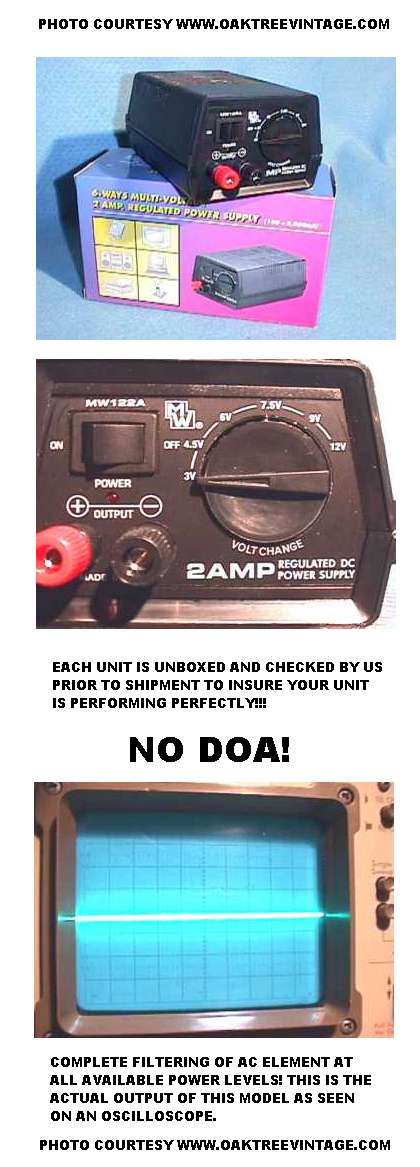

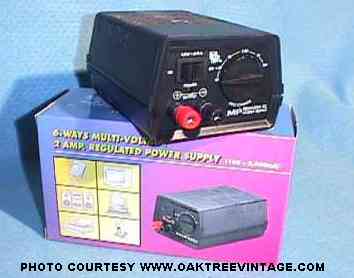

2-AMP DC VARIABLE OUTPUT POWER SUPPLY
FOR SALE
Great for general purpose bench work. Supplies enough current to power
most DC
devices for short of long term use. This is our 'Go To
First' power supply on our test benches.
Supplies 3, 4.5, 6, 9, and 12 volts
very accurately and is completely filtered as is shown on the oscilloscope output.
All
voltages test to rated specs. We also un-box and bench check each unit prior to shipping to
absolutely ensure
performance upon delivery. Output is via heavy duty binding / banana
posts. Each unit is fused
for protection. This is one of the most useful and high quality power
supplies we have found and
it's very affordable!
NEW AND IN STOCK!
$28.99
|
NEW ADDITION
6/3/09
(click on above thumbnails to enlarge photos)

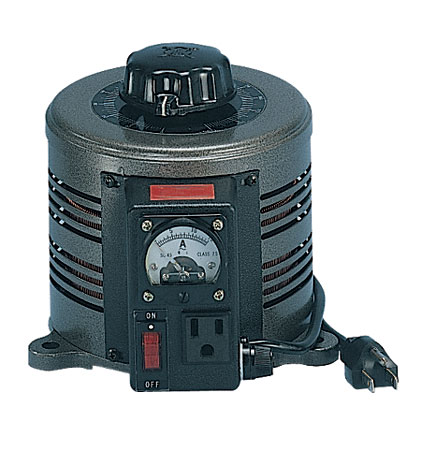

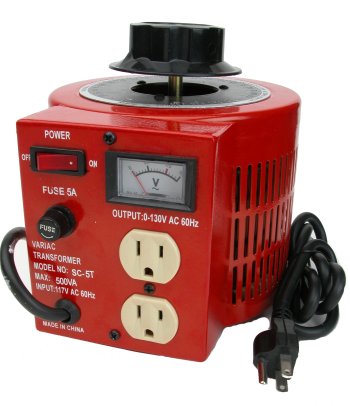

5 or 10-AMP Vari-AC
VARIABLE AC VOLTAGE POWER SUPPLY / ADJUSTER
for sale
Great quality,
Vari-AC. Externally fused. Grounded Input AC cord and Isolated and Dual,
Grounded 3-prong outputs. Varies AC voltage from 0-130 volts. Available in
either a 5 amp or 10 amp version. These are superior quality from the last
version we were able to get. The AC outlets are much more heavy duty and
won't "gut" themselves.
Some knowledge of electronic principles advised to purchase or use one of
these.*
Specs:
- Varies
line voltage between 0~130VAC.
- Built-in ammeter shows current draw
-Replaceable fuse protection
- Three prong grounded cord and
dual sockets provide
convenience and safety
- Specifications120V, 60Hz Output
0~130VAC Current10A, 1.3KVA 10A AGC
- Available in either a 5 amp or 10 amp version
NEW
$179.99 5-Amp
(special order item)
$199.99 10-Amp
(special order item)
*Again,
Vari-AC's can have many uses. Varying the speed of a motor, bringing voltage
up slowly on gear for trouble-shooting, getting "brown AC" to guitar tube
amps, and controlling the
brightness of a lamp are only a few. It is a tool. Some "tools" are designed for many
"known uses", but in the hands of qualified personnel, can be used for other
"non-designed" uses. Improperly used, this "tool" can be dangerous,
even fatal both to
the operator and to the equipment. No warranties are expressed or implied.
If you do not understand the use of a Vari-AC on a film projector, DO NOT
PURCHASE, OR USE ONE!
|
NEW
ITEM
(Click on above thumbnails to enlarge photos)
warranty
NEW

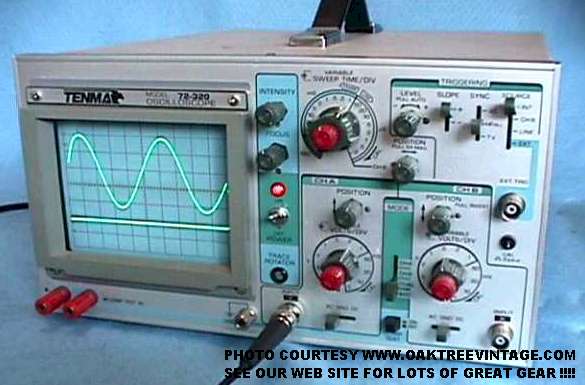

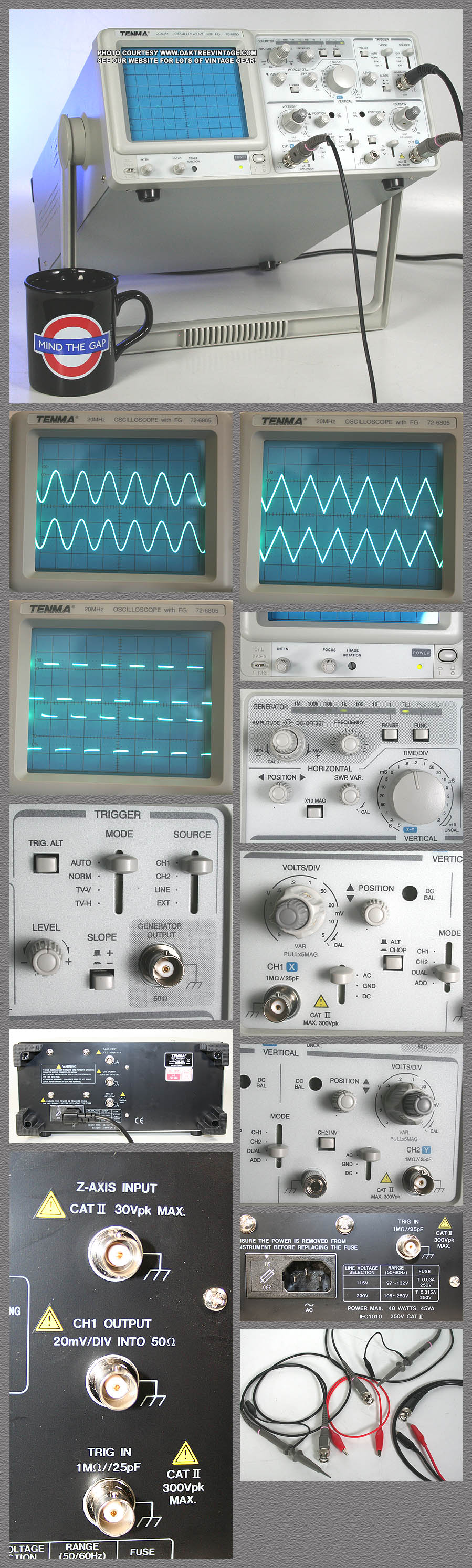

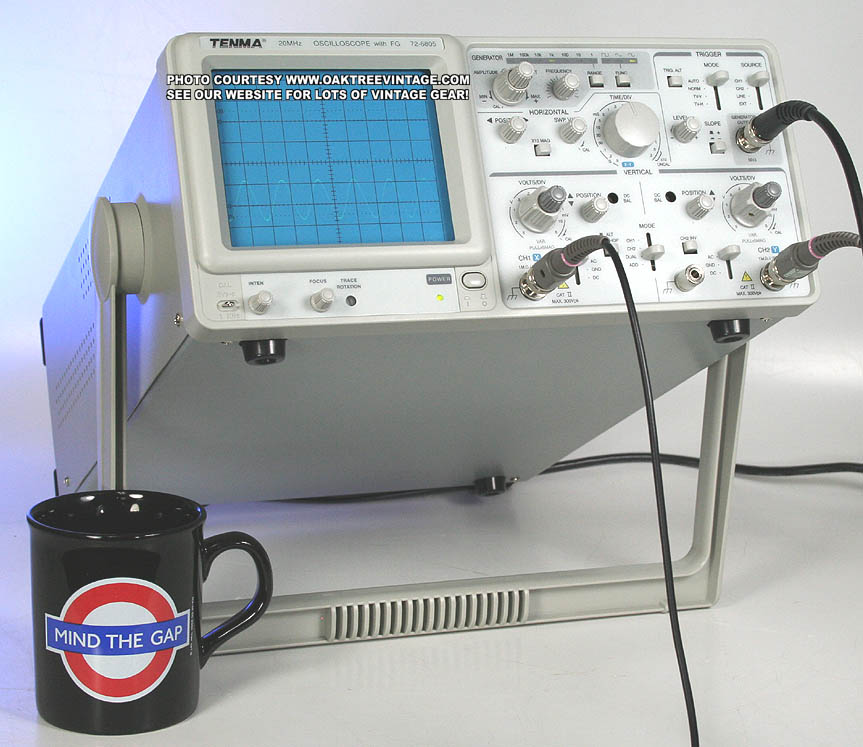

TENMA OSCILLOSCOPE / O-SCOPE
20MHz, Analog, Dual-Trace Oscilloscope with Function Generator
for sale
Dual channel Dual trace Built—in 1MHz function generator with sine, square
and triangle wave output 6" rectangular CRT with internal graticule 2KV
acceleration voltage High sensitivity 1mV/div Display modes: CH-1, CH-2,
DUAL, ALT, CHOP, ADD, CH-2 INV Input coupling: AC/GND/DC CH-1 output signal
Sweep modes: A, X—Y, X10 magnification Trigger modes: AUTO, NORM, TV—V, TV—H
Trigger sources: CH-1, CH-2, ALT, LINE, EXT Trigger slope: + or — Z axis
input for intensity modulation.
More info coming
TENMA OSCILLOSCOPE 72-6805
MSRP $520.00
$449. |
NEW LISTING
2/8/10
(Click on above thumbnails to
enlarge photos)
warranty

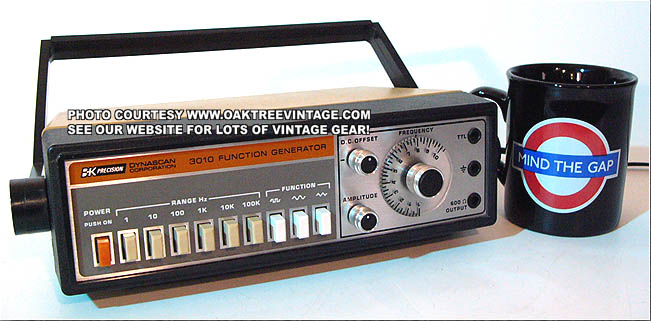

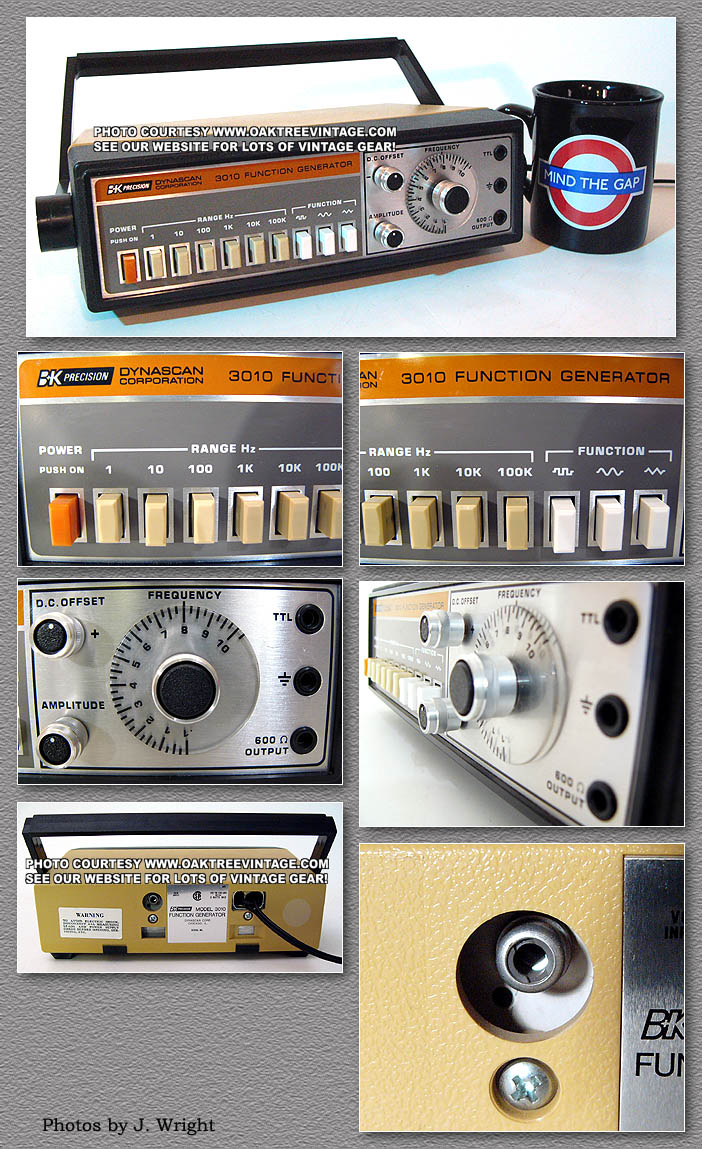

BK PRECISION
3010
FUNCTION
/ AF GENERATOR
for sale
Frequency range 1 Hz to 1 MHz.
Generates Sine, Square and Saw-tooth waveforms.
Adjustable D.C. offset. Looks and works great. All
functions seem to check fine. May need a slight calibration, but was very
close to our bench unit and with our Frequency Counter.
The wave forms also looked great on our scope. Utilizes standard "Banana"
style probes / leads (not included). Sorry no manual

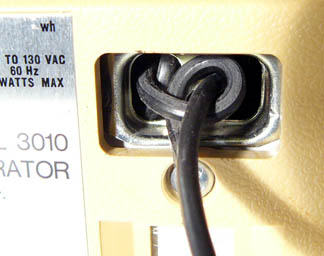

with it. Detachable AC cord has been modified /
permanently attached. Includes our standard 30 day limited warranty
for test gear.
(we
may decide to keep this for shop use as it features adjustable 'DC Offset',
but until that time, it's available for sale)
Cond. 8.5
$149.
|
NEW LISTING
8/4/11
(Click on above thumbnails to enlarge photos)
warranty

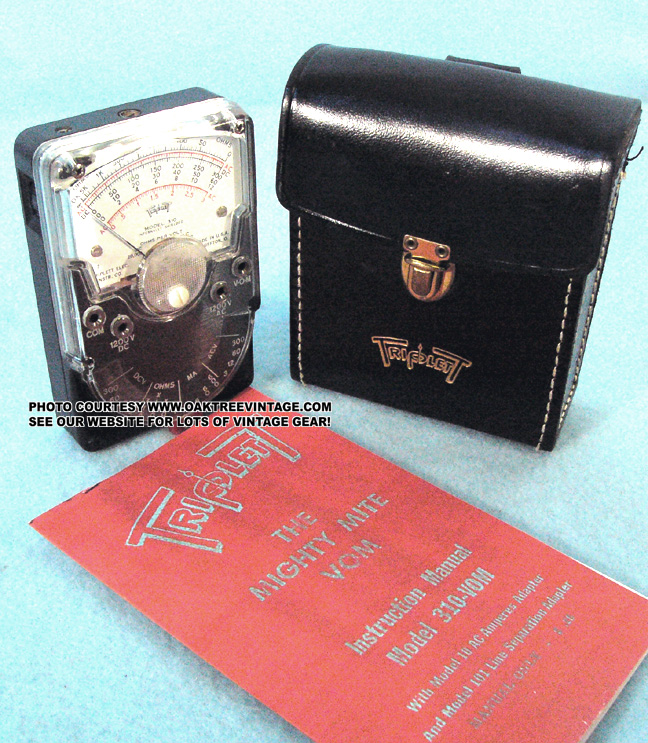

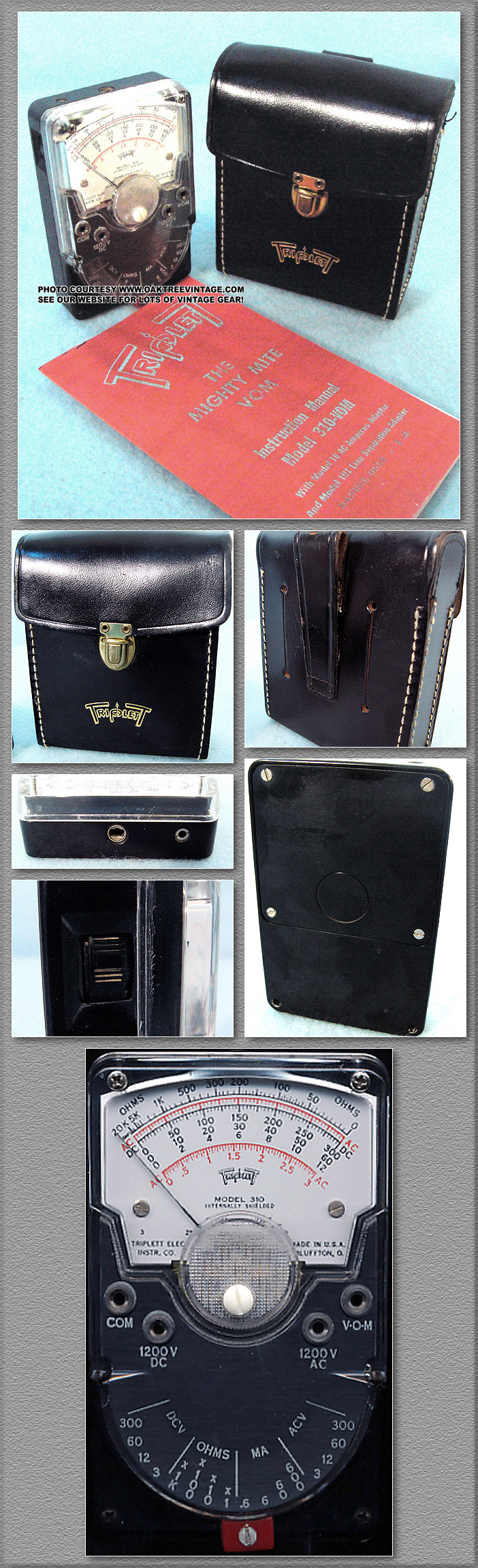

VINTAGE / ORIGINAL
TRIPLETT
310
MULTI-METER
ANALOG 'VOM'
'The Mighty Mite VOM'
Circa 1963
for sale
Unit in 'Like New', unused condition. No cracks in window
or rust. All original knobs.
Features:
- 18 Ranges
- 5 DC Voltage Ranges
- 5 AC Voltage Ranges
- 4 DC Current Ranges
- 4 Resistance Ranges
- Drop Resistant High-Impact Case
- Diode Overload Protection with fused Resistance
Ranges
- Single Enclosed Range Switch
Specifications / Specs:
DC Voltage Ranges: 0-3, 12, 60, 300, 1200 (20,000 Ohms
per Volt)
Accuracy: ± 3% of Full Scale
AC Voltage Ranges: 0-3, 12, 60, 300, 1200 (5,000 Ohms per Volt)
Accuracy: ± 4% of Full Scale
DC Current Ranges: 600uA, 6mA, 60mA, 600mA
Accuracy: ± 3% of Full Scale
Max. Voltage Drop: 330mV
Resistance Ranges: 0-20K Ohms, 200K Ohms, 2M Ohms, 20M Ohms (200 Ohms
center scale on lowest range)
Accuracy: ± 3% of Scale Length
Original case in
LIKE NEW condition. Includes a
copy
of the owners / users manual. Attention, you will need special batteries to
utilize this meter and they are not included, nor do we have access to them.
We tested it with our bench power supplies. The required batteries are:
1 - 12V, 1 - N-Cell.
Includes our standard 30 day warranty
for test gear (excluding blowing it up by
injecting voltage when in Ohms position or similar).
Measures
2.75" wide x 4.25" tall and
1.25"
deep.
Cond. 10
$129.
|
NEW
ITEM
11/8/12
(Click on above thumbnails to enlarge photos)
EICO
RESISTANCE-CAPACITANCE-COMPARATOR BRIDGE
EICO CAPACITOR TESTER
EICO 950A
#7946
Circa late 1950's / early 1960's
for sale
EICO 950A Capacitor Checker / Tester.
These are incredibly versatile instruments. They can compare / test resistor
and capacitors as well as chokes and transformers. Since they can actually
'test at voltage' for leakage, they are so much more 'usable' than most any
'modern', digital meter. Those don't test at the voltages these are capable
of, thus aren't really much good for testing for 'leakage'. These are since
they can actually output a 1kHz tone at 500 volts. So here's the deal. We
use these here in the shop, along with the Heathkit IT-11 / IT-28 and C3.
Depends on what mood the tech is in. Really all do pretty much the same
thing.
EICO
RESISTANCE-CAPACITANCE-COMPARATOR BRIDGE FEATURES;
- Capacitance
measurement of Mica, Paper, Electrolytic, and Ceramic Capacitors
However, unless one has been COMPLETELY re-capped / restored, they're just
pretty 'boat anchors'. A piece of test gear is only as good as "how close it
get's to 100% accuracy". These are 45+ year old units, and while they can be
brought back to their former glory (and then some), unless it's been done by
someone qualified and correctly, then again, they're just 'boat anchors'
(and I'm not talking about just powering it up on a vari-ac and making sure
not smoke comes out). To be usable ALL the electrolytic and foil capacitors
need to be changed with fresh and tested caps (difficult to find 500volt
electrolytics). Carbon resistors are tested. Since many of these were sold
as 'kits', one of the most important process we do is to inspect and most
likely correct, any wiring errors (meaning the person that assembled the
kit, connected wires and parts to the wrong place...and we usually find 2-4
on most units). We then test / replace all tubes. Once all of that is done,
and ONLY THEN should the unit be powered up, and that should only be done on
a vari-ac with an ammeter. Following the 'parts restoration' calibration and
testing can be undertaken. Once that's completed and signed off on, then the
unit will have final detailing done. Since all of the above work represents
many hours of tech time (typically 7-10 hours) and parts, it scares off most
initial / newbie buyers of these, so we are offering it two ways. 'As-Found'
or 'Completely Refurbished'.
Cosmetic COND. 8.5
$650. restored*
or
$149. as-is, untested, and at this point
not powered-up (and no we wouldn't 'power
it up' prior to restoration)
*Please allow 2-6 weeks for restoration
|
NEW
ITEM
(Click on above thumbnails to enlarge photos)

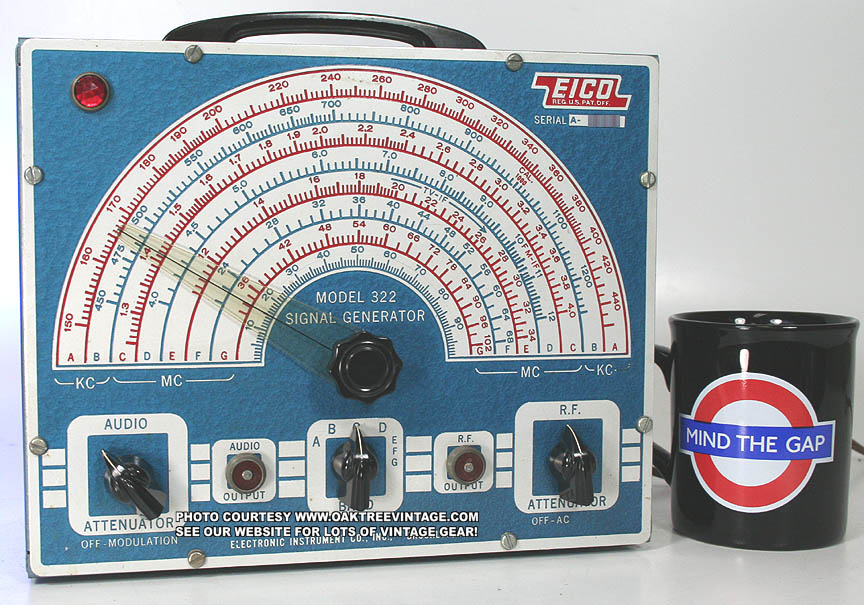

EICO RF SIGNAL
GENERATOR
EICO 322
#3838
Circa late 1950's / early 1960's
for sale
EICO 322 Capacitor Checker / Tester.
These are great for radio servicing / aligning AM and FM IF stages, checking
RF stages and has a 400Hz Audio test tone. However, unless one has been
COMPLETELY re-capped & restored, they're just pretty 'boat anchors'. A piece
of test gear is only as good as "how close it get's to 100% accuracy". These
are 45+ year old units, and while they can be brought back to their former
glory (and then some), unless it's been done by someone qualified and
correctly, then again, they're just 'boat anchors' (and I'm not talking
about just powering it up on a vari-ac and making sure not smoke comes out).
To be usable ALL the electrolytic and foil capacitors need to be changed
with fresh and tested caps. Carbon resistors must be tested. Since many of
these were sold as 'kits', one of the most important process we do is to
inspect and most likely correct, any wiring errors (meaning the person that
assembled the kit, connected wires and parts to the wrong place...and we
usually find 2-4 on most units). We then test / replace all tubes. Once all
of that is done, and ONLY THEN should the unit be powered up, and that
should only be done on a vari-ac with an ammeter. Following the 'parts
restoration' calibration and testing can be undertaken. Once that's
completed and signed off on, then the unit will have final detailing done.
Since all of the above work represents many hours of tech time (typically
7-10 hours) and parts, it scares off most initial / newbie buyers of these,
so we are offering it two ways. 'As-Found' or 'Completely Refurbished'.
EICO 322 RF GENERATOR
Cosmetic COND. 8.5
$495. restored*
or
$119. as-is, untested, and at this point
not powered-up (and no we wouldn't and
won't 'power it up' prior to restoration)
*Please allow 2-6 weeks for restoration
|
NEW
ITEM
11/30/12
(Click on above thumbnails to enlarge photos)

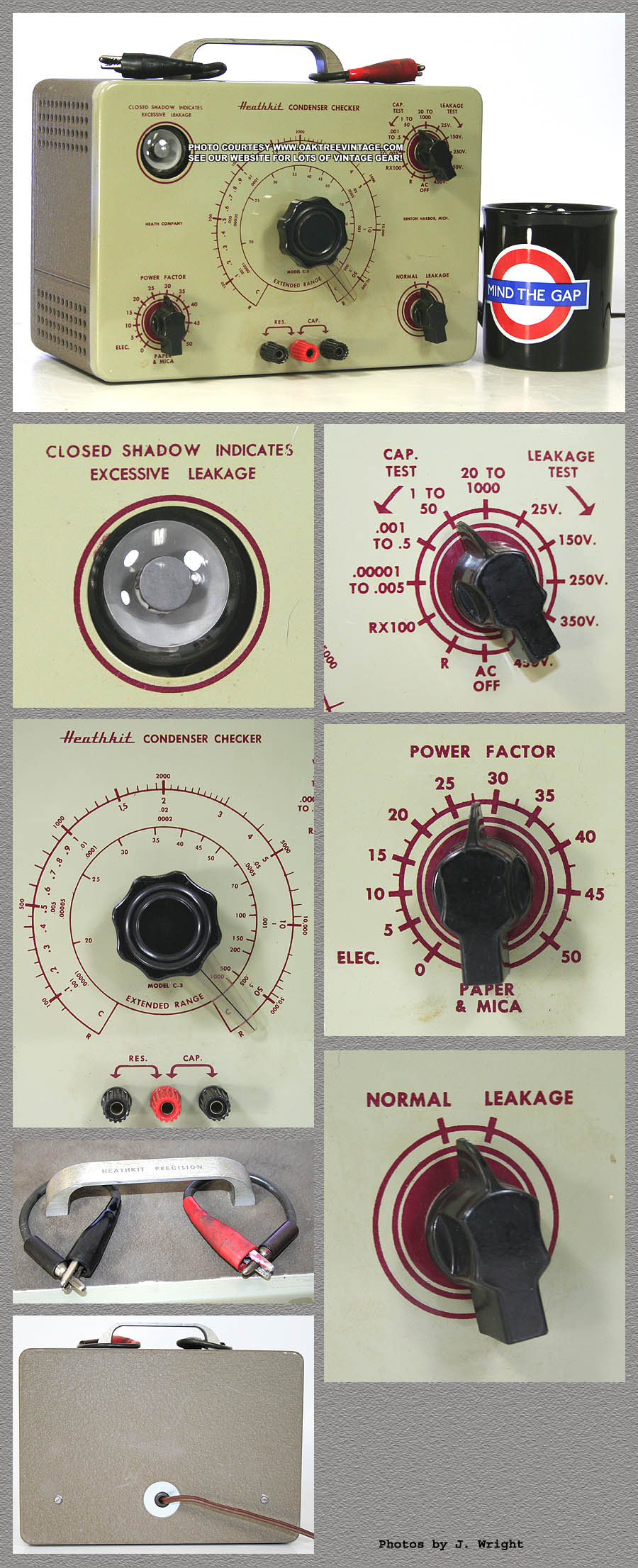

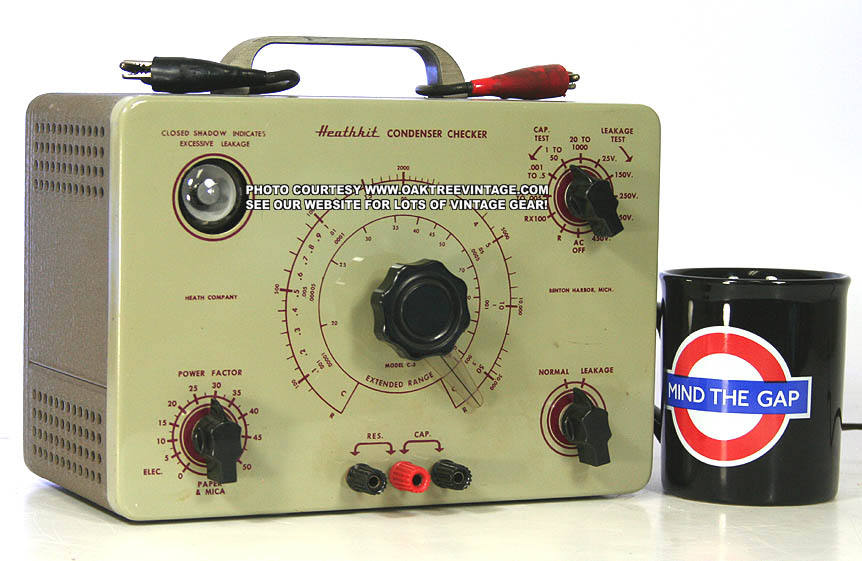

HEATHKIT
CONDENSER / CAPACITOR CHECKER / TESTER
HEATHKIT C-3
Circa early 1960's
for sale
Heathkit Condenser Checker / Tester.
Great way to check capacitors. Since they can actually
'test at voltage' for leakage, they are so much more 'usable' than most any
'modern', digital meter. Those don't test at the voltages these are capable
of, thus aren't really much good for testing for 'leakage'. These are since
they can actually output a 1kHz tone at 450 volts. So here's the deal. We
use these here in the shop, along with the Heathkit IT-11 / IT-28.
Depends on what mood the tech is in. Really all do pretty much the same
thing.
HEATHKIT
CONDENSER CHECKER FEATURES;
- Capacitance
measurement of Mica, Paper, Electrolytic, and Ceramic Capacitors
However, unless one has been COMPLETELY re-capped / restored, they're just
pretty 'boat anchors'. A piece of test gear is only as good as "how close it
get's to 100% accuracy". These are 45+ year old units, and while they can be
brought back to their former glory (and then some), unless it's been done by
someone qualified and correctly, then again, they're just 'boat anchors'
(and I'm not talking about just powering it up on a vari-ac and making sure
not smoke comes out). To be usable ALL the electrolytic and foil capacitors
need to be changed with fresh and tested caps (difficult to find 500volt
electrolytics). Carbon resistors are tested. Since many of these were sold
as 'kits', one of the most important process we do is to inspect and most
likely correct, any wiring errors (meaning the person that assembled the
kit, connected wires and parts to the wrong place...and we usually find 2-4
on most units). We then test / replace all tubes. Once all of that is done,
and ONLY THEN should the unit be powered up, and that should only be done on
a vari-ac with an ammeter. Following the 'parts restoration' calibration and
testing can be undertaken. Once that's completed and signed off on, then the
unit will have final detailing done. Since all of the above work represents
many hours of tech time (typically 7-10 hours) and parts, it scares off most
initial / newbie buyers of these, so we are offering it two ways. 'As-Found'
or 'Completely Refurbished'.
Cosmetic COND. 8.5
$550. restored*
or
$149. as-is, untested, and at this point
not powered-up (and no we wouldn't 'power
it up' prior to restoration)
*Please allow 2-6 weeks for restoration
|
(Click on above thumbnails to enlarge
photos)

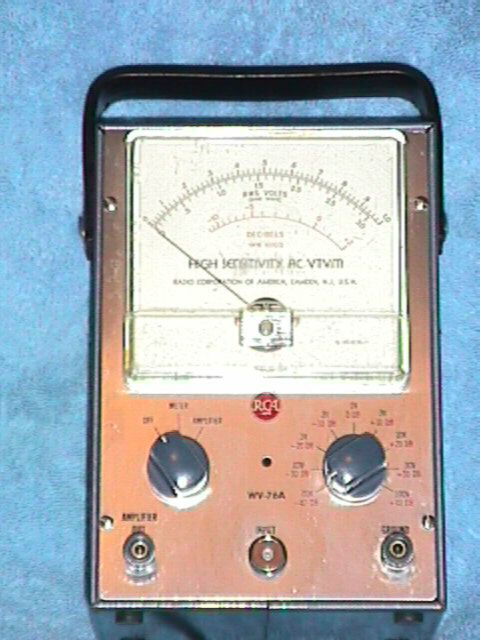

RCA
MODEL WV-76A
AC VTVM
FOR SALE
Serial # 1057
needs probe(s). Untested, but does power up and meter responds. Not tested
beyond that. Appears
cosmetically in
good cond. Meter
window slightly
scuffed, no cracks. Overall cosmetic cond. 7.5
$45.
|
(Click on above thumbnails to
enlarge photos)

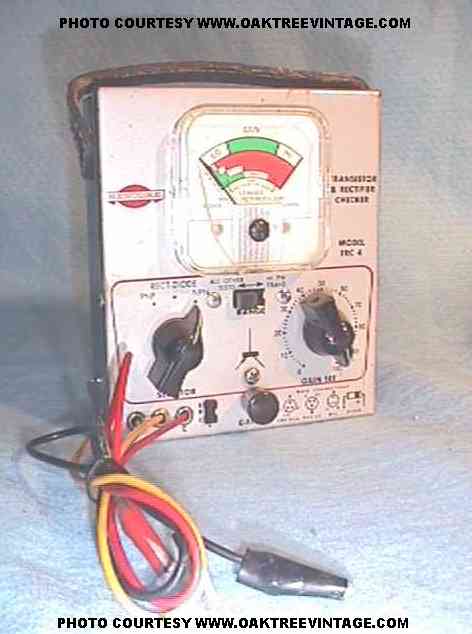

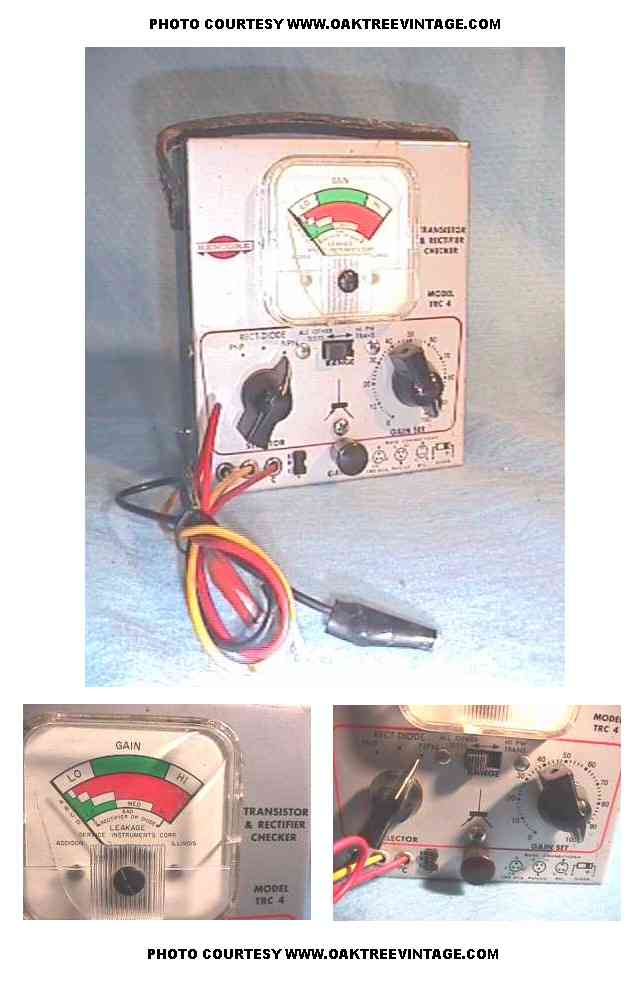

SENCOR
TRC-4
Transistor checker
FOR SALE
Unopened crack in VU window visible in photo. Seems to work. Battery
powered. No manual.
Cond. 7
$39.
|
NEW LISTING
(Click on above thumbnails to
enlarge photos)

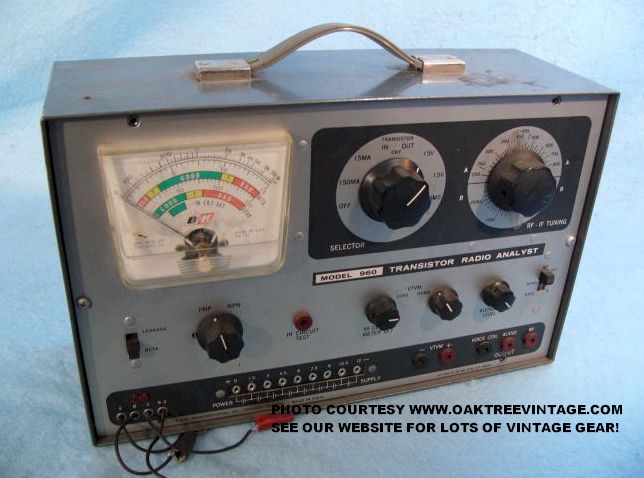

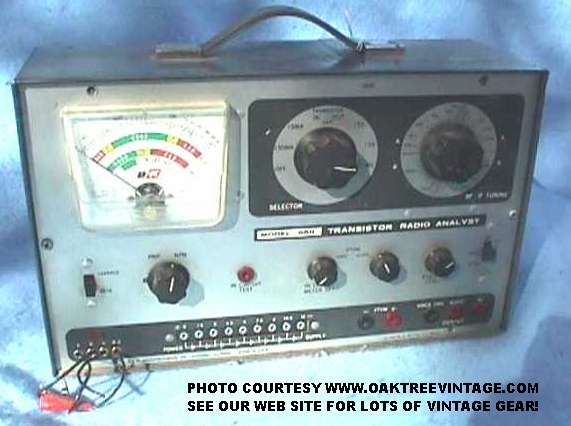

B&K
960
#603677
TRANSISTOR RADIO ANALYST
FOR SALE
These are great "all-in-one"
units, however this one needs restoration or use for parts. Will need tubes
at least. When the two tubes were installed, the tone generator worked at
3.1kHz. The tubes are not included.
Cond. 5
As-Is
$39.
|
(Click on above thumbnails to
enlarge photos)

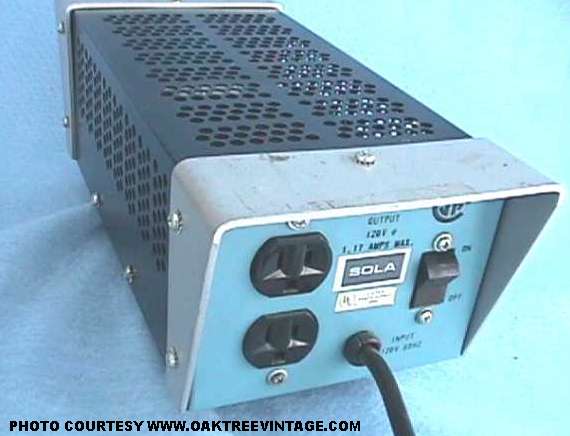

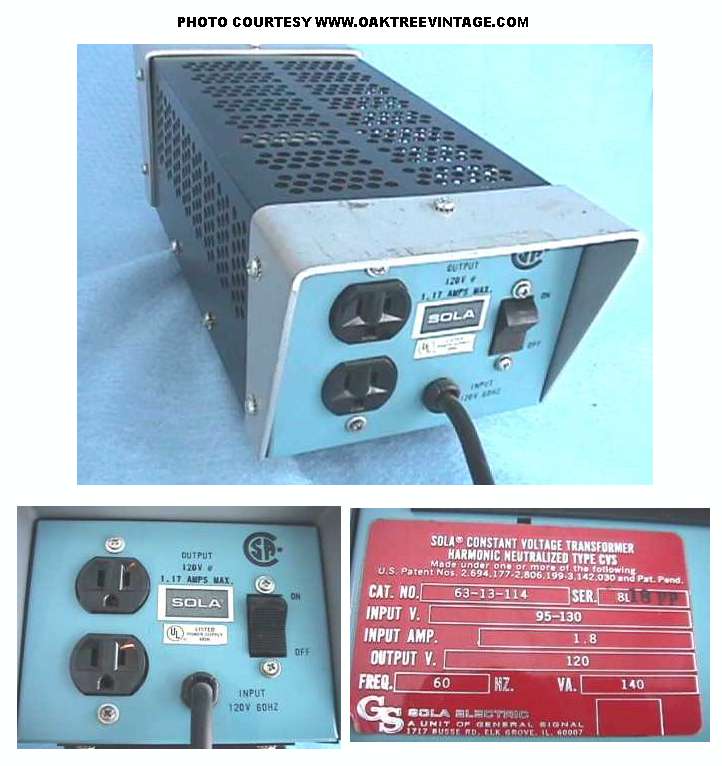

SOLA
CVT
MODEL 63-13-114
Constant Voltage Transformer
AC Line Power Conditioner
FOR SALE
Designed to hold a constant voltage output of 120 VAC +
within a range of input voltages. It is designed for use between 95-130 VAC. We input a
variety of voltages with the following results:
Input:
Output:
30 V =
112V
50 V =
116V
60 V =
118V
80 V =
121V
100 V =
123V
115 V =
125V
125V =
126V
It is rated for a maximum current of 1.17amps. Unit in very good condition and works
great! Measures 14" X 5.5" X 5.5" and weighs 18lbs.
Cond. 9
$59.
|
NEW
LISTING
6/13/12
(CLICK ABOVE PHOTOS TO ENLARGE)
VINTAGE

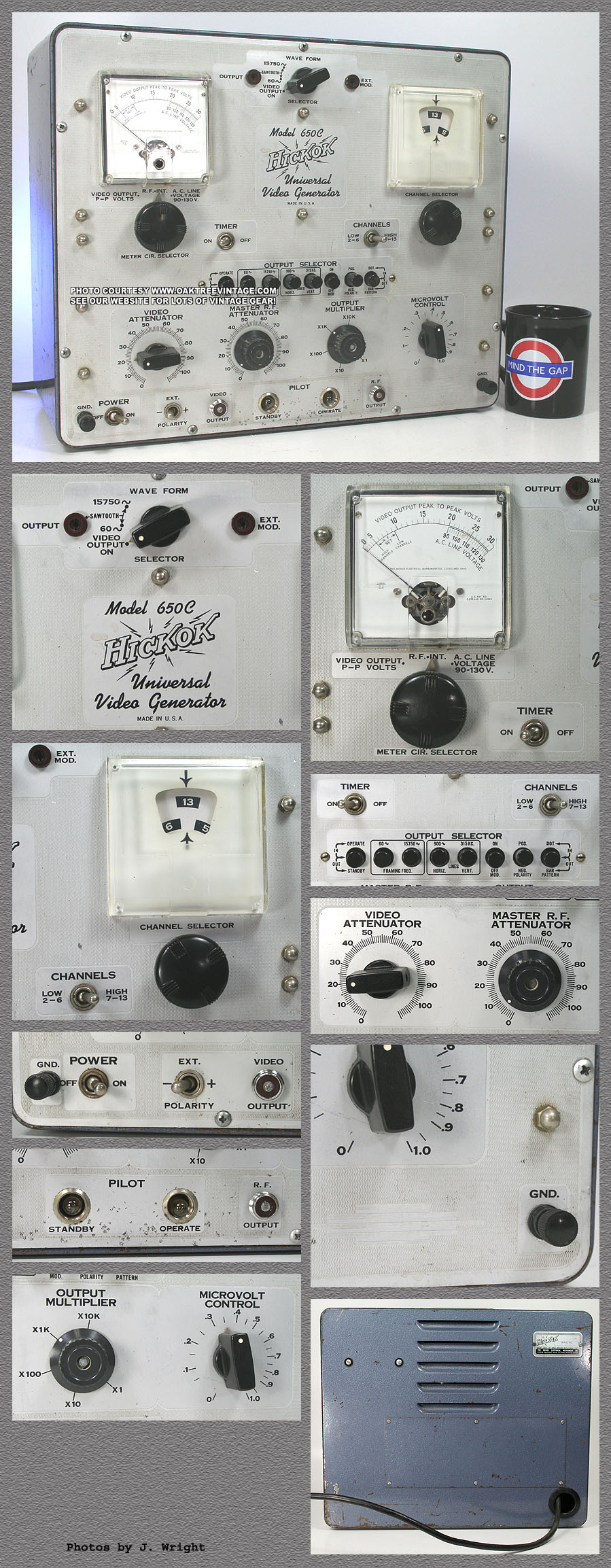

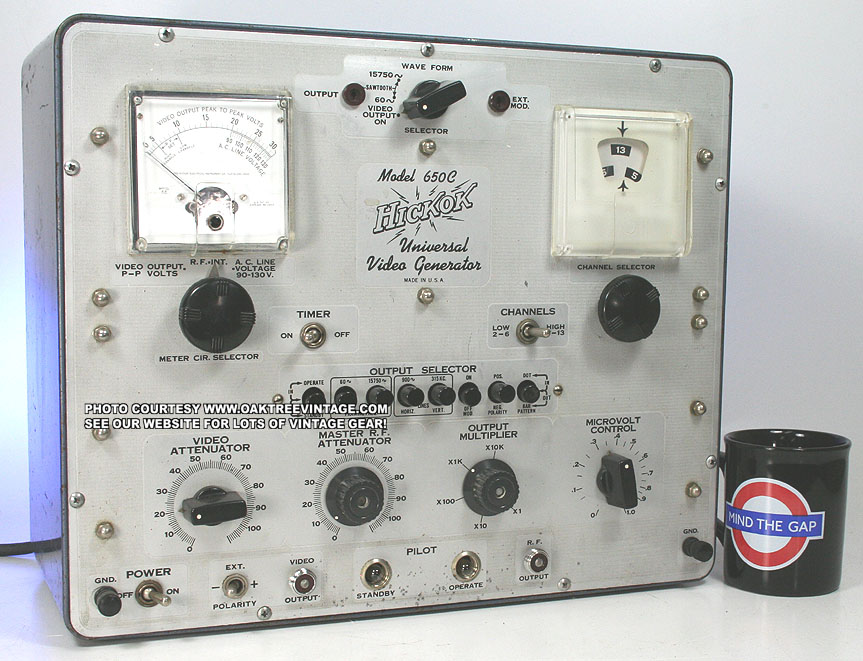

HICKOK VIDEO GENERATOR
HICKOCK 650C
for sale
Vintage Hickok 650C, Video Generator. We are selling this as a 'prop' /
Restoration project or for parts. Has the following tubes installed; All but
one are GE brand, 5Y3, 3x 12AT7, 12AY7, 6H6 Metal tube, 6AB4, 7x 5963 and 1x
RCA 12AX7 tubes. Unit and tubes completely untested. Measures 16" x 13.5" x
8" and weighs ~25 lbs unpacked.
Hickok 650C Video Generator
Cosmetic Cond. 7.5
As-is / Prop
$139. (C)
R.R.
|
(Click on above thumbnails to
enlarge photos)

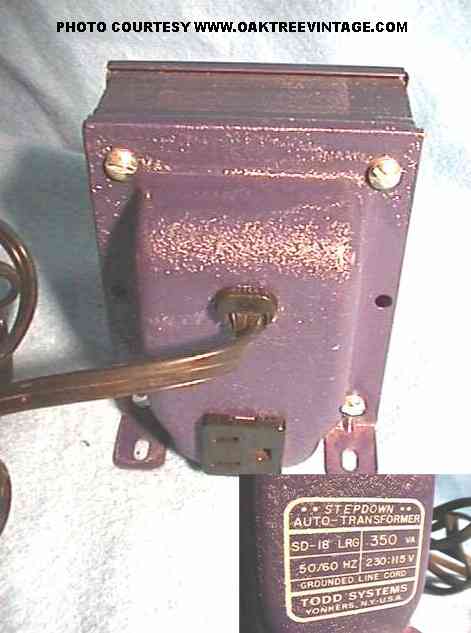

Todd
Step-down Transformer
FOR
SALE
Converts up to 220 volts into half voltage. Has standard Edison plug and jack, but could
be converted to anything.
$45.
|
NEW LISTING 1/24/06
(Click on above thumbnails to
enlarge photos)

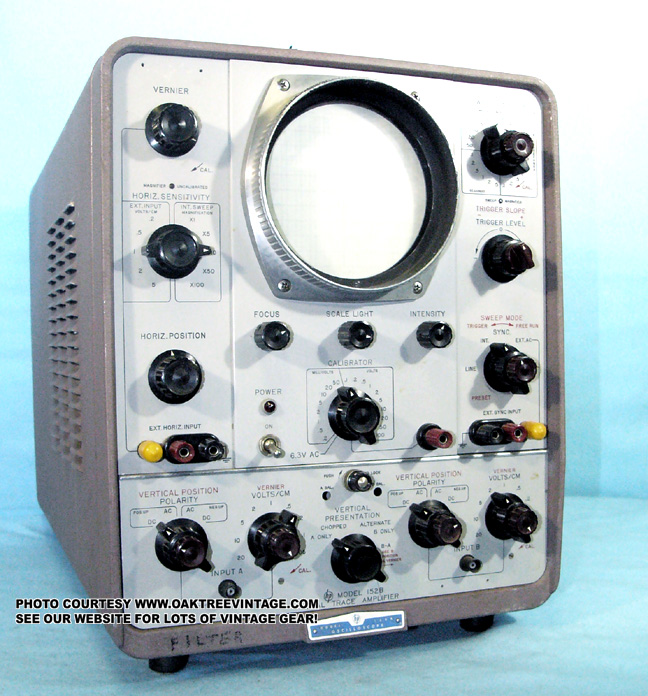

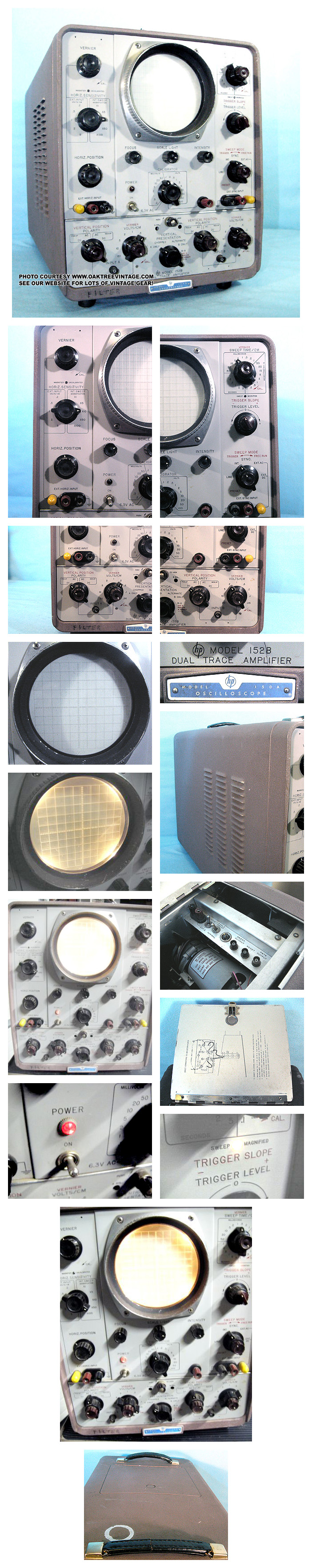

HP 150A
Oscilloscope
w/152B
DUAL TRACE AMPLIFIER
MODULE
"AS-IS"
FOR SALE
This unit is an impressive piece of
test gear. In its current condition however, it is only suitable as a
theatrical prop, display or as a hobbyists, "fixer-upper". The tubes are
gone and only the most perfunctory of testing has been performed to see
which lights, light. (see above photos). The 152B Dual Trace Amplifier
module is removable and other modules can be inserted for differing
functionality.
Measures 6.5" wide x 8" tall and 4.5" deep. Selling As-Is for fix-up or
for parts.
HP 150A w/152A module
Cond.
AS-IS
$150.
|
NEW LISTING 1/24/06
(Click on above thumbnails to
enlarge photos)

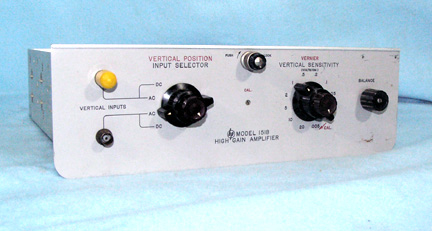

HP 151B
Oscilloscope
HIGH GAIN AMPLIFIER
MODULE
"AS-IS"
FOR SALE
This HP-151A, High Gain Amplifier,
module is a companion module for the HP 150A Oscilloscope. Suitable for
display use or for a fix-up. Functionality unknown as all the tubes are
pulled and not included.
Measures 6.5" wide x 8" tall and 4.5" deep. Selling As-Is for fix-up or
for parts.
HP 151B
Cond.
AS-IS
$40.
|
NEW LISTING 1/24/06
(Click on above thumbnails to
enlarge photos)

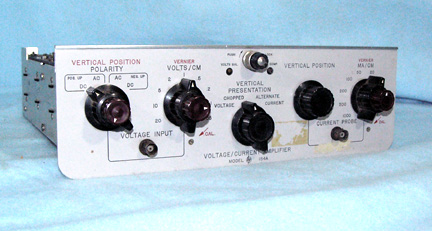

HP 154A
Oscilloscope
VOLTAGE / CURRENT AMPLIFIER MODULE
"AS-IS"
FOR SALE
This HP-154A, Voltage / Current
Amplifier, module is a companion module for the HP 150A Oscilloscope.
Suitable for display use or for a fix-up. Functionality unknown as all the
tubes are pulled and not included.
Measures 6.5" wide x 8" tall and 4.5" deep. Selling As-Is for fix-up or
for parts.
HP 154A
Cond.
AS-IS
$40.
|

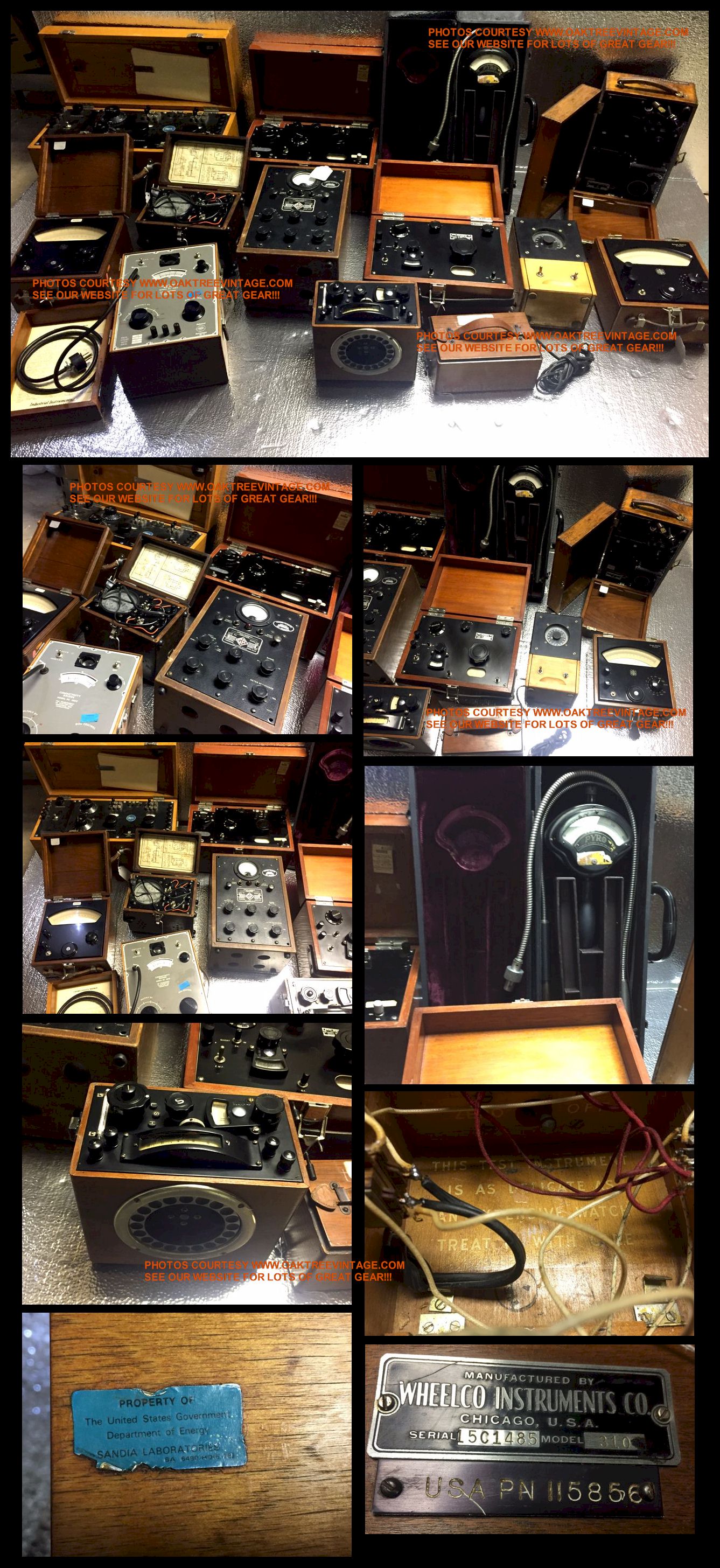

MANHATTAN PROJECT ELECTRONIC TEST
EQUIPMENT
FROM THE SECRET LOS ALAMOS LABORATORIES
The following electronic laboratory test gear is purported to have come
from Los Alamos National Laboratory (LANL) in Los Alamos, New Mexico.
In the late 1930's, the US Department of Defense was looking for a
remote and secret location for the classified 'Manhattan Project'. This
was the Allied project (led by the United States with participation from
the United Kingdom and Canada), during World War II, to develop the
first nuclear weapons. The US government used its power of eminent
domain in 1942 to take over the Los Alamos, 'Ranch School' and all
homesteads of the town.
All information about the town of Los Alamos was highly classified until
the bombing of Hiroshima, Japan.
Known at various times as 'Project Y', 'Los Alamos Laboratory', and 'Los
Alamos Scientific Laboratory' it is one of two laboratories in the US
where classified work towards the design of nuclear weapons was
undertaken.
From 1942 to 1946, Los Alamos was responsible for the development of the
'H-bomb' and many other nuclear weapons.
Is it safe to assume that some of this test equipment below was used in
those developments?.....
|
NEW LISTING
6/13/12
(CLICK ABOVE PHOTOS TO ENLARGE)
VINTAGE LATE 1940'S

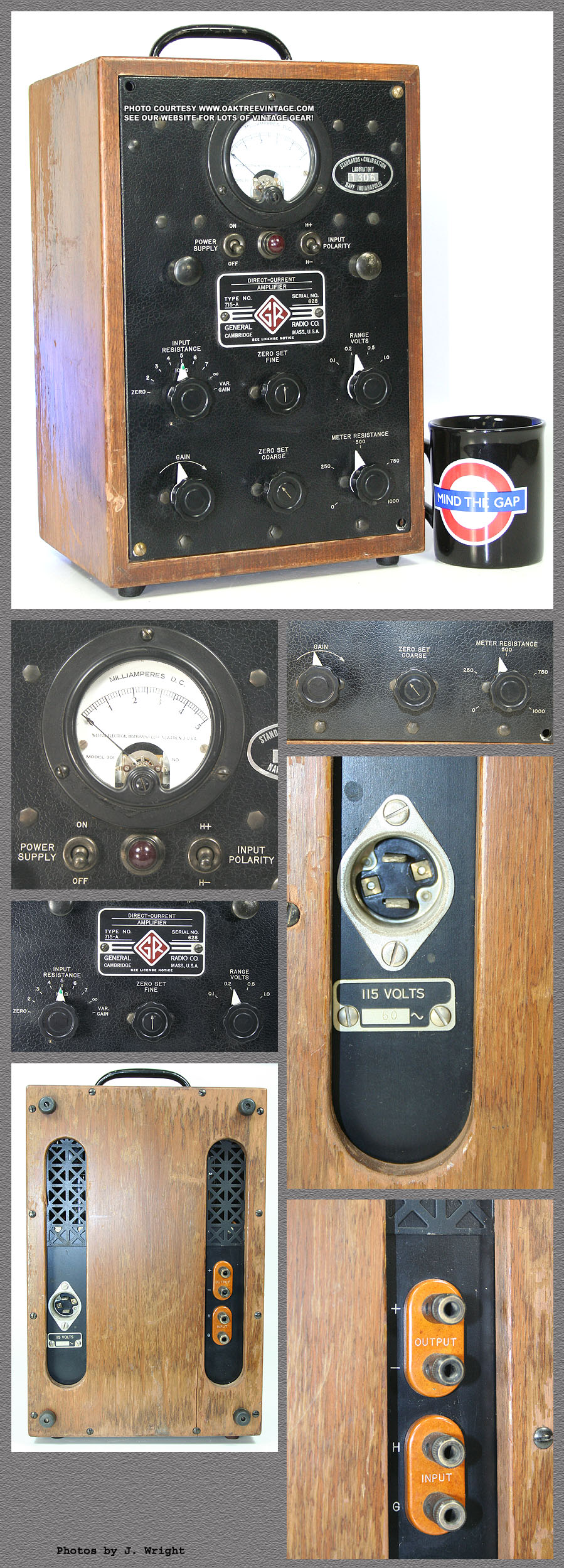

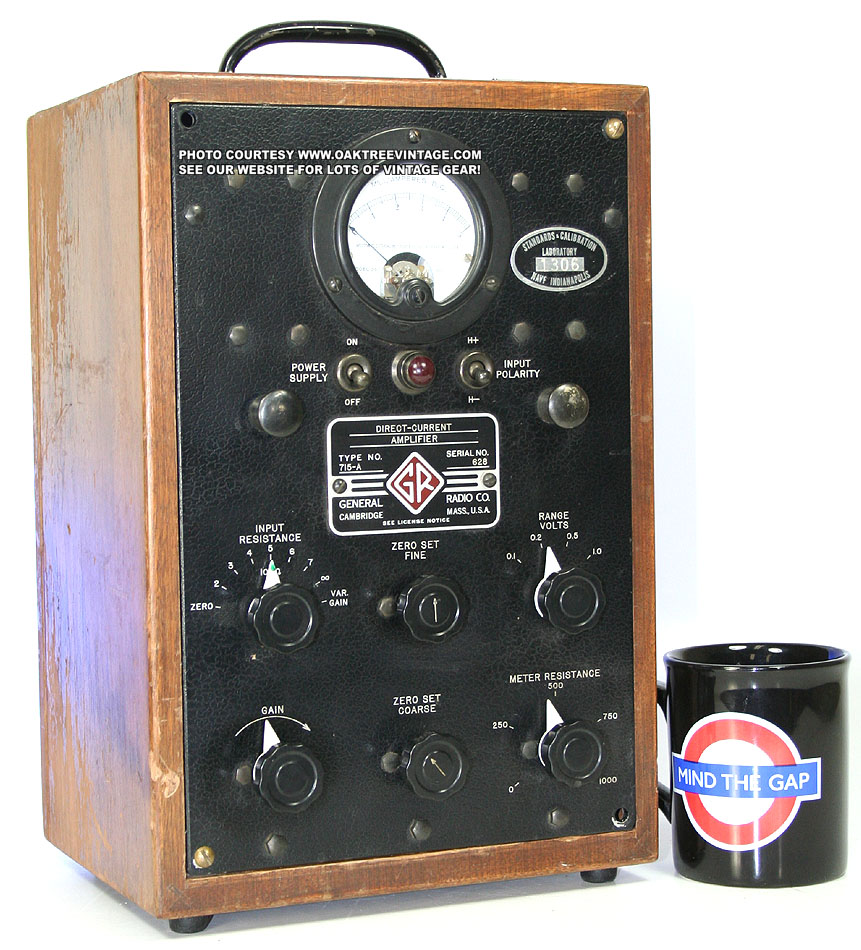

GENERAL RADIO COMPANY
DIRECT CURRENT AMPLIFIER
TYPE 715-A
FROM 'LANL'
INFO AND PRICING COMING
|
NEW LISTING
6/13/12
(CLICK ABOVE PHOTOS TO ENLARGE)

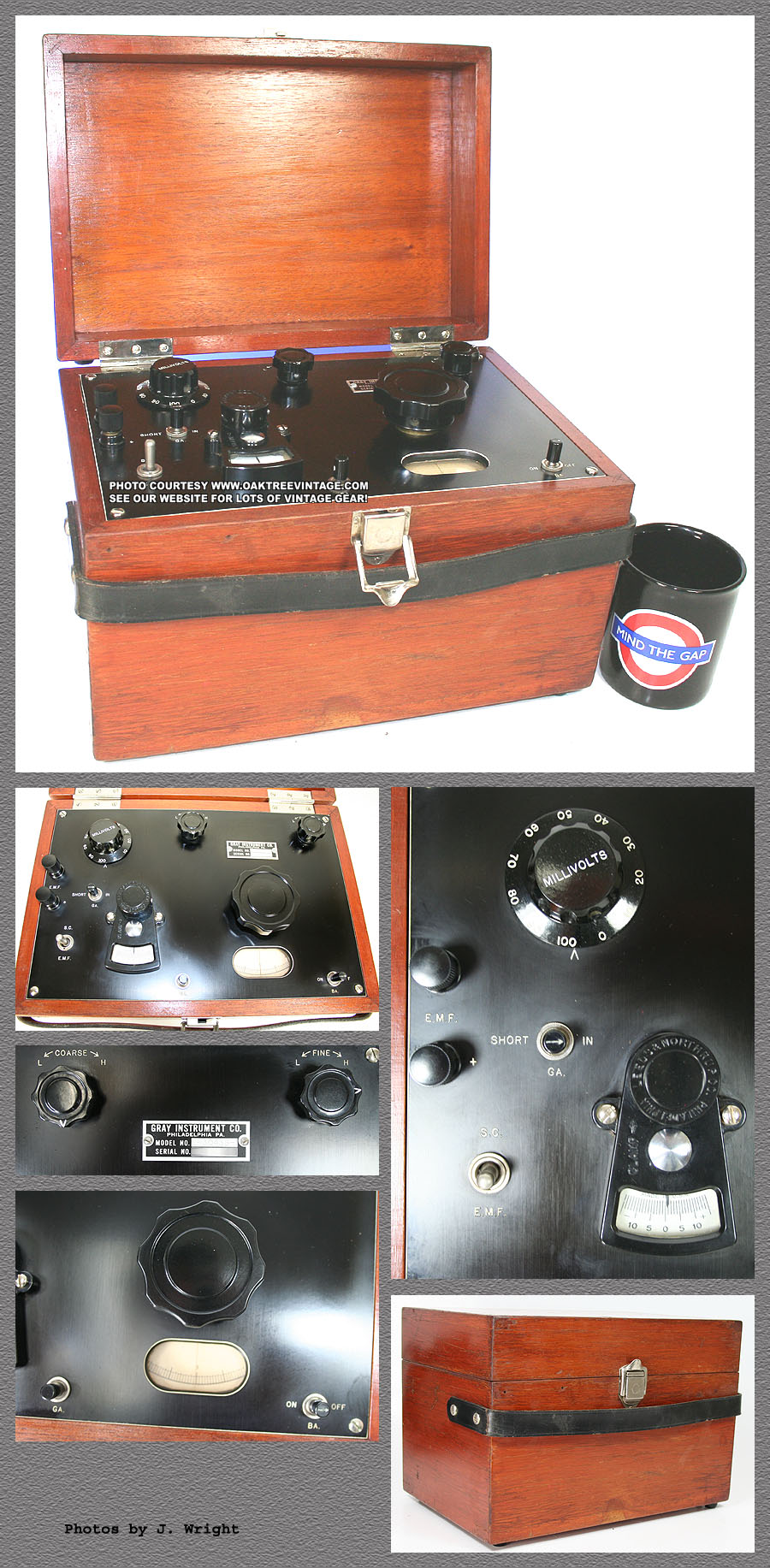

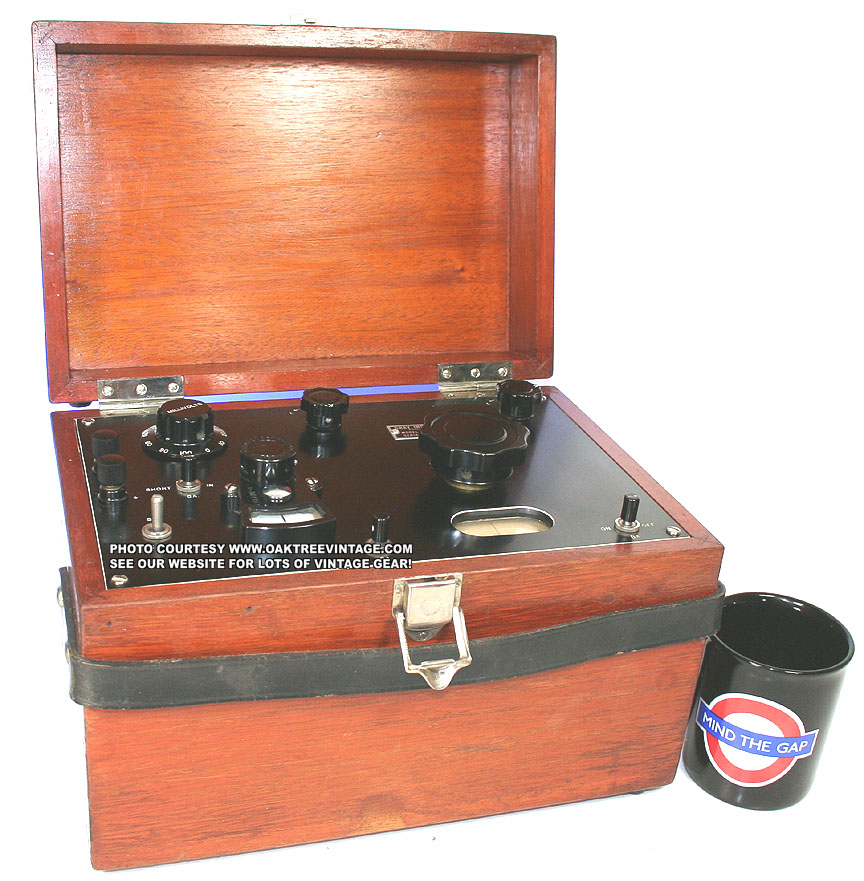

VINTAGE LATE 1940'S
GRAY INSTRUMENT COMPANY
MODEL E-3043S-1
FROM 'LANL'
INFO AND PRICING COMING |
NEW LISTING
6/13/12
(CLICK ABOVE PHOTOS TO ENLARGE)

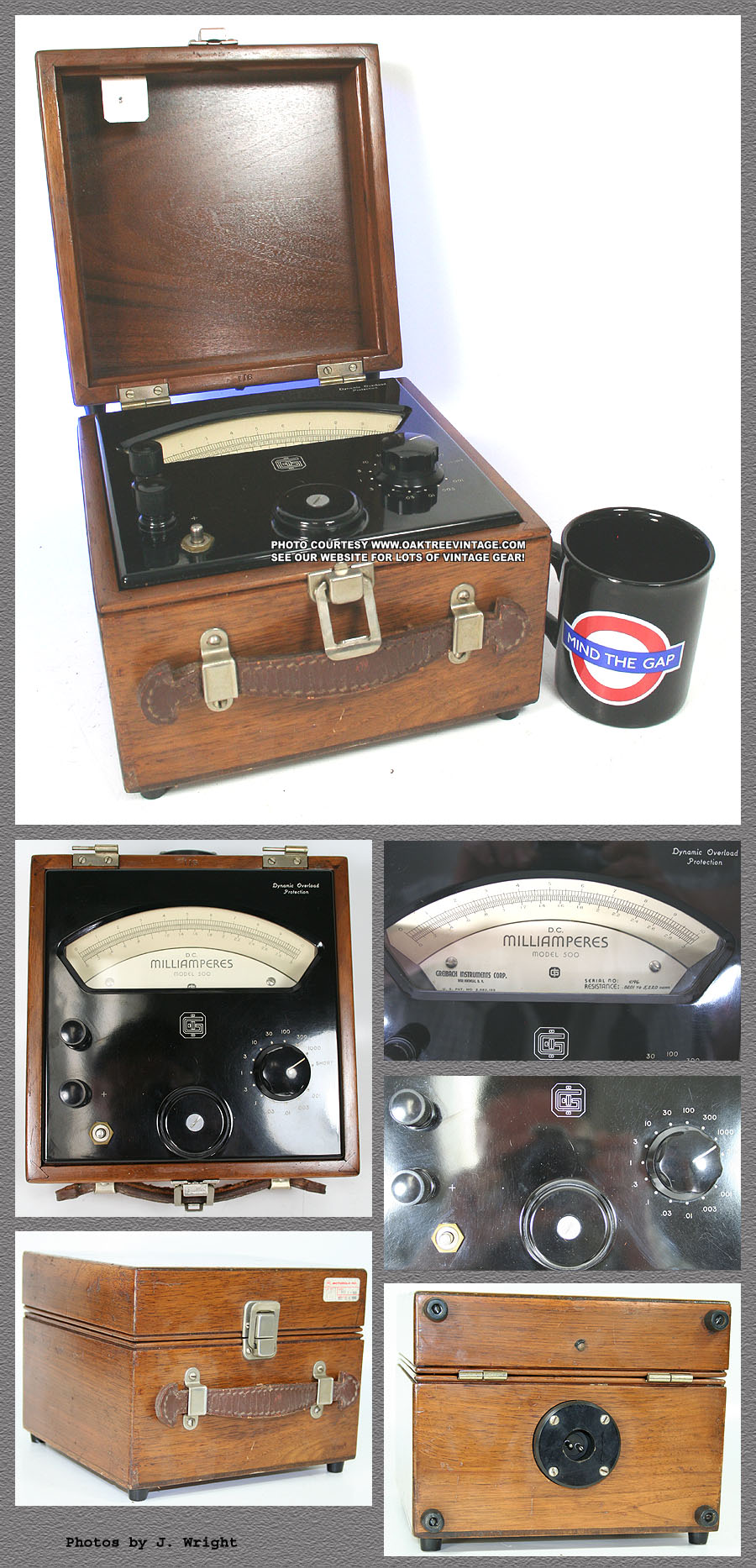

VINTAGE LATE 1940'S

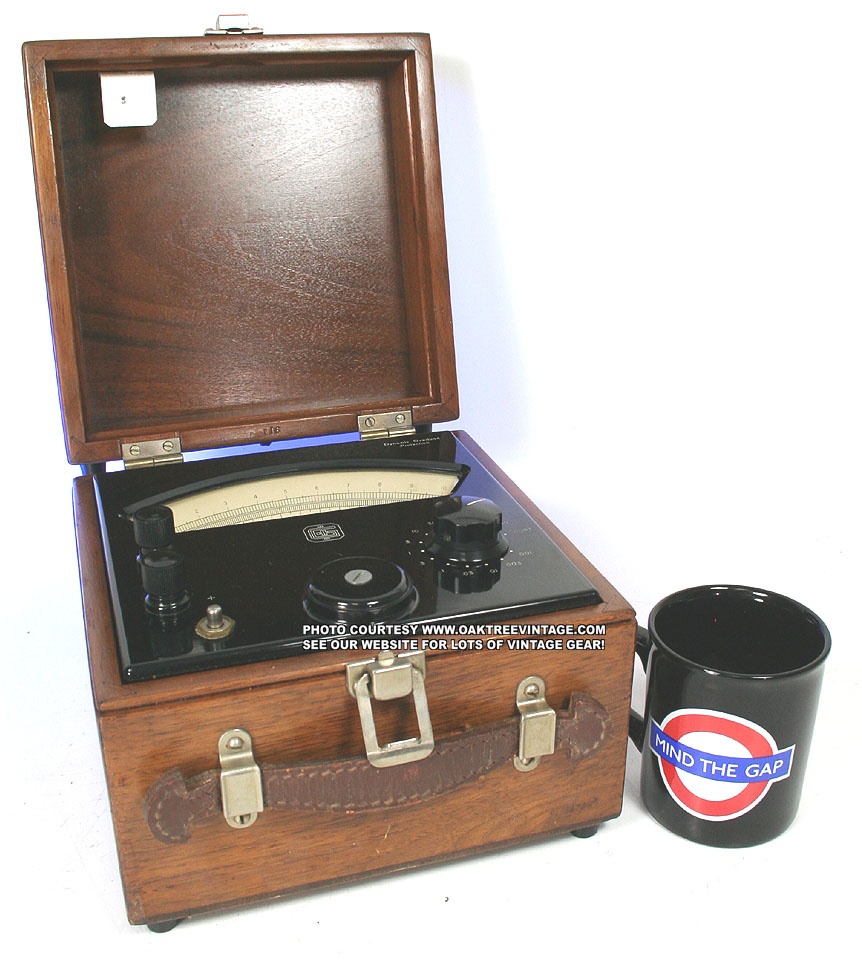

GREIBACH INSTRUMENTS CORP.
MODEL 500
MILLIMETER
FROM 'LANL'
INFO AND PRICING COMING |
MORE PIECES TO COME
|
|
|
|
|
|
|
|
|
(Click on above thumbnails to
enlarge photos)
PLATT
Diced-Foam
Utility Case
Model 2005
FOR SALE
Medium-Duty ABS utility case filled with Diced foam and a finger foam
lined lid. NEW! Includes keys and catalog. Slight depression to front edge
along handle. Does not affect performance. Measures inside 20" wide x
14" front-back x ~6" high / deep. Weighs 7 lbs loaded with foam.
Cond. 9.5
$59. 1 only
|
|
|
|
|
|
BELOW ITEMS ARE SOLD
|
NEW LISTING 7/15/05
(Click on above thumbnails to
enlarge photos)

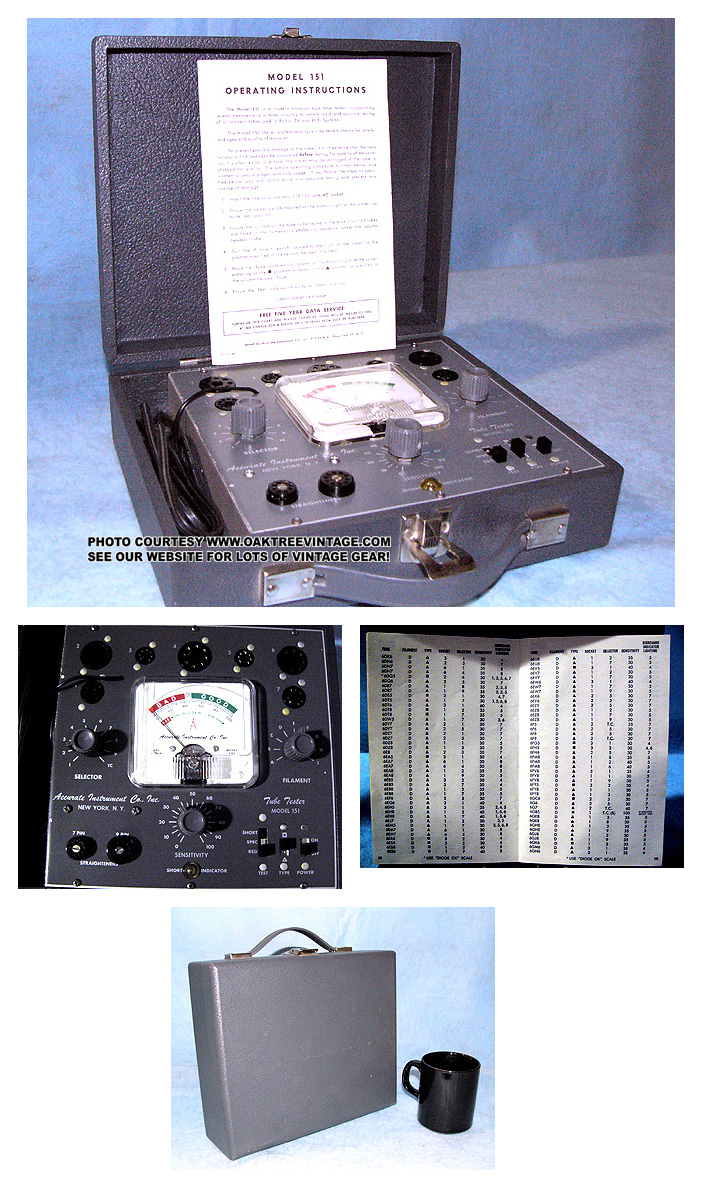

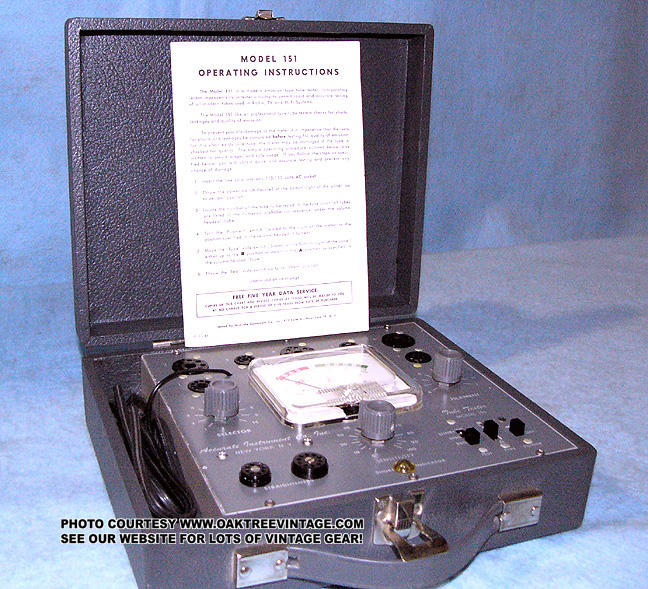

ACCURATE INSTRUMENT CO.
MODEL 151
TUBE TESTER / CHECKER
SOLD 8/5/05
Great little, solid state, emission type
tube tester from Accurate Instrument Company. Small and light. Very simple
to operate. Great for intermediate shop / hobbyist. Tests for shorts,
leakage and quality of emission. Great for Radio / Audio work. We have
completely cleaned all the switches and pots. We tested the following tubes

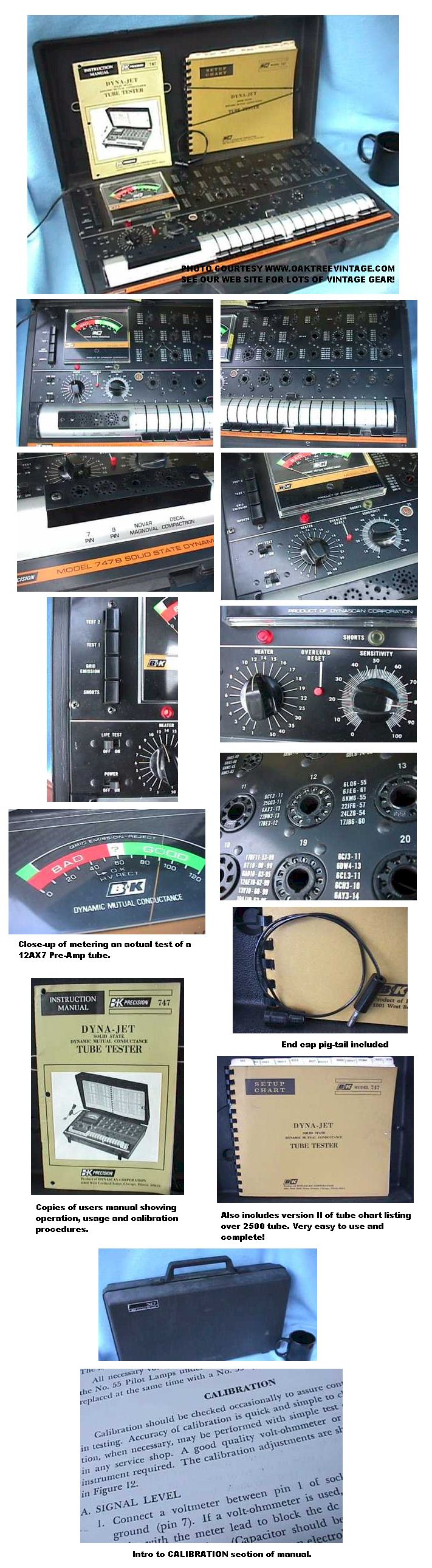

consistently with our calibrated, shop B&K 747B tester (12AU7, 12AT7, 12AX7,
6L6, 6V6, 6BQ5 / EL84 & 6W4). Has built-in tube pin straightener. Comes with
copy of original manual / tube chart / schematic. Works great and looks near
new. It is ready to go.
Unit measures 10.5" wide x 3.5" tall (closed) x 9"
deep and weighs 5 lbs unpacked.
Cosmetic cond. 9
As-Is
$139.
SOLD 8/5/05
|

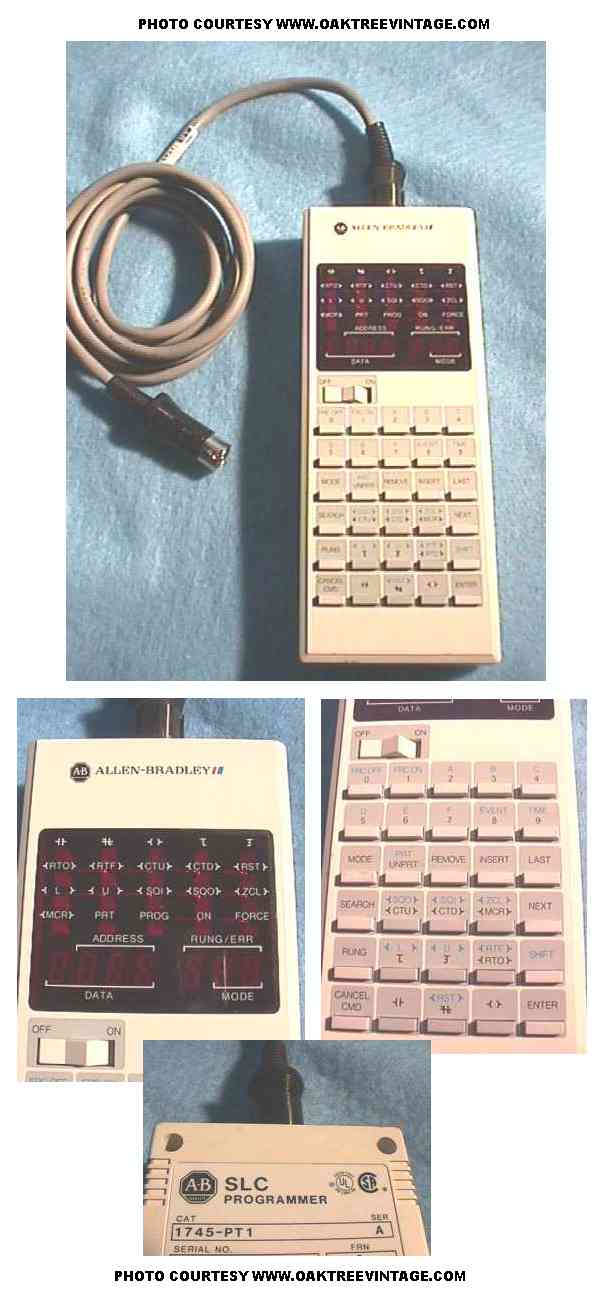

Allen & Bradley
1745-PT1
SLC Programmer remote.
SOLD |
|
(Click on above thumbnails to enlarge photos)

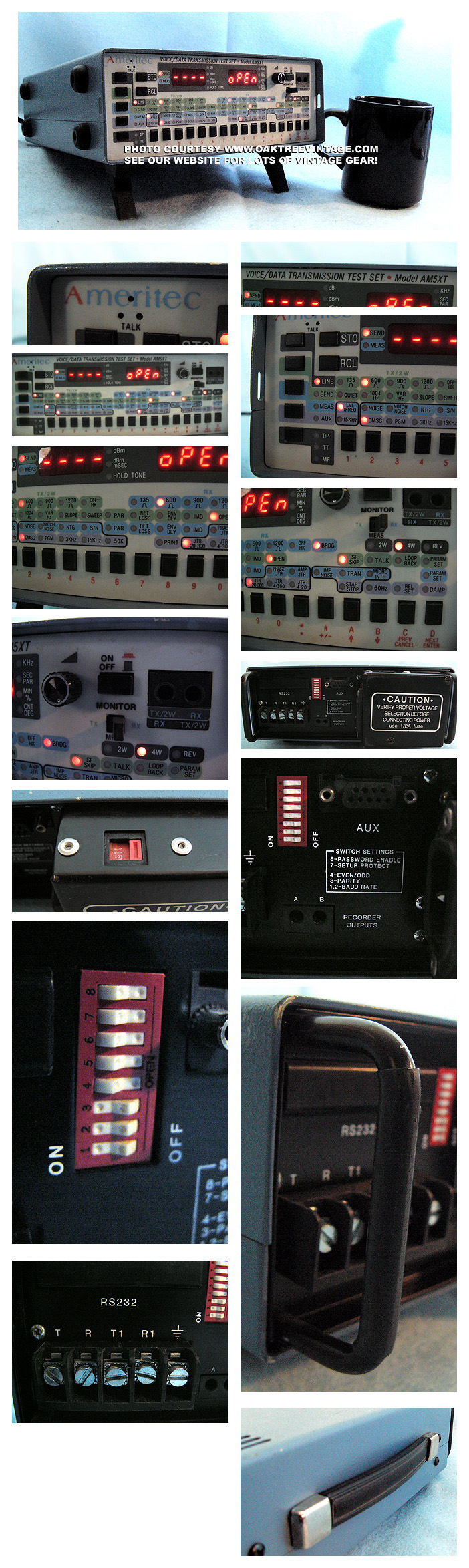

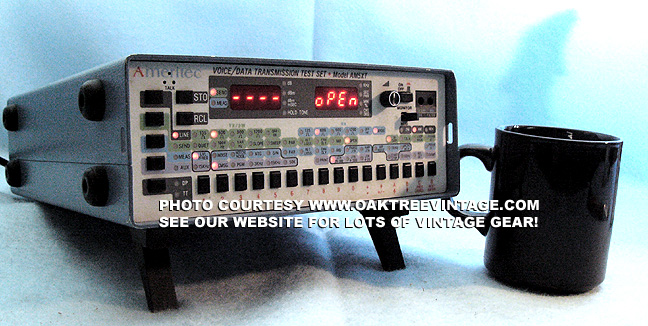

AMERITEC
AM5XT
VOICE/DATA TRANSMISSION TEST SET
SOLD 3/9/07
I know a little about a lot of different stuff
and a lot about a few things, but virtually nothing about Transmission
Test Sets. We have had a couple in the past that have sold, but that's all
I know. Unit fires up and does respond to it's switches. The last
one we had could do a "self-test", but I don't know how to
engage a test with this unit. According to some other info on the web:
"The Ameritec AM5eXT-200
Wideband Transmission Test Set is specifically engineered for peak
performance for use in the field and in the lab. This easy-to-use unit
offers a full range of transmission impairment measurements and a highly
versatile signal generator in a single, compact, portable instrument.
Approximately the size of a telephone directory, this test instrument fits
conveniently on a bench top for use as a laboratory unit. It can also be
rack mounted."
"Portable wideband transmission impairment set with sweep function that can
be programmed to automatically perform tests across the 20 kH to 200 kHz
bandwidth, while simultaneously measuring level and frequency across the
same bandwidth."
"100% digital control of all measure, filter, send, and termination
functions"
"Front panel with easy-to-locate and easy-to-read areas for each of the
major instrument functions."
"Together with the optional internal rechargeable battery pack and soft
carrying case, the AM5eXT-200 can be used as a field tester with a battery
life of up to six hours of uninterrupted use."
"Performs qualification tests on circuits carrying voice band, high quality
audio, and basic rate ISDN and HDSL or other services using up to 200 kHz
bandwidth."
"Simultaneously sends signal and measure received signals."
"Provides individual selection of "send and receive terminations" and "on
hook/off hook DC hold" circuits."
Testing capabilities include dBm level or dB loss, frequency, frequency
response (attenuation distortion), noise (wideband or with filters), noise
with tone (wideband or with filters), signal-to-noise ratio (wideband or
with filters), noise to ground (wideband or with filters), impulse noise
(wideband or with filters), phase jitter, amplitude jitter, micro
interruptions, group delay, inter-modulation distortion (4-tone/2-tone), 2-
and 4-wire return loss, and transients (including phase and gain hits as
well as impulse noise with tone and interruptions)."
"Sophisticated test scripts can be obtained by simply drawing the test
sequence. Call scripts are easily developed by dragging, dropping, and
interconnecting icons to create a graphical call flow diagram."
Sorry no manual with it. Measures 8"
wide 12" deep 4" tall (with stand folded in) and weighs
7 lbs unpacked. AC cord
included.
Selling As-Is
Cosmetic Cond. 8.5
$299.
SOLD 3/9/07
|
|
(CLICK ABOVE PHOTOS TO ENLARGE)

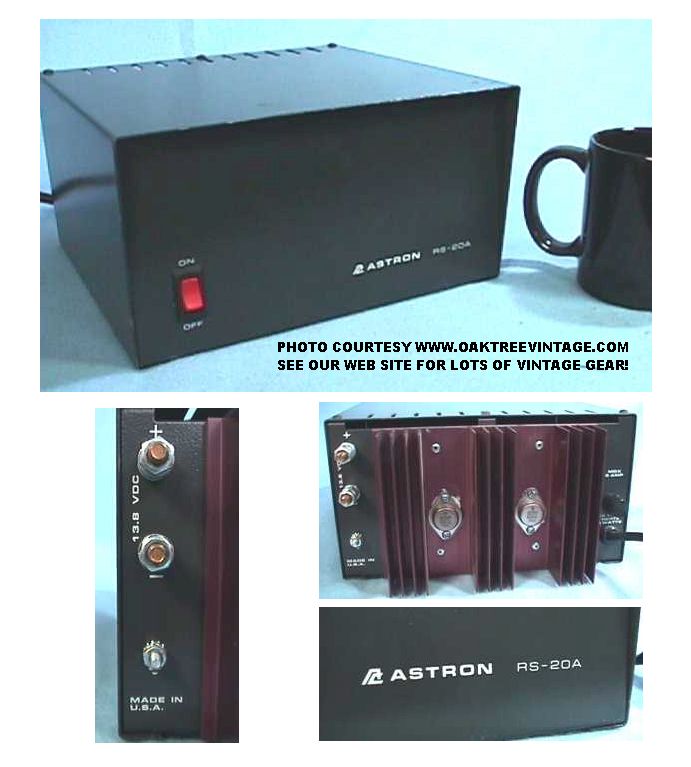

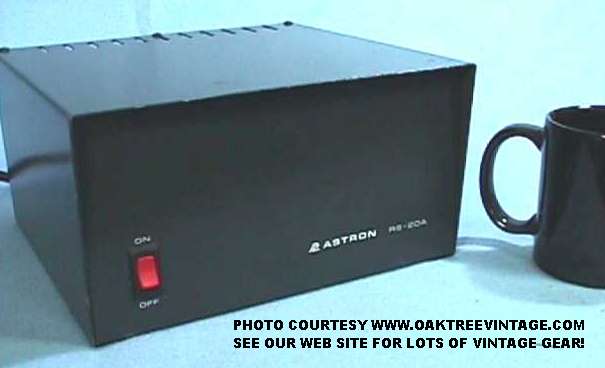

ASTRON
MODEL RS-20A
13.8 VOLT
DC POWER SUPPLY
SOLD 4/5/04
Nice 13.8 volt / 20 amp DC power supply. Great for bench work, Mobile
Electronics displays and Amateur Radio Equipment. Very heavy duty binding
post outputs. Features metal cased output rectifiers mounted on heat sink
for years of trouble free service. Heavy duty 3-prong grounded AC cord.
Works perfectly and looks new! Measures 10.5" deep x 9.5" wide x
5.5" tall and weighs 18 lbs unpacked.
Cond. 9
SOLD 4/5/04
|

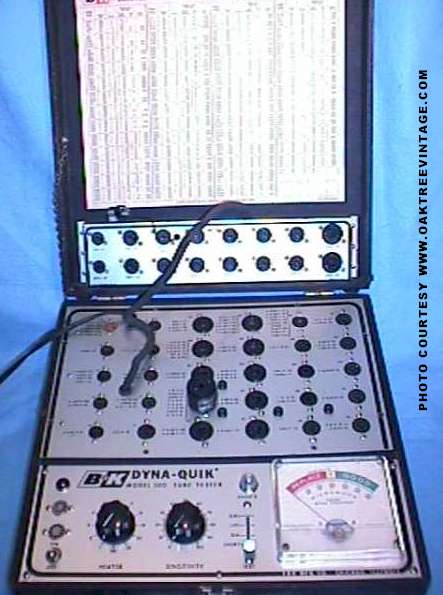

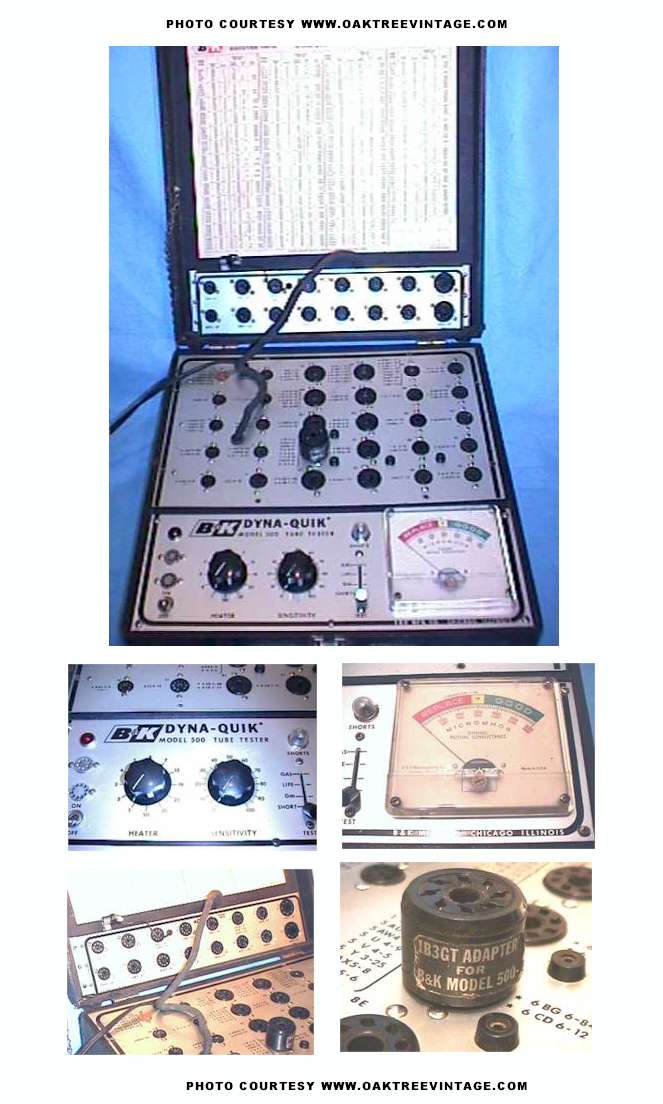

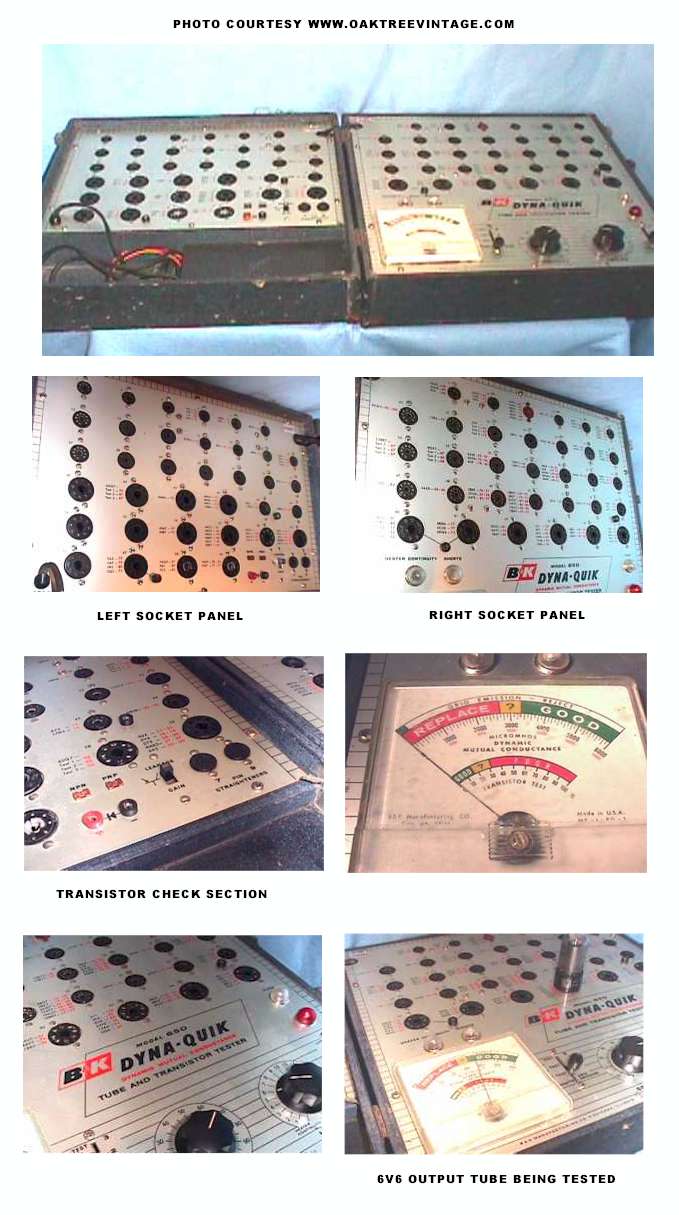

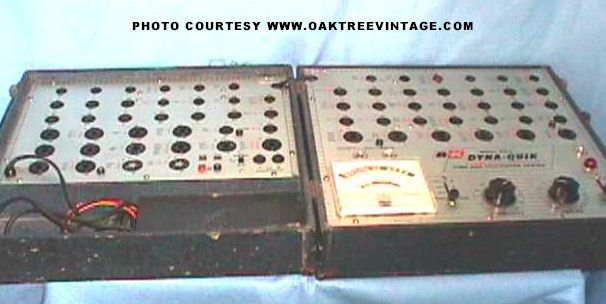

B&K TUBE TESTER
DYNA-QUIK
MODEL 500
SOLD
When you just need a quick, down, and dirty check on
some tubes without flipping a lot of switches, or you don't have much
experience using tube testers. Unit has new 6AT6 and #83 tubes installed,
along with new filter caps. All other internal components checked and / or
replaced where necessary. Tube chart glued into lid, but sockets have test
info for most tubes silk screened next to them. Has optional 510 expansion
module installed. Works and tests consistent with our calibrated shop B&K
747B. Unit clean. Case has normal wear to outside covering. Comes with
optional 1B3GT socket adaptor as well as two cap pigtails.
COND. 7.0
SOLD
|
(CLICK ABOVE PHOTOS TO ENLARGE)
B&K DYNAMIC MUTUAL CONDUCTANCE
TUBE / TRANSISTOR TESTER
650
#200005
SOLD
Number 5!! Will test both tubes and transistors. Good for
simple, easy, and quick tests without flipping a lot of switches. All
internal components checked. Comes with 75% complete tube chart (cards), but
info for most tests is silk screened next to each tube socket. Seems to work
well. Tested sample tubes 5U4, 12AX7, 6SJ7, 35W4, 6V6, And 6L6 consistent
with our calibrated shop B&K 747B. Again we do not have a complete tube
chart or manual. Case worn.
COND. 6.5
SOLD
|
B&K 707 TUBE TESTER-CHECKER
SOLD |
warranty

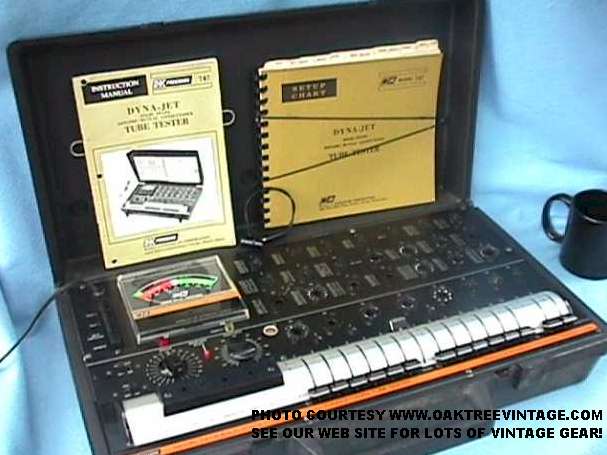

B&K TUBE TESTER / CHECKER
747 B 747B
MUTUAL CONDUCTANCE
TUBE TESTER / CHECKER
SOLID STATE
SOLD
Our favorite tester. We have one we have used for years and keep
calibrated. Since it's solid state you don't have to worry that it's
internal tubes have drifted. (Will not test early 4-pin or Acorn style
tubes, but will test all popular and modern (post mid 40's) tubes). Features
include:
- "Jet Check" testing section for very quick testing of select tubes
- Programmed Testing
- Dynamic Testing
- Tests High Voltage Regulators with proper current (dynamic test injects a
signal voltage into the Grid and another much higher voltage is applied to
the plate at the same time)
- Shorts Test (leakage paths up to 1 megohm and leakage as low as .5
microampere.
- Grid Emission Tests (tests up to 100 megohms)
- Life Test (tests tubes remaining reserve or life expectancy)
- Dual Section testing (Each section of a multi-section tube can be tested
separately)
- Voltage Regulated
- Overload Protection ( Manual circuit breaker protects if an unusually high
load is inserted i.e a shorted tube.)
Very accurate tester. We have completely gone though it doing all
calibrations as follows: 1) Signal Level set 2) Bias Voltage set 3) Meter
Bridge Balance set 4) Shorts Sensitivity set 5) and finally Grid Emission
Sensitivity set. Meter tests and works great! Exactly as our shop B&K 747B.
Includes both the version II Tube chart (lists over 2500 tubes) and a copy
of the manual / calibration guide. All 30 on board tube sockets in perfect
condition. All controls function perfectly. Meter looks new! Even has
built-in pin straightening for 7 pin miniature, 9 pin miniature, Noval /
magnoval & Decal / Compactron tubes. Tester is built into a blow-molded
heavy duty plastic case. Measures 21" wide x 13" deep. Includes our standard
30 day limited warranty for test gear.
B&K 747B
Cond. 9
SOLD
|
B & K
TRANSISTOR RADIO ANALYST
MODEL 960
Powers up, but we do not have an operations manual so unable to test
further. Selling As-is
SOLD |
|
(CLICK ABOVE PHOTOS TO ENLARGE)

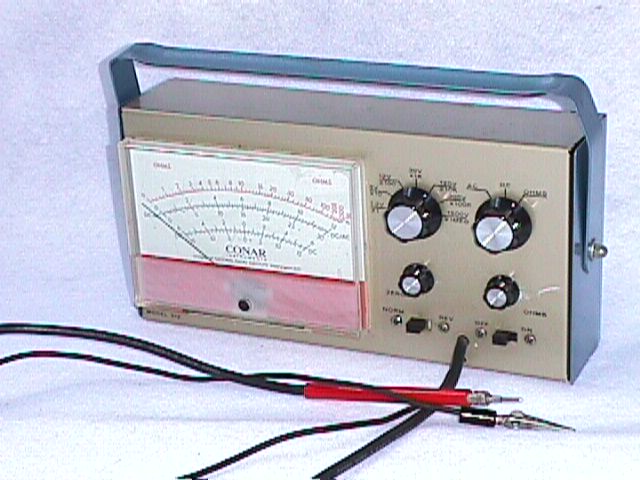

CONAR
212 VOM VOLT-OHM METER
SOLD |

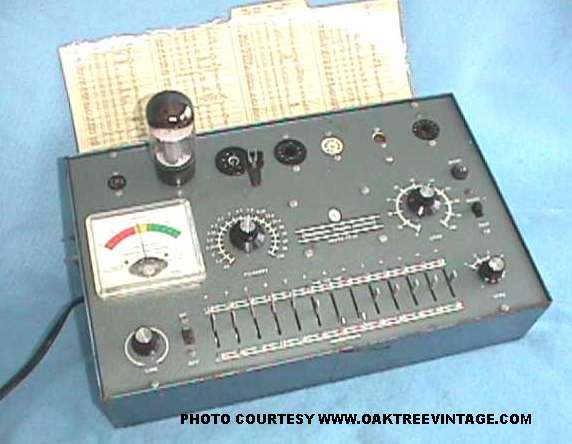

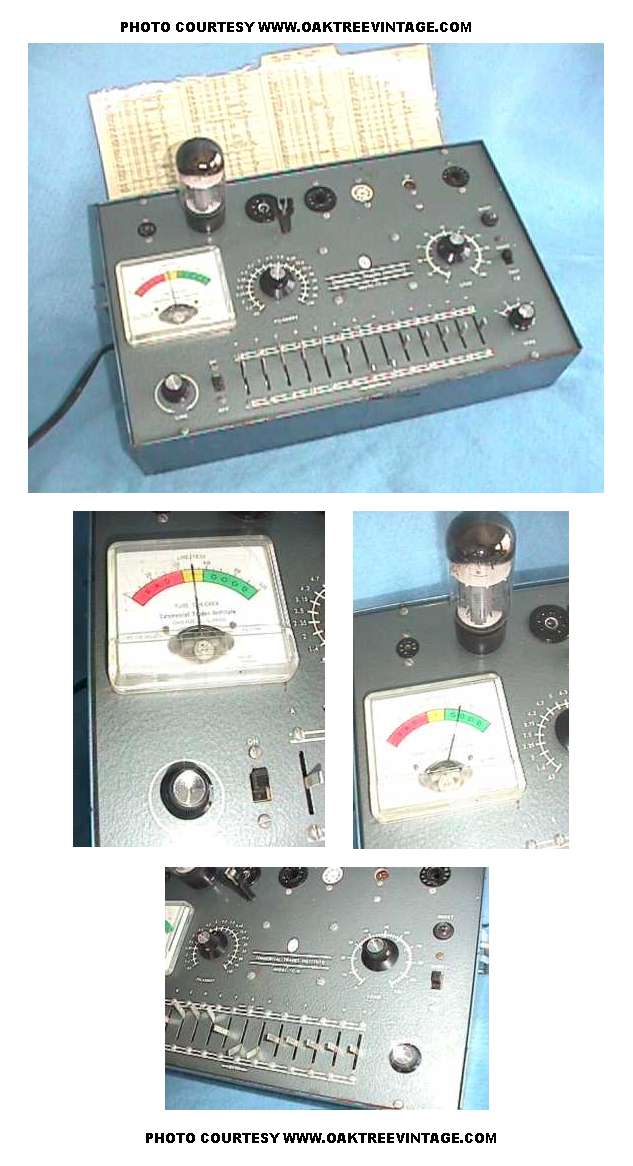

CTI TUBE TESTER
MODEL TC-20
Nice portable, very easy to use tube tester by Central Trades Institute. Has
been gone through and has all contacts and controls cleaned. New AC cord
installed. Test results comparable to you shop calibrated B&K 747B. (Tested
was 6L6, 5Y3, and 12AX7). Unit is clean with only normal wear to case. Cap
pigtail intact. No cracked or chipped sockets or knobs. Meter window in
great shape! Built-in handle doubles as a leaning stand. Tube chart,
assembly instructions, operating instructions, and schematic included and
fits in rear of unit for storage. No internal tubes required. Measures 15"
wide x 9" tall x 3" deep and weighs only 9lbs unpacked. Great for portable
use!
Cond. 8
SOLD
|
|
(CLICK ABOVE PHOTOS TO ENLARGE)

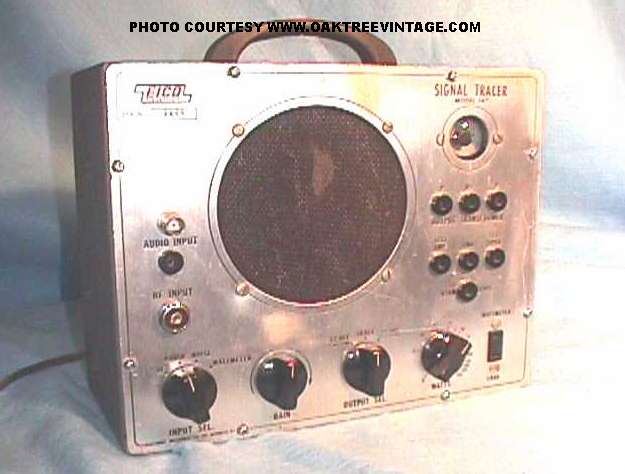

EICO
MODEL 147
Signal Tracer / Test Speaker / Amplifier
Classic Signal tracer. Works well. Cosmetically a bit
challenged. Very clean inside and out. All tubes and caps checked and
replaced where necessary.
Cond. 8.
SOLD 4/5/04
|
NEW LISTING
(Click on above thumbnails to
enlarge photos)

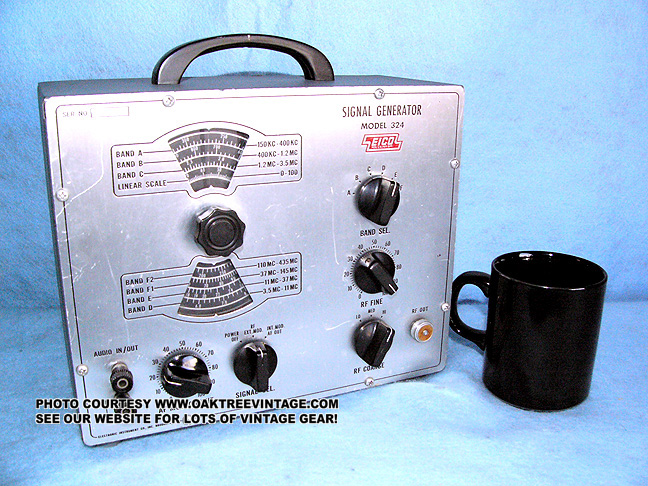

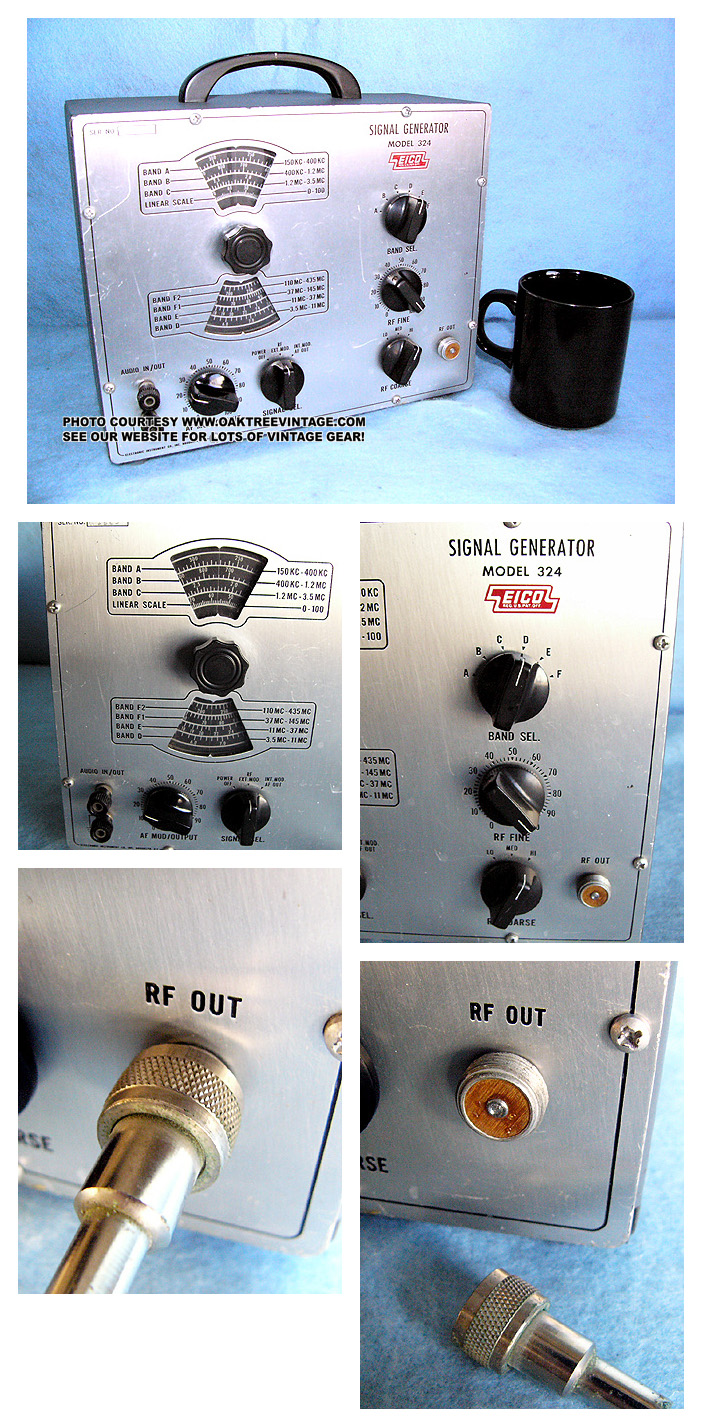

EICO RF GENERATOR
MODEL 324
SOLD 2/23/07
Classic RF generator for general Radio Audio / Stereo
repair. These have been found on service benches for years. Features
include:
- 6 Tuning bands
- 175 kc - 475 mc range
- 6 to 1 Vernier Tuning Dial with back light
- Built-in 400 Hz audio tone generator
- External modulation tone input
- Course and fine Attenuators
- Accuracy of tuning dial indicators +- 1.5%
- AF output voltage 0-10 volts across 100k ohms and 0-5 volts across 10k
ohms
- AF input impedance 70k Ohms
- AF output impedance 10k Ohms
- External Modulation freq range 20-15,000 Hz
- Internal tubes 1x 12AU7 and 1x 12AV7
These are great for aligning AM and FM tuners and tuning sections on Hi-Fi
gear. Also function as small radio transmitters. Fun for creating a mini
broadcast station in your house / lab. This one does need some work. It does
produce some output and does have AF output, but is not correct. We are
selling it as is. Unit does look good and is clean inside. Likely a minor
problem, but we do not have time to chase it, as we have a working one on
our test bench. Unit measures 10" wide x 8" tall x 4.75" deep and weighs 10
lbs unpacked.
Cosmetic cond. 8.5
As-Is
$55.
SOLD 2/23/07
|
EICO FUNCTION GENERATOR / AF SINE WAVE /
SQUARE WAVE GENERATOR
MODEL 377
SERIAL # 17629
AF generator. Scratches on
front visible on photo enlargement. Works fine.
COND. 7.5
HOLD FOR SHOP USE
|
EICO
MODEL 625 (BLUE)
SOLD
|
 EICO
MODEL 635
SOLD
|

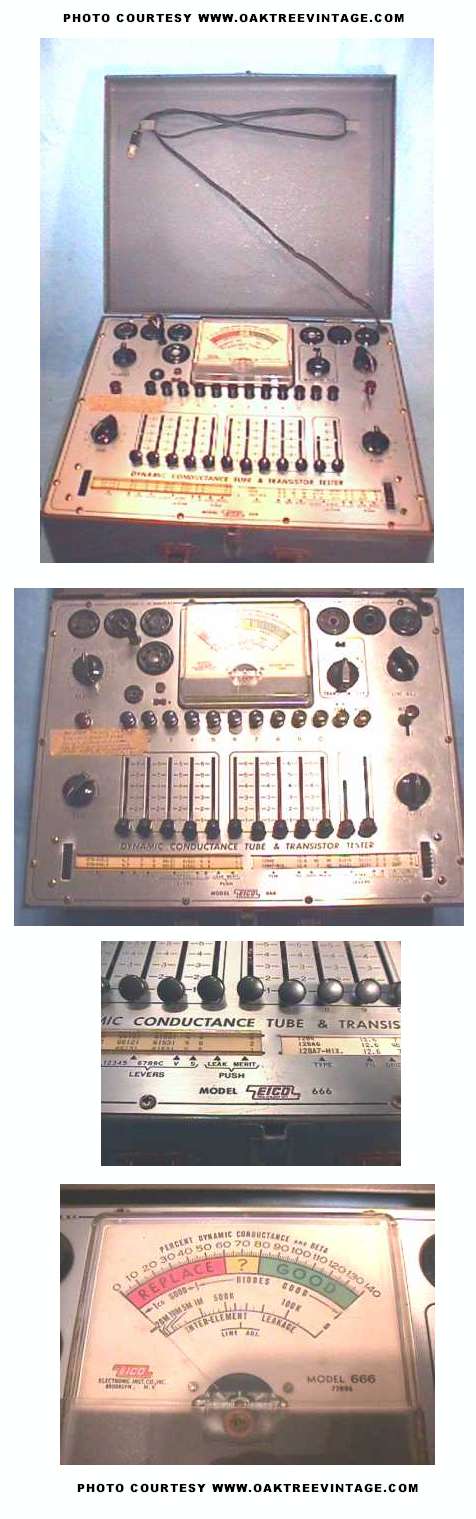

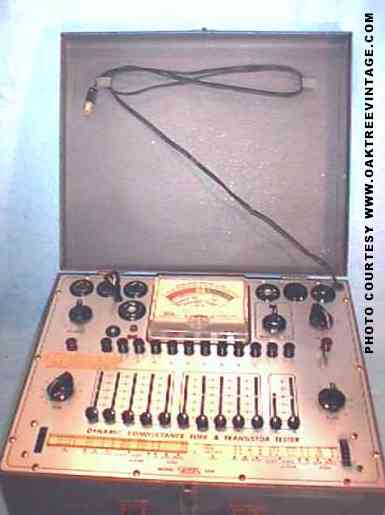

EICO
MODEL 666
DYNAMIC CONDUCTANCE TUBE & TRANSISTOR TESTER
CIRCA 1956
SOLD
|
(Click on above thumbnails to
enlarge photos)
warranty

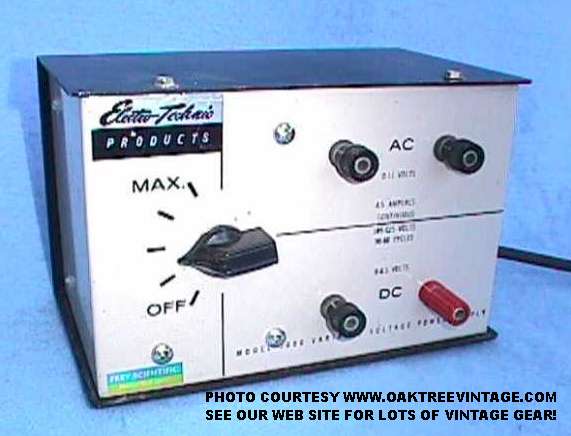

ELECTRO-TECHNIC
5000
VARIABLE AC / DC POWER SUPPLY
SOLD
8/7/08
Nice general purpose, bench-top variable power supply. Variable 0-11 volts
(tested to 13 volts) AC output and 0-6.5 (tested to 16volts) DC output at
4.5 amps via binding / banana posts. Unit tests great. Measures 7" wide x
4.5" deep x 5" tall and weighs only5 lbs. Includes our standard 30 day
limited warranty for test gear.
Cond. 9
$55.
SOLD
8/7/08
|

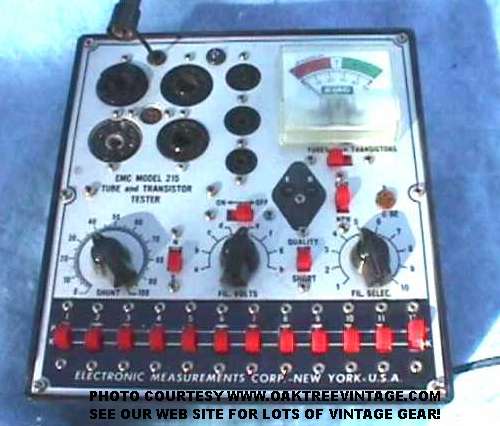

EMC PORTABLE TUBE TESTER / CHECKER
MODEL 215
SOLD
|
(Click on above thumbnails to
enlarge photos)
warranty

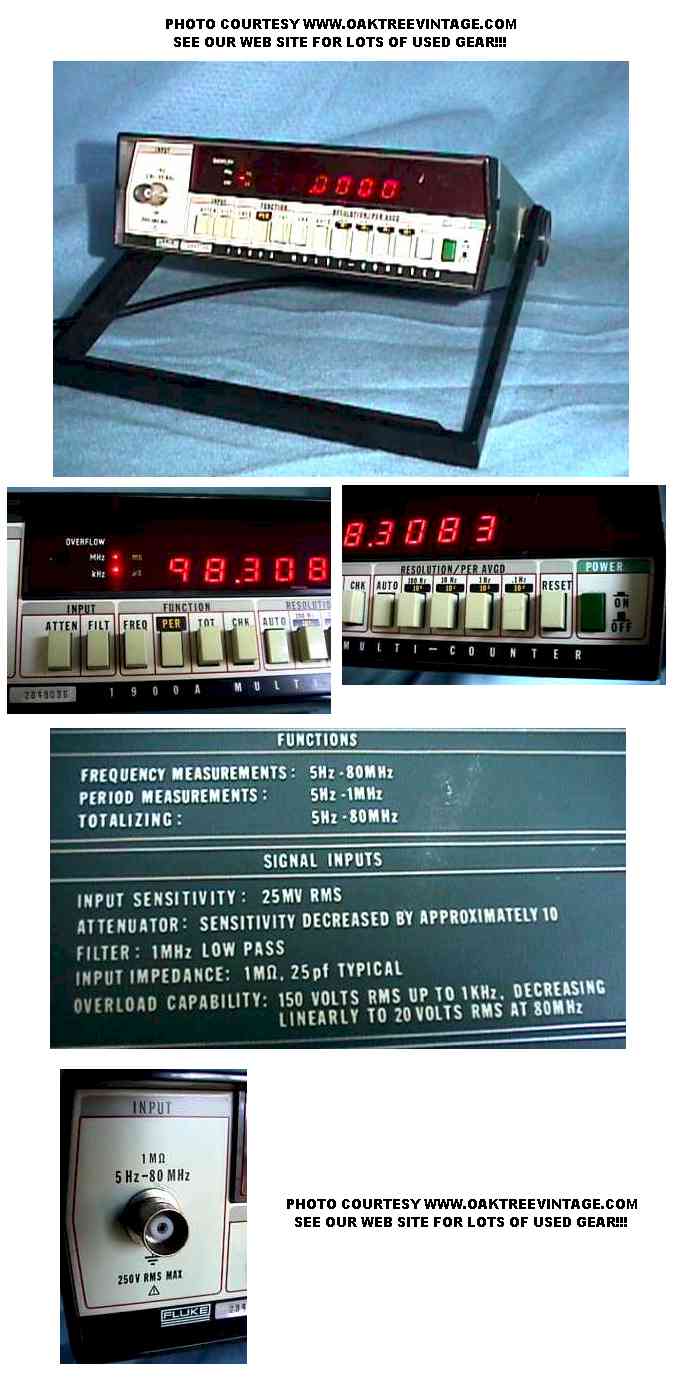

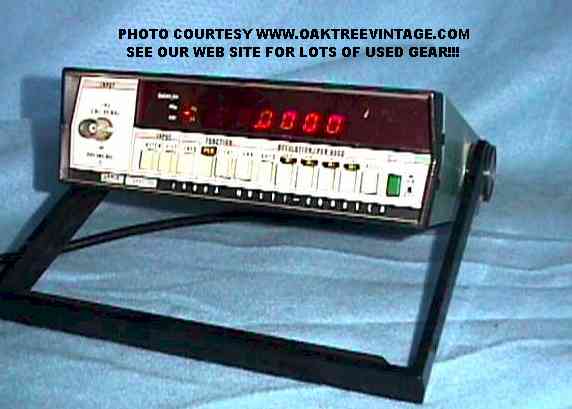

FLUKE MULTI-METER DIGITAL VOM
1900A
FREQUENCY / MULTI-COUNTER
SOLD 8/20/05
Multi-Counter. Provides frequency, period, period averaging, and totaling
of measurements. Frequency range 5 Hz to 80 MHz. Looks and works great. All
functions seem to check fine. May need a slight calibration, but was very
close to our bench unit. Just need a BNC cable for input. Sorry no manual
with it.
Includes our standard
30 day warranty for test gear
(excluding blowing it up by injecting voltage into it or
similar).
Cond. 8.5
$59.
SOLD 8/20/05
|
(Click on above thumbnails to
enlarge photos)

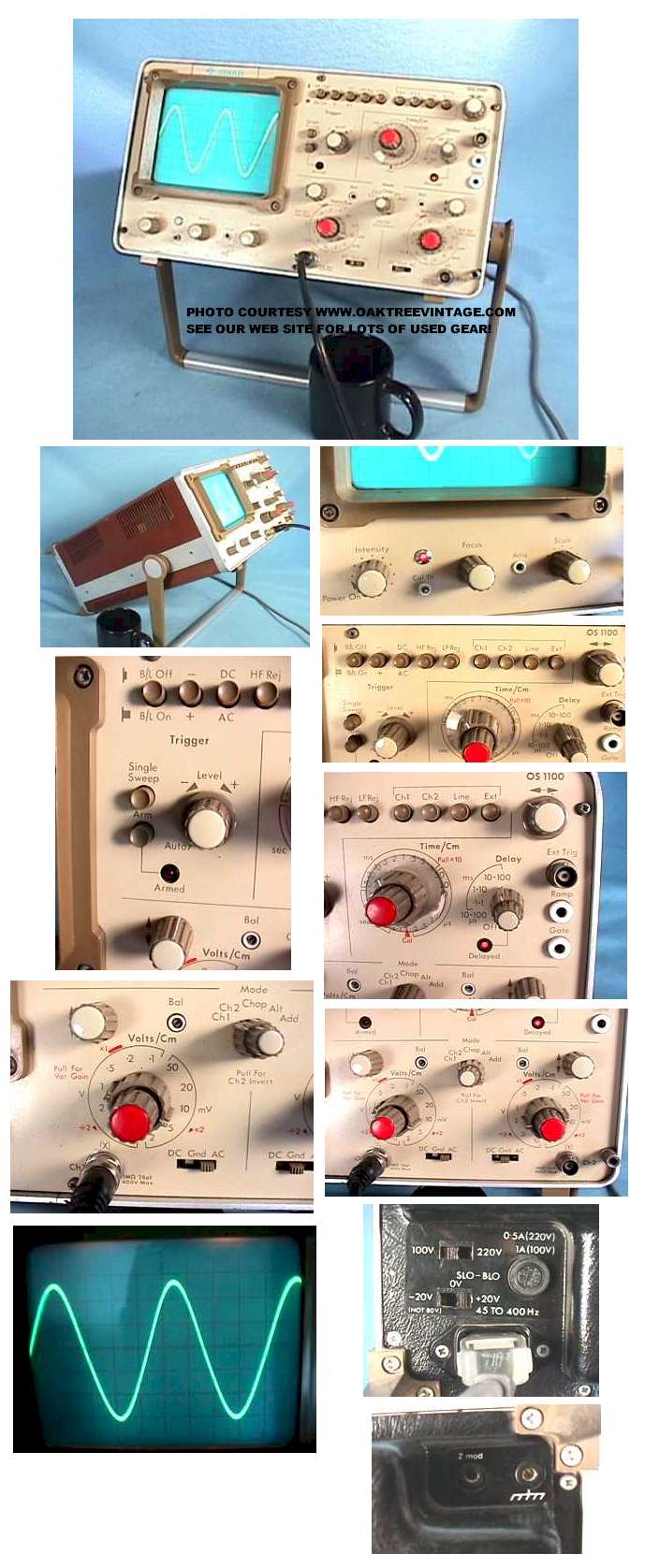

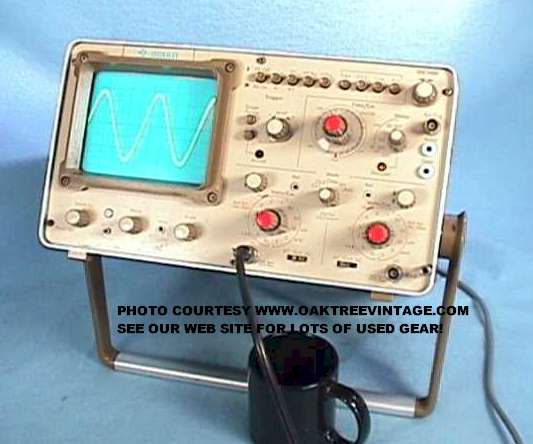

GOULD DUAL TRACE OSCILLOSCOPE
30 MHz
SOLD 8/30/04
Ready to go 30-Megahertz, Dual trace O-Scope. We have gone through it checking
for basic function and cleaning controls internally. All functions test fine.
Ready to use. Measures 17.5" deep x 12.5" wide x 7.5"
tall and weighs 22 lbs unpacked. Utilizes standard BNC connector probe(s) (not
included).
Cond. 8
SOLD 8/30/04
|
|
|
(CLICK ABOVE PHOTOS TO ENLARGE)

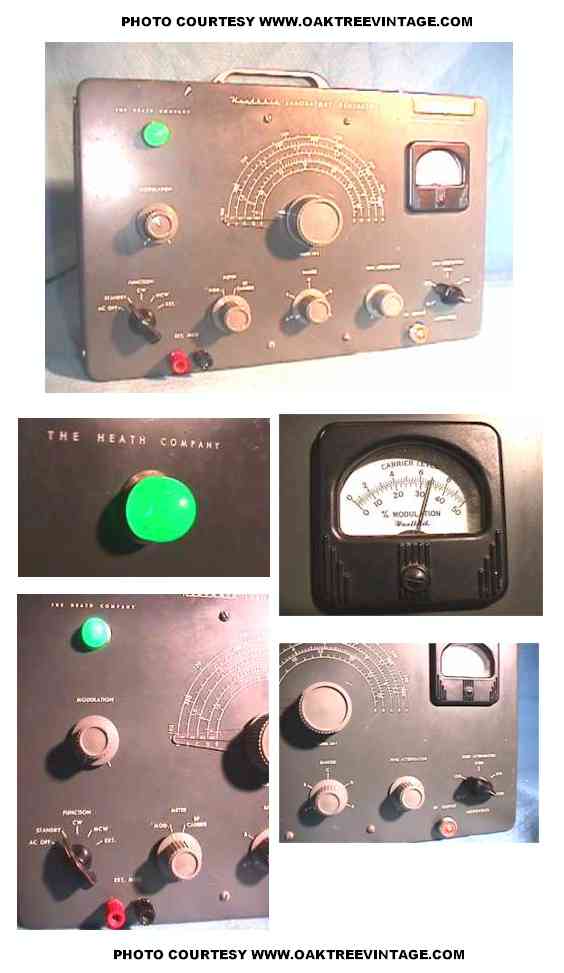

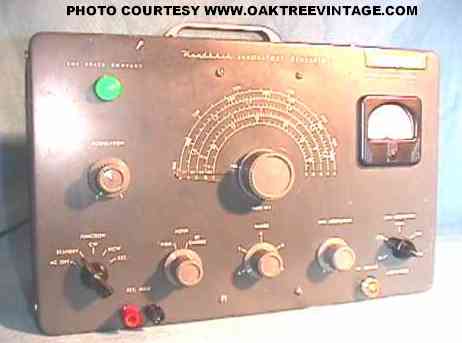

HEATHKIT
Laboratory Generator
RF generator. Tests fine. No dents or corrosion. All tubes and caps checked.
Cond. 8.5
SOLD
|
warranty

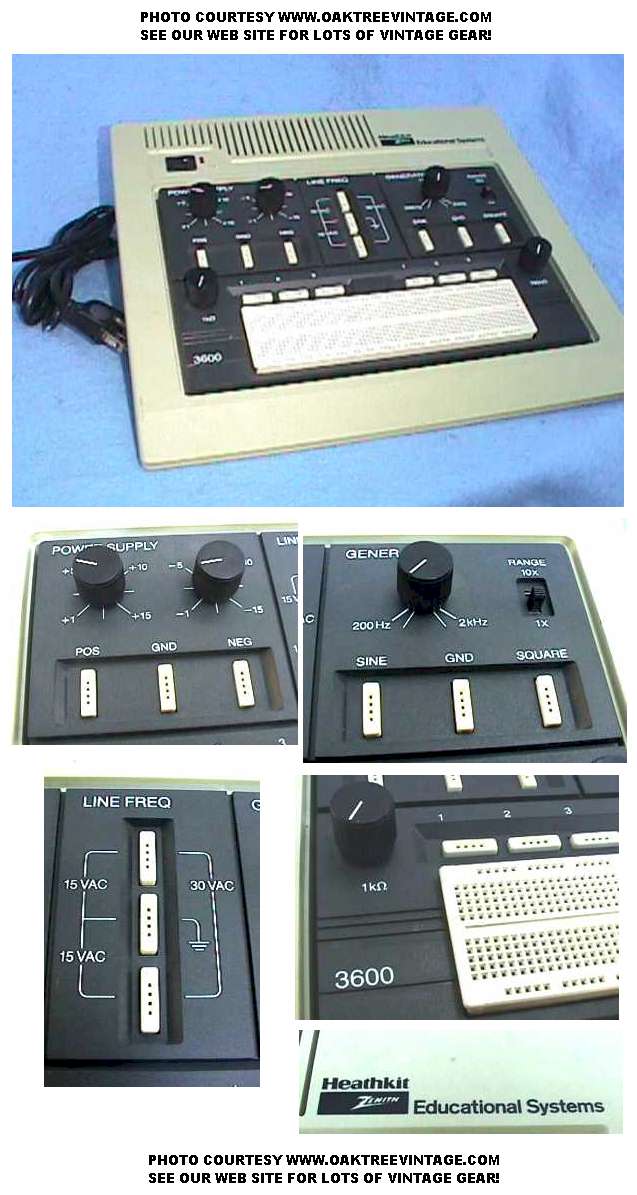

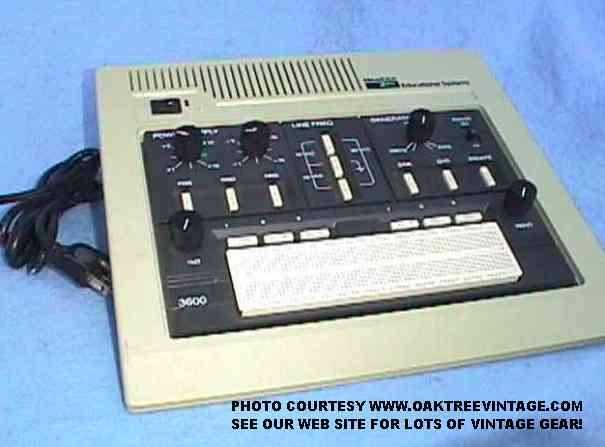

HEATHKIT / ZENITH LABORATORY / ELECTRONIC TRAINER
KIT
ET-3600
These were designed for electronic courses, experimenters, and general
bench use. They are a great multi-purpose device.
Features include:
- Onboard 750 hole breadboard
- +1-15 volt low amperage, variable output DC power supply
- -1-15 volt low amperage, variable output DC power supply
- Dual 15 volt low amperage, AC power supplies
- 30 volt low amperage, AC power supply
- 200 Hz- 20 khz Sine Wave generator
- 200 hz - 20 khz Square Wave generator
- 180-1250 ohm general purpose variable potentiometer
- 2.2k-85,000 ohm general purpose variable potentiometer.
- Rear mounted 60-pin ribbon connector
These are great devices. Add a soldering iron and a multi-meter and you
have a great general purpose work-bench. We have completely tested all
functions and all works great! Unit also is in fine cosmetic condition.
Measures 12" wide x 11" deep x 5" tall and weighs 5 lbs.
Comes with our standard 30 day limited warranty
for test gear.
Cond. 9.5
SOLD
|
(Click on above thumbnails to
enlarge photos)

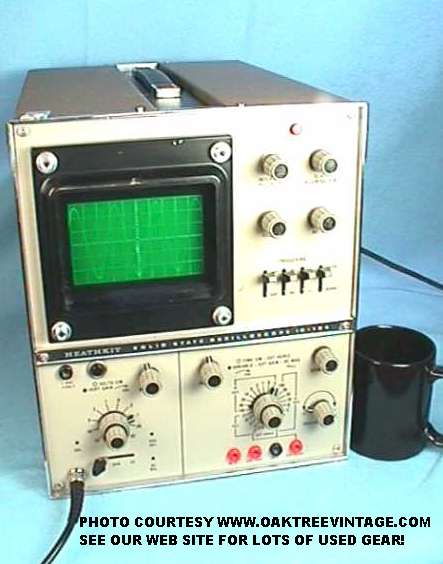

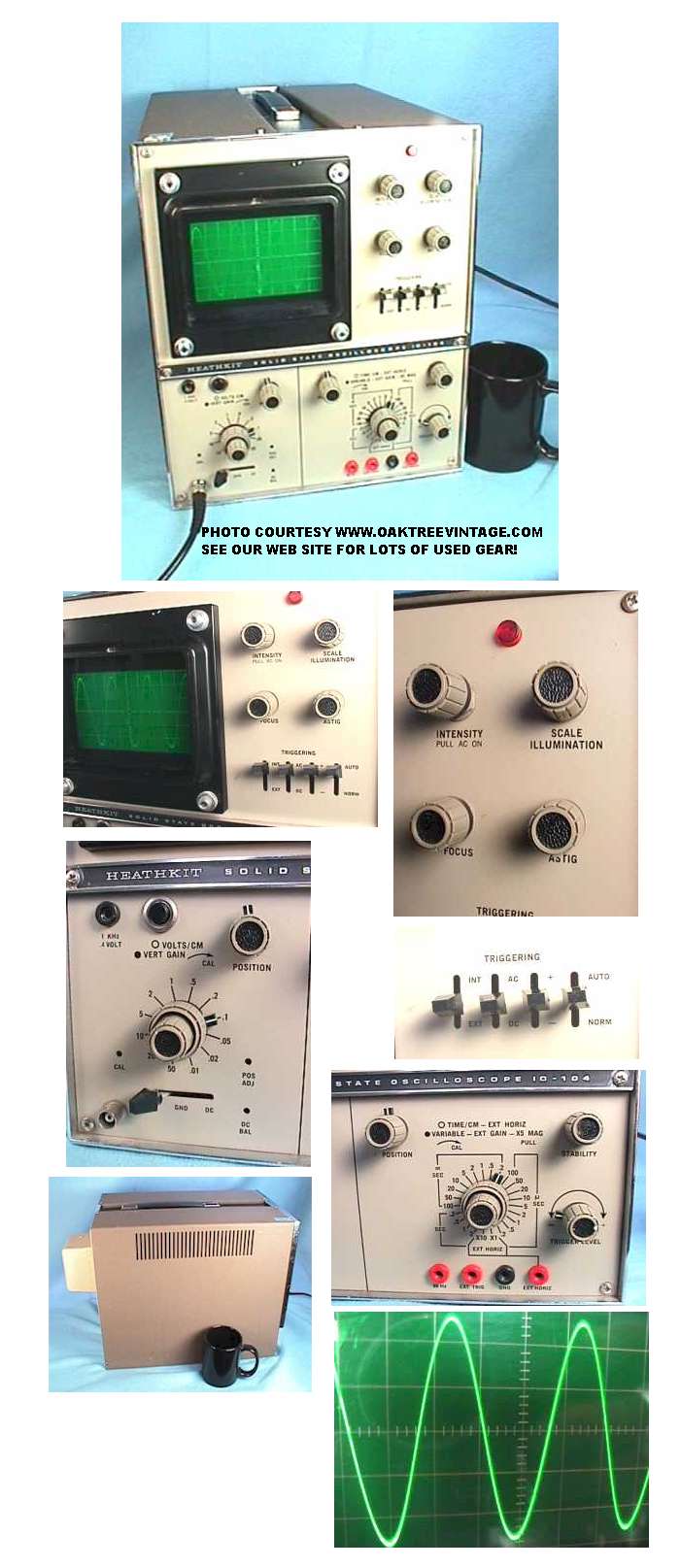

HEATHKIT OSCILLOSCOPE
MODEL 10-104
SOLD 6/3/05
Nice 5-Megahertz single trace O-Scope. Great for general audio bench work.
This has been our old stand-by for a few years, but it looks like the
smaller scope we have now is going to work better for us. This scope is in
great shape and everything works well. No burns on screen! If you have
space and don't need tons of features then here you go. A good reliable
scope for beginners and pros alike. Measures 10 3/4" wide x
20.5" deep x 12.5" tall and weighs 33 lbs unpacked. Utilizes
standard BNC connector probe (none included)
Cond. 8.5
$99.
SOLD 6/3/05
|

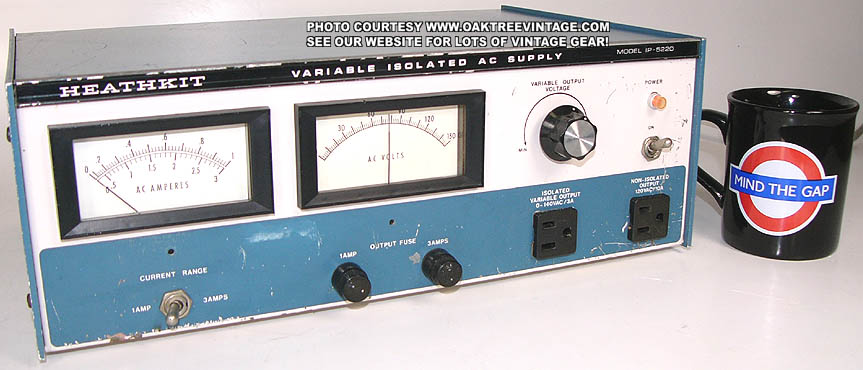

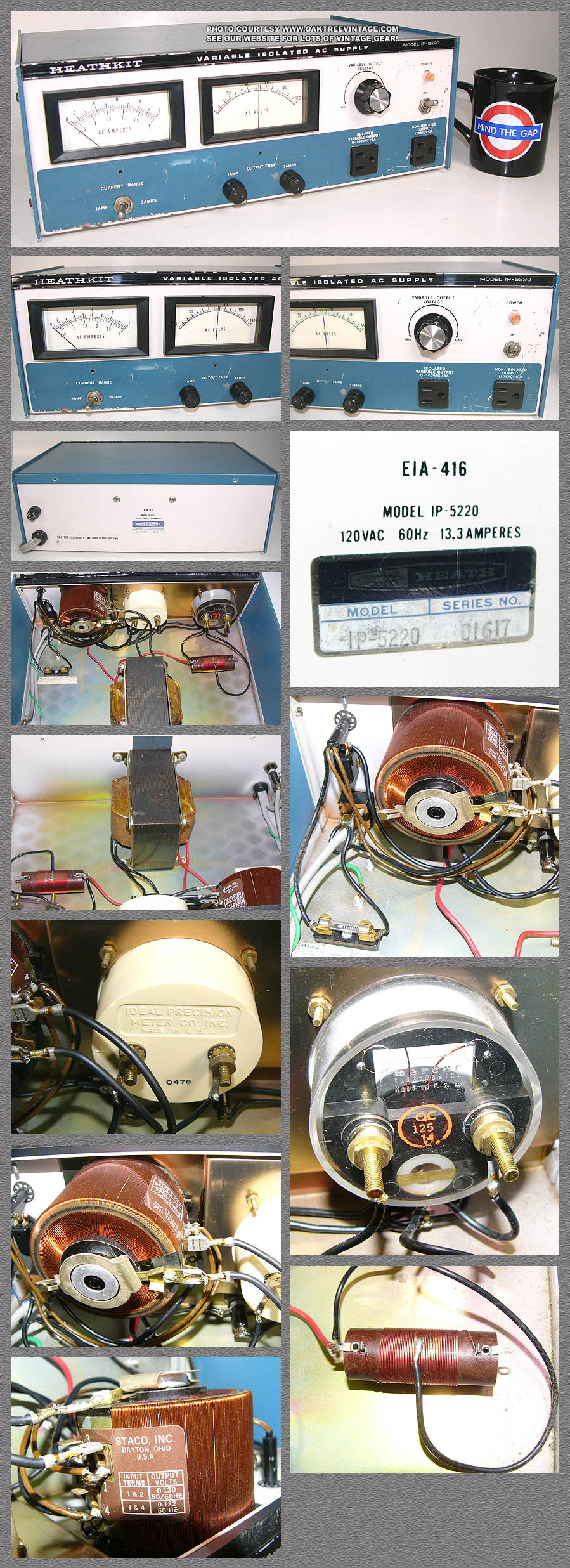

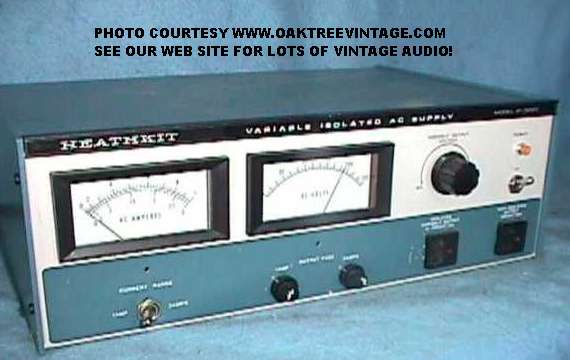

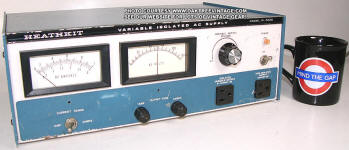

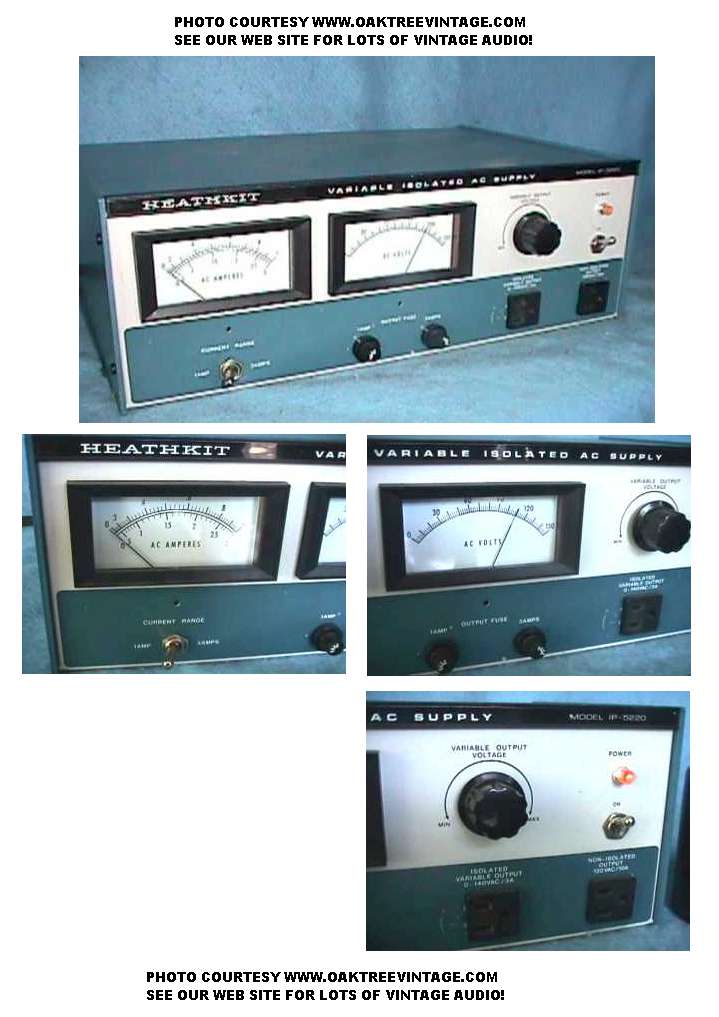

HEATHKIT IP-5220 VARI-AC
Variable AC power supply
ON HOLD FOR SHOP USE |
HEATHKIT IP-5220 VARI-AC
Variable AC power supply
ON HOLD
FOR SHOP USE
|
|

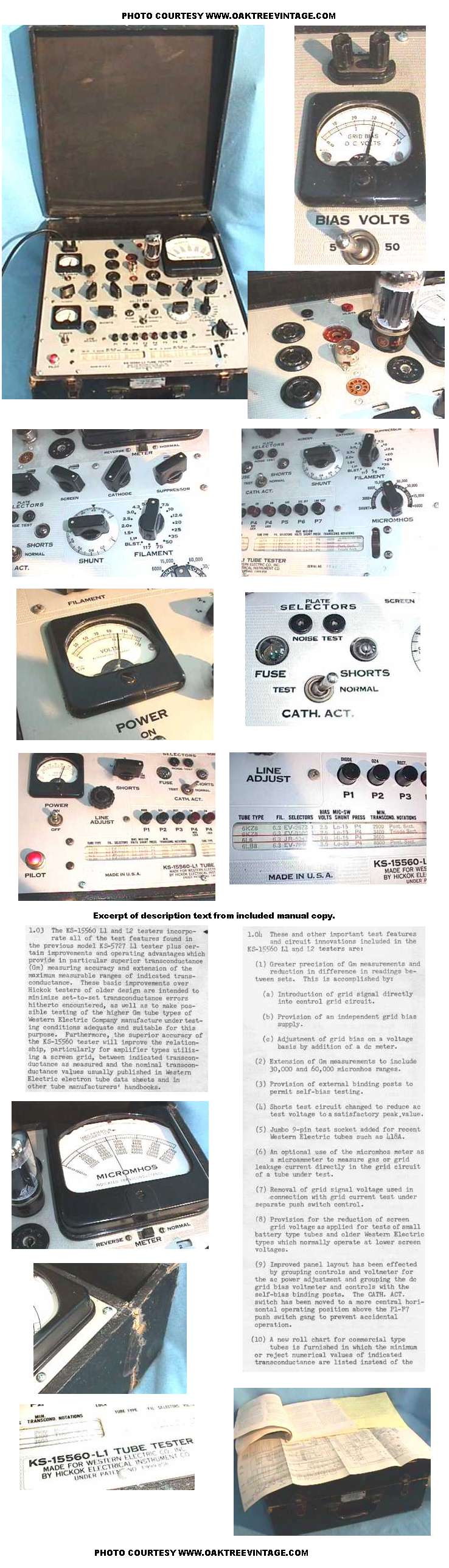

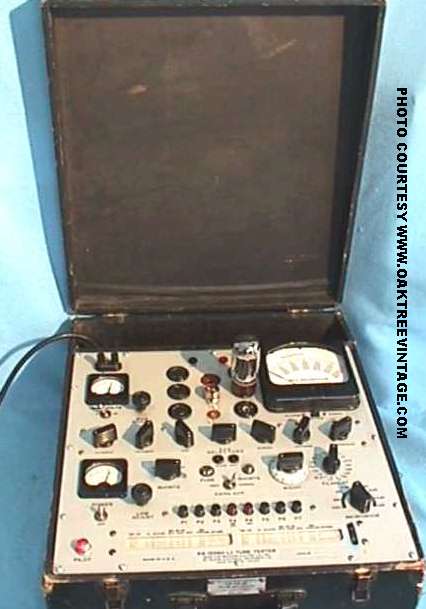

HICKOK / WESTERN ELECTRIC TUBE TESTER / CHECKER
MODEL KS-15560-L1
Circa 1952
SOLD
|
(CLICK ABOVE PHOTOS TO ENLARGE)
HICKOK
/ WESTERN ELECTRIC TUBE TESTER / CHECKER

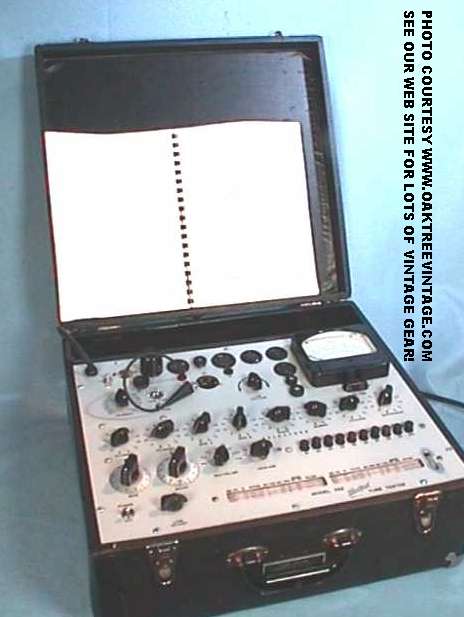

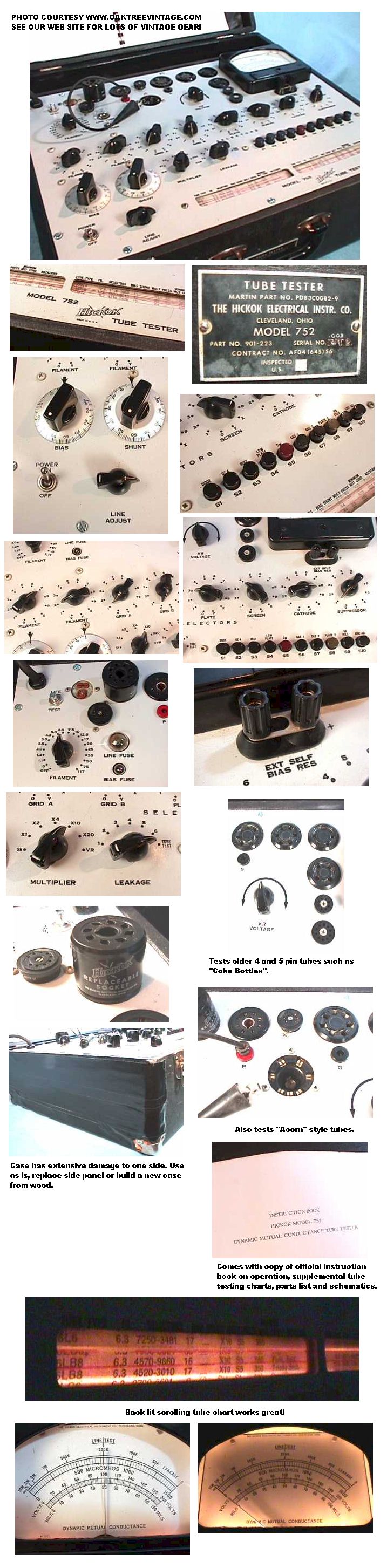

HICKOCK
752
DYNAMIC MUTUAL CONDUCTANCE
TUBE TESTER-CHECKER
SOLD 8/22/04
Hickok tube testers are recognized as the more "serious"
tube checkers that were available. Not a good tester for the novice or
beginner to use as they are complicated to operate / utilize to their
fullest, but if you're used to working with tubes / test gear or have a
working knowledge of Hickok's then you will love it. With the exception of
the case (see photo collage) this one is in great shape. We have given it a
"lite" going over, checking internal caps, testing internal tubes, cleaning
contacts, "tweaking" tube chart for easier rolling and given it a good
cleaning overall. We then spot checked a few different tubes with results
consistent with our calibrated "shop" B&K 747B (747B - easy to use, but no
where near the level of gear the 752 Hickok is). Does include a copy of the
manual / schem in addition to the internal tube chart. Measures 19" x 17" x
8" (closed" and weighs 23 lbs unpacked.
Hickok 752
Cond. 7.5 (due to case)
As-is
SOLD 8/22/04
|
|
NEW
LISTING 8/7/09
(Click on above thumbnails to
enlarge photos)

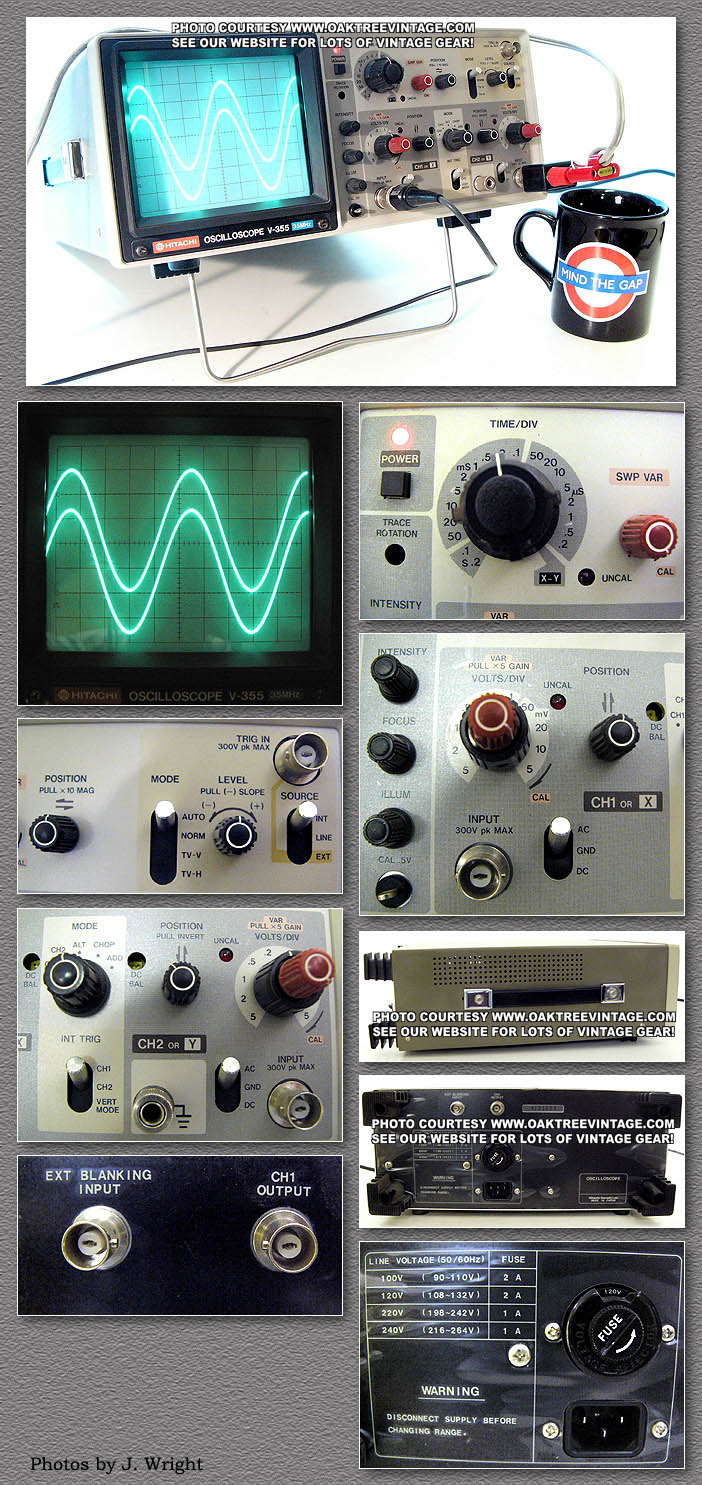

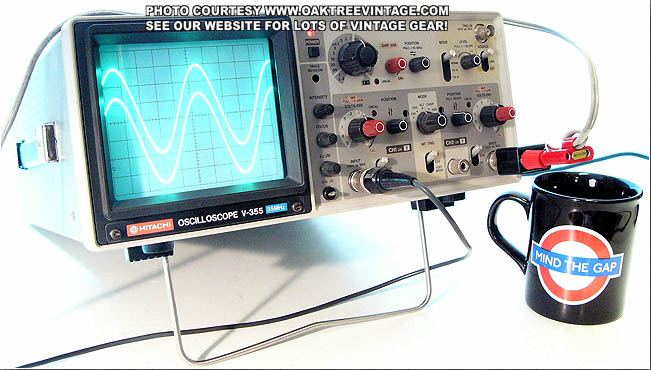

HITACHI
OSCILLOSCOPE
35 mHz / DUAL TRACE
MODEL V-355
Nice 35-Megahertz, Dual trace O-Scope. We have gone through it checking
for basic function. All functions test fine and trace has been aligned.
Ready to use.
-True WORLD AC POWER allows unit
to be operated on 50 or 60 Hz AC and will
select voltages from 90-264 volts AC input for use
anywhere in the world.
Comes with a copy of the owners / users manual. Utilizes standard BNC connector probe(s) (not
included).
Cond. 8.5
$259.
SOLD 10/18/09
|
|
HY-TRONIX
AUTOMATIC TRANSISTOR ANALYZER / CHECKER.
MODEL 900
SOLD
|
(Click on above thumbnails to
enlarge photos)

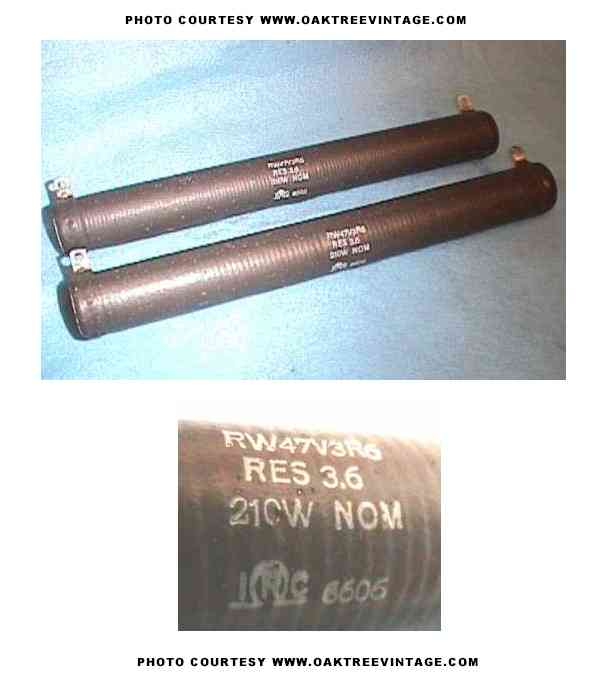

IRC DUMMY LOADS
DUAL 3.6 (4 OHM)
210 WATTS EACH
IRC Brand
very good
quality older USA made resistors. These are new old stock. Perfect for
loading tube amps. Could be the heart of a versatile dummy load box. They
could be configured for 2, 4, or 8 ohms of load. Measure 1" in
diameter, and are 10.5" long.
COND. 10
$40. pr.
ON HOLD FOR SHOP USE
|
|
|

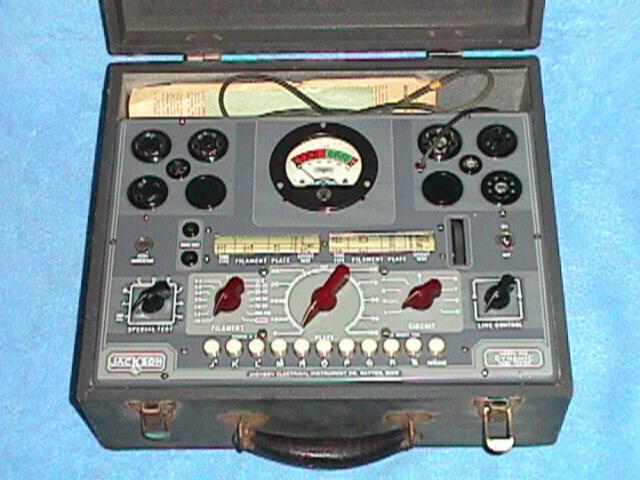

JACKSON TUBE TESTER / CHECKER
MODEL 636
SER. # 720
Very early model based
on such
a low serial
number. Unit does
power up with no
smoke, but untested beyond that. Has internal tube chart. This is an early
tube tester thus is somewhat limited in the tubes it can test. Case scuffed,
but chassis very clean. All pots and switches seem to work. Has original
instructions and original unfilled out warranty card included. Overall
mechanical/ cosmetic condition 7.0
AS IS
ON HOLD FOR SHOP USE
|
JACKSON TWEED TUBE TESTER.
MODEL 648
SOLD
|
|
(Click on above thumbnails to
enlarge photos)

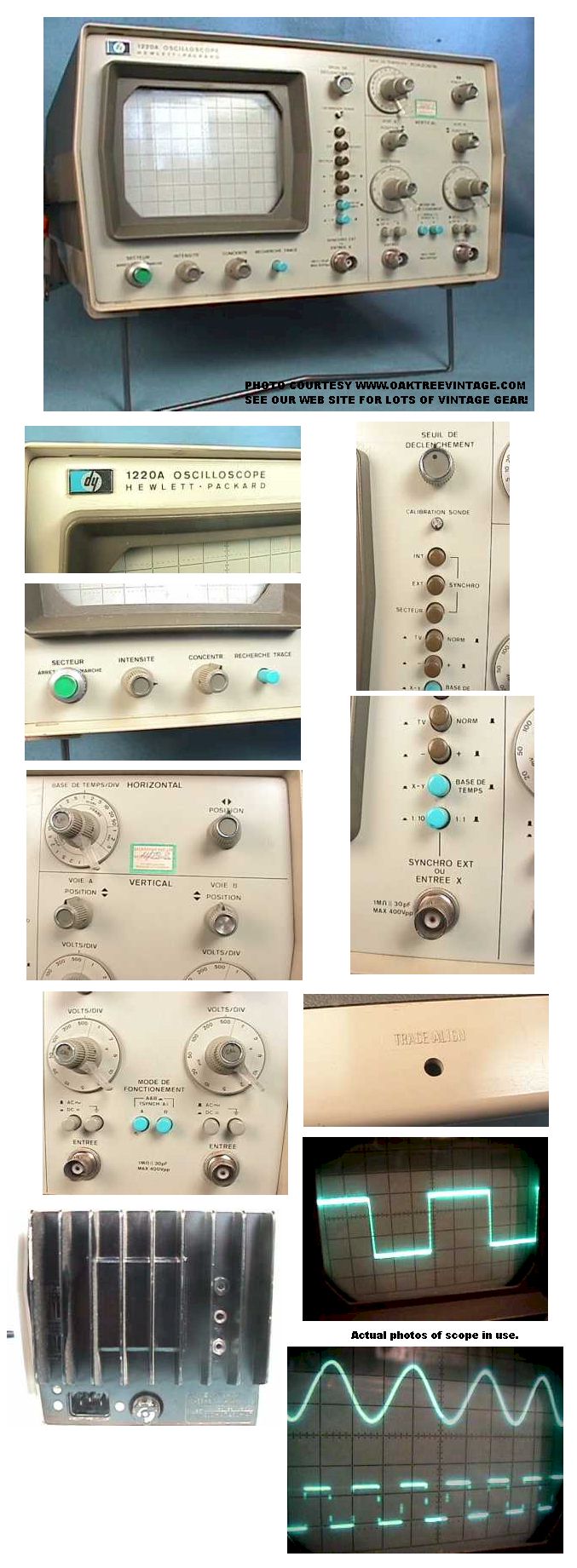

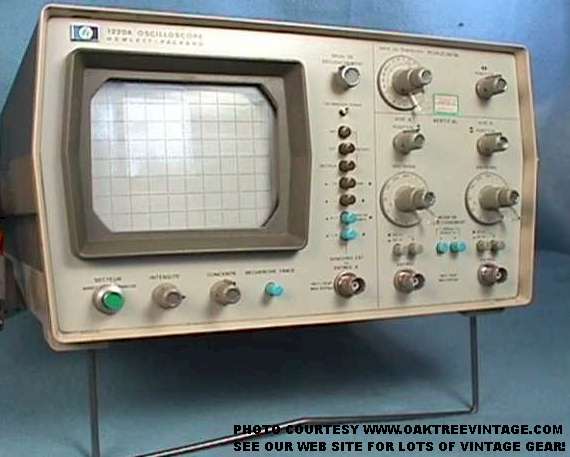

HP
HEWLETT PACKARD
MODEL 1220A
OSCILLOSCOPE
SOLD 3/9/05
Nice 15-Megahertz, Dual trace O-Scope. We have gone through it checking
for basic function. All functions test fine and trace has been aligned.
Ready to use. Was issued for the French market as silk-screening on front
is in French. Still easy to use and operates like any standard
scope.
-True WORLD AC POWER allows unit
to be operated on 50 or 60 Hz AC (actually ranges from 43-60Hz) and will
select voltages from 110v, 120v, 220v and 240 volts AC input for use
anywhere in the world.
Utilizes standard BNC connector probe(s) (not
included).
Cond. 8.5
SOLD 3/9/05
|
HP
4934A TIMS
SOLD |
|
(Click on above thumbnails to
enlarge photos)

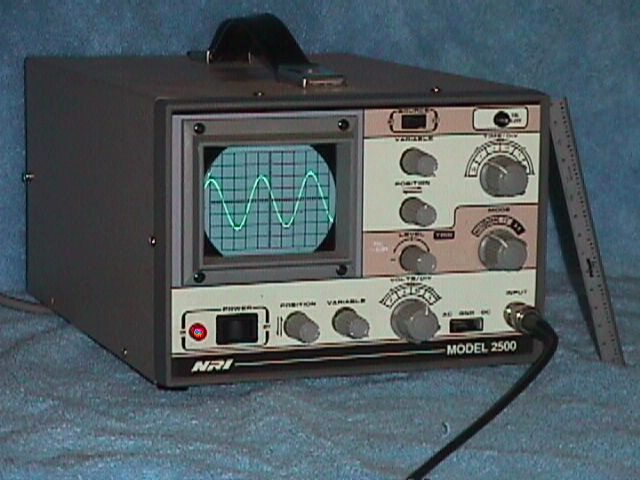

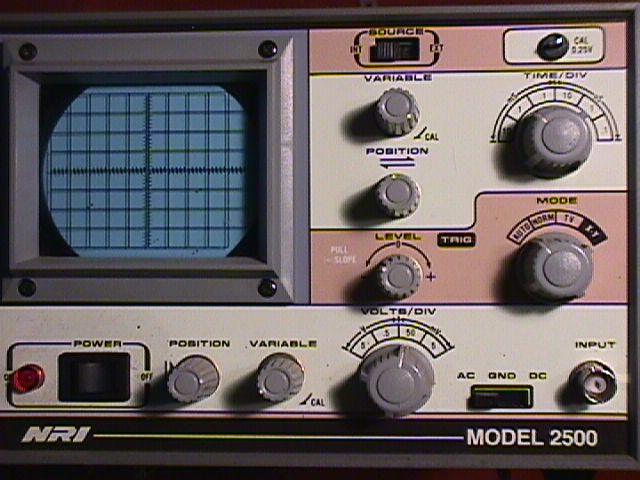

NRI
MODEL 2500
SOLD 9/15/05
5-Mhz
OSCILLOSCOPE
Works well. Single
trace, 5 Megahertz. Very clean. Great scope if you need something simple
that doesn't take up much space on your bench. Probe not
included, but is standard BNC connection.
Rule leaning against side is 6".
COND. 9.0
$110.
SOLD 9/15/05
|
|
|
(Click on above thumbnails to
enlarge photos)

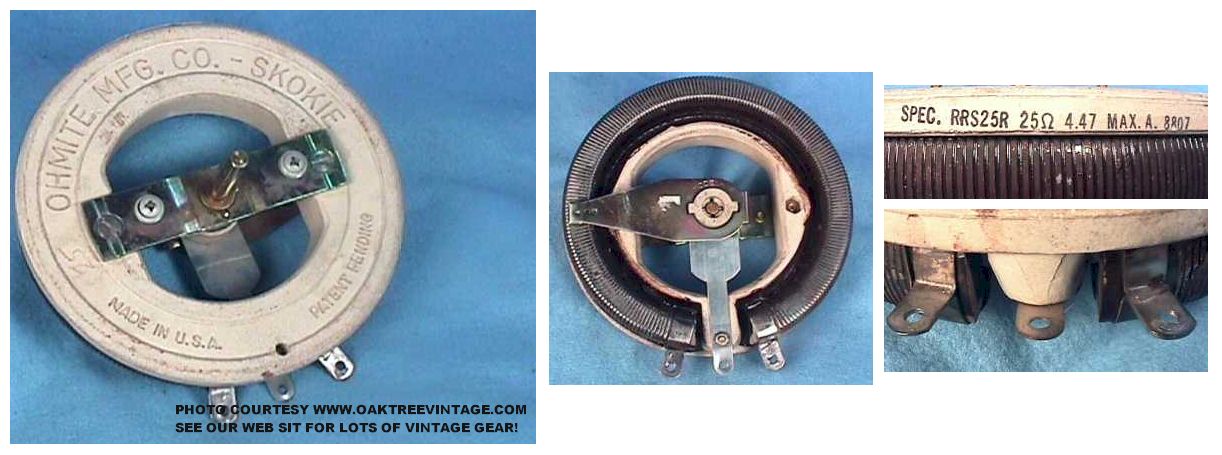

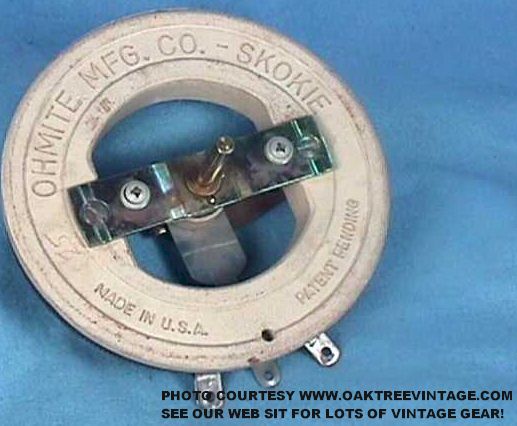

OHMITE
VARIABLE 0-25 OHM /
500 WATT
HOLD FOR SHOP USE
DUMMY LOAD / RHEOSTAT
RATED TO 4.47 AMPS
This is the same model we use on our test bench for testing amplifier
outputs. Can be marked at 2, 4, 8 & 16 ohms for convenience or any
setting from 0-25 ohms. Wattage capacity is 4.47 amps / 500 watts. Can be used as-is or mounted behind a panel.
Mounting flange included. Great condition. Measures 7.5" in diameter
and is 2" thick. Very handy test load. Great speaker substitute. Made
in USA.
1 only available @
$129.
HOLD FOR SHOP USE
|
|
|

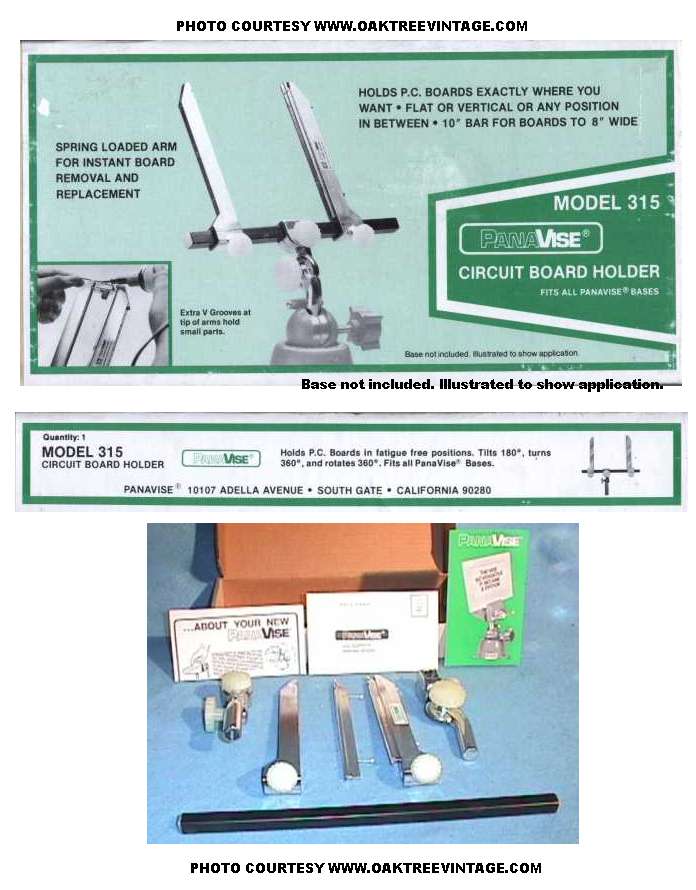

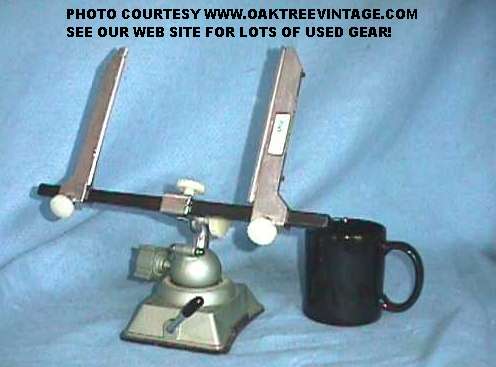

PANAVISE
CIRCUIT BOARD HOLDER
SOLD
|
NEW LISTING 7/15/05
(Click on above thumbnails to
enlarge photos)

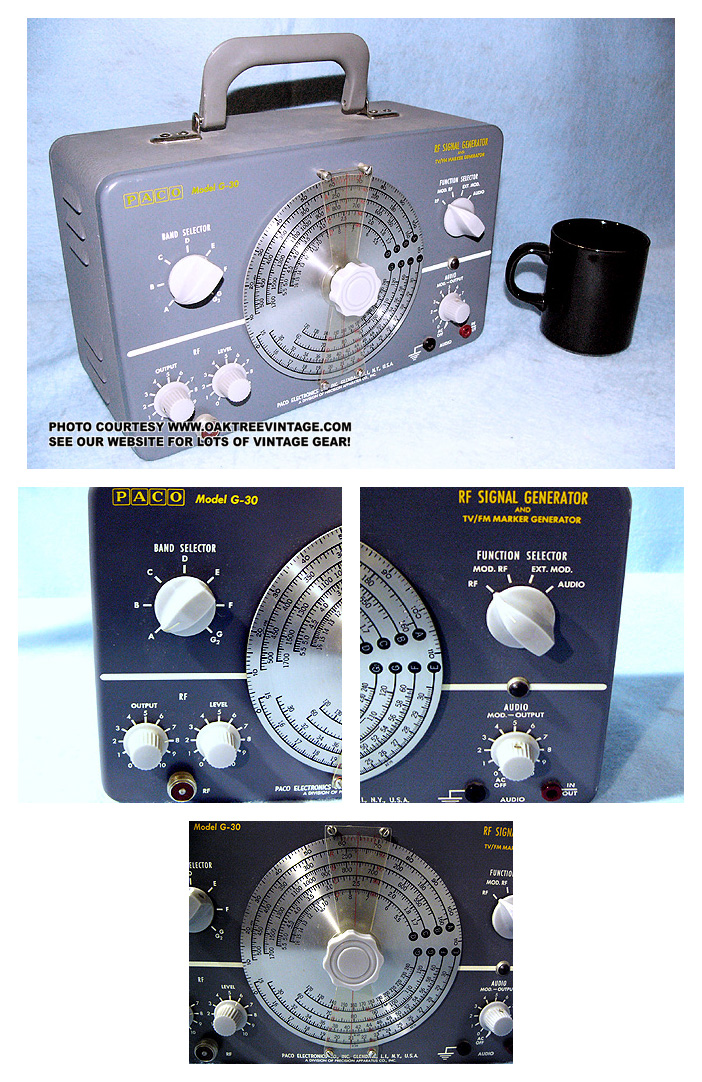

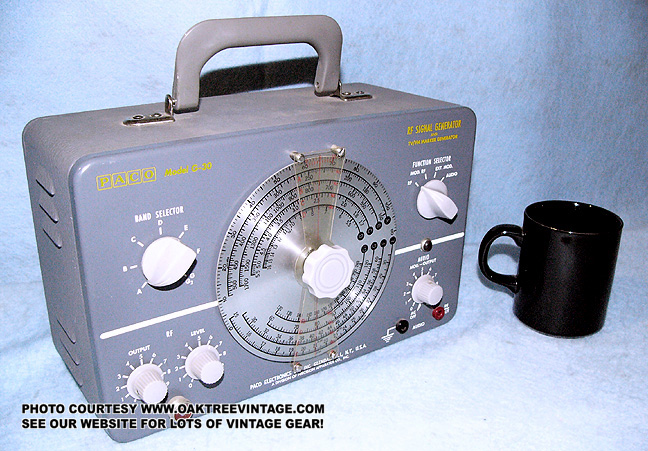

PACO
MODEL G-30
SOLD 8/20/05
RF GENERATOR
Very good condition
and did pass pre-testing to as far as our Frequency counter would test
(3.9mHz), RF generator for general Radio
Audio / Stereo repair. A Paco G-30.
Features include:
- 6.5 Tuning bands
- 158 kc - 240 mc range
- Vernier Tuning Dial
- Built-in 400 Hz audio tone generator
- Variable AF output level control
- External modulation tone input
- RF Output and Level Attenuators
- 2 Internal tubes
These are great for aligning AM and FM tuners and
tuning sections on Hi-Fi gear. Also function as small radio transmitters.
Fun for creating a mini broadcast station in your house / lab. This one does
need some work. Unit does look good and is clean
inside. While we did not do a full restoration on this unit, it does appear
to work well. Should be completely gone through and calibrated, prior to use. Unit measures 11.5" wide x 8" tall x
6" deep and weighs 10 lbs unpacked.
Cosmetic cond. 9
As-Is
$85.
SOLD 8/20/05
|

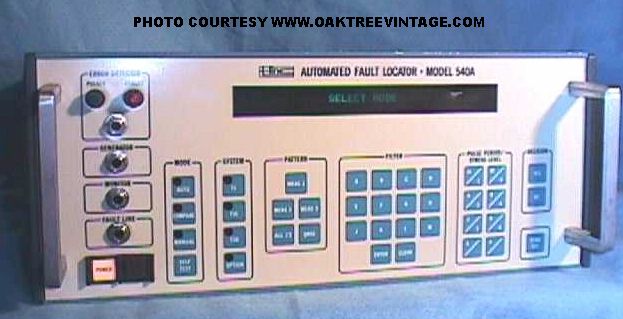

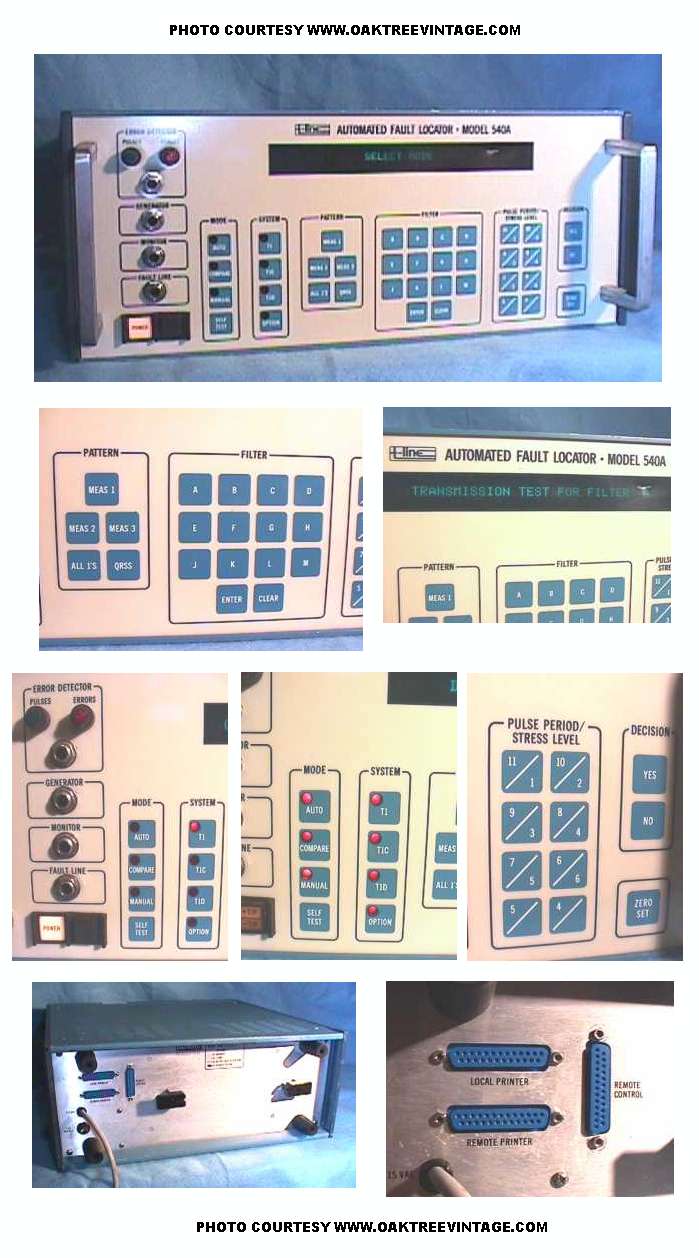

Perkins
Model 540A
Automatic Fault Locator
SOLD
|
(CLICK ABOVE PHOTOS TO ENLARGE)
warranty
RCA
WV-98C
SOLD
"SENIOR VOLT-OHMYST"
Vacuum tube VTVM multi-meter
Classic tube volt / ohm meter found on most test / work benches. We have
completely gone through this one, checking the internal tubes, caps and
installing a new D cell. Seems to test and work great! Looks near new. No
cracks in window or rust. All original knobs. Comes with original RCA
WG-299E probe with selectable AC or DC resistance. Original leather handle
in perfect condition. Measures 7" wide x 6.5" tall and 4.5"
deep. Includes our standard 90 day warranty (excluding blowing it up by
injecting voltage when in Ohms position).
Cond. 8.5
SOLD
|
|
|
warranty

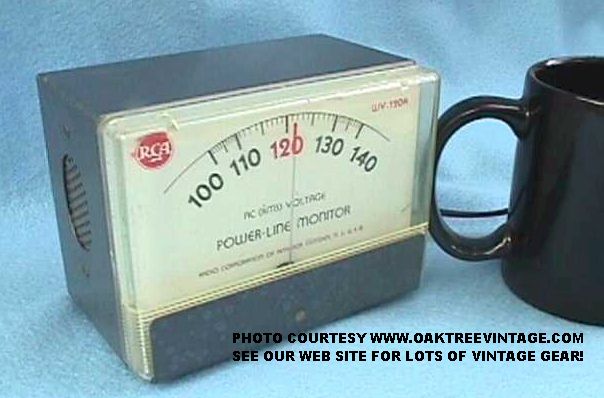

VINTAGE RCA
WV-120A
AC (RMS) VOLTAGE
POWER-LINE MONITOR
A must have for every bench! Continuously monitors your AC power line and
outlets with a large easy to see VU meter. Registers from well less than
100 volts to well over 140 volts. We always have ours plugged in. Great
for monitoring power sags from AC line problems and current hungry loads.
Checked against both our RCA WV-120a and our digital meters. Looks and
works great! Plugs into any standard American AC Edison outlet. Small
footprint measuring only 5 1/8" wide x 4 1/8" high x 3 1/8"
deep. Includes our standard 90 day limited warranty.
Cond. 8.5
SOLD
|
NEW LISTING
(Click on above thumbnails to enlarge photos)
warranty

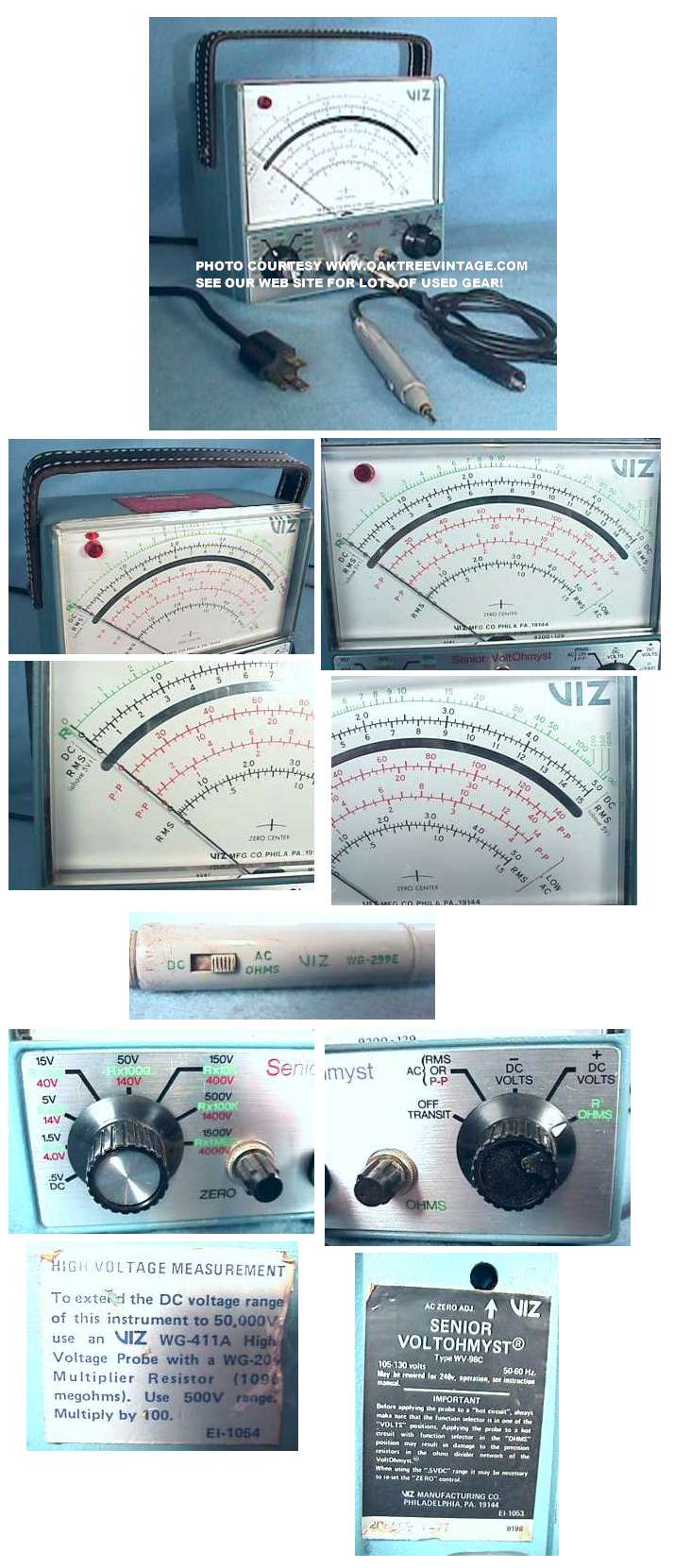

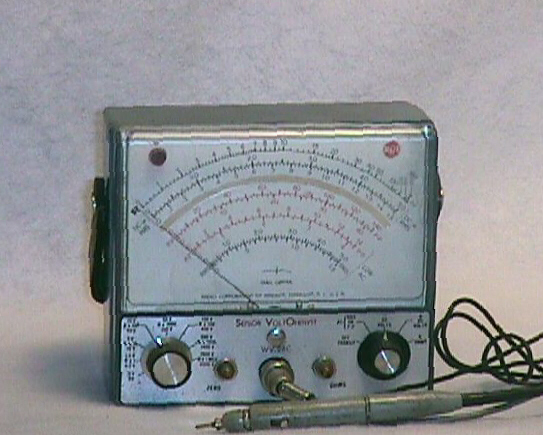

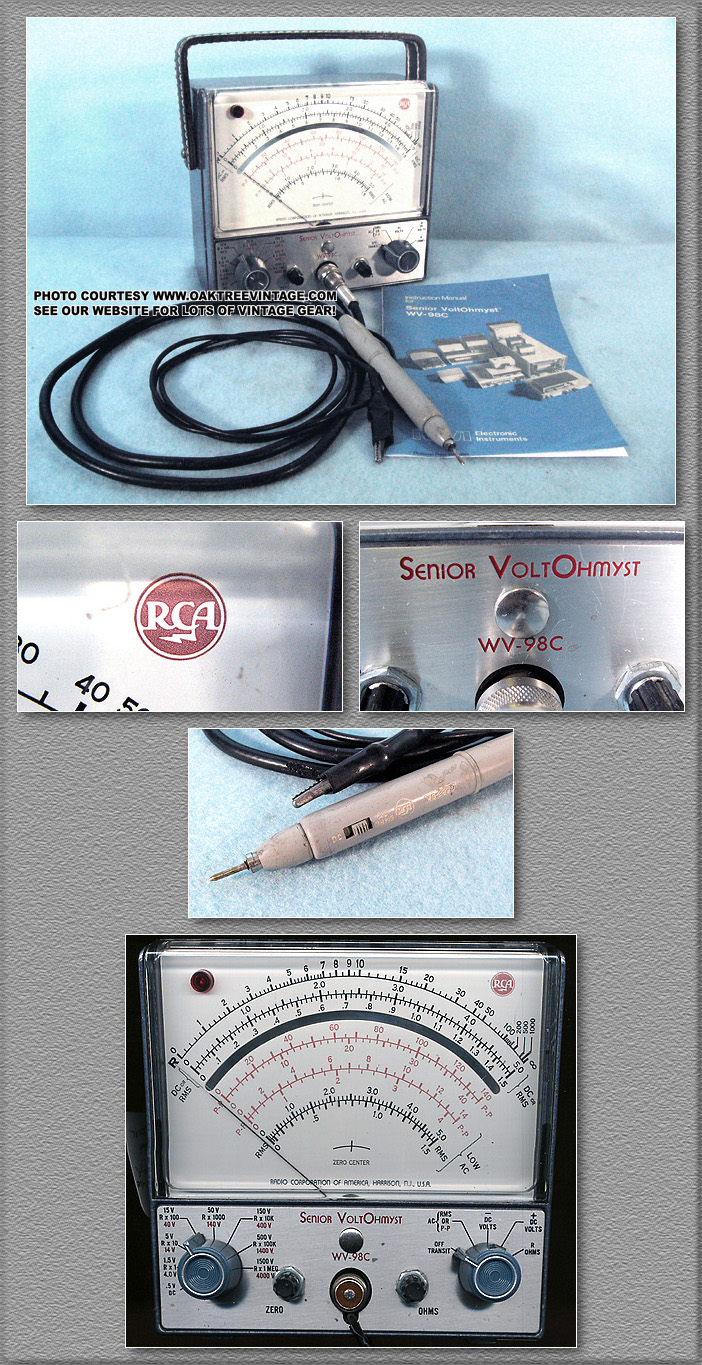

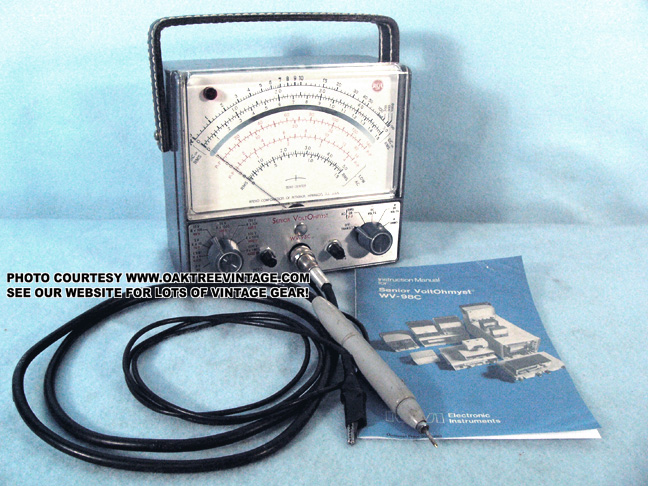

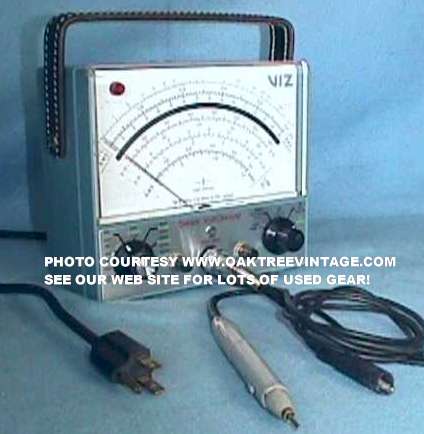

RCA
WV-98C
"SENIOR VOLT-OHMYST"
VACUUM TUBE VTVM
MULTI-METER
Classic tube volt / ohm meter found on most test / work benches. We have
completely gone through this one, checking / replacing the internal tubes, caps and
installing a new D cell. We have calibrated to manual
specs. Tests accurately with our calibrated bench unit and work great! Looks near new. No
cracks in window or rust. All original knobs. Comes with original RCA
WG-299E probe with selectable AC or DC resistance. Original leather handle
in perfect condition. Includes a copy of the owners /
users manual. Measures 7" wide x 6.5" tall and 4.5"
deep. Includes our standard 30 day warranty
for test gear (excluding blowing it up by
injecting voltage when in Ohms position or similar).
Cond. 8.5
$169.
SOLD 10/25/06 |
(Click on above thumbnails to
enlarge photos)
warranty

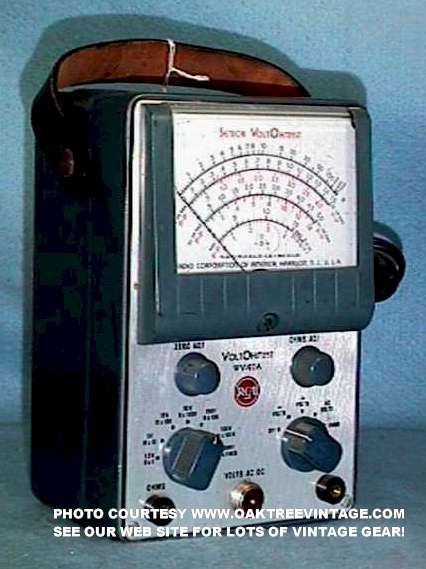

RCA
WV-97A
SOLD 4/7/06
"SENIOR VOLT-OHMYST"
Vacuum tube VTVM multi-meter
Classic tube volt / ohm meter found on most test / work benches. However
we can't seem to get this one to zero. We checked the tubes inside and
installed a new Cap, AC cord and cleaned contacts and controls, but didn't
investigate too far. No
cracks in window or rust. All original knobs. Original leather handle
in perfect condition. Measures 6.5" wide x 8" tall and 4.5"
deep. Selling As-Is for fix-up or for parts.
$35.
SOLD 4/7/06
|
 RCA
WV-98C
SENIOR VOLT-OHMYST
SOLD
|

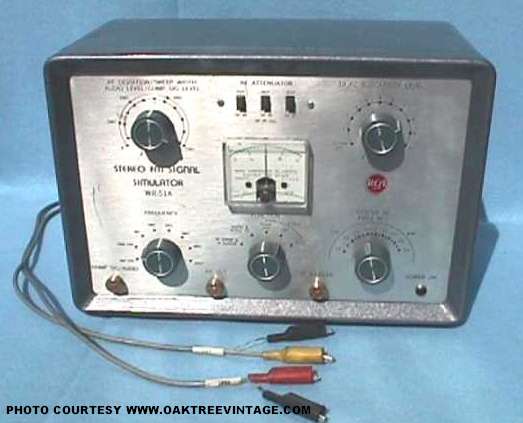

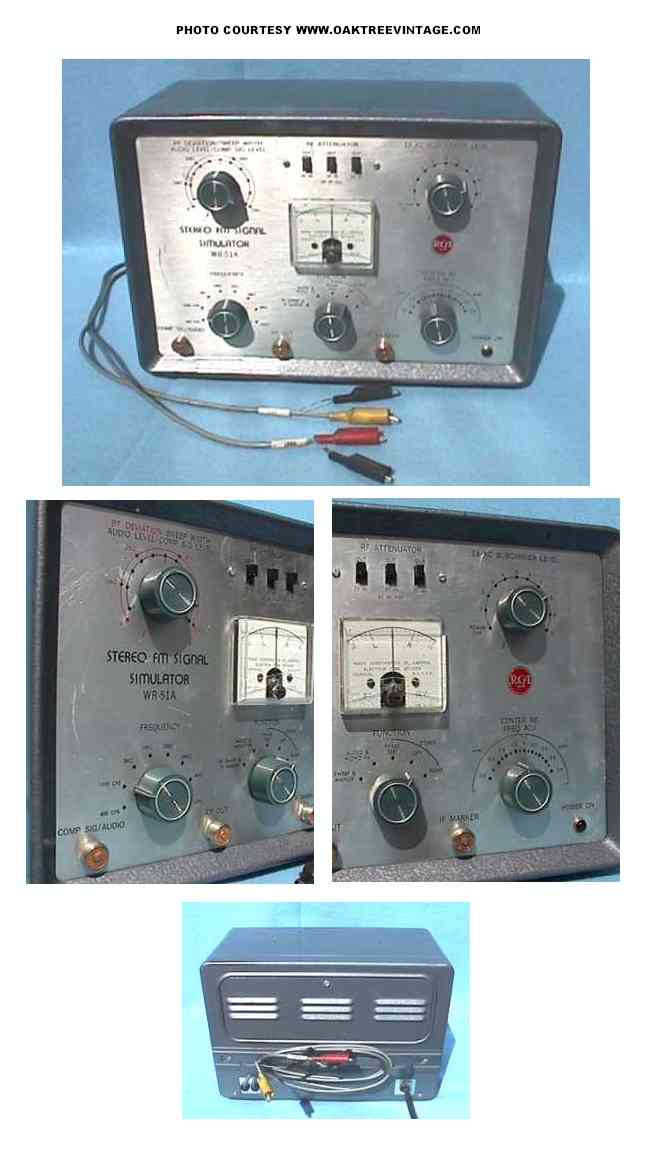

RCA
WR-51A
STEREO FM SIGNAL SIMULATOR
CIRCA 1962
SOLD
|
 RCA
MODEL WA-504A
AF GENERATOR
Works well w/ exception
of small harmonic tone
occurring around 60 HZ.,
which is typical on a lot of
AF generators due to 60 HZ
line current.
Original knobs and fittings
including handle.
COND. 7.5
HOLD FOR SHOP USE
|
(Click on above thumbnails to
enlarge photos)

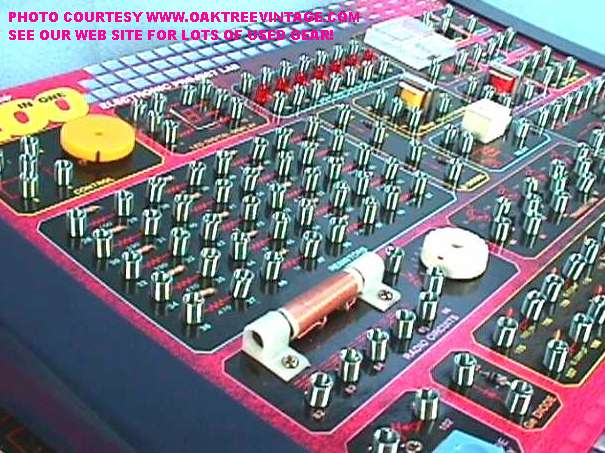

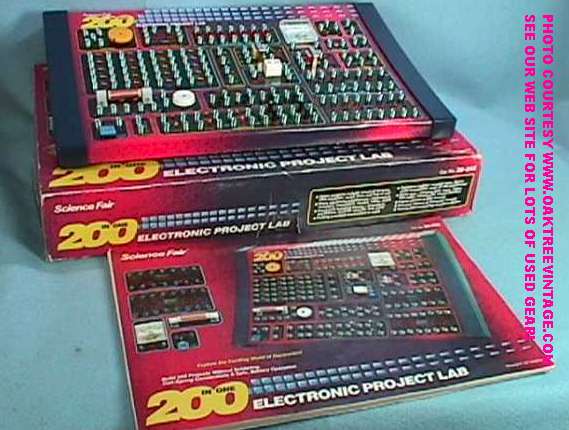

REALISTIC / RADIO SHACK
200 in ONE
SOLD 11/15/05
ELECTRONICS PROJECT / EXPERIMENTERS KIT
Great kit for beginning experimenters and advanced students alike. Parts
fixed in place and includes lots of jumpers to connect solderless
junctions. Learn basics of electricity and electronics. Lots of projects
to build from amplifiers to oscillators to an AM radio and broadcaster to
computer circuits and many more. Includes meter, pots, switches, speaker,
transformers, relay, antenna and more! Also includes original box and 109
page instruction / project manual. Uses 6 AA-batteries (not included).
$39.
SOLD 11/15/05
|

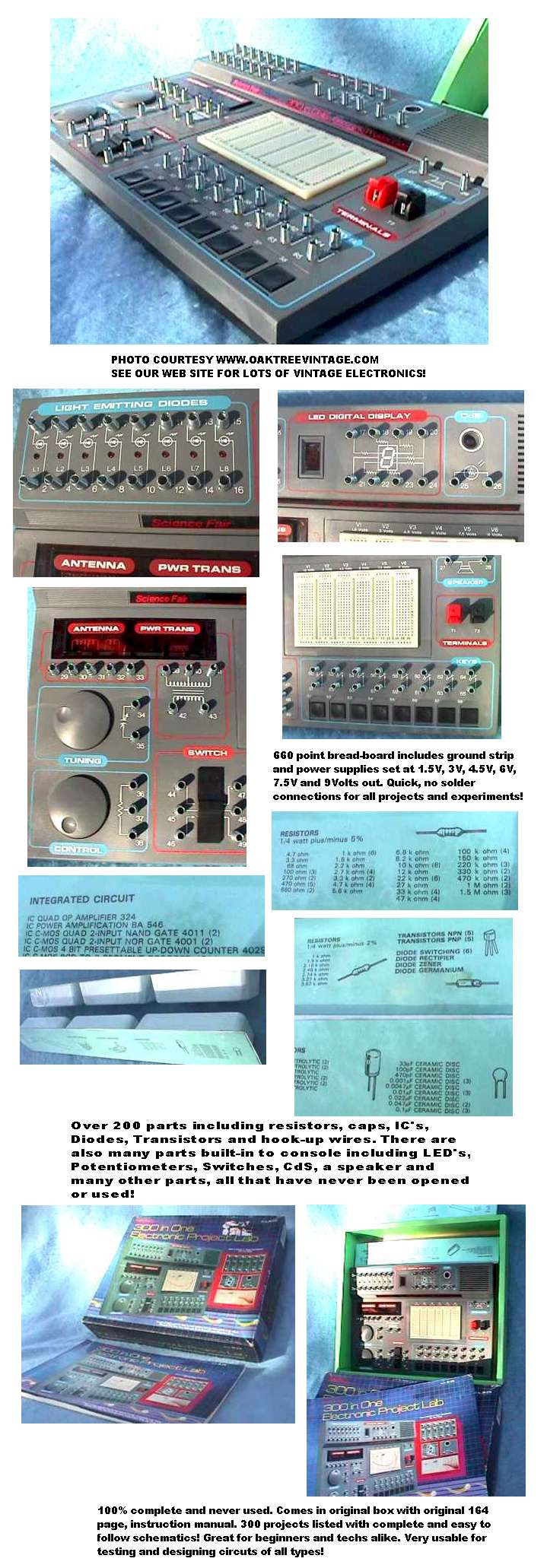

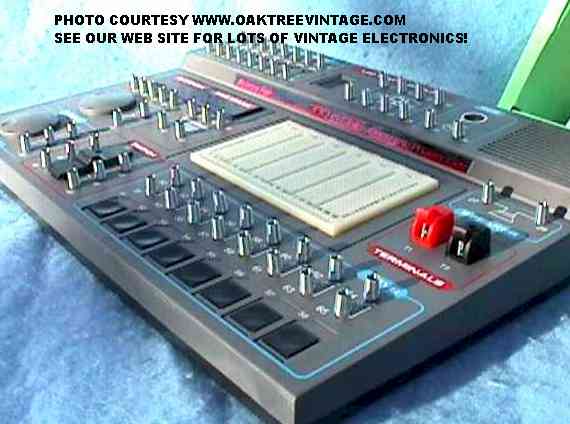

REALISTIC / RADIO SHACK
300 in ONE
ELECTRONICS PROJECT / EXPERIMENTERS KIT
SOLD |
|
(Click on above thumbnails to
enlarge photos)

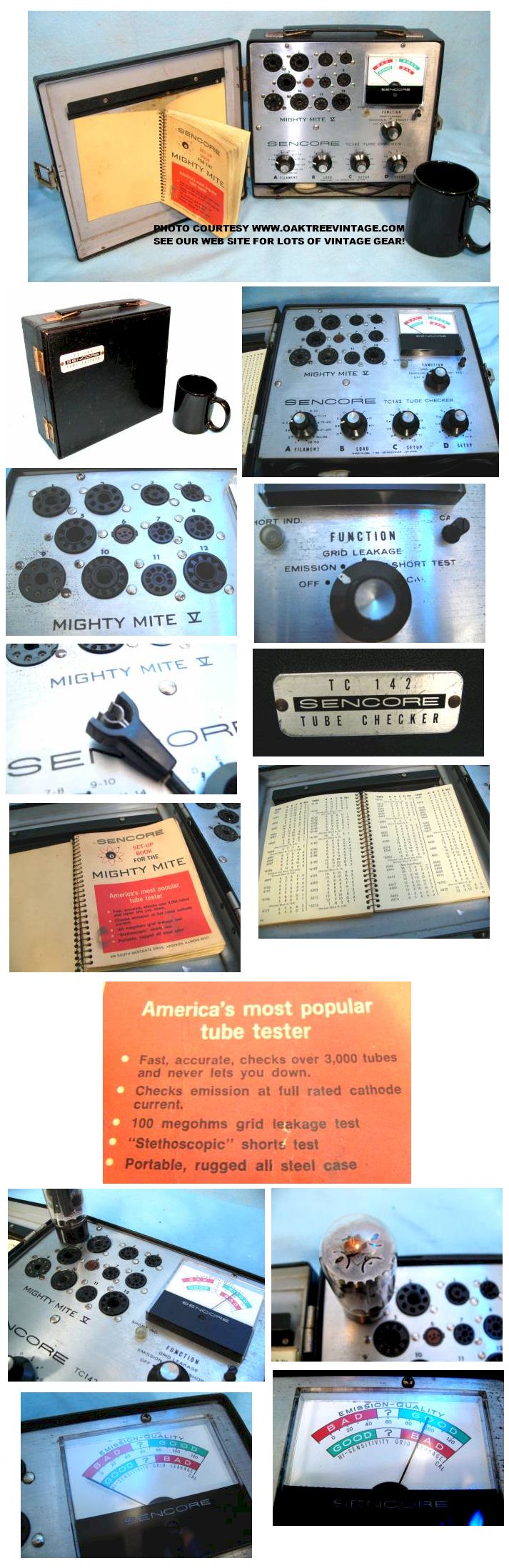

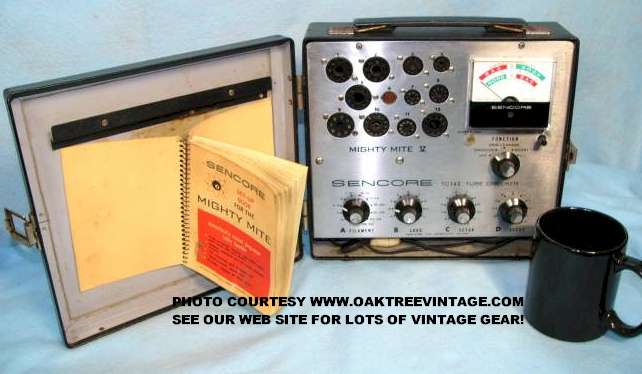

SENCOR
TC142 TC-142
TUBE TESTER / CHECKER
SOLD 4/21/04
This compact Sencor TC-142
will test most audio, radio &
TV tubes. Good
for simple, easy, and quick tests.
All components checked including the units' internal RCA 12AU7 tube. All
switches cleaned. Comes with original & complete operators manual / tube chart. Tested sample tubes
5Y3, 12AX7 and 6L6 consistent with our calibrated shop B&K 747B. Unit
in usable shape with surface corrosion on face and chrome case parts.
Measures 10.5" x 10.5" x 4.25" and weighs 8 lbs unpacked.
COND. 7
$139.
SOLD 4/21/04
|
|
NEW
LISTING 3/16/06
(Click on above thumbnails to enlarge photos)
SIMPSON
360
MULTI-METER
Circa 1963
SOLD 4/7/06
|
SUPERIOR
POWER-STAT
TYPE 136B
VARI-AC / DIMMER
SOLD
|
(Click on above thumbnails to
enlarge photos)

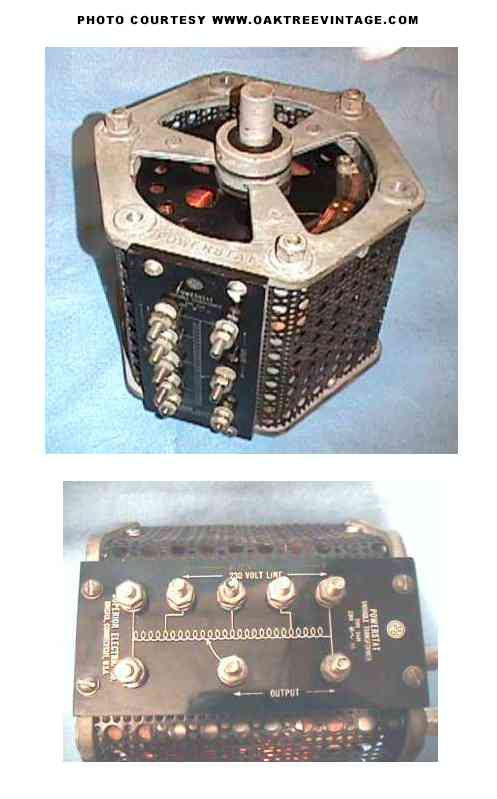

SUPERIOR ELECTRIC CO.
MODEL S649
"POWERSTAT"
VARIAC
Accepts 110 or 220 AC volts
input. 9 amp capacity. 10-140 volts output with 110 volts input. Great for
general bench work, reforming and breaking in filter caps, troubleshooting
tube amps by lowering or increasing their voltage, or dimming lighting. Also
could be used to run a tube amp "brown" if you so desire. Very
heavy duty, older USA made unit. Much more durable than most of the import
units. Very well ventilated. Can be mounted to a panel from the inside, or
left free-standing. Output bolts are 1/4". Shaft should have knob
installed. It's diameter is 3/4", and it protrudes 1 1/4" from the
front. Unit diameter is 8" at it's widest point, and 7" tall not
counting the shaft. The variac weighs 26 lbs.
Warning:
Due to high potential AC current and voltage, Vari-AC's are very dangerous
for the untrained user. Only for use by qualified technicians!
COND. 8.5
$129.
As-Is
SOLD 10/18/09
|
SYLVANIA
MODEL 220
TUBE TESTER
CIRCA 50'S-60'S
CHECKED ALL INTERNAL COMPONENTS. CLEANED CONTACTS, POTS, AND SOCKETS. INSTALLED NEW METER
LAMPS. CHECKED 7 REFERANCE TUBES ( 5U4, 6L6, 6V6, 12AX7, 35W4, 6SJ7, & 50L6)
SATISFACTORILY. METAL CASE AND LID HAVE NO DENTS, OR RUST. SOME "CHEMICAL BURN"
FROM OUT-GASSING OF RUBBER INSULATION ON AC CORD ON FACE NEAR TUBE CHART WINDOWS, AND LID.
VISIBLE AS YELLOWED AREAS. ABBREVIATED INSTRUCTIONS SILK-SCREENED ON LID. TUBE CHART INTACT
AND ROLLS SMOOTH. NO MISSING KNOBS. ALL SWITCHES FUNCTION PROPERLY.
COND. 8.0
SOLD
|
(Click on above thumbnails to enlarge photos)

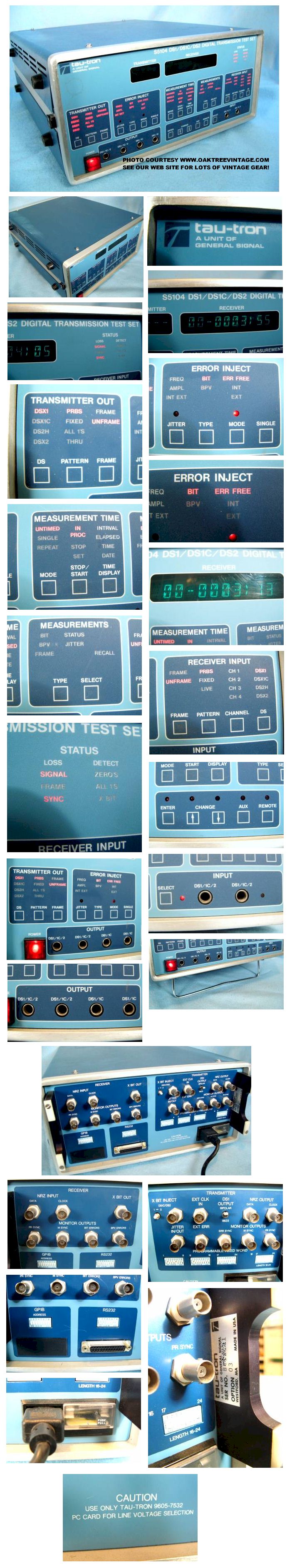

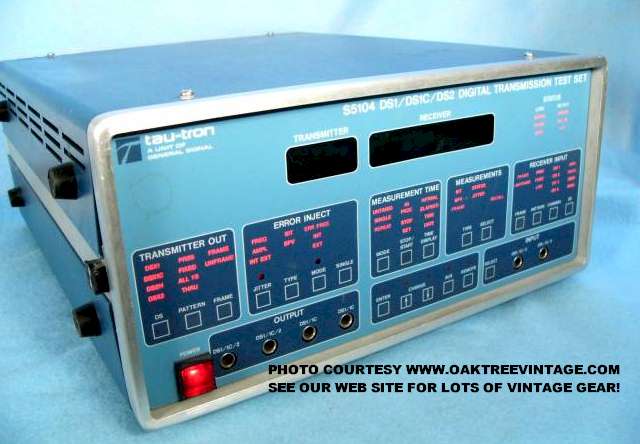

TAU-TRON
S5104
DIGITAL
TRANSMISSION TEST SET
SOLD 3/9/07
I know a little about a lot of different stuff
and a lot about a few things, but virtually nothing about Transmission
Test Sets. We have had a couple in the past that have sold, but that's all
I know. Unit fires up and does respond to it's switches. The last
one we had could do a "self-test", but I don't know how to
engage a test with this unit. According to some other info on the web it's
used for testing digital radio, fiber-optic and T-carrier systems
including multi-plexers, switches and lines. Has GPIB and RS 232 outputs.?
Sorry no manual with it. Measures 13.5" wide x 17.5" deep x
7" tall (with stand folded in) and weighs 20 lbs unpacked. AC cord
included.
Selling As-Is
Cosmetic Cond. 8.5
$159.
SOLD 3/9/07
|
(Click on above thumbnails to enlarge photos)
TEAC TASCAM
TO-122A TEST TONE OSCILLATOR
for sale
Also great for injecting signal into amps and mixing board!
I used these Teac TO-122A Test Tone generators for years in the field as a
Tascam dealer. I always had one in my tool box for testing Pro-Audio sound
systems in clubs and churches. I used them to detect signal paths and look
for anomalies in room acoustics at different frequencies. They're also great
for setting levels on input gains and for leveling power meters. They have
many other uses as well. Small package runs off a standard 9-volt battery.
Fixed 1/4" out. Frequencies are selectable 40Hz, 400Hz, 1kHz, 4kHz, 10kHz
and 15kHz. Levels are selectable between -10 or -40dB. Unit works perfectly
and looks great. LED to show power on. Easy 2-screw battery change if you
accidentally leave it on or just need to change the battery. Unit is small
enough to fit in your tool box measuring only 3 1/8" wide x 2.5" deep x 1.5
tall. These are no longer available from Teac new.
Teac TO-122A
SOLD
|
warranty
TENMA
72-320
Dual Trace / 20 Mhz Oscilloscope.
HOLD FOR SHOP USE |
Tetronix
551 / 555
O-Scope
SOLD
|
NEW LISTING 8/4/11
(Click on above thumbnails to enlarge photos)
warranty
VINTAGE / ORIGINAL
TRIPLETT
630-PL MULTI-METER
MILLIAMMETER
ANALOG 'VOM'
Circa 1963
SOLD 11/22/11
Unit in 'Like New', unused or virtually
unused condition. True 'Museum' quality find.
We see these and Simpson 260's all the time, but almost always pass them up
as the meter needle will have sluggish to very sluggish movement (and are
not very serviceable if that is the case). This is one of about 30 we have
come across that has no 'sluggishness' to the needle movement (good
question to ask when you're looking at a 'cheaper' one on an online auction).
No
cracks in window or rust. All original knobs.
Meter & Scale: 50uA
taut-band movement. 4.5" mirrored scale. Temperature compensation. All range
polarity-reversing switch. Slide switch for range doubling.
Overload Protection : Meter movement is semi-conductor (diode) network
protected. 12AMP/250V fuse protects the 12 Amp range. 1.25 Amp/250 Volt fuse
protects other ranges.
Features:
- Single
range switch to help reduce chance of operator error
- Diode overload protection and 2 fuse arrangement
- Mirrored scale to reduce parallax error
- Decibel function for audio work
- All ranges are fuse protected
- 'Thermoset' plastic case
- Ranges and Functions
- Glass meter window for added chemical resistance
- Two input jacks to help minimize error
- AC Voltage frequency response to 40KHz typical
- Resistance measurement of 30V / 100M on Rx100K range for testing
insulation
Specifications / Specs:
DC Voltage Ranges: 0-0.25 (10,000 Ohms/Volt, 0-2.5, 10, 50, 250, 1000
(20,000 Ohms/Volt) Accuracy: ± 1.5% of Full Scale
AC Voltage Ranges: 0-3, 10, 50, 250, 1000 Accuracy: ± 3% of Full
Scale
Sensitivity: 5,000 Ohms/Volt
DC Current Ranges: 100uA, 10mA, 100mA, 1A, 10A
Accuracy: ± 1.5% of Full Scale
Max. Voltage Drop: 500mV
Decibels: -20dBm to +49dBm (0dBm at 1mW on a 600 Ohms line)
Resistance Ranges: 0-1K Ohms, 10K Ohms, 1M Ohms, 100M Ohms
Center scale: 4.4 Ohms on lowest range
Accuracy: ± 1.5% of Scale Length
AC Output Ranges: 1.5, 6, 30, 150 (10,000 Ohms/Volt, 3, 12, 60, 300
(5,000 Ohms/Volt)
Comes with original,
un-used (still wrapped) probes. Original leather handle
and case in excellent, almost
new condition.
Includes a copy of the owners / users manual.
Attention, you will need special batteries to utilize this meter and they
are not included, nor do we have access to them. We tested it with our bench
power supplies. The required batteries are: B1 = 1.5v 'Burgess' No. 2 or
equivalent
(you can use a standard 'D' cell for this one)
and B2= 30V Burgess, U20E or Eveready 413 for the '100,000 Ohm' range.
Includes our standard 30 day warranty
for test gear (excluding blowing it up by
injecting voltage when in Ohms position or similar).
Measures
7.75" tall x
5.5" wide and
3.5"
deep and weighs ~5 lbs.
Cond. 10
$189.
SOLD 11/22/11
|
|
