USED / VINTAGE SPEAKER PARTS / SPARES / COMPONENTS / DRIVERS.
REFERENCE / DATA BASE




 Used / Vintage stereo replacement speaker parts / spares / speakers, drivers, woofers, tweeters, mids, cross overs / crossovers for reference and occasional sale if available. Audio-Select, ACOUSTIC 'STUDIO MONITOR / Acoustic Image 12.3 ' (white van speaker scam guys) 3311 Avid 100 speaker parts, Celestion-Rolla-Ditton, Criterion-Lafayette, Focal, Frazier, Innovative Sound Systems ISS, JVC Tweeters, Subwoofer, KEF woofers, tweeters, mids, midranges, KLH, M&K, Miller & kreisel MX-90, MX90 powered subwoofer parts / spares, Marantz Imperial IV, HD-55, HD77, HD-550, HD600, HD660, HD770, HD880, SX9, Marantz woofers, tweeters, mids, midranges, Nokia speakers, Olson S-970, Paradigm, Peerless, Polydax, PSB 1000, RTR, Utah Celesta C12PC-3 Coaxial, Scan-Speak, SEAS speakers, Sound Craftsmen 2640TX DUPLEX speaker parts. Parts / spares, woofers drivers tweeters grills and cabinets. Data Base info, specifications / specs, reference and occasional sale. Specifications / specs may include maximum power in watts, DCR / Ohms / Impedance, Frequency Response, details of construction and other valuable info.















































*Note about parts / spares sales

* Our "parts units", parts / spares and related reference information are primarily archived for the purpose of restoration / repair of "Oak Tree Vintage" units first. Only if we do not have a "viable" unit in yet, either already in process or in line to be processed, that may potentially need parts from a "parts unit", will we release available parts for sale (even though they may appear as available for sale to the public). As many of you know, the restoration of a unit can be a long, time consuming process. We may "lock up" parts that we may potentially need in the restoration of a unit (and not necessarily get it marked 'Hold' or 'Sold' on the site right away). Parts are priced according to the "potential value" of the unit they can be applicable to (meaning the amount WE would be willing to pay for the part if that was all that was standing between us having a "shelved unit" or a valuable / sellable unit), time to extract, their rarity & their condition to name a few criteria and likely will be completely unrelated to the original cost / price of a part when it was currently available from the manufacturer.

Parts Photos; We get a number of requests for 'photos' of a specific part. Unfortunately, in most cases that is not practical as the amount of time involved in posting that exceeds the value of the 'unique' part. We will sometimes post photos of less 'unique' parts, if there is a greater chance of them being available in multiple quantities, or on a more 'repeat' basis.

Shipping: Shipping on most 'small' parts if typically via Postal first class or Postal Priority for both domestic (USA) and international orders. Larger parts such as transformers and drivers (speakers) are typically via FedEx gnd.
Some parts sales such as those for empty 'speaker cabinets', empty 'component cabinets / covers / bonnets' and 'speaker grills' are 'doomed' from the start. Due to their size and required packing supplies, the cost of 'packing for safe transit' and shipping are typically nearly equal to and sometimes greater than the cost of the part.  Think about it. An empty speaker cabinet or stereo receiver case is essentially the same size as a complete one. Yes the weight will be less, but most of items that size are calculated on 'dimensional weight', not actual weight. Secondly empty component cabinets have to be packed to disallow breakage, typically requiring nearly as much packing materials as an entire unit. Speaker grills have to be 'sandwiched' between foam sheets in large, custom ordered boxes (all relatively expensive).  It is what it is....

A non-response to an email request for a part (we may appear to have), likely means that we are still determining which parts we are going to need for the restoration or repair of one of our units. Again, the parts are first for the restoration of our units and secondarily for the public market. Since we list the parts available for ourselves, it is not much effort to modify the menu's for web publication, which in turn makes the reference information and occasionally the part available to the public. Frankly, publishing them to the web, in many instances, makes it easier for us to determine if we have the part for our needs as well. The alternative to all of the above would be to not offer them at all to the public, however most parts are available to the public for sale.
BOTTOM LINE IS; IF YOU DON'T SEE IT AVAILABLE FOR SALE, WE DON'T HAVE IT!
 Thank you for your understanding.




20% off sale on salvage speaker parts.


See sales banners on parts pages for details







Most of these components are "take-outs" from working speaker cabinets and unless otherwise noted are in perfect shape!
   Where necessary foam surrounds have been replaced and / or speaker has been professionally and correctly re-coned!




































MANUFACTURERS INDEX OF OUR PARTS INVENTORY:
(Choosing a brand link will take you to our most current page for that brand)

ADS

ADVENT

ALTEC

American Acoustics Labs / AAL

AR (Acoustic Research)

ATLAS-SOUNDOLIER

B&O (Bang & Olufsen)

B&W

BIC

BOSE

BOSTON ACOUSTICS

CANTON

CERWIN VEGA

DBX

DYNACO

EMPIRE

EPI / EPICURE

ESS


EV / ELECTRO-VOICE

FISHER

INFINITY

JAMO

JBL

JENSEN

KENWOOD

KEVEK

KLIPSCH

LAFAYETTE

MISSION

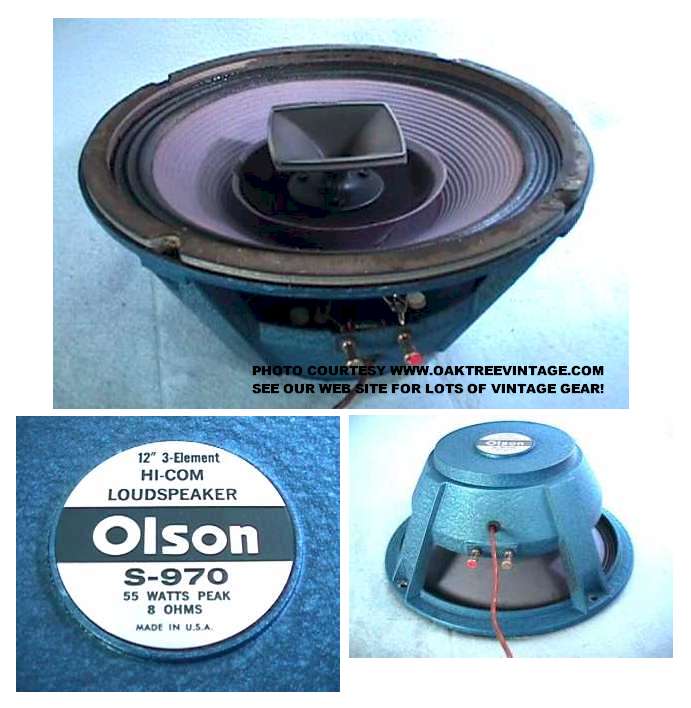

OLSON

PHILIPS

PIONEER

POLK AUDIO

REALISTIC

RENKUS-HEINZ

SANSUI

SNELL ACOUSTICS

SONY

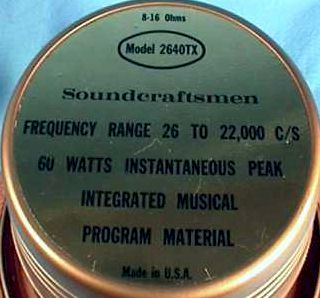

SOUNDCRAFTSMEN

TECHNICS

TELEFUNKEN

WHARFEDALE

YAMAHA

WESTERN ELECTRIC






  OTHER BRANDS NOT IN ABOVE LIST MAY BE SHOWN BELOW....




"What's the difference between a 'woofer' and a 'subwoofer'?

The following is applicable primarily to '2-channel-home audio' applications.

Over the past couple of years, we have been getting an increasing volume of calls for 'replacement subwoofers' for folks speakers from the 1970s and 1980's. Generally speaking those aren't 'sub woofers', but 'woofers', and there IS a difference, both typically in 'driver design' and certainly how the driver (speaker) is implemented. Subwoofers did not become prevalent in 'mainstream' audio until about the late 1980's. (Yes there were subwoofers prior to that, but fairly uncommon in the 'mainstream / mass market', and were primarily used in the 'mobile audio' [car stereo] market and yes, I know there were subwoofers built by JBL, a/d/s, Cerwin Vega and others for the 'home audio' market, and there were 'subs' in 'pro-audio' / PA systems throughout the 1970's, but again, I'm talking 'main stream / mass market-home audio'.)
Which brings us to the questions, "What's the difference between a woofer and a subwoofer?" or "Are these 'Woofers' or 'Subwoofers'? Generally speaking a 'sub-woofer' handles the frequencies below what a woofer can do adequately and will reproduce those frequencies with more force. Depending on the design of a speaker system, the low-end drivers' (woofer) range of required frequencies can extend from as high as 2500Hz (2.5kHz) down to as low as 20Hz, although most larger units bottom out realistically at around 30 or 40Hz and some smaller speakers may only go, practically speaking, down to 60, 80 or even 100Hz. The 'sub' part of 'subwoofer, means that it extends the range of frequencies a system can reproduce down to the lower limits of the subwoofer which can be in the 30Hz, 20Hz or even lower. Theoretically, the 'best' human hears have a range of 20Hz (lowest lows) to 20kHz (highest highs), but even if you can't 'hear' the bass, you can still 'feel' bass down to 1 cycle. Yes, 1 cycle. If someone punches you in the arm, you may not hear the motion of their hand, but you will certainly feel it's 'excursion limits'. That’s '1 cycle'! Practically speaking most subwoofers, reproduce a range of about 120Hz down to 30Hz or 20Hz. So if you have a speaker that already has a frequency response that goes down to 20Hz or even 30Hz, why do you need a subwoofer. Well, in my opinion, for standard 2-channel audio, with quality speakers and a quality amplifier, you don't!  However, I can't deny that a subwoofer has its place and in many situations is even desirable. So given that your existing speakers may already go down to a very low frequency response, their woofers are likely also being required to reproduce much higher frequencies, at the same time. The more frequencies a driver (speaker) is asked to reproduce at a single moment, the less efficient it will become at each of those tasks. If a 'subwoofer' is introduced, it can take over the task of reproducing the lower range of the woofers' frequencies and do a better job of it. Secondly, since the lowest frequencies of music / program material demand the most power, many subwoofers are 'self powered' meaning that they have a separate power amp, built-in to reproduce only the lowest, most power consuming frequencies. The powered subwoofers generally also have a 'cut-off' / 'roll-off' / crossover point selector to adjust from maybe 200Hz down to maybe 40Hz (I usually choose something between 120Hz and more likely around 80Hz, adjusting until the vocals disappear from the subwoofer. Maybe not scientific, but has worked for the few hundred systems I've dealt with over the years, from home, car to 'pro-audio').
A side note on using a subwoofer; a 'high pass' filter is a good thing to add to your main speakers if you are using a subwoofer, so that they are not 'wasting' the power from their amplifier trying to duplicate the frequencies that the subwoofer is now covering. This will 'pass' all the frequencies above your subwoofer to your main speakers.
Back to the original question, "What is the difference between a subwoofer and a woofer", technically there may not be any difference. It may be more how a driver (woofer speaker) is utilized. A normal woofer, crossed over for lower frequencies, and installed in a separate cabinet, may be classified as a 'subwoofer' but for the most part, subwoofers are generally going to be designed specifically to only go to maybe 200Hz, 250Hz or as high as 400Hz, and will typically be constructed of 'heavier duty' materials and design.
Bottom line is, when you're calling for a replacement woofer for your vintage 1960's, 1970's or 1980's Sansui, Pioneer, Marantz, AR, Boston, Cerwin Vega, Yamaha,….etc, speakers, don't call them 'subwoofers' cause' they probably ain't.  If you get me, I will drill down and figure out that you really need woofers and not subwoofers, but you may get someone on the phone at another parts shop, whose qualifying questions at the place he worked last week was, "do you want fries with that" and sell you subwoofer drivers when you really needed woofers.





Most of these components are "take-outs" from working speaker cabinets and unless otherwise noted are in perfect shape! Where necessary foam surrounds have been replaced and / or speaker has been professionally and correctly re-coned! Input panels may or may not include any applicable, original tweeter protection fuse holders / caps.






AUDIO SELECT™ MODEL 100 SPEAKERS PARTS / SPARES



HUGE 21" WOOFER / SUBWOOFER

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS Ohms USED
  /
  NEW
QUANTITY PRICE NOTES





AUDIO SELECT™

AUDIO SELECT™

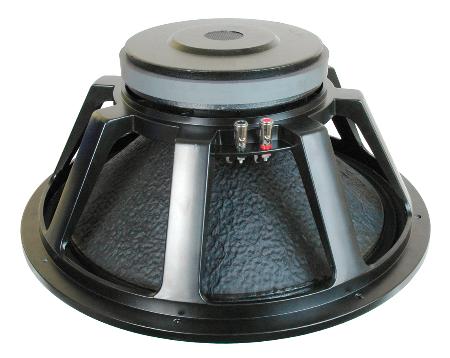

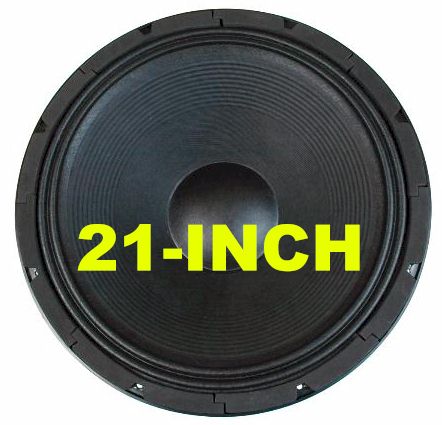

21" WOOFER / 21" SUBWOOFER
mcm electronics
Woofers / Woofer OTMCM-55-2985 21"


800 Watts RMS / 1600 Watts Peak 8 Ohms NEW
SP.
ORD.
N/A MSRP;
$299.00

Your Price
$165. ea
21" Woofer / Subwoofer. Ideal for Sound Reinforcement / PA system / Bass Amplifier / Keyboard Amplifier / Musical Instrument use. Rigid die cast frame
Treated paper cone,
treated cloth accordion surround, 4" VC.
 21" Audio Select Woofer / Subwoofer Specifications: 4" high temperature voice coil,  100oz. vented magnet, Sensitivity: 99dB (W/M),  Impedance: 8ohm,  DCR: 6.3ohm,  Frequency response: 25Hz~2.5KHz,  Fs: 25.9Hz,  Qts: 0.38,  Qes: 0.43,  Qms: 3.51,  Vas: 705.0 liters,  Xmax: 7.0mm,  Overall frame diameter: 21.26",  Required cutout: 19.69",  Mounting depth: 9.29"    pdf data sheet;  http://www.mcmelectronics.com/content/ProductData/Spec%20Sheets/55-2985.pdf

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS Ohms USED
  /
  NEW
QUANTITY PRICE NOTES





AUDIO SELECT™

AUDIO SELECT™

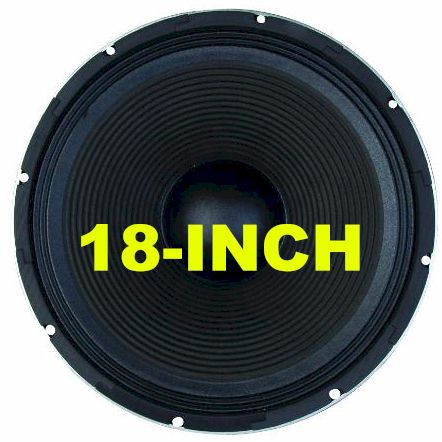

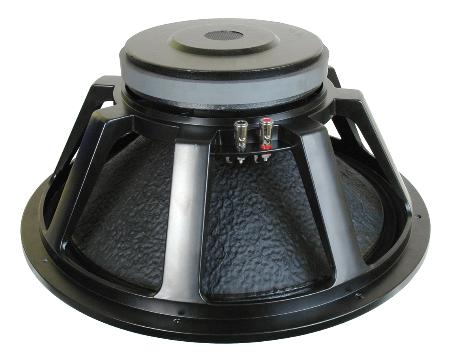

18" WOOFER / 18" SUBWOOFER
Woofers / Woofer OTMCM-55-2984 18"


700 Watts RMS / 1400 Watts Peak 8 Ohms NEW
SP.
ORD.
N/A MSRP;
$219.00

Your Price
$149. ea
18" Woofer / Subwoofer. Ideal for Sound Reinforcement / PA system / Bass Amplifier / Keyboard Amplifier / Musical Instrument use. Rigid die cast frame
Treated paper cone,
treated cloth accordion surround, 4" VC.
 18" Audio Select Woofer / Subwoofer Specifications: 4" high temperature voice coil,  100oz. vented magnet, Sensitivity: 99dB (W/M),  Impedance: 8ohm,  DCR: 6.3ohm,  Le: 1.60mH,  Frequency response: 30Hz~2.5KHz,  Fs: 27.1Hz,  Qts: 0.40,  Qes: 0.47,  Qms: 2.75,  Vas: 473.84 liters,  Xmax: 7.0mm,  Overall frame diameter: 18.5",  Required cutout: 16.93",  Mounting depth: 8.12"   pdf data sheet; http://www.mcmelectronics.com/content/ProductData/Spec%20Sheets/55-2984.pdf

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS Ohms USED
  /
  NEW
QUANTITY PRICE NOTES




AUDIO SELECT™

AUDIO SELECT™

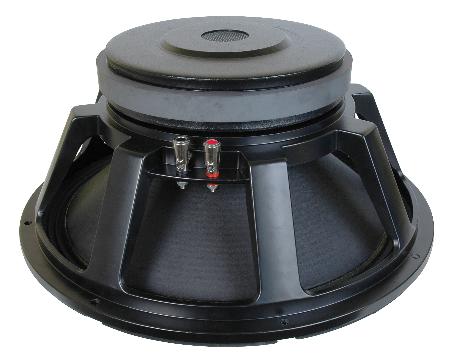

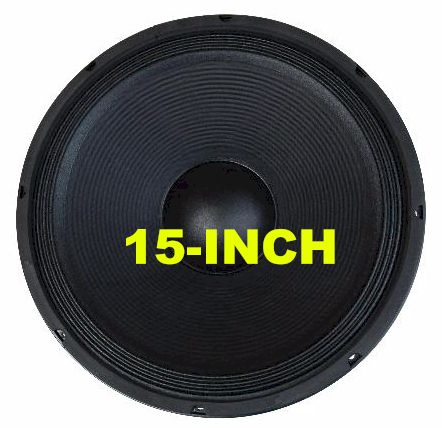

15" WOOFER / 15" SUBWOOFER
Woofers / Woofer OTMCM-55-2983 15"


500 Watts RMS / 1000 Watts Peak 8 Ohms NEW
SP.
ORD.
N/A MSRP;
$189.00

Your Price
$119. ea
15" Woofer / Subwoofer. Ideal for Sound Reinforcement / PA system / Bass Amplifier / Keyboard Amplifier / Musical Instrument use. Rigid die cast frame
Treated paper cone,
treated cloth accordion surround, 4" VC.
 15" Audio Select Woofer / Subwoofer Specifications: 4" high temperature voice coil,  100oz. vented magnet, Sensitivity: 98dB (W/M),  Impedance: 8ohm,  DCR: 6.5ohm,  Frequency response: 30Hz~2.5KHz,  Fs: 43.57Hz,  Qts: 0.46,  Qes: 0.55,  Qms: 2.89,  Vas: 127.52 liters,  Xmax: 7.0mm,  Overall frame diameter: 15.27",  Required cutout: 14.17",  Mounting depth: 6.73"    pdf data sheet; http://www.mcmelectronics.com/content/ProductData/Spec%20Sheets/55-2983.pdf

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS Ohms USED
  /
  NEW
QUANTITY PRICE NOTES





AUDIO SELECT™

AUDIO SELECT™

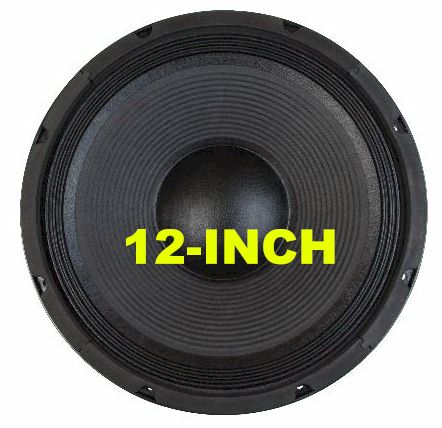

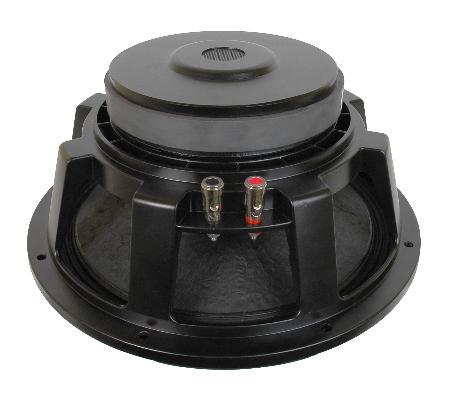

12" WOOFER / 12" SUBWOOFER
Woofers / Woofer OTMCM-55-2982 12"


350 Watts RMS / 700 Watts Peak 8 Ohms NEW
SP.
ORD.
N/A MSRP;
$119.00

Your Price
$99. ea
12" Woofer. Ideal for Sound Reinforcement / PA system / Monitor /  Bass Amplifier / Keyboard Amplifier / Musical Instrument use. Rigid die cast frame
Treated paper cone,
treated cloth accordion surround.
 12" Audio Select Woofer / Subwoofer Specifications: 2.5" high temperature voice coil,  67oz. vented magnet, Sensitivity: 96dB (W/M),  Impedance: 8ohm,  DCR: 6.3ohm,  Frequency response: 30Hz~3.2KHz,  Le: 1.20mH,  Fs: 36.2Hz,  Qts: 0.41,  Qes: 0.48,  Qms: 2.82,  Vas: 121.67 liters,  Xmax: 7.0mm,  Overall frame diameter: 12.28",  Required cutout: 11.1",  Mounting depth: 5.51"    pdf data sheet; http://www.mcmelectronics.com/content/ProductData/Spec%20Sheets/55-2982.pdf

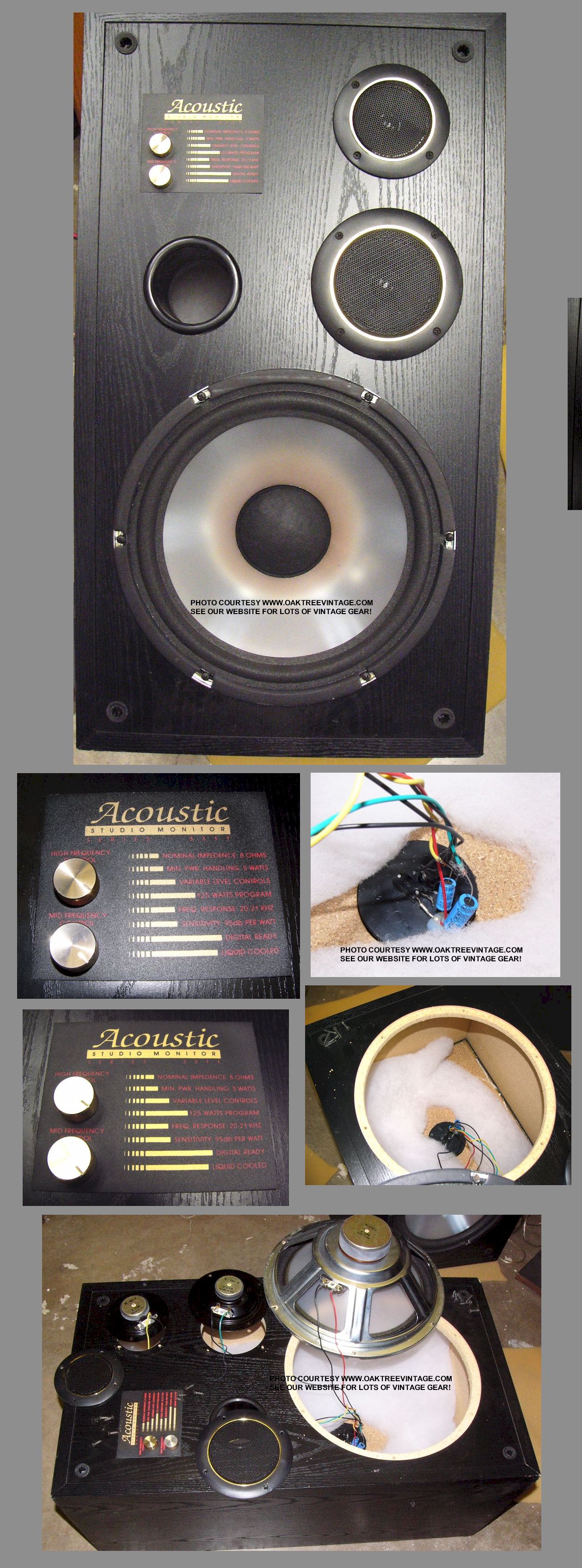

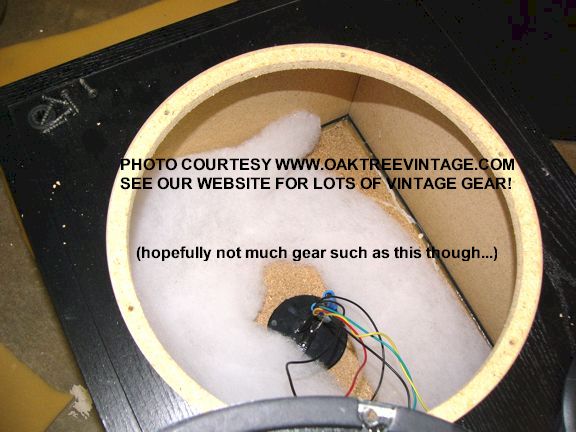

ACOUSTIC 3311 'STUDIO MONITOR' / Acoustic Image 12.3 ("Studio Monitor",..yeah,...right...NO, these are one of the famous 'white van speaker scam' models) SPEAKERS PARTS / SPARES


We purchased these speakers with the intent of 'picking them apart', not for parts necessarily, but to 'poke fun at them', which is now what I will do, but with a caveat* at the end.
These are the epitome of 'white van speakers'. What, you're not familiar with the term 'white van speakers', or 'white van speaker scam'?...While I haven't seen the 'scam' (ok, lets call it 'creative capitalism') for a while, I've experienced it in person a number of times years ago. It's a business model somewhat similar to the guy that drives around with a freezer in the back of his truck, and yells at you at a stop light, etc. something like, "hey, I've got a freezer full of steaks, and my boss says, "they gotta go", so I'm willing to make a deal on them!". Anyway, these guys would drive around (seemed like in what was almost always a 'white van'), and yell at you while stopped at a traffic light something like, "hey, I've got some '$650 or $1000 STUDIO MONITOR SPEAKERS, that I'm selling for only the crazy low price of $250' (or similar)". Now assuming the light was long enough for you to actually 'ponder' owning some supposedly really expensive speakers for a super low price (forgetting the whole 'traffic light marketing technique' thing) you would follow the 'white van' to the nearest parking lot and purchase these very low end speakers (I'm sorry, 'Studio Monitors') for what was still WAY TOO MUCH money. I could be wrong, but I don't think they were ever sold at any 'real' audio / stereo shops. Maybe a pawn shop with a 'jobber' catalog, or a pseudo audio dealer at the flea market etc.
They are a very simply constructed, 3-way speaker with a VERY anemic woofer, and the cheapest mids and tweeters. They don't really have a crossover, but just a couple of capacitors to keep the bass out of the midranges, and the midrange out of the tweeters. The woofer is ran at 'full range', which means that it gets the midrange and high frequencies as well as the bass material and the midrange gets the upper top end (OK, to be fair, there are some reasonably 'decent' speakers, albeit smaller ones typically, that utilize a similar design, primarily to save money, that don't sound bad, but it's typically a sign of a really 'cheeeeesy' speaker....and remember I previously said there's a 'caveat' at the end of this). The woofer frame is of some of the thinnest steel I've seen and I don't recall ever seeing a magnet / motor this small on a woofer of this supposed stature (yes, it's only ceramic and not of a material where 'small packs a punch'). There's one layer of 'spun poly' batting inside to dampen the cabinet. I suppose it's possible that a previous owner could have 'borrowed' some to stuff a pillow with, but it appears to be original. So $650...I could see these speaker retailing for $150-$250. Hey, nothing wrong with someone trying to make a buck, and if you purchased these and now think you were 'ripped off', then don't blame the guy in the white van that sold them to you. You should have known better, and you 'ripped off' yourself (Really,... at a traffic light,... you thought it was a good idea?...)

     *OK, now the 'caveat'. These speakers actually SOUND GOOD! In-fact, I will say that they sound 'all around good', and yes I am embarrassed to admit that. (so who am I to be so pretentious and so presumptuously expect my opinion to mean so much either negatively or positively. Oh, just poke around on the website and then see if you need to re-ask that). I gave them my normal barrage of testing without doing any of the stuff we normally do to restore / refurb a pair of speakers (I had every intention of 'completely ripping these speakers apart 'verbally' and likely throwing them away once I heard a track or two thru them, however...).
     I first ran some pink noise thru them to make sure all the drivers were functioning, then swept them with an AF generator from 3kHz down to 10Hz. All the drivers functioned (the attenuators had 'bad spots' in them, which is expected on EVERY speaker), but I positioned them near their uppermost limits on some 'functioning spots'. The AF sweep found no buzzes, fuzzes, farts or anything. First surprise.
     Next I went straight to one of the most difficult to produce bass notes we use, from TLC's; "Fan Mail" CD, "Scrub" cut at @ 1'25" & 1'35" and they actually performed it pretty well. Now, at this point, I had to start to accept that these speakers might not 'fall apart' sonically quite as quickly as I was expecting. Allison Kraus and Union Station's; "Baby, Now That I've Found You" (exhibits a large and natural sound stage with these speakers), Donald Fagens; "I.G.Y." was 'very solid and puncy', Van Halen's; "Drop Dead Legs" was 'huge and solid', Trapt's; "Headstrong" was a bit 'mushy', but Nickelbacks; "Never Again" ROCKED! Nickle Creeks; "When in Rome" from their "Why Should The Fire Die?" CD was 'open and punchy',  Most of our 'Sheffield Drive' was fabulous, numerous cuts from Michael Jackson's 'BAD' CD were 'punchy and solid and were handled with virtually no fatigue' (those are difficult cuts to reproduce well), Don Williams'; DDD version of "Country Boy" was 'open and natural', Jennifer Warne's "Famous Blue Raincoat" was 'reproduced perfectly fine', Calvin Hampton's; "The Wedding March" from "Digital Pipes, The Splendor of the Organ" a digital recording of a cathedral pipe organ, was 'HUGE and OPEN'. Brash symphonic / 'marching band' selections come thru very 'true to recording' and speakers exhibited great headroom capability. Choir music makes them sound about twice as tall as they are, meaning they have a huge 'sound stage'. We also listened to a few other cuts, all digitally recorded and some 'DDD'.
     They exhibited VERY good 'upper' power handling characteristics. They are able to handle "power" better MUCH than your average speaker. Not simply referring to
their wattage rating, but just the way they perform at higher power / volume levels without "falling apart" sonically. We 'stood' on them HARD with our test Hafler 500 watt power amp. At the same time, they were surprisingly efficient at lower volumes.
     So, bottom line...While I probably wouldn't pay $650 for a pair of these speakers (or purchase anything at a traffic light),  for a smaller amount of money, they are a pretty good sounding pair of speakers. We'll use them as 'front line' test speakers (meaning on a test bench, and if an amp 'takes them out', we won't be heartbroken, or we'll use them as another pair of warehouse speakers).

FYI. If you wanted to significantly improve these speakers, install a 'real' crossover network, and add much more 'dampening' material. Yes, they're still utilizing cheeeeeezy / inexpensive drivers, but again, they seem to actually function decently.





  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS Ohms USED
  /
  NEW
QUANTITY PRICE NOTES

Acoustic_3311_Stereo_Speakers_Acoustic-Studio-Monitor_3311_white-van-speaker-scam_speakers_collage.jpg


ACOUSTIC 'STUDIO MONITOR'

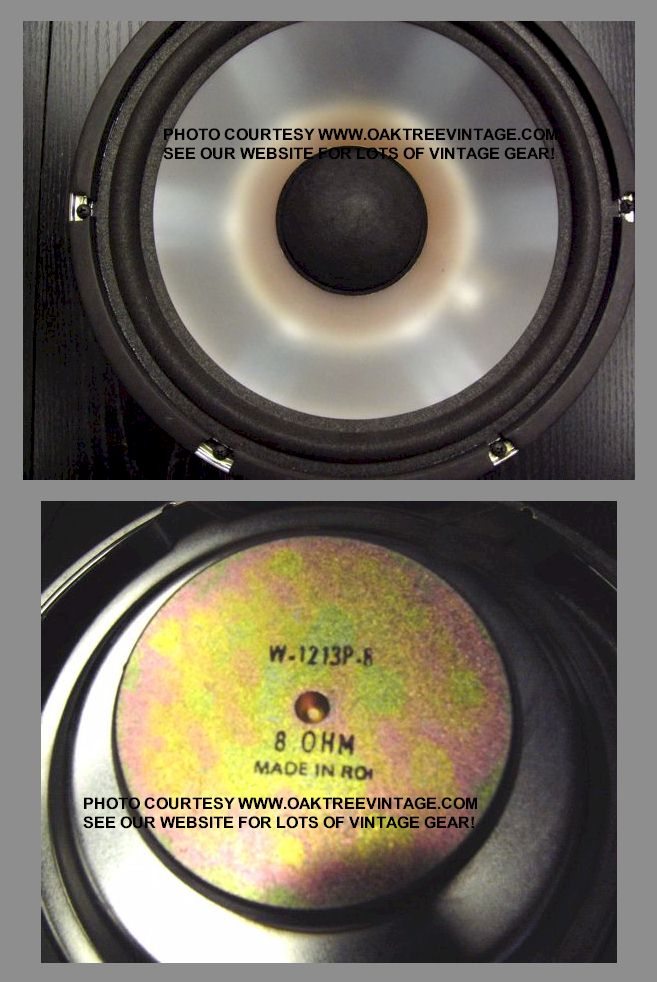

ACOUSTIC 'STUDIO MONITOR' 3311 ACOUSTIC 'STUDIO MONITOR' 3311 Woofers / Woofer ACOUSTIC 'STUDIO MONITOR' 3311 Woofers / Woofer
W-1213P-8
12" 125 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Stamped steel frame, VERY SMALL ceramic magnet, translucent poly cone, foam surround. Good Cond. Works.




ACOUSTIC 'STUDIO MONITOR'

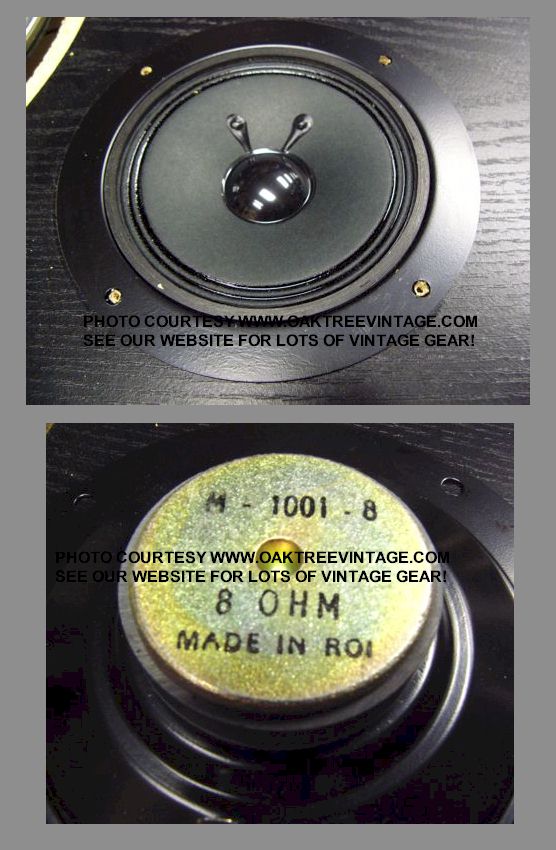

ACOUSTIC 'STUDIO MONITOR' 3311 ACOUSTIC 'STUDIO MONITOR' 3311 MIDRANGES / MIDS ACOUSTIC 'STUDIO MONITOR' 3311 M-1001-8 1.75"
Cone
- 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Sealed, stamped steel frame, ceramic magnet, Pulp cone, corrugated pulp surround. Good Cond. Works.



ACOUSTIC 'STUDIO MONITOR'

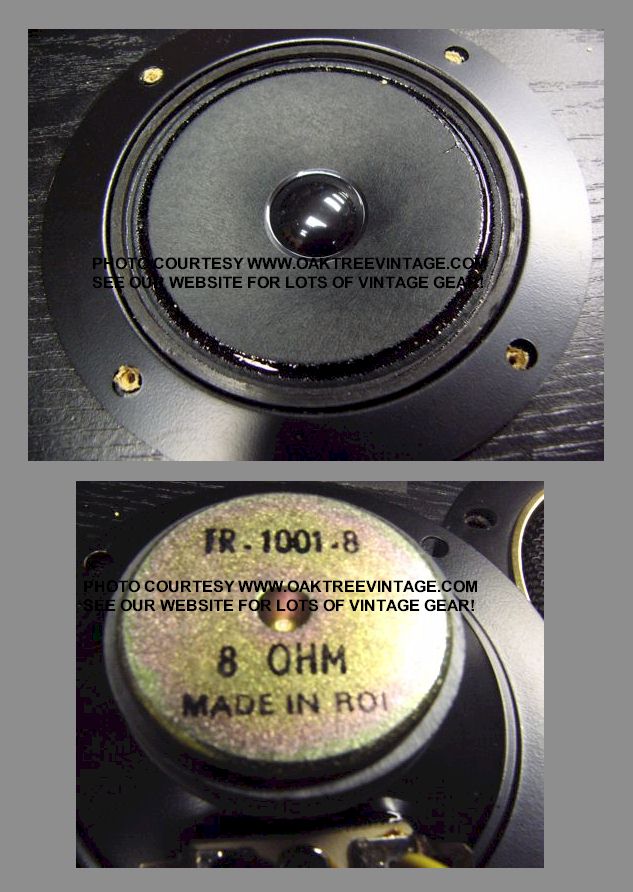

ACOUSTIC 'STUDIO MONITOR' 3311 ACOUSTIC 'STUDIO MONITOR' 3311 Tweeters / Tweeter ACOUSTIC 'STUDIO MONITOR' 3311 TWEETERS TR-1001-8 1.75"
Cone
- 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Good Cond. Works.



ACOUSTIC 'STUDIO MONITOR'

ACOUSTIC 'STUDIO MONITOR' 3311 ACOUSTIC 'STUDIO MONITOR' 3311 CROSSOVERS (or lack thereof) / INPUT PANELS - 18.5" x 10.25" Brown cloth. - U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

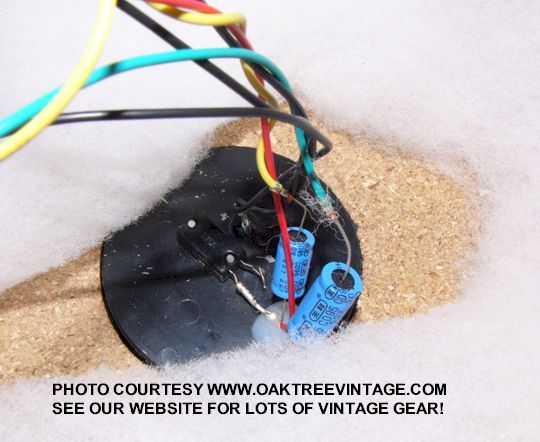

OK, these are NOT really what you would call a 'crossover / network'. There's just a couple of caps to filter the tweeters and mids and a tweeter protection relay. The woofer gets full range and the mid gets full 'top-end'. Functionally they are working as designed.
ACOUSTIC 'STUDIO MONITOR' ACOUSTIC 'STUDIO MONITOR' 3311 Grills / Screens / Front Covers - 18.5" x 10.25" Brown cloth. - U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Good Cond. w/ 'Avid' logo intact. Frame good w/ no breaks.


CELESTION SPEAKER PARTS / SPARES

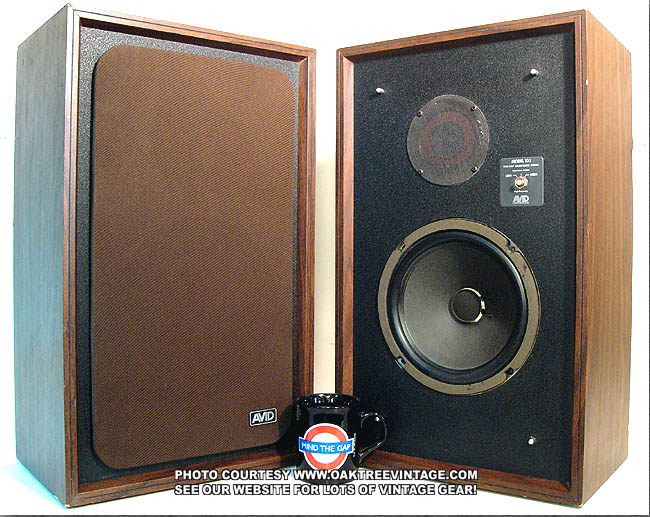

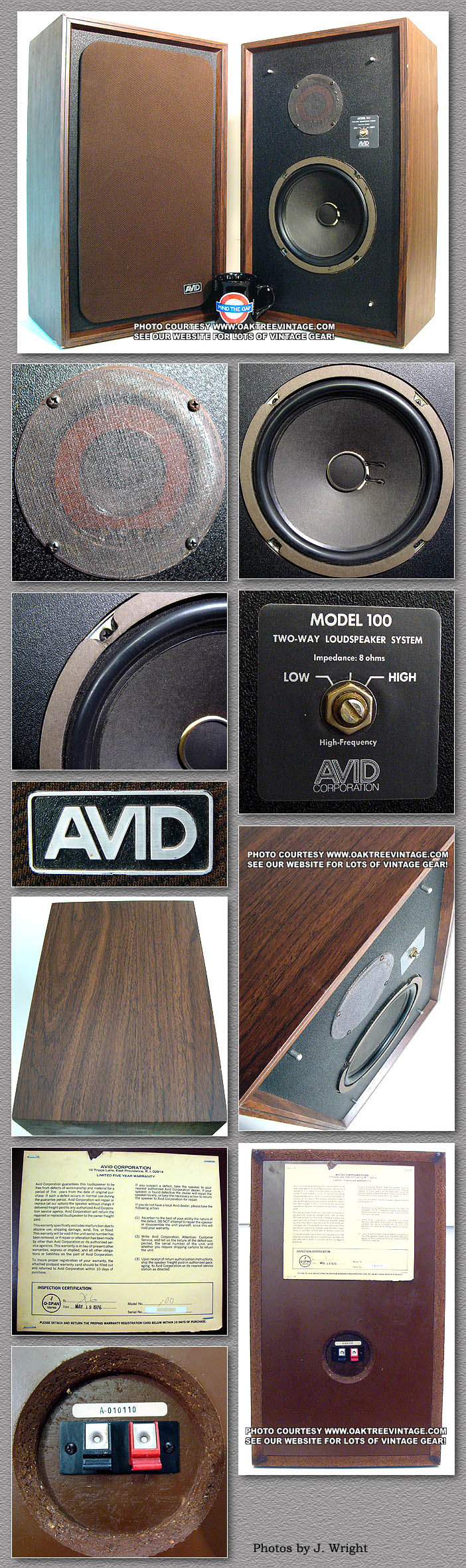

AVID MODEL 100 SPEAKERS PARTS / SPARES


  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS Ohms USED
  /
  NEW
QUANTITY PRICE NOTES



AVID

AVID MODEL 100 AVID MODEL 100 Woofers / Woofer DR11 9 137 7619 8" - 8 Ohms U 2 $45. ea Good Cond. Works. non-deteriorating Butyl surround.



AVID

AVID MODEL 100 AVID MODEL 100 Tweeters / Tweeter DR 120 197 76 1.75"
Cone
- 8 Ohms U 1 $35. ea Good Cond. Works.
AVID AVID MODEL 100 Grills / Screens / Front Covers - 18.5" x 10.25" Brown cloth. - U 2 $30. ea Good Cond. w/ 'Avid' logo intact. Frame good w/ no breaks.



CELESTION SPEAKER PARTS / SPARES


  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS Ohms USED
  /
  NEW
QUANTITY PRICE NOTES
CELESTION Celestion DL4 Celestion DL4 Woofer LX2 6.5" - - U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Butyl rubber surround. Ceramic Magnet. Stamped steel frame
CELESTION Celestion DL4 Celestion DL4 Tweeter LX1 1" Dome - - U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Huge Ceramic Magnet. Titanium dome?

CELESTION ROLA Celestion DITTON Tweeter Power Cell-20 Tweeter 'Bullet Tweeter' ~20 Watts 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Phase Plug
CELESTION ROLA Celestion DITTON 66 Tweeter Ditton 66 Tweeter ~1.5" Mylar Cone - DCR = 4.9 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
AlNiCo magnet.
CELESTION ROLA Celestion DITTON
240
Tweeter Ditton 240 Tweeter ~1" Dome - 8 Ohms
DCR = 6.5 Ohms
U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Ceramic magnet.

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS Ohms USED
  /
  NEW
QUANTITY PRICE NOTES
CREDENCE - Woofer TEX 8 / 1171281 8" - 8 Ohms
DCR = 5.2 Ohms
U 1 $35. ea Black Poly Cone, stamped steel frame, ceramic frame. Works, but missing dust cap. New / fresh foam surround installed.



CRITERION / LAFAYETTE CR-100B SPEAKER PARTS / SPARES


  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS Ohms USED
  /
  NEW
QUANTITY PRICE NOTES
CRITERION / LAFAYETTE CR100B Mid / Tweeters
W/ AlNiCo magnets. Sealed frame.
1K229 ~3" - 8 Ohms
DCR = 6.8Ω
U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
CRITERION / LAFAYETTE CR100B Tweeters
W/ AlNiCo magnets. Sealed frame.
- ~2" - 8 Ohms
DCR = 6.4Ω
U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
-






FOCAL SPEAKER PARTS / SPARES


  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS Ohms USED
  /
  NEW
QUANTITY PRICE NOTES
FOCAL FOCAL 165KRX2 FOCAL WOOFERS 165KRX2 6.5"
Down to 70Hz
100 Watts 4 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Butyl Rubber surround. Cast Frame. Ceramic Magnet.





FRAZIER SPEAKER PARTS / SPARES


  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS Ohms USED
  /
  NEW
QUANTITY PRICE NOTES



FRAZIER

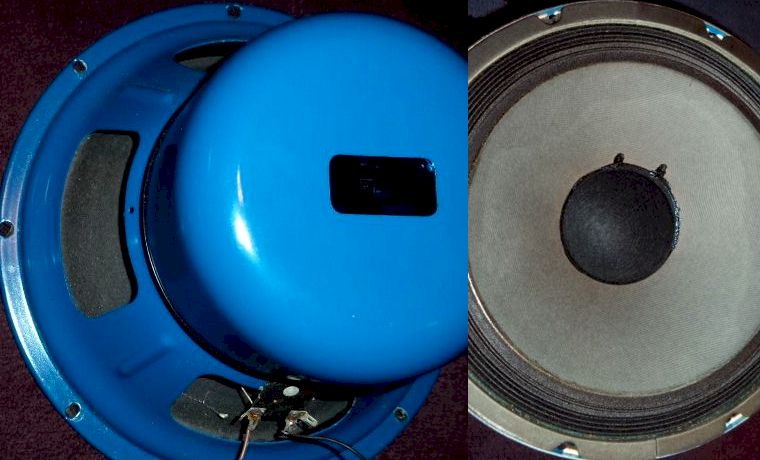

FRAZIER MARK V / 5 FRAZIER WOOFERS - 12" - 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Stamped steel frame, AlNiCo magnet, w/ bell cover, 'Blue' finish, Pulp cone. Circa 1963-76 (possibly).



FRAZIER

FRAZIER MARK VI / 6 / F-12-8? FRAZIER WOOFERS F-1270 12" ~30 Watts? 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Stamped steel frame, AlNiCo magnet, Pulp & 'ribbed' cone. Circa 1963-76 (possibly).

FRAZIER

- FRAZIER WOOFERS F-1028 10" - 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Stamped steel frame, Ceramic magnet, pulp cone, Blue finish, 'vented' dust cap, 'red' coated cloth suspension.



FRAZIER

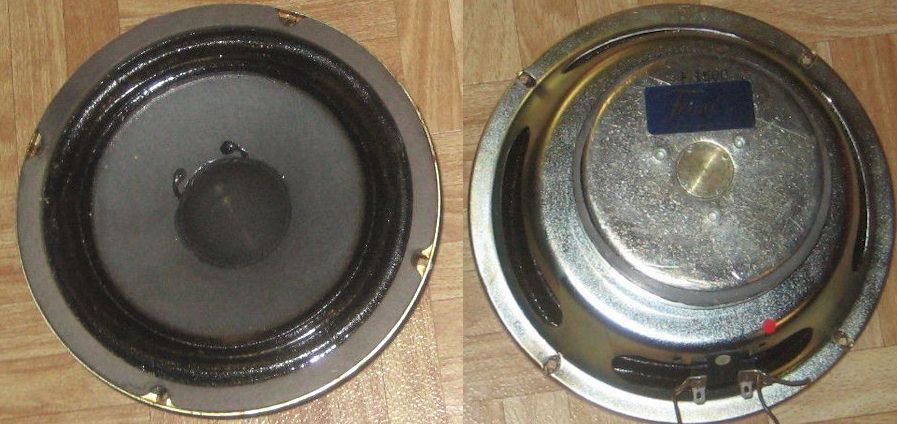

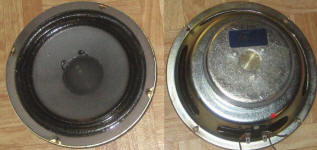

- FRAZIER WOOFERS F-1500 8" - 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Stamped steel frame, Ceramic magnet, pulp cone, 'vented' dust cap, coated cloth suspension.



FRAZIER

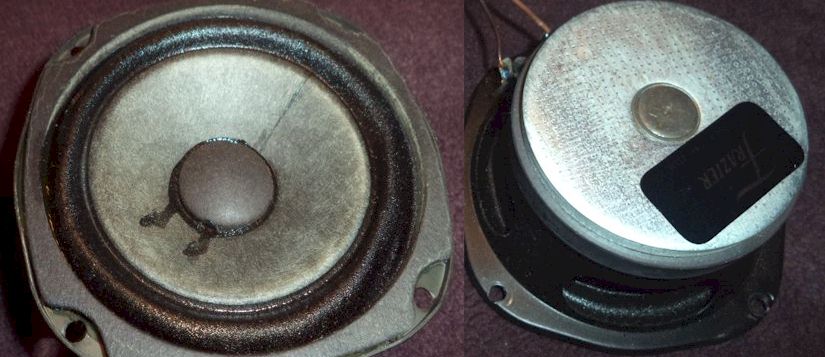

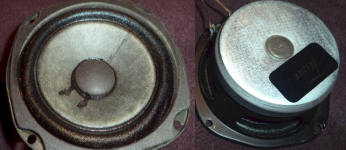

May fit F-6-80 FRAZIER Midrange F4-110? 4-4.5" - 8 Ohms
DCR = ~6.8-7
U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Stamped steel frame, Ceramic magnet, pulp cone, 'red' spider, coated cloth suspension.

FRAZIER

- FRAZIER 'Horn Tweeter' F-3X7 ~3" x 7" - 8 Ohms
DCR = ~6.8-7
U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Cast aluminum horn, ceramic magnet driver.

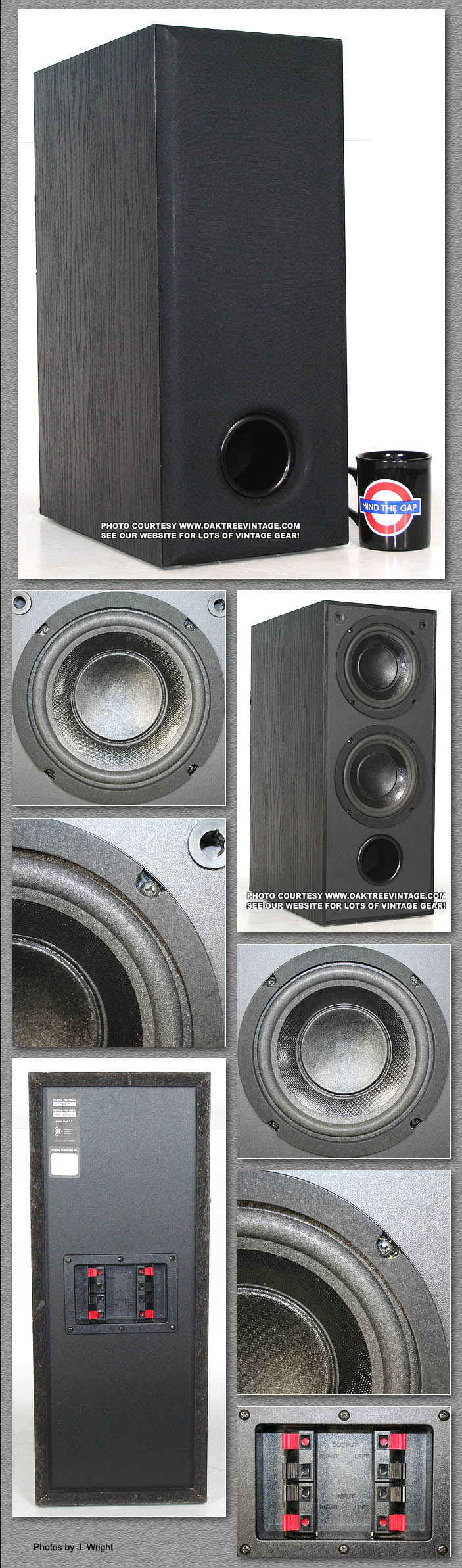

INNOVATIVE SOUND SYSTEMS ISS-707 SUBWOOFER PARTS / SPARES


  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS Ohms USED
  /
  NEW
QUANTITY PRICE NOTES



ISS INNOVATIVE SOUND SYSTEMS

ISS-707 SUBWOOFER Woofer CSX-6 6" - 8 Ohms
DCR = 7.1Ω
U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
-





JVC SPEAKER PARTS / SPARES


  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS Ohms USED
  /
  NEW
QUANTITY PRICE NOTES


JVC
-

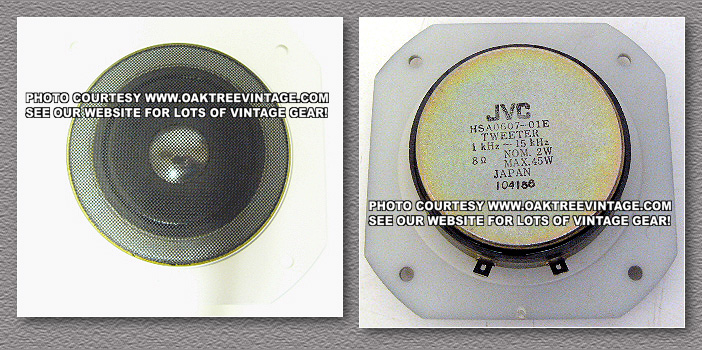

JVC Tweeter

JVC Tweeter
HSA0607-01E / 104156
4.25" 45 Watts 8 Ohms U 2 $25. ea Works


JVC
-

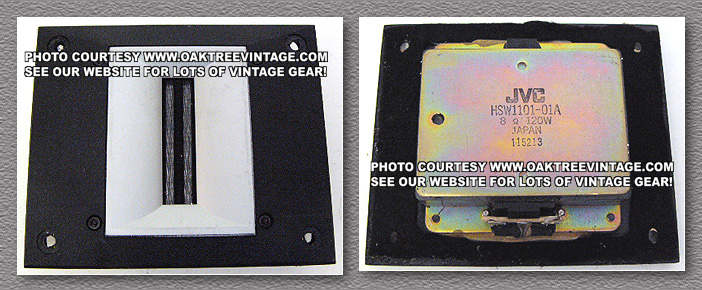

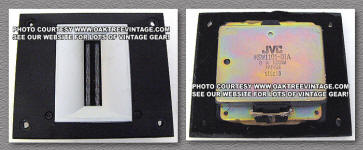

JVC Ribbon Tweeter

JVC Ribbon Tweeter
HSW1101-01A / 075133
4" 120 Watts 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
-



KEF SPEAKER PARTS / SPARES MADE IN ENGLAND


  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS Ohms USED
  /
  NEW
QUANTITY PRICE NOTES
KEF KEF C30

KEF C30 Woofer

KEF SP3058 8" 100 Watts 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Poly Cone. Butyl Rubber Surround. Ceramic Magnet, Stamped steel frame.
KEF KEF CODA

KEF CODA Woofer

KEF SP1092 8" ? 6 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Coated Paper Cone. Inverted Butyl Rubber Surround. Ceramic Magnet, Stamped steel frame.
KEF KEF CODA III

KEF CODA III Woofer

KEF B200Type SP1088 8" ? 6 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Paper Cone. Inverted Butyl Rubber Surround. Ceramic Magnet, Stamped steel frame.
KEF KEF 103/2

KEF 103/2 UNI-Q Woofer

KEF SP1309 B160 6.5" ? - U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
KEF KEF 105/3


KEF 105/3 Woofer

KEF B200-SP1256 8" ? 8 Ohms
DCR= 7.2
U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Paper cone. Stamped Steel frame. Ceramic Magnet. Foam surrounds. 3-Bolt mounting flange.
KEF KEF 105.4

KEF 105.4 Woofer

KEF B200-SP1076 8" ? ? Ohms
DCR=
??
U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Paper cone. Stamped Steel frame. Ceramic Magnet. Foam surrounds. 3-Bolt mounting flange.
KEF KEF 105.4

KEF 105.4 Midrange

KEF B110 midrange SP1057 4"? ? ? Ohms
DCR=
??
U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
KEF KEF 105.4

KEF 105.4 Tweeter

KEF T33 tweeter SP1074 1"? ? ? Ohms
DCR=
??
U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
KEF KEF 304/S2 series II

KEF 304/S2 series II Woofer

KEF SP1069 8" (or 10" ?) ? 16 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Paper cone. Stamped Steel frame. Ceramic Magnet. Butyl Rubber surrounds. 3-Bolt mounting flange.
KEF KEF PSW2150

KEF PSW2150 Woofer

KEF 2150 10" Drive unit Slot Port design 10 in. (250 mm)

Frequency range: 30 Hz - 140 Hz

Recommended Amplifier: 250 W

Maximum output (SPL): 110 dB
Internal volume: 40.4 litres
8 Ohms? U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Poly cone. Stamped Steel frame. Ceramic Magnet. Butyl Rubber surrounds.
KEF KEF TWEETERS  104/2

KEF TWEETERS  104/2 TWEETERS

KEF TYPE T33B SP1086? 1"   4 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Coated Fabric soft dome.
KEF KEF TWEETERS  T27

KEF TWEETERS  T27 TWEETERS

KEF TYPE SP1032 1"   8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Poly soft dome.
KEF KEF C30

KEF C30 TWEETERS

KEF TYPE SP1211 1" Mounting Plate 4-5/16" x 3-1/4" 6 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Coated fabric soft dome.
KEF KEF C80

KEF C80 TWEETERS

KEF T33 TYPE SP1210 1"   4 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Coated fabric soft dome.
KEF KEF Carina II, Coda III and or  Cresta III

KEF Carina II, Coda III and or  Cresta III  TWEETERS

KEF TYPE SP1087 / SP1088 1"   6 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Coated fabric soft dome.
KEF KEF Cantor III, Carina II, Chorale III, Coda III (some), Cresta III, and C10

KEF Cantor III, Carina II, Chorale III, Coda III (some), Cresta III, and C10 TWEETERS

KEF TYPE SP1089
(Made in Japan, Not England)
1"   6 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Coated fabric soft dome.
KEF KEF K120

KEF K120 TWEETERS

KEF TYPE SP1231
(Made in Japan, Not England)
1"   8 Ohms
DCR=6.1
U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Poly soft dome.
KEF KEF LS3/5A

KEF LS3/5A TWEETERS

KEF TYPE T27 SP1032 1"   8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
dome.
-



KLH SPEAKER PARTS / SPARES


  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS Ohms USED
  /
  NEW
QUANTITY PRICE NOTES
KLH KLH 610


KLH 610 Woofer

610 / 100W1201 4" 40 Watts 4 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Paper Cone. Foam Surround. Stamped steel frame.
KLH KLH 802

KLH 802 Woofer

802 / 114108 8" ? 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Poly Cone. Foam Surround. Stamped steel frame.
KLH KLH 862

KLH 862 Woofer

862 / 906A202; 248537O 6.5" ? 8 Ohms
DCR=6.4 Ohms
U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Poly Cone. Poly dust cap. Butyl Rubber Surround. Ceramic Magnet, Stamped steel frame.
KLH KLH 910B

KLH 910B Woofer

910B 10" ? 8 Ohms
DCR=5.5 Ohms
U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Coated, ribbed paper Cone. Poly dust cap. Foam Surround. Ceramic Magnet, Stamped steel frame.
KLH KLH AV33

KLH AV33 Woofer

AV33 / 114108T 8" 140 Watts 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Poly Cone. Foam Surround. AV shielded, Ceramic Magnet w/ 'bucking' magnet attached to rear, Stamped steel frame.
KLH KLH BARRON 355

KLH BARRON 355 Woofer

10-55725 10" ? 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Paper Cone. Foam Surround. Ceramic Magnet, Stamped steel frame.
KLH KLH BTF220

KLH BTF220 Woofer

BTF220
1148CT
6.5" ? 8 Ohms
DCR=4.8 Ohms
U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Poly Cone. Foam Surround. Ceramic Magnet, Stamped steel frame.
KLH KLH SIX

KLH SIX Woofer

SIX 10" ? 8 Ohms
DCR=5.5 Ohms
U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Coated Paper Cone. Inverted Surround. AlNiCo Magnet, Cast frame.
KLH KLH SIX (alternate version)

KLH SIX Woofer

SIX
(alternate version)
10"
driver mounting hole to hole= 10 ¼", driver flange= 10 ¾" diameter
? 8 Ohms
DCR=4.2
U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Coated Paper Cone. Inverted Surround. Ceramic Magnet, Stamped steel frame.
KLH

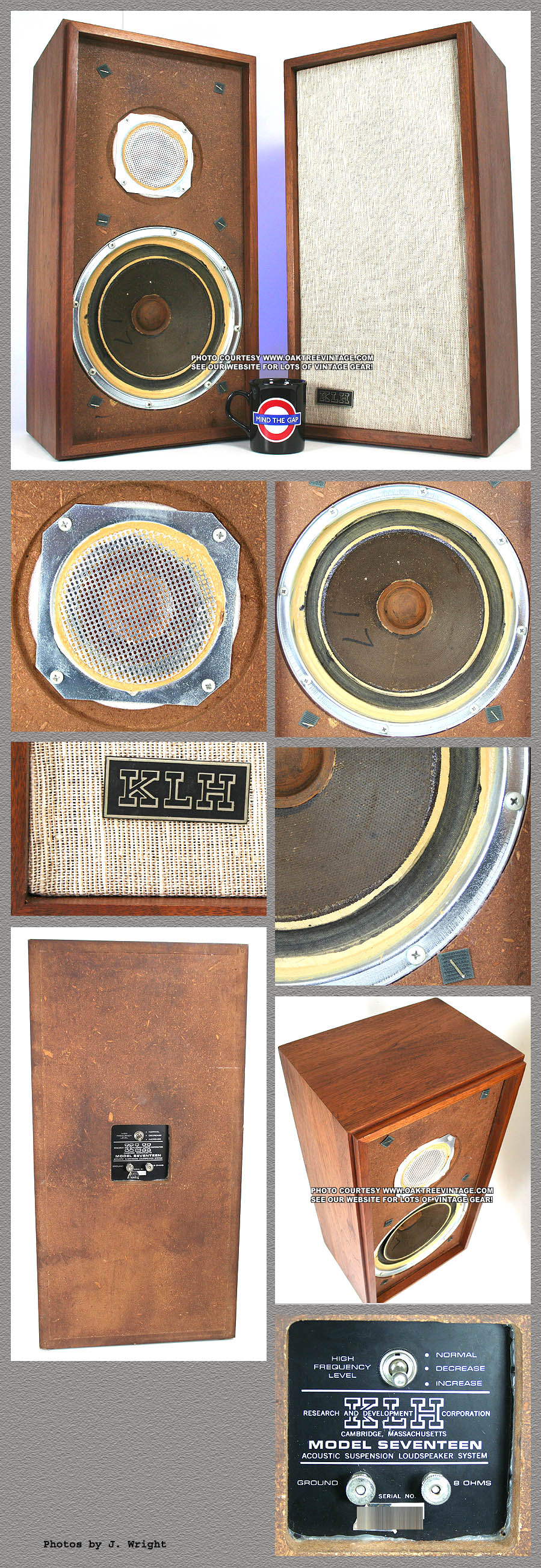

KLH SEVENTEEN
(may also fit KLH model 20)


KLH SEVENTEEN Woofer

SEVENTEEN 10"
Mounting hole to hole : 9 3/4" , flange-10 1/8" diameter
? 4 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Paper Cone. Inverted cloth surround. Ceramic Magnet, Stamped steel frame.
KLH KLH TWENTY
(may also fit KLH model Twenty-Three & 20)


KLH TWENTY Woofer

TWENTY 10" ? x U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Coated Paper Cone. Inverted cloth Surround. Ceramic Magnet, Stamped steel frame.
KLH KLH TWENTY-THREE
(may also fit KLH model Twenty-Three & 20)


KLH TWENTY-THREE Woofer

TWENTY-THREE 10"
Mounting hole to hole = 10 1/4" (flange = 10 3/4" diameter)
7.5 lbs
? DCR=4.3 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Coated Paper Cone. Inverted cloth Surround. Ceramic Magnet, Stamped steel frame.
KLH KLH TWENTY-FOUR

KLH TWENTY-FOUR Woofer

TWENTY-FOUR 8" ? DCR=5.3 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Coated Paper Cone. Inverted cloth Surround. Ceramic Magnet, Stamped steel frame.
-




MG SPEAKER PARTS SPEAKERS FOR SALE
  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS Ohms USED
  /
  NEW
QUANTITY PRICE NOTES
M&K
Miller & Kreisel
M&K
Miller & Kreisel
MX-90
M&K
Miller & Kreisel
MX-90
Powered Subwoofer Drivers
MKMX90-16x2R
12999
67-92190085 G5
12" Likely at least 125 watts, but probably much more 16 Ohms
DCR=7.1 Ohms
U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Coated paper. Stamped steel frame. Vented magnet. Butyl rubber surrounds.
M&K
Miller & Kreisel
M&K
Miller & Kreisel
Z-50
M&K
Miller & Kreisel
Z-50
Woofer
250MK
9708111
5.25" 50 Watts 4 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Poly Cone, Cast aluminum frame
MG SPEAKER PARTS SPEAKERS FOR SALE
  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS Ohms USED
  /
  NEW
QUANTITY PRICE NOTES

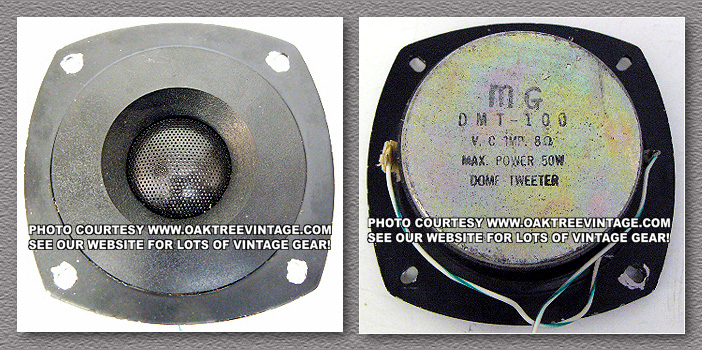

MG
TWEETER Dome
Tweeter
DMT-100 3.75" / Mag. 2.75" 50 Watts 8 Ohms U 6 $45. ea Works



MARANTZ 1230 'Prestige Series' SPEAKERS PARTS / SPARES


  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS Ohms USED
  /
  NEW
QUANTITY PRICE NOTES
MARANTZ MARANTZ 1230 'Prestige Series' MARANTZ
1230 'Prestige Series'
Woofers
841-1094-000A /
S90753
12" - - U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Ribbed paper cone. Stamped steel frame. Spade terminals. Foam surround. Ceramic Magnet
MARANTZ MARANTZ 1230 'Prestige Series' MARANTZ
1230 'Prestige Series'
Midranges
841-1095-000 4" - - U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Ribbed paper cone. Stamped steel frame. Spade terminals. Paper surround. Ceramic magnet.
MARANTZ MARANTZ 1230 'Prestige Series' MARANTZ
1230 'Prestige Series'
Tweeters
841-1096-000 / EAS-25K1111S 1" - 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Dome Tweeter



MARANTZ HD-55 / HD55 SPEAKERS PARTS / SPARES


  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS Ohms USED
  /
  NEW
QUANTITY PRICE NOTES
MARANTZ MARANTZ HD-55 MARANTZ
HD
55 Midrange
841-1055-000D S50707 4" - 8 Ohms
DCR= 6.6 Ohms
U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Round ceramic magnet. Coated pulp cone. Coated cloth surround. Stamped steel frame.
MARANTZ MARANTZ HD-55 MARANTZ
HD
55 Tweeters
841-1051-000D S51071 1.75" - 6 Ohms
DCR= 4 Ohms
U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Square ceramic magnet. Spade terminals. Soft Dome




MARANTZ HD-77 / HD77 SPEAKERS PARTS / SPARES


  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS Ohms USED
  /
  NEW
QUANTITY PRICE NOTES
MARANTZ MARANTZ HD-77 MARANTZ
HD-77
Midranges
841-1049-000C / S60003 ~4.5" 10 Watts 6 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
AlNiCo magnet. Sealed back. Cloth surround.



MARANTZ HD-550 / HD550 SPEAKERS PARTS / SPARES


  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS Ohms USED
  /
  NEW
QUANTITY PRICE NOTES
MARANTZ MARANTZ HD-550 MARANTZ
HD-550
Woofers
211-1001-100A
(S70317)
(J72TFN)
10" - 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Appears to be 'cast aluminum frame' from the front, but that is only a cast aluminum 'beauty ring'. The driver is actually typical 'stamped steel'.
MARANTZ MARANTZ HD-550 MARANTZ
HD-550
Midranges
(see also HD-660, HD770, HD880)
841-1067-000A /
S70061
(see also HD-660, HD770, HD880)
~4"

130mm

Cone midrange
Frequency Response; 750-2.3kHz
- 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Appears to be 'cast aluminum frame' from the front, but that is only a cast aluminum 'beauty ring'. The driver is actually typical 'stamped steel'. Pulp cone. Corrugated surround.
MARANTZ MARANTZ HD-550 MARANTZ
HD-550
Tweeters
(see also HD-660, HD770, HD880)
841-1051-200
(07391)
(see also HD-660, HD770, HD880)
Poly Dome Tweeter - 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
-



MARANTZ HD-600 / HD-900 SPEAKERS PARTS / SPARES


  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS Ohms USED
  /
  NEW
QUANTITY PRICE NOTES
MARANTZ MARANTZ HD-600
(See also HD-600 & HD-900)
MARANTZ
HD-600
Tweeters
841-1051-000E K63TNM (S60320) ~1.75
Flange 4.75" across
- 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Soft dome.



MARANTZ HD-660 / HD660 SPEAKERS PARTS / SPARES


  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS Ohms USED
  /
  NEW
QUANTITY PRICE NOTES

MARANTZ



MARANTZ HD-660 MARANTZ
HD-660
Woofers
211-1002-100
(S70318)
K73TNB or 182TNB etc...(last series of numbers not important)
10" - 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Appears to be 'cast aluminum frame' from the front, but that is only a cast aluminum 'beauty ring'. The driver is actually typical 'stamped steel'.
MARANTZ MARANTZ HD-660 MARANTZ
HD660
'Trim Rings' for Woofer
- 10" - N/A U 2 $25. pair, As-Is Cast aluminum alloy woofer trim ring. Surface discoloration. Could possibly be cleaned or painted.
MARANTZ



MARANTZ HD-660 MARANTZ
HD660
Midranges
(see also HD-660, HD770, HD880)
841-1067-000A /
S70061
(see also HD-660, HD770, HD880)
~4"

130mm

Cone midrange
Frequency Response; 750-2.3kHz
- 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Appears to be 'cast aluminum frame' from the front, but that is only a cast aluminum 'beauty ring'. The driver is actually typical 'stamped steel'. Pulp cone. Corrugated surround.
MARANTZ MARANTZ HD-660 MARANTZ
HD-660
Tweeters
(see also HD-660, HD770, HD880)
841-1051-200
(see also HD-660, HD770, HD880)
Poly Dome Tweeter - 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
MARANTZ MARANTZ HD-660 MARANTZ
HD-660
Tweeters
SJ-8G1A-16? Bullet Tweeter? - 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
-



MARANTZ HD-880 SPEAKERS PARTS / SPARES


  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS Ohms USED
  /
  NEW
QUANTITY PRICE NOTES
MARANTZ MARANTZ HD-880 MARANTZ
HD880
Woofer
211-1003-100A /
S70319
(see also HD-660, HD770, HD880)
12" - 8 Ohms
DCR=6.6 Ohms
U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Appears to be 'cast aluminum frame' from the front, but that is only a cast aluminum 'beauty ring'. The driver is actually typical 'stamped steel'. Pulp cone. Corrugated surround.
MARANTZ MARANTZ HD-880
(See also HD-550, HD-660 & HD-880)
MARANTZ
HD-880
Midranges
(see also HD-660, HD770, HD880)
841-1067-000A /
S70061
(see also HD-660, HD770, HD880)
~4"

130mm

Cone midrange
Frequency Response; 750-2.3kHz
- 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Appears to be 'cast aluminum frame' from the front, but that is only a cast aluminum 'beauty ring'. The driver is actually typical 'stamped steel'. Pulp cone. Corrugated surround.



MARANTZ IMPERIAL IV SPEAKERS PARTS / SPARES


  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS Ohms USED
  /
  NEW
QUANTITY PRICE NOTES
MARANTZ MARANTZ IMPERIAL IV / 4 Woofers / Woofer 552 8"
Freq range ~50Hz-2kHz
- 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
AlNiCo magnet. Soldered terminals. Cloth surround.
MARANTZ MARANTZ IMPERIAL IV / 4 Tweeters / Tweeter 4552 2"
Cone
- 8 Ohms U 1 $30. ea Good Cond. Works.
MARANTZ MARANTZ IMPERIAL IV / 4 Grills / Screens / Front Covers - 16 3/4" x 8 7/8" 'Burnt Orange' weave w/ silver threads - U 1 $30. ea Good Cond. w/ 'Marantz' logo intact. Frame good w/ no breaks.
-



MARANTZ IMPERIAL VII / 7 SPEAKERS PARTS / SPARES


  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS Ohms USED
  /
  NEW
QUANTITY PRICE NOTES
MARANTZ MARANTZ IMPERIAL VII / 7 MARANTZ IMPERIAL VII / 7
Midranges
841-1030-100C / CO85M01 ~4" - 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Ceramic magnet. Foam surround.



MARANTZ LS-88 SPEAKERS PARTS / SPARES


  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS Ohms USED
  /
  NEW
QUANTITY PRICE NOTES
MARANTZ MARANTZ LS-88 MARANTZ
LS-88
Midranges
SF-12G10-02 ~4 - 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Cast aluminum frame. Coated Cloth surround.

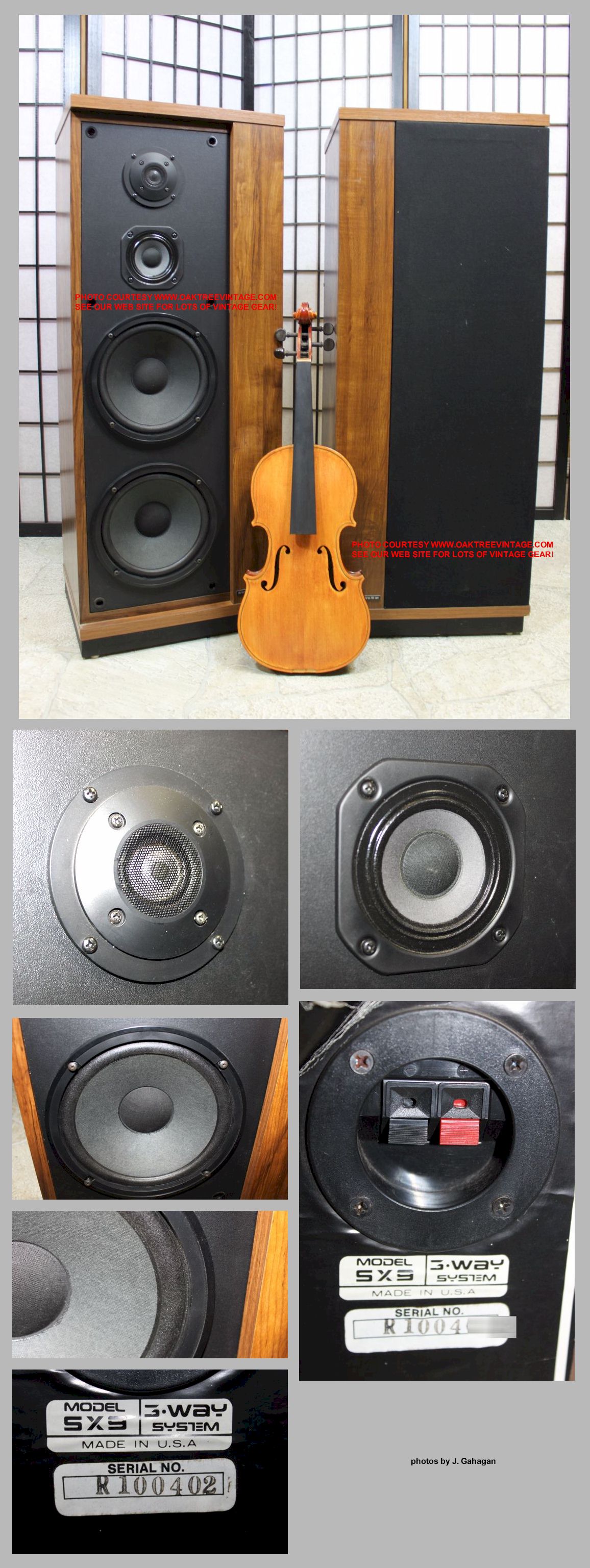

MARANTZ SX-9 / SX9 SPEAKERS, SPEAKER PARTS / SPARES


  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS Ohms USED
  /
  NEW
QUANTITY PRICE NOTES

MARANTZ





MARANTZ SX-9 / SX9 MARANTZ SX-9 / SX9 Woofers 841-1114-030 / 133TN6 10" - 4 Ohms
DCR =
3.4
U 1 $65.  ea Good Cond. Pulp cone, stamped steel frame, coated cloth surround.

MARANTZ





MARANTZ SX-9 / SX9 MARANTZ SX-9 / SX9 Woofers 841-1114-030 / 133TN6 10" - 4 Ohms
DCR =
3.4
U 1 $35.  ea Works, but has 1" 'cut' in cone, between dust cap and surround. Pulp cone, stamped steel frame, coated cloth surround.
MARANTZ





MARANTZ SX-9 / SX9 MARANTZ SX-9 / SX9 Midranges POLYDAX / 2CA313 / HDM-8ND-0138 ~3" midrange - 4 Ohms
DCR =
3.0
U 1 $45.  ea Works, but has tear in cone, between dust cap and surround. Good Cond. Pulp cone, stamped steel frame, coated cloth surround.
MARANTZ





MARANTZ SX-9 / SX9 MARANTZ SX-9 / SX9 Midranges POLYDAX / 2CA313 / HDM-8ND-0138 ~3" midrange - 4 Ohms
DCR =
3.0
U 1 $20.  ea Works, but has tear in cone, between dust cap and surround. Pulp cone, stamped steel frame, coated cloth surround.
MARANTZ




MARANTZ SX-9 / SX9 MARANTZ SX-9 / SX9
Tweeters
EAS 9KH-H055 1" Dome Tweeter - 8 Ohms
DCR = 6.7
U 1 $45. ea Good Cond. With the "EAS" prefix, that indicates these were likely made by Matsushita, the parent company of Technics / Panasonic.
MARANTZ




MARANTZ SX-9 / SX9 MARANTZ SX-9 / SX9
PASSIVE RADIATOR
841-1126-000 8' Passive Radiator - N/A U 2 $30.  ea Good Cond. Pulp cone, stamped steel frame, coated cloth surround.
MARANTZ




MARANTZ SX-9 / SX9 MARANTZ SX-9 / SX9
Input panel / crossover / dividing network
  3-Way Crossover - N/A U 2 $30.  ea Spring clips good. All works fine.
MARANTZ




MARANTZ SX-9 / SX9 MARANTZ SX-9 / SX9
Speaker Grills / front cover / Screens
  31.75" H x 10" W - N/A U 2 $35.  ea Great cond. No snags, holes, tears, stains, cat pee or anything. Black knit cloth perfect. Frames solid with not breaks, past or present. All locating pins are intact. All in all, they're perfect.



OLSON SPEAKERS PARTS / SPARES


  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS Ohms USED
  /
  NEW
QUANTITY PRICE NOTES

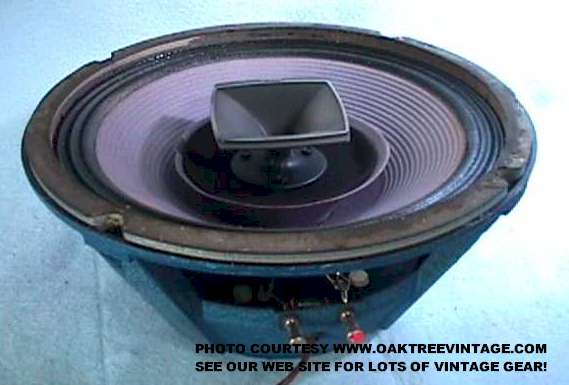

OLSON


Olson S-970
Triplex
 Speakers
Co-axial /
 Duplex
Woofer
with radial
 mid and
 tweeter
S-970 12" with 5.25 mid cone & 3x3" radial
tweeter
- 8 Ohms U 1 single $95.  ea.



Like new
 shape.
Only issue
is small
ding in
edge of
mid cone
 (see photo)
Requires
 Cross-over



PARADIGM SPEAKER PARTS / SPARES


  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS Ohms USED
  /
  NEW
QUANTITY PRICE NOTES
PARADIGM 11SE MK-III PARADIGM 11SE MK-III WOOFER 11SE 10" - 6 Ohms
DCR = 4.5
U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Poly cone. Butyl Rubber Surround. Stamped steel frame. Vented motor. 2-piece, ceramic magnet.






PEERLESS SPEAKER PARTS / SPARES


  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS Ohms USED
  /
  NEW
QUANTITY PRICE NOTES
PEERLESS - PEERLESS Tweeter - 5" - 8 Ohms U 1 $25. ea Works


POLYDAX SPEAKER PARTS / SPARES


  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS Ohms USED
  /
  NEW
QUANTITY PRICE NOTES
POLYDAX - POLYDAX Woofer 100458R 7.25" - 8 Ohms U 1 $25. ea Works
POLYDAX - POLYDAX Woofer HIF17H / 2CA12CN107 7.25" - 8 Ohms U 1 $25. ea Works


PSB SPEAKER PARTS / SPARES

BRAND
OF
SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS Ohms USED
  /
NEW
QUANTITY PRICE NOTES
PSB PSB 1000 PSB Woofer VIFA TC18.WG35 6" - 9 Ohms
DCR = 6.5Ω
U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Poly coated, pulp cone.
Poly coated, pulp dust cap.
Foam Surround. Cast, polycarbonate frame with molded in 'beauty ring' (does not impede surround replacement). Ceramic magnet.
Dual sized, spade lugs for each polarity.
PSB PSB 1000 PSB Woofer VIFA TC25-TG05 1" - DCR = 4.5Ω U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Soft Silk, domed tweeter.
Cast, polycarbonate frame with molded in 'beauty ring' (does not impede surround replacement). Ceramic magnet.
Dual sized, spade lugs for each polarity.






RTR G40 SPEAKER PARTS / SPARES


  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS Ohms USED
  /
  NEW
QUANTITY PRICE NOTES
POLYDAX - Woofer 100458R 7.25" - 8 Ohms U 1 $25. ea Works
RTR RTR G40 / G40B RTR G40 / G40B Tweeter - .75-1" coated cloth soft dome - 8 Ohms
DCR = 7
U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
---
---
  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS Ohms USED
  /
  NEW
QUANTITY PRICE NOTES
RECTILINEAR Rectilinear III Midrange 2422-255-85006 / 67-38-HA
or
2422-257-35102 / AD 5060/MB / 51-69-AH.
made in Holland
~5" likely 8-15 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Pulp cone w/ Whizzer. Stamped cone. AlNiCo magnet.
---
  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS Ohms USED
  /
  NEW
QUANTITY PRICE NOTES

Renkus-Heinz
SSD-1800-16
CD-1800
Horn
 Diaphragm
- 2" - 16 Ohms U MIA?? $129. ea
SOLD OUT?
New
Old
Stock
 SANSUI SPEAKER PARTS -SPEAKERS FOR SALE  -





SCAN-SPEAK of Denmark SPEAKER PARTS / SPARES


  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS Ohms USED
  /
  NEW
QUANTITY PRICE NOTES



SCAN-SPEAK

SCANSPEAK
WOOFER
42W/6300
WOOFER SCANSPEAK
42W/6300
15.75" ~200 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Coated accordion Surround. Ribbed Paper cone.
SCANSPEAK SCANSPEAK
Revelator  MIDBASS / MIDRANGE
18W/8531G
MIDBASS / MIDRANGE SCANSPEAK
18W/8531G
6.5" ~100 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Butyl Rubber Surround. Poly cone.
SCANSPEAK SCANSPEAK MIDBASS / MIDRANGE
18W/8545-00
MIDBASS / MIDRANGE SCANSPEAK
18W/8545-00
6.5" ~100 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Butyl Rubber Surround. Poly cone.
Here's a link to the data sheet on the above driver: http://www.scan-speak.dk/datasheet/pdf/18w-8545-00.pdf

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS Ohms USED
  /
  NEW
QUANTITY PRICE NOTES
SCANSPEAK SCANSPEAK MIDBASS / Woofer
21W/6554
MIDBASS / Woofer SCANSPEAK
21W/6554
8" ~100 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Butyl Rubber Surround. Poly cone.
SCAN-SPEAK SCANSPEAK TWEETER
D2904/
710003/2
MIDBASS / Tweeter SCANSPEAK
D2904/
710003/2
1" ? 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Coated cloth soft dome tweeter. Symmetrical Drive (SD-2) motor. Neodymium magnet
SCANSPEAK SCANSPEAK TWEETER
D2008/
851100
MIDBASS / Tweeter SCANSPEAK
D2008/
851100
.75" ? 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Non-Ferrofluid version.
Coated cloth soft dome tweeter.
SCAN-SPEAK SCANSPEAK TWEETER
D2008/
851200
MIDBASS / Tweeter SCANSPEAK
D2008/
851200
.75" ? 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Ferrofluid version.
Coated cloth soft dome tweeter.
SCAN-SPEAK SCANSPEAK TWEETER
D2905/9000
(also known as D2905-9300, -9500, -9700 and -9800)
MIDBASS / Tweeter SCANSPEAK
D2905/9000
1" 150 Watts RMS 6 Ohms Nominal U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Ferrofluid version.
Coated cloth soft dome tweeter.
Here's a link to the data sheet on the above driver: http://www.scan-speak.dk/datasheet/pdf/d2905-950000.pdf
  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS Ohms USED
  /
  NEW
QUANTITY PRICE NOTES
SCANSPEAK SCANSPEAK TWEETER
D2008/
851200
MIDBASS / Tweeter SCANSPEAK
D2008/
851200
.75" ? 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Ferrofluid version.
Coated cloth soft dome tweeter.
SCANSPEAK SCANSPEAK TWEETER
D2010 / 8513-00
MIDBASS / Tweeter SCANSPEAK
D2010 / 8513-00
.75" ? 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Coated cloth soft dome tweeter.
SCANSPEAK DISCOVERY  PASSIVE RADIATOR
30W/0-00
Passive Radiator SCANSPEAK
30W/0-00
12" 56mm peak excursion N/A U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Black anodized, Aluminum cone. Butyl Rubber Surround. Cast Frame. Nomex spider. Fiberglass/Paper Sandwich Dust Cap.






SEAS SPEAKER PARTS / SPARES FROM Norway


  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS Ohms USED
  /
  NEW
QUANTITY PRICE NOTES
SEAS / THEIL CS2 SEAS / THEIL CS2 WOOFER
P21REX-TH H367
Woofer P21REX-TH H367 8" ? 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Poly cone.Huge ceramic Magnet. Cast frame. Butyl Rubber Surround.
SEAS SEAS MIDRANGE
CA12RCY H1152-08
MIDRANGE CA12RCY H1152-08 4.5" ? 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Paper cone.Huge ceramic Magnet. Cast frame. Butyl Rubber Surround.
SEAS / Prestige Series SEAS MIDRANGE
L12RCY/P H1207-08
MIDRANGE L12RCY/P H1207-08 4.5" ~40 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Aluminum cone. A High Temperature voice coil wound on an Aluminum voice coil former. Huge ceramic Magnet. Cast frame. Butyl Rubber Surround.
SEAS / EXCEL SEAS MIDRANGE
W11CY-002
MIDRANGE W11CY-002 ~4.5"
Fs - 46Hz
Vas - 5.8 L
Qms - 1.9
Qes - 0.37
Qts - 0.31

Frequency Response:  60-3.5kHz

Linear coil travel: 6mm (p-p)

Max. coil travel: 9 mm (p-p)
~40 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Huge Vented Magnet. Cast frame. Butyl Rubber Surround. Magnesium cone.
ProAc Response 1s
SEAS
SEAS MIDBASS / MIDRANGE
T-14 RCY/P-M
702-08
MIDBASS / MIDRANGE T-14 RCY/P-M
702-08
~5.25" ~40 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Huge Vented Magnet. Cast frame. Butyl Rubber Surround. Pulp cone and inverted dust cap.
SEAS / CELESTION SEAS TWEETER
19TFF 1 H0737-08
TWEETER 19TFF 1 H0737-08 1" ? 8 Ohms
DCR=6.5 Ohms
U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
SONOTEX  fabric soft dome tweeter. Ferrofluid cooled VC. 94mm faceplate, 66mm cutout.
SEAS / MISSION SEAS TWEETER
19TNF-M
TWEETER 19TNF-M 1" ? 8 Ohms
DCR=6.5 Ohms
U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Coated cloth soft dome tweeter.
SEAS / PROAC SEAS TWEETER
25TFFC/ H519
TWEETER 25TFFC/ H519 1" ? 6 Ohms
DCR=5.1 Ohms
U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Coated cloth soft dome tweeter. Ceramic Magnet
SEAS / MISSION SEAS TWEETER
25TNF/T / H297
TWEETER 25TNF/T / H297 1" ? 6 Ohms
DCR=5.1 Ohms
U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Coated cloth soft dome tweeter. Ceramic Magnet
SEAS SEAS TWEETER
27TBFC/G H1212-06
TWEETER 27TBFC/G H1212-06 1" ? ? U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
High Definition metal dome tweeter.  Aluminum / Magnesium alloy diaphragm. Ceramic Magnet
SEAS EXCEL / Millennium SEAS TWEETER
T25CF002 E0011-06
TWEETER T25CF002 E0011-06 29mm
Frequency Response: 2k-25kHz
90 Watts RMS
200 Peak
6 Ohms
DCR = 4.7
U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
SONOTEX  fabric soft dome tweeter. HEXADYM Neodymium magnet system based on 6 radially magnetized NdFeB magnet blocks
SEAS EXCEL SEAS TWEETER
T29CF001
TWEETER T29CF001 29mm
Frequency Response: 2k-25kHz
90 Watts RMS
200 Peak
6 Ohms
DCR = 4.7Ω
U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Coated cloth soft dome tweeter.
SEAS SEAS TWEETER
H-086
TWEETER H-086 1" or 1.5" ? 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Coated cloth soft dome tweeter.
SEAS SEAS TWEETER
H-087
TWEETER H-087 1.5" ? 8 Ohms nom
4 Ohms min.
U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Coated cloth soft dome tweeter. AlNiCo magnet.
SEAS SEAS TWEETER
H-107
TWEETER H-107 1" ? 6 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Coated cloth soft dome tweeter. Ceramic Magnet





  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS Ohms USED
  /
  NEW
QUANTITY PRICE NOTES
SOUND-
CRAFTSMEN

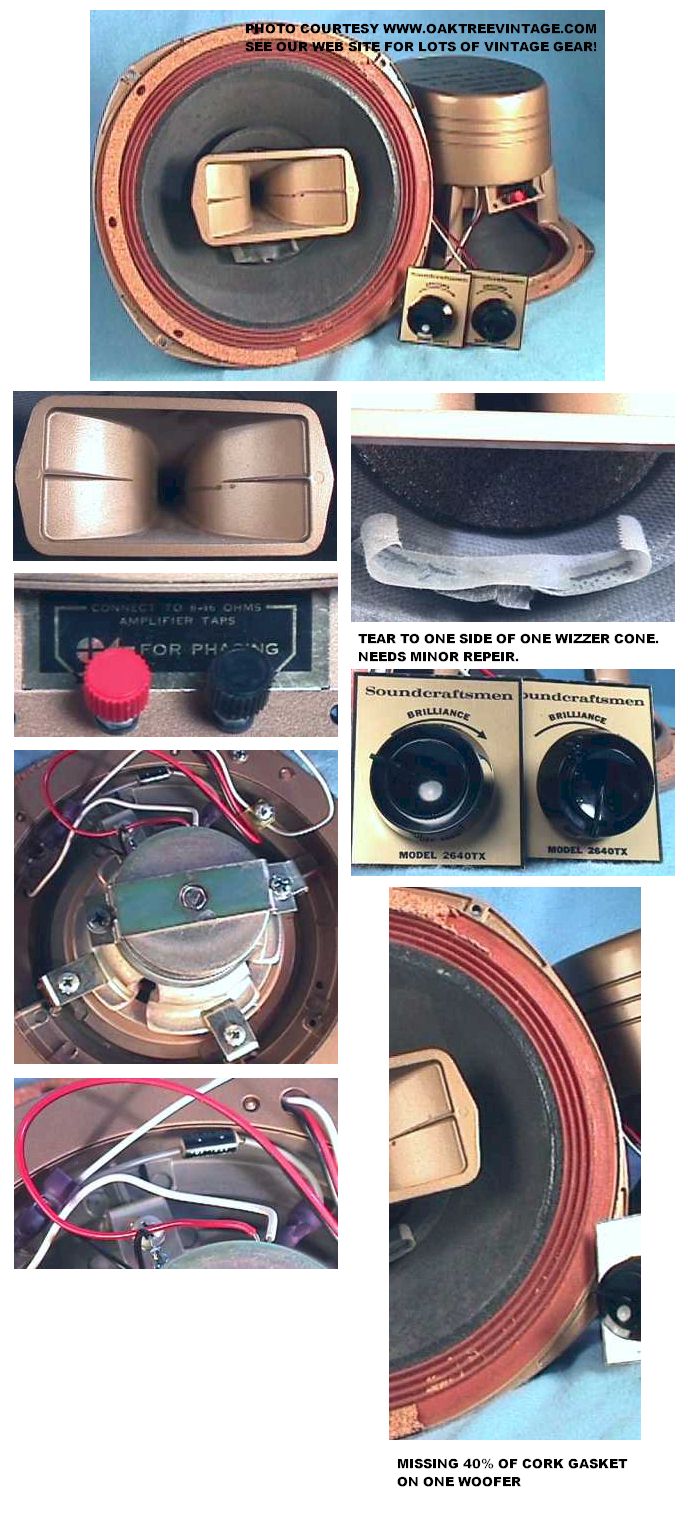

Soundcraftsmen data.jpg (20199 bytes)  Soundcraftsmen_2630TX_Co-axial_Duplex_Speakers_collage.jpg (189317 bytes)
SOUND-
CRAFTSMEN
2640TX
DUPLEX WOOFER / HORNS
WITH BUILT-IN TWEETER FILTER
Co-axial /
 Duplex
Woofer
with horn
 tweeter
and
built-in
2-way
 cross-
overs
and
 integrated
 Tweeter
 attenuators Woofers
SOUND-
CRAFTSMEN

2640TX
12" with 3.25 x 6"
tweeter
horn
26hz-
22kHz & 60 watts peak
Speakers labeled 8-16 Ohms, but read like a 6 ohm speaker (reading 4.4 Ohms) U 1 pair (2) $199. pair. All in
great
shape
with the
 exception
 of the
 whizzer
 cone on
one
woofer
needs
minor
repair
and half
the cork
 gasket is
 missing
 from one
 woofer
 frame.





  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS Ohms USED
  /
  NEW
QUANTITY PRICE NOTES
Unknown

- Midrange 6102/ 1054-9331 6" - U 1 $25. ea. New
Old
Stock
Unknown

- Midrange C10DC70-02F 4.75" - U 1 $25. ea. New
Old
Stock
Unknown

- Midrange 5102/ 1056-9343 4.75" - U 1 $25. ea. New
Old
Stock




Unknown

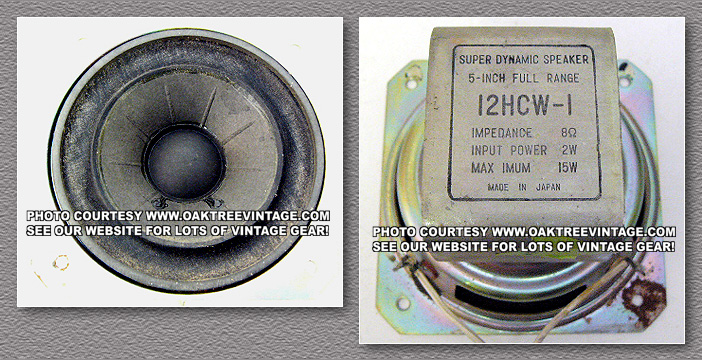

- Full Range / Super Dynamic Speaker 12HCW-1 5" 15 watts U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

$25. ea.
AlNiCo Magnet

New
Old
Stock

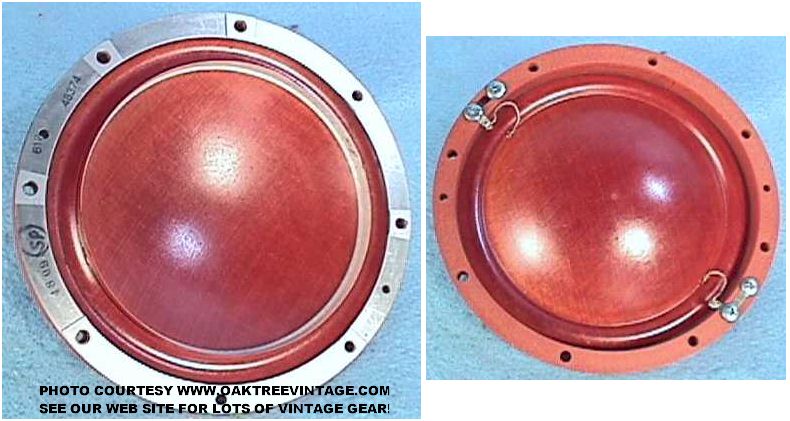

unknown diaphragms.jpg (71470 bytes)

Unknown
 Diaphragm
MATCHED PAIR Dia-
phragms
Numbers
are as
follows:
4809,
7995,
48374,
612,
&  SP
 Voice coil is 3 3/4" - - N 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
The above diaphragms' brand is unknown at this time. They may be Altec, Western Electric, JBL or another.
They measure 5.5" in overall diameter and the voice coil is 3.75" in diameter. The 8 mounting holes are
5 1/8" across from one another center to center and are spaced 2" apart on centers. The diaphragm body
is 1/2" thick. They measure 8.8 & 9.2 Ohms on a digital Ohm meter so are probably rated at 8 Ohms. If anyone
knows for sure what brand these are or any other info feel free to email us.
  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS Ohms USED
  /
  NEW
QUANTITY PRICE NOTES




UTAH
1965
UTAH
CELESTA
CO-AXIAL
PSEUDO 3-WAY
CODE;
328517
12" Woofer, with whizzer cone for mids and coaxial tweeter. Filter cap installed on tweeter. Cloth Surround. UTAH CELESTA C12PC-3 12" w/ 5.5" whizzer cone and 3.5" pole mounted tweeter. Can easily be bi-amped as well Cast Frame and AlNiCo Magnets 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
No tears, dents or creases to the woofer cone, surround or whizzer cone. Very clean. Tested  Perfect and Works great!
WESTERN
ELECTRIC

MATCHED PAIR WOOFERS 754A  12" - - U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Like
New!!!
CUSTOM MADE
WOODEN HORN







- Wooden
High Compression  Treble
horn
Overall horn depth 20" not including throat adaptor

Overall horn width 25"

Overall horn height 12"

Throat opening of aluminum adaptor 5/8"

Thread diameter ~ 1.25"+
 12" - - U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Good





MISC AUTOMOTIVE / MOBILE AUTO REPLACEMENT SPEAKERS / PARTS / SPARES REFERENCE INFORMATION ONLY


  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS Ohms USED
  /
  NEW
QUANTITY PRICE NOTES
NOKIA 49134-10050/02
4A0 / 22775
97-99 AUDI A8 FRONT DRIVER'S DOOR BOSE SPEAKER
Woofer
49134-10050/02
4A0 / 22775
~4"
3-Bolt. Looks like many Bose drivers like a later 901 style (except those were 1 ohm)
  4 U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Good


If you're looking for a great place for great place to purchase new foam surround kits, replacement surrounds, or to have your woofers, sub woofers / subs, re-foamed or re-coned, we recommend either 'Orange County Speakers' or 'Parts Express'. They have QUALITY parts and do QUALITY work.


If you simply wish to 'ditch' your speakers and get a pair of great vintage speakers,
that have already been restored competently,
 OUR
   'RESTORED      VINTAGE      STEREO      SPEAKERS      PAGE'      LINK      HERE     .     .     .


 __________________________________________________________________________________________________________










Jerry Gahagan of OakTreeVintage
Taken in portion of Speaker Audition Room
Vintage Home Audio Speakers from the late 1960's into the 1980's







LINKS TO OUR 'HI-FI' DEPARTMENTS

Amps and
Pre-Amps

Receivers

Cassette
Decks

Tuners

Turntables

8-Track Decks

CD Players

Reel-Reel
Decks

EQs and Signal
Processors

Speakers

Betamax and
VHS VCRs

Turntable Cartridges

Tube Audio

Ne'cessories

Speaker Parts

Record Players

Vintage Radios

Vintage
Walkmans

Headphones

Stereo Parts


Wondering where the "tone" you remember went?....

Vintage  Stereo Equipment receivers speakers Classic Silver Audio Collection and jerry gahagan



.... Surround yourself with Silver and find it again!


CONTACT INFO BELOW

$20. MINIMUM ORDER





    Before calling, PLEASE read the text in orange below.
No Really...Stop, Alto, Halt, etc.
 BEFORE
CALLING

(800) 806-4231 EXT #1
OR EMAILING
parts@oaktreevintage.com

~9:30 AM- ~7:30 PM most days COLORADO / ROCKY MOUNTAIN TIME ZONE

We DO NOT have your part unless the following conditions are met:

A) You HAVE SERCHED our page(s) and HAVE FOUND the part you are looking for SPECIFICALLY listed on one of our pages or you have solid information that it's a 'bona fide' substitution for your part (unless noted already, we won't have any further info along those lines)
AND
B) The part that you have found is NOT marked as SOLD or SOLD OUT.


If you do not see it listed after thoroughly searching the pertinent page
(likely the page you landed on originally),
we do not have it,
nor do we know when
it might come in,
nor do we maintain "waiting lists" for parts,
nor do we know who
might have it.

Sorry, but phone and email traffic for parts
we don't have listed or for parts that are already marked "SOLD" has become too consuming of time resources.


 We try to keep these pages 99+% updated.
If you don't see the part you are looking for, simply check the web page periodically as we never know what will show up each day. Thanks!!!!!


ALSO: When e-mailing be sure to include a relevant subject, ie: Brand / Model number / reason for inquiry in the 'SUBJECT LINE'.
SUBJECT
lines left empty, or with 'single word' text like;
"Hello", "Hi", "parts", "stereo", "inquiry", "question", "selling" or similar or similar 'un-qualified' terms will automatically be deleted by Anti-Virus / Spam settings or receive 'Low Priority'.
(Subject lines left empty show up as "No Subject" and are deleted automatically by our anti-spam settings"


 SPEAKER PARTS   |   STEREO / HI-FI ELECTRONIC PARTS   |  KEYBOARD PARTS

___________________________________________

Haven't received a response to your email? See FAQ'S

MAILING:
OAK TREE ENTERPRISES
PO. BOX 6182
COLORADO SPRINGS, CO 80934
U.S.A
.

Before ordering by postal mail, please phone or email us about the item and the details of sending your funds. Thank-you.


 SPEAKER PARTS   |   STEREO / HI-FI ELECTRONIC PARTS   |   SELLING-TRADING-CONSIGNING   |  KEYBOARD PARTS   I   FAQ'S
  CONDITION RATINGS   |   ORDERING / POLICIES    |    WARRANTIES / RETURNS   |   SHIPPING
 RESTORATION PROCEDURES   |   REPAIRS  | CONTACT PARTS


30% restock fee / service charge applies to all 'parts' returns for refund.
Some parts are not returnable.

See our "
Warranties / Returns" page via the link below for more details.


POLICIES, SPECIFICATIONS, AVAILABILITY, INFORMATION AND PRICING SUBJECT TO CHANGE  AT ANYTIME  AND WITHOUT PRIOR NOTICE
and changes may not be posted to web immediately
. Information such as Parts Substitution possibilities, "Circa" dates, original values, etc. are to the best of our knowledge. If you are critically concerned, you should do independent
research on your own prior to ordering or utilizing this information in any way. Manufacturers also are known to change part numbers, specs, circuit designs, specs etc within the same model.


Copyright © 1997-2016 Oak Tree Enterprises, LLC

COPYRIGHT INFORMATION




Please be patient while page loads . . .
