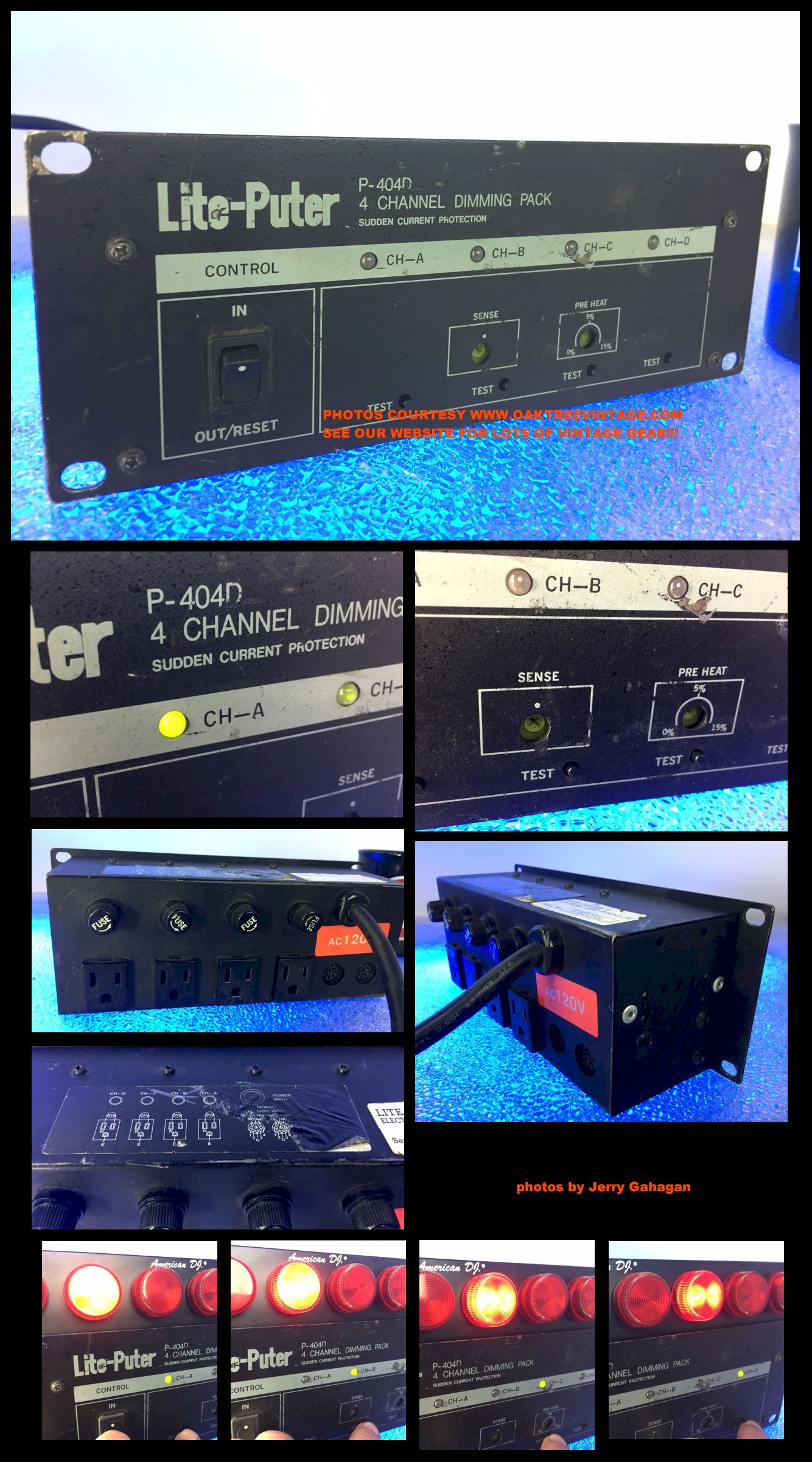

MBT LITE-PUTER P-404D
4-CHANNEL DIMMER PACK
FOR SALE



MBT LITE-PUTER P-404D 4-Channel dimmer pack for sale. We did have Par 64, Par 56 & Par 36 Stage Lights and Pin-spots utilizing LED's and DMX, but they're not longer available through us.






PRE-OWNED / FULLY TESTED and READY TO USE!
MBT LIGHTING
LITE-PUTER P-404D
4-CHANNEL DIMMER PACK
for sale

Lite-Puter P-404D Features / Specifications / Specs:
4 Channel Dimmer Pack
• 4 independent channel dimmer power outputs with GROUNDED / 3-Wire standard Edison Outlets
Built-in 'Noise Filters' to eliminate or at least 'reduce to a tolerable level' any "60 Hz" hum through any associated audio / PA systems
• Analog input / control from 0 to +10V control via 8-Pin DIN jacks
"Sudden Current Protection", via 4 independent 'Fast Blow' fuses, function to avoid the damage caused by sudden circuit short.
• Lamp Element ‘Pre-Heat’ (keeps bulb filiments at a pre-determined minimum to GREATLY extend lamp / bulb life (and for effect). Adjustable 0-15% via "WARM-UP" control pot (pre-heat) to increase the loads life.
• Power: AC100-120V, AC220-240V
• Maximal output: 8A each channel; total 15A (or any combination of channels loaded up to "15A" total)
Two of these bolted / fastened together make one 2-space Rack unit
Grounded / 3-Prong, 33" AC mains lead / cord
• Dimension: 240mm / 9.5" (W) x 88mm / 3.5" (H) x 88mm / 3.5" (D)
• Weight: 1.8Kg / 3.5lbs

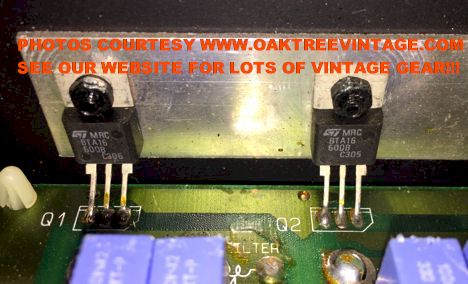

Output Triacs specs (if you're one of the 'nerdy types' like us): Based on the MRC BTA16-600B (16A / 600V) Triacs; “Glass passivated triacs in a plastic envelope, intended for use in applications requiring high bidirectional transient and blocking voltage capability and high thermal cycling performance” (subs with NTE5671) (Some specs; TO-220 case. Uses; “Motor Control”, “Industrial and Domestic Lighting”, “Heating” & “Static Switching”. ‘On-State’ RMS =16A / Full-Sine Wave. 600Volt Repetitive peak off-state voltages.
Link to full specs of main current handling part (Triacs); http://www.haopin.com/PDF/BTA16-600B.pdf

I sold A LOT of these as a dealer for MBT, when new in the '90's. We also used them all over our shop lighting displays and on our rental / demo rigs and for our 'Live Show' clinics. We simply used some good quality 'Zip Ties' and hung them directly from trussing / "T-Bar" lighting stands for temporary shows and cables for permanent installs. With all the one's I sold, I don't ever remember having one come back with a problem. They're a pretty simple circuit inside, and the circuit boards are constructed with 'real', 'full size' components (not SMD).

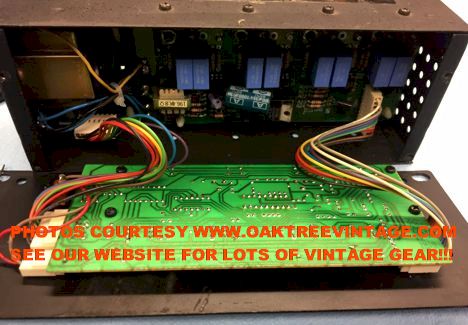

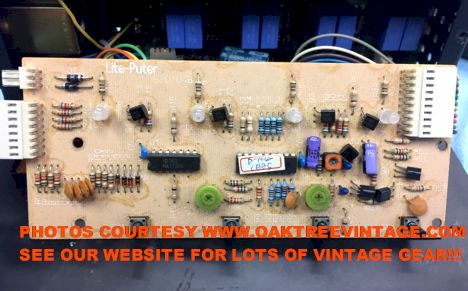

Bench disassembled here at our shop and fully tested (outputs, 'test' buttons, 'Pre-Heat' etc. All output Edisons tight and chip / crack free. All output Triacs originals (not replacements or substitutions installed inside).

 All 4 fuses correct value.
Cosmetically, it's got a few 'battle scars', but hey, it's a pre-owned, stage lighting dimmer box. Still has top sticker that shows the DIN pin In / Out diagram. Ground pin still intact on AC mains lead / cord.
Includes our 30 day limited warranty.
LITE-PUTER P-404D
Cond. 8
$99.

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)





LED lighting fixtures have MANY advantages over their 'incandescent / halogen' counterparts. While they may SEEM expensive on the 'front end', it doesn't take much 'math' to figure out they become way less expensive to own fairly quickly. One great thing about LED fixtures, is that they use only a SMALL FRACTION of electricity, compared with their 'incandescent' counterparts, thus not only do they generate far less heat, but save considerably on your electric bill. Another great advantage is that they have a 50,000-100,000 + hour life span, so the days of replacing 'Halogen' / Sealed beam Par / stage light bulbs at $25-$100 each, every 600-2000 hours are gone! Imagine the savings in electricity & lamp replacement costs if you have lighting systems consisting of 12-100 fixtures (don't forget the extra air conditioning costs to offset each fixtures 90-1000 watts of heat).
Yes, I know that LED fixtures do not have quite the candle power / brightness of traditional stage light bulbs, and there may be situations calling for longer 'throws' or simply the most candle power possible that may mean LED fixtures (under $300) will not be the best choice. For those situations you should probably stick with standard 'incandescent / sealed beam' bulb technology. However, if you're like me and play smaller stages / venues, or are a DJ with a dance floor smaller than 30' x 30', or a small stage diner theater they will likely work well enough that their other advantages will justify their slightly less candlepower.
I have dealt with traditional stage light fixtures for years both as a musician and as a system designer / installer and have been anticipating this technology for a long time. I won't miss the heat from the lamps outrunning the venue's air conditioner, or the electric meter in my personal 'garage band' space spinning at light speed, or spending $50 every time one of my fixtures get's 'bumped' during set up / tear down and takes out a bulb filament.



For assistance in choosing the correct fixture, review the following.
PAR 64 - These are the largest of the common 'Par' cans found in stage lighting. Generally best for the largest of stages where there is trussing or a lighting grid that is 8-20' above the talent / subject. These cans are large, so if you have a typical 'bar' stage or small 300 seat or smaller venue, they will likely be 'overkill' both in lumens and


 in physical size. You simply need a LARGE space for them to be justified for most applications. In 20 years, I would have to think hard the last time I sold any Par 64 fixtures to your typical 'weekend warrior' or semi-pro / bar band.

PAR 56 - Slightly smaller than the Par 64 and more common in the medium to medium-large stage's. Bridges the gap for medium to large bands / acts between Par 38 and Par 64. Still, probably overkill for most medium size stages or venues under 250 capacity.

PAR 38 - Great for shorter throws of 3-12 feet away from the 'talent', typical 'bar' stages / venues of less than 200 capacity and for smaller group settings. Certainly most small bar / venue / coffee shop / restaurant gigs are going to be best served with Par 38 fixtures. This is my personal favorite size for most of the gigs I have played, especially when mixed with some Par 36 'Pin Spots' for 'back lighting'. You can pack more of them in smaller spaces both at the gig and loaded on the truck. It's also easier to lift a 'rack' of them as they weigh less.

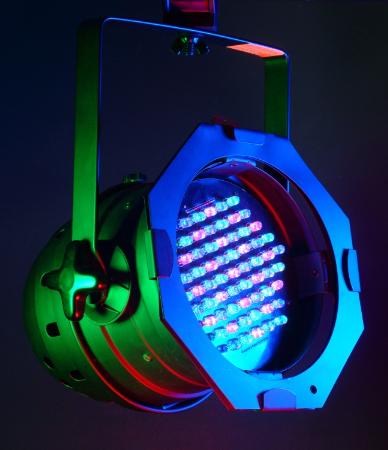

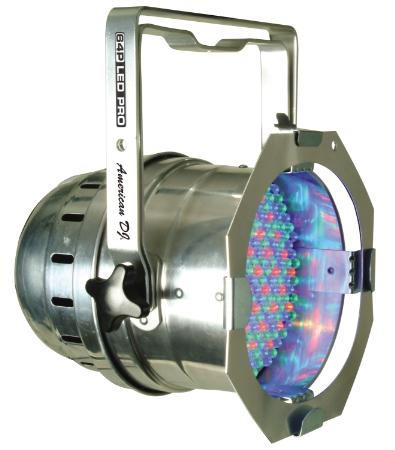

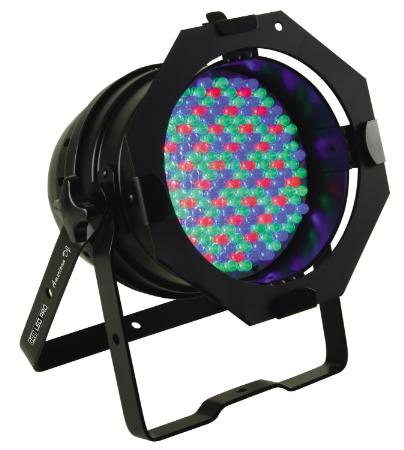

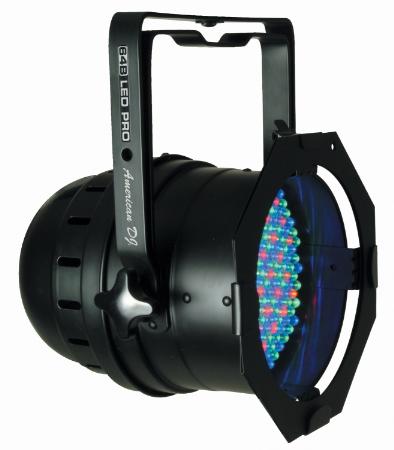

LED PAR 64
AMERICAN DJ
POLISHED ALUMINUM OR 'STAGE BLACK'
W/ 'STAND YOKE'

MANUAL OPERATION OR DMX CAPABLE
W/ 100,000 HOUR LIFE SPAN

Featuring 181 ultra-bright 10mm LEDs, the 64 LED PRO is light weight, compact, and durable, making it terrific for mobile DJ's, clubs or bands. The 64 LED PRO is also DMX controllable, can be used as a stand alone light
(for manual operation, there are 'DIP' switches on the rear housing to configure the light for your needs), and can also be used in a Master/Slave configuration. Also features LED Sync™ which automatically syncs operation modes with other American DJ products that have LED Sync™.

Seven operating modes:
  • Color mode - Choose from one of seven colors and the color remains static
  • Color change mode - Changes various colors based on the speed you desire
  • Color fade mode - Fades in and out of various colors based on the speed you desire
  • Auto mode - Random color changes and color fades
  • Sound active mode - Causes the light to react to sound, with adjustable sound sensitivity
  • Master/slave operation - If the fixture is the master, each light connected to it will function the same. If the light is a slave, it will act in the same manner as the master
  • DMX mode - Allows operation through a DMX 512 controller, in three channel, six channel, or seven channel modes

Features:

  • 181 ultra bright, 10mm LEDs (36 Red, 85 Green, & 60 Blue LEDs)
  • Very smooth field with rich palettes of color created by mixing the red, green and blue LEDs
  • Long life (100,000 hrs.), low power consumption, low heat
  • 3-button LED display on rear panel
  • Dual bracket system allows fixture to be hung or set on the ground
  • Power Draw: 30W
  • Dimensions (LxWxH): 12 1/4" (L) x 9" (W) x 9" (H)
  • Weight: 6 lbs

AVAILABLE IN BLACK OR POLISHED ALUMINUM
NEW
SORRY, NO LONGER AVAIL

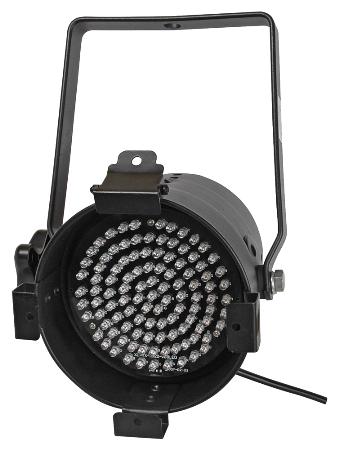

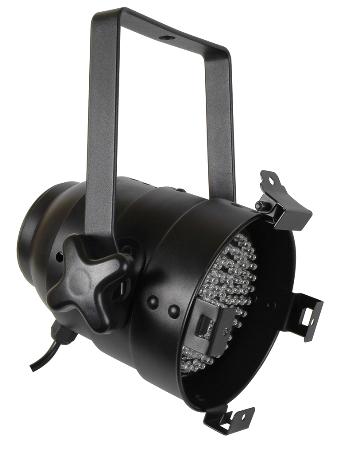

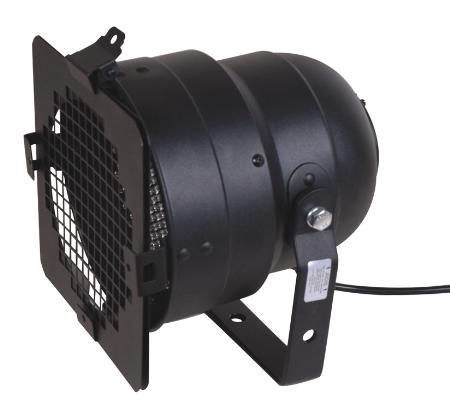

PAR 56 LED
POLISHED ALUMINUM OR 'STAGE BLACK'

MANUAL OPERATION OR DMX CAPABLE
W/ 50,000 HOUR LIFE SPAN


Turn it up a notch with these long lasting DMX controllable LED par 56 equivalent lighting fixtures. Various patterns can be controlled by the beat of the music playing (adjustable sensitivity) or by manual adjustment
(for manual operation, there are 'DIP' switches on the rear housing to configure the light for your needs). In a multi fixture setup, one unit can be used as the DMX controller, ensuring that each light is in sync. Lights can also be controlled with an external DMX controller. mfg # Stellar Labs / mcm / OT cat # : 555-11400

Features:

  • Auto fade mode
  • Auto color change mode
  • Manual color change / operation mode via DIP switches

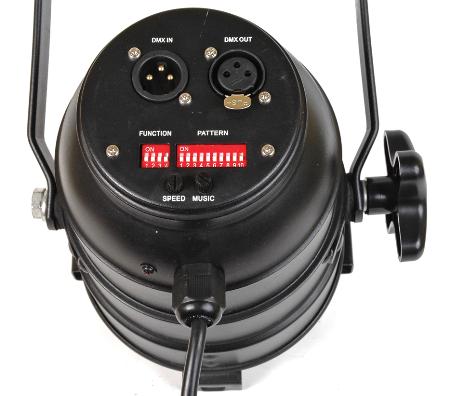

  • Settings are adjustable via DIP switches on back of light
  • Lights can be daisy-chained via XLR
  • Manual pattern speed adjustment
  • Only 20W power consumption
  • Approximately 50,000 hour bulb life
  • Power requirements: 120VAC, 60Hz

    AVAILABLE IN BLACK OR CHROME
    NEW
    SORRY, NO LONGER AVAIL

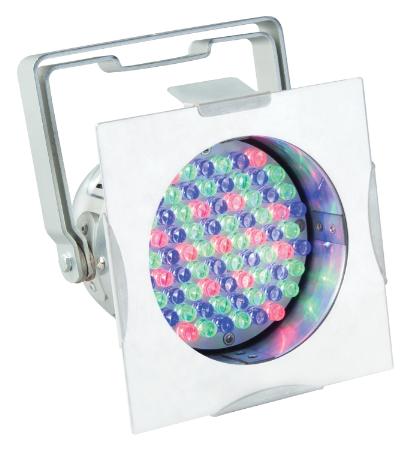

LED PAR 38
AMERICAN DJ
POLISHED ALUMINUM
W/ 'STAND YOKE'

MANUAL OPERATION OR DMX CAPABLE
W/ 100,000 HOUR LIFE SPAN


Polished Aluminum, LED Par 38!
Featuring
75 ultra-bright 10mm LEDs, the 38 LED PRO is light weight, compact, and durable, making it terrific for short throw (less than 30') stage / band use, theaters, mobile DJ's and clubs. Also makes an excellent accent light in any large lighting setup, especially for 'back lights'. One great thing about LED fixtures, is that they use only a SMALL FRACTION of electricity, compared with their 'incandescent' counterparts. Thus not only do they generate far less heat, but save considerably on your electric bill. Another great advantage is that they have a 50,000 + hour life, so the days of replacing 'Halogen' / Sealed beam Par / stage light bulbs at $25-$100 each are gone!The 38 LED PRO is also DMX controllable, can be used as a stand alone light
(for manual operation, there are 'DIP' switches on the rear housing to configure the light for your needs), and can also be used in a Master/Slave configuration. Also features LED Sync™ which automatically syncs operation modes with other American DJ products that have LED Sync™. mfg # AmDJ 38LED PRO / mcm / OT cat # : 555-11336

Seven operating modes:

  • Color mode - Choose from one of seven colors and the color remains static
  • Color change mode - Changes various colors based on the speed you desire
  • Color fade mode - Fades in and out of various colors based on the speed you desire
  • Auto mode - Random color changes and color fades
  • Sound active mode - Causes the light to react to sound, with adjustable sound sensitivity
  • Master/slave operation - If the fixture is the master, each light connected to it will function the same. If the light is a slave, it will act in the same manner as the master
  • DMX mode - Allows operation through a DMX 512 controller, in three channel, six channel, or seven channel modes

Features:

  • 75 ultra bright, 10mm RGB LEDs (15 Red, 30 Green, & 30 Blue LEDs)
  • Very smooth field with rich palettes of color created by mixing the Red, Green and Blue LEDs
  • Long life (100,000 hrs.), low power consumption, low heat
  • 3-button LED display on rear panel
  • Dual bracket system allows fixture to be hung or set on the ground
  • Beam angle: 20 degrees
  • Power Consumption: 9W
  • Multi-voltage: 90-240V, 50/60Hz
  • Dimensions: 8 1/2" (L) x 7 1/4" (W) x 8 1/2" (H)
  • Weight: 3 lbs.

    MSRP $200.00
    NEW IN POLISHED ALUMINUM
    SORRY, NO LONGER AVAIL

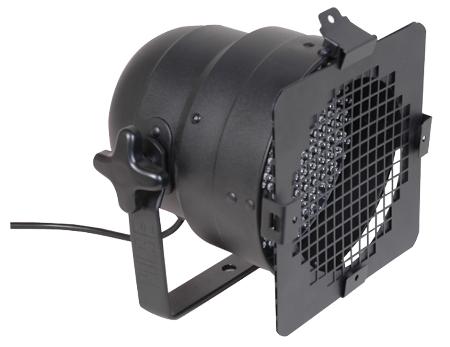

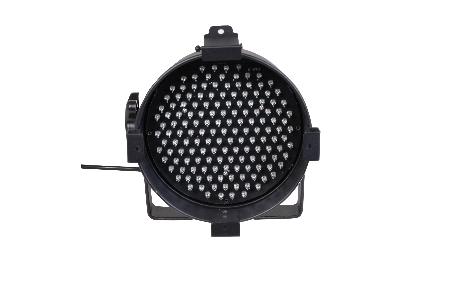

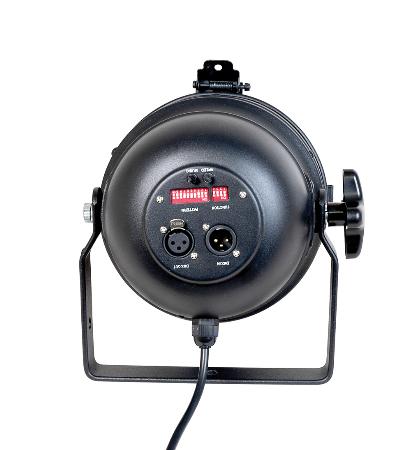

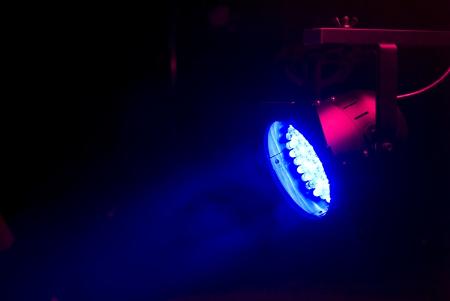

LED PAR 38
'STAGE BLACK'
MANUAL OPERATION OR DMX CAPABLE
W/ 50,000 HOUR LIFE SPAN

An
ideal accent light for any performance environment, this LED par 38 lamp provides reliability and low power consumption, as well as extremely bright lighting effects. Various patterns can be controlled by the beat of the music playing (adjustable sensitivity) or by manual adjustment (for manual operation, there are 'DIP' switches on the rear housing to configure the light for your needs). In a multi fixture setup, one unit can be used as the DMX controller, ensuring that each light is in sync. Lights can also be controlled with an external DMX controller. mfg # Stellar Labs / mcm / OT cat # : 555-11410

Features:
  • Auto fade mode
  • Auto color change mode
  • Manual color change mode
  • Settings are adjustable via dipswitches on back of light
  • Lights can be daisy-chained via XLR DMX ables
  • Manual pattern speed adjustment
  • 36 each of red, blue and green LEDs
  • Only 14.5W power consumption
  • Approximately 50,000 hour bulb life

    MSRP $140.00
    NEW
    SORRY, NO LONGER AVAIL








At this point we do not have any quality light stands currently available to us.
For smaller groups / DJ's, my personal favorite was always 'Ultimate' brand stands and fittings. There were other brands that had 'cool' looking, pre-assembled trusses, but their fittings were not quality and either would not 'hold' position and or would often break. I built many systems using Ultimate's  TS-33 stands, with extensions and their 'bulk / heavy wall' tubing as trussing. Their 'heavy wall' tubing can be drilled, and outfitted with pre-assembled bolts from the hardware store. Eye bolts in the ends are handy for hanging them for storage with carabineers in a garage or camper shell or box truck. I used 5/16' 'all thread' thru the aluminum tubing with lock washers / nuts on each side of the tubing. Leaving about 1" of 'all thread' exposed on each side allows fixtures to be mounted on the top and bottom of the tubing.
Above all, no matter how you mount your lighting fixtures, remember you are responsible for the safety of any one who might be endangered by the equipment hanging over their heads. Never 'overload' your system design limits in weight or AC current / heat output. Always 'over engineer' every aspect / part of the structure components. Use safety cables / mechanisms appropriately and liberally. Verify the integrity of mounting / anchor points. Verify and understand the current limits of your AC system
(again with LED fixtures, this becomes much less of an issue).
