FISHER SPEAKER PARTS - USED / VINTAGE.
REFERENCE / DATA BASE



Fisher Replacement Speakers for reference information, specifications and occasionally for sale. Fisher drivers & Parts / spares. Fisher DS-177, DS-810, DS-826, LX1, ST-420, ST-430, ST-510, ST-750, ST-830, ST-832, ST-920,  ST-9415 / ST-9418, STV-410, STV-430, STV-720, STV-724, STV-827, STV-844, STV-873, STV-875, STV-880, STV-9535, X6000, SP-6B, XP-7, XP-7C, XP-9, XP-9b, XP-10, replacement woofers, tweeters, midranges, crossovers, cabinets, grills, speaker parts. Fisher speakers / parts for Data Base info, specifications / specs, reference and occasional sale.













































*Note about parts / spares sales

* Our "parts units", parts / spares and related reference information are primarily archived for the purpose of restoration / repair of "Oak Tree Vintage" units first. Only if we do not have a "viable" unit in yet, either already in process or in line to be processed, that may potentially need parts from a "parts unit", will we release available parts for sale (even though they may appear as available for sale to the public). As many of you know, the restoration of a unit can be a long, time consuming process. We may "lock up" parts that we may potentially need in the restoration of a unit (and not necessarily get it marked 'Hold' or 'Sold' on the site right away). Parts are priced according to the "potential value" of the unit they can be applicable to (meaning the amount WE would be willing to pay for the part if that was all that was standing between us having a "shelved unit" or a valuable / sellable unit), time to extract, their rarity & their condition to name a few criteria and likely will be completely unrelated to the original cost / price of a part when it was currently available from the manufacturer.

Parts Photos; We get a number of requests for 'photos' of a specific part. Unfortunately, in most cases that is not practical as the amount of time involved in posting that exceeds the value of the 'unique' part. We will sometimes post photos of less 'unique' parts, if there is a greater chance of them being available in multiple quantities, or on a more 'repeat' basis.

Shipping: Shipping on most 'small' parts if typically via Postal first class or Postal Priority for both domestic (USA) and international orders. Larger parts such as transformers and drivers (speakers) are typically via FedEx gnd.
Some parts sales such as those for empty 'speaker cabinets', empty 'component cabinets / covers / bonnets' and 'speaker grills' are 'doomed' from the start. Due to their size and required packing supplies, the cost of 'packing for safe transit' and shipping are typically nearly equal to and sometimes greater than the cost of the part.  Think about it. An empty speaker cabinet or stereo receiver case is essentially the same size as a complete one. Yes the weight will be less, but most of items that size are calculated on 'dimensional weight', not actual weight. Secondly empty component cabinets have to be packed to disallow breakage, typically requiring nearly as much packing materials as an entire unit. Speaker grills have to be 'sandwiched' between foam sheets in large, custom ordered boxes (all relatively expensive).  It is what it is....

A non-response to an email request for a part (we may appear to have), likely means that we are still determining which parts we are going to need for the restoration or repair of one of our units. Again, the parts are first for the restoration of our units and secondarily for the public market. Since we list the parts available for ourselves, it is not much effort to modify the menu's for web publication, which in turn makes the reference information and occasionally the part available to the public. Frankly, publishing them to the web, in many instances, makes it easier for us to determine if we have the part for our needs as well. The alternative to all of the above would be to not offer them at all to the public, however most parts are available to the public for sale.
BOTTOM LINE IS; IF YOU DON'T SEE IT AVAILABLE FOR SALE, WE DON'T HAVE IT!
 Thank you for your understanding.




20% off sale on salvage speaker parts.


See sales banners on parts pages for details







Most of these components are "take-outs" from working speaker cabinets and unless otherwise noted are in perfect shape!
   Where necessary foam surrounds have been replaced and / or speaker has been professionally and correctly re-coned!













FISHER DS-177 / DS177
Replacement speaker parts / spares

  BRAND
 OF
 SPEAKER
MODEL
 OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
 /
 NEW
QUANTITY PRICE NOTES


Fisher

Fisher
DS-177 / DS177
Fisher DS-177
Original Woofers
SC80677-2 / 923TNB
JAPAN
12" ~50-70 Watts DCR= 4.3 Ohms U 1 $75. ea. Good Cond.


Fisher

Fisher
DS-177 / DS177
Fisher DS-177 Midranges / Mids SB 80531-3
Made by Foster.
Taiwan / R.O.C.
5" - DCR= 6.5 Ohms U 2 $35. ea. Good Cond.
Fisher
 Speaker
Parts
Fisher
DS-177 / DS177

Fisher DS-177 Tweeters
SA80432-3
Korea
3" - DCR= 3.0 Ohms U 2 $30. ea. Good Cond.
Fisher
 Speaker
Parts
Fisher
DS-177 / DS177

Fisher DS-177 Grills / Front Covers / Screens
Made in USA 16" x 25.5" - - U 2 $35. ea. Good Cond.
Fisher
 Speaker
Parts
Fisher
DS-177 / DS177

Fisher DS-177 Cabinets / Cases
Made in USA - - - U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
-


FISHER DS-810 / DS810
Replacement speaker parts / spares

  BRAND
 OF
 SPEAKER
MODEL
 OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
 /
 NEW
QUANTITY PRICE NOTES
Fisher

Fisher
DS-810 / DS810
Fisher DS-810
Original Woofers
SC80645-5AX  / 923TNB
JAPAN
8" - 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Stamped Steel frame. White Pulp cone w/ black 'cloth' dust cap. Coated Cloth surround. Ceramic magnet.


FISHER DS-826 / DS826
Replacement speaker parts / spares

  BRAND
 OF
 SPEAKER
MODEL
 OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
 /
 NEW
QUANTITY PRICE NOTES
Fisher

Fisher
DS-826 / DS826
Fisher DS-826
Original Woofers
SC80733-5  / 153TNB
JAPAN
8" - 8 Ohms
DCR= 7.1 Ohms
U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Stamped Steel frame. White Pulp cone w/ black 'cloth' dust cap. Coated Cloth surround. Ceramic magnet.
Fisher

Fisher
DS-826 / DS826
Fisher DS-826
Original Midrange
SB80555-1
JAPAN
4" - 6 Ohms
DCR= 4.5 Ohms
U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Stamped Steel, Square,  Sealed frame. Black Pulp cone w/ 'chrome', Mylar dust cap. Coated Cloth surround. Ceramic magnet.
Fisher

Fisher
DS-826 / DS826
Fisher DS-826
Original Tweeter
SA80455-1
JAPAN
3" - 4 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Stamped Steel, Square,  Sealed frame. Red 'pinstripe'.  Black Pulp cone w/ 'chrome', Mylar dust cap. Coated Cloth surround. Ceramic magnet. Made by Foster in Japan


FISHER / SEARS LX1
Replacement speaker parts / spares

  BRAND
 OF
 SPEAKER
MODEL
 OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
 /
 NEW
QUANTITY PRICE NOTES
Fisher / Sears

Fisher / Sears
LX1
Fisher / Sears LX-1 Tweeter SA80424 2.5" 360 degree radial horn 12 4 Ohms
DCR= 3.5 Ohms
U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Cast, aluminum, Radial, Bullet horn. Ceramic magnet. Made by Foster in Japan.


FISHER ST-420 / ST420
Replacement speaker parts / spares

  BRAND
 OF
 SPEAKER
MODEL
 OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
 /
 NEW
QUANTITY PRICE NOTES
Fisher

Fisher
ST-420 / ST420
Fisher ST-420
Original Woofers
SC80661CX 10" - 8 Ohms
DCR= ~7.8 Ohms
U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Stamped Steel frame. Pulp cone w/ black 'pulp' dust cap. Coated Cloth surround. Ceramic magnet.
Fisher

Fisher
ST-420 / ST420
Fisher ST-420
Original Tweeters
SA-80427 3" - 4 Ohms
DCR=4.5 Ohms
U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Stamped Steel, sealed frame. Pulp cone w/ black 'pulp' dust cap. Accordion Coated Cloth surround. Ceramic magnet.


FISHER ST-430 / ST430
Replacement speaker parts / spares

  BRAND
 OF
 SPEAKER
MODEL
 OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
 /
 NEW
QUANTITY PRICE NOTES
Fisher

Fisher
ST-430 / ST430
Fisher ST-430
Original Woofers
SC80662-1 10" - 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Stamped Steel frame. Pulp cone w/ black 'pulp' dust cap. Coated Cloth surround. Ceramic magnet. Made by JVC.


FISHER ST-510 / ST510
Replacement speaker parts / spares

  BRAND
 OF
 SPEAKER
MODEL
 OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
 /
 NEW
QUANTITY PRICE NOTES
Fisher

Fisher
ST-510 / ST510
Fisher ST-510
Original Tweeters
FSA80492-1 ~.75" - - U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Mylar dome / diaphragm. Ceramic magnet. Made by Foster.


FISHER ST-750 / ST750
Replacement speaker parts / spares

  BRAND
 OF
 SPEAKER
MODEL
 OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
 /
 NEW
QUANTITY PRICE NOTES
Fisher

Fisher
ST-750 / ST750
Fisher ST-750
Original Woofers
12101 / SC80653 12" - DCR= 4.3 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
-


Fisher

Fisher
ST-750 / ST750
Fisher ST-750 Midranges / Mids 502 / SB 80530
Made by Foster.
Taiwan / R.O.C.
5" 40 6 Ohms
DCR= 4.5 Ohms
U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
Fisher
 Speaker
Parts
Fisher
ST-750 / ST750

Fisher ST-750 Tweeters
351 / SA80424
Made by Foster.
2.5" 360 degree radial horn 12 4 Ohms
DCR= 3.5 Ohms
U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Cast, aluminum, Radial, Bullet horn. Ceramic magnet. Made by Foster in Japan.


FISHER ST-830 / ST830
Replacement speaker parts / spares

  BRAND
 OF
 SPEAKER
MODEL
 OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
 /
 NEW
QUANTITY PRICE NOTES
Fisher

Fisher
ST-830 / ST830
Fisher ST-830
Original Woofers
SC80740-2 15" - 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Stamped Steel frame. White, Pulp cone w/ black 'cloth' dust cap. Coated Cloth surround. Ceramic magnet.


FISHER ST-832 / ST832
Replacement speaker parts / spares

  BRAND
 OF
 SPEAKER
MODEL
 OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
 /
 NEW
QUANTITY PRICE NOTES
Fisher

Fisher
ST-832 / ST832
Fisher ST-832
Original Woofers
SC80699-2AX 15" 100 Watts 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Stamped Steel frame. White, Pulp cone w/ black 'cloth' dust cap. Coated Cloth surround. Ceramic magnet.


FISHER ST-920 / ST920
Replacement speaker parts / spares

  BRAND
 OF
 SPEAKER
MODEL
 OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
 /
 NEW
QUANTITY PRICE NOTES
Fisher

Fisher
ST-920 / ST920
Fisher ST-920
Original Midranges
SB80533 ~5.5" - 4 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Stamped Steel, Sealed frame. White, Pulp cone w/ black 'cloth' dust cap. Coated Cloth surround. Ceramic magnet. Made by Foster in Japan.
Fisher

Fisher
ST-920 / ST920
Fisher ST-920
Original Tweeters
SB80435 / SB80435BX
(See also Fisher ST-920 & STV-844)
~2.5" 12 4 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Cast, aluminum, Radial, Bullet horn. Ceramic magnet. Made by Foster in Japan.


FISHER ST-9415 / ST-9418
Replacement speaker parts / spares

  BRAND
 OF
 SPEAKER
MODEL
 OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
 /
 NEW
QUANTITY PRICE NOTES
Fisher

Fisher
ST-9415 / ST-9418
Fisher ST-9415 / ST-9418
Original Tweeters
SSA80498-1 2" - N/A U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Piezo, Pulp cone. Made in Korea.


FISHER STV-410 / STV410
Replacement speaker parts / spares

  BRAND
 OF
 SPEAKER
MODEL
 OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
 /
 NEW
QUANTITY PRICE NOTES
Fisher

Fisher
STV-410 / STV410
Fisher STV-410
Original Woofers
SC80761-3

10" 60 Watts 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Stamped Steel frame. White Pulp cone w/ black 'cloth' dust cap. Coated cloth surround. Ceramic magnet, w/ smaller 'bucking magnet' added for 'video shielding
Fisher

Fisher
STV-410 / STV410
Fisher STV-410
Original Tweeter
SA80460-3

~2.5" ~15? 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Stamped Steel frame. Black Pulp cone w/ 'Chrome', Mylar dust cap. Coated cloth surround. Ceramic magnet.


FISHER STV-430 / STV430
Replacement speaker parts / spares

  BRAND
 OF
 SPEAKER
MODEL
 OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
 /
 NEW
QUANTITY PRICE NOTES
Fisher

Fisher
STV-430 / STV430
Fisher STV-430
Original Woofers
SC80781-1 15" - 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Stamped Steel frame. White Pulp cone w/ black 'cloth' dustcap. Ceramic magnet, w/ smaller 'bucking magnet' added for 'video shielding


FISHER STV-720 / STV720
Replacement speaker parts / spares

  BRAND
 OF
 SPEAKER
MODEL
 OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
 /
 NEW
QUANTITY PRICE NOTES
Fisher

Fisher
STV-720 / STV720
Fisher STV-720
Original Woofers
SC80761-1 10" - 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Stamped Steel, 'deep' frame. White Pulp cone w/ 'Oversize' black 'cloth' dust cap. Cloth surround. VERY tiny Ceramic magnet, w/ smaller 'bucking magnet' added for 'video shielding.
Fisher

Fisher
STV-720 / STV720
Fisher STV-720
Original Tweeter
SC80460-3 3" - 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Stamped Steel, Sealed frame. Black Pulp cone w/ 'chrome', Mylar dust cap. Accordion, coated, pulp surround. Ceramic magnet.


FISHER STV-724 / STV724
Replacement speaker parts / spares

  BRAND
 OF
 SPEAKER
MODEL
 OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
 /
 NEW
QUANTITY PRICE NOTES
Fisher

Fisher
STV-724 / STV724
Fisher STV-724
Original Woofers
SC80781-1 15" - 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Stamped Steel, 'deep' frame. White Pulp cone w/ black 'cloth' dust cap. Cloth surround. VERY tiny Ceramic magnet, w/ smaller 'bucking magnet' added for 'video shielding.
Fisher

Fisher
STV-724 / STV724
Fisher STV-724
Original Midrange
SC80564-3 ~2.5" - 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Stamped Steel, Sealed frame. Black Pulp cone w/ 'chrome', Mylar dust cap. Accordion, coated, pulp surround. Ceramic magnet.


FISHER STV-827 / STV827
Replacement speaker parts / spares

  BRAND
 OF
 SPEAKER
MODEL
 OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
 /
 NEW
QUANTITY PRICE NOTES
Fisher

Fisher
STV-827 / STV827
Fisher STV-827
Original Woofers
SC80772-1
(see also Fisher STV-827 & STV-873)
12"
4.5lbs total weight.
- 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Stamped Steel frame. White Pulp cone w/ black 'cloth' dustcap. Cloth surround. Ceramic magnet, w/ smaller 'bucking magnet' added for 'video shielding.
Fisher

Fisher
STV-827 / STV827
Fisher STV-827
Original Midrange
SC80564-1 4" - 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Stamped Steel, Sealed frame. Black Pulp cone w/ 'chrome', Mylar dust cap. Accordion, pulp surround. Ceramic magnet, w/ smaller 'bucking magnet' added for 'video shielding.


FISHER STV-844 / STV844
Replacement speaker parts / spares

  BRAND
 OF
 SPEAKER
MODEL
 OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
 /
 NEW
QUANTITY PRICE NOTES
Fisher

Fisher
STV-844 / STV844
Fisher STV-844
Original Woofers
SC80741-2 15" ~120 watts 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Stamped Steel frame. White Pulp cone w/ black 'cloth' dustcap. Cloth surround. Ceramic magnet, w/ smaller 'bucking magnet' added for 'video shielding. Made by 'Foster' in Japan.
Fisher

Fisher
STV-844 / STV844
Fisher STV-844
Original Midranges
SC80535FX ~4.5" - 4 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Stamped Steel, 'Semi-Sealed' frame. Black Pulp cone w/ black 'pulp' dust cap. Coated, Accordion  surround. Ceramic magnet. Made by 'Foster' in Japan.
Fisher

Fisher
STV-844 / STV844
Fisher STV-844
Original Tweeters
SB80435 / SB80435BX
(See also Fisher ST-920 & STV-844)
~2.5" - 4 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Cast, aluminum, Radial, Bullet horn. Ceramic magnet. Made by Foster in Japan.


FISHER STV-873 / STV873
Replacement speaker parts / spares

  BRAND
 OF
 SPEAKER
MODEL
 OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
 /
 NEW
QUANTITY PRICE NOTES
Fisher

Fisher
STV-873 / STV873
Fisher STV-873
Original Woofers
SC80772-1
(see also Fisher STV-827 & STV-873)
12"
4.5lbs total weight.
- 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Stamped Steel frame. White Pulp cone w/ black 'cloth' dust cap. Cloth surround. Ceramic magnet. Made by 'Foster' in Japan.
Fisher

Fisher
STV-873 / STV873
Fisher STV-873
Original Tweeters
SA80464-3 3" - 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Stamped Steel frame. Black Pulp cone w/ 'Chrome', Mylar dust cap. Accordion, Cloth surround. Ceramic magnet, w/ smaller 'bucking magnet' added for 'video shielding. Made by 'Foster' in Japan.


FISHER STV-875 / STV875
Replacement speaker parts / spares

  BRAND
 OF
 SPEAKER
MODEL
 OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
 /
 NEW
QUANTITY PRICE NOTES
Fisher

Fisher
STV-875 / STV875
Fisher STV-875
Original Midrange
SC80464-2 ~4" - - U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Stamped Steel, Sealed, frame, w/ square mounting flange. Black, Pulp cone w/ 'chrome', Mylar dust cap. 'Accordion', Coated Cloth surround. Ceramic magnet, w/ smaller 'bucking magnet' added for 'video shielding. Made by 'Foster' in Japan.
Fisher

Fisher
STV-875 / STV875
Fisher STV-875
Original Tweeter
SC80564-2 ~3" - - U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Stamped Steel, Sealed, frame, w/ square mounting flange. Black, Pulp cone w/ 'chrome', Mylar dust cap. 'Accordion', Coated Cloth surround. Ceramic magnet, w/ smaller 'bucking magnet' added for 'video shielding. Made by 'Foster' in Japan.


FISHER STV-880 / STV880
Replacement speaker parts / spares

  BRAND
 OF
 SPEAKER
MODEL
 OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
 /
 NEW
QUANTITY PRICE NOTES
Fisher

Fisher
STV-880 / STV880
Fisher STV-880
Original Woofers
SC80781-1 15" - 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Stamped Steel frame. White Pulp cone w/ black 'cloth' dustcap. Ceramic magnet, w/ smaller 'bucking magnet' added for 'video shielding


FISHER STV-9535 / STV9535
Replacement speaker parts / spares

  BRAND
 OF
 SPEAKER
MODEL
 OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
 /
 NEW
QUANTITY PRICE NOTES
Fisher

Fisher
STV-9535 / STV9535
Fisher STV-9535
Original Tweeters
FSA80461-5 ~2.5" - DCR=4.6 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Stamped Steel, Rectangular  Sealed  frame. Black Pulp cone w/ black 'Mylar' dust cap. Ceramic magnet. Made by Foster in Korea.


FISHER / SEARS X6000
Replacement speaker parts / spares

  BRAND
 OF
 SPEAKER
MODEL
 OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
 /
 NEW
QUANTITY PRICE NOTES
Fisher / Sears
 Speaker
Parts
Fisher / Sears X6000 ORIGINAL
 SERIES
WOOFER
S
SC80641-1 10" - 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
$55. ea
Stamped Steel frame. Pulp cone. Cloth dust Cap. Foam surrounds. Ceramic Magnet.


FISHER XP-6B / XP6B
'Heritage Series' Replacement speaker parts / spares

  BRAND
 OF
 SPEAKER
MODEL
 OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
 /
 NEW
QUANTITY PRICE NOTES
Fisher
 Speaker
Parts
Fisher
XP-6B, XP6B, XP6B
ORIGINAL
 SERIES
WOOFER
S
W208
(Alternative XP-6B, XP6B woofer)
10" +4dB over W149 4.4 DCR U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
$55. ea
Good Cond.
Fisher
 Speaker
Parts
Fisher
XP-6B, XP6B
ORIGINAL
 SERIES
WOOFER
S
W149 / W-149
(Alternative XP-6B, XP6B woofer)
10" -4dB under W208 5.7 DCR U 1 $55. ea. Good Cond.
Fisher
 Speaker
Parts
Fisher

XP-6B, XP6B

AlNiCo Magnet
Upper-Mid Midrange Ranges
M-166
'sealed back'
(alternative)
(SEE ALSO XP-6B, XP6B / XP-9B)
4" - 6 ohms
(5.3
ohms
static
reading)
U 2 $35. ea. Good Cond.
Fisher
 Speaker
Parts
Fisher

XP-6B, XP6B
AlNiCo Magnet
'Fried Egg'
Dome
Tweeter
s
'Marked'
T-200 / T200
(SEE ALSO XP-6B, XP-7, XP-9B, XP-12)
1.5"
Cloth Dome on a
4" mounting plate
- 12.3 ohms
(static
reading)
U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
-


FISHER XP-7 / XP7
Replacement speaker parts / spares

  BRAND
 OF
 SPEAKER
MODEL
 OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
 /
 NEW
QUANTITY PRICE NOTES
Fisher
 Speaker
Parts
Fisher
XP-7 / XP7
ORIGINAL
 SERIES
WOOFER
S
W204X 12" - 4 Ohms
DCR = 3.7 Ohms
U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
$55. ea
Stamped steel frame. Ribbed, Pulp cone. Coated Cloth Surround. Cloth dust cap. AlNiCo magnet.
Fisher
 Speaker
Parts
Fisher
XP-7 / XP7
ORIGINAL
 SERIES
Midrange
M202 5" - 8 Ohms
DCR = 7.6 Ohms
U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
$55. ea
Stamped steel frame. Pulp cone. 'Accordion' Coated Cloth Surround. Cloth dust cap. AlNiCo magnet.


FISHER XP-7C / XP7C
Replacement speaker parts / spares

  BRAND
 OF
 SPEAKER
MODEL
 OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
 /
 NEW
QUANTITY PRICE NOTES
Fisher
 Speaker
Parts
Fisher
XP-7C / XP7C
ORIGINAL
 SERIES
WOOFER
S
CS-80609 12" - 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
$55. ea
Stamped steel frame. Ribbed, Pulp cone. Reverse, Coated Cloth Surround. Cloth dust cap. Huge Ceramic magnet.
Fisher
 Speaker
Parts
Fisher
XP-7C / XP7C
ORIGINAL
 SERIES
Lower-Midrange
CS-80505 12" - 8 Ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
$55. ea
Stamped steel frame. Ribbed, Pulp cone. Reverse, Coated Cloth Surround. Cloth dust cap. Huge Ceramic magnet.
Fisher
 Speaker
Parts
Fisher
XP-7C / XP7C
ORIGINAL
 SERIES
Upper-Midrange
CS-80504 ~4" - 8 Ohms
DCR = 6.8
U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
$55. ea
Stamped steel frame. Pulp cone.  Coated Cloth Surround. Pulp dust cap. Huge, Square, Ceramic magnet.
Fisher
 Speaker
Parts
Fisher
XP-7C / XP7C
ORIGINAL
 SERIES
Tweeter
SA-80401 / 137-72xx ~2.5" - - U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
$55. ea
Stamped steel frame. Pulp cone.  Coated Pulp Surround. Pulp dust cap. Ceramic magnet.

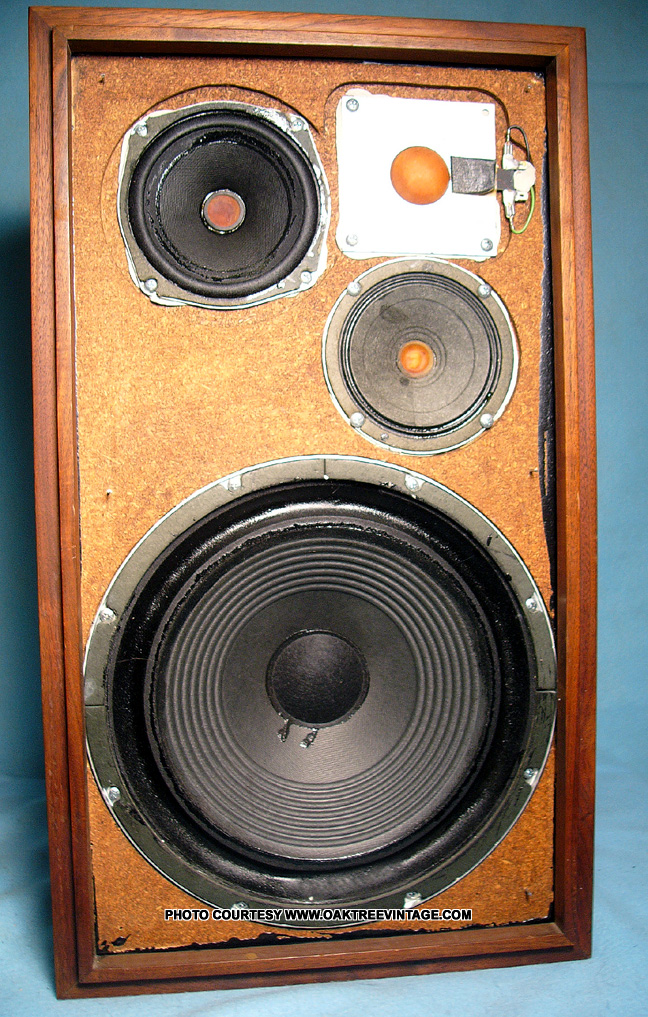

FISHER XP-9 / XP9
Replacement speaker parts
/ spares

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES
Fisher
XP-9 / XP9
XP-9 / XP9 AlNiCo Magnet
WOOFERS
W-205X
woofer,
12" - 4 Ohms
DCR = 3.5 Ohms
U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
$55. ea
Stamped steel frame. Ribbed, Pulp cone. 'Reverse' coated cloth surround. Cloth dust cap. AlNiCo magnet.
Fisher
XP-9 / XP9
XP-9 / XP9 AlNiCo Magnet
Midrange
W-202X
woofer,
5" - 8 Ohms
DCR = 7.4 Ohms
U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
$55. ea
Stamped steel frame.
Pulp cone. 'Accordion' coated cloth surround. Cloth dust cap. AlNiCo magnet.


FISHER XP-9b / XP9b
'Heritage Series' Replacement speaker parts
/ spares

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES


Fisher
XP-9b / XP9b
XP-9b / XP9b AlNiCo Magnet
WOOFERS
W206
woofer,
12" - 8 ohms (5.3 DCR) U 1 $95. ea. Good Cond.
 w/ 'Reverse' coated cloth surround, ribbed paper cone and AlNiCo Magnet. Wire attachment lugs are 'solder' type.


Fisher  / Scott
XP-9b / XP9b
XP-9b / XP9b AlNiCo Magnet
WOOFERS
SCOTT branded

SP-W12-88

Replacement for Fisher XP-9B woofer, w/ 'Reverse' coated cloth surround, ribbed paper cone and AlNiCo Magnet. Wire attachment lugs are 'solder' type.

12" - 8 ohms (5.3 DCR) U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
Fisher
XP-9b / XP9b
XP-9b / XP9b
Low-Mid Midrange Ranges
M-154X
'open back'
(alternative)
4.5" - 4 ohms
(3.7
ohms
static
reading)
U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
Fisher
XP-9b / XP9b
XP-9b / XP9b
Low-Mid Midrange Ranges
M-165
'sealed back'
(alternative)
4.5" - 4 ohms
(3.7
ohms
static
reading)
U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
Fisher
XP-9b / XP9b
XP-9b / XP9b
AlNiCo Magnet
Upper-Mid Midrange Ranges
M-155X
'open back'
(alternative)
4" - 6 ohms
(5.3
ohms
static
reading)
U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
Fisher
XP-9b / XP9b
XP-9b / XP9b
AlNiCo Magnet
Upper-Mid Midrange Ranges
M-166
'sealed back'
(alternative)
(SEE ALSO XP-6B, XP6B / XP-9B)
4" - 6 ohms
(5.3
ohms
static
reading)
U 2 $35. ea. Good Cond.
Fisher
XP-9b / XP9b
XP-9b / XP9b AlNiCo Magnet
'Fried Egg'
Dome
Tweeter
s
'Marked'
T-200 / T200
(SEE ALSO XP-6B, XP-7, XP-9B, XP-12, XP-15)
1.5"
Cloth Dome on a
4" mounting plate
- 12.3 ohms
(static
reading)
U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
Fisher
XP-9b / XP9b
XP-9b / XP9b AlNiCo Magnet
'Fried Egg'
Dome
Tweeter
s
'Un-marked'
T-200 / T200
(SEE ALSO XP-6B, XP-7, XP-9B, XP-12)
1.5"
Cloth Dome on a
4" mounting plate
- 12.3 ohms
(static
reading)
U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
Fisher
XP-9b / XP9b
XP-9b / XP9b Cross-
overs
W/
5-Position
 L-Pad
 Tweeter
 control-8
XP-9b / XP9b 4-way - U 2 $45. ea. Good Cond.
Fisher
XP-9b / XP9b
XP-9b / XP9b Cabinets Walnut
veneer
- - - U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
Fisher
XP-9b / XP9b
XP-9b / XP9b Grills Nat Linen / basket weave - - - U 2 $45. ea. Good Cond.
Fisher
XP-9b / XP9b
XP-9b / XP9b Logo - - - - U 2 $20. ea Good Cond.


FISHER XP-10 / XP10
Replacement speaker parts
/ spares

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES
Fisher
XP-10 / XP10
XP-10 / XP10 AlNiCo Magnet
WOOFERS
W-123-A
woofer
15"
7 lbs in total
- 4 Ohms
DCR=3.9 Ohms
U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Stamped Steel frame. 'Reverse' coated cloth surround, ribbed paper cone and AlNiCo Magnet. Wire attachment lugs are 'solder' type.
Fisher
XP-10 / XP10
XP-10 / XP10 AlNiCo Magnet
Mid-Bass
M-124XA midrange / mid-bass 8"
9 lbs in total
- 16 Ohms
DCR= 9.8 Ohms
U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Stamped Steel frame. 'Reverse' coated cloth surround.  Pulp cone. Cloth dust cap. AlNiCo Magnet. Wire attachment lugs are 'solder' type.

--
- - - - - - - - - - -
If you're looking for a great place for great place to purchase new foam surround kits, replacement surrounds, or to have your woofers, sub woofers / subs, re-foamed or re-coned, we recommend either 'Orange County Speakers' or 'Parts Express'. They have QUALITY parts and do QUALITY work.











LINKS TO OUR 'HI-FI' DEPARTMENTS

Amps and
Pre-Amps

Receivers

Cassette
Decks

Tuners

Turntables

8-Track Decks

CD Players

Reel-Reel
Decks

EQs and Signal
Processors

Speakers

Betamax and
VHS VCRs

Turntable Cartridges

Tube Audio

Ne'cessories

Speaker Parts

Record Players

Vintage Radios

Vintage
Walkmans

Headphones

Stereo Parts


Wondering where the "tone" you remember went?....

Vintage  Stereo Equipment receivers speakers Classic Silver Audio Collection and jerry



.... Surround yourself with Silver and find it again!


CONTACT INFO BELOW

$20. MINIMUM ORDER





    Before calling, PLEASE read the text in orange below.
No Really...Stop, Alto, Halt, etc.
 BEFORE
CALLING

(800) 806-4231 EXT #1
OR EMAILING
parts@oaktreevintage.com

~9:30 AM- ~7:30 PM most days COLORADO / ROCKY MOUNTAIN TIME ZONE

We DO NOT have your part unless the following conditions are met:

A) You HAVE SERCHED our page(s) and HAVE FOUND the part you are looking for SPECIFICALLY listed on one of our pages or you have solid information that it's a 'bona fide' substitution for your part (unless noted already, we won't have any further info along those lines)
AND
B) The part that you have found is NOT marked as SOLD or SOLD OUT.


If you do not see it listed after thoroughly searching the pertinent page
(likely the page you landed on originally),
we do not have it,
nor do we know when
it might come in,
nor do we maintain "waiting lists" for parts,
nor do we know who
might have it.

Sorry, but phone and email traffic for parts
we don't have listed or for parts that are already marked "SOLD" has become too consuming of time resources.


 We try to keep these pages 99+% updated.
If you don't see the part you are looking for, simply check the web page periodically as we never know what will show up each day. Thanks!!!!!


ALSO: When e-mailing be sure to include a relevant subject, ie: Brand / Model number / reason for inquiry in the 'SUBJECT LINE'.
SUBJECT
lines left empty, or with 'single word' text like;
"Hello", "Hi", "parts", "stereo", "inquiry", "question", "selling" or similar or similar 'un-qualified' terms will automatically be deleted by Anti-Virus / Spam settings or receive 'Low Priority'.
(Subject lines left empty show up as "No Subject" and are deleted automatically by our anti-spam settings"


 SPEAKER PARTS   |   STEREO / HI-FI ELECTRONIC PARTS   |  KEYBOARD PARTS

___________________________________________

Haven't received a response to your email? See FAQ'S

MAILING:
OAK TREE ENTERPRISES
PO. BOX 6182
COLORADO SPRINGS, CO 80934
U.S.A
.

Before ordering by postal mail, please phone or email us about the item and the details of sending your funds. Thank-you.


 SPEAKER PARTS   |   STEREO / HI-FI ELECTRONIC PARTS   |   SELLING-TRADING-CONSIGNING   |  KEYBOARD PARTS   I   FAQ'S
  CONDITION RATINGS   |   ORDERING / POLICIES    |    WARRANTIES / RETURNS   |   SHIPPING
 RESTORATION PROCEDURES   |   REPAIRS  | CONTACT PARTS


30% restock fee / service charge applies to all 'parts' returns for refund.
Some parts are not returnable.

See our "
Warranties / Returns" page via the link below for more details.


POLICIES, SPECIFICATIONS, AVAILABILITY, INFORMATION AND PRICING SUBJECT TO CHANGE  AT ANYTIME  AND WITHOUT PRIOR NOTICE
and changes may not be posted to web immediately
. Information such as Parts Substitution possibilities, "Circa" dates, original values, etc. are to the best of our knowledge. If you are critically concerned, you should do independent
research on your own prior to ordering or utilizing this information in any way. Manufacturers also are known to change part numbers, specs, circuit designs, specs etc within the same model.


Copyright 1997-2014 Oak Tree Enterprises, LLC

COPYRIGHT INFORMATION




Please be patient while page loads . . .
