Most of these components are "take-outs" from working speaker cabinets
and unless otherwise noted are in perfect shape! Where necessary foam
 surrounds have been replaced and / or speaker has been professionally
and correctly re-coned!

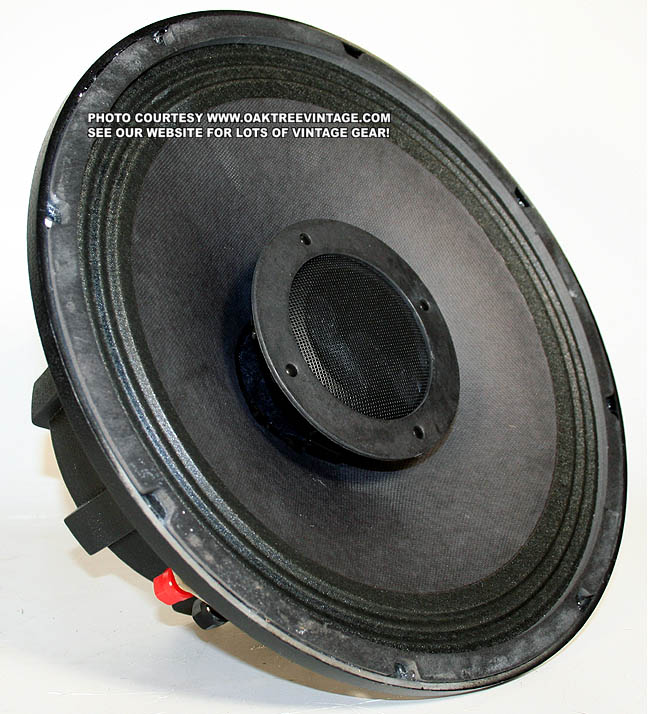

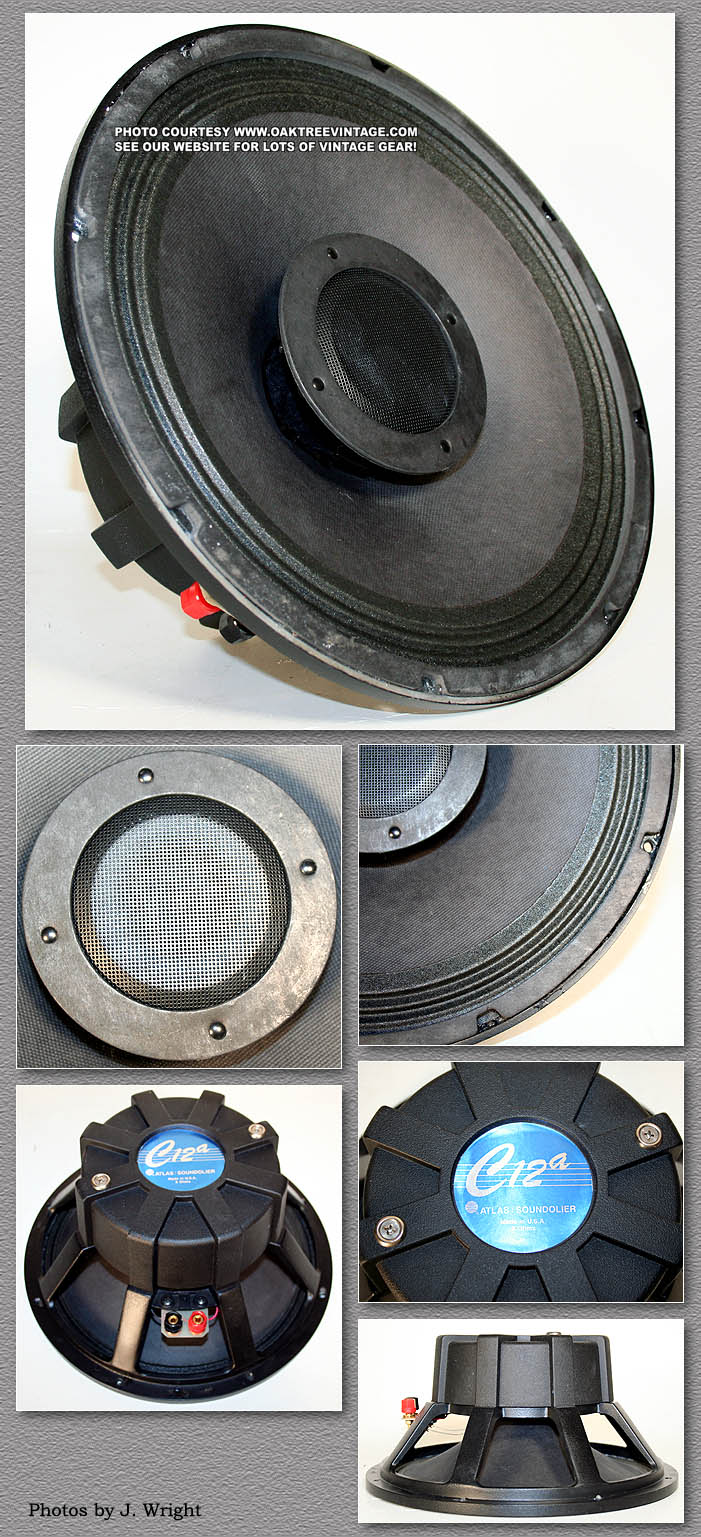

Atlas-Soundolier has long been THE industry standard of quality sound reproduction for background, foreground music applications and professional sound reinforcement in auditoriums, schools, universities, gymnasiums, convention centers, churches, theaters, airports and other industrial facilities. These Atlas C12A, Coaxial, 12" drivers are rated at 8-ohms impedance and are available with factory-installed, line-matching transformers for 70 volt systems or without transformers for connection to standard 8 ohm amp outputs.
BRAND   OF   SPEAKER	MODEL   OF  SPEAKER	ITEM	PART #	SIZE	WATTS	Ω	USED   /   NEW	QUANTITY	PRICE	NOTES
ATLAS-SOUNDOLIER	ATLAS  C12A	Coaxial, 12", Cast frame Drivers.	C12A	12" - 40-17kHz - 98dB - 32Oz motor / magnet	65 watts	8 Ω	U	10	NEW $189. ea Pre-Owned $89. ea.	Excellent shape

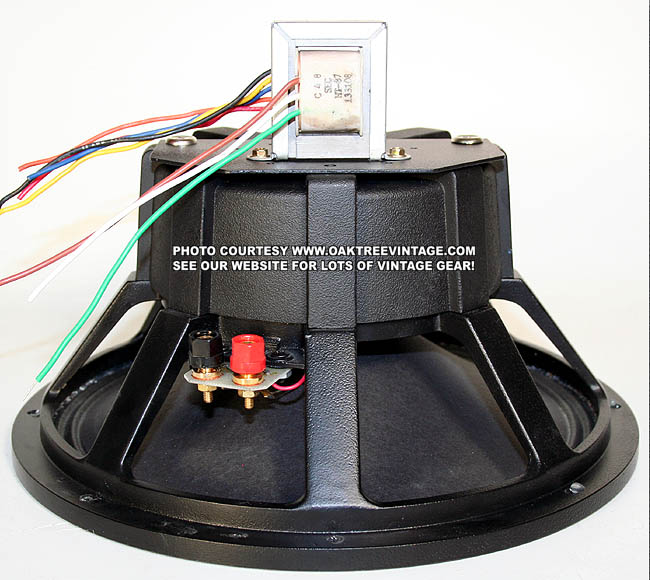

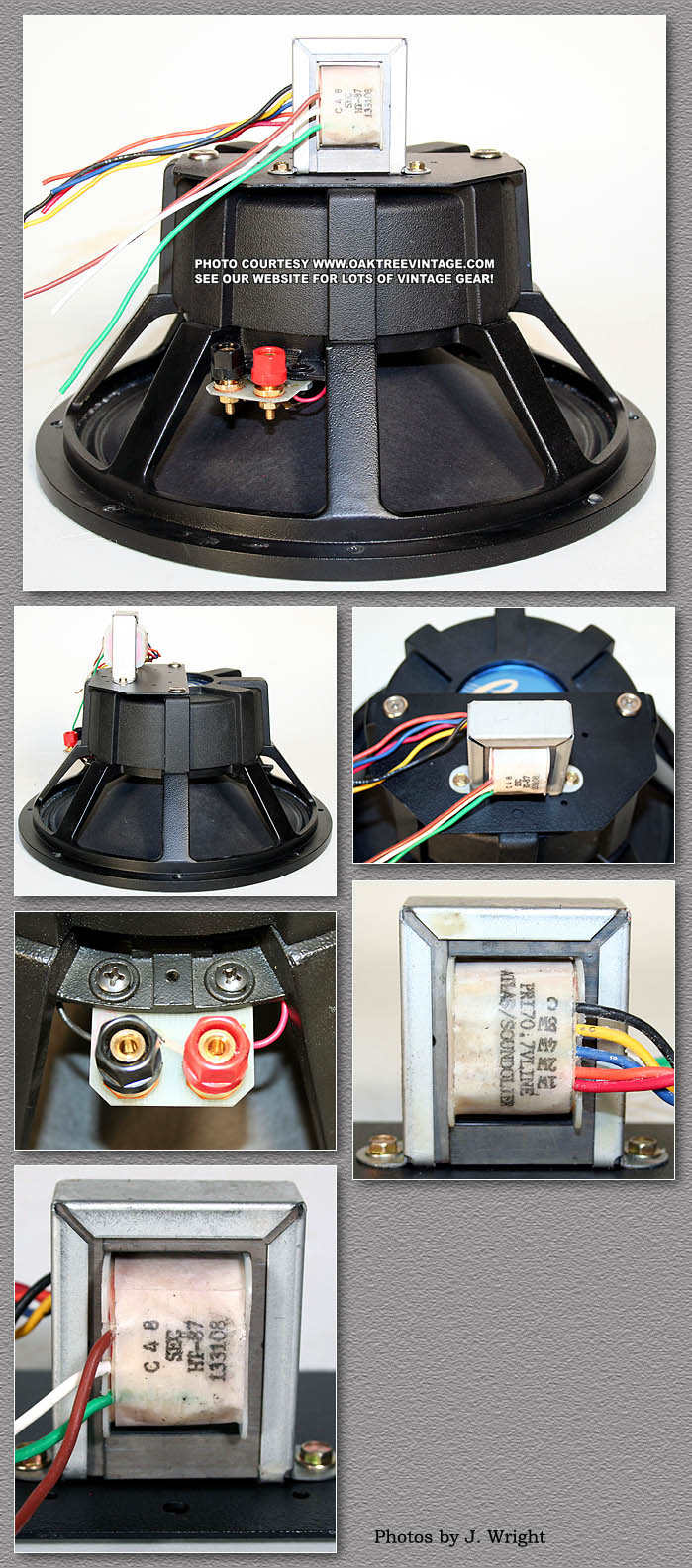

ATLAS-SOUNDOLIER	ATLAS  C12A w/ HT-87 70.7 volt transformer installed on transformer mounting plate.	Coaxial, 12", Cast frame Drivers.	C12A / HT-87 HT87	12" - 40-17kHz - 98dB - 32Oz motor / magnet Transformer Specs; see below	Primary: 70.7 volts 1, 2, 4 or 8 watt legs	Secondary taps @ 4 or 8 Ohm	U	10	NEW $229. ea Pre-Owned $109. ea.	Excellent shape

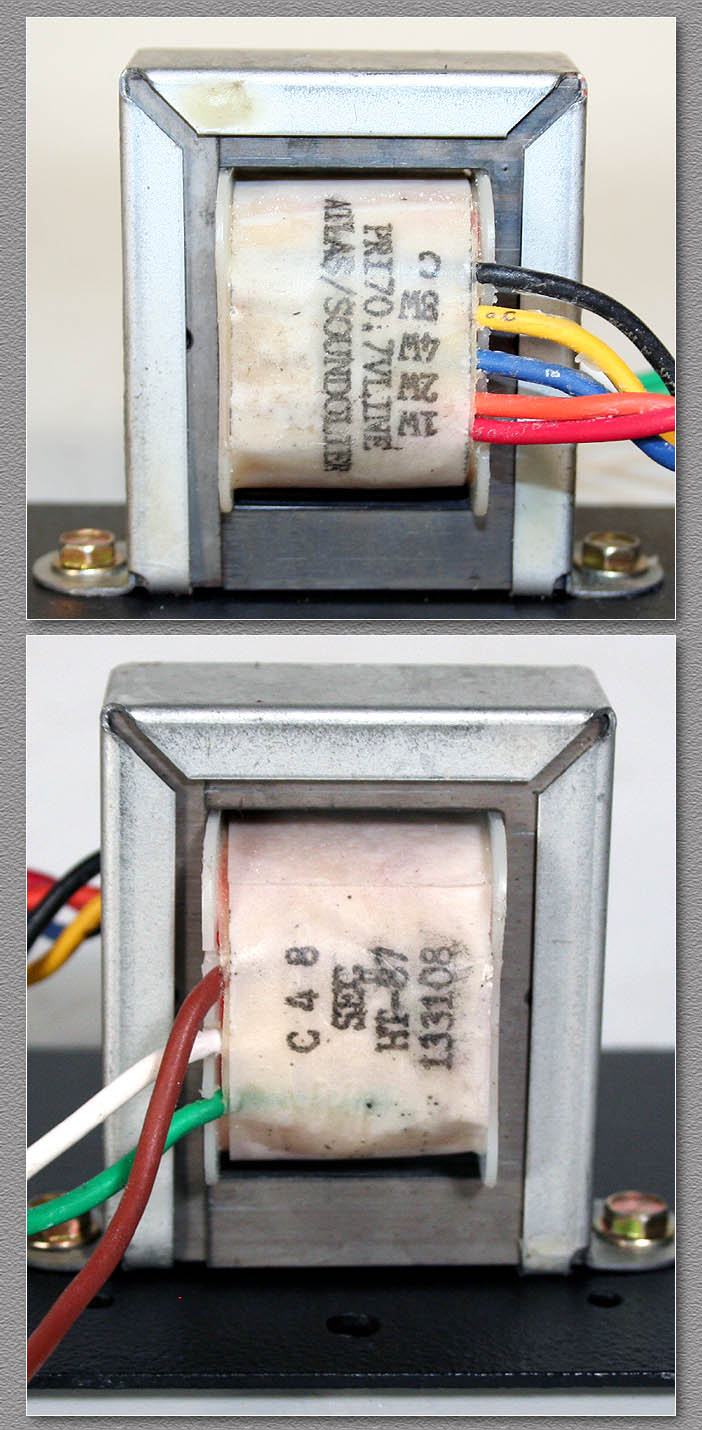

ATLAS-SOUNDOLIER	ATLAS  HT-87 70.7 volt transformer installed on transformer mounting plate. Plate fits Atlas C12A drivers, but may fit others.	70.7 Line voltage transformer	HT-87 HT87	-	Primary: 70.7 volts 1, 2, 4 or 8 watt legs	Secondary taps @ 4 or 8 Ohm	U	10	NEW $29. ea Pre-Owned $34. for a PAIR. Sold in 'Pairs' only.	Excellent shape
Atlas Transformer Model Number Primary Volts Freq Response Primary Impedance (OHMS) Insertion Loss in dB Power Rating   HT-87 70.7 ± 1dB - 50 Hz - 15kHz 4 & 8Ω 0.6dB 8 Watts
-
