KENWOOD SPEAKER PARTS USED / VINTAGE / REFERENCE.
REFERENCE / DATA BASE


Kenwood / Trio Replacement drivers Speakers & Parts / spares for reference and occasionally for sale. Kenwood replacement woofers Tweeters mids midranges, crossovers, cabinets, Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use) for speaker repair of Kenwood, JL, KL KL333, KL-333S, KL-555A, KL-555X, KL555x, KL777, 777D, 777A, 777, A , KL-777S, 777X KL 333 555 X KL-888A, KL888A, KL999, 999 D, LSK-600B, LS-P9200 speaker parts. Kenwood speakers / parts for Data Base info, specifications / specs, reference and occasional sale.














































*Note about parts / spares sales

* Our "parts units", parts / spares and related reference information are primarily archived for the purpose of restoration / repair of "Oak Tree Vintage" units first. Only if we do not have a "viable" unit in yet, either already in process or in line to be processed, that may potentially need parts from a "parts unit", will we release available parts for sale (even though they may appear as available for sale to the public). As many of you know, the restoration of a unit can be a long, time consuming process. We may "lock up" parts that we may potentially need in the restoration of a unit (and not necessarily get it marked 'Hold' or 'Sold' on the site right away). Parts are priced according to the "potential value" of the unit they can be applicable to (meaning the amount WE would be willing to pay for the part if that was all that was standing between us having a "shelved unit" or a valuable / sellable unit), time to extract, their rarity & their condition to name a few criteria and likely will be completely unrelated to the original cost / price of a part when it was currently available from the manufacturer.

Parts Photos; We get a number of requests for 'photos' of a specific part. Unfortunately, in most cases that is not practical as the amount of time involved in posting that exceeds the value of the 'unique' part. We will sometimes post photos of less 'unique' parts, if there is a greater chance of them being available in multiple quantities, or on a more 'repeat' basis.

Parts, general condition / circuit board condition; Most of our parts are from 'salvage / donor' units. While we don't sell parts that are 'known' to be bad, occasionally parts will need further adjustment, cleaning, 'tweaking', or in the case of circuit boards, may need old, conductive glue / epoxy further cleaned, and some 'common' parts / components such as, aging / leaky capacitors, parts whose values have drifted, and some epoxy transistors may need to be replaced due to 'green / black / furry' legs, or because those parts were marked as 'sold separately'. Some circuit boards may have 'tired' "landing / solder pads", or severed traces, or cold / bad solder joints which can require solder re-flow or 'jumpers'. Unless noted, circuit boards will be 'crack / split / break' free.

Parts pricing; Most of our parts price / value will be based on a few things. Firstly, we are in the restoration / refurb business, so we consider what we would be willing to pay for the part if we needed it (which again, is what the parts are listed for in the first place, "our units"). Secondly, the rarity / value of the unit the part(s) fit. The 'Tuning Knob' for a receiver that has a final value of $350 will likely be much less than the "Tuning Knob" for a unit with a final value of $1500 or more (a set of tires for a typical sedan will be $400 to $600. A set for a Lamborghini can be $16,000). Thirdly, the 'rarity' of the part. Forth, the 'condition' of the part. Fifth, the difficulty to extract the part, or success rate for extracting certain parts. Sixth; frankly it's a LOT of work and time to part out a unit. Most take 1 to 3 days of shop time to process. Not only the disassembly, but the 4-15 hours of pre-testing / servicing and just as time consuming can be the amount of time it takes to do all of the research we do and the info we list on many parts for cross-referrencing to other units that my use the same parts by scouring service manuals. On many circuit boards we will list every 'semi-conductor' which is also very time consuming. Lastly, every call or email for a part can require 20 minutes to sometimes over an hour of 'phone support', often (about 70% of the time) with me convincing the potential purchaser that they don't need the part I have to solve their problem.
Sorry to sound like a "whiner" about selling parts, but "time is money".

Shipping: Shipping on most 'small' parts if typically via Postal first class or Postal Priority for both domestic (USA) and international orders. Larger parts such as transformers and drivers (speakers) are typically via FedEx gnd.
Some parts sales such as those for empty 'speaker cabinets', empty 'component cabinets / covers / bonnets' and 'speaker grills' and most are 'doomed' from the start. Due to their size and required packing supplies, the cost of 'packing for safe transit' and shipping are commonly 'disproportionate' to their cost, typically nearly equal to and sometimes greater than the cost of the part.  Think about it. An empty speaker cabinet or stereo receiver case is essentially the same size as a complete one. Yes the weight will be less, but most of items that size are calculated on 'dimensional weight', not actual weight so are commonly just as expensive as shipping a 'complete unit'. Secondly empty component cabinets have to be packed to disallow breakage, typically requiring nearly as much packing materials as an entire unit. Speaker grills have to be 'sandwiched' between foam sheets in large, custom ordered boxes (all relatively expensive).  It is what it is....

A non-response to an email of phone call / voice message request for a part that we don't show on one or our pages, or is already marked "SOLD" will be typical. We simply don't have the time / man-power resources to respond to every query we get for items we don't show as avail. Most folks get that. Having said that, I / we may respond if we have information on a substitution or other useful information relating to it.

A non-response to an email of phone call / voice message request for a part (we may appear to have, but typically 'highlighted in Orange or Yellow'), likely means that we are still determining which parts we are going to need for the restoration or repair of one of our units. Again, the parts are first for the restoration of our units and secondarily for the public market. Since we list the parts available for ourselves, it is not much effort to modify the menu's for web publication, which in turn makes the reference information and occasionally the part available to the public. Frankly, publishing them to the web, in many instances, makes it easier for us to determine if we have the part for our needs as well. The alternative to all of the above would be to not offer them at all to the public, however most parts are available to the public for sale.  Also, parts requests can occasionally take time for us to respond to. While we may have a part listed, and we like to keep the website 100% accurate, occasionally a part will be 'used by us' or 'previously sold' and we by oversight, and we did not get the web listing marked "SOLD", or the part gets  'mis-placed' or 'lost' (laid down somewhere in the warehouse(s) and then it get's lost track of (that happens to our coffee cups all the time, then we find it months later with 'a good batch of 'penicillin' growing in it), so we like to 'lay eyes on it' prior to responding. Sometimes we just can't figure out which cabinet or drawer parts were assigned to (and we're working on a system for that one).

Some folks email / call and want us to respond either way / whether we have the part or not. Again, we simply do not have the time resources to do that. Our time must be utilized on the requests we can fulfill.
Sorry for all the excuses, but that's how the 'system' (or lack thereof) works.
And, if you don't see it, we likely don't have it.
 Thank you for your understanding.

$20. MINIMUM ORDER



20% off sale on salvage speaker parts.


See sales banners on parts pages for details


Most of these components are "take-outs" from working speaker cabinets and unless otherwise noted are in perfect shape!
   Where necessary foam surrounds have been replaced and / or speaker has been professionally and correctly re-coned!












KENWOOD JL-680 JL680 SPEAKER PARTS / SPARES

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES

Kenwood
Kenwood JL-680 / JL680

Kenwood JL-680 / JL680
Woofers
T10-0408 12" - 8 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Kenwood Kenwood JL-680 / JL680 Kenwood JL-680 / JL680
Mids / Midranges
T06-0234-05 Outside 5"
Cone 4"
Hole diameter 4"
- - U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Kenwood Kenwood JL-680 / JL680 Kenwood JL-680 / JL680
Tweeters
T03-0297-05 Outside 3"
Cone 2.5"
- - U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-

KENWOOD JL-885 JL885 SPEAKER PARTS / SPARES

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES

Kenwood
Kenwood JL-885 / JL885 Woofers T-10-0632-05 12" - 8 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Kenwood Kenwood JL-885 / JL885 Mids / Midranges T06-0323-05 ~4-4.5" - - U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Kenwood Kenwood JL-885 / JL885 Tweeters T03-0464-05 ~1.5" - - U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
-

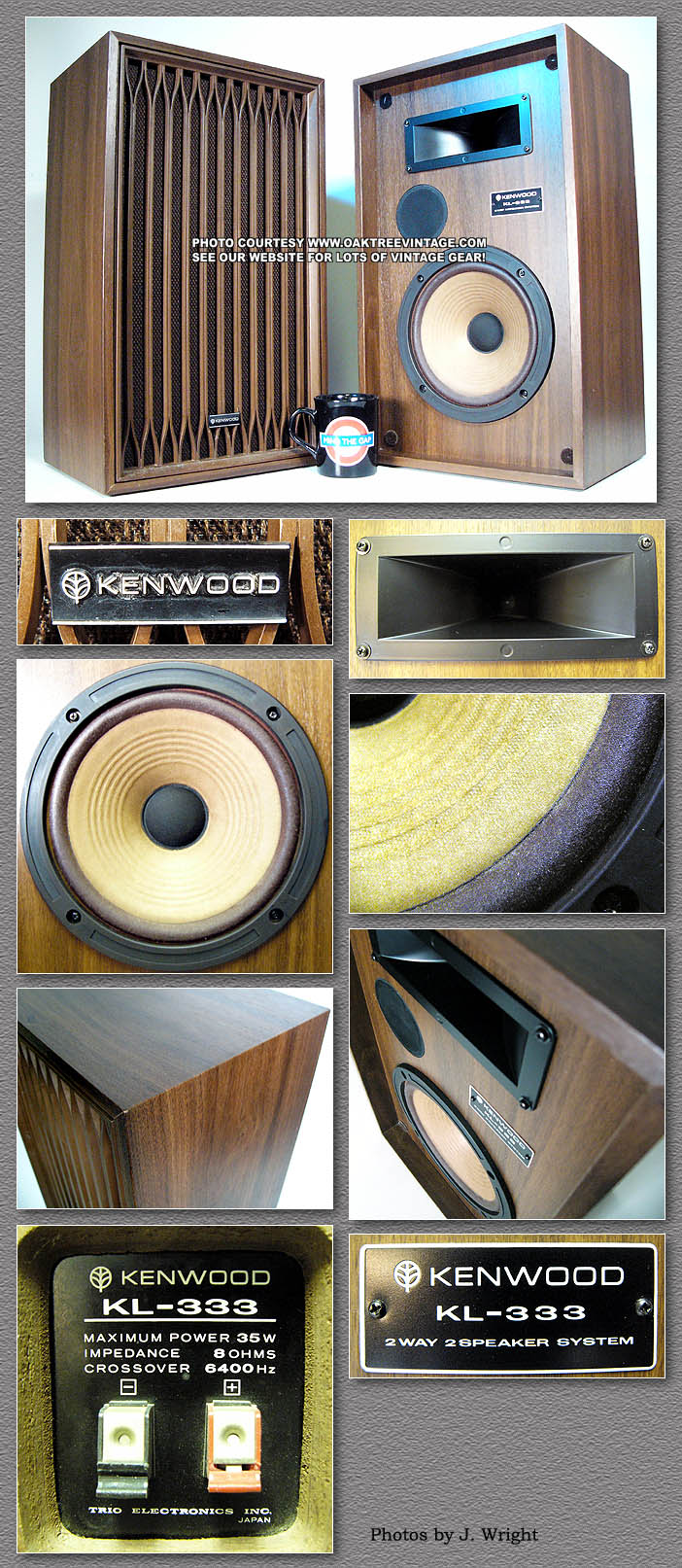

KENWOOD KL-333 KL333 SPEAKER PARTS / SPARES

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES



Kenwood
KL-333 Kenwood KL-333
Woofers
T0-8-0033-01 8" 35 8 Ohms U 1 $35. ea. Good Cond.
   Kenwood KL-333 Kenwood KL-333
Horn
tweeters
T14-0016-05 3" x 7.5" 35 8 Ohms U 1 $35. ea. Good Cond.
   Kenwood
speaker parts
KL-333 Kenwood KL-333
Crossover /
 input
panel
X21-1240-20 2-way 35 8 Ohms U 1 $25. ea. Good Cond.
   Kenwood KL-333 Speaker
Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use)
Molded
 Plastic
Lattice
- - - U 0
 Reference info ONLY.
 None currently for sale,
 but more MAY occasionally show up. Check back periodically.



Good Cond.

KENWOOD KL-333S KL333S SPEAKER PARTS  / SPARES

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES

Kenwood
Kenwood KL-333S

Kenwood KL-333S
Woofers
T010-0079-05
Tan cone, cloth suspension, silver dust cap.
10" 100 Watts max 8 Ohms
DCR=5.7 Ohms
U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-

KENWOOD KL-555A KL555A SPEAKER PARTS / SPARES

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES

Kenwood
Kenwood / TRIO KL-555A / KL555A

Kenwood / TRIO KL-555A / KL555A
Woofers
T10-0041 12" Nom 6
Max 90
8 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
Stamped steel frame, paper cone, coated cloth suspension, vented / ceramic magnet.
   Kenwood Kenwood / TRIO
KL-
555A / KL555A
Kenwood / TRIO KL-555A / KL555A
Midranges  / Mids
T06-0028-05 ~5" Nom 15
Max 45
4-6 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Kenwood Kenwood / TRIO
KL-
555A / KL555A
Kenwood / TRIO KL-555A / KL555A
Horn
tweeters
T14-0026-05 2.5" Nom 12
Max 30
16 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Kenwood Kenwood / TRIO
KL-
555A / KL555A
Crossover /
 input
panel
KL-555A 3 Way / 4-Driver system 90 Watts
/ Crossover frequencies 800Hz & 5kHz
8 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
*

 *
Here's the issue with speaker grill sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, due to their large size, the 'custom' box and amount of foam board required for safe transit, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

-


KENWOOD KL-555D / KL555D SPEAKER PARTS / SPARES

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES



Kenwood
Kenwood / TRIO KL-555X / KL555X

Kenwood / TRIO KL-555X / KL555X
Woofers
T10-0096-05 10" ~30 8 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Kenwood Kenwood
KL-
555X / KL555X
Kenwood / TRIO KL-555X / KL555X
Midranges  / Mids
T06-0077-05 4" - 8 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Kenwood Kenwood
KL-
555X / KL555X
Kenwood / TRIO KL-555X / KL555X
Horn
tweeters
T03-0088-05 3" - 8 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Kenwood Kenwood
KL-
555X / KL555X
Speaker
Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use)
Molded
 Plastic
Lattice
- - - U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
*

 *
Here's the issue with speaker grill sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, due to their large size, the 'custom' box and amount of foam board required for safe transit, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

-







KENWOOD KL-555X KL555x SPEAKER PARTS / SPARES

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES



Kenwood
Kenwood / TRIO KL-555X / KL555X

Kenwood / TRIO KL-555X / KL555X
Woofers
T10-0096-05 10" ~30 8 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Kenwood Kenwood
KL-
555X / KL555X
Kenwood / TRIO KL-555X / KL555X
Midranges  / Mids
T06-0077-05 4" - 8 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Kenwood Kenwood
KL-
555X / KL555X
Kenwood / TRIO KL-555X / KL555X
Horn
tweeters
T03-0088-05 3" - 8 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Kenwood Kenwood
KL-
555X / KL555X
Speaker
Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use)
Molded
 Plastic
Lattice
- - - U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
*

 *
Here's the issue with speaker grill sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, due to their large size, the 'custom' box and amount of foam board required for safe transit, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

-

KENWOOD KL-660 KL660 SPEAKER PARTS / SPARES

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES
   Kenwood KENWOOD KL-660 KL660 KENWOOD KL-660 KL660 Horn
tweeters
T12-75 Square horn w/ phase plug 20 16 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-

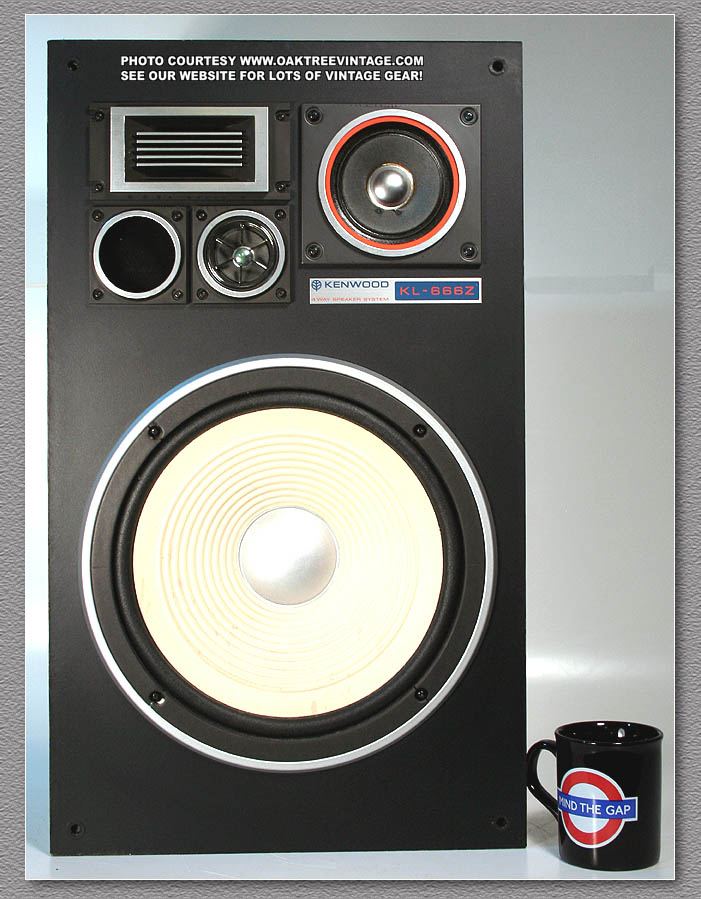

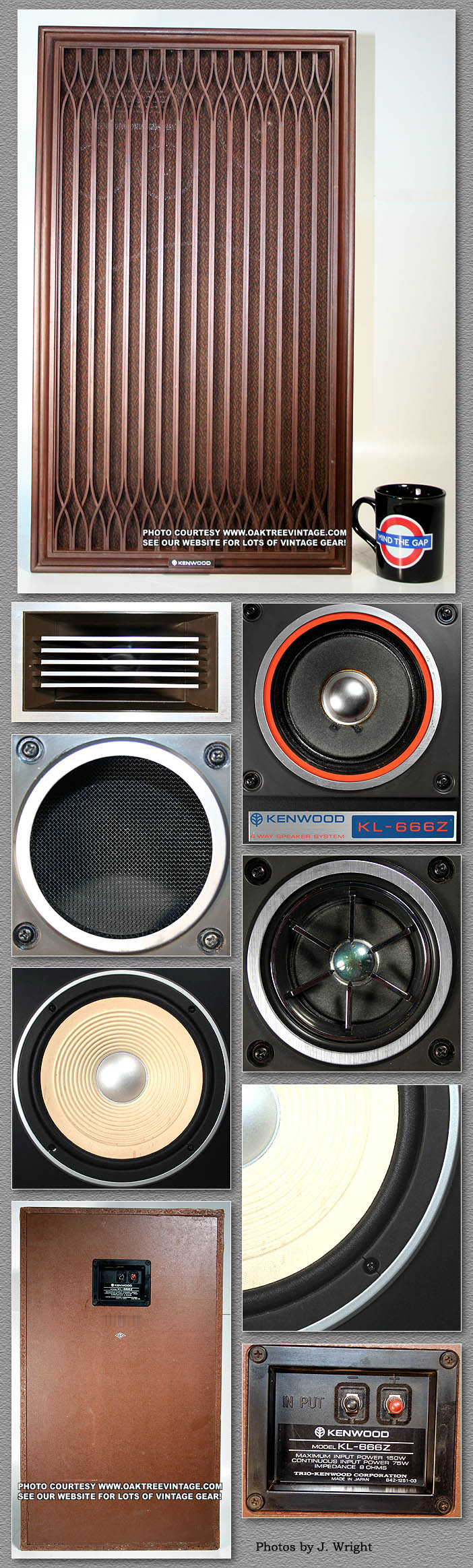

KENWOOD KL-666Z KL666Z SPEAKER PARTS / SPARES

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES



Kenwood / Trio
speaker parts

Kenwood KL-666Z / KL666Z

Kenwood KL-666Z / KL666Z
Woofers
T10--0134-00 12"  ~150 Watts 8 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-



Kenwood / Trio
speaker parts

Kenwood
KL-666Z / KL666Z
Kenwood KL-666Z / KL666Z
midranges
 mids
T06-0091-05 ~ 3.75"  15-45 watts 8 Ohms U 1 $40. ea. Good Cond.

Kenwood / Trio
speaker parts

Kenwood
KL-666Z / KL666Z

Kenwood KL-666Z / KL666Z
Tweeters

Horn Tweeters
T14-0075-05
~2 x 1.75" - 8 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.

$35. ea.
Good Cond.

Kenwood / Trio
speaker parts

Kenwood
KL-666Z / KL666Z
Kenwood KL-666Z / KL666Z
Super
Tweeters
T03-0112-05 1.5 - 8 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.

$35. ea.
Good Cond.

Kenwood
speaker parts

Kenwood
KL-666Z / KL666Z
Kenwood KL-666Z / KL666Z
Crossovers
Cross over
X21-2450 4-Way.
x-over
freqs
 150 watts 8 Ohms U 0 $45. ea. Working, (less connectors)

Kenwood
speaker parts

Kenwood
KL-666Z / KL666Z

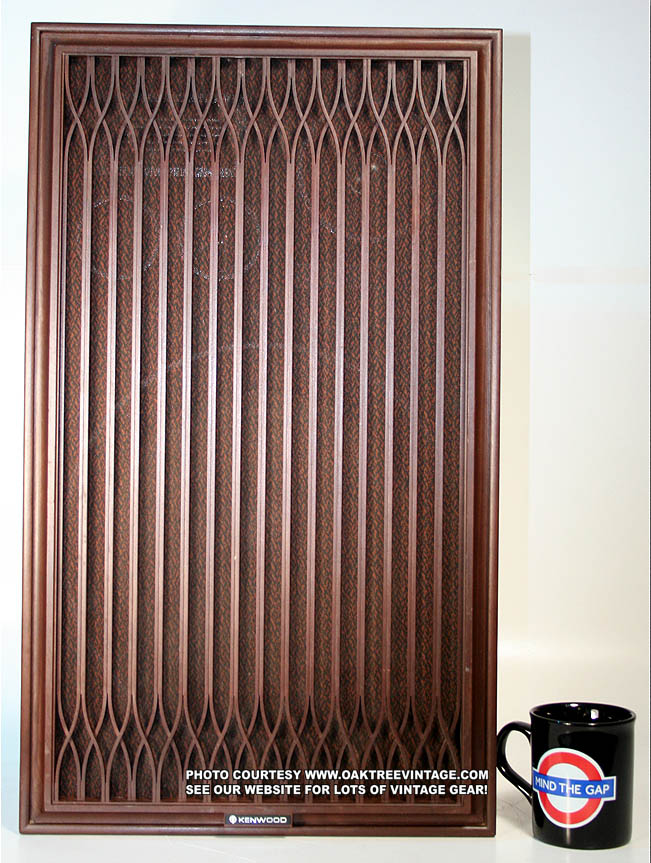

Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use) Lattice -  - - U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.


 *
Here's the issue with speaker grill sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, due to their large size, the 'custom' box and amount of foam board required for safe transit, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

Good. Lower left locating pin missing / broken off.

Kenwood
speaker parts

Kenwood
KL-666Z / KL666Z
Cabinets Wood-
grain
Vinyl
-  - - U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
*

 *
Here's the issue with 'empty speaker cabinet'  sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, as they essentially require the same amount of packing for safe transit. They are also the same physical size, empty or not, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

-

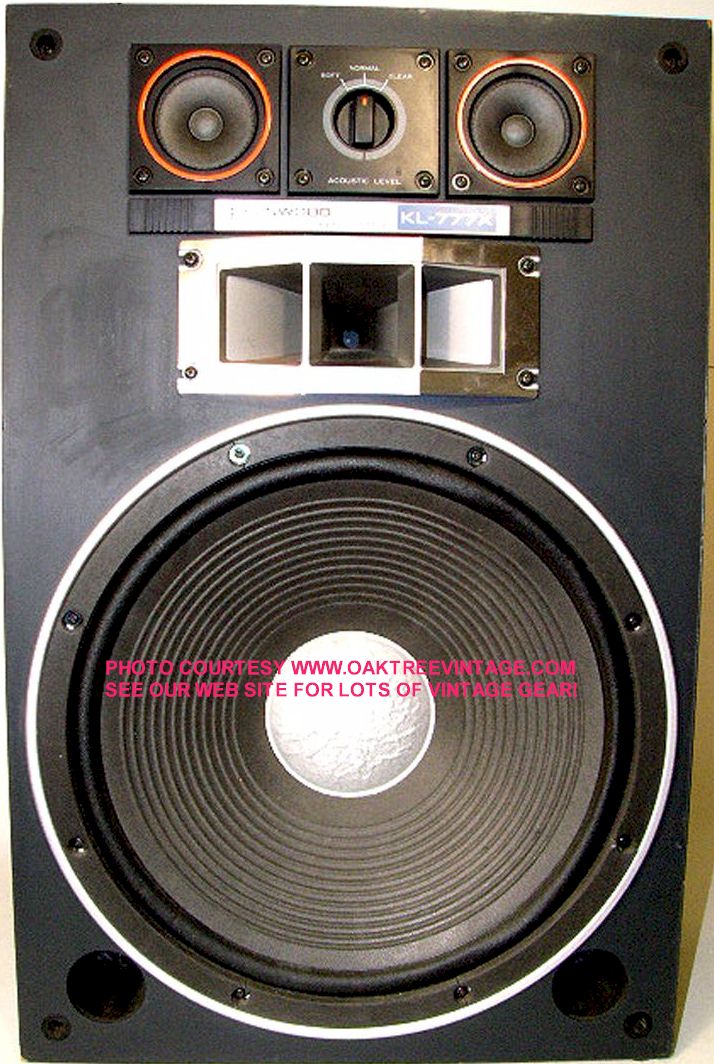

KENWOOD KL-777 KL777 SPEAKER PARTS / SPARES

  BRAND
  OF
  SPEAKER
MODEL0
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES



 Kenwood
speaker parts

KL-777 KENWOOD KL-777
Woofers
T11-0043-05 15"  30-100 5.2 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Kenwood KL-777 KENWOOD KL-777
midranges
 mids
T06-0019-05 4.5"  15-45 watts 16 Ohms U 0
SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
$40. ea.
SOLD 2 10/16/19

Good Cond.
   Kenwood KL-777
KENWOOD KL-777
Super
Tweeters

T11-0044-05
1"  3-10 watts 29.4 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
Matte, 'Black' frame.
 'Clear' mylar cone.
Black, pulp dust cap, AlNiCo magnet.
Good Cond.
   Kenwood KL-777 KENWOOD KL-777
Tweeters
T14-0015-05 1.5  12-30 watts 16 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Kenwood KL-777 KENWOOD KL-777
Crossovers
Cross over
X21-1170-80 4-Way.
x-over
freqs. -
800/
5000/
10kHz
 100 8 Ohms U 1 $45. ea. Working, (less connectors)
   Kenwood KL-777 Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use) Lattice -  - - U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
*

 *
Here's the issue with speaker grill sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, due to their large size, the 'custom' box and amount of foam board required for safe transit, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

 (777 & 777A Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use) are inter-changeable for size and shape. They are NOT interchangeable for the 'D' or later. We also have not verified whether the grill cloth is the same.)
   Kenwood KL-777 Cabinets Wood-
grain
Vinyl
-  - - U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
*

 *
Here's the issue with 'empty speaker cabinet'  sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, as they essentially require the same amount of packing for safe transit. They are also the same physical size, empty or not, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

-

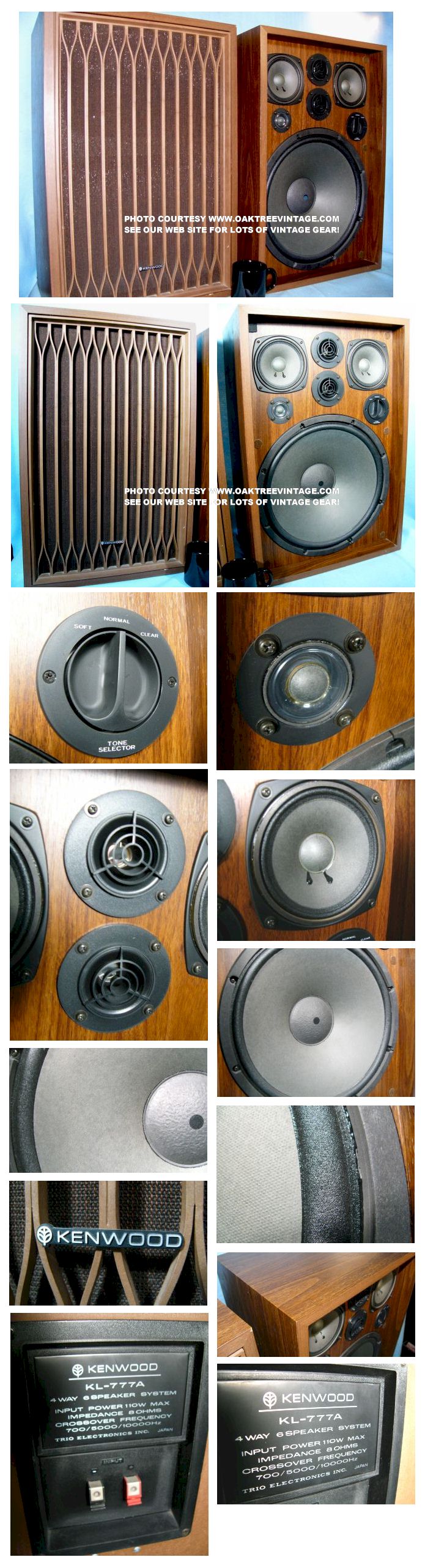

KENWOOD KL-777A KL777A SPEAKER PARTS / SPARES

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES


Kenwood
speaker parts

KL-777A KENWOOD KL-777A Woofers T11-0054-05 15"  110 5.2 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.

$85. ea
Good Cond.
   Kenwood KL-777A KENWOOD KL-777A midranges
 mids
T06-0029-05 4.5"  45 16 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
 $40. ea
Good Cond.
   Kenwood KL-777A
KENWOOD KL-777A
Super
Tweeters

T14-0024-05






See Also Sansui SP-2500X and SP-4000A T-138 tweeter. Will also work for Sansui SP-2500X or SP-4000 T-138. Differences  are wattage, impedance and cosmetic in that the Kenwood has a concentric plastic grill added over the front and the Sansui T-138 does not.

2.5"  30 8 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Kenwood KL-777A KENWOOD KL-777A Tweeters T11-0044-05 1.5  10 32 Ohms U 1 $30. ea. Matte, 'Black' frame.
 'Clear' mylar cone.
Black, pulp dust cap, AlNiCo magnet.
Good Cond.
Slightly dented
Dust Cap.
Cosmetics
Only. Works / Sounds fine.
   Kenwood KL-777A Crossovers
Cross over
J25-1174-02 4-Way.
x-over
freqs. -
700/
5000/
10kHz
 110 8 Ohms U 1 $45. ea.
Good & Working crossover circuit board (less attenuator).
(We're throwing in the 'Input panel / plastic cup / plate, with the input connectors, but the 'Black / Neg' is missing the push button. Still functions)

   Kenwood KL-777A KENWOOD KL-777A
'Tone Selector' / Treble Attenuator
KL-777A 3-Position - - U 1 $35. ea.
Good & Working

   Kenwood KL-777A Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use) Lattice - 15" x 23.4" - U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
*

 *
Here's the issue with speaker grill sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, due to their large size, the 'custom' box and amount of foam board required for safe transit, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

Good.
(777 & 777A Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use) are inter-changeable for size and shape. They are NOT interchangeable for the 'D' or later. We also have not verified whether the grill cloth is the same.)
   Kenwood KL-777A Cabinets Wood-
grain
Vinyl
-  - - U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.


 *
Here's the issue with 'empty speaker cabinet'  sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, as they essentially require the same amount of packing for safe transit. They are also the same physical size, empty or not, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

Good structurally, but someone has painted them white instead of the wood grain.


KENWOOD KL-777D KL777D SPEAKER PARTS
 / SPARES

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES
   Kenwood
speaker parts



KL-777D KENWOOD KL-777D Woofers T10-0102-05 15"  130 8 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
$95. 5/7/12
Good Cond.
   Kenwood KL-777D KENWOOD KL-777D midranges

 mids
T06-0053-05 4.5"  45 8 Ohms U 2 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.

$40. ea.

Good Cond.
   Kenwood KL-777D KENWOOD KL-777D Tweeters T03-0055-05 2.5"  130 16 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
$35. ea
Good Cond.
   Kenwood KL-777D KENWOOD KL-777D Tweeters T14-0023-05 Horn  35 8 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
$45.
$95. 5/7/12
Good Cond.
   Kenwood KL-777D KENWOOD KL-777D Super Tweeters T03-0054-05
(see also Kenwood KL-777D, KL-777S & KL-888D)

1.5  10 8 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
Black steel frame. Good Cond.
   Kenwood KL-777D KENWOOD KL-777D Crossovers
Cross over
J25-2006-02 5-Way  130 8 Ohms U 3 $65. ea. Good Cond.

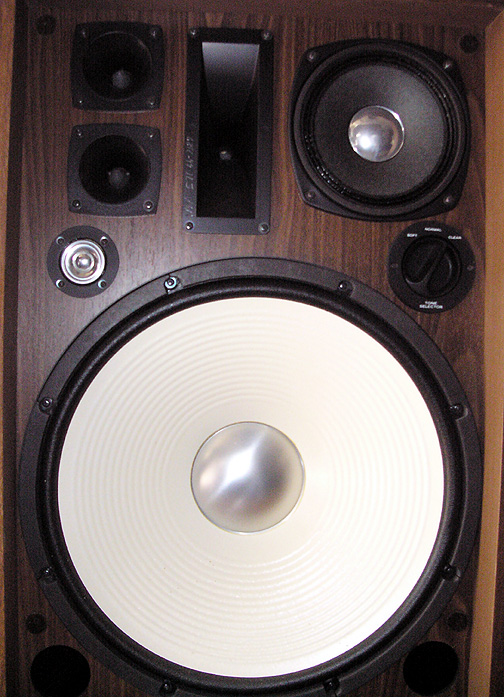

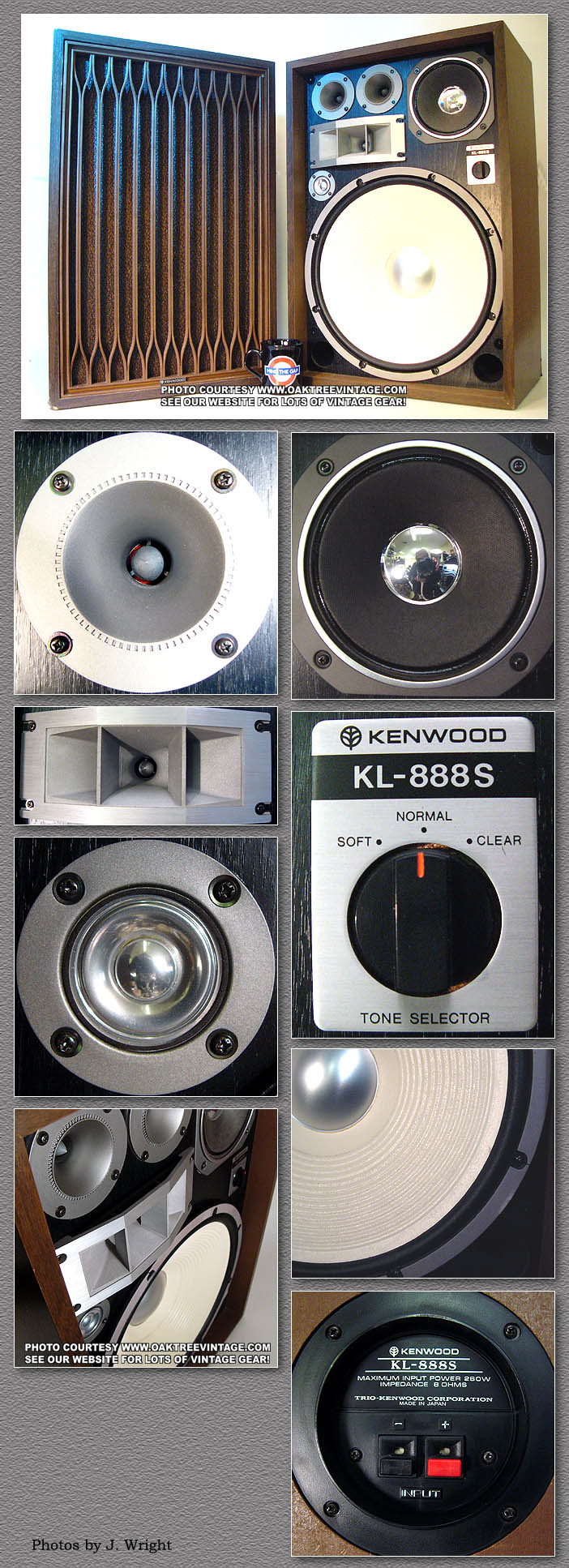

   Kenwood KL-888D
KL-888D
KL-888S
KL888S
KL-777D
KL777D
Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use) Lattice -  - - U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
*

 *
Here's the issue with speaker grill sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, due to their large size, the 'custom' box and amount of foam board required for safe transit, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

Good Cond. No breaks or issues.

(KL-777 / 777A Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use) are NOT inter-changeable with the 777D series or later)

Also; Kenwood KL-777D and KL-888D, KL-888S Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use) are interchangeable


   Kenwood KL-888D
KL-888D
KL-888S
KL888S
KL-777D
KL777D
Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use) Lattice -  - - U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.


 *
Here's the issue with speaker grill sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, due to their large size, the 'custom' box and amount of foam board required for safe transit, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

Ok, but with lower 1/3 of two strips broken off. Useable.

(KL-777 / 777A Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use) are NOT inter-changeable with the 777D series or later)

Also; Kenwood KL-777D and KL-888D, KL-888S Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use) are interchangeable


   Kenwood KL-777D Cabinets Wood-
grain
Vinyl
-  - - U 0
SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.


 *
Here's the issue with 'empty speaker cabinet'  sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, as they essentially require the same amount of packing for safe transit. They are also the same physical size, empty or not, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

Clean

KENWOOD KL-777DX KL777DX SPEAKER PARTS
/ SPARES

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES
   Kenwood KL-777DX KENWOOD KL-777DX midranges

 mids
T06-0111-00 4.5" - 8 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
/
   Kenwood KL-777DX KENWOOD KL-777DX 'Super Tweeters' T03-0141-05 - - - U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
/
   Kenwood KL-777DX KENWOOD KL-777DX Crossovers - - Nominal 125 Watts / Max 250 watts 8 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
/



KENWOOD KL-777S KL777S SPEAKER PARTS / SPARES


  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES
 Kenwood Kenwood KL-777S KENWOOD KL-777S Woofers T10-0076-05 16" / 40.6cm 220 (unlikely) 8 Ohms
DCR = 5.0
U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
Stamped steel frame,
Concentrically ribbed, white pulp cone,
Silver dust cap.

 Kenwood Kenwood KL-777S KENWOOD KL-777S Midranges T06-0086-05 5" / 12cm 160 (unlikely) 8 Ohms
DCR =
7.6
U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
Stamped steel frame,
 pulp cone, coated paper surround,
Silver dust cap.

 Kenwood Kenwood KL-777S KENWOOD KL-777S upper mid horn / tweeter ? 3X6" - 8 Ohms
DCR =
7.5
U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
Matte finish, plastic, silver horn.

 Kenwood Kenwood KL-777S KENWOOD KL-777S Tweeters T03-0069-05 2" / 5cm 160 (highly unlikely) 16 Ohms
DCR = 12.9
U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
Pulp cone.
Good Cond.
 Kenwood Kenwood KL-777S KENWOOD KL-777S Super Tweeters T03-0070-05
(Was previously / erroneously listed as part #T03-0054-05)
(see also Kenwood KL-777D, KL-777S & KL-888D)
1.25" / 3cm 220 (highly unlikely) 8 Ohms U 0
SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.

$30. ea

Matte finish, black frame, shiny silver / chrome mylar cone and dust cap, AlNiCo magnet.
Good Cond.
 Kenwood Kenwood KL-777S KENWOOD KL-777S Super Tweeters T03-0070-05
(Was previously / erroneously listed as part #T03-0054-05)
(see also Kenwood KL-777D, KL-777S & KL-888D)
1.25" / 3cm 220 (highly unlikely) 8 Ohms U 0
SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.

$20. ea


Matte finish, Silver frame, shiny silver / chrome mylar cone and dust cap, AlNiCo magnet.
Small hole in cone edge. Still functions and would suffice as a temporary / spare.










KENWOOD KL-777X KL777X SPEAKER PARTS
/ SPARES

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES


   Kenwood
speaker parts
KL-777X KENWOOD KL-777X Woofers TRIO
T10-0104-05
15"
Overall diameter 15.5" and 6" total height from front edge to magnet rear. 8 lbs
~150 8 Ohms U 4
$85. ea.
Pulp cone and ribbed cone, Pulp, non-vented dust-cap, stamped steel frame, ceramic magnet.


   Kenwood
speaker parts
KL-777X KENWOOD KL-777X Woofers TRIO
T10-0104-05
15" ~150 8 Ohms U 1
$35. ea.
Hole / tear in surround. Could be 'patched' and work.
Pulp cone and ribbed cone, Pulp, non-vented dust-cap, stamped steel frame, ceramic magnet.
   Kenwood

TRIO
KL-777X
KL-888X
KENWOOD KL-777X
horn horns
midranges
 mids
TRIO
T14-0064-05
Horn dims:
7.25" x 3" (outside flange 'foot print')
7.25 hole center to hole on diagonal.
- 8 Ohms U 1 remaining
(located on 'blue' shelves)
$55. ea. Good Cond.
   Kenwood

TRIO
KL-777X Midrange
horn bezel / diffusion trim
Silver with dual louvers - - - U 6 $20. ea. Decent w/ only minor scuffs


   Kenwood

TRIO
KL-777X KENWOOD KL-777X
Tweeters
TRIO
T03-0084-05
Cone 2.25"
Frame 81mm on a side.
Screw Holes 71mm on center side to side
or
100mm centers diagonally
- 6 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.

$38. ea.
Crinkled dust cap. Cosmetics issue only.
 Pulp Cone. Ceramic magnet.


   Kenwood

TRIO
KL-777X KENWOOD KL-777X
Tweeters
TRIO
T03-0084-05
Cone 2.25"
Frame 81mm on a side.
Screw Holes 71mm on center side to side
or
100mm centers diagonally
- 6 Ohms U 2 $28. ea. Small holes, but still functions. Pulp Cone. Ceramic magnet.
   Kenwood

TRIO
KL-777X Tweeter Trim Ring Black w/ orange stripe - - - U 12 $12. ea. Good Cond.
   Kenwood

TRIO
KL-777X KENWOOD KL-777X
Input panel
Crossovers
Cross over
- 3-Way  200 8 Ohms U 6 $45. ea. Good Cond.
(Red and Black binding posts are 'captured' in place, meaning that the ends of the bolts are 'braded' and will not allow post to be removed completely)
   Kenwood

TRIO
KL-777X Acoustic Level control - - - - U 6 $25. ea. Good Cond.
   Kenwood

TRIO
KL-777X Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use)  Lattice -  - - U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.

  $65. ea.*

 *
Here's the issue with speaker grill sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, due to their large size, the 'custom' box and amount of foam board required for safe transit, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

Good Cond.
All pins intact. No broken 'struts'. Clean. No 'Cat Pee'.
   Kenwood

TRIO
KL-777X Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use)  Lattice -  - - U 0
SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.


 *
Here's the issue with speaker grill sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, due to their large size, the 'custom' box and amount of foam board required for safe transit, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

3 pins broken. No broken 'struts'. Clean. No 'Cat Pee'.
  Kenwood

TRIO
KL-777X Cabinets  Wood-
grain
Vinyl
-  - - U 0
SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.


 *
Here's the issue with 'empty speaker cabinet'  sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, as they essentially require the same amount of packing for safe transit. They are also the same physical size, empty or not, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

OK with normal wear.

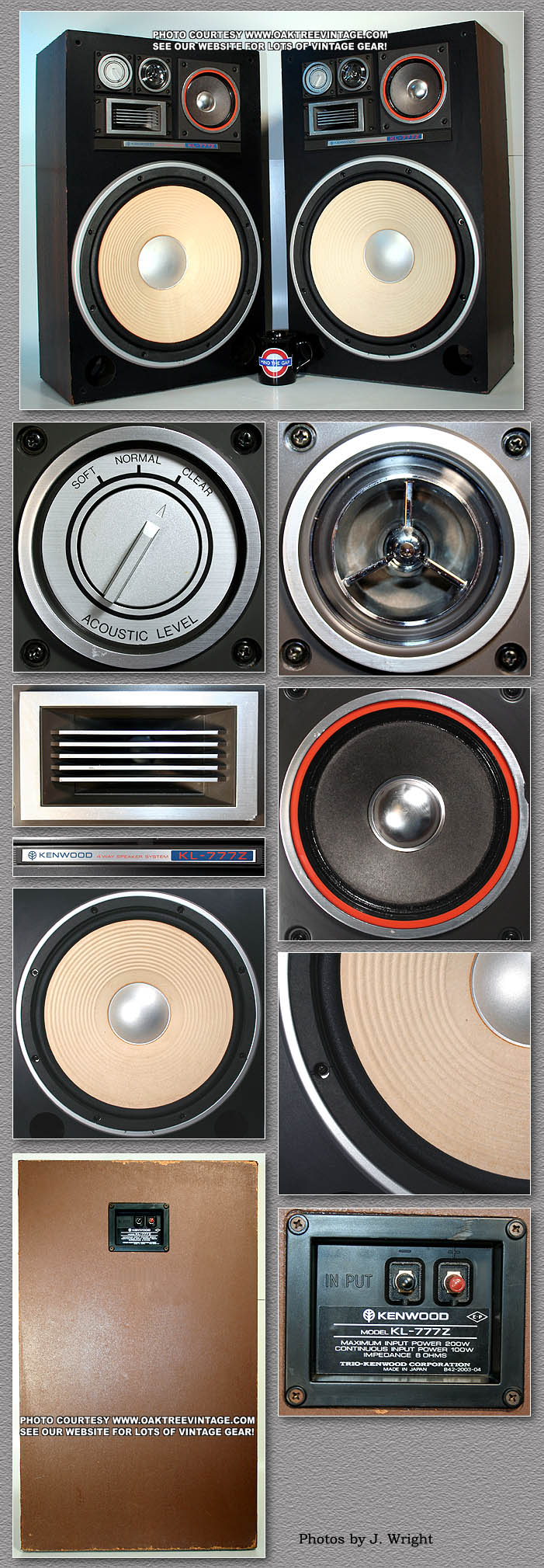

KENWOOD KL-777Z KL777Z SPEAKER PARTS
/ SPARES

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES


   Kenwood
speaker parts
KL-777Z KENWOOD KL-777Z Woofers TRIO
T10-0136-05
~ 14" ~150 8 Ohms
DCR = 6.2Ω
U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
/
   Kenwood

TRIO
KL-777Z KENWOOD KL-777Z Midranges / Mids TRIO
T06-0090-05
5" Conical paper - 8 Ohms
DCR = 6.7Ω
U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
/
   Kenwood

TRIO
KL-777Z KENWOOD KL-777Z
Horn
Tweeter
s
TRIO
T14-0075-05
Silver with 5 louvers
 Horn Tweeter
2" x 3.75"
- 8 Ohms
DCR = 7Ω
U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
/


   Kenwood

TRIO
KL-777Z KENWOOD KL-777Z
Super
Tweeters
TRIO
T03-0112-05
Mylar Cone 2" -
DCR = 5.9Ω
U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
/
   Kenwood

TRIO
KL-777Z KENWOOD KL-777Z
Input panel
Crossovers
Cross over
- 4-Way  200 8 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
Good Cond.
(Red and Black binding posts are 'captured' in place, meaning that the ends of the bolts are 'braded' and will not allow post to be removed completely)
   Kenwood

TRIO
KL-777Z Acoustic Level control - - - - U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
/
   Kenwood

TRIO
KL-777Z Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use)  Lattice -  - - U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.

 *
Here's the issue with speaker grill sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, due to their large size, the 'custom' box and amount of foam board required for safe transit, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

/
  Kenwood

TRIO
KL-777Z Cabinets  Wood-
grain
Vinyl
-  - - U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
*

 *
Here's the issue with 'empty speaker cabinet'  sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, as they essentially require the same amount of packing for safe transit. They are also the same physical size, empty or not, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

/





KENWOOD KL-888A KL888A SPEAKER PARTS / SPARES

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES
 Kenwood

TRIO


KL-888A KENWOOD KL-888A Woofers TRIO
T11-0054-05
15" 30 Watts Nominal
110 Watts Maximum
5.2 Ohms
DCR = 4.9 Ohms
U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-





KENWOOD KL-888D KL888D SPEAKER PARTS / SPARES

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES
 Kenwood

TRIO



KL-888D (white)
  KENWOOD KL-888D Woofers
TRIO
T10-0101-05
16" 40 Watts Nominal
150 Watts Maximum
8 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Kenwood

TRIO
KL-888D KENWOOD KL-888D Midrange TRIO
T06-0052-05
6.5" 25 Watts Nominal
60 Watts Maximum
8 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Kenwood

TRIO
KL-888D KENWOOD KL-888D
horns
midranges
 mids
TRIO
T14-0023-15
Horn
7 1/4" x 3"
5 Watts Nominal
35 Watts Maximum
8 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Kenwood

TRIO
KL-888D KENWOOD KL-888D Tweeters TRIO
T14-0051-05
.75" Throat
2
.25" Radial Horn w/
Phase Plug
25 Watts Nominal
35 Watts Maximum
16 Ohms U 1 $40. ea. Good Cond.
   Kenwood

TRIO
KL-888D KENWOOD KL-888D
Super
Tweeters
TRIO
T03-0054-05

(see also Kenwood KL-777D, KL-777S & KL-888D)

1.25" 3 Watts Nominal
10 Watts Maximum
8 Ohms U 1 $30. ea. Matte finish, Black frame, shiny / silver / chrome mylar cone and dust cap, AlNiCo magnet.
Good Cond.

   Kenwood

TRIO
KL-888D KENWOOD KL-888D Input panel
Crossovers
Cross over
X21-1610 3-Way - 8 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Kenwood

TRIO
KL-888D Acoustic Level control - - - - U 1 $35. ea. Good Cond.
   Kenwood

TRIO
KL-888D
(See also Kenwood KL-777D, KL-777A, KL-888D, & KL-888S)
Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use)  Lattice - 16" x 24.6" - U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
*

 *
Here's the issue with speaker grill sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, due to their large size, the 'custom' box and amount of foam board required for safe transit, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

Also; Kenwood KL-777D and KL-888D, KL-888S Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use) are interchangeable
  Kenwood

TRIO
KL-888D Cabinets  Wood-
grain
Vinyl
- - - U 0
SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.


 *
Here's the issue with 'empty speaker cabinet'  sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, as they essentially require the same amount of packing for safe transit. They are also the same physical size, empty or not, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

OK with normal wear.


Kenwood KL-888S Speaker Parts
/ SPARES

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES
 Kenwood

TRIO



KL-888S
KL888S
(white)
  KENWOOD KL-888S Woofers
TRIO
T10-00076-05
16" 220 Watts Maximum 8 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Kenwood

TRIO
KL-888S
KL888S
KENWOOD KL-888S Midrange TRIO
T06-0067-05
6.5" 220 Watts Maximum 8 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Kenwood

TRIO
KL-888S
KL888S
KENWOOD KL-888S
horns
midranges
 mids
TRIO
T14-0061-15
Horn
7 1/4" x 3"
220 Watts Maximum 8 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Kenwood

TRIO
KL-888S
KL888S
KENWOOD KL-888S Tweeters TRIO
T14-0062-05
.75" Throat
2
.25" Radial Horn w/
Phase Plug
220 Watts Maximum 16 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Kenwood

TRIO
KL-888S
KL888S
KENWOOD KL-888S
Super

Tweeters
TRIO
T03-0070-05
1.25" 220 Watts Maximum 8 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Kenwood

TRIO
KL-888S
KL888S
Input panel
KENWOOD KL-888S Crossovers
Cross over
X21-1940-80 J252017-02 3-Way 250 Watts Maximum 8 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Kenwood

TRIO
KL-888S
KL888S
Acoustic Level control - - - - U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Kenwood

TRIO
KL-888D
KL-888D
KL-888S
KL888S
KL-777D
KL777D
Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use)  Lattice - - - U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
*

 *
Here's the issue with speaker grill sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, due to their large size, the 'custom' box and amount of foam board required for safe transit, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

Also; Kenwood KL-777D and KL-888D, KL-888S Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use) are interchangeable
  Kenwood

TRIO
KL-888S
KL888S
Cabinets  Wood-
grain
Vinyl
- - - U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
*

 *
Here's the issue with 'empty speaker cabinet'  sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, as they essentially require the same amount of packing for safe transit. They are also the same physical size, empty or not, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

-
-


Kenwood KL-888X Speaker Parts
/ SPARES

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES
 Kenwood

TRIO


KL-888X
KL888X
KENWOOD KL-888X Woofers TRIO
T10-0105-05
15" - 8 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Kenwood

TRIO
KL-888X
KL888X
KENWOOD KL-888X Midrange TRIO
T06-0075-05
4.5" - 8 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Kenwood

TRIO
KL-888X
KL888X
horns
KENWOOD KL-888X midranges
 mids
TRIO
T14-0064-05
Horn dims:
7.25" x 3" (outside flange 'foot print')
7.25 hole center to hole on diagonal
- 8 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Kenwood

TRIO
KL-888X
KL888X
KENWOOD KL-888X Tweeters TRIO
T14-0085-05
2.25" Cone - 16 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Kenwood

TRIO
KL-888X
KL888X
Super
Tweeters
TRIO
T03-0086-05
1.25" - 8 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Kenwood

TRIO
KL-888X
KL888X
Input panel
Crossovers
Cross over
J25-2018-02 5-Way 250 Watts Maximum 8 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
Good Cond.
(Red and Black binding posts are 'captured' in place, meaning that the ends of the bolts are 'braded' and will not allow post to be removed completely)
   Kenwood

TRIO
KL-888X
KL888X
Acoustic Level control - - - - U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Kenwood

TRIO
KL-888X
KL888X
Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use)  Lattice - - - U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
*

 *
Here's the issue with speaker grill sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, due to their large size, the 'custom' box and amount of foam board required for safe transit, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

-
  Kenwood

TRIO
KL-888X
KL888X
Cabinets  Wood-
grain
Vinyl
- - - U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
*

 *
Here's the issue with 'empty speaker cabinet'  sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, as they essentially require the same amount of packing for safe transit. They are also the same physical size, empty or not, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

-
-

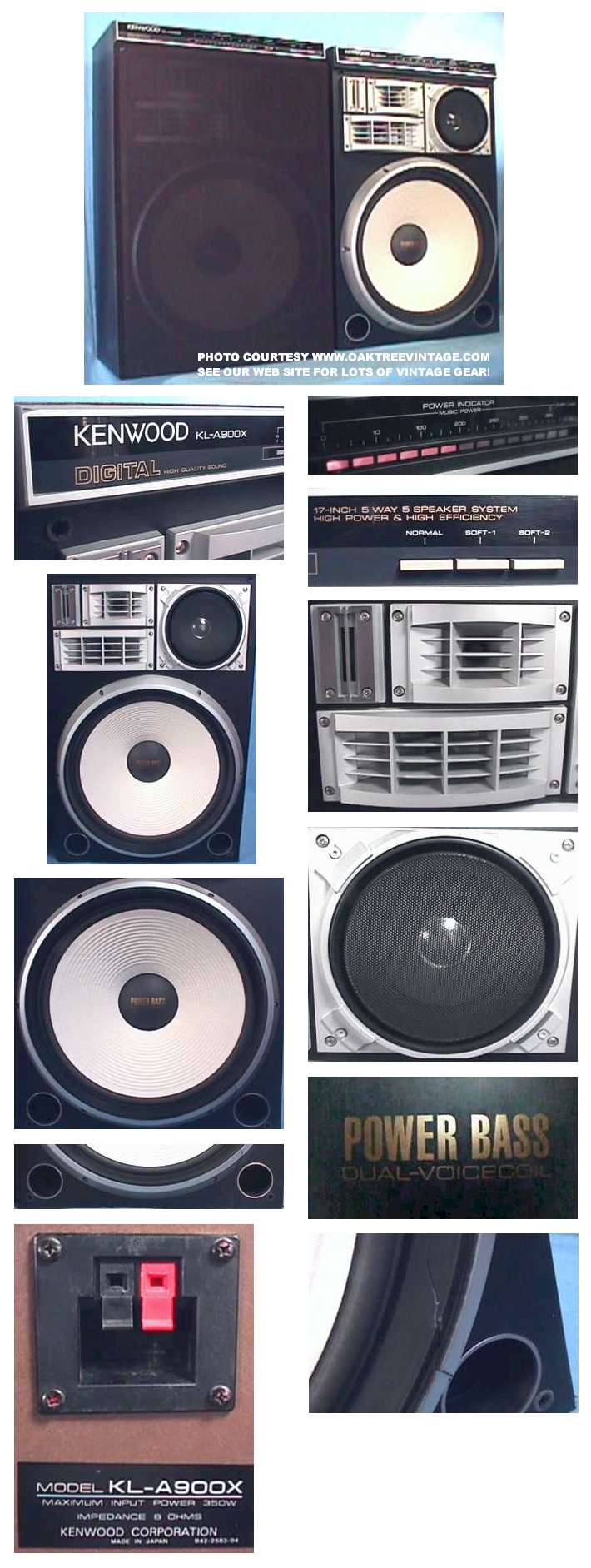

KENWOOD KL-A900X KLA900X PARTS / SPARES

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES


   Kenwood

KL-A900X KENWOOD KL-A900X Woofer

  Woofers
T10-0322-03 17" 250-300'ish 8 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Kenwood
speaker parts
KL-A900X KENWOOD KL-A900X Woofer
Silver
Trim ring
T10-0322-03 - - - U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Kenwood KL-A900X KENWOOD KL-A900X Midrange
midranges
 mids
T06-0139-15 5"  - 8 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Kenwood KL-A900X KENWOOD KL-A900X Midrange
Silver Grill
 work
- -  - - U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Kenwood KL-A900X KENWOOD KL-A900X
Horn
Tweeter
Tweeters
T14-0079-05 7.25" x 3" - 8 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
--
   Kenwood KL-A900X KENWOOD KL-A900X
Horn
Tweeter
Silver Grill
 work
- - - - U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
--
   Kenwood KL-A900X KENWOOD KL-A900X Bullet
Tweeter
Tweeters
T14-0060-05 Bullet
4" x 2.5"
 - 8 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Kenwood KL-A900X KENWOOD KL-A900X Bullet
Tweeter
Silver Grill
 work
- -  - - U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Kenwood KL-A900X KENWOOD KL-A900X Super Slot
Piezo
 Tweeter
Tweeters
T03-0217-05 2.25" x 3.5" - Piezo U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Kenwood KL-A900X Crossover
/ Electronics
- 5-Way with light and switches 350 watts 8 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Kenwood
speaker parts
KL-A900X Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use)
Black
cloth
-  - - U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
*

 *
Here's the issue with speaker grill sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, due to their large size, the 'custom' box and amount of foam board required for safe transit, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

-
   Kenwood KL-A900X Cabinets Wood-
grain
Vinyl
-  - - U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
*

 *
Here's the issue with 'empty speaker cabinet'  sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, as they essentially require the same amount of packing for safe transit. They are also the same physical size, empty or not, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

-




KENWOOD KL-5080 KL5080 SPEAKER PARTS / SPARES

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES
 Kenwood

TRIO


KENWOOD KL-5080 KL5080 KENWOOD KL-5080 KL5080
Woofers
TRIO
T10-00 31-05 / T10-00 31-15
AlNiCo magnet, Inverted suspension.
12" 70 Watts Maximum 8 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
 Kenwood

TRIO


KENWOOD / TRIO KL-5080 KL5080 KENWOOD KL-5080 KL5080
Midranges / Mids
Trio T07-0042-05
AlNiCo magnet, Inverted suspension, enclosed.
~6" 70 Watts Maximum 8 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Kenwood KENWOOD / TRIO KL-5080 KL5080 KENWOOD KL-5080 KL5080
360° Horn
tweeters
Trio T14-0005-15 2.5" Nom 12
Max 30
16 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Kenwood KENWOOD / TRIO KL-5080 KL5080 KENWOOD KL-5080 KL5080
Super Horn
tweeters
Trio T11-0002-05 ~1.5"?
3.5" mounting flange
Max 60 8 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
AlNiCo Magnet
 Kenwood

TRIO


KENWOOD KL-5080 KL5080 KENWOOD KL-5080 KL5080
Crossovers
- 4-Way / Crossover Frequencies: 600, 2kHz, 5kHz & 10kHz.
Full Range or 'Tri-Amp-able'

70 Watts Maximum 8 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
Trio T07-0042-05

KENWOOD KL-7080 KL7080 SPEAKER PARTS / SPARES

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES
 Kenwood

TRIO


KENWOOD KL-7080 KL7080

KENWOOD KL-7080 KL7080
Woofers
TRIO
T11-0038-05
15" 80 Watts Maximum 8 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
 Kenwood

TRIO


KENWOOD KL-7080 KL7080 KENWOOD KL-7080 KL7080
Midranges / mids
TRIO
T06-0012-05
5" 40 Watts Maximum 8 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
 Kenwood

TRIO


KENWOOD KL-7080 KL7080 KENWOOD KL-7080 KL7080
Tweeters
TRIO
T14-0005-15
Radial horn tweeters / phase plug. Very well designed / built!!
Silver finish.
12 Watts Nominal
30 Watts Maximum
16 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
 Kenwood

TRIO


KENWOOD KL-7080 KL7080 KENWOOD KL-7080 KL7080
Crossovers
- 5-Way / 6 Driver outputs
Crossover Frequencies: 600, 2kHz, 5kHz & 10kHz.
Full Range or 'Tri-Amp-able'

80 Watts Maximum 8 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-

KENWOOD KL-7090 KL7090 SPEAKER PARTS / SPARES

 Kenwood

TRIO


KENWOOD KL-7090 KL7090 KENWOOD KL-7090 KL7090
Woofers
TRIO
T11-0045-05.
Tan cone, vented dust cap, stamped steel frame.
15" 30 Watts Nominal
120 Watts Maximum
5.2 Ohms
DCR = 4.9 Ohms
U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
 Kenwood

TRIO


KENWOOD KL-7090 KL7090
KENWOOD KL-7090 KL7090
Midranges / mids
TRIO
T06-0021-05
4.5" 15 Watts Nominal
45 Watts Maximum
8 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-

RANDOM LSK SERIES PARTS / SPARES

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES
   Kenwood Kenwood LSK-200B LSK200B Kenwood LSK-200B LSK200B
Tweeters
- 1.5" Cone w/ foam ring surrounding frame - DCR = 7Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Kenwood Kenwood LSK-400B LSK400B Kenwood LSK-400B LSK400B
Tweeters
9904A184, 24 8016D Outside 4.25"
Cone 1.75"
- 8 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Kenwood Kenwood LSK-600B LSK600B Kenwood LSK-600B LSK600B
Tweeters
T03-0089-05 Outside 4.25"
Cone 1.75"
- 8 Ohms U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-







RANDOM LS-P SERIES PARTS / SPARES

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES
   Kenwood Kenwood LS-P9200 LSP9200

Kenwood LS-P9200 LSP9200
Woofers
T10-0333-03 10" Stamped steel, Paper cone, ceramic magnet, foam surround - - U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Kenwood Kenwood LS-P9200 LSP9200 Kenwood LS-P9200 LSP9200
Midranges
T06-0242-05 ~4" - - U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Kenwood Kenwood LS-P9200 LSP9200 Kenwood LS-P9200 LSP9200
Tweeters
T03-0309-05 - - - U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Kenwood Kenwood LS-P9200 LSP9200 Kenwood LS-P9200 LSP9200
Super Tweeters
T03-0310-05 - - - U 0 SOLD OUT
Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-


- - - - - - - - - - -

If you're looking for a great place for great place to purchase new foam surround kits, replacement surrounds, or to have your woofers, sub woofers / subs, re-foamed or re-coned, we recommend either 'Orange County Speakers' or 'Parts Express'. They have QUALITY parts and do QUALITY work.














LINKS TO OUR 'HI-FI' DEPARTMENTS

Amps and
Pre-Amps

Receivers

Cassette
Decks

Tuners

Turntables

8-Track Decks

CD Players

Reel-Reel
Decks

EQs and Signal
Processors

Speakers

Betamax and
VHS VCRs

Turntable Cartridges

Tube Audio

Ne'cessories

Speaker Parts

Record Players

Vintage Radios

Vintage
Walkmans

Headphones

Stereo Parts


Wondering where the "tone" you remember went?....




.... Surround yourself with Silver and find it again!


CONTACT INFO BELOW

$20. MINIMUM ORDER





>>>(for 'PARTS'; <<<
as of NOW and for the foreseeable future,
due to staffing / time / resource limitations, we are shifting focus AWAY from MOST 'SALVAGE / USED / DONOR' parts requests at this time with
*only a few exceptions, and will not likely be responding to calls or emails for those type of parts.  We will still process orders for '**non-unique / SKU' parts / accessories that offer an 'on-line payment' option.)

*at our discretion, some requests may still get a response if time allows.
*"unique" would apply to most 'salvage' Hi-Fi / Stereo / Speaker, scooter, MI, Pro-audio parts.
Parts that we normally stock and have a "Buy It" option are not included in the above notice.


    Before calling, PLEASE read the text in below.
 BEFORE
CALLING

(800) 806-4231 EXT #1
~10:00 AM- ~5:30 PM most days COLORADO / ROCKY MOUNTAIN TIME ZONE


OR

BEFORE EMAILING

parts@oaktreevintage.com

>>>(for 'PARTS'; <<<
as of NOW and for the foreseeable future,
due to staffing / time / resource limitations, we are shifting focus AWAY from MOST 'SALVAGE / USED / DONOR' parts requests at this time with
*only a few exceptions, and will not likely be responding to calls or emails for those type of parts.  We will still process orders for '**non-unique / SKU' parts / accessories that offer an 'on-line payment' option.)

*at our discretion, some requests may still get a response if time allows.
*"unique" would apply to most 'salvage' Hi-Fi / Stereo / Speaker, scooter, MI, Pro-audio parts.
Parts that we normally stock and have a "Buy It" option are not included in the above notice.

We DO NOT have your part unless the following conditions are met:

A) You HAVE SEARCHED our page(s) and HAVE FOUND the part you are looking for SPECIFICALLY listed on one of our pages or you have solid information that it's a 'bona fide' substitution for your part (unless noted already, we won't have any further info along those lines)
AND
B) The part that you have found is NOT marked as SOLD or SOLD OUT.


If you do NOT see it listed after thoroughly searching the pertinent page
(likely the page you landed on originally),
we do not have it,
nor do we know when
it might come in,
nor do we maintain "waiting lists" for parts,
nor do we know who
might have it.

Sorry, but phone and email traffic for parts
we don't have listed or for parts that are already marked "SOLD" has become too consuming of time resources.


 We try to keep these pages 99+% updated.
If you don't see the part you are looking for, simply check the web page periodically as we never know what will show up each day. Thanks!!!!!


ALSO: When e-mailing be sure to include a relevant subject, ie: Brand / Model number / reason for inquiry in the 'SUBJECT LINE'.
SUBJECT
lines left empty, or with 'single word' text like;
"Hello", "Hi", "parts", "stereo", "inquiry", "question", "selling" or similar or similar 'un-qualified' terms may automatically be deleted by Anti-Virus / Spam settings or receive 'Low Priority'.
(Subject lines left empty show up as "No Subject" and are deleted automatically by our anti-spam settings".
We do not return calls / emails for requests for parts we don't show / or have available (we may choose contact with further, useful information).


 SPEAKER PARTS   |   STEREO / HI-FI ELECTRONIC PARTS   |  KEYBOARD PARTS

___________________________________________

Haven't received a response to your email? See FAQ'S

MAILING:
OAK TREE ENTERPRISES
PO. BOX 6182
COLORADO SPRINGS, CO 80934
U.S.A.


Before ordering by postal mail, please phone or email us about the item and the details of sending your funds. Thank-you.


 SPEAKER PARTS   |   STEREO / HI-FI ELECTRONIC PARTS   |   SELLING-TRADING-CONSIGNING   |  KEYBOARD PARTS   I   FAQ'S
  CONDITION RATINGS   |   ORDERING / POLICIES    |    WARRANTIES / RETURNS   |   SHIPPING
 RESTORATION PROCEDURES   |   REPAIRS  | CONTACT PARTS


As much of the price charged for parts is for the 'time to extract' from it's donor unit, unless we send the 'wrong part', parts are NOT returnable.
See our "
Warranties / Returns" page via the link below for more details.


POLICIES, SPECIFICATIONS, AVAILABILITY, INFORMATION AND PRICING SUBJECT TO CHANGE  AT ANYTIME  AND WITHOUT PRIOR NOTICE
and changes may not be posted to web immediately
. Information such as Parts Substitution possibilities, "Circa" dates, original values, etc. are to the best of our knowledge. If you are critically concerned, you should do independent
research on your own prior to ordering or utilizing this information in any way. Manufacturers also are known to change part numbers, specs, circuit designs, specs etc within the same model.


Copyright © 1997-2023 Oak Tree Enterprises, LLC

COPYRIGHT INFORMATION
