MISSION SPEAKER PARTS - USED / VINTAGE.
REFERENCE / DATA BASE



Mission Replacement Speakers drivers, Parts and Spares. Mission woofers / bass drivers, tweeters / high frequency drivers, mids / midranges crossover cabinets grills speakers parts. Mission speaker parts for Mission 70, 77C (Center Channel Speaker), 78DS, 700, 701, 705, 727, 760i, 763i, 753, 780, 782, MS-50. Mission speakers / parts for Data Base info, specifications / specs, reference and occasional sale.













































*Note about parts / spares sales

* Our "parts units", parts / spares and related reference information are primarily archived for the purpose of restoration / repair of "Oak Tree Vintage" units first. Only if we do not have a "viable" unit in yet, either already in process or in line to be processed, that may potentially need parts from a "parts unit", will we release available parts for sale (even though they may appear as available for sale to the public). As many of you know, the restoration of a unit can be a long, time consuming process. We may "lock up" parts that we may potentially need in the restoration of a unit (and not necessarily get it marked 'Hold' or 'Sold' on the site right away). Parts are priced according to the "potential value" of the unit they can be applicable to (meaning the amount WE would be willing to pay for the part if that was all that was standing between us having a "shelved unit" or a valuable / sellable unit), time to extract, their rarity & their condition to name a few criteria and likely will be completely unrelated to the original cost / price of a part when it was currently available from the manufacturer.

Parts Photos; We get a number of requests for 'photos' of a specific part. Unfortunately, in most cases that is not practical as the amount of time involved in posting that exceeds the value of the 'unique' part. We will sometimes post photos of less 'unique' parts, if there is a greater chance of them being available in multiple quantities, or on a more 'repeat' basis.

Shipping: Shipping on most 'small' parts if typically via Postal first class or Postal Priority for both domestic (USA) and international orders. Larger parts such as transformers and drivers (speakers) are typically via FedEx gnd.
Some parts sales such as those for empty 'speaker cabinets', empty 'component cabinets / covers / bonnets' and 'speaker grills' are 'doomed' from the start. Due to their size and required packing supplies, the cost of 'packing for safe transit' and shipping are typically nearly equal to and sometimes greater than the cost of the part.  Think about it. An empty speaker cabinet or stereo receiver case is essentially the same size as a complete one. Yes the weight will be less, but most of items that size are calculated on 'dimensional weight', not actual weight. Secondly empty component cabinets have to be packed to disallow breakage, typically requiring nearly as much packing materials as an entire unit. Speaker grills have to be 'sandwiched' between foam sheets in large, custom ordered boxes (all relatively expensive).  It is what it is....

A non-response to an email request for a part (we may appear to have), likely means that we are still determining which parts we are going to need for the restoration or repair of one of our units. Again, the parts are first for the restoration of our units and secondarily for the public market. Since we list the parts available for ourselves, it is not much effort to modify the menu's for web publication, which in turn makes the reference information and occasionally the part available to the public. Frankly, publishing them to the web, in many instances, makes it easier for us to determine if we have the part for our needs as well. The alternative to all of the above would be to not offer them at all to the public, however most parts are available to the public for sale.
BOTTOM LINE IS; IF YOU DON'T SEE IT AVAILABLE FOR SALE, WE DON'T HAVE IT!
 Thank you for your understanding.




20% off sale on salvage speaker parts.


See sales banners on parts pages for details







Most of these components are "take-outs" from working speaker cabinets and unless otherwise noted are in perfect shape!
   Where necessary foam surrounds have been replaced and / or speaker has been professionally and correctly re-coned!










Mission 70 & 70 MK II replacement parts
 / speaker parts/ spares / drivers & components

(We have yet, to figure out any difference between the Mission 70 vs Mission 70 mkII. We thought it might simply be input connectors, and / or black vs wood grain vinyl, back cabinet, but we've seen both combinations on both versions.)


  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES

MISSION
speaker parts

MISSION MODEL 70
& 70 MKII
(may also fit 77)
Woofers / Bass Driver 70S 6" - 8 ohms U 0 Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.

$45. ea.
Good. Works. Surround still serviceable, but will need to be replaced in the future.
MISSION
speaker parts

MISSION MODEL 70
& 70 MKII

Soft Dome
Tweeter
s / tweeter
Vifa
D 19 TD-08
.75" - 8 ohms U 1 $45. ea. Good. Works.
MISSION
speaker parts
Model 70
70's
Input panel / Cross-
overs
- - 2-way 8 ohms U 1 $25. ea. Good. Works.
MISSION
speaker parts
Model 70
70's

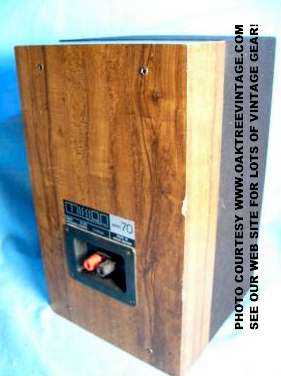

Cabinet
  cabinets
Walnut vinyl wood grain 13.75" h x 8.25" w - - U 2 $30. ea. Nice
with
minor
wear to
back edge.

MISSION
speaker parts
Model 70
70's

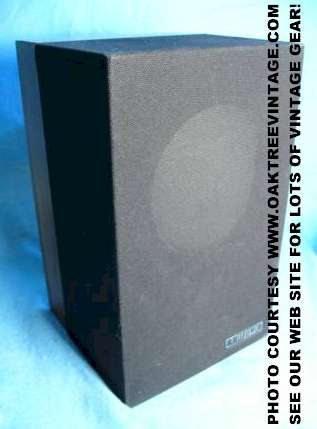

Front grill half
  cabinets
Black knit 13.75" h x 8.25" w - - U 2 $30. ea.*

 *
Here's the issue with speaker grill sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, due to their large size, the 'custom' box and amount of foam board required for safe transit, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

Nice
condition


Mission 77C (
780, 77C, 78DS) replacement speaker parts / spares / drivers & components

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES

MISSION
speaker parts

MISSION MODEL 77C 'Center Channel Speaker (780, 77C, 78DS) Tweeter / High Frequency Driver 50HF-025 ~.75" - - U 0 Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
Soft, foam-dome


Mission 700 replacement

speaker parts / spares / drivers & components


  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES

MISSION
speaker parts

MISSION MODEL 700 Woofers / Bass Driver 7SD-83450  / CF130/78 / C17WG-17-56 / 700 'Leading Edge' 6" - 6 ohms U 0 Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
Stamped frame, some have woven Kevlar-cone and some have poly-coated paper cones, Butyl rubber surround.

MISSION
speaker parts

MISSION MODEL 700 Tweeter / High Frequency Driver R761 HFU-D19 / TYPE No. 700 / HF ~.75" - 8 Ohms
DCR= ~6.5
U 0 Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
Soft, Poly-dome


Mission 701 replacement

speaker parts / spares / drivers & components


  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES

MISSION
speaker parts

MISSION MODEL 701 Woofers / Bass Driver CF160/78 ~6.5" - ~5 Ohms
DCR= 3.8 Ohms
U 0 Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
Cast frame, some have woven Kevlar-cone and some have poly-coated paper cones, Butyl rubber surround.


Mission 705 replacement

speaker parts / spares / drivers & components


  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES

MISSION
speaker parts

MISSION MODEL 705 Woofers / Bass Driver   6" - 8 ohms U 0 Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
Cast frame, some have woven Kevlar-cone and some have poly-coated paper cones, Butyl rubber surround.


Mission 727 replacement speaker parts / spares / drivers & components

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES

MISSION
speaker parts

MISSION MODEL 727 Woofers / Bass Driver ROLF230PPS2
SEA
(Made in France)
~7.5-8"
8.75" across on hole centers.
- ? ohms U 0 Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
Stamped frame, poly cone and dust cap, 'Reverse' Butyl rubber surround.

MISSION
speaker parts

MISSION MODEL 727 Tweeter / High Frequency Driver 53-HFL-M2 ~1" - 4 Ohms U 0 Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
Woven, Soft-dome


If you're looking for a great place for great place to purchase new foam surround kits, replacement surrounds, or to have your woofers, sub woofers / subs, re-foamed or re-coned, we recommend either 'Orange County Speakers' or 'Parts Express'. They have QUALITY parts and do QUALITY work.

Mission 753 replacement speaker parts / spares / drivers & components

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES

MISSION
speaker parts

MISSION MODEL 753 Woofers / Bass Driver 51-LFC13/BP 6" - ? ohms U 0 Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
Stamped frame, pulp cone, Butyl rubber surround.


Mission 760i replacement speaker parts / spares / drivers & components

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES

MISSION
speaker parts

MISSION MODEL 760i Woofers / Bass Driver 60-LFC13/BK ~5.25-6" - DCR= 4.2 Ohms U 0 Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
Stamped frame, pulp cone, Butyl rubber surround.

MISSION
speaker parts

MISSION MODEL 760i Tweeter / High-Frequency driver R761-HFU-D19 / 303 ~.75" - 8 Ohms
DCR= 6.3 Ohms
U 0 Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
Soft, Poly-dome


Mission 763i replacement speaker parts / spares / drivers & components

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES

MISSION
speaker parts

MISSION MODEL 763i Woofer / Low-Frequency driver 62-LF22W / 832879 8" - 8 Ohms U 0 Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
Stamped frame, Poly-cone, Butyl rubber surround. Mfg by 'Peerless' in Denmark.

MISSION
speaker parts

MISSION MODEL 763i Tweeter / High-Frequency driver R76/78-HFU-D20 ~.75" - - U 0 Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
Soft, Poly-coated, cloth dome


Mission 782 replacement speaker parts / spares / drivers & components

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES

MISSION
speaker parts

MISSION MODEL 782 Woofers / Bass Driver - ~6" - 8 Ohms ea., but are wired in parallel. U 0 Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
Stamped frame, Poly-cone, Butyl rubber surround. Mfg by 'Peerless' in Denmark.



Mission MS-50 replacement speaker parts / spares / drivers & components

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES

MISSION
speaker parts

MISSION MODEL MS-50 Woofers / Bass Driver 'Profiles' Bass Unit 110mm / ~4.5" ~50 W 6 Ohms U 0 Reference information only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
Stamped frame, woven cone, Butyl rubber surround. Magnetically Shielded.
