KLIPSCH SPEAKER PARTS - USED / VINTAGE.
REFERENCE / DATA BASE

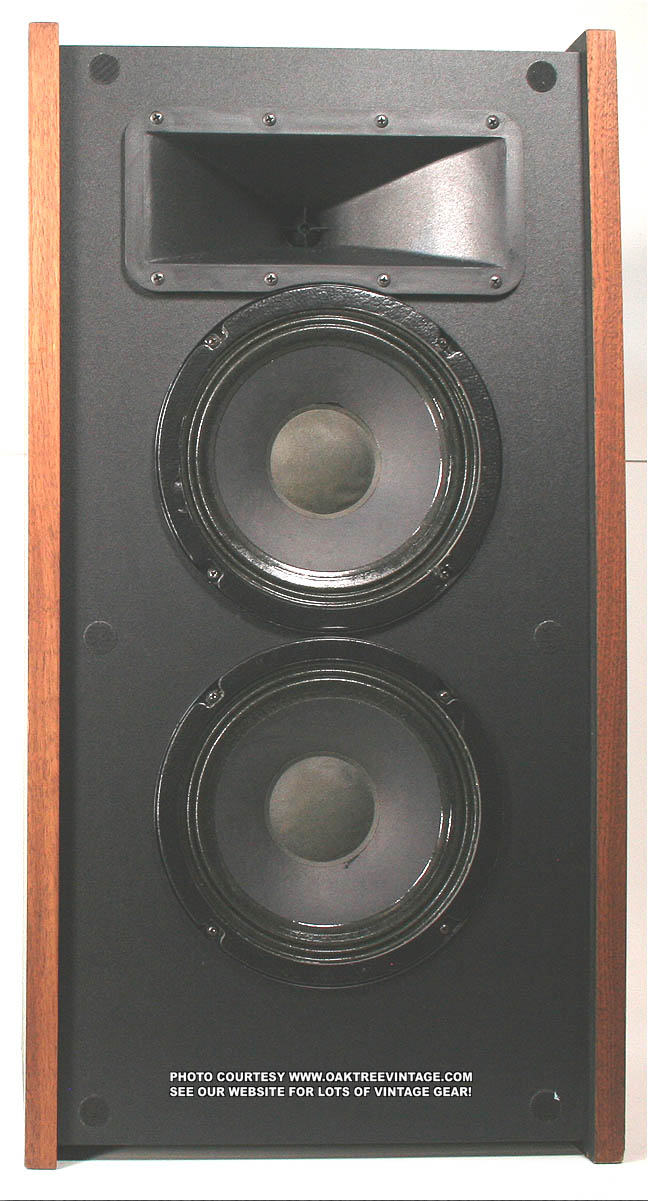

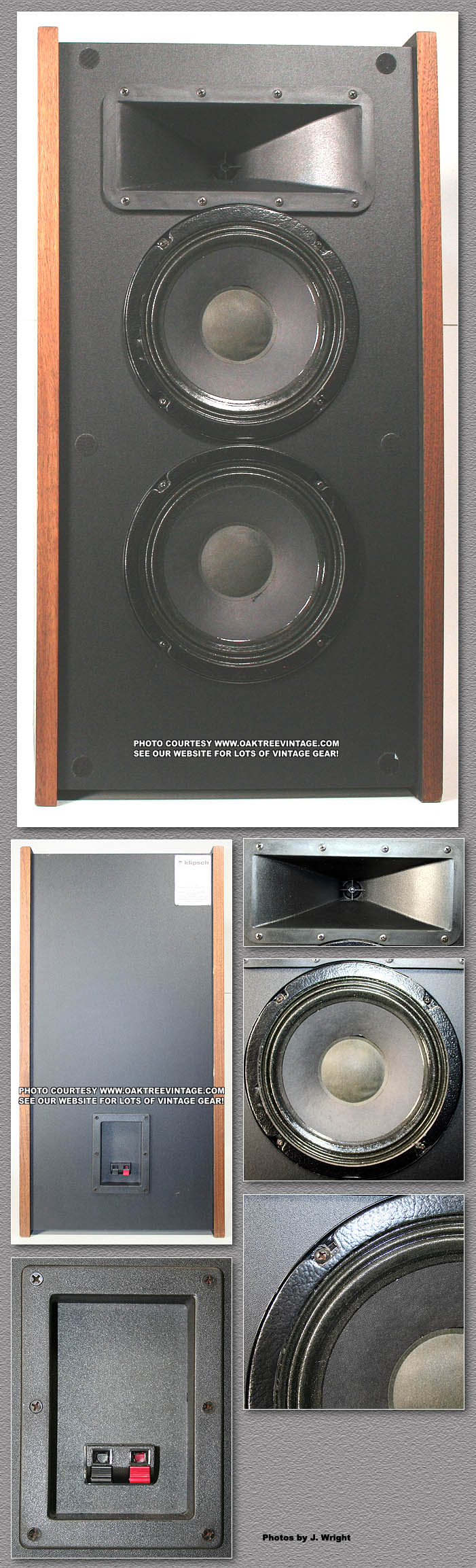

Klipsch / Tangent Replacement Speakers Parts / Spares. Klipsch woofers Tweeters, mids / midranges, cross overs, crossovers, cabinets, Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use) and other speakers / parts for Klipsch Forte II, Heresy, KM4, KG 3.5 Used Vintage replacement K-33-E, K-77, K-58, E-2, T-35. Klipsch speakers / parts for Data Base info, specifications / specs, reference and occasional sale. clipch clipsch cliptch kliptch






*Note about parts / spares sales

* Our "parts units", parts / spares and related reference information are primarily archived for the purpose of restoration / repair of "Oak Tree Vintage" units first. Only if we do not have a "viable" unit in yet, either already in process or in line to be processed, that may potentially need parts from a "parts unit", will we release available parts for sale (even though they may appear as available for sale to the public). As many of you know, the restoration of a unit can be a long, time consuming process. We may "lock up" parts that we may potentially need in the restoration of a unit (and not necessarily get it marked 'Hold' or 'Sold' on the site right away). Parts are priced according to the "potential value" of the unit they can be applicable to (meaning the amount WE would be willing to pay for the part if that was all that was standing between us having a "shelved unit" or a valuable / sellable unit), time to extract, their rarity & their condition to name a few criteria and likely will be completely unrelated to the original cost / price of a part when it was currently available from the manufacturer.

Parts Photos; We get a number of requests for 'photos' of a specific part. Unfortunately, in most cases that is not practical as the amount of time involved in posting that exceeds the value of the 'unique' part. We will sometimes post photos of less 'unique' parts, if there is a greater chance of them being available in multiple quantities, or on a more 'repeat' basis.

Parts, general condition / circuit board condition; Most of our parts are from 'salvage / donor' units. While we don't sell parts that are 'known' to be bad, occasionally parts will need further adjustment, cleaning, 'tweaking', or in the case of circuit boards, may need old, conductive glue / epoxy further cleaned, and some 'common' parts / components such as, aging / leaky capacitors, parts whose values have drifted, and some epoxy transistors may need to be replaced due to 'green / black / furry' legs, or because those parts were marked as 'sold separately'. Some circuit boards may have 'tired' "landing / solder pads", or severed traces, or cold / bad solder joints which can require solder re-flow or 'jumpers'. Unless noted, circuit boards will be 'crack / split / break' free.

Parts pricing; Most of our parts price / value will be based on a few things. Firstly, we are in the restoration / refurb business, so we consider what we would be willing to pay for the part if we needed it (which again, is what the parts are listed for in the first place, "our units"). Secondly, the rarity / value of the unit the part(s) fit. The 'Tuning Knob' for a receiver that has a final value of $350 will likely be much less than the "Tuning Knob" for a unit with a final value of $1500 or more (a set of tires for a typical sedan will be $400 to $600. A set for a Lamborghini can be $16,000). Thirdly, the 'rarity' of the part. Forth, the 'condition' of the part. Fifth, the difficulty to extract the part, or success rate for extracting certain parts. Sixth; frankly it's a LOT of work and time to part out a unit. Most take 1 to 3 days of shop time to process. Not only the disassembly, but the 4-15 hours of pre-testing / servicing and just as time consuming can be the amount of time it takes to do all of the research we do and the info we list on many parts for cross-referrencing to other units that my use the same parts by scouring service manuals. On many circuit boards we will list every 'semi-conductor' which is also very time consuming. Lastly, every call or email for a part can require 20 minutes to sometimes over an hour of 'phone support', often (about 70% of the time) with me convincing the potential purchaser that they don't need the part I have to solve their problem.
Sorry to sound like a "whiner" about selling parts, but "time is money".

Shipping: Shipping on most 'small' parts if typically via Postal first class or Postal Priority for both domestic (USA) and international orders. Larger parts such as transformers and drivers (speakers) are typically via FedEx gnd.
Some parts sales such as those for empty 'speaker cabinets', empty 'component cabinets / covers / bonnets' and 'speaker grills' and most are 'doomed' from the start. Due to their size and required packing supplies, the cost of 'packing for safe transit' and shipping are commonly 'disproportionate' to their cost, typically nearly equal to and sometimes greater than the cost of the part.  Think about it. An empty speaker cabinet or stereo receiver case is essentially the same size as a complete one. Yes the weight will be less, but most of items that size are calculated on 'dimensional weight', not actual weight so are commonly just as expensive as shipping a 'complete unit'. Secondly empty component cabinets have to be packed to disallow breakage, typically requiring nearly as much packing materials as an entire unit. Speaker grills have to be 'sandwiched' between foam sheets in large, custom ordered boxes (all relatively expensive).  It is what it is....

A non-response to an email of phone call / voice message request for a part that we don't show on one or our pages, or is already marked "SOLD" will be typical. We simply don't have the time / man-power resources to respond to every query we get for items we don't show as avail. Most folks get that. Having said that, I / we may respond if we have information on a substitution or other useful information relating to it.

A non-response to an email of phone call / voice message request for a part (we may appear to have, but typically 'highlighted in Orange or Yellow'), likely means that we are still determining which parts we are going to need for the restoration or repair of one of our units. Again, the parts are first for the restoration of our units and secondarily for the public market. Since we list the parts available for ourselves, it is not much effort to modify the menu's for web publication, which in turn makes the reference information and occasionally the part available to the public. Frankly, publishing them to the web, in many instances, makes it easier for us to determine if we have the part for our needs as well. The alternative to all of the above would be to not offer them at all to the public, however most parts are available to the public for sale.  Also, parts requests can occasionally take time for us to respond to. While we may have a part listed, and we like to keep the website 100% accurate, occasionally a part will be 'used by us' or 'previously sold' and we by oversight, and we did not get the web listing marked "SOLD", or the part gets  'mis-placed' or 'lost' (laid down somewhere in the warehouse(s) and then it get's lost track of (that happens to our coffee cups all the time, then we find it months later with 'a good batch of 'penicillin' growing in it), so we like to 'lay eyes on it' prior to responding. Sometimes we just can't figure out which cabinet or drawer parts were assigned to (and we're working on a system for that one).

Some folks email / call and want us to respond either way / whether we have the part or not. Again, we simply do not have the time resources to do that. Our time must be utilized on the requests we can fulfill.
Sorry for all the excuses, but that's how the 'system' (or lack thereof) works.
And, if you don't see it, we likely don't have it.
 Thank you for your understanding.

$20. MINIMUM ORDER



20% off sale on salvage speaker parts.


See sales banners on parts pages for details


Most of these components are "take-outs" from working speaker cabinets and unless otherwise noted are in perfect shape!
   Where necessary foam surrounds have been replaced and / or speaker has been professionally and correctly re-coned!








If you're looking on this page for 'Subwoofers' for the below listed models, or most any 'vintage' speaker, those likely AREN'T SUBWOOFERS you need. They are 'WOOFERS', and there is a difference.





Further reading at this link:  WOOFERS - VS - SUBWOOFERS




KLIPSCH FORTE II SPEAKER PARTS / SPARES

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY
IN STOCK
PRICE NOTES
KLIPSCH KLIPSCH FORTE II
(See also Forte, Forte II and Heresy III)
Woofer / Woofers K-25 12" - 4 Ohms
DCR ~ 3.5 Ohms
U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

Steel Frame. Ribbed-Pulp cone.
Ceramic Magnet.
'Reverse', Butyl Rubber Surround.
Oversize VC, with sealed, pulp dust cap.
  KLIPSCH KLIPSCH FORTE II
(See also Forte, Forte II and Heresy III)
Horn
 midrange
mid range
K-161 - - DCR ~ 12 Ohms U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

Poly Carbonate horn w/ Phase Plug.
Ceramic Magnet.
  KLIPSCH  KLIPSCH FORTE II Horn
 Tweeter
 "Squawker"
K-77 (EV
 T35 T-35)
- - 8 Ohms U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

-
   KLIPSCH  KLIPSCH FORTE II Crossover /
 input panel
- 3-way 35 8 Ohms U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

-
   KLIPSCH  KLIPSCH FORTE II Cabinets  MDF
(the "Series II" designates a switch from 'Marine Grade / Void-Free" plywood, to MDF)
- - - U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.


 *
Here's the issue with 'empty speaker cabinet'  sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, as they essentially require the same amount of packing for safe transit. They are also the same physical size, empty or not, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.


   KLIPSCH  KLIPSCH FORTE II Speaker
Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use)
- - - - U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
*

 *
Here's the issue with speaker grill sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, due to their large size, the 'custom' box and amount of foam board required for safe transit, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.



-

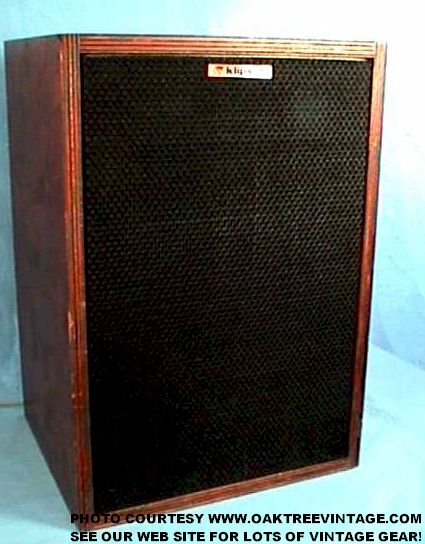

KLIPSCH HERESY SPEAKER PARTS / SPARES

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY
IN STOCK
PRICE NOTES
KLIPSCH

HERESY Woofers K-22 12" - 8 Ohms U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

Steel Frame. Ceramic Magnet.
Pulp Cone. Coated, Cloth, Corrugated surround.

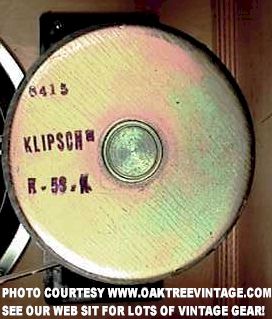

  KLIPSCH

HERESY Horn
 midrange
mid range
K-58-K - - 8 Ohms U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

Poly Carbonate horn.
Ceramic Magnet.

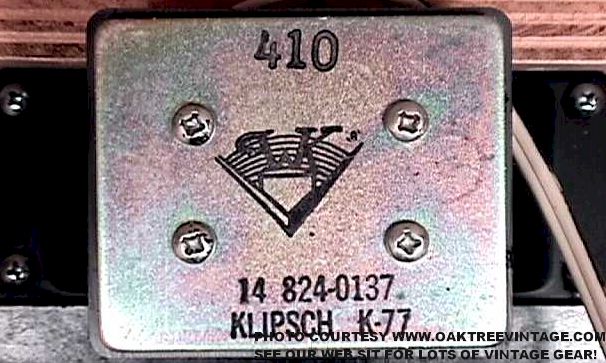

  KLIPSCH

speaker parts
HERESY Horn
 Tweeter
 "Squawker"
K-77 (EV
 T35 T-35)
- - 8 Ohms U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

Cast Aluminum Horn. Usually Ceramic magnet, when designated as a "K-77".

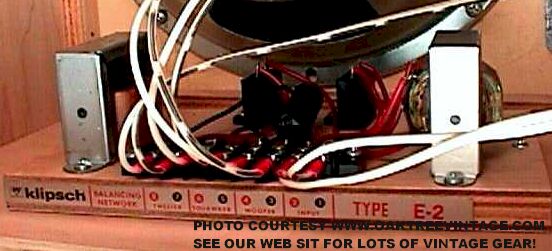

   KLIPSCH

HERESY Crossover /
 input panel
E-2 3-way 35 8 Ohms U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

-
   KLIPSCH

HERESY Cabinets  Void-free
 Birch
 plywood
 stained
 Walnut
- - - U 1 $119. ea.*

 *
Here's the issue with 'empty speaker cabinet'  sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, as they essentially require the same amount of packing for safe transit. They are also the same physical size, empty or not, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

Very
clean
with only
 minor
wear
   KLIPSCH

speaker parts
HERESY Speaker
Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use)
Black
coarse
woven
cloth
- - - U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
*

 *
Here's the issue with speaker grill sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, due to their large size, the 'custom' box and amount of foam board required for safe transit, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.



-

KLIPSCH HERESY II SPEAKER PARTS / SPARES

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY
IN STOCK
PRICE NOTES
KLIPSCH HERESY II Woofers K-24-K 12" - 8 Ohms U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

Steel Frame. Ceramic Magnet.
Pulp Cone. Coated, Cloth, Corrugated surround.
  KLIPSCH HERESY II Horn
 midrange
mid range
K-53-K - - 8 Ohms U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

Poly Carbonate horn.
Ceramic Magnet.
  KLIPSCH
speaker parts
HERESY II Horn
 Tweeter
 "Squawker"
K-76-K - - 8 Ohms U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

Poly Carbonate horn w/ Phase Plug.
Ceramic Magnet.
   KLIPSCH  HERESY II Crossover /
 input panel
- 3-way 35 8 Ohms U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
*

-
   KLIPSCH  HERESY II Cabinets  MDF
(the "Series II" designates a switch from 'Marine Grade / Void-Free" plywood, to MDF)
- - - U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
*

 *
Here's the issue with 'empty speaker cabinet'  sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, as they essentially require the same amount of packing for safe transit. They are also the same physical size, empty or not, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.


   KLIPSCH  HERESY II Speaker
Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use)
- - - - U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
*

 *
Here's the issue with speaker grill sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, due to their large size, the 'custom' box and amount of foam board required for safe transit, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.



-

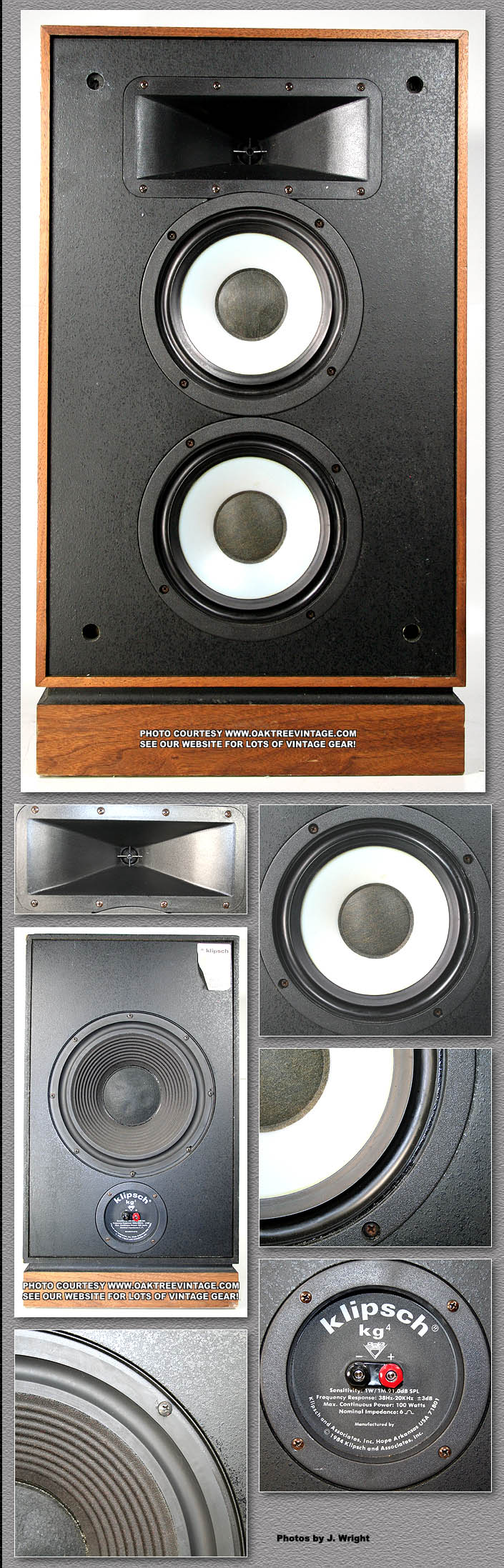

KLIPSCH KG4 / KG-4 SPEAKER PARTS / SPARES

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY
IN STOCK
PRICE NOTES


KLIPSCH

KG4 / KG 4 Woofers K-8-K 8" - 8 Ohms
DCR = 6.8 Ohms
U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

Good


  KLIPSCH


speaker parts
KG4 / KG 4 Horn
 Tweeter
 "Squawker"
K-74-K / K-74K Polymer dome compression horn-driver TWEETER: K-74-K 1" (2.54cm) Phenolic dome compression driver
HIGH FREQUENCY: 90°x40° Exponential Horn

- 8 Ohms
DCR = 7.6 Ohms
U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

Good
   KLIPSCH


KG4 / KG 4 Crossover /
 input panel w/ Banana / Binding Posts
KG4 2-way
6dB / Oct
65++ 8 Ohms U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
$55. ea.

Good


   KLIPSCH


KG4 / KG 4 Cabinets Walnut veneer - - - U 1 $85. ea. Cabinet ONLY. ALL components sold separately.*

 *
Here's the issue with 'empty speaker cabinet'  sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, as they essentially require the same amount of packing for safe transit. They are also the same physical size, empty or not, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

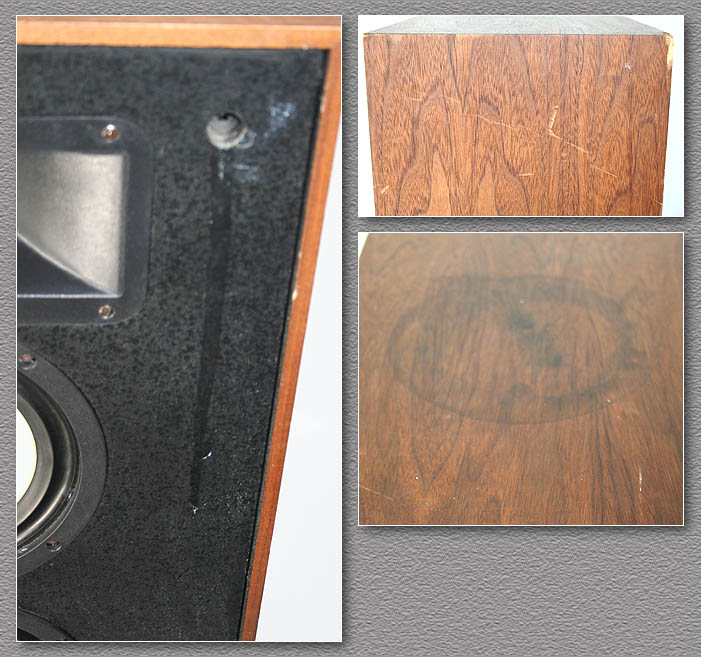

Some scuffs, and veneer chips. Dark water ring on top. Structurally sound.
   KLIPSCH


speaker parts
KG4 / KG 4 Speaker
Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use)
Dark Brown
coarse
woven
cloth
15" w x 23.5" h - - U 0
 Reference info ONLY.
 None currently for sale,
 but more MAY occasionally show up. Check back periodically.

Clean
 w/logo
and all pins /  fasteners intact No frame breaks. No snags or tears to original dark brown 'Terry cloth'.

KLIPSCH KG2 / KG-2 SPEAKER PARTS / SPARES

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY
IN STOCK
PRICE NOTES
KLIPSCH

KLIPSCH KG2 / KG 2
(see also KG-2 & KG-4)
Woofers K-8-K 8" - 8 Ohms
DCR = 6.9 Ohms
U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.


KLIPSCH

KLIPSCH KG2 / KG 2 Passive Radiator - 8" - N/A U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.


KLIPSCH  KLIPSCH KG2 / KG 2 Horn
 Tweeter
 "Squawker"
Klipsch 850,  360° Radial  compression horn-driver 2"

- DCR = 8.5 Ohms U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.









KLIPSCH KM4 SPEAKER PARTS / SPARES

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY
IN STOCK
PRICE NOTES
KLIPSCH


KM4 / KG 3.5 Woofers - 8" - 8 Ohms U 2 $75. ea.
 ON HOLD
Perfect
  KLIPSCH


speaker parts
KM4 / KG 3.5 Horn
 Tweeter
 "Squawker"
K-84-K 1" (2.54cm) Polymer dome compression driver - - 8 Ohms U 2 $75. ea.
 ON HOLD
Perfect
   KLIPSCH


KM4 / KG 3.5 Crossover /
 input panel
KG 3.5 2-way 65++ 8 Ohms U 2 $35. ea.
 ON HOLD
Perfect
   KLIPSCH


KM4 / KG 3.5 Cabinets Void-free
 Birch
 plywood
 stained
 Walnut
33.5" H x 10.5" W x 11.5" D - - U 1 $85. ea.
 ON HOLD
*

 *
Here's the issue with 'empty speaker cabinet'  sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, as they essentially require the same amount of packing for safe transit. They are also the same physical size, empty or not, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

Very
clean
with only
 minor
wear
   KLIPSCH


speaker parts
KM4 / KG 3.5 Speaker
Grill
 / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use)
Black
coarse
woven
cloth
- - - U 1 $45. ea.
 ON HOLD
Perfect
 w/logo
and all magnetic fasteners intact
   KLIPSCH


speaker parts
KM4 / KG 3.5 Speaker
Grill
 / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use)
Black
coarse
woven
cloth
- - - U 1 $35. ea.
 ON HOLD
*

 *
Here's the issue with speaker grill sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, due to their large size, the 'custom' box and amount of foam board required for safe transit, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

clean
with only
 minor
wear
 w/logo
and all magnetic fasteners intact


KLIPSCH KSW-10 / KSW10 SUBWOOFER SPEAKER PARTS / SPARES

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY
IN STOCK
PRICE NOTES
KLIPSCH


KLIPSCH KSW-10 / KSW10 Woofers / Drivers 121037 / K-1070 10" - 4 Ohms
DCR = 3.4 Ohms
U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

Stamped steel frame, ceramic magnet, ribbed-pulp cone, foam surround.


KLIPSCH KSW-100 / KSW100 SUBWOOFER SPEAKER PARTS / SPARES

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY
IN STOCK
PRICE NOTES
KLIPSCH


KLIPSCH KSW-100 / KSW100 Woofers / Drivers 120828 / K-1048K 8" - - U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

Stamped steel frame, ceramic magnet, ribbed-pulp cone, foam surround.








KLIPSCH KSW-150 / KSW150 SUBWOOFER SPEAKER PARTS / SPARES

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY
IN STOCK
PRICE NOTES
KLIPSCH


KLIPSCH KSW-150 / KSW150 Woofers / Drivers 121024 / K-1049 10" - - U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

Stamped steel frame, ceramic magnet, ribbed-pulp cone, foam surround.



KLIPSCH TANGENT T30 SPEAKER PARTS / SPARES

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY
IN STOCK
PRICE NOTES



KLIPSCH / TANGENT


T30 Woofers K-6-K 8" - 8 Ohms
DCR = 6.8 Ohms
U 1 $75. ea. Pulp cone. Cloth dust cap / dome. Coated cloth, accordion suspension. Ceramic Magnet. Stamped, steel frame. Spade lugs.



KLIPSCH / TANGENT


speaker parts

T30 Horn
 Tweeter
 "Squawker"
K-80-K Polymer dome compression horn-driver - - 8 Ohms
DCR = 8.5 Ohms
U 1 $75. ea. Good
KLIPSCH / TANGENT


T30 Crossover /
 input panel
T30 2-way
6dB / Oct
- 8 Ohms U 0
Reference info ONLY.
 None currently for sale,
 but more MAY occasionally show up. Check back periodically.

$45. ea.

Good
KLIPSCH / TANGENT


T30 Cabinets Walnut veneer - - - U 1 $65. ea. Cabinet ONLY. ALL components sold separately.*

 *
Here's the issue with 'empty speaker cabinet'  sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, as they essentially require the same amount of packing for safe transit. They are also the same physical size, empty or not, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.


Looks great. Only very minor wear. Structurally sound.
KLIPSCH / TANGENT


speaker parts
T30 Front Speaker
Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use)
Black knit
cloth
12.5" w x 26.7" h - - U 0
 Reference info ONLY.
 None currently for sale,
 but more MAY occasionally show up. Check back periodically.

Clean
 w/logo
and all velcro  fasteners intact No frame breaks. No snags or tears to original black knit cloth'.
KLIPSCH / TANGENT


speaker parts
T30 Top Speaker
Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use)
Black knit
cloth
12.5" w x 26.7" h - - U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
*

 *
Here's the issue with speaker grill sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, due to their large size, the 'custom' box and amount of foam board required for safe transit, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.



-

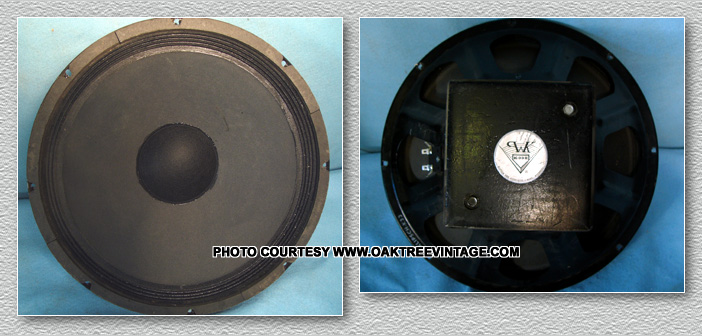

Klipsch K-33-E Woofer

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY
IN STOCK
PRICE NOTES
KLIPSCH



Klipsch Klipschorns / K-Horns /
La Scala / Cornwall & Others
Klipsch
K-33-E

Woofers
K-33-E 15" ~400 - U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

-
-
- - - - - - - - - - -


If you're looking for a great place for great place to purchase new foam surround kits, replacement surrounds, or to have your woofers, sub woofers / subs, re-foamed or re-coned, we recommend either 'Orange County Speakers' or 'Parts Express'. They have QUALITY parts and do QUALITY work.











LINKS TO OUR 'HI-FI' DEPARTMENTS

Amps and
Pre-Amps

Receivers

Cassette
Decks

Tuners

Turntables

8-Track Decks

CD Players

Reel-Reel
Decks

EQs and Signal
Processors

Speakers

Betamax and
VHS VCRs

Turntable Cartridges

Tube Audio

Ne'cessories

Speaker Parts

Record Players

Vintage Radios

Vintage
Walkmans

Headphones

Stereo Parts


Wondering where the "tone" you remember went?....




.... Surround yourself with Silver and find it again!


CONTACT INFO BELOW

$20. MINIMUM ORDER





>>>(for 'PARTS'; <<<
as of NOW and for the foreseeable future,
due to staffing / time / resource limitations, we are shifting focus AWAY from MOST 'SALVAGE / USED / DONOR' parts requests at this time with
*only a few exceptions, and will not likely be responding to calls or emails for those type of parts.  We will still process orders for '**non-unique / SKU' parts / accessories that offer an 'on-line payment' option.)

*at our discretion, some requests may still get a response if time allows.
*"unique" would apply to most 'salvage' Hi-Fi / Stereo / Speaker, scooter, MI, Pro-audio parts.
Parts that we normally stock and have a "Buy It" option are not included in the above notice.


    Before calling, PLEASE read the text in below.
 BEFORE
CALLING

(800) 806-4231 EXT #1
~10:00 AM- ~5:30 PM most days COLORADO / ROCKY MOUNTAIN TIME ZONE


OR

BEFORE EMAILING

parts@oaktreevintage.com

>>>(for 'PARTS'; <<<
as of NOW and for the foreseeable future,
due to staffing / time / resource limitations, we are shifting focus AWAY from MOST 'SALVAGE / USED / DONOR' parts requests at this time with
*only a few exceptions, and will not likely be responding to calls or emails for those type of parts.  We will still process orders for '**non-unique / SKU' parts / accessories that offer an 'on-line payment' option.)

*at our discretion, some requests may still get a response if time allows.
*"unique" would apply to most 'salvage' Hi-Fi / Stereo / Speaker, scooter, MI, Pro-audio parts.
Parts that we normally stock and have a "Buy It" option are not included in the above notice.

We DO NOT have your part unless the following conditions are met:

A) You HAVE SEARCHED our page(s) and HAVE FOUND the part you are looking for SPECIFICALLY listed on one of our pages or you have solid information that it's a 'bona fide' substitution for your part (unless noted already, we won't have any further info along those lines)
AND
B) The part that you have found is NOT marked as SOLD or SOLD OUT.


If you do NOT see it listed after thoroughly searching the pertinent page
(likely the page you landed on originally),
we do not have it,
nor do we know when
it might come in,
nor do we maintain "waiting lists" for parts,
nor do we know who
might have it.

Sorry, but phone and email traffic for parts
we don't have listed or for parts that are already marked "SOLD" has become too consuming of time resources.


 We try to keep these pages 99+% updated.
If you don't see the part you are looking for, simply check the web page periodically as we never know what will show up each day. Thanks!!!!!


ALSO: When e-mailing be sure to include a relevant subject, ie: Brand / Model number / reason for inquiry in the 'SUBJECT LINE'.
SUBJECT
lines left empty, or with 'single word' text like;
"Hello", "Hi", "parts", "stereo", "inquiry", "question", "selling" or similar or similar 'un-qualified' terms may automatically be deleted by Anti-Virus / Spam settings or receive 'Low Priority'.
(Subject lines left empty show up as "No Subject" and are deleted automatically by our anti-spam settings".
We do not return calls / emails for requests for parts we don't show / or have available (we may choose contact with further, useful information).


 SPEAKER PARTS   |   STEREO / HI-FI ELECTRONIC PARTS   |  KEYBOARD PARTS

___________________________________________

Haven't received a response to your email? See FAQ'S

MAILING:
OAK TREE ENTERPRISES
PO. BOX 6182
COLORADO SPRINGS, CO 80934
U.S.A.


Before ordering by postal mail, please phone or email us about the item and the details of sending your funds. Thank-you.


 SPEAKER PARTS   |   STEREO / HI-FI ELECTRONIC PARTS   |   SELLING-TRADING-CONSIGNING   |  KEYBOARD PARTS   I   FAQ'S
  CONDITION RATINGS   |   ORDERING / POLICIES    |    WARRANTIES / RETURNS   |   SHIPPING
 RESTORATION PROCEDURES   |   REPAIRS  | CONTACT PARTS


As much of the price charged for parts is for the 'time to extract' from it's donor unit, unless we send the 'wrong part', parts are NOT returnable.
See our "
Warranties / Returns" page via the link below for more details.


POLICIES, SPECIFICATIONS, AVAILABILITY, INFORMATION AND PRICING SUBJECT TO CHANGE  AT ANYTIME  AND WITHOUT PRIOR NOTICE
and changes may not be posted to web immediately
. Information such as Parts Substitution possibilities, "Circa" dates, original values, etc. are to the best of our knowledge. If you are critically concerned, you should do independent
research on your own prior to ordering or utilizing this information in any way. Manufacturers also are known to change part numbers, specs, circuit designs, specs etc within the same model.


Copyright © 1997-2023 Oak Tree Enterprises, LLC

COPYRIGHT INFORMATION
