POLK-AUDIO SPEAKER PARTS
- USED / VINTAGE
.
REFERENCE / DATA BASE



Polk-Audio Monitor Model 2 series 2, 4a, 10 10's 11T 11-T, RTA-15TL, SDA 1A, SRS2 Replacement speaker Parts / spares / components for reference and occasionally available for sale. Polk replacement drivers, woofers, tweeters, mids / midranges, cross-overs / crossovers, cabinets, Grills / Screens / Front Covers & speaker parts. Polk-Audio speakers / parts for Data Base info, specifications / specs, reference and occasional sale.






A NOTE ABOUT POLK AUDIO SPEAKERS:
Polk woofers can be very susceptible to damage from 'shock'. A speaker that has been dropped, even from a short distance or bumped severely, may likely have damage to the woofers. Even dropping them from as little as 6" can do it. This can even happen when the box is unloaded from the delivery truck / loading dock or when being hand-trucked down stairs or off a curb. This occurs because the glue / epoxy the original mfg used to secure the magnet structure to the back plate of the frame is now 'decades' old and gives way. This usually manifests itself in a woofer cone that is "frozen" and will not move. DO NOT connect a speaker that has a woofer with these symptoms to your amplifier, as the voice coil of the driver may be shorted across part of the internal motor structure of the speaker and may present a lower impedance to your amplifier than it is designed to accommodate. The above issue is prevalent on most of the classic Polk Audio models utilizing the 6500 series drivers, ie; 6502, 6502, 6503, 6505 etc., and possibly others.
If you just bought a pair and they arrived with the woofers / mids 'locked-up' with the voice coils 'frozen', it's probably not necessarily anyone's fault. We generally default to the attitude that, "if something gets damaged in shipping, it's almost always the fault of the 'packer' and not the carrier. Yes, of course the carrier / shipper dropped it, kicked it, ran over it, etc. That is what happens and everyone should realize that. Items need to be packed so they can be 'dropped / kicked / ran-over' etc and still survive intact".
However
,...
the epoxy on the 'vintage' Polk drivers is old and may be one tiny vibration from releasing, even under normal use so it's difficult to place blame on either the seller / packer or the shipper, but again, if they aren't packed well in the first place, then there's certainly little hope of safe arrival even with the most careful handling.
We have started 'proactively' using a 'liquid metal' epoxy, such as JB weld (but NOT 'JB Weld', as there's one that works better for a couple of reasons) around the seams between the magnets and plates on all of our Polk speakers and parts-woofers when they come into stock.
We do not know if the problem has been rectified on the newer drivers (woofers). We spoke with someone at Polk recently about this and that person said they could not verify one way or the other whether they had changed epoxy types or designs. Just FYI.











































*Note about parts / spares sales

* Our "parts units", parts / spares and related reference information are primarily archived for the purpose of restoration / repair of "Oak Tree Vintage" units first. Only if we do not have a "viable" unit in yet, either already in process or in line to be processed, that may potentially need parts from a "parts unit", will we release available parts for sale (even though they may appear as available for sale to the public). As many of you know, the restoration of a unit can be a long, time consuming process. We may "lock up" parts that we may potentially need in the restoration of a unit (and not necessarily get it marked 'Hold' or 'Sold' on the site right away). Parts are priced according to the "potential value" of the unit they can be applicable to (meaning the amount WE would be willing to pay for the part if that was all that was standing between us having a "shelved unit" or a valuable / sellable unit), time to extract, their rarity & their condition to name a few criteria and likely will be completely unrelated to the original cost / price of a part when it was currently available from the manufacturer.

Parts Photos; We get a number of requests for 'photos' of a specific part. Unfortunately, in most cases that is not practical as the amount of time involved in posting that exceeds the value of the 'unique' part. We will sometimes post photos of less 'unique' parts, if there is a greater chance of them being available in multiple quantities, or on a more 'repeat' basis.

Shipping: Shipping on most 'small' parts if typically via Postal first class or Postal Priority for both domestic (USA) and international orders. Larger parts such as transformers and drivers (speakers) are typically via FedEx gnd.
Some parts sales such as those for empty 'speaker cabinets', empty 'component cabinets / covers / bonnets' and 'speaker grills' are 'doomed' from the start. Due to their size and required packing supplies, the cost of 'packing for safe transit' and shipping are typically nearly equal to and sometimes greater than the cost of the part.  Think about it. An empty speaker cabinet or stereo receiver case is essentially the same size as a complete one. Yes the weight will be less, but most of items that size are calculated on 'dimensional weight', not actual weight. Secondly empty component cabinets have to be packed to disallow breakage, typically requiring nearly as much packing materials as an entire unit. Speaker grills have to be 'sandwiched' between foam sheets in large, custom ordered boxes (all relatively expensive).  It is what it is....

A non-response to an email request for a part (we may appear to have), likely means that we are still determining which parts we are going to need for the restoration or repair of one of our units. Again, the parts are first for the restoration of our units and secondarily for the public market. Since we list the parts available for ourselves, it is not much effort to modify the menu's for web publication, which in turn makes the reference information and occasionally the part available to the public. Frankly, publishing them to the web, in many instances, makes it easier for us to determine if we have the part for our needs as well. The alternative to all of the above would be to not offer them at all to the public, however most parts are available to the public for sale.
BOTTOM LINE IS; IF YOU DON'T SEE IT AVAILABLE FOR SALE, WE DON'T HAVE IT!
 Thank you for your understanding.




20% off sale on salvage speaker parts.


See sales banners on parts pages for details







Most of these components are "take-outs" from working speaker cabinets and unless otherwise noted are in perfect shape!
   Where necessary foam surrounds have been replaced and / or speaker has been professionally and correctly re-coned!









POLK-AUDIO MONITOR 2 SERIES 2 SPEAKER PARTS / SPARES / REPLACEMENT SPEAKERS

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES



Polk Audio

Polk Audio Model Monitor 2 /  Series 2 Woofers MW 6502
Poly coated w/ Butyl Rubber surround.
6.5" - 8 ohms U 0 Reference information only. None currently for sale,
but more occasionally show up. Check back periodically.

$55. ea
Great cond. Works.

NOTE!
We now 'proactively' add 'liquid metal' epoxy to all of our Polk 6000 series drivers to eliminate the possibility of 'magnet shift'.



Polk Audio

Polk Audio Model Monitor 2 /  Series 2  Tweeters SL-1500 1" soft dome
on plate
- 8- ohms U 0 Reference information only. None currently for sale,
but more occasionally show up. Check back periodically.

$35. ea 8/8/12
Great cond. Works.

Polk Audio

Polk Audio Model Monitor 2 /  Series 2 Crossover/Input Panels - 2 Way - - U 1 $30. ea Great cond. Works.

Polk Audio

Polk Audio Model Monitor 2 /  Series 2 Speaker Cabinets Medium Oak
vinyl wood grain finish
- - U 1 $35 ea Solid. Very clean.

Polk Audio

Polk Audio Model Monitor 2 /  Series 2 Grills / Screens / Front Covers / Screens / Front Covers Black
Cloth
- - - U 1 $25. ea Great cond. No breaks to frame. All locating pins intact. W/ 'Polk audio' logo.

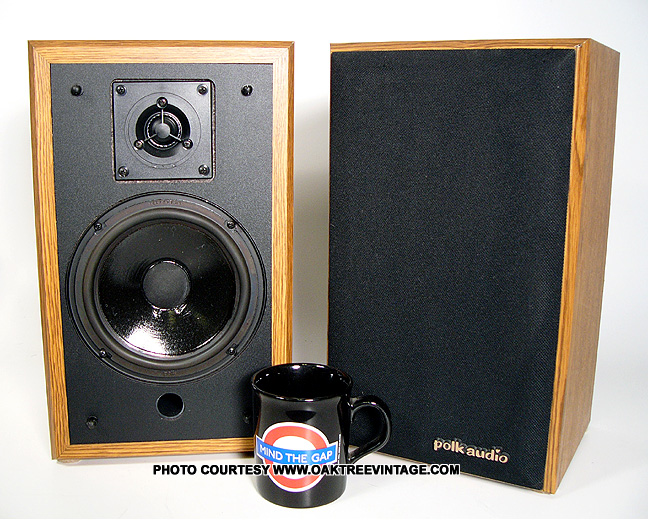

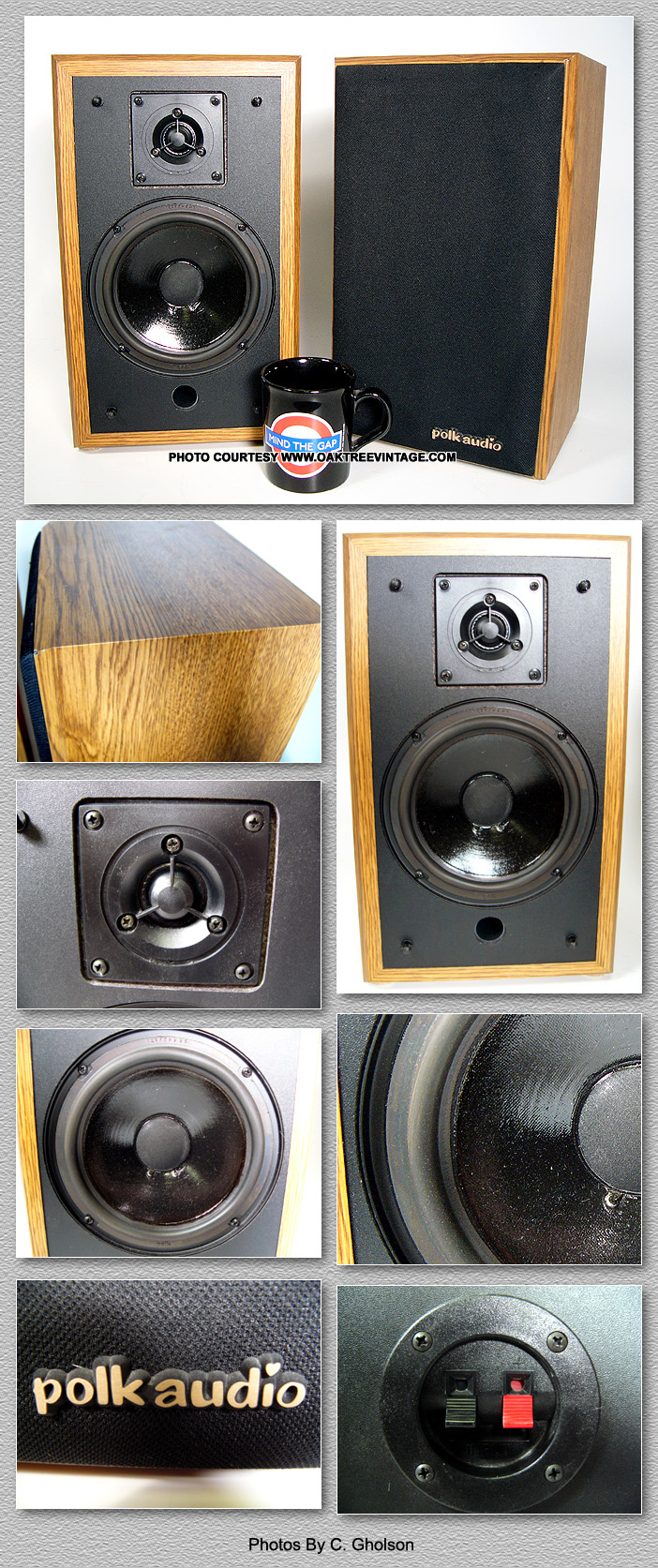

POLK-AUDIO MONITOR 4A SPEAKER PARTS / SPARES / REPLACEMENT SPEAKERS

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES






Polk Audio

Polk Audio Model Monitor 4A Woofers
(see also Monitor 2)
MW 6502
Poly coated w/ Butyl Rubber surround.
6.5" - 8 ohms U 0 Reference information only. None currently for sale,
but more occasionally show up. Check back periodically.
Great cond. Works.

NOTE!
We now 'proactively' add 'liquid metal' epoxy to all of our Polk 6000 series drivers to eliminate the possibility of 'magnet shift'.








Polk Audio

Polk Audio Model Monitor 4A  Tweeters 5515A 1" soft dome
on plate
- 4 ohms U 0 Reference information only. None currently for sale,
but more occasionally show up. Check back periodically.
-

Polk Audio

Polk Audio Model Monitor 4A Crossover/Input Panels - 2 Way - - U 0 Reference information only. None currently for sale,
but more occasionally show up. Check back periodically.
Great cond. Works.

Polk Audio

Polk Audio Model Monitor 4A Speaker Cabinets Rosewood
vinyl wood grain finish
- - U 0 Reference information only. None currently for sale,
but more occasionally show up. Check back periodically.
-

Polk Audio

Polk Audio Model Monitor 4A Grills / Screens / Front Covers / Screens / Front Covers Black
Cloth
- - - U 1 $25. ea Great cond. No breaks to frame. W/ 'Polk audio' logo.


POLK-AUDIO MONITOR 10 SPEAKER PARTS / SPARES / REPLACEMENT SPEAKERS

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES



Polk Audio

Polk Audio Model Monitor 10 Series I Woofers MW 6500
MW6500
(Later replaced w/ 6503)
6.5" - 8 ohms U 0 Reference information only. None currently for sale,
but more occasionally show up. Check back periodically.


NOTE!
We now 'proactively' add 'liquid metal' epoxy to all of our Polk 6000 series drivers to eliminate the possibility of 'magnet shift'.





Polk Audio

Polk Audio Model Monitor 10 Series I Passive
 Radiator
W/ 4.0" center dampening disc 10" - - U 0 Reference information only. None currently for sale,
but more occasionally show up. Check back periodically.
-





Polk Audio

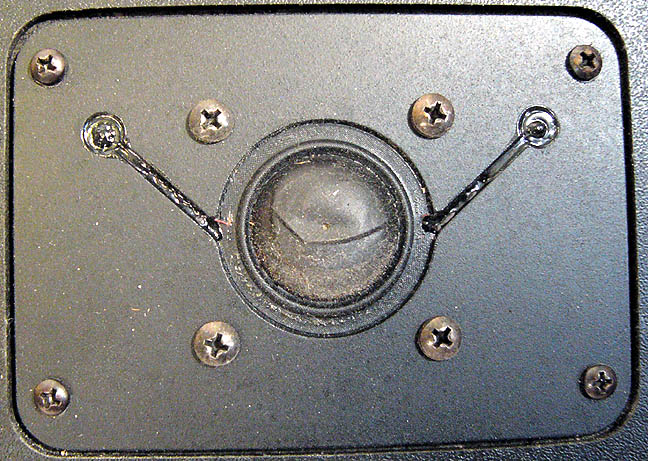

Polk Audio Model Monitor 10 Series I  Tweeters - 1" soft dome
on plate
- 8- ohms U 0 Reference information only. None currently for sale,
but more occasionally show up. Check back periodically.
-
Polk Audio Polk Audio Model Monitor 10 Series I Crossover/Input Panels - 2 Way - - U 0 Reference information only. None currently for sale,
but more occasionally show up. Check back periodically.
-
Polk Audio Polk Audio Model Monitor 10 Series I Speaker Cabinets Rosewood
vinyl wood grain finish
- - U 0 Reference information only. None currently for sale,
but more occasionally show up. Check back periodically.
-
Polk Audio Polk Audio Model Monitor 10 Series I Grills / Screens / Front Covers Black
Cloth
- - - U 1 $35. ea Good & snag / hole free, & with logo
Polk Audio Polk Audio Model Monitor 10 Series I Grills / Screens / Front Covers
Black
Cloth
- - - U 1 $35. ea Good & snag / hole free. Non-Logo version.

POLK AUDIO Monitor 11T Speaker Parts / Spares / Replacement Speakers.
Note: Some Monitor 11T MAY fit some Polk Audio SDA-CRS-SDAII SDA II models. Check your driver model number for compatibility.

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES
Polk Audio Monitor Series 11T 11-T and some SDA-CRS, SDA-II models Woofers MW 6510
MW6510
6.5" - 8 ohms U 0 Reference information only. None currently for sale,
but more occasionally show up. Check back periodically.


NOTE!
We now 'proactively' add 'liquid metal' epoxy to all of our Polk 6000 series drivers to eliminate the possibility of 'magnet shift'.


Polk Audio Monitor Series 11T 11-T and some SDA-CRS, SDA-II models Passive
 Radiator
W/ 2.75" center dampening disc 8" - - U 0 Reference information only. None currently for sale,
but more occasionally show up. Check back periodically.
-
Polk Audio Monitor Series 11T 11-T and some SDA-CRS, SDA-II models Passive
 Radiator
W/ 4.0" center dampening disc 8" - - U 0 Reference information only. None currently for sale,
but more occasionally show up. Check back periodically.
-

Polk Audio



Monitor Series 11T 11-T and some SDA-CRS, SDA-II models  Tweeters SL-2000
SL2000
1" Silver Coil, soft dome
on plate
- 8- ohms U 0 Reference information only. None currently for sale,
but more occasionally show up. Check back periodically.
-
Polk Audio Monitor Series 11T 11-T Crossover / input panel - 2- Way - - U 1 $45 ea Black / Gnd banana jack snapped off. All else good.
Polk Audio Monitor Series 11T 11-T Cabinets Black vinyl tower - - - U 0 Reference information only. None currently for sale,
but more occasionally show up. Check back periodically.
-
Polk Audio Monitor Series 11T 11-T Grills / Screens / Front Covers
Black
Cloth
- - - U 0 Reference information only. None currently for sale,
but more occasionally show up. Check back periodically.
-

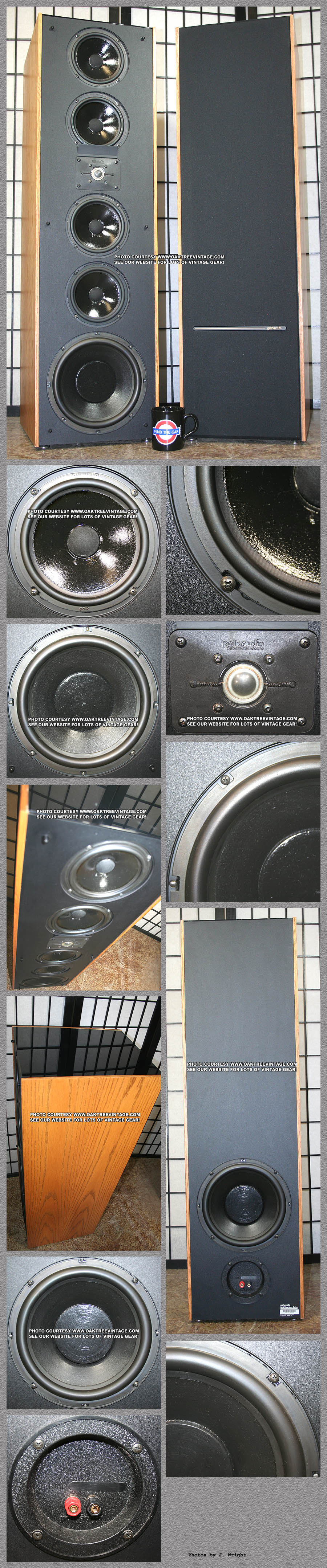

POLK AUDIO RTA-15TL Speaker Parts / Spares / Replacement Speakers. Polk Audio RTA (Real Time Array Series)
  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES


Polk Audio
Polk RTA-15TL Woofers MW 6503
MW65
03
Butyl rubber surround
(could likely sub MW6500)

6.5" - 8 ohms U 0 Reference information only. None currently for sale,
but more occasionally show up. Check back periodically.


NOTE!
We now 'proactively' add 'liquid metal' epoxy to all of our Polk 6000 series drivers to eliminate the possibility of 'magnet shift'.





Polk Audio

Polk RTA-15TL Passive
 Radiator
W/ 4.0" center dampening disc & Butyl rubber surround 8" - - U 0 Reference information only. None currently for sale,
but more occasionally show up. Check back periodically.
-
Polk Audio Polk RTA-15TL  Tweeters SL-3000 / SL-2000 can be sub'd 1" Silver Coil, soft dome
on plate
- 8- ohms U 0 Reference information only. None currently for sale,
but more occasionally show up. Check back periodically.
-
Polk Audio Polk RTA-15TL Crossover / input panel - 2- Way - - U 0 Reference information only. None currently for sale,
but more occasionally show up. Check back periodically.
-
Polk Audio Polk RTA-15TL Grills / Screens / Front Covers
Black
Cloth / Thin MDF frame
- - - U 0 Reference information only. None currently for sale,
but more occasionally show up. Check back periodically.
-

POLK-AUDIO SDA 1A SIGNATURE SPEAKER PARTS / SPARES / REPLACEMENT SPEAKERS

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES
Polk Audio SDA 1A / SRS2 Woofers MW 6509 6.5" - 8 ohms U 6-8 $20. ea As-Is All have some degree of magnet shift / locked / scraping voice coil-cone. Also dust caps may be pushed in, but can be pulled with shop vac.
Polk Audio SDA 1A Passive
 Radiator
- 12"?? or 15"?? - - U 2 $45. ea Great

Polk Audio





SDA 1A  Tweeters SL-2000
SL2000
1" Mylar dome
on plate
- 8- ohms U 0 Reference information only. None currently for sale,
but more occasionally show up. Check back periodically.
Slight creasing to Mylar come. Cosmetics only. Work and sound great.
Polk Audio SDA 1A Crossover SDA
series
2/3 Way - - U 0 Reference information only. None currently for sale,
but more occasionally show up. Check back periodically.
-
Polk Audio SDA 1A Cabinets Oak
Wood
veneer
- - - U 0 Reference information only. None currently for sale,
but more occasionally show up. Check back periodically.
-


Polk Audio

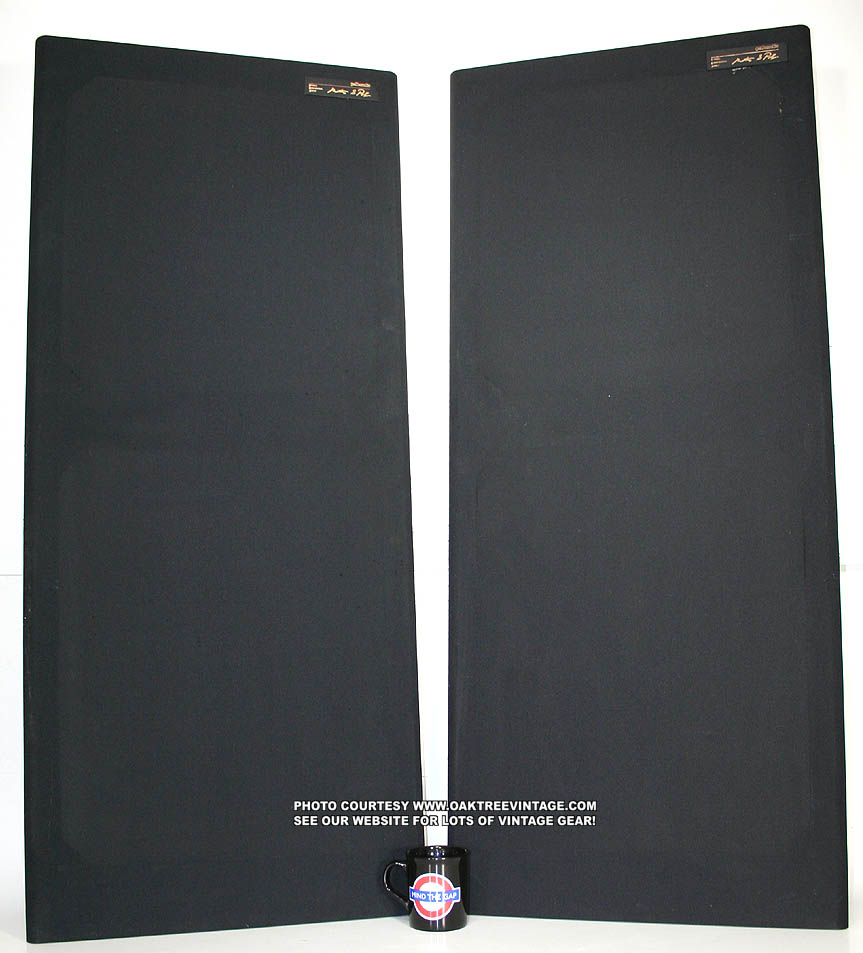

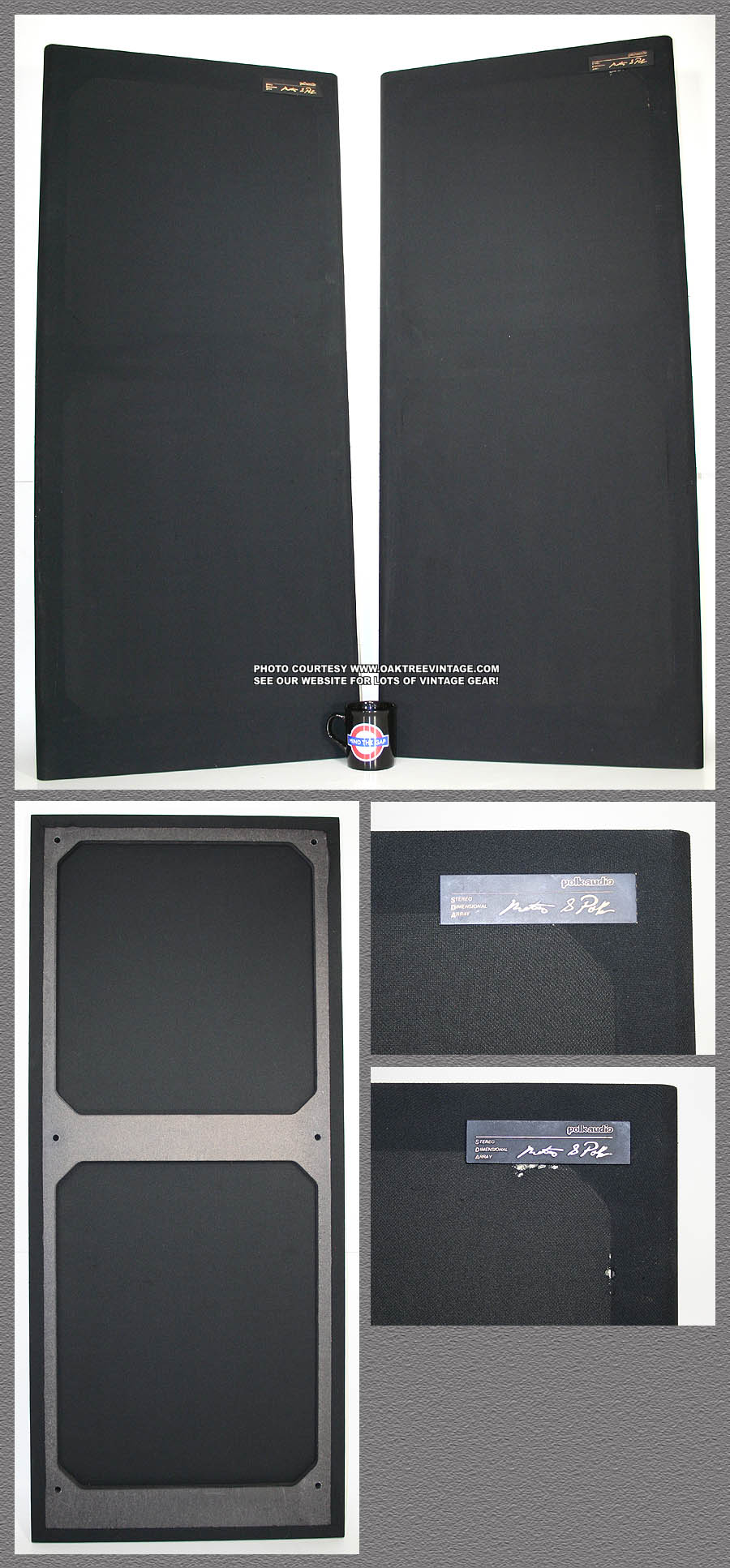

SDA 1A Grills / Screens / Front Covers
Black
Cloth
48" x 20 5/8" - - U 1
$85. ea.
w/ original knit cloth.
(Note: due to their size, packing and shipping will be VERY expensive, relatively speaking and will need custom boxes which adds about a week.)

Frames solid and intact. Cloth great cond and snag free. 'Stereo Dimensional Array / Matthew S. Polk' Signature Logos intact.


Polk Audio
SDA 1A Grills / Screens / Front Covers
Black
Cloth
48" x 20 5/8" - - U 1
$85. ea.
w/ original knit cloth.
 Recovered w/ fresh knit grill cloth $185. ea.
(Note: due to their size, packing and shipping will be VERY expensive, relatively speaking and will need custom boxes which adds about a week.)

Frames solid and intact. Cloth great with only minor snags. 'Stereo Dimensional Array / Matthew S. Polk' Signature Logos intact.



POLK-AUDIO SDA / CRS SPEAKER PARTS / SPARES / REPLACEMENT SPEAKERS

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES
Polk Audio SDA / CRS Woofers MW 6510 6.5" - 8 ohms U 0 Reference information only. None currently for sale,
but more occasionally show up. Check back periodically.


NOTE!
We now 'proactively' add 'liquid metal' epoxy to all of our Polk 6000 series drivers to eliminate the possibility of 'magnet shift'.


Polk Audio SDA / CRS Woofers MW 6511 6.5" - 4 ohms U 0 Reference information only. None currently for sale,
but more occasionally show up. Check back periodically.
-
Polk Audio SDA / CRS Passive
 Radiator
- - - - U 0 Reference information only. None currently for sale,
but more occasionally show up. Check back periodically.
-

Polk Audio

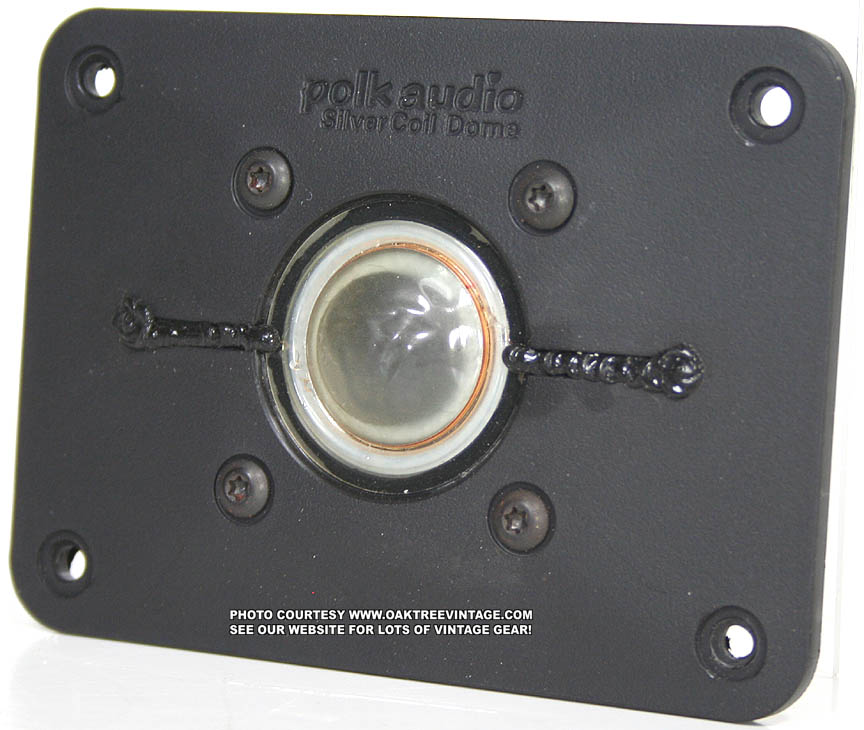

SDA / CRS  Tweeters SL-2000
SL2000
1" Mylar dome
on plate
- 8- ohms U 0 Reference information only. None currently for sale,
but more occasionally show up. Check back periodically.
-
Polk Audio SDA / CRS Crossover SDA
series
2/3 Way - - U 0 Reference information only. None currently for sale,
but more occasionally show up. Check back periodically.
-
Polk Audio SDA / CRS Cabinets Oak
Wood
veneer
20" w x 12.75" h x 9.5" 2/3 way - U 0 Reference information only. None currently for sale,
but more occasionally show up. Check back periodically.
-
Polk Audio SDA / CRS Grills / Screens / Front Covers
Black
Cloth
19.75" x 12" - - U 0 Reference information only. None currently for sale,
but more occasionally show up. Check back periodically.
-
Polk Audio SDA / CRS Rear
Grill
Black
Metal
9.5" - - U 0 Reference information only. None currently for sale,
but more occasionally show up. Check back periodically.
-

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES
- - - - - - - - - - -
---If you're looking for a great place for great place to purchase new foam surround kits, replacement surrounds, or to have your woofers, sub woofers / subs, re-foamed or re-coned, we recommend either 'Orange County Speakers' or 'Parts Express'. They have QUALITY parts and do QUALITY work.










LINKS TO OUR 'HI-FI' DEPARTMENTS

Amps and
Pre-Amps

Receivers

Cassette
Decks

Tuners

Turntables

8-Track Decks

CD Players

Reel-Reel
Decks

EQs and Signal
Processors

Speakers

Betamax and
VHS VCRs

Turntable Cartridges

Tube Audio

Ne'cessories

Speaker Parts

Record Players

Vintage Radios

Vintage
Walkmans

Headphones

Stereo Parts


Wondering where the "tone" you remember went?....

Vintage  Stereo Equipment receivers speakers Classic Silver Audio Collection and jerry



.... Surround yourself with Silver and find it again!


CONTACT INFO BELOW

$20. MINIMUM ORDER





    Before calling, PLEASE read the text in orange below.
No Really...Stop, Alto, Halt, etc.
 BEFORE
CALLING

(800) 806-4231 EXT #1
OR EMAILING
parts@oaktreevintage.com

~9:30 AM- ~7:30 PM most days COLORADO / ROCKY MOUNTAIN TIME ZONE

We DO NOT have your part unless the following conditions are met:

A) You HAVE SERCHED our page(s) and HAVE FOUND the part you are looking for SPECIFICALLY listed on one of our pages or you have solid information that it's a 'bona fide' substitution for your part (unless noted already, we won't have any further info along those lines)
AND
B) The part that you have found is NOT marked as SOLD or SOLD OUT.


If you do not see it listed after thoroughly searching the pertinent page
(likely the page you landed on originally),
we do not have it,
nor do we know when
it might come in,
nor do we maintain "waiting lists" for parts,
nor do we know who
might have it.

Sorry, but phone and email traffic for parts
we don't have listed or for parts that are already marked "SOLD" has become too consuming of time resources.


 We try to keep these pages 99+% updated.
If you don't see the part you are looking for, simply check the web page periodically as we never know what will show up each day. Thanks!!!!!


ALSO: When e-mailing be sure to include a relevant subject, ie: Brand / Model number / reason for inquiry in the 'SUBJECT LINE'.
SUBJECT
lines left empty, or with 'single word' text like;
"Hello", "Hi", "parts", "stereo", "inquiry", "question", "selling" or similar or similar 'un-qualified' terms will automatically be deleted by Anti-Virus / Spam settings or receive 'Low Priority'.
(Subject lines left empty show up as "No Subject" and are deleted automatically by our anti-spam settings"


 SPEAKER PARTS   |   STEREO / HI-FI ELECTRONIC PARTS   |  KEYBOARD PARTS

___________________________________________

Haven't received a response to your email? See FAQ'S

MAILING:
OAK TREE ENTERPRISES
PO. BOX 6182
COLORADO SPRINGS, CO 80934
U.S.A
.

Before ordering by postal mail, please phone or email us about the item and the details of sending your funds. Thank-you.


 SPEAKER PARTS   |   STEREO / HI-FI ELECTRONIC PARTS   |   SELLING-TRADING-CONSIGNING   |  KEYBOARD PARTS   I   FAQ'S
  CONDITION RATINGS   |   ORDERING / POLICIES    |    WARRANTIES / RETURNS   |   SHIPPING
 RESTORATION PROCEDURES   |   REPAIRS  | CONTACT PARTS


30% restock fee / service charge applies to all 'parts' returns for refund.
Some parts are not returnable.

See our "
Warranties / Returns" page via the link below for more details.


POLICIES, SPECIFICATIONS, AVAILABILITY, INFORMATION AND PRICING SUBJECT TO CHANGE  AT ANYTIME  AND WITHOUT PRIOR NOTICE
and changes may not be posted to web immediately
. Information such as Parts Substitution possibilities, "Circa" dates, original values, etc. are to the best of our knowledge. If you are critically concerned, you should do independent
research on your own prior to ordering or utilizing this information in any way. Manufacturers also are known to change part numbers, specs, circuit designs, specs etc within the same model.


Copyright 1997-2014 Oak Tree Enterprises, LLC

COPYRIGHT INFORMATION




Please be patient while page loads . . .
