EV / ELECTRO-VOICE SPEAKER PARTS / SPARES - USED / VINTAGE.
REFERENCE / DATA BASE



EV / Electro-Voice Replacement Speakers / Parts / Spares for Vintage stereo replacement EV SP12 woofers, T-35 Tweeters / Horns, Model EV "Four" speakers, DH2001, EVID tweeters EVID woofers, 1202 mids / midranges, ADH-2, AT-100 crossovers. EV / ELECTROVOICE speakers / parts / spares for Data Base info, specifications / specs, reference and occasional sale.
















































*Note about parts / spares sales

* Our "parts units", parts / spares and related reference information are primarily archived for the purpose of restoration / repair of "Oak Tree Vintage" units first. Only if we do not have a "viable" unit in yet, either already in process or in line to be processed, that may potentially need parts from a "parts unit", will we release available parts for sale (even though they may appear as available for sale to the public). As many of you know, the restoration of a unit can be a long, time consuming process. We may "lock up" parts that we may potentially need in the restoration of a unit (and not necessarily get it marked 'Hold' or 'Sold' on the site right away). Parts are priced according to the "potential value" of the unit they can be applicable to (meaning the amount WE would be willing to pay for the part if that was all that was standing between us having a "shelved unit" or a valuable / sellable unit), time to extract, their rarity & their condition to name a few criteria and likely will be completely unrelated to the original cost / price of a part when it was currently available from the manufacturer.

Parts Photos; We get a number of requests for 'photos' of a specific part. Unfortunately, in most cases that is not practical as the amount of time involved in posting that exceeds the value of the 'unique' part. We will sometimes post photos of less 'unique' parts, if there is a greater chance of them being available in multiple quantities, or on a more 'repeat' basis.

Shipping: Shipping on most 'small' parts if typically via Postal first class or Postal Priority for both domestic (USA) and international orders. Larger parts such as transformers and drivers (speakers) are typically via FedEx gnd.
Some parts sales such as those for empty 'speaker cabinets', empty 'component cabinets / covers / bonnets' and 'speaker grills' are 'doomed' from the start. Due to their size and required packing supplies, the cost of 'packing for safe transit' and shipping are typically nearly equal to and sometimes greater than the cost of the part.  Think about it. An empty speaker cabinet or stereo receiver case is essentially the same size as a complete one. Yes the weight will be less, but most of items that size are calculated on 'dimensional weight', not actual weight. Secondly empty component cabinets have to be packed to disallow breakage, typically requiring nearly as much packing materials as an entire unit. Speaker grills have to be 'sandwiched' between foam sheets in large, custom ordered boxes (all relatively expensive).  It is what it is....

A non-response to an email request for a part (we may appear to have), likely means that we are still determining which parts we are going to need for the restoration or repair of one of our units. Again, the parts are first for the restoration of our units and secondarily for the public market. Since we list the parts available for ourselves, it is not much effort to modify the menu's for web publication, which in turn makes the reference information and occasionally the part available to the public. Frankly, publishing them to the web, in many instances, makes it easier for us to determine if we have the part for our needs as well. The alternative to all of the above would be to not offer them at all to the public, however most parts are available to the public for sale.
BOTTOM LINE IS; IF YOU DON'T SEE IT AVAILABLE FOR SALE, WE DON'T HAVE IT!
 Thank you for your understanding.




20% off sale on salvage speaker parts.


See sales banners on parts pages for details







Most of these components are "take-outs" from working speaker cabinets and unless otherwise noted are in perfect shape!
   Where necessary foam surrounds have been replaced and / or speaker has been professionally and correctly re-coned!












EV ELECTRO-VOICE 'EVID 4.2 / 4.2T 301046-001 / 301046-002 / 301046-003 / 301046-004' SPEAKER PARTS / SPARES

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES


EV ELECTRO-
VOICE

EV ELECTRO-
VOICE / EV EVID / EV8D
EVID Woofers 10PR70BX-LW01 4" - 16 Ohms
DCR = 11.7
(internally wired in parallel for the cabinets 8 Ohm rating.)
U 4 $45. ea. Excellent. Poly Cone, Butyl Rubber surround, Bucking magnet for video shielding.


EV ELECTRO-
VOICE

EV EVID 4.2 (fits EVID 4.2 / 4.2T & EVID 6.2 / 6.2T) EVID Tweeter EV EVID 4.2 tweeter (fits EVID 4.2 / 4.2T & EVID 6.2 / 6.2T) 1" - 4 Ohms
DCR = 3
U 2 $45. ea. Excellent. Titanium dome / Neodymium magnet.
WILL BE DIFFICULT TO REMOVE AS THEY'RE EPOXIED IN PLACE


EV ELECTRO-
VOICE

EV EVID 4.2 EVID Crossovers 4.2 / 4.2T MM2 2-Way - 200 RMS Watts U 2 $45. ea. Excellent


EV ELECTRO-
VOICE

EV EVID 4.2 EVID Transformer with Voltage / Wattage switch #0210 - 70 V or 100V
3.25W / 7.5W / 15W / 30W taps
- U 2 $35. ea. Excellent


EV ELECTRO-
VOICE

EV EVID 4.2 Input Panel / Attenuators / switches 4.2 / 4.2T and maybe others - - - U 2 $35. ea. White.
Excellent


EV ELECTRO-
VOICE

EV EVID 4.2 Cabinet Front baffle /  housing - - - - U 2 $45. ea. ABS Plastic. White. Decent / Good cond.


EV ELECTRO-
VOICE

EV EVID 4.2 Cabinet Rear housing - - - - U 2 $45. ea. ABS Plastic. White. Decent / Good cond. W / 'SAM' eye intact.


EV ELECTRO-
VOICE

EV EVID 4.2 EV EVID GRILLS - - - - U 2 $35. ea. Paintable. Currently in 'original' white with foam backing and safety anchor

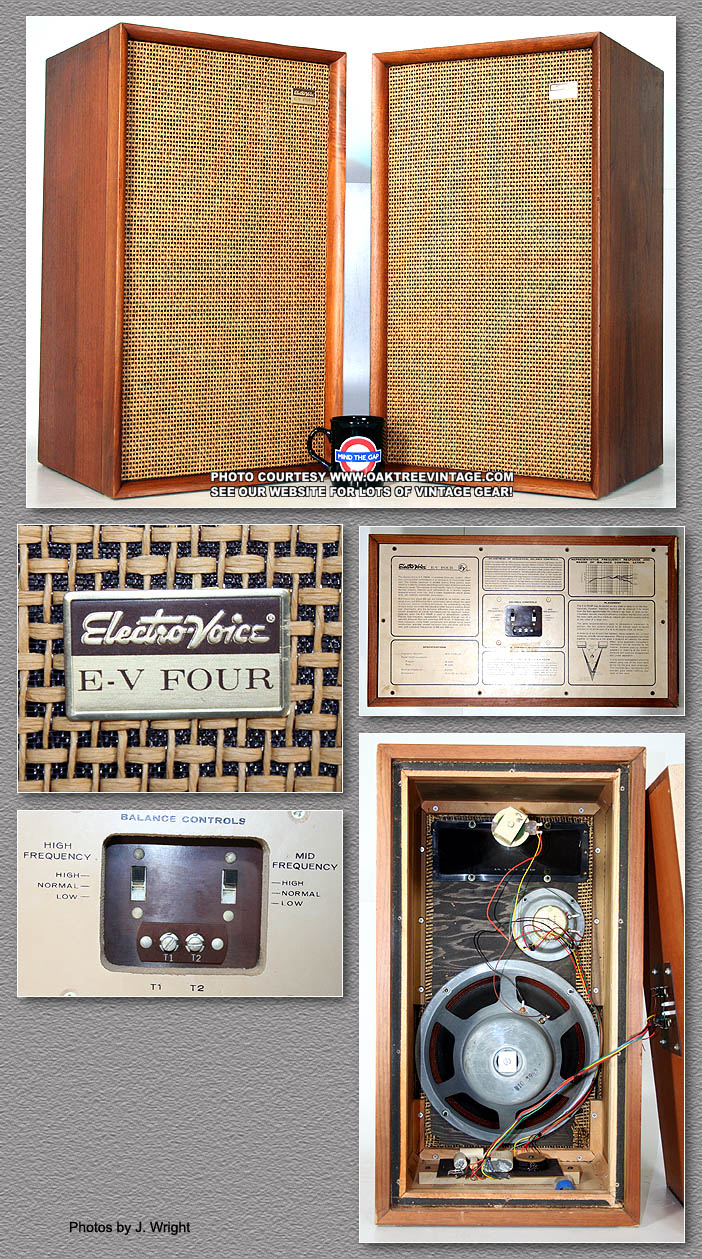

EV ELECTRO-VOICE 'FOUR' SPEAKER PARTS / SPARES

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES




EV ELECTRO-
VOICE

EV ELECTRO-
VOICE
"FOUR"
Woofers BIO 3963
Edge Wound VC, Die-Cast Frame.
12"
Frequency  Response 30Hz-800Hz (in 'as designed' model "Four" speaker system)
30-60 Watts 8 U 2 $95. ea. Excellent




EV ELECTRO-
VOICE

EV ELECTRO-
VOICE
"FOUR"
Midranges / mids 326 / 1824 / 3967
AlNiCo Magnet driver
5" - - U 1 $25. ea. Deteriorated Foam.


EV ELECTRO-
VOICE

EV ELECTRO-
VOICE
"FOUR"
Horn Tweeter 14 / 1825 / 3618
AlNiCo Magnet driver
~3" x 8" - - U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
$85.00

Excellent


EV ELECTRO-
VOICE

EV ELECTRO-
VOICE
"FOUR"
Crossovers - 3-Way Crossover Frequencies @ 800Hz & 3500Hz 60 Watts U 2 $45. ea. Excellent


EV ELECTRO-
VOICE

EV ELECTRO-
VOICE
"FOUR"
Input Panel / Attenuators / switches - - - - U 2 $35. ea. Excellent



EV ELECTRO-
VOICE

EV ELECTRO-
VOICE
"FOUR"
Cabinets / Grills / Back Panels - - - - U 1 $95. ea. Excellent


EV ELECTRO-
VOICE

EV ELECTRO-
VOICE
"FOUR"
Cabinets / Grills / Back Panels - - - - U 1 $65. ea. Small Ding on one side of Grill frame

EV ELECTRO-VOICE ARISTOCRAT SPEAKER PARTS / SPARES

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES




EV ELECTRO-
VOICE

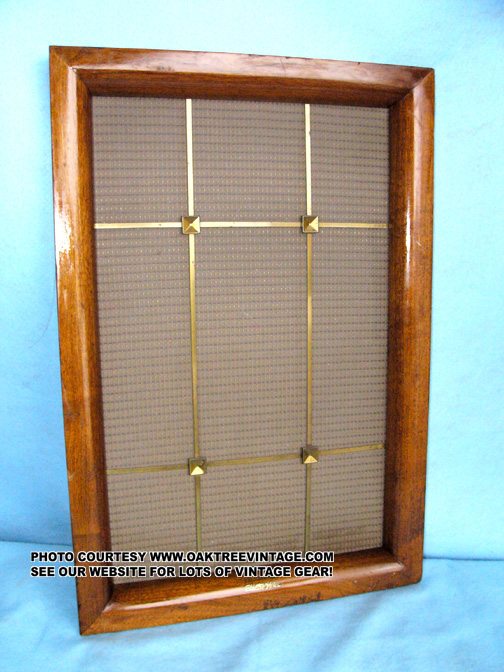

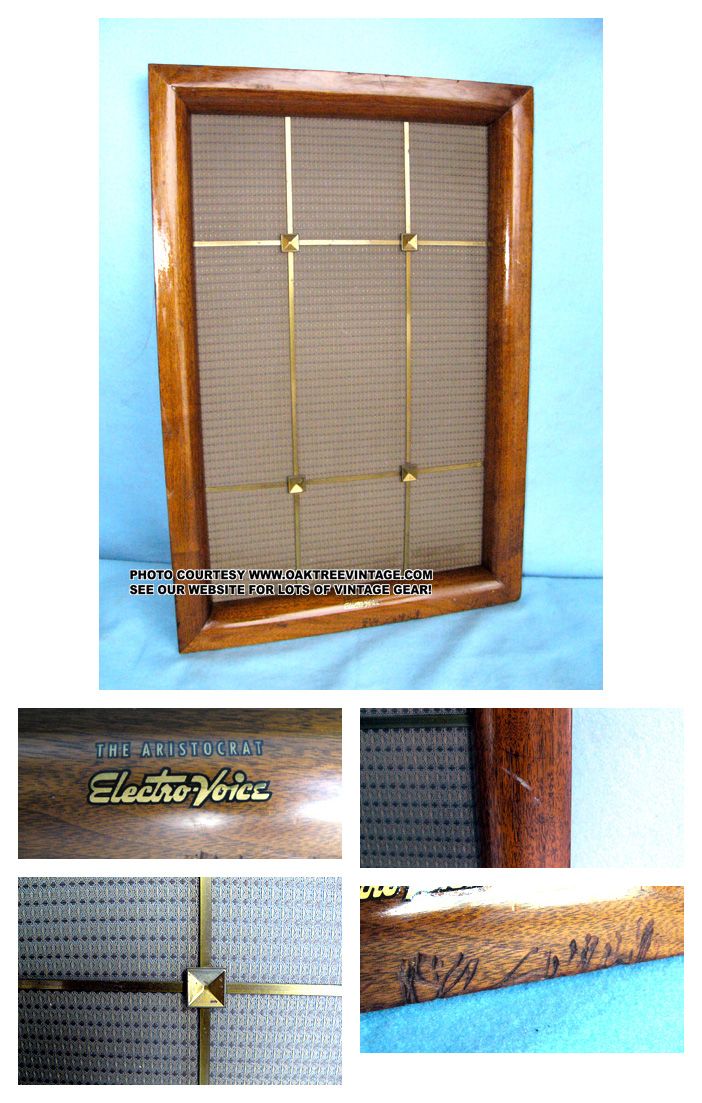

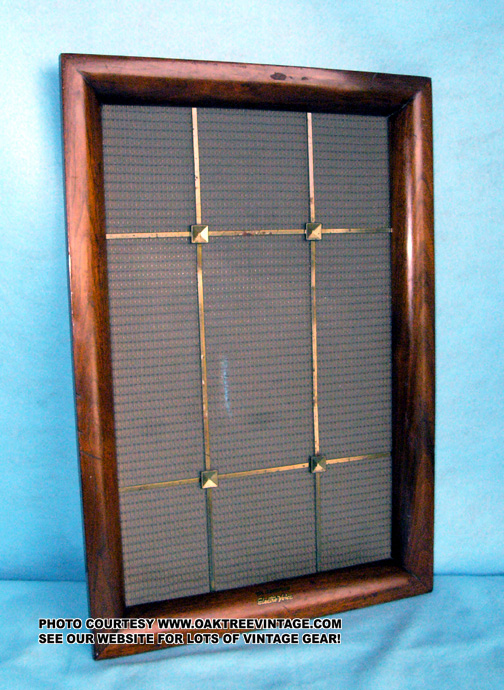

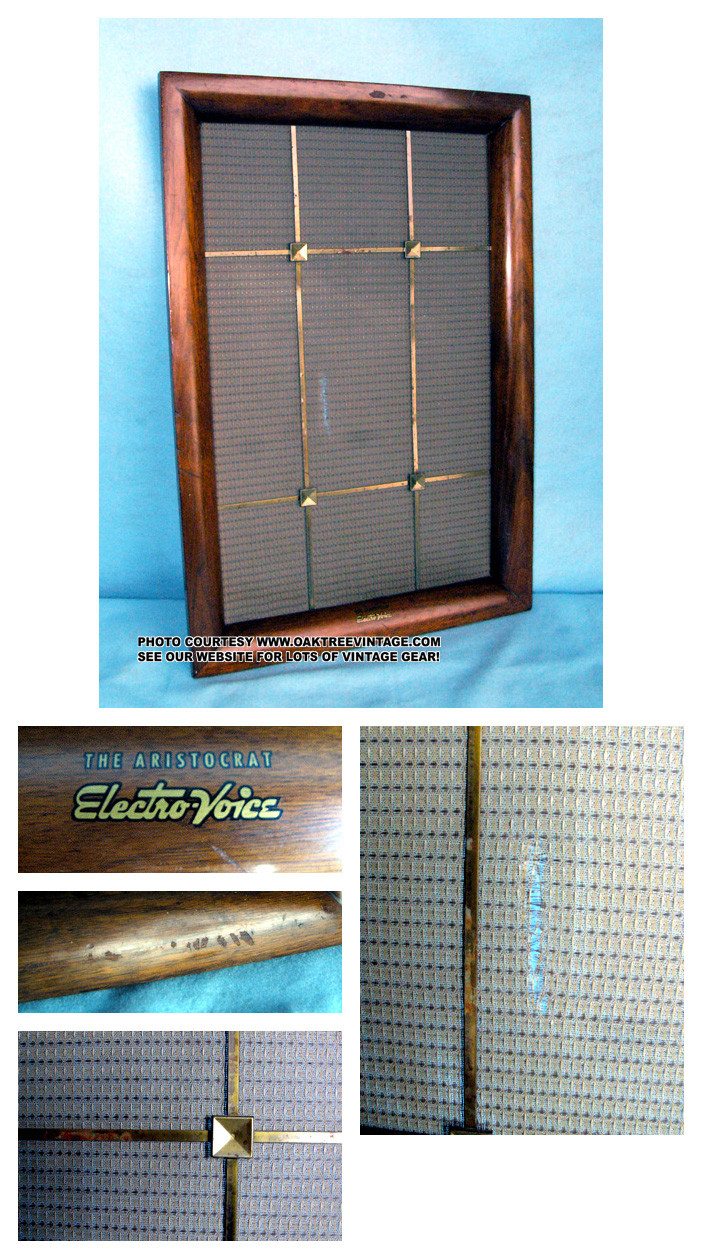

ARISTOCRAT    SPEAKER GRILL
EV ELECTRO-
VOICE
ARISTOCRAT    SPEAKER
SPEAKER
GRILLS
CHERRY
ARISTOCRAT
28" x 19" - - U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Beautiful Cherry finish, with decal. Factory version. Finish, cloth and brass all in excellent condition.




EV ELECTRO-
VOICE

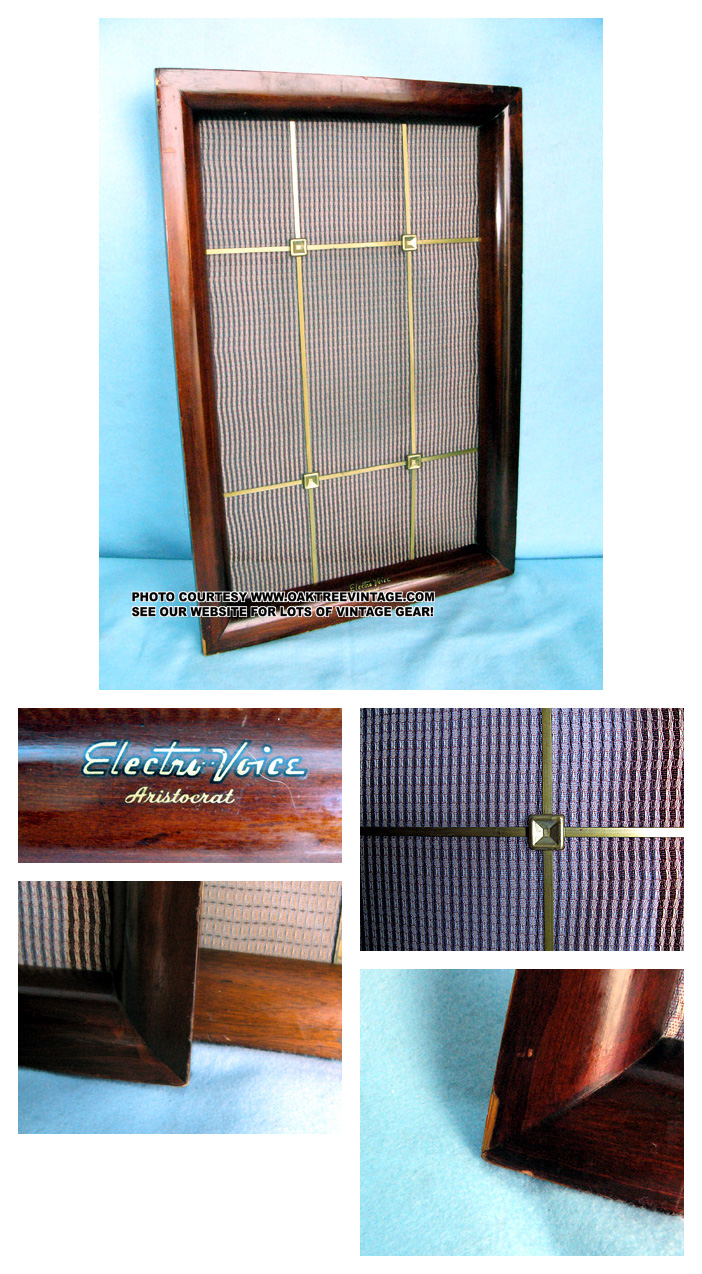

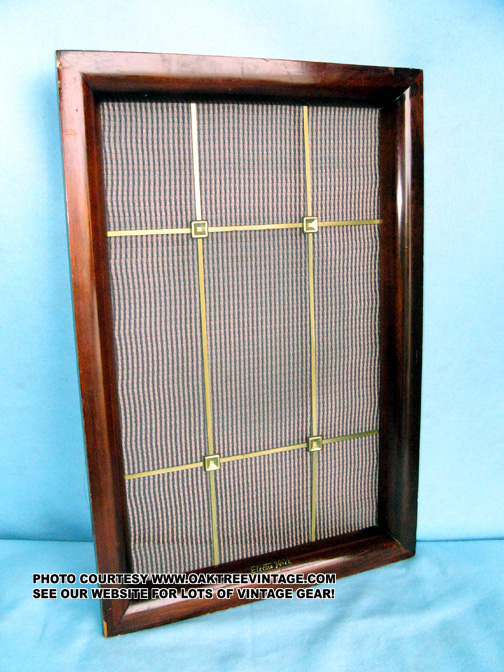

ARISTOCRAT    SPEAKER GRILL
EV ELECTRO-
VOICE
ARISTOCRAT    SPEAKER
SPEAKER
GRILLS
BROWN MAHOGANY
ARISTOCRAT
28" x 19" - - U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Brown Mahogany  finish, with decal. Factory version. Some tarnish to brass work and wear to finish. Grill cloth perfect.




EV ELECTRO-
VOICE
ARISTOCRAT    SPEAKER GRILL
EV ELECTRO-
VOICE
ARISTOCRAT    SPEAKER
SPEAKER
GRILLS
BROWN MAHOGANY
ARISTOCRAT
28" x 19" - - U 1 $50. ea. Brown Mahogany  finish, with decal. Factory version. Some tarnish to brass work and wear to finish. 5" tear in speaker cloth.
  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES


  EV ELECTRO-
VOICE
EV ELECTRO-
VOICE

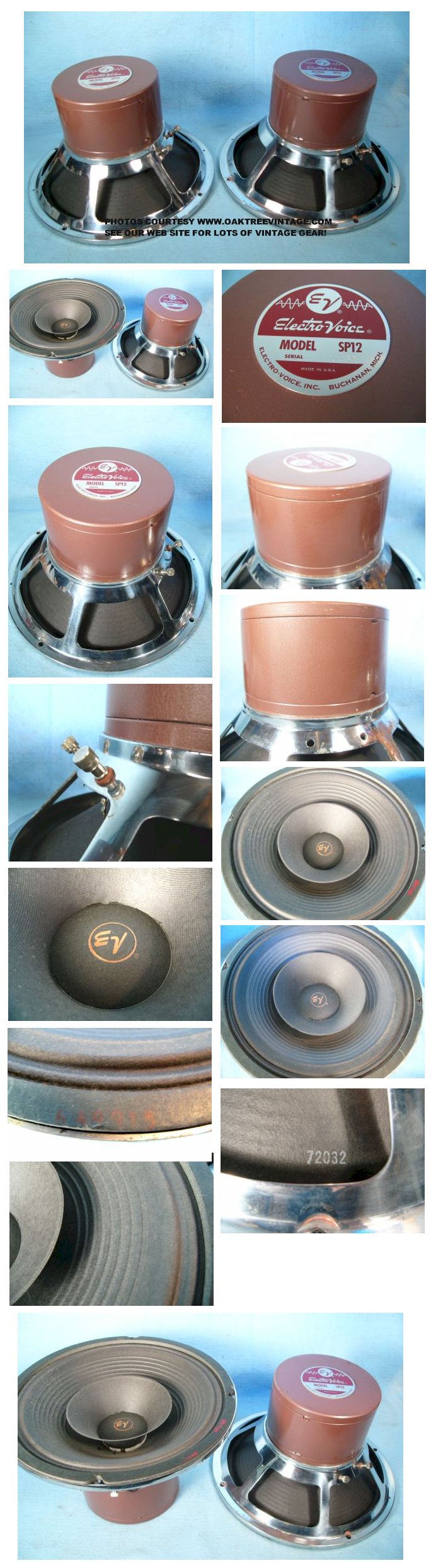

SP12 SP-12  WOOFER SPEAKER
WOOFERS / SPEAKER EV
SP12
12" x 7.25" mounting depth &
18 lbs each
- 16 ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Beautiful and work perfectly

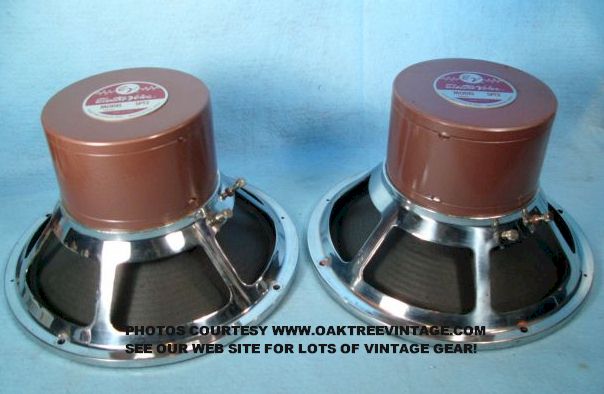

EV_SP12_Chrome_Dual-Cone_Woofers_web.jpg (39221 bytes)       EV_SP12_Chrome_Dual-Cone_Woofers_collage.jpg (269647 bytes)


(Click on above thumbnails to enlarge photos)
ORIGINAL VINTAGE
Late 50's early '60's

EV Electro-Voice
SP12 SP-12
Case & Chrome Frame
AlNiCo Magnet
Speakers / Dual-cone Woofers

SOLD 4/18/07

FOR SALE

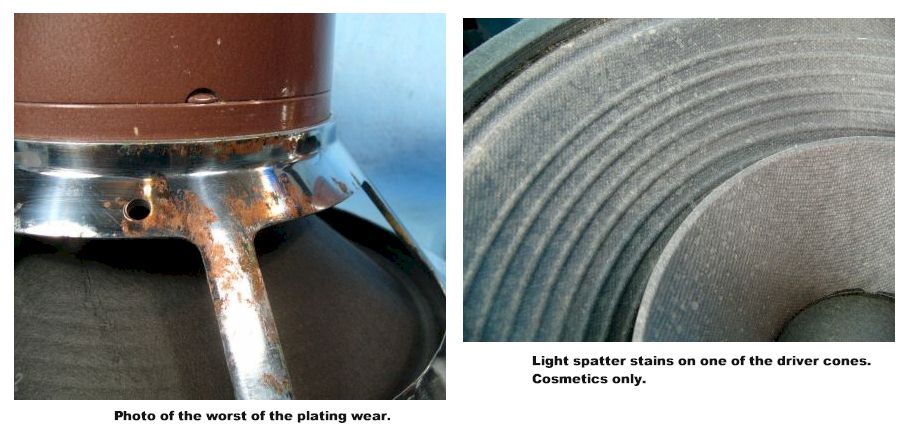

Beautiful condition EV 12" AlNiCo magnet, SP12 Cast & Chrome plated Frame speakers. 2.5" voice coil and 18 lbs each! They look, work and sound great! There are no dents, tears, gouges, rust or anything. With the exception of some light spatter stains on a part of one of the cones, the original paper cones and surrounds perfect as are the original mounting gaskets! The heavy cast frames also in perfect shape with no cracks and only light wear to areas of the Chrome. Most of the chrome is still in perfect condition (see lower set of photos). Mounting gasket stamped #649915 and backside of cones stamped 72032. Serials are 17362 &  14459. Each measures ~12 ohms so are likely rated at 16. They both pass our audio generator sweep tests and are ready to install. Ready to drop in that old Fender, Gibson, Ampeg, Leslie or other amp or custom Hi-Fi speakers. They would be great in most guitar amps wired in parallel for an 8 ohm load on the amp.
E
V SP12
Cond. 8.5
SOLD 4/18/07




EV ELECTRO-VOICE SPEAKER PARTS / SPARES

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES
EV
 ELECTRO-
VOICE

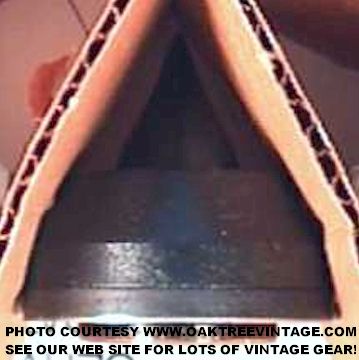

DH2001
for
1202
Horn Dia-
phragm
- - - 8 ohms NEW
 OLD
 STOCK
0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
New old Stock.
Perfect
in box
with
 instructions
EV
 ELECTRO-
VOICE

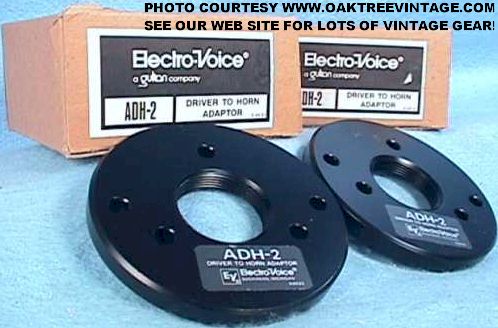

ADH-2 Driver to
 Horn
throat
 adaptors
Threaded /
 3-bolt /
 2-bolt.
Measures:
3.75" outside
 diameter
x 1 3/8"
 inside hole
 diameter
(18 thread).
 3/8" thick
 aluminum
 construction
- - - NEW
 OLD
 STOCK
0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
New
old
Stock
The above EV ADH-2 horn / driver adaptor is designed to adapt any of the EV screw-in drivers with 1-3/8"-18
thread drivers to Altec, JBL and any other horns with 1" nominal throat diameter and with two or three hole
 mounting pattern. Possible drivers are series 1824, 1828, 1829, DH1506 and others.

EV
 ELECTRO-
VOICE
EV
 ELECTRO-
VOICE

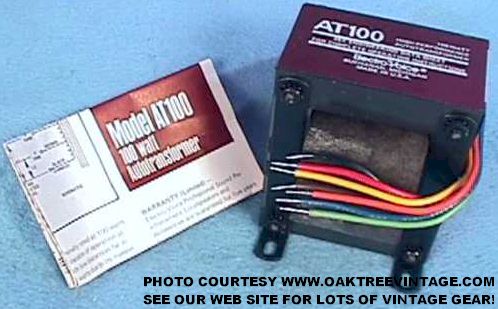

AT-100
AT100
EV
 ELECTRO-
VOICE

Auto-Match
 Transformer
for 70 volt
 systems
- - - - NEW
 OLD
 STOCK
-
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Perfect
in box
with
 instructions

speaker parts

EV
 ELECTRO-
VOICE

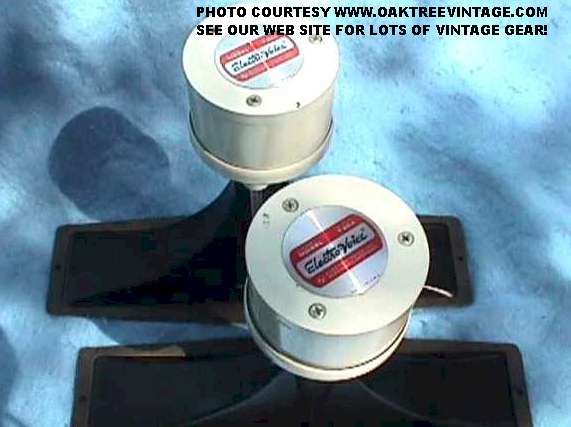

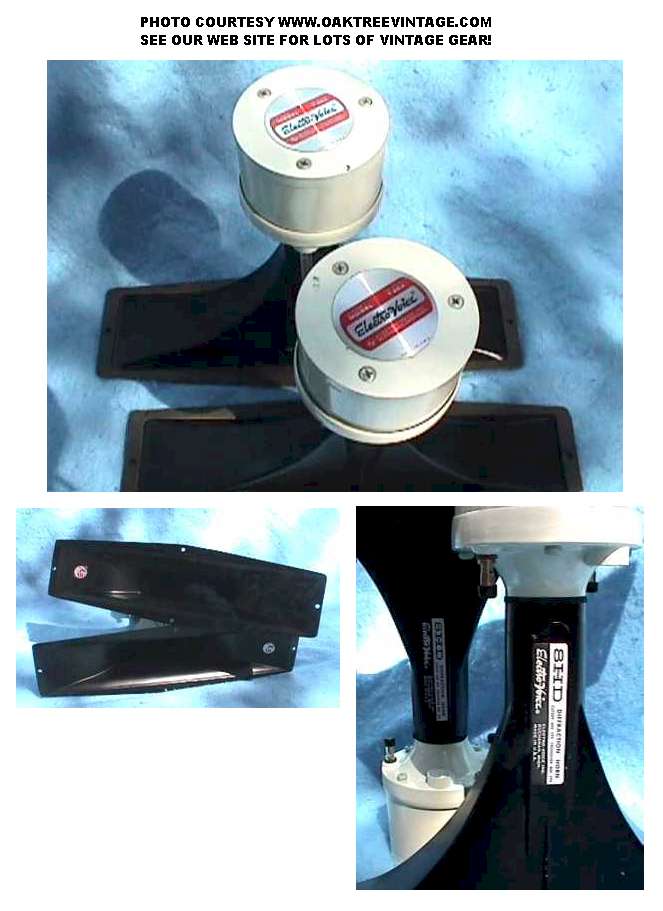

T-25A
T25A
T-25-A
Midranges
Horn

mid range
T25 with
      8HD

 8 hd

Aluminum
Diffraction
 Horn
Horn front
 = 15" x
 4.5".
Depth
with
driver
 11.5".
Alnico
 Magnets
8 ohms U -
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Perfect

EV
 ELECTRO-
VOICE
EV
 ELECTRO-
VOICE
Bronze
backed

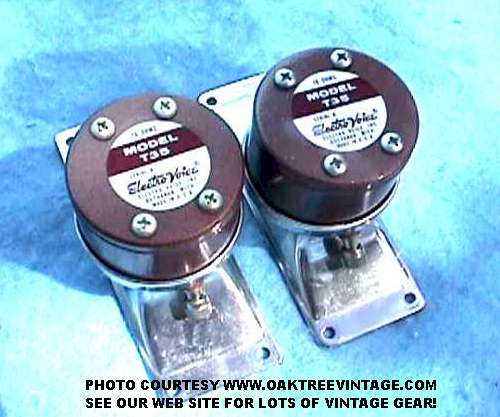

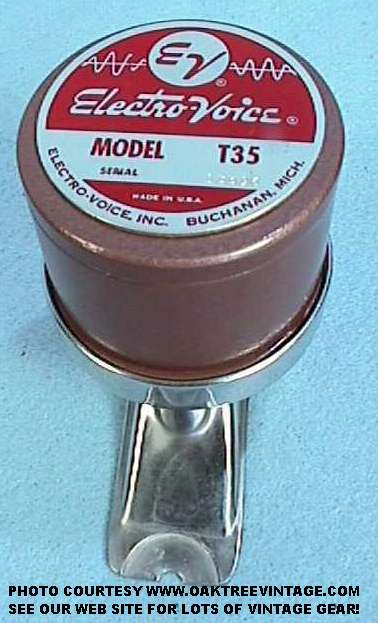

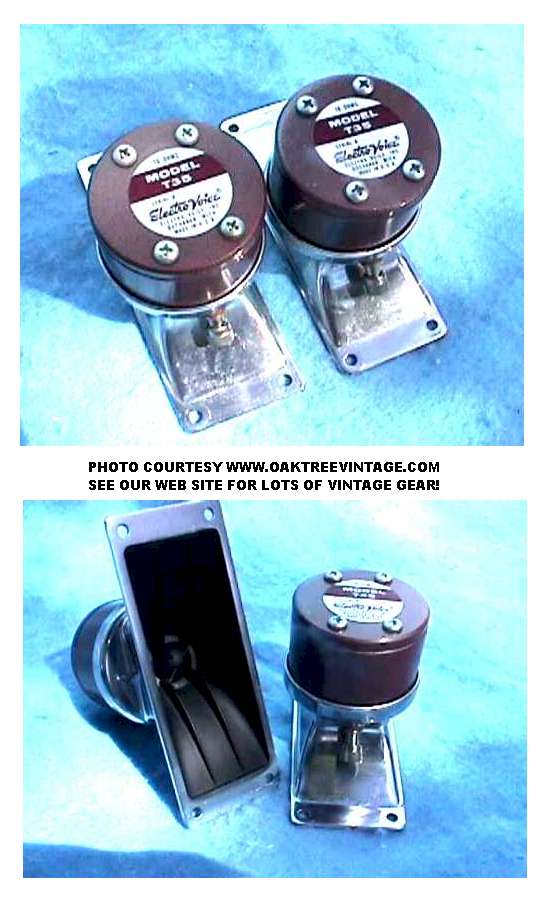

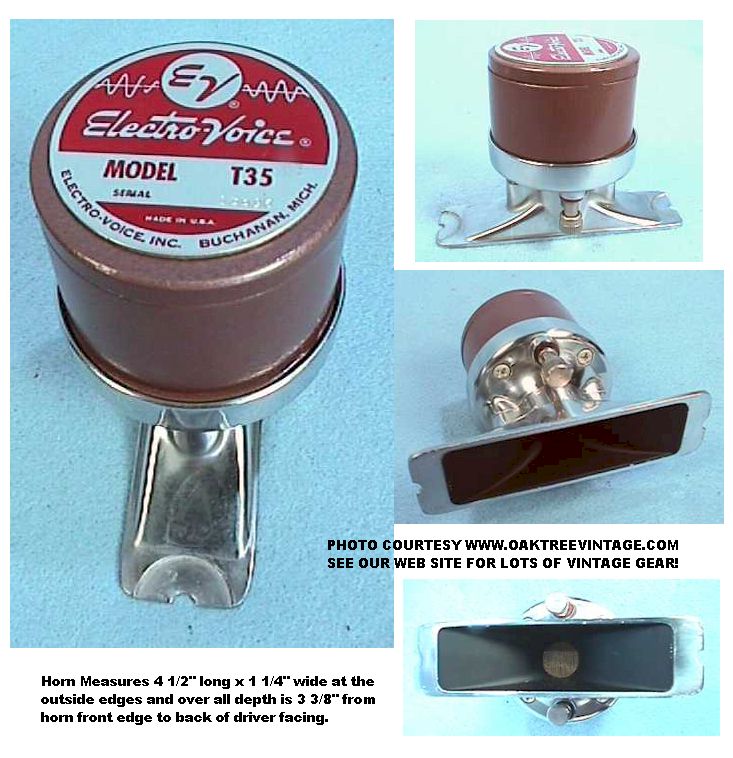

T35 T 35
EV
 ELECTRO-
VOICE

Horn
Tweeter
T35 T 35
#A03258
& A01268
1.25" x 4.5"
(Small
 horn)
Alnico
 Magnet
10 ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

Perfect


EV
 ELECTRO-
VOICE
Bronze
backed
T35
EV
 ELECTRO-
VOICE
Horn
 Tweeters

T35 2" x 5.25" Alnico
 Magnets
16 ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Perfect
speaker parts

EV
 ELECTRO-
VOICE

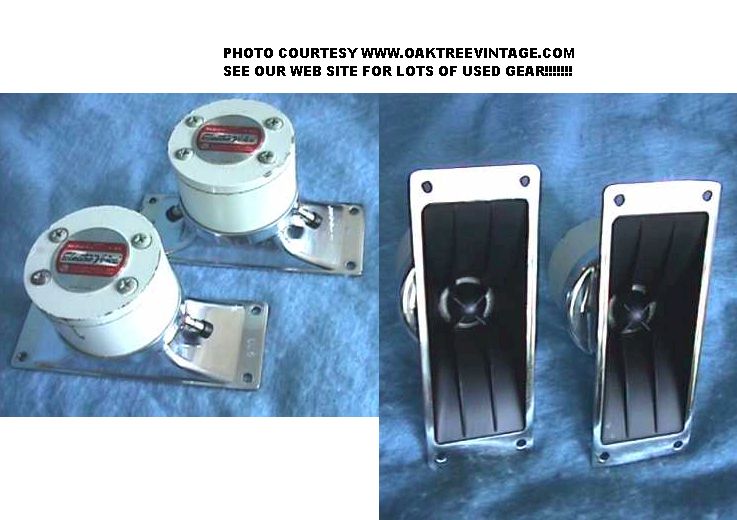

White
backed
T35
Horn
 Tweeters
T35 2" x 5.25" Alnico
 Magnets
12 ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Perfect

EV

ELECTRO-
VOICE

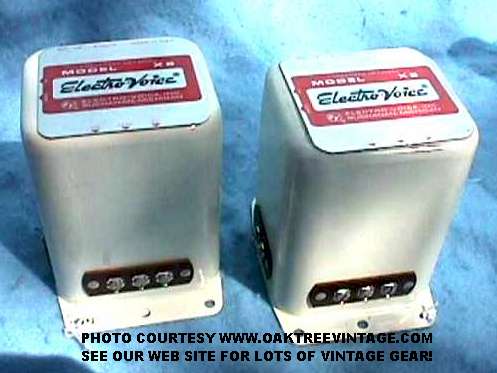

X8
X-8
Cross-
overs
X8
X-8
5" x 4.5" x 3.5" 2-way 8 ohms / 800 Hz turn-over frequency U - Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Perfect
  EV

ELECTRO-
VOICE

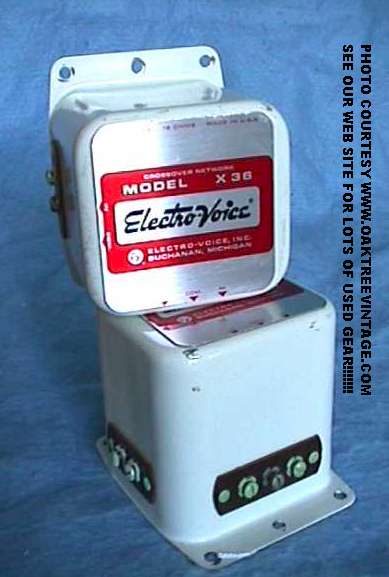

X36
x-36
Cross-
overs
X36
X-36
3.5" x 4.5" x 3.5" 2-way 8 ohms U 0 Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
Perfect
-
  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES
- - - - - - - - - - -
If you're looking for a great place for great place to purchase new foam surround kits, replacement surrounds, or to have your woofers, sub woofers / subs, re-foamed or re-coned, we recommend either 'Orange County Speakers' or 'Parts Express'. They have QUALITY parts and do QUALITY work.
                                                                                                                         ----       revised 1/17/14











LINKS TO OUR 'HI-FI' DEPARTMENTS

Amps and
Pre-Amps

Receivers

Cassette
Decks

Tuners

Turntables

8-Track Decks

CD Players

Reel-Reel
Decks

EQs and Signal
Processors

Speakers

Betamax and
VHS VCRs

Turntable Cartridges

Tube Audio

Ne'cessories

Speaker Parts

Record Players

Vintage Radios

Vintage
Walkmans

Headphones

Stereo Parts


Wondering where the "tone" you remember went?....

Vintage  Stereo Equipment receivers speakers Classic Silver Audio Collection and jerry



.... Surround yourself with Silver and find it again!


CONTACT INFO BELOW

$20. MINIMUM ORDER





    Before calling, PLEASE read the text in orange below.
No Really...Stop, Alto, Halt, etc.
 BEFORE
CALLING

(800) 806-4231 EXT #1
OR EMAILING
parts@oaktreevintage.com

~9:30 AM- ~7:30 PM most days COLORADO / ROCKY MOUNTAIN TIME ZONE

We DO NOT have your part unless the following conditions are met:

A) You HAVE SERCHED our page(s) and HAVE FOUND the part you are looking for SPECIFICALLY listed on one of our pages or you have solid information that it's a 'bona fide' substitution for your part (unless noted already, we won't have any further info along those lines)
AND
B) The part that you have found is NOT marked as SOLD or SOLD OUT.


If you do not see it listed after thoroughly searching the pertinent page
(likely the page you landed on originally),
we do not have it,
nor do we know when
it might come in,
nor do we maintain "waiting lists" for parts,
nor do we know who
might have it.

Sorry, but phone and email traffic for parts
we don't have listed or for parts that are already marked "SOLD" has become too consuming of time resources.


 We try to keep these pages 99+% updated.
If you don't see the part you are looking for, simply check the web page periodically as we never know what will show up each day. Thanks!!!!!


ALSO: When e-mailing be sure to include a relevant subject, ie: Brand / Model number / reason for inquiry in the 'SUBJECT LINE'.
SUBJECT
lines left empty, or with 'single word' text like;
"Hello", "Hi", "parts", "stereo", "inquiry", "question", "selling" or similar or similar 'un-qualified' terms will automatically be deleted by Anti-Virus / Spam settings or receive 'Low Priority'.
(Subject lines left empty show up as "No Subject" and are deleted automatically by our anti-spam settings"


 SPEAKER PARTS   |   STEREO / HI-FI ELECTRONIC PARTS   |  KEYBOARD PARTS

___________________________________________

Haven't received a response to your email? See FAQ'S

MAILING:
OAK TREE ENTERPRISES
PO. BOX 6182
COLORADO SPRINGS, CO 80934
U.S.A
.

Before ordering by postal mail, please phone or email us about the item and the details of sending your funds. Thank-you.


 SPEAKER PARTS   |   STEREO / HI-FI ELECTRONIC PARTS   |   SELLING-TRADING-CONSIGNING   |  KEYBOARD PARTS   I   FAQ'S
  CONDITION RATINGS   |   ORDERING / POLICIES    |    WARRANTIES / RETURNS   |   SHIPPING
 RESTORATION PROCEDURES   |   REPAIRS  | CONTACT PARTS


30% restock fee / service charge applies to all 'parts' returns for refund.
Some parts are not returnable.

See our "
Warranties / Returns" page via the link below for more details.


POLICIES, SPECIFICATIONS, AVAILABILITY, INFORMATION AND PRICING SUBJECT TO CHANGE  AT ANYTIME  AND WITHOUT PRIOR NOTICE
and changes may not be posted to web immediately
. Information such as Parts Substitution possibilities, "Circa" dates, original values, etc. are to the best of our knowledge. If you are critically concerned, you should do independent
research on your own prior to ordering or utilizing this information in any way. Manufacturers also are known to change part numbers, specs, circuit designs, specs etc within the same model.


Copyright 1997-2014 Oak Tree Enterprises, LLC

COPYRIGHT INFORMATION




Please be patient while page loads . . .
