PHOTO GALLERY / ARCHIVE REFERENCE OF VINTAGE / USED
STEREO TURNTABLES

- SOLD UNITS -




Photo gallery of vintage / Used Stereo Turntables that we have had in the past that have been sold. Great reference / archive of photos.
Keep checking as more vintage turntables / record players / phonographs will be added periodically.
 Some of our 'past' listings may have a portion of their original text remaining, but not necessarily intact, and not likely complete as that has been archived for potential future purposes. All photos and text, copyrighted and protected as stated at bottom of page. Click the link below for current inventory. All photos and text, copyrighted and protected as stated at bottom of page. Click the link below for current inventory.

... OR, CLICK HERE TO SEE OUR TURNTABLES CURRENTLY FOR SALE!

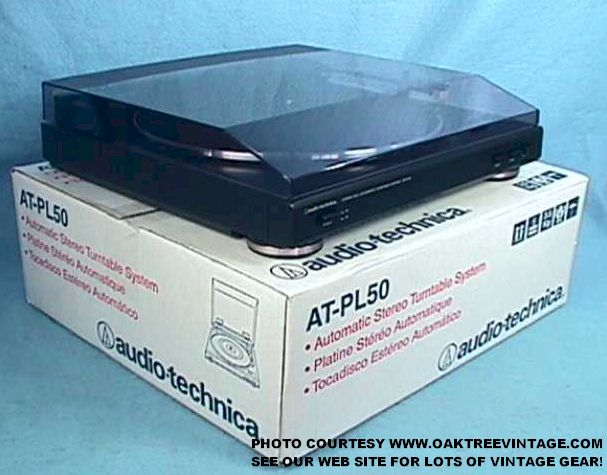

New_Audio-Technica_AT-PL50_Fully-Automatic_Turntable_web.jpg (50845 bytes)      New_Audio-Technica_AT-PL50_Fully-Automatic_Turntable_collage.jpg (185301 bytes)

PRE-OWNED AUDIO-TECHNICA
AT-PL50 TURNTABLE

SOLD OUT



-



         NEW LISTING 11/30/11
(Click on above thumbnails to enlarge photos)

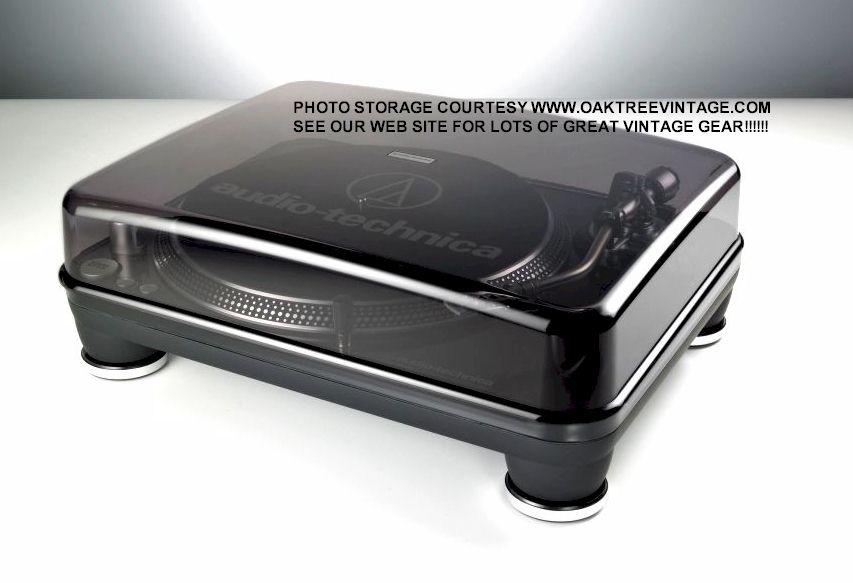

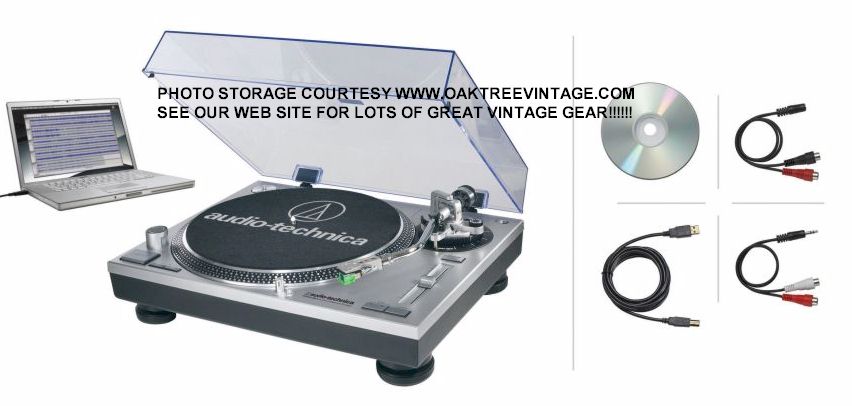

NEW
AUDIO-TECHINCA
HOME AUDIO STEREO TURNTABLE
MODEL AT-LP1240USB
DIRECT DRIVE
QUARTZ LOCKED
FULLY MANUAL
WITH A MM, DIAMOND CARTRIDGE NOW INCLUDED
NEW

SORRY, NOW DISCONTINUED

One of the few 'QUALITY' turntables available under a $GRAND these days! The Audio-Technica AT-LP240-USB stereo turntable. Similar in design to some of the vintage turntable models, such as the Kenwood KD-550 'concrete base', the Sony PS-T1, and the Technics SL-1500, SL-1600MK2 or SL-D2 turntable models. This professional stereo turntable features a super high-torque, direct-drive motor for quick start-ups yet is perfectly quiet. Classic 'S' shaped tone arm with 'universal' head-shell that allows mounting of most any 'quality', 1/2' cartridge, either MM (moving magnet) or MC (moving coil). Tone-arm mounted in high quality 4-point, Gimbol bearing.

The AT-LP240-USB plays back 33-1/3, 45 and 78 RPM records
(to correctly play 78rpm records, you will need a proper '78' stylus / cartridge). Its built-in phono preamp enables the turntable to be connected to a wide variety of music and home entertainment systems, powered speakers, and to A/V receivers that do not include a dedicated phono input. The turntable includes PC- and Mac-compatible Audacity® software that converts the audio on a record to MP3, WAV or other format digital audio files.

NEW UPDATE--- We're now including the Audio-Technica AT-311E, MM, Elliptically cut diamond cartridge with tables purchased from us.

Table has great mass at almost 30 lbs!

Features:

- Direct drive high-torque motor
- Quartz Locked Speed Control System
- Fully-Manual operation
- Selectable 33/45/78 RPM speeds (78 RPM speed is a bit of a 'moot point' as it's pretty difficult to impossible to find a 78 capable cartridge these days)
- Professional weight cast aluminum platter with slip mat (no PLASTIC platters here, unlike many of the NEW tables out there!)
- Classic 'S' style tone-arm
- High quality 4-point Gimbol bearing
- ½-inch mount universal head shell
- Strobe monitored, adjustable platter speed
- Adjustable tone-arm counter weight
- Adjustable 'Anti-Skating' control
- Internal Built-in Phono Pre-Amp of decent quality so if you MUST use this with some sort of 'home-theater-surround-sound-5.1, 7.2, or 8.BR549 receiver' that the manufacturer forgot to include the phono pre-amp on. If you have a 'REAL receiver', ie, an old-school, vintage, 2-channel receiver or integrated amp or pre-amp with a phono pre built-in, then you can flip a switch and bypass the 'built-in' phono preamp.
- USB output—connects directly to your computer for plug-&-play use
- Forward or reverse play (this is a DJ feature, and if you value your vinyl or cartridge, DON'T USE 'Reverse'! If you have a crappy cartridge and are playing 'Frisbees', then 'go for it' if you're so inclined!
-
*Comes with Mac- and PC-compatible Audacity software and cables to digitize your LPs
If you appreciate the 'organic' sound of quality vinyl, then disregard the above stuff 'USB / SOFTWARE STUFF' and just 'LISTEN' to your vinyl the way it was meant.


SPECIFICATIONS:

Type:
3-speed, fully manual operation
Motor:
High-Torque, 16-pole, 3-phase, brushless DC motor
Drive System:
Direct drive
Speeds:
33-1/3, 45, & 78 RPM
Pitch Variation:
+/-10%
Turntable Platter:
332mm, Die-cast aluminum
Starting Torque:
>4.5 kgf-cm
Braking System:
Electronic brake
Wow and Flutter:
< 0.1% WRMS (JIS WTD) with 33 RPM
Tone-arm type:
Static balanced, Classic 'S' shape, universal head shell
Effective Arm Length:
230mm
Overhang:
15mm
Height of tone arm adjustment range:
0-6 mm
Tracking Error:
< 3 degrees
Applicable cartridge weight Without head shell:
3.5- 8.5 g
Anti-skating range:
0-3 g
Signal-to-Noise Ratio:
>55 dB DIN-B
Output Level Pre-amp "PHONO":
2.5 mV nominal at 1 kHz, 5 cm/sec
Pre-amp "LINE":
150 mV nominal at 1 kHz, 5 cm/sec
Phono Pre-Amp Gain:
36 dB nominal, RIAA equalized
RIAA 20-20kHz, +1/-3dB (In: 1.5mV 1kHz)
 USB Function: A/D, D/A- 16 bit 44.1 kHz or 48 kHz USB selectable
Computer interface:
USB function
A/D, D/A 16 bit 44.1 kHz or 48 kHz USB selectable
Computer interface USB 1.1 Compliant Windows XP or
above or MAC OSX or above

Power Supply Requirements:
115V AC, 60 Hz


Includes :

Software included: Mac- and PC-compatible Audacity software
Accessories Included: 'Universal' Head shell,
Slip mat; dust cover; platter; 45 RPM adapter; counterweight; head shell; power cord; USB cable; dual RCA (female) to 1/8" (3.5 mm) mini-plug (male) stereo adapter cable; dual RCA (female) to 1/8" (3.5 mm) mini-plug (female) stereo adapter cable; dual RCA (male) cable with integrated ground wire; stylus target light; Audacity software (CD)
*System requirements (if you're planning on using the table to transfer and burn your LP's / albums, records to CD ROM or your computer hard drive or some other MP3 format);
PC or Mac with an available USB port (USB1.1 or higher), CD-R or CD-RW writer for burning CDs & installation.
Includes Audacity software for PC & Mac users
(Audacity requires Mac running OS X 10.1 or later or PC running Windows (98 and above))
(Refer to included software guide (also available online at www.audio-technica.com) before connecting the turntable to your computer.)
Comes with the Audio-Technicas' 1 Year limited warranty handled through the AT. See Audio-Technica AT-LP240USB turntable owners manual or AT's web site for further details.
Dimensions w 17.72" x d 13.9" x 6.6" H and weighs a HEAVY 27 lbs.
AUDIO-TECHNICA AT-LP240USB TURNTABLE
Cond.- NEW

$xxx.xx *W/ AT-311E CARTRIDGE!
SORRY, NOW DISCONTINUED

*Turntable shipped directly from AT and Cartridge shipped from us at Oak Tree Enterprises, LLC. Once products arrive, please call us for assistance with re-balancing tone arm and setting the 'Anti-Skate' adjustment.



Akai_AP-B1_Belt-Driven_Semiautomatic_Stereo_Turntable_web.jpg (34329 bytes)   Akai_AP-B1_Belt-Driven_Semiautomatic_Stereo_Turntable_collage.jpg (118806 bytes)

VINTAGE STEREO TURNTABLE
AKAI AP-B1
REFURBISHED / RESTORED
Semi-Automatic / Belt-Drive
TURNTABLE

SOLD 1/31/07










(Click on above thumbnails to enlarge photos)

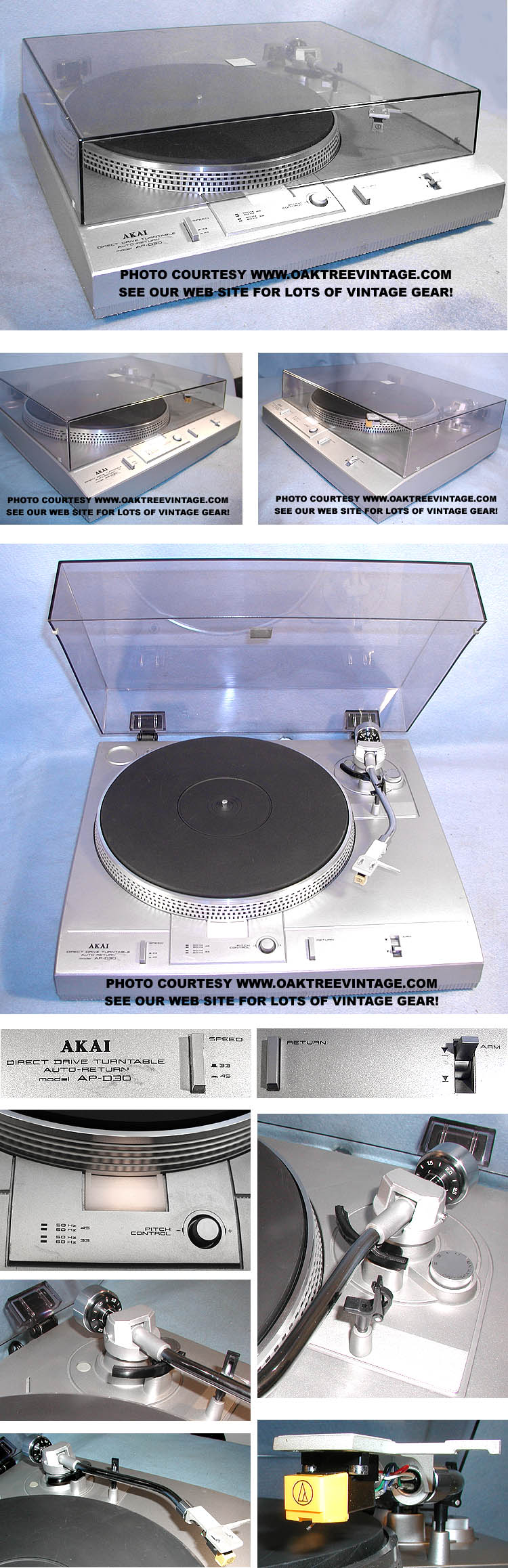

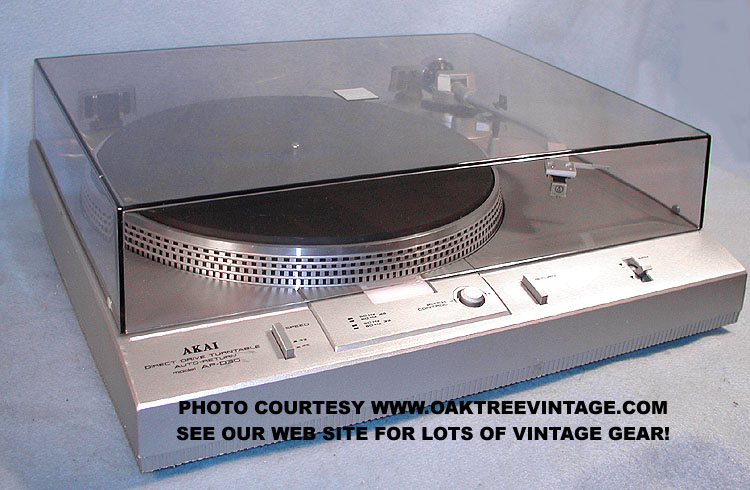

VINTAGE STEREO TURNTABLE
AKAI AP-D30
DIRECT DRIVE
SEMI-AUTOMATIC
STEREO TURNTABLE

SOLD 10/9/07






NEW LISTING 12/20/07
(Click on above thumbnails to enlarge photos)

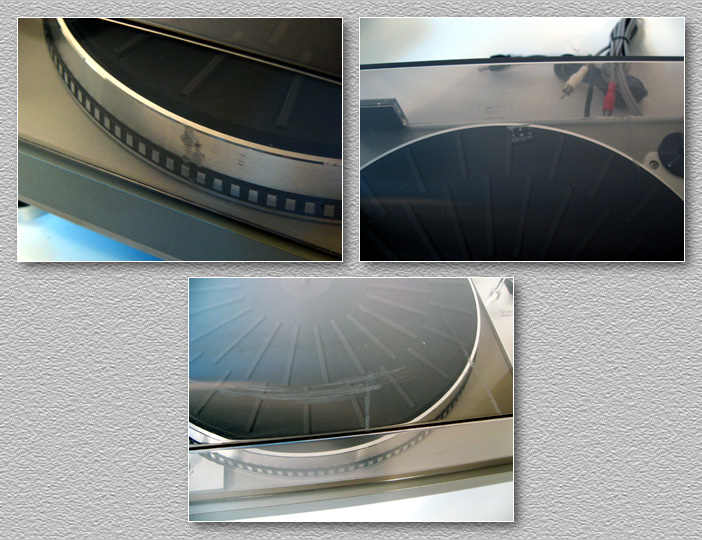

VINTAGE STEREO TURNTABLE
AKAI
AP-307
 FULLY-AUTOMATIC
 DIRECT DRIVE
STEREO TURNTABLE

#...1271

 Circa 19
79-80
SOLD 1/13/08






(Click on above thumbnails to enlarge photos)

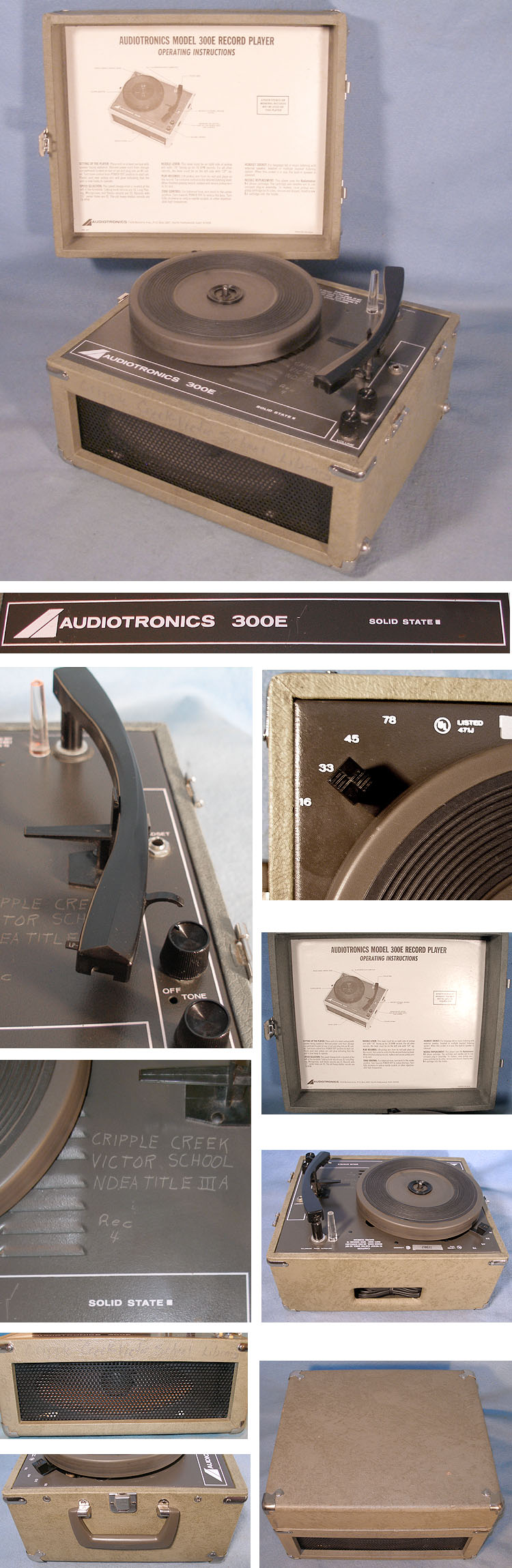

AUDIOTRONICS 300E
FULLY MANUAL
& SELF-CONTAINED
SCHOOL / PHONOGRAPH

PLAYS 33, 45 78 & 16 RPM ALSO!

MADE IN THE USA

(C)
C.B.S.

SOLD 9/1/07






       NEW ADDITION 4/5/12

 (Click on above thumbnails to enlarge photos)

 warranty

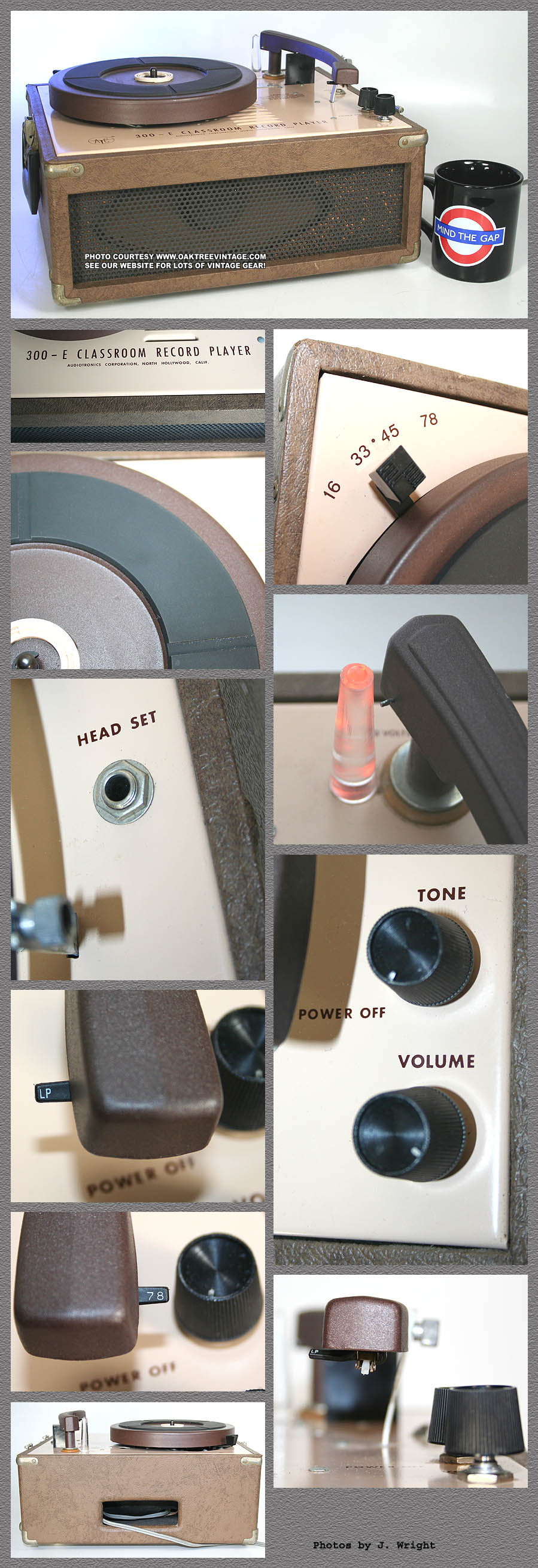

AUDIOTRONICS SELF-CONTAINED
 CLASSROOM TYPE TURNTABLE / SUITCASE STYLE PHONOGRAPH
AUDIOTRONICS 300-E
 PLAYS 33, 45 78 & 16 RPM!
 MADE IN THE USA

SOLD 9/5/13
SHIPPED TO CALIFORNIA

 Refurbished Audiotronics 300-T "Classroom style" record player / phonograph. Plays 16, 33, 45 & 78 RPM records.
Our technician has completely gone through and 'Certified' this unit. We have completely gone through it cleaning inside and out, disassembled & lubricated mechanisms, resurfaced & reconditioned platter drive wheel. Motor re-lubed and test played. Both rotary controls, volume and tone, were cleaned for static / noise free operation.
Cosmetically it's fine, however the lid is 'long gone'.
All functions work great! Turntable holds speed well at an overall +1.5% (tested with our factory strobe disc). Both 78 and LP stylus's are in good condition. Ceramic cartridge and twin sided stylus in great condition.
...
Includes our standard 30 day limited warranty. Measures 15" wide x 13" deep x 9.5" tall and weighs 18 lbs unpacked.
 AUDIOTRONICS CLASSROOM STYLE PHONOGRAPH 300-E
 Cond. 8 (due to missing lid)

SOLD 9/5/13
SHIPPED TO CALIFORNIA

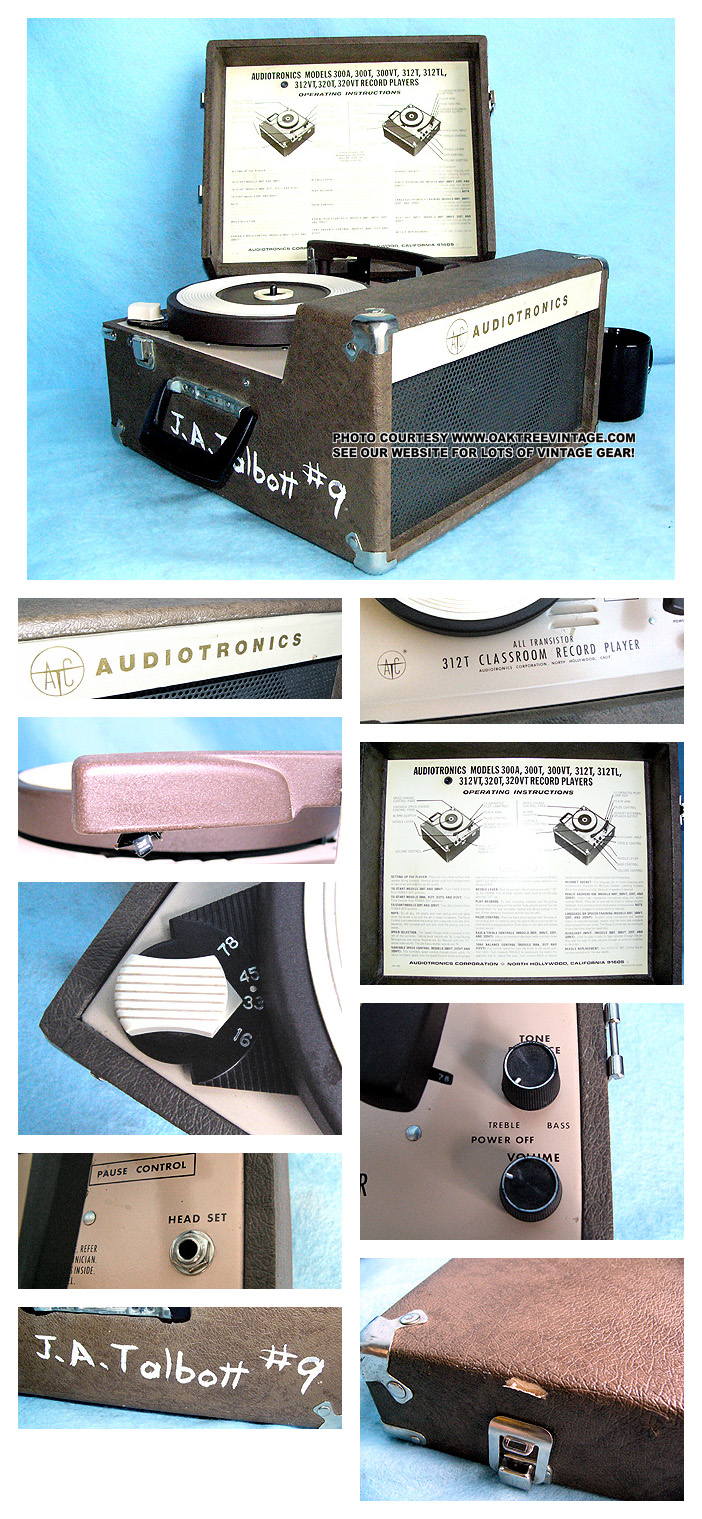

VINTAGE AUDIOTRONICS
'SCHOOL PHONOGRAPH' 312T
TURNTABLE

SOLD 12/16/05








VINTAGE AUDIOTRONICS
'SCHOOL RECORD PLAYER' 312T

SOLD 12/19/05



NEW LISTING 8/19/09
(Click on above thumbnails to enlarge photos)
warranty
              AUDIOTRONICS AUDIO TRONICS
312T

#...7775
FULLY MANUAL
 & SELF-CONTAINED

TURNTABLE / PHONOGRAPH

PLAYS 78'S & 16 RPM ALSO!

MADE IN THE USA

SOLD 9/3/09

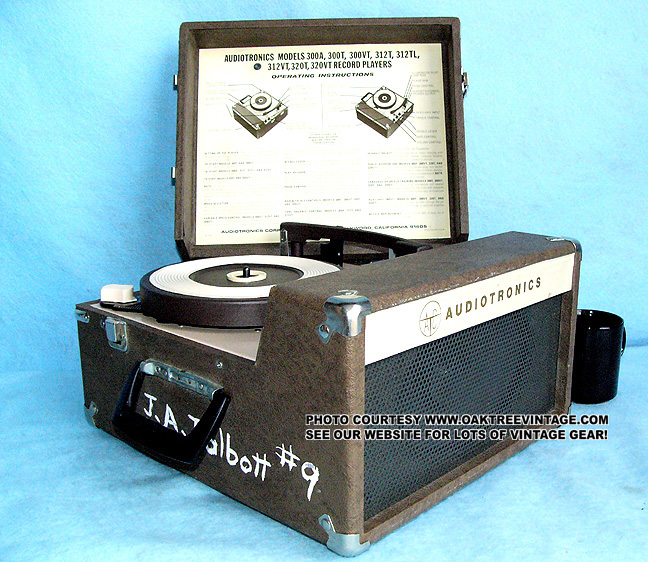

Refurbished / Restored Audiotronics 312T "School style" record player / phonograph. Plays 16, 33, 45 & 78 RPM records. We have completely gone through it cleaning inside and out, disassembled & lubricated main mechanism, resurfaced idler wheel and test played. All functions work great! Turntable holds speed well at +.5%! Probably the closest to perfect speed we have ever had a self contained table run. Both 78 and LP stylus's are in good condition. Original Ceramic cartridge still intact with excellent condition stylus (needle). This is a "stand alone" unit with it's own built-in amp and speaker so no need to connect to another system to use. It does, however have an external speaker jack if you wish to connect a larger extension speaker. Also even though it is a "Mono" system the cartridge / stylus is compatible with all stereo albums / records. Features Function, Tone and volume controls. Feet have built in suspension to reduce noise / rumble from floor noise. Unit is UL listed and has original 3-prong, grounded AC cord intact for safety. This table is ready to use and looks nice. Includes our standard 30 day limited warranty. Measures 15" wide x 13" deep x 9.5" tall and weighs 18 lbs unpacked.
AUDIOTRONICS 312T

Cond. 8.5
SOLD 9/3/09







NEW LISTING 7/7/15
(Click on above thumbnails to enlarge photos)
RESTORED / REFURBISHED

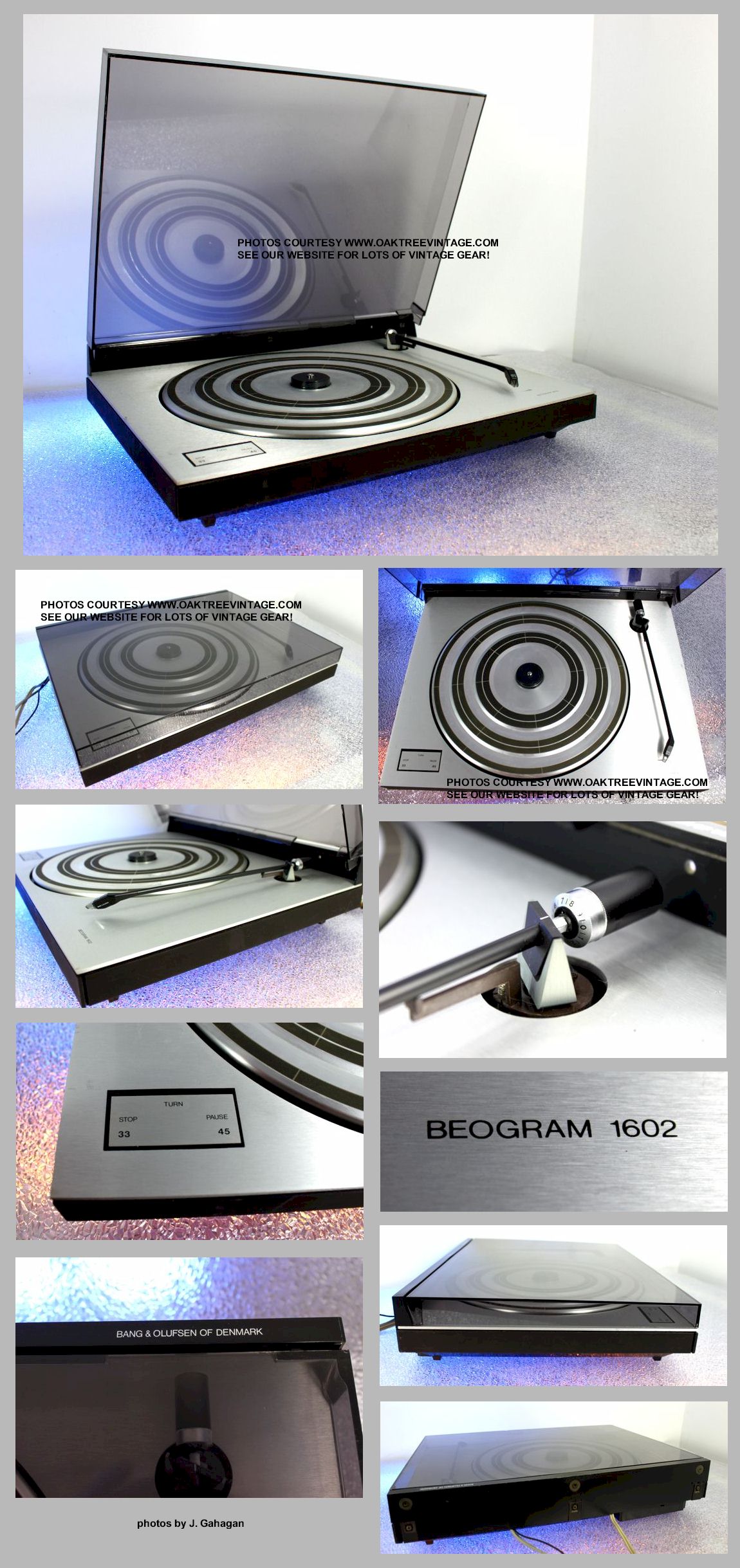

BANG & OLUFSEN
B&O
BEOGRAM 1602 / type 5712
STEREO TURNTABLE
FULLY-AUTO
BELT DRIVE TURNTABLE
#...9036
Circa 1980-82
Made in Denmark
for sale

SOLD 12/21/17
SHIPPING TO UTAH


ü  Our technician has completely gone through and 'Certified' this unit cleaning inside and out, cleaning out ‘gelled’ lubes (a ‘MUST DO’ on all pre-owned / vintage turntables) and re-lubricating mechanism.

ü Contacts cleaned and burnished on ALL internal 'leaf' switches, and re-aligned them for proper Tone-Arm 'Lead-In / Out'

ü Cleaned motor pulley and platter drive rim of rubber residue

ü Tone-arm height adjusted

ü Tone-arm 'lift height' adjusted.

ü  Tone-arm ‘Auto’ functions restored, adjusted and tested.

ü
Tone-arm lead ‘In / Out’ adjusted.

ü Gimbal bearing, counter weight and anti-skating verified for accuracy.

ü Speed checked and verified for accuracy with our shop strobe disc.

ü Tested / analyzed and passed for motor noise and 60Hz hum


ü We also re-installed, the existing B&O, MMC20E, Elliptically cut, Diamond stylus, magnetic cartridge and optimized the tone arm for it (aligned with Stevens Protractor). You can readily connect this table to any receiver, Integrated amplifier with a standard magnetic phono input, or a Pre-amp. To connect to computer for burning CD's just order one of our inexpensive Phono Pre-Amps and cable kits.

ü Unit tested with our myriad of test records, one of which included; Shures' 'Cartridge Obstacle Course' record.

ü Unit test cycled through 12 LP’s flawlessly.

ü Original dustcover had a fresh buff, and looks great. Does have a 'vertical and sealed' crack in the front edge and a small ding in the top edge. Either issue is hardly noticeable (you have to look hard to spot crack) (see photos above)

...

Again, our turntable tech has completely and EXTENSIVELY gone through this B&O 1602 turntable as stated above and 'certified' it's ready to go! Finally tested for speed accuracy, rumble, wow-flutter, noise isolation, tone-arm function and lubed internal mechanism. New belt just installed for years of trouble free service. Cartridge / tone-arm set to 1.5 grams tracking weight. Dust cover  just had a pro-buff to beautiful condition. Original dust cover is intact and looks great (only the very minor issues previously listed) as does entire table. Unit looks and works great! Very impressive. Comes with 'upgraded' B&O MMC20E cartridge with Elliptical, Diamond Stylus that is in great shape and ready to go (originally came with a 'MMC10' when new). Includes pdf / e-copy download of B&O BEOGRAM 1602 / Type 5712 owners / users manual if purchaser desires via email. Measures 17" wide x 13" deep x 3.5" tall and heavy at 13.2 lbs unpacked. Comes with our standard 30 day limited warranty.
B&O BEOGRAM 1602 / Type 5712
Cond. 8.5

SOLD 12/21/17
SHIPPING TO UTAH


To connect to computer for burning CD's or to a modern A/V receiver that does not have phono inputs, just order one of our inexpensive $42.99 Phono Pre-Amps and cable kits.

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)











Bang_&_Olufsen-3000_Stereo_Turntable_collage.jpg (335737 bytes)       Bang_&_Olufsen-3000_Belt_web.jpg (85281 bytes)

NEW LISTING 2/9/05
BANG & OLUFSEN
B&O
BEOGRAM 3000
STEREO TURNTABLE

SOLD 2/12/05

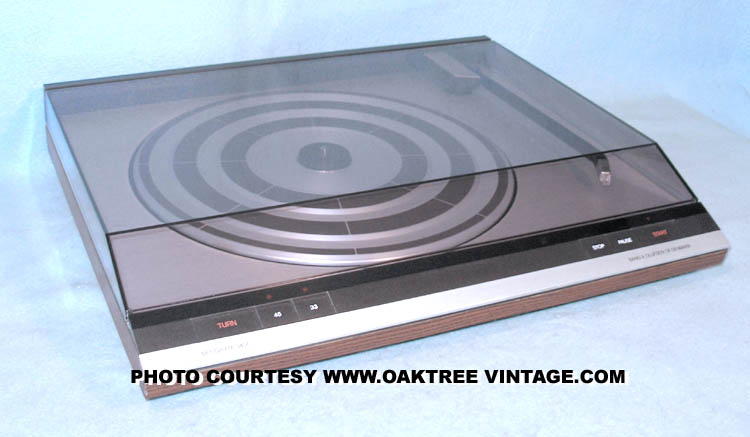

VINTAGE
BANG & OLUFSEN
B&O

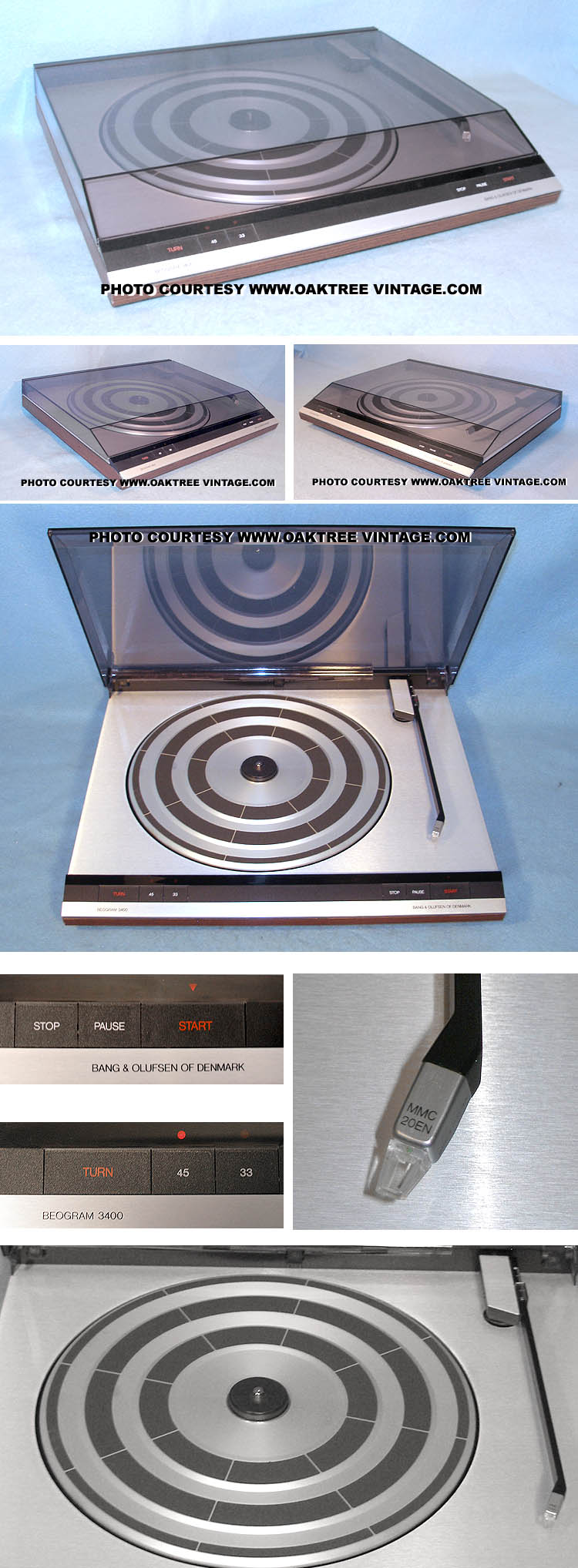

BEOGRAM 3400
STEREO TURNTABLE

SOLD 11/29/06



-




NEW LISTING 11/21/05

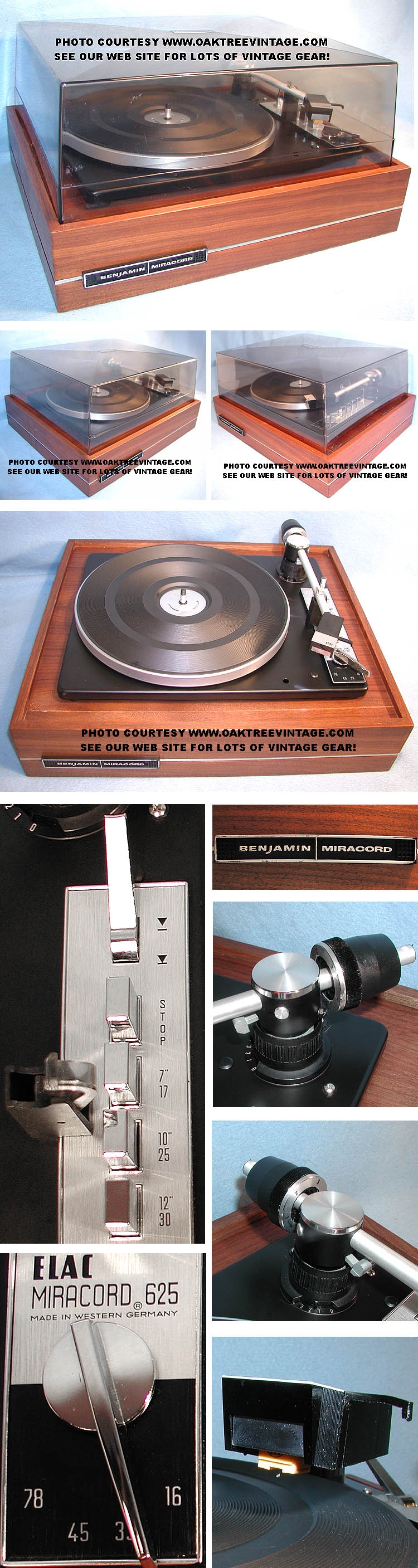

VINTAGE BENJAMIN / MIRACORD 625
STEREO TURNTABLE

SOLD 11/21/05



- -


- -


BIC 940
BELT DRIVEN
FULLY AUTOMATIC

STEREO
TURNTABLE
SOLD 12/12/06







          NEW LISTING 12/20/07
(Click on above thumbnails to enlarge photos)

 BIC 940
 BELT DRIVEN
 FULLY AUTOMATIC
 STEREO TURNTABLE
#...7708


Circa 1974-'92
 Made in the USA!

SOLD 3/12/08






         NEW LISTING 1/30/09
(Click on above thumbnails to enlarge photos)

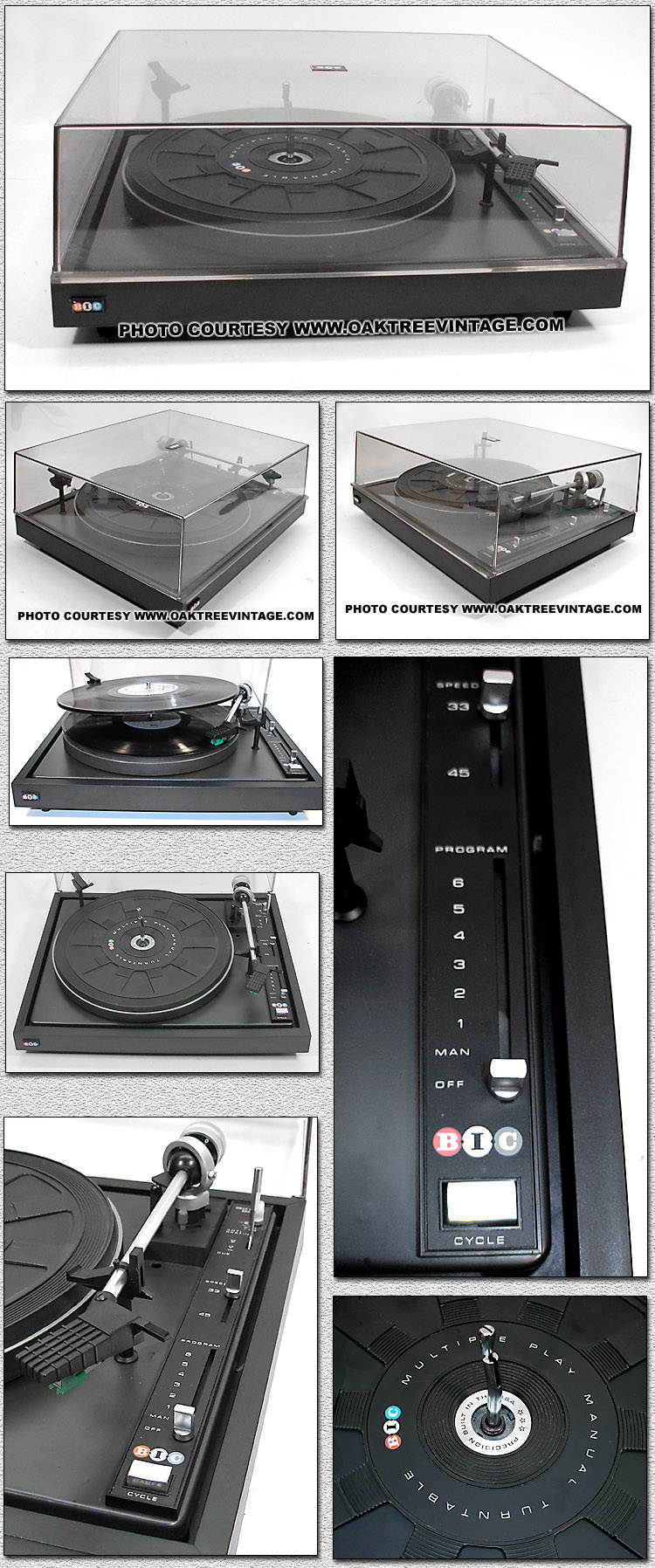

 BIC
STEREO TURNTABLE

 BIC 940 BLACK
 BELT DRIVEN
 FULLY AUTOMATIC
CHANGER / STACKER
 Circa 1974 - '92
 Made in the USA!

SOLD 12/10/10









       NEW LISTING 4/8/11
(Click on above thumbnails to enlarge photos)
VINTAGE STEREO TURNTABLE
BIC 940 BLACK
 BELT DRIVEN
 FULLY AUTOMATIC
CHANGER / STACKER
 Circa 1974- '92
 Made in the USA!

SOLD 3/3/12

We have just had the table completely gone through by CBS turntable services cleaning inside and out, lubricating mechanism, adjusting tone arm and testing performance. Platter bearing completely disassembled, cleaned of old varnished lube and re-lubed for years of trouble-free service. Lead-in / Lead-out adjusted for typical albums. Changer / stacker mechanism serviced to perfect working order (while it's considered 'lucky' to get more than a stack of 'three' records to 'drop' successfully on a 'changer / stacker' we actually had successful tests with six records on this particular BIC 940 following restoration, but they were mostly 1970's and early 80's LP's). Speed checked and verified for accuracy with our factory strobe disc. Gimbal bearing, counter weight and anti-skating all adjusted and verified for accuracy. Stop mechanism adjusted and tested. All functions work great! Original dust cover just had fresh buff by CBS and looks great! Both Hinges function fine. Entire table looks NEW! CBS installed, a brand new Audio-Technica, AT-301ELC Elliptical diamond stylus, magnetic cartridge and optimized the tone arm for it. (If you prefer an up-grade you may also choose from our selection of new Audio Technica cartridges that we can also set up and ship with it for the additional cartridge cost.) You can readily connect this table to any receiver, Integrated amplifier with a standard magnetic phono input, or a Pre-amp. To connect to computer for burning CD's just order one of our inexpensive Phono Pre-Amps and cable kits.
......Again, CBS has
completely gone through it testing for speed accuracy, rumble, wow-flutter, noise isolation, tone-arm function and lubed internal mechanism......
Comes with our standard 30 day limited warranty.

 BIC 940 STEREO TURNTABLE
 Cond. 8.5+

SOLD 3/3/12

W/ DUST COVER
&

w/ NEW AT-301E  Elliptical Diamond stylus cartridge installed

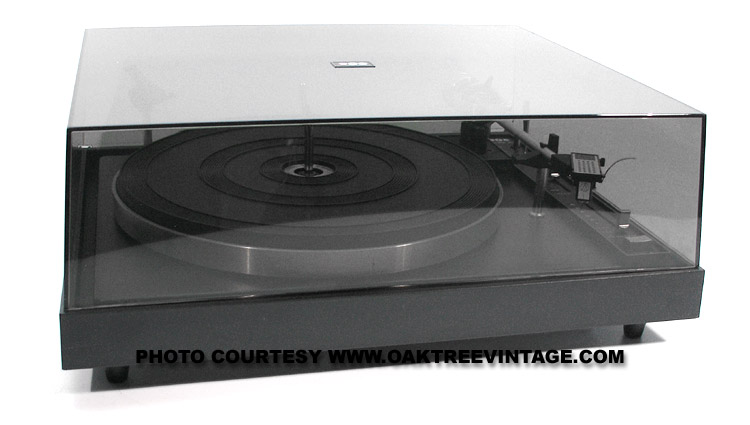

BIC STACKER / CHANGER
STEREO TURNTABLE
BIC 960
SOLD 12/12/06






NEW LISTING 1/25/0
6
BIC STACKER / CHANGER
STEREO TURNTABLE
BIC 960
SOLD 2/2/06











           NEW LISTING 6/23/08
(Click on above thumbnails to enlarge photos)

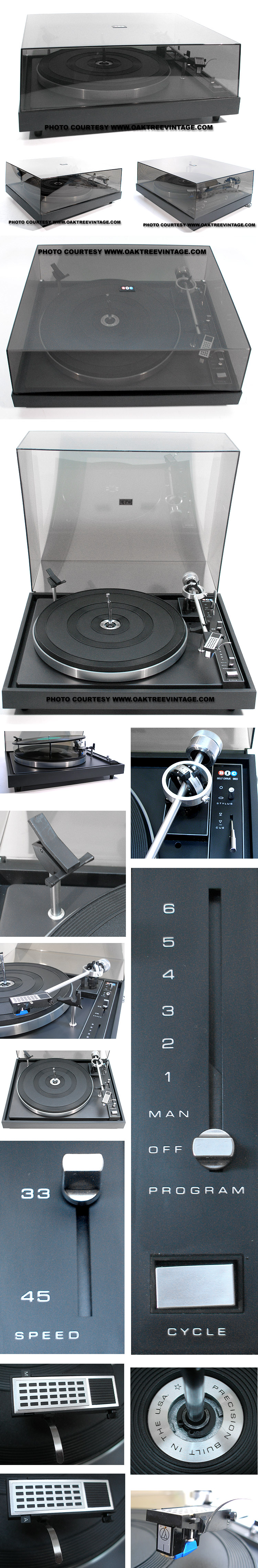

 BIC
STEREO TURNTABLE

 BIC 960 BLACK
 BELT DRIVEN
 FULLY AUTOMATIC
CHANGER / STACKER
#...5699

 Circa 1974 - '92
 Made in the USA!

SOLD 8/10/10
(C)
C.B.S.










NEW LISTING 1/25/0
6

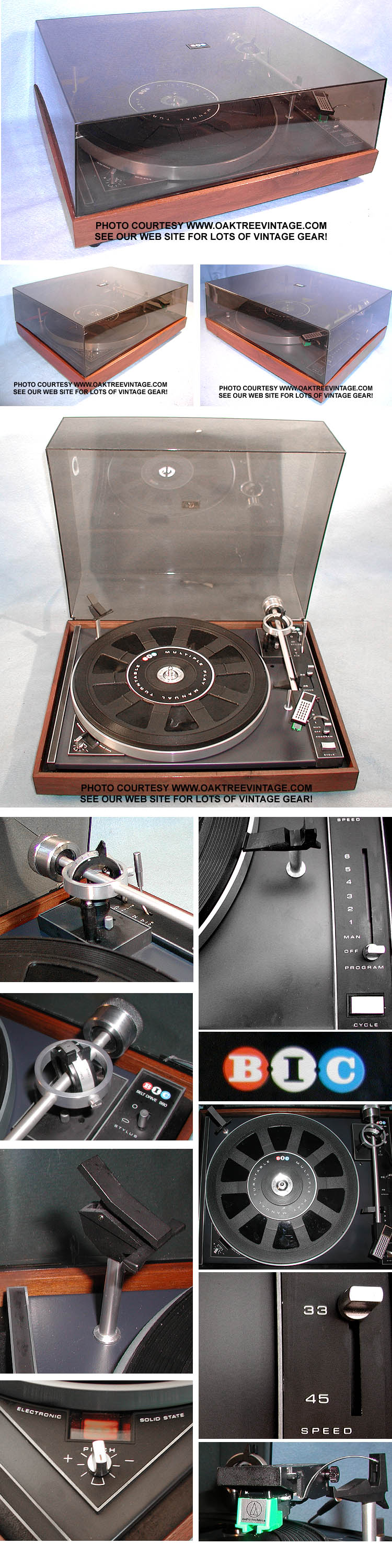

VINTAGE BIC
STEREO TURNTABLE
STACKER / CHANGER
BIC 980

SOLD 1/31/06














NEW LISTING 9/20/19
(Click on above thumbnails to enlarge photos)

RESTORED / REFURBISHED / FULLY SERVICED
VINTAGE BOSE STEREO TURNTABLE
BOSE 360
BELT DRIVE
FULLY MANUAL
TURNTABLE
Circa late 1970's-1980

 #...1086
Made in Japan







BSR - FOR SOLD GALLERY OF BSR TUNTABLES, CLICK HERE!



CALIFONE - FOR SOLD GALLERY OF CALIFONE PHONOGRAPHS, CLICK HERE!






NEW LISTING 4/20/05

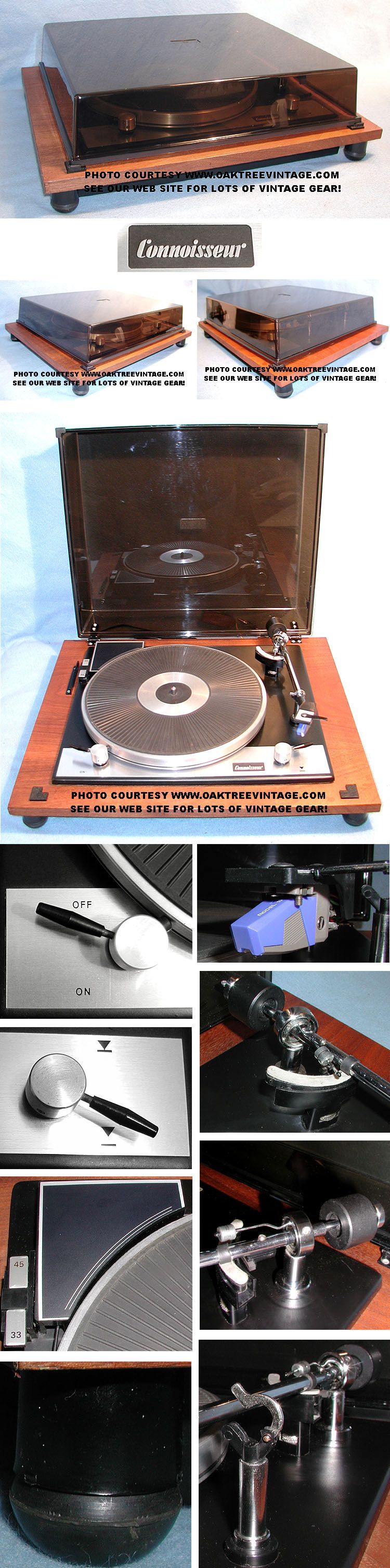

VINTAGE CONNOISSEUR BD/2A
STEREO TURNTABLE

SOLD 4/28/05


- -

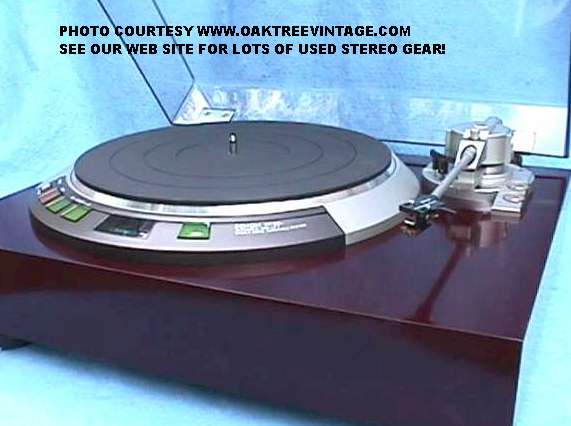

PRE-OWNED DENON TURNTABLE
DENON DP-62L
DIRECT DRIVE / QUARTZ LOCKED
SOLD 10/11/03



- -

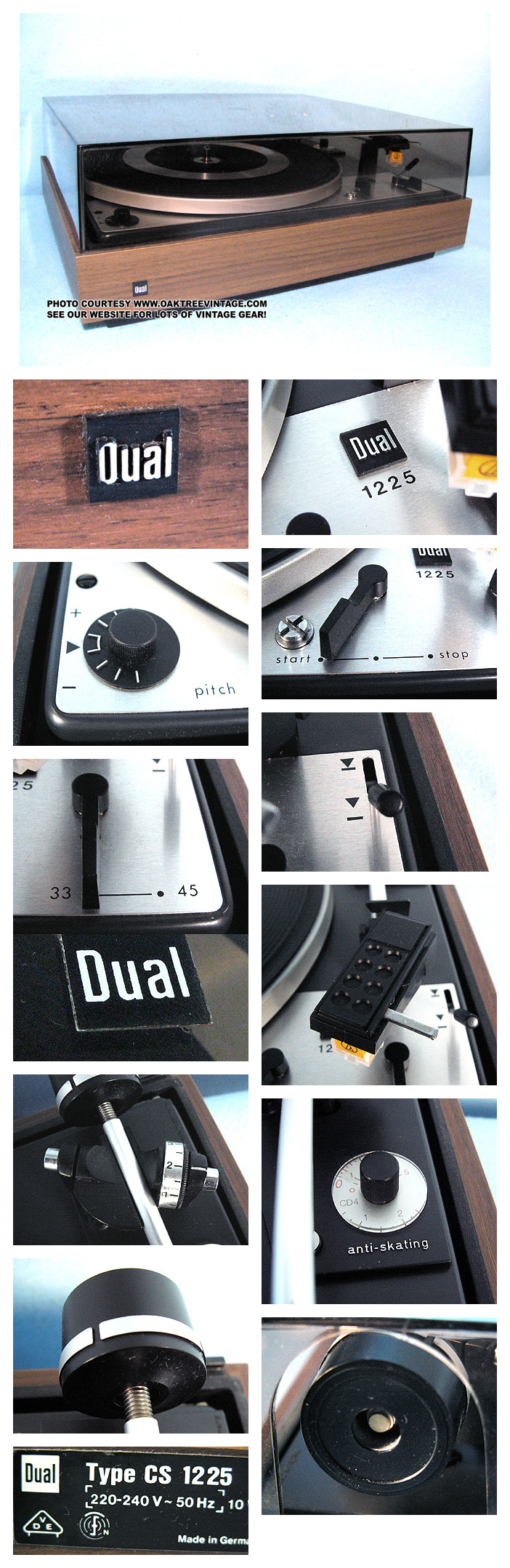

DUAL - CLICK HERE TO SEE OUR SOLD DUAL TURNTABLES ARCHIVE




REFURBISHED / RESTORED
FISHER TURNTABLE
143-97951800
SOLD 09/08/04






        NEW LISTING 3/3/15
(Click on above thumbnails to enlarge photos)

RESTORED / REFURBISHED

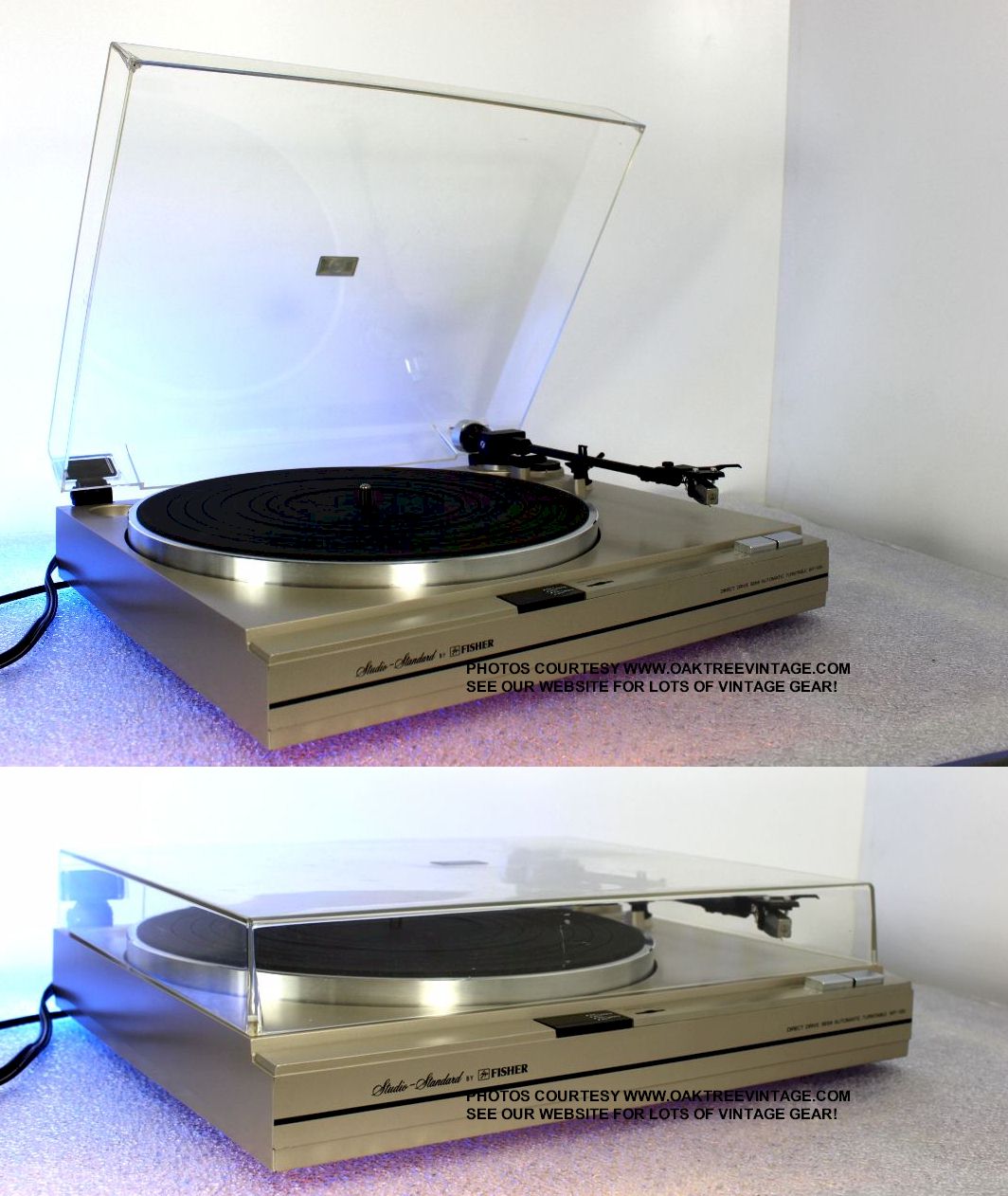

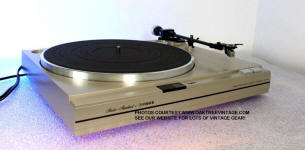

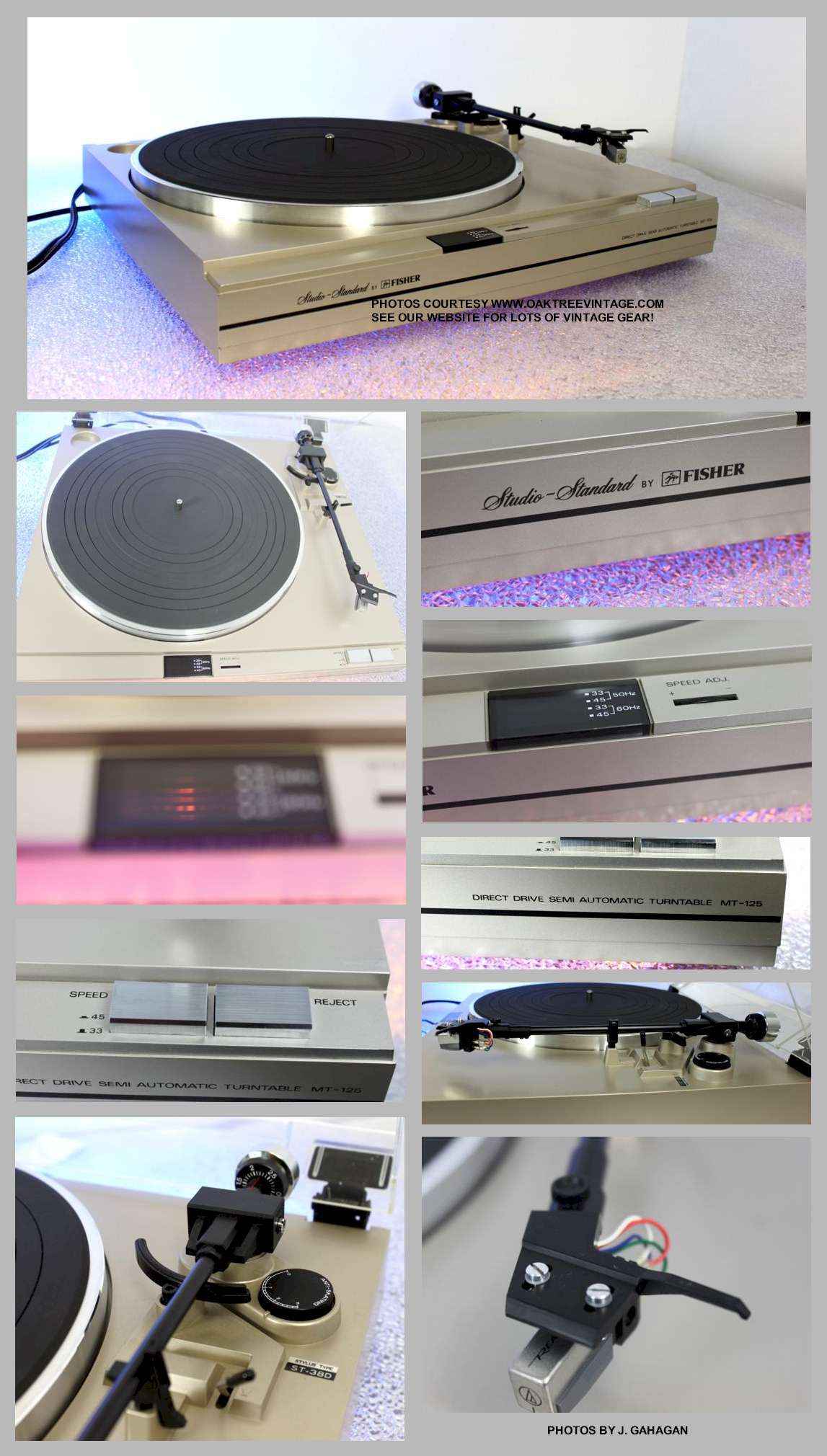

VINTAGE FISHER "STUDIO STANDARD" STEREO TURNTABLE
FISHER MT-125 / MT125
DIRECT DRIVE, SEMI-AUTOMATIC TURNTABLE
'CHAMPAIGN' FINISH
MADE IN JAPAN

#...8231
Circa 1981-83
SOLD 8/25/15
SHIPPED TO CALIFORNIA


ü Our technician has completely gone through and 'Certified' this unit cleaning inside and out, cleaning out ‘gelled’ lubes (a ‘MUST DO’ on all pre-owned / vintage turntables) and re-lubricating mechanism.

ü Tone-arm ‘Cueing’ mechanism disassembled, cleaned and re-filled with fresh 500,000 silicone fluid.

ü Tone-arm height adjusted.

ü Tone-arm 'lift height' adjusted.

ü Fresh 500,000 silicone damping in the cuing mechanism and cuing speed adjusted.

ü Tone-arm ‘Auto’ functions restored, adjusted and tested.

ü Tone-arm ‘Lead Out’ adjusted.

ü Repaired Cuing level mounting.

ü 'Anti-Skate' mechanism, cleaned and re-lubed w/ silicone lube.

ü External (user adjustable) speed pot was cleaned for perfect platter stability.

ü Gimbal bearing, counter weight and anti-skating all adjusted and verified for accuracy.

ü Original Rubber Vibration absorbing feet intact.


ü Entire table was cleaned inside and out.


ü Dustcover hinges tested for ability to hold dust cover 'up' and passed.

ü speed checked and verified for accuracy with our shop strobe disc.

ü Tested / analyzed and passed for motor noise and 60Hz hum.


ü We also re-installed, the existing 'Realistic' branded, Audio-Technica, Elliptically cut Diamond stylus, magnetic cartridge and optimized the tone arm for it. (If you prefer an up-grade you may also choose from our selection of new Audio Technica cartridges that we can also set up and ship with it for the additional cartridge cost.) You can readily connect this table to any receiver, Integrated amplifier with a standard magnetic phono input, or a Pre-amp. To connect to computer for burning CD's just order one of our inexpensive Phono Pre-Amps and cable kits.

ü Unit tested with our myriad of test records, one of which included; Shures' 'Cartridge Obstacle Course' record

ü Unit test cycled through 6 LP’s flawlessly.

ü Original dustcover has some 'spray paint' spatters on the inside. We buffed the outside, but on a table under $500, we didn't address it any further. It could be improved by the purchaser, or for a additional amount, we could improve it. Functionally it's perfect, as are the original hinges (see photos above). Hinges hold it upright as well

Decent, 'utilitarian' quality Fisher Studio-Standard Series, MT-125, Semi-Automatic, Direct-Drive turntable. Low-Mass, straight tone-arm with ORIGINAL Fisher, Angled, 1/2" standard mount head-shell for low record / stylus wear and accurate tracking. Plays 33 or 45 RPM vinyl. High quality gimbal bearing allows for critical adjustment of cartridge tracking / anti-skating. Only a couple minor issues with it. One is that the 'tone-arm' lock (used when moving the table) is not intact, so when moving, tone-arm will need to be secured with a wire tie. The other is cosmetic in that there is 'something' spattered on the inside of the dust cover. Due to the price point of the table, we did not choose to invest the time to rectify that. Decently well-built table delivers high quality performance.

Fisher MT-125 Turntable Features:


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Very quiet table. Nice low profile and elegant looking (other then the dust cover issues mentioned above. See photos). All the "auto" functions work great following the refurb work outlined above. Great working and sounding table, and with the Realistic / Audio-Technica, elliptically cut, diamond stylus cartridge installed, it's...Ready to Go! Measures 15.75" wide x 14" deep x 4.25" high and weighs 9 lbs unpacked. Includes our standard 30 day warranty.
Cond. 8 (due to dust cover)
RESTORED / REFURBISHED FISHER MT-125 STUDIO-STANDARD STEREO TURNTABLE
SOLD 8/25/15
SHIPPED TO CALIFORNIA


W/ DUST COVER
&

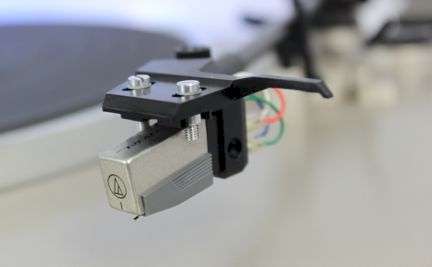

w/ REALISTIC / AT Elliptical Diamond stylus cartridge installed







(Click on above thumbnails to enlarge photos)
REFURBISHED / RESTORED FISHER

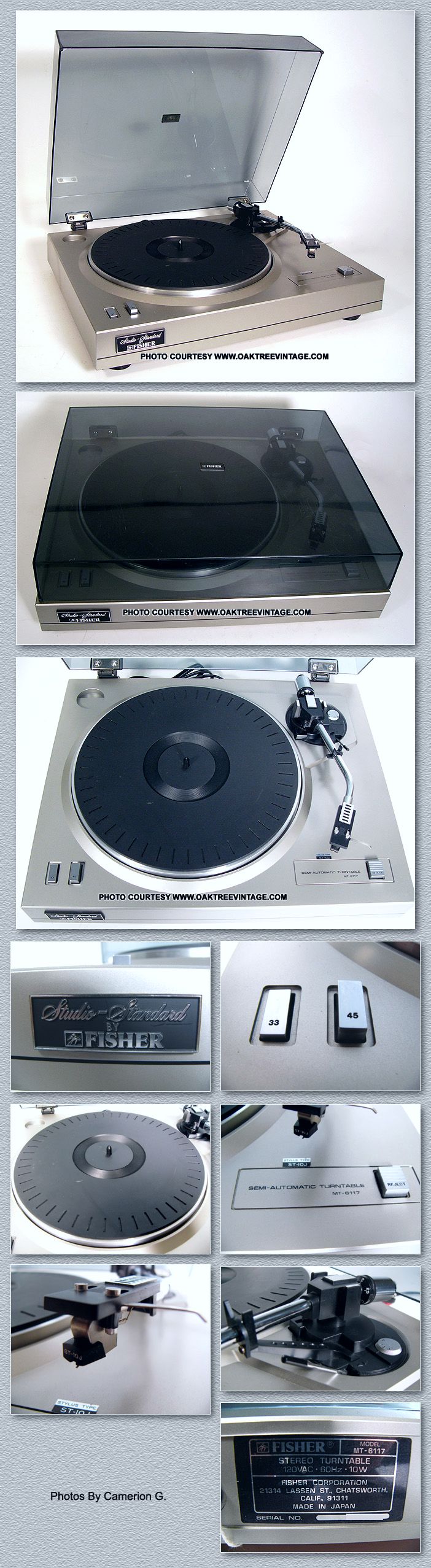

FISHER MT-6117
SEMI-AUTOMATIC
BELT-DRIVE
TURNTABLE

SOLD 3/10/08










NEW LISTING 4/23/10
(Click on above thumbnails to enlarge photos)
  FISHER

  STEREO TURNTABLE
FISHER MT-6250
"STUDIO STANDARD"
SEMI-AUTOMATIC

  DIRECT DRIVE
  QUARTZ LOCK
 #...1334
  Circa 197
8
  Made in Japan

SOLD 4/29/10









            NEW LISTING 3/25/09
(Click on above thumbnails to enlarge photos)
warranty
FISHER

STEREO TURNTABLE
"STUDIO STANDARD" SERIES

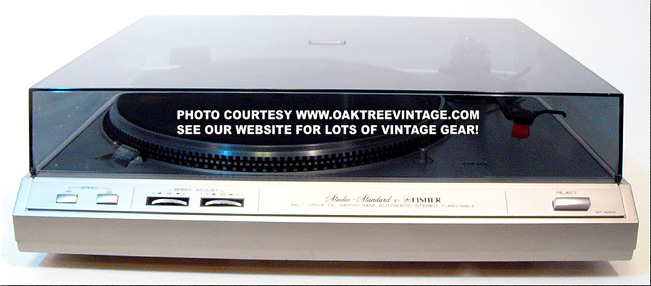

FISHER MT-6410/C
#...8132
 SEMI-AUTOMATIC

 BELT DRIVE
 Circa 1981-82
 Made in Japan

SOLD 5/24/10

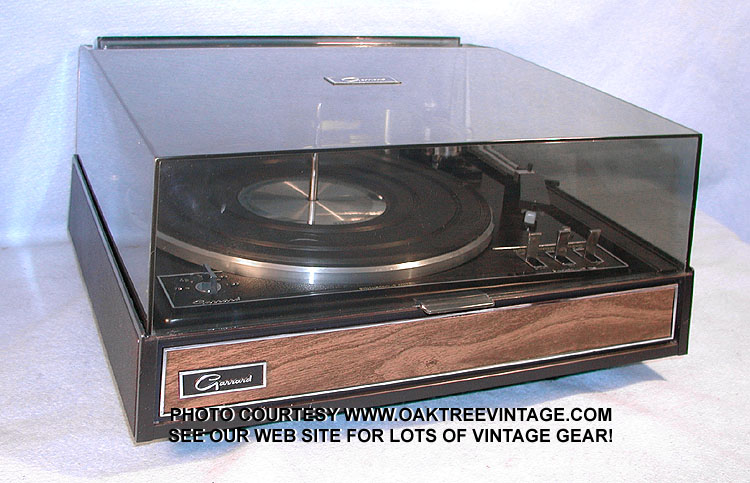

GARRARD - FOR SOLD GALLERY OF GARRARD TUNTABLES, CLICK HERE!


GE_78_CA800G_Recordplayer_web.jpg (34652 bytes)  GE_78_CA800G_Recordplayer_collage.jpg (78525 bytes)

GE STACKER / CHANGER RECORD PLAYER
CE800g

SOLD


- -
Glenburn_1100A_Stereo_Turntable_changer_web.jpg (76691 bytes)    Glenburn_1100A_Stereo_Turntable_changer_collage.jpg (212166 bytes)


GLENBURN STACKER / CHANGER RECORD PLAYER
GLENBURN 1100A

SOLD


NEW LISTING 2/13/08
(Click on above thumbnails to enlarge photos)

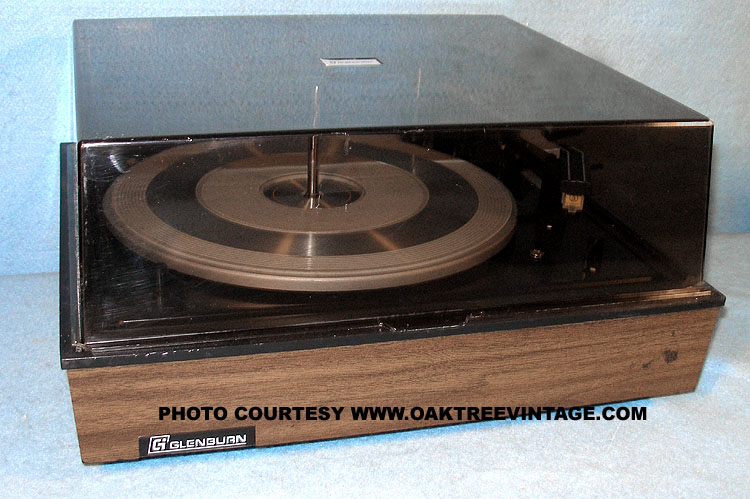

 GLENBURN 2110A

FULLY-AUTOMATIC

STACKER / CHANGER

STEREO TURNTABLE
    PLAYS 16, 33, 45 & 78 RPM RECORDS TOO!
RPM

MADE IN ENGLAND

SOLD 3/6/08


-


 NEW LISTING 10/8/08
(Click on above thumbnails to enlarge photos)

warranty

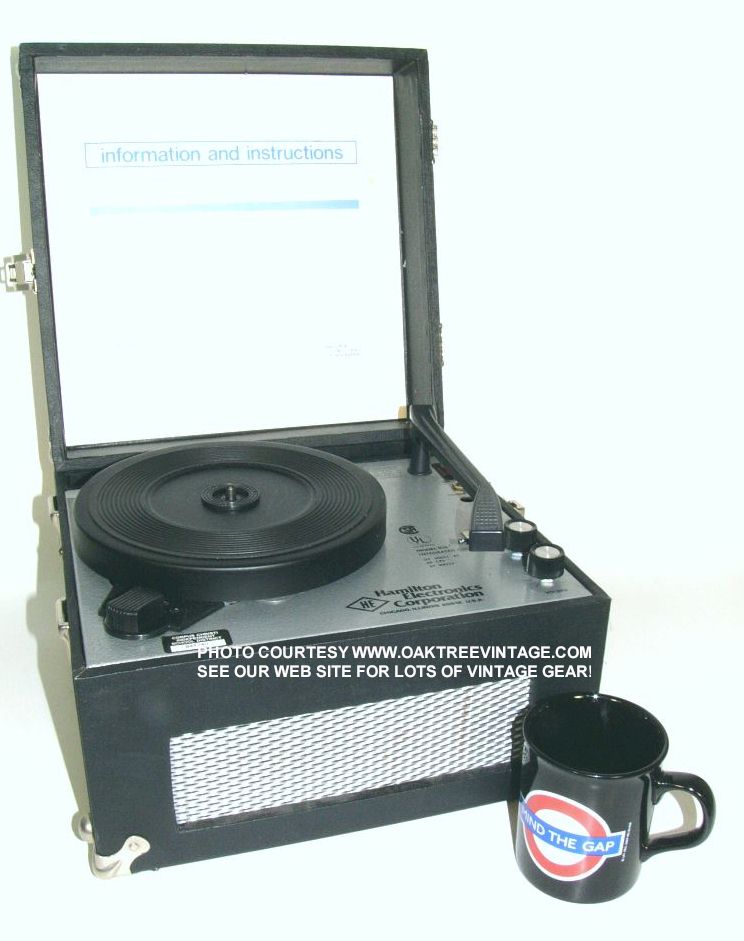

HAMILTON 915
  FULLY MANUAL
  & SELF-CONTAINED
  TURNTABLE / SCHOOL TYPE PHONOGRAPH


PLAYS 33, 45 78 & 16 RPM!
MADE IN THE USA


SOLD 11/1/09





                NEW LISTING 11/16/2022
(Click on above thumbnails to enlarge photos)
 FULLY SERVICED / REFURBISHED / RESTORED
HAMILTON 930
WITH BRAND NEW CARTRIDGE / NEEDLE INSTALLED
4-SPEED
WITH FULL SIZED MOTOR
CLASSROOM / SELF-CONTAINED
TURNTABLE / PHONOGRAPH

PLAYS 33, 45 78 & 16 RPM!
MADE IN THE USA
(not the 'plastic', Chinese cheeeeeese versions of more recent years)



ONE CURRENTLY FOR SALE. CLICK HERE...






USED
HARMON KARDON CD PLAYER
HARMON/KARDON HD100
SOLD





PRE-OWNED HARMON/KARDON
STEREO TURNTABLE
HARMON/KARDON HK T-40 / T40

SOLD 7/27/06








NEW LISTING 12/6/07
(Click on above thumbnails to enlarge photos)

 HARMAN / KARDON T55C / T55C FULLY-MANUAL / QUARTER AUTOMATIC BELT DRIVE STEREO TURNTABLE
 Circa 1984 - 86

SOLD 1/25/08






(Click on above thumbnails to enlarge photos)

PRE-OWNED
HITACHI
REFURBISHED / RESTORED STEREO TURNTABLE HITACHI HT-40S SEMI-AUTOMATIC DIRECT DRIVE TURNTABLE
Circa late 80's early 90's

SOLD 9/21/09










          NEW LISTING 10/09/08

(Click on above thumbnails to enlarge photos)
warranty

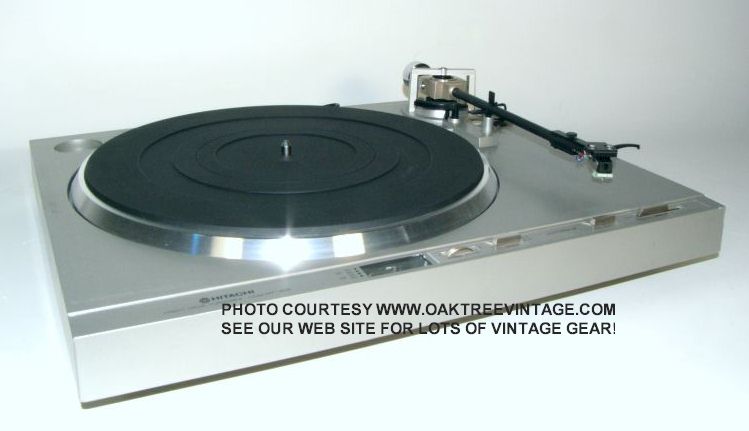

HITACHI

STEREO TURNTABLE

HITACHI HT-40S / HT40S

 SEMI-AUTOMATIC

 DIRECT DRIVE

 MADE IN JAPAN

 Circa 1980-84
(C)
C.B.S.

SOLD 6/3/10







(Click on above thumbnails to enlarge photos)

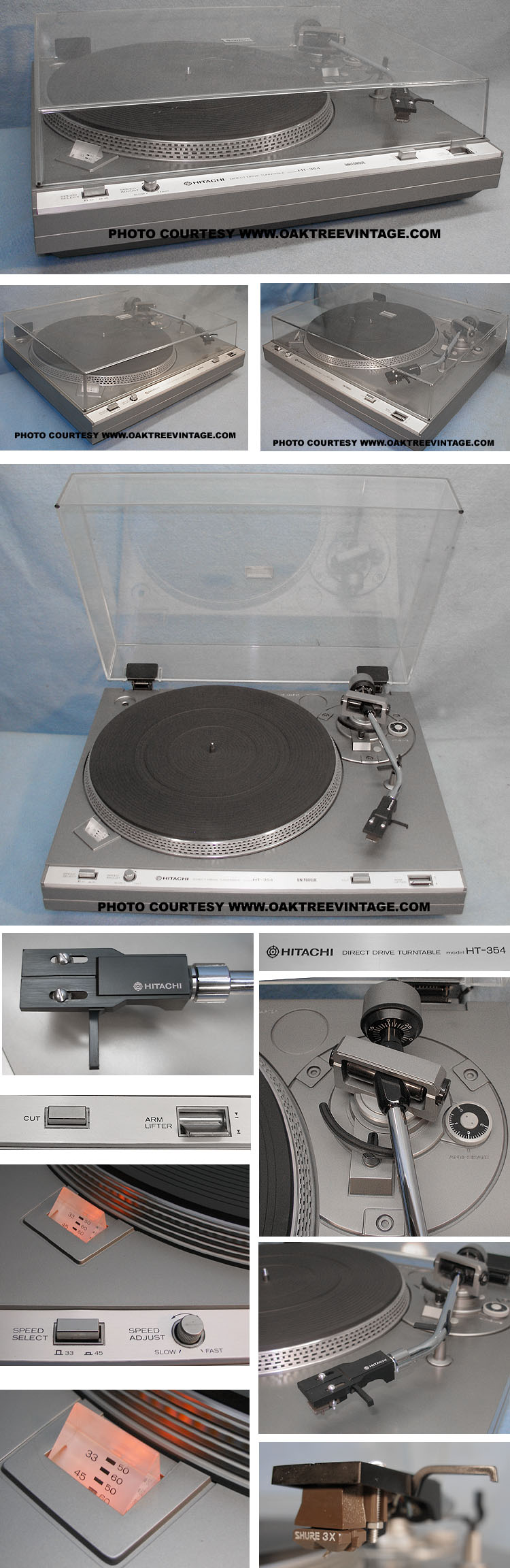

HITACHI
MODEL HT-354 / HT354
DIRECT
DRIVE
AUTOMATIC RETURN

STEREO TURNTABLE

SOLD 11/30/07




(Click on above thumbnails to enlarge photos)
RESTORED / REFURBISHED
VINTAGE JVC LINEAR TRACKING TURNTABLE RESTORED / REFURBISHED
    MODEL L-E33 LE33
LINEAR TRACKING
 FULLY-AUTOMATIC
STEREO TURNTABLE
 MADE IN JAPAN
 Circa 1982-83

SOLD


NEW LISTING 1/14/15
(Click on above thumbnails to enlarge photos)

RESTORED / REFURBISHED
VINTAGE JVC LINEAR TRACKING TURNTABLE RESTORED / REFURBISHED
    MODEL L-E33 LE33
#...2291
LINEAR TRACKING
 FULLY-AUTOMATIC
STEREO TURNTABLE
 MADE IN JAPAN
 Circa 1982-83

SOLD 1/29/15
SHIPPED TO CALIFORNIA


ü  Our technician has completely gone through and 'Certified' this unit cleaning inside and out, cleaning and re-lubricating mechanism, adjusting tone arm height, lead OUT and 'auto return' mechanism and testing performance.

ü  Entire tone-arm guide tube removed, all the old, coagulated silicon lube on the tone-arm mechanism removed and new silicon applied. The 'worm' drive gears also cleaned of old lube and re-lubed. All of these operations are a must on these linear tables.

ü  We also removed the motor spindle, cleaned the bearing / bushing and re-lubed. (A plus with this JVC linear table over some others is that it is not prone to the internal plastic assemblies shrinking and cracking like MANY of the other linear tables. Trust us, we've been into most of them internally).

ü A new arm drive belt installed to replace the old hardened / in-flexible unit.

ü  Internal speed pots, adjusted for centering and speed checked and verified for accuracy with our factory test strobe disc against built-in strobe monitor.

ü  Internal platter speed potentiometers cleaned and adjusted. Speed checked and verified for accuracy with factory test strobe disc.

ü  'Auto' mechanism adjusted and tested.

ü  Platter / motor suspension mechanisms rebuilt on all for corners of internal chassis.

ü  Dust cover hinges are perfect and still hold cover in it's 'upright' position.

ü  Original rubber mat, still supple and flexible with no hardening. Original feet in fine condition.

ü  We also re-installed and adjusted the existing, Audio-Technica ATU402LC, elliptically cut Diamond, magnetic cartridge and optimized the tone arm for it. (If you prefer an up-grade you may also choose from our selection of new Audio Technica cartridges that we can also set up and ship with it for the additional cartridge cost.)
You can readily connect this table to any receiver, Integrated amplifier with a standard magnetic phono input, or a Pre-amp. To connect to computer for burning CD's just order one of our inexpensive Phono Pre-Amps and cable kits.

All functions work great! Again, this table looks and works great!



HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


. As stated earlier, following it's refurbish procedure, it works great!


JVC L-E33 FEATURES INCLUDE:



HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


JVC L-E33 TABLE SPECIFICATIONS:




HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

 Again, this table has been completely gone through. Only cosmetic issue is some minor 'bubbling' of the 'matte laminate' top covering that was not able to be 'addressed' during refurb (won't show up in photos).
Following the above described work, it's ready to go! Great table for all around use. Measures 13.5" wide x 14.25" deep x 4.5" tall (closed) and weighs 12.5 lbs unpacked. Includes our standard 30 day limited warranty.
JVC L-E33 Linear Tracker STEREO TURNTABLE
 Cond. 8.5

SOLD 1/29/15
SHIPPED TO CALIFORNIA


w/ Audio-Technica AT402EP, Diamond stylus cartridge installed


-



REFURBISHED / RESTORED / REFURBISHED
JVC STEREO TURNTABLE
JVC JL-F30

SOLD 1/27/06





       NEW ADDITION 4/2/12
 (Click on above thumbnails to enlarge photos)
STEREO TURNTABLE JVC JL-F30
 FULLY-AUTOMATIC
 BELT DRIVE
 Circa 1977-85
  MADE IN JAPAN
  Circa 1980-83

SOLD 12/13/15
SHIPPED TO NEW YORK

 We have just had the table completely gone through cleaning inside and out, cleaning & lubricating mechanism, adjusting tone arm and testing performance. Speed checked and verified for accuracy following tear down / service / re-assembly with our factory test strobe disc. Gimbal bearing, counter weight and anti-skating all adjusted and verified for accuracy. Cuing mechanism disassembled, cleaned and re-lubed w/ fresh 500,000 grade silicone damping fluid. Fresh, new belt installed. All functions work great! Rubber mat, still supple and flexible with no hardening. We also cleaned and inspected with our 10x loop, the existing "universal" mount Stanton D680, Elliptical cut Diamond, magnetic cartridge and optimized the tone arm for it. This table does have a 1/2", "universal" mount head shell, so any standard, 1/2" mount cartridge will fit it. (If you prefer an up-grade you may also choose from our selection of new Audio Technica cartridges that we can also set up and ship with it for the additional cartridge cost.) You can readily connect this table to any receiver, Integrated amplifier with a standard magnetic phono input, or a Pre-amp. To connect to computer for burning CD's just order one of our inexpensive Phono Pre-Amps and cable kits. Again, this table looks and works great!!



HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


  Features include:




HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


TABLE SPECIFICATIONS:



HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


   Again, this JVC, JL-F30 turntable has been completely gone through. The dust cover has had a 'medium' buff treatment and looks decent with light scuffs / scratches. No breaks, cracks, splits or chips. Hinges both intact and both hold dust cover in 'upright' position. It looks and works great and is ready to go! You will not be disappointed in this table for all around use. Measures 18.1" wide x 14.5" deep x 5.1" tall and weighs 15 lbs unpacked. Includes our standard 30 day limited warranty.
JVC Fully Automatic, Belt-Drive Turntable JL-F30
  Cond. 8.5
w/dust cover
&
w/ Stanton D680 Elliptical Diamond stylus cartridge installed
SOLD 12/13/15
SHIPPED TO NEW YORK

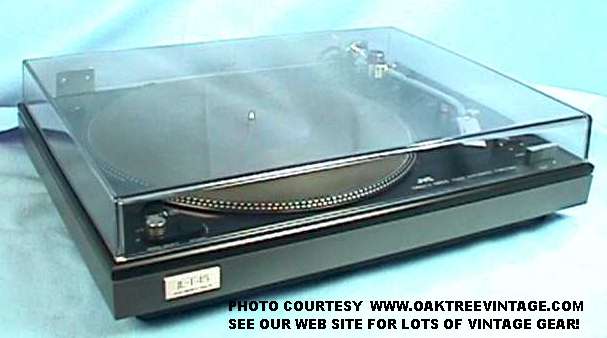

REFURBISHED / RESTORED / REFURBISHED
JVC STEREO TURNTABLE
JVC JL-F45

SOLD





NEW LISTING 4/1/05

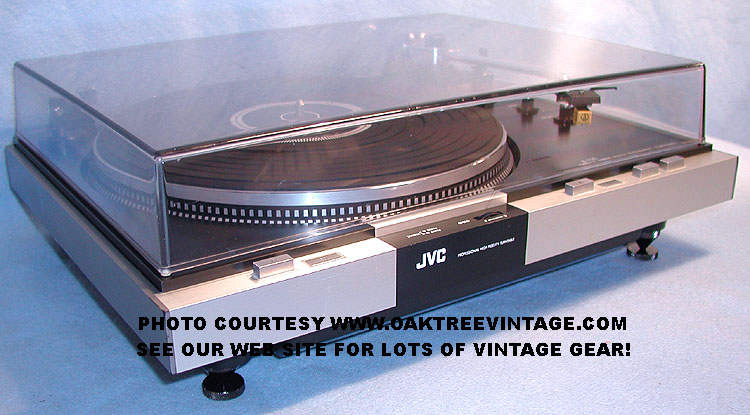

VINTAGE JVC STEREO TURNTABLE
JVC JL-F50
SOLD 4/19/05

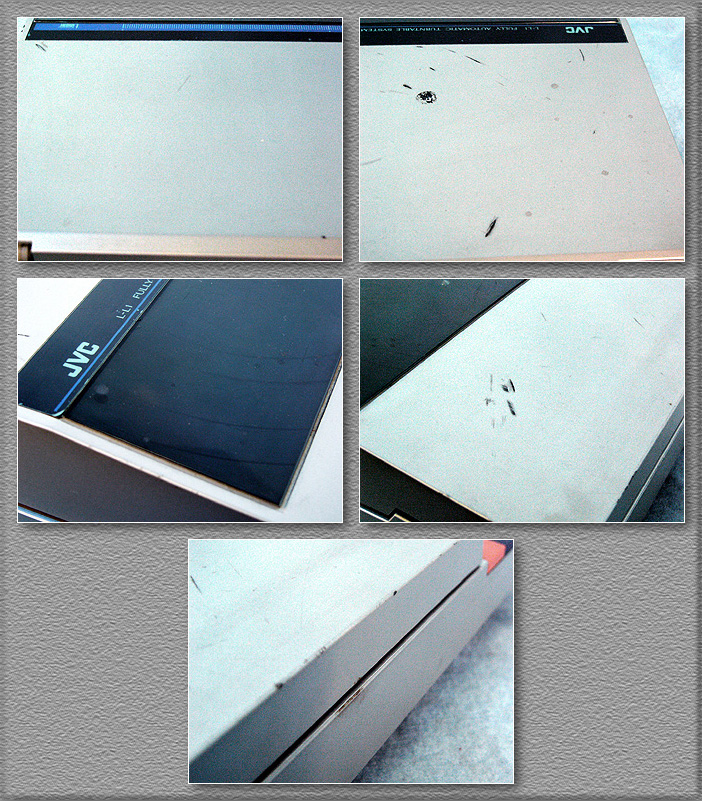

VINTAGE JVC LINEAR TRACKING TURNTABLE
JVC L-L1
SOLD 5/27/06





      NEW LISTING 4/17/08
(Click on above thumbnails to enlarge photos)
warranty

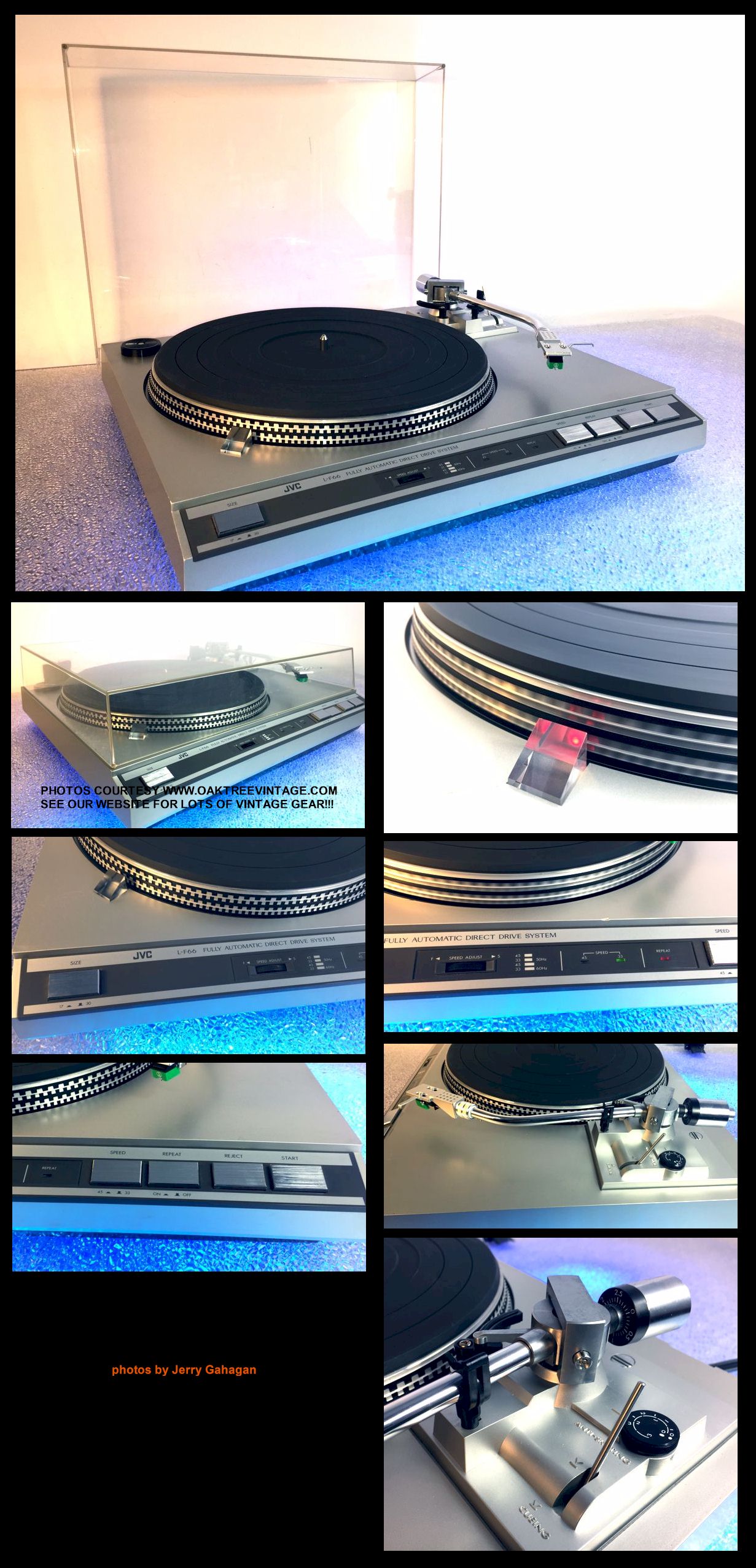

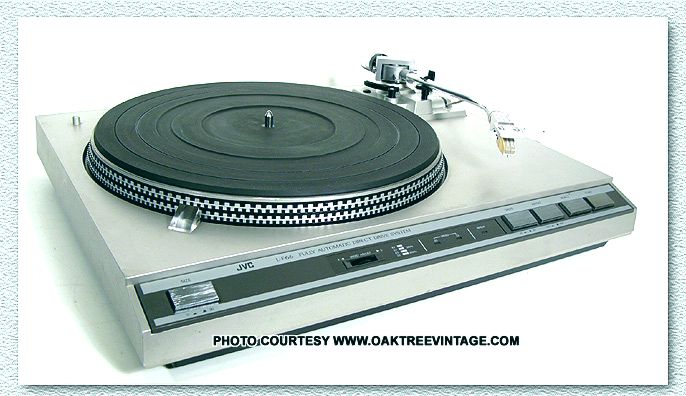

JVC

STEREO TURNTABLE

JVC L-F66 / LF66

 FULLY-AUTOMATIC

 DIRECT DRIVE

 MADE IN JAPAN

 Circa 1980-83
SOLD 10/28/08


w/ AT112E/U Elliptical Diamond stylus cartridge installed

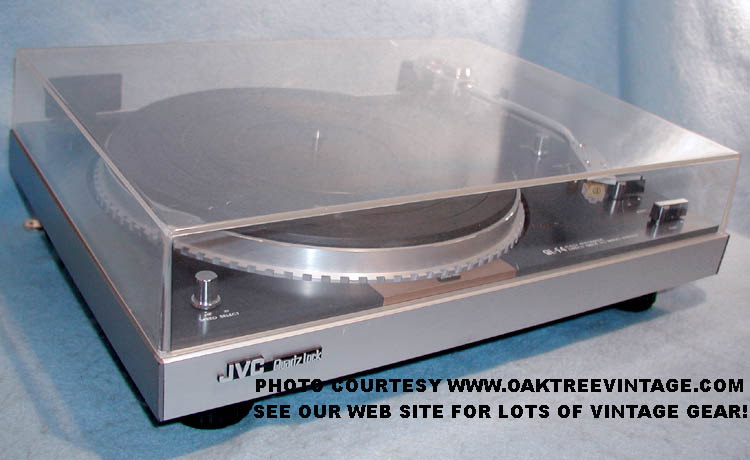

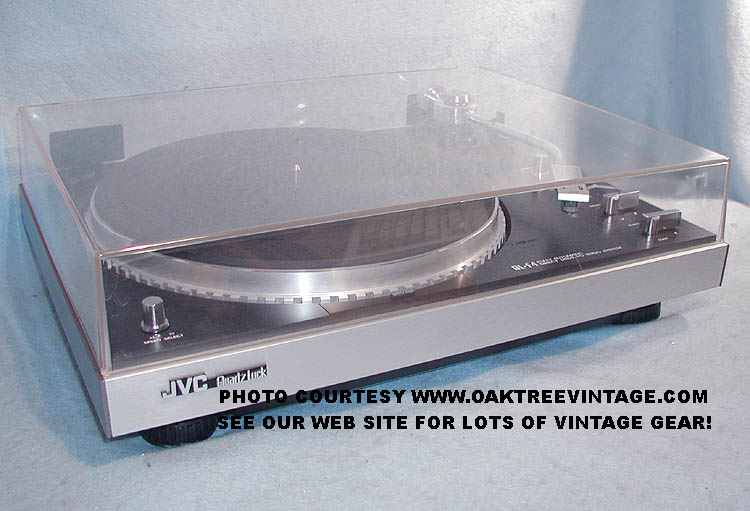

JVC_QL-F4_Stereo_Turntable_web.JPG (65511 bytes)  JVC_QL-F4_Stereo_Turntable_collage.JPG (206229 bytes)

VINTAGE JVC STEREO TURNTABLE
JVC QL-F4
TURNTABLE
Circa 1978-81
SOLD 8/5/04


JVC STEREO TURNTABLE
JVC QL-F4
SOLD 12/8/04

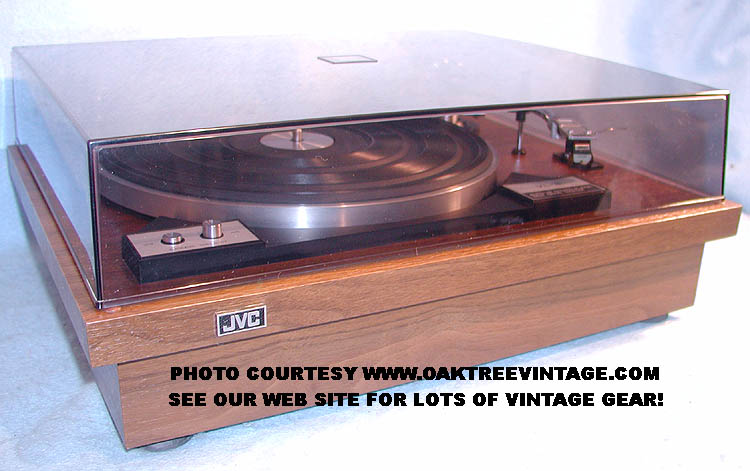

VINTAGE JVC STEREO TURNTABLE

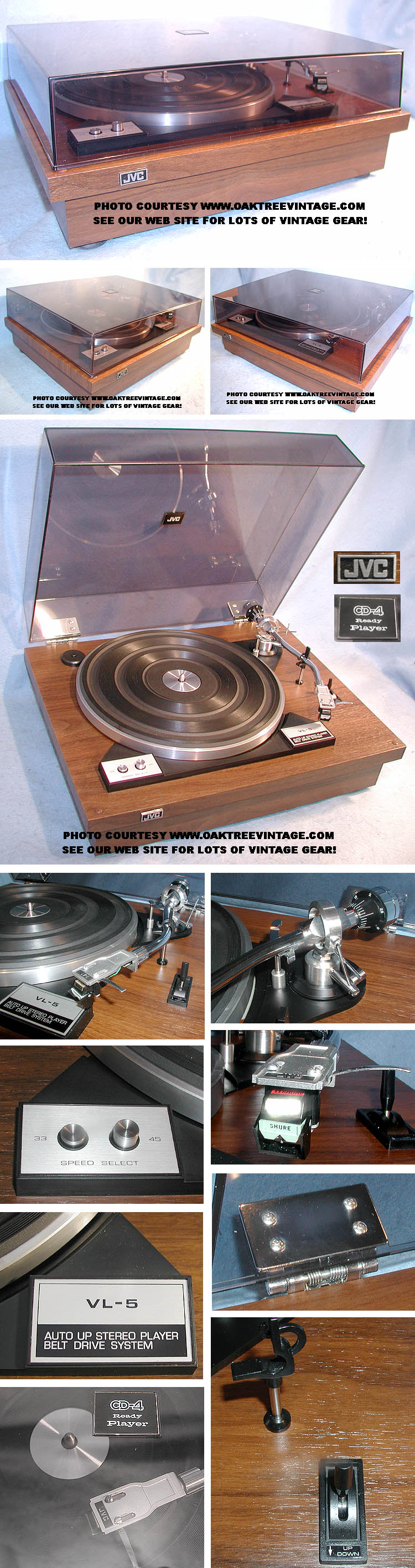

JVC VL-5
SOLD 8/30/05




     NEW LISTING 6/18/08
(Click on above thumbnails to enlarge photos)
KENWOOD
STEREO TURNTABLE


KENWOOD KD-50F KD50F

FULLY AUTOMATIC

DIRECT DRIVE

QUARTZ LOCK

TURNTABLE

Circa 1981-84
MIJ

(C)
 C.B.S.

SOLD 7/31/08












NEW LISTING 10/8/08
(Click on above thumbnails to enlarge photos)
warranty
KENWOOD
STEREO TURNTABLE


KENWOOD MODEL KD-67F
LINEAR TRACKING
 FULLY-AUTOMATIC
 MADE IN JAPAN
 Circa 1989-91

SOLD 12/30/08

w/ Technics 1001, Diamond stylus cartridge installed








      NEW LISTING 5/24/18
(Click on above thumbnails to enlarge photos)

COMPLETELY SERVICED
CLASSIC AND BEAUTIFUL KENWOOD TURNTABLE
KENWOOD KD-770D
DIRECT DRIVE / ‘QUARTER’ AUTOMATIC
TURNTABLE
#...0067
Made in Japan
Circa late 1984-87

SOLD 6/13/19
SHIPPING TO STEVE IN CONNECTICUT

ü Our technician has completely gone through and 'Certified' this unit .



ü Tested / analyzed and passed for motor noise and 60Hz hum.

ü Rubber mat still supple and flexible with no hardening.

ü New lift surface fixed Arm Cuing mechanism and height corrected


ü Platter speed checked and verified for 100% accuracy with our factory test strobe disc following above restoration.

ü Platter tested for 'true flat' and no 'run-out'

ü OrtofonOM-10’ cartridge inspected, reinstalled and tone arm adjustments optimized for it

ü Tone Arm weighting and ‘tracking’ screw adjusted for proper tracking with test tone record and O-Scope.

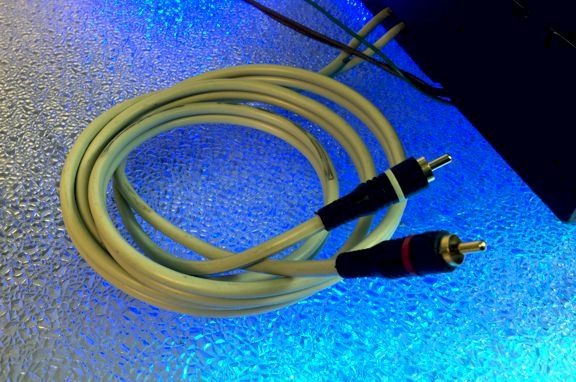

ü Output cables are High Quality, heavy shielded interlink cables installed with GOLD plated RCA connectors

ü Original dustcover had a 3-Stage buff, and looks VERY NICE! Hinges adjusted to hold it upright as well. (note; this is an incredibly well designed and built dust cover, and is of acrylic about 3 times the thickness of most covers) We did photo some very light scuffs, but had to get the light 'just right' to get them to show up in photos. Almost not worth mentioning (see photos above).

ü Cartridge / head shell ‘overhang’ adjusted using shop calibration scale.

ü Unit tested with our myriad of test records, one of which included; Shures' 'Cartridge Obstacle Course' record

ü Unit test cycled through 12+ LP’s flawlessly

 You can readily connect this table to any receiver, Integrated amplifier with a standard magnetic phono input, or a Pre-amp. To connect to computer for burning CD's just order one of our inexpensive Phono Pre-Amps and cable kits.


 Great performing, sounding and INCREDIBLE looking Kenwood KD-770D, Direct-Drive, Quarter-Automatic turntable. Following the above restoration, it looks fabulous, now functions correctly and performs well.

From an original Kenwood KD-770D brochure, "Many turntables cause a loss in musical energy during reproduction through insufficient structural rigidity. With the Kenwood "DL" system, it has been possible to integrated the motor into a solid block of "ARCB" (anti resonant resin-concrete). This in turn is mechanically linked with the tone-arm assembly, so that the entire unit forms one rigid integrated whole. This has important results in terms of accuracy, improved tone-arm tracking and better sound quality."



Beautiful table overall. Other than some fine scratches in the dust cover as mentioned earlier, the only other cosmetic items worth mentioning are some black 'smudges' on the platter edges and a small ding near the 'Speed' switch, but again, nothing distracting.




 Again, our turntable tech has completely gone through this table, and following restoration was tested for speed accuracy, rumble, wow & flutter, noise isolation, tone-arm function at ‘end of record’. Original dust cover is in fabulous shape after a 3-Stage plastic buff / hand polish. Beautiful condition. Table looks amazing and works great! Again, comes with a Ortofon OM-10, Elliptically cut, diamond stylus, cartridge. Ready to play!!!
This one includes it's ORIGINAL BOX AND PACKING!
Measures 19.5" wide x 16.25" deep x 6.5" tall and weighs a HEAVY 26 lbs unpacked.
Comes with our standard 30 day limited warranty.
KENWOOD KD-770D STEREO TURNTABLE
Cond. 8.5++
+
w/ dust cover
(Cons.) R.R.

SOLD 6/13/19
SHIPPING TO STEVE IN CONNECTICUT


W/ BEAUTIFUL DUST COVER &
 w/ Ortofon OM-10 Elliptical Diamond stylus cartridge installed

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)






NEW LISTING 1/27/05
KENWOOD STEREO TURNTABLE
KENWOOD KD-3100

TURNTABLE

SOLD 3/1/05






NEW LISTING 1/25/0
6
KENWOOD STEREO TURNTABLE

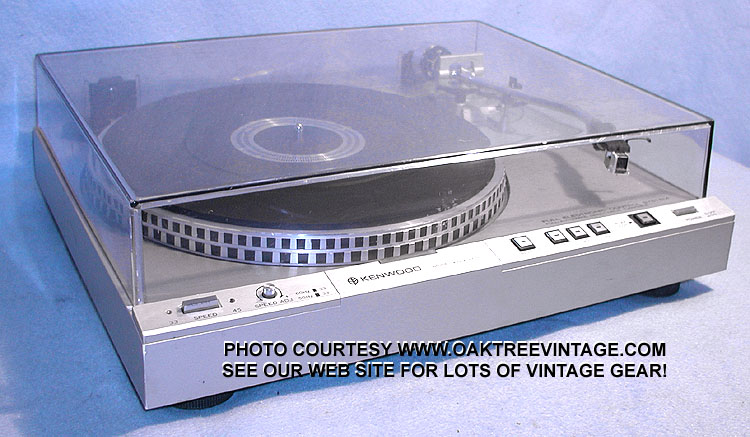

KENWOOD MODEL KD-4100R
DIRECT DRIVE

SOLD






NEW LISTING 12/20/12
(Click on above thumbnails to enlarge photos)

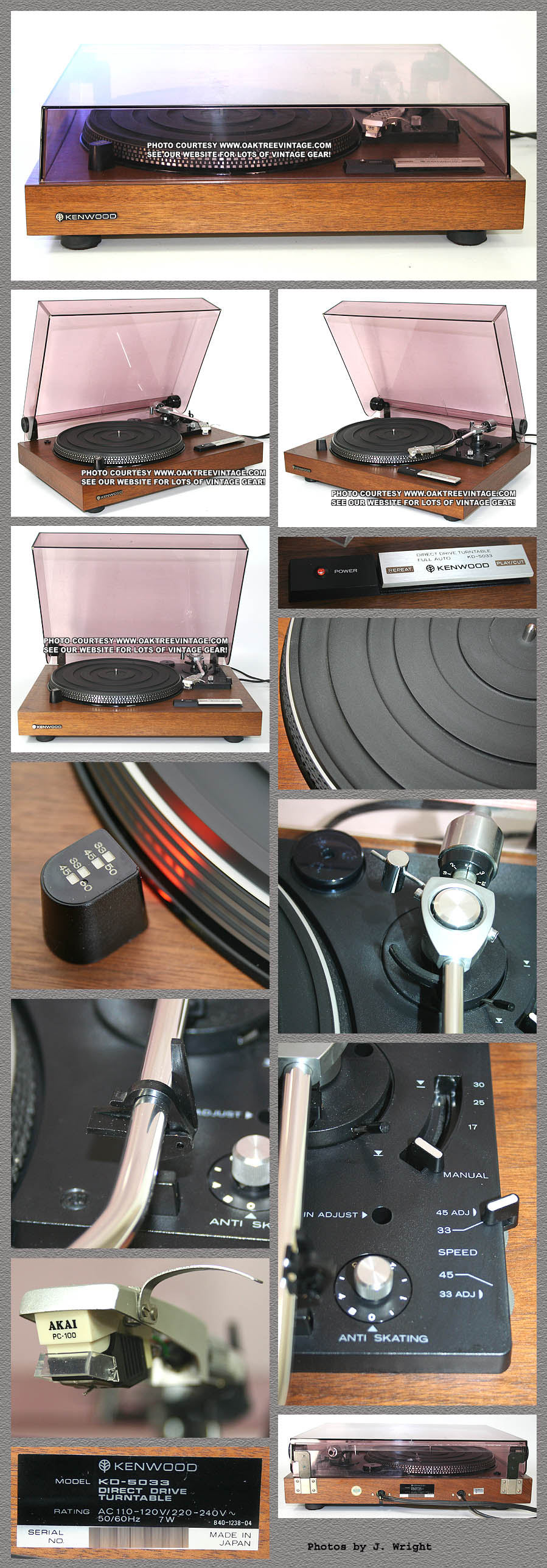

VINTAGE KENWOOD TURNTABLE

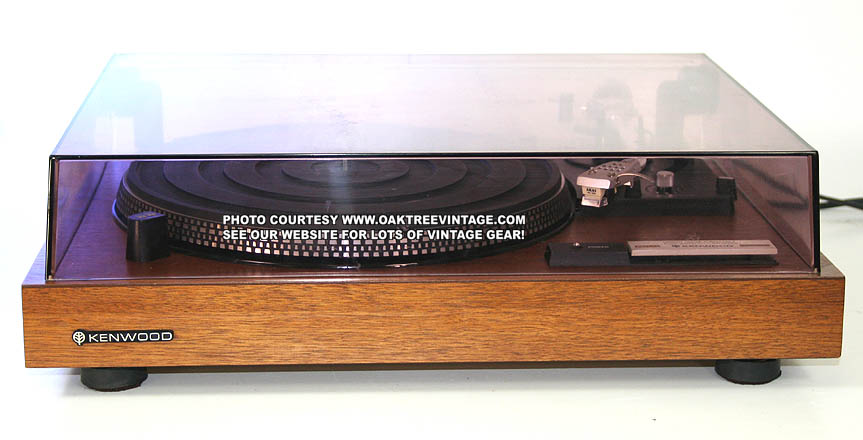

KENWOOD KD-5033 STEREO TURNTABLE
FULLY AUTO
STEREO TURNTABLE
DIRECT DRIVE
 RESTORED / REFURBISHED
#...1251
Made in Japan
Circa 19
74-78
"WORLD AC POWER" ™
SOLD 1/8/13
SHIPPED TO OHIO
















NEW LISTING 4/27/15
(Click on above thumbnails to enlarge photos)

RESTORED / REFURBISHED
VINTAGE KENWOOD STEREO TURNTABLE

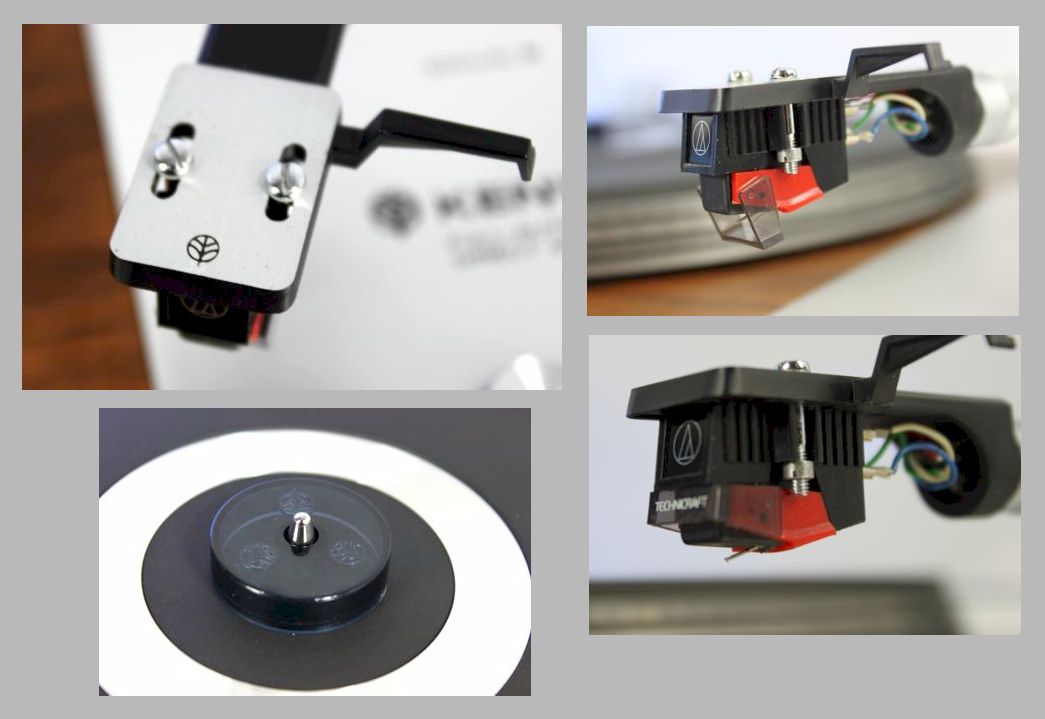

KENWOOD KD-5066 / KD5066
FULLY-AUTOMATIC
DIRECT DRIVE TURNTABLE
MADE IN JAPAN
#...0011
Circa 1977


"WORLD AC POWER"
SOLD 5/18/15
SHIPPED TO TEXAS

ü Our technician has completely gone through and 'Certified' this unit cleaning inside and out, cleaning out ‘gelled’ lubes (a ‘MUST DO’ on all pre-owned / vintage turntables) and re-lubricating mechanism investing ~12 hours of technician time!

ü Contacts cleaned and burnished on ALL internal 'leaf' switches, and re-aligned them for proper Tone-Arm 'Lead-In / Out'

ü Tone-Arm 'Run-Out' sensor mechanism disassembled, cleaned and re-lubed to eliminate errant 'side-ways' motion

ü Tone-arm height adjusted

ü Tone-arm 'lift height' adjusted.

ü Fresh 500,000 silicone damping in the cuing mechanism and cuing speed adjusted.

ü  Tone-arm ‘Auto’ functions restored, adjusted and tested.

ü Tone-arm lead ‘In / Out’ adjusted.

ü 'Anti-Skate' mechanism, cleaned and re-lubed w/ silicone lube.

ü Gimbal bearing, counter weight and anti-skating all adjusted and verified for accuracy.

ü 'Quartz Locked' Speed checked and verified for accuracy with our shop strobe disc.

ü Tested / analyzed and passed for motor noise and 60Hz hum after additional 'up-grade' of ground cable


ü Entire table was cleaned inside and out, including applying fresh Lemon Oil to 'Real Wood Veneer' base


ü Front 'Kenwood' badge re-attached


ü We also re-installed, the existing Audio-Technica, Elliptically cut, Diamond stylus, magnetic cartridge and optimized the tone arm for it (aligned with Stevens Protractor)(If you prefer an up-grade you may also choose from our selection of new Audio Technica cartridges that we can also set up and ship with it for the additional cartridge cost.) You can readily connect this table to any receiver, Integrated amplifier with a standard magnetic phono input, or a Pre-amp. To connect to computer for burning CD's just order one of our inexpensive Phono Pre-Amps and cable kits.

ü Unit tested with our myriad of test records, one of which included; Shures' 'Cartridge Obstacle Course' record

ü Unit test cycled through 10 LP’s flawlessly.

ü Original dustcover had a fresh buff, and looks good with still some typical 'clouding'.



HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


Only minor cosmetic issue is overall 'clouding' to dustcover that was not able to be buffed out (see photos). Well-built table delivers high quality performance.

Kenwood KD-5066 Turntable Features:


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Kenwood KD-5066 Turntable Specifications:


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?



Very quiet, well performing table. Nice 'High Tech', yet elegant cosmetics. All the "auto" functions work great following the EXTENSIVE refurb work outlined above. Great working and sounding table. And with the Audio-Technica, elliptically cut, diamond stylus cartridge installed, it's 'Ready to Go'! Original 'shock absorbing' feet were pretty 'absorbed out' as they're constructed of natural rubber, so we're including a set or
our Sorbothane® Isolation Pods to virtually eliminate environmental sonic disturbances such as 'foot falls'. Following 3-stage dust cover buff, it still has clouding, but looks acceptable. Structurally sound with no cracks, splits or chips. Platter has original LP mat, which is still flexible, supple and crack free. Will include an ‘e’ copy / pdf download of the Kenwood KD-5066 Owners / users manual and Service manual if desired. Measures 18 7/ 8" wide (check your width if installing in a rack, as this is wider than most tables) x 14 3/4" deep x 6 9/16 " high and weighs heavy at 23+ lbs (again, 4 lbs of which is the platter / mat) unpacked. Even includes the 'very cool and rare' Kenwood 45 adaptor puck! Includes our standard 30 day warranty.
Cond. 8.5
RESTORED / REFURBISHED KENWOOD KD-5066 STEREO TURNTABLE

(C) R.R.
SOLD 5/18/15
SHIPPED TO TEXAS



W/ DUST COVER
&
w/ Audio-Technica, Elliptical Diamond stylus cartridge installed










NEW LISTING 11/29/11

(Click on above thumbnails to enlarge photos)

VINTAGE STEREO TURNTABLE
KENWOOD
'CONCRETE BASE'
KENWOOD KD-5070
STEREO TURNTABLE
DIRECT DRIVE
MANUAL OR FULLY AUTOMATIC
 RESTORED / REFURBISHED
#...0493
Made in Japan
Circa 1978-80

SOLD 2/23/12

We have just had the table completely gone through by our turntable technician, cleaning inside and out, lubricating mechanism, adjusting tone arm height, lead IN / OUT, 'auto start / return' mechanism and testing performance. Internal speed pots, cleaned & adjusted for centering. Then speed checked and verified for accuracy with our factory test strobe disc against built-in strobe monitor. External / 'user' adjustable platter speed potentiometers cleaned for smooth speed transition and 'glitch-free' adjustment. Gimbal bearing, counter weight and anti-skating all adjusted and verified for accuracy. Tone-arm height corrected. Stop mechanism adjusted and tested. All functions work great! Original dust cover just had fresh buff and while does still have light scuffs, looks presentable and is certainly 'functional'. No cracks or chips! Dust cover hinges are strong and hold cover in it's 'upright' position fine. Original rubber mat, still supple and flexible with no hardening.

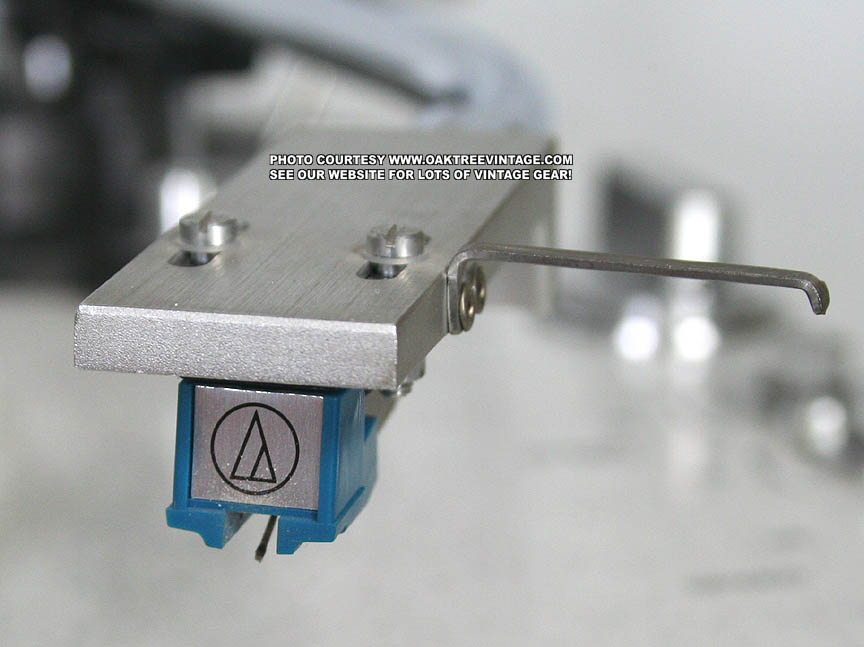

We also re-installed and optimized the existing Audio-Technica AT-11, Elliptically cut Diamond, magnetic cartridge and optimized the tone arm for it.  (If you prefer an up-grade you may also choose from our selection of new Audio Technica cartridges that we can also set up and ship with it for the additional cartridge cost.) You can readily connect this table to any receiver, Integrated amplifier with a standard magnetic phono input, or a Pre-amp. To connect to computer for burning CD's just order one of our inexpensive Phono Pre-Amps and cable kits. Again, this table looks and works great!

Commonly referred to as the Kenwood 'Concrete Base' or 'marble base' turntable (not really concrete or marble / cultured marble / faux marble , but that's what everyone has called it). It's actual 'technical term' is ...
.

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


First one we have in 15 years to sell (the other one that came in went to ME! and is my main turntable in my office). The Kenwood KD-5070 is one of the most famous and 'sought after' of the "classic" 1970's Turntables.....


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


This was a 'one owner' unit and like all the gear we acquired from her, was in great condition. Other than the dust cover issues this unit looks near NEW. Yes, it's expensive, but if I didn't already have one myself, it wouldn't even have hit the page. These are getting 'rarer' all the time due sadly, to amateurs inadequately packing them, only to have them DESTROYED during shipment. Sorry, but it's a 'soap box' I have to get on.
KENWOOD KD-5070 Features:


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

......Again, this table has been completely gone through by our turntable tech, looks and works great and is ready to go! .... Includes our standard 30 day limited warranty.
KENWOOD KD-5070 STEREO TURNTABLE

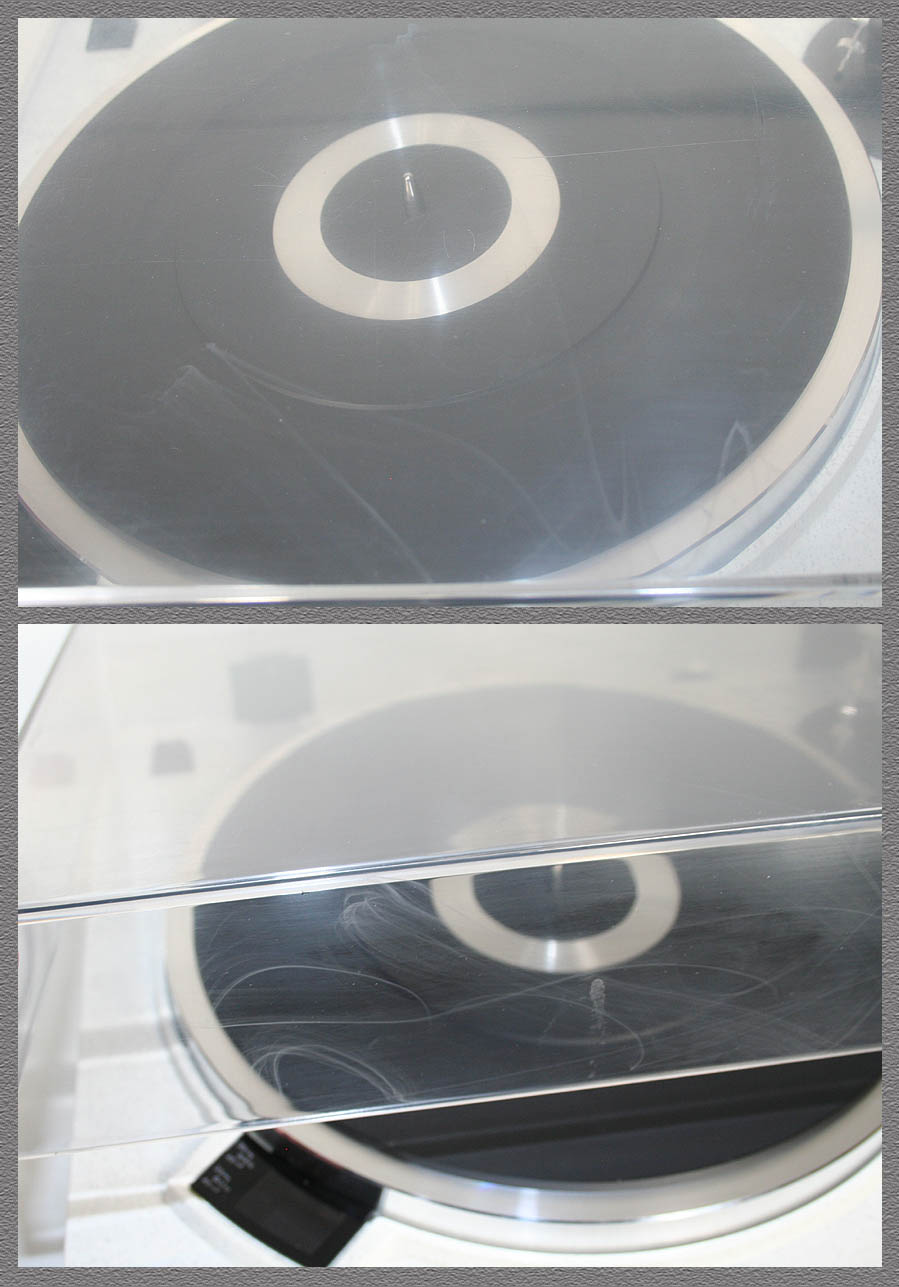

Cond. 8.5 (only due to dust cover scuffing)
SOLD 2/23/12


W/ CARTRIDGE and DUST COVER









         NEW ADDITION 10/19/17
(Click on above thumbnails to enlarge photos)
RESTORED / REFURBISHED / FULLY SERVICED
VINTAGE
KENWOOD STEREO TURNTABLE

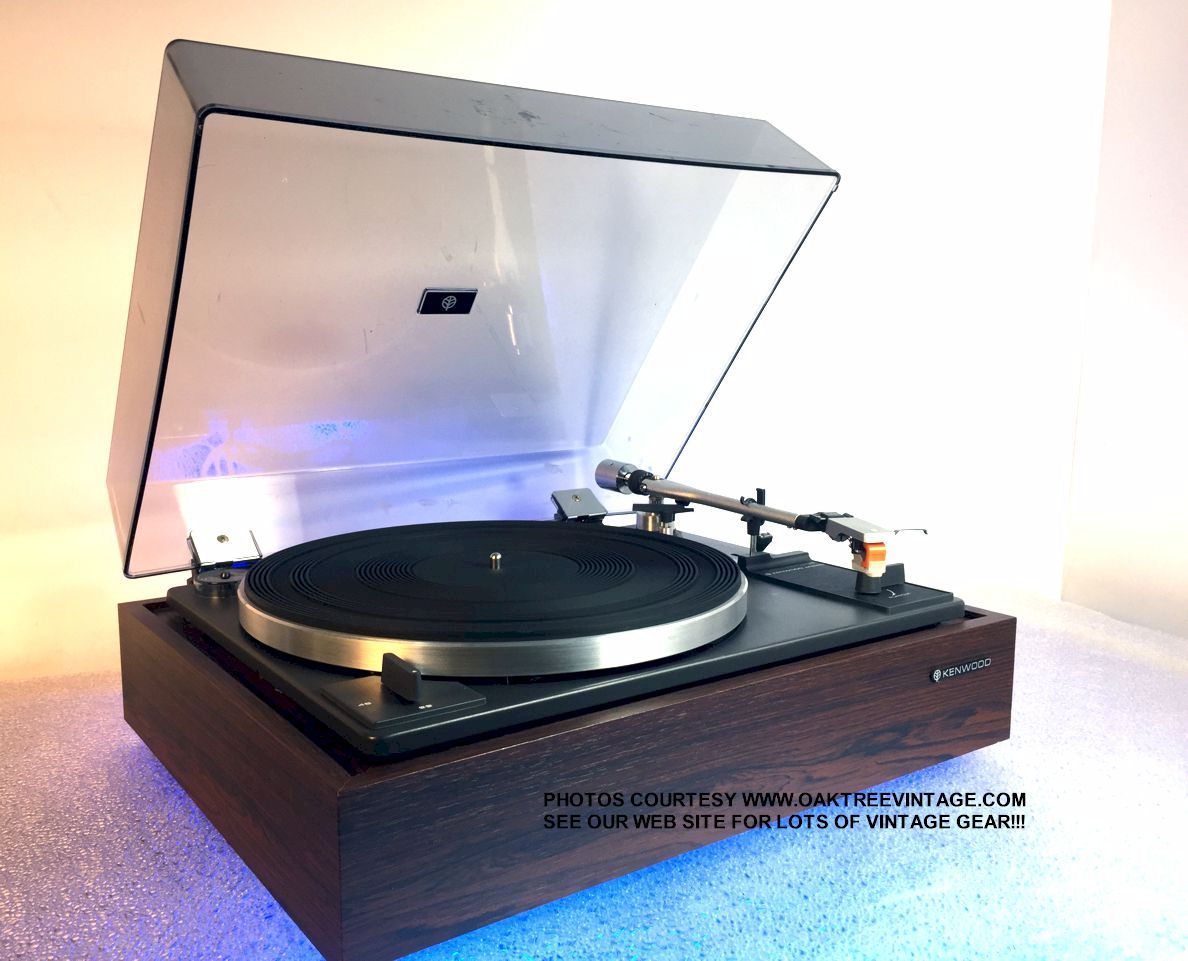

KENWOOD KP-2022A
#...0330
SEMI-AUTOMATIC
BELT DRIVE TURNTABLE
 Circa 1974-76
Made in Japan

SOLD 12/21/17
SHIPPING TO CALIFORNIA


ü  Our technician has completely gone through and 'Certified' this unit cleaning inside and out, cleaning out ‘gelled’ lubes (a ‘MUST DO’ on all pre-owned / vintage turntables) and re-lubricating mechanism.  Motor internal oil points lubed. Anti-Skating adjustment cleaned of old lubes and re-lubed. New belt installed for trouble-free service. Speed checked and verified for accuracy with factory test strobe disc to 99.95% accuracy. Gimbal bearing, counter weight and anti-skating all adjusted and verified for accuracy. Stop mechanism adjusted and tested. All functions work great! Both Hinges function fine and hold cover in upright position. Included rubber mat supple w/ no cracks, splits or warping. While the original dust cover does have a some scuffs / scratches / battle-scars, it is 'crack / split free' even at the hinges. We did give it a buff and it looks acceptable (see photos above). Dust cover hinges do hold the cover in it's upright position.
We also re-installed the Diamond stylus, magnetic cartridge and optimized the tone arm for it. (If you prefer an up-grade you may also choose from our selection of new Audio Technica cartridges that we can also set up and ship with it for the additional cartridge cost.) You can readily connect this table to any receiver, Integrated amplifier with a standard magnetic phono input, or a Pre-amp. To connect to computer for burning CD's just order one of our inexpensive Phono Pre-Amps and cable kits. Again, this table looks and works great!!


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


Again, this table has been completely gone through. Table looks, works and sounds great! Heavy table delivers high quality performance. Great "all around" table for utility use, and ready to spin your vinyl through those vintage speakers you own. Will ship with a pair of 'High-Quality', RCA interlink cables. Measures 17.5" wide x 13.35" deep x 6.75" tall and weighs 15 lbs unpacked. Comes with our standard 30 day limited warranty.
KENWOOD KP-2022A SEMI-AUTO TURNTABLE
 Cond. 8.0 (due to dustcover scuffs)
W/ DUST COVER

(C) R.R.
SOLD 12/21/17
SHIPPING TO CALIFORNIA


  w/ Diamond stylus cartridge installed

To connect to computer for burning CD's or to a modern A/V receiver that does not have phono inputs, just order one of our inexpensive $42.99 Phono Pre-Amps and cable kits.

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)





KENWOOD P-7G
STEREO TURNTABLE

SOLD 3/4/06






NEW LISTING 7/3/06

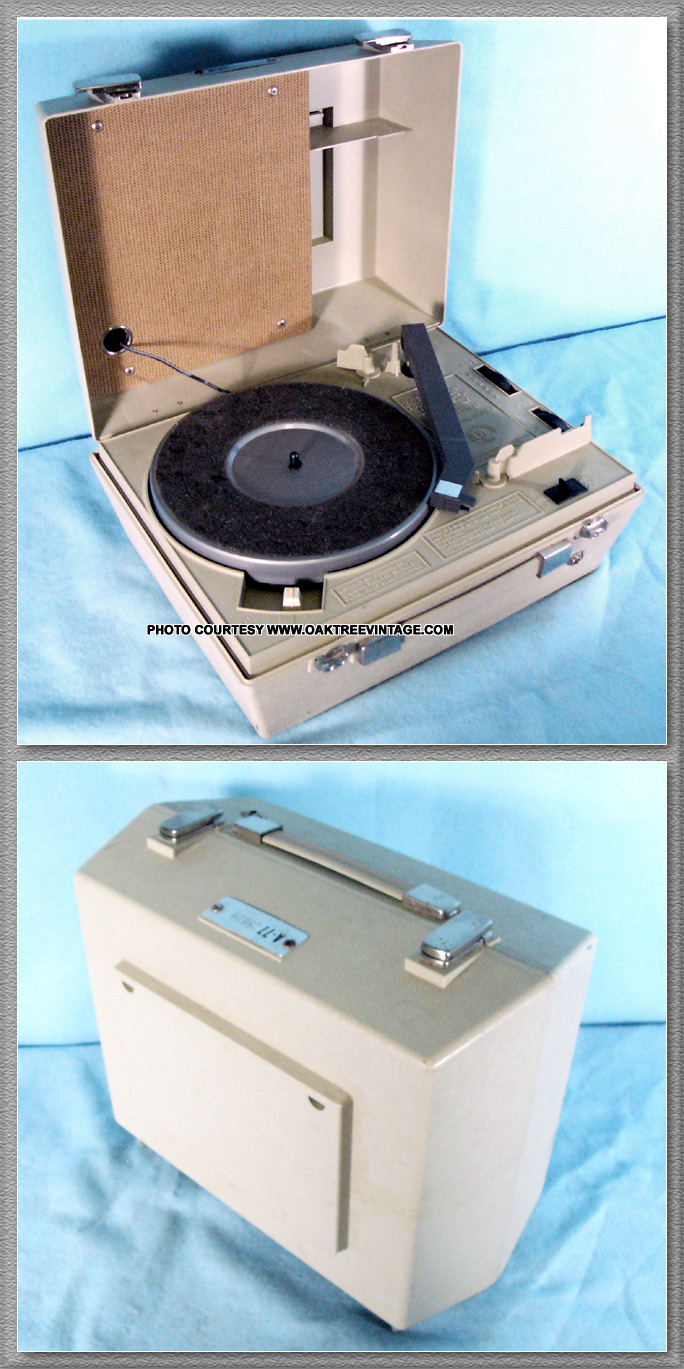

INTERSTATE INDUSTRIES INC.
"LIBRARY OF CONGRESS"

RECORD PLAYER

SOLD 8/24/06


- -

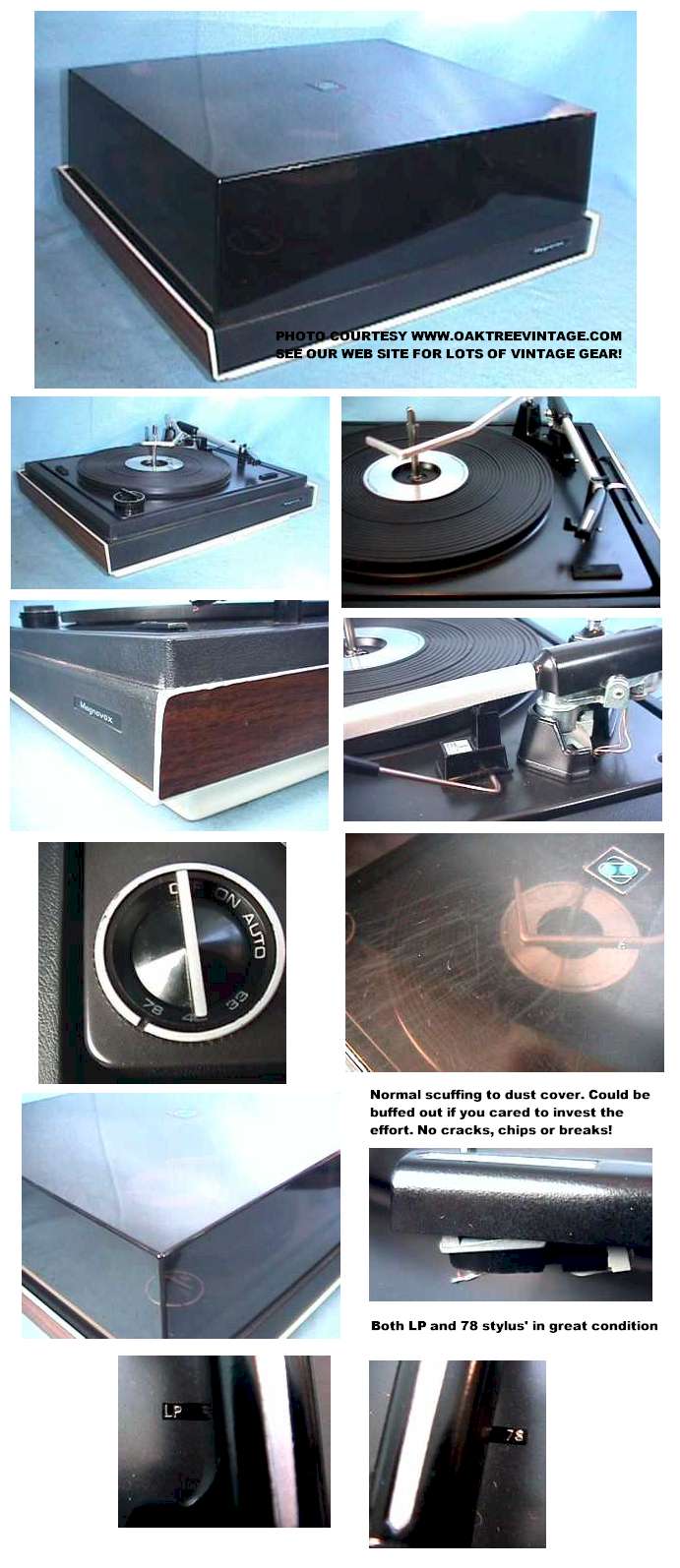

Magnavox_LF1203_Stereo_Phonograph_Turntable_web.jpg (20824 bytes)   Magnavox_LF1203_Stereo_Phonograph_turntable_collage.jpg (116012 bytes)

MAGNAVOX STACKER / CHANGER RECORD PLAYER
LF1203
SOLD



- -




NEW LISTING 11/17/05

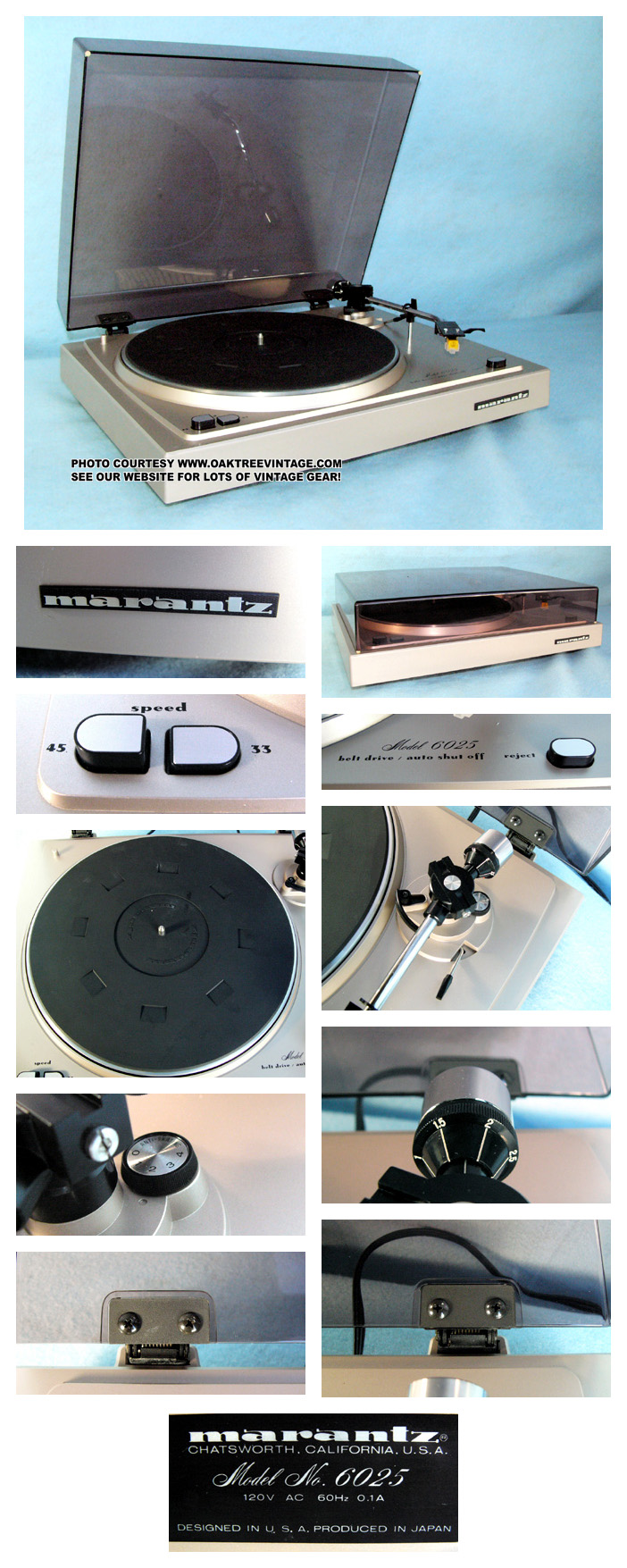

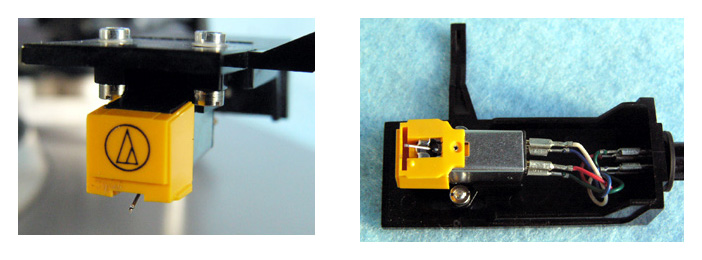

REFURBISHED / RESTORED MARANTZ STEREO TURNTABLE
MARANTZ 6025

SOLD 1/25/06

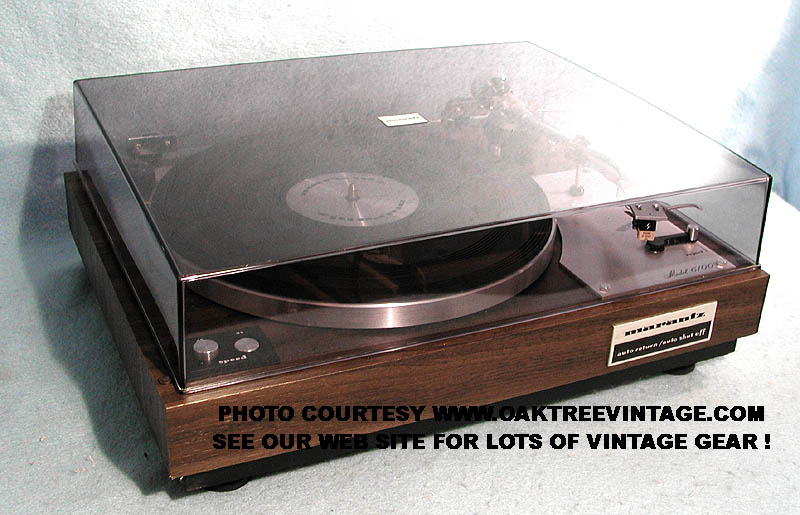

Marantz_6100_Stereo_Turntable_web.jpg (81270 bytes)    Marantz_6100_Stereo_Turntable_collage.JPG (233717 bytes)

REFURBISHED / RESTORED MARANTZ STEREO TURNTABLE
MARANTZ 6100

SOLD 10/11/03








NEW LISTING 12/9/2022

(Click on above thumbnails to enlarge photos)

RESTORED / REFURBISHED / FULLY SERVICED
VINTAGE MARANTZ STEREO TURNTABLE

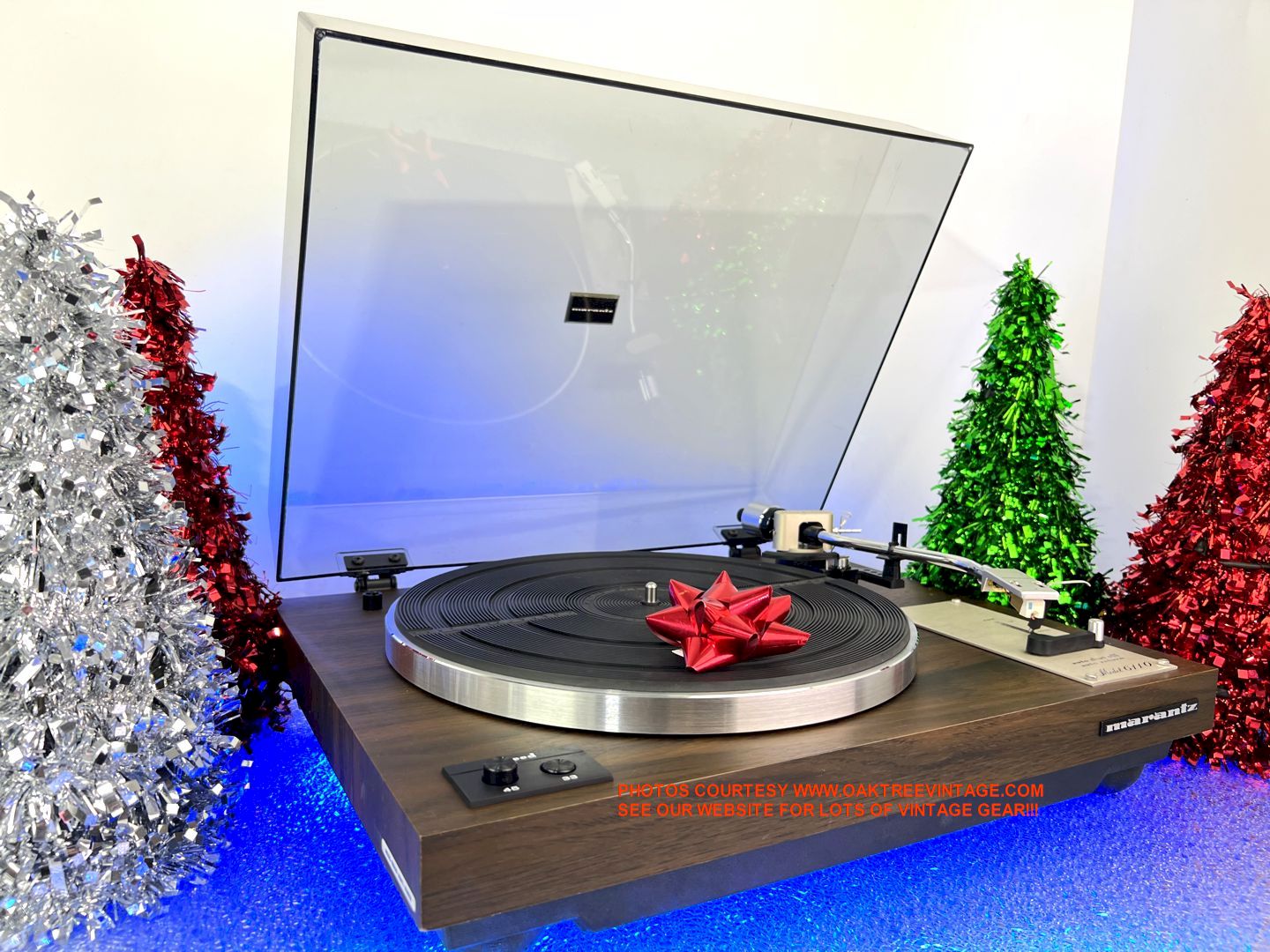

MARANTZ 6110 (aka 6050)
BELT DRIVE
SEMI-AUTOMATIC
TURNTABLE
Circa 1978-1980

 #...0579
Made in Japan







NEW LISTING 11/23/11
(Click on above thumbnails to enlarge photos)

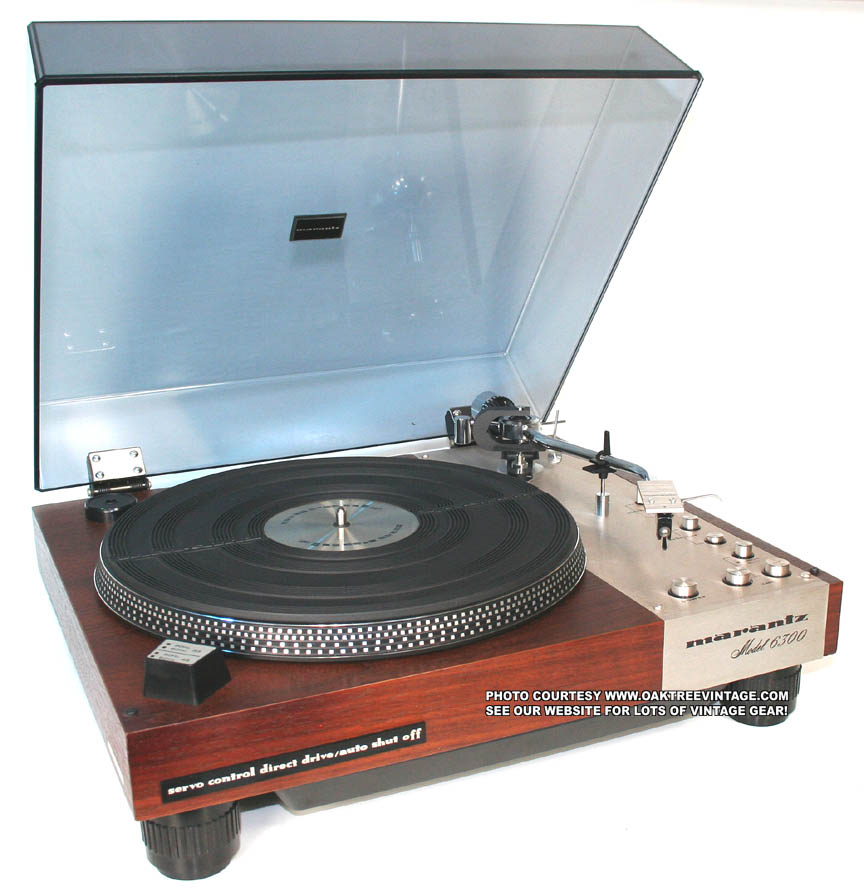

VINTAGE STEREO TURNTABLE
MARANTZ
MODEL 6300
STEREO TURNTABLE
DIRECT DRIVE
3/4 MANUAL / AUTOMATIC 'LIFT'
 RESTORED / REFURBISHED
#...46J4
Made in Japan
Circa 1976-78

SOLD 1/4/12
We have just had the table completely gone through by our turntable technician, cleaning inside and out, cleaning and re-lubricating mechanism, adjusting tone arm height, lead OUT and 'auto return' mechanism and testing performance. Internal speed pots, adjusted for centering and speed checked and verified for accuracy with our factory test strobe disc against built-in strobe monitor. External / 'user' adjustable platter speed potentiometers cleaned for smooth speed transition and 'glitch-free' adjustment. Gimbal bearing, counter weight and anti-skating all adjusted and verified for accuracy. Stop mechanism adjusted and tested. All functions work great! Original dust cover just had fresh buff and looks NEAR new. Dust cover hinges are strong and hold cover in it's 'upright' position fine. Original rubber mat, still supple and flexible with no hardening.

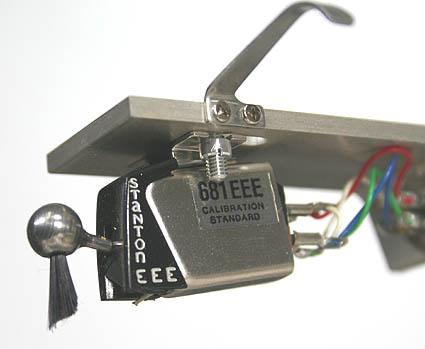

We also re-installed and adjusted the existing, Stanton 681EEE, elliptically cut Diamond, magnetic cartridge and optimized the tone arm for it. (If you prefer an up-grade you may also choose from our selection of new Audio Technica cartridges that we can also set up and ship with it for the additional cartridge cost.) You can readily connect this table to any receiver, Integrated amplifier with a standard magnetic phono input, or a Pre-amp. To connect to computer for burning CD's just order one of our inexpensive Phono Pre-Amps and cable kits. Again, this table looks and works great!

......

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

This unit is in impeccable condition to boot. Following the above restoration, it functions correctly and looks NEAR NEW! Very handsome cosmetics.
MARANTZ 6300 Features:


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


MARANTZ 6300 TURNTABLE TABLE SPECIFICATIONS:

Motor and Turntable Drive System:
.....
Platter:
.....
Speeds:
33 1/3 and 45 rpm
Speed Control Range:
.....
Wow and Flutter (WRMS):
.....


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Rumble :
.....
Tonearm Type:
.....
Effective Arm Length;
.....
Overhang;
.....
Tracking Error:
.....


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Tracking Force Range :
.....
Useable Gross Cartridge Weight range:
.....


....


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Again, this table has been completely gone through by our turntable tech, looks and works great and is ready to go!..... Includes our standard 30 day limited warranty.
MARANTZ 6300 TURNTABLE STEREO TURNTABLE
Cond. 9+
 (C)
R.R.

SOLD 1/4/12
W/ STANTON 681EEE CARTRIDGE INSTALLED







Marantz_TT-1060_Gold_Stereo_Turntable_web.jpg (25296 bytes)  Marantz_TT-1060_Gold_Stereo_Turntable_collage.jpg (121308 bytes)

REFURBISHED / RESTORED MARANTZ
STEREO TURNTABLE

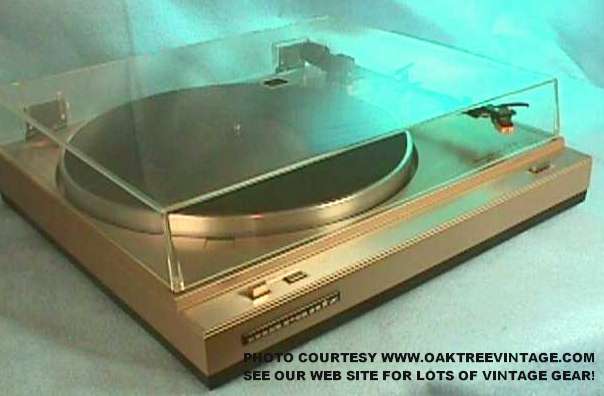

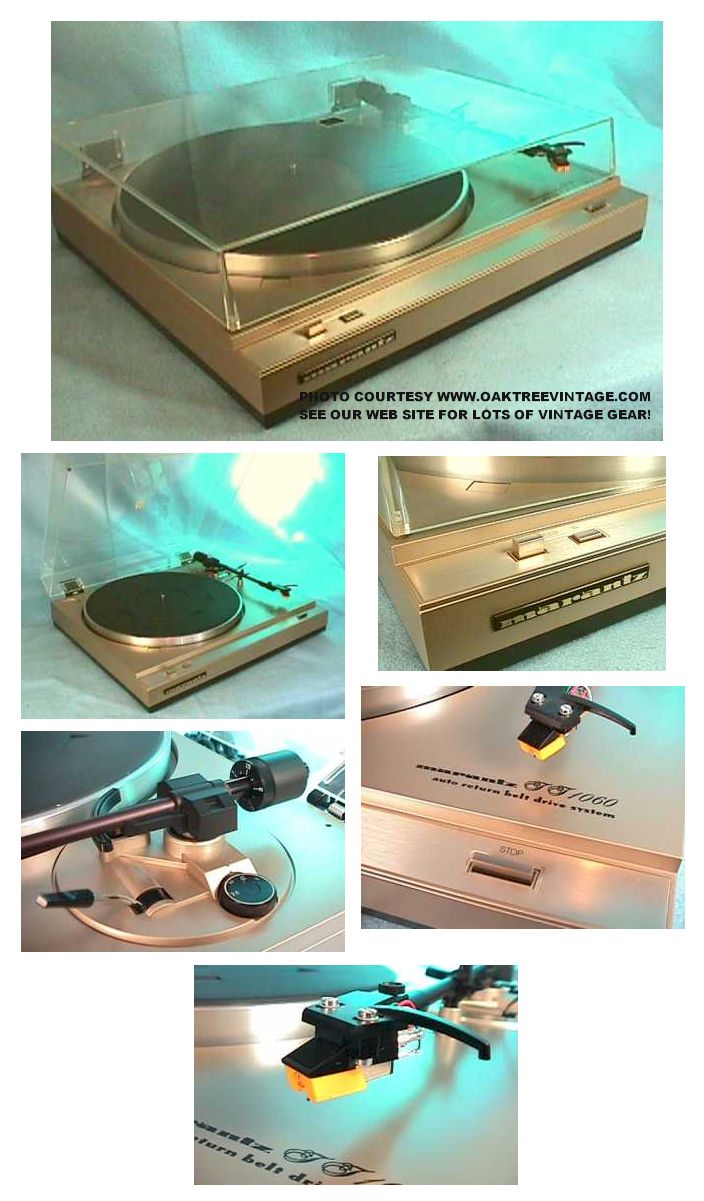

MARANTZ TT-1060
"GOLD"
SOLD 8/4/04


-




MARANTZ STEREO TURNTABLE

MARANTZ TT-1080
TURNTABLE

SOLD 10/20/06

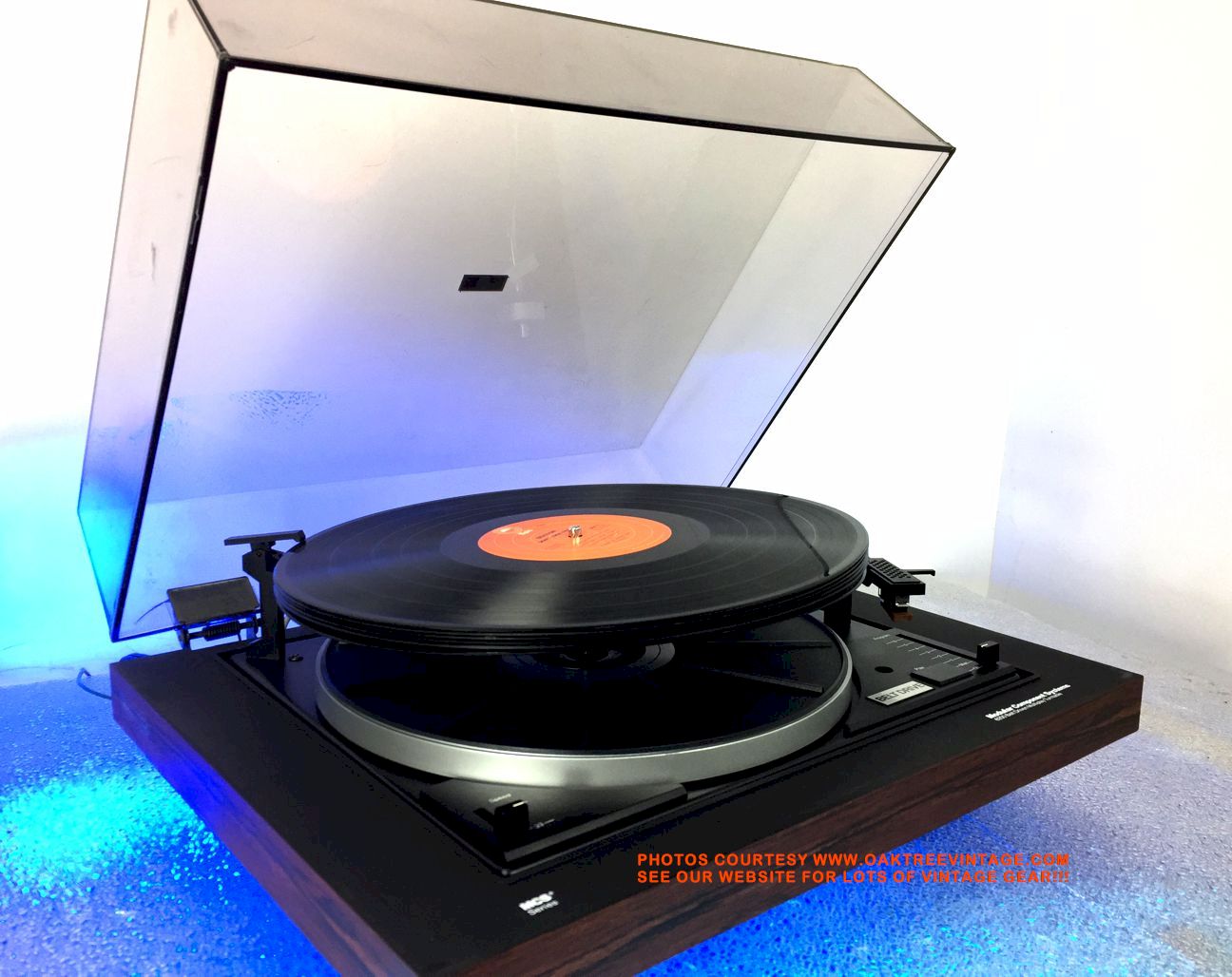

        NEW LISTING 11/6/19

(Click on above thumbnails to enlarge photos)
FULLY SERVICED / REFURBISHED
MCS
6200 STACKING / CHANGER TURNTABLE

 #...8851
 FULLY AUTOMATIC,  BELT DRIVE
 STACKER / CHANGER

W/ SHURE M74 CARTRIDGE!!!
Circa late 1970's early 80's
Made in
U.S.A.

SOLD 7/20/2020
SHIPPING TO RONALD IN NORTH CAROLINA

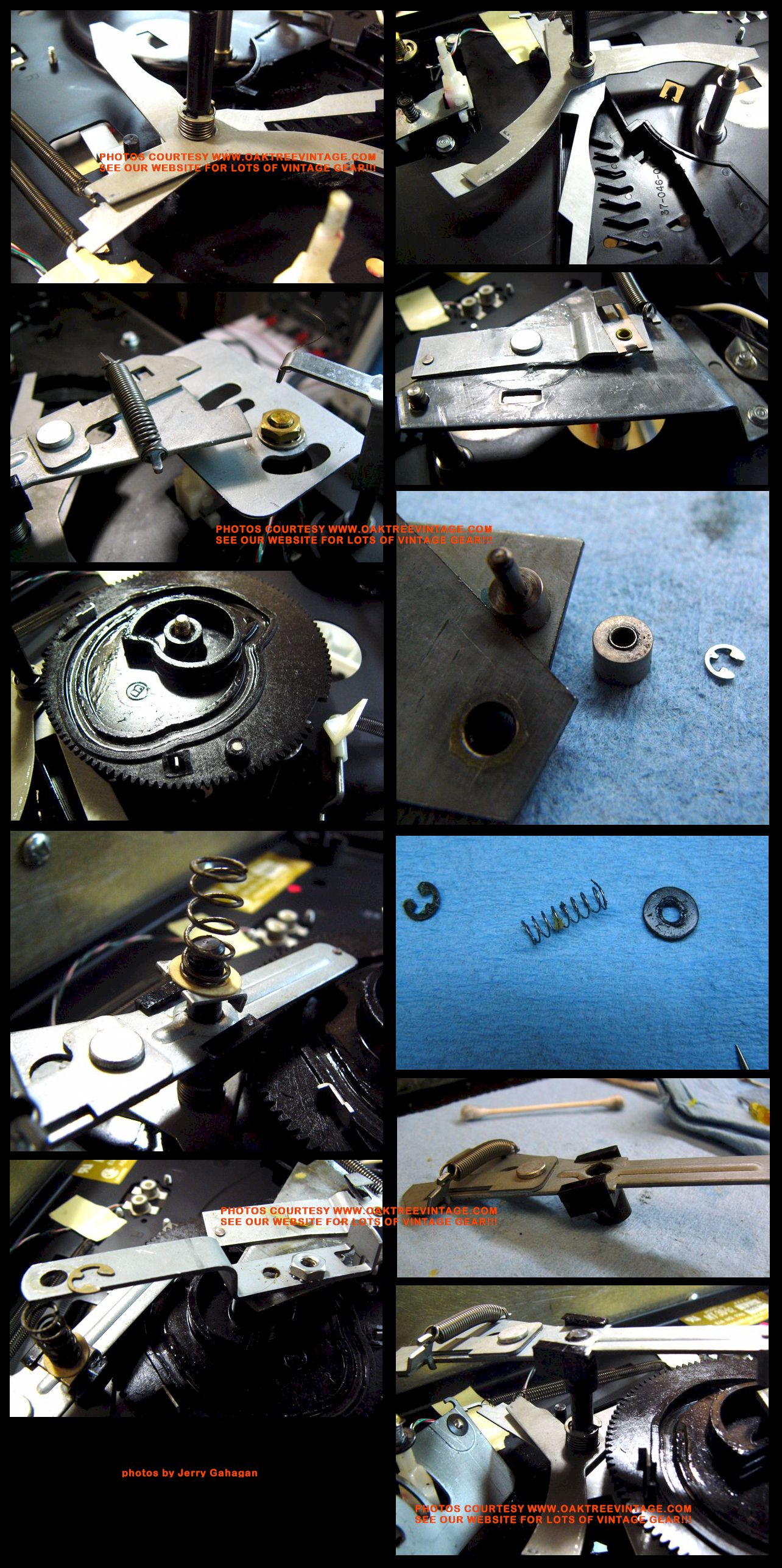

ü Our technician has completely gone through and 'Certified' this unit, cleaning inside and out, lubricating mechanism, adjusting tone arm lead out and testing performance.

ü  Entire automatic mechanism was disassembled, de-greased, cleaned and re-lubed, including; the 'Actuating Slide and Pawl', and both plates



ü
Drive motor disassembled, cleaned and re-lubed (no easy task).

ü  Platter spindle disassembled, cleaned of old lube and re-lubed.

ü  User accessible speed controls cleaned

ü  Gimbal bearing, counter weight and anti-skating all adjusted and verified for accuracy.

ü  Tone arm bearing perfectly smooth in operation.

ü New main drive belt installed for trouble-free service.

ü Speed checked and verified for accuracy with technician's factory test strobe disc.

ü Original dust cover cleaned, but still shows original wear. We decided not to do our typical, 3-stage buff as the additional time resources would have increased the price more than warranted. It doesn't look too bad, and is typical of what you would expect on a used turntable. Structurally it's in good and serviceable condition. No chips or serious cracks (one small near a hinge). Hinges function fine.



ü
Shure M74CS Magnetic cartridge installed

We installed a Shure, M74CS, Diamond stylus, magnetic cartridge and optimized the tone arm for it.
You can readily connect this table to any receiver, Integrated amplifier with a standard magnetic phono input, or a Pre-amp. To connect to computer for burning CD's just order one of our inexpensive Phono Pre-Amps and cable kits.
This table looks good and works well!  Most changers are designed to stack from 3-6 records. Their success rate is often dependant on the quality of the center hole in the record. If all the records in a stack have a 'conforming' cut to their hole, they will usually stack fine. If one is 'rounded' too much, or much 'smaller' or 'larger' than typical in diameter, then they can cause issues. Occasionally you'll have a record 'hang up' or 'double drop', but that's almost always due to errantly drilled / punched, elliptical or center holes that are 'too tight' in one of the records. While most stackers are designed to stack from 3 up to maybe 6 records, we were able to stack and play thru 6 LP's a number of times.




 Again, our turntable tech has completely and EXTENSIVELY gone through this MCS 6200 turntable as stated above and 'certified' it's ready to go! Features belt drive for quiet operation and a classic "S" shaped tone arm with standard 1/2" mount head shell. Also features adjustable tracking and anti-skating force and Tone-Arm cuing lift control. Entire table functions well following the above mentioned, complete tear-down and re-build / refurb. ALL functions work great! Only issue's worth mentioning is that when the turntable is 'turned OFF' (at end of playing all the records) the output from the cartridge becomes 'un-muted' and will allow some 60Hz buzz (again, this is when the turntable is 'turned off'. Not when actually playing other than normal floor level hum). Also, if you aggressively lift off the record(s), the spindle may come out (it simply plugs into the center hole with a slight lock / click). Additionally, the plastic 'flip up' tone arm lock is missing, so if you move the turntable, you should 'twist tie' the arm in place prior to moving it.
Comes with a Shure M74, Magnetic cartridge that has been installed and optimized for the tone-arm.
 Ready to use! Includes our 30 day limited warranty. Measures 17.5" wide x 14.5" deep x 7.75" tall and weighs 13 lbs unpacked.
MCS 6200 STACKING / CHANGER / FULLY AUTOMATIC TURNTABLE

   Cond. 8.5

SOLD 7/20/2020
SHIPPING TO RONALD IN NORTH CAROLINA

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)











MCS STEREO TURNTABLE

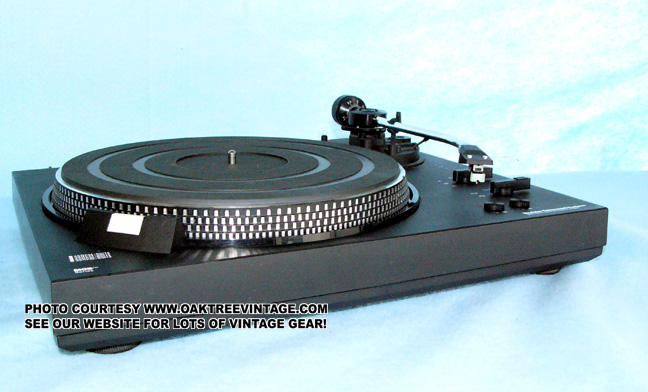

MCS 683-6601

SOLD 12/5/05



NEW LISTING 7
/11/06

MCS STEREO TURNTABLE
MCS -6500
SOLD 7/31/06

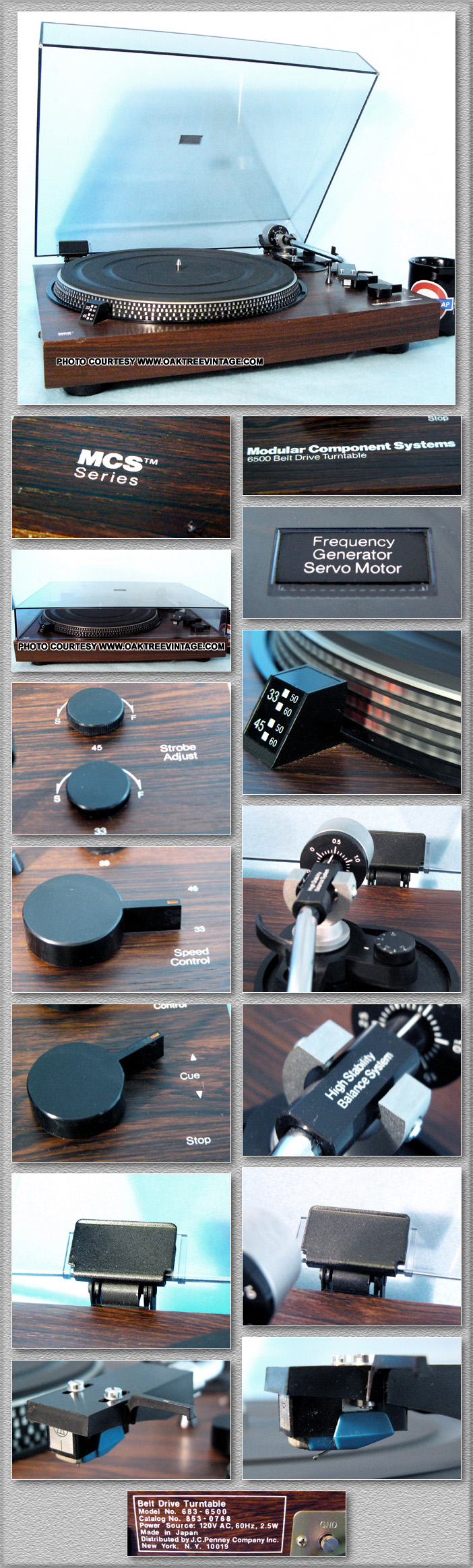

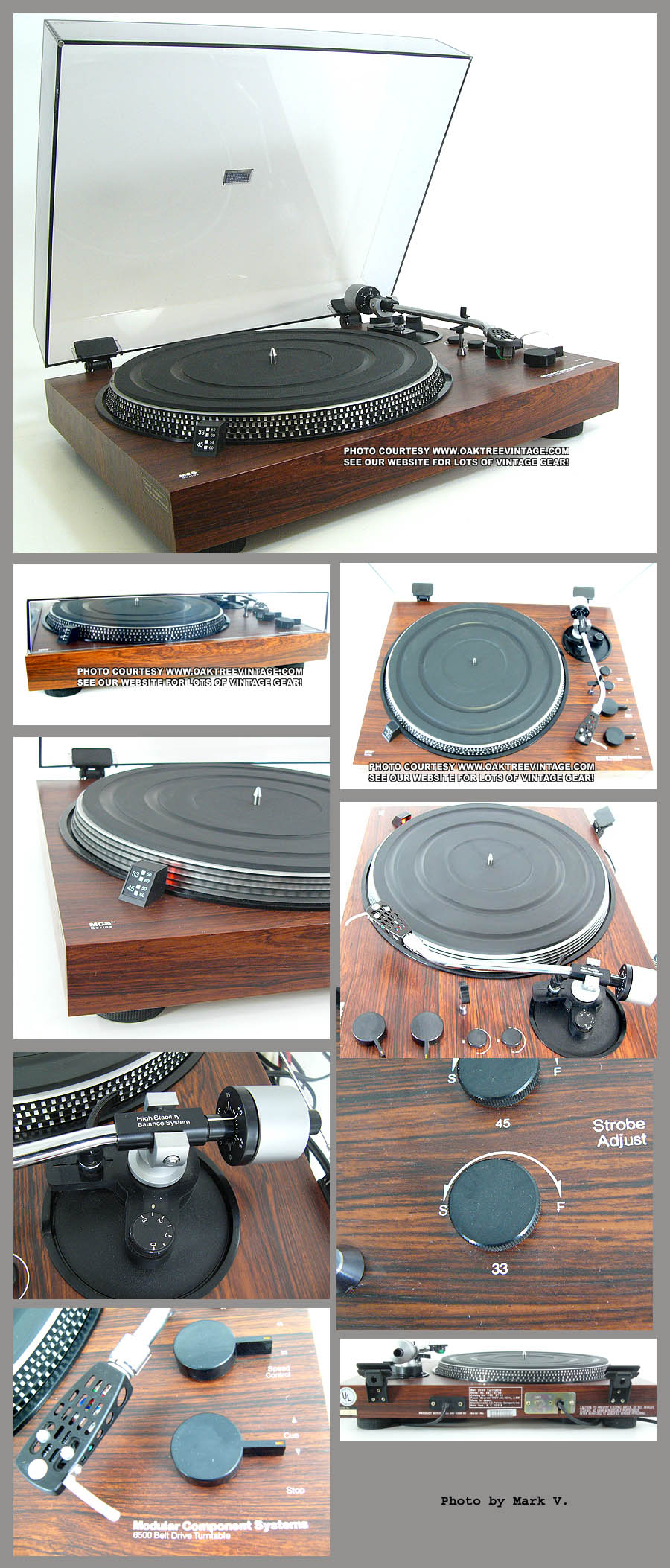

NEW LISTING 1/9/14
 (Click on above thumbnails to enlarge photos)
RESTORED / REFURBISHED

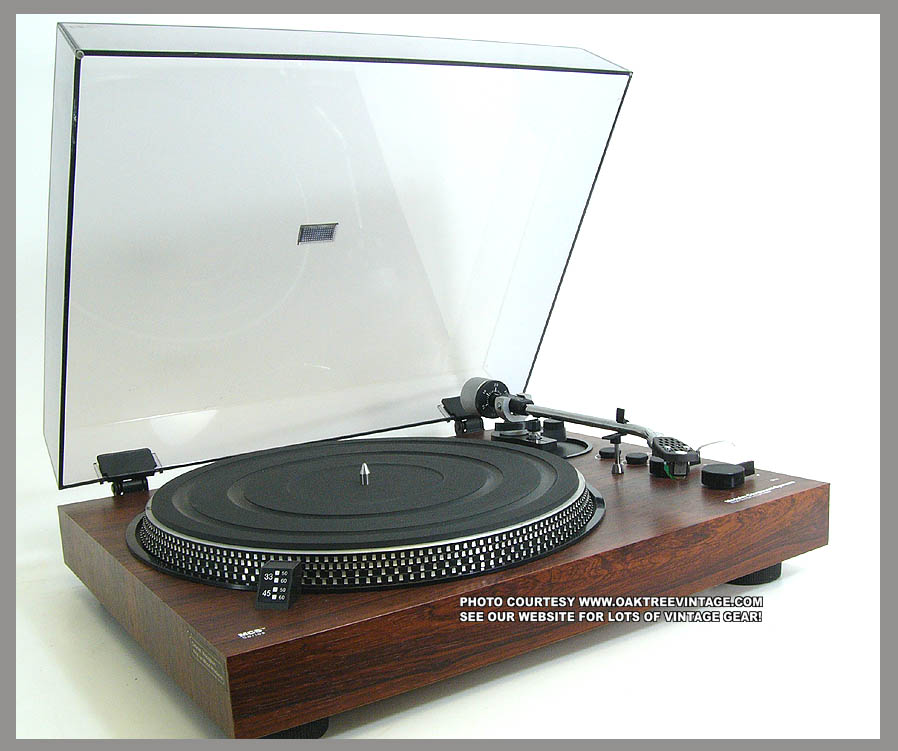

MCS / TECHNICS
6500 STEREO TURNTABLE
MODEL 683-6500

 #...5006

 SEMI-AUTOMATIC / BELT DRIVE
W/ NEW AUDIO-TECHNICA AT-95E CARTRIDGE!!!


Circa late 1970's early 80's

 Made in Japan
for sale
SOLD 1-13-14
SHIPPED TO ARIZONA



ü  Our technician has completely gone through and 'Certified' this unit, cleaning inside and out, lubricating mechanism, adjusting tone arm lead out and testing performance.

ü  Drive motor disassembled, cleaned and re-lubed (no easy task).

ü  Platter spindle disassembled, cleaned of old lube and re-lubed.

ü  User accessible speed controls cleaned

ü  Internal 'centering' speed controls cleaned and center point adjusted.

ü  Gimbal bearing, counter weight and anti-skating all adjusted and verified for accuracy.

ü  Tone arm bearing perfectly smooth in operation.

ü  New main drive belt installed for years of trouble-free service.

ü  Speed checked and verified for accuracy with technician's factory test strobe disc against built-in strobe.

ü  Original rubber mat, still supple and flexible with no hardening.

ü  Original dust cover just had a fresh, 3-stage buff and looks great!

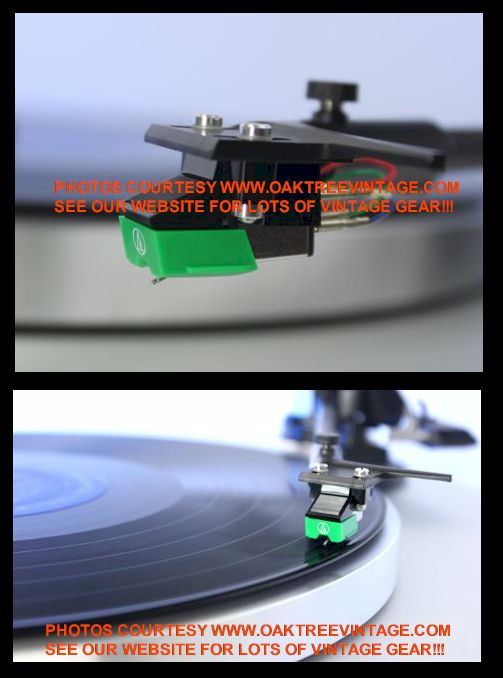

ü  NEW Audio-Technica AT-95E Cartridge installed

We installed a NEW, Elliptically cut, Diamond stylus, magnetic cartridge (Audio-Technica AT-95E 'Green') and optimized the tone arm for it (If you prefer an up-grade you may also choose from our selection of new Audio Technica cartridges that we can also set up and ship with it for the additional cartridge cost.)
You can readily connect this table to any receiver, Integrated amplifier with a standard magnetic phono input, or a Pre-amp. To connect to computer for burning CD's just order one of our inexpensive Phono Pre-Amps and cable kits.


ü Unit tested with our myriad of test records, one of which included: Shures' 'Cartridge Obstacle Course' record

With the exception of a 1.5", split at the rear, which has been 'plasti-welded' there are no serious issue and no splits, chips or serious scratches.
This table looks and works great!


 W/ NEW AT-95E Cartridge & Dust Cover
SOLD 1-13-14
SHIPPED TO ARIZONA



To connect to computer for burning CD's or to a modern A/V receiver that does not have phono inputs, just order one of our inexpensive $29.99 Phono Pre-Amps and cable kits.

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)







NEW LISTING
3/25/09
(Click on above thumbnails to enlarge photos)
warranty
MCS / TECHNICS
STEREO TURNTABLE

MCS 6502
#...A011
 SEMI-AUTOMATIC

 BELT DRIVE
 Circa late 1970's early 80's
 Made in Japan

SOLD 5/7/08

w/ NEW
CN5625AL Diamond stylus cartridge installed

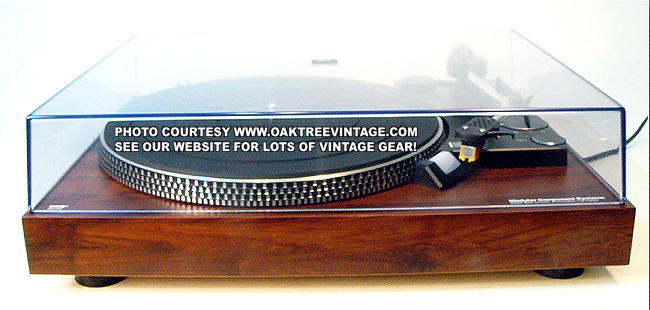

NEW LISTING 5/08/10
(Click on above thumbnails to enlarge photos)
warranty
MCS / TECHNICS
STEREO TURNTABLE

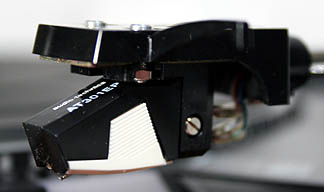

MCS 683- 6502
#...B123
 SEMI-AUTOMATIC

 BELT DRIVE
 Circa late 1970's early 80's
 Made in Japan

SOLD 5/15/10

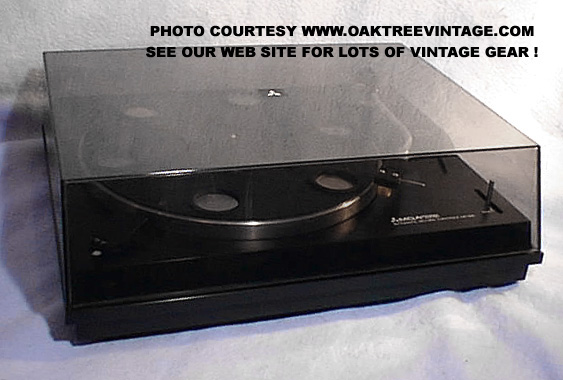

Mitsubishi_MGA_DP-200_Stereo_Turntable_web.JPG (76461 bytes)    Mitsubishi_MGA_DP-200_Stereo_Turntable_collage.JPG (154633 bytes)

RESTORED MITSUBISHI STEREO TURNTABLE
MITSUBISHI MGA DP-200
SOLD 4/15/04

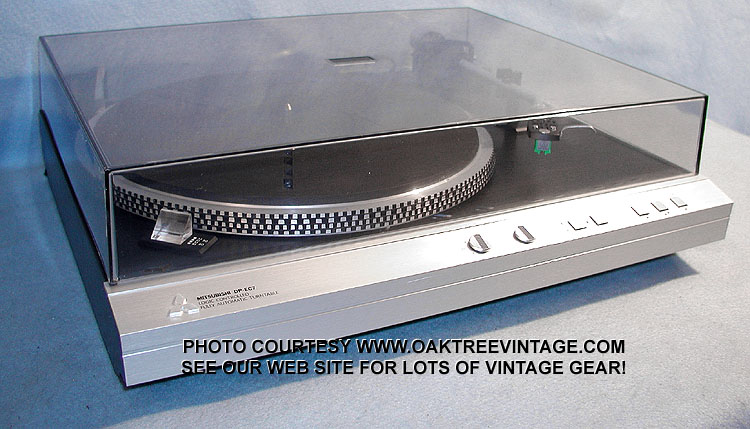

MITSUBISHI
DP-EC7 / DPEC7
STEREO TURNTABLE

SOLD 10/25/06



-


NEW LISTING 3/15/06
NEWCOMB SCHOOL TYPE / SUITCASE RECORD PLAYER / PHONOGRAPH
NEWCOMB EDT12-C

SOLD
3/15/06



       NEW ADDITION 4/5/12


(Click on above thumbnails to enlarge photos)

 warranty

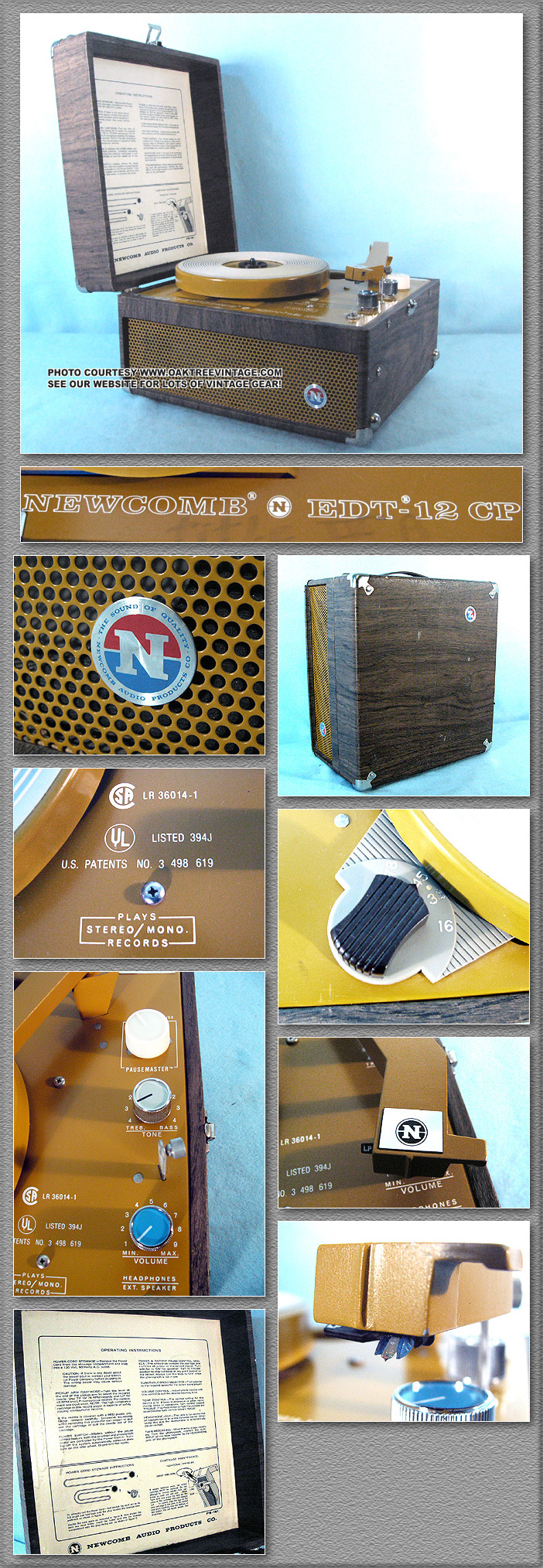

NEWCOMB SELF-CONTAINED
 SCHOOL TYPE TURNTABLE / SUITCASE STYLE PHONOGRAPH
EDT12-C
 PLAYS 33, 45 78 & 16 RPM ALSO!
 MADE IN THE USA

SOLD 10/15/12
 Refurbished Newcomb "School style" record player / phonograph. Plays 16, 33, 45 & 78 RPM records. We have completely gone through it cleaning inside and out, disassembled & lubricated mechanisms, resurfaced & reconditioned / repaired / refurbished idler wheel. Motor re-lubed and test played. Both rotary controls, volume and tone, were cleaned for static / noise free operation. All functions work great! Turntable holds speed well at an overall +1% (tested with our factory strobe disc). Both 78 and LP stylus's are in good condition. Original Ceramic cartridge still intact.  ....
 Includes our standard 30 day limited warranty. Measures 15" wide x 13" deep x 9.5" tall and weighs 18 lbs unpacked.
 NEWCOMB SUIT CASE STYLE PHONOGRAPH EDT-12-CP
 Cond. 8.5

SOLD 10/15/12








-




       NEW LISTING 3/15/18
(Click on above thumbnails to enlarge photos)

COMPLETELY RESTORED / REFURBISHED
VINTAGE OPTONICA (SHARP) TURNTABLE

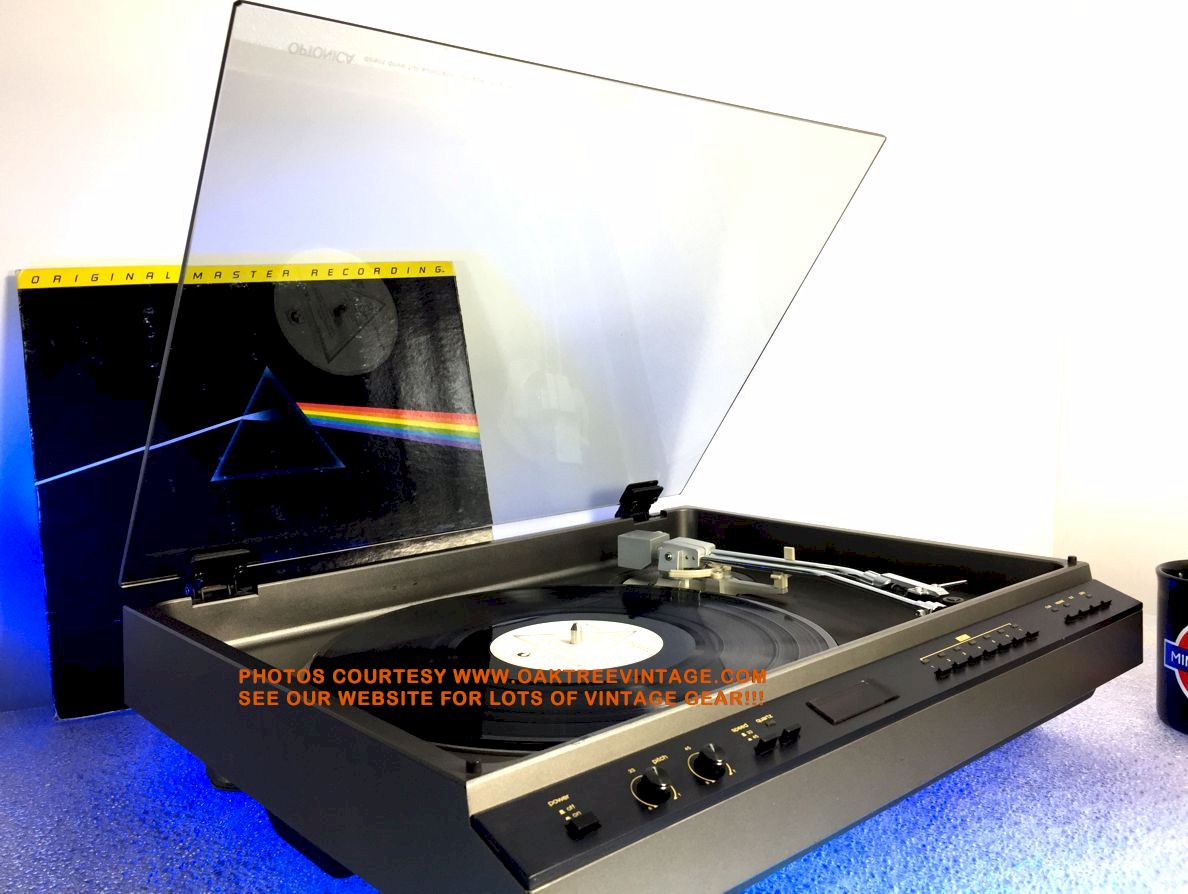

OPTONICA RP-7705
FULLY AUTOMATIC / DIRECT DRIVE / QUARTZ LOCKED
w/ A.L.P.D.
TURNTABLE

#...2773
Made in Japan
Circa 1979

SOLD 10/12/19
SHIPPING TO ALYSSA IN FLORIDA


ü Our technician has completely and EXTENSIVELY gone through and 'Certified' this unit which involves disassembly, cleaning inside and out, COMPLETELY DISASSEMBLING, cleaning and re-lubricating internal mechanisms and the balance of efforts listed below.

ü Disassembly of tone-arm ‘carriage mechanism’, cleaned and re-lubed



ü Tested / analyzed and passed for motor noise and 60Hz hum.

ü Tone-Arm ‘Motor Belt’ replaced

ü Transport / Program selectors (entire control panel) disassembled & cleaned.

ü Internal ‘Course Speed’ adjustment pots cleaned and centered

ü ‘User Speed’ adjustment pots cleaned

ü Overall, Tone-arm ‘lead-in / lead-out’ function adjusted correctly

ü Tone-arm cuing ‘stop bar’ adjusted for correct ‘up / down’ limits


ü Platter speed checked and verified for 100% accuracy with our factory test strobe disc following above restoration.

ü Platter tested for 'true flat' with no 'run-out'

ü Audio-TechnicaAT-4012XE’ cartridge inspected, reinstalled and tone arm adjustments optimized for it

ü Tone Arm weighting and ‘tracking’ adjusted for proper tracking with test tone record and O-Scope.

ü Output cables are High Quality, heavy shielded cables with GOLD plated RCA connectors

ü Original glass dustcover was missing, and has been replaced by dustcover from RP-4705. Hinges adjusted to hold it upright as well. (we also added pads to 'hinge to glass' clamps for future safety)

ü Cartridge / head shell ‘overhang’ adjusted using shop calibration scale (which also matched the one built-in to the turntable).


ü Mat replaced with 'Anti-Static' felt.

ü Unit tested with our myriad of test records, one of which included; Shures' 'Cartridge Obstacle Course' record

ü Unit test cycled through 30+ LP’s flawlessly

Total technician time to restore 8+ hrs.

 You can readily connect this table to any receiver, Integrated amplifier with a standard magnetic phono input, or a Pre-amp. To connect to computer for burning CD's just order one of our inexpensive Phono Pre-Amps and cable kits.


 Great performing & sounding Sharp RP-7705, Direct-Drive, Fully-Automatic, and Programmable turntable. Following the above restoration, it looks good, now functions correctly and performs well.




 Only a few minor cosmetic issues; 'finish wear' to front edge near left controls, 'finish blem' near cartridge alignment pin, glass top has been changed at some time to one with 4705 logo (see photos above). Only other issue with the table is that the tone-arm 'lock' is missing, meaning that if you move or ship the table, you would need to 'tie it down' with a wire tie or similar.
Again, our turntable tech has completely and EXTENSIVELY gone through this table (total tech time ~8+ hours), and following restoration was tested for speed accuracy, rumble, wow & flutter, noise isolation, tone-arm function at ‘end of record’. 'Programming Auto' functions work great! Simply press the cut you wish to hear, and the tone-arm move accurately to it. If you simply wish to hear the entire album side, then just press 'Start'!
Table looks good, sounds and works great!  Again, comes with an AT4012XE, Elliptically cut, diamond stylus, cartridge. Ready to play!!

Measures 18.75" wide x 15.75" deep x 5" tall and weighs a HEAVY 23 lbs unpacked
. Comes with our standard 30 day limited warranty.
 REFURBISHED OPTONICA RP-7705 STEREO TURNTABLE

Cond. 8.5

SOLD 10/12/19
SHIPPING TO ALYSSA IN FLORIDA




W/ DUST COVER &
 w/ AT4012 Elliptical Diamond stylus cartridge installed

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)















  NEW LISTING 7/24/08
(Click on above thumbnails to enlarge photos)

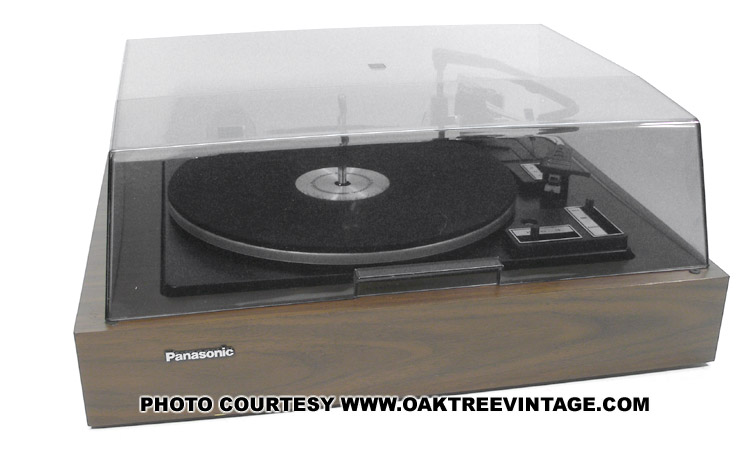

 PANASONIC / BSR

STEREO TURNTABLE


 PANASONIC / BSR3800
#6824


FULLY AUTOMATIC

CHANGER

TURNTABLE / PHONOGRAPH
W/ MAGNETIC CARTRIDGE


PLAYS 33, 45 & 78 RPM!

Circa
1970's

SOLD 10/2/09

 (C)
C.B.S.

SOLD 10/2/09















NEW LISTING 5/24/16
(Click on above thumbnails to enlarge photos)

COMPLETELY RESTORED / REFURBISHED
VINTAGE PHASE LINEAR TURNTABLE
PHASE LINEAR 8000-II (same as Pioneer PL-L1000)
TANGENTIAL TRACKING / LINEAR TRACKING
FULLY AUTOMATIC / DIRECT DRIVE
TURNTABLE


Made in Japan
Circa late 1979 thru 1980
SOLD 5/25/16
SHIPPED TO MISSOURI


This was a Phase Linear branded version of Pioneer's 'Flag Ship' turntable for this period. We have had 2 of these (the other was the Pioneer version), for over 6 years, waiting for the 'right technician' to challenge them. FINALLY, our current senior technician was up to the task, and restored this one beautifully and CORRECTLY!

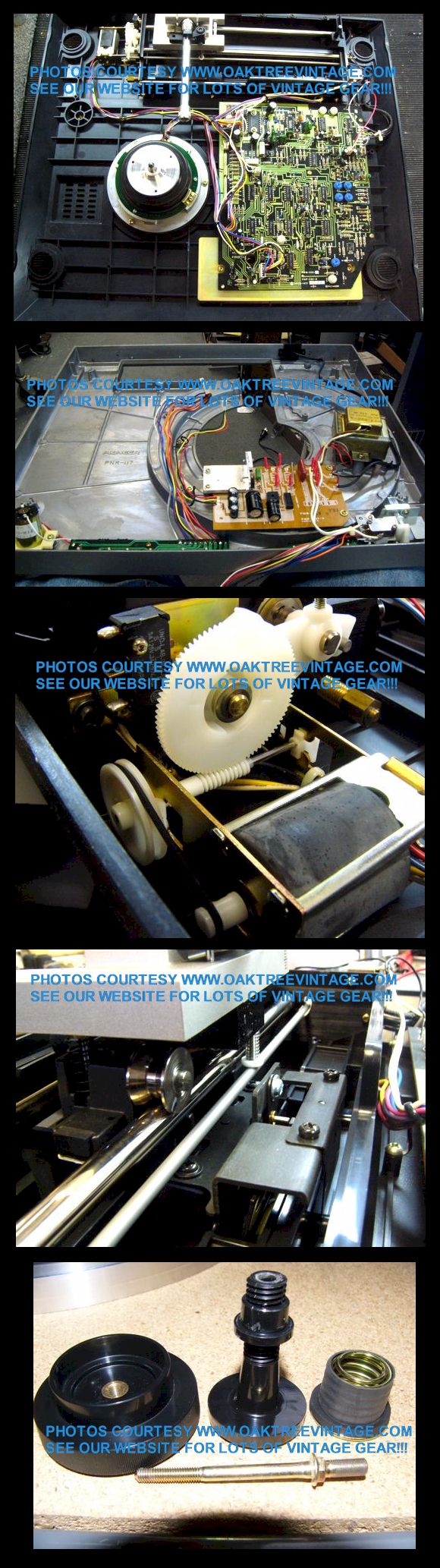

ü Our technician has completely and EXTENSIVELY gone through and 'Certified' this unit which involves disassembly (not an easy task on this table), cleaning inside and out, COMPLETELY DISASSEMBLING, cleaning and re-lubricating internal mechanisms and the balance of efforts listed below. Total technician time to restore 11 hrs (see above collage of bench shots).

ü Partial disassembly of 'Arm Lift Mechanism' , cleaned and re-lubed

ü Fresh, New and Correct 'Arm Mechanism' belt installed.

ü End of Play lift and return set with oscilloscope at test point 4 and adj internal VR9.

ü Arm transport shuttle control cleaned and re-lubed

ü Lateral arm motion rails and guide rollers cleaned and re-lubed

ü Arm lift motor re-lubed

ü Tone-arm Lead-In adjusted until perfect for mid point lead in

ü Tested / analyzed and passed for motor noise and 60Hz hum.

ü Rubber mat still supple and flexible with no hardening.

ü Disassembled and re-built feet / pods

ü Platter speed checked and verified for 100% accuracy with our factory test strobe disc following above restoration.

ü Platter replaced as the original had a 'few hundredths' of an inch of 'run-out, then tested for 'true flat' and no 'run-out'. Most folks probably wouldn't have noticed, but I did after playing for a while. So back to the shop for another original platter it went.

ü Original dustcover had a 3-Stage buff, and looks INCREDIBLE, essentially AS NEW. Hinges adjusted to hold it upright as well.

ü We also installed and adjusted a new, Audio Technica elliptically cut Diamond, magnetic cartridge and optimized the tone arm for it on the ORIGINAL PIONEER / PHASE LINEAR headshell. (If you prefer an up-grade you may also choose from our selection of new Audio Technica cartridges that we can also set up and ship with it for the additional cartridge cost.)
You can readily connect this table to any receiver, Integrated amplifier with a standard magnetic phono input, or a Pre-amp. To connect to computer for burning CD's just order one of our inexpensive Phono Pre-Amps and cable kits.

ü Cartridge / head shell ‘overhang’ adjusted using shop calibration scale.

ü Unit tested with our myriad of test records, one of which included; Shures' 'Cartridge Obstacle Course' record

ü Unit test cycled through 30+ LP’s flawlessly

Great performing, sounding and INCREDIBLE looking Pioneer PL-L1000
(read Phase Linear 8000-II), Linear Tracking, Direct-Drive, Fully-Automatic turntable. Following the above restoration, it looks fabulous, now functions correctly and performs well.

From the Vinyl Engine website page on this table, "The Pioneer PL-L1000
(read Phase Linear 8000-II) comes fitted with a...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

... stop hinges."

This table is a 'blast' to use. As the owner of Oak Tree Enterprises, I personally auditioned and did the final testing on this table. I had a few further 'fine tune / tweaks' done by the technician and probably played more than 30 albums on this.

Phase Linear 8000-II Turntable Features:


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?



Phase Linear 8000-II TURNTABLE SPECIFICATIONS:

Motors:

XX

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

 Platter Drive System:
Direct Drive
Platter:
XXmm / XX" diameter, die-cast, aluminum alloy
Speeds:
33 1/3 and 45 rpm
Wow and Flutter (WRMS):
< 0.0
XX%
Tone-arm Type:
Straight
XXe, on pivot bearing
Tone-arm height adj range:
±XXmm
Build-up Time;
XX° @33.3 RPM
Speed Deviation; < 0.0
XX%
Speed drift; < 0.0
XX% @33.3 RPM

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Speed vs Load characteristics; stable to 220 grams of load drag
Effective Arm Length;
190mm

Cartridge weight range (not 'tracking force' range); 4g-24g
Head-shell weight: 10.5g


Again, our turntable tech has completely and EXTENSIVELY gone through this Phase Linear 8000
as stated above and 'certified' it's ready to go! (total tech time ~11 hours). Following restoration was tested for speed accuracy, rumble, wow & flutter, noise isolation, tone-arm return function and lubed internal mechanism. Original dust cover is in fabulous shape after a 3-Stage plastic buff / hand polish, with only very minor blems. Table looks good and works great! Again, comes with a new, fresh Audio-Technica, Elliptically cut, diamond stylus, AT-95 cartridge. Ready to play!!!
Note: These tables, like many 'higher end' tables are VERY critical of 'Level Placement', and it will come with a bubble / spirit level to assist in that task (yes, the feet are adjustable with more than adequate height range). Measures 19.25" wide x 17.75" deep x 6" tall and weighs a HEAVY 27 lbs unpacked.
Will include an ‘e’ copy / pdf download of the Pioneer PL-L1000 Owners / users manual and the service manual if purchaser desires. Also has original box and packing. Comes with our standard 30 day limited warranty.
REFURBISHED PHASE LINEAR 8000-II STEREO TURNTABLE
Cond. 8.5++

SOLD 5/25/16
SHIPPED TO MISSOURI
(C) R.R.

W/ BEAUTIFUL DUST COVER &
w/ NEW 'Audio Technica' Elliptical Diamond stylus cartridge installed



To connect to computer for burning CD's or to a modern A/V receiver that does not have phono inputs, just order one of our inexpensive $42.99 Phono Pre-Amps and cable kits.

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)

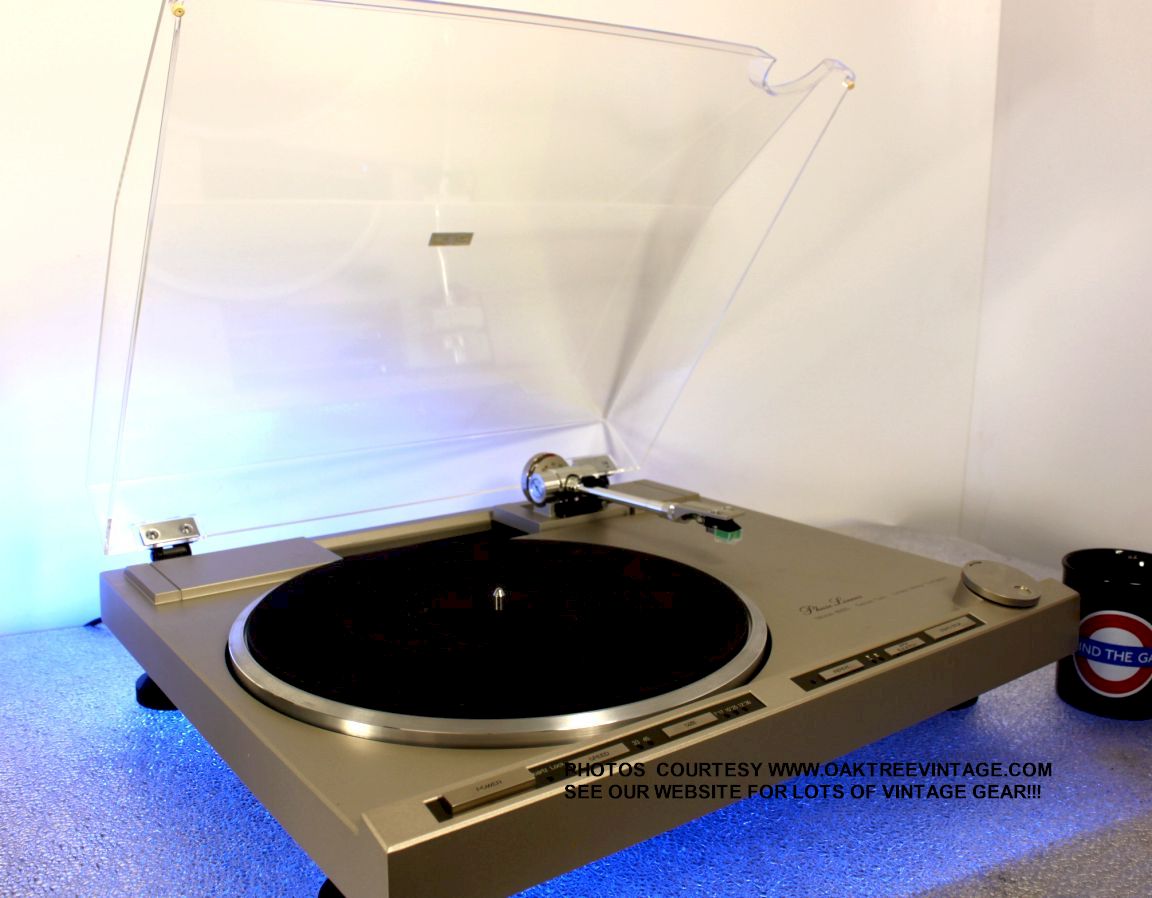

           NEW LISTING 7/18/18
 (Click on above thumbnails to enlarge photos)


COMPLETELY RESTORED / REFURBISHED
 VINTAGE PHASE LINEAR TURNTABLE
 PHASE LINEAR 8000-II (aka Pioneer PL-L1000)
 TANGENTIAL TRACKING / LINEAR TRACKING
 FULLY AUTOMATIC / DIRECT DRIVE
 TURNTABLE
 #...552S
 Made in Japan
 Circa late 1979 thru 1980

SOLD 2/10/2020
SHIPPING TO DON IN PENNSYLVANIA



 This was a Phase Linear branded version of Pioneer's 'Flag Ship' turntable for this period. We have had 2 of these (the other was the Pioneer version), for over 6 years, waiting for the 'right technician' to challenge them. FINALLY, our current senior technician was up to the task, and restored this one beautifully and CORRECTLY!


ü Our technician has completely and EXTENSIVELY gone through and 'Certified' this unit which involves disassembly (not an easy task on this table), cleaning inside and out, COMPLETELY DISASSEMBLING, cleaning and re-lubricating internal mechanisms and the balance of efforts listed below. Total technician time to restore 11 hrs (see above collage of bench shots).


ü Partial disassembly of 'Arm Lift Mechanism' , cleaned and re-lubed


ü Fresh, New and Correct 'Arm Mechanism' belt installed.


ü End of Play lift and return set with oscilloscope at test point 4 and adj internal VR9.


ü Arm transport shuttle control cleaned and re-lubed


ü Lateral arm motion rails and guide rollers cleaned and re-lubed


ü Arm lift motor re-lubed


ü Tone-arm Lead-In adjusted until perfect for mid point lead in



ü Tested / analyzed and passed for motor noise and 60Hz hum.


ü Rubber mat still supple and flexible with no hardening.


ü Disassembled and re-built feet / pods


ü Tone-Arm 'shipping lock' fabricated and fitted


ü Platter speed checked and verified for 100% accuracy with our factory test strobe disc following above restoration.


ü Platter replaced as the original had a 'few hundredths' of an inch of 'run-out, then tested for 'true flat' and no 'run-out'. Most folks probably wouldn't have noticed, but I did after playing for a while. So back to the shop for another original platter it went.


ü Original dustcover had a 3-Stage buff, and looks INCREDIBLE, essentially AS NEW. Hinges adjusted to hold it upright as well.


ü We also installed and adjusted a new, Audio Technica elliptically cut Diamond, magnetic cartridge and optimized the tone arm for it on the ORIGINAL PHASE LINEAR headshell.
 You can readily connect this table to any receiver, Integrated amplifier with a standard magnetic phono input, or a Pre-amp. To connect to computer for burning CD's just order one of our inexpensive Phono Pre-Amps and cable kits.


ü Cartridge / head shell ‘overhang’ adjusted using shop calibration scale.


ü Unit tested with our myriad of test records, one of which included; Shures' 'Cartridge Obstacle Course' record


ü Unit test cycled through 30+ LP’s flawlessly


 Great performing, sounding and INCREDIBLE looking
Phase Linear 8000 II (read Pioneer PL-L1000A), Linear Tracking, Direct-Drive, Fully-Automatic turntable. Following the above restoration, it looks fabulous, now functions correctly and performs well.

 From the Vinyl Engine website page on this table,
"The
Phase-Linear 8000-II  comes fitted with a linear tracking tone-arm which traces the sound grooves on the record linearly in the same way that the master cutting machine cuts the grooves in the first place.  This means that the linear system is superior to conventional offset tone-arms in many ways:

 (1) There is no tracking error thus preventing the generation of harmonic distortion.
 (2) In principle, there is no generation of inside force and so the crosstalk and inter-modulation distortion are improved and the positioning of the sound image is stabilized.
 (3) The tone-arm pipe is linear for optimum lateral balance.
 (4) It is possible to shorten the effective length of the tone-arm and so this feature makes for a low equivalent mass and high rigidity.
 This combination also reduces resonance in the parts and compound resonance.   Sub-functions of the
Phase-Linear 8000-II include auto lead-in, auto-return, auto cut, quick repeat, quick play, quick stop, stylus pressure direct readout, arm height adjustment, cueing device and free stop hinges."


 This table is a 'blast' to use. As the owner of Oak Tree Enterprises, I personally auditioned and did the final testing on this table. I had a few further 'fine tune / tweaks' done by the technician and probably played more than 30 albums on this.





 Again, our turntable tech has completely and EXTENSIVELY gone through this Phase Linear 8000
as stated above and 'certified' it's ready to go! (total tech time ~11 hours). Following restoration was tested for speed accuracy, rumble, wow & flutter, noise isolation, tone-arm return function and lubed internal mechanism. Original dust cover is in fabulous shape after a 3-Stage plastic buff / hand polish, with only very minor blems. Table looks good and works great! Again, comes with a new, fresh Audio-Technica, Elliptically cut, diamond stylus, AT-95 cartridge. Ready to play!!!
 Note: These tables, like many 'higher end' tables are VERY critical of 'Level Placement', and it will come with a bubble / spirit level to assist in that task (yes, the feet are adjustable with more than adequate height range). Measures 19.25" wide x 17.75" deep x 6" tall and weighs a HEAVY 27 lbs unpacked.
Will include an ‘e’ copy / pdf download of the Pioneer PL-L1000 (again, same table) Owners / users manual and the service manual if purchaser desires. Also has original box and packing. Comes with our standard 30 day limited warranty.
 REFURBISHED PHASE LINEAR 8000-II STEREO TURNTABLE
 Cond. 8.5++

SOLD 2/10/2020
SHIPPING TO DON IN PENNSYLVANIA



W/ BEAUTIFUL DUST COVER &
 w/ NEW 'Audio Technica' Elliptical Diamond stylus cartridge installed


(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)




-


PIONEER - CLICK HERE TO SEE OUR SOLD PIONEER TURNTABLES ARCHIVE




        NEW LISTING 11/2018
(click on above thumbnails to enlarge photos)

RESTORED / REFURBISHED

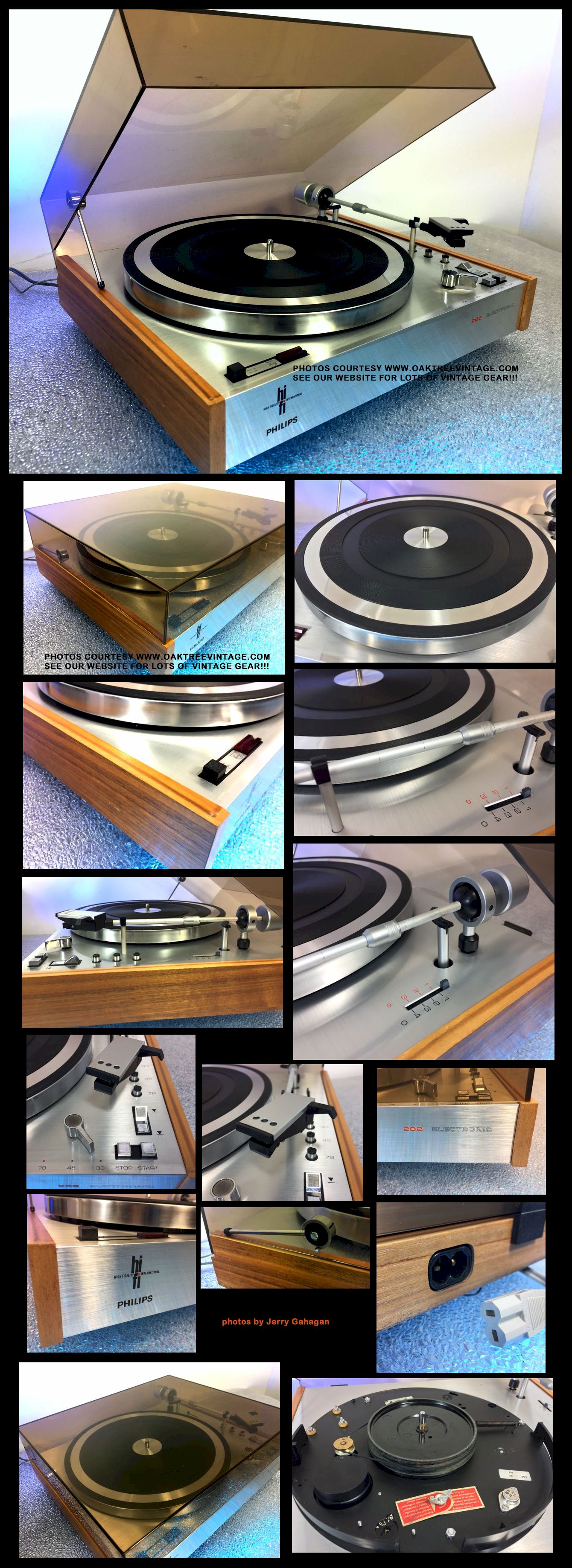

PHILIPS 202 / GA202 TURNTABLE
3-SPEED
QUARTER-AUTOMATIC / BELT DRIVE
'FLOATING PLATTER / TONE-ARM'
W/ 'ELECTRONIC SPEED' CONTROLS
Circa 1970's
MADE IN HOLLAND

SOLD 10/6/19
SHIPPING TO CHRIS IN NEW YORK

ü Our technician has completely gone through and 'Certified' this unit cleaning inside and out, cleaning out ‘gelled’ lubes (a ‘MUST DO’ on all pre-owned / vintage turntables) and re-lubricating mechanism.

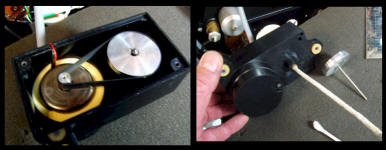

ü 'Motor Box' disassembled and motor bushings cleaned of disintegrated 'belt goo' as so often happens with 30+ year old rubber. Initial flywheel removed, bushings cleaned and re-lubed as well:



ü Tone-arm height adjusted.

ü Tone-arm ‘Auto’ functions restored, adjusted and tested.

ü Tone-arm 'lift height' adjusted.

ü Tone-arm Optical lead ‘Out’ adjusted for correct position on LP

ü 'Anti-Skate' mechanism, cleaned and re-lubed w/ silicone lube.

ü Electronic speed control transistors removed and tested for leakage.


ü 'Control' solder joints 're-flowed':

ü Balance of CB solder joints inspected and 're-flowed' as necessary.


ü Correct Philips GA-202 belts ordered from Europe and installed

ü Internal, PCB mounted speed pots cleaned for perfect platter stability. Then adjusted to allow 'user' pots to be 'closely centered'.

ü External (user adjustable) speed pots cleaned for perfect platter stability.

ü Gimbal bearing, counter weight and anti-skating all adjusted and verified for accuracy.


ü Entire table was cleaned inside and out.

ü Speed checked and verified for accuracy with our shop strobe disc.

ü Tested / analyzed and passed for motor noise and 60Hz hum.

ü Original dustcover had a fresh buff, and looks great. Nice 'crisp' corners and edges

ü Original rubber mat, still supple and flexible with no hardening.

ü Our turntable tech also re-installed and adjusted the existing 'Shure' M75ED elliptical stylus, magnetic cartridge and optimized the tone arm for it.  (If you prefer an up-grade you may also choose from our selection of new Audio Technica cartridges that we can also set up and ship with it for the additional cartridge cost.) You can readily connect this table to any receiver, Integrated amplifier with a standard magnetic phono input, or a Pre-amp. To connect to computer for burning CD's just order one of our inexpensive Phono Pre-Amps and cable kits. Again, this table looks and works great!!

ü Unit tested with our myriad of test records, one of which included; Shures' 'Cartridge Obstacle Course' record. Total tech time 9+ hours!

ü Unit test cycled through 6 LP’s flawlessly.


 Classic, well built, Philips 202, quiet running / belt drive,
...


Looks fabulous, works and sounds great! Very Solid performer. Just as a 'side note'. This is one of the nicest tables I've had the pleasure to audition and do final testing on. It just runs great, is super quiet and 'accurate feeling'. The tone arm 'feels great' (tracks great too). There's no automatic stuff to break. Even the dust cover has a 'hood prop' to hold it up, so there's no worry that the hinges will get weak over time and let the dust-cover drop. Just say'in.


PHILIPS 202 TURNTABLE FEATURES:


- Three...


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?



PHILIPS 202 TURNTABLE SPECIFICATIONS:


Motor:
Low RPM...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


Again, our turntable tech has completely and EXTENSIVELY gone through this Philips GA202 turntable as stated above and 'certified' it's ready to go! Other than some minor cosmetic issues (see above photos), the table looks and works great! Great "Mid-Fi / Hi-Fi" table. Great "all around" table for utility use, and ready to spin your vinyl through those vintage speakers you own. Measures 15.5" wide x 13.5" deep x 5.5" tall and weighs 11 lbs unpacked.  Includes pdf / e-copy download of Philips GA-202 turntable owners / users manual and brochure via email. Comes with our standard 30 day limited warranty.
RESTORED / REFURBISHED PHILIPS GA202
Cond. 8.5+
SOLD 10/6/19
SHIPPING TO CHRIS IN NEW YORK

(Cons.) R.R.

W/ DUST COVER
&
 'Shure' Elliptical Diamond stylus cartridge installed


(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)















         NEW LISTING 12/22/14
(Click on above thumbnails to enlarge photos)

RESTORED / REFURBISHED

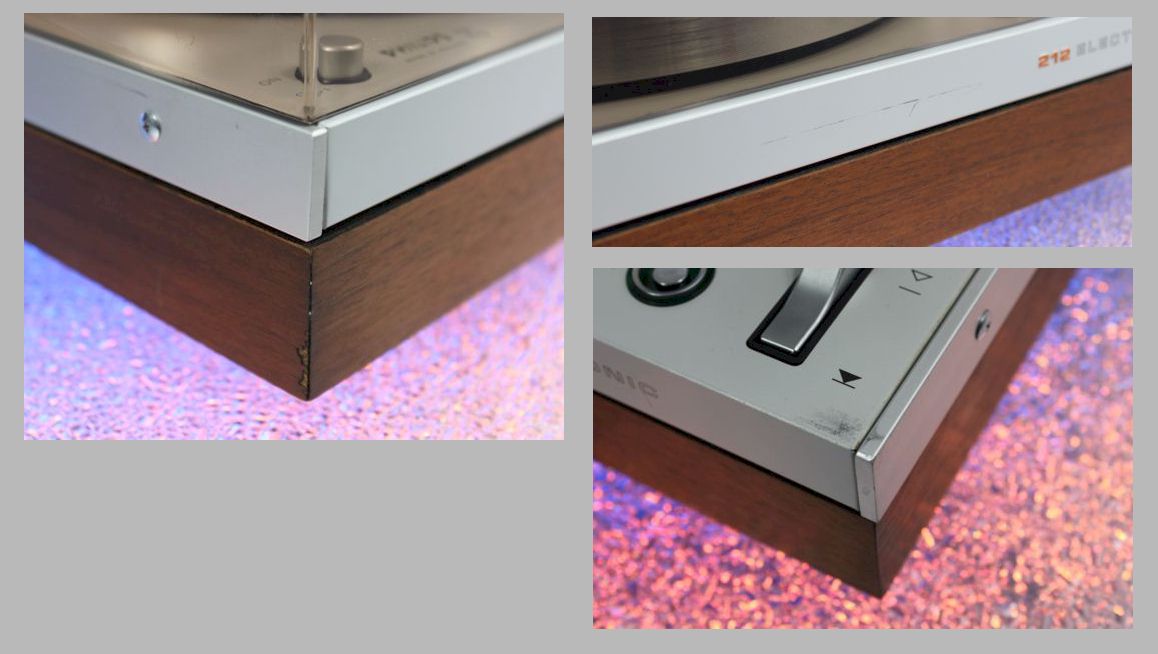

PHILIPS 212 / GA212 TURNTABLE
QUARTER-AUTOMATIC / BELT DRIVE
'FLOATING PLATTER / TONE-ARM'
W/ 'ELECTRONIC TOUCH' CONTROLS
Circa 1970's
MADE IN HOLLAND

SOLD 1/18/17
SHIPPED TO NEW HAMPSHIRE

ü Our technician has completely gone through and 'Certified' this unit cleaning inside and out, cleaning out ‘gelled’ lubes (a ‘MUST DO’ on all pre-owned / vintage turntables) and re-lubricating mechanism.

ü Tone-arm height adjusted.

ü Tone-arm ‘Auto’ functions restored, adjusted and tested.

ü Tone-arm 'lift height' adjusted.

ü Tone-arm lead ‘In / Out’ adjusted.

ü Tone-arm ‘Cueing’ mechanism disassembled, cleaned and re-filled with fresh 500,000 silicone fluid.

ü 'Anti-Skate' mechanism, cleaned and re-lubed w/ silicone lube.

ü 'Touch Control' solder joints 're-flowed'.

ü Balance of CB solder joints inspected and 're-flowed'.

ü External (user adjustable) speed pots cleaned for perfect platter stability.

ü Gimbal bearing, counter weight and anti-skating all adjusted and verified for accuracy.


ü Entire table was cleaned inside and out.

ü Speed checked and verified for accuracy with our shop strobe disc.

ü New, High-Quality RCA interlink cables installed.

ü Tested / analyzed and passed for motor noise and 60Hz hum
.

ü Original dustcover had a fresh buff, and looks great. Hinges hold it upright as well.

ü Original rubber mat, still supple and flexible with no hardening.

ü Our turntable tech also re-installed and adjusted the existing 'Precept' elliptical stylus, magnetic cartridge and optimized the tone arm for it.  (If you prefer an up-grade you may also choose from our selection of new Audio Technica cartridges that we can also set up and ship with it for the additional cartridge cost.) You can readily connect this table to any receiver, Integrated amplifier with a standard magnetic phono input, or a Pre-amp. To connect to computer for burning CD's just order one of our inexpensive Phono Pre-Amps and cable kits. Again, this table looks and works great!!

ü Unit tested with our myriad of test records, one of which included; Shures' 'Cartridge Obstacle Course' record

ü Unit test cycled through 6 LP’s flawlessly.


Looks fabulous, works and sounds great!
Very Solid performer.


Again, our turntable tech has completely and EXTENSIVELY gone through this Philips GA212 turntable as stated above and 'certified' it's ready to go! Other than some minor cosmetic issues (see above photos), the table looks and works great! ...
 Measures 15" wide x 12.5" deep x 6" tall and weighs 15 lbs unpacked.
 Includes pdf / e-copy download of Philips 212 turntable owners / users manual via email. Comes with our standard 30 day limited warranty.
RESTORED / REFURBISHED PHILIPS GA212
Cond. 8.5

SOLD 1/18/17
SHIPPED TO NEW HAMPSHIRE


W/ DUST COVER
&
 'Precept' Elliptical Diamond stylus cartridge installed



To connect to computer for burning CD's or to a modern A/V receiver that does not have phono inputs, just order one of our inexpensive $42.99 Phono Pre-Amps and cable kits.

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)








VINTAGE PHILIPS BELT DRIVE TURNTABLE
PHILIPS 222
SOLD 3/8/06



(Click on above thumbnails to enlarge photos)
PHILIPS STEREO TURNTABLE
PHILIPS 312
SEMI-AUTOMATIC
BELT DRIVE
TURNTABLE

SOLD 2/29/08






             NEW LISTING 3/25/09
(Click on above thumbnails to enlarge photos)
warranty
PHILIPS
STEREO TURNTABLE

PHILIPS 685
QUARTER-AUTOMATIC
BELT DRIVE
"ELECTRONIC CONTROL"

MADE IN
BELGIUM
SOLD 12/21/09










NEW LISTING 8/14/07
(Click on above thumbnails to enlarge photos)
PHILIPS

STEREO TURNTABLE

PHILIPS
877
SEMI-AUTOMATIC
BELT DRIVE
TURNTA
BLE
Circa 1970's
MADE IN HOLLAND

SOLD 9/25/08

&

w/ new AT-71 Elliptical Diamond
stylus cartridge installed








VINTAGE PHILIPS TURNTABLE
PHILIPS AF-829
SOLD












NEW LISTING 4/1/16
(Click on above thumbnails to enlarge photos)

RESTORED / REFURBISHED
PHILIPS 308 / GA308 TURNTABLE
FULLY-AUTOMATIC / BELT DRIVE
'FLOATING PLATTER / TONE-ARM'
Circa 1970's
MADE IN HOLLAND

SOLD 4/18/16
SHIPPED TO VIRGINIA

ü Our technician has completely gone through and 'Certified' this unit cleaning inside and out, cleaning out ‘gelled’ lubes (a ‘MUST DO’ on all pre-owned / vintage turntables) and re-lubricating mechanism. Equally importantly the 'liquefied belt' was completely removed / cleaned from inside the table plinth and motor pulley, shaft and platter table.

ü Tone-arm height adjusted.

ü Tone-arm ‘Auto’ functions restored, adjusted and tested.

ü Tone-arm 'lift height' adjusted.

ü Tone-arm lead ‘In / Out’ adjusted.

ü 'Anti-Skate' mechanism, cleaned and re-lubed w/ silicone lube.

ü CB solder joints inspected and 're-flowed'.

ü Gimbal bearing, counter weight and anti-skating all adjusted and verified for accuracy.


ü Entire table was cleaned inside and out.


ü New platter drive belt installed.

ü Speed checked and verified for 96+% accuracy with our shop strobe disc.

ü New, High-Quality RCA interlink cables, with gold plated connectors installed.

ü New AC power cord installed.

ü Tested / analyzed and passed for motor noise and 60Hz hum.

ü Original dustcover had a fresh buff, and looks decent, but has scuffs / scratches that were too deep to be 'practically' removed (due to 'small size' of dust cover, it cannot be closed while unit is playing an LP record).

ü Real wood veneer base was also lemon oiled and looks great.

ü Original rubber mat, still supple and flexible with no hardening.

ü Our turntable tech also re-installed and adjusted the existing 'Ortofon, F15E, MK II' elliptical stylus, magnetic cartridge and optimized the tone arm for it.  (If you prefer an up-grade you may also choose from our selection of new Audio Technica cartridges that we can also set up and ship with it for the additional cartridge cost.) You can readily connect this table to any receiver, Integrated amplifier with a standard magnetic phono input, or a Pre-amp. To connect to computer for burning CD's just order one of our inexpensive Phono Pre-Amps and cable kits. Again, this table looks and works great!!

ü Unit tested with our myriad of test records, one of which included; Shures' 'Cartridge Obstacle Course' record

ü Unit test cycled through 6 LP’s flawlessly.



Does have a few scuffs and 'battle scars', but still looks decent, works and sounds great!
Very Solid performer.

PHILIPS GA 308 TURNTABLE FEATURES:

- Two-Piece...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

PHILIPS GA 308 TURNTABLE SPECIFICATIONS:


Motor: Low XX Motor
Turntable Drive System:
'Sub-
XX t drive
Platter: Two piece w/ l
XX
Rumble: <-
XXdB DIN A, <-XXdB DIN B
Wow & Flutter
: <XX%


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Speeds: 33 1/3 and 45 rpm
Tone arm Type: Static balance type,
 straight arm tube, with a Counter Weight that doubles as a resonate damper
Head-shell: Accepts standard 1/2" cartridges
Stylus Force Range:
2* to 4g (*stylus can be adjusted to any weight down to zero grams, if you have a separate 'gram scale', but the built in scale only reads down to 2)


Again, this table has been completely gone through by our turntable tech. While it does have a few cosmetic issues (see above photos), the table looks decent and works great! Great "Mid-Fi" ...


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

. Measures 14.25" wide x 12" deep x 5.25" tall and weighs 15 lbs unpacked.
 Includes pdf / e-copy download of Philips GA-308 turntable owners / users manual via email. Comes with our standard 30 day limited warranty.
RESTORED / REFURBISHED PHILIPS GA308
Cond. 8

SOLD 4/18/16
SHIPPED TO VIRGINIA


W/ DUST COVER
&
 'Ortofon' Elliptical Diamond stylus cartridge installed

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)








USED PIONEER CD 6-DISC CHANGER / PLAYER
PIONEER PD-M510
6-DISC CD CHANGER
SOLD 7/7/04



Pioneer_PD-M900_Stereo_CD_Player_Changer_Collage.jpg (207041 bytes)   Pioneer_PD-M900_Stereo_CD_Player_Changer_Cartridges_web.jpg (12976 bytes)

USED PIONEER CD 6-DISC CHANGER / PLAYER
PIONEER PD-M900
6-DISC REFERENCE
"ELITE SERIES"

SOLD 7/21/04


-







             NEW LISTING 10/23/17
(Click on above thumbnails to enlarge photos)

COMPLETELY RESTORED / REFURBISHED
VINTAGE HARMAN KARDO / RABCO TURNTABLE
hk / RABCO ST-7 / ST7
TANGENTIAL TRACKING / LINEAR TRACKING
‘QUARTER’ AUTOMATIC / BELT DRIVE
TURNTABLE
#...3063
Made in U.S.A.
Circa late 1977-81

SOLD 10/12/18
SHIPPING TO MARK



"This is one of the ‘coolest’ tables I’ve experienced"
We have had this table in the warehouse for over 10 years, waiting for the 'right technician' to ‘challenge’ it. Not only was, our current senior technician up to the task, and restored this one beautifully and CORRECTLY, he owns two himself that are his main tables, over his Thorens TD 145 mk2 and Garrard 301!


ü Our technician has completely and EXTENSIVELY gone through and 'Certified' this unit which involves disassembly (not an easy task on this table), cleaning inside and out, COMPLETELY DISASSEMBLING, cleaning and re-lubricating internal mechanisms and the balance of efforts listed below. Total technician time to restore 20+ hrs.

ü Disassembly of tone-arm ‘carriage mechanism’, cleaned and re-lubed

ü Tone-Arm cueing mechanism ‘dashpot’ inspected and found to be ‘air-tight’



ü Tested / analyzed and passed for motor noise and 60Hz hum.

ü Rubber mat still supple and flexible with no hardening.

ü All three ‘control bar’ lamps / bulbs replaced with correctly ‘colored’ bulbs (blue, red, green)

ü Main Platter drive belt replaced

ü Tone-Arm ‘Track Rod’ belt replaced



ü ‘Tracking Tire’ replaced with new as original had, like they all do, turned to ‘goo’

ü Tone arm tracking extensively tested for correct function following tire change

ü ‘Course Speed’ adjustment pots cleaned and centered

ü ‘User Speed’ adjustment pots cleaned

ü Lead-out bulb / lamp replaced, ‘lamp shield / photo cell interrupter’ adjusted (takes a while to get correct) and Photocell function extensively tested

ü Arm ‘lead out’ micro-switch position adjusted correctly

ü Overall, Tone-arm ‘lead out’ function adjusted correctly

ü Tone-arm cuing ‘stop bar’ adjusted for correct ‘down’ limits

ü ‘Restrictor Arm’ aligned correctly

ü ‘Carriage guide’ aligned correctly


ü Platter speed checked and verified for 100% accuracy with our factory test strobe disc following above restoration.

ü Platter tested for 'true flat' and no 'run-out'

ü Pickering ‘XV-15’ cartridge inspected, reinstalled and tone arm adjustments optimized for it

ü Tone Arm weighting and ‘tracking’ screw adjusted for proper tracking with test tone record and O-Scope.

ü Output cables upgraded to, High Quality, heavy shielded interlink cables installed with GOLD plated RCA connectors

ü Original dustcover had a 3-Stage buff, and looks INCREDIBLE. Hinges adjusted to hold it upright as well.

ü Cartridge / head shell ‘overhang’ adjusted using shop calibration scale.

ü Unit tested with our myriad of test records, one of which included; Shures' 'Cartridge Obstacle Course' record

ü Unit test cycled through 30+ LP’s flawlessly

 You can readily connect this table to any receiver, Integrated amplifier with a standard magnetic phono input, or a Pre-amp. To connect to computer for burning CD's just order one of our inexpensive Phono Pre-Amps and cable kits.


 Great performing, sounding and INCREDIBLE looking Harman Kardon / Rabco ST-7, Tangential Tracking, Belt-Drive, Quarter-Automatic turntable. Following the above restoration, it looks fabulous, now functions correctly and performs well.

 This table is a 'blast' to use. As the owner of Oak Tree Enterprises, I personally auditioned and did the final testing on this table. I had a few further 'fine tune / tweaks' done by the technician and probably played more than 30 albums on this. One word of warning, it is important that this table be utilized on a 'LEVEL' surface for correct tracking

hk / Rabco ST-7 Turntable Features:


- Linear /
...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


hk / Rabco ST-7 TURNTABLE SPECIFICATIONS:

Motors:
Brushless D...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


Pickering XV-15 625E Hi-Fi Cartridge Specifications:

Mounting: Standard ½ inch...


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?



 Again, our turntable tech has completely and EXTENSIVELY gone through this table (total tech time ~20 hours), and following restoration was tested for speed accuracy, rumble, wow & flutter, noise isolation, tone-arm function at ‘end of record’. Original dust cover is in fabulous shape after a 3-Stage plastic buff / hand polish. Beautiful condition. Table looks amazing and works great! Again, comes with a Pickering XV 15, Elliptically cut, diamond stylus, cartridge. Ready to play!!!
Note: These tables, like many 'higher end' tables are VERY critical of 'Level Placement'.
Will include an ‘e’ copy / pdf download of the Harman Kardon / Rabco ST-7 Owners / user’s manual and the service manual if purchaser desires. ). Measures 16.5" wide x 16.25" deep x 6.75" tall and weighs a HEAVY 23 lbs unpacked. Comes with our standard 30 day limited warranty.
 REFURBISHED hk / RABCO ST-7 STEREO TURNTABLE
Cond. 8.5++
+
SOLD 10/12/18
SHIPPING TO MARK



W/ BEAUTIFUL DUST COVER &
 w/ Pickering XV 15 Elliptical Diamond stylus cartridge installed

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)











          NEW ADDITION 10/19/17
(Click on above thumbnails to enlarge photos)
RESTORED / REFURBISHED
VINTAGE BSR STACKING / CHANGER TURNTABLE
FULLY AUTOMATIC
BSR / REALISTIC LAB 24A 'PROFESSIONAL'
CHASSIS C131
4-SPEED TURNTABLE / PHONOGRAPH
w/ 'NEW MAGNETIC CARTRIDGE'
Circa late 1960's thru early 1970's
BRITISH MADE

SOLD 8/8/18
SHIPPING TO CONNIE IN OKLAHOMA


ü  Our technician has completely gone through and 'Certified' this unit, cleaning inside and out, lubricating mechanism, adjusting tone arm lead out and testing performance.

ü  Entire automatic mechanism COMPLETELY disassembled, de-greased, cleaned and re-lubed, (never an easy task on 'auto' turntables) including; the 'Actuating Slide and Pawl', and both plates.

ü  All internal rubber parts reconditioned including, of course, the 'intermediate' idler wheel.

ü  Drive motor disassembled, cleaned and re-lubed.

ü  'Cushion ring', 'thrust washer / thrust bearing' disassembled, cleaned and re-lubed,

ü  'Trip pawl' cleaned for 'smooth end of album cycle.

ü  Platter bearing disassembled, cleaned of old lube and re-lubed.

ü  Gimbal bearing, counter weight and anti-skating all adjusted and verified for accuracy.

ü  Tone arm Lead-In and Lead-Out.

ü  Tone arm bearing perfectly smooth in operation.

ü Idler position centered for more positive speed positioning w/ selector.

ü He also replaced the anemic, factory RCA cables, with some much higher grade, fully shielded interlink cables, w/ 24kt gold RCA connectors.

ü Table cosmetics detailed.

ü Dust cover 'multi-stage' buffed for improved appearance with no cracks, splits or serious 'battle scars' (actually looks very nice for 45 years old).

ü Original Platter bubble / warp free.

ü Due to the head shell 'lift tab' missing previously, we installed an aftermarket 'lift / grove brush' (see photos above)

ü New Audio-Technica, Diamond Stylus, 'magnetic' cartridge installed. Tracking and Bias force also re-set to 2g.

Following, and only due to the above restoration / refurbishment, the table starts as it should, and end's as it should with no 'end groove hang up'!
Unit was test played thru 4 cycles and tested with 6X LP's stacked with no issues!!! (normally you should typically only get about 3 on a stack with no issues, and you won't always get '6' to work, but...)
(also, as you stack on more records, especially once you get to 5 and certainly 6, depending on the overall 'thickness' of the albums in the stack, 'tone arm 'cuing'' will cease to have enough clearance to function correctly on ANY stacker / changer. Just FYI). Overall the table works beautifully and all functions now work GREAT!

ü Tested / analyzed and passed for motor noise and 60Hz hum.

ü  Speed checked and verified for accuracy with technician's factory test strobe disc against built-in strobe.

ü Unit tested with our myriad of test records, one of which included; Shures' 'Cartridge Obstacle Course' record

Restoration entailed approx 7+ hrs w/ followed with about MANY hours of testing w/ many albums (mostly because we enjoyed having a 'quality' changer on one of the test stations to listen to).


As this turntable has a 'magnetic cartridge' (unlike most 'stacker / changers' which have 'crystal / ceramic / piezo' pickups) you can readily connect this table to any receiver or Integrated amplifier input. For a basic system, or wanting to get introduced or re-introduced to stacking vinyl records, this is a great table.

You can readily connect this table to any receiver (including 'modern / A/V / Home Theater receivers) or Integrated amplifier with a standard magnetic phono input, or an external Phono Pre-amp. To connect to computer for burning CD's just order one of our inexpensive Phono Pre-Amps and cable kits.


Great mechanical / electrical
condition BSR  / Realistic 'Professional Series', LAB 24A, fully automatic changer phonograph. Plays 16, 33, 45 & 78 RPM records. Selects 7", 10" or 12" record size. Cosmetically, the table looks great. The dustcover did have a light buff, but to keep the price affordable, we did not spend as much time on it as we might a table that's in the 'grand $' price range. It has numerous scuffs / striations remaining, but overall looks acceptable, and not distracting. We photographed the 'worst' of it (see above). No cracks, chips or splits to it.

BSR / Realistic LAB 24A Features include:



- 3-Speed Turntable, 16, 33, 45 & 78 RPM
- Magnetic Cartridge equipped
- Stacker / Changer capable on 16, 33's & 78's. Sorry, but we do not have a '45' stacker spindle for this one.
- Fully-Automatic operation
- Record Repeat Function
- Record Size selector- allows 'Auto' or 'Stacking' of any size record at any speed!
- Adjustable Tracking force
- Adjustable Anti-Skating
- Full chassis suspension for damping vibrations
- Heavy version, BSR platter for more stable speed, vibration damping and better 'feel'


Again, our turntable tech has completely and EXTENSIVELY gone through this BSR / Realistic PRO LAB 24A turntable as stated above and 'certified' it's ready to go! Entire table functions beautifully following the above mentioned, complete tear-down and re-build / refurb. ALL functions work great! Comes with a new Audio-Technica 'Yellow', Magnetic cartridge that has been installed and optimized for the tone-arm.
Ready to use! Includes our standard 30 day limited warranty. Measures 17.5" wide x 14.5" deep x 7.75" tall and weighs 13 lbs unpacked.
 BSR / Realistic LAB 24A, 4-SPEED STACKING / CHANGER / FULLY AUTOMATIC TURNTABLE
  Cond. 8.5

SOLD 8/8/18
SHIPPING TO CONNIE IN OKLAHOMA


 & w/ NEW Audio-Technica, Diamond stylus cartridge installed!

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)









NEW LISTING 10/09/10

(Click on above thumbnails to enlarge photos)
VINTAGE REALISTIC STEREO TURNTABLE RESTORED / REFURBISHED

REALISTIC LAB-260
 SEMI-AUTOMATIC
 BELT  DRIVE
#...2061

 Circa 1979-83

W/ DUST COVER
SOLD 12/1/10


w/ new AT-301 Elliptical Diamond stylus cartridge installed





Realistic _LAB-400_Stereo_Turntable_web.jpg (55045 bytes)

Realistic _LAB-400_Stereo_Turntable_collage.jpg (332406 bytes)

REALISTIC TURNTABLE
REALISTIC LAB SERIES 400
SOLD 7/18/05



REALISTIC LINEAR TRACKING TURNTABLE
REALISTIC LAB-2100
SOLD 7/28/04








VINTAGE TRANSCRIPTION TURNTABLE REK-O-KUT
"RONDINE"

SOLD 8/9/05



- -


NEW LISTING 7/8/06
SANSUI FR-3060
STEREO TURNTABLE

SOLD 8/22/06







NEW LISTING
(Click on above thumbnails to enlarge photos)
SANSUI FR-5080 / FR5080
STEREO TURNTABLE
FULLY-AUTOMATIC
DIRECT DRIVE
TURNTA
BLE
" WORLD AC POWER"™
Circa 1977-79
Made in Japan
   (C)
C.B.S.

SOLD 6/9/07






NEW LISTING 7/3/15

 (Click on above thumbnails to enlarge photos)
PRE-OWNED SANSUI STEREO TURNTABLE REFURBISHED
SANSUI P-1000 / P1000
SEMI-AUTOMATIC
BELT DRIVE
 #...
0829
 Circa late 1980's to '90's

SOLD 12/29/15
SHIPPED TO NEW JERSEY

Our technician has completely gone through and 'Certified' this unit cleaning inside and out, lubricating mechanism, adjusting tone arm and testing performance. Speed checked and verified for accuracy with both internal strobe and the shop calibrated strobe disc. Super quality Gimbal tone-arm bearing. Tracks grooves well. Original dust cover just had light buff, and looks decent, with only normal wear. Original hinges and hinge tabs in fine and functioning condition and holds dust cover in the 'up' position. No cracks, chips, or hairlines. All four original 'shock absorber' feet intact. Original rubber platter mat, lays perfectly flat with no blistering, bubbles or warps. We also installed a new, Audio-Technica, "Yellow", diamond stylus, on the, standard, 1/2" mount head shell.  (If you prefer an up-grade you may also choose from our selection of new Audio Technica cartridges that we can also set up and ship with it for the additional cartridge cost.) You can readily connect this table to any receiver, Integrated amplifier with a standard magnetic phono input, or a Pre-amp. To connect to computer for burning CD's just order one of our inexpensive Phono Pre-Amps and cable kits. Again, this table looks and works great!!
 ____________________________________

Decent quality and easy to use. Great if you 'just want to play records' without spending too much, but don't want some of the 'throw-away units' that's avail new, in the 'cheaper' price range.



Again, we have had the table completely gone through, testing for speed accuracy, rumble, wow-flutter, noise isolation, tone-arm bearing function. Table functions perfectly and looks near fine! Measures 20" wide x 13" deep x 4.75" tall and weighs 7 lbs. Comes with our standard 30 day limited warranty.
SANSUI P-1000 STEREO TURNTABLE
  Cond. 8.5

SOLD 12/29/15
SHIPPED TO NEW JERSEY

(C)
C.B.S.

w/ dust cover

 &
 w/ NEW Audio-Technica Diamond stylus cartridge installed




NEW LISTING 1/30/09
(Click on above thumbnails to enlarge photos)
SANSUI
STEREO TURNTABLE

SANSUISR-1050C
#...0109
FULLY MANUAL
BELT DRIVE
MADE IN JAPAN
Circa Mid 1970's

SOLD 3/10/09


W/ DUST COVER

&
w/ NEW AT-71 "GREEN" Elliptical Diamond
stylus
cartridge installed





RESTORED / REFURBISHED
SANSUI SR-3030BC
TURNTABLE
FULLY MANUAL / BELT DRIVE
Circa 1970's
PHOTOS W/ 'UN-POLISHED' PLATTER
REFERENCE PHOTOS ONLY






           NEW LISTING W/ UPDATED PHOTOS 4/27/15
(Click on above thumbnails to enlarge photos)

RESTORED / REFURBISHED
SANSUI SR-3030BC
TURNTABLE
FULLY MANUAL / BELT DRIVE
Circa 1970's
MIJ
SOLD 4/6/16
SHIPPED TO CALIFORNIA
ü  Our technician has completely gone through and 'Certified' this unit cleaning inside and out, cleaning out ‘gelled’ lubes (a ‘MUST DO’ on all pre-owned / vintage turntables) and re-lubricating mechanism.

ü  Tone-arm 'lift height' adjusted.

ü  Tone-arm ‘Cueing’ mechanism tested.

ü  New 'Anti-Skate' weight installed w/ 24k Gold crimps.

ü  Gimbal bearing, counter weight and anti-skating all adjusted and verified for accuracy.


ü  Entire table was cleaned inside and out.

ü  Brand new belt installed.

ü  Speed checked and verified for accuracy with our shop strobe disc.

ü Tested / analyzed and passed for motor noise and 60Hz hum.

ü Original dustcover had a fresh buff, and looks pretty good minor issues. Hinges intact as well as 'strut'.

ü We also had the platter 'machined' to re-fresh the 'brushed' look on the edge / side-rim and to remove surface corrosion.

ü Original rubber mat, still supple and flexible with no hardening.

ü Our turntable tech also re-installed and adjusted the existing 'Sansui SC-32' elliptical stylus, magnetic cartridge and optimized the tone arm for it, adjusting 'overhang'.  (If you prefer an up-grade you may also choose from our selection of new Audio Technica cartridges that we can also set up and ship with it for the additional cartridge cost.) You can readily connect this table to any receiver, Integrated amplifier with a standard magnetic phono input, or a Pre-amp. To connect to computer for burning CD's just order one of our inexpensive Phono Pre-Amps and cable kits. Again, this table looks and works great!!

ü Unit tested with our myriad of test records, one of which included; Shures' 'Cartridge Obstacle Course' record

ü Unit test played through 6 LP’s flawlessly


Classic, well built, Sansui SR-303BC, quiet running / belt drive, Fully Manual stereo turntable! Suspended "sub-chassis" Plinth for damping outside vibrations, but WOULD recommend purchasing a set of our '
Sorbothane Iso Pods' to further isolate it from it's environment. Classic 'curved' tone arm w/ 'Universal / 1/2" headshell".


Looks fabulous, works and sounds great!
Very Solid performer.

SANSUI SR-3030BC TURNTABLE FEATURES:

- Fully-...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

SANSUI SR-3030BC TURNTABLE SPECIFICATIONS:


Motor: XX
Turntable Drive System:
Belt Drive
Platter: XXmm, XXt platter
S/N:
>XXdB
Wow & Flutter
: <0.XX%

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Speeds: 33 1/3 and 45 rpm
Tone arm Type: Tubular, XX type
Head-shell: Accepts standard 1/2" cartridges
Tracking Error
:
<+/- XX%
Stylus Force Range: 0.XXg


Again, this table has been completely gone through by our turntable tech. Other than some minor cosmetic issues w/ the dust cover (see above photos), the table looks and works great! Great "Mid-Fi" table. Great "all around" table for utility use, and ready to spin your vinyl through those vintage speakers you own.
We would recommend our Sorbothane Iso Pods to further isolate the table from it's shelf. Measures 20.5" wide x 14.75" deep x 6.5" tall and weighs 19 lbs unpacked. Comes with our standard 30 day limited warranty.
RESTORED / REFURBISHED SANSUI SR-3030BC
Cond. 8.5
(C) R.R.
SOLD 4/6/16
SHIPPED TO CALIFORNIA

W/ DUST COVER
&
 'Sansui SC-32' Elliptical Diamond stylus cartridge installed



To connect to computer for burning CD's or to a modern A/V receiver that does not have phono inputs, just order one of our inexpensive $42.99 Phono Pre-Amps and cable kits.

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)





Sansui_SR-4040_Stereo_Turntable_collage.jpg (380404 bytes)     Sansui_SR-4040_tonearm_extra_counter_weight.jpg (118938 bytes)     Sansui_SR-4040_Stereo_Turntable_Internal_collage.jpg (104215 bytes)

NEW LISTING 2/11/05


VINTAGE SANSUI STEREO TURNTABLE
SANSUI SR/4040
SOLD 2/23/05







SANYO DIRECT DRIVE STEREO TURNTABLE
SANYO PLUS SERIES Q-25

SOLD 12/3/04









          NEW LISTING 10/09/10

(Click on above thumbnails to enlarge photos)
VINTAGE SANYO STEREO TURNTABLE RESTORED / REFURBISHED

SANYO TP-625 TP625
 SEMI-AUTOMATIC
 BELT  DRIVE
#...
9976
 Circa 1978-81
 Made in Japan
W/ DUST COVER
SOLD 1/24/11


w/ new AT-301 Elliptical Diamond stylus cartridge installed







           NEW LISTING 3/25/09
(Click on above thumbnails to enlarge photos)
warranty
SANYO

STEREO TURNTABLE


SANYO TP-727 TP727
#...5235

 BELT DRIVE
 SEMI-AUTOMATIC

 Made in Japan

Circa 19
81-86
SOLD 12/7/09

&

w/ GRADO F3+  Elliptical Diamond stylus cartridge installed






       NEW LISTING 11/23/11
(Click on above thumbnails to enlarge photos)
VINTAGE STEREO TURNTABLE
SANYO
MODEL TP-1020 TP1020
SEMI-AUTOMATIC
DIRECT DRIVE
#...0822
 RESTORED / REFURBISHED
STEREO TURNTABLE
Circa 1977
Made in Japan

SOLD 11/20/12







        NEW LISTING 4/8/08
(Click on above thumbnails to enlarge photos)
SANYO
STEREO TURNTABLE

SANYO TP-1030 / TP1030

FULLY AUTOMATIC

DIRECT DRIVE
2 MOTOR

TURNTABLE

Circa 1979-8
4
SOLD 6/26/08

&

w/ new Shure Elliptical Diamond
stylus stylus installed





Scott_PS-49-A_Belt_Drive_Turntable__Record-Player_web.jpg (40341 bytes)   Scott_PS-49-A_Belt_Drive_Turntable__Record-Player_collage.jpg (153351 bytes)

SCOTT STEREO TURNTABLE
SCOTT PS-49A

SOLD 8/29/05




(Click on above thumbnails to enlarge photos)

SCOTT PS-68
DIRECT
DRIVE
SEMI-AUTOMATIC

STEREO TURNTABLE
Made in Japan
Circa 1980-81

SOLD 9/13/07




-


SEARS STACKER / CHANGER RECORD PLAYER
257
SOLD 4/27/04



- -
Sony_PS-FL1_Stereo_Turntable_web.jpg (51794 bytes)   Sony_PS-FL1_Stereo_Turntable_collage.jpg (223534 bytes)


SONY DRAWER TURNTABLE
SONY PS-FL1
FULLY AUTOMATIC

SOLD 9/24/04









VINTAGE SONY PS-LX2
TURNTABLE
SOLD 5/16/05




           NEW LISTING 1/30/09
(Click on above thumbnails to enlarge photos)
SONY

STEREO TURNTABLE


SONY PS-LX2 PSLX2
FULLY-AUTOMATIC
DIRECT DRIVE
SERVO LOCK
MADE IN JAPAN
Circa 1981-8
3 (C)
C.B.S.

SOLD 3/30/10







       NEW LISTING 6/21/16
(Click on above thumbnails to enlarge photos)
SONY STEREO TURNTABLE
SONY PS-LX2
SEMI-AUTOMATIC
DIRECT DRIVE
SERVO LOCK
MADE IN JAPAN
Circa 1981-83

SOLD 9/26/16
SHIPPING TO CALIFORNIA


ü Our technician has completely and EXTENSIVELY gone through and 'Certified' this unit cleaning inside and out, COMPLETELY DISASSEMBLING, cleaning and re-lubricating internal mechanisms and the balance of efforts listed below. Speed checked and verified for accuracy. Gimbal bearing, counter weight and anti-skating all adjusted and verified for accuracy. Stop / Return mechanism adjusted and tested. All functions work great! Original dust cover just had a fresh buff and looks decent! No cracks, chips or breaks, just minor scuffing, but nothing too distracting. Entire table looks NEW! CBS installed, a brand new Audio-Technica, 'Yellow' diamond stylus, magnetic cartridge and optimized the tone arm for it. (If you prefer an up-grade you may also choose from our selection of new Audio Technica cartridges that we can also set up and ship with it for the additional cartridge cost.) You can readily connect this table to any receiver, Integrated amplifier with a standard magnetic phono input, or a Pre-amp. To connect to computer for burning CD's just order one of our inexpensive Phono Pre-Amps and cable kits. Again, this table looks and works great!!





Entire table is like new! Nice low profile and elegant looking. Again, entire table has been restored and adjusted by our turntable tech. Great looking, working and sounding table. Ready to Go! Measures 17" wide x 14.5" deep x 4.25" high and weighs heavy at 11 lbs unpacked. Includes our standard 30 day warranty.
Cond. 8.0++
SONY PS-LX2

SOLD 9/26/16
SHIPPING TO CALIFORNIA

(C)
R.R.

W/ DUST COVER
 &
 w/ NEW AT 'YELLOW' Diamond stylus cartridge installed





To connect to computer for burning CD's or to a modern A/V receiver that does not have phono inputs, just order one of our inexpensive $42.99 Phono Pre-Amps and cable kits.



(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)











         NEW LISTING 5/28/10
(Click on above thumbnails to enlarge photos)


SONY

STEREO TURNTABLE

SONY PS-T1
SEMI-AUTOMATIC
DIRECT DRIVE TURNTABLE
MADE IN JAPAN
#...8134
Circa 19
78
SOLD 9/14/10

W/ DUST COVER
&

w/ AT-301E  Elliptical Diamond stylus cartridge installed










       NEW LISTING 4/8/11

(Click on above thumbnails to enlarge photos)


VINTAGE
SONY STEREO TURNTABLE

SONY PS-T20
 FULLY-AUTOMATIC
 DIRECT DRIVE TURNTABLE
 MADE IN JAPAN
 #...2426
 Circa 1978

SOLD 10/6/11


W/ DUST COVER
 &
 w/ AT Elliptical Diamond stylus cartridge installed










       NEW LISTING 4/8/11

(Click on above thumbnails to enlarge photos)


VINTAGE
SONY STEREO TURNTABLE

SONY PS-T33
 FULLY-AUTOMATIC
 DIRECT DRIVE TURNTABLE
 MADE IN JAPAN
 #...2275
 Circa 1978
-83

SOLD 10/17/11


W/ DUST COVER
 &
 w/ AT Elliptical Diamond stylus cartridge installed







NEW LISTING 12/20/14
(Click on above thumbnails to enlarge photos)

RESTORED / REFURBISHED
VINTAGE SONY STEREO TURNTABLE
SONY PS-T33 / PS-T33
FULLY-AUTOMATIC
DIRECT DRIVE TURNTABLE
MADE IN JAPAN
#...4021
Circa 1978-83

SOLD 1/16/15
SHIPPED TO ILLINOIS

ü  Our technician has completely gone through and 'Certified' this unit cleaning inside and out, cleaning out ‘gelled’ lubes (a ‘MUST DO’ on all pre-owned / vintage turntables) and re-lubricating mechanism

ü  Tone-arm ‘Cueing’ mechanism disassembled, cleaned and re-filled with fresh 500,000 silicone fluid.

ü  Tone-arm height adjusted

ü  Tone-arm 'lift height' adjusted.

ü  Fresh 500,000 silicone damping in the cuing mechanism and cuing speed adjusted.

ü  Tone-arm ‘Auto’ functions restored, adjusted and tested

ü  Tone-arm lead ‘In / Out’ adjusted.

ü  'Anti-Skate' mechanism, cleaned and re-lubed w/ silicone lube.

ü  Both internal speed pots adjusted for perfect speed at 'centered' position.

ü  External (user adjustable) speed pot was cleaned for perfect platter stability and

ü  Gimbal bearing, counter weight and anti-skating all adjusted and verified for accuracy.


ü  Entire table was cleaned inside and out

ü  Speed checked and verified for accuracy with our shop strobe disc.

ü Tested / analyzed and passed for motor noise and 60Hz hum


ü We also re-installed, the existing Audio-Technica ‘Green’, Elliptically cut Diamond stylus, magnetic cartridge and optimized the tone arm for it. (If you prefer an up-grade you may also choose from our selection of new Audio Technica cartridges that we can also set up and ship with it for the additional cartridge cost.) You can readily connect this table to any receiver, Integrated amplifier with a standard magnetic phono input, or a Pre-amp. To connect to computer for burning CD's just order one of our inexpensive Phono Pre-Amps and cable kits.


ü Unit tested with our myriad of test records, one of which included; Shures' 'Cartridge Obstacle Course' record

ü Unit test cycled through 6 LP’s flawlessly

ü Original dustcover had a fresh buff, and looks great. Hinges hold it upright as well

  Great quality SONY PS-T33, Fully-Automatic, Direct-Drive turntable. Low-Mass, straight tone-arm with ORIGINAL ‘SONY’, angled, 1/2" standard mount head-shell for low record / stylus wear and accurate tracking. Plays 33 or 45 RPM vinyl. High ...


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Only has minor cosmetic issues; scuff along front edge, ‘stress point’ at front edge of dust cover (see photos). Well-built table delivers high quality performance.

Sony PS-T33 Features:


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


Sony PS-T33 Turntable Specifications:

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?



  Very quiet table. Nice low profile and elegant looking. All the "auto" functions work great following the EXTENSIVE refurb work outlined above. Great working and sounding table. and with the Audio-Technica, elliptically cut, diamond stylus cartridge installed, it's...Ready to Go! Measures 17" wide x 14.25" deep x 5.25" high and weighs heavy at 14 lbs unpacked. Includes our standard 30 day warranty.
  Cond. 8.5
 SONY PS-T33 STEREO TURNTABLE

SOLD 1/16/15
SHIPPED TO ILLINOIS
W/ DUST COVER
&
w/ AT Elliptical Diamond stylus cartridge installed








NEW LISTING 5/05/05
SONY PS-X7
TURNTABLE
SOLD 5/13/05

Sony_Turntable_PS-X35_web.jpg (36922 bytes)    Sony_Turntable_PS-X35_collage.jpg (212131 bytes)

SONY STEREO TURNTABLE
SONY PS-X35
SOLD










(Click on above thumbnails to enlarge photos)
SONY

STEREO TURNTABLE

SONY PS-X55
FULLY-AUTOMATIC
DIRECT DRIVE TURNTABLE
MADE IN JAPAN
Circa 1981-84

SOLD 4/27/10
(C)
C.B.S.








(Click on above thumbnails to enlarge photos)
SONY PS-X55S
FULLY-AUTOMATIC
DIRECT DRIVE
QUARTZ LOCK
TURNTABLE

SOLD 10/11/07






NEW LISTING 2/26/15
(Click on above thumbnails to enlarge photos)

RESTORED / REFURBISHED
VINTAGE SONY STEREO TURNTABLE
SONY PS-X55S / PSX55S

FULLY-AUTOMATIC
DIRECT DRIVE TURNTABLE
MADE IN JAPAN
#...4905
Circa 1981-84

SOLD 3/12/15
SHIPPED TO TENNESSEE

ü Our technician has completely gone through and 'Certified' this unit cleaning inside and out, cleaning out ‘gelled’ lubes (a ‘MUST DO’ on all pre-owned / vintage turntables) and re-lubricating mechanism investing ~16 hours of technician time!

ü Tone-arm height adjusted

ü Tone-arm 'lift height' adjusted.

ü Fresh 500,000 silicone damping in the cuing mechanism and cuing speed adjusted.

ü  Tone-arm ‘Auto’ functions restored, adjusted and tested.

ü Tone-arm lead ‘In / Out’ adjusted.

ü 'Anti-Skate' mechanism, cleaned and re-lubed w/ silicone lube.

ü Gimbal bearing, counter weight and anti-skating all adjusted and verified for accuracy.


ü Entire table was cleaned inside and out.

ü 'Quartz Locked' Speed checked and verified for accuracy with our shop strobe disc.

ü Tested / analyzed and passed for motor noise and 60Hz hum after additional 'up-grade' of ground cable


ü We also re-installed, the existing ADC LM100-MK-III, Elliptically cut Diamond stylus, magnetic cartridge and optimized the tone arm for it (aligned with Stevens Protractor)(If you prefer an up-grade you may also choose from our selection of new Audio Technica cartridges that we can also set up and ship with it for the additional cartridge cost.) You can readily connect this table to any receiver, Integrated amplifier with a standard magnetic phono input, or a Pre-amp. To connect to computer for burning CD's just order one of our inexpensive Phono Pre-Amps and cable kits.

ü Unit tested with our myriad of test records, one of which included; Shures' 'Cartridge Obstacle Course' record

ü Unit test cycled through 10 LP’s flawlessly.

ü Original dustcover had a fresh buff, and looks great.

ü Original dustcover hinges were made of plastic and suffered what pretty much ALL vintage Sony dust cover hinges suffer from, 'Spring Blowout'. Our tech found a set of 'ALL METAL' hinges to replace them with, for years of trouble-free service. Only one 'very' minor issue as of a result. The dust cover sometimes has to be 're-set' on the hinge slide to fully seat down against the plinth (see above photos).



HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


 Only minor cosmetic issue is some 'splotching' on the alloy platter (see photos). Well-built table delivers high quality performance.

Sony PS-X55S Turntable Features:



HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Sony PS-X55S Turntable Specifications:


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?



Very quiet, well performing table. Nice low profile and elegant looking. All the "auto" functions work great following the EXTENSIVE refurb work outlined above. Great working and sounding table. And with the ADC LM100-MK-III, elliptically cut, diamond stylus cartridge installed, it's...Ready to Go! Original 'shock absorbing' feet, intact. Following 3-stage dust cover buff, and the balance of the rest of the table restoration, it looks fabulous.
Will include an ‘e’ copy / pdf download of the Sony PS-X55 Owners / users manual and Service manual and Original Catalog / Brochure if desired. This particular one also includes the original Sony box and some packing. Measures 17" wide x 14.25" deep x 5.25" high and weighs heavy at 17.5 lbs unpacked. Includes our standard 30 day warranty.
Cond. 8.5+
RESTORED / REFURBISHED SONY PS-X55S STEREO TURNTABLE
SOLD 3/12/15
SHIPPED TO TENNESSEE


W/ DUST COVER
&
w/ ADC, Elliptical Diamond stylus cartridge installed















TECHNICS - CLICK HERE TO SEE OUR SOLD TECHNICS TURNTABLES ARCHIVE






NEW LISTING 8/24/06
THORENS
THORENS TD-104
TURNTABLE

SOLD 8/28/06







THORENS
THORENS TD-110 / TD110
FULLY MANUAL
BELT DRIVE
TURNTABLE
SOLD 4/9/07







        NEW LISTING 4/8/08
(Click on above thumbnails to enlarge photos)
warranty


THORENS
STEREO TURNTABLE

 T
THORENS D-146 / TD146
 FULLY MANUAL
 BELT DRIVE
 TURNTABLE
#...4859

 MADE IN WEST GERMANY
 Circa 1984-8
5
SOLD 6/9/08




THORENS
THORENS TD-165
TURNTABLE

SOLD FOR
MOVIE PROP



             NEW LISTING 4/22/16
(Click on above thumbnails to enlarge photos)

VINTAGE
REFURBISHED AND READY TO GO
THORENS STEREO TURNTABLE

THORENS TD-166 MK-II
FULLY MANUAL
2-SPEED
BELT DRIVE
#...7193
MADE IN WEST GERMANY
Circa 1981-83

SOLD 8/17/16
SHIPPING TO TEXAS

ü Our technician has completely and EXTENSIVELY gone through and 'Certified' this unit cleaning inside and out, COMPLETELY DISASSEMBLING, cleaning and re-lubricating internal mechanisms and the balance of efforts listed below.

ü Tone-arm cuing mechanism disassembled, cleaned and re-lubed.

ü Speed checked and adjusted for accuracy with factory test strobe disc to <1.0% drift!

ü Gimbal bearing, counter weight and anti-skating all adjusted and verified for accuracy w/ shop digital gram scale.

ü New bias weight mechanism / rod and bias weight sourced from Sweden

ü New and CORRECT drive belt ordered and installed

ü Original platter mat intact and still perfectly supple

ü Real Wood veneer deck lemon oiled and looks great

ü We also installed and adjusted a brand new Audio-Technica, AT-95, Elliptically cut Diamond stylus, magnetic cartridge and optimized the tone arm for it.  (If you prefer an up-grade you may also choose from our selection of new Audio Technica cartridges that we can also set up and ship with it for the additional cartridge cost.) You can readily connect this table to any receiver, Integrated amplifier with a standard magnetic phono input, or a Pre-amp. To connect to computer for burning CD's just order one of our inexpensive Phono Pre-Amps and cable kits. Again, this table looks near new and works great!!

ü Following the above refurb, turntable looks, functions and sounds fabulous

Thorens TD-166 mkII Features:


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?




With the exception of the dust cover, this Thorens TD-166 mkII is in LIKE NEW CONDITION. We've not had many Thorens come through in the past 18 years, and when they did, they didn't hang around long (our turntable tech is a Thornes fan). These are very well built, German turntables featuring belt drive platter & 4 point- high quality Gimbal bearing tone arm mount. Also features adjustable tracking and anti-skating force. Utilizes an external power supply to further reduce possibility of any noise.


Thorens TD-166 mkII TABLE SPECIFICATIONS:


Motor: Electronically controlled,XX-pole, synchronous
Platter Drive System: Belt-Drive
 Platter:
XXmm, non-XXAlloy
Speeds: Electronically controlled, 33 1/3 & 45 RPM
Speed Control:
XX frequency


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Wow & Flutter:
0.
XX% (WRMS) @ 33 1/3 RPM
Rumble:
>75dB
Tone arm type: Straight, XX head shell.
Arm Length:
XXmm
Counter weight range: XX grams
Cartridge type: Accepts all 1/2" "Standard" mount
Cable Capacitance:
XX pF, +/- 10%
Tangential Tracking Error:
XXdegrees/cm of radius
Cartridge Overhang:
XXmm adjustable
Offset Angle:
XX
Power Supply: External DC


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?



Again, our turntable tech has completely and EXTENSIVELY gone through this Thorens TD-166 mkII
as stated above and 'certified' it's ready to go! (total tech time ~9 hours). Now the 'bad news'. Unfortunately this one came in 'sans dust cover', however, again, as previously stated, the table has just been completely gone through and is "Ready to Go"! You will not be disappointed in this table for all around use. Measures 17" wide x 14" deep x 5.5" tall and weighs 15 lbs unpacked. Will include an ‘e’ copy / pdf download of the Thorens TD-166 mkII Owners / users manual and the service manual if purchaser desires. Includes our standard 30 day limited warranty.
THORENS TD-166 mkII STEREO TURNTABLE

 Cond. 8.5++ (less missing dust cover)
SOLD 8/17/16
SHIPPING TO TEXAS

 &
 w/ new AT-95 Elliptical Diamond stylus cartridge installed





To connect to computer for burning CD's or to a modern A/V receiver that does not have phono inputs, just order one of our inexpensive $42.99 Phono Pre-Amps and cable kits.

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)







         NEW LISTING 7/4/08
(Click on above thumbnails to enlarge photos)
VINTAGE
THORENS STEREO TURNTABLE

 THORENS TD-190 / TD190
 FULLY AUTOMATIC
3-SPEED
(
PLAYS 78'S!* )
 BELT DRIVE
#...3710

 MADE IN WEST GERMANY
 Circa 1993-2000
 THORENS TD-190
STEREO TURNTABLE
W/ DUST COVER
SOLD 6/15/11

&
w/ new AT-301 Elliptical Diamond stylus cartridge installed
* Best performance with 78's would require a suitable 78 RPM cartridge / stylus such as our Audio Technica ATP-2XN

Here is a link to the Thorens TD-190 turntable owners manual
for this table:

http://www.thorens.com/support/downloads.html







TOSHIBA STEREO TURNTABLE
TOSHIBA SR-230

SOLD 5/26/05

  - -



VOICE OF MUSIC
1511-1
FULLY AUTOMATIC
CHANGER / STACKER
FULLY AUTOMATIC

TURNTABLE / PHONOGRAPH
SOLD 9/4/07





NEW LISTING 11/25/07
(Click on above thumbnails to enlarge photos)


VOICE OF MUSIC / V of M
216/3
FULLY MANUAL
& SELF-CONTAINED
TURNTABLE / PHONOGRAPH

SOLD 12/12/07




VINTAGE YAMAHA STEREO BELT DRIVE TURNTABLE
YAMAHA YP-211

SOLD 10/7/05




NEW LISTING 1/30/09
(Click on above thumbnails to enlarge photos)
warranty
 YAMAHA
STEREO TURNTABLE


YAMAHA YP-211 YP211
#...6380
 "NATURAL SOUND"
 SEMI-AUTOMATIC

 BELT DRIVE
 Circa Late 1970's to 1980
 Made in Japan

 (C)

C.B.S.

SOLD 2/4/09


W/ DUST COVER
&

w/ GRADO GF3  Elliptical Diamond stylus cartridge installed










VINTAGE YAMAHA STEREO BELT DRIVE TURNTABLE
YAMAHA YP-B2

SOLD 1/10/06


Yamaha_YP-B4_Fully-Automatic_Belt-Drive_Stereo_Turntable_BS_web.jpg (24589 bytes)     Yamaha_YP-B4_Fully-Automatic_Belt-Drive_Stereo_Turntable_BS_collage.jpg (167569 bytes)

VINTAGE YAMAHA STEREO BELT DRIVE TURNTABLE
YAMAHA YP-B4
SOLD



NEW LISTING 9/20/19
(Click on above thumbnails to enlarge photos)

RESTORED / REFURBISHED / FULLY SERVICED
VINTAGE
YAMAHA
STEREO TURNTABLE
YAMAHA YP-B4
#...1832
FULLY-AUTOMATIC
QUIET, BELT DRIVE
MADE IN JAPAN
Circa 1977-
79
SOLD 9/21/19
SHIPPING TO BETTY IN FLORIDA


ü Our technician has completely gone through and 'Certified' this unit, cleaning inside and out, lubricating mechanism, adjusting tone arm lead out and testing performance. ~6.5 hours of technician time!

ü Partial disassembly of internal 'Auto' mechanisms, cleaned and re-lubed.

ü Originally missing platter and mat replaced.

ü Supplied, TOO light head shell, replaced with 'die-cast Aluminum' head-shell to correct tone-arm balance.

ü Platter spindle disassembled, cleaned of old lube and re-lubed.

ü Gimbal bearing, counter weight and anti-skating all adjusted and verified for accuracy w/ external shop scale.

ü Tone arm Lead-In and Lead-Out adjusted.

ü Tone arm bearing perfectly smooth in operation.

ü Fresh, NEW main drive belt installed for trouble-free service

ü Speed checked and verified for accuracy with technician's factory test strobe disc against built-in strobe at 98+%.

ü Gel damped cueing mechanism works smoothly, and brings tone arm STRAIGHT UP & DOWN (no angling or skewing).

ü Original rubber mat, still supple and flexible with no hardening.

ü Original dust cover just had a buff and looks GREAT, with no significant scratches or scuffs, and no cracks or splits, even around the hinge flanges

ü Original dustcover hinges hold cover upright as well

ü RCA Output cables checked for consistent signal flow and defects


ü We installed a NEW Audio-Technica AT-92E, Elliptically cut diamond stylus, Magnetic Cartridge (w/ 'universal kit') and optimized the tone arm for it (If you prefer an up-grade you may also choose from our selection of new Audio Technica cartridges that we can also set up and ship with it for the additional cartridge cost.)


ü Cartridge / head shell ‘overhang’ adjusted using shop Stevens calibration scale.

ü Tested / analyzed and passed for motor noise and 60Hz hum.

ü Unit tested with our myriad of test records, one of which included; Shures' 'Cartridge Obstacle Course' record

ü Unit test cycled through 12+ LP’s flawlessly

Following the above technical restore work,
this table looks fine, functions perfectly and sounds great!

Great condition, Quiet Belt Drive, Fully Auto, Yamaha YP-B4 Turntable. Utilizes a 'universal' head-shell for standard fit, 1/2" mount cartridges (again, the table comes with a FRESH / NEW "Audio-Technica AT-92e" Cartridge pre-installed from us.
Good solid performer. Looks good, works fine, reliable and easy to use. What else do you need?!

You can readily connect this table to any receiver (including 'modern / A/V / Home Theater receivers) or Integrated amplifier with a standard magnetic phono input, or an external Phono Pre-amp. To connect to computer for burning CD's just order one of our inexpensive
Phono Pre-Amps and cable kits.




Again, this table has been completely gone through and original dust cover just had a fresh, 6-Side buff and not only is crack free, but for the most part free of distracting scuffs / scratches. Only very minor cosmetic wear. Hinges and 'hinge areas' of dust cover completely intact, and the ALL METAL hinges hold dust cover up perfectly well. The entire table looks NEAR NEW. Beautiful 'Rosewood' grain, vinyl wrapped finish with mat finish, aluminum tone-arm base and escutcheons. Entire table Works great and is ready to go! You will not be disappointed in this table for all around use. Measures 17.2" wide x 13.75" deep x 5.2" tall and weighs 15 lbs unpacked. Includes our standard 30 day limited warranty.
YAMAHA YP-B4 STEREO TURNTABLE
w/ NEW AT-92E CART
Cond. 8.5+++

SOLD 9/21/19
SHIPPING TO BETTY IN FLORIDA
 (Cons.) R.R.


 & w/ NEW Audio-Technica AT-92e, Elliptically cut, Diamond stylus cartridge installed and original, 'CRACK FREE' DUST COVER (no, NOT "FREE Crack"!, "CRACK Free".)

To connect to computer for burning CD's or to a modern A/V receiver that does not have phono inputs, just order one of our inexpensive $42.99 Phono Pre-Amps and cable kits.







NEW LISTING 1/27/05
RESTORED / REFURBISHED YAMAHA TURNTABLE
YAMAHA P-350

SOLD 3/9/05




VINTAGE YAMAHA CD PLAYER
YAMAHA CD-2
SOLD

-


(Click on above thumbnails to enlarge photos)

Mahogany
Plinth
(Mounting board / Desk)
cut for
Garrard 301 Transcription
Table
Circa 1958
SOLD
  FOR SALE
Less table and tone arm. Beautiful condition Mahogany veneered 5/8" thick, 7-ply board from 1959. Cut to fit a Garrard 301 Transcription table and a tone arm. Overall measures 29 3/4" wide x 17 5/8" deep. Leave as is or narrow to fit your needs. Perfect condition original 1959 factory finish shows off Mahogany grain. Much prettier than the above photos.
Cond. 9.5
$50.
SOLD






GARRARD LAB-75B






ONKYO CP-1130F




DUAL CS-1225

Reference Cartridge / head shell Photos. (Products shown in photos NOT for sale)



Shure M95 Cartridge on universal head shell for reference only.






Record Players


Phonographs

(Self-contained)


CLICK HERE TO SEE OUR TURNTABLES
 CURRENTLY FOR SALE!

We are trying to ready more 78 RPM, 16 RPM and changer /
 stacker tables, but it is slow going. We will post more as
soon as they become ready! Keep checking or email to get
on the waiting list. Thanks!!!



LINKS TO OUR 'HI-FI' DEPARTMENTS

Amps and
Pre-Amps

Receivers

Cassette
Decks

Tuners

Turntables

8-Track Decks

CD Players

Reel-Reel
Decks

EQs and Signal
Processors

Speakers

Betamax and
VHS VCRs

Turntable Cartridges

Tube Audio

Ne'cessories

Speaker Parts

Record Players

Vintage Radios

Vintage
Walkmans

Headphones

Stereo Parts


Wondering where the "tone" you remember went?....




.... Surround yourself with Silver and find it again!



POLICIES, SPECIFICATIONS, AVAILABILITY, INFORMATION
AND PRICING SUBJECT TO CHANGE  AT ANYTIME  AND
WITHOUT PRIOR
NOTICE
and changes may not be posted to web immediately
.


20-30% restock fee / service charge applies to all returns for refund depending on item specifics & / or individual distributor / drop shipper policies.
See our "
Warranties / Returns" page via the link below for more details.

$20. Minimum Orders

Visa Credit Card Logo                 American Express Credit Card Logo                Mastercard Credit Card Logo              Discover Credit Card Logo

   *HOME PAGE*   |   CONTACT & ORDERING  PARTS CONTACT  |  FAQ'S  I   SELLING-TRADING-CONSIGNING    |   CONDITION RATINGS   |   ORDERING / POLICIES   |   WARRANTIES / RETURNS   |   SHIPPING    |   HOLD / SOLD   |  RESTORATION PROCEDURES  I  LINKS   |  CLIENT LIST  |

Copyright © 1997-2023 Oak Tree Enterprises, LLC
COPYRIGHT INFORMATION
