PHOTO / REFERENCE GALLERY OF
VINTAGE / USED
PIONEER STEREO TURNTABLES
- SOLD UNITS -


Photo / Reference gallery of vintage PIONEER Turntables. PIONEER Turntables / Phonographs that we have had in the past that have been sold. Keep checking as more vintage Pioneer Record Players will be added periodically. Used vintage Pioneer stereo turntables phonographs record players / turntables Pioneer PL-5 / PL5 (aka PIONEER PL-420 / PL420), PL-12D, PL-12D-II, PL-15D MKII, PL-15R, PL-50, PL-51A, PL-55D, PL-55DX, PL-55X, PL-61, PL-112D, PL-115D, PL-117D, PL-250, PL-400, PL-510, PL-510A, PL-512, PL-514, PL-518, PL-518X, PL-550, PL-560, PL-570BK, PL-600, PL-740, PL-A35D, PL-A45, PL-A45D, PL-L70, PL-L1000, PL-S40, PL-S70 phonograph and PD-M510, PD-M900 CD Players. All photos and text, are copyrighted and protected as stated at bottom of page. Keep checking as more vintage PIONEER turntables will be added periodically.

This page is for photo / text ARCHIVING ONLY of our Restored / Refurbished used PIONEER stereo turntables that have already been SOLD. Click the link below for current inventory.




... OR, CLICK HERE TO SEE OUR TURNTABLES CURRENTLY FOR SALE!





NEW LISTING 2/23/15
(Click on above thumbnails to enlarge photos)

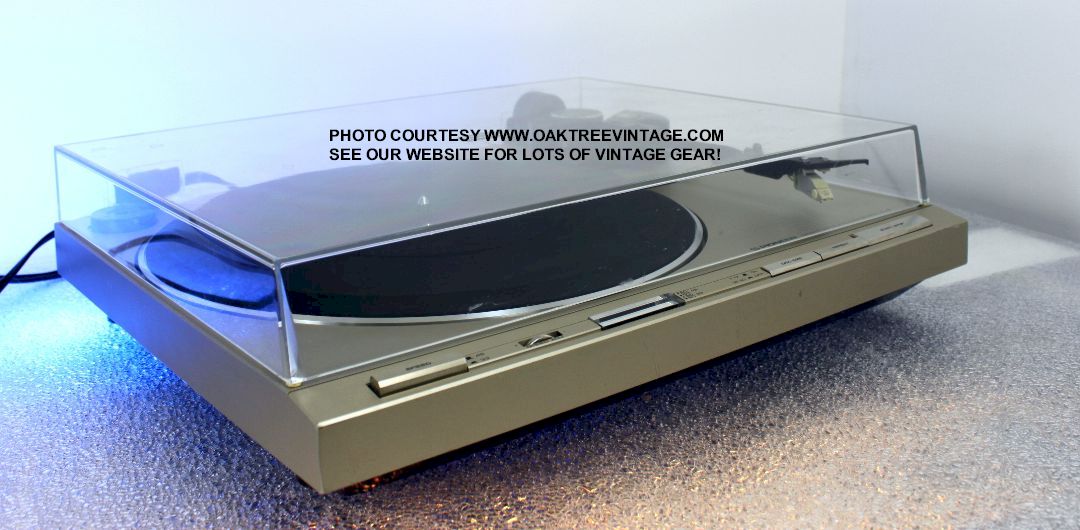

RESTORED / REFURBISHED
VINTAGE PIONEER STEREO TURNTABLE

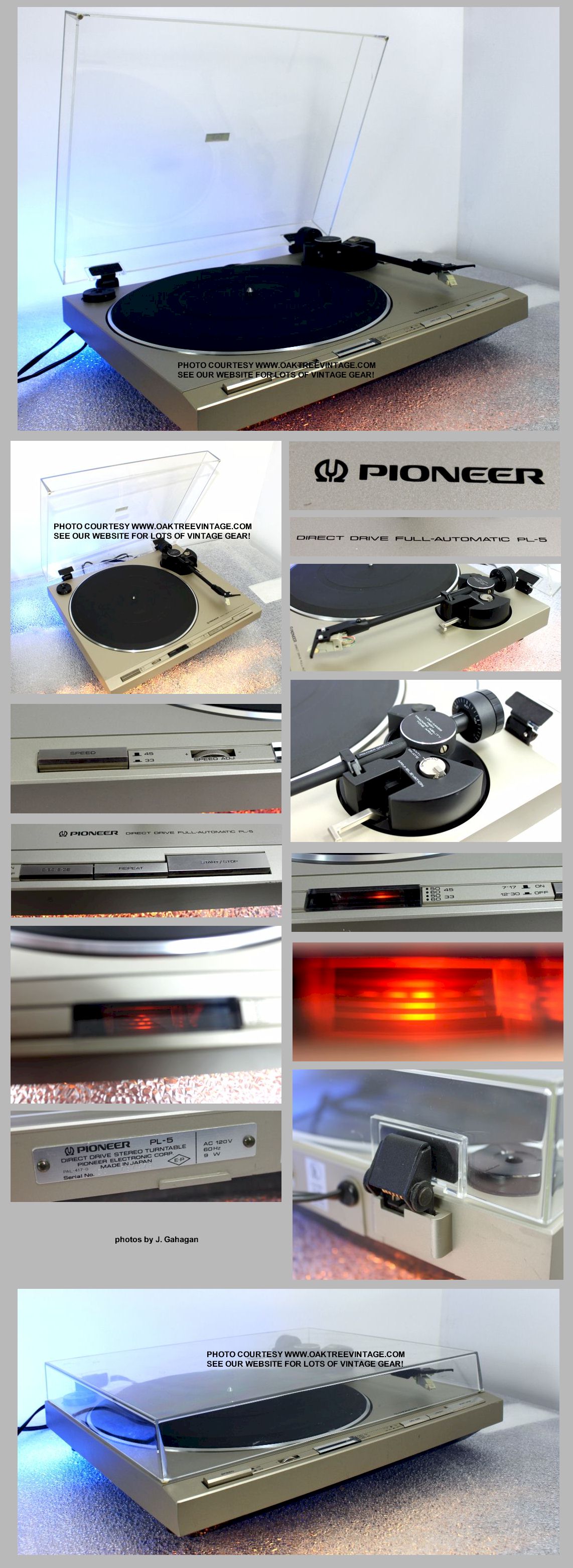

PIONEER PL-5 / PL5
(aka PIONEER PL-420 / PL420)
DIRECT DRIVE, FULLY-AUTOMATIC TURNTABLE
'CHAMPAIGN' FINISH
MADE IN JAPAN

#...797S
Circa 1981-83

SOLD 3/9/15
SHIPPING TO OHIO

 Our technician has completely gone through and 'Certified' this unit cleaning inside and out, cleaning out gelled lubes (a MUST DO on all pre-owned / vintage turntables) and re-lubricating mechanism

 Tone-arm Cueing mechanism disassembled, cleaned and re-filled with fresh 500,000 silicone fluid.

Tone-arm height adjusted

Tone-arm 'lift height' adjusted.

 Fresh 500,000 silicone damping in the cuing mechanism and cuing speed adjusted.

Tone-arm Auto functions restored, adjusted and tested

Tone-arm lead In / Out adjusted.

 'Anti-Skate' mechanism, cleaned and re-lubed w/ silicone lube.

 Both internal speed pots adjusted for perfect speed at 'centered' position.

 External (user adjustable) speed pot was cleaned for perfect platter stability.

Gimbal bearing, counter weight and anti-skating all adjusted and verified for accuracy.


 Entire table was cleaned inside and out.


 Dustcover hinges tested for ability to hold dust cover 'up' and passed.

 speed checked and verified for accuracy with our shop strobe disc.

Tested / analyzed and passed for motor noise and 60Hz hum

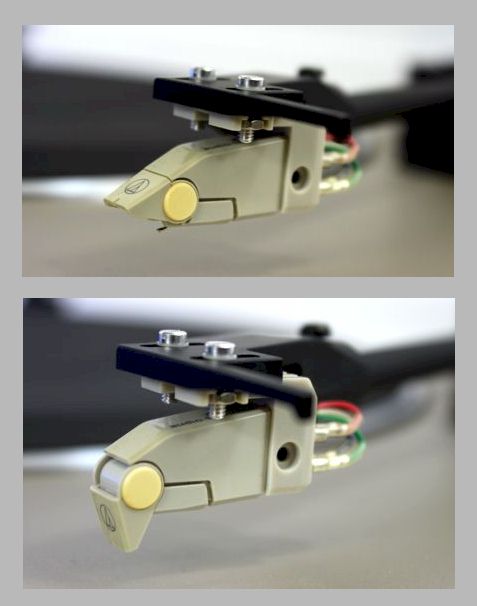

We also re-installed, the existing Audio-Technica, AT201, Elliptically cut Diamond stylus, magnetic cartridge and optimized the tone arm for it. (If you prefer an up-grade you may also choose from our selection of new Audio Technica cartridges that we can also set up and ship with it for the additional cartridge cost.) You can readily connect this table to any receiver, Integrated amplifier with a standard magnetic phono input, or a Pre-amp. To connect to computer for burning CD's just order one of our inexpensive Phono Pre-Amps and cable kits.

Unit tested with our myriad of test records, one of which included; Shures' 'Cartridge Obstacle Course' record.

Unit test cycled through 10 LPs flawlessly

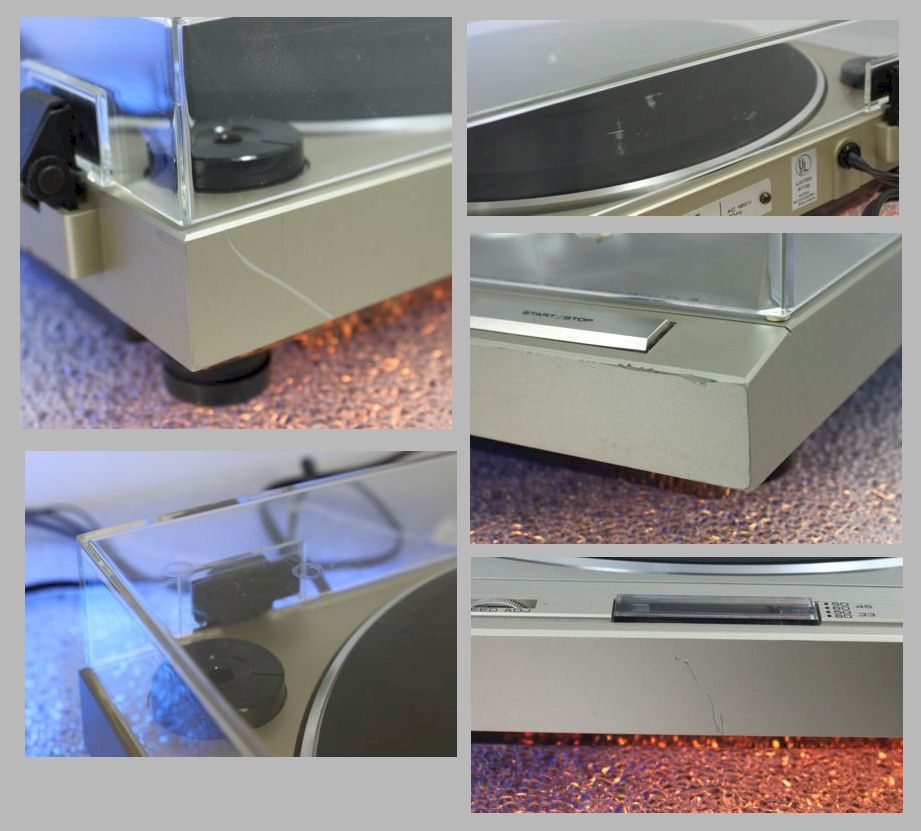

Original dustcover had a fresh buff, and looks very nice with minor wear (see photos above). Hinges hold it upright as well

Great quality Pioneer PL-5, Fully-Automatic, Direct-Drive turntable. Low-Mass, straight tone-arm with ORIGINAL Pioneer, 1/2" standard mount head-shell for low record / stylus wear and accurate tracking. Plays 33 or 45 RPM vinyl. High quality Gimbal bearing allows for critical adjustment of cartridge tracking / anti-skating. Only has minor cosmetic scuffs / scratches (see photos). Well-built table delivers high quality performance.

Pioneer PL-5 Features:


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Pioneer PL-5 / PL-420 Turntable Specifications:

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?



Very quiet table. Nice low profile and elegant looking. All the "auto" functions work great following the refurb work outlined above. Great working and sounding table. and with the Audio-Technica, elliptically cut, diamond stylus cartridge installed, it's...Ready to Go! Measures 16.5" wide x 14.5" deep x 4.25" high and weighs heavy at 13 lbs unpacked. Includes our standard 90 day warranty.
  Cond. 8.5
RESTORED / REFURBISHED PIONEER PL-5 STEREO TURNTABLE
SOLD 3/9/15
SHIPPING TO OHIO


W/ DUST COVER
&
w/ AT Elliptical Diamond stylus cartridge installed

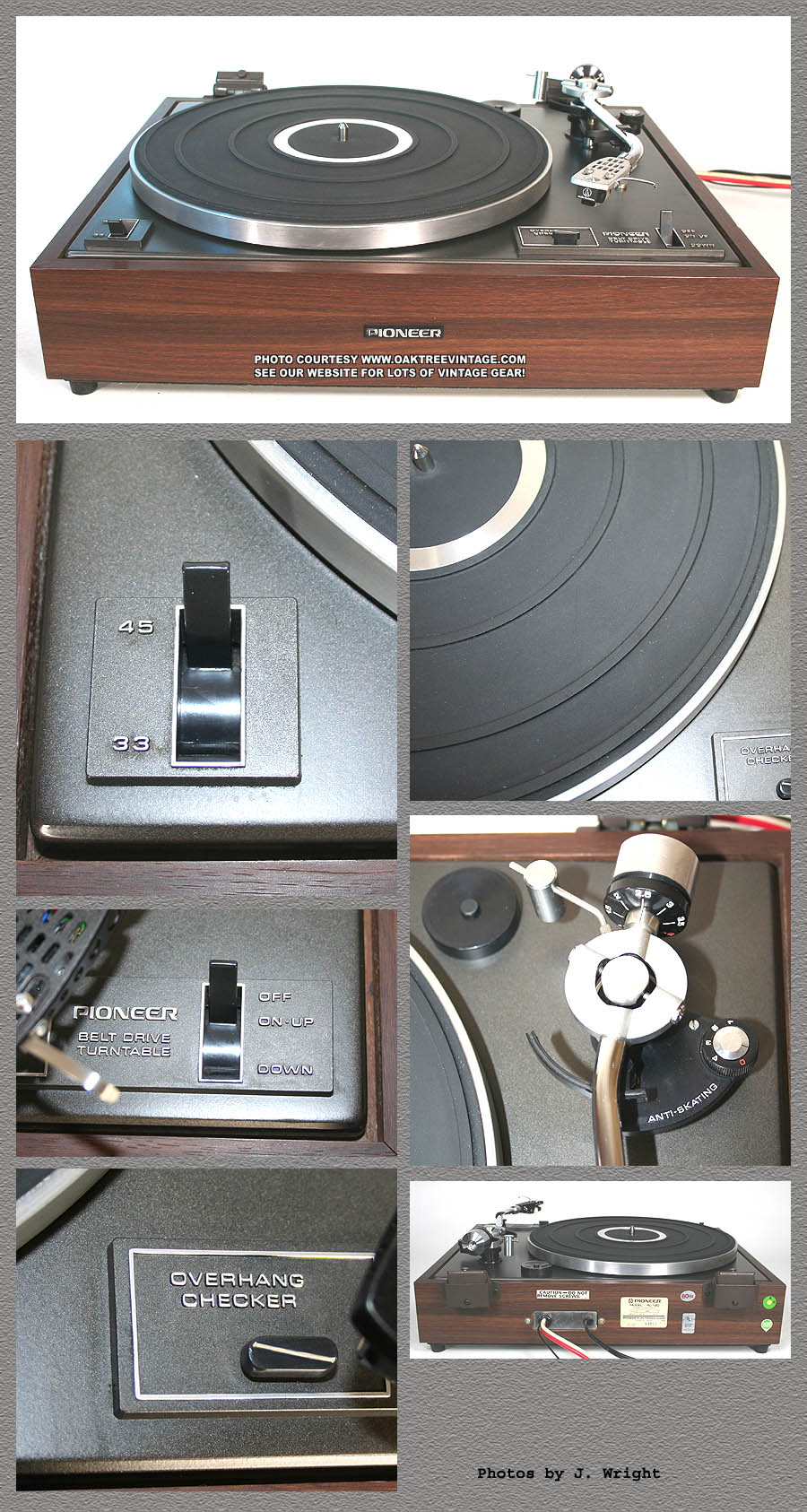

VINTAGE PIONEER STEREO TURNTABLE

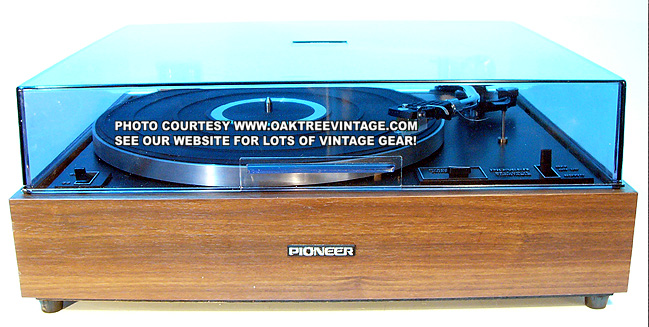

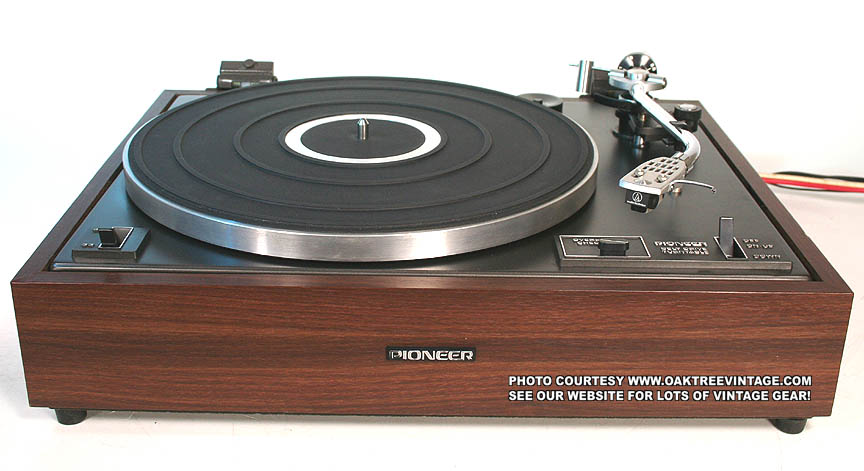

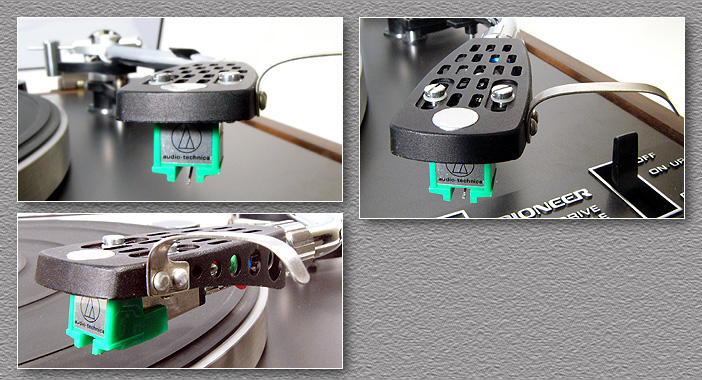

PL-12D

SOLD

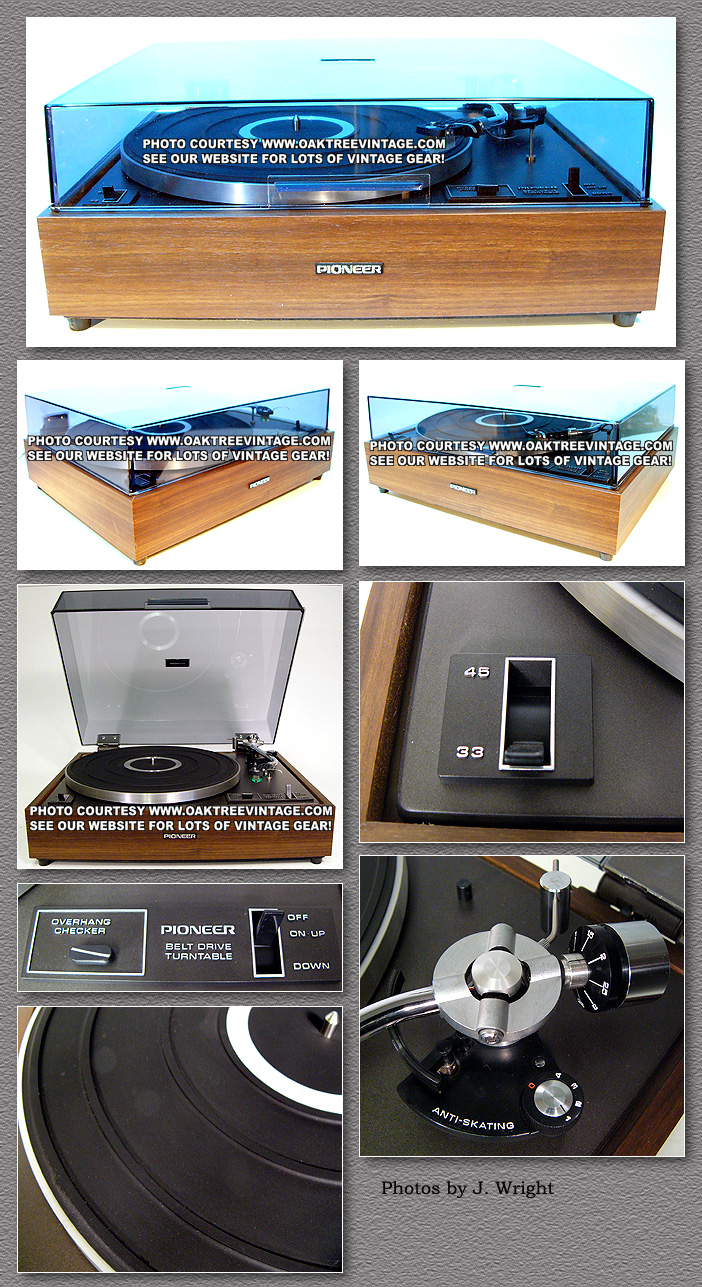

VINTAGE PIONEER STEREO TURNTABLE
PL-12D

SOLD 6/11/05





NEW LISTING 3/25/09
(Click on above thumbnails to enlarge photos)
warranty
PIONEER
STEREO TURNTABLE

PIONEER
PL-12D
#...5507
FULLY MANUAL
 BELT DRIVE
 Circa 1970 to 1975
 Made in Japan

SOLD 6/12/09

&

w/ NEW AT-71E  Elliptical Diamond stylus
cartridge installed






       NEW LISTING 4/8/11

(Click on above thumbnails to enlarge photos)
warranty
VINTAGE
PIONEER STEREO TURNTABLE

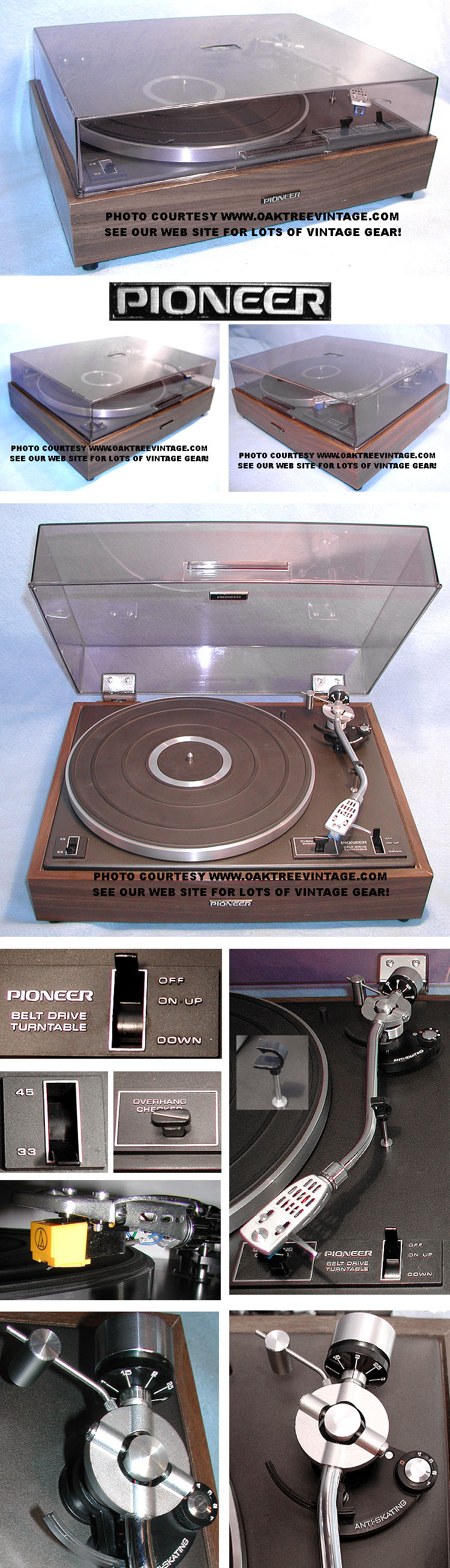

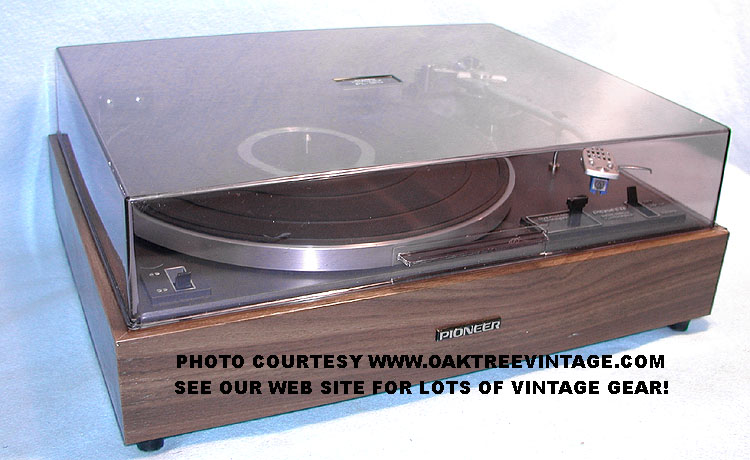

PIONEER PL-12D
#...5507
FULLY MANUAL / BELT DRIVE
 Circa 1970 to 1975
 Made in Japan

 PIONEER PL-12D
STEREO TURNTABLE
(C)
J.W.

SOLD 8/17/11

 &
 w/ NEW AT-92E  Elliptical Diamond stylus cartridge installed






NEW LISTING 6/16/16
(Click on above thumbnails to enlarge photos)

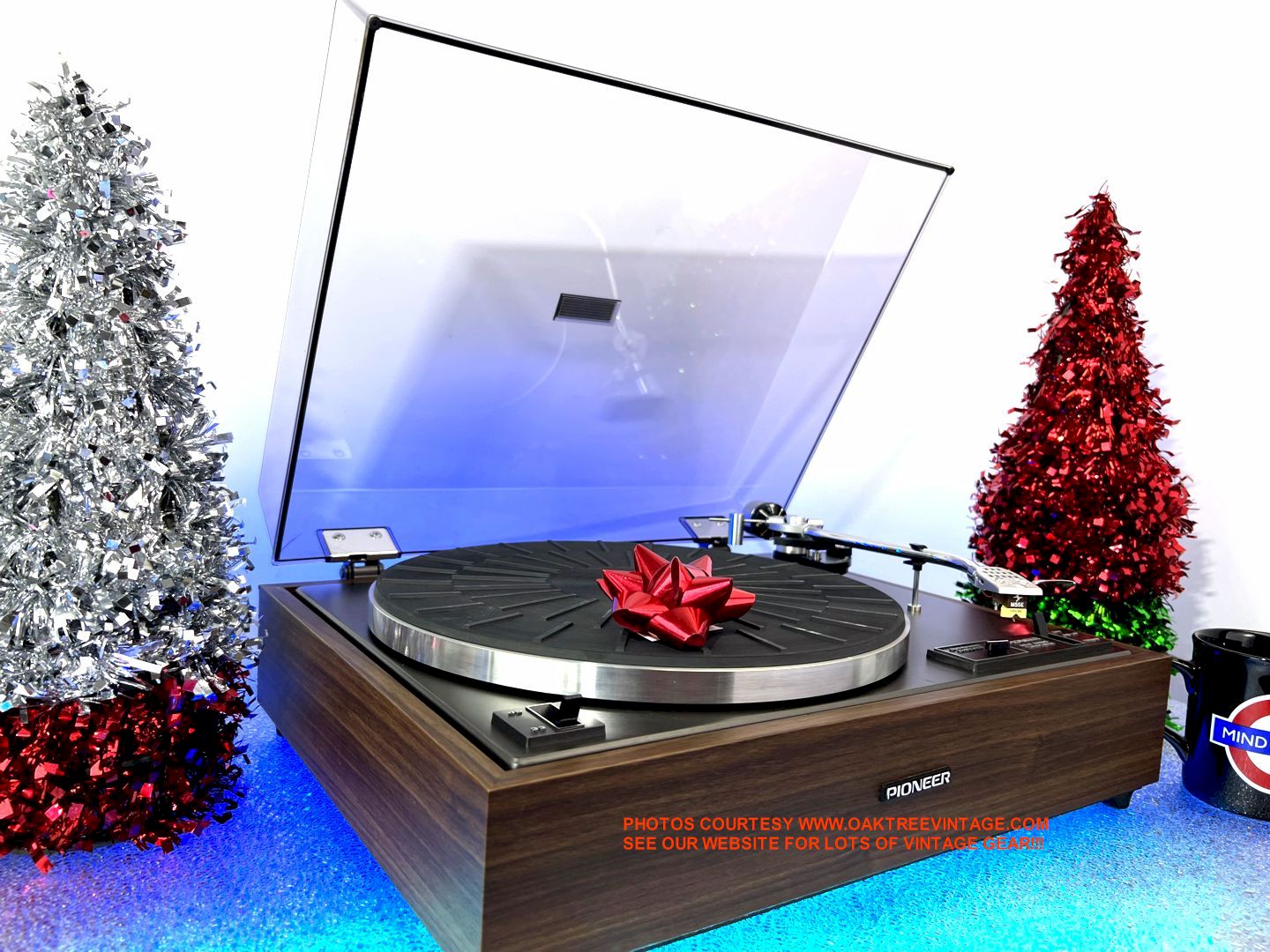

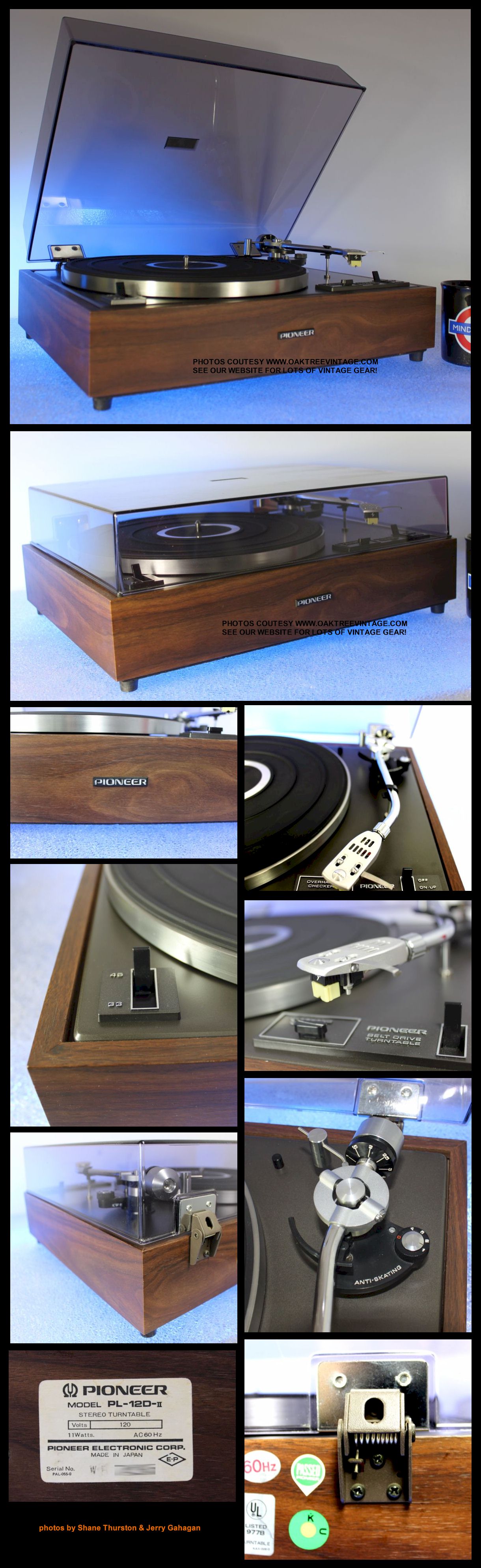

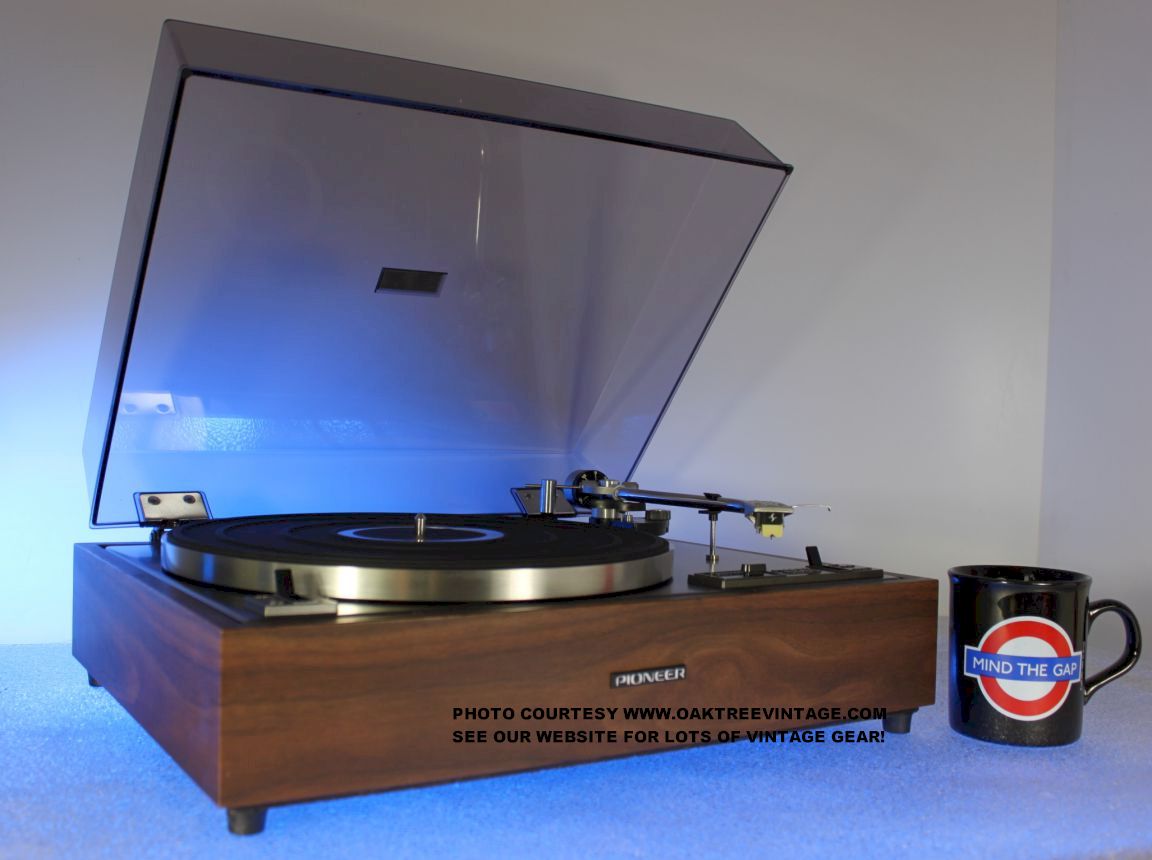

VINTAGE PIONEER STEREO TURNTABLE
PIONEER PL-12D-II
BELT DRIVE
FULLY MANUAL
TURNTABLE
Circa 1976-78
 #...4265
Made in Japan

SOLD 9/15/16
SHIPPED TO ILLINOIS

Our technician has completely and EXTENSIVELY gone through and 'Certified' this unit cleaning inside and out, COMPLETELY DISASSEMBLING, cleaning and re-lubricating internal mechanisms and the balance of efforts listed below. Refurb / restore included lubricating mechanism, adjusting tone arm and testing performance. New belt installed for trouble-free service. Speed checked and verified for accuracy with factory test strobe disc and is 98% for 33.3 & 45 RPM. Gimbal bearing, counter weight and anti-skating all adjusted and verified for accuracy. Original dust cover just had fresh buff, and looks decent with most of the scuffing / scratching / clouding removed. Both Hinges function fine. Original rubber mat, still supple and flexible with no hardening. We also re-installed and adjusted the existing Shure M91ED, elliptical stylus cartridge with a NEW stylus and optimized the tone arm for it. (If you prefer an up-grade you may also choose from our selection of new Audio Technica cartridges that we can also set up and ship with it for the additional cartridge cost.) You can readily connect this table to any receiver, Integrated amplifier with a standard magnetic phono input, or a Pre-amp. To connect to computer for burning CD's just order one of our inexpensive Phono Pre-Amps and cable kits. Again, this table looks and works great!!

Simple, well built, Pioneer PL-12D-II, quiet running / Belt Drive, Fully Manual stereo turntable!...
Pioneer PL-12D-II Features:


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


Pioneer PL-12D-II Specifications:


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


Again, this table has been completely gone through by our table technician. Table looks and works great! Very heavy table delivers high quality performance. Great "all around" table for utility use, and ready to spin your vinyl through those vintage speakers you own. Measures 17" wide x 13.75" deep x 6.5" tall and weighs 16.5 lbs unpacked.
 Includes a pdf, 'e' copy, download of the Pioneer PL-12D-II owners / users / instruction manual, and Service Manual if user desires. Comes with our standard 90 day limited warranty.
PIONEER PL-12D-II
Cond. 8.5

SOLD 9/15/16
SHIPPED TO ILLINOIS

W/ DUST COVER


 w/ Shure Elliptical Diamond stylus cartridge installed

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)








(Click on above thumbnails to enlarge photos)

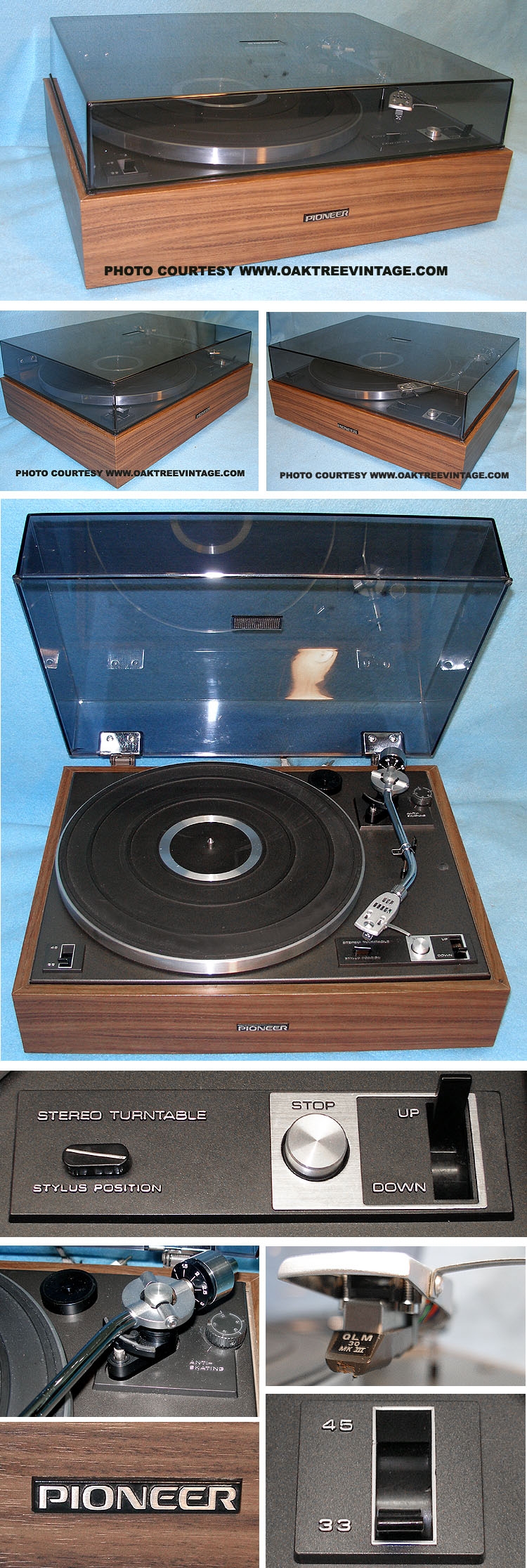

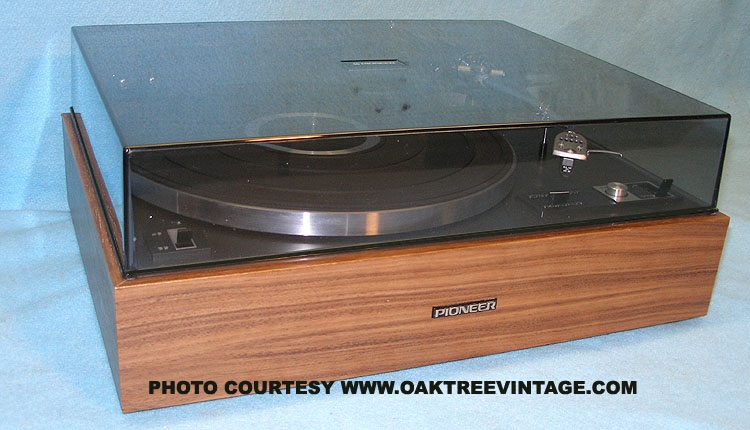

VINTAGE PIONEER PL-15D MK II
PIONEER STEREO TURNTABLE
SEMI-AUTOMATIC
BELT DRIVE
TURNTABLE

SOLD 11/28/07








       NEW LISTING 5/08/10
(Click on above thumbnails to enlarge photos)
warranty

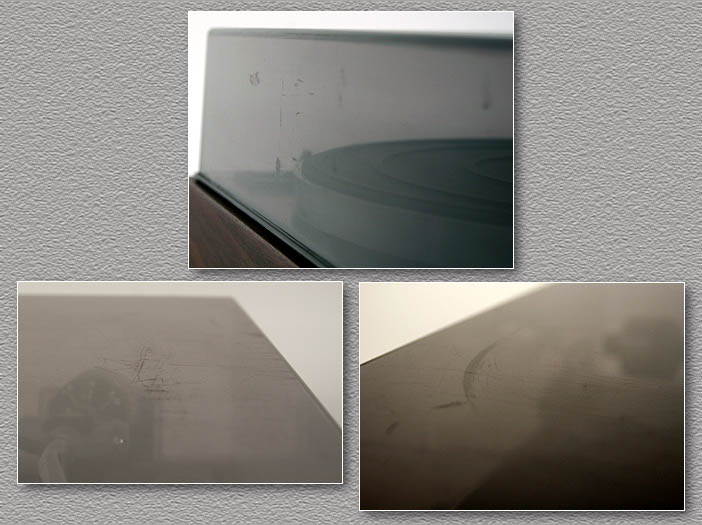

VINTAGE PIONEER STEREO TURNTABLE RESTORED / REFURBISHED
MODEL PL-15R
SEMI-AUTOMATIC
BELT DRIVE
TURNTABLE
 Circa 1976-78
#...5571
 Made in Japan

SOLD 10/4/10

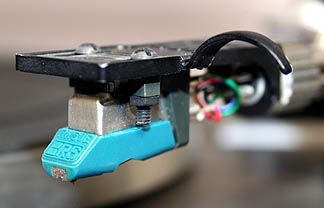

w/ Realistic Elliptical Diamond stylus cartridge installed



NEW LISTING 1/27/05

PIONEER
PL-50
STEREO TURNTABLE

TURNTABLE

SOLD 1/28/05










            NEW LISTING 2/27/15
(Click on above thumbnails to enlarge photos)

RESTORED / REFURBISHED
VINTAGE PIONEER TURNTABLE

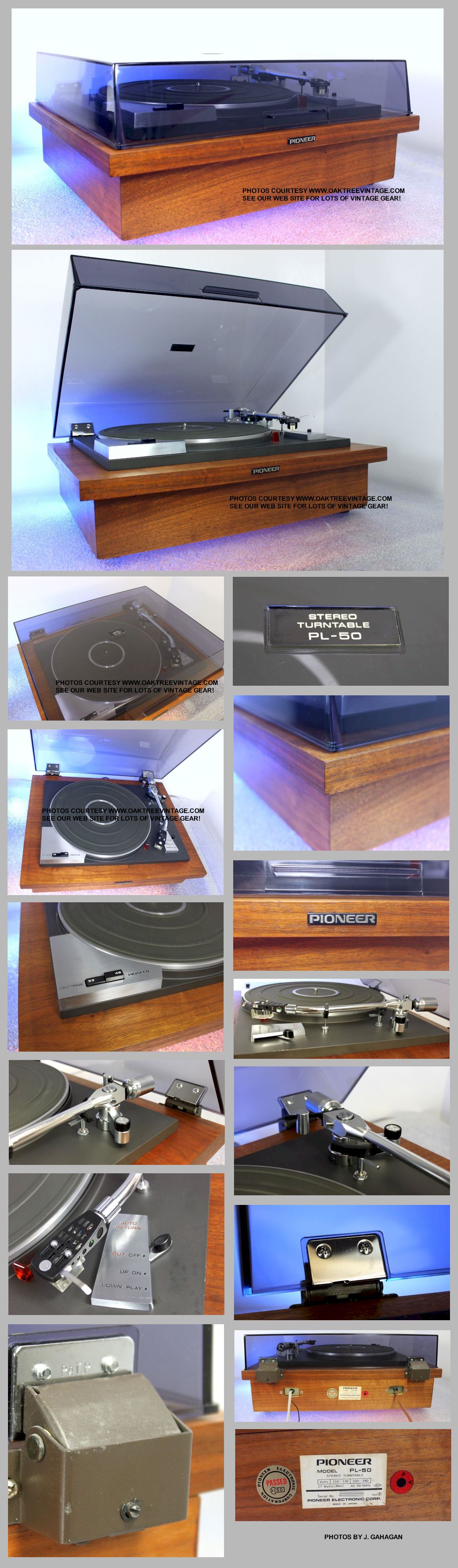

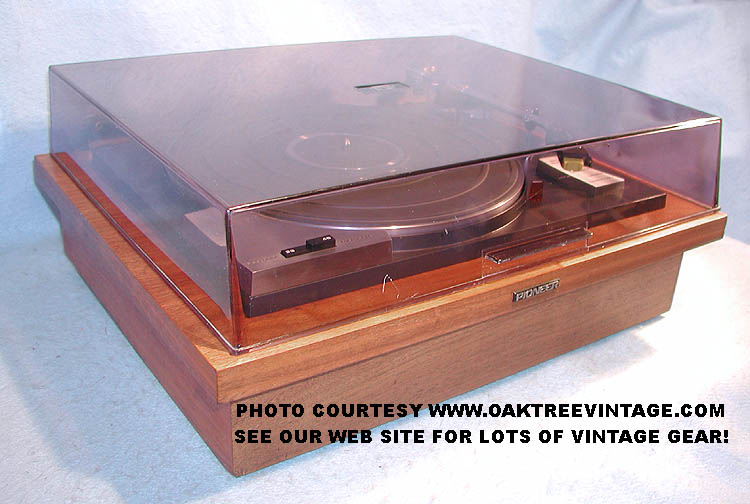

PIONEER PL-50 / PL50
SEMI AUTOMATIC / BELT DRIVE
TURNTABLE
#...5177
Made in Japan
Circa early 1970's

SOLD 5/8/15
SHIPPED TO ILLINOIS

Our technician has completely and EXTENSIVELY gone through and 'Certified' this unit cleaning inside and out, COMPLETELY DISASSEMBLING, cleaning and re-lubricating internal mechanism (including BOTH internal Rotating Plates, the lower of which had fresh 500,000 Silicone gel installed), tone arm bearing disassembled, cleaned and re-lubed, adjusting tone arm height, lead OUT and adjusting multiple internal springs related to 'auto return' mechanism and testing performance.
Total Technician Time
to restore this table back to original condition
~24 HOURS!!!
(we have owned MANY of this series (ie; PL-40, PL41, PL-50, PL-51, PL-60, PL-61, PL-55, PL-55DX etc) and we know what is inside, what is wrong inside, and what HAS TO BE DONE in order to have one of these that will run properly for any length of time, and be dependable. We've never had one that ran well, nor for very long without this work being done, especially to the 'rotator plates', arm bearing and thrust bearing)




Gimbal bearing, counter weight and anti-skating all adjusted and verified for accuracy.

'Auto-return' mechanism EXTENSIVELY restored, adjusted and tested as mentioned above (this is a MUST DO on this series of Pioneer tables and takes MANY HOURS to correctly and thoroughly accomplish).

'Speed Selector' mechanism completely disassembled, cleaned and re-lubed.

'Arm Lift / Cuing' mechanism cleaned of old damping gel (most always leaks out on early Pioneer PL's) and fresh 500,000 silicone gel inserted (this is a MUST DO on this series of Pioneer tables).

Original motor was replaced with one from another PL-50 we had, after we noticed about 1.5-2 dB of noise we felt shouldn't have been there, even after cleaning and re-lubing. The replacement motor was silent following cleaning and re-lubing.

Original tone-arm was replaced with one from another PL-50 we had, after we noticed a bit too much 'play' we felt shouldn't have been there.

'Crumbly' original thrust bearing was replaced with a new 'nylon' bearing (this is a must do on this series). Platter spindle bearing cleaned of old lube and re-lubed.

Fresh, New and Correct belt installed.

Tested / analyzed and passed for motor noise and 60Hz hum.

Rubber mat still supple and flexible with no hardening.

Original feet in fine condition.

Cartridge / head shell overhang adjusted using shop calibration scale.

Original dustcover had a 3-Stage buff, and looks INCREDIBLE. Hinges adjusted to hold it upright as well.

Original Real Walnut Wood veneer base cleaned and rubbed with Howards 'Restore-a-Finish' followed by Howards 'Feed-n-Wax'.

Platter speed checked and verified for 99.1+% accuracy with our factory test strobe disc following installation of correct belt.

We also re-installed and adjusted the existing, Sansui, elliptically cut Diamond, magnetic cartridge and optimized the tone arm for it. (If you prefer an up-grade you may also choose from our selection of new Audio Technica cartridges that we can also set up and ship with it for the additional cartridge cost.)
You can readily connect this table to any receiver, Integrated amplifier with a standard magnetic phono input, or a Pre-amp. To connect to computer for burning CD's just order one of our inexpensive Phono Pre-Amps and cable kits.


Unit tested with our myriad of test records, one of which included; Shures' 'Cartridge Obstacle Course' record

Unit test cycled through 30 LPs flawlessly

Great performing, sounding and INCREDIBLE looking Pioneer PL-50, Belt Drive, Semi-Automatic turntable. Following the above restoration, it looks fabulous, now functions correctly and performs well.

Pioneer PL-50 Turntable Features:

...archived away from page

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


PIONEER PL-50 TURNTABLE SPECIFICATIONS:

...archived away from page


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?



These are very sought after Pioneer turntables due to their size / stature / mass, the platter mass and their belt drive system.
Again, our turntable tech has completely and EXTENSIVELY gone through this table (total tech time ~24 hours), and following restoration was tested for speed accuracy, rumble, wow & flutter, noise isolation, tone-arm return function and lubed internal mechanism. Original dust cover is in fabulous shape after a 3-Stage plastic buff / hand polish. Table looks good and works great! Comes with a great performing, Sansui, Elliptically cut, diamond stylus cartridge. Ready to play!!! (not for use at room temps below about mid 60's, due to lubes) (If you prefer an up-grade you may also choose from our selection of new Audio Technica cartridges that we can also set up and ship with it for the additional cartridge cost.) Measures 19.5" wide x 16.8" deep x 7.75" tall and weighs a HEAVY 22 lbs unpacked. Will include an e copy / pdf download of the Pioneer PL-50 Owners / users manual and the service manual if purchaser desires. Comes with our standard 90 day limited warranty.
RESTORED / REFURBISHED PIONEER PL-50 STEREO TURNTABLE
Cond. 8.5++

SOLD 5/8/15
SHIPPED TO ILLINOIS


W/ BEAUTIFUL DUST COVER &
w/ 'Sansui' Elliptical Diamond stylus cartridge installed








NEW LISTING 10/20/17
(Click on above thumbnails to enlarge photos)

RESTORED / REFURBISHED
VINTAGE PIONEER TURNTABLE
PIONEER PL-50 / PL50
SEMI AUTOMATIC / BELT DRIVE
TURNTABLE
#...4248
Made in Japan
Circa early 1970's

SOLD 12/6/17
SHIPPING TO KENTUCKY



Our technician has completely and EXTENSIVELY gone through and 'Certified' this unit cleaning inside and out, COMPLETELY DISASSEMBLING, cleaning and re-lubricating internal mechanism (including BOTH internal Rotating Plates, the lower of which had fresh 500,000 Silicone gel installed), tone arm bearing disassembled, cleaned and re-lubed, adjusting tone arm height, lead OUT and adjusting multiple internal springs related to 'auto return' mechanism and testing performance.


Gimbal bearing, counter weight and anti-skating all adjusted and verified for accuracy.


'Auto-return' mechanism EXTENSIVELY restored, adjusted and tested as mentioned above (this is a MUST DO on this series of Pioneer tables and takes MANY HOURS to correctly and thoroughly accomplish).


Platter Drive Motor completely disassembled,  EXTENSIVELY cleaned and re-lubed.


'Speed Selector' mechanism completely disassembled, cleaned and re-lubed.


'Arm Lift / Cuing' mechanism cleaned of old damping gel (most always leaks out on early Pioneer PL's) and fresh 500,000 silicone gel inserted (this is a MUST DO on this series of Pioneer tables).


'Crumbly', original thrust bearing was replaced with a new 'nylon' bearing (this is a must do on this series).

Installed new 'thrust pad'

Platter spindle bearing cleaned of old lube and re-lubed.


Fresh, New and Correct belt installed.


Tested / analyzed and passed for motor noise and 60Hz hum.


Original 'hardened / cracked', rubber platter mat replaced with more 'supple' one


Original feet in fine condition.



Cartridge / head shell overhang adjusted using shop calibration scale.


Original dustcover had a 3-Stage buff, and looks fine with typical wear.

Hinges adjusted to hold it upright as well.


Original Real Walnut Wood veneer base cleaned and rubbed with Howards 'Restore-a-Finish' followed by Howards 'Feed-n-Wax'.


Following restoration, the Platter speed checked and verified for 98% accuracy (runs about +.2%) with our factory test strobe disc following installation of correct belt.

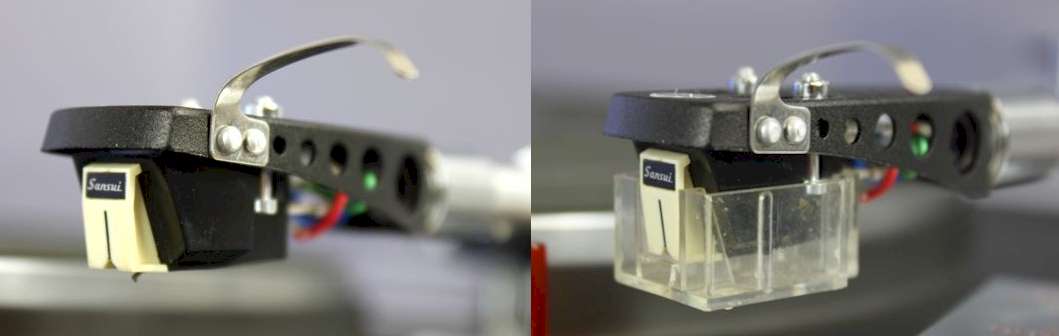

We also re-installed and adjusted the existing, Sansui, elliptically cut Diamond, magnetic cartridge and optimized the tone arm for it. (If you prefer an up-grade you may also choose from our selection of new Audio Technica cartridges that we can also set up and ship with it for the additional cartridge cost.)
 You can readily connect this table to any receiver, Integrated amplifier with a standard magnetic phono input, or a Pre-amp. To connect to computer for burning CD's just order one of our inexpensive Phono Pre-Amps and cable kits.



Unit tested with our myriad of test records, one of which included; Shures' 'Cartridge Obstacle Course' record


Total Technician Time
 to restore this table
~22 HOURS!!!
(we have owned MANY of this series (ie; PL-40, PL41, PL-50, PL-51, PL-60, PL-61, PL-55, PL-55DX etc) and we know what is inside, what is wrong inside, and what HAS TO BE DONE in order to have one of these that will run properly for any length of time, and be dependable. We've never had one that ran well, nor for very long without this work being done, especially to the 'rotator plates', arm bearing and thrust bearing)


Unit test cycled through 30 LPs flawlessly


 Great performing, sounding and INCREDIBLE looking Pioneer PL-50, Belt Drive, Semi-Automatic turntable. Following the above restoration, it looks fabulous, now functions correctly and performs well.




 These are very sought after Pioneer turntables due to their size / stature / mass, the platter mass and their belt drive system.
 Again, our turntable tech has completely and EXTENSIVELY gone through this table (total tech time ~22 hours), and following restoration was tested for speed accuracy, rumble, wow & flutter, noise isolation, tone-arm return function and lubed internal mechanism. Original dust cover is in good shape after a 3-Stage plastic buff / hand polish. Table looks good and works great! Comes with a great performing, Sansui, Elliptically cut, diamond stylus cartridge. Ready to play!!! Measures 19.5" wide x 16.8" deep x 7.75" tall and weighs a HEAVY 22 lbs unpacked. Will include an e copy / pdf download of the Pioneer PL-50 Owners / users manual and the service manual if purchaser desires. Comes with our standard 90 day limited warranty.
 RESTORED / REFURBISHED PIONEER PL-50 STEREO TURNTABLE
 Cond. 8.5

SOLD 12/6/17
SHIPPING TO KENTUCKY

(C) M.R.



W/ DUST COVER &
 w/ 'Sansui' Elliptical Diamond stylus cartridge installed

To connect to computer for burning CD's or to a modern A/V receiver that does not have phono inputs, just order one of our inexpensive $42.99 Phono Pre-Amps and cable kits.


(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)

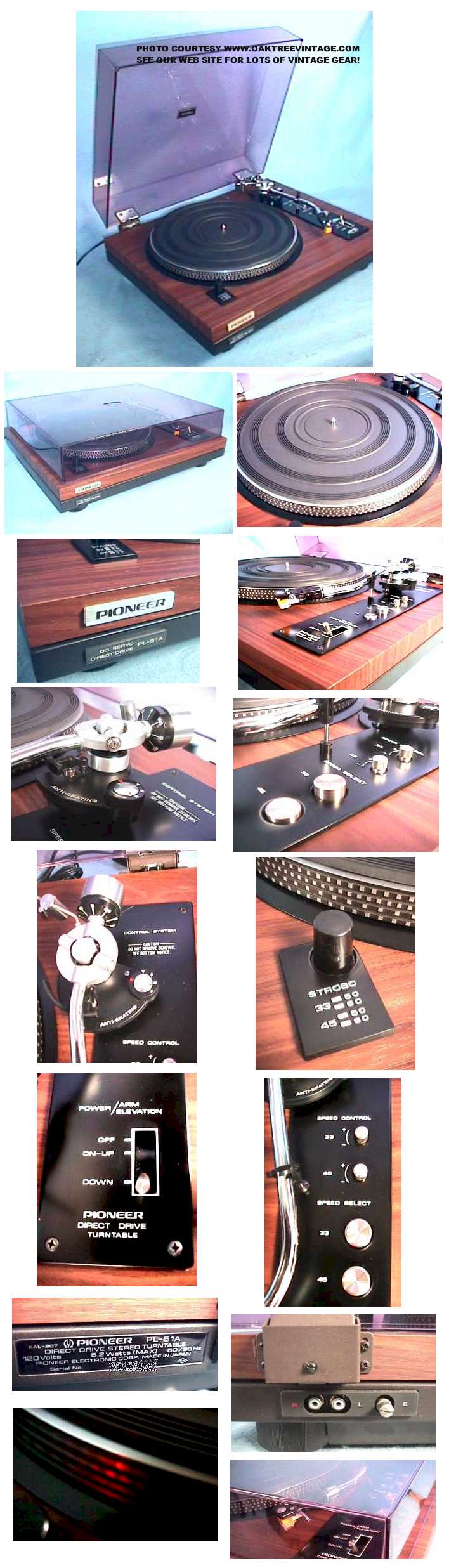

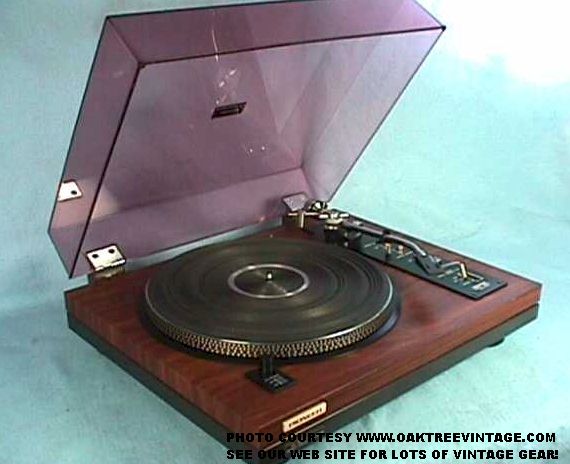

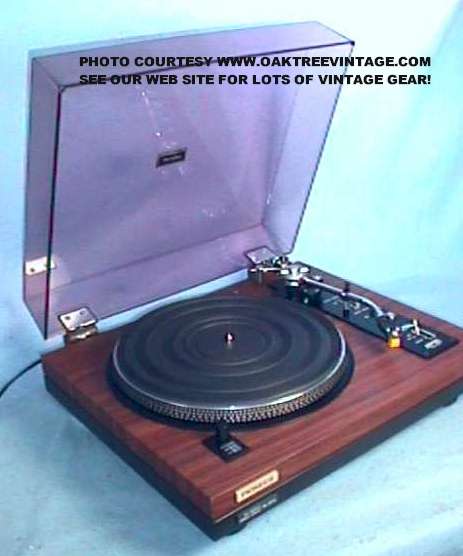

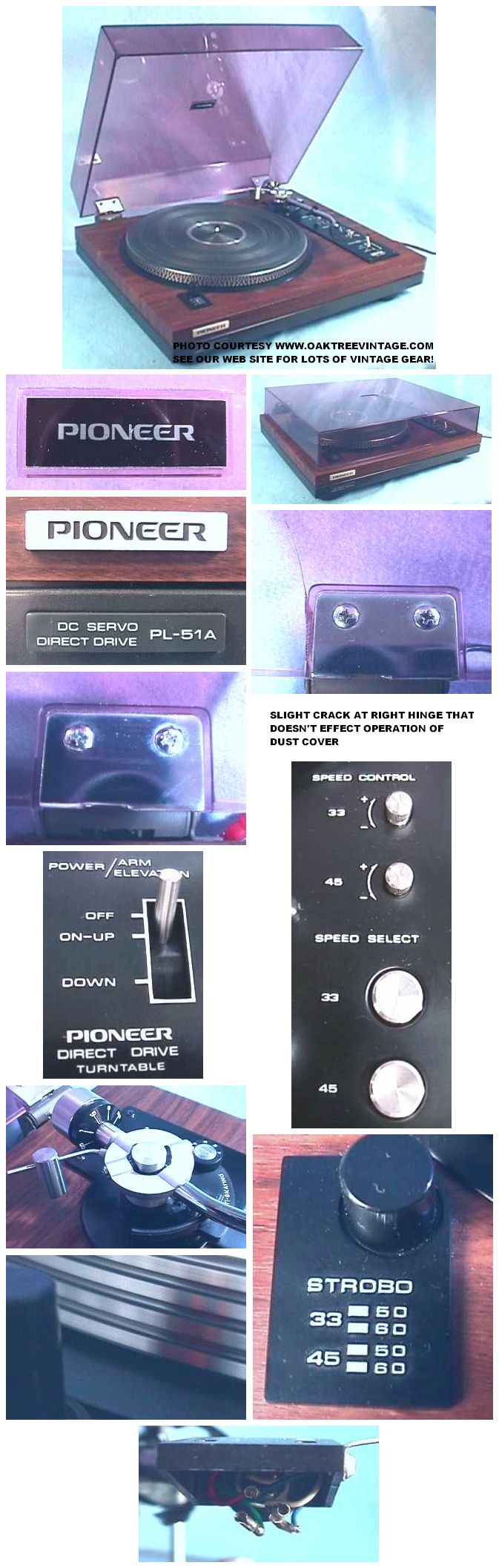

Pioneer_PL-51A_Direct-Drive_Manual_Turntable_web.jpg (41016 bytes)    Pioneer_PL-51A_Direct-Drive_Stereo Turntable_collage.jpg (196739 bytes)

PIONEER STEREO TURNTABLE
DIRECT DRIVE
PIONEER PL-51A

SOLD



Pioneer_PL-51A_Stereo_Turntable_2_web.jpg (25773 bytes)   Pioneer_PL-51A_Stereo_Turntable_2_collage.jpg (196773 bytes)

PIONEER STEREO TURNTABLE
DIRECT DRIVE
PIONEER PL-51A
#UH158111
SOLD


-

-



(Click on above thumbnails to enlarge photos)

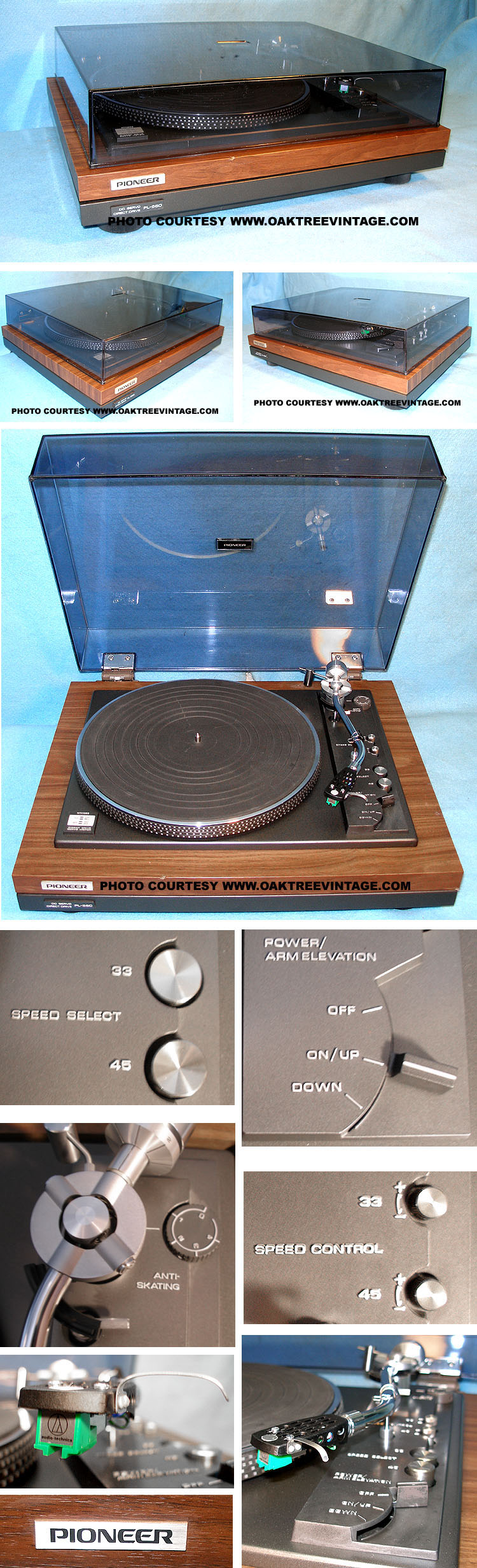

                NEW LISTING 8/30/07
REPAIRED / RESTORED / REFURBISHED
PIONEER STEREO TURNTABLE
DIRECT DRIVE / SEMI-AUTOMATIC
PIONEER PL-55D

SOLD
11/29/07

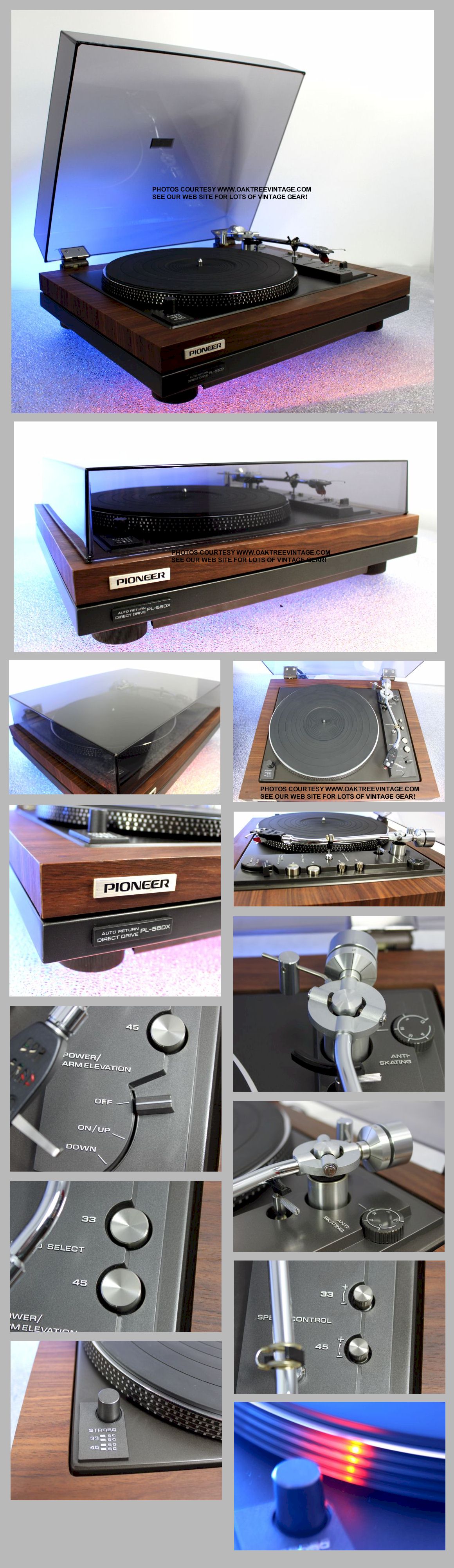

NEW LISTING 12/20/14

(Click on above thumbnails to enlarge photos)

RESTORED / REFURBISHED
VINTAGE PIONEER TURNTABLE

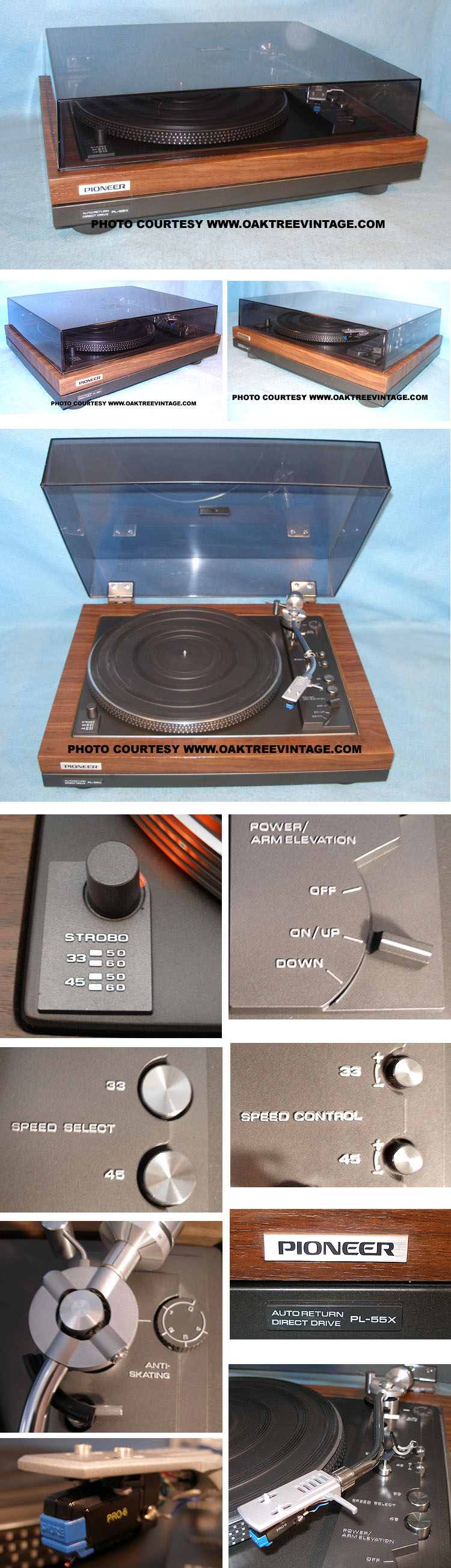

PIONEER PL-55DX / 55DX
SEMI AUTOMATIC / DIRECT DRIVE
TURNTABLE
#...016M
Made in Japan
Circa late 1970's

SOLD 12/29/14
SHIPPED TO VIRGINIA
Our technician has completely and EXTENSIVELY gone through and 'Certified' this unit cleaning inside and out, COMPLETELY DISASSEMBLING, cleaning and re-lubricating internal mechanism (including BOTH internal Rotating Plates, the lower of which had fresh 500,000 Silicone gel installed), adjusting tone arm height, lead OUT and adjusting multiple internal springs related to 'auto return' mechanism and testing performance.

Platter speed checked and verified for 100% accuracy with our factory test strobe disc against built-in strobe monitor.

External / 'user' adjustable platter speed potentiometers cleaned for smooth speed transition and 'glitch-free' adjustment.

Gimbal bearing, counter weight and anti-skating all adjusted and verified for accuracy.

'Auto' mechanism EXTENSIVELY restored, adjusted and tested as mentioned above (this is a MUST DO on this series of Pioneer tables and takes hours to correctly and thoroughly accomplish).

Rubber mat supple and flexible with no hardening.

Original feet in fine condition.

We also re-installed and adjusted the existing, Accutex, elliptically cut Diamond, magnetic cartridge and optimized the tone arm for it. (If you prefer an up-grade you may also choose from our selection of new Audio Technica cartridges that we can also set up and ship with it for the additional cartridge cost.)
You can readily connect this table to any receiver, Integrated amplifier with a standard magnetic phono input, or a Pre-amp. To connect to computer for burning CD's just order one of our inexpensive Phono Pre-Amps and cable kits.

Cartridge / head shell overhang adjusted using shop calibration scale.

Original dustcover had a fresh buff, and looks incredible. Hinges adjusted to hold it upright as well

Tested / analyzed and passed for motor noise and 60Hz hum


Unit tested with our myriad of test records, one of which included; Shures' 'Cartridge Obstacle Course' record

Unit test cycled through 6 LPs flawlessly

Great performing, sounding and looking Pioneer PL-55DX, Direct Drive, Semi-Automatic turntable. Following the above restoration, it looks fabulous, now functions correctly and performs well.



Again, our turntable tech has completely and EXTENSIVELY gone through this table,  testing for speed accuracy, rumble, wow & flutter, noise isolation, tone-arm return function and lubed internal mechanism. Original dust cover is in fabulous shape after a fresh plastic buff / hand polish. Table looks good and works great! Comes with a great performing, Accutex, Elliptically cut, diamond stylus cartridge. Ready to play!!! (If you prefer an up-grade you may also choose from our selection of new Audio Technica cartridges that we can also set up and ship with it for the additional cartridge cost.) Measures 19" wide x 16.2" deep x 7.5" tall and weighs a HEAVY 25 lbs unpacked. Will include an e copy / pdf download of the Pioneer PL-55DX Owners / users manual. Also includes a pair of Monster Cable brand, 'Interlink-100' RCA cables. Comes with our standard 90 day limited warranty.
PIONEER PL-55DX
Cond. 8.5++

(C) M.R.
SOLD 12/29/14
SHIPPED TO VIRGINIA

W/ BEAUTIFUL DUST COVER &
w/ 'Accutex' Elliptical Diamond stylus cartridge installed









REPAIRED / RESTORED / REFURBISHED
PIONEER STEREO TURNTABLE
DIRECT DRIVE / FULLY MANUAL

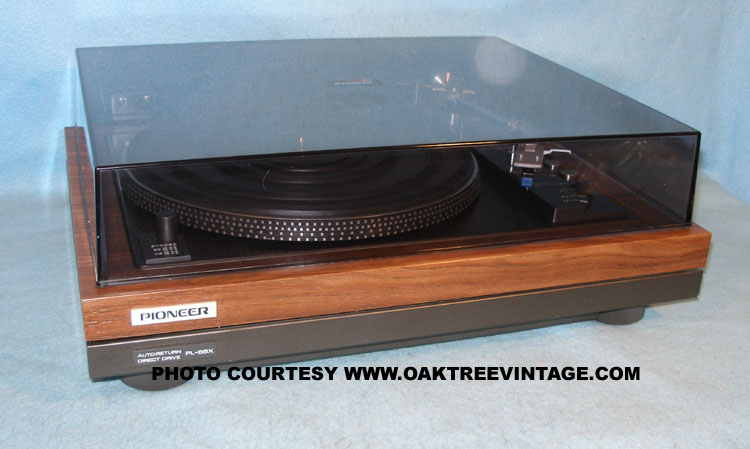

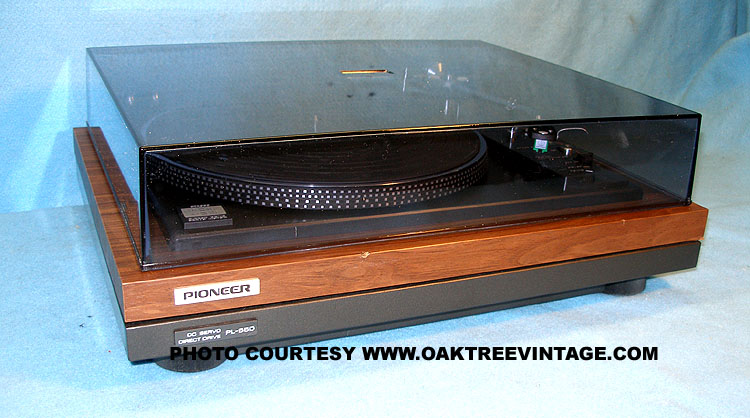

PIONEER PL-55X

SOLD 11/23/03






REPAIRED / RESTORED / REFURBISHED
PIONEER STEREO TURNTABLE
DIRECT DRIVE / FULLY MANUAL
PIONEER PL-55X

SOLD 1/4/07


-





NEW LISTING 3/8/05

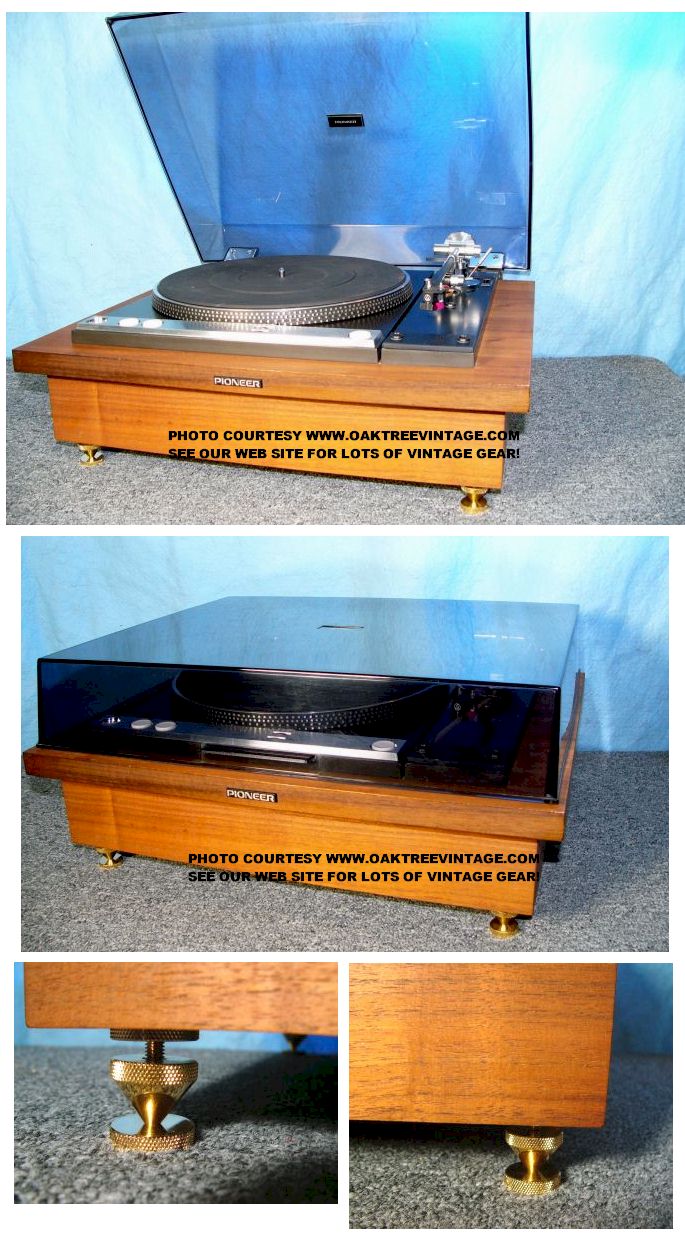

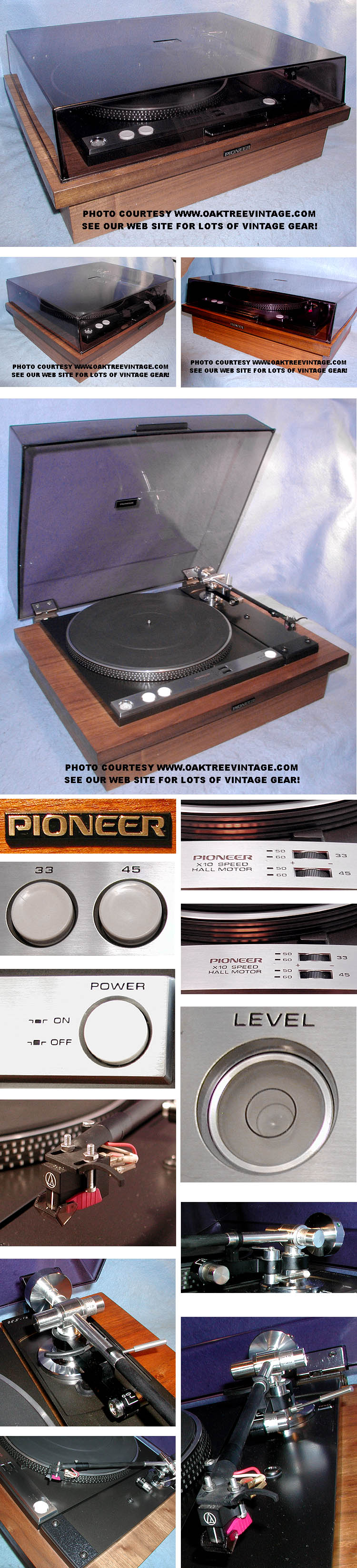

PIONEER

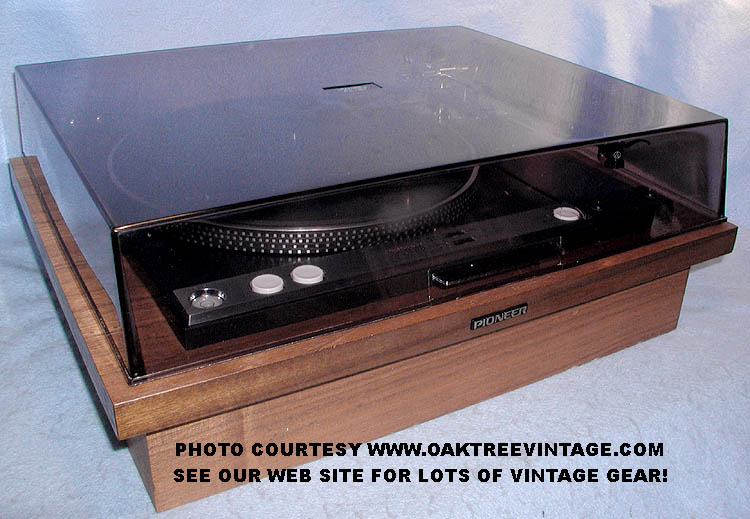

PL-61
STEREO TURNTABLE
CONVERTED TO FULLY MANUAL
WITH MICRO-SEIKI TONE-ARM
BELT DRIVE
TURNTABLE

SOLD 3/11/05

- -

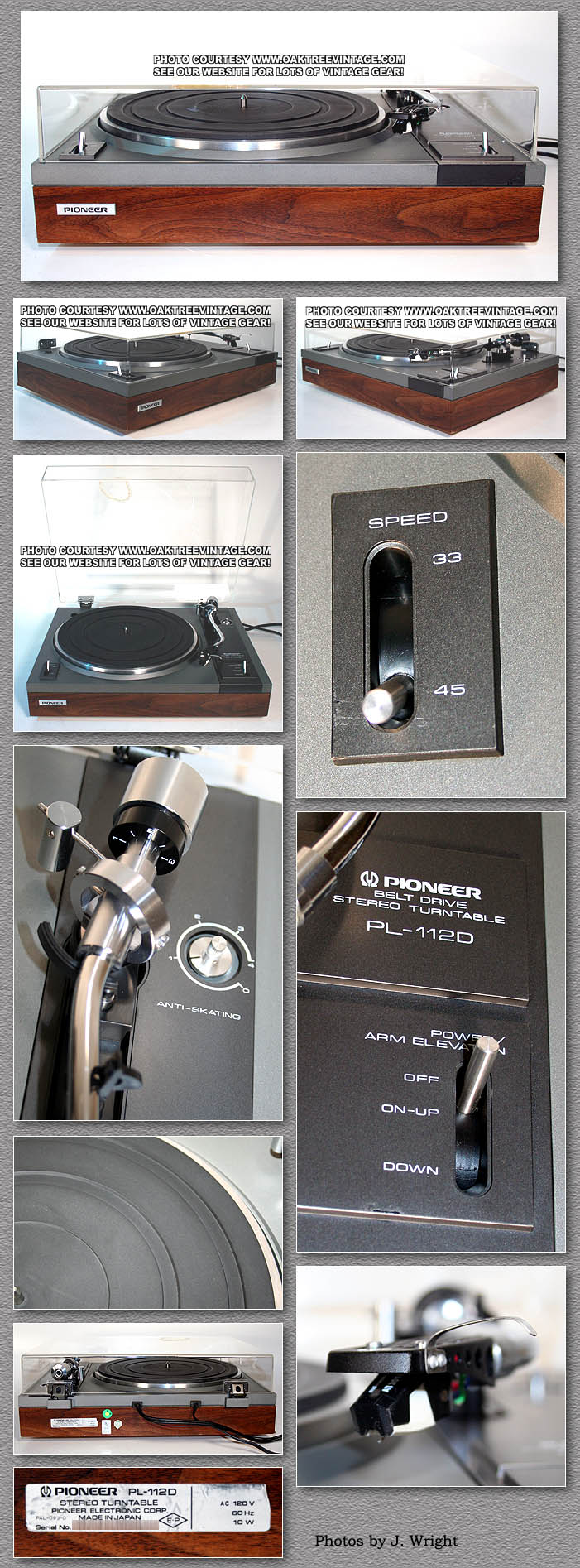

REPAIRED / RESTORED / REFURBISHED
PIONEER STEREO TURNTABLE
FULLY MANUAL / BELT DRIVE

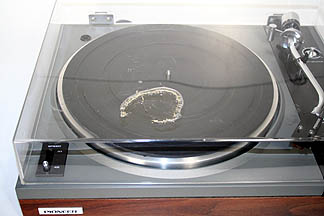

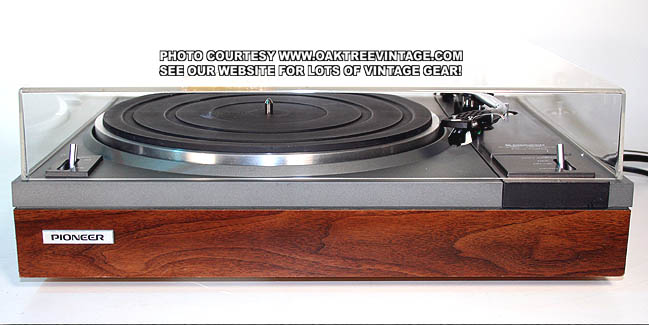

PL-112D
SOLD


REPAIRED / RESTORED / REFURBISHED
PIONEER STEREO TURNTABLE
FULLY MANUAL / BELT DRIVE
PL-112D
SOLD

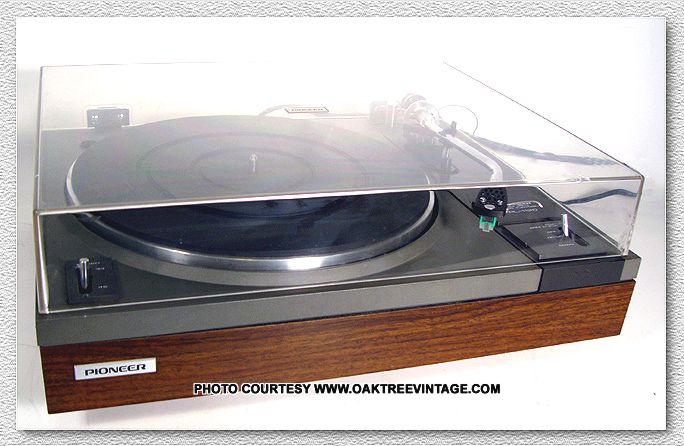

      NEW LISTING 4/17/08
(Click on above thumbnails to enlarge photos)
warranty

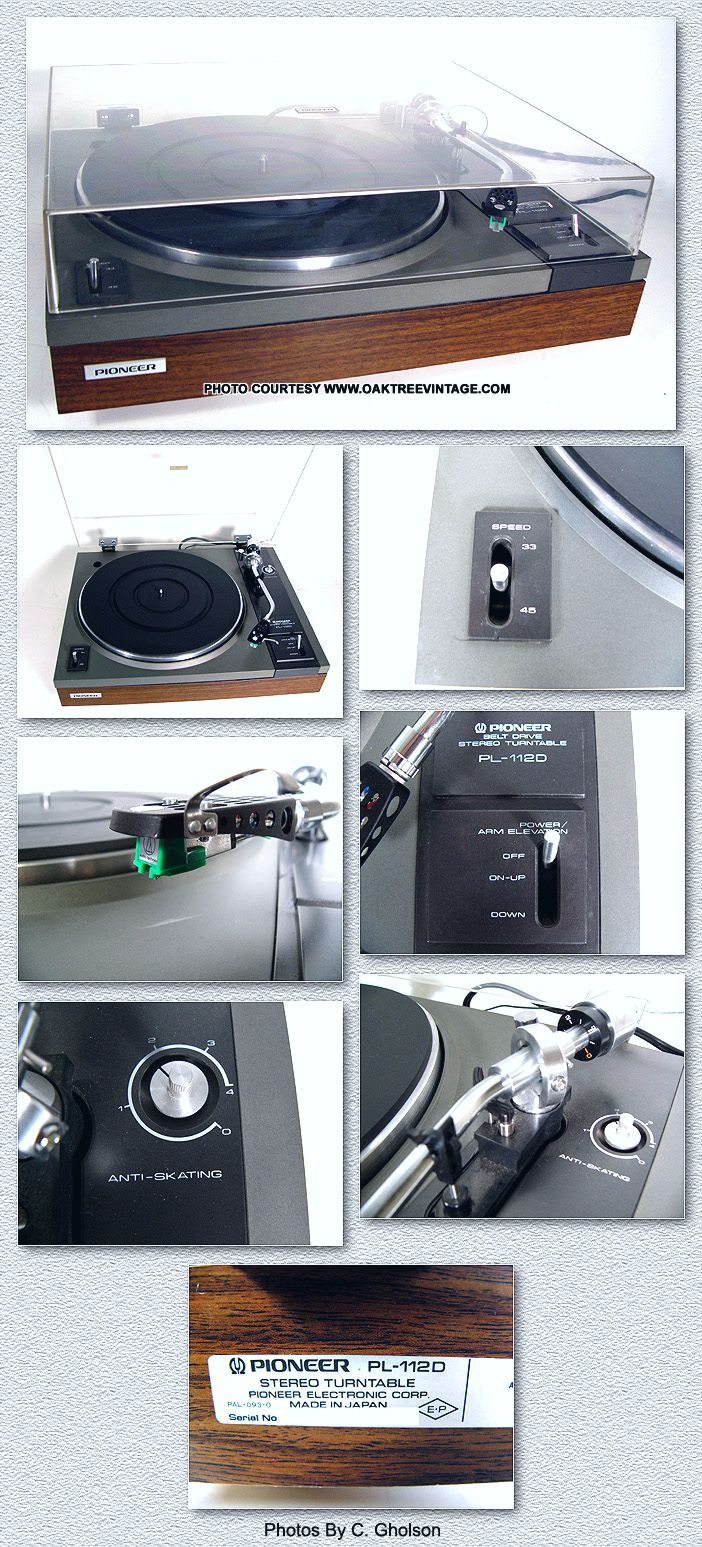

PIONEER
STEREO TURNTABLE

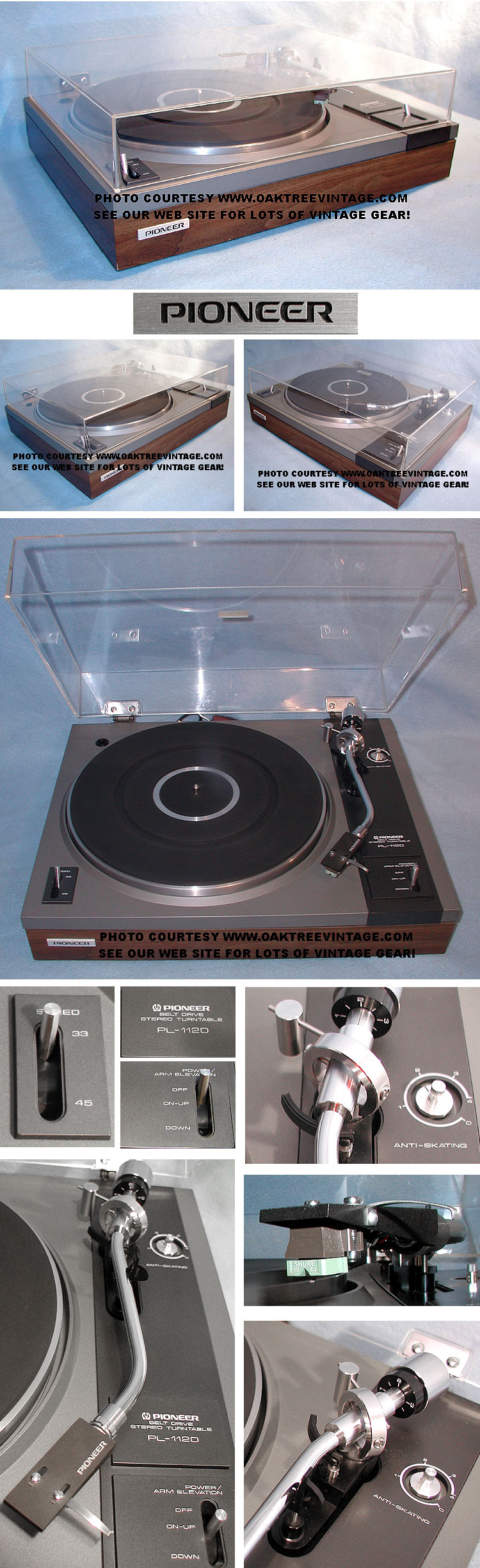

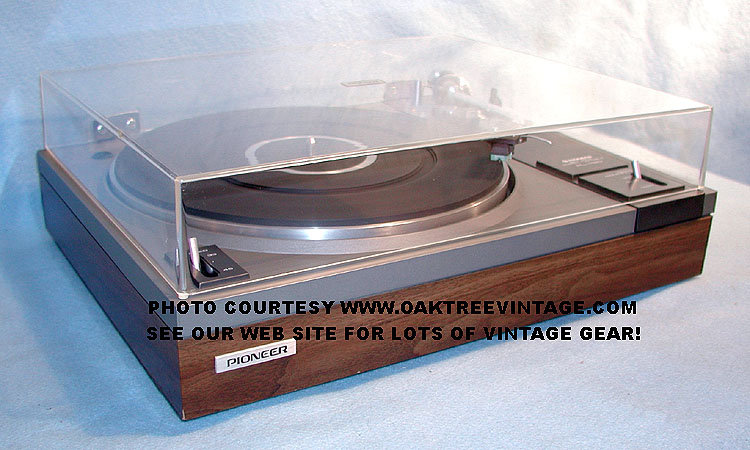

 PL-112D PL112D
#...2000NP
FULLY MANUAL
 BELT DRIVE
 TURNTABLE
 Circa 1976-79
 Made in Japan

SOLD 6/4/08

&
w/ new AT Elliptical Diamond stylus cartridge installed









NEW LISTING 10/11/10/08

(Click on above thumbnails to enlarge photos)
VINTAGE PIONEER STEREO TURNTABLE RESTORED / REFURBISHED
  MODEL PL-112D PL112D
 #...2000NP
 FULLY MANUAL
  BELT DRIVE
  TURNTABLE
  Circa 1976-79
  Made in Japan

SOLD 11/19/10

 &
 w/ new AT Elliptical Diamond stylus cartridge installed










       NEW LISTING 4/16/08
(Click on above thumbnails to enlarge photos)
warranty

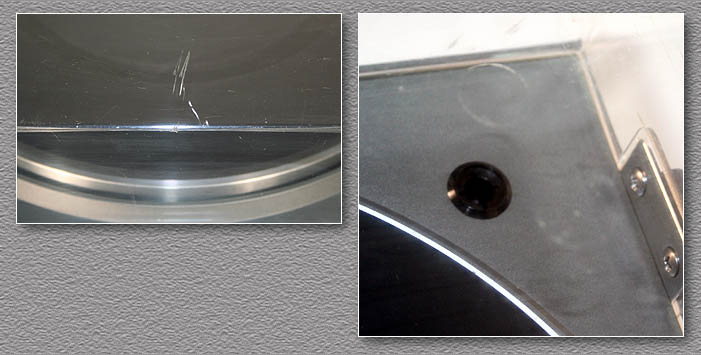

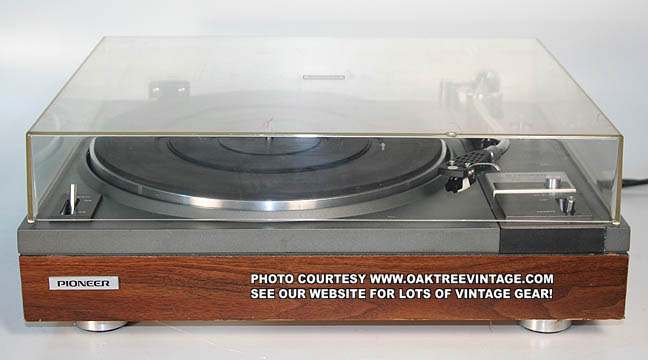

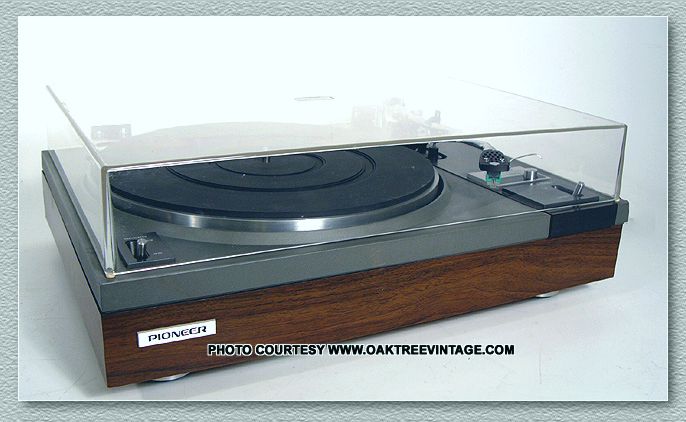

PIONEER

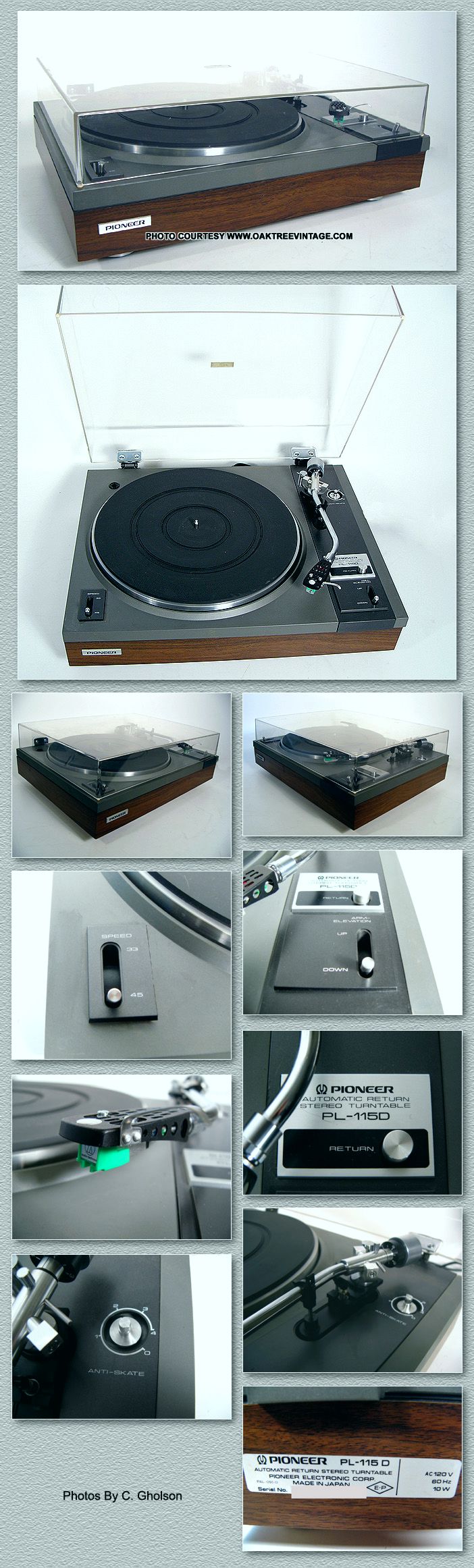

 PL-115D PL115D
#....07NP
 STEREO TURNTABLE
 SEMI-AUTOMATIC
 BELT DRIVE
 TURNTABLE
 Circa 1976-79
 Made in Japan

SOLD 4/30/08


w/ new AT Elliptical Diamond stylus cartridge installed








NEW LISTING 5/08/10
(Click on above thumbnails to enlarge photos)
warranty
PIONEER
 STEREO TURNTABLE

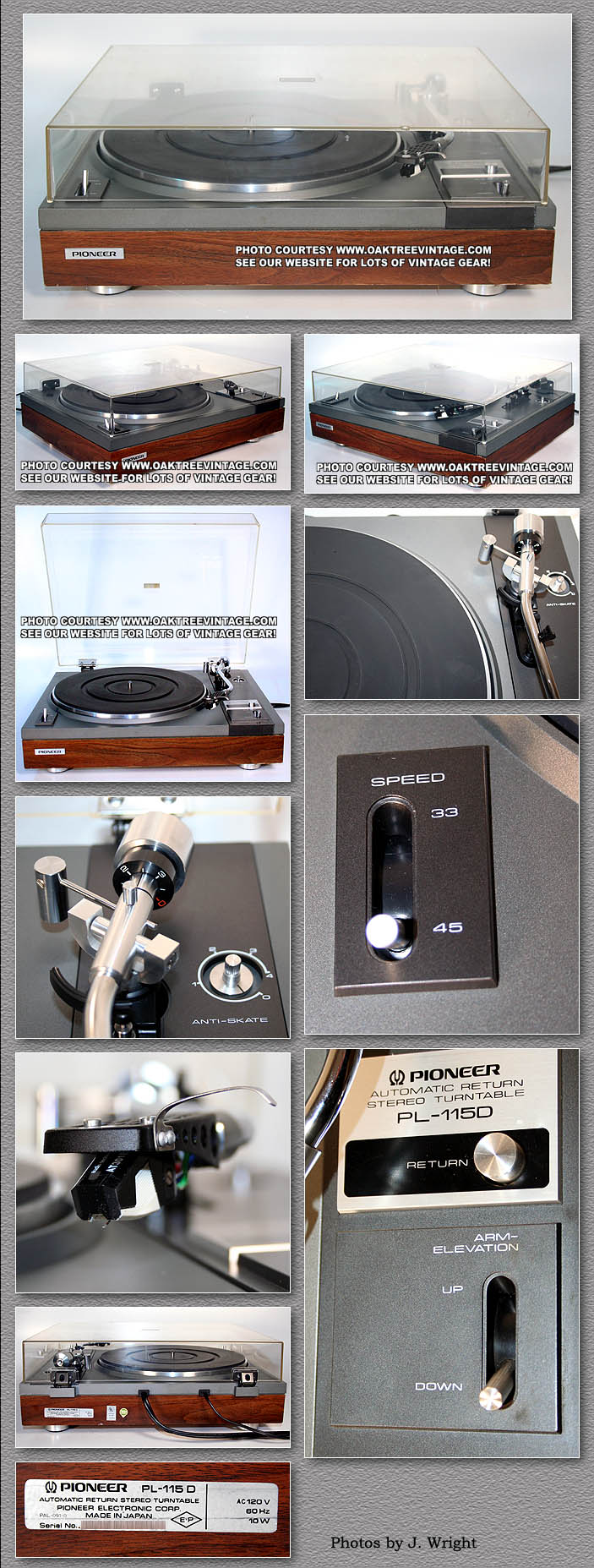

  PL-115D PL115D
#....2297
 SEMI-AUTOMATIC
 BELT DRIVE
 TURNTABLE
 Circa 1976-79
 Made in Japan
SOLD 5/20/10











NEW LISTING 10/11/10/08
(Click on above thumbnails to enlarge photos)
warranty
VINTAGE PIONEER STEREO TURNTABLE RESTORED / REFURBISHED
  MODEL PL-115D PL115D
#....69NR
 SEMI-AUTOMATIC
 BELT DRIVE
 Circa 1976-79
 Made in Japan

  SOLD 12/15/10

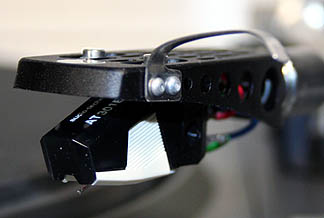

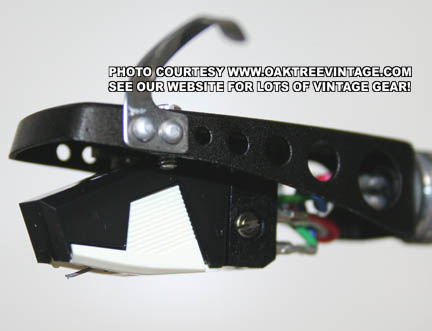

w/ new AT-301 Elliptical Diamond stylus cartridge installed

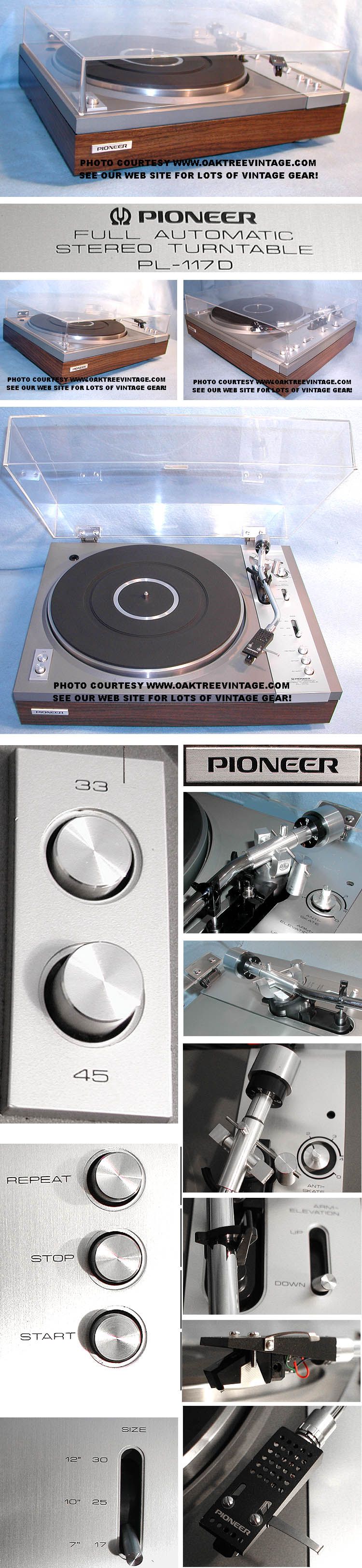

VINTAGE PIONEER STEREO TURNTABLE RESTORED / REFURBISHED

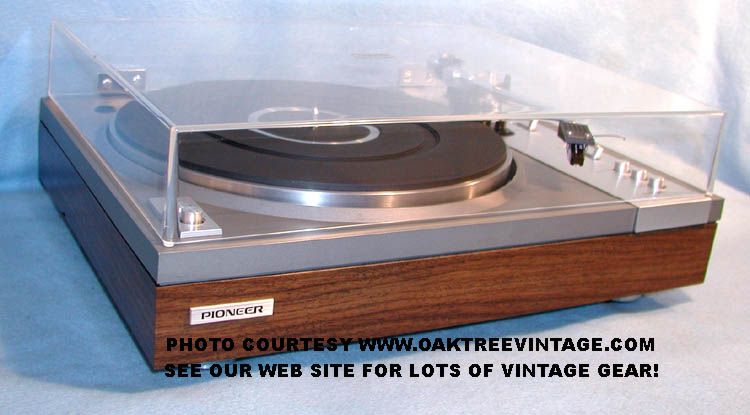

  MODEL PL-117D PL117D
 FULY-AUTOMATIC
 BELT DRIVE
 Circa 1976-79
 Made in Japan

SOLD 12/23/05






NEW LISTING 10/11/10/08
(Click on above thumbnails to enlarge photos)
warranty
VINTAGE PIONEER STEREO TURNTABLE RESTORED / REFURBISHED
  MODEL PL-117D PL117D
 FULY-AUTOMATIC
 BELT DRIVE
#....8297
 Circa 1976-79
 Made in Japan
SOLD 11/10/10


w/ Shure M91E Magnetic cartridge w/ new Elliptical Diamond stylus installed

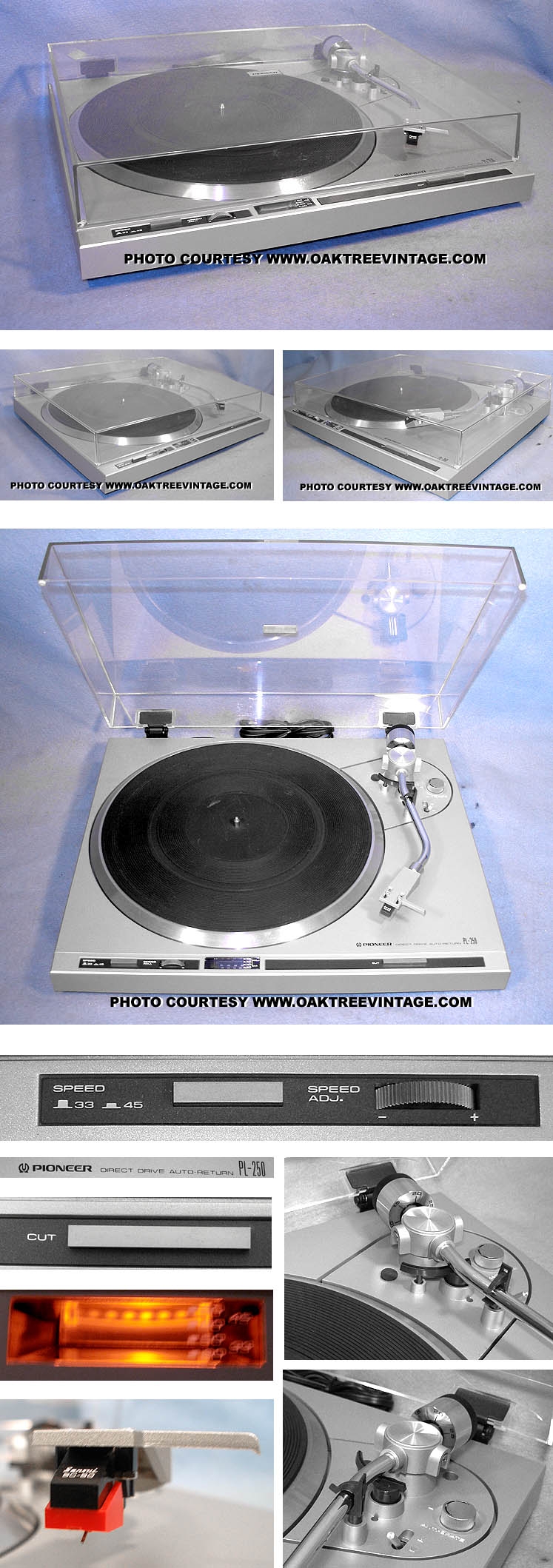

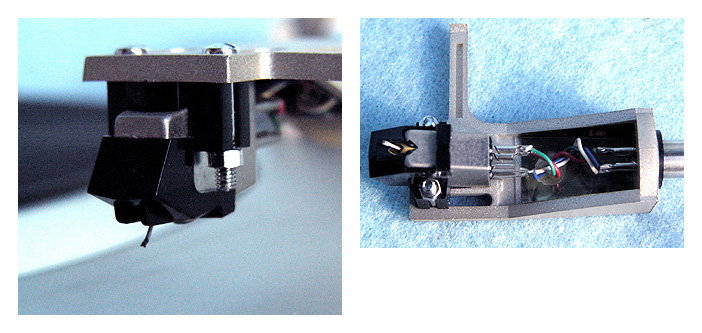

REPAIRED / RESTORED / REFURBISHED
PIONEER STEREO TURNTABLE
DIRECT DRIVE / SEMI-AUTOMATIC

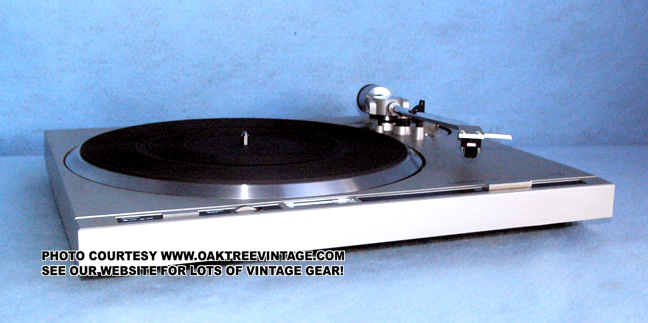

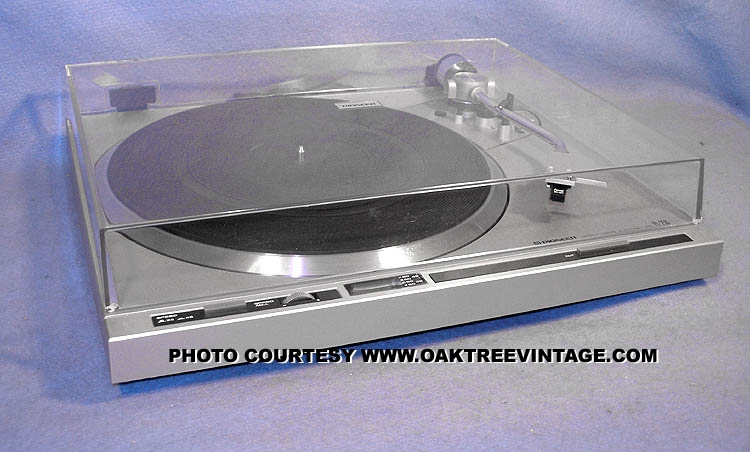

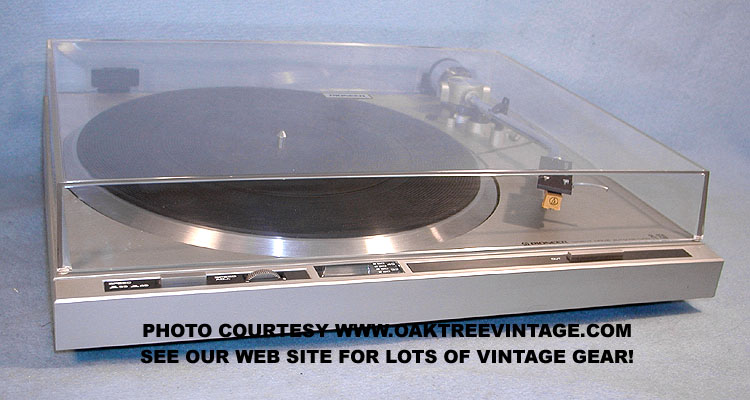

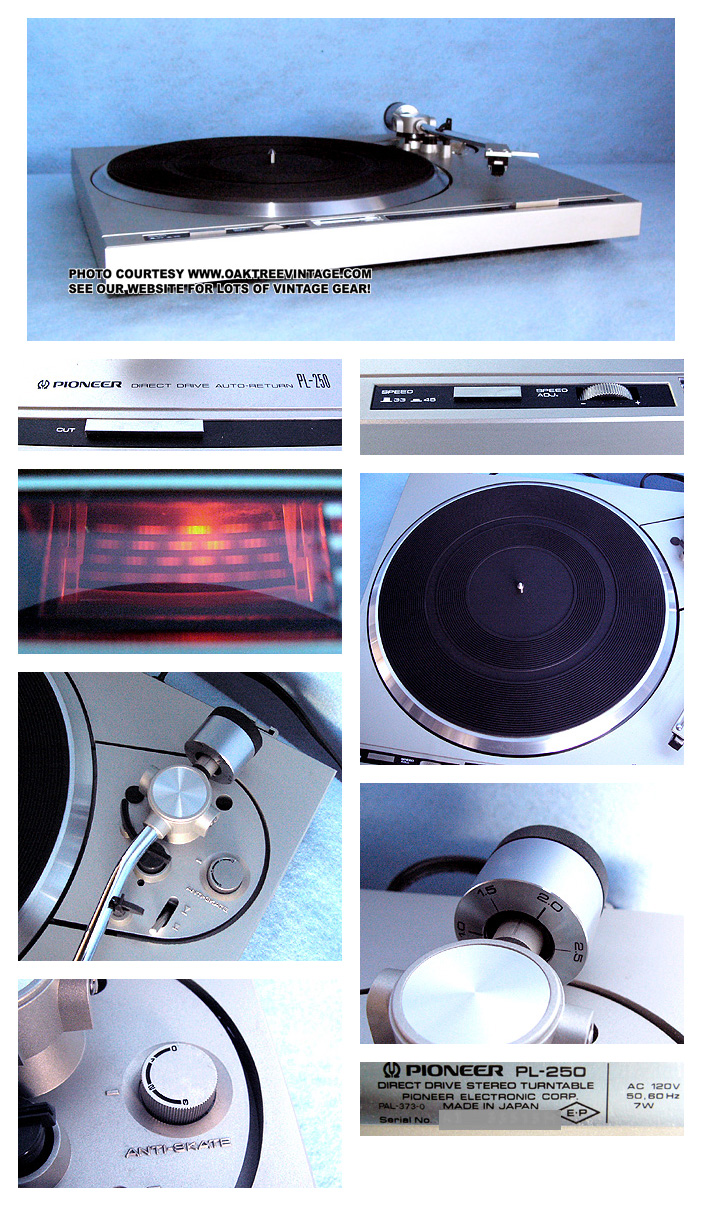

PIONEER PL-250
Circa 1984 - '86

SOLD 9/20/06







REPAIRED / RESTORED / REFURBISHED
PIONEER STEREO TURNTABLE
DIRECT DRIVE / SEMI-AUTOMATIC
PIONEER PL-250
Circa 1984 - '86

SOLD 9/13/06








REPAIRED / RESTORED / REFURBISHED
PIONEER STEREO TURNTABLE
DIRECT DRIVE / SEMI-AUTOMATIC
PIONEER PL-250
Circa 1984 - '86

SOLD 12/19/06





NEW LISTING 12/4/07
(Click on above thumbnails to enlarge photos)

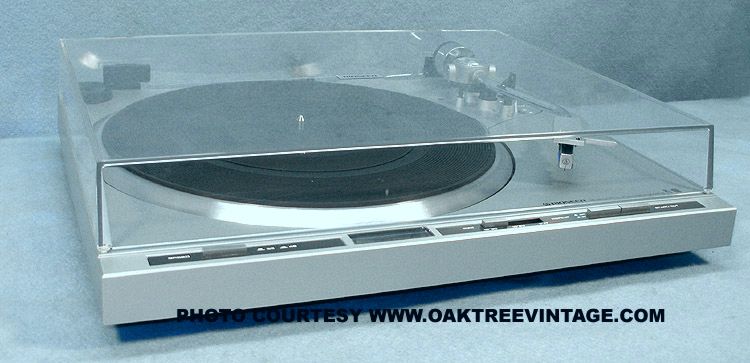

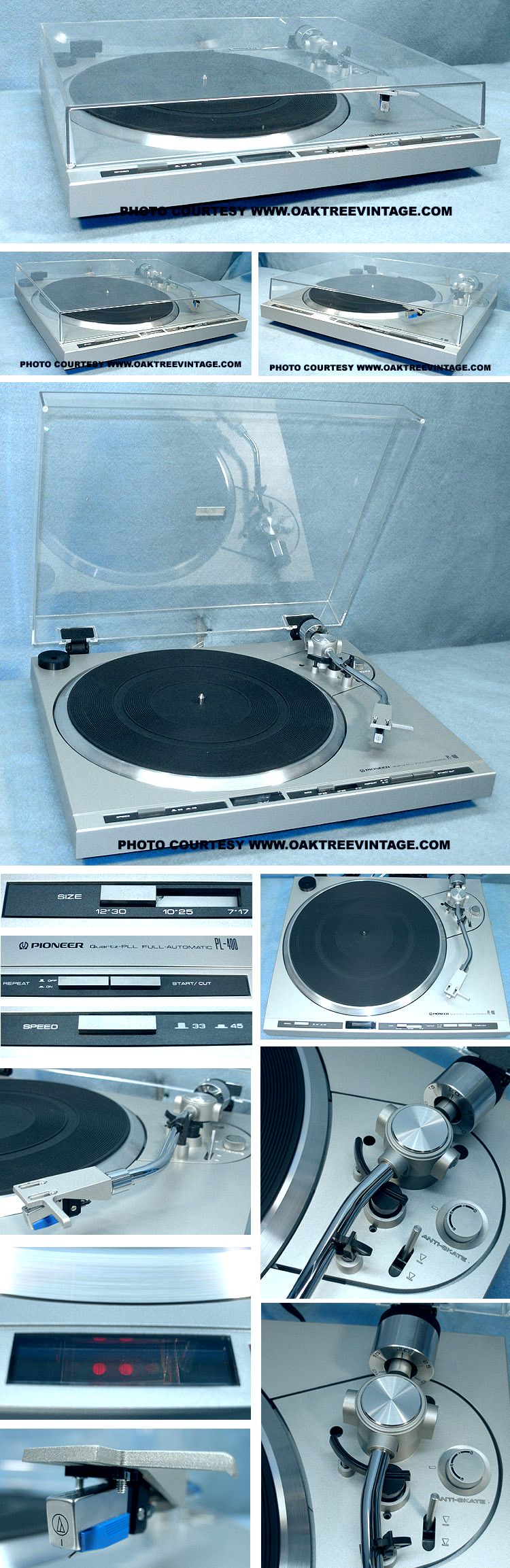

PIONEER
MODEL PL-400 PL400
DIRECT
DRIVE
FULLY AUTOMATIC

STEREO TURNTABLE

SOLD 12/21/07



- -


VINTAGE STEREO TURNTABLE
PIONEER

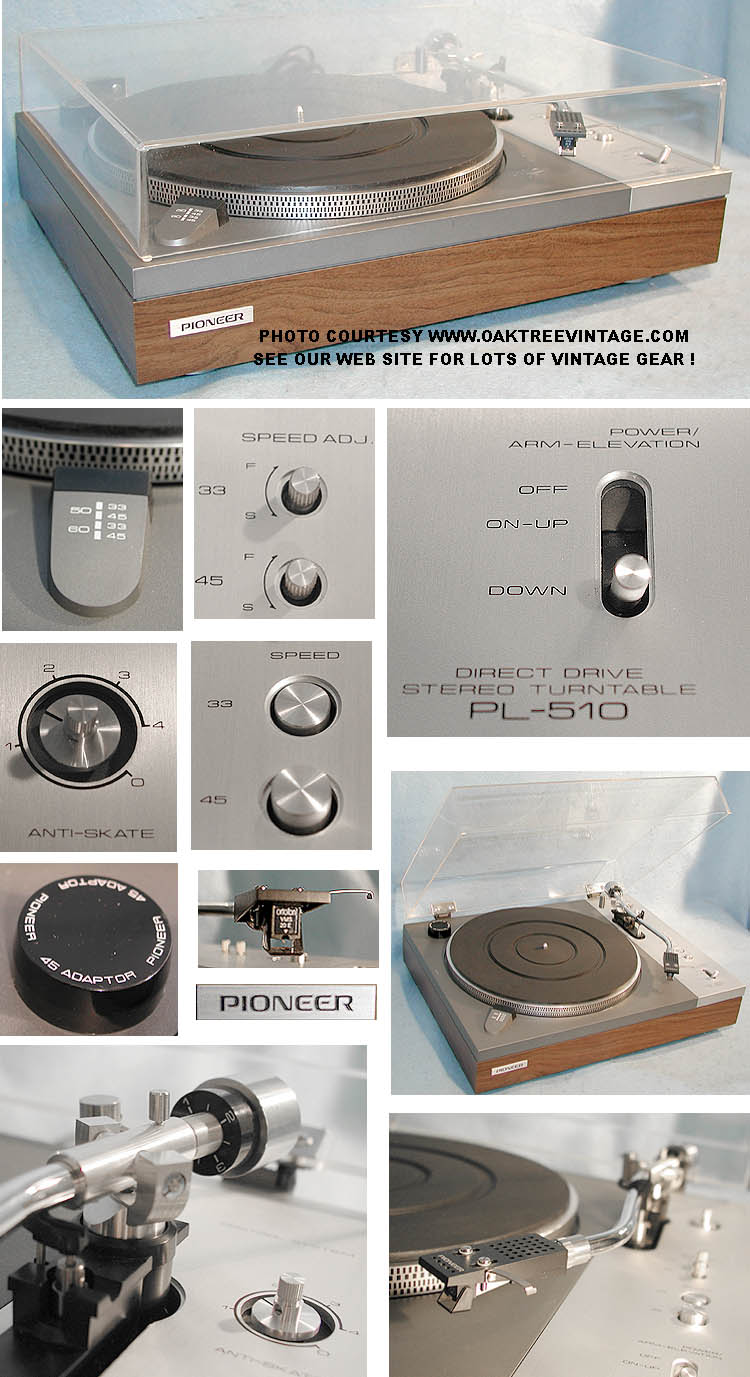

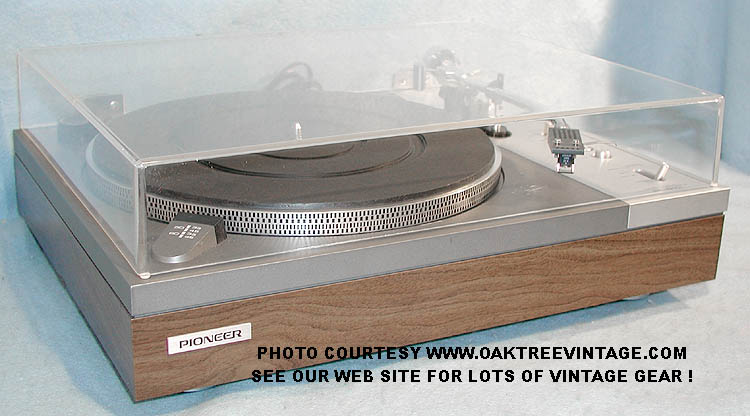

PL-510 / PL510
STEREO TURNTABLE
DIRECT DRIVE
FULLY MANUAL
 RESTORED / REFURBISHED
Circa '77-79
SOLD 3/21/04






NEW LISTING 11/23/11
(Click on above thumbnails to enlarge photos)

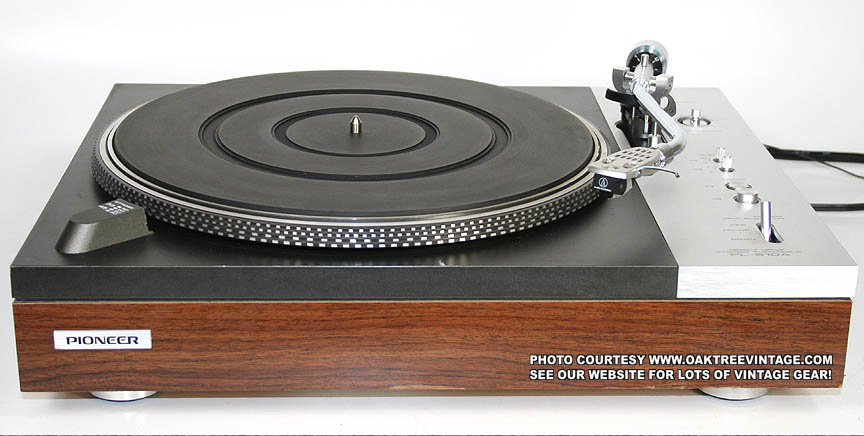

VINTAGE STEREO TURNTABLE
PIONEER

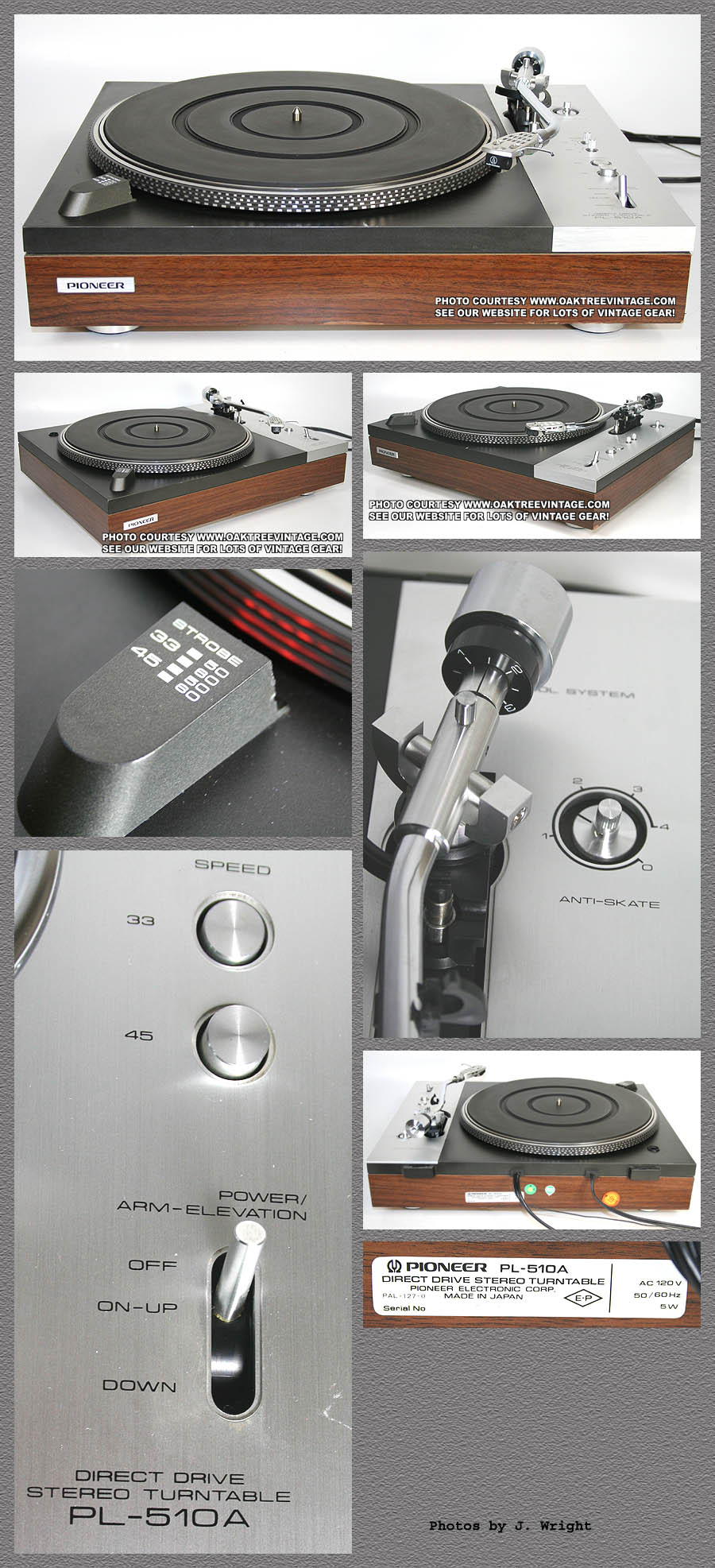

PL-510A / PL510A
STEREO TURNTABLE
DIRECT DRIVE
FULLY MANUAL
 RESTORED / REFURBISHED
Circa '77-79

SOLD 1/4/12

W/ NEW AUDIO TECHNICA CARTRIDGE INSTALLED

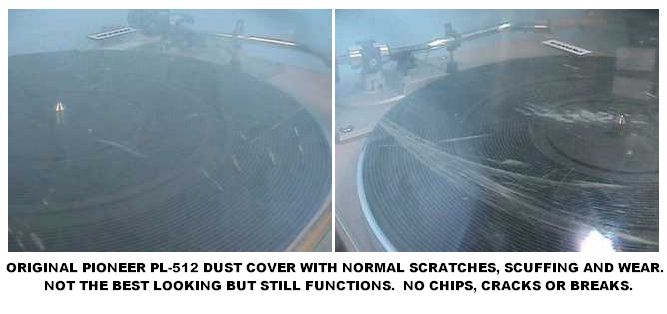

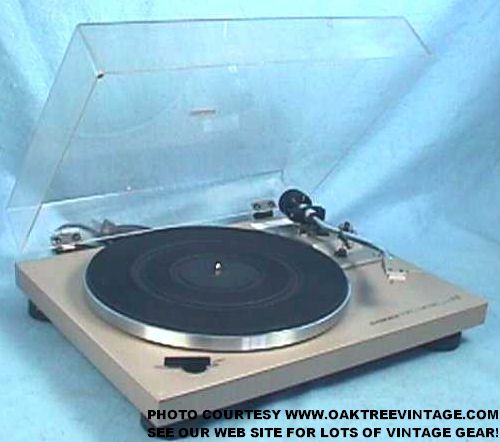

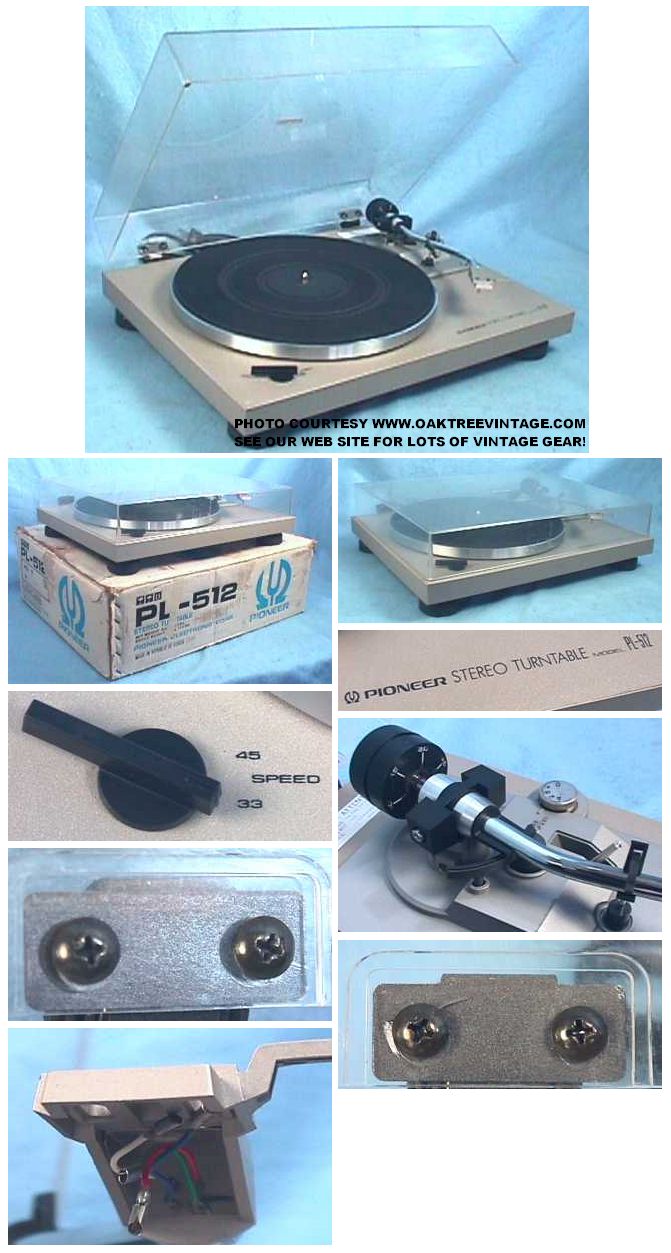

  Pioneer_PL-512_Stereo_Belt-drive_Turntable_web.jpg (33466 bytes)    Pioneer_PL-512_Stereo_Belt-drive_Turntable_collage.jpg (126819 bytes)


VINTAGE STEREO TURNTABLE
PIONEER
PL-512 / PL512
STEREO TURNTABLE
BELT DRIVE
FULLY MANUAL
 RESTORED / REFURBISHED
Circa '78-80
SOLD 3/9/05




NEW LISTING 11/23/11
(Click on above thumbnails to enlarge photos)
VINTAGE STEREO TURNTABLE
PIONEER
MODEL PL-514 / PL514
BELT DRIVE
SEMI-AUTO
AUTOMATIC RETURN / SHUTOFF
 RESTORED / REFURBISHED
STEREO TURNTABLE
Made in Japan
Circa 1978-79

SOLD 1/20/12
We have just had the table completely gone through by our turntable technician, cleaning inside and out, lubricating drive motor and mechanism, adjusting tone arm height, lead OUT and 'auto return' mechanism and testing performance. Fresh, new belt installed for trouble-free service. Speed tested / checked to +/- 1% accuracy with our factory test strobe disc. Gimbal bearing, counter weight and anti-skating all adjusted and verified for accuracy. Stop mechanism adjusted and tested. All functions work great! Original dust cover while included has not been buffed and is in 'as-found' condition currently, but is certainly 'functional'. Dust cover hinges are strong and hold cover in it's 'upright' position fine. Original rubber mat, still supple and flexible with no hardening.
We also installed and adjusted a brand new Audio-Technica, AT-92E, Elliptical cut Diamond, magnetic cartridge and optimized the tone arm for it.  (If you prefer an up-grade you may also choose from our selection of new Audio Technica cartridges that we can also set up and ship with it for the additional cartridge cost.) You can readily connect this table to any receiver, Integrated amplifier with a standard magnetic phono input, or a Pre-amp. To connect to computer for burning CD's just order one of our inexpensive Phono Pre-Amps and cable kits. Again, this table looks and works great!.....


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


......It would be almost unheard of to find a Pioneer PL-514 turntable that did not have the natural rubber feet deteriorated and this one is no example, so that is why we are including a set of fresh, 2", 50 Duro, Sorbothane hemispheres to isolate it from it's environment (it is generally accepted that Sorbothane simulates vibration isolation properties similar to water).
....

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

.... this table has been completely gone through by our turntable tech, looks and works great and is ready to go!


SOLD 1/20/12


W/ SET OF NEW SORBOTHANE ISO PODS AND NEW AUDIO TECHNICA CARTRIDGE INSTALLED






       NEW ADDITION 4/2/12
(Click on above thumbnails to enlarge photos)
VINTAGE STEREO TURNTABLE
PIONEER
MODEL PL-514 / PL514
BELT DRIVE
SEMI-AUTO
AUTOMATIC RETURN / SHUTOFF
 RESTORED / REFURBISHED
STEREO TURNTABLE
#...4099
Made in Japan
Circa 1978-79

SOLD 12/23/12
SHIPPED TO TEXAS

We have just had the table completely gone through by our turntable technician, cleaning inside and out, lubricating drive motor and mechanism, adjusting tone arm height, lead OUT and 'auto return' mechanism and testing performance. Tone-Arm height adjusted. Fresh, new belt installed for trouble-free service. Platter spindle disassembled, cleaned and re-lubed with 10,000 grade silicone lubricant then Speed tested / checked to +/- 1% accuracy with our factory test strobe disc. Gimbal bearing, counter weight and anti-skating all adjusted and verified for accuracy. Stop mechanism adjusted and tested. All functions work great! Unfortunately, there is no dust cover included with this one.
Original rubber mat, still supple and flexible with no hardening.
We also installed and adjusted a brand new Audio-Technica, AT-92E, Elliptically cut Diamond, magnetic cartridge and optimized the tone arm for it.  (If you prefer an up-grade you may also choose from our selection of new Audio Technica cartridges that we can also set up and ship with it for the additional cartridge cost.) You can readily connect this table to any receiver, Integrated amplifier with a standard magnetic phono input, or a Pre-amp. To connect to computer for burning CD's just order one of our inexpensive Phono Pre-Amps and cable kits. Again, this table looks and works great!

.......


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


Again, this table has been completely gone through by our turntable tech, looks and works great and is ready to go! You will not be disappointed in this table for all around use. With the exception of the dust cover, the table looks and works great! Comes with an 'e' copy of the Pioneer PL-514 owners / users manual and the period correct, Pioneer 'Full-Line' audio brochure / catalog! Measures 17.5" wide x 14.5" deep x 5.5" tall and weighs 16 lbs unpacked. Includes our standard 90 day limited warranty.
PIONEER PL-514 STEREO TURNTABLE
Cond. 8.5 (excluding missing dust cover)

SOLD 12/23/12
SHIPPED TO TEXAS


W/ SET OF NEW SORBOTHANE ISO PODS AND NEW AUDIO TECHNICA CARTRIDGE INSTALLED








(Click on above thumbnails to enlarge photos)

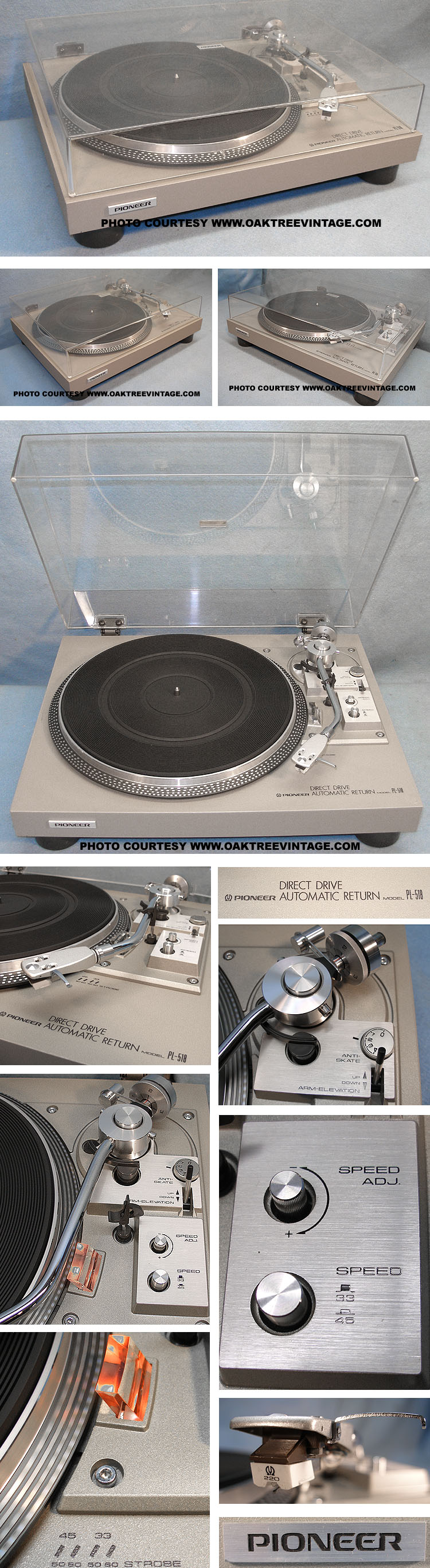

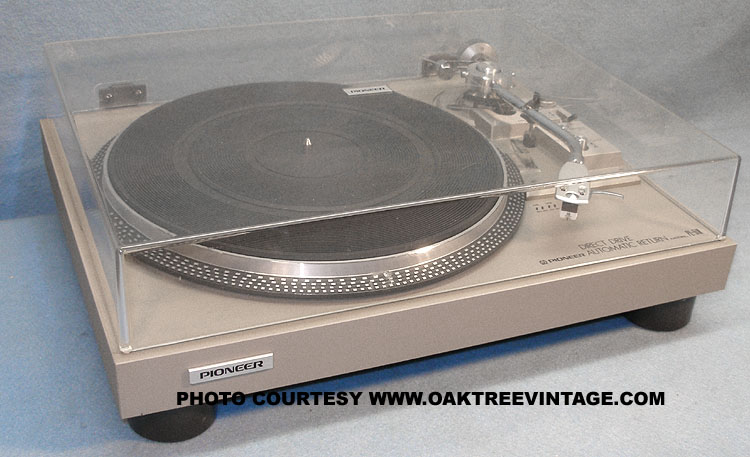

PIONEER
MODEL PL-518 PL518
DIRECT DRIVE
AUTOMATIC RETURN
STEREO TURNTABLE

SOLD TO MACK IN JAPAN










NEW LISTING 11/23/11

(Click on above thumbnails to enlarge photos)

VINTAGE
PIONEER
STEREO TURNTABLE

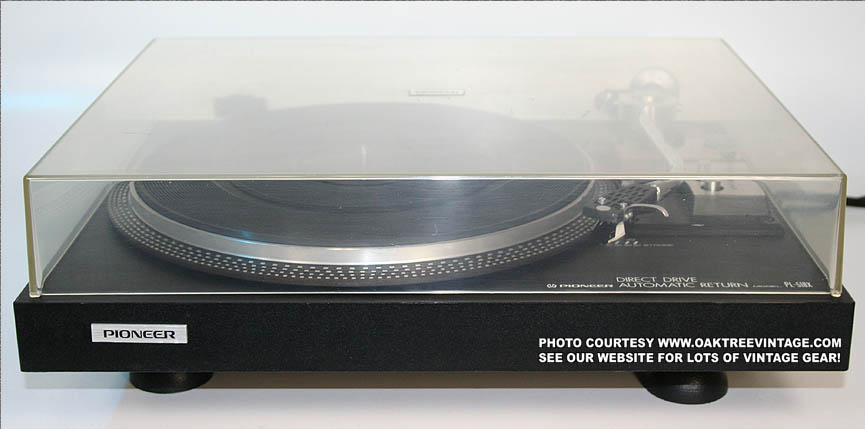

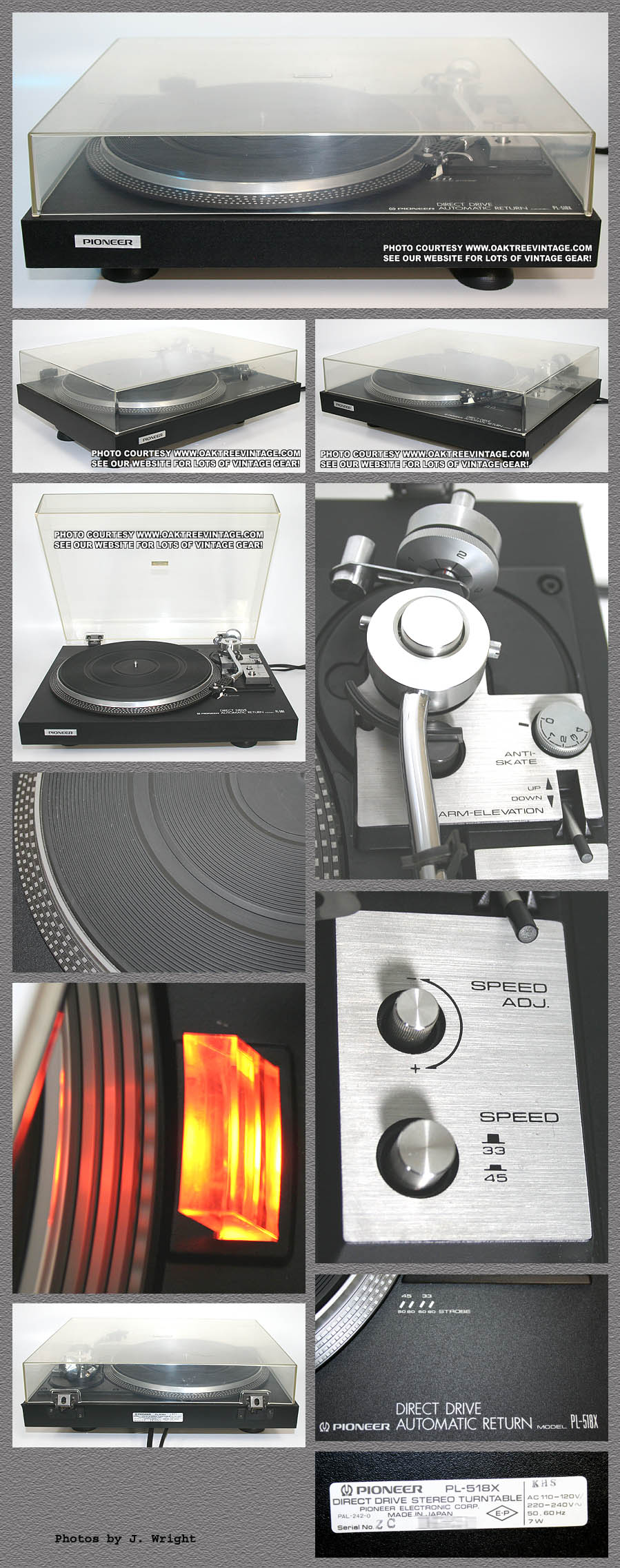

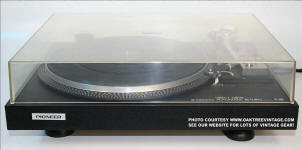

MODEL PL-518X PL518X 'BLACK'
DIRECT DRIVE
AUTOMATIC RETURN

 RESTORED / REFURBISHED

#...6851
Made in Japan
Circa 1978-80

SOLD 11/25/11

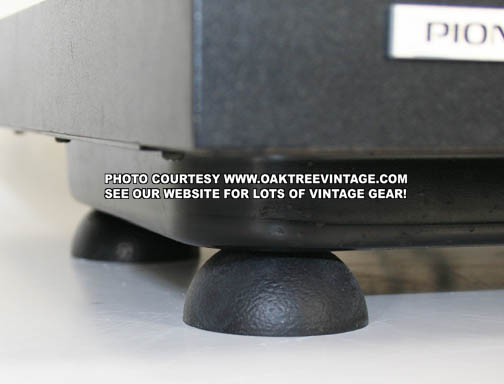

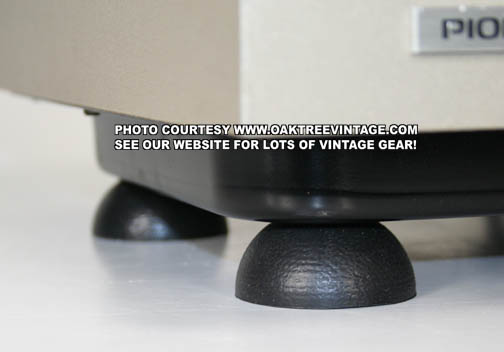

W/ SET OF NEW SORBOTHANE ISO PODS AND NEW AUDIO TECHNICA CARTRIDGE INSTALLED







NEW LISTING 11/23/11
(Click on above thumbnails to enlarge photos)

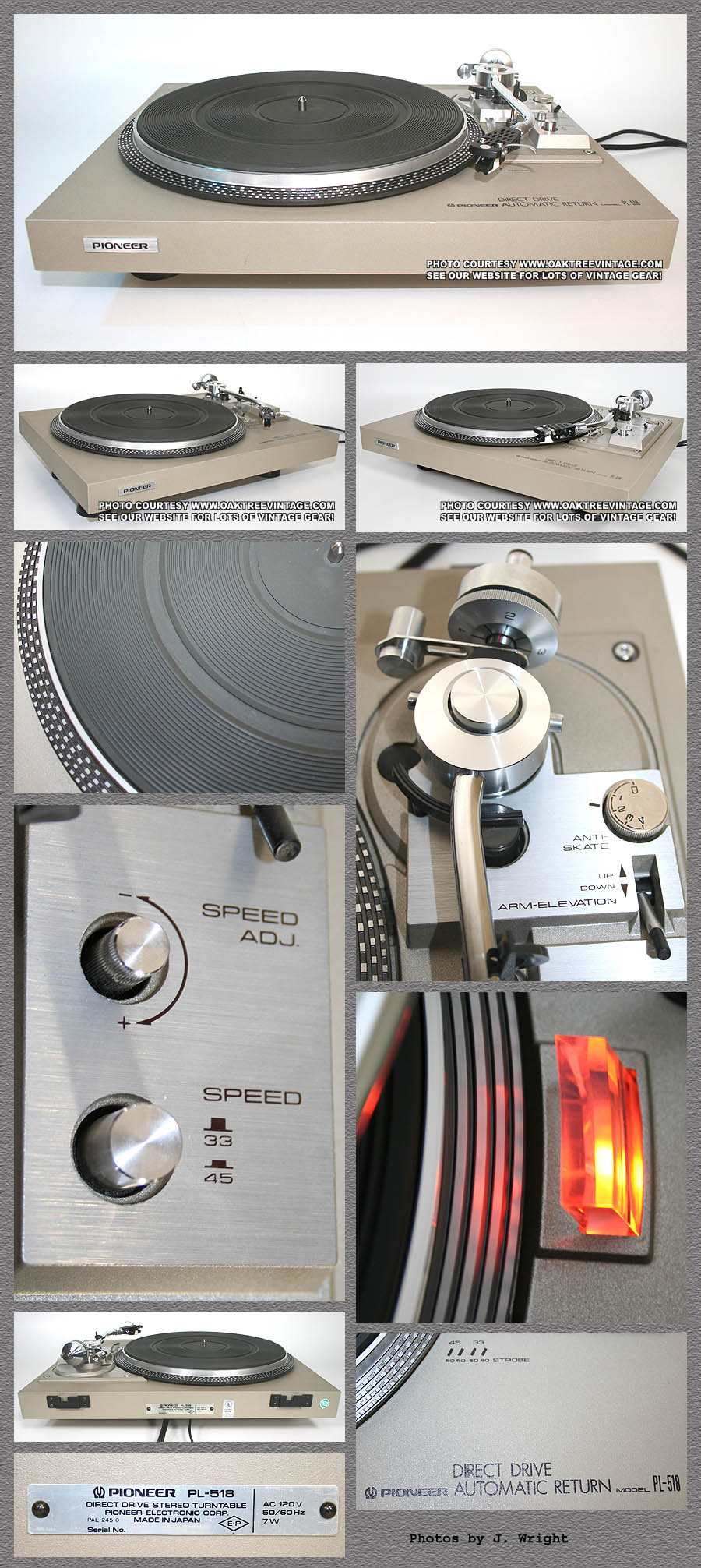

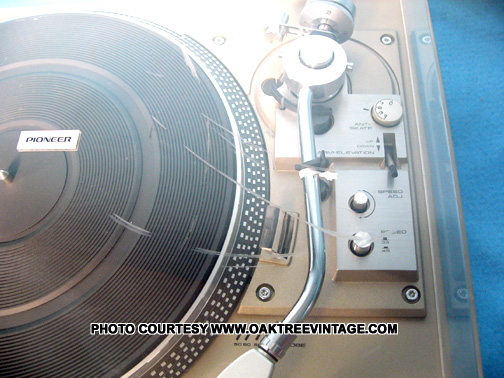

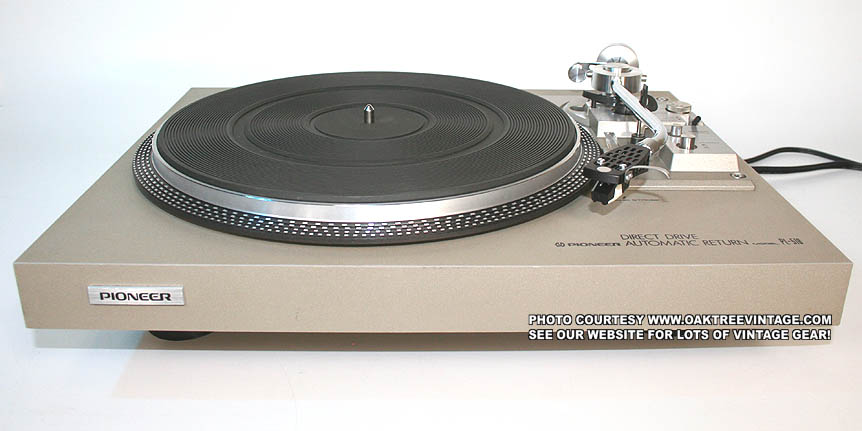

VINTAGE STEREO TURNTABLE
PIONEER
MODEL PL-518 PL518
STEREO TURNTABLE
DIRECT DRIVE
AUTOMATIC RETURN
 RESTORED / REFURBISHED
Made in Japan
Circa 1978-80

SOLD 1/6/12

We have just had the table completely gone through by our turntable technician, cleaning inside and out, cleaning and re-lubricating internal mechanism, adjusting tone arm height, lead OUT and 'auto return' mechanism and testing performance. Internal speed pots, adjusted for centering and speed checked and verified for accuracy with our factory test strobe disc against built-in strobe monitor. External / 'user' adjustable platter speed potentiometers cleaned for smooth speed transition and 'glitch-free' adjustment. Gimbal bearing, counter weight and anti-skating all adjusted and verified for accuracy. Stop mechanism adjusted and tested. All functions work great! Unfortunately, the dust cover was missing when the turntable arrived, so none is included. Original rubber mat, still supple and flexible with no hardening.
We also installed and adjusted a brand new Audio-Technica, AT-92E, Elliptical cut Diamond, magnetic cartridge and optimized the tone arm for it.  (If you prefer an up-grade you may also choose from our selection of new Audio Technica cartridges that we can also set up and ship with it for the additional cartridge cost.) You can readily connect this table to any receiver, Integrated amplifier with a standard magnetic phono input, or a Pre-amp. To connect to computer for burning CD's just order one of our inexpensive Phono Pre-Amps and cable kits. Again, this table looks and works great!

The Pioneer PL-518 is one of the most famous and 'sought after' of the "classic" Pioneer Turntables. We get about 1 good example of this model once every 3 years, or so.
It would be almost unheard of to find a Pioneer PL-518 turntable that did not have the natural rubber feet deteriorated and this one is no example, so that is why we are including a set of fresh, 2", 50 Duro, Sorbothane hemispheres to isolate it from it's environment (it is generally accepted that Sorbothane simulates vibration isolation properties similar to water).....




 this table has been completely gone through by our turntable tech, looks and works great and is ready to go!...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?



...
Comes with an 'e' copy of the Pioneer PL-518 owners / users manual and the period correct, Pioneer 'Full-Line' audio brochure / catalog! Includes our standard 90 day limited warranty.
PIONEER PL-518 STEREO TURNTABLE

SOLD 1/6/12


W/ SET OF NEW NEW SORBOTHANE ISO PODS AND NEW AUDIO TECHNICA CARTRIDGE INSTALLED







(Click on above thumbnails to enlarge photos)

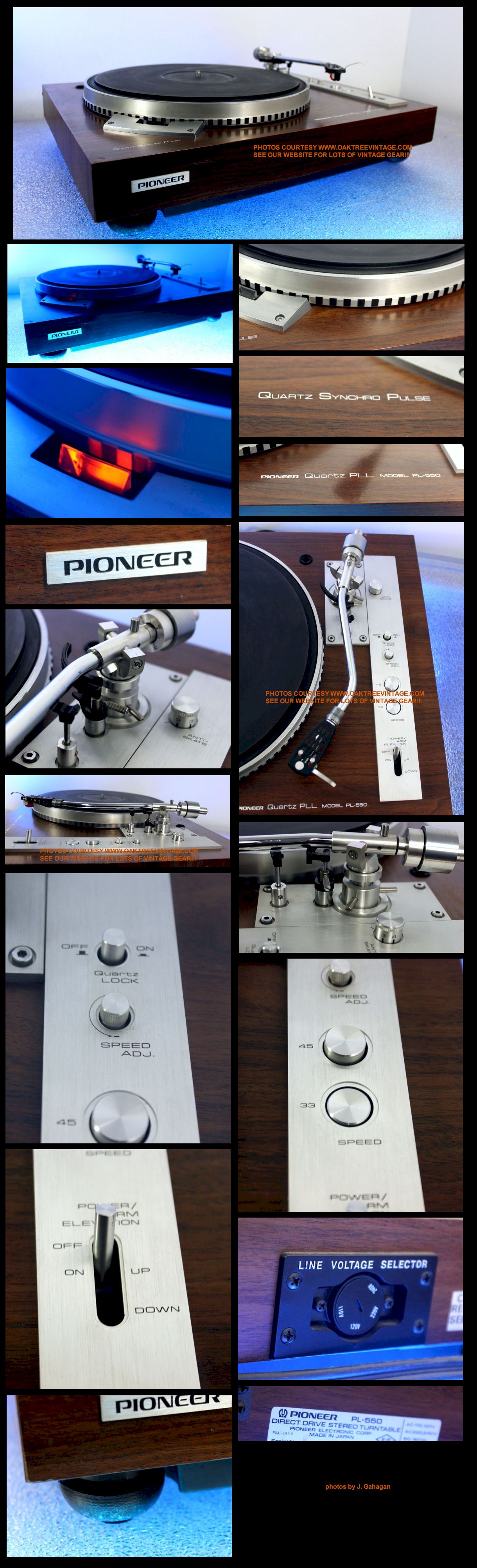

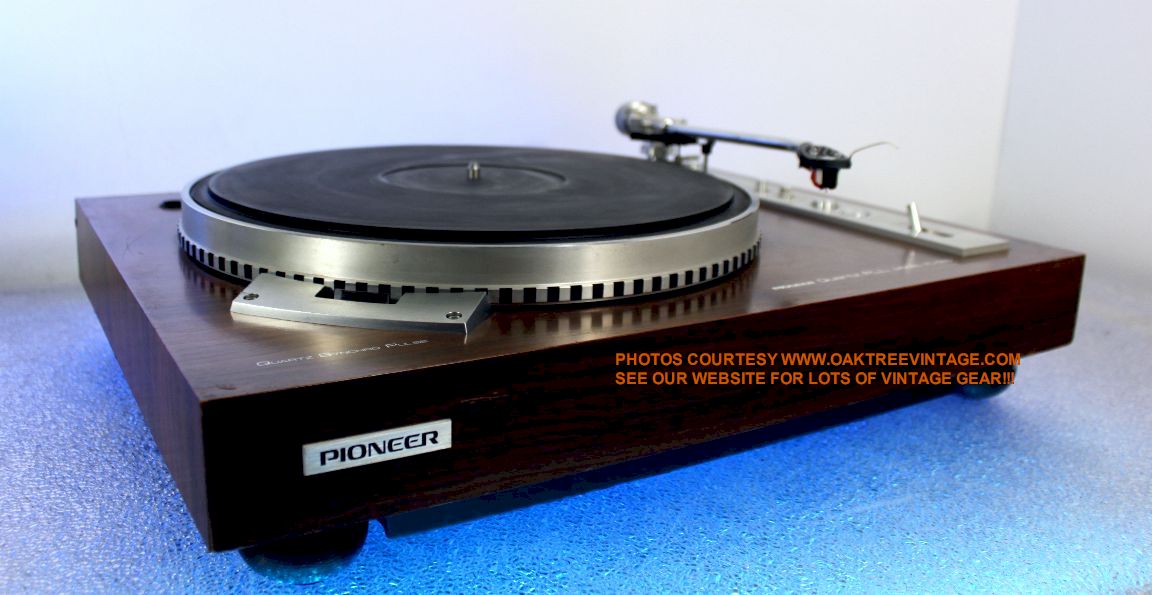

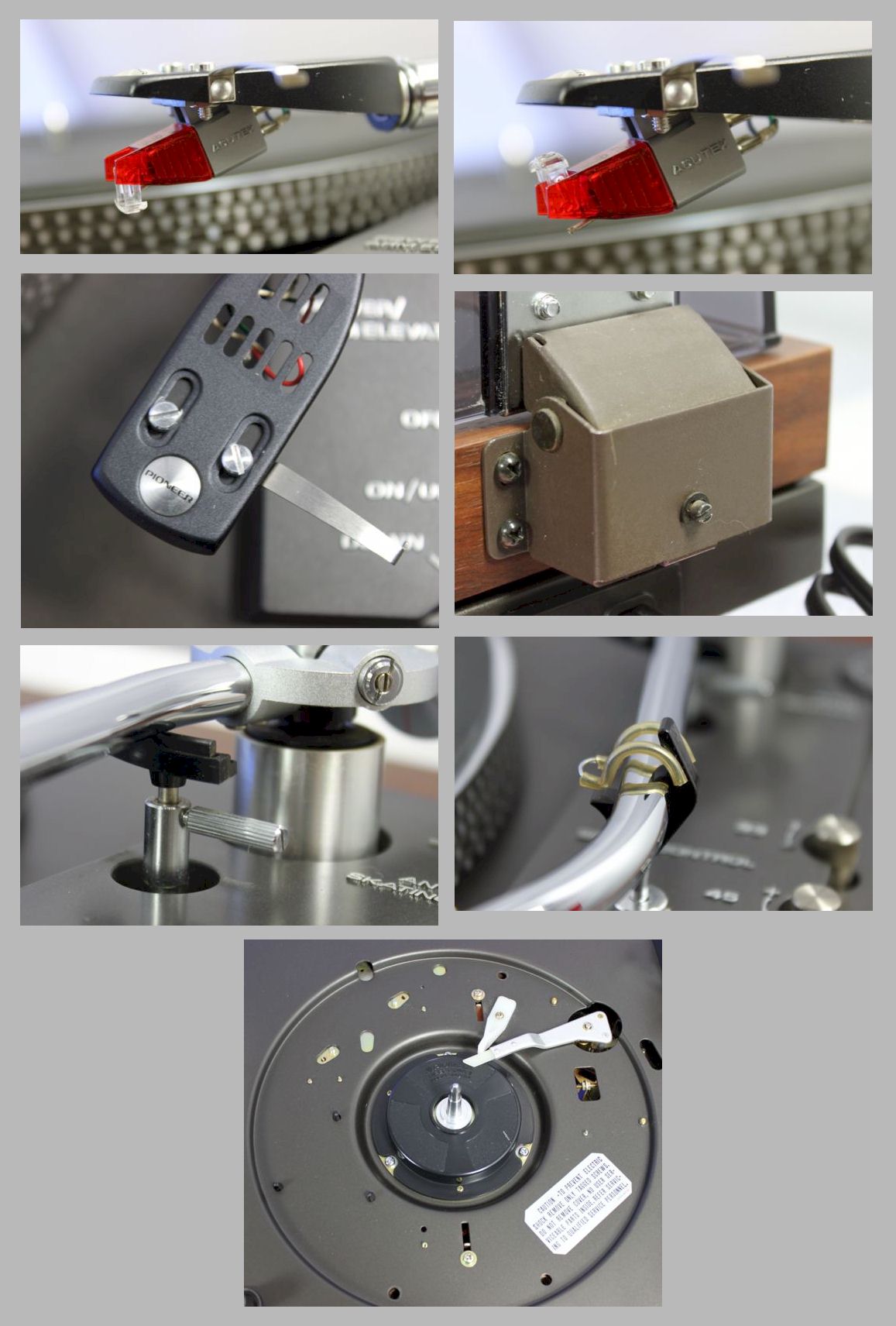

VINTAGE
PIONEER STEREO TURNTABLE
MODEL PIONEER PL-550
FULLY-MANUAL
DIRECT DRIVE
QUARTZ LOCKED
#...015MP
Made in Japan

SOLD 4/1/2017












NEW LISTING 10/1/16
(Click on above thumbnails to enlarge photos)

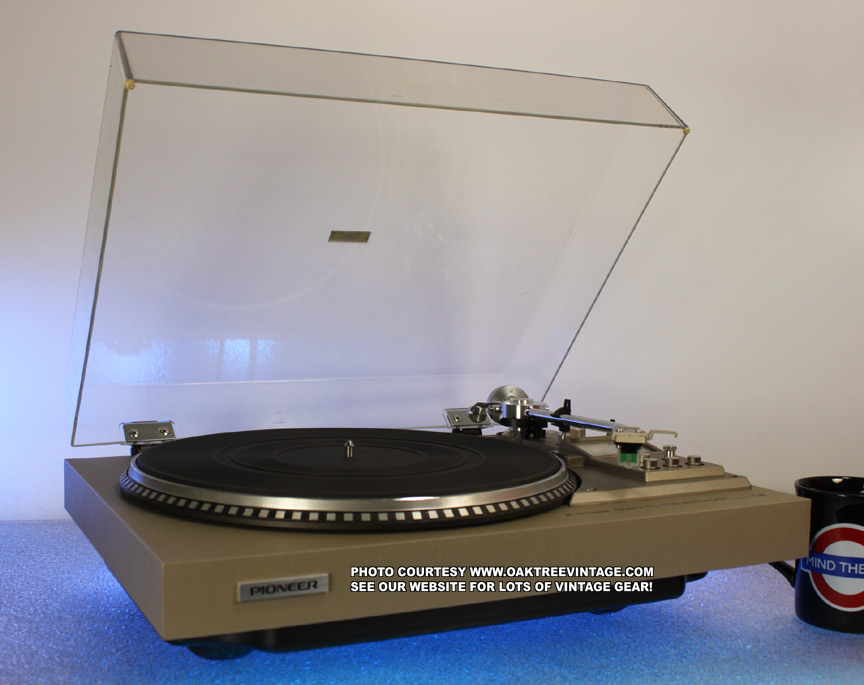

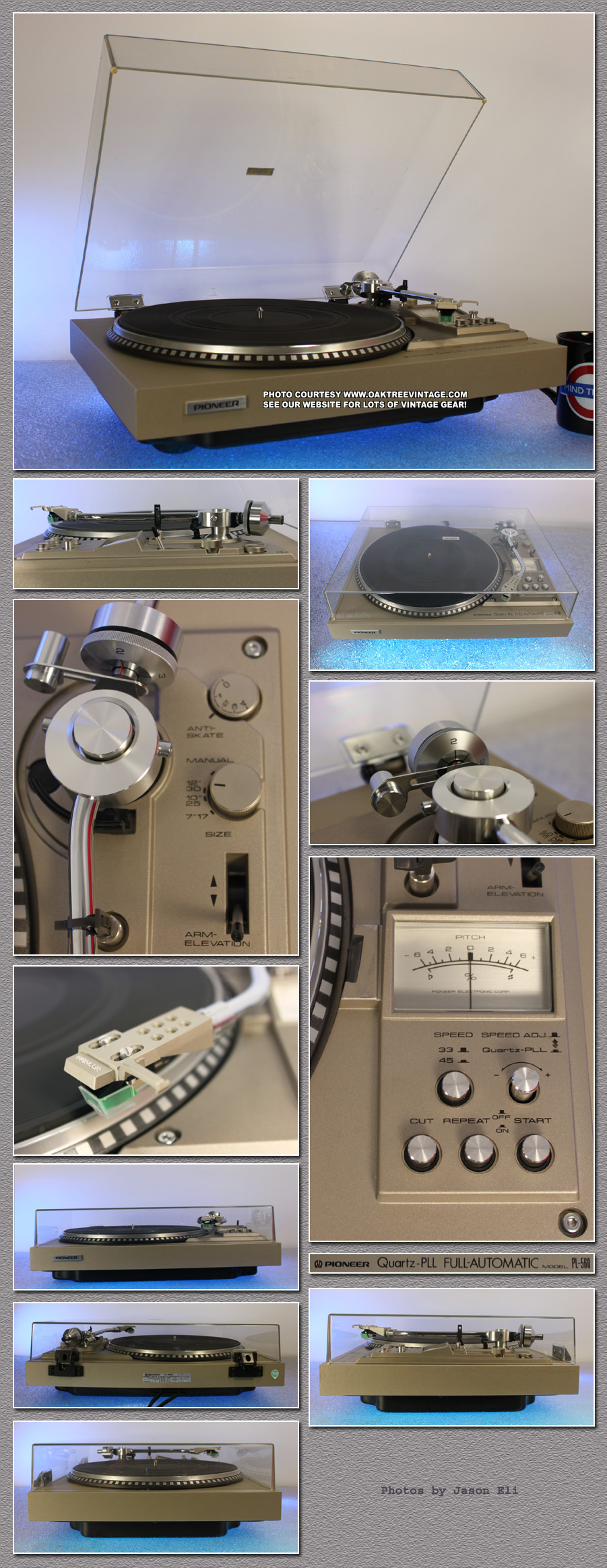

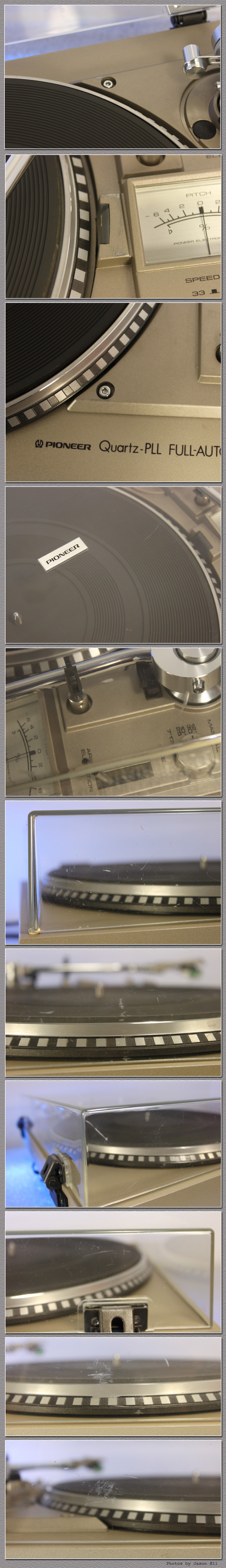

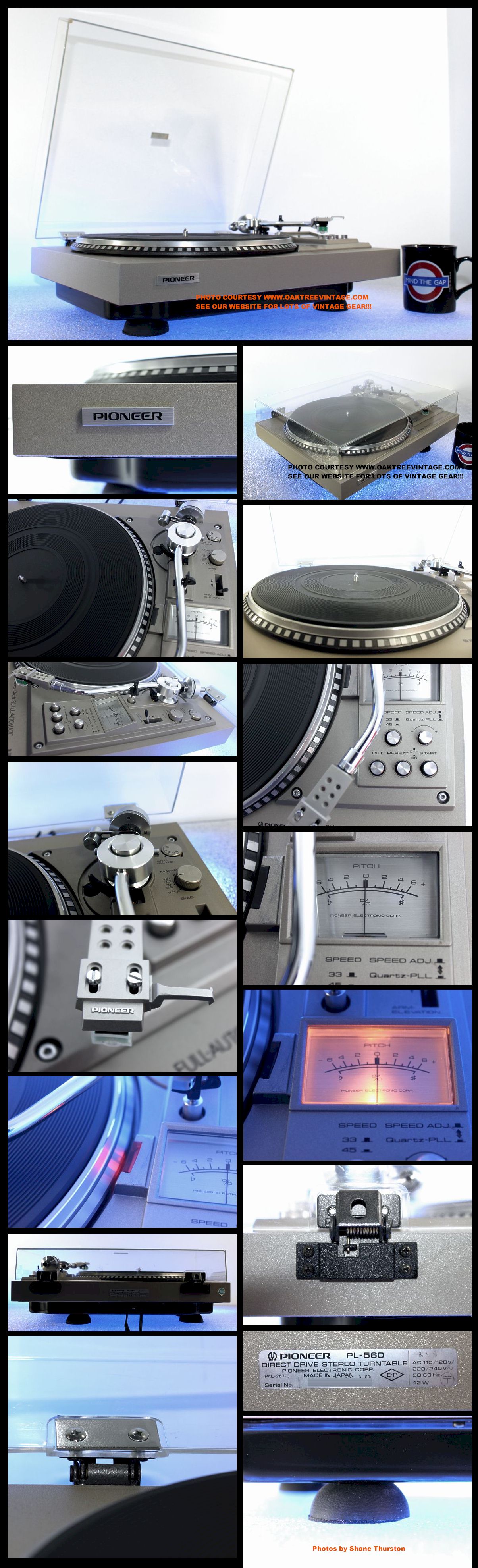

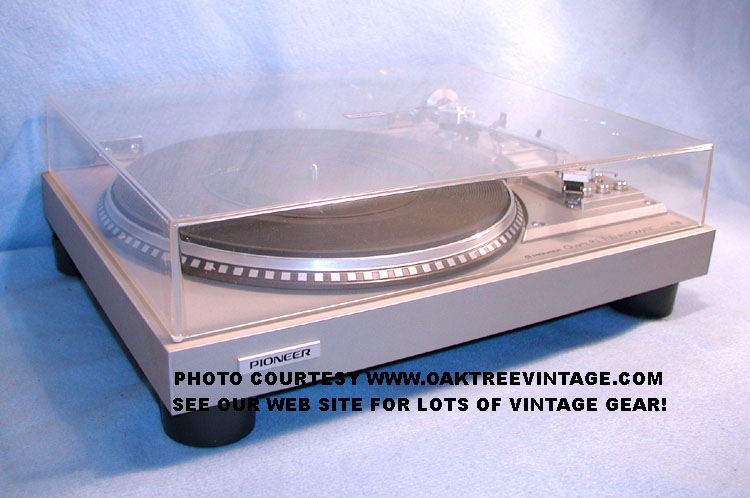

COMPLETELY RESTORED / REFURBISHED
VINTAGE PIONEER TURNTABLE

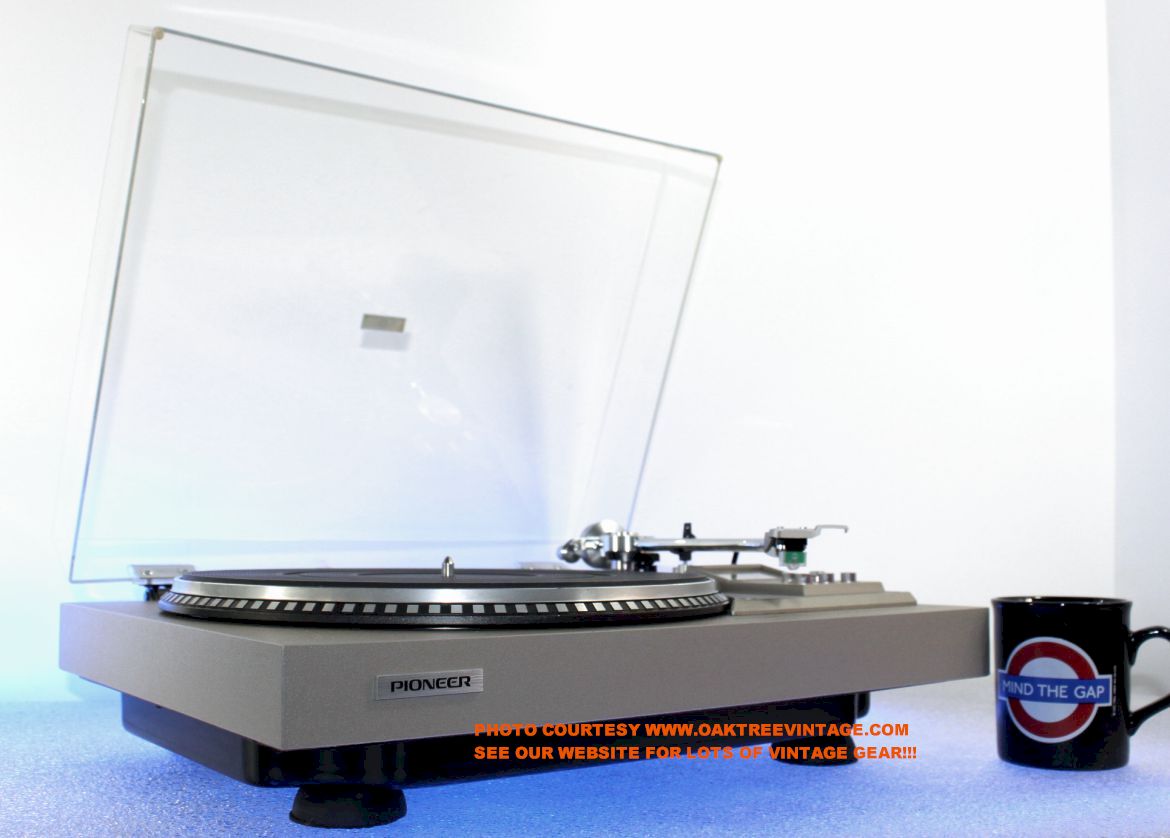

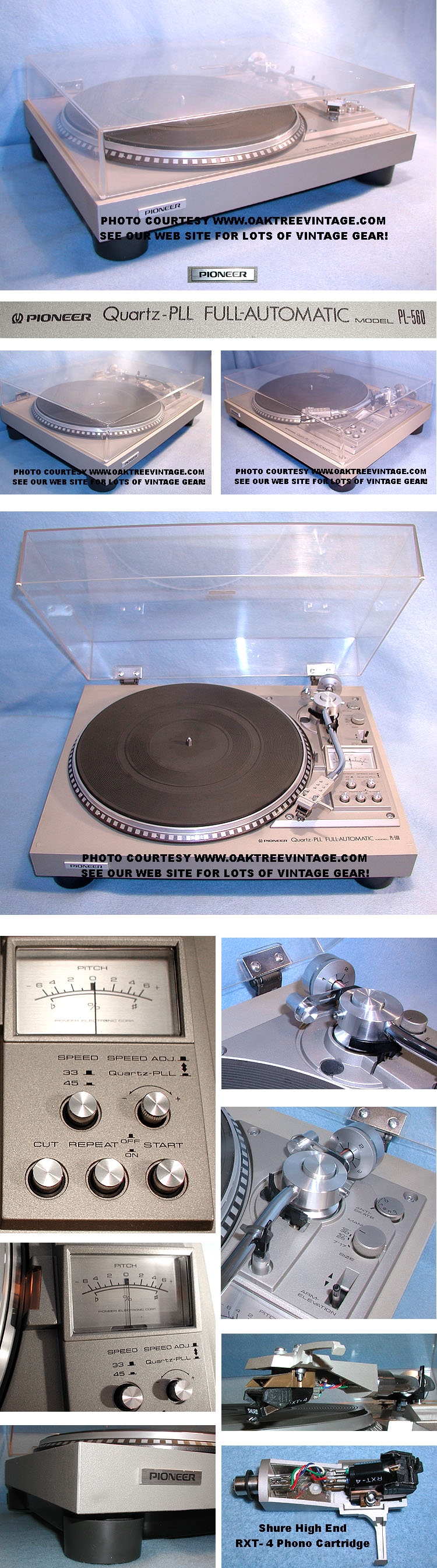

PIONEER PL-560 / PL560
FULLY AUTOMATIC / DIRECT DRIVE
TURNTABLE

#...6893
Made in Japan
Circa late 197
0''s
SOLD 12/6/16
SHIPPED TO FLORIDA


This was one of Pioneer's top of the line tables for this period. We have had ONLY 2 of these in the last 18+ years!

Our technician has completely and EXTENSIVELY gone through and 'Certified' this unit which involves disassembly (not an easy task on this table), cleaning inside and out, COMPLETELY DISASSEMBLING, cleaning and re-lubricating internal mechanisms and the balance of efforts listed below. Total technician time to restore 7 hrs.

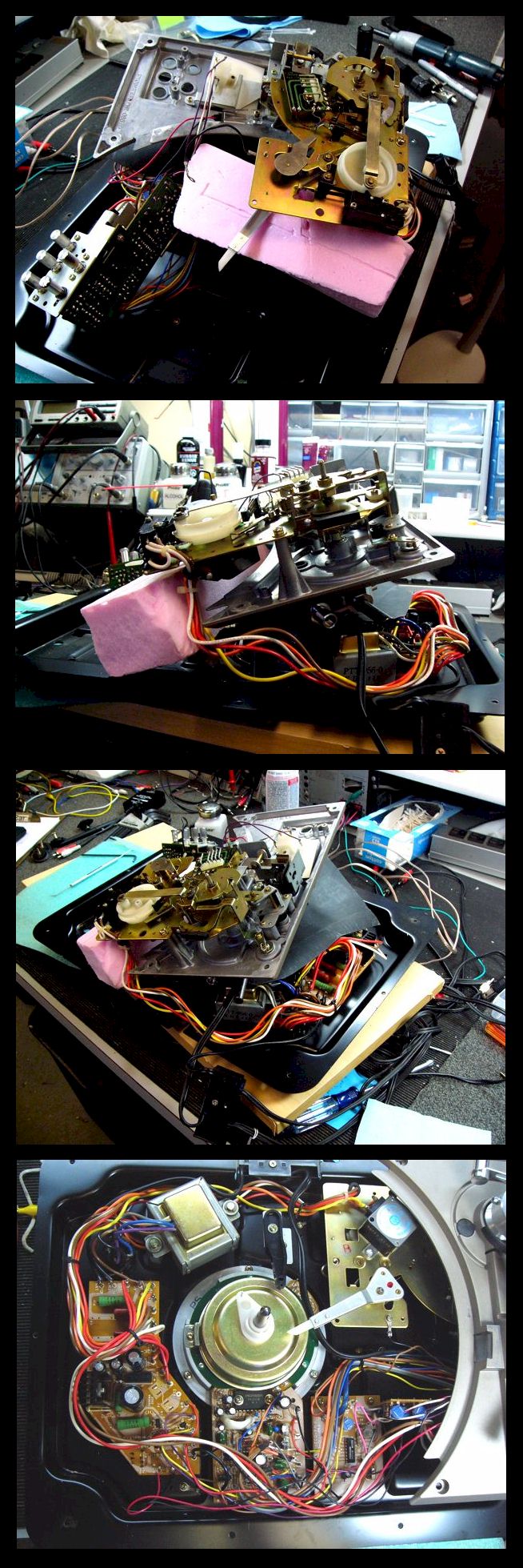

Entire table disassembled (see above 'bench photos')

Disassembly of 'Arm Lift Mechanism', cleaned and re-lubed

Arm actuator pad replaced

Internal speed pots cleaned and adjusted for 'center point'

Headshell leads replaced

New 'speed meter' lamp / bulb installed

Tested / analyzed and passed for motor noise and 60Hz hum.

Rubber mat still supple and flexible with no hardening.

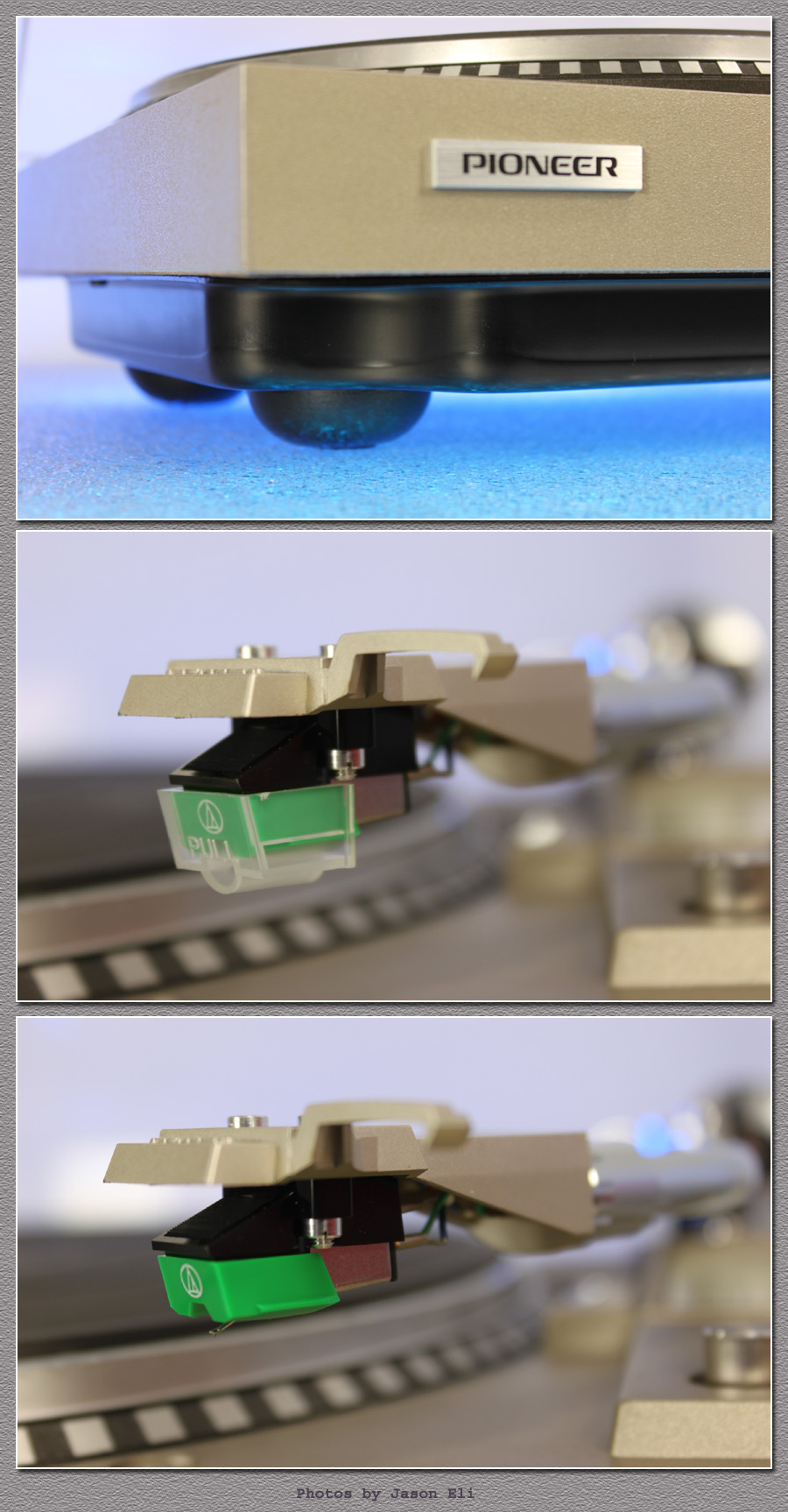

Original, and ALWAYS deteriorated 'natural rubber' Pioneer feet replaced with our 'up-graded' Sorbothane pods

Platter speed checked and verified for 100% accuracy with our factory test strobe disc following above restoration.

Platter tested for 'true flat' and no 'run-out' (we had one with 'run-out', that required a new platter).

Original dustcover had a 3-Stage buff, and looks INCREDIBLE. Hinges adjusted to hold it upright as well.

We also installed and adjusted a new, Audio Technica AT-95 'GREEN', elliptically cut Diamond, magnetic cartridge and optimized the tone arm for it. (If you prefer an up-grade you may also choose from our selection of new Audio Technica cartridges that we can also set up and ship with it for the additional cartridge cost.)
You can readily connect this table to any receiver, Integrated amplifier with a standard magnetic phono input, or a Pre-amp. To connect to computer for burning CD's just order one of our inexpensive Phono Pre-Amps and cable kits.

Cartridge / head shell overhang adjusted using shop calibration scale.

Unit tested with our myriad of test records, one of which included; Shures' 'Cartridge Obstacle Course' record

Unit test cycled through 30+ LPs flawlessly

Great performing, sounding and INCREDIBLE looking Pioneer PL-560, Direct-Drive, Fully-Automatic turntable. Following the above restoration, it looks fabulous, now functions correctly and performs well.


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?



Pioneer PL-560 Turntable Features:



HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?



PIONEER PL-560 Specifications:

Motor type:
xxx

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Turntable function design: Fully-Automatic
Turntable Drive System:
Direct drive
Platter / Mat:
xx
Speeds:
33 1/3 and 45 rpm
Manual Pitch Control Range:
+xx%
Speed Deviation: x%
Tone arm Type:
Static balance type, S-Shaped arm tube
Effective Arm Length: x" / x1cm


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Overhang: xmm
Tone Arm Bearings: Bx
Wow & Flutter:
0.x% @ 33 1/3 RPM
Rumble:
xdB
Cartridge type: Accepts all 1/2" "Standard" and "universal" mount
Overall Cartridge weight range: xx grams
Counter weight range: 0xgrams


Again, our turntable tech has completely and EXTENSIVELY gone through this Pioneer PL-560
as stated above and 'certified' it's ready to go! (total tech time ~7 hours). Following restoration was tested for speed accuracy, rumble, wow & flutter, noise isolation, tone-arm return function and lubed internal mechanism. Original dust cover is in fabulous shape after a 3-Stage plastic buff / hand polish. Table and dust cover have a few minor blems / scuffs, but nothing distracting, and some you have to look hard to notice (see photo collage above). Table looks good and works great! Again, comes with a new, fresh Audio-Technica, Elliptically cut, diamond stylus, AT-95 cartridge. Ready to play!!!Comes with our standard 90 day limited warranty.
REFURBISHED PIONEER PL-560 STEREO TURNTABLE
Cond. 8.5+

(C) R.R.

SOLD 12/6/16
SHIPPED TO FLORIDA


W/ DUST COVER &
w/ NEW 'Audio Technica' Elliptical Diamond stylus cartridge installed








NEW LISTING 5/13/05

VINTAGE
PIONEER
STEREO TURNTABLE
PL-560 PL560
QUARTZ LOCKED
FULLY-AUTOMATIC
DIRECT-DRIVE
 RESTORED / REFURBISHED
Made in Japan
Circa 1978-80

SOLD 5/21/05



NEW LISTING 2016
(Click on above thumbnails to enlarge photos)

COMPLETELY RESTORED / REFURBISHED
VINTAGE PIONEER TURNTABLE
PIONEER PL-560 / PL560
FULLY AUTOMATIC / DIRECT DRIVE
TURNTABLE

Made in Japan
Circa late 197
0''s
SOLD




NEW LISTING 11/30/11
(Click on above thumbnails to enlarge photos)

PRE-OWNED
PIONEER STEREO TURNTABLE

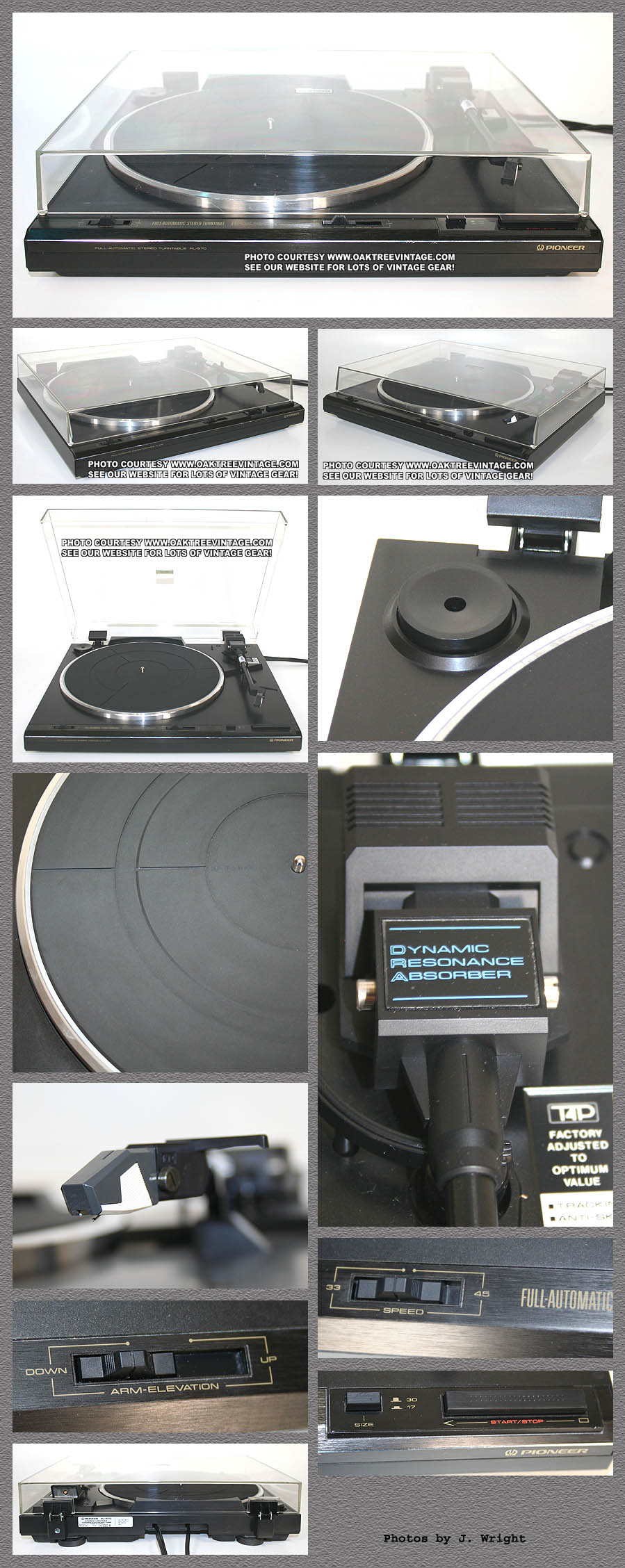

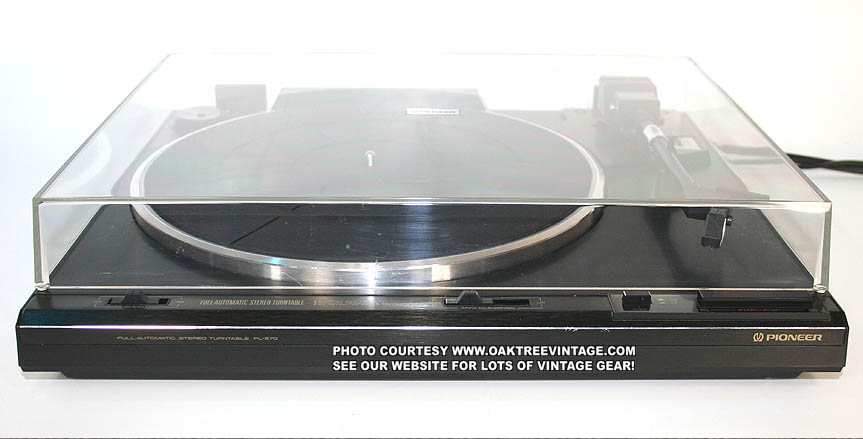

     MODEL PL-570BK / PL570
 FULLY-AUTOMATIC
 BELT DRIVE
#...6112H
Made in Japan

 Circa early-mid 198
6-89
SOLD 2/27/12

We have just had the table completely checked out and testing performance. Fresh, New platter drive belt installed. Speed selector switch contacts cleaned internally so motor runs steady. Speed checked and verified for accuracy with our factory test strobe disc to 100% accuracy. Tone arm bearing perfectly smooth in operation. Original rubber mat, still supple and flexible with no hardening. Original dust cover had a 'medium' buff to remove any 'offensive' scuffs / scratches and looks great. No cracks, chips, splits of major dings. Both hinges and hinge area in fine condition, crack free and hinge spring hold dust cover up fine. Both cover hinge tabs completely intact. We also re-installed the existing, Pioneer, 295T, P-Mount, 0.6mil 'Conical' diamond stylus, magnetic cartridge.  (If you prefer an up-grade you may also choose from our selection of new Audio Technica cartridges that we can also set up and ship with it for the additional cartridge cost.) You can readily connect this table to any receiver, Integrated amplifier with a standard magnetic phono input, or a Pre-amp. To connect to computer for burning CD's just order one of our inexpensive Phono Pre-Amps and and cable kits....

...
this table has been completely gone through.
PIONEER PL-570BK STEREO TURNTABLE
Cond. 8.5++

SOLD 2/27/12

&
w/ Pioneer Conical Diamond stylus cartridge installed









VINTAGE
PIONEER
STEREO TURNTABLE

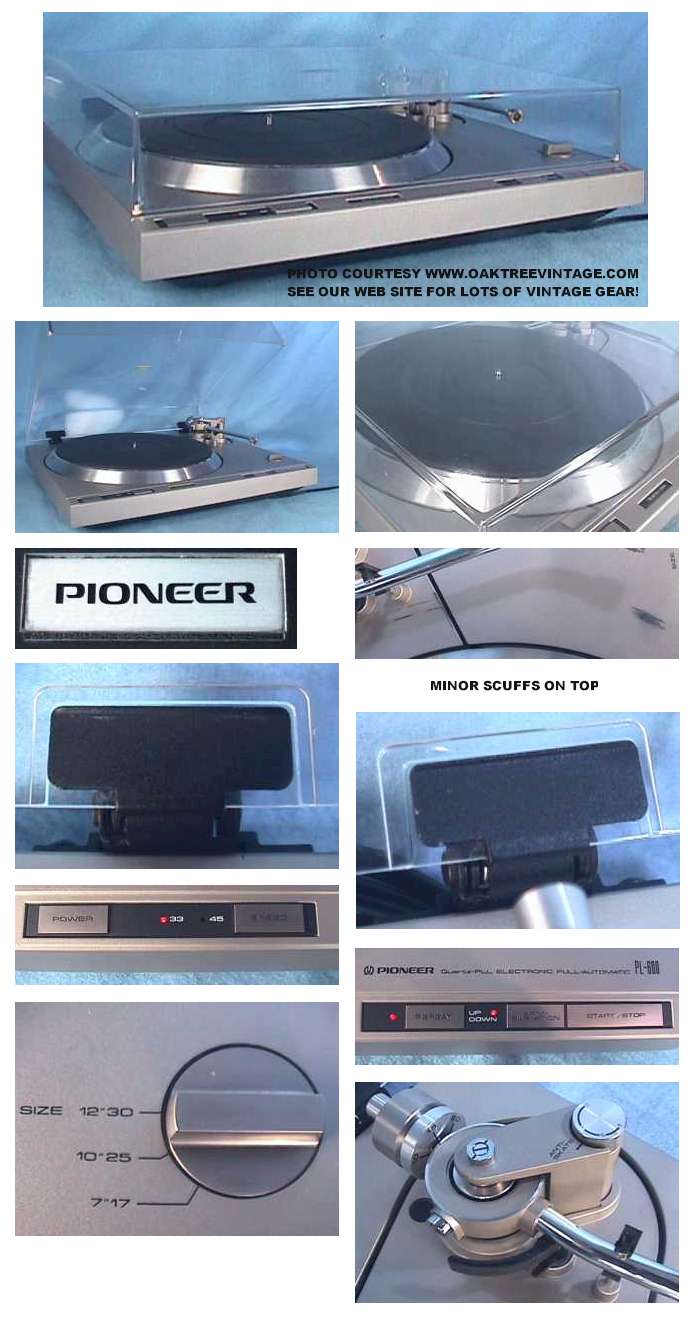

PL-600 PL600
QUARTZ LOCKED
FULLY-AUTOMATIC
DIRECT-DRIVE
 RESTORED / REFURBISHED
Made in Japan
Circa 1979-81
SOLD





VINTAGE
PIONEER
STEREO TURNTABLE
PL-600 PL600
QUARTZ LOCKED
FULLY-AUTOMATIC
DIRECT-DRIVE
 RESTORED / REFURBISHED
Made in Japan
Circa 1979-81
SOLD





-











VINTAGE

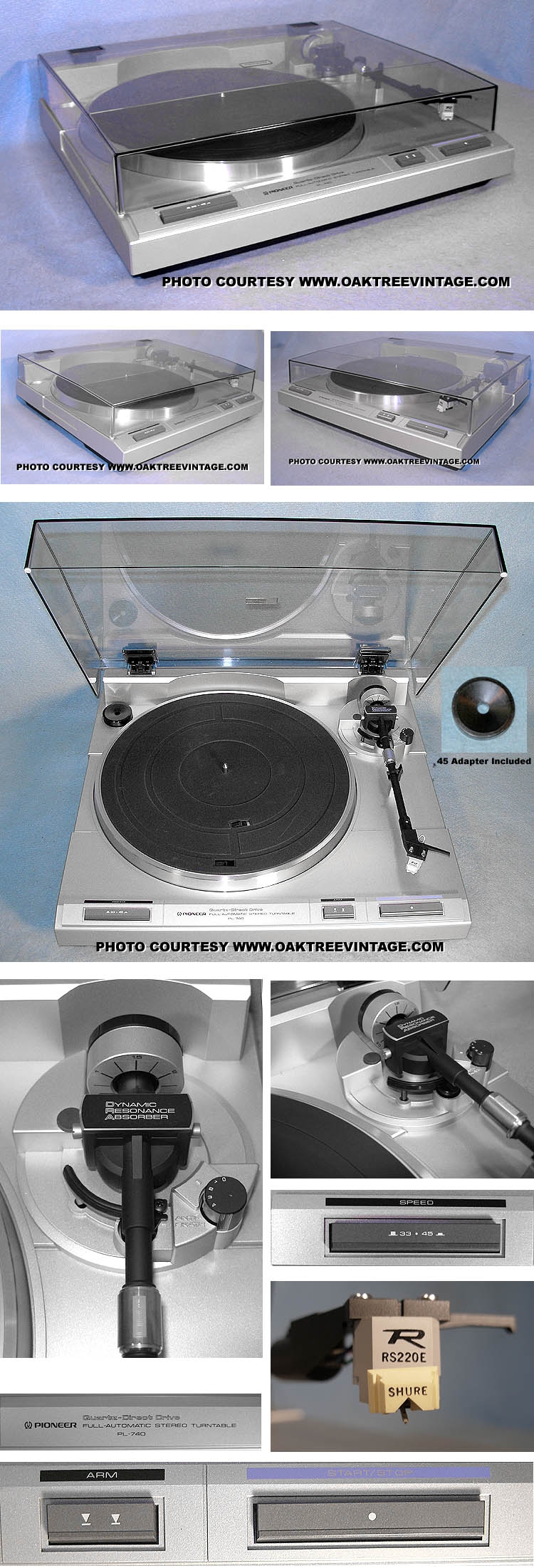

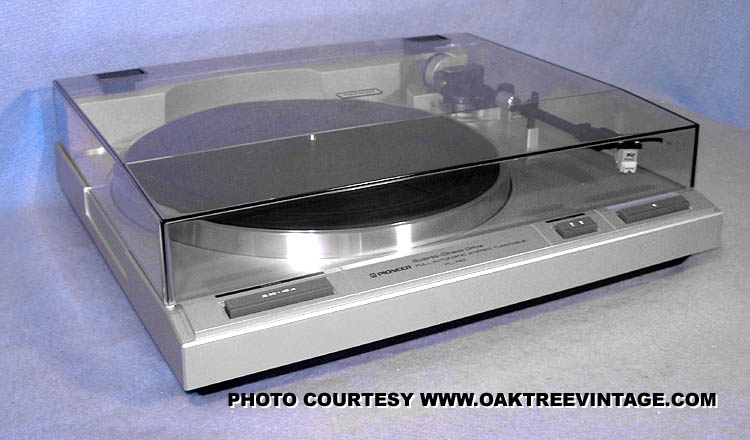

PIONEER
STEREO TURNTABLE
PL-740 PL740
QUARTZ LOCKED
FULLY-AUTOMATIC
DIRECT-DRIVE
 RESTORED / REFURBISHED
Made in Japan
Circa 1983

SOLD 12/13/06








NEW LISTING 11/30/11
(Click on above thumbnails to enlarge photos)

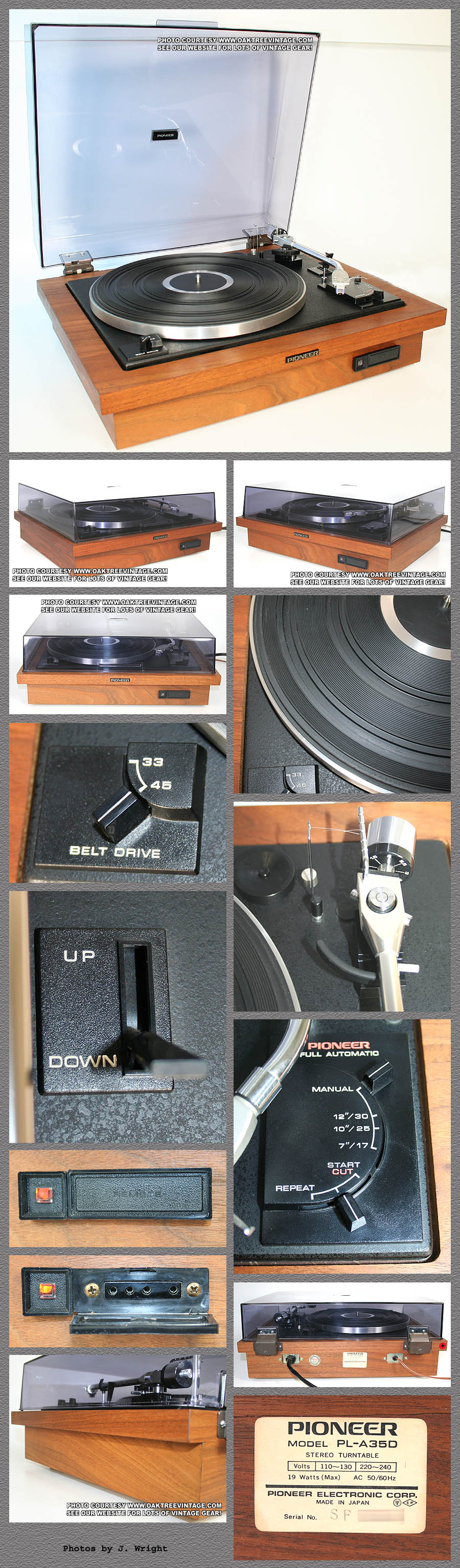

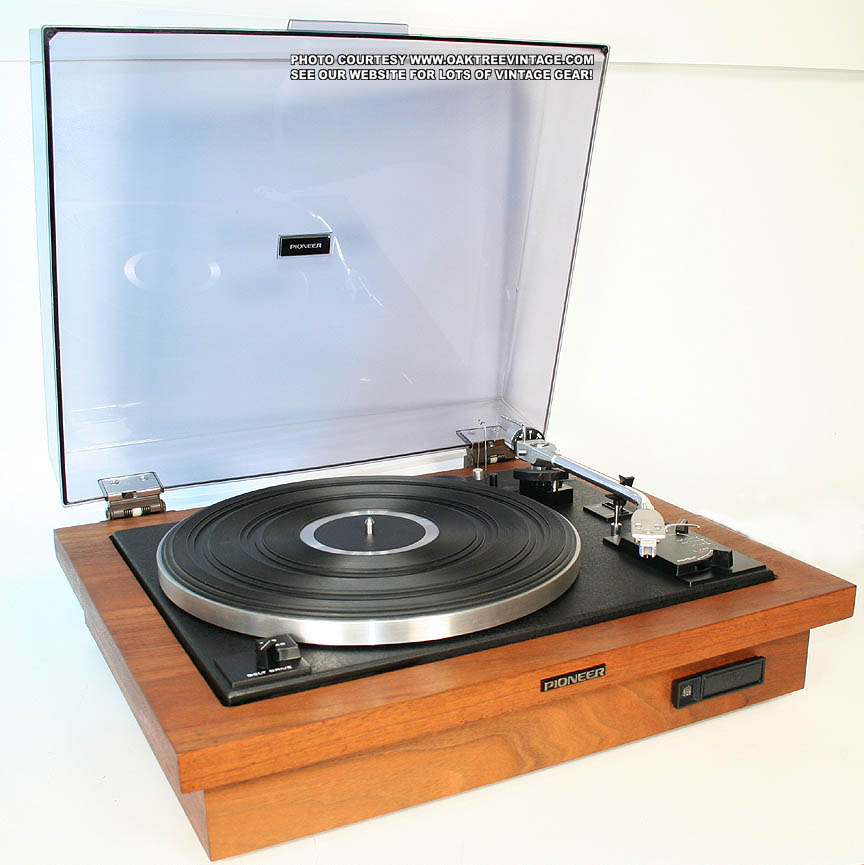

VINTAGE STEREO TURNTABLE
PIONEER
MODEL PL-A35D / PLA35D
TWO MOTOR / BELT DRIVE
FULLY AUTOMATIC
 RESTORED / REFURBISHED
STEREO TURNTABLE
Made in Japan
'Military Market' Unit
Circa 1974-76

SOLD 11/9/11

W/ CARTRIDGE and DUST COVER








        NEW LISTING 6/30/16

(Click on above thumbnails to enlarge photos)

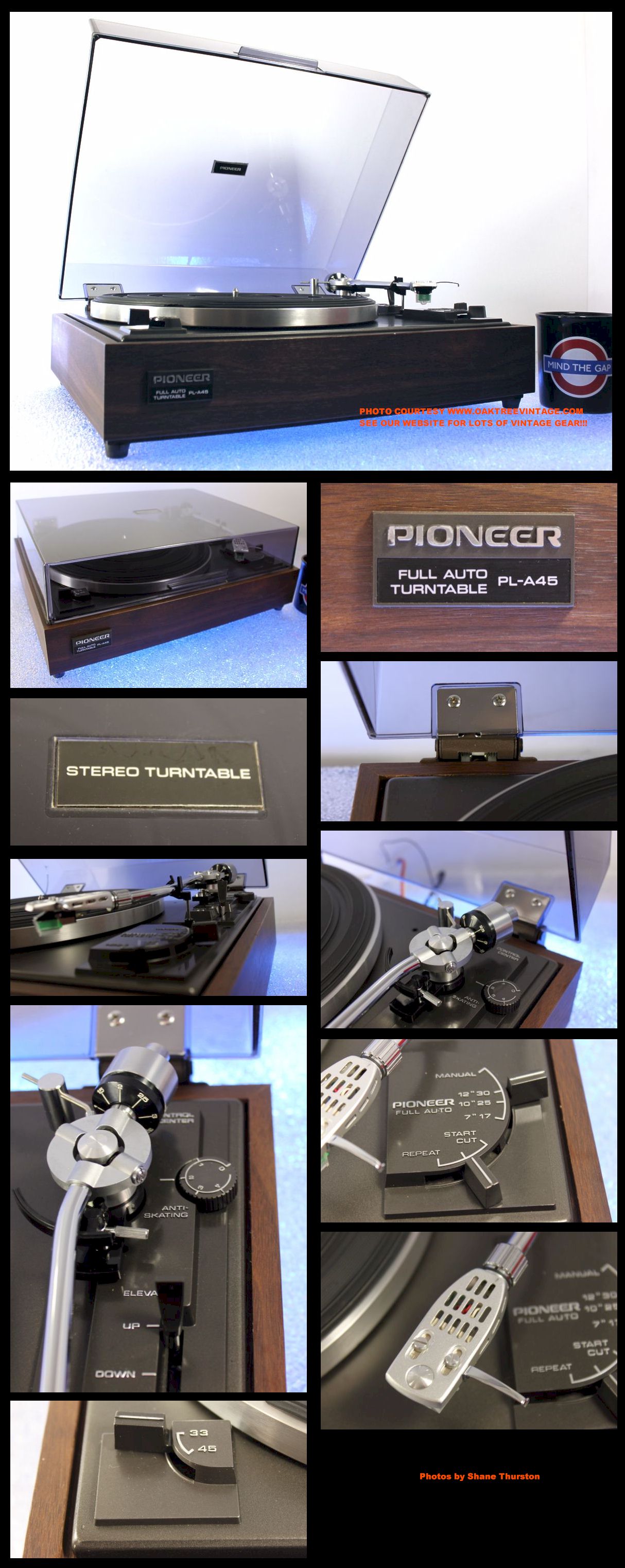

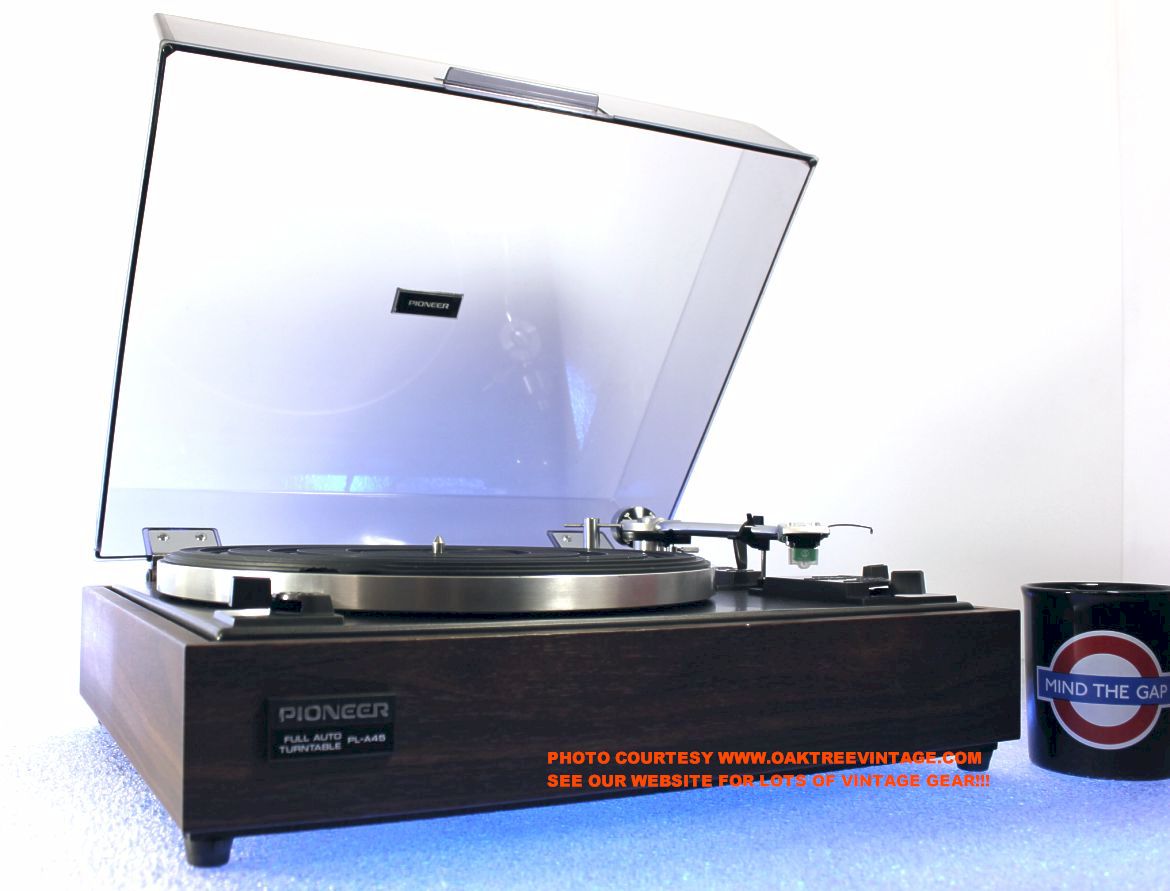

PIONEER STEREO TURNTABLE
PIONEER PL-A45 / PLA45
 #...3281
FULLY-AUTOMATIC
BELT DRIVE
TURNTABLE
Circa 1974-76
Made in Japan
SOLD 12/16/16
SHIPPED TO COLORADO

 Our technician has completely gone through and 'Certified' this unit cleaning inside and out, cleaning out gelled lubes (a MUST DO on all pre-owned / vintage turntables) and re-lubricating mechanism.  Motor internal oil points lubed. Anti-Skating adjustment cleaned of old lubes and re-lubed. New belt installed for trouble-free service. Speed checked and verified for accuracy with factory test strobe disc to 99.95% accuracy. Gimbal bearing, counter weight and anti-skating all adjusted and verified for accuracy. Stop mechanism adjusted and tested. Internal cartridge muting reed switches re-sprung for perfect connection. All functions work great! Both Hinges function fine and hold cover in upright position. Included rubber mat supple w/ no cracks, splits or warping. While the original dust cover does have a couple of older, repaired / welded cracks, we did give it a fresh buff and it looks nice with only a few minor battle scars, nothing distracting (see photos above). We also installed and adjusted a brand new Audio-Technica, AT-95ELCOT, Elliptical cut Diamond, magnetic cartridge and optimized the tone arm for it. (If you prefer an up-grade you may also choose from our selection of new Audio Technica cartridges that we can also set up and ship with it for the additional cartridge cost.) You can readily connect this table to any receiver, Integrated amplifier with a standard magnetic phono input, or a Pre-amp. To connect to computer for burning CD's just order one of our inexpensive Phono Pre-Amps and cable kits. Again, this table looks and works great!!


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


Pioneer PL-A45 Features:


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?



PIONEER PL-A45 Specifications:


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?



Again, this table has been completely gone through. Table looks, works and sounds great! Very heavy table delivers high quality performance. Great "all around" table for utility use, and ready to spin your vinyl through those vintage speakers you own. Includes pdf / e-copy download of Pioneer PL-A45D turntable owners / users manual via email (PL-A45D is same as PL-A45 with the exception of the base color / finish. The "PL-A45" is all walnut wood grain, and the "PL-A45D" is a 'two-tone', with Walnut wood grain vinyl on the top half, and a 'pewter' vinyl wrap on the lower half). Measures 16 15/16" wide x 14.25" deep x 6.5" tall and weighs 21 lbs unpacked. Comes with our standard 90 day limited warranty.
PIONEER PL-A45
Cond. 8.5
W/ DUST COVER
(C) R.R.
SOLD 12/16/16
SHIPPED TO COLORADO

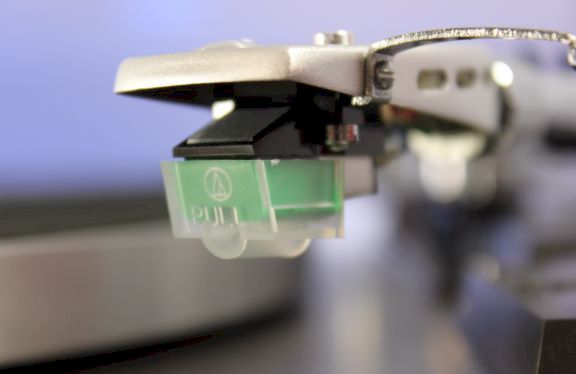

 w/ new AT Elliptical Diamond stylus cartridge installed




To connect to computer for burning CD's or to a modern A/V receiver that does not have phono inputs, just order one of our inexpensive $42.99 Phono Pre-Amps and cable kits.

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)







NEW LISTING 4/23/08
(Click on above thumbnails to enlarge photos)
warranty

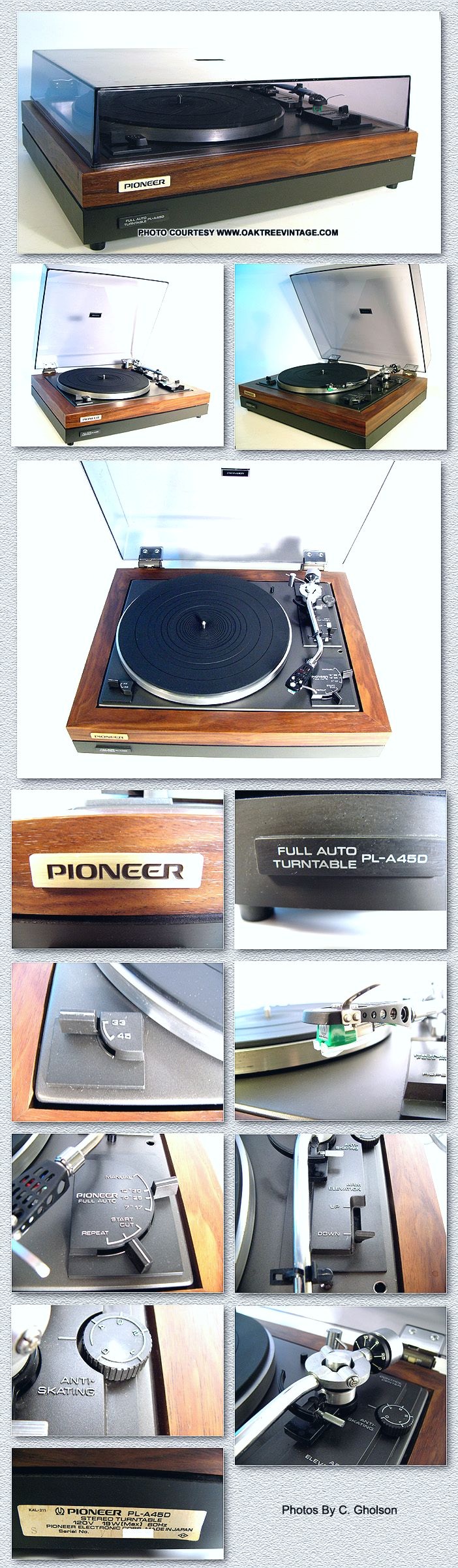

PIONEER

STEREO TURNTABLE

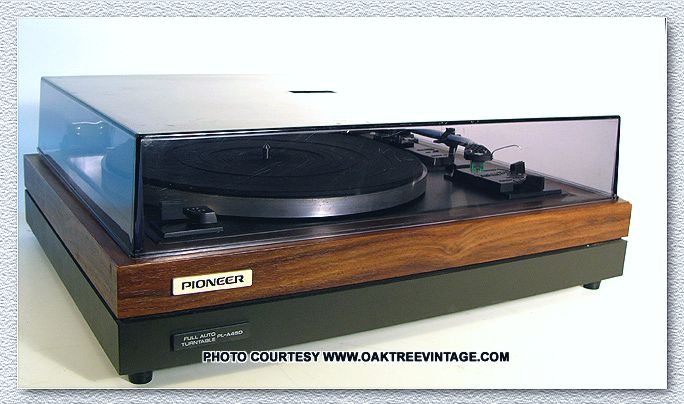

 PL-A45D  PLA45D
#...0141

 FULLY-AUTOMATIC
 BELT DRIVE
 TURNTABLE
 Circa 1974-76
 Made in Japan

SOLD 5/28/08


w/ new AT Elliptical Diamond stylus cartridge installed


VINTAGE

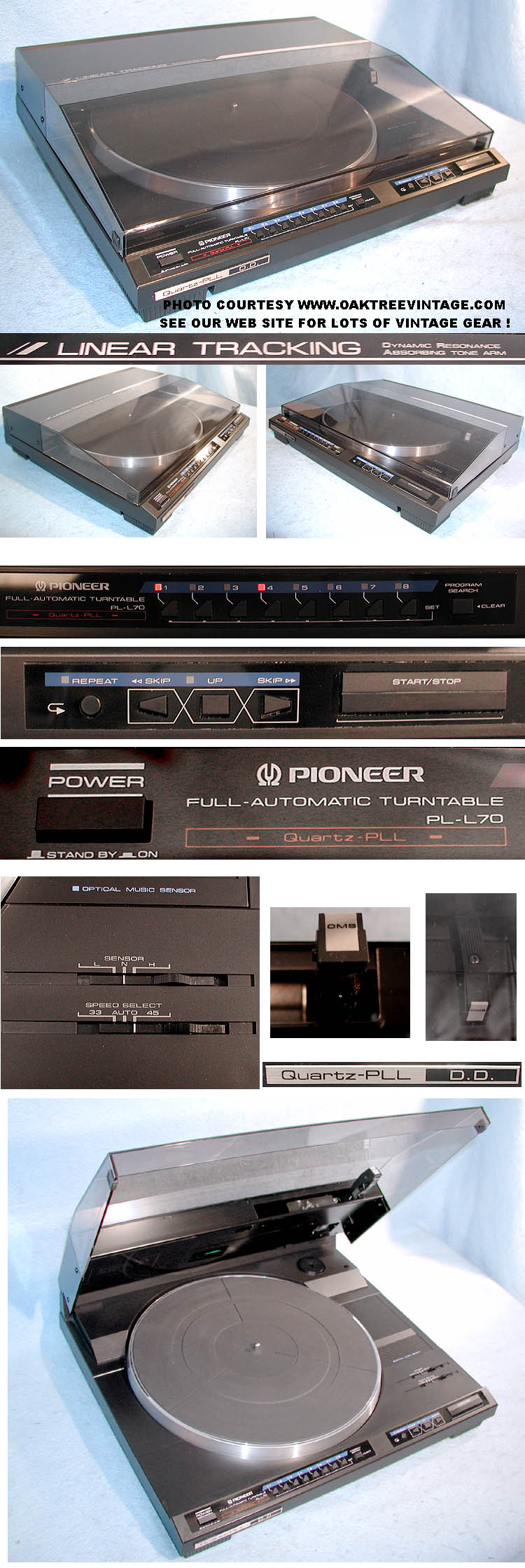

PIONEER LINEAR TRACKING
STEREO TURNTABLE

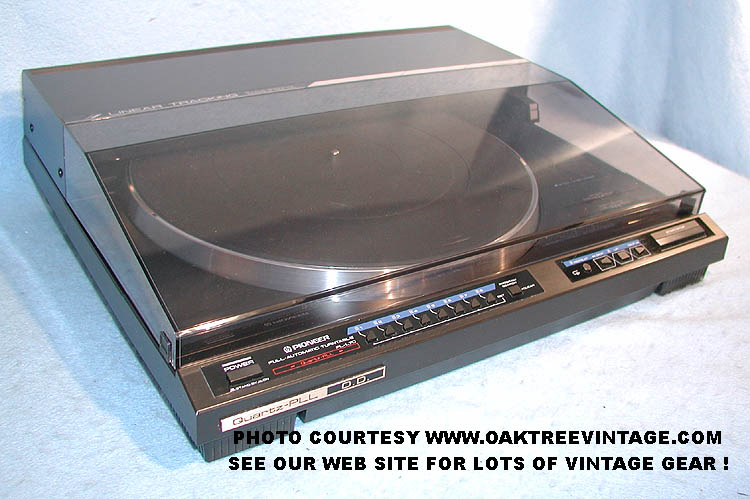

PL-L70 PLL70
QUARTZ LOCKED / PLL
FULLY-AUTOMATIC
DIRECT-DRIVE
 RESTORED / REFURBISHED
Made in Japan
Circa 1983

SOLD 12/4/04









NEW LISTING 4/21/16
(Click on above thumbnails to enlarge photos)

COMPLETELY RESTORED / REFURBISHED
VINTAGE PIONEER TURNTABLE
PIONEER PL-L1000 / PLL1000
TANGENTIAL TRACKING / LINEAR TRACKING
FULLY AUTOMATIC / DIRECT DRIVE
TURNTABLE

#...180T
Made in Japan
Circa late 1979 thru 1980

SOLD 5/5/16
SHIPPED TO NORTH CAROLINA

This was Pioneer's 'Flag Ship' turntable for this period. We have had 2 of these (one was the Phase Linear version), for over 6 years, waiting for the 'right technician' to challenge them. FINALLY, our current senior technician was up to the task, and restored this one beautifully and CORRECTLY!

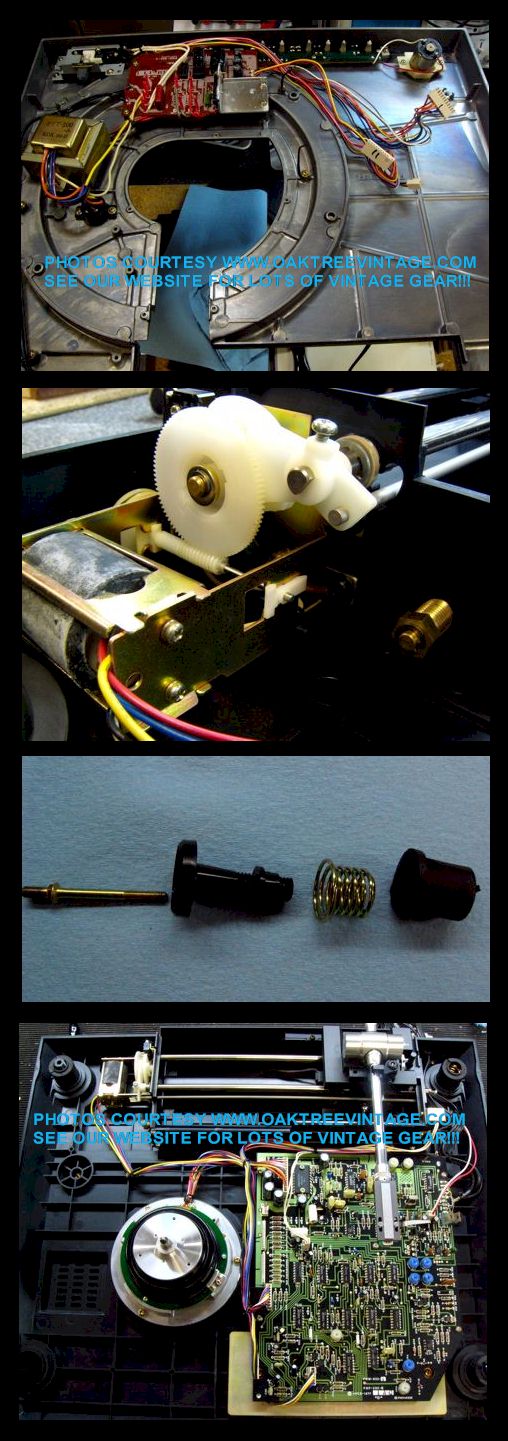

Our technician has completely and EXTENSIVELY gone through and 'Certified' this unit which involves disassembly (not an easy task on this table), cleaning inside and out, COMPLETELY DISASSEMBLING, cleaning and re-lubricating internal mechanisms and the balance of efforts listed below. Total technician time to restore 11 hrs.

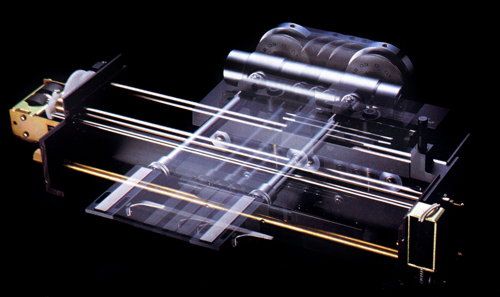

Partial disassembly of 'Arm Lift Mechanism' , cleaned and re-lubed

Fresh, New and Correct 'Arm Mechanism' belt installed.

End of Play lift and return set with oscilloscope at test point 4 and adj internal VR9.

Arm transport shuttle control cleaned and re-lubed

Lateral arm motion rails and guide rollers cleaned and re-lubed

Arm lift motor re-lubed

Tone-arm Lead-In adjusted until perfect for mid point lead in

Tested / analyzed and passed for motor noise and 60Hz hum.

Rubber mat still supple and flexible with no hardening.

Disassembled and re-built feet / pods

Platter speed checked and verified for 100% accuracy with our factory test strobe disc following above restoration.

Platter tested for 'true flat' and no 'run-out' (we had one with 'run-out', that required a new platter).

Original dustcover had a 3-Stage buff, and looks INCREDIBLE. Hinges adjusted to hold it upright as well.

We also installed and adjusted a new, Audio Technica elliptically cut Diamond, magnetic cartridge and optimized the tone arm for it on the ORIGINAL PIONEER PL-L1000 headshell. (If you prefer an up-grade you may also choose from our selection of new Audio Technica cartridges that we can also set up and ship with it for the additional cartridge cost.)
You can readily connect this table to any receiver, Integrated amplifier with a standard magnetic phono input, or a Pre-amp. To connect to computer for burning CD's just order one of our inexpensive Phono Pre-Amps and cable kits.

Cartridge / head shell overhang adjusted using shop calibration scale.

Unit tested with our myriad of test records, one of which included; Shures' 'Cartridge Obstacle Course' record

Unit test cycled through 30+ LPs flawlessly

Great performing, sounding and INCREDIBLE looking Pioneer PL-L1000, Linear Tracking, Direct-Drive, Fully-Automatic turntable. Following the above restoration, it looks fabulous, now functions correctly and performs well.

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

This table is a 'blast' to use. As the owner of Oak Tree Enterprises, I personally auditioned and did the final testing on this table. I had a few further 'fine tune / tweaks' done by the technician and probably played more than 30 albums on this.


PIONEER PL-L1000 TURNTABLE SPECIFICATIONS:

Motors:

Direct-In XX)

 Platter Drive System:
Direct Drive
Platter:
XXmm / XX" diameter, die-cast, aluminum alloy
Speeds:
33 1/3 and 45 rpm
Wow and Flutter (WRMS):
< 0.0
XX%


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Tone-arm Type:
Straight Tubular, Linear Motor drive, Static-ba
lance, on pivot bearing
Tone-arm height adj range:
XXmm
Build-up Time;
XX @33.3 RPM
Speed Deviation; < 0.XX%
Speed drift; < 0.XX% @33.3 RPM
Speed vs Load characteristics; stable to XX grams of load drag
Effective Arm Length;
XXmm
Cartridge weight range (not 'tracking force' range); XXg
Head-shell weight: 1XXg


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Again, we have completely gone through this Pioneer SX-939 Stereo Receiver,

Again, our turntable tech has completely and EXTENSIVELY gone through this Pioneer PL-L1000
as stated above and 'certified' it's ready to go! (total tech time ~11 hours). Following restoration was tested for speed accuracy, rumble, wow & flutter, noise isolation, tone-arm return function and lubed internal mechanism. Original dust cover is in fabulous shape after a 3-Stage plastic buff / hand polish. Table looks good and works great! Again, comes with a new, fresh Audio-Technica, Elliptically cut, diamond stylus, AT-95 cartridge. Ready to play!!!

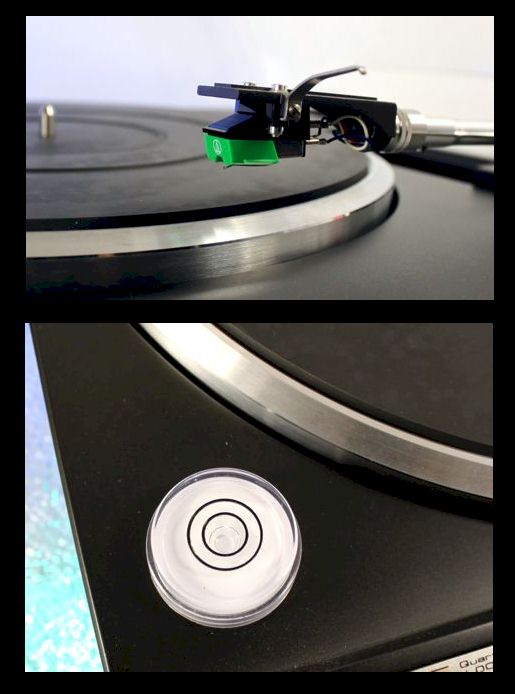

Note: These tables, like many 'higher end' tables are VERY critical of 'Level Placement', and it will come with a bubble / spirit level to assist in that task (yes, the feet are adjustable with more than adequate height range). Measures 19.25" wide x 17.75" deep x 6" tall and weighs a HEAVY 27 lbs unpacked.
Will include an e copy / pdf download of the Pioneer PL-L1000 Owners / users manual and the service manual if purchaser desires. Comes with our standard 90 day limited warranty.
REFURBISHED PIONEER PL-L1000 STEREO TURNTABLE
Cond. 8.5++

SOLD 5/5/16
SHIPPED TO NORTH CAROLINA

W/ BEAUTIFUL DUST COVER &
w/ NEW 'Audio Technica' Elliptical Diamond stylus cartridge installed



To connect to computer for burning CD's or to a modern A/V receiver that does not have phono inputs, just order one of our inexpensive $42.99 Phono Pre-Amps and cable kits.

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)







NEW LISTING 12/20/14
(Click on above thumbnails to enlarge photos)

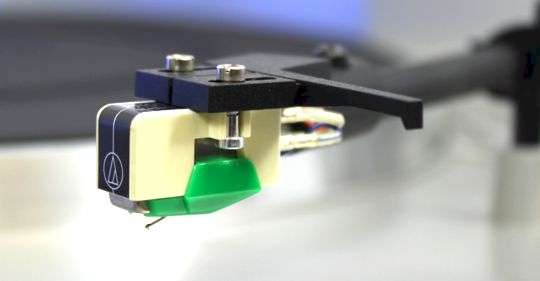

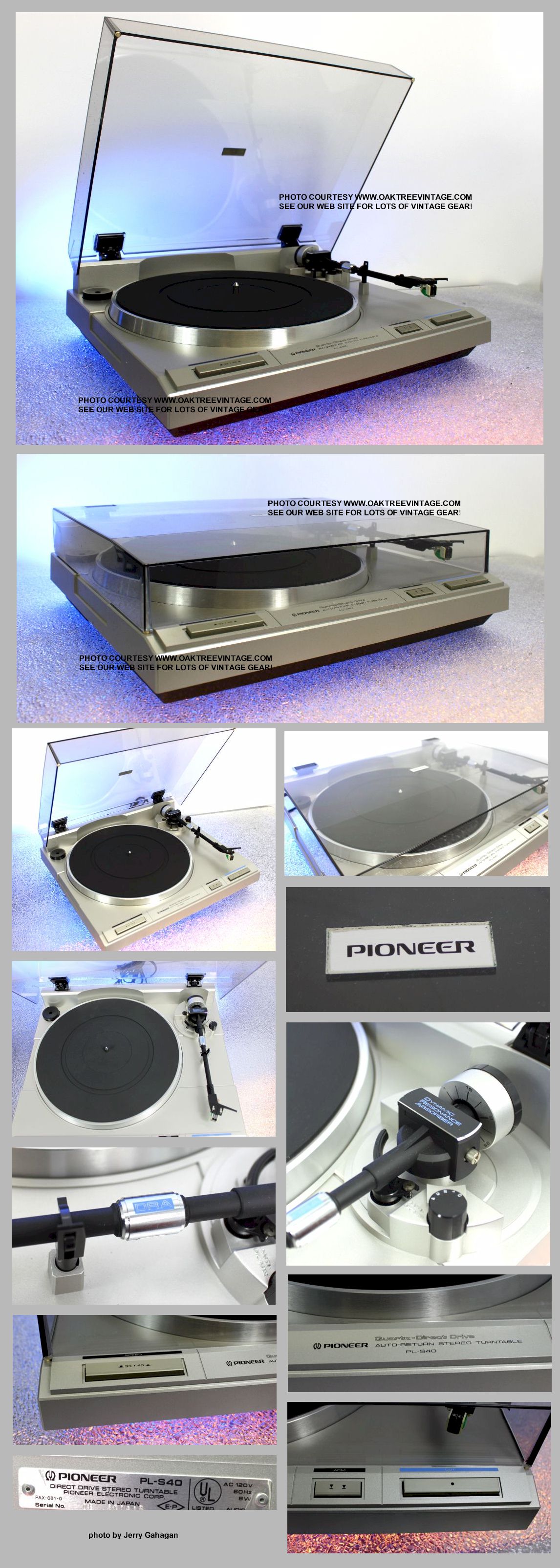

RESTORED / REFURBISHED
VINTAGE PIONEER TURNTABLE

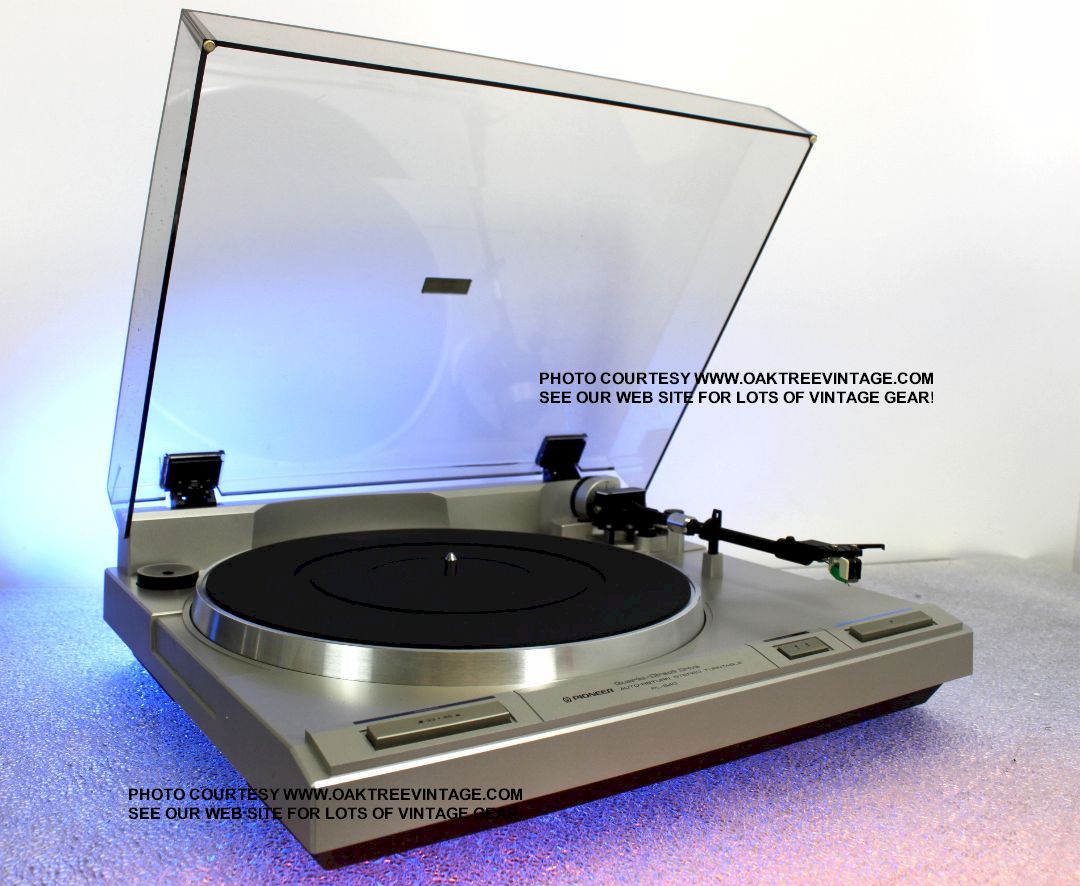

PIONEER PL-S40 / PL-S40
FULLY AUTO
DIRECT DRIVE
STEREO TURNTABLE
RESTORED / REFURBISHED

Made in Japan
Circa 1979-81

SOLD 12/20/14
SHIPPED TO GEORGIA




               NEW LISTING 12/16/16
(Click on above thumbnails to enlarge photos)

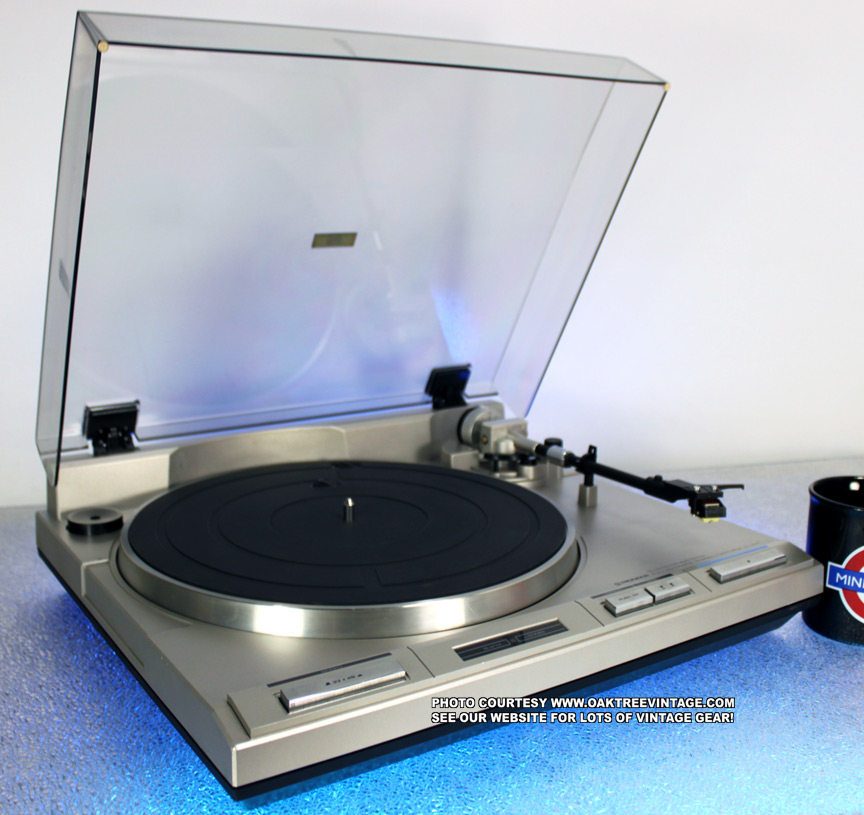

RESTORED / REFURBISHED
VINTAGE PIONEER STEREO TURNTABLE

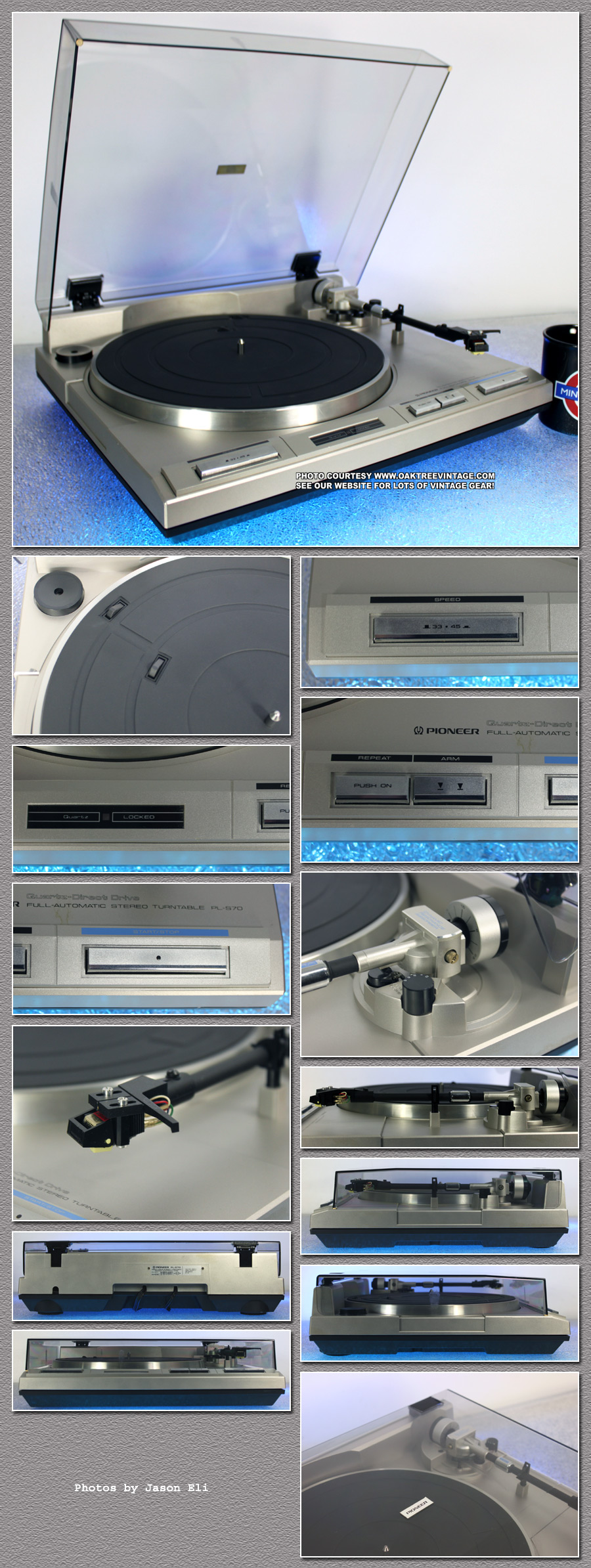

PIONEER PL-S70
FULLY-AUTOMATIC
DIRECT DRIVE TURNTABLE
MADE IN JAPAN
#...4586
Circa 1982-85

SOLD 12/19/16
SHIPPED TO WEST VIRGINIA

Our technician has completely gone through and 'Certified' this unit cleaning inside and out, cleaning out gelled lubes (a MUST DO on all pre-owned / vintage turntables) and re-lubricating mechanism investing ~8 hours of technician time!

Tone-arm height adjusted

 Tone-arm 'lift height' adjusted.

 Tone-arm Auto functions restored, adjusted and tested.

Tone-arm lead In / Out adjusted.

 'Anti-Skate' mechanism, cleaned and re-lubed w/ silicone lube.

 Gimbal bearing, counter weight and anti-skating all adjusted and verified for accuracy.


Entire table was cleaned inside and out.

 'Quartz Locked' Speed checked and verified for accuracy with our shop strobe disc.

Tested / analyzed and passed for motor noise and 60Hz hum after additional 'up-grade' of ground cable


We also installed a Shure "Hi-Track" Cartridge, with a NEW Shure M95ED, Elliptically cut Diamond stylus, magnetic cartridge and optimized the tone arm for it (aligned with Stevens Protractor). (If you prefer an up-grade you may also choose from our selection of new Audio Technica cartridges that we can also set up and ship with it for the additional cartridge cost.) You can readily connect this table to any receiver, Integrated amplifier with a standard magnetic phono input, or a Pre-amp. To connect to computer for burning CD's just order one of our inexpensive Phono Pre-Amps and cable kits.

Unit test cycled through 20+ LPs flawlessly.

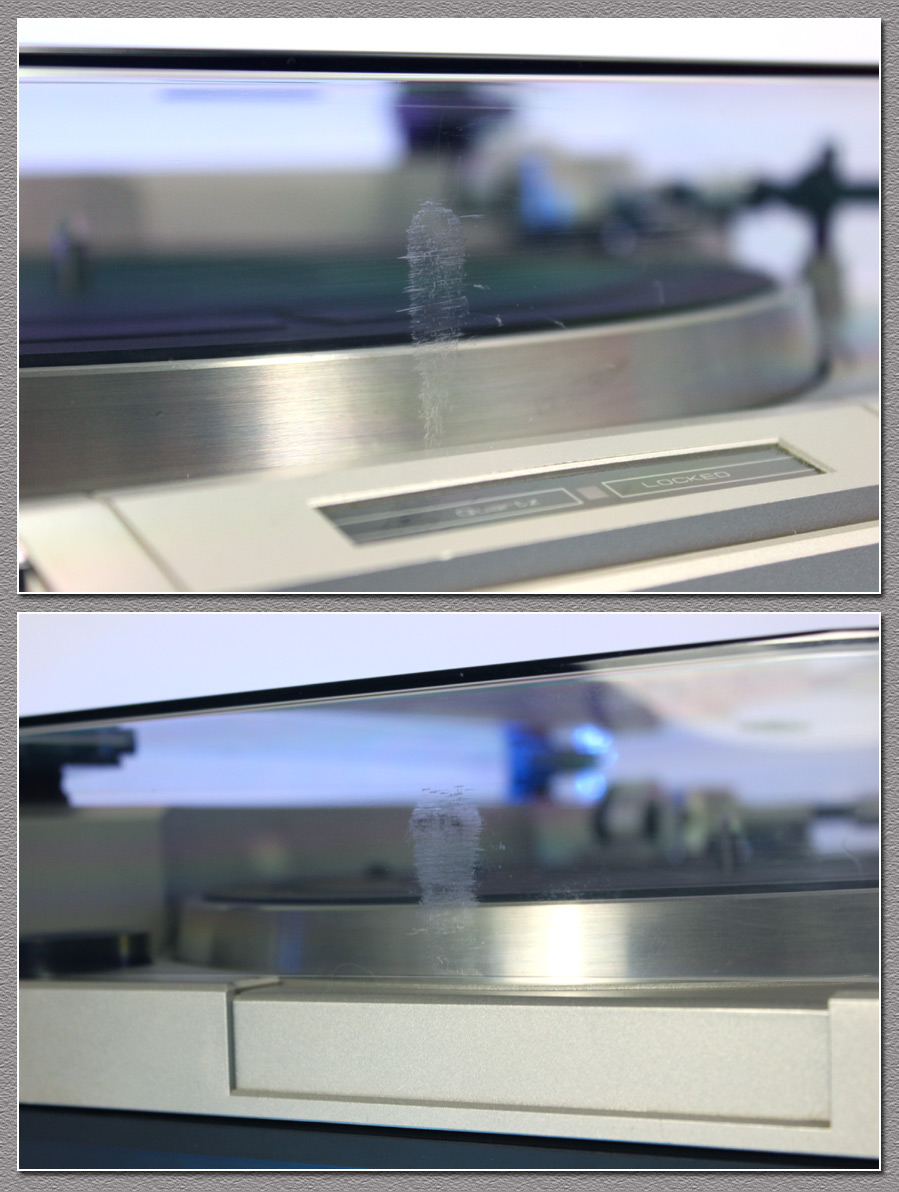

Original dustcover had a fresh buff, and looks great, with only a couple of 'platter scuffs' on the left side, front edge and top (was probably transported / moved at one time without removing the platter...oops. see photos above).

Original dustcover hinges work great and 'hold' dust cover upright fine.

Great quality Pioneer PL-S70, Fully-Automatic, Direct-Drive, Quartz Locked turntable. Low-Mass, straight tone-arm with ORIGINAL Pioneer, angled, 1/2" standard mount head-shell for low record / stylus wear and accurate tracking. Plays 33 or 45 RPM vinyl. High quality Gimbal bearing allows for critical adjustment of cartridge tracking / anti-skating. Tone-arm lock intact and functioning properly. This was the "Top of the Line" for the Pioneer "PL-S" series at the time. Well-built table delivers high quality performance.

Pioneer PL-S70 Turntable Features:



HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


Pioneer PL-S70 Turntable Specifications:



HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


Very quiet, well performing table...


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?
All the "auto" functions work great following the EXTENSIVE refurb work outlined above. Great working and sounding table, and with the Shure Hi-Track / M95ED, elliptically cut, diamond stylus cartridge installed, it's...Ready to Go! ...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

 Following 3-stage dust cover buff, and the balance of the rest of the table restoration, it looks great. Will include an e copy / pdf download of the Pioneer PL-S50 (the Pioneer PL-S70's 'little brother') pdf download, Owners / users manual and a copy of the 1984 Pioneer Full Line Catalog that features this turntable if purchaser desires. This particular one also includes the original Pioneer box and some packing. Measures 16.6" wide x 14.25" deep x 4.8" high and weighs a respectable 12.5 lbs unpacked. Includes our standard 90 day warranty.
Cond. 8.5
RESTORED / REFURBISHED PIONEER PL-S70 STEREO TURNTABLE

SOLD 12/19/16
SHIPPED TO WEST VIRGINIA


W/ DUST COVER
&
w/ SHURE Hi-Track / M95ED, Elliptical Diamond stylus cartridge installed




To connect to computer for burning CD's or to a modern A/V receiver that does not have phono inputs, just order one of our inexpensive $42.99 Phono Pre-Amps and cable kits.

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)









REPAIRED / RESTORED PIONEER 6-DISC CD CHANGER
PIONEER PD-M510

SOLD 7/7/04



Pioneer_PD-M900_Stereo_CD_Player_Changer_Collage.jpg (207041 bytes)   Pioneer_PD-M900_Stereo_CD_Player_Changer_Cartridges_web.jpg (12976 bytes)

REPAIRED / RESTORED PIONEER 6-DISC CD CHANGER
PIONEER
PD-M900
6-DISC REFERENCE
"ELITE SERIES"
CD CHANGER / PLAYER

SOLD 7/21/04


-
- - -
CLICK HERE TO SEE OUR TURNTABLES
 CURRENTLY FOR SALE!



LINKS TO OUR 'HI-FI' DEPARTMENTS

Amps and
Pre-Amps

Receivers

Cassette
Decks

Tuners

Turntables

8-Track Decks

CD Players

Reel-Reel
Decks

EQs and Signal
Processors

Speakers

Betamax and
VHS VCRs

Turntable Cartridges

Tube Audio

Ne'cessories

Speaker Parts

Record Players

Vintage Radios

Vintage
Walkmans

Headphones

Stereo Parts


Wondering where the "tone" you remember went?....

Vintage Stereo Equipment receivers speakers Classic Silver Audio Collection and jerry gahagan



.... Surround yourself with Silver and find it again!



POLICIES, SPECIFICATIONS, AVAILABILITY, INFORMATION
AND PRICING SUBJECT TO CHANGE  AT ANYTIME  AND
WITHOUT PRIOR
NOTICE
and changes may not be posted to web immediately
.


20-30% restock fee / service charge applies to all returns for refund depending on item specifics & / or individual distributor / drop shipper policies.
See our "
Warranties / Returns" page via the link below for more details.

$20. Minimum Orders

Visa Credit Card Logo                 American Express Credit Card Logo                Mastercard Credit Card Logo              Discover Credit Card Logo

   *HOME PAGE*   |   CONTACT & ORDERING  PARTS CONTACT  |  FAQ'S  I   SELLING-TRADING-CONSIGNING    |   CONDITION RATINGS   |   ORDERING / POLICIES   |   WARRANTIES / RETURNS   |   SHIPPING    |   HOLD / SOLD   |  RESTORATION PROCEDURES  I  LINKS   |  CLIENT LIST  |

Copyright 1997-2018 Oak Tree Enterprises, LLC
COPYRIGHT INFORMATION



Please be patient while page loads . . .
