SUNDANCE HOT-TUB PARTS / SPARES

Sundance Hot-tub / Spa salvage parts / spares from a Sundance Marquis for reference and occasional sale if shown on page as available.
The parts we have were removed from running units.













Ok, here's the deal. If you don't see it here, we don't have it. Sorry. These are used parts a salvaged / parted out Sundance Hot-Tub / Spa and it's ALL we have.




SUNDANCE HOT-TUB / SPA PARTS / SPARES FROM A SALVAGE HOT-TUB.
These parts were removed from working hot-tubs. Not import knock-offs!
The tubs functioned great, but were impractical to move intact, or had issues with frames so we decided to 'part out'.





SUNDANCE HOT-TUB / SPA
PRE-OWNED / SECOND-HAND PARTS / SPARES
 FOR SALE


Working second-hand / used replacement parts or great for DIY hot-tub / back-yard spa.

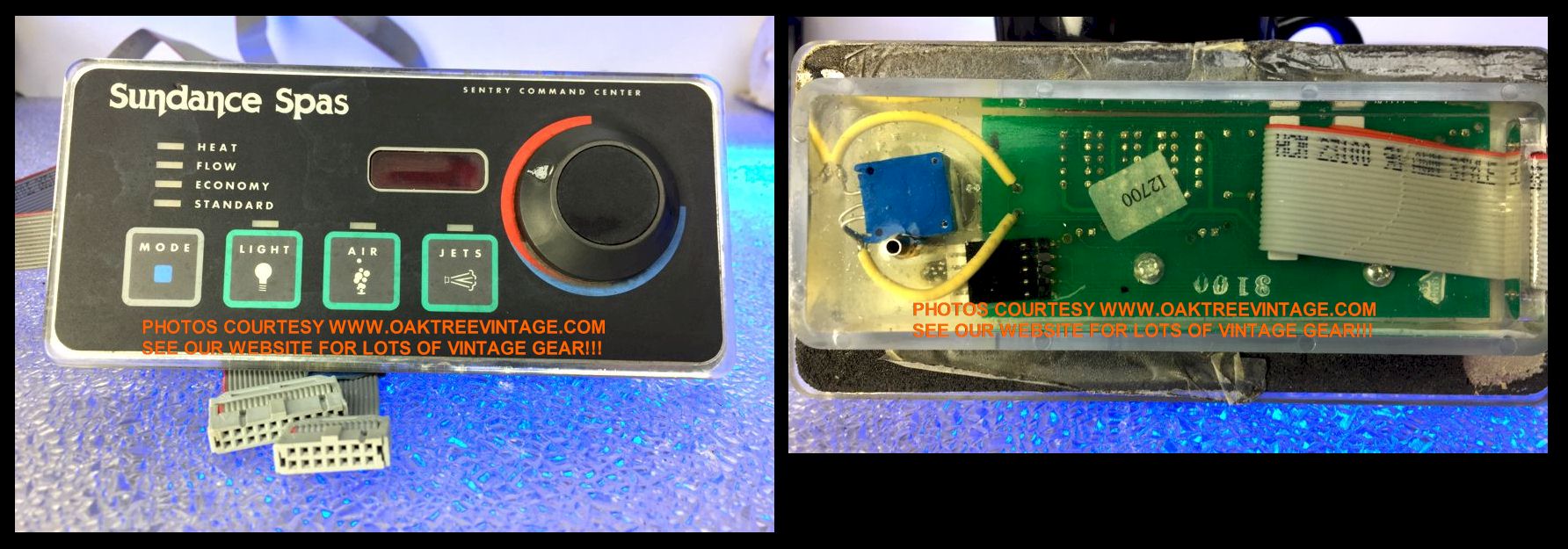

Control Panel, Sundance Spas "Sentry Command Center" control panel 12700 / 3100, circuit board, ribbon cables - $85. SOLD

Location: PB, Southern Island, North Shore, West end, 4th cab (Western most, black), 7th drawer, Left side - Revised 3/4/20

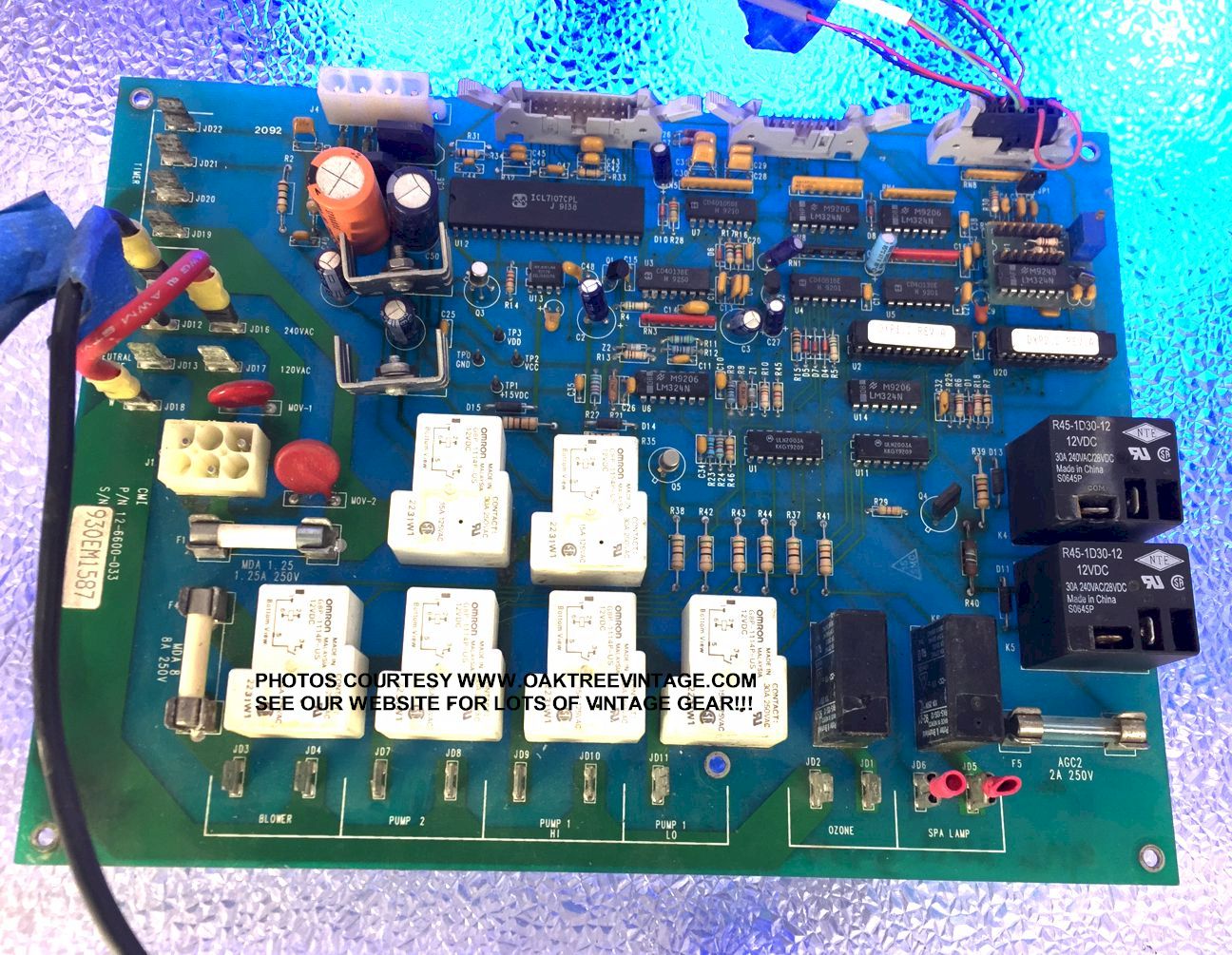

Circuit Board, Sundance Spas "Sentry Main Circuit board; 600DX Controller / 240VAC, 50/60Hz, 30/40 Amp, 3-Wire / #12-6600-033. Populated with Relays; OMRON G8P-1114P-US, NTE R45-1D30-12 (one of which has a melted terminal), Potter & Brumfield RKS-1DG-12, IC chips; ICL7107CPL, CD40106BE, M9206 / LM324N, ULN2003A, Maxim 9207N / ICL7660CPA, 9248 / LM324N, DXP1.2 REV.A, In-line packages; L83C105 and a few others that are too difficult to read as well as, Transistors; 2N2907, 2N4920, LM340T, (a couple of others than can't be read), and balance of capacitors, diodes, resistors, trim pots, connectors, and fuse holders. One other resistor, #R40 is burned. Was working when removed, but has been exposed to the elements for a bit, so consider it as useful for parts - $50. as-is SOLD

Location: PB, Southern Island, North Shore, West end, 4th cab (Western most, black), 7th drawer, Left side - Revised 3/4/20


PHOTOS COMING
Power Transformer
, Sundance Spas "Sentry Main Circuit board; 12-6000 series power transformer with two Molex connectors (1x 4-Pin and 1x 6-Pin {only 3 of which are used}). Was working when removed. - $50.

Location: PB, Southern Island, North Shore, West end, 4th cab (Western most, black), 7th drawer, Left side - Revised 3/4/20


PHOTOS COMING
Timer
, Diehl Type 880, Made in Germany. cracked dial, but works. - $25.

Location: PB, Southern Island, North Shore, West end, 4th cab (Western most, black), 7th drawer, Left side - Revised 3/4/20

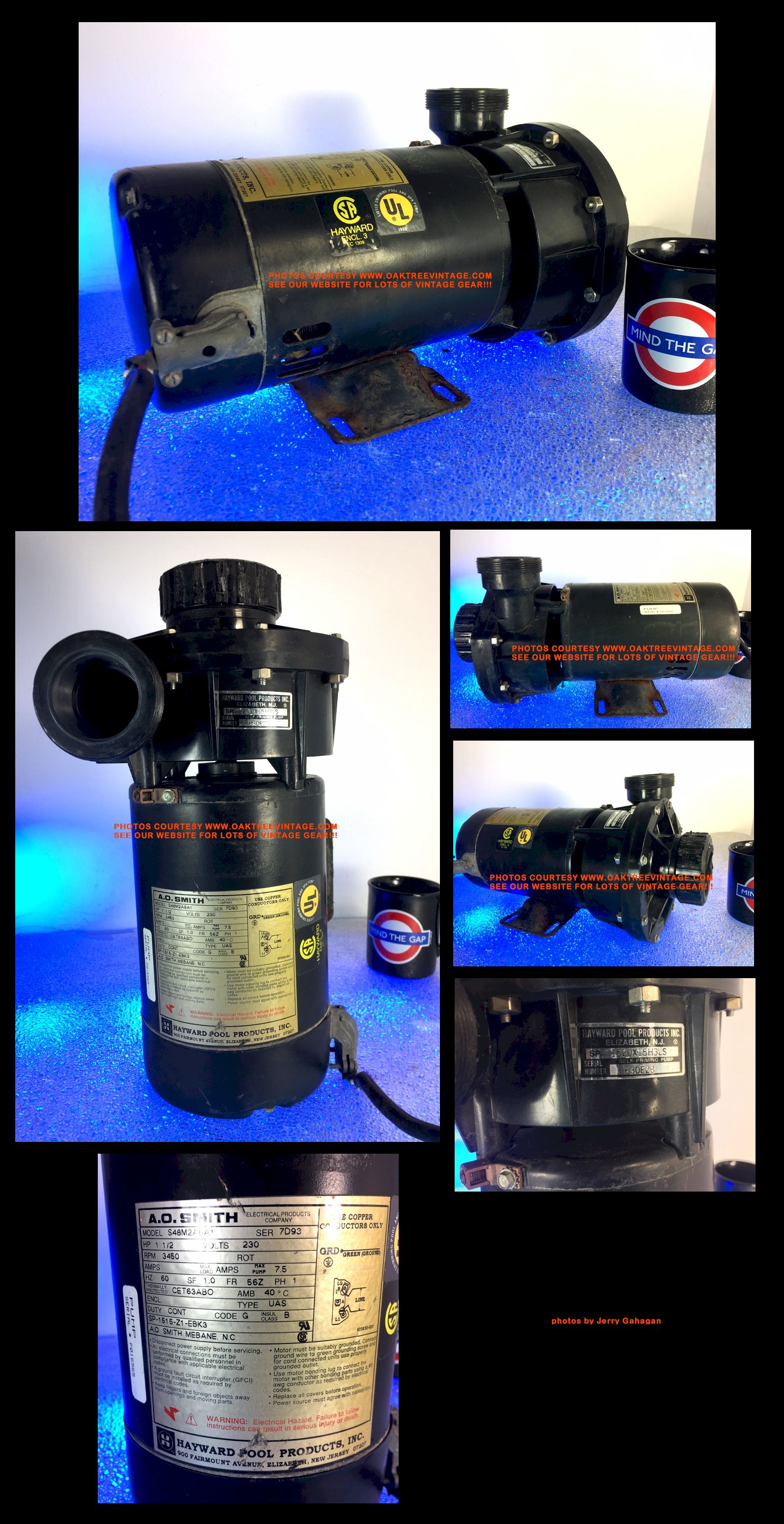

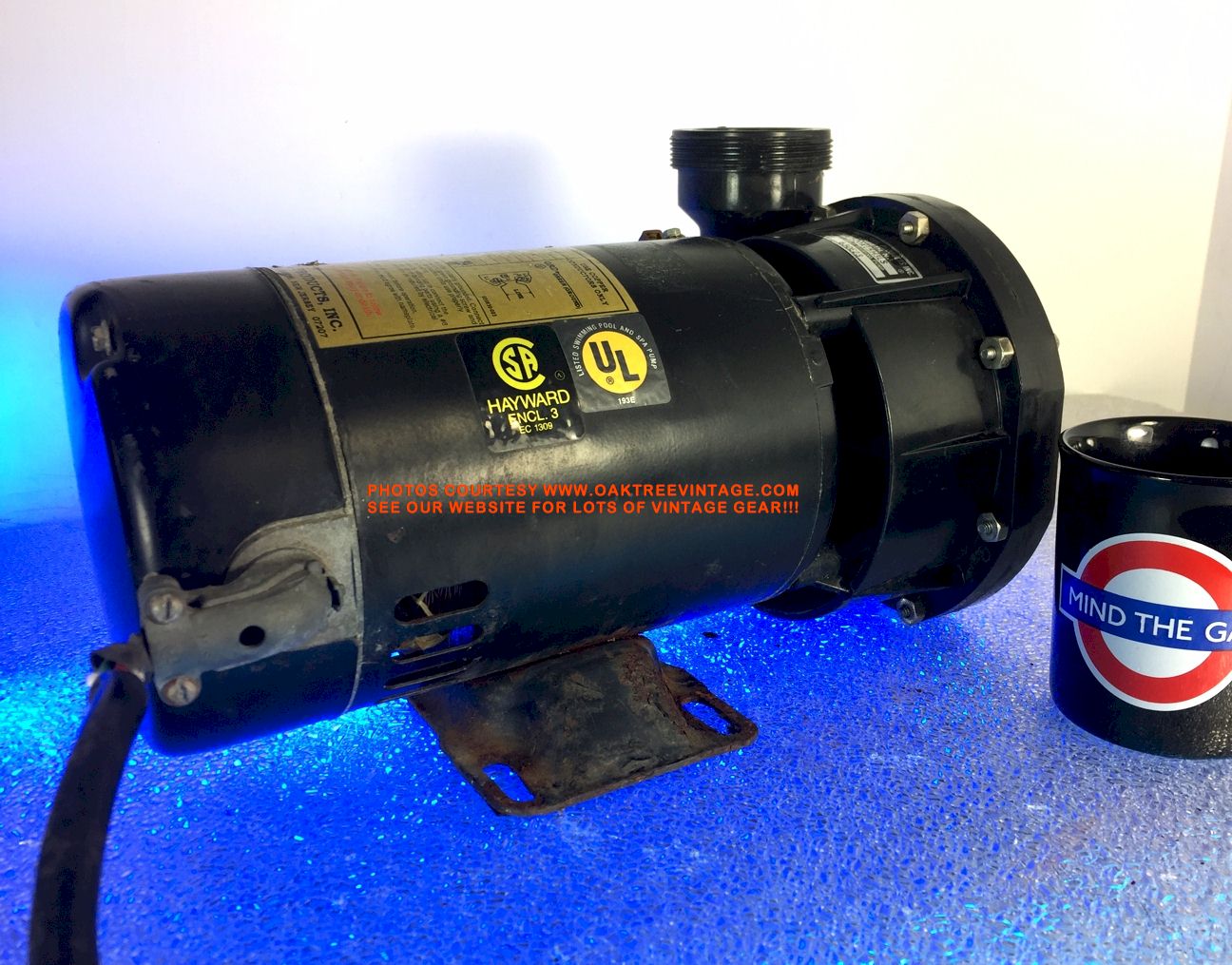

Motor / Pump
, Pump & motor; A.O. Smith motor, Model; S48M2A8A1. 1 1/2 hp / 1.5hp, 230 Volts, 3450 RPM. 7.5 Max Amps. Continuous Duty Cycle, Thermally Protected. Cond. Used, dusty, Some surface rust. Runs well.
WITH Hayward Pool Products, Inc. SP 1520X15H3LS pump attached - $125. SOLD 4/3/20

Location: PB, Southern Island, North Shore, West end, 4th cab (Western most, black), above - Revised 4/4/20






Motor / Pump, Pump & motor; A.O. Smith motor (Century Lasar Pool / Spa Motor), Part 7-182477-02. 3 hp, 230 Volts, 3450 / 1725 RPM. 10.5 / 2.6 Amps. Continuous Duty Cycle, Thermally Protected. Cond. Used, dusty, Some surface rust. Runs well.
WITH Hayward Pool Products, Inc. SP 1525X2H3LS pump attached - $125.

Location: PB, Southern Island, North Shore, West end, 4th cab (Western most, black), above - Revised 3/4/20

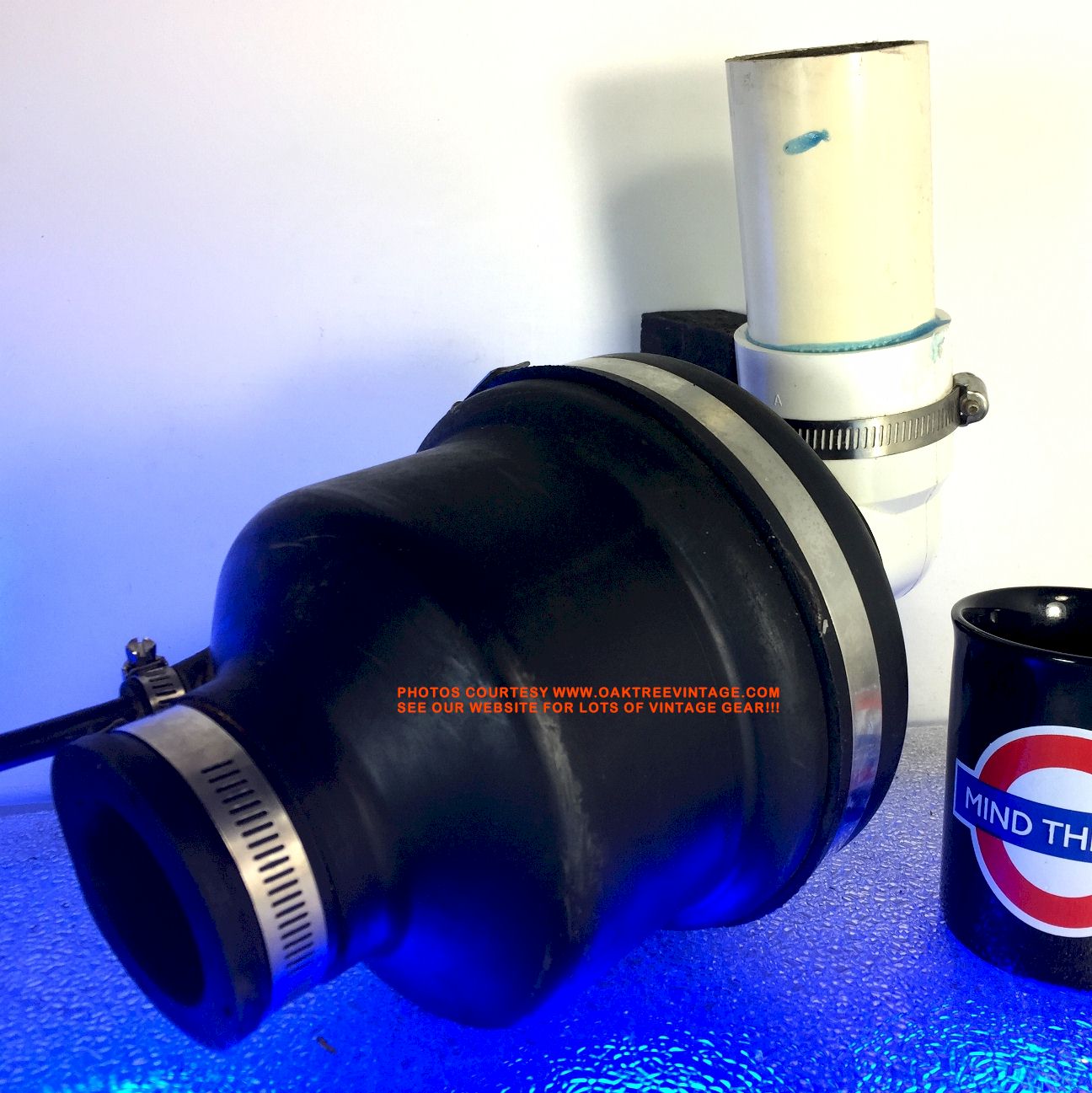

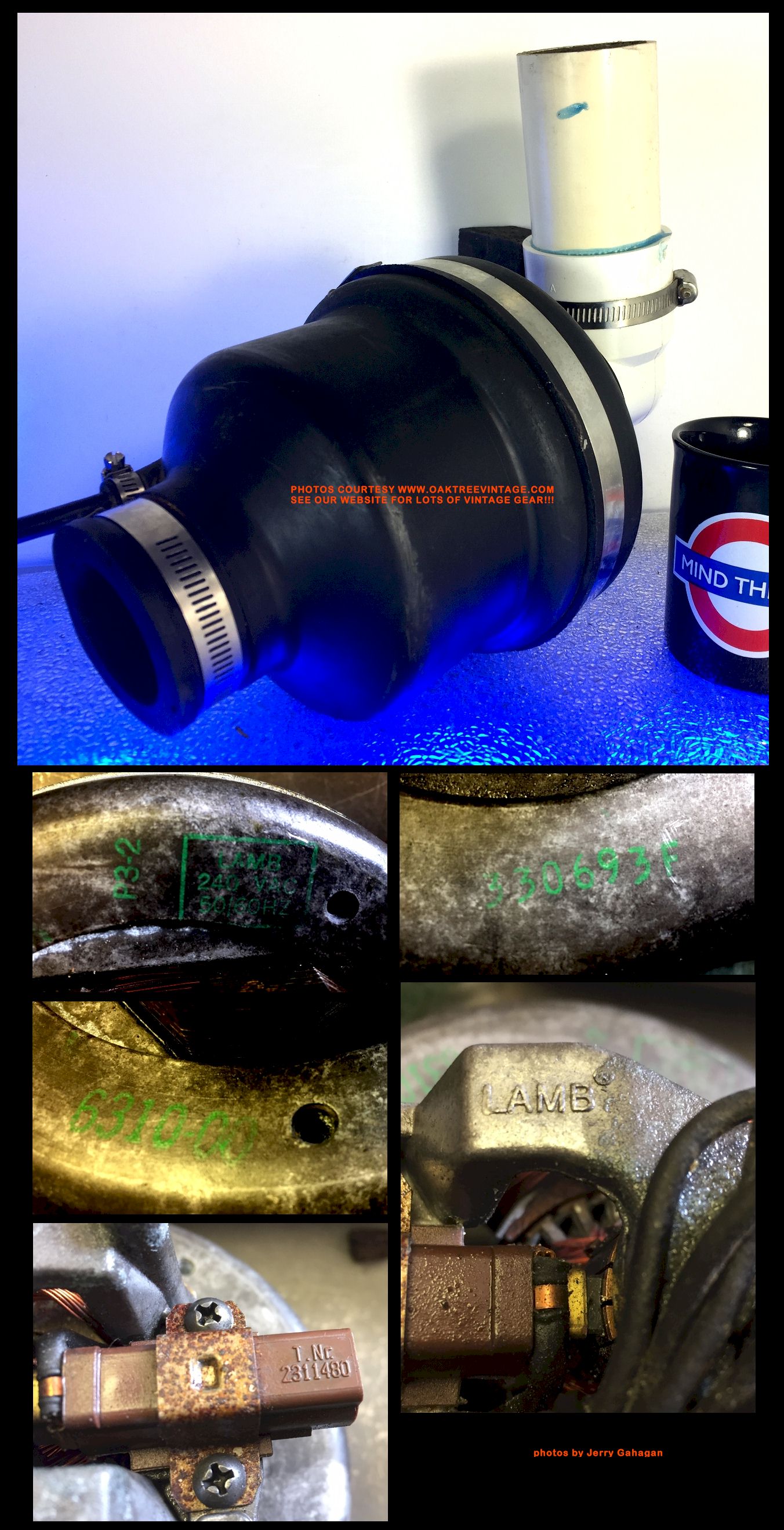

Blower / Motor, Air / Bubble Blower / Motor assembly.
Altamar Lamb P3-2, 240 VAC. Taken from working hot-tub. Motor does run, but should have new, carbon brushes installed and overall cleaning / lubing. Rubber housing perfect. - $55.

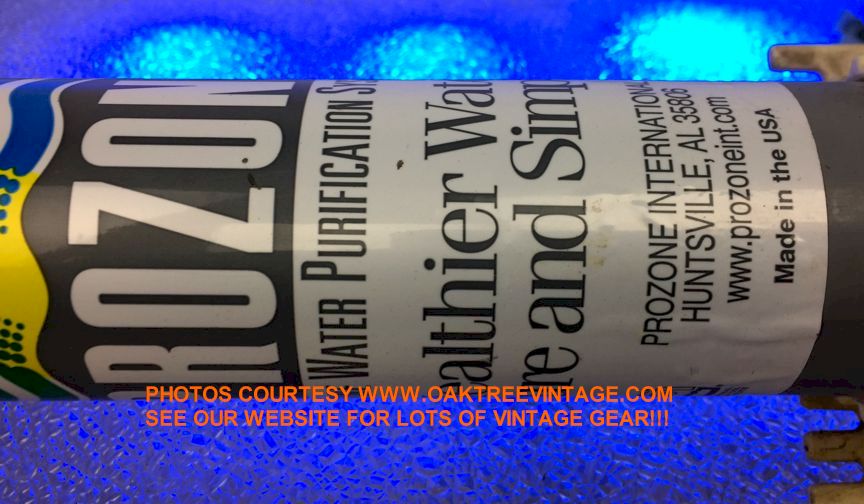

Water Purification, Prozone Ozone Water Purification System PZ3-X24, 240V / 0.42A assembly
. - $55. SOLD

NO PHOTO YET
Heater, 6000 Watt Heater / Manifold / junction box assembly, C-0019 / HSG
. - $75.


Parts may include, pump, control panel, heaters, circuit boards and more.

Sorry, but we don't know anything about medical 'co-payments', 'Group-B' Medicare or anything regarding 'co-payments', nor will we get involved in any of that. We will simply have these parts for sale and will take Visa, M/C, Discover, Amex or Paypal.

Please do not contact us about any parts not shown on the menu posted above. Thanks
