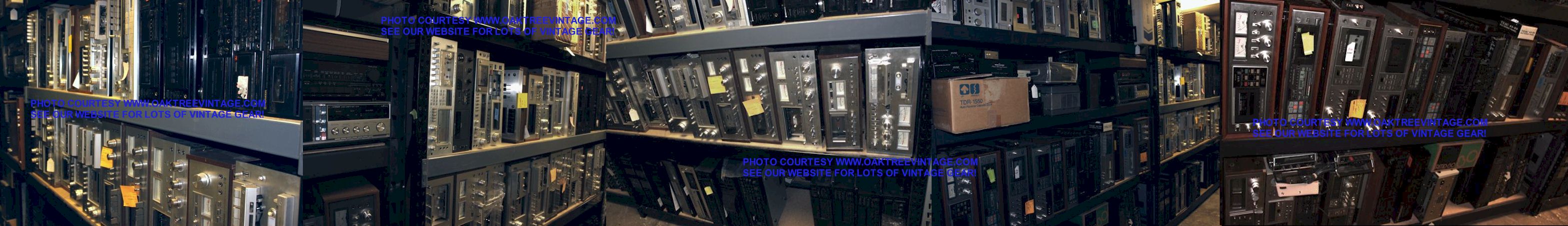

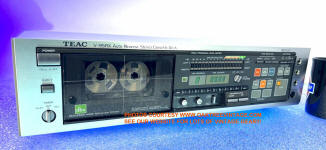

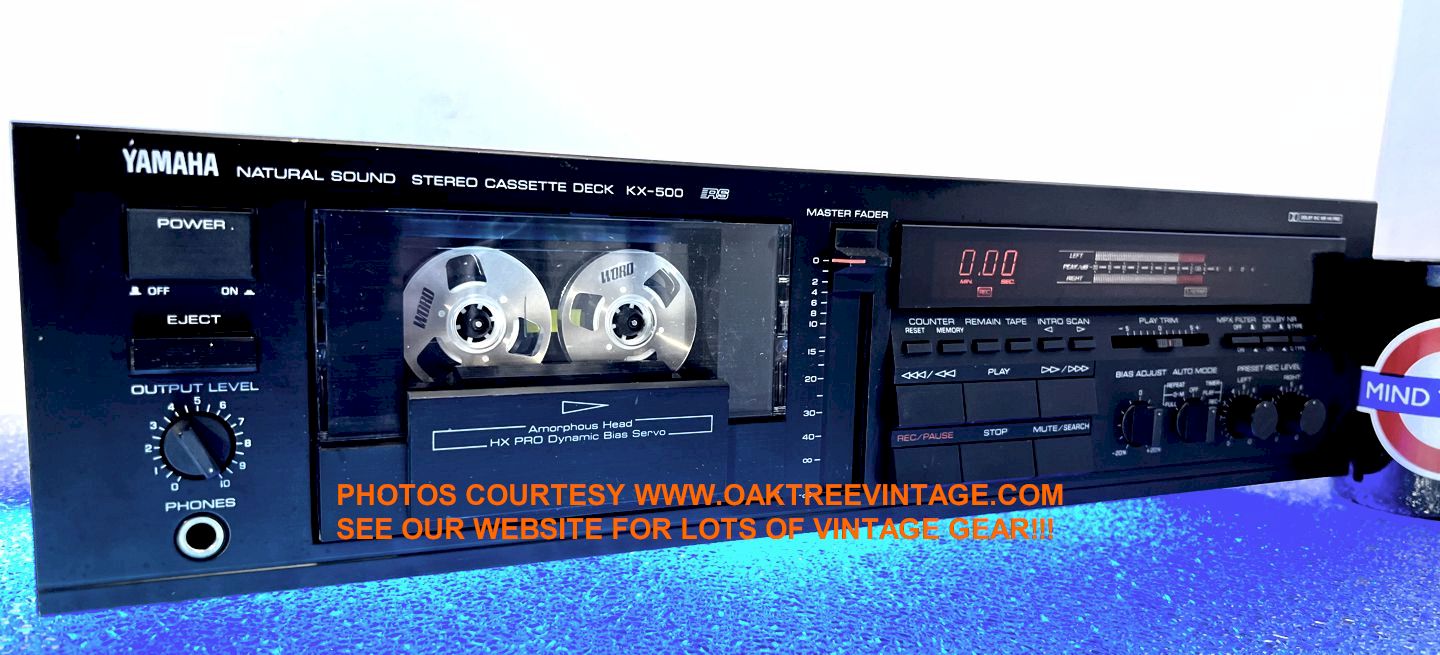

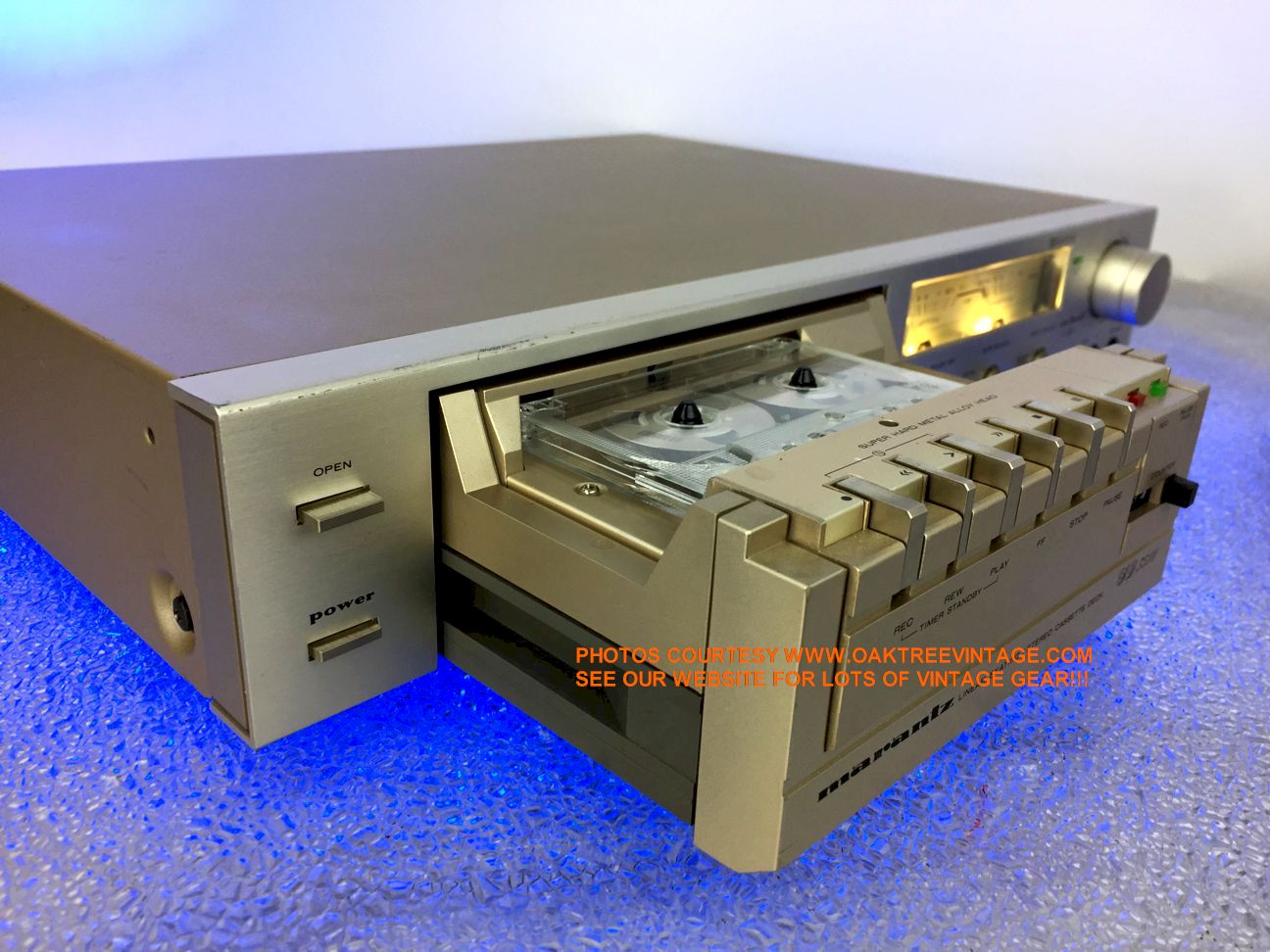

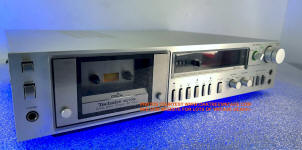

A FEW OF OUR CASSETTE DECKS
WAITING FOR A SPOT ON THE RESTORATION BENCHES...
(YES, WE HAVE OUR WORK 'CUT OUT FOR
US')

OUR SERVICED / RESTORED
CASSETTE TAPE
DECKS:
|
NEW LISTING 4/16/2022
(Click
on above thumbnails to enlarge photos)
warranty
VINTAGE,
REFURBISHED,
FULLY
SERVICED
NAKAMICHI CASSETTE TAPE DECK NAKAMICHI
RX-202 #...6682 With DOLBY B
& C NR "UDAR" (Unidirectional Auto Reverse)
(the correct way!) MADE IN JAPAN! Circa early 1982-93
(that's a testament to this decks success as a design, as it was
current for an 11 year time span!!!)
"WORLD AC POWER"
™
for sale
Initial 'pre-test'
conditions; 'Control motor' doesn't move (even though Voltage is present
momentarily). Mode motor finally started running with manual
manipulation. Fast wind motor works, but no reel hub movement indicating
failed idler tire.
ü

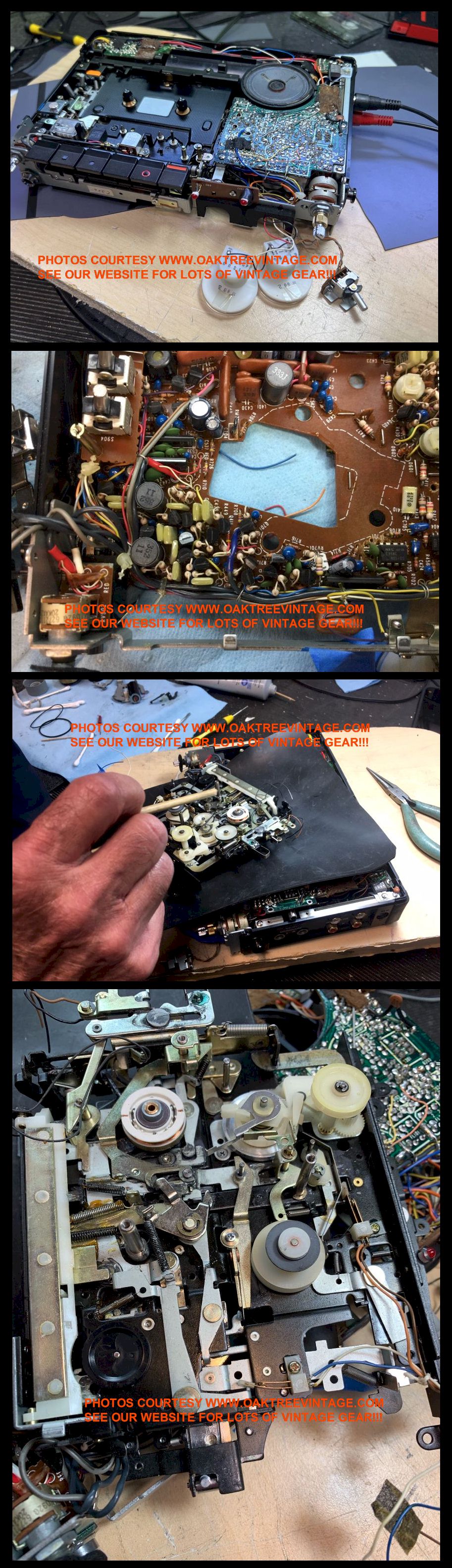

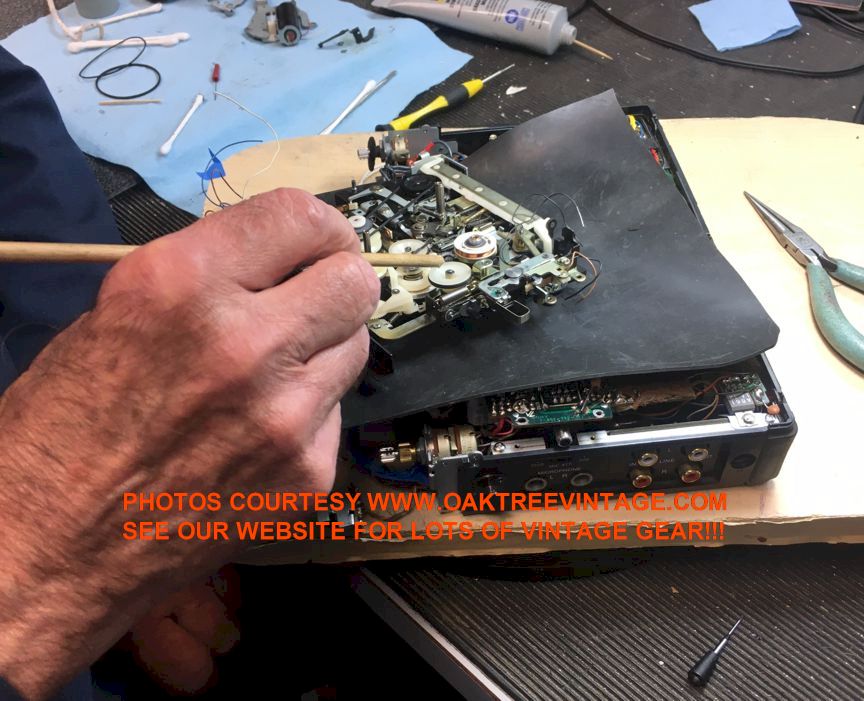

Our technician has completely and EXTENSIVELY gone through
and 'Certified' this unit which involves complete
disassembly of the transport, DISASSEMBLING,
removing old / stiff
lubes, cleaning inside and out, cleaning and
re-lubricating all internal mechanisms and the balance of
efforts listed below.
ü
Brand new, Reel
hub 'drive' tires
installed and 'pre-conditioned'
(PRB
#STC.5629).
ü
Capstan
Drive belt replaced
with NEW for trouble-free service
(does not utilize a 'counter' belt).
ü

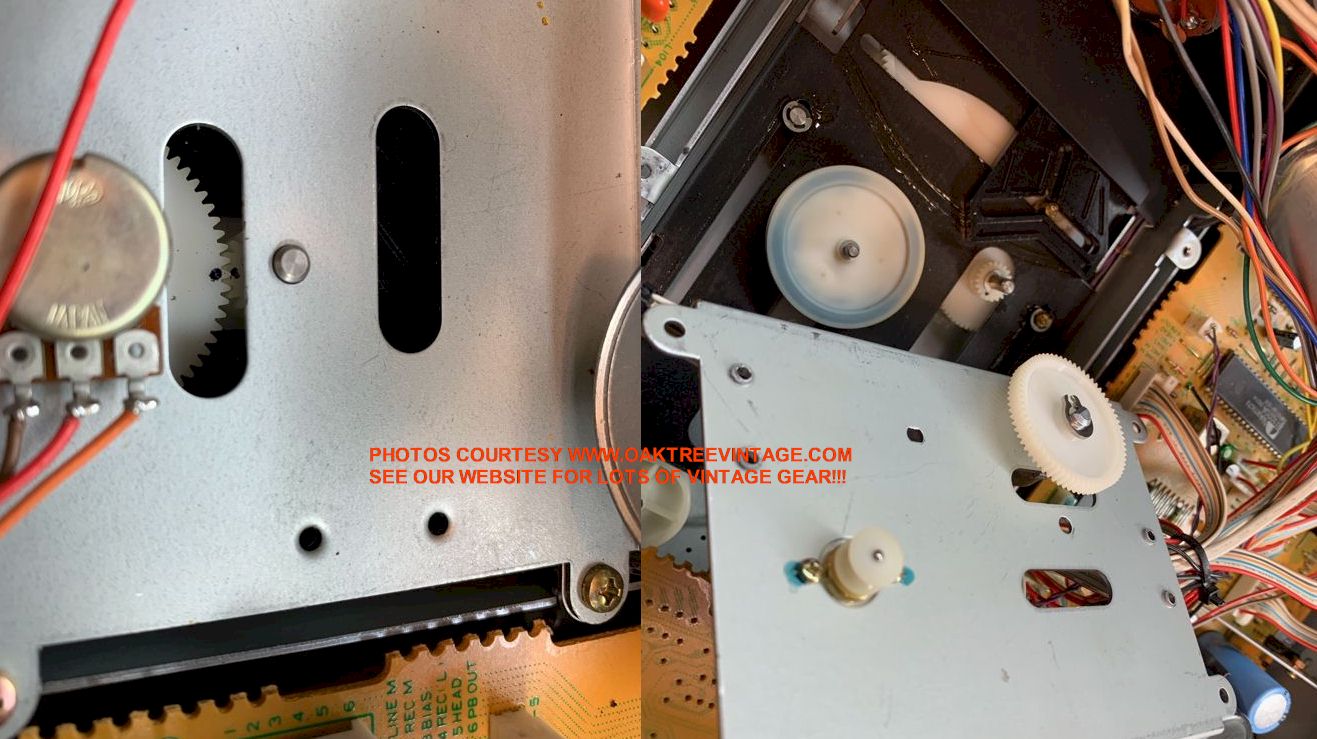

Slide chassis to Cam motor
belt replaced w/ PRB #SQC4.8.
ü

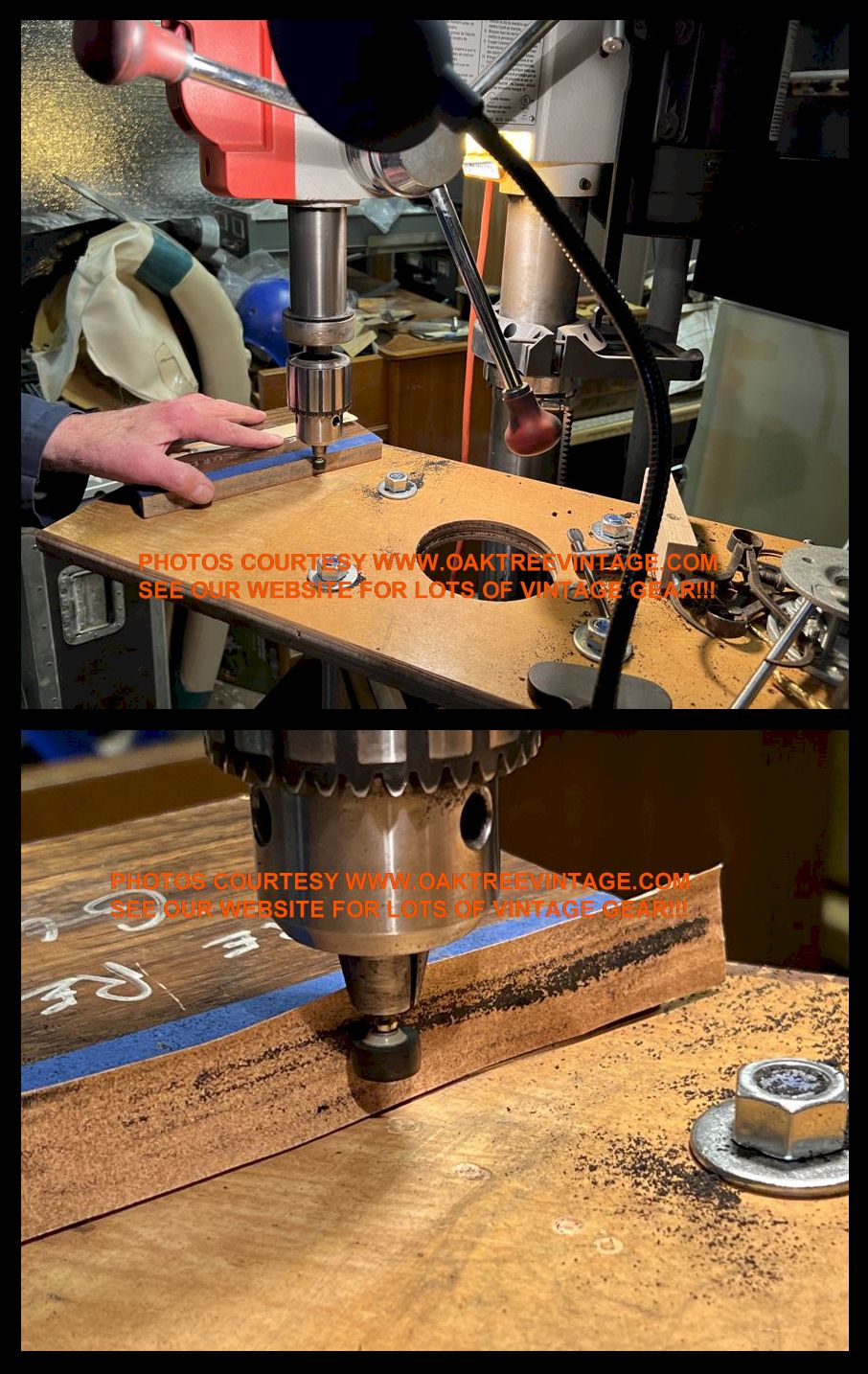

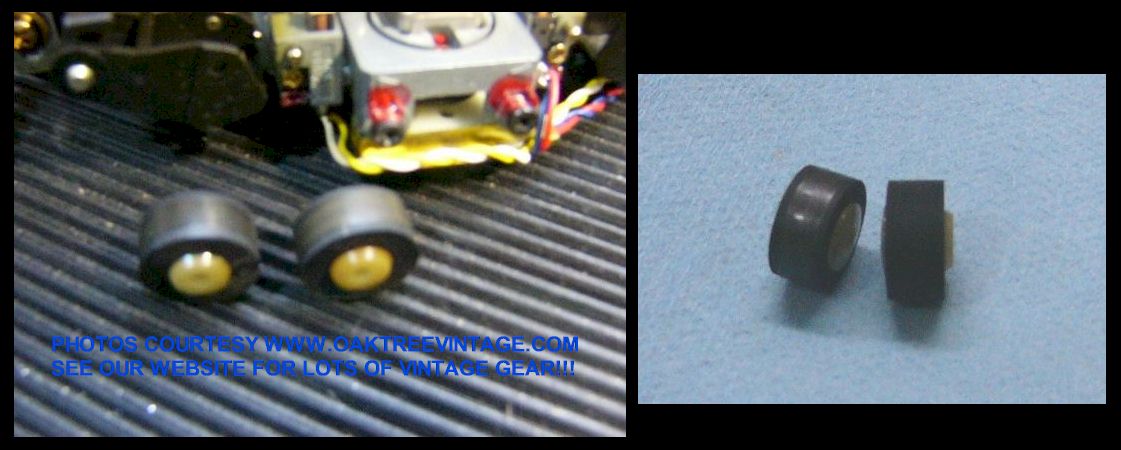

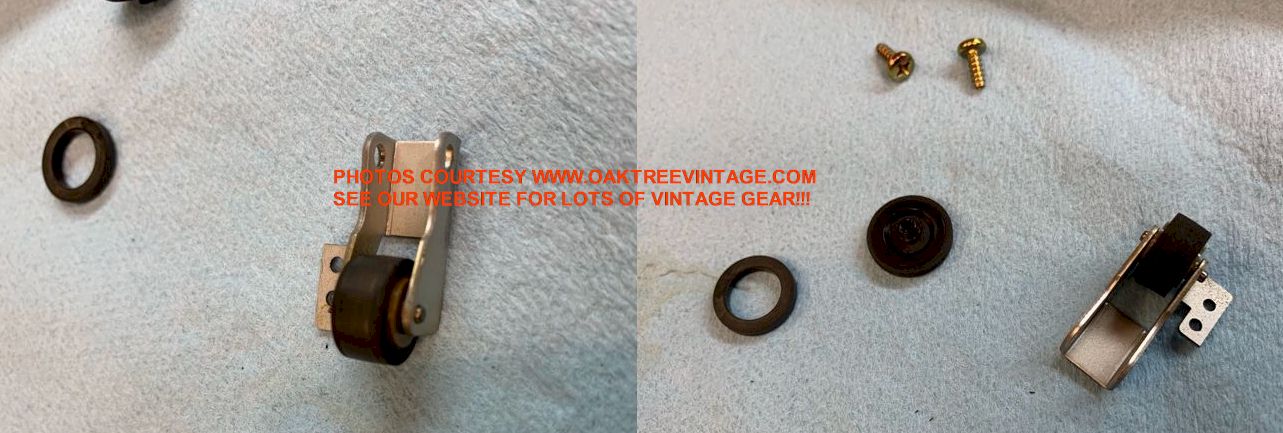

Rubber pinch roller
has been resurfaced and reconditioned
ü

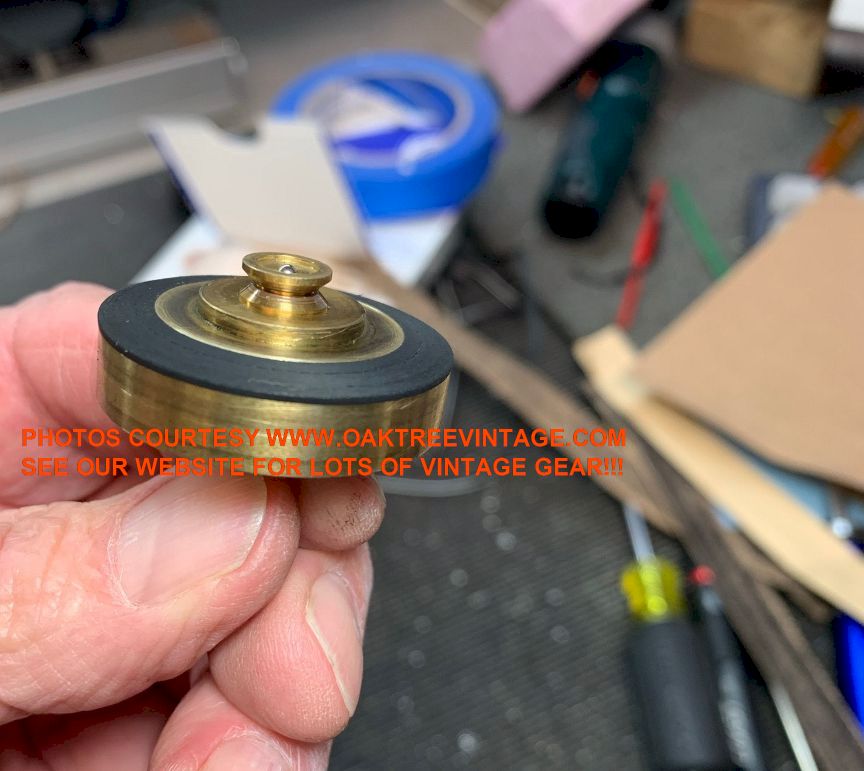

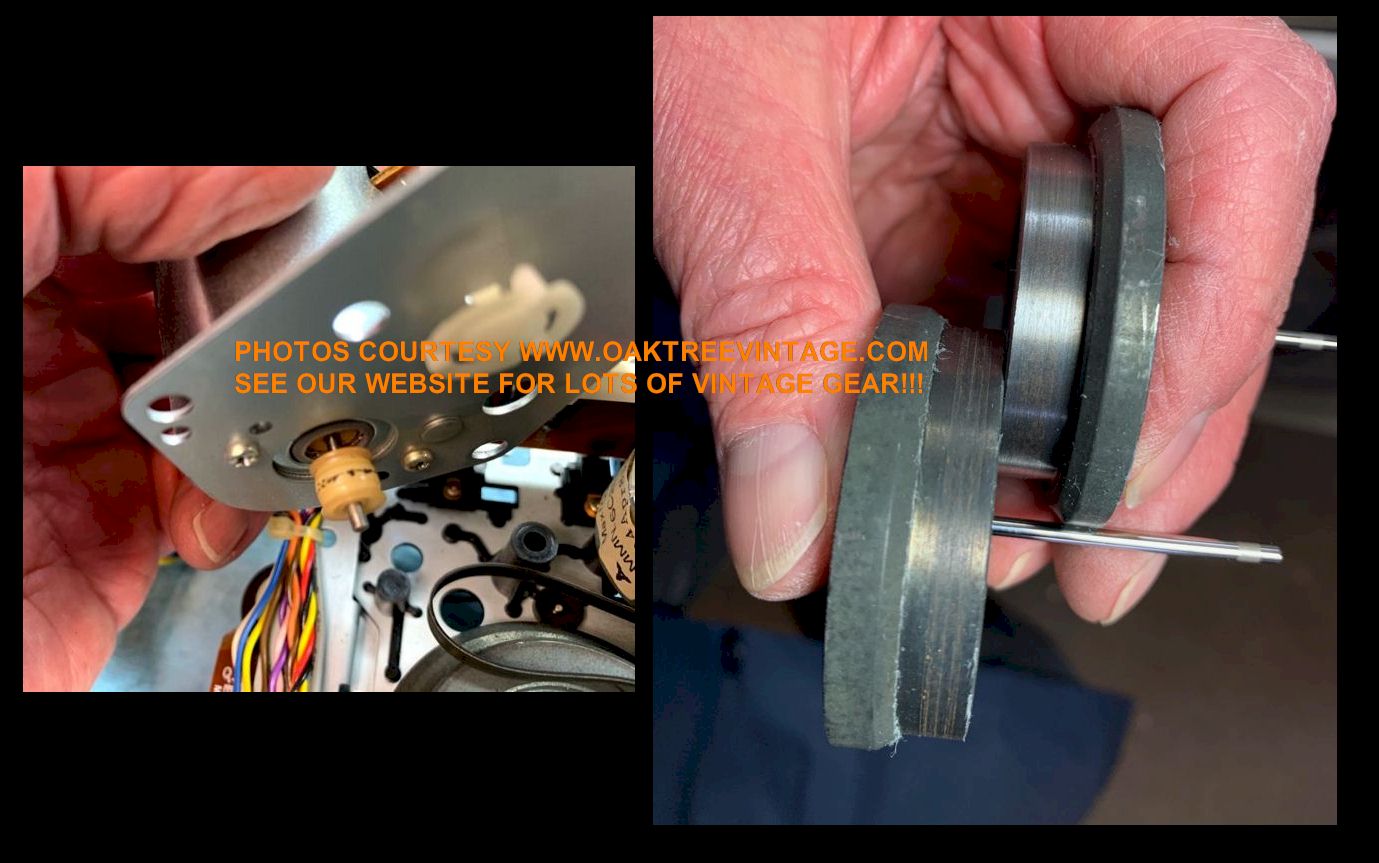

Flywheel
removed and
Capstan
burnished. Bushings cleaned and lubed.
ü
Heads
have been cleaned and de-magnetized as well as the entire
transport.
ü
All
internal pots, switches and controls cleaned and tested for
noise-free function.
ü
Both
spindles in perfect alignment.
ü
FF, REW,
Play, Eject and Auto-Reverse slide
chassis / transport functions all test perfectly and controls
tested for 'positive / accurate' responsive.
ü
Eject
operates properly.
ü
Tape
Counter Function tested
ü
Both
Dolby NR
circuits tested
ü
'Memory
/ Zero Return' function tested
ü
Heads
are in great condition, with
virtually no visible wear!
ü
Pinch
roller in GREAT condition!!!
ü
Both level meters adjusted for
even playback.
ü
Head alignment and azimuth at 125Hz, 1kHz and 10kHz adjusted
for BOTH directions for 'peak performance' with
Oscilloscope and w/ STL and TEAC
MTT-257H calibration / alignment tapes. Both channels now even output.
ü

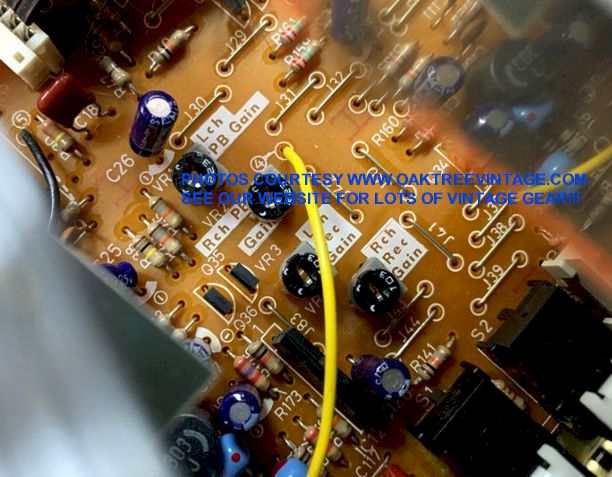

Both Internal playback amplifier channels adjusted with Volt meter,
O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both
channels now even output.
ü
Meters adjusted to even zero with symmetric input with Volt meter,
O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both
channels now even output.
ü
Both Internal Record amplifier channels adjusted with Volt meter,
O-Scope and sine-wave generators and 'pink / white noise sources'. Both
channels now even output.
ü
Pinch roller and heads all in GREAT condition!!!
ü
Speed adjusted to 100% accuracy BOTH directions, with with TEAC MTT-257H
1kHz factory calibration tape (meaning 1kHz calibration tape plays back
at 1000Hz +/- 1 Hz.)
ü
Plays perfectly and after adjustment,
records AMAZINGLY well with 1kHz @
0 dB = -1dB! on High bias type
tapes. (Following the extensive restoration, we did
'test recordings' of a 'ddd' CD on Maxell 'XL-II' High Bias
with the following results; 1kHz @ 0dB; L=-1dB & R=-1dB PN @ 0dB; L=-1dB & R=-1dB WN @ 0dB; L=-1dB & R=-1dB DDD Pre-Recorded CD material @ 0dB; L=0 to -1dB & R=0
to -1dB Bottom line is, it recorded amazingly well!

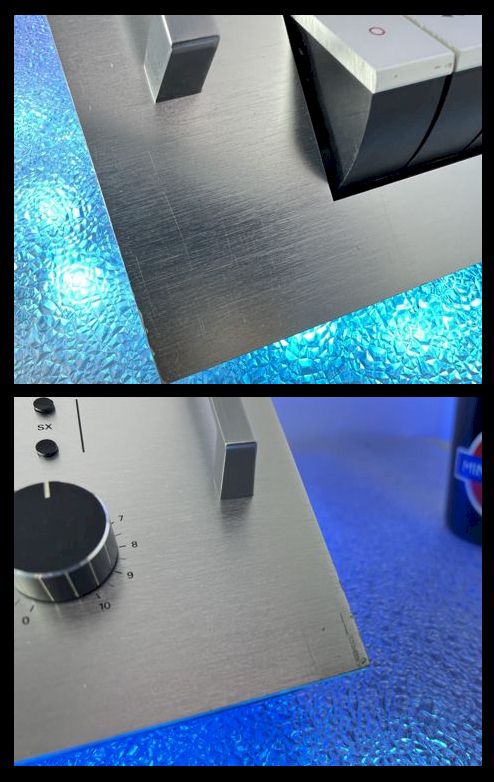

Cosmetically, there's some scuffs on a couple of the transport buttons,
a small 'chip' on the well window corner, and some tic on the upper face
surface. Camera and lighting actually make the blems show up more than
they seem to in person (see photos above).
Total technician time to
restore ~11
HOURS!
____________________________
The Nakamichi
RX-202, Auto-Reverse (the best way)
Stereo Cassette Tape Deck. Great deck for doing your tape
transfers if your tapes were recorded with no NR or with
Dolby B or C.
It's also quite 'fun' to operate. While I sold these when new as a
Nakamichi dealer back in the mid-late 1980's, I had forgotten how well
they function. The transport commands are VERY precise and quick. You
might think that if the tape has to come all the way out, flip a 180,
then re-load and go back into play mode might take a few seconds. You
might. However, in reality, I think it's less than and certainly seems
like no more than about 1 second! It's quite the 'head turner' when it
functions.
Nakamichi RX-202 Features include:
- 4 Motors (Capstan, Reel, 'Cam' {head control} and
UDAR chassis)
- 3-Mode, "UDAR" (Unidirectional Auto Reverse) for related 'cool
factor', check next feature
- Music-Sensing Circuit monitors playback and fast-forwards through
blank 'tail' of tape to provide less interrupted playback when
auto-reverse is engaged.
- Special, PR-2D R/P head separates the head into 2 parts so there's a
head for playback and separate Record head instead of having them
combined as they are in most "2 head" decks.
- Super-hard, Record / Playback heads - Super Hard,
High-Performance,
Laminated Sendust, semi-discrete,' R/P head w/ EXTREMELY
NARROW gap, allowing for 20-20,000Hz
performance - IC Logic / Touch tape transport with
motor driven 'cam control mechanism'
(From the original Nakamichi RX-202 brochure; "Microprocessor-controlled
silent tape transport ensures smooth operation and minimum flutter") - Selector for Normal (EX / I) &
CrO2 (SX / II) & ZX (IV Metal) Tape Types - Tape Type EQ selector for 120 or 70
μsec
tape
- Auto-Record Standby automatically rewinds the
tape, skips over the leader, records a 6-second bland header and
activates the "Record Standby Mode". Pressing twice during recording,
Auto Rec Standby instantly advances the tape to the end, switches to
Side-B, skips the leader, records a blank header and enters "Record
Standby". Pretty cool if you do a lot of recording. This is especially
handy if you start recording, the realize you screwed something up and
need to start again. WAY less buttons to push.
- Electronic "Master Fader" for professional, 2 or
4-Second (selectable) Fade-In and Fade-Out when recording -
LED "VU" signal level meters w/
37dB of range - 4 Digit,
digital tape counter - MPX filter (for filtering the 19kHz pilot tone out of FM
transmissions) - Dolby B & C NR
-
Variable
Output Level (one of our favorite features on a tape deck)
- 1/4" Headphone jack (follows Output level control so you can control
the volume without blasting your ears off) - Record level control with L & R balance - Memory Stop /
Play for counter -
Standard RCA
I/O's on rear panel
- Timer Play
/ Record (has the option to immediately engage "Play" or "Record" modes
when power is sent to deck either via the 'Power' button or the AC Power
cord via a switched outlet if the 'Power' button is already engaged)
- "WORLD AC POWER"™
allows unit to be operated on 50 or 60 Hz AC
and 100-240V. Currently set up for US / North
American AC power.
Nakamichi
RX-202 Specifications:
Track format: 4
track / 2 channel Motors: 2
DC Servo motors. 1 for capstan drive and one for reel hubs / fast wind Freq Response;
20-12,000Hz
+/- 3db w/ SX or EX Tapes
@ -20dB Wow & Flutter (WRMS):
<0.11%
WTD Peak / <0.06%
WTD RMS Tape Speed: 1-7/8 ips
Harmonic Distortion: <1.0%
@ 400Hz & 0dB S/N ratio w/ CrO2 tape: >68dB
@400Hz w/o Dolby C engaged and
High Bias Tapes
>62dB
@400Hz w/o Dolby B engaged and
High Bias Tapes Bias Frequency: 105KHz Erasure: >60dB below saturation level @ 1kHz
Separation: >36dB @ 1kHz,
0dB Crosstalk: >60dB @ 1kHz, 0dB Line Input:
50mV &
30K Ohms Line Output:
500mV w/ 400Hz = 0dB w/
Output control @ max with 2.2k Ohms impedance
Headphones Output: 2.2mW w/
400Hz = 0dB w/ Output control @ max with 8 Ohms load
Again, following
the above stated bench work / testing, our technician has 'Certified'
this deck and it is an great performer sonically
and mechanically.
It's been fully
serviced / completely gone through
cleaning, lubing, adjusting, demagnetizing and
testing.
Also great for transferring your no NR or Dolby NR encoded tape
collection to CD, Hard-drive or MP3. Built very well!
Cosmetically, again there's some scuffs on a couple
of the transport buttons, a small 'chip' on the well window corner, and
some tic on the upper face surface. Camera and lighting actually make
the blems show up more than they seem to in person (see photos above).
Looks decent, works and sounds great. Comes with an 'e-copy' / pdf of the Nakamichi
RX-202 owners
manual and Nakamichi RX-202 Brochure.
Measures 17.75" wide x
10" deep x
5.5" tall and weighs 20 lbs unpacked.
Includes our standard 90 day limited warranty. NAKAMICHI
RX-202 Cond. 8.5
$1299.
(tape shown
in photos not included. We do ship our decks with a a
'pre-recorded' tape for playback, made on this 'specific'
deck, and a tape to 'practice record' on.)
(Above
text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See
'Copyright
Information' page for details)
|


NEW
LISTING 7/4/2022
(Click
on above thumbnails to enlarge photos)
warranty

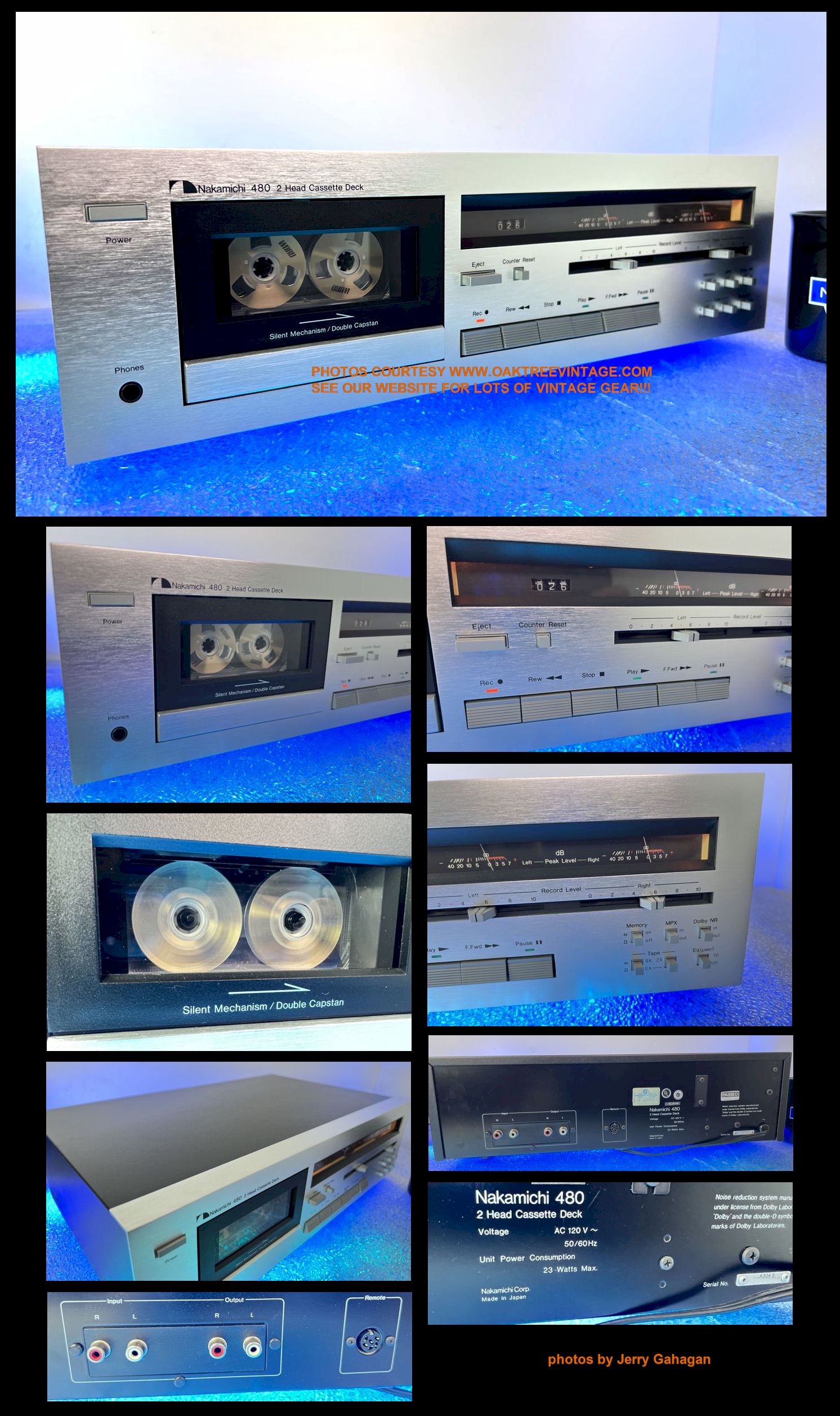

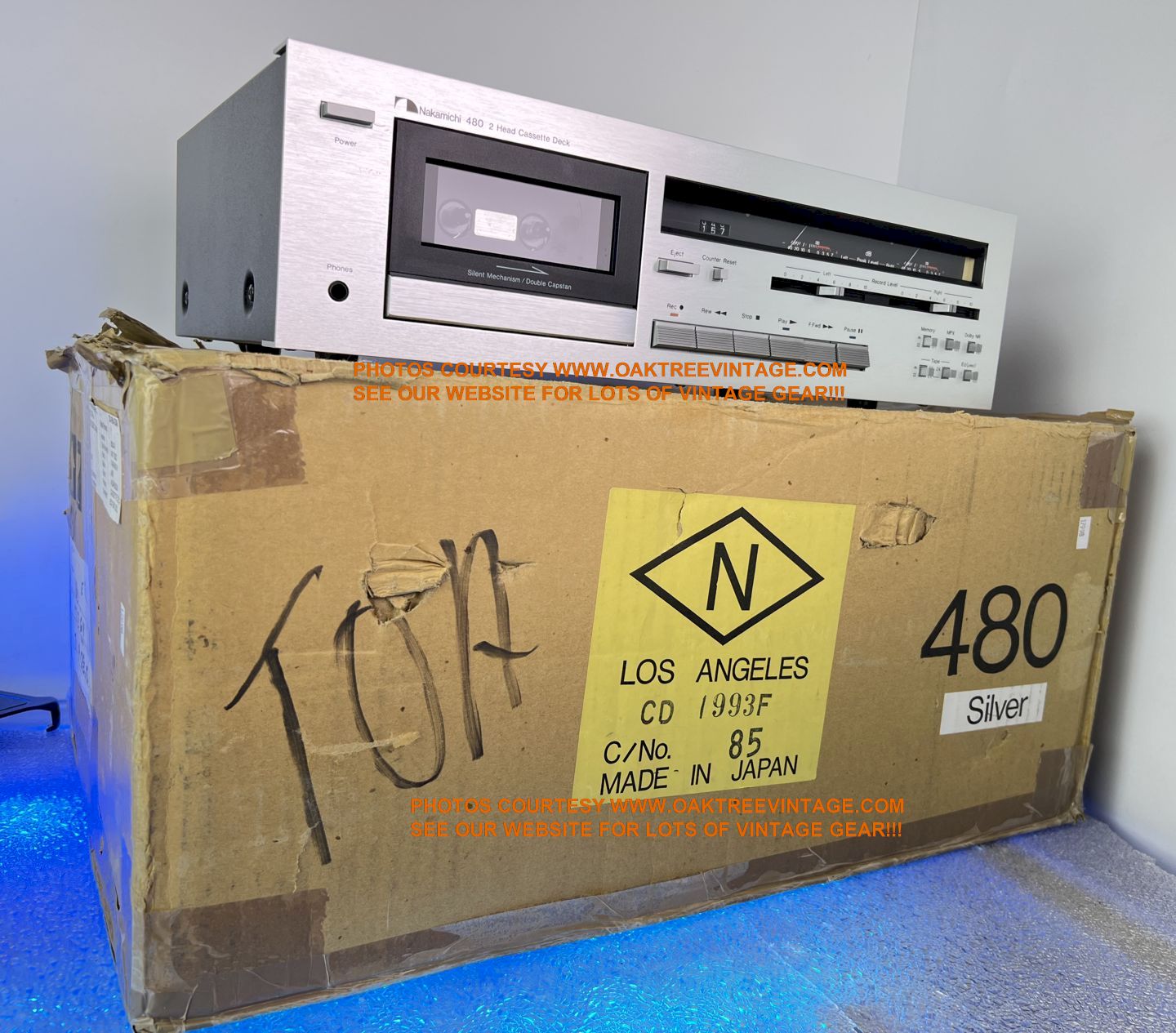

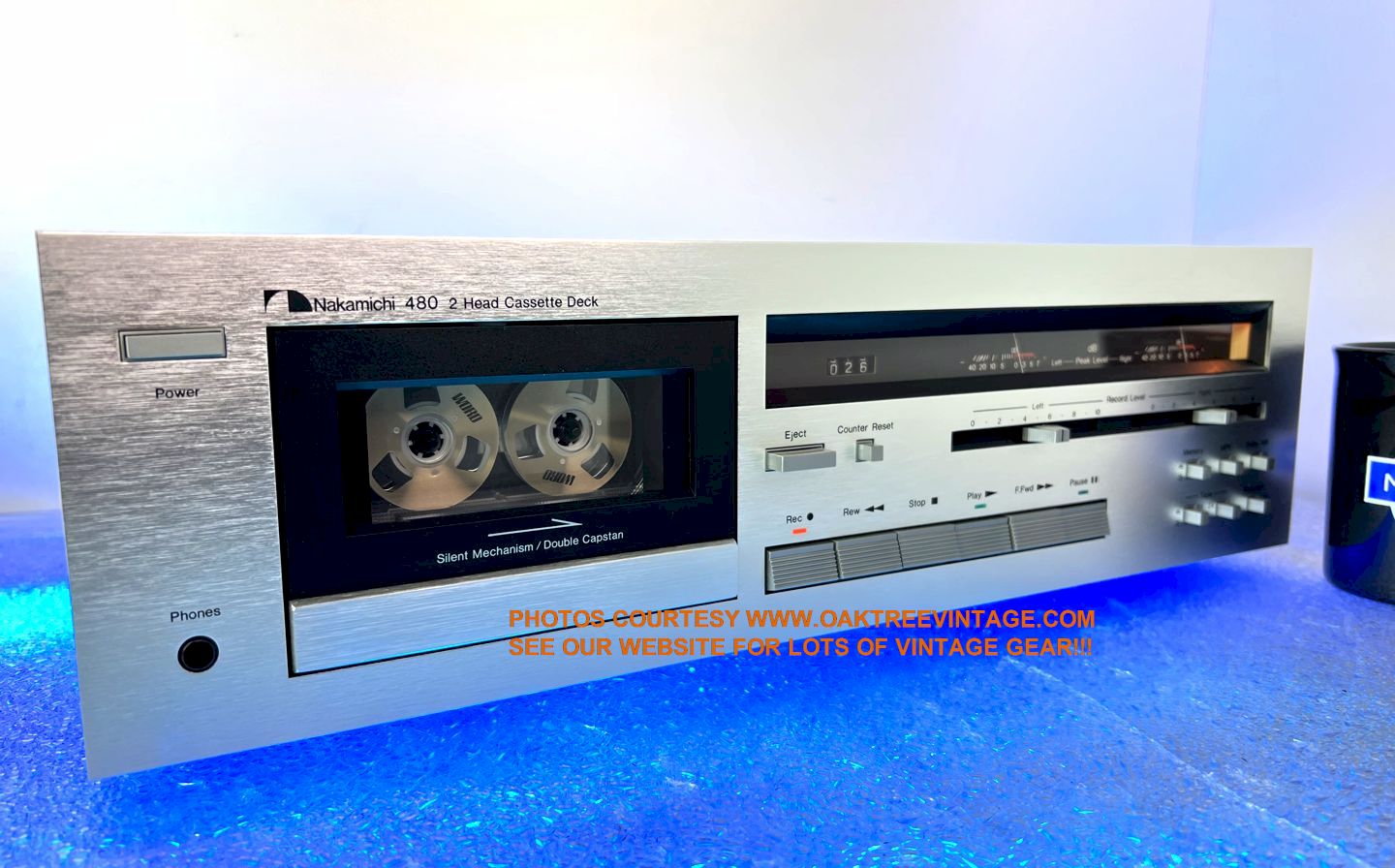

VINTAGE, FULLY SERVICED / REFURBISHED NAKAMICHI
CASSETTE TAPE DECK NAKAMICHI 480 #...3284 With DOLBY B NR MADE IN JAPAN! Circa early 1979-81
"*WORLD
AC POWER"
™
SOLD 8/9/2022
SHIPPING TO KEVIN IN PENNSYLVANIA
Original issues; No tape motion at any level. Internal power
supply was producing correct +5VAC, +24VDC, but missing
+12VDC.
ü
Our technician has completely and EXTENSIVELY gone through and
'Certified' this unit which involves complete disassembly of
the transport (not an easy task on this table), cleaning inside
and out, DISASSEMBLING, cleaning and re-lubricating all internal
mechanisms and the balance of efforts listed below.
ü
Replaced transistors; Q405 & Q406 to
restore missing +12VDC on internal power supply. This
restored the function of two of the motors.
ü
Burnished contacts on
reed switch of eject door which restored the function of
third motor.
ü
Record actuator
cable mount repaired (this is pretty much required on any
Nak utilizing this style transport, which would be most from
this era and not a matter of "if", but "when" it will fail)
ü
Eject
actuator cable mount repaired (this is pretty much required
on any Nak utilizing this style transport, which would be
most from this era and not a matter of "if", but "when" it
will fail)
ü
Inspected entire transport nylon
assemblies and repaired where necessary (quite important and
unique to Nakamichis that this be done)
ü

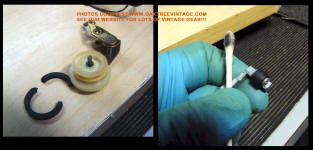

New and proper
idler tire, ordered, 'pre-conditioned' and installed.
ü
Rubber pinch roller has been reconditioned
ü
Both Capstan
flywheels removed, cleaned, burnished and lubed
ü
Heads have been cleaned and de-magnetized as well as the entire
transport.
ü
Head alignments and azimuth checked and adjusted as necessary
for 'peak performance' with O-Scope
ü
All internal pots, switches and controls cleaned and tested for
noise-free function.
ü
Both spindles in perfect alignment.
ü
All new Counter belts
installed for trouble-free service
4.74 & 9.0 PRB.
ü
New
'Mode' belt installed for trouble-free service
SQC4.8 PRB.
ü
New
'Capstan' belt installed for trouble-free service
FRM10.2 PRB.
ü
FF, REW, & Play transport functions all test perfectly and
controls tested for 'positive / accurate' responsive.
ü
Eject door
NOW operates smoothly following
above mentioned operation.
ü
Tape Counter Function tested
ü
Dolby NR circuit tested
ü
'Memory / Zero Return' function tested
ü
Heads are in 'AS-NEW' condition, with NO visible wear!
ü
Meters adjusted to even zero with symmetric input.
ü
Both pinch rollers and heads all in GREAT condition!!!
ü
Head alignment and azimuth at 125Hz, 1kHz and 10kHz adjusted
for BOTH directions for 'peak performance' with
Oscilloscope and w/ STL and TEAC
MTT-257H calibration / alignment tapes. Both channels now even output.
ü
Both Internal playback amplifier channels adjusted with Volt meter,
O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both
channels now even output.
ü
Meters adjusted to even zero with symmetric input with Volt meter,
O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both
channels now even output.
ü
Both Internal Record amplifier channels adjusted with Volt meter,
O-Scope and sine-wave generators and 'pink / white noise sources'. Both
channels now even output.
ü
Speed adjusted to 100% accuracy with 1kHz factory calibration
tape (meaning 1kHz calibration tape plays back at 1000Hz +/-
2Hz)
ü
Cosmetics are in
great condition. Deck works, sounds
and looks great!
ü
Plays perfectly and after adjustment,
records AMAZINGLY well with 1kHz @
0 dB = 0dB! on High bias type
tapes. (Following the extensive restoration, we did
'test recordings' of a 'ddd' CD on Maxell 'XL-II' High Bias
with the following results; 1kHz @ 0dB; L=0dB & R=0dB PN @ 0dB; L=-2dB & R=-1dB WN @ 0dB; L=0dB & R=-1dB (again, that was when
'pushed' to 0dB @ record) DDD Pre-Recorded CD material @ 0dB; L=0 to -1dB & R=0
to -1dB Bottom line is, it recorded amazingly well! While doing the
test recording's, it became apparent that the recorded sound was
fairly remarkable. Here's the deal. We sync'd up the recording
we had just made, and the CD player and AB'd on our pre-amp
between the CD and the Tape.
Total technician time to restore
~22 HOURS!
followed by 5 hours of playback and record testing in
reference system. ____________________________
The Nakamichi 481, Closed-Loop / Dual Capstan, Stereo Cassette
Tape Deck. Great deck for doing your tape transfers if your
tapes were recorded with no NR or with Dolby B. Again, as stated
above, records AMAZINGLY well!
Nakamichi 480 Features include:
- Asymmetrical Dual Flywheel capstan drive
(virtually eliminates vibration, flutter and modulation
noise emanating from tape transport mechanism) Double-Capstan / Closed Loop tape transport for more consistent
head contact - Super Hard, High-Performance, 'SENDUST' R/P head w/ EXTREMELY
NARROW gap, allowing for 20-20,000Hz performance - IC logic "touch-control" tape transport with motor driven 'cam
control mechanism' - Selector for Normal (EX / I), CrO2 (SX / II) & Metal (ZX /
IV)Tape Type - Tape Type EQ selector for 120 or 70
μsec tape - Analog "VU" signal level meters w/ 47dB of range - Analog tape counter - Auto 'Slack Take-up' when tape is loaded - MPX filter (for filtering the 19kHz pilot tone out of FM
transmissions) - Dolby B NR - Separate
L&R Record level controls - Memory Stop - Front mounted 1/4", Stereo Headphone jack - DIN on rear panel for optional wired remote (remote not
included)
-
*Semi
"WORLD AC POWER"™
allows unit to be operated on 50 or 60 Hz AC (would require a
transformer to operated on European / Asian AC volts). Currently
set up for US / North American AC power.
Nakamichi
480
Specifications:
Track format: 4
track / 2 channel Motors: 3 Freq Response;
20-20,000Hz +/- 3db w/ Metal Tape @ -20dB Wow & Flutter (WRMS): 0.06%
WTD RMS Tape Speed: 1-7/8 ips +/-0.5% (but as stated above, we
have adjusted to >0.2% accuracy!) S/N ratio w/ CrO2 tape:
>62db @400Hz (w/ Dolby engaged and
High Bias Tapes) The following specs based on the Nak 480;
Harmonic Distortion: <1.0% @ 400Hz & 0dB (High Bias
Tapes) Bias Frequency: 105KHz Erasure: >60dB below saturation level @ 1kHz
Separation: >36dB @ 1kHz, 0dB Crosstalk: >60dB @ 1kHz, 0dB
Line Input: 50mV & 30K Ohms Line Output:
600mV / 400Hz & 2.2K Ohms
Headphones Output: 10mW / 400Hz
@ 8 Ohms
Purchased from the original owner. Again, we have completely cleaned, prepped and tested this
Nakamichi 480 cassette tape deck.
Records and plays back VERY well as noted

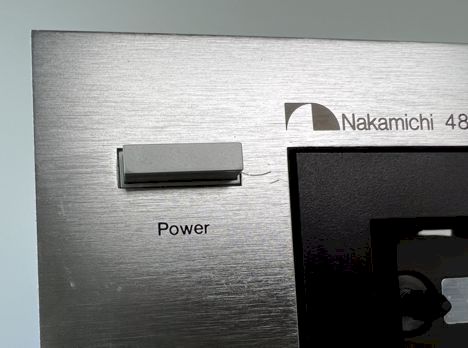

by test results mentioned earlier. Cosmetically about the

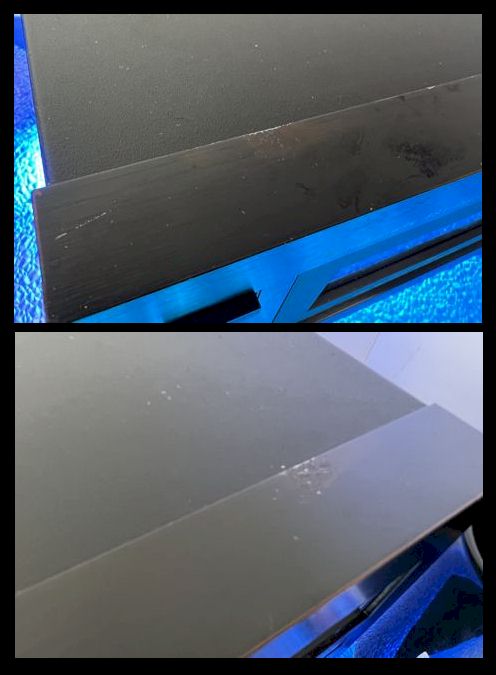

only thing worth mentioning are some very small scratches
near the power switch (See
photos above.) Great for transferring your no NR or Dolby NR encoded tape
collection to CD, Hard-drive or MP3. Built very well! Looks like
new, works and sounds great. This one
includes it's original Nakamichi 480 box and packing. Also
comes with a of the
Nakamichi 480 owners manual and
"e-copy / pdf download" of the original Nakamichi
480 Brochure.
Measures 17.75" wide x 11.5" deep x 5.5" tall and weighs 16 lbs
unpacked. Includes our standard 90 day limited warranty. NAKAMICHI
480 Cond. 8.5+++
SOLD 8/9/2022
SHIPPING TO KEVIN IN PENNSYLVANIA
(C)
B.F.
(tape shown in
photos not included. We do ship our decks with a a
'pre-recorded' tape for playback, made on this 'specific' deck,
and a tape to 'practice record' on.)
(Above text, in
it's entirety, property of
www.oaktreevintage.com /
Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|

FINALLY, A FEW MORE BACK IN STOCK
(Click on above thumbnails to enlarge
photos) MINIATURE / MINI REEL TO REEL
CASSETTE TAPES TAPE
for sale
We just
bought a very limited quantity of these "mini-reel to reel" cassette
tapes.
Follow this link to order...Click Here
|
Did you know? 3-Heads vs 2-Heads;
'Normal / 2-head' decks have an erase head and a
'combination' playback / record head that serves
'double duty' depending on whether it was being sent a 'record signal' or
receiving a 'playback signal', thus the "2-heads". Most 'higher end' cassette
tape decks / recorders offered '3-Heads' for superior 'recording' performance.
The 'Third-head' was a separate playback head, positioned immediately after the
record head to allow 'almost instantaneous' (about a third second behind, as a
cassette shell only has 'so many openings') monitoring of the actual recorded
signal on the tape, as opposed to simply monitoring the 'input' signal to the
deck. However, the '3rd-head' 'generally' does nothing for playback of already
recorded tapes. There's some credence to the argument that playback heads can
have a closer 'gap' designed into them than record heads, so if you get a
'3-head' deck that has a playback head with a closer gap, then it would (could)
offer better playback performance. Possibly, if you check the specs (if
available) and find that is the case, the heads aren't worn and the balance of
the deck is of substantial quality. Many better 2-head decks offered playback
heads in the 18-20kHz. I get a lot of folks that are shopping for cassette
decks, with only the purpose of 'playing back' their old tapes, but thinking
they want a 'Three-Head Cassette Tape Deck' because they've
been 'told' that it would be better quality. Since the third head does
'little to potentially nothing' for playback (except it does
make doing final audio adjustments / fine biasing adjustments when servicing
MUCH easier), there's minimal reason to hold out
for that feature, nor to pay extra for it…unless you just want it,
or you ARE going to be 'recording' or it's coming along on a deck
that has other features you wish. Now if you are going to be
'recording' then I 'HIGHLY' recommend a deck with 'Tape Monitoring' via
the third head, thus "3-Heads"!
|

NEW LISTING
4/16/2022
(Click
on above thumbnails to enlarge photos)
warranty

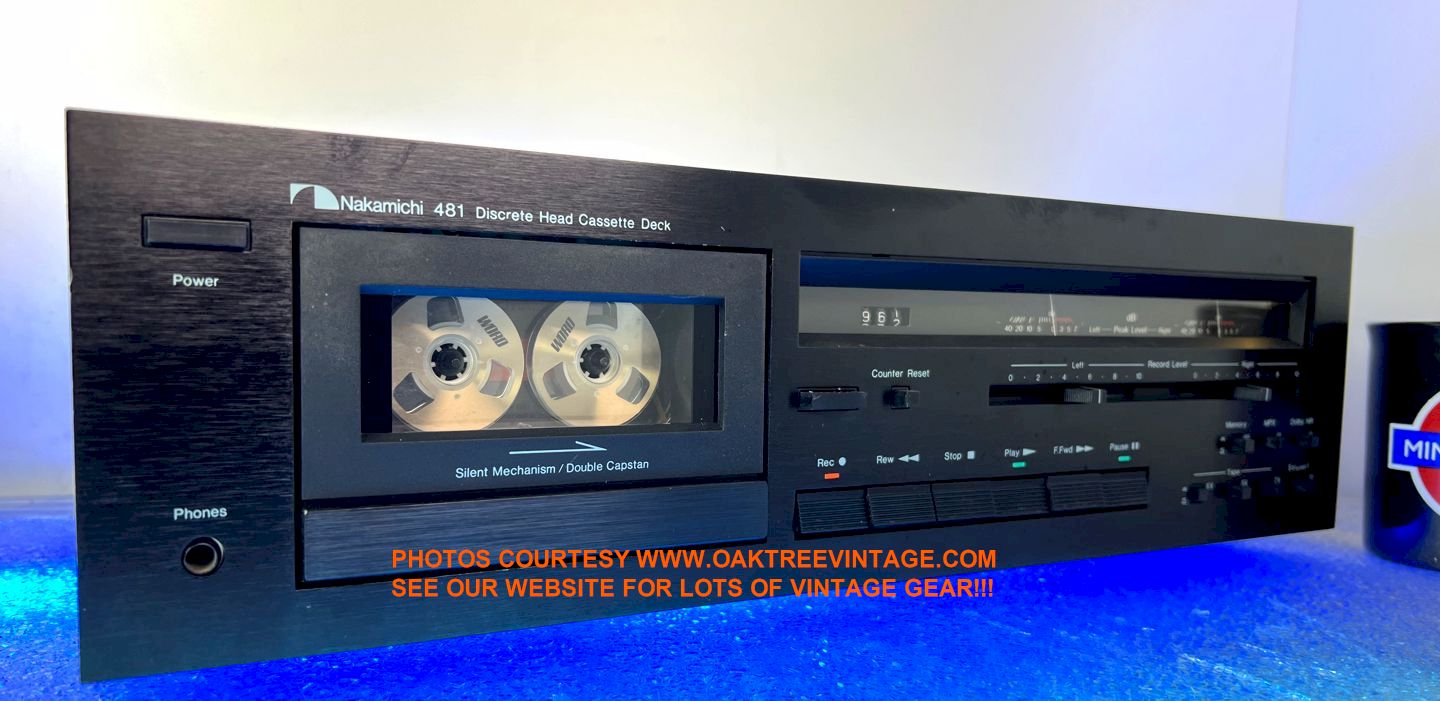

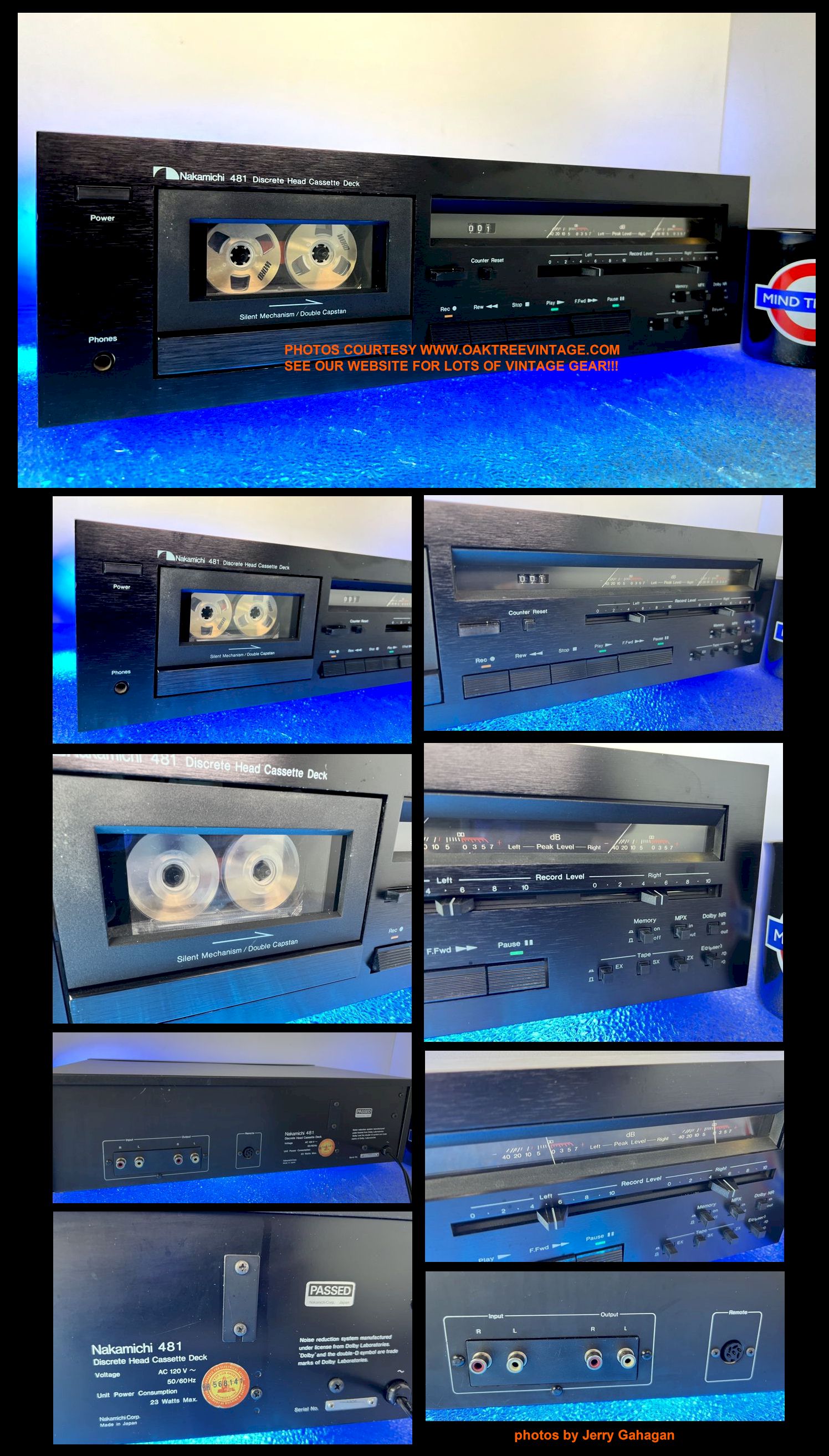

PRE-OWNED / REFURBISHED NAKAMICHI
CASSETTE TAPE DECK NAKAMICHI
481 #...1719 With DOLBY B NR MADE IN JAPAN!
Circa early 1979-81
"*WORLD
AC POWER"
™
SOLD
7/25/2022
SHIPPING TO ALEX IN ONTARIO CANADA

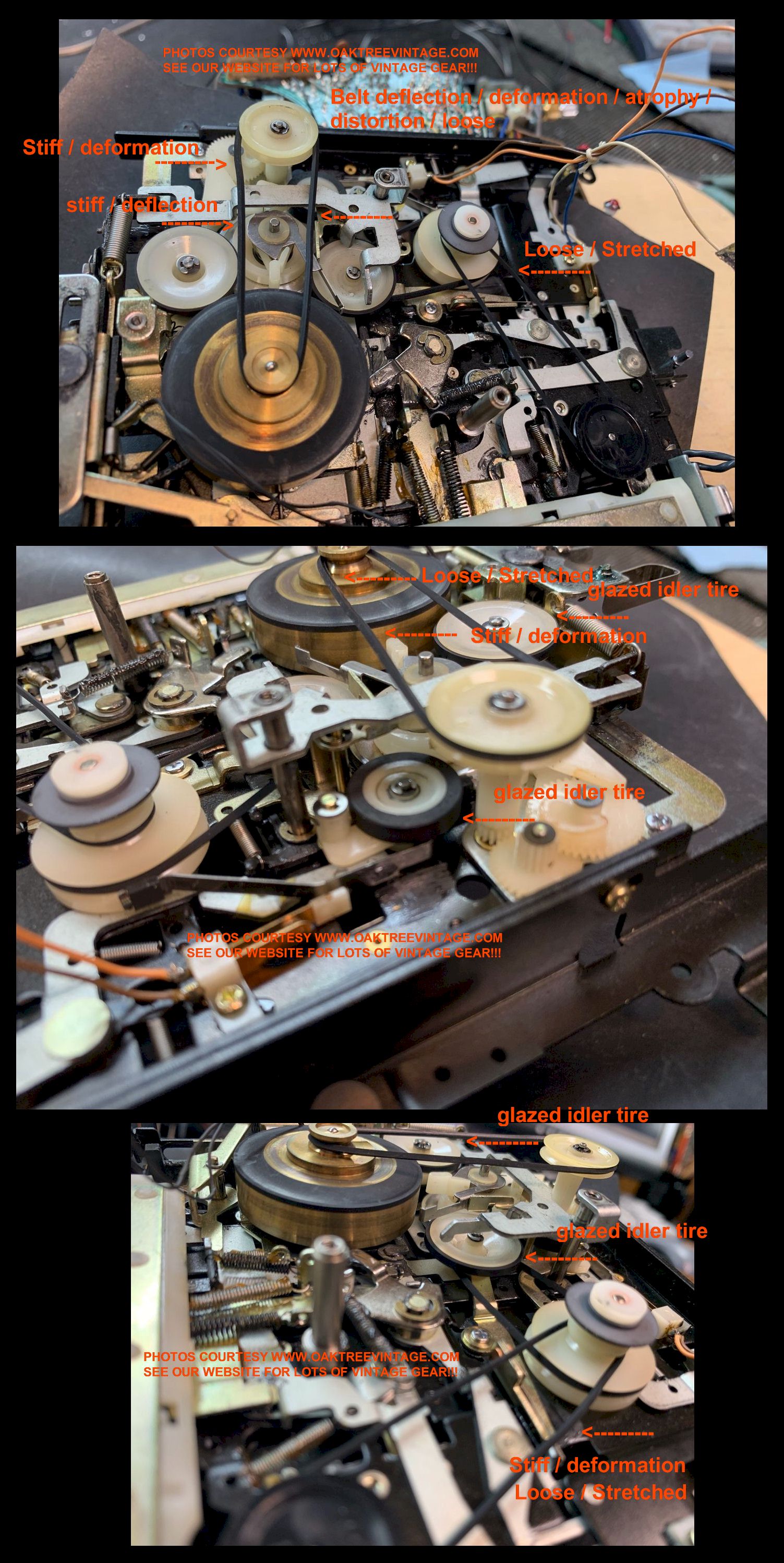

Initial 'pre-test' conditions; Fast Wind
typically sluggish / intermittent / eats tapes (almost
always due to rubber, idler tire issues). Play 'tries' to engage,
but immediately disengages. Won't go into 'Record' mode
(likely due to broken actuator cable mount which is typical
of Nakamichi decks that use this transport), Eject 'iffy'
(likely due to broken actuator cable mount which is typical
of Nakamichi decks that use this transport).
'Left Channel' level fader lever broken off. Missing that
knob / cap.
ü
Our technician has completely and EXTENSIVELY gone through and
'Certified' this unit which involves complete disassembly of
the transport (not an easy task on this table), cleaning inside
and out, DISASSEMBLING, cleaning and re-lubricating all internal
mechanisms and the balance of efforts listed below.
ü
Internal power
supply tested to 11.89VDC
ü
Record actuator
cable mount repaired (this is pretty much required on any
Nak utilizing this style transport, which would be most from
this era and not a matter of "if", but "when" it will fail)
ü
Eject
actuator cable mount repaired (this is pretty much required
on any Nak utilizing this style transport, which would be
most from this era and not a matter of "if", but "when" it
will fail)
ü
Inspected entire transport nylon
assemblies and repaired where necessary (quite important and
unique to Nakamichis that this be done)
ü
New and proper
idler tire 'pre-conditioned' and installed.
ü

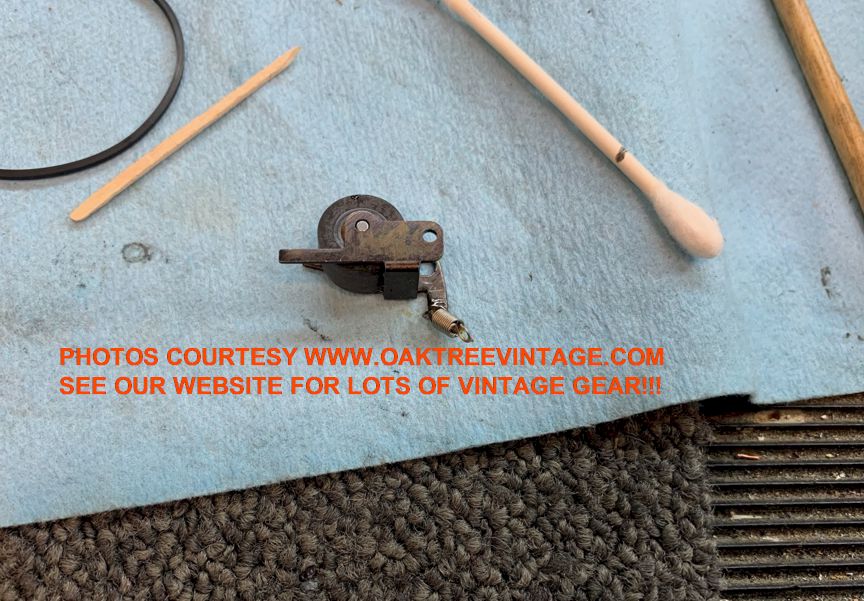

Rubber pinch roller
has been reconditioned
ü
Capstan burnished /
flywheel removed, cleaned, burnished and lubed
ü
Heads have been cleaned and de-magnetized as well as the entire
transport.
ü
Head alignments and azimuth checked and adjusted as necessary
for 'peak performance' with O-Scope
ü
All internal pots, switches and controls cleaned and tested for
noise-free function.
ü
Both spindles in perfect alignment.
ü
All new Counter belts
installed for trouble-free service
4.74 & 9.0 PRB.
ü
New
'Mode' belt
installed for trouble-free service
SQC4.8 PRB.
ü
New
'Capstan' belt
installed for trouble-free service
FRM10.2 PRB.
ü
FF, REW, & Play transport functions all test perfectly and
controls tested for 'positive / accurate' responsive.
ü
Eject door
NOW operates smoothly following
above mentioned operation.
ü
Tape Counter Function tested
ü
Dolby NR circuit tested
ü
'Memory / Zero Return' function tested
ü
Heads are in 'AS-NEW' condition, with NO visible wear!
ü
Meters adjusted to even zero with symmetric input.
ü
Both pinch rollers and heads all in GREAT condition!!!
ü
Head alignment and azimuth at 125Hz, 1kHz and 10kHz adjusted
for BOTH directions for 'peak performance' with
Oscilloscope and w/ STL and TEAC
MTT-257H calibration / alignment tapes. Both channels now even output.
ü
Both Internal playback amplifier channels adjusted with Volt meter,
O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both
channels now even output.
ü
Meters adjusted to even zero with symmetric input with Volt meter,
O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both
channels now even output.
ü
Both Internal Record amplifier channels adjusted with Volt meter,
O-Scope and sine-wave generators and 'pink / white noise sources'. Both
channels now even output.
ü
Speed adjusted to 100% accuracy with 1kHz factory calibration
tape (meaning 1kHz calibration tape plays back at 1000Hz +/-
1Hz)
ü
Cosmetics are in
great condition. Deck works, sounds
and looks great!
ü
Plays perfectly and after adjustment,
records AMAZINGLY well with 1kHz @
0 dB = 0dB! on High bias type
tapes. (Following the extensive restoration, we did
'test recordings' of a 'ddd' CD on Maxell 'XL-II' High Bias
with the following results;
1kHz @ 0dB; L=0dB & R=0dB
PN @ 0dB; L=-2dB & R=-1dB
WN @ 0dB; L=-45dB & R=-4dB (again, that was when
'pushed' to 0dB @ record)
DDD Pre-Recorded CD material @ 0dB; L=0 to -1dB & R=0
to -1dB
Bottom line is, it recorded amazingly well! While doing the
test recording's, it became apparent that the recorded sound was
fairly remarkable. Here's the deal. We sync'd up the recording
we had just made, and the CD player and AB'd on our pre-amp
between the CD and the Tape. Not only was there
little to no 'level loss'
(it's a cassette, there should have been!!!), but the
tape actually had a bit more brilliance and 'natural' top end to
it by a couple to 3 dB's!!!)
Total technician time to restore
~19 HOURS! ____________________________
The Nakamichi 481, Closed-Loop / Dual Capstan, Stereo Cassette
Tape Deck. Great deck for doing your tape transfers if your
tapes were recorded with no NR or with Dolby B. Again, as stated
above, records AMAZINGLY well!
Nakamichi 481 Features include:
- Asymmetrical Dual Flywheel capstan drive Double-Capstan / Closed Loop tape transport for more consistent
head contact - Discrete PB & REC Heads
means that there are two separate heads unlike the vast
majority of decks that utilize the same head for both tasks
(different than most "three head" decks in that there isn't
a 'monitor' function) - Super Hard, High-Performance, 'SENDUST' R/P head w/ EXTREMELY
NARROW gap, allowing for 20-20,000Hz performance - IC logic "touch-control" tape transport with motor driven 'cam
control mechanism' - Selector for Normal (EX / I), CrO2 (SX / II) & Metal (ZX /
IV)Tape Type - Tape Type EQ selector for 120 or 70
μsec tape - Analog "VU" signal level meters w/ 47dB of range - Analog tape counter - Auto 'Slack Take-up' when tape is loaded - MPX filter (for filtering the 19kHz pilot tone out of FM
transmissions) - Dolby B NR - Separate
L&R Record level controls - Memory Stop - Front mounted 1/4", Stereo Headphone jack - DIN on rear panel for optional wired remote (remote not
included)
-
*Semi
"WORLD AC POWER"™
allows unit to be operated on 50 or 60 Hz AC (would require a
transformer to operated on European / Asian AC volts). Currently
set up for US / North American AC power.
Nakamichi 481
Specifications:
Track format: 4
track / 2 channel Motors: 3 Freq Response;
20-20,000Hz +/- 3db w/ Metal Tape @ -20dB Wow & Flutter (WRMS): 0.06%
WTD RMS Tape Speed: 1-7/8 ips +/-0.5% (but as stated above, we
have adjusted to 0.1% accuracy!) S/N ratio w/ CrO2 tape:
>63db @400Hz (w/ Dolby engaged and
High Bias Tapes)
The following specs based on the Nak 480;
Harmonic Distortion: <1.0% @ 400Hz & 0dB (High Bias
Tapes) Bias Frequency: 105KHz Erasure: >60dB below saturation level @ 1kHz
Separation: >36dB @ 1kHz, 0dB Crosstalk: >60dB @ 1kHz, 0dB
Line Input: 50mV & 30K Ohms Line Output:
600mV & 2.2K Ohms Headphones Output: 10mW @ 8 Ohms Again, we have completely cleaned, prepped and tested this
Nakamichi 481 cassette tape deck.
Records and plays back VERY well as noted
by test results mentioned earlier.

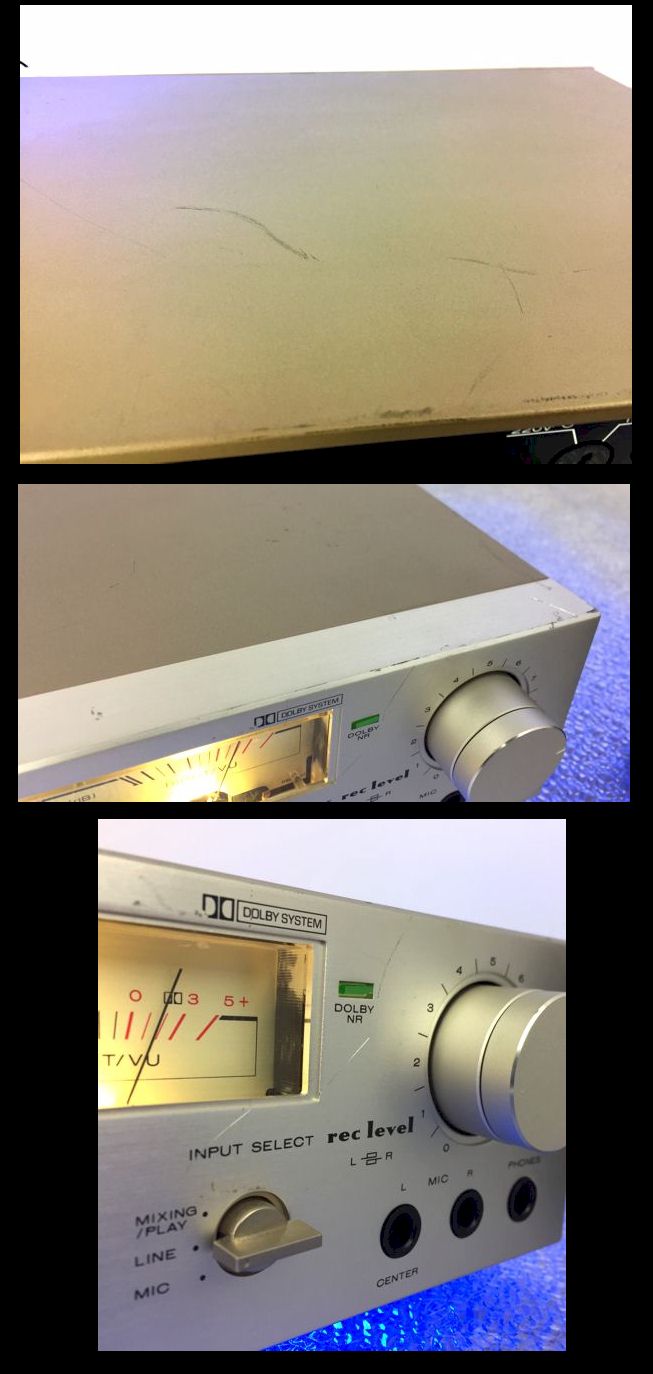

Cosmetically about the only thing worth mentioning is that
there are some minor scuffs on the top edge surface of the
front panel (probably from a CD player or EQ sitting on top
at some point) that's only seen when viewed from above (See
photos above.) Great for transferring your no NR or Dolby NR encoded tape
collection to CD, Hard-drive or MP3. Built very well! Looks like
new, works and sounds great. Comes with an 'e-copy' / pdf of the
Nakamichi 481 owners manual and original Nakamichi 481 Brochure.
Measures 17.75" wide x 11.5" deep x 5.5" tall and weighs 16 lbs
unpacked. Includes our standard 90 day limited warranty. NAKAMICHI
481 Cond. 8.5+
SOLD
7/25/2022
SHIPPING TO ALEX IN ONTARIO CANADA
(tape shown in
photos not included. We do ship our decks with a a
'pre-recorded' tape for playback, made on this 'specific' deck,
and a tape to 'practice record' on.)
(Above text, in
it's entirety, property of
www.oaktreevintage.com /
Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|


NEW LISTING
4/16/2022
(Click on above
thumbnails to enlarge photos)
warranty
VINTAGE, REFURBISHED, FULLY SERVICED
TECHNICS CASSETTE TAPE DECK
TECHNICS
RS-B78R
GEAR DRIVEN HUBS!!!!!!!!!
AUTO-REVERSE
With DOLBY B, C &
dbx NR
#...C082
Circa early 1984-86
Made in Japan
"*WORLD
AC POWER"
™ for
sale
Initial 'pre-test' conditions; Fast Wind
typically sluggish / intermittent (almost
always due to idler tire issues). Play and Record actually
seem to have basic function and perform decently, but did exhibit some
flutter. Crack in Level meter plexi window (we sat on this deck for
about 6 years, before starting on it, waiting to come across another to
pull the window from and it never happened. I sold model deck when new,
and due to it's relatively higher price, not many were sold, so not many
are out there on the secondary market for parts. Thus finally, we
decided to go ahead and restore it with the window crack as it's such an
amazing deck both considering features and performance.
Addendum; following initial restoration, we found that when monitoring
playback for hours, that occasionally the speed would slow down for a
few moments randomly throughout the day. We had a Technics RS-68R that
had just come in that had head issues, so we pulled the transports and
swapped them, and discovered that the issue followed the transport (yes,
we checked the power supply, monitoring it when the motor slowed, but
observed no variation in the power supply Voltage or current). We then
pulled the motor and determined that it had too much drag at certain
points through it's rotation. We swapped the motor and that finally solved the
speed issue.
ü

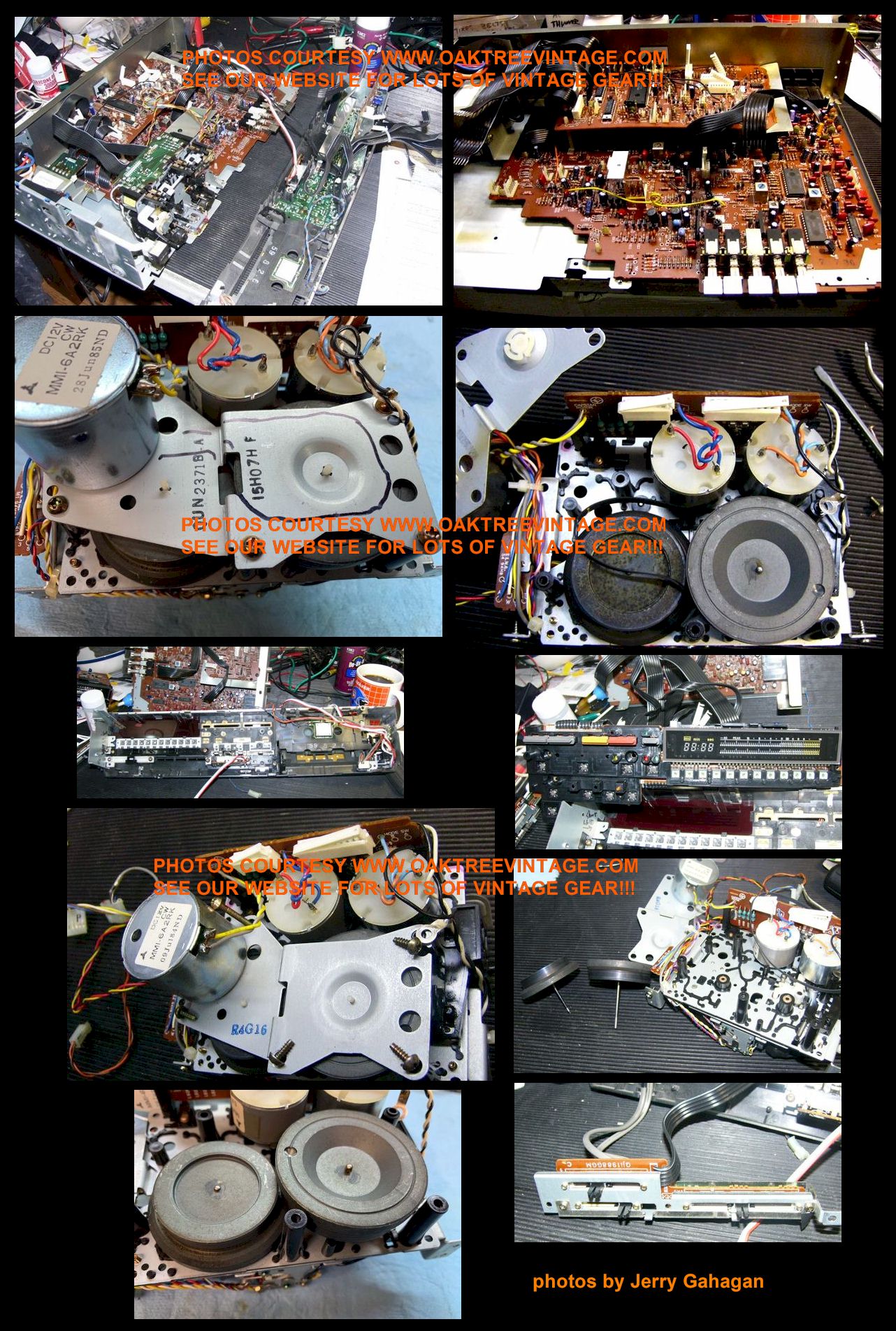

Our technician has completely and EXTENSIVELY gone through and
'Certified' this unit which involves complete disassembly of
the transport (not an easy task on this table), cleaning inside
and out, DISASSEMBLING, cleaning and re-lubricating all internal
mechanisms and the balance of efforts listed below.

Both capstan flywheels removed.

Capstan's cleaned, burnished and re-lubed prior to re-install
(also had their belt surfaces cleaned and burnished as mentioned further
on. Both
rubber pinch rollers removed from arms and have been
resurfaced on drill press and chemically reconditioned.

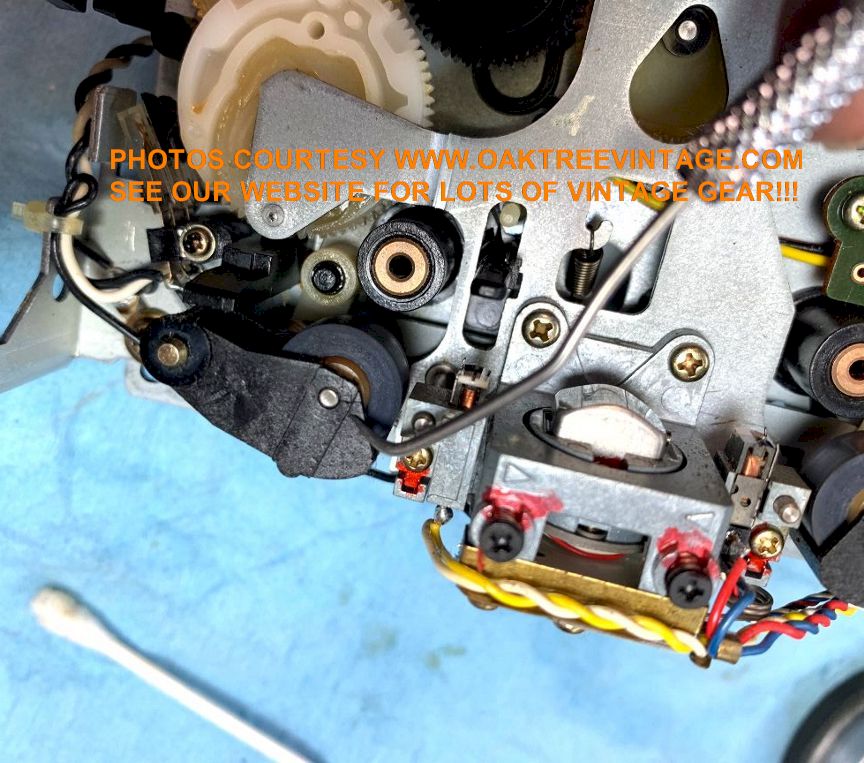

During that process, we discovered that both pinch
roller arms had cracks in their axle mounts.

While those may have been
fine left alone, we went a head and changed them out from the other
transport which had 'crack free' arms.
Heads have been cleaned and de-magnetized as well as the entire
transport. Power supply tested for correct Voltage
and current to the motor. While the motor
issues likely caused some of the flutter issue, we also found a random
build-up of rubber debris on the drive pulley and the capstan flywheels,
that would contribute to that as well.

Main
capstan / flywheel belt replaced with modified
#FR10.0. New counter belt installed.
Following initial rerfurb, Main / Cap motor replaced
with another original / OEM motor due to faulty bearings in one
originally installed. All internal pots, switches and controls cleaned and tested for
noise-free function. Floor noise tested to -74dB. All fluorescent displays and LED's
working fine. Both spindles in perfect alignment. FF, REW, & Play
transport functions all test perfectly and controls positively
responsive. Eject door mechanism operates smoothly. Heads in good shape
as well, with many years of performance left in them.
ü
Speed adjusted to
99.70% accuracy with 1kHz factory calibration
tape (meaning 1kHz calibration tape plays back at 1003Hz +/-
1Hz {the service manual spec states +/- 15Hz
is acceptible BTW})
ü
Head alignment and azimuth at 125Hz, 1kHz and
factory 10kHz, Sony alignment tape and O-scope for peak performance
(this adjustment alone gained ~6-9dB output amplitude!)
for BOTH directions for 'peak performance' with
Oscilloscope
also w/ STL and TEAC
MTT-257H calibration / alignment tapes. Both channels now even output.
ü
Both Internal playback amplifier channels adjusted with Volt meter,
O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both
channels now even output.

ü
Meters adjusted to even zero with symmetric input with Volt meter,
O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both
channels now even output.
ü
Both Internal Record amplifier channels adjusted with Volt meter,
O-Scope and sine-wave generators and 'pink / white noise sources'. Both
channels now even output.
Azimuth verified for BOTH directions and remained consistent.
Playback meters zero with factory test
tone tape.
ü
Plays perfectly and after adjustment,
records AMAZINGLY well with 1kHz @
0 dB = 0dB! on High bias type
tapes. (Following the extensive restoration, we did
'test recordings' of a 'ddd' CD on Maxell 'XL-II' High Bias
with the following results;
w/ no NR; 1kHz @ 0dB; L=0dB & R=0dB
w/ Dolby B; 1kHz @ 0dB; L=0dB & R=0dB
w/ Dolby C; 1kHz @ 0dB; L=0dB & R=0dB
w/ dbx; 1kHz @ 0dB; L=+2dB & R=0dB
DDD Pre-Recorded CD material sounded fabulous on Maxell UDXL-II
and dbx engaged.
(we really put them through the paces, testing both with
well mixed, recently recorded CD material and CD recorded / factory test
tones looking for correct head Azimuth and speed accuracy).
Following all of the above, deck now performs VERY
WELL!
____________________________
The Technics RS-B78R with
Auto-Reverse, Dolby B / C & dbx
NR. Great deck for "all around use" home
or project studio. And since it utilizes DBX NR, it can squeeze up to
110 dB of dynamic range onto a cassette tape (normally the best

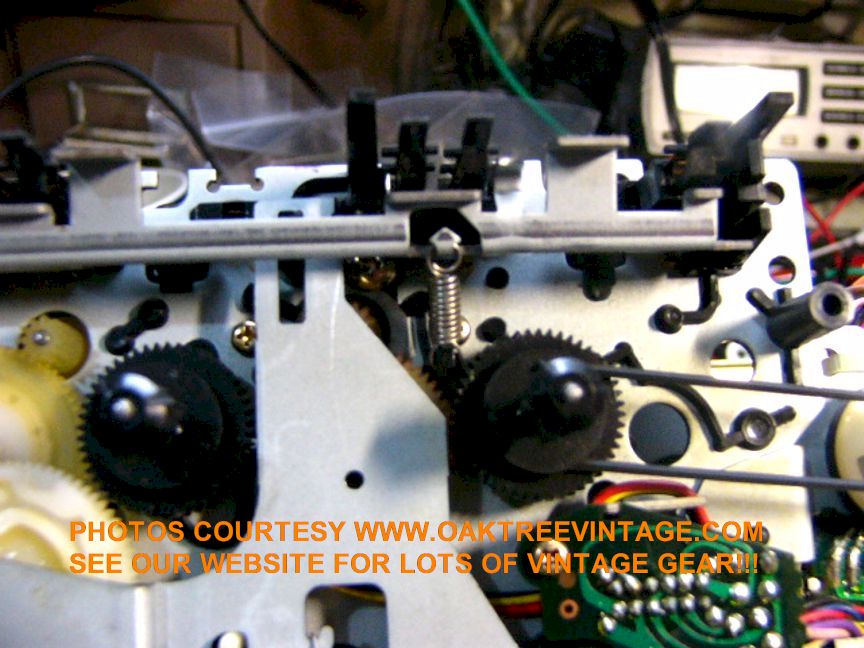

recorders might do up to 72 dB with Dolby engaged. Another great feature

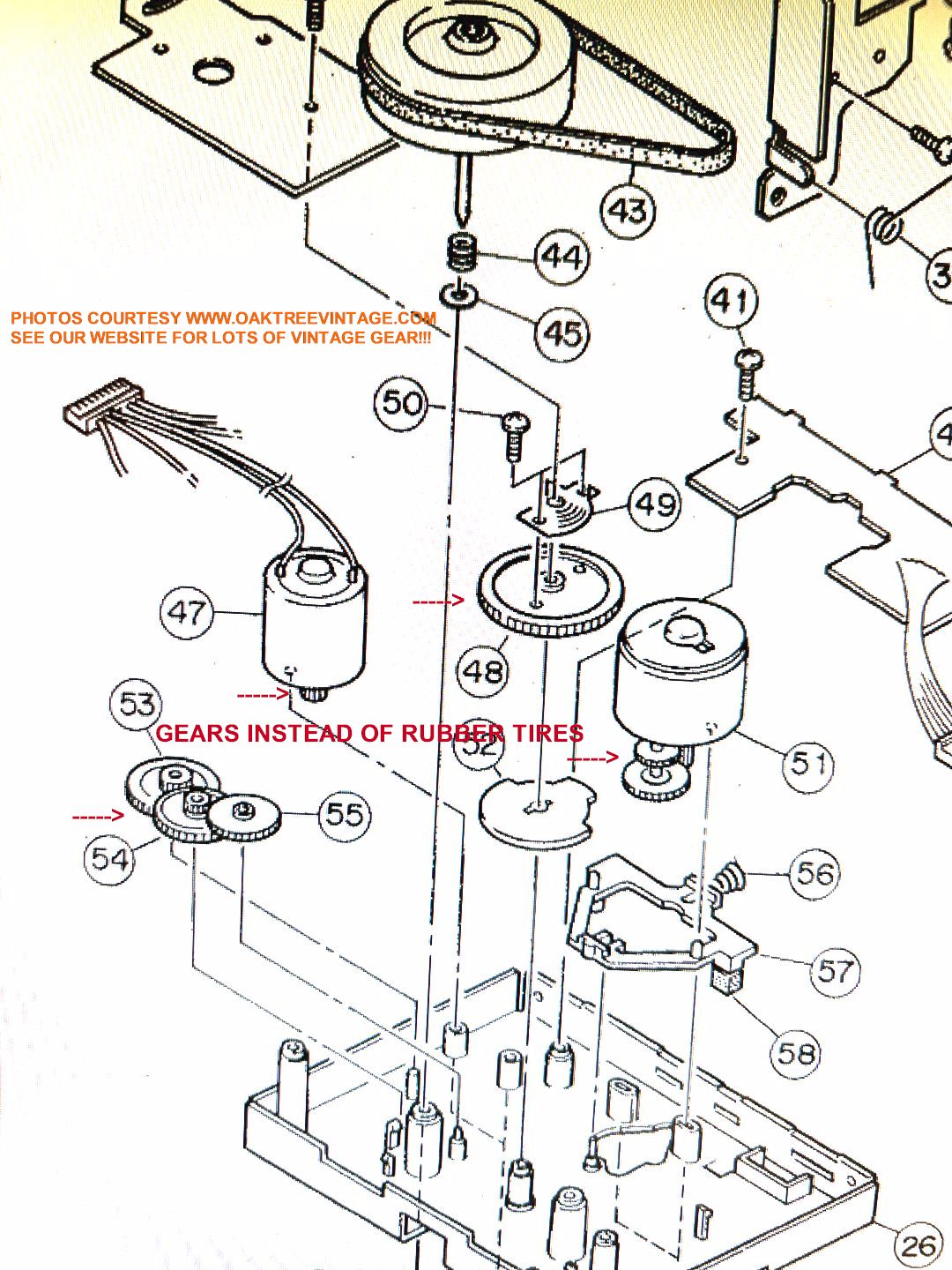

of this model is that the fast wind mechanism is completely gear
driven and does not us a rubber tire. Deteriorated / glazed rubber fast
wind idler tires are THE COMMON issue with decks not fast forwarding,
rewinding and / or eating tapes. That will never be an issue on this
particular model and many Technics decks w/ 'gear driven' reel spindles.
Technics
RS-B78R Features include:
- IC Logic "touch-control" transport
- Full "Auto-Stop" or Dual Mode Auto-Reverse
- 100% Gear Driven Reel Spindles

- Dual, Asymmetrical Flywheels and capstans
- dbx noise reduction built-in for recording and playback for playing
back all those dbx encoded tapes you have
- dbx Disc Decoder (for any dbx encoded vinyl you might have)
- Dolby B & C NR built-in as well as the dbx
- 3 Motors
- Auto Tape Type selector for Normal, CrO2 & Metal
- Super hard, "Amorphous" Head
- Auto Record Mute for 5 second song spacing
- "Cue & Review" function for fast winding tape while temporarily
listening (very handy). Also doubles as "Music Select" feature (song
search)
- Direct Access song skip feature for up to 12 selections
- "Blank Skip" feature
- Dual function, digital tape counter
- Dual Fluorescent VU signal level meters with Peak Hold
- Manual Record Level and Balance controls
- Variable Output level control
- Front mounted Stereo Headphone jack
- Dual, rear mounted, 1/4" mic jacks
- Timer Play / Record function.
-
*Semi
"WORLD AC POWER"™
allows unit to be operated on 50 or 60 Hz AC (would require a
transformer to operated on European / Asian AC volts). Currently
set up for US / North American AC power.
Technics
RS-B78R
Specs:
Track format: 4
track / 2 channel
Capstan Drive: Dual, asymmetrical flywheel / capstan, closed loop
Heads: 1x AX head for
Rec/PB and 2x Double-gap, Ferrite head for erasure

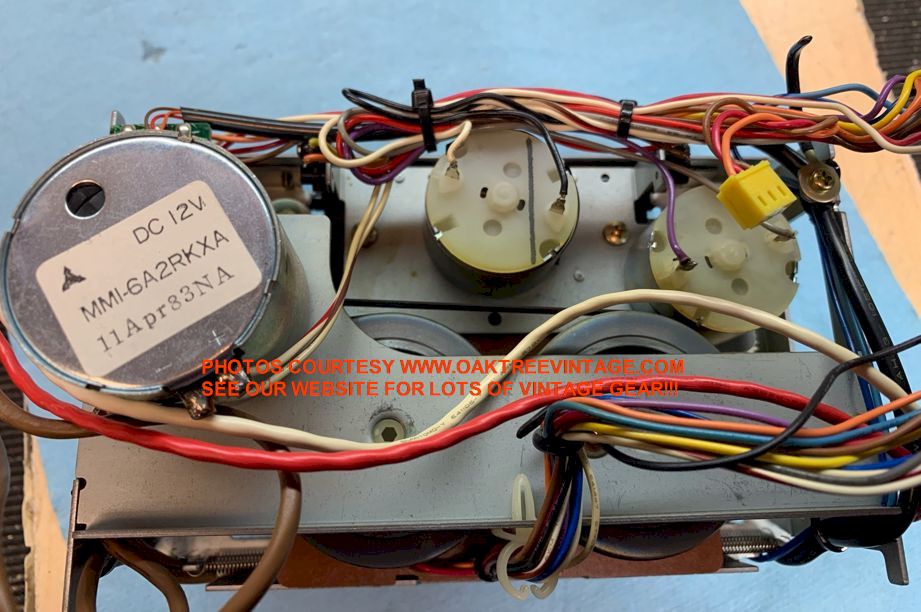

Motors: 3
Freq Response: w/ Metal tape;
20-20,000 Hz
-20dB (30-18,000 Hz
+/- 3dB @ -20dB)
w/
CrO2 tape; 20-19,000 Hz
-20dB (40-17,000 Hz
+/- 3dB @ -20dB)
w/ Normal / LN tape;
20-18,000 Hz
-20dB (40-16,000 Hz
+/- 3dB @ -20dB)
Wow & Flutter (WRMS): 0.45%
S/N ratio: 92db DBX on (A weighted)
74dB Dolby C NR (CCIR)
66dB Dolby B NR (CCIR)
56dB No NR (A weighted)
Dynamic Range: 110db
@ 1kHz DBX on (A weighted)
Bias Frequency:
80kHz
Line Input: 60mV &
47K Ohms Line Output:
700mV &
0.8k Ohms Headphones Output: 125mV @ 8 Ohms
Fast Wind Time: C-60 tape ~90 secs
Again, we have completely
cleaned, EXTENSIVELY prepped and tested this deck with an investment of
approx 9 hours of tech time. Great for project studio or home use
especially since it has dbx NR. Great for simply 'listening' as it has
'auto-reverse'. Also great for transferring your tape collection to CD,
Hard-drive or MP3. Obviously it's main 'black-eye' is
the crack in the meter window (again, we searched for probably 6 years
for a replacement that was economically practical to no avail). Works and sounds great!
Performs probably better than when new
(I know that at least the speed is adjusted more accurately
evidenced by the adjustments and test results mentioned above).
Measures 17" wide x 11" deep x 4" tall and weighs 11 lbs unpacked. Comes
with our 90 day limited warranty.
TECHNICS RS-B78R
Cond. 8
(due to to the display window crack. Rest of the deck looks
near NEW @ cond. 8.5+++)
$659.
(tape shown
in photos not included. We do ship our decks with a a
'pre-recorded' tape for playback, made on this 'specific'
deck, and a tape to 'practice record' on.)
(Above
text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See
'Copyright
Information' page for details)
|
|
|
|

|
- NOTES ON PURCHASING A VINTAGE
CASSETTE DECK -
I own and have owned
‘hundreds’ of cassette decks. I started selling them ‘new’ in
the early 1980’s.
Very few of the decks that we have on our ‘incoming’ shelves
will function to any degree of ‘practical usability’, if at all,
in their ‘as found’ condition. So it amazes me at all the
articles out there on “How to Buy a Used / Vintage Cassette
Deck”, and no one seems to mention how the ‘clock needs to be
rolled back’ 30-40 years on one to get to a level of ‘practical
usefulness’. They all want to mention
to make sure it’s got the right ‘features’ for what you need,
that it’s in “good condition” (typically referring
to its often purported, “minty” looks), that
the shipping is “reasonable”, the
methods of payment work for you, and
that the ‘sellers feedback rating’ is adequate….
WHAT ABOUT IT’S INTERNAL CONDITION????? IT’S GOT
20-40 YEARS UNDER THE HOOD!!!
There’s
lots of ‘rubber’ and ‘lubricated parts’ inside a cassette deck.
‘Time’ is NOT a friend to either. Rubber can do a few things. It
can crack, stretch, break, glaze over (think about how a ‘pencil
eraser’ gets after about a year in a drawer), or turn back to
its original form, which is a ‘gooey / tar’ substance. Oil and
grease ‘gel up’ and stop being lubes, and start becoming ‘glues’
(think the grease caked under an old / vintage car / tractor. It
has to be ‘chipped’ away with a putty knife). Both of those
aspects and others affect a tape deck’s (or turntable, or VCR or
camcorder, or CD / DVD player, or film projector, or just about
anything that is powered by electricity and has moving parts
(AND THERE’S A LOT OF MOVING PARTS IN A CASSETTE DECK)
performance. Most folks assume that if you
simply 'change the belt(s), then the deck is 'good to go'. "Not

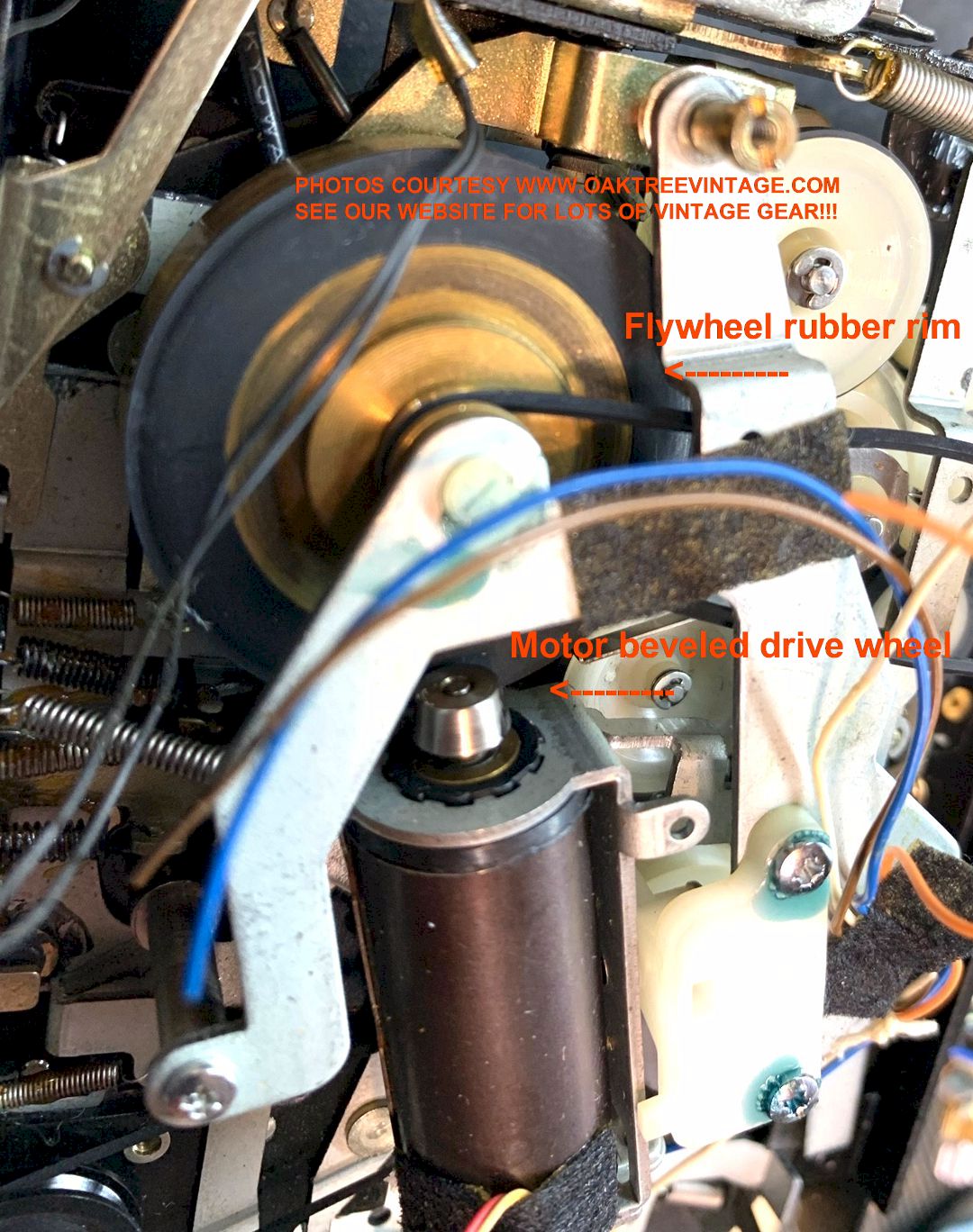

even close". Most cassette decks also utilize an 'idler tire' to
drive the tape reels, not only for 'Fast Wind' functions, but
also for 'Take-up' reel function. This tire becomes 'glazed',
cracked, deformed and / or disintegrated, and a deck WILL NOT
function correctly with 'tire' issues. The 'kicker' is that the

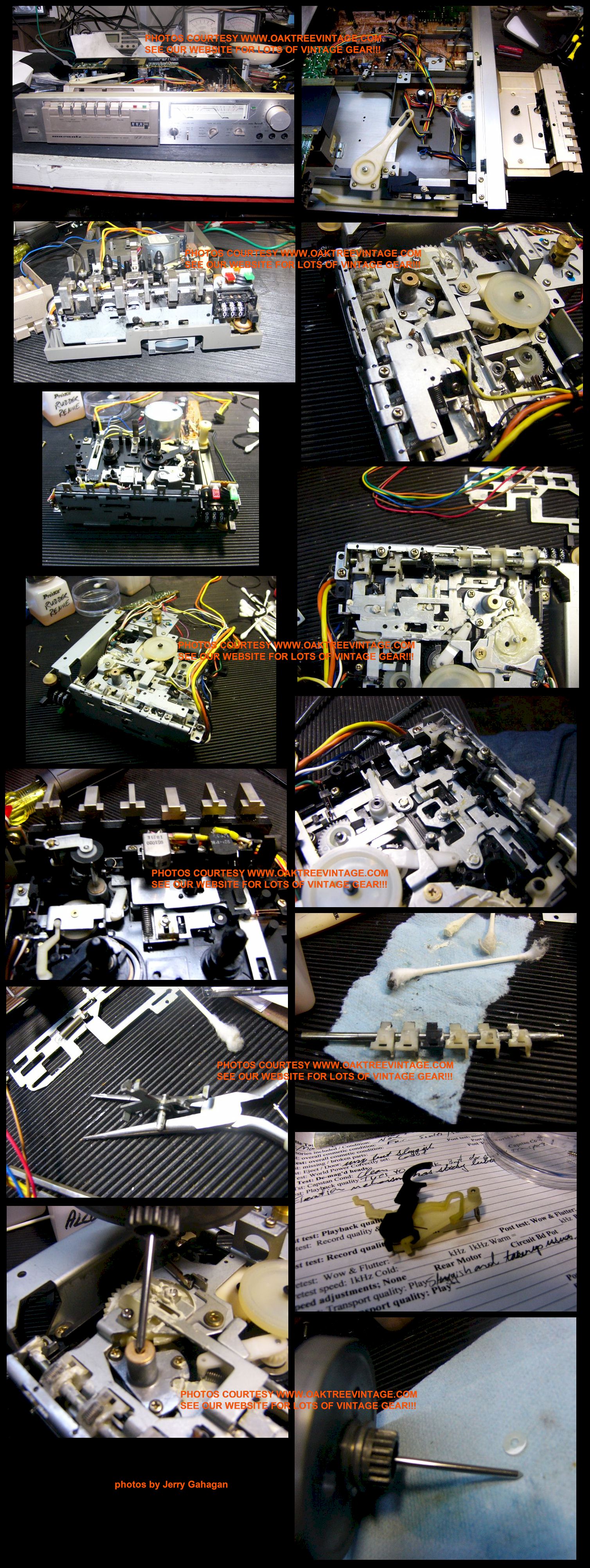

'idler tire' is almost always 'buried' deep within the transport
mechanism which typically requires a near complete disassembly
of the entire tape transport to even asses if a replacement tire
can be found, an available one modified, or if one can be
fabricated.
Thus following is a list of questions to ask about
any tape deck…
How is
its overall ‘Speed’? Inaccurate speed is one of the first
‘tell-tale’ sign of a decks overall heath. You won’t likely be
able to tell without an accurate ‘speed / test tone /
calibration’ tape and a frequency counter. If you’re
not a musician, not ‘musically inclined’, or are ‘tone deaf’
maybe you won’t notice, but most folks will notice ‘something is
not quite right’ when listening to a slow (or occasionally fast)
running tape. Just throwing on a new belt, doesn’t address speed
accuracy. Most mechanisms will need to be disassembled, cleaned
and re-lubed before any speed adjustments can be attempted.
How ‘Steady’ is the speed? This refers to ‘WOW &
Flutter’. This generally won’t be noticed until you put on a
tape with a ‘steady tone’ or a musical piece with sustained
piano notes. Then ‘Flutter’ issues will
drive you nuts. Also can be noticed with sustained string
instruments. Just wait till there’s violin with vibrato, then
added on top is ‘out of time’ vibrato caused from excessive
‘Flutter’ of the tape transport. If someone
just throws any selection of music in, or a 'spoken word' tape,
they'll likely not notice the 'Flutter' issue. ‘WOW’
is less of an issue in cassette decks, but can occasionally be
caused by ill-fitting / wrong belts being installed.
Does the
deck ‘fast wind’ at ANY AND ALL positions on the tape, and will fast wind,
BOTH WAYS
throughout an entire tape,...repeatedly...Every
time? While playing does the ‘take up’ pulley / reel run
correctly, or is it ‘jerky’. Is ‘fast wind’ (in either or both
directions) smooth, or jerky. It will typically be jerky and
intermittent if it functions at all. If it
doesn't turn correctly / sufficiently in 'Playback' mode, that
will cause the deck to 'eat tapes'!
This is caused by a
‘glazed’ / cracked ‘idler tire’, and about 99.999999% of decks
are going to have a glazed or cracked or otherwise deteriorated
idler tire’. It's 'decades' old rubber. It
almost HAS to be compromised. You usually can't 'dodge physics'.
AND those things are not easy to address. The idler tire will
almost always be ‘buried’ a few layer inside the transport. Then
once you get there you go on the hunt for a replacement, only to
find that there were dozens or hundreds of rubber, idler tires
made, only a few of which are still available, and none of which
will fit correctly. So now you have to make the choice (at least
of you want to move forward with a decks restoration) as to
whether you substitute an ‘O-ring’ (often works as a sub) or you
take a tire that is close to fitting, and modify it to function
correctly.
How is the condition
of the heads, regarding 'head wear'? It takes and 'experienced
eye' to 'visually' estimate the condition of tape heads.
Excessively worn heads, will never sound the way they should,
with any amount of adjustment, and you can't just go into your
local 7-11 and pick up a new set. Replacement heads for a
specific deck, will likely need to come from another of the same
(or darn close) specific deck. Having the heads 'lapped' was
once a sometimes viable possibility, but that is, for the most
part, a 'long, lost art'. Even if you manage to acquire
replacement heads, they have to be installed correctly. That
will require alignment tapes and test gear (O-scope and / or
milli-Volt meters) and a lot of patience.
If the deck is ‘auto-reverse’, how’s the condition of the
gear in the mechanism that ‘spins the head’? They are commonly,
slightly ‘cracked’. There is note a practical fix for that. The
head will go part way and ‘lock up’. If you can get it to go
‘back’ to its original position, just leave it, and accept that
the deck is not ‘auto-reverse’.
When the tape gets to the end of it's
travel in play and fast wind modes, does the decks 'auto-stop'
mechanism work? Every time?
Does the tape counter work, and
spin smoothly throughout the entire length of the tape? Every
time?
How’s the
‘azimuth’. Yes, I know it’s not a word that you use every day,
but it’s vitally important on a tape deck. When the azimuth is
out of alignment, a tape will sound ‘muffled’ (loss of treble)
and / or ‘out of phase’ (not much bass). While you can use a
‘pre-recorded’ tape and get it close, it’s really only adjusted
correctly and COMPLETELY by utilizing a ‘calibrated alignment’
tape and an O’Scope or at least a ‘milli-Volt’ meter.
How many
‘dB’ down does the deck playback from its recording level? If
you record a signal at “0dB”, how far does playback deviate from
that? You should usually expect 3-6dB if the deck is in
‘reasonable’ condition. If it’s down 10 or 12dB (or more) you’re
not likely going to be very happy with its recording quality.
Unless it’s simply due to dirty heads, addressing this is fairly
complicated for all but the technically qualified.
Is
playback even out of both channels and via both meters? You
can’t just put on your favorite tape of ‘Death-Polka Favorites’
(or some other 'recorded program material'
and listen to it to make an accurate determination. You would
need a calibrated test tape (with 'constant'
test tones), and an O’scope, or at least a
millivolt meter to first make sure the playback head is in
alignment, then the internal playback amplifiers are producing
an ‘even amplitude’ and then that the meters are both
‘mechanically’ adjusted correctly and that their ‘voltage feed’
is evenly adjusted. Don’t know what any of that means? Then I
wouldn’t be ‘messing with it’.
Do you hear any 'crinkling / scrunching'
noises with your ear right up next to the transport, and / or
when you pull out a tape that has been played on it, is there
evidence of 'crinkling / wrinkles / creasing' on the tape
section that just went past the pinch roller?
Is there
a loud, obnoxious ‘motor boating’ sound that and or your meter(s)
are cyclically ‘pegging’? No. How about after the third time of
putting the deck into record mode? Or the 6th time or
the 20th time? Then the there’s a problem with the
internal record switch (or it needs to be flooded / cleaned).
(this issue is usually only a potential problem on a deck with a
‘mechanical internal record switch’, and not more ‘modern decks’
that use ‘electronics’ to switch the deck in and out of record)
Does the deck make any extraneous noises when in play /
record, such as squeaks, growls, scrapes, grinds etc? if not
immediately, how about after 15 minutes, a half hour, an hour or
a day? In all modes?
Are the ‘Recording Level’ control pots ‘quiet’ or do they
need to be cleaned?
Do the “Source / Monitor” or “Tape EQ” switches quiet or do
they make noise and need to be cleaned?
If the deck has ‘Auto-Tape-Type’ sensing, is it triggering
correctly? If not, that could mean an issue with the mechanism
trigger tab, or a dirty / compromised micro switch.
If the deck is equipped with any type of noise reduction ie;
Dolby B, C, dbx etc, is if functioning properly? We don’t see
issues with that often, but it does happen.
Is the deck
quiet when playing back a ‘blank tape’ or better yet, a cassette
‘shell’ with no tape in it? (some decks will not allow this test
easily, as it’s ‘auto-stop’ mechanism is triggered by the tape
counter, which is typically tied to the ‘supply’ reel and if
that reel is not moving then the deck will go into ‘auto-stop’
mode.) This is ‘floor noise’ and is not to be confused simply
with ‘tape hiss’, which is why we want to hear the transport
moving without tape passing the playback head.
How is the 'quality'
of the recording and playback? Bad, distorted recordings can
also be due to Bias issues (besides the above mentioned "worn
heads", azimuth alignment errors and dirty controls and
switches.
Are all of the indicators and lights working? These aren’t
typically ‘functional deal breakers’, but can definitely
increase or decrease ‘curb appeal’.
If 'analog', do the meters settle at their
left most index line? Do they both respond quickly? Do they
'stick' at any point in their travel? If 'really pegged' do the
get stuck at the top?
Does the ‘well door’ close and latch, EVERY
TIME and correctly, REPEATEDLY?
Those would be most of
the ‘high points’ regarding the functionality of a tape deck.
Once you, or someone
technically qualified has addressed AT LEAST ALL of the above,
then we can talk about how ‘minty-fresh’ it’s cosmetics are.
I get the question
of, “what’s the best brand / model” of tape deck out there.
Well, 25-50 years ago, when you could go to a few ‘real audio
shops’ and take your pick of a dozen or two NEW tape decks, that
question held much validity. Now my opinion of the
"which is the
best deck", is the “one that has been properly refurbished /
restored / fully service to a level of ‘proper utility’,
recently, by someone qualified to do so”.
A QUESTION:
Most folks know the difference,
without too much thought, between a Chevrolet ‘Corvette’ and a
Chevrolet ‘Chevette’. If I ask "which is a better car,
a ‘Corvette’ or a ‘Chevette’", most folks will answer
"the
Corvette” (barring all the arguments based on other personal
opinions)…Now, I’ll give you the rest of the story. The
Corvette has been sitting in a barn for the past 25 years, and
hasn’t been started since it was parked there
originally. Or it was in a flood. Or it’s had a dog
living it, or a rat has built a home in the dashboard, or the
engine was blown by the 'now deceased
owner’s son', or, or, or…
Now the Chevette has just been thru a
qualified auto repair shop, and had the engine
compression checked (and was within spec), new plugs / wires /
dist cap, timing adjusted, new starter, alternator checked for
charging, new battery, the coolant flushed, the clutch replaced,
the brake system flushed, new calipers, drums and shoes, new
belts, carb rebuilt and properly jetted,
vacuum lines checked for leaks and replaced, air
conditioner serviced, new seat covers, new tires, new wiper
blades, windshield cleaner system replaced, cracked windshield
replaced, all lights tested / replaced, horn
checked, wiper motor / mechanism checked / lubed, and
thoroughly test driven around town, starting and stopping, on
the highway at all speeds. It was started in the cold weather,
and once warm, started again. Repeatedly.
It is pretty much doing what it did when new. And you need to
take a trip across the country tomorrow. Now
I ask again, "which is the better
car?"
UPDATED LIST
7/1/2022
Cassette Tape Decks
Coming Soon
(or at least as the units
cooperate and time allows):
Nakamichi LX-5 (Awaiting spot on tech bench)
Nakamichi ZX-7 (In process on bench)
TEAC V-909RX (Tech has finished, awaiting final inspection /
testing / sign-off / photos / text)
Technics RS-B68R (Didn't make it through. Becoming a parts
unit)
Sony TC-D5M (Tech has finished, awaiting final inspection /
testing / sign-off / photos / text)
(While we have a few dozen more decks in stock (by Akai, Denon,
Marantz, Nakamichi, Onkyo, Pioneer, Sansui, Sharp, Sony, TEAC,
Yamaha etc), awaiting bench /
tech time, but MANY WON'T MAKE IT thru
our stringent process)
|
Click here to see what we do to our cassette decks to make sure you
get a
"usable" deck
that should be good for years of trouble free
service.
|
LIMITED PERFORMANCE / AS-IS** / AS-FOUND**
/ RESTORATION PROJECT CASSETTE DECKS BELOW:
|


NEW LISTING 2/26/2020
EXTENSIVE REFURBISH / SERVICE***
VINTAGE MARANTZ CASSETTE TAPE DECK
MARANTZ SD-3510
THE ONE WITH THE "DRAWER TRANSPORT"
SO IT'S LOW PROFILE GOLD / CHAMPAIGN FINISH CIRCA 1981-84 MIJ
"WORLD AC POWER" ™
for sale
ü
Our technician has completely and EXTENSIVELY gone through and
'Certified' this unit which involves total disassembly of
the transport, cleaning inside and out, COMPLETELY
DISASSEMBLING, cleaning and re-lubricating all internal
mechanisms and the balance of efforts listed below
(incredibly difficult on this deck!!!).

ü
Heads inspected for excessive wear (obviously we do this 'early
on' as 'excessive' wear will usually negate any further
restoration work).
ü
Main Capstan / Flywheel belts
replaced w/ #42-450 & #42-980.
ü
Counter belts
replaced w/ #42-260 & #42-1060.
ü
Rubber pinch roller mechanism bushings & axles cleaned of old
lube, reconditioned and re-lubed.
ü
Capstans motor had
it's bronze bushings lubed w/ 30wt
ü
Capstans cleaned /
burnished
ü
All internal trim pots, switches and controls cleaned and tested for
noise-free function.
ü
All meter lamps and LED indicators working fine.
ü
Both hub spindles in perfect alignment.
ü
"FF, REW, & Play transport functions all test and
controls tested for 'positive / accurate' responsive"
is what we normally like to say, but due to the internal design of this
one, we were not able to get it to perform 100%, EVERY time.
Occasionally the 'STOP' button will have to be pressed a time or two, or
another button will need to be pressed to then be able to engage 'STOP'.
Other buttons sometimes 'hang up' temporarily, but usually selecting
another transport function will 're-set' them as they're 'self
cancelling / mechanical' with an internal mechanism that was unusually
difficult to service and get to the current 'usable' state.
ü
Heads in great shape as well, with many years of performance
left in them
ü
Heads have been cleaned and de-magnetized as well as the entire
transport.
ü
Head alignment and azimuth at 125Hz, 1kHz and 10kHz adjusted for
BOTH directions for 'peak performance' with O-Scope and w/ STL
and TEAC MTT-257H calibration / alignment tapes. Both channels
now even output for PLAYBACK..
ü
Both Internal playback amplifier channels adjusted with Volt
meter, O-Scope and w/ STL and TEAC MTT-257H calibration /
alignment tapes. Both channels now even output
for PLAYBACK..
ü
Meters adjusted to even zero with symmetric input with Volt
meter, O-Scope and w/ STL and TEAC MTT-257H calibration /
alignment tapes. Both channels now even output
for PLAYBACK.
ü
Both Internal Record amplifier channels adjusted with Volt
meter, O-Scope and sine-wave generators and
'pink / white noise sources', however we were not able to get
great recordings. The left channel is often 'low / and distorted' on
'Recording' (sounds fine as a 'PLAYBACK' deck).
ü
Pinch roller and heads all in GREAT condition!!!
ü
Speed adjusted to 100% accuracy BOTH
directions, with with TEAC MTT-257H 1kHz factory calibration tape (meaning
1kHz calibration tape plays back at 1000Hz +/- 1
Hz)
ü
Pinch roller re-surfaced, and in GREAT condition!!!
ü
Tape Counter works well
ü
Speed adjusted internally to 100% accuracy with 1kHz factory
test tape (meaning 1kHz calibration tape plays back at 1000Hz
+/- 1Hz) (utilized TEAC MTT-257H)
ü
Floor noise measured at -60dBm
So again, this deck was ultimately passed as a 'Playback' deck.
Total technician time to restore
~22++ HOURS!
(YES, OUCH!) ____________________________
This deck is the commensurate deck for other Marantz
components such as the Marantz Escotec SC-7, SC-8, SC-9, SC-500 SC-2000
Pre-Amps, the SM-8, SM-500DC, SM-2000 Power Amps, EQ-20 Graphic
Equalizer, PM-8, PM-450 or PM-730 Integrated amps, ST-500 Tuner and many
others. I sold all of those components when they were new for a Marantz
dealer. If you're building that system (or already have most of that
system) and need the matching cassette deck (for Playback), then here
you go. This one is probably as good as it's going to get, as I don't
know of any tech's who would be willing to bring one any further to
completion
Marantz SD-3510 Features include:
- Retractable, Drawer Tape transport - Adjustable
Fine Bias Control for
Recording***
- 'Soft Touch', mechanical transport - Dolby-B
noise reduction built-in for recording***
and playback -
Beautiful, Back-Lit VU signal level Indicators - Manual Record Level with
Separate L&R control - Record 'Mute' function - Front mounted,
1/4" Stereo Headphone jack - Dual, Front mounted,
1/4" Microphone jacks
- 4-Position, Tape Type Selector for
Normal, CrO2,
Ferro-Chrome & Metal tape
- Tape Counter - True “WORLD
AC POWER"™ as it will work on both 50 or 60 Hz AC and voltages from 110-240
Volts AC
***
again, at this point a moot point as its best for
Playback purposes
Marantz SD-3510 Specifications:
Style: Slim
/ Top Load
Track format: 4
track / 2 channel
Motor: DC
Servo Heads: Super-Hard, Alloy Play / Record
head & Double-Gap,
Ferrite Erase head Freq Response w/ Dolby OFF: w/ Metal;
30-17,500
Hz +/- 3dB w/ Chrome / CrO2; 30-16,000
Hz +/- 3dB @ w/ 'Normal'; 35-15,000
Hz +/- 3dB Wow & Flutter (WRMS): 0.10%
WRMS S/N: >65dB w/ Dolby B
>56dB w/ Dolby Off Line Input Sensitivity:
50mV +/- 3dB Output Level
/ Impedance for
'Normal' levels: 500mV
+/- 3dB &
8.5k Ohms
Headphone Output Level
/ Impedance for 'Normal'
levels: 50mV
+/- 3dB & 60 Ohms
Fast Wind time (C-60): 90
sec.
Again, we have service and thoroughly tested this
deck and offering it for 'PLAYBACK' purposes. Cosmetically, it's in
decent
condition with a scratch on the right side of
the face & some scuffs on the top of the face panel (see photos above).
Great deck for just about any system. Also great for
transferring your tape collection to CD, Hard-drive or MP3
for just playing your tapes. Includes an 'e-copy / pdf download' of the
Marantz SD-3510 owners manual. Measures 17.3" wide x 12"
deep x 4.5" tall
and weighs a
~12 lbs unpacked. REFURBISHED / SERVICED for PLAYBACK MARANTZ
SD-3510 Cond. 8
$299. as-is for
Playback only
with one of our mini, GOLD R2R tapes shown in the photos included

(tape shown in photos not included. We do ship our decks with a
a 'pre-recorded' tape for playback, made on this 'specific'
deck, and a tape to 'practice record' on.)
(Above text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|

NEW LISTING 2/26/2020
VINTAGE PIONEER CT-F750 CASSETTE TAPE DECK
AUTO-REVERSE
CIRCA 1979
MIJ
RESTORATION PROJECT / REFURB CANDIDATE / AS-IS
for sale
Fixer-Upper Pioneer CT-F750 stereo cassette tape deck / player /
recorder.
Another one we are clearing out in 'as-found' condition. We just simply aren't
going to have time to restore them all so it's for sale 'as-is'.
What we know:
- Powers-Up
- Motor Runs
- Has some Fast Forward and Re-Wind function
- Both capstans turn
- Pinch roller did not engage so no Play function observed (likely varnished
lubes impeding movement)
- All LED's, cassette well illumination, Direction indicators, Reverse mode
indicators and Blue-Fluorescent meters / display work
- Pinch rollers appear serviceable
- Heads appear to be in great condition (at least cosmetically)
- Clean cosmetics (may be dusty / dirty etc.)
-
Pioneer CT-F750 Features:
- Auto-Reverse
- Variable Output Level control (one of the most important features on a
deck in our opinion.
Allows you to match volume level
of other sources, allows adjustment for 'best' pre-amp input to avoid
distortion, allows you to change the volume of the deck if you have it located
remotely from the pre-amp / receiver as I do, and many other applications)
- Dolby
- Piano Key operation
- Blue Fluorescent Meters with 'Peak' or 'Avg'
- Tape Type Selection
- Record Mute
Missing Power toggle
cap
Great restoration projects if you have the skill sets or are versed in restoring
Pioneer CT-F tape transports.
$189. As-Is, entire Unit*
~$789.
If Restored to our normal level
depending on record quality and tech time
(theoretical only, as we're not restoring it due to current tech time resource constraints).
|

NEW LISTING
4/1/2022
(Click
on above thumbnails to enlarge photos)
warranty
VINTAGE,
REFURBISHED,
FULLY SERVICED
NAKAMICHI CASSETTE TAPE DECK NAKAMICHI
600 PEWTER / SILVER #...6510 With DOLBY B NR
THREE MOTORS, 'USER ADJUSTABLE' BIAS AND
REC CALIBRATION MADE IN JAPAN! Circa early 1975-78
"WORLD AC POWER"
™
SOLD 6/3/2022 SHIPPING TO VLAD IN NEW YORK
Initial 'pre-test' conditions; Fast Wind
typically sluggish / intermittent. Auto-Stop intermittent.
Noisy controls esp when recording. 'Play' cap loose / gone.
2x pads missing. 'Sticky' buttons / controls.
ü
Our technician has completely and EXTENSIVELY gone through
and 'Certified' this unit which involves complete
disassembly of the transport, DISASSEMBLING,
removing old / stiff
lubes, cleaning inside and out, cleaning and
re-lubricating all internal mechanisms and the balance of
efforts listed below.
ü
Both
reel turntable 'drive' tires
resurfaced / re-conditioned for
trouble-free service.
ü
Capstan Drive belt replaced
with NEW for trouble-free service.
ü
Essentially 'lifetime' Counter
belt cleaned and re-conditioned.
ü
Rubber pinch roller
has been resurfaced and reconditioned
ü
Flywheel
removed and Capstan
burnished. Bushings cleaned and lubed.
ü
Heads
have been cleaned and de-magnetized as well as the entire
transport.
ü
All
internal pots, switches and controls cleaned and tested for
noise-free function.
ü
Push button switches cleaned and not
binding / sticking
ü
Circuit board connectors,
removed, burnished / cleaned.
ü
Both
spindles in perfect alignment.
ü
All motors had bushings lubricated
ü
FF, REW,
& Play transport functions all test perfectly and controls
tested for 'positive / accurate' responsive.
ü
Eject
operates properly.
ü
Tape
Counter Function tested
ü
Dolby NR
circuit tested
ü
'Memory
/ Zero Return' function tested
ü
Heads
are in great condition, with
virtually no visible wear!
ü
Pinch
roller and heads all in GREAT condition!!!
ü
All adjustment pot cover plugs intact.
ü
Both level meters playback even.
ü
Head alignment and azimuth at 125Hz, 1kHz and 10kHz adjusted
for BOTH directions for 'peak performance' with
Oscilloscope and w/ STL and TEAC
MTT-257H calibration / alignment tapes. Both channels now even output.
ü
Both Internal playback amplifier channels adjusted with Volt meter,
O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both
channels now even output.
ü
Meters adjusted to even zero with symmetric input with Volt meter,
O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both
channels now even output.
ü
Both Internal Record amplifier channels adjusted with Volt meter,
O-Scope and sine-wave generators and 'pink / white noise sources'. Both
channels now even output.
ü
Pinch roller and heads all in GREAT condition!!!
ü
Speed adjusted to 100% accuracy BOTH directions, with with TEAC MTT-257H
1kHz factory calibration tape (meaning 1kHz calibration tape plays back
at 1000Hz +/- 1 Hz.)
ü
4 replacement feet / pads installed
ü
Following initial
mechanical restoration, we found that the 'fast wind'
functions were still slow and intermittent. It was
discovered that the reel tables on this deck utilize
clutches sandwiched between their front and rear halves with
adjustable tension. We removed the originals clutch pads,
fabricated new ones, installed and re-adjusted the tension
springs so now those functions perform properly (this
operation took over 5 hours so resolve).
ü
Cosmetics are in essentially NEW condition. Deck works,
sounds and looks great!
ü
Plays perfectly and after adjustment,
records AMAZINGLY well with 1kHz @
0 dB = 0dB! on High bias type
tapes. (Following the extensive restoration, we did
'test recordings' of a 'ddd' CD on Maxell 'XL-II' High Bias
with the following results; 1kHz @ 0dB; L=0dB & R=0dB PN @ 0dB; L=-1dB & R=-1dB WN @ 0dB; L=-4dB & R=-4dB DDD Pre-Recorded CD material @ 0dB; L=0 to -1dB & R=0
to -1dB Bottom line is, it recorded amazingly well!
Total technician time to
restore ~14
HOURS! ____________________________
The Nakamichi 600
Stereo Cassette Tape Deck. Great deck for doing your tape
transfers if your tapes were recorded with no NR or with
Dolby B. It's just 'fun' to operate and
gorgeous to look at. Nice, big, illuminated VU meters look
great when playing. Again, as stated above, records
AMAZINGLY well!
Nakamichi 600 Features include:
- 3 Motors (Capstan, Reel and 'Cam') -
User Adjustable Bias controls (under
plugs on front panel) -
User Adjustable Record Calibration w/ built-in 400Hz
function generator. (under plugs on front panel) - Super Hard, High-Performance, ''Focused
Field Crystal Permalloy Head' R/P head w/ EXTREMELY
NARROW gap, allowing for 20-18,000Hz
performance - Piano-Key tape transport with
motor driven 'cam control mechanism' - Selector for Normal (EX / I) &
CrO2 / Metal (SX / II)
Tape Types - Tape Type EQ selector for 120 or 70
μsec
tape - Analog "VU" signal level meters w/ 47dB of range - Analog tape counter - MPX filter (for filtering the 19kHz pilot tone out of FM
transmissions) - Dolby B NR -
Variable
Output Level (one of our favorite features on a tape deck) - Record level control with L & R balance - Memory Stop / Repeat for counter -
RCA and DIN I/O's on rear panel
- "WORLD AC POWER"™
allows unit to be operated on 50 or 60 Hz AC
and 100-240V. Currently set up for US / North
American AC power.
Nakamichi
600 Specifications:
Track format: 4
track / 2 channel Motors: 3 Freq Response;
40-18,000Hz
+/- 3db w/ SX or EX Tapes
@ -20dB Wow & Flutter (WRMS):
<0.12%
WTD Peak Tape Speed: 1-7/8 ips
Harmonic Distortion: <1.5%
@ 400Hz & 0dB S/N ratio w/ CrO2 tape: >60dB
@400Hz w/o Dolby. >68dB
@400Hz w/o Dolby.w/ Dolby engaged
and High Bias Tapes) Bias Frequency: 105KHz Erasure:
>60dB below saturation level @ 1kHz Separation: >35dB @ 1kHz,
0dB Crosstalk: >60dB @ 1kHz, 0dB Line Input:
60mV &
50K Ohms Line Output:
580mV
Again, following
the above stated bench work / testing, our technician has 'Certified'
this deck and it is an great performer sonically
and mechanically.
It's been
fully
serviced / completely gone through
cleaning, lubing, adjusting, demagnetizing and
testing.
This is one of the most 'fun' and
aesthetically pleasing decks I have ever crossed paths with
(and I've had, owned and sold the best cassette decks ever
made including Tascams 122mk III's, Nak Dragons, Nak CR-7's,
Yamaha's, Denons, Onkyo's, Pioneer CT-F1250's and CT-F1000,
and a few hundred more.) Great for transferring your no NR or Dolby NR encoded tape
collection to CD, Hard-drive or MP3. Built very well! Looks
like new, works and sounds great. Comes with an 'e-copy' /
pdf of the Nakamichi 600 owners
manual and Nakamichi 600 Brochure.
Measures 15.75" wide x
9.5" deep x
6.75"
tall and weighs 15 lbs unpacked.
Includes our standard 90 day limited warranty. NAKAMICHI
600 PEWTER Cond. 8.5+++
SOLD 6/3/2022
SHIPPING
TO VLAD IN NEW YORK
(tape shown
in photos not included. We do ship our decks with a a
'pre-recorded' tape for playback, made on this 'specific'
deck, and a tape to 'practice record' on.)
(Above
text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See
'Copyright
Information' page for details)
|
*Ok,
so here's the deal on our 'As-Is' / 'As-Found' / 'For Restoration' units.
The prices are firm and are more based from their 'pre-processed parts value'.
We are offering these “As-Is” units simply
because they’re below our threshold of time-vs-effort-ROI at the time of
posting. Any less than our published price and we'll
go ahead and process them as "parts" and remove from sale or re-slate for future
restoration by us as time allows. At these
values / prices, no more photos or testing will be done by us.
Most or all of the following
applies to us as well, EVERYTIME we start the refurb / service process on a
unit. While we may sometimes (usually) state what
functions / condition we observed at the time of testing, it is in no way a
declaration of warranty (meaning; “we may have missed some $%#*”).
The existing condition we observed and
documented is also no guarantee of ultimate viability following further service
efforts. It is only offered 'As-Is', without our
normal *warranty and we won't have the
time resources to 'improve' it in anyway. The
existing condition we observed and documented is also not necessarily indicative
of the entire cosmetic / operational condition associated with a unit (there’s
probably issues we didn’t or couldn’t see at the time).
Restoring / refurbishing
'vintage / used' units properly is typically not an 'easy' process and if you
are 'not' a technician or will be disappointed if a unit does not come all the
way through to fruition, then you should probably purchase a unit that has
already been restored to 'working' condition. If
you are not a technician and do not understand the potential dangers of working
with electronic / electrical units, then DO NOT ATTEMPT repair / restoration /
further service or even open a unit up. The voltages
inside these unit can kill you and it will hurt the entire time you are dying!!!
Units should probably not be ‘powered up’ or
used until, at least, a cursory check by qualified personnel has been done.
Parts to restore / refurbish
/ service or 'further improve' the unit may or may not be readily available
(most parts can be sourced). Parts / units may
or may not respond positively to further repairs (you might blow something up).
Units may or may not have original parts. They may have missing, damaged,
modified, dangerous / outdated parts etc. (most will not).
Units may have evidence of past ‘non-factory’, incorrect, uncompleted,
shoddy or dangerous repairs (most will not).
These units are NOT intended
for someone looking for a 'working' unit or thinks you can simply 'install a new
belt', spray in some contact cleaner or change a light bulb and have a working
component. It typically requires 4-18 hours to
bring most units / vintage components back to a decent level of function and
utility for the 'long haul'.
The pack / ship will be the
same as for our 'fully restored' components so the reduced price of the "As-Is"
unit has NO BEARING on the cost to pack and ship (which is typically somewhere
between $45-$85 but can vary up or down from that range). shipped to most of the
lower 48 states. Extreme Southern, North Eastern, or North Western locales will
be slightly more.
Bottom line; If you’re not up
for the challenge either due to ‘lacking skill sets’ or ‘lacking funds’ to hire
the work done, and need a unit to be more than a ‘shelf display’, then I would
pursue a unit / component that has already been PROPERLY restored / refurbished
/ service with a ‘clean bill of health’. This goes for most of the units that
are for sale on on-line Auctions and Classified ads. Occasionally there will be
a unit ‘up for auction’ or on a classified ad that really has been service
properly, but they’re generally a ‘single digit percentage’ of what’s out there
available for sale.
|
We've moved most of the "SOLD
/ ARCHIVED"
items to their own page.
Click ........HERE.
|
RECENTLY SOLD
UNITS BELOW
|

NEW LISTING
11/12/2021
(Click on above thumbnails to enlarge photos)
warranty
VINTAGE,
FULLY SERVICED
/ REFURBISHED / RESTORED VINTAGE
AKAI AUTO-REVERSE
CASSETTE TAPE DECK
AKAI GXC-730D With 'AUTO-REVERSE' AND DOLBY NR
and REAL "VU" METERS #...9379 Circa early 1976-79 Made in Japan
SOLD 11/15/2021 SHIPPING TO STANLEY IN NEVADA
Original issues observed (mostly the
issues common with all 40 year old tape decks):
"power switch not working correctly, broken eject switch lever,
sluggish fast wind, noisy internal record switches, noisy level
controls, PB and REC levels low and un-matched, clutches
slipping way too much to be usable, L-Channel Bias way out.
Pinch rollers have un-even wear. Missing one input level knob."
ü
Our technician has completely and EXTENSIVELY gone through and
'Certified' this unit which involves complete disassembly of
the transport (not an easy task on this table), cleaning inside
and out, COMPLETELY DISASSEMBLING, cleaning and re-lubricating
all internal mechanisms and the balance of efforts listed below.
ü
Heads inspected for excessive wear (obviously we do this 'early
on' as 'excessive' wear will usually negate any further
restoration work, although as these are 'GX'
heads, it would be pretty hard to put much 'wear' on them).
These have virtually NO visible wear to them.
ü
Internal DC power supply tested
ü
Capstan motor
disassembled, cleaned and
re-lubed.

ü
Both Flywheel belt surfaces solvent
cleaned

ü
Bronze
Flywheel bushings solvent cleaned
ü
Both
Flywheel thrust pads cleaned
ü
Capstan burnished
ü
Reel drive
tires (7 IN ALL!!!)
replaced and / or reconditioned for trouble-free service.
(These are actually much more important to replace on this deck
(and most) than the belts. Without these, the deck won't fast
wind very well, and will likely 'eat tapes' as the 'take-up'
reel won't turn properly)
ü
New
internal Capstan Drive
belt (#FRM9.2) installed for trouble-free service.
(so this operation required extensive effort. The belts that
came in the so called "correct kit" currently available for the
Akai GXC-730D, proved to cause incorrect speed in two different
decks. We were then forced to find new belts that by 'trial and
error' allowed enough 'traction' and the most speed accuracy. In
fact, none of the belts in the 'official kit' that is currently
available for an Akai GXC-730D allowed the deck to operate at
anything resembling correct speed when tested on a frequency
counter with factory test tapes!)
ü
New
Counter belt (#.041) installed
as well as 'spindle' belt #029.
ü
Both hub spindles
clutches were slipping
and / or causing 'chatter'. Both were disassembled, shims added,
compression springs adjusted, pads and plates re-surfaced, lubed
where necessary and re-installed. (This was by far one of the
more time consuming aspects to restoring this deck!)
ü
Replaced broken
Eject paddle button from another GXC-730D donor unit
ü
Replaced
non-repairable Power switch assembly from another GXC-730D donor
unit
ü
Replaced missing
input level knob from another GXC-730D donor unit (some surface
scratches to the replacement knob)
ü
Rubber pinch rollers have been reconditioned
ü
Tape well door pins re-aligned / re-worked / repaired
ü
Heads have been cleaned and de-magnetized as well as the entire
transport.
ü
Head alignments and azimuth checked and adjusted as necessary
for 'peak performance' with O-Scope. As it's
an 'Auto-Reverse' deck, these adjustments are required
separately FOR BOTH DIRECTIONS!
ü
All internal pots, switches and controls cleaned and tested for
noise-free function.
ü
Head swivel for
Auto-Reverse disassembled, cleaned and lubed as it was stiff to
move (this was one of the more time consuming operations for
this deck).
ü
Both d'arsonoval
VU meters
static adjusted, tested and working
fine.
ü
Both
VU meter illumination
lamps replaced w/ #25-445 6.3V / 250mA.
ü
Both
VU Direction illumination
lamps replaced w/ 4 new bulbs.
ü
Both hub spindles NOW
in perfect alignment.
ü
FF, REW, & Play transport functions all test perfectly and
controls tested for positive / accurate responsive.
ü
Heads in great shape as well, with many years of performance
left in them and head alignment / azimuth has been checked for
peak performance.
ü
Playback meters zero
adjusted
'electronically' with factory test tone tape.
ü
Tape Counter Function tested
ü
Pinch roller and heads all in GREAT condition!!!
ü
Floor noise tested to -60dBm with empty shell
tape
ü
Speed tested to
98%
accuracy with 1kHz factory test tape (meaning 1kHz calibration
tape plays back at 980 Hz +/- 1Hz)
Only issue still remaining is that "Fast
Wind"
will slow more than typical as it nears completion of a side.
This cannot be improved anymore, and still does an adequate job.
ü
Deck has had just over 23 hours of
restoration work done.
Face is made of beautiful brushed aluminum, and overall the deck
is in great cosmetic condition.
One of the input level knobs has a few scuffs as mentioned above. Following the extensive
restoration, we did 'test recordings' of a 'ddd' CD on
2 tapes; Maxell Normal Bias, TDK 'SA'
High Bias, and Maxell 'XL-II' High Bias.
We found that both the "Maxell's" performed VERY well on this particular deck.
ü
Plays
great and records well
with 1kHz,
recorded 0dB playing back @ L=-2dB & R=-2dB on Maxell
UDXL-II tapes. With DDD CD we
experienced ~ -3 to -4dB, but great, overall sonics! (we
really put them through the paces, testing both with well mixed,
recently recorded CD material and CD recorded / factory test
tones looking for correct head Azimuth and speed accuracy).
ü Recording
tests performed with Maxell Normal Bias and Maxell
High-Bias UDXL-II (Gold / Black) Tapes. Here’s
the results;
Maxell UDXL-II: 1KhZ
with Dolby & CrO2 position @ 0dB = -2dB L & -2dB R with
virtually no
artifacts
Maxell UDXL-II: 1KhZ
W/O Dolby & CrO2 position @ 0dB = -2dB L & -2dB R with
virtually no
artifacts
Maxell UDXL-II: 1KhZ
with Dolby &
Normal
position @ 0dB = -2.5dB L & -3dB R with virtually no
artifacts
Maxell UDXL-II: 1KhZ
W/O Dolby & Normal position @ 0dB = -2.5dB L & -2dB R with
virtually no
artifacts Recorded program from "ddd" source @ 0dB sounds great
as well. It's nice recording on a deck that's 'dialed in'
properly)
Total technician time to restore
~28+
HOURS! ____________________________
Handsomely designed, and classic looking Akai
GXC-730D, Auto-Reverse cassette tape deck.
Features Piano-Key
transport, Auto-Reverse,
& Dolby B. Great deck for most systems
and uses. One of the 'Biggest' cassette decks ever made.
AKAI GCX-730D
Features include:
- 3-Mode Auto-Reverse ('Manual' reverse as
well of course) - Bi-Directional Recording -
Huge drive Motor - Classic 'Piano Key' transport
w/ Solenoid
assist results in 'Soft Touch operation - Dolby noise reduction built-in for recording and playback
- Akai's A.D.R. (automatic distortion
reduction) changes the recording equalizer characteristics
according to the signal level of a certain frequency band to
achieve low distortion over an extended frequency range. -
Auto-Limiter (if selected) to limit 'over /
peaks' on 'high energy' recordings. Great when recording in
'Live' situations. - Rear located, adjustable 'Bias / Recording Levels' (don't mess
with these without the proper test / calibration gear) - Tape Type selector for Normal, Fe-CO2,
&
CrO2 tape - Dual, Large "VU" signal level meters
-
"Peak"
LED level indicator that kicks in at +7dB - Manual Record Level with independent L&R control
- Variable Output Level control (one of the most important
features on a deck in our opinion.
Allows you to
match volume level of other sources, allows adjustment for
'best' pre-amp input to avoid distortion, allows you to change
the volume of the deck if you have it located remotely from the
pre-amp / receiver as I do, and many other applications) - Dual front mounted 1/4" mic input jacks - Front mounted Stereo Headphone jack - Analog Tape Counter w/ "Memory Stop"
AKAI GCX-730D
Specifications:
Track format: 4
track / 2 channel
Heads: One
"GX" recording / playback head and two Erase heads.
4
track / 2 channel
Motors: HUGE
AC, High Torque, 4-Pole Hysteresis /
AC synchronous Freq Response: w/
FeCr tape;
35-17,000 Hz
+/- 3dB @ -20dB w/
CrO2 tape; 35-16,000
Hz +/- 3dB @ -20dB w/ Normal / LN tape;
35-14,000 Hz
+/- 3dB @ -20dB Wow & Flutter (WRMS) - 0.080%
WRMS S/N ratio: >50dB
@ +3 on VU meter w/ LN tape. Dolby B
NR
adds ~10dB above 5kHz Harmonic Distortion: <1.5%
@ 0dB
w/ "LN" tape Bias Frequency:
100kHz
Erase Ratio:
>70dB
Fast Wind time: <70sec*
on C-60 Tapes (again, does have the
above mentioned 'slowing' characteristic near the 'end' of REW & FF
operation)
There's just something about the feel of 'original piano key'
tape transports. This one especially has a
great "feel" to it. Like you're engaging some 'huge' mechanism
internally. The 'Auto-Reverse' is very 'precise' in it's motion. Again, we have completely refurbished and thoroughly tested this
deck, with multiple recording tests (as stated previously).
Cosmetically, other than the knob with scuffs
in it, it's condition! Also great for
transferring your tape collection to CD, Hard-drive or MP3.
Includes original box and packing. Comes with an 'e-copy' / pdf
download of the Akai GXC-730D
owners manual
and color brochure. Measures 17.3"
wide x 11.9" deep x 6.9"
tall and weighs
26.5 lbs unpacked. Comes with our 90
day limited warranty. AKAI GCX-730D Cond. 8.5
$789.
SOLD 11/15/2021 SHIPPING TO STANLEY IN NEVADA
(tape shown in photos not included. We do ship our decks with a
'pre-recorded' tape for playback, made on this 'specific' deck,
and a tape to 'practice record' on.)
(Above text, in it's entirety, property of
www.oaktreevintage.com
/ Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|


NEW LISTING
12/15/2020
(Click
on above thumbnails to enlarge photos)
warranty
VINTAGE AND
FULLY SERVICED W/ WARRANTY TEAC CASSETTE TAPE DECK HUGE TEAC A-510 / A510 (same as TEAC A-500) #...9261 With DOLBY NR and IC LOGIC TRANSPORT MADE IN JAPAN! Circa 1978-80
SOLD 1/10/2022
SHIPPING TO JEAN IN NEW BRUNSWICK, CANADA
ü
Our technician has completely and EXTENSIVELY gone through and
'Certified' this unit which involves complete removal and
disassembly of the entire transport (not an easy task on this
deck), cleaning inside and out, DISASSEMBLING, cleaning and
re-lubricating all internal mechanisms and the balance of
efforts listed below.

ü
Heads inspected for excessive wear
(obviously we do this 'early on' as 'excessive' wear will usually negate any further restoration work).
ü
Capstan motor spindle bushing re-lubed
ü
Capstan burnished
ü
NEW,
'reel drive' tire installed for trouble-free service.
(These are actually much more important to replace on this deck
{and most} than the belts. Without these, the deck won't fast
wind very well {if at all}, and will likely 'eat tapes' as the 'take-up'
reel won't turn properly)
ü
All three
Main Drive and Counter belts replaced for trouble-free service.
ü
Rubber pinch rollers have been reconditioned
ü
Flywheel 'belt surfaces' solvent cleaned
ü
Bronze
Flywheel bushings solvent cleaned
ü
Entire flywheel assemblies re-lubed upon re-assembly
ü
Interconnects on 'transport circuit board' repaired
ü
All internal pots, switches and controls cleaned and tested for
noise-free function.
ü
Heads have been cleaned and de-magnetized as well as the entire
transport.
ü
Head alignment and azimuth at 125Hz, 1kHz and 10kHz adjusted for
BOTH directions for 'peak performance' with O-Scope and w/ STL
and TEAC MTT-257H calibration / alignment tapes. Both channels
now even output.
ü
FF, REW, & Play transport functions all test perfectly and
controls tested for 'positive / accurate' responsive w/ new
idler tire installed.
ü
'Silicone
Damped' Eject door operates smoothly.
ü
Tape Counter
'Reset' button fabricated &
tested
ü
Tape Counter Function tested
ü
Dolby NR circuits / function tested
ü
'Memory / Zero Return' function tested
ü
Meters adjusted to even zero with symmetric with Volt meter,
O-Scope and w/ STL and TEAC MTT-257H calibration / alignment
tapes. Both channels now even output.
ü
Both Internal playback amplifier channels adjusted with Volt
meter, O-Scope and w/ STL and TEAC MTT-257H calibration /
alignment tapes. Both channels now even output.
ü
Meters adjusted to even zero with symmetric input with Volt
meter, O-Scope and w/ STL and TEAC MTT-257H calibration /
alignment tapes. Both channels now even output.
ü
Both Internal Record amplifier channels adjusted with Volt
meter, O-Scope and w/ STL and TEAC MTT-257H calibration /
alignment tapes.
ü
Pinch roller and heads all in GREAT condition!!!
ü
Overall floor noise measured at >-60dB.
üSpeed
adjusted internally to 100% accuracy BOTH directions, with 1kHz
factory calibration tape and frequency counter (meaning 1kHz
calibration tape plays back at 1000Hz +/- 1Hz)
ü
Cosmetically,
there are some 'whiteish spots"
that we weren't able to affect. 409, Alcohol, nor Naptha seemed
to have any effect on them.
ü
Plays great and after adjustment, records AMAZINGLY well w/
following results;
ü
With White Noise recorded @ -0dB w/o Dolby engaged PB =
-3dB &
With White Noise recorded @ -10dB w/o Dolby engaged PB =
0dB
ü
With White Noise
recorded @ -10dB w/o Dolby engaged PB = -10dB & @ 10kHz w/o Dolby
engaged PB = -10dB on Maxell UDXL-II / High Bias tape
ü
With 1kHz recorded @
0dB with Dolby engaged on Maxell XL-II (high bias) tapes
PB = -2dB
ü
With 'ddd'
CD recorded @ 0dB with Dolby engaged;
-3dB on
Maxell UDXL-II / High Bias tape
Bottom line is this deck sounds
great for playback or
recording (always make sure you're playing back 'good quality'
tape recordings) Total technician time to restore
11+
HOURS!
____________________________
The Teac A-510 / A-500 with 'Dolby NR and IC Logic Transport',
Stereo Cassette Tape Deck. Great deck for doing tape transfers
if your tapes were recorded with no NR or with "Dolby B"
or for making some awesome 'new' recordings or 'mix tapes' (hey,
it's 'the thing' again).
This deck is a pleasure to use, and has a great 'feel' due to
it's size and transport function. As far as cosmetics,
it's BEAUTIFUL. Was taken very good care of before it came to
us, and is even more astounding now. Very impressive looking
deck.
Teac A-510 Features include:
- "Soft touch / IC LOGIC control" tape transport (allows you to
switch between 'Fast Wind' or 'Play' modes without pressing
'Stop' w/ no fear of 'spilling / dumping tape') - Selector for Normal (EX / I), CrO2 (SX / II) & Metal (ZX / IV)
Tape Type - 3-Position Selector for Tape Equalization for Normal (EX / I),
CrO2 (SX / II) & Metal (ZX / IV) Tape Type on playback - Dual Fluorescent VU Level Meters - Analog Tape counter
- Variable Output Level control (one of the most
important features on a deck in our opinion) - Dolby B NR - Record Muting - Real 'Potentiometer' Record level controls that are 'gear
coupled' (meaning when you turn one, the other one responds as
well. They can be turned independently for 'fine adjustment' as
they're 'clutch coupled' as well) - Memory Stop for counter - Dual, Front mounted, 1/4", Microphone Jacks - Front mounted, 1/4", Stereo Headphone jack - RCA and DIN I/O's on rear panel - Timer Play / Record function. (IMPORTANT NOTE ABOUT 'TIMER
SWITCH' ON THIS DECK. If the 'Timer' switch is in any position
other than "OFF", and the tape plays thru to 'Auto-Stop', then
no other function on the deck will commence until the 'Timer'
switch is turnted to "Off". That is what the 'sticker' on the
top of the unit indicates (and we found to be the case)) - Multi-pin port on rear panel for optional wired remote, TEAC
RC-90 (remote not included)
Teac A-510Specifications:
Track format: 4
track / 2 channel Motors: 2x, 1x DC Coreless 'Reel', & 1x FG Servo Controlled
DC 'Capstan' Wow & Flutter (WRMS): 0.07% WRMS Tape Speed: 1-7/8 ips
Speed Deviation: 0.015% (we did not find ANY speed
deviation when bench testing following restoration and / or
auditioning Harmonic Distortion / THD: <2.0% @ 1kHz & 0dB (High Bias
Tapes) S/N ratio w/ CrO2 tape: >48db w/ Dolby dis-engaged (and
Normal Bias Tapes) >53db
w/ Dolby-B engaged (over 10kHz and High Bias Tapes) Bias Frequency:
100K Channel Separation: min 30dB @ 1K
Adjacent Track Cross-talk: min 40dB @ 125Hz Fast Wind Time:
~90 Seconds for C-60 tape Again, we have completely cleaned, refurbished / serviced and
thoroughly tested this Teac A-510 cassette tape deck. Great for transferring your no NR or Dolby B NR encoded tape
collection to CD, Hard-drive or MP3 especially with the 'Tape EQ'
selector for 'fine tuning' older tapes. Built very well!
Again, not going to win any beauty contests, but
performs decently. Due to it's size, overall
feel, the 'input controls' and the 'transport control' this deck
really is a blast to use. Comes with an 'e-copy / pdf download'
of the TEAC A-510-MKII owners / users /
instruction manual, and the TEAC A-510 / A-500 cassette tape deck service manual if
the purchaser desires. Measures 18.6" wide x 13.5" deep x 7.25"
tall and weighs a VERY HEAVY 24 lbs
unpacked. Just in-case you 'too casually' read past that last
little bit, IT'S A TWENTY-FOUR POUND CASSETTE DECK!
Includes our standard 90 day limited warranty. TEAC A-510 Cond.
7.5+
SOLD 1/10/2022
SHIPPING TO JEAN IN NEW BRUNSWICK, CANADA
(tape shown in photos not included. We do ship our decks with a
a 'pre-recorded' tape for playback, made on this 'specific'
deck, and a tape to 'practice record' on.)
(Above text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|

NEW LISTING
11/12/2021
(Click on above thumbnails to enlarge photos)
warranty
VINTAGE & FULLY
SERVICED W/ WARRANTY
NAKAMICHI CASSETTE DECK
NAKAMICHI BX-1
STEREO CASSETTE TAPE DECK
With DOLBY B NR
#...9858
Circa 1982-83
SOLD 11/19/2021
SHIPPING TO STEPHEN IN INDIANA
ü
Our technician has completely and EXTENSIVELY gone through and
'Certified' this unit which involves complete removal and
partial disassembly of the entire transport, cleaning inside and
out, DISASSEMBLING, cleaning and re-lubricating all internal
mechanisms and the balance of efforts listed below.
ü
Heads
inspected for excessive wear (obviously we do this 'early on' as
'excessive' wear will usually negate any further restoration
work).
ü
Faulty
voltage regulator, IC401 replaced in power supply, as instead of supplying
12VDC, it was offering up only 1.5VDC.
ü Removed
'drive / Transport' assembly, solvent cleaned all pulley and bearing surfaces,
then re-lubed where necessary during re-assembly
ü
Capstan
REMOVED, cleaned / burnished
ü
New 'Idler' tire #STC-5629 installed for trouble-free service.

ü
New
#42-465 Main
drive / capstan belt replaced for trouble-free service.
ü
New
#42-1060 Counter belt replaced for trouble-free service.
ü
Rubber pinch
roller has been reconditioned
ü
Heads have
been cleaned and de-magnetized as well as the entire transport.
ü
Head
alignments and azimuth @ 10kHz adjusted for 'peak performance' with
O-Scope
ü
All 'user'
potentiometers / controls removed, then cleaned and tested for
noise-free function.
ü
All internal
pots, switches and controls cleaned and tested for noise-free
function.
ü
Both
spindles in perfect alignment.
ü
Heads are in
great condition
ü
Internal playback levels adjusted for even playback w/ alignment
tape, Oscilloscope, and mVAC meter
ü
Internal
Record amplifier channels adjusted for 'even recording' w/ B&K Sine
/ Function generator test tone on O-Scope
ü
Playback
meters adjusted for 'playback' zero'd with factory test tone tape.
ü
Pinch roller
and heads all in GREAT condition!!!
ü
While there
was originally some 'flutter' at 10kHz, following our restoration,
we detected none.
ü
Speed
adjusted to 99.99% accuracy BOTH directions, with 1kHz factory
calibration tape (meaning 1kHz calibration tape plays back at 1001Hz
+/- 1 Hz)
ü
FF, REW, &
Play transport functions all test adequately*
and controls tested for 'positive / accurate' responsive.
* Nakamichi decks
from this series are relatively known for having fairly 'sluggish'
Fast Wind characteristics depending on progress thru the tape. We
have optimized this one to it's best ability, but will still be
slower than other decks once it reaches the extreme ends of progress
thru a tape.
ü
Eject door
operates smoothly.
ü
Dolby
circuits / function tested
ü
Floor noise
measured at -60dBm
ü
Plays great and after adjustment, records well
w/ following results;
With Pink Noise recorded at 0dB w/o Dolby engaged; PB @ -2dB (and
exhibited good 'top end performance in playback' with Maxell UDXL-II
/ High Bias tapes
With 'Real World', DDD CD music recorded at 0dB w/ Dolby-C
engaged; 0dB and great 'brilliance' (and exhibited good 'top end
performance in playback' with Maxell 'UD XL-II' / High Bias tapes)
Total technician time to restore
12.5+
HOURS!
____________________________
NAKAMICHI is known for 'Cassette Decks', but they were expensive
when new, so we don't see a lot floating around on the secondary
market, so when we do, it's always a treat. Here's a NAK BX-1, which
following all of the above listed service work, is READY TO GO!
Nakamichi BX-1 Features:
-
2-Motors
-
IC Logic, 'Silent Mechanism' Tape Transport controls (allows you to
switch between 'Fast Wind' or 'Play' modes without pressing 'Stop'
w/ no fear of 'spilling / dumping tape')
- 2 Motor Transport (DC Servo motors. One for
Capstan drive and one for Reel drive)
- Dolby B Noise Reduction
- Tape type selector for Normal (Type-1) / Chrome (Type-2) & Metal
tapes
- 2-Position Tape Equalization to optimize playback of different
tape types
- Dual, LED level meters
- Analog Tape Counter
- Memory tied to the counter for 'Zero Stop'
- Front-mounted 1/4" stereo headphone jack
- Timer option for Play or Record start
Nakamichi BX-1 Specifications:
Track format: 4
track / 2 channel
Heads: 2x
Motors: 2, DC Servo Capstan Motor, DC Reel Motor
Freq Response; 20-20,000Hz +/- 3db w/ All Tape types @ -20dB
Wow & Flutter (WRMS): <0.06% WTD RMS
Tape Speed: 1-7/8 ips +/- 0.5%
Harmonic Distortion / THD: <1.0% @ 1kHz & 0dB (High Bias
Tapes)
Bias Frequency: 105kHz
Erasure: >60dB below saturation level @ 100Hz / 0dB
Separation: >36dB @ 1kHz, 0dB
Line Input 'Nominal': 50mV & <30K Ohms
Line Output 'Nominal': 500mV & 2.2K Ohms (w/ output pot maxed)
S/N ratio w/ CrO2 tape: >62db w/ Dolby B engaged (and High Bias
Tapes)
Headphones Output: 2.2mW @ 8 Ohms
Fast Wind Time: ~80-90 Seconds for
C-60 tape
Again, as mentioned above, our tech has gone through it completely
cleaning all parts, controls and tape mechanism. As mentioned, the
power supply was originally not functioning correctly, so before
restoration could commence, we replaced a faulty voltage regulator.
We also checked, cleaned, reconditioned and / or replaced rubber
components. We completely de-magnetized the heads and transport.
Capstan motor speed adjusted to exact spec! Tape speed
re-adjusted to 100% accuracy, ie; 1 kHz = 1 kHz! And with it's
service work completed the deck records incredibly well and plays
back utilizing Maxell UD XL-II tapes at -2dB
down!
Cosmetically there are
numerous scratches to the black paint, on the top
and sides of the sheet metal housing.
Probably from someone setting a unit on top of it that didn't have
feet and sliding it across shelves. Of
course you only notice that when looking 'down from above' the deck,
so in a rack, wouldn't be seen. Overall, the deck looks good and
sounds great! Great for transferring your tape collection to CD,
Hard-drive or MP3. Plays and Records well. Very clean and usable
deck! Includes a pdf / e-copy download of the Nakamichi BX-1 owners
/ users / instruction manual. Measures 17" w X 10" d X 4.25" h and
unpacked weight is 13 lbs. Comes with our 90 day limited warranty.
Nakamichi BX-1
Cond. 8.0
SOLD 11/19/2021
SHIPPING TO STEPHEN IN INDIANA
(tape shown in
photos not included. We do ship our decks with a a 'pre-recorded'
tape for playback, made on this 'specific' deck, and a tape to
'practice record' on.)
(Above text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|

NEW LISTING
11/12/2021
(Click on above thumbnails to enlarge photos)
warranty
FULLY SERVICED
/ REFURBISHED / RESTORED
W/ WARRANTY
TEAC CASSETTE TAPE DECK
TEAC V-2RX
3-HEADS!
WITH DOLBY B &
dbx with IC LOGIC TRANSPORT
& 'FINE BIAS' ADJUSTMENT
#...0590
Circa early 1982-84
Made in Japan
SOLD 2/3/2022
SHIPPING TO DAVID IN TEXAS
Original issues observed (mostly the
issues common with all 40 year old tape decks):
"No play movement due to perished drive belt,
so due to that, unable to test further until that was addressed"
ü
Our technician has completely and EXTENSIVELY gone through and
'Certified' this unit which involves total disassembly of the
transport, cleaning inside and out, COMPLETELY DISASSEMBLING, cleaning
and re-lubricating all internal mechanisms and the balance of efforts
listed below.
ü
Heads inspected for excessive wear (obviously we do this 'early on' as
'excessive' wear will usually negate any further restoration
work).
ü
Counter belt - NO counter belt. It's GEAR DRIVEN!!!
ü
Main Capstan / Flywheel belt reconditioned.
ü
Main pulley end bushing lubed.
ü
Rubber pinch roller mechanism bushings & axles cleaned of old lube,
reconditioned and re-lubed.
ü
Capstans cleaned / burnished
ü
All internal pots, switches and controls cleaned and tested for
noise-free function. (Pre/Post and Tape/Source
switches required disassembly and removal of front fluorescent display
to access for cleaning. This step alone took 2 hours)
ü
All Fluorescent displays and LED's working fine.
ü
Both hub spindles in perfect alignment
ü
FF, REW, & Play transport functions all test perfectly and controls
tested for 'positive / accurate' responsive.
ü
Heads in great shape as well, with many years of performance left in
them
ü
Heads have been cleaned and de-magnetized as well as the entire
transport.
ü
Head alignment and azimuth at 125Hz, 1kHz and 10kHz adjusted for BOTH
directions for 'peak performance' with O-Scope and w/ STL and TEAC
MTT-257H calibration / alignment tapes. Both channels now even output.
ü
Both Internal playback amplifier channels adjusted with Volt meter,
O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both
channels now even output.
ü
Meters adjusted to even zero with symmetric input with Volt meter,
O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both
channels now even output.
ü
Both Internal Record amplifier channels adjusted with Volt meter,
O-Scope and sine-wave generators and 'pink / white noise sources'. Both
channels now even output.
ü
Pinch roller and heads all in GREAT condition!!!
ü
Speed adjusted to 100% accuracy BOTH directions, with with TEAC MTT-257H
1kHz factory calibration tape (meaning 1kHz calibration tape plays back
at 1000Hz +/- 1 Hz. The service manual allows for an
error range of +/- 23Hz! Yuck!!!)
ü
Pinch roller re-surfaced, and in GREAT condition!!!
ü
Playback meters zero with factory test tone tape.
ü
Tape Counter and 'Memory' Function tested
ü
Tape well door needed 'hinge' mechanism work
ü
Speed adjusted internally to 100% accuracy with 1kHz factory test tape
(meaning 1kHz calibration tape plays back at 1000Hz +/- 1Hz) (utilized
TEAC MTT-257H)
ü
Floor noise measured at -74dBu
Following service / fine tuning;
ü Recording
tests performed with Maxell
High-Bias UDXL-II (Gold / Black) Tapes.
Here’s the results;
Maxell UDXL-II: 1KhZ
with No NR @ 0dB; L= 0dB & R= 0dB R with
virtually no
artifacts
Maxell UDXL-II: PN
with No NR @ 0dB; L= -1dB & R= -1dB R
Recorded program from "ddd" source @ 0dB sounds great
as well. It's nice recording on a deck that's 'dialed in'
properly)
Following restoration, during one of our extensive 'post tests' we
discovered that the deck was not erasing consistently. We eventually
discovered that the erase head had it's own mechanism to move it, which
was an originally 'lubricated' parts. Well, just as all 30+ year old
lube gels and stiffens up, so had that. We then disassembled the erase
head pivot arm, solvent cleaned it, lubricated it and re-assembled
mechanism. Worked as intended then. This process alone added 2.5 hours
to restoration. This was a mechanism somewhat different than we come
across in most decks.
Total technician time to restore ~15.5
HOURS!
____________________________
This is one 'LOADED' cassette deck. The TEAC V-2RX,
Stereo Cassette Tape Deck w/ Three-heads, IC
logic, Fine-Bias, Fluorescent display, Dolby B
&
*dbx
NR & MORE!
TEAC V-2RX Features include:
- Three-Heads!
- Super Hard, Permalloy' PB / REC heads
- 2 Motors (one for capstan drive and a separate
motor for reel drive)
- Adjustable Fine Bias Control for Recording allows
you to really 'dial in' the sonic qualities for each different tape
formulation (brand / model) you may want to use
- IC logic "touch-control" tape transport with motor driven 'cam control
mechanism' (allows you to switch between 'Fast Wind' or 'Play' modes
without pressing 'Stop' w/ no fear of 'spilling / dumping tape')
- Dolby-B & dbx noise reduction built-in for recording and
playback
- dbx 'Disc' decoder. Allows you to get "dbx"
benefits from encoded LP's (I've had this on my personal deck for almost
4 decades!)
- Parametric EQ that can be utilized to imprint EQ characteristics to
tape. Handy if you wish to play tapes on another system that needs
certain frequencies accentuated or attenuated.
- TapeType / EQ selector for Normal, CrO2 & Metal tape
- Variable Output level control
- Fluorescent display / VU signal level Indicators
- Separate Record Level
controls
- Record Mute function
- Front mounted Stereo Headphone jack
- Digital Fluorescent Tape Counter
counts in 'Real Time'
- Selectable 'Memory' points
-
Dual 1/4" microphone inputs
- 8-pin port for optional TEAC RC-102 'wired' remote control
(not available from us)
TEAC V-2RX Specifications:
Track format: 4
track / 2 channel
Heads: Super-hard Permalloy, Three Heads;
Erase, Record and separate Play (most decks are "2-head" and use a
combined Play / Record head. Separate Record and Play heads allow for
nearly instant monitoring of recording by listening to the actual signal
just recorded on the tape, not just the 'source signal' coming into the
deck. Great for making level, EQ and Fine Bias adjustments. Also allows
our tech to really 'dial in' a deck from a performance standpoint).
Motors: 2. 1 for capstan drive and one for reel drive. Both are
DC
Freq Response w/ Dolby OFF: w/ Metal; 20-20,000 Hz +/- 3dB
w/ Chrome / CrO2; 20-19,000 Hz +/- 3dB @
w/ 'Normal'; 20-18,000 Hz +/- 3dB
Wow & Flutter (WRMS): 0.06% WRMS
S/N ratio w/ CrO2 / Metal tape:
>92db w/ dbx
>65dB w/ Dolby B
>60dB w/ Dolby Off
Bias Frequency:
100kHz
Fast Wind time (C-60): 90 sec.
Again, we have completely refurbished and thoroughly tested this deck.
From a 'feature' standpoint, IT'S LOADED!!!
Cosmetically, it's in fabulous condition with, other
than some very light scratches on the rear part of the top cover /
bonnet, there's really nothing to mention.
Great deck for just about any system. Also great for transferring your
tape collection to CD, Hard-drive or MP3. Includes an 'e-copy / pdf
download' of the TEAC V-2RX owners manual.
Measures 17.3" wide x 10.7" deep x 4.25" tall and weighs a
heavy ~16 lbs
unpacked.
Comes with
our 90 day limited warranty.
RESTORED / REFURBISHED / SERVICED TEAC V-2RX
Cond. 8.5++
SOLD 2/3/2022
SHIPPING TO DAVID IN TEXAS
(tape shown
in photos not included. We do ship our decks with a a 'pre-recorded'
tape for playback, made on this 'specific' deck, and a tape to 'practice
record' on.)
(Above text, in
it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
|

NEW LISTING
11/18/2021
(Click on above thumbnails to enlarge photos)
warranty
FULLY SERVICED
/ REFURBISHED / RESTORED
W/ WARRANTY
NAKAMICHI CASSETTE DECK
NAKAMICHI CR-3A
STEREO CASSETTE TAPE DECK
3-HEAD
DOUBLE CAPSTAN
With DOLBY B & C NR
#...2270
Circa 1988-90
SOLD 12/29/2021
SHIPPING TO LEE IN NEW YORK
ü
Our technician has completely and EXTENSIVELY gone through and
'Certified' this unit which involves complete removal and partial
disassembly of the tape drive / transport,
cleaning inside and out, DISASSEMBLING, cleaning and re-lubricating all
internal mechanisms and the balance of efforts listed below.

ü
Heads inspected
for excessive wear (obviously we do this 'early on' as 'excessive' wear
will usually negate any further restoration work).
ü
Removed
both 'capstan / flywheel' assembly,
solvent cleaned all pulley and bearing surfaces, then re-lubed where
necessary during re-assembly

ü
Main drive /
capstan belt replaced for trouble-free service.
ü
'Gear driven' hubs, so
fewer
reel tires for trouble-free service.

ü
Motor removed, disassembled and serviced (removed
armature, cleaned commutator gaps and cleaned and inspected brushes.
Cleaned and lubed bushings and armature shafts).

ü
Rubber pinch
rollers have been
reconditioned w/ Re-Nue
ü
Capstan
burnished
ü
New main drive belt installed for Capstan
flywheels as original had
perished (started with FRY 10.0, but decided that "42-1995 / 9.1 had
overall better performance)
ü
New counter belt installed
ü
Heads have
been cleaned and de-magnetized as well as the entire transport.
ü
Head
alignments and azimuth at both 1kHz and 10kHz adjusted for 'peak
performance' with O-Scope
ü
All 'user'
potentiometers / controls removed, then cleaned and tested for
noise-free function.
ü
All internal
pots, switches and controls cleaned and tested for noise-free function.
ü
Heads are in
great condition
ü
Internal playback levels adjusted for even playback w/ alignment tape,
Oscilloscope, and mVAC meter
ü
Playback
meters adjusted for 'playback' zero'd with factory test tone tape.
ü
Internal
Record amplifier channels adjusted for 'even output'
ü
Pinch roller
and heads all in GREAT condition!!!
ü
Speed
adjusted to 100% accuracy with TEAC 257H calibration
tape, with 1kHz factory calibration tape (meaning 1kHz
calibration tape plays back at 1000Hz +/- 1 Hz)
ü
FF, REW, &
Play transport functions all test perfectly and controls tested for
'positive / accurate' responsive.
ü
Eject door
operates smoothly.
ü
Digital Tape Counter
ü
'Memory Stop
/ Zero Return' and 'Auto Repeat' function
ü
Dolby B & C
circuits / function tested
ü
Cosmetics are
decently clean, with typical, minor wear and one small 'ding' to a rear
corner of the face bezel (see above photos)
ü
Floor noise measured at -60dBm
Following service / fine tuning;
ü Recording
tests performed with Maxell
High-Bias UDXL-II (Gold / Black) Tapes.
Here’s the results;
Maxell UDXL-II: 1KhZ
with No NR @ 0dB; L= -4dB & R= -4dB R with
virtually no
artifacts
Maxell UDXL-II: 1KhZ
w/Dolby B NR @ 0dB; L= -5dB & R= -5dB R with
virtually no
artifacts
Maxell UDXL-II: WN
with No NR @ -10dB; = -15dB L & R
Recorded program from "ddd" source @ 0dB sounds great
as well coming in around -4dB w/o NR on Type II. It's nice recording on a deck that's 'dialed in'
properly)
Total technician time to restore
14+
HOURS!
____________________________
NAKAMICHI is known for 'Cassette Decks', but they were expensive when
new, so we don't see a lot floating around on the secondary market, so
when we do, it's always a treat. Here's a NAK CR-3A, "3-Head" deck 'made
for recording'! And following all of the above listed service work, it's
READY TO GO!
Nakamichi CR-3A Features:
-
3-Heads for better
record capability
- Dual Capstan 'Closed Loop' transport
- 'Pressure Pad Lifter' (Most Nakamichi tape decks 'lift' the tape away
from the 'pressure pad' that's 'built-in' to cassette tape shells, so
that the deck can 'manage' the entire tape path.
- IC
Logic, 'Silent Mechanism' Tape Transport controls
- 2 Motor Transport
- Dolby B & C Noise Reduction
- Tape type selector for Normal / Chrome & Metal tapes
- Fine Bias Tuning (really becomes useful coupled with the "3-head"
design for 'fine tuning' recordings around different tape types)
- 2-Position Tape Equalization to optimize playback of different tape
types
- Auto-Slack mechanism (takes up slack in tape upon closing the cassette
well door)
- 'One Touch' Rec/Pause
- Record Mute
- Built-in MPX filter for killing the 19kHz pilot tone in FM
transmissions
- Variable Output Level control (one of the most important features on a
deck in our opinion)
- Dual, LED level meters
- Memory tied to the counter
- Front-mounted 1/4" stereo headphone jack
- Timer option for Play or Record start
- System' remote port for tying in with other, compatible Nakamichi
components
Nakamichi CR-3A Specifications:
Track format: 4 track / 2 channel
Heads: 3x
Motors: 2, DC Servo Capstan Motor, Flat Torque DC Reel Motor
Freq Response; 20-20,000Hz +/- 3db w/ All Tape types @ -20dB
Wow & Flutter (WRMS): 0.035% wtd
Tape Speed: 1-7/8 ips +/- 0.5%
Harmonic Distortion / THD: <0.9% @ 1kHz & 0dB (High Bias Tapes)
Bias Frequency: 105kHz
Erasure: >60dB below saturation level @ 100Hz / +10dB
Separation: >37dB @ 1kHz, 0dB
Line Input 'Nominal': 50mV & <30K Ohms
Line Output 'Nominal': 500mV & 2.2K Ohms (w/ output pot maxed)
S/N ratio w/ CrO2 tape: >72db @ 400Hz, w/ Dolby C engaged (and High
Bias Tapes)
>66db w/ Dolby B engaged (and High Bias Tapes)
Headphones Output: 5mW @ 8 Ohms
Fast Wind Time: ~80 Seconds for C-60 tape
Again, as
mentioned above, our tech has gone through it completely cleaning all
parts, controls and tape mechanism. We also checked, cleaned,
reconditioned and / or replaced rubber components. We completely
de-magnetized the heads and transport. Capstan motor speed adjusted to
exact spec! Tape speed re-adjusted to 100% accuracy, ie; 1 kHz =
1 kHz! And with it's service work completed the deck records incredibly
well and plays back utilizing Maxell UDXL-II
tapes at a respectable
-4- -5dB down. The
looks and sounds great! Only issue worth
mentioning is that the 'supply' reel is missing it's small, black e-clip
cover so you see the silver e-clip if you're looking close enough.
Great for transferring your tape collection to CD, Hard-drive or
MP3. Plays and Records extremely well. Very clean deck and usable deck!
Includes a pdf / e-copy download of the Nakamichi CR-3A owners / users /
instruction manual. Measures 17" w X 10.5" d X 4" h and unpacked weight
is 13lbs. Comes with our 90 day limited warranty.
Nakamichi CR-3A
Cond. 8.5+
SOLD 12/29/2021
SHIPPING TO LEE IN NEW YORK
(tape shown in
photos not included. We do ship our decks with a a 'pre-recorded' tape
for playback, made on this 'specific' deck, and a tape to 'practice
record' on.)
(Above text, in
it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
- Archived
|

NEW LISTING
12/15/2020
(Click on above thumbnails to enlarge photos)
warranty
VINTAGE, FULLY SERVICED
/ REFURBISHED / RESTORED
VINTAGE
AKAI AUTO-REVERSE
CASSETTE TAPE DECK
AKAI GXC-730D
With 'AUTO-REVERSE' AND DOLBY NR
and REAL "VU" METERS
#...0321
Circa early 1976-79
"WORLD AC POWER"
™
Made in Japan
SOLD 2/25/2021
SHIPPING TO IAN IN OHIO
ü
Our technician has completely and EXTENSIVELY gone through and
'Certified' this unit which involves complete disassembly of
the transport (not an easy task on this table), cleaning inside
and out, COMPLETELY DISASSEMBLING, cleaning and re-lubricating
all internal mechanisms and the balance of efforts listed below.
ü
Heads
inspected for excessive wear (obviously we do this 'early on' as
'excessive' wear will usually negate any further restoration
work, although as these are 'GX' heads, it would
be pretty hard to put much 'wear' on them). These have virtually NO visible wear to them.
ü
Internal DC power supply tested
ü
Capstan motor disassembled, cleaned and
re-lubed.

ü
Both Flywheel 'belt surfaces' solvent cleaned

ü
Bronze
Flywheel bushings solvent cleaned
ü
Both
Flywheel thrust pads cleaned
ü
Capstan burnished
ü
'Reel
drive' tires (7 IN ALL!!!) reconditioned for
trouble-free service.
(These are actually much more important to replace on this deck (and
most) than the belts. Without these, the deck won't fast wind very
well, and will likely 'eat tapes' as the 'take-up' reel won't turn
properly)
ü
New
internal Capstan Drive
belt (#FRM9.2) installed for trouble-free service.
(so this operation required extensive effort. The belts that
came in the so called "correct kit" currently available for the
Akai GXC-730D, proved to cause incorrect speed in two different
decks. We were then forced to find new belts that by 'trial and
error' allowed enough 'traction' and the most speed accuracy. In
fact, none of the belts in the 'official kit' that is currently
available for an Akai GXC-730D allowed the deck to operate at
anything resembling correct speed when tested on a frequency
counter with factory test tapes!)
ü
New
'Counter' belt (#.041) installed
as well as 'spindle' belt #029.
ü
'Non-locking' 'Pause' control disassembled, cleaned and re-lubed
ü
Rubber pinch rollers have been reconditioned
ü
Tape well door 'eject' springs re-worked / repaired
ü
Heads have been cleaned and de-magnetized as well as the entire
transport.
ü
Head alignments and azimuth checked and adjusted as necessary
for 'peak performance' with O-Scope
ü
All internal pots, switches and controls cleaned and tested for
noise-free function.
ü
Both d'arsonoval
VU meters
'static adjusted', tested and working fine.
ü
Both
VU meter illumination
lamps replaced.
ü
Both hub spindles in perfect alignment.
ü
FF, REW, & Play transport functions all test perfectly and
controls tested for 'positive / accurate' responsive.
ü
Heads in great shape as well, with many years of performance
left in them and head alignment / azimuth has been checked for
peak performance.
ü
Replaced 'Erase Head', reed switch with OEM
from another of the same model (very difficult to deduce and
locate as source of issue with deck 'not erasing' correctly)

ü
Playback meters zero adjusted
'electronically' with factory test tone tape.
ü
Tape Counter Function tested
ü
Plays perfectly and records well with 1kHz,
recorded 0dB playing back @ L=-2dB & R=-3.5dB (between
TDK and Maxell tapes). With DDD CD we
experienced ~ -5 to -6dB, but great, overall sonics! (we
really put them through the paces, testing both with well mixed,
recently recorded CD material and CD recorded / factory test
tones looking for correct head Azimuth and speed accuracy).
ü
Pinch roller and heads all in GREAT condition!!!
ü
Floor noise tested to -60dBm with empty shell
tape
ü
Speed tested to 98% accuracy with 1kHz factory test tape
(meaning 1kHz calibration tape plays back at
980Hz +/- 1Hz)
Only issue still remaining is that "Rewind"
is noisy on some tapes as it nears completion.
ü
Deck has had just over 18.5 hours of
restoration work done.
Face is made of beautiful brushed aluminum, and overall the deck
is in NEW cosmetic condition. Following the extensive
restoration, we did 'test recordings' of a 'ddd' CD on 6 tapes;
Sony Normal Bias, Fuji Normal Bias, TDK Normal Bias, Maxell
Normal Bias, TDK 'SA' High Bias, and Maxell 'XL-II' High Bias.
We found that for Normal and High Bias, of those tapes tested,
both the "Maxells" performed VERY well on this particular deck.
Total technician time to restore
~18.5 HOURS!
____________________________
Handsomely designed, and classic looking Akai
GXC-730D, Auto-Reverse cassette tape deck.
Features Piano-Key
transport, Auto-Reverse,
& Dolby B. Great deck for most systems
and uses. One of the 'Biggest' cassette decks ever made.
AKAI GCX-730D
Features include:
- 3-Mode Auto-Reverse ('Manual' reverse as
well of course)
- Huge drive Motor
- Classic 'Piano Key' transport w/ Solenoid
assist results in 'Soft Touch operation
- Dolby noise reduction built-in for recording and playback
- Akai's A.D.R. (automatic distortion
reduction) changes the recording equalizer characteristics
according to the signal level of a certain frequency band to
achieve low distortion over an extended frequency range.
- Auto-Limiter (if selected) to limit 'over /
peaks' on 'high energy' recordings. Great when recording in
'Live' situations.
- Tape Type selector for Normal, Fe-CO2, &
CrO2 tape
- Dual, Large "VU" signal level meters
-
"Peak" LED level indicator that kicks in at
+7dB
- Manual Record Level with independent L&R control
- Variable Output Level control (one of the most important features on a
deck in our opinion.
Allows you to
match volume level of other sources, allows adjustment for
'best' pre-amp input to avoid distortion, allows you to change
the volume of the deck if you have it located remotely from the
pre-amp / receiver as I do, and many other applications)
- Dual front mounted 1/4" mic input jacks
- Front mounted Stereo Headphone jack
- Analog Tape Counter w/ "Memory Stop" -True "WORLD AC POWER"™ allows unit to be operated on 50 or 60 Hz AC and
will select voltages from 110v, 120v, 220v and 240 volts AC input.
AKAI GCX-730D
Specifications:
Track format: 4
track / 2 channel
Heads: One
"GX" recording / playback head and two Erase heads. 4
track / 2 channel
Motors: HUGE
AC, High Torque, 4-Pole Hysteresis /
AC synchronous
Freq Response: w/ FeCr tape;
35-17,000 Hz +/- 3dB @
-20dB
w/
CrO2 tape; 35-16,000 Hz +/- 3dB @
-20dB
w/ Normal / LN tape;
35-14,000 Hz +/- 3dB @
-20dB
Wow & Flutter (WRMS) - 0.080% WRMS
S/N ratio: >50dB
@ +3 on VU meter w/ LN tape. Dolby B NR
adds ~10dB above 5kHz
Harmonic Distortion: <1.5% @ 0dB
w/ "LN" tape
Bias Frequency:
100kHz
Erase Ratio:
>70dB
Fast Wind time: <70sec*
on C-60 Tapes (again, does have the above
mentioned 'slowing' characteristic near the 'end' of FF
operation)
There's just something about the feel of 'original piano key'
tape transports. This one especially has a
great "feel" to it. Like you're engaging some 'huge' mechanism
internally. The 'Auto-Reverse' is very 'precise' in it's motion.
Again, we have completely refurbished and thoroughly tested this
deck, with multiple recording tests (as stated previously).
Cosmetically, it's in essentially NEW condition! Also great for transferring
your tape collection to CD, Hard-drive or MP3. Includes original
box and packing. Comes with an 'e-copy' / pdf
download of the Akai GXC-730D owners manual
and color brochure.
Measures 17.3" wide x 11.9" deep x 6.9" tall and weighs
26.5 lbs
unpacked. Comes with our 90 day limited warranty.
AKAI GCX-730D
Cond. 9.5
SOLD 2/25/2021
SHIPPING TO IAN IN OHIO
(tape shown in photos not included. We do ship our decks with a
'pre-recorded' tape for playback, made on this 'specific' deck,
and a tape to 'practice record' on.)
(Above text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|

NEW LISTING
12/15/2020
(Click
on above thumbnails to enlarge photos)
warranty
VINTAGE,
FULLY SERVICED
/ REFURBISHED / RESTORED
TEAC CASSETTE TAPE DECK
HUGE TEAC CX-650R AUTO-REVERSE W/ 'BI-DIRECTIONAL RECORDING' #...6614 With DOLBY NR MADE IN JAPAN! Circa 1980-82
SOLD 1/10/2021 SHIPPING TO JEFF IN CALIFORNIA
ü
Our technician has completely and EXTENSIVELY gone through and 'Certified' this
unit which involves complete removal and disassembly of the entire transport
(not an easy task on this deck), cleaning inside and out, DISASSEMBLING,
cleaning and re-lubricating all internal mechanisms and the balance of efforts
listed below.

ü
Heads inspected for excessive wear (obviously we do this
'early on' as 'excessive' wear will usually negate any further
restoration work).
ü
Head rotating gear inspected with a jewelers loop prior to starting any
restoration work, and found to be 'hairline' crack free.

ü
Capstan
motor spindle bushing re-lubed
ü
Capstan
burnished
ü
Internal
23VDC power supply tested to 23.2Volts
ü
2X NEW, 'reel drive' tires installed for trouble-free service.
(These are
actually much more important to replace on this deck (and most) than the belts.
Without these, the deck won't fast wind very well, and will likely 'eat tapes'
as the 'take-up' reel won't turn properly)
ü
All new
internal Drive and Counter belts installed for trouble-free service.
ü
Rubber
pinch rollers have been reconditioned
ü
Both
Flywheel 'belt surfaces' solvent cleaned
ü
Bronze
Flywheel bushings solvent cleaned
ü
Both
Flywheel thrust pads cleaned
ü
Entire
flywheel assemblies re-lubed upon re-assembly

ü
Head 'Reverse' mechanism disassembled,
cleaned of 'stiff / old' lube that was impeding movement, re-lubed and re-assembled.
ü
Heads have
been cleaned and de-magnetized as well as the entire transport.
ü
Head
alignments and azimuth at both 1kHz and 10kHz adjusted for BOTH
directions for 'peak performance' with O-Scope
ü
All
internal pots, switches and controls cleaned and tested for noise-free function.

ü
Both
spindles in perfect alignment.
ü
FF, REW, &
Play transport functions all test perfectly and controls tested for 'positive /
accurate' responsive.
ü
'Silicone
Damped' Eject door operates smoothly.
ü
Tape
Counter Function tested
ü
Dolby NR
circuits / function tested
ü
'Memory /
Zero Return' function tested
ü
Heads are
in great condition
ü
Internal playback levels adjusted for even playback w/ alignment tape,
Oscilloscope, and mVAC meter
ü
Head alignment and azimuth at 125Hz, 1kHz and 10kHz adjusted for
BOTH directions for 'peak performance' with O-Scope and w/ STL
and TEAC MTT-257H calibration / alignment tapes. Both channels
now even output for PLAYBACK..
ü
Both Internal playback amplifier channels adjusted with Volt
meter, O-Scope and w/ STL and TEAC MTT-257H calibration /
alignment tapes. Both channels now even output
for PLAYBACK..
ü
Meters adjusted to even zero with symmetric input with Volt
meter, O-Scope and w/ STL and TEAC MTT-257H calibration /
alignment tapes. Both channels now even output
for PLAYBACK.
ü
Internal
Record amplifier channels adjusted for 'even output'
ü
Pinch
roller and heads all in GREAT condition!!!
ü
Overall
floor noise measured at >-60dB.
ü
Speed adjusted internally to 100% accuracy BOTH directions, with 1kHz
factory calibration tape and frequency counter (meaning 1kHz calibration tape
plays back at 1000Hz +/- 1Hz)
ü
Cosmetically, with the exception of a couple of very minor
'corners dings', the deck and the 'wood grain wrapped' case / cabinet looks NEAR
NEW!
ü
Plays
great and after adjustment, records well w/ following results; With
white Noise recorded at
-5dB w/o Dolby engaged; -1dB on Maxell UDXL-II / High Bias tapes
With white Noise recorded at
-10dB w/o Dolby
engaged; 0dB
on Maxell UDXL-II / High Bias tapes
With
1kHz recorded at 0dB w/o Dolby engaged;
0dB on Maxell UR
(normal bias) tapes
With 10kHz
recorded at 0dB w/o Dolby engaged;
-6dB on Maxell UDXL-II / High Bias tapes
With 'ddd'
CD recorded at 0dB with Dolby engaged;
-3.5dB
on Maxell UDXL-II / High Bias tapes
Bottom line is this deck sounds amazing for playback or recording (always make
sure you're playing back 'good quality' tape recordings)
Total technician time to restore
10.5+ HOURS!
____________________________
The
Teac CX-650R, Auto-Reverse with 'Bi-Directional Recording', Stereo Cassette Tape
Deck. Great deck for doing your tape transfers if your tapes were recorded with
no NR or with "Dolby B" or for making some awesome 'new' recordings or 'mix
tapes' (hey, it's 'the thing' again). This deck is a pleasure to use, and has a
great 'feel' due to it's size and transport function.
As far as cosmetics, it's BEAUTIFUL. Was taken very good care of before it came
to us, and is even more astounding now. The deck and the wood grain case could
convince you that time had rolled back almost 40 years, and you were seeing it
at the original store's retail display.
Teac CX-650R Features include: - Heavy duty transport featuring 'oversized' capstan motor, and VERY large,
'asymmetrical' flywheels - Triple-Mode Auto-Reverse, with 'Bi-Directional' Recording (not just 'A' side
recording!) - "Soft touch-control" tape transport - Selector for Normal (EX / I), CrO2 (SX / II) & Metal (ZX / IV) Tape Type - 3-Position Selector for Tape Equalization for Normal (EX / I), CrO2 (SX / II)
& Metal (ZX / IV) Tape Type on playback - Dual Analog VU Level Meters - Analog counter - Built-in MPX filter for killing the 19kHz pilot tone in FM transmissions - Variable Output Level control (one of the most important features on a deck in
our opinion) - Dolby B NR - Record Muting - 'Auto-Space' records a 4-second space prior to 'stop' when engaged. - Real 'Potentiometer' Record level controls that are 'gear coupled' (meaning
when you turn one, the other one responds as well. They can be turned
independently for 'fine adjustment' as they're 'clutch coupled' as well) - Memory Stop / Repeat for counter - Dual, Front mounted, 1/4", Microphone Jacks - Front mounted, 1/4", Stereo Headphone jack - Timer Play / Record function. - Multi-pin port on rear panel for optional wired remote, TEAC RC-100 (remote
not included)
Teac CX-650R
Specifications:
Track format: 4 track / 2 channel Motors: 2x 1x DC Coreless 'Reel', & 1x FG Servo Controlled DC 'Capstan' Freq Response;
30-18,000Hz +/- 3db w/ Metal Tape @ -20dB 30-18,000Hz +/- 3db w/ CrO2 Tape @ -20dB 30-15,000Hz +/- 3db w/ 'Normal' Tape @ -20dB Wow & Flutter (WRMS): 0.06% wtd
Tape Speed: 1-7/8 ips Harmonic Distortion / THD: <3.0% @ 1kHz & 0dB (High Bias Tapes) S/N ratio w/ CrO2 tape:
>56db w/ Dolby dis-engaged (and Normal Bias Tapes) >66db w/ Dolby-B engaged (over 10kHz and High Bias Tapes)
Line Input 'Nominal': 60mV @ 50K Ohms Line Output 'Nominal':
300mV for a load impedance of 50k Ohms Headphones Output:
1.0mW @ 8 Ohms Fast Wind Time: ~80 Seconds for C-60 tape
Again, we have completely cleaned, refurbished / serviced and
thoroughly
tested this Teac CX-650R cassette tape deck. Great for transferring your no NR or Dolby B NR encoded tape collection to CD,
Hard-drive or MP3 especially with the 'Tape EQ' selector for 'fine tuning' older
tapes. Built very well!
Looks near new, works great and sounds fabulous. Due to it's size,
overall feel, the 'input controls' and the 'transport control' this deck really
is a blast to use. Comes with an 'e-copy / pdf download' of the TEAC CX-650R
cassette tape deck owners / users / instruction manual. Measures 18.5" wide x
13.5" deep x 7" tall and weighs a VERY HEAVY 26 lbs
unpacked. Just in case you 'too casually' read past that last little bit,
IT'S A TWENTY-SIX POUND CASSETTE DECK! Includes our standard 90 day limited warranty. TEAC CX-650R Cond. 8.5++++
SOLD 1/10/2021 SHIPPING TO JEFF IN CALIFORNIA
(tape shown in photos not included. We do ship our decks with a a
'pre-recorded' tape for playback, made on this 'specific' deck, and a tape to
'practice record' on.)
(Above text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|

NEW LISTING
12/20/2020
(Click on above thumbnails to enlarge photos)
warranty
FULLY SERVICED
/
REFURBISHED
PRE-OWNED /
PIONEER MULTI-PLAY CASSETTE TAPE DECK
PIONEER CT-M6R
DOES HAVE A FEW 'BATTLE SCARS', BUT MAKES UP
FOR THAT IN PERFORMANCE!
MULTI-PLAY, 6 TAPE CHANGER!
HX PRO deck with DOLBY B & C
"QUICK" AUTO-REVERSE
"RELAY" PLAY / RECORD (means will continuously record thru
BOTH sides of ALL 6 tapes!!!)
#...2441
Circa 1990-1991
MIJ
SOLD 1/29/2021
SHIPPING TO SCOTT IN CALIFORNIA
ü
Our technician has completely and EXTENSIVELY gone through and
'Certified' this unit cleaning inside and out,
tape transport mechanism removed, cleaning and re-lubricating internal mechanisms
and the balance of efforts listed below. (this was already a
VERY CLEAN & LIKE NEW deck inside before we started our service
work)
ü
AC voltage set for 'North American' use, and Internal DC power
supply tested to correct Voltages before any work commenced
ü
Heads inspected for excessive wear (obviously we do this 'early
on' as 'excessive' wear will usually negate any further
restoration work).
ü
Head rotating gears on both wells inspected with a jewelers loop
prior to starting any restoration work, and found to be
'hairline' crack free.
ü
Main Drive and Counter belts inspected
and are in 'like new' cond.
ü
Rubber pinch rollers have been reconditioned
ü
One VERY important note about this
deck. The spindles are 'gear driven' which means that it should
WAY OUTLAST most other decks that utilize standard, rubber
'idler tires' for reel activation
(everyone thinks that 'belts' are all you need to replace to
make a cassette deck work. While belts are important, it's
almost always the 'idler tire' that is the "Achilles
Heel" of cassette decks and causes the VAST majority of
cassette deck problems).
ü
Both spindles in perfect alignment.
ü
Heads have been cleaned and de-magnetized as well as the entire
transport.
ü
Head alignment and azimuth at 125Hz, 1kHz and 10kHz adjusted for
BOTH directions on both decks for 'peak performance' with
O-Scope and w/ STL and TEAC MTT-257H calibration / alignment
tapes. Both channels now even output.
ü
All internal pots, switches and controls cleaned and tested for
noise-free function.
ü
Front panel removed and disassembled to allow cleaning of the
Record and Balance potentiometers.
ü
All LED's and fluorescent displays functioning well, with low
current draw
ü
FF, REW, & Play transport functions all test perfectly and
controls tested for 'positive / accurate' responsive.
ü
'Mechanized' Eject door operates smoothly.
ü
Tape Counter Function tested
ü
Dolby NR circuits / function tested
ü
'Memory / Zero Return' function tested
ü
Meters adjusted to even zero with symmetric with Volt meter,
O-Scope and w/ STL and TEAC MTT-257H calibration / alignment
tapes. Both channels now even output.
ü
Both Internal playback amplifier channels adjusted with Volt
meter, O-Scope and w/ STL and TEAC MTT-257H calibration /
alignment tapes. Both channels now even output.
ü
Meters adjusted to even zero with symmetric input with Volt
meter, O-Scope and w/ STL and TEAC MTT-257H calibration /
alignment tapes. Both channels now even output.
ü
Both Internal Record amplifier channels adjusted with Volt
meter, O-Scope and w/ STL and TEAC MTT-257H calibration /
alignment tapes. Both channels now even output.
ü
Pinch roller and heads all in GREAT condition!!!
ü
Overall floor noise measured at >-60dB.
ü
Speed adjusted internally to 100% accuracy BOTH directions, with
1kHz factory calibration tape and frequency counter (meaning
1kHz calibration tape plays back at 1000Hz +/- 1Hz)
ü
Plays great and after full service and adjustment, records
AMAZINGLY well w/ following results;
1kHz recorded @ 0dB with Dolby C engaged on Maxell XL-II (High
bias) tapes plays back @ -2 dB L&R.
Full Bandwidth 'White Noise' recorded @ 0dB
w/o NR engaged
on Maxell XL-II (High bias) tapes plays back @
-3dB L&R
Full Bandwidth 'White Noise' recorded @ 0dB with Dolby C engaged
on Maxell XL-II (High bias) tapes plays back @ 0dB L&R,
which equals ZERO dB loss!!
"Real World" test, 'DDD' CD recorded at
0dB +/- 3dB with Dolby C engaged,
on Maxell UDXL-II / High Bias tapes sounds
great
Bottom line is this deck sounds amazing for playback or
recording (always make sure you're playing back 'good quality'
tape recordings)
ü
Again, Cosmetically, the deck
has a few 'battle scars' and isn't going to win any 'beauty
contests', but makes up for it in performance.
Total technician time to restore 4+ HOURS!
____________________________
This Pioneer CT-M6R is a well built and designed deck and is a
BLAST TO USE! (I personally used it extensively following it's
refurb / service). It's super quality in design and build, and
it's loaded. It's a 'Double Auto-Reverse', with 'Bi-Directional'
Recording, AND it's a 6 tape changer that can record up to 9
HOURS CONTINUOUSLY!
This is an incredible deck for performance and IT'S LOADED! It
would be at home in any audio system.
Pioneer CT-M6R Features include:
- HX-PRO (Extended Head-Room Recording) (One
of the BEST features of 'modern / recent' cassette decks)
- 6 Cassette Tape Changer
- Dolby B & C Noise Reduction built-in
- Relay Recording. This means that you can record all 6 tapes on
both sides for 9 hours of continuous recording time w' standard
90 minute tapes
- IC Logic "touch-control" tape transport on both decks
- Super-quality tape heads- "MS" Music Search" cuing
- OTR (One Touch Recording and Pause)
- Auto-Selector for Normal, CrO2 & Metal Tape Type
- Full fluorescent readout screen
- Dual fluorescent signal level meters
- Multi-Mode, Digital tape counter for either tape well. Gives
"Standard" count or "Real Time" and Time Remaining
- "All Rewind" (this ends up being a VERY handy feature. If you
have a bunch of tapes that were stopped in random spots, just
put them all in, and press "All Rewind". It will automatically
go thru each and re-wind either Side A or B, depending on how
you load the tapes)
- Record Level control
- Record Mute function
- Timer Play / Record / Off selector
- 1/4" Stereo Headphone jack
- Wireless Remote Control (INCLUDED)
- "CD Synchro" for other Pioneer compatible gear
- AND LIKELY MORE THAT WE DIDN'T LIST
Pioneer CT-M6R Specs:
Track format: 4
track / 2 channel
Heads:
Super-Hard, Permalloy for Recording and Playback head.
Ferrite for Erase head
Motors:
4 total. "DC Servo" motor for capstan and standard DC motors for
Reels, Loading, and well door.
Wow & Flutter (WRMS):
0.055%
Freq Response:
(-20dB) - 20-19,000 Hz, Metal Tape
- 20-18,000 Hz, Chrome Tape
- 20-17,000 Hz, Norm tape
S/N ratio: >58dB NR Off, @ 3% THD
NR reduction:
Dolby B = >10dB@ 5kHz
Dolby C = >19dB@ 5kHz
THD:
1.0% @ 0dB
Line in:
63mV, 50k Ohms
Line Out:
0.316 V @ 5.8KOhms
This Pioneer CT-M6R is an incredible deck and a rare one too.
Only the forth cassette changer we've had since I sold an Aiwa
changer when new around 1984. You would likely be the only 'kid
on the block' with one of these.
Also great for transferring your tape collection to CD,
Hard-drive or MP3. As it can do up to 9 hours of continuous
recording, think of the possibilities. Built very well! Looks
like new and sounds great. Deck includes a copy of original
owners manual. Measures 16.5" wide x 14.5" deep x 5.5" tall and
weighs 19 lbs unpacked. Comes with our 90 day limited warranty.
Cond. 8
PIONEER CT-M6R
SOLD 1/29/2021
SHIPPING TO SCOTT IN CALIFORNIA
W/ original Wireless Remote Control
(tape shown in photos not included. We do ship our decks with a a
'pre-recorded' tape for playback, made on this 'specific' deck,
and a tape to 'practice record' on.)
(Above text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|

NEW LISTING 2/22/2020
(Click on above thumbnails to enlarge
photos)
warranty
VINTAGE AND
FULLY SERVICED
W/ WARRANTY LUXMAN CASSETTE TAPE DECK LUXMAN KX-106 WITH
HX-PRO, DOLBY B,
C &
*dbx
with IC LOGIC TRANSPORT & AUTO-REVERSE & 'FINE BIAS' ADJUSTMENT
GEAR DRIVEN SPINDLES - NO IDLER TIRES!!! #...747A Circa early 1986-88 Made in Japan
SOLD 4/22/20 SHIPPING TO SHADRACH IN CANADA
ü
Our technician has completely and EXTENSIVELY gone through and
'Certified' this unit which involves total disassembly of
the transport, cleaning inside and out, COMPLETELY
DISASSEMBLING, cleaning and re-lubricating all internal
mechanisms and the balance of efforts listed below.
ü
Heads inspected for excessive wear (obviously we do this 'early
on' as 'excessive' wear will usually negate any further
restoration work).
ü
Spindles are GEAR DRIVEN which means NO idler tires / wheels to
glaze over, crack and mis-behave with none of the typically
associated ills.
ü
Counter belt
- NO counter
belt. It's GEAR DRIVEN!!!
ü
Main Capstan / Flywheel belt reconditioned.
ü
Rubber pinch roller mechanism bushings & axles cleaned of old
lube, reconditioned and re-lubed.
ü
Capstans cleaned /
burnished
ü
All internal pots, switches and controls cleaned and tested for
noise-free function.
ü
All Fluorescent displays and LED's working fine.
ü
Both hub spindles in perfect alignment and
end locks intact and staying put.
ü
FF, REW, & Play transport functions all test perfectly and
controls tested for 'positive / accurate' responsive.
ü
Heads in great shape as well, with many years of performance
left in them
ü
Heads have been cleaned and de-magnetized as well as the entire
transport.
ü
Head alignment and azimuth at 125Hz, 1kHz and 10kHz adjusted for
BOTH directions for 'peak performance' with O-Scope and w/ STL
and TEAC MTT-257H calibration / alignment tapes. Both channels
now even output.
ü
Both Internal playback amplifier channels adjusted with Volt
meter, O-Scope and w/ STL and TEAC MTT-257H calibration /
alignment tapes. Both channels now even output.
ü
Meters adjusted to even zero with symmetric input with Volt
meter, O-Scope and w/ STL and TEAC MTT-257H calibration /
alignment tapes. Both channels now even output.
ü
Both Internal Record amplifier channels adjusted with Volt
meter, O-Scope and sine-wave generators and
'pink / white noise sources'. Both channels now even
output.
ü
Pinch roller and heads all in GREAT condition!!!
ü
Speed adjusted to 100% accuracy BOTH
directions, with with TEAC MTT-257H 1kHz factory calibration tape (meaning
1kHz calibration tape plays back at 1000Hz +/- 1
Hz)
ü
Pinch roller re-surfaced, and in GREAT condition!!!
ü
Playback meters zero with factory test tone tape.
ü
Tape Counter and 'Memory' Function tested
ü
White Noise recorded @ 0dB w/ Dolby-C engaged = PB @ -2dB on
Maxell UDXL-II / High Bias tapes
ü
1kHz
Sine-wave recorded @ 0dB w/ Dolby-C engaged = PB @ -1.5dB
on Maxell UDXL-II / High Bias tapes
ü
'ddd' CD recorded recorded @ 0dB w/ Dolby-C engaged = PB @ ~ -1dB
on Maxell UDXL-II / High Bias tapes
ü
1kHz
Sine-wave recorded @ 0dB w/
*dbx
engaged = PB @ -1.5dB on Maxell UDXL-II
/ High Bias tapes.
ü
'ddd' CD recorded recorded @ +3dB w/
*dbx
engaged = PB @ ~ -6dB on Maxell UDXL-II
/ High Bias tapes So this is the one aspect of the deck that we were not able to
'practically' rectify. It's record and playback capability with
dbx NR engaged is about 9dB down. It probably needs it's 'dbx
chips' replaced, but beyond the scope of practicality for us and
this deck.
ü
Speed adjusted internally to 100% accuracy with 1kHz factory
test tape (meaning 1kHz calibration tape plays back at 1000Hz
+/- 1Hz) (utilized TEAC MTT-257H)
ü
Floor noise measured at -60dBm
Total technician time to restore
~5 HOURS! ____________________________ This is
one 'LOADED' cassette deck. The Luxman KX-106,
Auto-Reverse Stereo Cassette Tape Deck w/ Sendust heads,
IC logic, Fluorescent display, HX-Pro and Dolby B, C
&
*dbx
NR & MORE!
Luxman KX-106 Features include: - Super Hard, 'HEXALAM / Permalloy' PB
/ REC heads - HX PRO capable - Auto-Reverse - Adjustable
Fine Bias Control for
Recording - IC logic "touch-control" tape transport with motor driven 'cam
control mechanism' (allows you to switch between 'Fast Wind' or
'Play' modes without pressing 'Stop' w/ no fear of 'spilling /
dumping tape') - Dolby-B, C
&
*dbx (see notes above re; dbx)
noise reduction built-in for recording and playback -
Auto-Tape Bias Type / EQ selector
for Normal, CrO2 & Metal tape - LED
VU signal level Indicators - Manual Record Level with L&R balance control - Record 'Mute / Auto-Space' function - Front mounted Stereo Headphone jack - Digital
LED Tape Counter - Selectable 'Memory' point
- Music Search feature (looks for a blank
space between songs if sufficiently long) - Intro Scan - Blank Search - Blank Skip - Rear mounted, 8-pin port for optional Luxman 'wired' remote
control (not available from us)
Luxman KX-106 Specifications:
Track format: 4
track / 2 channel Heads: HEXALAM Play / Record
head & Double-Gap,
Ferrite Erase head Freq Response w/ Dolby OFF: w/ Metal; 20-18,000
Hz +/- 3dB w/ Chrome / CrO2; 30-16,000
Hz +/- 3dB @ w/ 'Normal'; 30-15,000
Hz +/- 3dB Wow & Flutter (WRMS): 0.09%
WRMS S/N ratio w/ CrO2 / Metal tape:
>90db w/
*dbx
>65db w/ Dolby C >59dB w/ Dolby B >54dB w/ Dolby Off
Stereo Separation:
>35dB Harmonic Distortion (THD): <3%
@ 0dB Line Input Sensitivity: 150mV
+/- 3dB Output Level / Impedance
for
'Normal' levels: 550mV
+/- 3dB & 47k Ohms
Headphone Output Level
/ Impedance for 'Normal'
levels: 65mV
+/- 3dB & 8 Ohms
Fast Wind time (C-60): 120
sec.
Again, we have completely refurbished and thoroughly tested this
deck. From a 'feature' standpoint, IT'S
LOADED!!! Again, though as mentioned earlier, it's "dbx" function is less
than typical. It is about 9dB down. It's still usable, but
you'll need to increase your volume substantially to play tapes
encoded with dbx. Cosmetically, it's in
fabulous
condition with really nothing to mention.
Great deck for just about any system. Also great for
transferring your tape collection to CD, Hard-drive or MP3.
Includes an 'e-copy / pdf download' of the
Luxman K-109 owners manual which is similar enough to be fairly
useful. Measures 17.3" wide x 12"
deep x 4.5" tall and weighs a
~12 lbs unpacked.
Comes with our 90 day limited warranty. RESTORED / REFURBISHED / SERVICED LUXMAN KX-106 Cond. 8.5
SOLD 4/22/20 SHIPPING TO SHADRACH IN CANADA
(tape shown in photos not included. We do ship our decks with a
a 'pre-recorded' tape for playback, made on this 'specific'
deck, and a tape to 'practice record' on.)
(Above text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
archived
|


NEW LISTING
12/15/2020
(Click on above thumbnails to enlarge photos)
warranty
VINTAGE,
FULLY SERVICED
/ REFURBISHED / RESTORED TASCAM
'PROFESSIONAL
SERIES' CASSETTE TAPE DECK
TASCAM 133 2-SPEED / 3-CHANNEL #...0097 With DOLBY NR MADE IN JAPAN! Circa 1986-93
SOLD 12/16/2020
SHIPPING TO MICHAEL IN
CALIFORNIA
ü
Our technician has completely and EXTENSIVELY gone through and
'Certified' this unit which involves complete removal and
disassembly of the entire transport, cleaning inside and out,
DISASSEMBLING, cleaning and re-lubricating all internal mechanisms
and the balance of efforts listed below.
ü
Heads
inspected for excessive wear (obviously we do this 'early on' as
'excessive' wear will usually negate any further restoration
work). These have virtually NO visible wear to them.
ü
Capstan motor spindle bushing re-lubed
ü
Capstan burnished
ü
Internal DC power supply tested
ü
'Reel
drive' tires reconditioned installed for
trouble-free service.
(These are actually much more important to replace on this deck (and
most) than the belts. Without these, the deck won't fast wind very
well, and will likely 'eat tapes' as the 'take-up' reel won't turn
properly)
ü
New
internal Drive (#42-340) and Counter
(#42-470) belts installed for trouble-free service.
ü
Rubber pinch rollers have been reconditioned
ü
Both
Flywheel 'belt surfaces' solvent cleaned
ü
Bronze
Flywheel bushings solvent cleaned
ü
Both
Flywheel thrust pads cleaned
ü
Both
Brake pads replaced
ü
Entire flywheel assemblies re-lubed upon re-assembly
ü
Heads
have been cleaned and de-magnetized as well as the entire transport.
ü
All
original illumination working well
ü
Head
alignments and azimuth at 125Hz, 1kHz and 10kHz adjusted for 'peak
performance' with O-Scope and original TEAC alignment tape
ü
All
internal pots, switches and controls cleaned and tested.
Performing well now, with a bit of residual noise on one of the
'output' pots (fortunately, once 'output' pots on tape decks are
'set', they're usually not moved).
ü
Both
spindles in perfect alignment.
ü
FF,
REW, & Play transport functions all test perfectly and controls
tested for 'positive / accurate' responsive.
ü
'Silicone
Damped' Eject door operates smoothly following
disassembly and re-lubing w/ silicone gel
(must 'hold' down "Eject" button on this
series until door releases)
ü
Tape
Counter Function tested
ü
Dolby
NR circuits / function tested
ü
'Memory / Zero Return' function tested
ü
Heads
are in great condition
ü
Internal playback levels adjusted for even playback w/ alignment
tape, Oscilloscope, and mVAC meter
ü
Playback meters adjusted for 'playback' zero'd with factory test
tone tape.
ü
Internal Record amplifier channels adjusted for 'even output'
ü
Pinch
roller and heads all in GREAT condition!!!
ü
Overall floor noise measured at >-60dB.
ü
Speed adjusted internally to 100% accuracy BOTH directions,
with 1kHz factory calibration tape and frequency counter (meaning
1kHz calibration tape plays back at 1000Hz +/- 1Hz)
ü
Plays
great and after adjustment, records AMAZINGLY well w/ following
results; With 1kHz recorded at 0dB
/ 1 7/8ips / w/o Dolby engaged; -1.25dB
on Maxell UDXL-II / High Bias tapes With DDD CD recorded at 0dB
/ 1 7/8ips / w & w/o Dolby engaged; -1
to -2 dB on Maxell UDXL-II / High Bias tapes
Bottom line is this deck sounds amazing for playback or recording
(always make sure you're playing back 'good quality' tape
recordings) Total technician time to restore
8+ HOURS!
(Tech note: This model deck is "VERY SERVICEABLE"
since it's in their 'Pro-Line'. (Only remaining issues would be that REW is a bit noisy when nearing
completion on most brands of tapes and Right output pot still a bit
noisy when manipulated) ____________________________
The
Tascam 133, Pro-Series, 2-SPEED, Stereo
Cassette Tape Deck. Great deck for a 'project recording studio' as a
'mastering deck' (utilizing the 'High Speed'). With an original MSRP of over $1500, this was one of Tascams most
expensive cassette decks ever. Of course also makes an
incredible 'home system' deck and of also a great deck for doing
your tape transfers if your tapes were recorded with no NR or with
"Dolby B". Think of making some awesome 'new' recordings or 'mix
tapes' (hey, it's 'the thing' again). This deck is a pleasure to
use, and has a great 'feel' due to it's size and transport function.
As this was made for 'video / radio' production
it limits frequency response to 15k (per FCC limits), but makes up
for it in robust build quality.
TASCAM 133 Features include:
- Two Speeds; 1 7/8 ips (normal) and 3.75 ips (HIGH Speed for best
recording quality)
-
Dolby B NR - Rear I/O RCA jacks for connecting external dbx (or other NR) unit - Heavy duty transport featuring 'oversized' capstan motor, and
large flywheel - "Soft touch / IC Logic
control" tape
transport - Triple Analog VU Level Meters -
Digital Tape counter - Variable Output Level control (one of the most important features on a
deck in our opinion.
Allows you to match
volume level of other sources, allows adjustment for 'best' pre-amp
input to avoid distortion, allows you to change the volume of the
deck if you have it located remotely from the pre-amp / receiver as
I do, and many other applications) - Real 'Potentiometer' Record level controls - Memory Stop / Repeat Play and for 'Rewind'
for counter - Dual, Front mounted, 1/4", Microphone Jacks - Front mounted, 1/4", Stereo Headphone jack w/
Level / volume control - Multi-pin port on rear panel for any optional dbx NR unit (not
included) - Multi-pin port on rear panel for optional wired remote, (Tascam
RC-133 remote not included)
TASCAM 133 Specifications:
Track format: 4
track / 3 channel Motors: 2x 1x DC 'Reel', & 1x FG Servo Controlled DC 'Capstan' Freq Response w/ Philips tape;
30Hz
to 15kHz +/- 3dB
@ 'High Speed' Wow & Flutter (WRMS):
as low as; 0.06%
@ 'High Speed' & 0.04% @ Normal Speed Tape Speeds: 1-7/8 ips & 3.75 ips
Harmonic Distortion / THD: <1.5% @
1kHz & 0dB (High Bias Tapes) Speed Accuracy: <+/-0.5%
deviation either speed Preset Bias frequency:
60kHz Erasure:
>65dB @
1kHz S/N ratio: >55db w/ Dolby dis-engaged (and High Bias Tapes @
either speed) Adjacent Track Crosstalk:
>45dB @
1kHz (one of the best we've seen)
Fast Wind time: <90sec
on C-60 Tapes) Again, we have completely cleaned, refurbished / serviced and
thoroughly tested this Tascam 133, 'PRO'
cassette tape deck. Makes fabulous recordings. Also great for transferring your no NR or
Dolby B NR encoded tape collection to CD, Hard-drive or MP3
especially with the 'Tape EQ' selector for 'fine tuning' older
tapes. Built very well! Due to it's size, overall feel, the 'input
controls' and the 'transport control' this deck really is a blast to
use. Would make a great '2-Track' deck to match
your Tascam 234 'Multi-Track' if you have one. Sorry, but we did not
get the rack ears so no covering over face plate ends on the sides.
Comes with an e-copy / pdf download of the Tascam 133 owners / user
/ instruction manual and the service manual if the purchaser
desires. Measures 19" wide x 13.5" deep x
5.75" tall and weighs a heavy 20 lbs unpacked. Includes our standard 90 day limited warranty.
TASCAM 133 Cond. 8.5
SOLD 12/16/2020
SHIPPING TO MICHAEL IN
CALIFORNIA
(tape
shown in photos not included. We do ship our decks with a a
'pre-recorded' tape for playback, made on this 'specific' deck, and
a tape to 'practice record' on.)
(Above text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|

NEW LISTING
2/26/2020
(Click
on above thumbnails to enlarge photos)
warranty
PRE-APPRECIATED
SERVICED & FULLY TESTED
JVC CASSETTE DECK
JVC TD-R431
AUTO-REVERSE
STEREO CASSETTE TAPE DECK
With DOLBY B & C
WITH HX PRO & FINE BIAS
Circa 1991
Made in Japan
SOLD 3/6/2020
SHIPPING TO NANCY IN VERMONT
ü
Our technician has adjusted, EXTENSIVELY
tested and 'Certified' this unit
ü
Heads
inspected for excessive wear (obviously we do this 'early on' as
'excessive' wear will usually negate any further restoration
work).
ü
GEAR DRIVE reel tables, so none of the typical
'cassette deck' worries about sluggish Fast Wind or Tape Eating
= trouble-free service.
ü
Rubber pinch roller has been reconditioned
ü
Capstans cleaned
ü
Heads
have been cleaned and de-magnetized as well as the entire transport.
ü
Head
alignments and azimuth at both 1kHz and 10kHz adjusted for BOTH
directions (averaged) for 'peak
performance' with O-Scope
ü
Heads
are in great condition
ü
Playback meters adjusted for 'playback' zero'd with factory test
tone tape.
ü
Head alignment and azimuth at 125Hz, 1kHz and 10kHz adjusted for
BOTH directions for 'peak performance' with O-Scope and w/
SONY A100 and TEAC MTT-257H calibration / alignment tapes. Both channels
now even output.
ü
Both Internal playback amplifier channels adjusted with Volt
meter, O-Scope and w/ STL and TEAC MTT-257H calibration /
alignment tapes. Both channels now even output.
ü
Meters adjusted to even zero with symmetric input with Volt
meter, O-Scope and w/ STL and TEAC MTT-257H calibration /
alignment tapes. Both channels now even output.
ü
Both Internal Record amplifier channels adjusted with Volt
meter, O-Scope and sine-wave generators and
'pink / white noise sources'. Both channels now even
output.
ü
Speed adjusted to 100% accuracy BOTH
directions, with with TEAC MTT-257H 1kHz factory calibration tape (meaning
1kHz calibration tape plays back at 1000Hz +/- 1
Hz)
ü
Pinch
roller and heads all in GREAT condition!!!
ü
Speed
adjusted to 100% accuracy BOTH directions, with 1kHz factory
calibration tape (meaning 1kHz calibration tape plays back at 1000Hz
+/- 2Hz)
ü
FF,
REW, & Play transport functions all test perfectly and controls
tested for 'positive / accurate' responsive.
ü
Eject
door operates smoothly.
ü
ALL
Tape Counter Functions tested
ü
Dolby
B & C NR circuits / function tested
ü
Floor noise measured to -60dBm
ü
Cosmetics are decent with a only few scuffs /
scratches
ü
Plays perfectly and after adjustment, records
very well at -2dB = 0dB
down on about any formulation of tape
(as it's got 'fine bias'). We did 'test recordings' of Pink
Noise and 'ddd' CD's on Maxell 'XL-II' High Bias. We found that they
all performed VERY well on this particular deck
(and most decks). We did however find that the deck likes to
record at about -20dB on the meters, for
'smoother saturation' of tape (which is the
industry standard, we just like to 'push them'). Again, we
really didn't have a favorite, plus the deck has adjustable Bias
(although we left it 'centered' for our tests).
Total technician time to restore
3+
hours.
____________________________
Great
performing deck. The JVC TD-R431.
Following the above mentioned service / refurb, it's now reliable
for playing, recording or if you need to burn some tapes to CD.
Looks and runs great!
JVC TD-R431 Features:
-
'Quick' Auto-Reverse (changes direction quicker
than some)
- HX Pro circuitry
- IC Logic Touch Tape Transport controls
- Tri-mode Auto-Reverse
- Auto tape type selector for Normal / Chrome & Metal tapes
(we don't see any 'lighted indicators' so don't know if that's
normal or not, but it is switching)
- Dolby B & C Noise Reduction
- Fine Bias adjustment
- Front-mounted 1/4" stereo headphone jack
- Record Mute
- 4-Digit, Fluorescent tape counter
- Dual, fluorescent level meters
JVC TD-R431
Specifications*:
Track format: 4
track / 2 channel Heads: PB
/ REC; Fine Amorphous Erase; "Two-Gap Ferrite" Freq Response;
20-80,000Hz w/
Metal Tape @ -20dB VU 20-17,000Hz w/
CrO2 Tape @ -20dB VU 20-17,000Hz w/
'Normal' Tape @ -20dB
VU Wow & Flutter (WRMS): 0.05-0.08%
WRMS Tape Speed:
1-7/8 ips
+/-0.5%
Crosstalk:
60dB & 1kHz
Channel Separation: 40dB &
1kHz
Harmonic Distortion / THD:
>1.0% @ 1kHz & 0dB
(High Bias Tapes) S/N ratio w/
Metal tape: >58db w/ Dolby
dis-engaged (and High Bias Tapes) Bias Frequency:
adjustable Line
Input 'Nominal': 80mV &
>50K Ohms Line Output 'Max':
300mV & >5K
Ohms Fast Wind Time:
~70 Seconds for C-60
tape
*Based
on flanking, earlier JVC models
Again, as mentioned above, our tech has done the
service and testing mentioned above. We completely
adjusted all meter, PB and REC internal levels
and tape head azimuth . Capstan motor speed adjusted
here to exact spec! Tape speed
re-adjusted to 100% accuracy, ie; 1 kHz = 1 kHz! Test records
incredibly well and plays back at 0 dB
down when recorded at -2dB! Looks
good with just a few 'battle scars' and
sounds great! Great for transferring your tape collection to CD,
Hard-drive or MP3. Test plays and Records extremely well.
Practical and usable deck! Measures 17.25"
w X 11" d X 4.5" h and unpacked weight is
10 lbs. Comes with our 90 day limited warranty.
JVC TD-R431
Cond. 8
SOLD 3/6/2020
SHIPPING TO NANCY IN VERMONT
(tape shown in photos not included. We do ship our decks with a a
'pre-recorded' tape for playback, made on this 'specific' deck, and
a tape to 'practice record' on.)
(Above text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree
Enterprises, LLC. See 'Copyright
Information' page for details)
|

NEW LISTING
12/14/18
(Click
on above thumbnails to enlarge photos)
warranty
EXTENSIVELY SERVICED W/ WARRANTY
VINTAGE AKAI CASSETTE TAPE DECK
HUGE
AKAI GX-F60R "GX/TWIN FIELD" HEAD AUTO-REVERSE &
DOLBY NR
#...4233
MADE IN
JAPAN!
Circa 1980-83
SOLD 1/4/20
SHIPPING TO TIM IN OHIO
ü
Our technician has completely and
EXTENSIVELY gone through and 'Certified' this unit
which involves complete removal and disassembly of the
entire
transport (not an easy task on this deck), cleaning inside
and out, DISASSEMBLING, cleaning and re-lubricating
all internal mechanisms
and the balance of efforts listed below.

ü
Internal AC voltage set for 'North American' use, and
Internal DC power supply tested to correct Voltages before any work
commenced
ü
Capstan Motor
(EG-510ED-2B), reel motor (1241006)
and Solenoid function verified
ü
Heads inspected for
excessive wear (obviously we do this 'early on' as 'excessive' wear
will usually negate any further restoration work).
ü
Head rotating gear inspected with a jewelers loop
prior to starting any restoration work, and found to be 'hairline'
crack free.
ü
Capstan
motor spindle
bushing re-lubed
ü
Capstan burnished
ü
VERY DIFFICULT TO ACCESS, 'Reel Drive Tire' removed and replaced
with a new one.
(These are actually much more important to replace on
this deck (and most) than the belts. Without these, the deck won't fast
wind very well, and will likely 'eat tapes' as the 'take-up' reel won't
turn properly)

ü
New Main Drive and Counter belts
installed throughout
entire transport for trouble-free service.

ü
'Frozen',
Pinch-Roller
'pivot' assembly disassembled, cleaned of 'old, stiff' grease and
re-lubed
ü
Rubber
pinch rollers have been reconditioned
(Pinch roller assembly service alone took about 4 hours)

ü
Flywheel 'belt surfaces' solvent cleaned
ü
Bronze
Flywheel bushings solvent cleaned
ü
Entire
flywheel assemblies re-lubed upon re-assembly
ü
Left reel hub replaced with another original, OEM
unit for better 'seating' of cassette reels.
ü
Heads have been cleaned and de-magnetized
as well as the entire transport.
ü
Head alignment and
azimuth at 125Hz, 1kHz and 10kHz adjusted for BOTH directions for 'peak performance'
with O-Scope
and w/ STL and TEAC MTT-257H calibration / alignment
tapes.
Both channels now even output.
ü
All internal pots, switches and controls cleaned and tested for
noise-free function.
ü
All LED's and incandescent lamps functioning well, with low current
draw
ü
FF, REW, & Play transport functions all test perfectly and controls
tested for 'positive /
accurate' responsive.
ü
'Silicone
Damped' Eject door
operates smoothly.
ü
Tape
Counter Function tested
ü
Dolby
NR circuits / function tested
ü
'Memory / Zero Return' function tested
ü
Meters adjusted to even zero with symmetric
with Volt meter, O-Scope
and w/ STL and TEAC MTT-257H calibration / alignment
tapes.
Both channels now even output.
ü
Both
Internal
playback amplifier channels adjusted
with Volt meter, O-Scope
and w/ STL and TEAC MTT-257H calibration / alignment
tapes.
Both channels now even output.
ü
Meters adjusted to even zero
with symmetric input
with Volt meter, O-Scope
and w/ STL and TEAC MTT-257H calibration / alignment
tapes.
Both channels now even output.
ü
Both
Internal Record amplifier channels adjusted
with Volt meter, O-Scope
and w/ STL and TEAC MTT-257H calibration / alignment
tapes.
Both channels now even output.
ü
Pinch
roller and heads all in GREAT condition!!!
ü
Speed
adjusted to 100% accuracy BOTH directions, with 1kHz factory
calibration tape (meaning 1kHz calibration
tape plays back at 1000Hz +/- 1Hz)
ü
Pinch
roller and heads all in GREAT condition!!!
ü
Overall floor noise measured at >-60dB.
üSpeed
adjusted internally to 100% accuracy BOTH directions, with 1kHz factory
calibration tape and
frequency counter (meaning 1kHz calibration
tape plays back at 1000Hz +/- 1Hz)
ü
Plays
great and after adjustment, records
AMAZINGLY
well w/ following results;
ü
Pink Noise recorded
@ 0dB
with Dolby engaged
on
Maxell XL-II (High bias)
tapes plays back @ avg of -1dB to -3dB between L
& R
ü
1kHz
recorded @ 0dB
with Dolby engaged
on
Maxell XL-II (High bias)
tapes plays back @ avg of -1dB to -3dB between L
& R
ü 'DDD' CD
recorded at 0dB with Dolby engaged;
1 to -2.5dB on
Maxell UDXL-II / High Bias
tapes
Bottom line is this deck sounds amazing
for playback or recording (always make sure you're playing back 'good
quality' tape recordings)
ü
Cosmetically,
the deck looks great. The 'wood grained, vinyl wrapped' case / cabinet
looks great with only a couple minor cosmetic blems.
Total technician time to restore
18.5+ HOURS!
____________________________
The
Akai GX-F60R, Auto-Reverse,
Stereo Cassette Tape Deck.
Akai has always been known as one of the top
manufacturers of 'tape decks', especially Reel to Reel decks, and
they bring that expertise to 'Cassette Decks' as well, especially
when it comes to 'motor technology'. Their cassette and 8-track
decks have some of the biggest motors. Great deck for doing your tape transfers
if your tapes were recorded with no NR or with "Dolby B"
or for making some awesome 'new' recordings or 'mix tapes' (hey,
it's 'the thing' again). This deck is a pleasure to use, and has a great
'feel' due to it's size and transport function.
As far as cosmetics, it's BEAUTIFUL. Just a couple little minor
scuffs / dings on the included, but originally optional wood grained
case (see photos above). Was taken very good care of
before it came to us, and is even more astounding now. The deck and
the wood grain case could convince you that time had rolled back
almost 40 years, and you were seeing it at the original store's
retail display.
AKAI GX-F60R
Features include:
-
"Twin-Field / Super GX Head" (features separate 'gap sizes' for
Playback and Recording in a single R/P head) - 'Quick Infrared' Auto Reverse (Reverses at 'beginning' of 'leader
/ tape' splice, instead of playing all the way thru the leader to
the point of 'Auto-Stop' resistance, the needing to play back
through the leader just to get to the recorded material on side B)
- Triple-Mode Auto-Reverse - "Soft touch
/ IC Logic control" tape transport
(allows you to switch between 'Fast Wind' or 'Play' modes without
pressing 'Stop' w/ no fear of 'spilling / dumping tape') - Selector for
two positions of Normal (EX / I), CrO2 (SX / II) & Metal (ZX / IV)
Tape
Type - Dual
Fluorescent VU Level Meters -
Analog Tape Counter - Built-in MPX filter for killing the 19kHz pilot tone in FM
transmissions - Variable Output Level control (one of the most important features on a
deck in our opinion.
Allows you to
match volume level of other sources, allows adjustment for
'best' pre-amp input to avoid distortion, allows you to change
the volume of the deck if you have it located remotely from the
pre-amp / receiver as I do, and many other applications) - Dolby B NR - Record Muting -
'Auto-Space' records a 4-second space prior to
'stop' when engaged. - Real 'Potentiometer'
Record level controls
that are 'friction-coupled' (meaning when you turn one,
the other one responds as well. They can be turned independently for
'fine adjustment' as they're 'clutch coupled' as well) - Memory Stop / Repeat for counter -
Dual, Front mounted,
1/4", Microphone Jacks - Front mounted, 1/4", Stereo Headphone jack - Timer Play / Record function.
- Standard RCA I/O jacks as well as DIN -
Multi-pin port on rear panel for optional wired remote,
Akai RC-21 (remote not included)
AKAI GX-F60R Specifications:
Track format: 4
track / 2 channel Motors: 2x 1x DC
'Reel', & 1x FG Servo Controlled DC 'Capstan' Freq Response;
30-19,000Hz +/- 3db w/
Metal Tape @ -20dB 30-16,500Hz +/- 3db w/
CrO2 Tape @ -20dB 30-16,000Hz +/- 3db w/
'Normal' Tape @ -20dB Wow & Flutter (WRMS): 0.04%
wtd
Tape Speed:
1-7/8 ips
Harmonic Distortion / THD:
>0.7% @ 1kHz & 0dB
(High Bias Tapes) S/N ratio w/ CrO2 tape:
>65dB w/ Dolby
B engaged (over
5kHz and and High Bias Tapes) >60dB w/ Dolby-B out
Line
Input 'Nominal': 70mV
@ 47K Ohms
Bias Frequency:
100kHz Line Output 'Nominal':
410mV @ 0VU for a load impedance
of 20k Ohms Headphones Output: 100mV
@ 8 Ohms Fast Wind Time:
~60 Seconds for C-60
tape
Again, we
have completely cleaned, EXTENSIVELY serviced and
thoroughly tested this Akai GX-F60R
cassette tape deck.
Great for transferring your no NR or Dolby
B NR encoded tape
collection to CD, Hard-drive or MP3. Built very well!
Looks like
new, works perfectly and sounds
fabulous.
Measures 18.75" wide x 12.75" deep x
7.75" tall and also weighs
a VERY HEAVY 34 lbs
unpacked. Just in-case you 'too casually' read past that last
little bit, IT'S A THIRTY-FOUR POUND CASSETTE DECK!
Includes
our standard 90 day limited warranty. AKAI GX-F60R Cond. 8.5+
SOLD 1/4/20
SHIPPING TO TIM IN OHIO
(tape shown in photos not included. We do ship our decks with a
a 'pre-recorded' tape for playback, made on this
'specific' deck, and a tape to 'practice record' on.)
(Above text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|


NEW LISTING
12/18/18
(Click on above thumbnails to enlarge photos)
warranty
VINTAGE
AND FULLY
SERVICED
W/ WARRANTY LUXMAN CASSETTE TAPE DECK LUXMAN KX-101 WITH DOLBY B&C with IC LOGIC TRANSPORT #...5944 Circa early 1982-84 Made in Japan
SOLD 10/4/19 SHIPPING TO MICHAEL IN ILLINOIS
ü
Our technician has completely and EXTENSIVELY gone through and
'Certified' this unit which
involves
total disassembly of the
transport, cleaning inside and out,
COMPLETELY DISASSEMBLING, cleaning and re-lubricating all internal
mechanisms and the balance of efforts listed below.
ü
Heads inspected for
excessive wear (obviously we do this 'early on' as 'excessive'
wear will usually negate any further restoration work).
ü
VERY DIFFICULT TO ACCESS, 'Reel Drive Tire' removed and
replaced
with a new one
(#R-209).
(These are actually much more important to replace on
this deck (and most) than the belts. Without these, the deck won't fast
wind very well, and will likely 'eat tapes' as the 'take-up' reel won't
turn properly)
ü
Reel drive belt
replaced w/ #42-160.
ü
Main Capstan / Flywheel belt reconditioned.
ü
Rubber pinch roller
mechanism bushing & axle cleaned of old, 'varnished lube', reconditioned
and re-lubed.
ü Capstan burnished
ü
All internal pots, switches and controls cleaned and tested for
noise-free function.
ü
'Servo-Face' mechanism completely disassembled, overhauled
and re-assembled. (actually worked fine prior to
refurbishment, but we did 'proactive maintenance' so should be
good for a long time to come)
ü
Multiple solder joints re-flowed, primarily on
the landing pads of the 'control pots / switches'.
ü
All
Fluorescent
displays and LED's working fine.
ü
Both hub spindles in perfect alignment.
ü
FF, REW, & Play transport functions all test perfectly and controls
tested for 'positive / accurate' responsive.
ü
Heads in great shape as well, with many years of performance
left in them
ü Heads have been cleaned and de-magnetized as well as the entire
transport.
ü
Head alignment and
azimuth at 125Hz, 1kHz and 10kHz adjusted for BOTH directions for 'peak performance'
with O-Scope
and w/ STL and TEAC MTT-257H calibration / alignment
tapes.
Both channels now even output.
ü
Meters adjusted to even zero with symmetric
with Volt meter, O-Scope
and w/ STL and TEAC MTT-257H calibration / alignment
tapes.
Both channels now even output.
ü
Both
Internal playback amplifier channels adjusted
with Volt meter, O-Scope
and w/ STL and TEAC MTT-257H calibration / alignment
tapes.
Both channels now even output.
ü
Meters adjusted to even zero
with symmetric input
with Volt meter, O-Scope
and w/ STL and TEAC MTT-257H calibration / alignment
tapes.
Both channels now even output.
ü
Both
Internal Record amplifier channels adjusted
with Volt meter, O-Scope
and w/ STL and TEAC MTT-257H calibration / alignment
tapes.
Both channels now even output.
ü
Pinch
roller and heads all in GREAT condition!!!
ü
Speed
adjusted to 100% accuracy BOTH directions, with 1kHz factory
calibration tape (meaning 1kHz calibration
tape plays back at 1000Hz +/- 1Hz)
ü
Pinch
roller re-surfaced, and in GREAT condition!!!
ü
Playback meters zero with factory test tone tape.
ü Tape Counter
and 'Memory' Function tested
ü
White Noise recorded @ 0dB w/ Dolby-C engaged
= PB @
-2dB on
Maxell UDXL-II / High Bias
tapes
ü
1kHz
Sine-wave recorded @ 0dB w/ Dolby-C engaged = PB @
-1dB on
Maxell UDXL-II / High Bias
tapes
ü 'ddd' CD
recorded recorded @ 0dB w/ Dolby-C engaged
= PB @
~ -2dB on
Maxell UDXL-II / High Bias
tapes
ü
Speed adjusted
internally to 100% accuracy with 1kHz factory test tape (meaning
1kHz calibration tape plays back at 1000Hz +/- 1Hz) (utilized TEAC MTT-257H)
ü Floor noise measured at -60dBm
Total technician time to restore
~16 HOURS! ____________________________
This is a BEAUTIFUL, brushed Pewter face deck
with complimenting brushed, Silver knobs and the very cool,
'Servo Face'. The Luxman KX-101,
Stereo Cassette Tape Deck w/ Sendust heads, IC logic,
Fluorescent
display, and Dolby
B & C NR.
Luxman KX-101
Features include:
- Super Hard, 'Sendust' PB / REC heads - Adjustable Bias Control for Recording - IC logic "touch-control" tape transport with
motor driven 'cam control mechanism'
(allows you to switch between 'Fast Wind' or 'Play' modes
without pressing 'Stop' w/ no fear of 'spilling / dumping tape') - Dolby-B
& C noise reduction built-in for
recording and playback - 3-Position Tape
Bias Type / EQ selector for Normal, CrO2 & Metal tape -
Very
cool, Fluorescent display and VU signal level
meters w/ Peak Level Indicators - Manual Record Level with L&R
balance control - Variable Output Level control (one of the most important features on a
deck in our opinion.
Allows you to
match volume level of other sources, allows adjustment for
'best' pre-amp input to avoid distortion, allows you to change
the volume of the deck if you have it located remotely from the
pre-amp / receiver as I do, and many other applications) -
Record 'Mute' function
-
MPX Filter, for eliminating the 19kHz 'pilot'
signal from FM broadcasts. - Dual front mounted 1/4" mic input jacks - Front mounted Stereo Headphone jack -
Digital Tape Counter
- Auto-Play or Auto-Rewind at the end of
either 'Fast Wind' selection -
Selectable 'Memory' point - Rear mounted,
8-pin port for optional Luxman 'wired'
remote control (not available from us)
Luxman KX-101
Specifications:
Track format: 4 track / 2 channel
Heads: Sendust
Play / Record head, Ferrite Erase head
Freq Response w/ Dolby OFF: w/
Metal; 20-12,000
Hz +/- 3dB w/ Chrome / CrO2;
20-18,000 Hz
+/- 3dB @ w/ 'Normal';
20-17,000 Hz
+/- 3dB Wow & Flutter (WRMS): 0.04% WRMS
S/N ratio w/ CrO2 tape:
>73db
w/ Dolby C and High Bias Tapes
>65dB w/ Dolby B
and High-bias' tape >56dB w/ Dolby Off
and High-bias' tape Harmonic Distortion
(THD): >0.7% @ 0dB
Line Input
Sensitivity:
80mV Microphone Input
Sensitivity:
0.3mV
Output Level for 'Normal':
580mV
Again, we have completely refurbished and thoroughly tested this deck,
with multiple recording tests (as stated previously
it took 16+ hours of tech time to do it proper justice).
Cosmetically, it's
in decent condition with
light 'wear areas' to the corners of the face bezel, and
scratches to the top sheet metal (see photos above).
Great deck for just about any system.
Also great for transferring your tape collection to CD,
Hard-drive or MP3. Measures 18" wide x 14.5" deep x
5.75" tall
and
weighs
a HEAVY 23+ lbs
unpacked.
Comes with our 90 day limited warranty.
RESTORED /
REFURBISHED / SERVICED LUXMAN KX-101 Cond.
8.5
SOLD 10/4/19 SHIPPING TO MICHAEL IN ILLINOIS
(tape
shown in photos not included. We do ship our decks with a a
'pre-recorded' tape for playback, made on this 'specific' deck, and a
tape to 'practice record' on.)
(Above
text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|


NEW LISTING
2/22/2020
(Click
on above thumbnails to enlarge photos)
warranty
VINTAGE AND FULLY SERVICED
TASCAM STUDIO
CASSETTE TAPE DECK
TASCAM
112R
"Not going to win any 'Beauty Contests', but makes
up for that in 'Studio Mix-Down' performance" 3 HEADS / 3 MOTORS AUTO-REVERSE W/ 'BI-DIRECTIONAL RECORDING'
#...0195
With DOLBY B
&C NR
MADE IN
JAPAN!
Circa 1986-93
for sale
HOLD FOR BRETT W. 8/6/2020
ü
Our technician has completely and
EXTENSIVELY gone through and 'Certified' this unit
which involves complete removal and disassembly of the
transport (not an easy task on this deck), cleaning inside
and out, DISASSEMBLING, cleaning and re-lubricating
all internal mechanisms
and the balance of efforts listed below.

ü
Heads inspected for
excessive wear (obviously we do this 'early on' as 'excessive' wear
will usually negate any further restoration work).
ü
Head rotating gear inspected with a jewelers loop
prior to starting any restoration work, and found to be 'hairline'
crack free.
ü
'reel drive' tire
reconditioned for
years of trouble-free service.
ü
All new internal
Drive and Counter belts
replaced for
years of trouble-free service.
*ü
Following initial
service, we determined there was audibly detectable Wow &
Flutter, so we changed the capstan belt again, and eliminated
it.
ü
Rubber
pinch roller has been reconditioned
ü
Capstan burnished
ü
Heads have been cleaned and de-magnetized
as well as the entire transport.
ü
Head alignments and
azimuth at both 1kHz and 10kHz adjusted for BOTH directions for 'peak performance'
with O-Scope
ü
All internal pots, switches and controls cleaned and tested for
noise-free function.
ü
Both spindles
in perfect alignment.
ü
FF, REW, & Play transport functions all test perfectly and controls
tested for 'positive /
accurate' responsive.
ü
Eject door
operates smoothly following repairs.
ü
Tape
Counter Function tested
ü
Dolby
B & C NR circuits / function tested
ü
'Memory / Zero Return' function tested
ü
Heads
are in great condition
ü
Internal playback levels adjusted for even playback w/ alignment tape, Oscilloscope, and
mVAC meter
ü
Internal
Record amplifier channels adjusted for 'even output'
ü
Meters adjusted to within 1.5dB with symmetric input.
ü
Pinch
roller and heads all in GREAT condition!!!
ü
Both level
meters playback even.
ü
Speed
adjusted to 100% accuracy BOTH directions, with 1kHz factory
calibration tape (meaning 1kHz calibration
tape plays back at 1000Hz +/- 1Hz)
(VERY
difficult to do on this deck by the way)

ü
Cosmetically, it's definitely not going to "win any beauty contests"
(see above 'horizontal' photo collage), but it makes up for it in
performance.
ü
Plays
perfectly and after adjustment, records AMAZINGLY
well at -1dB! on
Maxell UDXL-II
tapes and -.5dB on Maxell UR / Normal Bias tapes
(but 'top end' will not be as good as on CrO2). (Following
the extensive restoration,
we did 'test recordings' of a 'ddd' CD on 6
tapes; Sony HF Normal Bias -3dB, Fuji Normal Bias -2.5dB, TDK Normal Bias
-1.5dB, Maxell
Normal Bias, TDK 'SA' High Bias -2dB (didn't saturate as well as the
Maxell UDXL-II), and Maxell 'XL-II' High Bias. We
found that for Normal and High Bias, of those tapes tested, both "Maxells" performed well on this particular deck.
The Maxell's did however much 'outshine' the TDK's for being able to
'over saturate' on the levels. While doing the test recording's, it
became apparent that the recorded sound was fairly remarkable.
Total technician time to restore
17.5 HOURS! ____________________________
The
TASCAM 112R, 3-Head / 3-Motor, Auto-Reverse with
'Bi-Directional Recording', Rack-Mount, Studio
Stereo Cassette Tape Deck. Again, cosmetically
it's 'fair' (numerous scratches, scuffs and transport button
silk-screening completely worn off {it was somewhat intact, but we
removed all of it to improve overall cosmetics}), but works GREAT!!!
Perfect deck for doing your tape transfers
if your tapes were recorded with no NR or with "Dolby B"
or "Dolby C".
Again, as stated above, records AMAZINGLY well!
TASCAM 112R Features include:
-
3 Heads (allows
instantaneous monitoring of recordings for the best audio results) - Auto-Reverse, with 'Bi-Directional' Recording (not just 'A' side
recording!)
-
Dual, Asymmetrical Flywheel drive - IC logic "touch-control" tape transport with
motor driven 'cam control mechanism' - Auto
Selector for Normal (EX / I), CrO2 (SX / II) & Metal (ZX / IV)Tape
Type - Dual 13-Segment, LED Level Meters -
Digital, 'Multi-Function' tape counter - Dolby B
&C NR - Record Muting - Record level control with L & R balance - Memory Stop / Repeat for counter -
Dual, Front mounted,
1/4", Microphone Jacks - Front mounted, 1/4", Stereo Headphone jack - Timer Play / Record function. - DIN on rear panel for optional wired remote,
TEAC RC-205 (remote not included) -
Rack Mountable, with
originally 'optional' rack ears, INCLUDED
TASCAM 112R
Specifications:
Track format: 4
track / 2 channel Motors: 3 Freq Response;
25-20,000Hz +/- 3db w/
Metal Tape @ -20dB 25-18,000Hz +/- 3db w/
CrO2 Tape @ -20dB 25-17,000Hz +/- 3db w/
'Normal' Tape @ -20dB Wow & Flutter (WRMS): 0.03%
wtd Tape Speed:
1-7/8 ips
+/-0.5% (but as stated above, we have adjusted to 100% accuracy
w/ 'Pitch Control' ''centered''!)
Harmonic Distortion / THD:
>1.0% @ 1kHz & 0dB
(High Bias Tapes) S/N ratio w/ CrO2 tape:
>60db w/ Dolby
dis-engaged (and High Bias Tapes) >70db w/ Dolby-B engaged (over 5kHz and High Bias Tapes) >80db w/ Dolby-B engaged (over 1kHz and High Bias Tapes) Bias Frequency:
100kHz Pitch Control:
+/-
15% Erasure:
>65dB below
saturation level @ 1kHz / +10dB
Separation:
>45dB @ 1kHz, 0dB
Recording Level:
200 nWb/m & 0dB Line
Input 'Nominal': -10dBV / 300mV &
>40K Ohms Line Input 'Maximum':
-22dBV / 794mV &
>40K Ohms Line Output 'Nominal':
-10dBV / 300mV & >3.5K
Ohms Line Output 'Maximum':
-5 dBV / 560mV & >3.5K
Ohms Headphones Output: 2.5mW
@ 8 Ohms Fast Wind Time:
~70 Seconds for C-60
tape
Again, we
have completely cleaned, refurbished / serviced and
thoroughly tested this TASCAM 112R
cassette tape deck.
It does have a few 'battle scars', so isn't going to 'win' any
beauty contests (see
above 'horizontal' photo collage), but will make up for it in
performance, again check the -1dB recording results, and the 1kHz
= 1kHz speed!
Great for transferring your no NR or Dolby
B / C NR encoded tape
collection to CD, Hard-drive or MP3. Built very well! Looks like
new, works and sounds great.
Measures 19.25" wide
(w/ rack ears installed) x 11.5" deep x
4.6" tall and weighs 13 lbs
unpacked.
Includes
our standard 90 day limited warranty.
TASCAM 112R
Cond. 7.5
$549.
HOLD FOR BRETT W. 8/6/2020
(tape shown in photos not included. We do ship our decks with a
a 'pre-recorded' tape for playback, made on this
'specific' deck, and a tape to 'practice record' on.)
(Above text, in it's entirety, property of
www.oaktreevintage.com
/ Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
|


NEW LISTING
3/9/19
(Click on above thumbnails to enlarge photos)
warranty
PRE-OWNED / REFURBISHED
PIONEER MULTI-PLAY CASSETTE TAPE DECK
PIONEER CT-M6R
MULTI-PLAY, 6 TAPE CHANGER!
HX PRO deck with DOLBY B & C "QUICK" AUTO-REVERSE "RELAY" PLAY / RECORD
(means will continuously record thru BOTH sides of ALL 6
tapes!!!)
#...2200
Circa
1990-1991
MIJ
SOLD 4/8/19
SHIPPING TO BENJAMIN IN NEW MEXICO
ü
Our technician has completely and
EXTENSIVELY gone through and 'Certified' this unit cleaning inside
and out, DISASSEMBLING, cleaning and re-lubricating
internal mechanisms and
the balance of efforts listed below. (this was already a VERY CLEAN
& LIKE NEW deck inside before we started our service work)
ü
AC voltage set for 'North American' use, and
Internal DC power supply tested to correct Voltages before any work
commenced
ü
Heads inspected for
excessive wear (obviously we do this 'early on' as 'excessive' wear
will usually negate any further restoration work).
ü
Head rotating gears on both wells inspected with a jewelers loop
prior to starting any restoration work, and found to be 'hairline'
crack free.
ü
Main Drive and Counter belts
inspected and are in 'like new' cond.
ü
Rubber
pinch rollers have been reconditioned
ü
One VERY
important note about this deck. The spindles are 'gear driven'
which means that it should WAY OUTLAST most other decks that
utilize standard, rubber 'idler tires' for reel activation
(everyone thinks that 'belts' are all you need to replace to
make a cassette deck work. While belts are important, it's
almost always the 'idler tire' that is the "Achilles
Heel" of cassette decks and causes the VAST majority of
cassette deck problems).
ü
Both
spindles in perfect alignment.
ü
Heads have been cleaned and de-magnetized
as well as the entire transport.
ü
Head alignment and
azimuth at 125Hz, 1kHz and 10kHz adjusted for BOTH directions on
both decks for 'peak performance'
with O-Scope
and w/ STL and TEAC MTT-257H calibration / alignment
tapes.
Both channels now even output.
ü
All internal pots, switches and controls cleaned and tested for
noise-free function.
ü
Front panel removed and disassembled to allow
cleaning of the Record and Balance potentiometers.
ü
All LED's and
fluorescent displays functioning well, with low current
draw
ü
FF, REW, & Play transport functions all test perfectly and controls
tested for 'positive /
accurate' responsive.
ü
'Mechanized' Eject door
operates smoothly.
ü
Tape
Counter Function tested
ü
Dolby
NR circuits / function tested
ü
'Memory / Zero Return' function tested
ü
Meters adjusted to even zero with symmetric
with Volt meter, O-Scope
and w/ STL and TEAC MTT-257H calibration / alignment
tapes.
Both channels now even output.
ü
Both
Internal
playback amplifier channels adjusted
with Volt meter, O-Scope
and w/ STL and TEAC MTT-257H calibration / alignment
tapes.
Both channels now even output.
ü
Meters adjusted to even zero
with symmetric input
with Volt meter, O-Scope
and w/ STL and TEAC MTT-257H calibration / alignment
tapes.
Both channels now even output.
ü
Both
Internal Record amplifier channels adjusted
with Volt meter, O-Scope
and w/ STL and TEAC MTT-257H calibration / alignment
tapes.
Both channels now even output.
ü
Pinch
rollers and heads all in GREAT condition!!!
ü
Speed
adjusted to 100% accuracy BOTH directions, with 1kHz,
TEAC MTT,
factory
calibration tape (meaning 1kHz calibration
tape plays back at 1000Hz +/- 1Hz)
ü
Pinch
roller and heads all in GREAT condition!!!
ü
Overall floor noise measured at >-60dB.
ü
Speed adjusted
internally to 100% accuracy BOTH directions, with 1kHz factory
calibration tape and
frequency counter (meaning 1kHz calibration
tape plays back at 1000Hz +/- 1Hz)
ü
Plays
great and after full
service and adjustment, records
AMAZINGLY
well w/ following results;
1kHz
recorded @ +3dB
with Dolby C engaged
on
Maxell XL-II (High bias)
tapes plays back @ +3 dB L&R, which equals ZERO
dB loss!! (same results with no NR)
Full Bandwidth 'Pink Noise' recorded @ 0dB
with Dolby C engaged
on
Maxell XL-II (High bias)
tapes plays back @ 0dB L&R, which equals ZERO dB
loss!!
10k was down 5dB or less across the board. White noise was down ~ 5dB recorded at -5dB and -10dB on Deck 1
White noise was down ~ 2dB recorded at -5dB and -0dB recorded at -10
on Deck 2
"Real World" test, 'DDD' CD
recorded at +4dB with Dolby C engaged,
on
Maxell UDXL-II / High Bias
tapes
equals +4dB. Again, ZERO dB loss!!!
Bottom line is this deck sounds amazing
for playback or recording (always make sure you're playing back 'good
quality' tape recordings)
ü
Cosmetically,
the deck looks near new. Just a few very minor scuffs.
Total technician time to restore
5+ HOURS!
____________________________
This Pioneer CT-M6R is
a well built and designed deck and is a BLAST
TO USE! (I personally used it
extensively following it's refurb / service). It's super
quality in design and build, and it's loaded. It's a
'Double Auto-Reverse',
with
'Bi-Directional' Recording, AND it's a 6 tape
changer that can record up to 9 HOURS CONTINUOUSLY!
This is an
incredible deck for performance and IT'S LOADED! It would be at home in any
audio system.
Pioneer CT-M6R Features
include:
- HX-PRO (Extended Head-Room Recording)
- 6 Cassette Tape Changer - Dolby B & C Noise Reduction built-in - Relay Recording. This means that you can record all
6 tapes on both sides for
9 hours of continuous recording time w' standard 90 minute
tapes - IC Logic "touch-control" tape transport on both decks - Super-quality tape heads- "MS" Music Search" cuing
- OTR (One Touch Recording and Pause) - Auto-Selector for Normal, CrO2 & Metal Tape Type
- Full fluorescent readout screen - Dual fluorescent signal
level meters - Multi-Mode, Digital tape counter for either tape well. Gives "Standard"
count or "Real Time" and Time Remaining
- "All Rewind" (this ends up being a VERY handy feature. If you
have a bunch of tapes that were stopped in random spots, just
put them all in, and press "All Rewind". It will automatically
go thru each and re-wind either Side A or B, depending on how
you load the tapes)
- Record Level control - Record Mute function - Timer Play / Record / Off selector - 1/4" Stereo Headphone jack
- Wireless Remote Control
(INCLUDED) - "CD Synchro" for other Pioneer compatible gear
- AND LIKELY MORE THAT WE DIDN'T LIST
Pioneer CT-M6R Specs:
Track format - 4 track / 2 channel
Heads - Super-Hard,
Permalloy for Recording and Playback head.
Ferrite for Erase head Motors -
4 total. "DC Servo" motor for capstan and
standard DC motors for Reels, Loading, and well door.
Wow & Flutter (WRMS) - 0.055% Freq Response
(-20dB) - 20-19,000 Hz, Metal Tape - 20-18,000 Hz, Chrome Tape - 20-17,000 Hz, Norm tape
S/N ratio - >58dB NR Off, @ 3% THD
NR reduction - Dolby
B = >10dB@
5kHz
Dolby C = >19dB@
5kHz
THD - 1.0%
@ 0dB Line in - 63mV, 50k Ohms Line Out - 0.316 V @ 5.8KOhms
This
Pioneer CT-M6R is an incredible deck and a rare one too.
Only the second cassette changer we've
had since I sold an Aiwa changer when
new around 1984. You would likely be the only
'kid on the block' with one
of these.
Also great
for transferring your tape collection to CD, Hard-drive or MP3.
As it can do up to 9 hours of continuous
recording, think of the possibilities. Built very
well! Looks like new and sounds great. Deck includes a copy of original
owners manual. Measures 16.5" wide x 14.5" deep x 5.5" tall and weighs
19 lbs unpacked. Comes with our 90 day limited warranty.
Cond.
8.5++ PIONEER CT-M6R
SOLD 4/8/19
SHIPPING TO BENJAMIN IN NEW MEXICO
W/ original
Wireless Remote Control
(tape
shown in photos not included. We do ship our decks with a a
'pre-recorded' tape for playback, made on this 'specific' deck, and a
tape to 'practice record' on.)
(Above
text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
|
|
|
Did you know?
Technics;
The name Technics was introduced as a brand name for premium
loudspeakers marketed domestically by Matsushita in 1965. In 1969, they
introduced the SP-10, the first direct-drive turntable model for the
professional market, and in 1971 the SL-1100 for the consumer market.
The SL-1200 has since it's inception been the 'standard' of the industry
for DJ's around the world. Most of there turntables are of 'industry
standard' quality, even on the 'low-end' of the price scale, for most of
their model years.
Technics
was the first to introduce 'auto-reverse' (1972) into cassette decks
(some would say to the detriment of audio quality, but certainly 'handy'
in many applications) and 3-heads in a cassette deck (1973). In the late 1970's, Technics introduced what are
some of the currently most sought after reel to reel decks out there.
The Technics 1500 and 1700 series. They are overall 'amazing'! I am a HUGE fan of Technics gear, especially their cassette decks. I
worked for a Technics dealer in the early 1980's and loved to sell
Technics gear because, not only did I know it would perform splendidly
for most applications, it rarely came back with an issue. In fact, I
extend that opinion to today, now 30 years on, as if I have to place a
'blind bet' on an 'as-found' item either still functioning, or being not
far from it, I will go with Technics almost every time. Yamaha would
typically be my second choice followed by the other 'famous'
manufacturers a ways down the list. That's not to say 'Technics can do
no wrong', because like everyone, they built a few 'lemons', but overall
they do MOSTLY right.
|
|
|
|
** "(actual as measured)" refers to original test results done by
Hirsch-Houck Laboratories upon test release of product when new. Current
"aged" specifications / performance may of course vary from that.
|
