-VINTAGE DUAL STEREO TURNTABLES
PHOTO / REFERENCE GALLERY OF
VINTAGE / USED UNITS
-
- SOLD UNITS -






Photo / Reference gallery of vintage DUAL Turntables  / Phonographs that we have had in the past that have been sold. Keep checking as more vintage Dual / United Audio Record Players will be added periodically. Used vintage Dual / United Audio stereo turntables phonographs record players / turntables Dual CS-505, CS-506, CS-528, CS-604, CS-606, CS-626, CS-1019, CS-1210, CS-1215, 1225, 1228, 1229, 1229Q, 1237, 1249, 1257, 1268, CS-741Q. All photos and text, are copyrighted and protected as stated at bottom of page. Keep checking as more vintage Dual / United Audio turntables will be added periodically.


This page is for photo / text ARCHIVING ONLY of our Restored / Refurbished used DUAL stereo turntables that have already been SOLD. Click the link below for current inventory.

... OR, CLICK HERE TO SEE OUR TURNTABLES CURRENTLY FOR SALE!









CLICK HERE TO SEE OUR TURNTABLES
  CURRENTLY FOR SALE!










       NEW LISTING 4/8/11
(Click on above thumbnails to enlarge photos)

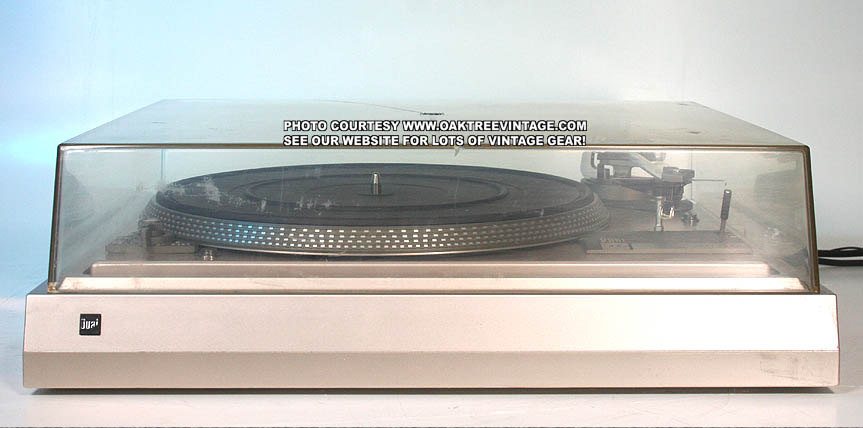

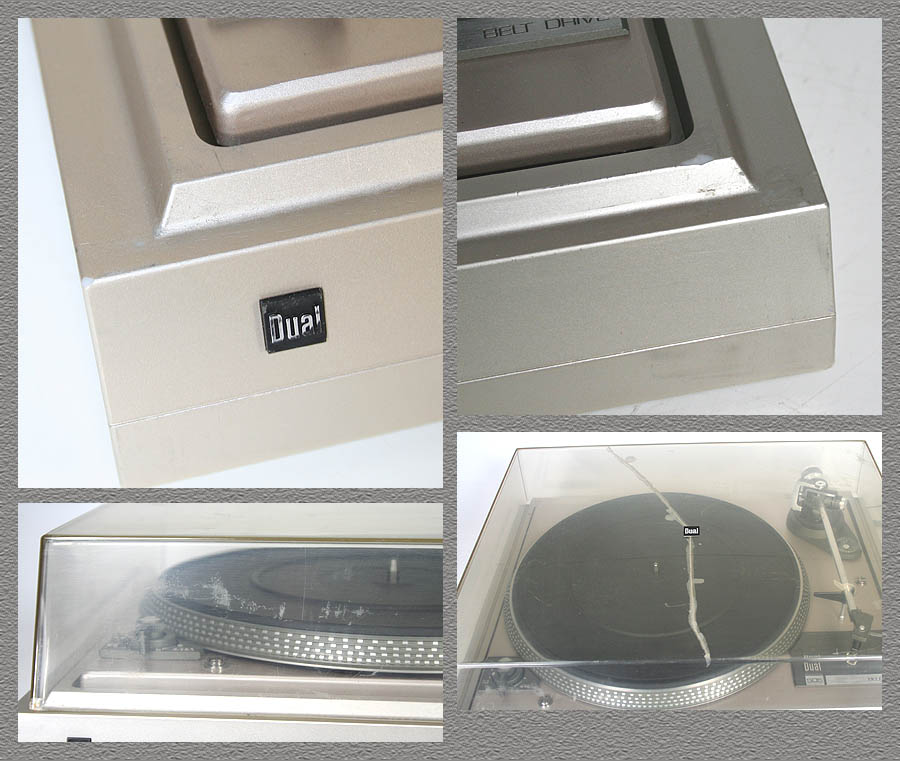

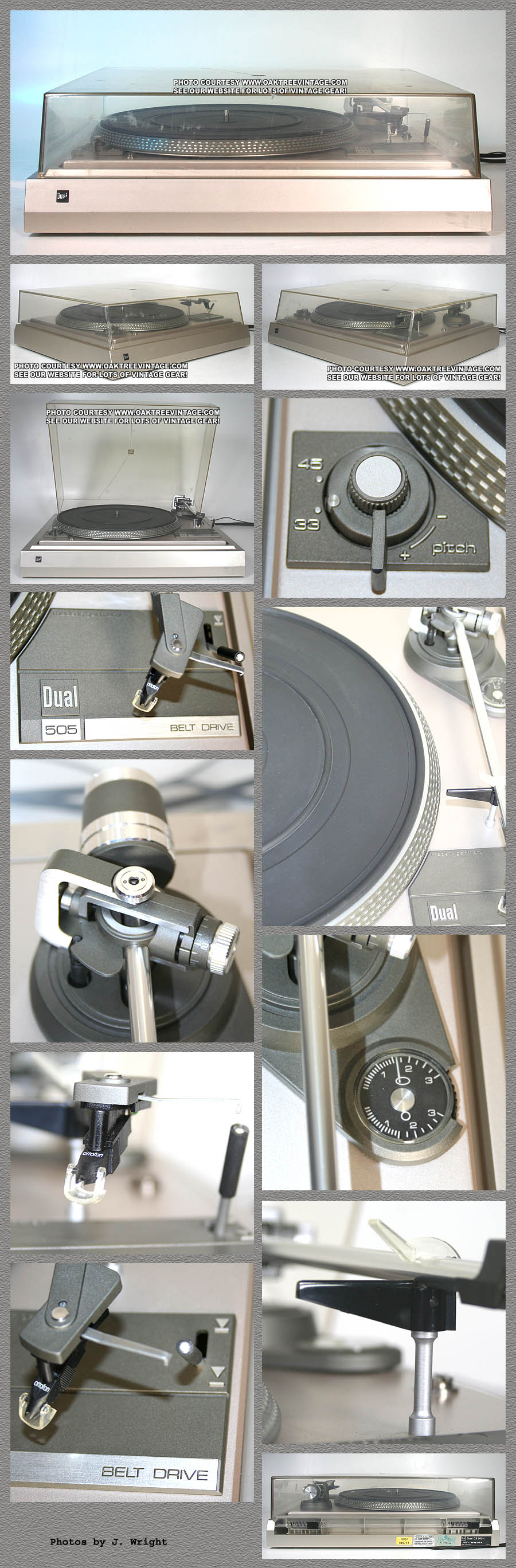

VINTAGE DUAL STEREO TURNTABLE CS-505 QUARTER MANUAL QUIET BELT DRIVE
#...6731
 MADE IN WEST GERMANY
 Circa 1980-83

SOLD 11/29/11


w/ Ortofon 'Concord', Elliptically cut  Diamond stylus cartridge installed








               NEW LISTING 10/13/16
(Click on above thumbnails to enlarge photos)

RESTORED / REFURBISHED / FULLY SERVICED
VINTAGE
DUAL STEREO TURNTABLE

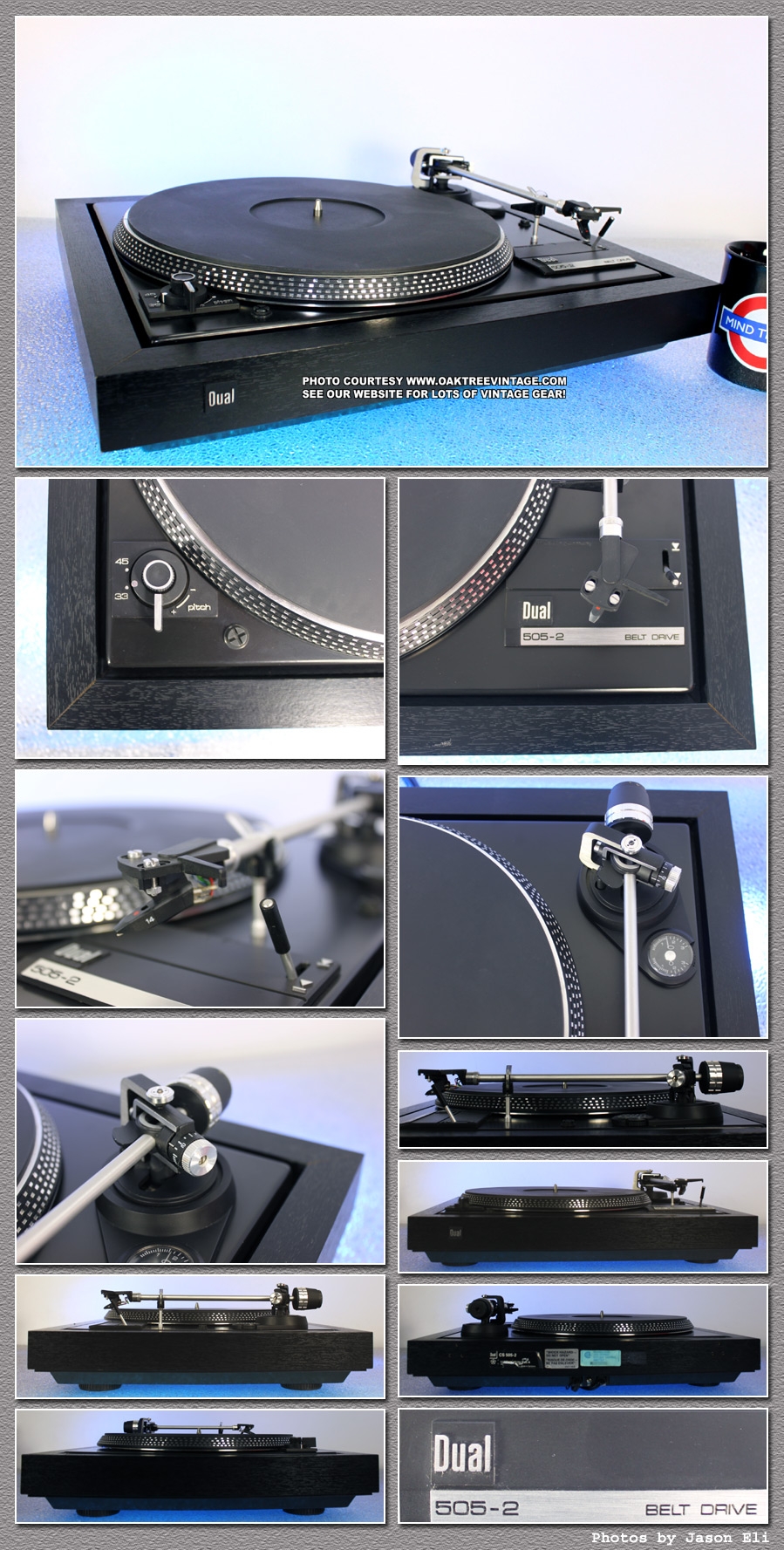

DUAL CS-505-2
QUARTER MANUAL
SUPER-QUIET BELT DRIVE
 MADE IN WEST GERMANY
 Circa 1985-89

SOLD 3/15/19
SHIPPING TO KYLE IN TEXAS

Our technician has completely and EXTENSIVELY gone through and 'Certified' this unit which involves disassembly (not an easy task on this table), cleaning inside and out, COMPLETELY DISASSEMBLING, cleaning and re-lubricating internal mechanisms and the balance of efforts listed below. Total technician time to restore 6+ hrs.

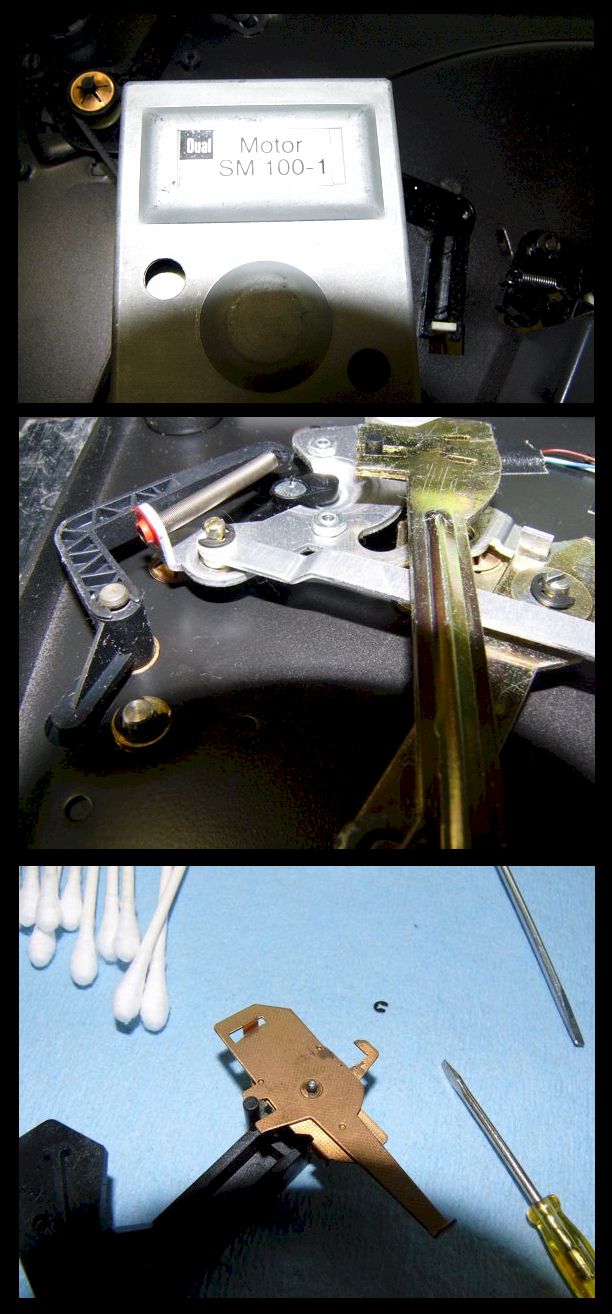

  Entire table disassembled (see above 'bench photos')

Disassembly of 'Arm Lift / Cue Mechanism', cleaned and re-lubed

Auto-Stop mechanism adjusted and tested

Head-shell carriage contacts burnished (both sides)

Tested / analyzed and passed for motor noise and 60Hz hum.

Rubber mat still supple and flexible with no hardening. Lays flat w/ no 'bubbles'.

Table got one of our last 'official' Dual pitch control belts!!

Speed control / belt adjusted for 'center point'

Speed checked and verified for accuracy with both internal strobe and the shop calibrated strobe disc.

  Platter tested for 'true flat' and no 'run-out' (we had one with 'run-out', that required a new platter).

We also installed and a new, Ortofon OM-14, elliptically cut Diamond stylus on the Ortofon OM-10 magnetic cartridge and optimized the tone arm for it. (If you prefer an up-grade you may also choose from our selection of new Audio Technica cartridges that we can also set up and ship with it for the additional cartridge cost.)
You can readily connect this table to any receiver, Integrated amplifier with a standard magnetic phono input, or a Pre-amp. To connect to computer for burning CD's just order one of our inexpensive Phono Pre-Amps and cable kits.


Unit tested with our myriad of test records, one of which included; Shures' 'Cartridge Obstacle Course' record

Unit test played through 20+ LPs flawlessly

You can readily connect this table to any receiver, Integrated amplifier with a standard magnetic phono input, or a Pre-amp. To connect to computer for burning CD's just order one of our inexpensive Phono Pre-Amps and cable kits. Again, this table looks and works great!!
 ____________________________________



Again, we have had the table completely gone through, rolling the clock back about 30 years. Table functions perfectly. Again, has a few battle scars, but mechanically is sound. This one is all about performance. Measures 16.75" wide x 14.75" deep x 6" tall. Includes an 'e' copy / pdf download of the Dual 505-2 owners / users / instruction manual, a copy of the sales brochure, and a copy of the Dual 505-2 Service manual if the purchaser so desires. Includes our standard 90 day limited warranty.

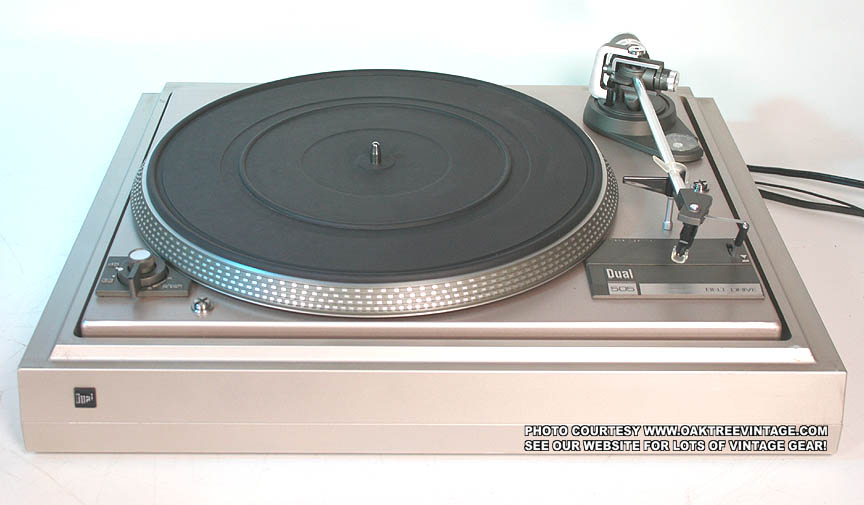

DUAL 505-2
STEREO TURNTABLE
Cond. 8+ (without dustcover)

SOLD 3/15/19
SHIPPING TO KYLE IN TEXAS


w/ Ortofon 'Concord', Elliptically cut  Diamond stylus cartridge installed




To connect to computer for burning CD's or to a modern A/V receiver that does not have phono inputs, just order one of our inexpensive $42.99 Phono Pre-Amps and cable kits.

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)

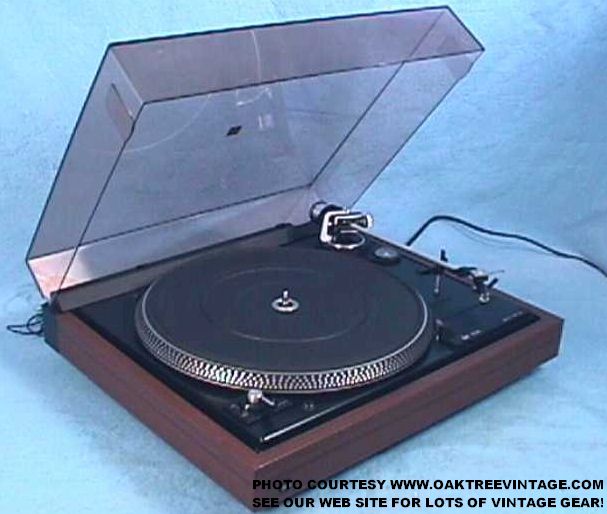

Dual_506_Stereo_Beltdriven_Turntable_web.jpg (47086 bytes)    Dual_506_Stereo_Beltdriven_Turntable_collage.jpg (168308 bytes)

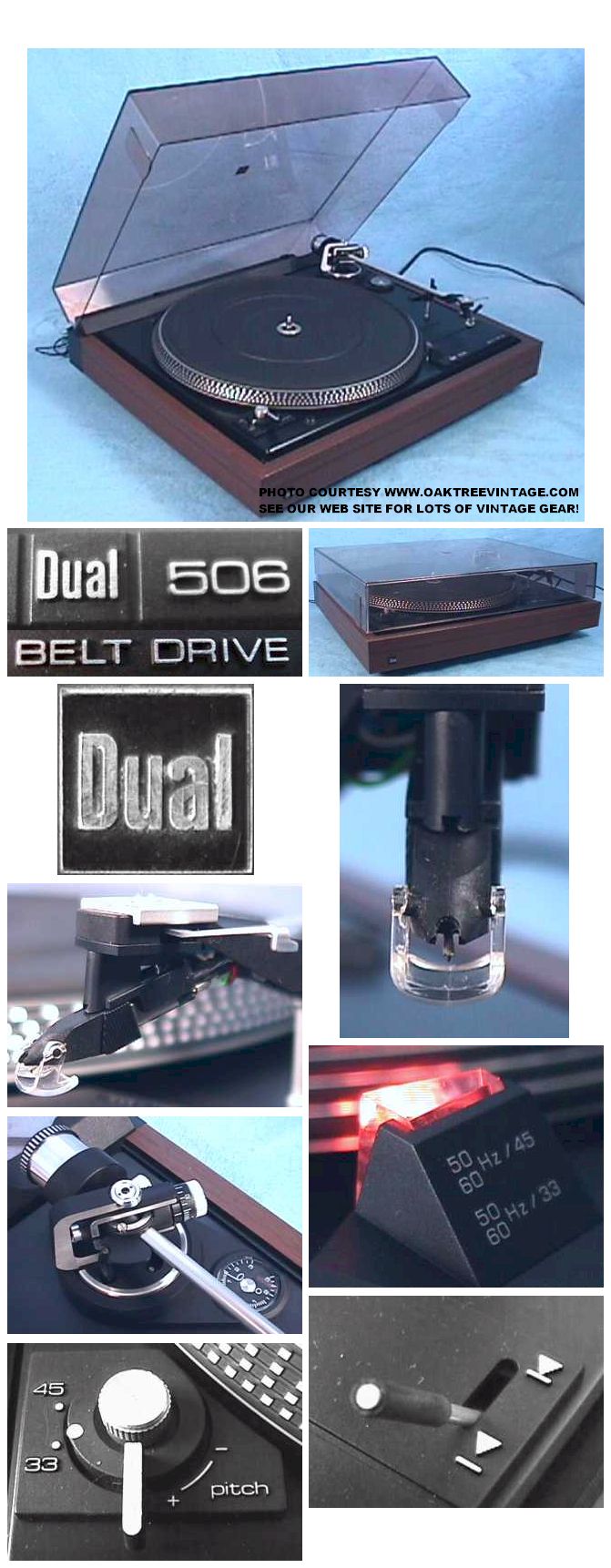

REPAIRED / RESTORED DUAL CS-506 STEREO TURNTABLE
BELT DRIVEN
SOLD

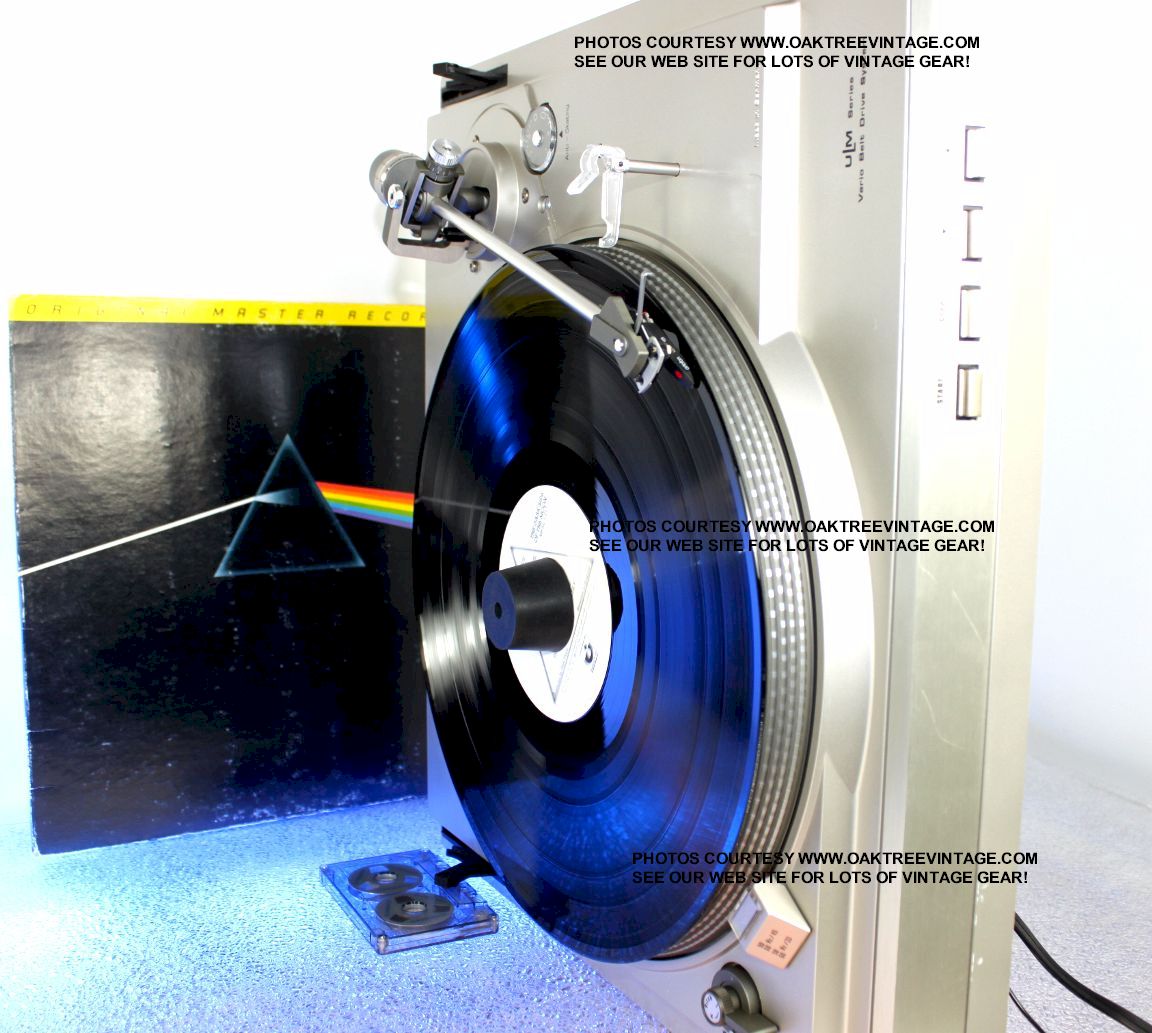

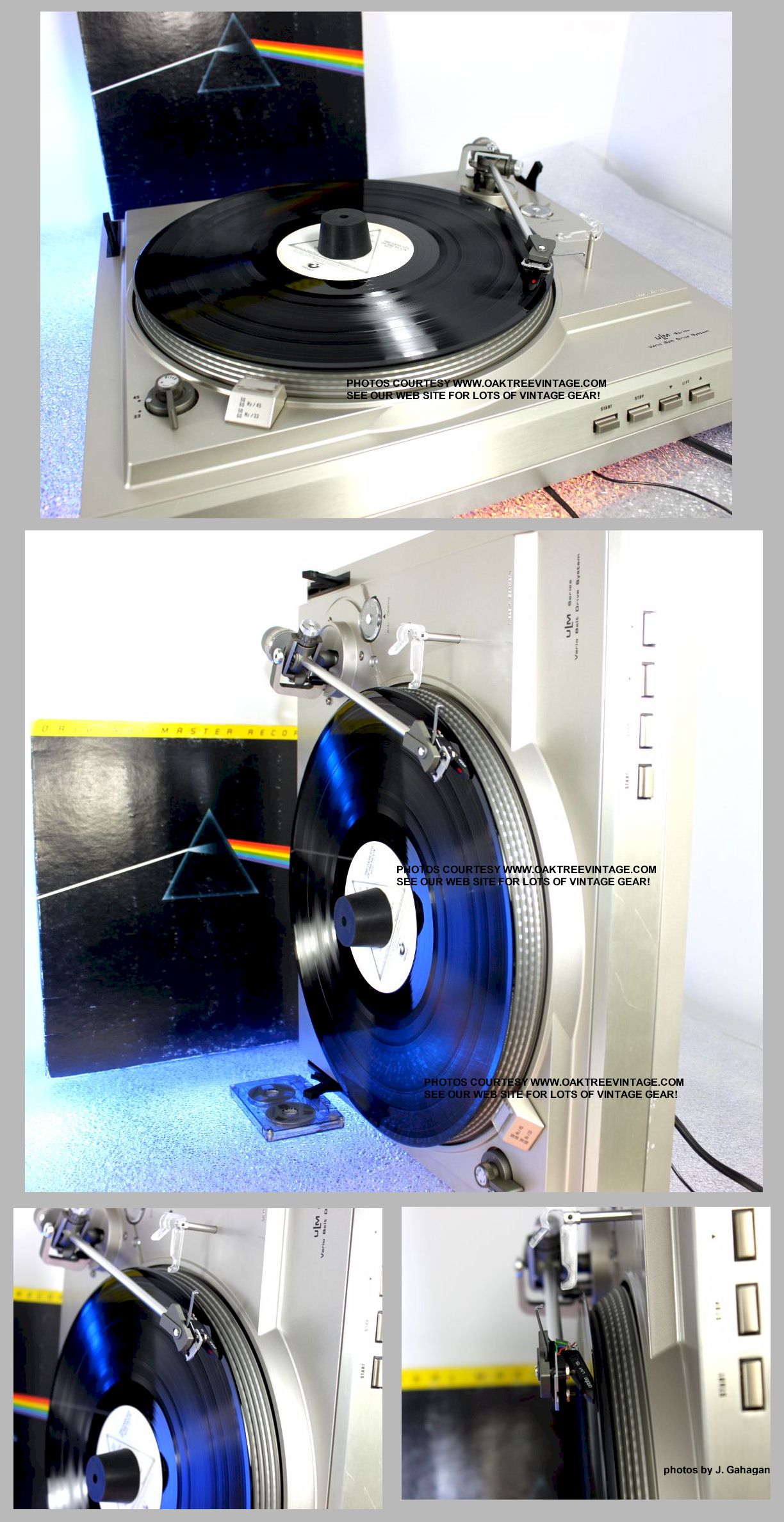

Dual CS-528 'Parlor Trick'. YES, it's REALLY playing on it's side.
Only do this with certain 'Dual' turntables, and BE CAREFUL!!!

NEW LISTING 2/24/15
 (Click on above thumbnails to enlarge photos)
RESTORED / REFURBISHED
DUAL CS-528 STEREO TURNTABLE
FULLY-AUTOMATIC / BELT DRIVE
W/ ORTOFON LM-15 CARTRIDGE!!!
#...5204
Circa early 80's
Made in Germany

SOLD 3/2/15
SHIPPING TO FLORIDA

  Our technician has completely gone through and 'Certified' this unit, cleaning inside and out, lubricating mechanism, adjusting tone arm lead out and testing performance. Total tech time invested ~ 10 hours!

  Entire internal 'Auto' mechanisms COMPLETELY disassembled, cleaned and re-lubed (no easy task).

  Platter spindle disassembled, cleaned of old lube and re-lubed.

  Pitch Control Belt reconditioned

  Gimbal bearing, counter weight and anti-skating all adjusted and verified for accuracy.

  Tone arm Lead-In and Lead-Out.

  Tone arm bearing perfectly smooth in operation.

  New main drive belt installed for years of trouble-free service.

  -Speed checked and verified for accuracy with technician's factory test strobe disc against built-in strobe.

  Original rubber mat, still supple and flexible with no hardening.

  Original dust cover just had a fresh, 3-stage buff and looks great!
-
Original dustcover hinges adjusted and now hold it upright as well-

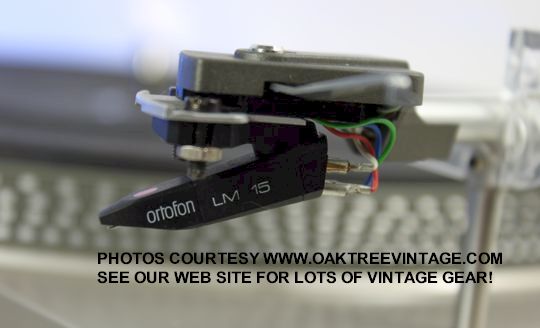

  Ortofon LM-15 Cartridge installed.-

We installed an Elliptically cut, Diamond stylus, magnetic cartridge (Ortofon LM-15 'Concord') and optimized the tone arm for it (If you prefer an up-grade you may also choose from our selection of new Audio Technica cartridges that we can also set up and ship with it for the additional cartridge cost.)
You can readily connect this table to any receiver, Integrated amplifier with a standard magnetic phono input, or a Pre-amp. To connect to computer for burning CD's just order one of our inexpensive Phono Pre-Amps and cable kits.
-

Unit tested with our myriad of test records, one of which included; Shures' 'Cartridge Obstacle Course' record.-

Following the above technical restore work,
t

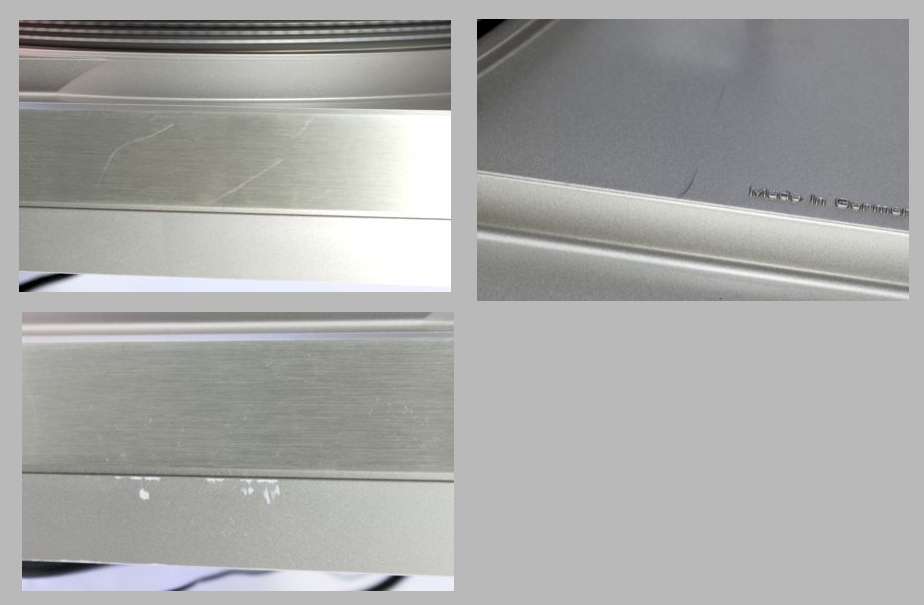

-his table works and sounds great! With the exception of some minor scuffs (see above photos) it looks great as well.

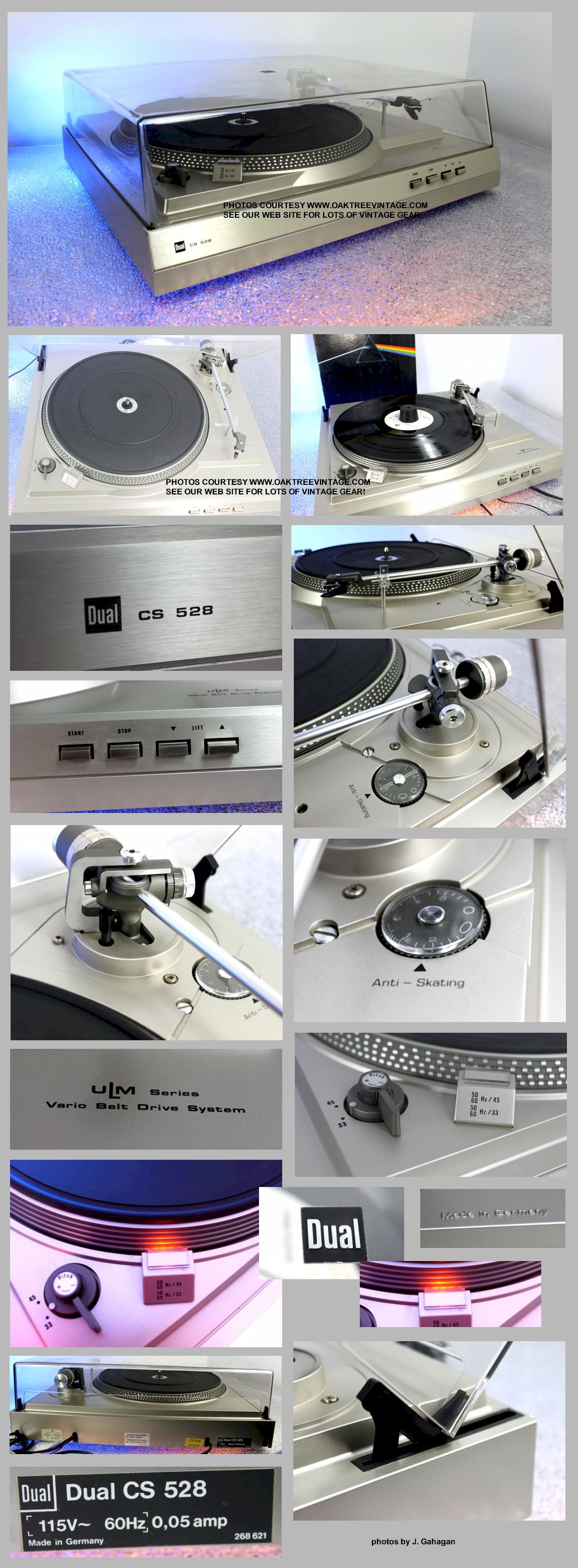

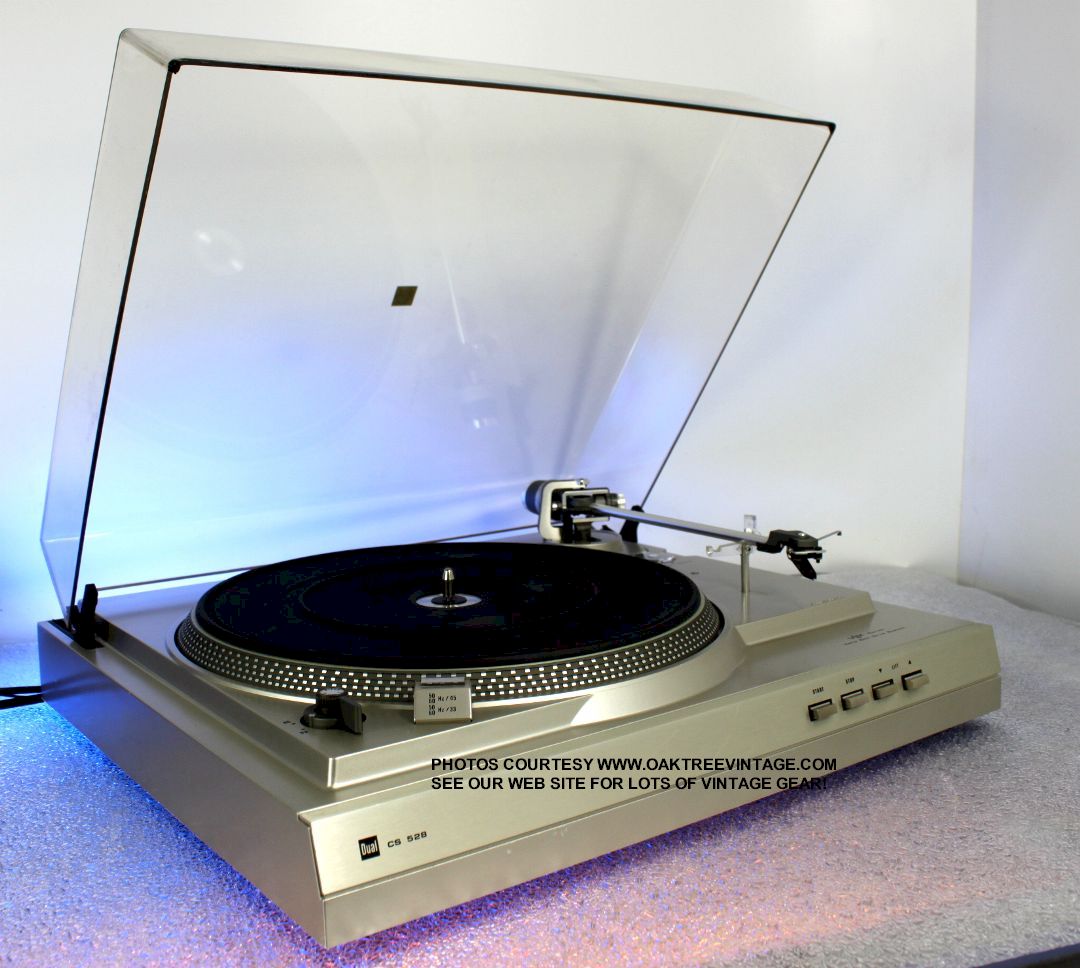

Dual CS-528 Turntable
-Features:

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


DUAL CS-528 TURNTABLE SPECIFICATIONS:
...archived

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?



Beautiful condition Dual CS-528 Fully-automatic turntable. Following the above mentioned, 10 hours of tech time, it's a very well running turntable featuring .... text omitted


 Also features adjustable ........ text omitted

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?
 .... Original dust cover looks great, with only minor, scuffs following a fresh buff w/ 3-stage plastic polish. Original hinges intact, adjusted and work perfectly. Again, it's been completely reconditioned and all functions test fine and overall, the table looks great! This is a great "all around" table that you won't be disappointed in. And for your next party, you can demonstrate how 'your turntable' can play on it's side (we'll include a rubber record clamp so you can do that!!!) Will include an e copy / pdf download of the Dual CS-528 / CS-1268 Owners / users manual and Service manual if desired.  Measures 17" wide x 13.5" deep x 6.5" tall and weighs 10 lbs unpacked. Includes our standard 90 day limited warranty.
RESTORED / REFURBISHED Dual CS-528 STEREO TURNTABLE
Cond. 8.5+
SOLD 3/2/15
SHIPPING TO FLORIDA

(C) R.R.


W/ ORTOFON LM-15 Cartridge & Dust Cover

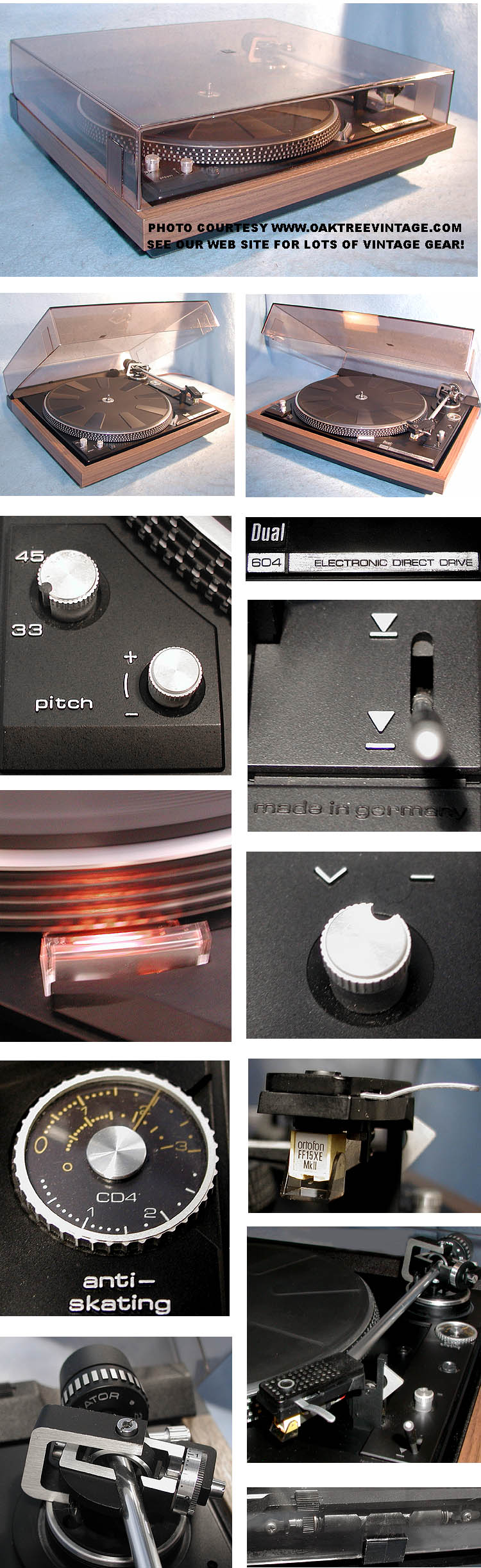

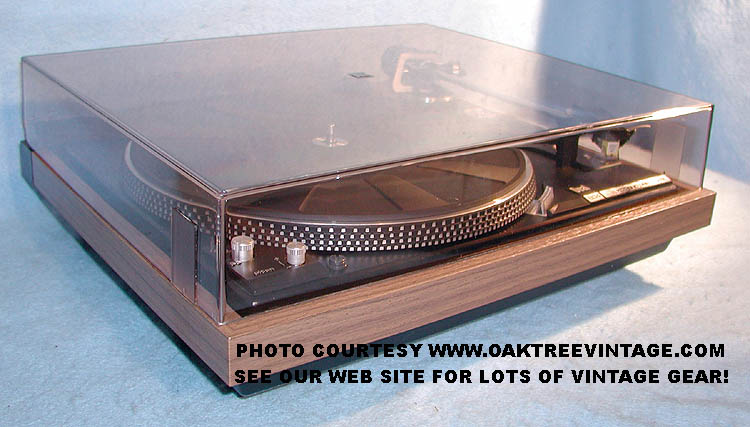

REPAIRED / RESTORED DUAL CS-604 STEREO TURNTABLE
BELT DRIVEN

SOLD 4/7/05

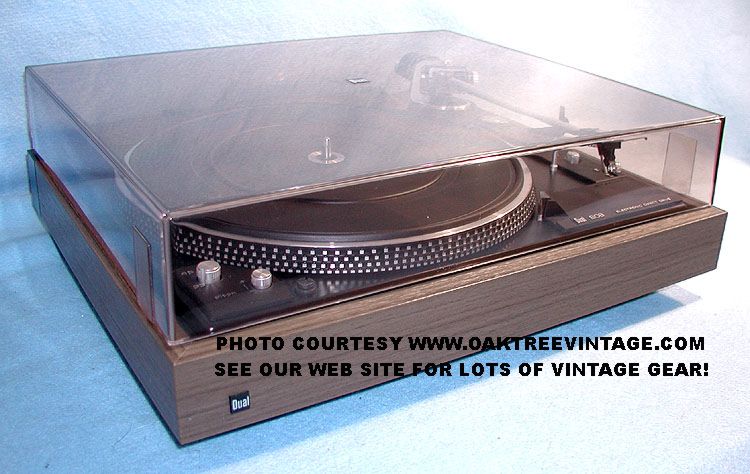

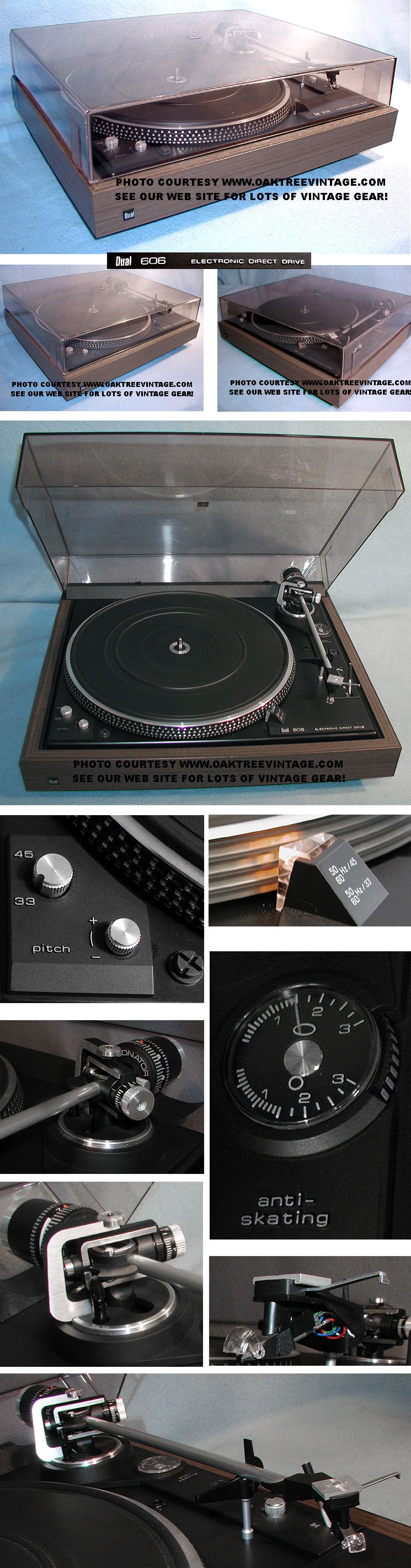

REPAIRED / RESTORED DUAL CS-606 STEREO TURNTABLE
BELT DRIVEN

SOLD 8/3/05
- -

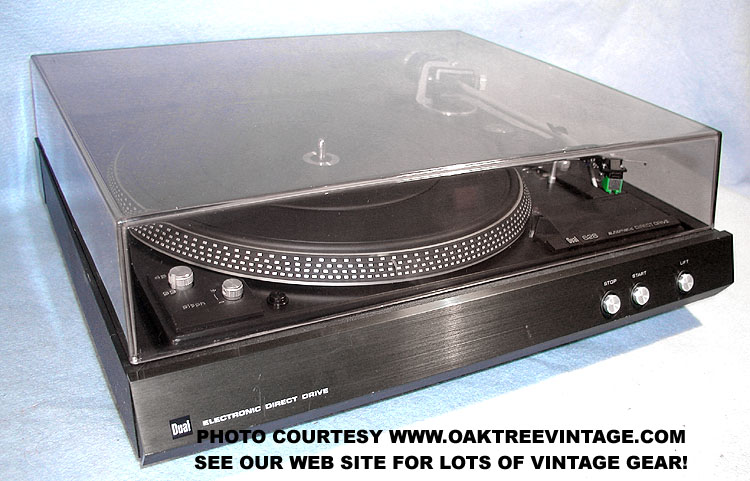

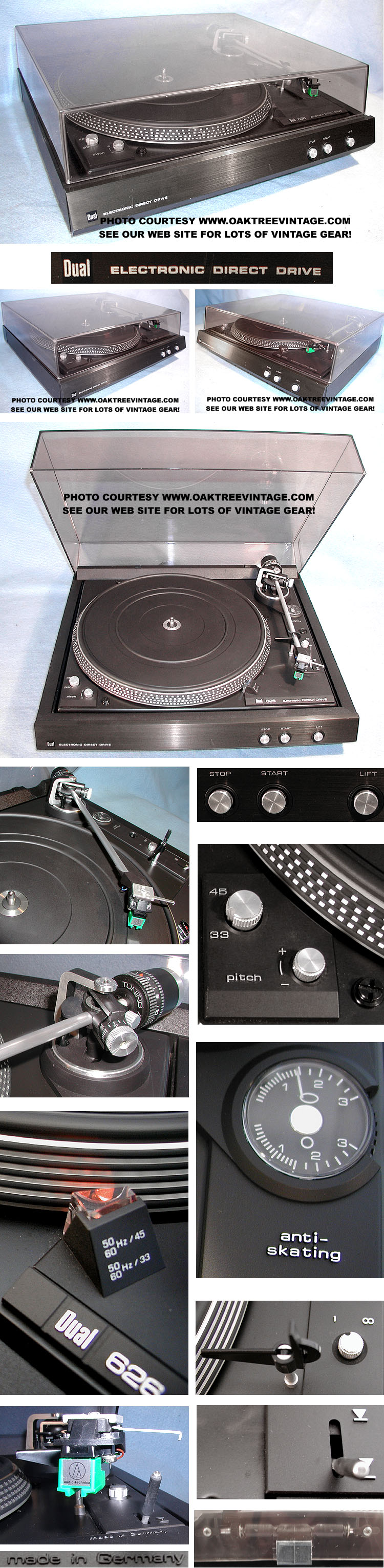

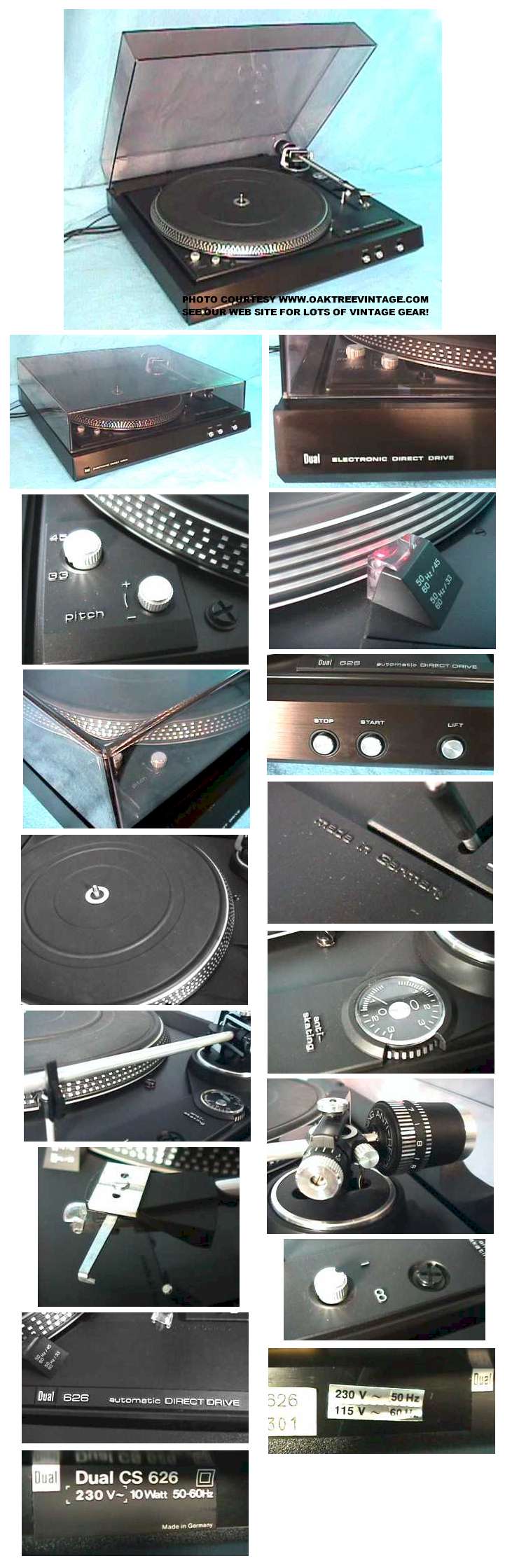

DUAL CS-626 STEREO TURNTABLE
BELT DRIVEN

SOLD 12/28/05

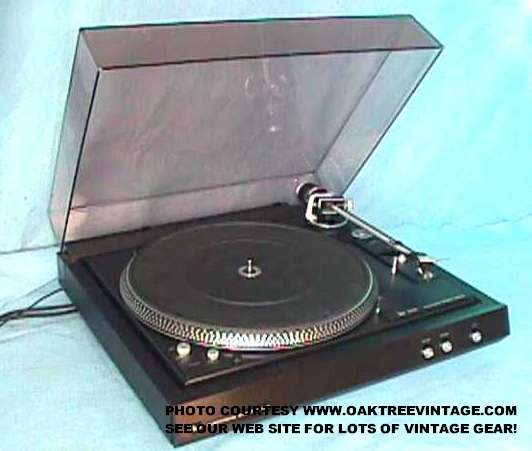

Dual_626_Direct_Drive_Stereo_Turntable_web.jpg (25593 bytes)      Dual_626_Direct_Drive_Stereo_Turntable_colllage.jpg (171419 bytes)
-
DUAL CS-626 STEREO TURNTABLE
BELT DRIVEN

SOLD


-

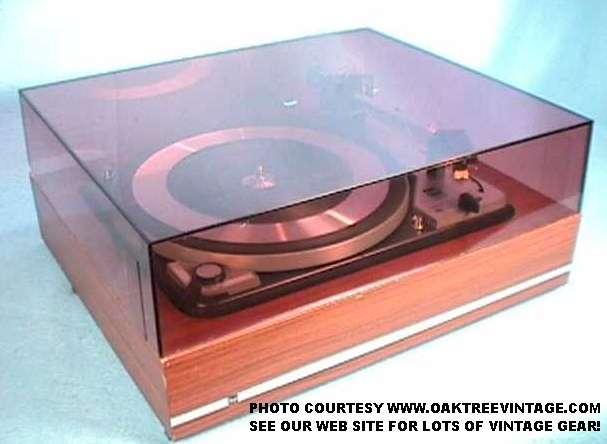

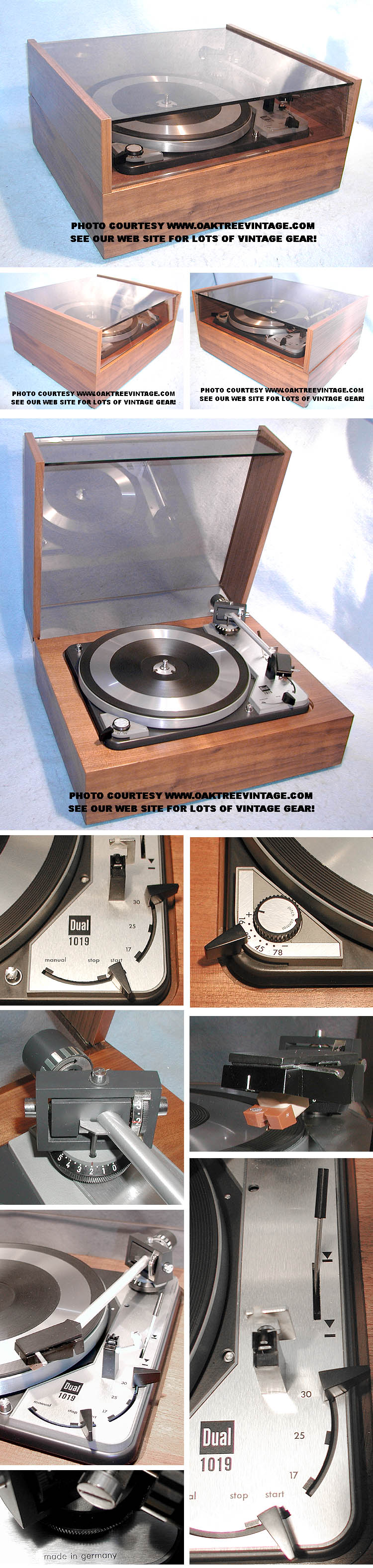

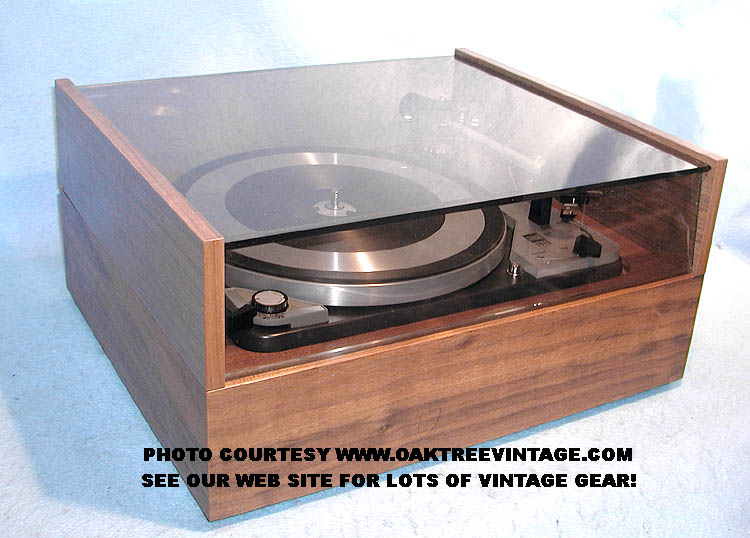

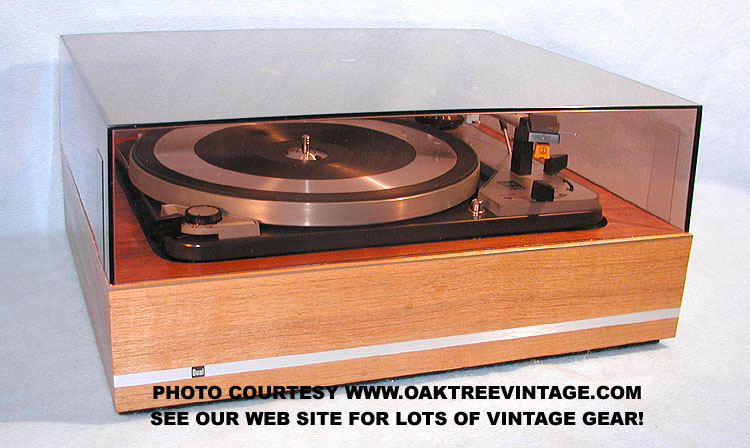

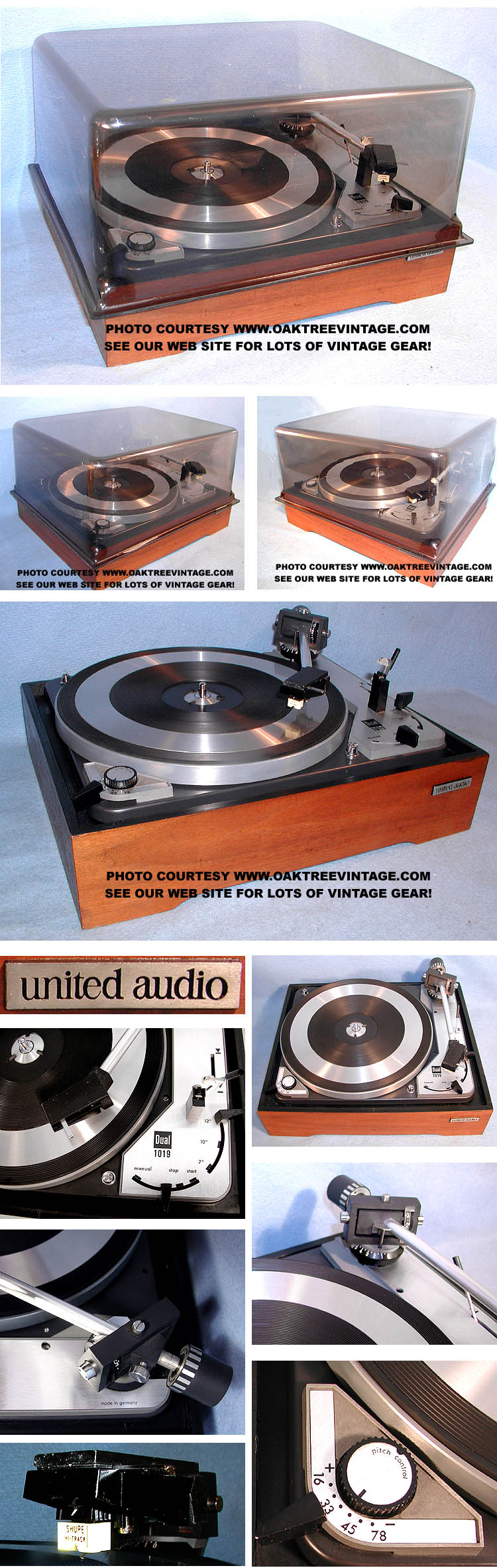

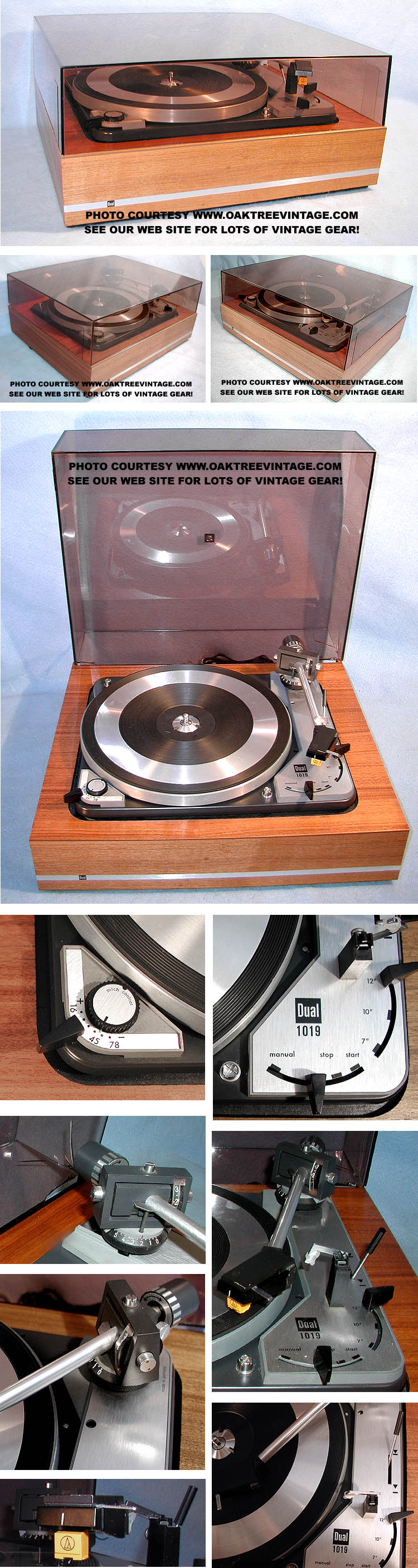

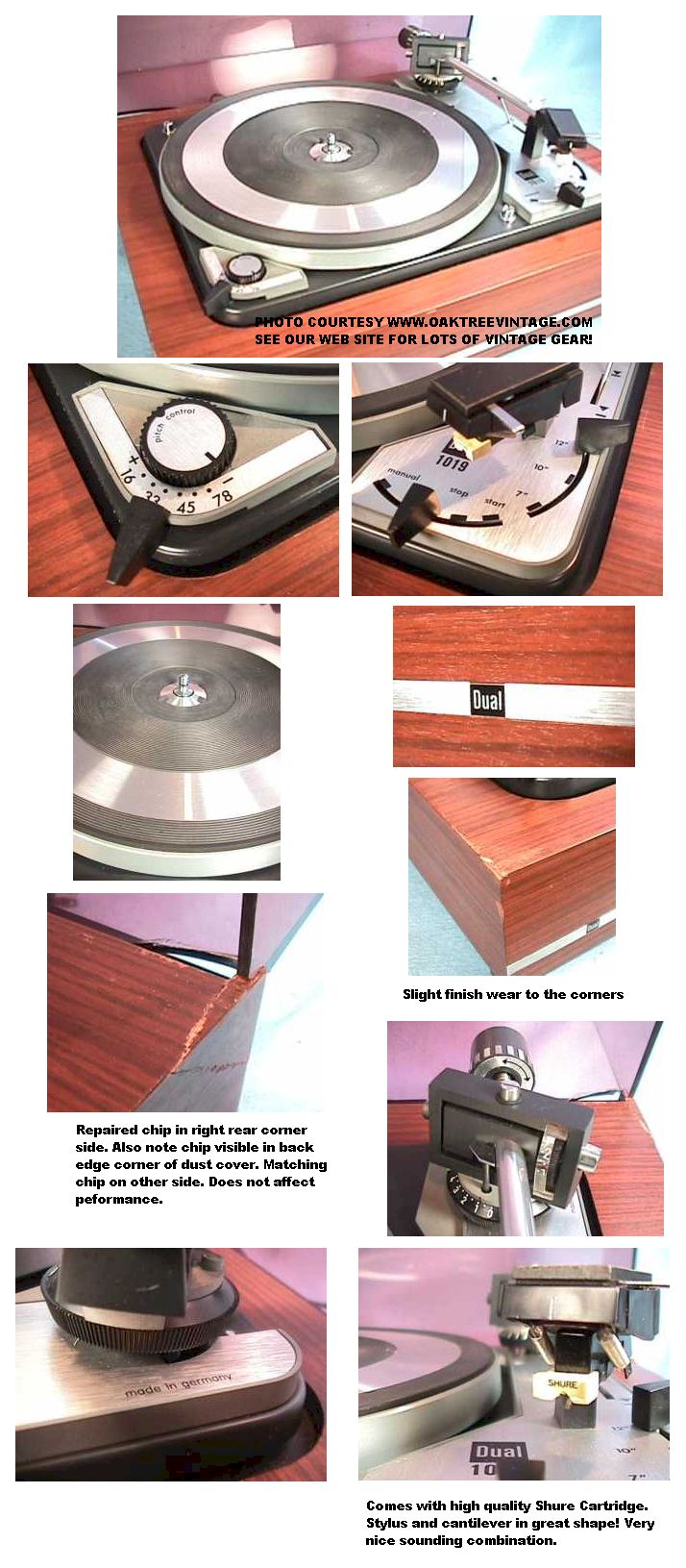

REPAIRED / RESTORED DUAL 1019 STEREO TURNTABLE
BELT DRIVEN
FULLY AUTOMATIC
IN OPTIONAL DUAL CK5 WOOD BASE
SOLD




NEW LISTING 11/17/05

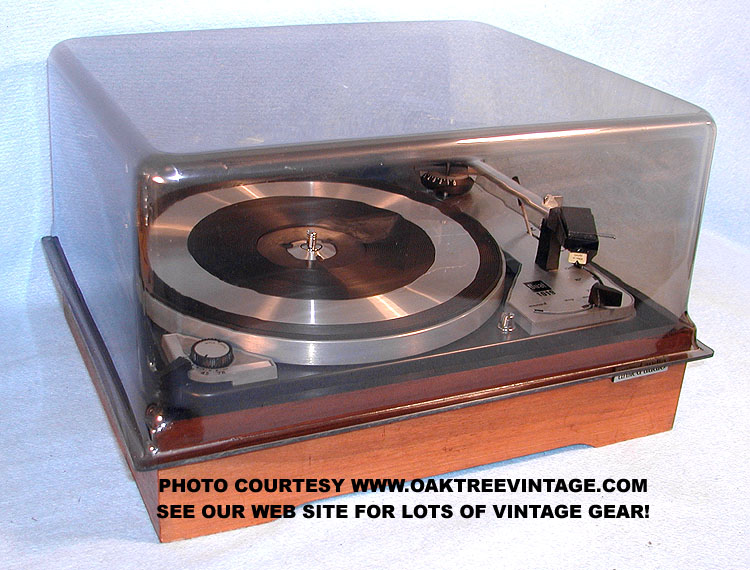

REPAIRED / RESTORED -DUAL 1019 STEREO TURNTABLE
BELT DRIVEN
FULLY AUTOMATIC

SOLD 12/14/05







NEW LISTING 11/17/05
REPAIRED / RESTORED -DUAL 1019 STEREO TURNTABLE
BELT DRIVEN
FULLY AUTOMATIC
IN OPTIONAL DUAL CK5 WOOD BASE

SOLD 12/2/05







NEW LISTING 1/27/05

DUAL 1019 STEREO TURNTABLE
BELT DRIVEN
FULLY AUTOMATIC
IN OPTIONAL DUAL CK-2 / CH-1 WOOD BASE

SOLD 3/4/05


- -

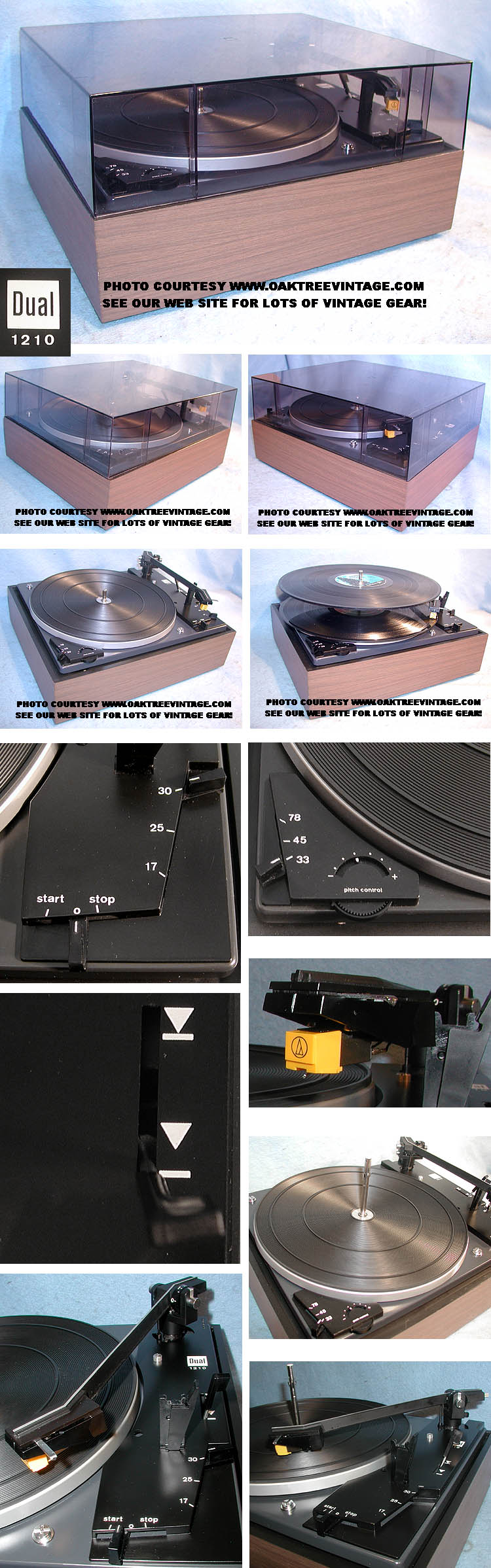

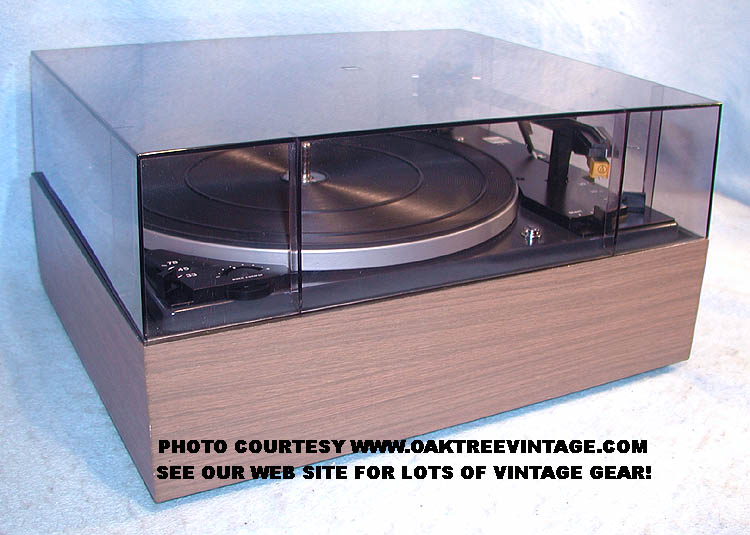

DUAL 1210 STACKER / CHANGER STEREO TURNTABLE
FULLY AUTOMATIC
BELT DRIVEN
SOLD 3/16/05









           NEW LISTING 12/11/18
(Click on above thumbnails to enlarge photos)
RESTORED / REFURBISHED / FULLY SERVICED
VINTAGE DUAL STACKER / CHANGER TURNTABLE

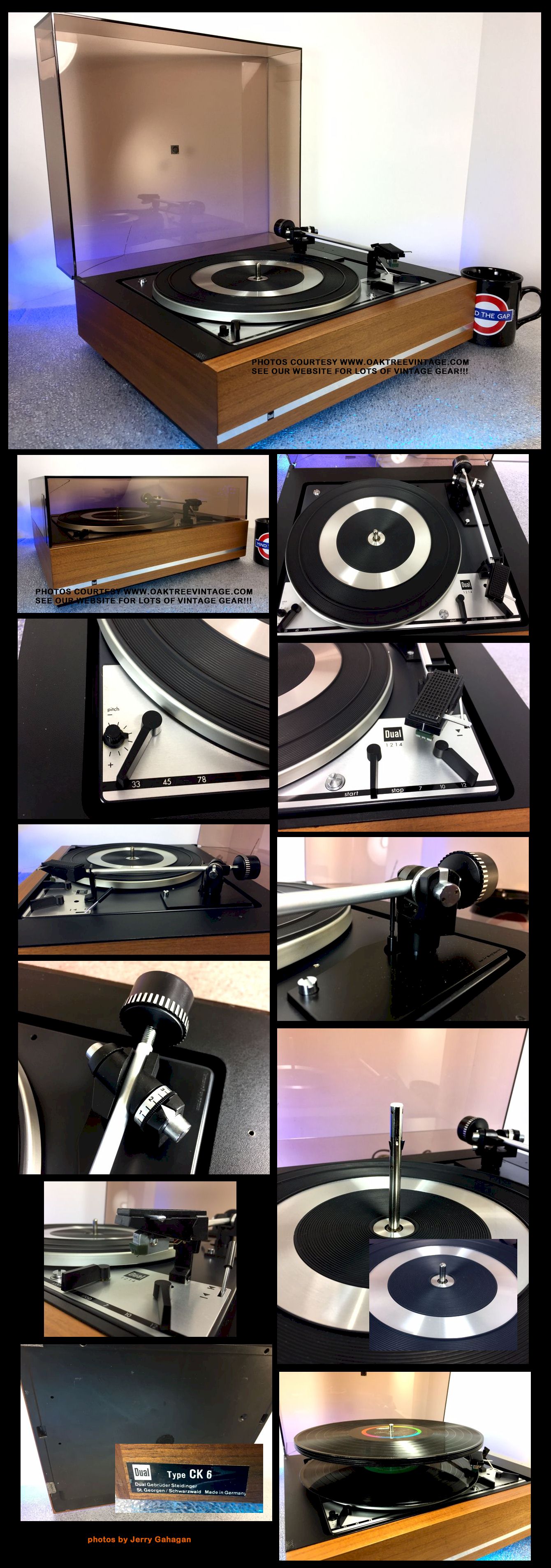

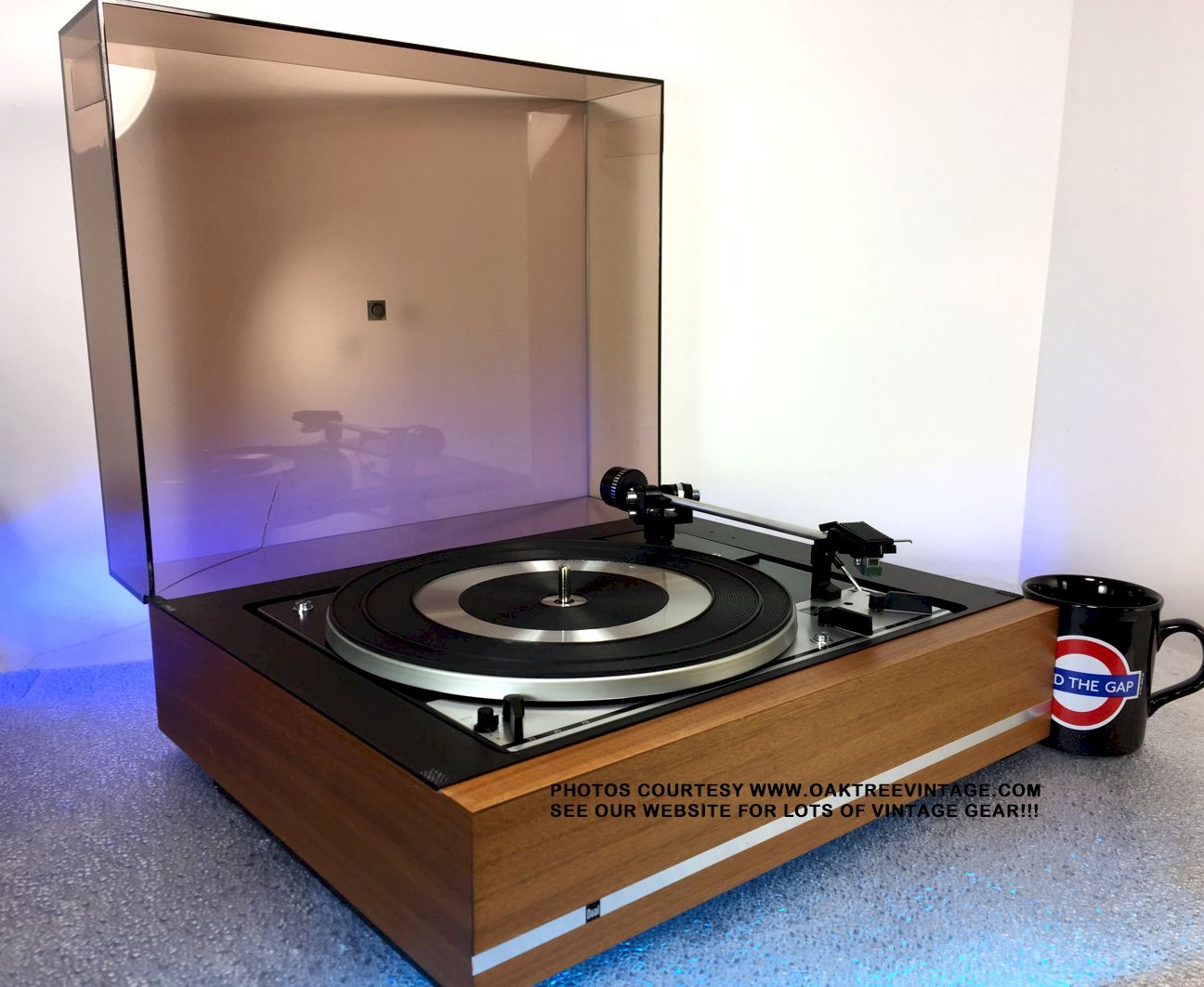

DUAL 1214
DUAL STACKER / CHANGER / FULLY AUTOMATIC
IDLER WHEEL DRIVE
3-SPEED TURNTABLE
PLAYS 78'S TOO!
 MADE IN WEST GERMANY
#...
8160
Circa 1974-76

SOLD 3/2/19
SHIPPING TO MICHAEL IN WISCONSIN

  Our technician has completely gone through and 'Certified' this unit, cleaning inside and out, lubricating mechanism, adjusting tone arm lead out and testing performance.

 Entire automatic mechanism COMPLETELY disassembled, de-greased, cleaned and re-lubed, (never an easy task on 'auto' turntables) including; the 'Actuating Slide and Pawl', and both plates.

 'Speed Change' mechanism disassembled, de-greased, cleaned and re-lubed

 All internal rubber parts reconditioned including, of course, the idler wheel.

 Drive motor completely disassembled, cleaned and re-lubed.

Steuerpimpel glider pad in fine shape, and fully operational

Platter bearing disassembled, cleaned of old lube and re-lubed.

 Gimbal bearing, counter weight and anti-skating all adjusted and verified for accuracy.

 Tone arm Lead-In and Lead-Out.

 Tone arm bearing perfectly smooth in operation.

 Idler position centered for more positive speed positioning w/ selector.

 Original Dual Changer / Stacker Spindle inspected, re-lubed with 'dry lube' and EXTENSIVELY tested on multiple tables (see below)

 Original platter mat warp & bubble free.

 Proprietary Dual 'cartridge sled' inspected, and had both mating contact sets burnished (primarily to address 60Hz hum)

 Excel, ES-70S 'magnetic' cartridge. Tracking and Bias force also re-set to 2g.

Tested / analyzed and passed for motor noise and 60Hz hum.

 Speed checked and verified for accuracy with technician's factory test strobe disc.


 He also did an 'orbital buff' to the dustcover and it looks GREAT! Has crack at rear corner that HAS been 'plastic welded' solidly back (looks bad, but solid now).

 Table cosmetics detailed.

 Real, Teak Wood veneer base structurally solid. Veneer just had a fresh coat of Lemon Oil.

Unit tested with our myriad of test records, one of which included; Shures' 'Cartridge Obstacle Course' record

Restoration entailed approx 6+ hrs w/ followed with about MANY hours of testing w/ many albums (mostly because we enjoyed having a 'quality' changer on one of the test stations to listen to).

As this turntable has a 'magnetic cartridge' (unlike most 'stacker / changers' which have 'crystal / ceramic / piezo' pickups) you can readily connect this table to any receiver or Integrated amplifier input. For a basic system, or wanting to get introduced or re-introduced to stacking vinyl records, this is a great table.

You can readily connect this table to any receiver (including 'modern / A/V / Home Theater receivers) or Integrated amplifier with a standard magnetic phono input, or an external Phono Pre-amp. To connect to computer for burning CD's just order one of our inexpensive Phono Pre-Amps and cable kits.

 Plays 16, 33, 45 & 78 RPM records. Selects 7", 10" or 12" record size. As stated above, this table has had EXTENSIVE refurb / restore work. Cosmetically, the table looks great.
 Again, our turntable tech has completely and EXTENSIVELY gone through this table (total tech time 6 hours).
Following, and ONLY DUE TO the above restoration / refurbishment, the table starts as it should, and end's as it should with no 'end groove hang up'!  (While Dual purports stacks of 5 LPs as 'typical', normally you should typically only get about 3-4 on a stack with no issues, and you won't always get '6' to work, but... this table, #8160 was test played thru 30+ cycles and tested thru multiple stacks, with 6X LP's stacked with no issues!!! Occasionally you'll have a record 'hang up' or 'double drop', but that's almost always due to errantly drilled, elliptical or center holes that are 'too tight' in one of the records.
 Overall the table works beautifully and all functions now work GREAT! We also re-installed the 'Excell', ES-70S cartridge and optimized the table for it.  (If you prefer an up-grade you may also choose from our selection of new Audio Technica cartridges that we can also set up and ship with it for the additional cartridge cost.) You can readily connect this table to any receiver, Integrated amplifier with a standard magnetic phono input, or a Pre-amp. To connect to computer for burning CD's just order one of our inexpensive Phono Pre-Amps and cable kits. Again, this table looks near new and works great!!

First DUAL 1214, fully automatic changer phonograph. This is the first "Dual 1214" that we've had in over 20 years that we've restored (due to finally having a technician that's up to the task). Very nice Dual 1214 Stacker / Changer / Single play, Fully-Automatic turntable. Very difficult to 'break' one of these.
These are very well built turntables featuring an adjustable speed belt drive platter, but here's the VERY IMPORTANT POINT about the 1214.  It is one of the few Dual models, offering 'adjustable platter speed' that does NOT utilize a 'toothed belt'. It uses a 'tapered' motor drive pulley. The original 'Toothed' belts, utilized by Dual on MANY of their turntables are now 'UNOBTAINIUM' now, and any of the original / NOS ones still floating around are likely 'dry rotted' and useless. We've tried 'O-rings' (both single and double) with limited success. NOT to worry on this model as it doesn't use that system at all (and that is VERY important).

Again, as previously stated, the table has just been completely gone through by our senior turntable technician and is "Ready to Go"! Following refurbishment / and final inspection / sign off, the table has gone thru a minimum of 30 play cycles, including a minimum of 6 plays of 6x record stacks. Again, the only cosmetic issue is the repaired crack in the dust cover (see photos above). You will not be disappointed in this table for all around use. Includes 'e-copy' / pdf download of the Dual 1214 Owners / Users manual, and the Service manual if the purchaser desires. Comes with "Stacker / Changer" tall spindle and 'Short / Single Play' spindle. Measures 18" wide x 16" deep x 9" tall and weighs a heavy 16 lbs unpacked. Includes our standard 90 day limited warranty.
DUAL 1214 #...8160
Cond. 8.5+

SOLD 3/2/19
SHIPPING TO MICHAEL IN WISCONSIN


Including 'Square-edged Dust Cover'


To connect to computer for burning CD's or to a modern A/V receiver that does not have phono inputs, just order one of our inexpensive $42.99 Phono Pre-Amps and cable kits.

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)









NEW LISTING 9/15/06

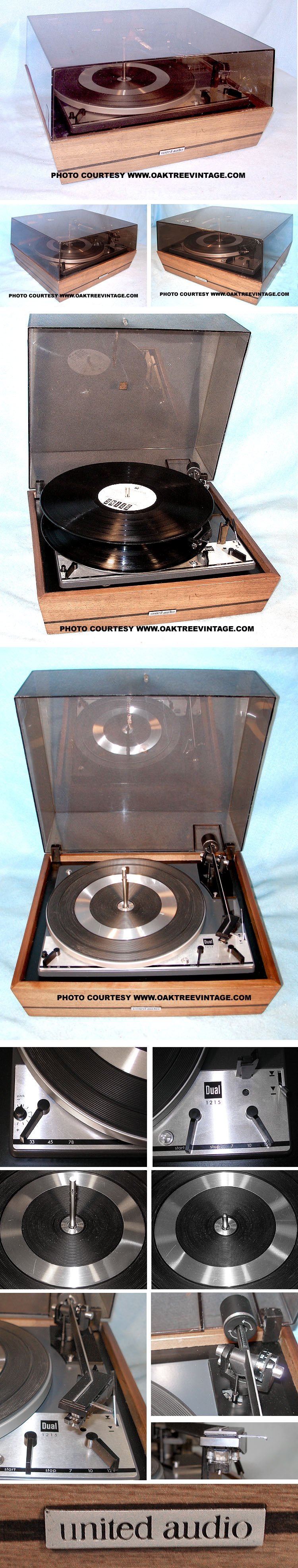

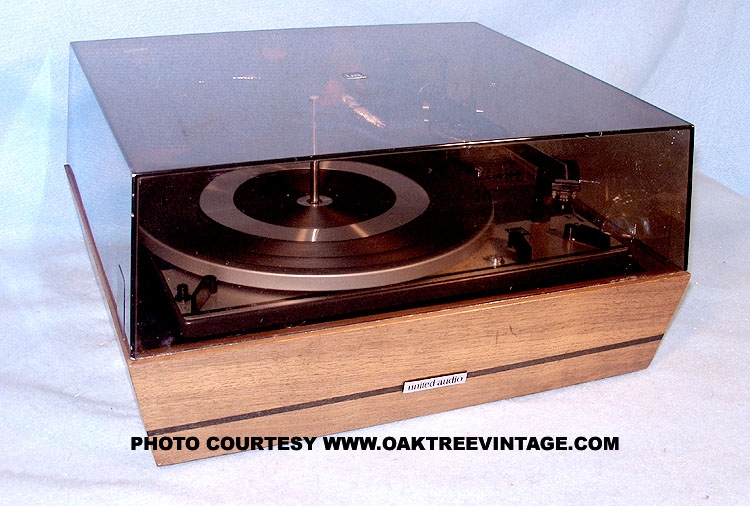

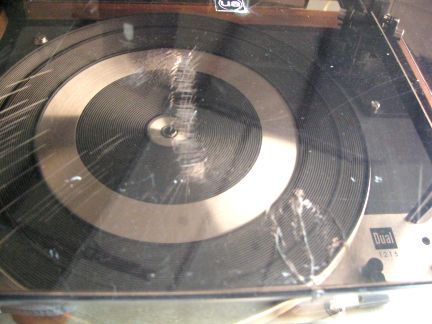

DUAL 1215 STACKER / CHANGER STEREO TURNTABLE
FULLY AUTOMATIC
BELT DRIVEN

SOLD 10/3/06









NEW LISTING 12/14/17
(click on above thumbnails to enlarge photos)

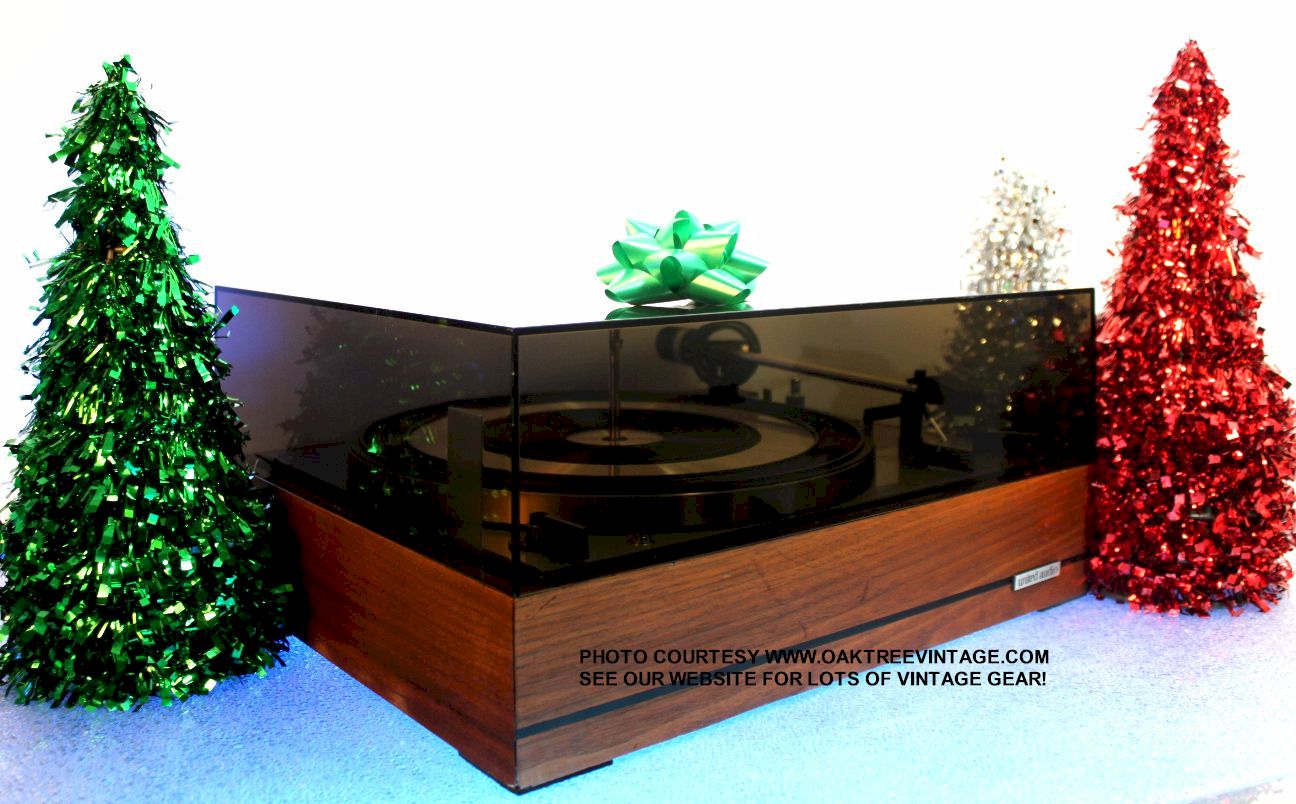

RESTORED / REFURBISHED / FULLY SERVICED
VINTAGE DUAL STACKER / CHANGER TURNTABLE

DUAL 1219
FULLY AUTOMATIC
STACKER / CHANGER

IDLER WHEEL DRIVE

TURNTABLE
PLAYS 78'S TOO!
 MADE IN WEST GERMANY
#...2184

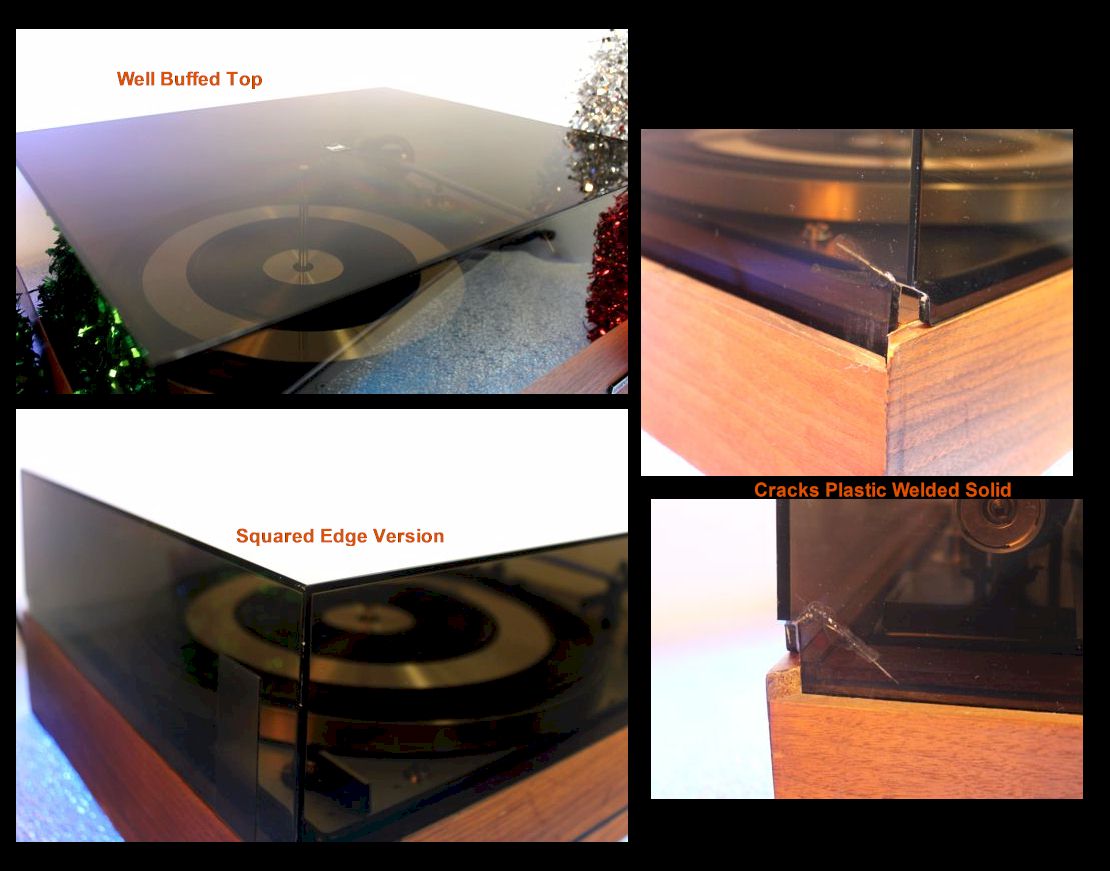

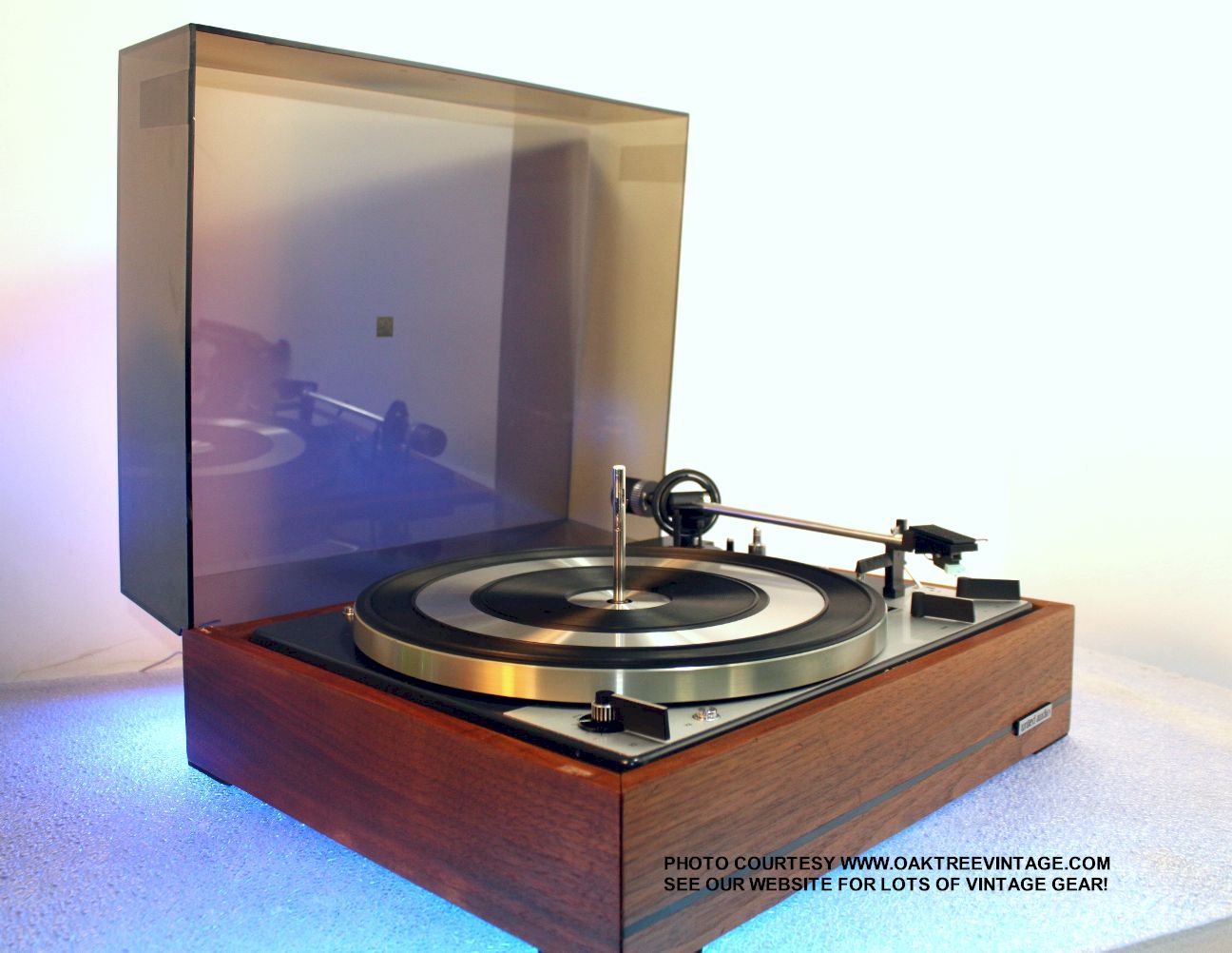

'Square-edged Dust Cover'
Circa 1970-72

for sale
SOLD 12/20/17
SHIPPING TO ARIZONA


  Our technician has completely gone through and 'Certified' this unit, cleaning inside and out, lubricating mechanism, adjusting tone arm lead out and testing performance.

 Entire automatic mechanism COMPLETELY disassembled, de-greased, cleaned and re-lubed, (never an easy task on 'auto' turntables) including; the 'Actuating Slide and Pawl', and both plates.

 'Speed Change' mechanism disassembled, de-greased, cleaned and re-lubed

 All internal rubber parts reconditioned including, of course, the idler wheel.

 Drive motor completely disassembled, cleaned and re-lubed.

Steuerpimpel replaced (this is a 'MUST DO')

Steuerpimpel glider pad in fine shape, and fully operational

Platter bearing disassembled, cleaned of old lube and re-lubed.

 Gimbal bearing, counter weight and anti-skating all adjusted and verified for accuracy.

 Tone arm Lead-In and Lead-Out.

 Tone arm bearing perfectly smooth in operation.

 Idler position centered for more positive speed positioning w/ selector.

 Original Dual Changer / Stacker Spindle inspected, re-lubed with 'dry lube' and EXTENSIVELY tested on multiple tables (see below)

 Burnished RCA output connectors under chassis

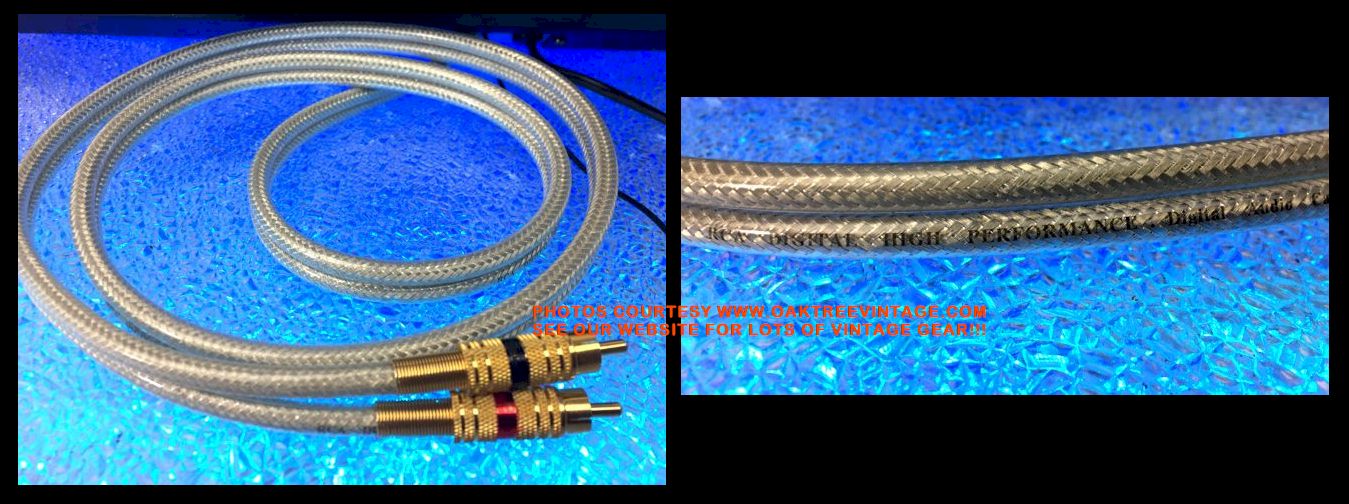

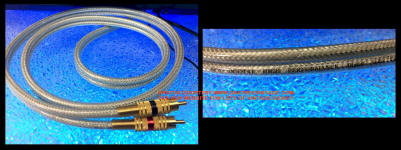

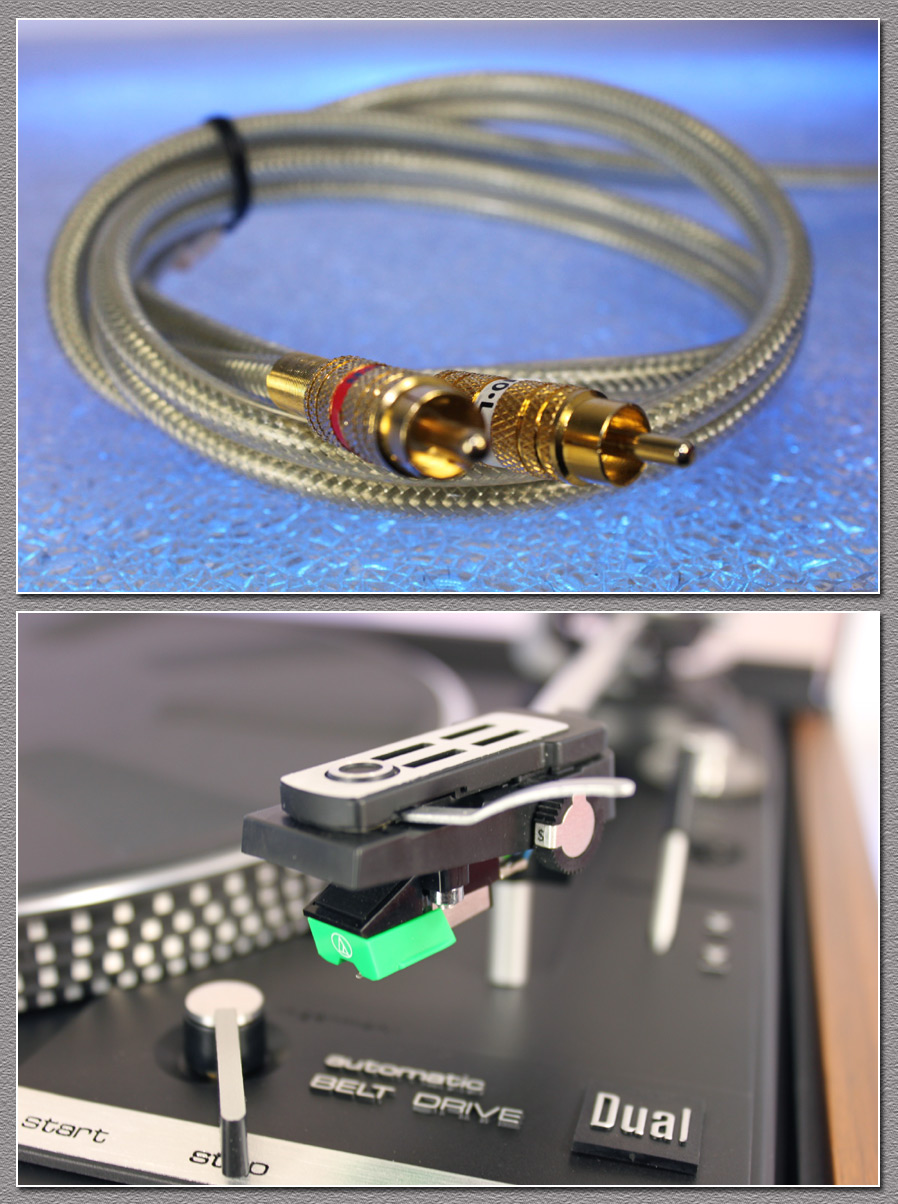

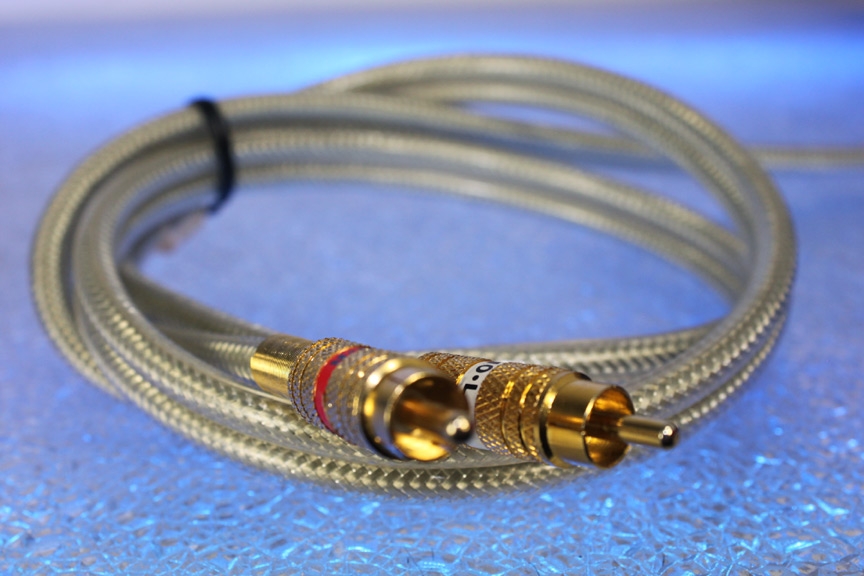

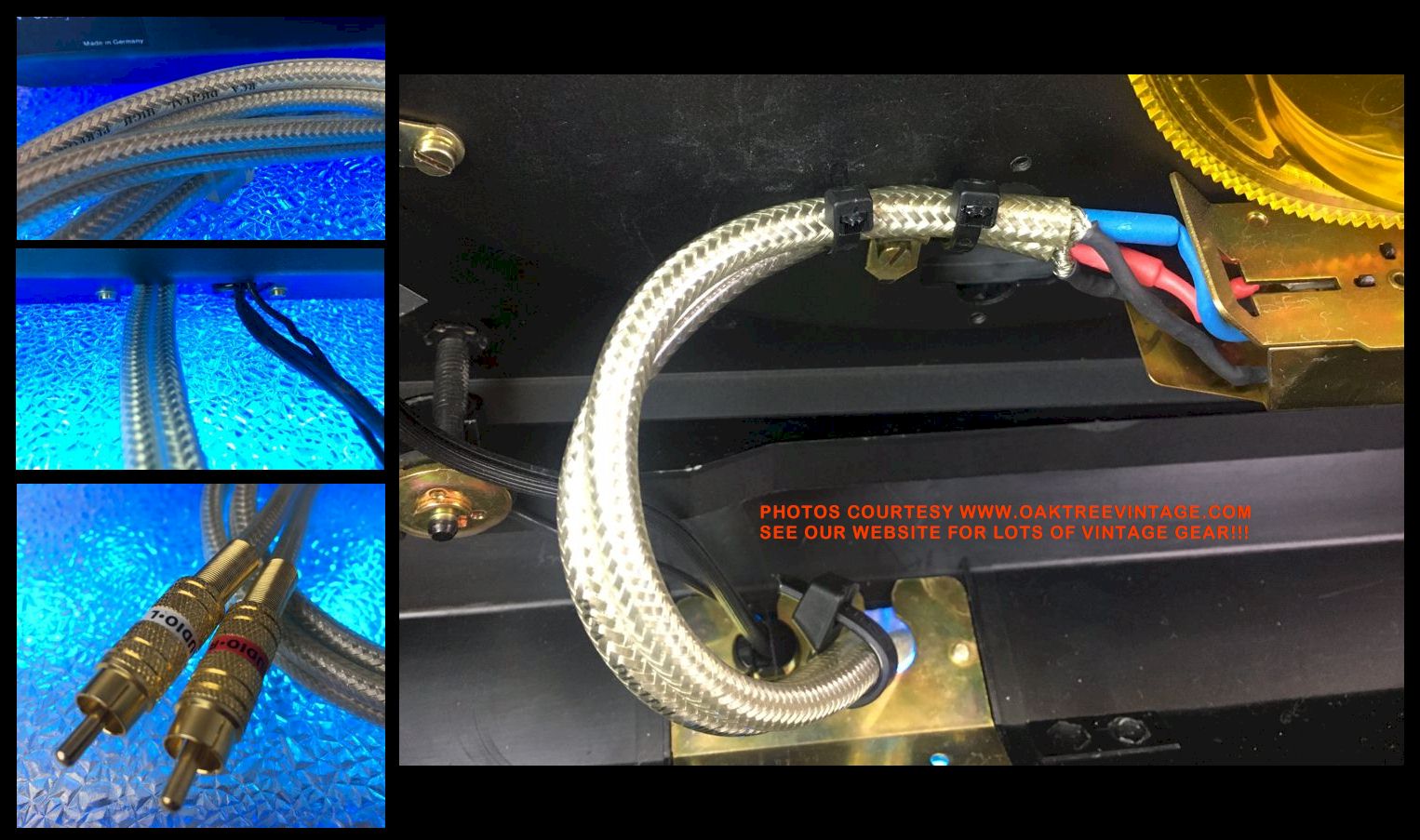

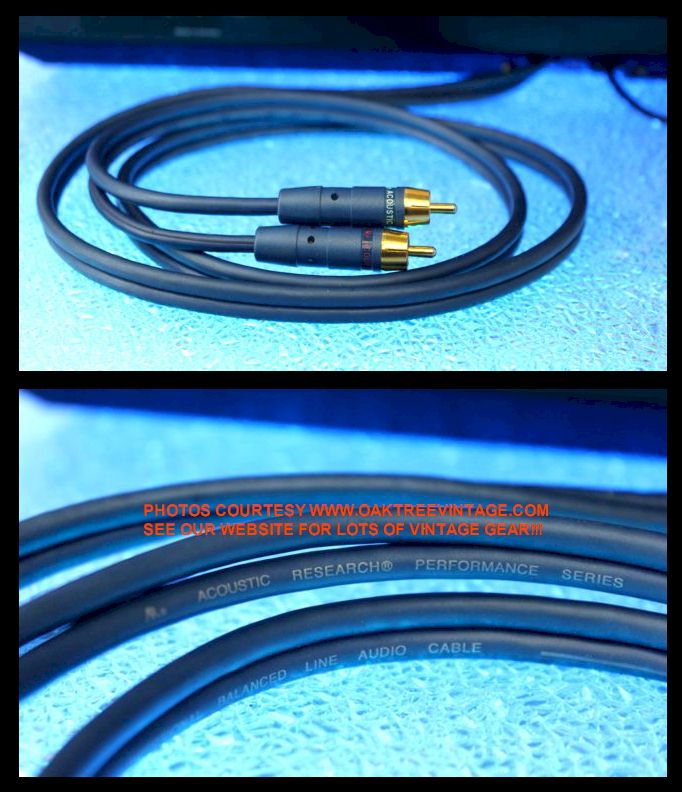

 He also replaced the anemic, factory RCA cables, with some much higher grade, fully shielded interlink cables, w/ 24kt gold RCA connectors.

 Original platter mat warp & bubble free.

 Re-glue, and Lemon Oil Teak wood veneer case / base

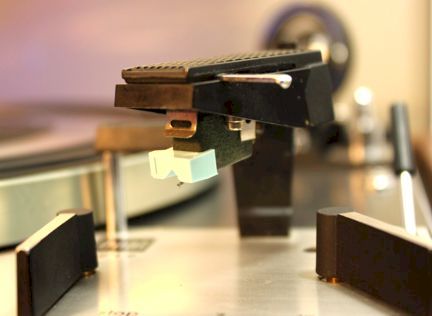

 Proprietary Dual 'cartridge sled' inspected, and had both mating contact sets burnished (primarily to address 60Hz hum)

 New Shure M91-E, Elliptically cut, Diamond Stylus, installed on the Shure 'magnetic' cartridge. Tracking and Bias force also re-set to 2g.


Tested / analyzed and passed for motor noise and 60Hz hum.

 Speed checked and verified for accuracy with technician's factory test strobe disc.


 He also did an 'orbital buff' to the dustcover and it looks GREAT! Has cracks at each rear corner that have been 'plastic welded' solidly back.

 Table cosmetics detailed.

Unit tested with our myriad of test records, one of which included; Shures' 'Cartridge Obstacle Course' record

Restoration entailed approx 19+ hrs w/ followed with about MANY hours of testing w/ many albums (mostly because we enjoyed having a 'quality' changer on one of the test stations to listen to).


As this turntable has a 'magnetic cartridge' (unlike most 'stacker / changers' which have 'crystal / ceramic / piezo' pickups) you can readily connect this table to any receiver or Integrated amplifier input. For a basic system, or wanting to get introduced or re-introduced to stacking vinyl records, this is a great table.

You can readily connect this table to any receiver (including 'modern / A/V / Home Theater receivers) or Integrated amplifier with a standard magnetic phono input, or an external Phono Pre-amp. To connect to computer for burning CD's just order one of our inexpensive Phono Pre-Amps and cable kits.


 Plays 16, 33, 45 & 78 RPM records. Selects 7", 10" or 12" record size. As stated above, this table has had EXTENSIVE refurb / restore work. Cosmetically, the table looks great.

Again, our turntable tech has completely and EXTENSIVELY gone through this table (total tech time ~17+ hours).
Following, and ONLY DUE TO the above restoration / refurbishment, the table starts as it should, and end's as it should with no 'end groove hang up'!
 (While Dual purports stacks of 5 LPs as 'typical', normally you should typically only get about 3-4 on a stack with no issues, and you won't always get '6' to work, but... this table, #2184
was test played thru 25+ cycles and tested thru multiple stacks, with 6X LP's stacked with no issues!!! Occasionally you'll have a record 'hang up' or 'double drop', but that's almost always due to errantly drilled, elliptical or center holes that are 'too tight' in one of the records.
 Overall the table works beautifully and all functions now work GREAT!
 We also re-installed a Shure cartridge with a brand new M91-E stylus and optimized the table for it.  (If you prefer an up-grade you may also choose from our selection of new Audio Technica cartridges that we can also set up and ship with it for the additional cartridge cost.)



Again, as previously stated, the table has just been completely gone through by our senior turntable technician and is "Ready to Go"! Following refurbishment / and final inspection / sign off, the table has gone thru a minimum of 25 play cycles, including a minimum of 6 plays of 6x record stacks. You will not be disappointed in this table for all around use. Comes with "Stacker / Changer" tall spindle and 'short / single play' spindle and a pair of 'up-graded' RCA interlinks. Measures 18" wide x 16" deep x 9" tall an
d weighs a heavy 16 lbs unpacked. Includes our standard 90 day limited warranty.
DUAL 1219 #...2184
Cond. 8.5+

SOLD 12/20/17
SHIPPING TO ARIZONA


Including 'Square-edged Dust Cover'


To connect to computer for burning CD's or to a modern A/V receiver that does not have phono inputs, just order one of our inexpensive $42.99 Phono Pre-Amps and cable kits.

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)






NEW LISTING 12/14/17
(click on above thumbnails to enlarge photos)

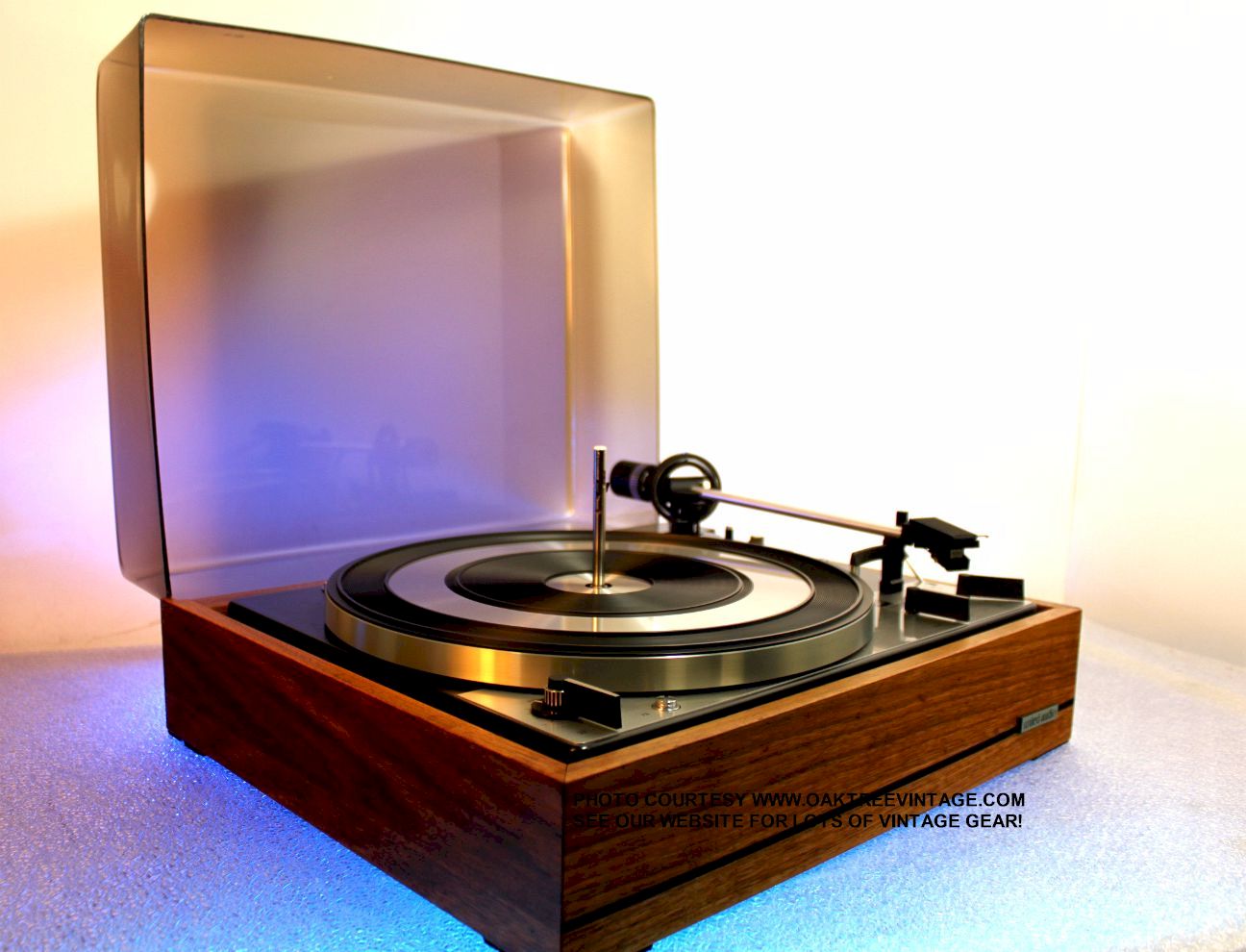

RESTORED / REFURBISHED / FULLY SERVICED
VINTAGE DUAL STACKER / CHANGER TURNTABLE

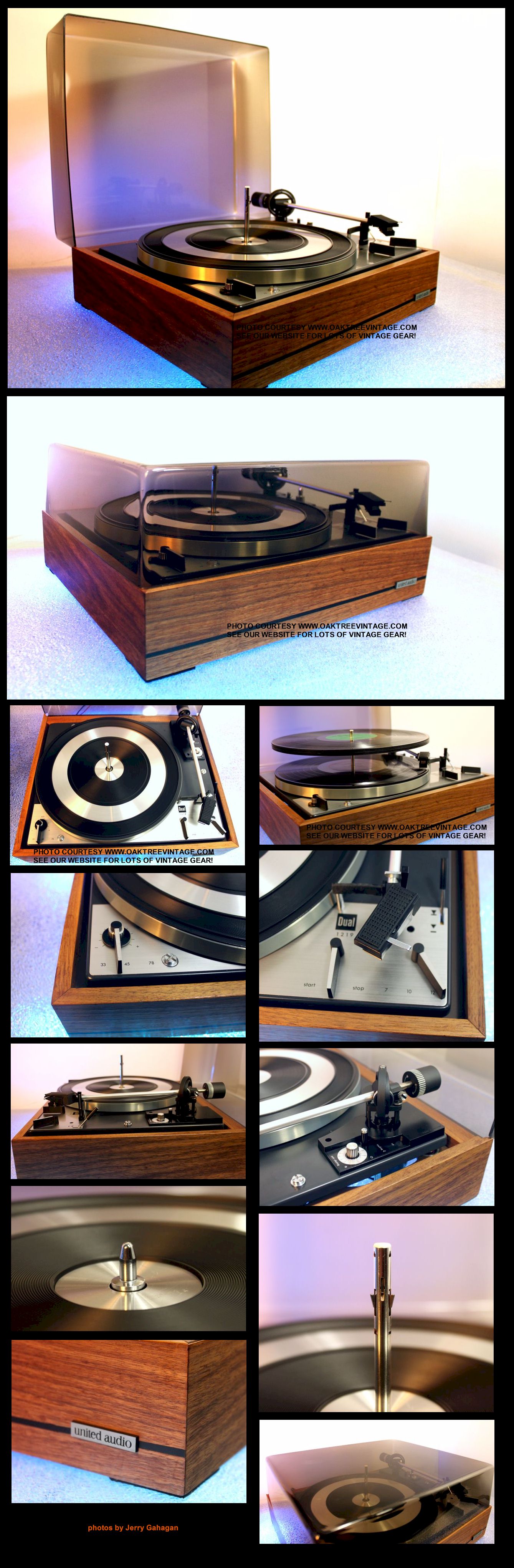

DUAL 1219
FULLY AUTOMATIC
STACKER / CHANGER

IDLER WHEEL DRIVE

TURNTABLE
PLAYS 78'S TOO!
 MADE IN WEST GERMANY
#...5223

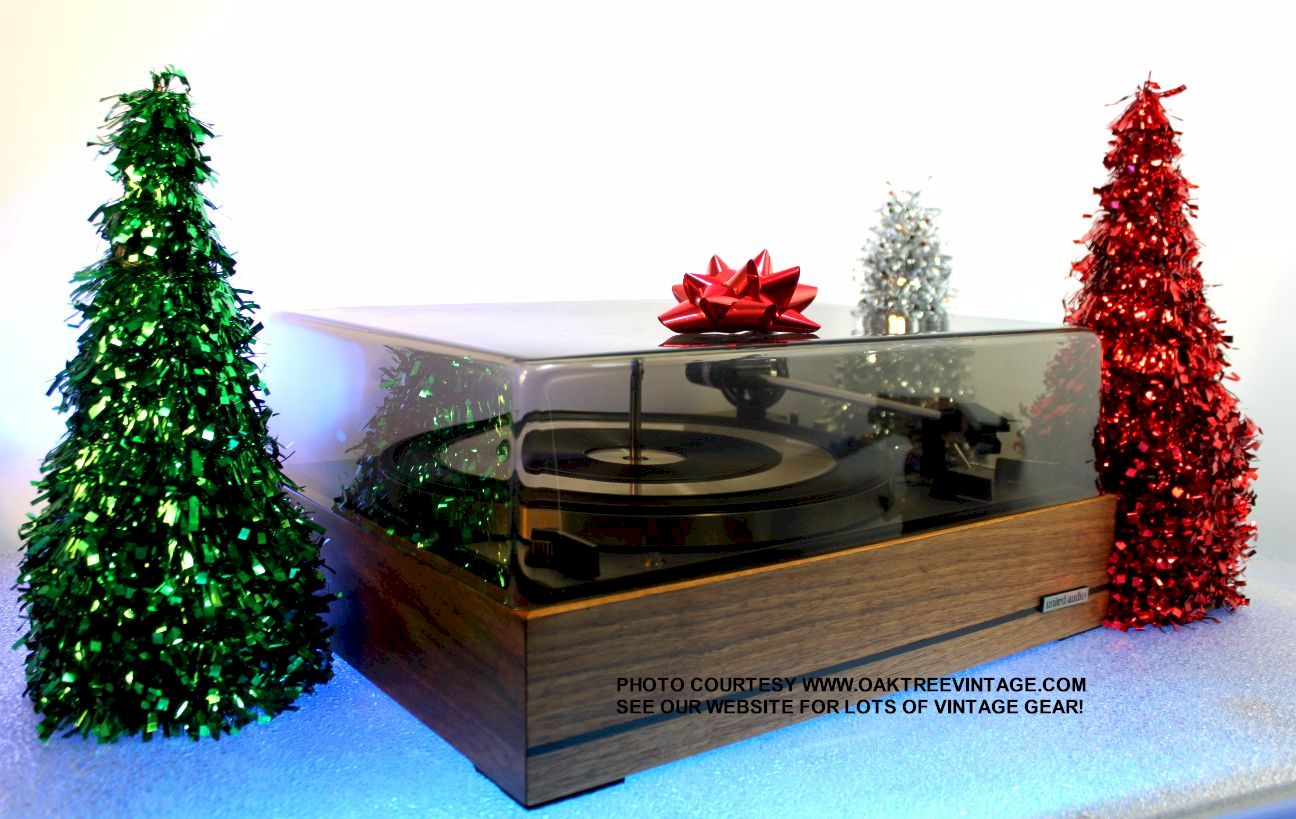

'Round-edged Dust Cover'
Circa 1970-72

SOLD 8/21/18
SHIPPED TO ALASKA


  Our technician has completely gone through and 'Certified' this unit, cleaning inside and out, lubricating mechanism, adjusting tone arm lead out and testing performance.

 Entire automatic mechanism COMPLETELY disassembled, de-greased, cleaned and re-lubed, (never an easy task on 'auto' turntables) including; the 'Actuating Slide and Pawl', and both plates.

 'Speed Change' mechanism disassembled, de-greased, cleaned and re-lubed

 All internal rubber parts reconditioned including, of course, the idler wheel.

 Drive motor completely disassembled, cleaned and re-lubed.

Steuerpimpel replaced (this is a 'MUST DO')

Steuerpimpel glider pad in fine shape, and fully operational

Platter bearing disassembled, cleaned of old lube and re-lubed.

 Gimbal bearing, counter weight and anti-skating all adjusted and verified for accuracy.

 Tone arm Lead-In and Lead-Out.

 Tone arm bearing perfectly smooth in operation.

 Idler position centered for more positive speed positioning w/ selector.

 Original Dual Changer / Stacker Spindle inspected, re-lubed with 'dry lube' and EXTENSIVELY tested on multiple tables (see below)

 Burnished RCA output connectors under chassis

 He also replaced the anemic, factory RCA cables, with some much higher grade, fully shielded interlink cables, w/ 24kt gold RCA connectors.

 Table cosmetics detailed.

 Dust cover 'multi-stage' buffed for improved appearance with no cracks, splits or serious 'battle scars' (actually looks very nice for 45 years old).

 Original platter mat warp & bubble free.

 Re-glue corner joints in wood base, and Lemon Oil Teak wood veneer

 Proprietary Dual 'cartridge sled' replaced, and had both mating contact sets burnished  (primarily to address 60Hz hum)

 New Shure M97-E, Elliptically cut, Diamond Stylus, installed on the Shure 'magnetic' cartridge. Tracking and Bias force also re-set to 2g.


Tested / analyzed and passed for motor noise and 60Hz hum (once cartridge 'sled' was replaced and had contacts burnished!).

 Speed checked and verified for accuracy with technician's factory test strobe disc.

 He also did an 'orbital buff' to the dustcover and it looks FANTASTIC!!! No cracks, chips or splits to it.

Unit tested with our myriad of test records, one of which included; Shures' 'Cartridge Obstacle Course' record

Restoration entailed approx 19+ hrs w/ followed with about MANY hours of testing w/ many albums (mostly because we enjoyed having a 'quality' changer on one of the test stations to listen to).


As this turntable has a 'magnetic cartridge' (unlike most 'stacker / changers' which have 'crystal / ceramic / piezo' pickups) you can readily connect this table to any receiver or Integrated amplifier input. For a basic system, or wanting to get introduced or re-introduced to stacking vinyl records, this is a great table.

You can readily connect this table to any receiver (including 'modern / A/V / Home Theater receivers) or Integrated amplifier with a standard magnetic phono input, or an external Phono Pre-amp. To connect to computer for burning CD's just order one of our inexpensive Phono Pre-Amps and cable kits.


 Plays 16, 33, 45 & 78 RPM records. Selects 7", 10" or 12" record size. As stated above, this table has had EXTENSIVE refurb / restore work. Cosmetically, the table looks great.

Again, our turntable tech has completely and EXTENSIVELY gone through this table (total tech time ~19+ hours).
Following, and ONLY DUE TO the above restoration / refurbishment, the table starts as it should, and end's as it should with no 'end groove hang up'!
 (While Dual purports stacks of 5 LPs as 'typical', normally you should typically only get about 3-4 on a stack with no issues, and you won't always get '6' to work, but... this table, #5223
was test played thru 25+ cycles and tested thru multiple stacks, with 6X LP's stacked with no issues!!! Occasionally you'll have a record 'hang up' or 'double drop', but that's almost always due to errantly drilled, elliptical or center holes that are 'too tight' in one of the records.
 Overall the table works beautifully and all functions now work GREAT!
We also re-installed a Shure cartridge with a brand new 'M75-E TYPE 2' stylus and optimized the table for it.  (If you prefer an up-grade you may also choose from our selection of new Audio Technica cartridges that we can also set up and ship with it for the additional cartridge cost.) You can readily connect this table to any receiver, Integrated amplifier with a standard magnetic phono input, or a Pre-amp. To connect to computer for burning CD's just order one of our inexpensive Phono Pre-Amps and cable kits. Again, this table looks near new and works great!!


Famous, sought after, and one of their more 'durably designed' DUAL 1219, fully automatic changer phonograph. This is one of only two "Dual 1219s" that we've had in over 20 years that we've restored (due to finally having a technician that's up to the task). Very nice Dual 1219 Stacker / Changer / Single play, Fully-Automatic turntable. One of the most sought after Dual's due to it's 'simple and durable' design. Very difficult to 'break' one of thes.
These are very well built turntables featuring an adjustable speed belt drive platter
, but here's the VERY IMPORTANT POINT about the 1219.  It is one of the few Dual models, offering 'adjustable platter speed' that does NOT utilize a 'toothed belt'. It uses a 'tapered' motor drive pulley. The original 'Toothed' belts, utilized by Dual on MANY of their turntables are now 'UNOBTAINIUM' now, and any of the original / NOS ones still floating around are likely 'dry rotted' and useless. We've tried 'O-rings' (both single and double) with limited success. NOT to worry on this model as it doesn't use that system at all (and that is VERY important).


Again, as previously stated, the table has just been completely gone through by our senior turntable technician and is "Ready to Go"! Following refurbishment / and final inspection / sign off, the table has gone thru a minimum of 25 play cycles, including a minimum of 6 plays of 6x record stacks. You will not be disappointed in this table for all around use. Comes with "Stacker / Changer" tall spindle and 'short / single play' spindle and a pair of 'up-graded' RCA interlinks
. Measures 18" wide x 16" deep x 9" tall and weighs a heavy 16 lbs unpacked. Includes our standard 90 day limited warranty.
DUAL 1219 #...5223
Cond. 8.5+++

SOLD 8/21/18
SHIPPED TO ALASKA




Including 'Round-edged Dust Cover'


To connect to computer for burning CD's or to a modern A/V receiver that does not have phono inputs, just order one of our inexpensive $42.99 Phono Pre-Amps and cable kits.

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)

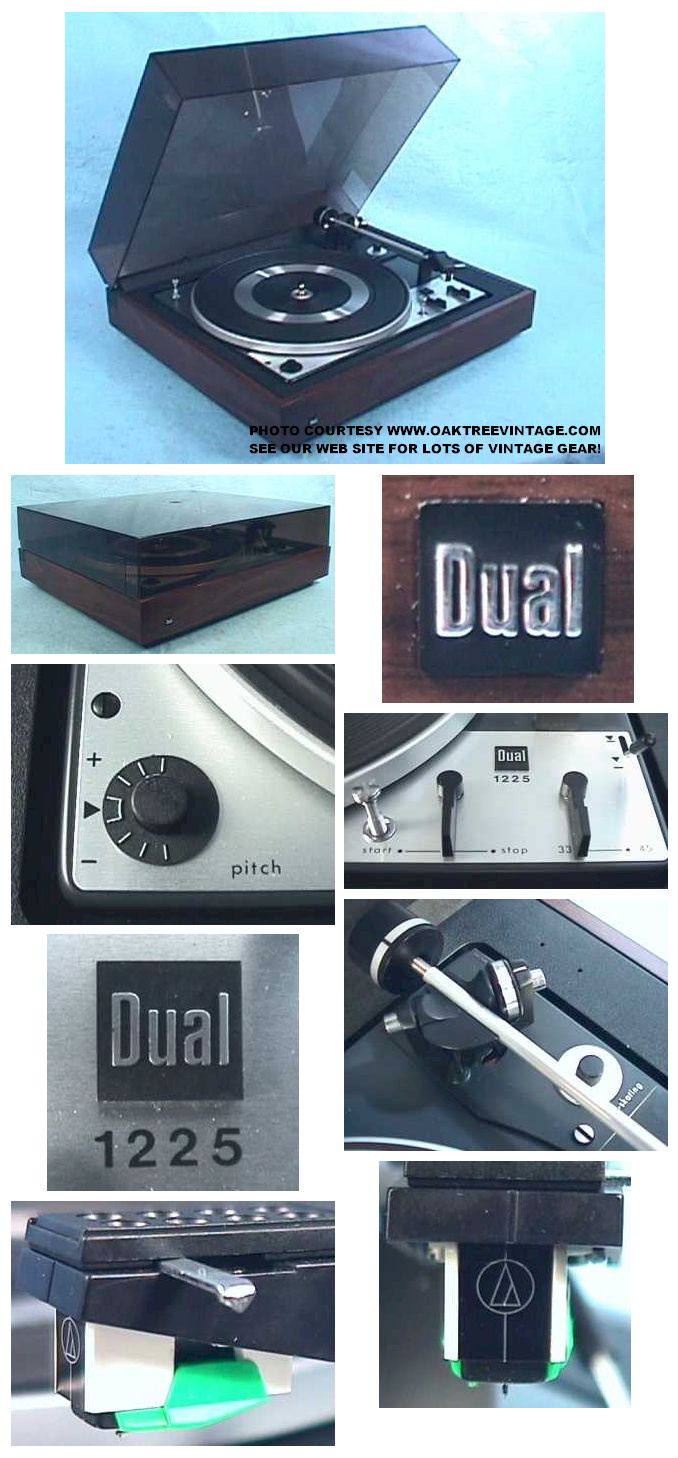

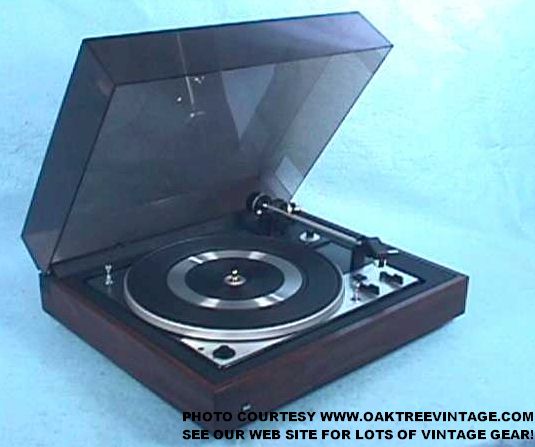

Dual_1225_Fully-Automatic_Turntable_web.jpg (34563 bytes)    Dual_1225_Fully-Automatic_Turntable_collage.jpg (137512 bytes)

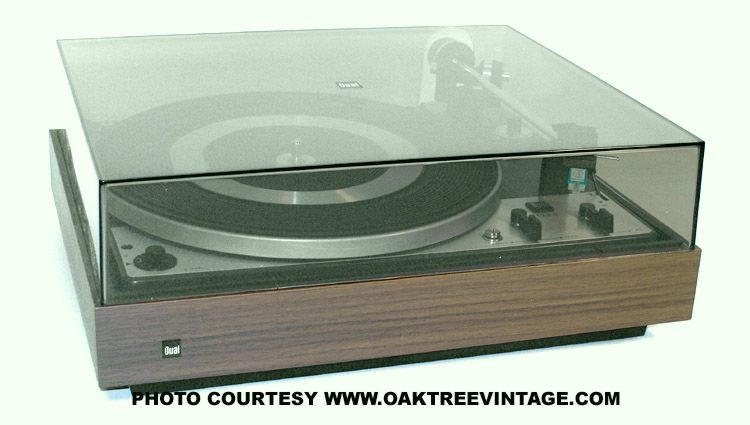

DUAL 1225 STEREO TURNTABLE
BELT DRIVEN
FULLY AUTOMATIC
SOLD

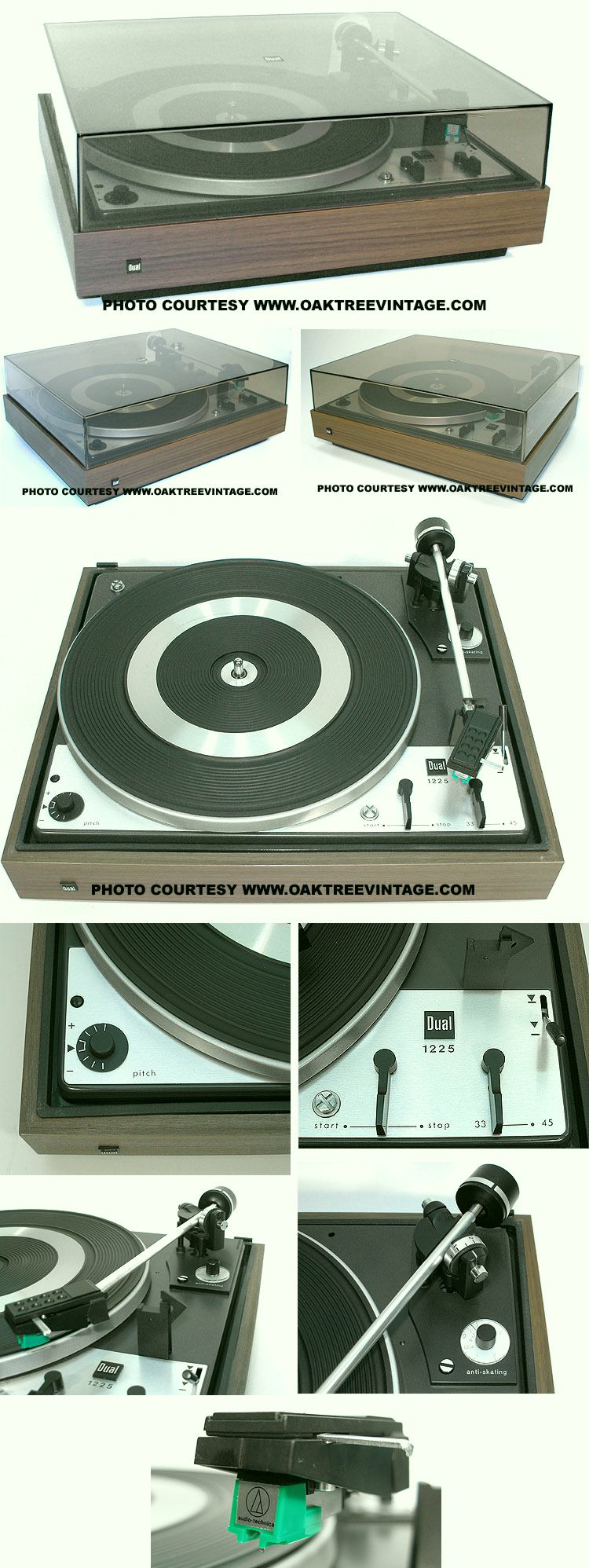

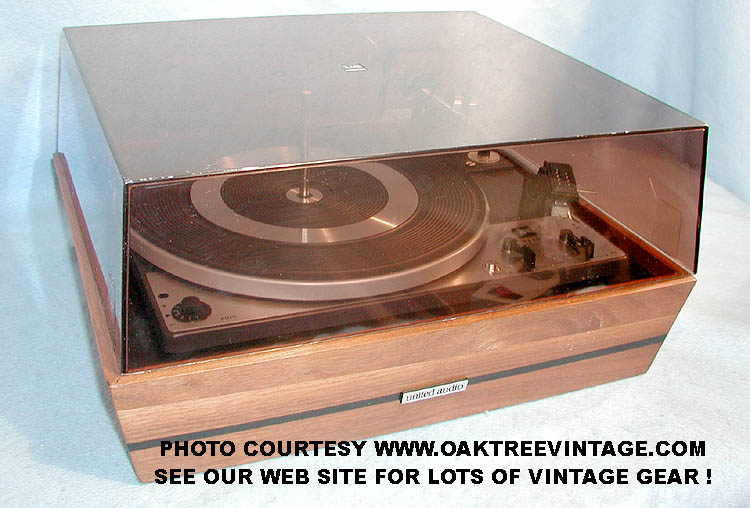

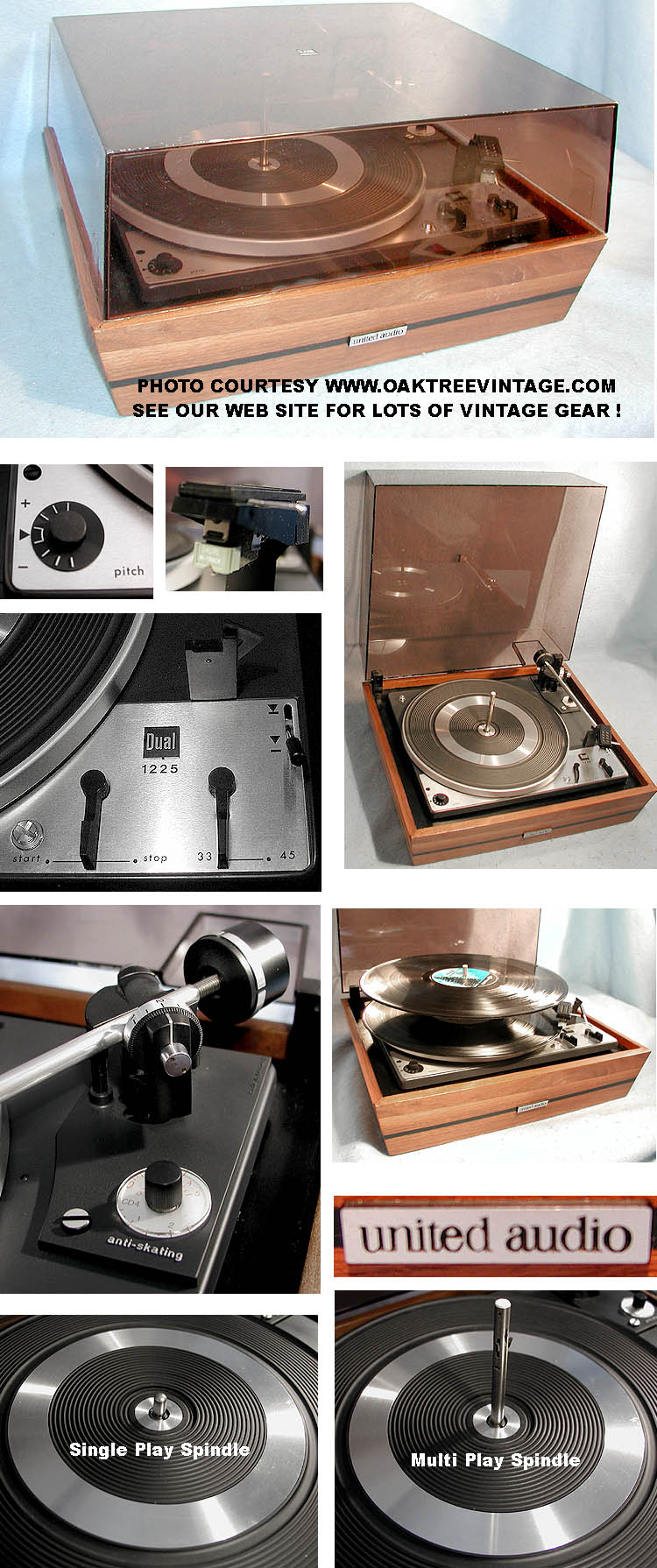

DUAL 1225 STACKER / CHANGER STEREO TURNTABLE
FULLY AUTOMATIC
BELT DRIVEN
SOLD 2/26/04




        NEW LISTING 4/8/08
(Click on above thumbnails to enlarge photos)
warranty

DUAL
STEREO TURNTABLE

1225
FULLY AUTOMATIC
IDLER WHEEL DRIVE

MADE IN WEST GERMANY

Circa 1973-74
W/ DUST COVER
SOLD 5/22/08

&

w/ new AT Elliptical Diamond
stylus cartridge installed





         NEW LISTING 7/4/08
(Click on above thumbnails to enlarge photos)
warranty

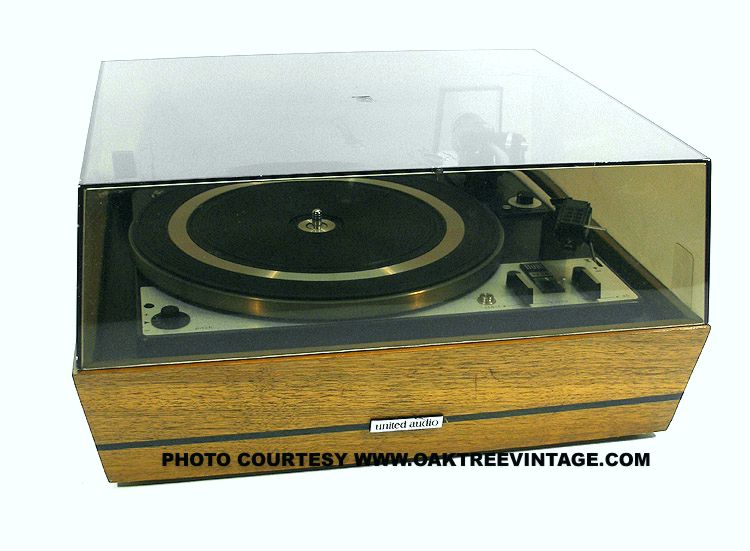

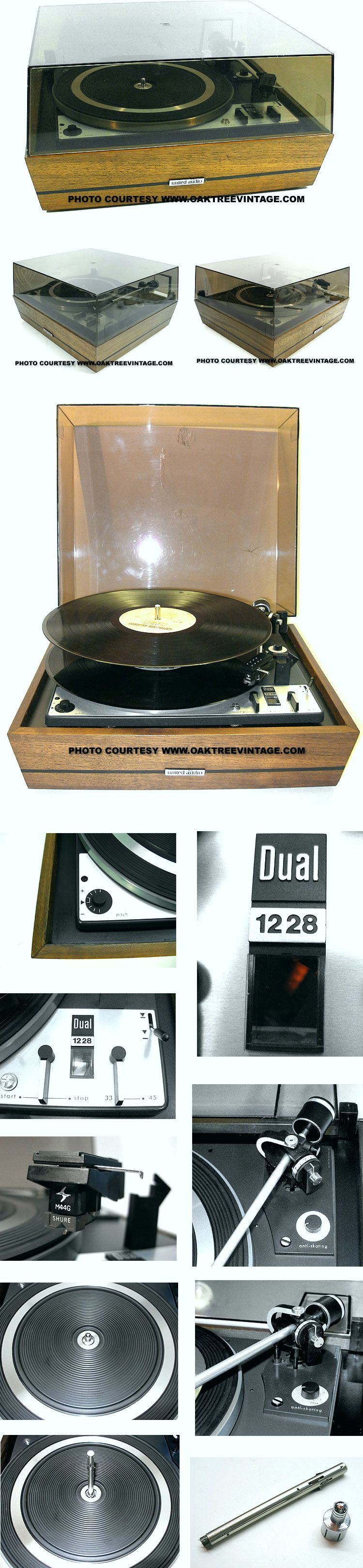

DUAL / UNITED AUDIO
STEREO TURNTABLE
1228 STACKER / CHANGER
FULLY AUTOMATIC
STEREO
IDLER WHEEL DRIVE
TURNTABLE
 MADE IN WEST GERMANY
Circa 1973-74

SOLD 9/8/09

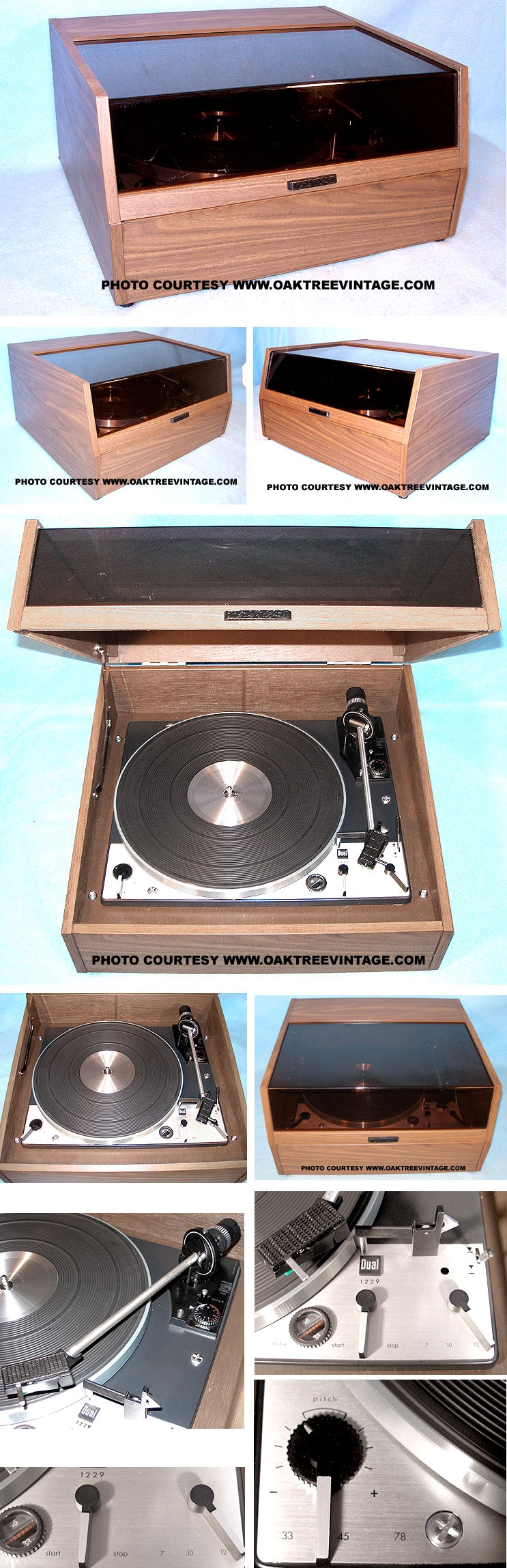

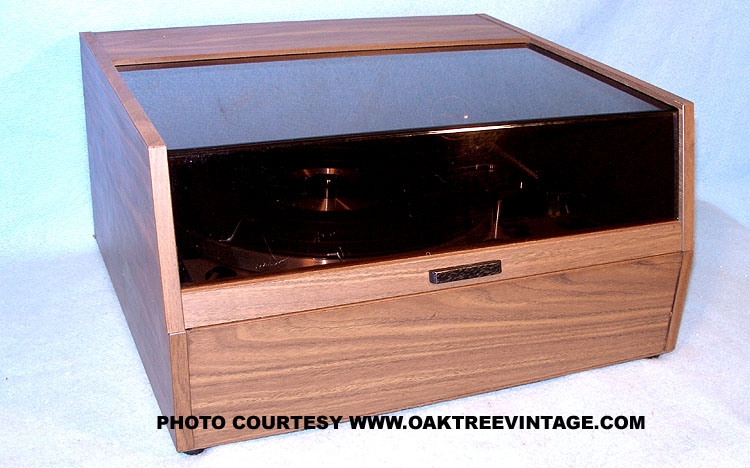

DUAL / UNITED AUDIO
STEREO TURNTABLE
1229 STACKER / CHANGER
FULLY AUTOMATIC
STEREO
IDLER WHEEL DRIVE
TURNTABLE
 MADE IN WEST GERMANY
SOLD 10/26/06




        NEW LISTING 4/8/08
(Click on above thumbnails to enlarge photos)
warranty

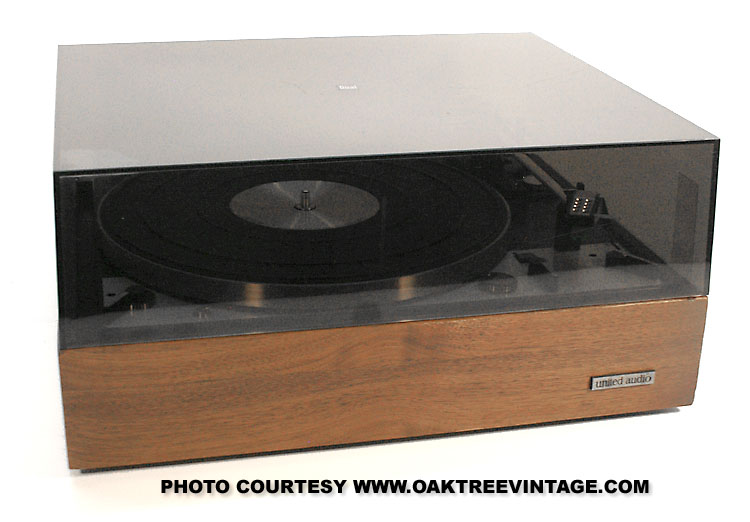

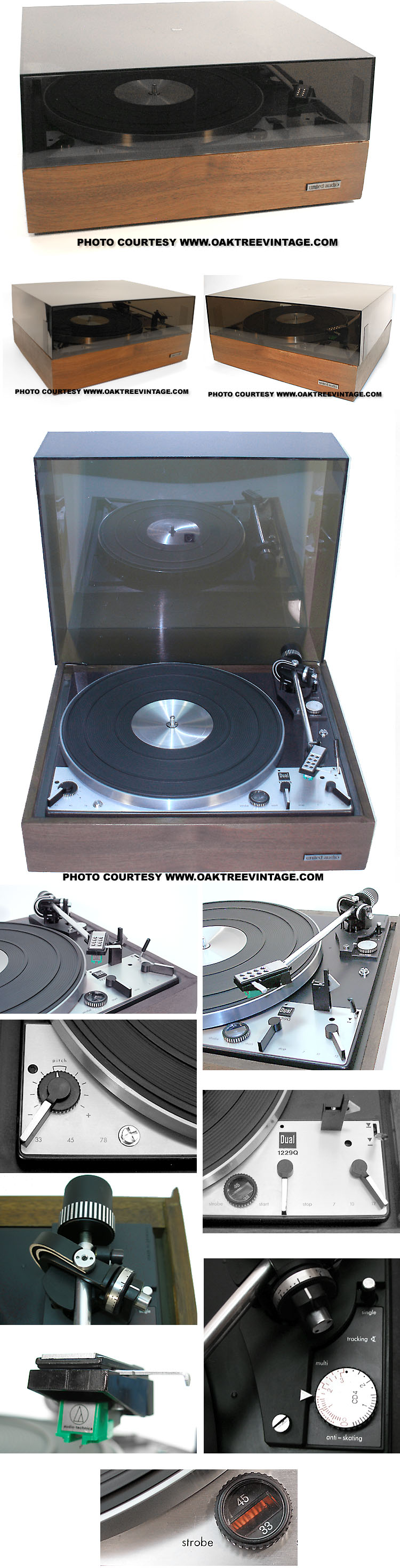

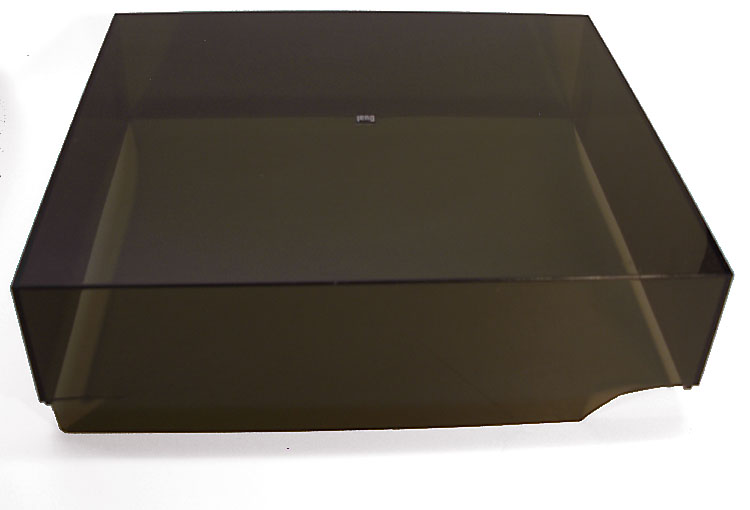

DUAL / UNITED AUDIO
STEREO TURNTABLE
1229Q
FULLY AUTOMATIC
STEREO
IDLER WHEEL DRIVE
TURNTABLE
 PLAYS 78'S TOO!
W/ DUST COVER
SOLD 5/23/08
w/ new AT Elliptical Diamond stylus cartridge installed
-






-
Dual_1237_Auto-matic_Belt-Drive_Turntable-web.jpg (26367 bytes)   Dual_1237_Stereo_Turntable_collage.jpg (138191 bytes)

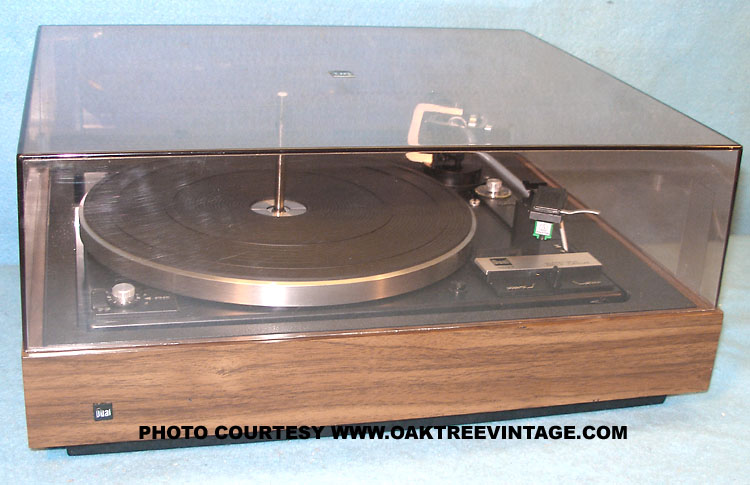

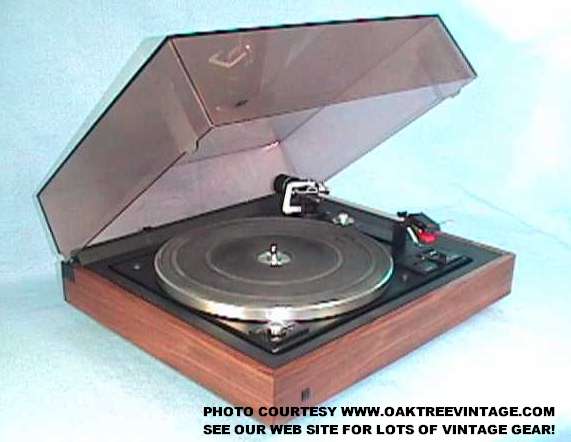

DUAL 1237 STEREO TURNTABLE
BELT DRIVEN
FULLY AUTOMATIC

SOLD

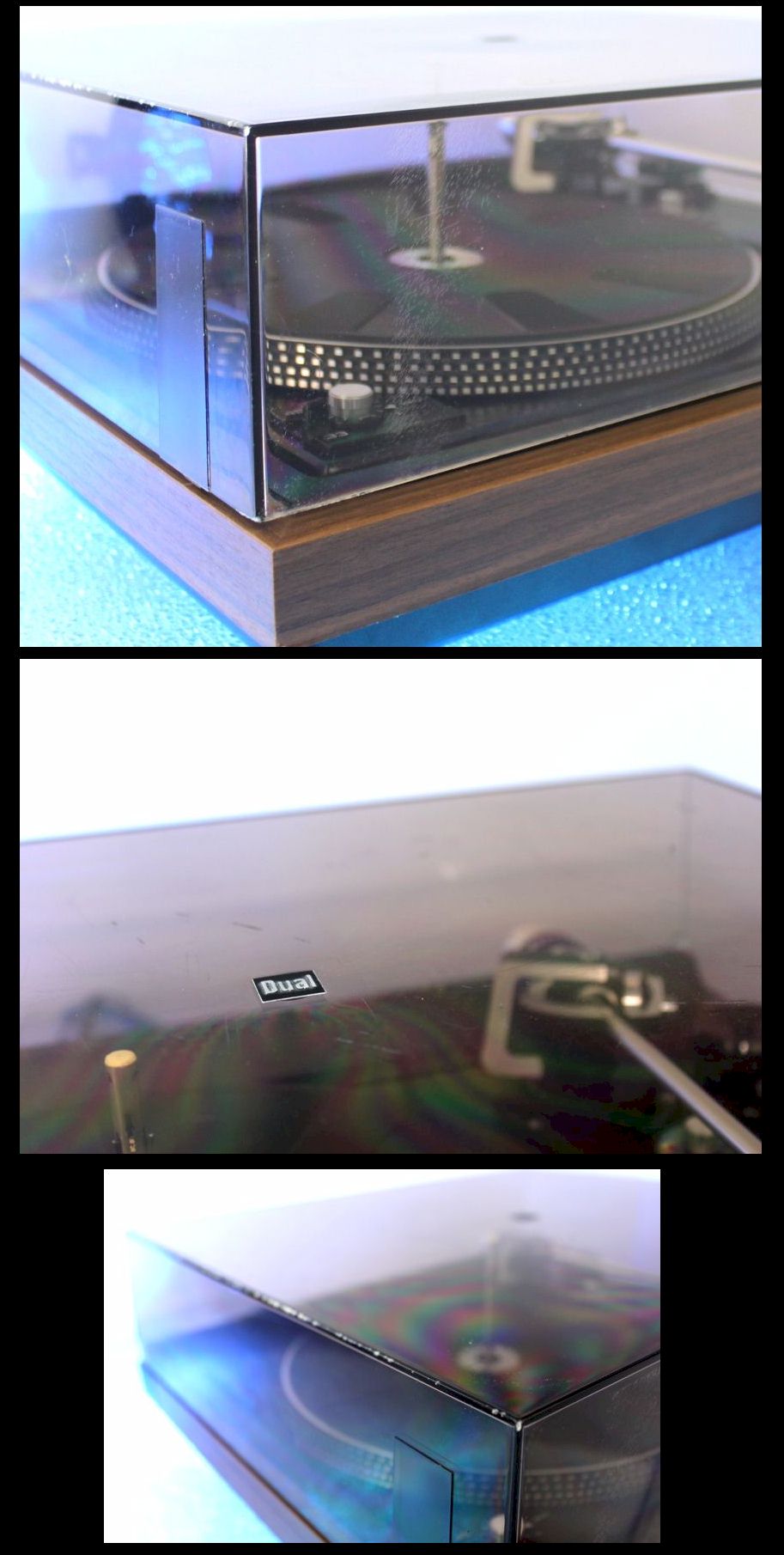

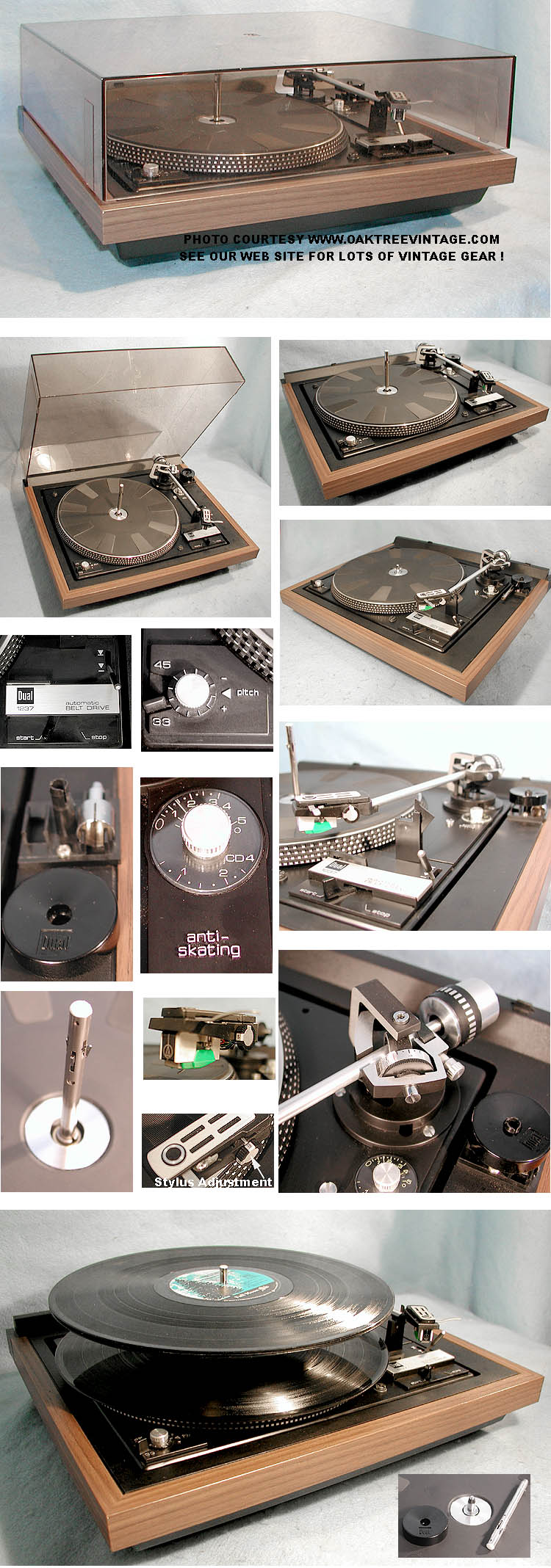

Dual_1237_Stereo_Turntable_CBS_collage.jpg (274203 bytes)            Dual_1237_CBS_Dustcover_issues_2.jpg (55839 bytes)

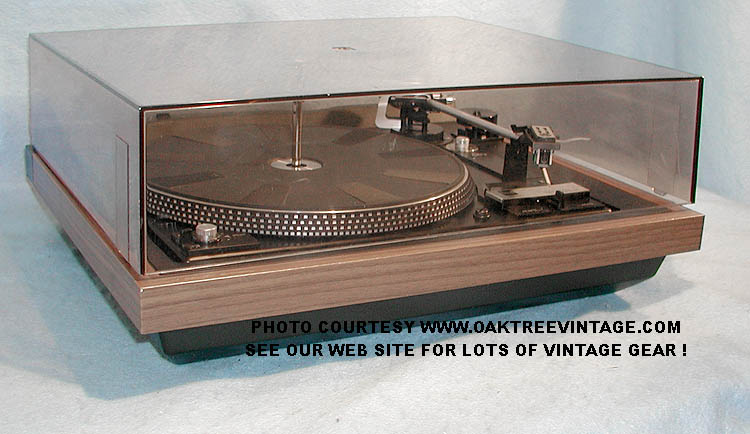

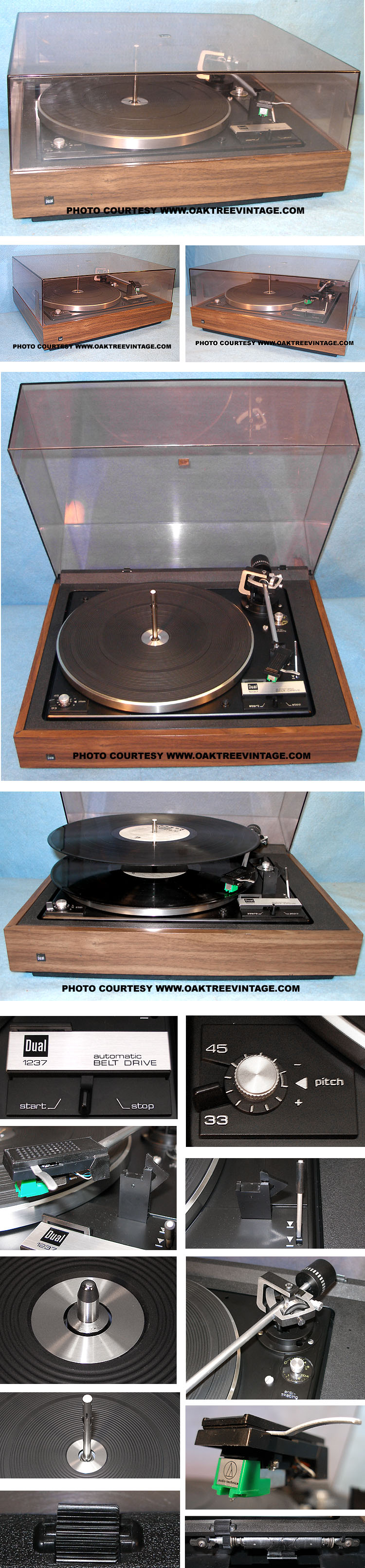

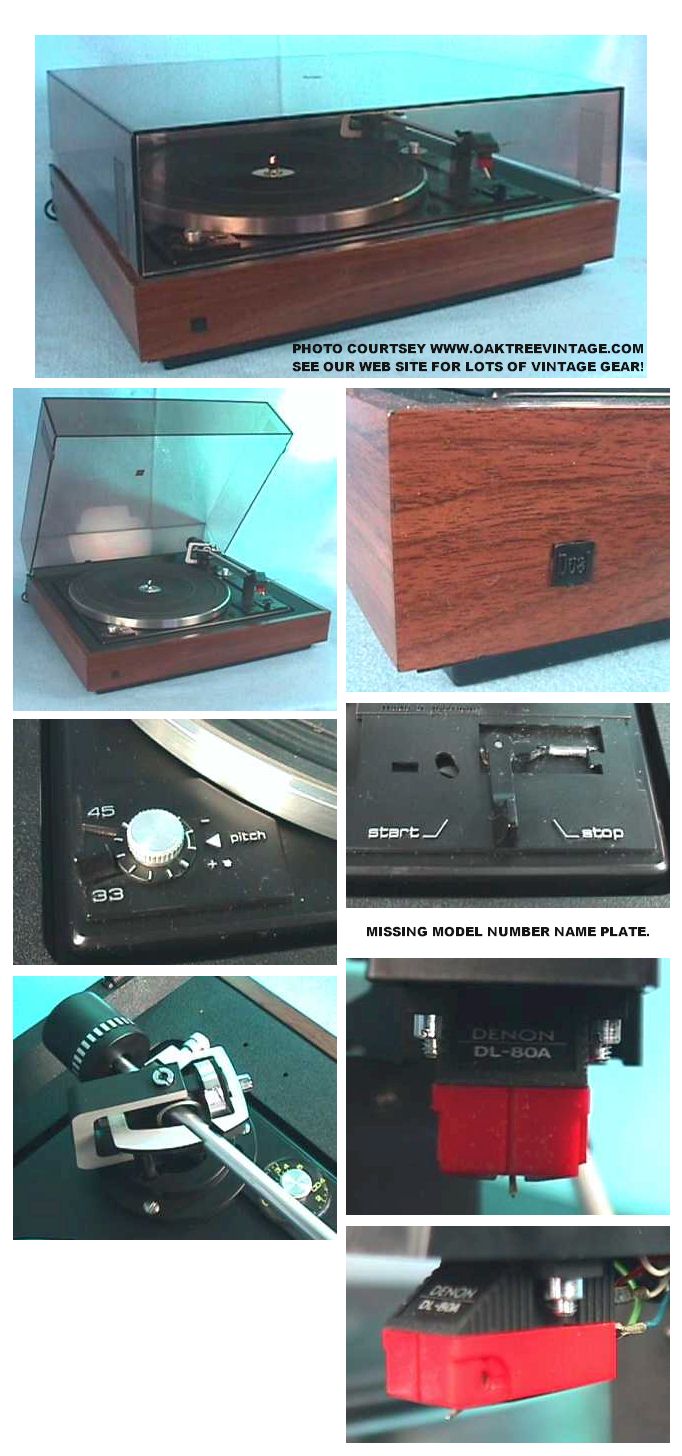

DUAL 1237 STACKER / CHANGER STEREO TURNTABLE
BELT DRIVEN
FULLY AUTOMATIC

SOLD 10/5/04







NEW LISTING 2/13/08
(Click on above thumbnails to enlarge photos)

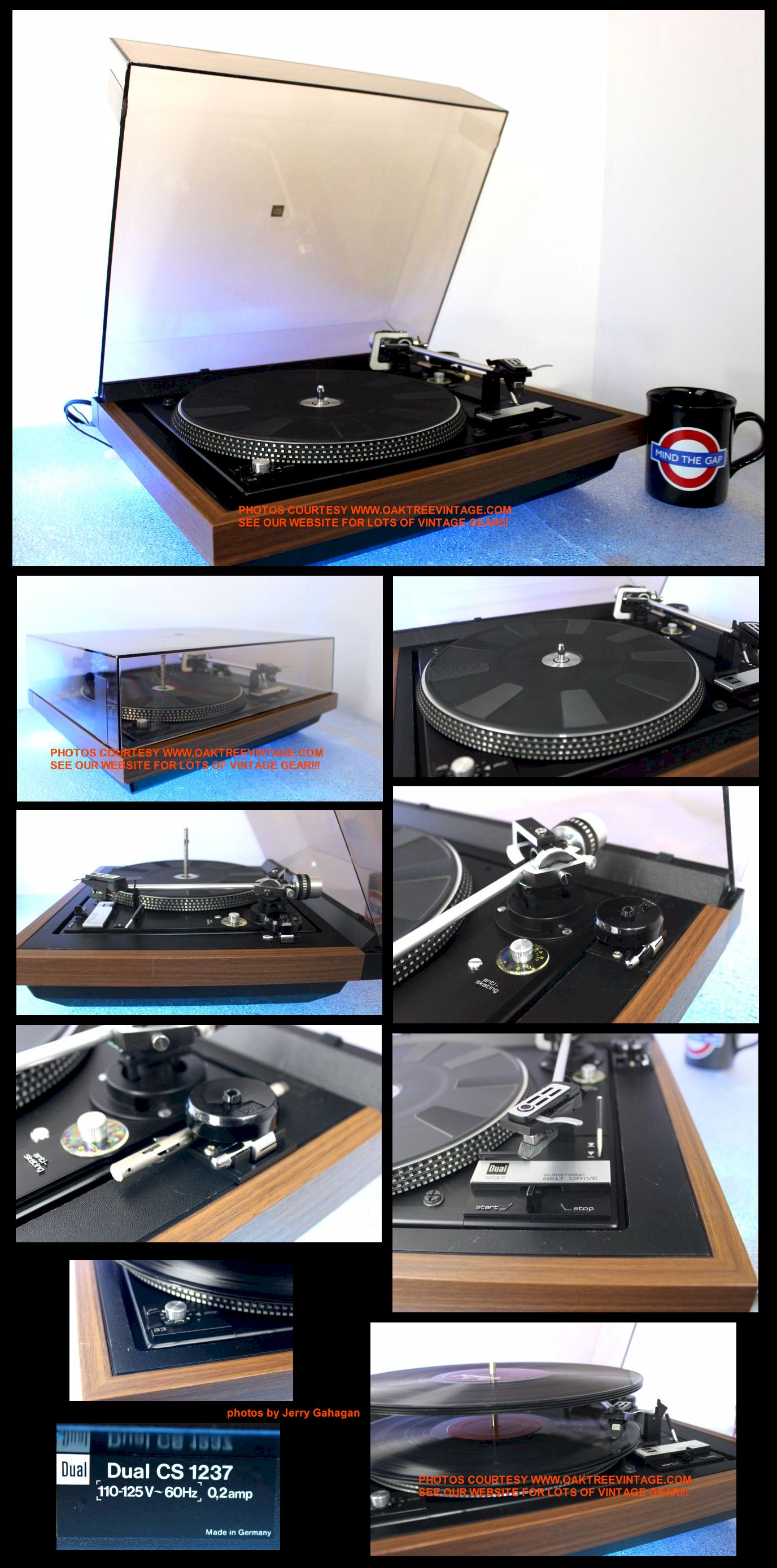

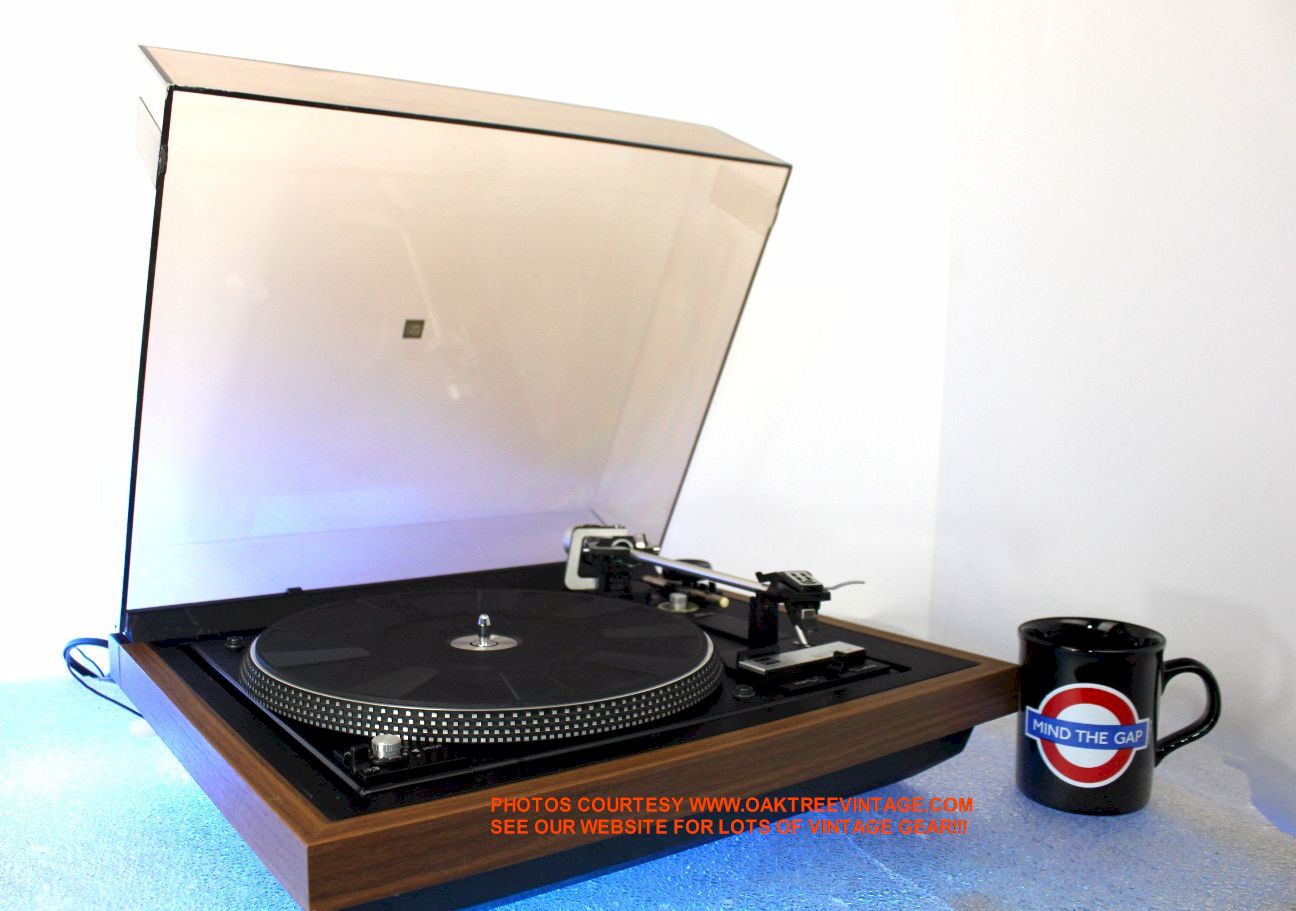

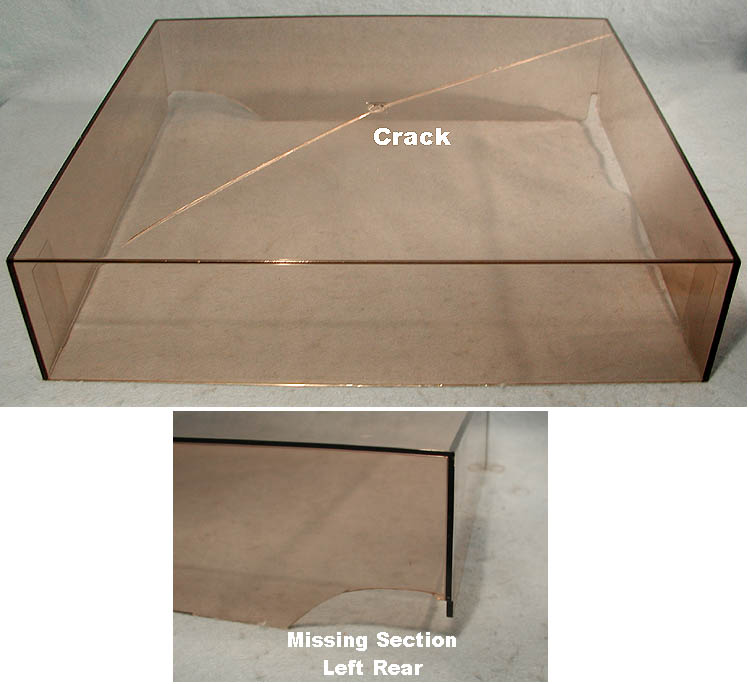

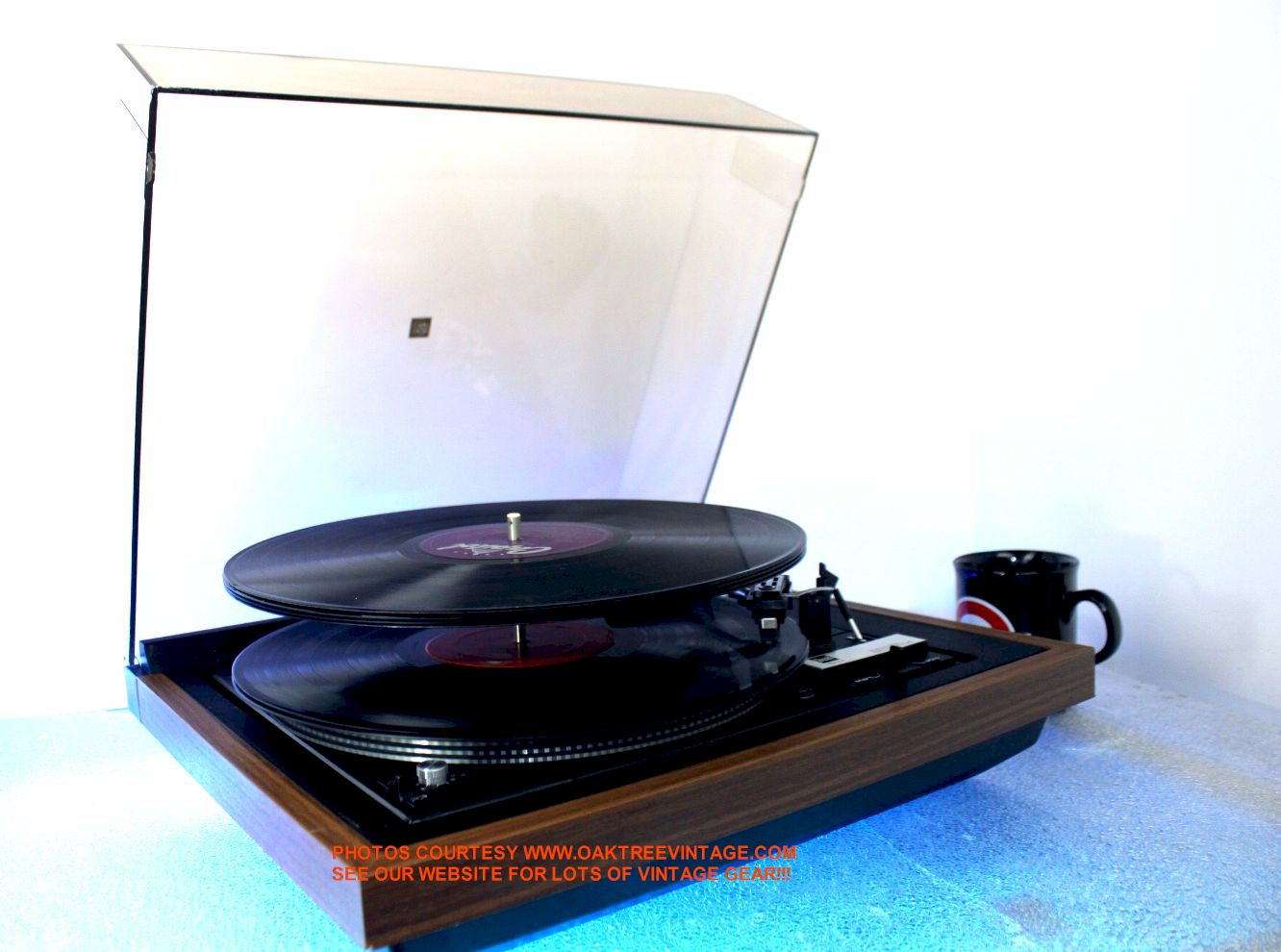

DUAL 1237
FULLY AUTOMATIC, STACKER / CHANGER
BELT DRIVE TURNTABLE
Circa 1979-80

SOLD 3/19/08







(Click on above thumbnails to enlarge photos)

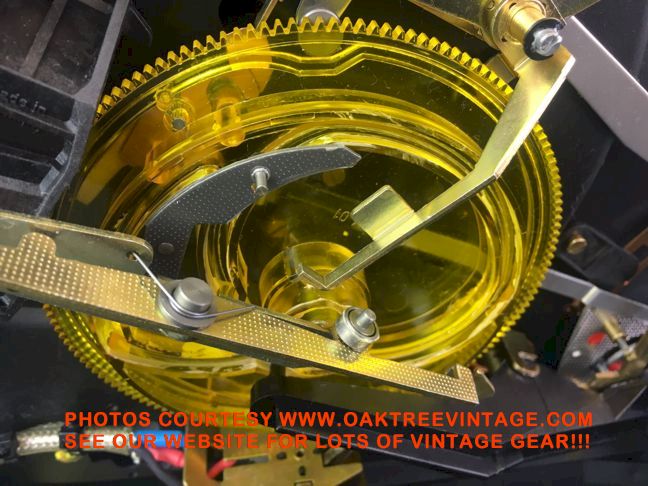

SERVICED / RESTORED / REFURBISHED

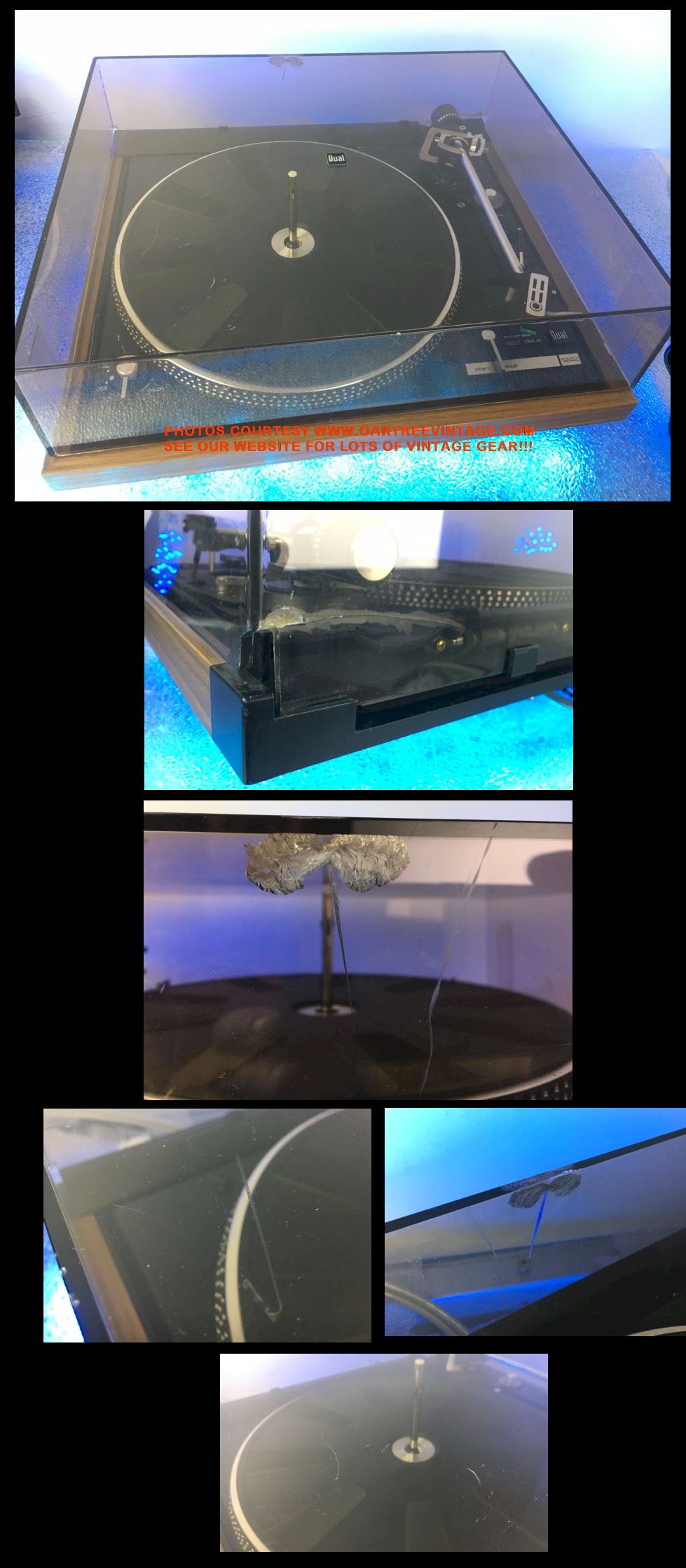

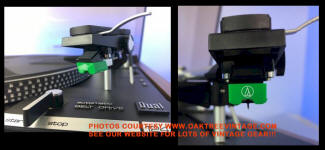

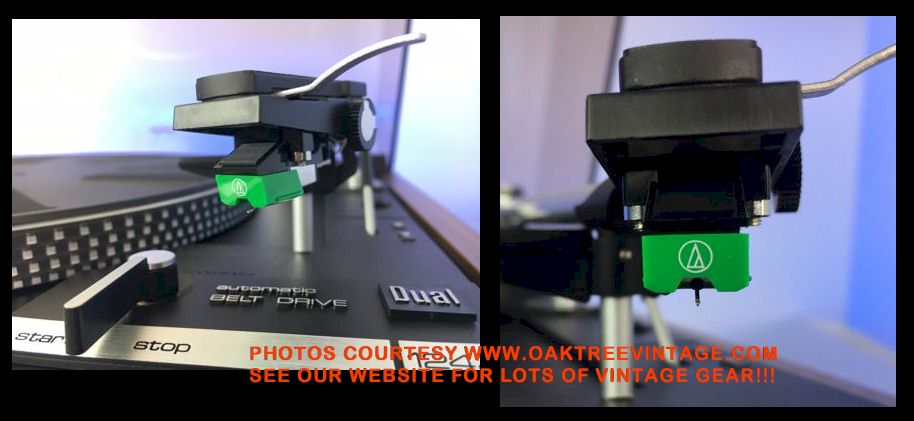

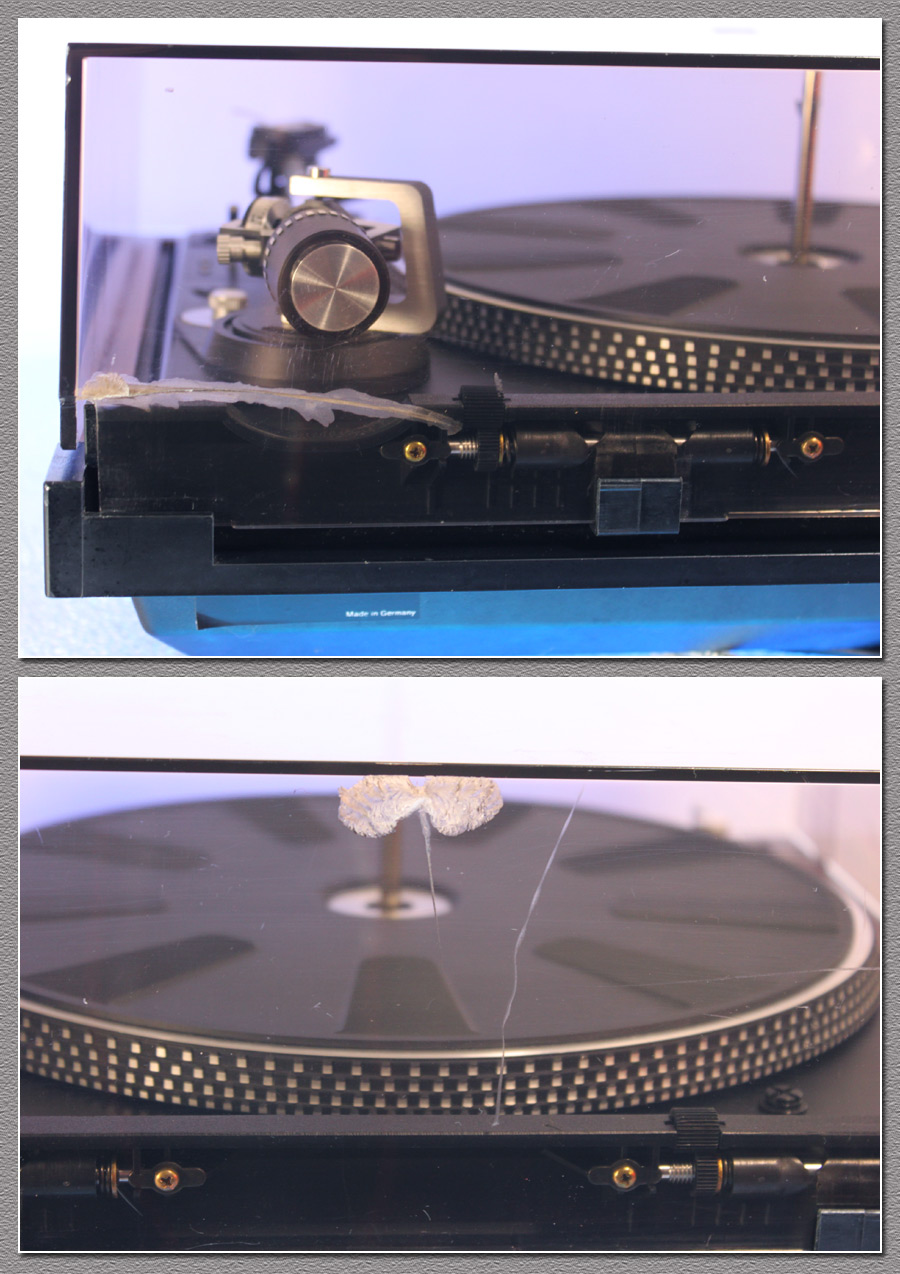

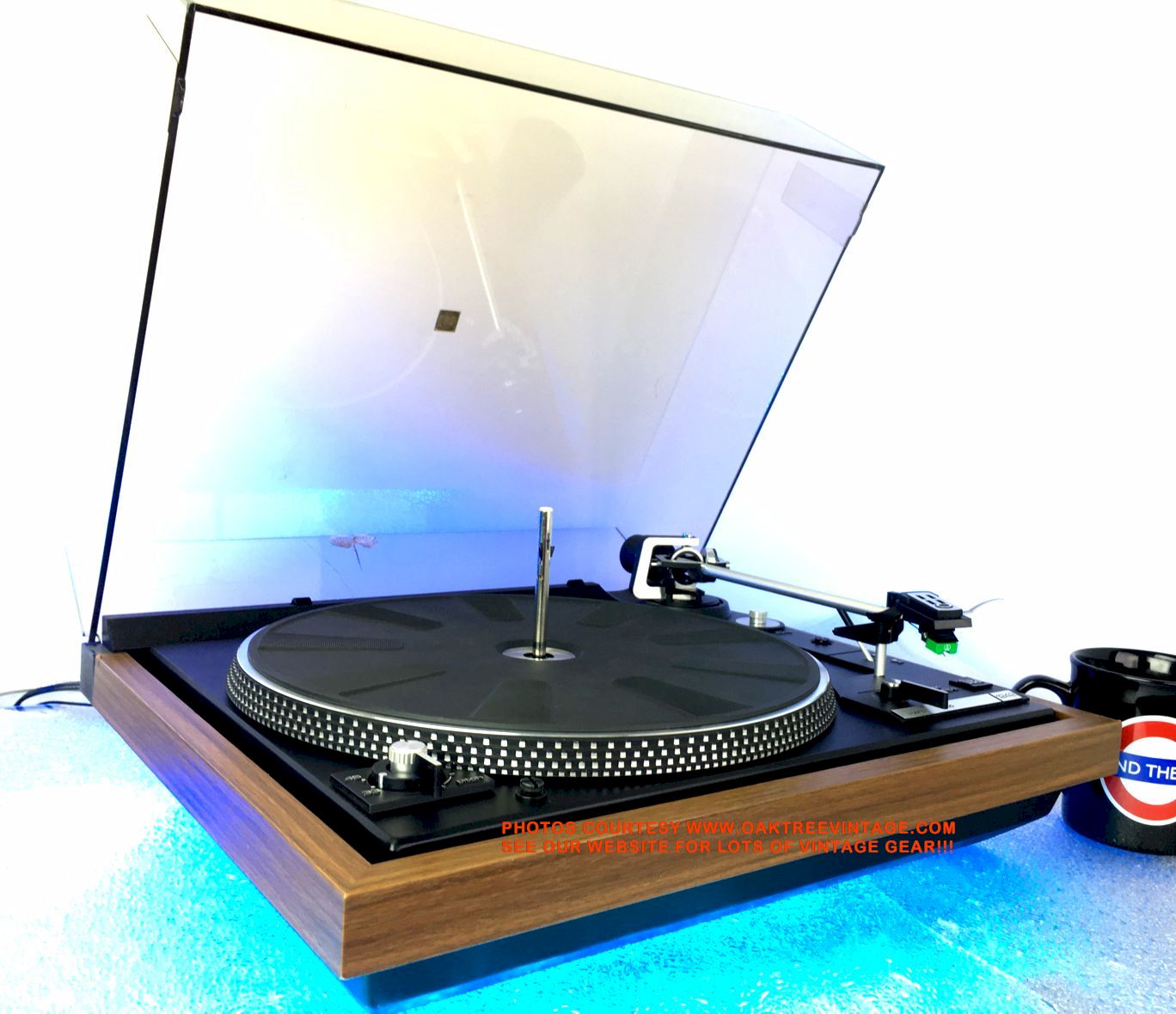

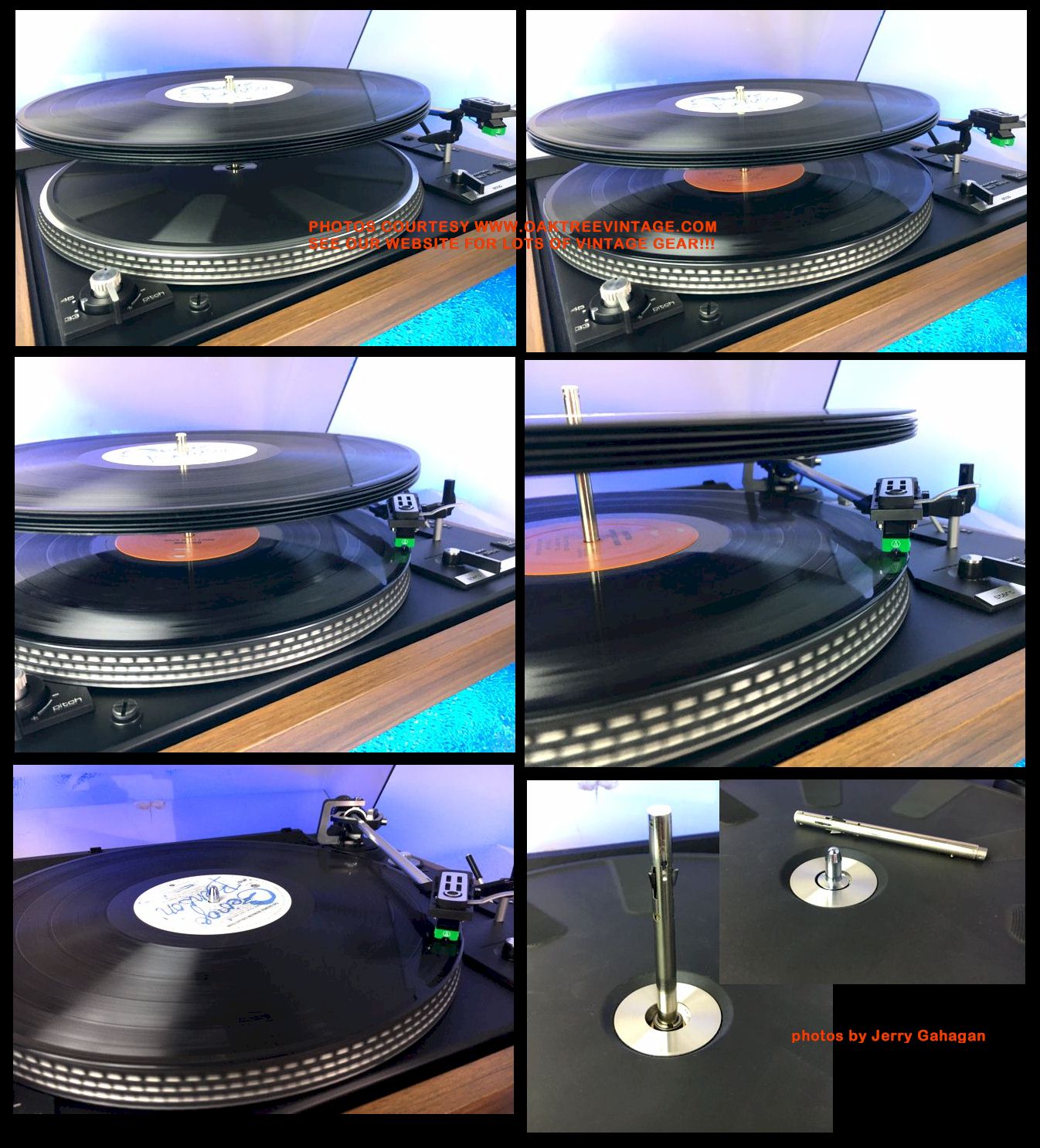

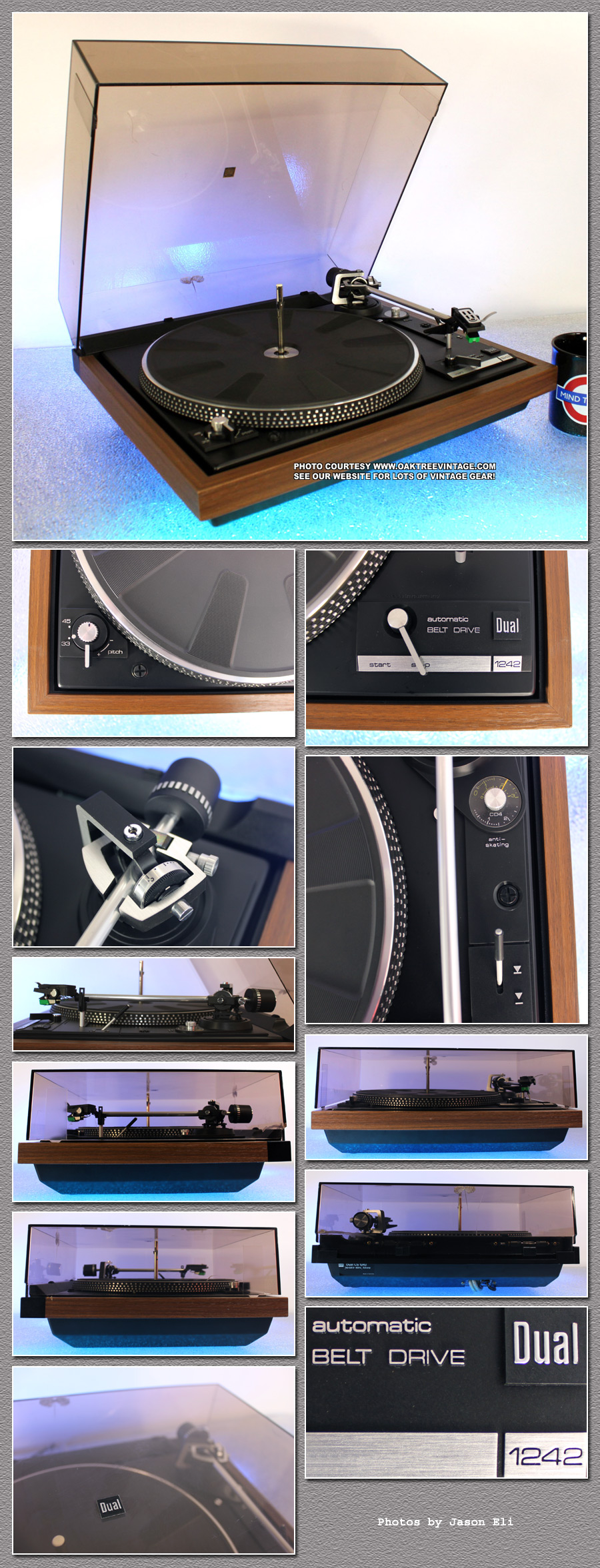

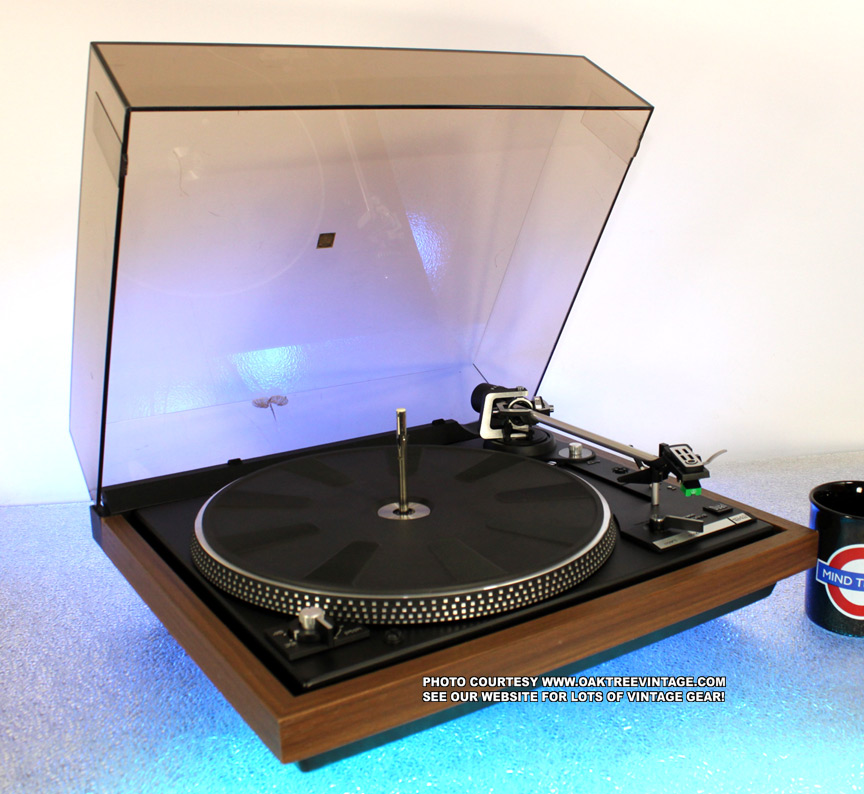

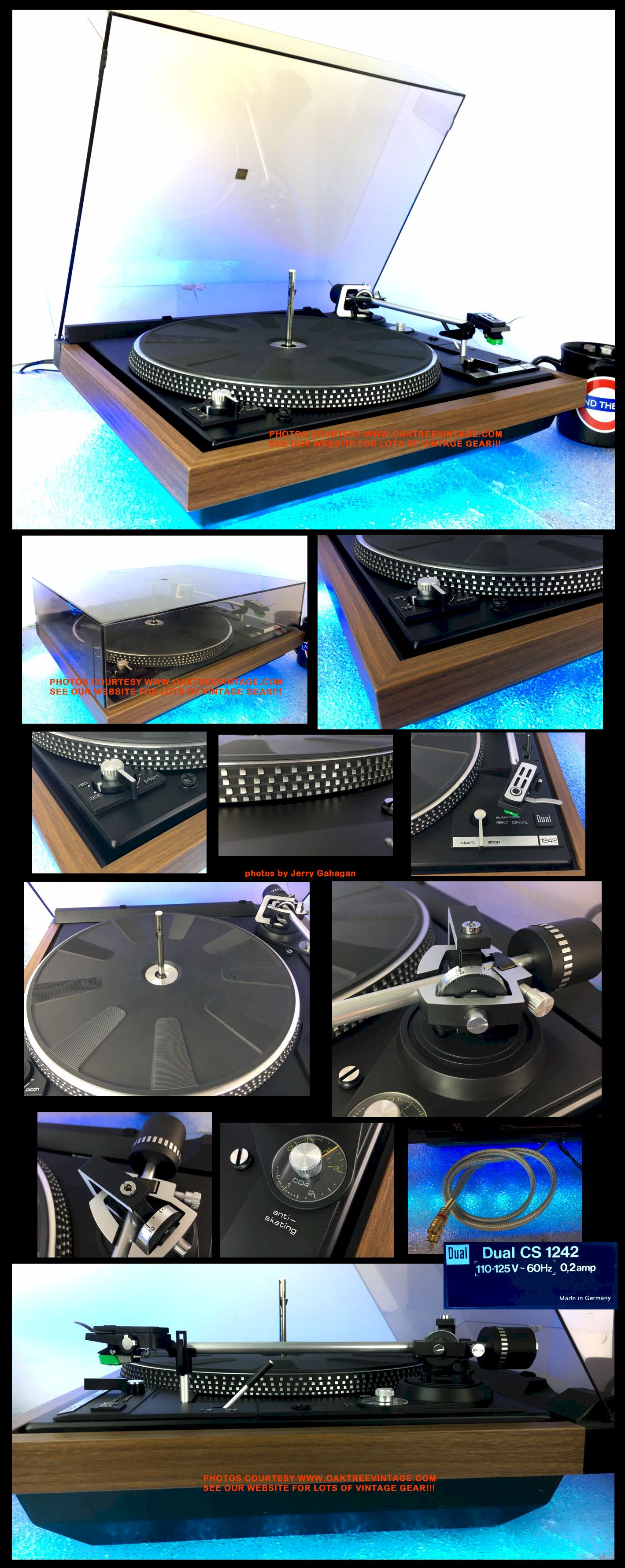

DUAL 1242  STACKER / CHANGER
 FULLY AUTOMATIC BELT DRIVE TURNTABLE

SOLD





-



(Click on above thumbnails to enlarge photos)

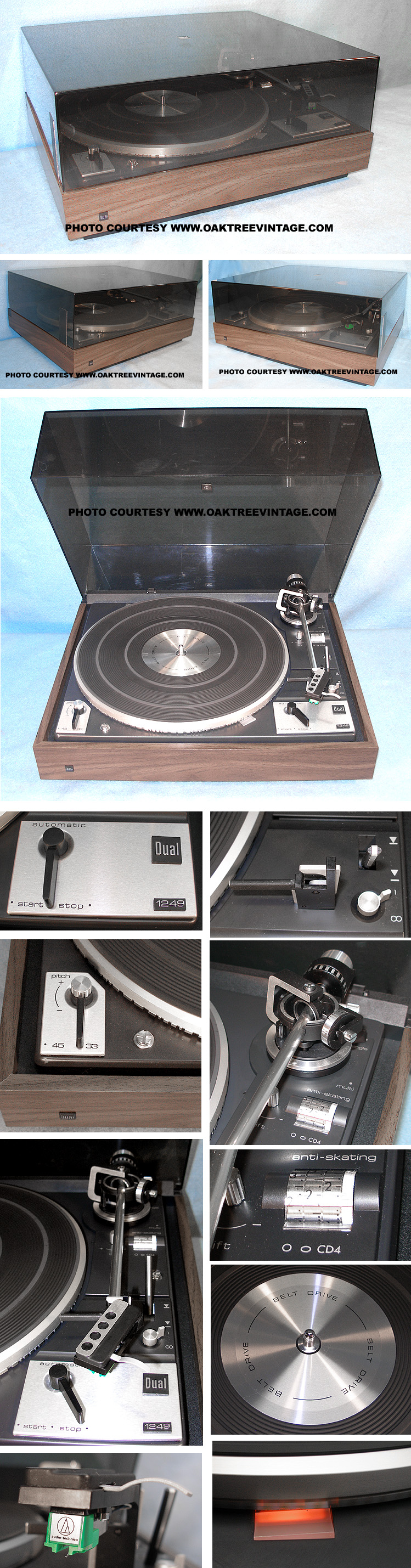

                  NEW LISTING 8/14/07

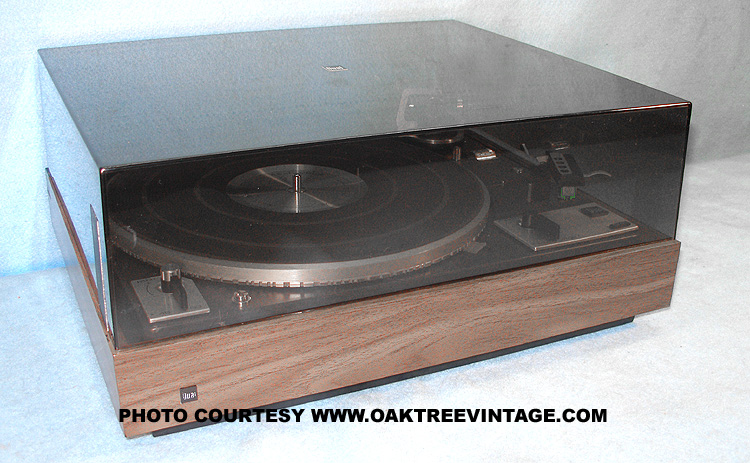

 DUAL
 1249
 FULLY AUTOMATIC
 STACKER / CHANGER
 BELT DRIVE
 TURNTABLE

SOLD 12/15/07

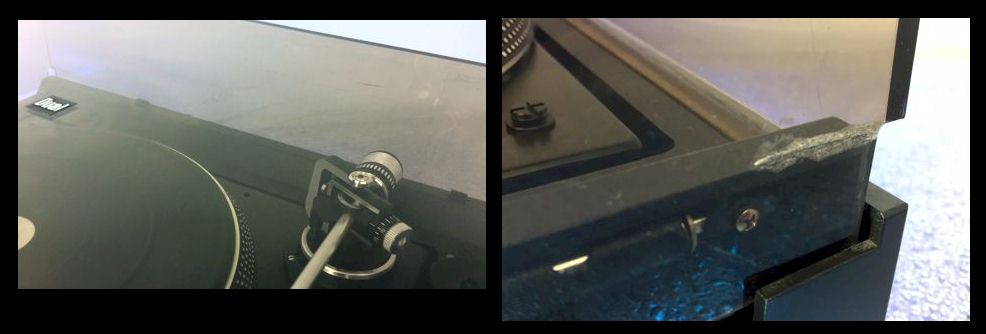

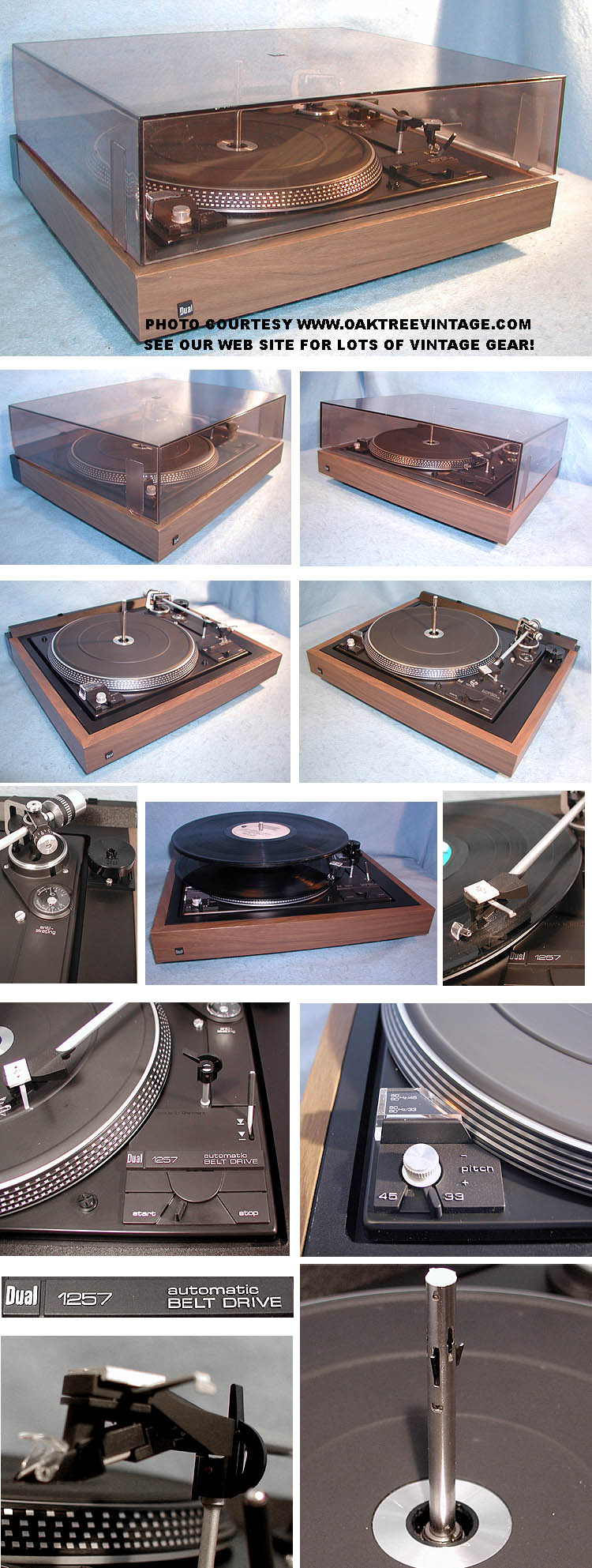

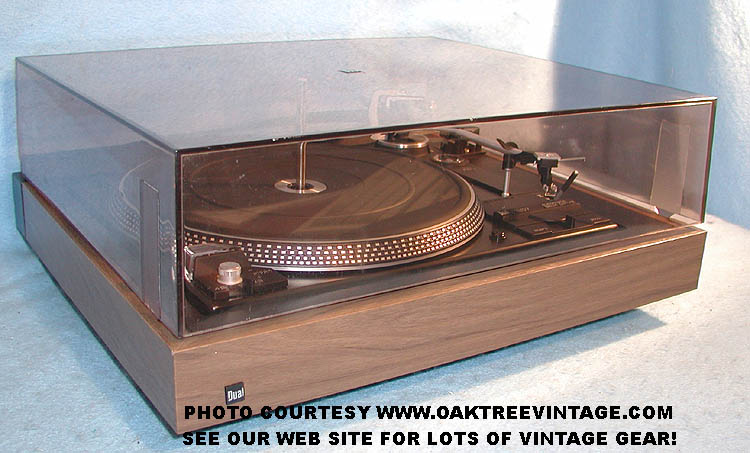

Dual_1257_Stereo_Changer_Turntable_collage.jpg (234325 bytes)       Dual_1257_Stereo_Changer_Turntable_issues.jpg (40368 bytes)

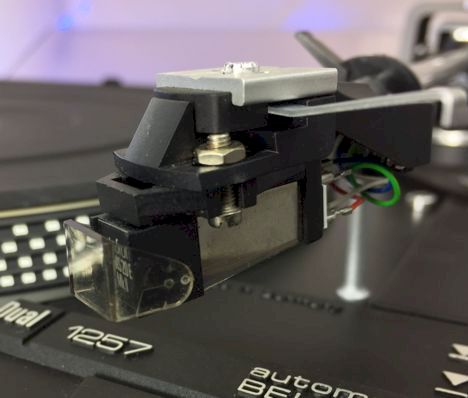

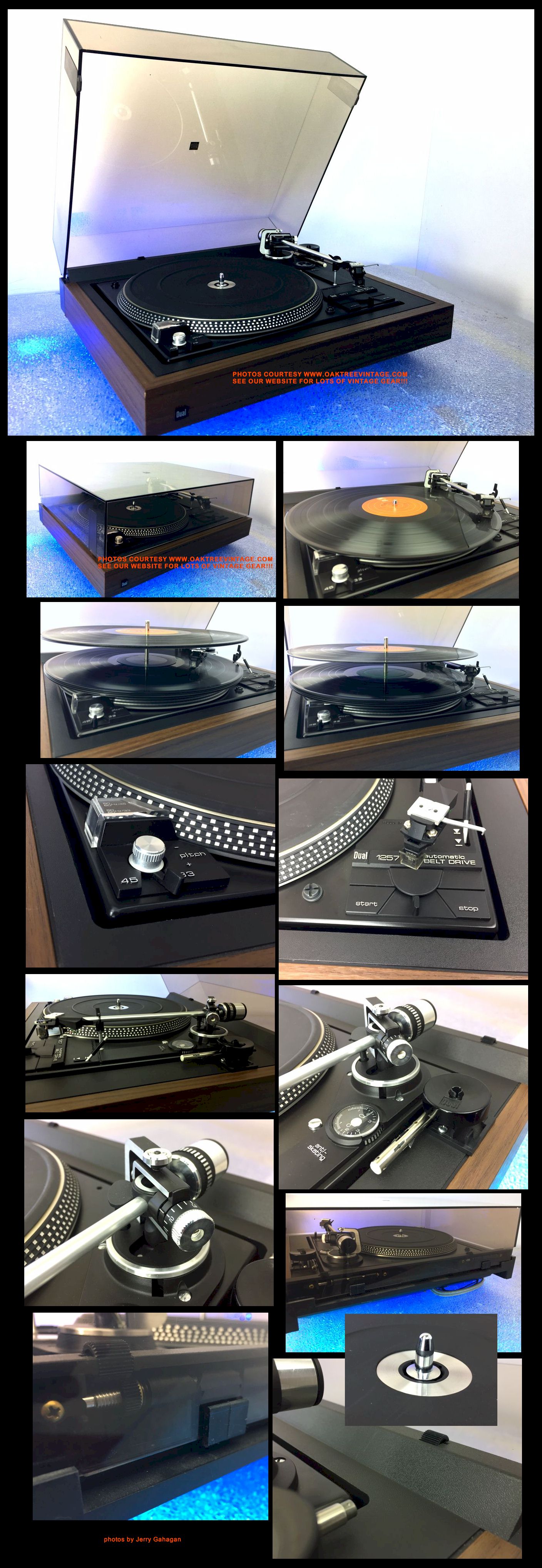

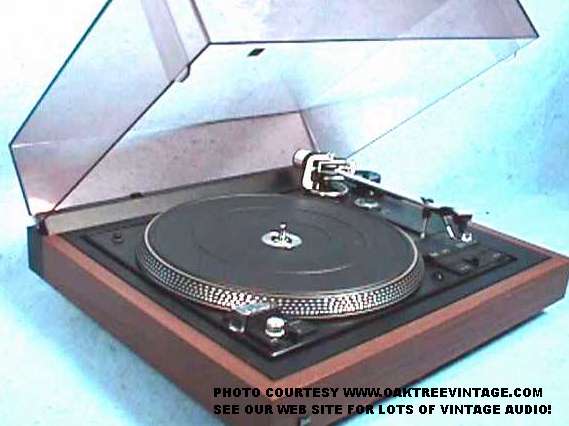

 DUAL
 1257
 FULLY AUTOMATIC
 STACKER / CHANGER
 BELT DRIVE
 TURNTABLE

SOLD 10/7/05

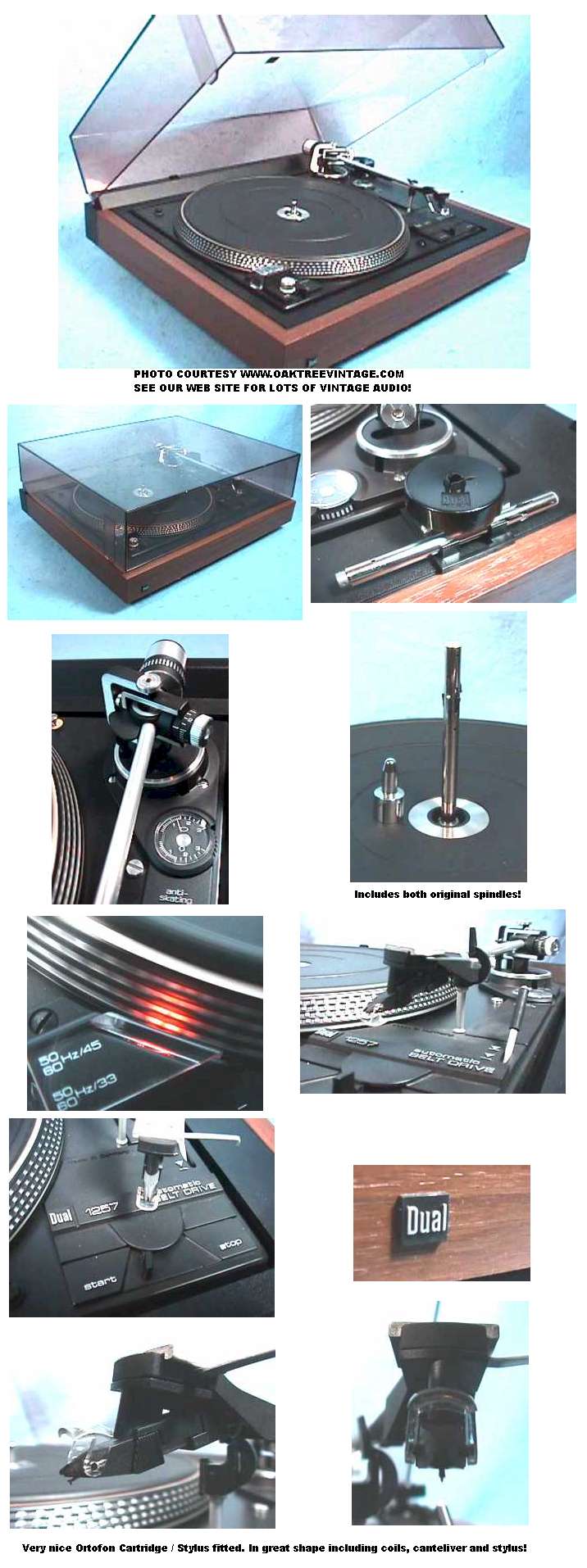

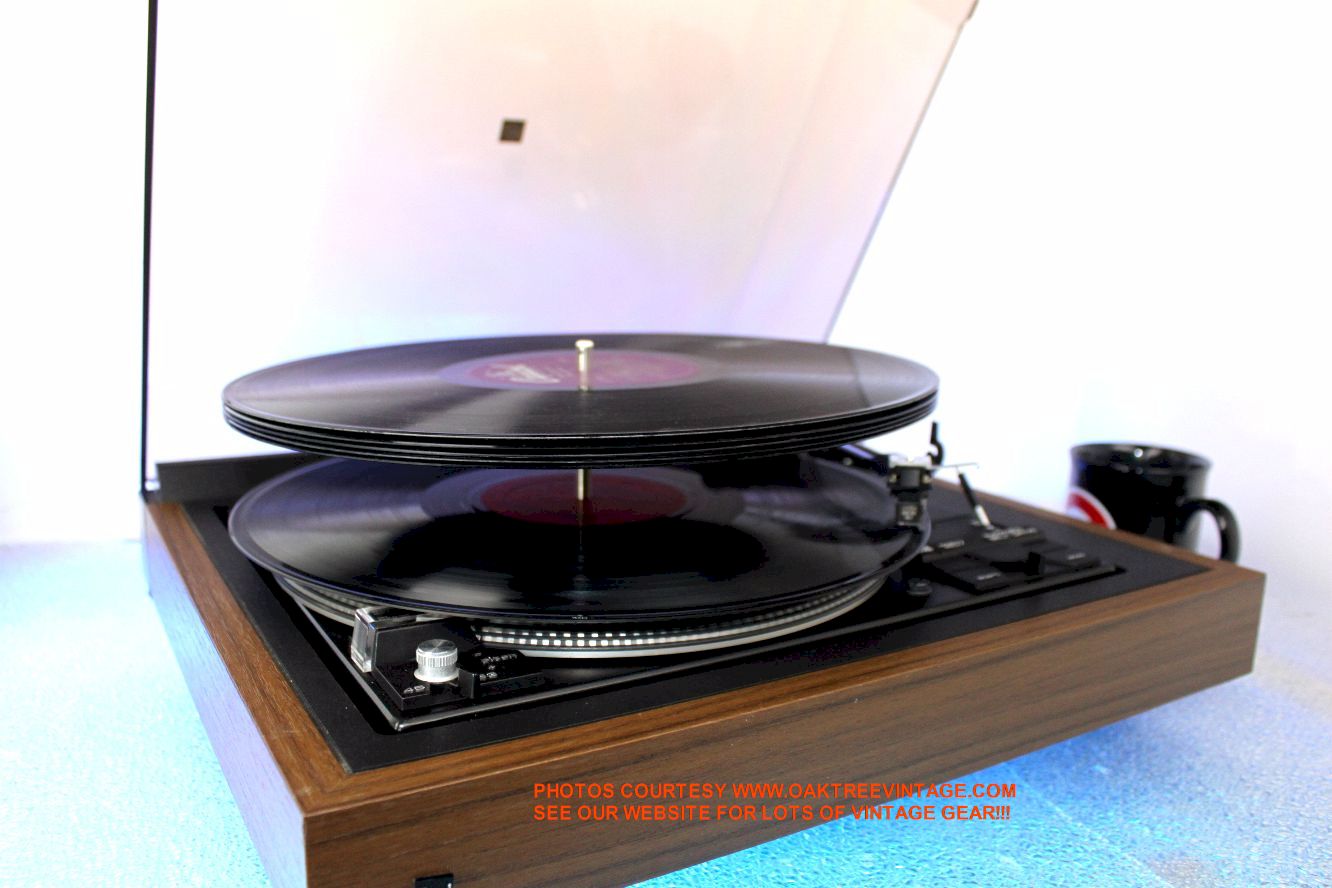

DUAL
 1257
 FULLY AUTOMATIC
 STACKER / CHANGER
 BELT DRIVE
 TURNTABLE

Circa 1979-80

SOLD







             NEW LISTING 10/13/16

(Click on above thumbnails to enlarge photos)
RESTORED / REFURBISHED

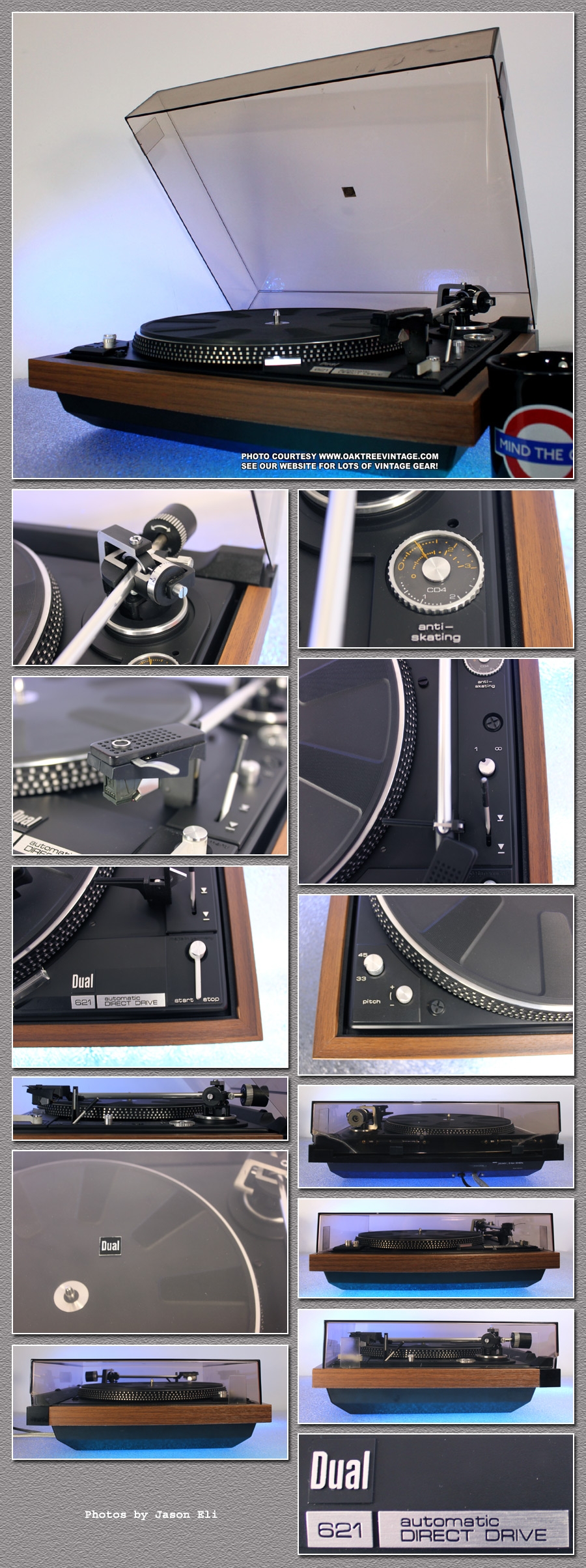

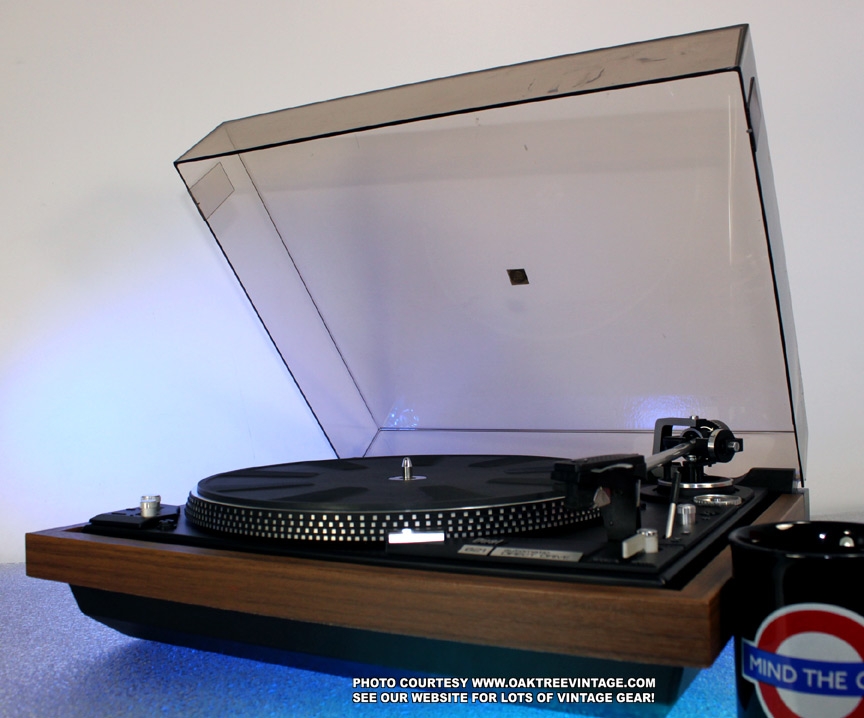

DUAL CS-621 STEREO TURNTABLE
FULLY-AUTOMATIC / DIRECT DRIVE
W/ GRADO ZT+ CARTRIDGE!!!
#...9162
Circa early 77-78
Made in Germany

for sale
SOLD 6/13/17
SHIPPING TO WISCONSIN

  Our technician has completely gone through and 'Certified' this unit, cleaning inside and out, lubricating mechanism, adjusting tone arm lead out and testing performance. Total tech time invested ~ 10 hours!

  Entire internal 'Auto' mechanisms COMPLETELY disassembled, cleaned and re-lubed (never an easy task on 'auto' turntables).

  Platter spindle disassembled, cleaned of old lube and re-lubed.

  Gimbal bearing, counter weight and anti-skating all adjusted and verified for accuracy.

  Tone arm Lead-In and Lead-Out.

  Tone arm bearing perfectly smooth in operation.

  New 'Steuerpimpel' installed into return mechanism, for years of trouble-free service.

  Internal 'speed control' pots cleaned and adjusted for 'center' position on 'user / external' controls

  Speed checked and verified for accuracy with technician's factory test strobe disc against built-in strobe.

  Original rubber mat, still supple and flexible with no hardening.

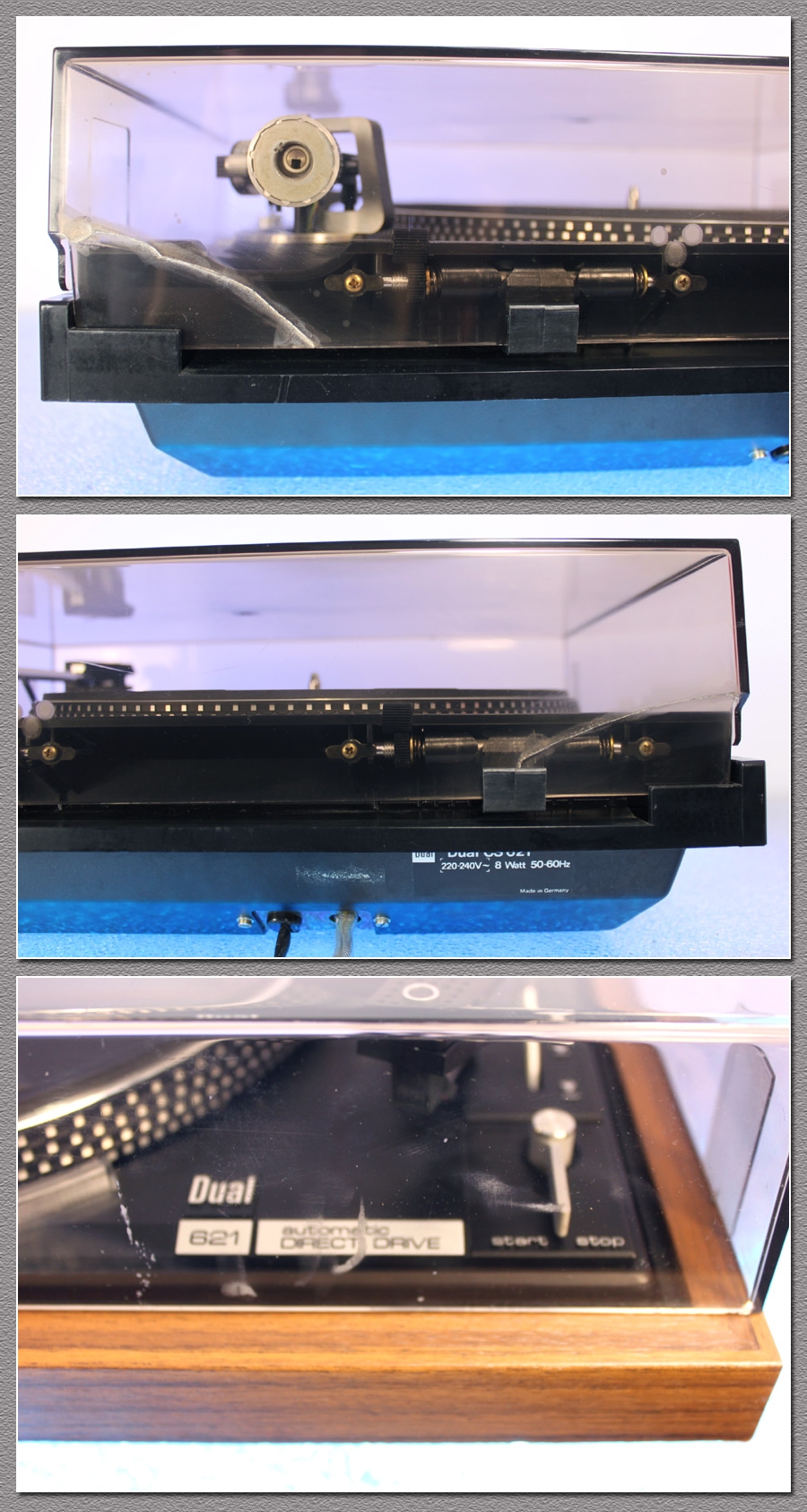

  Original dust cover just had a fresh, 3-stage buff and looks decent, but has a few battle scars, including a couple of previously welded cracks at the rear (see photos above)

  Original dustcover hinges adjusted and now hold it upright as well

  Grado ZT+, Eliptically cut diamond stylus, Magnetic Cartridge re-installed

  RCA Output cables replaced with 'fully braided', audiophile quality cables, with 24k Gold Plated Connectors (see photos above)

  'World AC Power' checked / adjusted for 'North American' AC power (can be changed for other countries if desired internally)

 We re-installed the
Grado ZT+, Eliptically cut diamond stylus, Magnetic Cartridge and optimized the tone arm for it (If you prefer an up-grade you may also choose from our selection of new Audio Technica cartridges that we can also set up and ship with it for the additional cartridge cost.)
 You can readily connect this table to any receiver, Integrated amplifier with a standard magnetic phono input, or a Pre-amp. To connect to computer for burning CD's just order one of our inexpensive Phono Pre-Amps and cable kits.

Cartridge / head shell overhang adjusted using shop calibration scale.

Tested / analyzed and passed for motor noise and 60Hz hum.

Unit tested with our myriad of test records, one of which included; Shures' 'Cartridge Obstacle Course' record

Unit test cycled through 12+ LPs flawlessly

 Following the above technical restore work,
this table works and sounds great! With the exception of some dust cover issues, (see above photos) it looks great as well. One HUGE feature about this table over other Dual's is that it uses 'electronic' motor speed controls, and NOT the obsolete pitch control belt that Dual used on many vintage tables.


Beautiful condition Dual CS-621 Fully-automatic turntable. Following the above mentioned,
7 hours of tech time, it's a very well running, 'direct-drive' turntable...

Will include an e copy / pdf download of the Dual CS-621 Owners / users manual, Service manual and brochure if desired.  Measures 17" wide x 13.5" deep x 6.5" tall and weighs 10 lbs unpacked. Includes our standard 90 day limited warranty.
RESTORED / REFURBISHED Dual CS-621 STEREO TURNTABLE
Cond. 8.5+ (excepting dust cover condition mentioned above)

SOLD 6/13/17
SHIPPING TO WISCONSIN



 W/ GRADO ZT+ Cartridge & Dust Cover


(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)

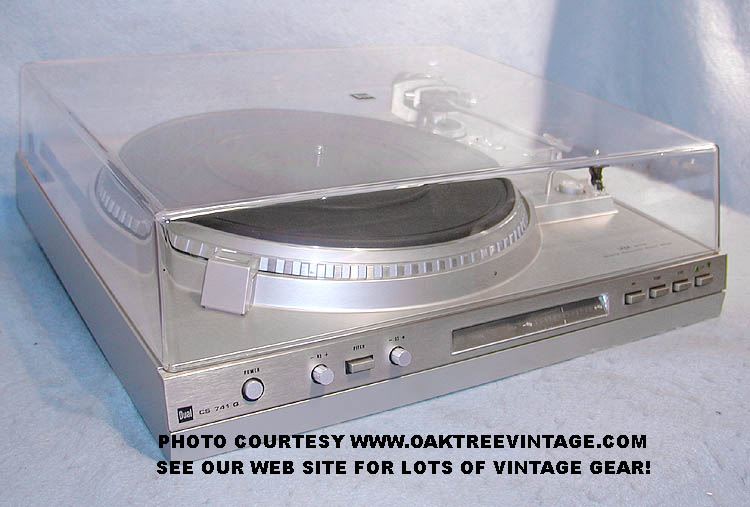

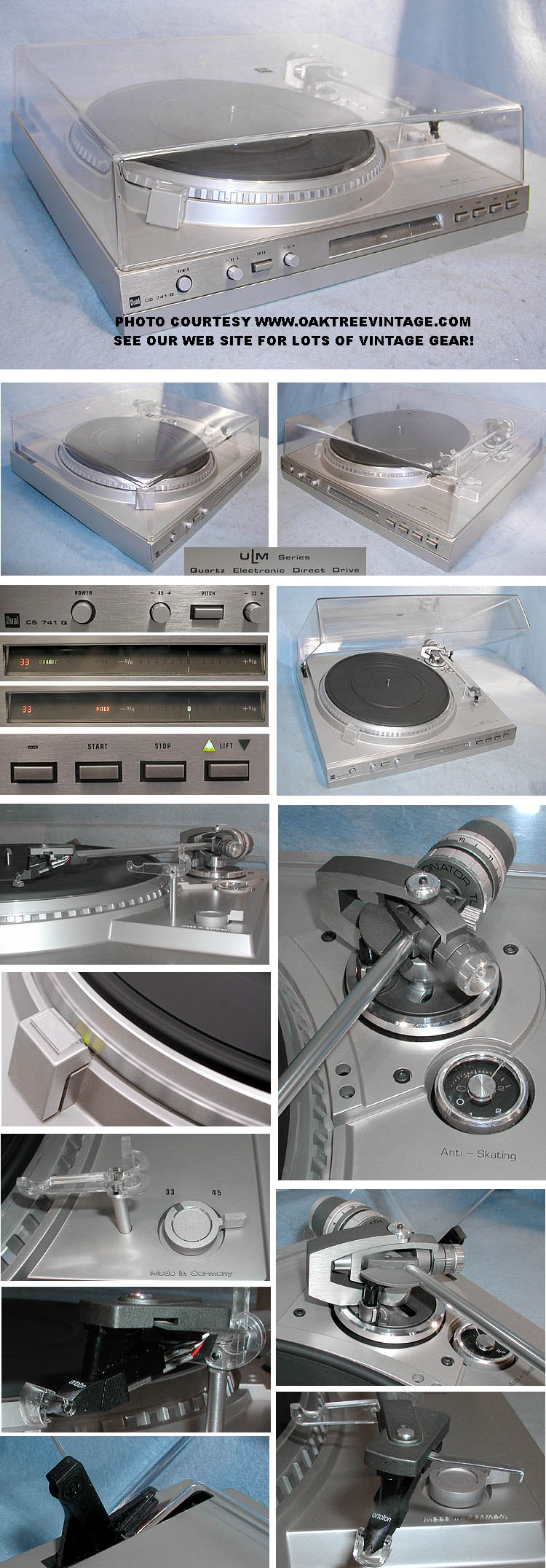

Dual_CS-741-Q_Stereo_Turntable_collage.jpg (245124 bytes)    Dual_CS-741-Q_Stereo_Turntable_sideshot.jpg (79708 bytes)

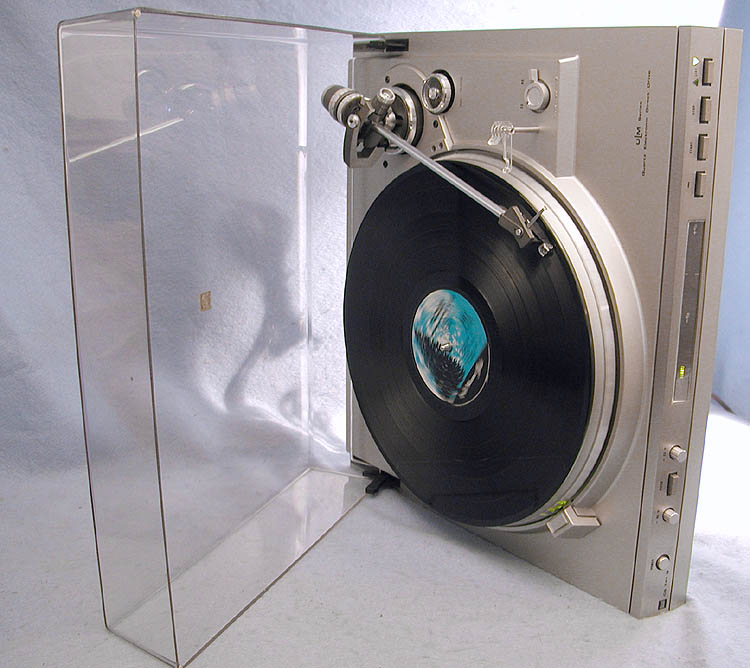

DUAL
CS-741Q 741-Q
TURNTABLE

SOLD 8/18/06







NEW LISTING 5/20/09
(Click on above thumbnails to enlarge photos)
warranty

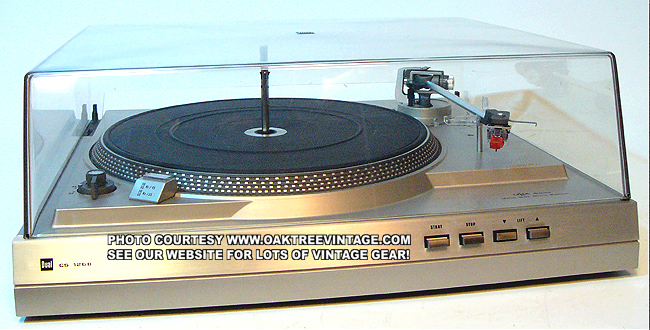

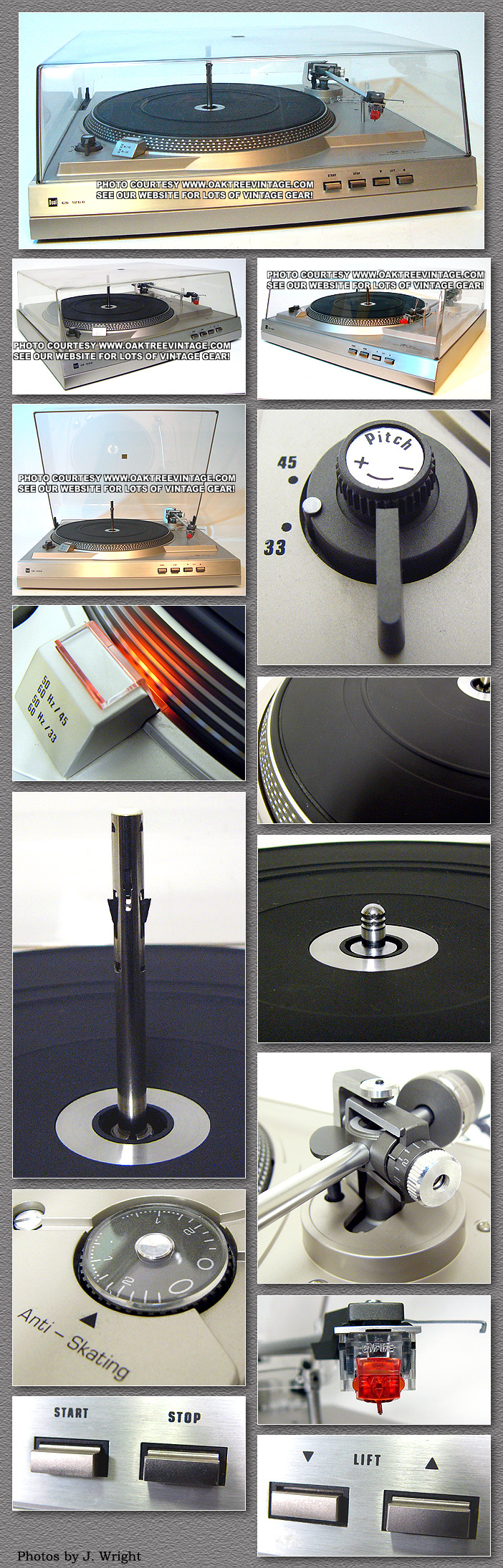

DUAL
STEREO TURNTABLE
CS 1268 CS1268
#...2898
FULLY AUTOMATIC
CHANGER / STACKER
BELT DRIVE
 MADE IN WEST GERMANY
Circa 1981-82
SOLD 7/8/09
w/ dust cover
 & Empire Elliptical Diamond stylus cartridge installed





- - -
CLICK HERE TO SEE OUR TURNTABLES
 CURRENTLY FOR SALE!



LINKS TO OUR 'HI-FI' DEPARTMENTS

Amps and
Pre-Amps

Receivers

Cassette
Decks

Tuners

Turntables

8-Track Decks

CD Players

Reel-Reel
Decks

EQs and Signal
Processors

Speakers

Betamax and
VHS VCRs

Turntable Cartridges

Tube Audio

Ne'cessories

Speaker Parts

Record Players

Vintage Radios

Vintage
Walkmans

Headphones

Stereo Parts


Wondering where the "tone" you remember went?....




.... Surround yourself with Silver and find it again!



POLICIES, SPECIFICATIONS, AVAILABILITY, INFORMATION
AND PRICING SUBJECT TO CHANGE  AT ANYTIME  AND
WITHOUT PRIOR
NOTICE
and changes may not be posted to web immediately
.


20-30% restock fee / service charge applies to all returns for refund depending on item specifics & / or individual distributor / drop shipper policies.
See our "
Warranties / Returns" page via the link below for more details.

$20. Minimum Orders

Visa Credit Card Logo                 American Express Credit Card Logo                Mastercard Credit Card Logo              Discover Credit Card Logo

   *HOME PAGE*   |   CONTACT & ORDERING  PARTS CONTACT  |  FAQ'S  I   SELLING-TRADING-CONSIGNING    |   CONDITION RATINGS   |   ORDERING / POLICIES   |   WARRANTIES / RETURNS   |   SHIPPING    |   HOLD / SOLD   |  RESTORATION PROCEDURES  I  LINKS   |  CLIENT LIST  |

Copyright 1997-2021 Oak Tree Enterprises, LLC
COPYRIGHT INFORMATION
