WESTERN ELECTRIC 'ROLL TOP DECK' PHONE





TEAC 32-2B


MAXELL
1/4" Reel-To-Reel TAPE
10.5"
MAXELL 35-180 / UD
10.5" Aluminum metal reels
High Bias / POSITION
 Reel-to-Reel 1/4" Tape
3,600 FEET
'Smooth finish box / 2-rectangular cutouts'
for sale
Pre-owned, HIGH Bias, Maxell UD 'ULTRA-DYNAMIC' / 35-180, 1/4" X 10.5" Reel-to-Reel tape. 1,100 meters (3600 ft.) in length and 35 micron thickness w/ Polyester base. 180 minutes-both directions @ 19cmps (7.5 ips) (These tapes do require NAB hub adaptors). May or may not have leaders attached. Include individual box. Most have been used and will have recordings on them (we can bulk erase them for additional charge below). May or may not have usable labels. Boxes may have extraneous labels and / or marking on them. Reels are clean with no markings, labels or stickers.
Very clean reels in original boxes. No dents, bends or warps and reels run 'true'.
 Used and likely recorded on, but great shape:
Very limited supply w/ currently 2 left in stock.
MAXELL UD 35-180 'Smooth Box' & 'Dual Rectangular cutouts' on reel
 $64.99 ea. shipped*
or

2 pack is $118.00 shipped.

(while supply lasts)*

* Packed and shipped via Ground shipment to any of the lower 48 states. Other destinations can be calculated. 2.5lbs

                          - Revised 11/2/12

MAXELL
1/4" Reel-To-Reel TAPE
10.5"
MAXELL 35-180 / UD
10.5" Aluminum metal reels
High Bias / POSITION
 Reel-to-Reel 1/4" Tape
3,600 FEET
Pebble finish box / 'Tri' cutouts'
for sale
Pre-owned, HIGH Bias, Maxell UD 'ULTRA-DYNAMIC' / 35-180, 1/4" X 10.5" Reel-to-Reel tape. 1,100 meters (3600 ft.) in length and 35 micron thickness w/ Polyester base. 180 minutes-both directions @ 19cmps (7.5 ips) (These tapes do require NAB hub adaptors). Has leader attached. Include individual box. Most have been used and will have recordings on them (we can bulk erase them for additional charge below). May or may not have usable labels. No marking / writing on box. Reels are clean with no markings, labels or stickers.
Very clean reels in original boxes. No dents, bends or warps and reels run 'true'.
 Used and likely recorded on, but great shape:
Very limited supply w/ currently 1 left in stock.
MAXELL UD 35-180 'Pebble finish Box' & 'Triple cutouts' on reel
 $64.99 ea. shipped*

(while supply lasts)*

* Packed and shipped via Ground shipment to any of the lower 48 states. Other destinations can be calculated. 2.5lbs

                          - Revised 11/2/12

REALISTIC 494


BUTCHER BLOCK



Speaker Stack for restaurant




DENON AVR-1709



MARANTZ SR6200-U2B



PIONEER F-99X



SONY STR-DH700



Sony STR-DE875





YAMAHA TX-70

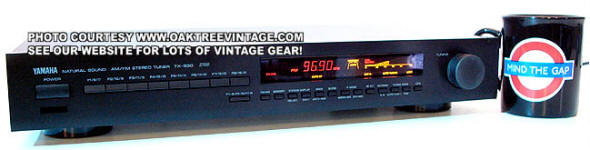

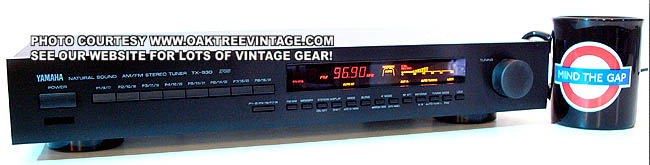

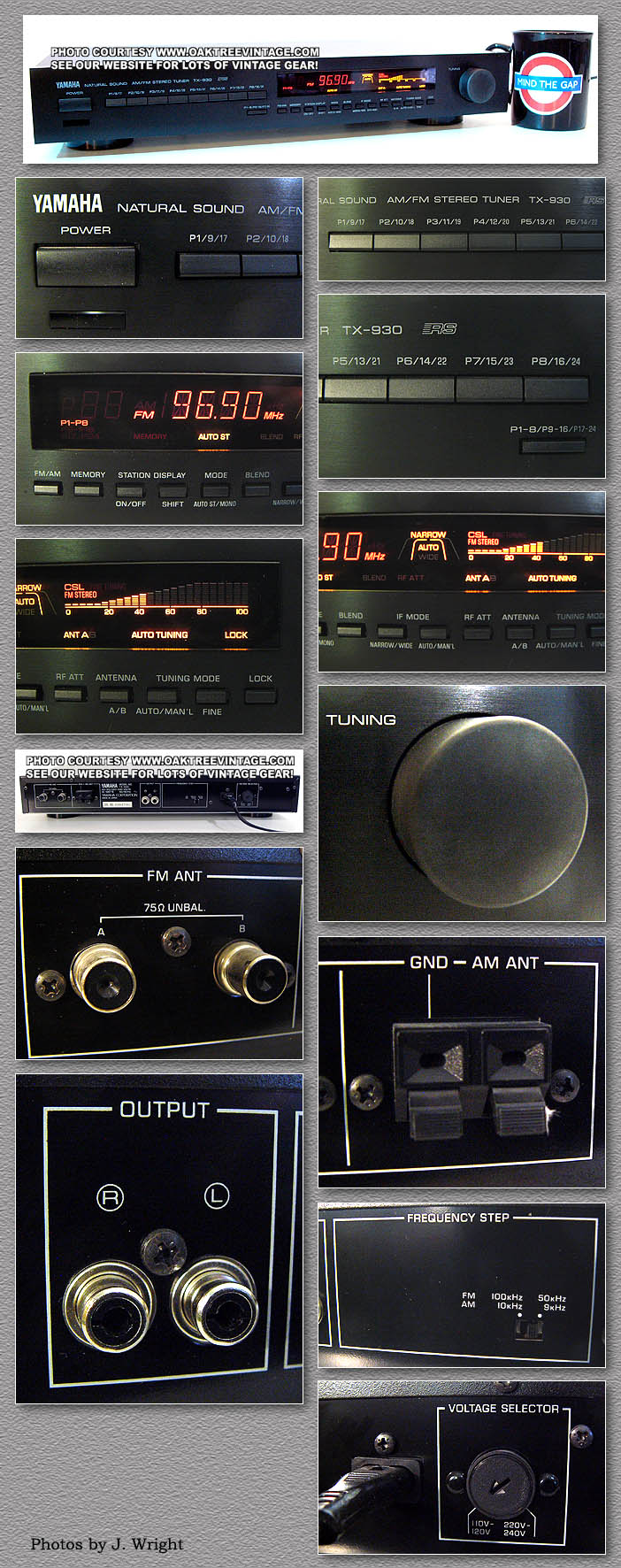

YAMAHA TX-930



KEN-TECH T-2018 CLOCK

(Click on above thumbnails to enlarge photos)
PRE-OWNED
BUFFET CLARINET
MODEL B12
INTERMEDIATE STUDENT Bb CLARINET
for sale
This clarinet is modeled after the Famous Buffet Grenadilla wood clarinets from the 'old day's'. When I worked for a 'full-line' music store thru the 1990's, we would periodically have a 'vintage' Buffet come thru and they never hung around long once serviced for re-sale. It is what most clarinet players asked for. That and Yamaha's.  This is a Buffet B12 clarinet, again, designed after the 'vintage' horns for the student / beginner and into the intermediate market. The Buffet B12 clarinets are made from ABS resin with an appearance and sound similar to that of genuine Grenadilla wood. These models are lightweight, strong and easy to clean perfect for even very young players. The Buffet B12 model has a very attractive and traditional design with nickel-plated body rings, straight key work and a traditional bell ring. The body is buffed to give the appearance of wood. The nickel silver key work is cold forged and induction soldered, providing greater stability, precision and quality. The B12 model is mounted with double fish skin pads which ensure excellent sealing.

 Features:
- Nickel plated keys, body rings & plated bell rings
- 65mm barrel
- 14.65mm poly-cylindrical bore
- Arched key cups (same as R-13 model)
- Staggered trill keys (same as R-13 model)
- Blue Needle Springs
- Adjustable 3-position thumb rest
- Ergonomic key design: Improved playing comfort like that of a professional clarinet
- Pointed needle springs for quality key action
- Undercut tone holes for improved tone quality and faster response
- High quality Double fish skin pads enables air tightness and are long lasting
- Blow-molded, hard shell case

Mouthpiece Assembly with Ligature, Cap and Mouthpiece

•           Cork Grease

•           Cleaning Swab

This clarinet retails for $925.00 (US).



NEW LISTING 12/30/15
(Click on above thumbnails to enlarge photos)
warranty
PIONEER OPEN REEL TO REEL TAPE RECORDER
 1/4" STEREO TAPE DECK
PIONEER RT-909 / RT909 REEL TAPE DECK
#...2430
 4-TRACK / 2-CHANNEL
  2-SPEED / 3 HEAD
AUTO-REVERSE
 5*" / 7*" / 10.5" REEL CAPACITY
  Circa 1979-84
MIJ
for sale

ü  Our technician has completely gone through and 'Certified' this unit.

ü  We have completely and extensively gone through the mechanicals and electronics of this unit.

ü  Entire transport was disassembled down to the chassis, and every mechanical part was cleaned, re-lubed and reassembled.

ü pinch-roller mechanism completely disassembled, cleaned and re-lubed,

ü PR mechanism solenoid mounts adjusted

ü Capstans / flywheels removed, bushings and axels cleaned and re-lubed

ü Capstans burnished

 ü  Rubber pinch rollers have been replaced with FRESH units

ü  Brand new drive belt installed,

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Brakes adjusted on fast wind modes also.

ü Back tension adjusted on both reel motors.

ü All three motors test perfectly. Following above adjustments, Reel Start and Stop tested at beginning, middle and end of 7" and 10.5" tapes

ü Internal pots, switches and controls cleaned and tested for noise-free function.

ü We adjusted the 'Blue Fluorescent' VU meters electronically w/ factory test tone tapes, as well as the internal playback levels for both directions independently and record levels.

ü Deck has been fully calibrated to factory manual specs, tested, and found to perform like new in all categories.

ü Both spindles in perfect alignment.

ü We also adjusted the reel table heights.

Heads in great shape as well, with many years of performance left in them.

ü  BOTH direction Playback and Record Head alignment / azimuth was adjusted for peak performance with factory test tone tape and oscilloscope.

ü Both internal speed pots adjusted to 100% accuracy on either speed independently (with pitch control zero'd) (meaning that our 'verified' 1000Hz test tape now plays back at 1000Hz).

ü Records at +/-0dB on High Bias Chrome tape.

ü This Pioneer RT-909 functions, plays, and records perfectly (and we really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy).  (Total time investment in refurb / testing ~ 12 hours).

Face is made of beautiful brushed aluminum with only one scuff (see photos above), and is in great condition and has never been rack mounted. Deck looks and works great!
____________________________
Looks GREAT & is "Ready-to-go"! The very sought after Pioneer RT-909 Stereo Reel to Reel tape deck. Will play / record stereo 1/4" tapes on reels 5, 7 & 10.5". This is one of the few reel to reel decks we get in that make it to our finished page. Great performer. If you're looking for a reel to reel deck to "actually use" here you go. Only about 25% of the used Reel decks out there can be "practically" restored to working order. This one made it through and all functions test great! Looks and sounds great too! Again, we have completely gone through it. It has been a few years since the last Pioneer RT-909 made it to the page (the second to last one went in my personal rack).

Pioneer RT-909 Features include:

- 4-Track / 2-Channel
- 5*" / 7*" / 10.5" Reel Capacity (*compatible with standard 4-Track / 2-Channel tape format)
- 3 Heads for instant monitoring of tape levels while recording
- Three Motors for trouble free performance (has a lot to do with it still being a viable piece of gear due to less rubber parts)
- Variable pitch control
- Auto-Reverse (when using tape with "auto-reverse" sensing foil) (Forward Recording, with forward & reverse playback)
- Dual speeds at 7.5 ips / 19cms and 3 3/4ips / 9.5 cms
- 'IC Logic' / Solenoid Drive Touch Transport control and 'Power Brake' tape handling
- Manual Reverse switches for changing direction with out flipping reels over
- Independent Tape 'Bias' and 'Equalization' settings
- Repeat function
- Separate & dual concentric mic and line level controls
- Source / Monitor selector (for instant monitoring of recording)
- Independent L & R record enable switches for doing "sound-on-sound"
- Pitch Control (Playback)
- Left & Right output level controls
- Dual "Blue", Fluorescent level meters
- 4-Digit, "Blue", Fluorescent tape counter
- 'Timer' Play / Record function
- Dual front mounted 1/4" Microphone inputs
- Variable output level controls for each channel

Pioneer RT-909 Specifications:

Heads: 4 (record, erase, fwd-play, rev-play)
1 Hard 'Permalloy' Recording Head
1 Ferrite Erase Head
1 Hard 'Permalloy' forward Playback Head
1 Hard 'Permalloy' reverse Playback Head
Motors: Capstan drive motor; 1 (FG servo DC motor)
Reel base drive motors; 2 (6-pole inner rotor special induction type)
Tape Speed: 19cm/s (7-1/2ips), 9.5cm/s (3-3/4ips) ±0.5%
Wow and flutter:
< 0.04% WRMS (19cm/s)
< 0.08% WRMS (9.5cm/s)
Signal to noise ratio: >60dB
THD: <1% @ 19cms
Frequency response: @ 19cm/s  20Hz to 30,000Hz (20Hz to 28,000Hz ±3dB)
@ 9.5cm/s  20Hz to 20,000Hz (20Hz to 18,000Hz ±3dB)
Crosstalk: >50dB
Channel separation: >50dB
Erasing coefficient: >60dB
Recording bias Frequency: 125kHz
Pitch-control: +/- 6%
2 VU-meters: dB (-30 to +8)
Input Sensitivity (Minimum / Maximum allowable level / impedance): Mic x 2; 0.316mV /100mV /27kΩ, 1/4" / 6mm diam. jacks
(suitable microphone, 250Ω to 10kΩ)
Line; 50mV / 25V / 50kΩ
Output Level Reference / Maximum: Line; 900mV / 50kΩ
Headphones; 50mV / 8Ω, 1/4" / 6mm diam. jack
Fast Wind Time w/ 720m’ Tape & 10.5" reel: Less than 120 sec.

As stated earlier we have completely gone through it cleaning, lubing, adjusting, demagnetizing and testing everything. Plays and records perfectly, AGAIN, records at 0dB down, yes, that's a ZERO! Both original feet / skids intact and perfect (these are commonly broken / missing)

Thick & solid brushed aluminum face plate in excellent condition and has never been 'racked' so no rack screw rack rash / marks! Case also in great condition.

These are great machines. I have had one myself for a few years. It's a blast to put on a BIG 10.5" reel with Pink Floyds, "Dark Side of the Moon". Even though it was designed for the consumer market, many were and are in use in schools, universities, libraries, clubs, etc. I worked at a Sheraton Inn in the late 70's and early 80's, and we had two in the DJ booth, that supplied foreground music from about 11AM till the DJ showed up at about 9PM, 7 days a week!
Includes a pdf / 'e-copy' download of the Pioneer RT-909 Owners manual, and if desired, a copy of the Pioneer RT-909 Service manual. Measures 19" wide x 11.5" deep x 13.5" high and weighs 46 lbs unpacked. Includes our standard 90 day limited warranty.
(NAB Hubs, Reels & tape shown in photos not included. All are sometimes available separately depending on stock levels. Also unit does not have the 'voltage selector' shown in photos)
PIONEER RT-909 Reel to Reel Tape Deck
Cond. 8.5++
$1599.
(C) R.R.

WITH A PAIR OF NAB HUBS AND ONE 10.5" METAL PIONEER TAKE-UP REEL!!!

  (Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)



ü  Our technician has completely gone through and 'Certified' this unit.

ü  We have completely and extensively gone through the mechanicals and electronics of this unit.

ü  Entire transport was disassembled down to the chassis, and every mechanical part was cleaned, re-lubed and reassembled.

ü  'Tweaked' Mic / Line pot shafts straightened.





GEMINI XL-100

INFINITY ENTRA SUB TWO



ADVENT MINI II INDOOR / OUTDOOR



NEW LISTING 10/23/12
 (click on above thumbnails to enlarge photos)
  warranty
 PRE-APPRECIATED
 INFINITY
 STEREO SPEAKERS
 STUDIO MONITORS SM-152 / SM152



NEW LISTING 3/22/13
 (Click on above thumbnails to enlarge photos)
 warranty
PRE-OWNED POLK-AUDIO STEREO SPEAKERS
POLK AUDIO MONITOR SERIES 10
#...3055 & 3065
  Circa 1977-'82
MADE IN USA
SOLD 4/5/13
SHIPPED TO ARKANSAS
Fabulous sounding Polk Monitor 10 floor standing speakers. This is the model Polk designed to be the 'flagship' of their 'Monitor Series' line-up and to be a 'big brother' to their successful Monitor 7 speaker.
Our speaker tech has completely gone through and 'Certified' these. We have completely tested all drivers. When Polk speakers initially arrive to us, we can expect 50%-100% of the drivers to be 'locked' up, due to magnet shift. This will be virtually inevitable due to their original mfg process. We 'proactively' reinforce ALL functioning drivers with 'liquid metal' around the perimeter, on both sides of the motor structures. It's the only way to insure their immunity to 'magnet shift' either from normal use, or handling during shipping / transit / moving. After testing we then found one more woofer to have a slight VC rub on certain AF Gen frequencies and replaced it with another 'reinforced' unit. All drivers were reinstalled into cabinet with ‘added’ gasketing material under their frames to further reduce any possibilities of vibration or acoustic anomalies.
Next, as always they were tested with both recorded material, PN 20-20k and swept them with our AF generator from 20-3kHz. Then came our standard, 'abusive' test recordings. Following the technical restoration / tests, they were detailed cosmetically. Grill cloth attachment was improved. Wood grain, vinyl wrapped finish in decent shape with minor scratching / scuffing to the tops (see above photos). Much improved cosmetically and overall decent looking. These speakers are ready to go!

We auditioned this pair well. Following the above mentioned 'barrage', our demo cuts ran the gamut from Dire Straits, 'Brothers in Arms', Donald Fagens, 'Night Fly', '24K Gold Edition of Jennifer Waren's "Famous Blue Raincoat', TLC 'Fan Mail' (did 'sub-bass' note @ 1'25" & 1'35" SOLIDLY & PROMINENTLY, Allison Kraus and Union Station, Trapt's 'Headstrong', Don Williams' DDD version of 'Country Boy', a digital recording of a cathedral pipe organ, and a few others, all digitally recorded and some 'DDD'.

   Beautiful sounding Polk Audio, 2-way / Pseudo 3-Way, "Monitor 10" bookshelf speakers. Very accurate sound reproduction. Great balance and detail oriented speakers. Great speaker for up to 'medium loud' volume levels. While these do get reasonably 'loud' and handle power WELL, they are more "detail" oriented speakers not "Power Pounding, Party" speakers (yes they get loud, but that's not their "forte"). As we alluded to earlier, the bass is huge, solid and deep at the same time. Nice 'Wall of Sound'. Just great 'all around' speakers for most listening situations and systems.

 Features:

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


- Pseudo 3-Way, Passive Radiator design
- 10" Damped passive radiator for extended low end
- Dual 6.5" 'Mid-Bass' drivers
- Butyl rubber surrounds throughout
- 1" Soft-dome, Poly tweeter (Polk SL-2000)
- Real Crossover (not just a filter cap)
- Utilize 3-way binding post inputs

  Original Polk Monitor 10 Specifications:

- Overall Freq Range: 25-26kHz
- System Impedance: 8 Ohms
- Sensitivity: 89 dB
- Recommended amp range: 20 to 250 watts (best with the lower end)

These speakers are in great shape 'technically' and decent shape cosmetically. Again, as stated earlier, our speaker tech has completely refurbished them, then they were tested them including sweeping them with an audio generator looking for any acoustical anomalies or extraneous noises or sounds. Also tested with our extensive CD library of "audiophile" test CD's. They work and sound great! Butyl Rubber surrounds on 6.5" woofers & 10" passive radiators in perfect shape. Wood grain, vinyl wrapped cabinets and original knit cloth grills in acceptable shape. Again these are great speakers for accuracy and detail and while not made for loud volume / "mega power" amps, but will perform great at most volume levels volume levels. These speakers also function best with little or no tone control and are best, not used with much equalization. They utilize binding post / "banana" style input posts and will ship with a pair each of banana jacks. Includes an 'e-copy' in pdf of the owners manual. Each measures 28" high x 16" wide x 11.5" deep and weighs 48 lbs. Includes our standard 90 day limited warranty ( excluding problems due to under / over powering).
POLK AUDIO MONITOR SERIES 10 SPEAKERS
Cond. 8.5
SOLD 4/5/13
SHIPPED TO ARKANSAS

  (Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)




     NEW LISTING 10/8/10
 (click on above thumbnails to enlarge photos)
warranty
VINTAGE
KENWOOD / TRIO
  STEREO SPEAKERS
           KL-777Z  kl777Z
  #...0292 & ...0294
 Circa Late 1970's-early 1980's
SOLD 3/4/13
SHIPPING TO MARYLAND
Vintage & Large Kenwood KL-777Z stereo speakers from their last series of "Trip7's". These are likely what is referred to as 'Military' market / Euro / Asia market units as they are not listed in North American listings and they're the first we've seen in 13 years.
4-Way, 'Bass Reflex' design. These are VERY efficient speakers with above average tone balance for late '70's / early 80's speakers. Plenty of top end that can be filtered / tailored to your tastes with built-in attenuator or external EQ / tone control. Also HUGE & DEEP low end, likely due to the "Bass Reflex" cabinet design. They also seem to be able to handle "power" better than your average speaker. Not simply referring to their wattage rating, but just the way they perform at higher power / volume levels without "falling apart" sonically. Among the top performers of the many speakers we have auditioned over the years. Unfortunately these have 'lost' their grills along the way and do have considerable 'battle scars', along the edges, (mostly the upper) edges on each of the cabinets, the worst of which is shown in the photos above. The woofer cones also have typical 'yellowing' from age, that does not affect performance.
All drivers were tested with AF generator sweep, PN 20-20k and our standard, 'abusive' test recordings. Attenuators removed and cleaned. These speakers are ready to go!
  Features:

- 14" Non-deteriorating Cloth surround Woofer
- 5" Non-deteriorating, paper surround Midrange
- 2" x 3.75" Horn Tweeter
- 2" Cone 'Super-Tweeter'
- "Real" internal cross-over, not just a couple of "caps" on the mids and tweets
- 3-position Hi frequency attenuators, using resistors, not failure prone Ni-Chrome wire, for custom tailoring sound to your tastes and listening room
- Dual 2.25", Tuned Ports for increasing low end depth & efficiency

  Specs are as follows:

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


 Speaker System: 4-Way
 Cabinet type design: Bass Reflex / Ported design
 Frequency Response: ~25-20,000Hz
 Efficiency: ~97dB! 1w @ 1m
 Nominal Impedance: 8Ω each
 Max rated power capabilities: 100 watts continuous / 200 watts max recommended

 Again, these speakers are missing their grills and do have a few cosmetic 'issues', but more than make up for that in performance. Features a true / 'Real' 4-way cross-over for super clean response especially in the "low end". We removed all drivers, checked crossover for component & mounting integrity, cleaned the attenuator contacts and reassembled all. We completely tested them with both recorded material, PN 20-20k and swept them with our AF generator from 20-20,000 Hz and feeding them with the output from our Hafler P-225 Pro Power Amp. Then further auditioned with a myriad of our difficult to reproduce 'test' CD's. All drivers are in fine condition, work and sound fine! Speakers have an accurate and HUGE sound. If you're looking for a great performing speaker at medium to higher volume applications, and don't mind the 'battle scars', you will not be disappointed with these speakers. Each measures 27.25" tall x 16.5" wide x 9.5" deep and weighs 35 lbs unpacked. Includes our standard 90 day limited warranty ( & excluding problems due to under / over powering)
KENWOOD KL 777Z STEREO SPEAKERS
  Cond. 7.0 (due to missing grills and edge dings)
$369. pair
SOLD 3/4/13
SHIPPING TO MARYLAND

  (Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)






NEW LISTING 12/20/14
(Click on above thumbnails to enlarge photos)
  warranty
RESTORED / REFURBISHED
VINTAGE TECHNICS TURNTABLE
TECHNICS SL-Q2 / SLQ2
FULLY AUTO
DIRECT DRIVE
STEREO TURNTABLE
RESTORED / REFURBISHED
#...A323
Made in Japan
Circa 1979-81
SOLD 12/24/14
ü Our technician has completely gone through and 'Certified' this unit cleaning inside and out, cleaning and re-lubricating mechanism, adjusting tone arm height, lead OUT and 'auto return' mechanism and testing performance.

ü Internal speed pots, adjusted for centering and speed checked and verified for accuracy with our factory test strobe disc against built-in strobe monitor.

ü External / 'user' adjustable platter speed potentiometers cleaned for smooth speed transition and 'glitch-free' adjustment.

ü Tone-arm / head-shell ‘Overhang’ adjusted using shop chart

ü Gimbol bearing, counter weight and anti-skating all adjusted and verified for accuracy. 'Auto' mechanism adjusted and tested.

ü Original rubber mat, still supple and flexible with no hardening.

ü Original feet in fine condition.

ü We also installed and adjusted a fresh, new, Audio-Technica ‘AT-92ECD’, elliptically cut Diamond, magnetic cartridge and optimized the tone arm for it. (If you prefer an up-grade you may also choose from our selection of new Audio-Technica cartridges that we can also set up and ship with it for the additional cartridge cost.)
You can readily connect this table to any receiver, Integrated amplifier with a standard magnetic phono input, or a Pre-amp. To connect to computer for burning CD's just order one of our inexpensive Phono Pre-Amps and cable kits.

ü Tested / analyzed and passed for motor noise and 60Hz hum

ü Unit test cycled through 6 LP’s flawlessly

ü Unit tested with our myriad of test records, one of which included: Shures' 'Cartridge Obstacle Course' record

Great performing Technics SL-Q2, Direct Drive, Semi-Automatic turntable. Following the above restoration, it functions correctly and performs well.

Technics SL-Q2 Turntable Features:

- Direct Drive
- Semi-Automatic Operation (arm returns when finished)
- F.G. (Frequency Generator) motor
- 'Quartz Phase Locked' Speed
- Aluminum-alloy, die-cast platter
- ‘TNRC’ (Technics Non-Resonance Compound) base / plinth material
- Classic ‘S’ shaped, tubular tone arm
- ‘Universal’ head-fits Standard ‘Half Inch’ mount cartridge
(allows for quick cartridge changes w/ additional ‘loaded’ head-shells)
- Strobe monitored for platter
- 33 1/3 and 45 RPM speeds
- High Viscosity, 500,000 silicone Oil damped tone arm cuing
- Adjustable Tracking and 'Anti-Skating' force

TECHNICS SL-Q2 TURNTABLE TABLE SPECIFICATIONS:

Motor and Turntable Drive System: 'Quartz Phase Locked', Direct drive, 'Brushless' DC
Platter: 312mm / 12.5" diameter, die-cast, aluminum alloy
Speeds: 33 1/3 and 45 rpm
Wow and Flutter (WRMS): < 0.025% NAB
Rumble (A Weighted): -78dB!!!
Starting Torque: 1kg / cm
Speed Drift / Accuracy: within +/- 0.002%
Tone-arm Type: ‘S’ Shaped, Tubular
w/ ‘universal’ head-shell
Effective Arm Length: 230mm
Overhang: 15mm
Tracking Error: 2°32' @ outer groove of 12" LP & 0°32' @ inner groove
 Total Cable Capacitance: 88pF
Tracking Force: 0-2.5 Grams
Useable Gross Cartridge Weight: ~6-9.5g

Included Audio-Technica AT-92ECD Cartridge Specs are as follows:

Frequency Response: 15-27kHz
Output: 3.5 mV @ 1kHz
Recommended Vertical Tracking Force: 1.0-1.5 grams
Recommended loading impedance: 47K ohms (standard, requires only standard phono pre-amp built-into most gear).

Again, this table has been completely gone through by our turntable tech testing for speed accuracy, rumble, wow-flutter, noise isolation, tone-arm function and lubed internal mechanism. Works and sounds great. As long as you do not need a dust cover, it looks great and is ready to go! You will not be disappointed in this table for all around use. Will include an ‘e’ copy / pdf download of the Technics SL-Q2 Owners / users manual. Measures 17" wide x 14.75" deep x 4" tall and weighs 10 lbs unpacked. Includes our standard 90 day limited warranty.
TECHNICS SL-Q2 STEREO TURNTABLE
Cond. 8.5 (due to missing dustcover)
SOLD 12/24/14
W/ AUDIO-TECHNICA ‘92ECD’ / ELLIPTICALLY CUT DIAMOND CARTRIDGE INSTALLED

To connect to computer for burning CD's or to a modern A/V receiver that does not have phono inputs, just order one of our inexpensive $29.99 Phono Pre-Amps and cable kits.

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)

NEW ADDITION 2/4/11
 (Click on above thumbnails to enlarge photos)
  warranty
VINTAGE
FISHER AUDIO TIMER / DIGITAL CLOCK
TR-3000 TR3000
 Circa 1980-81
 Made in Japan
   "WORLD AC POWER" ™
SOLD 5/7/13
SHIPPED TO NEW YORK
 Fisher TR-3000 Audio Timer. These were originally designed for setting your system to record scheduled FM radio shows and Album rock. They also can be used to turn your system into a Super-Hi-Fi Alarm clock radio and / or just as the ultimate and really cool digital clock.
Features:
- 24 Hour 'Military' Time (as we are located in Colorado Springs, this unit was likely brought back by a GI)
- 'Sleep Timer' function from 1:59-1 minutes
- 4 'Switched' AC outlets
- 'Auto-Dimming' senses room light level and raises readout
- Rear located, variable 'Brightness' control for the readout
 -  Semi "WORLD AC POWER"™  50 / 60 cycles, but will need a transformer / converter for 'non-North American' AC voltages / use.

This is from a collection of these that took us a long time to amass. Many of these will erratically change / advance the time after they've been on for 1 or 2 hours. This is one of the few out of the many we get that keeps time perfectly and was checked over a 1 week period. Entire unit was disassembled and cleaned inside and out, including the internal switches. All functions test perfectly. Aqua Blue Fluorescent digital readout and black face plate. Use it to turn on most anything with a latched or mechanical power switch. Will switch up to 500 watts via 4, rear located AC outlets. Unit looks near new and works great! Clock memory is volatile at power outages. Measures 17.25" wide x 5.25" deep and 1.75" high and weighs 4 lbs unpacked. Includes our standard 90 day limited warranty.
FISHER TR-3000
 Cond. 8.5+
SOLD 5/7/13
SHIPPED TO NEW YORK

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)



(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)


(Click on above thumbnails to enlarge photos)
warranty
PRE-OWNED
DBX TAPE NOISE REDUCTION UNIT
NX-40 NX40
DBX TYPE II
#...2133
Circa 1982-86
for sale
Great for use with Reel to Reel decks or Cassette Decks. Blows Dolby B or C out of the water! DBX has been used in recording studios for years. Gets rid of tape hiss. Period! Will connect to any quality component system & / or analog studio deck. Will also accept signals from those rare DBX encoded LP's. Record and Playback levels located on rear panel. Utilizes dual 'AN6291' dbx IC chips. This unit is in great condition. We have completely gone through and tested the unit. Looks fine, sounds and works great! Unit is narrow at 7" wide x 9" deep x 1.75" (1 rack space) tall and weighs ~3 lbs unpacked. Comes with a copy of the dbx NX-40 owners / users manual. Includes our standard 90 day limited warranty.
DBX NX-40
Cond. 8.5
SOLD 7/17/13

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)





 NEW LISTING 4/19/13
(Click on above thumbnails to enlarge photos)
warranty
PIONEER SG-9 / SG9 STEREO EQUALIZER
DUAL 12 BAND STEREO GRAPHIC EQ / EQUALIZER
#...4841Z
   "WORLD AC POWER" ™
Circa 1979-81
for sale
SOLD 8/8/13
SHIPPED TO NEBRASKA
(The one with the LED's in each slider)

ü  Our technician has completely gone through and 'Certified' this unit.

ü  Everything was completely tested and benched.

  ü  Unit was disassembled for restoration / reconditioning.

ü  Most I/O jack and fader solder joints re-flowed for trouble-free service.

 ü  Tape monitor and Attenuator switch locks checked for proper function. All 'latched' switches locking fine.

ü  We checked and replaced lamps where needed.

  ü  We then tested both channels with a test tone and O-scope, analyzing both channels with and without each independent effect.

ü  It was then cosmetically detailed inside and out.

ü  All functions tested for perfect operation.

        ü  All inputs tested and both side produces clean and even sine waves!

   ü  Checked with O-Scope. No power supply hum of any kind. It's dead silent!
 ü  No scuffs / scratches or anything to mention. Switch / Fader caps all 'shiny' with none of the 'corrosion / patina' we commonly see on about 50% of Pioneer units (just FYI). Unit is clean both cosmetically and sonically. Looks and sounds great!

Sought after flagship EQ of the Pioneer "Golden Era". This is the EQ designed with the "Pioneer SPEC 1 & 2" system. Great looking Silver-Face Pioneer 24 band Equalizer (12 bands per stereo channel).

Pioneer SG-9800 Features include:

- 12 Bands per channel ('One-Octave EQ')
- 70mm 'Long Throw' faders with +-10dB.
- Separate Left and Right EQ Frequency centers are at 16Hz, 32Hz, 64Hz, 125Hz, 250Hz, 500Hz, 1kHz, 2kHz, 4kHz, 8Khz, 16kHz & 32kHz.
- LED lit faders
- EQ Recording function to imprint tapes / CD's / DAT's / Hard Drive with EQ curve for playback on a car stereo or to allow for deficiencies in speakers
- Tape monitor  (Tape Monitors can be used with Tape / Video / CD / DVD / VCR / DAT / MP3 / iPod® / iPhone® / iTouch® / iGadget / MP3 / XM® / SIRUS® CDR (CD recorders as well as for inserting signal processors, such as EQ's, Reverbs, Spatial Enhancers / Dynamic Processors, Noise Reduction units, Special Effects units, Time Delays, etc) Dubbing can be used with CDR (CD recorders) units)
--3 &-6 dB input attenuator (useful for DJ, Studio, Live Sound or any application when used with stronger than normal line-level signals)
- Overload indicator for attenuator
- One un-switched AC convenience jack located on the back rated at 100 Watts
- "WORLD AC POWER"™ 50 / 60 cycles there is a 110V, 120V, 220V & 240V selector for use anywhere in the world!

Again, our tech has completely gone through this unit and 'certified' it READY TO GO! Looks NEAR NEW and works great. This is considered to be one of the best 'all around' home audio EQ's ever produced. Clean, Quiet, Musical and easy to use. Add's depth, and punch to any system. What more could you ask!?!
Perfect compliment to most any audio system (except suckie, modern A/V / surround / 5.1 / 7.1 / BR549 / Home theater systems)
 Measures 16 5/8" wide x 14" deep x 6" high and weighs 15 lbs unpacked. Includes our standard 90 day limited warranty.
PIONEER SG-9 STEREO EQUALIZER
Cond. 9
(C) M.R.
SOLD 8/8/13
SHIPPED TO NEBRASKA

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)

NEW LISTING 4/18/13
 (Click on above thumbnails to enlarge photos)
warranty
 YAMAHA GRAPHIC EQUALIZER W/ RTA
YAMAHA EQ-500U GRAPHIC EQ
 W/ PINK NOISE GENERATOR AND SPECTRUM ANALYZER / RTA
 CIRCA 1987-91
SOLD 4/19/13
SHIPPED TO TEXAS

ü  Our technician has completely gone through and 'Certified' this unit.

ü  Everything was completely tested and benched.

ü  Unit was disassembled for restoration / reconditioning.

     ü  Linear fader / potentiometers checked for quiet operation.

ü  Most I/O jack and fader solder joints re-flowed for trouble-free service.

ü  Tape monitor and Attenuator switch locks checked for proper function.

ü  All 'latched' switches locking fine.

ü  All LED and Fluorescent indicators checked

 ü We then tested both channels with a test tone and O-scope, analyzing both channels with and without each independent effect.

ü  It was then cleaned inside and out.

ü  All inputs tested and both side produces clean and even sine waves (checked with AF gen and oscilloscope)! All functions tested for perfect operation. No power supply hum of any kind. It's dead silent!
 Unit is clean both cosmetically and sonically. Looks Near New and sounds great!

The Yamaha EQ-500U dual, 10 band EQ with Spectrum Analyzer, built-in pink noise generator and microphone input. This is a true Real Time Room / Speaker Analyzer. Using an RTA / with a pink noise generator like this is the only way you can truly know you have your speaker / room environment combination adjusted for pure "Flat" response. Each of the graphic controls feature a full +-12db of cut / boost (instead of the common 10 db) and are a long 60mm in throw length (most home units are 30 - 40mm).

Yamaha EQ-500U Features / Benefits:

 - One Octave Graphic EQ
 - 10-Band, Graphically controlled frequencies per channel
  - +- 12dB Cut / Boost (most do only 10 dB)
 - The 10 frequency centers are as follows (starting at the low-end):
 30Hz - 60Hz - 120Hz - 240Hz
 - 480kHz - 1kHz - 2kHz -
 4kHz - 8kHz & 16kHz.
  - 60mm Long Throw, Linear Pots
 - Built-In Pink Noise generator
 - 1/4" Mic input for use with Spectrum Analyzer and pink noise generator to "Flatten room" with EQ
 - 10-Band, Fluorescent bar graph Spectrum Analyzer display selectable for either Left, Right or Stereo indication
 - Infinitely variable level control for Spectrum display
 - Output Level control
  - Tape Monitor
 (Tape Monitors can be used with Video / CD / DVD / VCR / DAT / iPod / MP3 / XM / SIRUS CDR (CD recorders as well as for inserting signal processors, such as EQ's, Reverbs, Spatial Enhancers / Dynamic Processors, Noise Reduction units, Special Effects units, Time Delays, etc) Dubbing can be used with CDR (CD recorders) units)
  - EQ defeat / bypass
  - Sub-Sonic Filter built-in to reduce turn-table and speaker rumble

Yamaha EQ-500U Specifications:

 NEW ADDITION 11/30/12
 (Click on above thumbnails to enlarge photos)
warranty
ALLIED / REALISTIC 8-TRACK STEREO PLAY / RECORD DECK
ALLIED MODEL 14-5016 / TR-880
 Circa Late 1960's - Early 1970's
SOLD 9/12/13
SHIPPED TO PENNSYLVANIA
Our technician has completely gone through and 'Certified' this unit. We have completely and extensively gone through the mechanicals and electronics of this unit. Entire transport was disassembled down to the chassis, and every mechanical part was cleaned, re-lubed and reassembled.

- Entire transport and mechanism has been disassembled, cleaned, re-lubed and de-magnetized.
- Program change mechanism / elevator cleaned and re-lubed for trouble-free program changes.
- Internal Linear Record switch cleaned
- Capstan motor inspected and re-lubed.
- Flywheel / Capstan removed, cleaned, burnished / retextured and re-lubed.
- Flywheel thrust plate bearing surface cleaned and re-greased.
- New, main drive belt installed for trouble-free service.
- Heads have been cleaned and de-magnetized and are in great shape.

- Head azimuth, track alignment, cross-talk, and signal phase for optimum performance and the best high-frequency response (not normally expected from 8-track cartridge performance).

- All internal playback / output level pots all adjusted utilizing dual-trace oscilloscope and factory test tone tape.
- Records great* with the following test results after adjusting heads and internal level controls: +2d @ 1kHz, 0dB w/ full bandwidth Pink Noise, and ~0dB with CD Recorded Material!
- All track indicator, meter and other indicator lamps replaced with new bulbs and respond to program / track changes.
- Tape speed tested with factory 1kHz test tape for 95.4% accuracy.

*Note: Meters require approx 12 sec for initial response when record mode is initiated.

This machine would be good for burning your personal stereo 8-track collection to CD or simply for listening to your stereo tapes. Also great for making 'NEW' 8-track decks especially for your 'muscle car' with it's original 8-track deck. Deck looks good and works GREAT!
 _____________________________

 One of the best performing 8-track cartridge play / record decks we have ever had. This one is an Allied / Realistic TR-880. Following extensive restoration, we recorded from a CD onto a new 8-track cartridge and it sounded as good as a cassette and many Reel to Reels! Great for making "new" 8-track tapes for listening in your vintage or muscle car.
 Features include:

 - Recording Capable
 - Separate L & R Input record level controls
 - Dual back-lit, analog VU level meters
 - Variable output playback level controls on the rear panel for fine tuning levels to your inputs
 - Auto-Stop or Continuous Play - "Auto-Stop" Invaluable when archiving large 8-track libraries.
 - FF Switch (momentary type and non-locking)
  - ¼" microphone input mounted on the front panel

 Again, we have completely gone through this unit, refurbishing and then testing with amazing results for an 8-track. This machine would be perfect for burning your 8-track collection to CD or computer and making new tapes for your show / muscle car. Looks good and works GREAT! Includes our standard 90 day limited warranty. Measures 17.5" wide x 10" deep x 5" high and weighs 13 lbs unpacked.
 ALLIED / REALISTIC 14-5016 / TR-880 8-TRACK CARTRIDGE DECK
 Cond. 8.5
SOLD 9/12/13
SHIPPED TO PENNSYLVANIA

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)




(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)



(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)








& EXISTING DUST COVER

To connect to computer for burning CD's or to a modern A/V receiver that does not have phono inputs, just order one of our inexpensive $29.99 Phono Pre-Amps and cable kits.

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)




NEW LISTING 8/21/12
 (Click on above thumbnails to enlarge photos)
  warranty
 VINTAGE TECHNICS LINEAR TRACKING TURNTABLE RESTORED / REFURBISHED
      MODEL SL-5 SL5
 #...H026
 LINEAR TRACKING
  FULLY-AUTOMATIC
  MADE IN JAPAN
  Circa 1982-83
SOLD 10/1/12
SHIPPED TO PENNSYLVANIA
 We have just had the table completely gone through cleaning inside and out, lubricating mechanism, adjusting tone arm and testing performance. A new arm drive belt installed to replace the hardened / stiff one. All the old, coagulated silicon lube on the tone-arm mechanism removed and new silicon applied. Both of these operations are a must on these linear tables.  Internal speed centering pots adjusted. Speed checked and verified for accuracy with factory test strobe disc. Original rubber mat, still supple and flexible with no hardening. Our turntable technician also gave the clear, plexi-glass top a '3-step' buff and it looks great!
 (A plus with these Technics linear tables over some others is they are not prone to the internal plastic assemblies shrinking and cracking like MANY of the other brand linear tables. Trust us, we've been into most of them internally). We also inspected and re-installed the original Technics P28, diamond stylus, magnetic cartridge.  (If you prefer an up-grade you may also choose from our selection of new Audio Technica cartridges that we can also set up and ship with it for the additional cartridge cost.) You can readily connect this table to any receiver, Integrated amplifier with a standard magnetic phono input, or a Pre-amp. To connect to computer for burning CD's just order one of our inexpensive Phono Pre-Amps and cable kits. Again, this table looks and works great! Only the slightest scuffing on the top (see photos above).

 Technics' Fully Automatic - Linear tracking turntable. These are great turntables for overall quality and convenience. Technics' Linear tables by nature are great if you have cats or children or or someone who might be clumsy around a normal turntable and just don't want to worry about things, as they must be closed to operate and when the cover is lifted the fragile parts (ie the tone arm and cartridge) go up with the lid. Very dust free, due to lid / cover design and almost impossible to damage your records with! I sold these when new and currently use a similar version as one of my personal tables. I sold these when they were new and everyone loved them!!! Very small "footprint". Hardly larger than an LP jacket. From 1983 "Hi-Fi Choice" Magazine, "The wow and flutter of the Technics SL-5 was very low and the speeds accurate despite the absence of quartz lock. Shock was fairly well handled which is normal for a linear tracker, and it also behaved well on the feedback test. Well constructed and adjusted, the lid mounted tonearm possessed very good geometry and a low effective mass of around 3g"
  Features include:

  - Linear Tracking accuracy / operation
  - Fully Automatic operation
  - Super quiet, Direct Drive
 - Quartz Lock speed control
  - Repeat play function
  - Front panel electronic cuing
  - Both 33 and 45 RPM speeds
  - Auto record sensing to prevent damage to stylus from starting without a record in place and for sensing size
 - 'P-Mount' style, magnetic cartridge
  - Built-in 45 RPM adaptor!

 TABLE SPECIFICATIONS:

  Motor and Turntable Drive System: Ultra-Low speed, Brushless DC / Direct drive
  Platter: 300mm Die-cast, Aluminum alloy
  Speeds: 33 1/3 and 45 rpm
  Speed accuracy: Quartz Locked to 99.998%
  Tone arm Type: Linear Tracking
 Effective Arm Length: 10.5cm / 4.125"
 Wow & Flutter: 0.025% WRMS @ 33 1/3 RPM (DIN 45 507)
 Rumble: >78dB DIN 45-539B
 Cartridge type: Stereo / Magnetic, P-Mount
 Max Tracking Error: ± 0.1° / in.

   This is the same turntable I have connected to my Home Theater / Surround Sound system and have had for years. Great for when I want to just "spin" some vinyl and am not "critically listening". Again, this table has been completely gone through. It's ready to go! You will not be disappointed in this table for all around use. Comes with a copy of the owners manual. Measures 12.5" wide x 12.5" deep x 3.5" tall (closed) and weighs 9 lbs unpacked. Includes our standard 90 day limited warranty.
  TECHNICS SL-5 STEREO TURNTABLE
  Cond. 8.5
SOLD 10/1/12
SHIPPED TO PENNSYLVANIA
 w/ Technics P28, Diamond stylus cartridge installed




To connect to computer for burning CD's or to a modern A/V receiver that does not have phono inputs, just order one of our inexpensive $29.99 Phono Pre-Amps and cable kits.

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)




          NEW LISTING 4/9/12
 (click on above thumbnails to enlarge photos)
warranty
 VINTAGE STEREO SPEAKERS
JBL L80S
 #... 1299 / 1387
 Circa mid 1985-89
'Military Version' of JBL L80T
MADE IN USA
SOLD 1/23/13
SHIPPED TO ILLINOIS
JBL L80S, 3-way, 10" home audio speaker. Just a great 'all-around' speaker for home audio listening or recording ‘studio monitor’ use. Just as happy with a medium-small size amp as they are with amps of larger size.
Our speaker tech has completely gone through and 'Certified' these. We have completely tested all drivers, then re-assembled with ‘added’ gasketing material under all driver frames to further reduce any possibilities of vibration or acoustic anomalies, and tested with both recorded material, PN 20-20k and swept them with our AF generator from 20-3kHz.
Cabinets cleaned and in great shape. Grills including grill frames and cloth in great condition as well with only very minor wear. One grill had 3 locating pins replaced with Velcro attachment.

  JBL L80S FEATURES:

 - 3-Way, Bass Reflex cabinet design
 - 10" Die-Cast-aluminum framed, "Ribbed", cone woofer, 'Aquaplas' laminate (an ‘anti-resonance’ material to reduce radial ‘eddy currents)
- 5" High Polymer Laminate Midrange Die-Cast-aluminum framed, w/ 5/8” copper wound VC & Non-deteriorating, coated-cloth surround Cone-Tweeter
- 1" JBL 035TIA Titanium Dome Tweeter,
- Very well designed and built, "Real" internal 3-Way cross-over
- 3" tuned port for extending bass response
- Speaker input connectors are heavy duty, 3-Way, 24K gold binding posts

 JBL L80S / L80T Specifications:

 Frequency Response: 40-27k +/- 6dB
 Efficiency: ~90 dB 1w @ 1m
 Nominal Impedance: 8Ω each
 Cross-over frequencies: @ 800 & 4.5kHz
 Recommended Power Amp Rating: 300 watts

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


Again, we have completely tested all drivers at individually applicable frequencies with a sweep generator looking for any irregular anomalies in either the drivers or cabinet structure integrity.
For a 'tower' style speaker, these guys get LOUD! These have most everything we look for in a home audio speaker such as 'balance', detail, power handling, accuracy, punch and 'largeness of sound'. Bass response was 'deeper' than about 70% of the speakers we audition, based on the ability to reproduce one of our very difficult 'test cuts'. They are able to handle "power" better MUCH than your average speaker. Not simply referring to they're wattage rating, but just the way the perform at higher power / volume levels without "falling apart" sonically. We 'stood' on them HARD with our test Hafler power amp.
Also, again, these look great having the above mentioned work and are ready to go!
Each measures 32" h x 12.75" w x 12" d and weighs 44 lbs unpacked. Includes our 90 day warranty (excluding problems due to under / over powering)
JBL L80S SPEAKERS
  Condition 8.5
(C) M.R.
SOLD 1/23/13
SHIPPED TO ILLINOIS

  (Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)






       NEW ADDITION 4/2/12
 (Click on above thumbnails to enlarge photos)
  warranty
STEREO TURNTABLE JVC JL-F30
 FULLY-AUTOMATIC
 BELT DRIVE
 Circa 1977-85
  MADE IN JAPAN
  Circa 1980-83
SOLD 12/13/15
SHIPPING TO NEW YORK
 We have just had the table completely gone through cleaning inside and out, cleaning & lubricating mechanism, adjusting tone arm and testing performance. Speed checked and verified for accuracy following tear down / service / re-assembly with our factory test strobe disc. Gimbal bearing, counter weight and anti-skating all adjusted and verified for accuracy. Cuing mechanism disassembled, cleaned and re-lubed w/ fresh 500,000 grade silicone damping fluid. Fresh, new belt installed. All functions work great! Rubber mat, still supple and flexible with no hardening. We also cleaned and inspected with our 10x loop, the existing "universal" mount Stanton D680, Elliptical cut Diamond, magnetic cartridge and optimized the tone arm for it. This table does have a 1/2", "universal" mount head shell, so any standard, 1/2" mount cartridge will fit it. (If you prefer an up-grade you may also choose from our selection of new Audio Technica cartridges that we can also set up and ship with it for the additional cartridge cost.) You can readily connect this table to any receiver, Integrated amplifier with a standard magnetic phono input, or a Pre-amp. To connect to computer for burning CD's just order one of our inexpensive Phono Pre-Amps and cable kits. Again, this table looks and works great!!

  Great condition, Super-quiet, Belt Drive, Fully Auto, JVC, L-F30 Turntable. Good solid performer. Looks good, works fine, reliable and easy to use. Great table for 'all around' use!
  Features include:

  - Super quiet, Belt Drive
  - Fully-Automatic operation
 - Classic "S" tone arm w/ accurate 4-Point-Gimbal bearing
  - Standard 1/2" mount quick disconnect head shell
 - 33 1/3 and 45 RPM speeds
- Record Size selector
- Repeat function from 1-6 times or 'Infinite'
 - Silicone Oil / Fluid damped tone arm cuing
 - Adjustable Tracking force
 - Adjustable Anti-Skating selectable for either 'elliptical' or 'conical' stylus
 - Rubber feet suspension for damping vibrations

TABLE SPECIFICATIONS:

 Motor and Turntable Drive System: 4-Pole, Synchronous motor, Quiet, Belt drive
 Platter: 309mm diameter, die-cast, Aluminum alloy
 Speeds: 33 1/3 and 45 rpm
 Tone arm Type: Static balance type
S/N: >67dB (DIN-B)
Wow and Flutter: <0.06%
Rumble: 67dB
Effective Arm Length: 220mm
Tracking Error: +3°, 35' / -0°, 45'
Tracking range: 0g (min) - 3g (max)
Useable Gross Cartridge Weight range: 14.5g (min) - 22.5g (max)
Cartridge type: Accepts all 1/2" "Standard" mount and "Universal Head shell"
Stanton D680EE Cartridge specs:
Type: MM / 1/2" mount
Stylus: Elliptical, 0.4 x 0.7mil Diamond
Optimum Stylus Pressure: 2-5g
Frequency Response: 20Hz-18,000Hz
Channel Separation: 30dB
Gross Cart mass: 5.5g

   Again, this JVC, JL-F30 turntable has been completely gone through. The dust cover has had a 'medium' buff treatment and looks decent with light scuffs / scratches. No breaks, cracks, splits or chips. Hinges both intact and both hold dust cover in 'upright' position. It looks and works great and is ready to go! You will not be disappointed in this table for all around use. Measures 18.1" wide x 14.5" deep x 5.1" tall and weighs 15 lbs unpacked. Includes our standard 90 day limited warranty.
JVC Fully Automatic, Belt-Drive Turntable JL-F30
  Cond. 8.5
  $349.  w/dust cover
&
w/ Stanton D680 Elliptical Diamond stylus cartridge installed
SOLD 12/13/15
SHIPPING TO NEW YORK



To connect to computer for burning CD's or to a modern A/V receiver that does not have phono inputs, just order one of our inexpensive $29.99 Phono Pre-Amps and cable kits.

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)



           NEW LISTING 8/21/12
  (Click on above thumbnails to enlarge photos)
  warranty
 VINTAGE TECHNICS STEREO TURNTABLE RESTORED / REFURBISHED
           SL-QD33 SLQD33
 FULLY AUTOMATIC
 DIRECT DRIVE
 QUARTZ LOCK
 #...B148
 Circa 1986
MIJ
for sale
SOLD 9/6/12
SHIPPED TO VERMONT
  We have just completely gone through the turntable cleaning inside and out, lubricating mechanism, adjusting tone arm and testing performance. Speed checked and verified for accuracy with both internal strobe and the shop calibrated strobe disc. Super quality Gimbal tone-arm bearing. Stop mechanism adjusted and tested. All functions work great! Original dust cover just had fresh buff, and looks very good, with only light scuffing! Original hinges and hinge tabs in fine and functioning condition and holds dust cover in the 'up' position well. No cracks, chips, or hairlines. All four original 'shock absorber' feet intact. Original rubber platter mat, lays perfectly flat with no blistering, bubbles or warps. We also inspected and re-installed existing Audio-Technica DC-20, elliptically cut diamond stylus, on the, P-mount head shell.  (If you prefer an up-grade you may also choose from our selection of new Audio Technica cartridges that we can also set up and ship with it for the additional cartridge cost.) You can readily connect this table to any receiver, Integrated amplifier with a standard magnetic phono input, or a Pre-amp. To connect to computer for burning CD's just order one of our inexpensive Phono Pre-Amps and cable kits. Again, this table looks and works great!!
 ____________________________________

  Great quality and easy to use. What more could you ask for?! The Technics SL-QD33. Designed utilizing a Quartz locked motor for constant platter rotation speed and good isolation characteristics. Very quality build and like most Technics turntables, it's 'built like a tank'.
  Also features:

  - Direct Drive platter
  - DC servo motor
  - 'Quartz-Phase-Locked' for speed accuracy
    - 'P-Mount' quick disconnect cartridge system
  - Cast Aluminum Platter
  - Fully automatic operation
  - Separate power ON/OFF switch so table powers up with rest of your system
  - Oil Damped tone arm cueing
  - 33 1/3 & 45 RPM speeds
  - Factory 'Pre-Set' Tracking force for 'P-Mounts'
  - Factory 'Pre-Set' Anti-Skating for 'P-Mounts'
  - Strobe monitoring of speed (kind of a moot point, since it is Quartz locked and stays spot on)
  - "Repeat" for repeating plays

TECHNICS SL-QD33 SPECIFICATIONS:

 Platter Drive System: Quartz-Phase-Locked, Direct drive w/ DC 'Brushless' motor
  Platter / Mat: 310mm diameter, die-cast, Magnesium alloy
  Speeds: 33 1/3 and 45 rpm
 Speed Adjustment: Quartz Locked
  Tone arm Type: Static balance, tubular, Effective Arm Length - 230mm / 9.125"
 Wow & Flutter: 0.012% WRMS @ 33 1/3 RPM
 Rumble: -78dB DIN 45-530B
Overhang: 15mm
 Cartridge type: 'P-Mount'
 Adjustable Stylus pressure range: 1.25g +/ 0.25g
Effective Mass: 7.5 grams w/o cartridge & 13.5g with cart installed

  Again, we have had the table completely gone through, testing for speed accuracy, rumble, wow-flutter, noise isolation, tone-arm function and lubed internal mechanism. Table functions perfectly and looks near fine! Measures 17" wide x 14.5" deep x 5.5" tall and weighs 10 lbs. Comes with our standard 90 day limited warranty.
  TECHNICS SL-QD33 STEREO TURNTABLE
  Cond. 8.5
  $239. w/ dust cover
SOLD 9/6/12
SHIPPED TO VERMONT

 w/ Audio-Technica D20 Elliptical Diamond stylus cartridge installed

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)



NEW ADDITION 4/16/13
(Click on above thumbnails to enlarge photos)
warranty
VINTAGE SCOTT 320R STEREO RECEIVER
SCOTT 320R 320
#...0011
 Circa 1978-80
MIJ
SOLD 5/1/13
SHIPPING TO CALIFORNIA
Our technician has completely gone through and 'Certified' this unit.
- Everything was cleaned inside and out including all switches, controls and contacts. Extensive cleaning of unit internally.
- Internal and external fuses checked for correct value / function and replaced where necessary.
- All output transistors removed and individually tested.
- Left channel output transistors replaced with fresh heat sink compound applied to all output devices of course.
 - 'Stuck' Power switch was repaired for proper operation.
- Amplifier section had output bias and DC offset adjusted to spec levels.
- All dial, meter, and indicator lamps were replaced.
- We also aligned the tuner front-end on both AM & FM bands for optimum performance as older tuner components will have 'drifted' over the years. (Receiver requires external FM and AM antenna connections.)

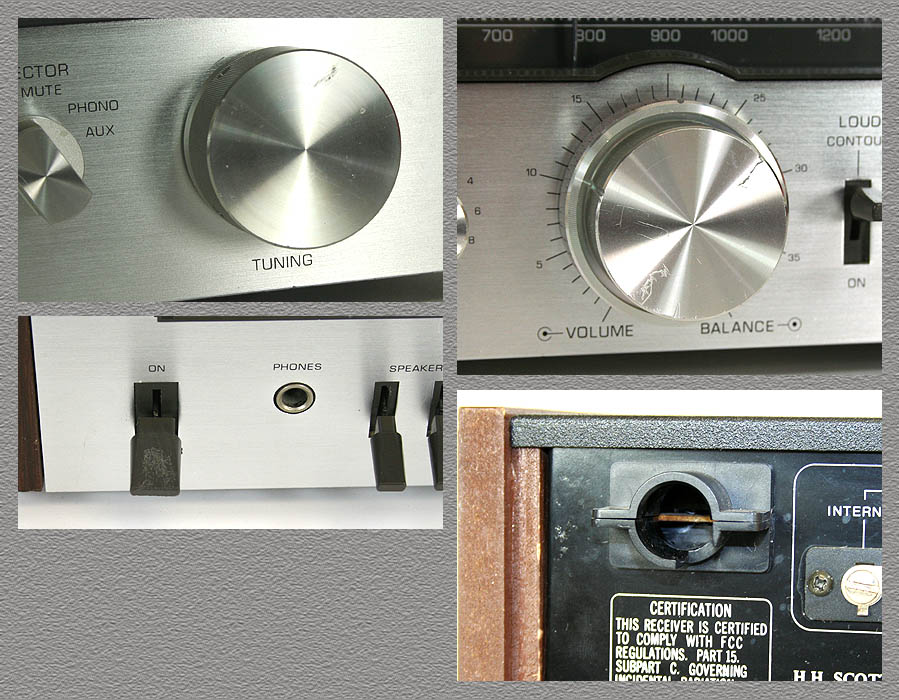

- Peeling vinyl veneer replaced. Only cosmetic issues with this unit are some black marks on the right side / end of the unit and some minor wear on the top bonnet and minor scuffs to aluminum face / knobs.
- Following above procedures, all functions tested for perfect operation and unit was cosmetically detailed inside and out.
All inputs tested and both sides produce clean and even sine waves into static 8 & 4 ohm loads! No power supply hum of any kind. It's dead silent! All functions tested for perfect operation. Following restoration procedures, the unit was ran continuously at medium volume, as all our amplifier / receivers are, into a load with "Loudness" on and both Tone Controls at 10 for 48 hours.

 On our test bench, each internal amplifier of this particular unit, #...0011, produced peak power of 14.2 volts @ 8Ω per channel for 25 watts / channel and 12 volts @ 4Ω per channel for 36 watts / channel via Discrete output devices at 1khz.  Bias voltage adjusted to 40 mV per channel factory specification.  AC Idle current at 60mA, & floor noise <0.3.

 Nice Scott 320R Silver face receiver is great looking with the two-tone dial, large volume/balance knobs and a nice array of switch controls.  The DC Coupled power amplifier provided uncolored sound directly to the speakers. The 320R would make a great addition for a small-medium system or for an office or Bedroom.

Scott 320R Features Include:

 - Weighted flywheel analog "slide-rule" tuning
- PLL tuning circuit
 - Double Pair Separate Speaker Switches providing: A, B , A+B or both Off speaker operation (two pair at a time)
 - Separate Bass and Treble featuring Hi-Quality, De-tented pots
- "Loudness" function to boost Bass and Treble in relationship to Mid frequencies at lower volume levels for a much fuller sound.
 - Oversize volume control featuring Hi-Quality, De-tented pot
 - Hi filter for reducing tape hiss / electronic hiss & noise and record static
- Phono / Turntable input with Built-In Phono Pre-Amp
 - True Tape Monitor with both RCA's and DIN I/O's
  (Tape Monitors can be used with Tape decks such as Cassette Tape Recorders/ Players, Reel to Reel's, 8-Track Tape Cartridge Decks, Video / CD / DVD / VCR / DAT / MP3 / iPod® / iPad® / iPhone® / iTouch® / iGadget / MP3 / XM® / SIRUS® CDR (CD recorders as well as for inserting signal processors, such as EQ's, Reverbs, Spatial Enhancers / Dynamic Processors, Noise Reduction units, Special Effects units, Time Delays, etc)
 - Rear located, Dual speaker output protection fuses

 - Rear located, full barrier strip for external antenna connections
 - Un-Switched AC convenience outlet on rear panel

  Again, we have done the previously stated refurbishment / restoration work (~8+ hours) on this unit to insure it's performance, and it gets our full 'Certification' followed up with a 48 hour burn in. All functions tested for perfect operation. Only minor cosmetic issues are the one’s mentioned earlier. This particular unit, after restoration, has a VERY GOOD TUNER! FM reception STRONG AND CLEAN!!!
Unit measures 18.5" wide x 12.5" deep x 5.5" high and weighs 12 lbs unpacked. Comes with our 90 day limited warranty.
SCOTT 320R STEREO RECEIVER
 Cond. 8
SOLD 5/1/13
SHIPPING TO CALIFORNIA

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)










NEW LISTING 4/15/13
(Click on above thumbnails to enlarge photos)
warranty
VINTAGE KENWOOD STEREO RECEIVER
KENWOOD KR-4070  KR4070
AM/FM STEREO RECEIVER
#...0774
Circa '77-'81
MIJ
SOLD 5/1/13
SHIPPING TO CALIFORNIA
  Our technician has completely gone through and 'Certified' this unit.
 Everything was cleaned inside and out including all switches, controls and contacts.
- Internal fuses checked for correct value / function and replaced where necessary.
- Controls tightened to chassis.
- Main circuit board repaired and damaged resistors replaced.
- Tuner MPX IC replaced.
- All output transistors removed and individually tested. Fresh heat sink compound used of course.
- Amplifier section had output bias and DC offset adjusted to spec levels.
- All dial, meter and stereo indicator lamps were replaced.
- We also aligned the tuner front-end, FM MPX and dial alignment on both AM & FM bands for optimum performance as older tuner components will have 'drifted' over the years.  INCREDIBLE TUNER! AM reception WAY above average, FM reception incredible, PUNCHY and MUSICAL and IMPECCABLY CLEAN!!!

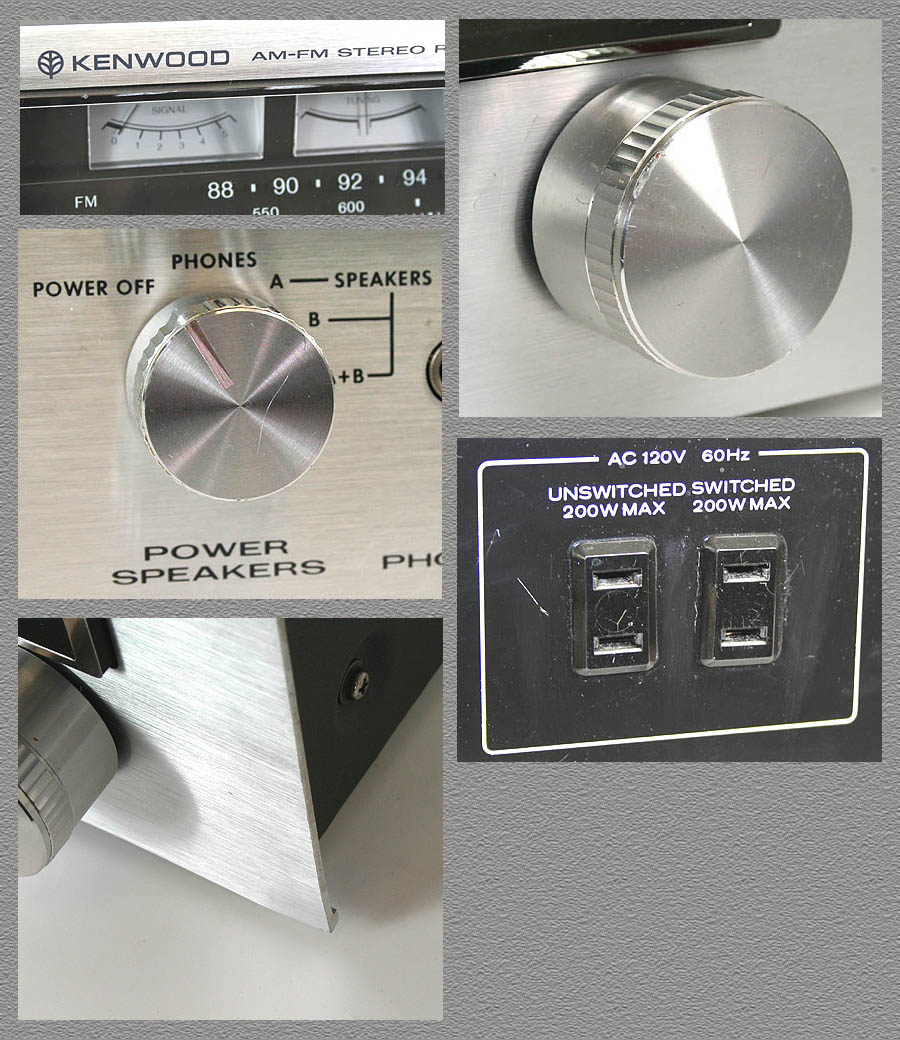

- Only cosmetic issues with this unit are minor scuffing on the bonnet and minor scratches on the face near the tuning knob) and a slight ‘off-center’ to the tuning knob when ‘spun’ (see photos above).
- Following above procedures, all functions tested for perfect operation and unit was cosmetically detailed inside and out.
- All inputs tested and both sides produce clean and even sine waves into static 8 & 4 ohm loads! No power supply hum of any kind. It's dead silent! All functions tested for perfect operation.
- Following restoration procedures, the unit was ran continuously at medium volume, as all our amplifier / receivers are, into a load with "Loudness" on and both Tone Controls at 10 for 48 hours.

On our test bench, each internal amplifier of this particular unit, #...0774, produced peak power of 20 volts per channel for 50 watts per channel @ 8 ohm and 17.5 volts @ 4 ohm for 76 watts per channel via discrete output devices at 1khz. (2X 2SD588 & 2X 2SB618). AC Idle current at .3A, & floor noise <0.1 mVAC and DC offset adjusted to a SUPER LOW <5mV L&R.
  ____________________________

  Wonderful condition, late 70's silver face receiver from Kenwood. Great performance for a 'mid-sized' 2-Channel audio system. This is an INCREDIBLEY ‘Musical’ sounding receiver. The tone / pre-amp section very transparent and ‘glassy’ sounding, even with only the FM tuner as a source! Nice looking classic brushed aluminum face and knobs with only minor scuffs.
  Kenwood KR-4070 Features:

  - Weighted flywheel analog slide rule tuning
  - A, B, A&B speaker selector
  - Separate Bass and Treble controls utilizing high quality de-tented pots
 - "Loudness" function to boost Bass and Treble in relationship to Mid frequencies at lower volume levels for a much fuller sound.
  - FM auto/muting and mono selection
  - Dual Analog back lit meters for center tuning and signal strength
- Phono / Turntable input with Built-In Phono Pre-Amp
   - 'True' Tape Monitor with a DIN input as well as the standard RCA I/O's
  (Tape Monitors can be used with Tape decks such as Cassette Tape Recorders/ Players, Reel to Reel's, 8-Track Tape Cartridge Decks, Video / CD / DVD / VCR / DAT / MP3 / iPod® / iPad® / iPhone® / iTouch® / iGadget / MP3 / XM® / SIRUS® CDR (CD recorders as well as for inserting signal processors, such as EQ's, Reverbs, Spatial Enhancers / Dynamic Processors, Noise Reduction units, Special Effects units, Time Delays, etc)
   - Aux input (may also be used for Video / CD / DVD /DAT / VCR / MP3 / iPod® / iPhone® / iTouch® / iGadget / MP3 / XM® / SIRUS®  etc.)
  - Built-in AM ferrite antenna
  - Dual 200 watt convenience AC outlets with one being switched for a total of 400 watts capacity

Original Kenwood KR-4070 Specifications:

POWER / PRE AMP SPECIFICATIONS:
Power output: 40wpc min RMS @ 8 Ohms & no more than 0.1% THD @ 20-20kHz
40wpc min RMS @ 8 Ohms & no more than 0.1% THD @ 1kHz
50wpc min RMS @ 4 Ohms & no more than 0.1% THD @ 1kHz
THD: <0.05% @ 1 watt  / 1kHz & <0.1% @ full rated power into 8 ohms
IHF IMD: 0.1% @ full rated power, 0.05% at 1 watt @ 8 Ohms
Freq Response of power amp section: 10-40,000kHz
Damping factor: 40 @ 8Ω / 1kHz
Power Bandwidth: 10-40,000Hz

TUNER SPECS FOR FM:
Usable Sensitivity: 10.8 dBf (1.9 uV)
Tuning Range: 87.4- 109.7MHz
Freq Response: 20 – 15 KHz +-.5dB, -2 dB
S/N @ 65dBf: >72db Mono or 67dB Stereo
Capture Ratio: 1.0 Db
Image Response Ratio: 45 dB
Spurious Response Ratio: 75 dB

TUNER SPECS FOR AM:
Useable Sensitivity: 6 uV
Signal to Noise Ratio: 50 dB
Image Rejection: 50 dB
Selectivity: 34 dB

PHONO SECTION SPECS:
Freq Response: RIAA Standard curve +_0.3 dB, -0.3 dB
Input Sensitivity: 2.5mV @ 47K ohms/73 dB
Maximum Phono Input Level: 190 mV, THD 0.% at 1 KHz

Again, we have done the previously stated refurbishment / restoration work (~9+ hours) on this unit to insure its performance, and it gets our full 'Certification'. All functions tested for perfect operation. This receiver has an awesome tuner.  Other than the previously mentioned wear, this unit is in great cosmetic condition! Looks and sounds great! Measures 18.5" wide x 6" tall x 16.5" deep and weighs an impressive 21 lbs unpacked. Includes our standard 90 day limited warranty.
Cond. 8.5
KENWOOD KR-4070 STEREO RECEIVER
SOLD 5/1/13
SHIPPING TO CALIFORNIA


(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)

NEW ADDITION 4/1/13
 (Click on above thumbnails to enlarge photos)
warranty
TECHNICS STEREO RECEIVER
TECHNICS SA-303 / SA303
Circa 1982-'84
M.I.J.
 for sale
Our technician has completely gone through and 'Certified' this unit.
- Everything was cleaned inside and out including all switches, contacts, and controls cleaned for static free performance, complete cleaning inside and out.
- He replaced all dial lamps for trouble-free service. Balance of all other indicators are ‘trouble-free’ LED’s.
- Following bench service, unit had a full cosmetic detail inside and out.
- With the exception of some minor scuffs on the tuning knob and around the headphone jack, the unit looks GREAT! All inputs tested and both side produces clean and even sine waves into static 8 & 4 ohm loads! No power supply hum of any kind. It's dead silent!
- Following restoration procedures, the unit was run continuously at medium volume, as all our amplifier / receivers are, into a load with "Loudness" on and both Tone Controls at 10 for 48 hours.

 On our test bench, the internal amplifiers of this particular unit, #...F486, produced 22 volts per channel at 8 ohms for 60 watts per channel and 18 volts at 4 ohms for 83 watts per channel via dual STK1039 power packs.
 ____________________________

 Very nice, compact size Silver face receiver. Great for smaller systems and anywhere depth space is at a premium, but you still desire the Classic Silver face / wood appearance.
 Features include:

- Weighted flywheel analog "slide-rule" tuning
- A or B or ‘OFF’ & A+B speaker selector
- Dual 5-segment LED power meters with range selector
- Separate Bass and Treble utilizing super quality "de-tented" controls
- "Loudness" function to boost Bass relationship to Mid frequencies at lower volume levels for a much fuller sound.
- FM Muting / Mono selector
- Hi filter for reducing tape hiss / electronic hiss & noise and record static
- Phono / Turntable input with Built-In Phono Pre-Amp
- Aux inputs (may also be used for Video / CD / DVD /DAT / VCR / MP3 / iPod® / iPad® / iPhone® / iTouch® / iGadget / MP3 / XM® / SIRUS®  etc.)
- 'Dual, TRUE' tape monitors featuring both RCA and DIN I/O's
  (Tape Monitors can be used with Tape decks such as Cassette Tape Recorders/ Players, Reel to Reel's, 8-Track Tape Cartridge Decks, Video / CD / DVD / VCR / DAT / MP3 / iPod® / iPad® / iPhone® / iTouch® / iGadget / MP3 / XM® / SIRUS® CDR (CD recorders as well as for inserting signal processors, such as EQ's, Reverbs, Spatial Enhancers / Dynamic Processors, Noise Reduction units, Special Effects units, Time Delays, etc)
- 5-segment LED tuning Signal strength meter
- Externally located speaker protection fuses
- Rear mounted, un-switched AC convenience outlet.

Again, as stated before, we have completely gone through this Technics SA-303, stereo receiver, cleaning and testing all and it gets our full 'Certification'. These are great all around receiver for small to medium sized systems. Receiver functions and sounds Great. Unit measures 18 1/8" wide x 10.75" deep x 6" high and weighs 13 lbs unpacked. Includes our standard 90 day limited warranty.
 TECHNICS SA-303 STEREO RECEIVER
 Cond. 8.5
 $329.

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)





NEW ADDITION 12/7/12
(Click on above thumbnails to enlarge photos)
warranty

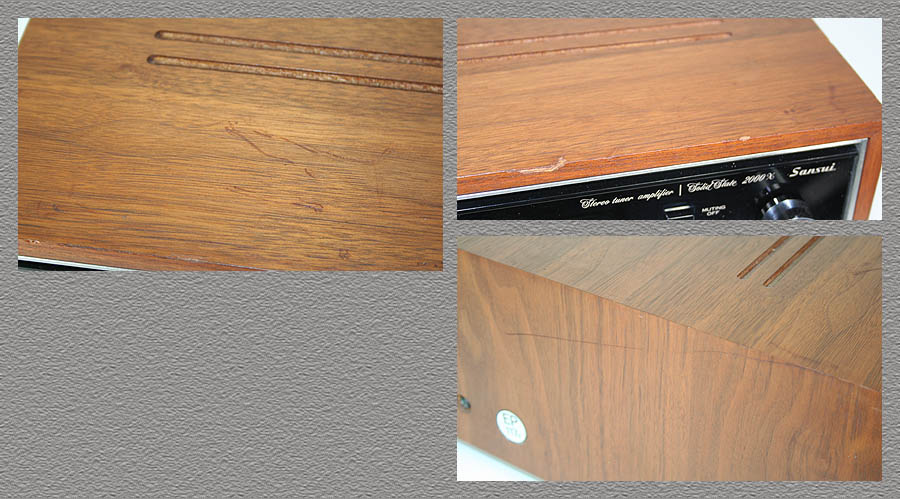

VINTAGE STEREO RECEIVER
SANSUI 2000X
 #...1261
   Circa '73-76
   "WORLD AC POWER" ™
  MIJ
SOLD 1/14/13
SHIPPING TO NORTH CAROLINA
 Our technician has completely gone through and 'Certified' this unit. Everything was cleaned inside and out including all contacts, switches, controls and I/O jacks. Control Pot shafts re-sprung. Internal and external fuses checked and replaced where necessary. We also aligned the tuner for optimum AM & FM performance as older internal tuner components have always drifted on vintage gear over the years. All meter, dial, and FM stereo lamps replaced for trouble-free service (very difficult to do on this series of receiver). All 4 power transistors removed and fresh heat-sink compound applied. Tuner string re-tensioned and flywheel string 'grip' improved. Amplifier section had output bias and DC offset adjusted to spec levels. Entire unit cleaned / detailed cosmetically inside and out, including a fresh coat of lemon oil rubbed into the Real Walnut wood veneer cabinet, while chassis was removed. All inputs tested and both side produces clean and even sine waves into static 8 & 4 ohm loads! No power supply hum of any kind. It's dead silent! All functions test fine. Following restoration procedures, the unit was run continuously at medium volume, as all our amplifier / receivers are, into a load with ""Loudness"" on and both Tone Controls at 10 for 48 hours.

   While this unit was originally rated at 55 wpc, on our test bench, both this unit's amplifiers, #...1843 produced peak power of 17 volts per channel @ 8 ohms for 36 watts and 14.7 volts @ 4 ohms for 54 watts per channel via discrete, TO-3, metal cased outputs with 1 kHz input. (4x Sanken 2SC1111, (same as Toshiba 2SC793)). DC offset adjusted to and measured at 2.6mVDC L&R. Idle current draw within spec. Floor noise measured at 6mVAC w/ AUX shunted.
  ____________________________

This is from what many consider to be one of Sansui's best eras. The Sansui 2000X stereo receiver. The "X" suffix designates upgraded f-6013 driver boards that are sought after by owners of "non-X" units as an aftermarket upgrade. We have had a few 'X000' series Sansui units and they are among some of the best sounding, 'vintage', 'main stream' amplifiers we have heard. Lot's of headroom and punch! Similar in sound to many of the NAD amplifiers / receivers we sold back in the 80's. This one also is installed in the optional, REAL walnut wood veneer case.
   Features include:

  - Weighted flywheel, 'slide rule' style analog tuning
  - Dual Tuning Capacitors. One for FM and one for AM. Allows for incredibly 'quiet' tuning performance
  - Speaker Damping Selector
  - A, B, A+B, Off, speaker positions
  - Separate Left and Right, Bass and Treble w/ 'concentric' controls
  - Hi filter for reducing tape hiss / electronic hiss & noise and record static
  - Built-in Subsonic Filter to eliminate excess rumble from sources such as turntables
 - Pre-Amp Out / Power-Amp In Loop (unique to the "X" version)
- 'TRUE' tape monitor featuring both RCA and DIN I/O's
  (Tape Monitors can be used with Tape decks such as Cassette Tape Recorders/ Players, Reel to Reel's, 8-Track Tape Cartridge Decks, Video / CD / DVD / VCR / DAT / MP3 / iPod® / iPad® / iPhone® / iTouch® / iGadget / MP3 / XM® / SIRUS® CDR (CD recorders as well as for inserting signal processors, such as EQ's, Reverbs, Spatial Enhancers / Dynamic Processors, Noise Reduction units, Special Effects units, Time Delays, etc)

- Aux inputs (may also be used for Video / CD / DVD /DAT / VCR / MP3 / iPod® / iPad® / iPhone® / iTouch® / iGadget / MP3 / XM® / SIRUS®  etc.)
- Tape B to Tape A Dubbing capability

 - Dual Phono / Turntable inputs with Built-In Phono Pre-Amps

 - "Loudness" function to boost Bass and Treble in relationship to Mid frequencies at lower volume levels for a much fuller sound.
 - Stereo / Mono selector for Pre-Amp separate from the FM tuner selector
  - Pre-Amp Stereo / Mono selector
  - Stereo Reverse selector (great for trouble-shooting speakers)
  - FM Muting separate from the Stereo / Mono selector
 - FM MPX filter
  - Rear located MPX Separation & Level adjustments
- FM Dist / Loc selector
   - Front mounted 1/4" stereo headphone jack
  - Tuning window features VU meter for tuning signal strength
 - Rear located speaker and main power protection fuses
 - Vertically finned heat sinks for very efficient cooling and long life
- Built-In Ferrite 'Stick' AM antenna
  - True "WORLD AC POWER"™ allows unit to be operated on 50 or 60 Hz AC and will select voltages from 110v, 120v, 220v and 240 volts AC input.
  - Dual AC convenience outlets on rear panel with 1 switched and 1 un-switched

SPECS:

POWER / PRE AMP SPECIFICATIONS:
Music Power: 140 watts dynamic @ 4 Ohms
100 watts dynamic @ 8 Ohms
Cont rated RMS Power: 2 x 52 watts @ 4 Ohms, 20-20k & <0.8% THD
 THD: 0.8% @ full rated power
 IMD: 0.8% @ full rated power
  Power Bandwidth (IHF): 20Hz-40kHz
  Damping factor: 24 @ 8Ω & full bandwidth
  Hum and Noise:  70dB on Phono w/ 2.5mV input and 80dB w/ 5.0mV input
  Input Sensitivity AUX / Tape: 150mV @ 100kΩ
  Bass Control:  ±12dB @ 50hz
  Treble Control:  ±12dB @ 10khz
  High Filter:  -10dB @ 10kHz
  Low Filter:  -10dB @ 50Hz
  "Loudness" Contour:  +8dB @ 50hz & +3dB @ 10kHz (volume control @ -30dB)

  TUNER SPECS FOR FM:
  Tuning Range: 88-108mHz
  Freq Response: 30-15kHz
Capture Ratio: 1.0dB
  S/N: > 60db Stereo
20dB Quieting Sensitivity Mono: 1.4μV
  FM Alternate Channel Selectivity: > 40dB
  Spurious Radiation: <34dB
  Spurious Response Rejection: >90dB
 Image Rejection Ratio: >90dB
  THD 65dBf @ 1kHz, Mono:  <0.8%
Stereo Separation Ratio: >35dB @ 50Hz to 10kHz

  TUNER SPECS FOR AM:
  Tuning Range: 535-1605kHz
 Image Frequency Rejection: >50dB @ 1kHz
 IF Rejection: >80dB @ 1kHz
  Useable Sensitivity: 100μV / m @ 1kHz with ferrite stick antenna
  Selectivity: >20dB @ 1kHz

  PHONO SECTION SPECS:
  Freq Response: 20-20kHz
  THD: 0.8% @ 200 mV @ 1kHz
  Input Sensitivity: 2.5 mV @ 50kΩ on 'Phono-1' & 2.5 mV @ 100kΩ on 'Phono-2'
  Max input: ~200 mV @ 50kΩ

   Again, we have completely gone through this unit. This is the first Sansui 2000X we have refurbished in a few years. Brushed aluminum face and knobs in like NEW condition. Unit looks and sounds great! Originally 'Optional', but now included, Real Walnut wood, veneer case in beautiful condition as well. Again, these are known for their exceptional tuner quality on both AM and FM and their VERY PUNCHY sounding amplifiers. Very 'Musical' sounding stereo receiver. Measures 18" wide x 14" deep x 6.5" deep and weighs a whopping 34 lbs unpacked. Comes with our standard 90 day limited warranty.
 SANSUI 2000X STEREO RECEIVER
   Cond. 8.5+
SOLD 1/14/13
SHIPPING TO NORTH CAROLINA

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)

            NEW LISTING 10/13/12
(Click on above thumbnails to enlarge photos)
  warranty
VINTAGE STEREO RECEIVER
SANSUI 5000A
 #...0112
   Circa ~1970- ~'72
  MIJ
SOLD 2/23/13
SHIPPING TO GEORGIA
Our technician has completely gone through and 'Certified' this unit. Everything was cleaned inside and out including all contacts, switches and controls. We also aligned the tuner for optimum AM & FM performance as older internal tuner components have always drifted on vintage gear over the years. All meter, dial, function indicator and FM stereo indicator lamps replaced for trouble-free service (very difficult to do on this series of receiver and there's a total of 12). All 4 power transistors removed and tested for leakage. DC offset and bias current adjusted to correct levels. Entire unit cleaned / detailed cosmetically inside and out. All inputs tested and both side produces clean and even sine waves into static 8 & 4 ohm loads! No power supply hum of any kind. It's dead silent! All functions test fine. Following restoration procedures, the unit was run continuously at medium volume, as all our amplifier / receivers are, into a load with ""Loudness"" on and both Tone Controls at 10 for 48 hours.

   While this unit was originally rated at 55 wpc, on our test bench, both this unit's amplifiers, #...0112 produced peak power of ~20.45 volts per channel @ 8 ohms for 52 watts and 16.5 volts @ 4 ohms for 68 watts per channel via discrete, TO-3, metal cased outputs with 1 kHz input. (2x Toshiba 2SC1079 & 2x 2SD118). Idle current measured at 260mA. Bias current & DC offset / output adjusted to levels within spec. Floor noise measured at <4mVAC.
  ____________________________

 This is from what many consider to be one of Sansui's best eras. The Sansui 5000A stereo receiver. The "A" suffix designates upgraded driver boards over the original '5000'. We have had a few 'X000' series Sansui units and they are among some of the best sounding, 'vintage', 'main stream' amplifiers we have heard. Lot's of headroom and punch! Similar in sound to many of the NAD amplifiers / receivers we sold back in the 80's. This one also is installed in the optional, REAL walnut wood veneer case.

   Sansui 5000A Features include:

  - Weighted flywheel, 'slide rule' style analog tuning
  - Dual Tuning Capacitors. One for FM and one for AM. Allows for incredibly 'quiet' tuning performance
  - Speaker Damping Selector
  - A, B, C, A+B, A+C, Off, speaker positions
  - Separate Left and Right, Bass and Treble w/ 'concentric' controls
  - Hi filter for reducing tape hiss / electronic hiss & noise and record static
  - Built-in Subsonic Filter to eliminate excess rumble from sources such as turntables
- 'Dual, TRUE' tape monitors featuring both RCA and DIN I/O's
  (Tape Monitors can be used with Tape decks such as Cassette Tape Recorders/ Players, Reel to Reel's, 8-Track Tape Cartridge Decks, Video / CD / DVD / VCR / DAT / MP3 / iPod® / iPad® / iPhone® / iTouch® / iGadget / MP3 / XM® / SIRUS® CDR (CD recorders as well as for inserting signal processors, such as EQ's, Reverbs, Spatial Enhancers / Dynamic Processors, Noise Reduction units, Special Effects units, Time Delays, etc)

- 'Tape Head' direct input. Allows older 'transport only' Reel to Reel decks to operated as well as inputs from 'modified' Reel to Reel tape decks that have 'direct outputs' from the tape playback head to bypass the tape decks built-in electronics.

- Aux inputs (may also be used for Video / CD / DVD /DAT / VCR / MP3 / iPod® / iPad® / iPhone® / iTouch® / iGadget / MP3 / XM® / SIRUS®  etc.)
- Tape B to Tape A Dubbing capability

 - Phono / Turntable input with Built-In Phono Pre-Amp

 - "Loudness" function to boost Bass and Treble in relationship to Mid frequencies at lower volume levels for a much fuller sound.
 - Stereo / Mono selector for Pre-Amp separate from the FM tuner selector ('FM Auto')
  - Pre-Amp Stereo / Mono selector
  - Stereo Reverse selector (great for trouble-shooting speakers)
  - FM Muting separate from the Stereo / Mono selector
 - FM MPX filter
  - Rear located MPX Separation
- Rear Located 'Level' (output power limiter). Limits the amount of output someone can send to speakers as this unit is capable of fairly high power output.
- FM Dist / Loc selector
   - Rear located 'Speaker Damping Hi-Lo' Selector
   - Front mounted 1/4" stereo headphone jack
  - Tuning window features VU meter for 'Tuning' & station 'Signal Strength'
 - Rear located speaker and main power protection fuses
 - EXTERNALLY located, Vertically finned heat sinks for very efficient cooling and long life. External heat sinks keep the heat producing transistors outside of the receiver housing where they belong. All units should utilize this design.
- Built-In Ferrite 'Stick' AM antenna
  - Dual AC convenience outlets on rear panel with 1 switched and 1 un-switched

Sansui 5000A Original Specifications:

POWER / PRE AMP SPECIFICATIONS:
Music Power: 90watts dynamic @ 4 Ohms
70 watts dynamic @ 8 Ohms
Cont rated RMS Power: 2 x 55 watts @ 8 Ohms, 20-20k & <0.1% THD
 THD: <0.8% @ full rated power
 IMD: <0.5% @ full rated power
  Power Bandwidth (IHF): 10Hz-50kHz
  Damping factor: 50 @ 8Ω & full bandwidth
  Hum and Noise:  70dB on Phono w/ 2.5mV input and 80dB w/ 5.0mV input
  Input Sensitivity AUX / Tape: 150mV @ 100kΩ
 Input Sensitivity 'Tape Head': 2mV
  Bass Control:  ±12dB @ 50hz
  Treble Control:  ±12dB @ 10khz
  High Filter:  -13dB @ 10kHz
  Low Filter:  -13dB @ 50Hz
  "Loudness" Contour:  +8dB @ 50hz & +4dB @ 10kHz (volume control @ -30dB)

  TUNER SPECS FOR FM:
  Tuning Range: 88-108mHz
  Freq Response: 30-15kHz
Capture Ratio: 1.5dB
  S/N: > 60db Stereo
20dB Quieting Sensitivity Mono: 1.4μV
  FM Alternate Channel Selectivity: >50dB
  Spurious Radiation: <34dB
  Spurious Response Rejection: >90dB
 Image Rejection Ratio: >90dB
  THD 65dBf @ 1kHz, Mono:  <0.2%
Stereo Separation Ratio: >35dB @ 50Hz to 10kHz

  TUNER SPECS FOR AM:
  Tuning Range: 535-1605kHz
 IF (Image Frequency) Rejection: >90dB @ 1kHz
Selectivity: >30dB @ 1kHz
Useable Sensitivity (External Antenna / Bar Antenna): 15 μV/m / 250 μV/m

  PHONO SECTION SPECS:
  Freq Response: 20-20kHz
  THD: 0.8% @ 200 mV @ 1kHz
  Input Sensitivity: 2.5 mV @ 50kΩ
  Max input: ~200 mV @ 50kΩ

   Again, as stated before, we have completely gone through this Sansui 5000A, Stereo Receiver cleaning and testing all and it gets our full 'Certification' . This is the first Sansui 5000A we have refurbished in a few years. Other than some scuffs / scratches around the headphone jack, the aluminum face and knobs in like great condition. Unit looks and sounds great! Again, these are known for their exceptional tuner quality on both AM and FM and their VERY PUNCHY sounding amplifiers. Very 'Musical' sounding stereo receiver. Includes a pdf 'e' copy of a '5000-Series' owners manual. Measures 17.25" wide x 14.5" deep x 5.5" deep and weighs a whopping 30 lbs unpacked. Comes with our standard 90 day limited warranty.
SANSUI 5000A STEREO RECEIVER
   Cond. 8.5
SOLD 2/23/13
SHIPPING TO GEORGIA

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)



          NEW LISTING 7/13/12
  (Click on above thumbnails to enlarge photos)
warranty
VINTAGE SANSUI STEREO RECEIVER
SANSUI 8080 RECEIVER
 #...1680
 CIRCA 1977-79
 MIJ
SOLD 1/7/13
SHIPPING TO MICHIGAN
 Our technician has completely gone through and 'Certified' this unit. Everything was cleaned inside and out including all switches (actually accessed (requires 'splitting' the unit horizontally) and fully flooded), controls and contacts for quiet, positive operation.
Extra attention is ALWAYS necessary on Sansui 8080 / 9090 units to the 'Input Selector' and 'Dolby / Tape-Monitor' switches, and they were completely disassembled, thoroughly cleaned, burnished, had contacts 're-sprung' and tested (only about half the 990's, 8080's and 9090's have input selector switches that will respond to cleaning only). On this unit, he actually bypassed the wafer portion that routes the dial light current, and direct wired the lights to be lit constantly (the issue with the dial lights on Sansui 880 / 8080-DB / 990 / 9090-DB series receivers is that the contacts were, by design, too anemic to handle the 1 Amp+ current they require).  He also re-flowed all dial lamp solder joints, especially at the 'extremes' of the board. Now dial lamps light solidly and inputs sonically intact. DC measurements taken 'post-preamp', 'post driver board' and 'post power amp'. 'Sansui 2624-Driver-Board 'removed, inspected / tested component by component & contacts burnished. Once reseated, DC measurements re-taken. Once driver board was tested, then the tech moved to address the output transistors. All output transistors removed and individually tested. Fresh heat sink compound used of course. Green 'LED' Power indicator's 'current limiting' circuit components replaced as necessary. We also aligned the tuner front-end for optimum AM & FM performance as older internal tuner components have always drifted on vintage gear over the years. VERY GOOD TUNER! Generally AM reception in a stereo receiver is treated as an 'after thought', but the AM reception on this 8080, #...1680 is WAY above average. VERY GOOD TUNER! FM reception as well great and IMPECCABLY CLEAN!!! All dial, all meter (including the very difficult to replace power meter lamps  ), all function indicator and stereo indicator lamps replaced with new units for trouble-free service. Dial light solder contacts re-flowed. Also we 'painstakingly' replaced the 'dial pointer' lamp. The dial string was cleaned and re-tensioned. Once unit's electronics were addressed, the unit was cosmetically detailed inside and out. The extruded aluminum face great shape after detailing. The knobs are intact, but do have numerous 'flea bits' and minor scuffs on them. Internal and external dial screen and window in perfect shape. We removed the dial window and re-finished the black mask behind it. The lower wood strip that would normally be on the bottom of the face plate is missing. All inputs tested, including phono input, and both amplifiers produces clean and even sine waves into static 8 & 4 ohm loads! No power supply hum of any kind. It's dead silent! All functions test fine. The Walnut wood grain, vinyl wrapped in good condition with minor wear. Following restoration procedures, the unit was operated continuously at medium volume, as all our amplifier / receivers are, into a load with ""Loudness"" on and both Tone Controls at 10 for 72 hours.

  On our test bench, this particular Sansui 8080, #...1680, amplifiers each produced 27.8 volts per channel for 96 watts per channel @ 8 Ω via discrete output & 23 volts per channel for 132 watts per channel @ 4 Ω via discrete, Metal cased, original TO-3 outputs (Sanken 4x  2SC1116 output transistors).
 (AC draw at idle 280mA tested,
DC offset adjusted to <0.5mV each side.)
  ___________________________

  Here's the second Sansui 8080 we've had, that's made it all the way through our restoration with no 'terminal' issues, since 2003! These receivers are known for great AM/FM tuners, and amplifiers that you can "darn near weld with". The tuner quality on both AM & FM is exceptional due to aspects such as a fully shielded tuning capacitor . The amps are incredibly warm sounding with HUGE punch and headroom. Very "Musical" sounding with real output transistors and huge power supplies.  A testament to the strength of the power supply is that the results we achieved on the test bench.
The difference in tone of an 8080, with a 'clean bill of health', and most other receivers is astronomical. Sort of like the difference between driving a 130hp car and a 400hp car or a 350cc bike and and 1100cc Harley. It's a difference that must be experienced to be appreciated.
  Features include:

  -Weighted flywheel analog, 'slide rule' dial tuning
 - HUGE internal Power Supply
 - Real Metal Cased, TO-3 output transistors for lot's of punch and tone!!!!
-Huge, EXTERNALLY LOCATED, 'Vertical' heat sinks for the most efficient passive cooling (all units should follow this example. Keeps the heat outside the unit, where it belongs)
- 4-Way Protection (Fuses 'on everything', Thermal Protection, DC surge Protection, and a 'Current Limiter')
  - A, B, A+B & Off speaker selector
- Classic and handsome''SLIVER FACE'
  - Gorgeous "Aqua" back-lit slide rule face and tuning meters (amber back-lit power meters)
- 6-Gang tuning capacitor
- PLL tuning circuit
  - Analog 'Tuning' and 'Signal' strength VU meters
  - Dual Analog 'Power' / 'Dolby' Calibration VU meters
  - Separate Bass, Midrange and Treble controls utilizing high quality de-tented pots
 - "Loudness" function to boost Bass and Treble in relationship to Mid frequencies at lower volume levels for a much fuller sound.
  - FM Muting Selector (separate from the 'Stereo' selector)
 - Stereo / Mono selector for all inputs
  - Hi filter for reducing tape hiss / electronic hiss & noise and record static
  - Built-in 'Low' Filter to eliminate excess rumble from sources such as turntables
  - -20dB Audio Muting for instant lowering of volume without adjusting the volume control. Great for ringing phones and cuing a record on your turntable
  - Phono / turntable inputs with Built-In Phono Pre-Amp
   - Dual tape monitors with Tape monitor 'B' also featuring a DIN input as well as the standard RCA I/O's
  (Tape Monitors can be used with Tape decks such as Cassette Tape Recorders/ Players, Reel to Reel's, 8-Track Tape Cartridge Decks, Video / CD / DVD / VCR / DAT / MP3 / iPod® / iPad® / iPhone® / iTouch® / iGadget / MP3 / XM® / SIRUS® CDR (CD recorders as well as for inserting signal processors, such as EQ's, Reverbs, Spatial Enhancers / Dynamic Processors, Noise Reduction units, Special Effects units, Time Delays, etc)
 - Bi-Directional Tape 'Dubbing' capability
- Aux input (may also be used for Video / CD / DVD /DAT / VCR / MP3 / iPod® / iPhone® / iTouch® / iGadget / MP3 / XM® / SIRUS®  etc.)
- Dolby Loop can be used as an additional input or as a signal processor loop for EQ, Dynamic Range Expanders, Reverbs, Delays, DBX units, etc.
  - Microphone input with Level Control (turns the unit into the ultimate Karaoke Machine (be very careful with your speakers when inserting a mic into a stereo receiver)
  - 1/4", stereo headphone jack
-Bi-Color 'Power-Protection' indicator
- Pre-Amp / Power-Amp I/O loop
 - External AC main line protection fuse
  - 2x AC convenience outlets 1 switched and 1 un-switched with a total output capacity of 250 watts

Original Sansui 8080 Specifications:

POWER / PRE AMP SPECIFICATIONS:
RMS Power, Continuous Rated: 2 x 80 watts @ 8 Ohms & <0.2% THD @ 20Hz-20,000Hz
&
2 x 90 watts @ 8 Ohms & <0.2% THD @ 1kHz
 Rated Freq Response of power amp section:
 measured @ 1w: 10-30,000Hz +/-1dB
 THD: measured @ 80w RMS = <0.2%
 IMD: measured @ 80w RMS = <0.2%
  Hum and Noise:  80dB on AUX / Tape w/ 150mV input
Damping factor: 30 @ 8Ω / 1kHz
Input Sensitivity: 150mV @ 50kΩ on AUX / Tape
Pre-Amp Output Level 1 or 2:  775mV
Main Power Amp Input Sensitivity:  775mV @ 100kΩ
  Bass Control:  ±10dB @ 50hz
 Mid Control:  ±10dB @ 1.5khz
  Treble Control:  ±10dB @ 10khz
"Loudness" Contour:  +8dB @ 50hz, +6dB @ 10khz (w/ volume set at -30dB)
  Low Filter:  -10dB @ 50Hz @ 6dB Oct
  High Filter:  -10dB @ 10kHz @ 6dB Oct
DOLBY NR Effect:  -10dB @ 'Tape' and 'Dolby FM' (which doesn't exist anymore for 'FM', but works for Dolby Tapes)
  MAX Power Consumption: 650 watts

  TUNER SPECS FOR FM:
  Tuning Range: 88-108mHz
  Freq Response: 30-15kHz
Capture Ratio: <1.5dB
S/N: > 70db Mono / >65db Stereo
FM Alternate Channel Selectivity: >85dB
  AM Suppression Ratio: >55dB
Image Response Ration: >70dB @98Mhz
IF Response Ration: >95dB @98Mhz
Spurious Noise Ratio: >85dB @98Mhz
Stereo Separation:
>35dB @ 100Hz
>40dB @ 1kHz
>28dB @ 10kHz
  Useable 50dB Mono Sensitivity (IHF): 3.0 μV / 14.7 dBf
  Useable 50dB Stereo Sensitivity (IHF): 36 μV / 36.3 dBf
  Useable Mono Sensitivity: 9.8dBf / 1.7μV
  THD 65dBf @ 1kHz, Mono:  <0.2% @ 1V
  THD 65dBf @ 1kHz, Stereo:  <0.3% @ 1V

 TUNER SPECS FOR AM:
Tuning Range: 535-1605kHz
  Useable Sensitivity: 50dB / m with ferrite stick antenna
Selectivity: >50dB @ 1kHz
Image Response Ration: >30dB @ 1kHz
IF Response Ration: >30dB @ 1kHz

  PHONO SECTION SPECS:
 S/N: >70dB
  Input Sensitivity for rated output of 125 wpc RMS: 2.5 mV @ 50kΩ
  Max input: 180mV RMS  @ 1kΩ w/ <0.2% dist

This Sansui 8080 classic stereo receiver is great looking and fabulous sounding! Again, we have done EXTENSIVE refurbishment / restoration work (~16+ hours) on this unit to insure it's performance, and it gets our full 'Certification'. With the exception of a few very minor 'tic' marks on knobs, the face plate & window are in great cosmetic condition (see photos above). The 'typically broken' Sansui 8080 AM antenna socket still intact and 'un-broken'. The Walnut grain, vinyl wrapped case is in great shape with only minor wear! Looks VERY impressive and sounds great! This thing is incredible when lit up at night or in a dark room!! Includes an 'e-copy' of the Sansui 9090 owners manual (will be applicable to the 8080) & Service manual. Measures 21.5" wide x 7.25" tall x 15.75" deep and weighs and heavy 46 lbs unpacked. Includes our standard 90 day limited warranty.
SANSUI 8080 STEREO RECEIVER
  Cond. 8.5
(C) M.R.
SOLD 1/7/13
SHIPPING TO MICHIGAN

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)
