16MM MOTION PICTURE / FILM PROJECTORS
- PHOTO REFERENCE / ARCHIVE SOLD UNITS -








This page is for photo / text archiving only of our Restored / Refurbished used 16mm Film / movie projectors, some with variable speed motors / shutters that have come and gone.












This area is for photo archiving for our web site administration only. If you found this page and are looking for items to purchase, click the links below. All photos and text, are copyrighted and protected as stated at bottom of page.


To see our current projectors for sale click below:

16mm Film / Movie Projectors available for sale








We fully test each projector offered for sale. We use film that is in good shape, with sprocket holes that are not worn. Each projector is checked for belt / drive condition, frame sync, lamp(s) condition, switching condition, focus, Sound quality (where applicable), AC safety, excess transport noise and overall function. Each is cleaned and lubed where necessary. Projector should be "ready to go" when you receive it, however film projectors are complicated machines and film can be very fragile, especially older film (and most of it is). Always check your films sprocket holes for quality. Worn sprocket holes will cause problems when playing back. The problems may only last a frame or can last seconds. Also double check the loading and always go slow as that is when most problems happen. While our projectors are warranted for their basic function, we cannot guarantee that you will always get glitch free viewing and that films will not break and be "eaten", especially during the loading process. I doesn't happen often, in fact rarely, but we all remember watching school films and the teacher having to stop and splice, rewind or further adjust the film and projector to continue.





NEW ADDITION 08/13/08
(click on above thumbnails to enlarge photos)

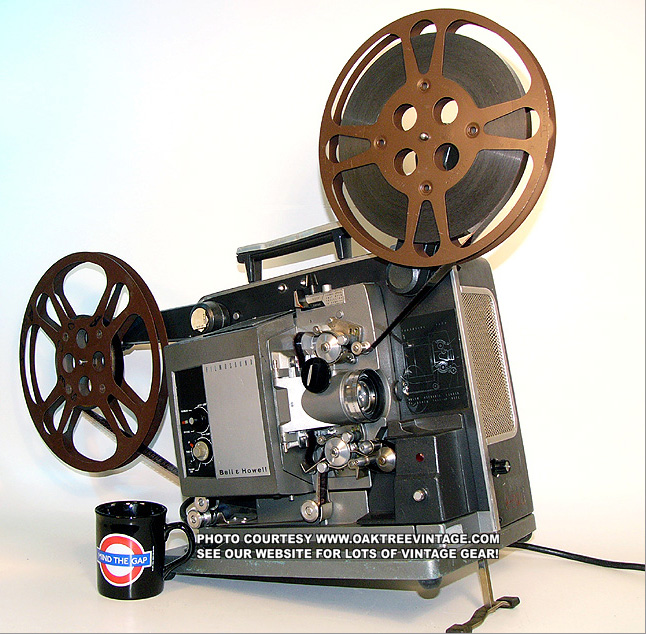

BELL & HOWELL
16mm SOUND / SILENT FILM
2 SPEEDS / 18fps or 24fps

PROJECTOR
SOLD 8/30/08

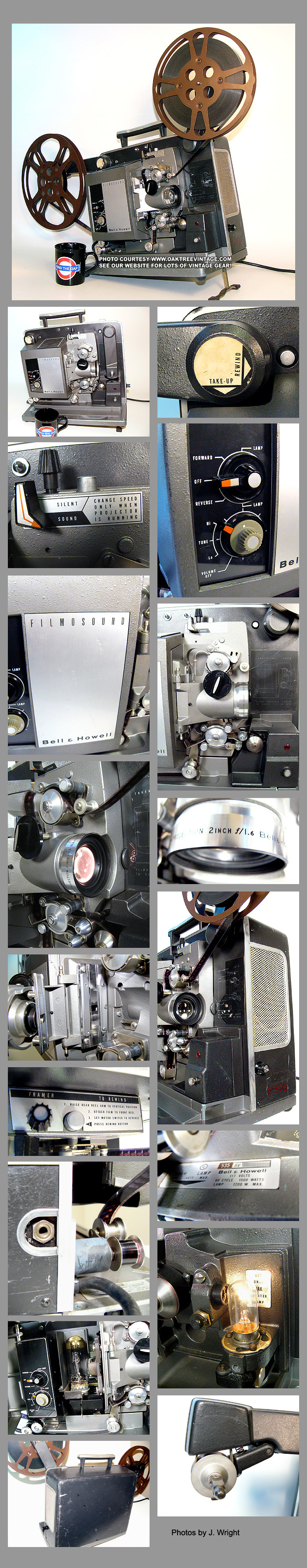

Model 535
#
...3494
for sale

Widely used in the University / Institutional / School systems as an industry standard. Recommended for someone familiar with using "Manual Load" 16mm film projectors as they are a bit more critical to load film into the first time. Loading diagram on front of unit.  Features easy rotary knob operation from the front for Off / Reverse / Forward / and Lamp. Will play Sound or Silent film. This unit has a built-in speaker as well as an external jack for a remote speaker. Currently has a 1000 watt / 125V CTS lamp for image projection (included and installed), but could also use a CWA-750 watt, DAX-1000 watt, or CYS-1200 watt lamp and BAK sound exciter lamp (included and installed). Also comes with 2", f1.6 Bell & Howell lens installed. Operates from standard 60 Hz / 120 V AC current. One issue to be aware of on this unit as well as most 16mm projectors that offer both "Sound" and "Silent" operation. The "Sound" / "Silent" switch MUST NOT BE MOVED when projector is not running. To do so, even once, will necessitate the removal of the back housing to re-seat belt. This unit features all tube audio electronics and all works great (yes, the tubes are still plentiful and available). It uses 5 tubes; 3x 25C5 and 2x 12AX7. All existing, US made GE tubes tested strong on our calibrated, B&K 747B tube tester and should be good for many films / years.
Even though this unit is in "un-restored" condition, and only received a light cleaning, we
have completely checked out all functions and this unit is ready to go. We ran 2, 400' sound films through, and all worked marvelously. Looks and works fine! Nice, heavy duty, commercial unit. Threading, abbreviated instructions and lamp info inside lid / cover. Measures 15" high x 16" wide x 10" deep and weighs 28 lbs unpacked. Film and reels in photos not included. Does not include a 1600 ft take-up reel, but they are usually available separately.

B&H 535
Cond. 8.5

SOLD 8/30/08


*These projectors cannot be switched from "Sound" to "Silent" mode with motor not running. To do so will require projector housing to be removed to re-seat belt by qualified technician.








NEW LISTING
(click on above thumbnails to enlarge photos)

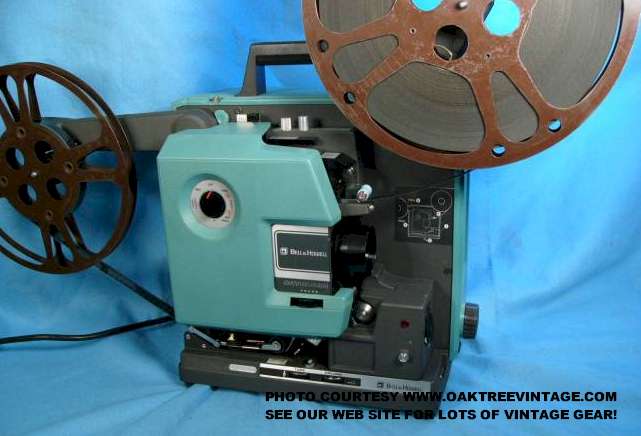

B&H
BELL & HOWELL

Model 1592

16mm SOUND / FILM
PROJECTOR
#915009A

SOLD 5/27/05









(click on above thumbnails to enlarge photos)

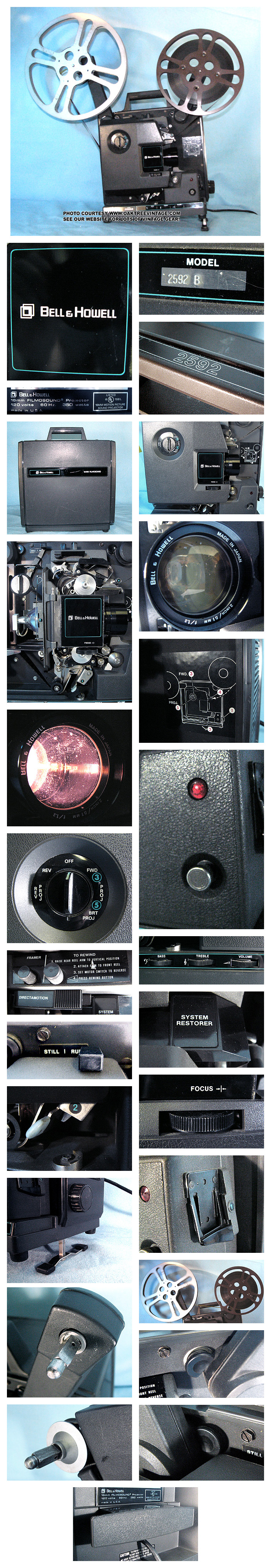

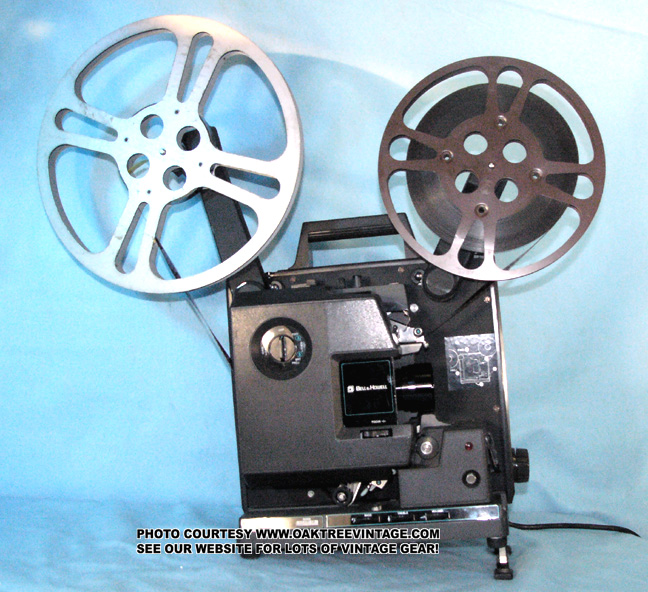

BELL & HOWELL
"DIRECTAMOTION"
Model 2592-B
16mm SOUND / FILM
PROJECTOR
SOLD 1/15/07
B&H_3592_16mm_Film_Projector_web.jpg (37860 bytes)   B&H_3592_16mm_Film_Projector_collage.jpg (430068 bytes)


NEW LISTING
(click on above thumbnails to enlarge photos)

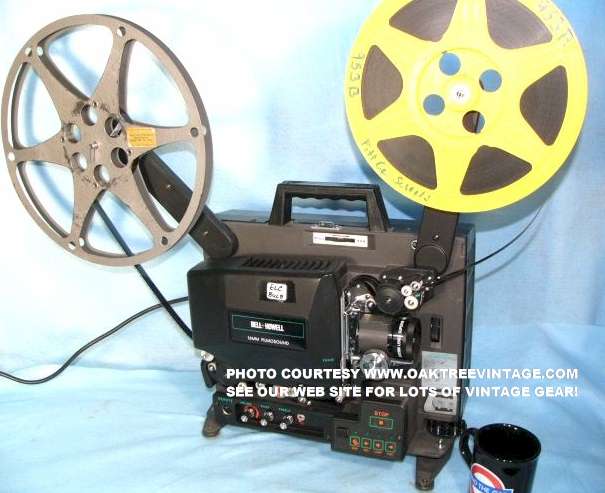

B&H
BELL & HOWELL

16mm SOUND / FILM
"FILMOSOUND"
PROJECTOR
Model 3592
#10136

SOLD 6/2/05





NEW LISTING 1/04/06
(click on above thumbnails to enlarge photos)

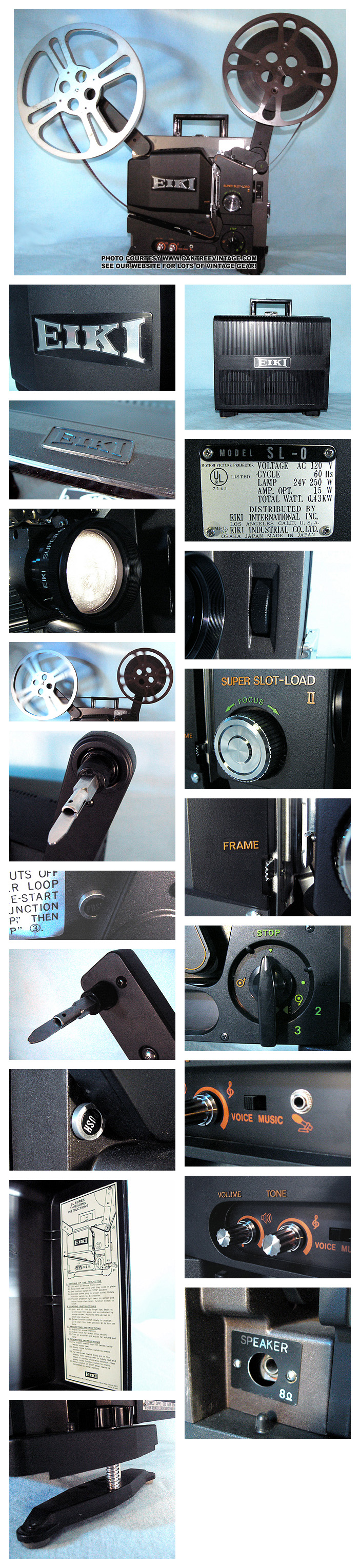

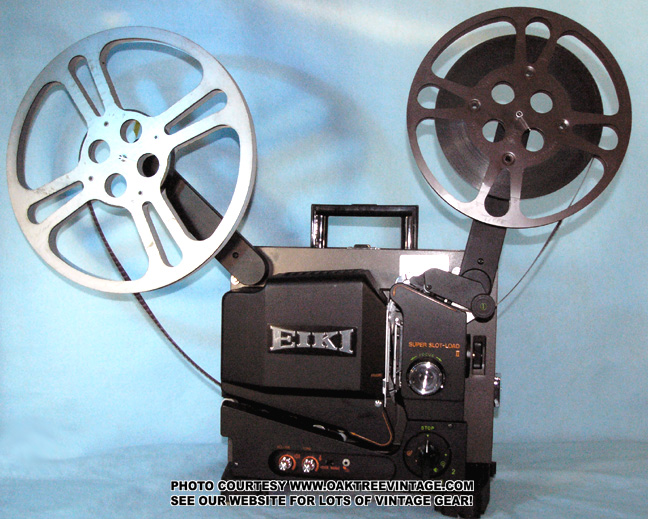

EIKI

16mm SOUND / FILM
PROJECTOR
Model SL-0
SOLD 1/10/06



  Elmo_CL-16_16mm_Sound_Film_Projector_web.jpg (38123 bytes)     Elmo_CL-16_16mm_Sound_Film_Projector_collage.jpg (321310 bytes)

(click on above thumbnails to enlarge photos)

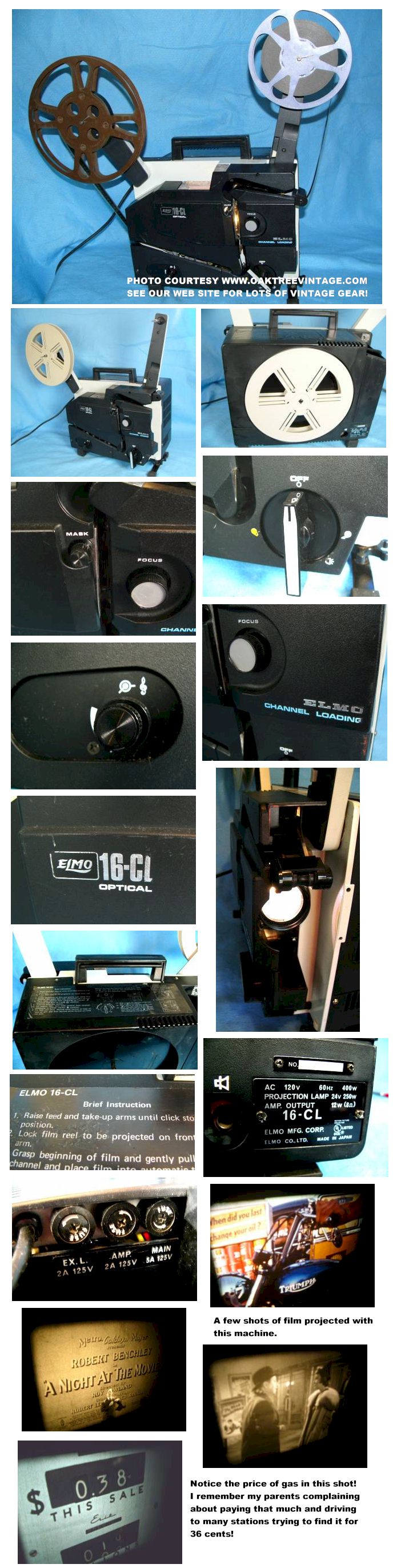

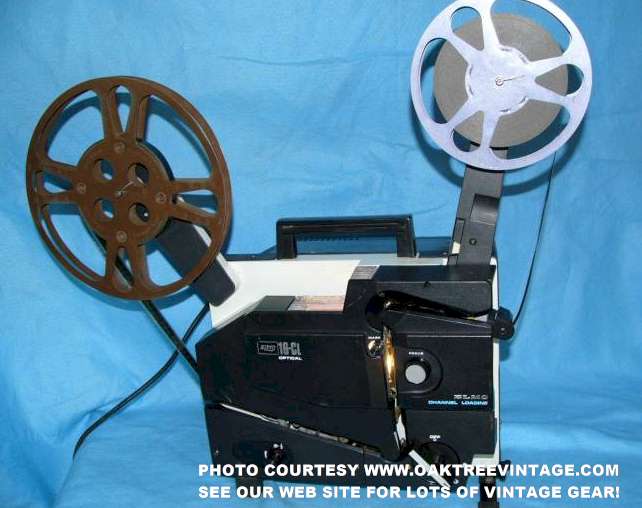

ELMO

16mm  SOUND / FILM
PROJECTOR
SOLD 8/31/04
Singer_Instaload-16_44415C_16mm_Film_Motion_Picture_Projector_web.jpg (46751 bytes)  Singer_Instaload-16_44415C_16mm_Film_Motion_Picture_Projector_collage.jpg (200995 bytes)

GRAFLEX / SINGER
INSTALOAD/XL
16mm SOUND / FILM
PROJECTOR
Model 2120
#44415C

SOLD 2/26/04
GRAFLEX
16mm Projector
SOLD



-

Graflex-16_16mm_Film_Motion_Picture_Projector_web.jpg (52115 bytes)  General_Precision_Graflex-16_282464_16mm_Film_Motion_Picture_Projector_collage.jpg (145844 bytes)

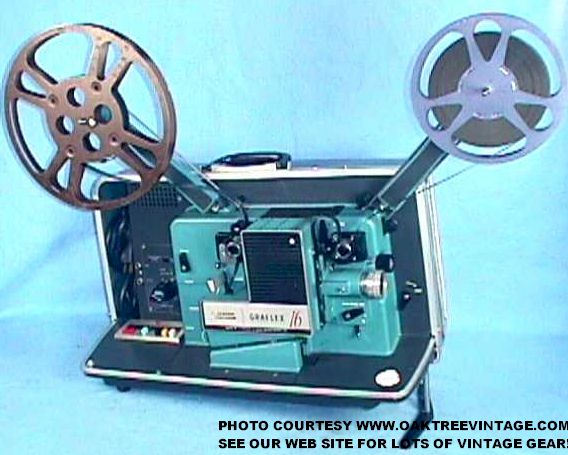

GRAFLEX 16
16mm SOUND / FILM
PROJECTOR
Model 820
#282464

SOLD 2/4/04



Graflex-16_16mm_Film_Motion_Picture_Projector_web.jpg (52115 bytes)  General_Precision_Graflex-16_310798_16mm_Film_Motion_Picture_Projector_collage.jpg (161091 bytes)

GRAFLEX 16
16mm SOUND / FILM
PROJECTOR
Model 915
#310798
SOLD





GRAFLEX 16
16mm SOUND / FILM
PROJECTOR
Model 1000
SOLD









NEW ADDITION 09/8/08
(click on above thumbnails to enlarge photos)

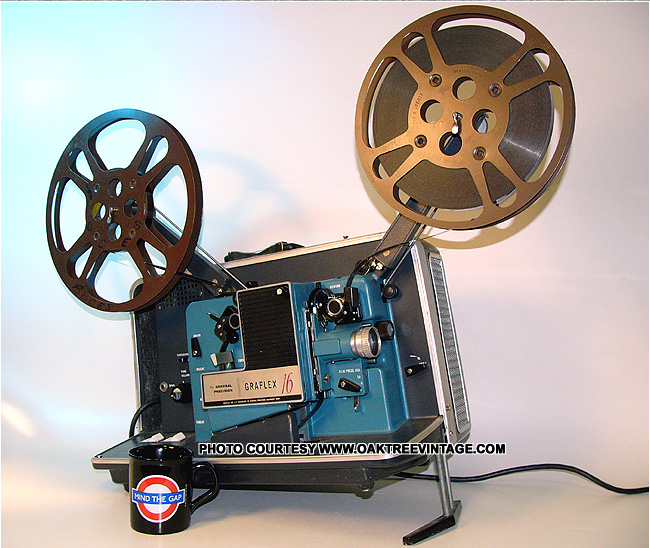

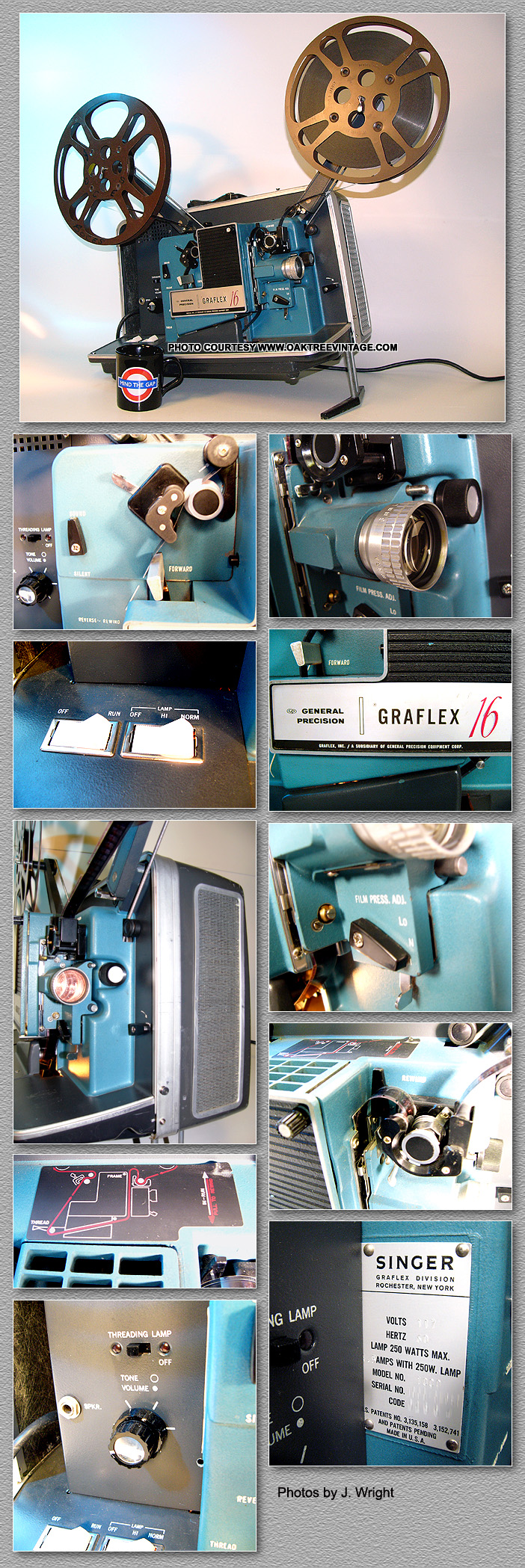

GRAFLEX 16
16mm SOUND / FILM
PROJECTOR
Model 1000
#
...1657

SOLD 5/19/08

for sale

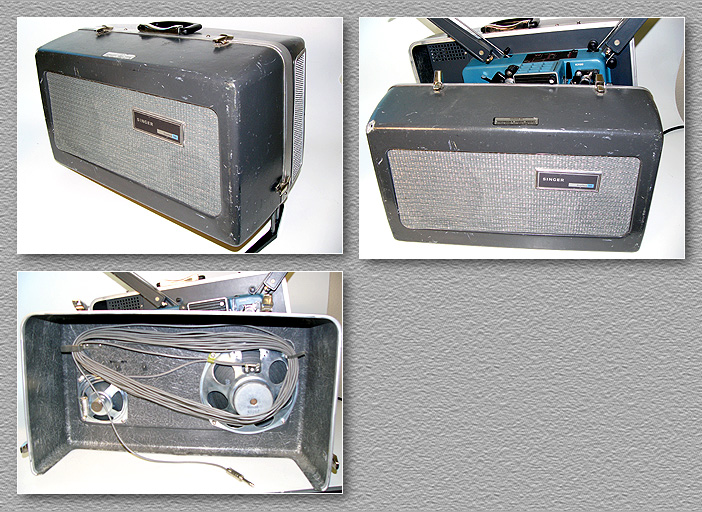

Widely used in the University / Institutional / School systems as an industry standard. Recommended for someone familiar with using "Manual Load" 16mm film projectors as they are a bit more critical to load film into the first time. Features easy push-button operation from the front for Off / Still / Run / and Lamp Hi / Normal settings to save Lamp life and for cooler running on the Normal setting. This unit has dual speakers built into the main housing as well as a 2-way extension speaker / lid-cover with a 25' cord for remote placement of sound. Uses 250 watt / 21.5V DKM / DLR lamp for image projection (included and installed) and BSW sound exciter lamp (included and installed). Also comes with 2", f1.6 "Somtar" lens installed. Operates from standard 60 Hz / 120 V AC current. Only 2 issues to be aware of on this unit as well as most 16mm projectors that offer both "Sound" and "Silent" operation. One and very importantly, the "Sound" / "Silent" switch MUST NOT BE MOVED when projector is not running. To do so, even once, will necessitate the removal of the back housing to reseat belt. Two, if you are using to play films that are heavy with music, these have some "flutter", so better for dialog films. We have completely checked out all functions and made any necessary adjustments and this unit is ready to go. Looks and works decently! Threading, abbreviated instructions and lamp info inside lid / cover. Measures 14" high x 20.5" wide x 11.5" deep and weighs 35 lbs unpacked. Comes with BRAND NEW DKM / DLR projection lamp installed. Includes our standard 30 day limited warranty (excluding lamps / bulbs). Film and reels in photos not included. Does include a 1600 ft take-up reel.
GRAFLEX 16
Model 1000
#...1657
Cond. 8.5

SOLD 5/19/08


*These projectors cannot be switched from "Sound" to "Silent" mode with motor not running. To do so will require projector housing to be removed to re-seat belt by qualified technician.






NEW LISTING
(click on above thumbnails to enlarge photos)

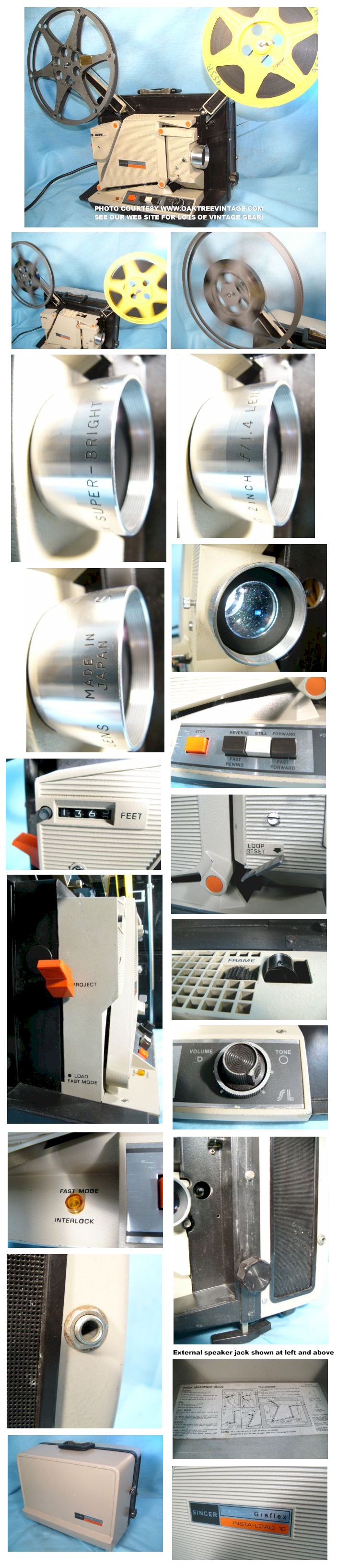

GRAFLEX / SINGER

16mm SOUND / FILM
PROJECTOR
Model 1170A
#
...0042

SOLD 7/11/05

GRAFLEX / SINGER
INSTALOAD/XL
Model 2010
SOLD





Singer_Instaload-16_16mm_Film_Motion_Picture_Picture_web.jpg (48195 bytes)  Singer_Instaload-16_44415C_16mm_Film_Motion_Picture_Projector_collage.jpg (200995 bytes)

GRAFLEX / SINGER
INSTALOAD /XL
16mm SOUND / FILM
PROJECTOR
Model 2110

#93625F
TEMP HELD FROM SALE



NEW LISTING
(click on above thumbnails to enlarge photos)

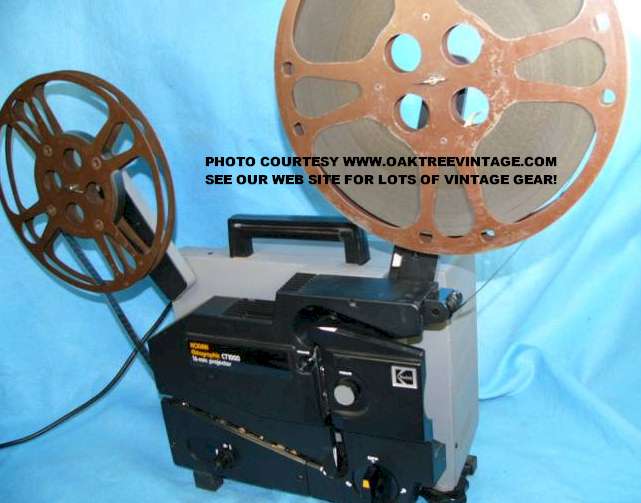

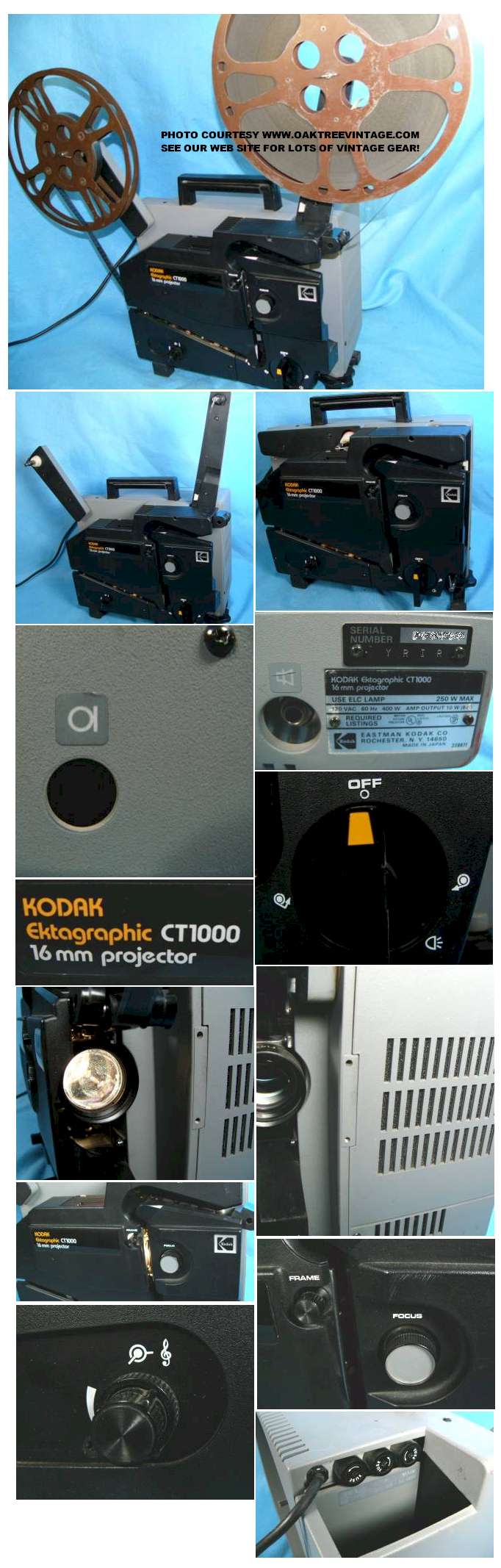

KODAK

16mm OPTICAL SOUND / FILM
PROJECTOR
CT-1000
SOLD 10/28/04







NEW LISTING
(click on above thumbnails to enlarge photos)

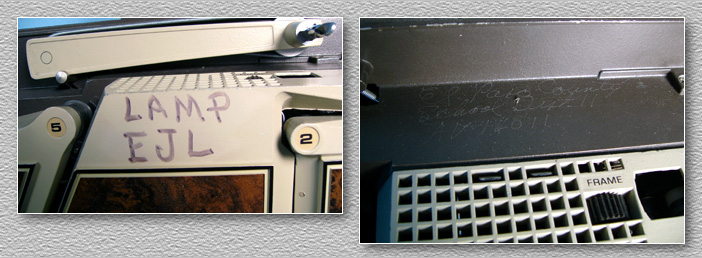

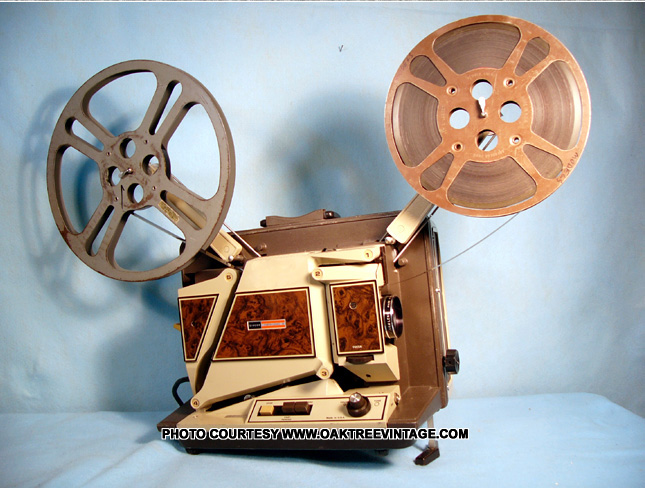

SINGER
INSTALOAD /XL
16mm SOUND / FILM
PROJECTOR
Model 2110

SOLD 11/8/07

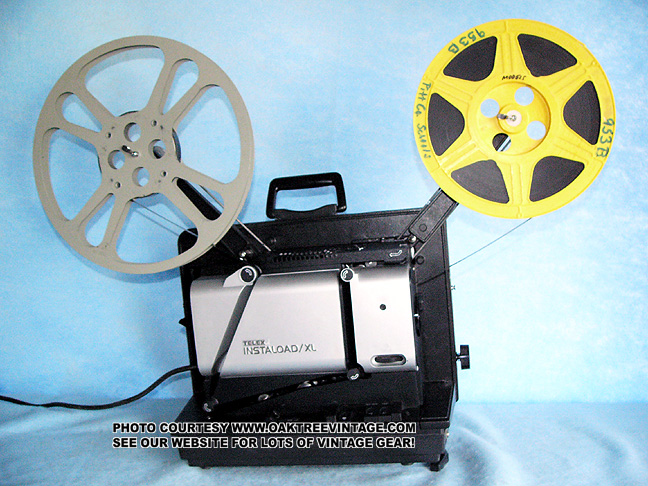

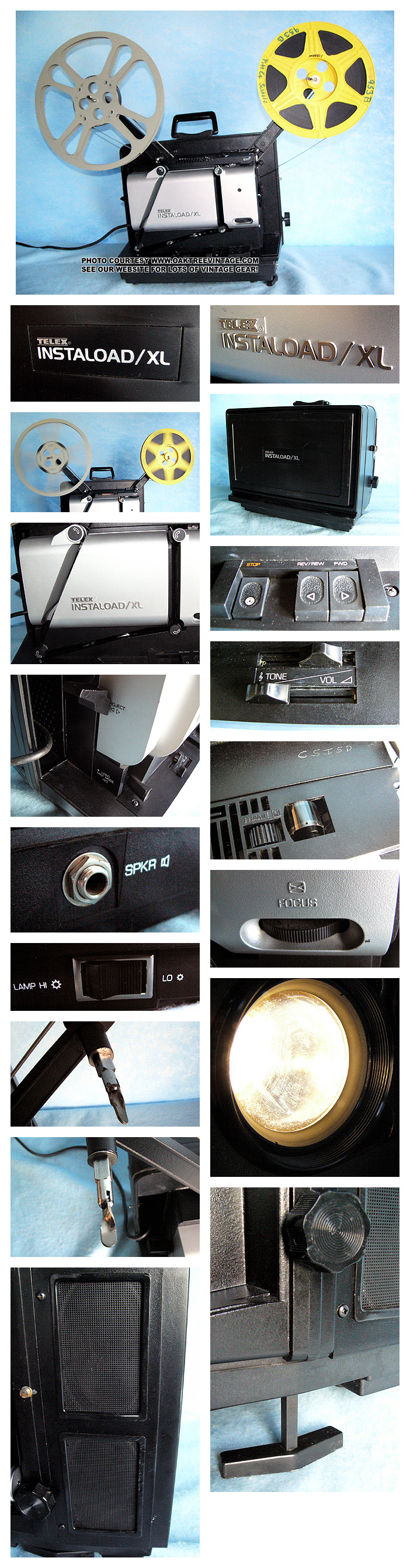

TELEX
INSTALOAD/XL
16mm SOUND / FILM
PROJECTOR
Model 2210
#75141

SOLD

TELEX
INSTALOAD/XL
16mm SOUND / FILM
PROJECTOR
Model 2210
SOLD 12/15/03




NEW LISTING
(click on above thumbnails to enlarge photos)
TELEX
INSTALOAD/XL
16mm SOUND / FILM
PROJECTOR
Model 2210
#...652N
SOLD 11/23/05

Telex_Instaload-XL_85620N_16mm_Film_Motion_Picture_Projector_web.jpg (40655 bytes)   Telex_Instaload-XL_85620N_16mm_Film_Motion_Picture_Projector_collage.jpg (185155 bytes)

TELEX / SINGER
INSTALOAD/XL
16mm SOUND / FILM
PROJECTOR
Model 2210
SOLD 12/15/03
#38592H





 Telex_Instaload_89940_16mm_Film_Motion_Picture_Projector_web.jpg (38970 bytes)  Telex_Instaload_89940_16mm_Film_Motion_Picture_Projector_collage.jpg (284454 bytes)

TELEX
INSTALOAD/XL
16mm SOUND / FILM
PROJECTOR
Model 2270
SOLD
#89940

Metal 16mm Motion Picture Film Projector Empty Take-Up reels
for sale
1600 ft - $25. ea.
400 & 800 ft -
$20. ea. -SOLD OUT
Regular-8 images            Super-8 images






Reg 8mm images


Super 8mm Images


16mm Images



         NEW ADDITION 12/4/07
(click on above thumbnails to enlarge photos)

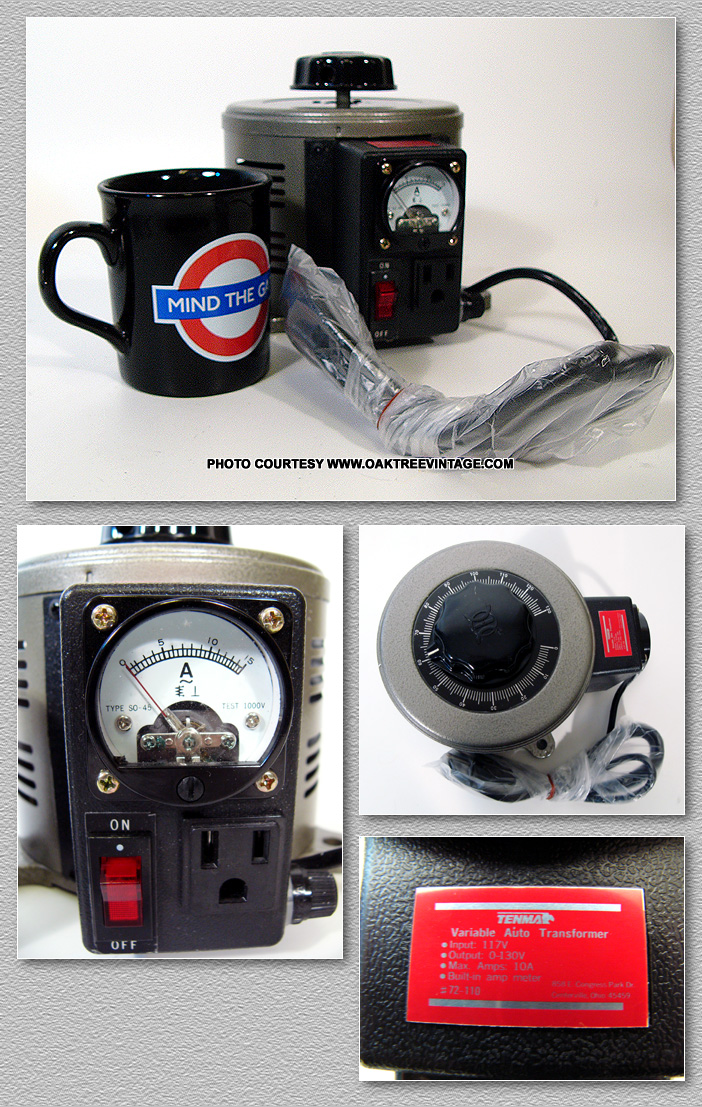

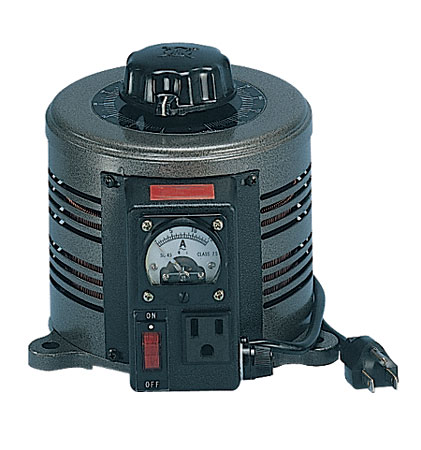

10-AMP Vari-AC
PROJECTOR SPEED ADJUSTER
SOLD OUT



16mm Film / Movie Projectors available for sale



                                                                                                             -  revised 9/24/10
