VINTAGE / USED TAPE DECKS / RECORDERS
REFERENCE PHOTOS / ARCHIVE




Reference / Archive of Stereo Cassette Tape Decks, Reel to Reel Recorders / Players, 8-Track tape players we have had. Tape decks from brands such as Ampex, B.I.C. / BIC series, BSR, Craig, Denon, Dokorder, Fisher, JVC, Kenwood, Luxman, Marantz, NAD, Nakamichi, Onkyo, Panasonic, Proton, Revox, Sansui, Sanyo D Plus, Tandberg Reel, Teac, Webcor, Yamaha.
Some of our 'past' listings may have a portion of their original text remaining, but not necessarily intact, and not likely complete as that has been archived for potential future purposes. All photos and text, copyrighted and protected as stated at bottom of page. Click the link below for current inventory.






























































CLICK HERE TO SEE OUR TAPE DECKS CURRENTLY FOR SALE!



FOR SOLD AKAI TAPE DECK ARCHIVE, CLICK HERE




             NEW LISTING 6/10/11
(Click on above thumbnails to enlarge photos)

AIWA TP-32 / TP32
 MINI TRANSISTOR

 1/4" REEL-TO-REEL
 TAPE DECK
Plays up to 3.25" Reels

 Circa 1960's

We have completely gone through this unit. Both reel tables were removed, cleaned & re-lubed. Both spindles in perfect alignment and now spin freely. As they are rubber coated and the basis of the 'drive system', their rubber was reconditioned for positive traction. Internal transport motor 'slide' assembly cleaned of old grease & re-lubed where necessary. Heads have been cleaned and de-magnetized as well as the entire transport. Volume control cleaned for quite performance. Head alignment / azimuth has been adjusted to conform to most of our test tapes. No current or past corrosion in the battery compartment and the battery lid with lock is intact. This unit is very clean and was well.
SOLD 9/17/12
SHIPPED TO NEW MEXICO



 (Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)







 NEW ADDITION 11/30/12

(Click on above thumbnails to enlarge photos)
ALLIED / REALISTIC 8-TRACK STEREO PLAY / RECORD DECK
ALLIED MODEL 14-5016 / TR-880
 Circa Late 1960's - Early 1970's

SOLD 9/12/13
SHIPPED TO PENNSYLVANIA

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)





         NEW LISTING 5/5/08
(Click on above thumbnails to enlarge photos)

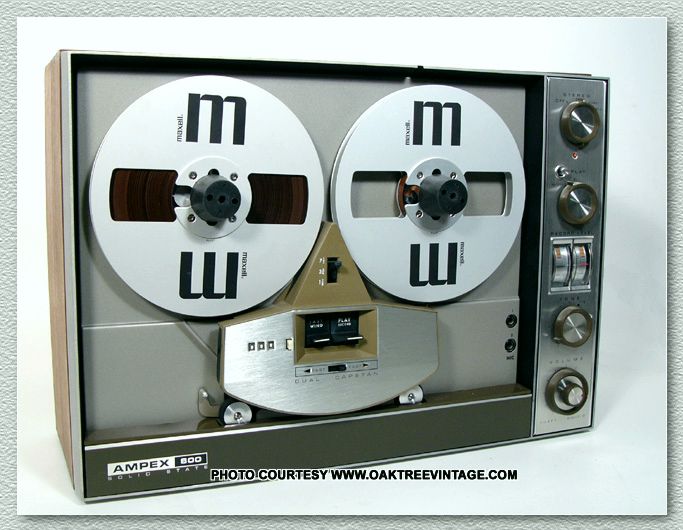

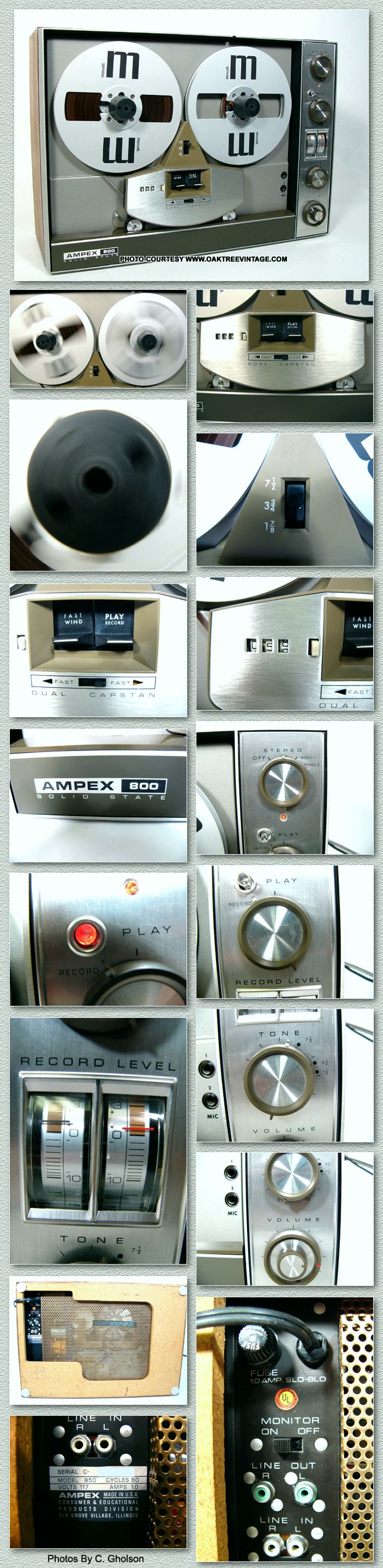

AMPEX REEL TO REEL TAPE DECK
AMPEX MODEL 850 / 800 SERIES

3-SPEED
STEREO / MONO

4-TRACK / 2-CHANNEL STEREO OR   4 MONO CHANNEL
S
1/4" REEL-TO-REEL
TAPE DECK
MADE IN THE USA
RESTORED FOR PLAYBACK USE
Circa 1968

SOLD 6/9/08







NEW LISTING

 (Click on above thumbnails to enlarge photos)

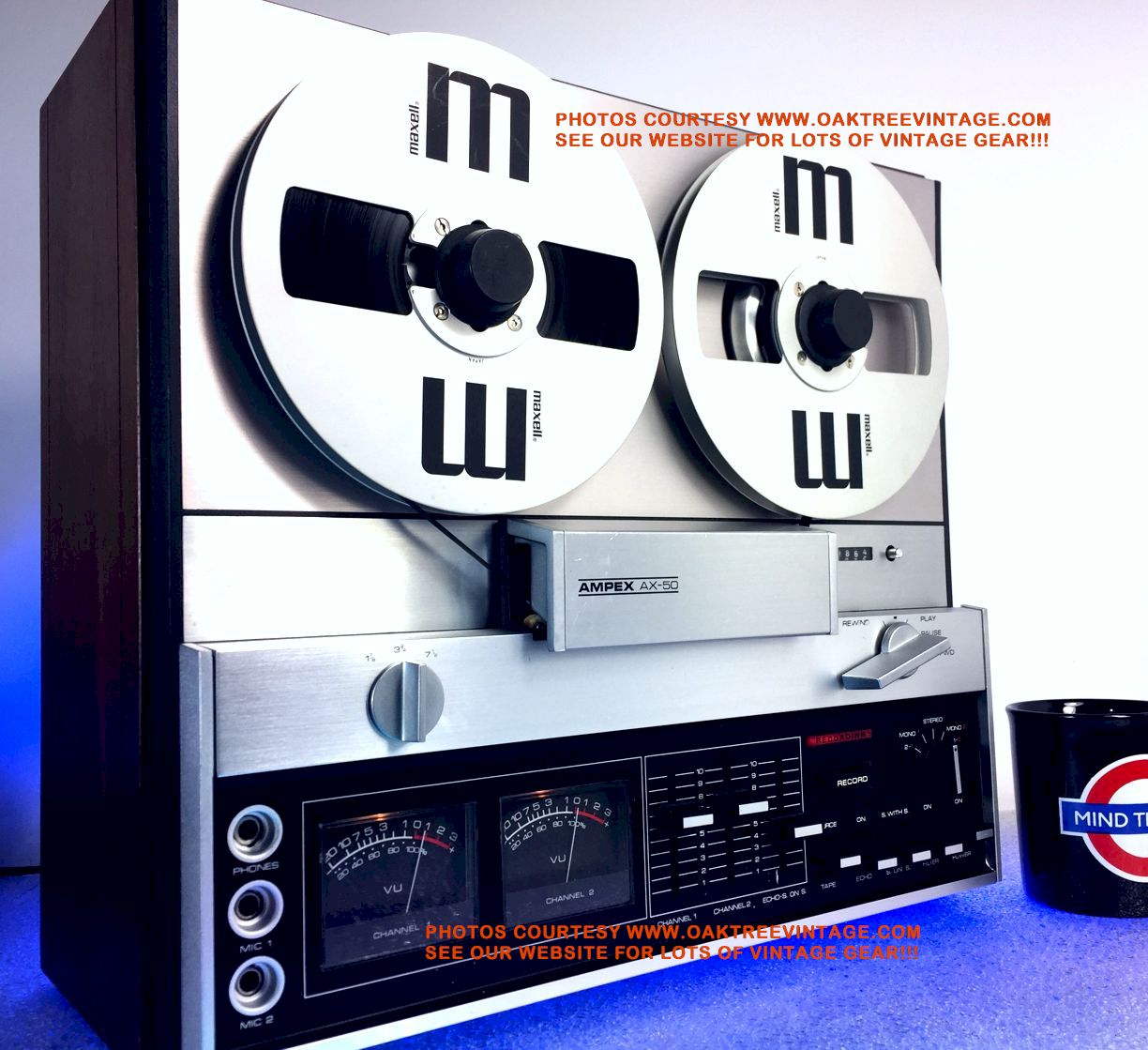

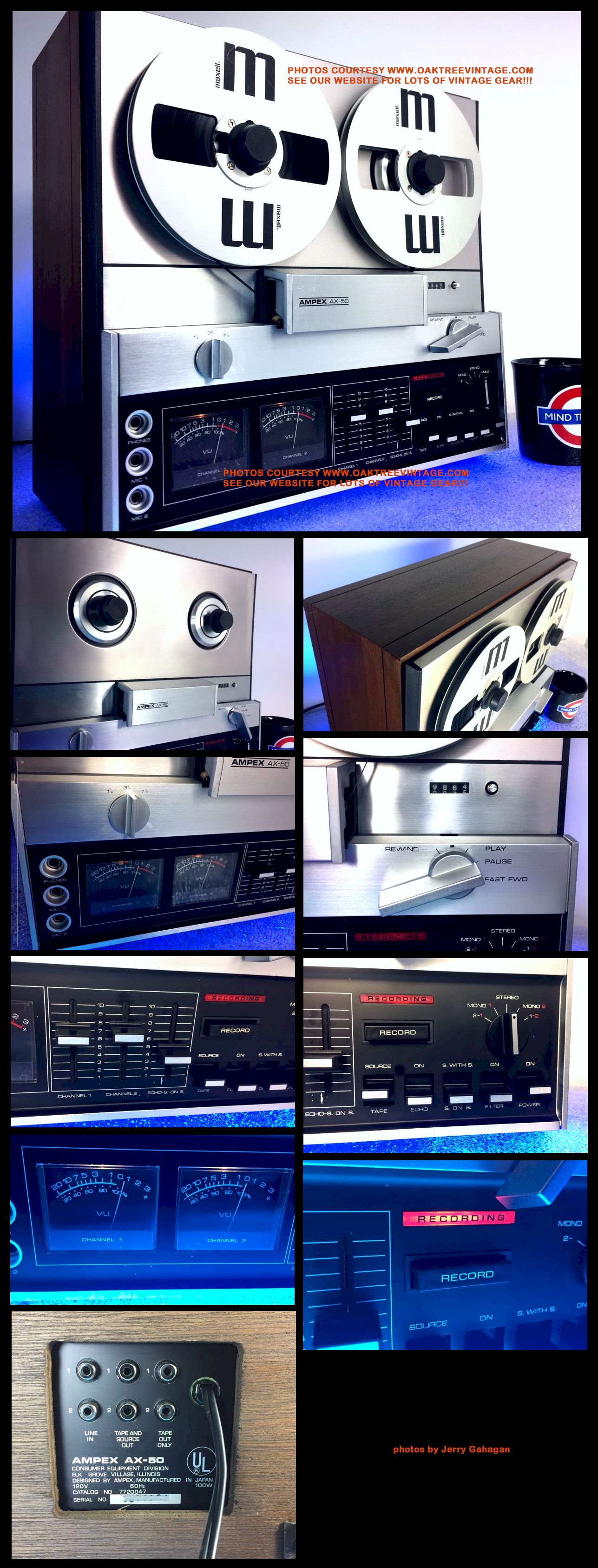

AMPEX 1/4" REEL-TO-REEL STEREO TAPE DECK
AMPEX AX-50 / AX50
#...0134
4-TRACK / 2-CHANNEL
STEREO / MONO
3-HEAD / 3-SPEED
3", 5" & 7" REEL CAPACITY

Circa 1970-75
SOLD
SHIPPED TO JACK IN TENNESSEE


ü  Our technician has completely gone through and 'Certified' this unit.

ü
 We have completely and extensively gone through the mechanicals and electronics of this unit.

ü Entire transport was disassembled down to the chassis, and mechanical parts cleaned, re-lubed and reassembled.

ü Flywheels removed, cleaned and reinstalled.

ü Capstans burnished

ü Again, the entire transport assembly was painstakingly disassembled, cleaned and re-lubed.

ü Motor 'start / run' capacitors checked.

ü Motor lubed.

ü Fresh, New belts installed (all three) for trouble-free service.

ü VU meter illumination lamps / bulbs check fine.

ü
 Both spindles were completely disassembled, cleaned and had their bearings / bushings cleaned and re-lubed and are in perfect alignment.

ü Heights adjusted on both reel tables.

ü Reel Hub brakes adjusted for best performance in all 'Fast Wind' modes with tape at any position on reels, while not 'grabbing' during playback.

ü 'Auto-Stop' mechanism disassembled and re-lubed with fresh 300,000 silicon damping fluid.

ü Supply / Take-up 'back tension' adjusted.

ü Rubber pinch roller was removed, cleaned & reconditioned.

ü All three internal drive tires / wheels for positive grip.

ü Tape heads and entire transport cleaned and demagnetized.

ü Heads in great shape as well (tech noted they have "very little wear"), and should have many hundreds of hours of performance left in them. (this deck features 'Deep Gap' heads which can take a LOT of wear with no diminished performance)

ü Head alignment / azimuth has been checked for peak performance on both play and record heads with factory STL tape to 15kHz with oscilloscope.

ü Plays INCREDIBLY WELL

ü Adjusted to record INCREDIBLY WELL @ ~ 0dB and sound GREAT on 'Ampex GM-456' tape.

ü Floor noise measured at >-60dB w/ blank tape, L&R

ü Both PB output levels and VU meters playback internally adjusted for response within 2dB.

ü We really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones and Pink Noise looking for correct head Azimuth and speed accuracy). Pinch roller and heads all in GREAT condition.

ü Speed tested to 99.3% accuracy, utilizing 'STL' test tape (meaning that a 1000Hz tape plays at 1007Hz. Very close to perfect)

ü Following electro/mechanical restoration, unit received a cosmetic
 cleaning / detailing and looks near new. The deck even has a 'Real Wood Veneer' case that was given a coat of lemon oil.

ü (Total time investment in refurb / testing ~ 19+ hours).
   ____________________________



Again, following the above stated bench work / testing, our technician has 'Certified' this deck and it is an great performer sonically and mechanically. This deck has had EXTENSIVE restoration with the above mentioned 19+ hours of tech time. Restored, extensively tested / played, then re-benched after 'burn-in' to double check performance / adjustments.
A note on the Ampex AX-50. I've seen a few opinions / remarks on the web regarding this aspect (of course, yes, there's any myriad of "opinions / remarks" on the web about anything, by anybody (including me) ). One is that the deck has a bit more 'motor / fan' noise than some. Yes, that's true, again referring to "a bit". We measured it at 41dB at 1 meter away (actually had to get our dB meters within 120cm to even get a reading, then mathematically deduce the 'meter value'). That's 'not bad', however if you have a very quiet piece of music playing, or the deck is in between tracks, or you simply have it power up without a tape loaded / playing, and are sitting near the deck, you will detect the motor fan noise. It can actually be reduced by setting the deck on a 'soft' surface such as felt or neoprene (think, a couple of 'mouse pads').
 (To give you an idea of how loud 41 dB is, Normal conversation averages 60dB-65dB @ 1 meter. Given that a "3dB difference" requires a doubling or halving of power, "41dB" is 6-7 times LESS power than conversation level). By the way, this is 'ambient sound' and has no effect on the output signal. It's almost not worth mentioning, but it is a bit more sound than we typically detect from a running reel to reel deck. They all make some ambient noise.

 Comes with a copy of the Ampex AX-50 Owners manual. Includes our standard 30 day limited warranty. Measures 16.25" wide x 9" deep x 14.75" tall and weighs 29 lbs unpacked.

 (Reels & tape shown in photos not included. All are sometimes available separately depending on stock levels.)

AMPEX AX-50 REEL TO REEL TAPE DECK
 Cond. 8.5
(Cons.)
R.R.

SOLD
SHIPPED TO JACK IN TENNESSEE

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)






Apolec_Transistor_Small_Mini_Reel-Reel_tape_Recorder_Deck_web.jpg (33840 bytes)     Apolec_Transistor_Small_Mini_Reel-Reel_tape_Recorder_Deck_collage.jpg (101390 bytes)

(Click on above thumbnails to enlarge photos)

MINI
TRANSISTOR
1/4" REEL-TO-REEL
SOLD 6/18/05
TAPE DECK
Circa 1960's





- -


(Click on above thumbnails to enlarge photos)

VINTAGE / REFURBISHED

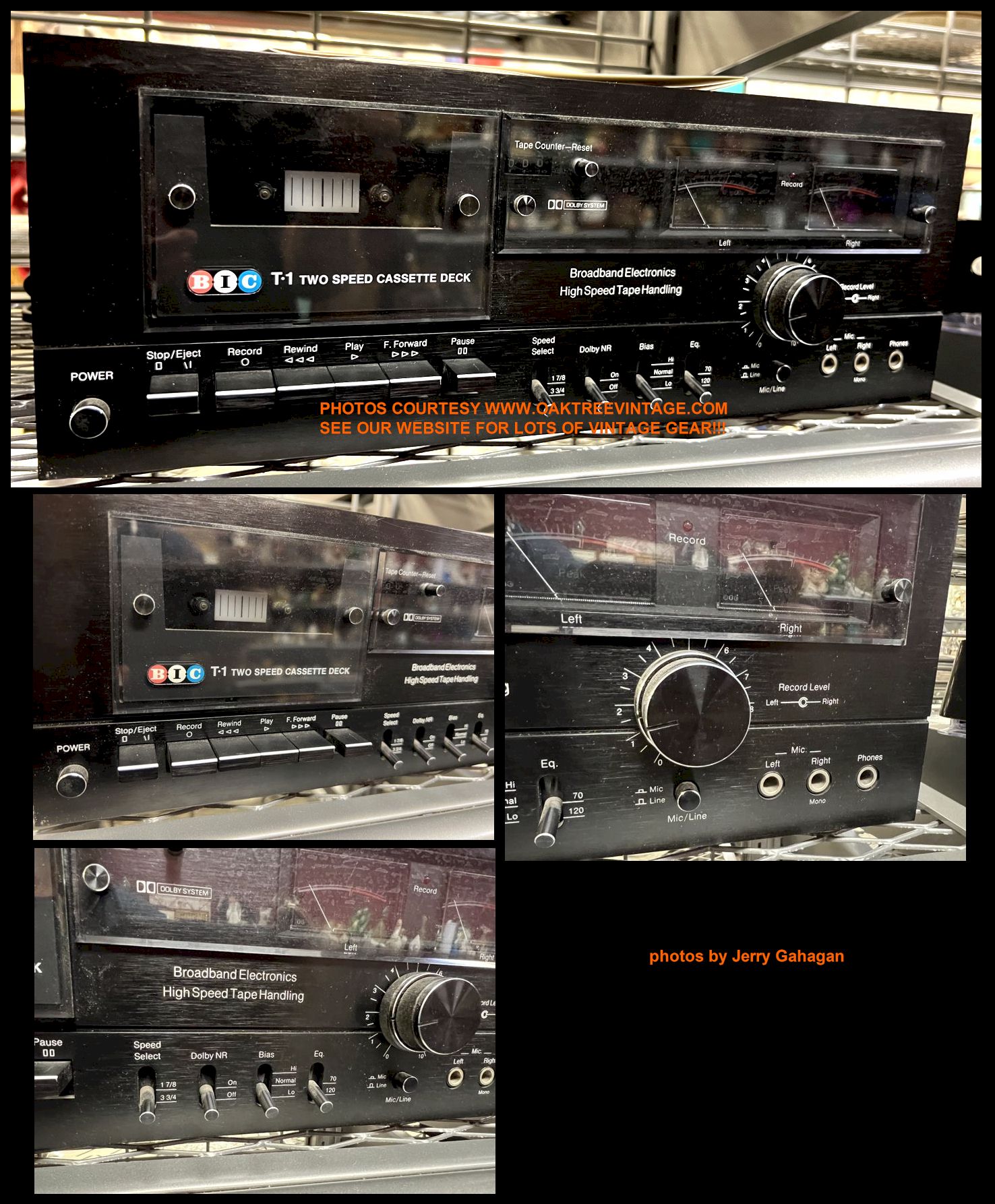

B.I.C. T-1 STEREO CASSETTE DECK
2-SPEED
With DOLBY
Field found unit for reference only.


      NEW ADDITION 1/30/08
(Click on above thumbnails to enlarge photos)

VINTAGE / REFURBISHED

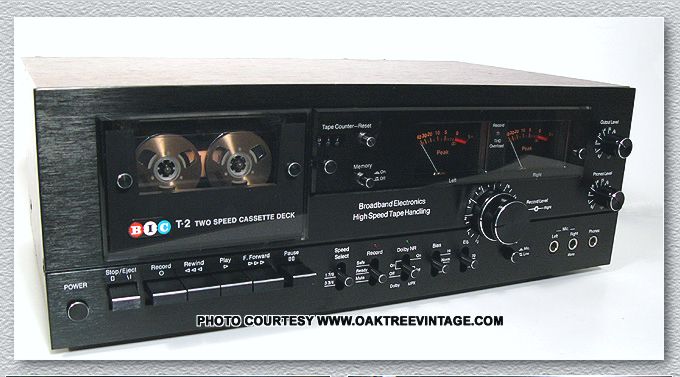

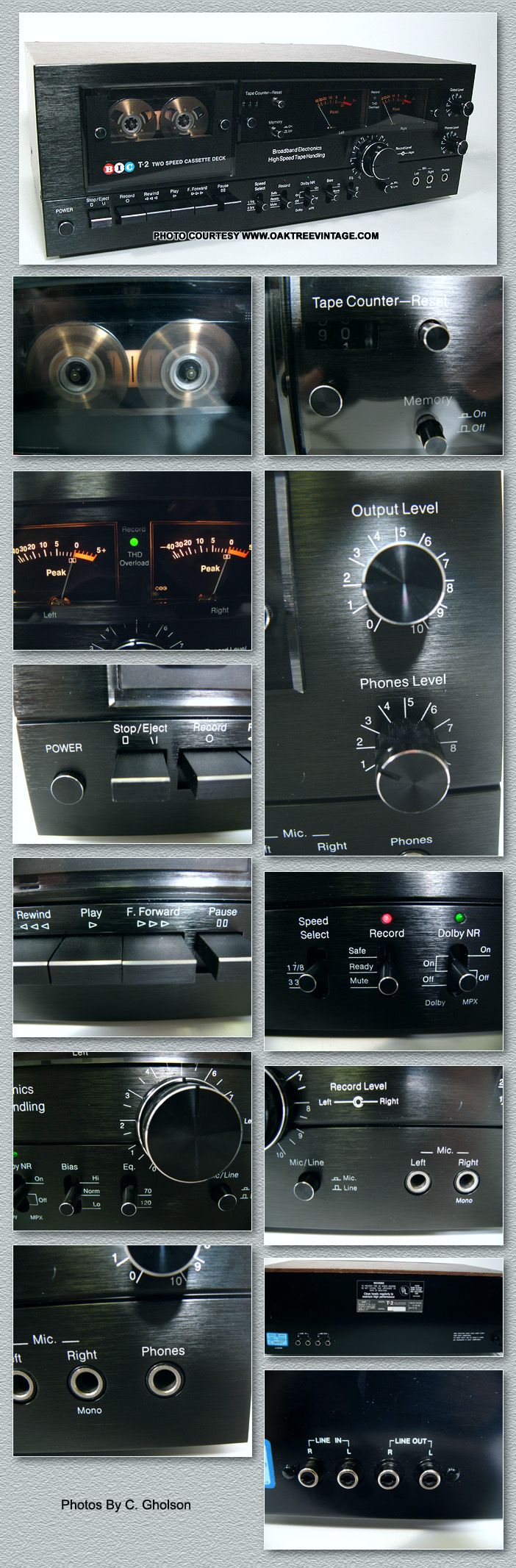

B.I.C. T-2 STEREO CASSETTE DECK
2-SPEED
With DOLBY B, OUTPUT AND HEADPHONE LEVEL


* "WORLD AC POWER"
SOLD 3/22/08










          NEW LISTING 12/18/18
 (Click on above thumbnails to enlarge photos)
VINTAGE AND FULLY SERVICED W/ WARRANTY

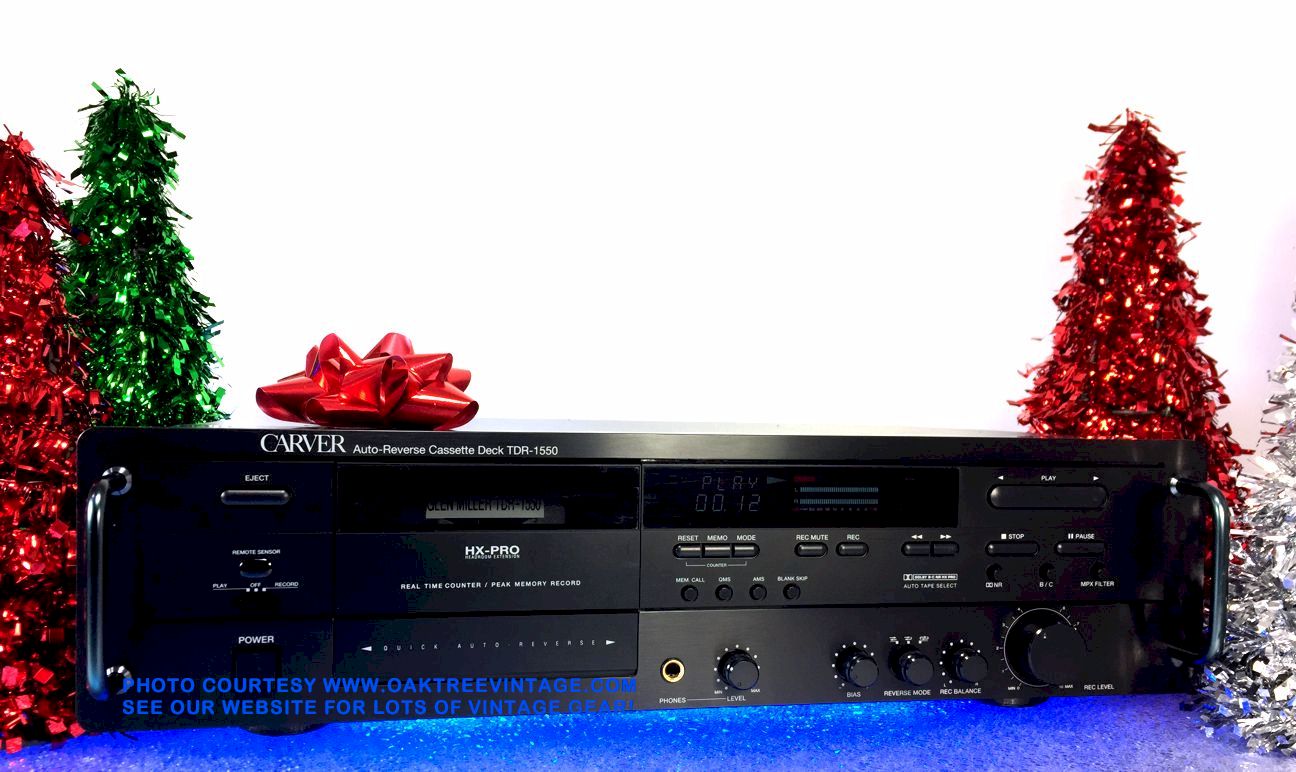

CARVER CASSETTE TAPE DECK
CARVER TDR-1550
AUTO-REVERSE
With HX PRO & DOLBY B &C NR
#...0200
MADE IN JAPAN!


"WORLD AC POWER"
Circa 1992

SOLD 3/1/19
SHIPPING TO JESSIE IN NEW MEXICO


ü Our technician has completely and EXTENSIVELY gone through and 'Certified' this unit

ü Heads inspected for excessive wear (obviously we do this 'early on' as 'excessive' wear will usually negate any further restoration work) (tech actually noted on the work sheet, that they were "like new").

ü Head rotating gear inspected with a jewelers loop prior to starting any restoration work, and found to be 'hairline' crack free.

ü Reel drive is accomplished with gears, so fortunately no tires to 'glaze over' or crack and loose traction down the road. Yipeee.

ü Capstan drive belt is 'like new', but we still reconditioned it for trouble-free service.

ü Rubber pinch roller has been reconditioned

ü Capstan burnished

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Head alignment and azimuth at 125Hz, 1kHz and 10kHz adjusted for BOTH directions for 'peak performance' with O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü All internal pots, switches and controls cleaned and tested for noise-free function.

ü FF, REW, & Play transport functions all test perfectly and controls tested for 'positive / accurate' responsive.

ü Eject door operates smoothly.

ü Tape Counter Function tested

ü Dolby B & C NR circuits / function tested

ü 'Memory / Zero Return' function tested

ü Meters adjusted to even zero with symmetric with Volt meter, O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü Both Internal playback amplifier channels adjusted with Volt meter, O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü Meters adjusted to even zero with symmetric input with Volt meter, O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü Both Internal Record amplifier channels adjusted with Volt meter, O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü Pinch roller and heads all in GREAT condition!!!

ü Speed adjusted to 100% accuracy BOTH directions, with 1kHz factory calibration tape (meaning 1kHz calibration tape plays back at 1000Hz +/- 1Hz)

ü Cosmetically it's essentially in NEW condition.

 (Following the extensive restoration, we did 'test recordings' of a 'ddd' CD on 6 tapes; Sony Normal Bias, Fuji Normal Bias, TDK Normal Bias, Maxell Normal Bias, TDK 'SA' High Bias, and Maxell 'XL-II' High Bias. We found that for Normal and High Bias, of those tapes tested, both the TDK and "Maxells" performed VERY well on this particular deck. The Maxell's did however much 'outshine' the TDK's for being able to 'over saturate' on the levels. While doing the test recording's, it became apparent that the recorded sound was fairly remarkable.
ü Plays perfectly and after adjustment, records AMAZINGLY well w/ 1kHz at 0dB=0dB! on Maxell UDXL-II tapes.
Our 'Real World' test resulted in +2-3dB w/ Maxell UDXL-II tape with "HX-PRO" and Dolby-C engaged, and the Bias control set to ~9:00 O'clock.


____________________________

The Carver TDR-1550, Auto-Reverse Stereo Cassette Tape Deck w/ HX-PRO. Great deck for doing your tape transfers if your tapes were recorded with no NR or with "Dolby B" or "Dolby C". Again, as stated above, records AMAZINGLY well!

CARVER TDR-1550 Features include:


- HX PRO Headroom Extension (we are BIG fans of HX-PRO)
- Adjustable Bias from
....

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Headphone jack
- Timer Play / Record function.
- Has 'Wireless Remote Control' function capability, but we do not have the remote available

- True "WORLD AC POWER"™ allows unit to be operated on 50 or 60 Hz AC and will select voltages from 110V, 120V, 220V and 240 Volts AC input. (this is one of the few cassette tape decks that we've ever had, and the ONLY one now that allows both 60Hz and 50Hz operation)


CARVER TDR-1550 Specifications:


Track format:
4 track / 2 channel
Motors:
 2x DC
....

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Headphones Output:
0.8mW @ 32 Ohms


Again, we have completely cleaned, refurbished / serviced and thoroughly tested this Carver TDR-1550 cassette tape deck.
Performs AMAZINGLY well. Did I mention that it's also in 'AS NEW' condition as well?!
Great for transferring your no NR or Dolby B / C NR, HX-PRO encoded tape collection to CD, Hard-drive or MP3. Looks like new, works and sounds great.
Includes a copy of the owners manual. This one also comes with it's original box and most packing. Measures 19" wide x 12.5" deep x 5.5" tall and weighs 11 lbs unpacked. Includes our standard 30 day limited warranty.
CARVER TDR-1550
Cond. 9+++

SOLD 3/1/19
SHIPPING TO JESSIE IN NEW MEXICO

(tape shown in photos not included. We do ship our decks with a  a 'pre-recorded' tape for playback, made on this 'specific' deck, and a tape to 'practice record' on.)

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)









NEW LISTING 12/7/09
(Click on above thumbnails to enlarge photos)

CRAIG
OPEN REEL TO REEL TAPE RECORDER

PORTABLE / TRANSISTOR
 1/4" MONO TAPE DECK
MODEL 212
2-SPEED
2-TRACK / 1 CHANNEL

 2-3" REEL CAPACITY
R
W/ BUILT IN AMP & SPEAKER
 Circa
1969

SOLD 04/05/10






             NEW LISTING 6/10/11
(Click on above thumbnails to enlarge photos)

CRAIG REEL TO REEL TAPE RECORDER
PORTABLE / TRANSISTOR
 1/4" MONO TAPE DECK
CRAIG 212

 Circa
1969
SOLD 1
/4/12


 (Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)





NEW LISTING 10/6/16
(Click on above thumbnails to enlarge photos)


CRAIG
OPEN REEL TO REEL TAPE RECORDER
PORTABLE / TRANSISTOR
1/4" MONO TAPE DECK
CRAIG 212
#...3145

2-SPEED
2-TRACK / 1 CHANNEL
2-3" REEL CAPACITY

W/ BUILT IN AMP & SPEAKER
Circa 1969

SOLD 10/21/16
SHIPPED TO FLORIDA


We have completely gone through this unit. Both the Main Drive belt and reel table serpentine belt have been replaced for trouble-free service. Rubber pinch roller has been removed & reconditioned for positive grip. Importantly entire internal transport disassembled, cleaned of old grease & re-lubed where necessary. We also burnished the capstan, heads have been cleaned and de-magnetized as well as the entire transport. Also both hubs / reel tables have been disassembled, cleaned & re-lubed. Both spindles in perfect alignment and now spin freely. Volume control cleaned for cleaner performance. Heads in great shape as well, with many years of performance left in them and head alignment / azimuth has been checked for peak performance. Plays and records well. Pinch roller and heads all in GREAT condition. Speed checked to 99.5% accuracy with factory speed test tape and our frequency counter.
We
are including THE original CRAIG AC adaptor to power it, so no need to use with batteries. This unit was very clean and well cared for when we started on it. Cosmetically
in near new condition!
  ____________________________


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

  Features include:


- Dual tape ...adaptor - included)
- Plays up to...
 - AL...
- Input...
 - Single "T" ...
 - Built-in...
 - "Line Out" can be achieved via....


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


  Utilizes 6 C-cells, but we are including the AC power supply so no need for batteries.
Again, deck has been gone through and all works great now
(Total technician time investment in refurb ~ 3.5 hours) Great for...


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

All of our restored / refurbished reel to reel decks come with a 7", plastic take-up reel, a 'known good' 7" tape for initial testing of playback, and a 7" tape you can record onto, all to assist you in becoming familiar with the operation / function of your new reel to reel tape deck.
Again, includes AC power adaptor, 'Line-Out' cable and a take-up reel. This one comes with it's original box and packing as well!!!
 Measures 10" wide x 8" deep x 3" thick and weighs ~ 5lbs.
 CRAIG 212 Mini-Reel to Reel

 Condition 8.5+++
SOLD 10/21/16
SHIPPED TO FLORIDA




 (Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)








NEW LISTING 6/11/10
(Click on above thumbnails to enlarge photos)

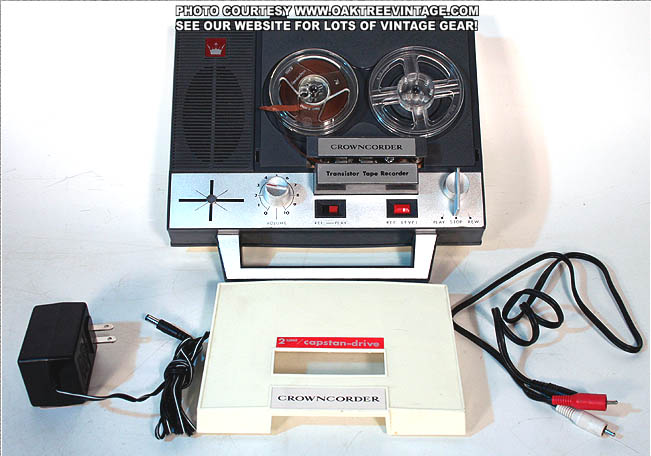

CROWNCORDER

REEL TO REEL
PORTABLE / TRANSISTOR
 1/4" MONO TAPE DECK
MODEL CTR-5300
2-SPEED
2-TRACK / 1 CHANNEL

 2-3" REEL CAPACITY
R
W/ BUILT IN AMP & SPEAKER
 Circa
1969
SOLD 7/13/10







(Click on above thumbnails to enlarge photos)

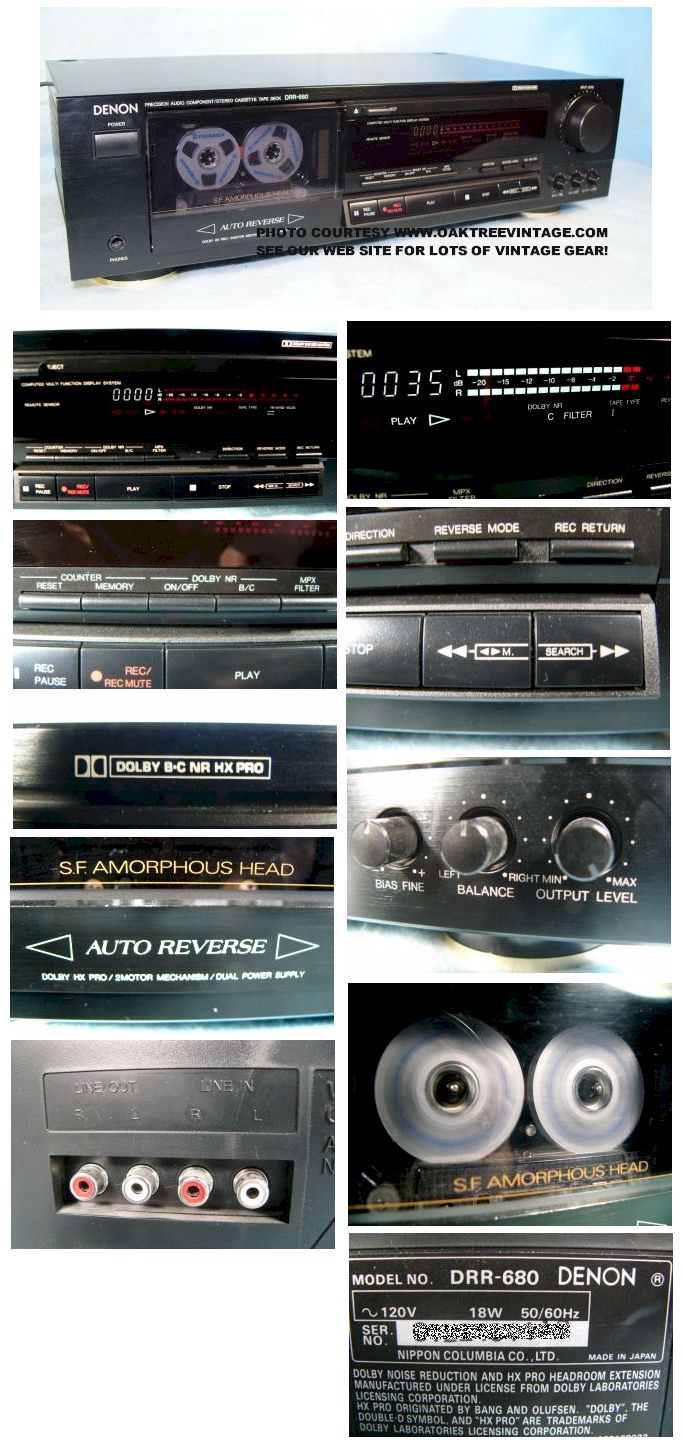

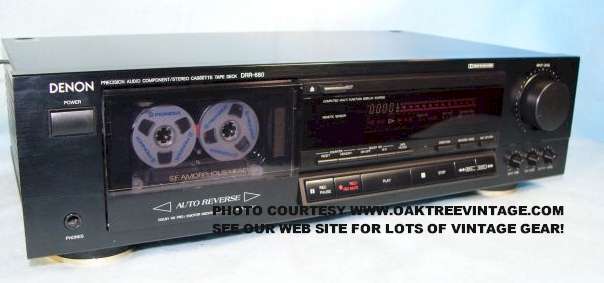

DENON STEREO CASSETTE TAPE DECK
DENON DRR-680
SOLD 6/19/06










NEW LISTING
12/19/17
 (Click on above thumbnails to enlarge photos)
PRE-APPRECIATED
FULLY SERVICED

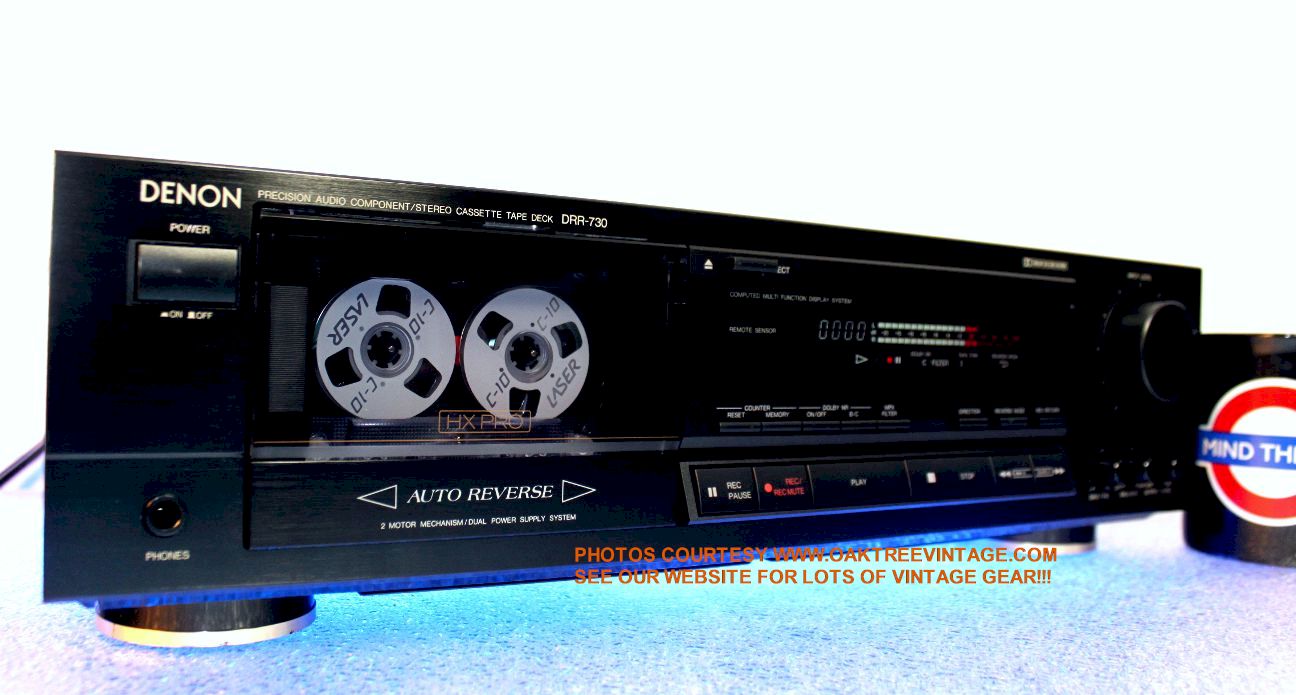

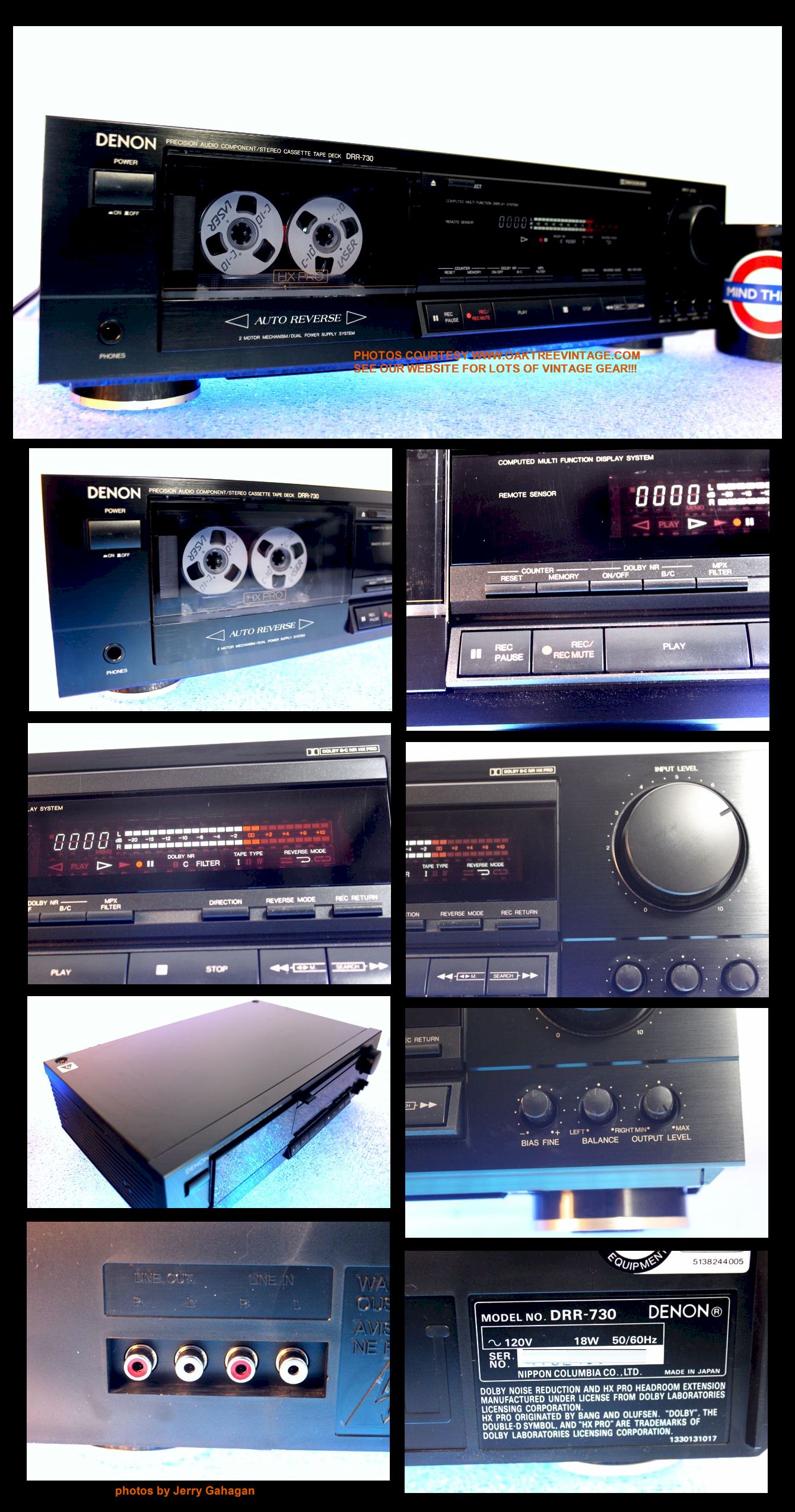

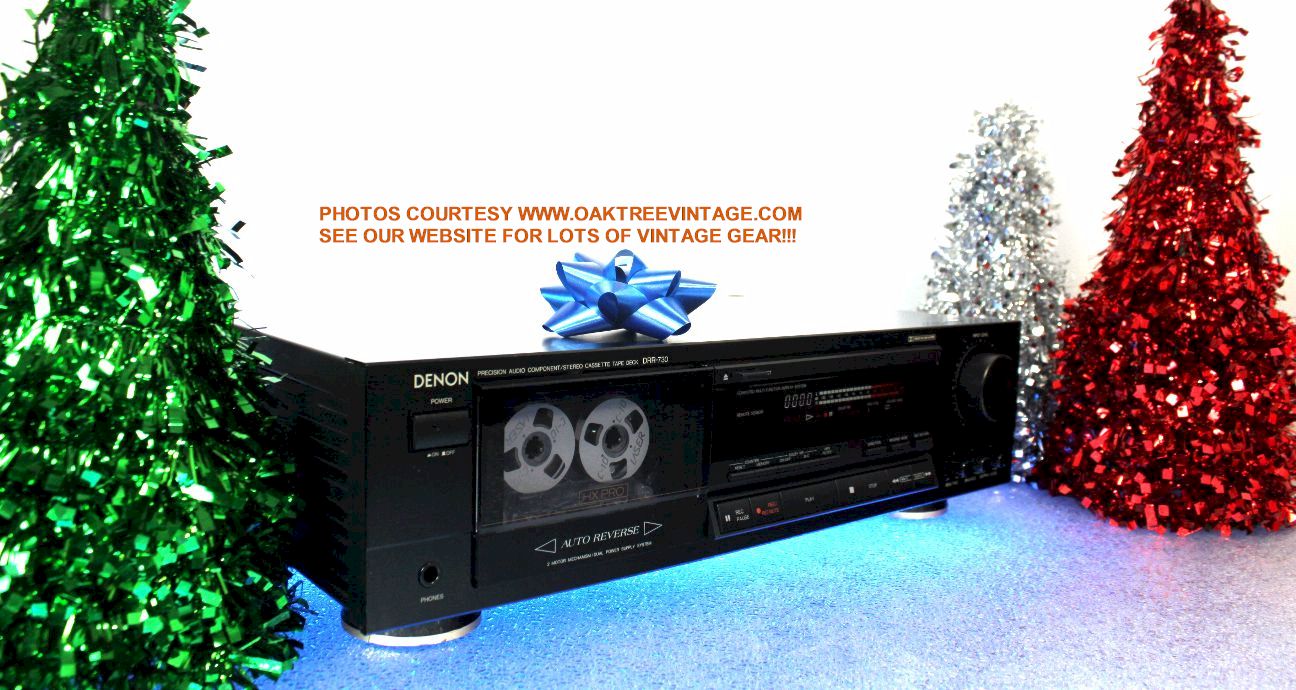

DENON CASSETTE DECK
DENON DRR-730
AUTO-REVERSE
STEREO CASSETTE TAPE DECK
With DOLBY B & C
& HX PRO

Circa 19
92-97
Made in Japan

 2/5/18
SHIPPING TO NEW MEXICO


ü Our technician has completely and EXTENSIVELY gone through and 'Certified' this unit which involves complete removal and partial disassembly of the entire transport, cleaning inside and out, DISASSEMBLING, cleaning and re-lubricating all internal mechanisms and the balance of efforts listed below.

ü Heads inspected for excessive wear (obviously we do this 'early on' as 'excessive' wear will usually negate any further restoration work).

ü Head rotating gear inspected with a jewelers loop prior to starting any restoration work, and found to be 'hairline' crack free.

ü All 'reel drive' tires reconditioned for years of trouble-free service.

ü All new internal Drive and Counter belts replaced for years of trouble-free service.

ü Rubber pinch roller has been reconditioned

ü Capstan burnished

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Head alignments and azimuth at both 1kHz and 10kHz adjusted for BOTH directions for 'peak performance' with O-Scope

ü All internal pots, switches and controls cleaned and tested for noise-free function.

ü Both spindles in perfect alignment.

ü Heads are in great condition

ü Internal playback levels adjusted for even playback w/ alignment tape, Oscilloscope, and mVAC meter

ü Playback meters adjusted for 'playback' zero'd with factory test tone tape.

ü Internal Record amplifier channels adjusted for 'even output'

ü Pinch roller and heads all in GREAT condition!!!

ü Speed adjusted to 100% accuracy BOTH directions, with 1kHz factory calibration tape (meaning 1kHz calibration tape plays back at 1000Hz +/- 1Hz)

ü FF, REW, & Play transport functions all test perfectly and controls tested for 'positive / accurate' responsive.

ü Eject door operates smoothly.

ü ALL Tape Counter Functions tested

ü Dolby B & C NR circuits / function tested

ü 'Memory / Zero Return' function tested

ü Cosmetics are LIKE NEW!

ü Plays perfectly and after adjustment, records very well at -1dB! on about any formulation of tape. We did 'test recordings' of Pink Noise and 'ddd' CD's on 6 tapes; Sony Normal Bias, Fuji Normal Bias, TDK Normal Bias, Maxell Normal Bias, TDK 'SA' High Bias, and Maxell 'XL-II' High Bias. We found that they all performed VERY well on this particular deck. We did however find that the deck likes to record at about -10dB on the meters, for 'smoother saturation' of tape. Again, we really didn't have a favorite, plus the deck has adjustable Bias (although we left it 'centered' for our tests).
Total technician time to restore 8+ HOURS!

Again, as mentioned above, our tech has gone through it completely cleaning all parts, controls and tape mechanism. We also checked, cleaned, reconditioned and / or replaced rubber components. We completely de-magnetized the heads and transport. Capstan motor speed adjusted to exact spec! Tape speed re-adjusted to 100% accuracy, ie; 1 kHz = 1 kHz! Test records incredibly well and plays back at -1 dB down!  Looks NEW and sounds great! Great for transferring your tape collection to CD, Hard-drive or MP3. Test plays and Records extremely well. Very clean deck and usable deck! Measures 17.25" w X 11" d X 5" h and unpacked weight is 10 lbs. Comes with our 30 day limited warranty.
DENON DRR-730
 Cond. 9

 2/5/18
SHIPPING TO NEW MEXICO

(tape shown in photos not included. We do ship our decks with a  a 'pre-recorded' tape for playback, made on this 'specific' deck, and a tape to 'practice record' on.)

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)












           NEW LISTING 9/29/17

(Click on above thumbnails to enlarge photos)

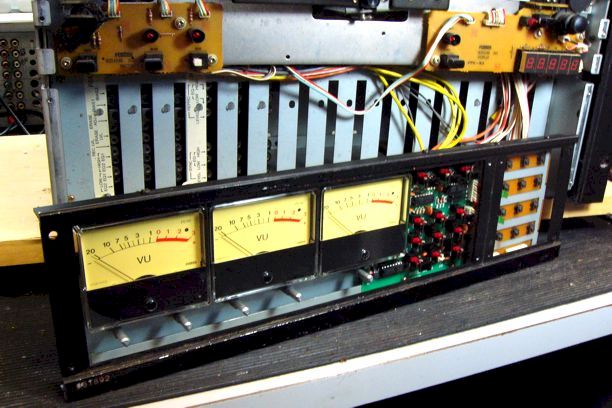

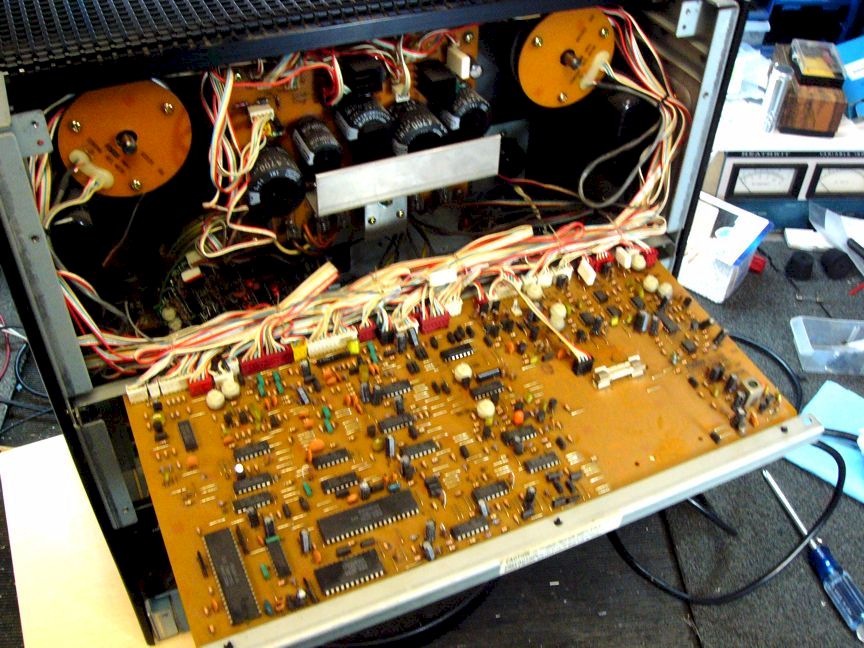

FULLY (EXTENSIVELY SERVICED / REFURBISHED

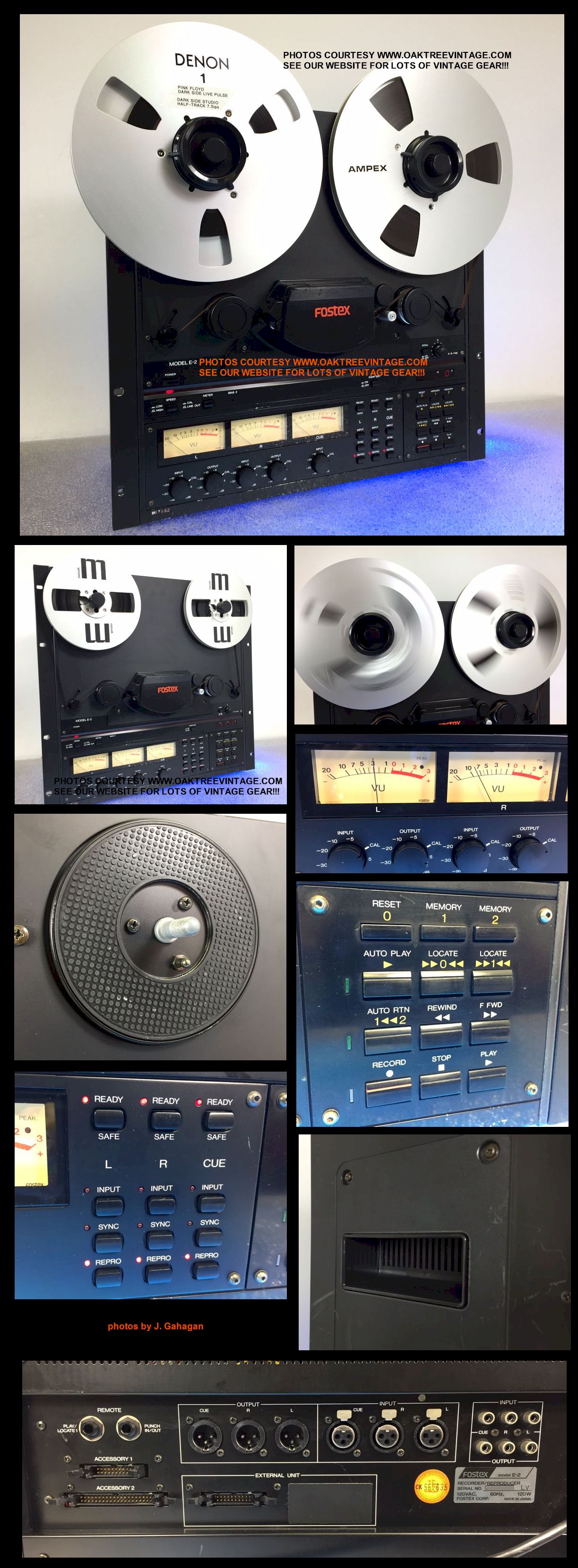

PROFESSIONAL FOSTEX
REEL TO REEL TAPE DECK
FOSTEX E-2 / E2 'MASTERING DECK'
#...1783
2-TRACK ('HALF TRACK')
(2-CHANNEL w/ CENTER 'QUE / SYNC' / TIME CODE TRACK /
STEREO) / 1-CHANNEL MONO
3-HEAD / 2-SPEED / 3-MOTOR
10.5", 7" REELS AND / OR *SMALLER
'MASTERING' R2R
1/4" TAPE DECK
W/ 'CUE / SYNC' TRACK
MIJ
SOLD 1/17/20
SHIPPED TO RICK IN MICHIGAN

ü Our technician has completely gone through and 'Certified' this unit.

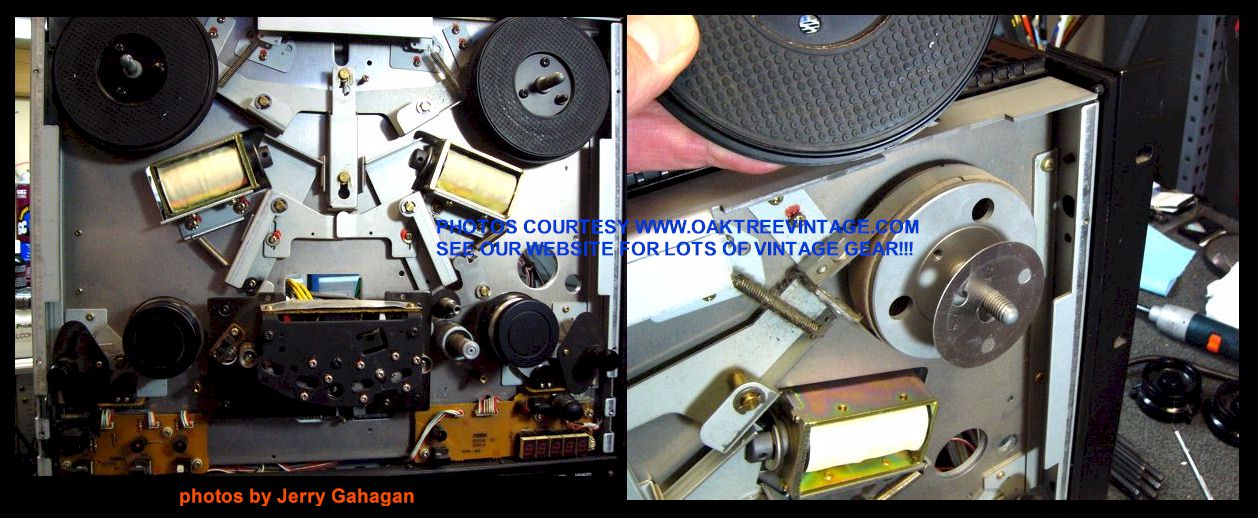

ü We have completely and extensively gone through the mechanicals and electronics of this unit.



ü Transport was cleaned, re-lubed and reassembled



ü Tape Tension arms disassembled, cleaned and re-lubed, and their springs adjusted and had fresh 500,000 grade silicone lube gel applied

ü pinch-roller mechanism completely disassembled, cleaned and re-lubed,

ü
 PR mechanism solenoid mounts adjusted

ü Capstans / flywheels removed, bushings and axels cleaned and re-lubed

ü Rubber pinch rollers removed, re-conditioned and re-installed with fresh lubricant

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Brakes adjusted on fast wind modes also (optimized for 7" & 10.5" tape.)

ü Back tension adjusted on both reel motors.

ü All three motors test perfectly. Following above adjustments, Reel Start and Stop tested at beginning, middle and end of 7" & 10.5" tapes (VERY QUICK FAST WIND ON THIS ONE)

ü Internal pots, switches and controls cleaned and tested for noise-free function




ü We adjusted the VU meters mechanically and electronically w/ factory test tone tapes, as well as the internal playback and record levels.



ü Both spindles in perfect alignment.

ü We also adjusted the reel table heights.

ü Heads are in great shape w/ very little wear observed. Many years of performance left in them.

ü Playback and Record Head alignment / azimuth was adjusted for peak performance with factory test tone tape and oscilloscope.

ü Following refurb / service mechanicals tested for 'play torque' at beginning and end of largest size reels, as well as 'Fast wind torque' and 'braking tension' in both FF and REW, at beginning, middle and end of tapes. In other words, every combination of transport function was tested and passed.

ü Speed tested to 99.9+% accuracy following refurb (meaning that our 'verified' 1000Hz test tape now plays back at 1000 +/- 1Hz).



ü Adjusted to record AMAZINGLY WELL at +2dB both with 1kHz, then 100Hz to 20kHz test and in 'Real World' use. (Tested with Ampex 456, Maxell UD 35-90, and Denon Tape). (We actually used it to record a fabulous copy of Pink Floyds, "Dark Side of the Moon", 'Live version' from their "Pulse" album for ourselves)

ü Floor noise measured at >-60dB w/ blank tape, L&R

ü This FOSTEX E-2 functions, plays, and records VERY WELL (and we really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy).  (Total time investment in refurb / testing ~ 10.5 hours).

This is an amazing deck for both recording or playback, again of 'Half-Track / 2-Track' tapes for speeds of 7.5ips or 15ips. Following refurbishment, the deck looks and works great!

The Fostex E-2 Stereo Reel to Reel tape deck. Ready to GO! This is one of the few reel to reel decks we get in that make it to our finished page. Following our refurb / bench time it's now an AMAZING performer (Check the 'recording test results' above and the 'specs' in larger text below). If you're looking for a reel to reel deck to "actually use" here you go. Only about 25 % of the used Reel decks out there can be "practically" restored to working order. This one made it through with flying colors after about 11 hours of bench time.

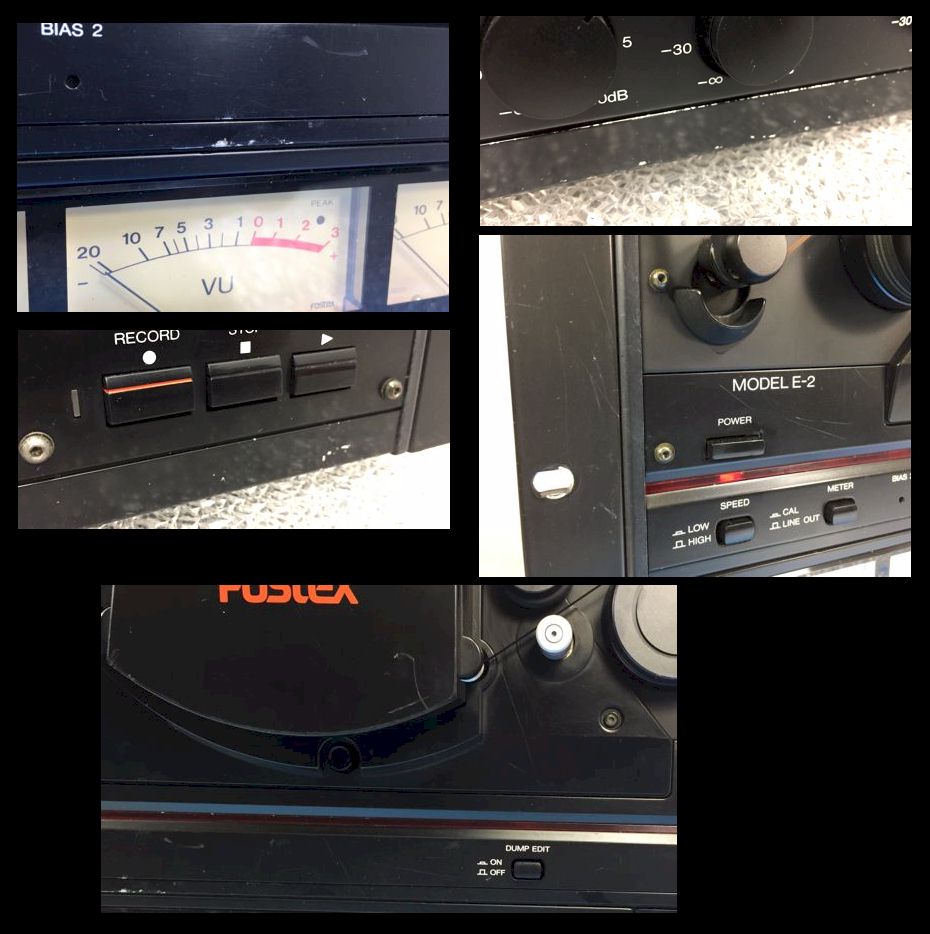

The deck tests great! Cosmetically it's in good condition, with a few minor scuffs & scratches (see separate photo collage above). Looks decent and sounds great ! We have completely gone through it. Will play up to 10.5" reels.

.....

 Includes Rack Ears and original, Fostex NAB hubs for ALL tape sizes.  Comes with an 'e-copy' / pdf download of the
FOSTEX E-2 owners / operations manual, service manual if purchaser so desires. Includes our standard 30 day limited warranty. (Reels & tape shown in photos not included. All are sometimes available separately if you need them. We do ship our decks with a plastic take-up reel, a tape to 'practice record' on and a 'pre-recorded' tape for playback.)
FOSTEX E-2 HALF-TRACK REEL TO REEL TAPE DECK
Cond. 8.5+

SOLD 1/17/20
SHIPPED TO RICK IN MICHIGAN
(Cons.)
M.R.

(Reels shown in photos are not included, but we sometimes / occasionally have them for sale. Inquire at time of order.
However, all of our decks will come with 2x tapes for testing 'Playback' and 'Recording' as well as a 7" 'take-up' reel, and RCA patch cables for connection to your system
)



 (Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)

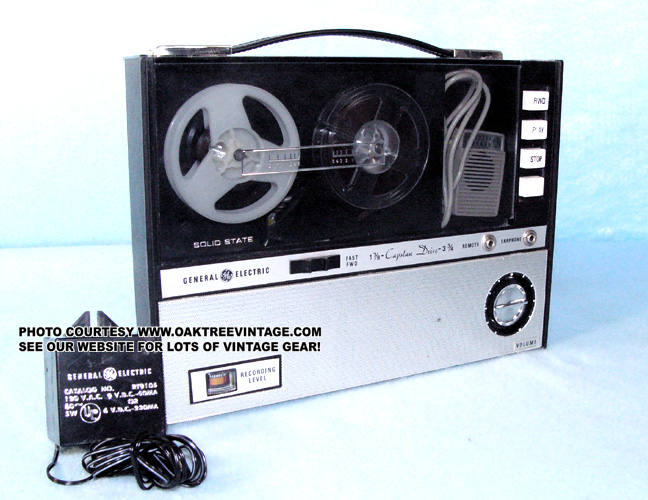

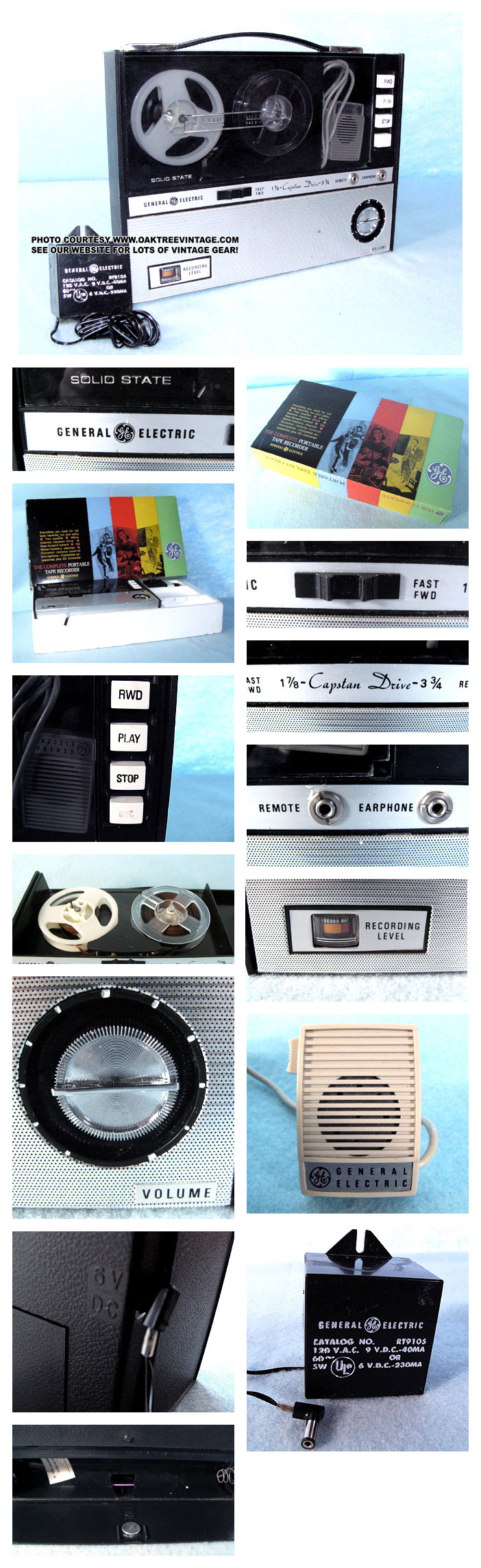

GE
MODEL
M-8080
MINI R2R TAPE DECK
SOLD 6/1/06 TO AMERICAN GANGSTER PROPS










             NEW LISTING 10/12/17
 (Click on above thumbnails to enlarge photos)

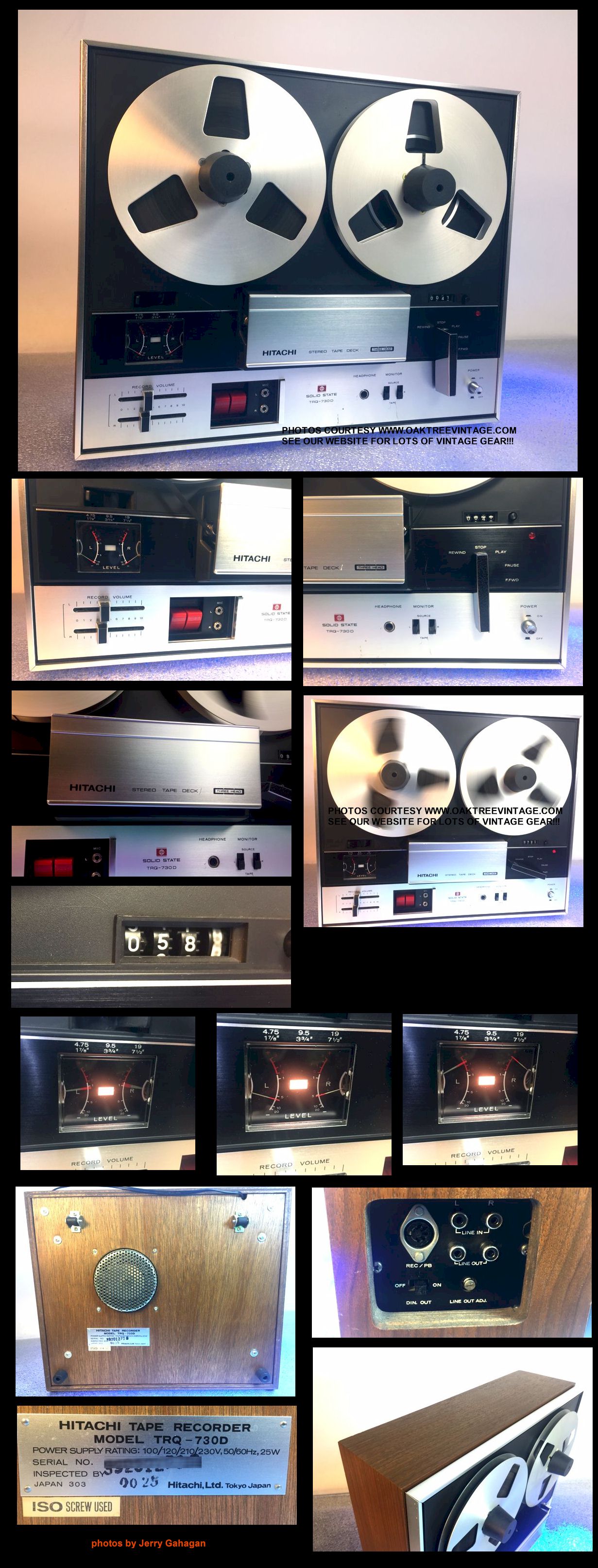

RESTORED / REFURBISHED / FULLY SERVICED
VINTAGE

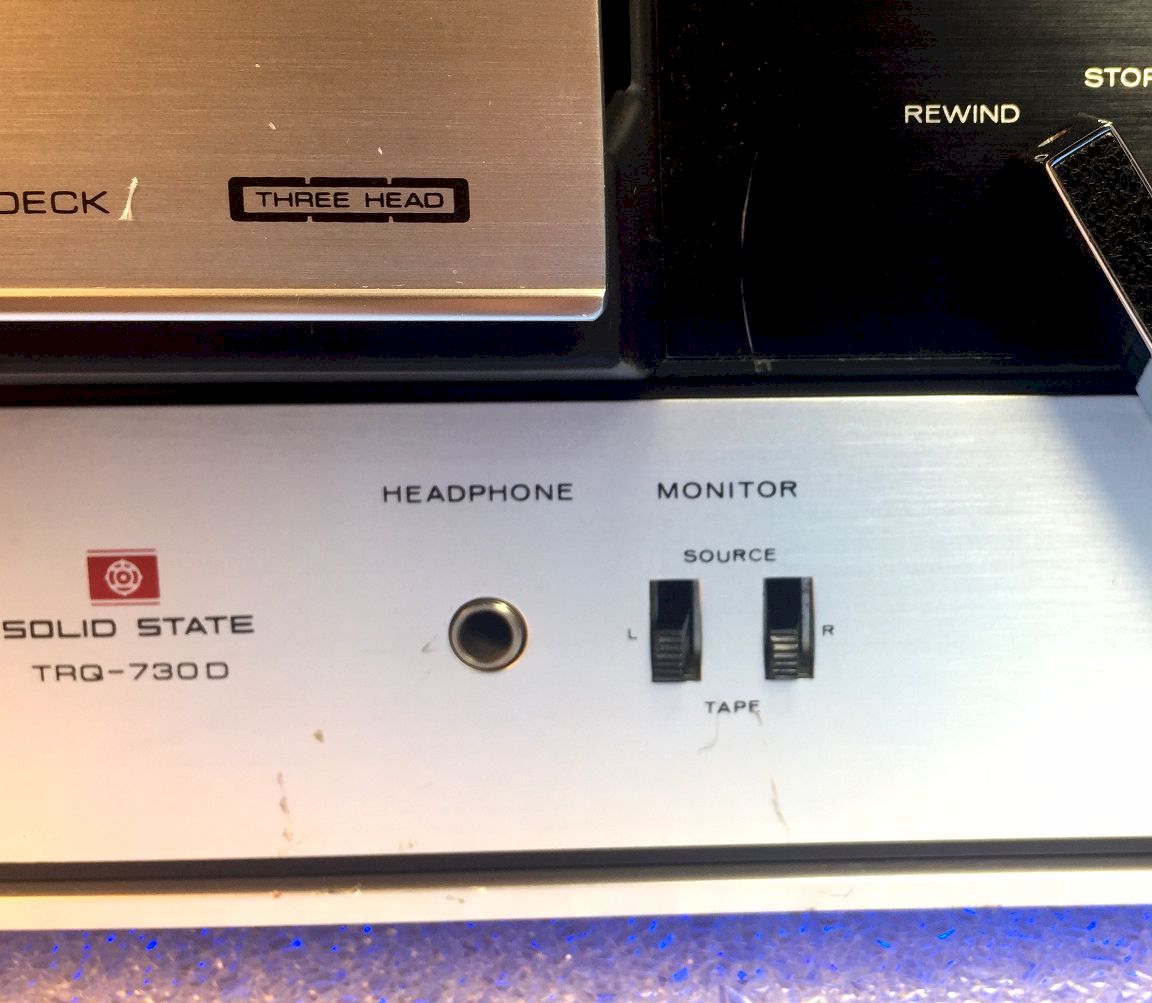

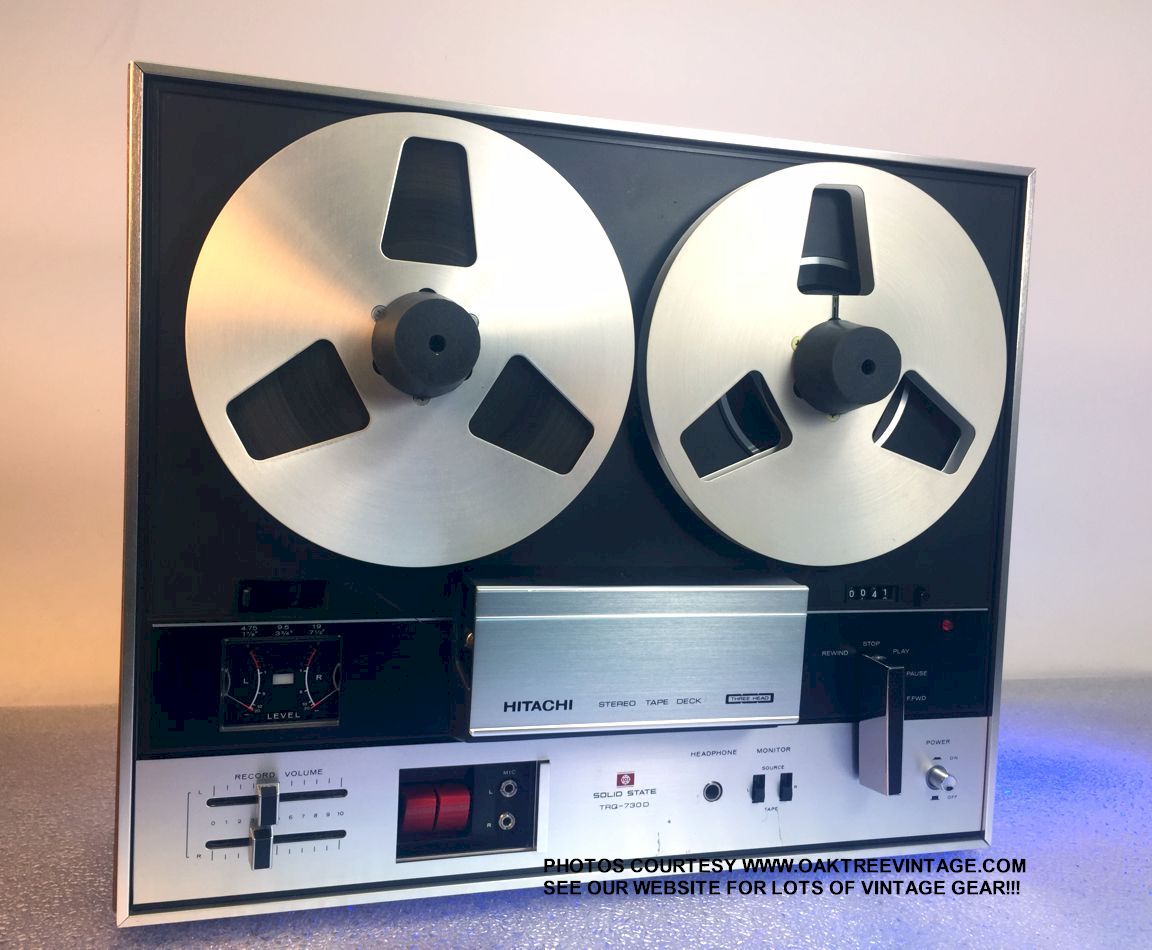

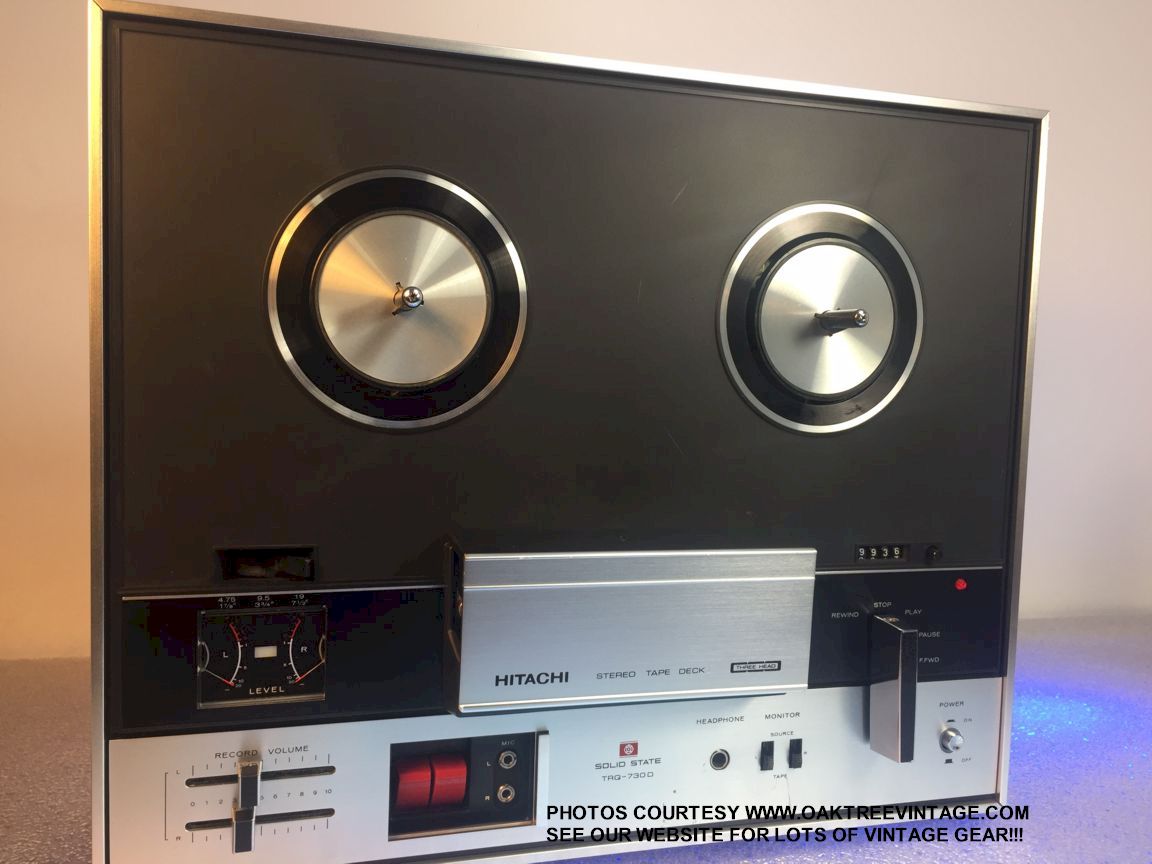

HITACHI REEL-TO-REEL 1/4" STEREO TAPE DECK
HITACHI TRQ-730D
4-TRACK / 2-CHANNEL STEREO
3-SPEEDS / 3-HEADS
3"- 7" REEL CAPACITY
 #...1270B
 Circa 1972-77
"WORLD AC POWER"
(HAS A 50Hz CAPSTAN SLEEVE, SO UNLESS YOU'RE ONLY GOING TO BE MAKING TAPES ON THIS MACHINE, AND PLAYING THEM BACK, EXCLUSIVELY ON THIS MACHINE, THEN ONLY FOR SALE TO NON-AMERICAN LOCALES. MUST HAVE 50Hz POWER FOR PROPER PLAYBACK OF FACTORY PRE-RECORDED / PREVIOUSLY RECORDED TAPES)
MIJ
SOLD
SHIPPED TO WAYNE W. IN NEW ZEALAND

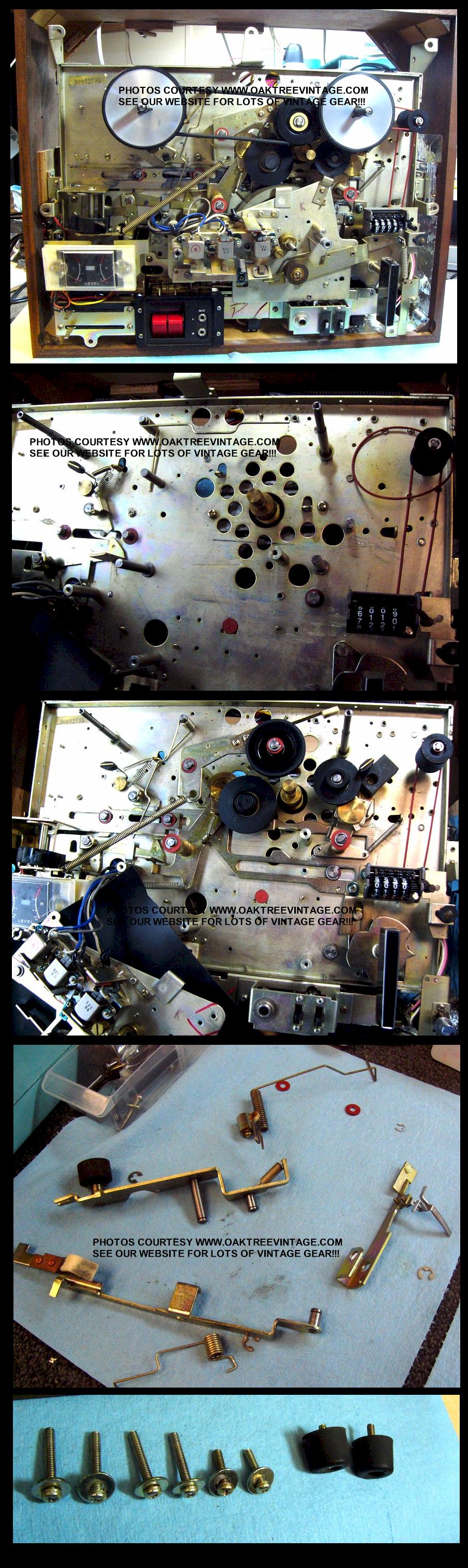

 Our technician has completely gone through and 'Certified' this unit.

ü  We have completely and extensively gone through the mechanicals and electronics of this unit.

ü  Entire transport was disassembled down to the chassis, and every mechanical part was cleaned of "varnished" lubes and re-lubed as well as the always at issue, Pinch Roller plunge assembly, re-lubed and reassembled.

ü  Rubber pinch roller has been reconditioned

ü  All internal drive tires / wheels burnished / conditioned for positive grip

ü  Capstan burnished.

ü  Both counter belts replaced with NEW for trouble-free service.

ü  Both reel hubs / clutches removed, disassembled and re-lubed.

ü  Supply Idler wheel shimed / modified, and bushing greased to reduce chatter on 'fast wind' modes.

ü  All hub brake pads have been replaced, and their bearings re-lubed and adjusted on fast wind modes also.

ü  Motor has been re-lubed as well.

ü  Internal voltage will be set to desired voltage prior to shipping, but currently at 120VAC / 50Hz (We're 60Hz in America).

ü  All Internal & External pots, controls, & switches (including the linear 'record' switches) cleaned and tested for noise-free function.

ü  Both spindles in perfect alignment.

ü  We also adjusted the reel table heights for no "reel rub".

ü  Pinch roller reconditioned / re-surfaced.

ü  VU meter illumination lamps both test fine.

ü  Internal 'Bias', 'Record-Level' and 'PB' micro-pots cleaned EXTENSIVELY and levels adjusted.

ü  Heads were cleaned and de-magnetized as well as the entire transport.

ü  Head alignment / azimuth has been checked for peak performance with factory test tone tape and oscilloscope.

ü  Both level meters adjusted for even playback level w/ factory test tone tape.

ü  Floor noise tested to >-51dBm w/ fresh, blank tape on PB.

ü  Plays and Records GREAT @ +1dB ! with 'ddd CD material' (tested with Ampex 641 Normal Bias tape)


ü  Speed checked to 97% accuracy.

ü  Following the above procedures, entire unit was detailed inside and out including 'REAL' wood veneer cabinet having lemon oil treatment.

 Again, Pinch roller and Heads all in GREAT condition.



 (Total time investment in refurb / testing ~ 19 hours).
 Cosmetically in fabulous condition!
 ____________________________



Again this deck has been completely gone through and...


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

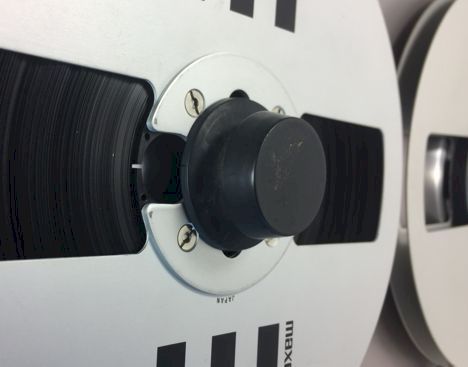

Comes with one pair of NEW rubber reel retainers.
Includes our standard 30 day limited warranty.
Measures 16.20" wide x 7" deep x 13.3" tall and weighs 24 lbs unpacked. (Reels & tape shown in photos not included. All are usually available separately if you need them)
Hitachi TRQ-730D REEL TO REEL
Cond. 8.5
SOLD
SHIPPED TO WAYNE W. IN NEW ZEALAND

Again, this is a 50Hz deck, so unless you are only interested in playing tapes you record on this deck, it's only for sale to 'non-American' locations ("Non-American" meaning 'North', 'Central', or 'South America as the 'West' is mostly '60Hz' AC power)


(Reels shown in photos are not included, but we sometimes / occasionally have them for sale. Inquire at time of order.
However, all of our decks will come with 2x tapes for testing 'Playback' and 'Recording' as well as a 7" 'take-up' reel, and RCA patch cables for connection to your system
)



 (Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)







NEW LISTING
(Click on above thumbnails to enlarge photos)

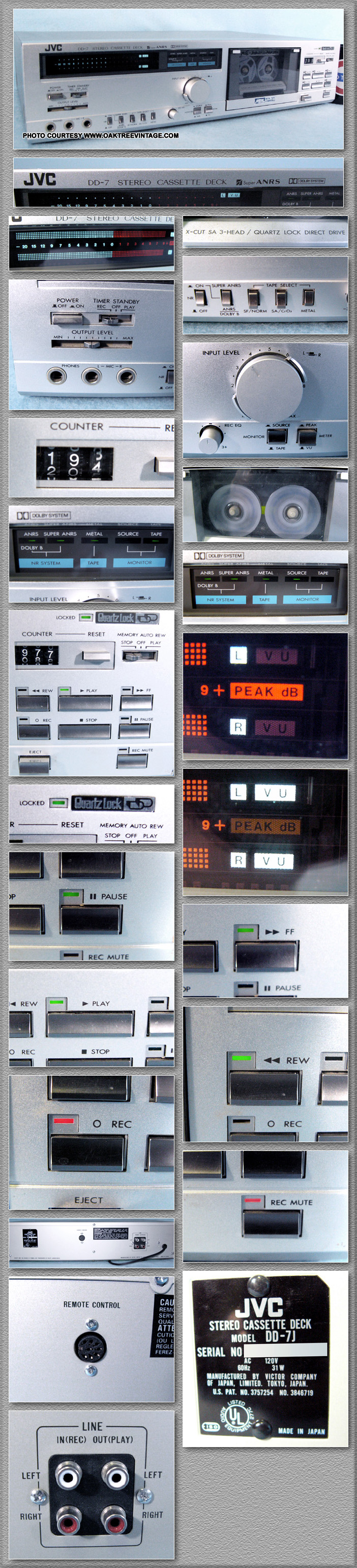

JVC STEREO CASSETTE TAPE DECK
JVC DD-7 / DD7
 SOLD 5/2/07










NEW LISTING 5/15/07
(Click on above thumbnails to enlarge photos)

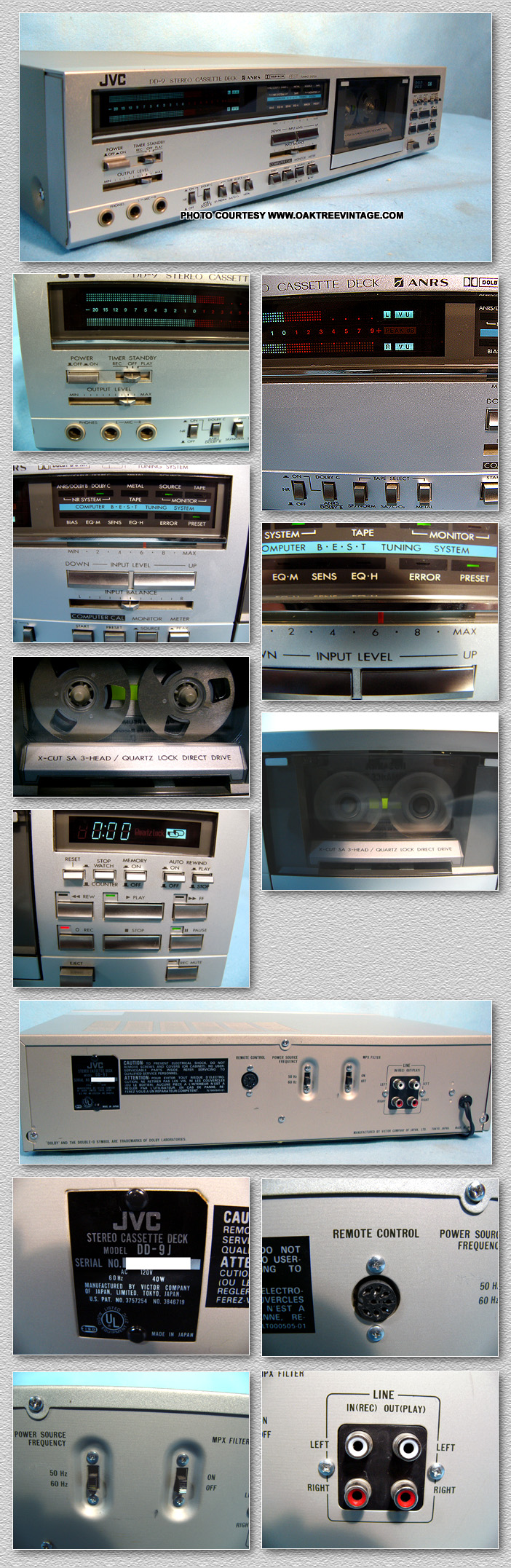

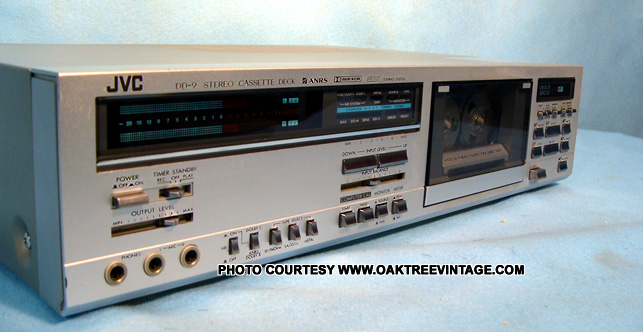

JVC STEREO CASSETTE TAPE DECK
JVC DD-9 / DD9

3-HEAD
QUARTZ LOCK, DIRECT DRIVE

STEREO CASSETTE TAPE DECK

*"WORLD AC POWER"
SOLD 5/16/07

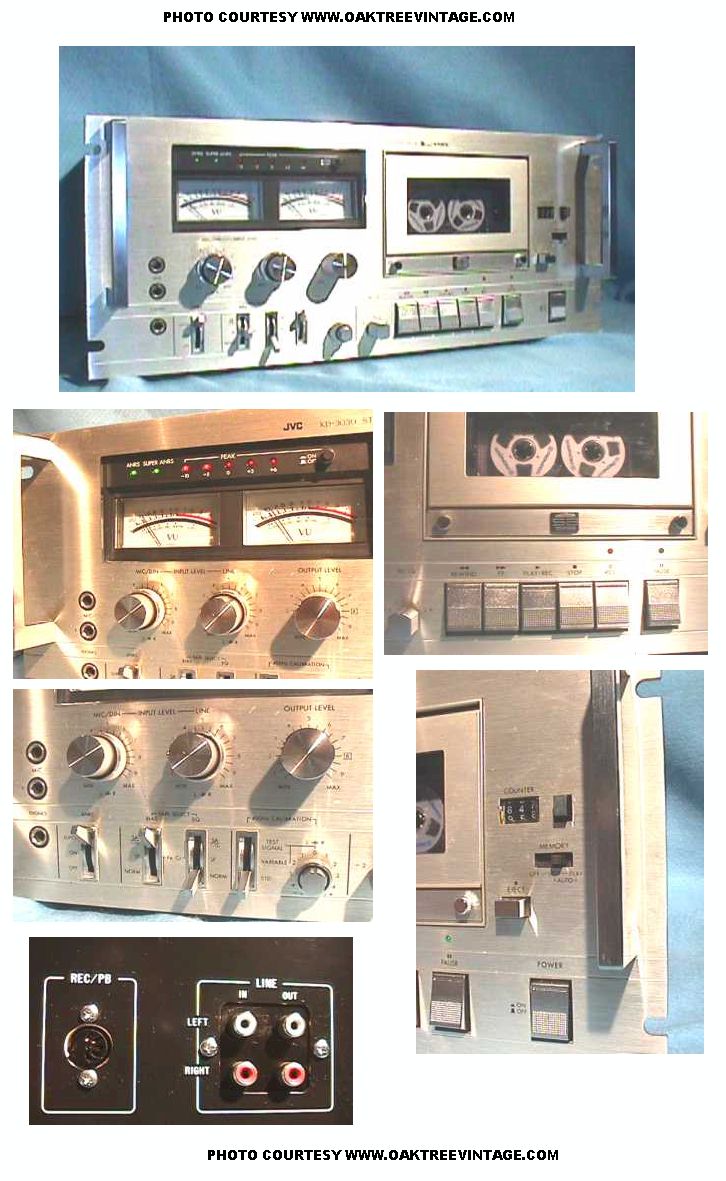

VINTAGE JVC CASSETTE DECK
JVC KD-3030J
Circa 1978-82
SOLD









NEW ADDITION 1/30/08
(Click on above thumbnails to enlarge photos)


PRE-OWNED / REFURBISHED
VINTAGE JVC CASSETTE DECK

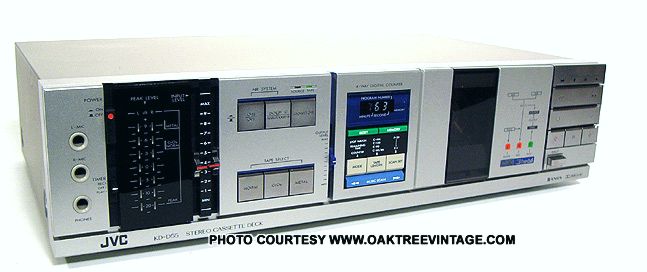

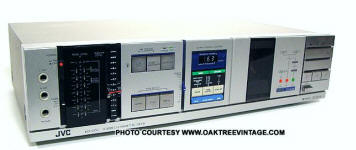

JVC KD-D55
#...1220

 3-HEAD
 STEREO CASSETTE TAPE DECK
 WITH DOLBY B & C

SOLD 2/27/08





-









NEW LISTING 6/29/05
(Click on above thumbnails to enlarge photos)

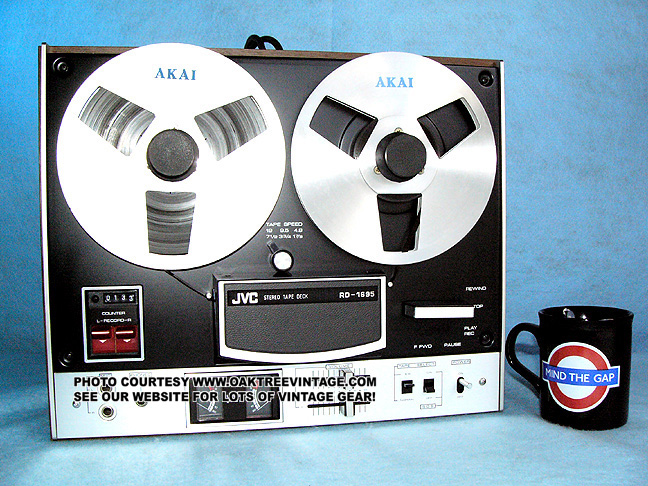

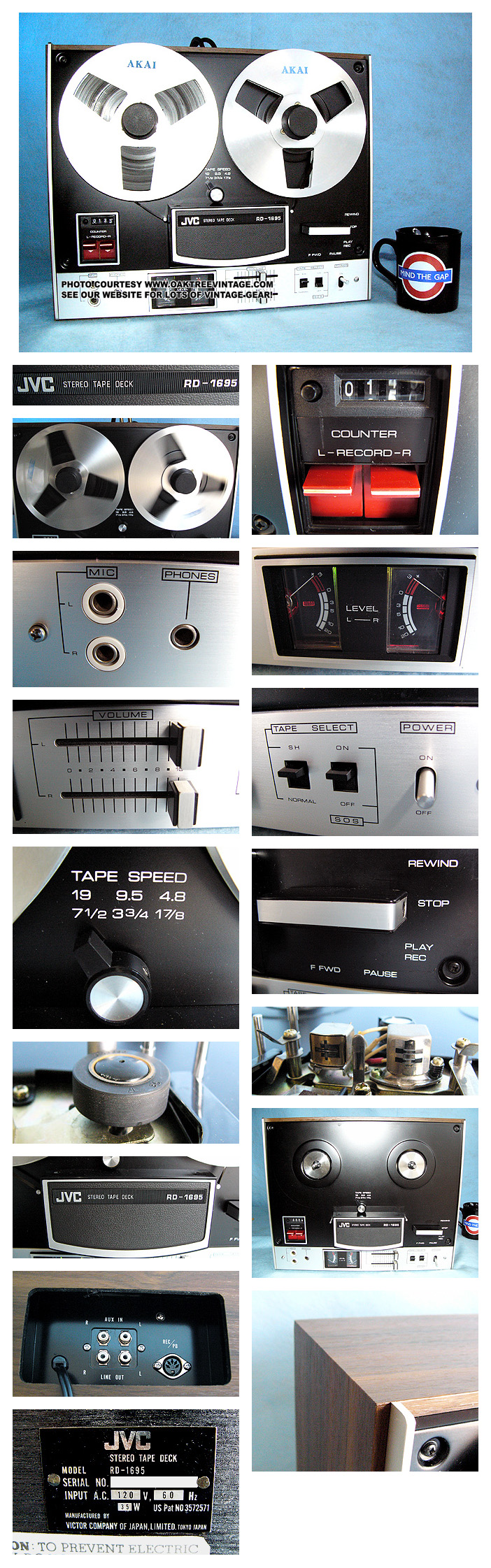

JVC REEL TO REEL TAPE DECK
JVC MODEL RD-1695

4-TRACK STEREO / 2-CHANNEL
3-SPEED
REEL TO REEL R2R
1/4" STEREO TAPE DECK

Circa 19
73-78
SOLD 7/14/05






NEW LISTING
2/26/2020

(Click on above thumbnails to enlarge photos)

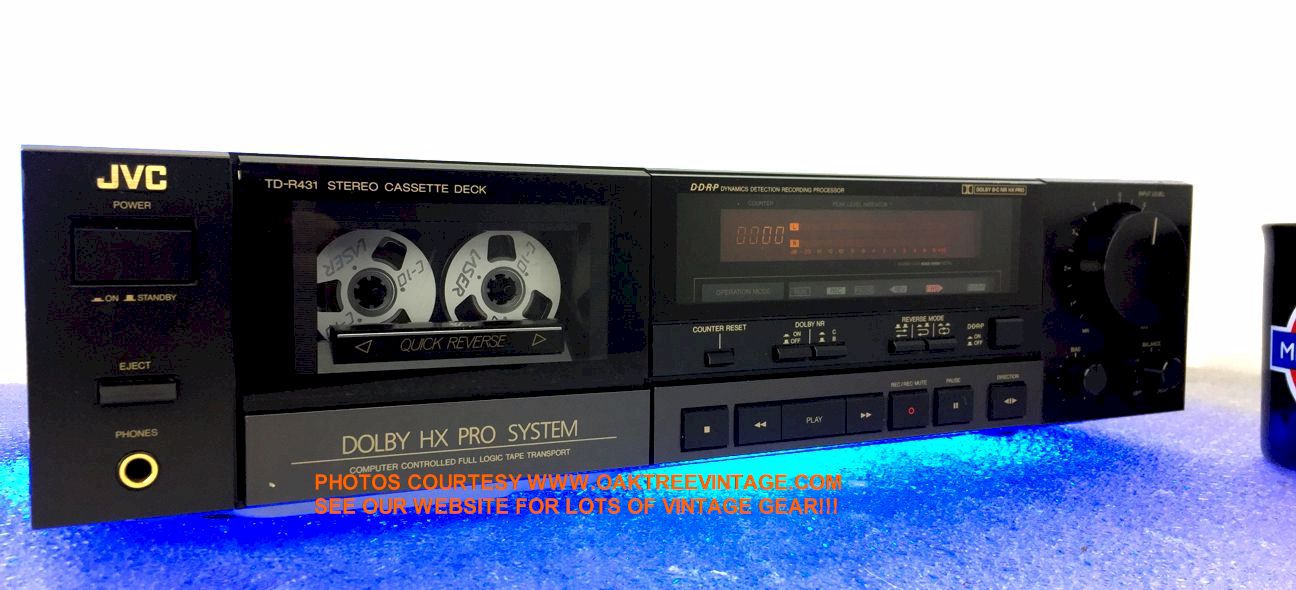

PRE-APPRECIATED
SERVICED & FULLY TESTED

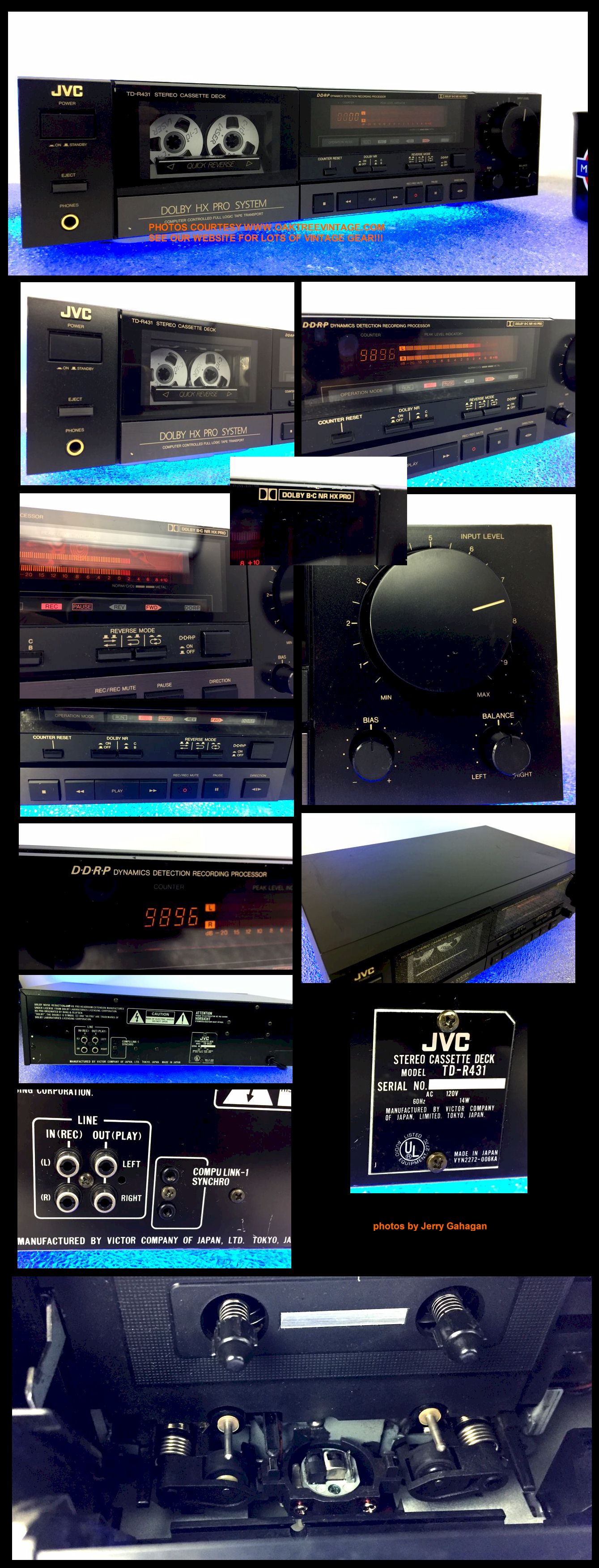

JVC CASSETTE DECK
JVC TD-R431
AUTO-REVERSE
STEREO CASSETTE TAPE DECK
With DOLBY B & C
WITH HX PRO & FINE BIAS
Circa 1991
Made in Japan

SOLD 3/6/2020
SHIPPING TO NANCY IN VERMONT


ü Our technician has adjusted, EXTENSIVELY tested and 'Certified' this unit

ü Heads inspected for excessive wear (obviously we do this 'early on' as 'excessive' wear will usually negate any further restoration work).

ü GEAR DRIVE reel tables, so none of the typical 'cassette deck' worries about sluggish Fast Wind or Tape Eating = trouble-free service.

ü Rubber pinch roller has been reconditioned

ü Capstans cleaned

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Head alignments and azimuth at both 1kHz and 10kHz adjusted for BOTH directions (averaged) for 'peak performance' with O-Scope

ü Heads are in great condition

ü Playback meters adjusted for 'playback' zero'd with factory test tone tape.

ü Head alignment and azimuth at 125Hz, 1kHz and 10kHz adjusted for BOTH directions for 'peak performance' with O-Scope and w/ SONY A100 and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü Both Internal playback amplifier channels adjusted with Volt meter, O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü Meters adjusted to even zero with symmetric input with Volt meter, O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü Both Internal Record amplifier channels adjusted with Volt meter, O-Scope and sine-wave generators and 'pink / white noise sources'. Both channels now even output.

ü Speed adjusted to 100% accuracy BOTH directions, with with TEAC MTT-257H 1kHz factory calibration tape (meaning 1kHz calibration tape plays back at 1000Hz +/- 1 Hz)

ü Pinch roller and heads all in GREAT condition!!!

ü Speed adjusted to 100% accuracy BOTH directions, with 1kHz factory calibration tape (meaning 1kHz calibration tape plays back at 1000Hz +/- 2Hz)

ü FF, REW, & Play transport functions all test perfectly and controls tested for 'positive / accurate' responsive.

ü Eject door operates smoothly.

ü ALL Tape Counter Functions tested

ü Dolby B & C NR circuits / function tested

ü Floor noise measured to -60dBm

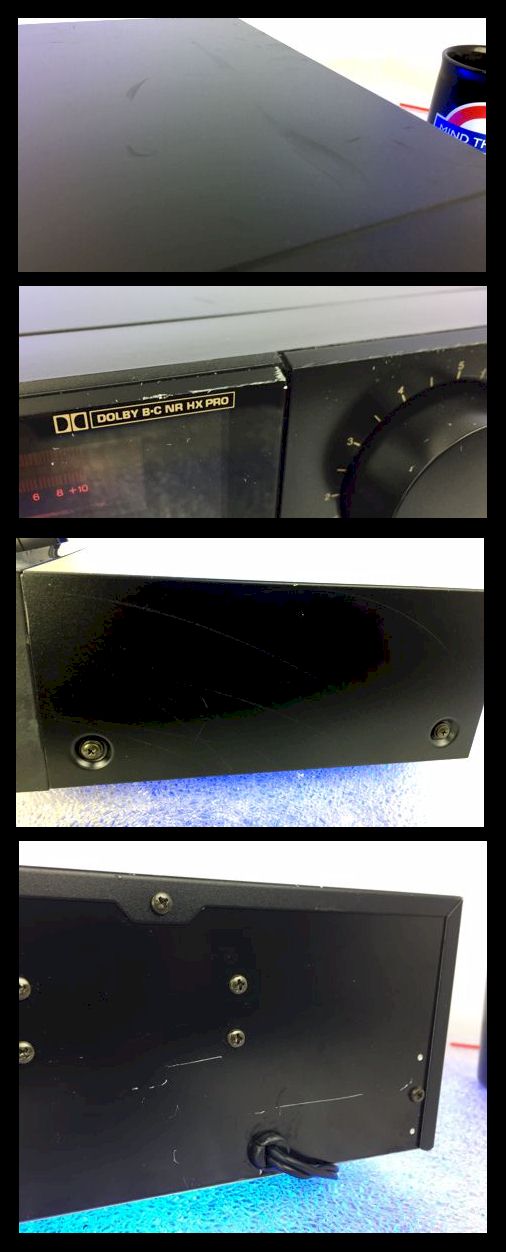

ü Cosmetics are decent with a only few scuffs / scratches

ü Plays perfectly and after adjustment, records very well at -2dB = 0dB down on about any formulation of tape (as it's got 'fine bias'). We did 'test recordings' of Pink Noise and 'ddd' CD's on Maxell 'XL-II' High Bias. We found that they all performed VERY well on this particular deck (and most decks). We did however find that the deck likes to record at about -20dB on the meters, for 'smoother saturation' of tape (which is the industry standard, we just like to 'push them'). Again, we really didn't have a favorite, plus the deck has adjustable Bias (although we left it 'centered' for our tests).
Total technician time to restore 3+
hours.

____________________________




Again, as mentioned above, our tech has done the service and testing mentioned above. We completely adjusted all meter, PB and REC internal levels and tape head azimuth . Capstan motor speed adjusted here to exact spec! Tape speed re-adjusted to 100% accuracy, ie; 1 kHz = 1 kHz! Test records incredibly well and plays back at 0 dB down when recorded at -2dB!  Looks good with just a few 'battle scars' and sounds great! Great for transferring your tape collection to CD, Hard-drive or MP3. Test plays and Records extremely well. Practical and usable deck! Measures 17.25" w X 11" d X 4.5" h and unpacked weight is 10 lbs. Comes with our 30 day limited warranty.
JVC TD-R431
Cond. 8

SOLD 3/6/2020
SHIPPING TO NANCY IN VERMONT

(tape shown in photos not included. We do ship our decks with a  a 'pre-recorded' tape for playback, made on this 'specific' deck, and a tape to 'practice record' on.)

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)











       NEW LISTING 9/13/08
(Click on above thumbnails to enlarge photos)

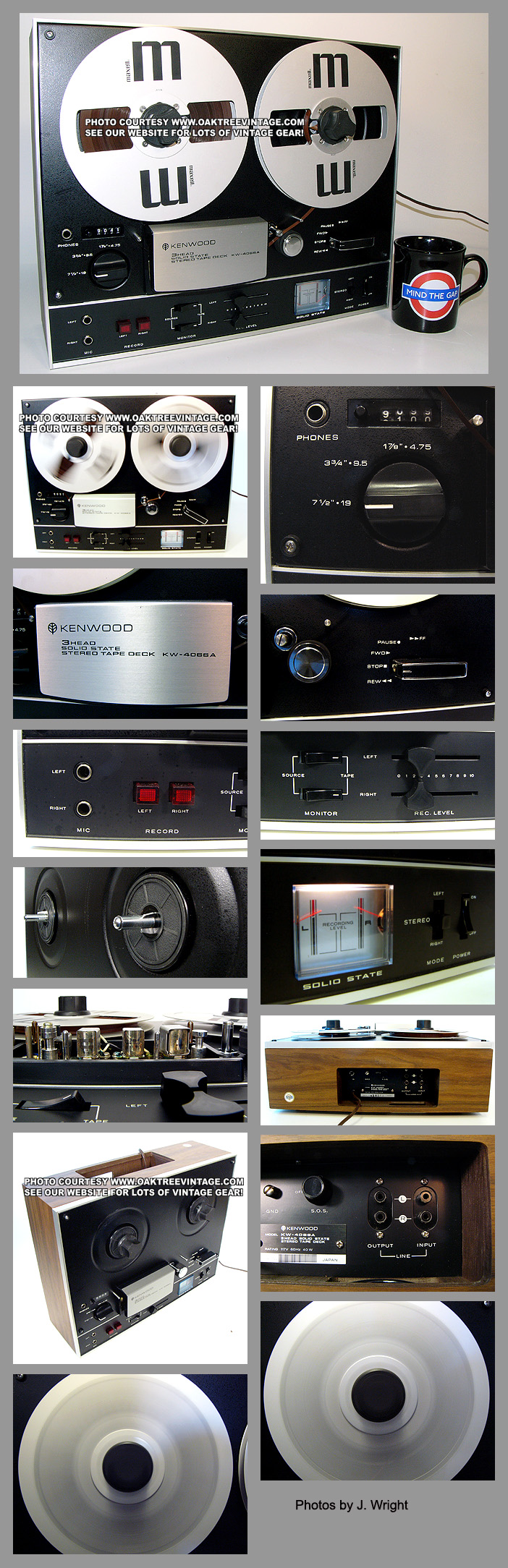

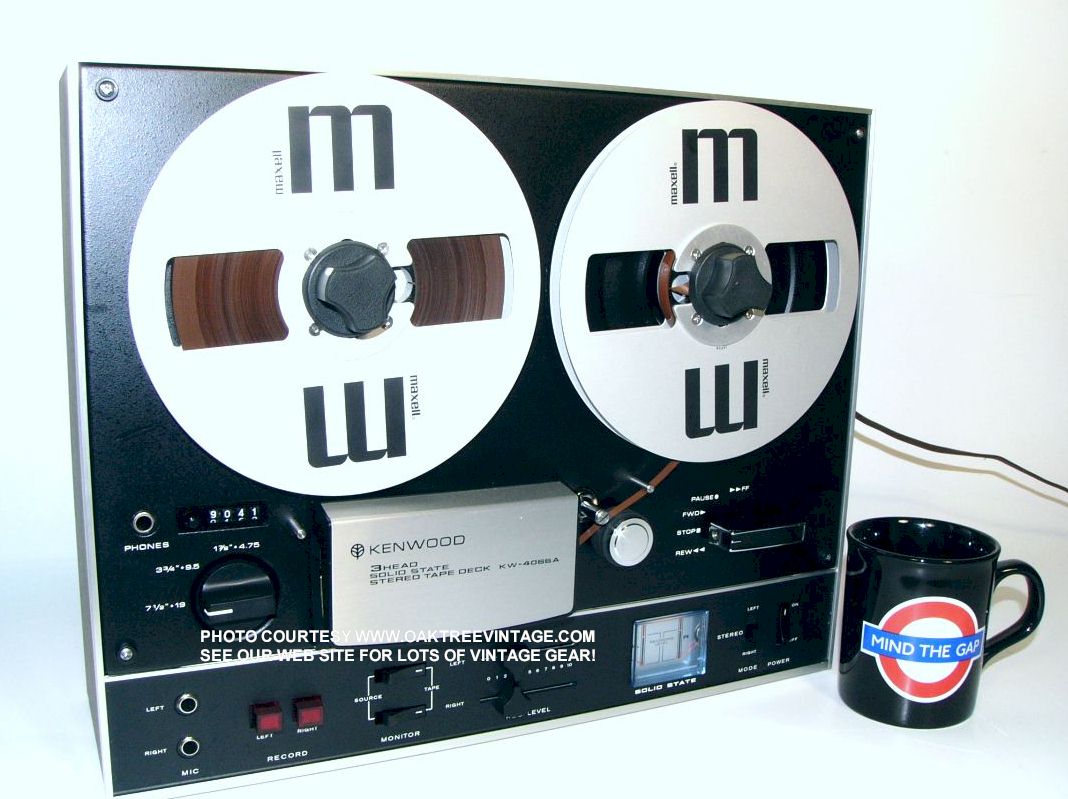

VINTAGE KENWOOD REEL TO REEL TAPE DECK
KENWOOD KW-4066A

 3-SPEED / 3-HEAD
STEREO
1/4" REEL-TO-REEL
TAPE DECK
CIRCA LATE 1970'S
MIJ

SOLD 12/5/08

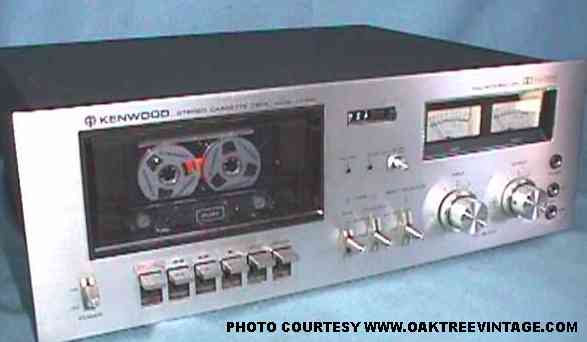

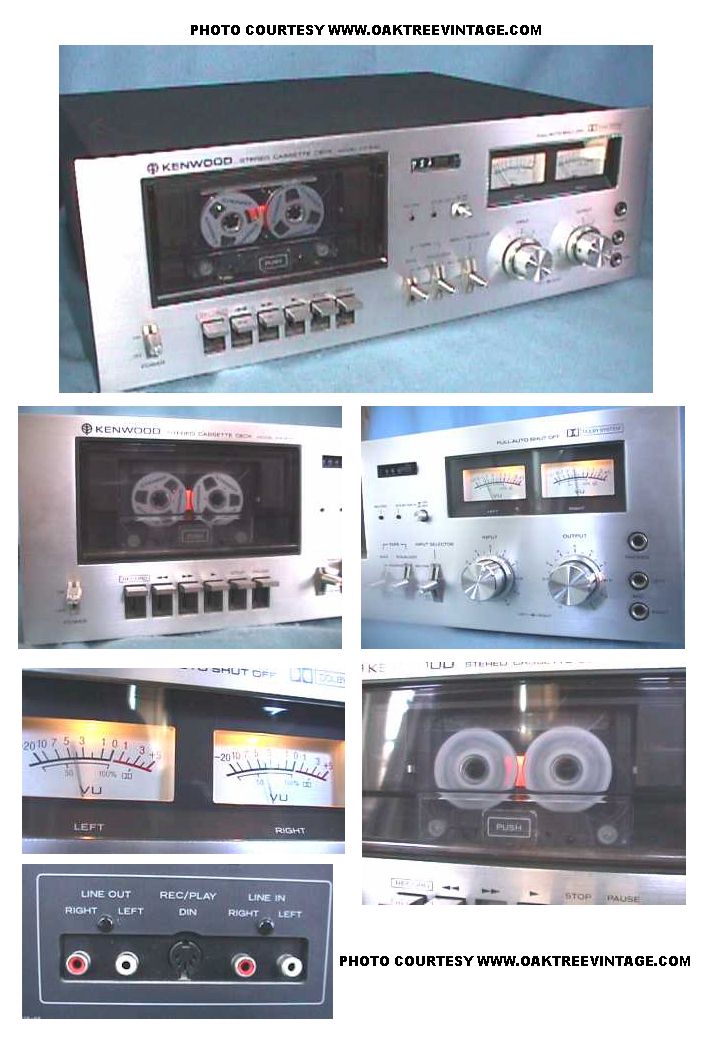

VINTAGE KENWOOD CASSETTE TAPE DECK
KENWOOD KX-630
SOLD





NEW LISTING 12/18/18
 (Click on above thumbnails to enlarge photos)

VINTAGE AND FULLY SERVICED W/ WARRANTY

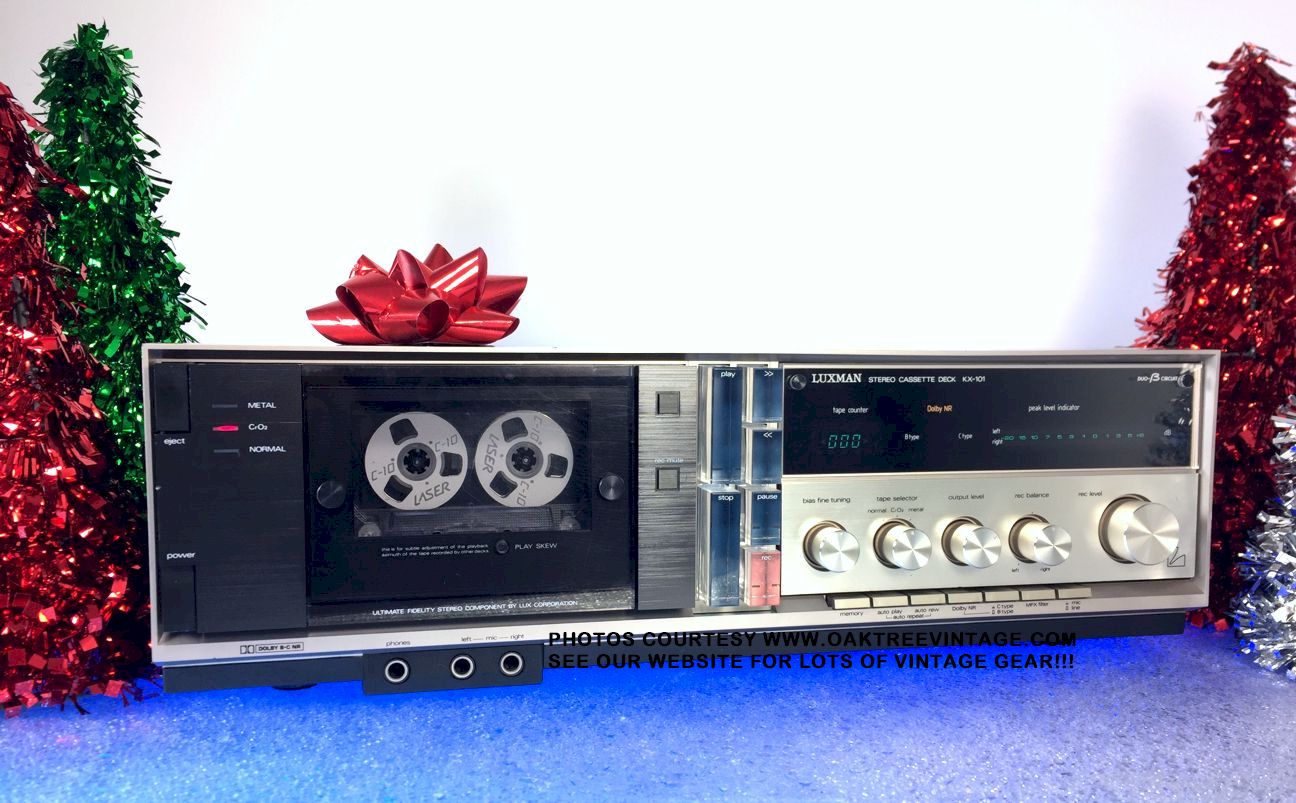

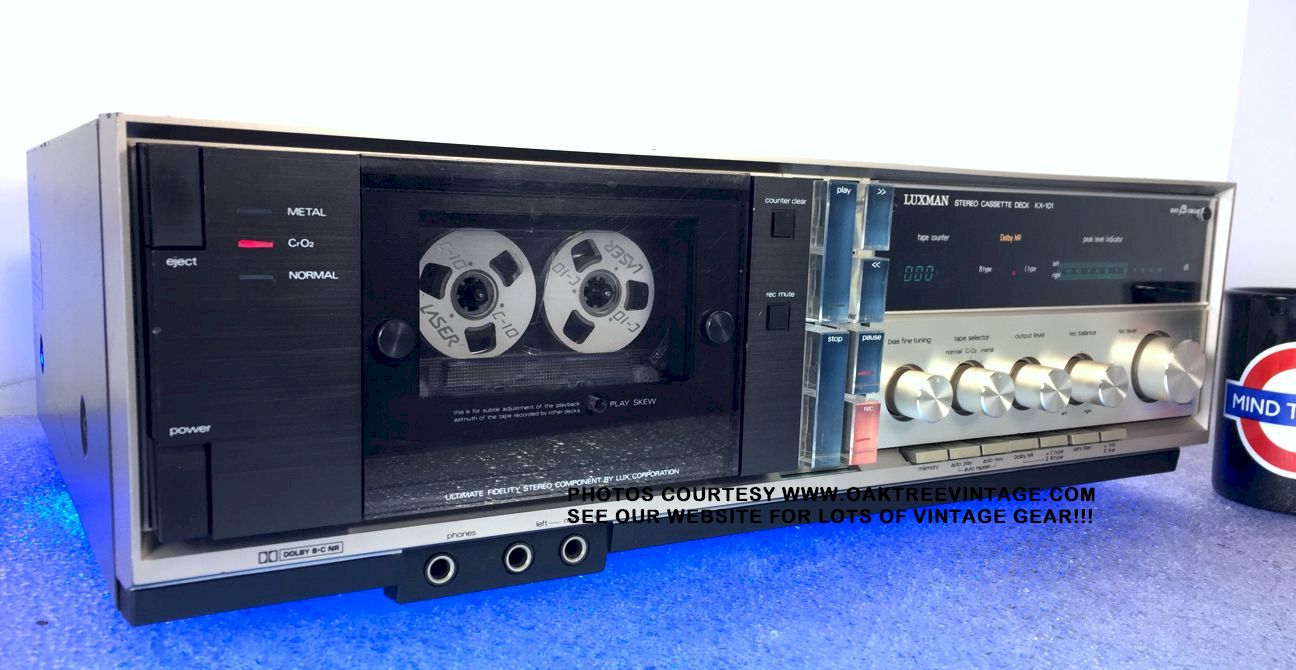

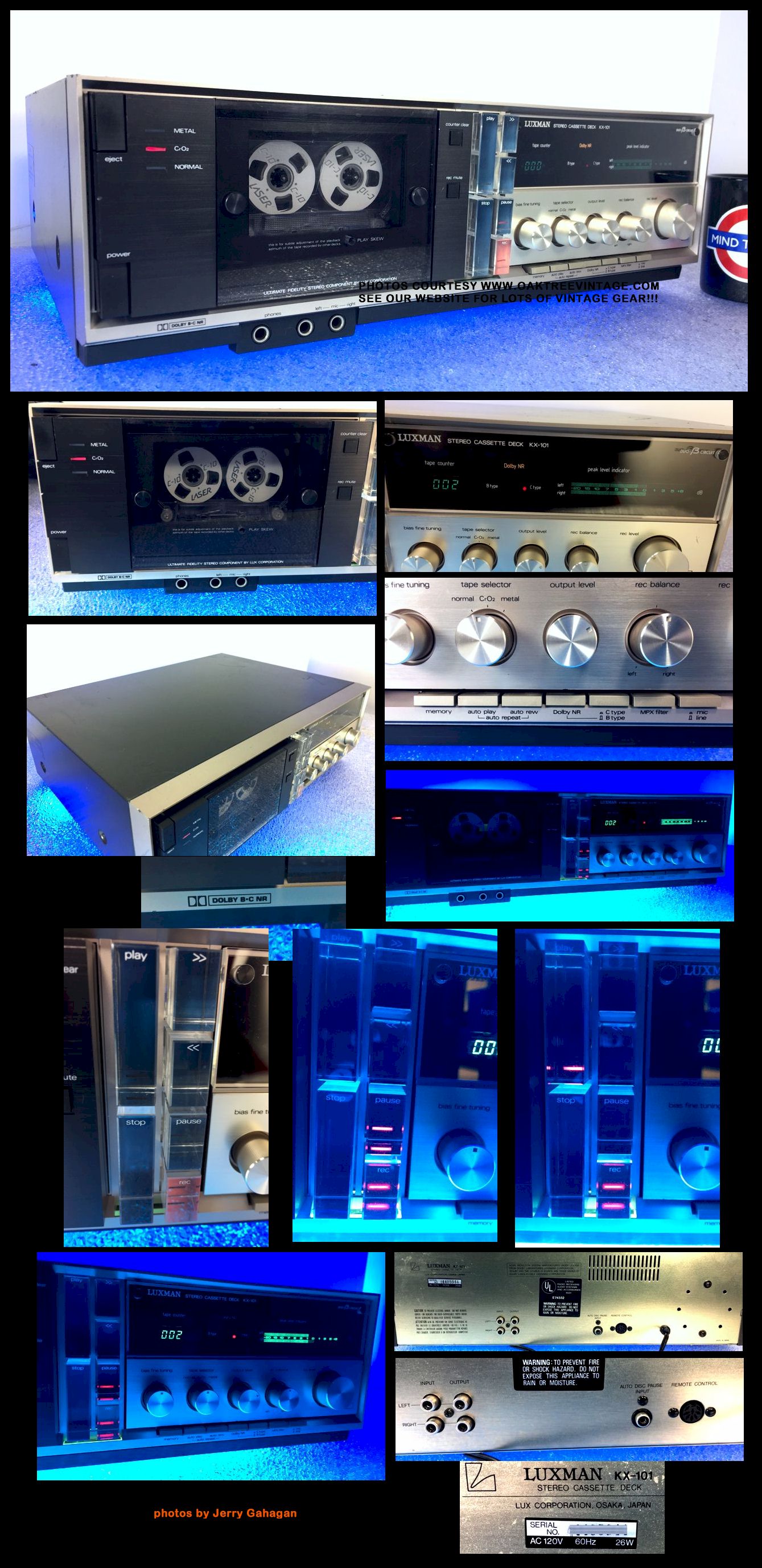

LUXMAN CASSETTE TAPE DECK
LUXMAN KX-101
WITH DOLBY B&C with IC LOGIC TRANSPORT

#...5944
Circa early 1982-84
Made in Japan

SOLD 10/4/19
SHIPPING TO MICHAEL IN ILLINOIS


ü Our technician has completely and EXTENSIVELY gone through and 'Certified' this unit which involves total disassembly of the transport, cleaning inside and out, COMPLETELY DISASSEMBLING, cleaning and re-lubricating all internal mechanisms and the balance of efforts listed below.

ü Heads inspected for excessive wear (obviously we do this 'early on' as 'excessive' wear will usually negate any further restoration work).

ü VERY DIFFICULT TO ACCESS, 'Reel Drive Tire' removed and replaced with a new one (#R-209). (These are actually much more important to replace on this deck (and most) than the belts. Without these, the deck won't fast wind very well, and will likely 'eat tapes' as the 'take-up' reel won't turn properly)

ü Reel drive belt replaced w/ #42-160.

ü Main Capstan / Flywheel belt reconditioned.

ü Rubber pinch roller mechanism bushing & axle cleaned of old, 'varnished lube', reconditioned and re-lubed.

ü Capstan burnished

ü All internal pots, switches and controls cleaned and tested for noise-free function.

ü 'Servo-Face' mechanism completely disassembled, overhauled and re-assembled. (actually worked fine prior to refurbishment, but we did 'proactive maintenance' so should be good for a long time to come)

ü Multiple solder joints re-flowed, primarily on the landing pads of the 'control pots / switches'.

ü All Fluorescent displays and LED's working fine.

ü Both hub spindles in perfect alignment.

ü  FF, REW, & Play transport functions all test perfectly and controls tested for 'positive / accurate' responsive.

ü Heads in great shape as well, with many years of performance left in them

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Head alignment and azimuth at 125Hz, 1kHz and 10kHz adjusted for BOTH directions for 'peak performance' with O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü Meters adjusted to even zero with symmetric with Volt meter, O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü Both Internal playback amplifier channels adjusted with Volt meter, O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü Meters adjusted to even zero with symmetric input with Volt meter, O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü Both Internal Record amplifier channels adjusted with Volt meter, O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü Pinch roller and heads all in GREAT condition!!!

ü Speed adjusted to 100% accuracy BOTH directions, with 1kHz factory calibration tape (meaning 1kHz calibration tape plays back at 1000Hz +/- 1Hz)

ü Pinch roller re-surfaced, and in GREAT condition!!!

ü Playback meters zero with factory test tone tape.

ü Tape Counter and 'Memory' Function tested

ü White Noise recorded @ 0dB w/ Dolby-C engaged = PB @ -2dB on Maxell UDXL-II / High Bias tapes

ü 1kHz Sine-wave recorded @ 0dB w/ Dolby-C engaged = PB @ -1dB on Maxell UDXL-II / High Bias tapes

ü 'ddd' CD recorded recorded @ 0dB w/ Dolby-C engaged = PB @ ~ -2dB on Maxell UDXL-II / High Bias tapes

ü Speed adjusted internally to 100% accuracy with 1kHz factory test tape (meaning 1kHz calibration tape plays back at 1000Hz +/- 1Hz) (utilized TEAC MTT-257H)

ü Floor noise measured at -60dBm

 Total technician time to restore
~16 HOURS!
  ____________________________

This is a BEAUTIFUL, brushed Pewter face deck with complimenting brushed, Silver knobs and the very cool, 'Servo Face'. The Luxman KX-101, Stereo Cassette Tape Deck w/ Sendust heads, IC logic,
Fluorescent display, and Dolby B & C NR.

(Features and Specifications archived by Oak Tree Vintage)

Again, we have completely refurbished and thoroughly tested this deck, with multiple recording tests (as stated previously it took 16+ hours of tech time to do it proper justice). Cosmetically, it's in decent condition with light 'wear areas' to the corners of the face bezel, and scratches to the top sheet metal (see photos above).
Great deck for just about any system. Also great for transferring your tape collection to CD, Hard-drive or MP3.
Measures 18" wide x 14.5" deep x 5.75" tall
and weighs a HEAVY 23+ lbs unpacked.
Comes with our 30 day limited warranty.
RESTORED / REFURBISHED / SERVICED LUXMAN KX-101
Cond. 8.5

SOLD 10/4/19
SHIPPING TO MICHAEL IN ILLINOIS


(tape shown in photos not included. We do ship our decks with a  a 'pre-recorded' tape for playback, made on this 'specific' deck, and a tape to 'practice record' on.)

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)










          NEW LISTING 2/22/2020
 (Click on above thumbnails to enlarge photos)
   warranty
VINTAGE AND FULLY SERVICED W/ WARRANTY
LUXMAN CASSETTE TAPE DECK

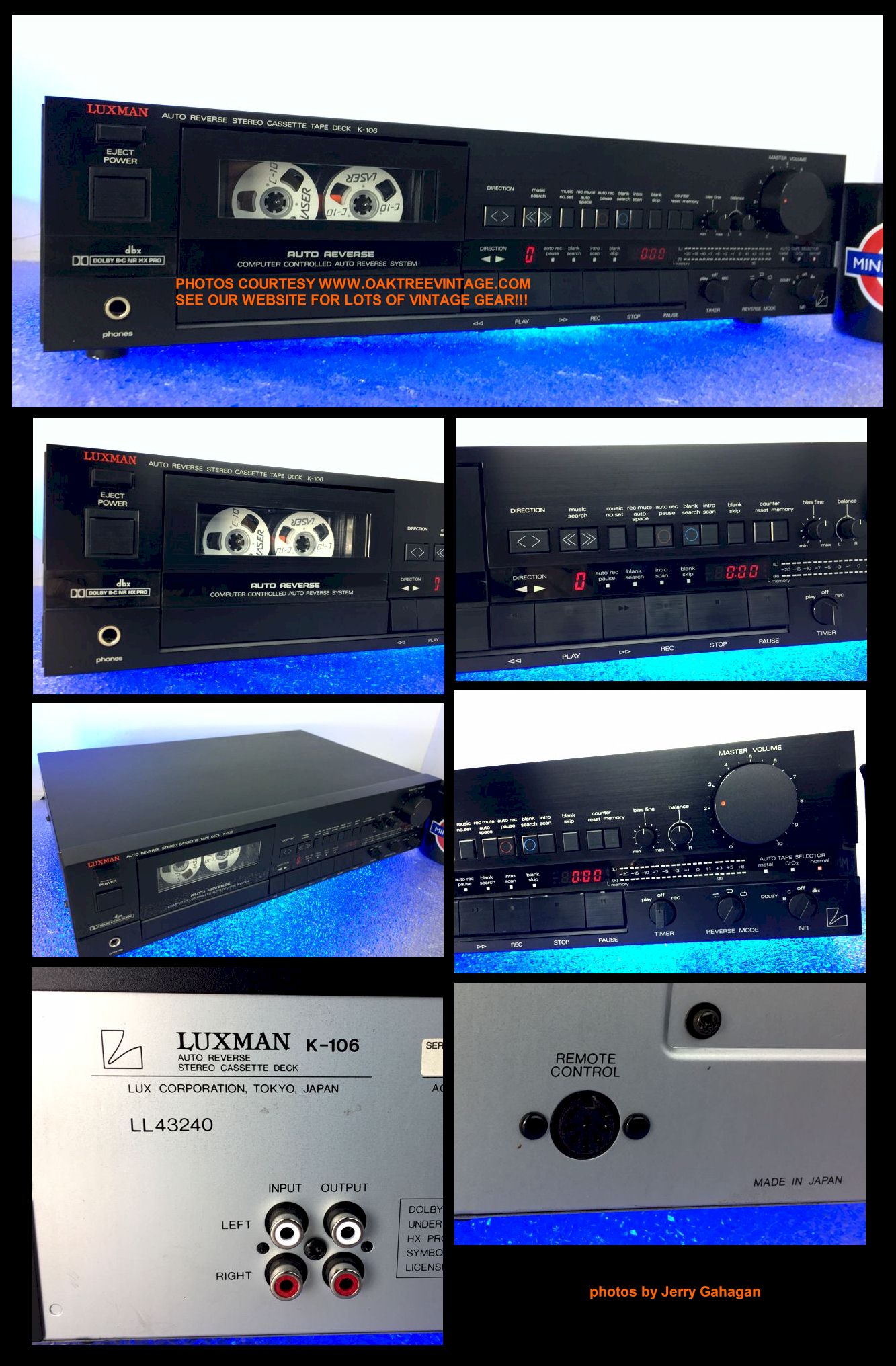

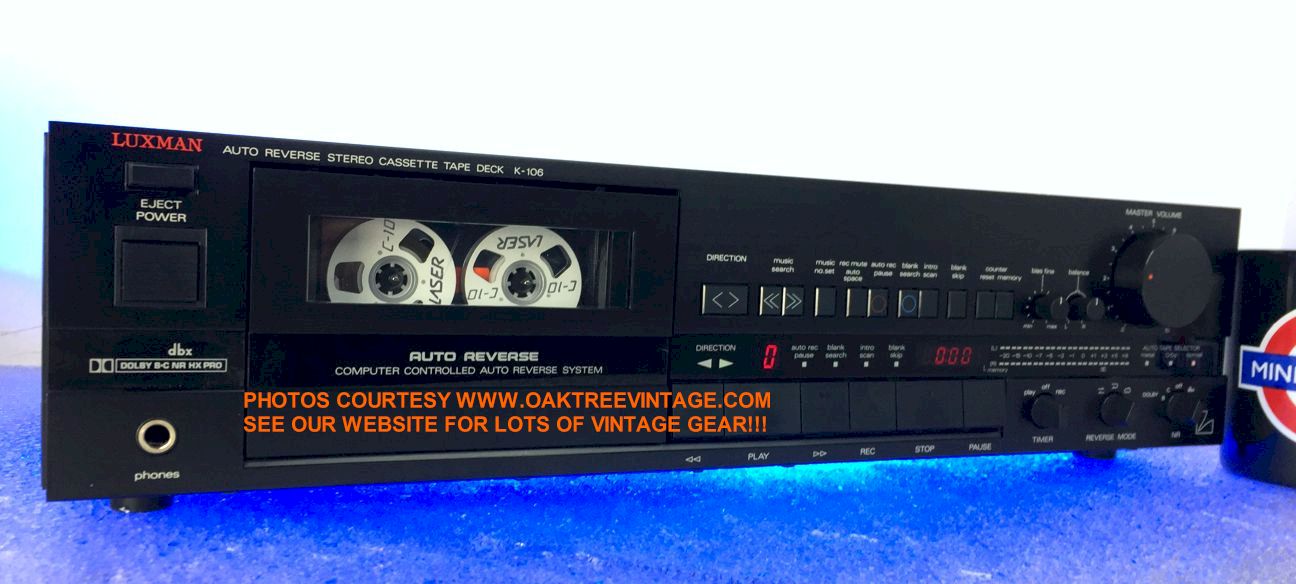

LUXMAN KX-106
WITH HX-PRO, DOLBY B, C &
*dbx with IC LOGIC TRANSPORT
& AUTO-REVERSE & 'FINE BIAS' ADJUSTMENT
GEAR DRIVEN SPINDLES - NO IDLER TIRES!!!

#...747A
Circa early 1986-88
Made in Japan

SOLD 4/22/20
SHIPPING TO SHADRACH IN CANADA


ü Our technician has completely and EXTENSIVELY gone through and 'Certified' this unit which involves total disassembly of the transport, cleaning inside and out, COMPLETELY DISASSEMBLING, cleaning and re-lubricating all internal mechanisms and the balance of efforts listed below.

ü Heads inspected for excessive wear (obviously we do this 'early on' as 'excessive' wear will usually negate any further restoration work).

ü Spindles are GEAR DRIVEN which means NO idler tires / wheels to glaze over, crack and mis-behave with none of the typically associated ills.

ü Counter belt - NO counter belt. It's GEAR DRIVEN!!!

ü Main Capstan / Flywheel belt reconditioned.

ü Rubber pinch roller mechanism bushings & axles cleaned of old lube, reconditioned and re-lubed.

ü Capstans cleaned / burnished

ü All internal pots, switches and controls cleaned and tested for noise-free function.

ü All Fluorescent displays and LED's working fine.

ü Both hub spindles in perfect alignment and end locks intact and staying put.

ü FF, REW, & Play transport functions all test perfectly and controls tested for 'positive / accurate' responsive.

ü Heads in great shape as well, with many years of performance left in them

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Head alignment and azimuth at 125Hz, 1kHz and 10kHz adjusted for BOTH directions for 'peak performance' with O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü Both Internal playback amplifier channels adjusted with Volt meter, O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü Meters adjusted to even zero with symmetric input with Volt meter, O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü Both Internal Record amplifier channels adjusted with Volt meter, O-Scope and sine-wave generators and 'pink / white noise sources'. Both channels now even output.

ü Pinch roller and heads all in GREAT condition!!!

ü Speed adjusted to 100% accuracy BOTH directions, with with TEAC MTT-257H 1kHz factory calibration tape (meaning 1kHz calibration tape plays back at 1000Hz +/- 1 Hz)

ü Pinch roller re-surfaced, and in GREAT condition!!!

ü Playback meters zero with factory test tone tape.

ü Tape Counter and 'Memory' Function tested

ü White Noise recorded @ 0dB w/ Dolby-C engaged = PB @ -2dB on Maxell UDXL-II / High Bias tapes

ü 1kHz Sine-wave recorded @ 0dB w/ Dolby-C engaged = PB @ -1.5dB on Maxell UDXL-II / High Bias tapes

ü 'ddd' CD recorded recorded @ 0dB w/ Dolby-C engaged = PB @ ~ -1dB on Maxell UDXL-II / High Bias tapes


ü 1kHz Sine-wave recorded @ 0dB w/ *dbx engaged = PB @ -1.5dB on Maxell UDXL-II / High Bias tapes.

ü 'ddd' CD recorded recorded @ +3dB w/ *dbx engaged = PB @ ~ -6dB on Maxell UDXL-II / High Bias tapes
So this is the one aspect of the deck that we were not able to 'practically' rectify. It's record and playback capability with dbx NR engaged is about 9dB down. It probably needs it's 'dbx chips' replaced, but beyond the scope of practicality for us and this deck.


ü Speed adjusted internally to 100% accuracy with 1kHz factory test tape (meaning 1kHz calibration tape plays back at 1000Hz +/- 1Hz) (utilized TEAC MTT-257H)

ü Floor noise measured at -60dBm

Total technician time to restore
~5 HOURS!
  ____________________________

(Features and Specifications archived by Oak Tree Vintage)

Again, we have completely refurbished and thoroughly tested this deck. From a 'feature' standpoint, IT'S LOADED!!!
Again, though as mentioned earlier, it's "dbx" function is less than typical. It is about 9dB down. It's still usable, but you'll need to increase your volume substantially to play tapes encoded with dbx.

Cosmetically, it's in fabulous condition with really nothing to mention.
Great deck for just about any system. Also great for transferring your tape collection to CD, Hard-drive or MP3. Includes an 'e-copy / pdf download' of the Luxman K-109 owners manual which is similar enough to be fairly useful.
Measures 17.3" wide x 12" deep x 4.5" tall and weighs a ~12 lbs unpacked.

Comes with our 30 day limited warranty.
RESTORED / REFURBISHED / SERVICED LUXMAN KX-106
Cond. 8.5

SOLD 4/22/20
SHIPPING TO SHADRACH IN CANADA



(tape shown in photos not included. We do ship our decks with a  a 'pre-recorded' tape for playback, made on this 'specific' deck, and a tape to 'practice record' on.)

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)

archived

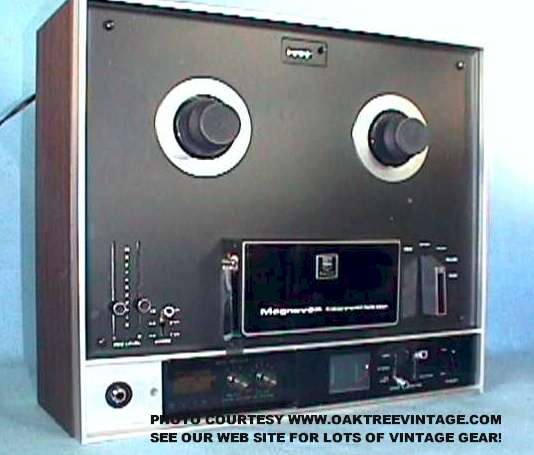

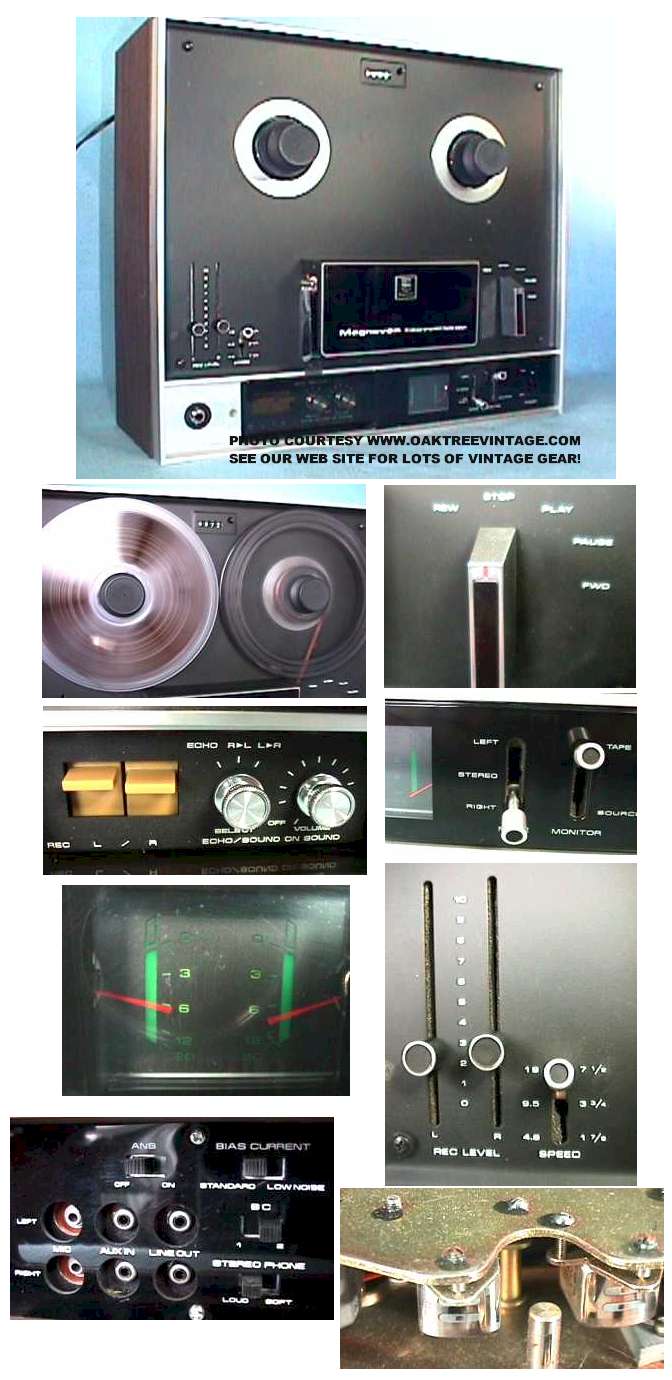

  Magnavox_Sony_1K8877_Reel-to-Reel_tape_deck_web.jpg (28556 bytes)    Magnavox-Sony_1K8877_Reel-to-Reel_Tape_Deck_collage.jpg (102089 bytes)

MAGNAVOX / SONY
1K8877
SOLD





Marantz
C-202LP

SOLD



MARANTZ
5010B
SOLD

VINTAGE MARANTZ CASSETTE TAPE DECK
MARANTZ SD-340
-AUTO-REVERSE-
CASSETTE DECK
HELD FROM SALE FOR STORE USE



            NEW LISTING 9/29/09

(Click on above thumbnails to enlarge photos)

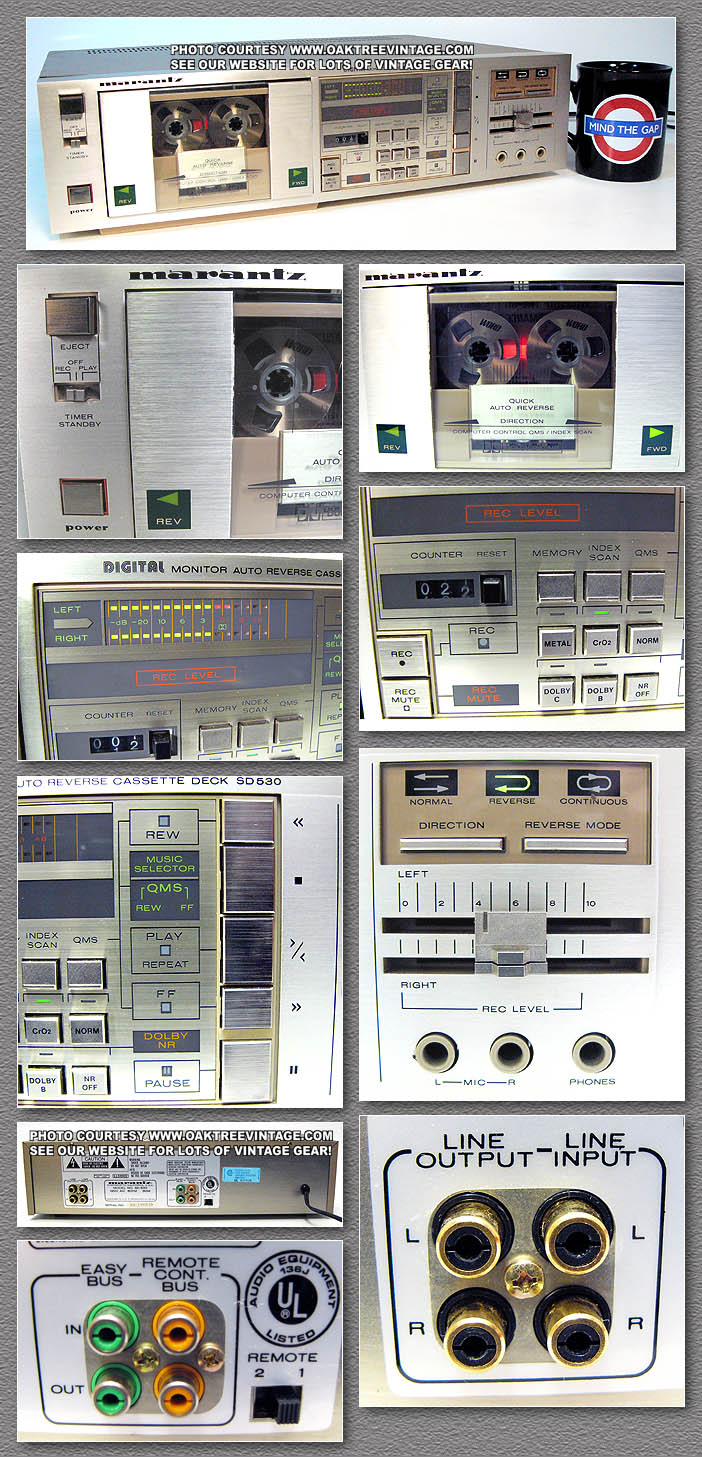

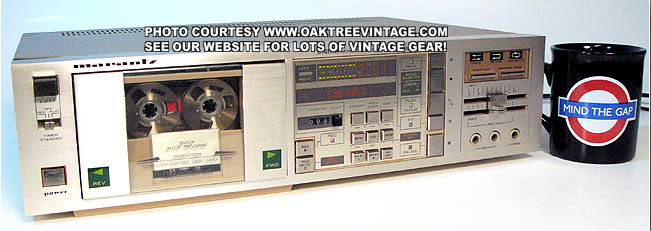

VINTAGE MARANTZ CASSETTE TAPE DECK
MARANTZ SD-530 / SD530

#...
0619
 3-MOTOR
AUTO-REVERSE

 WITH DOLBY B&C
 Circa 1984

MIJ
SOLD 1/16/10







            NEW LISTING 9/29/09

(Click on above thumbnails to enlarge photos)


VINTAGE MARANTZ CASSETTE TAPE DECK
MARANTZ SD-530 / SD530

#...
0010
 3-MOTOR
AUTO-REVERSE

 WITH DOLBY B&C
 Circa 1984

MIJ
SOLD 1/14/09

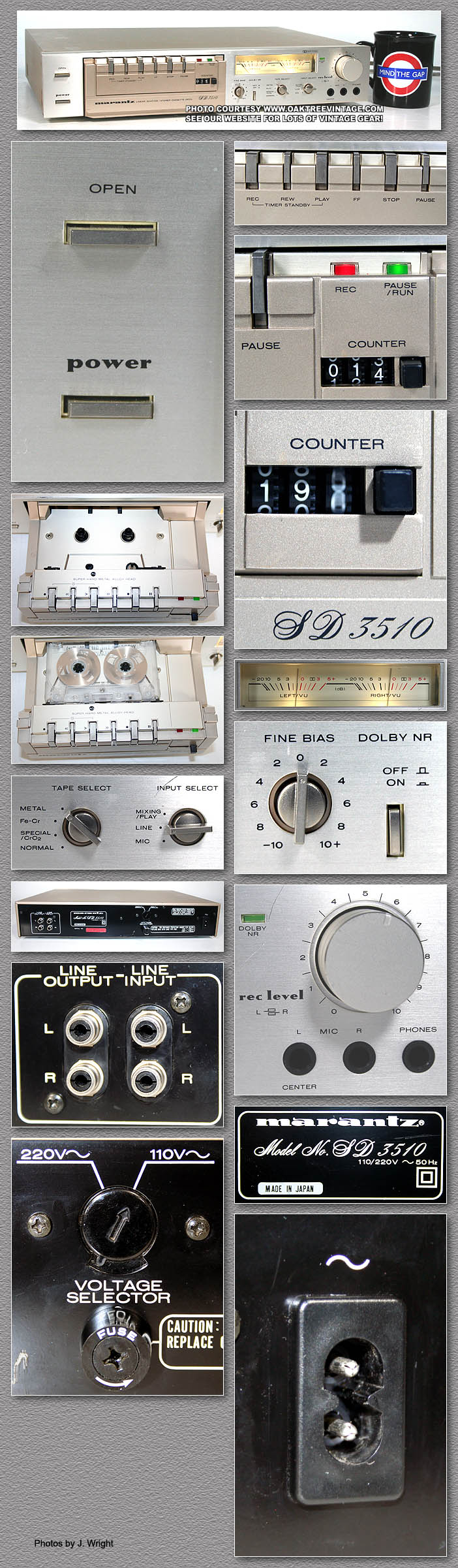

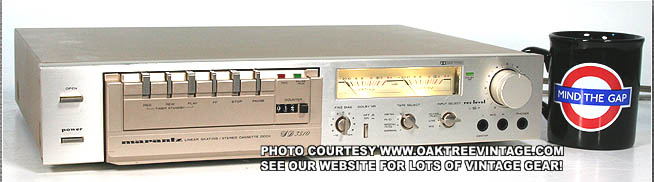

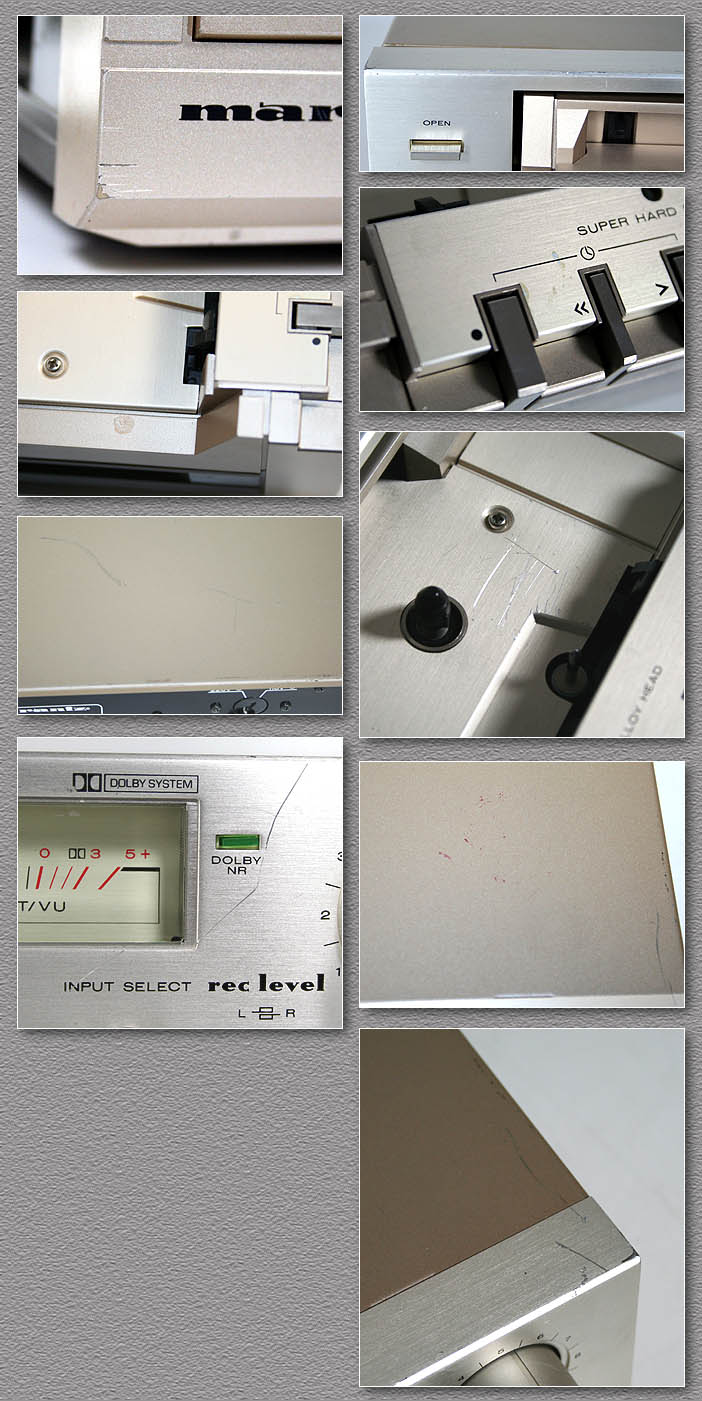

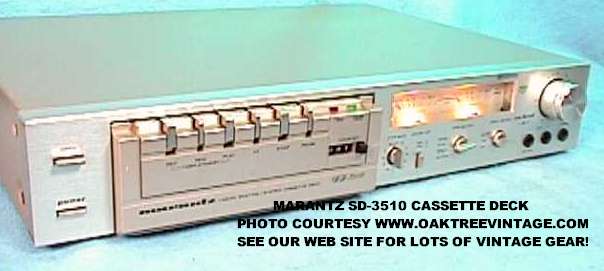

Marantz_SD-3510_SD3510_Stereo_Cassette_Tape_Deck_web.jpg (23317 bytes)   Marantz_SD-3510_SD3510_Stereo_Cassette_Tape_Deck_collage.jpg (182159 bytes)

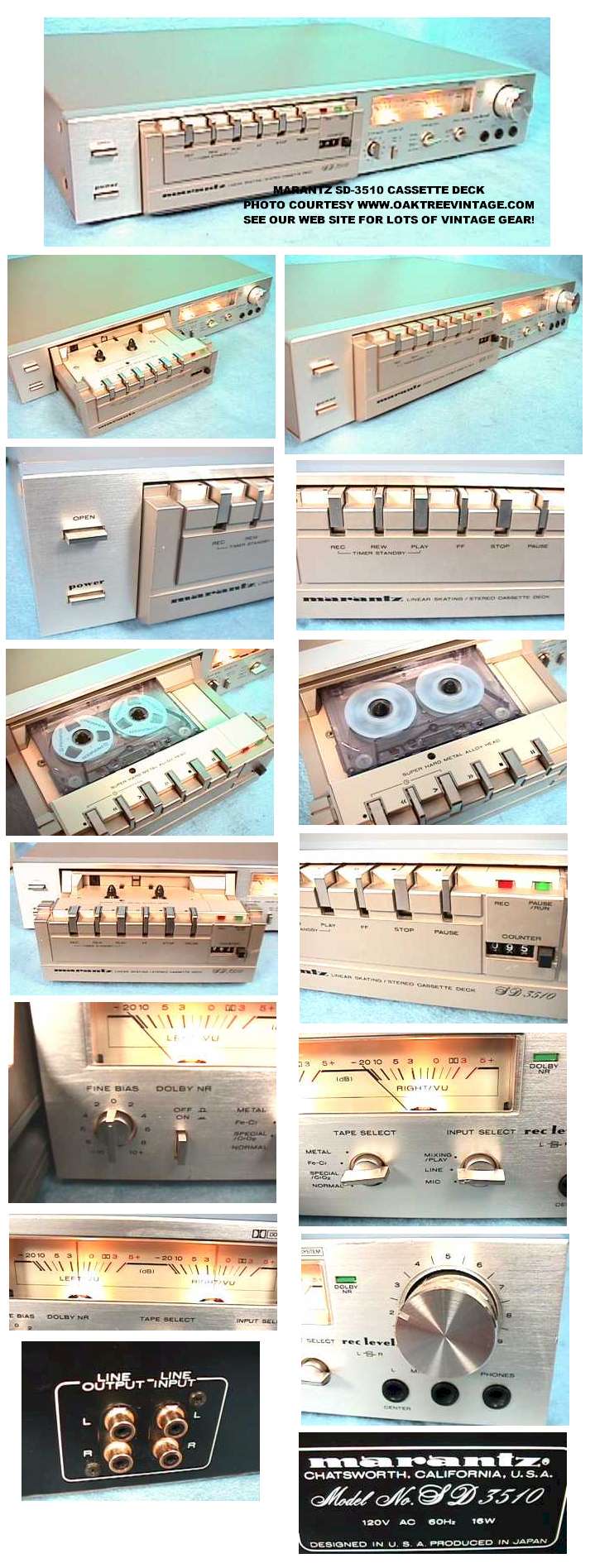

VINTAGE MARANTZ CASSETTE TAPE DECK
MARANTZ
SD-3510
SOLD










NEW ADDITION 2/4/11
 (Click on above thumbnails to enlarge photos)
VINTAGE AND FULLY SERVICED
MARANTZ CASSETTE TAPE DECK
MARANTZ
SD-3510

SOLD 2017




NEW LISTING
4/4/18
 (Click on above thumbnails to enlarge photos)

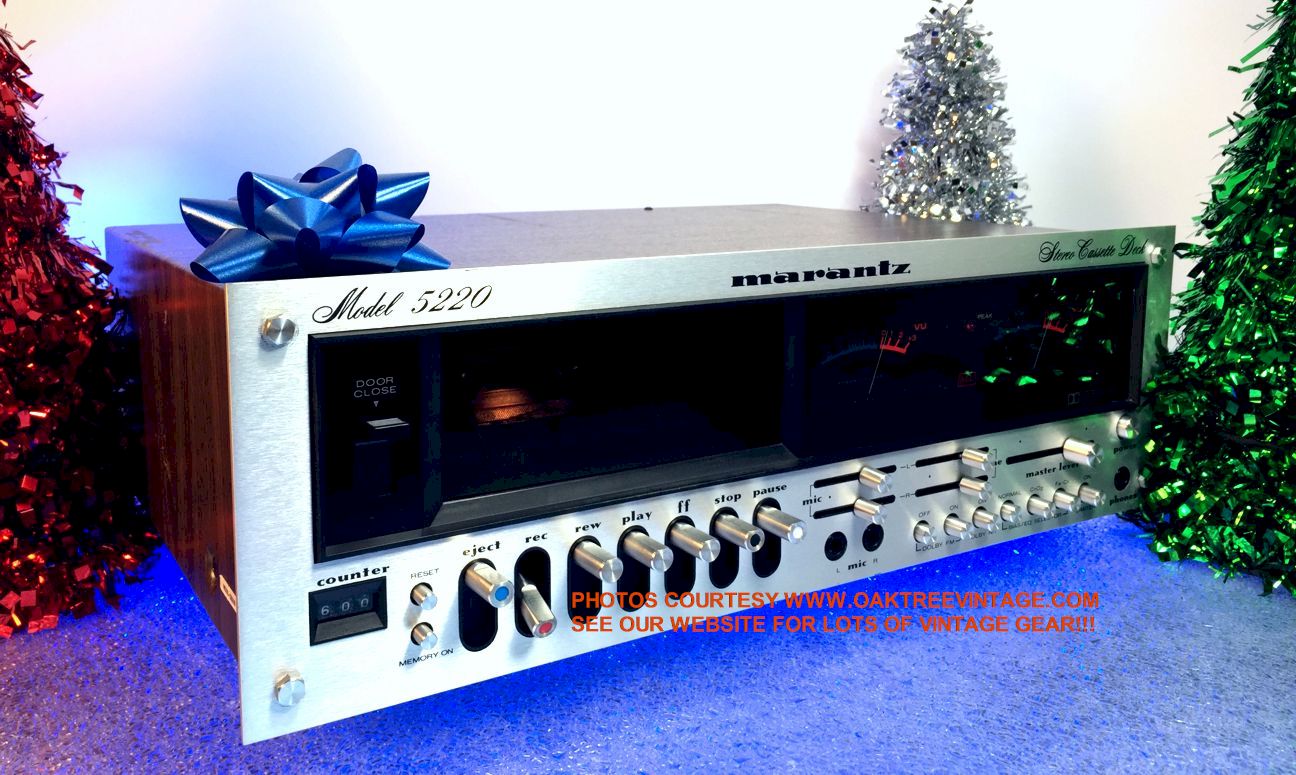

VINTAGE AND FULLY SERVICED
MARANTZ CASSETTE TAPE DECK

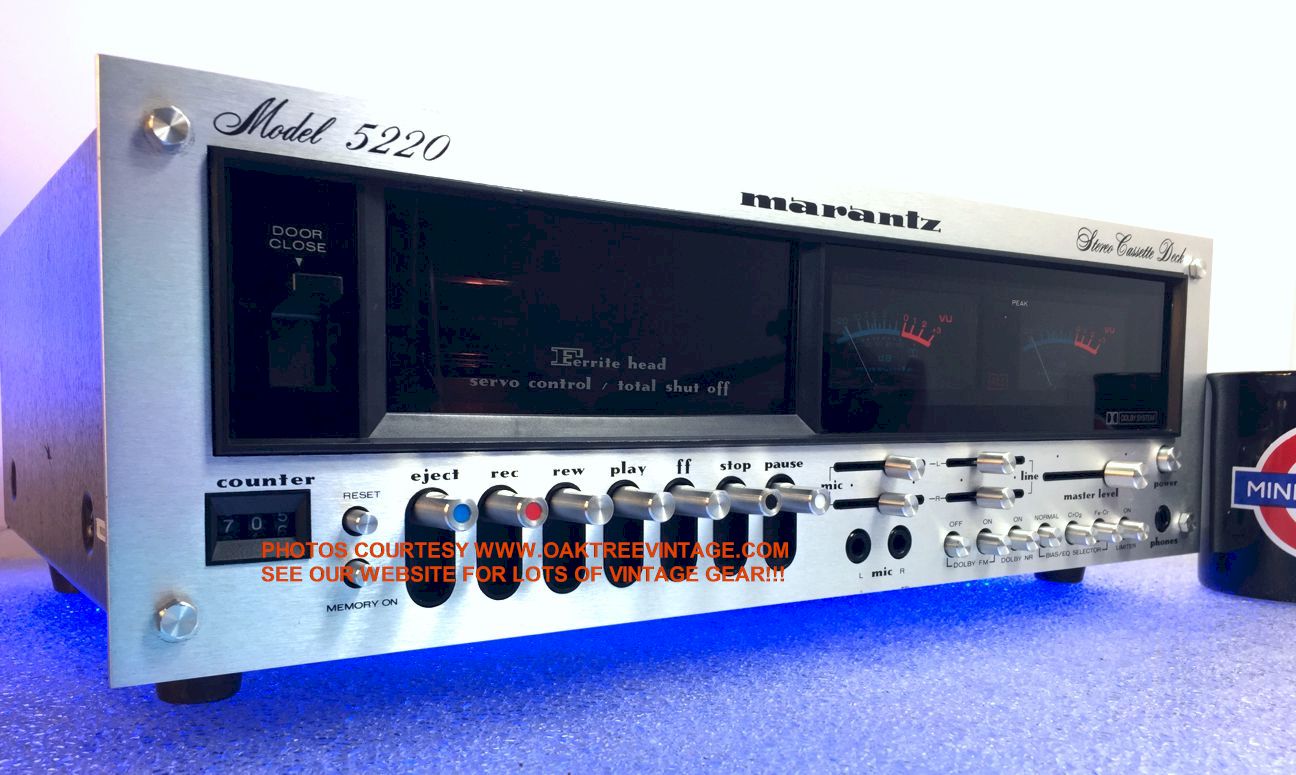

MARANTZ 5220
WITH 4-CHANNEL 'MIXING' CAPABILITY
AND DOLBY NR
FROM THE CLASSIC AND SOUGHT AFTER
'BLUE FACE' MARANTZ
SERIES
USA'S "BICENTENNIAL" YEAR

#...08J4
Circa early 1976-77
Made in Japan
 4/23/18
SHIPPING TO CALIFORNIA


ü Our technician has completely and EXTENSIVELY gone through and 'Certified' this unit which involves complete disassembly of the transport, cleaning inside and out, COMPLETELY DISASSEMBLING, cleaning and re-lubricating all internal mechanisms and the balance of efforts listed below.

ü Heads inspected for excessive wear (obviously we do this 'early on' as 'excessive' wear will usually negate any further restoration work).

ü All drive tires reconditioned for trouble-free service.

ü All new internal rubber belts replaced for trouble-free service. (a note about the 'belt kits' out there. We were out of a couple of the belts we needed, so to make it easy / quick, we thought we'd order a 'belt kit' from an ebay seller (yes, we should know better). We installed them, and went on with the restoration. At the first opportunity to do some testing during it's 'bench time', we noticed 'fast' WOW / 'slow' Flutter when recording test tones (especially prevalent with recording, then playing back 'Piano' music). After spending 'hours' trying to track down the issues, and in the interim we had 're-stocked' our normal belts, changed out the ebay purchased ones for our 'stock' units, and the problem was solved. That seller was selling 'round' belts ("round belts" typically shouldn't be an issue), but the Marantz 5220 deck MUST have 'Square' belts. Just FYI (at our expense).)

ü Rubber pinch roller reconditioned

ü Capstan burnished

ü Missing Capstan thrust screw replaced

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Head alignments and azimuth checked and adjusted as necessary for 'peak performance' with O-Scope

ü All internal pots, switches and controls cleaned and tested for noise-free function.

ü All internal light bulbs changed

ü All internal displays and LED's working fine.

ü Both hub spindles in perfect alignment.

ü FF, REW, & Play transport functions all test perfectly and controls tested for 'positive / accurate' responsive.

ü Heads in great shape as well, with many years of performance left in them and head alignment / azimuth has been checked for peak performance.

ü Both Internal playback amplifier channels adjusted for 'even output'

ü Meters adjusted to even zero with symmetric input.

ü Both Internal Record amplifier channels adjusted for 'even output'

ü Pinch roller and heads all in GREAT condition!!!

ü Playback meters zero with factory test tone tape.

ü Tape Counter and 'Memory' Function tested

ü Plays perfectly and records well @ ~0dB (with Maxell UDXL-II tapes @ 1kHz) and @ ~-2.5dB (with TDK D tapes with Pink Noise)( we really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy).

ü Pinch roller and heads all in GREAT condition!!! -Both level meters playback even.

ü Speed adjusted internally to 100% accuracy with 1kHz factory test tape (meaning 1kHz calibration tape plays back at 1000Hz +/- 1Hz)

Face is made of beautiful brushed aluminum, and overall the deck is in fabulous cosmetic condition. Following the extensive restoration, we did 'test recordings' of a 'ddd' CD on 6 tapes; Sony Normal Bias, Fuji Normal Bias, TDK Normal Bias, Maxell Normal Bias, TDK 'SA' High Bias, and Maxell 'XL-II' High Bias. We found that TDK 'D' / Normal Bias tape performed the best on this particular deck.
 Total technician time to restore ~16 HOURS! (12 Hours Tech time, then another 3-4 hours testing / evaluating)
  ____________________________

From Marantz's Classic and always sought after, 'Blue Face' years. This is the first of Marantz cassette deck from this series that we've had make it through our process in over 21 years, and it was a 'long journey'. Marantz only made 3 'vertical' models of cassette decks, with the 'Smoked Plexi' look. The 5020 (lesser model), the 5200 (same as this deck, but without Dolby), and this 'Top of the Line' 2-Track, 5220! Mid-70's cassette deck with classic, Piano-Key transport operation, Dolby, stereo cassette tape deck. Great deck to add to your classic, brushed silver and 'Blue Face' Marantz 'stack or rack'.


Marantz 5220 Features include:


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Marantz 5220 Specifications:


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?



There's just something about the feel of 'original piano key' tape transports.
Again, we have completely refurbished and thoroughly tested this deck, with multiple recording tests (as stated previously). Cosmetically, it's in essentially NEW condition! Great deck for just about any system, but especially 'great' for cosmetically matching to an existing, Marantz 'Blue Face' stereo system. Also great for transferring your tape collection to CD, Hard-drive or MP3. Includes original box and packing. Comes with an 'e-copy' / pdf of the Marantz 5220 owners manual.
Measures 17.25" wide x 13" deep x 6" tall and weighs 20 lbs unpacked. Comes with our 30 day limited warranty.
RESTORED / REFURBISHED / SERVICED MARANTZ 5220
Cond. 8.5+++

 4/23/18
SHIPPING TO CALIFORNIA


(tape shown in photos not included. We do ship our decks with a  a 'pre-recorded' tape for playback, made on this 'specific' deck, and a tape to 'practice record' on.)

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)











(Click on above thumbnails to enlarge photos)

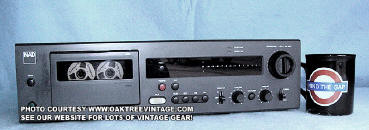

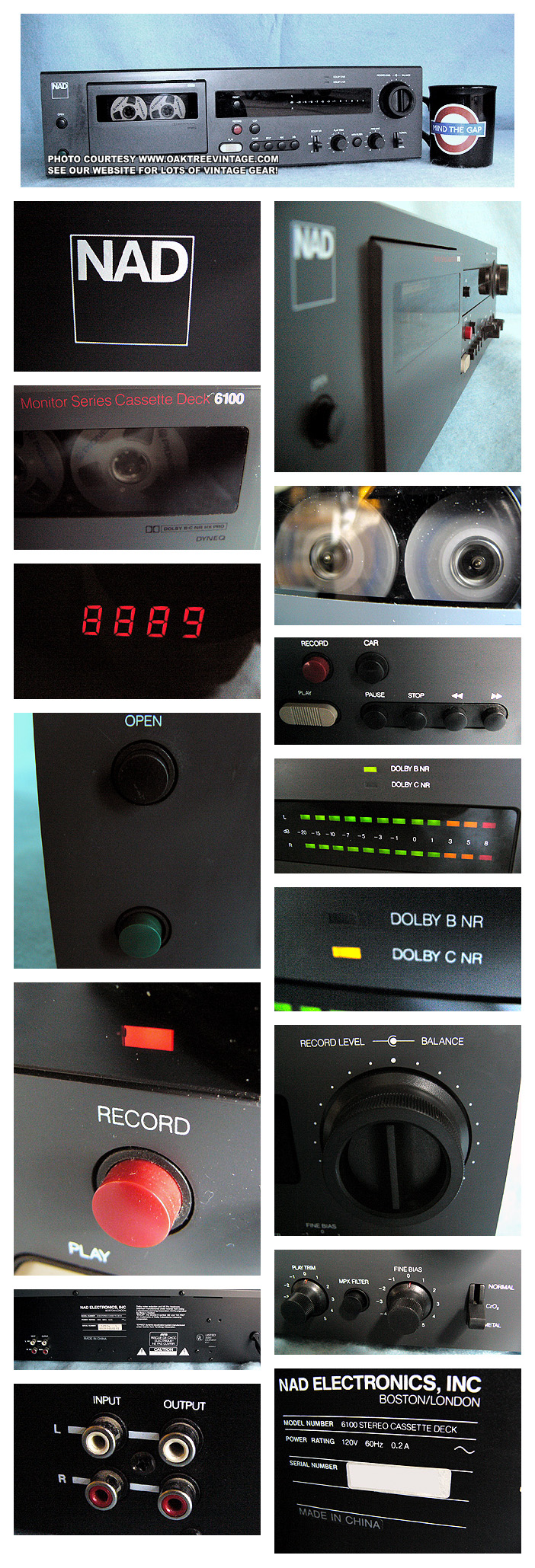

VINTAGE NAD STEREO CASSETTE TAPE DECK
NAD 6100

SOLD 11/3/05







NEW LISTING 10/27/08

(Click on above thumbnails to enlarge photos)

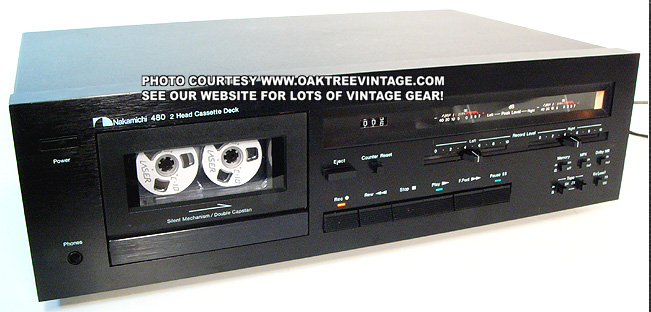

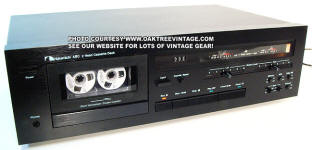

PRE-OWNED / REFURBISHED
NAKAMICHI CASSETTE TAPE DECK
NAKAMICHI 480

 #...9431
 With DOLBY B NR
 MADE IN JAPAN!
 Circa early 1979-
82
  "*WORLD AC POWER"

SOLD 7/31/09

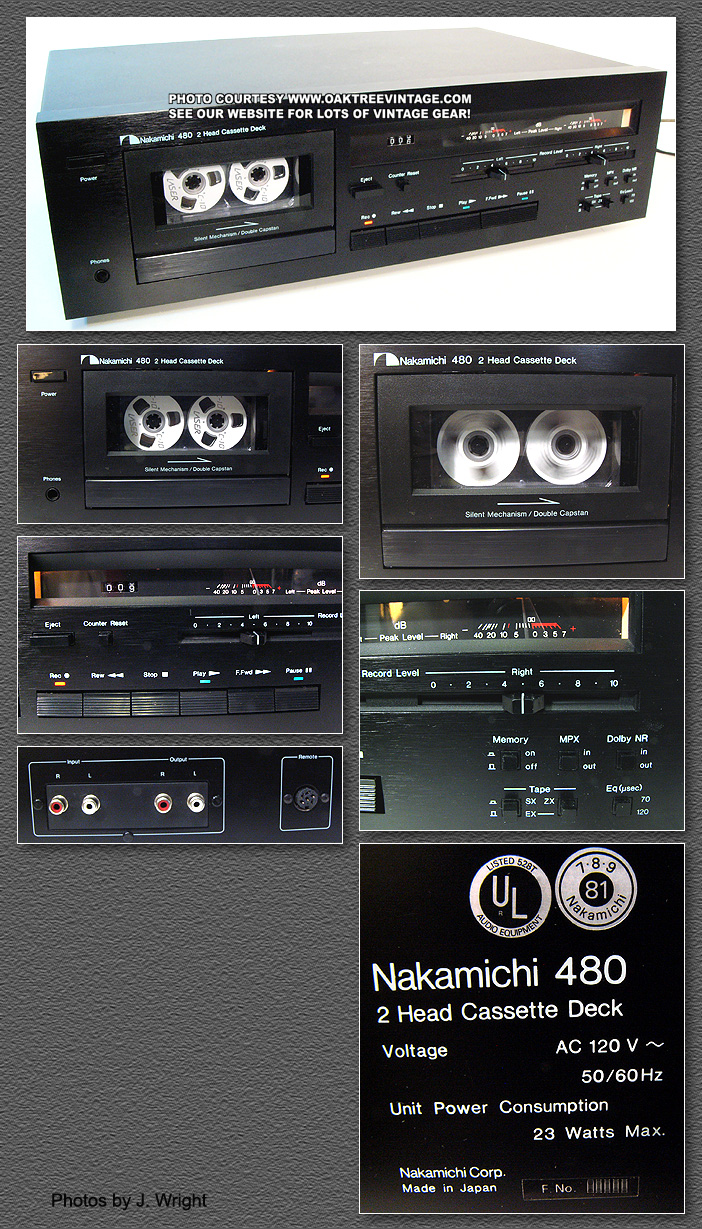

NEW LISTING 10/24/17
 (Click on above thumbnails to enlarge photos)
PRE-OWNED / REFURBISHED
NAKAMICHI CASSETTE TAPE DECK
NAKAMICHI 480

#...
9933
With DOLBY B NR
MADE IN JAPAN!
Circa 1979-82
"*WORLD AC POWER"

SOLD 11/27/17
SHIPPED TO WISCONSIN


ü Our technician has completely and EXTENSIVELY gone through and 'Certified' this unit which involves complete disassembly of the transport (not an easy task on this table), cleaning inside and out, DISASSEMBLING, cleaning and re-lubricating all internal mechanisms and the balance of efforts listed below.

ü Heads inspected for excessive wear (obviously we do this 'early on' as 'excessive' wear will usually negate any further restoration work).

ü All 'reel drive' tires replaced for years of trouble-free service.

ü All new internal Drive and Counter belts replaced for years of trouble-free service.

ü Both Rubber pinch rollers have been reconditioned

ü Capstan burnished

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Head alignments and azimuth checked and adjusted as necessary for 'peak performance' with O-Scope

ü All internal pots, switches and controls cleaned and tested for noise-free function.

ü Both spindles in perfect alignment.

ü FF, REW, & Play transport functions all test perfectly and controls tested for 'positive / accurate' responsive.

ü Eject door operates smoothly.

ü Tape Counter Function tested

ü Dolby NR circuit tested

ü 'Memory / Zero Return' function tested

ü Heads are in 'AS-NEW' condition, with NO visible wear!

ü Meters adjusted to even zero with symmetric input.

ü Pinch roller and heads all in GREAT condition!!!

ü Both level meters playback even.

ü Speed adjusted to 100% accuracy with 1kHz factory calibration tape (meaning 1kHz calibration tape plays back at 1000Hz +/- 1Hz)

ü Cosmetics are in essentially NEW condition. Deck works, sounds and looks great!

ü Plays perfectly and after our adjustment, records AMAZINGLY well at -0 dB! on High bias type tapes. (Following the extensive restoration, we did 'test recordings' of a 'ddd' CD on 6 tapes; Sony Normal Bias, Fuji Normal Bias, TDK Normal Bias, Maxell Normal Bias, TDK 'SA' High Bias, and Maxell 'XL-II' High Bias. We found that for Normal and High Bias, of those tapes tested, both the TDK and "Maxells" performed VERY well on this particular deck. The Maxell's did somewhat 'outshine' the TDK's for being able to 'over saturate' on the levels. While doing the test recording's, it became apparent that the recorded sound was fairly remarkable. Here's the deal. We sync'd up the recording we had just made, and the CD player and AB'd on our pre-amp between the CD and the Tape. Not only was there no 'level loss' (it's a cassette, there should have been!!!), but the tape actually had a bit more brilliance and 'natural' top end to it by a couple to 3 dB's!!!)
 Total technician time to restore ~9 HOURS!
(this deck is actually from the 'personal stock' of our Senior Technician)


____________________________

The Nakamichi 480, Closed.......

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?
  ...
well!

Nakamichi 480 Features include:


-
Asymmetrical Dual.......


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Nakamichi 480 Specifications:

Track format:
4 track / 2 channel
Motors:
 x ....


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


Freq Response;
xxHz +/- xb w/ Metal Tape @ -xxdB
Wow & Flutter (WRMS):
0.06% wtd
Tape Speed:
1-7/8 ips +/-x% (but as stated above, we have adjusted to 0x% accuracy!)
Harmonic Distortion <x% @ 400Hz & xdB (High Bias Tapes)
S/N ratio w/ CrO2 tape:
>xdb @400Hz (w/ Dolby engaged and High Bias Tapes)
Bias Frequency:
xxKHz
Erasure: >xxB below saturation level @ 1kHz
Separation: >xxdB @ 1kHz, 0dB
Crosstalk: >xxdB @ 1kHz, 0dB
Line Input: xxmV & 30K Ohms
Line Output: xxmV & 2.2K Ohms
Headphones Output: xxmW @ 8 Ohms....


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?



Again, we have completely cleaned, prepped and tested this Nakamichi 480 cassette tape deck.
I would like to think that I have had plenty, but would be hard pressed to recall a cassette deck that records as well as this one does following the service regime it just had. Maybe I have gotten better at testing them, but regardless, this records about as 'perfectly' as possible (and I've had, owned and sold the best cassette decks ever made including Tascams 122mk III's, Nak Dragons, Nak CR-7's, Yamaha's, Denons, Onkyo's, Pioneer CT-F1250's and CT-F1000, and a few hundred more.)
Great for transferring your no NR or Dolby NR encoded tape collection to CD, Hard-drive or MP3. Built very well! Looks like new, works and sounds great.
 Comes with an 'e-copy' / pdf of the Nakamichi 480 owners manual and original Nakamichi 480 Brochure. Measures 17.75" wide x 11.5" deep x 5.5" tall and weighs 16 lbs unpacked.
Includes our standard 30 day limited warranty.
NAKAMICHI 480
Cond. 8.5+++

(C) B.F.

SOLD 11/27/17
SHIPPED TO WISCONSIN

(tape shown in photos not included. We do ship our decks with a  a 'pre-recorded' tape for playback, made on this 'specific' deck, and a tape to 'practice record' on.)

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)






(Click on above thumbnails to enlarge photos)

warranty
NAKAMICHI STEREO CASSETTE TAPE DECK

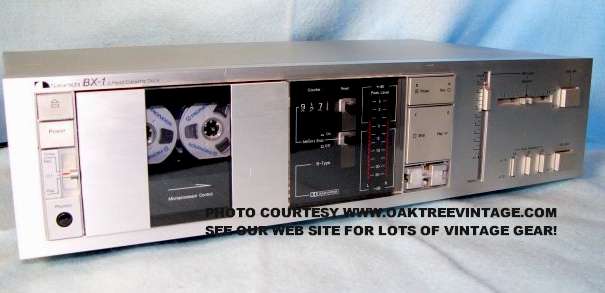

NAKAMICHI BX-1
Circa 1982-84

SOLD





NEW LISTING 11/12/2021
 (Click on above thumbnails to enlarge photos)

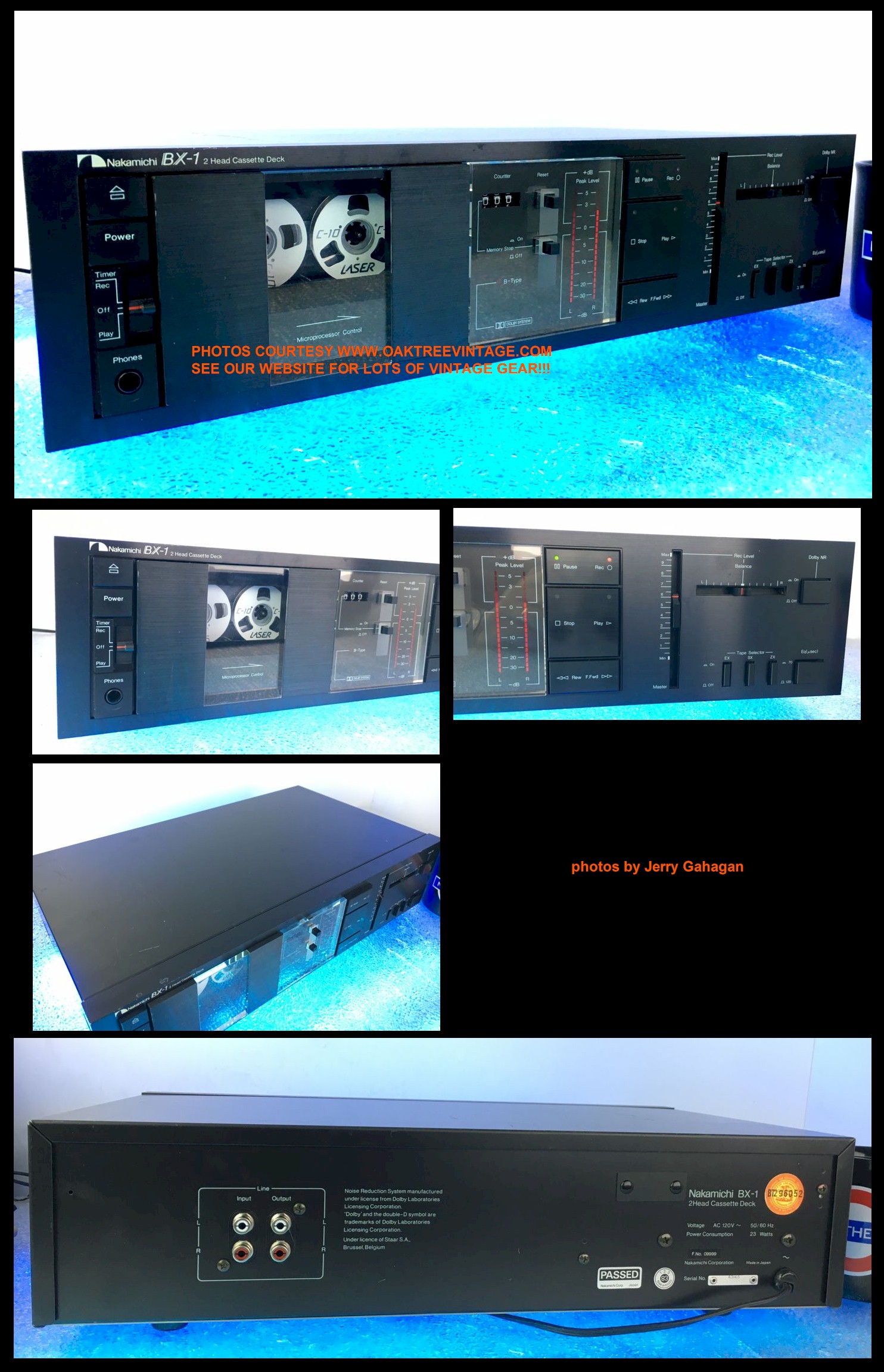

VINTAGE & FULLY SERVICED W/ WARRANTY
NAKAMICHI CASSETTE DECK

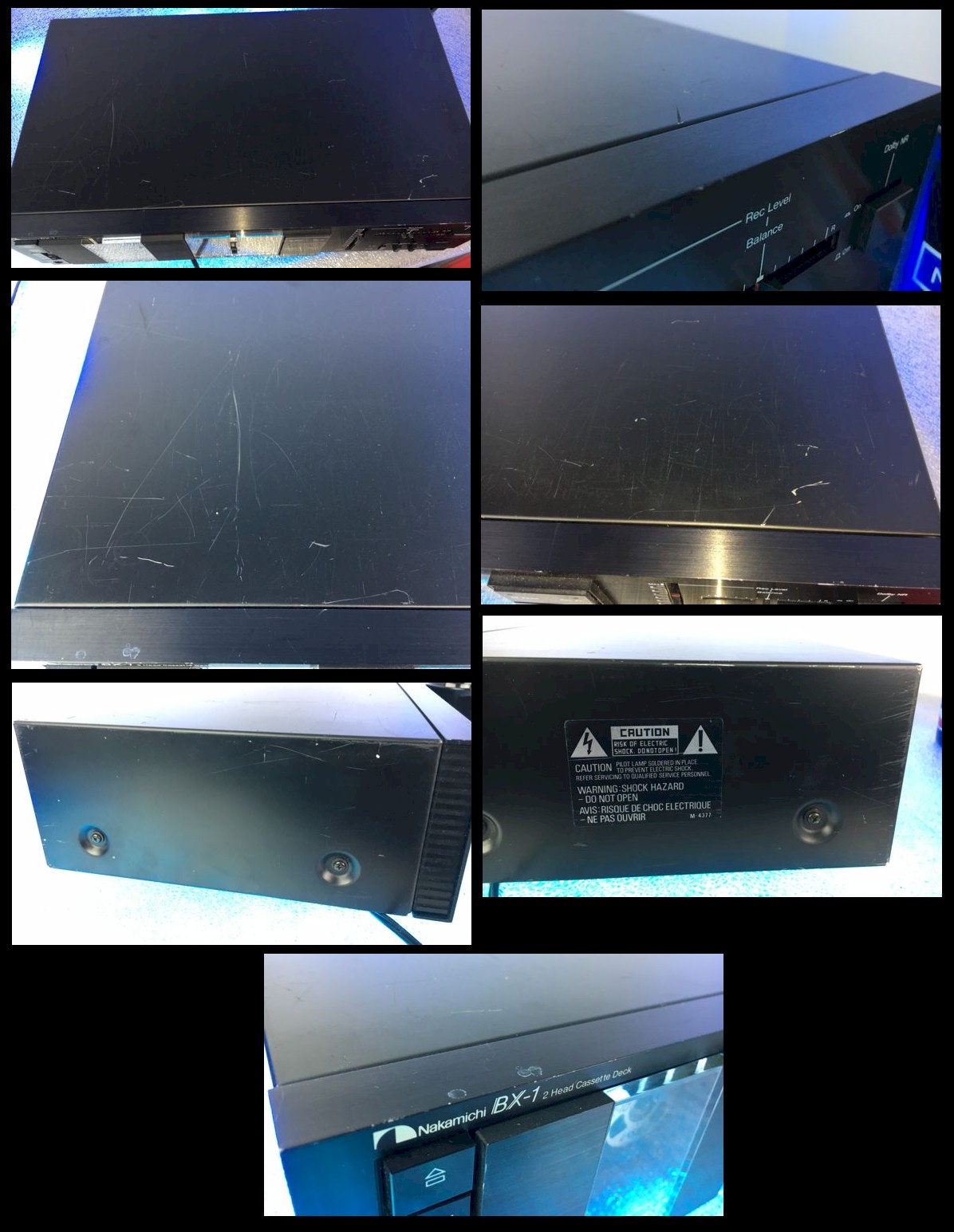

NAKAMICHI BX-1
STEREO CASSETTE TAPE DECK
With DOLBY B NR
#...9858
Circa 1982-83

SOLD 11/19/2021
SHIPPING TO STEPHEN IN INDIANA


ü Our technician has completely and EXTENSIVELY gone through and 'Certified' this unit which involves complete removal and partial disassembly of the entire transport, cleaning inside and out, DISASSEMBLING, cleaning and re-lubricating all internal mechanisms and the balance of efforts listed below.

ü Heads inspected for excessive wear (obviously we do this 'early on' as 'excessive' wear will usually negate any further restoration work).

ü Faulty voltage regulator, IC401 replaced in power supply, as instead of supplying 12VDC, it was offering up only 1.5VDC.

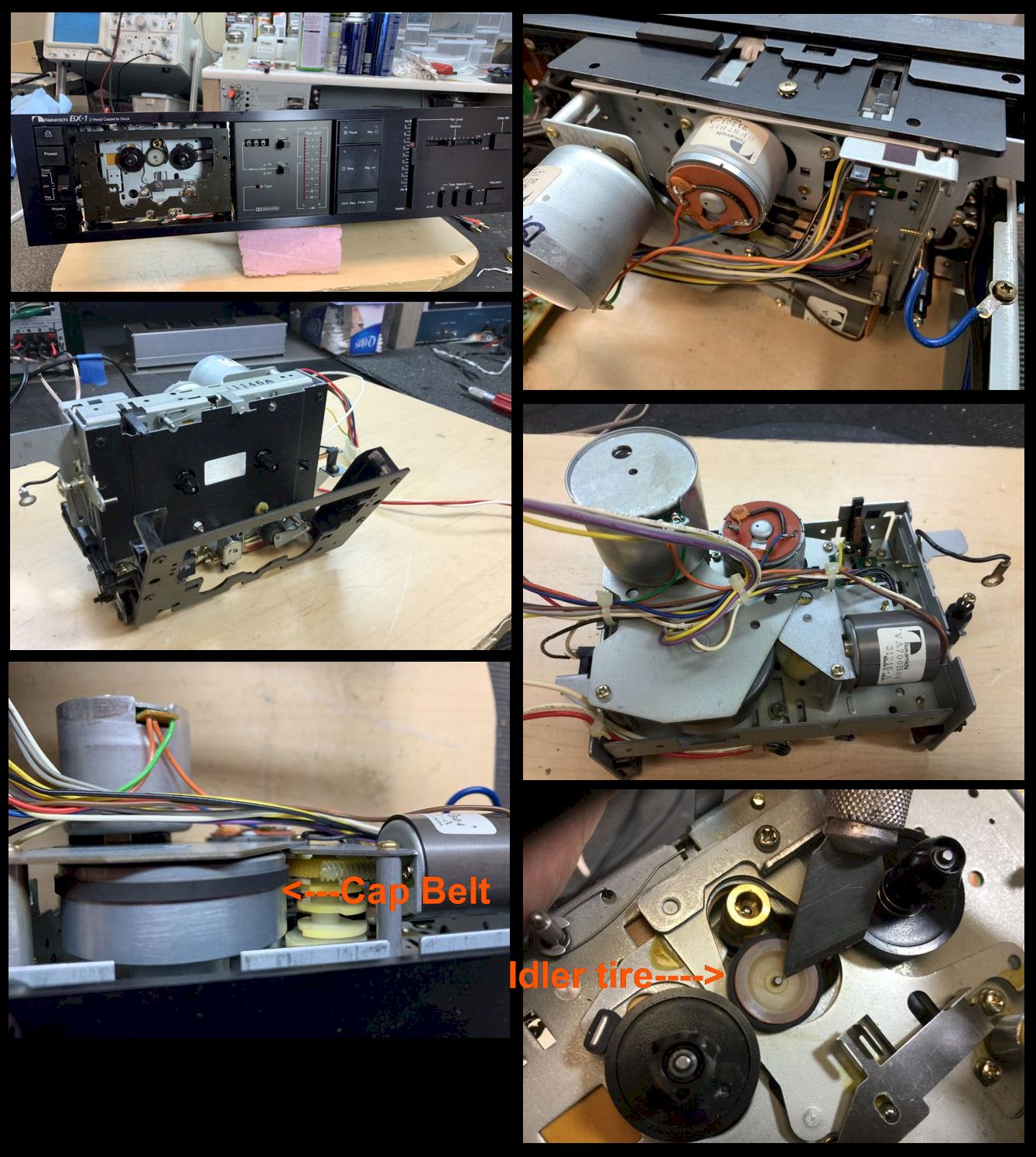

ü Removed 'drive / Transport' assembly, solvent cleaned all pulley and bearing surfaces, then re-lubed where necessary during re-assembly

ü Capstan REMOVED, cleaned / burnished

ü New 'Idler' tire #STC-5629 installed for trouble-free service.



ü New #42-465 Main drive / capstan belt replaced for trouble-free service.

ü New #42-1060 Counter belt replaced for trouble-free service.

ü Rubber pinch roller has been reconditioned

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Head alignments and azimuth @ 10kHz adjusted for 'peak performance' with O-Scope

ü All 'user' potentiometers / controls removed, then cleaned and tested for noise-free function.

ü All internal pots, switches and controls cleaned and tested for noise-free function.

ü Both spindles in perfect alignment.

ü Heads are in great condition

ü Internal playback levels adjusted for even playback w/ alignment tape, Oscilloscope, and mVAC meter

ü Internal Record amplifier channels adjusted for 'even recording' w/ B&K Sine / Function generator test tone on O-Scope

ü Playback meters adjusted for 'playback' zero'd with factory test tone tape.

ü Pinch roller and heads all in GREAT condition!!!

ü While there was originally some 'flutter' at 10kHz, following our restoration, we detected none.

ü Speed adjusted to 99.99% accuracy BOTH directions, with 1kHz factory calibration tape (meaning 1kHz calibration tape plays back at 1001Hz +/- 1 Hz)

ü FF, REW, & Play transport functions all test adequately* and controls tested for 'positive / accurate' responsive.
* Nakamichi decks from this series are relatively known for having fairly 'sluggish' Fast Wind characteristics depending on progress thru the tape. We have optimized this one to it's best ability, but will still be slower than other decks once it reaches the extreme ends of progress thru a tape.

ü Eject door operates smoothly.

ü Dolby circuits / function tested

ü Floor noise measured at -60dBm

ü Plays great and after adjustment, records well w/ following results;
With Pink Noise recorded at 0dB w/o Dolby engaged; PB @ -2dB (and exhibited good 'top end performance in playback' with Maxell UDXL-II / High Bias tapes

With 'Real World', DDD CD music recorded at 0dB w/ Dolby-C engaged; 0dB and great 'brilliance' (and exhibited good 'top end performance in playback' with Maxell 'UD XL-II' / High Bias tapes)
Total technician time to restore 12.5+ HOURS!

____________________________

.....


Includes a pdf / e-copy download of the Nakamichi BX-1 owners / users / instruction manual. Measures 17" w X 10" d X 4.25" h and unpacked weight is 13 lbs. Comes with our 30 day limited warranty.
Nakamichi BX-1
 Cond. 8.0

SOLD 11/19/2021
SHIPPING TO STEPHEN IN INDIANA

(tape shown in photos not included. We do ship our decks with a  a 'pre-recorded' tape for playback, made on this 'specific' deck, and a tape to 'practice record' on.)

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)













(Click on above thumbnails to enlarge photos)

warranty

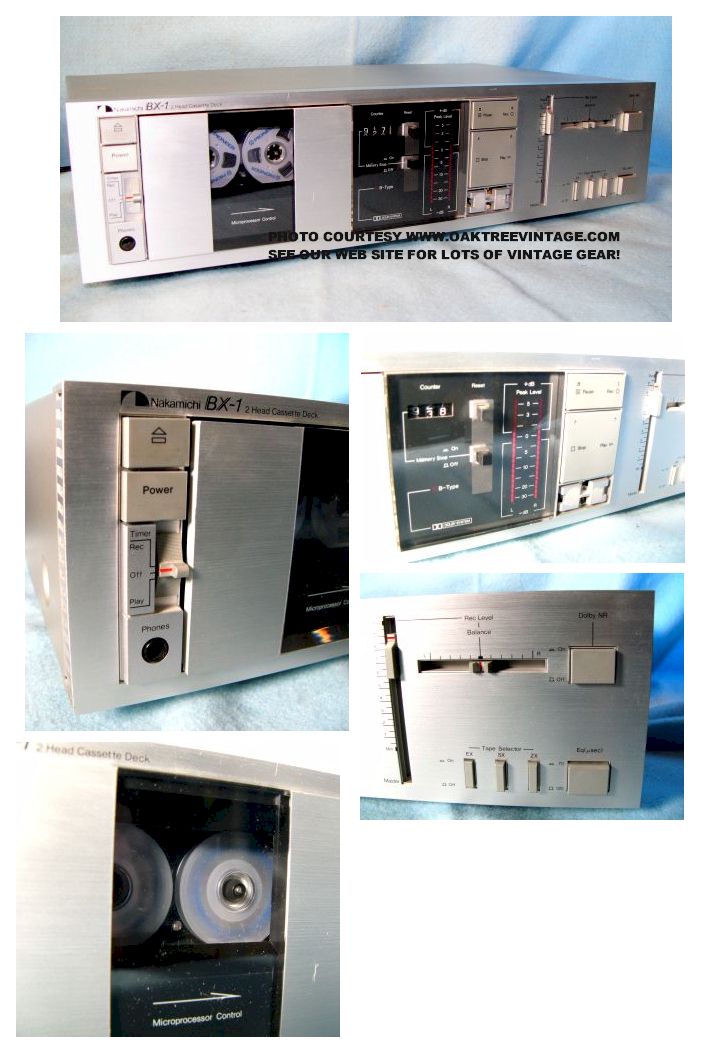

NAKAMICHI STEREO CASSETTE TAPE DECK
NAKAMICHI BX-1
Circa 1982-84

SOLD




(Click on above thumbnails to enlarge photos)

NAKAMICHI STEREO CASSETTE DECK
NAKAMICHI BX-2
SOLD 8/20/05




               NEW LISTING 9/26/18

(click on above thumbnails to enlarge photos)

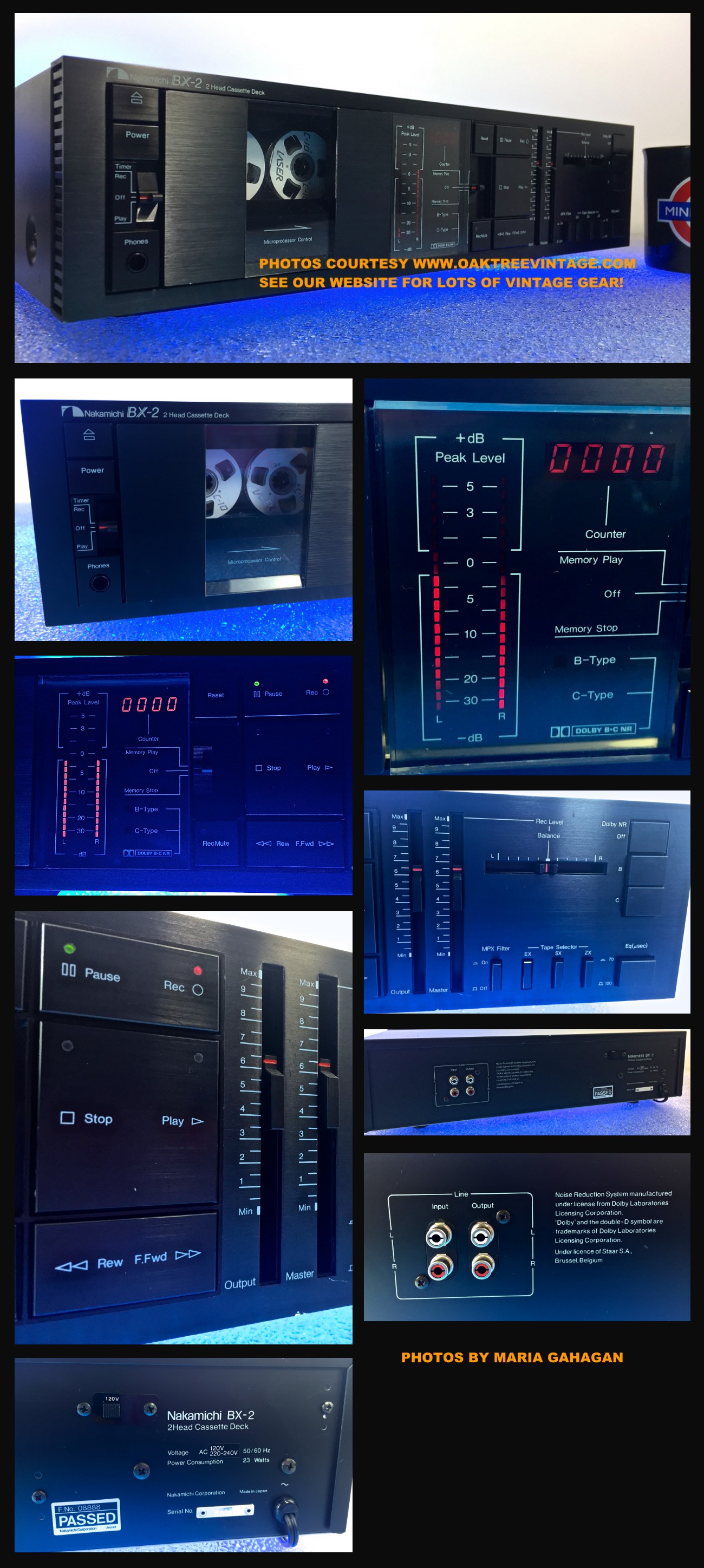

VINTAGE & FULLY SERVICED W/ WARRANTY
NAKAMICHI CASSETTE DECK

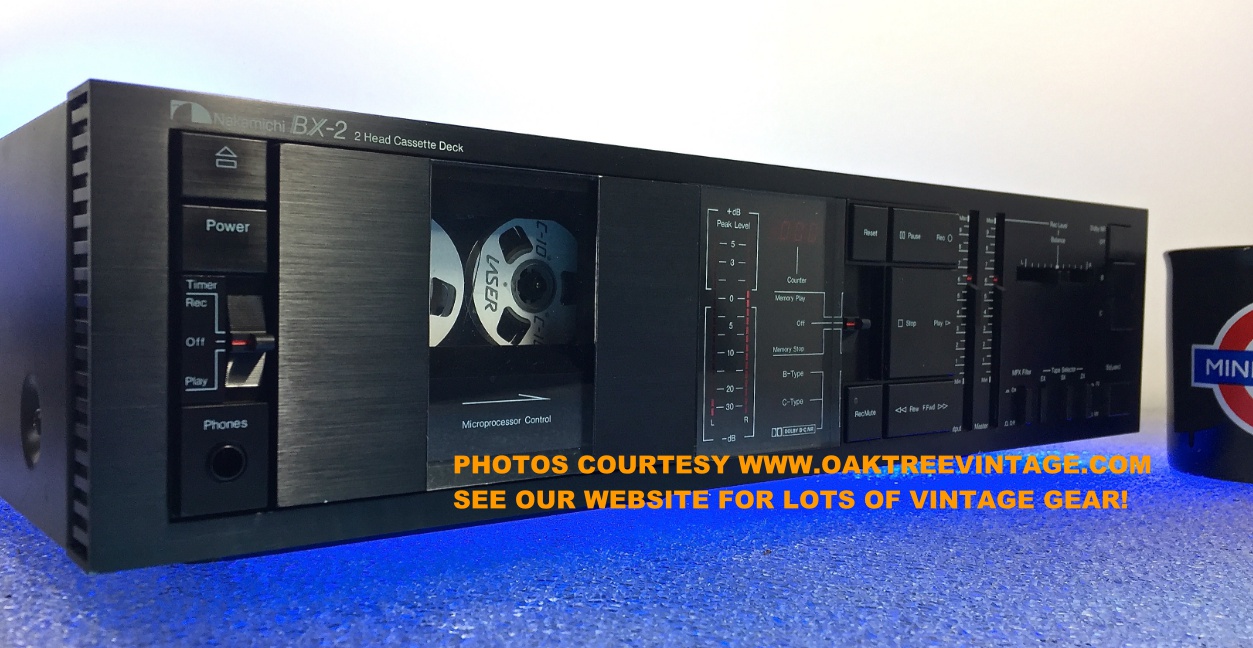

NAKAMICHI BX-2
STEREO CASSETTE TAPE DECK
With DOLBY B & C NR
#...5412
Circa 1982-83

SOLD 1/16/19
SHIPPING TO RUSSELL IN IOWA


ü Our technician has completely and EXTENSIVELY gone through and 'Certified' this unit which involves complete removal and partial disassembly of the entire transport, cleaning inside and out, DISASSEMBLING, cleaning and re-lubricating all internal mechanisms and the balance of efforts listed below.

ü Heads inspected for excessive wear (obviously we do this 'early on' as 'excessive' wear will usually negate any further restoration work).

ü Faulty voltage regulator replaced in power supply, as instead of supplying 12VDC, it was offering up only 1.5VDC.

ü Removed 'drive' assembly, solvent cleaned all pulley and bearing surfaces, then re-lubed where necessary during re-assembly

ü Capstan REMOVED, cleaned / burnished

ü New 'Idler' tire fabricated and installed for trouble-free service.

ü New Main drive / capstan belt replaced for trouble-free service.

ü Rubber pinch roller has been reconditioned

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Head alignments and azimuth @ 10kHz adjusted for 'peak performance' with O-Scope

ü All 'user' potentiometers / controls removed, then cleaned and tested for noise-free function.

ü All internal pots, switches and controls cleaned and tested for noise-free function.

ü Both spindles in perfect alignment.

ü Heads are in great condition

ü Internal playback levels adjusted for even playback w/ alignment tape, Oscilloscope, and mVAC meter

ü Internal Record amplifier channels adjusted for 'even recording' w/ B&K Sine / Function generator test tone on O-Scope

ü Playback meters adjusted for 'playback' zero'd with factory test tone tape.

ü Pinch roller and heads all in GREAT condition!!!

ü While there was originally some 'flutter' at 10kHz, following our restoration, we detected none.

ü Speed adjusted to 100% accuracy BOTH directions, with 1kHz factory calibration tape (meaning 1kHz calibration tape plays back at 1000Hz +/- 1 Hz)

ü FF, REW, & Play transport functions all test perfectly and controls tested for 'positive / accurate' responsive.

ü Eject door operates smoothly.

ü Dolby B & C circuits / function tested

ü Floor noise measured at -60dBm

ü Plays great and after adjustment, records well w/ following results;
With Pink Noise recorded at 0dB w/o Dolby engaged; PB @ -2
dB (and exhibited good 'top end performance in playback' with Maxell UDXL-II / High Bias tapes

With 'Real World', DDD CD music recorded at 0dB w/ Dolby-C engaged; 0dB and great 'brilliance' (and exhibited good 'top end performance in playback' with Maxell 'UD XL-II' / High Bias tapes)
Total technician time to restore 6.5+ HOURS!

____________________________

NAKAMICHI is known for 'Cassette Decks', but they were expensive when new, so we don't see a lot floating around on the secondary market, so when we do, it's always a treat. Here's a NAK BX-2, which following all of the above listed service work, is READY TO GO!

Nakamichi BX-2 Features:

- 2-Motors
- IC Logic, 'Silent Mechanism' Tape Transport controls (allows you to

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?



Nakamichi BX-2 Specifications:


Track format:
4 track / 2 channel
Heads:
 2x
Motors:
 2, DC Servo Capstan Motor, DC Reel Motor
Freq Response;


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Again, as mentioned above, our tech has gone through it completely cleaning all parts, controls and tape mechanism. As mentioned, the power supply was originally not functioning correctly, so before restoration could commence, we replaced a faulty voltage regulator.
We also checked, cleaned, reconditioned and / or replaced rubber components. We completely de-magnetized the heads and transport. Capstan motor speed adjusted to exact spec! Tape speed re-adjusted to 100% accuracy, ie; 1 kHz = 1 kHz! And with it's service work completed the deck records incredibly well and plays back utilizing Maxell UD XL-II tapes at 0dB down! About the only cosmetic issue worth mentioning, is that there are some scratches to the black paint, on the top sheet metal housing. Probably from someone setting a unit on top of it that didn't have feet. Of course you only notice that when looking 'down from above' the deck, so in a rack, wouldn't be seen. Overall, the deck looks good and sounds great! Great for transferring your tape collection to CD, Hard-drive or MP3. Plays and Records extremely well. Very clean and usable deck! Includes a pdf / e-copy download of the Nakamichi BX-2 owners / users / instruction manual. Measures 17" w X 10" d X 4.25" h and unpacked weight is 13 lbs. Comes with our 30 day limited warranty.
Nakamichi BX-2
 Cond. 8.5+

SOLD 1/16/19
SHIPPING TO RUSSELL IN IOWA

(tape shown in photos not included. We do ship our decks with a  a 'pre-recorded' tape for playback, made on this 'specific' deck, and a tape to 'practice record' on.)

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)

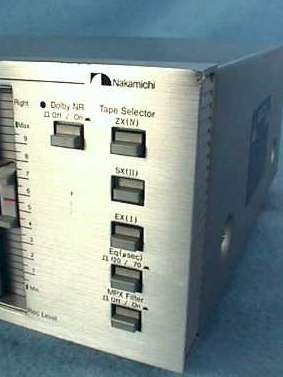

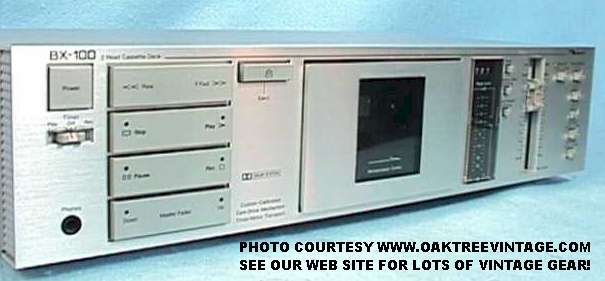

Nakamichi_BX-100_Cassette_Deck_Sal_web.jpg (24263 bytes)   Nakamichi_BX-100_Cassette_Deck_Sal_collage.jpg (70597 bytes)



VINTAGE NAKAMICHI CASSETTE DECK

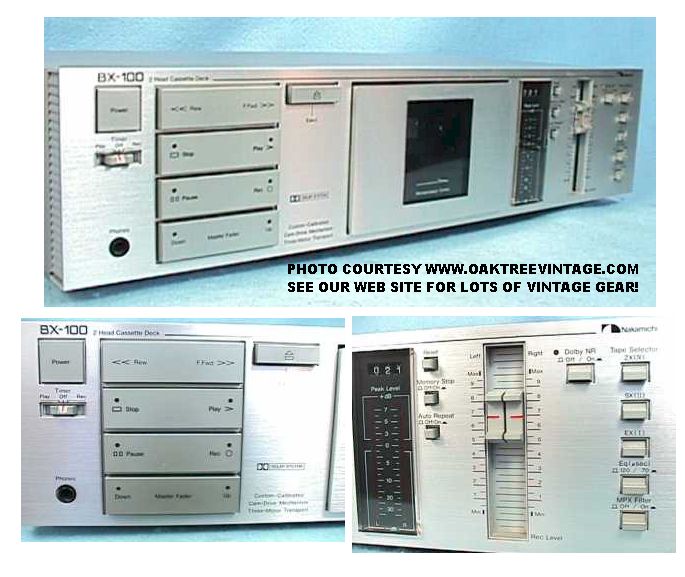

NAKAMICHI BX-100 / BX100

SOLD









(Click on above thumbnails to enlarge photos)

PRE-OWNED / REFURBISHED
VINTAGE NAKAMICHI CASSETTE DECK

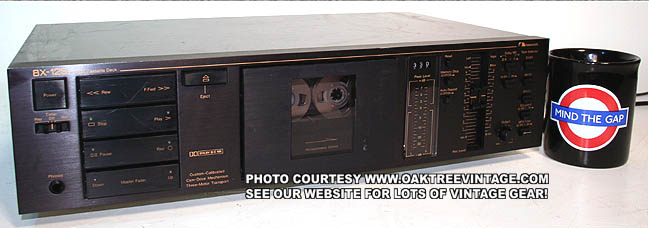

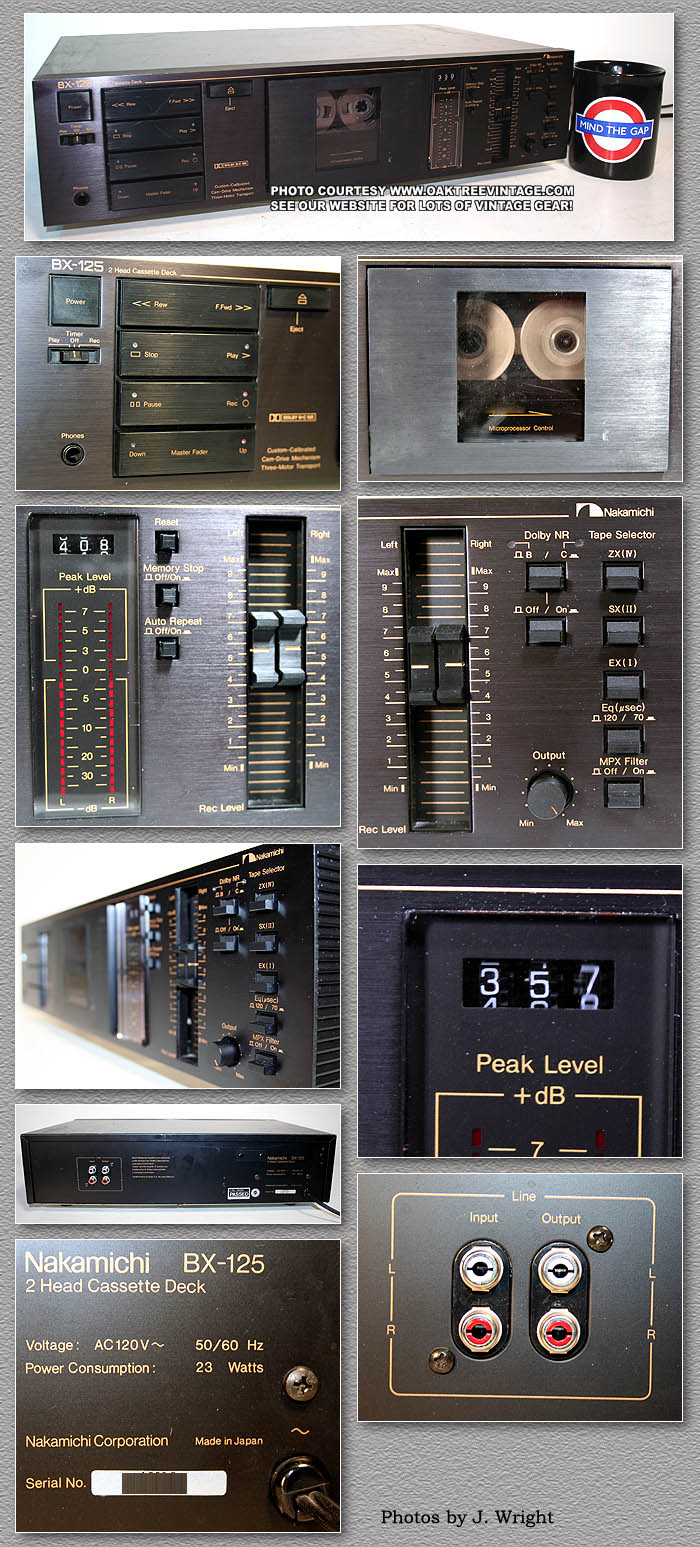

NAKAMICHI BX-125
With DOLBY B & C NR

SOLD 4/10






VINTAGE NAKAMICHI CASSETTE DECK

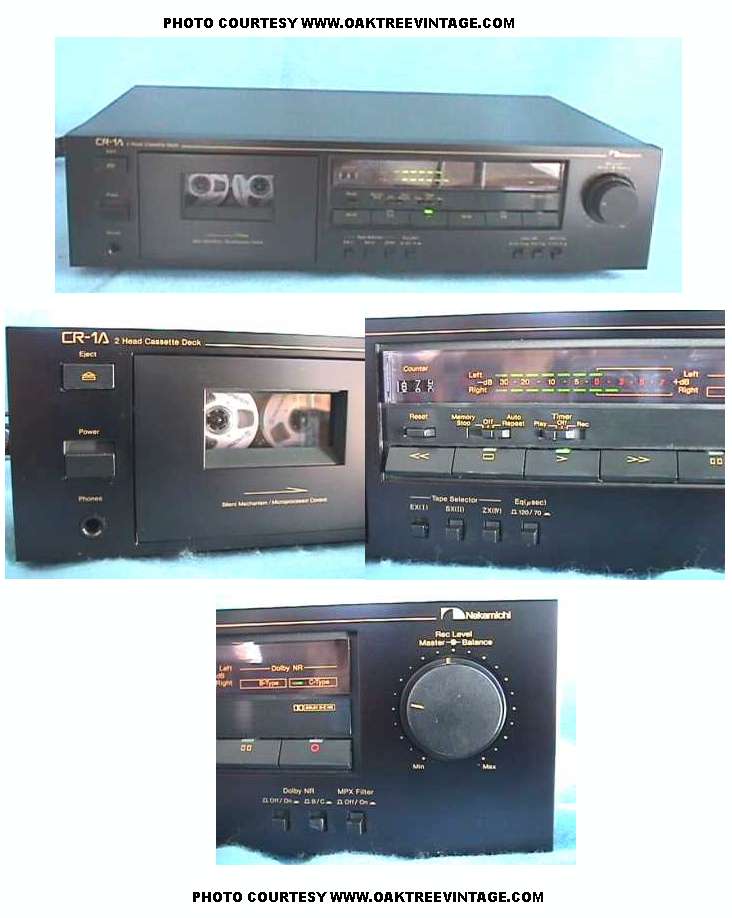

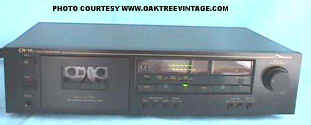

NAKAMICHI CR-1A
SOLD




NEW LISTING 2/12/08
(Click on above thumbnails to enlarge photos)


PRE-OWNED / REFURBISHED

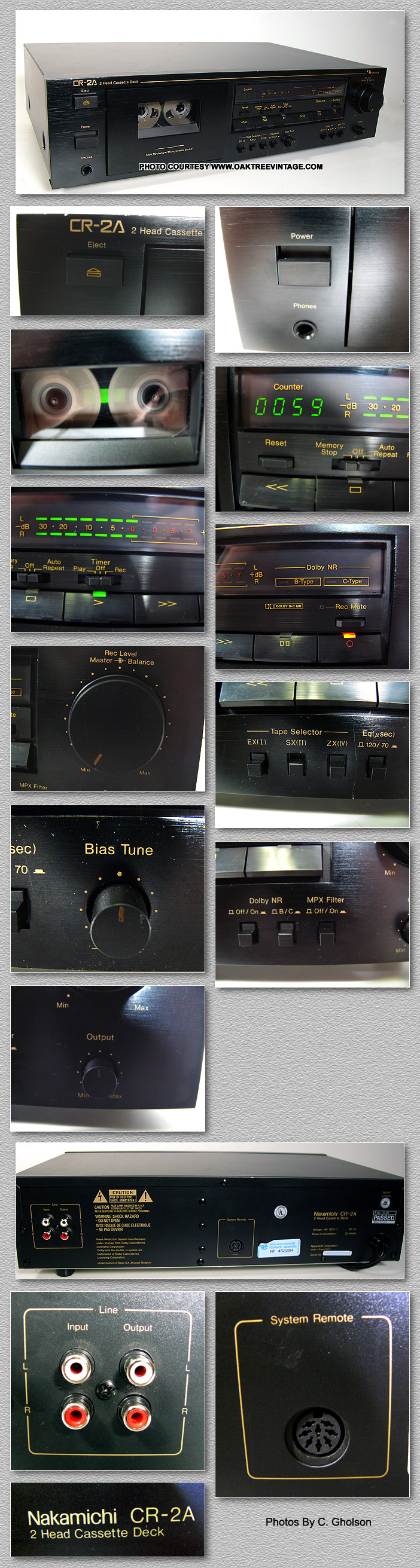

VINTAGE NAKAMICHI CASSETTE DECK

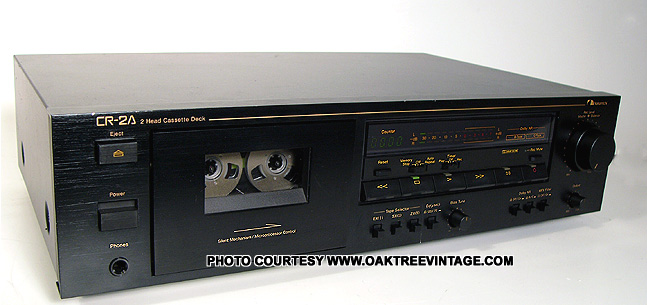

NAKAMICHI CR-2A
#...0029

STEREO
CASSETTE TAPE DECK
With DOLBY B & C NR

SOLD 3/3/08







NEW LISTING
12/29/17
 (Click on above thumbnails to enlarge photos)

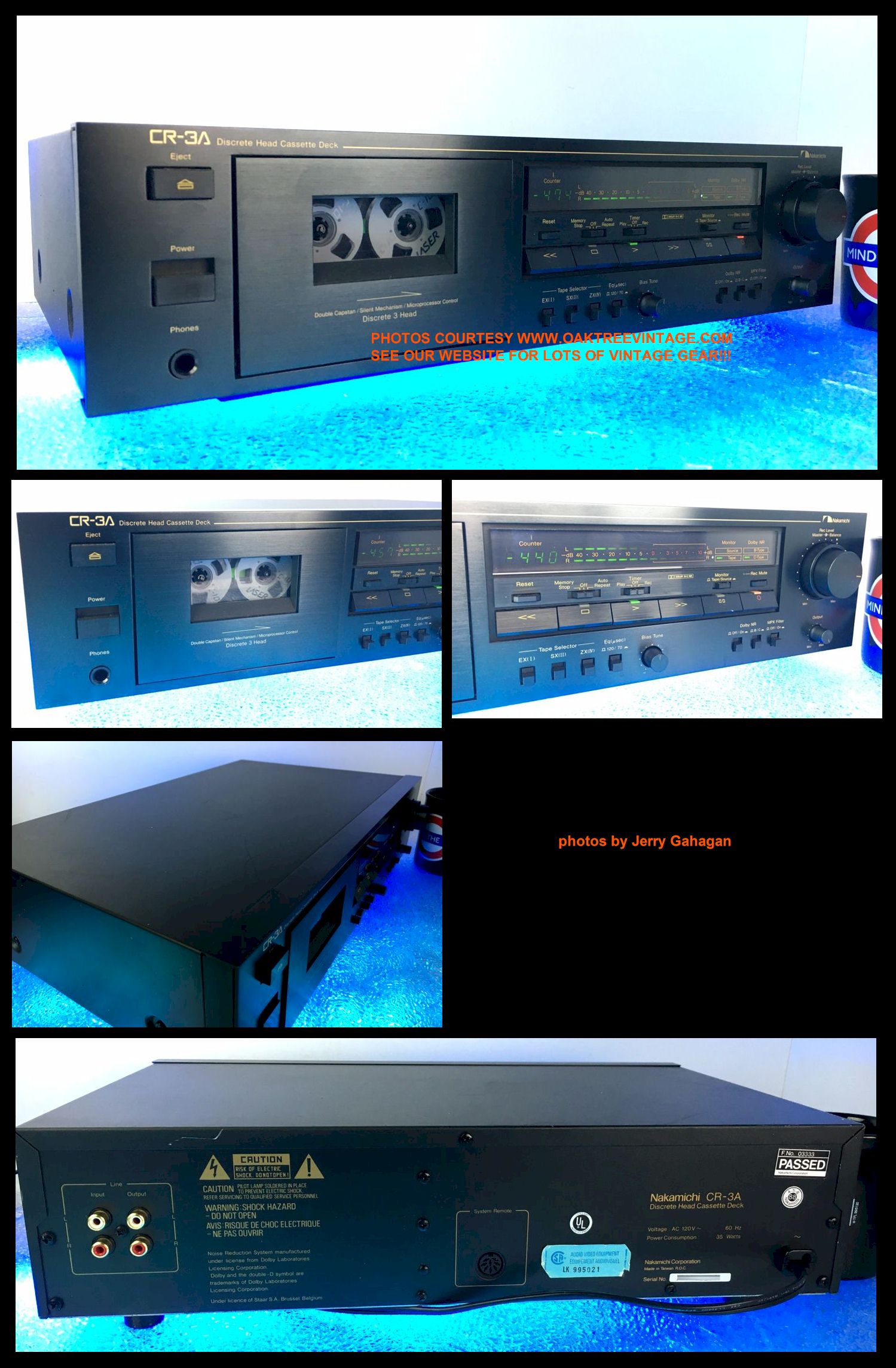

VINTAGE & FULLY SERVICED
NAKAMICHI CASSETTE DECK
NAKAMICHI CR-3A
STEREO CASSETTE TAPE DECK
3-HEAD
DOUBLE CAPSTAN
With DOLBY B & C NR
#...5673
Circa 1988-90

 1/2/18
SHIPPED TO ARIZONA

ü Our technician has completely and EXTENSIVELY gone through and 'Certified' this unit which involves complete removal and partial disassembly of the entire transport, cleaning inside and out, DISASSEMBLING, cleaning and re-lubricating all internal mechanisms and the balance of efforts listed below.

ü Heads inspected for excessive wear (obviously we do this 'early on' as 'excessive' wear will usually negate any further restoration work).

ü Removed 'drive' assembly, solvent cleaned all pulley and bearing surfaces, then re-lubed where necessary during re-assembly

ü 'Gear driven' hubs, so NO reel tires for trouble-free service.

ü Main drive / capstan belt replaced for trouble-free service.

ü Rubber pinch roller has been reconditioned

ü Capstan burnished

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Head alignments and azimuth at both 1kHz and 10kHz adjusted for 'peak performance' with O-Scope

ü All 'user' potentiometers / controls removed, then cleaned and tested for noise-free function.

ü All internal pots, switches and controls cleaned and tested for noise-free function.

ü Both spindles in perfect alignment.

ü Heads are in great condition

ü Internal playback levels adjusted for even playback w/ alignment tape, Oscilloscope, and mVAC meter

ü Playback meters adjusted for 'playback' zero'd with factory test tone tape.

ü Internal Record amplifier channels adjusted for 'even output'

ü Pinch roller and heads all in GREAT condition!!!

ü Speed adjusted to 100% accuracy BOTH directions, with 1kHz factory calibration tape (meaning 1kHz calibration tape plays back at 1000Hz +/- 1 Hz)

ü FF, REW, & Play transport functions all test perfectly and controls tested for 'positive / accurate' responsive.

ü Eject door operates smoothly.

ü Digital Tape Counter

ü 'Memory Stop / Zero Return' and 'Auto Repeat' function

ü Dolby B & C circuits / function tested

ü Cosmetics are decently clean, with typical, minor wear and one small 'ding' to a rear corner of the face bezel (see above photos)

ü Floor noise measured at -60dBm

ü Plays great and after adjustment, records well w/ following results;
With Pink Noise recorded at 0dB w/o Dolby engaged; -3dB (and exhibited good 'top end performance in playback' with Maxell UDXL-II / High Bias tapes
With Pink Noise recorded at 0dB w/o Dolby engaged; -0dB (and exhibited good 'top end performance in playback' with TDK 'SA' / High Bias tapes
Total technician time to restore 6.5+ HOURS!

____________________________

NAKAMICHI
is known for 'Cassette Decks', but they were expensive when new, so we don't see a lot floating around on the secondary market, so when we do, it's always a treat. Here's a NAK CR-3A, "3-Head" deck 'made for recording'! And following all of the above listed service work, it's READY TO GO!

Nakamichi CR-3A Features:

- 3-Heads for better...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Nakamichi CR-3A Specifications:

Track format:
4 track / 2 channel
Heads:
 3x
Motors:
 2, DC Servo Capstan Motor, Flat
...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?
Again, as mentioned above, our tech has gone through it completely cleaning all parts, controls and tape mechanism. We also checked, cleaned, reconditioned and / or replaced rubber components. We completely de-magnetized the heads and transport. Capstan motor speed adjusted to exact spec! Tape speed re-adjusted to 100% accuracy, ie; 1 kHz = 1 kHz! And with it's service work completed the deck records incredibly well and plays back utilizing TDK SA tapes at 0dB down! Other than the minor 'ding' mentioned earlier, the deck looks near NEW and sounds great! Great for transferring your tape collection to CD, Hard-drive or MP3. Plays and Records extremely well. Very clean deck and usable deck! Includes a pdf / e-copy download of the Nakamichi CR-3A owners / users / instruction manual. Measures 17" w X 10.5" d X 4" h and unpacked weight is 13lbs. Comes with our 30 day limited warranty.
Nakamichi CR-3A
 Cond. 8.5+

(Cons.) R.R.

 1/2/18
SHIPPED TO ARIZONA

(tape shown in photos not included. We do ship our decks with a  a 'pre-recorded' tape for playback, made on this 'specific' deck, and a tape to 'practice record' on.)

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)







             NEW LISTING 11/18/2021
 (Click on above thumbnails to enlarge photos)

FULLY SERVICED / REFURBISHED / RESTORED W/ WARRANTY
NAKAMICHI CASSETTE DECK

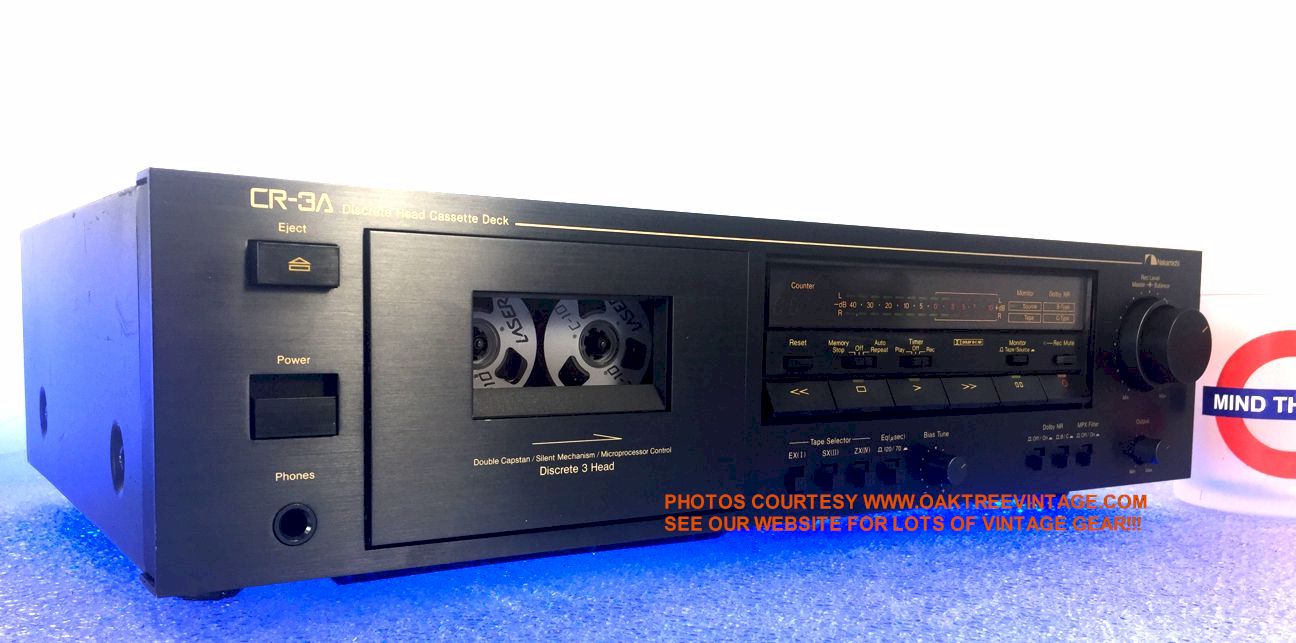

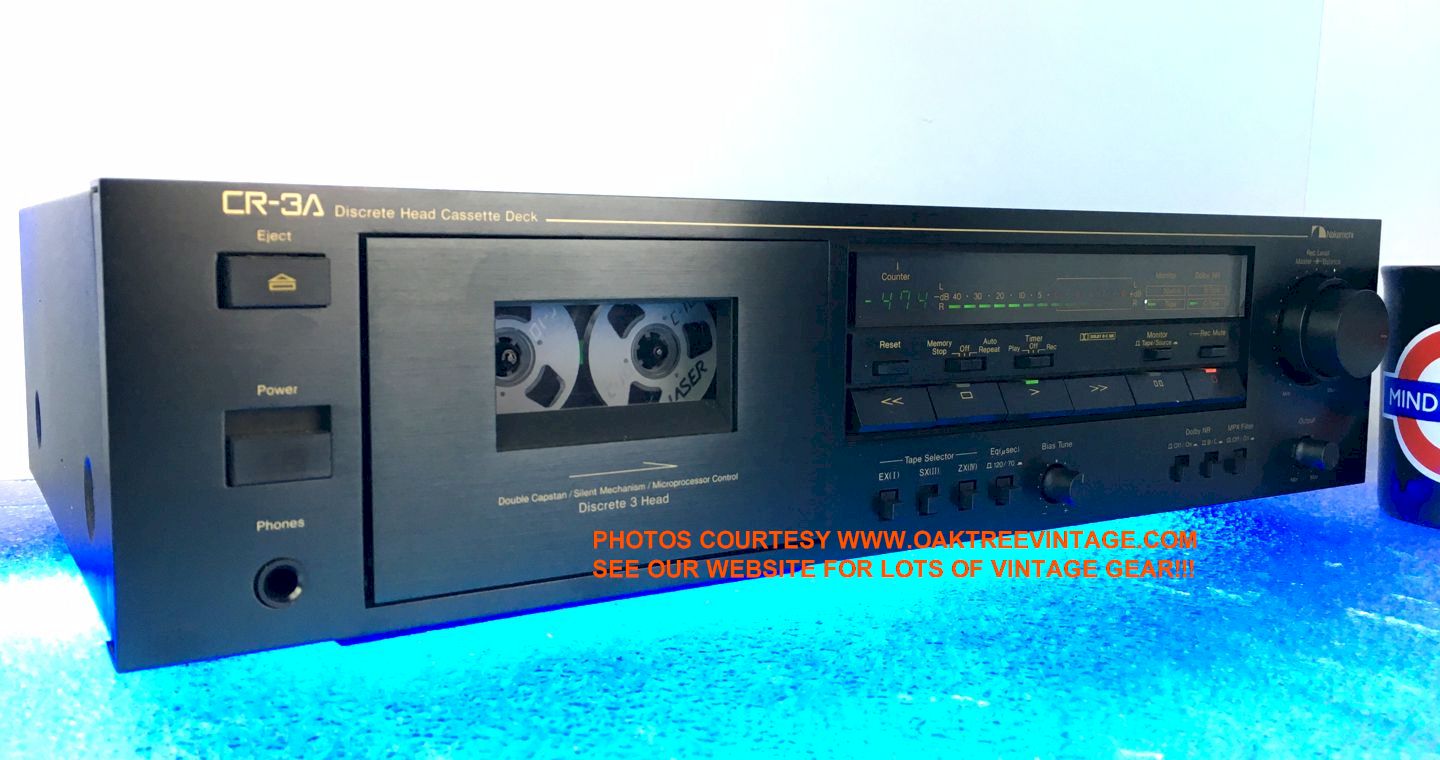

NAKAMICHI CR-3A
STEREO CASSETTE TAPE DECK
3-HEAD
DOUBLE CAPSTAN
With DOLBY B & C NR
#...2270
Circa 1988-90

SOLD 12/29/2021
SHIPPING TO LEE IN NEW YORK


ü Our technician has completely and EXTENSIVELY gone through and 'Certified' this unit which involves complete removal and partial disassembly of the tape drive / transport, cleaning inside and out, DISASSEMBLING, cleaning and re-lubricating all internal mechanisms and the balance of efforts listed below.



ü Heads inspected for excessive wear (obviously we do this 'early on' as 'excessive' wear will usually negate any further restoration work).

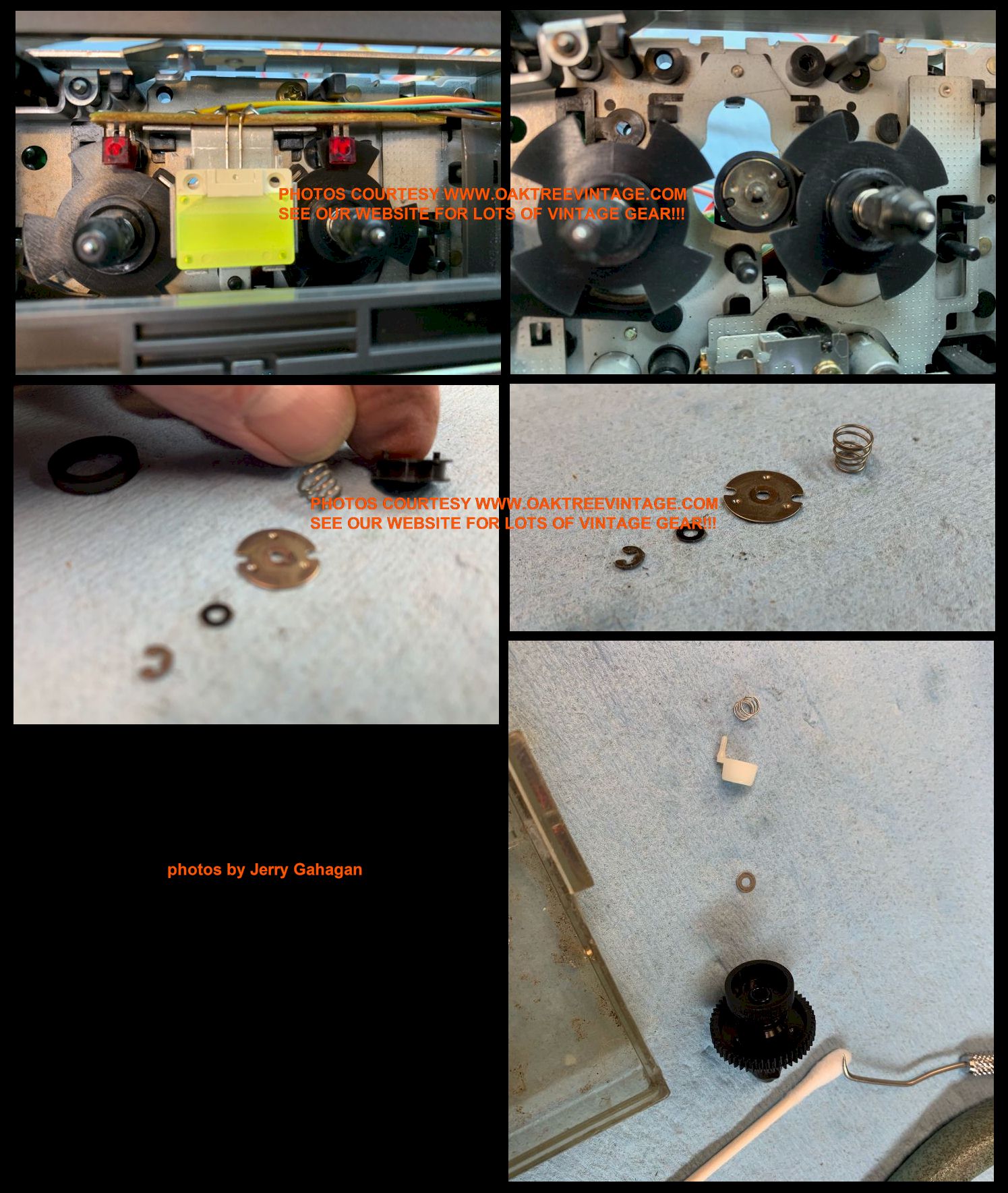

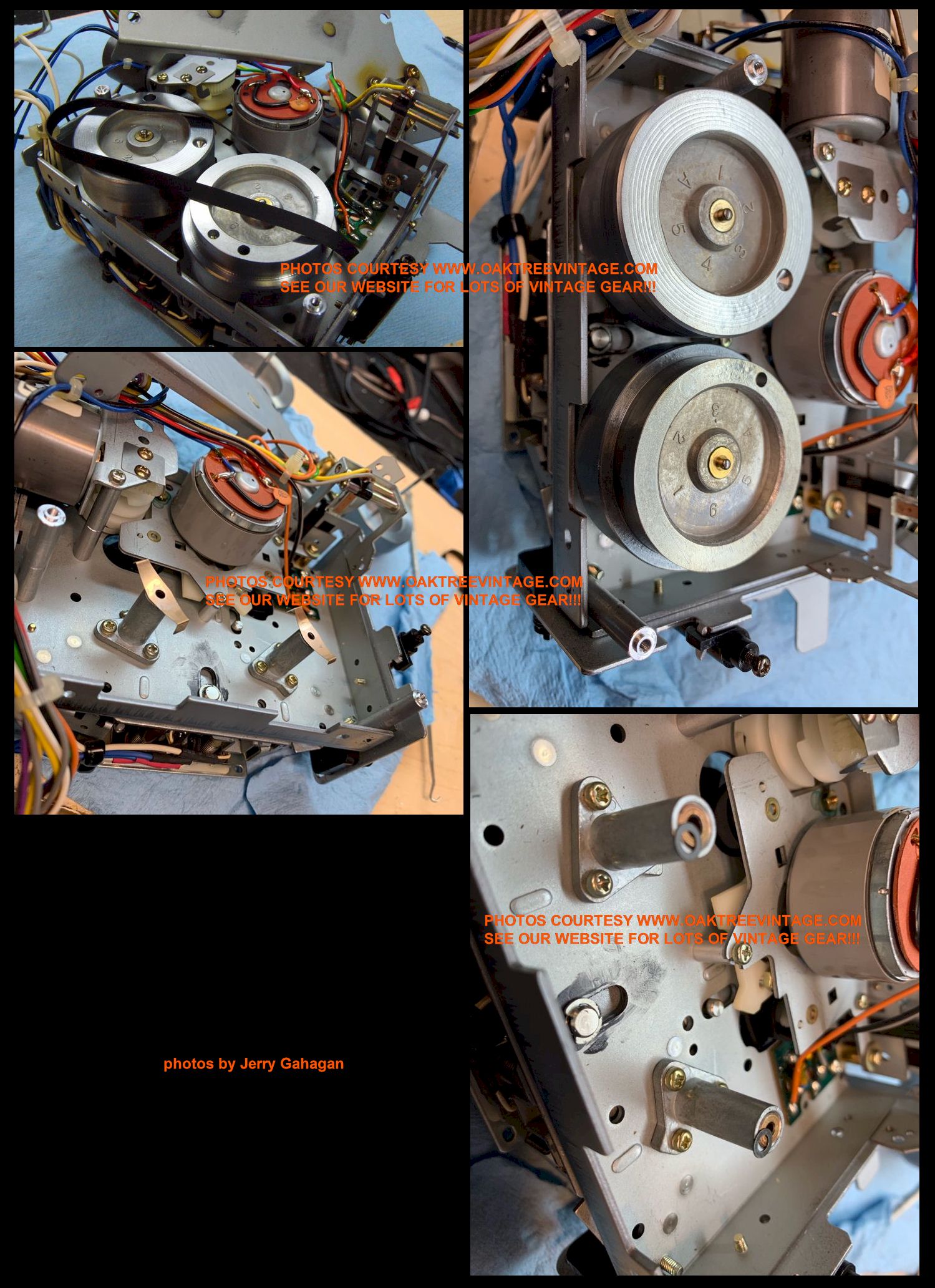

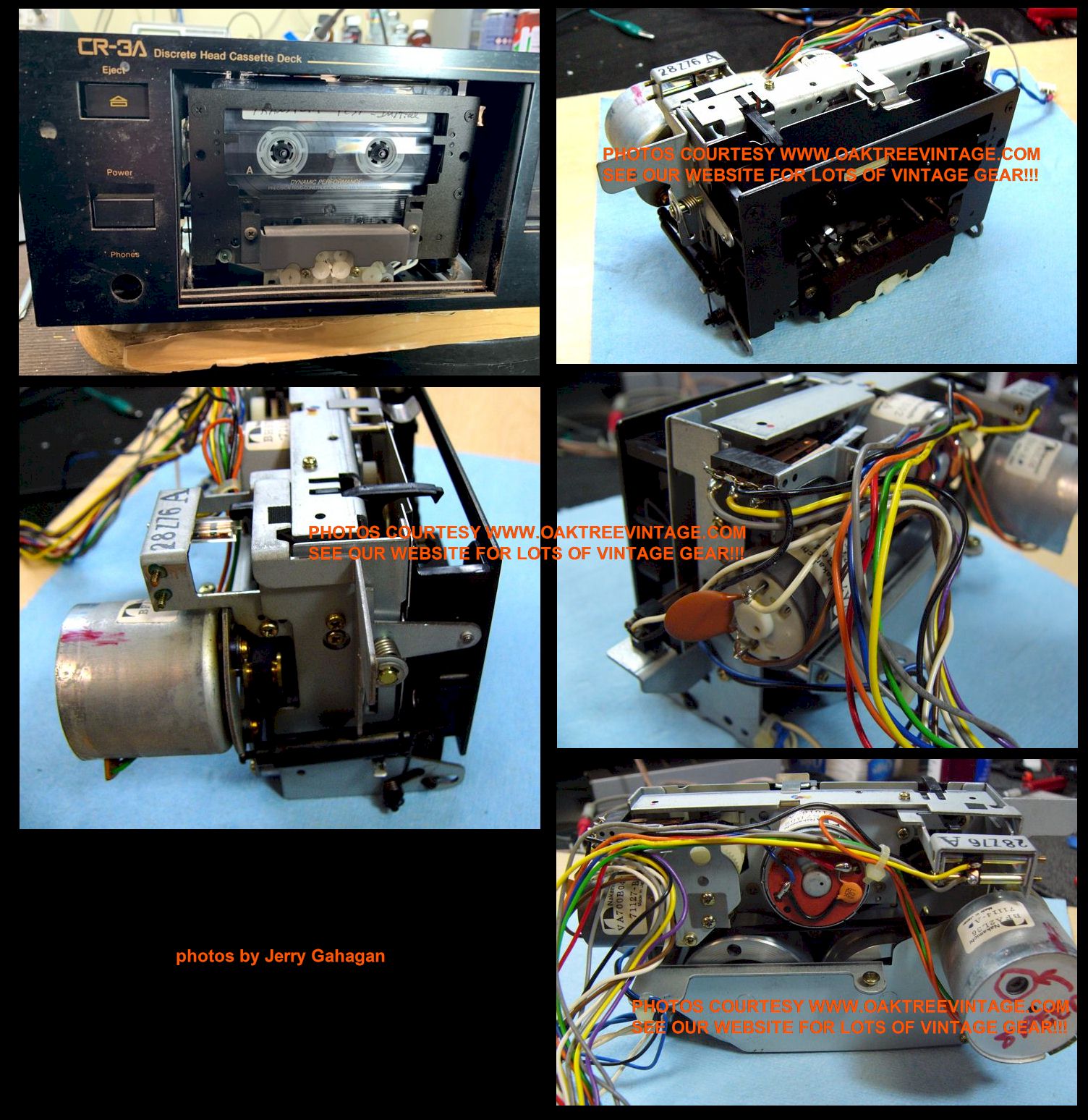

ü Removed both 'capstan / flywheel' assembly, solvent cleaned all pulley and bearing surfaces, then re-lubed where necessary during re-assembly



ü Main drive / capstan belt replaced for trouble-free service.

ü 'Gear driven' hubs, so fewer reel tires for trouble-free service.

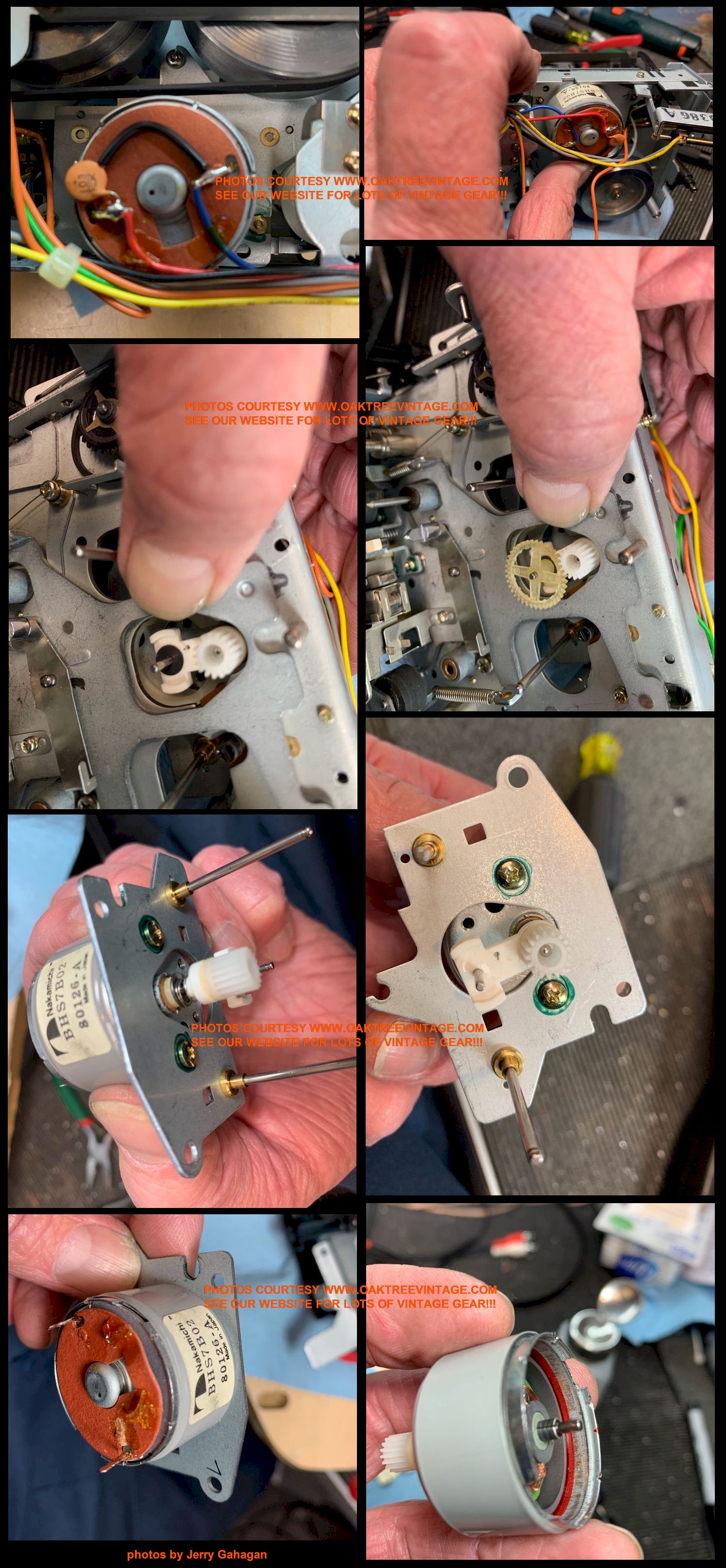

ü Motor removed, disassembled and serviced (removed armature, cleaned commutator gaps and cleaned and inspected brushes. Cleaned and lubed bushings and armature shafts).



ü Rubber pinch rollers have been reconditioned w/ Re-Nue

ü Capstan burnished

ü New main drive belt installed for Capstan flywheels as original had perished (started with FRY 10.0, but decided that "42-1995 / 9.1 had overall better performance)

ü New counter belt installed

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Head alignments and azimuth at both 1kHz and 10kHz adjusted for 'peak performance' with O-Scope

ü All 'user' potentiometers / controls removed, then cleaned and tested for noise-free function.

ü All internal pots, switches and controls cleaned and tested for noise-free function.

ü Heads are in great condition

ü Internal playback levels adjusted for even playback w/ alignment tape, Oscilloscope, and mVAC meter

ü Playback meters adjusted for 'playback' zero'd with factory test tone tape.

ü Internal Record amplifier channels adjusted for 'even output'

ü Pinch roller and heads all in GREAT condition!!!

ü Speed adjusted to 100% accuracy with TEAC 257H calibration tape, with 1kHz factory calibration tape (meaning 1kHz calibration tape plays back at 1000Hz +/- 1 Hz)

ü FF, REW, & Play transport functions all test perfectly and controls tested for 'positive / accurate' responsive.

ü Eject door operates smoothly.

ü Digital Tape Counter

ü 'Memory Stop / Zero Return' and 'Auto Repeat' function

ü Dolby B & C circuits / function tested

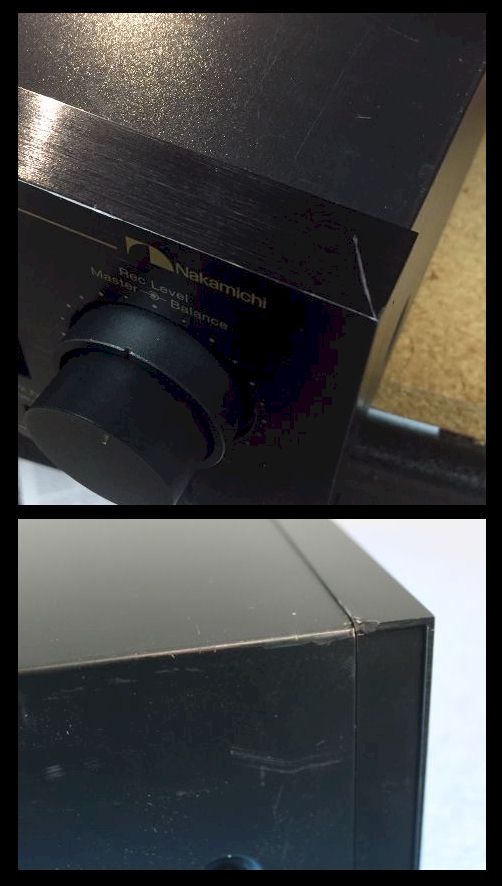

ü Cosmetics are decently clean, with typical, minor wear and one small 'ding' to a rear corner of the face bezel (see above photos)

ü Floor noise measured at -60dBm

Following service / fine tuning;

ü Recording tests performed with Maxell High-Bias UDXL-II (Gold / Black) Tapes.
Here’s the results;

Maxell UDXL-II: 1KhZ with No NR @ 0dB; L= -4dB & R= -4dB R with virtually no artifacts
Maxell UDXL-II: 1KhZ w/Dolby B NR @ 0dB; L= -5dB & R= -5dB R with virtually no artifacts
Maxell UDXL-II: WN
with No NR @ -10dB; = -15dB L & R
Recorded program from "ddd" source @ 0dB sounds great as well coming in around -4dB w/o NR on Type II. It's nice recording on a deck that's 'dialed in' properly)


Total technician time to restore 14+ HOURS!

____________________________

 Includes a pdf / e-copy download of the Nakamichi CR-3A owners / users / instruction manual. Measures 17" w X 10.5" d X 4" h and unpacked weight is 13lbs. Comes with our 30 day limited warranty.
Nakamichi CR-3A
 Cond. 8.5+

SOLD 12/29/2021
SHIPPING TO LEE IN NEW YORK

(tape shown in photos not included. We do ship our decks with a  a 'pre-recorded' tape for playback, made on this 'specific' deck, and a tape to 'practice record' on.)

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)

- Archived







VINTAGE NAKAMICHI CASSETTE DECK
NAKAMICHI MR-1

SOLD

VINTAGE NAKAMICHI CASSETTE DECK
NAKAMICHI RX-505
AUTO REVERSE, 3-HEAD
SOLD








          NEW LISTING 4/16/2022
 (Click on above thumbnails to enlarge photos)

VINTAGE, REFURBISHED, FULLY SERVICED
NAKAMICHI CASSETTE TAPE DECK
NAKAMICHI RX-202
#...6682
With DOLBY B & C NR
"UDAR" (Unidirectional Auto Reverse) (the correct way!)
MADE IN JAPAN!
Circa early 1982-93 (that's a testament to this decks success as a design, as it was current for an 11 year time span!!!)
"WORLD AC POWER"







PHOTOS COMING

NICORDER MODEL 750 REEL TO REEL / PHONOGRAPH / STEREO TUBE AMPLIFIER REFERENCE (CLICK HERE)...













NEW LISTING 5/15/07
(Click on above thumbnails to enlarge photos)


PRE-OWNED
VINTAGE ONKYO CASSETTE DECK
ONKYO TA-R33
3-MOTOR

 AUTO REVERSE
 STEREO
 CASSETTE TAPE DECK

SOLD 8/16/07







NEW LISTING 5/15/07
(Click on above thumbnails to enlarge photos)


PRE-OWNED
VINTAGE ONKYO CASSETTE DECK
ONKYO TA-R301
#...7342

"QUICK" AUTO-REVERSE
 STEREO
 CASSETTE TAPE DECK
 With DOLBY B & C
&
HX PRO

SOLD 1
/23/08








NEW LISTING
4/25/08
(Click on above thumbnails to enlarge photos)

PRE-OWNED
/ REFURBISHED
VINTAGE ONKYO CASSETTE DECK
ONKYO "INTEGRA" TA-2090 TA2090Z
3-HEAD / 3 MOTOR

DIRECT DRIVE
 STEREO
 CASSETTE TAPE DECK
 With HX-PRO, dbx, DOLBY B & C
Circa 1985-91

SOLD 5/15/08










NEW LISTING 4/28/21
(Click on above thumbnails to enlarge photos)
FULLY SERVICED / REFURBISHED WITH WARRANTY
OTARI
REEL TO REEL TAPE DECK
OTARI MX5050-BII 'MASTERING DECK'
#...2021
2-TRACK ('HALF TRACK') 2-CHANNEL STEREO MASTERING DECK
PLUS
4-TRACK / 2-CHANNEL PLAYBACK

4-HEAD / 3-SPEED / 3-MOTOR
10.5" REELS OR SMALLER
PRETTY MUCH THE 'SWISS ARMY' KNIFE OF DECKS
THIS IS ABOUT AS CLOSE AS YOU WILL GET TO "ONE DECK THAT DOES IT ALL"

MIJ
Circa 1979-89
SOLD 5/14/2021
SHIPPING TO KEN IN GEORGIA

ü Our technician has EXTENSIVELY gone through and 'Certified' this unit.ü We have completely and EXTENSIVELY gone through the mechanicals and electronics of this unit (and this was a BIG project as it's a VERY complex deck).

ü Initially FS702 would blow when transport engaged. Found bad D702 rectifier and bad IC802. Replaced both to cure issue. Now all power supply Voltages correct.

ü Initially had intermittent record issues, especially with one channel. Found both Omron "GTVN-234P / 24VDC" (R301 & R401) relays were occasionally intermittent. Replaced with NEW, correct, Omron OEM relays.

ü Via extensive testing of all the systems and system combinations, we found bad and questionable components / semi-conductors / transistors at call-out locations; Q408, IC302, & Q409

ü Via Following the above mentioned replacements, there still remains an issue with recording when in the SOS / SWS mode. We chose not to continue to pursue those aspects as few users would ever need to record "Sound on Sound" or "Sound with Sound". There are other, easier, cheaper ways to do that nowadays.

ü Transport mechanisms disassembled, cleaned, lubed w/ 'SuperLube', silicone based gel and light machine oil as necessary and reassembled

ü Tape Tension arms disassembled, cleaned and re-lubed, and their springs adjusted and had fresh 500,000 grade silicone lube gel applied

ü pinch-roller mechanism completely disassembled, cleaned and re-lubed.

ü Capstan motor disassembled. New oil felts fabricated and installed

ü Rubber pinch and impedance rollers removed, re-surfaced, conditioned and re-installed with fresh lubricant

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Brakes adjusted on fast wind modes also (optimized for 7" & 10.5" tape.)

ü Back tension checked / adjusted on both reel motors.

ü All three motors test perfectly. Following above adjustments, Reel Start and Stop tested at beginning, middle and end of 7" & 10.5" tapes (VERY QUICK 'FAST WIND' ON THIS ONE)

ü All pots, switches and controls cleaned and tested for noise-free function

ü We adjusted the VU meters mechanically for correct 'resting position' and electronically w/ factory test tone tapes, as well as the internal playback and record levels.

ü All four meter lamps replaced with #25-450 bulbs

ü Both spindles in perfect alignment.

ü We also checked / adjusted the reel table heights.

ü Heads in great shape as well, with many years of performance left in them

ü Playback and Record Head alignment / azimuth / Phase was adjusted for peak performance with factory test tone tape and oscilloscope.

ü Speed tested to 99.9+% accuracy following refurb with pitch control defeated or "Off" (meaning that our 'verified' 1000Hz test tape now plays back at 1000 +/- 1Hz) (separate, internal adjustments for each of the three speeds were addressed).

ü Adjusted to record AMAZINGLY WELL at 0dB both with full bandwidth Pink-Noise, then 1kHz test and in 'Real World' use w/ 'mixed DDD CD' signals. (Tested with multiple Tapes, ie; Scotch 207, Maxell XL-II, Ampex GM456, ATR, and Ampex 499. Tech noted, "Best I've ever heard").

ü Floor noise measured at >-60dBm w/ blank tape, L&R

ü Following refurb / service mechanicals tested for 'play torque' at beginning and end of largest size reels, as well as 'Fast wind torque' and 'braking tension' in both FF and REW, at beginning, middle and end of tapes. In other words, every combination of transport function was tested and passed.

ü This Otari MX5050B-II functions, plays, and records VERY WELL (and we really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy).


ü Recording tests performed with the following tapes and results:

Scotch 207
tape. Here’s how it tested at 0dB; 1kHz / L= ~-1.75dB & R= ~-1.75dB
Maxell UDXL-II
tape. Here’s how it tested at 0dB; 1kHz / L= ~-2.75dB & R= ~-2.75dB
ATR
tape. Here’s how it tested at 0dB; 1kHz / L= ~0dB & R= ~0dB
Ampex GM456
tape. Here’s how it tested at 0dB; 1kHz / L= ~0dB & R= ~0dB
Ampex GM499 tape. Here’s how it tested at 0dB; 1kHz / L= ~0dB & R= ~+.75dB

ü (Total time investment in refurb / testing ~ 42+ hours).

This is an fabulous deck for both recording or playback, again of 'Half-Track / 2-Track' tapes and playback of standard, 4-Track/2-Channel tapes AND for speeds of 3.75ips, 7.5ips or 15ips. Following refurbishment, the deck looks and works great and sounds amazing!!!

As this deck plays 2 different tape formats and 3 speeds, it would make a great 'One-Size-Fits-Most' deck for a media tape transfer house as well.

The Otari MX5050B-II Stereo 'Half-Track / 2-Channel' / 'Quarter-Track / 2-Channel', 1/4" wide Reel to Reel tape deck. Ready to GO! First one of these we've had in 30+ years of dealing in vintage audio. This is one of the few reel to reel decks we get in that make it to our finished page. Following our refurb / bench time it's now an AMAZING performer (Check the 'recording test results' above and the 'specs' in larger text below). If you're looking for a reel to reel deck to "actually use" here you go. Only about 25% of the used Reel decks out there can be "practically" restored to working order. This one made it through with flying colors after about 41+ hours of bench time.

The deck tests great! Cosmetically it's in good condition. Looks good and sounds great ! We have completely gone through it. Will play up to 10.5" reels.

Otari MX5050B-II Features include:
...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

- Accessory connectors for optional Otari Remote control
- Tape 'Splice Block' located on the head cover


As stated earlier we have completely gone through it cleaning heads and all else, lubing, adjusting, reconditioning pinch rollers and other rubber parts, demagnetizing heads and entire transport and testing everything.
Tape speed tested and resulted in 99.9% accuracy using a 1000 Hz test tape. Plays and records Exceptionally well (and we really put them through the paces, testing both with well mixed CD material and CD test tones looking for correct head Azimuth, tape speed accuracy and making test recordings. Again, check the 'test results' listed above). Pinch rollers and heads all in GREAT condition!!! Very clean and GREAT!

Otari MX5050B-II Specs / Specifications from the owners manual / brochure as follows:
...


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Fast Wind Time: VERY FAST @ 90 sec for 2500'


As I mentioned earlier it's about as 'Swiss Army' knife as you could get. It can do 3 speeds from 3 3/4ips to 15ips, AND can play 2-Track or 4-Track tapes. We've had other decks that can do one of those two options, but never one that can do BOTH!!! This is a GREAT deck with UNBELIEVABLE PERFORMANCE. I think it is now my favorite model of Reel to Reel deck (at least among the many dozens I've had over the past 3 decades). Probably the best sounding deck I've had the pleasure to audition due to the built in oscillator, fine bias and variable EQ alone.
Again, as mentioned earlier, cosmetically it's in great condition.
This was
considered a 'standard' among studio engineers. A real 'Workhorse' throughout much of the 1980's into the '90's.

Measures 17.25" wide (with side panels installed) x 20.7" tall x 9" (from tip of back feet-tip of hubs) deep and weighs a
HEAVY 58 lbs unpacked and with side panels installed

This Otari MX-5050B-II comes with;

> 7", plastic take-up reel,
>
'NEW ATR' 7" tape recorded on this machine for initial testing of playback, and

>a couple other 7" tapes you can record onto,

>AND a 10.5" take-up reel, all to assist you in becoming familiar with the operation / function of your new reel to reel tape deck.


>We are ALSO including a pair of Pioneer NAB hub adaptors and

>
a pair of rubber stoppers (modified specifically for the 5050. NAB's will not have their original Pioneer labels intact).

>Also comes with 2 pair of XLR-RCA adaptors (male and female) as well as the RCA cables to get you going.

>Comes with an 'e-copy' / pdf download of the Otari MX5050B-II owners / operations manual, & service manual if purchaser so desires.

>Includes our standard 30 day limited warranty.


(Reels & tape shown in 'MAIN' photos not included (the "
Lagniappe" in the last photo is included. All are sometimes available separately if you need them. We do ship our decks with a plastic take-up reel, a tape to 'practice record' on and a 'pre-recorded' tape for playback.)
OTARI MX5050B-II HALF-TRACK / STEREO / 4-TRACK / 4-CHANNEL REEL TO REEL TAPE DECK
Cond. 8.5
$3799.

SOLD 5/14/2021
SHIPPING TO KEN IN GEORGIA




(Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)

(Due to the size and weight of this particular unit, it runs a bit more for shipping relative to other (consumer) reel to reel machines)

- archived







(Click on above thumbnails to enlarge photos)


PRE-OWNED / REFURBISHED
VINTAGE PROTON CASSETTE DECK
PROTON 740
STEREO CASSETTE DECK

 With
dbx, DOLBY B & C
Circa 1985-90'ish

SOLD 10/23/08







FOR SOLD PIONEER TAPE DECK ARCHIVE, CLICK HERE






FOR SOLD REALISTIC TAPE DECK ARCHIVE, CLICK HERE








CASSETTE TAPE DUPLICATOR
RECORDEX 345

SOLD




- -





NEW LISTING 1/29/07
(Click on above thumbnails to enlarge photos)

STUDER / REVOX REEL TO REEL
REVOX B77 / B-77
STEREO
REEL TO REEL
 "
WORLD AC POWER"
SOLD 1/31/07







NEW LISTING 3/12/19
(Click on above thumbnails to enlarge photos)

VINTAGE
AI RHAPSODY COMBINATION CASSETTE 8-TRACK TAPE DECK / PLAYER / RECORDER
RHAPSODY RY-220D

REFERENCE / FIELD PHOTOS ONLY







(click on above thumbnails to enlarge photos)
RESTORED / REFURBISHED / FULLY SERVICED / WARRANTED
ROBERTS OPEN REEL TO REEL TAPE PLAYER
ROBERTS MODEL 5000X
PLAYBACK ONLY

 1/4" 4-TRACK / 2-CHANNEL STEREO or 1-CHANNEL MONO
3-HEADS
***, 3-MOTORS, 2-SPEEDS
25-22,000Hz Freq Response!!!
3" - 10.5" REEL CAPACITY
SELF-CONTAINED (BUILT-IN AMP AND SPEAKERS)
FASTEST 'FAST WIND' WE'VE EVER SEEN!

OPEN REEL TO REEL TAPE DECK
#...0678
Circa 1969-1970
MIJ




VINTAGE SANSUI STEREO CASSETTE TAPE DECK
SANSUI SC-1110
SOLD

Sansui_SC-1110_Stereo_Cassette_Tape_Deck_web.jpg (27764 bytes)   Sansui_SC-1110_Stereo_Cassette_Tape_Deck_collage.jpg (99490 bytes)


(Click on above thumbnails to enlarge photos)

VINTAGE SANSUI STEREO CASSETTE TAPE DECK
SANSUI SC-1110 #2
SOLD 1/19/04







SANSUI SC-2000 CASSETTE TAPE DECK / RECORDER

SOLD


Sansui_SD-3030_Stereo_Quadraphonic_Reel-Reel_Tape_Deck_web.jpg (29965 bytes)      Sansui_SD-3030_Stereo_Quadraphonic_Reel-Reel_Tape_Deck_collage.jpg (192234 bytes)

VINTAGE SANSUI REEL TO REEL
SANSUI SD-3030

SOLD



VINTAGE SANSUI REEL TO REEL
SANSUI SD-5000
TAPE DECK
SOLD









NEW LISTING 4/19/13
(Click on above thumbnails to enlarge photos)
VINTAGE SANSUI REEL TO REEL
SANSUI SD-7000 / SD7000 REEL TO REEL TAPE DECK
STEREO 2-CHANNEL, AUTO-REVERSE
4 HEADS W/ 3-HEAD STYLE RECORD MONITORING
¼” X 5” OR 7” TAPE

 #...0281
Circa 1970-‘73
"WORLD AC POWER"
MIJ

SOLD 5/4/13
SHIPPING TO CALIFORNIA

ü  Our technician has completely gone through and 'Certified' this unit.

ü  Everything was cleaned inside and out including all switches, controls and contacts.  We have completely gone through this unit restoring it for Record and Playback use.

ü  Entire internal transport mechanism disassembled, cleaned of old grease, re-lubed, reassembled and adjusted to spec.

ü  Rubber pinch roller has been reconditioned. Main drive belt reconditioned.

ü  New counter belt installed.

ü  Capstan and flywheel removed, cleaned, burnished, reinstalled and adjusted. Flywheel thrust bracket removed, bearing surface cleaned and re-lubed, then reinstalled and adjusted.

ü  All internal pots and controls cleaned and tested for noise-free function.

ü  Both playback level and meter level internal pots adjusted using factory service manual and test tones.

ü  Bi-Directional function, levels and adjustments set to factory spec

ü  Both spindles in perfect alignment and work perfectly with no missing fins.

ü  Brake pads reconditioned on both sides and are in good shape.

ü  Heads are in great shape as well, with many years of performance left in them and head alignment / azimuth has been checked with factory 'STL' test tapes and an O-Scope for peak performance. Head alignment done w/ factory test tones @ 10k & 15kHz. Heads and entire transport cleaned electronically de-mag'd.

ü  All internal relays (and there’s a LOT of them in this deck) and solenoids checked for proper operation and contacts resurfaced where necessary.

ü  Plays very well. We tested with a myriad of tapes once restoration was complete. This is a great sounding tape deck.

ü  Speed checked to 99.8% accuracy!

ü  Cosmetically the deck looks great. Just over 12 hours invested in this deck’s refurb. It’s READY TO GO!

Exceptional cosmetic condition, the Sansui SD-7000 features wood top and side panels and the hard-to-find clear front dust cover. While we've had a couple of Sansui SD-5000's in the past 16 years, this is the first Sansui SD-7000 we've had.
The transport is ‘Solenoid-Assist-Soft-Touch’ for all functions and makes this deck a pleasure to use. Very 'positive' and 'solid' when switching between transport functions. This is one of the few reel to reel decks we get in that make it to our finished page. Great performer for recording or playing back your old reel to reel tapes. If you're looking for a professional quality reel to reel deck to "actually use" here you go. Only about 25 % of the used Reel decks out there can be "practically" restored to working order. Looks and sounds great! Will play 5"and 7" reels.

SANSUI SD-7000  Features Include:

- Two spe...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?
...Level Control
- Standard RCA I/O’s (2 Line In, DIN, Line out)
- Auto stop for play and fast wind functions
- Auto Shut-Off of power selector when tape ends with “Sleep” mode

From the original Sansui SD-7000 Owners Manual, “The end result of

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

...features of the SD-7000”


Original SANSUI SD-7000 Specifications:

Track system: 4-track 2-channel stereo / monaural system
Motors:
One 4......r for capstan drive.  Two 6-pole capacitor starting induction mortors for reel drive.
Reel capacity: 5-7" maximum
Fast Forward/Rewind Time: Approx. xxx Sec for 1800 ft tape

Heads (4):
1x One Erase Head, 2x One Micron-Gap Playback & 1x One Micron-Gap Record Head
Tape Speed:
3 ¾, and 7 ½ Inches Per Second +/- 2% (again, we tested this deck after our refurbishment at 1k=998, which is 0x%!, which is 10 TIMES BETTER!!!)

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Wow & Flutter:
<0xx% WRMS (7.5 ips) / <xx% WRMS (3-3/4 ips)
Frequency Response:
xxx000 Hz ± 2db at 7 ½ IPS (w/ extended range tape)
15xx000 Hz
± 2db at 3 ¾ IPS (w/ extended range tape)
Distortion :
< xx% at 1kHz & 0 VU
Crosstalk: >xxx dB between channels at 1KHz / > 60 dB between tracks at 1 KHz

S/N:
>xxx db @ 7.5 ips


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Erase Efficiency: > xx dB
Input Levels:
Mic - >x mV @ 50k Ohms / 0.x mV @ 600 Ohms using Sansui A-603 Mic Transformers
Line - >xxmV @ 100k Ohms
DIN - > xxmv @ 100K ohm
Output Levels: xx V max (0 VU=0.775V
Erase Ratio: >xx dB.
Cross talk: >xxdB stereo
Record Bias Freq: x khz
Mixing:
Mic+Line1, Line1+Line2, Line1+DIN


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


Again, this deck was restored for Recording and Playback. As stated earlier we have completely gone through it cleaning, lubing, adjusting, demagnetizing and testing everything. Pinch roller and heads all in fine condition!!! Case is also in ‘LIKE NEW’ condition, as is pretty much ENTIRE deck! Fabulous addition to ‘round-out’ most any ‘Vintage Sansui Stereo System’ or if you simply need a deck for transferring your reel to reel tapes to another media, making new tapes / recordings or just listening to your tapes, then you won't be disappointed in this one. Measures 17" wide x 21" tall x 10" deep and weighs 60 lbs unpacked. E-Copy in pdf form of the owner’s manual can be emailed to the purchaser. Does come with a standard plastic, take-up reel and clear plastic transport dust cover (very rare). Includes our standard 30 day limited warranty. (Reels & tape shown in photos not included, but are sometimes available)
  Cond. 9
SANSUI SD-7000 REEL-TO-REEL TAPE RECORDER

(C) M.R.

SOLD 5/4/13
SHIPPING TO CALIFORNIA



(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)














VINTAGE SANYOSTEREO CASSETTE TAPE DECK
SANYO PLUS SERIES
SANYO D-64
SOLD







FOR SOLD SONY TAPE DECK ARCHIVE, CLICK HERE



VINTAGE TANDBERG REEL TO REEL TAPE DECK
TANDBERG MODEL 6
SOLD



NEW LISTING 3/2/07
(Click on above thumbnails to enlarge photos)

VINTAGE TANDBERG REEL TO REEL TAPE DECK
TANDBERG TD-20A SE

"Second Edition "SE"" version
3-HEAD / 3-MOTOR
STEREO
REEL TO REEL

1/4" TAPE DECK
SOLD 3/5/07





NEW LISTING 9/19/2020
(Click on above thumbnails to enlarge photos)

RESTORED / REFURBISHED / FULLY SERVICED
TANDBERG
REEL TO REEL TAPE DECK
TANDBERG X9100
#...8884
 4-TRACK / 2-CHANNEL STEREO / MONO
 4-HEADS (One is "Cross-Field") / 2-SPEED / 3-MOTOR
"DIRECT DRIVE"
"CROSS-FIELD" BIAS HEAD
"ECHO / SOUND ON SOUND" CAPABLE
7" OR 5" REELS
REEL TO REEL
1/4" TAPE DECK


SOLD 10/12/2020
SHIPPING TO ALAN IN VIRGINIA


ü Our technician has completely gone through and 'Certified' this unit.

ü We have completely and extensively gone through the mechanicals and electronics of this unit.

ü Transport was disassembled, and mechanical parts disassembled, cleaned, re-lubed and reassembled

ü Tape Tension arms disassembled, cleaned and re-lubed, and their springs adjusted and had fresh 500,000 grade silicone lube gel applied

ü pinch-roller mechanism completely disassembled, cleaned and re-lubed

ü Damaged Pinch roller arm springs replaced

ü PR mechanism solenoid mounts adjusted

ü Capstans / flywheels removed, bushings and axels cleaned and re-lubed and flywheels burnished (see photos above)

ü Capstan burnished

ü Rubber pinch roller removed and re-conditioned

ü Brand new #042 counter belt installed (no other belts, as it's "Direct Drive")

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Brakes adjusted on fast wind modes also (optimized for 7" tape.)

ü Back tension adjusted on both reel motors.

ü EOT sensor adjusted

ü All three motors test perfectly. Following above adjustments, Reel Start and Stop tested at beginning, middle and end of 7" tapes

ü Internal pots, switches and controls cleaned and tested for noise-free function (initially, of course, had typical static / noise which is to be expected in an 'un-serviced' deck after 35+ years).

ü We adjusted the VU meters mechanically and electronically w/ factory test tone tapes, as well as the internal playback levels for both directions independently and record levels.

ü Specific to this deck, all the circuit board pins and connectors (and there are dozens), burnished individually with fiber-glass pen (this is a must on this deck for reliable performance)

ü Both spindles in perfect alignment.

ü We also adjusted the reel table heights.

ü Heads in great shape as well, with many years of performance left in them.

ü Playback and Record Head alignment / azimuth was adjusted for peak performance with factory test tone tape and oscilloscope.



ü Speed tested to 98.6% accuracy following refurb (meaning that our 'verified' 1000Hz test tape now plays back at 986Hz).

ü Adjusted to record a @ -0dB = 0dB PB (+/- 3dB) @ 1kHz on Maxell UDXL tape (Biased for same Maxell UDXL tape).

ü Floor noise measured at >-60dB w/ blank tape, L&R

ü This Tandberg 9100X functions, plays, and records VERY WELL (and we really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy).  (Total time investment in refurb / testing
~ 21 hours).

Face is beautiful, brushed, Stainless Steel and TEAK wood, veneer side panels all in great condition. Deck looks and works great!


The Tandberg 9100X Stereo Reel to Reel tape deck. Ready to GO! This is one of the few reel to reel decks we get in that make it to our finished page. Great performer. If you're looking for a reel to reel deck to "actually use" here you go. Only about 25% of the used Reel decks out there can be "practically" restored to working order. This one made it through with flying colors again after
~21 hours of bench time.

The deck tests great! Looks and sounds great too! We have completely gone through it. Will play 3", 5" & 7" reels (transport best optimized for 7" reels).

Tandberg 9100X Features include:

- 4-Track ...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?




As stated earlier we have completely gone through it cleaning heads and all else, lubing, adjusting, reconditioning pinch rollers and other rubber parts, demagnetizing heads and entire transport and testing everything. Tape speed tested and resulted in 98.6% accuracy using a 1000 Hz test tape. Plays and records Exceptionally well (and we really put them through the paces, testing both with well mixed CD material and CD test tones looking for correct head Azimuth, tape speed accuracy and making test recordings). Pinch rollers and heads all in GREAT condition!!! Face is made of beautiful, brushed, stainless steel and looks great. Very clean and looks near new. Unit looks GREAT!

Tandberg X9100 Specs / Specifications from the original 9100X brochure as follows:

Head / Head-stack Format: 3+
...


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


 Specs:
  Track format; 4 track / 2 channel
Heads; Hard 'Permalloy' PB / REC and Ferrite Erase
  Motors: Capstan is xxx motor is 'Flat Torque' type
  Freq Response:  W/ CrO2 tape; xxxx,000 Hz +/- 3db,
  Wow & Flutter (WRMS); 0xx%
  S/N ratio: xxdB Dolby C NR (CCIR)
                 xxdB Dolby B NR (CCIR)
                  xxdB No NR (A weighted)


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

  Line Output; xxmV @ 47k Ohms
  Headphone Output; 4xxmV @ 8 Ohms
  Fast Wind Time w/ C60; xx sec.


Again, we have gone through this deck as stated above, and it's 'Ready To Go'! Great deck for...


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

This is a GREAT looking deck and is mounted in the original, 'REAL TEAK WOOD VENEER' side panels, and again the deck looks great, and following above extensive tech work, it works fabulously!!!
All of our restored / refurbished reel to reel decks come with a 7", plastic take-up reel, a 'known good' 5" Maxell UDXL PB tape (made on this deck) for initial testing of playback, and a 7" tape you can record onto, all to assist you in becoming familiar with the operation / function of your new reel to reel tape deck.
Measures 15.75" wide x 16.2" tall x 7.25" deep and weighs 35 lbs unpacked. Comes with an 'e-copy' / pdf download of the Tandberg 9100X owners / operations manual. Includes our standard 30 day limited warranty.
(Reels & tape shown in photos not included. All are sometimes available separately if you need them. We do ship our decks with a plastic take-up reel, a tape to 'practice record' on and a 'pre-recorded' tape for playback.)
TANDBERG X9100
Cond. 8.5+++++


SOLD 10/12/2020
SHIPPING TO ALAN IN VIRGINIA


(Reels shown in photos are not included, but we sometimes / occasionally have them for sale. Inquire at time of order.
However, all of our decks will come with 2x tapes for testing 'Playback' (actually made on this deck) and 'Recording' as well as a 7" 'take-up' reel, and RCA patch cables for connection to your system)


 (Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)






FOR SOLD TASCAM / TEAC TAPE DECK ARCHIVE,
CLICK HERE






FOR SOLD TECHNICS TAPE DECK ARCHIVE,
CLICK HERE





(Click on above thumbnails to enlarge photos)

VINTAGE WARDS 8-TRACK TAPE PLAYER / RECORDER / DECK
WARDS 6827A
8-TRACK STEREO PLAY / RECORD DECK
Circa 1978-82

SOLD 9/30/05



webcor wire rec. mod. 228-1.JPG (106077 bytes)

VINTAGE / ANTIQUE WEBCOR WIRE RECORDER
WEBCOR MODEL 228-1
SOLD

VINTAGE WEBCOR REEL TO REEL TAPE RECORDER / PLAYER
WEBCOR MODEL 210 1B
SOLD




-




NEW LISTING

(Click on above thumbnails to enlarge photos)

PRE-OWNED YAMAHA STEREO CASSETTE TAPE DECK
YAMAHA K-60
DUAL-WELL / DUBBING
STEREO
CASSETTE TAPE DECK
 SOLD 4/11/07







(Click on above thumbnails to enlarge photos)

VINTAGE YAMAHA STEREO CASSETTE TAPE DECK
YAMAHA K-320
CASSETTE DECK / RECORDER
SOLD





          NEW ADDITION 4/13/12
 (Click on above thumbnails to enlarge photos)

 VINTAGE YAMAHA CASSETTE TAPE DECK / RECORDER

  K-320 K320
 #...6215
2 MOTOR

  With DOLBY B & C
   Circa 19
85

MIJ
SOLD 10/15/13
SHIPPING TO CALIFORNIA

  We have gone through this unit. Entire transport removed for service. Main capstan drive belt replaced as well as the counter belt. One great aspect of this deck is that it does not use a rubber 'tire' to drive the hubs, so it won't experience the typical fast wind issues that many decks have. Rubber pinch roller has been reconditioned, capstan burnished, heads have been cleaned and de-magnetized as well as the entire transport. All mechanics checked for proper function. All internal pots, switches and controls cleaned and tested for noise-free function. All displays working fine. Both spindles in perfect alignment. FF, REW, & Play transport functions all test perfectly and controls positively responsive on both decks. Tape loads accurately. Meters zero even with symmetric input. Floor noise on this particular one, measured at ~2.6mVAC on playback of blank tape w/ no NR engaged. Heads in "like new" shape as well, with many years of performance left in them and head alignment / azimuth has been adjusted with factory test tones and an O-Scope for peak performance. Playback level adjusted for even output as well as the Meters adjusted for even levels on input and playback. Plays perfectly and records incredibly well with high quality, with the following results - Normal tape; No NR = 0dB.
(and we really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy). Pinch roller and heads all in GREAT condition!!! Both level meters playback even. Speed adjusted on capstan motor to 100% accuracy with 1kHz factory test tape (adjusting speed on this deck also requires removal of the entire transport to access the motor speed adjustment). Cosmetically the face and all control buttons, and the case in clean condition.
  ____________________________

   Great performing deck. The Yamaha K-320. It's recording quality is very SOLID! Great for playing, recording or if you need to burn some tapes to CD. Looks NEW and runs great!
   Features:


- IC ...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


 Specs:
  Track format; 4 track / 2 channel
Heads; Hard 'Permalloy' PB / REC and Ferrite Erase
  Motors: Capstan is xxx motor is 'Flat Torque' type
  Freq Response:  W/ CrO2 tape; xxxx,000 Hz +/- 3db,
  Wow & Flutter (WRMS); 0xx%
  S/N ratio: xxdB Dolby C NR (CCIR)
                 xxdB Dolby B NR (CCIR)
                  xxdB No NR (A weighted)


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

  Line Output; xxmV @ 47k Ohms
  Headphone Output; 4xxmV @ 8 Ohms
  Fast Wind Time w/ C60; xx sec.


Again, we have gone through this deck as stated above, and it's 'Ready To Go'! Great deck for...


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

. Measures 17" w X 11" d X 5" h and unpacked weight is 10 lbs. Comes with our 30 day limited warranty.
  YAMAHA CASSETTE TAPE DECK K-320
   Cond. 8.5

SOLD 10/15/13
SHIPPING TO CALIFORNIA







Yamaha_K-550_K550_Stereo_Cassette_Tape_Deck_web.jpg (22818 bytes)   Yamaha_K-550_K550_Stereo_Cassette_Tape_Deck_collage.jpg (141463 bytes)

VINTAGE YAMAHA STEREO CASSETTE TAPE DECK
YAMAHA K-550
SOLD

Yamaha K-550 Cassette Deck B small jpg

Yamaha K-550 Cassette Deck B Collage small jpg


NEW LISTING
5/7/10
(Click on above thumbnails to enlarge photos)

VINTAGE YAMAHA STEREO CASSETTE TAPE DECK
YAMAHA K-550

#...1543


 2-MOTOR / 2-HEAD
 With DOLBY B
  Circa 198
0
MIJ
SOLD 6/3/10








(Click on above thumbnails to enlarge photos)

VINTAGE YAMAHA K-600 STEREO CASSETTE TAPE DECK
SOLD
1/8/05







NEW LISTING 12/18/18
 (Click on above thumbnails to enlarge photos)
VINTAGE &
FULLY SERVICED WITH WARRANTY
YAMAHA 'Natural Sound' CASSETTE DECK
YAMAHA KR-720
THIS THING IS 'LOADED'!!!

AUTO-REVERSE
STEREO CASSETTE TAPE DECK
With DOLBY B, C AND dbx NR
HX PRO and MUCH MORE!
#...9724

Circa 19
92-97

"WORLD AC POWER"
Made in Japan
SOLD 2/4/19
SHIPPING TO EMORY IN NORTH CAROLINA


ü Our technician has completely and EXTENSIVELY gone through and 'Certified' this unit which involves complete removal and partial disassembly of the entire transport, cleaning inside and out, DISASSEMBLING, cleaning and re-lubricating all internal mechanisms and the balance of efforts listed below.

ü Heads inspected for excessive wear (obviously we do this 'early on' as 'excessive' wear will usually negate any further restoration work).

ü Head rotating gear inspected with a jewelers loop prior to starting any restoration work, and found to be 'hairline' crack free.

ü 'Gear driven' hubs, so NO reel tires to glaze over, slip, or crack for trouble-free service.

ü Main drive / capstan belt replaced for trouble-free service.

ü Rubber pinch roller has been reconditioned

ü Capstan burnished

ü Heads have been cleaned and de-magnetized as well as the entire transport. (Tech noted, "VERY minimal wear" to the heads on the work sheet)

ü Head alignment and azimuth at 125Hz, 1kHz and 10kHz adjusted for BOTH directions for 'peak performance' with O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü All 'user' potentiometers / controls removed, then cleaned and tested for noise-free function.

ü All internal pots, switches and controls cleaned and tested for noise-free function. dbx switch 'triple cleaned'.

ü Both spindles in perfect alignment.

ü Meters adjusted to even zero with symmetric with Volt meter, O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü Both Internal playback amplifier channels adjusted with Volt meter, O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü Meters adjusted to even zero with symmetric input with Volt meter, O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü Both Internal Record amplifier channels adjusted with Volt meter, O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü Pinch roller and heads all in GREAT condition!!!

ü Speed adjusted to 100% accuracy BOTH directions, with 1kHz factory calibration tape (meaning 1kHz calibration tape plays back at 1000Hz +/- 1Hz)

ü Pinch roller and heads all in GREAT condition!!!

ü Speed adjusted to 100% accuracy BOTH directions, with 1kHz factory STL, Sony P-4-A100 and TEAC MTT-257H calibration / alignment tapes (meaning 1kHz calibration tape plays back at 1000Hz +/- 1 Hz) (was 1053Hz when we started refurb)

ü FF, REW, & Play transport functions all test perfectly and controls tested for 'positive / accurate' responsive.

ü Eject door operates smoothly.

ü ALL Tape Counter Functions tested

ü Dolby B, C & dbx NR circuits / function tested

ü 'Memory / Zero Return' function tested

ü Cosmetics are decently clean, with typical, minor wear

ü Floor noise measured at -52dBm

ü Plays perfectly and after adjustment, records very well at ~-2.0 dB! on most formulations of tape however, two did 'shine' over the rest of our test tapes.

ü White Noise recorded @ 0dB with Dolby-C engaged on Maxell XL-II (High bias) tapes plays back @ avg of -2dB between L & R

ü 1kHz recorded @ 0dB with Dolby-C engaged on Maxell XL-II (High bias) tapes plays back @ avg of -2dB between L & R

ü 'DDD' CD recorded at +4dB with Dolby-C engaged; -2.5dB on Maxell UDXL-II / High Bias tapes. Bottom line is it makes GREAT recordings.
Total technician time to restore 10 HOURS!

____________________________

Great performing and LOADED deck. The Yamaha K-720. There's not much this deck doesn't do for a '2-head' machine. Following the above mentioned service / refurb, it's now reliable for playing, recording or if you need to burn some tapes to CD. Looks and runs great!

Yamaha KR-720 Features:

- IC Logic Touch Tape Transport controls
- 3 Motor Transport
- Dolby B & C and...


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Yamaha KR-720 Specifications:

Track format:
4 track / 2 channel
Heads:
 Sendust Rec / Playback. Double...


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Again, as mentioned above, our tech has gone through it completely cleaning all parts, controls and tape mechanism. We also checked, cleaned, reconditioned and / or replaced rubber components. We completely de-magnetized the heads and transport. Capstan motor speed adjusted to exact spec! Tape speed re-adjusted to 100% accuracy, ie; 1 kHz = 1 kHz! And with it's service work completed the deck records incredibly well and plays back at -2 dB down!  Cosmetically looks fine, just a few scuffs / scratches on the top, sheet metal cover (see photos above). Looks and sounds great!
Great for transferring your tape collection to CD, Hard-drive or MP3. Plays and Records extremely well. Very clean deck and usable deck! Includes a pdf / e-copy download of the Yamaha KR-720 owners / users / instruction manual (which you're gonna need to appreciate of of the function of this deck). Measures 17.25" w X 12" d X 4.25" h and unpacked weight is 13lbs. Comes with our 30 day limited warranty.
Yamaha KR-720
 Cond. 8.5

SOLD 2/4/19
SHIPPING TO EMORY IN NORTH CAROLINA

(tape shown in photos not included. We do ship our decks with a  a 'pre-recorded' tape for playback, made on this 'specific' deck, and a tape to 'practice record' on.)

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)









NEW LISTING 12/20/17
 (Click on above thumbnails to enlarge photos)
VINTAGE &
FULLY SERVICED
YAMAHA 'Natural Sound' CASSETTE DECK
YAMAHA KR-720
THIS THING IS 'LOADED'!!!

AUTO-REVERSE
STEREO CASSETTE TAPE DECK
With DOLBY B, C AND dbx NR
HX PRO and MUCH MORE!
#...6806

Circa 19
92-97
Made in Japan

 1/12/18
SHIPPING TO OTTAWA, CANADA


ü Our technician has completely and EXTENSIVELY gone through and 'Certified' this unit which involves complete removal and partial disassembly of the entire transport, cleaning inside and out, DISASSEMBLING, cleaning and re-lubricating all internal mechanisms and the balance of efforts listed below.

ü Heads inspected for excessive wear (obviously we do this 'early on' as 'excessive' wear will usually negate any further restoration work).

ü Head rotating gear inspected with a jewelers loop prior to starting any restoration work, and found to be 'hairline' crack free.

ü 'Gear driven' hubs, so NO reel tires for trouble-free service.

ü Main drive / capstan belt replaced for years of trouble-free service.

ü Rubber pinch roller has been reconditioned

ü Capstan burnished

ü Heads have been cleaned and de-magnetized as well as the entire transport. (Tech noted, "VERY minimal wear" to the heads on the work sheet)

ü Head alignments and azimuth at both 1kHz and 10kHz adjusted for BOTH directions for 'peak performance' with O-Scope

ü All 'user' potentiometers / controls removed, then cleaned and tested for noise-free function.

ü All internal pots, switches and controls cleaned and tested for noise-free function.

ü Both spindles in perfect alignment.

ü Heads are in great condition

ü Internal playback levels adjusted for even playback w/ alignment tape, Oscilloscope, and mVAC meter

ü Playback meters adjusted for 'playback' zero'd with factory test tone tape.

ü Internal Record amplifier channels adjusted for 'even output'

ü Pinch roller and heads all in GREAT condition!!!

ü Speed adjusted to 100% accuracy BOTH directions, with 1kHz factory calibration tape (meaning 1kHz calibration tape plays back at 1000Hz +/- 1 Hz)

ü FF, REW, & Play transport functions all test perfectly and controls tested for 'positive / accurate' responsive.

ü Eject door operates smoothly.

ü ALL Tape Counter Functions tested

ü Dolby B, C & dbx NR circuits / function tested

ü 'Memory / Zero Return' function tested

ü Cosmetics are decently clean, with typical, minor wear

ü Floor noise measured at -60dBm

ü Plays perfectly and after adjustment, records very well at -0.5 to -1dB! on most formulations of tape however, two did 'shine' over the rest of our test tapes. We did 'test recordings' of Pink Noise and 'ddd' CD's on 6 tapes; Sony Normal Bias, Fuji Normal Bias, TDK Normal Bias, Maxell Normal Bias, TDK 'SA' High Bias, and Maxell 'XL-II' High Bias. We found that they all performed VERY well on this particular deck (although the Fuji DR-1 definitely came up 'last'). The Sony HF 'Normal Bias' did very well with both PN and ddd CD at -.5dB w/ no NR. It exhibited good saturation capabilities with minimal 'high end' loss. It recorded at -6dB w/ dbx engaged, but that was from a starting point of more than +10dB on the meters. Dolby B was -2 and C was -2. Maxell UDXL-II was at -1.5dB with PN, but with ddd CD and no NR it exhibited great recording at -1.0dB with GREAT high end retention. dbx was at -6dB down, but again, that was from a ++10dB starting point. Bottom line is it makes GREAT recordings.
Total technician time to restore 8+ HOURS!

____________________________

Great performing and LOADED deck. The Yamaha K-720. There's not much this deck doesn't do for a '2-head' machine. Following the above mentioned service / refurb, it's now reliable for playing, recording or if you need to burn some tapes to CD. Looks and runs great!

Yamaha KR-720 Features:

- IC Logic Touch Tape Transport controls
- 3 Motor Transport
- Dolby B & C and...


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Yamaha KR-720 Specifications:

Track format:
4 track / 2 channel
Motors:
 3, DC Servo Capstan Motor, Flat Torque D
Wow & Flutter (WRMS):
0.0...


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Fast Wind Time
:
~70 Seconds for C-60 tape

Again, as mentioned above, our tech has gone through it completely cleaning all parts, controls and tape mechanism. We also checked, cleaned, reconditioned and / or replaced rubber components. We completely de-magnetized the heads and transport. Capstan motor speed adjusted to exact spec! Tape speed re-adjusted to 100% accuracy, ie; 1 kHz = 1 kHz! And with it's service work completed the deck records incredibly well and plays back at -1 dB down!  Looks NEW and sounds great! Great for transferring your tape collection to CD, Hard-drive or MP3. Plays and Records extremely well. Very clean deck and usable deck! Includes a pdf / e-copy download of the Yamaha KR-720 owners / users / instruction manual (which you're gonna need to appreciate of of the function of this deck). Measures 17.25" w X 12" d X 4.25" h and unpacked weight is 13lbs. Comes with our 30 day limited warranty.
Yamaha KR-720
 Cond. 9

 1/12/18
SHIPPING TO OTTAWA, CANADA

(tape shown in photos not included. We do ship our decks with a  a 'pre-recorded' tape for playback, made on this 'specific' deck, and a tape to 'practice record' on.)

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)













(Click on above thumbnails to enlarge photos)

VINTAGE YAMAHA K-2000 STEREO CASSETTE DECK

SOLD 1/23/06
















NEW LISTING 5/18/09
(Click on above thumbnails to enlarge photos)

YAMAHA CASSETTE TAPE DECK
YAMAHA KX-390 / KX390

#...060Q

 With DOLBY B, C & HX-PRO
  Circa 199
7
MIJ
SOLD 9/4/09









NEW LISTING

(Click on above thumbnails to enlarge photos)


YAMAHA KX-650 / KX650 STEREO CASSETTE TAPE DECK
SOLD 1/4/07






NEW LISTING
5/18/09
(Click on above thumbnails to enlarge photos)

YAMAHA CASSETTE TAPE DECK
YAMAHA KX-500U
#...699QS
3-MOTOR
With DOLBY B, C & HX-PRO
Circa 1988-98

MIJ
SOLD 6/3/09





Yes, we know, EVERYTHING (at least all the Reel to Reel decks) are SOLD OUT currently.
We will be posting more in the future.
We are currently focusing resources on expanding our Tape Deck 'Parts Department' AND 'refurbished' Tape Decks sell faster than we can get them refurbished, and it's a slow process getting them ready.




CLICK HERE TO SEE OUR TAPE DECKS CURRENTLY FOR SALE!



We will be getting more machines ready over the next few days to a couple weeks, but it is a slow process, as every 20+ year old Reel to Reel tape deck requires 10-18 hours of service to be brought back to "usable" condition. Check back often as they will sell out quickly!







LINKS TO OUR 'HI-FI' DEPARTMENTS

Amps and
Pre-Amps

Receivers

Cassette
Decks

Tuners

Turntables

8-Track Decks

CD Players

Reel-Reel
Decks

EQs and Signal
Processors

Speakers

Betamax and
VHS VCRs

Turntable Cartridges

Tube Audio

Ne'cessories

Speaker Parts

Record Players

Vintage Radios

Vintage
Walkmans

Headphones

Stereo Parts


Wondering where the "tone" you remember went?....




.... Surround yourself with Silver and find it again!



The units on the above page are for photo reference only and are no longer available for sale. To search 'For Sale' units, click on the links in the upper, left corner of page.

   *HOME PAGE*   |   FAQ'S   |   RESTORATION PROCEDURES    |  REPAIR RESOURCES  |  LINKS


POLICIES, SPECIFICATIONS, AVAILABILITY, INFORMATION
AND PRICING SUBJECT TO CHANGE  AT ANYTIME  AND
WITHOUT PRIOR
NOTICE
and changes may not be posted to web immediately
.


Copyright © 1997-2023 Oak Tree Enterprises, LLC

COPYRIGHT INFORMATION
