PHOTO GALLERY OF
VINTAGE / USED TEAC / TASCAM STEREO TAPE DECKS
ARCHIVE REFERENCE OF SOLD UNITS






This page is for photo / text archiving only, of our RESTORED / REFURBISHED used TEAC stereo tape decks that have already been SOLD. Click the link below for current inventory.

CLICK HERE TO SEE OUR TAPE DECKS CURRENTLY FOR SALE!



NEW LISTING
(Click on above thumbnails to enlarge photos)

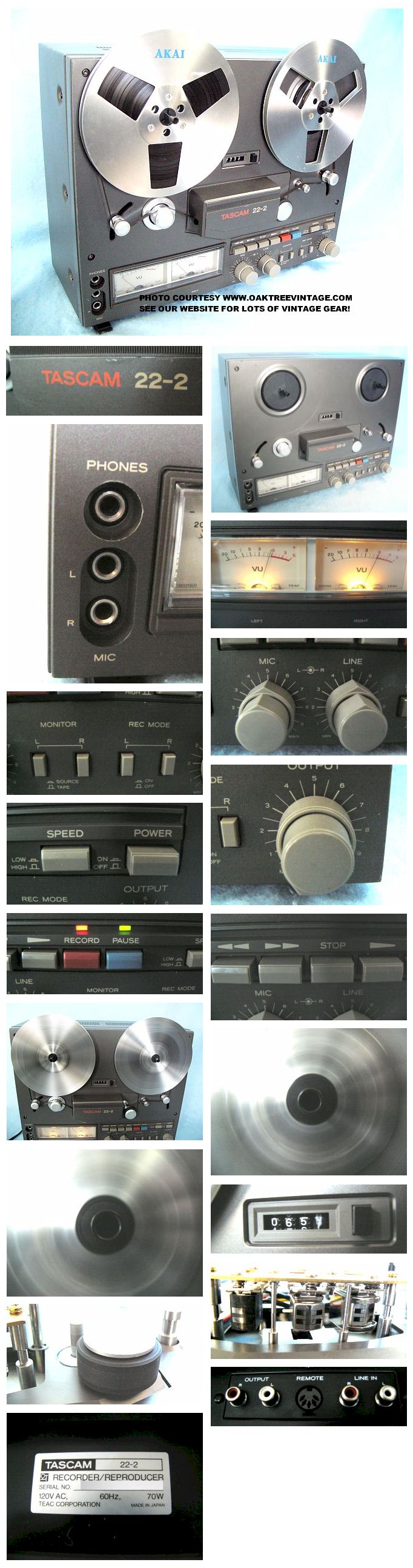

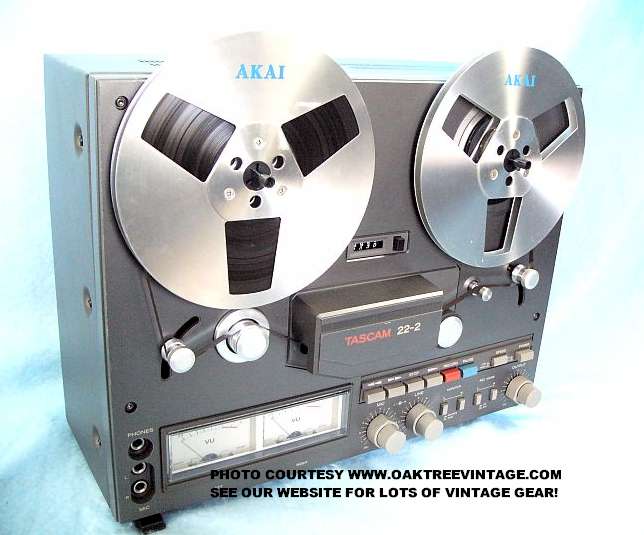

TASCAM 22-2
MASTERING DECK
HALF (1/2)-TRACK STEREO / 2-CHANNEL
3-HEAD / 2-SPEED / 3-MOTOR
REEL TO REEL R2R
1/4" TAPE DECK

Circa 19
81-94
SOLD 6/17/05

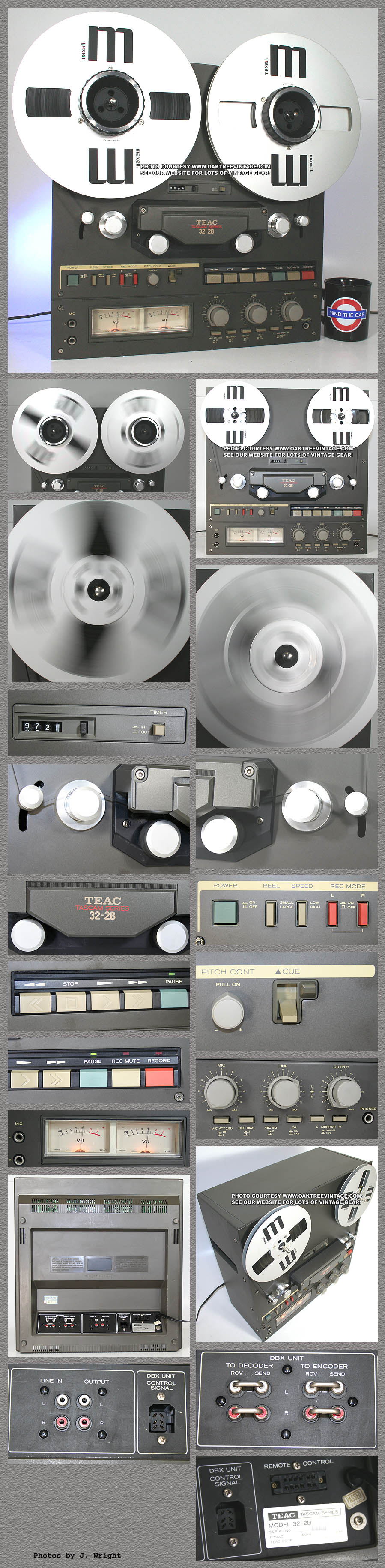

TASCAM 32-2B
MASTERING DECK
HALF (1/2)-TRACK STEREO / 2-CHANNEL
3-HEAD / 2-SPEED / 3-MOTOR
REEL TO REEL R2R
1/4" TAPE DECK
SOLD

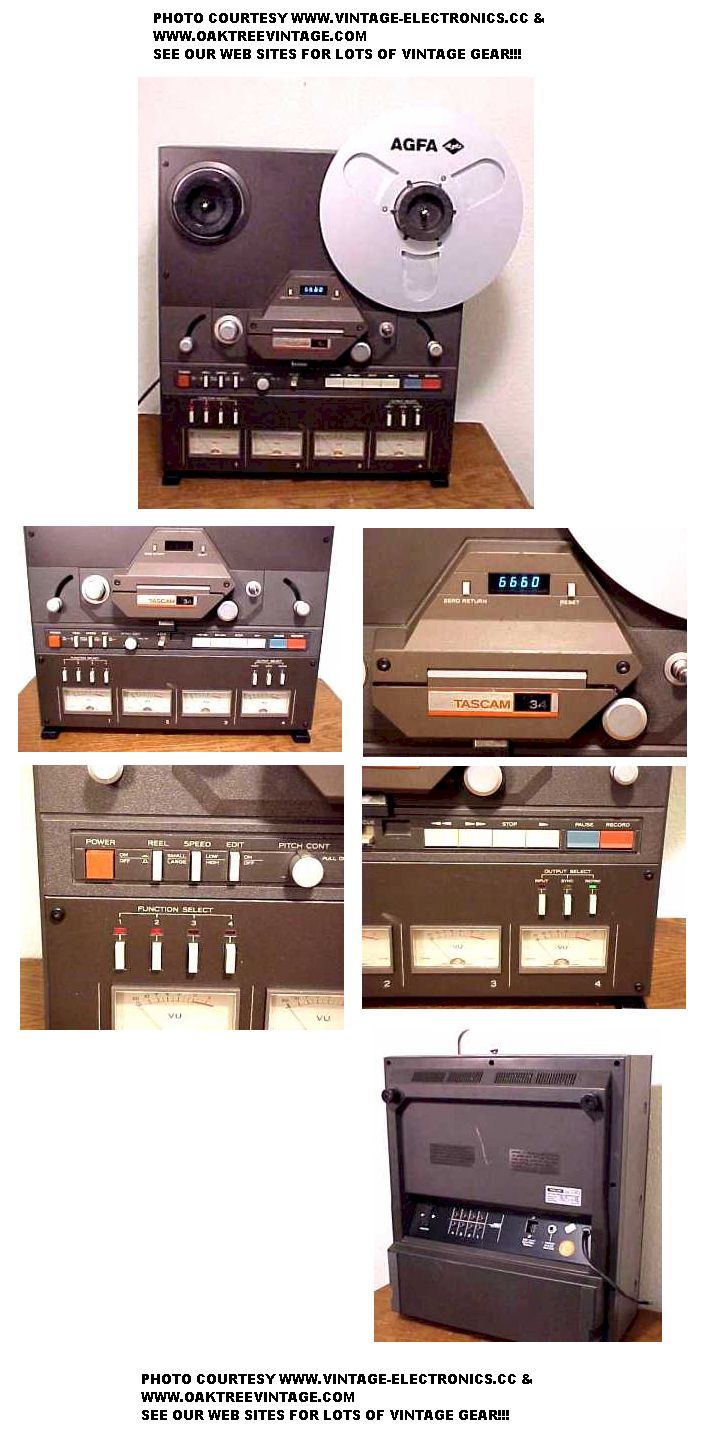

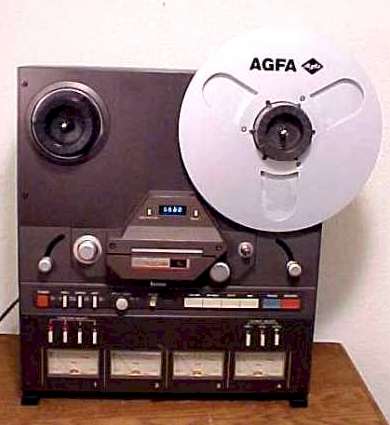

TASCAM 34
4-TRACK
4-TRACK / 4-CHANNEL /
MULTI-TRACK / MULTI-CHANNEL
REEL-REEL
SOLD





         NEW LISTING / REVISED 12/2018
(Click on above thumbnails to enlarge photos)
FULLY
SERVICED / REFURBISHED
CLASSIC / SEMI-PRO TEAC MULTI-TRACK REEL TO REEL TAPE DECK
TASCAM SERIES

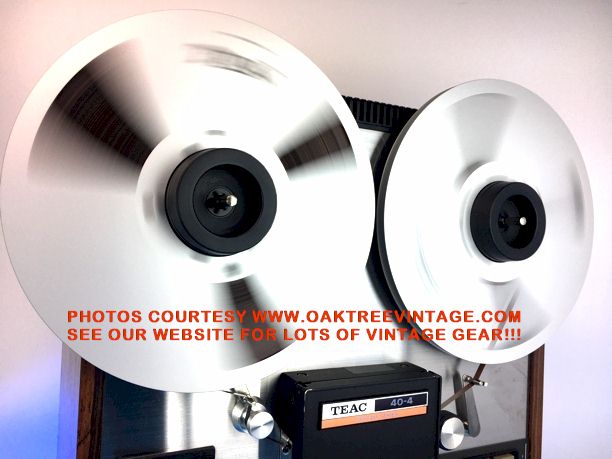

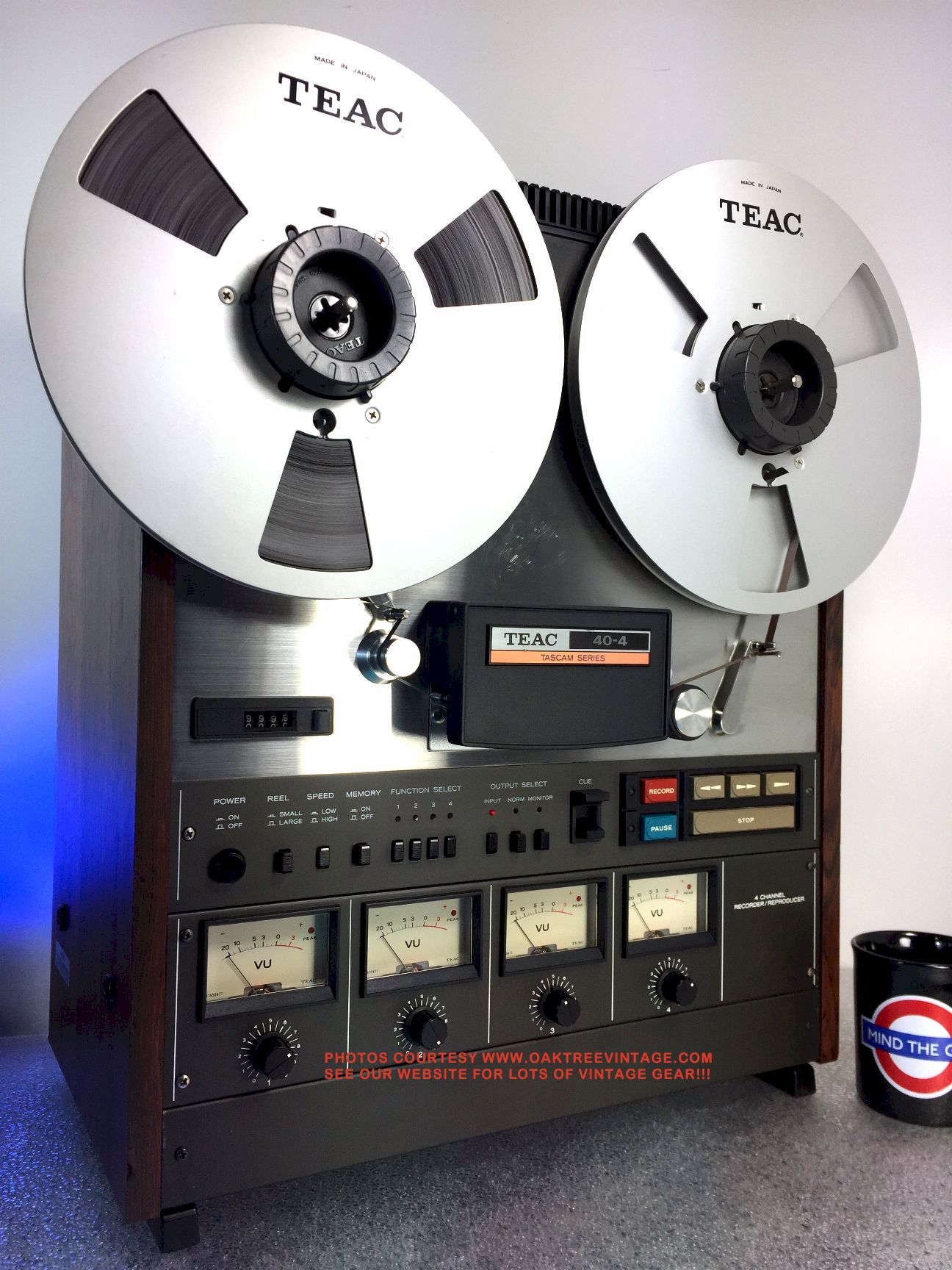

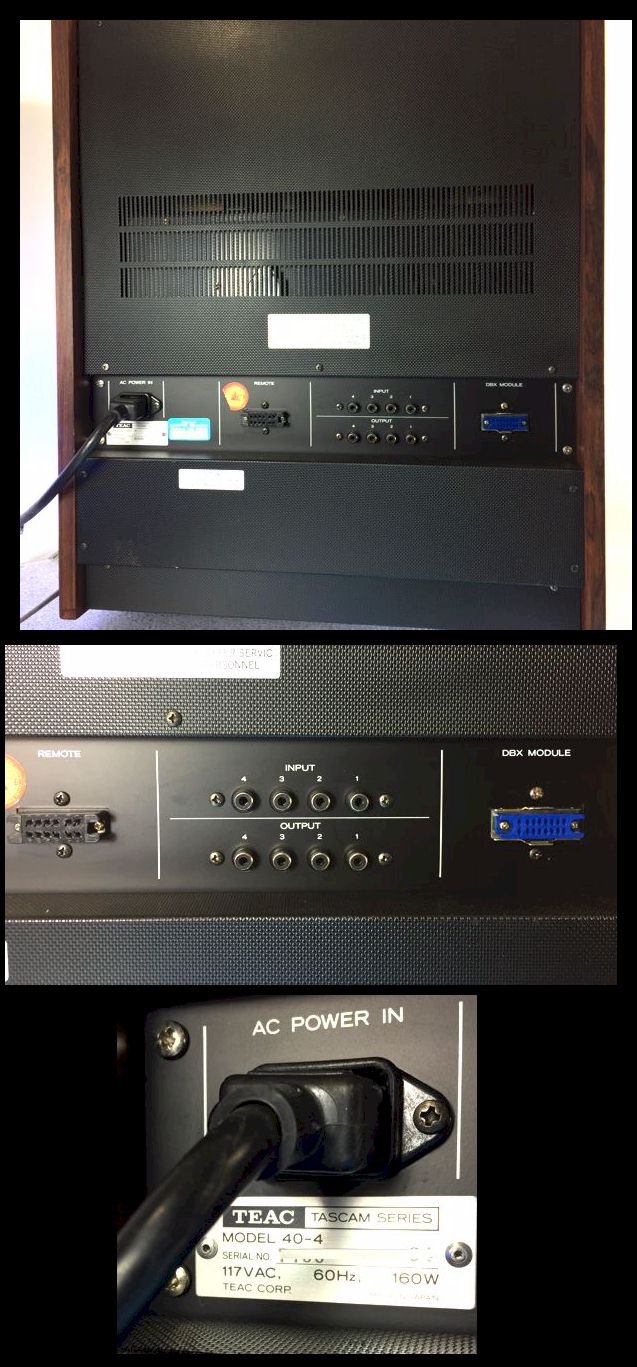

TEAC / TASCAM 40-4 4-TRACK TAPE DECK
4-TRACK / 4-CHANNEL STEREO / QUADRAPHONIC / MONO
3-HEAD / 2-SPEED / 3-MOTOR
10.5", 7" REELS AND / OR
*SMALLER
'SIMUL-SYNC'

MULTITRACK 1/4" TAPE DECK
#....7640
MIJ
Circa 1978-81
for sale

SOLD 11/20/19
SHIPPED TO BILL IN TEXAS

ü Our technician has completely gone through and 'Certified' this unit.

ü
 We have completely gone through the mechanicals and electronics of this unit.

ü All Power supply outputs tested and verified at spec.

ü Transport mechanisms disassembled, cleaned, lubed w/ 'SuperLube', silicone based gel and light machine oil as necessary and reassembled including PR Pivot Arm mechanism.

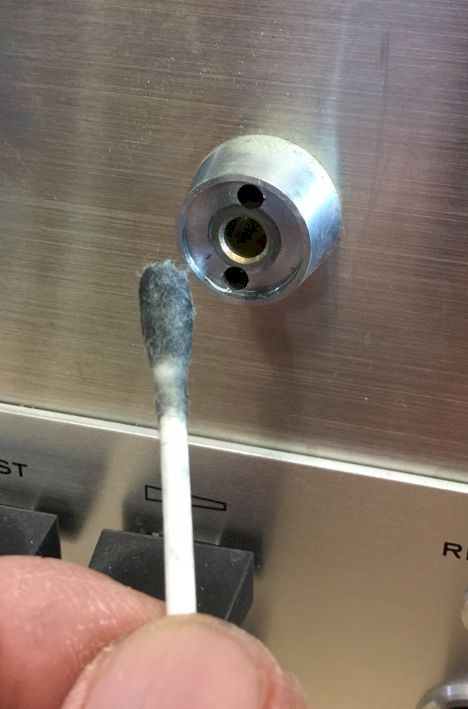

ü Tape Tension arms disassembled, cleaned and re-lubed, and had fresh 500,000 grade silicone lube gel applied

ü Tape Left Tension arm had extra spring tension added for better performance on tape handling

ü Capstan flywheel removed, cleaned bushings and axels cleaned and re-lubed. Flywheel surface burnished.

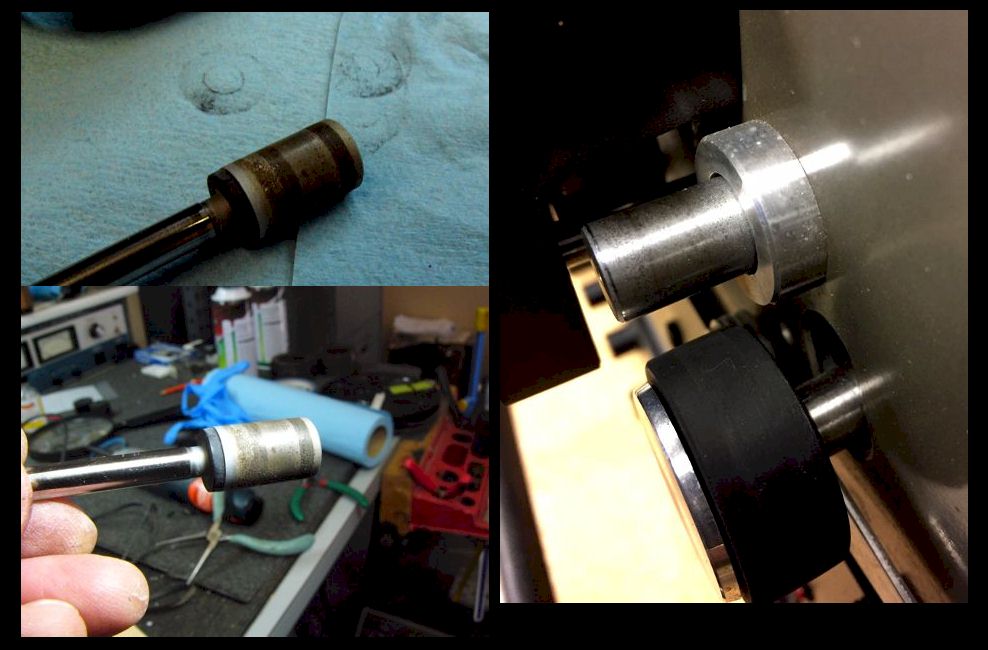

ü Capstan cleaned and burnished in drill press while removed

ü pinch-roller mechanism completely disassembled, cleaned and re-lubed.

ü Rubber pinch roller removed, re-surfaced, conditioned and re-installed with fresh lubricant.

ü Impedance roller had both it’s end bearings removed and new ones pressed in for ‘silent’ tape transportation.

ü Fresh, new 'Main' / Capstan belt (#42-3005) installed as original belt was 'melted' back to goo.

ü Fresh, new counter belt (#048) installed.

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Brakes adjusted on fast wind modes also (optimized for 7" & 10.5" tape.)

ü Back tension checked / adjusted on both reel motors.

ü All three motors test perfectly. Following above adjustments, Reel Start and Stop tested at beginning, middle and end of 7" & 10.5" tapes (VERY QUICK 'FAST WIND' ON THIS ONE)

ü Both spindles in perfect alignment w/ no 'run-out' at any speed.

ü Both spindle-locks hold tightly.

ü We also checked / adjusted the reel table heights.

ü Heads in great shape as well, with many years of performance left in them (see photos)

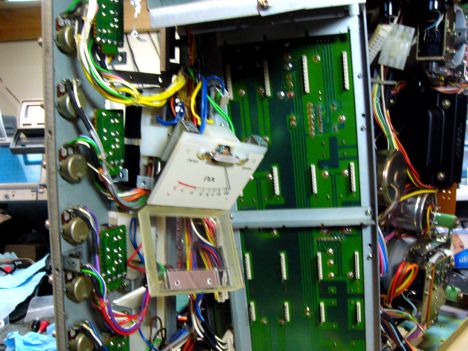

ü Removed and burnished COMMONLY INTERMITTENT contacts on channel Circuit Boards and re-seated. Adjusted pin contacts for better connections. Was discovered that these connectors was the source of channel intermittence.

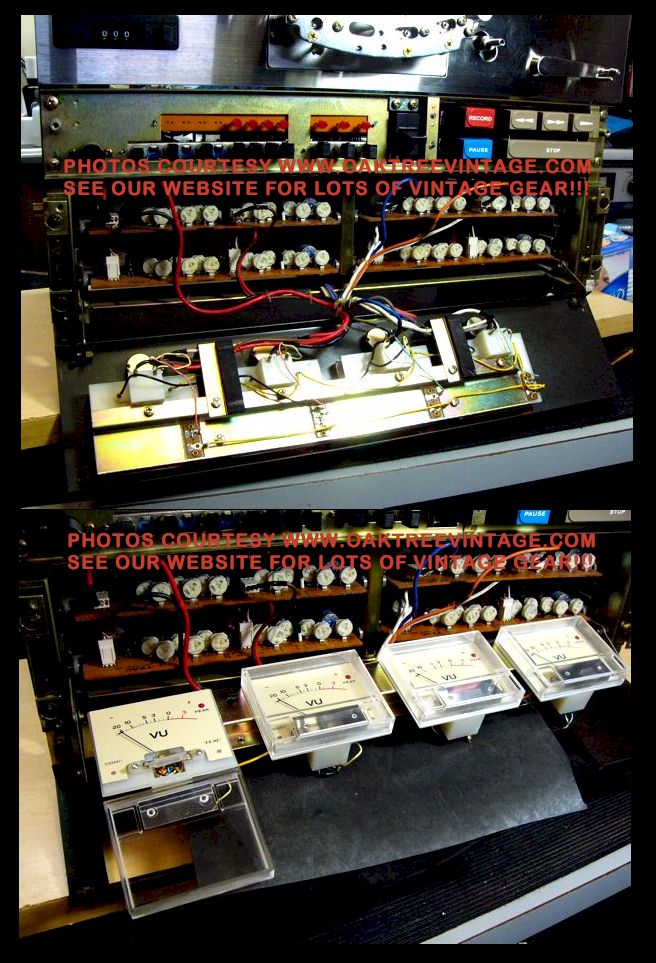

ü All meter lamps working great as they’re ‘very low’ current draw and will likely last decades more.

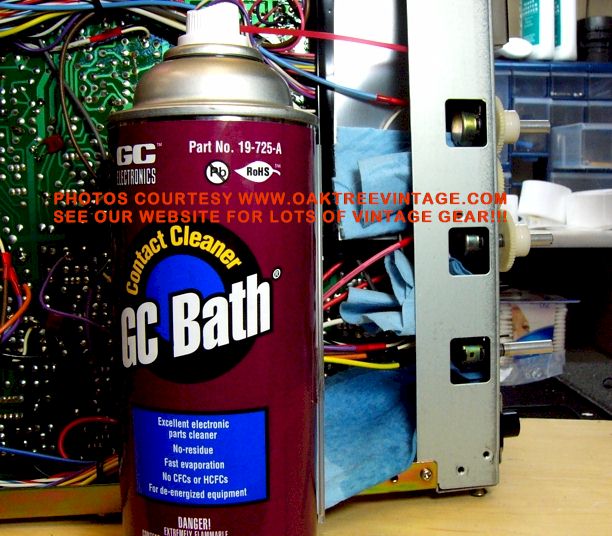

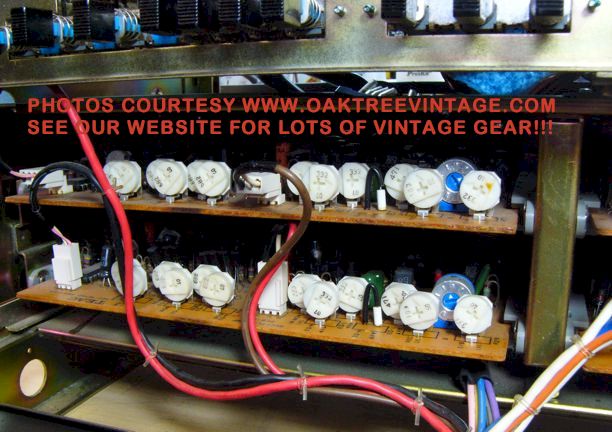

ü All 'internal' / PC mounted pots, switches and controls cleaned and tested for noise-free function

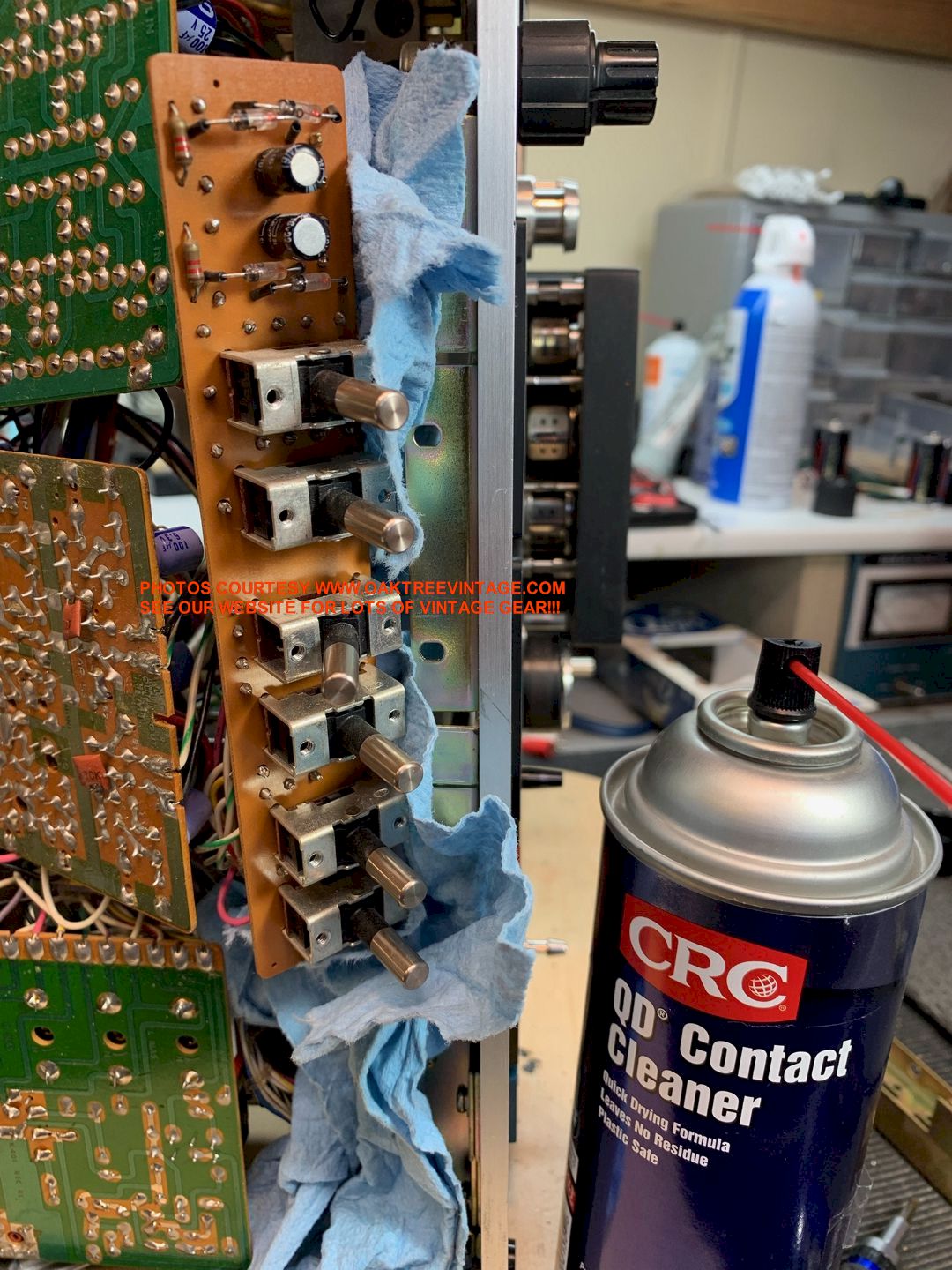

ü All 'User' pots, switches and controls cleaned and tested for noise-free function


ü Playback and Record Head alignment / azimuth was adjusted for peak performance with factory test tone tape and oscilloscope.

ü We adjusted the VU meters mechanically for correct 'resting position' and electronically w/ factory test tone tapes, as well as the internal playback, Monitor levels, and record levels utilizing “STL” test / alignment tapes.




ü We adjusted the Bias for great sound with Ampex GM-456 tape.

ü Speed tested to 99.9% accuracy following refurb (meaning that our 'verified' 1000Hz accuracy using a 1000 Hz “STL” test tape.  (test tape now plays back at 1001 when ‘warmed up’).



ü Adjusted to record AMAZINGLY WELL at 0dB both with full bandwidth Pink-Noise, then 1kHz test and in 'Real World' use w/ 'mixed DDD CD' signals. (Tested with Maxell UDXL Tape and Ampex GM-456 (bias set for Ampex GM-456).

ü Floor noise measured at >-60dBm w/ blank tape, L&R

ü Following refurb / service mechanicals tested for 'play torque' at beginning and end of largest size reels, as well as 'Fast wind torque' and 'braking tension' in both FF and REW, at beginning, middle and end of tapes. In other words, every combination of transport function was tested and passed.

ü This TEAC / TASCAM 40-4 functions, plays, and records VERY WELL (and we really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy).  (Total time investment in refurb / testing ~ 18 hours).

This is an amazing deck for both recording or playback, again of Multi-Track / Four-Track / Four-Channel / Stereo / Quadraphonic / Mono' tapes for speeds of 7.5ips or 15ips. Following refurbishment, the deck looks and works great and sounds amazing!!!

The encore to the TEAC / A-3440, the TEAC / TASCAM 40-4 Multi-Track / Four-Track / Four-Channel / Stereo / Quadraphonic / Mono (Yep, that pretty much covers everything but 'half-track') Reel to Reel tape deck. Ready to GO! We've had this deck in our warehouse for years, waiting for a 'senior tech' who was qualified to the task of bringing such a deck back to life CORRECTLY. One of a recent few, we've had make it through satisfactorily in 24+ years of dealing in vintage audio.

This is the deck that most folks want for their home studio to record 'raw tracks' on. For examples; you could lay down bass and drums on one track, then rhythm guitar on the next track, lead guitar on track 3 and vocals on track 4. Or you can lay down tracks 2-4, then bounce them to track 1 and have 2, 3 & 4 free again. Or you can records 'heads-up' (all four tracks at once), then mix those down later. Of course, you can record 'normal stereo' tapes, or you can record 4 separate mono tracks if you're trying to conserve tape. Or, Or, Or...

 Following our extensive refurb / bench time it's now an AMAZING performer (Check the 'recording test results' above and the 'specs' in text below). If you're looking for a reel to reel deck to "actually use" here you go. Only about 25% of the used Reel decks out there can be "practically" restored to working order. This one made it through with flying colors after about 18 hours of bench time.

From the original TEAC / TASCAM 40-4 brochure:
“They are ideal for...


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

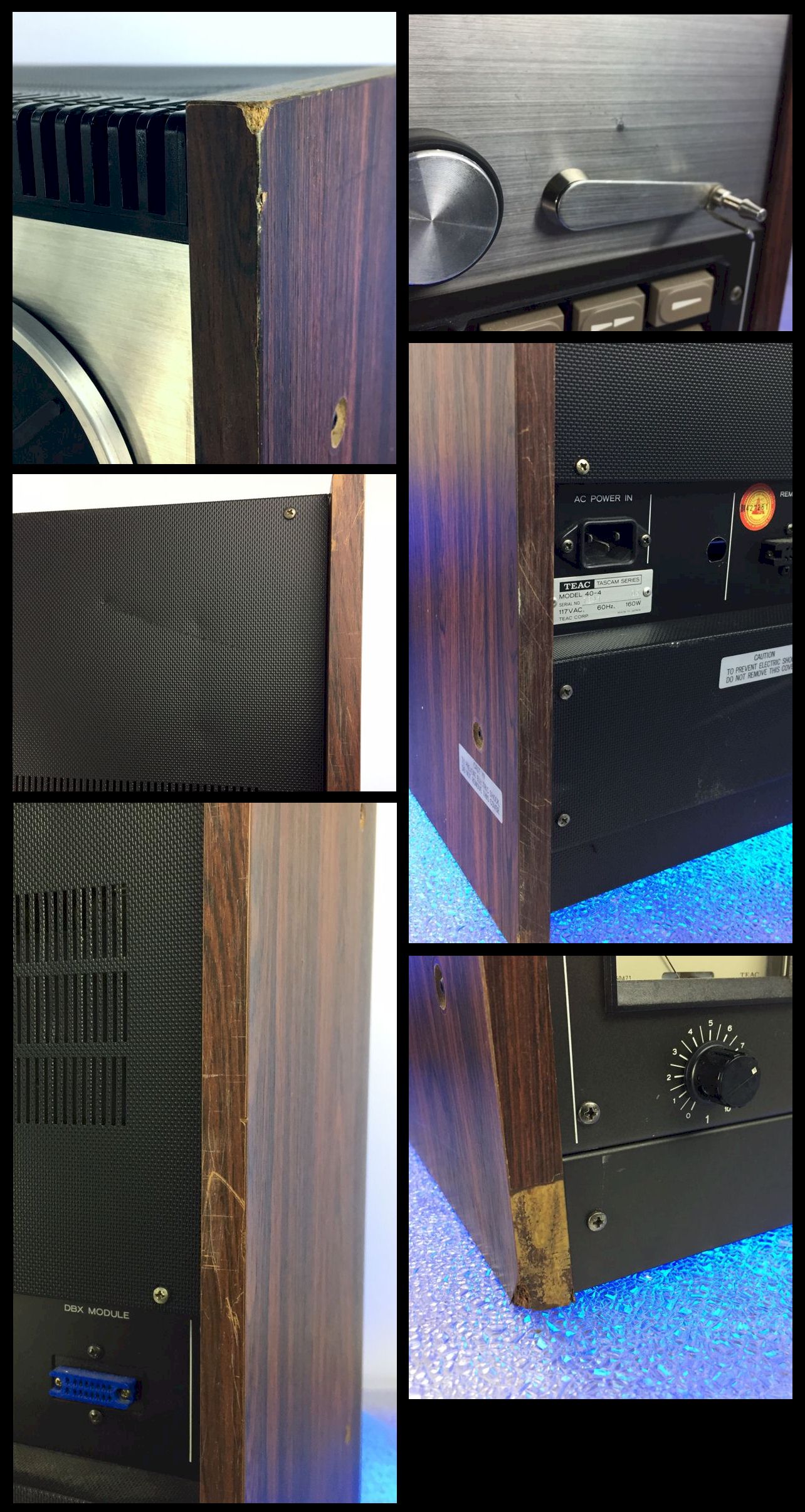

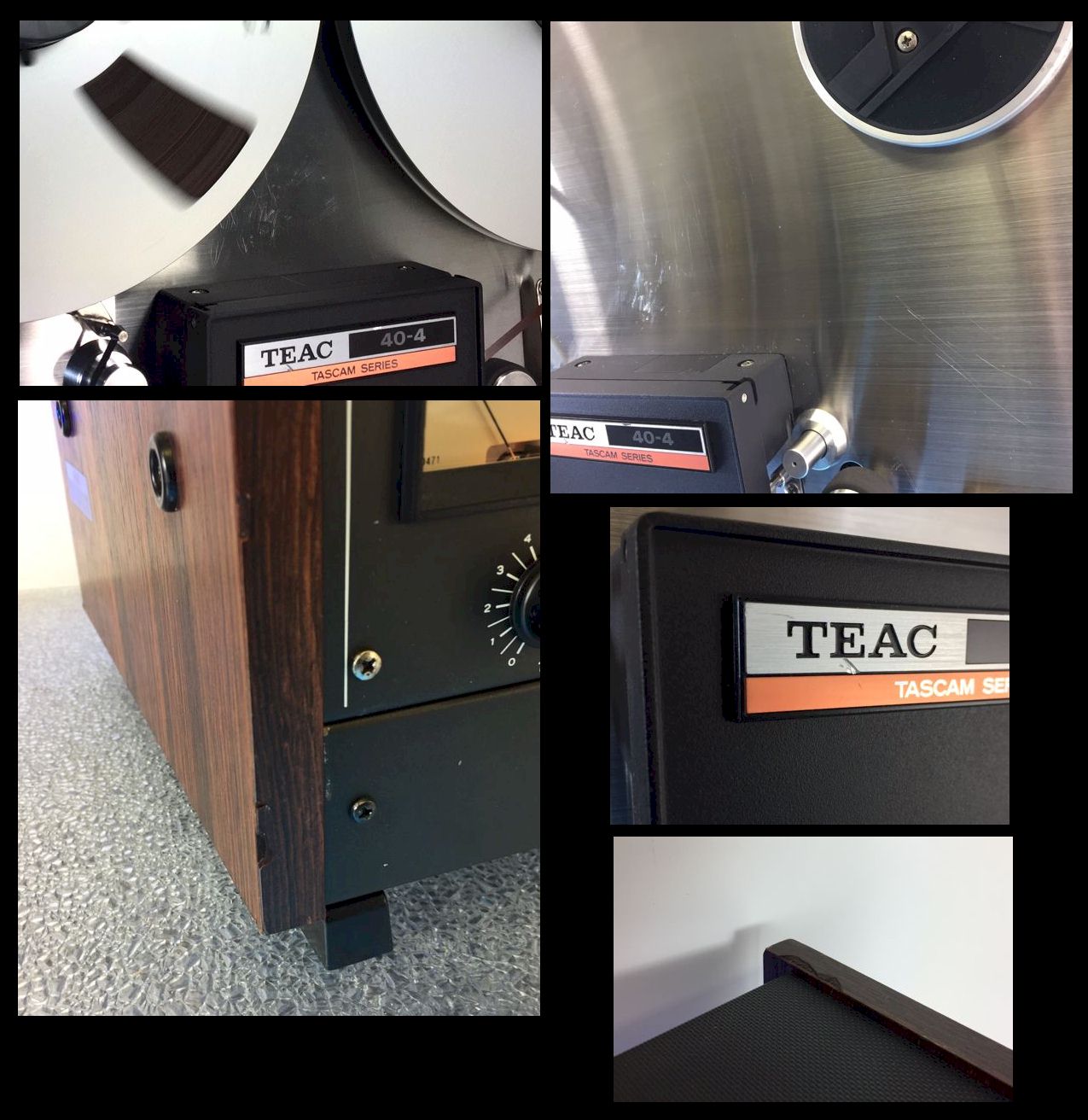

The deck tests great! Cosmetically it's in great condition. Cosmetic issues worth mentioning would be some light scuffs on the face panel, between the reel tables and a few, typical nicks to the wood grain side panes, and a small nick to the head cover (see photos above). Functions and sounds great ! Will play up to 10.5" reels.

TEAC / TASCAM 40-4 Features include:

- Multi-Track / 4-Track / 4-...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


- Accessory connectors for optio
nal TEAC Remote control (not included, nor currently available)
- Multi-pin logic connector for external dbx unit (not included, nor currently available)


TEAC / TASCAM 40-4 Specs / Specifications:

Track / Head / Head-stack Format: 3 heads, inline (4...


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


As stated earlier we have EXTENSIVELY gone through it cleaning heads and all else, lubing, adjusting, reconditioning pinch rollers and other rubber parts, demagnetizing heads and entire transport and testing everything. Tape speed tested and resulted in 99.9% accuracy using a 1000 Hz “STL” test tape. Plays and records Exceptionally well (and we really put them through the paces, testing both with well mixed CD material and CD test tones looking for correct head Azimuth, tape speed accuracy and making test recordings. Again, check the 'test results' listed above). Pinch rollers and heads all in GREAT condition!!! As stated earlier, cosmetic issues worth mentioning would be some light scuffs on the face panel, between the reel tables and a few, typical nicks to the wood grain side panes, and a small nick to the head cover (see photos above).

This is a...


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?



All of our restored / refurbished reel to reel decks come with a 7", plastic take-up reel, a 'known good' 7" tape for initial testing of playback, and a 7" tape you can record onto, all to assist you in becoming familiar with the operation / function of your new reel to reel tape deck.
Comes with an 'e-copy' / pdf download of the TEAC / TASCAM 40-4 owners / operations manual. Measures 21" tall (with skids installed) x 17.3" wide (w/ wood side panels installed) x 21.5" tall x 12" (from tip of back feet-tip of hubs)
deep and weighs a VERY HEAVY 72+ lbs unpacked. Includes our standard 30 day limited warranty.
(Reels, tape and any NAB hubs shown in photos not included. All are sometimes available separately if you need them. We do ship our decks with a plastic take-up reel, a tape to 'practice record' on and a 'pre-recorded' tape for playback.)
TEAC / TASCAM 40-4 MULTI-TRACK / STEREO / MONO REEL TO REEL TAPE DECK
Cond. 8.5

SOLD 11/20/19
SHIPPED TO BILL IN TEXAS


(Reels, tape and any NAB hubs shown in photos are not included, but we sometimes / occasionally have them for sale. Inquire at time of order.
However, all of our decks will come with 2x tapes for testing 'Playback' and 'Recording' as well as a 7" 'take-up' reel, and RCA patch cables for connection to your system
)


This deck, coupled with the Fostex shown below would make a complete, analog recording system for your project studio. 4 track to 2-Track stereo mixdown.


 (Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)












NEW LISTING 12/22/2020
(Click on above thumbnails to enlarge photos)
FULLY SERVICED / REFURBISHED
CLASSIC / SEMI-PRO TEAC MULTI-TRACK REEL TO REEL TAPE DECK
TASCAM SERIES

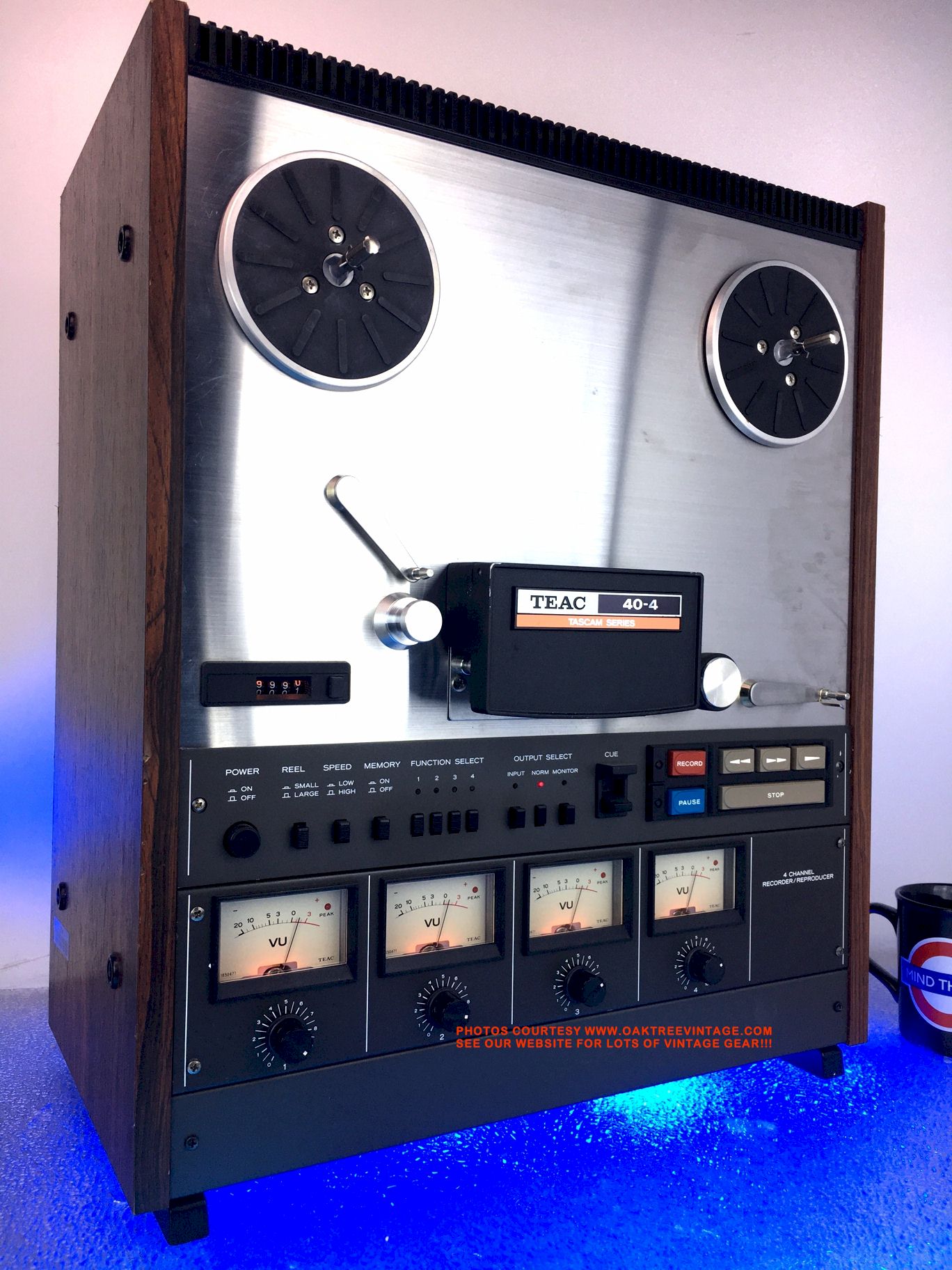

TEAC / TASCAM 40-4 4-TRACK TAPE DECK
4-TRACK / 4-CHANNEL STEREO /
*QUADRAPHONIC / MONO
3-HEAD / 2-SPEED (7.5 & 15IPS) / 3-MOTOR
10.5", 7" REELS AND / OR
**
SMALLER
'SIMUL-SYNC'
MULTITRACK 1/4" TAPE DECK
#....7392
MIJ
Circa 1978-81

SOLD 12/23/2020
SHIPPING TO DAVID IN IOWA


ü Our technician has completely gone through and 'Certified' this unit.

ü
 We have completely gone through the mechanicals and electronics of this unit.

ü Replaced three, incorrect value fuses in 'lower fuse PCB' #109

ü All Power supply outputs tested and verified at spec.

ü Transport mechanisms disassembled, cleaned, lubed w/ 'SuperLube', silicone based gel and light machine oil as necessary and reassembled including PR Pivot Arm mechanism.



ü Tape Tension arms disassembled, cleaned and re-lubed, and had fresh 300,000 grade silicone lube gel applied

ü Replaced one reel table / spindle

ü Tape Left Tension arm had extra spring tension added for better performance on tape handling

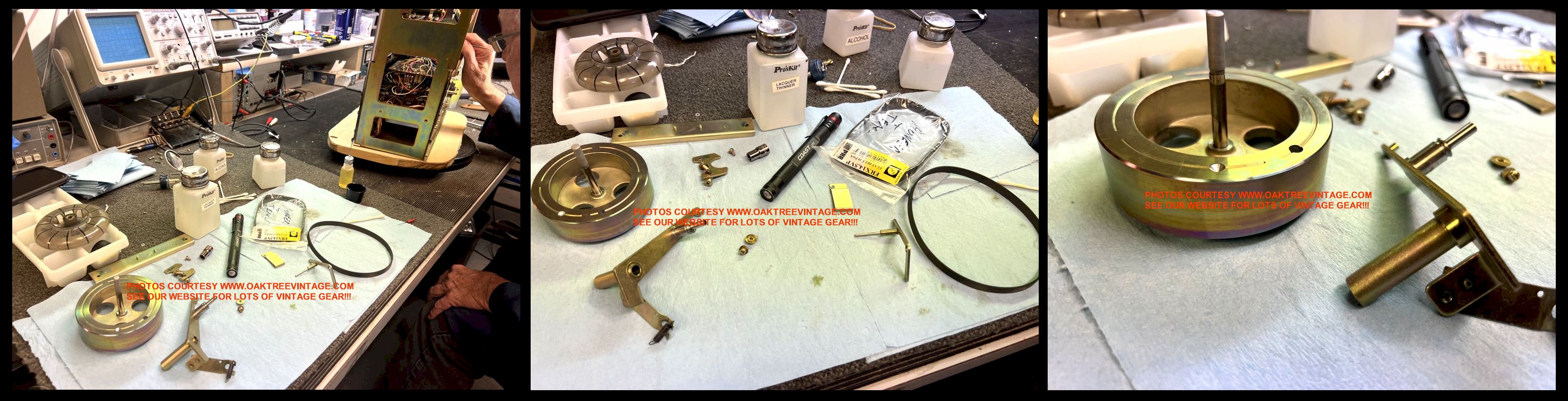

ü Capstan flywheel removed, cleaned bushings and axels cleaned and re-lubed w/ 80-90W gear oil. Flywheel surface burnished.

ü Capstan Motor re-lubed (has 'oil tubes')

ü Capstan cleaned and burnished in drill press while removed

ü Pinch-roller mechanism completely disassembled, cleaned and re-lubed.

ü Rubber pinch roller removed, re-surfaced, conditioned and re-installed with fresh lubricant.

ü Impedance roller had both it’s end bearings removed and new ones (#626) pressed in for ‘silent’ tape transportation.

ü 'Main' / Capstan belt reconditioned.

ü Fresh, new counter belt (#049) installed.

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Brakes adjusted on fast wind modes also (optimized for 7" & 10.5" tape.)

ü Back tension checked / adjusted on both reel motors.

ü All three motors test perfectly. Following above adjustments, Reel Start and Stop tested at beginning, middle and end of 7" & 10.5" tapes (VERY QUICK 'FAST WIND' ON THIS ONE)

ü Both spindles in perfect alignment w/ no 'run-out' at any speed.

ü Both spindle-locks hold tightly.

ü We also adjusted the reel table heights.

ü Heads in great shape as well, with lots of performance left in them

ü Removed and burnished COMMONLY INTERMITTENT contacts on channel Circuit Boards and re-seated. Adjusted pin contacts for better connections. Was discovered that these connectors was the source of channel intermittence.

ü All meter lamps replaced #25-455

ü Both 'Counter' lamps replaced #A403

ü All 'internal' / PC mounted pots, switches and controls cleaned and tested for noise-free function

ü All 'User' pots, switches and controls cleaned and tested for noise-free function

ü Playback and Record Head alignment / azimuth was adjusted for peak performance with factory test tone tape and oscilloscope.

ü We adjusted the VU meters mechanically for correct 'resting position' and electronically w/ factory test tone tapes, as well as the internal playback, Monitor levels, and record levels utilizing “STL” test / alignment tapes.




ü We adjusted the Bias for great sound with Ampex GM-456 tape.

ü Speed tested to 99.7% accuracy following refurb (meaning that our 'verified' 1000Hz accuracy using a 1000 Hz “STL” test tape.  (test tape now plays back at 1003Hz +/-1Hz when ‘warmed up’).



ü Adjusted to record AMAZINGLY WELL; 1k to 10kHz input @ 0dB = ~-1 to -2dB on 456 tape. Also tested with full bandwidth White-Noise, and in 'Real World' use w/ 'mixed DDD CD' signals. (Tested with Maxell UDXL Tape and Ampex GM-456 (best results with Ampex GM-456).

ü Floor noise measured at >-60dBm w/ blank tape, L&R

ü Following refurb / service mechanicals tested for 'play torque' at beginning and end of largest size reels, as well as 'Fast wind torque' and 'braking tension' in both FF and REW, at beginning, middle and end of tapes. In other words, every combination of transport function was tested and passed.

ü This TEAC / TASCAM 40-4 functions, plays, and records VERY WELL (and we really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy).  (Total time investment in refurb / testing ~ 18+ hours).

ü This deck had been rack-mounted so it arrive with NO side panels or most 'sheet metal'. We sourced a 'parts donor' deck later (took about a year of looking / waiting)

This is an amazing deck for both recording or playback, again of Multi-Track / Four-Track / Four-Channel / Stereo /
**Quadraphonic / Mono' tapes for speeds of 7.5ips or 15ips. Following refurbishment, the deck looks and works great and sounds amazing!!!

The encore to the TEAC / A-3440, the TEAC / TASCAM 40-4 Multi-Track / Four-Track / Four-Channel / Stereo / Quadraphonic / Mono (Yep, that pretty much covers everything but 'half-track') Reel to Reel tape deck. Ready to GO! We've had this deck in our warehouse for years, waiting for a 'senior tech' who was qualified to the task of bringing such a deck back to life CORRECTLY. One of a recent few, we've had make it through satisfactorily in 24+ years of dealing in vintage audio.

 Following our extensive refurb / bench time it's now an AMAZING performer (Check the 'recording test results' above and the 'specs' in text below). If you're looking for a reel to reel deck to "actually use" here you go. Only about 25% of the used Reel decks out there can be "practically" restored to working order. This one made it through with flying colors after about
18 hours of bench time.

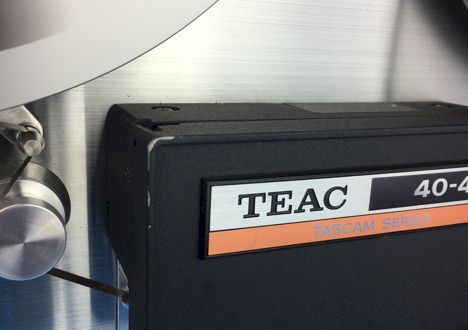

The deck tests great! Cosmetically it's in great condition. Really not much cosmetically to talk about that the above photos don't show. There's a few small tics along the edges of the wood, grain side panels and a bit of wear to the edges of the finish on the head cover and a few scratches on the pinch roller hub cap. Nothing at all distracting. Just a solidly built, 'Pro' series deck, that's READY TO GO!

TEAC / TASCAM 40-4 Features include:
...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


TEAC / TASCAM 40-4 Specs / Specifications:
...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


As stated earlier we have EXTENSIVELY gone through it cleaning heads and all else, lubing, adjusting, reconditioning pinch rollers and other rubber parts, demagnetizing heads and entire transport and testing everything. Tape speed tested and resulted in 99.7% accuracy using a 1000 Hz “STL” test tape. Plays and records Exceptionally well (and we really put them through the paces, testing both with well mixed CD material and CD test tones looking for correct head Azimuth, tape speed accuracy and making test recordings. Again, check the 'test results' listed above). Pinch rollers and heads all in GREAT condition!!!

This is a highly sought after deck and now, following the extensive service, with UNBELIEVABLE PERFORMANCE.
This was not only a GREAT 'Musicians' deck, as a performer could 're-visit' their old band tapes to transfer to computer, DAW, or 'Stereo Mix Down', but since it also does standard 'Stereo' playback, Mono and even Quadraphonic (Quadriphonic) playback, it's about as versatile as you can get. Also would be a great deck for a 'media transfer house / business' that has clients with old 'band tapes' that they want to get mixed down to stereo.
All of our restored / refurbished reel to reel decks come with a 7", plastic take-up reel, a 'known good' 7" tape for initial testing of playback, and a 7" tape you can record onto, all to assist you in becoming familiar with the operation / function of your new reel to reel tape deck.
Comes with an 'e-copy' / pdf download of the TEAC / TASCAM 40-4 owners / operations manual. Measures 21" tall (with skids installed) x 17.3" wide (w/ wood side panels installed) x 21.5" tall x 12" (from tip of back feet-tip of hubs) deep and weighs a
VERY HEAVY 72+ lbs unpacked. Includes our standard 30 day limited warranty.
(Reels, tape and any NAB hubs shown in photos not included. All are sometimes available separately if you need them. We do ship our decks with a plastic take-up reel, a tape to 'practice record' on and a 'pre-recorded' tape for playback.)
TEAC / TASCAM 40-4 MULTI-TRACK / STEREO / MONO REEL TO REEL TAPE DECK
Cond. 8.5

SOLD 12/23/2020
SHIPPING TO DAVID IN IOWA


(Reels, tape and any NAB hubs shown in photos are not included, but we sometimes / occasionally have them for sale. Inquire at time of order.
However, all of our decks will come with 2x tapes for testing 'Playback' and 'Recording' as well as a 7" 'take-up' reel, and RCA patch cables for connection to your system)



 (Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)

(Due to it's size and weight, it runs a bit more for shipping relative to other (consumer) reel to reel machines)









NEW LISTING
(Click on above thumbnails to enlarge photos)
FULLY SERVICED / REFURBISHED
CLASSIC / SEMI-PRO TEAC MULTI-TRACK REEL TO REEL TAPE DECK
TASCAM SERIES
TEAC / TASCAM 40-4 4-TRACK TAPE DECK
4-TRACK / 4-CHANNEL STEREO /
*QUADRAPHONIC / MONO
3-HEAD / 2-SPEED / 3-MOTOR
10.5", 7" REELS AND / OR
**
SMALLER
'SIMUL-SYNC'
MULTITRACK 1/4" TAPE DECK
#....7241
MIJ
Circa 1978-81
SOLD 8/19/20
SHIPPED TO PETER IN CALIFORNIA


ü Our technician has completely gone through and 'Certified' this unit.

ü
 We have completely gone through the mechanicals and electronics of this unit.

ü All Power supply outputs tested and verified at spec.

ü Transport mechanisms disassembled, cleaned, lubed w/ 'SuperLube', silicone based gel and light machine oil as necessary and reassembled including PR Pivot Arm mechanism.



ü Tape Tension arms disassembled, cleaned and re-lubed, and had fresh 300,000 grade silicone lube gel applied

ü Replaced both reel tables / spindles

ü Tape Left Tension arm had extra spring tension added for better performance on tape handling

ü Capstan flywheel removed, cleaned bushings and axels cleaned and re-lubed w/ 80-90W gear oil. Flywheel surface burnished.

ü Capstan Motor re-lubed (has 'oil tubes')

ü Capstan cleaned and burnished in drill press while removed

ü Pinch-roller mechanism completely disassembled, cleaned and re-lubed.

ü Rubber pinch roller removed, re-surfaced, conditioned and re-installed with fresh lubricant.

ü Impedance roller had both it’s end bearings removed and new ones (#626) pressed in for ‘silent’ tape transportation.

ü 'Main' / Capstan belt reconditioned.

ü Fresh, new counter belt (#049) installed.

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Brakes adjusted on fast wind modes also (optimized for 7" & 10.5" tape.)

ü Back tension checked / adjusted on both reel motors.

ü All three motors test perfectly. Following above adjustments, Reel Start and Stop tested at beginning, middle and end of 7" & 10.5" tapes (VERY QUICK 'FAST WIND' ON THIS ONE)

ü Both spindles in perfect alignment w/ no 'run-out' at any speed.

ü Both spindle-locks hold tightly.

ü We also adjusted the reel table heights.

ü Heads in great shape as well, with lots of performance left in them

ü Removed and burnished COMMONLY INTERMITTENT contacts on channel Circuit Boards and re-seated. Adjusted pin contacts for better connections. Was discovered that these connectors was the source of channel intermittence.

ü All meter lamps replaced #25-455

ü Both 'Counter' lamps replaced #A403

ü All 'internal' / PC mounted pots, switches and controls cleaned and tested for noise-free function

ü All 'User' pots, switches and controls cleaned and tested for noise-free function


ü Playback and Record Head alignment / azimuth was adjusted for peak performance with factory test tone tape and oscilloscope.

ü We adjusted the VU meters mechanically for correct 'resting position' and electronically w/ factory test tone tapes, as well as the internal playback, Monitor levels, and record levels utilizing “STL” test / alignment tapes.




ü We adjusted the Bias for great sound with Ampex GM-456 tape.

ü Speed tested to 99.9% accuracy following refurb (meaning that our 'verified' 1000Hz accuracy using a 1000 Hz “STL” test tape.  (test tape now plays back at 999Hz when ‘warmed up’).



ü Adjusted to record AMAZINGLY WELL at 0dB both with full bandwidth Pink-Noise, then 1kHz test and in 'Real World' use w/ 'mixed DDD CD' signals. (Tested with Maxell UDXL Tape and Ampex GM-456 (best results with Ampex GM-456).

ü Floor noise measured at >-60dBm w/ blank tape, L&R

ü Following refurb / service mechanicals tested for 'play torque' at beginning and end of largest size reels, as well as 'Fast wind torque' and 'braking tension' in both FF and REW, at beginning, middle and end of tapes. In other words, every combination of transport function was tested and passed.

ü This TEAC / TASCAM 40-4 functions, plays, and records VERY WELL (and we really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy).  (Total time investment in refurb / testing ~ 24 hours).

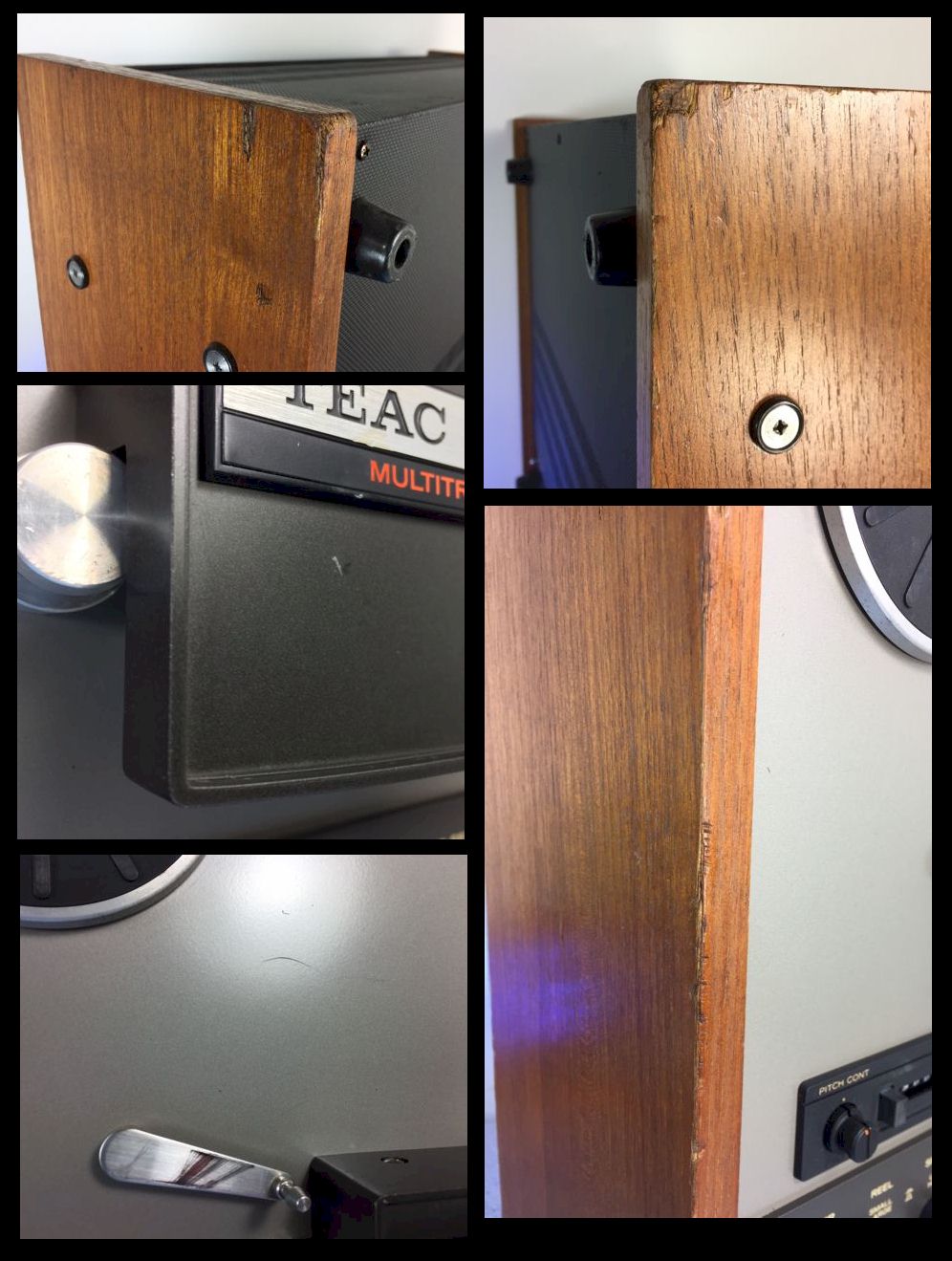

ü This deck had been rack-mounted so it arrive with NO side panels. We sourced a pair later (took about a year of looking / waiting)

This is an amazing deck for both recording or playback, again of Multi-Track / Four-Track / Four-Channel / Stereo /
**Quadraphonic / Mono' tapes for speeds of 7.5ips or 15ips. Following refurbishment, the deck looks and works great and sounds amazing!!!

The encore to the TEAC / A-3440, the TEAC / TASCAM 40-4 Multi-Track / Four-Track / Four-Channel / Stereo / Quadraphonic / Mono (Yep, that pretty much covers everything but 'half-track') Reel to Reel tape deck. Ready to GO! We've had this deck in our warehouse for years, waiting for a 'senior tech' who was qualified to the task of bringing such a deck back to life CORRECTLY. One of a recent few, we've had make it through satisfactorily in 24+ years of dealing in vintage audio.

This is the deck that most folks want for their home studio to record 'raw tracks' on. For examples; you could lay down bass and drums on one track, then rhythm guitar on the next track, lead guitar on track 3 and vocals on track 4. Or you can lay down tracks 2-4, then bounce them to track 1 and have 2, 3 & 4 free again. Or you can records 'heads-up' (all four tracks at once), then mix those down later. Of course, you can record 'normal stereo' tapes, or you can record 4 separate mono tracks if you're trying to conserve tape. Or, Or, Or...

 Following our extensive refurb / bench time it's now an AMAZING performer (Check the 'recording test results' above and the 'specs' in text below). If you're looking for a reel to reel deck to "actually use" here you go. Only about 25% of the used Reel decks out there can be "practically" restored to working order. This one made it through with flying colors after about
24 hours of bench time.


The deck tests great! Cosmetically it's in good condition. Cosmetic issues worth mentioning would be a veneer chip to the lower, left side panel, some scuffs / striations to the rear edges of the side panels, a note-worthy ding to the upper right side panel corner, a small 'dent' in the faceplate near the right tension arm. As we stated earlier, the deck had been rack-mounted so it arrived with NO side panels or rear sheet metal. Sometime in the past, an 'accessory' port was drilled in the rear panel, that is no longer utilized. Also, as it had been rack-mounted, there's no 'plastic' skids installed on the bottom (even though they're shown in one photo, those were from a previous deck), just 'felt feet'. We sourced all of it later from another deck we purchased. (see photos above). Functions and sounds great ! Will play up to 10.5" reels.


As stated earlier we have EXTENSIVELY gone through it cleaning heads and all else, lubing, adjusting, reconditioning pinch rollers and other rubber parts, demagnetizing heads and entire transport and testing everything. Tape speed tested and resulted in 99.9% accuracy using a 1000 Hz “STL” test tape. Plays and records Exceptionally well (and we really put them through the paces, testing both with well mixed CD material and CD test tones looking for correct head Azimuth, tape speed accuracy and making test recordings. Again, check the 'test results' listed above). Pinch rollers and heads all in GREAT condition!!! As stated earlier, cosmetic issues worth mentioning would be some light scuffs on the face panel, between the reel tables and a few, typical nicks to the wood grain side panes, and a small nick to the head cover (see photos above).

This is a highly sought after deck and now, following the extensive service, with UNBELIEVABLE PERFORMANCE.
This was not only a GREAT 'Musicians' deck, as a performer could 're-visit' their old band tapes to transfer to computer, DAW, or 'Stereo Mix Down', but since it also does standard 'Stereo' playback, Mono and even Quadraphonic (Quadriphonic) playback, it's about as versatile as you can get. Also would be a great deck for a 'media transfer house / business' that has clients with old 'band tapes' that they want to get mixed down to stereo.
All of our restored / refurbished reel to reel decks come with a 7", plastic take-up reel, a 'known good' 7" tape for initial testing of playback, and a 7" tape you can record onto, all to assist you in becoming familiar with the operation / function of your new reel to reel tape deck.
Comes with an 'e-copy' / pdf download of the TEAC / TASCAM 40-4 owners / operations manual. Measures 21" tall (with skids installed) x 17.3" wide (w/ wood side panels installed) x 21.5" tall x 12" (from tip of back feet-tip of hubs) deep and weighs a
VERY HEAVY 72+ lbs unpacked. Includes our standard 30 day limited warranty.
(Reels, tape and any NAB hubs shown in photos not included. All are sometimes available separately if you need them. We do ship our decks with a plastic take-up reel, a tape to 'practice record' on and a 'pre-recorded' tape for playback.)
TEAC / TASCAM 40-4 MULTI-TRACK / STEREO / MONO REEL TO REEL TAPE DECK
Cond. 8.5

SOLD 8/19/20
SHIPPED TO PETER IN CALIFORNIA


(Reels, tape and any NAB hubs shown in photos are not included, but we sometimes / occasionally have them for sale. Inquire at time of order.
However, all of our decks will come with 2x tapes for testing 'Playback' and 'Recording' as well as a 7" 'take-up' reel, and RCA patch cables for connection to your system)



 (Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)

(Due to it's size and weight, it runs a bit more for shipping relative to other (consumer) reel to reel machines)





Tascam_80-8_Used_8-Track_half-inch_Reel-Reel_Tape_Deck_web.jpg (32625 bytes)    Tascam_80-8_Used_8-Track_half-inch_Reel-Reel_Tape_Deck_collage.jpg (219122 bytes)    Tascam_80-8_Used_8-Track_half-inch_Reel-Reel_Tape_Deck_Issues_collage.jpg (109093 bytes)

TASCAM MODEL 80-8
EIGHT TRACK REEL TO REEL

SOLD 2/21/04










NEW LISTING
12/4/17
 (Click on above thumbnails to enlarge photos)

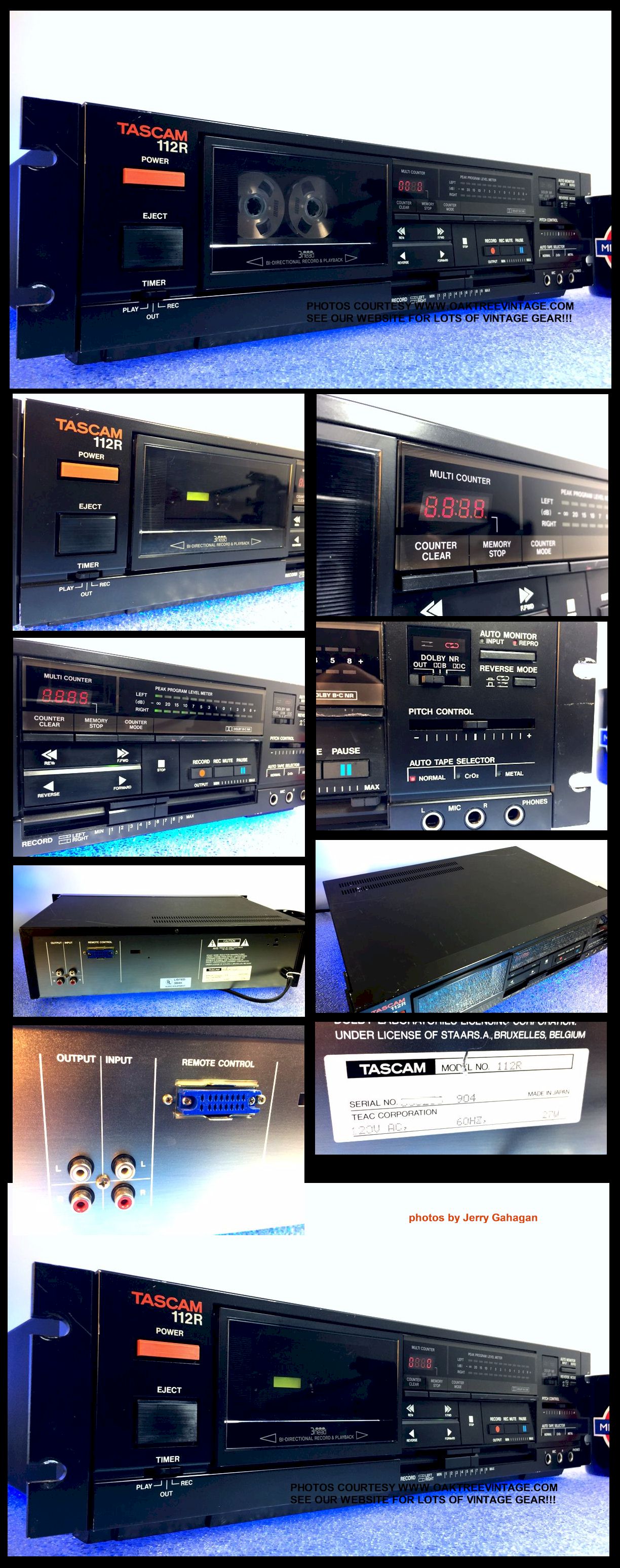

VINTAGE AND FULLY SERVICED W/ WARRANTY

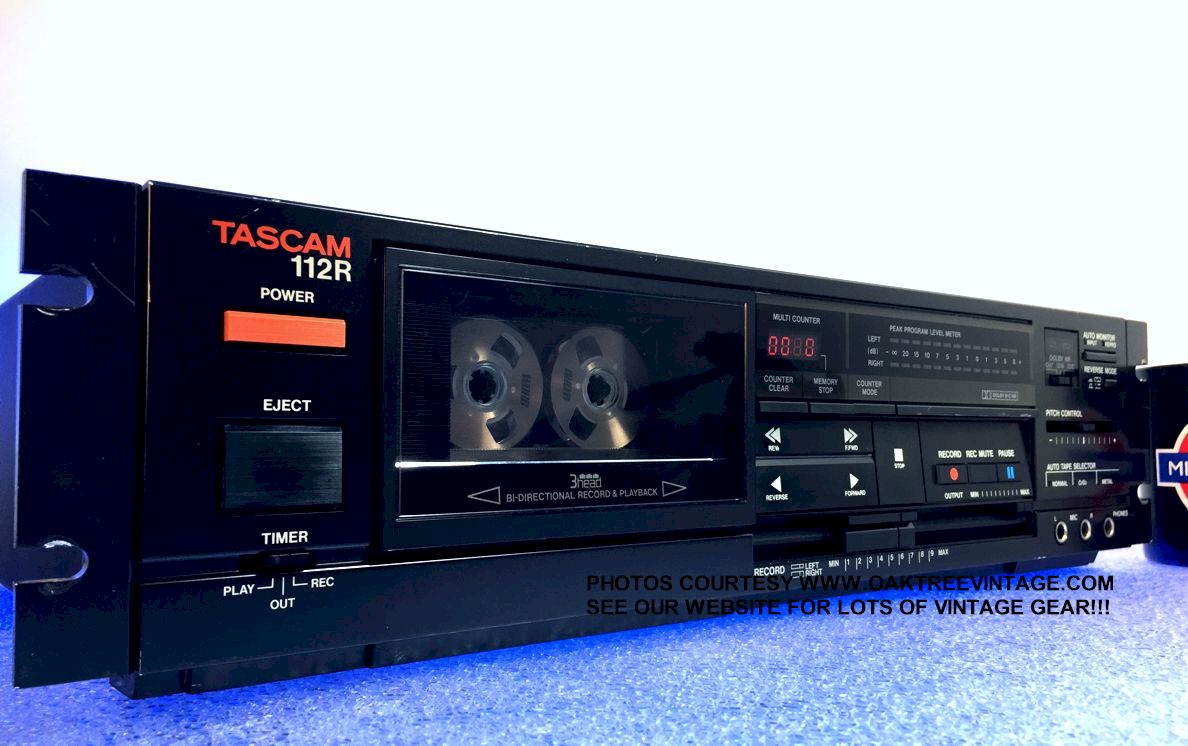

TASCAM STUDIO CASSETTE TAPE DECK

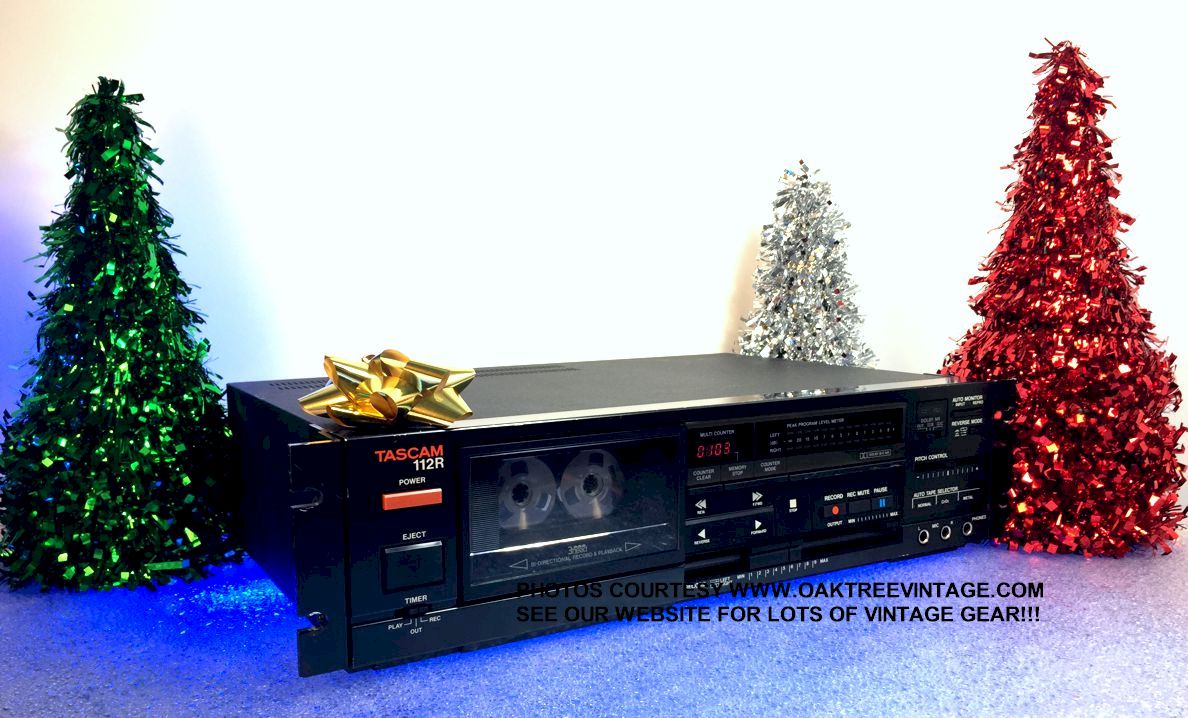

TASCAM 112R
"It's got a few minor 'battle scars', but following it's full service, makes
up for that in 'Studio Mix-Down' performance
"

 3 HEADS / 3 MOTORS
AUTO-REVERSE W/ 'BI-DIRECTIONAL RECORDING'

#...0236
With DOLBY B &C NR
MADE IN JAPAN!
Circa 1986-93

SOLD 3/23/19
SHIPPED TO SCOTT IN CALIFORNIA


ü Our technician has completely and EXTENSIVELY gone through and 'Certified' this unit which involves complete removal and disassembly of the entire transport (not an easy task on this deck), cleaning inside and out, DISASSEMBLING, cleaning and re-lubricating all internal mechanisms and the balance of efforts listed below.


ü Heads inspected for excessive wear (obviously we do this 'early on' as 'excessive' wear will usually negate any further restoration work).

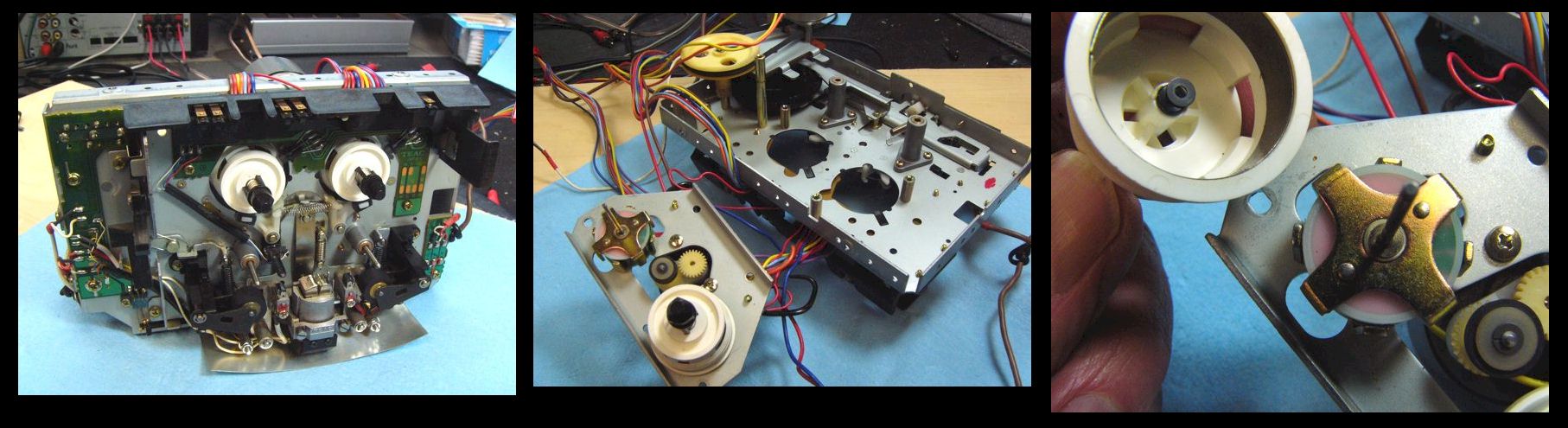

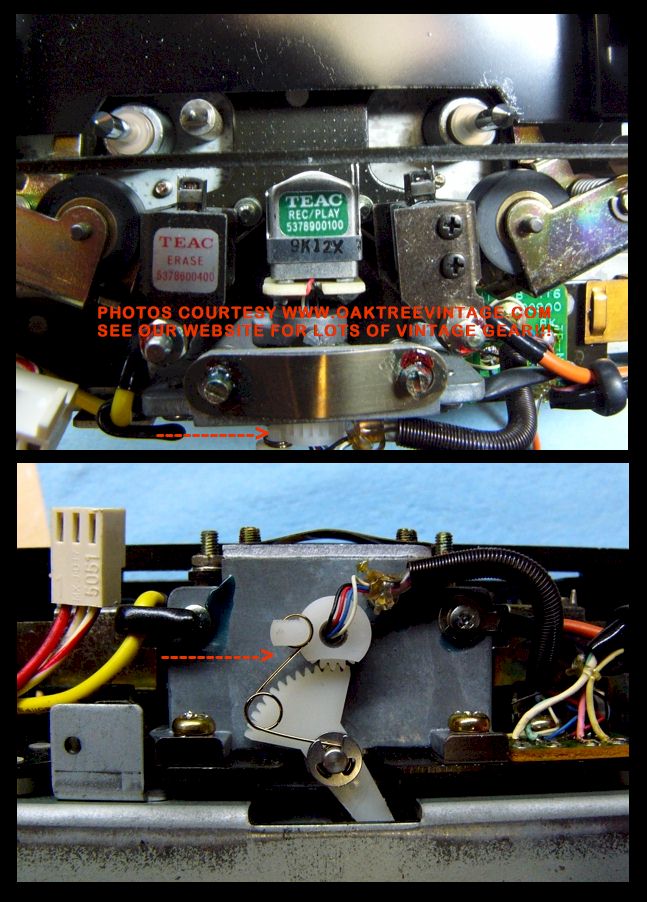

ü Head rotating gear inspected with a jewelers loop prior to starting any restoration work, and found to be 'hairline' crack free.

ü 'reel drive' tire reconditioned for years of trouble-free service.

ü All new internal Drive and Counter belts replaced for years of trouble-free service.

ü Rubber pinch roller has been reconditioned

ü Capstan burnished

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Head alignment and azimuth at 125Hz, 1kHz and 10kHz adjusted for BOTH directions for 'peak performance' with O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü All internal pots, switches and controls cleaned and tested for noise-free function.

ü Both spindles in perfect alignment.

ü
FF, REW, & Play transport functions all test perfectly and controls tested for 'positive / accurate' responsive.

ü Eject door operates smoothly.

ü Tape Counter Function tested

ü Dolby B & C NR circuits / function tested

ü 'Memory / Zero Return' function tested

ü Meters adjusted to even zero with symmetric with Volt meter, O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü Both Internal playback amplifier channels adjusted with Volt meter, O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü Meters adjusted to even zero with symmetric input with Volt meter, O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü Both Internal Record amplifier channels adjusted with Volt meter, O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü Pinch roller and heads all in GREAT condition!!!

ü Speed adjusted to 100% accuracy BOTH directions, with 1kHz factory calibration tape (meaning 1kHz calibration tape plays back at 1000Hz +/- 1Hz)

ü Pinch roller and heads all in GREAT condition!!!

ü Playback meters zero with factory test tone tape.

ü Speed adjusted to 100% accuracy BOTH directions, with 1kHz factory calibration tape (meaning 1kHz calibration tape plays back at 1000Hz +/- 1Hz) (VERY difficult to do on this deck by the way)


ü

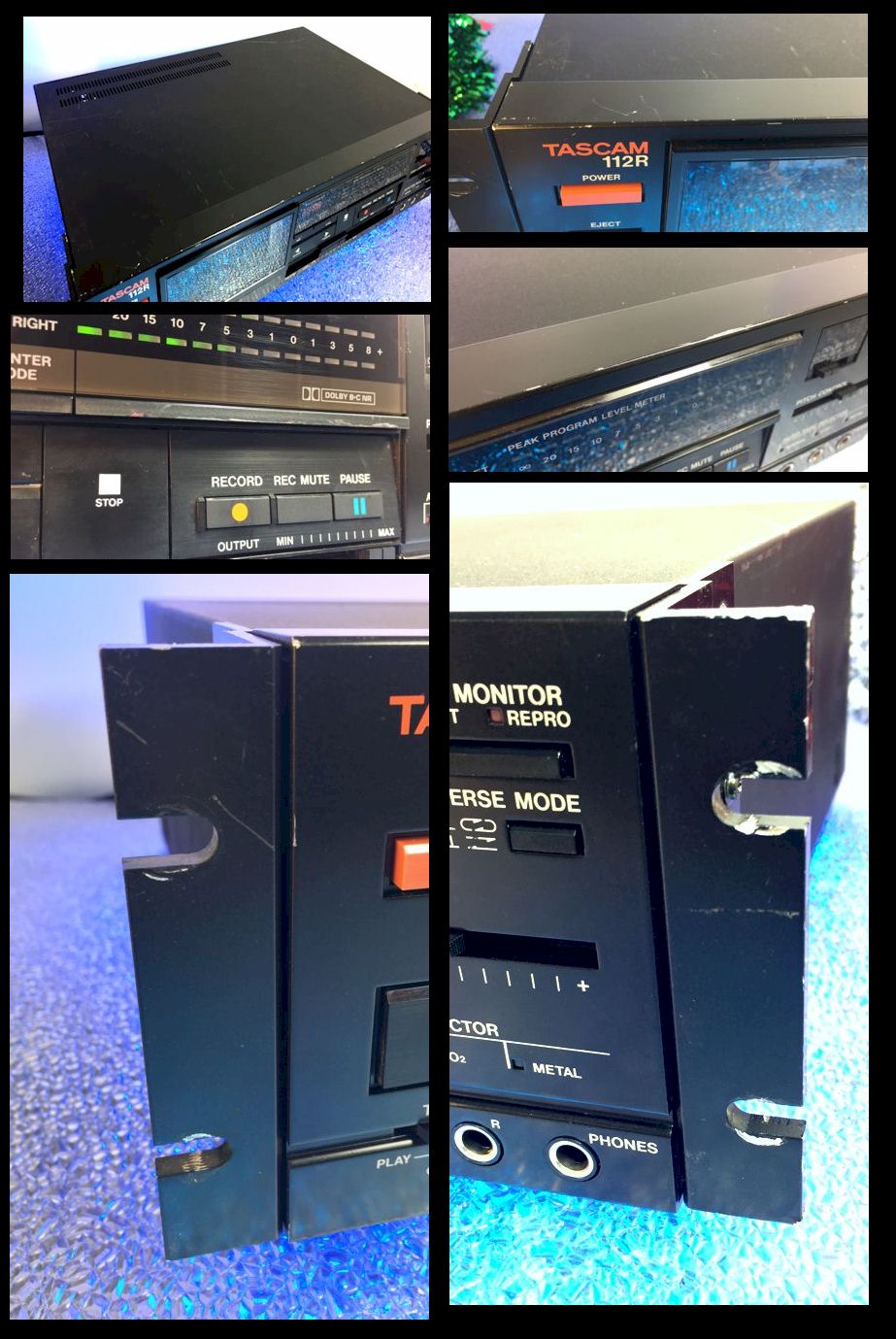

Cosmetics are not great, with numerous 'battle scars', but makes up for that in performance.

ü Plays perfectly and after adjustment, records AMAZINGLY well at 0dB! on Maxell UDXL-II tapes and +1dB on Maxell UR / Normal Bias tapes. (Following the extensive restoration, we did 'test recordings' of a 'ddd' CD on 6 tapes; Sony Normal Bias, Fuji Normal Bias, TDK Normal Bias, Maxell Normal Bias, TDK 'SA' High Bias, and Maxell 'XL-II' High Bias. We found that for Normal and High Bias, of those tapes tested, both the TDK and "Maxells" performed VERY well on this particular deck. The Maxell's did however much 'outshine' the TDK's for being able to 'over saturate' on the levels. While doing the test recording's, it became apparent that the recorded sound was quite remarkable.
Total technician time to restore 14+ HOURS

____________________________

The TASCAM 112R, 3-Head / 3-Motor, Auto-Reverse with 'Bi-Directional Recording', Rack-Mount, Studio Stereo Cassette Tape Deck. Great deck for doing your tape transfers if your tapes were recorded with no NR or with "Dolby B" or "Dolby C". Again, as stated above, records AMAZINGLY well!

TASCAM 112R Features include:



HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


- Auto-Reverse, with 'Bi-Directional'...


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


...Recording (not just 'A' side recording!)

- IC logic "touch-control" tape transport with ...
(allows you to switch between 'Fast Wind' or ....


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


- Timer Play / Record function.
- DIN on rear panel for optional wired remote, TEAC RC-205 (remote not included)
-
Rack Mountable, with originally 'optional' rack ears, INCLUDED

TASCAM 112R Specifications:

Track format:
4 track / 2 channel
Motors:
 3
Freq Response;
...-20,000Hz +/- ...




HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


Bias Frequency:
100kHz
Pitch Control: ...


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


...
Ohms
Headphones Output: 2.5mW @ 8 Ohms
Fast Wind Time:
~70 Seconds for C-60 tape

Again, we have completely cleaned, refurbished / serviced and thoroughly tested this TASCAM 112R cassette tape deck.
It does have a few 'battle scars', so isn't going to 'win' any beauty contests (see above photos), but will make up for it in performance, again check the 0-+1dB recording results, and the 1kHz = 1kHz speed!
Great for transferring your no NR or Dolby B / C NR encoded tape collection to CD, Hard-drive or MP3. Built very well! Looks like new, works and sounds great.
Measures 19.25" wide (w/ rack ears installed) x 11.5" deep x 4.6" tall and weighs 13 lbs unpacked. Includes our standard 30 day limited warranty.
TASCAM 112R
Cond. 8

SOLD 3/23/19
SHIPPED TO SCOTT IN CALIFORNIA

(tape shown in photos not included. We do ship our decks with a  a 'pre-recorded' tape for playback, made on this 'specific' deck, and a tape to 'practice record' on.)

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)










NEW LISTING
12/4/17
 (Click on above thumbnails to enlarge photos)
VINTAGE AND FULLY SERVICED
TASCAM STUDIO CASSETTE TAPE DECK
TASCAM 112R
"Not going to win any 'Beauty Contests', but makes
up for that in 'Studio Mix-Down' performance
"

 3 HEADS / 3 MOTORS
AUTO-REVERSE W/ 'BI-DIRECTIONAL RECORDING'

With DOLBY B &C NR
MADE IN JAPAN!
Circa 1986-93
SOLD 1/6/18
SHIPPED TO VIRGINIA


ü Our technician has completely and EXTENSIVELY gone through and 'Certified' this unit which involves complete removal and disassembly of the transport (not an easy task on this deck), cleaning inside and out, DISASSEMBLING, cleaning and re-lubricating all internal mechanisms and the balance of efforts listed below.



ü Heads inspected for excessive wear (obviously we do this 'early on' as 'excessive' wear will usually negate any further restoration work).

ü Head rotating gear inspected with a jewelers loop prior to starting any restoration work, and found to be 'hairline' crack free.

ü 'reel drive' tire reconditioned for years of trouble-free service.

ü All new internal Drive and Counter belts replaced for years of trouble-free service. (this was especially important to eliminate any audible WOW and Flutter)

ü Rubber pinch roller has been reconditioned

ü Capstan burnished

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Head alignments and azimuth at both 1kHz and 10kHz adjusted for BOTH directions for 'peak performance' with O-Scope

ü All internal pots, switches and controls cleaned and tested for noise-free function.

ü Both spindles in perfect alignment.

ü FF, REW, & Play transport functions all test perfectly and controls tested for 'positive / accurate' responsive.

ü Eject door operates smoothly.

ü Tape Counter Function tested

ü Dolby B & C NR circuits / function tested

ü 'Memory / Zero Return' function tested

ü Heads are in great condition

ü Internal playback levels adjusted for even playback w/ alignment tape, Oscilloscope, and mVAC meter

ü Internal Record amplifier channels adjusted for 'even output'

ü Meters adjusted to within 1.5dB with symmetric input.

ü Pinch roller and heads all in GREAT condition!!!

ü Both level meters playback even.

ü Speed adjusted to 100% accuracy BOTH directions, with 1kHz factory calibration tape (meaning 1kHz calibration tape plays back at 1000Hz +/- 1Hz) (VERY difficult to do on this deck by the way)

ü Cosmetically, it's definitely not going to "win any beauty contests" (see above 'horizontal' photo collage), but it makes up for it in performance.

ü Plays perfectly and after adjustment, records AMAZINGLY well at -1dB! on Maxell UDXL-II tapes and -.5dB on Maxell UR / Normal Bias tapes (but 'top end' will not be as good as on CrO2). (Following the extensive restoration, we did 'test recordings' of a 'ddd' CD on 6 tapes; Sony HF Normal Bias -3dB, Fuji Normal Bias -2.5dB, TDK Normal Bias -1.5dB, Maxell Normal Bias, TDK 'SA' High Bias -2dB (didn't saturate as well as the Maxell UDXL-II), and Maxell 'XL-II' High Bias. We found that for Normal and High Bias, of those tapes tested, both "Maxells" performed well on this particular deck. The Maxell's did however much 'outshine' the TDK's for being able to 'over saturate' on the levels. While doing the test recording's, it became apparent that the recorded sound was fairly remarkable.
Total technician time to restore 16.5 HOURS!

____________________________

The TASCAM 112R, 3-Head / 3-Motor, Auto-Reverse with 'Bi-Directional Recording', Rack-Mount, Studio Stereo Cassette Tape Deck. Again, cosmetically it's only 'fair', but works GREAT!!!
Perfect
deck for doing your tape transfers if your tapes were recorded with no NR or with "Dolby B" or "Dolby C".
Again, as stated above, records AMAZINGLY well!

TASCAM 112R Features include:


- 3 Heads (allows instantaneous...



HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


- Timer Play / Record function.
- DIN on rear panel for optional wired remote, TEAC RC-205 (remote not included)
-
Rack Mountable, with originally 'optional' rack ears, INCLUDED

TASCAM 112R Specifications:

Track format:
4 track / 2 channel
Motors:
 3
Freq Response;
25-....


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


...Metal Tape @ -20dB

Fast Wind Time:
~70 Seconds for C-60 tape


Again, we have completely cleaned, refurbished / serviced and thoroughly tested this TASCAM 112R cassette tape deck.
It does have a few 'battle scars', so isn't going to 'win' any beauty contests (

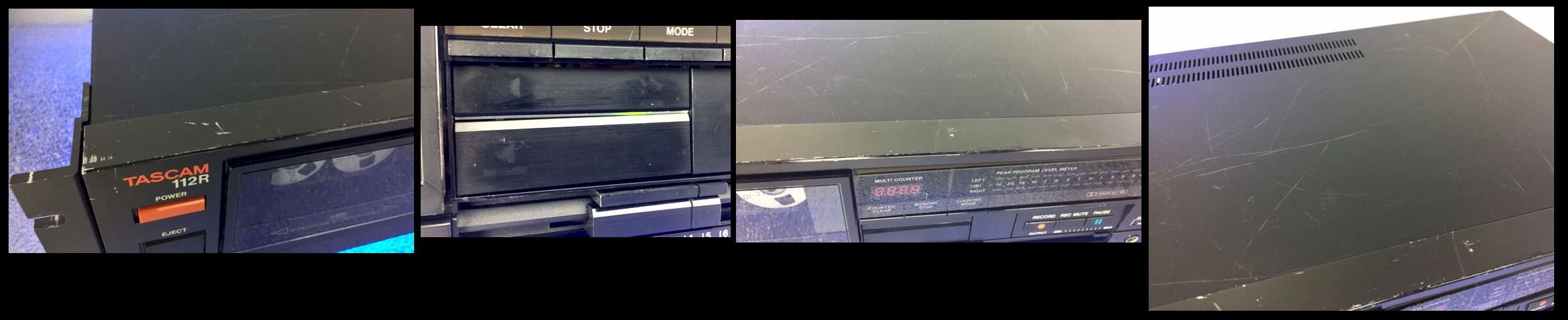

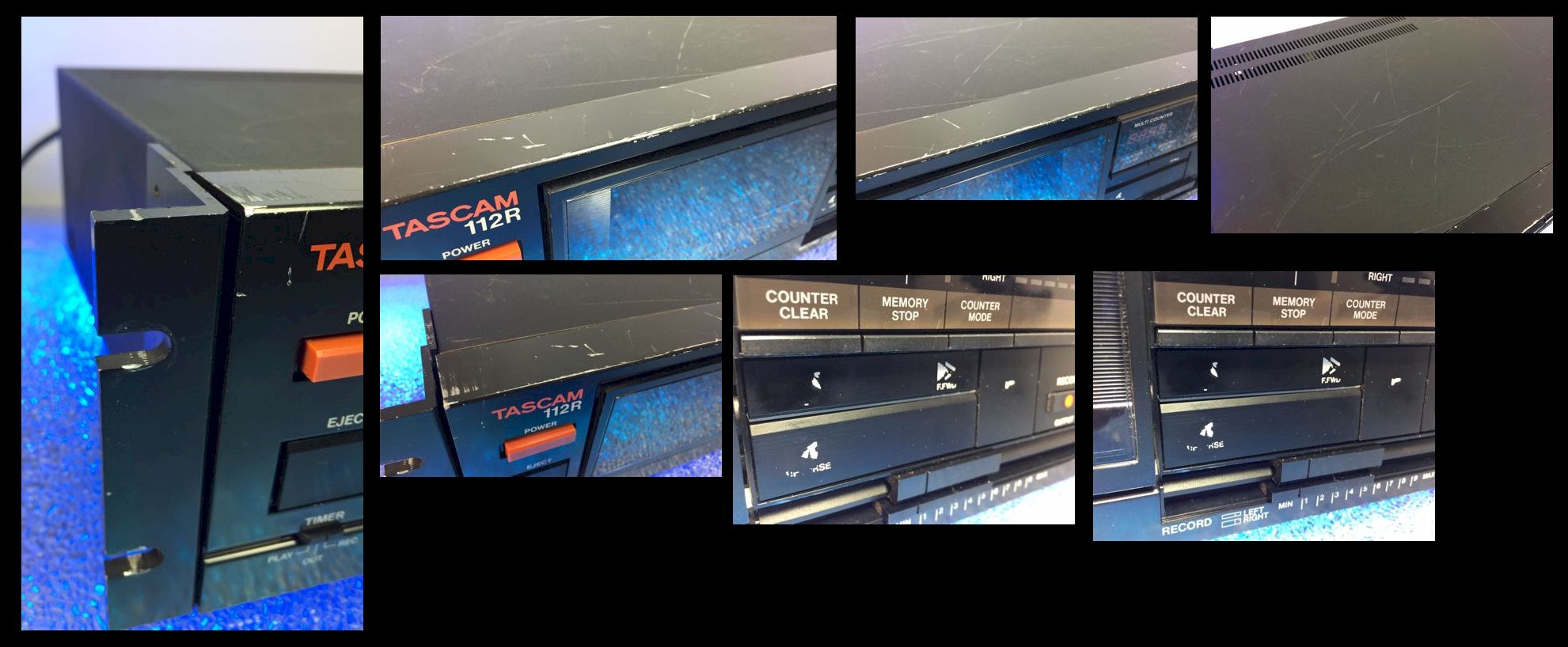

see above 'horizontal' photo collage), but will make up for it in performance, again check the -1dB recording results, and the 1kHz = 1kHz speed!
Great for transferring your no NR or Dolby B / C NR encoded tape collection to CD, Hard-drive or MP3. Built very well! Looks like new, works and sounds great.
Measures 19.25" wide (w/ rack ears installed) x 11.5" deep x 4.6" tall and weighs 13 lbs unpacked. Includes our standard 30 day limited warranty.
TASCAM 112R
Cond. 7.5

SOLD 1/6/18
SHIPPED TO VIRGINIA

(tape shown in photos not included. We do ship our decks with a  a 'pre-recorded' tape for playback, made on this 'specific' deck, and a tape to 'practice record' on.)

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)

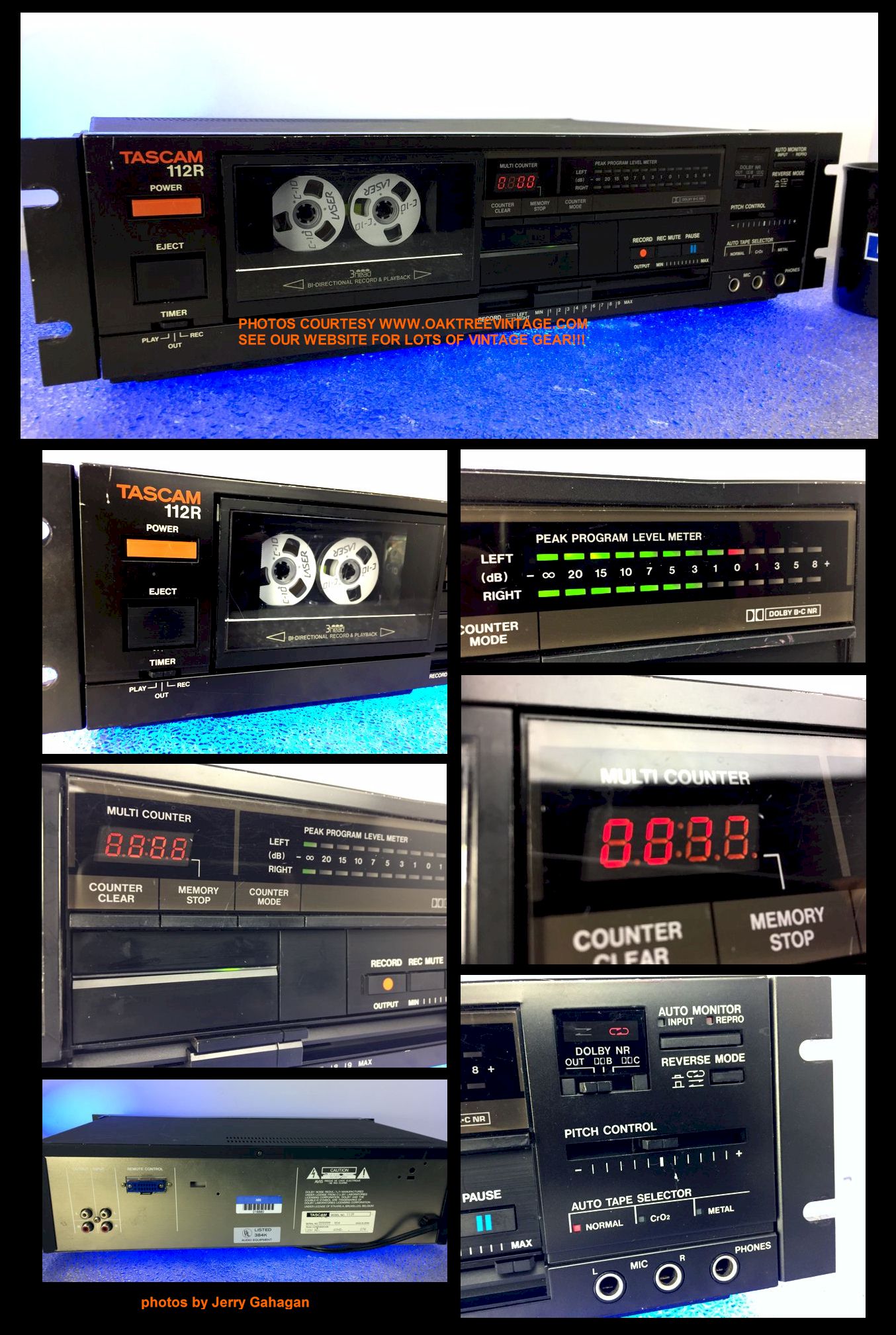

NEW LISTING 2/22/2020

 (Click on above thumbnails to enlarge photos)
VINTAGE AND FULLY SERVICED
TASCAM STUDIO CASSETTE TAPE DECK

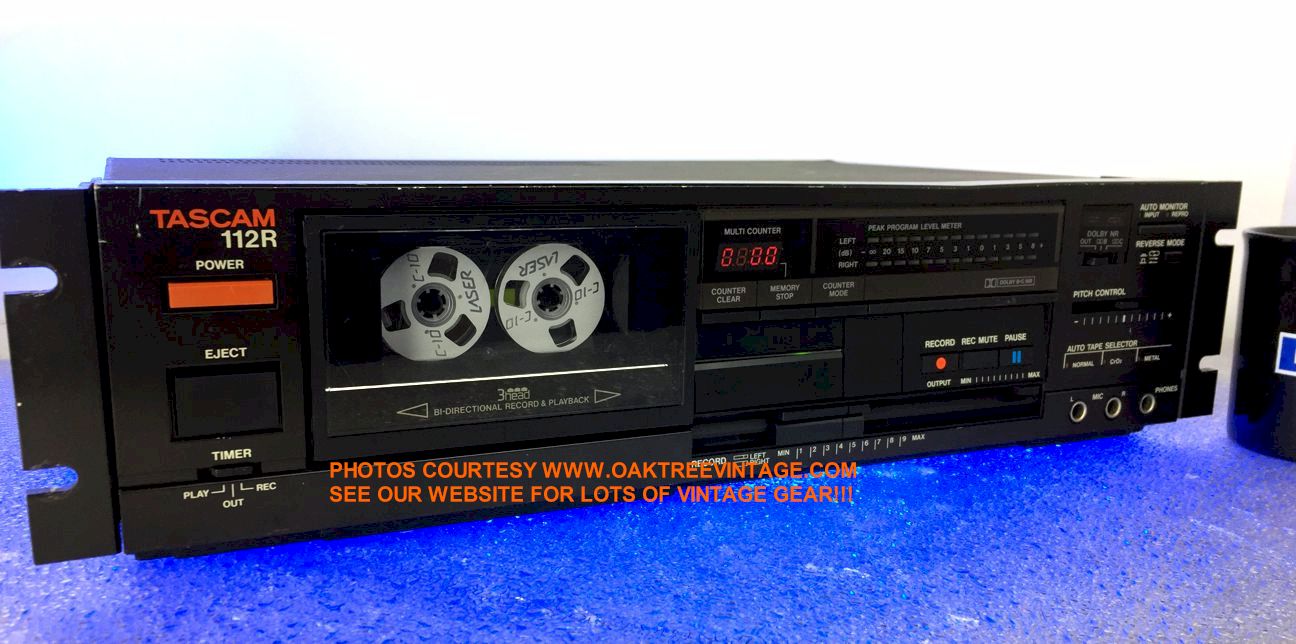

TASCAM 112R
"Not going to win any 'Beauty Contests', but makes
up for that in 'Studio Mix-Down' performance
"

 3 HEADS / 3 MOTORS
AUTO-REVERSE W/ 'BI-DIRECTIONAL RECORDING'

#...0195
With DOLBY B &C NR
MADE IN JAPAN!
Circa 1986-93

for sale
HOLD FOR BRETT W. 8/6/2020

ü Our technician has completely and EXTENSIVELY gone through and 'Certified' this unit which involves complete removal and disassembly of the transport (not an easy task on this deck), cleaning inside and out, DISASSEMBLING, cleaning and re-lubricating all internal mechanisms and the balance of efforts listed below.



ü Heads inspected for excessive wear (obviously we do this 'early on' as 'excessive' wear will usually negate any further restoration work).

ü Head rotating gear inspected with a jewelers loop prior to starting any restoration work, and found to be 'hairline' crack free.

ü 'reel drive' tire reconditioned for years of trouble-free service.

ü All new internal Drive and Counter belts replaced for years of trouble-free service.

*ü Following initial service, we determined there was audibly detectable Wow & Flutter, so we changed the capstan belt again, and eliminated it.

ü Rubber pinch roller has been reconditioned

ü Capstan burnished

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Head alignments and azimuth at both 1kHz and 10kHz adjusted for BOTH directions for 'peak performance' with O-Scope

ü All internal pots, switches and controls cleaned and tested for noise-free function.

ü Both spindles in perfect alignment.

ü FF, REW, & Play transport functions all test perfectly and controls tested for 'positive / accurate' responsive.

ü Eject door operates smoothly following repairs.

ü Tape Counter Function tested

ü Dolby B & C NR circuits / function tested

ü 'Memory / Zero Return' function tested

ü Heads are in great condition

ü Internal playback levels adjusted for even playback w/ alignment tape, Oscilloscope, and mVAC meter

ü Internal Record amplifier channels adjusted for 'even output'

ü Meters adjusted to within 1.5dB with symmetric input.

ü Pinch roller and heads all in GREAT condition!!!

ü Both level meters playback even.

ü Speed adjusted to 100% accuracy BOTH directions, with 1kHz factory calibration tape (meaning 1kHz calibration tape plays back at 1000Hz +/- 1Hz) (VERY difficult to do on this deck by the way)

ü Cosmetically, it's definitely not going to "win any beauty contests" (see above 'horizontal' photo collage), but it makes up for it in performance.

ü Plays perfectly and after adjustment, records AMAZINGLY well at -1dB! on Maxell UDXL-II tapes and -.5dB on Maxell UR / Normal Bias tapes (but 'top end' will not be as good as on CrO2). (Following the extensive restoration, we did 'test recordings' of a 'ddd' CD on 6 tapes; Sony HF Normal Bias -3dB, Fuji Normal Bias -2.5dB, TDK Normal Bias -1.5dB, Maxell Normal Bias, TDK 'SA' High Bias -2dB (didn't saturate as well as the Maxell UDXL-II), and Maxell 'XL-II' High Bias. We found that for Normal and High Bias, of those tapes tested, both "Maxells" performed well on this particular deck. The Maxell's did however much 'outshine' the TDK's for being able to 'over saturate' on the levels. While doing the test recording's, it became apparent that the recorded sound was fairly remarkable.
Total technician time to restore 17.5 HOURS!

____________________________


HOLD FOR BRETT W. 8/6/2020

(tape shown in photos not included. We do ship our decks with a  a 'pre-recorded' tape for playback, made on this 'specific' deck, and a tape to 'practice record' on.)

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)







NEW LISTING
12/15/2020
(Click on above thumbnails to enlarge photos)

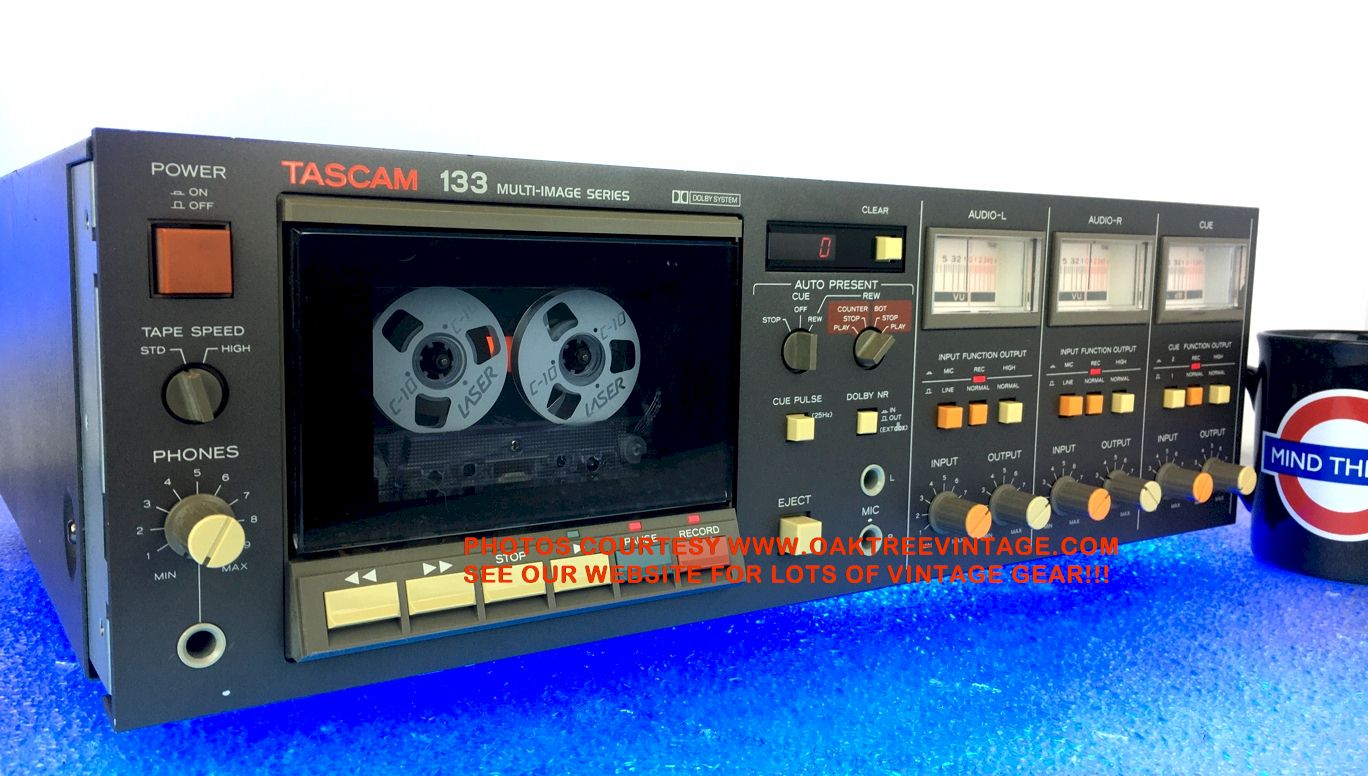

VINTAGE, FULLY SERVICED / REFURBISHED / RESTORED

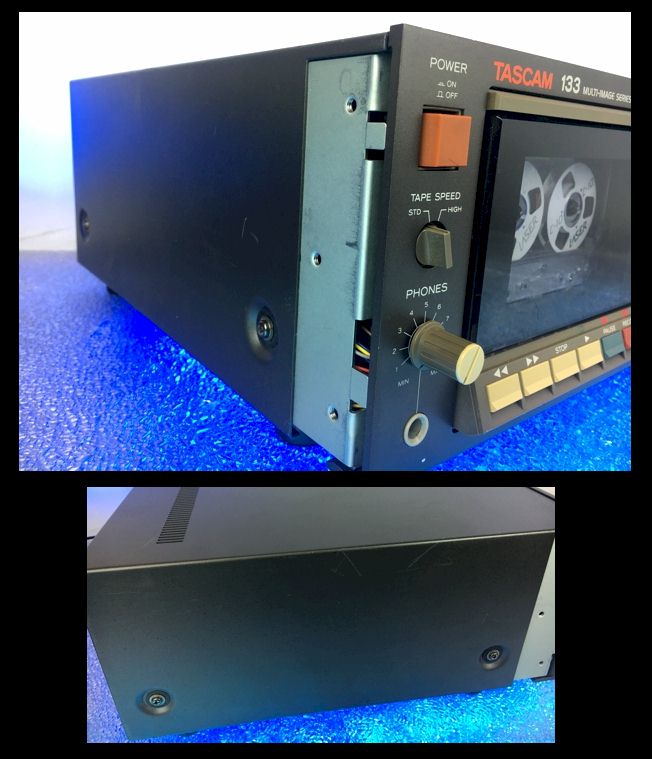

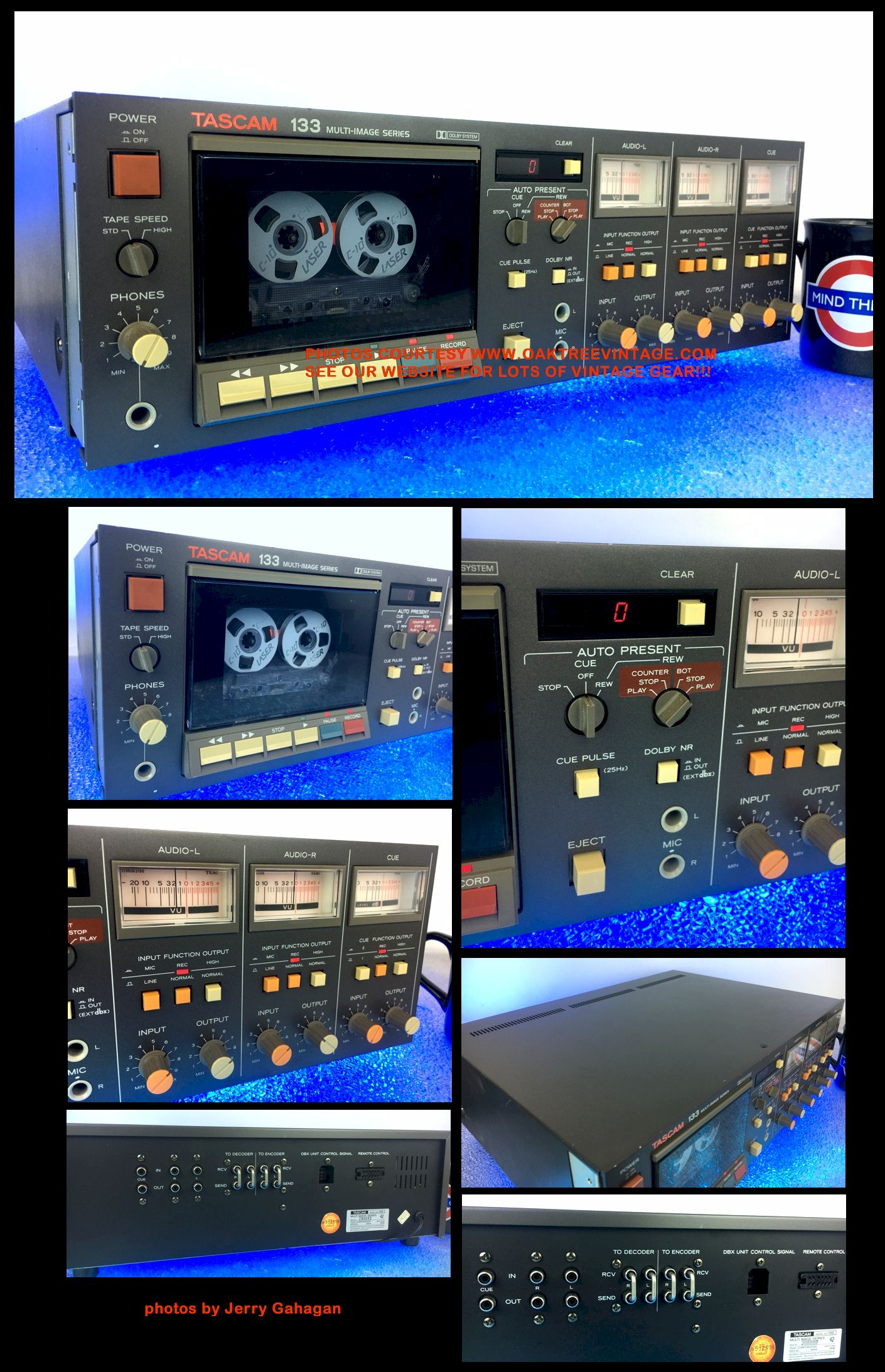

TASCAM 'PROFESSIONAL SERIES' CASSETTE TAPE DECK
TASCAM 133
2-SPEED / 3-CHANNEL
#...0097
With DOLBY NR
MADE IN JAPAN!
Circa 1986-93

SOLD 12/16/2020

SHIPPING TO MICHAEL IN CALIFORNIA

ü Our technician has completely and EXTENSIVELY gone through and 'Certified' this unit which involves complete removal and disassembly of the entire transport, cleaning inside and out, DISASSEMBLING, cleaning and re-lubricating all internal mechanisms and the balance of efforts listed below.

ü Heads inspected for excessive wear (obviously we do this 'early on' as 'excessive' wear will usually negate any further restoration work). These have virtually NO visible wear to them.

ü Capstan motor spindle bushing re-lubed

ü Capstan burnished

ü Internal DC power supply tested

ü 'Reel drive' tires reconditioned installed for trouble-free service. (These are actually much more important to replace on this deck (and most) than the belts. Without these, the deck won't fast wind very well, and will likely 'eat tapes' as the 'take-up' reel won't turn properly)

ü New internal Drive (#42-340) and Counter (#42-470) belts installed for trouble-free service.

ü Rubber pinch rollers have been reconditioned

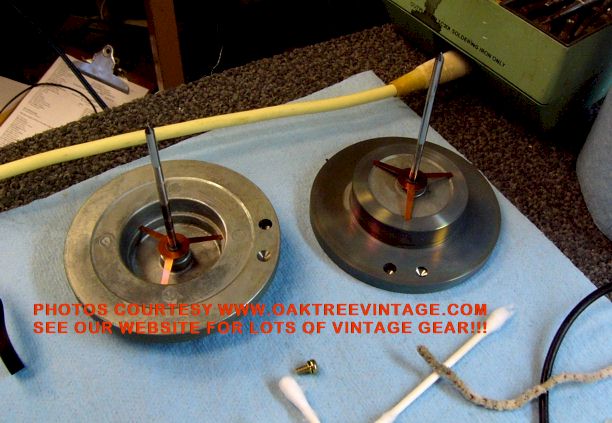

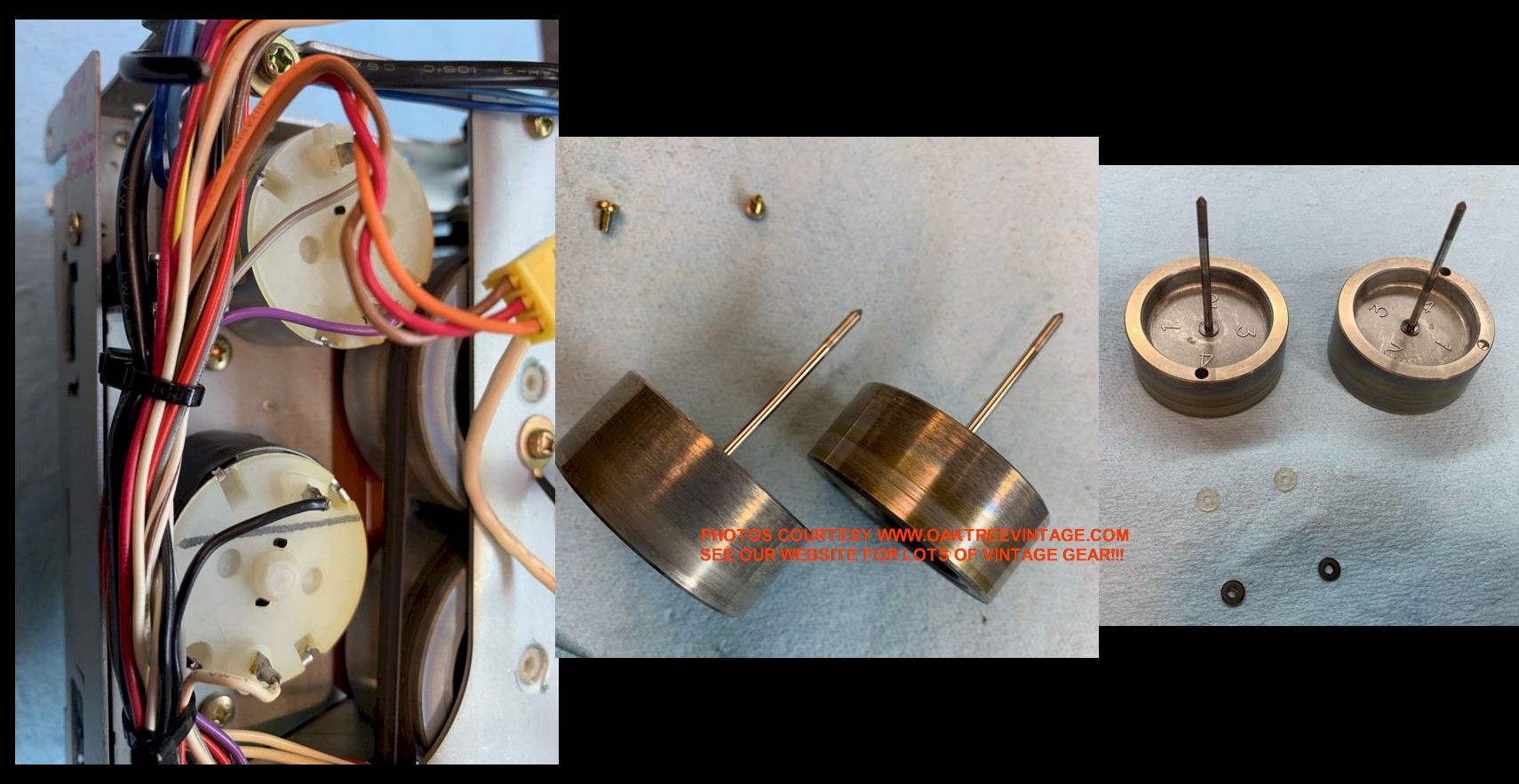

ü Both Flywheel 'belt surfaces' solvent cleaned

ü Bronze Flywheel bushings solvent cleaned

ü Both Flywheel thrust pads cleaned

ü Both Brake pads replaced

ü Entire flywheel assemblies re-lubed upon re-assembly

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü All original illumination working well

ü Head alignments and azimuth at 125Hz, 1kHz and 10kHz adjusted for 'peak performance' with O-Scope and original TEAC alignment tape

ü All internal pots, switches and controls cleaned and tested. Performing well now, with a bit of residual noise on one of the 'output' pots (fortunately, once 'output' pots on tape decks are 'set', they're usually not moved).

ü Both spindles in perfect alignment.

ü FF, REW, & Play transport functions all test perfectly and controls tested for 'positive / accurate' responsive.

ü 'Silicone Damped' Eject door operates smoothly following disassembly and re-lubing w/ silicone gel (must 'hold' down "Eject" button on this series until door releases)

ü Tape Counter Function tested

ü Dolby NR circuits / function tested

ü 'Memory / Zero Return' function tested

ü Heads are in great condition

ü Internal playback levels adjusted for even playback w/ alignment tape, Oscilloscope, and mVAC meter

ü Playback meters adjusted for 'playback' zero'd with factory test tone tape.

ü Internal Record amplifier channels adjusted for 'even output'

ü Pinch roller and heads all in GREAT condition!!!

ü Overall floor noise measured at >-60dB.

ü Speed adjusted internally to 100% accuracy BOTH directions, with 1kHz factory calibration tape and frequency counter (meaning 1kHz calibration tape plays back at 1000Hz +/- 1Hz)

ü Plays great and after adjustment, records AMAZINGLY well w/ following results;
With 1kHz recorded at 0dB / 1 7/8ips / w/o Dolby engaged; -1.25dB on Maxell UDXL-II / High Bias tapes
With DDD CD recorded at 0dB / 1 7/8ips / w & w/o Dolby engaged; -1 to -2 dB on Maxell UDXL-II / High Bias tapes

Bottom line is this deck sounds amazing for playback or recording (always make sure you're playing back 'good quality' tape recordings)
Total technician time to restore
8+ HOURS!

(Tech note: This model deck is "VERY SERVICEABLE" since it's in their 'Pro-Line'.
(Only remaining issues would be that REW is a bit noisy when nearing completion on most brands of tapes and Right output pot still a bit noisy when manipulated)

____________________________

SOLD 12/16/2020

SHIPPING TO MICHAEL IN CALIFORNIA

(tape shown in photos not included. We do ship our decks with a  a 'pre-recorded' tape for playback, made on this 'specific' deck, and a tape to 'practice record' on.)

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)

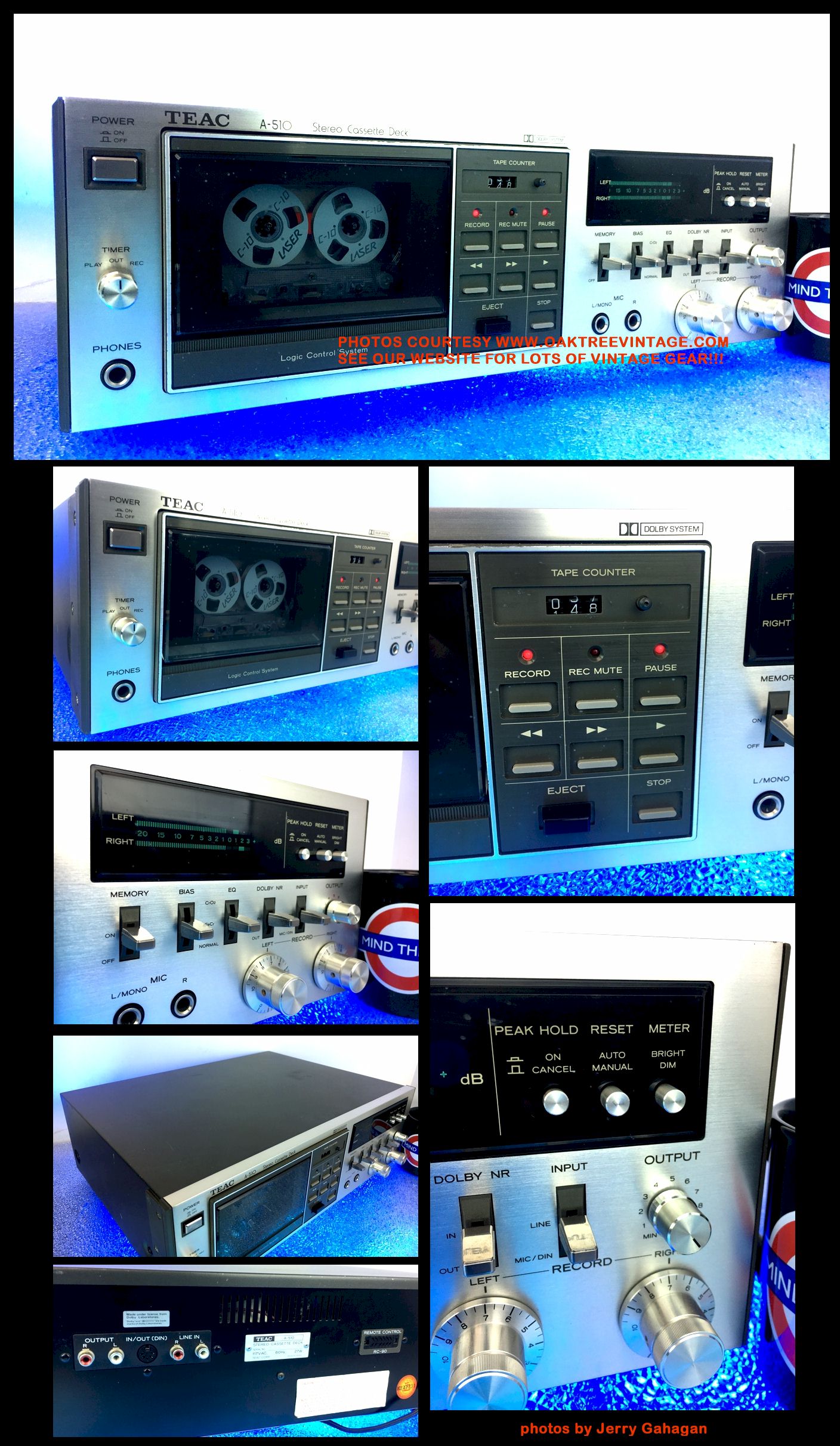

          NEW LISTING 9/26/18

 (Click on above thumbnails to enlarge photos)
VINTAGE AND FULLY SERVICED W/ WARRANTY

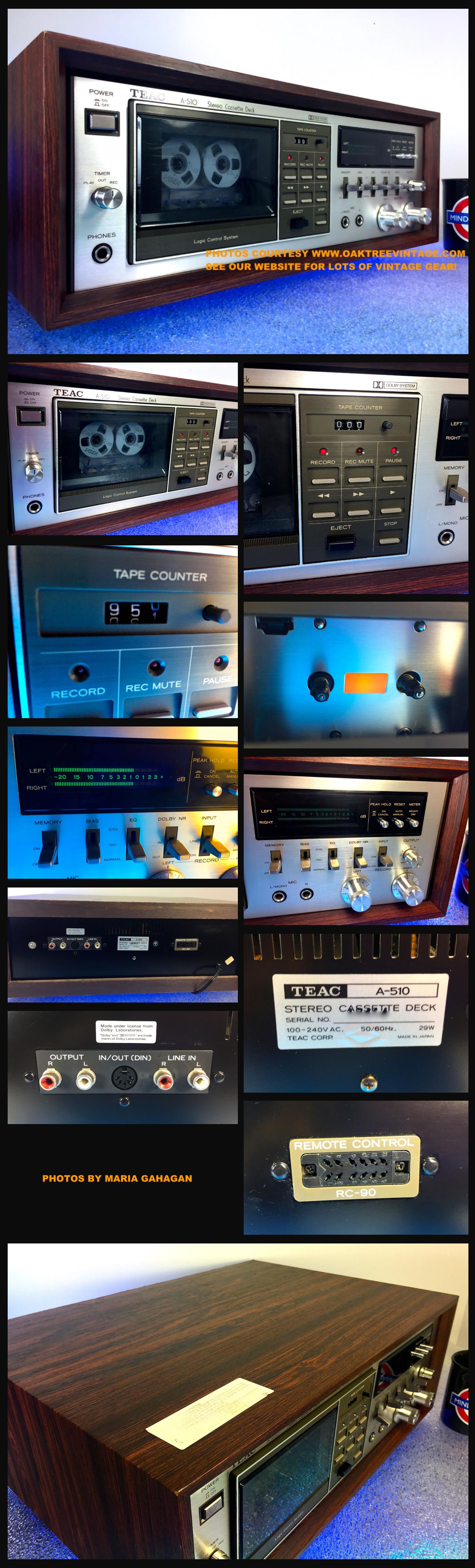

TEAC CASSETTE TAPE DECK
HUGE

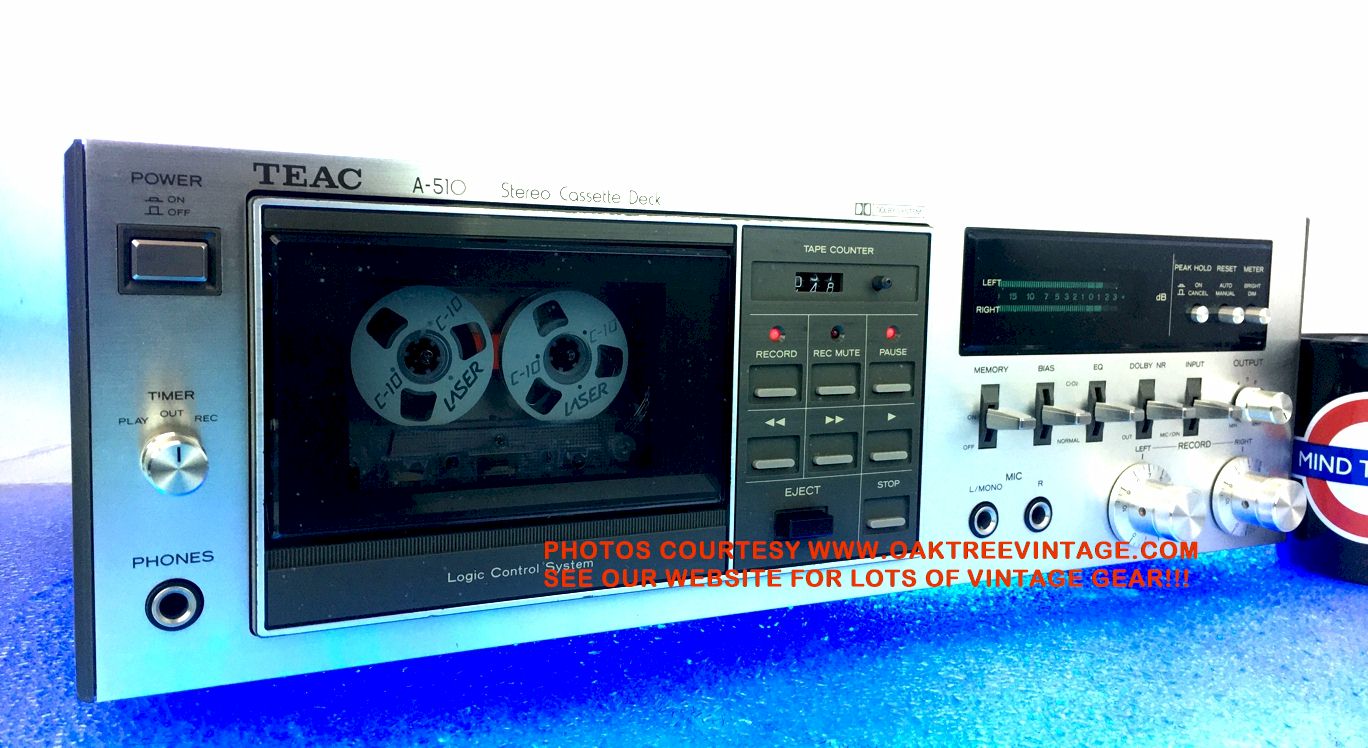

TEAC A-510 / A510
(same as TEAC A-500)

#...7414
With DOLBY NR and IC LOGIC TRANSPORT
MADE IN JAPAN!
Circa 1978-80

SOLD 4/25/19
SHIPPING TO TIMOTHY IN ARIZONA


ü Our technician has completely and EXTENSIVELY gone through and 'Certified' this unit which involves complete removal and disassembly of the entire transport (not an easy task on this deck), cleaning inside and out, DISASSEMBLING, cleaning and re-lubricating all internal mechanisms and the balance of efforts listed below.

ü Heads inspected for excessive wear (obviously we do this 'early on' as 'excessive' wear will usually negate any further restoration work).

ü Capstan motor spindle bushing re-lubed

ü Capstan burnished

ü NEW, 'reel drive' tire installed for trouble-free service. (These are actually much more important to replace on this deck (and most) than the belts. Without these, the deck won't fast wind very well, and will likely 'eat tapes' as the 'take-up' reel won't turn properly)

ü All three Main Drive and Counter belts replaced for trouble-free service.

ü Rubber pinch rollers have been reconditioned

ü Flywheel 'belt surfaces' solvent cleaned

ü Bronze Flywheel bushings solvent cleaned

ü Entire flywheel assemblies re-lubed upon re-assembly

ü Interconnects on 'transport circuit board' repaired

ü All internal pots, switches and controls cleaned and tested for noise-free function.

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Head alignment and azimuth at 125Hz, 1kHz and 10kHz adjusted for BOTH directions for 'peak performance' with O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü FF, REW, & Play transport functions all test perfectly and controls tested for 'positive / accurate' responsive w/ new idler tire installed.

ü 'Silicone Damped' Eject door operates smoothly.

ü Tape Counter Function tested

ü Dolby NR circuits / function tested

ü 'Memory / Zero Return' function tested

ü Meters adjusted to even zero with symmetric with Volt meter, O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü Both Internal playback amplifier channels adjusted with Volt meter, O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü Meters adjusted to even zero with symmetric input with Volt meter, O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü Both Internal Record amplifier channels adjusted with Volt meter, O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü Pinch roller and heads all in GREAT condition!!!

ü Speed adjusted to 100% accuracy BOTH directions, with 1kHz factory calibration tape (meaning 1kHz calibration tape plays back at 1000Hz +/- 1Hz)

ü Pinch roller and heads all in GREAT condition!!!

ü Overall floor noise measured at >-60dB.

üSpeed adjusted internally to 100% accuracy BOTH directions, with 1kHz factory calibration tape and frequency counter (meaning 1kHz calibration tape plays back at 1000Hz +/- 1Hz)

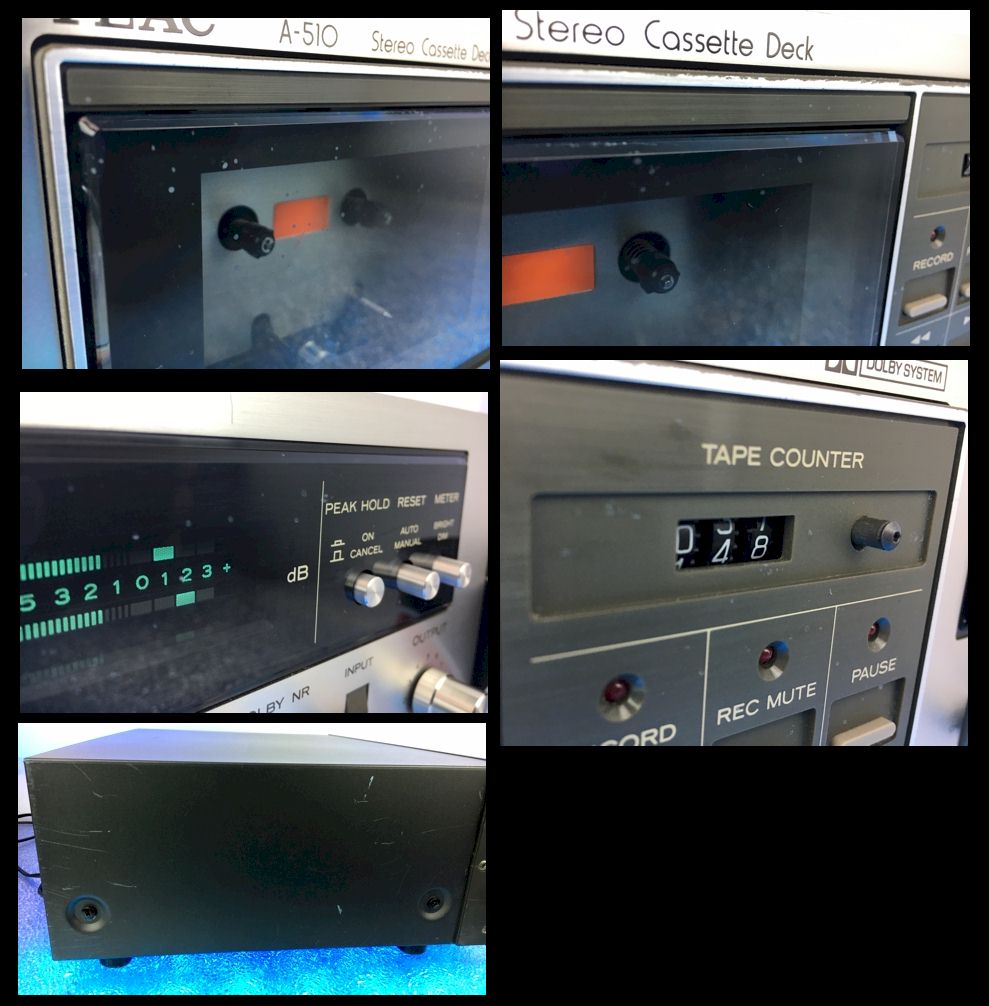

ü Cosmetically, the deck looks great. The deck looks NEAR NEW!

ü Plays great and after adjustment, records AMAZINGLY well w/ following results;

ü With White Noise recorded @ -0dB w/o Dolby engaged PB = 0dB & With White Noise recorded @ -10dB w/o Dolby engaged PB = -15dB

ü With White Noise recorded @ -10dB w/o Dolby engaged PB = -5dB & @ 10kHz w/o Dolby engaged PB = -15dB on Maxell UDXL-II / High Bias tape

ü With 1kHz recorded at 0dB with w/o Dolby engaged on Maxell XL-II (high bias) tapes PB = 0dB &  10kHz recorded at 0dB with w/o Dolby engaged on Maxell XL-II (High bias) tapes plays back = -10dB

ü With 'ddd' CD recorded at 0dB with Dolby engaged; -1dB on Maxell UDXL-II / High Bias tape

Bottom line is this deck sounds amazing for playback or recording (always make sure you're playing back 'good quality' tape recordings)
Total technician time to restore 12.5+ HOURS!
____________________________

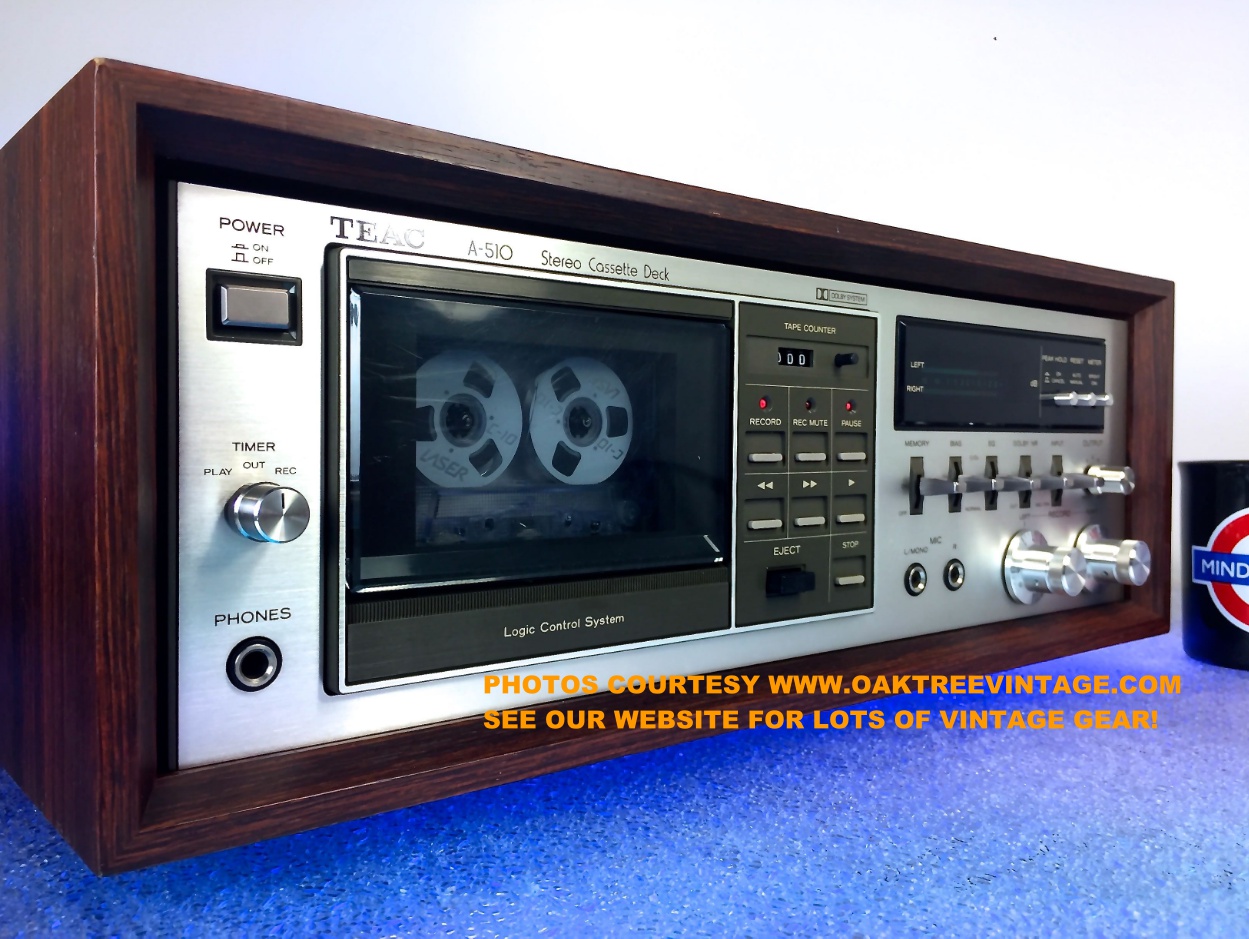

The Teac A-510 / A-500 with 'Dolby NR and IC Logic Transport', Stereo Cassette Tape Deck. Great deck for doing your tape transfers if your tapes were recorded with no NR or with "Dolby B" or for making some awesome 'new' recordings or 'mix tapes' (hey, it's 'the thing' again). This deck is a pleasure to use, and has a great 'feel' due to it's size and transport function. As far as cosmetics, it's BEAUTIFUL. Was taken very good care of before it came to us, and is even more astounding now. Very impressive looking deck.

Teac A-510 Features include:


-  "Soft touch / IC LOGIC
...


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?
...



allows you to switch between

...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?
...


- Timer Play / Record function. (IMPORTANT NOTE ABOUT 'TIMER SWITCH' ON THIS DECK. If the 'Timer' switch is in any position other than "OFF", and the tape plays thru to 'Auto-Stop', then no other function on the deck will commence until the 'Timer' switch is turnted to "Off". That is what the 'sticker' on the top of the unit indicates (and we found to be the case))
- Multi-pin port on rear panel for optional wired remote, TEAC RC-90 (remote not included)

Teac A-510Specifications:

Track format:
4 track / 2 channel
Motors:
 2
...


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?
...

...@ 125Hz
Fast Wind Time:
~90 Seconds for C-60 tape

Again, we have completely cleaned, refurbished / serviced and thoroughly tested this Teac A-510 cassette tape deck.
Great for transferring your no NR or Dolby B NR encoded tape collection to CD, Hard-drive or MP3 especially with the 'Tape EQ' selector for 'fine tuning' older tapes. Built very well! Looks like new, works perfectly and sounds fabulous.
Due to it's size, overall feel, the 'input controls' and the 'transport control' this deck really is a blast to use. Comes with an 'e-copy / pdf download' of the TEAC A-510 / A-500 cassette tape deck service manual if the purchaser desires. Measures 18.6" wide x 13.5" deep x 7.25" tall and weighs a VERY HEAVY 24 lbs unpacked. Just in-case you 'too casually' read past that last little bit,
IT'S A TWENTY-FOUR POUND CASSETTE DECK!

Includes our standard 30 day limited warranty.
TEAC A-510
Cond. 8.5++

SOLD 4/25/19
SHIPPING TO TIMOTHY IN ARIZONA

(tape shown in photos not included. We do ship our decks with a  a 'pre-recorded' tape for playback, made on this 'specific' deck, and a tape to 'practice record' on.)

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)











NEW LISTING 10/1/19


(Click on above thumbnails to enlarge photos)
VINTAGE TEAC REEL TO REEL TAPE DECK

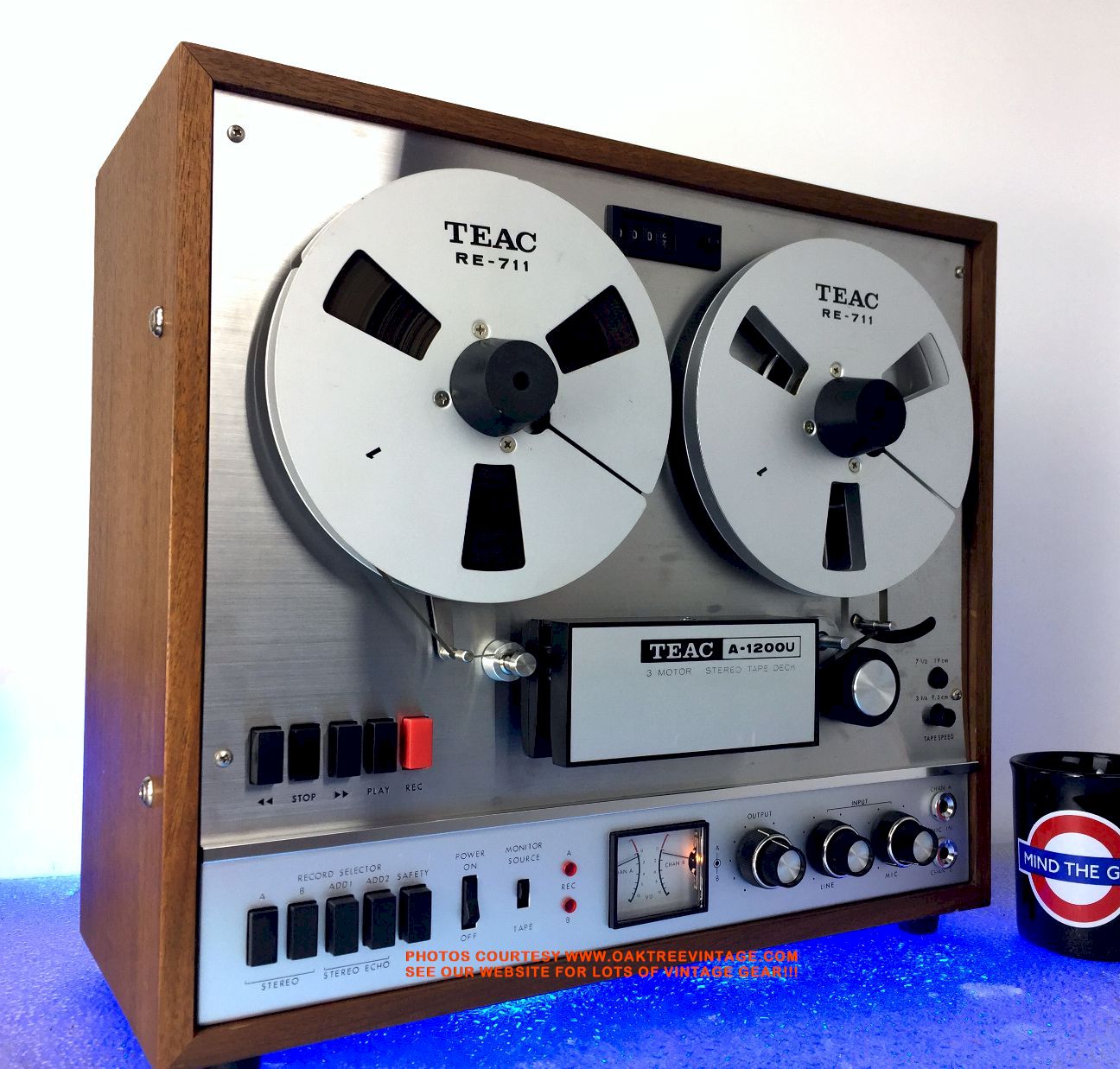

TEAC A-1200U
(essentially same deck as TEAC A-4010 series, but in a different, simpler case, without the need for umbilical cables)

3-HEAD / 3-MOTOR
2-SPEEDS
4-TRACK / 2-CHANNEL
STEREO or 4-CHANNEL MONO
1/4" REEL TO REEL TAPE RECORDER
#...5404
Circa 1967-70/71
SOLD 10/18/19
SHIPPED TO TIM IN ALABAMA

ü Our technician has completely gone through and 'Certified' this unit.

ü We have completely and extensively gone through the mechanicals and electronics of this unit.

ü Entire transport was disassembled down to the chassis, and every mechanical part was disassembled, cleaned, re-lubed and reassembled

ü Tape Tension arms disassembled, cleaned and re-lubed, and their springs adjusted and had fresh 300,000 grade silicone lube gel applied

ü pinch-roller mechanism completely disassembled, cleaned and re-lubed,

ü PR mechanism solenoid mounts adjusted

ü Capstans / flywheels removed, bushings and axels cleaned and re-lubed (w/ #80-90) and flywheels burnished

ü Capstan motor pulley burnished

ü Capstan cleaned and burnished

ü Capstan motor lubed (very quiet now)

ü Rubber pinch roller removed and re-conditioned (removed multiple 'capstan burns / marks')

ü Pinch roller pressure adjusted

ü New MAIN drive belt sourced and installed (#42-745)

ü Brand new counter belt installed (#152)

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Brake bands / linings re-attached

ü Brakes adjusted on fast wind modes also (optimized for 7" reels.)

ü Back tension adjusted on both reel motors.

ü All three motors test perfectly. Following above adjustments, Reel Start and Stop tested at beginning, middle and end of 7" reels.

ü Internal pots, switches and controls cleaned and tested for noise-free function (initially, of course, had typical static / noise which is to be expected in an 'un-serviced' deck after 45+ years).

ü RCA I/O jacks cleaned / burnished

ü EOT / Auto-Stop mechanism had magnet re-attached, and spring tension re-adjusted for more consistent tape motion without prematurely going into 'Auto-Stop' mode

ü External / User adjustable pots, switches and controls cleaned on the playback / record amp and tested for noise-free function

ü We adjusted the VU meters mechanically and electronically w/ factory test tone tapes, as well as the internal playback levels for both directions independently and record levels.

ü We adjusted the output, 'Minimum Input', 'Specified Input', 'Record Level' and 'Bias' all to spec, then further adjusted 'Bias' for Ampex GM-456

ü Both spindles in perfect alignment.

ü We also adjusted the reel table heights.

ü Heads in great shape as well, with many years of performance left in them

ü Playback and Record Head alignment / azimuth was adjusted for peak performance with factory test tone tape and oscilloscope.

ü Speed tested to 99.7% accuracy following refurb (meaning that our 'verified' 1000Hz test tape now plays back at 1003Hz +/- 1Hz).

ü Adjusted to record VERY WELL. Biased for *Ampex GM 456 studio tape with the following results:
1kHz recorded @ 0dB resulted in PB @ L= -1 dB & R= 0dB
White Noise recorded @ 0dB resulted in PB @ L= -2 dB & R= 0dB

'Real World', DDD CD recorded at 0 = ~ -2dB

* We also had great results with Maxell UD XL (Gold Box) tape as well

ü WoW & Flutter are minimal, especially at 'higher' speed.

ü Floor noise measured at >-60dB w/ blank tape, L&R

ü This TEAC A-1200U functions, plays, and records VERY WELL (and we really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy).  (Total time investment in refurb / testing ~13.5 hours).

Face is beautiful, brushed, Stainless Steel and case is in great condition. Deck looks and works great!

Following mechanical / electronic refurb, entire unit was cosmetically detailed inside and out. Face is made of beautiful brushed Stainless Steel and is dent free and in great condition. Cabinet covered in real Walnut wood veneer, is in great condition and just had a fresh coat of lemon oil. Deck looks and sound great!
   ____________________________

Looks great & "Ready-to-go"  TEAC A-1200U Stereo Reel to Reel tape deck.  Will play & Record stereo 1/4" tapes on reels up to 7". This is one of the few reel to reel decks we get in that make it to our finished page. If you're looking for a reel to reel deck to "actually use" then here you go. Only about 25% of the used Reel decks out there can be "practically" restored to working order. This one made it through. Playback & transport functions test great and records well! Looks and sounds great too!

TEAC A-1200U Features include:


- Up to
...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


- 8-Pin port for optional TEAC RC-101 wired remote control (remote not included or available anymore from us)

TEAC A-1200U Specifications as follows (same specs as TEAC A-4010 series):


Heads / Track system: X4 Heads / 4-track...


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?



This is the first
TEAC A-1200U that has made it through restoration we have had in 24 years. Great machine for playback / archiving your tapes to CD or Hard Drive or, with the above recording results, for recording new tapes. This is a beautiful deck. Entire deck is in near new cosmetic condition with really, nothing out of the ordinary worth mentioning. Performs incredibly well following refurbishing. Face plates,  knobs and all cosmetics fabulous! Measures 17" wide x 15.5" tall x 10" (from tip of back feet-tip of hubs) deep and weighs 41 lbs unpacked. Includes a set of 'fresh' spindle stoppers / reel clamps. This one still has it's original box and most of it's original packing. Does also come with the AC / Power cord. Includes an e-copy / pdf download of the TEAC A-1500 Owners Manual and the Service Manual if you wish as well. Includes our standard 30 day limited warranty.
 (Reels & tape shown in photos not included. All are sometimes available separately depending on stock levels.)

TEAC A-1200U REEL TO REEL TAPE DECK
Cond. 8 ++

SOLD 10/18/19
SHIPPED TO TIM IN ALABAMA



(Reels shown in photos are not included, but we sometimes / occasionally have them for sale. Inquire at time of order.
However, all of our decks will come with 2x tapes for testing 'Playback' and 'Recording' as well as a 7" 'take-up' reel, and RCA patch cables for connection to your system)




(Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)











             NEW LISTING 7/5/11
(Click on above thumbnails to enlarge photos)

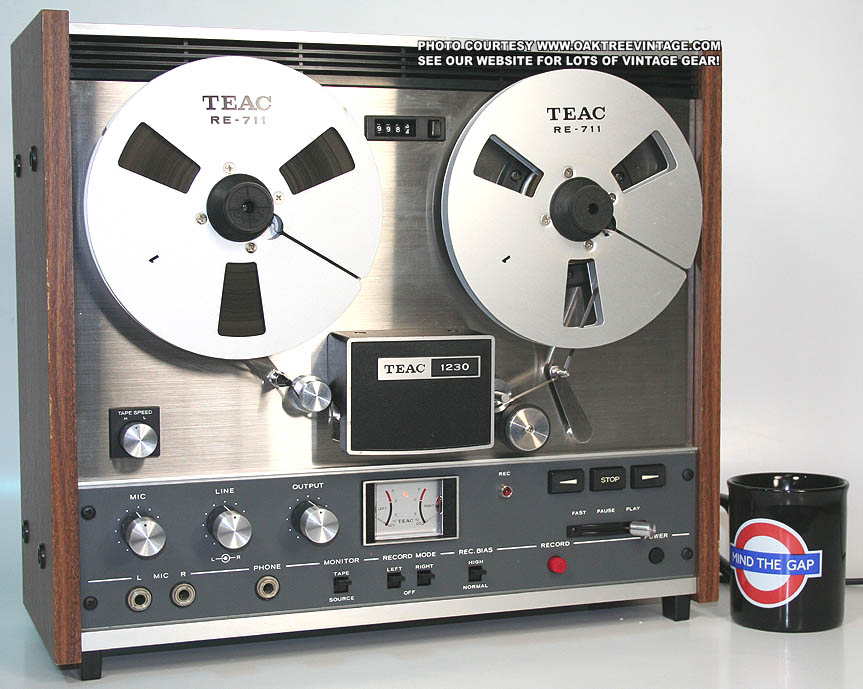

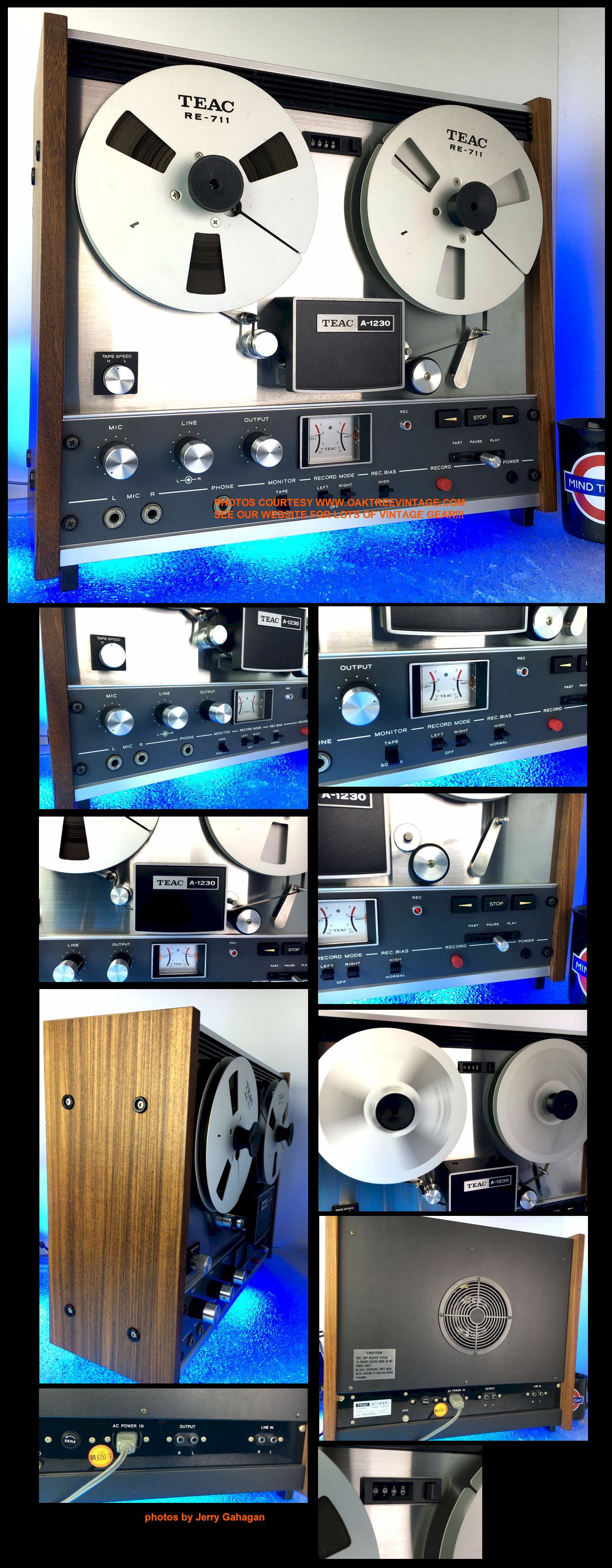

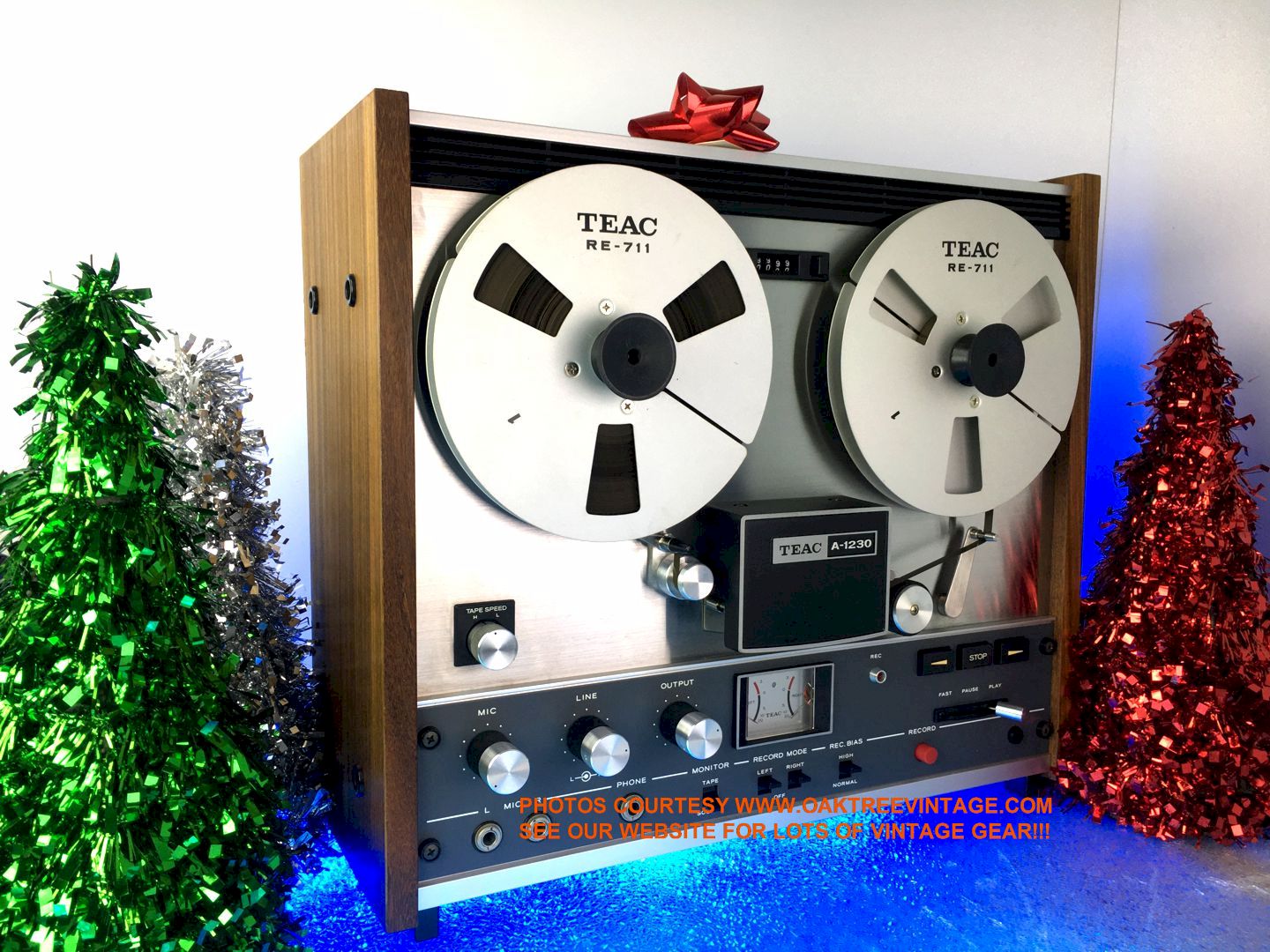

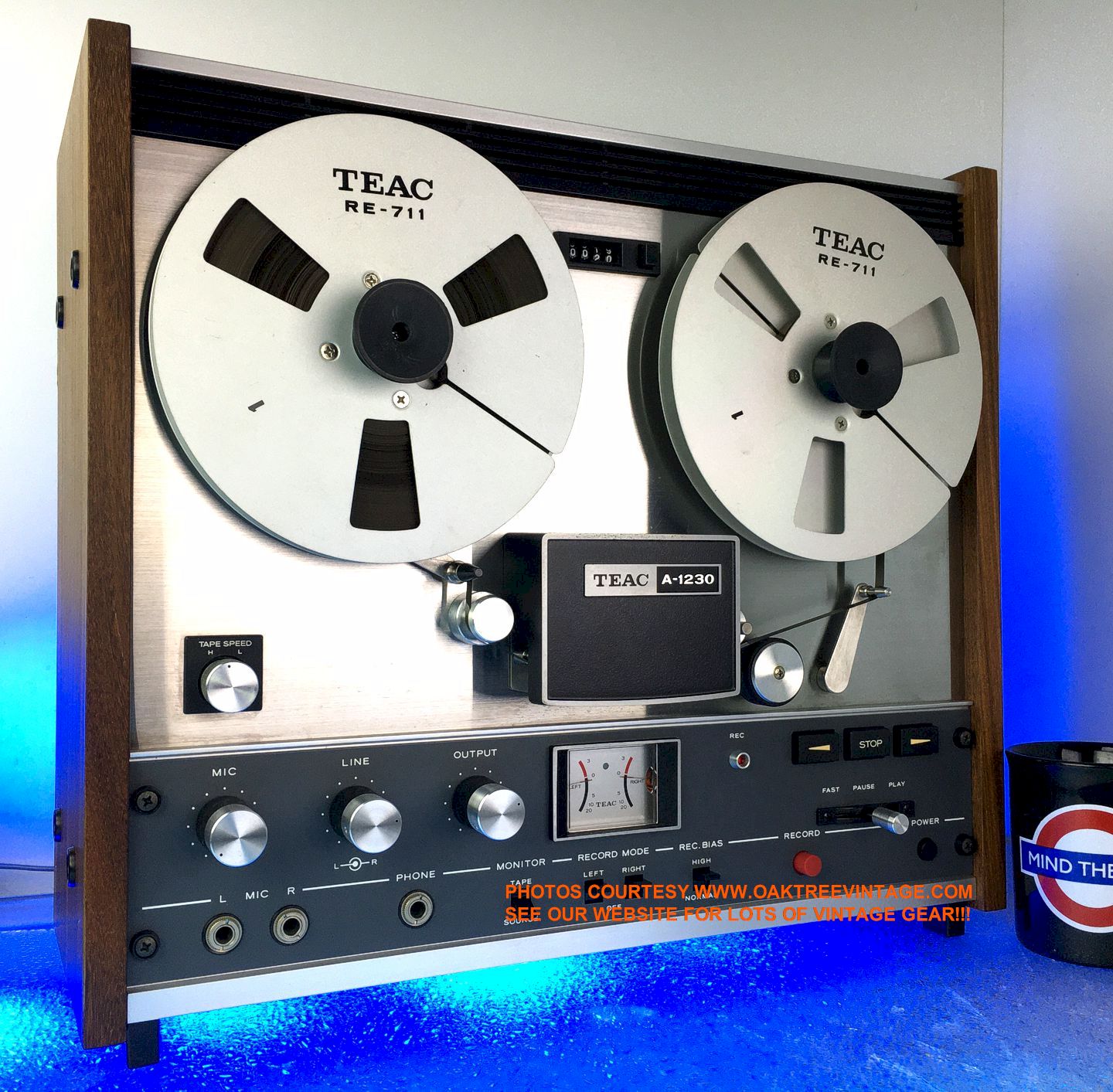

TEAC A-1230

OPEN REEL TO REEL TAPE RECORDER
FOR PLAYBACK ONLY!
 1/4" 4-TRACK / 2-CHANNEL
 STEREO
3-MOTOR / 2-SPEEDS
OPEN REEL TO REEL
TAPE DECK

#...
3761
Circa 1971-76
SOLD 8/15/11






   (Click on above thumbnails to enlarge photos)
RESTORED / REFURBISHED / FULLY SERVICED / WARRANTED
VINTAGE TEAC REEL TO REEL TAPE DECK
TEAC A-1230

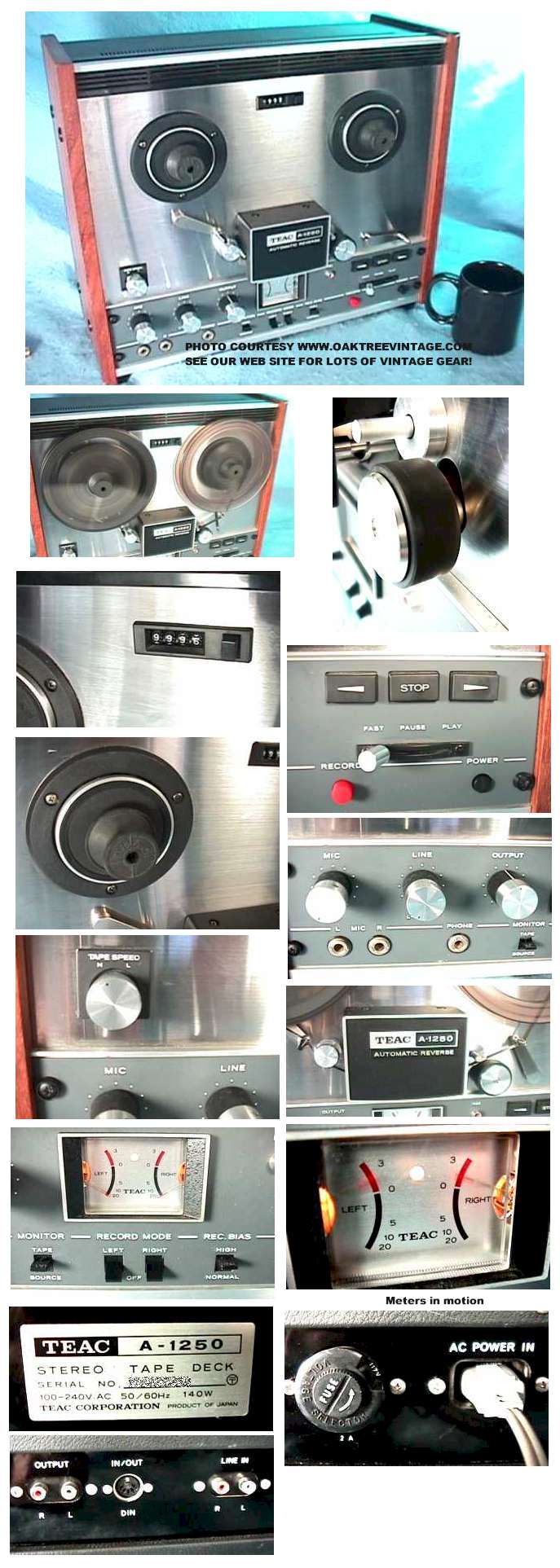

 Teac_A-1250_Stereo_Reel-Reel_Tape_Deck_web.jpg (37589 bytes)     Teac_A-1250_Stereo_Reel-Reel_Tape_Deck_collage.jpg (165716 bytes)

TEAC A-1250 REEL TO REEL

SOLD











NEW LISTING 9/26/19

(Click on above thumbnails to enlarge photos)
VINTAGE TEAC REEL TO REEL TAPE DECK

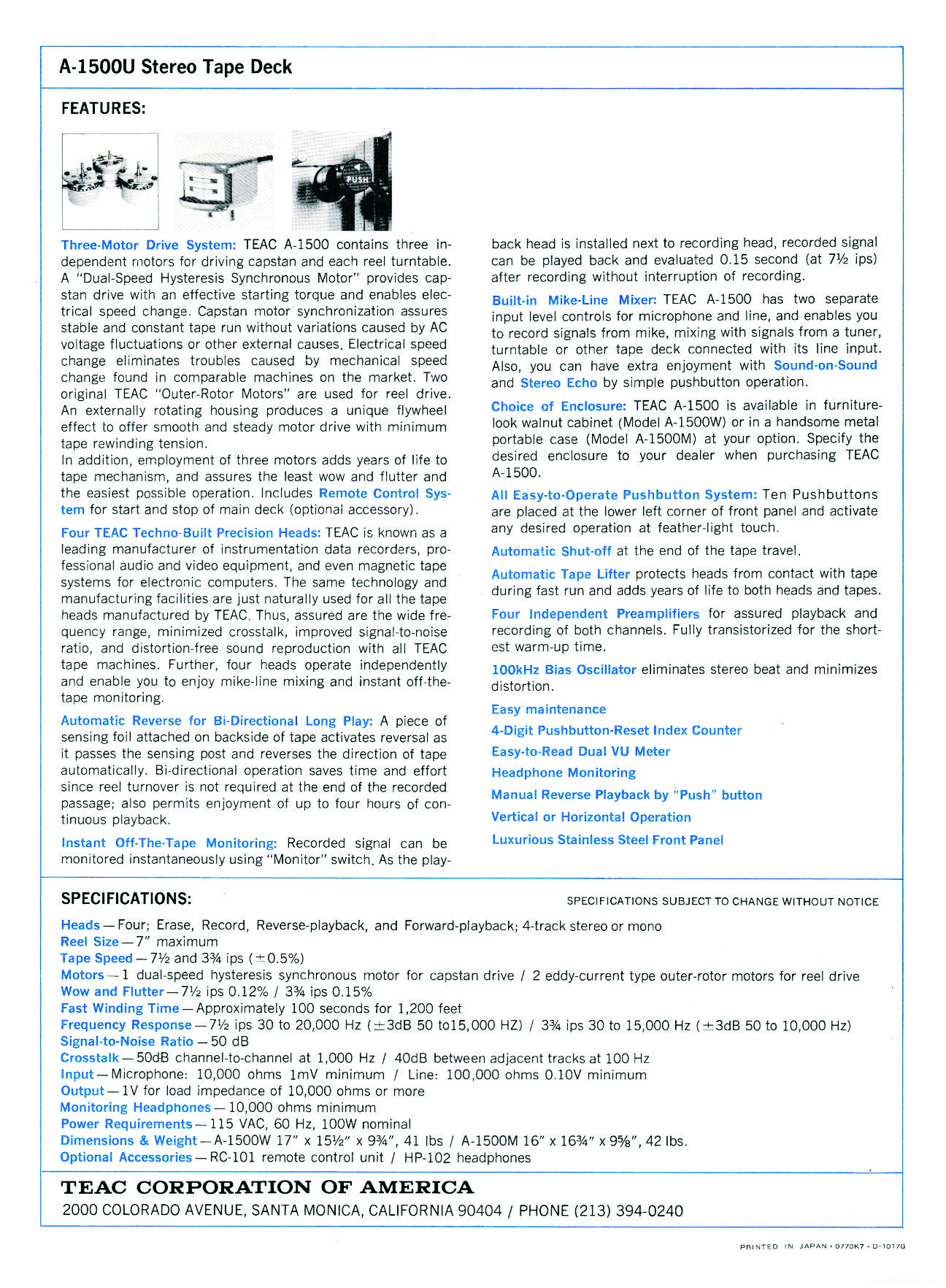

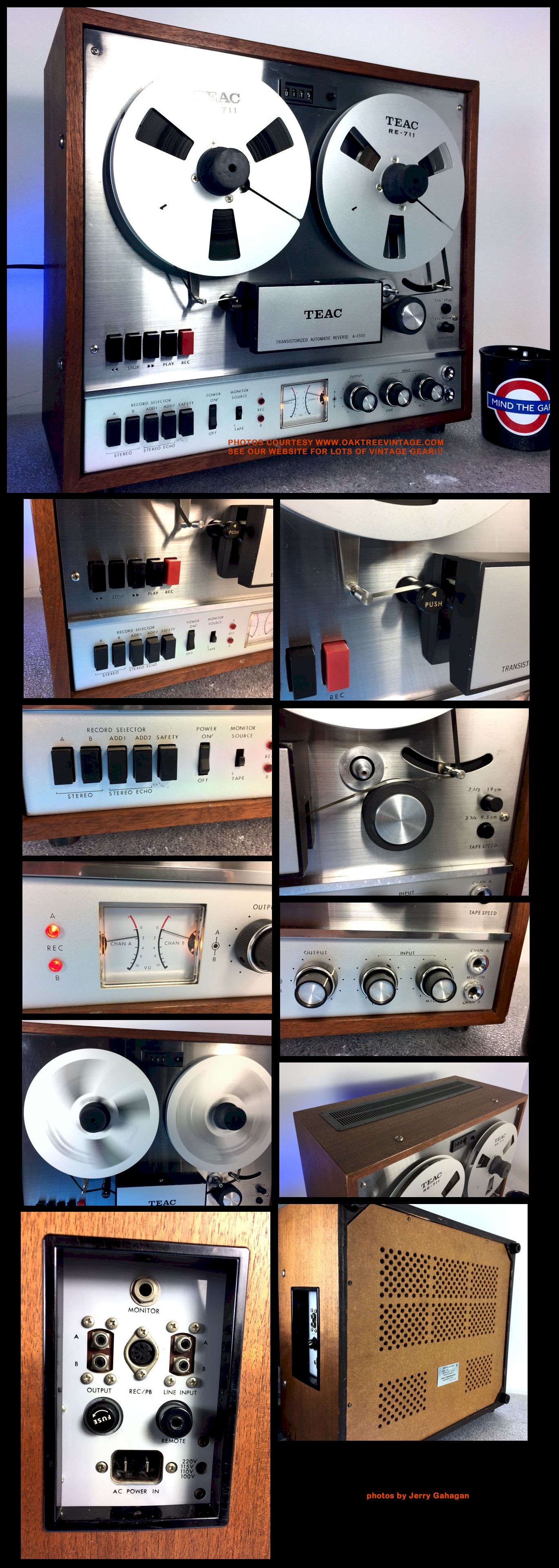

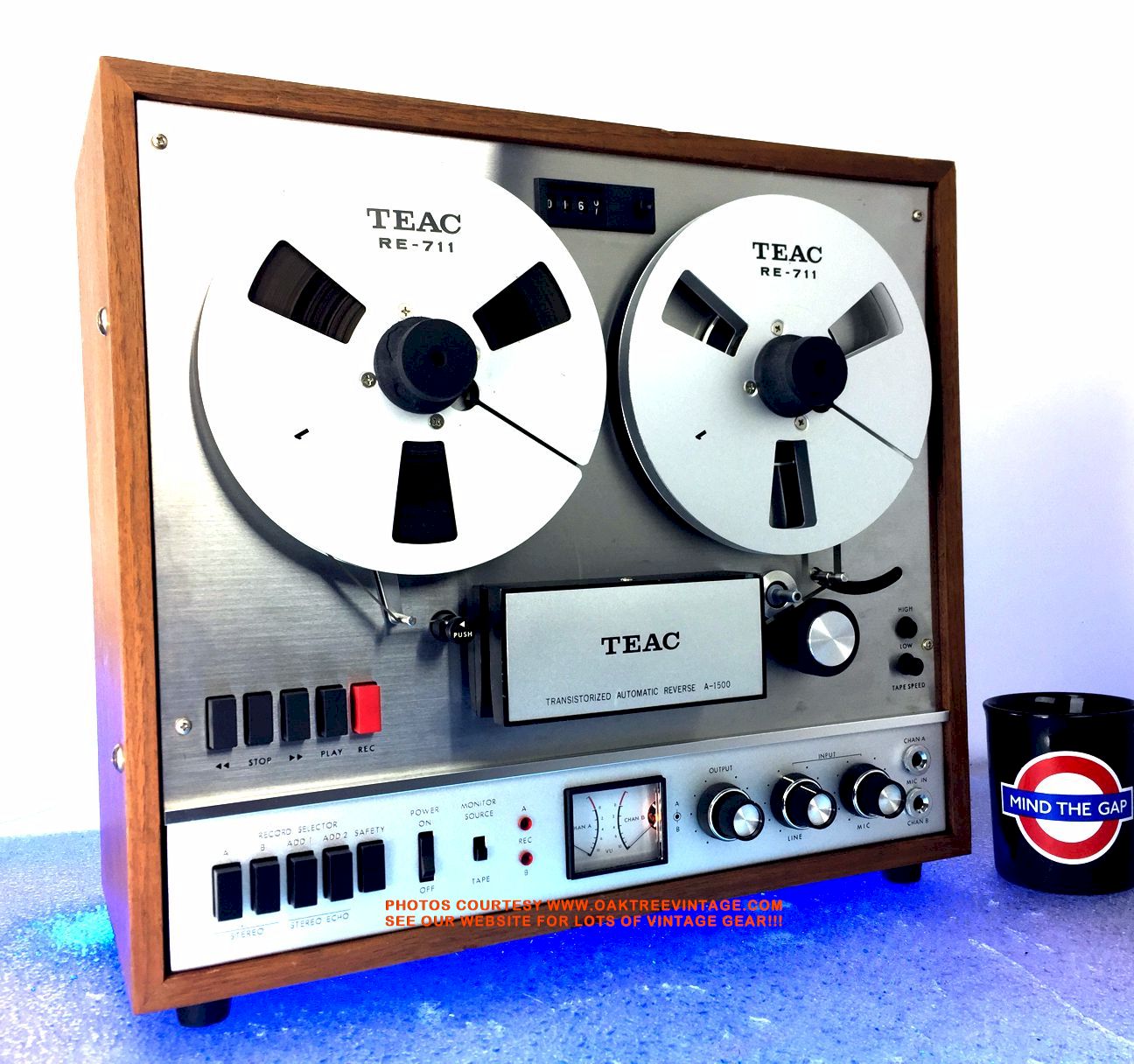

TEAC A-1500
(essentially same deck as TEAC A-4010 series, but in a different, simpler case, without the need for umbilical cables)

4-TRACK / 2-CHANNEL
STEREO or 4-CHANNEL MONO
3-HEAD / 3-MOTOR
2-SPEEDS
1/4" REEL TO REEL
DUAL PB HEAD , U-TURN AUTO-REVERSE TAPE RECORDER
#...6197
Circa 1967-70/71

SOLD 9/26/19
SHIPPED TO ED IN NORTH CAROLINA











NEW LISTING 7/17/19


(Click on above thumbnails to enlarge photos)
VINTAGE TEAC REEL TO REEL TAPE DECK
TEAC A-1500W ("W" for wood case)
(essentially same deck as TEAC A-4010 series, but in a different, simpler case, without the need for umbilical cables)

4-TRACK / 2-CHANNEL
STEREO or 4-CHANNEL MONO
3-HEAD / 3-MOTOR
2-SPEEDS
1/4" REEL TO REEL
DUAL PB HEAD , U-TURN AUTO-REVERSE TAPE RECORDER
#...4879
Circa 1967-70/71

"WORLD AC POWER"
SOLD 9/23/19
SHIPPED TO PAUL IN ILLINOIS

ü Our technician has completely gone through and 'Certified' this unit.

ü We have completely and extensively gone through the mechanicals and electronics of this unit.

ü Entire transport was disassembled down to the chassis, and every mechanical part was disassembled, cleaned, re-lubed and reassembled

ü Tape Tension arms disassembled, cleaned and re-lubed, and their springs adjusted and had fresh 300,000 grade silicone lube gel applied

ü pinch-roller mechanism completely disassembled, cleaned and re-lubed,

ü PR mechanism solenoid mounts adjusted

ü Capstans / flywheels removed, bushings and axels cleaned and re-lubed (w/ #80-90) and flywheels burnished

ü Capstan motor pulley burnished

ü Capstan cleaned and burnished

ü Capstan motor lubed (very quiet now)

ü Rubber pinch roller removed and re-conditioned (removed multiple 'capstan burns / marks')

ü Pinch roller pressure adjusted

ü New MAIN drive belt sourced and installed (#42-745) (had a piece of 'fiberglass, packing tape' being used as a belt when it came in. Hey, it was actually working, 'sort-of'.)

ü We also discovered the 'belt-guide' was missing (helps keep belt from 'jumping off' when auto-reversing). We replaced with one from another TEAC we had.

ü Brand new counter belt installed (#152)

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Brake bands / linings re-attached

ü Brakes adjusted on fast wind modes also (optimized for 7" reels.)

ü Back tension adjusted on both reel motors.

ü All three motors test perfectly. Following above adjustments, Reel Start and Stop tested at beginning, middle and end of 7" reels.

ü Internal pots, switches and controls cleaned and tested for noise-free function (initially, of course, had typical static / noise which is to be expected in an 'un-serviced' deck after 45+ years).

ü RCA I/O jacks cleaned / burnished

ü EOT / Auto-Stop mechanism had magnet re-attached, and spring tension re-adjusted for more consistent tape motion without prematurely going into 'Auto-Stop' mode

ü External / User adjustable pots, switches and controls cleaned on the playback / record amp and tested for noise-free function

ü We adjusted the VU meters mechanically and electronically w/ factory test tone tapes, as well as the internal playback levels for both directions independently and record levels.

ü We adjusted the output, 'Minimum Input', 'Specified Input', 'Record Level' and 'Bias' all to spec, then further adjusted 'Bias' for Ampex GM-456

ü Both spindles in perfect alignment.

ü We also adjusted the reel table heights.

ü Heads in great shape as well, with many years of performance left in them

ü Playback and Record Head alignment / azimuth was adjusted for peak performance with factory test tone tape and oscilloscope.

ü Speed tested to 100% accuracy following refurb (meaning that our 'verified' 1000Hz test tape now plays back at 1000Hz +/- 1Hz) !!!.

ü Adjusted to record VERY WELL. Biased for *Ampex GM 456 studio tape with the following results:
1kHz recorded @ 0dB resulted in PB @ 0 to -2dB
10kHz recorded @ 0dB resulted in PB @ 0 to +2 dB
Pink Noise recorded @ 0dB resulted in PB @ +3 to +4dB

'Real World', DDD CD recorded at 0 = 0 to +4dB

* We also had great results with Maxell UD XL (Gold Box) tape as well

ü WoW & Flutter are minimal, especially at 'higher' speed.

ü Floor noise measured at >-60dB w/ blank tape, L&R

ü This TEAC A-1500 functions, plays, and records VERY WELL (and we really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy).  (Total time investment in refurb / testing ~18.5 hours).

Face is beautiful, brushed, Stainless Steel and case is in great condition. Deck looks and works great!

Following mechanical / electronic refurb, entire unit was cosmetically detailed inside and out. Face is made of beautiful brushed Stainless Steel and is dent free and in great condition. Cabinet covered in real Walnut wood veneer, is in great condition and just had a fresh coat of lemon oil. Deck looks and sound great!
   ____________________________

Looks great & "Ready-to-go"  TEAC -1500 Stereo Reel to Reel tape deck.  Will play & Record stereo 1/4" tapes on reels up to 7". This is one of the few reel to reel decks we get in that make it to our finished page. If you're looking for a reel to reel deck to "actually use" then here you go. Only about 25% of the used Reel decks out there can be "practically" restored to working order. This one made it through. Playback & transport functions test great and records well! Looks and sounds great too!

TEAC A-1500 Features include:


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


This is the first Teac A-1500 that has made it through restoration we have had in 24 years
(only second we've ever had, but the first one had too much head wear to start restoration). Great machine for playback / archiving your tapes to CD or Hard Drive or for recording new tapes. This is a beautiful deck. About the only cosmetic issues worth mentioning are some veneer chips / flaking on the lower edge of the wood veneer case (we have re-attached this down so shouldn't get any worse, and the head cover has been changed at some point to a "1200U" (probably someone misplaced the original, and could only find a 1200 cover at the time). There's also a few, numerous light striations on the face plate, and a small ding on the lower, front edge of the cabinet / case (see photos above).   Performs incredibly well following refurbishing. Face plates,  knobs and all cosmetics fabulous! Measures 17" wide x 15.5" tall x 10" (from tip of back feet-tip of hubs) deep and weighs 41 lbs unpacked. Includes a set of 'fresh' spindle stoppers / reel clamps. Includes an
e-copy / pdf download of the TEAC A-1500 Owners Manual and the Service Manual if you wish as well. Includes our standard 30 day limited warranty.
 (Reels & tape shown in photos not included. All are sometimes available separately depending on stock levels.)

 TEAC A-1500 REEL TO REEL TAPE DECK
Cond. 8 ++

SOLD 9/23/19
SHIPPED TO PAUL IN ILLINOIS
(cons. M.H.)



(Reels shown in photos are not included, but we sometimes / occasionally have them for sale. Inquire at time of order.
However, all of our decks will come with 2x tapes for testing 'Playback' and 'Recording' as well as a 7" 'take-up' reel, and RCA patch cables for connection to your system)




(Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)






NEW LISTING 11/9/05
(Click on above thumbnails to enlarge photos)

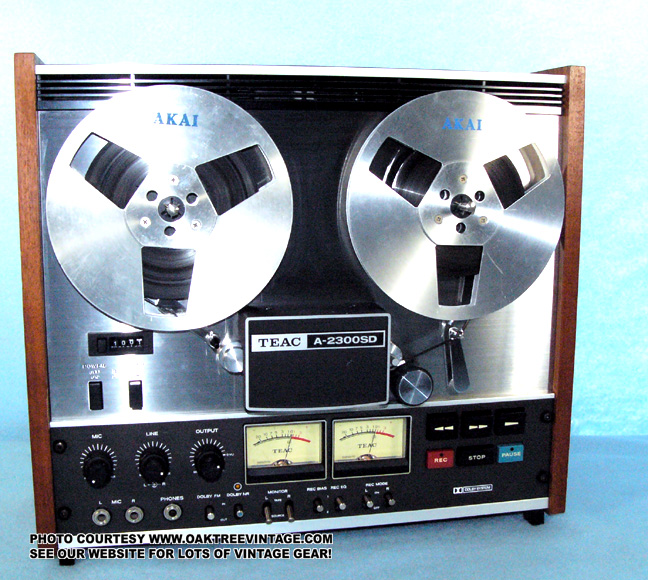

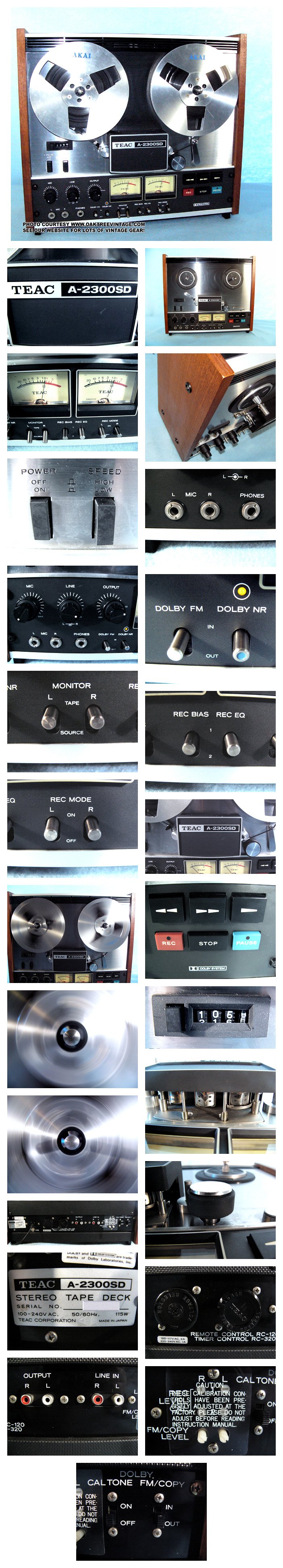

TEAC
A-2300SD
4-TRACK STEREO / 2-CHANNEL
3-HEAD / 2-SPEED / 3-MOTOR
DIRECT DRIVE
REEL TO REEL R2R
1/4" STEREO TAPE DECK
WITH DOLBY NR

Circa 19
76-77
SOLD 11/23/05










NEW LISTING 11/26/19
(Click on above thumbnails to enlarge photos)
RESTORED / REFURBISHED / FULLY SERVICED
TEAC REEL TO REEL TAPE DECK
TEAC A-2340R
#...7813
4-TRACK / 2 or 4-CHANNEL STEREO / 4-TRACK / 1-CHANNEL MONO
STEREO OR QUADRAPHONIC
"SIMUL-TRACK" DOES 4 TRACK "HEADS-UP" RECORDING (meaning ALL four tracks at once)
3-HEAD / 2-SPEED / 3-MOTOR
AUTO-REVERSE
7" OR 5" REELS
REEL TO REEL
1/4" TAPE DECK

SOLD 12/7/19
SHIPPED TO ROWLAND IN MINNESOTA


ü Our technician has completely gone through and 'Certified' this unit.

ü

We have completely and extensively gone through the mechanicals and electronics of this unit.

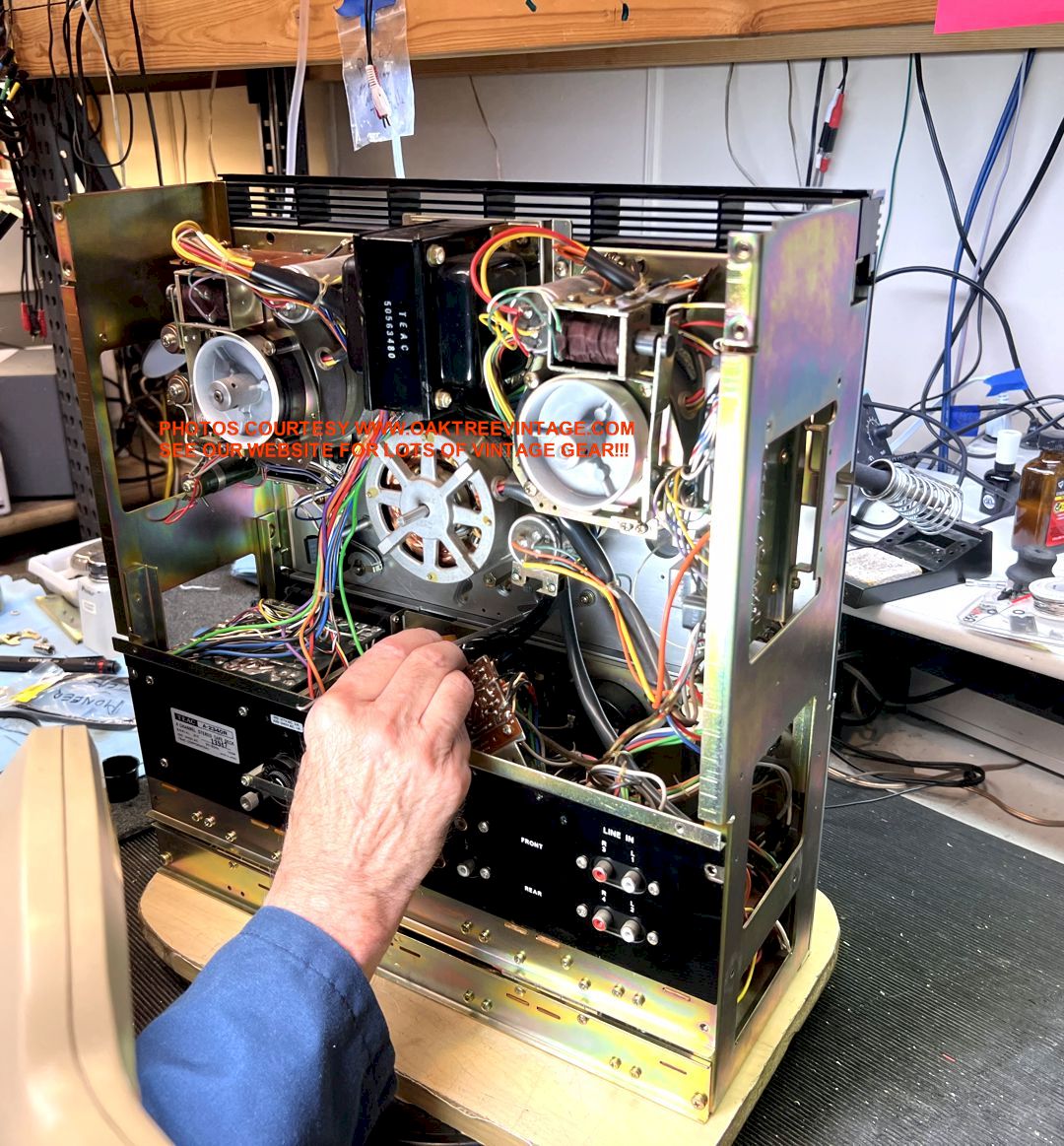

ü Entire transport was disassembled down to the chassis, and every mechanical part was disassembled, cleaned, re-lubed and reassembled including; Both Tape Lifters, Pinch Roller Pivot Arm, EOT Sensor Arm, Left Tape Tension arm mechanism, Capstan Motor (clean and re-lube), Capstan and flywheel shaft removed cleaned / re-lubed (pretty much every moving part)

ü Tape Tension arms disassembled, cleaned and re-lubed, and their springs adjusted

ü Originally 'Frozen' pinch-roller mechanism completely disassembled, cleaned and re-lubed,

ü Capstan / flywheels removed, bushings and axels cleaned and re-lubed and flywheels burnished

ü Capstan burnished

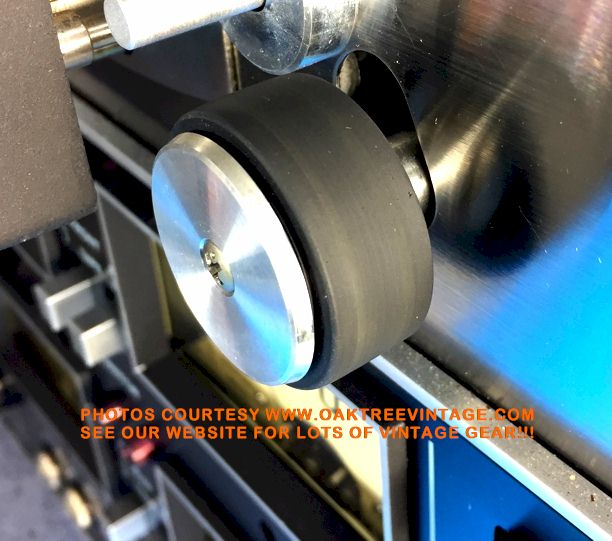

 ü Rubber pinch roller removed and re-conditioned

ü MAIN drive belt reconditioned and re-installed

ü Brand new counter belt, #152 installed (FYI; requires removal of TU reel table trim, Top front Trim, and dismounting of Power Transformer)

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Brakes adjusted on fast wind modes at ALL points thru a tape. It's a fine line between having the brakes actuate with too much tension, 'abruptly' stopping the tape (risking stretching / breaking of tape) or too loose (allows tape to 'dump'). (VERY difficult to do on this series). Brakes optimized for 7" reels.

ü Re-lubed all 3 motors (all have 'oil tubes')

ü Fabricated new 'oil slinger' for capstan shaft

ü Back tension adjusted on both reel motors.

ü All three motors test perfectly. Following above adjustments, Reel Start and Stop tested at beginning, middle and end of 7" tapes

ü Internal pots, switches and controls cleaned and tested for noise-free function (initially, of course, had typical static / noise which is to be expected in an 'un-serviced' deck after 35+ years).

ü Cleaned all 'user' slide switches and control pots

ü Checked / replaced VU meter lamps / bulbs

ü We adjusted all  four VU meters mechanically and electronically w/ factory test tone tapes, as well as the internal playback levels for both directions independently and record levels.

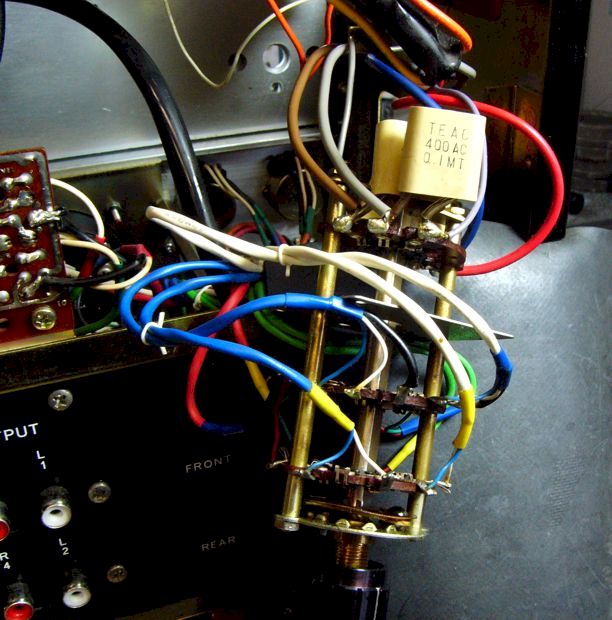

ü Replaced ALL 4 'spark arrestors' (0.1mfd in series w/ 120Ω resistor)




ü Both spindles in perfect alignment.

ü We also adjusted the reel table heights for average reel flanges.

ü Heads in great shape as well, with many years of performance left in them.

ü Playback and Record Head alignment / azimuth was adjusted for peak performance with factory test tone tape and oscilloscope.

ü Entire deck detailed inside and out cosmetically

ü Speed tested to 99.4% accuracy following refurb (meaning that our 'verified' 1000Hz test tape now plays back at 1006Hz).

ü Adjusted to record VERY WELL. Biased for Ampex GM 456 studio tape with the following results w/ Output control ~"2:00 PM":
1kHz recorded @ 0dB resulted in PB @ 0dB


ü 'Real World, DDD CD recorded @ zero dB = PB of zero dB! (w/ GM456).

ü
Floor noise measured at >-60dB w/ blank tape, L&R

ü This Teac A-2340R functions, plays, and records VERY WELL (and we really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy).

Face is beautiful, brushed, Stainless Steel and case is in LIKE NEW condition.

The Teac A-2340R Stereo Reel to Reel tape deck. Ready to GO! This is one of the few reel to reel decks we get in that make it to our finished page. Great performer. If you're looking for a reel to reel deck to "actually use" here you go. Only about 25 % of the used Reel decks out there can be "practically" restored to working order. This one made it through with flying colors after about 19.5 hours of bench time.

The deck tests great! Looks and sounds great too! We have completely gone through it. Will play 5" & 7" reels (would play small 2-5" to 3" as well).


As stated earlier we have completely gone through it cleaning heads and all else, lubing, adjusting, reconditioning pinch rollers and other rubber parts, demagnetizing heads and entire transport and testing everything. Tape speed tested and resulted in 99.4% accuracy using a 1000 Hz test tape. Plays and records Exceptionally well (and we really put them through the paces, testing both with well mixed CD material and CD test tones looking for correct head Azimuth, tape speed accuracy and making test recordings). Pinch rollers and heads all in GREAT condition!!! Face is made of beautiful, brushed, stainless steel and looks great. Very clean and looks near new. Unit looks GREAT!

Teac A-2340R Specs / Specifications from the owners manual as follows:

Head / Head-stack Track Format: 3
...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


This is a GREAT looking deck and is mounted in the originally, optional, 'Walnut wood grain Formica' side panels with no chips, dings, scuffs or really anything! The entire deck essentially looks NEW!
Again, following above extensive tech work, it works fabulously too!!!
All of our restored / refurbished reel to reel decks come with a 7", plastic take-up reel, a 'known good' 7" tape for initial testing of playback, and a 7" tape you can record onto, all to assist you in becoming familiar with the operation / function of your new reel to reel tape deck.
Measures 17.3" wide x 18.75" tall x 8.5" (from tip of back feet-tip of hubs) deep and weighs 44 lbs unpacked. Comes with an 'e-copy' / pdf download of the TEAC A-2340R owners / operations manual & service manual. Includes our standard 30 day limited warranty.

Teac A-2340R
Cond. 8.5

SOLD 12/7/19
SHIPPED TO ROWLAND IN MINNESOTA

(Reels shown in photos are not included, but we sometimes / occasionally have them for sale. Inquire at time of order.
However, all of our decks will come with 2x tapes for testing 'Playback' and 'Recording' as well as a 7" 'take-up' reel, and RCA patch cables for connection to your system)



 (Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)












NEW LISTING 12/19/2020
(Click on above thumbnails to enlarge photos)
RESTORED / REFURBISHED / FULLY SERVICED
TEAC REEL TO REEL TAPE DECK
TEAC A-2340R
#...4841
4-TRACK / 2 or 4-CHANNEL STEREO / 4-TRACK / 1-CHANNEL MONO
STEREO OR QUADRAPHONIC
"SIMUL-TRACK" DOES 4 TRACK "HEADS-UP" RECORDING (meaning ALL four tracks at once)
3-HEAD / 2-SPEED / 3-MOTOR
AUTO-REVERSE
7" OR 5" REELS
REEL TO REEL
1/4" TAPE DECK

SOLD 12/21/2020
SHIPPED TO JOHN IN OREGON


ü Our technician has EXTENSIVELY gone through and 'Certified' this unit.

ü

We have completely and extensively gone through the mechanicals and electronics of this unit.

ü Entire transport was disassembled down to the chassis, and every mechanical part was disassembled, cleaned, re-lubed and reassembled including; Both Tape Lifters, Pinch Roller Pivot Arm, EOT Sensor Arm, Left Tape Tension arm mechanism, Capstan Motor (clean and re-lube), Capstan and flywheel shaft removed cleaned / re-lubed (pretty much every moving part)

ü Tape Tension arms disassembled, cleaned and re-lubed, and their springs adjusted




ü Originally 'Frozen' pinch-roller 'pivot' mechanism heated for removal, completely disassembled, cleaned and re-lubed,

ü Capstan / flywheels removed, bushings and axels cleaned and re-lubed and flywheels burnished

ü Capstan burnished

 ü Rubber pinch roller removed and re-conditioned



ü MAIN drive belt reconditioned and re-installed

ü Brand new counter belt, #152 installed (FYI; requires removal of TU reel table trim, Top front Trim, and dismounting of Power Transformer)

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Brakes adjusted on fast wind modes at ALL points thru a tape. It's a fine line between having the brakes actuate with too much tension, 'abruptly' stopping the tape (risking stretching / breaking of tape) or too loose (allows tape to 'dump'). (VERY difficult to do on this series). Brakes optimized for 7" reels.

ü Re-lubed all 3 motors (all have 'oil tubes')

ü Fabricated new 'oil slinger' for capstan shaft

ü Back tension adjusted on both reel motors.

ü All three motors test perfectly. Following above adjustments, Reel Start and Stop tested at beginning, middle and end of 7" tapes

ü Internal pots, switches and controls cleaned and tested for noise-free function (initially, of course, had typical static / noise which is to be expected in an 'un-serviced' deck after 35+ years).

ü Cleaned all 'user' slide switches and control pots

ü Checked VU meter lamps / bulbs

ü Power supply checked / tested for proper "23VDC" output and for 'ripple' on O'Scope.

ü We adjusted all  four VU meters mechanically and electronically w/ factory test tone tapes, as well as the internal playback levels for both directions independently and record levels.

ü Both spindles in perfect alignment.

ü We also adjusted the reel table heights for average reel flanges.

ü Heads in great shape as well, with many years of performance left in them.

ü Playback and Record Head alignment / azimuth was adjusted for peak performance with factory test tone tape and oscilloscope.

ü Entire deck detailed inside and out cosmetically




ü Speed tested to 99.6% accuracy following refurb (meaning that our 'verified' 1000Hz test tape now plays back at 1004Hz).

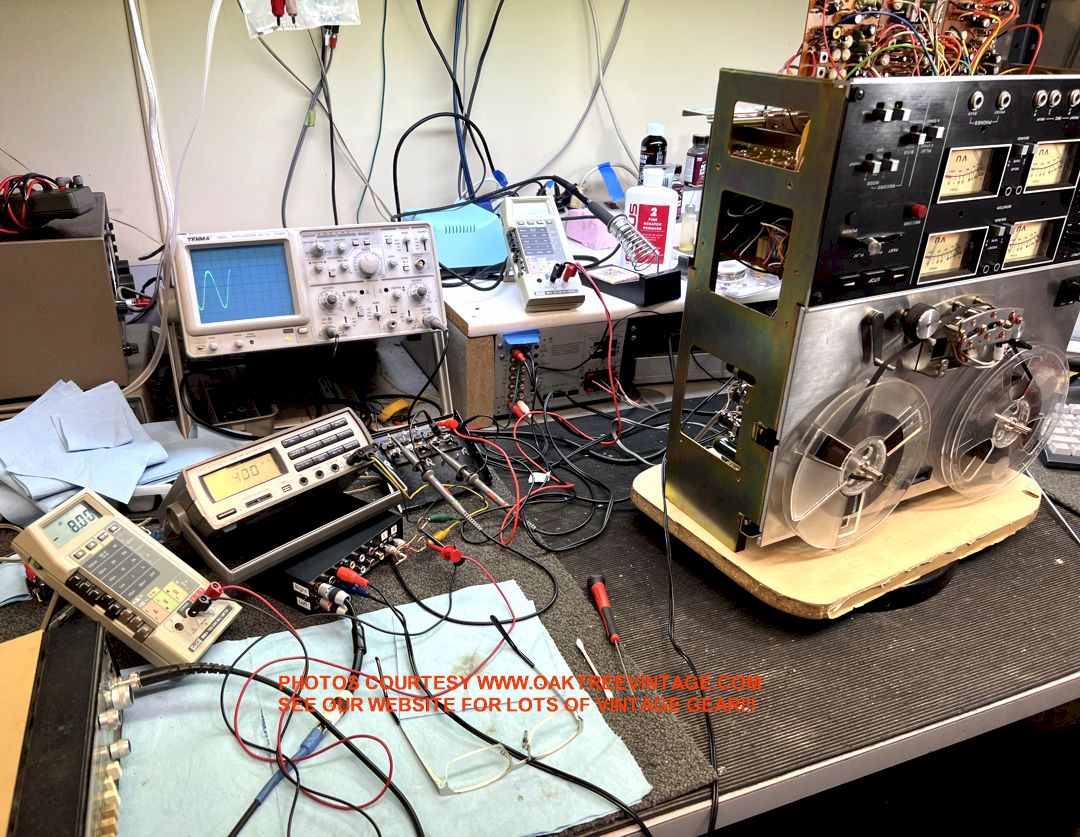

ü Adjusted* to record VERY WELL using Fluke8060A allowing proper "DBV" measurements! Biased for Ampex GM 456 studio tape with the following results w/ Output control ~"2:00 PM":
1kHz recorded @ 0dB resulted in PB @ L=~+0.5dB & R=~-1dB
W/ Maxell UDXL-II; 1kHz recorded @ 0dB resulted in PB =~-3dB L&R


* Adjusted BOTH layers of 'Record Amp' circuit board. Most folks trying to service these are not aware that there's a 'top' layer for tracks 1&3 and therefore at best, only get the 'rear channels' / tracks 2&4 adjusted.

ü 'Real World, DDD CD recorded @ zero dB w/ GM456 Sounded fabulous

ü
Floor noise measured at >-60dB w/ blank tape, L&R

ü This Teac A-2340R functions, plays, and records VERY WELL (and we really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy).

Face is beautiful, brushed, Stainless Steel and case is in LIKE NEW condition.

The Teac A-2340R Stereo Reel to Reel tape deck. Ready to GO! This is one of the few reel to reel decks we get in that make it to our finished page. Great performer. If you're looking for a reel to reel deck to "actually use" here you go. Only about 25 % of the used Reel decks out there can be "practically" restored to working order. This one made it through with flying colors after about 19.5 hours of bench time.

The deck tests great! Looks and sounds great too! We have completely gone through it. Will play 5" & 7" reels (would play small 2-5" to 3" as well).

Teac A-2340R Features include:


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


As stated earlier we have completely gone through it cleaning heads and all else, lubing, adjusting, reconditioning pinch rollers and other rubber parts, demagnetizing heads and entire transport and testing everything. Tape speed tested and resulted in 99.4% accuracy using a 1000 Hz test tape. Plays and records Exceptionally well (and we really put them through the paces, testing both with well mixed CD material and CD test tones looking for correct head Azimuth, tape speed accuracy and making test recordings). Pinch rollers and heads all in GREAT condition!!! Face is made of beautiful, brushed, stainless steel and looks great. Very clean and looks near new. Unit looks GREAT!


Teac A-2340R Specs / Specifications from the owners manual as follows:

Head / Head-stack Track Format: 3
...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?



Fast Wind Time: 90 sec for 1200'

This is a GREAT looking deck and is mounted in the originally, optional, 'Walnut wood grain Formica' side panels with no chips, dings, scuffs or really anything! The entire deck essentially looks NEW!
Again, following above extensive tech work, it works fabulously too!!!
All of our restored / refurbished reel to reel decks come with a 7", plastic take-up reel, a 'known good' 7" tape for initial testing of playback, and a 7" tape you can record onto, all to assist you in becoming familiar with the operation / function of your new reel to reel tape deck.
Measures 17.3" wide x 18.75" tall x 8.5" (from tip of back feet-tip of hubs) deep and weighs 44 lbs unpacked. Comes with an 'e-copy' / pdf download of the TEAC A-2340R owners / operations manual & service manual. Includes our standard 30 day limited warranty.

Teac A-2340R
Cond. 8.5

SOLD 12/21/2020
SHIPPED TO JOHN IN OREGON


(Reels shown in photos are not included, but we sometimes / occasionally have them for sale. Inquire at time of order.
However, all of our decks will come with 2x tapes for testing 'Playback' and 'Recording' as well as a 7" 'take-up' reel, and RCA patch cables for connection to your system)



 (Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)









NEW LISTING 4/8/17
(Click on above thumbnails to enlarge photos)


RESTORED / REFURBISHED / FULLY SERVICED
VINTAGE
TEAC REEL TO REEL TAPE DECK
TEAC A-2300S
#...2454

 4-TRACK / 2-CHANNEL STEREO / 1-CHANNEL MONO
 3-HEAD / 2-SPEED / 3-MOTOR

7" OR 5" REELS
REEL TO REEL
1/4" TAPE DECK
"WORLD AC POWER"
SOLD 6/14/17
SHIPPED TO GEORGIA

ü  Our technician has completely gone through and 'Certified' this unit.

ü  We have completely and extensively gone through the mechanicals and electronics of this unit.

ü  ü Entire transport was disassembled down to the chassis, and every mechanical part was disassembled, cleaned, re-lubed and reassembled

ü Tape Tension arms disassembled, cleaned and re-lubed, and their springs adjusted and had fresh 500,000 grade silicone lube gel applied

ü pinch-roller mechanism completely disassembled, cleaned and re-lubed,

ü PR mechanism solenoid mounts adjusted

ü Capstans / flywheels removed, bushings and axels cleaned and re-lubed and flywheels burnished (see photos above)

ü Capstans burnished

 ü Rubber pinch roller removed and re-conditioned

ü MAIN drive belt reconditioned and re-installed

ü Brand new counter belt installed

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Brakes adjusted on fast wind modes also (optimized for 7" tape.)

ü Back tension adjusted on both reel motors.

ü All three motors test perfectly. Following above adjustments, Reel Start and Stop tested at beginning, middle and end of 7" tapes

ü Internal pots, switches and controls cleaned and tested for noise-free function (initially, of course, had typical static / noise which is to be expected in an 'un-serviced' deck after 35+ years).

ü We adjusted the VU meters mechanically and electronically w/ factory test tone tapes, as well as the internal playback levels for both directions independently and record levels.

ü Both spindles in perfect alignment.

ü We also adjusted the reel table heights.

ü Heads in great shape as well, with many years of performance left in them.

ü Playback and Record Head alignment / azimuth was adjusted for peak performance with factory test tone tape and oscilloscope.

ü Speed tested to 99.4% accuracy following refurb (meaning that our 'verified' 1000Hz test tape now plays back at 994Hz).

ü Adjusted to record a @ -3dB @ 1kHz on normal bias tape, and @ -2dB @ 1kHz on high bias tape

ü Floor noise measured at >-52dB w/ blank tape, L&R

ü This Teac A-2300S functions, plays, and records VERY WELL (and we really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy).  (Total time investment in refurb / testing ~ 11.5 hours).

Face is beautiful, brushed, Stainless Steel and case is in great condition. Only cosmetic issue worth mentioning is there is a veneer chip ~3" x 3/8" on the rear edge of one side (see photos above). Deck looks NEW and works great!

The Teac A-2300S Stereo Reel to Reel tape deck. Ready to GO! This is one of the few reel to reel decks we get in that make it to our finished page. Great performer. If you're looking for a reel to reel deck to "actually use" here you go. Only about 30-50% of the used Reel decks out there can be "practically" restored to working order. This one made it through with flying colors after about 11.5 hours of bench time.

The deck tests great! Looks and sounds great too! We have completely gone through it. Will play 5" & 7" reels.

Teac A-2300S Features include:


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?




As stated earlier we have completely gone through it cleaning heads and all else, lubing, adjusting, reconditioning pinch rollers and other rubber parts, demagnetizing heads and entire transport and testing everything. Tape speed tested and resulted in 99.4% accuracy using a 1000 Hz test tape. Following the above mentioned restoration / service Plays and records Exceptionally well (and we really put them through the paces, testing both with well mixed CD material and CD test tones looking for correct head Azimuth, tape speed accuracy and making test recordings). Pinch rollers and heads all in GREAT condition!!! Face is made of beautiful, brushed, stainless steel and looks great. Very clean and looks near new. Unit looks GREAT!


Teac A-2300S
Specs / Specifications from the owners manual as follows:

Head / Head-stack Format: xx
/monaural system
Motors: 1x Dual-xxnous Capstan Motor & 2x Exxnt x Reel Motors


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?




Reel Size: 5” & 7” (5” reels may not ‘brake’ correctly as deck is optimized for 7” reels)
Wow and Flutter: xx% @ 7.5 ips & xx% @ 3.75 ips
S/N ratio: xxdB @ 7.5ips
THD: xx% @ 1kHz & 19cms
Crosstalk: >xxdB @ 125Hz & >xxdB @ 1kHz
Channel separation: >xxdB @ 1kHz


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?




Erasing coefficient:
>xxdB @ 1kHz
2 VU-meters: dB (-20 to +3)

Line; xxmV /50kΩ
Output Level Reference / Maximum: Line; .xV / 10kΩ
Headphones; ~xmV / 8Ω, 1/4" / 6mm diam. jack
Fast Wind Time: xxsec for 1800'


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?





This is a GREAT looking deck and is mounted in the originally, optional, 'REAL WOOD VENEER' side panels, and again the only cosmetic issue was the above mentioned veneer chip.  Again, following above extensive tech work, it works fabulously!!!

All of our restored / refurbished reel to reel decks come with a 7", plastic take-up reel, a 'known good' 7" tape for initial testing of playback, and a 7" tape you can record onto, all to assist you in becoming familiar with the operation / function of your new reel to reel tape deck.
Measures 17.3" wide x 15.5" tall x 8.5" (from tip of back feet-tip of hubs) deep and weighs 40 lbs unpacked. Comes with an 'e-copy' / pdf download of the TEAC Teac A-3300S (same as 2300 except 10.5 capable)
owners / operations manual, service manual and original brochure if purchaser so desires. Includes our standard 30 day limited warranty.
(Reels & tape shown in photos not included. All are sometimes available separately if you need them. We do ship our decks with a plastic take-up reel, a tape to 'practice record' on and a 'pre-recorded' tape for playback.)
Teac A-2300S
Cond.
8.5

SOLD 6/14/17
SHIPPED TO GEORGIA



 (Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)









NEW LISTING 11/9/05

(Click on above thumbnails to enlarge photos)

TEAC
A-2300SR
4-TRACK STEREO / 2-CHANNEL
3-HEAD / 2-SPEED / 3-MOTOR
DIRECT DRIVE
AUTO-REVERSE

REEL TO REEL R2R
1/4" STEREO TAPE DECK

Circa 19
76-77
SOLD 11/10/05







NEW LISTING

(Click on above thumbnails to enlarge photos)


TEAC A-2520 / A2520
 STEREO
 REEL TO REEL
TAPE DECK

SOLD 4/14/06



Teac_A-3300-10_1_rear_cover_removed_web.jpg (46111 bytes)   Teac_A-3300-10_1_Issues_collage.jpg (11471 bytes)

NEW LISTING 11/23/04
(Click on above thumbnails to enlarge photos)

TEAC A-3300-10 (#1)
 4-TRACK / 2-CHANNEL
 STEREO
10.5"
3-HEAD / 3-MOTORS
2-SPEEDS
1/4" REEL TO REEL
TAPE DECK
HOLD 12/8/04
Teac_A-3300-10_Stereo_Reel_Tape_Deck_web.jpg (39154 bytes)   Teac_A-3300-10_Stereo_Reel_Tape_Deck_collage.jpg (460623 bytes)

Teac_A-3300-10_2_Points_collage.jpg (92489 bytes)    Teac_A-3300-10_Issues_collage.jpg (96249 bytes)


NEW LISTING 11/23/04
(Click on above thumbnails to enlarge photos)

TEAC A-3300-10 (#2)
 4-TRACK / 2-CHANNEL
 STEREO
3-HEAD / 3-MOTORS
2-SPEEDS
1/4" REEL TO REEL
TAPE DECK
"WORLD AC POWER"
Circa 1973-78
SOLD 12/14/04







NEW LISTING 9/7/17

ANOTHER A-3300SX

(Click on above thumbnails to enlarge photos)

RESTORED / REFURBISHED / FULLY SERVICED
VINTAGE
TEAC REEL TO REEL TAPE DECK
TEAC A-3300SX / A3300SX
#...7423
4-TRACK / 2-CHANNEL STEREO / 1-CHANNEL MONO
3-HEAD / 2-SPEED / 3-MOTOR
10.5", 7" or 5" REELS
R2R 1/4" TAPE DECK

SOLD 9/11/17
SHIPPED TO NEW MEXICO

ü  Our technician has completely gone through and 'Certified' this unit.

ü  We have completely and extensively gone through the mechanicals and electronics of this unit.

ü Entire transport was disassembled down to the chassis, and every mechanical part was disassembled, cleaned, re-lubed and reassembled

ü Replaced one of the 'safety switches' on the tape tension arms with original / OEM parts (reversing a 'rigged repair' from a previous tech)

ü Tape Tension arms disassembled, cleaned and re-lubed, and their springs adjusted and had fresh 500,000 grade silicone lube gel applied

ü pinch-roller mechanism completely disassembled, cleaned and re-lubed,

ü
 PR mechanism solenoid mounts adjusted

ü Capstans / flywheels removed, bushings and axels cleaned and re-lubed and flywheels burnished

ü Capstan motor pulley burnished

ü Capstans burnished

ü Rubber pinch roller removed and re-conditioned

ü New MAIN drive belt sourced and installed

ü Brand new counter belt installed

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Brakes adjusted on fast wind modes also (optimized for 7" & 10.5" tape.)

ü Back tension adjusted on both reel motors.

ü All three motors test perfectly. Following above adjustments, Reel Start and Stop tested at beginning, middle and end of 7" & 10.5" tapes

ü Internal pots, switches and controls cleaned and tested for noise-free function (initially, of course, had typical static / noise which is to be expected in an 'un-serviced' deck after 35+ years).

ü We adjusted the VU meters mechanically and electronically w/ factory test tone tapes, as well as the internal playback levels for both directions independently and record levels.

ü Both spindles in perfect alignment.

ü We also adjusted the reel table heights.

ü Heads in great shape as well, with many years of performance left in them

ü Playback and Record Head alignment / azimuth was adjusted for peak performance with factory test tone tape and oscilloscope.

ü Speed tested to 99.4% accuracy following refurb (meaning that our 'verified' 1000Hz test tape now plays back at 1006Hz).

ü Adjusted to record @ a fairly respectable -7dB @ 1kHz on normal bias tape and ~ -7dB on 'High Bias'

ü Floor noise measured at >-60dB w/ blank tape, L&R

ü This TEAC A-3300SX functions, plays, and records VERY WELL (and we really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy).  (Total time investment in refurb / testing ~ 14.5 hours).

Face is beautiful, brushed, Stainless Steel and case is in great condition. Only cosmetic issues worth mentioning are 'smuges' on the stainless steel face plate (see photos above). Deck looks and works great!

The TEAC A-3300SX Stereo Reel to Reel tape deck. Ready to GO! This is one of the few reel to reel decks we get in that make it to our finished page. Great performer. If you're looking for a reel to reel deck to "actually use" here you go. Only about 25 % of the used Reel decks out there can be "practically" restored to working order. This one made it through with flying colors after about 14hours of bench time.

As stated earlier we have completely gone through it cleaning heads and all else, lubing, adjusting, reconditioning pinch rollers and other rubber parts, demagnetizing heads and entire transport and testing everything. Tape speed tested and resulted in 99.9% accuracy using a 1000 Hz test tape. Plays and records Exceptionally well (and we really put them through the paces, testing both with well mixed CD material and CD test tones looking for correct head Azimuth, tape speed accuracy and making test recordings). Pinch rollers and heads all in GREAT condition!!! Face is made of beautiful, brushed, stainless steel and looks great. Very clean and looks near new. Unit looks GREAT!

This is a GREAT looking deck and is mounted in the originally, optional, 'REAL WOOD VENEER' side panels.  Again, following above extensive tech work, it works well!!!
All of our restored / refurbished reel to reel decks come with a 7", plastic take-up reel, a 'known good' 7" tape for initial testing of playback, and a 7" tape you can record onto, all to assist you in becoming familiar with the operation / function of your new reel to reel tape deck.
Measures 17.3" wide x 17.3" tall x 8.5" (from tip of back feet-tip of hubs) deep and weighs 45 lbs unpacked. Comes with an 'e-copy' / pdf download of the TEAC TEAC A-3300SX owners / operations manual, service manual and original brochure if purchaser so desires. Includes our standard 30 day limited warranty.
(Reels & tape shown in photos not included. All are sometimes available separately if you need them. We do ship our decks with a plastic take-up reel, a tape to 'practice record' on and a 'pre-recorded' tape for playback.)
TEAC A-3300SX REEL TO REEL TAPE DECK
Cond. 8.5

SOLD 9/11/17
SHIPPED TO NEW MEXICO


(Reels shown in photos are not included, but we sometimes / occasionally have them for sale. Inquire at time of order.)


 (Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)













NEW LISTING 11/17/2022
(click on above thumbnails to enlarge photos)
RESTORED / REFURBISHED / FULLY SERVICED
TEAC REEL TO REEL TAPE DECK

TEAC A-3300SX / A3300SX
#...7290
4-TRACK / 2-CHANNEL STEREO / 1-CHANNEL MONO
3-HEAD / 2-SPEED / 3-MOTOR
10.5", 7" or 5" REELS
R2R 1/4" TAPE DECK

MIJ








NEW LISTING / REVISED
(Click on above thumbnails to enlarge photos)
EXTENSIVELY SERVICED / REFURBISHED
CLASSIC / SEMI-PRO TEAC MULTI-TRACK REEL TO REEL TAPE DECK
TEAC A-3440 4-TRACK TAPE DECK
4-TRACK / 4-CHANNEL STEREO / QUADRAPHONIC / MONO
3-HEAD / 2-SPEED / 3-MOTOR
10.5" REELS OR SMALLER
'SIMUL-SYNC'
MULTITRACK 1/4" TAPE DECK
60+ HOURS OF TECH TIME!!!
YES, IT'S 'CONSIDERABLE' $$$$, BUT IF YOU'RE LOOKING FOR AN A-3440 TO ACTUALLY USE FOR THE 'LONG HAUL', READ WHY BELOW...
#....8496
MIJ
Circa 1978
SOLD 2/17/19
SHIPPED TO ROD IN NEW YORK

ü Our technician has completely gone through and 'Certified' this unit.

ü
 We have completely and EXTENSIVELY gone through the mechanicals and electronics of this unit (and this was a BIG project to do 'CORRECTLY' as it's a VERY difficult to service deck).

ü Faulty AC Power switch replaced.

ü 'Tape Lifter' mechanism disassembled, cleaned, lubed w/ 'SuperLube', silicone based gel and reassembled.

ü Transport mechanisms disassembled, cleaned, lubed w/ 'SuperLube', silicone based gel and light machine oil as necessary and reassembled including PR Pivot Arm mechanism.


ü Tape Tension arms disassembled, cleaned and re-lubed, and their springs adjusted and had fresh 500,000 grade silicone lube gel applied.

ü Capstan removed, cleaned and burnished

ü Capstan flywheel removed, cleaned bushings and axels cleaned and re-lubed. Flywheel surface burnished.

ü pinch-roller mechanism completely disassembled, cleaned and re-lubed.

ü Rubber pinch rollers removed, re-surfaced, conditioned and re-installed with fresh lubricant.

ü Fresh, new 'Main' / Capstan belt installed as original belt was 'melted' back to goo.

ü Fresh, new counter belt installed.

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Brakes adjusted on fast wind modes also (optimized for 7" & 10.5" tape.)

ü Back tension checked / adjusted on both reel motors.

ü All three motors test perfectly. Following above adjustments, Reel Start and Stop tested at beginning, middle and end of 7" & 10.5" tapes (VERY QUICK 'FAST WIND' ON THIS ONE)

ü All 'internal' / PC mounted pots, switches and controls cleaned and tested for noise-free function

ü All 'User' pots, switches and controls cleaned and tested for noise-free function

ü Removed and burnished COMMONLY INTERMITTENT contacts on channel Circuit Boards and re-seated. Adjusted pin contacts for better connections. Was discovered that these connectors was the source of channel intermittence.

ü Hairline fracture in Channel #2 CB trace near input slide switch discovered and repaired. This was causing occasional intermittency in PB signal.

ü All meter lamps replaced w/ LED's. Very Bright! (This is an EXTENSIVE project on the 3440. Tech notes: must be done from rear. ONLY way to access meter for channel #4 is to remove motherboard, and detach bottom pre-amp chassis to allow hardware access. Changing to LED causes 'un-loading' of PB amplitude at pre-amp. Adequate load resistors determined and installed to maintain correct PB output. Required several hours.)



ü All 7 power supply outputs tested and verified at spec from 2.5VAC to 42VAC.

ü Stop switch had 'hairline' fracture in hinge mechanism that required inordinate amount of time to fabricate new one. This is a common issue on the A-3440 that most folks don't realize is wrong...for a while.

ü We adjusted the VU meters mechanically for correct 'resting position' and electronically utilizing "STL" test / alignment tapes, as well as the internal playback and record levels.

ü Both spindles in perfect alignment w/ no 'run-out' at any speed.

ü Both spindle-locks hold tightly.

ü We also checked / adjusted the reel table heights.

ü Heads in great shape as well, with many years of performance left in them

ü Playback and Record Head alignment / azimuth was adjusted for peak performance utilizing "STL" test / alignment tapes and oscilloscope.

ü Speed tested to 100% accuracy following refurb (meaning that our 'verified' 1000Hz test tape now plays back at 1000 +/- 1Hz utilizing "STL" test / alignment tapes).

ü Internal Playback & Record levels adjusted, as well as 'Meter' and 'Bias'


ü Adjusted to record AMAZINGLY WELL at 0dB both with full bandwidth Pink-Noise, then 1kHz test and in 'Real World' use w/ 'mixed DDD CD' signals. (Tested with Maxell UDXL Tape and Ampex GM-456 (bias set for Ampex GM-456).

ü Floor noise measured at >-60dBm w/ blank tape, L&R

ü Following refurb / service mechanicals tested for 'play torque' at beginning and end of largest size reels, as well as 'Fast wind torque' and 'braking tension' in both FF and REW, at beginning, middle and end of tapes. In other words, every combination of transport function was tested and passed.

ü This TEAC A-3440 functions, plays, and records VERY WELL (and we really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy).  (Total time investment in refurb / testing ~ 60++ hours).

This is an amazing deck for both recording or playback, again of 4-Track Mono / Stereo' or quadraphnic tapes for speeds of 7.5ips or 15ips. Following refurbishment, the deck looks and works great and sounds amazing!!

The VERY sought after and FAMOUS, TEAC A-3440 Multi-Track / Four-Track / Four-Channel...


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?



. Ready to GO! We've had this deck in our warehouse for years, waiting for a 'senior tech' who was qualified to the task of bringing such a deck back to life CORRECTLY. First one of these we've had make it through satisfactorily in 24+ years of dealing in vintage audio.

This is the deck that most folks want for their...


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?




 Following our extensive refurb / bench time it's now an AMAZING performer (Check the 'recording test results' above and the 'specs' in text below). If you're looking for a reel to reel deck to "actually use" here you go. Only about 25% of the used Reel decks out there can be "practically" restored to working order. This one made it through with flying colors after about 60++ hours of bench time.

The deck tests great! Cosmetically it's in great condition,
with a few minor chips / dings to the real wood veneer side panels, and a small chip on the head cover, scratch on the main panel, and wear to the left tension arm.  (see separate photo collage above). Functions and sounds great ! Will play up to 10.5" reels.

TEAC A-3440 Features include:

- Multi-Track / 4-Track / 4...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?



- Accessory connectors for optional TEAC RC-70 Remote control (not included, nor currently available)


As stated earlier we have EXTENSIVELY gone through it cleaning heads and all else, lubing, adjusting, reconditioning pinch rollers and other rubber parts, demagnetizing heads and entire transport and testing everything. Additionally the meter lamps were changed to LED's and multiple repairs completed, some whose symptoms only showed up during our exhaustive testing procedures (may not have shown up on other decks until the user tried the 'magical combination' of functions sometime down the road. Just food for thought on supposedly 'serviced' units).

Tape speed tested and resulted in 100% accuracy using a 1000 Hz test tape. Plays and records Exceptionally well (and we really put them through the paces, testing both with well mixed CD material and CD test tones looking for correct head Azimuth, tape speed accuracy and making test recordings. Again, check the 'test results' listed above). Pinch rollers and heads all in GREAT condition!!!



HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?



This is a highly sought after deck and now, following the extensive service, with UNBELIEVABLE PERFORMANCE.
Again, as mentioned earlier, cosmetically it's in good condition, with a few minor chips / dings to the real wood veneer side panels, and a small chip on the head cover, scratch on the main panel, and wear to the left tension arm. (see separate photo collage above).

This was TEACS most asked for 'Musicians' deck, but since it also does standard 'Stereo' playback, Mono and even Quadraphonic (Quadriphonic) playback, it's about as versatile as you can get.
All of our restored / refurbished reel to reel decks come with a 7", plastic take-up reel, a 'known good' 7" tape for initial testing of playback, and a 7" tape you can record onto, all to assist you in becoming familiar with the operation / function of your new reel to reel tape deck.
 Comes with an 'e-copy' / pdf download of the TEAC A-3440 owners / operations manual, & service manual if purchaser so desires. Also includes the RCA jumpers for the back panel shown in photos. Measures 17.5" wide x 20.5" tall x 10" (from tip of back feet-tip of hubs) deep and weighs a HEAVY 50+ lbs unpacked. Includes our standard 30 day limited warranty.
(Reels, tape and any NAB hubs shown in photos not included. All are sometimes available separately if you need them. We do ship our decks with a plastic take-up reel, a tape to 'practice record' on and a 'pre-recorded' tape for playback.)
TEAC A-3440 MULTI-TRACK / STEREO / MONO REEL TO REEL TAPE DECK
Cond. 8.5

SOLD 2/17/19
SHIPPED TO ROD IN NEW YORK

(Reels, tape and any NAB hubs shown in photos are not included, but we sometimes / occasionally have them for sale. Inquire at time of order.
However, all of our decks will come with 2x tapes for testing 'Playback' and 'Recording' as well as a 7" 'take-up' reel, and RCA patch cables for connection to your system
)


This deck, coupled with the Fostex shown below would make a complete, analog recording system for your project studio. 4 track to 2-Track stereo mixdown.


 (Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)


- -


NEW LISTING 6/4/08

(Click on above thumbnails to enlarge photos)


 TEAC A-4010 GSL / 4010GSL
#3358

  4-TRACK / 2-CHANNEL
   STEREO
  3-HEAD / 3-MOTOR
  2-SPEEDS
 3" - 7" REEL CAPACITY
  1/4" REEL TO REEL
  TAPE DECK
  "
WORLD AC POWER"
  Circa 1973-75

SOLD 6/28/08









NEW LISTING 2/21/06
 (Click on above thumbnails to enlarge photos)

 TEAC A-4010S / AR-40S
  STEREO  REEL TO REEL
 TAPE DECK
 "
WORLD AC POWER"
SOLD 3/3/06





NEW LISTING 2/17/06
 (Click on above thumbnails to enlarge photos)

 TEAC A-4010S / AR-40S
  STEREO  REEL TO REEL
 TAPE DECK
 "
WORLD AC POWER"
SOLD 3/7/06


NEW LISTING 2/13/06
 (Click on above thumbnails to enlarge photos)

 warranty
 TEAC A-4010S / AR-40S
 4-TRACK / 2-CHANNEL
  STEREO
 3-HEAD / 3-MOTOR
 2-SPEEDS

3" - 7" REEL CAPACITY
 1/4" REEL TO REEL
 TAPE DECK

S
OLD






 TEAC A-4010S / AR-40S
2 / 4 CHANNEL
 STEREO
3-HEAD / 3-MOTOR
2-SPEEDS
1/4" REEL TO REEL
TAPE DECK

"WORLD AC POWER"
SOLD 9/23/05




NEW LISTING
 (Click on above thumbnails to enlarge photos)

 TEAC A-4010S / AR-40S
  STEREO
 REEL TO REEL
 TAPE DECK
 "
WORLD AC POWER"

SOLD 1/16/07





          NEW LISTING 6/25/12

(Click on above thumbnails to enlarge photos)

warranty
TEAC REEL TO REEL TAPE DECK
TEAC A-4010-SU / A4010SU
4-TRACK / 2-CHANNEL
STEREO
3-HEAD / 3-MOTOR
2-SPEEDS
5"
*- 7" REEL CAPACITY
1/4" REEL TO REEL
TAPE RECORDER

 #...4303
   Circa 1969-75

SOLD TO ST. BONAVENTURE UNIVERSITY 9/10/12

SHIPPED TO NEW YORK


 We have completely gone through this unit. Entire transport was disassembled down to the chassis, and every mechanical part was cleaned of all old, varnished grease and oils (as ALL late 60's to mid 70's tape decks need), re-lubed and reassembled. Pinch Roller swing arm removed, disassembled and re-lubed as well as the brake arms, tape tension arms, tape lifter mechanism, tape counter and pretty much anything else that moves. Tape tension magnet reattached. Both brake pads / shoes re-glued. Brakes adjusted on fast wind modes also. Motor 'back tension' resistors adjusted for both directions of play and for both directions of 'fast wind' (checked at multiple points on tape). All three motors re-lubed. All internal pots and controls cleaned and tested for noise-free function. Both spindles in perfect alignment. We also adjusted the reel table heights. Both Main Drive belt and Counter belt have been replaced for years of trouble-free service. Rubber pinch roller has been reconditioned, internal transport cleaned of old grease & re-lubed, capstan burnished, heads have been cleaned and de-magnetized as well as the entire transport. RCA I/O jacks repaired. Record and 'Reverse PB' heads have been replaced with examples offering less wear than originals. Heads in good shape as well, with many hundred hours of performance left in them. Record / playback relay contacts were burnished for signal integrity. Entire head block assembly re-adjusted allowing 'Tape Lift' mechanism to function. Complete head alignment / azimuth has been adjusted w/ dual trace O-scope, and factory test tone tapes for peak performance. Pinch roller and heads all in GREAT condition!!! Line / Microphone input & Playback output input potentiometers cleaned, as well as all switches for static free performance. Both VU meter lamps test fine and power lamp replaced.  Both level meters adjusted for even input, playback and record.
Following refurbishment, on our test bench, this deck measured;
Floor noise tested @ 0mVAC in PB mode w/ output maxed.
Speed checked to 99.7% / 1,000Hz=1,003Hz accuracy.
Plays perfectly and records INCREDIBLY WELL at -0-0.5dB
(and we really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy).  Transport to Record / PB amp umbilical cables replaced. AC power cable also replaced with a new cord.
(Total time investment in refurb / testing ~ 16 hours). Following mechanical / electronic refurb, entire unit was cosmetically detailed inside and out. Face is made of beautiful brushed Stainless Steel and is dent free and in great condition. Cabinet covered in real Walnut wood veneer, is in great condition and just had a fresh coat of lemon oil. Deck looks and sound great!
  ____________________________

SOLD TO ST. BONAVENTURE UNIVERSITY 9/10/12

SHIPPED TO NEW YORK



 (Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)










NEW LISTING 7/9/05

(Click on above thumbnails to enlarge photos)

TEAC
A-4300
4-TRACK STEREO / 2-CHANNEL
3-HEAD / 2-SPEED / 3-MOTOR
DIRECT DRIVE
REEL TO REEL R2R
1/4" STEREO TAPE DECK

Circa 19
74-78
SOLD 8/19/05







NEW LISTING 12/30/16
(Click on above thumbnails to enlarge photos)


TEAC REEL TO REEL TAPE DECK
TEAC A-4300SX
#...5548

3-HEAD / 3-MOTOR
AUTO-REVERSE
REEL TO REEL
1/4" TAPE DECK
"
WORLD AC POWER"
SOLD 2/17/17
SHIPPED TO UNIVERSITY OF MICHIGAN


ü  Our technician has completely gone through and 'Certified' this unit.

ü  We have completely and extensively gone through the mechanicals and electronics of this unit.

ü  Entire transport was disassembled down to the chassis, and every mechanical part was disassembled, cleaned, re-lubed and reassembled (this is a VERY difficult deck to work on, especially considering any adjustments to the 'top layer', as the face plate has to remain partially attached while working on it (kind of like only being able to lift the hood a few inches on your car to change the plugs)



ü Tape Tension arms disassembled, cleaned and re-lubed, and their springs adjusted and had fresh 500,000 grade silicone lube gel applied

ü pinch-roller mechanism completely disassembled, cleaned and re-lubed,

ü PR mechanism solenoid mounts adjusted

ü Capstans / flywheels removed, bushings and axels cleaned and re-lubed and flywheels burnished (see photos above)

ü Capstans burnished

 ü  Rubber pinch roller re-conditioned

ü  Brand new MAIN drive belt installed

ü  Brand new counter belt installed

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Brakes adjusted on fast wind modes also (optimized for 7" tape.)

ü Back tension adjusted on both reel motors.

ü All three motors test perfectly. Following above adjustments, Reel Start and Stop tested at beginning, middle and end of 7" tapes

ü Internal pots, switches and controls cleaned and tested for noise-free function (initially, of course, had typical static / noise which is to be expected in an 'un-serviced' deck after 35+ years).

ü We adjusted the VU meters mechanically and electronically w/ factory test tone tapes, as well as the internal playback levels for both directions independently and record levels.

ü Both spindles in perfect alignment.

ü We also adjusted the reel table heights.

ü Heads in great shape as well, with many years of performance left in them.

ü  BOTH direction Playback and Record Head alignment / azimuth was adjusted for peak performance with factory test tone tape and oscilloscope.

ü Speed tested to 99.7% accuracy following refurb (meaning that our 'verified' 1000Hz test tape now plays back at 1003Hz).

ü Adjusted to record a @ -3dB @ 1kHz on normal bias tape. In a 'real world' recording situation, we experienced an average of -5dB with 'High Bias' tape (trying 4-5 types)

ü Floor noise measured at >-60dB w/ blank tape, L&R

ü This Teac A-4300SX functions, plays, and records VERY WELL (and we really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy).  (Total time investment in refurb / testing ~ 11.5 hours).

Face is beautiful, brushed, Stainless Steel and case is in great condition. Deck looks NEW and works great!

The Teac A-4300SX Stereo Reel to Reel tape deck. Ready to GO! This is one of the few reel to reel decks we get in that make it to our finished page. Great performer. If you're looking for a reel to reel deck to "actually use" here you go. Only about 25 % of the used Reel decks out there can be "practically" restored to working order. This one made it through with flying colors after about 11.5 hours of bench time.

The deck tests great! Looks and sounds great too! We have completely gone through it. Will play 3", 5" & 7" reels.

Teac A-4300SX Features include:


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?




As stated earlier we have completely gone through it cleaning heads and all else, lubing, adjusting, reconditioning pinch rollers and other rubber parts, demagnetizing heads and entire transport and testing everything. Tape speed tested and resulted in 99.7% accuracy using a 1000 Hz test tape. Plays and records Exceptionally well (and we really put them through the paces, testing both with well mixed CD material and CD test tones looking for correct head Azimuth, tape speed accuracy and making test recordings). Pinch rollers and heads all in GREAT condition!!! Face is made of beautiful, brushed, stainless steel and looks great. Very clean and looks near new. Unit looks GREAT!

From the original brochure;
“Automatic

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


)"

Teac A-4300SX
Specs / Specifications from the owners manual as follows:

Head / Head-stack Format: 4
Motors: 1x D
HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


Reel Size: 3”, 5”, & 7” (3” & 5” reels may not ‘brake’ correctly as deck is optimized for 7” reels)
Wow and Flutter: 0.xx
S/N ratio: xx dB
THD: xx% @  1kHz & 19cms
Crosstalk: >xxdB @ 125Hz
Channel separation: >xxdB @ 1kHz
Erasing coefficient:
>xxdB @ 1kHz

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?



2 VU-meters: dB (-20 to +3)

Line; xxxmV /xxk

Output Level Reference / Maximum: Line; .xV / 10k
Headphones; ~xxmV / 8 , 1/4" / 6mm diam. jack
Fast Wind Time: xx sec for 1800'

This is a GREAT looking deck and is mounted in the originally, optional, 'REAL WOOD VENEER' side panels.  Again, following above extensive tech work, it works fabulously!!!

All of our restored / refurbished reel to reel decks come with a 7", plastic take-up reel, a 'known good' 7" tape for initial testing of playback, and a 7" tape you can record onto, all to assist you in becoming familiar with the operation / function of your new reel to reel tape deck.
Measures 17.5" wide x 19.25" tall x 8.5" (from tip of back feet-tip of hubs) deep and weighs 51 lbs unpacked. Comes with an 'e-copy' / pdf download of the TEAC Teac A-4300SX
owners / operations manual, service manual and original brochure if purchaser so desires. Includes our standard 30 day limited warranty.
(Reels & tape shown in photos not included. All are sometimes available separately if you need them. We do ship our decks with a plastic take-up reel, a tape to 'practice record' on and a 'pre-recorded' tape for playback.)
Teac A-4300SX
Cond.
8.5

SOLD 2/17/17
SHIPPED TO UNIVERSITY OF MICHIGAN


(Reels shown in photos are not included, but we sometimes / occasionally have them for sale. Inquire at time of order.)


 (Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)





Teac_A-6010_AR-60_Reel-Reel_Tape_Deck_web.jpg (40730 bytes)     Teac_A-6010_AR-60_Reel-Reel_Tape_Deck_Front_collage.jpg (232301 bytes)     Teac_A-6010_AR-60_Reel-Reel_Tape_Deck_Rear_views_collage.jpg (105349 bytes)

TEAC A-6010 / AR-60

SOLD



NEW LISTING 11/26/19
(Click on above thumbnails to enlarge photos)
RESTORED / REFURBISHED / FULLY SERVICED
VINTAGE TEAC REEL TO REEL TAPE DECK
TEAC A-6010
4-TRACK / 2-CHANNEL STEREO or 4-TRACK / 1-CHANNEL MONO
3-HEAD / 3-MOTOR
 2-SPEEDS
1/4" REEL TO REEL
DUAL PB HEAD AUTO-REVERSE TAPE RECORDER

#...3839
Circa 1973-76
SOLD 1/14/20
SHIPPED TO PAUL IN VIRGINIA

ü Our technician has completely gone through and 'Certified' this unit.

ü We have completely and extensively gone through the mechanicals and electronics of this unit.

ü Entire transport was disassembled down to the chassis, and every mechanical part was disassembled, cleaned, re-lubed and reassembled including; Both Tape Lifters, Pinch Roller Pivot Arm, EOT Sensor Arm, Left Tape Tension arm mechanism, Capstan Motor (clean and re-lube), Capstan and flywheel shaft removed cleaned / re-lubed (pretty much every moving part)

ü Tape Tension arms disassembled, cleaned and re-lubed, and their springs adjusted



ü Removed 4 shims to correct take-up reel table height to eliminate reel, rim scrape.

ü pinch-roller 'arm' mechanism completely disassembled, cleaned and re-lubed

ü Capstan / flywheel removed, bushings and axles cleaned and re-lubed and flywheels burnished

ü Capstan motor pulley burnished

ü Capstan burnished

ü Rubber pinch roller removed and re-conditioned

ü New MAIN drive belt, #FR13.4 installed

ü Brand new counter belt, #153 installed

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Brakes adjusted on fast wind modes at ALL points thru a tape. It's a fine line between having the brakes actuate with too much tension, 'abruptly' stopping the tape (risking stretching / breaking of tape) or too loose (allows tape to 'dump'). (VERY difficult to do on this series). Brakes optimized for 7" reels.

ü Back tension adjusted on both reel motors.

ü All three motors test perfectly. Following above adjustments, Reel Start and Stop tested at beginning, middle and end of 7" reels.

ü Internal pots, switches and controls cleaned and tested for noise-free function (initially, of course, had typical static / noise which is to be expected in an 'un-serviced' deck after 35+ years).

ü External / User adjustable pots, switches and controls cleaned on the playback / record amp and tested for noise-free function

ü Following it's initial refurb, we were not able to get the internal Record Level to record at "zero dB" without having the internal PC mounted pots maxed, and the 'Input Level' pot maxed. We had another AR-60 PB / REC amp section at the shop, swapped it in, did all the calibration steps again, and it worked great (Just FYI; the "AR-60" is the entire bottom third section of the deck. Yes, that 'chewed-up' a potentially valuable electronic part, but was the only 'practical' way we could get the deck to our level of standards.
- YES, we're that thorough and committed, which should tell you a lot about purchasing a 40 year old R2R from 'just anybody'. -

ü Replaced one VU meter

ü Checked / replaced VU meter lamps / bulbs

ü We adjusted the VU meters mechanically and electronically w/ factory test tone tapes, as well as the internal playback levels for both directions independently and record levels (required changing out one of the meters, for another OEM unit).

ü We adjusted the output, 'Minimum Input', 'Specified Input', 'Record Level' and 'Bias' all to spec, then further adjusted 'Bias' for Ampex GM-456

ü Both spindles in perfect alignment.

ü Heads in great shape as well, with many years of performance left in them

ü Playback and Record Head alignment / azimuth was adjusted for peak performance with factory test tone tape and oscilloscope.

ü Speed tested to 99.3% accuracy following refurb (meaning that our 'verified' 1000Hz test tape now plays back at 993Hz).

ü Adjusted to record VERY WELL. Biased for Ampex GM 456 studio tape with the following results w/ Output control ~"2:00 PM":
1kHz recorded @ 0dB resulted in PB @ 0dB
10kHz recorded @ 0dB resulted in PB @ +3dB
15kHz recorded @ 0dB resulted in PB @ 0dB
17.5kHz recorded @ 0dB resulted in PB @ -6dB

ü 'Real World, DDD CD recorded actually seems to have better 'top end' than the original w/ GM456. Tech notes;
"this thing records amazingly well!!!".

ü Floor noise measured at >-60dB w/ blank tape, L&R

ü This TEAC A-6010 functions, plays, and records VERY WELL (and we really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy).  (Total time investment in refurb process / and final testing ~ 30 hours).

Face is beautiful, brushed, Stainless Steel and case is in great condition. Deck looks near new and works great!

The TEAC A-6010 Stereo Reel to Reel tape deck. Ready to GO! This is one of the few reel to reel decks we get in that make it to our finished page. Great performer. If you're looking for a reel to reel deck to "actually use" here you go. Only about 25% of the used Reel decks out there can be "practically" restored to working order. This one made it through with flying colors after about 30 hours of bench time.

Following mechanical / electronic refurb, entire unit was cosmetically detailed inside and out. Face is made of beautiful brushed Stainless Steel and is dent free and in great condition. Cabinet covered in real Walnut wood veneer, is in great condition with just a few 'battle scars' (see photos above) and just had a fresh coat of lemon oil. Deck looks and sound great!
   ____________________________

Looks great & "Ready-to-go"  TEAC -6010 Stereo Reel to Reel tape deck. These were later, bigger brother to the A-4010, probably the most sold R2R ever made by anybody. Just about everyone that was stationed overseas in the military during Viet Nam came back with an A-4010. The fortunate few came back with the A-6010 (a few 'better specs'). The "A-6010" was included in TEAC's 'Professional Line'. Unfortunately of course, 40 years has not been kind to Teac Reel decks (or any electro-mechanical devices that are 20 years old or older). The internal lubes were never meant to last that long, certainly without maintenance, and 'rubber' doesn't 'age well' either, thus requiring the above stated work. Ready to go now. Will play & Record stereo 1/4" tapes on reels up to 7". This is one of the few reel to reel decks we get in that make it to our finished page. If you're looking for a reel to reel deck to "actually use" then here you go. Only about 25% of the used Reel decks out there can be "practically" restored to working order. This one made it through. Playback & transport functions test great and records well! Looks and sounds great too!



HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?




This is only the second Teac A-6010 we have had in ~24 years. Great machine for playback / archiving your tapes to CD or Hard Drive or for recording new tapes. This is a beautiful deck. Performs incredibly well following refurbishing. With the exception of the above mentioned 'dings' on the wood housing it's all including the face, knobs, covers and all cosmetics fabulous! Measures 17.5" wide x 20.78" tall x 8.25" (from tip of back feet-tip of hubs) deep and weighs 52 lbs unpacked. Includes a set of 'fresh' spindle stoppers / reel clamps. Comes with a pdf 'e' copy of TEAC A-4010S owners manual and schematic (same unit with slightly lower specs). Can include the TEAC A-6010 Service Manual pdf 'e' download if you wish as well. Includes our standard 30 day limited warranty.

 (Reels & tape shown in photos not included. All are sometimes available separately depending on stock levels.)

 TEAC A-6010 REEL TO REEL TAPE DECK
Cond. 8.5+

SOLD 1/14/20
SHIPPED TO PAUL IN VIRGINIA


(Reels shown in photos are not included, but we sometimes / occasionally have them for sale. Inquire at time of order.
However, all of our decks will come with 2x tapes for testing 'Playback' and 'Recording' as well as a 7" 'take-up' reel, and RCA patch cables for connection to your system)



 (Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)











NEW LISTING 1/24/19

(Click on above thumbnails to enlarge photos)
VINTAGE TEAC REEL TO REEL TAPE DECK
TEAC A-6010 GSL
4-TRACK / 2-CHANNEL
STEREO
3-HEAD / 3-MOTOR
 2-SPEEDS
1/4" REEL TO REEL
DUAL PB HEAD AUTO-REVERSE TAPE RECORDER
#...3591
Circa 1973-76
SOLD
SHIPPED TO JOE IN NORTH CAROLINA

ü Our technician has completely gone through and 'Certified' this unit.

ü  We have completely and extensively gone through the mechanicals and electronics of this unit.

ü Entire transport was disassembled down to the chassis, and every mechanical part was disassembled, cleaned, re-lubed and reassembled

ü Tape Tension arms disassembled, cleaned and re-lubed, and their springs adjusted and had fresh 300,000 grade silicone lube gel applied

ü pinch-roller mechanism completely disassembled, cleaned and re-lubed,

ü
 PR mechanism solenoid mounts adjusted

ü Capstans / flywheels removed, bushings and axels cleaned and re-lubed and flywheels burnished

ü Capstan motor pulley burnished

ü Capstans burnished

ü Rubber pinch roller removed and re-conditioned

ü New MAIN drive belt sourced and installed

ü Brand new counter belt installed

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Brakes adjusted on fast wind modes also (optimized for 7" reels.)

ü Back tension adjusted on both reel motors.

ü All three motors test perfectly. Following above adjustments, Reel Start and Stop tested at beginning, middle and end of 7" reels.

ü Internal pots, switches and controls cleaned and tested for noise-free function (initially, of course, had typical static / noise which is to be expected in an 'un-serviced' deck after 35+ years).

ü External / User adjustable pots, switches and controls cleaned on the playback / record amp and tested for noise-free function

ü Following it's initial refurb, we discovered that it was recording about 6dB down on one channel, and would intermittently have distortion on playback of one side (rarely, but would happen if you listened long enough). We traced both problems to issues with the PB / REC amp section, so after a few months of searching was able to source another original. Once received, we then put the deck and the new amp through the shop and did all the final adjustments to it.
YES, we're that thorough, which should tell you a lot about purchasing a 40 year old R2R from 'just anybody'.


ü We adjusted the VU meters mechanically and electronically w/ factory test tone tapes, as well as the internal playback levels for both directions independently and record levels.

ü We adjusted the output, 'Minimum Input', 'Specified Input', 'Record Level' and 'Bias' all to spec, then further adjusted 'Bias' for Ampex GM-456

ü Both spindles in perfect alignment.

ü We also adjusted the reel table heights.

ü Heads in great shape as well, with many years of performance left in them

ü Playback and Record Head alignment / azimuth was adjusted for peak performance with factory test tone tape and oscilloscope.

ü Speed tested to 99.8% accuracy following refurb (meaning that our 'verified' 1000Hz test tape now plays back at 1002Hz).

ü Adjusted to record VERY WELL. Biased for Ampex GM 456 studio tape with the following results:
1kHz recorded
@ 0dB resulted in PB @ -1dB
10kHz recorded
@ 0dB resulted in PB @ -3dB
Pink Noise recorded
@ -3dB resulted in PB @ -0.5dB
Pink Noise recorded
@ -7dB resulted in PB @ -0.5dB

'Real World, DDD CD recorded at 0-+5dB = 0dB down


ü Floor noise measured at >-60dB w/ blank tape, L&R

ü This TEAC A-6010GSL functions, plays, and records VERY WELL (and we really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy).  (Total time investment in refurb / testing ~ 28 hours).

Face is beautiful, brushed, Stainless Steel and case is in great condition. Deck looks and works great!

The TEAC A-6010GSL Stereo Reel to Reel tape deck. Ready to GO! This is one of the few reel to reel decks we get in that make it to our finished page. Great performer. If you're looking for a reel to reel deck to "actually use" here you go. Only about 25% of the used Reel decks out there can be "practically" restored to working order. This one made it through with flying colors after about 24 hours of bench time.

Following mechanical / electronic refurb, entire unit was cosmetically detailed inside and out. Face is made of beautiful brushed Stainless Steel and is dent free and in great condition. Cabinet covered in real Walnut wood veneer, is in great condition and just had a fresh coat of lemon oil. Deck looks and sound great!
   ____________________________

Looks great & "Ready-to-go"  TEAC -6010GSL Stereo Reel to Reel tape deck. These were later, bigger brother to the ...


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


. Unfortunately of course, 40 years has not been kind to Teac Reel decks (or any electro-mechanical devices that are 20 years or older). The internal lubes were never meant to last that long, certainly without maintenance, thus requiring the above stated work. Ready to go now. Will play &...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


. Only about 25% of the used Reel decks out there can be "practically" restored to working order. This one made it through. Playback & transport functions test great and records well! Looks and sounds great too!

TEAC A-6010GSL Features include:


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


controls on the front)


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?




TEAC A-6010GSL Specifications as follows:

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?



This is the first Teac A-6010GSL we have had in 24 years.

 This is a beautiful deck. Performs incredibly well following refurbishing. Case, face, knobs and all cosmetics fabulous! Measures 17.5" wide x 20.78" tall x 8.25" (from tip of back feet-tip of hubs) deep and weighs 52 lbs unpacked. Includes a set of 'fresh' spindle stoppers / reel clamps. Comes with a pdf 'e' copy of TEAC A-6010GSL owners manual and brochure. Can include the TEAC A-6010GSL Service Manual pdf 'e' download if you wish as well. Includes our standard 30 day limited warranty.
 (Reels & tape shown in photos not included. All are sometimes available separately depending on stock levels.)

 TEAC A-6010 GSL REEL TO REEL TAPE DECK
Cond. 8.5

SOLD
SHIPPED TO JOE IN NORTH CAROLINA

(Reels shown in photos are not included, but we sometimes / occasionally have them for sale. Inquire at time of order.
However, all of our decks will come with 2x tapes for testing 'Playback' and 'Recording' as well as a 7" 'take-up' reel, and RCA patch cables for connection to your system
)



 (Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)







NEW LISTING 3/14/05
(Click on above thumbnails to enlarge photos)

PRE-OWNED
TEAC A-6100
2-TRACK / 4-TRACK
 STEREO
4-HEAD / 3-MOTOR /
2-SPEED
1/4" REEL TO REEL
STEREO MASTERING TAPE DECK
Circa 1973-76
SOLD 3/14/05














            NEW LISTING 7/15/2021
(click on above thumbnails to enlarge photos)
RESTORED / REFURBISHED / FULLY SERVICED / WARRANTED
TEAC OPEN REEL TO REEL TAPE RECORDER
10.5" / 1/4" STEREO TAPE DECK
TEAC A-6300 REEL TAPE DECK
#...0910
4-TRACK / 2-CHANNEL
2-SPEED / 3 HEAD
*AUTO-REVERSE
5" / 7" / 10.5" (THE BIG ONES) REEL CAPACITY
  Circa 1974-77
MIJ

SOLD 10/20/2021
SHIPPING TO SCOTT IN WASHINGTON


ü
Our technician has EXTENSIVELY gone through and 'Certified' this unit.

ü
 We have completely and extensively gone through the mechanicals and electronics of this unit.

ü Entire transport was disassembled down to the chassis, and every 'moving' mechanical part was cleaned, re-lubed and reassembled.

ü Tape Lifters’ completely disassembled, cleaned and re-lubed

ü Tape Lifters & Guide pins rotated 180 degrees to expose original, factory surface to tape (won't scratch surface of tape like worn pins will)

ü Head block removed, burnished and de-mag'd

ü Pinch-roller ‘Lift Mechanism’ completely disassembled, cleaned and re-lubed

ü E.O.T. arm completely disassembled, cleaned and re-lubed

ü PR mechanism solenoid mounts adjusted

ü Capstans / flywheels removed, bushings and axels cleaned and re-lubed

ü Capstans burnished

ü Rubber pinch roller reconditioned on lathe then cleaned with Rubber Re'nue

ü Brand new, FRM14.4 MAIN drive belt installed

ü Brand new, #050 counter belt installed

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Power supply CB checked, adjusted and verified to correct VDC which enables proper and certainly best performance from Cap motor, Playback and Record amp circuits

ü *Back tension adjusted via VR 18 and VR 19 A&B on both reel motors w/ vertical gram scale. * While we checked and adjusted where necessary, the back tension on the reel motors, we were only able to get 10.5" reels to play in reverse adequately with the "Reel Size" selector set for "small reels" ("small" position adds more reverse voltage to supply motor, thus reducing the chance of the tape 'walking' off the pinch roller edge).

ü Reel motor start / run capacitors healthy

ü 5.0 hours; Capstan motor removed, disassembled, cleaned, installed new foam lube retainers and lubed with 30W (no, simply adding oil to the oil tubes does not work nor quiet down a motor after 40 years. It has to be disassembled). Runs quiet now.

ü All three motors test perfectly. Following above adjustments, Reel Start and Stop tested at beginning, middle and end of 7" and 10.5" tapes

ü Brakes adjusted on fast wind modes on both 7.5” and fully loaded 10.5” reels from top speed, with tape at 95% either side

ü Both spindles now in perfect alignment.

ü We also adjusted the reel table heights.

ü Internal pots, switches and controls cleaned and tested for noise-free function.

ü 13.0 hours; EXTENSIVELY (about 13 hours on this step alone) spent time on calibrating internal levels for Line Input, Playback Levels, Meter Levels (both mechanically and electronically), Record Levels, Record Bias and EQ for using Ampex GM456 and Maxell 35-90 UD tape. (BTW: if you're ever working on an "A-6300", the original service manual does not give you your starting point for "input" calibration, and you'll need to get that from the SM for the TEAC A-2340R or other deck that includes. We had to research many service manuals to get the information to start correctly)

ü Heads have no appreciable wear.

ü 4.5 Hours: BOTH direction Playback and Record Head alignment / azimuth was adjusted for peak performance with factory test tone tape and oscilloscope.

ü Recording tests performed with Ampex GM456 and Maxell UD (Gold / Black) Tapes.
Here’s the results;

GM 456 @ 7.5ips. White Noise @ 0dB = -5dB L & -1.5dB R with minor artifacts
GM 456 @ 7.5ips. 1kHz @ 0dB = -5dB L & -1.5dB R with minor artifacts
GM 456 @ 7.5ips. White Noise @ -10dB = -10 (zero dB loss) dB L & R with minor artifacts
GM 456 @ 7.5ips. Recorded program from "ddd" source @ 0dB sounds great. Tape is actually a bit 'punchier' then source and brighter (in a good way)


ü Floor noise measured at -56 dBV

ü Unit painstakingly detailed cosmetically. Face removed and re-burnished, then cleaned with cleaning wax.

ü Veneer chips repaired to walnut side panels and oiled with Lemon oil.

ü New felt added to bottom edges of walnut side panels

ü This TEAC A-6300 functions, plays, and records VERY WELL (and we really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy).  (Total time investment in refurb / testing ~ 34.5+ hours).

ü Face is made of beautiful brushed Stainless Steel. Deck looks and following it's extensive service, now works great!
____________________________

Looks GREAT & is "Ready-to-go"! This is the firstTEAC A-6300 Stereo Reel to Reel tape deck we ever had in over two and a half decades. Will play / record stereo 1/4" tapes on reels 5, 7 & 10.5". This is one of the few reel to reel decks we get in that make it to our finished page. Great performer. This one made it through and all
* functions test great! If you're looking for a reel to reel deck to "actually use" here you go. Only about 30-50% of the used Reel decks out there can be "practically" restored to working order. Heads have no appreciable, visible wear, check the record test results above, evidence they’re in fine shape! Following extensive service and alignment, both mechanically and electronically, recordings sound FANTASTIC on this unit now. Looks and sounds great too!
Again, we have completely gone through it and it's ready to go!

TEAC A-6300 Features include:
...


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

- Real Wood veneer side panels


TEAC A-6300 Specifications:
...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

...Tape & 10.5" reel:
~ 160 sec.


This is the same deck that our senior tech has owned for years, so he was very familiar with it when performing the service work.

Includes our normal accessory kit that includes a 'PlayBack Demo' made on the deck, a 7" plastic take-up reel, and a couple of other assorted 7" tapes to play with.
Includes a pdf / 'e-copy' download of the TEAC A-6300 Owners manual, and if desired, a copy of the TEAC A-6300 Service manual. Measures 19.75" high x 17.5" wide x 8.5" deep and weighs 52 lbs unpacked. Includes our standard 30 day limited warranty.
TEAC A-6300, #0910 Reel to Reel Tape Deck
Cond. 8.5

$2499.
SOLD 10/20/2021
SHIPPING TO SCOTT IN WASHINGTON


(Reels shown in photos are not included, but we sometimes / occasionally have them for sale. Inquire at time of order.
However, all of our decks will come with 2x tapes for testing 'Playback' and 'Recording' as well as a 7" 'take-up' reel, and RCA patch cables for connection to your system)


 (Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)









NEW LISTING 2/12/08

(Click on above thumbnails to enlarge photos)
VINTAGE / REFURBISHED
TEAC C-3
#...7601

3-HEAD / RACK MOUNTABLE
STEREO
TEAC CASSETTE TAPE DECK
With DOLBY NR
AND
dbx OPTION
"WORLD AC POWER"
SOLD 2/29/08





NEW LISTING 5/25/18
(Click on above thumbnails to enlarge photos)

VINTAGE AND FULLY SERVICED
TEAC CASSETTE TAPE DECK
'PRO-SUMER'
TEAC C-3X
THREE-HEAD, 2-SPEED
RACK MOUNTABLE

#...9003
With DOLBY HX NR
MADE IN JAPAN!
Circa 1980-83

 6/12/18
SHIPPING TO OREGON


ü Our technician has completely and EXTENSIVELY gone through and 'Certified' this unit which involves complete removal and disassembly of the entire transport, cleaning inside and out, DISASSEMBLING, cleaning and re-lubricating all internal mechanisms and the balance of efforts listed below.

ü Heads inspected for excessive wear (obviously we do this 'early on' as 'excessive' wear will usually negate any further restoration work). These have virtually NO visible wear to them.

ü Capstan motor spindle bushing re-lubed

ü Capstan burnished

ü Internal DC power supply tested

ü 2X NEW, Custom crafted / modified, 'reel drive' installed for years of trouble-free service. (These are actually much more important to replace on this deck (and most) than the belts. Without these, the deck won't fast wind very well, and will likely 'eat tapes' as the 'take-up' reel won't turn properly)

ü All new internal Drive and Counter belts installed for trouble-free service.

ü Rubber pinch rollers have been reconditioned

ü Both Flywheel 'belt surfaces' solvent cleaned

ü Bronze Flywheel bushings solvent cleaned

ü Both Flywheel thrust pads cleaned

ü Entire flywheel assemblies re-lubed upon re-assembly

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü New Tape well lamp installed.

ü Head alignments and azimuth at 125Hz, 1kHz and 10kHz adjusted for 'peak performance' with O-Scope and original TEAC alignment tape

ü All internal pots, switches and controls cleaned and tested for noise-free function.

ü Both spindles in perfect alignment.

ü FF, REW, & Play transport functions all test perfectly and controls tested for 'positive / accurate' responsive.

ü 'Silicone Damped' Eject door operates smoothly.

ü Tape Counter Function tested

ü Dolby NR circuits / function tested

ü 'Memory / Zero Return' function tested

ü Heads are in great condition

ü Internal playback levels adjusted for even playback w/ alignment tape, Oscilloscope, and mVAC meter

ü Playback meters adjusted for 'playback' zero'd with factory test tone tape.

ü Internal Record amplifier channels adjusted for 'even output'

ü Pinch roller and heads all in GREAT condition!!!

ü Overall floor noise measured at >-60dB.

üSpeed adjusted internally to 100% accuracy BOTH directions, with 1kHz factory calibration tape and frequency counter (meaning 1kHz calibration tape plays back at 1000Hz +/- 2Hz)

ü Plays great and after adjustment, records AMAZINGLY well w/ following results;
With Pink Noise recorded at 0dB w/o Dolby engaged; -0dB on Maxell UDXL-II / High Bias tapes


Bottom line is this deck sounds amazing for playback or recording (always make sure you're playing back 'good quality' tape recordings)
Total technician time to restore 15+ HOURS!

____________________________

The Teac C-3X, 2-SPEED & 3-HEAD, Stereo Cassette Tape Deck. Great deck for a...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Teac C-3X Features include:


- Three Heads to
...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

...on playback
- Dual Analog
...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

...
Headphone jack
- Timer Play / Record function.
- Multi-pin port on rear panel for any optional dBx NR unit (not included)
- Multi-pin port on rear panel for optional wired remote, (remote not included)

Teac C-3X Specifications:

Track format:
4 track / 2 channel
Motors:
 2
...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?
...
kHz w/ 'High Bias' tape & @ 'High Speed'
(There are a multitude of frequency response curves in the service manual and were not practical to illustrate here)

Wow & Flutter (WRMS):
xxx% WRMS @ 'High Speed' & 0.x% WRMS @ Normal Speed
Tape Speeds:
1-7/8 ips & 3.75 ips
Harmonic Distortion / THD: >x0% @ 1kHz & 0dB (High Bias Tapes)
Preset Bias frequency (if you select from 'user' adjustability): 100kHz +/- 5kHz
S/N ratio:
>xxdB w/ Dolby dis-engaged (and High Bias Tapes @ High speed)
...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

>53dB w/ Dolby dis-engaged (and Normal Bias Tapes @ High speed)
(S/N is improved by
...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Channel Separation: >35dB @ 1kHz
Adjacent Track Crosstalk: >40dB @ 125Hz


Again, we have completely cleaned, refurbished / serviced and thoroughly tested this Teac C-3X cassette tape deck.
Makes fabulous recordings. Also great for transferring your no NR or Dolby B NR encoded tape collection to CD, Hard-drive or MP3 especially with the 'Tape EQ' selector for 'fine tuning' older tapes. Built very well! Looks like new, works perfectly and sounds fabulous. Due to it's size, overall feel, the 'input controls' and the 'transport control' this deck really is a blast to use. Measures 19.5" wide x 15" deep x 5.75" tall and weighs a heavy 20 lbs unpacked.
Includes our standard 30 day limited warranty.
TEAC C-3X
Cond. 8.5
w/ Rack Mount Ears
 6/12/18
SHIPPING TO OREGON

(tape shown in photos not included. We do ship our decks with a  a 'pre-recorded' tape for playback, made on this 'specific' deck, and a tape to 'practice record' on.)

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)















NEW LISTING 12/29/17
 (Click on above thumbnails to enlarge photos)
VINTAGE AND FULLY SERVICED
TEAC CASSETTE TAPE DECK
HUGE
TEAC CX-650R
AUTO-REVERSE W/ 'BI-DIRECTIONAL RECORDING'

#...7598
With DOLBY NR
MADE IN JAPAN!
Circa 1980-82

 1/17/18
SHIPPING TO CALIFORNIA


ü Our technician has completely and EXTENSIVELY gone through and 'Certified' this unit which involves complete removal and disassembly of the entire transport (not an easy task on this deck), cleaning inside and out, DISASSEMBLING, cleaning and re-lubricating all internal mechanisms and the balance of efforts listed below.

ü Heads inspected for excessive wear (obviously we do this 'early on' as 'excessive' wear will usually negate any further restoration work).

ü Head rotating gear inspected with a jewelers loop prior to starting any restoration work, and found to be 'hairline' crack free.

ü Capstan motor spindle bushing re-lubed

ü Capstan burnished

ü Internal 23VDC power supply tested to 23.2Volts

ü 2X NEW, Custom made, 'reel drive' tires installed for years of trouble-free service. (These are actually much more important to replace on this deck (and most) than the belts. Without these, the deck won't fast wind very well, and will likely 'eat tapes' as the 'take-up' reel won't turn properly)

ü All new internal Drive and Counter belts installed for trouble-free service.

ü Rubber pinch rollers have been reconditioned

ü Both Flywheel 'belt surfaces' solvent cleaned

ü Bronze Flywheel bushings solvent cleaned

ü Both Flywheel thrust pads cleaned

ü Entire flywheel assemblies re-lubed upon re-assembly

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Head alignments and azimuth at both 1kHz and 10kHz adjusted for BOTH directions for 'peak performance' with O-Scope

ü All internal pots, switches and controls cleaned and tested for noise-free function.

ü Both spindles in perfect alignment.

ü FF, REW, & Play transport functions all test perfectly and controls tested for 'positive / accurate' responsive.

ü 'Silicone Damped' Eject door operates smoothly.

ü Tape Counter Function tested

ü Dolby NR circuits / function tested

ü 'Memory / Zero Return' function tested

ü Heads are in great condition

ü Internal playback levels adjusted for even playback w/ alignment tape, Oscilloscope, and mVAC meter

ü Playback meters adjusted for 'playback' zero'd with factory test tone tape.

ü Internal Record amplifier channels adjusted for 'even output'

ü Pinch roller and heads all in GREAT condition!!!

ü Overall floor noise measured at >-60dB.

üSpeed adjusted internally to 100% accuracy BOTH directions, with 1kHz factory calibration tape and frequency counter (meaning 1kHz calibration tape plays back at 1000Hz +/- 1Hz)

ü Cosmetically, the deck and the 'wood grain wrapped' case / cabinet looks NEAR NEW!

ü Plays great and after adjustment, records AMAZINGLY well w/ following results;
With Pink Noise recorded at 0dB w/o Dolby engaged; -2dB on Maxell UDXL-II / High Bias tapes
With 1kHz recorded at 0dB with Dolby engaged; -0.3dB on Maxell UR (normal bias) tapes
With 'ddd' CD recorded at 0dB with Dolby engaged; -2dB on Maxell UDXL-II / High Bias tapes
With 'ddd' CD recorded at 0dB with Dolby engaged; -1.5dB on Maxell UR (normal bias) tapes
With 'ddd' CD recorded at 0dB w/oDolby engaged; -3dB on Maxell UR (normal bias) tapes

Bottom line is this deck sounds amazing for playback or recording (always make sure you're playing back 'good quality' tape recordings)
Total technician time to restore 10+ HOURS!
____________________________

The Teac CX-650R, Auto-Reverse with...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Teac CX-650R Features include:


- Heavy duty
...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

- Multi-pin port on rear panel for optional wired remote, TEAC RC-100 (remote not included)


Teac CX-650R Specifications:

Track format:
4 ...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

...~80 Seconds for C-60 tape


Again, we have completely cleaned, refurbished / serviced and thoroughly tested this Teac CX-650R cassette tape deck.
Great for transferring your no NR or Dolby B NR encoded tape collection to CD, Hard-drive or MP3 especially with the 'Tape EQ' selector for 'fine tuning' older tapes. Built very well! Looks like new, works perfectly and sounds fabulous.
Due to it's size, overall feel, the 'input controls' and the 'transport control' this deck really is a blast to use. Comes with an 'e-copy / pdf download' of the TEAC CX-650R cassette tape deck owners / users / instruction manual. Measures 18.5" wide x 13.5" deep x 7" tall and weighs a...


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Includes our standard 30 day limited warranty.
TEAC CX-650R
Cond. 8.5+

 1/17/18
SHIPPING TO CALIFORNIA

(tape shown in photos not included. We do ship our decks with a  a 'pre-recorded' tape for playback, made on this 'specific' deck, and a tape to 'practice record' on.)

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)










NEW LISTING 12/15/2020
 (Click on above thumbnails to enlarge photos)
VINTAGE, FULLY SERVICED / REFURBISHED / RESTORED
TEAC CASSETTE TAPE DECK
HUGE
TEAC CX-650R
AUTO-REVERSE W/ 'BI-DIRECTIONAL RECORDING'
#...6614
With DOLBY NR
MADE IN JAPAN!
Circa 1980-82

SOLD 1/10/2021
SHIPPING TO JEFF IN CALIFORNIA


ü Our technician has completely and EXTENSIVELY gone through and 'Certified' this unit which involves complete removal and disassembly of the entire transport (not an easy task on this deck), cleaning inside and out, DISASSEMBLING, cleaning and re-lubricating all internal mechanisms and the balance of efforts listed below.



ü Heads inspected for excessive wear (obviously we do this 'early on' as 'excessive' wear will usually negate any further restoration work).

ü Head rotating gear inspected with a jewelers loop prior to starting any restoration work, and found to be 'hairline' crack free.

ü Capstan motor spindle bushing re-lubed

ü Capstan burnished

ü Internal 23VDC power supply tested to 23.2Volts

ü 2X NEW, 'reel drive' tires installed for trouble-free service. (These are actually much more important to replace on this deck (and most) than the belts. Without these, the deck won't fast wind very well, and will likely 'eat tapes' as the 'take-up' reel won't turn properly)

ü All new internal Drive and Counter belts installed for trouble-free service.

ü Rubber pinch rollers have been reconditioned

ü Both Flywheel 'belt surfaces' solvent cleaned

ü Bronze Flywheel bushings solvent cleaned

ü Both Flywheel thrust pads cleaned

ü Entire flywheel assemblies re-lubed upon re-assembly

ü Head 'Reverse' mechanism disassembled, cleaned of 'stiff / old' lube that was impeding movement, re-lubed and re-assembled.

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Head alignments and azimuth at both 1kHz and 10kHz adjusted for BOTH directions for 'peak performance' with O-Scope

ü All internal pots, switches and controls cleaned and tested for noise-free function.

ü Both spindles in perfect alignment.

ü FF, REW, & Play transport functions all test perfectly and controls tested for 'positive / accurate' responsive.

ü 'Silicone Damped' Eject door operates smoothly.

ü Tape Counter Function tested

ü Dolby NR circuits / function tested

ü 'Memory / Zero Return' function tested

ü Heads are in great condition

ü Internal playback levels adjusted for even playback w/ alignment tape, Oscilloscope, and mVAC meter



ü Head alignment and azimuth at 125Hz, 1kHz and 10kHz adjusted for BOTH directions for 'peak performance' with O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output for PLAYBACK..

ü Both Internal playback amplifier channels adjusted with Volt meter, O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output for PLAYBACK..

ü Meters adjusted to even zero with symmetric input with Volt meter, O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output for PLAYBACK.

ü Internal Record amplifier channels adjusted for 'even output'

ü Pinch roller and heads all in GREAT condition!!!

ü Overall floor noise measured at >-60dB.

ü Speed adjusted internally to 100% accuracy BOTH directions, with 1kHz factory calibration tape and frequency counter (meaning 1kHz calibration tape plays back at 1000Hz +/- 1Hz)

ü Cosmetically, with the exception of a couple of very minor 'corners dings', the deck and the 'wood grain wrapped' case / cabinet looks NEAR NEW!

ü Plays great and after adjustment, records well w/ following results;
With white Noise recorded at -5dB w/o Dolby engaged; -1dB on Maxell UDXL-II / High Bias tapes
With white Noise recorded at -10dB w/o Dolby engaged; 0
dB on Maxell UDXL-II / High Bias tapes
With 1kHz recorded at 0dB w/o Dolby engaged; 0dB on Maxell UR (normal bias) tapes
With 10kHz recorded at 0dB w/o Dolby engaged; -6dB on Maxell UDXL-II / High Bias tapes
With 'ddd' CD recorded at 0dB with Dolby engaged; -3.5dB on Maxell UDXL-II / High Bias tapes

Bottom line is this deck sounds amazing for playback or recording (always make sure you're playing back 'good quality' tape recordings)
Total technician time to restore 10.5+ HOURS!

____________________________

Includes our standard 30 day limited warranty.
TEAC CX-650R
Cond. 8.5++++

SOLD 1/10/2021
SHIPPING TO JEFF IN CALIFORNIA

(tape shown in photos not included. We do ship our decks with a  a 'pre-recorded' tape for playback, made on this 'specific' deck, and a tape to 'practice record' on.)

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)











             NEW LISTING 5/16/12
(Click on above thumbnails to enlarge photos)

 'VINTAGE' TEAC CASSETTE TAPE DECK
R-606X / R606X
(Essentially the same as the TEAC V-550X)
  AUTO-REVERSE
  With DOLBY B, C & dbx NR
#...0794
  Circa 1986-87
  Made in Japan
 Comes with our 30 day limited warranty.

TEAC R-606X Cassette Tape Deck / Recorder / Player

 Cond. 8.5+

SOLD 6/4/12










NEW LISTING 1/22/08
(Click on above thumbnails to enlarge photos)


TEAC BUILT REALISTIC
 TR-3000 (X-300)
 4-TRACK / 2-CHANNEL
 STEREO
 3-HEAD / 3-MOTOR
 2-SPEEDS
 3" - 7" REEL CAPACITY
 1/4" REEL TO REEL
 TAPE DECK

SOLD 1/24/08






(Click on above thumbnails to enlarge photos)

TEAC V-2RX
STEREO
TEAC CASSETTE TAPE DECK
With DBX & DOLBY
"WORLD AC POWER"
SOLD 3/2/05






             NEW LISTING 11/12/2021
 (Click on above thumbnails to enlarge photos)

FULLY SERVICED / REFURBISHED / RESTORED W/ WARRANTY
TEAC CASSETTE TAPE DECK
TEAC V-2RX
3-HEADS!
WITH DOLBY B &
dbx with IC LOGIC TRANSPORT
& 'FINE BIAS' ADJUSTMENT
#...0590
Circa early 1982-84
Made in Japan

SOLD 2/3/2022
SHIPPING TO DAVID IN TEXAS


Original issues observed (mostly the issues common with all 40 year old tape decks):
"No play movement due to perished drive belt, so due to that, unable to test further until that was addressed"

ü Our technician has completely and EXTENSIVELY gone through and 'Certified' this unit which involves total disassembly of the transport, cleaning inside and out, COMPLETELY DISASSEMBLING, cleaning and re-lubricating all internal mechanisms and the balance of efforts listed below.

ü Heads inspected for excessive wear (obviously we do this 'early on' as 'excessive' wear will usually negate any further restoration work).

ü Counter belt - NO counter belt. It's GEAR DRIVEN!!!

ü Main Capstan / Flywheel belt reconditioned.

ü Main pulley end bushing lubed.

ü Rubber pinch roller mechanism bushings & axles cleaned of old lube, reconditioned and re-lubed.

ü Capstans cleaned / burnished

ü All internal pots, switches and controls cleaned and tested for noise-free function. (Pre/Post and Tape/Source switches required disassembly and removal of front fluorescent display to access for cleaning. This step alone took 2 hours)

ü All Fluorescent displays and LED's working fine.

ü Both hub spindles in perfect alignment

ü FF, REW, & Play transport functions all test perfectly and controls tested for 'positive / accurate' responsive.

ü Heads in great shape as well, with many years of performance left in them

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Head alignment and azimuth at 125Hz, 1kHz and 10kHz adjusted for BOTH directions for 'peak performance' with O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü Both Internal playback amplifier channels adjusted with Volt meter, O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü Meters adjusted to even zero with symmetric input with Volt meter, O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü Both Internal Record amplifier channels adjusted with Volt meter, O-Scope and sine-wave generators and 'pink / white noise sources'. Both channels now even output.

ü Pinch roller and heads all in GREAT condition!!!

ü Speed adjusted to 100% accuracy BOTH directions, with with TEAC MTT-257H 1kHz factory calibration tape (meaning 1kHz calibration tape plays back at 1000Hz +/- 1 Hz. The service manual allows for an error range of +/- 23Hz! Yuck!!!)

ü Pinch roller re-surfaced, and in GREAT condition!!!

ü Playback meters zero with factory test tone tape.

ü Tape Counter and 'Memory' Function tested

ü Tape well door needed 'hinge' mechanism work

ü Speed adjusted internally to 100% accuracy with 1kHz factory test tape (meaning 1kHz calibration tape plays back at 1000Hz +/- 1Hz) (utilized TEAC MTT-257H)

ü Floor noise measured at -74dBu

Following service / fine tuning;

ü Recording tests performed with Maxell High-Bias UDXL-II (Gold / Black) Tapes.
Here’s the results;

Maxell UDXL-II: 1KhZ with No NR @ 0dB; L= 0dB & R= 0dB R with virtually no artifacts
Maxell UDXL-II: PN with No NR @ 0dB; L= -1dB & R= -1dB R
Recorded program from "ddd" source @ 0dB sounds great as well. It's nice recording on a deck that's 'dialed in' properly)


Following restoration, during one of our extensive 'post tests' we discovered that the deck was not erasing consistently. We eventually discovered that the erase head had it's own mechanism to move it, which was an originally 'lubricated' parts. Well, just as all 30+ year old lube gels and stiffens up, so had that. We then disassembled the erase head pivot arm, solvent cleaned it, lubricated it and re-assembled mechanism. Worked as intended then. This process alone added 2.5 hours to restoration. This was a mechanism somewhat different than we come across in most decks.

Total technician time to restore ~
15.5 HOURS!
  ____________________________


Comes with our 30 day limited warranty.
RESTORED / REFURBISHED / SERVICED TEAC V-2RX
Cond. 8.5++

SOLD 2/3/2022
SHIPPING TO DAVID IN TEXAS



(tape shown in photos not included. We do ship our decks with a  a 'pre-recorded' tape for playback, made on this 'specific' deck, and a tape to 'practice record' on.)

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)






Teac_V-500X_V500X_Stereo_Cassette_Tape_Deck_web.jpg (22990 bytes)   Teac_V-500X_V500X_Stereo_Cassette_Tape_Deck_collage.jpg (143076 bytes)

TEAC V-500X
TEAC CASSETTE TAPE DECK

SOLD




       NEW LISTING 5/18/09
(Click on above thumbnails to enlarge photos)

TEAC CASSETTE TAPE DECK

TEAC V-500X / V500X
#...0067

 With DOLBY B, C, DBX & DBX DISC
  Circa
mid 1980's
MIJ
SOLD 9/28/09







TEAC V-707RX CASSETTE DECK
Circa 1983-84
SOLD



Teac_V-900X_Studio_Stereo_Cassette_Tape_Deck_web.jpg (24629 bytes)   Teac_V-900X_Studio_Stereo_Cassette_Tape_Deck_collage.jpg (156234 bytes)

TEAC V-900X CASSETTE DECK

SOLD




TEAC V-900X CASSETTE DECK
SOLD






NEW LISTING 12/3/17
 (Click on above thumbnails to enlarge photos)
PRE-OWNED / REFURBISHED
TEAC CASSETTE TAPE DECK
TEAC V-900X
3-HEADS / 3-MOTORS

#...0296
With DOLBY B, C AND dbx NR
MADE IN JAPAN!
Circa 1984-85
"WORLD AC POWER"


SOLD 12/9/17
SHIPPED TO OREGON


ü Our technician has completely and EXTENSIVELY gone through and 'Certified' this unit which involves complete disassembly of the transport (not an easy task on this table), cleaning inside and out, partially disassembling, cleaning and re-lubricating all internal mechanisms and the balance of efforts listed below.

ü Heads inspected for excessive wear (obviously we do this 'early on' as 'excessive' wear will usually negate any further restoration work).

ü Entire Tape transport completely removed from chassis



ü Cam Drive belt replaced for trouble-free service.

ü Entire front face panel removed during refurb / servicing

ü All 'Transport' 'momentary micro-switches' replaced with new (very time consuming operation)

ü Rubber pinch roller reconditioned

ü Capstan burnished

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Head alignments and azimuth checked and adjusted as necessary for 'peak performance' with O-Scope

ü All internal pots, switches and controls cleaned and tested for noise-free function.

ü FF, REW, & Play transport functions all test perfectly and controls tested for 'positive / accurate' responsive.

ü Eject door operates smoothly (Eject switch requires 'pressure' on 'lower edge' to engage).

ü 'Tape Motion / Counter Sensor' lamp' replaced (otherwise transport will stop after a few seconds if this is not functioning)

ü Meters adjusted to even zero with symmetric input.

ü Speed adjusted to 100% accuracy with 1kHz factory calibration tape (meaning 1kHz calibration tape plays back at 1000Hz +/- 1Hz)

ü Tape Counter Function tested

ü Dolby B, C and dbx NR circuits tested

ü 'Memory / Zero Return' function tested

ü Heads are in 'AS-NEW' condition, with NO visible wear!

ü Pinch roller and heads all in GREAT condition!!!

ü Floor noise measured at -60dB

ü Cosmetics are in essentially NEW condition. Deck works, sounds and looks great!

ü Plays perfectly and after our adjustment, records AMAZINGLY well at overall ~ -2.5-3 dB! on High bias type tapes using Pink Noise and DDD CD material (Following the extensive restoration, we did 'test recordings' of a 'DDD' CD on 6 tapes; Sony Normal Bias, Fuji Normal Bias, TDK Normal Bias, Maxell Normal Bias, TDK 'SA' High Bias, and Maxell 'XL-II' High Bias. We found that for Normal and High Bias, of those tapes tested, both the TDK and "Maxells" performed VERY well on this particular deck. Both the Maxell's and the TDK's able to 'over saturate' on the levels. This deck sounded very good, regardless of the NR type selected (ie; No NR, Dolby B, Dolby C or dbx (my personal favorite for over 30 years). In fact, we were able to push the record levels to more than +10dB, not only with dbx (as you should be able to), but on Dolby C and Dolby B!
 Total technician time to restore ~16.5 HOURS!

____________________________

The TEAC V-900X, 3-Head / 3-Motor, Stereo Cassette Tape Deck. Great deck for doing...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

TEAC V-900X Features include:



HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


TEAC V-900X Specifications:

Track format:
4 track / 2 channel
Motors:
 3
Freq Response;
xx0Hz +/- 3db w/ Metal Tape @ xdB
Wow & Flutter (WRMS):
xx% wtd
Tape Speed:
1-7/8 ips +/-x% (but as stated above, we have adjusted to xx% accuracy!)
Harmonic Distortion <xx% @ 400Hz & 0dB (High Bias Tapes)

Again, following the above listed 16+ HOURS OF TECH TIME, this deck performs exceptionally well. Test records and plays very strong! Speed adjusted to .0001% speed accuracy (no easy task on this machine). Wow & Flutter not audibly detectable in our audio tests! Piano recordings have no detectable flutter. Deck looks great! Built...


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

 Comes with an 'e-copy' / pdf of the
TEAC V-900X owners manual.
Also includes it ORIGINAL box and packing!
Measures 17" wide x 13.5" deep x 5" tall and weighs 22 lbs unpacked. Includes our standard 30 day limited warranty.
TEAC V-900X
Cond. 8.5+++
$799.

SOLD 12/9/17
SHIPPED TO OREGON

(tape shown in photos not included. We do ship our decks with a  a 'pre-recorded' tape for playback, made on this 'specific' deck, and a tape to 'practice record' on.)

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)






Teac_V-909RX_Auto-Reverse_DBX_Stereo_Cassette_Deck_web.jpg (27269 bytes)   Teac_V-909RX_Auto-Reverse_DBX_Stereo_Cassette_Deck_collage.jpg (231287 bytes)

TEAC V-909RX CASSETTE DECK
SOLD








NEW LISTING 12/13/2022

 (Click on above thumbnails to enlarge photos)

FULLY SERVICED / REFURBISHED / RESTORED W/ WARRANTY
TEAC CASSETTE TAPE DECK
TEAC V-909RX
AUTO-REVERSE w/ STATIC 4-CHANNEL HEAD

WITH DOLBY B & dbx with IC LOGIC TRANSPORT

*GEAR DRIVEN HUBS!!!!!!!!!

#...0694
Circa early 1983-84
Made in Japan



Teac W-990RX Cassette Deck small jpg

Teac W-990RX Cassette_Deck Collage small jpg

            NEW LISTING 9/29/09
(Click on above thumbnails to enlarge photos)

PRE-OWNED / REFURBISHED
TEAC W-990RX
 CASSETTE TAPE DECK
#...0442
DUAL-WELL
 With DOLBY B, C and dbx
& DUAL-WELL RECORDING
& DUAL "QUICK" AUTO-REVERSE
& "PARALLEL" RECORDING
Circa 199
0
MIJ

SOLD 4/25/11







(Click on above thumbnails to enlarge photos)
PRE-OWNED / REFURBISHED
TEAC W-6000R
 DUAL-WELL
 STEREO

TEAC CASSETTE TAPE DECK
 With DOLBY B & C
& PARALLEL / DUAL-WELL RECORDING
& DUAL "QUICK" AUTO-REVERSE

& PITCH CONTROL

SOLD 4/13/08









ANOTHER JUST IN!
NEW LISTING
5/15/08
(Click on above thumbnails to enlarge photos)
PRE-OWNED / REFURBISHED
TEAC W-6000R
#...3185
DUAL-WELL

 STEREO

TEAC CASSETTE TAPE DECK
 With DOLBY B & C
& PARALLEL / DUAL-WELL RECORDING
& DUAL "QUICK" AUTO-REVERSE

& PITCH CONTROL

SOLD 1/18/09









NEW LISTING 1/1/19
(Click on above thumbnails to enlarge photos)
PRE-OWNED FULLY SERVICED W/ WARRANTY
TEAC 'DOUBLE' CASSETTE TAPE DECK
TEAC W-6000R
#...0266
DUAL-WELL
STEREO
CASSETTE TAPE DECK
With DOLBY B & C
& PARALLEL / DUAL-WELL RECORDING
& DUAL "QUICK" AUTO-REVERSE
& PITCH CONTROL
Circa 1991

SOLD 1/29/19
SHIPPING TO JACOB IN FLORIDA

ü Our technician has completely and EXTENSIVELY gone through and 'Certified' this unit cleaning inside and out, DISASSEMBLING, cleaning and re-lubricating internal mechanisms and the balance of efforts listed below.

ü Internal AC voltage set for 'North American' use, and Internal DC power supply tested to correct Voltages before any work commenced

ü Heads inspected for excessive wear (obviously we do this 'early on' as 'excessive' wear will usually negate any further restoration work).

ü Head rotating gears on both wells inspected with a jewelers loop prior to starting any restoration work, and found to be 'hairline' crack free.

ü Capstan motor spindle bushing re-lubed

ü Capstan burnished

ü Main Drive and Counter belts reconditioned or replaced w/ new as necessary throughout entire transport for trouble-free service.

ü All 4 Rubber pinch rollers have been reconditioned (Pinch roller assembly service alone took about 3 hours)

ü Flywheel 'belt surfaces' solvent cleaned

ü Entire flywheel assemblies re-lubed upon re-assembly

ü Replaced missing reel hub retainers

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Head alignment and azimuth at 125Hz, 1kHz and 10kHz adjusted for BOTH directions on both decks for 'peak performance' with O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü All internal pots, switches and controls cleaned and tested for noise-free function.

ü All LED's and fluorescent displays functioning well, with low current draw

ü FF, REW, & Play transport functions all test perfectly and controls tested for 'positive / accurate' responsive.

ü 'Silicone Damped' Eject door operates smoothly.

ü Tape Counter Function tested

ü Dolby NR circuits / function tested

ü 'Memory / Zero Return' function tested

ü Meters adjusted to even zero with symmetric with Volt meter, O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü Both Internal playback amplifier channels adjusted with Volt meter, O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü Meters adjusted to even zero with symmetric input with Volt meter, O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü Both Internal Record amplifier channels adjusted with Volt meter, O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü Pinch rollers and heads all in GREAT condition!!!

ü Speed adjusted to 100% accuracy BOTH directions, with 1kHz factory calibration tape (meaning 1kHz calibration tape plays back at 1000Hz +/- 1Hz)

ü Pinch roller and heads all in GREAT condition!!!

ü Overall floor noise measured at >-60dB.

ü Speed adjusted internally to 100% accuracy BOTH directions, with 1kHz factory calibration tape and frequency counter (meaning 1kHz calibration tape plays back at 1000Hz +/- 1Hz)

ü Plays great and after adjustment, records AMAZINGLY well w/ following results;

Recording Results following refurb / service, DECK 1;
ü Side A: 1kHz recorded @ 0dB with Dolby C engaged on Maxell XL-II (High bias) tapes plays back @ avg of -1dB L & R
ü Side B: 1kHz recorded @ 0dB with Dolby C engaged on Maxell XL-II (High bias) tapes plays back @ avg of -2dB L & R

Recording Results following refurb / service, DECK 2;
ü Side A: 1kHz recorded @ 0dB with Dolby C engaged on Maxell XL-II (High bias) tapes plays back @ avg of 0dB L & R!
ü Side B: 1kHz recorded @ 0dB with Dolby C engaged on Maxell XL-II (High bias) tapes plays back @ avg of 0dB L & R!

10k was down 5dB or less across the board.
White noise was down ~ 5dB recorded at -5dB and -10dB on Deck 1
White noise was down ~ 2dB recorded at -5dB and -0dB recorded at -10 on Deck 2

ü 'DDD' CD recorded at 0dB with Dolby engaged; 0 to -2dB on Maxell UDXL-II / High Bias tapes

Bottom line is this deck sounds amazing for playback or recording (always make sure you're playing back 'good quality' tape recordings)

ü Cosmetically, the deck looks near new. Just a few scratches on the rear, sheet metal panel.
Total technician time to restore
8.5+ HOURS!
____________________________

Plays perfectly and after adjustment, records well at -0dB! (and we really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy). Pinch roller and heads all in GREAT condition!!! Both level meters playback even.  Speed adjusted to 100% accuracy with 1kHz factory test tape meaning that our
1kHz test tone tape, plays back at 1kHz* on BOTH WELLS and BOTH SPEEDS! Deck looks like NEW, works and sounds great!

*
1kHz with pitch control centered!
____________________________

We commonly will not give a "dubbing" / dual well cassette deck a second look as there weren't many that were not simply two cheap decks in one box. I KNOW, as I have sold hundreds of them when new by just about every brand. I always tried to persuade anyone looking for a "real" deck, to generally avoid them and just get a good, single play deck or two single play decks. "Dubbing" decks, as a general rule just didn't have quality transports or decent specs. There were, however a handful of exceptions that combined the convenience of a dubbing deck, with quality and we have posted a few with our high quality single well decks! This Teac W-6000R is...
...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


TEAC W-6000R Features Include:


- HX-
...
...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

- Dolby B
...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?
... level controls

TEAC W-6000R Specs / Specifications:

Track format -
4
...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?
 50KOhms

 This TEAC W-6000R would be perfect for the project studio as a mastering deck or home audio system use. Especially for a "project studio" as the "Tape Mix" control practically turns it into an "all in one" studio. It allows a mix in any combination of a tape in well "1", the microphones and a Line-In signal to be recorded onto a tape in well "2". Also great for transferring your tape collection to CD, Hard-drive or MP3.  Built very well! Looks like new and sounds great. Deck includes a copy of original Teac W-6000R owners manual. Measures  17.25" wide x 13" deep x 6" tall and weighs 15 lbs unpacked. Comes with our 30 day limited warranty.

 Cond. 9++
TEAC W-6000R

SOLD 1/29/19
SHIPPING TO JACOB IN FLORIDA




(tape shown in photos not included. We do ship our decks with a  a 'pre-recorded' tape for playback, made on this 'specific' deck, and a tape to 'practice record' on.)

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)







NEW LISTING 10/13/16
(Click on above thumbnails to enlarge photos)


TEAC REEL TO REEL TAPE DECK
TEAC X-7R
#...9315

6-HEAD / 3-MOTOR
AUTO-REVERSE
REEL TO REEL
1/4" TAPE DECK
"
WORLD AC POWER"
SOLD 12/2/16
SHIPPED TO TORONTO, CANADA

ü  Our technician has completely gone through and 'Certified' this unit.
(in-fact we had both of our Senior Techs go thru it, one after the other, just to make sure we had 'all the "i's" dotted and all the "T's" crossed)

ü  We have completely and extensively gone through the mechanicals and electronics of this unit.

ü  Entire transport was disassembled down to the chassis, and every mechanical part was disassembled, cleaned, re-lubed and reassembled (this is a VERY difficult deck to work on, especially considering any adjustments to the 'top layer', as the face plate has to remain partially attached while working on it (kind of like only being able to lift the hood a few inches on your car to change the plugs)

ü Tape Tension arms disassembled, cleaned and re-lubed, and their springs adjusted and had fresh 500,000 grade silicone lube gel applied to the Kevlar strings

ü pinch-roller mechanism completely disassembled, cleaned and re-lubed,

ü PR mechanism solenoid mounts adjusted

ü Capstans / flywheels removed, bushings and axels cleaned and re-lubed

ü Capstans burnished

 ü  Rubber pinch rollers have been cleaned and re-conditioned

ü  Brand new MAIN drive belt installed

ü  Brand new counter belt installed

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Brakes adjusted on fast wind modes also (optimized for 7" tape. 5" tape will work, but will 'dump' slightly when fast winding to a complete stop)

ü Back tension adjusted on both reel motors.

ü All three motors test perfectly. Following above adjustments, Reel Start and Stop tested at beginning, middle and end of 7" tapes

ü Internal pots, switches and controls cleaned and tested for noise-free function.

ü Sheared 'Mic Input' potentiometer replaced with OEM unit

ü Replaced bent Auto Reverse contact spring

ü New Meter lamps / bulbs installed (originals still worked, but preventative maintenance)

ü We adjusted the VU meters mechanically and electronically w/ factory test tone tapes, as well as the internal playback levels for both directions independently and record levels.

ü Deck has been fully calibrated to factory manual specs, tested, and found to perform like new in all categories

ü Both spindles in perfect alignment.

ü We also adjusted the reel table heights.

ü Heads in great shape as well, with many years of performance left in them.

ü  BOTH direction Playback and Record Head alignment / azimuth was adjusted for peak performance with factory test tone tape and oscilloscope.

ü Both internal speed pots adjusted to 100% accuracy on either speed independently (with pitch control zero'd) (meaning that our 'verified' 1000Hz test tape now plays back at 1000Hz).

ü We Adjusted to record at +/-0dB on High Bias Chrome tape at 1kHz and -3dB @ 15kHz and on normal records at 0dB @ 1kHz and -8dB at 15kHz (in other words, it records VERY well)

ü Floor noise measured at <1mv w/ blank tape, L&R

ü This TEAC X-7R functions, plays, and records perfectly (and we really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy).  (Total time investment in refurb / testing ~ 19 hours between the two techs).

Face is beautiful, beige anodized, aluminum and case is in great condition. Deck looks NEW and works great!

The TEAC X-7R Stereo Reel to Reel tape deck. Ready to GO! This is one of the few reel to reel decks we get in that make it to our finished page. Great performer. If you're looking for a reel to reel deck to "actually use" here you go. Only about 30-50% of the used Reel decks out there can be "practically" restored to working order. This one made it through with flying colors after about 19 hours of bench time.

The deck tests great! Looks and sounds great too! We have completely gone through it. Will play 3", 5" & 7" reels (again, we optimized the braking for 7" reels).

TEAC X-7R Features include:


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


As stated earlier we have completely gone through it cleaning heads and all else, lubing, adjusting, reconditioning pinch rollers and other rubber parts, demagnetizing heads and entire transport and testing everything. Tape speed in both Hi and Lo speed positions have been 'internally' adjusted to 100%, "Dead-On" accuracy using a 1000 Hz test tape for the pitch control in it's 'centered' position. Plays and records Exceptionally well (and we really put them through the paces, testing both with well mixed CD material and CD test tones looking for correct head Azimuth, tape speed accuracy and making test recordings). Pinch rollers and heads all in GREAT condition!!! Face is made of ...


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


TEAC X-7R Specs from the owners manual as follows:

Head / Head-stack Format:


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Stereo / Mono
Motors: FG Sxx DC sloxx Reel Motors
Wow and Flutter: 0x% @ 7.5 ips & x4% @ 3.75 ips
Frequency Response: 3xxHz, +- 3 dB @ 7.5 ips
x0 Hz, +- 3 dB @ 3.75 ips
S/N ratio: xdB

THD: x% @  1kHz & 19cms
Crosstalk: >xxdB
Channel separation: >xxdB @ 1kHz
Erasing coefficient:
>xxdB
Recording bias Frequency:
xxkHz
Pitch-control: +/- x%
2 VU-meters: x)
Line; xxmV /xx
Output Level Reference / Maximum: Line; .xxV / x
Headphones; 4xxmV / xΩ, 1/4" / 6mm diam. jack
Fast Wind Time: xxsec for 1800'


This is a GREAT looking deck and is mounted in the originally, optional, wood grain, vinyl wrapped case. Case does have a few 'edge dings', a couple of which are decent (see photos above). Deck was also capable of being rack mounted with optional (but not avail from us) rack mounts. Again, following above extensive tech work, it works fabulously!!!
All of our restored / refurbished reel to reel decks come with a 7", plastic take-up reel, a 'known good' 7" tape for initial testing of playback, and a 7" tape you can record onto, all to assist you in becoming familiar with the operation / function of your new reel to reel tape deck.
Measures 17" wide x 14.5" tall x 10.25" (from tip of back feet-tip of hubs) deep and weighs 40 lbs unpacked. Comes with an 'e-copy' / pdf download of the TEAC X-7R owners / operations manual and service manual if purchaser so desires. Includes our standard 30 day limited warranty.
TEAC X-7R
Cond.
8.5++

SOLD 12/2/16
SHIPPED TO TORONTO, CANADA


(Reels shown in photos are not included, but we sometimes / occasionally have them for sale. Inquire at time of order.)


 (Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)











NEW LISTING
9/09/11
(click on above thumbnails to enlarge photos)


TEAC X-10R
REEL-TO-REEL
 1/4" STEREO TAPE DECK

#...6536
 4-TRACK / 2-CHANNEL
  2-SPEED / 3 HEAD / AUTO REVERSE
BI-DIRECTIONAL RECORDING

 5" / 7" / 10.5" REEL CAPACITY

  Circa 1979-8
1
SOLD 9/24/11


NEW LISTING 5/17/05
(click on above thumbnails to enlarge photos)

TEAC X-300 / X300
STEREO REEL TO REEL
TAPE DECK

SOLD 5/25/06





NEW LISTING 10/7/16
(Click on above thumbnails to enlarge photos)


TEAC REEL TO REEL TAPE DECK
TEAC X-1000R-EE 'SILVER'
3-HEAD / 3-MOTOR
dbx - EE (Extended Efficiency)
AUTO-REVERSE
REEL TO REEL
1/4" TAPE DECK
"
WORLD AC POWER"
for sale
SOLD 10/17/16
SHIPPED TO ARKANSAS

ü  Our technician has completely gone through and 'Certified' this unit.
(in-fact we had both of our Senior Techs go thru it, one after the other, just to make sure we had 'all the "i's" dotted and all the "T's" crossed)

ü  We have completely and extensively gone through the mechanicals and electronics of this unit.

ü  Entire transport was disassembled down to the chassis, and every mechanical part was disassembled, cleaned, re-lubed and reassembled.

ü pinch-roller mechanism completely disassembled, cleaned and re-lubed,

ü PR mechanism solenoid mounts adjusted

ü Capstans / flywheels removed, bushings and axels cleaned and re-lubed

ü Capstans burnished

 ü  Rubber pinch rollers have been cleaned and re-conditioned

ü  Brand new MAIN drive belt installed

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Brakes adjusted on fast wind modes also.

ü Back tension adjusted on both reel motors.

ü All three motors test perfectly. Following above adjustments, Reel Start and Stop tested at beginning, middle and end of 7" and 10.5" tapes

ü Internal pots, switches and controls cleaned and tested for noise-free function.

ü We adjusted the VU meters mechanically and electronically w/ factory test tone tapes, as well as the internal playback levels for both directions independently and record levels.

ü Deck has been fully calibrated to factory manual specs, tested, and found to perform like new in all categories

ü Both spindles in perfect alignment.

ü We also adjusted the reel table heights.

ü Heads in great shape as well, with many years of performance left in them.

ü  BOTH direction Playback and Record Head alignment / azimuth was adjusted for peak performance with factory test tone tape and oscilloscope.

ü Both internal speed pots adjusted to 100% accuracy on either speed independently (with pitch control zero'd) (meaning that our 'verified' 1000Hz test tape now plays back at 1000Hz).

ü Following service work, it Records at +/-0dB on High Bias Chrome tape at 1kHz.

ü This TEAC X-1000R-EE functions, plays, and records perfectly (and we really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy).  (Total time investment in refurb / testing ~ 18 hours).

Face is made of beautiful brushed aluminum and case is in great condition. Deck looks NEW and works great!

This is one of my personal favorites! The TEAC X-1000R Stereo Reel to Reel tape deck. Ready to GO! This is one of the few reel to reel decks we get in that make it to our finished page. Great performer. If you're looking for a reel to reel deck to "actually use" here you go. Only about 25 % of the used Reel decks out there can be "practically" restored to working order. This one made it through with flying colors.

The deck tests great! Looks and sounds great too! We have completely gone through it. Will play 3", 5", 7" & 10.5" reels (10.5" reels require optional NAB hub adaptors that we generally have available at their additional cost).

TEAC X-1000R-EE Features include:



HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

- True
“WORLD AC POWER" as it will work on both 50 or 60 Hz AC and voltages from 110-240 Volts AC



As stated earlier we have completely gone through it cleaning heads and all else, lubing, adjusting, reconditioning pinch rollers and other rubber parts, demagnetizing heads and entire transport and testing everything. Tape speed in both Hi and Lo speed positions have been 'internally' adjusted to 100%, "Dead-On" accuracy using a 1000 Hz test tape for the pitch control in it's 'centered' position. Plays and records Exceptionally well (and we really put them through the paces, testing both with well mixed CD material and CD test tones looking for correct head Azimuth, tape speed accuracy and making test recordings). Pinch rollers and heads all in GREAT condition!!! Face is made of beautiful, black anodized, brushed Aluminum and looks very nice. Very clean and looks near new. Unit looks GREAT!

TEAC X-1000R-EE Specs from the owners manual as follows:

Head / Head-stack Format:


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


Measures 17 1/8" wide x 17.5" tall x 10.75" (from tip of back feet-tip of hubs) deep and weighs 44 lbs unpacked. Comes with an 'e-copy' / pdf download of the TEAC X-1000R-EE owners / operations manual. Includes our standard 30 day limited warranty. This one also comes with it's original box (serial number matches unit) and Styrofoam packing!!!
TEAC X-1000R-EE 'Silver'
Cond.
9
SOLD 10/17/16
SHIPPED TO ARKANSAS


(Reels and NAB hubs shown in photos are not included, but we sometimes / occasionally have them for sale. Inquire at time of order.)


 (Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)








Teac_X-1000R_BK_Reel-to-Reel_Tape_Deck_web.jpg (36847 bytes)     Teac_X-1000R_BK_Reel-to-Reel_Tape_Deck_collage.jpg (255733 bytes)

TEAC X-1000R BK

SOLD






TEAC X-2000R
SOLD


Teac_X-2000R_Reel-Reel_Tape_Deck_web.jpg (30215 bytes)      Teac_X-2000R_Reel-Reel_Tape_Deck_collage.jpg (237429 bytes)

TEAC X-2000R BK

SOLD










NEW LISTING 11/17/2022
(Click on above thumbnails to enlarge photos)

RESTORED / REFURBISHED / FULLY SERVICED
TEAC REEL TO REEL TAPE DECK
TEAC X-2000RBK-EE 'BLACK'
3-HEAD / 3-MOTOR
dbx NR, EE (Extended Efficiency), Cobalt Heads
AUTO-REVERSE w/ BI-DIRECTIONAL RECORDING
REEL TO REEL
10.5" x 1/4" TAPE DECK
"WORLD AC POWER"
MIJ

ONE CURRENTLY FOR SALE ON THE FOLLOWING PAGE LINK.
CLICK HERE!



CLICK HERE TO SEE OUR TAPE DECKS CURRENTLY FOR SALE!


We will be getting more machines ready over the next few days to a couple weeks, but it is a slow process, as every 20+ year old Reel to Reel tape deck requires 10-18 hours of service to be brought back to "usable" condition. Check back often as they will sell out quickly!







LINKS TO OUR 'HI-FI' DEPARTMENTS

Amps and
Pre-Amps

Receivers

Cassette
Decks

Tuners

Turntables

8-Track Decks

CD Players

Reel-Reel
Decks

EQs and Signal
Processors

Speakers

Betamax and
VHS VCRs

Turntable Cartridges

Tube Audio

Ne'cessories

Speaker Parts

Record Players

Vintage Radios

Vintage
Walkmans

Headphones

Stereo Parts


Wondering where the "tone" you remember went?....




.... Surround yourself with Silver and find it again!



The units on the above page are for photo reference only and are no longer available for sale. To search 'For Sale' units, click on the links in the upper, left corner of page.

   *HOME PAGE*   |   FAQ'S   |   RESTORATION PROCEDURES    |  REPAIR RESOURCES  |  LINKS


POLICIES, SPECIFICATIONS, AVAILABILITY, INFORMATION
AND PRICING SUBJECT TO CHANGE  AT ANYTIME  AND
WITHOUT PRIOR
NOTICE
and changes may not be posted to web immediately
.


Copyright © 1997-2023 Oak Tree Enterprises, LLC

COPYRIGHT INFORMATION
