PHOTO GALLERY OF
VINTAGE / USED SONY STEREO TAPE DECKS

- SOLD UNITS / ARCHIVE -







This page is for photo / text archiving only of our RESTORED / REFURBISHED used SONY stereo tape decks that have already been SOLD. Click the link below for current inventory.

CLICK HERE TO SEE OUR TAPE DECKS CURRENTLY FOR SALE!






NEW LISTING 2/16/08

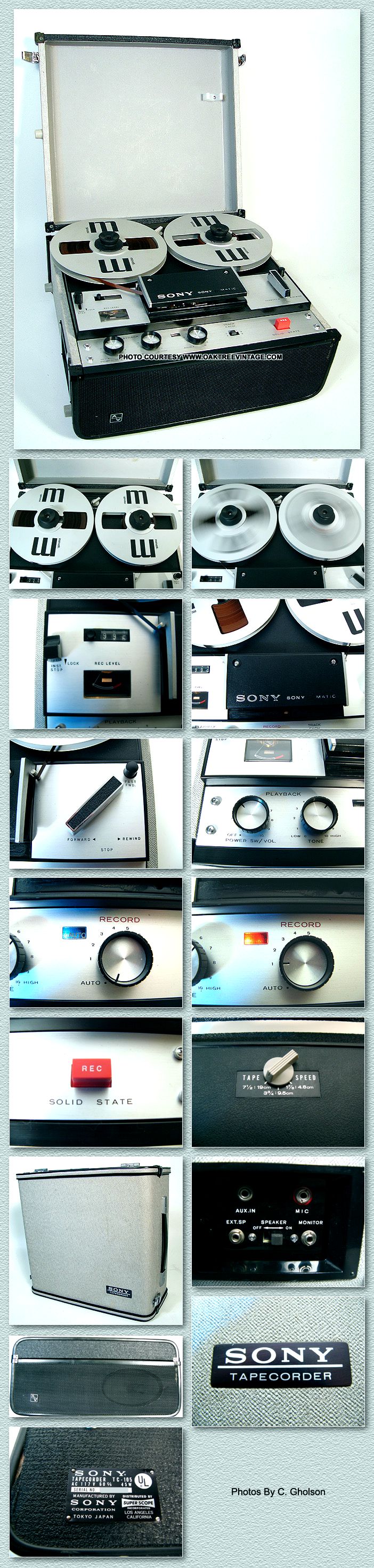

SONY "TAPECORDER"
SONY TC-105
DISTRIBUTED BY SUPERSCOPE
#...5045
MONO
3-SPEED
4-TRACK / 4 CHANNEL
REEL TO REEL R2R
1/4" TAPE DECK

SOLD 2/25/08




NEW LISTING 1/2/16

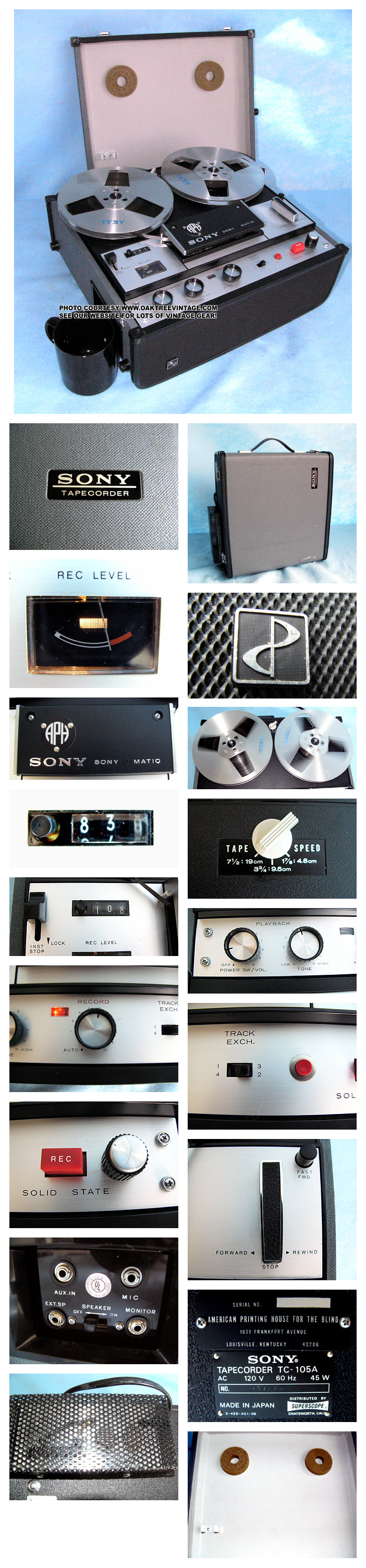

 (Click on above thumbnails to enlarge photos)


 SONY1/4"
 OPEN REEL TO REEL TAPE RECORDER
  1/4" MONO TAPE DECK
 "TAPECORDER"

DISTRIBUTED BY SUPERSCOPE

 TC-105
 #...4247
 3-SPEED
 4-TRACK / 4 CHANNEL
  3" - 7" REEL CAPACITY
W/ BUILT IN AMP & SPEAKER
  Circa 1970-77
MIJ

  for sale

SOLD 5/16/16
SHIPPED TO FLORIDA

ü  Our technician has completely gone through and 'Certified' this unit. Both Main Drive belt and Counter belt have been reconditioned for trouble-free service. Rubber pinch roller has been reconditioned, as well as all internal drive tires / wheels for positive grip. Importantly entire internal transport disassembled, cleaned of old grease & re-lubed. We also burnished the capstan, heads have been cleaned and de-magnetized as well as the entire transport. Always at issue on these machines is the Pinch Roller swing arm assembly that has been completely disassembled, cleaned and re-lubed. Also hub brakes have been cleaned, re-lubed, and adjusted on fast wind modes also. Following above adjustments, Reel Start and Stop tested at beginning, middle and end of 'loaded' 7" tapes. Motor has been re-lubed as well. All internal pots and controls cleaned and tested for noise-free function. Both spindles in perfect alignment. Heads in great shape as well, with many years of performance left in them and head alignment / azimuth has been checked for peak performance. Plays perfectly and records great. Speed checked to 100% accuracy  (meaning that our 'verified' 1000Hz test tape now plays back at 1000Hz). Pinch roller and heads all in GREAT condition!!! (Total time investment in refurb / testing ~ 16 hours). This unit was very clean and well cared for when we started on it. Cosmetically in near new condition!
  ____________________________

Sony TC-105 Features include:



- Triple ....

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

... electronics.

Original SONY TC-105 Specifications as follows:

Power Requirements: 45 watts, АС 117 V / 60 Hz
Tape Speed: 7.5 ips / 19cms, 3 3/4ips / 9.5 cms and extra long 1 7/8 ips / 4.75 cms
Reels: 1/4" tape on 7 inches оr smaller

Recording Format: 4-track / Single-Channel monophonic

Frequency Response:
40-18,0
...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


Frequency Response w/ Standard Tape:

XXXX Hz @ 7 1/2ips
XXXX Hz @ 3 3/4 ips.
XXXX Hz @ 1 7/8 ips.

Flutter and Wow: < 0.1...

Level Indication: Analog VU Meter

Speaker size: 4" x 6"
Built-in amp power: 4 Watts

   As stated earlier we have completely gone through it cleaning, lubing, adjusting, demagnetizing and testing everything. .... Comes with original Sony lid. Includes e-copy / pdf download of the Sony TC-105 Owners / Users Manual, and the Sony TC-105 service manual if purchaser desires. Includes our standard 30 day limited warranty.
   SONY TC-105A
   Condition 8.5

SOLD 5/16/16
SHIPPED TO FLORIDA

 (Reels & tape shown in photos not included. All are sometimes available separately depending on stock levels.)



 (Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)






        NEW LISTING 1/7/20

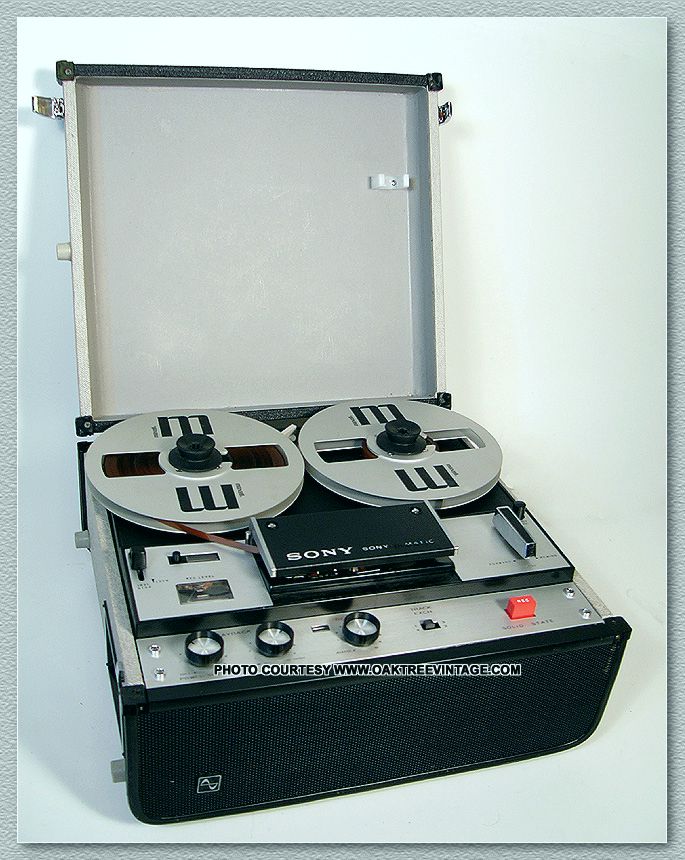

(Click on above thumbnails to enlarge photos)

RESTORED / REFURBISHED / FULLY SERVICED
SONY / SUPERSCOPE "TAPECORDER"
SONY TC-105
3-SPEED
, MONO 4-TRACK / 1 CHANNEL
REEL TO REEL R2R
1/4" TAPE DECK

2" - 7" REEL CAPACITY
W/ BUILT IN AMP & SPEAKER
"Great for listening and / or transferring 'early / older recordings' to computer / CD etc."
#...
0880
Circa 1970-77
MIJ

SOLD 6/2/2020
SHIPPED TO BARRY IN MARYLAND


ü Our technician has completely gone through and 'Certified' this unit.

ü Importantly ENTIRE internal transport COMPLETELY disassembled, cleaned of old grease & re-lubed.

ü Both Main Drive belt and Counter belt have been reconditioned for trouble-free service.

ü Rubber pinch roller has been reconditioned, as well as all internal drive tires / wheels for positive grip.

ü We also burnished the capstan

ü heads have been cleaned and de-magnetized as well as the entire transport.

ü Always at issue on these machines is the Pinch Roller swing arm assembly that has been completely disassembled, cleaned and re-lubed.

ü Also hub brakes have been cleaned, re-lubed, and adjusted on fast wind modes also.

ü Following above adjustments, Reel Start and Stop tested at beginning, middle and end of 'loaded' 7" tapes.

ü Motor has been re-lubed as well.

ü All internal pots and controls cleaned and tested for noise-free function.

ü Both spindles in perfect alignment.

ü Following initial refurb, we found tracks 1-4 to be diminished in high frequency response relative to tracks 2-3. We decided it could only be attributed to excessive wear to the Play / Rec head. After inspecting a number of replacement heads, we found one from a TC-200 (same head part number, and is the same head used in most of the Sony decks from that period) and installed it. Following that, we were able to bring the top end of 1-4 to within about 4dB of 2-3

ü Head alignment / azimuth has been checked for peak performance.

ü "Playback is now strong (following 'head-ectomy' with good 'top end' response.

ü Heads now in good shape as well, with plenty of performance left in them.

ü Plays perfectly on all tracks.

ü Speed checked to 99.4% accuracy  (meaning that our 'verified' 1000Hz test tape now plays back at 994Hz).

(Total time investment in refurb / testing ~ 24 hours {yes, WAY TOO many hours on about any deck, but that's how it goes sometimes}). This unit was very clean and well cared for when we started on it.

Cosmetically in very clean condition!

 ____________________________

As stated earlier we have completely gone through it cleaning, lubing, adjusting, demagnetizing and testing everything. Plays well (very strong with great 'top end brilliance'), but as stated above, the recording on "1-4" is fairly diminished in signal.
Deck is designed to be used only lying on it's back (horizontally).  Measures 14" deep x 15" wide x 6" tall and weighs 21 lbs unpacked. Comes with original Sony lid. Includes e-copy / pdf download of the Sony TC-105 Owners / Users Manual, and the Sony TC-105 service manual if purchaser desires. Includes our standard 30 day limited warranty.
SONY TC-105
Condition 8.5

SOLD 6/2/2020
SHIPPING TO BARRY IN MARYLAND


(Reels & tape shown in photos not included. All are sometimes available separately depending on stock levels.)


(Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)

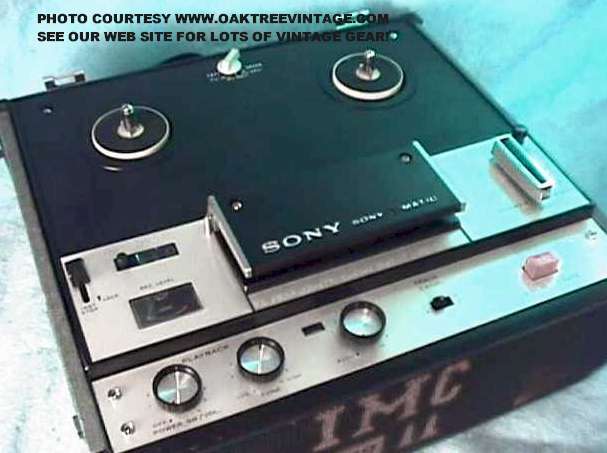

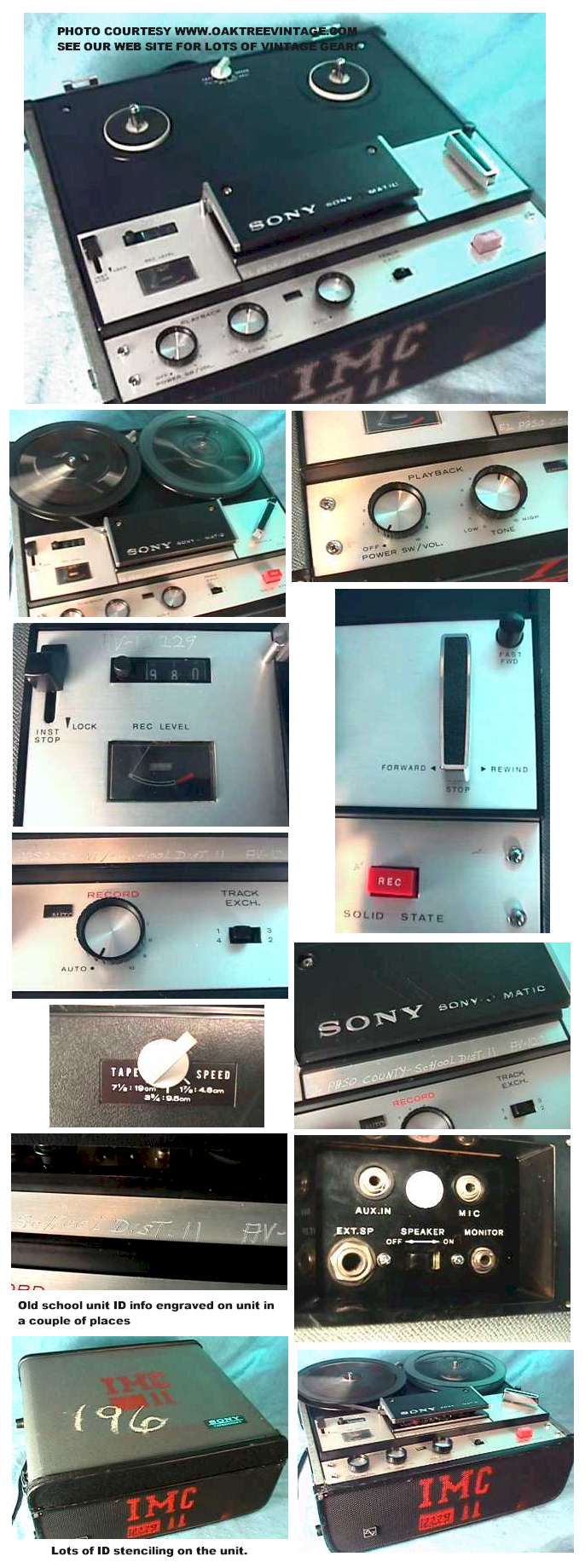

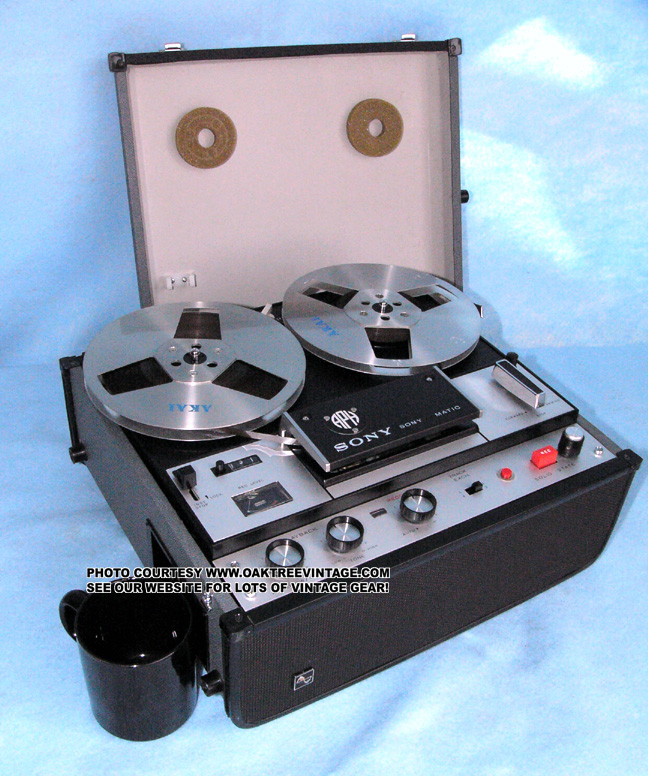

SONY_TC-105A_Reel-Reel_Tape-deck_Tapecorder_web.jpg (32077 bytes)     SONY_TC-105A_Reel-Reel_Tape-deck_Tapecorder_collage.jpg (153782 bytes)

SONY "TAPECORDER"

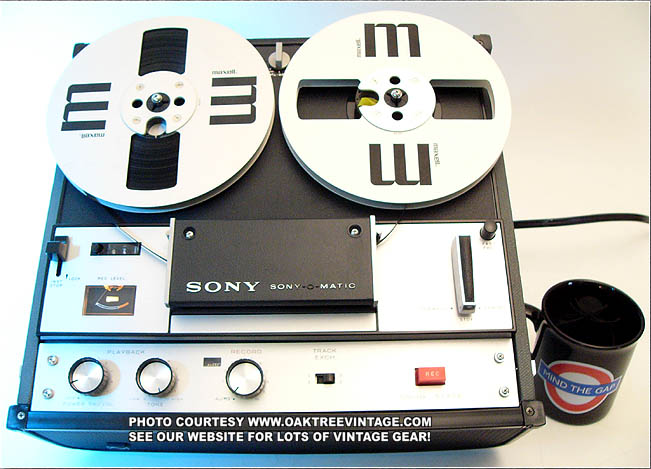

SONY TC-105A

DISTRIBUTED BY SUPERSCOPE

MONO
REEL TO REEL R2R
1/4" TAPE DECK
Circa 1970-77

SOLD



NEW LISTING 9/15/05
SONY "TAPECORDER"
SONY TC-105A

DISTRIBUTED BY SUPERSCOPE

MONO
REEL TO REEL R2R
1/4" TAPE DECK
Circa 1970-77

SOLD 9/17/05






NEW LISTING 9/19/07
SONY
"TAPECORDER"
              TC105 SONY TC-105A TC10
DISTRIBUTED BY SUPERSCOPE
5A TC-105
MONO

     REEL TO REEL R2R
1/4" TAPE DECK
SOLD 10/1/07

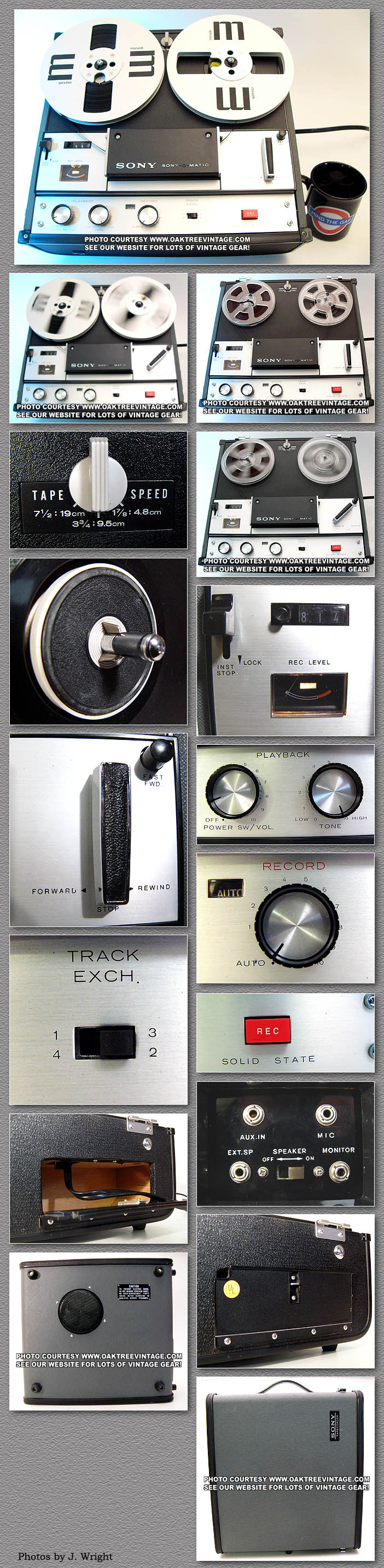

         NEW LISTING 3/19/09
(Click on above thumbnails to enlarge photos)


SONY 1/4"
OPEN REEL TO REEL TAPE RECORDER

 1/4" MONO TAPE DECK
"TAPECORDER"
              TC105 TC-105A TC105A TC 105
DISTRIBUTED BY SUPERSCOPE

#...5318
3-SPEED
4-TRACK / 4 CHANNEL

 3" - 7" REEL CAPACITY
R
W/ BUILT IN AMP & SPEAKER
 Circa 1970-77

SOLD 1/15/11

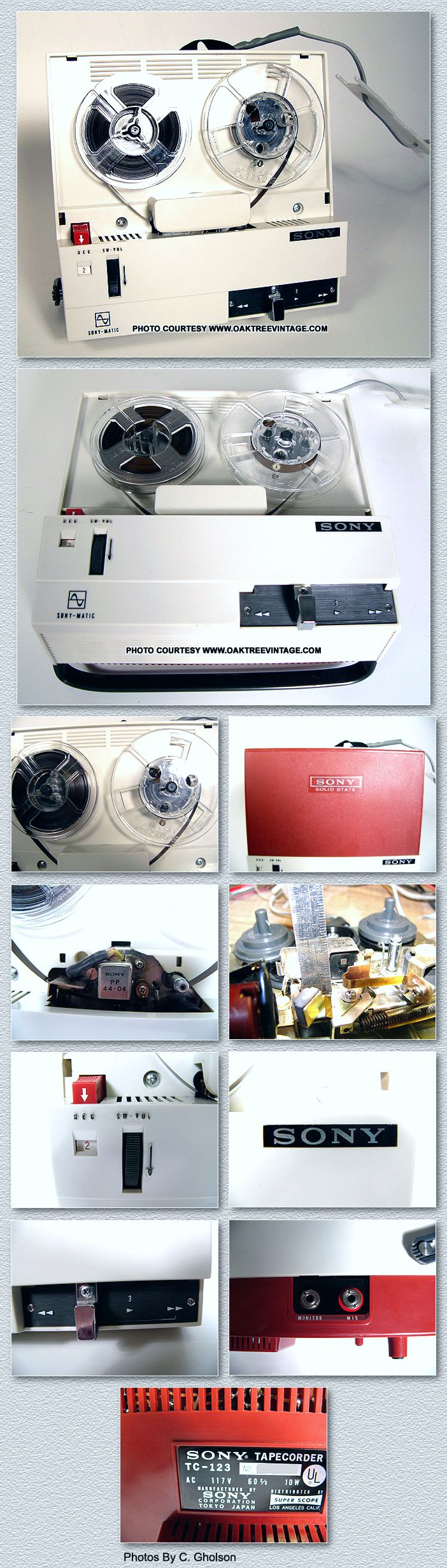

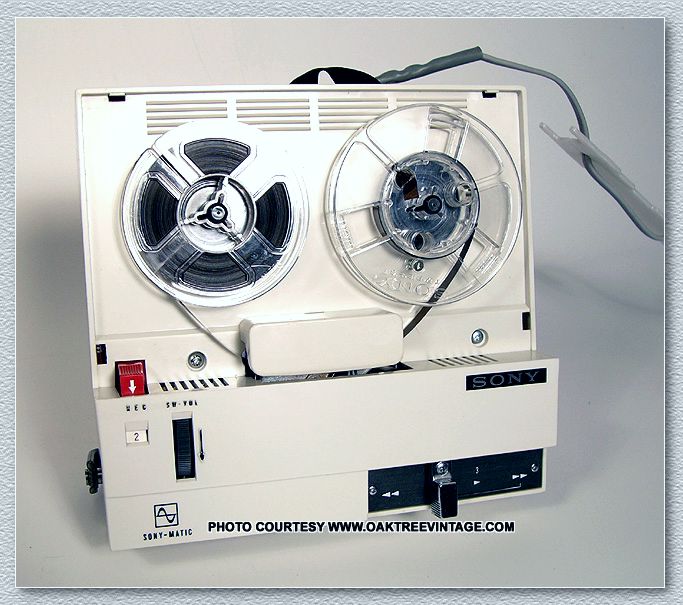

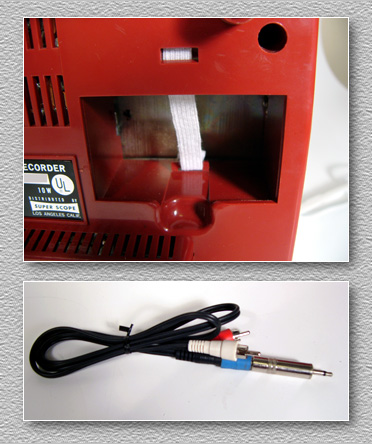

NEW LISTING 2/16/08
VINTAGE SONY REEL TO REEL TAPE-CORDER
SONY TC-123 TC123

DISTRIBUTED BY SUPERSCOPE

2-SPEED
2-TRACK / 1 CHANNEL
PORTABLE
TRANSISTOR
1/4" REEL-TO-REEL
TAPE DECK
Circa late 1960's

SOLD 9/9/08

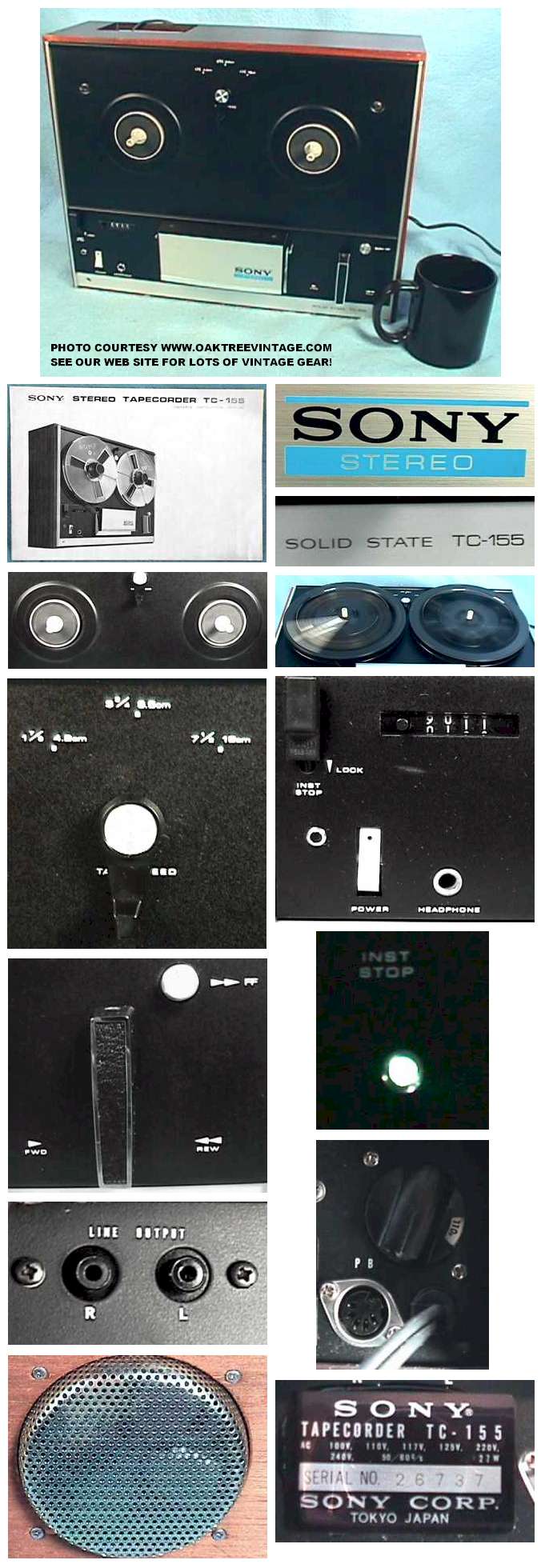

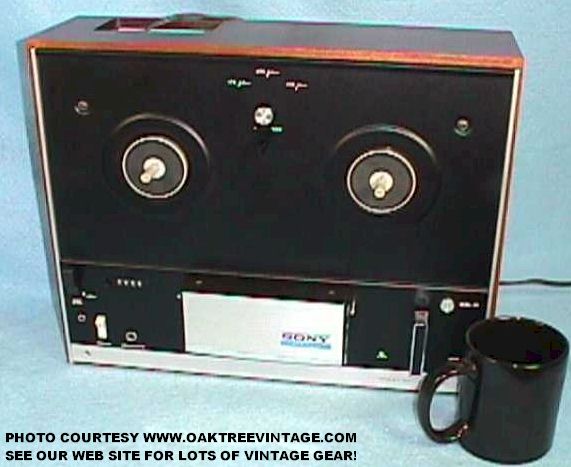

Sony_Reel-Reel_Tape_Deck_web.jpg (43315 bytes)  Sony_Reel-to-Reel_TC-155_Stereo_Tape-deck_collage.jpg (158965 bytes)
SONY
TC-155
REEL TO REEL
TAPE DECK
SOLD




NEW LISTING

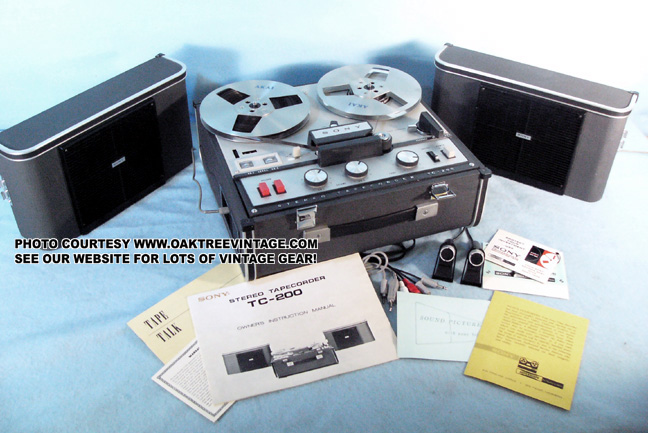

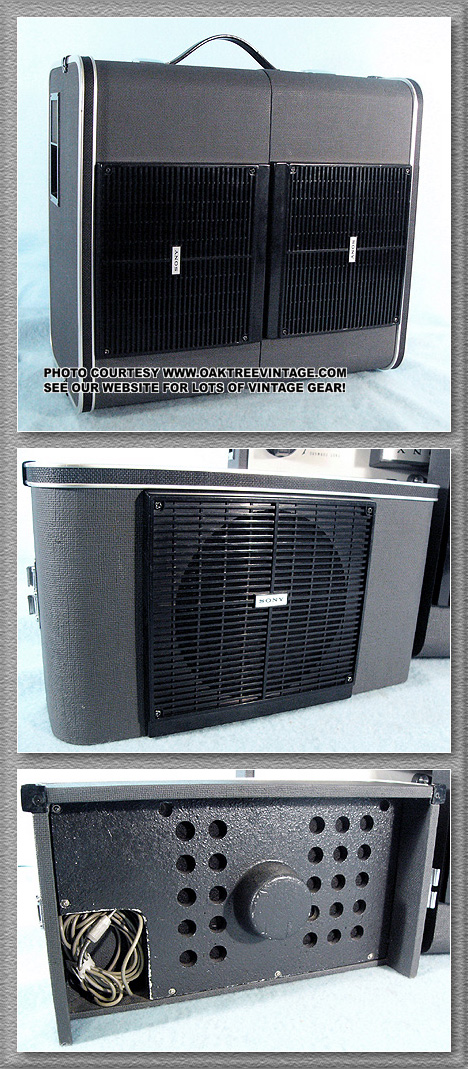

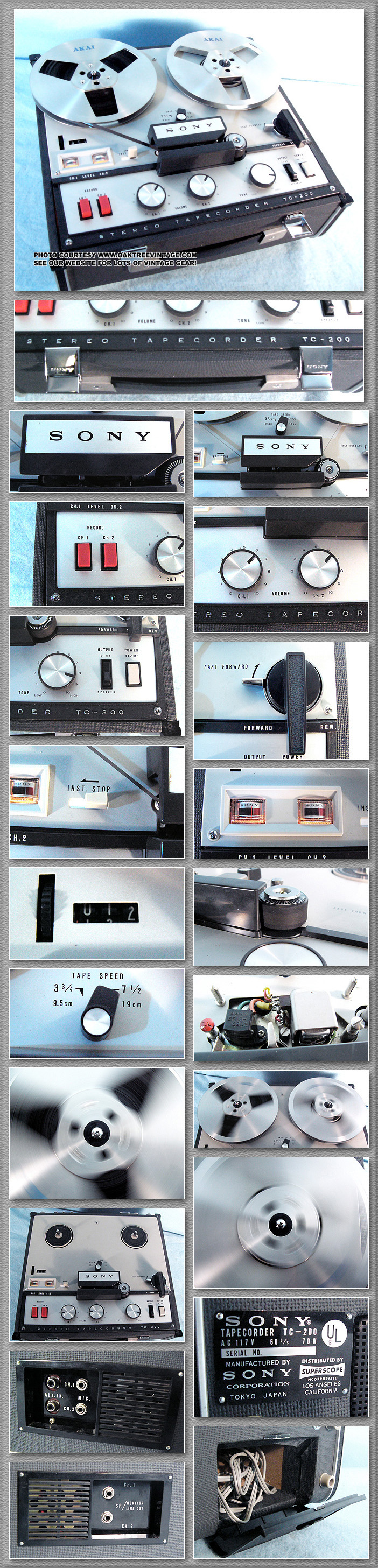

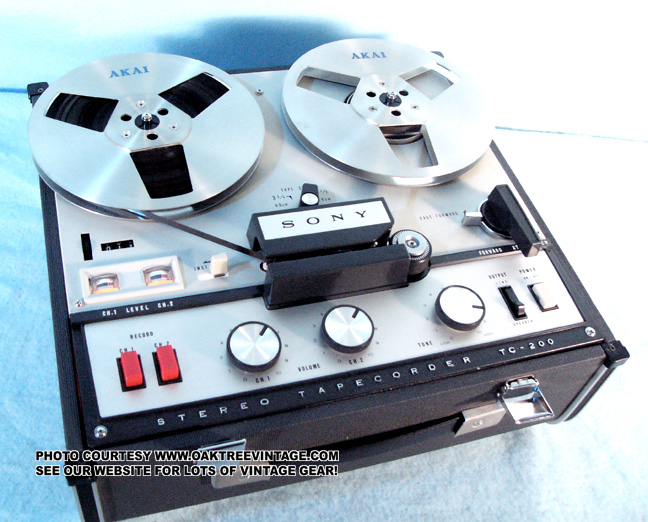

SONY TC-200 REEL TO REEL STEREO TAPE DECK
With original Sony Microphones!

DISTRIBUTED BY SUPERSCOPE

 "
WORLD AC POWER"

SOLD 7/28/06




NEW LISTING 6/8/05

RESTORED / REFURBISHED / FULLY SERVICED
SONY MODEL TC-250
DISTRIBUTED BY SUPERSCOPE
REEL TO REEL R2R
3" - 7" REEL CAPACITY
1/4" STEREO TAPE DECK

 "
WORLD AC POWER"

Circa 19
60-70's
for sale

SOLD 6/27/06




NEW LISTING 9/7/17

 (Click on above thumbnails to enlarge photos)

RESTORED / REFURBISHED / FULLY SERVICED
VINTAGE

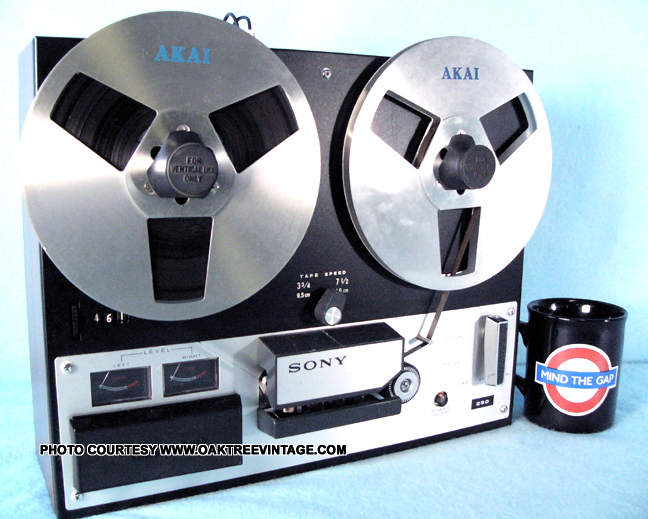

SONY TC-250A
DISTRIBUTED BY SUPERSCOPE

'VIETNAM ERA' 1/4" REEL TO REEL TAPE DECK

#...1512

4-TRACK / 2-CHANNEL
2-SPEED / 2-HEAD
3" - 7" REEL CAPACITY
STEREO TAPE DECK
Circa 1967-70
GREAT 'WORKHORSE' DECK FOR PLAYBACK OF 3", 5" & 7" TAPES FOR 'RE-VISITING' OR FOR TRANSFER TO ANOTHER MEDIA!

SOLD 9/12/17
SHIPPED TO CALIFORNIA

ü  Our technician has completely gone through and 'Certified' this unit.

ü  We have completely and extensively gone through the mechanicals and electronics of this unit.

ü  Entire transport was disassembled down to the chassis, and every mechanical part was cleaned of "varnished" lubes and re-lubed as well as the always at issue, Pinch Roller plunge assembly, re-lubed and reassembled.

ü  Rubber pinch roller has been reconditioned

ü  All three internal drive tires / wheels burnished / conditioned for positive grip

ü  Capstan burnished.

ü  Both counter belts replaced for trouble-free service.

ü  Both reel hubs / clutches removed, disassembled and re-lubed.

ü Auto-Stop mechanism disassembled, cleaned and re-lubed, and their springs adjusted and had fresh 500,000 grade silicone lube gel applied

ü  All hub brake pads have been replaced, and their bearings re-lubed and adjusted on fast wind modes also.

ü  Motor has been re-lubed as well.

ü  Internal voltage is self regulated DC and values were verified.

ü  All Internal & External pots, controls, & switches (including the linear 'record' switches) cleaned and tested for noise-free function.

ü  Both spindles in perfect alignment.

ü  We also adjusted the reel table heights for no "reel rub".

ü  Pinch roller reconditioned / re-surfaced.

ü  New VU meter illumination lamp installed and both record indicator lamps test fine.

ü  Internal 'Bias', 'Record-Level' and 'PB' micro-pots cleaned EXTENSIVELY and levels adjusted.

ü  Heads were cleaned and de-magnetized as well as the entire transport.

ü Heads in great shape as well, with many years of performance left in them

ü  Head alignment / azimuth has been checked for peak performance with factory test tone tape and oscilloscope and exhibited good wave form out to 15kHz!

ü  Both level meters adjusted for even playback level w/ factory test tone tape.

ü We adjusted the VU meters mechanically and electronically w/ factory test tone tapes, as well as the internal playback levels for both directions independently and record levels.

ü Speed tested to 98.8% accuracy following refurb (meaning that our 'verified' 1000Hz test tape now plays back at 1012Hz).

ü Adjusted to record @ a fairly respectable -6dB @ 1kHz on normal bias tape

ü Floor noise measured at >-60dB w/ blank tape, L&R

ü AC Line cord replaced

ü This SONY TC-250A functions, plays VERY well and records decently (and we really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy).  (Total time investment in refurb / testing ~ 12.5 hours).

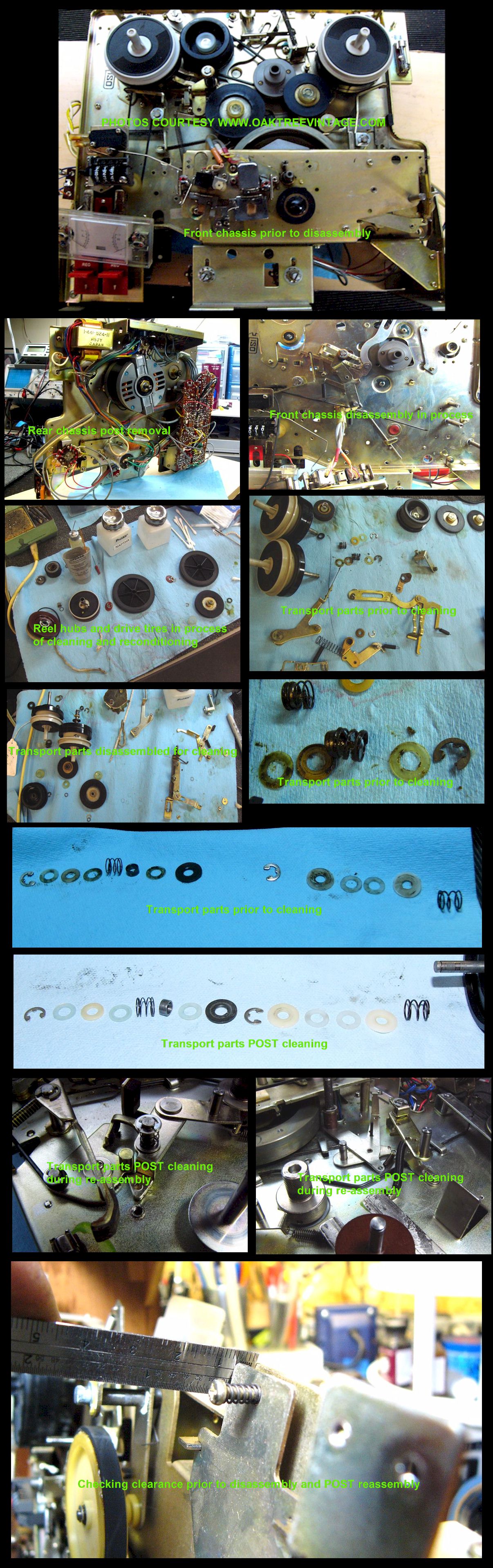

(photo collage showing a 'taste' of the process involved in the 'initial' stages of refurbishing these decks)

The analog, meter needles can be a bit 'sticky' on this one, but it it's lower price range, coupled with the odds that most folks are looking at this deck primarily for playback, we deduced it would not be worth the added resources, thus 'final, additional cost to the price tag' to source replacements. They work most of the time, but sometimes 'stick' in place
. Other than that, the deck looks and works great!


 GREAT performing Sony TC-250A 1/4" ...
 It is compatible with tapes recorded on
...


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


Again this is an great performer sonically and mechanically....


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

 Ready to go! Can be used standing vertically or laying on it's back horizontally. Again, only issue is that the meter indicator needles can be a little 'sticky'. Comes with one pair of rubber reel retainers (shown in photos. Reels and tape shown in photos not included). Includes our standard 30 day limited warranty.  Measures 15.25" wide x 7" deep x 14" tall and weighs 24 lbs unpacked.
(Reels & tape shown in photos not included. All are usually available separately if you need them)
SONY TC-250A
Cond. 8.5+

SOLD 9/12/17
SHIPPED TO CALIFORNIA


(Reels shown in photos are not included, but we sometimes / occasionally have them for sale. Inquire at time of order.)


 (Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)

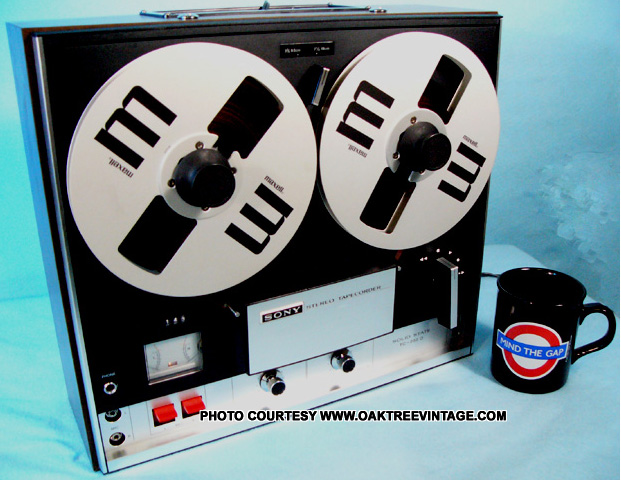

NEW LISTING 1/21/07
SONY

 TC-252D

REEL-TO-REEL
 STEREO TAPE DECK

 "
WORLD AC POWER"
SOLD 2/14/07

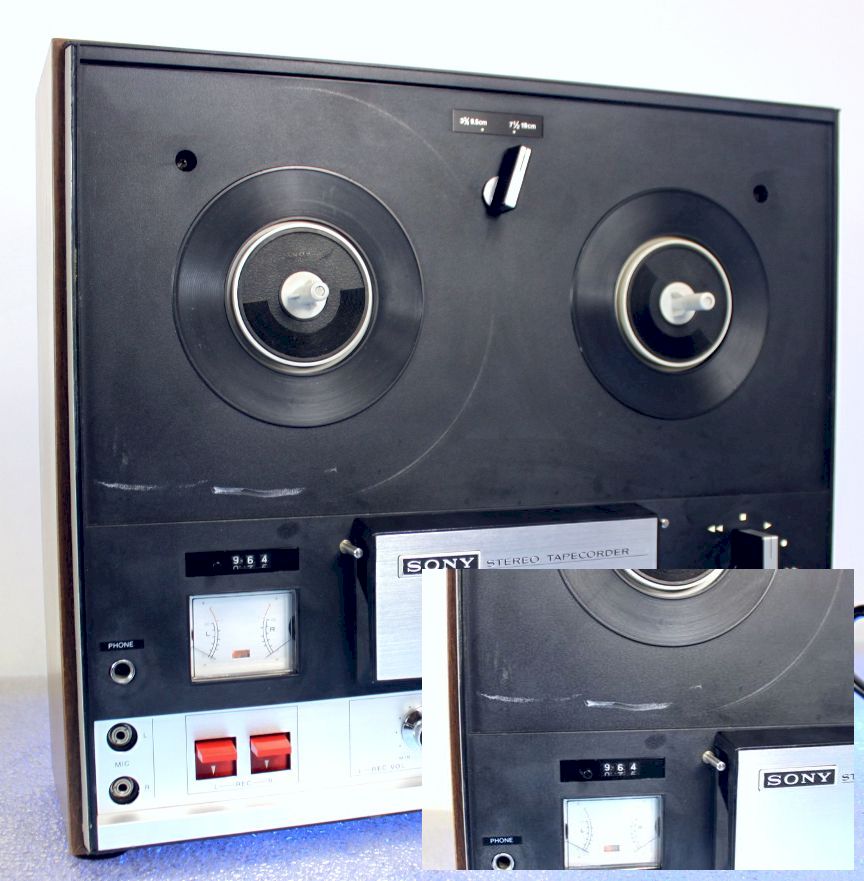

NEW LISTING 10/15/17
 (Click on above thumbnails to enlarge photos)

RESTORED / REFURBISHED / FULLY SERVICED
VINTAGE

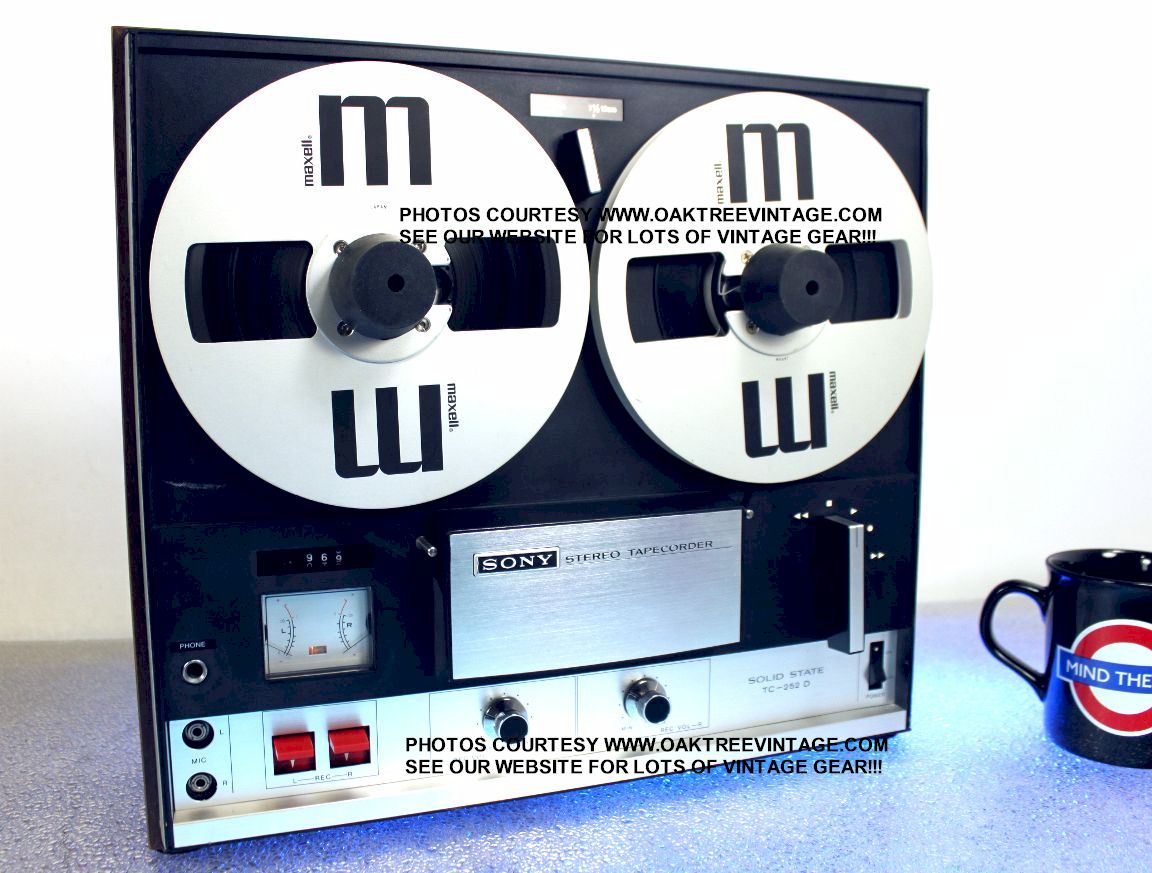

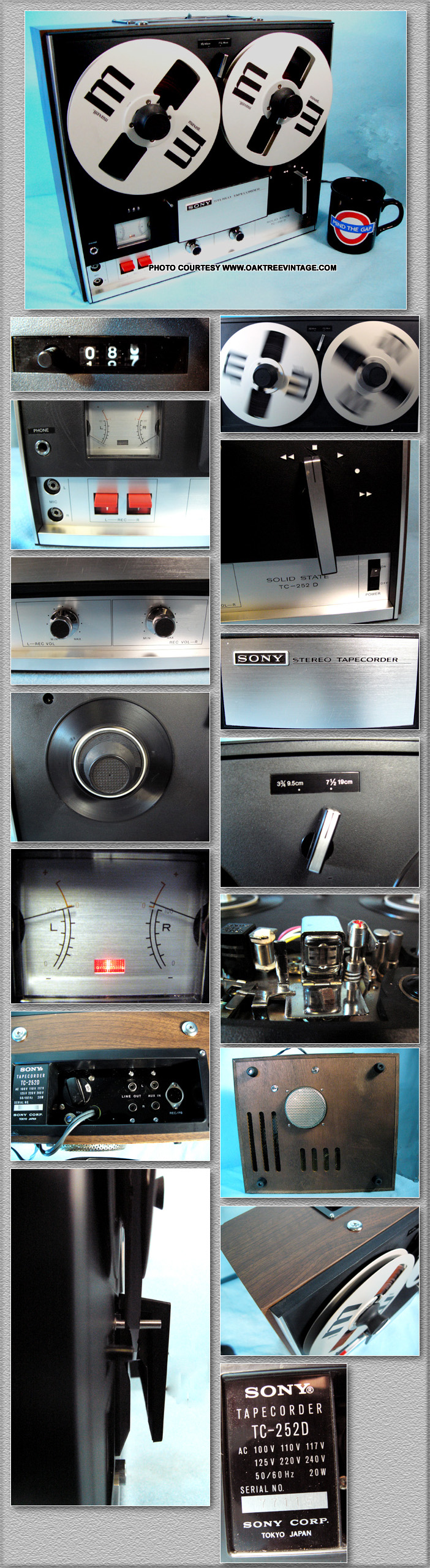

SONY TC-252D
'VIETNAM ERA' 1/4" REEL TO REEL TAPE DECK

#...7811
4-TRACK / 2-CHANNEL
2-SPEED / 2-HEAD
3" - 7" REEL CAPACITY
STEREO TAPE DECK
"WORLD AC POWER"
  Circa 1970-72

GREAT 'WORKHORSE' DECK FOR PLAYBACK OF 3", 5" & 7" TAPES FOR 'RE-VISITING' OR FOR TRANSFER TO ANOTHER MEDIA!

SOLD 11/16/17
SHIPPED TO LAS VEGAS

ü  Our technician has completely gone through and 'Certified' this unit.

ü  We have completely and extensively gone through the mechanicals and electronics of this unit.

ü  Entire transport was disassembled down to the chassis, and every mechanical part was cleaned of "varnished" lubes and re-lubed as well as the always at issue, Pinch Roller plunge assembly, re-lubed and reassembled.

ü  Rubber pinch roller has been reconditioned

ü  All three internal drive tires / wheels burnished / conditioned for positive grip

ü  Capstan burnished.

ü  Both counter belts replaced for trouble-free service.

ü  Both reel hubs / clutches removed, disassembled and re-lubed.

ü Auto-Stop mechanism disassembled, cleaned and re-lubed, and their springs adjusted and had fresh 500,000 grade silicone lube gel applied

ü  All hub brake pads have been replaced, and their bearings re-lubed and adjusted on fast wind modes also.

ü  Motor has been re-lubed as well.

ü  Internal voltage is self regulated DC and values were verified.

ü  All Internal & External pots, controls, & switches (including the linear 'record' switches) cleaned and tested for noise-free function.

ü  Both spindles in perfect alignment.

ü  We also adjusted the reel table heights for no "reel rub".

ü  Pinch roller reconditioned / re-surfaced.

ü  Both record indicator lamps test fine.

ü  Internal 'Bias', 'Record-Level' and 'PB' micro-pots cleaned EXTENSIVELY and levels adjusted.

ü  Heads were cleaned and de-magnetized as well as the entire transport.

ü Heads in great shape as well, with many years of performance left in them

ü  Head alignment / azimuth has been checked for peak performance with factory test tone tape and oscilloscope and exhibited good wave form out to 15kHz!

ü  Both level meters adjusted for even playback level w/ factory test tone tape.

ü We adjusted the VU meters mechanically and electronically w/ factory test tone tapes, as well as the internal playback levels for both directions independently and record levels.

ü Speed tested to 99.6% accuracy following refurb (meaning that our 'verified' 1000Hz test tape now plays back at 996Hz).

ü Adjusted to record decently at -1dB with a 1kHz test tone on normal bias. In 'Real World' / Music Program we obtained performance of -6 or -7dB on High Bias and Normal BiasTape.

ü Floor noise measured at >-60dB w/ blank tape, L&R

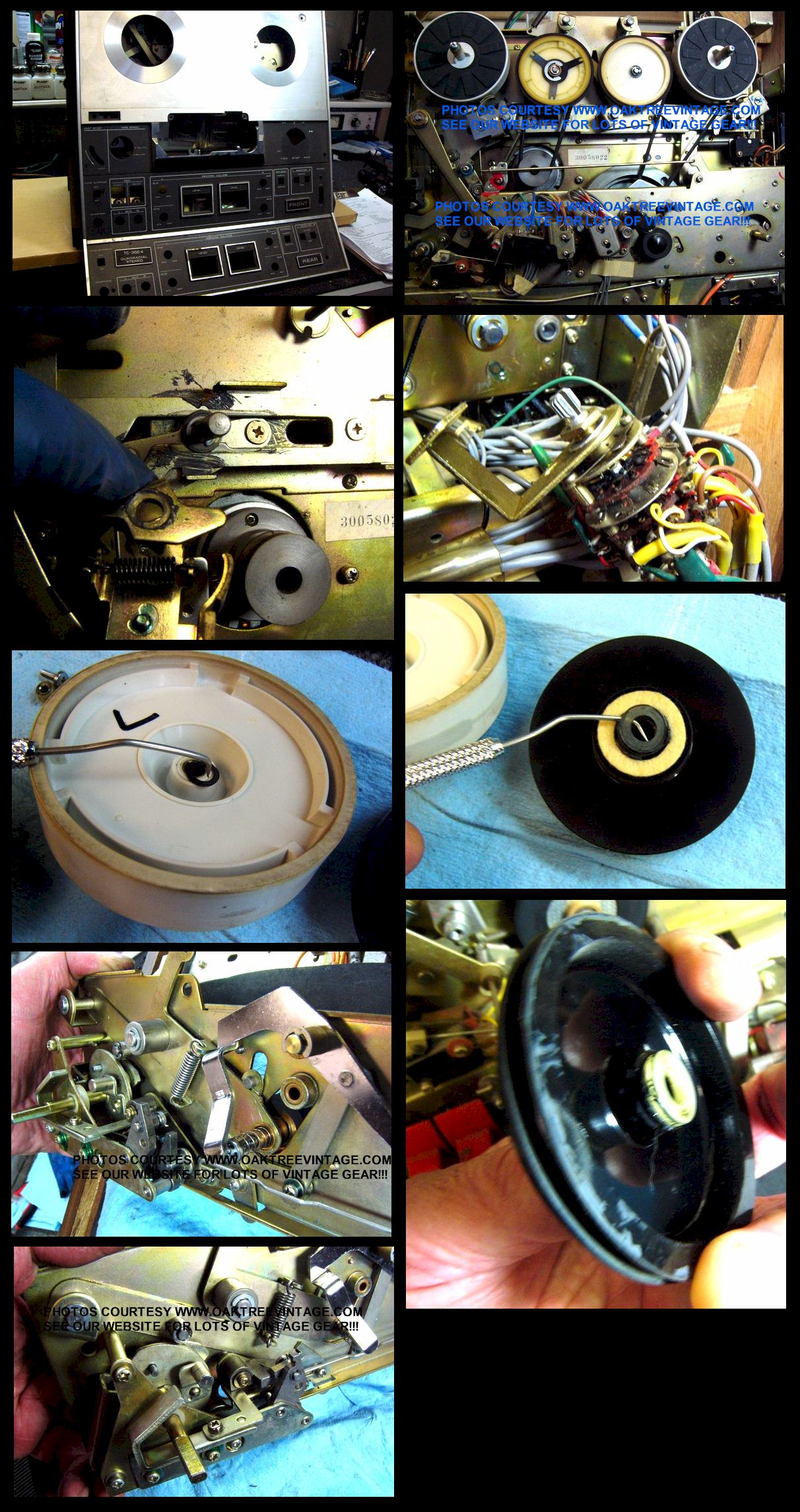

(photo collage showing a 'taste' of the process involved in the 'initial' stages of refurbishing these decks)

ü This SONY TC-252D functions, plays VERY well and records decently (and we really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy).  (Total time investment in refurb / testing ~ 16.5 hours).

SONY TC-252D Features include:

- Dual...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


SONY TC-252D SPECIFICATIONS:

Track system:
...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


Again this is an great performer sonically and mechanically. Following extensive refurbishement / service, Works and plays GREAT on Normal or Hi-Bias, Chrome Tapes. Ready to go! Again, as mentioned above about the only cosmetic issues are the 'white' scuffs on the face (see photos above).

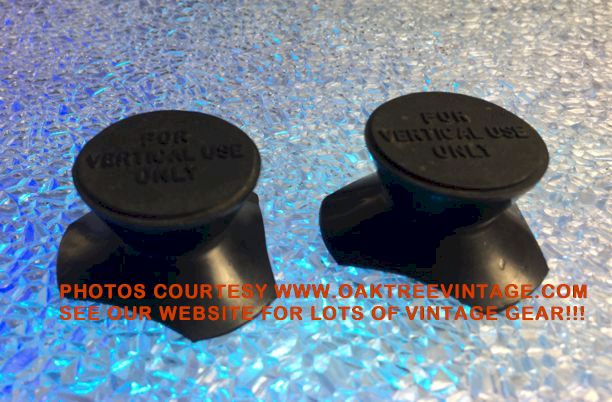

Can be used standing vertically or laying on it's back horizontally.
Comes with an 'e-copy' / pdf download of the Sony TC-252D owners / operations manual. Comes with one pair of rubber reel retainers (shown in photos. Reels and tape shown in photos not included). Includes our standard 30 day limited warranty.  Measures 15.25" wide x 7" deep x 14" tall and weighs 18 lbs unpacked.  (Reels & tape shown in photos not included. All are usually available separately if you need them)
Sony TC-252D R2R TAPE DECK
Cond. 8.5

SOLD 11/16/17
SHIPPED TO LAS VEGAS


(Reels shown in photos are not included, but we sometimes / occasionally have them for sale. Inquire at time of order. However, all of our decks will come with 2x tapes for testing 'Playback' and 'Recording' as well as a 7" 'take-up' reel)


 (Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)









             NEW LISTING 10/15/17
 (Click on above thumbnails to enlarge photos)

RESTORED / REFURBISHED / FULLY SERVICED
VINTAGE
SONY TC-252D
'VIETNAM ERA' 1/4" REEL TO REEL TAPE DECK

#...9279

4-TRACK / 2-CHANNEL
2-SPEED / 2-HEAD
3" - 7" REEL CAPACITY
STEREO TAPE DECK

  Circa 1970-72

GREAT 'WORKHORSE' DECK FOR PLAYBACK OF 3", 5" & 7" TAPES FOR 'RE-VISITING' OR FOR TRANSFER TO ANOTHER MEDIA!

SOLD 1/17/18
SHIPPING TO NEW YORK

ü  Our technician has completely gone through and 'Certified' this unit.

ü  We have completely and extensively gone through the mechanicals and electronics of this unit.

ü  Entire transport was disassembled down to the chassis, and every mechanical part was cleaned of "varnished" lubes and re-lubed as well as the always at issue, Pinch Roller plunge assembly, re-lubed and reassembled.

ü  Rubber pinch roller has been reconditioned

ü  All three internal drive tires / wheels burnished / conditioned for positive grip

ü  Capstan burnished.

ü  Both counter belts replaced for trouble-free service.

ü  Both reel hubs / clutches removed, disassembled and re-lubed.

ü Auto-Stop mechanism disassembled, cleaned and re-lubed, and their springs adjusted and had fresh 500,000 grade silicone lube gel applied

ü  All hub brake pads have been replaced, and their bearings re-lubed and adjusted on fast wind modes also.

ü  Motor has been re-lubed as well.

ü  Internal voltage is self regulated DC and values were verified.

ü  All Internal & External pots, controls, & switches (including the linear 'record' switches) cleaned and tested for noise-free function.

ü  Both spindles in perfect alignment.

ü  We also adjusted the reel table heights for no "reel rub".

ü  Pinch roller reconditioned / re-surfaced.

ü  Both record indicator lamps test fine.

ü  Internal 'Bias', 'Record-Level' and 'PB' micro-pots cleaned EXTENSIVELY and levels adjusted.

ü  Heads were cleaned and de-magnetized as well as the entire transport.

ü Heads in great shape as well, with many years of performance left in them

ü  Head alignment / azimuth has been checked for peak performance with factory test tone tape and oscilloscope and exhibited good wave form out to 15kHz!

ü  Both level meters adjusted for even playback level w/ factory test tone tape.

ü We adjusted the VU meters mechanically and electronically w/ factory test tone tapes, as well as the internal playback levels for both directions independently and record levels.

ü Speed tested to 98.8% accuracy following refurb (meaning that our 'verified' 1000Hz test tape now plays back at 988Hz).

ü Adjusted to record very well at 0dB with a 1kHz test tone on normal bias. In 'Real World' / Music Program we obtained performance of -1dB on High Bias Tape, and -3 to- -4dB @ 1kHz on normal bias tape. Nice, 'bright' playback!!!

ü Floor noise measured at >-60dB w/ blank tape, L&R



(photo collage showing a 'taste' of the process involved in the 'initial' stages of refurbishing these decks)

ü This SONY TC-252D functions, plays and records VERY well (and we really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy).  (Total time investment in refurb / testing ~ 14 hours).

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Again this is an great performer sonically and mechanically. Records and plays GREAT on Normal or Hi-Bias, Chrome Tapes. Ready to go! Can be...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

..
.
Comes with an 'e-copy' / pdf download of the Sony TC-252D owners / operations manual. Comes with one pair of rubber reel retainers (Reels and tape shown in photos not included). Includes our standard 30 day limited warranty.  Measures 15.25" wide x 7" deep x 14" tall and weighs 18 lbs unpacked.  (Reels & tape shown in photos not included. All are usually available separately if you need them)
Sony TC-252D R2R TAPE DECK
Cond. 8.5+

SOLD 1/17/18
SHIPPING TO NEW YORK


(Reels shown in photos are not included, but we sometimes / occasionally have them for sale. Inquire at time of order. However, all of our decks will come with 2x tapes for testing 'Playback' and 'Recording' as well as a 7" 'take-up' reel)


 (Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)





NEW LISTING 4/28/11

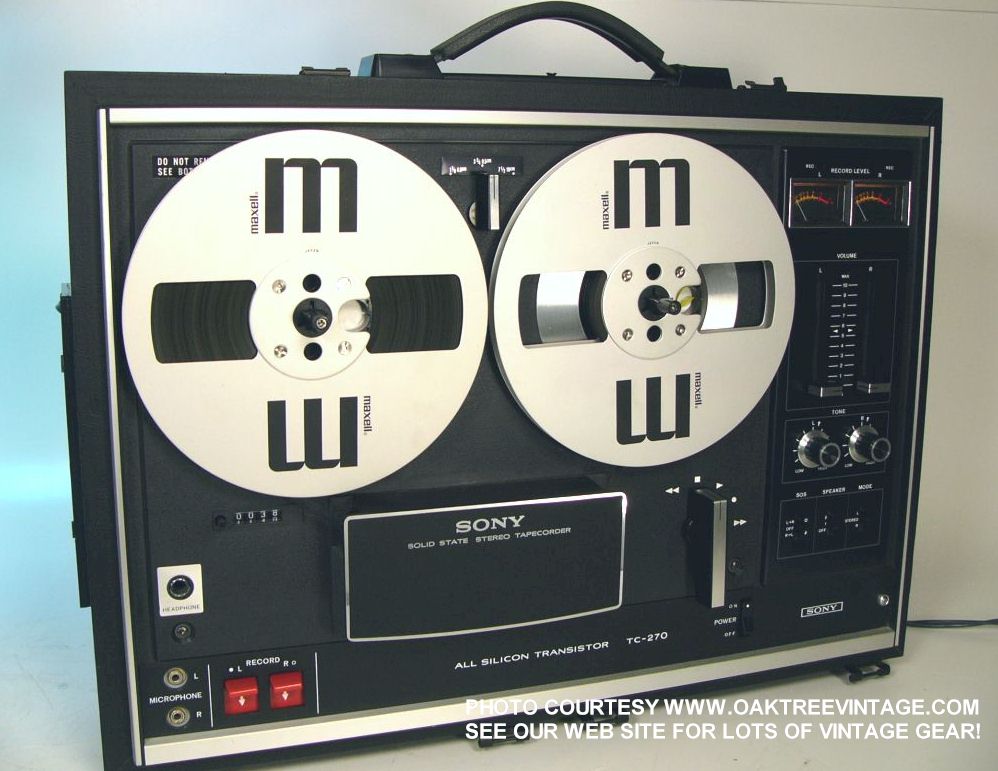

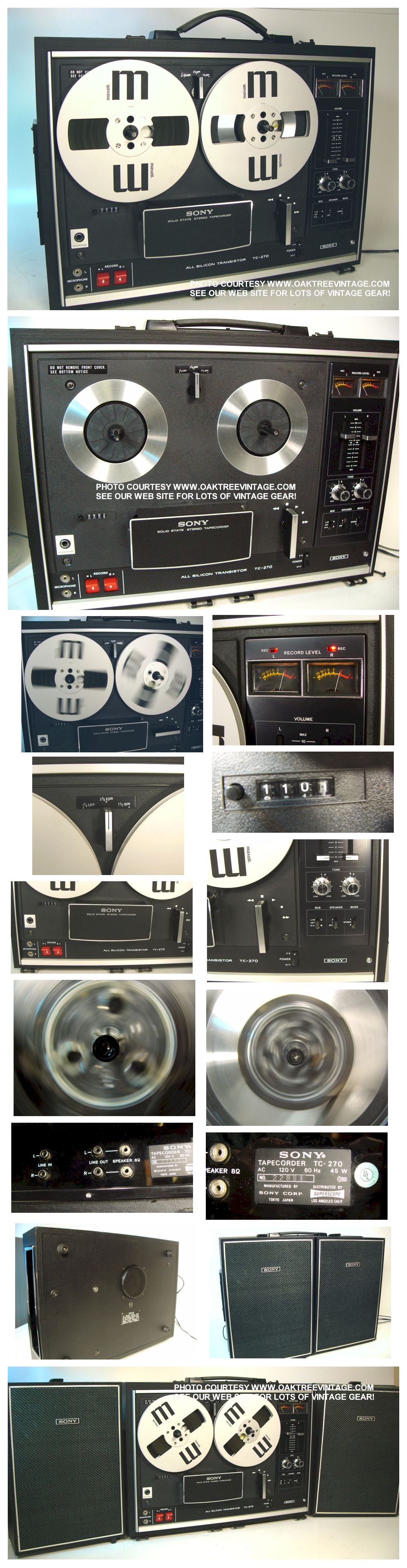

 SONY TC-270 REEL-TO-REEL TAPE DECK / RECORDER
SONY

DISTRIBUTED BY SUPERSCOPE

  4-TRACK / 2-CHANNEL
 2-SPEED / 3 HEAD

3" - 7" REEL CAPACITY

 1/4" REEL-TO-REEL
 STEREO TAPE DECK

SOLD 4/29/11
'MIB-III'









          NEW LISTING 6/20/12
 (Click on above thumbnails to enlarge photos)

SONY REEL-TO-REEL TAPE DECK / RECORDER
SONY TC-280 / TC280

SONY
DISTRIBUTED BY SUPERSCOPE

STEREO 1/4" REEL TAPE
4-TRACK / 2-CHANNEL
   3-SPEED / 2-HEAD
  5"
*- 7" REEL CAPACITY
WITH SUPER HARD
"F&F" (Ferrite & Ferrite) HEADS
#...6316

   Circa
~1972-75
SOLD 7/19/12
SHIPPED TO
NORTH CAROLINA

  We have completely gone through the mechanicals of this unit. Entire transport was disassembled down to the chassis, and every mechanical part was cleaned, re-lubed and reassembled. Flywheel was removed, cleaned and reinstalled. The capstan was burnished, heads have been cleaned and de-magnetized as well as the entire transport. Again, the entire transport assembly was painstakingly disassembled, cleaned and re-lubed as well as the always at issue, 'Pinch Roller swing arm' assembly. 'Auto-Stop' mechanism disassembled and re-lubed with fresh 500,000 silicon damping fluid. Also hub brakes have been cleaned, re-lubed, and adjusted on fast wind modes also. Motor was re-lubed. Voltage set for correct North American AC current at 117VAC with correct 60Hz motor spindle pulley and 0° timing. All internal pots and controls cleaned and tested for noise-free function. Both spindles were completely disassembled, cleaned and had their bearings / bushings cleaned and re-lubed and are in perfect alignment. Main Drive and counter belts replaced for trouble-free service. Rubber pinch roller was removed, cleaned & reconditioned, as well as all internal drive tires / wheels for positive grip. We also adjusted the reel table heights. Heads in great shape as well, with VERY little wear and many hundreds of hours of performance left in them and head alignment / azimuth has been checked for peak performance on both play and record heads with factory STL 1k, 5k, 7.5k, 10k & 15k tones thru an oscilloscope. Plays fine and Records GREAT at +/- 0dB (1kHz @ .775V)! Internal PB output level and VU playback meter level micro-potentiometers adjusted for even (and we really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy). Pinch roller and heads all in GREAT condition. Speed checked to 99.2% accuracy. Following electro/mechanical restoration, unit received a cosmetic cleaning / detailing. Only cosmetic issue is the case has a few minor 'battle scars' / edge dings.
  (Total time investment in refurb / testing ~ 12+ hours). Pinch roller and heads all in GREAT condition!!! Cosmetically in near new condition!
  ____________________________

SOLD 7/19/12
SHIPPED TO
NORTH CAROLINA



 (Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)






NEW LISTING
12/23/16

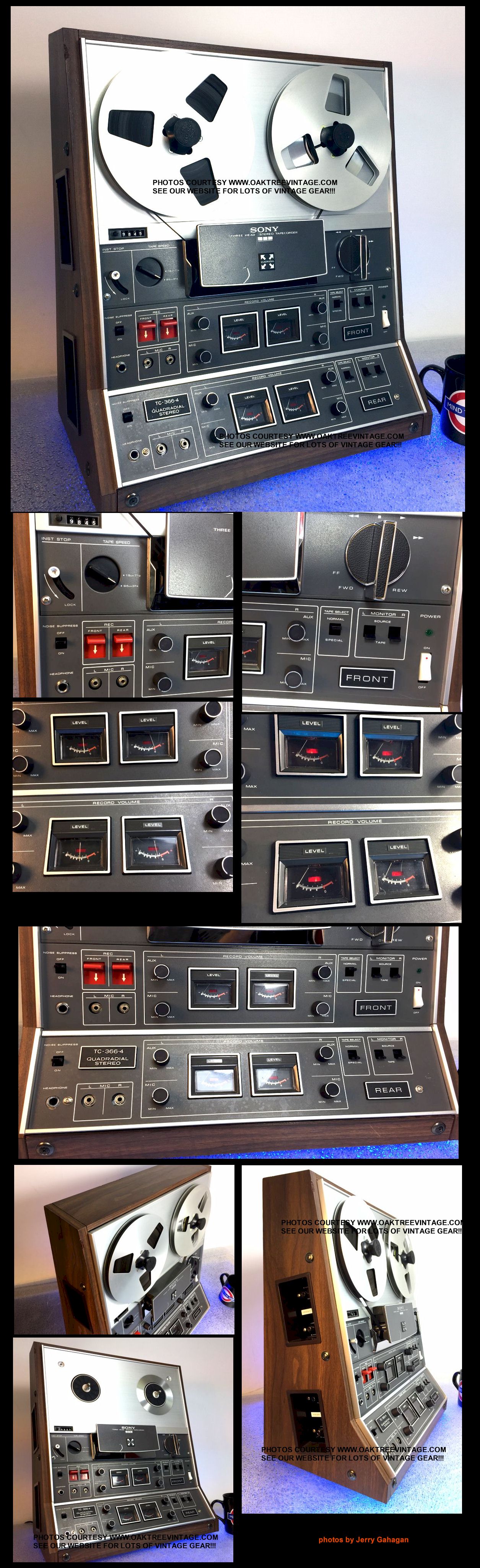

(Click on above thumbnails to enlarge photos)

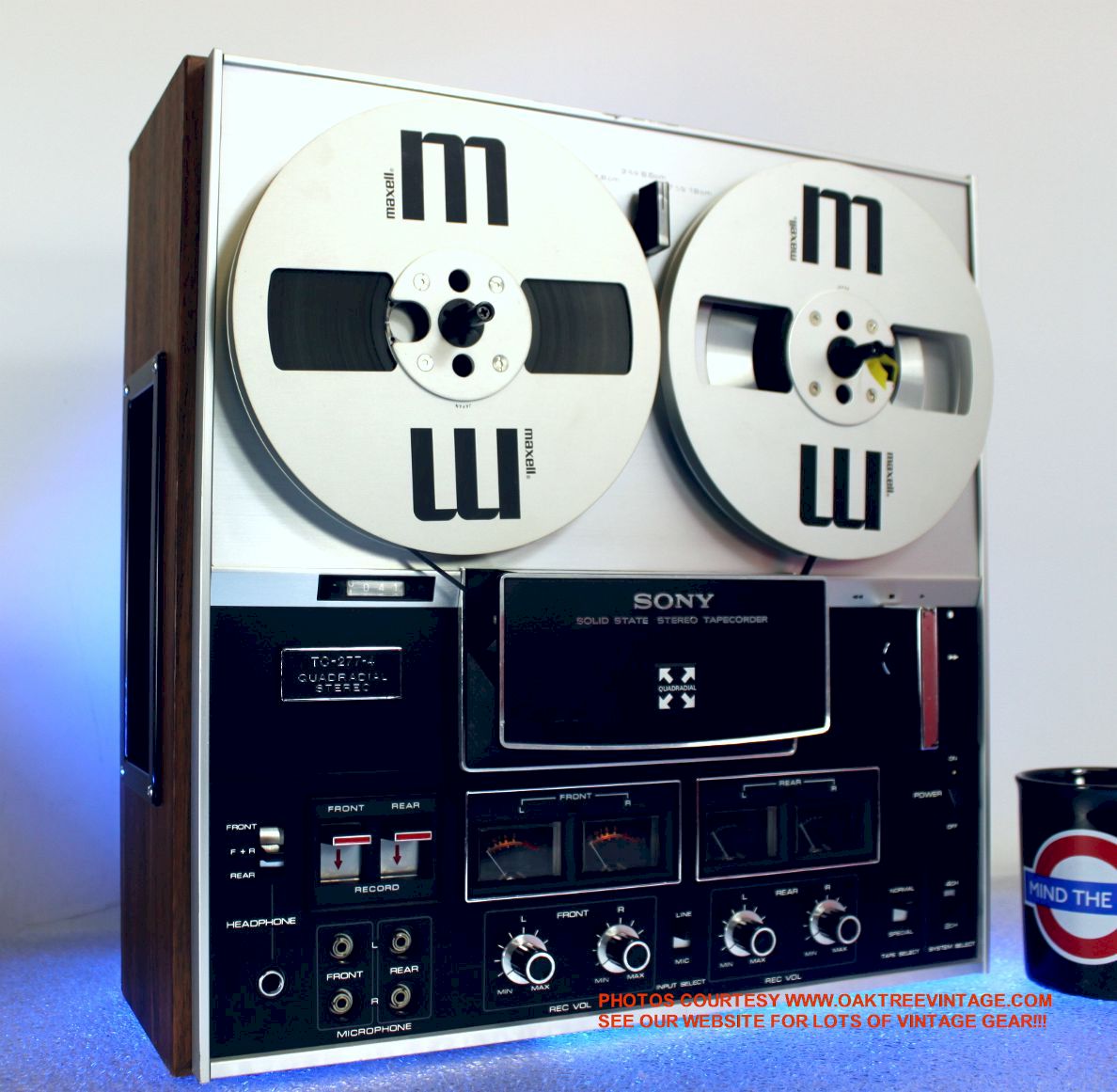

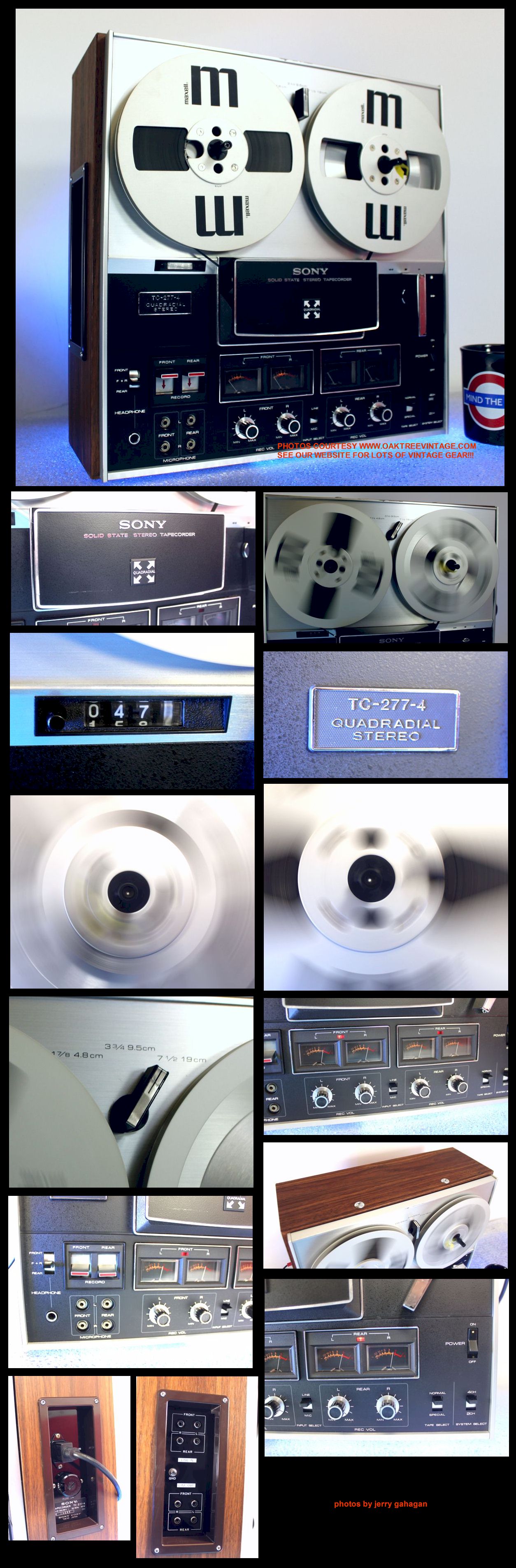

SONY REEL-TO-REEL 1/4" STEREO TAPE DECK
SONY TC-277-4 'QUADRADIAL'
4-TRACK / 2-CHANNEL STEREO & 4-CHANNEL
STEREO / QUADRAPHONIC

3-SPEED
3"- 7" REEL CAPACITY
WITH SUPER HARD F&F HEADS
#...4065
Circa 1972-77
"WORLD AC POWER"
SOLD 1/5/17
SHIPPED TO NEW HAMPSHIRE

Our technician has completely gone through and 'Certified' this unit.

ü  We have completely and extensively gone through the mechanicals and electronics of this unit.
ü  Entire transport was disassembled down to the chassis, and every mechanical part was cleaned of "varnished" lubes and re-lubed as well as the always at issue, Pinch Roller plunge assembly, re-lubed and reassembled.

ü  All Drive and counter belts replaced for trouble-free service.

ü  Rubber pinch roller has been reconditioned

ü  All three internal drive tires / wheels for positive grip

ü  Capstan burnished.

ü  Both reel hubs / clutches removed, disassembled and re-lubed.

ü  All hub brake pads have been replaced, and their bearings re-lubed and adjusted on fast wind modes also.

ü  Motor has been re-lubed as well.

ü  Internal voltage is self regulated DC and values were verified.

ü  All Internal & External pots, controls, & switches (including the linear 'record' switches) cleaned and tested for noise-free function.

ü  Both spindles in perfect alignment.

ü  We also adjusted the reel table heights for no "reel rub".

ü  Pinch roller reconditioned / re-surfaced.

ü  New VU meter illumination lamp installed and both record indicator lamps test fine.

ü  Internal 'Bias', 'Record-Level' and 'PB' micro-pot levels adjusted.

ü  Heads were cleaned and de-magnetized as well as the entire transport.

ü  Ferrite and Ferrite heads all in great shape, with many years of performance left in them.

ü  Head alignment / azimuth has been checked for peak performance with factory test tone tape and oscilloscope.

ü  All Four level meters adjusted for even playback level w/ factory test tone tape.

ü  Floor noise tested to >-52dB w/ fresh, blank tape on PB.

ü  Plays and Records GREAT @ 0dB / 1kHz on Normal Bias tape.

ü  Speed checked to 98.8% accuracy.

ü  Following the above procedures, entire unit was detailed inside and out

Again, Pinch roller and Heads all in GREAT condition.

  (Total time investment in refurb / testing ~ 16 hours).
Cosmetically in fabulous condition!
  ____________________________

GREAT performing Sony TC-277-4 1/4" Open Reel to Reel Stereo / Quadraphonic tape Record / Play deck and has....

Original Sony TC-277-4 Tape Deck Features include:

-  4-Track 2 or 4 Channel playback and 2-Channel recording
- Triple speeds @ 7.5 ips...
- Plays up to a 7" reel as well as...
- Playback / Recording of either stereo or 'Quadraphonic / 4-Channel / Surround-Sound' tapes
- "F&F" Ferrite & Ferrite Heads (super hard heads to prevent...)


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


- True
“WORLD AC POWER" as it will work on both 50 or 60 Hz AC and voltages from 110-240 volts AC (would require 50Hz pulley for use outside of North America)


Original Sony TC-277-4 Tape Deck Specifications:


(All with Sony SLH-180 type tape)
Power Requirements:
110-240 volts AC  & 50 / 60 Hz
Capstan Drive Motor Type: Induction
Tape Speed: 7.5 ips / 19cms, 3 3/4ips / 9.5 cms and extra long 1 7/8 ips / 4.75 cms mechanically switched with single lever, with automatic switching for equalization changes
Reels: 1/4" tape on 7 inches ог smaller
Recording Format: 4-track stereophonic оr monophonic (Quad)
Frequency Response: 3xxxxx Hz @ 7 1/2ips.
                                  3xxxxx Hz @ 3 3/4 ips.


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


                                  unrated for freq (but who cares) @ 1 7/8 ips.
Signal-to-Noise Ratio: > xx dB @ 7 1/2 ips w/ high bias tape
 > xx dB @ 7 1/2 ips w/ normal bias tape
Flutter and Wow: < 0.xx% @ 7 1/2 ips.
Level Indication: Four Analog VU Meters
Record: Calibrated to NAB standard reference level
Playback Time: With 1,800' tape
 (4-track stereo)  (4-track mono) 7 1/2 ips  1 hr. 30 min.                  / 3 hr. & @ 3 3/4 ips. 3 hr. / 6 hr.
Inputs: Four 1/8" Microphone Input Jacks and dual RCA jacks
Outputs: Four RCA jacks
Output Impedance: xxkΩ / 0.775V @ 0dB w/ 100k Ohm load
Line Input Sensitivity: .xx Volts max
Line Input Impedance: 1xxx
Bias Frequency: xxxx(kHz)
Rewind Time w/ 1200’ Tape:- 1xxsec


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


Again, following the above stated bench work / testing, our technician has 'Certified' this deck and it is an great performer sonically and mechanically. This deck has had our full refurbishment. It's pretty much had the clock rolled back 40 years on it. With the exception of 'light' scuffing at the top edge of the trim, and the 'black' is worn from the front of the transport lever (see photos above), the units looks fabulous. Machine is READY TO GO! Would make a great deck for any one needing a deck to do tape to CD or Hard Drive transfers of reel to reel tapes or for making NEW reel tape recordings. Of course GREAT for playing your QUADRAPHONIC / SURROUND SOUND tapes as well. Comes with an 'e' copy / pdf of the Sony TC-366-4 (a previous version that would be applicable) owners / users manual. Includes a take-up reel. Includes our standard 30 day limited warranty. Measures 15.75" wide x 7.75" deep x 15.25" tall and weighs 24 lbs unpacked. (Reels & tape shown in photos not included. All are sometimes available separately if you need them. We do ship our decks with a plastic take-up reel, a tape to 'practice record' on and a 'pre-recorded' tape for playback.)
SONY TC-277-4 REEL TO REEL TAPE RECORDER / DECK
Cond. 8.5

SOLD 1/5/17
SHIPPED TO NEW HAMPSHIRE



(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)







Sony_TC-228_8-Track_Tape_Deck_Recorder_Player_web.jpg (21858 bytes)  Sony_TC-228_8-Track_Tape_Deck_Recorder_Player_collage.jpg (115265 bytes)

SONY 8-TRACK
MODEL TC-288
DISTRIBUTED BY SUPERSCOPE

SOLD





NEW LISTING
2/15/08

SONY

 TC-350 TC350
#...7410


 4-TRACK / 2-CHANNEL
 2-SPEED / 3 HEAD

3" - 7" REEL CAPACITY

 1/4" REEL-TO-REEL
 STEREO TAPE DECK

SOLD 3/17/08

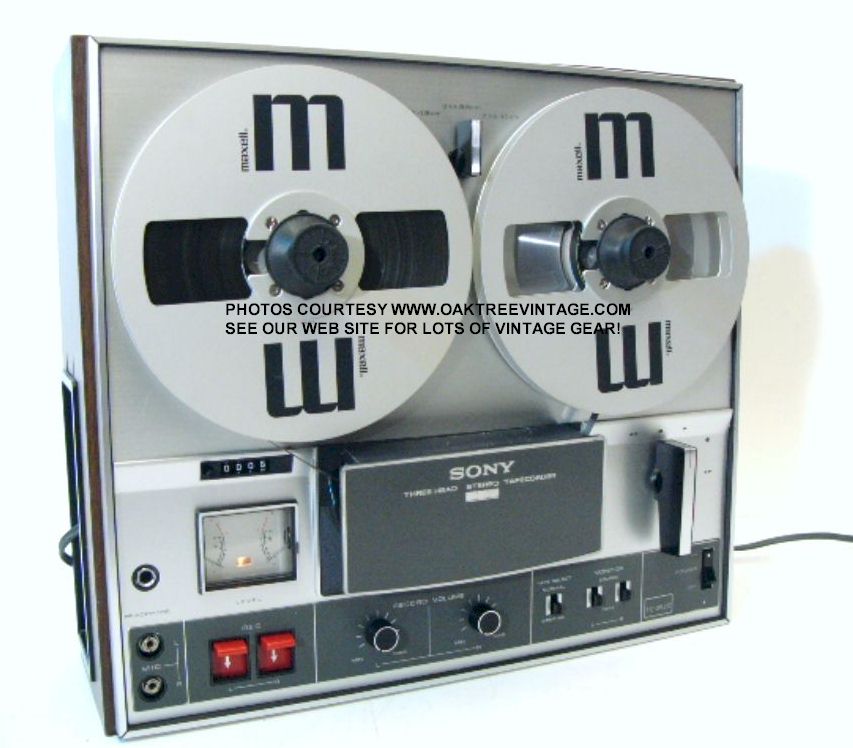

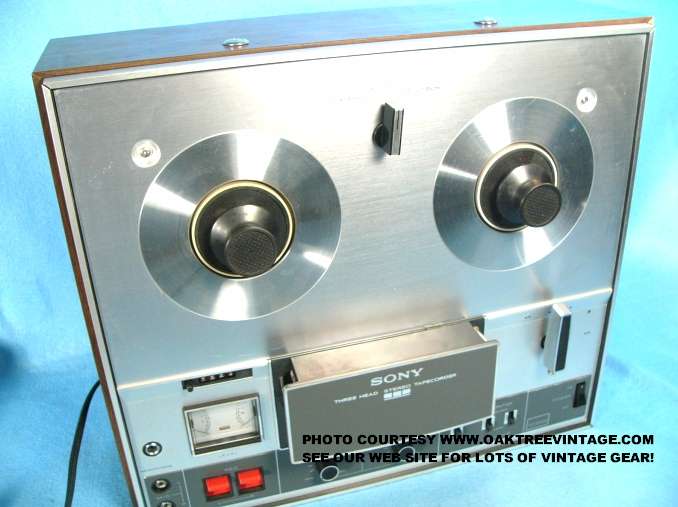

SONY
TC-352D
REEL-TO-REEL
STEREO TAPE DECK

SOLD

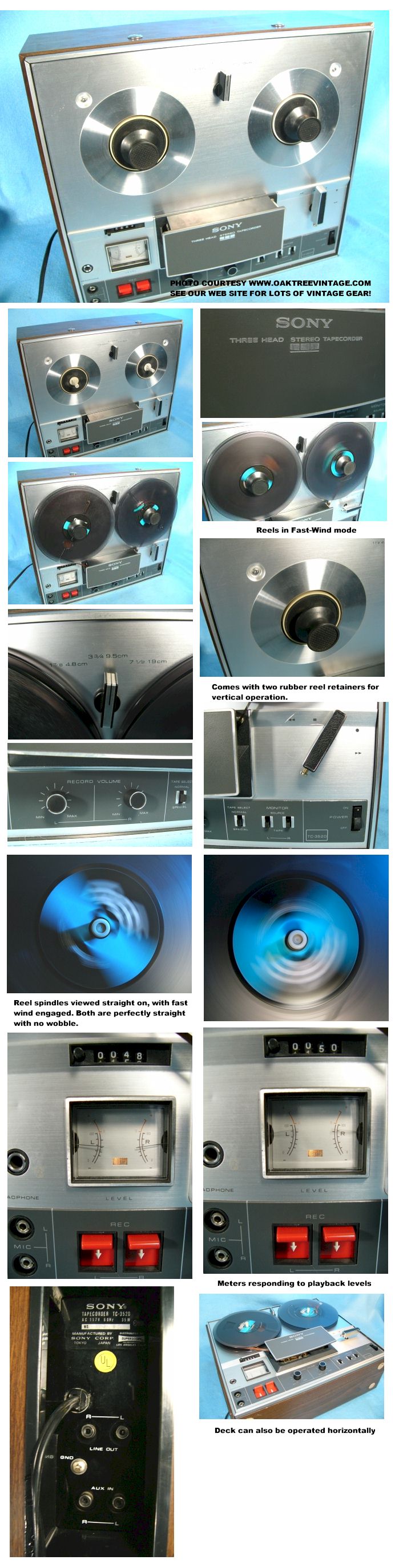

Sony_TC-352D_Stereo_Open_Reel_Tape_Deck_web.jpg (38408 bytes)    Sony_TC-352D_Stereo_Open_Reel_Tape_Deck_collage.jpg (304395 bytes)

NEW LISTING 3/14/05

SONY TC-352D

DISTRIBUTED BY SUPERSCOPE

4-TRACK / 2-CHANNEL
3-SPEED
&
3-HEAD

1/4" REEL-TO-REEL
STEREO TAPE DECK

Circa 1970-7
2
SOLD 3/22/05

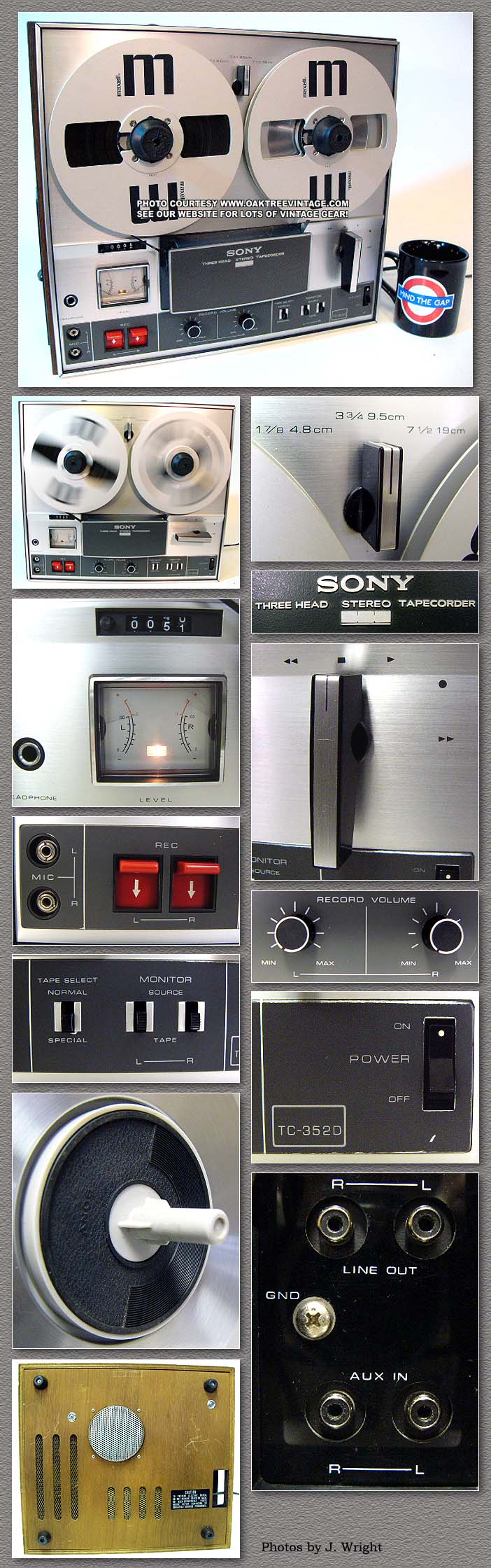

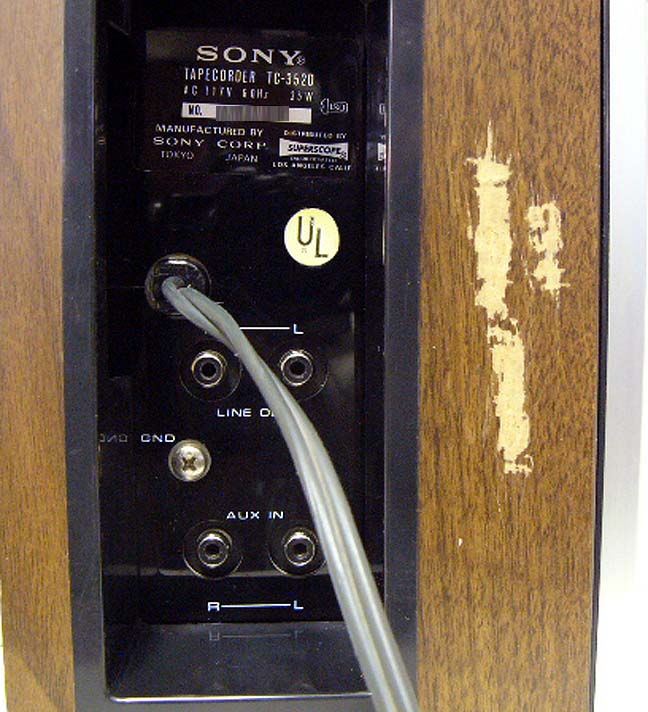

NEW LISTING
6/19/09
(Click on above thumbnails to enlarge photos)
SONY
1/4" REEL-TO-REEL
STEREO TAPE DECK
         TC-352D
TC352D
 4-TRACK / 2-CHANNEL
3-SPEED
&
3-HEAD

Circa 1970-72

SOLD 8/28/09





SONY
TC-355
REEL-REEL
SOLD

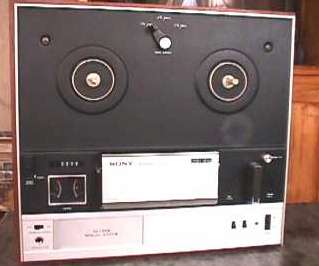

NEW LISTING 9/19/07
SONY

 TC-355

 4-TRACK / 2-CHANNEL
 3-SPEED / 3 HEAD

3" - 7" REEL CAPACITY

 1/4" REEL-TO-REEL

SOLD 11/9/07








NEW LISTING 3/19/09
(Click on above thumbnails to enlarge photos)


 SONY
  1/4" REEL-TO-REEL
  STEREO TAPE DECK
         TC-355
TC355
    #...1882
4-TRACK / 2-CHANNEL

  3-SPEED / 3 HEAD
 3" - 7" REEL CAPACITY
  "
WORLD AC POWER"
  Circa 1967-70

SOLD 3/19/09

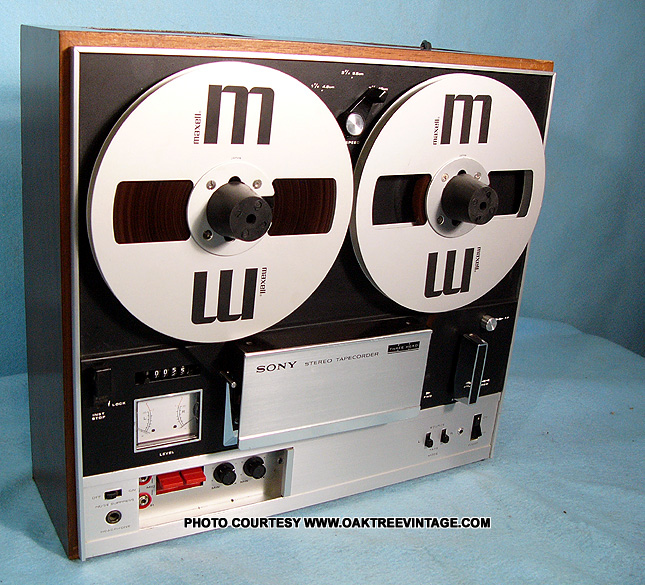

 NEW LISTING 9/16/11
 (Click on above thumbnails to enlarge photos)

  SONY
   1/4" REEL-TO-REEL
   STEREO TAPE DECK

          TC-355
TC355

    #...0389
 4-TRACK / 2-CHANNEL
   3-SPEED / 3 HEAD

  5"- 7" REEL CAPACITY
   "
WORLD AC POWER"
   Circa 1967-70

SOLD 11/07/11






         NEW LISTING 6/12/12
 (Click on above thumbnails to enlarge photos)

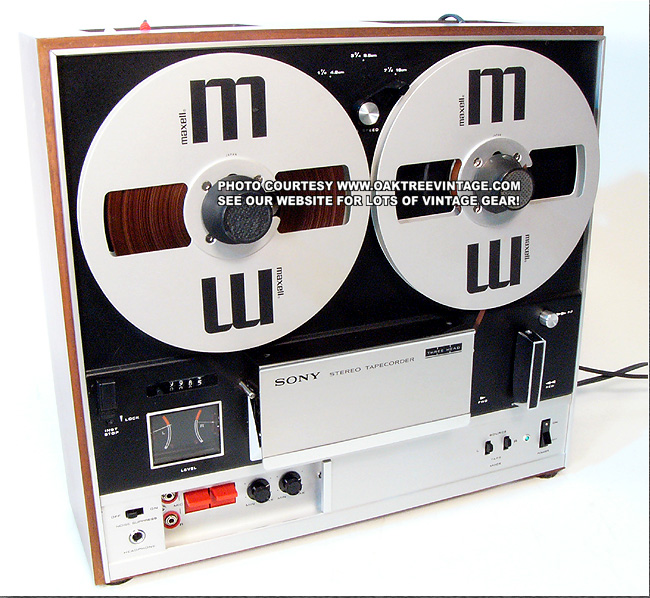

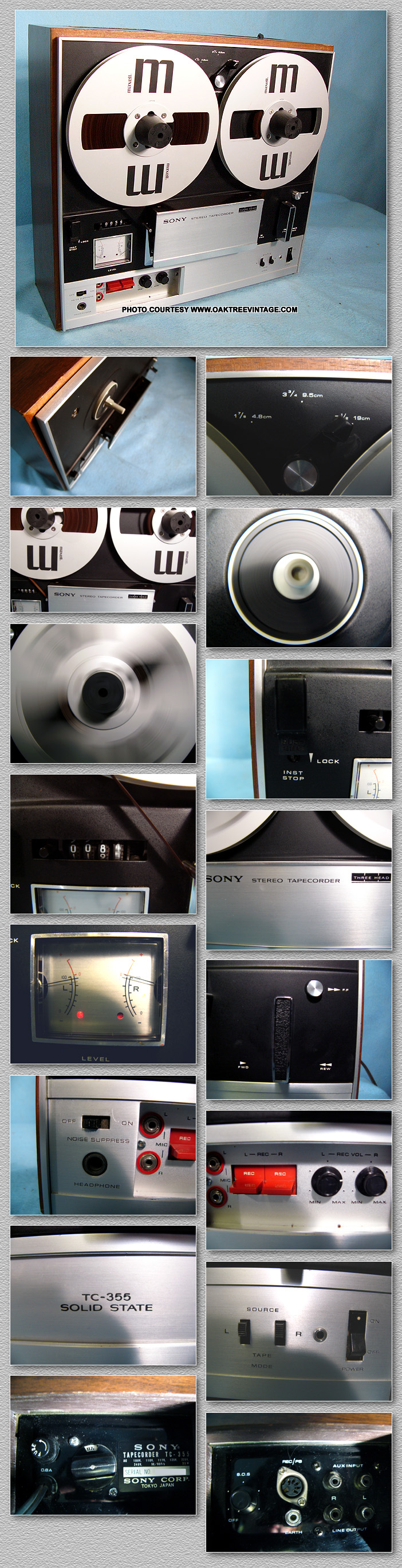

  SONY 1/4" REEL-TO-REEL STEREO TAPE DECK TC-355 / TC355
#4027

   Circa 1967-70

 for sale
SOLD 8/13/12
SHIPPED TO MASSACHUSETTS

  We have completely gone through the mechanicals of this unit. Entire transport was disassembled down to the chassis, and every mechanical part was cleaned, re-lubed and reassembled. Flywheel was removed, cleaned and reinstalled. The capstan was burnished, heads have been cleaned and de-magnetized as well as the entire transport. Again, the entire transport assembly was painstakingly disassembled, cleaned and re-lubed as well as the always at issue, 'Pinch Roller swing arm' assembly. 'Auto-Stop' mechanism disassembled and re-lubed with fresh 500,000 silicon damping fluid. Also hub brakes have been cleaned, re-lubed, new brake pads installed and adjusted on fast wind modes also. Motor was re-lubed. Voltage set for correct North American AC current at 117VAC with correct 60Hz motor spindle pulley and 0° timing. All internal pots and controls cleaned and tested for noise-free function. Both spindles were completely disassembled, cleaned and had their bearings / bushings cleaned and re-lubed and are in perfect alignment. Main Drive and counter belts replaced for trouble-free service. Rubber pinch roller was removed, cleaned & reconditioned, as well as all internal drive tires / wheels for positive grip. We also adjusted the reel table heights. Heads in great shape as well, with many hundreds of hours of performance left in them and head alignment / azimuth has been checked for peak performance on both play and record heads with factory STL 1k, 5k, 7.5k, 10k & 15k tones thru an oscilloscope. Plays fine and Records GREAT at +/- 0dB! Both PB output levels and VU meters playback internally adjusted for even (and we really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy). Pinch roller and heads all in GREAT condition. Speed checked to 98.6% accuracy. Following electro/mechanical restoration, unit received a cosmetic cleaning / detailing. Only cosmetic issue is the case has a few minor 'battle scars' / edge dings.
  (Total time investment in refurb / testing ~ 12+ hours). Pinch roller and heads all in GREAT condition!!! Cosmetically in near new condition!
  ____________________________



SOLD 8/13/12
SHIPPED TO MASSACHUSETTS



 (Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)

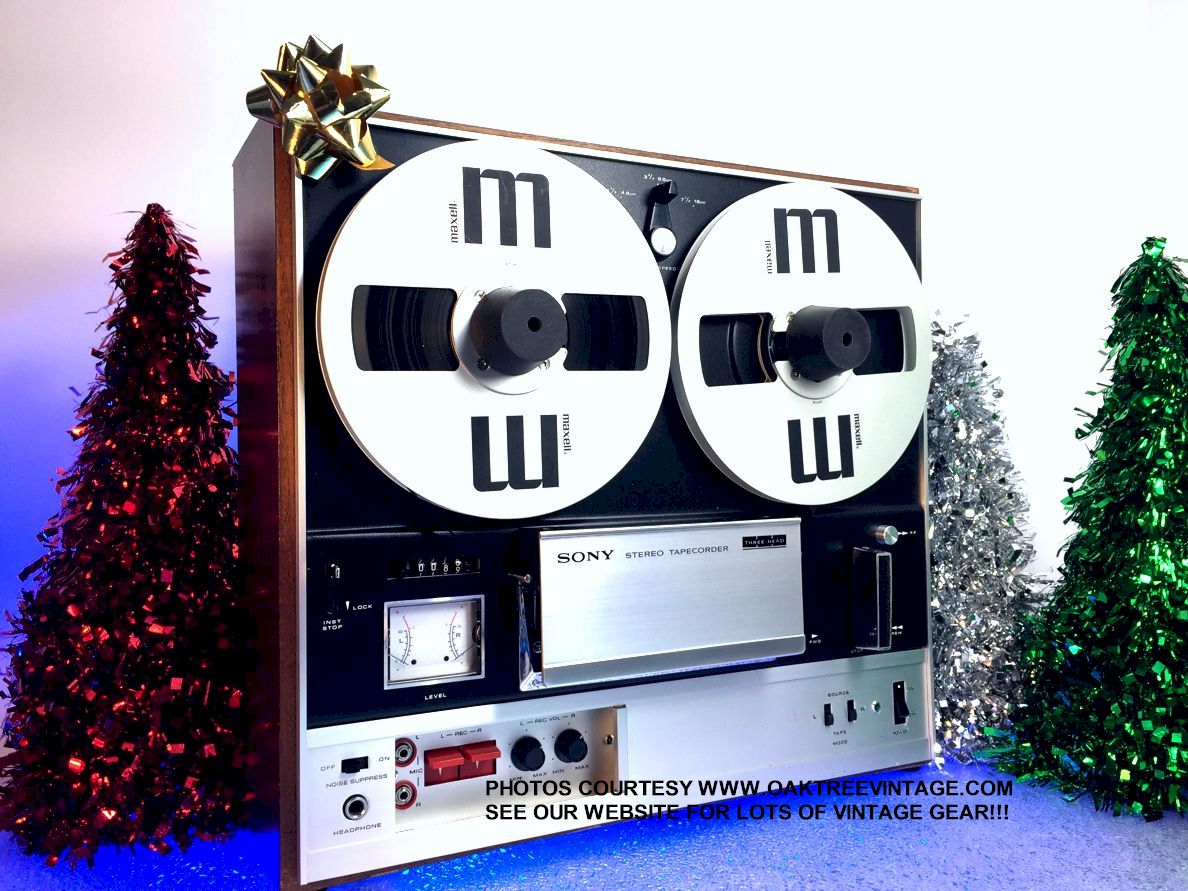

       NEW LISTING 12/4/17
(Click on above thumbnails to enlarge photos)

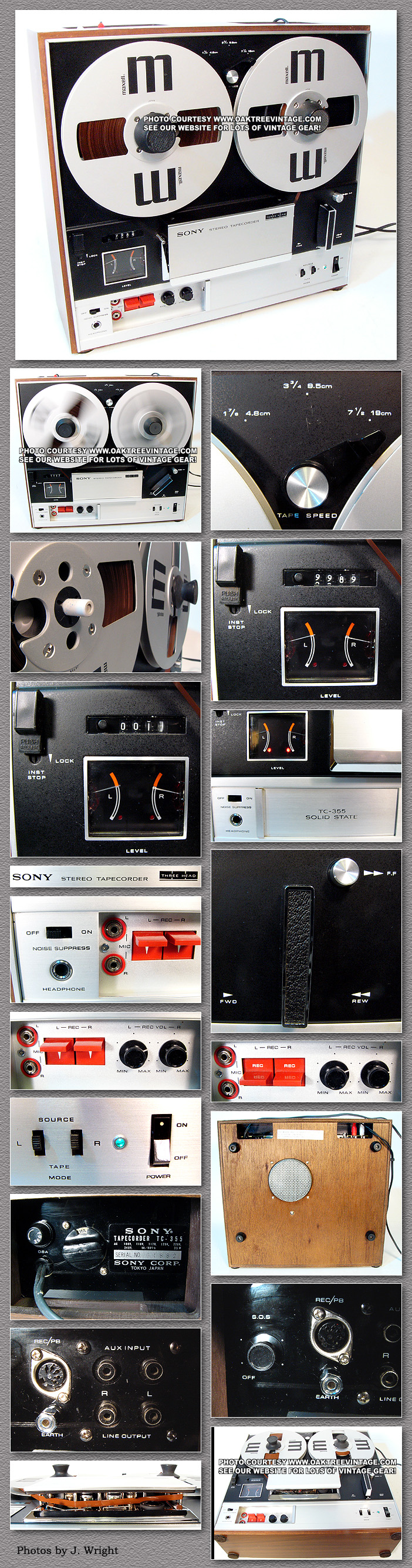

VINTAGE SONY 1/4" REEL-TO-REEL STEREO TAPE DECK
SONY TC-355 / TC355
 #...0422
4-TRACK / 2-CHANNEL STEREO OR 4-CHANNEL MONO
3-SPEED / 3 HEAD
5"
* - 7" REEL CAPACITY
"
WORLD AC POWER"
Circa 1967-70

MIJ
SOLD 1/10/18
SHIPPING TO NEVADA


Our technician has completely gone through and 'Certified' this unit.

ü We have completely and extensively gone through the mechanicals and electronics of this unit.
ü Entire transport was disassembled down to the chassis, and every mechanical part was cleaned of "varnished" lubes, re-lubed and reassembled. Again, the entire transport assembly was painstakingly disassembled, cleaned and re-lubed as well as the always at issue, 'Pinch Roller swing arm' 'plunge' assembly

ü New 'Main Drive' and counter belts replaced for trouble-free service.

ü All three internal drive tires / wheels reconditioned for positive grip

ü Capstan burnished.

ü Drive Flywheel 'crosshatched' for more positive traction

ü Both reel hubs / clutches removed, disassembled and re-lubed.

ü All hub brake pads have been resurfaced or replaced where necessary, and their bearings re-lubed and adjusted on fast wind modes.

ü Motor re-lubed at both front and rear ports

ü AC power input selection corrected from 100V to 117V

ü Internal voltage is self regulated DC and values were verified.

ü All Internal & External pots, controls, & switches (including the linear 'record' switches) cleaned and tested for noise-free function.

ü Both spindles in perfect alignment.

ü We also adjusted the reel table heights for no "reel rub".

ü Pinch roller reconditioned / re-surfaced.

ü Auto-Stop mechanism tested for proper 'drop' time

ü New VU meter illumination lamp installed and both record indicator lamps test fine.

ü Internal 'Bias', 'Record-Level' and 'Play Back Level' micro-pot levels adjusted.

ü Heads were cleaned and de-magnetized as well as the entire transport.

ü Ferrite and Ferrite heads all in great shape, with many years of performance left in them.

ü Head alignment / azimuth has been checked for peak performance with factory test tone tape and oscilloscope on both Playback and Recording.

ü Both level meters adjusted for even playback level w/ factory test tone tape.

ü Floor noise tested to >60dB w/ fresh, blank tape on PB.

ü Tape pressure pad tension increased for improved response above 5kHz

ü Plays and Records GREAT @ -2dB / 1kHz on Ampex 456GM tape, however, in 'real world' testing, we found that switching to TDK 'Audua / L-1800' tape allowed 0dB on both Pink Noise and DDD CD recording with very little high frequency loss!

ü Speed checked to 98.14% accuracy.

üDuring the above procedures, entire unit was detailed inside and out

ü Again, Pinch roller and Heads all in GREAT condition.

  (Total time investment in refurb / testing 18+ hours).
Cosmetically in great condition!
  ____________________________


Comes with one pair of rubber reel retainers and a take-up reel. Includes a pdf download 'e-copy' of the Sony TC-355 owners manual and the service manual if the purchaser wishes. Includes our standard 30 day limited warranty. Measures 15.25" wide x 7" deep x 14" tall and weighs 24 lbs unpacked.
 (Reels & tape shown in photos not included. All are sometimes available separately depending on stock levels.)

SONY TC-355 REEL TO REEL TAPE DECK
Cond. 8.5+
(C) R.R.

SOLD 1/10/18
SHIPPING TO NEVADA


(Reels shown in photos are not included, but we sometimes / occasionally have them for sale. Inquire at time of order. However, all of our decks will come with 2x tapes for testing 'Playback' and 'Recording' as well as a 7" 'take-up' reel. This deck will come with a TDK 'Audua' tape that we have recorded on for playback tests, that you may further record on if you desire)



 (Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)

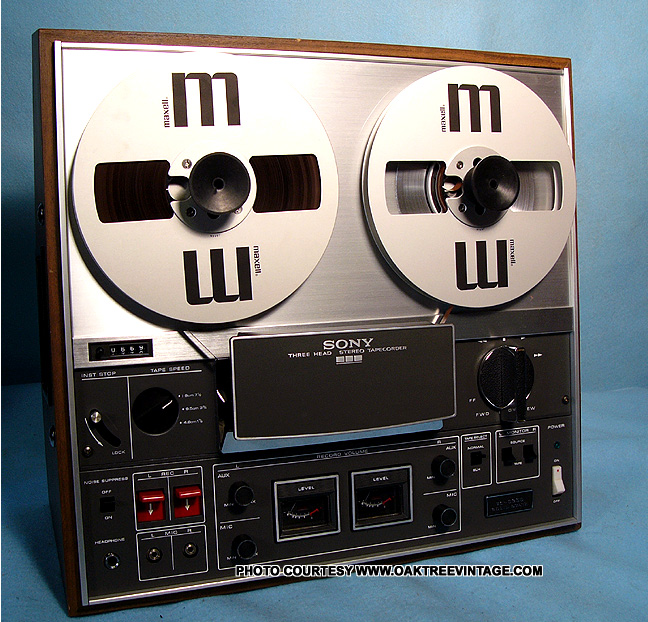

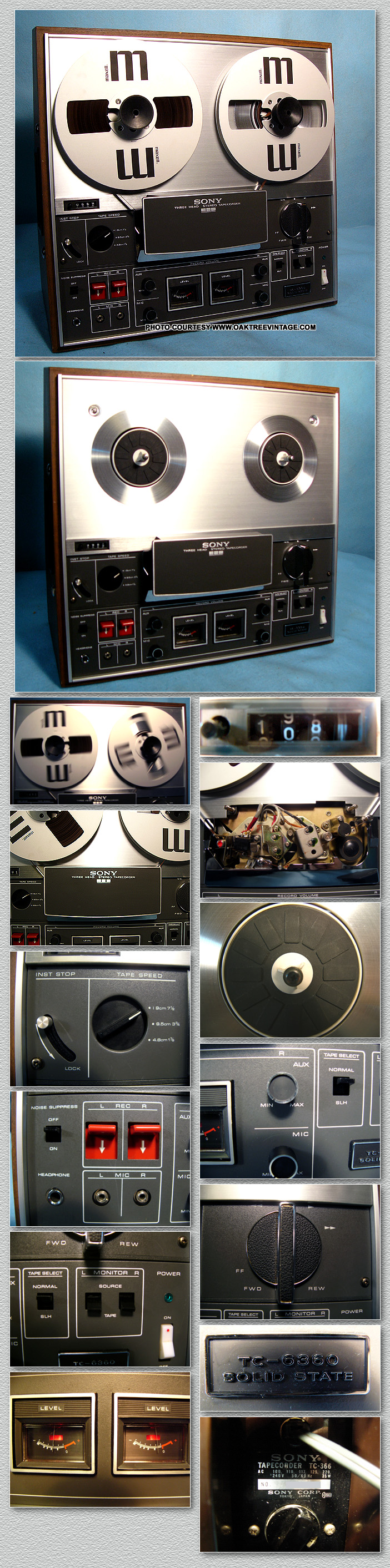

Sony_TC-366_Reel-Reel_Tape_Deck_Recorder_web.jpg (33754 bytes)      Sony_TC-366_Reel-Reel_Tape_Deck_Recorder_collage.jpg (189476 bytes)

SONY
TC-366
SOLD



NEW LISTING 3/2/07
SONY
                     TC-366 / 6360
TC366 TC6360
 3-HEAD / 3-SPEED
1/4" REEL-TO-REEL
STEREO TAPE DECK
 "
WORLD AC POWER"
SOLD 3/5/07





         NEW LISTING 5/2/08
SONY
                     TC-366 / 6360
TC366 TC6360
 3-SPEED / 3-HEAD
STEREO
1/4" REEL-TO-REEL
TAPE DECK
 "
WORLD AC POWER"

SOLD 6/13/08







NEW LISTING 7/4/17
 (Click on above thumbnails to enlarge photos)

 RESTORED / REFURBISHED / FULLY SERVICED

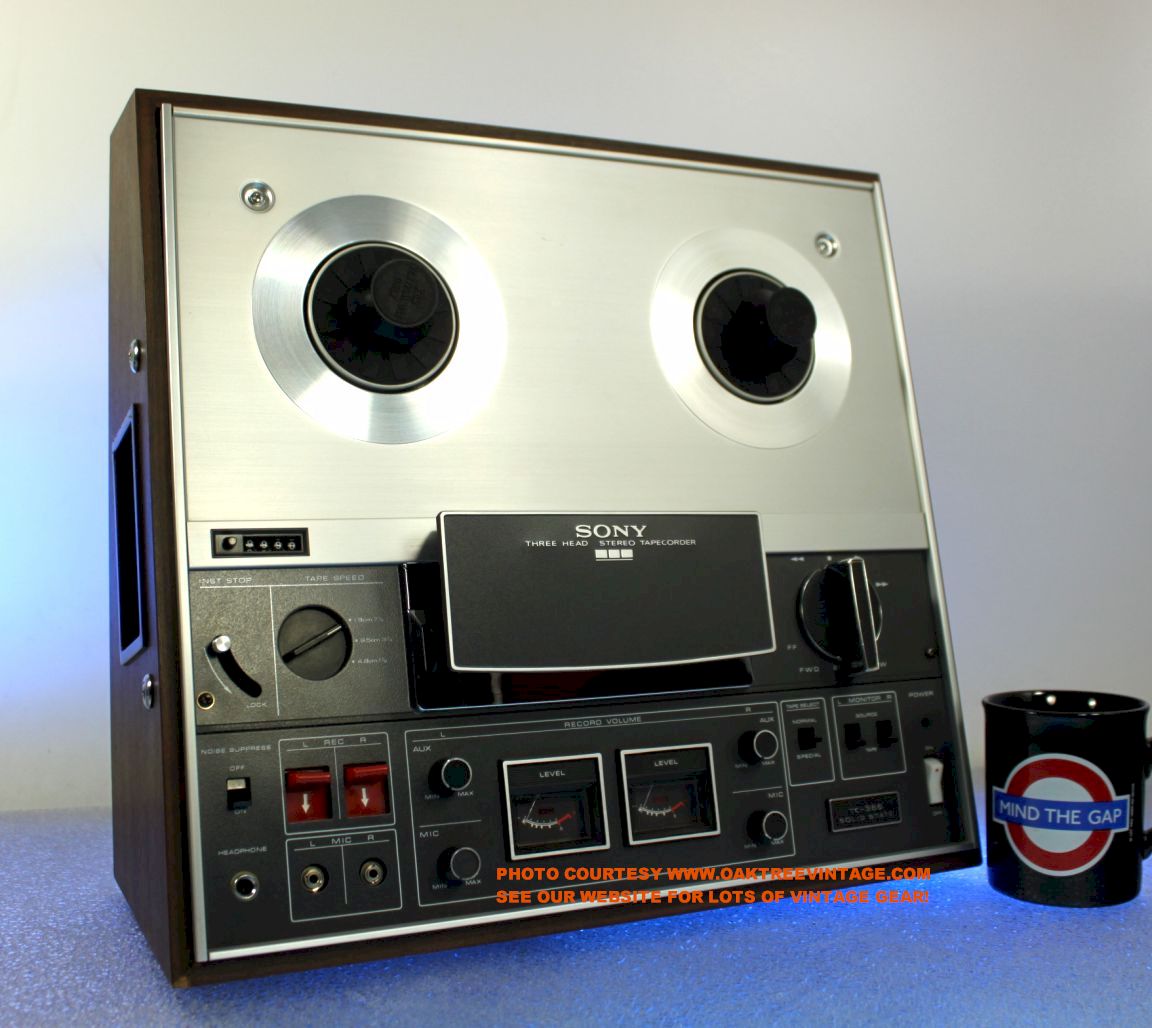

VINTAGE SONY REEL-TO-REEL 1/4" STEREO TAPE DECK
 SONY TC-366 / TC366
 4-TRACK / 2-CHANNEL STEREO
 3-SPEEDS / 3-HEADS
 3"- 7" REEL CAPACITY
 WITH SUPER HARD F&F HEADS
 #...5652
 Circa 1972-77
"WORLD AC POWER"
SOLD 7/6/17
SHIPPED TO WASHINGTON


 Our technician has completely gone through and 'Certified' this unit.

ü  We have completely and extensively gone through the mechanicals and electronics of this unit.
ü  Entire transport was disassembled down to the chassis, and every mechanical part was cleaned of "varnished" lubes and re-lubed as well as the always at issue, Pinch Roller plunge assembly, re-lubed and reassembled.

ü  Rubber pinch roller has been reconditioned

ü  All three internal drive tires / wheels burnished / conditioned for positive grip

ü  Capstan burnished.

ü  Both counter belts replaced for trouble-free service.

ü  Both reel hubs / clutches removed, disassembled and re-lubed.

ü  All hub brake pads have been replaced, and their bearings re-lubed and adjusted on fast wind modes also.

ü  Motor has been re-lubed as well.

ü  Internal voltage is self regulated DC and values were verified.

ü  All Internal & External pots, controls, & switches (including the linear 'record' switches) cleaned and tested for noise-free function.

ü  Both spindles in perfect alignment.

ü  We also adjusted the reel table heights for no "reel rub".

ü  Pinch roller reconditioned / re-surfaced.

ü  New VU meter illumination lamp installed and both record indicator lamps test fine.

ü  Internal 'Bias', 'Record-Level' and 'PB' micro-pots cleaned EXTENSIVELY and levels adjusted.

ü  Heads were cleaned and de-magnetized as well as the entire transport.

ü  Head alignment / azimuth has been checked for peak performance with factory test tone tape and oscilloscope.

ü  Both level meters adjusted for even playback level w/ factory test tone tape.

ü  Floor noise tested to >-60dB w/ fresh, blank tape on PB.

ü  Plays and Records GREAT @ -1.5dB with 'High Bias' tape and @ -2dB / 1kHz on Normal Bias tape.


ü  Speed checked to 99.8% accuracy.

ü  New AC Line cord installed

ü  Following the above procedures, entire unit was detailed inside and out

 Again, Pinch roller and Heads all in GREAT condition.

 (Total time investment in refurb / testing ~ 16 hours).
 Cosmetically in fabulous condition!
 ____________________________


 Nice performing Sony TC-366, ...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?



... Following it's extensive refurbishment, this deck works great, sounds wonderful, and looks NEAR NEW! Our tech is VERY good at restoring these Sony Reel to Reel's, and this one is a fine example of his efforts.

Sony TC-366 Features include:
- Triple Speed transport supporting 1 7/8 ips, 3 3/4 ips and 7 1/2 ips
 - 3-HEAD tape monitoring (a very high end feature for checking recording quality as the tape is actually being recorded)
 - Plays up to a 7" reel as well as 3" & 5" reels
 - Separate L XXX


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

 - Sound-XX
 - Dual XXX(again this unit does have the above mentioned issue with the right meter)
 - Separate XX
 - Built-in Noise Suppressor
 - TapeXX
 - Dual XX
 - 1/4"X
 - MechanicalXXX


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

 - RCA & DIN inputs and outputs
 -True XX

Original Sony TC-366 Tape Deck Specifications:

(All with Sony SLH-180 type tape)
 Power Requirements:  117 VAC, 30 Watts, 60 Hz

 Capstan Drive Motor Type: InduXXXe'
 Tape Speed: 7.5 ips / 19cms, 3 3/4ips / 9.5 cms and extra long 1 7/8 ips / 4.75 cms mechanically switched with single lever, with automatic switching for equalization changes
 Reels: 1/4" tape on 7 inch diameter ог smaller
 Recording Format: 4-track stereophonic оr monophonic
 Frequency Response: XXX Hz @ 7 1/2ips.

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?



                               XXXX Hz @ 3 3/4 ips.
                                   XX Hz @ 1 7/8 ips.
 Signal-to-Noise Ratio: > XXdB @ 7 1/2 ips w/ high bias tape
  >XXdB @ 7 1/2 ips w/ normal bias tape
 Flutter and Wow: < XX% @ 7 1/2 ips.
                           < 0XX% @ 3 3/4 ips.
 Level Indication: Dual XXX

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?



 Record: Calibrated to NAB standard reference level

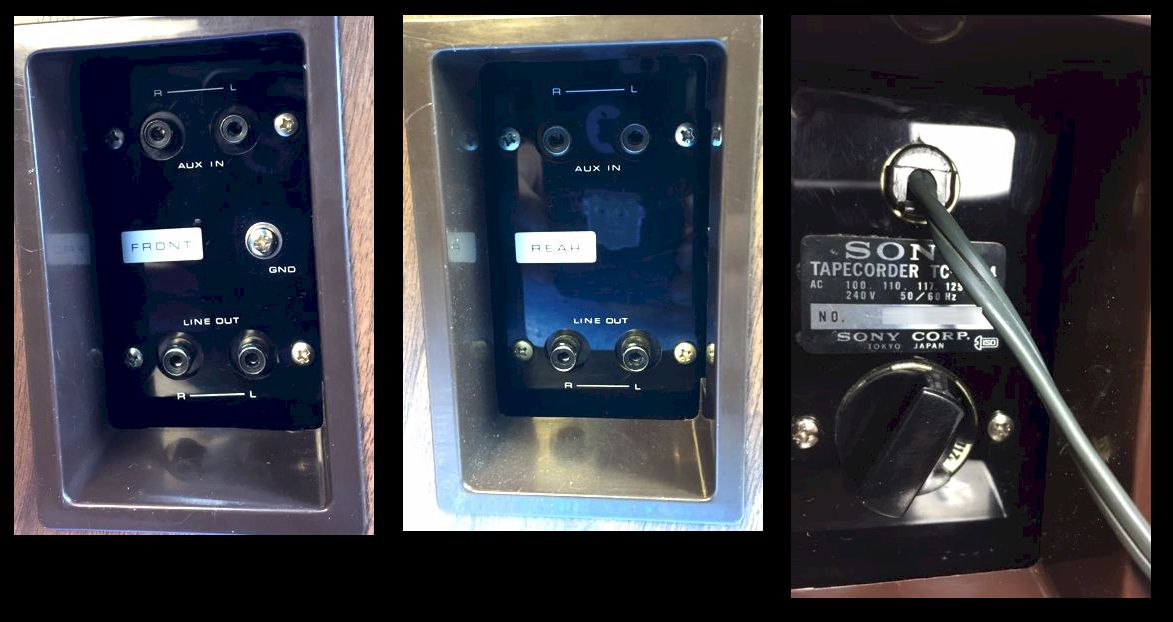

  Inputs: Dual 1/4" Microphone Input Jacks and dual RCA jacks
 Outputs: Dual RCA jacks
 Output Impedance: 10kΩ
 Line Input Sensitivity: -XXdB / .X Volts
 Line Input Impedance: XXXk
 Bias Frequency: 1XX(kHz)


 Again this deck has been completely gone through and with the exception of the right meter always appearing low, everything works great! This deck sounds great for a "nothing fancy & inexpensive" reel to reel deck. Exceptional performer sonically in both playback and record modes (and we are pretty critical). Can be used standing vertically or laying on it's back horizontally. Comes with one pair of correct and original SONY rubber reel retainers with Sony's metal clip inserts. Includes our standard 30 day limited warranty.  Measures 16.25" wide x 8.5" deep x 15.75" tall and weighs 24 lbs unpacked.
(Reels & tape shown in photos not included. All are usually available separately if you need them)
SONY TC-366 REEL TO REEL
Cond. 8.5

SOLD 7/6/17
SHIPPED TO WASHINGTON



(Reels shown in photos are not included, but we sometimes / occasionally have them for sale. Inquire at time of order.)


 (Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)











NEW LISTING 9/19/2020
(Click on above thumbnails to enlarge photos)

RESTORED / REFURBISHED / FULLY SERVICED
VINTAGE SONY REEL-TO-REEL 1/4" STEREO TAPE DECK
SONY TC-366 / TC366
4-TRACK / 2-CHANNEL STEREO OR 1-CHANNEL MONOPHONIC
3-SPEEDS / 3-HEADS

"SOUND ON SOUND" CAPABLE

3"- 7" REEL CAPACITY
#...8751
Circa 1972-77
"WORLD AC POWER"
SOLD 10/7/2020
SHIPPING TO RAY IN TEXAS


ü Our technician has completely gone through and 'Certified' this unit.

ü Adjustable input voltage verified correct for North American AC current

ü We have completely and extensively gone through the mechanicals and electronics of this unit.

ü AC power cord replaced

ü Entire transport was disassembled down to the chassis, and every mechanical part, including head block assembly was cleaned of "varnished" lubes and re-lubed as well as the always at issue, Pinch Roller plunge assembly, re-lubed and reassembled.



ü All internal drive tires / wheels burnished / conditioned for positive grip

ü Capstan burnished.

ü Both Tape Counter belts (#031 & 042) replaced for trouble-free service.

ü Both 'Main Drive' belts (#157 & 232) replaced.

ü Both reel hubs / clutches removed, disassembled and re-lubed.

ü All hub brake pads / linings REPLACED, and their bearings re-lubed and adjusted on fast wind modes also.

ü Motor has been re-lubed as well.

ü  Internal voltage is self regulated DC and values were verified. (Tech note: This particular unit, Sony TC-366 #8751 has the updated power supply circuit board, per recall notice in service bulletin, installed. We further, updated the Electrolytic Capacitors on the board.)

ü All Internal & External pots, controls, & switches (including the linear 'record' switches) cleaned and tested for noise-free function.


ü Both linear record switches removed and cleaned.


ü All 'slide' switches cleaned.

ü Both spindles in perfect alignment.

ü We also adjusted the reel table heights for no "reel rub".

ü Pinch roller reconditioned / re-surfaced.

ü VU meter illumination lamps all working fine.

ü Internal 'Bias', 'Record-Level', 'Record EQ' and 'PB' micro-pots cleaned EXTENSIVELY and levels adjusted with proper test tapes.



ü Heads were cleaned and de-magnetized as well as the entire transport.

ü Head alignment / azimuth has been checked for peak performance with factory test tone tape and oscilloscope.

ü Both meters adjusted for even playback and Record levels w/ factory test tone tape.

ü Floor noise tested to >-60dB w/ fresh, blank tape on PB.

ü Plays and Records great. 1kHz @ -1dB Plays back @ 0dB on L and 0dB on R +/-3dB w/ Maxell UDXL tape. (We got the best results using Maxell UDXL tape).


ü Speed checked to 99.2% accuracy. (Meaning a 'factory' 1kHz tape plays back at 992Hz. The last on of these we had in 2014 tested to just over 95% accuracy, which is just at the limit of passing our bar) (tech note: has Sony #-05 motor / belt pulley installed from factory)

ü Following the above procedures, entire unit was detailed inside and out

 Again, Pinch roller and Heads all in GREAT condition.


(Total time investment in refurb / testing ~
21 hours).
ü Following cosmetic detailing, it looks in great condition.
 ____________________________


Nice performing Sony TC-366, 3-Speed, 3-Head, 1/4" Open Reel Stereo tape Record / Play deck.


 Again this deck has been completely gone through and everything works great! Exceptional performer sonically in both playback and record modes (and we are pretty critical). Comes with an 'e-copy' / pdf download of the Sony TC-366 owners / operations manual. Comes with one pair of correct and original SONY rubber reel retainers with Sony's metal clip inserts. Includes our standard 30 day limited warranty.  Measures 17" wide x 9.75" deep x 18.75" tall and weighs 28 lbs unpacked.
(Reels & tape shown in photos not included. All are usually available separately if you need them)
SONY TC-366 REEL TO REEL
Cond. 9

SOLD 10/7/2020
SHIPPING TO RAY IN TEXAS



(Reels shown in photos are not included, but we sometimes / occasionally have them for sale. Inquire at time of order.
However, all of our decks will come with 2x tapes for testing 'Playback' (actually made on this deck) and 'Recording' as well as a 7" 'take-up' reel, and RCA patch cables for connection to your system)




(Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)









NEW LISTING 10/16/17

 (Click on above thumbnails to enlarge photos)

RESTORED / REFURBISHED / FULLY SERVICED
VINTAGE SONY REEL-TO-REEL 1/4" STEREO TAPE DECK

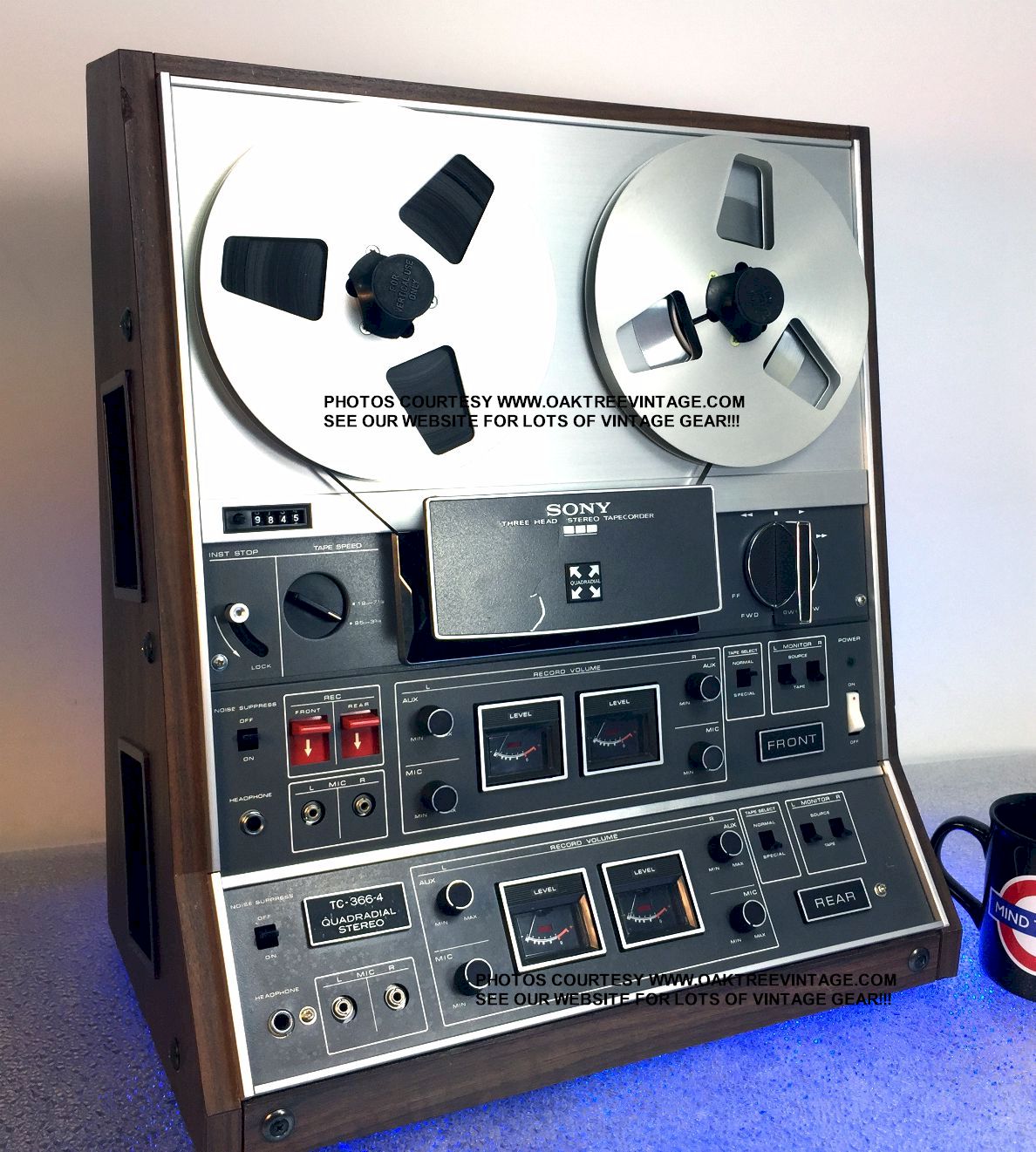

SONY TC-366-4 / TC366-4 "QUADRADIAL"
4-TRACK / 2-CHANNEL STEREO / 4-CHANNEL QUADRAPHONIC
2-SPEEDS / 3-HEADS
3"- 7" REEL CAPACITY
#...1483
Circa 1972-77
"WORLD AC POWER"
SOLD 11/29/17
SHIPPING TO TENNESSEE


Our technician has completely gone through and 'Certified' this unit.

ü  We have completely and extensively gone through the mechanicals and electronics of this unit.

ü  Entire transport was disassembled down to the chassis, and every mechanical part was cleaned of "varnished" lubes and re-lubed as well as the always at issue, Pinch Roller plunge assembly, re-lubed and reassembled.

ü  All internal drive tires / wheels burnished / conditioned for positive grip

ü  Capstan burnished.

ü  Both Tape Counter belts replaced for trouble-free service.

ü  Both 'Main Drive' belts replaced.

ü  Both reel hubs / clutches removed, disassembled and re-lubed.

ü  All hub brake pads have been resurfaced or replaced, and their bearings re-lubed and adjusted on fast wind modes also.

ü  Motor has been re-lubed as well.

ü  Internal voltage is self regulated DC and values were verified.

ü  All Internal & External pots, controls, & switches (including the linear 'record' switches) cleaned and tested for noise-free function.


ü  Both linear record switches removed and cleaned.


ü  All 'slide' switches cleaned.

ü  Both spindles in perfect alignment.

ü  We also adjusted the reel table heights for no "reel rub".

ü  Pinch roller reconditioned / re-surfaced.

ü  VU meter illumination lamps all working fine.

ü  Internal 'Bias', 'Record-Level' and 'PB' micro-pots cleaned EXTENSIVELY and levels adjusted.

ü  Heads were cleaned and de-magnetized as well as the entire transport.

ü  Head alignment / azimuth has been checked for peak performance with factory test tone tape and oscilloscope.

ü Quad level meters adjusted for even playback level w/ factory test tone tape.

ü  Floor noise tested to >-60dB w/ fresh, blank tape on PB.

ü  Plays GREAT and Records decently @ approx -5dB. We got the best results using Ampex 456. This machine does best (as do many) with 'fresh' or 'bulk-erased' tape.


ü  Speed checked to 99.0% accuracy.

ü  Following the above procedures, entire unit was detailed inside and out

 Again, Pinch roller and Heads all in GREAT condition.



 (Total time investment in refurb / testing ~ 25 hours).

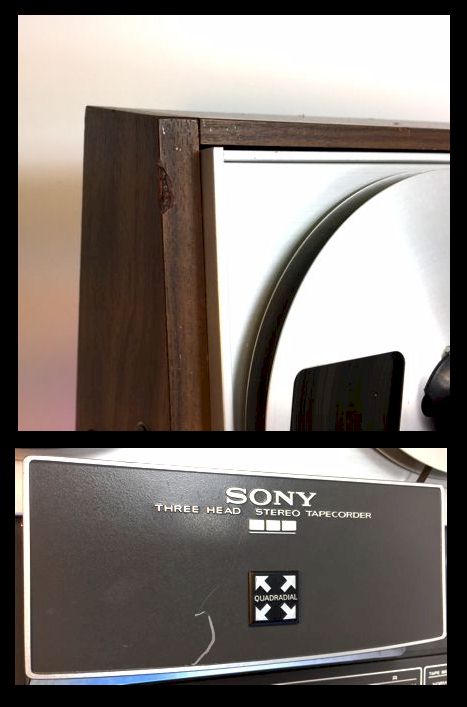

 Cosmetically in great condition with the only notable issues being a 'scuff' on the head cover, and a couple of chips to the edge veneer.
 ____________________________


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

 Comes with an 'e-copy' / pdf download of the Sony TC-366-4 owners / operations manual. Comes with one pair of correct and original SONY rubber reel retainers with Sony's metal clip inserts. Includes our standard 30 day limited warranty.  Measures 17" wide x 9.75" deep x 18.75" tall and weighs 28 lbs unpacked. (Reels & tape shown in photos not included. All are usually available separately if you need them)
SONY TC-366-4 REEL TO REEL
Cond. 8.5

SOLD 11/29/17
SHIPPING TO TENNESSEE


(Reels shown in photos are not included, but we sometimes / occasionally have them for sale. Inquire at time of order. However, all of our decks will come with 2, tapes for testing 'Playback' and 'Recording' as well as a 7" 'take-up' reel)


 (Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)

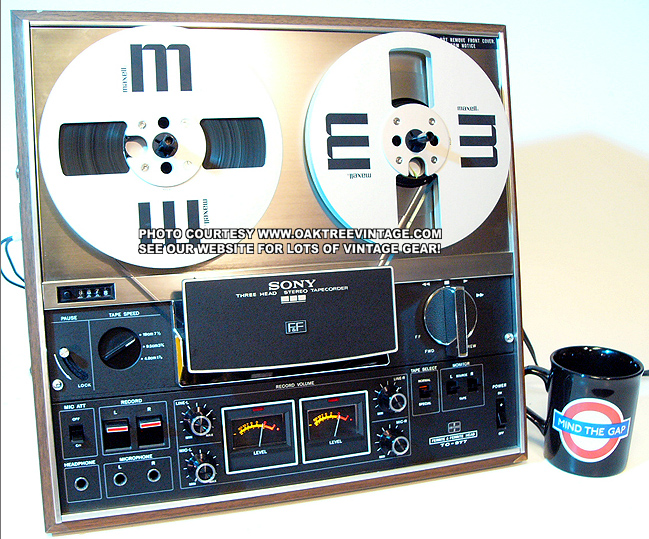

SONY REEL-TO-REEL
1/4" STEREO TAPE DECK
SONY TC-377

DISTRIBUTED BY SUPERSCOPE

WITH SUPER HARD
"F&F" (Ferrite & Ferrite) HEADS
SOLD



NEW LISTING 5/11/09
(Click on above thumbnails to enlarge photos)

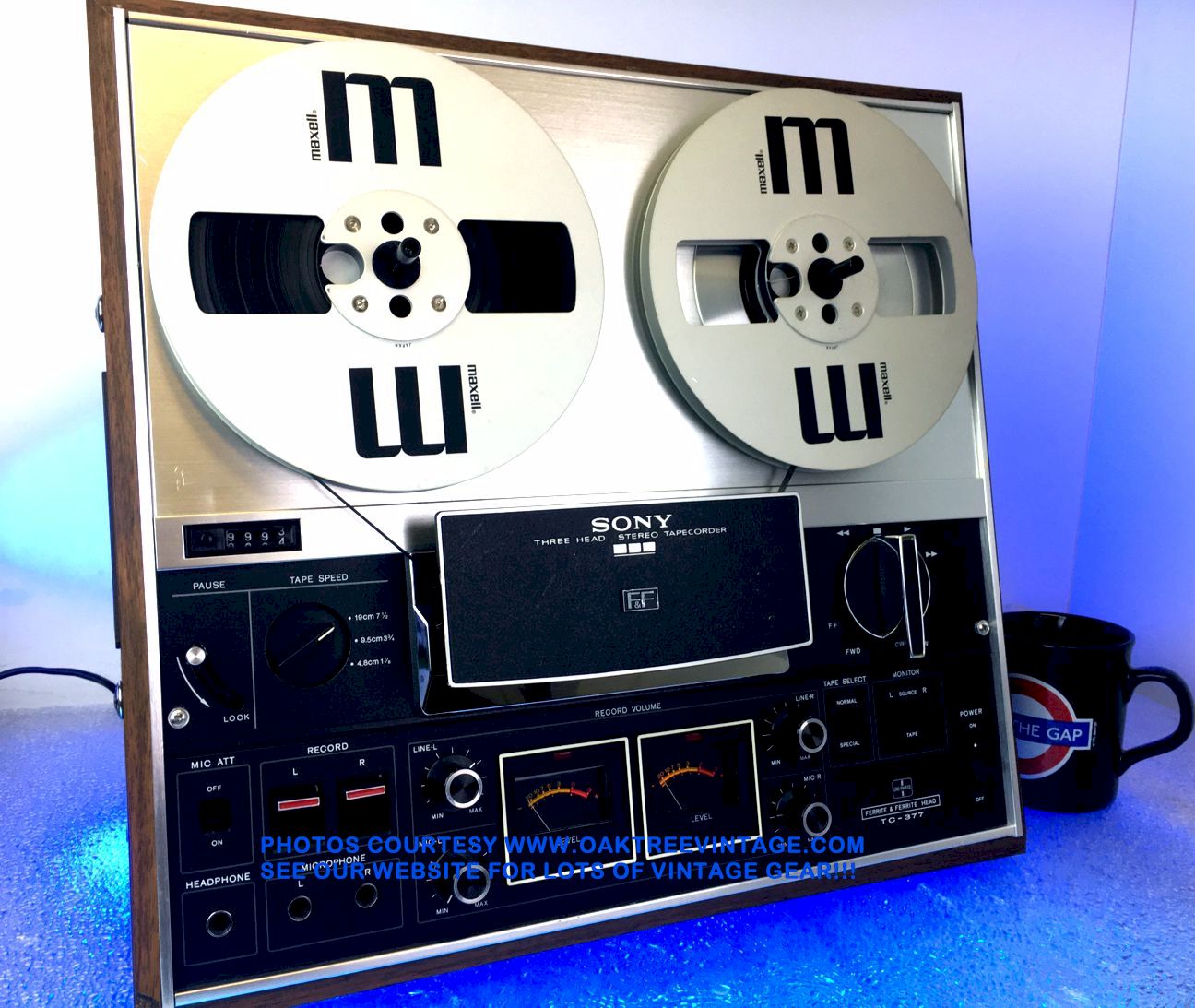

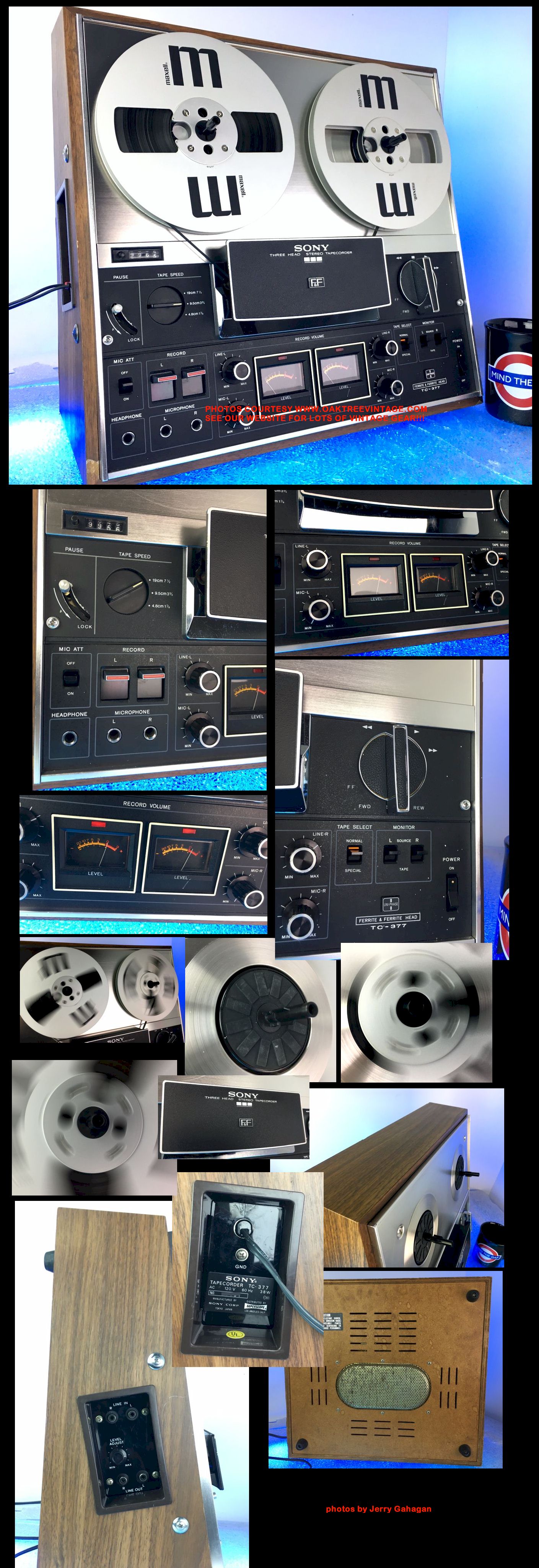

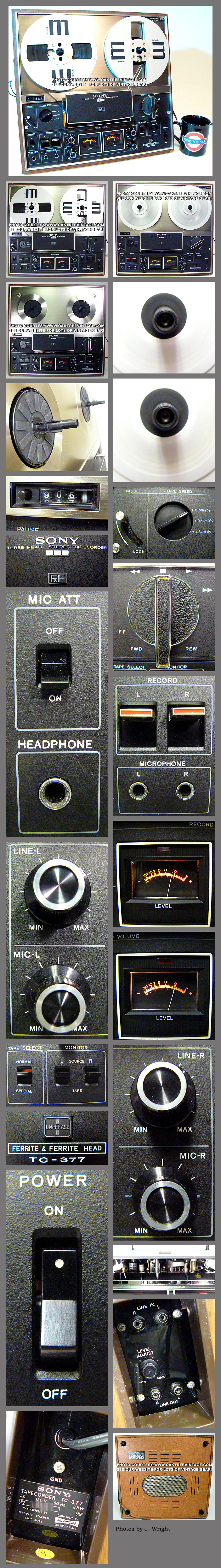

SONY REEL-TO-REEL
1/4" STEREO TAPE DECK
SONY TC-377

DISTRIBUTED BY SUPERSCOPE

    #...3597
4-TRACK / 2-CHANNEL
  3-SPEED / 3 HEAD
 3" - 7" REEL CAPACITY

WITH SUPER HARD
"F&F" (Ferrite & Ferrite) HEADS
  Circa 1972-77

SOLD 5/12/09




           NEW LISTING 11/10/12
 (Click on above thumbnails to enlarge photos)

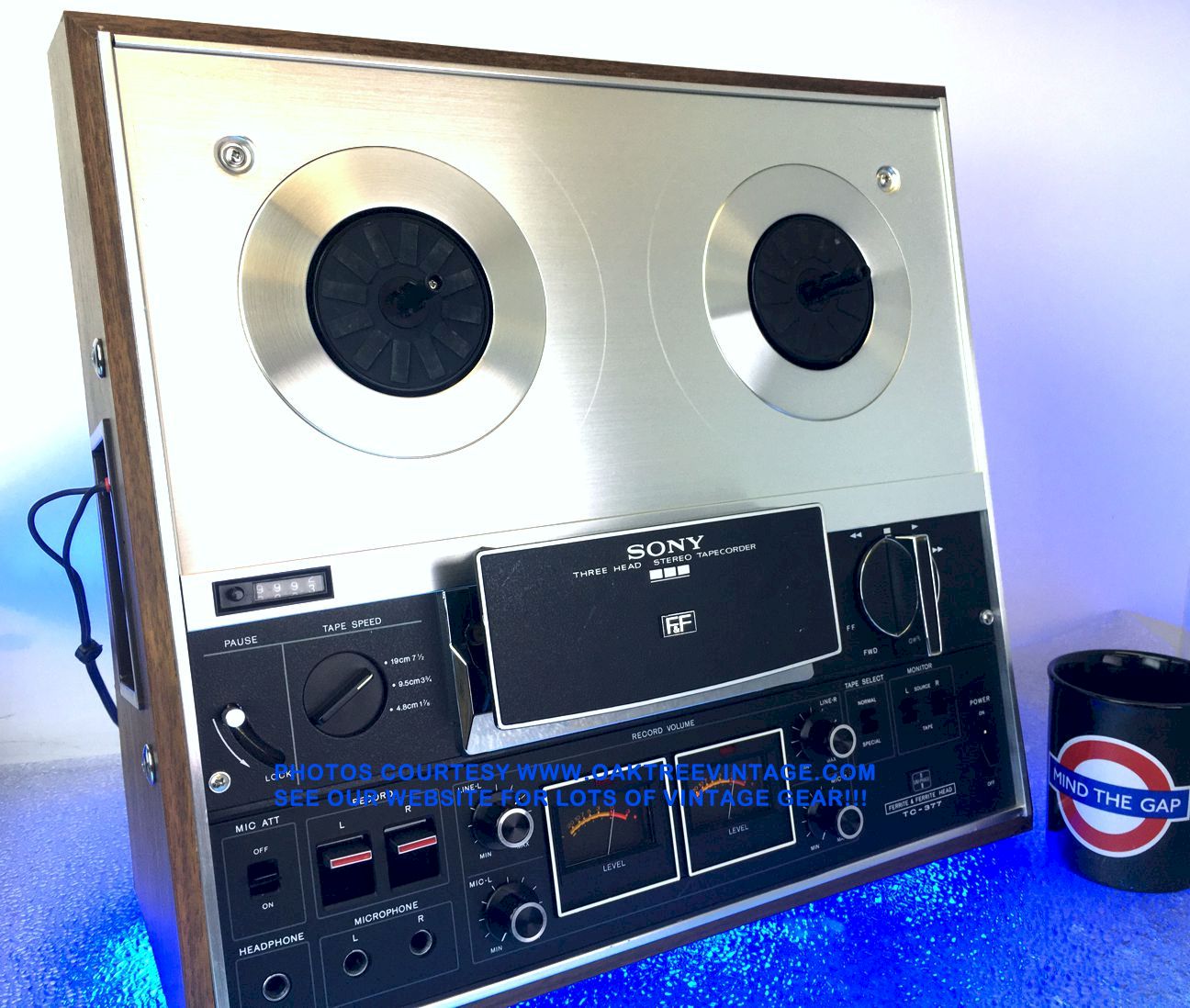

SONY 1/4" REEL-TO-REEL STEREO TAPE DECK
SONY TC-377 / TC377

DISTRIBUTED BY SUPERSCOPE

#...2098
4-TRACK / 2-CHANNEL
3-SPEED / 3 HEAD
3"- 7" REEL CAPACITY

WITH SUPER HARD
"F&F" (Ferrite & Ferrite) HEADS
Circa 1972-77

SOLD 1/3/13
SHIPPED TO UTAH


Our technician has completely gone through and 'Certified' this unit.
We have completely and extensively gone through the mechanicals and electronics of this unit.
- Entire transport was disassembled down to the chassis, and every mechanical part was cleaned of "varnished" lubes and re-lubed as well as the always at issue, Pinch Roller plunge assembly, re-lubed and reassembled.

- All Drive and counter belts replaced for trouble-free service. Rubber pinch roller has been reconditioned, as well as all three internal drive tires / wheels for positive grip, capstan burnished.

- Both reel hubs / clutches removed, disassembled and re-lubed.

- All hub brake pads have been replaced, and their bearings re-lubed and adjusted on fast wind modes also.

- Motor has been re-lubed as well.

- Internal voltage is self regulated DC and values were verified.

- All Internal & External pots, controls, & switches (including the linear 'record' switches) cleaned and tested for noise-free function.

- Both spindles in perfect alignment.

- We also adjusted the reel table heights for no "reel rub".

- Pinch roller reconditioned / re-surfaced.

- New VU meter illumination lamp installed and both record indicator lamps test fine.

- Broken meter leads repaired.

- Internal 'Bias', 'Record-Level' and 'PB' micro-pot levels adjusted.

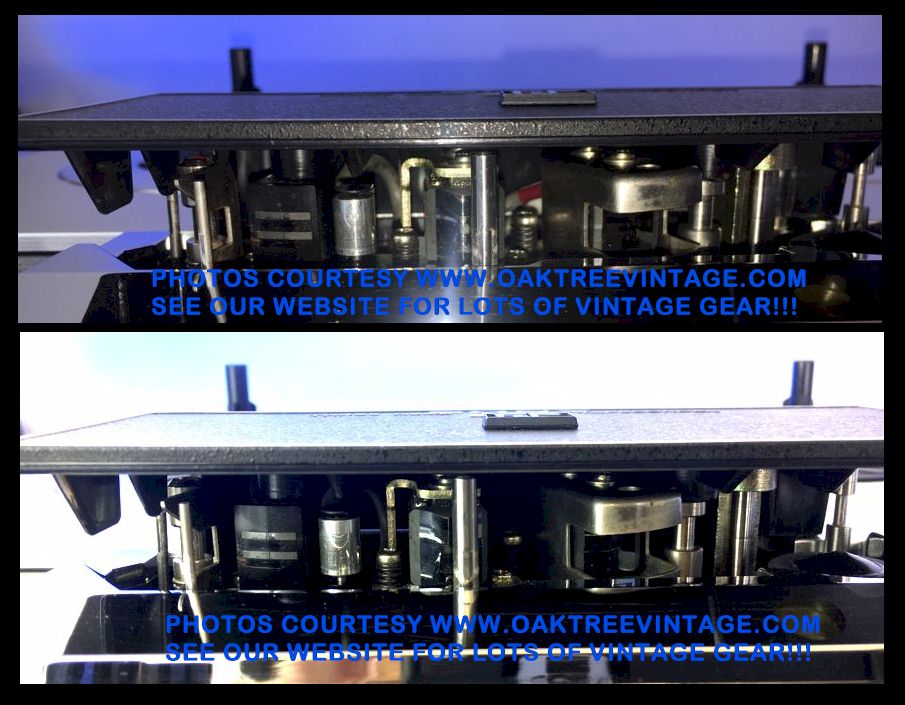

- Heads were cleaned and de-magnetized as well as the entire transport.

- Ferrite and Ferrite heads all in great shape, with many years of performance left in them.

- Head alignment / azimuth has been checked for peak performance with factory test tone tape and oscilloscope.

- Both level meters adjusted for even playback level w/ factory test tone tape.

- Floor noise tested to 2.4mV w/ fresh, blank tape on PB.



Plays and Records GREAT @ -1.5dB / 1kHz on High Bias tape.


- Speed checked to 99.0% accuracy.


- Following the above procedures, entire unit was detailed inside and out

Again, Pinch roller and Heads all in GREAT condition.

  (Total time investment in refurb / testing ~ 12 hours).
 Cosmetically in fabulous condition!
  ____________________________



Original Sony TC-377 Tape Deck Specifications:

(All with Sony SLH-180 type tape)
 Power Requirements:
XXX
 Capstan Drive Motor Type: XXX
 Tape Speed: XXX


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

 Reels: XXX
 Recording Format: XXX
 Frequency Response: XXX Hz @XXXips.
                                  XXX Hz @ XXX ips.
                                  XXX Hz @ XXX ips.
 Signal-to-Noise Ratio: > XXXdB @ XXX ips w/ high bias tape
 > XXXdB @XXX ips w/ normal bias tape
 Flutter and Wow: < XXX% @ XXX ips.
                          < XXX% @XXX ips.
 Level Indication: .....
 Record: Calibrated to
.....
 Playback Time: XXXX


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


 Inputs: XXX
 Outputs: XXXX
 Output Impedance: XXkΩ
 Line Input Sensitivity: XX Volts
 Line Input Impedance: XXk
 Bias Frequency: XX (kHz)
 Rewind Time w/ 1200’ Tape:- XX sec


Again, following the above stated bench work / testing, our technician has 'Certified' this deck and it is an great performer sonically and mechanically.
This deck has had typical restoration. It's pretty much had the clock rolled back 40 years on it. With the exception of a 'light' scuff from the perimeter of a previously installed metal reel on the face, and a small veneer chip on the lower, left corner of the case, the units looks fabulous.....

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


....
Unit includes  an 'e' pdf copy of Sony TC-377 owners / users manual. Comes with a plastic 'take-up' reel. Includes our standard 30 day limited warranty.....
(Reels & tape shown in photos not included. All are sometimes available separately if you need them)
SONY TC-377 REEL TO REEL STEREO TAPE DECK #...0298
Cond. 8.5

SOLD 1/3/13
SHIPPED TO UTAH



(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)






            NEW LISTING 11/15/12
 (Click on above thumbnails to enlarge photos)

SONY REEL-TO-REEL 1/4" STEREO TAPE DECK
SONY TC-377 / TC377

DISTRIBUTED BY SUPERSCOPE

4-TRACK / 2-CHANNEL
3-SPEED / 3 HEAD
3"- 7" REEL CAPACITY

WITH SUPER HARD
"F&F" (Ferrite & Ferrite) HEADS
#...7256
Circa 1972-77

SOLD 3/17/14
SHIPPING TO ALASKA

Our technician has completely gone through and 'Certified' this unit.

We have completely and extensively gone through the mechanicals and electronics of this unit.
- Entire transport was disassembled down to the chassis, and every mechanical part was cleaned of "varnished" lubes and re-lubed as well as the always at issue, Pinch Roller plunge assembly, re-lubed and reassembled.

- All Drive and counter belts replaced for trouble-free service. Rubber pinch roller has been reconditioned, as well as all three internal drive tires / wheels for positive grip, capstan burnished.

- Both reel hubs / clutches removed, disassembled and re-lubed.

- All hub brake pads have been replaced, and their bearings re-lubed and adjusted on fast wind modes also.

- Motor has been re-lubed as well.

- Internal voltage is self regulated DC and values were verified.

- All Internal & External pots, controls, & switches (including the linear 'record' switches) cleaned and tested for noise-free function.

- Both spindles in perfect alignment.

- We also adjusted the reel table heights for no "reel rub".

- Pinch roller reconditioned / re-surfaced.

- New VU meter illumination lamp installed and both record indicator lamps test fine.

- Internal 'Bias', 'Record-Level' and 'PB' micro-pot levels adjusted.

- Heads were cleaned and de-magnetized as well as the entire transport.

- Ferrite and Ferrite heads all in great shape, with many years of performance left in them.

- Head alignment / azimuth has been checked for peak performance with factory test tone tape and oscilloscope.

- Both level meters adjusted for even playback level w/ factory test tone tape.

- Floor noise tested to 0.5mV w/ fresh, blank tape on PB.

 Plays and Records GREAT @+2.5dB / 1kHz on High Bias tape.

(we further tested with 'High-Bias' / 'Chrome' tape with the following results (averaged L&R); 100, 250, 400, 500 & 1kHz @ +2.5dB, 2kHz @ +1dB, 5kHz @ -1dB, 7.5kHz @-1.5dB, 10kHz @ -4dB, 12kHz @ -8dB & 15kHz @ -20dB. Those numbers are also with meters starting at 0dB, not the typical -20dB. We would probably get even better numbers if we started at -20dB, but we feel that starting at 0dB is considerably more 'real world'.)

- Speed checked to 95.1% accuracy
*.

- Following the above procedures, entire unit was detailed inside and out

Again, Pinch roller and Heads all in GREAT condition.

  (Total time investment in refurb / testing ~ 13 hours).
Cosmetically in fabulous condition!
  ____________________________

GREAT performing Sony TC-377 1/4" Open Reel to Reel stereo tape Record / Play deck and has all 3 consumer speeds! Good for reel sizes up to 7" in diameter. Great for burning your tapes to CD or Hard Drive or for making new tapes. Also great for having fun in your project recording studio.
Features include:


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

- Mic Attenuator selector
- RCA inputs and outputs
- Spring loaded tape hub spindles (no need for rubber reel retainers)
- Can be mounted in cabinet for 'vertical' orientation (as currently installed) or inverted for 'horizontal' use.



Original Sony TC-377 Tape Deck Specifications:

(All with Sony SLH-180 type tape)
 Power Requirements:  117 VAC, 30 watts, 60 Hz

 Capstan Drive Motor Type: Induction
 Tape Speed: 7.5 ips / 19cms, 3 3/4ips / 9.5 cms and extra long 1 7/8 ips / 4.75 cms mechanically switched with single lever, with automatic switching for equalization changes
 Reels: 1/4" tape on 7 inches ог smaller
 Recording Format: 4-track stereophonic оr monophonic
 Frequency Response: 3x,000 Hz @ 7 1/2ips.
                                  3xx00 Hz @ 3 3/4 ips.
                                  xxx0 Hz @ 1 7/8 ips.
 Signal-to-Noise Ratio: > xx dB @ 7 1/2 ips w/ high bias tape
 > xx dB @ 7 1/2 ips w/ normal bias tape
 Flutter and Wow: < xxx% @ 7 1/2 ips.
                          < 0.xx% @ 3 3/4 ips.
 Level Indication: Dual Analog VU Meters
 Record: Calibrated to NAB standard reference level


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


 Playback Time: With 1,800' tape
 (4-track stereo)  (4-track mono) 7 1/2 ips  1 hr. 30 min.                  / 3 hr. & @ 3 3/4 ips. 3 hr. / 6 hr.
 Inputs: Dual 1/4" Microphone Input Jacks and dual RCA jacks
 Outputs: Dual RCA jacks
 Output Impedance: xxkΩ
 Line Input Sensitivity: .06 Volts
 Line Input Impedance: xxxk
 Bias Frequency: xxx(kHz)
 Rewind Time w/ 1200’ Tape:-xxx sec


Again, following the above stated bench work / testing, our technician has 'Certified' this deck and it is an great performer sonically and mechanically. This deck has had typical restoration. It's pretty much had the clock rolled back 40 years on it. With the exception of 'light' scuffing from the perimeter of a previously installed metal reels on the face, and a small veneer chip on the lower, right corner of the case, the units looks fabulous. Machine is READY TO GO! Would make a great deck for any one needing a deck to do tape to CD or Hard Drive transfers of reel to reel tapes or for making NEW reel tape recordings. Comes with an 'e' copy / pdf of the Sony TC-377 owners / users manual. Includes a take-up reel. Includes our standard 30 day limited warranty. Measures 16.25" wide x 8.5" deep x 15.75" tall and weighs 24 lbs unpacked. (Reels & tape shown in photos not included. All are sometimes available separately if you need them)
SONY TC-377 REEL TO REEL TAPE RECORDER / DECK #...7256
Cond. 8.5

SOLD 3/17/14
SHIPPING TO ALASKA


*(Price will increase following any additional work to bring the deck closer to 100% speed accuracy.)

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)










       NEW LISTING 2/28/18
 (Click on above thumbnails to enlarge photos)

 SONY REEL-TO-REEL 1/4" STEREO TAPE DECK
SONY TC-377 / TC377

DISTRIBUTED BY SUPERSCOPE

4-TRACK / 2-CHANNEL
3-SPEED / 3 HEAD
"LOCKING SPINDLES"!!!
3"- 7" REEL CAPACITY
#...0390
Circa 1972-77

SOLD
SHIPPED TO MARYLAND
Our technician has completely gone through and 'Certified' this unit.

We have completely and extensively gone through the mechanicals and electronics of this unit.
- Entire transport was disassembled down to the chassis, and every mechanical part was cleaned of "varnished" lubes and re-lubed as well as the always at issue, Pinch Roller plunge assembly, re-lubed and reassembled.

- All Drive and counter belts replaced for trouble-free service. Rubber pinch roller has been reconditioned, as well as all three internal drive tires / wheels for positive grip, capstan burnished.

- Both reel hubs / clutches removed, disassembled and re-lubed.

- All hub brake pads have been replaced, and their bearings re-lubed and adjusted on fast wind modes also.

- Motor has been re-lubed as well.

- Internal voltage is self regulated DC and values were verified.

- All Internal & External pots, controls, & switches (including the linear 'record' switches) cleaned and tested for noise-free function.

- Both spindles in perfect alignment.

- We also adjusted the reel table heights for no "reel rub".

- Pinch roller reconditioned / re-surfaced.

- New VU meter illumination lamp installed and both record indicator lamps test fine.

- Internal 'Bias', 'Record-Level' and 'PB' micro-pot levels adjusted.

- Heads were cleaned and de-magnetized as well as the entire transport.

- Ferrite and Ferrite heads all in great shape, with many years of performance left in them.
(technicians note: "heads appear 'un-used'. They're the best we've ever had on a deck and look NEW!")

- Head alignment / azimuth has been checked for peak performance with factory test tone tape and oscilloscope at 1kHz and 10kHz.

- Both level meters adjusted for even playback level w/ factory test tone tape.

- Floor noise tested to -60Dbm w/ fresh, blank tape on PB.

 Plays and Records GREAT @ 0dB / 1kHz on High Bias tape (Ampex 456 Grand Master).


-
Speed checked once 'warmed up', to 99.99% accuracy
. (Meaning a 'factory' 1kHz tape plays back at 1000 +/- 1Hz!. The last on of these we had in 2014 tested to just over 95% accuracy, which is just at the limit of passing our bar)

- Following the above procedures, entire unit was detailed inside and out

Again, Pinch roller and Heads all in GREAT condition.


(Total time investment in refurb / testing ~ 15 hours).
Cosmetically in fabulous condition!

 ____________________________


GREAT performing Sony TC-377 1/4" Open Reel to Reel stereo tape Record / Play deck and has...


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

As stated earlier our technician noted that the heads were in essentially new condition. He further stated on the work sheet, "overall, the deck shows little use, and was remarkably, actually functional prior to tear down." (a 45 year old deck that still functions prior to a restoration, would be classified as "remarkable")



Again, following the above stated bench work / testing, our technician has 'Certified' this deck and it is an great performer sonically and mechanically. This deck has had typical restoration. It's pretty much had the clock rolled back 45+ years on it. With the exception of small veneer chips on the front edge, and 'light' scuffing from the perimeter of a previously installed metal reels on the face, (see photos above) the units looks fabulous. Again, over and above our standard restoration, this deck has virtually NEW heads!
Machine is READY TO GO! Would make a great deck for any one needing a deck to do tape to CD or Hard Drive transfers of reel to reel tapes or for making NEW reel tape recordings. Comes with an 'e' copy / pdf of the Sony TC-377 owners / users manual. Includes a take-up reel. Includes our standard 30 day limited warranty. Measures 16.25" wide x 8.5" deep x 15.75" tall and weighs 24 lbs unpacked.
(Reels & tape shown in photos not included. All are sometimes available separately if you need them)

SONY TC-377 REEL TO REEL TAPE RECORDER / DECK #...0390
Cond. 8.5

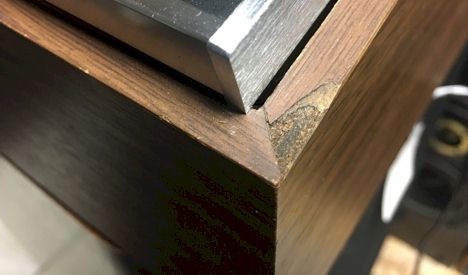

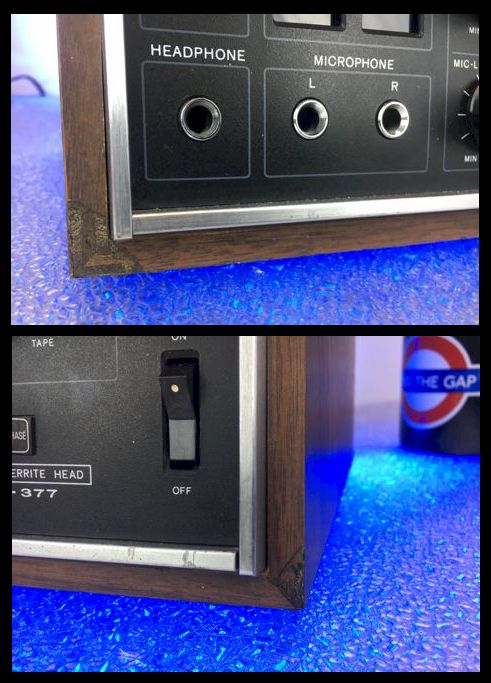

(only due to small veneer chips)

SOLD
SHIPPED TO MARYLAND


(Reels shown in photos are not included, but we sometimes / occasionally have them for sale. Inquire at time of order.
However, all of our decks will come with 2x tapes for testing 'Playback' and 'Recording' as well as a 7" 'take-up' reel, and RCA patch cables for connection to your system
)

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)










NEW LISTING 12/19/2020
(Click on above thumbnails to enlarge photos)
RESTORED / REFURBISHED / FULLY SERVICED

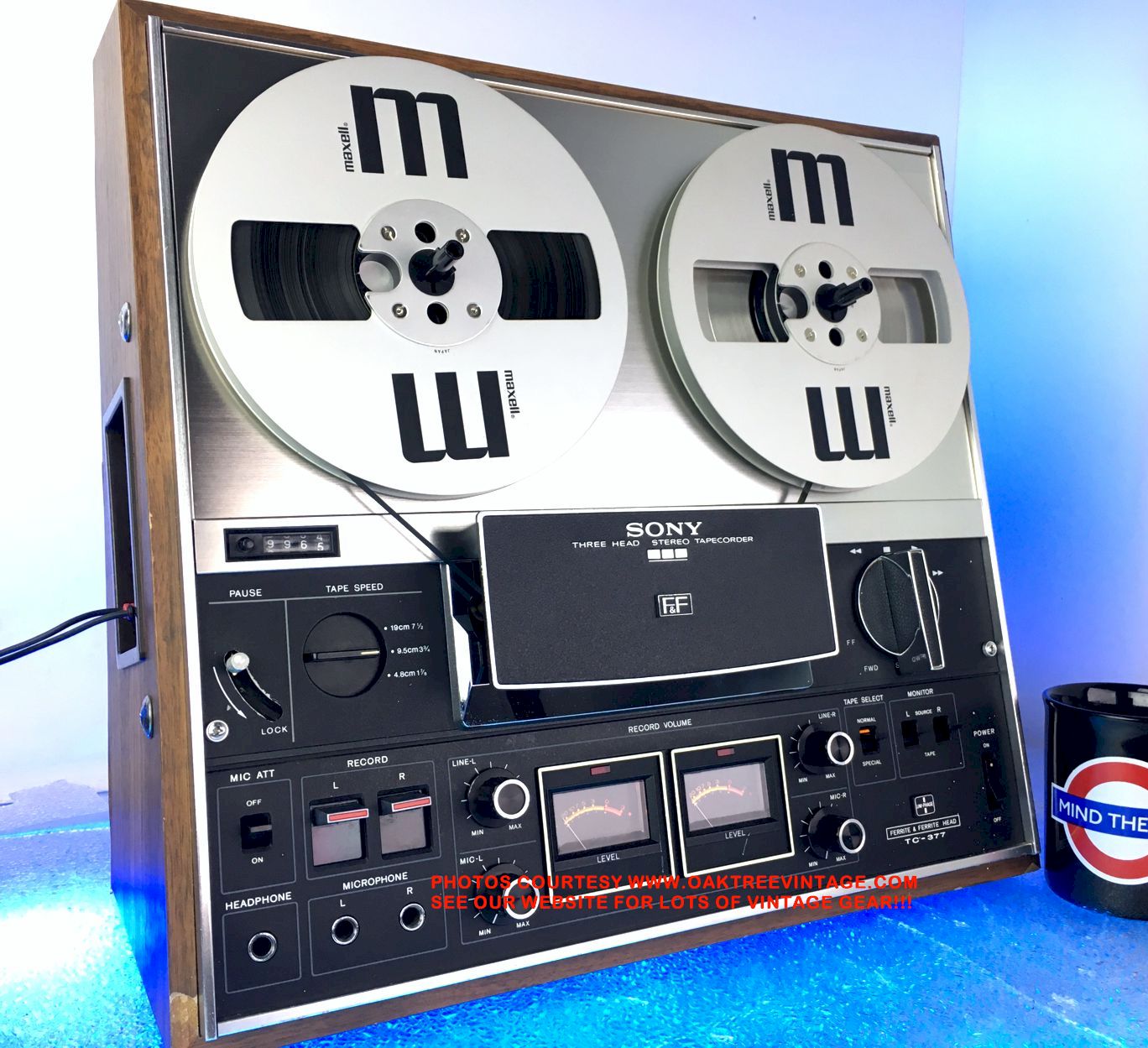

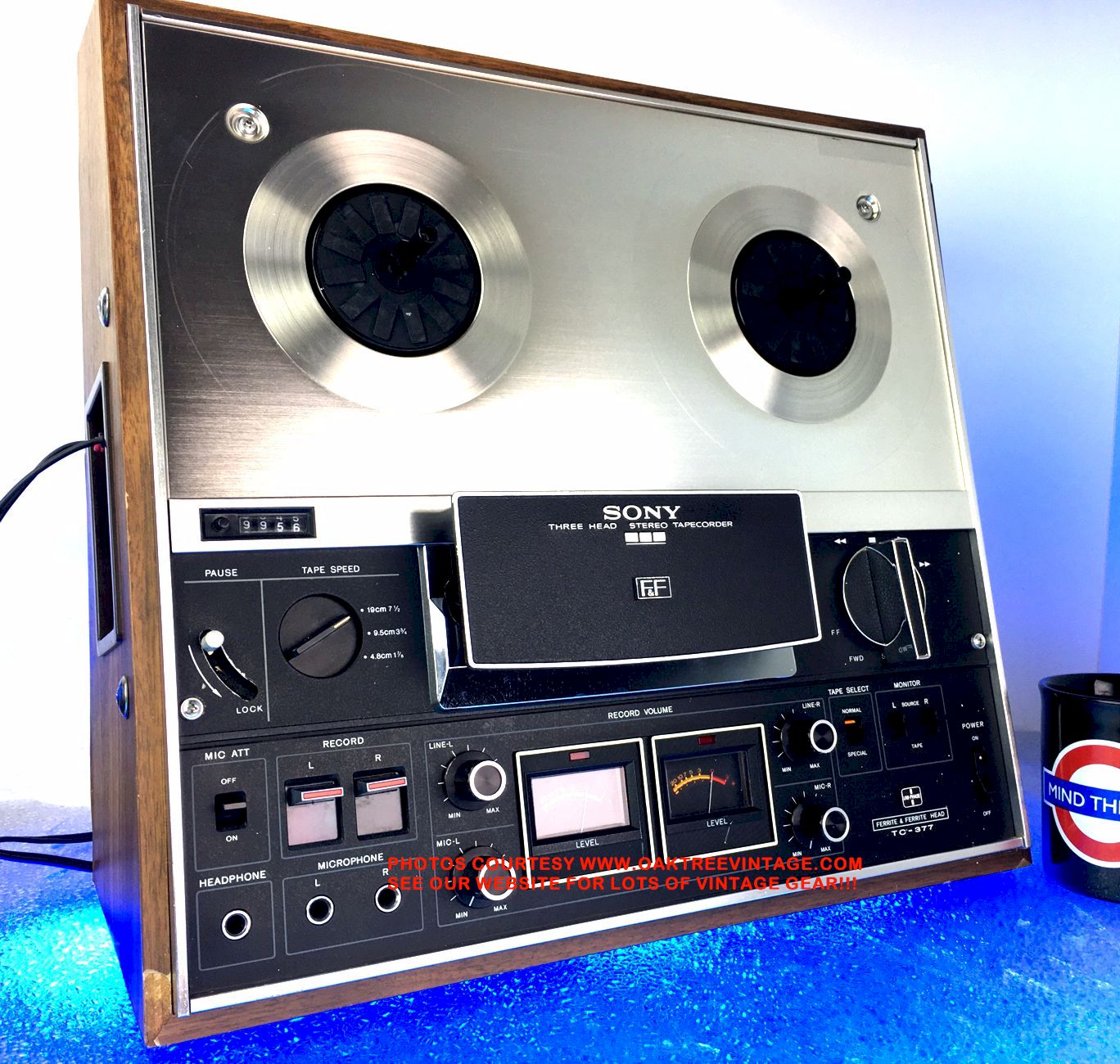

SONY REEL-TO-REEL 1/4" STEREO TAPE DECK
SONY TC-377 / TC377
4-TRACK / 2-CHANNEL
3-SPEED / 3 HEAD (F&F HEADS!)
"LOCKING SPINDLES"!!!
3"- 7" REEL CAPACITY
#...4220
Circa 1972-77

SOLD 2/9/2021
SHIPPED TO MICHAEL IN ARIZONA


Of the many Reel to Reel Tape decks built by Sony, especially from the late 1960’s and into the early 70’s, this has always been one of our favorite machines for Features, Build quality (that by luck, lends itself well to restoration 50 years later), solid and most importantly DEPENDABLE performance, and consistent sound quality.


ü Our technician has EXTENSIVELY gone through and 'Certified' this unit.

ü Entire transport was disassembled down to the chassis, and every mechanical part including head block assembly, was cleaned of "varnished" lubes and re-lubed as well as the always at issue on most Sony's of this era, Pinch Roller plunge assembly, re-lubed and reassembled.

ü All Drive and counter belts replaced for trouble-free service. Rubber pinch roller has been reconditioned, as well as all three internal drive tires / wheels for positive grip, capstan burnished.

ü Supply (left) reel spindle lock replaced from another unit we purchased for that and a couple other parts as the original had a small, almost invisible crack in it.

ü Both reel hubs / clutches removed, disassembled and cleaned.

ü All hub brake pads have been replaced, and their bearings re-lubed and adjusted on fast wind modes also.

ü Motor has been re-lubed as well.

ü Motor 'cooling fan' repositioned for quieter operation

ü Internal voltage is self regulated DC and values were verified.

ü All Internal & External pots, controls, & switches (including the linear 'record' switches) cleaned and tested for noise-free function.

ü Both spindles in perfect alignment (originally were not, and were off a few degrees from perpendicular).

ü We also adjusted the reel table heights for tighter fitting reels, and no 'flange rub' by adding a layer of rubber under the original table mats

ü Pinch roller reconditioned / re-surfaced.

ü Mains AC cord replaced

ü Power supply board tested to it's intended +25VDC. We had full voltage to the record amplifier and was able to adjust record amp to intended levels.

ü New VU meter illumination lamp installed (#25-090) and both record indicator lamps test fine.

ü Internal 'Line Level', 'Bias', 'Record-Level', 'Record EQ' and 'PB' micro-pots cleaned EXTENSIVELY and levels adjusted with proper test tapes.



ü Heads were cleaned and de-magnetized as well as the entire transport.

ü Ferrite and Ferrite heads all in great shape, with many years of performance left in them. (technicians note: "heads appear 'un-used'. They're the best we've ever had on a deck and look NEW!")

ü Head alignment / azimuth has been checked for peak performance with factory test tone tape and oscilloscope at 100Hz, 1kHz and 10kHz.

ü Both level meters adjusted for even playback level w/ factory test tone tape.

ü Floor noise tested to -60Dbm w/ fresh, blank tape on PB.

ü  Plays and Records GREAT both channels


ü  Records GREAT @ 0dB / 1kHz on High Bias tape (Maxell UDXL) w/ L=~+1dB and R=~+2dB, however, there is an issue with, random 'low volume' 'artifacts' that appear on one channel during recording. We noticed it when recording 'zero' signal on blank tape, but it's there. I'm the only one here who noticed it, but during very quiet passages, you might notice it when recording.

ü Speed checked once 'warmed up', to 98..91% accuracy. (Meaning a 'factory' 1kHz tape plays back at 1011Hz. (tech note: has Sony 60Hz / #0 motor pulley installed from factory)

ü Internal cabinet braces re-worked / re-glued.

ü Following the above procedures, entire unit was detailed inside and out

Again, Pinch roller and Heads all in GREAT condition.

(Total time investment in refurb / testing
~ 21 hours).
Cosmetically in fabulous condition!
  ____________________________


GREAT performing Sony TC-377 1/4" Open Reel to Reel stereo tape Record / Play deck and has all...


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

As stated earlier our technician noted that the heads were in essentially new condition. He further stated on the work sheet, "overall, the deck shows little use, and was remarkably, actually functional prior to tear down." (a 45 year old deck that still functions prior to a restoration, would be classified as "remarkable")

Sony TC-377 Features include:


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Original Sony TC-377 Tape Deck Specifications:


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


Again, following the above stated bench work / testing, our technician has 'Certified' this deck and it is an great performer sonically and mechanically primarily for 'PLAYBACK', noting the above mentioned issue with 'Recording' on one channel. This deck has had typical restoration. It's pretty much had the clock rolled back 45+ years on it. With the exception of a small veneer chip on the front, right, lower corner, (see photos above) the units looks near new. Again, over and above our standard restoration, this deck has virtually NEW heads!
Machine is READY TO GO! Would make a great deck for any one needing a deck to do tape to CD or Hard Drive transfers of reel to reel tapes or for making NEW reel tape recordings. Comes with an 'e' copy / pdf of the Sony TC-377 owners / users manual. Includes a take-up reel. Includes our standard 30 day limited warranty. Measures 16.25" wide x 8.5" deep x 15.75" tall and weighs 24 lbs unpacked.
(Reels & tape shown in photos not included. All are sometimes available separately if you need them)
SONY TC-377 REEL TO REEL TAPE RECORDER / DECK #...4220
Cond. 8.5+

SOLD 2/9/2021
SHIPPED TO MICHAEL IN ARIZONA


(Reels shown in photos are not included, but we sometimes / occasionally have them for sale. Inquire at time of order.
However, all of our decks will come with 2x tapes for testing 'Playback' (actually made on this deck) and 'Recording' as well as a 7" 'take-up' reel, and RCA patch cables for connection to your system)

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)











NEW LISTING 4/29/2021
(Click on above thumbnails to enlarge photos)
warranty
RESTORED / REFURBISHED / FULLY SERVICED
SONY REEL-TO-REEL 1/4" STEREO TAPE DECK
SONY TC-377 / TC377
4-TRACK / 2-CHANNEL
3-SPEED / 3 HEAD (F&F HEADS!)
"LOCKING SPINDLES"!!!
3"- 7" REEL CAPACITY
#...9636
Circa 1972-77

SOLD 5/18/2021
SHIPPING TO TRAVIS IN MONTANA


Of the many Reel to Reel Tape decks built by Sony, especially from the late 1960’s and into the early 70’s, this has always been one of our favorite machines for Features, Build quality (that by luck, lends itself well to restoration 50 years later), solid and most importantly DEPENDABLE performance, and consistent sound quality.

ü Our technician has EXTENSIVELY gone through and 'Certified' this unit.

ü Entire transport was disassembled down to the chassis, and every mechanical part including head block assembly, was cleaned of "varnished" lubes and re-lubed as well as the always at issue on most Sony's of this era, Pinch Roller plunge assembly, re-lubed and reassembled.

ü Flywheel / capstan removed, bushings cleaned and re-lubed when re-assembled.

ü Capstan cleaned / burnished

ü All Drive and counter belts replaced for trouble-free service.

ü All three internal drive tires / wheels resurfaced on drill-press, then reconditioned for positive grip

ü We discovered that one of the idler wheels had a bronze bushing that with enough wear that caused excessive mechanical noise. We replaced it with an original / OEM wheel from another TC-377 we had and re-conditioned it. Now the entire deck is quite as it should be.

ü Both reel hubs / clutches removed, disassembled and cleaned.

ü All hub brake pads have been replaced, and their bearings re-lubed and adjusted on fast wind modes also.

ü Motor has been re-lubed as well.

ü Internal voltage is self regulated DC and values were verified.

ü All Internal & External pots, controls, & switches (including the linear 'record' switches) cleaned and tested for noise-free function.


ü Both reel tables removed, disassembled, clutch pads resurfaced, then reassembled and tensioned correctly

ü Both spindles in perfect alignment.

ü We also adjusted the reel table heights for tighter fitting reels, and no 'flange rub' by adding a layer of rubber under the original table mats (assuming you're installing reels that are also 'running true')

ü Pinch roller reconditioned / re-surfaced.

ü Mains AC cord replaced

ü Power supply board tested to it's intended +25VDC. We had full voltage to the record amplifier and was able to adjust record amp to intended levels.

ü New VU meter illumination lamp installed (#25-090) and both record indicator lamps test fine.

ü Internal 'Line Level', 'Bias', 'Record-Level', 'Record EQ' and 'PB' micro-pots cleaned EXTENSIVELY and levels adjusted with proper test tapes.



ü Heads were cleaned and de-magnetized as well as the entire transport.

ü Ferrite and Ferrite heads all in great shape, with many years of performance left in them. (technicians note: "heads appear 'un-used'. They're the best we've ever had on a deck and look NEW!")

ü Head alignment / azimuth has been checked for peak performance with factory test tone tape and oscilloscope at 100Hz, 1kHz and 10kHz.

ü Both level meters adjusted for even playback level w/ factory test tone tape.

ü Floor noise tested to -60dBm w/ fresh, blank tape on PB.

ü Plays and Records GREAT both channels


ü Records GREAT @ 0dB / 1kHz on High Bias tape (Ampex GM456 and / or ATR Tape) w/ L=~+2dB and R=~+2dB. Recorded program material SOUNDS FANTASTIC!!!

ü Speed checked once 'warmed up', to 99.1% accuracy. (Meaning a 'factory' 1kHz tape plays back at 991Hz. (tech note: has Sony 60Hz / #0 motor pulley installed from factory)

ü Following the above procedures, entire unit was detailed inside and out

Again, Pinch roller and F&F Heads all in GREAT condition.

(Total time investment in refurb / testing
~ 17.5 hours).

Cosmetically there's a few striations in the upper, left corner of the face, the lower, left corner and circular 'witness marks' from metal reels being 'stopped by hand' at some point in it's life. There's also a small ding in the lower, left corner of the face (see photos above of details).
  ____________________________

GREAT performing Sony TC-377 1/4" Open Reel to Reel stereo tape Record / Play deck and has all 3 consumer speeds! Good for reel sizes up to 7" in diameter. Great for burning your tapes to CD or Hard Drive or for making new tapes. Also great for having fun in your project recording studio.

Sony TC-377 Features include:


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Original Sony TC-377 Tape Deck Specifications:


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?



Again, following the above stated bench work / testing, our technician has
'Certified' this deck and it is an great performer sonically and mechanically. This deck has had typical restoration. It's pretty much had the clock rolled back 45+ years on it. With the exception of the minor striations / ding and reel marks previously mentioned, (see photos above) the units looks decent. Again, over and above our standard restoration, this deck has virtually NEW heads!
Machine is READY TO GO! Would make a great deck for any one needing a deck to do tape to CD or Hard Drive transfers of reel to reel tapes or for making NEW reel tape recordings. Comes with an 'e' copy / pdf of the Sony TC-377 owners / users manual. Includes a take-up reel. Includes our standard 30 day limited warranty. Measures 16.25" wide x 8.5" deep x 15.75" tall and weighs 24 lbs unpacked.
(Reels & tape shown in photos not included. All are sometimes available separately if you need them)
SONY TC-377 REEL TO REEL TAPE RECORDER / DECK #...9636
Cond. 8.5

SOLD 5/18/2021
SHIPPING TO TRAVIS IN MONTANA


(Reels shown in photos are not included, but we sometimes / occasionally have them for sale. Inquire at time of order.
However, all of our decks will come with 2x tapes for testing 'Playback' (actually made on this deck) and 'Recording' as well as a 7" 'take-up' reel, and RCA patch cables for connection to your system)

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)

- archived







NEW LISTING 10/27/2021
(Click on above thumbnails to enlarge photos)
warranty
RESTORED / REFURBISHED / FULLY SERVICED
SONY REEL-TO-REEL 1/4" STEREO TAPE DECK
SONY TC-377 / TC377
4-TRACK / 2-CHANNEL
3-SPEED / 3 HEAD (F&F HEADS!)
"LOCKING SPINDLES"!!!
3"- 7" REEL CAPACITY
#...0151
Circa 1972-77

SOLD 10/27/2021
SHIPPING TO GREG IN NEW YORK


Original issues were typical of most 40 year old reel to reel decks plus an unusual one; Interestingly, the internal transport was one of the cleanest we've ever seen initially, still had sluggish start, iffy brakes, noisy / dirty switches and controls etc. Main, critical issue was no recording from one side. As listed below we tracked it to an 'open' Record head. Upon sourcing a replacement head, we discovered diminishing level of signal above 1kHz. Upon further inspection, we discovered a very tiny crack in the replacement record head that was only visible with a jewelers loop. We then source a third head which performs fine.

Of the many Reel to Reel Tape decks built by Sony, especially from the late 1960’s and into the early 70’s, this has always been one of our favorite machines for Features, Build quality (that by luck, lends itself well to restoration 50 years later), solid and most importantly DEPENDABLE performance, and consistent sound quality.


ü Our technician has completely gone through and 'Certified' this unit.

ü Entire transport was disassembled down to the chassis, and every mechanical part including head block assembly, was cleaned of "varnished" lubes and re-lubed as well as the always at issue on most Sony's of this era, Pinch Roller plunge assembly, re-lubed and reassembled.

ü Flywheel / capstan removed, bushings cleaned and re-lubed when re-assembled.

ü Capstan cleaned / burnished

ü All Drive (#233 & #247) and counter belts (#031 & #042) replaced for trouble-free service.

ü All three internal drive tires / wheels resurfaced on drill-press, then reconditioned for positive grip

ü Both reel hubs / clutches removed, disassembled and cleaned.

ü All hub brake pads have been replaced, and their bearings re-lubed and adjusted on fast wind modes also.

ü Motor has been re-lubed as well.

ü Internal voltage is self regulated DC and values were verified.

ü All Internal & External pots, controls, & switches (including the linear 'record' switches) cleaned and tested for noise-free function.

ü Both reel tables removed, disassembled, clutch pads resurfaced, then reassembled and tensioned correctly

ü Both spindles in perfect alignment.

ü We also adjusted the reel table heights for tighter fitting reels, and no 'flange rub' by adding a layer of rubber under the original table mats (assuming you're installing reels that are also 'running true')

ü Pinch roller reconditioned / re-surfaced.

ü Mains AC cord replaced

ü Power supply board tested to it's intended +25VDC. We had full voltage to the record amplifier and was able to adjust record amp to intended levels.

ü New VU meter illumination lamp installed (2x #25-090 / 8V/ 0.25mA) and both record indicator lamps test fine.

ü Internal 'Line Level', 'Bias', 'Record-Level', 'Record EQ' and 'PB' micro-pots cleaned EXTENSIVELY and levels adjusted with proper test tapes.



ü Heads were cleaned and de-magnetized as well as the entire transport.

ü Ferrite and Ferrite heads all in great shape, with many years of performance left in them. (technicians note: "heads appear 'un-used'. They're the best we've ever had on a deck and look NEW!")

ü Head alignment / azimuth has been checked for peak performance with factory test tone tape and oscilloscope at 100Hz, 1kHz and 10kHz.

ü Both level meters adjusted for even playback level w/ factory test tone tape.

ü Floor noise tested to -64dBu w/ fresh, blank tape on PB.

ü Plays and Records GREAT both channels

Following the above work and calibration, Recording tests performed @ 7.5ips and most at 0dB in the 'Source' position unless otherwise noted.
Here’s the results:

Memorex 1.0mil @ 7.5ips. 1kHz @ 0dB = +3dB L & +1dB R
Recorded program from "ddd" source was the 'brightest' on the Memorex.

GM 456 on 'Normal' position @ 7.5ips. 1kHz @ 0dB = +1.5dB L & +0.5dB R
GM 456 on 'Special' position @ 7.5ips. 1kHz @ 0dB = +0dB L & -1.5dB R
GM 456 on 'Normal' position @ 7.5ips. White Noise @ 0dB = +3.0dB L & +2.0dB R
GM 456 on 'Special' position @ 7.5ips. White Noise @ 0dB = +3.0dB L & +1.0dB R
Recorded program from "ddd" source was actually not as bright as it was on the Memorex.

MAXELL UDXL on 'Normal' position @ 7.5ips. 1kHz @ 0dB = +3.0dB L & +2.5dB R
MAXELL UDXL on 'Special' position @ 7.5ips. 1kHz @ 0dB = +2.5dB L & +1.5dB R
MAXELL UDXL on 'Normal' position @ 7.5ips. White Noise @ 0dB = +3.0dB L & +2.0dB R
MAXELL UDXL on 'Special' position @ 7.5ips. White Noise @ 0dB = +2.5dB L & +1.0dB R
Recorded program from "ddd" source was actually almost as bright as it was on the Memorex and better than the GM456.
We also tried Scotch 203 and Recorded program from "ddd" source was also better than the GM456.


Recorded program material overall SOUNDS GREAT!!!


ü Speed checked once 'warmed up', to 100% accuracy. (Meaning a 'factory' 1kHz tape plays back at 1000Hz ±1Hz. (tech note: this one has Sony 60Hz / #0 motor pulley installed from factory)

ü Following the above procedures, entire unit was detailed inside and out

Again, Pinch roller and F&F Heads all in GREAT condition.

(Total time investment in refurb / testing
~ 19 hours).

Cosmetically the main issues are small, white, spots of paint that seems to be impervious to any of our normal, shop solvents / cleaners. One of the head mount sheet metal has surface corrosion (does not affect performance and not the actual head. Also, the upper face panel has circular striations from fairly common 'reel rub' from metal reels being 'stopped' by hand and pushed into the fact. There's a few scratches near the pinch roller. There's also a couple veneer chips to the case, and a couple 'white' marks on the face near the meters. Nothing really offensive, but noticeable. (see photos above of details).
  ____________________________

GREAT performing Sony TC-377 1/4" Open Reel to Reel stereo tape Record / Play deck and has all 3 consumer speeds! Good for reel sizes up to 7" in diameter. Great for burning your tapes to CD or Hard Drive or for making new tapes. Also great for having fun in your project recording studio.

Sony TC-377 Features include:


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Original Sony TC-377 Tape Deck Specifications:


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


Again, following the above stated bench work / testing, our technician has
'Certified' this deck and it is an great performer sonically and mechanically. This deck has had typical restoration. It's pretty much had the clock rolled back 45+ years on it. With the exception of the numerous, small, white, paint spots previously mentioned, (see photos above) the units looks decent.
Machine is READY TO GO! Would make a great deck for any one needing a deck to do tape to CD or Hard Drive transfers of reel to reel tapes or for making NEW reel tape recordings. Comes with an 'e' copy / pdf of the Sony TC-377 owners / users manual. Includes a take-up reel. Includes our standard 30 day limited warranty. Measures 16.25" wide x 8.5" deep x 15.75" tall and weighs 24 lbs unpacked.
(Reels & tape shown in photos not included. All are sometimes available separately if you need them)
SONY TC-377 REEL TO REEL TAPE RECORDER / DECK #...0151
Cond. 8.0 (only due to white spots on lower face panel)

SOLD 10/27/2021
SHIPPING TO GREG IN NEW YORK


(Reels shown in photos are not included, but we sometimes / occasionally have them for sale. Inquire at time of order.
However, all of our decks will come with 2x tapes for testing 'Playback' (actually made on this deck) and 'Recording' as well as a 7" 'take-up' reel, and RCA patch cables for connection to your system)

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)









NEW LISTING 9/19/2020
(Click on above thumbnails to enlarge photos)

RESTORED / REFURBISHED / FULLY SERVICED
SONY REEL-TO-REEL 1/4" STEREO TAPE DECK
SONY TC-377 / TC377
4-TRACK / 2-CHANNEL
3-SPEED / 3 HEAD (F&F HEADS!)
"LOCKING SPINDLES"!!!
3"- 7" REEL CAPACITY
#...1131
Circa 1972-77

SOLD 12/16/2020
SHIPPING TO DONNELLE IN CALIFORNIA


Of the many Reel to Reel Tape decks built by Sony, especially from the late 1960’s and into the early 70’s, this has always been one of our favorite machines for Features, Build quality (that by luck, lends itself well to restoration 50 years later), solid and most importantly DEPENDABLE performance, and consistent sound quality.


ü Our technician has completely gone through and 'Certified' this unit.

ü Entire transport was disassembled down to the chassis, and every mechanical part including head block assembly, was cleaned of "varnished" lubes and re-lubed as well as the always at issue on most Sony's of this era, Pinch Roller plunge assembly, re-lubed and reassembled.

ü All Drive and counter belts replaced for trouble-free service. Rubber pinch roller has been reconditioned, as well as all three internal drive tires / wheels for positive grip, capstan burnished.

ü "SERVICE DETAILS" COMING...
HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

GREAT performing Sony TC-377 1/4" Open Reel to Reel stereo tape Record / Play deck and has all 3 consumer speeds! Good for reel sizes up to...


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

As stated earlier our technician noted that the heads were in essentially new condition. He further stated on the work sheet, "overall, the deck shows little use, and was remarkably, actually functional prior to tear down." (a 45 year old deck that still functions prior to a restoration, would be classified as "remarkable")
Sony TC-377 Features include:



HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Original Sony TC-377 Tape Deck Specifications:


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


Again, following the above stated bench work / testing, our technician has 'Certified' this deck and it is an great performer sonically and mechanically. This deck has had typical restoration. It's pretty much had the clock rolled back 45+ years on it. With the exception of a small veneer chip on the front, right, lower corner, (see photos above) the units looks fabulous. Again, over and above our standard restoration, this deck has virtually NEW heads!
Machine is READY TO GO! Would make a great deck for any one needing a deck to do tape to CD or Hard Drive transfers of reel to reel tapes or for making NEW reel tape recordings. Comes with an 'e' copy / pdf of the Sony TC-377 owners / users manual. Includes a take-up reel. Includes our standard 30 day limited warranty. Measures 16.25" wide x 8.5" deep x 15.75" tall and weighs 24 lbs unpacked.
(Reels & tape shown in photos not included. All are sometimes available separately if you need them)
SONY TC-377 REEL TO REEL TAPE RECORDER / DECK #...1131
Cond. 8.5+++ (only due to a small veneer chip)

SOLD 12/16/2020
SHIPPING TO DONNELLE IN CALIFORNIA


(Reels shown in photos are not included, but we sometimes / occasionally have them for sale. Inquire at time of order.
However, all of our decks will come with 2x tapes for testing 'Playback' (actually made on this deck) and 'Recording' as well as a 7" 'take-up' reel, and RCA patch cables for connection to your system)

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)








NEW LISTING 9/19/2020
(Click on above thumbnails to enlarge photos)

RESTORED / REFURBISHED / FULLY SERVICED
SONY REEL-TO-REEL 1/4" STEREO TAPE DECK
SONY TC-377 / TC377
4-TRACK / 2-CHANNEL
3-SPEED / 3 HEAD (F&F HEADS!)
"LOCKING SPINDLES"!!!
3"- 7" REEL CAPACITY
#...7072
Circa 1972-77

SOLD 10/7/2020
SHIPPING TO MARK IN VERMONT


Of the many Reel to Reel Tape decks built by Sony, especially from the late 1960’s and into the early 70’s, this has always been one of our favorite machines for Features, Build quality (that by luck, lends itself well to restoration 50 years later), solid and most importantly DEPENDABLE performance, and consistent sound quality.

ü Our technician has completely gone through and 'Certified' this unit.

ü Entire transport was disassembled down to the chassis, and every mechanical part including head block assembly, was cleaned of "varnished" lubes and re-lubed as well as the always at issue on most Sony's of this era, Pinch Roller plunge assembly, re-lubed and reassembled.

ü All Drive and counter belts replaced for trouble-free service. Rubber pinch roller has been reconditioned, as well as all three internal drive tires / wheels for positive grip, capstan burnished.

ü Supply (left) reel spindle lock replaced from another unit we purchased for that and a couple other parts as the original had a small, almost invisible crack in it.

ü Both reel hubs / clutches removed, disassembled and cleaned.

ü All hub brake pads have been replaced, and their bearings re-lubed and adjusted on fast wind modes also.

ü Motor has been re-lubed as well.

ü Internal voltage is self regulated DC and values were verified.

ü All Internal & External pots, controls, & switches (including the linear 'record' switches) cleaned and tested for noise-free function.

ü Both spindles in perfect alignment (originally were not, and were off a few degrees from perpendicular).

ü We also adjusted the reel table heights for no "reel rub".

ü Pinch roller reconditioned / re-surfaced.

ü Initial 'less than stellar' recording performance on one side was traced down to a bad, 19V Zener diode on the power supply board, causing it to supply ~5V instead of it's intended +25VDC. Once replaced, we had full voltage to the record amplifier and was then able to adjust record amp to intended levels.

ü New VU meter illumination lamp installed and both record indicator lamps test fine.

ü Internal 'Bias', 'Record-Level', 'Record EQ' and 'PB' micro-pots cleaned EXTENSIVELY and levels adjusted with proper test tapes.



ü Heads were cleaned and de-magnetized as well as the entire transport.

ü Ferrite and Ferrite heads all in great shape, with many years of performance left in them. (technicians note: "heads appear 'un-used'. They're the best we've ever had on a deck and look NEW!")

ü Head alignment / azimuth has been checked for peak performance with factory test tone tape and oscilloscope at 100Hz, 1kHz and 10kHz.

ü Both level meters adjusted for even playback level w/ factory test tone tape.

ü Floor noise tested to -60Dbm w/ fresh, blank tape on PB.

ü Entire face plate replaced with a cleaner example from a donor unit as well as the originally scratched / scuffed head cover

 Plays and Records GREAT @ 0dB / 1kHz on High Bias tape (Maxell UDXL).


ü Speed checked once 'warmed up', to 98.23% accuracy. (Meaning a 'factory' 1kHz tape plays back at 1018Hz. The last on of these we had in 2014 tested to just over 95% accuracy, which is just at the limit of passing our bar) (tech note: has Sony #0 motor / belt pulley installed from factory)

ü Following the above procedures, entire unit was detailed inside and out

Again, Pinch roller and Heads all in GREAT condition.

(Total time investment in refurb / testing
~ 21 hours).
Cosmetically in fabulous condition!
  ____________________________



HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

GREAT performing Sony TC-377 1/4" Open Reel to Reel stereo tape Record / Play deck and has all 3 consumer speeds! Good for reel sizes up to...


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

As stated earlier our technician noted that the heads were in essentially new condition. He further stated on the work sheet, "overall, the deck shows little use, and was remarkably, actually functional prior to tear down." (a 45 year old deck that still functions prior to a restoration, would be classified as "remarkable")
Sony TC-377 Features include:



HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Original Sony TC-377 Tape Deck Specifications:


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


Again, following the above stated bench work / testing, our technician has 'Certified' this deck and it is an great performer sonically and mechanically. This deck has had typical restoration. It's pretty much had the clock rolled back 45+ years on it. With the exception of a couple small veneer chips on the two, front, lower edges, and 'light' scuffing from the perimeter of a previously installed metal reels on the face, (see photos above {the reel scuffs don't really show up for photos}) the units looks fabulous. Again, over and above our standard restoration, this deck has virtually NEW heads!
Machine is READY TO GO! Would make a great deck for any one needing a deck to do tape to CD or Hard Drive transfers of reel to reel tapes or for making NEW reel tape recordings. Comes with an 'e' copy / pdf of the Sony TC-377 owners / users manual. Includes a take-up reel. Includes our standard 30 day limited warranty. Measures 16.25" wide x 8.5" deep x 15.75" tall and weighs 24 lbs unpacked.
(Reels & tape shown in photos not included. All are sometimes available separately if you need them)
SONY TC-377 REEL TO REEL TAPE RECORDER / DECK #...7072
Cond. 8.5 (only due to a couple small veneer chips)

SOLD 10/7/2020
SHIPPING TO MARK IN VERMONT


(Reels shown in photos are not included, but we sometimes / occasionally have them for sale. Inquire at time of order.
However, all of our decks will come with 2x tapes for testing 'Playback' (actually made on this deck) and 'Recording' as well as a 7" 'take-up' reel, and RCA patch cables for connection to your system)

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)






Sony_TC-399_Reel-Reel_Tape_Deck_web.jpg (23882 bytes)      Sony_TC-399_Reel-Reel_Tape_Deck_collage.jpg (328240 bytes)

SONY
TC-399
REEL-TO-REEL
STEREO TAPE DECK
SOLD


Sony_TC-440_Open_Reel_Tape_Deck_web.jpg (50455 bytes)    Sony_TC-440_Open_Reel_Tape_Deck_collage.jpg (400860 bytes)


SONY
TC-440
Sold 11/01/04
 4-TRACK / 2-CHANNEL
 3-HEAD / 3-SPEED
1/4" REEL-TO-REEL
AUTO-REVERSE
STEREO TAPE DECK
Circa 1971-73



NEW LISTING 7/9/05
SONY
MODEL TC-500A
SOLD 7/23/05
4-TRACK STEREO / 2-CHANNEL
2-HEAD / 2-SPEED
TUBE
REEL TO REEL R2R
1/4" STEREO TAPE DECK

"WORLD AC POWER"
Circa 19
60-70's








NEW LISTING 5/17/05
SONY
MODEL TC-530
REEL TO REEL STEREO TAPE DECK

 "
WORLD AC POWER"

SOLD 5/18/06






            NEW LISTING 10/9/19

(Click on above thumbnails to enlarge photos)

RESTORED / REFURBISHED / FULLY SERVICED
SONY TC-530 / TC530

 4-TRACK / 2-CHANNEL STEREO
 2-HEAD / 3-SPEED
 REEL TO REEL R2R
 3" - 7" REEL CAPACITY
 1/4" STEREO TAPE DECK
with Built-In AMP & SPEAKERS
MIJ

  "
WORLD AC POWER" ™
 Circa 196
7-69
SOLD 4/4/2020
SHIPPING TO MICHAEL IN NEW YORK


ü Our technician has completely gone through and 'Certified' this unit.

Original tech notes on 'pre-inspection';
"Dirty, but relatively unmarked...take-up bushing loose in chassis...AC power cord frayed....Voltage incorrectly set to 110V...Playback head VERY worn...main drive tire dried & cracked and will need to be replaced...dents in pinch roller...FF & REW partially function. Entire transport needs total overhaul...motor is quiet...main drive belt stretched / cracked...Right channel very low output...speed; unable to determine as entire transport doesn't function well enough...VERY noisy controls...leaf switches intermittent to non-functional...Rec pressure pad too flat...very little high frequency likely due to excessive head wear."

ü We have completely and extensively gone through the mechanicals and electronics of this unit.

ü Entire transport was disassembled down to the chassis, and mechanical parts cleaned, re-lubed and reassembled.

ü Flywheels removed, cleaned and reinstalled.

ü Capstans burnished

ü Again, the entire transport assembly was painstakingly disassembled, cleaned and re-lubed.

ü 'Auto-Stop' mechanism disassembled and re-lubed with fresh 300,000 silicon damping fluid.

ü Also hub brakes have been cleaned, re-lubed, and adjusted on fast wind modes also.

ü Main AC / Line / Power switch replaced with Original Sony from a donor unit

ü Burnished leaf switches

ü VU meter illumination lamps / bulbs check fine.

ü Both spindles were completely disassembled, cleaned and had their bearings / bushings cleaned and re-lubed and are in perfect alignment and run 'true' (see above photos).

ü Heights adjusted on both reel tables.

ü Replaced dried / cracked idler tire with 'reconditioned' unit

ü Main Drive and counter belts replaced for trouble-free service.

ü Rubber pinch roller removed, cleaned & reconditioned, as well as all internal drive tires / wheels for positive grip.

ü Combination Record / Playback head replaced with sourced OEM unit in good shape

ü Tape heads and entire transport cleaned and demagnetized.

ü Heads in great shape as well, and should have many hundreds of hours of performance left in them.

ü All Amplifier controls and input selectors cleaned extensively

ü AUX, Tuner and Phono inputs all tested fine on both channels following 'control cleaning'

ü Amplifier tested on both channels (not a 'power house' of volume, but fine for 'lower volume' needs. Will get as loud as you need it to once connected to your system).

ü Both speakers tested and frequency swept with no issues (internal and external, but again, won't get 'room filling' loud as they're simply to monitor playback).

ü Speaker wires, amp input jacks and plugs all in perfect condition

ü Head alignment / azimuth has been checked for peak performance on both play and record heads with factory STL 1k, 5k, 7.5k, 10k & 15k tones with oscilloscope.

ü Records well, but much lower on VU than input (about -12-15 dB). Sonically fine. Biased for *Ampex GM 456 studio tape with the following results:
1kHz recorded @ 0dB resulted in PB @ -15dB (with minimal 'artifacts')

'Real World', DDD CD recorded at 0 = -12dB but sounded fine. This deck is a much better 'playback' unit than a 'record' unit.

* We also had great results with Maxell UD XL (Gold Box) tape as well
Note: If you're going to be making 'new' recordings, you'll want to 'push' the levels well into the "red" to get a good PB level.


ü Floor noise measured at -60dBm w/ blank tape, L&R

ü Both PB output levels and VU meters playback internally adjusted for even response.




ü We really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy).

ü Tape Speed tested to 100% accuracy on each speed independently, via cir bd micro-pots, utilizing 'factory' test tapes meaning that 1000 Hz tape plays back at 1000Hz +/-1Hz!

ü External Cabinet and some of the speaker hardware replaced with Original Sony from a donor unit

ü Following electro/mechanical restoration, unit received a cosmetic cleaning / detailing.

ü (Total time investment in refurb / testing 29 hours).
Deck is now in overall, GREAT condition!!!
   ____________________________



Great condition & "Ready-to-go", Solid State, Sony TC-530 R2R with...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Sony TC-560D Reel to Reel Tape Recorder Features include:


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Original SONY TC-560D Specifications as follows:

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


 As stated earlier we have completely gone through it cleaning, re-lubing, adjusting, demagnetizing and testing everything. All rubber parts inspected, replaced and / or reconditioned. Records at approx -12-15dB and Plays well (and we really put them through the paces, testing both with well mixed CD material and CD test tones looking for correct head Azimuth and speed accuracy
(speed is correct to 100% @ 1kHz) and making test recordings. All fast wind and stop functions work perfectly at any point in the tape. Only two minor cosmetic issues; AC cord storage compartment door missing and head cover securing screws missing. Head cover still stays on well with friction. Pinch roller reconditioned and heads all in GREAT condition!!! Face and knobs all in great cosmetic condition as is the original case, hinges and latches. Both speakers detach from the top and form the top of the case when latched. Speaker cables store in lids. Since this unit has a built-in amplifier, pre-amp controls, multiple inputs and built-in speakers, it can be used as a true "stand-alone" unit. The internal amplifier and built-in speakers actually sound great as well! Very surprising. Of course unit will still patch into any stereo / sound system normally. Measures 15" tall x 20" wide x  x 10" deep (with speaker / covers installed) and weighs 40 lbs unpacked. Includes our standard 30 day limited warranty. Also includes a pair of rubber hub stoppers! (Reels & tape shown in photos not included. All are usually available separately if you need them)

SONY TC-530
Cond. 8.5

(CONS. R.R.)
SOLD 4/4/2020
SHIPPING TO MICHAEL IN NEW YORK


(Reels shown in photos are not included, but we sometimes / occasionally have them for sale. Inquire at time of order.
However, all of our decks will come with 2x tapes for testing 'Playback' and 'Recording' as well as a 7" 'take-up' reel, and RCA patch cables for connection to your system)

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)


(archived)





NEW LISTING 12/6/2022

(Click on above thumbnails to enlarge photos)

RESTORED / REFURBISHED / FULLY SERVICED
SONY TC-530 / TC530
 4-TRACK / 2-CHANNEL STEREO
 2-HEAD / 3-SPEED
 REEL TO REEL R2R
 3" - 7" REEL CAPACITY
 1/4" STEREO TAPE DECK
with Built-In AMP & SPEAKERS
#...0190
MIJ
  "
WORLD AC POWER" ™
 Circa 196
7-69


ONE CURRENTLY FOR SALE ON THE FOLLOWING PAGE LINK.
CLICK HERE!
Sony_TC-558_Reel_Deck_web.jpg (36192 bytes)    Sony_TC-558_Reel_Deck_collage.jpg (194208 bytes)
SONY
TC-558
REEL TO REEL
TAPE DECK
SOLD








       NEW LISTING
2/28/18
 (Click on above thumbnails to enlarge photos)
RESTORED / REFURBISHED / FULLY SERVICED
VINTAGE SONY 1/4" REEL-TO-REEL STEREO TAPE DECK /
"SONY STEREO MUSIC CENTER"

SONY TC-560 / TC560
#...3534
4-TRACK / 2-CHANNEL
SELF POWERED W/ AMPLIFIER AND SPEAKERS
3-SPEED
E.S.P. AUTO-REVERSE*
BI-DIRECTIONAL RECORDING
2.5" thru 7" REEL CAPACITY
Circa 1966-71
SOLD
SHIPPED TO RHODE ISLAND

ü Our technician has completely gone through and 'Certified' this unit.

ü We have completely and extensively gone through the mechanicals and electronics of this unit.

ü Entire transport was disassembled down to the chassis, and mechanical parts cleaned, re-lubed and reassembled.

ü Flywheels removed, cleaned and reinstalled.

ü Capstans burnished

ü Again, the entire transport assembly was painstakingly disassembled, cleaned and re-lubed.

ü 'Auto-Stop' mechanism disassembled and re-lubed with fresh 300,000 silicon damping fluid.

ü Also hub brakes have been cleaned, re-lubed, and adjusted on fast wind modes also.

ü VU meter illumination lamps / bulbs check fine.

ü Both spindles were completely disassembled, cleaned and had their bearings / bushings cleaned and re-lubed and are in perfect alignment.

ü Heights adjusted on both reel tables.

ü 'Forward / Reverse' Selector switch painstakingly adjusted (no easy process)

ü Main Drive, both reel belts and both counter belts replaced for trouble-free service.

ü Both Rubber pinch rollers removed, cleaned & reconditioned, as well as all internal drive tires / wheels for positive grip.

ü Tape heads and entire transport cleaned and demagnetized.

ü Heads in great shape as well, and should have many hundreds of hours of performance left in them.

ü All Amplifier controls and input selectors cleaned extensively

ü AUX, Tuner and Phono inputs all tested fine on both channels following 'control cleaning'

ü Amplifier tested on both channels.

ü Both speakers tested and frequency swept with no issues

ü Speaker wires, amp input jacks and plugs all in perfect condition

ü Head alignment / azimuth has been checked for peak performance on both play and record heads with factory STL 1k, 5k, 7.5k, 10k & 15k tones with oscilloscope.

ü Plays very well

ü Adjusted to record @ a very good, -2dB @ 1kHz on Ampex 456 GM tape

ü Floor noise measured at -60dBm w/ blank tape, L&R

ü Both PB output levels and VU meters playback internally adjusted for even response.

ü We really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy). Pinch roller and heads all in GREAT condition.

ü All internal speed pots adjusted to 100% accuracy on each speed independently, via cir bd micro-pots, utilizing 'factory' test tapes meaning that 1Khz tape plays back at 1000Hz +/-1Hz!

ü Following electro/mechanical restoration, unit received a cosmetic cleaning / detailing. About the only cosmetic issue is a small dent in the aluminum trim on one of the speakers and one of the knobs is missing it's 'brite' and was replaced with aluminum foil at some time in the past (see photos above).

ü (Total time investment in refurb / testing ~ 23.5+ hours).
Deck is now in overall, GREAT condition!!!
   ___________________________


Sony TC-560, POWERED Reel to Reel Tape Recorder Features include:


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Original SONY TC-560 Specifications as follows:

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Again, following the above stated bench work / testing, our technician has 'Certified' this deck and it is an great performer sonically and mechanically. This deck has had EXTENSIVE restoration with the above mentioned 18+ hours of tech time. Restored, extensively tested / played, then re-benched after 'burn-in' to double check performance / adjustments.
As stated earlier, this is the FIRST 'Self-Powered' reel to reel tape deck we've restored / refurbished since starting the website some 23 years ago. The amp and speakers actually sound great, and are completely usable. Of course the unit can also be used as a standard 'component' deck, meaning you can still connect it to a receiver / amplifier / or computer for media transfers. AND, since it has...


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Comes with a pair of original, and proper for this machine, rubber spindle stoppers / reel holders.
Also comes with
a pdf 'e' copy of the Sony TC-560 Owners manual (
courtesy " www.hifiengine.com "). Includes our standard 30 day limited warranty. Measures 20.5" wide x 8.5" deep x 17.5" tall  (main unit only, not including speakers) and weighs 50 lbs w/ speakers attached unpacked.
 (Reels & tape shown in photos not included. All are sometimes available separately depending on stock levels.)

 SONY TC-560 AMPLIFIED WITH SPEAKERS, REEL TO REEL TAPE DECK
 Cond. 8.5
++
$1199.
SOLD
SHIPPED TO RHODE ISLAND


(Reels shown in photos are not included, but we sometimes / occasionally have them for sale. Inquire at time of order.
However, all of our decks will come with 2x tapes for testing 'Playback' and 'Recording' as well as a 7" 'take-up' reel, and RCA patch cables for connection to your system
)

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)











       NEW LISTING
2/28/18
 (Click on above thumbnails to enlarge photos)
RESTORED / REFURBISHED / FULLY SERVICED
VINTAGE SONY 1/4" REEL-TO-REEL STEREO TAPE DECK
SONY TC-560D / TC560D

DISTRIBUTED BY SUPERSCOPE

#...7655
4-TRACK / 2-CHANNEL

3-SPEED
E.S.P. AUTO-REVERSE*
BI-DIRECTIONAL RECORDING
2.5" thru 7" REEL CAPACITY

Circa 1966-71

SOLD
SHIPPED TO MAINE

ü Our technician has completely gone through and 'Certified' this unit.

ü We have completely and extensively gone through the mechanicals and electronics of this unit.

ü Entire transport was disassembled down to the chassis, and mechanical parts cleaned, re-lubed and reassembled.

ü Flywheels removed, cleaned and reinstalled.

ü Capstans burnished

ü Again, the entire transport assembly was painstakingly disassembled, cleaned and re-lubed.

ü 'Auto-Stop' mechanism disassembled and re-lubed with fresh 300,000 silicon damping fluid.

ü Also hub brakes have been cleaned, re-lubed, and adjusted on fast wind modes also.

ü VU meter illumination lamps / bulbs check fine.

ü Both spindles were completely disassembled, cleaned and had their bearings / bushings cleaned and re-lubed and are in perfect alignment.

ü Heights adjusted on both reel tables.

ü 'Forward / Reverse' Selector switch painstakingly adjusted (no easy process)
ü Main Drive, both reel belts and both counter belts replaced for trouble-free service.

ü Both Rubber pinch rollers removed, cleaned & reconditioned, as well as all internal drive tires / wheels for positive grip.

ü Tape heads and entire transport cleaned and demagnetized.

ü Heads in great shape as well, and should have many hundreds of hours of performance left in them.

ü  Head alignment / azimuth has been checked for peak performance on both play and record heads with factory STL 1k, 5k, 7.5k, 10k & 15k tones with oscilloscope.

ü Plays very well

ü Adjusted to record @ a very good, -2dB @ 1kHz on Ampex 456 GM tape

ü Floor noise measured at >-57dBm w/ blank tape, L&R

ü Both PB output levels and VU meters playback internally adjusted for even response.

ü  We really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy). Pinch roller and heads all in GREAT condition.

ü  All internal speed pots adjusted to 99.9+% accuracy on each speed independently, via cir bd micro-pots, utilizing 'factory' test tapes meaning that 1Khz tape plays back at 1000Hz +/-1Hz!

ü  Following electro/mechanical restoration, unit received a cosmetic
 cleaning / detailing. About the only cosmetic issues remaining are a few 'minor battle scars' to the head cover (see photos above).

ü (Total time investment in refurb / testing ~ 17+ hours).
Deck is now in overall, GREAT condition!!!
   ____________________________


Sony TC-560D Reel to Reel Tape Recorder Features include:


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Original SONY TC-560D Specifications as follows:

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Again, following the above stated bench work / testing, our technician has 'Certified' this deck and it is an great performer sonically and mechanically. This deck has had EXTENSIVE restoration with the above mentioned 18+ hours of tech time. Restored, extensively tested / played, then re-benched after 'burn-in' to double check performance / adjustments.


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Also comes with
a pdf 'e' copy of the Sony TC-560D Owners manual (
courtesy " www.hifiengine.com ") and a copy of the Sony TC-560D service manual if the purchaser wishes. Includes our standard 30 day limited warranty. Measures 16.5" wide x 6.75" deep x 16.5" tall and weighs 29 lbs unpacked.
 (Reels & tape shown in photos not included. All are sometimes available separately depending on stock levels.)

 SONY TC-560D REEL TO REEL TAPE DECK
 Cond. 8.5


SOLD
SHIPPED TO MAINE

(Reels shown in photos are not included, but we sometimes / occasionally have them for sale. Inquire at time of order.
However, all of our decks will come with 2x tapes for testing 'Playback' and 'Recording' as well as a 7" 'take-up' reel, and RCA patch cables for connection to your system
)

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)







Sony_TC-560D_Reel-Reel_Tapecorder_web.jpg (32943 bytes)     Sony_TC-560D_Reel-Reel_Tapecorder_collage.jpg (309330 bytes)

NEW LISTING 10/22/04
SONY
TC-560D

DISTRIBUTED BY SUPERSCOPE

 4-TRACK / 2-CHANNEL
3-SPEED
AUTO-REVERSE
1/4" REEL-TO-REEL
STEREO TAPE DECK
"
WORLD AC POWER"
Circa 1968-71

12/07/04










NEW LISTING 8/12/19

 (Click on above thumbnails to enlarge photos)
RESTORED / REFURBISHED / FULLY SERVICED
VINTAGE SONY 1/4" REEL-TO-REEL STEREO TAPE DECK /
"SONY STEREO MUSIC CENTER"
SONY TC-570 / TC570
#...0071
4-TRACK / 2-CHANNEL
SELF POWERED W/ AMPLIFIER AND SPEAKERS
3-HEAD / 3-SPEED

2.5" thru 7" REEL CAPACITY
*

Circa
early 1970's

SOLD 8/21/19
SHIPPED TO RUSS IN ILLINOIS


ü Our technician has completely gone through and 'Certified' this unit.

ü We have completely and extensively gone through the mechanicals and electronics of this unit.

ü Entire transport was disassembled down to the chassis, and mechanical parts cleaned, re-lubed and reassembled.

ü Flywheels removed, cleaned and reinstalled.

ü Capstans burnished

ü Again, the entire transport assembly was painstakingly disassembled, cleaned and re-lubed.

ü 'Auto-Stop' mechanism disassembled and re-lubed with fresh 300,000 silicon damping fluid.

ü Also hub brakes have been cleaned, re-lubed, and adjusted on fast wind modes also.

ü Main AC / Line / Power switch replaced with Original Sony from a donor unit

ü VU meter illumination lamps / bulbs check fine.

ü Both spindles were completely disassembled, cleaned and had their bearings / bushings cleaned and re-lubed and are in perfect alignment and run 'true' (see above photos).

ü Heights adjusted on both reel tables.

ü Main Drive and counter belts replaced for trouble-free service.

ü Rubber pinch roller removed, cleaned & reconditioned, as well as all internal drive tires / wheels for positive grip.

ü Tape heads and entire transport cleaned and demagnetized.

ü Heads in great shape as well, and should have many hundreds of hours of performance left in them.

ü All Amplifier controls and input selectors cleaned extensively

ü AUX, Tuner and Phono inputs all tested fine on both channels following 'control cleaning'

ü Amplifier tested on both channels.

ü Both speakers tested and frequency swept with no issues

ü Speaker wires, amp input jacks and plugs all in perfect condition

ü Extra attention spent on "R150" as recording would become intermittent a ways into a selection. Issue rectified.

ü Head alignment / azimuth has been checked for peak performance on both play and record heads with factory STL 1k, 5k, 7.5k, 10k & 15k tones with oscilloscope.

ü Adjusted to record VERY WELL. Biased for *Ampex GM 456 studio tape with the following results:
1kHz recorded @ 0dB resulted in PB @ +2dB (with minimal 'artifacts')
Full Bandwidth, Pink Noise recorded @ 0dB resulted in PB @ +2 L&R

'Real World', DDD CD recorded at 0 = 0 and was very strong, punchy, bright, and 'musical'.

* We also had great results with Maxell UD XL (Gold Box) tape as well


ü Floor noise measured at -60dBm w/ blank tape, L&R

ü Both PB output levels and VU meters playback internally adjusted for even response.

ü We really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy). Pinch roller and heads all in GREAT condition.

ü Tape Speed tested to 99.99% accuracy on each speed independently, via cir bd micro-pots, utilizing 'factory' test tapes meaning that 1Khz tape plays back at 1001Hz +/-1Hz!

ü External Cabinet and some of the speaker hardware replaced with Original Sony from a donor unit

ü Following electro/mechanical restoration, unit received a cosmetic cleaning / detailing.

ü (Total time investment in refurb / testing ~ 26+ hours).
Deck is now in overall, GREAT condition!!!
   ____________________________

GREAT performing Sony TC-570 'SELF POWERED / SELF-CONTAINED', 1/4", Open Reel stereo tape deck with 3-Heads and 3-Speeds! This is only the second or third "Self Powered, WITH Speakers' Reel to Reel we've decided to restore / refurbish in 23 years of having the website.
The deck, by design, has slightly elevated mechanical noise from it's transport. Does not transfer thru the audio. At normal listening levels you wouldn't likely notice it, but at lowest volume levels with 'quieter' music, it's audible.
Occasionally (about 1-2 out of 10 times) the pinch roller doesn't 'trap' the tape between the capstan and pinch roller (it actually hasn't done this any of the last dozen times I auditioned the deck, but it had happened a couple times and is nothing for us to address).

Overall, a great deck for all-around Playback and recording of reels up to 7" in diameter, and with it's own 'built-in' amplifier and speakers, makes the deck even more versatile and fun!

Sony TC-570, POWERED / SELF CONTAINED Reel to Reel Tape Recorder Features include:

- 3-Heads for instant monitoring of tape levels / record quality while recording. (also handy for us here at the shop to really dial in it's recording performance)
- Triple speeds at 7.5 ips / 19cms, 3 3/4ips / 9.5 cms & 1 7/8 ips / 4.75 cms
- DURABLE AC powered capstan motor (lasts decades longer than DC capstan motors of the 'later' models)

- Self Powered (Built-in Amplifier)
- Built-in, Detachable Speakers (can be controlled separately from the 'Line Output' to your stereo system. Also, their level can be controlled separately from the 'Record' levels)
- Modern, Spring loaded, reel spindle locks (no need for rubber stoppers to hold reels in place)

- Input selector for AUX, Tuner, Microphones and Phonograph
- Separate Bass and Treble when monitoring thru built-in amp and speakers
- Stereo / Mono Mode Selector for built-in amplifier
-
1/4", 4-Track / 2-Channel Stereo or 4-Channel Mono capable Tape Head format
-
3" / 5" / 7" Reel Capacity (
*braking and starting torque optimized for 7" reels)
 4-Track / 2-Channel tape format, although other track formats may likely work sufficiently as well)
- Triple speeds at 7.5 ips / 19cms, 3 3/4ips / 9.5 cms & 1 7/8 ips / 4.9 cms
- Sound-On-Sound w/ level control (allows pseudo 'Mult-Tracking' with some practice. We have a TEAC A-1200 / 1500 Manual covers this extensively and necessarily)
- Echo w/ level control (We have a TEAC A-1200 / 1500 Manual covers this extensively and necessarily)

- Separate L & R Line Input / Microphone Input level controls
-
Auto-Stop
- Tape Type selector for "Normal" or "Special" (higher bias)
- Dual analog VU meters for monitoring Playback and Record levels
- Dual front mounted 1/8" mic input jacks
- 1/4" Stereo Headphone jack
- Mechanical Tape counter
- RCA inputs and outputs as well as DIN
-
Grounded, EIC, detachable AC cord
- True "WORLD AC POWER"   allows unit to be operated on 50 or 60 Hz AC and will select voltages from 110v, 120v, 220v and 240 volts AC input. (50Hz / 60Hz is selectable but "50Hz / Euro-Asia" power would require capstan pulley.)
- 8-Pin port for optional TEAC RC-101 wired remote control (remote not included or available anymore from us)

Original SONY TC-570 Specifications as follows:


Tape Speed:
7.5 ips / 19cms, 3 3/4ips / 9.5 cms and extra long 1 7/8 ips / 4.75 cms
Motors:
Hysteresis Synchronous capstan motor
Reels:
1/4" tape on 7 inches оr smaller
Recording Format:
4-track / 2-Channel stereophonic оr monophonic
Frequency Response w/ Standard Tape:

30-20,000 Hz
±3dB @ 7 1/2ips
30-17,000 Hz
±3dB @ 3 3/4 ips.
30-9,000 Hz
±3dB
@ 1 7/8 ips.
Flutter and Wow:
<0.12% @ 7 1/2 ips.

<0.15% @ 3 3/4 ips.
Signal-to-Noise Ratio:

>55dB @ 7 1/2 ips. w/ SONY SLH Tape.
>52dB @ 7 1/2 ips. w/ standard Tape.

Harmonic Distortion:
<1.5% @ 7 1/2 ips. @ 'normal pb level'
Bias Frequency:
160kHz
Level Indication: Dual Analog VU Meters
Line Input (AUX input):
Max Sensitivity 60mV / Impedance 560kΩ
Mic Input:
Low Impedance / Sensitivity 0.2mV / -72dB
Outputs:
Line Output Jacks w/ Output level 0dB (0.775 V) & suitable load impedance 100kΩ
Fast Wind Time:
approx 100 sec / 1200'

Amplifier / Speaker Specs:
Rated Amplifier Output: 15 Watts / Channel
Load Impedance:
16
Driver model / size: 1-502-388-11 / 5.25"
Magnet:
Ceramic

Again, following the above stated bench work / testing, our technician has 'Certified' this deck and it is an great performer sonically and mechanically. This deck has had EXTENSIVE restoration with the above mentioned 26+ hours of tech time. Restored, extensively tested / played, then re-benched after 'burn-in' to double check performance / adjustments.
As stated earlier, this is only the second or third 'Self-Powered' reel to reel tape deck we've restored / refurbished since starting the website some 24 years ago. The amp and speakers actually sound great, and are completely usable. Of course the unit can also be used as a standard 'component' deck, meaning you can still connect it to a receiver / amplifier / or computer for media transfers. AND, since it has multiple inputs, it is essentially also the heart of a 'complete stereo system'.
Cosmetic issues are minimal. There's a 'reel mark' on the left face, some wear to the 'transport function' silk-screening, and evidence of a repaired grill dent (see photos above).
Looks good & Ready to go! Comes with a take-up reel. Again, GREAT for bur
ning your tapes to CD or Hard Drive or for a 'media transfer business'. Also handy for archiving / researching / revisiting your tapes prior to 'digitizing' them.
Also comes with a pdf 'e' copy of similar Sony Owners manual (
courtesy " www.hifiengine.com "). Includes a 30 day, limited warranty. Measures 20.25" wide x 11" deep x 15.25" tall  (main unit only, not including speakers) and weighs 41 lbs w/ speakers attached unpacked.
(Reels & tape shown in photos not included. All are sometimes available separately depending on stock levels.)

SONY TC-570 AMPLIFIED WITH SPEAKERS, REEL TO REEL TAPE DECK
 Cond. 8.5++

SOLD 8/21/19
SHIPPED TO RUSS IN ILLINOIS

(CONS. R.R.)

(Reels shown in photos are not included, but we sometimes / occasionally have them for sale. Inquire at time of order.
However, all of our decks will come with 2x tapes for testing 'Playback' and 'Recording' as well as a 7" 'take-up' reel, and RCA patch cables for connection to your system)

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)









         NEW LISTING 5/10/19
(Click on above thumbnails to enlarge photos)
 SONY 1/4" REEL-TO-REEL STEREO TAPE DECK
 SONY TC-580 / TC580

DISTRIBUTED BY SUPERSCOPE

 #...4258
4-TRACK / 2-CHANNEL STEREO OR MONO
3-SPEED / 6-HEAD
 AUTO-REVERSE with BI-DIRECTIONAL RECORDING
7" REELS AND / OR *SMALLER
Circa 1969-72
SOLD 8/7/19
SHIPPED
TO TIM IN INDIANA

ü  Our technician has completely and EXTENSIVELY gone through and 'Certified' this unit.

ü  We have completely and extensively gone through the mechanicals and electronics of this unit.

ü  Entire transport was disassembled down to the chassis, and every mechanical part was cleaned, re-lubed and reassembled.

ü  'Tweaked' Mic / Line pot shafts straightened.

ü  Line / Mic potentiometers had '2-stage' cleaning, meaning that they were cleaned, left overnight, then re-cleaned.

ü  'Direction Change Stopper' wheel, resurfaced / rebuilt for correct tension arm operation.

ü  Flywheel was removed, cleaned and reinstalled. During this the 'capstan bearing' was re-aligned, and the test for this was that it should 'free-wheel' 31 sec when aligned, which it does now.

ü  The capstan was burnished, heads have been cleaned and de-magnetized as well as the entire transport.

ü  Again, the entire transport assembly was painstakingly disassembled, cleaned and re-lubed as well as the always at issue on this series of decks, 'Pinch Roller swing arm' assembly.

ü  'Auto-Stop' mechanism disassembled and re-lubed with fresh 300,000 silicon damping fluid.

ü  Also hub brakes have been cleaned, re-lubed, new brake pads installed and adjusted on fast wind modes also.

ü  Rewind 'back tension' adjusted.

ü  Reel Motor 'start / run' capacitors checked.

ü  All three motors were re-lubed.

ü  All internal pots / controls cleaned in both the playback amplifier, record amplifiers and tested for noise-free function.

ü  VU meter illumination lamps / bulbs all working fine and run 'cool' so should last years more.

ü  Both spindles were completely disassembled, cleaned and had their bearings / bushings cleaned and re-lubed and are in perfect alignment.

ü  Spindle tips checked and 'tweaked' where necessary to ensure 'trueness' when in 'fast wind' (check photos)

ü  Heights adjusted on both reel tables.

ü  Both counter belts replaced for trouble-free service.

ü  A pre-existing issue with the FF not staying engaged was repaired at it's switch

ü  New reel hub brake pads fabricated, installed and adjusted

ü  Rubber pinch roller was removed, cleaned & reconditioned, as well as all internal drive tires / wheels for positive grip. Pinch roller was re-reconditioned following initial testing.

ü  Head-block assembly completely disassembled, cleaned and moving parts correctly re-lubed.

ü  Tape heads and entire transports demagnetized.

ü  Heads in great shape as well, with many hundreds of hours of performance left in them. (Tech noted they have VERY MINIMAL wear)

ü  We adjusted the VU meters mechanically for correct 'resting position' and electronically utilizing "STL" test / alignment tapes, as well as the internal playback and record levels.

ü  Head alignment / azimuth has been checked for peak performance on both play and record heads with factory STL 1k, 5k, 7.5k, 10k & 15k tones thru an oscilloscope.

ü  We adjusted the output, 'Minimum Input', 'Specified Input', 'Record Level' and 'Bias' all to spec, then further adjusted 'Bias' for Ampex GM-456 (meaning all meter, playback levels and 'internal' recording levels adjusted with 'real' alignment / test tapes for optimum performance, essentially 'rolling back the clock 40 years)



ü  Adjusted to Play and Record AMAZINGLY WELL with the following results on Ampex GM-456 tape (and a well used tape at that!!!) with the following results:
1kHz in forward direction recorded
@ 0dB resulted in PB @ +0.5dB
1kHz in reverse direction recorded
@ 0dB resulted in PB @ -0.75dB
White Noise in forward direction recorded
@ 0dB resulted in PB @ +1dB
White Noise in reverse direction recorded
@ 0dB resulted in PB @ -0.5dB

'Real World, DDD CD recorded in such a way that it was virtually indistinguishable from the original CD DDD 'Master Recording'.


ü  We really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded /
factory test tones looking for correct head Azimuth and speed accuracy). Pinch roller and heads all in GREAT condition.

ü  All three internal speed pots adjusted to 100% accuracy on each speed independently, via cir bd micro-pots, utilizing 'Institute of High Fidelity' test tape meaning that 1Khz tape plays back at 1000Hz +/-1Hz! (many reel to reel decks do not feature a 'DC power' capstan motor, which is why we were able to adjust it's speed. Many have AC Synchronous motors which are not adjustable so getting the speed close to correct is often a 'crap shoot')

ü  Following electro/mechanical restoration, unit received a cosmetic
 cleaning / detailing. Unit has a couple of minor issues. Missing ‘rear’ feet replaced with OEM / Sony Originals. About the only cosmetic issues remaining are: the ‘tip’ of the ‘Amp’ On/Off toggle switch is snapped off, so they’re short (still functions, just doesn't stick out as far as normal). The others are cosmetic in that there are a few 'minor battle scars' cosmetically with a few chips in the Formica finish on the casing and a few scuffs / scratches on the head cover / fascia.

ü  (Total time investment in refurb / testing ~ 17+ hours).
Pinch roller and heads all in GREAT condition!!!
   ____________________________

 GREAT performing Sony TC-730 1/4" Open Reel stereo tape deck
...


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

BUT MOST OF ALL, RE-READ THE RECORDING LEVELS, LISTED ABOVE THAT WE GOT FROM THIS
DECK FOLLOWING IT'S EXTENSIVE SERVICE.

Sony TC-580 Reel to Reel Tape Recorder Features include:


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Original SONY TC-580 Specifications as follows:


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


Again, following the above stated bench work / testing, our technician has 'Certified' this deck and it is an great performer sonically and mechanically. This deck has had EXTENSIVE restoration with the above mentioned 17+ hours of tech time. It's pretty much had the clock rolled back 40 years on it. Restored, extensively tested / played, then re-benched after 'burn-in' to double and triple check performance / adjustments.
Just an operational note about this and many other Sony reel to reel decks. I find them easiest to use with their head cover removed when it comes to loading and un-loading tapes (although some actually rely on the head cover to guide the tape thru loading properly).




I have to say at this point, after about 2 and a half decades of restoring and selling Reel to Reel decks on line,
that I challenge anyone to find another group that is doing a better, or even as thorough of a job of restoring decks (or anything for that matter) as we do!!!!!!


Looks great & Ready to go! Best for playback and works decently for recording. Comes with a take-up reel.

Can include a pdf 'e' copy of the Sony TC-730 (same deck but with built-in amp and speakers) Owners manual (very poor copy) and a copy of the Sony TC-580 service manual if the purchaser wishes. Includes our standard 30 day limited warranty. Measures 17.5" wide x 9" deep x 18.25" tall and weighs 43 lbs unpacked.
 (Reels & tape shown in photos not included. All are sometimes available separately depending on stock levels.)

SONY TC-580 REEL TO REEL TAPE DECK
Cond. 8.5

SOLD 8/7/19
SHIPPED
TO TIM IN INDIANA

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)








NEW LISTING 12/9/05
SONY
MODEL TC-630

SOLD 12/30/05

4-TRACK / 2-CHANNEL STEREO
3-HEAD / 3-SPEED
REEL TO REEL R2R
1/4" STEREO TAPE DECK

"WORLD AC POWER"
Circa 19
60-70's

Sony_TC-651_Reel_Deck_web.jpg (35397 bytes)     Sony_TC-651_Reel_Deck_collage.jpg (251930 bytes)
SONY

TC-651
REEL TO REEL
TAPE DECK
SOLD



NEW LISTING


 (Click on above thumbnails to enlarge photos)
SONY 1/4" REEL-TO-REEL STEREO TAPE DECK
SONY TC-651 / TC651
#...7352
4-TRACK / 2-CHANNEL
4-HEAD / 3-MOTOR / 2-SPEED
AUTO-REVERSE
5" & 7" REEL CAPACITY
"WORLD AC POWER"
Circa 1973-7
5
SOLD
SHIPPED TO MIKE IN OHIO

ü  Our technician has completely gone through and 'Certified' this unit.

ü
 We have completely and extensively gone through the mechanicals and electronics of this unit.

ü Entire transport was disassembled down to the chassis, and mechanical parts cleaned, re-lubed and reassembled.

ü Flywheels removed, cleaned and reinstalled.

ü Capstans burnished

ü Again, the entire transport assembly was painstakingly disassembled, cleaned and re-lubed.

ü 'Auto-Stop' mechanism disassembled and re-lubed with fresh 300,000 silicon damping fluid.

ü Also hub brakes have been cleaned, re-lubed, and adjusted on fast wind modes also.

ü Supply / Take-up 'back tension' adjusted.

ü Reel Motors 'start / run' capacitors checked.

ü All three motors were re-lubed.

ü Voltage selector set for correct North American AC current at 117-120VAC.

ü VU meter illumination lamps / bulbs check fine.

ü
 Both spindles were completely disassembled, cleaned and had their bearings / bushings cleaned and re-lubed and are in perfect alignment.

ü Heights adjusted on both reel tables.

ü New Brake pads fabricated and installed

ü Reel Hub brakes PAINSTAKINGLY adjusted for best performance in all 'Fast Wind' modes with tape at any position on reels, while not 'grabbing' during playback (not at all easy on this unit, but done now)

ü Main Drive and both counter belts reconditioned / replaced for trouble-free service.

ü Rubber pinch roller was removed, cleaned & reconditioned, as well as all internal drive tires / wheels for positive grip.

ü  Tape heads and entire transport cleaned and demagnetized.

ü Heads in great shape as well, and should have many hundreds of hours of performance left in them

ü Head alignment / azimuth has been checked for peak performance on both play and record heads with factory STL 30Hz, 50Hz, 100Hz, 300Hz, 500Hz, 700Hz, 1k, 5k, 7.5k, 10k & 15k tones with oscilloscope.

ü Plays INCREDIBLY WELL

ü Adjusted to record INCREDIBLY WELL @ ~ 1dB and sound GREAT on 'Ampex GM456' tape.

ü Floor noise measured at >-60dB w/ blank tape, L&R

ü Both PB output levels and VU meters playback internally adjusted for even response.

ü We really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones and Pink Noise looking for correct head Azimuth and speed accuracy). Pinch roller and heads all in GREAT condition.

ü All internal speed pots adjusted to 99.2% accuracy on each speed independently, utilizing 'STL' test tape

ü Following electro/mechanical restoration, unit received a cosmetic
 cleaning / detailing. About the only cosmetic issue is the "SONY" badge missing from the head cover (see photos above)

ü (Total time investment in refurb / testing ~ 18+ hours).
   ____________________________

Sony TC-651 Reel to Reel Tape Recorder Features include:

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

§ True WORLD AC POWER   allows unit to be operated on
 50 or 60 Hz AC and will select voltages from 110v, 120v, 220v and 240 volts AC input. (50Hz / 60Hz is FULLY, USER selectable without any additional parts / pulleys etc.)


Original SONY TC-651 Specifications as follows:


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


Again, following the above stated bench work / testing, our technician has 'Certified' this deck and it is an great performer sonically and mechanically. This deck has had EXTENSIVE restoration with the above mentioned 18+ hours of tech time. Restored, extensively tested / played, then re-benched after 'burn-in' to double check performance / adjustments.
Looks good & Ready to go! Comes with a take-up reel. Again, the main 'cosmetic' issue with this deck is the missing 'SONY' badge from the head cover and a small veneer chip on the top, right edge of the case.

Comes with
a pdf 'e' copy of the Sony TC-651 Owners manual, 'Quick Start' guide and a copy of the Sony TC-651 service manual if the purchaser wishes. Includes our standard 30 day limited warranty. Measures 16.75" wide x 9.5" deep x 18" tall and weighs 45 lbs unpacked.

 (Reels & tape shown in photos not included. All are sometimes available separately depending on stock levels.)

 SONY TC-651 REEL TO REEL TAPE DECK
 Cond. 8.5

SOLD
SHIPPED TO MIKE IN OHIO

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)










NEW LISTING 10/26/12
 (Click on above thumbnails to enlarge photos)
SONY 1/4" REEL-TO-REEL STEREO TAPE DECK
SONY TC-730 / TC730
#...2507
 4-TRACK / 2-CHANNEL
   3-SPEED / 3 HEAD
AUTO-REVERSE
BUILT-IN AMP AND SPEAKERS!
  5"* - 7" REEL CAPACITY


 "WORLD AC POWER"

 Circa 1969-72
SOLD 11/2/12

SHIPPED TO
NEW JERSEY
We've been 'sitting' on this deck along with a few other 'difficult / performance critical' decks for a few years now, waiting until we had a technician with sufficient skills to 'do them justice' and realize their top potential performance. Sure we have been able to do more 'bread-n-butter' decks for years, such as Akai 150 / 210 / 1700 / 1800 / 4000 series, Sony TC-100, 300 & 300 series, Teac A-4010 / 6010 series, Pioneer RT-707's and 909's (yes, great looking and darn good performing decks, but I hate to 'burst your bubble', but while they have proven to be a 'durable' design 30 years after they were discontinued, they're no where near the best performing decks as R2R's go, sorry) and others, but chose not to 'tackle' these. Well, now by a stroke of luck, we have 'him'. Our 'new to us' technician is able to really 'do justice' to decks such as this. Yes, he's expensive and it's time consuming, but AS ALWAYS, we are striving for TOP quality and not for 'cheap'. If you want 'cheap' there are plenty of 'as found' decks out there to 'roll the dice' on. Our new technician spent much of the 1970's managing the service department of the famous Pacific Stereo chain, then on to their 'Recycle Audio' division. Heck, the guy even 'co-invented' the optical mouse (you're probably using one right now). He's our guy to restore decks such as this!

Our technician has completely gone through and 'Certified' this unit. We have completely and extensively gone through the mechanicals and electronics of this unit. Entire transport was disassembled down to the chassis, and every mechanical part was cleaned, re-lubed and reassembled. FF mechanism repaired. Previous, minor, PB amp circuit board modifications by 'hack' repair, reverted to stock. 'Direction Change Stopper' wheel, resurfaced / rebuilt for correct tension arm operation. Flywheel was removed, cleaned and reinstalled. The capstan was burnished, heads have been cleaned and de-magnetized as well as the entire transport. Again, the entire transport assembly was painstakingly disassembled, cleaned and re-lubed as well as the always at issue, 'Pinch Roller swing arm' assembly. 'Auto-Stop' mechanism disassembled and re-lubed with fresh 300,000 silicon damping fluid. Also hub brakes have been cleaned, re-lubed, new brake pads installed and adjusted on fast wind modes also. Motor 'start / run' capacitors checked. All three motors were re-lubed. Voltage set for correct North American AC current at 117-120VAC. All internal pots / controls cleaned in both the playback amplifier, record amplifiers and the built-in 'audio' amp and tested for noise-free function. New VU meter illumination lamps / bulbs installed. Both spindles were completely disassembled, cleaned and had their bearings / bushings cleaned and re-lubed and are in perfect alignment. Main Drive and both counter belts replaced for trouble-free service. Rubber pinch roller was removed, cleaned & reconditioned, as well as all internal drive tires / wheels for positive grip. We also adjusted the reel table heights.  Tape heads and entire transports demagnetized. Heads in great shape as well, with many hundreds of hours of performance left in them and head alignment / azimuth has been checked for peak performance on both play and record heads with factory STL 1k, 5k, 7.5k, 10k & 15k tones thru an oscilloscope. Plays INCREDIBLY WELL and Records well at avg - 2.5dB 1k to 15kHz. Both PB output levels and VU meters playback internally adjusted for even response.
We really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy). Pinch roller and heads all in GREAT condition. All three internal speed pots adjusted to 100% accuracy on each speed independently utilizing 'Institute of High Fidelity' test tape meaning that 1Khz tape plays back at 1000Hz +/-1Hz! Following electro/mechanical restoration, unit received a cosmetic cleaning / detailing. Entire unit looks, works and sounds GREAT!
  (Total time investment in refurb / testing ~ 14+ hours). Pinch roller and heads all in GREAT condition!!! Cosmetically in great condition with only very minor, noticeable case chips!

  ____________________________




HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Sony TC-730 Reel to Reel Tape Recorder Features include:


- Built-in Amplifier...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

... outputs

Amplifier features;
- Separate Power


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

... volts AC input.



 Original SONY TC-730 Specifications as follows:



Power Requirements: 120 watts, АС 100 V, 110 V, 125 V, 127V, 220 V, 240 V 50/60 Hz

Tape Speed: 7.5 ips / 19cms,


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


Reels: 1/4" tape on 7 inches оr smaller

Recording Format: ...

Frequency Response w/ Sony SLH or equiv 'High Bias' Tape:
20-3
....

Frequency Response w/ Standard Tape:
....25,000 Hz @
...

Signal-to-Noise Ratio: > 5...or equiv 'High Bias' Tape

Flutter and Wow: < 0.0....

Harmonic Distortion: < .xx% @ 7 1/2 ips.
Bias Frequency: xxxkHz

Level Indication: Dual Analog VU Meters

Record: Calibrated to NAB standard reference level

Playback: Calibrated to 0dB line output level
 Recording Time:



HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


Again, following the above stated bench work / testing, our technician has 'Certified' this deck and it is an great performer sonically and mechanically. This deck has had EXTENSIVE restoration. It's pretty much had the clock rolled back 40 years on it. Looks great & Ready to go! Comes with a take-up reel. Again, GREAT for burning your tapes to CD or Hard Drive or for a 'media transfer business'. Also handy for archiving / researching / revisiting your tapes without having to have a system nearby as it has a built-in amp and speakers. The built-in amp and speakers actually sound great with separate bass and treble controls. The amp has ample power to driver external speakers as well pretty decently. We had a blast doing our final testing with this unit as it's actually 'FUN' to use. Can include a pdf 'e' copy of the Sony TC-730 service manual if the purchaser wishes. Includes our standard 30 day limited warranty. Measures 21" wide x 9" deep x 19.5" tall and weighs 51 lbs unpacked.
(
Reels & tape shown in photos not included. All are sometimes available separately depending on stock levels.
SONY TC-730 REEL TO REEL TAPE DECK
Cond. 8
.5
SOLD 11/2/12

SHIPPED TO
NEW JERSEY


 (Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)










         NEW LISTING 4/26/13

 (Click on above thumbnails to enlarge photos)

 SONY 1/4" REEL-TO-REEL STEREO TAPE DECK
 SONY TC-730 / TC730
 #...3607
  4-TRACK / 2-CHANNEL
    3-SPEED / 3 HEAD
 AUTO-REVERSE
 BUILT-IN AMP AND SPEAKERS!
   5"* - 7" REEL CAPACITY

"WORLD AC POWER"
Circa 1969-72
SOLD 7/30/13
SHIPPING TO CONNECTICUT

We've been 'sitting' on this deck along with a few other 'difficult / performance critical' decks for a few years now, waiting until we had a technician with sufficient skills to 'do them justice' and realize their top potential performance. Sure we have been able to do more 'bread-n-butter' decks for years, such as Akai 150 / 210 / 1700 / 1800 / 4000 series, Sony TC-100, 300 & 300 series, Teac A-4010 / 6010 series, Pioneer RT-707's and 909's and others, but chose not to 'tackle' these. Well, now by a stroke of luck, we have 'him'. Our 'new to us' technician is able to really 'do justice' to decks such as this. Yes, he's expensive and it's time consuming, but AS ALWAYS, we are striving for TOP quality and not for 'cheap'. If you want 'cheap' there are plenty of 'as found' decks (read, 'boat anchors') out there to 'roll the dice' on. Our new technician spent much of the 1970's managing the service department of the famous Pacific Stereo chain, then on to their 'Recycle Audio' division. Heck, the guy even 'co-invented' the optical mouse (you're probably using one right now). He's our guy to restore decks such as this!

ü  Our technician has completely gone through and 'Certified' this unit.

ü  We have completely and extensively gone through the mechanicals and electronics of this unit.

ü  Entire transport was disassembled down to the chassis, and every mechanical part was cleaned, re-lubed and reassembled.

ü  'Tweaked' Mic / Line pot shafts straightened.

ü  Main audio out issue and uneven audio levels on the PB circuit board addressed.

ü  Previous 'hack' repair on Record Amp circuit board, reversed and proper parts re-installed.

ü  'Direction Change Stopper' wheel, resurfaced / rebuilt for correct tension arm operation.

ü  Flywheel was removed, cleaned and reinstalled.

ü  The capstan was burnished, heads have been cleaned and de-magnetized as well as the entire transport.

ü  Again, the entire transport assembly was painstakingly disassembled, cleaned and re-lubed as well as the always at issue, 'Pinch Roller swing arm' assembly.

ü  'Auto-Stop' mechanism disassembled and re-lubed with fresh 300,000 silicon damping fluid.

ü  Also hub brakes have been cleaned, re-lubed, new brake pads installed and adjusted on fast wind modes also.

ü  Rewind 'back tension' adjusted.

ü  Motor 'start / run' capacitors checked.

ü  All three motors were re-lubed.

ü  Voltage selector repaired, its contacts were 're-sprung' and set for correct North American AC current at 117-120VAC.

ü  All internal pots / controls cleaned in both the playback amplifier, record amplifiers and the built-in 'audio' amp and tested for noise-free function.

ü  New VU meter illumination lamps / bulbs installed.

ü  Broken ‘Power’ toggle switch replaced with an original from another Sony TC-730

ü  Both spindles were completely disassembled, cleaned and had their bearings / bushings cleaned and re-lubed and are in perfect alignment. ü  Heights adjusted on both reel tables.

ü  Main Drive and both counter belts replaced for trouble-free service.

ü  Rubber pinch roller was removed, cleaned & reconditioned, as well as all internal drive tires / wheels for positive grip.

ü  Tape heads and entire transports demagnetized.

ü  Heads in great shape as well, with many hundreds of hours of performance left in them.

ü
Head alignment / azimuth has been checked for peak performance on both play and record heads with factory STL 1k, 5k, 7.5k, 10k & 15k tones thru an oscilloscope.

ü  Plays INCREDIBLY WELL and Records fairly well at avg -2dB to -10dB 1k to 15kHz.

ü  Both PB output levels and VU meters playback internally adjusted for even response.

ü  We really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded /
factory test tones looking for correct head Azimuth and speed accuracy). Pinch roller and heads all in GREAT condition.

ü
All three internal speed pots adjusted to 100% accuracy on each speed independently, via cir bd micro-pots, utilizing 'Institute of High Fidelity' test tape meaning that 1Khz tape plays back at 1000Hz +/-1Hz! ü  Following electro/mechanical restoration, unit received a cosmetic
 cleaning / detailing. Unit has a couple of minor issues. Missing ‘rear’ feet replaced with OEM / Sony Originals. About the only cosmetic issues remaining are: the ‘tip’ of the ‘Amp’ On/Off toggle switch is snapped off, so they’re short (still functions, just doesn't stick out as far as normal). The others are cosmetic in that there are a few 'minor battle scars' cosmetically with a few chips in the Formica finish on the casing and a few scuffs / scratches on the head cover / fascia.
ü  Entire unit still looks good, works and sounds GREAT! (We’re actually auditioning a ‘Johnny Cash’ “At San Quentin” Reel to Reel tape on the machine as I write this)

ü  (Total time investment in refurb / testing ~ 18+ hours).
Pinch roller and heads all in GREAT condition!!!

   ____________________________


 GREAT performing Sony TC-730 1/4" Open Reel stereo tape deck with
...


 Sony TC-730 Reel to Reel Tape Recorder Features include:

§  Built-in Am

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


§  RCA and DIN inputs and outputs



 Amplifier features:

§


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

§  True WORLD AC POWER   allows unit to be operated on
 50 or 60 Hz AC and will select voltages from 110v, 120v, 220v and 240 volts AC input.



  Original SONY TC-730 Specifications as follows:


Power Requirements: 120 watts, АС 100 V, 110 V, 125 V, 127V, 220 V, 240 V 50/60 Hz

Tape Speed: 7.5 ips / 19cms, 3 3/4ips / 9.5 cms and extra long 1 7/8 ips / 4.75 cms electronically switched

Reels: 1/4" tape on 7 inches оr smaller

Recording Format: 4-track / 2-Channel stereophonic оr monophonic

Frequency Response w/ Sony SLH or equiv 'High Bias' Tape:
 xxx,000 Hz @ 7 1/2ips.
  2xx0,000 Hz @ 3 3/4 ips.

Frequency Response w/ Standard Tape:
xxx,000 Hz @ 7 1/2ips
2xx,000 Hz @ 3 3/4 ips.
30xx,000 Hz @ 1 7/8 ips.

Signal-to-Noise Ratio: > xx dB @ 7 1/2 ips. w/ standard Tape. xxdB w/ Sony SLH or equiv 'High Bias' Tape

Flutter and Wow: < 0.x% @ 7 1/2 ips.
                           < 0.x% @ 3 3/4 ips.
                          < 0.x% @ 1 7/8 ips.

Harmonic Distortion: < x% @ 7 1/2 ips.

Bias Frequency: xxkHz

Level Indication: Dual Analog VU Meters

Record: Calibrated to NAB standard reference level

Playback: Calibrated to 0dB line output level

Recording Time: With 1,800' tape (4-track stereo)  (4-track mono) 7 1/2 ips  1 hr. 30 min. / 3 hr. & @ 3 3/4 ips. 3 hr. / 6 hr.

Inputs: Dual 1/4" Microphone Input Jacks and Auxiliary Jacks Sensitivity -xx dB (62mV) Impedance 100kΩ

Outputs: Line Output Jacks w/ Output level 0dB (0.775 V) & suitable load impedance >100 kΩ

Headphone Jack's Output level @ 1 & 2:
-xx dB (12.3mV) Impedance 8Ω
-xxdB (30.8mV) Impedance 8Ω


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


DIN Record /Playback Connector: Output level 0dB (0.775V) Impedance 10kΩ & Input sensitivity -33dВ (17.4mV) w/ Impedance 10 kΩ

Amplifier output:  3.7 W x 2 w/ built-in speakers & 15 W x 2 w/ external speakers

Built-In Speakers: Dual 4" x 6" / 32Ω



Again, following the above stated bench work / testing, our technician has 'Certified' this deck and it is an great performer sonically and mechanically. This deck has had EXTENSIVE restoration with the above mentioned 18+ hours of tech time. It's pretty much had the clock rolled back 40 years on it. Restored, extensively tested / played, then re-benched after 'burn-in' to double check performance / adjustments.
 Looks great & Ready to go! Best for playback and works decently for recording. Comes with a take-up reel. Again, GREAT for burning your tapes to CD or Hard Drive or for a 'media transfer business'. Also handy for archiving / researching / revisiting your tapes without having to have a system nearby as it has a built-in amp and speakers. The built-in amp and speakers actually sound great with separate bass and treble controls. The amp has ample power to driver external speakers as well pretty decently. We had a blast doing our final testing with this unit as it's actually 'FUN' to use.
Can include a pdf 'e' copy of the Sony TC-730 Owners manual (very poor copy) and a copy of the Sony TC-730 service manual if the purchaser wishes. Includes our standard 30 day limited warranty. Measures 21" wide x 9" deep x 19.5" tall and weighs 51 lbs unpacked.
 (Reels & tape shown in photos not included. All are sometimes available separately depending on stock levels.)

 SONY TC-730 REEL TO REEL TAPE DECK
 Cond. 8.3
SOLD 7/30/13
SHIPPING TO CONNECTICUT

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)











NEW LISTING 9/18/17

 (Click on above thumbnails to enlarge photos)
RESTORED / REFURBISHED / FULLY SERVICED
VINTAGE
SONY 1/4" REEL-TO-REEL STEREO TAPE DECK
SONY TC-758 / TC758
#...1985
4-TRACK / 2-CHANNEL
3-SPEED / 6-HEAD / 3-MOTOR
AUTO-REVERSE
BI-DIRECTIONAL RECORDING
5"* - 10.5" REEL CAPACITY
"WORLD AC POWER"
Circa 19
76-78
SOLD 9/29/17
SHIPPED TO TEXAS

ü  Our technician has completely gone through and 'Certified' this unit.

ü  We have completely and extensively gone through the mechanicals and electronics of this unit.

ü  Entire transport was disassembled down to the chassis, and mechanical parts cleaned, re-lubed and reassembled.

ü  Flywheels removed, cleaned and reinstalled.

ü  Capstans burnished

ü  Again, the entire transport assembly was painstakingly disassembled, cleaned and re-lubed.

ü  'Auto-Stop' mechanism disassembled and re-lubed with fresh 300,000 silicon damping fluid.

ü  Also hub brakes have been cleaned, re-lubed, and adjusted on fast wind modes also.

ü  Supply / Take-up 'back tension' adjusted.

ü  Reel Motors 'start / run' capacitors checked.

ü  All three motors were re-lubed.

ü  Voltage selector set for correct North American AC current at 117-120VAC.

ü  VU meter illumination lamps / bulbs check fine.

ü
  Both spindles were completely disassembled, cleaned and had their bearings / bushings cleaned and re-lubed and are in perfect alignment.

ü  Heights adjusted on both reel tables.

ü  Main Drive and both counter belts reconditioned / replaced for trouble-free service.

ü  Rubber pinch roller was removed, cleaned & reconditioned, as well as all internal drive tires / wheels for positive grip.

ü  Tape heads and entire transport cleaned and demagnetized.

ü  Heads in great shape as well, and should have many hundreds of hours of performance left in them.

ü  Head alignment / azimuth has been checked for peak performance on both play and record heads with factory STL 1k, 5k, 7.5k, 10k & 15k tones with oscilloscope.

ü  Plays INCREDIBLY WELL

ü Adjusted to record @ a fairly respectable -6dB @ 1kHz on normal bias tape and ~ -4dB on 'High Bias'

ü Floor noise measured at >-60dB w/ blank tape, L&R

ü  Both PB output levels and VU meters playback internally adjusted for even response.

ü  We really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy). Pinch roller and heads all in GREAT condition.

ü  All internal speed pots adjusted to 100% accuracy on each speed independently, via cir bd micro-pots, utilizing 'Institute of High Fidelity' test tape meaning that 1Khz tape plays back at 1000Hz +/-1Hz!

ü  Following electro/mechanical restoration, unit received a cosmetic
 cleaning / detailing. About the only cosmetic issues remaining are: are a few 'minor battle scars' cosmetically with a few chips in the Formica finish on the casing edges and a few scuffs / scratches on the front panel and the "F & F" badge missing from the head cover (see photos above).

ü  (Total time investment in refurb / testing ~ 20+ hours).
Pinch roller and heads all in GREAT condition!!!
   ____________________________


 GREAT performing Sony TC-758 1/4" Open Reel stereo tape deck with...


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

The only issue seems to be (and it seems to be the case with all TC-758's we've encountered) is that the 'spindle lock springs' are a bit 'weaker' than they probably should be which means that with some 10.5" reels, you will get a bit of 'rattle' when 'fast winding' if the reels are not well balanced. While most reels did not exhibit the issue, we experienced this with a few of our reels and attributed it to the spindle springs, and "no", they're not adjustable. We had the same thing with a couple of previous TC-758's over the years, and have had two folks email in with the same question. Just an FYI.


Again, following the above stated bench work / testing, our technician has 'Certified' this deck and it is an great performer sonically and mechanically. This deck has had EXTENSIVE restoration with the above mentioned 20+ hours of tech time. Restored, extensively tested / played, then re-benched after 'burn-in' to double check performance / adjustments. As stated earlier, about the only issue seems to be the 'mechanical' rattle with some 10.5" reels that aren't 'well balanced'.
Also handy for archiving / researching / revisiting your tapes prior to 'digitizing' them. Can include a pdf 'e' copy of the Sony TC-758 Owners manual (
courtesy "manualslib.com") and a copy of the Sony TC-758 service manual if the purchaser wishes. Includes our standard 30 day limited warranty. Measures 17.2" wide x 8.75" deep x 17.75" tall and weighs 54 lbs unpacked.
 (Reels & tape shown in photos not included. All are sometimes available separately depending on stock levels.)

 SONY TC-758 REEL TO REEL TAPE DECK
 Cond. 8.5

SOLD 9/29/17
SHIPPED TO TEXAS

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)










              NEW LISTING 10/2/18
 (Click on above thumbnails to enlarge photos)

VINTAGE AND FULLY SERVICED W/ WARRANTY
SONY
CASSETTE TAPE DECK
SONY TC-K8B
WITH DOLBY NR & IC LOGIC TRANSPORT

#...0122
Circa early 1978-81

"WORLD AC POWER"
Made in Japan

SOLD 3/21/19
SHIPPING TO CHARLES IN MASSACHUSETTS


ü Our technician has completely and EXTENSIVELY gone through and 'Certified' this unit which involves total disassembly of the transport, cleaning inside and out, COMPLETELY DISASSEMBLING, cleaning and re-lubricating all internal mechanisms and the balance of efforts listed below.

ü Heads inspected for excessive wear (obviously we do this 'early on' as 'excessive' wear will usually negate any further restoration work).

ü Two 'idler' tires replaced and one reconditioned for trouble-free service.

ü New Main Capstan / Flywheel belt installed.

ü 'Frozen' Rubber pinch roller, removed, bushing & axle cleaned of old, 'varnished lube', reconditioned and re-lubed.

ü Capstan burnished

ü Missing Counter Reset button fabricated and replaced

ü All internal pots, switches and controls cleaned and tested for noise-free function.

ü Cassette 'well' lamp replaced. All others working fine.

ü All internal displays and LED's working fine.

ü Both hub spindles in perfect alignment.

ü FF, REW, & Play transport functions all test perfectly and controls tested for 'positive / accurate' responsive.

ü Heads in great shape as well, with many years of performance left in them

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Head alignment and azimuth at 125Hz, 1kHz and 10kHz adjusted for BOTH directions for 'peak performance' with O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü Meters adjusted to even zero with symmetric with Volt meter, O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü Both Internal playback amplifier channels adjusted with Volt meter, O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü Meters adjusted to even zero with symmetric input with Volt meter, O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü Both Internal Record amplifier channels adjusted with Volt meter, O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü Pinch roller and heads all in GREAT condition!!!

ü Playback meters zero with factory test tone tape.

ü Tape Counter and 'Memory' Function tested

> With Pink Noise recorded @ 0dB w/o Dolby engaged PB @ -1.2dB on Maxell UDXL-II / High Bias tapes

With 'ddd' CD recorded at 0dB with Dolby engaged; = 0dB on Maxell UDXL-II / High Bias tapes

ü Speed adjusted internally to 100% accuracy with 1kHz factory test tape (meaning 1kHz calibration tape plays back at 1000Hz +/- 1Hz) (utilized TEAC MTT-257H)

ü Floor noise measured at -60dBm

 Total technician time to restore ~16 HOURS!
  ____________________________

This is a BEAUTIFUL, brushed Pewter face deck with complimenting brushed, Silver knobs. The Sony TC-K8B, Stereo Cassette Tape Deck w/ F&F heads, IC logic,
Liquid Crystal meters, and Dolby NR. This was one of the first units to utilize 'Liquid Crystal', and they are quite unique looking to most of the examples that followed. This was Sony's top of the line units at the time and retailed for $850.00 in 1978 which is equivalent to over $3,200.00 today!!! That should give you an idea of the stature of this deck for it's time.

Sony TC-K8B Features include:


- Super Hard, 'Ferrite & Ferrite' heads (we've had a number of Sony Reel to Reel decks with these and they never seem to...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


- Rear mounted, 11-pin port for optional Sony, RM-30 'wired' remote control (not available from us)


Sony TC-K8B Specifications:

Track format:
4 track / 2 channel
Motors:
Two Motors w/ FG Servo Controlled Cap...


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


Fast Wind Time:
~70 sec w/ C-60

Again, we have completely refurbished and thoroughly tested this deck, with multiple recording tests (as stated previously it took 16+ hours of tech time to do it proper justice). This is a VERY handsome deck (the photos can't do it justice). Cosmetically, it's in excellent condition! About the only items worth mentioning is slight wear to some of the silk screened lettering, primarily near the 'Peak Hold' selectors, some light scratches to the left, side panel of the sheet metal housing and some 'spots / splotching' to a couple areas of the face (we weren't able to remove by any of our normal means. See photos above).
Great deck for just about any system. Also great for transferring your tape collection to CD, Hard-drive or MP3.
Measures 17" wide x 12.25" deep x 6.75" tall
and weighs a VERY HEAVY 26+ lbs unpacked. Just in-case you 'too casually' read past that last little bit,
IT'S A TWENTY-SIX POUND CASSETTE DECK!

Comes with our 30 day limited warranty.
RESTORED / REFURBISHED / SERVICED SONY TC-K8B
Cond. 8.5+

SOLD 3/21/19
SHIPPING TO CHARLES IN MASSACHUSETTS


(tape shown in photos not included. We do ship our decks with a  a 'pre-recorded' tape for playback, made on this 'specific' deck, and a tape to 'practice record' on.)

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)




Sony TC-K55 Cassette Deck small jpg

Sony TC-K55 Cassette Deck Collage small jpg


NEW LISTING
6/23/10
(Click on above thumbnails to enlarge photos)

 VINTAGE
SONY

 STEREO
 CASSETTE TAPE DECK

       TC-K55
TCK55
 With DOLBY
#...3269

 Circa early 19
78-80
MIJ

SOLD 8/12/10








Sony TC-RX606ES Cassette Deck small jpg

Sony TC-RX606ES Cassette Deck Collage small jpg


           NEW LISTING 12/28/10

(Click on above thumbnails to enlarge photos)

 SONY

  CASSETTE TAPE DECK

TC-RX606ES TCRX606ES
 #...6457

 With DOLBY B, C, S NR
& HX Pro

  Circa early 1993
  Made in Japan

SOLD 3/7/11







NEW LISTING
SONY
TC-K679ES
STEREO
CASSETTE TAPE DECK
SOLD 4/7/05











NEW LISTING 4/13/18

 (Click on above thumbnails to enlarge photos)
PRE-OWNED AND FULLY SERVICED
SONY CASSETTE TAPE DECK
SONY TC-K850ES
"It's got a few minor 'battle scars', but following it's full service, makes
up for that in Super-Sonic performance
"

3 HEADS / 3 MOTORS
USER BIAS ADJ, AUTO-TAPE CALIBRATION, AND RECORD LEVEL*

and Quartz Locked Speed
#...0168
With HX-PRO & DOLBY B&C NR
MADE IN JAPAN!
Circa early 1990's

for sale
 TO RYAN IN VIRGINIA


ü Our technician has completely and EXTENSIVELY gone through and 'Certified' this unit which involves complete removal and disassembly of the entire tape transport, cleaning inside and out, DISASSEMBLING, cleaning and re-lubricating all internal mechanisms and the balance of efforts listed below (unit actually worked very well prior to disassembly as well).

ü Heads inspected for excessive wear (obviously we do this 'early on' as 'excessive' wear will usually negate any further restoration work).

ü All new internal Capstan Drive belts replaced for trouble-free service (Dual Capstan design).

ü New 'Shift Roller' acquired (from Slovikia) and installed.

ü Left Rubber pinch roller has been replaced also sourced from Slovikia

ü Capstan 'Thrust Bearings' cleaned and re-lubed w/ silicone based lube

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Head alignments and azimuth at 125Hz, 1kHz and 10kHz adjusted for 'peak performance' with O-Scope. Both channels now even w/ 'max' output.

ü All internal pots, switches and controls cleaned and tested for noise-free function.

ü Both spindles in perfect alignment.

ü
FF, REW, & Play transport functions all test perfectly and controls tested for 'positive / accurate' responsive.

ü Eject door 'Auto mechanism' operates smoothly.

ü Tape Counter Function tested

ü Dolby B & C NR circuits / function tested

ü HX-Pro tested

ü 'Memory / Zero Return' function tested

ü Heads are in great condition

ü Meters adjusted to even zero with symmetric input.

ü Pinch roller and heads all in GREAT condition!!!

ü Both Internal playback amplifier channels adjusted for 'even output'

ü Meters adjusted to even zero with symmetric input.

ü Both Internal Record amplifier channels adjusted for 'even output'

ü Playback meters zero with factory test tone tape.

ü Speed tests at 100% accuracy (this deck has a 'FG-Servo / Synchronous' motor with a circuit board mounted, 'Comparator' system to maintain perfect speed so is 'always' 'on speed'), with 1kHz factory calibration tape (meaning 1kHz calibration tape plays back at 1000Hz +/- 1Hz)

ü
Cosmetics are not great. The sheet metal case has some creases / dents (don't know how they got there), and the originally, optional Rose wood side panels have a few dents (don't know if they were there before someone acquired them, or happened after installation). The wood panels could be removed, and we thought about it, but even with their cosmetic issues, they add to it's overall look being left intact.
ü Plays perfectly and after adjustment, records AMAZINGLY well. Normally we would give a "dB Down or UP" rating / results, but this deck has so many ways to have it's record levels and quality 'tweaked' that there's no 'one number' that can be assigned to it. Yes it can record at 'positive dB's' but with different attributes depending on the tape type and how 'hot' you wish to record. We found the best results with at Maxell UDXL-II tapes. We tried recordings using the 'Calibration' system, but usually found that we liked adjusting the 'Bias' control to suit our ears. Then we discovered the +/-3dB 'Record Level' control (No not the typical "Input Level" control, that is always labeled "Record Level", but a control on the outside that gives you access to the actual 'internal "record level"' normally located on the circuit board and adjustable by a technician via 'pc mounted' pots. This opened up a whole new layer of recording that we normally only get to experiment with while a unit is on the bench.
While doing the test recording's, it became apparent that this decks recording capabilities were AMAZING.

Total technician time to restore 8+ hours.

____________________________

The Sony TC-K850ES, 3-Head / 3-Motor Cassette Tape Deck. Great deck for doing your tape transfers if your tapes were recorded with no NR or with "Dolby B" or "Dolby C", but REALLY SHINES if you want to make new tapes as it's got HX-PRO and 'TONS' of serious recording features. Again, as stated above, records AMAZINGLY well! Also has 'gear driven' reel tables, which means there not 'pesky' idler tire or drive belts to worry about (which takes 'eating tapes' off the table).

SONY TC-K850ES Features include:


- 3 Heads (allows instantaneous monitoring of recordings for the best audio results)
- "Laseramorphous Magnetic...


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


SONY TC-K850ES Specifications:

Track format:
4 track / 2 channel
Heads:
 3 (Ferrite Erase head, Permalloy PB head and LA...


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Again, we have completely cleaned, refurbished / serviced and thoroughly tested this SONY TC-K850ES cassette tape deck.
It does have a few 'battle scars' (see above photos), but will make up for it in performance, again check the recording results, and the 1kHz = 1kHz speed!
If I didn't already have 'a sufficient number' of cassette decks in my collection, this one wouldn't be leaving, especially after experimenting with the 'Bias and Record Level' controls.
Great for....


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Looks like new, works and sounds great. Comes with an 'e-copy' / pdf of the Sony TC-K850ES owners manual and the service manual if purchaser desires. Measures 18.25" wide (w/ wood panels installed) x 13.5" deep x 5.2" tall and weighs 16 lbs unpacked.
Includes our standard 30 day limited warranty.
SONY TC-K850ES
Cond. 8
(due only to creases on top panel and dings in installed 'originally optional' wood panels. The deck looks much better and way more 'striking' in 'real life' than in the 'washed out photos'. It's hard to accurately depict 'true black'.)

 (Cons.) R.R.
 TO RYAN IN VIRGINIA

(tape shown in photos not included. We do ship our decks with a  a 'pre-recorded' tape for playback, made on this 'specific' deck, and a tape to 'practice record' on.)

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)








NEW LISTING 5/15/07
PRE-OWNED
SONY
TC-WE825S
 DUAL-WELL / DUBBING DECK
 STEREO
 CASSETTE TAPE DECK

SOLD 7/18/07






NEW LISTING

PRE-OWNED
SONY
TC-WR900
 DUAL-WELL / DUBBING DECK
 STEREO
 CASSETTE TAPE DECK

SOLD 11/5/07







-
-

CLICK HERE TO SEE OUR TAPE DECKS CURRENTLY FOR SALE!


We will be getting more machines ready over the next few days to a couple weeks, but it is a slow process, as every 20+ year old Reel to Reel tape deck requires 10-18 hours of service to be brought back to "usable" condition. Check back often as they will sell out quickly!







LINKS TO OUR 'HI-FI' DEPARTMENTS

Amps and
Pre-Amps

Receivers

Cassette
Decks

Tuners

Turntables

8-Track Decks

CD Players

Reel-Reel
Decks

EQs and Signal
Processors

Speakers

Betamax and
VHS VCRs

Turntable Cartridges

Tube Audio

Ne'cessories

Speaker Parts

Record Players

Vintage Radios

Vintage
Walkmans

Headphones

Stereo Parts


Wondering where the "tone" you remember went?....




.... Surround yourself with Silver and find it again!



The units on the above page are for photo reference only and are no longer available for sale. To search 'For Sale' units, click on the links in the upper, left corner of page.

   *HOME PAGE*   |   FAQ'S   |   RESTORATION PROCEDURES    |  REPAIR RESOURCES  |  LINKS


POLICIES, SPECIFICATIONS, AVAILABILITY, INFORMATION
AND PRICING SUBJECT TO CHANGE  AT ANYTIME  AND
WITHOUT PRIOR
NOTICE
and changes may not be posted to web immediately
.


Copyright © 1997-2023 Oak Tree Enterprises, LLC

COPYRIGHT INFORMATION
