PHOTO GALLERY OF
VINTAGE / USED PIONEER STEREO TAPE DECKS

- SOLD UNITS -








This area is for photo archiving for our web site administration only. If you found this page and are looking for items to purchase, click the links above or  below. All photos and text, are copyrighted and protected as stated at bottom of page.

CLICK HERE TO SEE OUR TAPE DECKS CURRENTLY FOR SALE!





(Click on above thumbnails to enlarge photos)

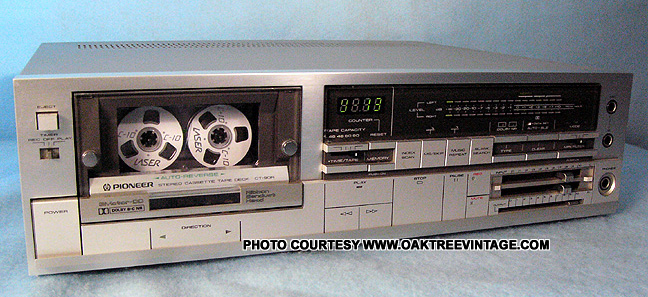

VINTAGE
PIONEER

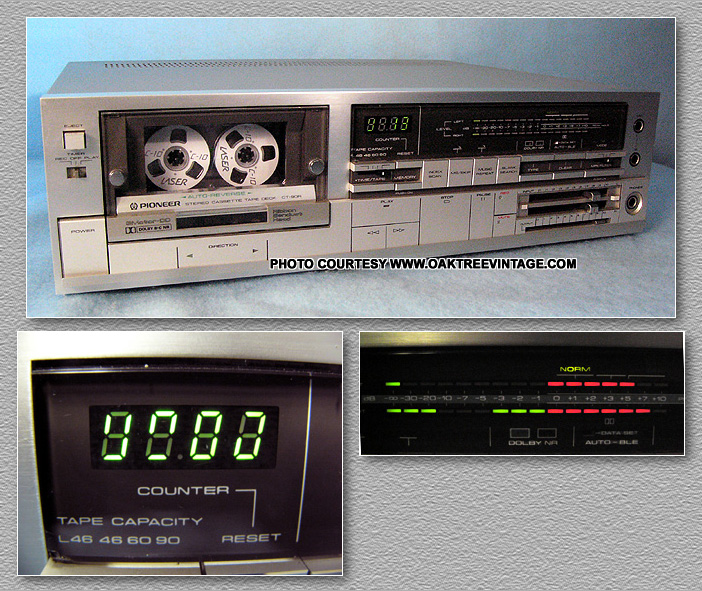

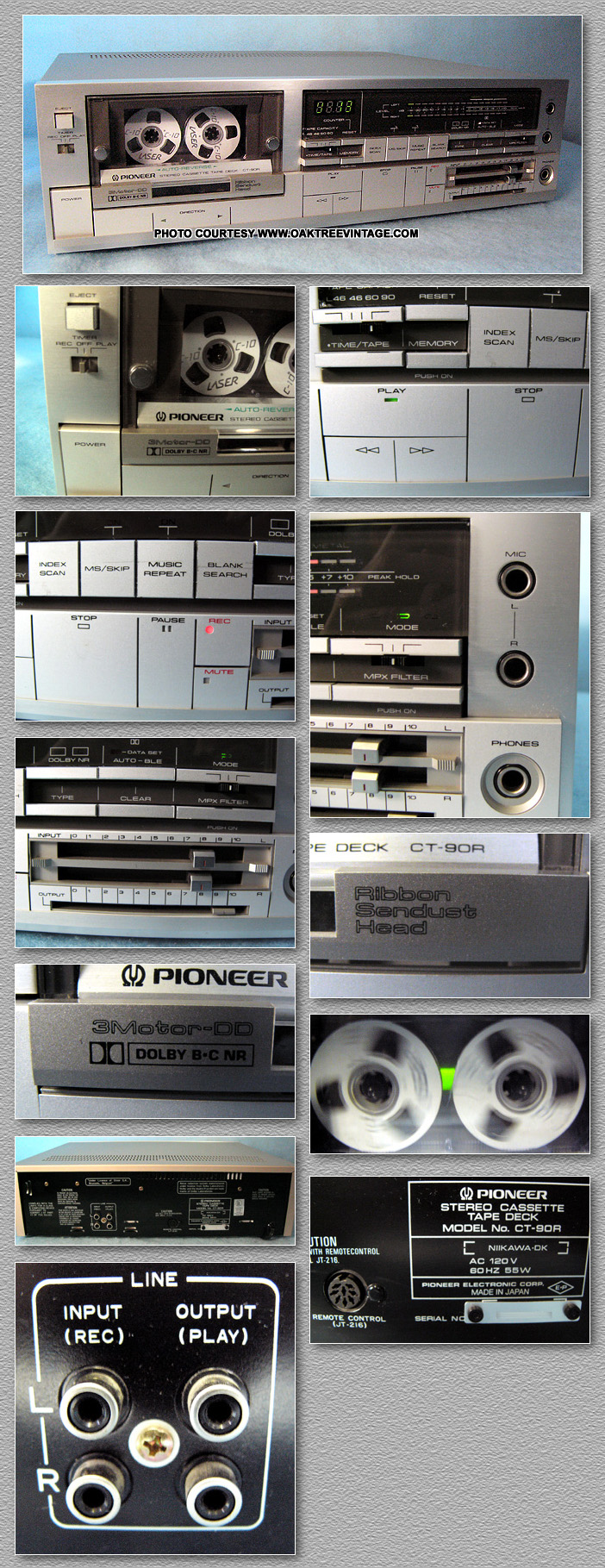

CT-90R
AUTO-REVERSE
3 MOTOR

STEREO
CASSETTE TAPE DECK

SOLD 7/17/07

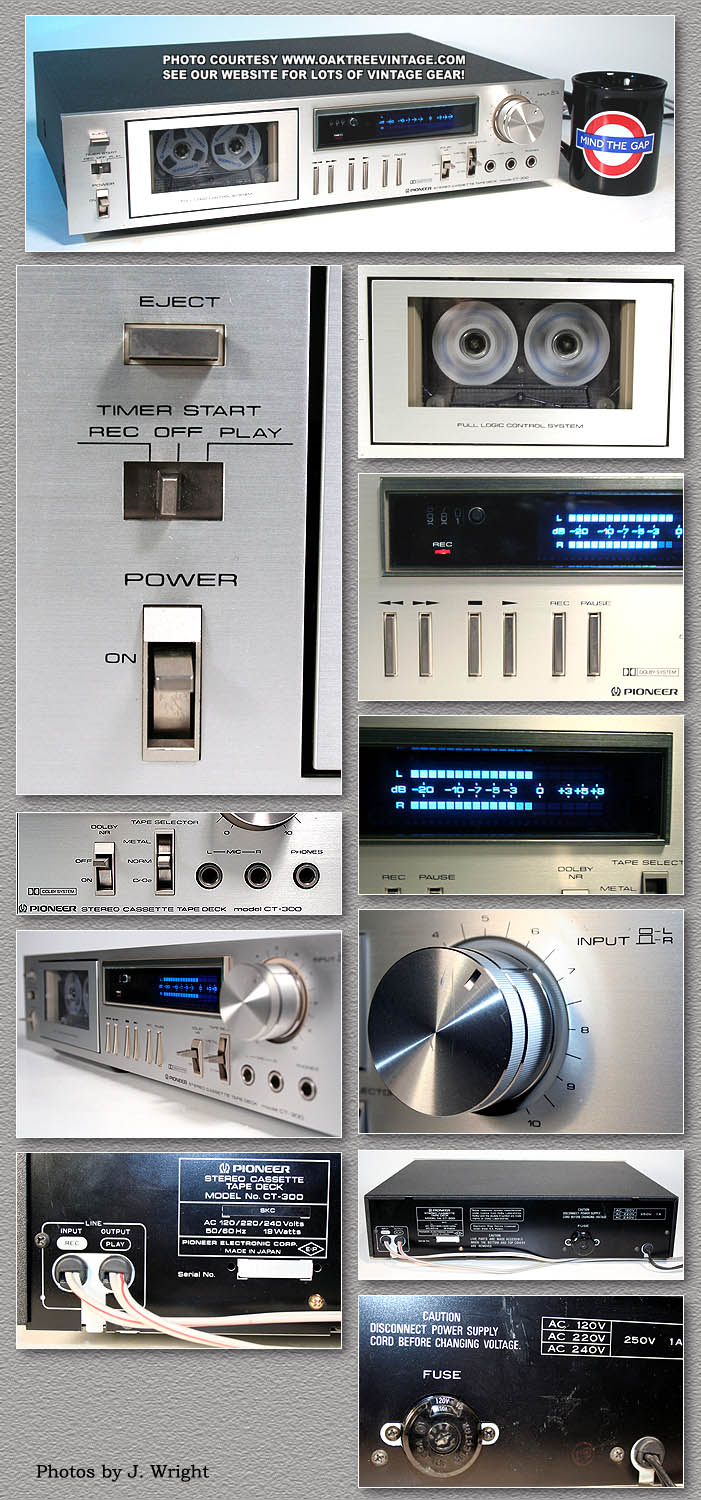

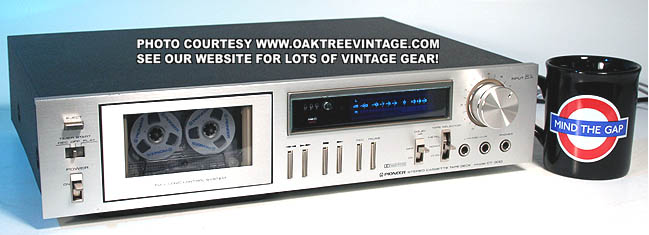

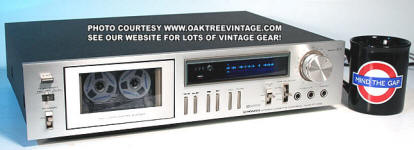

  Pioneer CT-300 Cassette Deck small jpg

Pioneer CT-300 Cassette Deck Collage small jpg


       NEW LISTING 5/7/10
(Click on above thumbnails to enlarge photos)

 VINTAGE
 PIONEER
 STEREO
 CASSETTE TAPE DECK

 CT-300 CT300
 With DOLBY
 Circa early 1982

 "
WORLD AC POWER"

SOLD 7/2/10







(Click on above thumbnails to enlarge photos)

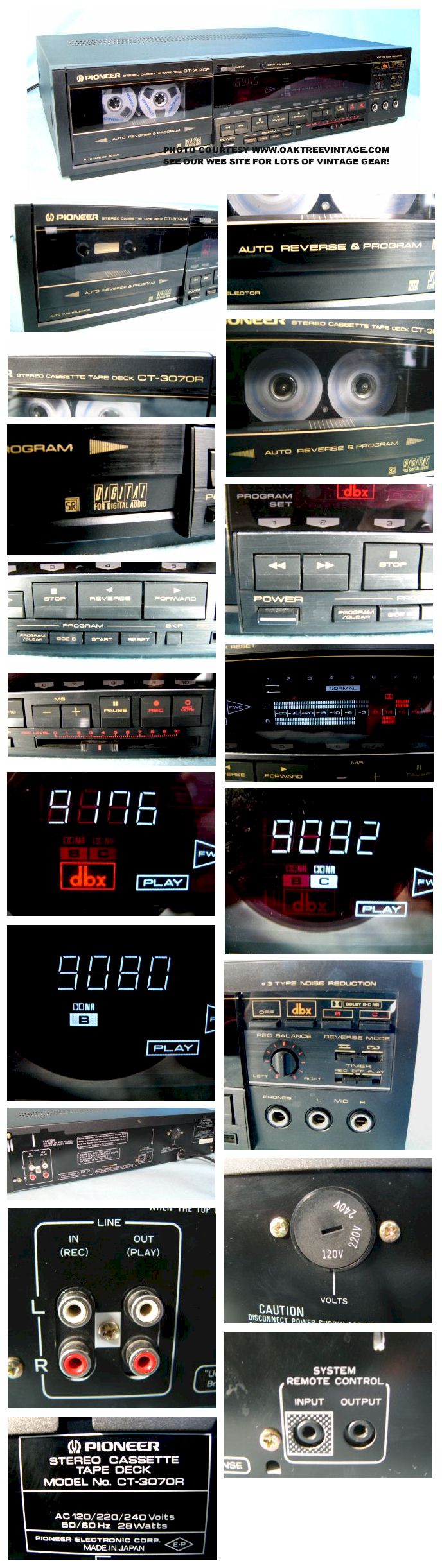

PIONEER

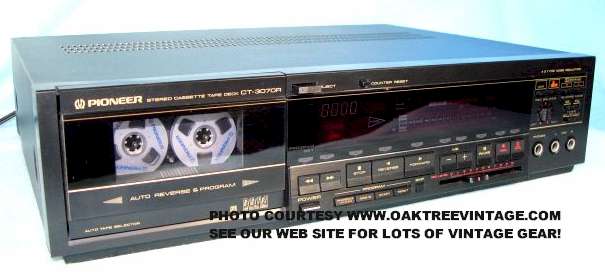

CT-3070R
STEREO
CASSETTE TAPE DECK
WITH DOLBY B&C & DBX
"WORLD AC POWER"
SOLD 10/27/06

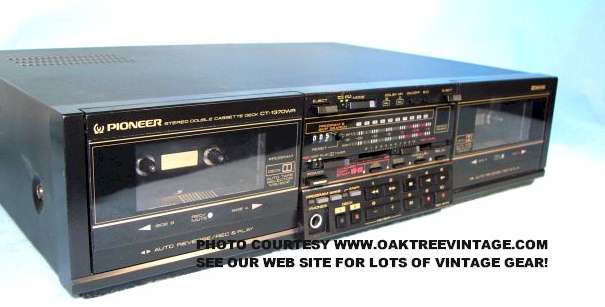

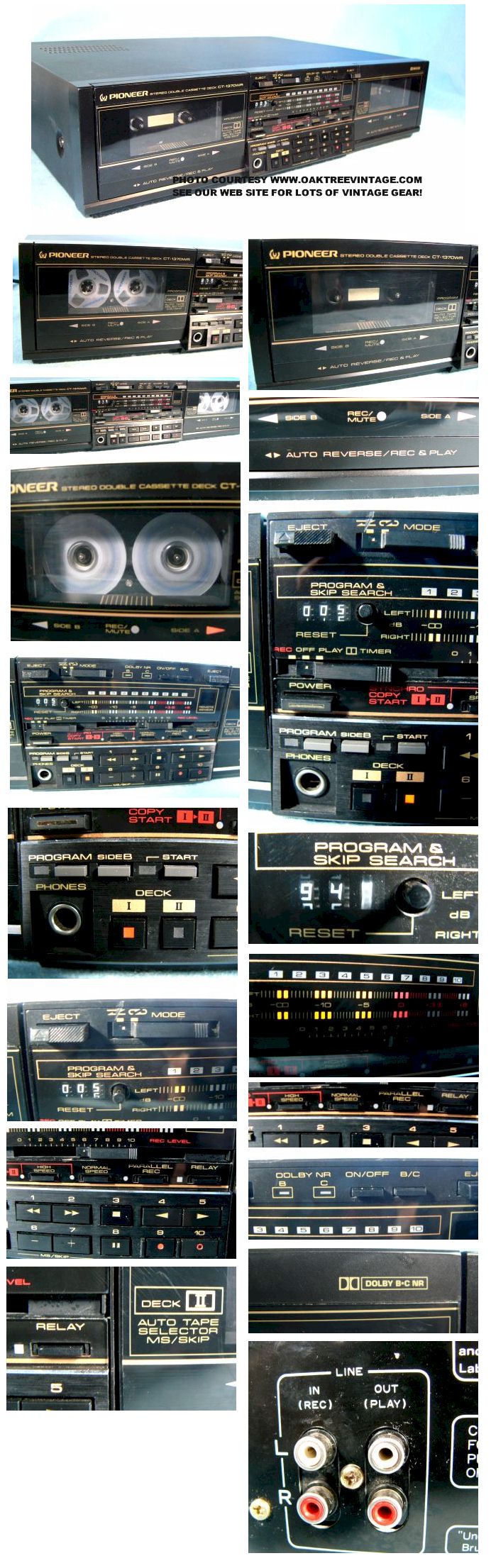

PIONEER
CT-1370WR
STEREO
CASSETTE TAPE DECK

SOLD 1/28/06







      NEW LISTING 5/1/08
(Click on above thumbnails to enlarge photos)

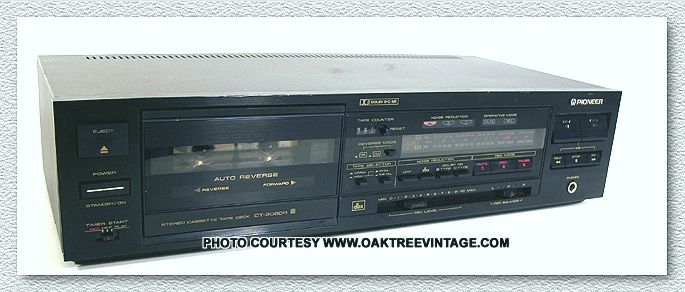

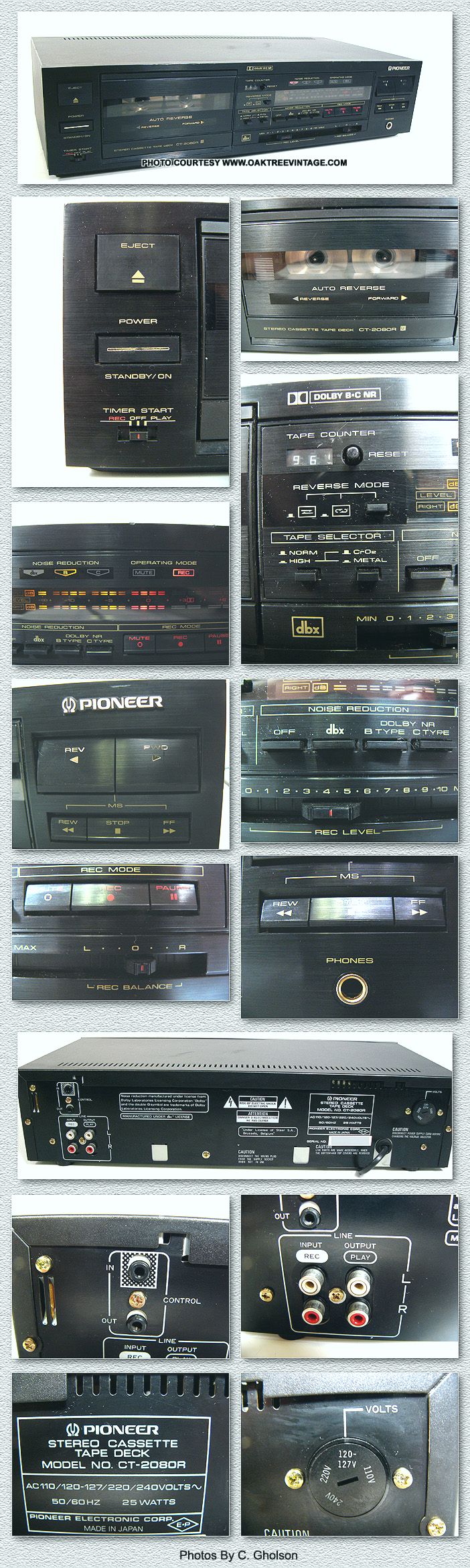

PIONEER
 CT-2080R CT2080R
#...183N

 2-MOTOR
 STEREO
AUTO-REVERSE

 CASSETTE TAPE DECK
 WITH DOLBY B&C & dbx
 "
WORLD AC POWER"

 Circa Mid-late '80's

SOLD 3/31/09














            NEW LISTING 9/29/09
(Click on above thumbnails to enlarge photos)

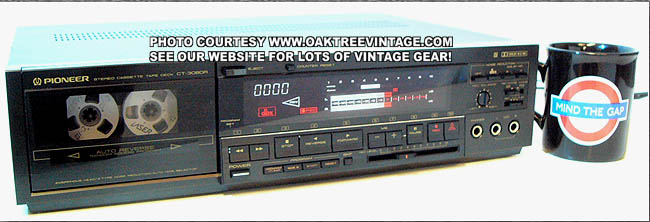

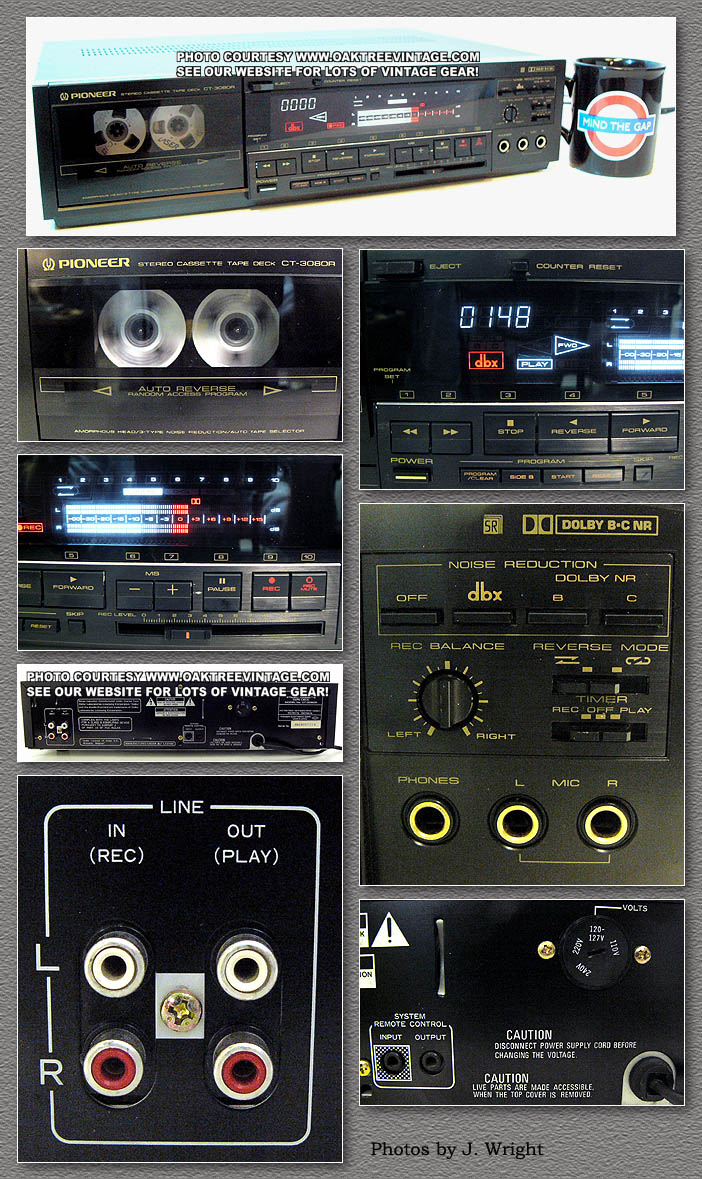

PIONEER
 CASSETTE TAPE DECK
         CT
-3080R CT3080R
#...771N

 3-MOTOR
AUTO-REVERSE

 WITH DOLBY B&C & dbx
 "
WORLD AC POWER"

 Circa
1990's
SOLD 04/12/10

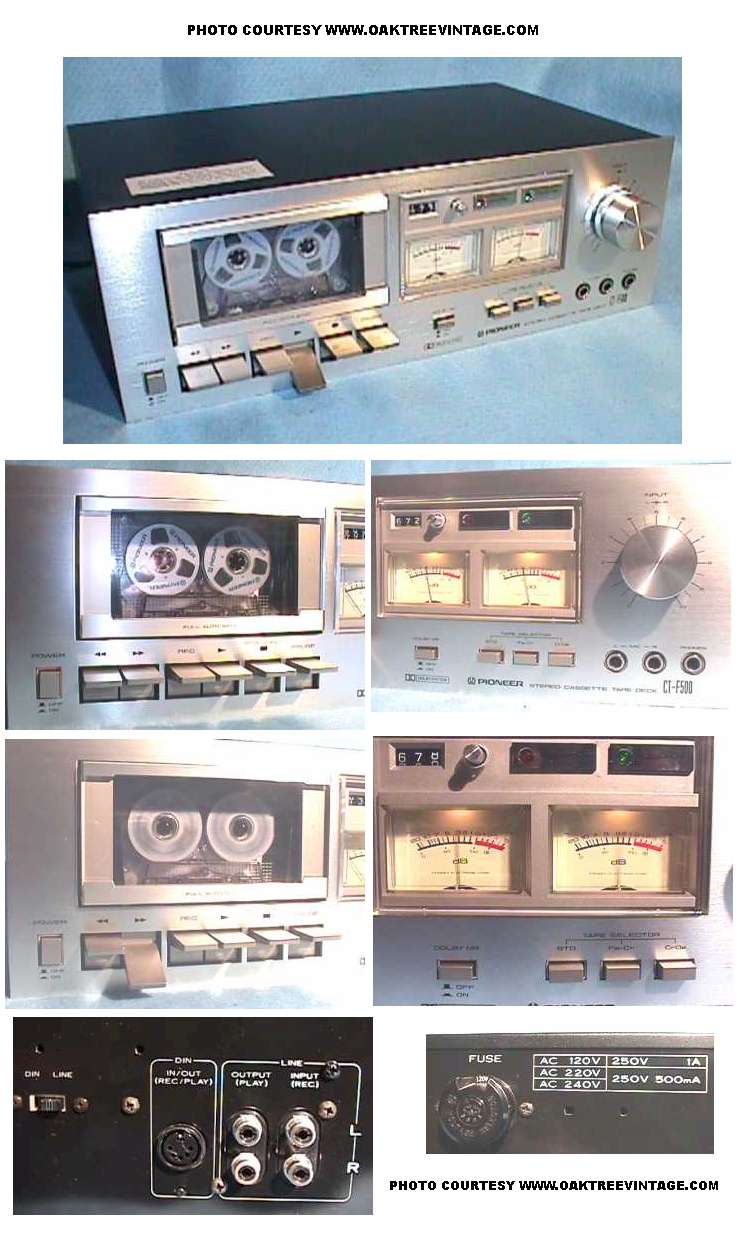

PIONEER
CT-F500
CASSETTE DECK
Circa 1975
SOLD

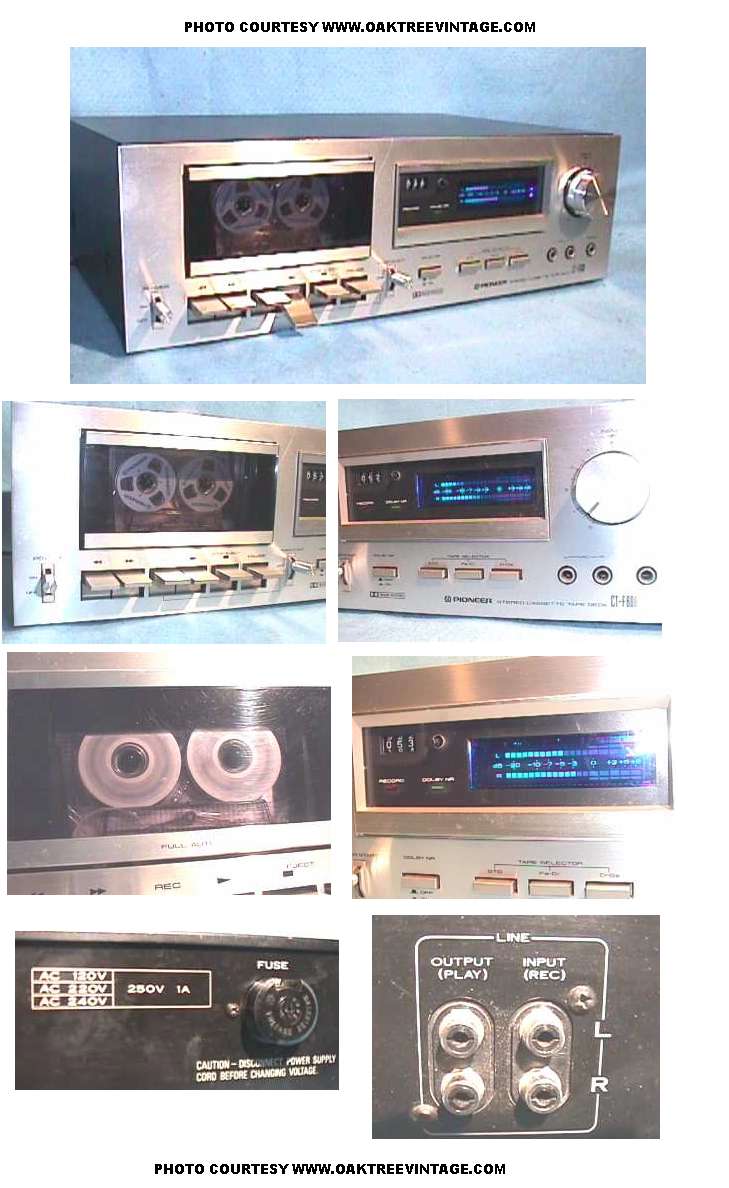

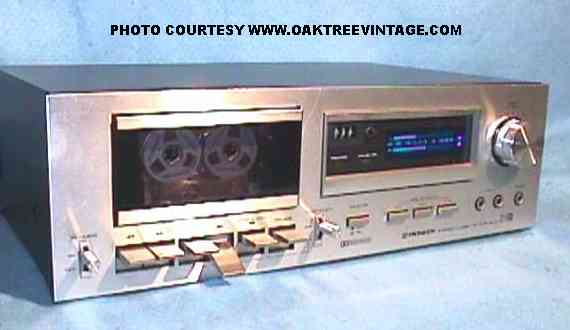

PIONEER CT-F600
SOLD





NEW LISTING 10/24/17
 (Click on above thumbnails to enlarge photos)
RESTORED / REFURBISHED / FULLY SERVICED
VINTAGE
PIONEER CASSETTE TAPE DECK

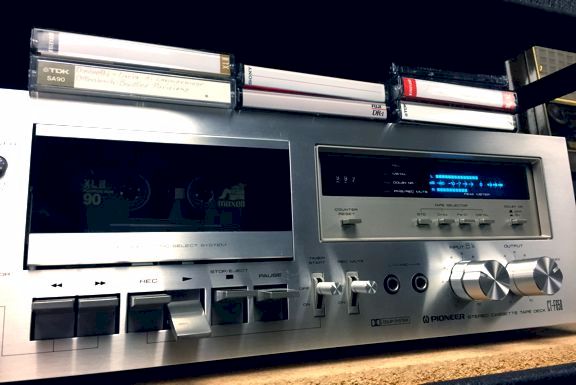

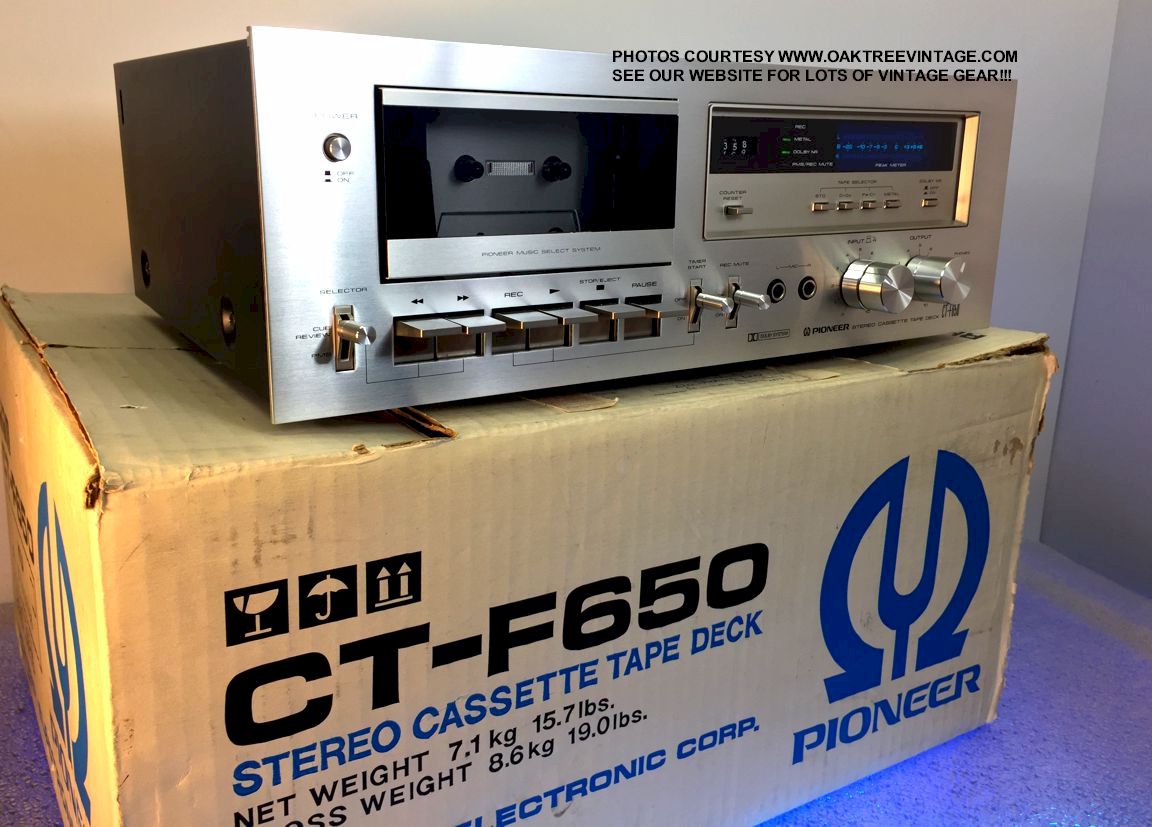

PIONEER CT-F650 / CTF650
With 'CUEING' AND DOLBY NR
FROM THE 'BLUE METER' SERIES

#...7616
Circa 1979-81
Made in Japan

SOLD 11/13/17
SHIPPED TO CALIFORNIA


ü Our technician has completely and EXTENSIVELY gone through and 'Certified' this unit which involves complete disassembly of the transport (not an easy task on this deck), cleaning inside and out, COMPLETELY DISASSEMBLING, cleaning and re-lubricating all internal mechanisms and the balance of efforts listed below.

ü Heads inspected for excessive wear (obviously we do this 'early on' as 'excessive' wear will usually negate any further restoration work).

ü All drive tires reconditioned for trouble-free service.

ü All new internal rubber belts replaced for trouble-free service.

ü Rubber pinch roller reconditioned

ü Capstan burnished

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Head alignments and azimuth checked and adjusted as necessary for 'peak performance' with O-Scope

ü All internal pots, switches and controls cleaned and tested for noise-free function.

ü All internal fluorescent displays and LED's working fine.

ü Both hub spindles in perfect alignment.

ü FF, REW, & Play transport functions all test perfectly and controls tested for 'positive / accurate' responsive.

ü Heads in great shape as well, with many years of performance left in them and head alignment / azimuth has been checked for peak performance.

ü Playback meters zero with factory test tone tape.

ü Tape Counter Function tested

ü Plays perfectly and records well @ ~0dB (between TDK and Maxell tapes) ( we really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy).

ü Pinch roller and heads all in GREAT condition!!! -Both level meters playback even.

ü Speed adjusted to 100% accuracy with 1kHz factory test tape (meaning 1kHz calibration tape plays back at 1000Hz +/- 1Hz)

ü Deck has had just over 9 hours of restoration work done, mostly to the transport.

Face is made of beautiful brushed aluminum, and overall the deck is in NEW cosmetic condition. Following the extensive restoration, we did 'test recordings' of a 'ddd' CD on 6 tapes; Sony Normal Bias, Fuji Normal Bias, TDK Normal Bias, Maxell Normal Bias, TDK 'SA' High Bias, and Maxell 'XL-II' High Bias. We found that for Normal and High Bias, of those tapes tested, both the "Maxells" performed VERY well on this particular deck.
 Total technician time to restore ~9 HOURS!
(this deck is actually from the 'personal stock' of our Senior Technician)

  ____________________________

The Classic...
.....

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


Pioneer CT-F650 Features include:


- 2-Motors
- Classic 'Piano
........

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


Pioneer CT-F650 Specifications
:

Track format:
4 track / 2 channel
Motors: High xxservo motor
Freq Response: w/ Metal tape xx00 Hz +/- 3dB @ xdB
Wow & Flutter (WRMS) - xx% WRMS
 S/N ratio:  xxdB Dolby B NR
                            xxdB No NR (A weighted)
Harmonic Distortion <xx% @ 0dB
 Output Level: xmV @ x0Kohms
.....

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


There's just something about the feel of...
.....

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


Again, we have completely refurbished and thoroughly tested this deck, with multiple recording tests (as stated previously). Cosmetically, it's in essentially NEW condition! Great addition to a classic Pioneer "Spec" rack! Also great for transferring your tape collection to CD, Hard-drive or MP3. Includes original box and packing. Comes with an 'e-copy' / pdf of the Pioneer CT-F650 owners manual.
Measures 16.5" wide x 13.25" deep x 6" tall and weighs 18 lbs unpacked. Comes with our 30 day limited warranty.

PIONEER CT-F650
Cond. 9.5+++ (really could be classed a 'TEN')

(C) B.F.

SOLD 11/13/17
SHIPPED TO CALIFORNIA

(Above text, in its entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)







NEW LISTING
(Click on above thumbnails to enlarge photos)

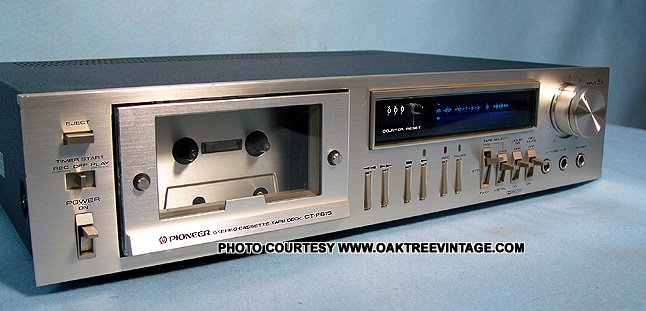

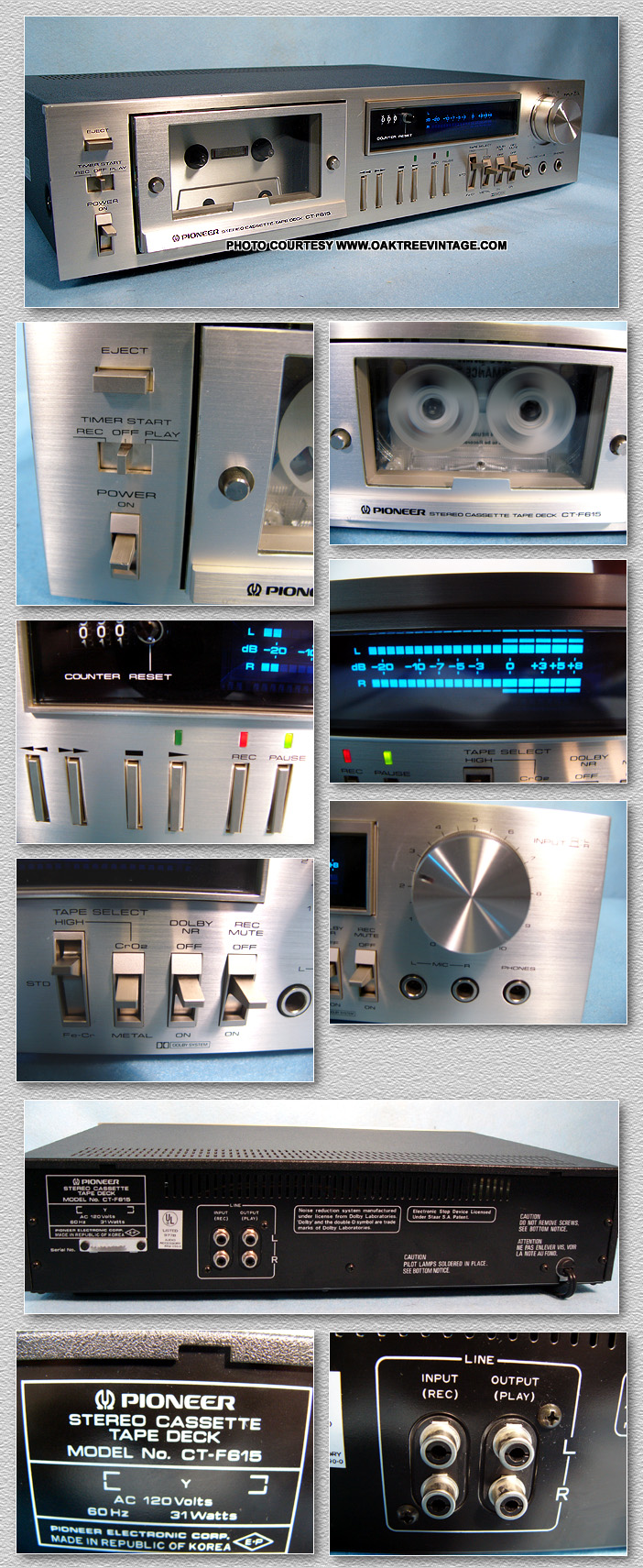

VINTAGE
PIONEER
CT-F615
STEREO
CASSETTE TAPE DECK

SOLD 9/26/07

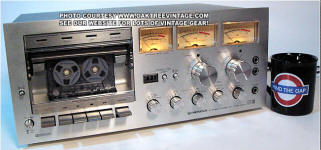

VINTAGE
PIONEER
STEREO
CASSETTE TAPE DECK

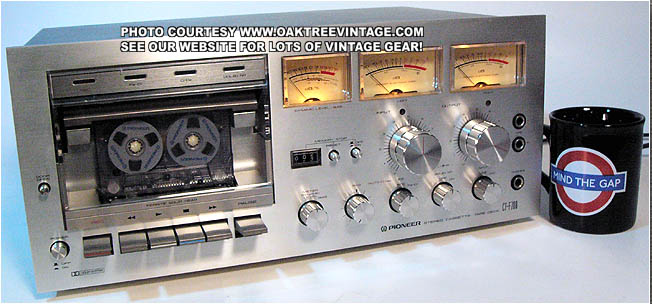

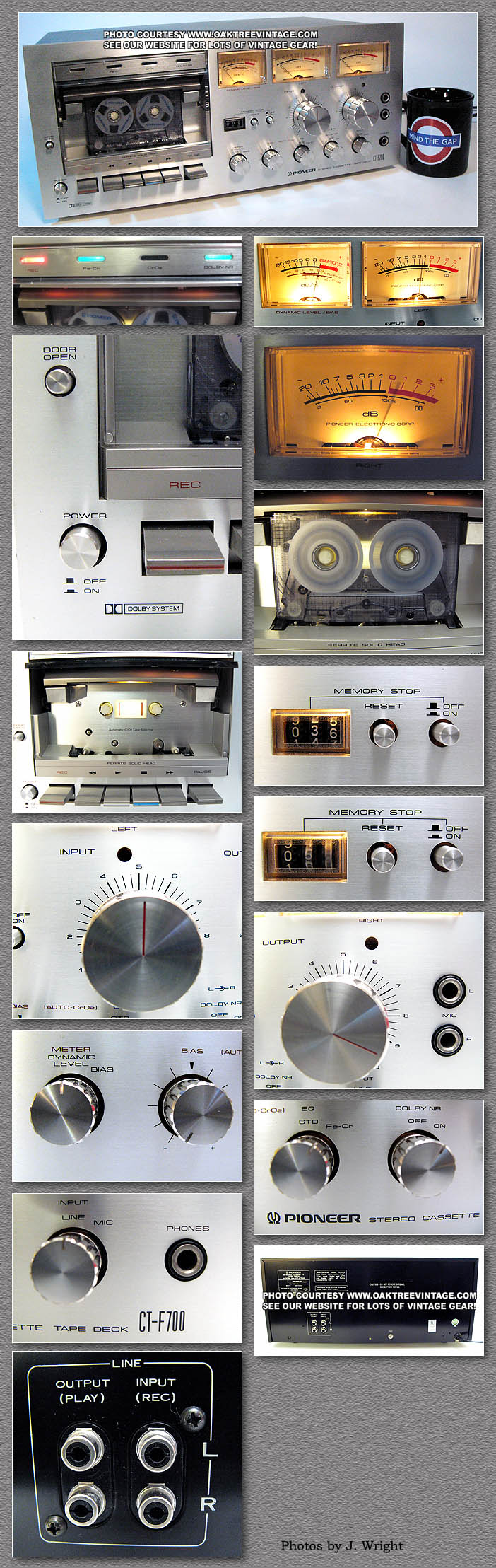

CT-F700

SOLD










NEW LISTING 10/27/08

(Click on above thumbnails to enlarge photos)

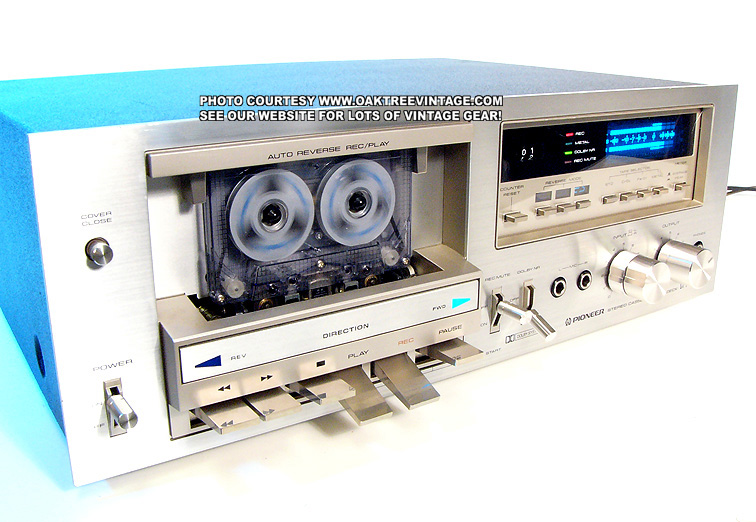

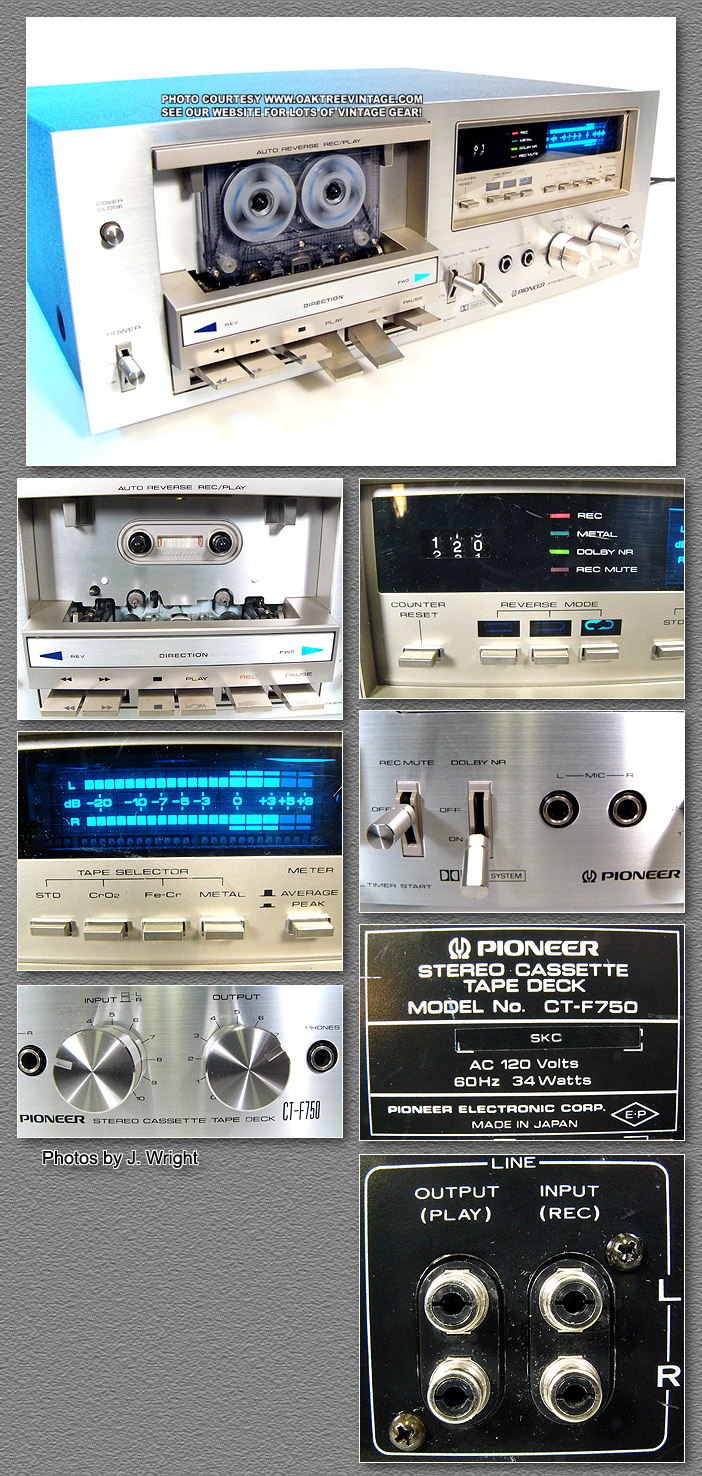

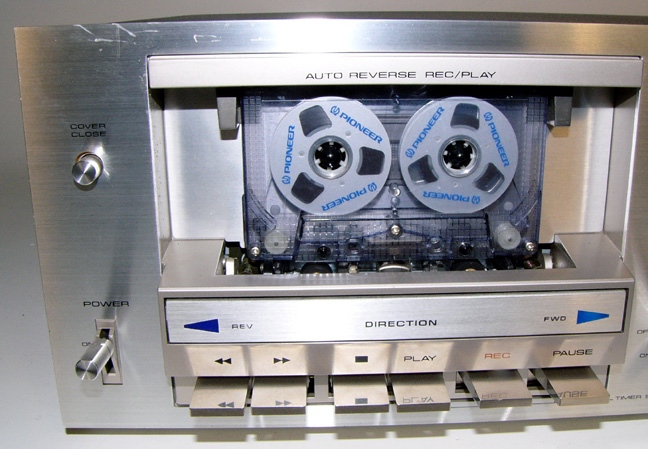

PIONEER
 CASSETTE TAPE DECK
CT-F750 CTF750
 AUTO-REVERSE
 With DOLBY B
NR
#...6136

 Circa early 1979-81
 Made in Japan

SOLD 8/8/09





PIONEER
CT-F950
SOLD

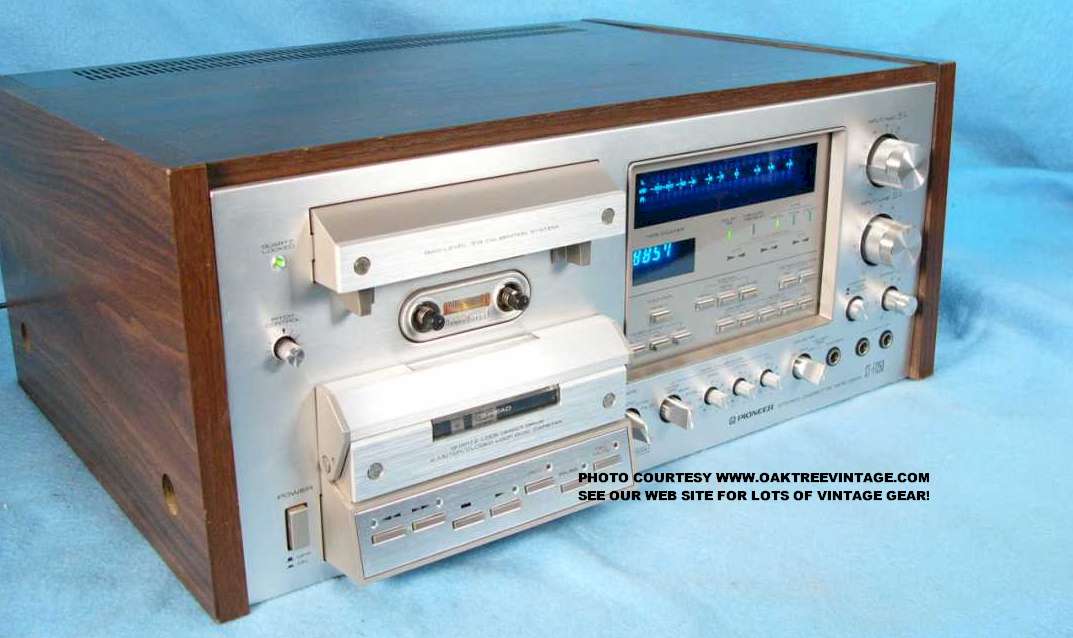

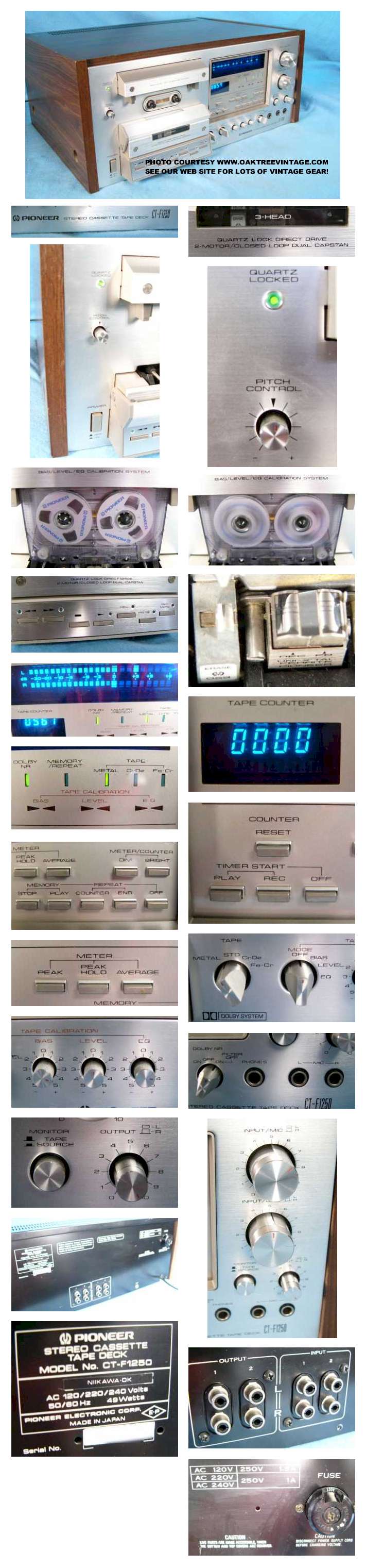

VINTAGE PIONEER CT-F1250 CASSETTE DECK
SOLD


VINTAGE PIONEER CT-F1250 CASSETTE DECK

SOLD
Pioneer_CT-F1250_Stereo_Cassette_Tape_Deck_large_web.jpg (64875 bytes)     Pioneer_CT-F1250_Stereo_Cassette_Tape_Deck_collage.jpg (227574 bytes)

(Click on above thumbnails to enlarge photos)
VINTAGE PIONEER CT-F1250 CASSETTE DECK
3-HEAD / 2-MOTOR
CASSETTE TAPE DECK

"WORLD AC POWER"

SOLD 3/11/04






NEW LISTING 10/27/08
(Click on above thumbnails to enlarge photos)

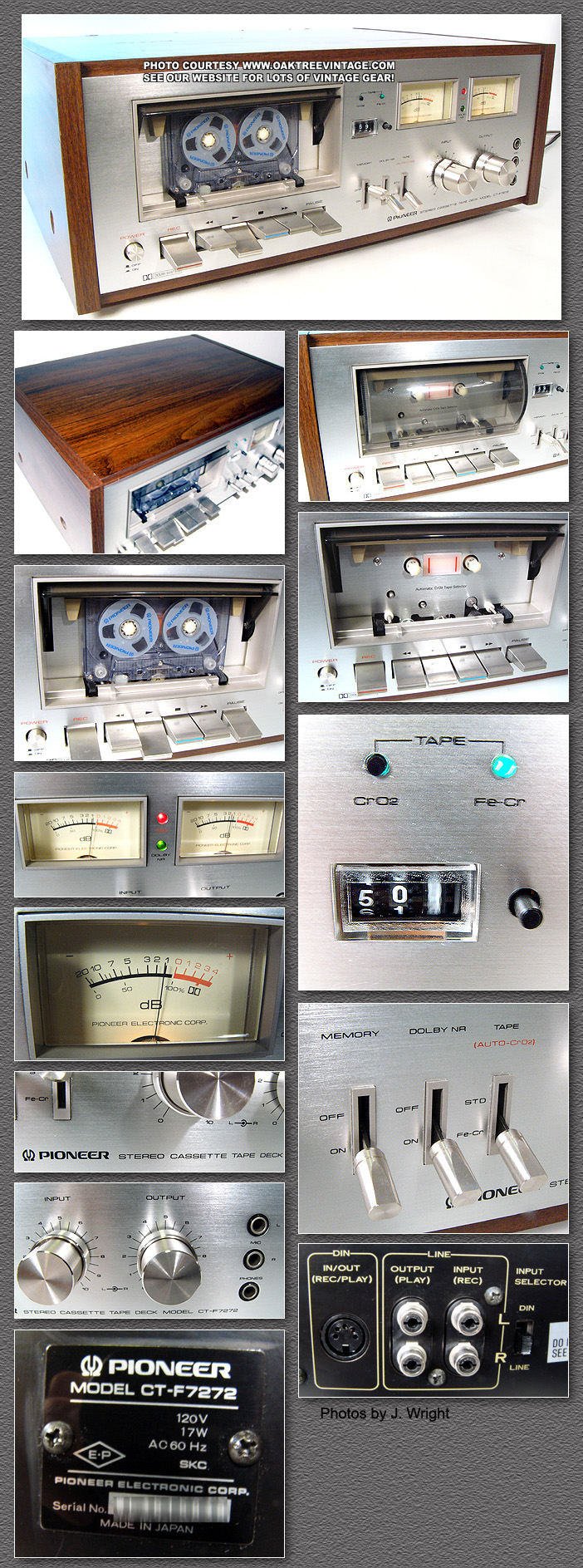

PIONEER
 CASSETTE TAPE DECK

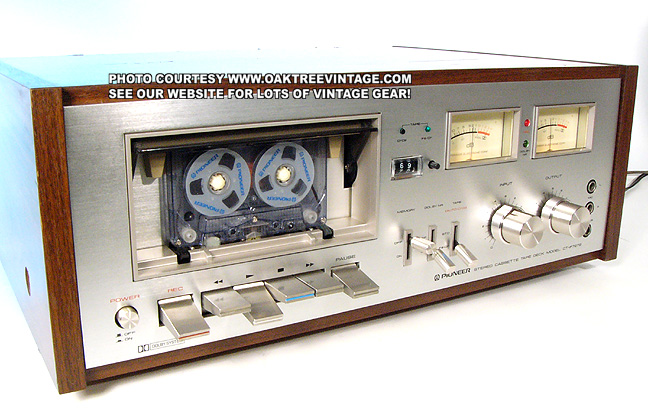

CT-F7272 CTF7272
 With DOLBY B
NR
#...
5838
 Circa early 1976-79
 Made in Japan
SOLD 10/28/08









             NEW LISTING
12/20/2020
(Click on above thumbnails to enlarge photos)
warranty

FULLY SERVICED / REFURBISHED
PRE-OWNED /

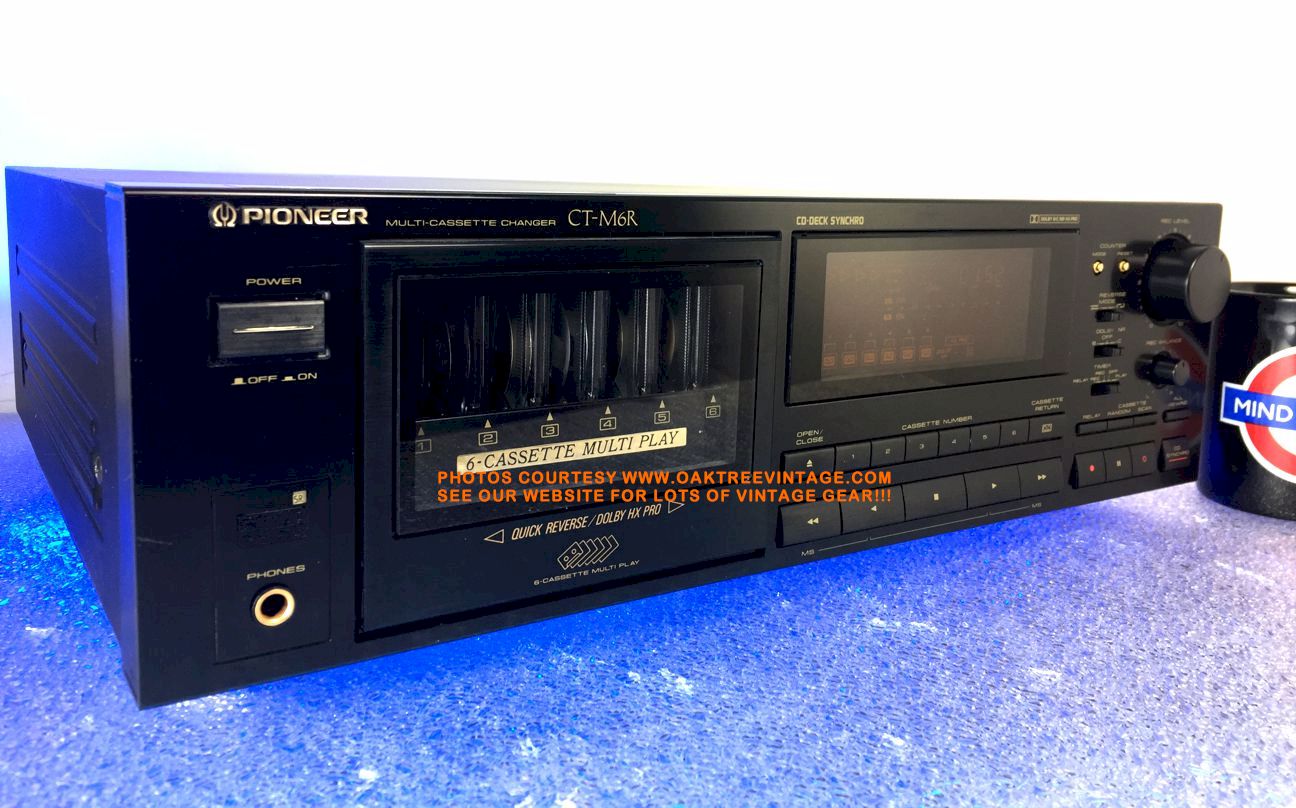

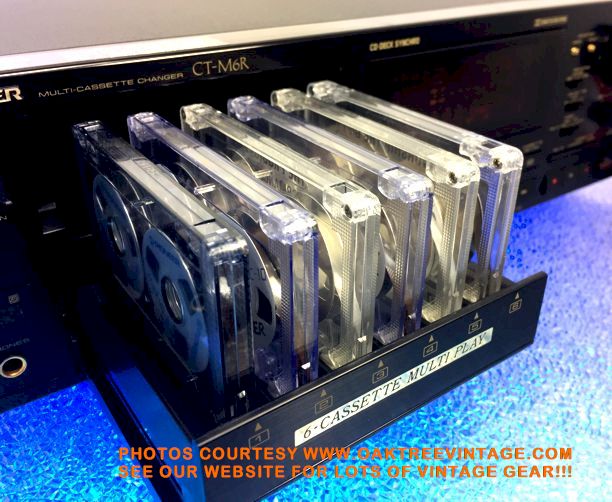

PIONEER MULTI-PLAY CASSETTE TAPE DECK

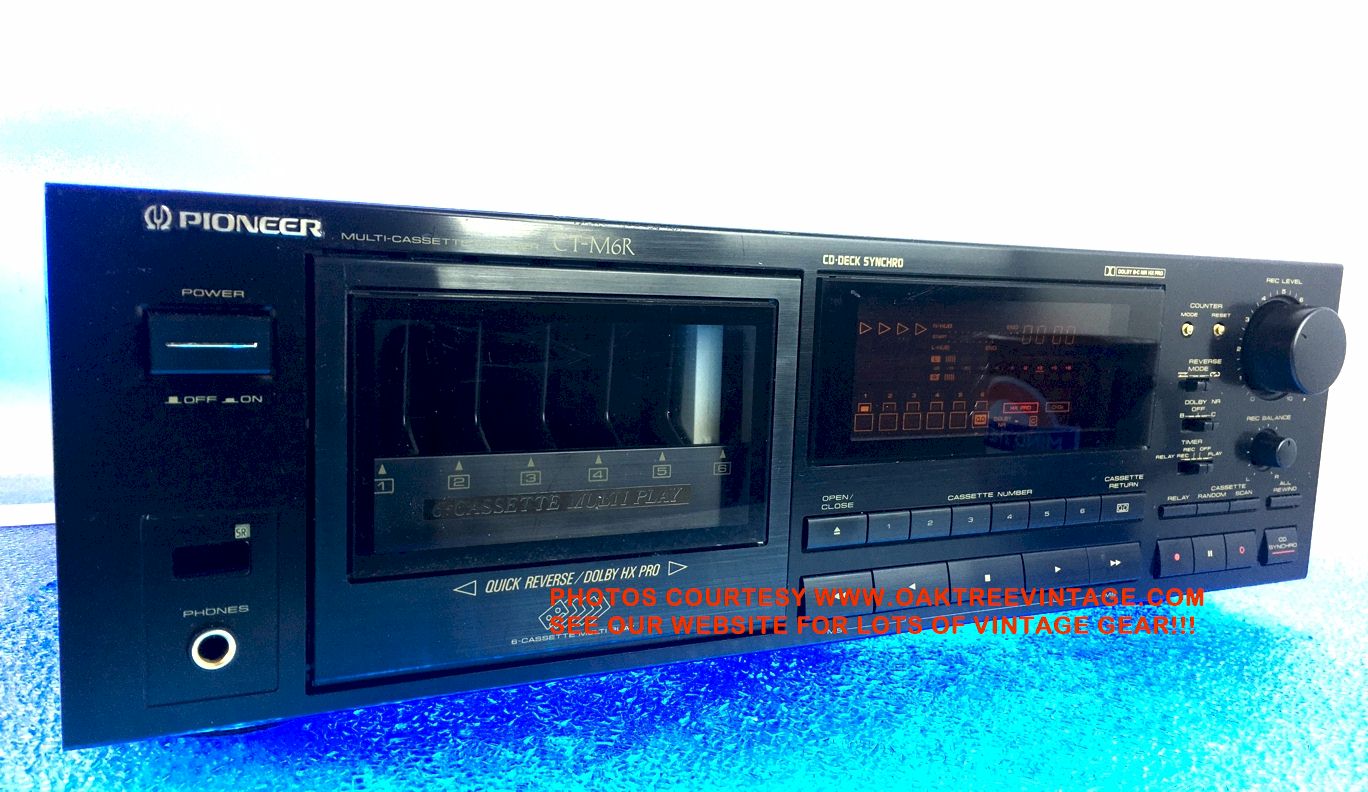

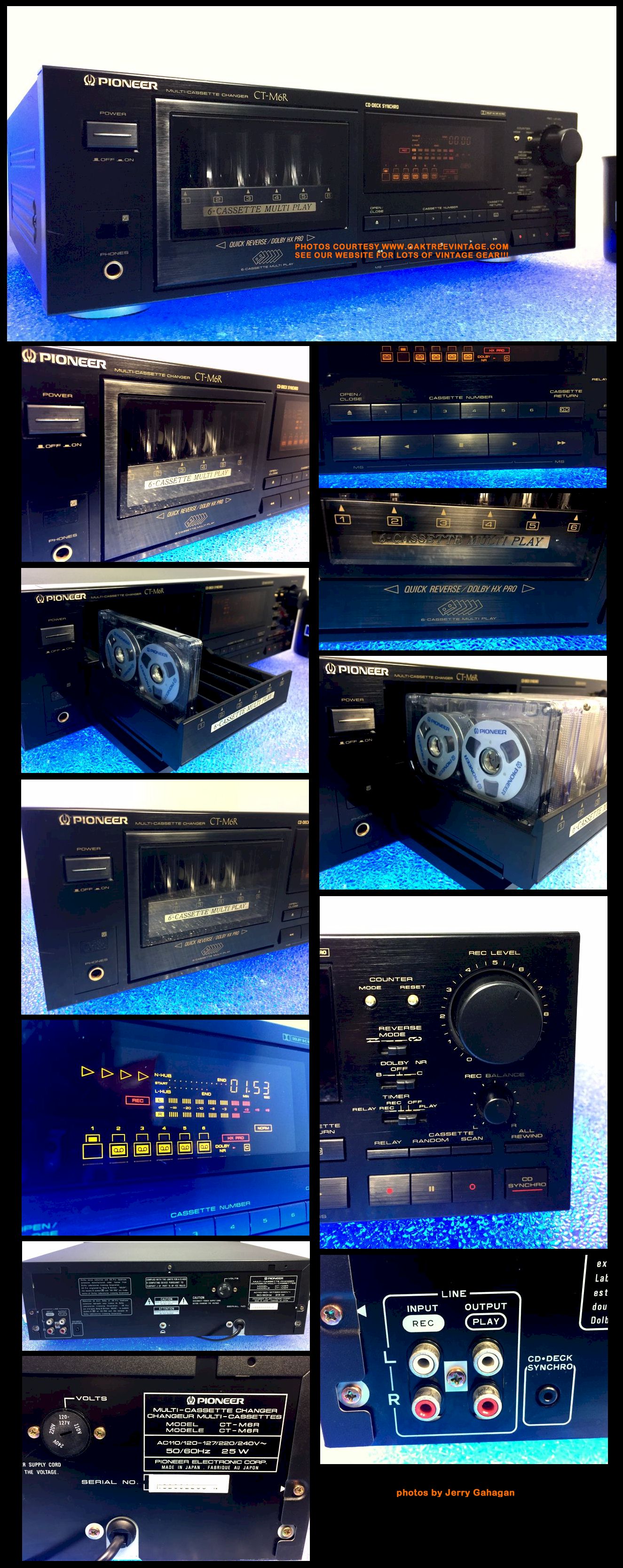

PIONEER CT-M6R

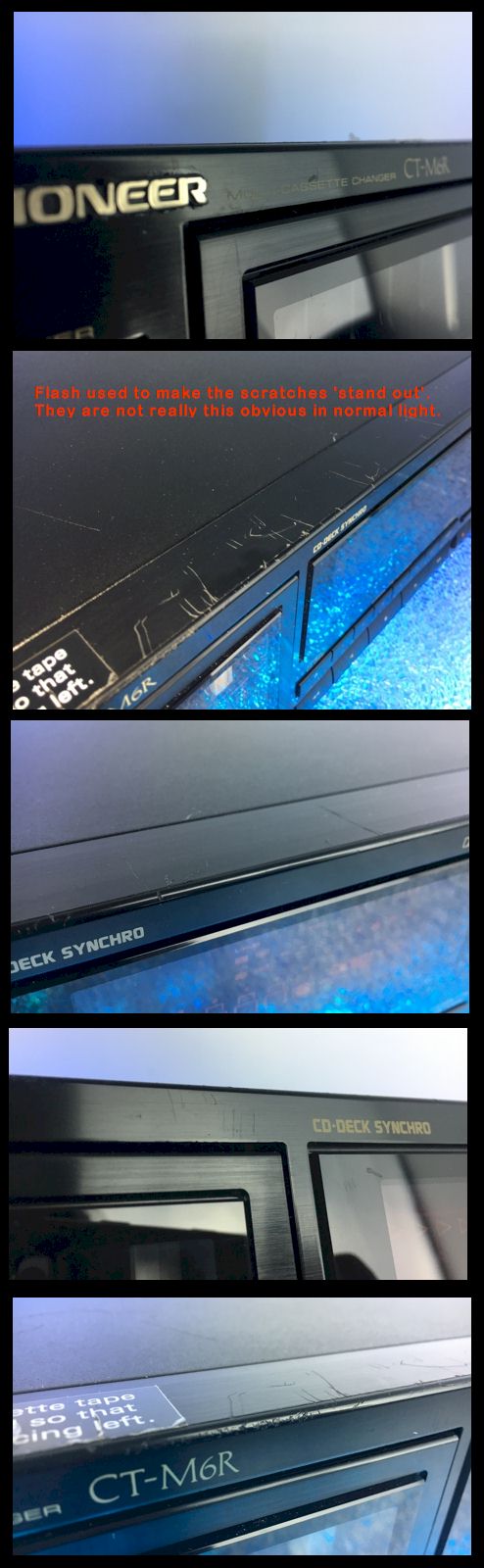

DOES HAVE A FEW 'BATTLE SCARS', BUT MAKES UP FOR THAT IN PERFORMANCE!
MULTI-PLAY, 6 TAPE CHANGER!
HX PRO deck with DOLBY B & C
"QUICK" AUTO-REVERSE
"RELAY" PLAY / RECORD (means will continuously record thru BOTH sides of ALL 6 tapes!!!)
#...2441
Circa 1990-1991
MIJ

SOLD 1/29/2021
SHIPPING TO SCOTT IN CALIFORNIA


ü Our technician has completely and EXTENSIVELY gone through and 'Certified' this unit cleaning inside and out, tape transport mechanism removed, cleaning and re-lubricating internal mechanisms and the balance of efforts listed below. (this was already a VERY CLEAN & LIKE NEW deck inside before we started our service work)

ü AC voltage set for 'North American' use, and Internal DC power supply tested to correct Voltages before any work commenced

ü Heads inspected for excessive wear (obviously we do this 'early on' as 'excessive' wear will usually negate any further restoration work).

ü Head rotating gears on both wells inspected with a jewelers loop prior to starting any restoration work, and found to be 'hairline' crack free.

ü Main Drive and Counter belts inspected and are in 'like new' cond.

ü Rubber pinch rollers have been reconditioned

ü One VERY important note about this deck. The spindles are 'gear driven' which means that it should WAY OUTLAST most other decks that utilize standard, rubber 'idler tires' for reel activation (everyone thinks that 'belts' are all you need to replace to make a cassette deck work.  While belts are important, it's almost always the 'idler tire' that is the "Achilles Heel"  of cassette decks and causes the VAST majority of cassette deck problems).

ü Both spindles in perfect alignment.

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Head alignment and azimuth at 125Hz, 1kHz and 10kHz adjusted for BOTH directions on both decks for 'peak performance' with O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü All internal pots, switches and controls cleaned and tested for noise-free function.

ü Front panel removed and disassembled to allow cleaning of the Record and Balance potentiometers.

ü All LED's and fluorescent displays functioning well, with low current draw

ü FF, REW, & Play transport functions all test perfectly and controls tested for 'positive / accurate' responsive.

ü 'Mechanized' Eject door operates smoothly.

ü Tape Counter Function tested

ü Dolby NR circuits / function tested

ü 'Memory / Zero Return' function tested

ü Meters adjusted to even zero with symmetric with Volt meter, O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü Both Internal playback amplifier channels adjusted with Volt meter, O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü Meters adjusted to even zero with symmetric input with Volt meter, O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü Both Internal Record amplifier channels adjusted with Volt meter, O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.
ü Pinch roller and heads all in GREAT condition!!!

ü Overall floor noise measured at >-60dB.

ü Speed adjusted internally to 100% accuracy BOTH directions, with 1kHz factory calibration tape and frequency counter (meaning 1kHz calibration tape plays back at 1000Hz +/- 1Hz)

ü Plays great and after full service and adjustment, records AMAZINGLY well w/ following results;

1kHz recorded @ 0dB with Dolby C engaged on Maxell XL-II (High bias) tapes plays back @ -2 dB L&R.

Full Bandwidth 'White Noise' recorded @ 0dB w/o NR engaged on Maxell XL-II (High bias) tapes plays back @ -3dB L&R

Full Bandwidth 'White Noise' recorded @ 0dB with Dolby C engaged on Maxell XL-II (High bias) tapes plays back @ 0dB L&R, which equals ZERO dB loss!!

"Real World" test, 'DDD' CD recorded at 0dB +/- 3dB with Dolby C engaged, on Maxell UDXL-II / High Bias tapes sounds great

Bottom line is this deck sounds amazing for playback or recording (always make sure you're playing back 'good quality' tape recordings)


ü Again, Cosmetically, the deck has a few 'battle scars' and isn't going to win any 'beauty contests', but makes up for it in performance.
Total technician time to restore 4+ HOURS!

____________________________

....

Looks like new and sounds great. Deck includes a copy of original owners manual. Measures  16.5" wide x 14.5" deep x 5.5" tall and weighs 19 lbs unpacked. Comes with our 30 day limited warranty.
Cond. 8
 PIONEER CT-M6R
SOLD 1/29/2021
SHIPPING TO SCOTT IN CALIFORNIA


W/ original Wireless Remote Control


(tape shown in photos not included. We do ship our decks with a  a 'pre-recorded' tape for playback, made on this 'specific' deck, and a tape to 'practice record' on.)

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)










NEW LISTING 3/9/19
(Click on above thumbnails to enlarge photos)
PRE-OWNED / REFURBISHED
PIONEER MULTI-PLAY CASSETTE TAPE DECK
PIONEER CT-M6R
MULTI-PLAY, 6 TAPE CHANGER!
HX PRO deck with DOLBY B & C
"QUICK" AUTO-REVERSE
"RELAY" PLAY / RECORD (means will continuously record thru BOTH sides of ALL 6 tapes!!!)
#...2200
Circa 1990-1991

MIJ

SOLD 4/8/19
SHIPPING TO BENJAMIN IN NEW MEXICO


ü Our technician has completely and EXTENSIVELY gone through and 'Certified' this unit cleaning inside and out, DISASSEMBLING, cleaning and re-lubricating internal mechanisms and the balance of efforts listed below. (this was already a VERY CLEAN & LIKE NEW deck inside before we started our service work)

ü AC voltage set for 'North American' use, and Internal DC power supply tested to correct Voltages before any work commenced

ü Heads inspected for excessive wear (obviously we do this 'early on' as 'excessive' wear will usually negate any further restoration work).

ü Head rotating gears on both wells inspected with a jewelers loop prior to starting any restoration work, and found to be 'hairline' crack free.

ü Main Drive and Counter belts inspected and are in 'like new' cond.

ü Rubber pinch rollers have been reconditioned

ü One VERY important note about this deck. The spindles are 'gear driven' which means that it should WAY OUTLAST most other decks that utilize standard, rubber 'idler tires' for reel activation (everyone thinks that 'belts' are all you need to replace to make a cassette deck work.  While belts are important, it's almost always the 'idler tire' that is the "Achilles Heel"  of cassette decks and causes the VAST majority of cassette deck problems).

ü Both spindles in perfect alignment.

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Head alignment and azimuth at 125Hz, 1kHz and 10kHz adjusted for BOTH directions on both decks for 'peak performance' with O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü All internal pots, switches and controls cleaned and tested for noise-free function.

ü Front panel removed and disassembled to allow cleaning of the Record and Balance potentiometers.

ü All LED's and fluorescent displays functioning well, with low current draw

ü FF, REW, & Play transport functions all test perfectly and controls tested for 'positive / accurate' responsive.

ü 'Mechanized' Eject door operates smoothly.

ü Tape Counter Function tested

ü Dolby NR circuits / function tested

ü 'Memory / Zero Return' function tested

ü Meters adjusted to even zero with symmetric with Volt meter, O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü Both Internal playback amplifier channels adjusted with Volt meter, O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü Meters adjusted to even zero with symmetric input with Volt meter, O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü Both Internal Record amplifier channels adjusted with Volt meter, O-Scope and w/ STL and TEAC MTT-257H calibration / alignment tapes. Both channels now even output.

ü Pinch rollers and heads all in GREAT condition!!!

ü Speed adjusted to 100% accuracy BOTH directions, with 1kHz, TEAC MTT, factory calibration tape (meaning 1kHz calibration tape plays back at 1000Hz +/- 1Hz)

ü Pinch roller and heads all in GREAT condition!!!

ü Overall floor noise measured at >-60dB.

ü Speed adjusted internally to 100% accuracy BOTH directions, with 1kHz factory calibration tape and frequency counter (meaning 1kHz calibration tape plays back at 1000Hz +/- 1Hz)

ü Plays great and after full service and adjustment, records AMAZINGLY well w/ following results;

1kHz recorded @ +3dB with Dolby C engaged on Maxell XL-II (High bias) tapes plays back @ +3 dB L&R, which equals ZERO dB loss!! (same results with no NR)

Full Bandwidth 'Pink Noise' recorded @ 0dB with Dolby C engaged on Maxell XL-II (High bias) tapes plays back @ 0dB L&R, which equals ZERO dB loss!!

10k was down 5dB or less across the board.
White noise was down ~ 5dB recorded at -5dB and -10dB on Deck 1
White noise was down ~ 2dB recorded at -5dB and -0dB recorded at -10 on Deck 2

"Real World" test, 'DDD' CD recorded at +4dB with Dolby C engaged, on Maxell UDXL-II / High Bias tapes equals +4dB. Again, ZERO dB loss!!!

Bottom line is this deck sounds amazing for playback or recording (always make sure you're playing back 'good quality' tape recordings)

ü Cosmetically, the deck looks near new. Just a few very minor scuffs.
Total technician time to restore
5+ HOURS!
____________________________

....

Deck includes an 'e-copy / pdf download' of original Pioneer CT-M6R owners manual. Measures  16.5" wide x 14.5" deep x 5.5" tall and weighs 19 lbs unpacked. Comes with our 30 day limited warranty.
Cond. 8.5++
 PIONEER CT-
M6R

SOLD 4/8/19
SHIPPING TO BENJAMIN IN NEW MEXICO


W/ original Wireless Remote Control


(tape shown in photos not included. We do ship our decks with a  a 'pre-recorded' tape for playback, made on this 'specific' deck, and a tape to 'practice record' on.)

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)









NEW LISTING

(Click on above thumbnails to enlarge photos)

PRE-OWNED / REFURBISHED

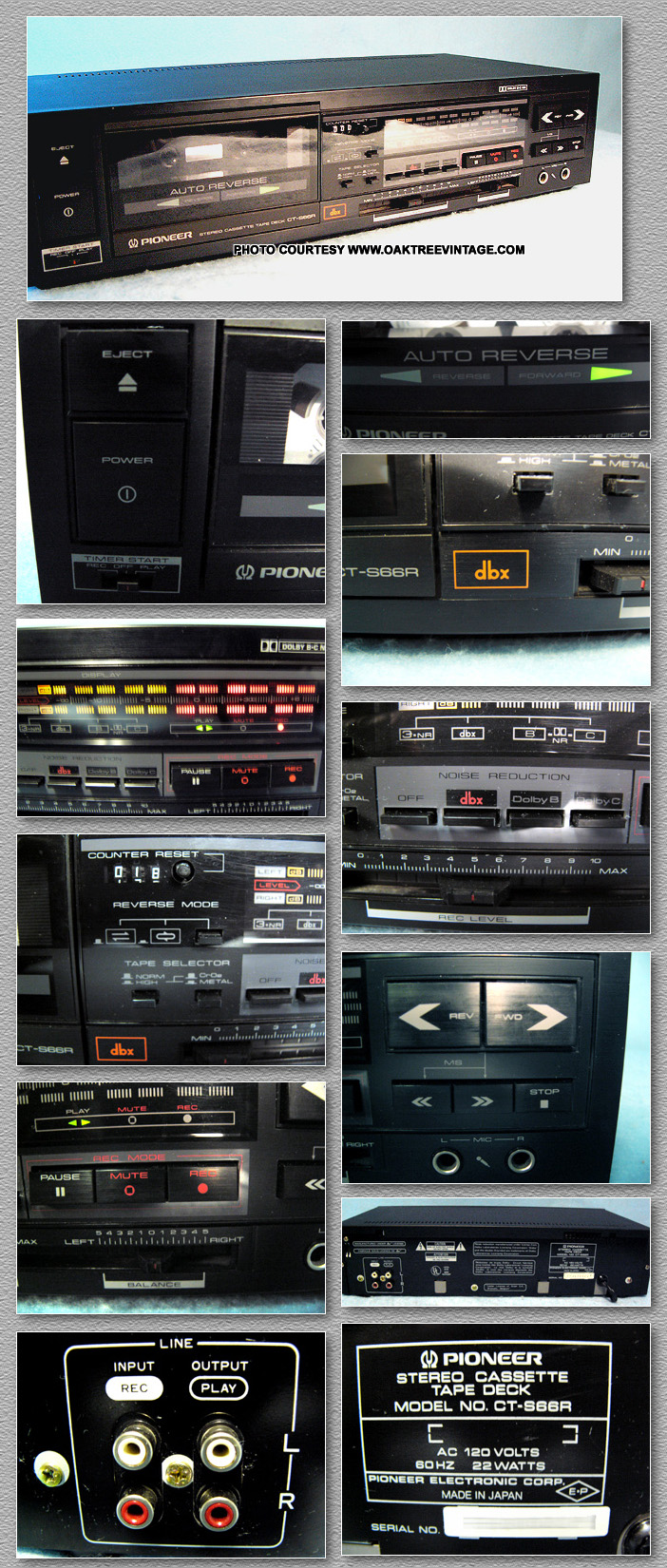

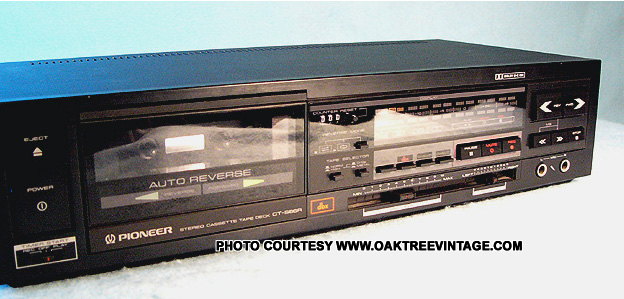

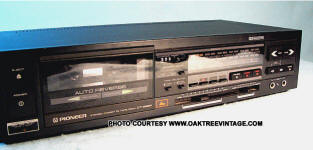

PIONEER
CT-S66R
 AUTO REVERSE
 STEREO
 CASSETTE TAPE DECK
 With
dbx, DOLBY B & C
SOLD 6/24/08

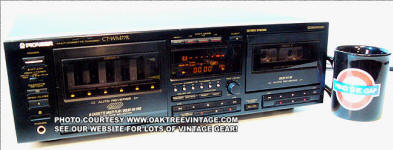

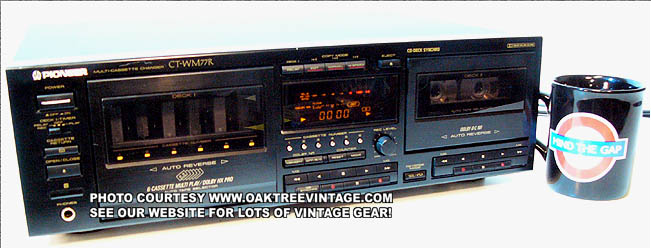

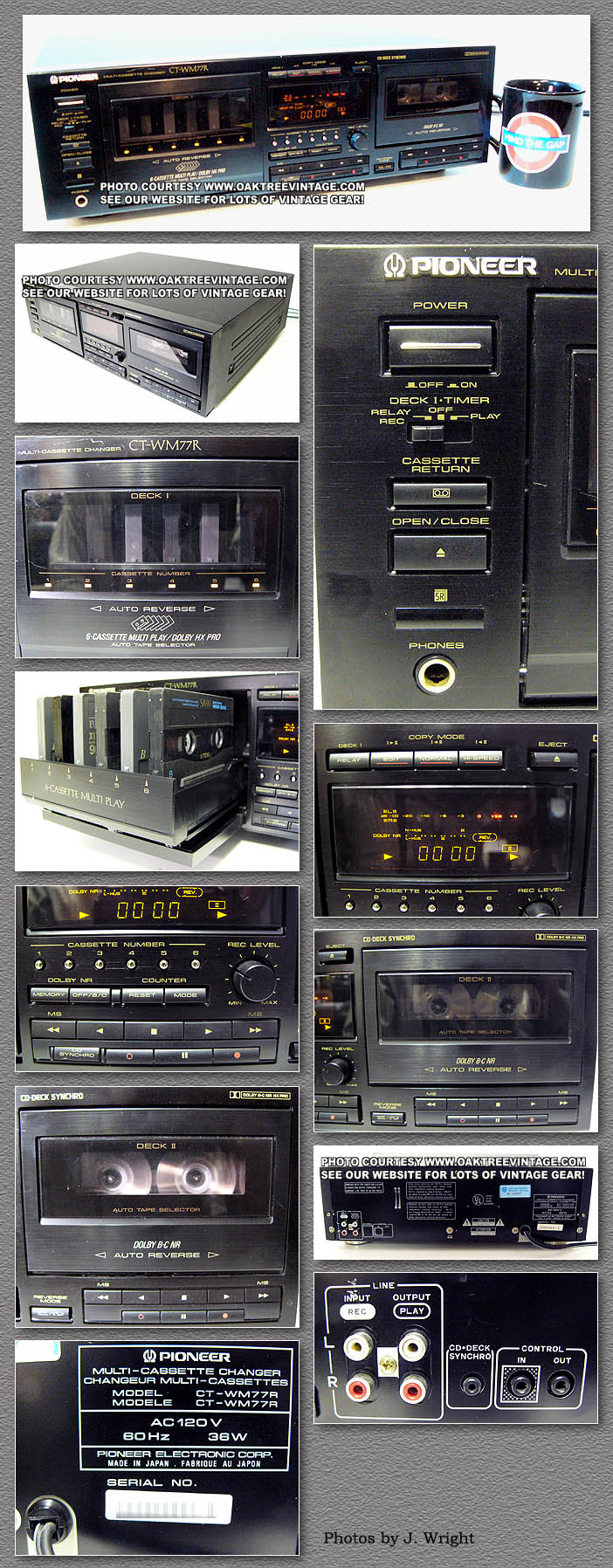

  Pioneer Multi Cassette Changer CT-WM77R small jpg

Pioneer Multi Cassette Changer CT-WM77R Collage small jpg


            NEW LISTING 9/29/09
(Click on above thumbnails to enlarge photos)

PRE-OWNED / REFURBISHED
PIONEER
 CASSETTE TAPE DECK
           CT-WM77R
/ CTWM77R
#...2857N
6 TAPE CHANGER!

DUAL-WELL
 With DOLBY B, C and HX Pro
& DUAL-WELL RECORDING
& DUAL "QUICK" AUTO-REVERSE
& "RELAY" PLAY / RECORD
Circa 1991

MIJ

SOLD 11/19/10

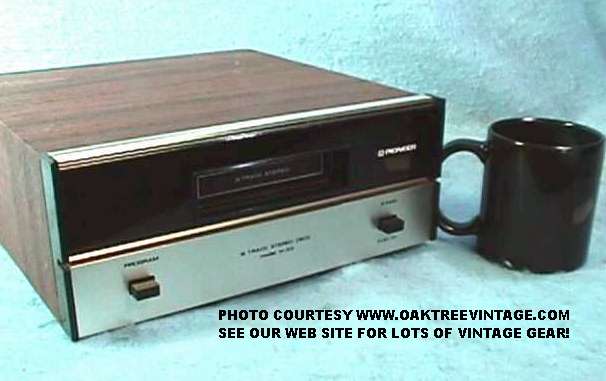

PIONEER H-33 8-TRACK PLAY DECK
Circa '74-'76
SOLD








NEW ADDITION

(Click on above thumbnails to enlarge photos)

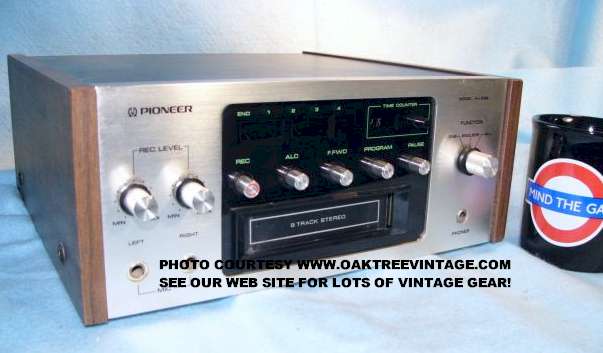

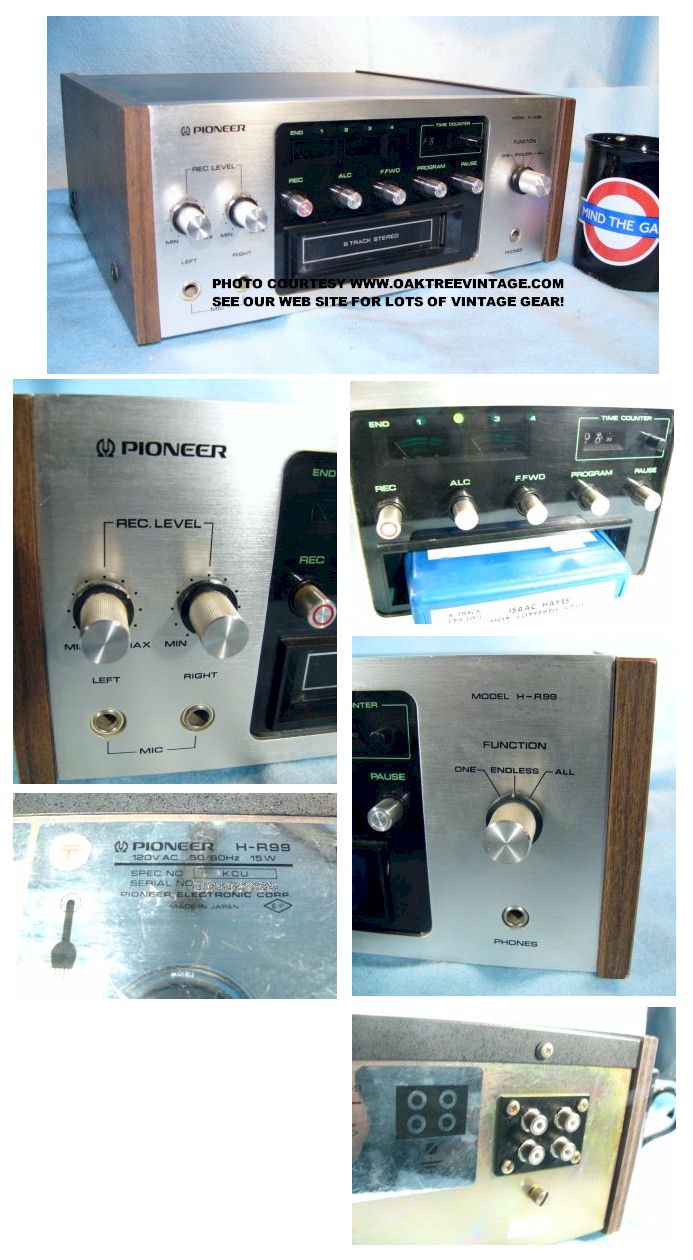

PIONEER
MODEL H-R99
8-TRACK DECK

SOLD 12/9/04
PIONEER
H-R100
SOLD


(Click on above thumbnails to enlarge photos)
PIONEER H-R100 8-TRACK DECK
#26864

WITH
DOLBY
"WORLD AC POWER"
SOLD 4/26/05

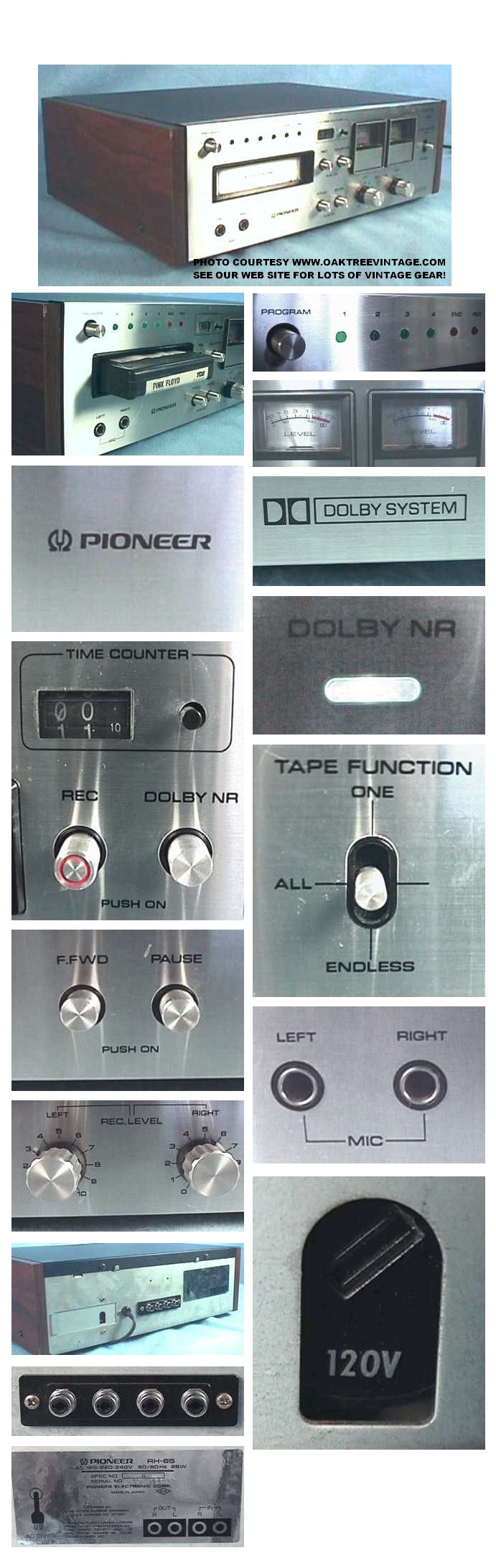

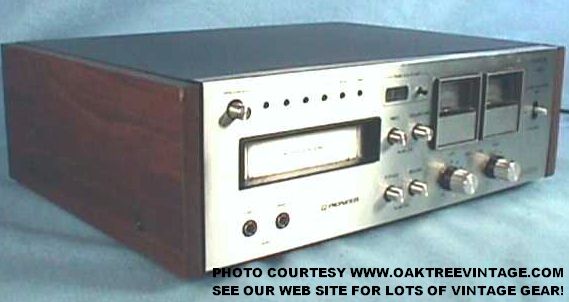

    Pioneer _RH-65_8-track_Tape-Deck_web.jpg (28790 bytes)  Pioneer _RH-65_8-track_Tape-Deck_collage.jpg (189407 bytes)

PIONEER RH-65 8-TRACK DECK
Circa 1974-76
SOLD

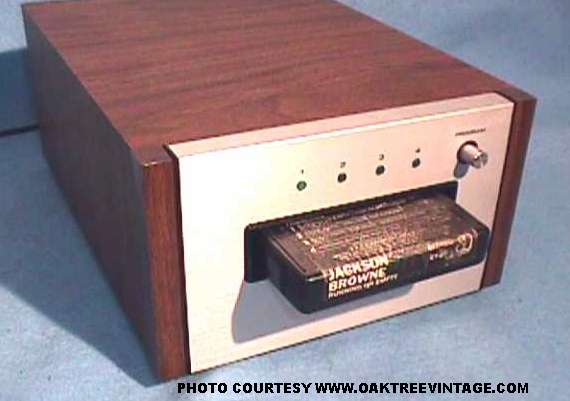

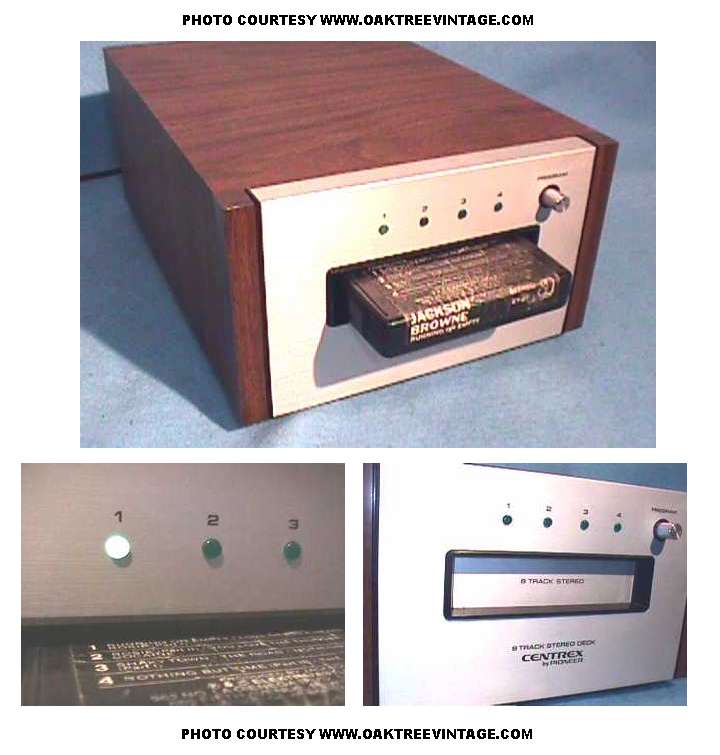

PIONEER / CENTREX
TH-30
SOLD

PIONEER
"CENTREX"
MODEL TH-30

SOLD

PIONEER "CENTREX"
MODEL TH-30
8-TRACK DECK
SOLD

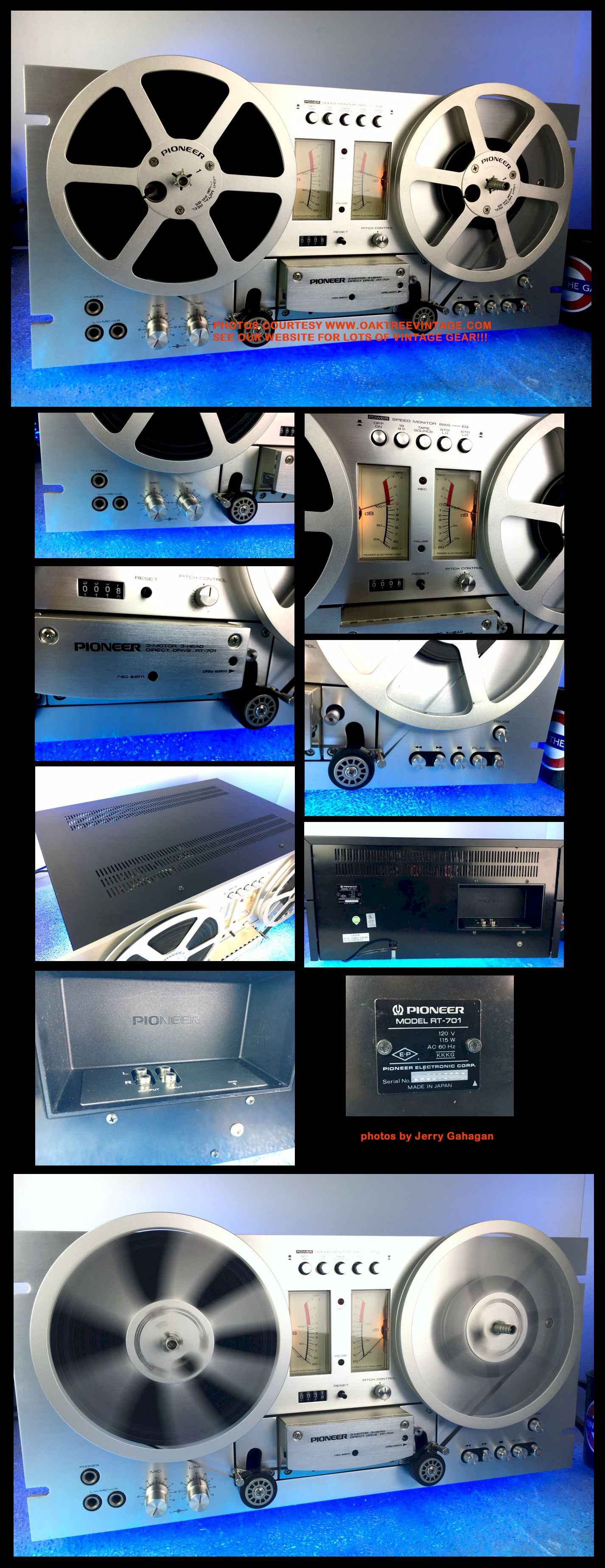

            NEW LISTING 7/15/2021
(click on above thumbnails to enlarge photos)
RESTORED / REFURBISHED / FULLY SERVICED / WARRANTED

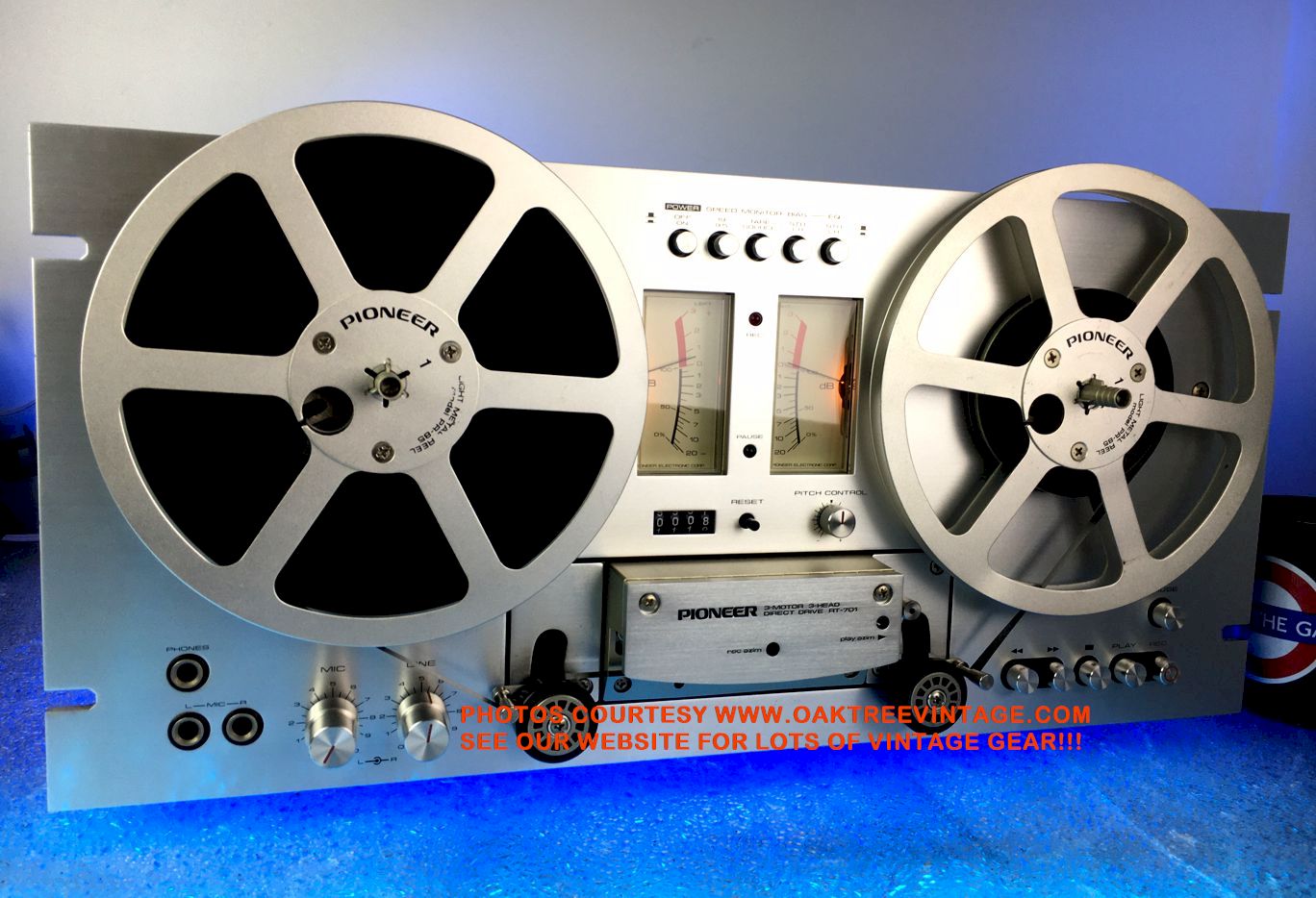

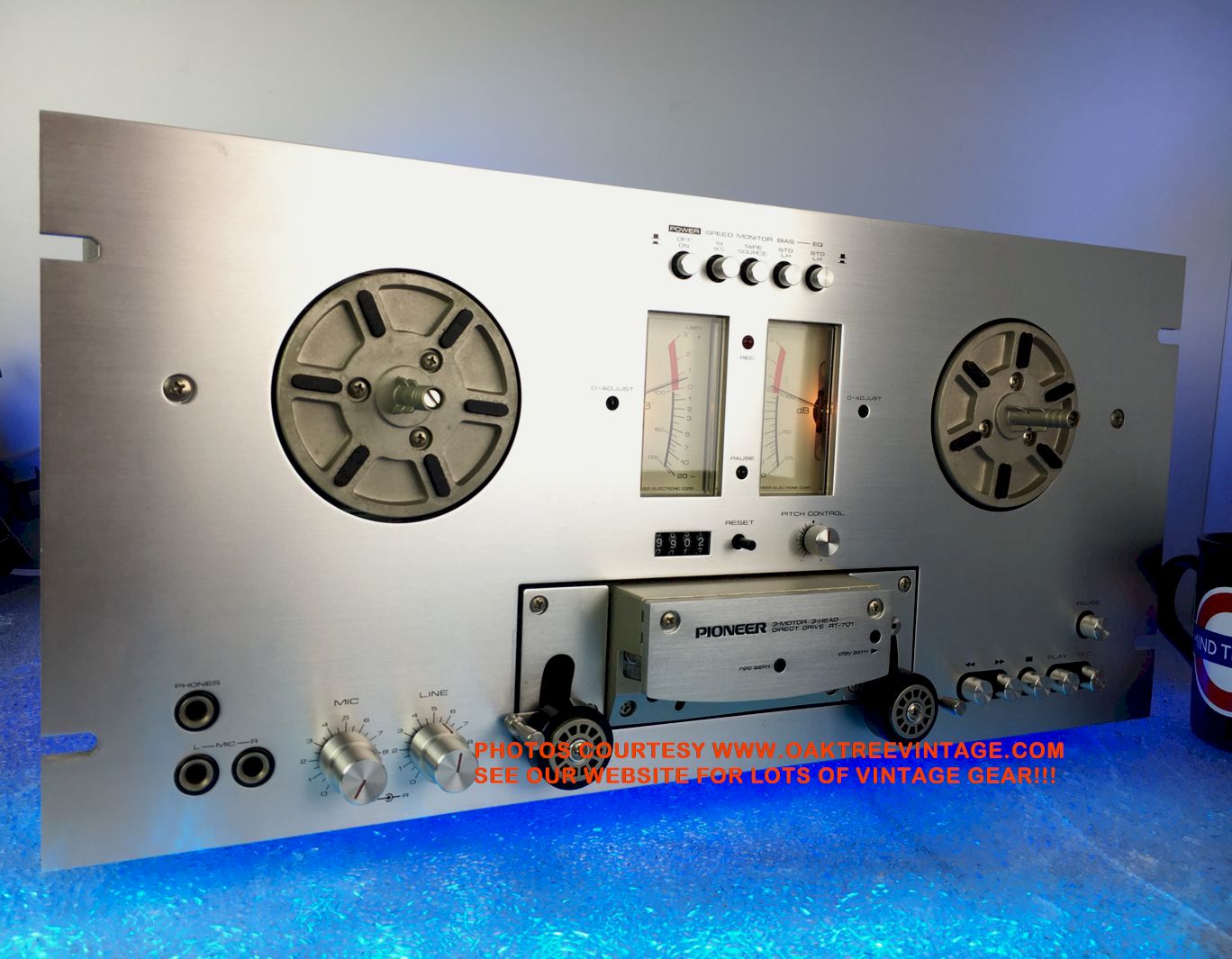

PIONEER REEL TO REEL TAPE DECK
PIONEER RT-701 / RT701
 1/4" STEREO
4-TRACK / 2-CHANNEL
2-SPEED / 3 HEAD
3" - 7" REEL CAPACITY
#...3003
  Circa 1977-85

MIJ

SOLD 10/14/2021
SHIPPING TO BRUCE IN NEW JERSEY


ü Our technician has EXTENSIVELY gone through and 'Certified' this unit.

"
Original condition was 6-9dB low and slightly distorted recordings L&R. Speed after warm-up was decent at 1007Hz. Bias pots intermittent. PR & counter belt melted. PB level un-even by 4dB and both down. EOT mechanism sluggish, as well as typical "40-year, no maintenance / 'as-found' condition"

ü We have completely and extensively gone through the mechanicals and electronics of this unit.

ü 4x #2SC1344, "Black legged" transistors replaced on Line-IN / Mic-IN PCB which cured distortion issues on recording and enabled levels to be adjust properly

ü Internal mechanisms, disassembled, cleaned and re-lubed

ü Brakes extensively adjusted on fast wind modes also.

ü Reel motor torque adjusted to correct force in grams. All three motors test perfectly.

ü We also adjusted the reel table heights. Both spindles in perfect alignment and run 'true'

ü We also installed a new counter belt for trouble-free service.

ü All External and Internal pots, switches and controls cleaned and tested for noise-free function.

ü Rubber pinch roller has been replaced with brand new

ü Cntr belt replaced with brand new

ü Capstan burnished

ü We adjusted the internal playback levels for standard 700Hz @ 0dB (VR103/V4104) as well as the record levels and both VU meters (VR101/VR102 on PB PCB #RWF-081) mechanically and electronically w/ factory test tone tapes.

ü Headstacks have been cleaned and de-magnetized as well as the entire transport.

ü Head-stack alignment / azimuth has been checked for peak performance with factory test tone tape out to 15khz and oscilloscope.

ü Heads have typical, normal wear and are all in fine condition with hundreds of hours left.

ü Both level meters adjusted for even playback level w/ factory test tone tape.

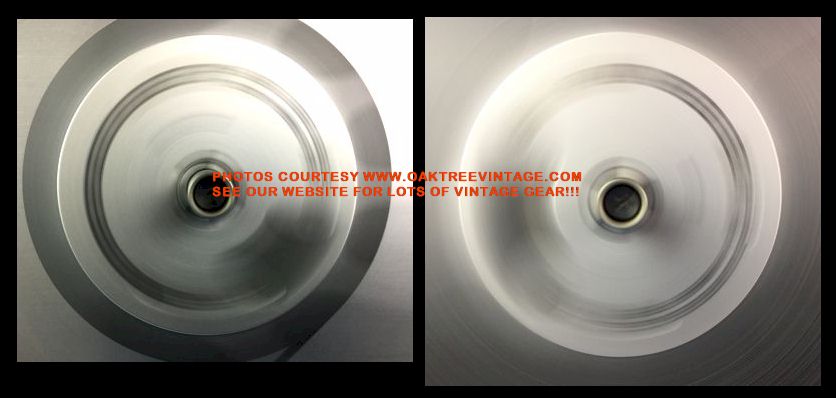

ü Both table spindles run 'true' with no run-out

ü New VU meter illumination lamps installed

ü Bias adjusted (VR301, VR302, VR303, VR304 on OSC PCB #RWR-059) for Ampex GM-456 Grand Master tape (same as modern ATR formulation)

ü Recording tests performed with Ampex GM456 and Maxell UD (Gold / Black) Tapes.
Here’s the results;

GM 456 @ 7.5ips. 1kHz @ 0dB = +3.0 dB L&R in STD+STD positions with very little artifacts
GM 456 @ 7.5ips. 1kHz @ 0dB = 0 dB L&R in LH+LH positions with very little artifacts
GM 456 @ 7.5ips. 1kHz @ 0dB = +0.5 dB L&R in STD+STD positions
GM 456 @ 7.5ips. 1kHz @ 0dB = -0.25 dB L&R in LH+LH positions
GM 456 @ 7.5ips. Recorded program from "ddd" source was "AWSOME". Best in "LH" position. "STD" was a bit too 'bright'
Maxell UD @ 7.5ips. 1kHz @ 0dB = -1 dB L&R in STD+STD positions with very little artifacts
Maxell UD @ 7.5ips. 1kHz @ 0dB = -2.5 dB L&R in LH+LH positions with very little artifacts
Maxell UD @ 7.5ips. White Noise @ 0dB = +1.5 dB L & -0.5 dB R in STD+STD positions
Maxell UD @ 7.5ips. White Noise  @ 0dB = -1 dB L & -2.5 dB Rin LH+LH positions
Maxell UD @ 7.5ips. Recorded program from "ddd" source was "Great". Best in "LH" position. "STD" was again, a bit too 'bright'

Pretty damn good numbers for a 40 year old classic!


ü Floor noise measured at >-60dBm

ü Both internal speed pots adjusted to 100% accuracy on 3.75ips and 7.5ips speeds  independently (with pitch control zero'd) (meaning that our 'official' 1000Hz test tape now plays back at 1000Hz +/- 1Hz w/ pitch control at ’12:00’ position).

We really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy.

 (Total time investment in refurb / testing ~ 19.5 hours).

Original face panel is made of beautiful brushed aluminum, and is in great condition NO marks from ever being rack mounted. Sheet metal bonnet and rear panel as well as the original finish all in near perfect shape.
Deck looks and works great!

____________________________

Looks GREAT & is "Ready-to-go"! The very sought after Pioneer RT-701 Stereo Reel to Reel tape deck. Will play / record stereo 1/4" tapes on reels up to 7". This is one of the few reel to reel decks we get in that make it to our finished page. Great performer. If you're looking for a reel to reel deck to "actually use" here you go. Only about 30-50% of the used Reel decks out there can be "practically" restored to working order. This one made it through and all functions test great! Looks and sounds great too! We have completely gone through it.

Pioneer RT-701 Reel to Reel Features include:

...

...
HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Pioneer RT-701 Reel to Reel Specifications as follows:

Track Format: 4-Track / 2...

...
HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Rewind Time w/ 1200’ Tape: ~100 sec

Following the above stated bench work / testing, our technician has 'Certified' this deck and it is an great performer sonically and mechanically. As stated earlier we have completely gone through it cleaning, lubing, adjusting, demagnetizing and testing everything. Plays and records perfectly. 701's are direct drive thus requiring no drive belt to wear out. The only belt to wear out or break is the counter belt and this one was replaced with a brand new one. (Since the 701 does not use the counter for "Auto-Stop" sensing, if you ever break the counter belt, the deck will still run fine, unlike some other high-end decks. Just FYI)
The Pioneer RT-70X series is considered by us (and we've heard a few others out there stating this as well) to be about the most durable, best built, least stuff to break reel to reel ever made by anyone. If you've been inside as many decks as we have, you can appreciate how simply the RT-701 is built inside. There's just none of the 'Rube Goldberg' mechanisms that most (even some later model machines) have.
Thick & solid brushed aluminum face plate in great condition. Great deck for adding QUALITY reel to reel capability to your audio system (vintage or otherwise), or for archiving / transferring your tape collection to another format such as CD, or hard-drive. Unit includes  an 'e' pdf copy of Pioneer RT-701 owners / users manual. Measures 19" wide x 14.5" deep x 9.5" high and weighs 44 lbs unpacked. Includes our standard 30 day limited warranty.
(Reels & tape shown in photos not included. All are usually available separately if you need them)
This is THE SECOND BEST recording / performing deck we EVER have finished. "The planets all aligned again" and our tech was really able to 'dial' this one in as well!
PIONEER RT-701, #3003 Reel to Reel Tape Deck
Cond. 8.5++

SOLD 10/14/2021
SHIPPING TO BRUCE IN NEW JERSEY


(Reels shown in photos are not included, but we sometimes / occasionally have them for sale. Inquire at time of order.
However, all of our decks will come with 2x tapes for testing 'Playback' and 'Recording' as well as a plastic, 7" 'take-up' reel, and RCA patch cables for connection to your system)


 (Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)

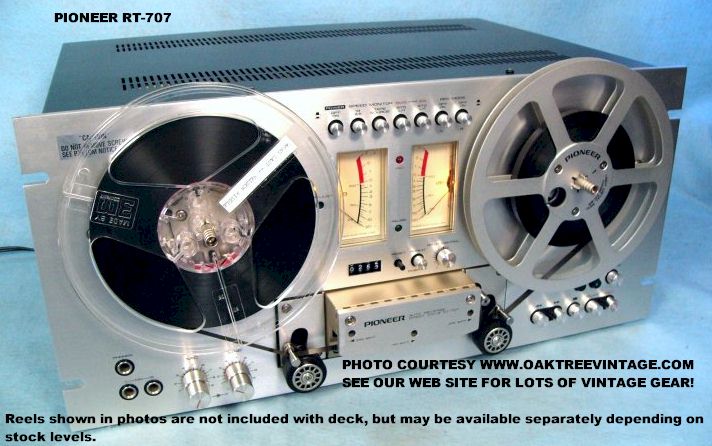

PIONEER
RT-707

STEREO
REEL TO REEL
TAPE DECK
SOLD

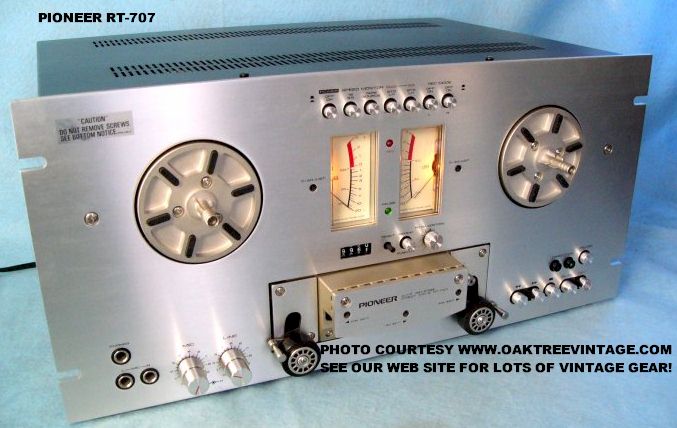

Pioneer_RT-707_Stereo_Reel-Reel_Tape_Deck_noreels_web.jpg (55504 bytes)   Pioneer_RT-707_Stereo_Reel-Reel_Tape_Deck_main_collage.jpg (408880 bytes)

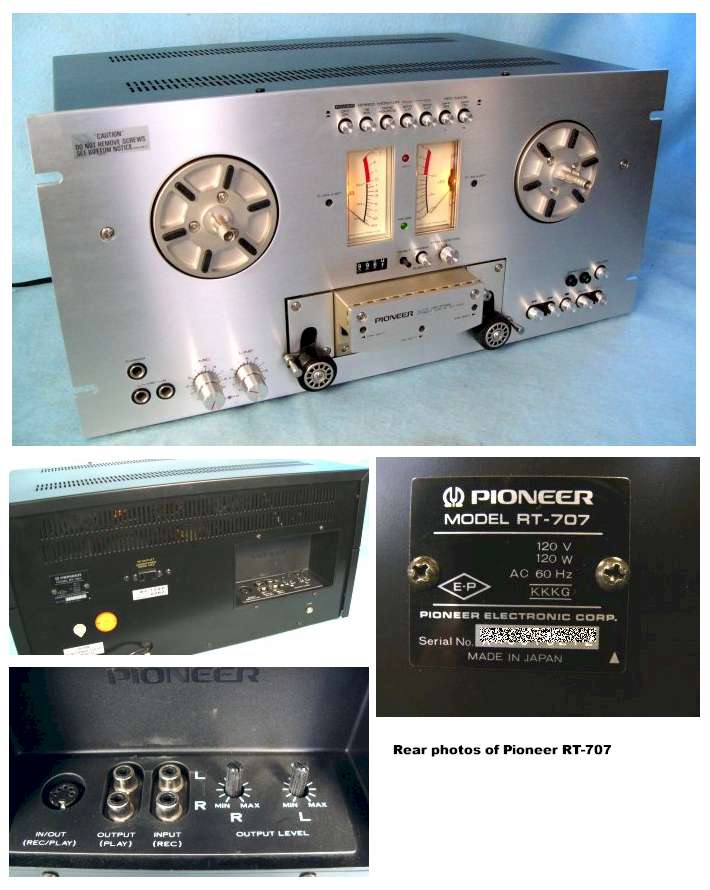

Pioneer_RT-707_Rear_Photos_collage.jpg (69267 bytes)   Pioneer_RT-707_Heads_collage.jpg (123549 bytes)

PIONEER
RT-707

STEREO
REEL TO REEL
TAPE DECK
SOLD

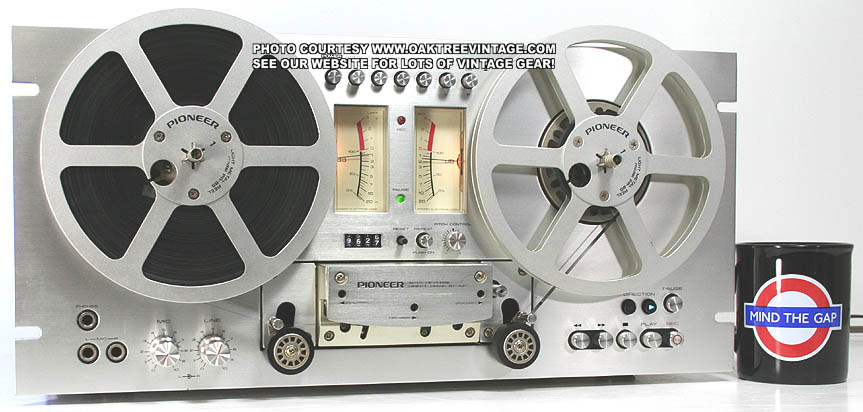

NEW LISTING 12/20/05

(Click on above thumbnails to enlarge photos)
PIONEER
RT-707 / RT707

 4-TRACK / 2-CHANNEL
STEREO
3-HEAD / 3-MOTOR
2-SPEEDS
AUTO-REVERSE
1/4" REEL TO REEL
TAPE DECK

SOLD 12/22/05





NEW LISTING 10/23/06

(Click on above thumbnails to enlarge photos)
PIONEER
RT-707 / RT707

STEREO REEL TO REEL
TAPE DECK

SOLD 10/26/06




NEW LISTING 5/11/09

(Click on above thumbnails to enlarge photos)
PIONEER
REEL TO REEL
 1/4" STEREO TAPE DECK
RT-707 / RT707
#...6421

4-TRACK / 2-CHANNEL
  2-SPEED / 3 HEAD
 3" - 7" REEL CAPACITY
  Circa 19
77-85
(C)

C.B.S.

SOLD 5/12/09

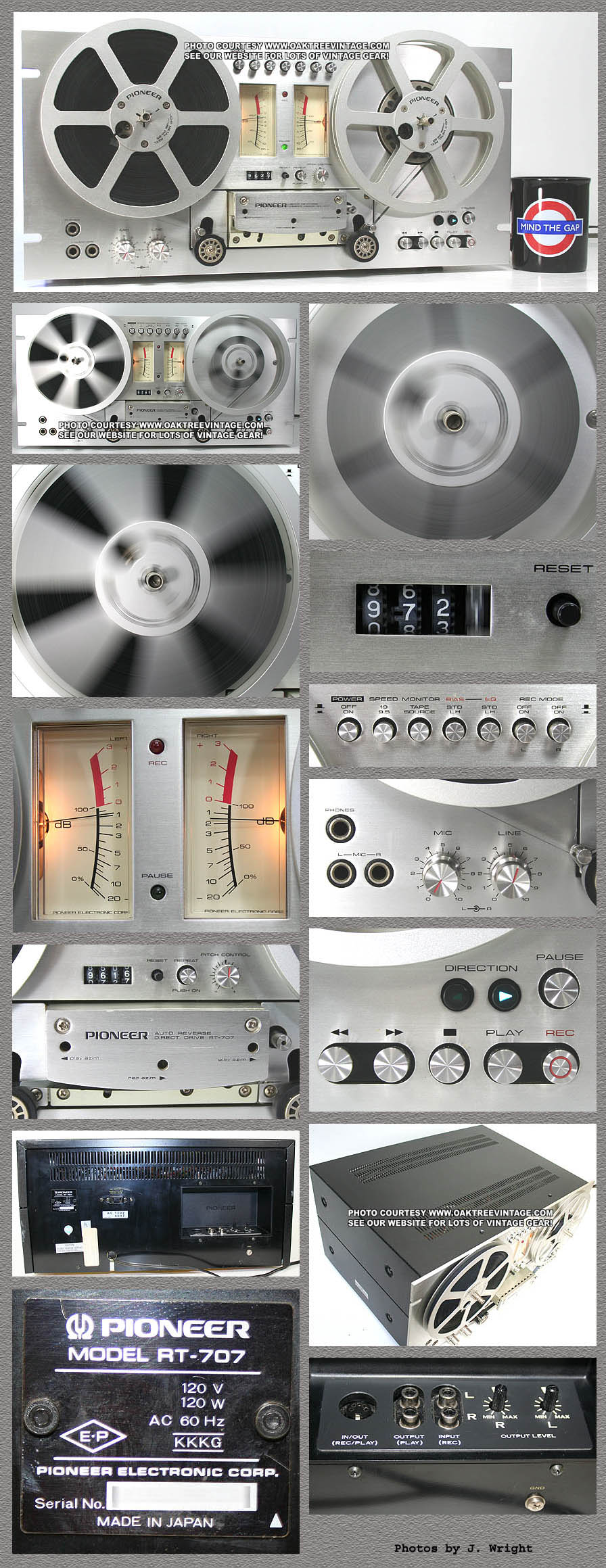

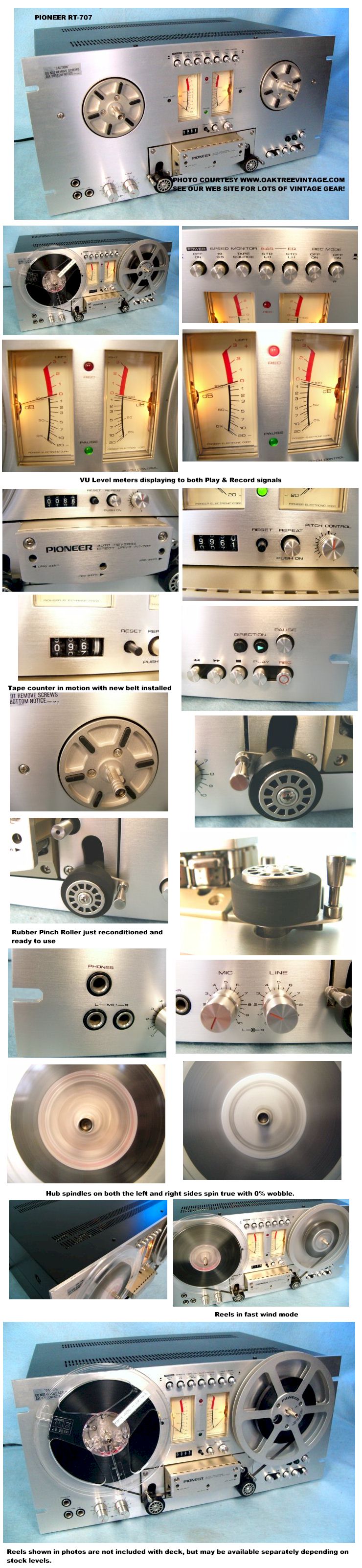

NEW LISTING 10/26/12
(Click on above thumbnails to enlarge photos)

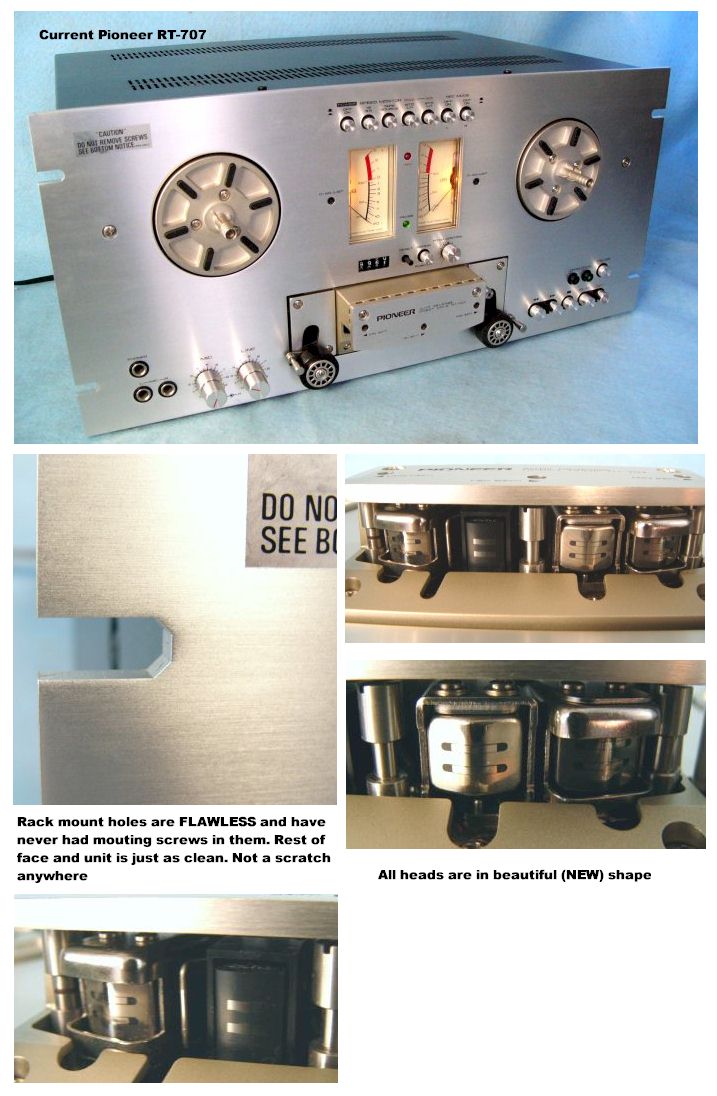

PIONEER REEL TO REEL TAPE DECK
PIONEER RT-707 / RT707
 1/4" STEREO
 4-TRACK / 2-CHANNEL
  2-SPEED / 3 HEAD
 5" - 7" REEL CAPACITY
#...8228
  Circa 1977-85

SOLD 11/20/12
SHIPPED TO NORTH CAROLINA


Our technician has completely gone through and 'Certified' this unit. We have completely and extensively gone through the mechanicals and electronics of this unit.

- Internal mechanism cleaned and re-lubed

- Brakes extensively adjusted on fast wind modes also.

- Reel motor torque adjusted to correct force in grams.
All three motors test perfectly.

- We also adjusted the reel table heights. Both spindles in perfect alignment and run 'true'

- We also installed a new counter belt for trouble-free service.

- All External and Internal pots, switches and controls cleaned and tested for noise-free function.

- Rubber pinch roller has been replaced with brand new

- Capstan burnished

- We adjusted the internal playback levels for both directions independently as well as the record levels and both VU meters mechanically and electronically w/ factory test tone tapes.

- Headstacks have been cleaned and de-magnetized as well as the entire transport.

- Head-stack alignment / azimuth has been checked for peak performance with factory test tone tape and oscilloscope.


- Heads have typical, normal wear and are
all in fine condition with hundreds of hours left.

- Both level meters adjusted for even playback level w/ factory test tone tape.

- New VU meter illumination lamps installed

- Both typically problematic direction indicator lamps replaced by cool running LED's.

- Plays great and Records at +/-0dB on both Normal and High Bias Chrome tape @ 1kHz.

We
really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy.


- Both internal speed pots adjusted to 100% accuracy on either speed independently (with pitch control zero'd) meaning that our 1kHz tape plays back at 1000Hz +/-1Hz.


(Total time investment in refurb / testing ~ 9 hours).


Pioneer RT-707 Reel to Reel Specifications as follows:

Track Format: 4-Track / 2-Channel stereo
Heads:
.....
Motors: .....
Tape Speed: .....


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Reel Size: .....
Wow and flutter: Less than XXX% WRMS (7-1/2 ips / 19cm/s)
Signal to noise ratio: >XXdB
Frequency response: XXips = XXHz to XXkHz.
Crosstalk: >XXdB
Channel separation: >XXdB
Input Impedance sensitivity / Impedance: .....


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Input Impedance sensitivity / Impedance: 0.25mV / 27kΩ
Pitch-control: +/- XX%
2 VU-meters: .....
Output Level at 0-VU: .....
Recording bias frequency: XXkHz.
Rewind Time w/ 1200’ Tape: .....

Following the above stated bench work / testing, our technician has 'Certified' this deck and it is an great performer sonically and mechanically. As stated earlier we have completely gone through it cleaning, lubing, adjusting, demagnetizing and testing everything.....

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

....
Includes our standard 30 day limited warranty.
(Reels & tape shown in photos not included. All are usually available separately if you need them)
PIONEER RT-707 Reel to Reel Tape Deck
Cond. 8.5

SOLD 11/20/12
SHIPPED TO NORTH CAROLINA



 (Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)

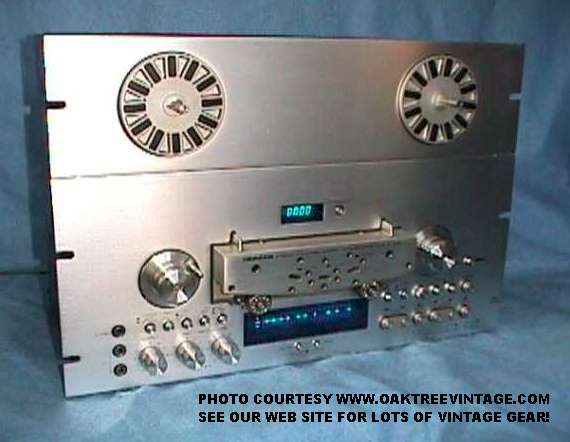

NEW LISTING 4/26/05

(Click on above thumbnails to enlarge photos)

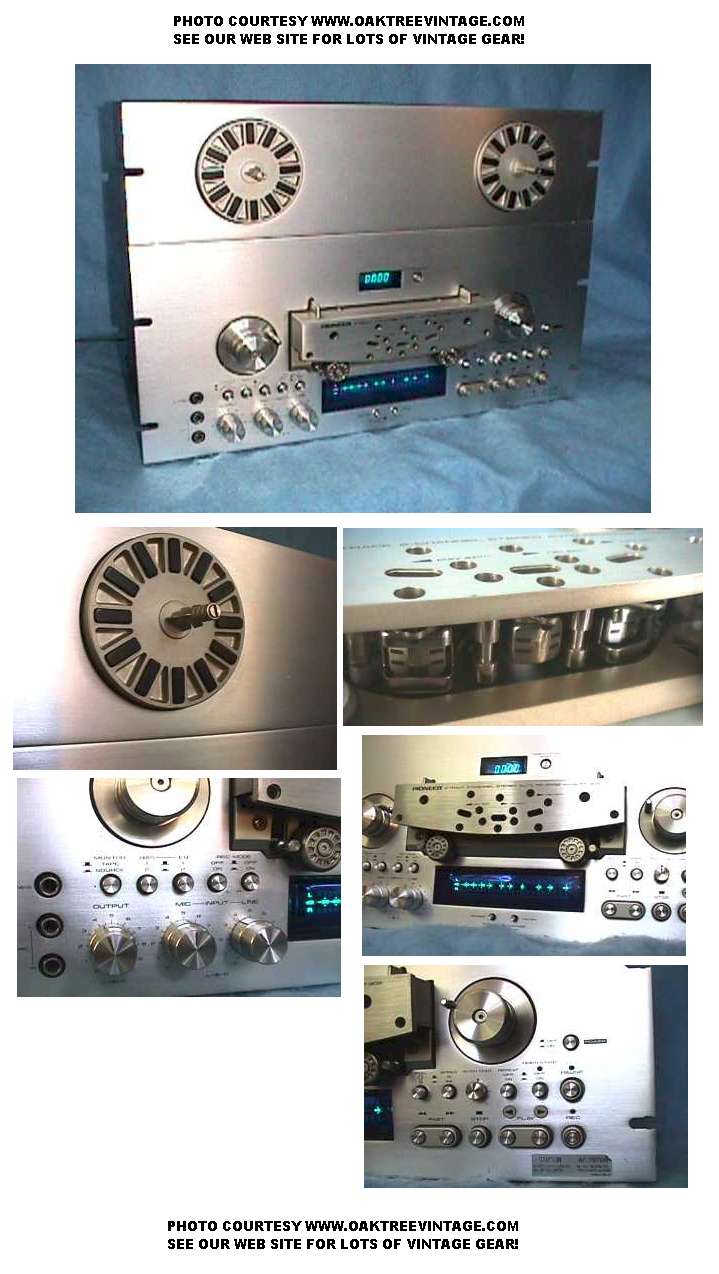

PIONEER RT-909 / RT909 REEL TO REEL R2R
4-TRACK / 2-CHANNEL
3-HEAD / 2-SPEED / 3-MOTOR
1/4" TAPE DECK
Circa 1979-84

SOLD 4/26/05






PIONEER RT-909 / RT909 REEL TO REEL R2R
4-TRACK / 2-CHANNEL
3-HEAD / 2-SPEED / 3-MOTOR
1/4" TAPE DECK
Circa 1979-84

SOLD





NEW LISTING 4/2/10
(Click on above thumbnails to enlarge photos)

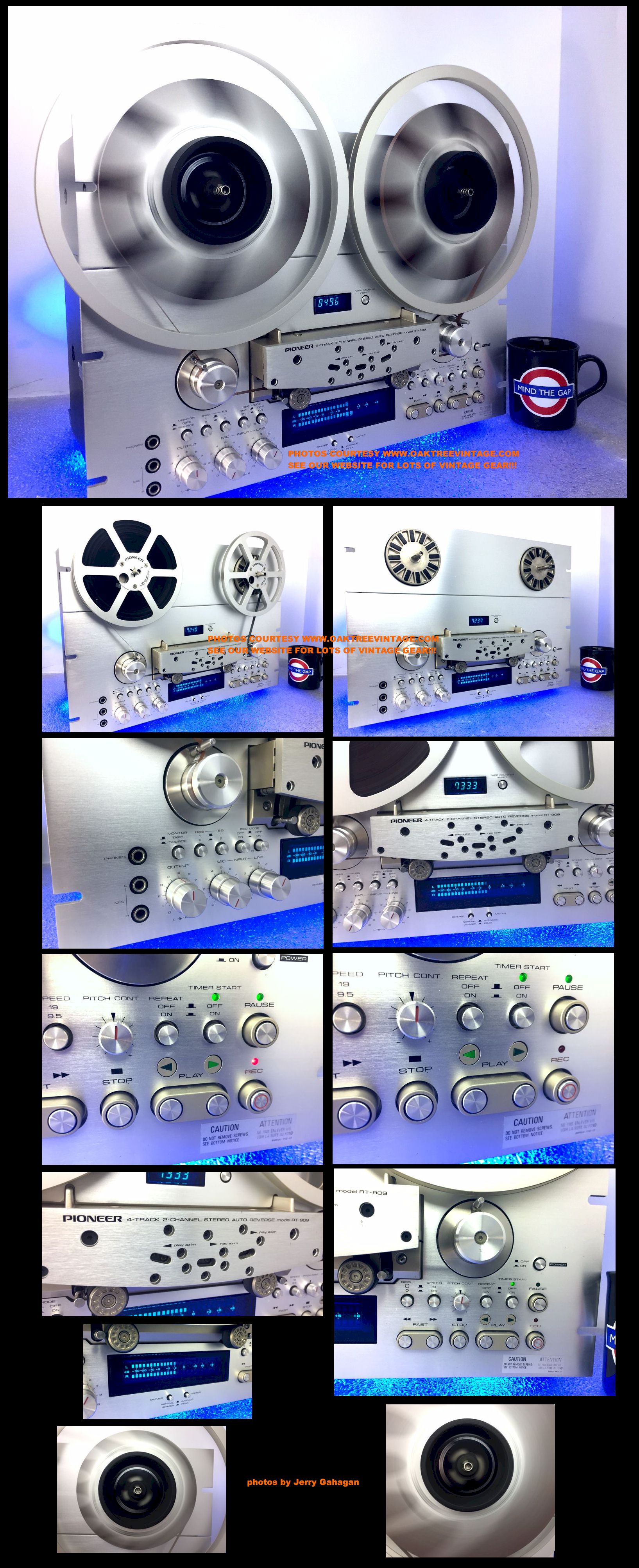

PIONEER RT-909 / RT909 REEL TO REEL R2R
4-TRACK / 2-CHANNEL
3-HEAD / 2-SPEED / 3-MOTOR
1/4" TAPE DECK

OPEN REEL TO REEL TAPE RECORDER

#...4248

 5" / 7" / 10.5" REEL CAPACITY

"
WORLD AC POWER"
  Circa 1979-8
4
(C)
K.K.

SOLD 5/4/10





         NEW LISTING 6/7/12
(Click on above thumbnails to enlarge photos)

PIONEER
OPEN REEL TO REEL TAPE RECORDER

 1/4" STEREO TAPE DECK
PIONEER RT-909 / RT909
#...0569
 4-TRACK / 2-CHANNEL
  2-SPEED / 3 HEAD
AUTO-REVERSE
 5*" / 7*" / 10.5" REEL CAPACITY

  Circa 1979-8
4
SOLD 7/6/12
SHIPPED TO CALIFORNIA

We have completely gone through this unit. All mechanics, disassembled, cleaned and re-lubed . Rubber pinch rollers have been replaced, new drive belt installed, pinch-roller mechanism completely disassembled, cleaned and re-lubed, PR mechanism solenoid mounts adjusted, capstan burnished, heads have been cleaned and de-magnetized as well as the entire transport. Brakes adjusted on fast wind modes also. Back tension adjusted on both reel motors. All three motors test perfectly. Replaced right 'tape tension micro switch'. Repaired minor sine-wave distortion in right channel pre-amp board by replacing factory omitted cap. Replaced weak directional LED. Internal pots, switches and controls cleaned and tested for noise-free function. We adjusted the VU meters both mechanically and electronically w/ factory test tone tapes, as well as the internal playback levels for both directions independently and record levels.
Deck has been fully calibrated to factory manual specs, tested, and found to perform like new in all categories.
Both spindles in perfect alignment. We also adjusted the reel table heights. Heads in great shape as well, with many years of performance left in them and head alignment / azimuth has been checked for peak performance with factory test tone tape and oscilloscope. Both internal speed pots adjusted to 100% accuracy on either speed independently (with pitch control zero'd). Plays great and Records at +/-0dB on both normal Bias and -3dB High Bias Chrome tape. Both level meters adjusted for even playback level w/ factory test tone tape (and we really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy).  (Total time investment in refurb / testing ~ 12 hours). Face is made of beautiful brushed aluminum with only one scuff (see photos above), and is in great condition and has never been rack mounted. Deck looks and works great!
____________________________

SOLD 7/6/12
SHIPPED TO CALIFORNIA



 (Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)

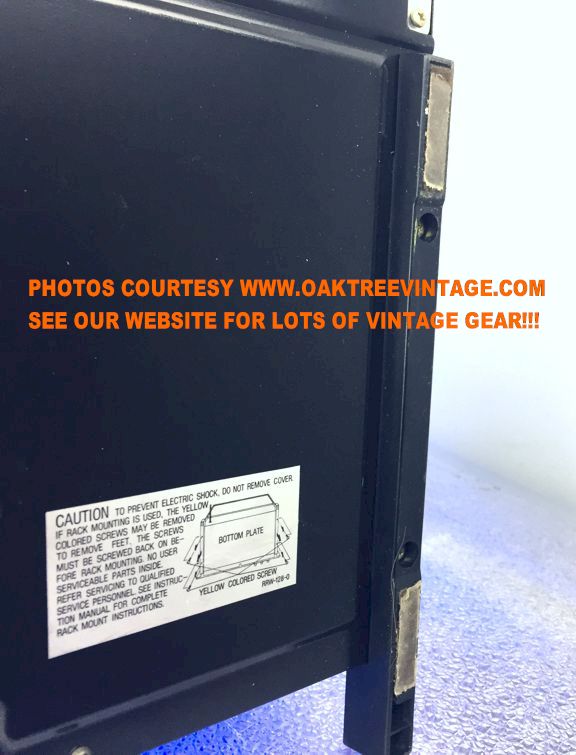

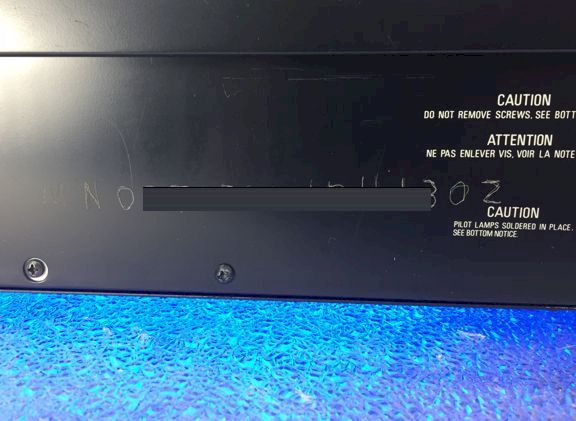

NEW LISTING 12/30/15
(Click on above thumbnails to enlarge photos)

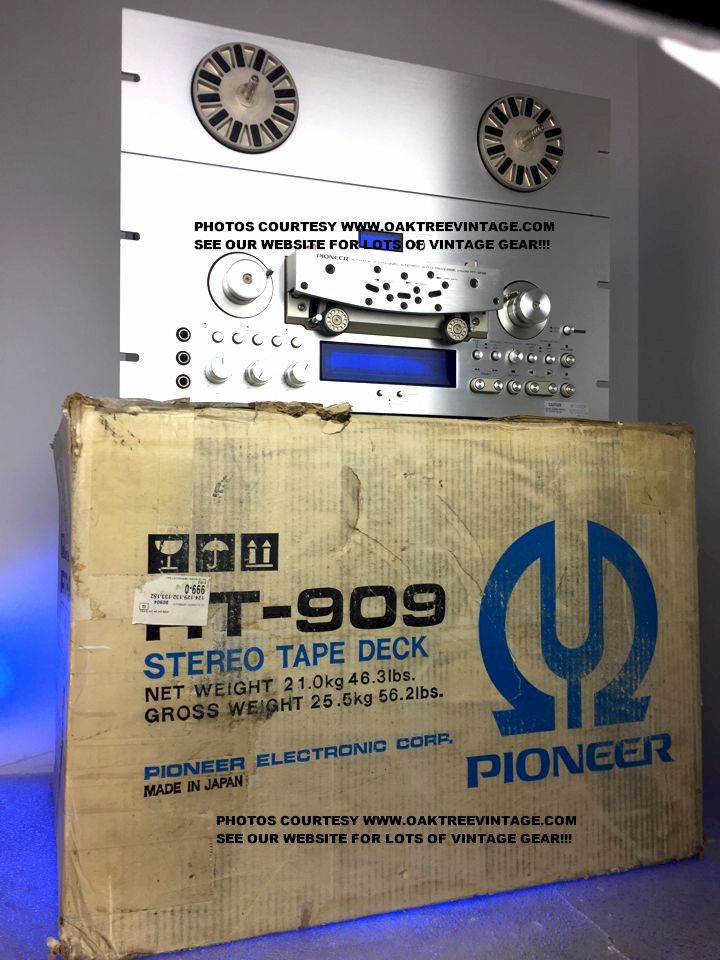

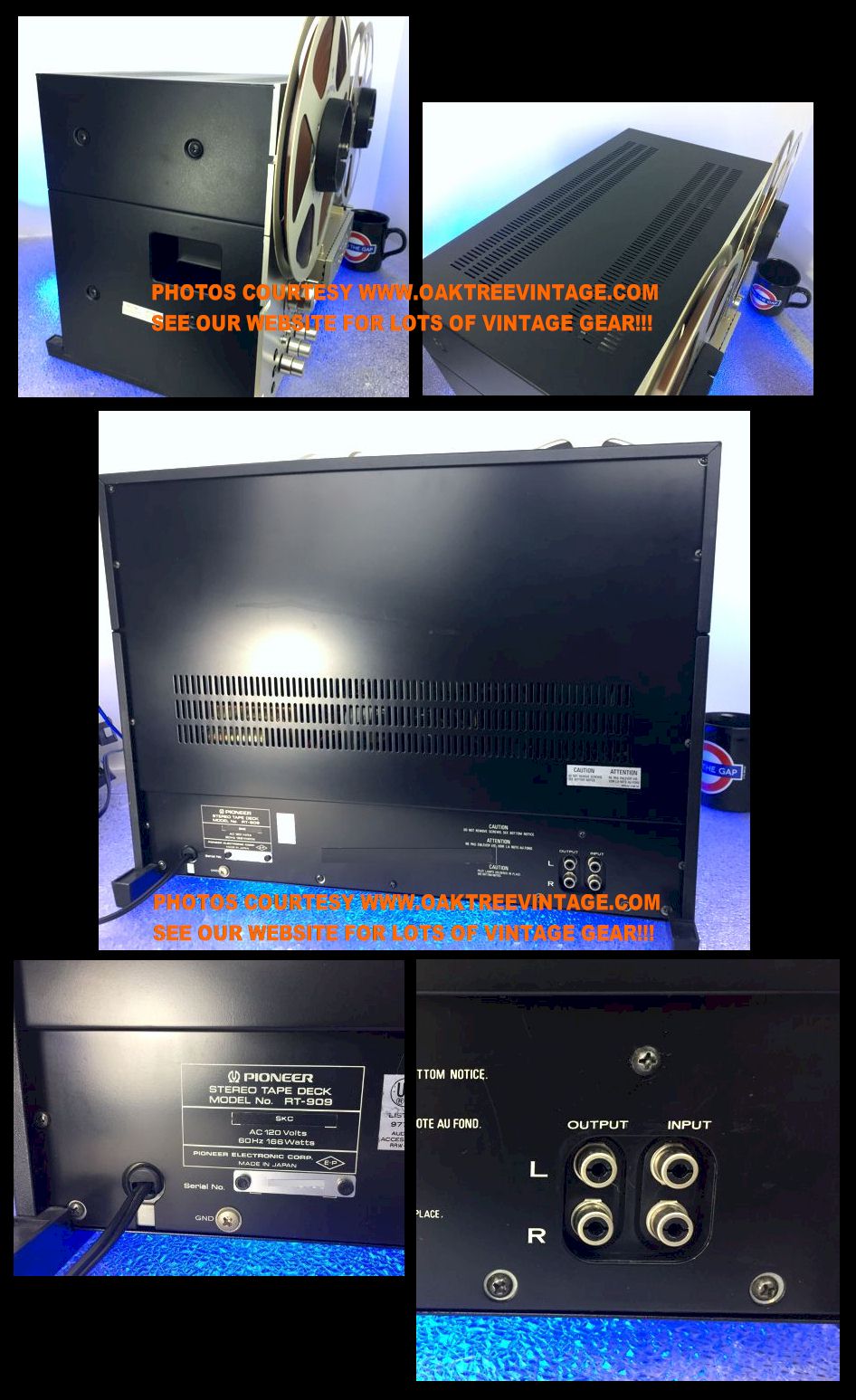

PIONEER OPEN REEL TO REEL TAPE RECORDER
 1/4" STEREO TAPE DECK
PIONEER RT-909 / RT909 REEL TAPE DECK
#...2430
 4-TRACK / 2-CHANNEL
  2-SPEED / 3 HEAD
AUTO-REVERSE

 5*" / 7*" / 10.5" REEL CAPACITY
  Circa 1979-84
MIJ

SOLD 1/19/16
SHIPPING TO CALIFORNIA

ü  Our technician has completely gone through and 'Certified' this unit.

ü  We have completely and extensively gone through the mechanicals and electronics of this unit.

ü  Entire transport was disassembled down to the chassis, and every mechanical part was cleaned, re-lubed and reassembled.

ü pinch-roller mechanism completely disassembled, cleaned and re-lubed,

ü PR mechanism solenoid mounts adjusted

ü Capstans / flywheels removed, bushings and axels cleaned and re-lubed

ü Capstans burnished

 ü  Rubber pinch rollers have been replaced with FRESH units

ü  Brand new drive belt installed,

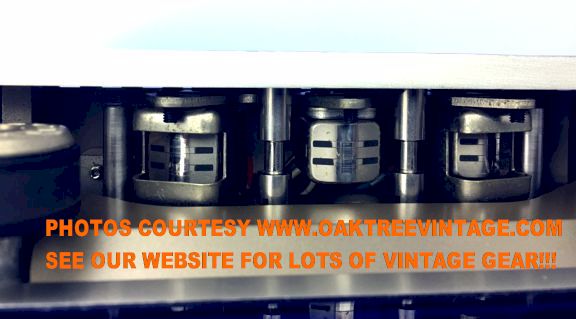

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Brakes adjusted on fast wind modes also.

ü Back tension adjusted on both reel motors.

ü All three motors test perfectly. Following above adjustments, Reel Start and Stop tested at beginning, middle and end of 7" and 10.5" tapes

ü Internal pots, switches and controls cleaned and tested for noise-free function.

ü We adjusted the 'Blue Fluorescent' VU meters electronically w/ factory test tone tapes, as well as the internal playback levels for both directions independently and record levels.

ü Deck has been fully calibrated to factory manual specs, tested, and found to perform like new in all categories.

ü Both spindles in perfect alignment.

ü We also adjusted the reel table heights.

Heads in great shape as well, with many years of performance left in them.

ü  BOTH direction Playback and Record Head alignment / azimuth was adjusted for peak performance with factory test tone tape and oscilloscope.

ü Both internal speed pots adjusted to 100% accuracy on either speed independently (with pitch control zero'd) (meaning that our 'verified' 1000Hz test tape now plays back at 1000Hz).

ü Records at +/-0dB on High Bias Chrome tape.

ü This Pioneer RT-909 functions, plays, and records perfectly (and we really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy).  (Total time investment in refurb / testing ~ 12 hours).

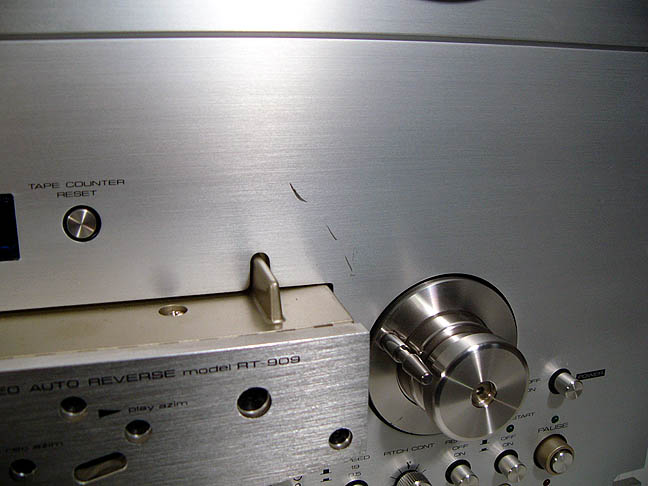

Face is made of beautiful brushed aluminum with only one scuff (see photos above), and is in great condition and has never been rack mounted. Deck looks and works great!
____________________________

Looks GREAT & is "Ready-to-go"! The very sought after Pioneer RT-909 Stereo Reel to Reel tape deck. Will play / record stereo 1/4" tapes on reels 5, 7 & 10.5". This is one of the few reel to reel decks we get in that make it to our finished page. Great performer. If you're looking for a reel to reel deck to "actually use" here you go. Only about 25% of the used Reel decks out there can be "practically" restored to working order. This one made it through and all functions test great! Looks and sounds great too! Again, we have completely gone through it. It has been a few years since the last Pioneer RT-909 made it to the page (the second to last one went in my personal rack).

...
HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

As stated earlier we have completely gone through it cleaning, lubing, adjusting, demagnetizing and testing everything. Plays and records perfectly, AGAIN, records at 0dB down, yes, that's a ZERO! Both original feet / skids intact and perfect (these are commonly broken / missing)

Thick & solid brushed aluminum face plate in excellent condition and has never been 'racked' so no rack screw rack rash / marks! Case also in great condition...
HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?
Includes a pdf / 'e-copy' download of the Pioneer RT-909 Owners manual, and if desired, a copy of the Pioneer RT-909 Service manual. Measures 19" wide x 11.5" deep x 13.5" high and weighs 46 lbs unpacked. Includes our standard 30 day limited warranty.

(NAB Hubs, Reels & tape shown in photos not included. All are sometimes available separately depending on stock levels. Also unit does not have the 'voltage selector' shown in photos)

PIONEER RT-909 Reel to Reel Tape Deck
Cond. 8.5++

(C) R.R.

SOLD 1/19/16
SHIPPING TO CALIFORNIA


WITH A PAIR OF NAB HUBS AND ONE 10.5" METAL PIONEER TAKE-UP REEL!!!


 (Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)






            NEW LISTING 7/15/2021
(click on above thumbnails to enlarge photos)
RESTORED / REFURBISHED / FULLY SERVICED / WARRANTED
PIONEER OPEN REEL TO REEL TAPE RECORDER
 10.5" / 1/4" STEREO TAPE DECK
PIONEER RT-909 / RT909 REEL TAPE DECK
#...2720
 4-TRACK / 2-CHANNEL
  2-SPEED / 3 HEAD
AUTO-REVERSE
 5" / 7" / 10.5" (THE BIG ONES) REEL CAPACITY
  Circa 1979-84
MIJ
for sale

SOLD 8/3/2021
SHIPPING TO ELVIS IN NORTH CAROLINA


ü
  Our technician has completely gone through and 'Certified' this unit.

ü
 We have completely and extensively gone through the mechanicals and electronics of this unit.

ü Entire transport was disassembled down to the chassis, and every mechanical part was cleaned, re-lubed and reassembled.

ü Pinch-roller ‘Lift Mechanism’ completely disassembled, cleaned and re-lubed (requires pulling head block, and Meter CB, once entire front face panel is removed and is fairly time consuming, but must be done on about 50% of 909's)

ü PR mechanism solenoid mounts adjusted

ü Capstans / flywheels removed, bushings and axels cleaned and re-lubed

ü Capstans burnished

ü Rubber pinch rollers have been replaced with FRESH units

ü Brand new drive belt installed

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Power supply CB adjusted to correct 15.1 VDC which enables proper and certainly best performance from Cap motor, Playback and Record amp circuits

ü Both L&R Tape Tension arm mechanisms removed, completely disassembled, solvent cleaned and re-lubed with 500,000 grade silicone gel (time consuming process and must be done to about 75+% of 909's)

ü Back tension adjusted on both reel motors.

ü Reel motor start / run capacitors healthy

ü All three motors test perfectly. Following above adjustments, Reel Start and Stop tested at beginning, middle and end of 7" and 10.5" tapes

ü Brakes adjusted on fast wind modes on both 7.5” and fully loaded 10.5” reels from top speed.

ü Internal pots, switches and controls cleaned and tested for noise-free function.

ü We adjusted the 'Blue Fluorescent' VU meters electronically w/ factory test tone tapes, as well as the internal playback levels for both directions independently and record levels.

ü Deck has been fully calibrated to factory manual specs, tested, and found to perform like new in all categories.

ü Both spindles now in perfect alignment.

ü We also adjusted the reel table heights.

ü Heads have virtually no appreciable, visible wear.

ü BOTH direction Playback and Record Head alignment / azimuth was adjusted for peak performance with factory test tone tape and oscilloscope.

ü Both internal speed pots (VR21 & VR22) adjusted to 100% accuracy on 3.75ips and 7.5ips speeds  independently (with pitch control zero'd) (meaning that our 'official' 1000Hz test tape now plays back at 1000Hz +/- 1Hz w/ pitch control at ’12:00’ position).

ü Recording tests performed with Ampex GM456 and Maxell UD (Gold / Black) Tapes.
Here’s the results;

GM 456 @ 7.5ips. White Noise @ 0dB = +3 dB L&R with very little artifacts
GM 456 @ 7.5ips. 1kHz @ 0dB = +2 dB L&R
GM 456 @ 7.5ips. Recorded program from "ddd" source @ 0dB = +2-3 dB L&R and 'bright'
Maxell UD @ 7.5ips. White Noise @ 0dB = +1 dB L & +2 dB R with very little artifacts
Maxell UD @ 7.5ips. 1kHz @ 0dB = -.05 dB L&R
Maxell UD @ 7.5ips. Recorded program from "ddd" source @ 0dB = +1-1.5 dB L&R and 'bright'

Pretty damn good numbers for a 40 year old classic!


ü Floor noise measured at >-60dBm

ü Original Pioneer Leg / skid sourced to replaced one of the originals that had one end chipped off

ü This Pioneer RT-909 functions, plays, and records perfectly (and we really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy).  (Total time investment in refurb / testing ~ 17+ hours).

ü Face is made of beautiful brushed aluminum and with the exception of a small 'smug' area and other area of light striations (see photos) is in great condition and has never been rack mounted. Deck looks and following it's extensive service, now works great!
____________________________

Looks GREAT & is "Ready-to-go"! The VERY sought after Pioneer RT-909 Stereo Reel to Reel tape deck. Will play / record stereo 1/4" tapes on reels 5, 7 & 10.5". This is one of the few reel to reel decks we get in that make it to our finished page. Great performer. This one made it through and all functions test great! If you're looking for a reel to reel deck to "actually use" here you go. Only about 30-50% of the used Reel decks out there can be "practically" restored to working order. Heads have no appreciable, visible wear, check the record test results above, evidence they’re in fine shape! Following extensive service and alignment, both mechanically and electronically, recordings sound FANTASTIC on this unit now. Looks and sounds great too! This one has never been 'rack mounted' so no 'rack-rash' on the mounting ears. As touched on above, the heads are in beautiful condition, also with none of the common 'green corrosion'. The reel tables do have a tolerable amount of the typical corrosion that is often seen on Pioneer RT's, but doesn't have any on the head cover (which they often do). Also, both the OEM plastic skids are intact now (afflicts about half the 901's and 909's out there (just FYI: the "skids / legs" on Pio RT-909's should always be removed prior to shipping).
Again, we have completely gone through it and it's ready to go!

Pioneer RT-909 Features include:...


...
HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

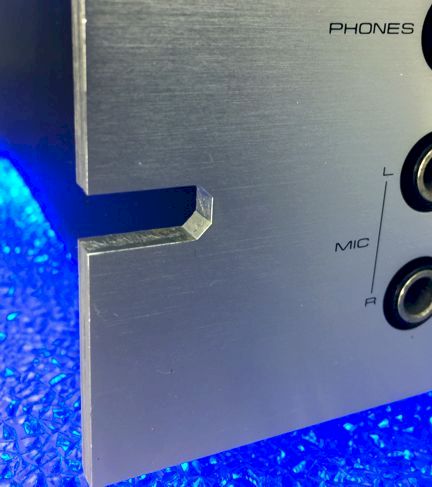

- Standard 19" rack mountable


Pioneer RT-909 Specifications:

Heads: ...

...
HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

...10.5" reel:
Less than 120 sec.


As stated earlier we have completely gone through it cleaning, lubing, adjusting, demagnetizing and testing everything. Plays and records perfectly, AGAIN, records at +2dB @ 1kHz!

As we replaced one, now the OEM feet / skids intact and perfect (these are commonly broken / partially missing).

Thick & solid brushed aluminum face plate in good condition with only the above mentioned rubs / striations, and has never been 'racked' so no rack screw rack rash / marks!

Prior to arriving to us, the sheet metal case was re-sprayed in satin black and is in good condition. There is an area on the back panel where someone had engraved id info, no obliterated with vinyl adhesive covering it.

These are great machines. I have had this one...


...
HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Also includes a 'non-Pioneer', Metal (Scotch brand with some surface wear), 10.5" take-up reel, as well as our normal accessory kit that includes a 'PlayBack Demo' made on the deck, a 7" plastic take-up reel, and a couple of other assorted 7" tapes to play with.
Includes a pdf / 'e-copy' download of the Pioneer RT-909 Owners manual, and if desired, a copy of the Pioneer RT-909 Service manual. Measures 19" wide x 11.5" deep x 13.5" high and weighs 46 lbs unpacked. Includes our standard 30 day limited warranty.
We have restored / refurbished / serviced MANY reel to reel decks over the past 2+ decades, including a lot of Pioneer RT-909's. This is THE BEST recording / performing deck we have finished. "The planets all aligned" and our tech was really able to 'dial' this one in!
PIONEER RT-909, #5708 Reel to Reel Tape Deck
Cond. 8.5+

SOLD 8/3/2021
SHIPPING TO ELVIS IN NORTH CAROLINA


IN ADDITION TO ABOVE MENTIONED ACCESSORIES, WITH A PAIR OF NAB HUBS FOR 10.5" REELS!!!

(Reels shown in photos are not included, but we sometimes / occasionally have them for sale. Inquire at time of order.
However, all of our decks will come with 2x tapes for testing 'Playback' and 'Recording' as well as a 7" 'take-up' reel, and RCA patch cables for connection to your system)


 (Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)







NEW LISTING 1/7/17
(Click on above thumbnails to enlarge photos)
PIONEER OPEN REEL TO REEL TAPE RECORDER
 1/4" STEREO TAPE DECK
PIONEER RT-909 / RT909 REEL TAPE DECK
#...9716
 4-TRACK / 2-CHANNEL
  2-SPEED / 3 HEAD
AUTO-REVERSE
 5" / 7" / 10.5" REEL CAPACITY
  Circa 1979-84
MIJ
SOLD 2/18/17
SHIPPED TO INDIANA

ü  Our technician has completely gone through and 'Certified' this unit.

ü  We have completely and extensively gone through the mechanicals and electronics of this unit.

ü  Entire transport was disassembled down to the chassis, and every mechanical part was cleaned, re-lubed and reassembled.

ü Pinch-roller ‘Lift Mechanism’ completely disassembled, cleaned and re-lubed (requires pulling head block, and Meter CB, once entire front face panel is removed)

ü PR mechanism solenoid mounts adjusted

ü Capstans / flywheels removed, bushings and axels cleaned and re-lubed

ü Capstans burnished

ü  Rubber pinch rollers have been replaced with FRESH units

ü  Brand new drive belt installed

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü  Power supply CB adjusted to correct 15.1VDC which enables best performance from Cap motor, Playback and Record amp circuits

ü  Back tension adjusted on both reel motors.

ü  All three motors test perfectly. Following above adjustments, Reel Start and Stop tested at beginning, middle and end of 7" and 10.5" tapes

ü  Brakes adjusted on fast wind modes on both 7.5” and fully loaded 10.5” reels from top speed.


ü  Internal pots, switches and controls cleaned and tested for noise-free function.

ü We adjusted the 'Blue Fluorescent' VU meters electronically w/ factory test tone tapes, as well as the internal playback levels for both directions independently and record levels.

ü Deck has been fully calibrated to factory manual specs, tested, and found to perform like new in all categories.

ü  Both spindles in perfect alignment.

ü  We also adjusted the reel table heights.

ü  While the heads do have some visible wear (generally expected on a 30+ year old deck) they perform great (see test results below), with lots of performance left in them.

ü  BOTH direction Playback and Record Head alignment / azimuth was adjusted for peak performance with factory test tone tape and oscilloscope.

ü Both internal speed pots adjusted to 100% accuracy on 3.75ips and 7.5ips speeds  independently (with pitch control zero'd) (meaning that our 'verified' 1000Hz test tape now plays back at 1000Hz +/- 1Hz w/ pitch control at ’12:00’ position).

ü Following bench time this unit now Records at +/-0dB on High Bias Chrome tape @ 1kHz. Here’s how it tested with the following frequencies;
50Hz = -1dB, 100Hz= -1dB, 500Hz= -1dB, 1kHz= 0dB, 8kHz= -1dB, 10kHz= -3dB and 15kHz= -5dB. Pretty good numbers for a 35 year old classic!


ü Floor noise measured at >-60dBm

ü This Pioneer RT-909 functions, plays, and records perfectly (and we really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy).  (Total time investment in refurb / testing ~ 13+ hours).

Face is made of beautiful brushed aluminum and is in great condition and has never been rack mounted. Deck looks and works great!
____________________________

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

to the page (the second to last one went in my personal rack).

Pioneer RT-909 Features include:


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Pioneer RT-909 Specifications:

Heads: 4 (record, erase, fwd-play, rev-play)
1 Hard 'Permalloy' Recording Head
1 Ferrite Erase Head
1 Hard 'Permalloy' forward Playback Head
1 Hard 'Permalloy' reverse Playback Head

Motors: Capstan drive motor; 1 (FG servo DC motor)
Reel base drive motors; 2 (6-pole inner rotor special induction type)
Tape Speed:
19cm/s (7-1/2ips), 9.5cm/s (3-3/4ips) ±0.5%
Wow and flutter:
< xx% WRMS (19cm/s)


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


< xx% WRMS (9.5cm/s)
Signal to noise ratio:
>xdB
THD:
<x% @ 19cms
Frequency response:
@ 19cm/s  2xx
Crosstalk:
>xxdB
Channel separation:
>xxdB
Erasing coefficient:
>xxdB
Recording bias Frequency:
125kHz
Pitch-control:
+/- 6%
2 VU-meters:
dB (-30 to +8)
Input Sensitivity (Minimum / Maximum allowable level / impedance):
Mic x 2xxx
Output Level Reference / Maximum:
Line; xxmV / x0k

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Headphones; xxmV / 8 , 1/4" / 6mm diam. jack
Fast Wind Time w/ 720m’ Tape & 10.5" reel:
Less than xx0 sec.


As stated earlier we have completely gone through it cleaning, lubing, adjusting, demagnetizing and testing everything. Plays and records perfectly, AGAIN, following our tech time, unit records at 0dB @ 1kHz, yes, that's a ZERO! Both original feet / skids intact and perfect (these are commonly broken / missing)

Thick & solid brushed aluminum face plate in LIKE NEW condition and has never been 'racked' so no rack screw rack rash / marks! Case also in excellent condition.

These are great machines. I have had one myself for a few years (this one WAY OUTPERFORMS my personal unit. Need to get our tech to do mine). It's a blast to put on a BIG 10.5" reel with Pink Floyds, "Dark Side of the Moon". Even though it was designed for the consumer market, many were and are in use in schools, universities, libraries, clubs, etc. I worked at a Sheraton Inn in the late 70's and early 80's, and we had two in the DJ booth, that supplied foreground music from about 11AM till the DJ showed up at about 9PM, 7 days a week!
Includes a pdf / 'e-copy' download of the Pioneer RT-909 Owners manual, and if desired, a copy of the Pioneer RT-909 Service manual. Measures 19" wide x 11.5" deep x 13.5" high and weighs 46 lbs unpacked. Includes our standard 30 day limited warranty.

(unit does not have the 'voltage selector' shown in photos)

PIONEER RT-909 Reel to Reel Tape Deck
Cond. 9

SOLD 2/18/17
SHIPPED TO INDIANA


WITH A PAIR OF ORIGINAL PIONEER NAB HUBS AND ONE 10.5" METAL PIONEER TAKE-UP REEL!!!


 (Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)






NEW LISTING 4/9/2020
(click on above thumbnails to enlarge photos)
RESTORED / REFURBISHED / FULLY SERVICED / WARRANTED
PIONEER OPEN REEL TO REEL TAPE RECORDER
 10.5" / 1/4" STEREO TAPE DECK
PIONEER RT-909 / RT909 REEL TAPE DECK
 4-TRACK / 2-CHANNEL
  2-SPEED / 3 HEAD
AUTO-REVERSE
 5" / 7" / 10.5" (THE BIG ONES) REEL CAPACITY
  Circa 1979-84
MIJ

SOLD 4/14/20
SHIPPING TO BRAD IN HAWAII

ü  Our technician has completely gone through and 'Certified' this unit. ü  We have completely and extensively gone through the mechanicals and electronics of this unit.

ü  Entire transport was disassembled down to the chassis, and every mechanical part was cleaned, re-lubed and reassembled.

ü  Pinch-roller ‘Lift Mechanism’ completely disassembled, cleaned and re-lubed (requires pulling head block, and Meter CB, once entire front face panel is removed and is fairly time consuming, but must be done on about 50% of 909's)

ü  PR mechanism solenoid mounts adjusted

ü  Capstans / flywheels removed, bushings and axels cleaned and re-lubed

ü  Capstans burnished

ü  Rubber pinch rollers have been replaced with FRESH units

ü  Brand new drive belt installed

ü  Heads have been cleaned and de-magnetized as well as the entire transport.

ü  Power supply CB adjusted to correct 15.1VDC which enables best performance from Cap motor, Playback and Record amp circuits

ü  Both L&R Tape Tension arm mechanisms removed, completely disassembled and re-lubed with 500,000 grade silicone gel (time consuming process and must be done to about 75+% of 909's)

ü  Back tension adjusted on both reel motors.

ü  All three motors test perfectly. Following above adjustments, Reel Start and Stop tested at beginning, middle and end of 7" and 10.5" tapes

ü  Brakes adjusted on fast wind modes on both 7.5” and fully loaded 10.5” reels from top speed.

ü  Internal pots, switches and controls cleaned and tested for noise-free function.

ü  We adjusted the 'Blue Fluorescent' VU meters electronically w/ factory test tone tapes, as well as the internal playback levels for both directions independently and record levels.

ü  Deck has been fully calibrated to factory manual specs, tested, and found to perform like new in all categories.

ü  Both spindles in perfect alignment.

ü  We also adjusted the reel table heights.

ü  Heads have virtually no appreciable, visible wear. (heads also HAVE NONE of the common 'green, surface corrosion' that a lot of Pioneer tape decks seem to get {we've had loads with the corrosion, and haven't really found a good way to remove it when a deck has it short of 'lapping' them...which we don't do})

ü  BOTH direction Playback and Record Head alignment / azimuth was adjusted for peak performance with factory test tone tape and oscilloscope.

ü  Both internal speed pots adjusted to 100% accuracy on 3.75ips and 7.5ips speeds  independently (with pitch control zero'd) (meaning that our 'verified' 1000Hz test tape now plays back at 1000Hz +/- 1Hz w/ pitch control at ’12:00’ position).

ü  Recording tests performed with Ampex GM456 tape. Here’s how it tested with the following frequencies recorded at 0dB;
500Hz = +2dB, 1kHz= +2dB, 2.5kHz= +1dB, 5kHz= +1dB, 7.5kHz= 0dB, 10kHz= 0dB, 12.5kHz= 0dB, 15kHz= -1dB, 17.5kHz= -1dB, 20kHz= -1.5dB, 22.5kHz= -4dB, and 25kHz= -5.5dB. Pretty damn good numbers for a 40 year old classic!


ü  Floor noise measured at >-60dBm

ü  This Pioneer RT-909 functions, plays, and records perfectly (and we really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy).  (Total time investment in refurb / testing ~ 12+ hours).

ü  Face is made of beautiful brushed aluminum and is in great condition and has never been rack mounted. Deck looks and works great!
____________________________
Looks GREAT & is "Ready-to-go"! The very sought after Pioneer RT-909 Stereo Reel to Reel tape deck. Will play / record stereo 1/4" tapes on reels 5, 7 & 10.5". This is one of the few reel to reel decks we get in that make it to our finished page. Great performer. This one made it through and all functions test great! If you're looking for a reel to reel deck to "actually use" here you go. Only about 25% of the used Reel decks out there can be "practically" restored to working order. Heads have no appreciable, visible wear, check the record test results above, evidence they’re sounding great! Recordings sound FANTASTIC on this unit now. Looks essentially NEW and sounds great too! This one has never been 'rack mounted' so no 'rack-rash' on the mounting ears. As touched on above, the heads are in beautiful condition, also with none of the common 'green corrosion'. The head cover and the reel tables are also free of the 'green corrosion' that is often seen growing on Pioneer RT's. Also, both the original plastic skids are intact and un-broken (afflicts about half the 901's and 909's out there (should typically be removed prior to shipping along with the reel spindles).
Again, we have completely gone through it. It has been in my personal office system here at OakTreeVintage for a few years, but I'm switching to a 'high speed' unit.

Pioneer RT-909 Features include:

- 4-Track / 2-Channel
- 5" / 7" / 10.5" Reel Capacity (compatible with standard / normal 4-Track / 2-Channel tape format)
- 3 Heads for instant monitoring of tape levels while recording
- Three Motors for trouble free performance (has a lot to do with it still being a viable piece of gear due to less rubber parts)
- Dual Flywheel, Closed Loop Tape Transport
- BLUE METERS! Dual "Blue", Fluorescent level meters with dimmer selector
- Variable pitch control (
+/- 6%)
- Auto-Reverse for Playback (when using tape with "auto-reverse" sensing foil) (Forward Recording, with forward & reverse playback)
- Dual speeds at 7.5 ips / 19cms and 3 3/4ips / 9.5 cms
- 'IC Logic' / Solenoid Drive Touch Transport control and 'Power Brake' tape handling
- Manual Reverse switches for changing direction with out flipping reels over
- Spring loaded, Reel table locks (no need for rubber stoppers / clamps)
- Independent Tape 'Bias' and 'Equalization' settings
- Repeat function
- Separate & dual concentric mic and line level controls
- Source / Monitor selector (for instant monitoring of recording)
- Independent L & R record enable switches for doing "sound-on-sound"
- Pitch Control (Playback)
- Left & Right output level controls
- 4-Digit, "Blue", Fluorescent tape counter
- 'Timer' Play / Record function
- Dual front mounted 1/4" Microphone inputs
- Variable Output Level controls for each channel (one of the most important features on a deck in our opinion. Allows you to match volume level of other sources, allows adjustment for 'best' pre-amp input to avoid distortion, allows you to change the volume of the deck if you have it located remotely from the pre-amp / receiver as I do, and many other applications)
- Standard 19" rack mountable


Pioneer RT-909 Specifications:

Heads: 4 (record, erase, fwd-play, rev-play)
1 Hard 'Permalloy' Recording Head
1 Ferrite Erase Head
1 Hard 'Permalloy' forward Playback Head
1 Hard 'Permalloy' reverse Playback Head

Motors: Capstan drive motor; 1 (FG servo DC motor)
Reel base drive motors; 2 (6-pole inner rotor special induction type)
Tape Speed:
19cm/s (7-1/2ips), 9.5cm/s (3-3/4ips) ±0.5%
Wow and flutter:
< 0.04% WRMS (19cm/s)
< 0.08% WRMS (9.5cm/s)
Signal to noise ratio: >60dB
THD:
<1% @ 19cms
Frequency response:
@ 19cm/s  20Hz to 30,000Hz (20Hz to 28,000Hz ±3dB)
@ 9.5cm/s  20Hz to 20,000Hz (20Hz to 18,000Hz ±3dB)
Crosstalk:
>50dB
Channel separation:
>50dB
Erasing coefficient:
>60dB
Recording bias Frequency:
125kHz
Pitch-control:
+/- 6%
2 VU-meters:
dB (-30 to +8)
Input Sensitivity (Minimum / Maximum allowable level / impedance):
Mic x 2; 0.316mV /100mV /27kΩ, 1/4" / 6mm diam. jacks
(suitable microphone, 250Ω to 10kΩ)
Line; 50mV / 25V / 50kΩ
Output Level Reference / Maximum:
Line; 900mV / 50kΩ
Headphones; 50mV / 8Ω, 1/4" / 6mm diam. jack
Fast Wind Time w/ 720m’ Tape & 10.5" reel:
Less than 120 sec.


As stated earlier we have completely gone through it cleaning, lubing, adjusting, demagnetizing and testing everything. Plays and records perfectly, AGAIN, records at +1dB @ 1kHz! Both original feet / skids intact and perfect (these are commonly broken / missing)

Thick & solid brushed aluminum face plate in LIKE NEW condition and has never been 'racked' so no rack screw rack rash / marks!

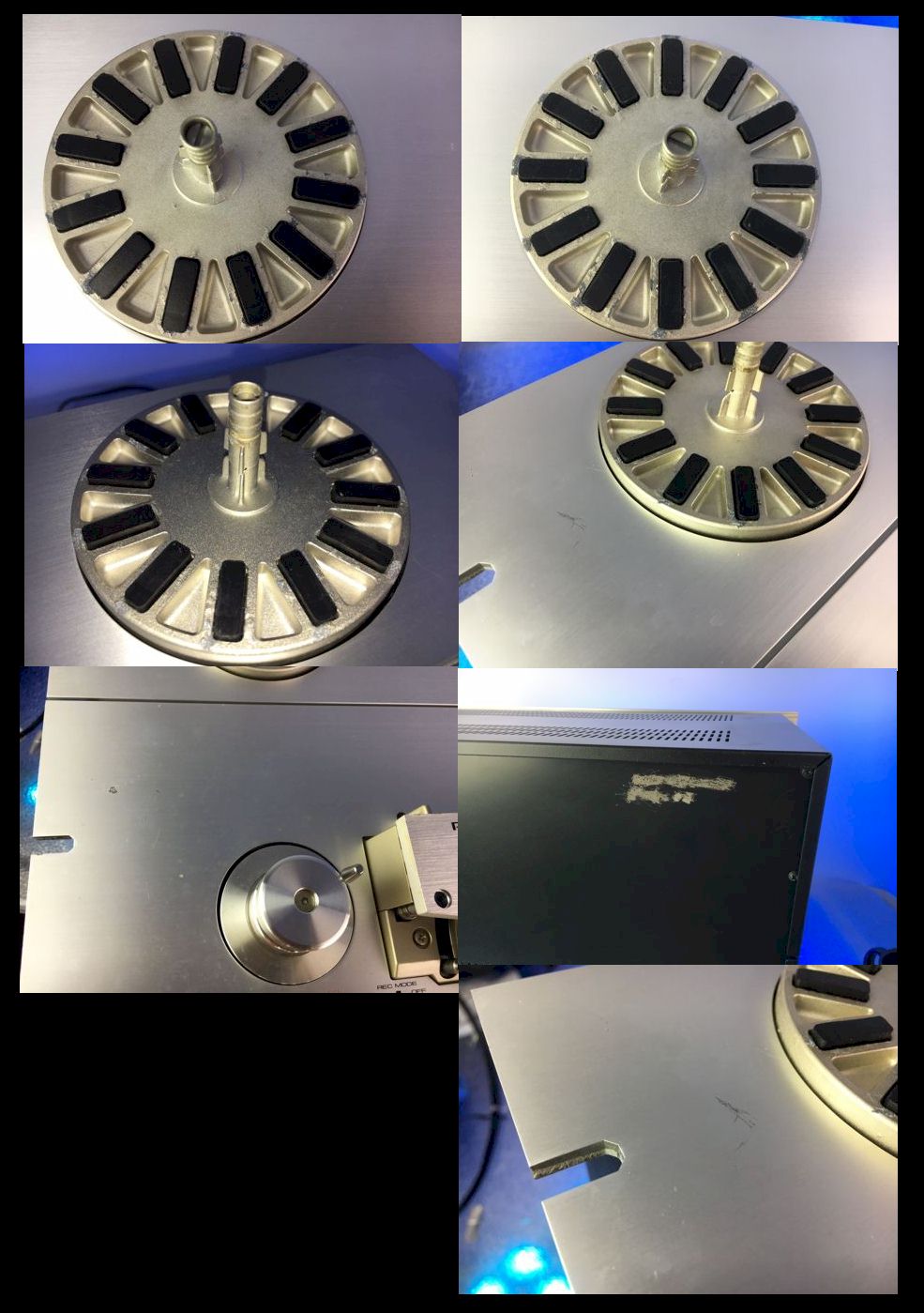

 About the only cosmetic issue worth mentioning is someone engraved their id number in the rear panel.

Overall, the sheet metal case is
in excellent condition.

These are great machines. I have had this one myself for years. It's a blast to put on a BIG 10.5" reel with Pink Floyds, "Dark Side of the Moon". Even though it was designed for the consumer market, many were and are in use in schools, universities, libraries, clubs, etc. I worked at a Sheraton Inn in the late 70's and early 80's, and we had two in the DJ booth, that supplied foreground music from about 11AM till the DJ showed up at about 9PM, 7 days a week!
Comes with an original (not it's) Pioneer RT-909 box and packing.
Also includes a pair of original, Pioneer PP-220 NAB Hub adaptors.



Also includes a 'non-Pioneer', Metal (Scotch brand with some surface wear), 10.5" take-up reel, as well as our normal accessory kit that includes a 'PlayBack Demo' made on the deck, a 7" plastic take-up reel, and a couple of other assorted 7" tapes to play with.
Includes a pdf / 'e-copy' download of the Pioneer RT-909 Owners manual, and if desired, a copy of the Pioneer RT-909 Service manual. Measures 19" wide x 11.5" deep x 13.5" high and weighs 46 lbs unpacked. Includes our standard 30 day limited warranty.

PIONEER RT-909 Reel to Reel Tape Deck
Cond. 9

SOLD 4/14/20
SHIPPING TO BRAD IN HAWAII


WITH A PAIR OF ORIGINAL PIONEER NAB HUBS AND A 10.5" METAL SCOTCH TAKE-UP REEL!!!

(Reels shown in photos are not included, but we sometimes / occasionally have them for sale. Inquire at time of order.
However, all of our decks will come with 2x tapes for testing 'Playback' and 'Recording' as well as a 7" 'take-up' reel, and RCA patch cables for connection to your system)


 (Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)

(archived)






NEW LISTING 9/28/05

(Click on above thumbnails to enlarge photos)
PIONEER

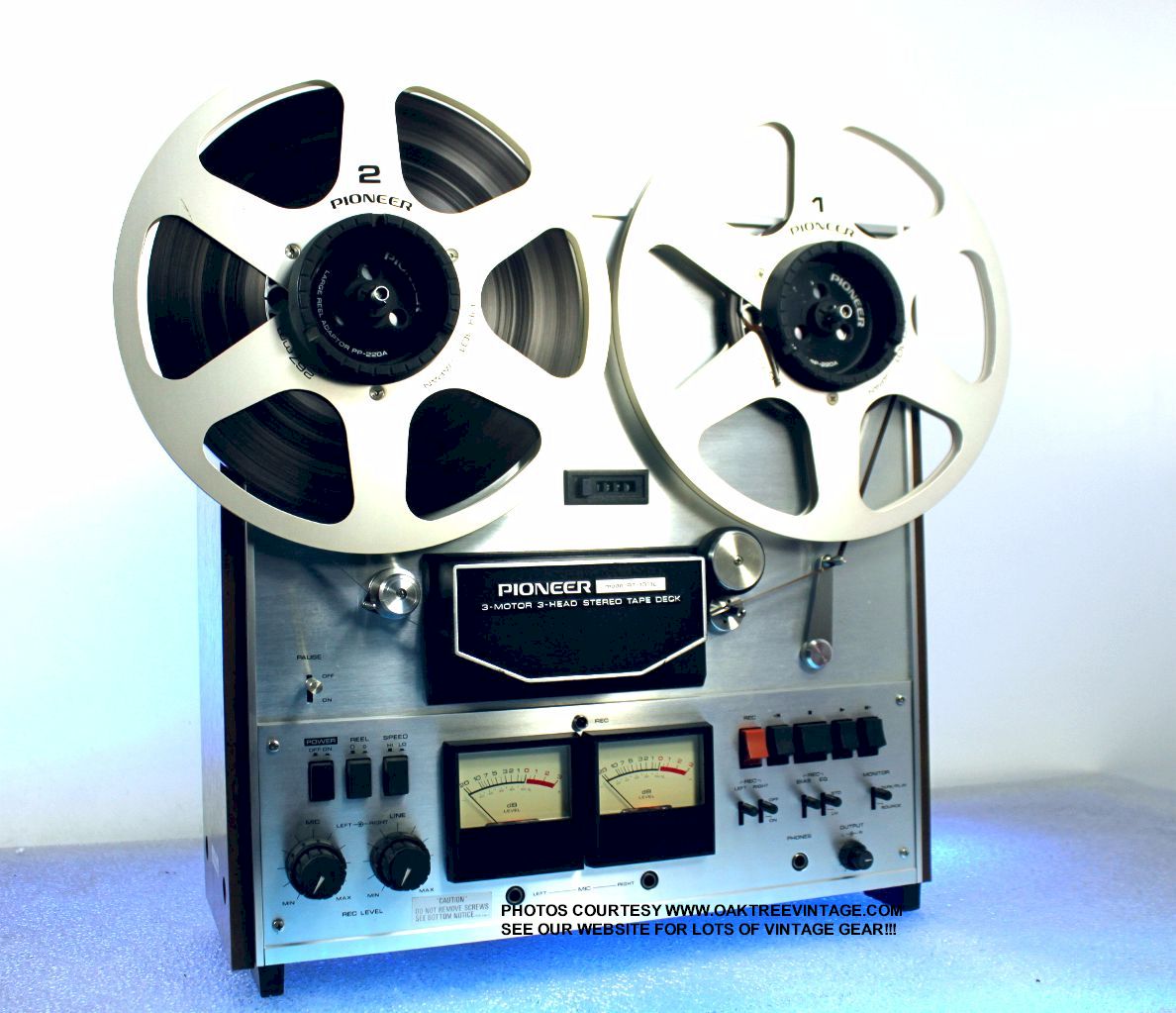

MODEL RT-1011L
SOLD 10/4/05

10.5" & 7" REEL
 4-TRACK / 2 CHANNEL STEREO

3-HEAD / 2-SPEED / 3-MOTOR
REEL TO REEL R2R
1/4" TAPE DECK







NEW LISTING 4/3/09

(Click on above thumbnails to enlarge photos)

PIONEER

REEL TO REEL

TAPE DECK

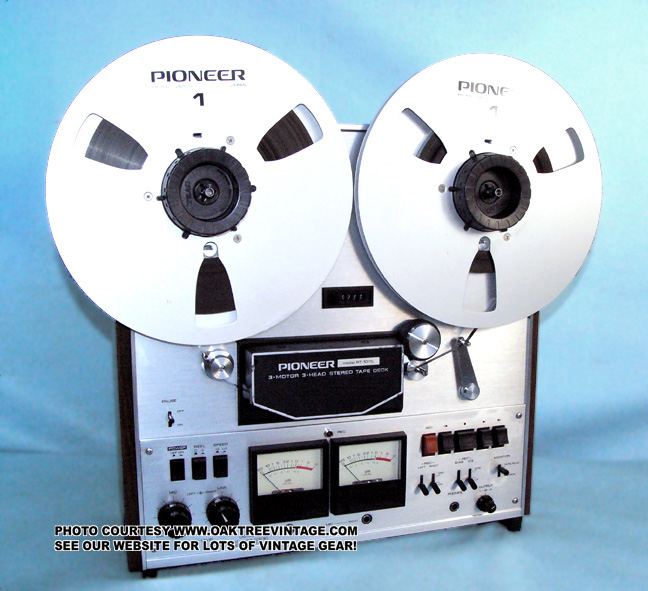

            RT-1011L
RT
1011L
    #...8392
4-TRACK / 2-CHANNEL STEREO

3-HEAD / 3-MOTOR
2-SPEED
1/4" X 7" OR 10.5" REEL SIZE

  Circa 19
74-79
SOLD 4/13/09

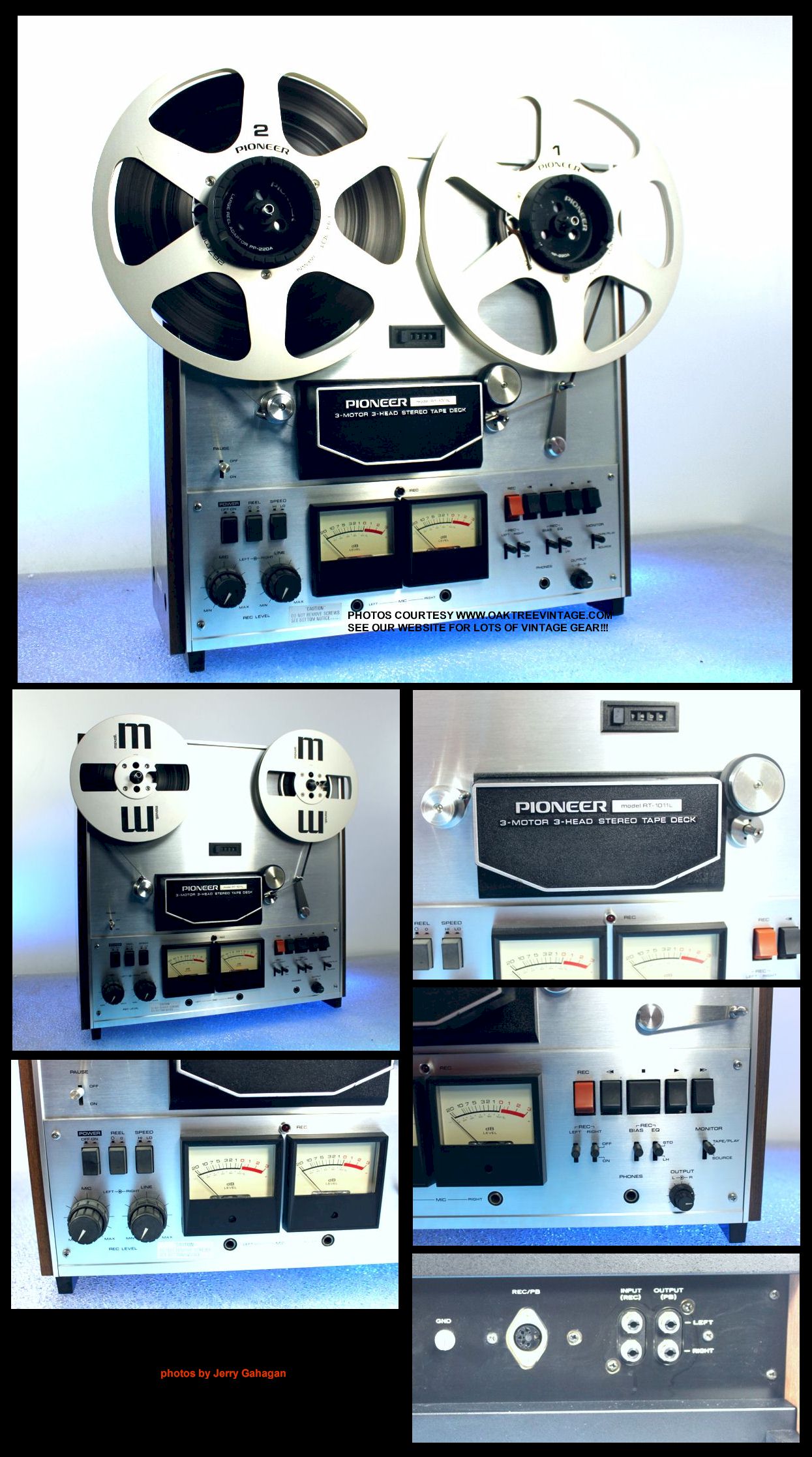

NEW LISTING 6/11/17
(Click on above thumbnails to enlarge photos)

RESTORED / REFURBISHED / FULLY SERVICED
VINTAGE
PIONEER REEL TO REEL TAPE DECK

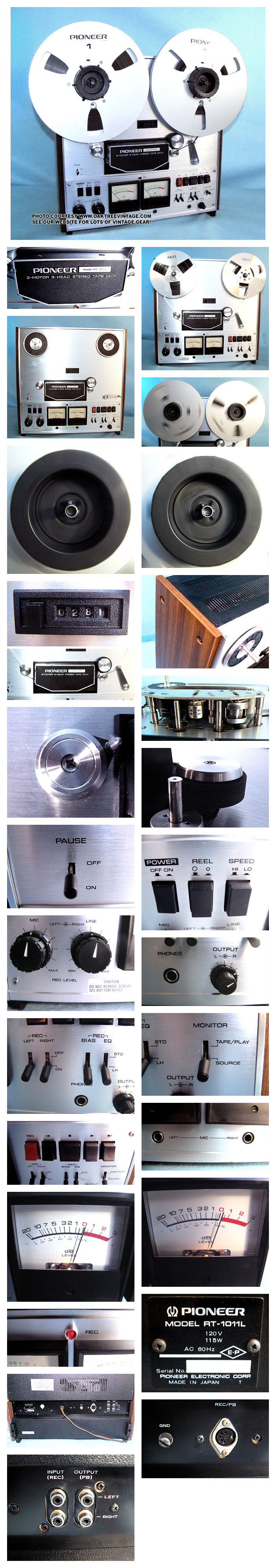

PIONEER RT-1011L

#...4952
 4-TRACK / 2-CHANNEL STEREO
 3-HEAD / 3-MOTOR
 2-SPEED
1/4" X 3", 5",  7" OR 10.5" REEL SIZE
Circa 1974-79

SOLD 6/19/17
SHIPPED TO RHODE ISLAND


 ü  Our technician has completely gone through and 'Certified' this unit.

ü  We have completely and extensively gone through the mechanicals and electronics of this unit.

ü Entire transport was disassembled down to the chassis, and every mechanical part was disassembled, cleaned, re-lubed and reassembled

ü Tape Tension arms disassembled, cleaned and re-lubed, and their springs adjusted and had fresh 500,000 grade silicone lube gel applied

ü pinch-roller mechanism completely disassembled, cleaned and re-lubed

ü PR mechanism solenoid mounts adjusted

ü Capstan drive flywheels removed, bushings and axels cleaned and re-lubed and flywheels burnished

ü Capstans cleaned and burnished burnished

ü Rubber pinch roller removed and re-conditioned

ü MAIN drive belt reconditioned and re-installed

ü Brand new counter belt installed

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Brakes adjusted on fast wind modes also (optimized for 10.5" tape.)

ü Back tension adjusted on both reel motors.

ü All three motors test perfectly. Following above adjustments, Reel Start and Stop tested at beginning, middle and end of 10.5" tapes

ü Internal pots, switches and controls cleaned and tested for noise-free function (initially, of course, had typical static / noise which is to be expected in an 'un-serviced' deck after 35+ years).

ü We adjusted the VU meters mechanically and electronically w/ factory test tone tapes, as well as the internal playback levels for both directions independently and record levels.

ü Both spindles in perfect alignment.

ü We also adjusted the reel table heights.

ü Heads in great shape as well, with many years of performance left in them.

ü Playback and Record Head alignment / azimuth was adjusted for peak performance with factory test tone tape and oscilloscope. Checked at 1kHz, 10kHz and 15kHz

ü Speed tested to 99.0% accuracy following refurb (meaning that our 'verified' 1000Hz test tape now plays back at 1010Hz).

ü Records decently at 0dB (yes, that's ZERO) on Maxell, UD High Bias tape at 1kHz.

ü Floor noise measured at >-60dB w/ blank tape, L&R

ü This Pioneer RT-1011L functions, plays, and records VERY WELL (and we really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy).  (Total time investment in refurb / testing ~ 14 hours).

Face is beautiful, brushed, Stainless Steel and case is in great condition. Deck looks and works great!

The
Pioneer RT-1011L  Stereo Reel to Reel tape deck. Ready to GO! This is one of the few reel to reel decks we get in that make it to our finished page. If you're looking for a reel to reel deck to "actually use" here you go. Only about 25 % of the used Reel decks out there can be "practically" restored to working order. This one made it through with flying colors after about 14 hours of bench time.
The deck tests great! Looks and sounds great too! We have completely gone through it. Will play 7" & 10.5" reels.

(Total time investment in refurb / testing ~ 12 hours). Face is made of beautiful brushed stainless, and is in great condition with no reel scuff. Deck looks and performs great!
 ____________________________


 Super clean and..

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

, Pioneer RT-1011L R2R deck! Just serviced and ready to GO! This is one of the few reel to reel decks we get in that make it to our finished page. ...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

..
Only about 30-50% of the used Reel decks out there can be "practically" restored to working order. This one made it through with flying colors. Looks and sounds great too! We have completely gone through it. Will play or record 7" or 10.5"  reels.

Pioneer RT-1011L Features include:


- 4-...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?



  Pioneer RT-1011L Specifications:

Track system: 4-track, 4-channel/2-channel stereo tape deck
Number of Motors: x


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


Transport Control Type: xx
Tape Speeds:
xx
Heads: xx
Frequexncy response: xHz to xxHz (± xdB at 7-1/2 ips) with normal tape. (Chrome tape gives even better performance)
Signxal to Noise Ratio: > xxdB
Chaxnnel Sxeparation / Crosstalk: >xxdB
Output Level: xxmV @ 0dB on VU meters
Maximxum Reel capacity: 10.5’’ reel
Tape speed: 19cm/s (7-1/2 ips & 9.5 cm/s (3-3/4 ips)
Wow & Flutter: xx% at 7-1/2ips
Micrxophonex input impexdance: xk Ohms
Fast Wixnd speed: ~xsecs for 1200 feet on 7" reel

As stated earlier we have completely gone through it cleaning, lubing, adjusting, demagnetizing and testing everything. Plays and records VERY WELL! Wood grain, vinyl wrapped side panels & Brushed stainless steel face all in great shape as well as all the original knobs and switch caps.  They don't come in often and of the hundred or so decks in line for restoration, there's only a couple more currently if that gives you an idea of the 10.5" to 7" ratio. Measures 17.5" wide x 17" tall x 9" (from tip of back feet-tip of hubs) deep and weighs 47 lbs unpacked. Comes with an 'e-copy' / pdf download of the Pioneer RT-1011L owners / operations manual, service manual and original brochure if purchaser so desires Includes our standard 30 day limited warranty. (Reels & tape shown in photos not included. All are sometimes available separately if you need them)
 PIONEER RT-1011L
Cond. 8.5

SOLD 6/19/17
SHIPPED TO RHODE ISLAND



 (Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)






NEW LISTING 4/8/17
(Click on above thumbnails to enlarge photos)

RESTORED / REFURBISHED / FULLY SERVICED
VINTAGE
PIONEER REEL TO REEL TAPE DECK

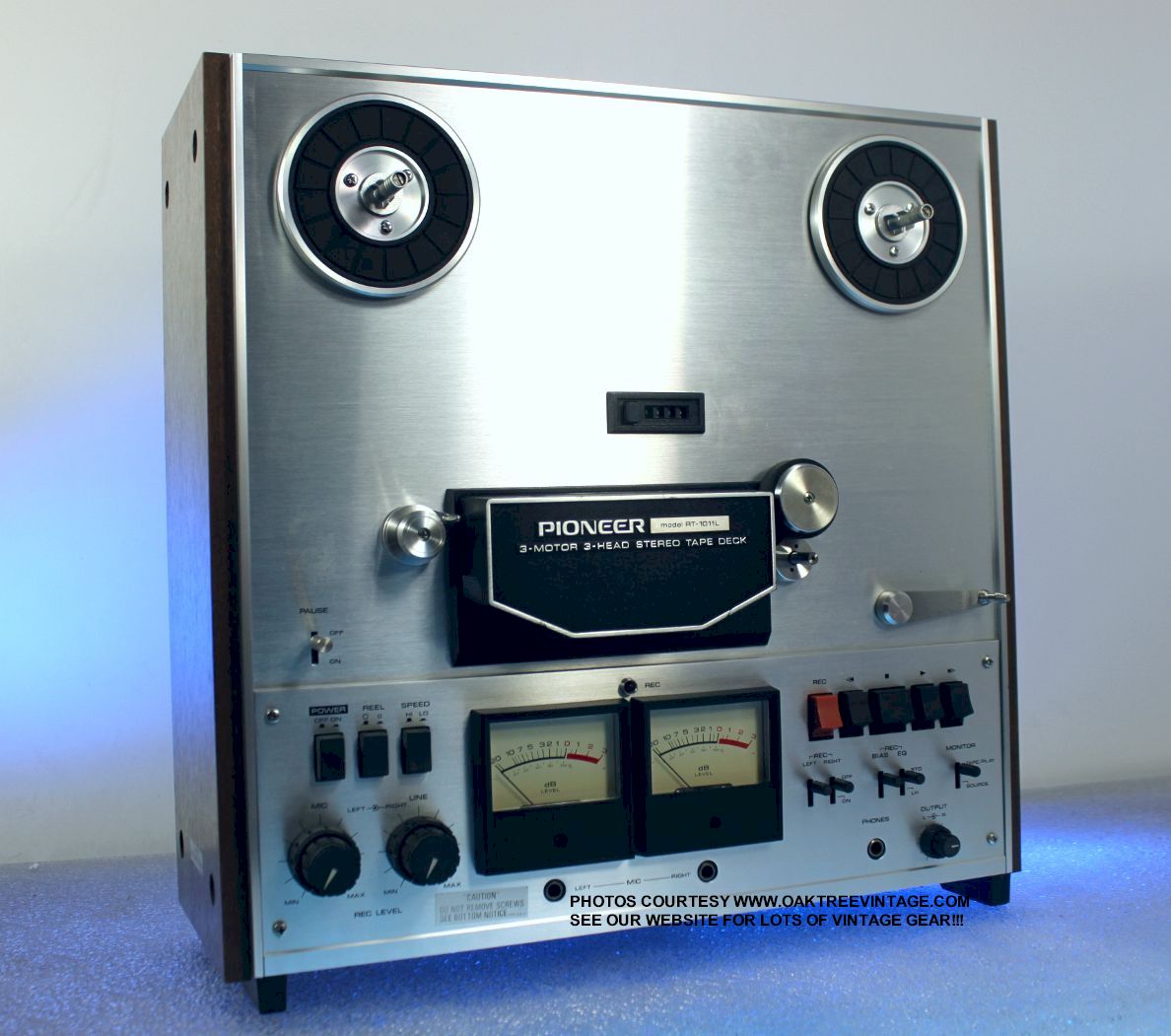

PIONEER RT-1011L

#...9008
 4-TRACK / 2-CHANNEL STEREO
 3-HEAD / 3-MOTOR
 2-SPEED
1/4" X 3", 5",  7" OR 10.5" REEL SIZE
Circa 1974-79


SOLD 5/19/17
SHIPPED TO  CANADA

 ü  Our technician has completely gone through and 'Certified' this unit.

ü  We have completely and extensively gone through the mechanicals and electronics of this unit.

ü Entire transport was disassembled down to the chassis, and every mechanical part was disassembled, cleaned, re-lubed and reassembled

ü Tape Tension arms disassembled, cleaned and re-lubed, and their springs adjusted and had fresh 500,000 grade silicone lube gel applied

ü pinch-roller mechanism completely disassembled, cleaned and re-lubed

ü PR mechanism solenoid mounts adjusted

ü Capstans / flywheels removed, bushings and axels cleaned and re-lubed and flywheels burnished (see photos above)

ü Capstans burnished

ü Rubber pinch roller removed and re-conditioned

ü MAIN drive belt reconditioned and re-installed

ü Brand new counter belt installed

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Brakes adjusted on fast wind modes also (optimized for 10.5" tape.)

ü Back tension adjusted on both reel motors.

ü All three motors test perfectly. Following above adjustments, Reel Start and Stop tested at beginning, middle and end of 10.5" tapes

ü Internal pots, switches and controls cleaned and tested for noise-free function (initially, of course, had typical static / noise which is to be expected in an 'un-serviced' deck after 35+ years).

ü We adjusted the VU meters mechanically and electronically w/ factory test tone tapes, as well as the internal playback levels for both directions independently and record levels.

ü Both spindles in perfect alignment.

ü We also adjusted the reel table heights.

ü Heads in great shape as well, with many years of performance left in them.

ü Playback and Record Head alignment / azimuth was adjusted for peak performance with factory test tone tape and oscilloscope.

ü Speed tested to 99.0% accuracy following refurb (meaning that our 'verified' 1000Hz test tape now plays back at 1010Hz).

ü Records decently at -5dB on Maxell, UD High Bias tape at 1kHz.

ü Floor noise measured at >-60dB w/ blank tape, L&R

ü This Pioneer RT-1011L functions, plays, and records VERY WELL (and we really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy).  (Total time investment in refurb / testing ~ 11 hours).

Face is beautiful, brushed, Stainless Steel and case is in great condition. Deck looks NEW and works great!

The
Pioneer RT-1011L  Stereo Reel to Reel tape deck. Ready to GO! This is one of the few reel to reel decks we get in that make it to our finished page. Great performer. If you're looking for a reel to reel deck to "actually use" here you go. Only about 30-50% of the used Reel decks out there can be "practically" restored to working order. This one made it through with flying colors after about 11.5 hours of bench time.
The deck tests great! Looks and sounds great too! We have completely gone through it. Will play 7" & 10.5" reels.

(Total time investment in refurb / testing ~ 11-12 hours). Face is made of beautiful brushed stainless, and is in great condition with no reel scuff. Deck looks and performs great!


 ____________________________

 Super clean and..

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

, Pioneer RT-1011L R2R deck! Just serviced and ready to GO! This is one of the few reel to reel decks we get in that make it to our finished page. ...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

..
Only about 30-50% of the used Reel decks out there can be "practically" restored to working order. This one made it through with flying colors. Looks and sounds great too! We have completely gone through it. Will play or record 7" or 10.5"  reels.

Pioneer RT-1011L Features include:


- 4-...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?



  Pioneer RT-1011L Specifications:

Track system: 4-track, 4-channel/2-channel stereo tape deck
Number of Motors: x


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


Transport Control Type: xx
Tape Speeds:
xx
Heads: xx
Frequexncy response: xHz to xxHz (± xdB at 7-1/2 ips) with normal tape. (Chrome tape gives even better performance)
Signxal to Noise Ratio: > xxdB
Chaxnnel Sxeparation / Crosstalk: >xxdB
Output Level: xxmV @ 0dB on VU meters
Maximxum Reel capacity: 10.5’’ reel
Tape speed: 19cm/s (7-1/2 ips & 9.5 cm/s (3-3/4 ips)
Wow & Flutter: xx% at 7-1/2ips
Micrxophonex input impexdance: xk Ohms
Fast Wixnd speed: ~xsecs for 1200 feet on 7" reel

As stated earlier we have completely gone through it cleaning, lubing, adjusting, demagnetizing and testing everything. Plays and records VERY WELL! Wood grain, vinyl wrapped side panels & Brushed stainless steel face all in great shape as well as all the original knobs and switch caps.  They don't come in often and of the hundred or so decks in line for restoration, there's only a couple more currently if that gives you an idea of the 10.5" to 7" ratio. Measures 17.5" wide x 17" tall x 9" (from tip of back feet-tip of hubs) deep and weighs 47 lbs unpacked. Comes with an 'e-copy' / pdf download of the Pioneer RT-1011L owners / operations manual, service manual and original brochure if purchaser so desires Includes our standard 30 day limited warranty. (Reels & tape shown in photos not included. All are sometimes available separately if you need them)
 PIONEER RT-1011LCond. 8.5

SOLD 5/19/17
SHIPPED TO CANADA



 (Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)





Pioneer_RT-1020L_Reel-Reel_Stereo_Tape_Deck_web.jpg (32085 bytes)     Pioneer_RT-1020L_Reel-Reel_Stereo_Tape_Deck_collage.jpg (224709 bytes)

PIONEER
MODEL RT-1020L

SOLD




NEW LISTING 3/19/09
(Click on above thumbnails to enlarge photos)

PIONEER

REEL TO REEL

TAPE DECK

            RT-1020L
RT
1020L
    #...0107
4-TRACK / 2-CHANNEL & 4-CHANNEL

STEREO / QUADRAPHONIC
3-HEAD / 3-MOTOR
2-SPEED
1/4" X 7" OR 10.5" REEL SIZE

  "
WORLD AC POWER"
  Circa 19
74-78
SOLD 3/19/09









NEW LISTING 10/28/16
(Click on above thumbnails to enlarge photos)

PIONEER REEL TO REEL TAPE DECK
PIONEER RT-1020L
#...1748
4-TRACK / 2-CHANNEL & 4-CHANNEL
STEREO / QUADRAPHONIC
3-HEAD / 3-MOTOR
2-SPEED
1/4" X 7" OR 10.5" REEL SIZE
"WORLD AC POWER"
  Circa 1974-78

SOLD 10/29/16
SHIPPED TO WYOMING

ü  Our technician has completely gone through and 'Certified' this unit.

ü  We have completely and extensively gone through the mechanicals and electronics of this unit.

ü  Entire transport was disassembled down to the chassis, and every mechanical part was disassembled, cleaned, re-lubed and reassembled.

ü pinch-roller mechanism completely disassembled, cleaned and re-lubed,

ü PR mechanism solenoid mounts adjusted

ü Capstans / flywheels removed, bushings and axels cleaned and re-lubed

ü Capstans burnished

 ü  Rubber pinch rollers have been cleaned and re-conditioned

ü  Brand new MAIN drive belt installed

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Brakes adjusted on fast wind modes also.

ü Back tension adjusted on both reel motors.

ü All three motors test perfectly. Following above adjustments, Reel Start and Stop tested at beginning, middle and end of 7" and 10.5" tapes

ü Internal pots, switches and controls cleaned and tested for noise-free function.

ü We adjusted the VU meters mechanically and electronically w/ factory test tone tapes, as well as the internal playback levels for both directions independently and record levels.

ü Deck has been fully calibrated as close to factory manual specs as practical, tested, and found to perform well in all categories

ü Both spindles in perfect alignment.

ü We also adjusted the reel table heights.

ü Heads in great shape as well, with many years of performance left in them.

ü  BOTH direction Playback and Record Head alignment / azimuth was adjusted for peak performance with factory test tone tape and oscilloscope.

ü Speed measured @ 98% accurate

ü Records decently at approx -10dB on High Bias Chrome tape at 1kHz & approx -8dB on Normal Bias Chrome tape at 1kHz.

ü This Pioneer RT-1020L functions, plays, and records very well (and we really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy).  (Total time investment in refurb / testing ~ 12 hours).

Face is made of beautiful brushed aluminum and case is in great condition. Deck looks NEW and works great!

I have one of these in my personal collection (although mine isn't in refurbished condition yet like this one). Ready to GO! This is one of the few reel to reel decks we get in that make it to our finished page. Great performer. If you're looking for a reel to reel deck to "actually use" here you go. Only about 25 % of the used Reel decks out there can be "practically" restored to working order. This one made it through with flying colors.

The deck tests great! Looks and sounds great too! We have completely gone through it. Will play 3", 5", 7" & 10.5" reels (10.5" reels require optional NAB hub adaptors that we generally have available at their additional cost).

____________________________

Looks great & is "Ready-to-go"! The very sought after Pioneer RT-1020L Stereo Reel to Reel tape deck. Will play / record stereo 1/4" tapes on reels up to 10.5". This model is very unique in that it will...
HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?
Here's a link to some original a website with some original, brochure info: http://stereonomono.blogspot.com/2011/11/pioneer-rt-1020l-1973.html

This is one of the few reel to reel decks we get in that make it to our finished page. Great performer. If you're looking for a reel to reel deck to "actually use" here you go. Only about 25% of the used Reel decks out there can be "practically" restored to working order. This one made it through and all functions test great! Looks and sounds great too! We have completely gone through it.
Pioneer RT-1020L Features include:


-  4-Track 2 or 4 Channel playback and 2-Channel recording
- 3 Heads for instant monitoring of tape levels while recording
- Handles up to 10.5" reels!
- 3 Motors for trouble free performance (has a lot to do with it still being a viable piece of gear due to fewer rubber parts)
- Dual speeds at 7.5 ips / 19cms and 3 3/4ips / 9.5 cms
- IC logic tape transport for control
- Separate & dual mic and line level controls
- Dual 1/4" front mounted mic inputs
- Source / Monitor selector
- Independent L & R record enable switches for doing "S-O-S / sound-on-sound"
- Left & Right output level controls
- Dual analog VU level meters that are selectable for either Front or Rear channels
- Triple position tape type selector
- Dual position tape EQ selector
- Spring loaded tape hub spindles (no need for rubber reel retainers)
- End of tape shut off / Auto-Stop function
- Dual front mounted 1/4" Microphone inputs
- Variable output level controls for each channel
- Mechanical Tape Counter
- Both RCA & DIN I/O's

Pioneer RT-1020L Original Specifications as follows:

Heads: 3 (2-channel erase, 4-Channel play and 2-Channel Record)
Number of Motors: 1 xx
Drive to Capstan: xxx
Tape Speeds: 7.5 ips / 19cms and 3 3/4ips / 9.5 cms
Wow and flutter: 0xx% DIN @ 7.5ips

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Signal to noise ratio:
>xxdB w/ Normal Bias Tape
Frequency response: 7-1/2 ips: xxHz to xxkHz w/ Normal Bias tape
Crosstalk: > xxdB.
Channel separation: > xxdB
Output Level: xxmV @ 0dB on VU meters


HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Microphone Input Impedance: xxK Ohms
Fast Wind Time: xx secs w/ 7", 1200' reels

As stated earlier we have completely gone through it cleaning, lubing, adjusting, demagnetizing and testing everything. Plays and records well! Only cosmetic issue worth mentioning is some light scuffs / striations on the small knob. We don't get many decks capable of 10.5" reels, and when we do have one refurbished, they don't hang around long.
Comes with an 'e-copy' / pdf download of the Pioneer RT-1020L owners / operations manual and service manual if the purchaser so desires.
All of our restored / refurbished reel to reel decks come with a 7", plastic take-up reel, a 'known good' 7" tape for initial testing of playback, and a 7" tape you can record onto, all to assist you in becoming familiar with the operation / function of your new reel to reel tape deck.
Measures 17.5" wide x 17" tall x 9" (from tip of back feet-tip of hubs) deep and weighs 47 lbs unpacked. Includes our standard 30 day limited warranty. (Reels & tape shown in photos not included. All are sometimes available separately if you need them)
PIONEER RT-1020L
Cond. 8.5
+

SOLD 10/29/16
SHIPPED TO WYOMING



 (Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)







NEW LISTING 4/8/17
(Click on above thumbnails to enlarge photos)

RESTORED / REFURBISHED / FULLY SERVICED
VINTAGE
PIONEER REEL TO REEL TAPE DECK
PIONEER RT-1020L
#...4629
4-TRACK / 2-CHANNEL & 4-CHANNEL
STEREO / QUADRAPHONIC
3-HEAD / 3-MOTOR
2-SPEED
1/4" X 3", 5",  7" OR 10.5" REEL SIZE
"WORLD AC POWER"
  Circa 1974-78

Cond. 8

SOLD 5/15/17
SHIPPED TO TENNESSEE



 (Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)








NEW LISTING 7/13/19
(Click on above thumbnails to enlarge photos)

RESTORED / REFURBISHED / FULLY SERVICED
VINTAGE
PIONEER REEL TO REEL TAPE DECK
PIONEER RT-1020L
#...4281
4-TRACK / 2-CHANNEL & 4-CHANNEL 'PRO' TAPES
STEREO / QUADRAPHONIC
3-HEAD / 3-MOTOR
2-SPEED
10.5" 'THE BIG ONE'S'
& 7" and / or
*SMALLER REEL SIZE

  Circa 1974-78

 SOLD 8/15/19
SHIPPED
TO WILLIAM IN OHIO

ü Our technician has completely gone through and 'Certified' this unit.
(in-fact we had both of our Senior Techs go thru it, one after the other, just to make sure we had 'all the "i's" dotted and all the "T's" crossed)

ü Entire transport was disassembled down to the chassis, and every mechanical part was disassembled, cleaned, re-lubed and reassembled.

ü We have completely and extensively gone through the mechanicals and electronics of this unit.

ü Entire transport was disassembled down to the chassis, and every mechanical part was disassembled, cleaned, re-lubed and reassembled.

ü One of the reel spindles had been 're-built' when this came in to us. It had 'run-out' (wobble) when utilizing 10.5" reels. We noticed there was a 'hair-line' crack on the reel table spindle that was not solid enough. We replaced the entire spindle / reel table with an OEM (original Pioneer) part (taken from one of my personal decks). Now large reels run 'true' with no excess vibration / wobble.

ü pinch-roller mechanism completely disassembled, cleaned and re-lubed,

ü PR mechanism solenoid mounts adjusted

ü 'Shut-off' arm removed, disassembled, had bushing and axle cleaned and re-lubed.

ü Tape Lifter arms rotated to 'like new' section / area

ü Capstans / flywheels removed, bushings and axels cleaned and re-lubed w/ 80/90 wt.

ü Capstans burnished

ü Rubber pinch rollers have been cleaned and re-conditioned

ü Brand new MAIN drive belt installed (#42-3030)

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Brakes adjusted on fast wind modes also (optimized for 10.5" reels, but works great for 7" as well*). .

ü Back tension adjusted on both reel motors (optimized for 10.5" reels, but works great for 7" as well*).

ü All three motors test perfectly. Following above adjustments, Reel Start and Stop tested at beginning, middle and end of 7" and 10.5" tapes

ü Internal pots, switches and controls cleaned and tested for noise-free function.

ü Both spindles in perfect alignment.

ü We also adjusted the reel table heights.

ü Heads in great shape as well, with many years of performance left in them.

ü BOTH direction Playback and Record Head alignment / azimuth was adjusted for peak performance with factory test tone tape and oscilloscope.

ü Speed measured @ 98.5% accurate (meaning that a 1000Hz tape plays back at 1015Hz.)

ü We adjusted the VU meters mechanically and electronically w/ factory test tone tapes, as well as the internal playback levels for both directions independently and record levels.

ü Deck has been fully calibrated as close to factory manual specs as practical, tested, and found to perform well in all categories

ü Internal Record levels adjusted with proper, factory alignment / test tapes

ü Record Bias adjusted internally, and optimized for Ampex GM 456 tape

ü Records GREAT at approx 0dB on Maxell UD XL-II tape with the following results all recorded at 0 (Zero) dB;
100Hz=0dB
500Hz=0dB
1000Hz=0dB
5000Hz=0dB
10,000Hz=-0.5dB
15,000Hz=-1.5dB
20,000Hz=-6dB




ü Floor noise measured at >-60dB w/ blank tape, L&R

ü This Pioneer RT-1020L functions, plays, and records very well (and we really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy).  (Total time investment in refurb / testing ~ 13 hours).

Face is made of brushed stainless steel, aluminum and 'real walnut wood veneer' case is in great condition. Deck looks, works and sounds great!

I have one of these in my personal collection (although mine isn't in refurbished condition yet like this one). Ready to GO! This is one of the few reel to reel decks we get in that make it to our finished page. Great performer. If you're looking for a reel to reel deck to "actually use" here you go. Only about 25 % of the used Reel decks out there can be "practically" restored to working order. This one made it through with flying colors.

The deck tests great! Looks and sounds great too! We have completely gone through it. Will play 5", 7" & 10.5" reels (10.5" reels require optional NAB hub adaptors that we generally have available at their additional cost).
____________________________

Looks great & following above service, is "Ready-to-go"! The very sought after Pioneer RT-1020L Stereo Reel to Reel tape deck. Will play / record stereo 1/4" tapes on reels up to 10.5". This model is very unique in that it will not only play standard consumer 4-track / 2-channel tapes, but also will play 4-channel "quadraphonic" tapes and ALSO 4-Track / 4-Channel "Pro-Multi-Track" tapes made from such decks as the Tascam 2340 or 3440!
Here's a link to some original a website with some original, brochure info:
http://stereonomono.blogspot.com/2011/11/pioneer-rt-1020l-1973.html

This is one of the few reel to reel decks we get in that make it to our finished page. Great performer. If you're looking for a reel to reel deck to "actually use" here you go. Only about 25% of the used Reel decks out there can be "practically" restored to working order. This one made it through and all functions test great! Looks and sounds great too! We have completely gone through it.

Pioneer RT-1020L Features include:


-  4-Track 2 or 4 Channel playback and 2-Channel recording
- 3 Heads for instant monitoring of tape levels while recording
- Handles up to 10.5" reels!
- 3 Motors for trouble free performance (has a lot to do with it still being a viable piece of gear due to fewer rubber parts)

- DURABLE AC powered capstan motor (lasts decades longer than DC capstan motors of the 'later' models)

- Dual speeds at 7.5 ips / 19cms and 3 3/4ips / 9.5 cms
- IC logic tape transport for control
- Separate & dual mic and line level controls
- Dual 1/4" front mounted mic inputs
- Source / Monitor selector
- Independent L & R record enable switches for doing "S-O-S / sound-on-sound"
- Left & Right output level controls
- Dual analog VU level meters that are selectable for either Front or Rear channels
- Triple position tape type selector
- Dual position tape EQ selector
- Spring loaded tape hub spindles (no need for rubber reel retainers)
- End of tape shut off / Auto-Stop function
- Dual front mounted 1/4" Microphone inputs
- Variable output level controls for each channel
- Mechanical Tape Counter
- Both RCA & DIN I/O's

Pioneer RT-1020L Original Specifications as follows:

Heads: 3 (2-channel erase, 4-Channel play and 2-Channel Record)
Number of Motors: 1 Hysteresis Synchronous Capstan and 2 Reel motors
Drive to Capstan: Belt to heavy flywheel
Tape Speeds: 7.5 ips / 19cms and 3 3/4ips / 9.5 cms
Wow and flutter: 0.08% DIN @ 7.5ips
Signal to noise ratio:
>55dB w/ Normal Bias Tape
Frequency response: 7-1/2 ips: 40Hz to 20kHz w/ Normal Bias tape
Crosstalk: >60dB.
Channel separation: >50dB
Output Level: 316mV @ 0dB on VU meters
Microphone Input Impedance: 20K Ohms
Fast Wind Time: 90 secs w/ 7", 1200' reels

As stated earlier we have completely gone through it cleaning, lubing, adjusting, demagnetizing and testing everything. Plays and records well! We don't get as many decks capable of 10.5" reels as 7", and when we do have one refurbished, they don't hang around long.
Note from our Senior tech, "Designed to be serviceable...Well built internally".
Comes with an 'e-copy' / pdf download of the Pioneer RT-1020L owners / operations manual and service manual if the purchaser so desires.
Cosmetically, there's only a couple issues worth mentioning, ie; a couple dings along the front edges of the wood, veneer cabinet (see photos above).
All of our restored / refurbished reel to reel decks come with a 7", plastic take-up reel, a 'known good' 7" tape for initial testing of playback, and a 7" tape you can record onto, all to assist you in becoming familiar with the operation / function of your new reel to reel tape deck.
Measures 17.5" wide x 17" tall x 9" (from tip of back feet-tip of hubs) deep and weighs 47 lbs unpacked. Includes our standard 30 day limited warranty. (Reels & tape shown in photos not included. All are sometimes available separately if you need them)
PIONEER RT-1020L
Cond. 8
.5++
(Cons. M.H.)
 SOLD 8/15/19
SHIPPED
TO WILLIAM IN OHIO


 (Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)














NEW LISTING

(Click on above thumbnails to enlarge photos)
PIONEER
MODEL RT-1050
MASTERING DECK

HALF (1/2)-TRACK STEREO / 2-CHANNEL or 4-TRACK / 2 CHANNEL STEREO*
3-HEAD / 2-SPEED / 3-MOTOR
REEL TO REEL R2R
1/4" TAPE DECK
(Play-back only)

Circa 1
970's

SOLD 10/18/05









NEW LISTING / REVISED
(Click on above thumbnails to enlarge photos)
VINTAGE PIONEER REEL TO REEL TAPE DECK
PIONEER RTU-11/2T / TAU-11 / RT-2022 'MASTERING DECK'
#...2021 (transport) / 0437 (Rec/PB amp)
2-TRACK ('HALF TRACK') 2-CHANNEL STEREO MASTERING DECK
3-HEAD / 2-SPEED / 3-MOTOR
10.5" REELS OR SMALLER
'MASTERING' R2R 1/4" TAPE DECK
MIJ
Circa 1977-79
SOLD
SHIPPED TO DAN IN CALIFORNIA

ü  Our technician has completely gone through and 'Certified' this unit.

ü  We have completely and extensively gone through the mechanicals and electronics of this unit (and this was a BIG project as it's a VERY complex deck.

ü Broken motor mount transport screws replaced (this alone, required a total strip down to chassis)

ü Transport mechanisms disassembled, cleaned, lubed w/ 'SuperLube', silicone based gel and light machine oil as necessary and reassembled

ü Tape Tension arms disassembled, cleaned and re-lubed, and their springs adjusted and had fresh 500,000 grade silicone lube gel applied

ü pinch-roller mechanism completely disassembled, cleaned and re-lubed.

ü Capstan / flywheel removed, cleaned bushings and axels cleaned and re-lubed. Flywheel surface burnished.

ü Rubber pinch rollers removed, re-surfaced, conditioned and re-installed with fresh lubricant

ü Fresh, new 'Main' and 'Counter' belts installed.

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Brakes adjusted on fast wind modes also (optimized for 7" & 10.5" tape.)

ü Back tension checked / adjusted on both reel motors.

ü All three motors test perfectly. Following above adjustments, Reel Start and Stop tested at beginning, middle and end of 7" & 10.5" tapes (VERY QUICK 'FAST WIND' ON THIS ONE)

ü All pots, switches and controls cleaned and tested for noise-free function

ü We adjusted the VU meters mechanically for correct 'resting position' and electronically w/ factory test tone tapes, as well as the internal playback and record levels.

ü Both spindles in perfect alignment.

ü We also checked / adjusted the reel table heights.

ü Heads in great shape as well, with many years of performance left in them

ü Following initial testing after re-assembly, we decided to address the commonly 'above average motor noise' in the TAU-11. We added additional rubber shock mounting on the motor in 'strategic locations', and on the advice of an engineer, replaced the 'Start / Run' capacitor. Replacing the 'cap' had no effect, but adding extra 'shock mounting' did have an effect on reducing the ambient, mechanical, motor noise. Adding damping to reel brake mechanisms also further reduced mechanical noise over original design. We also lubed the 'pinion shaft' on the counter to further reduce noise on 'fast wind'.

ü Playback and Record Head alignment / azimuth was adjusted for peak performance with factory test tone tape and oscilloscope.

ü Speed tested to 98.5+% accuracy following refurb (meaning that our 'verified' 1000Hz test tape now plays back at 1015 +/- 1Hz. Very close to perfect).

ü Adjusted to record AMAZINGLY WELL at 0dB both with full bandwidth Pink-Noise, then 1kHz test and in 'Real World' use w/ 'mixed DDD CD' signals. (Tested with Maxell UDXL Tape (bias set to 'Fixed' and EQ set to NAB-LH) ).

ü Floor noise measured at >-60dBm w/ blank tape, L&R

ü Following refurb / service mechanicals tested for 'play torque' at beginning and end of largest size reels, as well as 'Fast wind torque' and 'braking tension' in both FF and REW, at beginning, middle and end of tapes. In other words, every combination of transport function was tested and passed.

ü This Pioneer RT-2022 / RTU-11 / TAU-11 functions, plays, and records VERY WELL (and we really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy).  (Total time investment in refurb / testing ~ 20+ hours).

This is an amazing deck for both recording or playback, again of 'Half-Track / 2-Track' tapes for speeds of 7.5ips or 15ips. Following refurbishment, the deck looks and works great and sounds amazing!!


The Pioneer TAU-11 / RTU-11 / RT-2022 Stereo Reel to Reel tape deck. Ready to GO! First one of these we've had in 24+ years of dealing in vintage audio (including many of all the other Pioneer Reel to Reel decks. This is one of the few reel to reel decks we get in that make it to our finished page. Following our refurb / bench time it's now an AMAZING performer (Check the 'recording test results' above and the 'specs' in larger text below). If you're looking for a reel to reel deck to "actually use" here you go. Only about 25% of the used Reel decks out there can be "practically" restored to working order. This one made it through with flying colors after about 20 hours of bench time.

The deck tests great! Cosmetically it's in good condition, with a few minor veneer peels / chips to the rear corners of the road case (see separate photo collage above). Looks decent and sounds great ! We have completely gone through it. Will play up to 10.5" reels.

Pioneer RT-2022 / RTU-11 / TAU-11 Features include:

- Half-Track / 2-Track / 2-Channel Stereo head stack / tape format
- 3 Heads for instant monitoring of tape levels while recording
- 10.5" Max Reel Capacity (The BIG Reels!)
- Built-in Test Tone Oscillator for Bias, Recording Level / Tape Type adjustments and decisions and head adjustments (1kHz and 10kHz generator) (there is also a front located, output jack to route test oscillator to another use)
- Fixed or Completely variable Bias adjustment (owners manual includes a chart with suggested Bias settings for most contemporary tape types / brands / models, but I prefer to do it 'by ear')
- Completely variable Playback Tape EQ adjustment (owners manual includes a chart with suggested EQ settings for most contemporary tape types / brands / models, but I prefer to do it 'by ear')
- 3 Motors (means less 'Rube Goldberg' mechanisms inside like many R2R's)

- DURABLE AC powered capstan motor (lasts decades longer than DC capstan motors of the 'later' models)

- IC logic tape transport for "Touch" control
- Dual speeds at 15ips / 38cms & 7.5 ips / 19cms
- Sound-on-Sound / Sound-with-Sound / Duet recording capable
- Cue Lever for lifting tape away from head in Fast Wind modes or for moving tape close enough to head to monitor fast wind progress

- Input (Source) / Repro (Monitor) selector independently for each channel
- Output level control for each channel
- Dual analog VU level meters

- Analog
Tape Counter
- Spring loaded reel spindles (no need for 'rubber stoppers / reel clamps')
- RCA Line I/O's for all channels
- Dual Microphone inputs with separate L&R, 20dB attenuators

- Portable (as it's in a case with detachable lids / covers and a top located carry handle)

- Accessory connectors for optional Pioneer Remote control


As stated earlier we have completely gone through it cleaning heads and all else, lubing, adjusting, reconditioning pinch rollers and other rubber parts, demagnetizing heads and entire transport and testing everything. Additionally after first round of restoration, we further added rubber isolation to motor mounts.
Tape speed tested and resulted in 98.5% accuracy using a 1000 Hz test tape. Plays and records Exceptionally well (and we really put them through the paces, testing both with well mixed CD material and CD test tones looking for correct head Azimuth, tape speed accuracy and making test recordings. Again, check the 'test results' listed above). Pinch rollers and heads all in GREAT condition!!! Very clean and GREAT!

Pioneer RT-2022 / RTU-11/2T / TAU-11 Specs / Specifications from the owners manual as follows:

Head / Head-stack Format: 3 heads, inline (2-track, 2-channel, stereo/monaural system) Ferrite Erase and 'Permalloy' Record and Playback heads
Track Format: 2-track, 2-channel, stereo/monaural system
Motors: 3X. Capstan motor: 4/8 pole, large size Hysteresis synchronous. Reel motors: 6-pole, inner rotor induction
Reel Size: Acceptable 7” & 10.5" (3" & 5” reels may not ‘brake’ correctly as deck is optimized for 7”-10.5" reels)
Tape Speeds: 15 ips / 38cms & 7.5 ips / 19cms
Frequency Response w/ 'High Bias' Tape:
30-28,000 Hz @ 15ips.
40-20,000 Hz @ 7 1/2ips.
Wow and Flutter: 0.04% @ 15 ips
S/N ratio: >60dB IEC (over 5kHz)
THD: >0.8%
Bias Frequency:
125kHz in 'Fixed' position (Factory biased for Scotch #206)
VU Meters
; -40dB to +6dB VU range

Line Input
(AUX input): Min / Max Sensitivity 34mV - 25V / Impedance 100kΩ
Mic Input
: Sensitivity 0.11mV-100mV / Impedance 100kΩ
Outputs: Line level Reference to Max = 450mV-930mV
Test Oscillator: 1kHz for Bias Adjustment and 10kHz for Head Azimuth adjustment

Fast Wind Time: VERY FAST @ 110 sec for 2400'

Original Pioneer Test Conditions:
1. Reference Tape: Scotch #206
2. Reference recording level: meter 0dB
3. Reference Signal: 1000Hz
4. Wow & Flutter: w/ 3kHz tape
5. Freq response: measured at -10dB @ 38cms and -20dB level @ 19cms
6. S/N: measured @ +6dB level
7. THD: measured @ reference recording
8. reference output level: meter @ 0dB


This is a GREAT looking deck with UNBELIEVABLE PERFORMANCE. Probably the best sounding deck I've had the pleasure to audition due to the built in oscillator, fine bias and variable EQ alone
Again, as mentioned earlier, cosmetically it's in good condition, with a few minor vinyl peels / chips to the rear corners of the road case (see separate photo collage above).

This was Pioneers most 'Top of the Line' deck they ever did (yes, considerably above the RT-909), and was designed to offer the 'best recording' capabilities. As an additional possible bonus down the road, with the addition of another TAU-11 Rec/PB amp and the RT-2044 / 4-Track / 2-Channel head block, you could also have a deck that would play standard, commercially produced tapes, or tapes made on standard, consumer reel to reel decks. In other words, you'd have 'all the bases covered'. (No, we don't currently have either available, but they can be obtained give enough time / money.)
All of our restored / refurbished reel to reel decks come with a 7", plastic take-up reel, a 'known good' 7" tape for initial testing of playback, and a 7" tape you can record onto, all to assist you in becoming familiar with the operation / function of your new reel to reel tape deck.
 We are including a set of 4 of our Sorbothane IsoPods to isolate the chassis from the surface to inhibit and further reduce noise from transferring to it's environment. Also includes
it's original umbilical cord (just about 'worth it's weight in gold' alone).  Also includes the original case lids / cover plates for both units, as well as the 'smoked plexi' control cover. Comes with an 'e-copy' / pdf download of the Pioneer RT-2022 / RTU-11/2T / TAU-11 owners / operations manual, & service manual if purchaser so desires. Measures 17.5" wide x 21" tall x 10" (from tip of back feet-tip of hubs) deep and weighs a HEAVY 84 lbs unpacked (with 1 'amp unit' attached). Includes our standard 30 day limited warranty.
(Reels & tape shown in photos not included. All are sometimes available separately if you need them. We do ship our decks with a plastic take-up reel, a tape to 'practice record' on and a 'pre-recorded' tape for playback.)
Pioneer RT-2022 / RTU-11/2T / TAU-11  HALF-TRACK / STEREO / MONO REEL TO REEL TAPE DECK
Cond. 8.5
(Cons.)
R.R.

SOLD
SHIPPED TO DAN IN CALIFORNIA


(Reels shown in photos are not included, but we sometimes / occasionally have them for sale. Inquire at time of order.
However, all of our decks will come with 2x tapes for testing 'Playback' and 'Recording' as well as a 7" 'take-up' reel, and RCA patch cables for connection to your system
)



 (Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)







CLICK HERE TO SEE OUR TAPE DECKS CURRENTLY FOR SALE!


We will be getting more machines ready over the next few days to a couple weeks, but it is a slow process, as every 20+ year old Reel to Reel tape deck requires 10-18 hours of service to be brought back to "usable" condition. Check back often as they will sell out quickly!







LINKS TO OUR 'HI-FI' DEPARTMENTS

Amps and
Pre-Amps

Receivers

Cassette
Decks

Tuners

Turntables

8-Track Decks

CD Players

Reel-Reel
Decks

EQs and Signal
Processors

Speakers

Betamax and
VHS VCRs

Turntable Cartridges

Tube Audio

Ne'cessories

Speaker Parts

Record Players

Vintage Radios

Vintage
Walkmans

Headphones

Stereo Parts


Wondering where the "tone" you remember went?....




.... Surround yourself with Silver and find it again!



The units on the above page are for photo reference only and are no longer available for sale. To search 'For Sale' units, click on the links in the upper, left corner of page.

   *HOME PAGE*   |   FAQ'S   |   RESTORATION PROCEDURES    |  REPAIR RESOURCES  |  LINKS


POLICIES, SPECIFICATIONS, AVAILABILITY, INFORMATION
AND PRICING SUBJECT TO CHANGE  AT ANYTIME  AND
WITHOUT PRIOR
NOTICE
and changes may not be posted to web immediately
.


Copyright © 1997-2023 Oak Tree Enterprises, LLC

COPYRIGHT INFORMATION
