PIONEER STEREO / HOME AUDIO ELECTRONIC PARTS / SPARES - VINTAGE / USED FOR SALE / REFERENCE


Replacement Pioneer stereo parts / spares: Pioneer Stereo Electronic Repair Parts for vintage
Pioneer stereo receivers, cassette decks, reel to reels, and equalizer parts. Pioneer QX-646, QX-949, QX-949A, SA-7100, SX-450, SX-525, SX-535, SX-550, SX-636, SX-650, SX-680, SX-690, SX-727, SX-750, SX-780 / 790, SX-850, SX-850, SX-880, 890, SX-950, SX-980, SX-1000, SX-1000TD, SX-1000TW, SX-1050, SX-1080, SX-1250, SX-1280, SX-2500, SX-3600, SX-3700, SX-3800, SX-3900. Pioneer SX-9000, 6000. Also Pioneer RG-2, SG-9800 EQ Equalizer parts. Pioneer SA 7100 Integrated Amplifier Amp Parts CT-F500, CT-F900, CT-F1000,CT- F9191 series cassette decks recorders parts, H-R9000 8-Track Pioneer parts, RT-707 / 701 RT-909 / 901, RT-1050 RT-1050L R2R reel-to-reels parts / spares. Used / Vintage / Second hand Pioneer stereo replacement parts. Pioneer parts for Data Base info, cross-reference and occasionally for sale.





20% off sale
on salvage audio & keyboard parts.
 See sales banners on parts pages for details


MORE GEAR BEING ADDED AS IT BECOMES AVAILABLE
KEEP CHECKING!!!



*Note about parts / spares sales

* Our "parts units", parts / spares and related reference information are primarily archived for the purpose of restoration / repair of "Oak Tree Vintage" units first. Only if we do not have a "viable" unit in yet, either already in process or in line to be processed, that may potentially need parts from a "parts unit", will we release available parts for sale (even though they may appear as available for sale to the public). As many of you know, the restoration of a unit can be a long, time consuming process. We may "lock up" parts that we may potentially need in the restoration of a unit (and not necessarily get it marked 'Hold' or 'Sold' on the site right away). Parts are priced according to the "potential value" of the unit they can be applicable to (meaning the amount WE would be willing to pay for the part if that was all that was standing between us having a "shelved unit" or a valuable / sellable unit), time to extract, their rarity & their condition to name a few criteria and likely will be completely unrelated to the original cost / price of a part when it was currently available from the manufacturer.

Parts Photos; We get a number of requests for 'photos' of a specific part. Unfortunately, in most cases that is not practical as the amount of time involved in posting that exceeds the value of the 'unique' part. We will sometimes post photos of less 'unique' parts, if there is a greater chance of them being available in multiple quantities, or on a more 'repeat' basis.

Shipping: Shipping on most 'small' parts if typically via Postal first class or Postal Priority for both domestic (USA) and international orders. Larger parts such as transformers and drivers (speakers) are typically via FedEx gnd.
Some parts sales such as those for empty 'speaker cabinets', empty 'component cabinets / covers / bonnets' and 'speaker grills' are 'doomed' from the start. Due to their size and required packing supplies, the cost of 'packing for safe transit' and shipping are typically nearly equal to and sometimes greater than the cost of the part.  Think about it. An empty speaker cabinet or stereo receiver case is essentially the same size as a complete one. Yes the weight will be less, but most of items that size are calculated on 'dimensional weight', not actual weight. Secondly empty component cabinets have to be packed to disallow breakage, typically requiring nearly as much packing materials as an entire unit. Speaker grills have to be 'sandwiched' between foam sheets in large, custom ordered boxes (all relatively expensive).  It is what it is....

A non-response to an email request for a part (we may appear to have), likely means that we are still determining which parts we are going to need for the restoration or repair of one of our units. Again, the parts are first for the restoration of our units and secondarily for the public market. Since we list the parts available for ourselves, it is not much effort to modify the menu's for web publication, which in turn makes the reference information and occasionally the part available to the public. Frankly, publishing them to the web, in many instances, makes it easier for us to determine if we have the part for our needs as well. The alternative to all of the above would be to not offer them at all to the public, however most parts are available to the public for sale.
BOTTOM LINE IS; IF YOU DON'T SEE IT AVAILABLE FOR SALE, WE DON'T HAVE IT!
 Thank you for your understanding.









>HERE     ARE     SOME     ADDITIONAL     RESOURCES     FOR     REPAIR    /    RESTORATION<



____________________________________________________________________________________






    -





For Replacement Pioneer Speaker Plugs / adaptors
Click here....






Quick Jump to available Pioneer models in stock for parts / spares:
Units in 'BLUE' are ALL we have at this time.


PIONEER QUADRAPHONIC / STEREO RECEIVER PARTS / SPARES UNITS: QX-646, QX-949, QX-949A,
PIONEER INTEGRATED AMPLIFIER PARTS / SPARES ; SA-7100,
PIONEER STEREO RECEIVER PARTS / SPARES : SX-450, SX-525, SX-535, SX-550, SX-626, SX-636, SX-650, SX-680, SX-727, SX-737, SX-750, SX-770, SX-780, SX-828, SX-850, SX-880, SX-950, SX-980, SX-990, SX-1000TD, SX-1000TW, SX-1050, SX-1080, SX-1250, SX-1280, SX-1500, SX-1980, SX-2500, SX-3500, SX-3700, SX-3900, SX-6000, SX-9000

PIONEER CASSETTE TAPE DECK PARTS
/ SPARES ; CT-F500, CT-F900, CT-F1000, CT-F9191
PIONEER 8-TRACK TAPE DECK PARTS / SPARES: H-R9000

PIONEER REEL TO REEL DECK PARTS

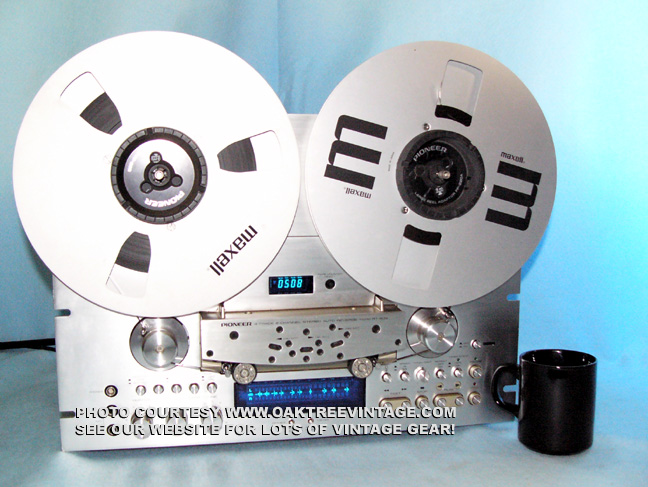

/ SPARES ; RT-701/707, RT-901/RT-909, RT-2044/RT-2022/RT2022/RT2044/RTU-11
PIONEER SIGNAL PROCESSOR PARTS
/ SPARES ; RG-2, SG-9800
PIONEER TURNTABLE PARTS
/ SPARES : PL-51A
PIONEER TUNER PARTS

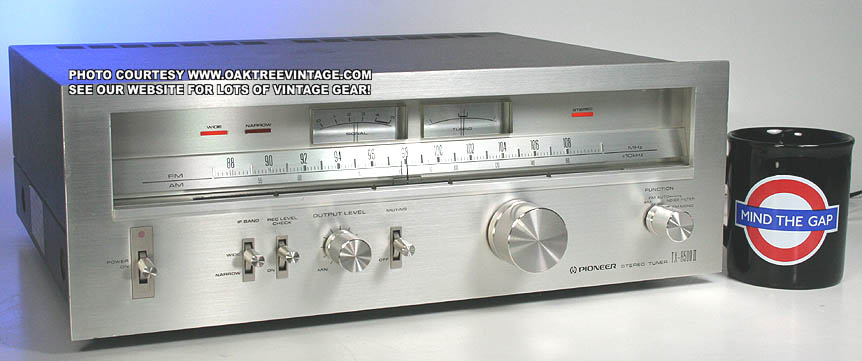

/ SPARES : TX-8500-II






PIONEER STEREO AMPLIFIER PARTS / SPARES




(Click on above thumbnails to enlarge photos)

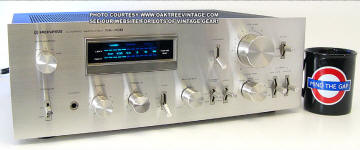

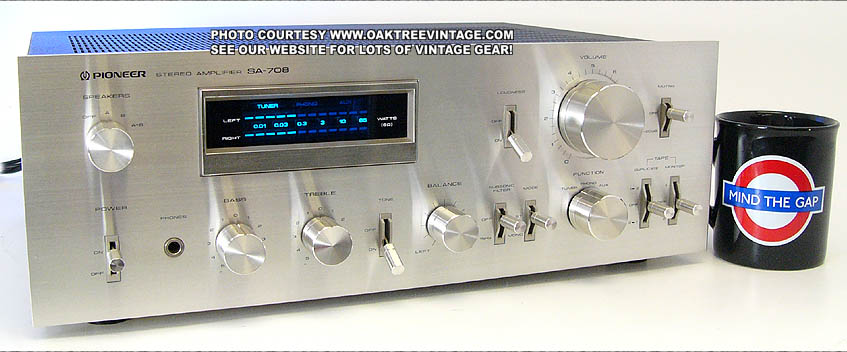

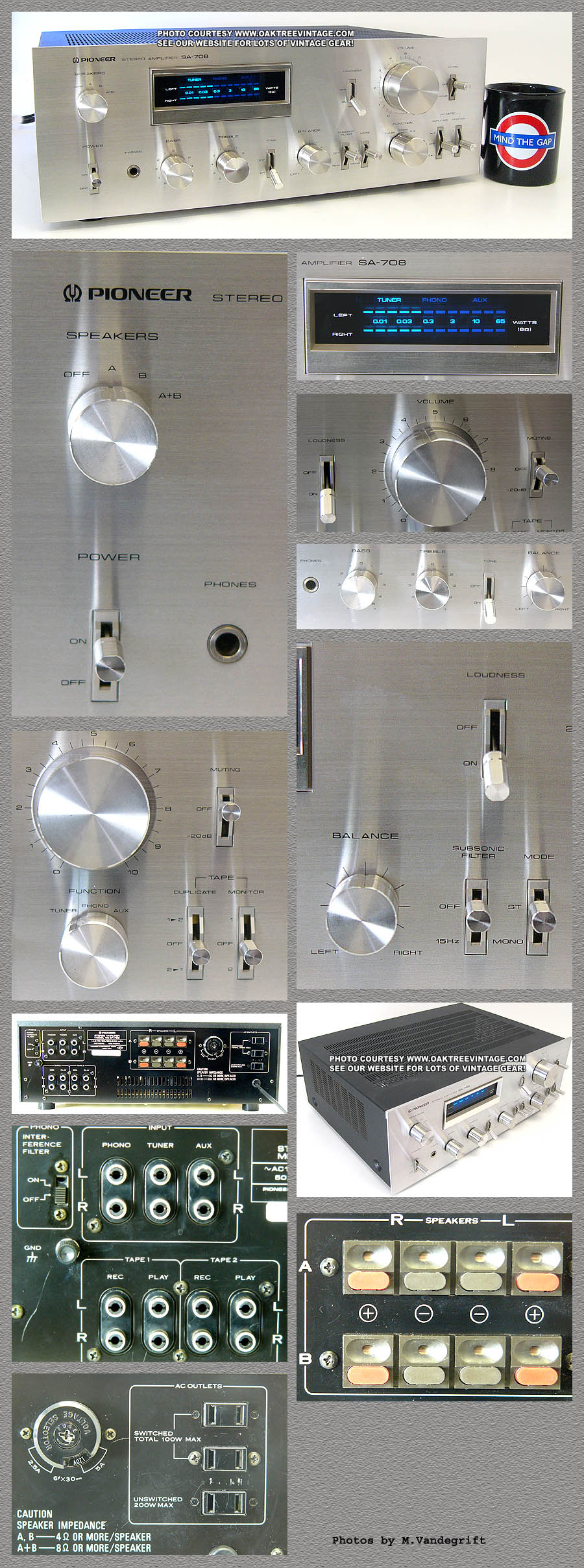

PIONEER SA-708 / SA708 STEREO INTEGRATED AMPLIFIER AMP PARTS / SPARES FOR REFERENCE
This is a listing of 'Significant' parts for cross-reference ONLY. We do not have this unit available for parts, this information is ONLY for cross-reference.

Knobs / Caps / Buttons, Volume knob AAB-202
(see also Pioneer SA-708, SA-5800 & SA-6800)  - SEE OTHER UNITS ON THIS PAGE FOR 'POSSIBLE' STOCK STATUS

Potentiometer / Control, Volume control pot ACV-181
(see also Pioneer SA-710, SA-708, SA-5500-11, SX-3800) - SEE OTHER UNITS ON THIS PAGE FOR 'POSSIBLE' STOCK STATUS

Potentiometer / Control, Balance Pot ACT-118 (Also fits; Pioneer SA-708, SA-3000, SA-5800, SA-6700, SA-6800, SA-7700)  - SEE OTHER UNITS ON THIS PAGE FOR 'POSSIBLE' STOCK STATUS


Potentiometer / Control, 'Bass', 'Treble' Pot ACT-117
(Also fits; Pioneer SA-708, SA-3000, SA-5800, SA-6700, SA-6800, SA-7700)  - SEE OTHER UNITS ON THIS PAGE FOR 'POSSIBLE' STOCK STATUS

Power Transformer;
Pioneer ATT-604 Multi-Voltage Version (Only fits this SA-708) - SEE OTHER UNITS ON THIS PAGE FOR 'POSSIBLE' STOCK STATUS

Relay, ASR-023 (DEC 4MSU-24DC) (see also Pioneer  A-5, A-6, SA-708, SA-610, SA-710, SA-720, SA-6800, SA-7500-II, SA-7700, SA-8800, SA-8500-11, SX-6, SX-7, SX-820, SX-3700) - SEE OTHER UNITS ON THIS PAGE FOR 'POSSIBLE' STOCK STATUS


Capacitors, Power supply filter Caps ACH-212 12,000μF / 12,000uF / 12,000mF / 56 volts (Also fits; Pioneer A-6, SA-708, SA-710, SA-720, SX-7, SX-3800) - SEE OTHER UNITS ON THIS PAGE FOR 'POSSIBLE' STOCK STATUS


Again these parts are not available from this unit so we do not have them, nor know who might have them. This unit was not parted out and was sold complete.



(Click on above thumbnails to enlarge photos)

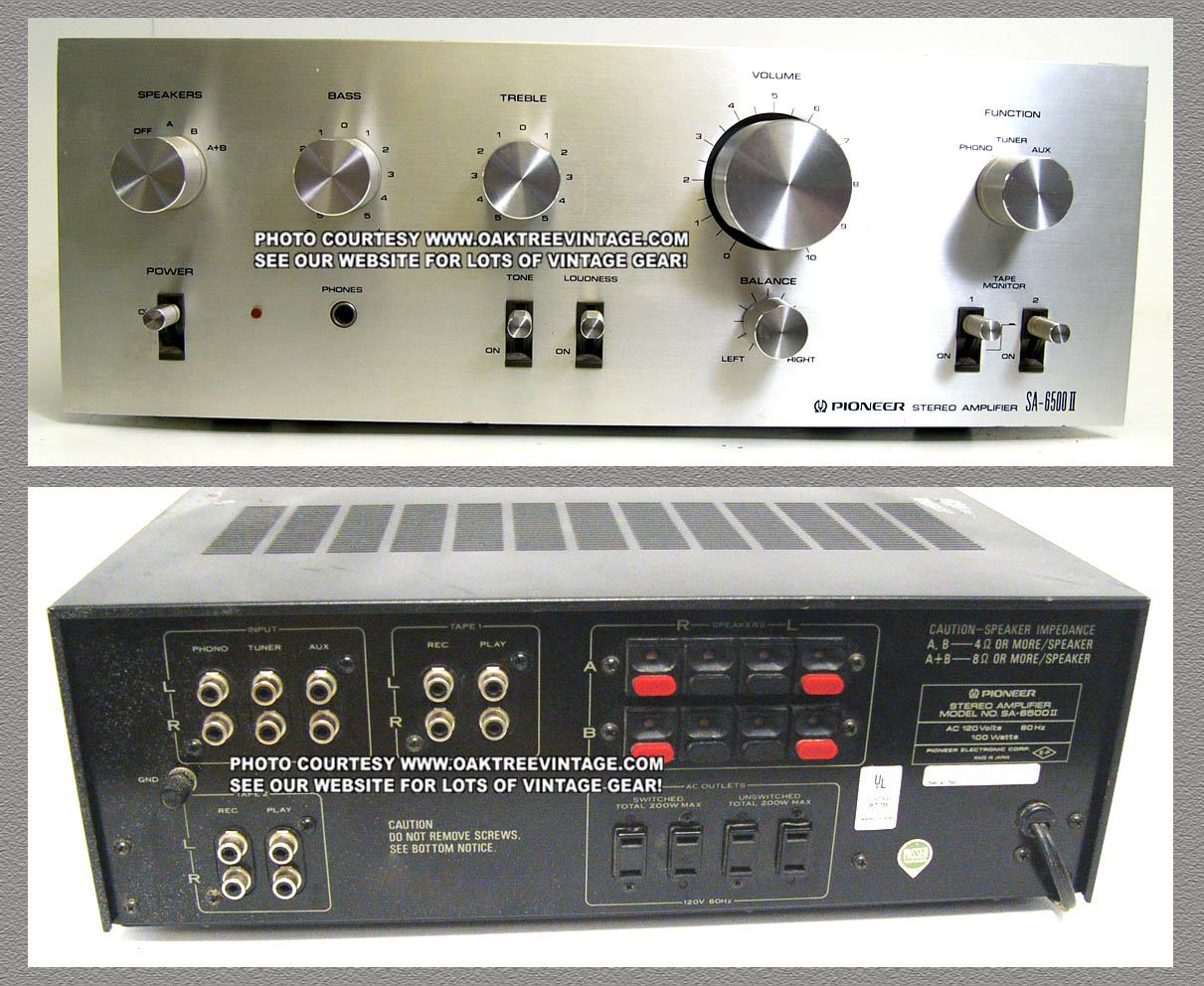

PIONEER SA-6500-II / SA6500-II STEREO INTEGRATED AMPLIFIER AMP PARTS / SPARES FOR SALE

 - PARTING OUT -


Bonnet / Case / Cover / Cabinet, ANE-110 Sheet metal cabinet
(see also SA-6500 & SA-6500-II) - $40.

Panel, Front / Face panel,  ANB-492 Clean - $55.


Knobs / Caps / Buttons, Volume knob AAB-142
(see only SA-6500-II) - $35.

Knobs / Caps / Buttons, AAB-145 Function, Speaker, Treble, Bass knob,
(see SA-6500-II, & SA-7500-II) - $25.

Knobs / Caps / Buttons. AAB-146 Balance knob (see SA-6500-II, & SA-7500-II)  $30.

Knobs / Caps / Buttons, AAD-040 Flip / toggle switch caps
(see also QD-240, RG-1, SA-7100, SA-7500, SA-8100, SA-8500, SA-9500, SA-9900, SG-9500, TX-7500, TX-7500, TX-8100, TX-9100, TX-9500)  - $18. ea

PIONEER SA-6500-II SA6500-II PARTS / SPARES

Transformer, Power supply Transformer ATT-398
(only works on SA6500 II) - (US 120 volt version) - $55.


Capacitors, ACH-073 Power supply filter Caps 6800
μF / 6800uF / 6800mF / 42 volts - $22. ea.

Transistors, TO-220 original / OEM Output transistors / Power amp transistors; NEC  2SD586A & 2SB616A - $20. ea.

Circuit Board, Main Circuit Board AWK-??? / ANP-500-C w/ transistors; 2SA640, 2SA733, 2SA777, 2SA850, 2SC945, 2SC1222, 2SC1438, 2AC1735, IC Chips; TA7136P and balance of resistors, capacitors and diodes
(except less output transistors, heat-sink, filter caps, fuses, switches, controls and pots) - $65.

Heat Sink, Power amp heat sink (less transistors) - $25.

Potentiometer / Control, Volume control pot ACV-154
(see also SA-6500 & SA-6500-II) - $35. ea

PIONEER SA-6500-II SA6500-II PARTS / SPARES



Control Potentiometer / Control, Balance Pot ACV-135
(Also fits; Pioneer SA7500) - $35. ea

Potentiometer / Control, Bass, Treble / Tone pot ACV-143
(see also A-7, SA-5300, SA-6500, SA650011, SA-6700) - $35. ea

Switches / Selectors, Rotary / Wafer Speaker Control Switch ASB-021 (see also SA710, SA-710, SA5300, SA-5300, SA6500, SA-6500, SA6700, SA-6700, SA7100, SA-7100, SA7500, SA-7500 11, SA8100, SA-8100) - $35. ea

Switches / Selectors, Rotary / Wafer Function switch / selector ASB-050 (see also SA-6500, SA-6500-II, SA-7500, SA-7500-II) - $35. ea

Switches / Selectors, Power Toggle switch ASK-065
(see also Pioneer SA-6500, SA-6500-II, TX-6500, TX-6500-II)  $XXX

Switches / Selectors, 'Loudness', ‘Tone’ Toggle switches ASK-089
(See also SA-6500 & II, SA-7500, SX-850, SX-950, TX-7500) - $25. ea.

Switches / Selectors, Tape Monitor 1 or 2 toggle switch / Duplicate switch ASK-092
(see also Pioneer RG-1, SX-750, 850, 950, or SX-1250, SA-7500 , 8500, TX-9500, SA-5500II, 6500, 6500II, 6700, SA-9500, ) - $25. ea.

PIONEER SA-6500-II SA6500-II PARTS / SPARES

Jacks, Headphone Jack K72-026 (decorative nut sold separately) (see also Pioneer RT-61 / 71, SA-520, SA-620, SA-710, SA-5300, SA-6200, SA-6500-II, SA-6700, SA-7500II, SA-7700, SX-525, SX-535, SX-626, SX-636, SX-727, SX-838, SX-828) - $25.

Jack / Connector, AKB-043 RCA Input / Output  connectors / jacks  ‘Phono’, ‘Tuner’, ‘AUX’, ‘Tape 1’, or  ‘Tape 2’   (See also Pioneer AKE-026, SA6500, SA-6500, SA6500II, SA-6500 II SA6700, SA-6700, SA6800, SA-6800, SA7500, SA-7500, SX-780) $25. Ea bank or 2 or 3

Jack / Connector
, AKE-026 Speaker connectors / terminals A OR B banks
(See also Pioneer AKE-026, SA6500, SA-6500, SA6500II, SA-6500 II SA6700, SA-6700, SA6800, SA-6800, SA7500, SA-7500, SX-780) $30. Ea bank

Jack / Connector, AC Convenience outlet / Socket , AKP-004 (See Also Pioneer DT-32, F-X700, SA5300, SA6500, SA650011, SA750011, SA7800, SA9800, SX-300, SX-450, SX-535, SX-550, SX-600, SX-636, SX-650, SX-680, SX-737, SX-750, SX-780/90, SX880/890) - $20. ea

Panel
, Rear sheet metal panel (less any input / output jacks / components) - $25.

Foot / Feet,
AEC-083 (see also; Pioneer A-7, A-8, A-9, RG-1, SA-9100, SA5300, SA6500, SA650011, SA7100, SA750011, TX5300, TX6500, TX6500-11, TX7100, TX8100) - $12. ea.

Most other parts $15-$35. ea

Call or Email for part you need.



revised 9/17
/13






Pioneer_SA-7100_Stereo_Integrated_Sal_back_web.jpg (36065 bytes)     Pioneer_SA-7100_Stereo_Integrated_Sal_engraving_web.jpg (17517 bytes)

(Click on above thumbnails to enlarge photos)

PIONEER SA-7100 / SA7100 STEREO INTEGRATED AMPLIFIER AMP PARTS / SPARES FOR SALE
- PARTING OUT -


Unit had no output on one side.
Bonnet / Case / Cover / Cabinet, AMM-022
(see also SA-7100, SA-8100, SA-9100, TX-7100, TX-8100, TX-9100) - SOLD
Front / Face panel,  ANB-179

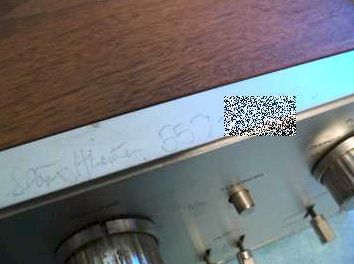

(See also SA-7100 & MA-62A) ID info engraved on top edge, not seen from front of unit, see photo lower right above) - $55.
Walnut wood end caps for face - Excellent cond. - $25. ea.
Knobs / Caps / Buttons, Volume knob AAB-039
(see only SA-7100) - $25.
Knobs / Caps / Buttons, Function knob - $25.
Knobs / Caps / Buttons, Balance knob - $20.
Knobs / Caps / Buttons, Speakers, Bass or Treble knob - $25. ea
Knobs / Caps / Buttons, AAD-040 Flip / toggle switch caps
(see also QD-240, RG-1, SA-7100, SA-7500, SA-8100, SA-8500, SA-9500, SA-9900, SG-9500, TX-7500, TX-7500, TX-8100, TX-9100, TX-9500)  - $15. ea

PIONEER SA-7100 SA7100 PARTS / SPARES

Transformer, Power supply Transformer ATT-100
(only works on SA-7100) - (US 120 volt version) - $55.

Relay, ASR-007 (OMRON MS4U- US-24DC) (see also QT02100, QX-747A, QX-949 / 949A, SA-710, SA-800, SA-7100, SA-9100, SA-9500, SX-737, SX-838, SX-939, SX-1010) - $35 ea. SOLD

Capacitors, Power supply filter Caps 6800mf / 35 volts ACH-018 - $22. ea.


Transistors, original / OEM Output transistors / Power amp original / OEM outputs transistors; Toshiba 2SD371 & 2SB371 - $20. ea. (1 each left)

PIONEER SA-7100 SA7100 PARTS / SPARES

Circuit Board, Circuit Board AWS029 / ANP-178 'Lever Switch' circuit board w/ less switches, controls and pots - $35.

Circuit Board, Circuit Board AWR026 / ANP-177 'Power Supply' circuit board w/ 4 ea; Rectifier diodes Sanyo DS-118AE, 1 ea; SANYO 2SD313D voltage regulator  & 1 EA. 2SC945 transistor - $45.

Circuit Board, Circuit Board AWG-016 / ANP-175 'Control' circuit board w/ 2 ea;
original / OEM transistors 2SC1312, 2 ea; 2SA725  (less control potentiometers) - $45.

Circuit Board, Circuit Board AWM-027 / ANP-113 'Protection' circuit board w/ 1 ea;
original / OEM transistors 2SC1384, 3 ea; 2SC945 , 2 EA; 2SC869 , 1 ea; NEC 2SA733 - $45.

Circuit Board, Circuit Board AWH-021 / ANP-176 Power Amp Driver board w/ 2 ea;
original / OEM transistors 2SB526, 4 ea; 2SA726 , 2 EA; 2SC1451 , 2 ea; 2SD356 - $45.

Circuit Board, Equalizer / Amp Circuit board AWF-005 / ANP-174 originally w/ 4 ea;
original / OEM transistors 2SC1345 (NTE199), and 2 ea; 2SA725 (NTE234) however we have utilized all four of the C1345's ourselves. - $45. as-is

Potentiometer / Control, Volume control pot ACV-112-0
(see also SA-710, SA-7100) - $35. ea SOLD

Potentiometer / Control, Balance pot ACV-111
(see also SA-710, SA-7100, SA-8100, SA-9100, SX-434) - $30. ea

Potentiometer / Control, Bass, Treble / Tone pot ACV-110
(see also QX-747, QX-747A, QX-949, QX-949A, SA-710, SA-7100, SA-8800) - $30. ea


PIONEER SA-7100 SA7100 PARTS / SPARES

Switches, Any push switch (except power switch) - $25. ea
Switches, Speaker Selector Switch ASB-021
(see also other Pioneer SA's from that period) - $35. SOLD
Switches, Power switch ALPS ASK-025
(see also SA-6500, SA-6500II, SA-7100, TX-6500, TX-6500II, TX-7100) - $30. SOLD
Switches, Tape Monitor switch ALPS ASK-028
(see also SA-710, SA-7100, SX-737) - $30.


Jacks, Any rear panel Input / Output component - $25. ea
or
Panel, Rear sheet metal panel -
SOLD


PIONEER SA-7100 SA7100 PARTS / SPARES

Fuse holder AKR-027 / AKR-018 (not including fuse cap / insert)
(see also; QA-800, QA-800A, QC-800, QC-800A, QL-600, QM-800, QM-800A, QT-2100, 6100, 6600, QX-4000, QX-747A, QX-8000 / 8000A, QX-949, QX-9900, SA-500, SA-7100, SA-800, SX-434, SX-440, SX-525, SX-535, SX-626, 727, 828, SX-990, SX-1010, SX-2500, SX-6000, TX-500, TX-800, TX-5300, TX-6200) - $25.

Fuse Cap Insert ONLY
(see also; QA-800, QA-800A, QC-800, QC-800A, QL-600, QM-800, QM-800A, QT-2100, 6100, 6600, QX-4000, QX-747A, QX-8000 / 8000A, QX-949, QX-9900, SA-500, SA-7100, SA-800, SX-434, SX-440, SX-525, SX-535, SX-626, 727, 828, SX-990, SX-1010, SX-2500, SX-6000, TX-500, TX-800, TX-5300, TX-6200) - $25.


Foot / Feet,
AEC-083 (see also; Pioneer A-7, A-8, A-9, RG-1, SA-9100, SA5300, SA6500, SA650011, SA7100, SA750011, TX5300, TX6500, TX6500-11, TX7100, TX8100) - $12. ea.

Most other parts $15-$35. ea


Call or Email for part you need.


revised 9/1913



PIONEER STEREO RECEIVER PARTS / SPARES



NEW LISTING
(Click on above thumbnails to enlarge photos)

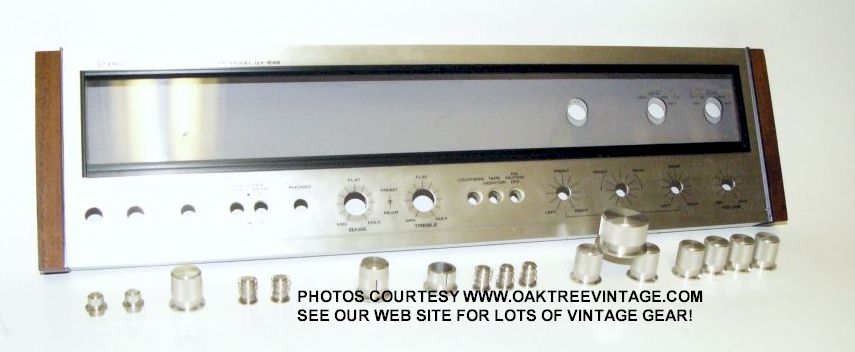

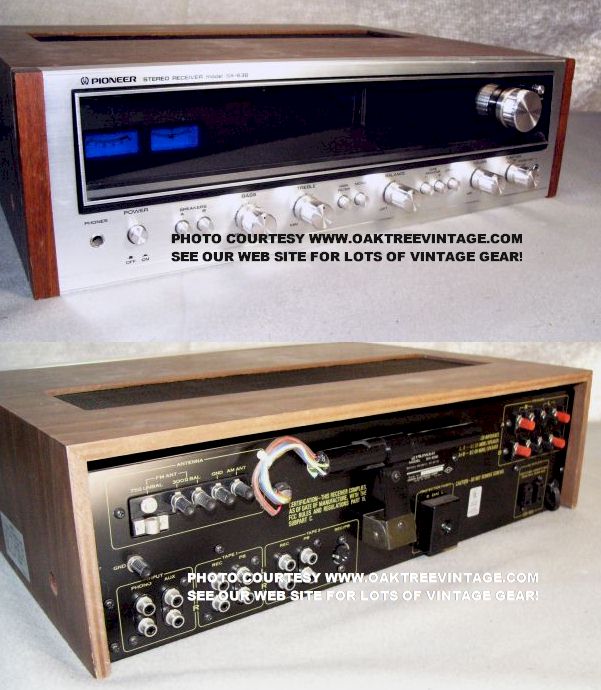

PIONEER QX-646 STEREO RECEIVER PARTS
