REPLACEMENT SWITCHES FOR PIONEER SR-SG-RG SERIES REVERBS, DYNAMIC PROCESSORS AND EQ'S / EQUALIZERS



Replacement Switch for broken bad Pioneer RG-2, SR-303, SG-9500, SG-9800, U-24 selector / switcher. Switches- Tape monitor, Processor, Attenuator, (4-pole switch). The "12-pin" switch also replaces the 'Source / Tape" switch on the Pioneer CT-F1250 cassette deck. MAY* also work for Sansui 7070, 8080, 9090 DB receiver Audio Mute Switch) Replacement for most Pioneer ASG-212, ASG-213, ASG-313, ASG-214, ASG-316 and others. MAY* also work for ADC / BSR SS-110 IC Equalizer "Tape Monitor". MAY* work on other ADC / BSR EQ's as well.





Replacement Switch for Pioneer unit that won't 'stay in'. Fits Pioneer RG-2, SR-303, SG-9500, SG-9800 & U-24 signal router / selector. The "12-pin" switch also replaces the 'Source / Tape" switch on the Pioneer CT-F1250 cassette deck. Switches- Tape monitor Processor Attenuator Attenuators
(4-pole switch will also work for Sansui 7070, 8080, 9090 DB receiver Audio Mute Switch) Replacement for most Pioneer ASG-212, ASG-213, ASG-313, ASG-214, ASG-316 and others.





NEW REPLACEMENT SWITCHES
PIONEER SG / SR / RG UNITS
AND OTHERS

If the locking push Tape monitor, Processor, Attenuator or other switch on your Pioneer RG-2, RG2, RG-9, RG9, RG-60, RG60, SG-3, SG-05, SG-9, SG9, SG-300, SG300, SG-540, SG540, SG-550, SG550, SG-9500, SG9500, SG-9800, SG9800, SR-9, SR9, SR-60, SR60, SR-303, SR303, U24, ADC, BSR, SS-110, SS-110-IC, SS110, SS110IC, CT-F1250 "Source / Tape", Pioneer EQ's, Reverbs, Dynamic Processors is not staying in, or will not lock, then here's the fix for you. May also fit other units. The original 'multi-pin', push switches had / have almost a 100% failure rate after a few years. If yours is not broken yet, it will fail and probably soon.


Failure is due to a plastic locking mechanism that is many years beyond it's designed lifespan. The plastic part that fails, is less than a mm thick, has a metal pin catching on it and is 25+ years old. Almost every time we bench one of the above listed units, the original switch lock will fail after being depressed a few more times. Even if the lock functioned when we purchased the unit we know it will either fail on us in restoration or on the buyer of the unit.

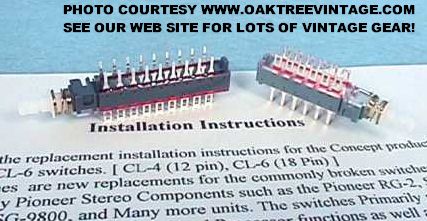

These switches will replace Tape Monitor, Attenuator, Processor and other push-in / locking switches on vintage Pioneer Gear. We have both 12-Pin (4-pole, 6 pins per side) and 18-pin (6-pole, 9 pins per side) switches. They are a simple install for most electronic techs and 'qualified do-it-yourselfers'. Some units may require minor 'mods' to switch housing (easy). In some units, the 'push button / cap' may now be set further back on the switch shaft, so when pushed all the way in, may be less than flush with the face plate. Still usable for most 'fingers' to manipulate. If you need the switch cap to be 'prouder' of the face plate, there is room in the switch cap cavity to 'add' appropriate material to help it 'stand out' further.

We've taken the 'guess work' out of figuring out which switch you need to order. Our Pioneer RG/SG/SR switch replacement kit NOW includes 2x  12-Pin (4-pole, 6 pins per side) and 1x  18-pin (6-pole, 9 pins per side). This is enough for any and more than enough for most Pioneer 'signal processors'
(If you have one of your switches bad you should replace the others of this type now as well. IF you need ALL three to be the "12-Pin" versions {such as for a Pioneer SG-9800}, let us know and we can swap the 18-Pin for another 12-Pin).

SO NOW, NO NEED TO FIGURE OUT WHICH YOU NEED.
YOU GET THEM ALL IN A '3' SWITCH PACK!


 $29.99 Shipped
Shipping within the United States is included in price.
Other destinations have an additional shipping charge.

Shipping Location:

IF YOU PREFER TO PLACE YOUR ORDER BY PHONE,
PLEASE CALL US AT:

(800) 806-4231
- Press Option '2' for 'SALES' to order -


~10:00 AM- ~5:30 PM most days COLORADO / ROCKY MOUNTAIN TIME ZONE


Orders for this product taken by Phone vs via the "Buy Now" button will incur a $5.00 surcharge.


(4-pole / 6 pin MAY*also work for Sansui 7070, 8080, 9090 DB Audio Mute Switch. MAY*also work for ADC / BSR SS-110 IC Equalizer "Tape Monitor". MAY*work on other ADC / BSR EQ's as well. Also fits for some functions on the Yamaha CR-1020 / CR-2020 receivers. Also, some units may require that ALL 3 switches be the "12-Pin" version. If that is the case, the "18-Pin" switch will work, by simply 'snipping / clipping' off the last three terminals at the posterior of the switch, or by bending them out / up. Just make sure at the onset of your task that you check for clearance behind the switches to determine where best to install the modified, "18-Pin" version.

If you need additional switches, just let us know at the time of the order to obtain pricing.

WARNING: Electronic equipment carries dangerous and potentially lethal electrical currents. You should never open any electronic unit without proper knowledge of electronics and the hazards of electricity!
Any repair / restoration should be undertaken ONLY by a QUALIFIED ELECTRONICS TECHNICIAN!




MAY*
*When we say "some parts MAY also fit", that does NOT mean ALL the parts listed 'WILL' fit, and unless we show specific info that a particular part DOES 'cross-pollinate', do not infer that it does or will fit. Only careful research and comparisons, on YOUR part with service manuals MAY indicate a POSSIBLE substitution. If your situation is 'critical', do not base your decision on information found on this or any other page of this web site and do your own research.
