THIS IS NOT THE SAME PAGE YOU JUST VIEWED. KEEP SCROLLING DOWN.





These are fresh rollers with new rubber and new brass bushings for your Pioneer RT-909 / RT-901 Reel to Reel Deck.
If yours have
...  More Info...

















NEW LISTING 3/24/07
(Click on above thumbnails to enlarge photos)

PIONEER

MODEL RT-909 RT909
REEL TO REEL PARTS
PARTING OUT
Many parts will also work on the RT-901 RT901

Parting out a clean Pioneer RT-909 Reel-Reel Deck. Everything runs and looks great! This one has an issue in that when it was powered up, the Fast Rewind motor always turned. Heads in like new condition. Hubs run perfectly true! All motors run fine, fast, smooth and quiet. All transport functions work well. Internal boards will need trim pots adjusted when installed in new deck. Cosmetics like new! We're parting it out as we've had so many requests for parts. Some RT-909 parts may also fit RT-901's.


Bonnet, Black Case
bonnet RNA-424 (Top / Sides sheet metal) - $65.
SOLD  (Cases, covers and side plate / panels, etc. do not include mounting screws, handles etc. as those are sold separately)

Panel, Face Plate, Upper Main RAH-293 - Clean and never been rack mounted so screw holes are in "NEW" condition
(Does not include screws or screw bezels) (see also Pioneer RT-901 / 909) - $75. SOLD
or
Panel, Face Plate, Upper Main RAH-293 - Clean and never been rack mounted so screw holes are in "NEW" condition. Couple of minor scratches near to edge (Does not include screws or screw bezels) (see also Pioneer RT-901 / 909) - $65.

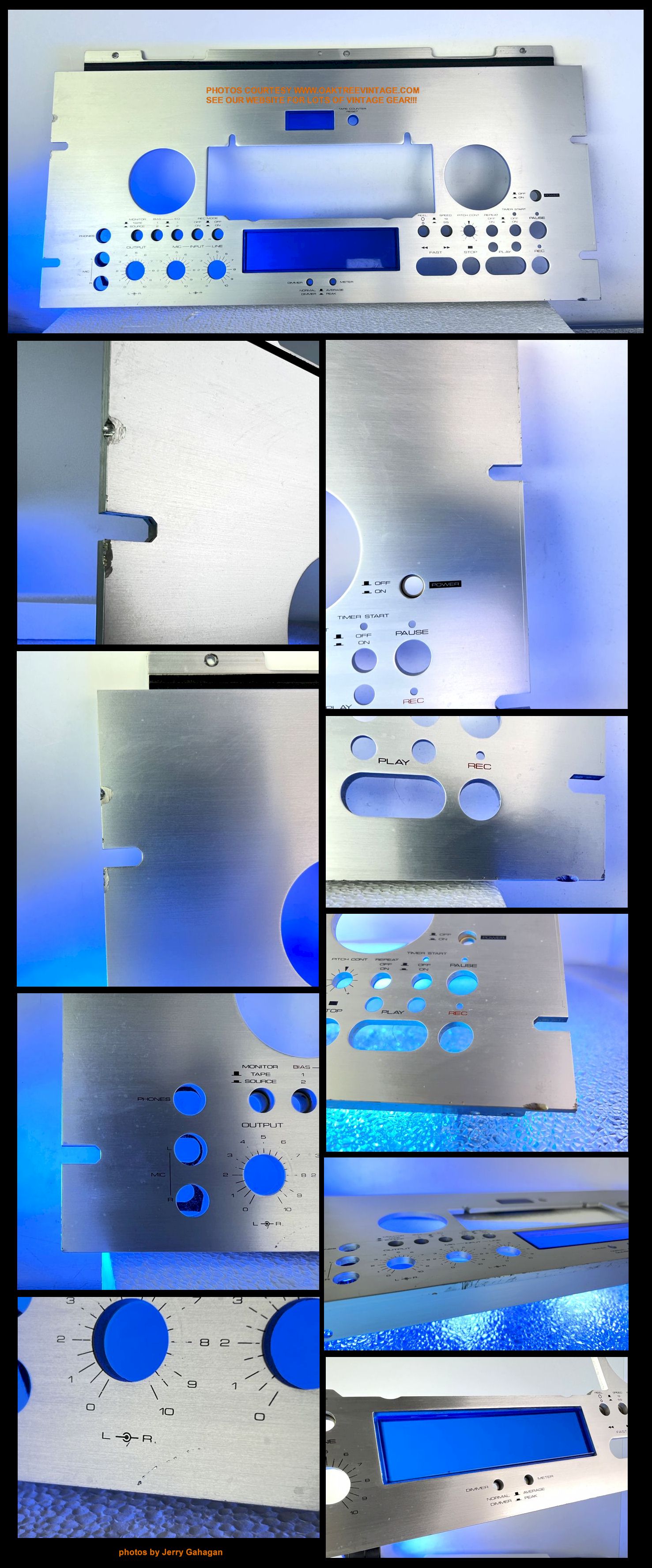

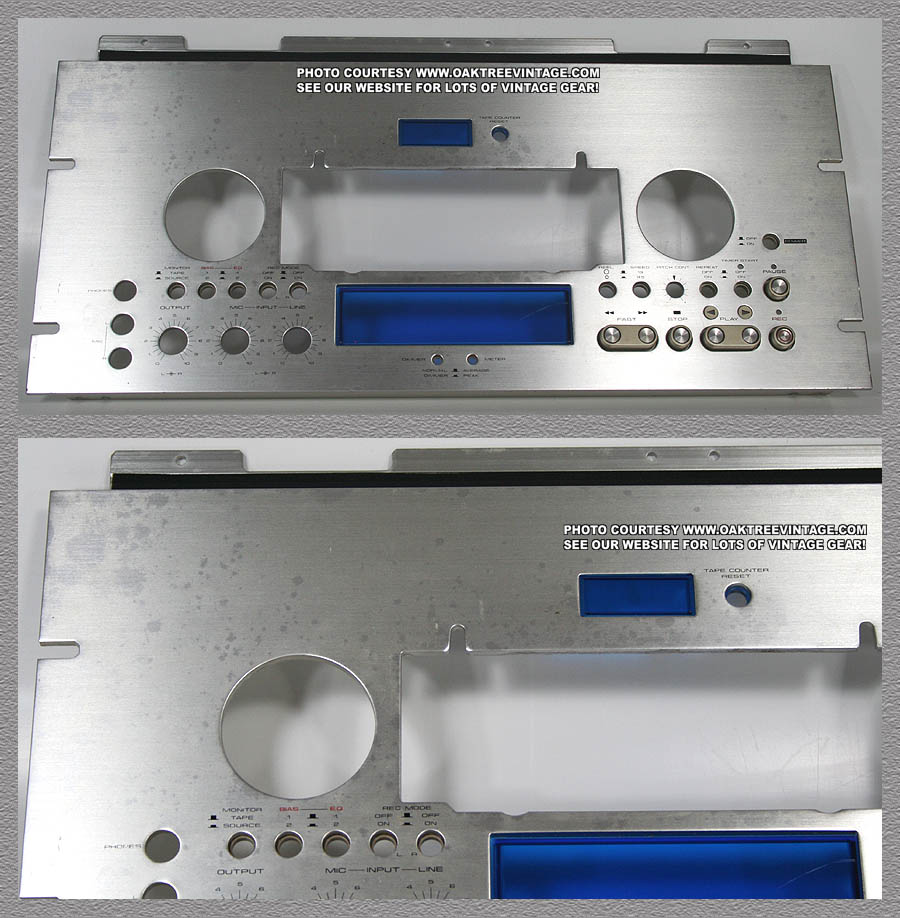

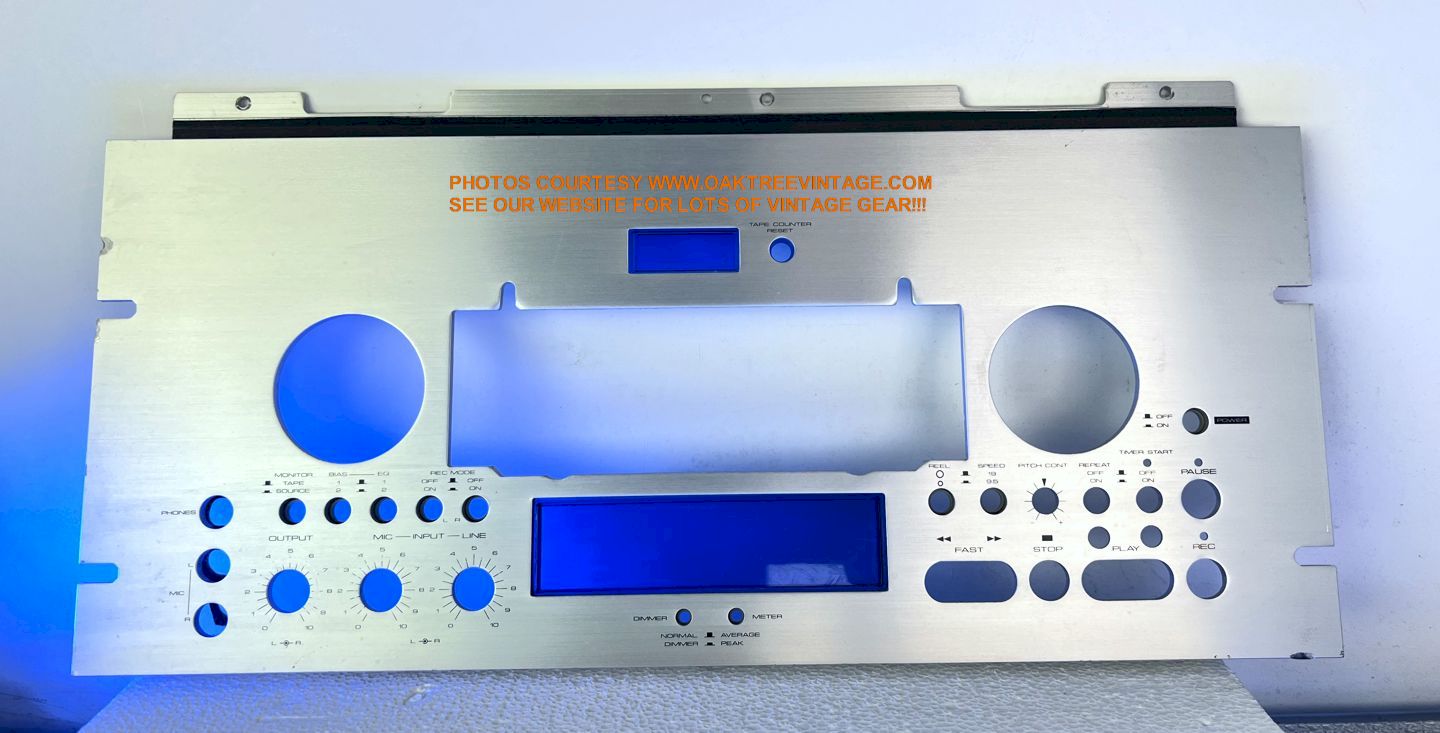

Panel, Lower Face plate with Silk-Screening RAH-268
(Only fits RT-909) - Near perfect and never been rack mounted so screw holes are in "NEW" condition as well as the silk screening - $145. SOLD OUT
or

Panel, Lower Face plate with Silk-Screening RAH-268
(Only fits RT-909) - Fairly clean, but has some 'splotching' that we could not wash off. Has never been rack mounted so screw holes are in "NEW" condition as well as the silk screening - $95.




PIONEER RT-909 RT909 PARTS / SPARES

Knobs / Caps / Buttons, Mic / Line / Output knobs (concentric pairs) RAC-120 / RAC-121 - $40. / concentric pair

Knobs / Caps / Buttons, Pitch Control Knob RAC-122 - $30.

Knobs / Caps / Buttons, Silver Push Switch caps
(Monitor, Bias, EQ, Rec Mode, Reel, Speed, Repeat, Timer) - $18. ea

Knobs / Caps / Buttons, Silver Push Switch caps ( Dimmer & Meter) - $18. ea SOLD OUT

Knobs / Caps / Buttons, Transport Buttons (Play, Fast, Rec, Stop, or Pause)- $35. per assembly SOLD OUT??

Switch, Power Switch RSA-021 (see also CT-F500/505, CT-F700, CT-F800, CT-F850, CT-F900, CT-F950, RT-901, RT-909) (Actual internal switch, not including linkage or silver cap) - $35.

Switch, Push switches RSG-086 (including Monitor, Bias, EQ, Rec Mode, Reel, Speed, Repeat, Timer). - $35. ea.

Switch, Push switches RSG-087 (including 'Dimmer' & 'Meter'). - $35. ea.


Potentiometers / Controls, Mic RCV-079 / Line RCV-075
/ Output Pots RCV-076 (less knobs) - $40. ea.

Potentiometers / Controls, Pitch Control Pot RCS-022 - $30.

Potentiometers / Controls, Blue PC mount, motor tension adjustment micro Pots (from Circuit board RWG-105; 100Ω, 330Ω, 470Ω, 1kΩ) - $18. ea.


Head Base / Panel, RNG-230 (less heads as they are sold separately) - $65. clean SOLD OUT or $45. w/ some surface finish corrosion


Heads, 4 Track / Quarter Track
Head / Head-Stack / Headstack (perfect) - $250. for all on the Head cover mounting base plate RNG-230.
(No longer available as a "all on mounting plate", however check single heads below for current availability)



Head, Erase Head RPG-047 Single
Head / Head-Stack / Headstack (fits 909 / 901) - $85. ea. SOLD OUT

Head,
Record Head
/ Head-Stack / Headstack RPB-064 / RPB-040  fits RT-909 / 901 / 707 - $65. ea. w/ some wear, but lots of hours left in it. SOLD OUT


Head, Playback Head Head-Stack / Headstack RPB-065 / RPB-041 (fits RT-909 / 901 & RT-707 / 701) - $95. ea. perfect SOLD OUT

or

$65. ea. w/ some wear, but lots of hours left in it. 1 available on RT-909


ALSO CHECK OUR RT-707 PARTS LISTINGS FOR HEADS AVAILABILITY AS SOME ARE INTERCHANGEABLE  ---->   Pioneer RT-707 Parts



PIONEER RT-909 RT909 PARTS / SPARES


 Meters / Display, Blue Fluorescent "Tape Counter" Readout w/ Circuit board assembly RWX-336
(w/ Toshiba IC chips; TC5054P, TC4069UBP, TC4011BP & TC5066BP) - $65. SOLD

 Meters / Display, Blue Fluorescent "Level Meter" Readout on RWX-338 Circuit Board- $85.
2 IN-STOCK

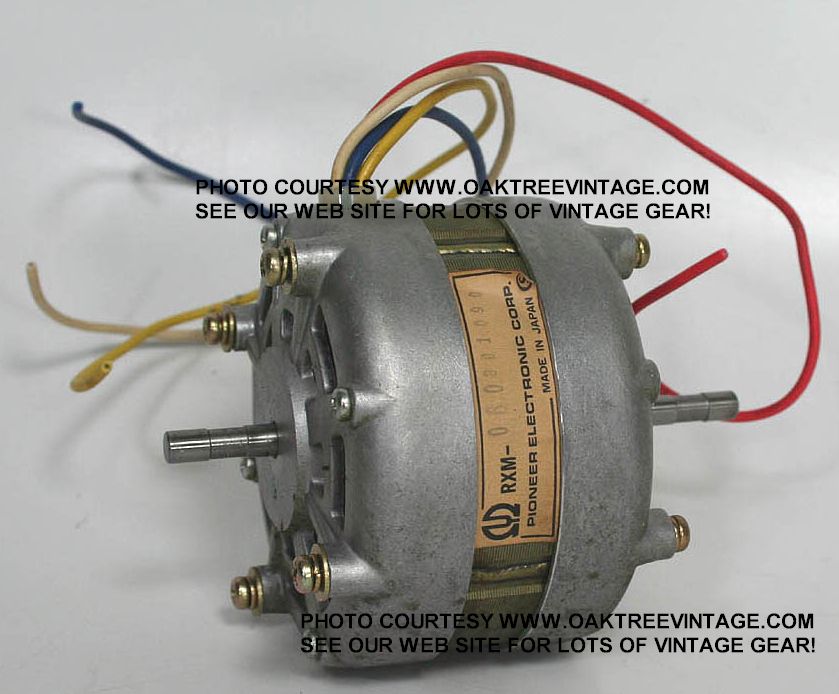

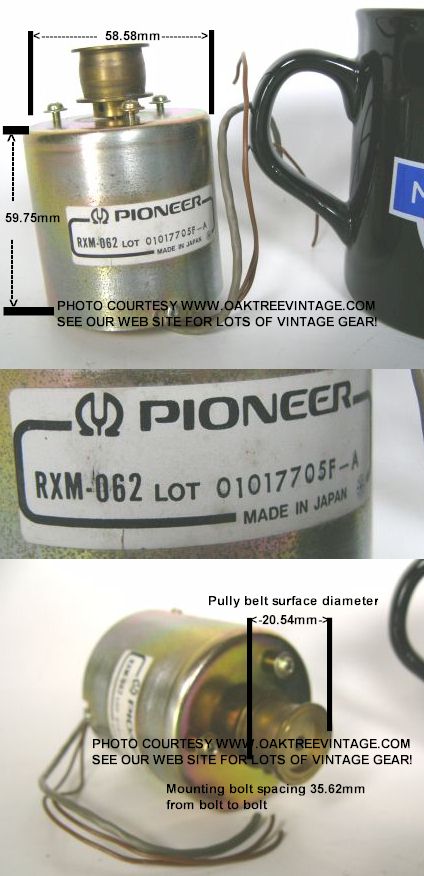

Motors, Capstan Motor - Part #RXM-062 / RXM-063 Will work on either RT-909 or 901
(we have information that the Teac EM1446 / 'X-series' motor is the same, but may need it's polarity reversed when connected. Just FYI.) - $125. SOLD





Motors, Take-Up or Supply / Fast Wind / Hub / reel motor right or left Part # RXM-060 - $85. ea
1 REMAINING IN-STOCK




Sensor, Counter 'Sensor Slit' / plastic butterfly RNK-827 - $25. ea

Flywheel
, Capstan Flywheel Assembly RXB-283
(less Teflon / nylon ball bearing) - $35. ea

Ball Bearings, Teflon / Nylon 'Micro-Balls'
(illustrated part #100 from Pioneer RT-909 service manual) Capstan Flywheel nylon ball bearing N23-068 - $30. ea (cannot be combined for quantity discount) (yes, you read that correctly, they're $30.00 each. We have found no substitute unfortunately) - NOW SOLD OUT  (Without these, the Pioneer RT-909 Reel to Reel Capstan flywheels will 'scrape / drag' on the motor mount thrust plate. Metal ball bearings transfer too much mechanical noise for a tape deck of this caliber unless you use a Teflon bearing surface on the 'thrust plate'. Additionally, there's a circuit 'shorting' risk if they fall down into the circuit board either by accident during labor or due to excess travel / space between the flywheel axels and the plate.)

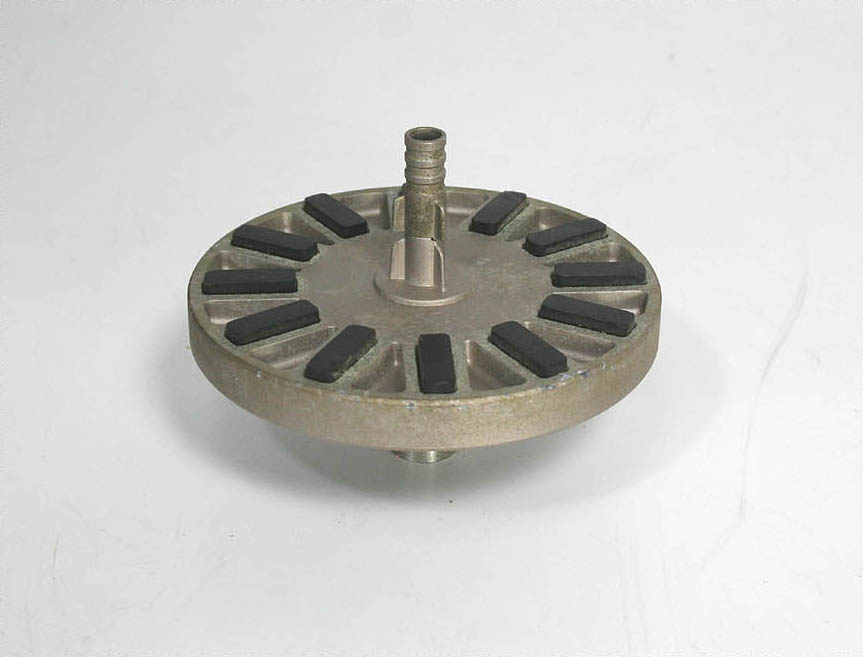

Reel Base Assembly, PIONEER RT-909 / RT-901 - Hub spindles / reel base / table / lock
(Reel Base assembly includes RNG-209, with Reel Base Blade RNG-227, Reel Base Spring RBH-585, Reel Base shaft / screw RLB-116) -  $109. ea. clean
SOLD OUT
or

$89. ea. function, but w/ finish corrosion (with a small amount of effort, these clean up well for repainting. We've done it on our machines before) -
SOLD OUT




(Many R2R's are offered for sale by individuals around the world, usually on "on-line" auctions. Most of the R2R's shipped by individuals are not packed adequately and thus sustain damage or are completely destroyed. We even see this when packed by some of the "pros" at the shipping stores. Just because they work there, doesn't mean they are versed in packing fragile, high mass electronics (I get calls all the time for this part because the unit was VERY INAPPROPRIATELY packed by one of the WELL KNOWN shipper stores). Reel spindles are the most common part to get damaged or destroyed from amateur / inadequate packaging (and no, double boxing is not the solution!!!. Thus we get many times more request for this part than there are ever parts available. If you see these available and you need them, call quickly as these are some of the first parts to sell due when a machine comes in for salvage.)



PIONEER RT-909 RT909 PARTS / SPARES


Hub Cap / Cover, Pinch Roller Hub cap / cover REC-305 for pinch roller with hex bolt RBA-050 screw and screw bezel / collar RLB-105 (Rollers sold separately) - $35. ea SOLD OUT


CLICK HERE NEW FOR PIONEER RT-909 / 901 RXB-325 / RXB-194 PINCH ROLLERS


Rollers, Rubber Pinch Roller RXB-325 - SEE JUST ABOVE & NEAR TOP OF PAGE


Belt, Rubber Pinch Roller REB-361 - SEE JUST ABOVE & NEAR TOP OF PAGE



Tension Roller Assembly, Tape Tension Arm Assemblies w/ Micro switches RXX-265 Left or RXX-266 Right

(Less front cap, hex bolt and tape roller and
will need to be disassembled, cleaned and re-lubed) - $45. ea As-Is
- SOLD OUT


Hub Cap / Cover, Tape Tension Front Hub cap / cover - $35. ea. w/ hex bolt





Brake Bands, Tape Tension brake bands RXB-204 - $35. ea.

Brake Drum, Plastic brake wheel RNK-833 - $25. ea.


PIONEER RT-909 RT909 PARTS / SPARES

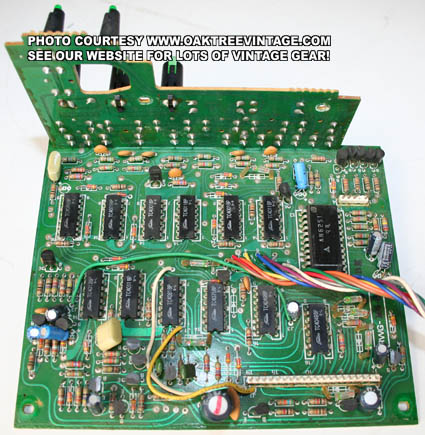

Circuit Boards, Pioneer RT-909 Internal circuit boards
(RNP-614 fast wind motor control board has issue in that the Rewind motor always turns
(less relay and adjustment pots), RWX-341 Fuse circuit board,  RWS-078 Transport switch circuit board (less LED's and Momentary Switches), RWG-106 /

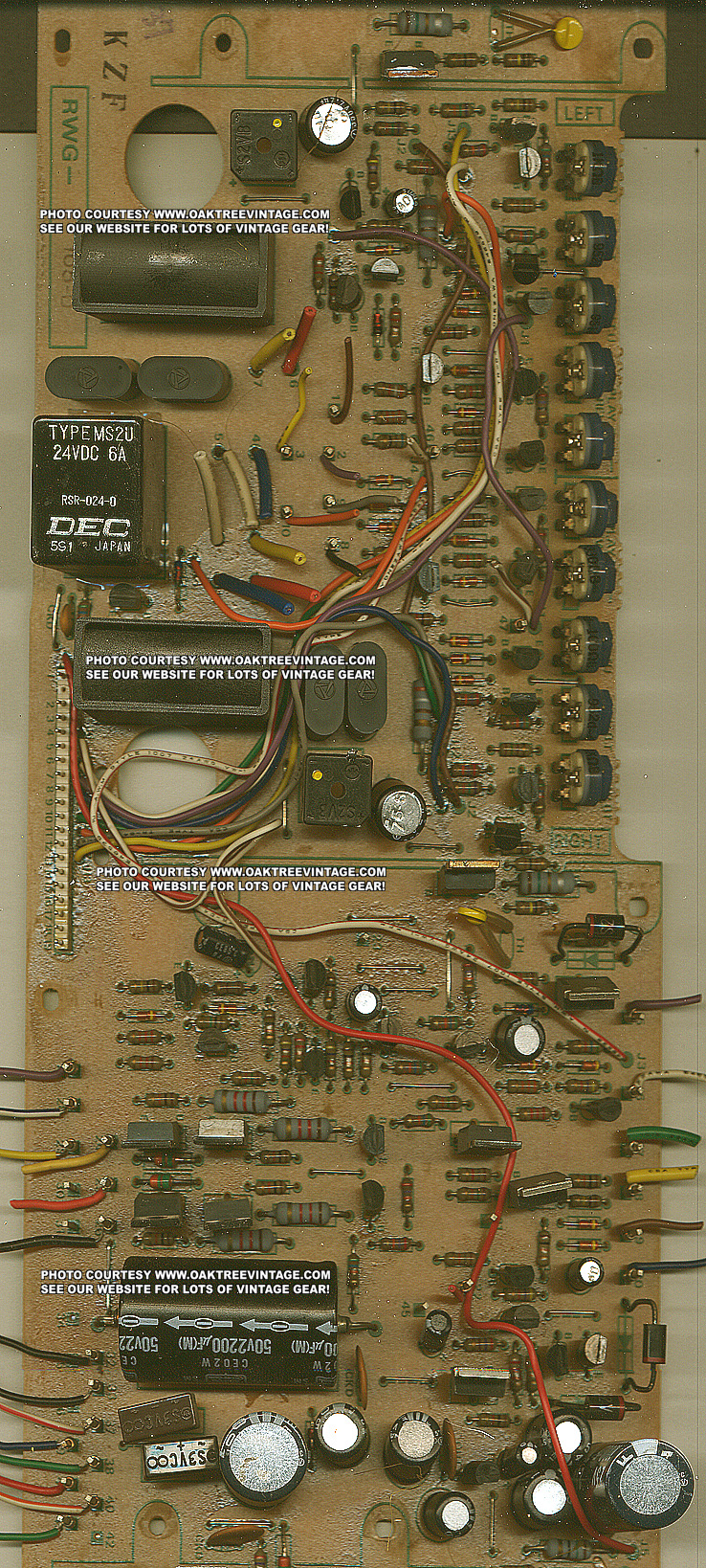

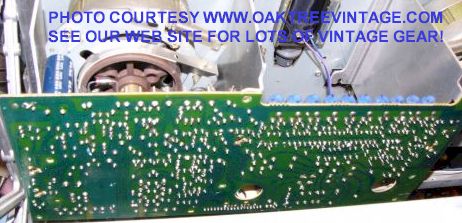

RWG-105

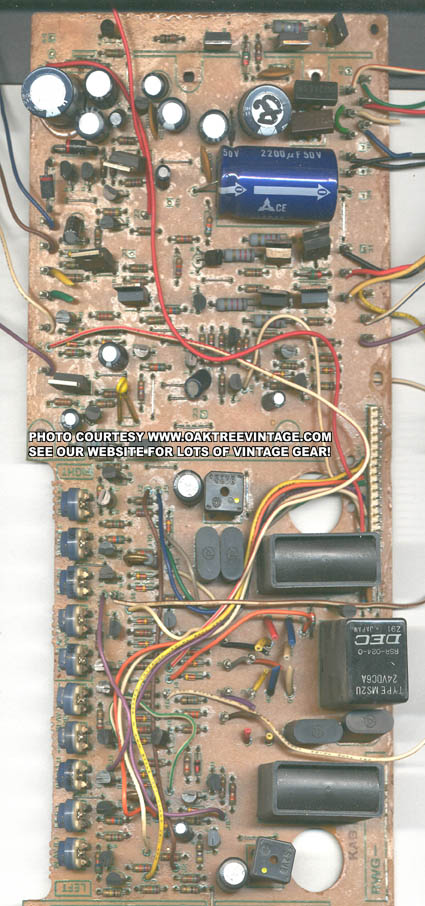

Circuit Boards, Pioneer RT-909 Internal circuit boards RWG-105 / RNP-735 Capstan motor speed control / transport board, circuit board w/ Mitsubishi transistors; B632, B682, C1382, C2535, D712, D837, D686, (less relays, start caps) - $95. SOLD OUT



RWX-340 / RNP-681

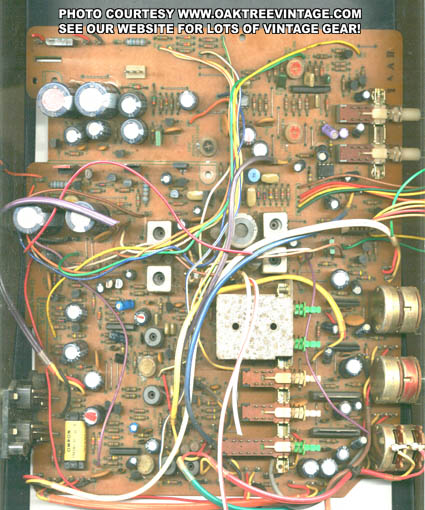

Circuit Boards, Pioneer RT-909 Internal circuit boards RWX-340 / RNP-681 Audio Mother Board PC assembly w/ Toshiba IC / Inline packages TA7220P & Omron LAB2NS relay
(less pots, switches, jacks) - $95. ea. 1 in stock.

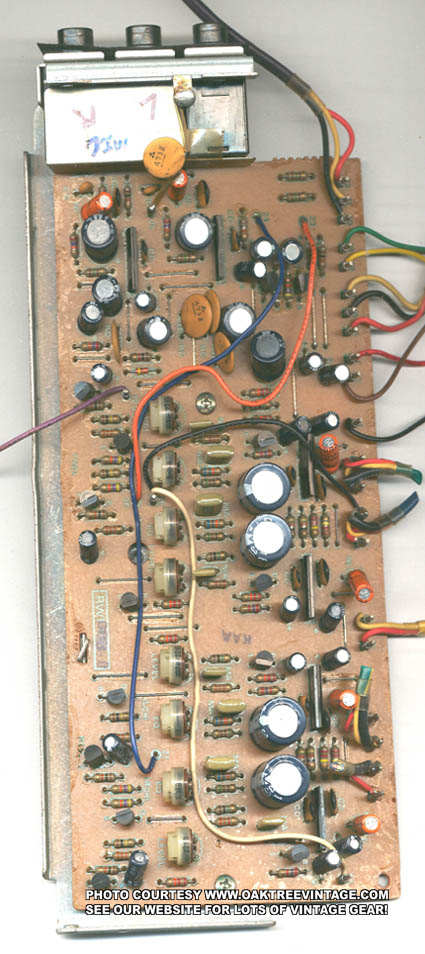

RWF-088 / RNP-622
Circuit Boards, Pioneer RT-909 Internal circuit boards RWF-088 / RNP-622 Pre-Amp PC Board assembly (less jacks but with micro pots) - $75. ea. 2 in stock.

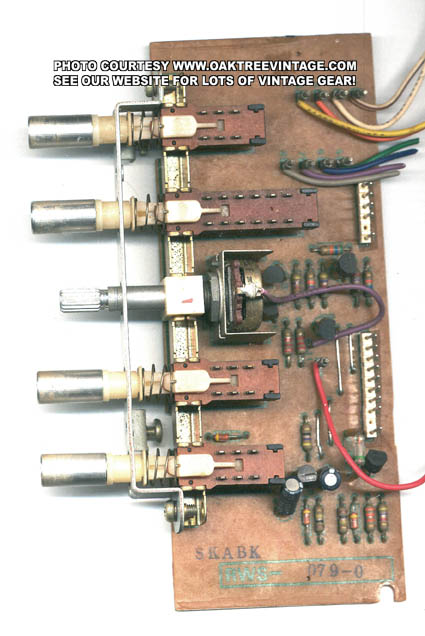

RWS-079

Circuit Boards, Pioneer RT-909 Internal circuit board; RWS-079 / RNP-617 (board only, less switches) - $45. ea. 2 in stock.



RWS-078 / RNP-723                         &                RWG-106 / RNP-618
Circuit Boards, Pioneer RT-909 Internal circuit board;

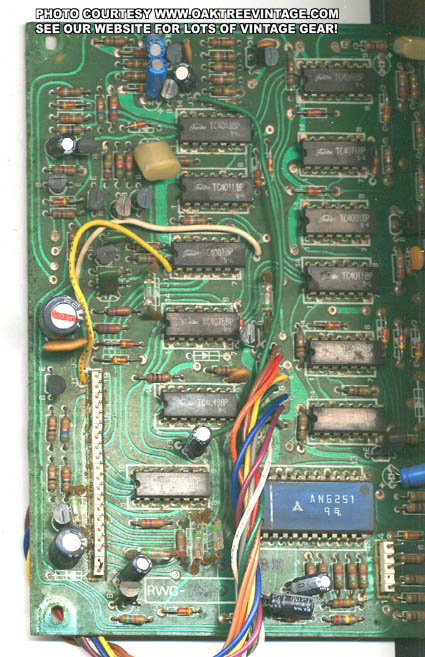

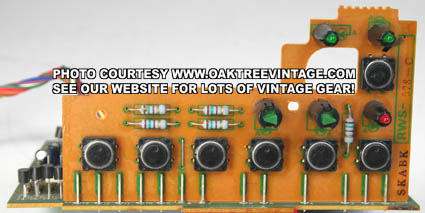

RWS-078 / RNP-723 & RWG-106 / RNP-618 Switch Assembly Circuit board w/ Toshiba chips; TC4001BP, TC4011BP, TC4013BP, TC4049BP, TC4071BP, TC4075BP, TC4081BP & AN6251 chips / IC. (w/ transport switches and LED's) - $75. ea.
SOLD OUT



PB-0370

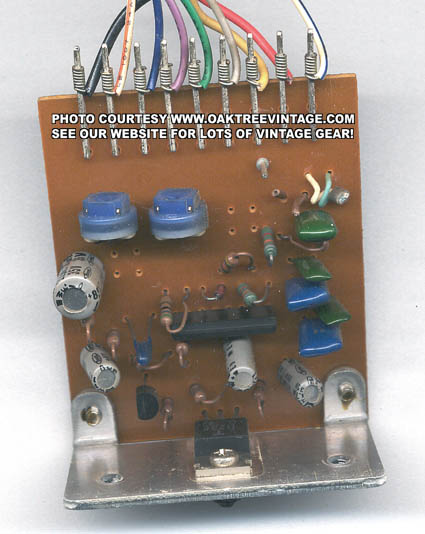

Circuit Boards, Pioneer RT-909 Internal circuit board; PB-0370 Motor Control Circuit board - $45. ea. 1 in stock.

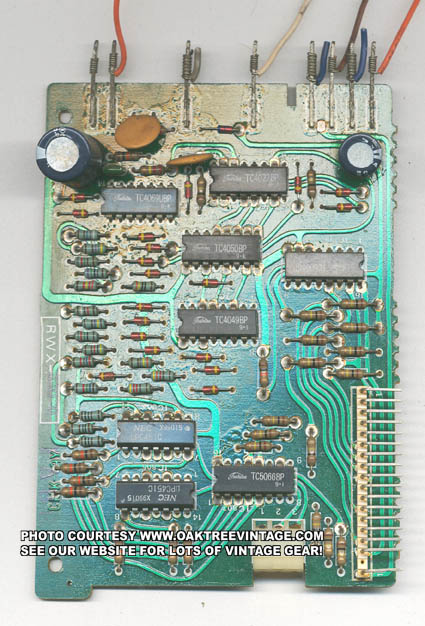

RWX-339 / RNP-620

Circuit Boards, Pioneer RT-909 Internal circuit board; RWX-339 / RNP-620 Driver Assembly Circuit board
(w/ Toshiba IC chips; TC4022BP, TC4049BP, TC4050BP,TC4069UBP, TC5066BP, and NEC UPC451C / μPC451C) - $45. ea. 1 in stock.


Relays, RSR-024 'DEC MS2U / RSR-024-0-24DC 6A' - $35.

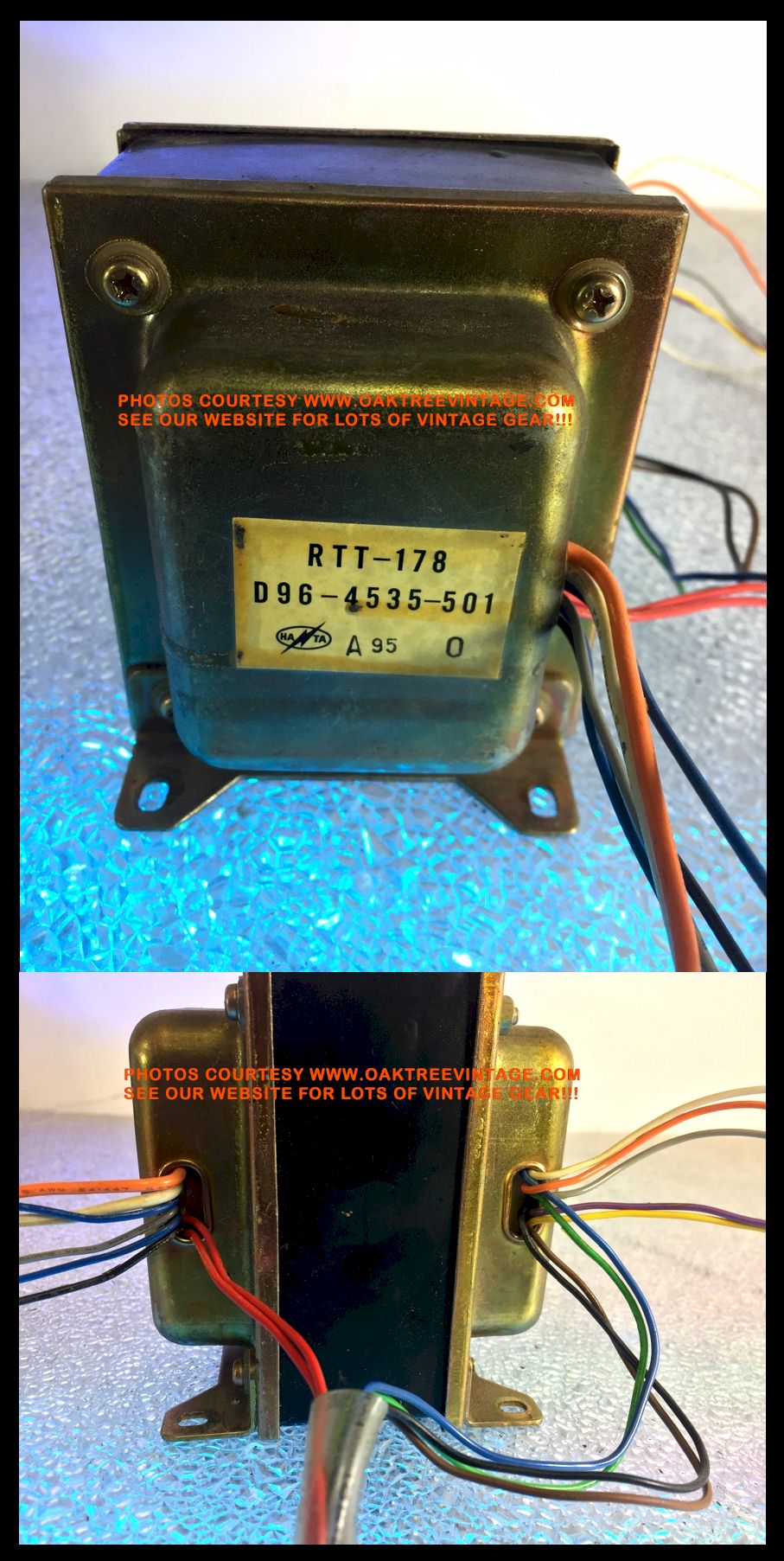

Transformer, Pioneer Main Transformer RTT-178 - $95. 3 in stock

Transformer, Pioneer Main Transformer RTT-199 Multi-Voltage / World AC Power version - $95.
SOLD

Capacitors, RCE-201 Start / Run capacitors for Fast Wind Reel motors 250VAC / 4.5uF
('non-polar / Bi-Polar') - $20. ea. only 3 left in stock currently

Solenoids, Any internal Solenoid
(RXP-075 Brake Solenoid, Pinch solenoid RXP-071, Pause solenoid RXP-070, etc.) - $45. ea.

Springs, Internal Springs - $25. ea.


PIONEER RT-909 RT909 PARTS / SPARES



Jacks
, Headphone Jack RKN-056 - $30.

Jacks
,
Mic Jacks RKN-058 - $35. pair

Jacks
, RCA Input / Output section RKB-014 - $35.


Jacks, Panel Mount Voltage selector,
 JACK ONLY RKR-020 (See also CT-05, CT-3, CT-320, CT-330, CT-7R, CT-F1050, CT-F6262, CT-F9191, CTX50, RT-701, RT-707) - $30. (voltage selector 'PLUG' and 'FUSE CAP' insert sold separately)






Jacks, Voltage Selector 'PLUG ONLY'
RKR-020 (See also CT-05, CT-3, CT-320, CT-330, CT-7R, CT-F1050, CT-F6262, CT-F9191, CTX50, RT-701, RT-707) - $30. (voltage selector 'JACK' and 'FUSE CAP' insert sold separately)







Fuse Cap (insert cap only) - $30.

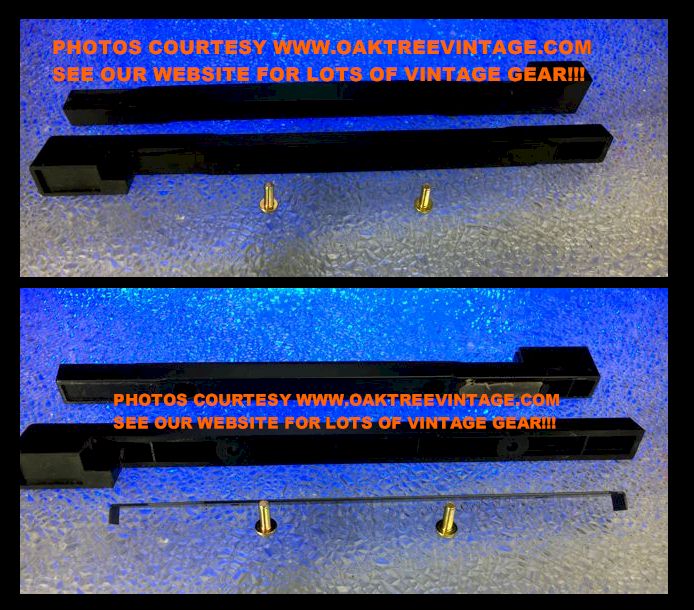

Bottom Feet / Skids  REC-319 Right or REC-320 Left - $35. ea. SOLD OUT

Chassis
, Cast Frame Sides - $35. ea.


Panel
,
Upper Back panel (Excellent) - $45.

Panel
,
Lower Back panel with info silk screening 'North American' AC / 'ZG' version (Perfect) - $35. SOLD

Panel, Lower Back panel with info silk screening 'Multi-Power' / 'World AC' / 'AB' version (Perfect) - $35.

Panel
,
Bottom Sheet Metal Panel / Plate (Perfect) - $35.

Cord
, AC Power Cord w/ Grommet - $25.

NAB
, PP-220 / PP-220A > For NAB Hub adaptors, click HERE!

Other parts not listed quoted individually based mostly on part value and time required to extract. Phone or email for  availability.
