TEAC A-4010S PARTS / SPARES
OPEN REEL DECK
TEAC A-4010S REPLACEMENT PARTS / SPARES



Replacement Teac A-4010S parts / spares Teac A-4010S / A4010 / A4010SU Open Reel to Reel Tape decks / recorders. Also, parts for TEAC RA-40S / RA40S Recording / Playback Amplifier. Teac A4010 Motor, heads, brakes, circuit boards, spindles, hubs, Solenoid, rollers, idler, tension arms etc.














































*Note about parts / spares sales

* Our "parts units", parts / spares and related reference information are primarily archived for the purpose of restoration / repair of "Oak Tree Vintage" units first. Only if we do not have a "viable" unit in yet, either already in process or in line to be processed, that may potentially need parts from a "parts unit", will we release available parts for sale (even though they may appear as available for sale to the public). As many of you know, the restoration of a unit can be a long, time consuming process. We may "lock up" parts that we may potentially need in the restoration of a unit (and not necessarily get it marked 'Hold' or 'Sold' on the site right away). Parts are priced according to the "potential value" of the unit they can be applicable to (meaning the amount WE would be willing to pay for the part if that was all that was standing between us having a "shelved unit" or a valuable / sellable unit), time to extract, their rarity & their condition to name a few criteria and likely will be completely unrelated to the original cost / price of a part when it was currently available from the manufacturer.

Parts Photos; We get a number of requests for 'photos' of a specific part. Unfortunately, in most cases that is not practical as the amount of time involved in posting that exceeds the value of the 'unique' part. We will sometimes post photos of less 'unique' parts, if there is a greater chance of them being available in multiple quantities, or on a more 'repeat' basis.

Shipping: Shipping on most 'small' parts if typically via Postal first class or Postal Priority for both domestic (USA) and international orders. Larger parts such as transformers and drivers (speakers) are typically via FedEx gnd.
Some parts sales such as those for empty 'speaker cabinets', empty 'component cabinets / covers / bonnets' and 'speaker grills' are 'doomed' from the start. Due to their size and required packing supplies, the cost of 'packing for safe transit' and shipping are typically nearly equal to and sometimes greater than the cost of the part.  Think about it. An empty speaker cabinet or stereo receiver case is essentially the same size as a complete one. Yes the weight will be less, but most of items that size are calculated on 'dimensional weight', not actual weight. Secondly empty component cabinets have to be packed to disallow breakage, typically requiring nearly as much packing materials as an entire unit. Speaker grills have to be 'sandwiched' between foam sheets in large, custom ordered boxes (all relatively expensive).  It is what it is....

A non-response to an email request for a part (we may appear to have), likely means that we are still determining which parts we are going to need for the restoration or repair of one of our units. Again, the parts are first for the restoration of our units and secondarily for the public market. Since we list the parts available for ourselves, it is not much effort to modify the menu's for web publication, which in turn makes the reference information and occasionally the part available to the public. Frankly, publishing them to the web, in many instances, makes it easier for us to determine if we have the part for our needs as well. The alternative to all of the above would be to not offer them at all to the public, however most parts are available to the public for sale.
BOTTOM LINE IS; IF YOU DON'T SEE IT AVAILABLE FOR SALE, WE DON'T HAVE IT!
 Thank you for your understanding.




20% off sale on salvage stereo parts.


See sales banners on parts pages for details







Most of these components are "take-outs" from stereo gear that for various reasons we 'chopped' and unless otherwise noted are in serviceable / working condition / shape!
   In the case of output transistors, they will be tested / checked prior to posting and once again prior to shipment, pots / switches will be 'cursory' cleaned, parts already missing / utilized from circuit board will be noted, transformers will be checked prior to posting. Filter capacitors  will be tested / checked prior to posting and once again prior to shipment and 're-conditioned' / 're-formed' if necessary.











Above photo is of a Teac A-4010S having typical Main Capstan Belt change and Pinch Roller Arm re-lube operation.
Just FYI as typical of some of the work that is required to bring any 20+ year old Reel to Reel tape deck back to life, regardless of how well a person selling an old deck, that has not been recently serviced, may say it works! In fact the worst decks are commonly the units that are stated as having low hours, have been little or never used, or the worst offender "is NIB (New In Box)". While that may seem like a good thing, experience tells us that those are the "scariest" to purchase. They generally require the most work to bring back to a practical level of operation. Just like a car that has sat for many years not being used, similar "atrophy" happens to most electro-mechanical devices, ie; Turntables, Cassette Decks, 8-Tracks, VCR's, R2R's etc. Just FYI.





(Click on above thumbnails to enlarge photos)
TEAC A-4010S / A4010-S / A4010SU Reel-Reel PARTS / SPARES
for sale / reference
(parts are from 'salvage / donor' units)
Parting out.

Case / Cabinet / Bonnet, Walnut Veneer Case - fair, w/ some minor veneer chips / scuffs. Structurally sound - $55.
(Cases, covers and side plate / panels, etc. do not include mounting screws as those are sold separately)

Panel, Masonite Back Panel - $25.
(Cases, covers and side plate / panels, etc. do not include mounting screws as those are sold separately)


Panel, Face Panel / Plate - Decent, Minor scuffing around capstan collar and light wear overall. Nothing too distracting - $45.


Sash, Aluminum Side Rails 11162 / 11163 Left or Right - $30. ea.

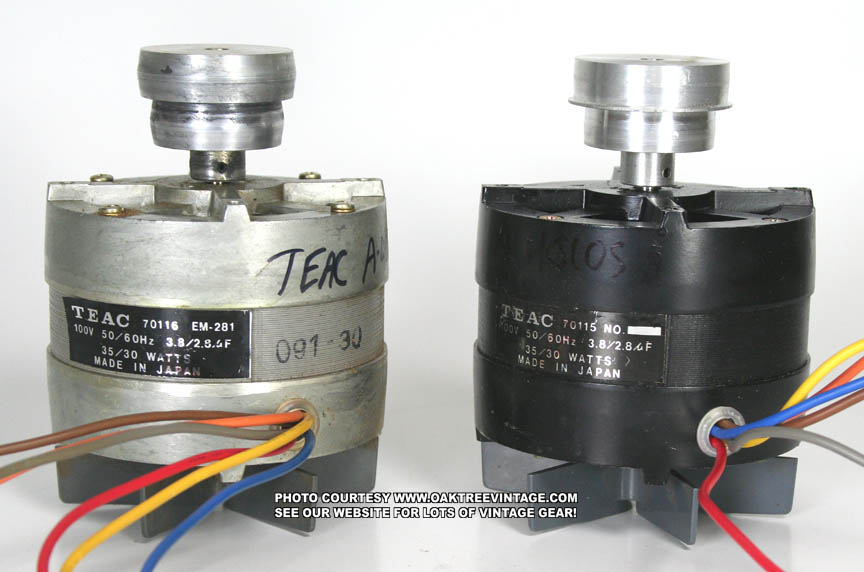

Motor, TEAC A-4010S Capstan Main Motor 70115 - $65.

Motor, TEAC A-4010SU Capstan Main Motor 70116 / EM-281 w/ rubber fan blades (3rd version. 1st version #70112. 2nd version #70114. 3rd version 70116-3. Not sure what the actual differences are / were) - $65.




Pulley, Capstan Belt Pulley 122256 - $35.

Flywheel / capstan, Capstan / Flywheel 12166, 12263, 12265, 12267 assembly - $40.

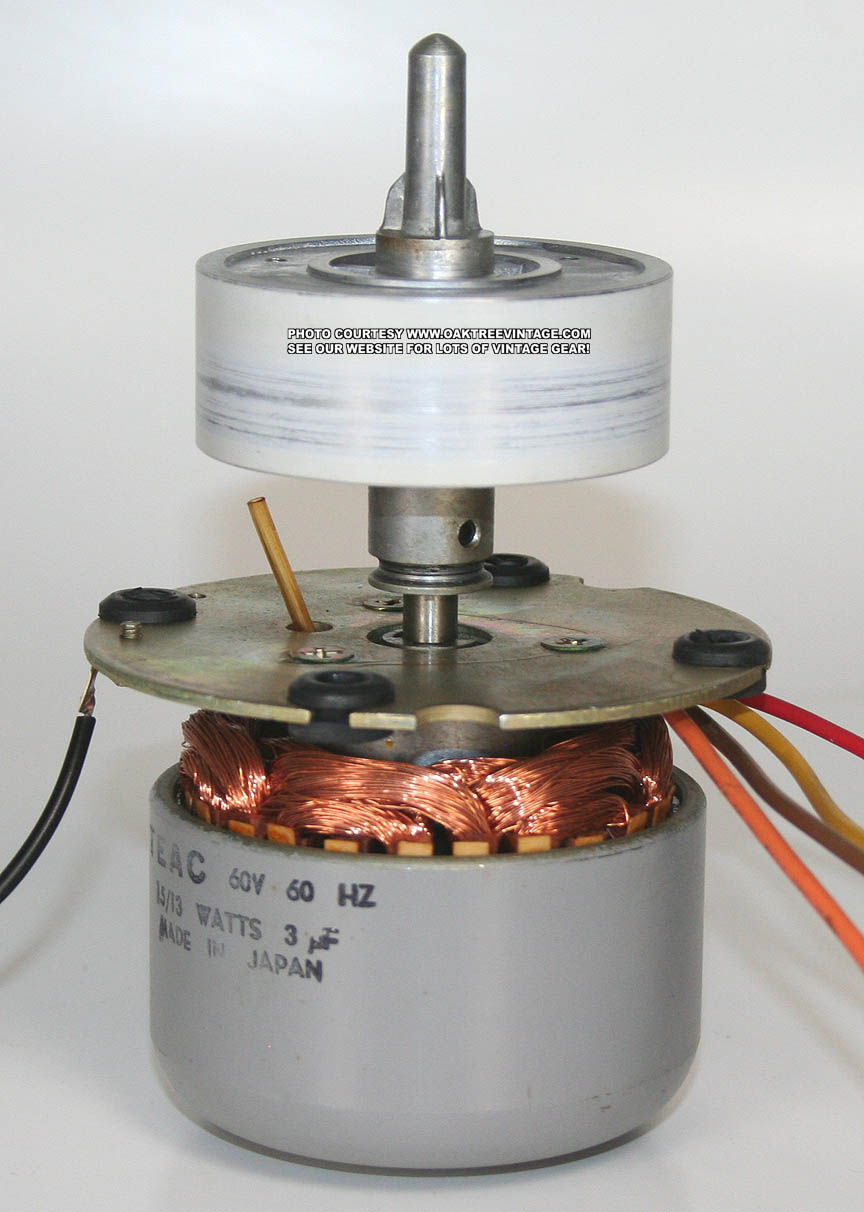

Motor, Hub / reel motor 70214 / 70217- $55. ea.  2 avail


TEAC A-4010S / A 4010-S / A4010SU PARTS / SPARES

Brake Drums / Spindles, 17185 - $35. 2 avail.

Reel Platform, Hub Reel Tables, Base 16155 (w/ black rubber pad, aluminum trim and 3 mounting screws) - $35 ea.

Counter, Index counter / Tape counter mechanism 58505 - $30.

Knobs / Caps / Buttons, Round switch caps (when removable) such as 'Tape Speed' buttons - $15. ea

Switch, Power Push switch
(button / cap sold separately) - $35.

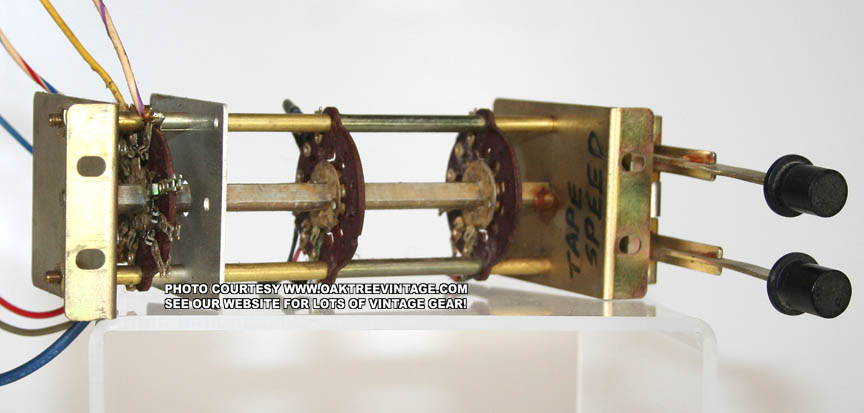

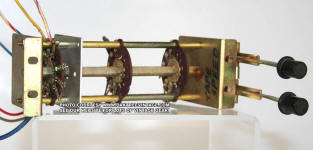

Switch, Tape Speed Switch array 44325 - $35.

Switch, Tape Tension Switch 44324 - $35.

Switch
, 'Micro-Switch V-5-1A 44104 / 5A / 125 / 250VAC 17108
- $20

Selector, Tape Transport selector assembly 25027 / 25028
(w/ buttons, micro switches for 'Stop', 'Fast Wind' & 'Play') - $45. complete w/ some wear to the 'white' lettering




TEAC A-4010S / A 4010-S / A4010SU PARTS / SPARES
Pinch Roller, Rubber Pinch roller assembly (good used, reconditioned prior to shipment) 14009 - $45.  2 IN STOCK

Pinch Roller,
Rubber Pinch roller ('NOS', reconditioned prior to shipment) 14009 - $65.  1 IN STOCK

Arm, Pinch Roller Arm w/ axle / post 14142 (revised as version 14160-1)
(cleaned and re-lubed prior to shipment) - $35.

Arm, Tape Tension Arm Assemblies 18032 (the one on the 'supply' side) - $35. ea SOLD

Arm, Automatic Shut-Off Lever / Arm (the one on the 'take-up' side)
- $35. ea

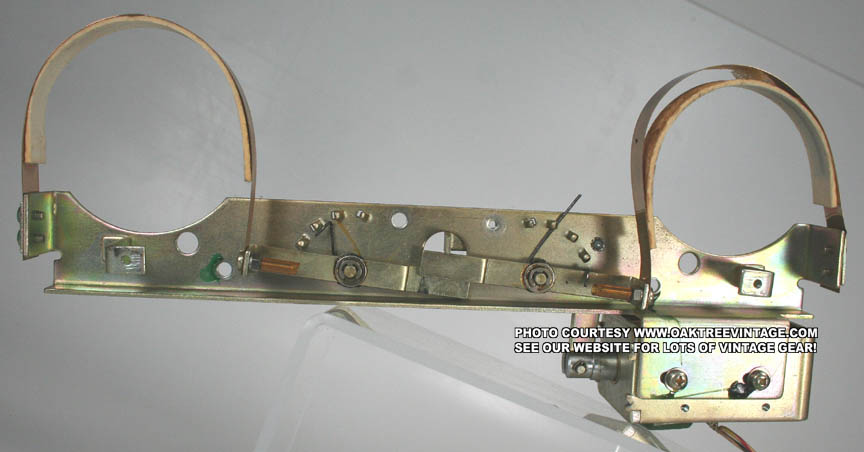

Brake Bands, Tape Tension brakes 17191 w/ 17138 felts- $30. each side (bands & felts only)

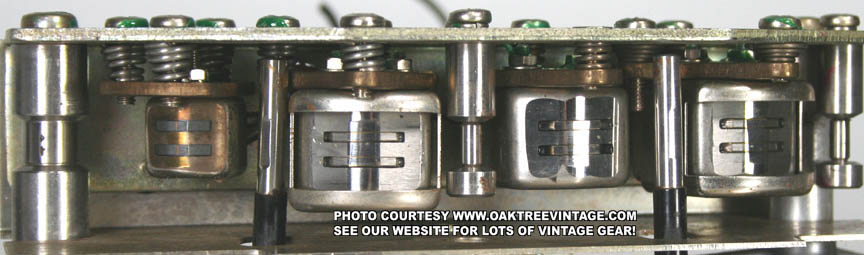

Heads, Play / Playback
Head / Head-Stack / Headstack 66903 / 80712 (Virtually NO visible wear) - $85. Each / Single (2 avail) - ON HOLD FOR SHOP USE

Heads, Record
Head / Head-Stack / Headstack 66904 / 80713 (Virtually NO visible wear) - $85. Single - ON HOLD FOR SHOP USE

Heads, Erase
Head / Head-Stack / Headstack 66303 (Virtually NO visible wear) - $65. Single - ON HOLD FOR SHOP USE
or

All 4 above listed heads - while available -
$185. - ON HOLD FOR SHOP USE


Heads, Record, Play / Playback / Erase

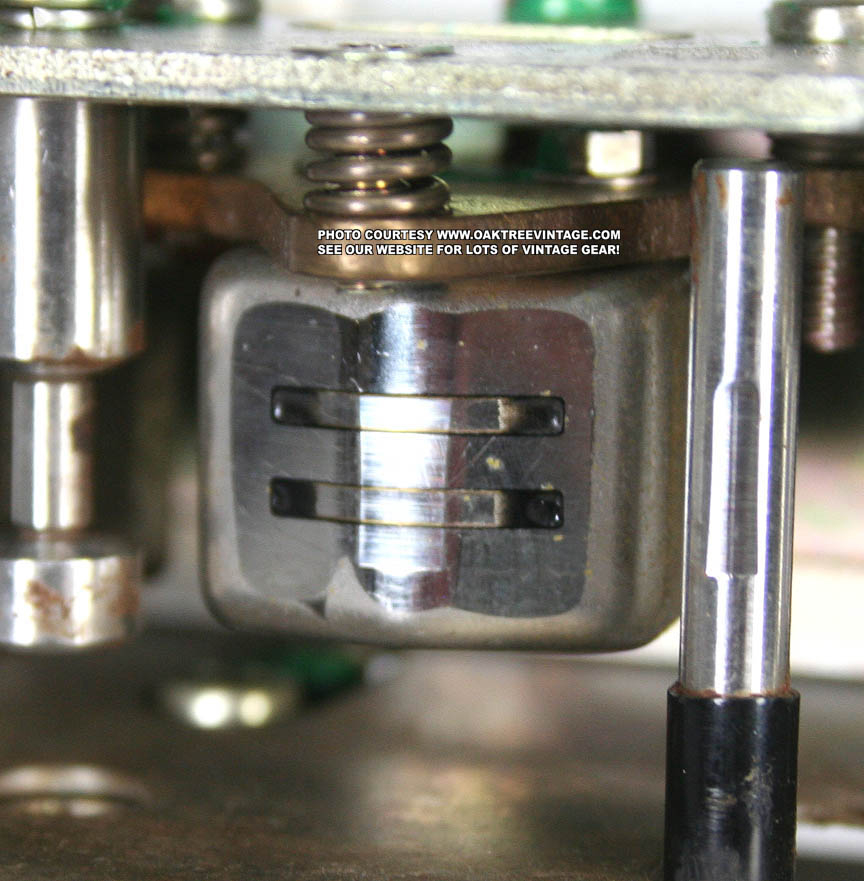

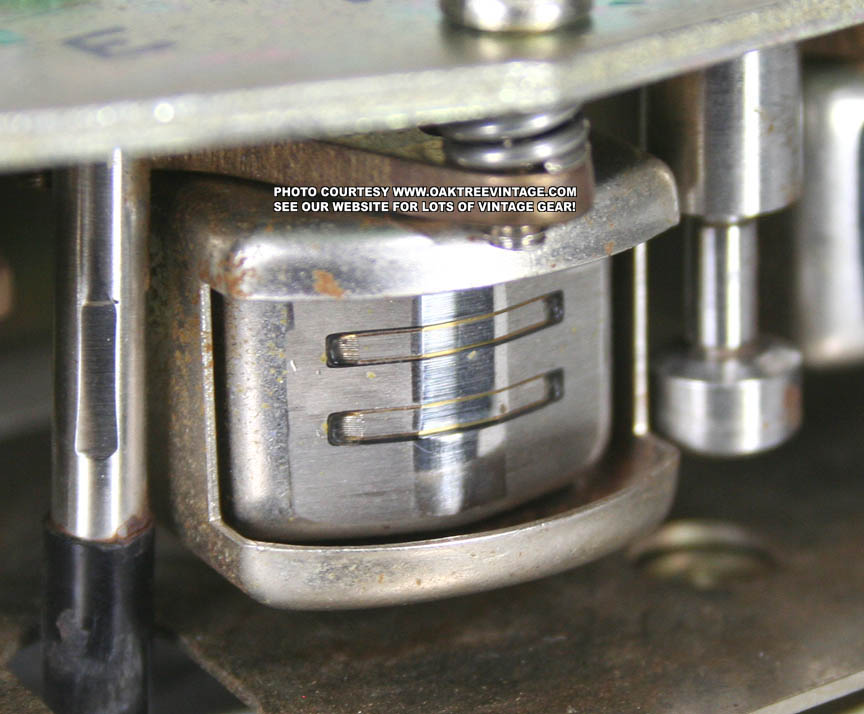

Head / Head-Stack / Headstack (about 50% visible wear, but likely many hours left) 13014 - $85. (all four heads on mounting)

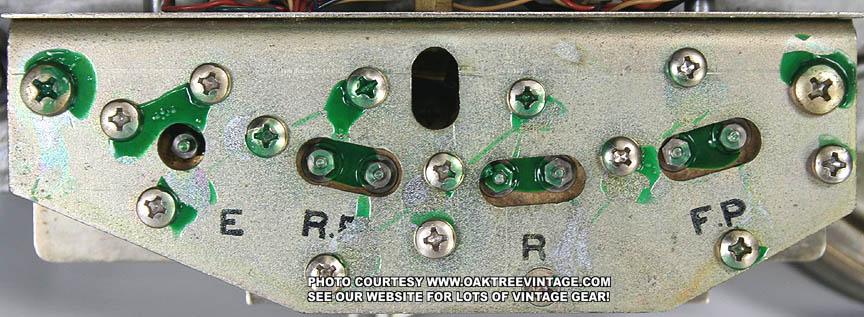

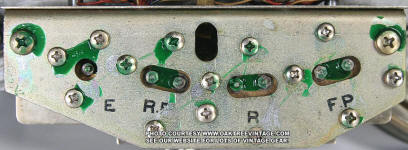

(P.65 of SM) (photo below right of Teac A-4010SU head azimuth adjustment screws)

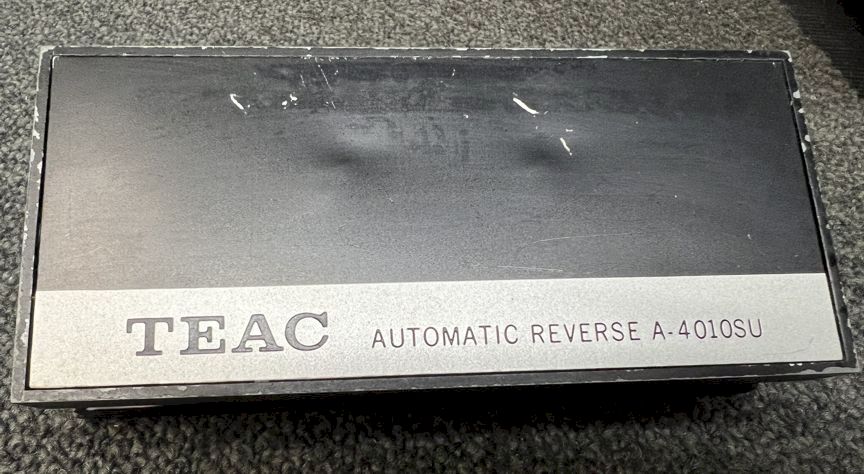

Cover, Head Cover with Teac 'A-4010SU' logo -
fair cond. dings / scratches. - $25.

Sensor, Auto-Reverse Sensing Post 44964 - $35.


TEAC A-4010S / A 4010-S / A4010SU PARTS / SPARES


Circuit Boards, Internal circuit board 48034-1 less relay - $45. ea

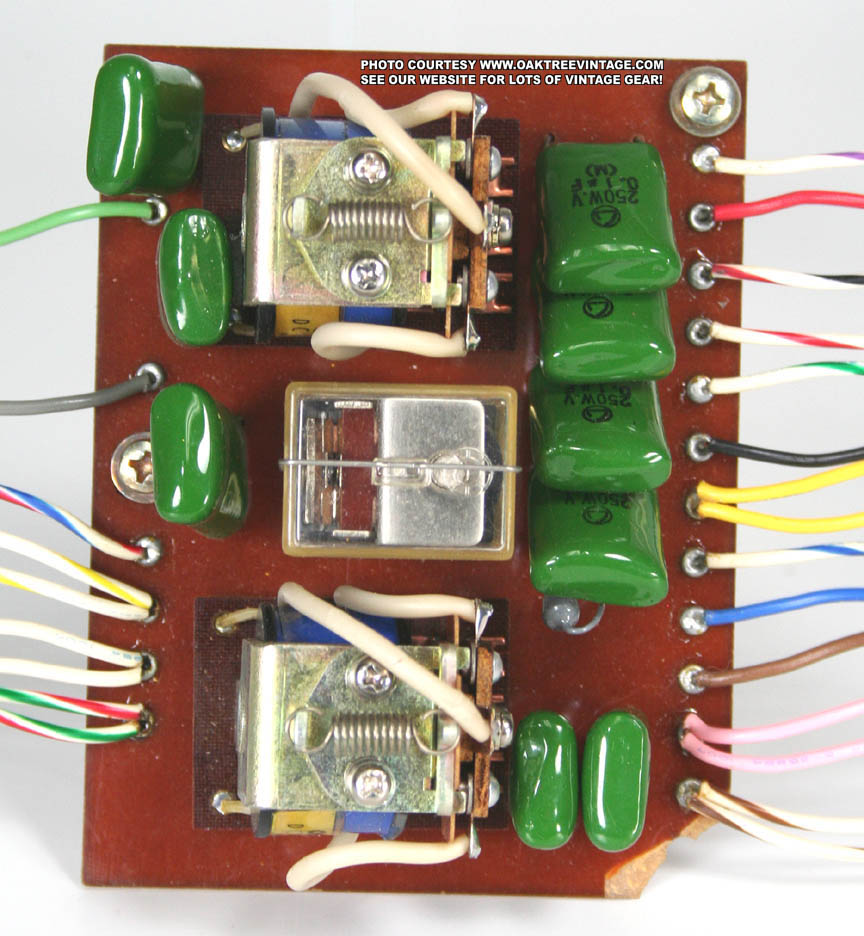

Circuit Boards, Internal circuit board 48064 with all three Motor and sensing relays 070868 - $55. ea 2 avail.


Connector, Playback Amplifier Circuit board connector TEAC 281281 - $40.

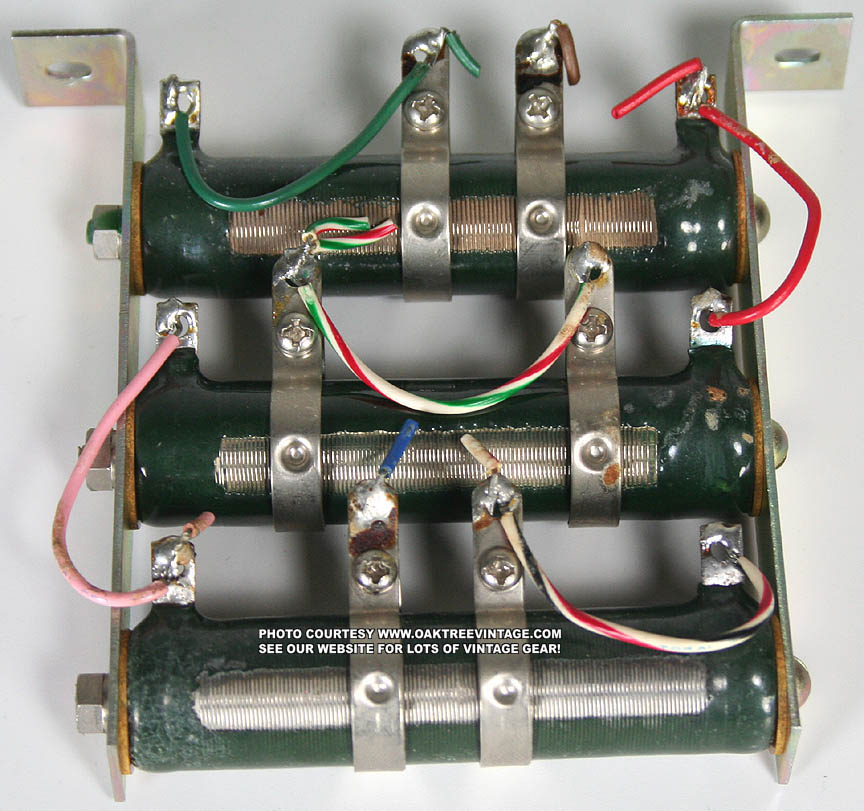

Resistors, Back tension Wire Wound Resistors with clamping adjustment connectors 250Ohms / 400Ohms / 30 watts  TEAC 52409 / 52416 - $25. ea. resistor



Solenoid, Solenoid (KGS RL-614 / 61616-1)- $35. ea.

Solenoid, TEAC 61621 / RL-613 100VDC / 1300 Ohms / 76 mA
(for Pinch Roller / Tape Lifter Mechanism) - $35.

Solenoid, TEAC 61617-1 / RL-614 100VDC / 1300 Ohms (for Reel Braking Mechanism) - $35.

Relay, OMRON TYPE MH27P - $35. ea.

TEAC A-4010S / A 4010-S / A4010SU PARTS / SPARES

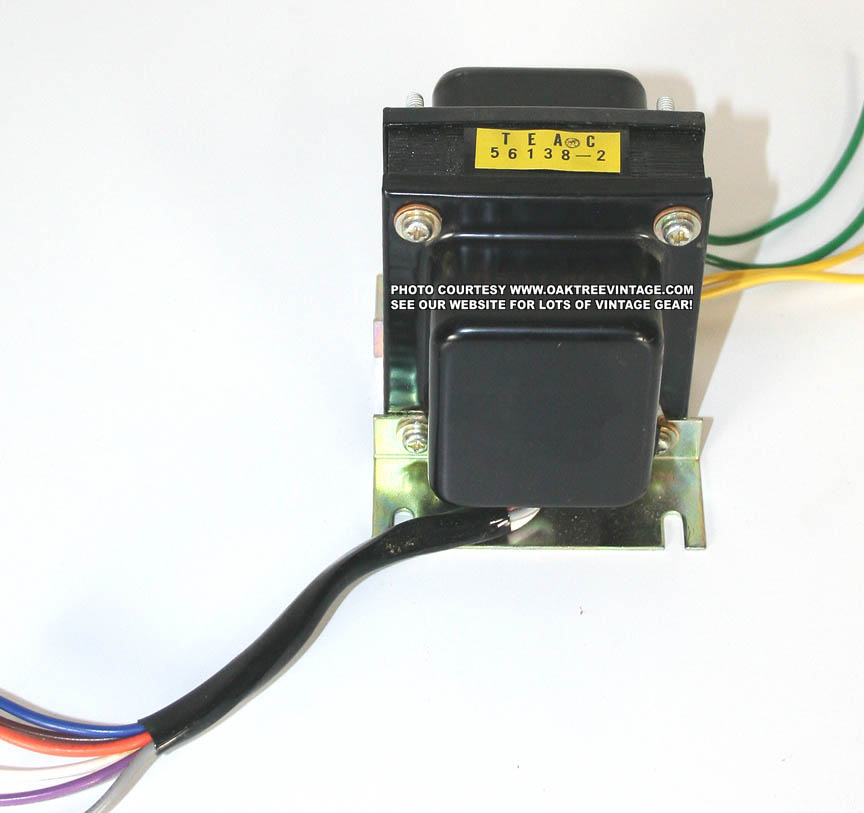

Transformer, A-4010S Power Transformer 56138-2 - $45.

Transformer, Power Transformer 56133 ?  - $45.

Capacitor, TEAC 54531 capacitor
2.8μF x1, 1μF x1 @ 250 WV-AC - $20. used. - SOLD OUT
Capacitor, TEAC 54548 capacitor
3μF x2, 1μF x2 @ 250 WV-AC - $20. used.
Capacitor, capacitor
100μF x1 @ 150 WV-AC - $15. used.
Capacitor, capacitor TEAC54547 capacitor
1000μF x1 @ 50 WV-AC - $20. used.

Jacks, Panel Mount 7 or 11 pin connectors - $30. ea

Plug, 8 pin Dummy / NULL Plug for Remote jack 26093 - $30. - ON HOLD FOR SHOP USE
Connector / cables, 11-pin jumper cable with connectors for Record Amp / Tape Deck - $35. ea. - ON HOLD FOR SHOP USE

Connector / cables, 7-pin jumper cable with connector for REC Equalizer - $35. ea. - ON HOLD FOR SHOP USE

Fuse Cap / insert - $25.

Fuse holder (non-world / multi-voltage style) (cap sold separately) - $20.

Jack, AC input jack, Female - $25.

Cord, AC cord / cable replacement -  CLICK HERE ...


Call or Email for "SHOWN and NOT marked 'SOLD' " part you need.



CLICK HERE TO RETURN TO THE MAIN TEAC / TASCAM PARTS PAGE



TEAC RA-40S / RA40S RECORDING / PLAYBACK AMPLIFIER
FOR TEAC

Reel-Reel Deck
PARTS / SPARES
for sale / reference
Parting out.




Knobs / Caps / Buttons, Mic / Line / Output  knobs (concentric pairs) - $25. / concentric pair

Transformer, Power Transformer TEAC 56140 - $45.

Circuit Boards, Record Bias circuit board TEAC 48079 w/ 'TEN 2SD137' transistors - $45.

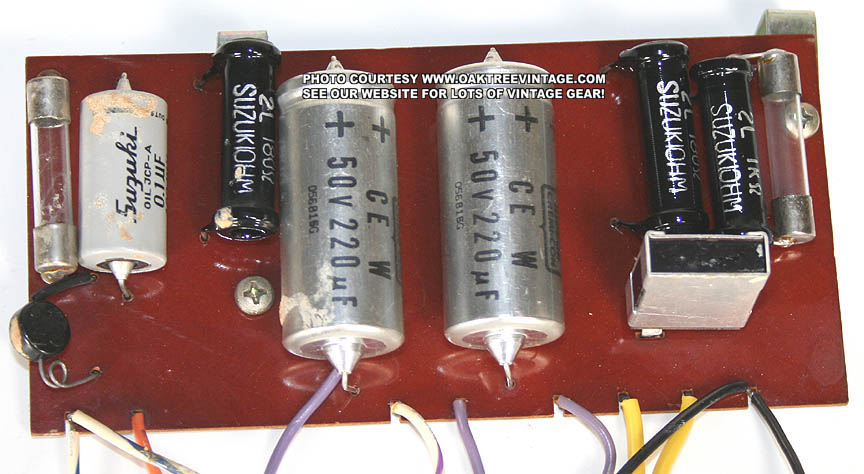

Circuit Boards, Power Supply Internal circuit board 48081 - $35. ea 2 avail.

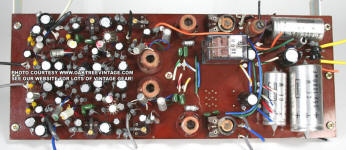

Circuit Boards, Record Amp / Amplifier circuit board TEAC 48097 (less relays) - $65.

Relay, OMRON TYPE MH4P / 1168) - $35. ea.
