ROLAND KEYBOARD / SYNTHESIZER PARTS / SPARES


Roland Keyboard / Synthesizer Electric / Piano Parts / spares / keys for keyboard repair / restoration of Roland EP-7, Juno 2, JUNO-6, Juno-60, Roland SH-101 & the Roland Jupiter-8 replacement keys
.
















































*Note about parts / spares sales

* Our "parts units", parts / spares and related reference information are primarily archived for the purpose of restoration / repair of "Oak Tree Vintage" units first. Only if we do not have a "viable" unit in yet, either already in process or in line to be processed, that may potentially need parts from a "parts unit", will we release available parts for sale (even though they may appear as available for sale to the public). As many of you know, the restoration of a unit can be a long, time consuming process. We may "lock up" parts that we may potentially need in the restoration of a unit (and not necessarily get it marked 'Hold' or 'Sold' on the site right away). Parts are priced according to the "potential value" of the unit they can be applicable to (meaning the amount WE would be willing to pay for the part if that was all that was standing between us having a "shelved unit" or a valuable / sellable unit), time to extract, their rarity & their condition to name a few criteria and likely will be completely unrelated to the original cost / price of a part when it was currently available from the manufacturer.

Parts Photos; We get a number of requests for 'photos' of a specific part. Unfortunately, in most cases that is not practical as the amount of time involved in posting that exceeds the value of the 'unique' part. We will sometimes post photos of less 'unique' parts, if there is a greater chance of them being available in multiple quantities, or on a more 'repeat' basis.

Shipping: Shipping on most 'small' parts if typically via Postal first class or Postal Priority for both domestic (USA) and international orders. Larger parts such as transformers and drivers (speakers) are typically via FedEx gnd.
Some parts sales such as those for empty 'speaker cabinets', empty 'component cabinets / covers / bonnets' and 'speaker grills' are 'doomed' from the start. Due to their size and required packing supplies, the cost of 'packing for safe transit' and shipping are typically nearly equal to and sometimes greater than the cost of the part.  Think about it. An empty speaker cabinet or stereo receiver case is essentially the same size as a complete one. Yes the weight will be less, but most of items that size are calculated on 'dimensional weight', not actual weight. Secondly empty component cabinets have to be packed to disallow breakage, typically requiring nearly as much packing materials as an entire unit. Speaker grills have to be 'sandwiched' between foam sheets in large, custom ordered boxes (all relatively expensive).  It is what it is....

A non-response to an email request for a part (we may appear to have), likely means that we are still determining which parts we are going to need for the restoration or repair of one of our units. Again, the parts are first for the restoration of our units and secondarily for the public market. Since we list the parts available for ourselves, it is not much effort to modify the menu's for web publication, which in turn makes the reference information and occasionally the part available to the public. Frankly, publishing them to the web, in many instances, makes it easier for us to determine if we have the part for our needs as well. The alternative to all of the above would be to not offer them at all to the public, however most parts are available to the public for sale.
BOTTOM LINE IS; IF YOU DON'T SEE IT AVAILABLE FOR SALE, WE DON'T HAVE IT!
 Thank you for your understanding.




20% off sale on salvage keyboard parts.


See sales banners on parts pages for details







Most of these components are "take-outs" from units that for various reasons we 'chopped' and unless otherwise noted are in serviceable / working condition / shape!
   In the case of output transistors, they will be tested / checked prior to posting and once again prior to shipment, pots / switches will be 'cursory' cleaned, parts already missing / utilized from circuit board will be noted, transformers will be checked prior to posting. Filter capacitors  will be tested / checked prior to posting and once again prior to shipment and 're-conditioned' / 're-formed' if necessary.









WARNING: Electronic equipment carries dangerous and potentially lethal electrical currents. You should never open or attempt to service any electronic unit without proper knowledge of electronics and the hazards of electricity!
Any repair / restoration should be undertaken ONLY by a QUALIFIED ELECTRONICS TECHNICIAN!

MOST OF THE PARTS LISTED BELOW ARE FROM SALVAGE UNITS.







Key_contacts_web.jpg (7628 bytes)                  Key_Contact_Repair_Kit_web.jpg (13661 bytes)                  Key_contacts_web.jpg (7628 bytes)
KEY CONTACT REPAIR KIT



CLICK HERE FOR OUR ROLAND KEY CONTACT REPAIR KIT...

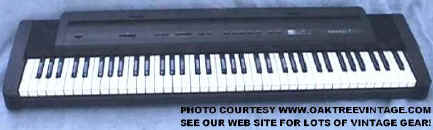

Roland_EP-7_Digital_Midi_Piano_web.jpg (25798 bytes)   Roland_EP-7_Digital_Midi_Piano_collage.jpg (137180 bytes)

ROLAND EP-7 EP7 MIDI ELECTRIC PIANO PARTS / SPARES
Some parts MAY also fit the Roland EP-9, but we do not have info unless specified.

KEYBOARD PARTS FOR SALE
76 note Roland EP-7 Midi Electric Piano / keyboard.

Top Chassis / Housing (less attached parts) - $95
- Front sheet metal strip -  $35.
- Keyboard sheet metal chassis (stripped) -  $45.

Keys, (will not fit EP-9) Keys with springs -  $15. ea. Except Lowest and Highest Keys
Keys, Lowest White Key - $30.
SOLD
Keys, Highest White Key - $30.

Circuit Board, #292-903-01 Main circuit board w/ rear panel jacks attached w/ IC CHIPS; Roland R15329166 / 24201F002, R15199726, R15209252, R15239124, Hitachi HM6264ALFP-12T / 03145333, 65256BLFP-12T, 0J3T / HC138, LS04, HP 6N137, NEC D6376, JRC 4565D, 15218, BU74HCU04F, AN7147N, 78MR05R Voltage Regulator, C3421, w/ Memory battery holder and balance of semi conductors, caps, resistors, diodes etc.  (fits Roland EP-3, EP-5 & EP-7) (less tuning pot) - $125.

Circuit Board, Switch Board w/ 9 momentary switches #22925904 1/4 (fits Roland EP-3, EP-5 & EP-7) - $35. ea. SOLD

Circuit Board, Other circuit boards -  $35. ea.

Jacks, headphone jack assembly -  $35.

Jacks, Input / Output Jacks (AC, Audio, MIDI cable jack, etc.) -  $25. ea
(AC jack
SOLD)

Contact Strip, Key contact circuit strip upper 2/3's - SOLD
Contact Strip, Key contact circuit strip lower 1/3 - SOLD

Contacts, Rubber key contacts 12 Note, Gray double contact - $18.99 ea. very limited supply
Contacts,
Rubber key contacts 8 Note, Gray double contact - $18.99 ea. very limited supply

(These key contacts fit ROLAND keyboards / synthesizers / electric piano models; Roland D-5, D-70, EP-5, EP-7, JD-800, U-20 & U-220, as well as
Edirol PCR-M80  and possibly others.)

ROLAND EP-7 EP7 MIDI ELECTRIC PIANO PARTS / SPARES

Potentiometer / Control, Tuning Pot - SOLD

Switch / selector, Power switch (will also fit the EP-7 II)- SOLD

Knobs / Caps / Buttons,  Plastic rectangular buttons for Piano, Strings, Organ etc - $20 / pair
Knobs / Caps / Buttons,  Plastic rectangular buttons for Reverb / Chorus & Record / Play (w/ LED window) etc - $20 / pair

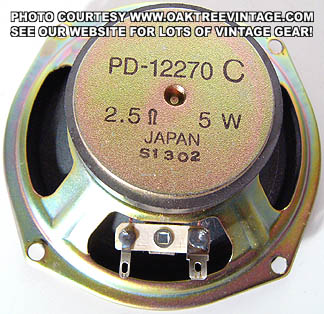

Speakers, Internal speakers
PD-12270 C / 2.5 ohms & 5 Watts (fits Roland EP-7 and Roland EP-9) - SOLD

ROLAND EP-7 Power supply -  MIA

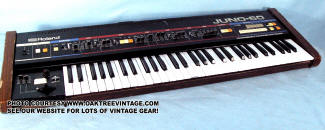

ROLAND JUNO-60 PARTS / SPARES FOR SALE
2 parts units in stock now






Roland Juno-60 Parts for sale

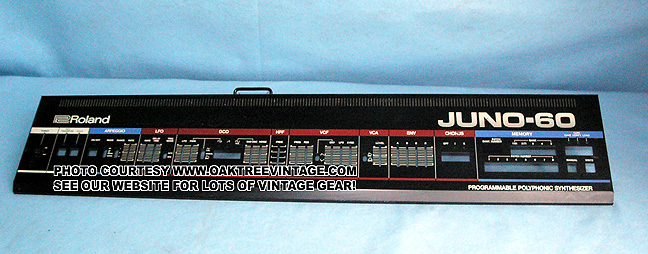

Top Panel / Sheet metal; Top plate - $75.  SOLD OUT

Transformer; Power transformer #022 H 057 - $65. SOLD

Circuit Board
;
Power supply Board #052H369 B (less transformer) - $65. SOLD

Circuit Board; Main Circuit Board #052H370 - $85. SOLD

Circuit Board; Left control Circuit Board #052H410c (less controls and switches) (2) - $65. MIA / SOLD?? (if we find them, we'll indicate so on this page and the ORANGE will be removed)

Circuit Board; Right Control circuit board #052H411D (less controls, switches and LED readout) (2) - $65.  SOLD

 Circuit board; Output Circuit board # 052H413 A (less pots, switches and jacks) (1) - $45.

Circuit Board, Pitch Bend; Circuit Board #052H371A
(less switches, controls and contacts) - $45.

Circuit Board; Pitch Bend Circuit Board #052H412 (2) - $65.

ROLAND JUNO-60 PARTS / SPARES

LED Readout display - $55. SOLD




KEYS

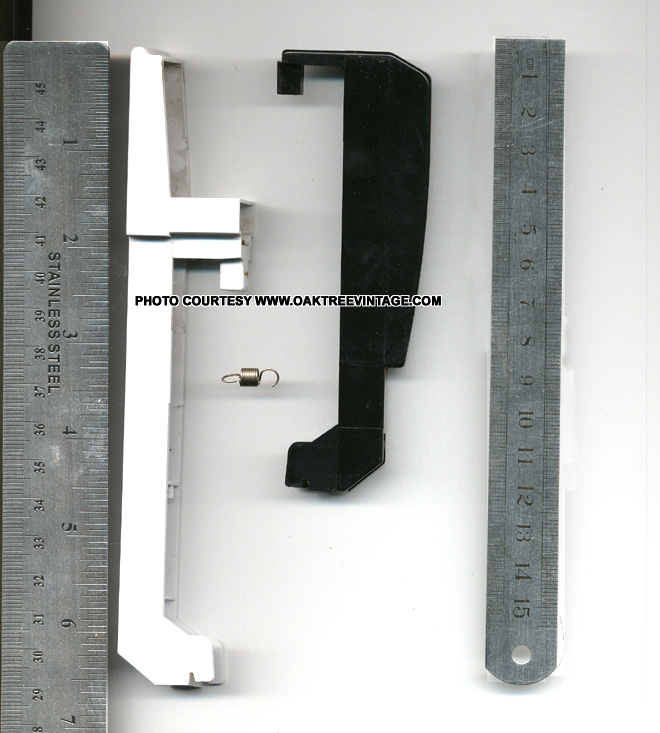

Keys; Roland Juno-60 - Keys w/ springs for sale- $18. ea
("High C" key and all "D" keys SOLD. Sorry, no ETA on more)

These keys will also fit; Roland SH-101 / SH101, JUNO 2, JUNO-6, HS-6 HS6 & the Roland Jupiter-8 keys


Key contact strip circuit board (mounted to steel chassis) (2) - $75.

ROLAND JUNO-60 PARTS / SPARES

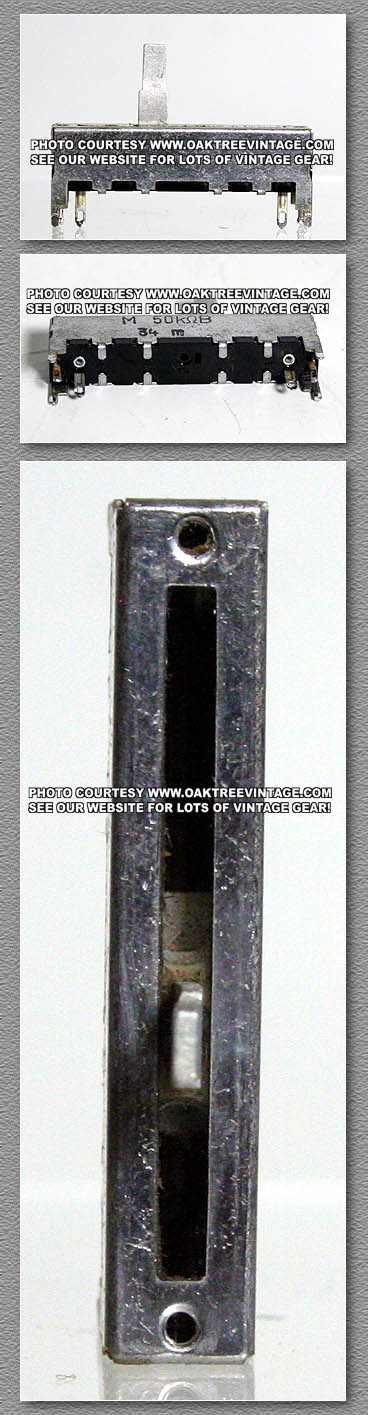

Potentiometer / Control; Linear Faders / Potentiometers; Roland Juno-60 (Will not fit Juno-106) - Linear slider controls (non-de-tented.
Will need to specify Control Name / Resistance Value as there are a variety of them in a Juno
)
Fit Roland Juno-60 and Jupiter-8 and other Roland Products from the same era.  - $35. ea.
Arpeggio linear pot SOLD. Some of the others may be interchangeable, but we have not definitive information on that.
(DCO = 10k, VCF= 50k. Fader body is ~47mm in length)




Potentiometer / Control;
Linear Faders / Potentiometers 4-Positon; Roland Juno-60 (Will not fit Juno-106) Fit Roland Juno-60 and Jupiter-8 and other Roland Products from the same era.  - $35. ea. SOLD OUT
(no more of the 4-position faders in stock)

Potentiometer / Control; Volume control pot w/ knob - $35. SOLD OUT

Control, Pitch Bend Control lever with control pot and mounting bracket - $55.
SOLD OUT

ROLAND JUNO-60 PARTS / SPARES

Switches, Power; Power switch (2) - $25.




Switches; 'Latched'
push switches for 'Arpeggio', & 'Hold'. Colored caps NOT included - $22.50 ea. - ONLY 3 Left in stock

Switches; 'Non-Latched'
push switches for 'Key Transpose'. Colored caps NOT included - $22.50 ea. - ONLY 1 Left in stock

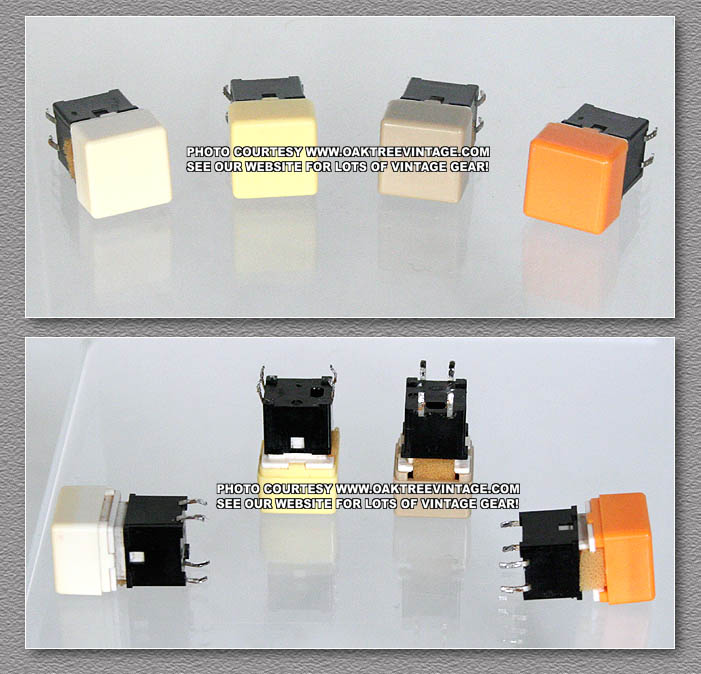

Switches; Momentary push switches with button knobs (white (yellowed after 30 years), cream, tan or brown) included - $18.50 ea. w/ cap or $12.50 without  SOLD OUT



Knobs / Buttons / Caps; Juno-60 Momentary push button caps
(these are the plastic caps ONLY. Switches sold separately above. ONLY 7 'tan' and 3 'cream' left. These are NOT interchangeable with the 'Juno-6') - $8.50 ea

ROLAND JUNO-60 PARTS / SPARES

Knobs / Buttons / Caps; Fit Roland Juno-60 and Jupiter-8 Black Linear control caps / knobs - $9.50 ea. SOLD OUT

Jacks; Single output jacks
(available individually unless the circuit board is ordered complete) - $35. ea.

Chassis; Wood chassis (ends cosmetically rough, but structurally sound) - SOLD OUT

Connector; DCB connector  (2) - $35.






ROLAND JUNO-60 TOGGLE SWITCHES.
WE NOW HAVE MORE IN STOCK AS OF 2/14

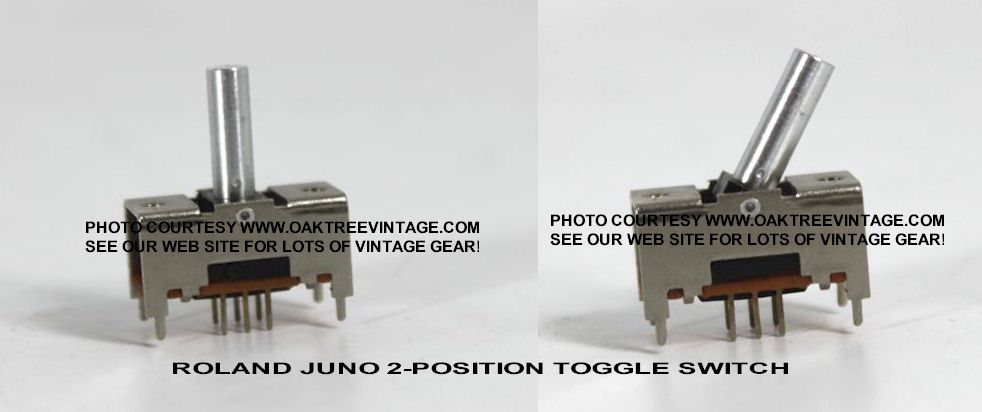

Roland-Juno-60_2-position_toggle_switch_CSQ-100_sequencer_Jupiter-8_SH-101_TR-808_toggle-switch_collage.jpg

Switches, DPST Toggle switches '2-POSITION' Fit Roland Juno-60, Juno-6, Juno-106, HS-60, toggle switch, CSQ-100 sequencer, Jupiter-8, SH-101, TR-808 and other Roland Products from the same era. - SEE PRICING BELOW
(Switch may also be used for some applications on the Korg 'Maxi-Korg / DV 800 / 800DV' synthesizer / keyboard toggle switch, but the 'bat / toggle handle' would be 'aluminum' instead of black or another color)

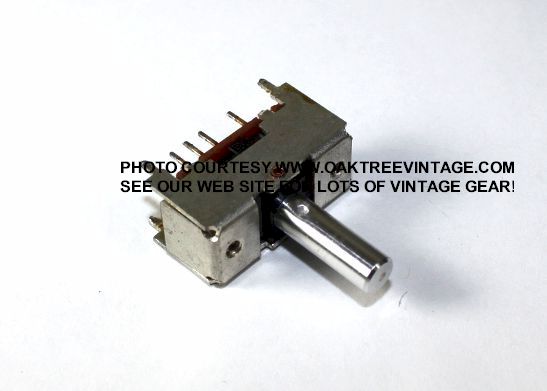

Roland-Juno-60_3-position_toggle_switch_CSQ-100-CSQ-600_sequencer_Jupiter-8_SH-101_toggle-switch_collage.jpg

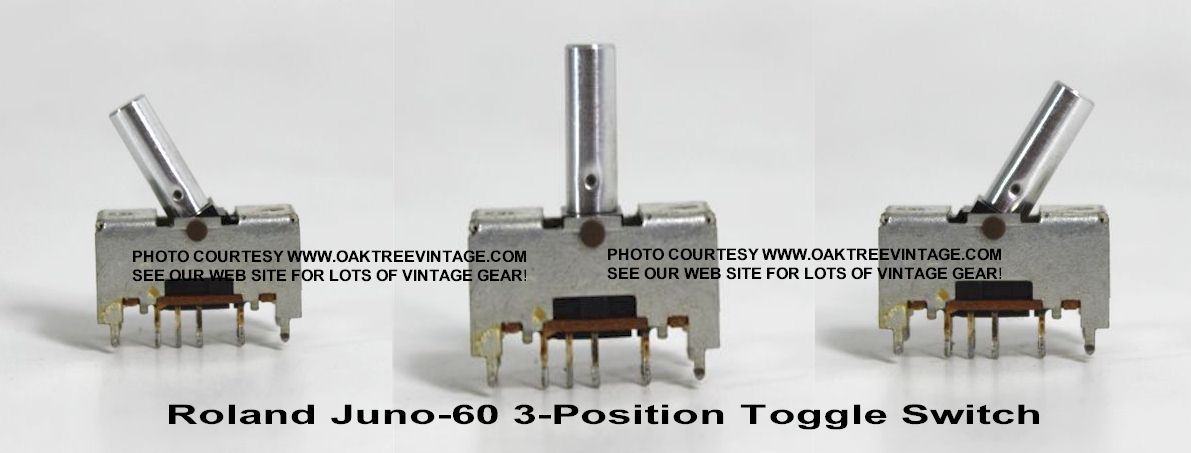

Switches, DPDT Toggle switches '3-POSITION'   Fits Roland Juno-60, Juno-6, Juno-106, HS-60, toggle switch and CSQ-100 / CSQ-600 sequencer, Jupiter-8, SH-101 and other Roland Products from the same era. - SEE PRICING BELOW
(Switch may also be used for some applications on the Korg 'Maxi-Korg / DV 800' synthesizer / keyboard
toggle switch, but the 'bat / toggle handle' would be 'aluminum' instead of black or another color)


2-POSITION OR 3-POSITION SWITCHES
$26.99 EA. SHIPPED*
OR
$39.99 for TWO SHIPPED* (mix or match 2 or 3 position)


*includes shipping to US states via postal
Add $6.50 for international / 'non-US State' locations







MISC ROLAND
Random Roland Parts / Spares INFORMATION for REFERENCE ONLY.
THESE ARE NOT PARTS WE HAVE IN STOCK OR FOR SALE,
NOR DO WE KNOW WHERE TO GET THEM, or IF WE WILL EVER HAVE THEM.
This is only information that may be handy as reference and cross reference info.
Please do not contact us regarding accessibility of parts or any info on parts in the following menu.
We have no further technical / cross information than what you find printed below. It will be a 'work in progress' as time allows.


ROLAND D-50
'Jack Board' / I/O PCB circuit board w/ 1/4" phono jacks and 'MIDI IN-OUT-THRU' jacks, part number ASSY 76180100-00
*

ROLAND D-70 'Panel Board' Circuit board, part number ASSY 76237210*
ROLAND D-70  'LCD' Circuit board, part number ASSY 76237220
*
ROLAND D-70  'Slider / Control' Circuit board, part number ASSY 76237230
*

ROLAND HP-700 & 800 CPU CIRCUIT BOARD ASSY 76189090*

ROLAND HP-1000S SL AMP/ POWER SUPPLY BOARD 7623216400 w/ 4 discrete output transistors
*

ROLAND HP 2500S / JX-3P AMP BOARD ASSEMBLY 76217162
*

ROLAND HP-2700 AMP/ POWER SUPPLY BOARD 7624208400 220V / 240V
*

ROLAND HP-2800 AMP BOARD ASSEMBLY 7628711100
*

ROLAND HP-3500 AMP PS BOARD 76206304 220V / 240V
*

ROLAND HP-5000S SL AMP Power Supply board 76207302
*

ROLAND HP-5500S 5600S Power Amplifier section / circuit board 7615304
*

ROLAND JUNO-106 MIDI IN-OUT-THRU Circuit Board ASSY #76139380
*

ROLAND Juno-106 Jack circuit board used working ASSY 76139350 / PCB 291-899 for the following I/O's and Foot Switches; Left & Right Outputs, Headphones, Hold, P.Shift, Save output & Load input
*

ROLAND JX-1
Synthesizer / Digital keyboard Main CPU Circuit board; PCB 292-947 (associated with JX-1 'VR' board # PCB 292-943?
*
ROLAND JX-1 Circuit Board - AR-10B SW 'switch' Board 22925946-00*

ROLAND JX-3P
; Circuit Board / PCB Part number is '149H214' Contains sections for 'Patch Number', 'Bend Depth', 'Bank', 'Brilliance', & 'Rate' controls
*

Roland MPG-80 programmer Super Jupiter synth module MKS-80 Main Panel Board / Circuit Board; #291-961*

ROLAND RD-200 CPU-A Board replacement part ASSY 76177060
*

ROLAND RD-200 / 300 Electric Digital Piano switch board ASSY 76175170 w/ controls for MIDI In-Out, Lower-Upper, Receive Channel, Transpose, Key-Split, Volume, Voices, Tremolo Rate & Depth*
ROLAND RD-200 / 300 Electric Digital Piano CPU B board ASSY 7617512000*

ROLAND RD-500 Digital piano / keyboard Main CPU Circuit board; 70231990-02 with multiple Roland IC chips including Roland R00453389, R15239229 and many others*

ROLAND RD-500 Digital piano / keyboard Main Power Transformer; Bando 00344023
*

ROLAND 'Sound Canvas' keyboard. Main circuit board / panel board 'SK-500' is associated with part numbers; 100-00100-01-00, & 71785734. Also links to 'Pitch Bend' and 'Modulation' wheels / controls
*

ROLAND SRV-2000 Digital Main Board Assembly P/N 74126080-00 WITH 2 EPROM IC and sometimes 1IC w/ Toshiba IC chip TC5517APL-2, and jacks for Input / Stereo Output, Midi In & Out. 4 small glass fuses 3x 1A & 1x 3A for power supply and filter section.*

ROLAND SRV-2000 Gate Array Board Assy. P/N 74126100-05 w/ Roland IC chips 60VH114, 60VH127, & 60VH128
*

ROLAND U-20 Digital keyboard / synthesizer I/O Jack board and MIDI IN-OUT-THOUGH board ASSY 76213210 03 1/3 and 3/3. Two separate boards connected with 'ribbon' wire.*

ROLAND VK-7 Main 'Panel Board' / Circuit board, part number ASSY 70898567
*
ROLAND VK-7 Organ Circuit board 'C' Assy 70898578 / PWB 01234523
*



Please be patient while page loads . . .






*AGAIN, this is ONLY REFERENCE INFORMATION for Random Roland Parts / Spares
!!! INFORMATION for REFERENCE ONLY!!!
!!! INFORMATION for REFERENCE ONLY!!!
!!! INFORMATION for REFERENCE ONLY!!!
THESE ARE NOT PARTS WE HAVE IN STOCK OR FOR SALE,
NOR DO WE KNOW WHERE TO GET THEM, or IF WE WILL EVER HAVE THEM.
This is only information that may be handy as reference and cross reference info.
Please do not contact us regarding accessibility of parts or any info on parts in the following menu.
We have no further technical / cross information than what you find printed below. It will be a 'work in progress' as time allows.
