HARMAN-KARDON / HK STEREO PARTS / SPARES - USED / VINTAGE
*Note about parts / spares sales
* Our "parts units", parts / spares and related reference information are primarily archived for the purpose of restoration / repair of "Oak Tree Vintage" units first. Only if we do not have a "viable" unit in yet, either already in process or in line to be processed, that may potentially need parts from a "parts unit", will we release available parts for sale (even though they may appear as available for sale to the public). As many of you know, the restoration of a unit can be a long, time consuming process. We may "lock up" parts that we may potentially need in the restoration of a unit (and not necessarily get it marked 'Hold' or 'Sold' on the site right away). Parts are priced according to the "potential value" of the unit they can be applicable to (meaning the amount WE would be willing to pay for the part if that was all that was standing between us having a "shelved unit" or a valuable / sellable unit), time to extract, their rarity & their condition to name a few criteria and likely will be completely unrelated to the original cost / price of a part when it was currently available from the manufacturer.
Parts Photos; We get a number of requests for 'photos' of a specific part. Unfortunately, in most cases that is not practical as the amount of time involved in posting that exceeds the value of the 'unique' part. We will sometimes post photos of less 'unique' parts, if there is a greater chance of them being available in multiple quantities, or on a more 'repeat' basis.
Shipping: Shipping on most 'small' parts if typically via Postal first class or Postal Priority for both domestic (USA) and international orders. Larger parts such as transformers and drivers (speakers) are typically via FedEx gnd.
Some parts sales such as those for empty 'speaker cabinets', empty 'component cabinets / covers / bonnets' and 'speaker grills' are 'doomed' from the start. Due to their size and required packing supplies, the cost of 'packing for safe transit' and shipping are commonly 'disproportionate' to their cost, typically nearly equal to and sometimes greater than the cost of the part. Think about it. An empty speaker cabinet or stereo receiver case is essentially the same size as a complete one. Yes the weight will be less, but most of items that size are calculated on 'dimensional weight', not actual weight so are commonly just as expensive as shipping a 'complete unit'. Secondly empty component cabinets have to be packed to disallow breakage, typically requiring nearly as much packing materials as an entire unit. Speaker grills have to be 'sandwiched' between foam sheets in large, custom ordered boxes (all relatively expensive). It is what it is....
A non-response to an email of phone call / voice message request for a part (we may appear to have), likely means that we are still determining which parts we are going to need for the restoration or repair of one of our units. Again, the parts are first for the restoration of our units and secondarily for the public market. Since we list the parts available for ourselves, it is not much effort to modify the menu's for web publication, which in turn makes the reference information and occasionally the part available to the public. Frankly, publishing them to the web, in many instances, makes it easier for us to determine if we have the part for our needs as well. The alternative to all of the above would be to not offer them at all to the public, however most parts are available to the public for sale. Also, parts requests can occasionally take time for us to respond to. While we may have a part listed, and we like to keep the website 100% accurate, occasionally a part will be 'used by us' or 'previously sold' and we by oversight, and we did not get the web listing marked "SOLD", or the part gets 'mis-placed' or 'lost' (laid down somewhere in the warehouse(s) and then it get's lost track of (that happens to our coffee cups all the time, then we find it months later with 'a good batch of 'penicillin' growing in it), so we like to 'lay eyes on it' prior to responding. Sometimes we just can't figure out which cabinet or drawer parts were assigned to (and we're working on a system for that one).
Some folks email / call and want us to respond either way / whether we have the part or not. We simply do not have the time resources to do that. Our time must be utilized on the requests we can fulfill.
Sorry for all the excuses, but that's how the 'system' (or lack thereof) works.
And, if you don't see it, we likely don't have it.
Thank you for your understanding.
$20. MINIMUM ORDER
20% off sale on salvage stereo parts.
See sales banners on parts pages for details
Most of these components are "take-outs" from stereo gear that for various reasons we 'chopped' and unless otherwise noted are in serviceable / working condition / shape!
In the case of output transistors, they will be tested / checked prior to posting and once again prior to shipment, pots / switches will be 'cursory' cleaned, parts already missing / utilized from circuit board will be noted, transformers will be checked prior to posting. Filter capacitors will be tested / checked prior to posting and once again prior to shipment and 're-conditioned' / 're-formed' if necessary.
|MOST OF THE PARTS LISTED BELOW ARE FROM SALVAGE UNITS.|
NEW LISTING 7/23/08

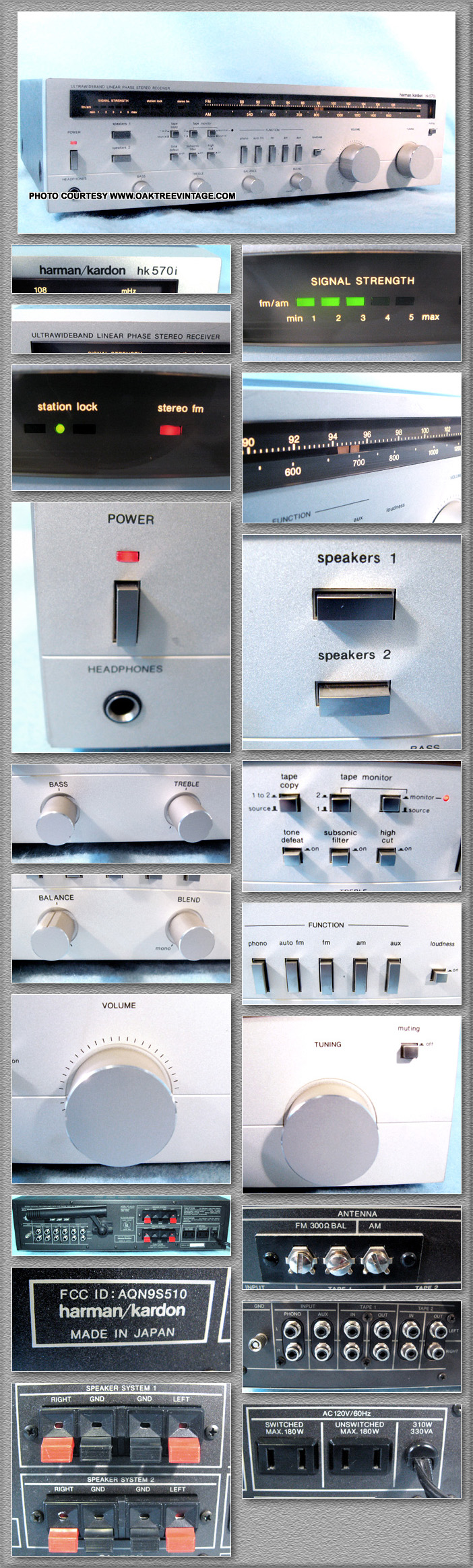

(Click on above thumbnails to enlarge photos)

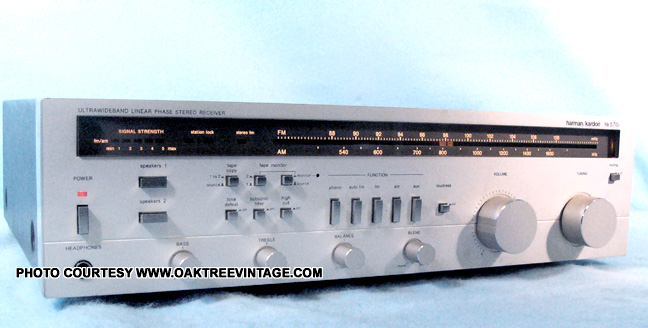

HARMAN KARDON / HK 570i
STEREO RECEIVER PARTS / SPARES
Some parts MAY also fit other HK 'i' models such as the hk 330i, 350i, 460i, 680i and others, but we have no definitive info.
Bonnet / Case / Cover / Top Sheet Metal, Clean - $40. SOLD
Panel, Face panel with glass. Very clean. No dents or scratches. Glass perfect. (less knobs / buttons) - $65.
Knobs / Caps / Buttons, Tuning knob - $35.
Knobs / Caps / Buttons, Volume knob - $35.
Knobs / Caps / Buttons, Round Bass, Treble, Tone / Balance, Blend - $20. ea
Knobs / Caps / Buttons, Rectangular 'push' cap for 'Power w/ extension - $20.
Knobs / Caps / Buttons, Rectangular 'push' caps for 'Loudness', 'Tape Monitor', ' Tape Copy', 'Subsonic Filter', 'High Cut', 'Tone Defeat', 'Speakers', 'Muting Defeat', 'FUNCTION' ie; 'phono', 'auto fm, ' fm', 'am', 'aux' - $20. ea.
Switches / Selectors, 'Power' Push switch. ALPS TV-5 SDG1P 01017358 - $30.
Switches / Selectors, Push switches for 'Loudness', 'Tape Monitor', ' Tape Copy', 'Subsonic Filter', 'High Cut', 'Tone Defeat', 'Speakers', 'Muting Defeat' - $20. ea.
Switches / Selectors, Push switches for 'FUNCTION' ie; 'phono', 'auto fm, ' fm', 'am', 'aux'. These switches must be removed as a unit as they are 'cancelling' switches, thus they would be VERY difficult to remove and reinstall individually. - $75. for all switches as a 'bank'.
Harman / Kardon - HK 570i PARTS / SPARES
Potentiometer / Control pot, Volume Pot 075H 1047343 2x 100k Ohms - $45.
Potentiometer / Controls, Bass pot VR505 082B 2x 100k Ohms - $35.
Potentiometer / Controls, Treble pot VR507 / VR508 082B 2x 50k Ohms - $35.
Potentiometer / Controls, 'Balance' pot VR501 / VR502 50376100 2x 50k Ohms - $35.
Potentiometer / Controls, 'Blend' pot VR509 / VR510 075H 2047140 2x 50k Ohms - $35.
Potentiometer / Control pot, 'Mute Adj' Pot - $20.
Meters, 'Tuner' LED Circuit board w/ 'Signal Strength', 'Station Lock', & 'Stereo' indicator LEDs. - $25.
Flywheel, Dial Shaft / Flywheel / Tuning control assembly (knob sold separately) - $30.
Pulley / String-wheel, plastic string wheel for tuning capacitor - $25.
Pointer, Lighted Dial Pointer - $20.
Harman / Kardon - HK 570i PARTS / SPARES
Circuit Boards, ' Tuner' Circuit board. Contains IC chips: Hitachi HA11225, 4437 W/ Tuning Capacitor (less pots & switches, jacks, string wheel) - $45.
Circuit Boards, 'Power Supply' / 'Power Amplifier / Driver Boards' Circuit board (less pots & switches, jacks, and large filter capacitors) - SOLD
Circuit Boards, 'Power Supply Rectifier' Circuit board - $20.
Transformer, Power supply Transformer BANDO 5584-701308 BD10A4-0006 - $45.
Capacitors, Power supply filter Caps 50V / 4,700 uf - $15. ea.
Jacks, Speaker Outputs - $30. each 'System 1' or 'System 2' bank
Jacks, Headphone Jack - $25.
Jacks, AC convenience outlets - $20. ea.
Jacks, RCA Input / Output Jacks - $30. each bank of 3 pairs
Antenna, AM 'Stick' antenna w/ swivel Bracket - $35.
Fuse Holder / Clip - $20.
Call or Email for "SHOWN and NOT marked 'SOLD' " part you need.
- Revised 1/19/18 - Location: PB, West, Grn cab, 4th drawer, right side, (below Spkr Wire)
Unless specifically noted, we do not typically sell 'component level' parts such as resistors, diodes, transistors, semiconductors, ic's / integrated circuit chips, ceramic capacitors, led's, bulbs, lamps, belts, etc. We do commonly sell circuit boards / cards which will likely come with those parts attached.
*When we say "some parts "MAY" also fit", that does NOT mean ALL the parts listed 'WILL' fit, and unless we show specific info that a particular part DOES 'cross-pollinate', do not infer that it does or will fit. Only careful research and comparisons, on YOUR part with service manuals, service bulletins, other comparable units, etc., MAY indicate a POSSIBLE substitution. If your situation is 'critical', do not base your decision on information found on this or any other page of this web site and do your own research.
