YAMAHA DX-7 / DX-7 II D PARTS KEYBOARD PARTS / SPARES



Yamaha Keyboard / Synthesizer
Keyboard / Synthesizer Electric / Piano Parts / spares / keys for keyboard repair / restoration for models such as Yamaha DX-7 / DX7 & DX-7 II D. Original series keyboard parts such as keys, Plastic DX-7 top panel, circuit boards & Yamaha DX-7 fresh Replacement Battery.














































*Note about parts / spares sales

* Our "parts units", parts / spares and related reference information are primarily archived for the purpose of restoration / repair of "Oak Tree Vintage" units first. Only if we do not have a "viable" unit in yet, either already in process or in line to be processed, that may potentially need parts from a "parts unit", will we release available parts for sale (even though they may appear as available for sale to the public). As many of you know, the restoration of a unit can be a long, time consuming process. We may "lock up" parts that we may potentially need in the restoration of a unit (and not necessarily get it marked 'Hold' or 'Sold' on the site right away). Parts are priced according to the "potential value" of the unit they can be applicable to (meaning the amount WE would be willing to pay for the part if that was all that was standing between us having a "shelved unit" or a valuable / sellable unit), time to extract, their rarity & their condition to name a few criteria and likely will be completely unrelated to the original cost / price of a part when it was currently available from the manufacturer.

Parts Photos; We get a number of requests for 'photos' of a specific part. Unfortunately, in most cases that is not practical as the amount of time involved in posting that exceeds the value of the 'unique' part. We will sometimes post photos of less 'unique' parts, if there is a greater chance of them being available in multiple quantities, or on a more 'repeat' basis.

Parts, general condition / circuit board condition; Most of our parts are from 'salvage / donor' units. While we don't sell parts that are 'known' to be bad, occasionally parts will need further adjustment, cleaning, 'tweaking', or in the case of circuit boards, may need old, conductive glue / epoxy further cleaned, and some 'common' parts / components replaced due to 'green / black / furry' legs, or because those parts were marked as 'sold separately'. Some circuit boards may have 'tired' "landing / solder pads" which can require 'jumpers'. Unless noted, circuit boards will be 'crack / split / break' free.

Parts pricing; Most of our parts price / value will be based on a few things. Firstly, we are in the restoration / refurb business, so we consider what we would be willing to pay for the part if we needed it (which again, is what the parts are listed for in the first place, "our units"). Secondly, the rarity / value of the unit the part(s) fit. The 'Tuning Knob' for a receiver that has a final value of $350 will likely be much less than the "Tuning Knob" for a unit with a final value of $1500 or more (a set of tires for a typical sedan will be $400 to $600. A set for a Lamborghini can be $16,000). Thirdly, the 'rarity' of the part. Forth, the 'condition' of the part. Fifth, the difficulty to extract the part, or success rate for extracting certain parts. Sixth; frankly it's a LOT of work and time to part out a unit. Most take 1 to 3 days of shop time to process. Not only the disassembly, but the 4-15 hours of pre-testing / servicing and just as time consuming can be the amount of time it takes to do all of the research we do and the info we list on many parts for cross-referrencing to other units that my use the same parts by scouring service manuals. On many circuit boards we will list every 'semi-conductor' which is also very time consuming. Lastly, every call or email for a part can require 20 minutes to sometimes over an hour of 'phone support', often (about 50% of the time) with me convincing the potential purchaser that they don't need the part I have to solve their problem.
Sorry to sound like a "whiner" about selling parts, but "time is money".

Shipping: Shipping on most 'small' parts if typically via Postal first class or Postal Priority for both domestic (USA) and international orders. Larger parts such as transformers and drivers (speakers) are typically via FedEx gnd.
Some parts sales such as those for empty 'speaker cabinets', empty 'component cabinets / covers / bonnets' and 'speaker grills' and most are 'doomed' from the start. Due to their size and required packing supplies, the cost of 'packing for safe transit' and shipping are commonly 'disproportionate' to their cost, typically nearly equal to and sometimes greater than the cost of the part.  Think about it. An empty speaker cabinet or stereo receiver case is essentially the same size as a complete one. Yes the weight will be less, but most of items that size are calculated on 'dimensional weight', not actual weight so are commonly just as expensive as shipping a 'complete unit'. Secondly empty component cabinets have to be packed to disallow breakage, typically requiring nearly as much packing materials as an entire unit. Speaker grills have to be 'sandwiched' between foam sheets in large, custom ordered boxes (all relatively expensive).  It is what it is....

A non-response to an email of phone call / voice message request for a part that we don't show on one or our pages, or is already marked "SOLD" will be typical. We simply don't have the time / man-power resources to respond to every query we get for items we don't show as avail. Most folks get that. Having said that, I / we may respond if we have information on a substitution or other useful information relating to it.

A non-response to an email of phone call / voice message request for a part (we may appear to have, but typically 'highlighted in Orange or Yellow'), likely means that we are still determining which parts we are going to need for the restoration or repair of one of our units. Again, the parts are first for the restoration of our units and secondarily for the public market. Since we list the parts available for ourselves, it is not much effort to modify the menu's for web publication, which in turn makes the reference information and occasionally the part available to the public. Frankly, publishing them to the web, in many instances, makes it easier for us to determine if we have the part for our needs as well. The alternative to all of the above would be to not offer them at all to the public, however most parts are available to the public for sale.  Also, parts requests can occasionally take time for us to respond to. While we may have a part listed, and we like to keep the website 100% accurate, occasionally a part will be 'used by us' or 'previously sold' and we by oversight, and we did not get the web listing marked "SOLD", or the part gets  'mis-placed' or 'lost' (laid down somewhere in the warehouse(s) and then it get's lost track of (that happens to our coffee cups all the time, then we find it months later with 'a good batch of 'penicillin' growing in it), so we like to 'lay eyes on it' prior to responding. Sometimes we just can't figure out which cabinet or drawer parts were assigned to (and we're working on a system for that one).

Some folks email / call and want us to respond either way / whether we have the part or not. Again, we simply do not have the time resources to do that. Our time must be utilized on the requests we can fulfill.
Sorry for all the excuses, but that's how the 'system' (or lack thereof) works.
And, if you don't see it, we likely don't have it.
 Thank you for your understanding.

$20. MINIMUM ORDER



20% off sale on salvage keyboard parts.


See sales banners on parts pages for details



Most of these components are "take-outs" from units that for various reasons we 'chopped' and unless otherwise noted are in serviceable / working condition / shape!
   In the case of output transistors, they will be tested / checked prior to posting and once again prior to shipment, pots / switches will be 'cursory' cleaned, parts already missing / utilized from circuit board will be noted, transformers will be checked prior to posting. Filter capacitors  will be tested / checked prior to posting and once again prior to shipment and 're-conditioned' / 're-formed' if necessary.




$5.00 surcharge on orders under $20.







NEW
YAMAHA DX-7
INTERNAL MEMORY
BATTERY
for sale
We have these custom made for us and are designed to be direct replacements for DX-7 batteries. If your battery is older than 5 years (and most are 20+ year and running on vapors) then you need one of these. It's not a matter of "if" your battery will cause your keyboard to fail, but simply a matter of "when". Yeah, I know you've heard that before, and you still waited till the part failed / broke the worst time, and you'll probably do it this time as well, but you've been warned.
Recommend installation by qualified technician and you will need to re-install the internal memory from an original data cartridge, another DX-7 or similar device, or off the web!

NEW

SORRY, NO DISCONTINUED FROM US.

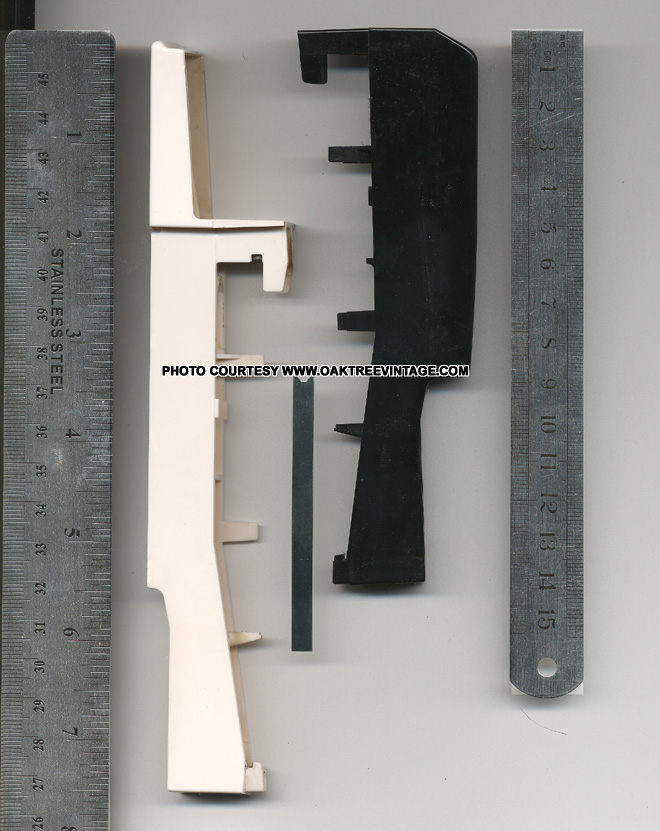

YAMAHA DX-7 SERIES
KEY / KEYS AVAILABLE FOR:
sale
Yamaha DX-7 DX7
Yamaha DX-7S
Yamaha DX-7 II
Yamaha DX-7 II D
Yamaha SY-77, SY-85, EX5 / EX-5, Yamaha Motif 6 ES6, Motif 7 ES7 replacement keys, and
MAY* also fit Korg M1, WS, 01W, Korg Trident Studio Workstation, Trinity / Prophecy and Some Korg Tritons

                                                   A #NB107580 CURRENTLY SOLD OUT OF A KEYS
B / E #NB107560
C / F #NB107540
                                                   D #NB107550 CURRENTLY SOLD OUT OF D KEYS
                                                   G #NB107570 CURRENTLY SOLD OUT OF G KEYS
                                                                                                     BLACK #/b keys #NB107600 / NB107601 CURRENTLY SOLD OUT OF BLACK KEYS

$18.00 ea.
OUR SALVAGE YAMAHA KEYS INCLUDE THEIR ORIGINAL SPRINGS!!!



Yamaha DX-7 / DX7 ORIGINAL SERIES PARTS / SPARES

(original series, some parts may fit other versions)


Panel / Plate / Top Cover, Top Panel with plastic membrane intact (no cracks in the membrane, but some finish wear to the brown paint on the metal) - $85. SOLD

Panel / Plate, Right plastic side panel / 'cheek' (minor cracks, but functional) - SOLD

Panel / Plate, Left Plastic Side panel / 'cheek' - SOLD

Contacts, Key contact sections (may need some straightening / repair / modification) (most sold in sections of 12 with a couple available in sections of 13 contacts) - $45. ea.

Yamaha DX-7 / DX7 PARTS / SPARES

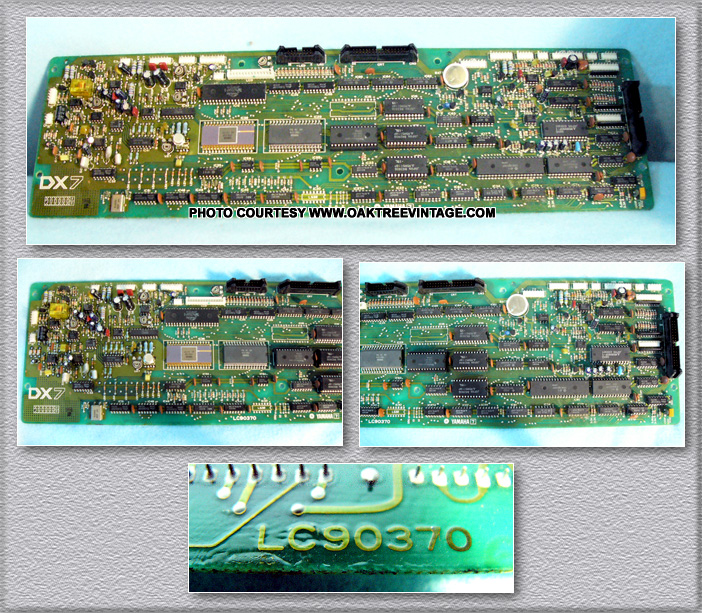

   Circuit Board, Main Circuit board LC90370, (without 7removable IC chips 84280G & IG11464 / YA3128 / D63-4E1) - $75. SOLD

Circuit Board, Power Supply Circuit Board LC 90330 - $45.  SOLD

Circuit Board, LC90390 Output / Output / MIDI jack circuit board (circuit board only. Jacks sold separately) - $45.

Chips; IC chips 84280G or  IG11464 / YA3128 / D63-4E1 - $45. ea. SOLD OUT

Potentiometers, Volume (Log) or Data Linear Pot / Slider (10K linear) (Data pot could be used as a Volume pot, but it isn't log)- $45. ea. SOLD OUT

Potentiometers, Pitch / Modulation control knobs / pots - $35. ea. SOLD

Switch, Power Switch w/ 2-pin Molex connector / pigtail - $30.

Switches, Selector switches (under membrane on circuit board LOC90390) - $25 ea. (discount for quantity order)
(Selector switches include; Store, Memory Protect, Edit / Compare, Memory Select, Function, Operator Select, Operator, LFO, MOD Sens, Oscillator, EG, Keyboard Level Scaling, Pitch EQ, etc)


Knobs, Volume / Data entry slider knobs / caps - $30. ea.  SOLD OUT

Transformer, Power Transformer GA8319 - $75. SOLD

LCD Display, DX-7 "Original series", LCD / LED Display LC90410 - $95. SOLD

LCD Display, DX-7 IID, LCD / LED Display PWB40267B - $95. SOLD

Yamaha DX-7 / DX7 PARTS / SPARES

Panel / Plate / Cover, Pitch / Modulation mounting panel / plate (less controls) - $45.

Cables / Wires, Internal Wiring harness - $50. or $25 per section if available

Cables / Wires, Ribbon Cables - $30. ea.


Connector, RAM Cartridge slot, sheet metal shield / cover, circuit board & connector - $40.

Jacks, Breath Controller / Headphone jack assembly LC90390 - $35. SOLD OUT

Jacks, MIDI Jacks - $30. ea.

Jacks, Modulation Pedal jack - $25. ea.

Jacks, Output jack - $25. ea. SOLD

Jacks, Volume Pedal jacks - $25. ea.

Jacks, Portamento Pedal jacks - $25. ea.

Jacks, Sustain Pedal jacks - $25. ea.

Foot / Feet set - $35. all 4 SOLD OUT

Back panel hinges - $25. ea.












HERE     ARE     SOME     ADDITIONAL     RESOURCES     FOR     REPAIR    /     RESTORATION


 __________________________________________________________________________________________________________















YAMAHA DX-7 II D SERIES
KEY / KEYS AVAILABLE FOR:
sale
Yamaha DX-7 II D
$18.00 ea.
Yamaha DX-7S
Yamaha DX-7 II
Yamaha DX-7 II D
Yamaha SY-77, SY-85, EX5 / EX-5, Yamaha Motif 6 ES6, Motif 7 ES7 replacement keys, and
MAY* also fit Korg M1, WS, 01W, Korg Trinity / Prophecy and Some Korg Tritons
$18.00 ea.
                                                   A #NB107580 CURRENTLY SOLD OUT OF A KEYS
B / E #NB107560
C / F #NB107540
                                                   D #NB107550 CURRENTLY SOLD OUT OF D KEYS
                                                   G #NB107570 CURRENTLY SOLD OUT OF G KEYS
                                                                                                     BLACK #/b keys #NB107600 / NB107601 CURRENTLY SOLD OUT OF BLACK KEYS

OUR SALVAGE YAMAHA KEYS INCLUDE THEIR ORIGINAL SPRINGS!!!


Yamaha DX-7IID DX7IID SERIES PARTS / SPARES
('II-D' series, some parts may fit other versions)

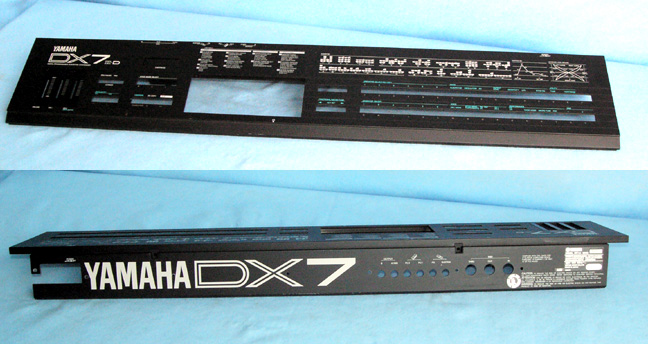

Panel / Plate / Cover, Top & Back Panel, aluminum (no cracks, scratches, scuffs, breaks. Like new condition) - $85.

Panel / cover, RAM Cartridge slot / cover / door - $30.

Power Switch - $30.
SOLD?

Knobs / Caps / Buttons / Covers, Selector Switch buttons / button sets ( Plastic) - 1-8 with 17-24 - $35

Knobs / Caps / Buttons / Covers, Selector Switch buttons / button sets ( Plastic) - 9-16 with 25-32 - $35

Knobs / Caps / Buttons / Covers,
Cursor, Poly, Mono, Data Entry, Yes-No, Voice Mode Select Compare, EG copy, Play Switch buttons / button sets ( Plastic) - $45 SOLD

Knobs / Caps / Buttons / Covers, Selector Switch buttons / button sets - A/B, 1-32, Internal & Cartridge / Fractional Micro-Tune / Key Set - $25

Switches / Controls, Selector switches (Momentary push switches under selector buttons) - $12.50 ea. (discount for quantity order)
(Selector switches include; Cursor / Poly / Mono / Data Entry, Yes-No, Voice Mode Select Compare, EG copy, Play, Store, Memory Protect, Edit / Compare, Memory Select, Function, Operator Select, Operator, LFO, MOD Sens, Oscillator, EG, Keyboard Level Scaling, Pitch EQ, etc)


Yamaha DX-7 II D PARTS / SPARES


Circuit boards, Main Circuit board, (less removable IC chips) - $75.
SOLD?

IC chips - $35 ea.
SOLD?

Potentiometer, Volume, CS-1 or CS-2 Data Linear Pot / Slider (Data pot could be used as a Volume pot, but it isn't log) - $30. ea. SOLD OUT

Transformer, Power Transformer GA8319 - $45.
SOLD?

Circuit board, Power Supply Circuit Board VC11240 complete - $65. SOLD

Circuit board, Other circuit boards not individually listed - $45.

LCD / LED Display on circuit board; PWB40267B (w/ HD44100H IC chips) - $85. SOLD

Breath Controller / Headphone jack assembly HK THK-11V-1 - $35.

Potentiometer, Pitch / Modulation control knobs with pots - $45. ea.


MIDI Jacks - $30. ea
SOLD?

Output / Modulation Pedal / Volume Pedal / Sustain Pedal / Portamento Pedal jacks - $25 ea.
SOLD?

Output / Output / MIDI jack circuit board (complete while jacks last) - $75.
SOLD?

Yamaha DX-7 II D PARTS / SPARES

 Panel, Side / Pitch / Modulation plastic mounting panel / plate (less controls) - $45. SOLD

Internal Wiring harness - $40.
SOLD?

Ribbon Cables - $30 ea.
SOLD?

Yamaha DX-7 II D PARTS / SPARES

Foot / Feet set (New grey) - $20 all 4

Panel, Bottom Panel / Plate (less feet) - $35

Panel, Right Plastic Side panel - $35. SOLD







*When we say "some parts MAY also fit", that does NOT mean ALL the parts listed 'WILL' fit, and unless we show specific info that a particular part DOES 'cross-pollinate', do not infer that it does or will fit. Only careful research and comparisons, on YOUR part with service manuals MAY indicate a POSSIBLE substitution. If your situation is 'critical', do not base your decision on information found on this or any other page of this web site and do your own research.
