TANDBERG STEREO PARTS / SPARES
FOR SALE / REFERENCE



Tandberg Stereo Parts & salvage replacement electronic Parts Units for sale by Tandberg for such models as TD20A TD 20A 20 A R2R / Reel to Reels.
Our Tandberg Tape Decks / deck TD20A parts for sale are from salvage / used units & are in very limited supply.
















































*Note about parts / spares sales

* Our "parts units", parts / spares and related reference information are primarily archived for the purpose of restoration / repair of "Oak Tree Vintage" units first. Only if we do not have a "viable" unit in yet, either already in process or in line to be processed, that may potentially need parts from a "parts unit", will we release available parts for sale (even though they may appear as available for sale to the public). As many of you know, the restoration of a unit can be a long, time consuming process. We may "lock up" parts that we may potentially need in the restoration of a unit (and not necessarily get it marked 'Hold' or 'Sold' on the site right away). Parts are priced according to the "potential value" of the unit they can be applicable to (meaning the amount WE would be willing to pay for the part if that was all that was standing between us having a "shelved unit" or a valuable / sellable unit), time to extract, their rarity & their condition to name a few criteria and likely will be completely unrelated to the original cost / price of a part when it was currently available from the manufacturer.

Parts Photos; We get a number of requests for 'photos' of a specific part. Unfortunately, in most cases that is not practical as the amount of time involved in posting that exceeds the value of the 'unique' part. We will sometimes post photos of less 'unique' parts, if there is a greater chance of them being available in multiple quantities, or on a more 'repeat' basis.

Shipping: Shipping on most 'small' parts if typically via Postal first class or Postal Priority for both domestic (USA) and international orders. Larger parts such as transformers and drivers (speakers) are typically via FedEx gnd.
Some parts sales such as those for empty 'speaker cabinets', empty 'component cabinets / covers / bonnets' and 'speaker grills' are 'doomed' from the start. Due to their size and required packing supplies, the cost of 'packing for safe transit' and shipping are typically nearly equal to and sometimes greater than the cost of the part.  Think about it. An empty speaker cabinet or stereo receiver case is essentially the same size as a complete one. Yes the weight will be less, but most of items that size are calculated on 'dimensional weight', not actual weight. Secondly empty component cabinets have to be packed to disallow breakage, typically requiring nearly as much packing materials as an entire unit. Speaker grills have to be 'sandwiched' between foam sheets in large, custom ordered boxes (all relatively expensive).  It is what it is....

A non-response to an email request for a part (we may appear to have), likely means that we are still determining which parts we are going to need for the restoration or repair of one of our units. Again, the parts are first for the restoration of our units and secondarily for the public market. Since we list the parts available for ourselves, it is not much effort to modify the menu's for web publication, which in turn makes the reference information and occasionally the part available to the public. Frankly, publishing them to the web, in many instances, makes it easier for us to determine if we have the part for our needs as well. The alternative to all of the above would be to not offer them at all to the public, however most parts are available to the public for sale.
BOTTOM LINE IS; IF YOU DON'T SEE IT AVAILABLE FOR SALE, WE DON'T HAVE IT!
 Thank you for your understanding.




20% off sale on salvage stereo parts.


See sales banners on parts pages for details







Most of these components are "take-outs" from stereo gear that for various reasons we 'chopped' and unless otherwise noted are in serviceable / working condition / shape!
   In the case of output transistors, they will be tested / checked prior to posting and once again prior to shipment, pots / switches will be 'cursory' cleaned, parts already missing / utilized from circuit board will be noted, transformers will be checked prior to posting. Filter capacitors  will be tested / checked prior to posting and once again prior to shipment and 're-conditioned' / 're-formed' if necessary.









MOST OF THE PARTS LISTED BELOW ARE FROM SALVAGE UNITS.

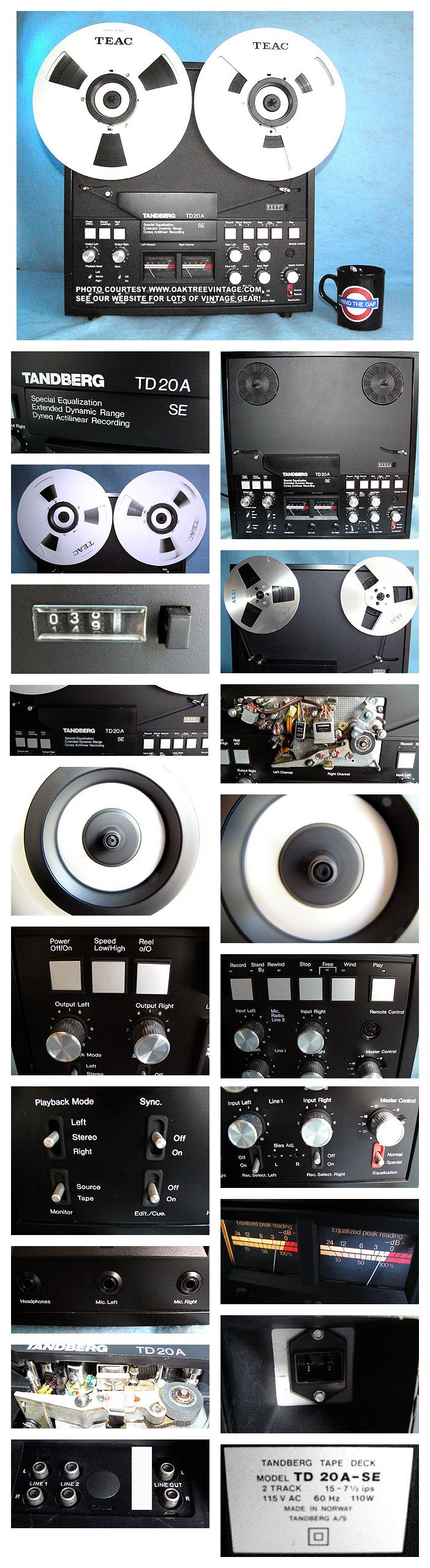

(Click on above thumbnails to enlarge photos)

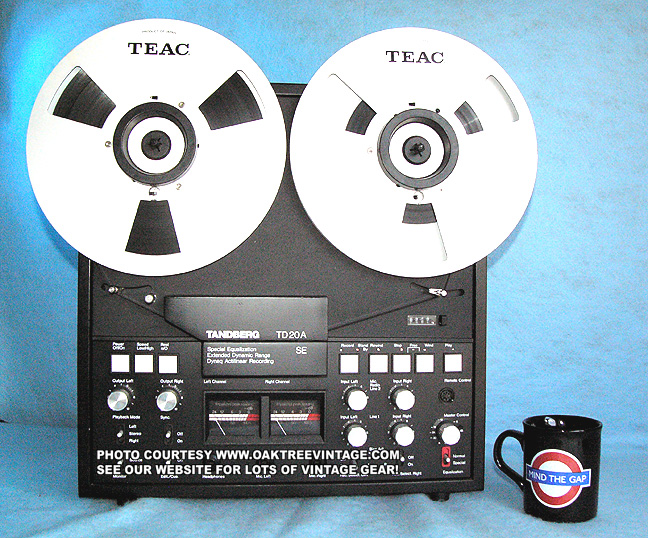

TANDBERG TD20A TD-20A-SE
Reel-Reel Deck Parts / Spares
for sale

Panel, Upper Face Plate CLEAN $75. SOLD

Panel, Lower Face Plate CLEAN $75.

Panel / cover, Upper Head Cover Plate / Panel - $35. ea.

Panel / cover,
Lower Head Cover Plate / Panel - $35. ea. SOLD

Bonnet / Case / housing, BLACK Wood Case / Cover - $95
SOLD

Motor, Capstan / Main Motor Part #HS-951CS 210622 - $95.
SOLD

Motor, Hub / reel motor right Part #IB-963RA 100920 - $95. SOLD

Motor, Hub / reel motor left Part #IB-963RA 100920 - $95. SOLD

Motor, Transport motor - $65.

Transformer, Power Transformer #368613 - $95.

TANDBERG TD-20A-SE TD20 PARTS / SPARES


Meters, Analog VU Meters - $40. ea. SOLD OUT

Trim / Escutcheon / bezel, Meter Bezel - $25.SOLD


Heads,  (2-Track / 2-Channel) - Heads (perfect) - $55. ea or $115 for all on the mounting plate. (Half track / 2-track).
 SOLD

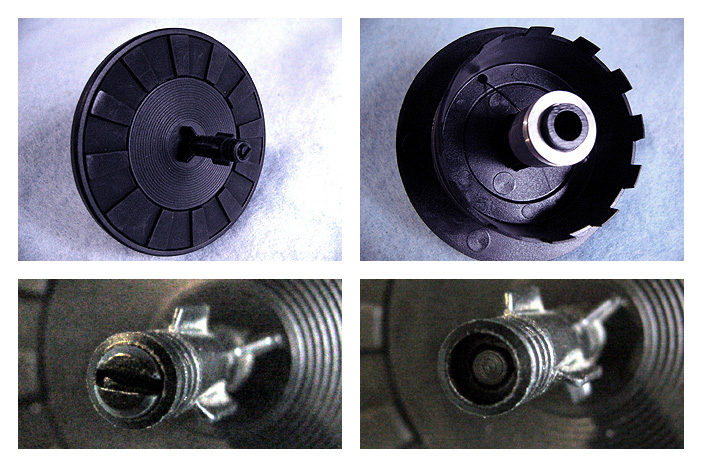

Reel Table, Hub spindles (Reel Base with spindle.  Spindle tips sold with reel bases due to retainer screws being un-removable) - $65 ea. SOLD OUT



Buttons / Caps / Knobs, Transport buttons - $15 ea.

Buttons / Caps / Knobs, Mic / Line knobs - $35.

Buttons / Caps / Knobs, Switch caps w/ silicon rubber insert (when removable) - $15. ea


Potentiometer, Mic / Line / Output pots / controls 1 & 2 / L& R Pots - $25 ea.

Potentiometer, Master Control - $40.

Pinch Roller, Rubber Pinch roller - $45. SOLD

Arms, Tape Tension Arm Assemblies - $35. ea

TANDBERG TD-20A-SE TD20 PARTS / SPARES


Switches, Toggle switches (Rec L, Rec R, Playback Mode, Edit / Cue, Sync, Monitor, Equalization {ALPS 369396}) (toggle switches do not include silver caps or rubber inserts. They are sold separately) - $35 ea.
 Switches listed in 'RED' are already - SOLD

Switches,
Push switches $40 ea. (only the rear portion of the speed switch left in stock) (Speed Switch {6 lugs) can be sub'd for the power switch {4 lugs}, but the power switch will not sub as the speed switch. Also Speed switch consists of 2 components. A front switch and a rear switch) - ALL SOLD

Switches, Micro switches for 'REC', 'Play', 'Stop', 'Wind' from 'Transport Circuit Board' - $20. ea.

Counter, Tape Counter - $25. SOLD

Sensor, Tape Counter/Speed sensor - $30.


Circuit boards, '63601-7' 'Audio Board' Circuit board, labeled for "2-Track / 7.5-15ips". Including such parts as transistors; 2N4562, Motorola MBC185B, 485B, 547B, 548B, 549CS, 558B, 559BS, 650D, 4858B, balance of electronic components and the RCA Input / Output panel (less pots, jacks, switches) - $65. SOLD

Circuit boards, '63685-4' 'Logic Board' Circuit board, labeled for "2-Track / 7.5-15ips". Including such parts as transistors; Motorola 485B, 486A, 489B, 547A, 547B, 557B, TAG138B / 8132, 8140, 8231 Bridge Rectifier, IC Chips; Texas Instruments 8223A / TBP28L22N (made in Singapore), 218B / SN7406N (made in El Salvador), 74148N / 8149 (made in England), Motorola SN74LS138N / I8228, SN74LS00N / 8228, 718151 / DM74LS14N, P206 / DM74LS02N, P229 / DM74LS32N, 003 / DM74LS08N, I120 / DM74LS279N, Voltage Regulators; L7805CV & 78M24CT, balance of electronic components
(less switches & fuses) - $65.
SOLD

Circuit boards, '63601' Circuit board. Including such parts as transistors & balance of electronic components - SOLD

Circuit boards, '63607-2' 'Playback Amplifier Board' Circuit board, labeled for "2-Track / 7.5-15ips". Including such parts as transistors; Motorola MBC547B, 548B, balance of electronic components - $35.
SOLD

Circuit boards, '63857' Circuit board. Including such parts as transistors; Motorola MBC547B, IC Chips; Motorola MC14081BCP / 82-I8, RCA CD4066BE / 201, & balance of electronic components - $35. SOLD

Circuit Board, '63619-2' 'Function Control Board' / Transport control circuit board less switches, LED's and DIN Jack. Circuit board and sockets only - $35.

Circuit Board, '63709-1' 'Rectifier Board' circuit board w / bridge rectifier KBPC102, 1N4739A Diodes and balance of components (less fuses) - $35.

Circuit Board, '63709-1' 'Switch Board' circuit board w / solder pins
(less pots & switches) - $35.

TANDBERG TD-20A-SE TD20 PARTS / SPARES



Capacitors, Motor Start / Run Caps. Rubycon Capacitors  4.3 F, 250 WV AC & 2.8 F, 250WV AC - $20 ea.
SOLD OUT

Brakes, Brake Straps - $18. ea.


Flywheels, Capstan Flywheel - $45.

Springs, Any Single Spring (valued at time to extract.) - $20. ea.

NAB Hubs (see this page)

Jacks,  AC input jack - $20.

Feet, Feet Set - $20 set.


Other parts not listed quoted individually based mostly on part value and  time required to extract. Phone or email for  availability.





Unless specifically noted, we do not typically sell 'component level' parts such as resistors, diodes, transistors, semiconductors, ic's / integrated circuit chips, ceramic capacitors, led's, bulbs, lamps, belts, etc. We do commonly sell circuit boards / cards which will likely come with those parts attached.
