MARANTZ PARTS / SPARES FOR VINTAGE STEREO GEAR




Marantz Stereo Parts / Spares for Marantz Stereo Receivers 2215, B, 2215B, 2220, 2220B, 2230, 2238, 2245, SR-2000, SR2000 Electronic Parts for Marantz cassette tape deck 5010B.














































*Note about parts / spares sales

* Our "parts units", parts / spares and related reference information are primarily archived for the purpose of restoration / repair of "Oak Tree Vintage" units first. Only if we do not have a "viable" unit in yet, either already in process or in line to be processed, that may potentially need parts from a "parts unit", will we release available parts for sale (even though they may appear as available for sale to the public). As many of you know, the restoration of a unit can be a long, time consuming process. We may "lock up" parts that we may potentially need in the restoration of a unit (and not necessarily get it marked 'Hold' or 'Sold' on the site right away). Parts are priced according to the "potential value" of the unit they can be applicable to (meaning the amount WE would be willing to pay for the part if that was all that was standing between us having a "shelved unit" or a valuable / sellable unit), time to extract, their rarity & their condition to name a few criteria and likely will be completely unrelated to the original cost / price of a part when it was currently available from the manufacturer.

Parts Photos; We get a number of requests for 'photos' of a specific part. Unfortunately, in most cases that is not practical as the amount of time involved in posting that exceeds the value of the 'unique' part. We will sometimes post photos of less 'unique' parts, if there is a greater chance of them being available in multiple quantities, or on a more 'repeat' basis.

Shipping: Shipping on most 'small' parts if typically via Postal first class or Postal Priority for both domestic (USA) and international orders. Larger parts such as transformers and drivers (speakers) are typically via FedEx gnd.
Some parts sales such as those for empty 'speaker cabinets', empty 'component cabinets / covers / bonnets' and 'speaker grills' are 'doomed' from the start. Due to their size and required packing supplies, the cost of 'packing for safe transit' and shipping are typically nearly equal to and sometimes greater than the cost of the part.  Think about it. An empty speaker cabinet or stereo receiver case is essentially the same size as a complete one. Yes the weight will be less, but most of items that size are calculated on 'dimensional weight', not actual weight. Secondly empty component cabinets have to be packed to disallow breakage, typically requiring nearly as much packing materials as an entire unit. Speaker grills have to be 'sandwiched' between foam sheets in large, custom ordered boxes (all relatively expensive).  It is what it is....

A non-response to an email request for a part (we may appear to have), likely means that we are still determining which parts we are going to need for the restoration or repair of one of our units. Again, the parts are first for the restoration of our units and secondarily for the public market. Since we list the parts available for ourselves, it is not much effort to modify the menu's for web publication, which in turn makes the reference information and occasionally the part available to the public. Frankly, publishing them to the web, in many instances, makes it easier for us to determine if we have the part for our needs as well. The alternative to all of the above would be to not offer them at all to the public, however most parts are available to the public for sale.
BOTTOM LINE IS; IF YOU DON'T SEE IT AVAILABLE FOR SALE, WE DON'T HAVE IT!
 Thank you for your understanding.




20% off sale on salvage stereo parts.


See sales banners on parts pages for details







Most of these components are "take-outs" from stereo gear that for various reasons we 'chopped' and unless otherwise noted are in serviceable / working condition / shape!
   In the case of output transistors, they will be tested / checked prior to posting and once again prior to shipment, pots / switches will be 'cursory' cleaned, parts already missing / utilized from circuit board will be noted, transformers will be checked prior to posting. Filter capacitors  will be tested / checked prior to posting and once again prior to shipment and 're-conditioned' / 're-formed' if necessary.














HOME / STUDIO / HI-FI SPEAKER PARTS
CLICK HERE!


MOST OF THE PARTS LISTED BELOW ARE FROM SALVAGE UNITS.








MARANTZ AMPLIFIERS / RECEIVERS / TUNERS PARTS / SPARES




MARANTZ
2215 B 2215
STEREO
RECEIVER PARTS
(Some parts MAY* also fit 2210 2215 2216 2220 2240 2275 2285 2260 and possibly others)

 FOR SALE
This one is in overall good shape, but has no sound from right outputs. Very clean throughout including wood grain vinyl covered metal case! We just decided to go ahead and part it out.
Marantz 2215B
- PARTING OUT -
Bonnet / Cover / Case / Shell, Wood grain vinyl covered metal case cover - $45. SOLD
(Cases, covers and side plate / panels, etc. do not include mounting screws as those are sold separately)
Panel / Plate, Face panel with window (good with small tic on edge above 2nd "A" in Marantz and light scuff on window)- $55.

MARANTZ 2215B PARTS / SPARES


Knob / Caps / Buttons, Tuning 'Gyro' knob - $40.

Knob / Caps / Buttons, Large round knobs
(singles or concentric, see photos for condition) - $30 each concentric pair SOLD OUT

Knob / Caps / Buttons, Push Switch caps
(11mm diameter) - $15. each SOLD OUT

Switch / Selector, 'Power' Push Switch TV-3 / JH5 w/ .1uf / 120Ohm clamp - $30. ea. HOLD power switch for shop use until either it get's marked 'SOLD' or this notice is removed.

Switch / Selector,
'Speaker Selector' Rotary / Wafer Switch - $30. ea.

Switch / Selector, Loudness and
Tape Monitor - SOLD

Switch / Selector, 'FM Mute' or 'Hi-Filter' Push Switch - $20. ea.

Potentiometers / Controls, VOLUME POT - SOLD
(Volume pot is ganged Alps 250k ohm unit # RM025040220 , Balance control 500k ohms and tone pots are 100k ohm units)

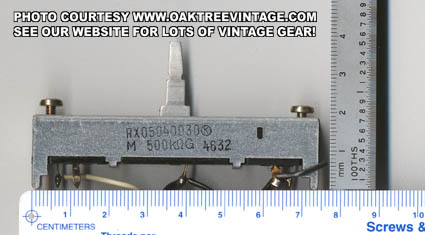

Potentiometers / Controls, Balance Pot RXO5040030    - (see also 2210, 2215, 2215B, 2220, 2238, 2240, 2252, 2265, 2275 & 2285 RSO5040050 ) - $25. SOLD


Potentiometers / Controls, Bass, Midrange, Treble pots #RM0104005 Alps 100kΩBx2 - $30. ea.

MARANTZ 2215B PARTS / SPARES


Transformer, Power transformer - $45. SOLD

Transistors, Output Transistors (ORIGINAL Sanyo 2SB507D & 2SD313D) - $20. ea. pair

Heat Sink, less components - $25.

Bracket, Steel Heat-sink strip w/ bolts - $15.


Circuit Board, Power amplifier circuit board with components and dual 35V / 2,200mf electrolytic capacitors (less output transistors & heat sink. - $35.

Circuit Board, Power supply board YD2956103-0 w/ Power Supply Filter Capacitor 55V / 3,300 mf /
μF - $45.

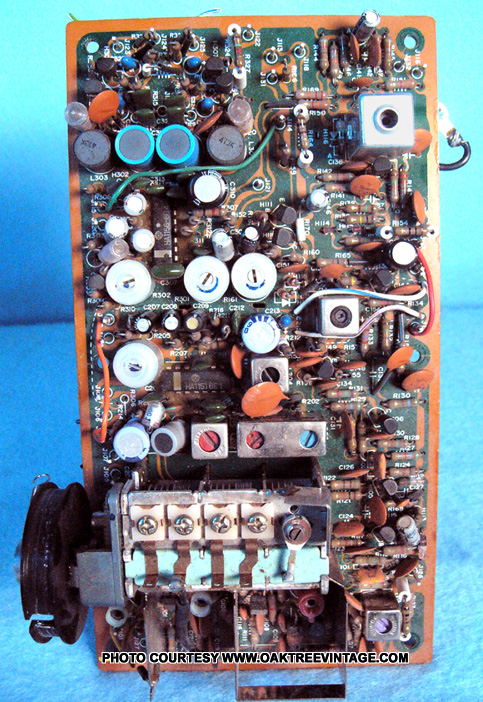

  (Tuner board) - SOLD

Pointer, Dial Indicator - $30. SOLD

MARANTZ 2215B PARTS / SPARES

Jacks, Headphone jack - $25.

Jacks / Connectors, RCA I/O source jacks; 'Tape Monitor' or 'AUX-PHOTO' - $20. ea set of 4 in a cluster

Connectors / Terminals, Connectors / Terminals, Speaker Output clips / connectors sections 'A or B set' - $20 ea. set of 4 terminals ALL SOLD or missing plastic caps

Connectors / Terminals, Antenna Barrier Strip / Inputs - $20. entire section

Jacks, AC 'convenience' outlets - $18. ea.

Fuse Cap, Fuse Cap 'insert' ONLY (North American Market Version) - $20.
Fuse Holder, (cap sold separately) (North American Market Version. NOT 'Multi-Voltage') - $20.


Antenna, AM antenna Ferrite stick - $25.
Antenna, AM antenna bracket - $25.

 Feet, Set 4 feet (Plastic) - $33 or $12.50 ea
ALL SOLD

Bolts / Screws / Fasteners, Face panel corner Hex bolts
(same bolts on at least 2238 and 2215B) $15. ea.

Most other parts $20-$35.each
Call or Email for part you need.







NEW LISTING
(Click on above thumbnails to enlarge photos)

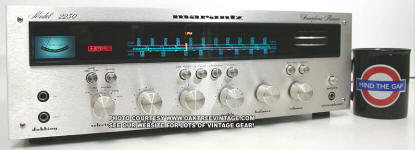

MARANTZ 2230 STEREO RECEIVER PARTS / SPARES
 Circa 1972- maybe 74
 Classic 'Blue Face'

MARANTZ 2230 STEREO RECEIVER PARTS / SPARES
 - PARTING OUT -


Bonnet / Case / Cover / Cabinet, Sheet metal, vinyl wood grain,  good condition - $45.

Panel, Front / Face panel / aluminum -
SOLD

Panel, ‘Tuning scale cover’, plastic - $25.

Panel, ‘Tuning Scale’, function display, glass - $35.

Meter, ‘Tuning Signal Strength’ Meter #IM1104204- $35.

Pointer / indicator, Tuning ‘Dial Pointer’ - $25.

Knob / Flywheel, ‘Gyro Tune’ ‘Tuning’ flywheel / knob #257727301 - $35.

Knobs / Caps / Buttons, Volume knob - SOLD

Knobs / Caps / Buttons. ‘Balance knob’, ‘Bass’, ‘Treble’, ‘Mid’ knobs SOLD

 Knobs / Caps / Buttons, ‘Tape monitor’, ‘Mono’, ‘Low Filter’, ‘Hi Filter’, ’Loudness’. ‘Muting’,  ‘Main’, ‘Remote’ / ‘Speakers’, ’Power’ caps / buttons (11mm x 13mm) – $20. ea.

MARANTZ 2230 STEREO RECEIVER PARTS / SPARES

Potentiometer / Control, ‘Volume’ control pot - RM0254021 - $40. SOLD

Potentiometer / Control, ‘Balance’ control pot - RM0254020 (see also Marantz 2215, 2220, 2230, 2245, 2270 and probably others) - $40.

Potentiometer / Control, ‘Treble’,‘ Bass’, ‘Mid’ control pots - RM0104005 - $35. ea.

Switches / Selectors, Rotary / Wafer ‘Selector’ switch- SR0805016 - $40.

Switches / Selectors, Push Switches, ‘Low Filter’ switch, ‘Hi Filter’ switch - RT1022414 - $25. ea.

Switches / Selectors, Push Switches, ’Loudness’. ‘Muting’, ‘Main Speaker’, ‘Remote’ switch- RT1010514 - $25. ea.

Switches / Selectors, Push switch ‘Power’, SP0201010 – SOLD

Switches / Selectors, ‘Muting’ push switch - $25.

Switches / Selectors, ‘Tape Monitor / ‘Mono’ switch, SP0402003  - $25. ea.

Switches / Selectors, ‘Antenna attenuator’ switch - $20.

MARANTZ 2230 STEREO RECEIVER PARTS / SPARES

Circuit Board, ‘Tuning capacitor’, ‘FM Front End’ board # YD2819002-2, with transistors; Mitsubishi 2SC829, 2SK19 - $55.

String Wheel, Plastic String Tuning Wheel- $35.

Circuit Board, ‘FM Amplifier’ board #YD2819008-2 w/ transistors; 2SC829 and balance of resistors, capacitors and diodes etc. - $65.

Circuit Board, ‘Power Amplifier’, board #YD2820007-0 / YD2820001-0, w/ transistors: Mitsubishi 2SC1327, NEC 2SA606, NEC 2SC959, 2SC371, 2SA562 and balance of capacitors, resistors etc. - $65.

Circuit Board, ‘Tone Amplifier’ board. #YD2577004-2, with transistors: 2SA493, 2SC1000 and balance of capacitors, resistors etc. - $45.

Circuit Board, 'Loudness', 'High / Low Filter', 'Muting’ switch unit assembly board # YD2819001-2 / YD2819001-0, (less push switches) and balance of resistors and capacitors etc. - $45.

Circuit Board, ‘Power Supply’ board #YD282006-0, with transistors; Mitsubishi 2SC696, 2SC1213 and balance of capacitors and resistors etc. - $45.

Circuit Board, ‘Muting Control’ board, #YD282005-2 / YD282005-0with transistors; 2SC372, 2SC733 and balance of resistors, diodes and capacitors etc. - $45.

Circuit Board, ‘MPX Stereo Decoding’ board, #YD2818015-2 / YD2818004-0, with LS3501002, transistors;  2SA494, 2SC372, Mitsubishi 2SC644, 2SC732, 2SK30A and balance of resistors, capacitors, diodes etc. - $65.

Circuit Board, ‘Phono Amplifier’ board #YD2818010-3 / YD2818010-3, with transistors; 2SC1000 and balance of capacitors, resistors and diodes etc. - $45.

Circuit Board, ‘AM Tuner’, #YD2818002-2, with transistors; 2SC372,  2SC644, 2SC941 and balance of resistors, capacitors and diodes etc. - $45.

Circuit Board, ‘FM Detector’, #YD220004-2 / YD220004-0 with transistors; Mitsubishi 2SC644 and balance of resistors, capacitors and diodes
etc. - $45.

Circuit Board, Tone control board #YD2818011-3 / YD2818011-0, includes balance of resistors, capacitors, etc. (less tone pots) - $45.

MARANTZ 2230 STEREO RECEIVER PARTS / SPARES

Transformer, Power supply Transformer 22Y4ZE - $85.

Capacitors, ‘Power supply filter cap’ #EC4780801 Elna 4700
μF 80 volts - $25.

Capacitors, OEM caps, #EC2280631, Elna 2200uF 63 volts - $20. ea.

Transistors, OEM ‘Output’ transistors;  HK021719A / 2SC897  TO-3 Metal cased output transistors - $25. ea.

Transistor, ‘2SD315F’ - $15.

Heat Sink, Power amp heat sink #282026701 (less transistors) - $25. ea.

Capacitor, Tuning Capacitor on circuit board w/ sheet metal side shielding (less to cover) - $55.

Cover / Panel, Tuning capacitor top shield cover - $25.

MARANTZ 2230 STEREO RECEIVER PARTS / SPARES

Jack / Connector
, ‘Stereophones’ / Headphone jack, ¼ inch - $25.

Jack / Connector, Tape ‘dubbing’ ¼ inch - $25. ea.

Jack / Connector, RCA Input / Output  connectors / jacks #YT0208002 ‘Phono’, ‘AUX’, ‘Tape’, one bank with capacitors - $35.

Jack / Connector, Speaker connectors / terminals, 2 complete banks of 2 pairs - $35. ea. Bank of 4 posts on phenolic resin / fiber board

Jack / Connector
, ‘Antenna’ Connectors / post / terminals on fiber board as set of 4, includes with ‘Antenna attenuator’ - $25.

Jack / Connector, ‘Pre-amp’ output / ‘Power Amp’ input, YP1000097, (jumpers not included ) - $25.

Jack / Connector, ‘Pre-amp’ output / ‘Power Amp’ input ‘Jumpers - $20. ea

Jack / Connector, ‘Quadradial’ ¼ inch, #YT0201006, terminal - $20.

Jack / Connector, AC Convenience outlet / Socket, ‘AC Convenience’ sockets - $18. ea

MARANTZ 2230 STEREO RECEIVER PARTS / SPARES
Antenna, AM ‘Stick’ / bar / rod antenna (mounting brackets sold separately) LF1120023 - $35.

Antenna, AM antenna hinge mount - $35.

Fuse, ‘Holder’
(cap sold separately) - $25.

Fuse, ‘Cap’ (holder sold separately) - $30.

Panel, Rear sheet metal panel (less any input / output jacks / components) - $25.

Panel, Bottom sheet metal - $20.


Foot / Feet, - $20.
set of 4

Most other parts $15-$35. ea

Call or Email for part you need.


revised 10/30/13

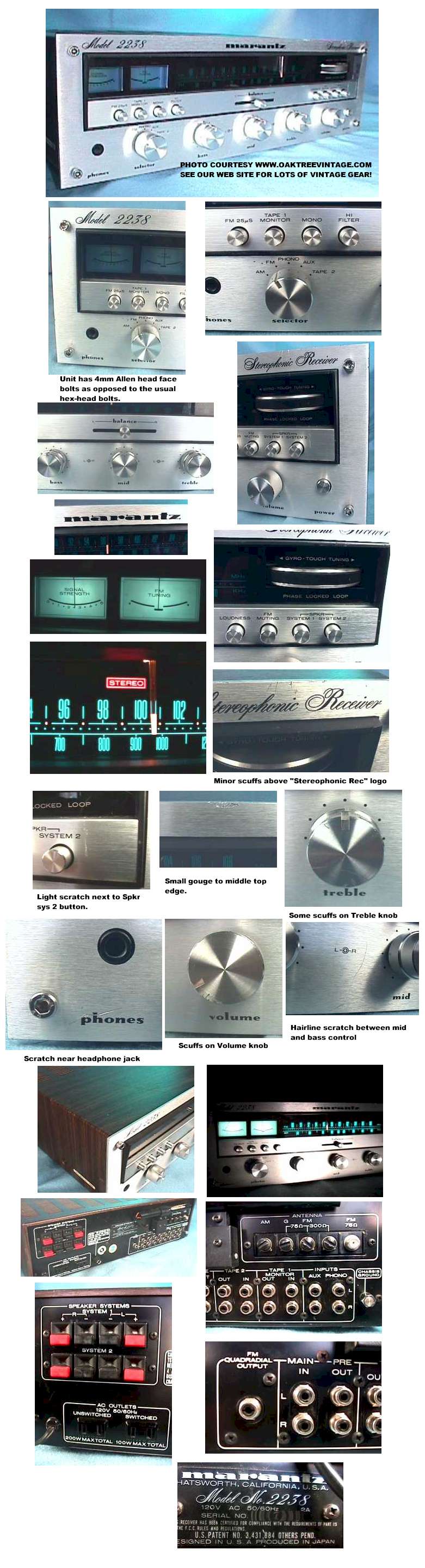

Marantz_2238_Stereo_Receiver_BM_web.jpg (41835 bytes)   Marantz_2238_Stereo_Receiver_BM_collage.jpg (267790 bytes)
(Click on above thumbnails to enlarge photos)

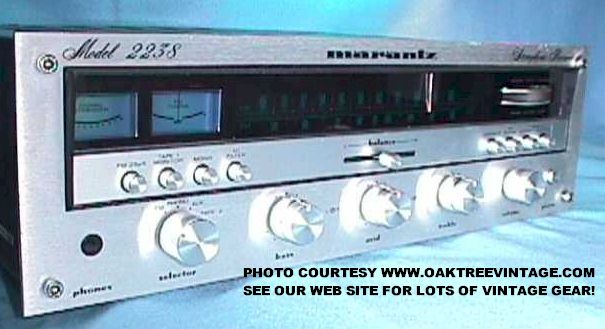

MARANTZ
2238
STEREO RECEIVER PARTS / SPARES
(
Some parts MAY* also fit 2210 2215 2216 2220 2240 2275 2285 2260 and others)
 FOR SALE
This one is in overall good shape, but has some minor cosmetic issues that are seen when up pretty close to the unit (see collage photo). Still looks "darn good".
 We had completely gone through this unit cleaning all switches, contacts and controls as well as cleaning unit inside and polishing face, dial glass and knobs. All dial lamps, function indicator lamps and stereo indicator lamps have been replaced with new ones!  Then the relay started shutting off while "standing on the unit" with a 4 ohm load. Very clean throughout including wood grain vinyl covered metal case! We just decided to go ahead and part it out.
Marantz 2238
- PARTING OUT -
Bonnet / Cover / Case / Shell, Wood grain vinyl covered metal case cover - $45. - SOLD
(Cases, covers and side plate / panels, etc. do not include mounting screws as those are sold separately)

Panel / Plate, Face panel with window (not perfect, see photos)- $45.
SOLD

Knobs / Caps / Buttons, Large round knobs;
Bass, Mid, Treble, Function, Selector (singles or concentric, see photos for condition) - $30. each concentric pair (CLEAN) - CLEAN PAIR SOLD
OR
$20. for a pair with minor scuffs / scratches.


Knobs / Caps / Buttons, 'Push' Switch caps (9mm diameter) - $15. each

Potentiometers / Controls, Bass, Midrange, Treble pots #RD01040052 Alps 100kΩBx2 - $30. ea.

Potentiometers / Controls, 500K Balance control - SOLD
Potentiometers / Controls, Volume control - SOLD

(Volume pot is Alps 250k ohm unit, Balance control 500k ohms and tone pots are 100k ohm units. Tone pot description: Alps brand, stacked-concentric & de-tented. Part numbers for tone (bass, mid, treble) pots; 601-RD01040052-100k
ΩBX2)

Switch / Selector, Loudness and FM muting Switches- SOLD
Switch / Selector, Power Switch - SOLD

Meters, 'Signal Strength / M001 / IM11055050'
or
'Tuning / M002 / IM11055050' VU meters - $30. ea.


MARANTZ 2238 PARTS / SPARES

Transformer, Power transformer - $65. SOLD

Heat sink, Power amplifier heat sink (less components) - $25.

Transistors, Output Transistors (Marantz 2SB541 & 2SD388) - $25 ea.

Capacitors, Power Supply Filter Capacitors 50V / 10,000 mf /
μF - $20. ea.

Circuit Board,
Power supply board w/ 132B rectifiers & Sanyo D330D voltage regulator - $45.

Circuit Board, Any single circuit board unless already listed separately (less pots, switches, large transformers, outputs) - $45.

Circuit Board, Driver board w/ A794 & C1567 transistors (less relay) - 45.

Pointer, Dial Indicator - $30 SOLD

Relay, (Omron type MY2) - 25.


MARANTZ 2238 PARTS / SPARES

Jacks, Headphone jack - SOLD

Jacks / Connectors, RCA I/O source jacks; 'Main / Pre', 'Tape-2', 'Tape-1 Monitor', 'AUX-PHOTO' - $20. ea set of 4 in a cluster

Jacks, AC 'convenience' outlets - $18. ea.

Connectors / Terminals, Speaker Output clips / connectors sections 'System-1' or 'System-2' - $25. ea section

Connectors / Terminals,
Antenna Barrier Strip / Inputs - $35. entire section

Antenna, AM antenna stick LF1120046
(not interchangeable with "B" series) - $25.
Antenna, AM antenna bracket
(not interchangeable with "B" series) - $25.
SOLD

 Feet, (plastic or Rubber- Plastic is approx 1/8" taller and uses a machine thread screw. Rubber uses a sheet metal screw) - $12.50 ea (1 rubber version left)


Bolts / Screws / Fasteners, Face panel corner Hex bolts
(same bolts on at least 2238 and 2215B) $15. ea.

Most other parts $20-$35.each
Call or Email for part you need.











NEW LISTING 11/10/13
(Click on above thumbnails to enlarge photos)

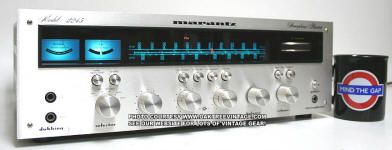

MARANTZ 2245 STEREO RECEIVER PARTS / SPARES

 - PARTING OUT -

Bonnet / Case / Cover / Cabinet, Sheet metal, vinyl wood grain,  good condition - SOLD

Panel, Front / Face panel / aluminum, very minor scuffing, dial window / glass - $55.

Panel, Front / Face panel, ‘Screws’ - $12. ea or $40. set of 4

Panel, Tuning Scale, function ‘display glass’ - $35.

Meter, Tuning AM/FM ‘Signal Strength’ Meter #IM1104203- $25.

Meter, ‘FM tuning’ meter #IM1104202 - $25.

Pointer / Indicator, Tuning ‘Dial Pointer’ #281926501- $25. SOLD

Knob / Flywheel, ‘Gyro Tune’ ‘Tuning’ flywheel / knob #257727301 (see also Marantz 2230, Marantz 2245 and possibly others) - $35.

Knobs / Caps / Buttons, Volume knob ## - SOLD

Knobs / Caps / Buttons, ‘Selector’ button / cap ## – $25.

Knobs / Caps / Buttons. ‘Balance knob’, ‘Bass’, ‘Treble’, ‘Mid’ knobs  #281815403SOLD

 Knobs / Caps / Buttons, ‘Tape monitor’, ‘Mono’, ‘Hi Filter’, ’Loudness’, ‘Main’, ‘Remote’ / ‘Speakers’, caps / buttons (11mm x 13mm) ## – $20. ea.

Knobs / Caps / Buttons,11mm x 18mm - $20.

MARANTZ 2245 STEREO RECEIVER PARTS / SPARES

Potentiometer / Control, ‘Volume’ control pot ALPS 250kOhms x2 Audio taper #RM0254021 - $40.

Potentiometer / Control, ‘Balance’ control pot ALPS 250kOhms x2 #RM0254020 (see also Marantz 2215, 2220, 2230, 2245, 2270 and probably others) - $40. SOLD

Potentiometer / Control, ‘Treble’, ‘ Bass’, ‘Mid’ control pots -  2NB RD0104005 100OHM R (see also Marantz 2230, Marantz 2245 and possibly  others) - $35. ea.

Potentiometer / Control, ‘Muting level’ pot - $20.

Switches / Selectors, Rotary / Wafer ‘Input Selector’ switch - $40. SOLD

Switches / Selectors, Push Switches, ‘Mono’, ’Loudness’, ‘Low Filter’, ‘Hi Filter’, ‘FM Mute’ switch – RT22414 220K R (see also Marantz 2230, Marantz 2245 and possibly  others) - $25. ea.

Switches / Selectors, Push Switches, ‘Main Speaker’ switch, ‘Remote’ switch #SP0402004- $25. ea.

Switches / Selectors, Push Switches, ’Muting’ ##– SOLD

Switches / Selectors, Push switch ‘Power’ #SP0201007 – SOLD

Switches / Selectors, ‘Tape Monitor’ switch, #SP0402003 - $35. ea.

Switches / Selectors, ‘Antenna attenuator’ switch - $20.

MARANTZ 2245 STEREO RECEIVER PARTS / SPARES

Tuning Capacitor, 7-Gang tuning capacitor on ‘FM Front End’ circuit board # YD2819002-2, with transistors Mitsubishi 2SC535, 2SK19 and w/ balance of components and metal chassis - $45.

String Wheel, Plastic String ‘Tuning’ Wheel- $35.

Circuit Board, ‘FM Amplifier’ circuit board #YD2819008-0 w/ transistors; 2SC829 and balance of resistors, capacitors and diodes - $65.

Circuit Board, ‘Tone Amplifier’ circuit board. #YD2577004-0, with transistors: 2SA493, 2SC1000 and balance of capacitors, resistors - $45.

Circuit Board, ‘Tone Control’ circuit board. #YD2818011-2, with balance of capacitors, resistors
(less potentiometers sold separately) - $45.

Circuit Board, ‘Power Supply’ circuit board #YD2819010-0 / YD2818012, transistors; Mitsubishi 2SC696, 2SC734, 2SC945, 2SC1213 and balance of rectifier diodes, capacitors and resistors (less relay sold separately) - $45.

Circuit Board, ‘MPX Stereo Decoding’ circuit board, # YD2818004-0, with LS3501002, LS-15-03-002-0, LS-15-03-001-2  transistors;  2SA494, 2SC372, Mitsubishi 2SC644, 2SC732, 2SK30A and balance of resistors, capacitors, diodes - $65.

Circuit Board, ‘Phono Amplifier’ circuit board #YD2818010-0, with transistors; Hitachi 2SC458, 2SC1000, MOTOROLA 2N3904  and balance of capacitors, resistors and diodes - $65.

Circuit Board, ‘AM Tuner’ circuit board #YD2818002-0, with transistors; 2SC372, 2SC644, 2SC941 and balance of resistors, capacitors and diodes - $45.

Circuit Board, ‘FM Detector’ circuit board, #YD2817005-0 with transistors; Mitsubishi 2SC644, Toshiba horizontal package IC Toshiba TA7060P and balance of resistors, capacitors and diodes – $35.

Circuit Board, ‘Muting control’ circuit board#YD2818006-2 with transistors; Texas Instruments 2SC372, Texas Instruments, 2SC733, Texas Instruments 2SK30A - $40.

MARANTZ 2245 STEREO RECEIVER PARTS / SPARES

Transformer, Power supply Transformer TS6050201– Adjustable 120v-240v power option - $65.

Terminal Block, Multi-voltage adjustment terminal block - $35.

Capacitors, ‘Power supply filter cap’, Elna 9000uF 55 volts - $30. ea.

Relay, OMRON TYPE MY2 / 24DC #LY20240033 - $35.

Transistors, ‘Output’ transistors;  TEXAS INSTRUMENTS / TI SJ2513  7215, TO-3 Metal cased output transistors - $25. ea. SOLD OUT

Transistors, ‘Output’ transistors;  TEXAS INSTRUMENTS / TI SJ2514 7225,  TO-3 Metal cased output transistors - $25. ea.

Heat Sink, Power amp heat sink  (less transistors) - SOLD

MARANTZ 2245 STEREO RECEIVER PARTS / SPARES

Jack / Connector
, ‘Stereophones’ / Headphone jack, ¼ inch,  #YJ0100055 - $25.

Jack / Connector, Tape ‘dubbing’ ¼ inch, pair - $25.

Jack / Connector, RCA Input / Output  connectors / jacks ‘Phono’, ‘AUX’, ‘Tape’, one bank with capacitors - $35.

Jack / Connector
, Speaker connectors / terminals, 2 complete banks of 2 pairs, banks of 4 posts on phenolic resin / fiber board - $35. ea. (1 good bank left)

Jack / Connector
, ‘Antenna’ Connectors / post / terminals on fiber board as set of 4 - $25.

Jack / Connector, Voltage adjustment terminals - $35.

Jack / Connector, ‘Pre-amp’ output / ‘Power Amp’ input, YP1000097, (jumpers not included) - $25.

Jack / Connector, ‘Pre-amp’ output / ‘Power Amp’ input ‘Jumpers
) - SOLD

Jack / Connector, ‘Quadradial’ RCA, #YT0201006, terminal - $20.

Jack / Connector, AC Convenience outlet / Socket, ‘AC Convenience’ sockets (sold with rear panel as they are riveted in place)

MARANTZ 2245 STEREO RECEIVER PARTS / SPARES

Antenna, AM ‘Stick’ / bar / rod antenna (mounting brackets sold separately) LF1120023 - $35.

Antenna, AM antenna hinge mount LF1120023 - $35.

Fuse, ‘Holder’ Socket #YJ)80012 -
(cap sold separately) - $25.

Fuse, ‘Cap’ (holder sold separately) - $30.

Panel, Tuning capacitor ‘shield’ - $20.

Panel, Rear sheet metal panel w/ AC Convenience outlets attached - $35.

Panel
, Bottom sheet metal - SOLD

Foot / Feet, - SOLD. set of 4

Most other parts $15-$35. ea


Call or Email for part you need.

                                                  revised 11/10/13





NEW LISTING

 (Click on above thumbnails to enlarge photos)

MARANTZ
 SR-2000 SR2000
 STEREO
RECEIVER PARTS
 Some parts
MAY* also fit the following Marantz models:
 SR-1000, SR-4000, SR-6000 & SR-8000
, but we do NOT have any substitution info.

 - PARTING OUT -

 Unit powers up, dial lights light, but has output issues

 MARANTZ SR-2000 SR2000 PARTS / SPARES

 Bonnet / Case / Cover / housing, Wood grain, vinyl wrapped case cover (very minor wear. Great condition) - $55. SOLD
 Panel, Face panel with glass (less knobs / buttons ) looks good with normal, minor wear - $40.

Wood face end caps (need to be refinished) - $20. ea

Lighted Tuning Dial indictor - $30. SOLD

 Knobs Caps & Buttons, Volume knob - $25.

Knobs Caps & Buttons, Balance ring
- $25. SOLD

 Knobs Caps & Buttons, Treble, Mid, Bass & balance control round knobs
(many will also fit SR-1000, SR-4000, SR-6000 & SR-8000) - $25 ea

 Knobs Caps & Buttons, Push Switch caps  - $12. ea

 MARANTZ SR-2000 SR2000 PARTS / SPARES

 Meters, Power meters - $40. SOLD

Meters, Tuning VU meter (shipped on tuning scale for safety) - $30.

 Transformer, Power supply Transformer Part # UG4-302 / TS17614010 - WORKS - $45. SOLD

 Capacitors, Power supply filter Caps - 10000 uf / 42 wv (2 total) - $35. ea

 Power amplifier outputs STK080G - $35. ea SOLD?

 Circuit Boards, Any single circuit board unless listed separately (less pots, switches, large transformers, outputs) - $40.

 Tuning circuit board with tuning cap CA32400100 and including the following IC chips; NEC UPC11782, NEC UPC1161C, NEC C1024H2 & Sanyo A1231N, and tuning coils LS200. (less switches and RCA patch bay and Antenna terminals) - $45.


 MARANTZ SR-2000 SR2000 PARTS / SPARES


Potentiometers / Controls, Volume / Balance pot control #RQ02040020 (200k & 2x 50k Ohms) - $35. SOLD


Potentiometers / Controls, Tone (Bass, mid or Treble) controls / pots #RM01040150 - $25. each

Switches, Power Switch - $30.

Switches, Mode Selector switch assembly - $40. SOLD

 Switches, Push switches ( Speaker / Loudness. Tape Monitor, FM Mute) - $20. ea

 MARANTZ SR-2000 SR2000 PARTS / SPARES

 "Gyro-Wheel Tuning flywheel assembly - $30.
Tuning string wheel (plastic) - $25.
 Rear panel (sheet metal only, less components) - $25. SOLD
 Jacks, AC convenience outlets - $15. ea SOLD

Jacks, Headphone jack - $25.
  Jacks, RCA jack section - $35.
 Jacks, Speaker output clips (A or B speaker output jacks) - $25. ea
 Jacks, Antenna Binding post section - $25


 MARANTZ SR-2000 SR2000 PARTS / SPARES

 Antenna, AM internal antenna - $25.
 Original AC cord and grommet - $20. SOLD

 Feet, Set 4 feet - $33 or $12.50 ea SOLD

 Panel, Bottom Panel - $25 (less feet)SOLD
 Most other parts $20-$50.ea


Call or Email for part you need.



(Click on above thumbnails to enlarge photos)
MARANTZ
5010B
CASSETTE DECK PARTS

Great looking deck. We complete went through it, replacing / reconditioning all rubber and cleaning thoroughly. Upon re-assembly of transport the auto-stop mechanism did not get assembled correctly. There is a cyclical muted click on FF and especially REW. On REW it will slow the tape every time it clicks. We do not have a service manual so as to resolve the problem. If you can repair this simple problem, you'll have a great and ready to go deck!
Cond. 9 (except above problem)

PARTS MENU COMING...






NEW LISTING 6/13/07
 (Click on above thumbnails to enlarge photos)
MARANTZ
     2500
 2600
STEREO RECEIVER

SOLD 5/6/08

HUGE POWER WITH SCOPE

Circa 1977-79
M.I.J.
**** NOW
WITH ISSUE ****
(Text below from before issue)
CONTINUE DOWN PAGE TO RED TEXT BEFORE DECIDING THIS IS THE ONE FOR YOU.


Receiver has had complete service (approx 22 hours worth) including all switches, contacts, and controls cleaned for static free performance, complete cleaning inside and out, all dial and meter lamps replaced as well as the FM Stereo indicator and scope illumination lamp, and all functions tested for perfect operation (with the exception of the FM Muting issue listed below). The only issue with this unit is that the balance control knob stem had been snapped off some time ago and it is a bit "worn" on the extreme ends (makes a bit of static that is beyond cleaning). Control still works and enough of it is protruding to operate it. Also, the FM Muting function is always engaged, meaning that the hiss between stations is never allowed. Shouldn't be an issue unless you are trying to tune a really weak station or need to utilize the unit as a pink noise generator for doing speaker testing. Entire "wind tunnel" design, output heat sink module cleaned internally (no easy task) as well as the cooling fan. Dust free internally for years more cool running and long life.
We also aligned the AM and FM front end sections of the tuners, checked the output bias. All inputs tested and both side produces clean and even sine waves into static 8 & 4 ohm loads! No power supply hum of any kind. It's dead silent! Unit looks and sounds great. Following restoration procedures, the unit was ran continuously at medium volume, as all our amplifier / receivers are, into a load with "Loudness" on and both Tone Controls at 10 for 48 hours.

 While this unit was originally rated at
250 wpc, on our test bench, both this unit's amplifiers produced 51 volts @ 8 Ω per channel for 325 watts / channel and 45 volts @ 4 Ω per channel for 506 watts / channel via discrete, TO-3, metal cased outputs. (8x Marantz branded D555 and 8x Marantz branded B600 transistors. All original Marantz's and none have ever been changed or substituted)

____________________________

One of the most SERIOUS receivers ever created. There's maybe 5 receivers made in the class of this unit from Marantz, Sansui and Pioneer and this is one of them. The Marantz 2500. This is the only receiver that when testing for power output we had to get our readings within about 3 seconds as at 4 ohms, our bench power load started smoking! This is not for connecting to wimpy speakers or even mid powered speakers. I normally don't jump on the "wattage bandwagon" and worry about speaker / amplifier match ups or load issues, but you have to be very careful with this unit and your speakers. It produces a tremendous amount of current and the power can "get away" from you quickly. It will take out drivers if you don't pay attention to it! Contrary to most of the historic thinking out there among audio "wannabes", 90+% speakers (drivers) are blown because someone had too small of an amplifier that they were driving beyond what it was designed to do and sent a "clipped" signal to their speakers, thus taking out drivers. This unit is an exception to that rule, and it really will take out drivers due to too much "clean / non-clipped" signal going too them. I don't want to unnecessarily scare someone, but also want the potential owner of this unit to under stand that it is a "race car" grade of power. The thing has
16, TO-3 outputs!!! Most amps / receivers have 4! Great looking unit with the "Scope" CRT tuning / audio signal monitor. With the exception of the balance issue mention above, all original aluminum knobs intact with minimum of cosmetic wear. Brushed aluminum face intact as well with minimum of cosmetic wear. Only Cosmetic issues are  some scuffing on the dial window plastic and minor on face and knobs (see issue photos above)

 Features include:

- Huge power output
- Dual Power supply featuring
huge toroidal dual winding power transformer
- Marantz's CRT Scope Tuning / Audio Monitor


- Weighted "Gryo" flywheel analog tuning
- High quality, Calibrated, Step de-tented Volume control
 - A,B  A+B & Off speaker positions
 - Separate Left and Right, Bass, Mid and Treble controls with concentric knobs and utilizing super quality, de-tented pots
- Tone In / Out (Defeat) selector for either routing signal thru the tone controls for modification or for Direct Coupling for purest audio signal path

- Built-in Hi and Sub filter
s for reducing 19kHz pilot tone in FM broadcasts, Tape Hiss and the Sub filter for reducing turntable rumble. Lo centered @ 15Hz and Hi centered @ 9kHz both at 18dB / Octave. Great filters!
 - AUX input for (Video / CD / DVD / VCR / DAT / MP3 / XM / SIRUS etc.)
 - Dual Tape monitors featuring Bi-Directional Dubbing
(Tape Monitors can be used with Video / CD / DVD / VCR / DAT / MP3 / XM / SIRUS etc. and Dubbing can be used with CDR (CD recorders) units)

- Dual Phono / Turntable inputs
 - Loudness control
 - FM Stereo / Mono selector
- FM "Quadradial" output RCA jack on rear panel

 - Pre-Amp Stereo / Mono selector
 - Stereo, Stereo Reverse switch for entire pre-amp also allows selection for R+L (Mono) conversion and independent monitoring of L & R signals that can then be routed to both power amp outputs
 - FM Muting with rear mounted level adjustment (has above mentioned issue that it's always engaged)
 - FM MPX filter built-in
- Built-In Ferrite AM Bar antenna on rear panel

  - Front mounted 1/4" stereo headphone jack
- Optional Dolby Decoder port on rear panel (Decoder plug in module not included)
- Pre-Amp Out / Power-Amp Input loop
- Rear mounted, Power Protection Fuse

 - Dual AC convenience outlets on rear panel with 1 switched and 1 un-switched with a total capacity of 300 watts

SPECIFICATIONS:
- Damping Factor;
 @20Hz >60!!!
- 0.08% THD at full rated power
- Freq Response Bandwidth of power amp section; 20-20,000Hz
- Rated Power 250 wpc @ 8 and 330 wpc @ 4 ohms


PRE-AMP SECTION;
- S/N ratio of phono input; 98 dB
- Freq Response; 10 Hz to 60 kHZ
- Output Levels for Tape; .775 mV
- Pre-Output max level; 4.2 V
- Pre-Out Impedance; 450
Ω
- Tape Output Impedance; 500Ω

- Bass Control;  centered @ 100Hz
- Treble Control; +- 11dB centered @ 10KHz
- Low Filter; Centered @ 15 cycles
- Hi-Filter; Centered @ 9 kHz


TUNER SPECS FOR FM;
- Sensitivity; IHF Usable - 8.75 dBf (1.5
μV)
- IHF 50 dB Quieting in Stereo Mode - 33.2 dBf (25
μV)
- 80 db S/N
- 85 dB Selectivity
-   1.0dB Capture Ratio @65 dBf (1000
μV)
-  IF rejection; 120 dB
-  FM separation @ 1kHz 50 dB


PHONO INPUT SECTION;
- Input overload at 200 mV
- Dynamic Range; 106 dB
- Input Sensitivity; 1.8 mV
- Input Impedance; 47 k
Ω
- Input Capacitance; 100 pF
- S/N ratio of phono input; 80 dB
- Freq Response; 10 Hz to 60 kHZ




 Again we have completely gone though this unit as stated above and it's ready to go. Unit incorporates huge power supply for reserves to spare. Allows for lots of headroom, clean bass and Huge, pounding sound!!!!!! Again, the Marantz 2500 is in the half-dozen largest receiver built for the mainstream audio market! Minor, normal scuffs to face edges. Brushed aluminum face and aluminum milled knobs all intact and in like great cosmetic condition. Entire receiver looks, works and sounds great! Measures 19.25" wide x 17.25" deep x 7" high and weighs a whopping 60 lbs unpacked. Will include a copy of the owners / users manual. Comes with our 90 day limited warranty.
    MARANTZ 2500 Stereo Receiver
2600
 Cond. 8 (due to balance control and FM muting issue)
$1899.00
SOLD 5/6/08


NEW INFO:
Unit has developed an issue. May be serious, may not by.
After it's restoration, we had done lot's of "burn-in". We used it on and off for a few weeks, as it was more practical to keep it near the "burn-in" rack than to move it to the warehouse for storage to await shipment. Our burn-in rack also serves a secondary purpose of providing sound for much of the warehouse during the day. What ever receiver / tuner-amp is being burned in is what we are listening too. I had moved the Marantz down to a piece of foam padding, and sat it on it's side, as there wasn't enough room in the rack for recently restored gear to be "burned-in". After about a week of burning in other gear, we cleared the burn-in rack and moved the 2500 back to the main burn-in shelf. After connecting the antenna, 8 ohm speakers and power, we powered it up. Upon doing this the only thing that happened is the cooling fan came on at high speed. No lights, no display, no relay click and no sound. No other sounds were associated with this, nor any visual indication of anything. Only the fan on at high speed. Having already invested 20+ hours into it, I was ready to move on to the next patient, but went ahead and gave it a quick re-bench. I thought maybe the problem could be the "over-temp" protectors on the heat sinks were giving a false alert. They seem to test similar in pairs (there's four of them). I checked all the internal fuses. At this point I don't wish to spend any more time on this unit as I've got many others that need attention.
As-Is
2/13/08
$950. *

SOLD 5/6/08


Issue may be serious, maybe not.

* price will be re-adjusted upward following any further restoration / repair work.



Unless specifically noted, we do not typically sell 'component level' parts such as resistors, diodes, transistors, semiconductors, ic's / integrated circuit chips, ceramic capacitors, led's, bulbs, lamps, belts, etc. We do commonly sell circuit boards / cards which will likely come with those parts attached.


*When we say "some parts MAY also fit", that does NOT mean ALL the parts listed 'WILL' fit, and unless we show specific info that a particular part DOES 'cross-pollinate', do not infer that it does or will fit. Only careful research and comparisons, on YOUR part with service manuals MAY indicate a POSSIBLE substitution. If your situation is 'critical', do not base your decision on information found on this or any other page of this web site and do your own research.






  (Click on above thumbnails to enlarge photos)
NEW LISTING 10/4/07

MARANTZ
2220B 2220 B
#...0035

RECEIVER

SOLD 11/5/07

AS-IS W/ TUNER ISSUES
Circa 1973-74

for sale

Marantz 2220B Stereo Receiver. Unfortunately this one has an issue with the FM tuner. We have tried to align it, but it has fairly compromised performance. It actually worked pretty well, before we attempted a routine alignment, but since it won't go into "Stereo" mode, nor will the Stereo light go on for FM. AM sounds great. Rest of receiver has been restored. All Dial and Meter lamps replaced with new ones. All pots, switches and controls cleaned. Unit sounds great. We actually did all of that prior to doing the tuner alignment then discovered the issue. All inputs tested and other than the FM, everything sounds great! It's the Classic "Blue-Face" series Marantz Receiver look and sound. Face is milled from a solid plank of Aluminum with matching milled aluminum knobs. Very elegant and simple design. We don't get these often and when  we do they don't hang around long.

While this unit was originally rated from 20 watts, on our test bench, the internal  amplifiers produced 16.5 volts @ 8 Ω per channel for 32 watts / channel and 12 volts @ 4 Ω per channel for 36 watts / channel via discrete, Marantz, TO-3, Metal cased output devices at 1khz. (2x Marantz A627 and 2x Marantz D188)
 ____________________________


Features include:

- Marantz exclusive "Gyro-Touch" weighted flywheel analog tuning
- Phono input
- Tape A also features a DIN I/O in addition to the RCA I/O's (Tape Monitors can be used with Video / CD / DVD / iPod /  VCR / DAT / MP3 / XM / SIRUS etc. and Dubbing can be used with CDR (CD recorders) units)
 - Aux Input (CD / DVD /DAT / iPod / VCR / MP3 / XM / SIRUS etc. inputs)

- Stereo / Mono selector
- Built-in Low and High filters
- Built-in Loudness control
- FM muting
- Separate Bass and Treble
- Main & Remote speaker selector
- Back-lit Blue Analog Tuning VU meter
- Built-in AM Ferrite Stick antenna
- Dual AC outlets 1 switched / 1 un-switched



Built using super quality, full size "ALPS" pots.  Huge internal power supply for lots of pounding "headroom". All circuits use an isolated design for eliminating cross-talk and improved maintenance ability.  Again, we have completely gone through this unit cleaning all switches, contacts and controls as well as cleaning unit inside and polishing face, dial glass and knobs. Other than the FM issue and sounds GREAT! Very clean throughout including face plate and wood grain vinyl covered metal case! Measures 17.25" wide x 16"deep x 6" tall and weighs 27 lbs unpacked.
Marantz 2220B
Cosmetic Cond. 9

SOLD 11/5/07

As-Is due to FM tuner issue





- -






LINKS TO OUR 'HI-FI' DEPARTMENTS

Amps and
Pre-Amps

Receivers

Cassette
Decks

Tuners

Turntables

8-Track Decks

CD Players

Reel-Reel
Decks

EQs and Signal
Processors

Speakers

Betamax and
VHS VCRs

Turntable Cartridges

Tube Audio

Ne'cessories

Speaker Parts

Record Players

Vintage Radios

Vintage
Walkmans

Headphones

Stereo Parts


Wondering where the "tone" you remember went?....

Vintage  Stereo Equipment receivers speakers Classic Silver Audio Collection and jerry



.... Surround yourself with Silver and find it again!


CONTACT INFO BELOW

$20. MINIMUM ORDER





    Before calling, PLEASE read the text in orange below.
No Really...Stop, Alto, Halt, etc.
 BEFORE
CALLING

(800) 806-4231 EXT #1
OR EMAILING
parts@oaktreevintage.com

~9:30 AM- ~7:30 PM most days COLORADO / ROCKY MOUNTAIN TIME ZONE

We DO NOT have your part unless the following conditions are met:

A) You HAVE SERCHED our page(s) and HAVE FOUND the part you are looking for SPECIFICALLY listed on one of our pages or you have solid information that it's a 'bona fide' substitution for your part (unless noted already, we won't have any further info along those lines)
AND
B) The part that you have found is NOT marked as SOLD or SOLD OUT.


If you do not see it listed after thoroughly searching the pertinent page
(likely the page you landed on originally),
we do not have it,
nor do we know when
it might come in,
nor do we maintain "waiting lists" for parts,
nor do we know who
might have it.

Sorry, but phone and email traffic for parts
we don't have listed or for parts that are already marked "SOLD" has become too consuming of time resources.


 We try to keep these pages 99+% updated.
If you don't see the part you are looking for, simply check the web page periodically as we never know what will show up each day. Thanks!!!!!


ALSO: When e-mailing be sure to include a relevant subject, ie: Brand / Model number / reason for inquiry in the 'SUBJECT LINE'.
SUBJECT
lines left empty, or with 'single word' text like;
"Hello", "Hi", "parts", "stereo", "inquiry", "question", "selling" or similar or similar 'un-qualified' terms will automatically be deleted by Anti-Virus / Spam settings or receive 'Low Priority'.
(Subject lines left empty show up as "No Subject" and are deleted automatically by our anti-spam settings"


 SPEAKER PARTS   |   STEREO / HI-FI ELECTRONIC PARTS   |  KEYBOARD PARTS

___________________________________________

Haven't received a response to your email? See FAQ'S

MAILING:
OAK TREE ENTERPRISES
PO. BOX 6182
COLORADO SPRINGS, CO 80934
U.S.A
.

Before ordering by postal mail, please phone or email us about the item and the details of sending your funds. Thank-you.


 SPEAKER PARTS   |   STEREO / HI-FI ELECTRONIC PARTS   |   SELLING-TRADING-CONSIGNING   |  KEYBOARD PARTS   I   FAQ'S
  CONDITION RATINGS   |   ORDERING / POLICIES    |    WARRANTIES / RETURNS   |   SHIPPING
 RESTORATION PROCEDURES   |   REPAIRS  | CONTACT PARTS


30% restock fee / service charge applies to all 'parts' returns for refund.
Some parts are not returnable.

See our "
Warranties / Returns" page via the link below for more details.


POLICIES, SPECIFICATIONS, AVAILABILITY, INFORMATION AND PRICING SUBJECT TO CHANGE  AT ANYTIME  AND WITHOUT PRIOR NOTICE
and changes may not be posted to web immediately
. Information such as Parts Substitution possibilities, "Circa" dates, original values, etc. are to the best of our knowledge. If you are critically concerned, you should do independent
research on your own prior to ordering or utilizing this information in any way. Manufacturers also are known to change part numbers, specs, circuit designs, specs etc within the same model.


Copyright © 1997-2014 Oak Tree Enterprises, LLC

COPYRIGHT INFORMATION




Please be patient while page loads . . .
