JVC STEREO PARTS
& SPARES FOR VINTAGE GEAR



Used JVC Stereo Hi-Fi Parts / Spares / reference. We have a JVC JR-S201 for parts, but some MAY fit the JVC JR-S301, JR-S401, JR-S501. Also parts for JVC 4VR-5404, 4VR-5414, JVC SEA-80 EQ parts.














































*Note about parts / spares sales

* Our "parts units", parts / spares and related reference information are primarily archived for the purpose of restoration / repair of "Oak Tree Vintage" units first. Only if we do not have a "viable" unit in yet, either already in process or in line to be processed, that may potentially need parts from a "parts unit", will we release available parts for sale (even though they may appear as available for sale to the public). As many of you know, the restoration of a unit can be a long, time consuming process. We may "lock up" parts that we may potentially need in the restoration of a unit (and not necessarily get it marked 'Hold' or 'Sold' on the site right away). Parts are priced according to the "potential value" of the unit they can be applicable to (meaning the amount WE would be willing to pay for the part if that was all that was standing between us having a "shelved unit" or a valuable / sellable unit), time to extract, their rarity & their condition to name a few criteria and likely will be completely unrelated to the original cost / price of a part when it was currently available from the manufacturer.

Parts Photos; We get a number of requests for 'photos' of a specific part. Unfortunately, in most cases that is not practical as the amount of time involved in posting that exceeds the value of the 'unique' part. We will sometimes post photos of less 'unique' parts, if there is a greater chance of them being available in multiple quantities, or on a more 'repeat' basis.

Shipping: Shipping on most 'small' parts if typically via Postal first class or Postal Priority for both domestic (USA) and international orders. Larger parts such as transformers and drivers (speakers) are typically via FedEx gnd.
Some parts sales such as those for empty 'speaker cabinets', empty 'component cabinets / covers / bonnets' and 'speaker grills' are 'doomed' from the start. Due to their size and required packing supplies, the cost of 'packing for safe transit' and shipping are typically nearly equal to and sometimes greater than the cost of the part.  Think about it. An empty speaker cabinet or stereo receiver case is essentially the same size as a complete one. Yes the weight will be less, but most of items that size are calculated on 'dimensional weight', not actual weight. Secondly empty component cabinets have to be packed to disallow breakage, typically requiring nearly as much packing materials as an entire unit. Speaker grills have to be 'sandwiched' between foam sheets in large, custom ordered boxes (all relatively expensive).  It is what it is....

A non-response to an email request for a part (we may appear to have), likely means that we are still determining which parts we are going to need for the restoration or repair of one of our units. Again, the parts are first for the restoration of our units and secondarily for the public market. Since we list the parts available for ourselves, it is not much effort to modify the menu's for web publication, which in turn makes the reference information and occasionally the part available to the public. Frankly, publishing them to the web, in many instances, makes it easier for us to determine if we have the part for our needs as well. The alternative to all of the above would be to not offer them at all to the public, however most parts are available to the public for sale.
BOTTOM LINE IS; IF YOU DON'T SEE IT AVAILABLE FOR SALE, WE DON'T HAVE IT!
 Thank you for your understanding.




20% off sale on salvage stereo parts.


See sales banners on parts pages for details







Most of these components are "take-outs" from stereo gear that for various reasons we 'chopped' and unless otherwise noted are in serviceable / working condition / shape!
   In the case of output transistors, they will be tested / checked prior to posting and once again prior to shipment, pots / switches will be 'cursory' cleaned, parts already missing / utilized from circuit board will be noted, transformers will be checked prior to posting. Filter capacitors  will be tested / checked prior to posting and once again prior to shipment and 're-conditioned' / 're-formed' if necessary.













MOST OF THE PARTS LISTED BELOW ARE FROM SALVAGE UNITS.

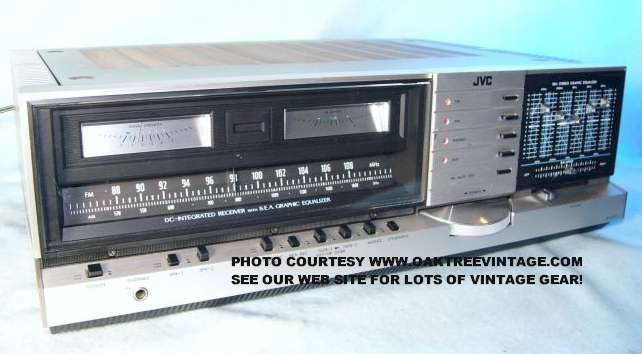

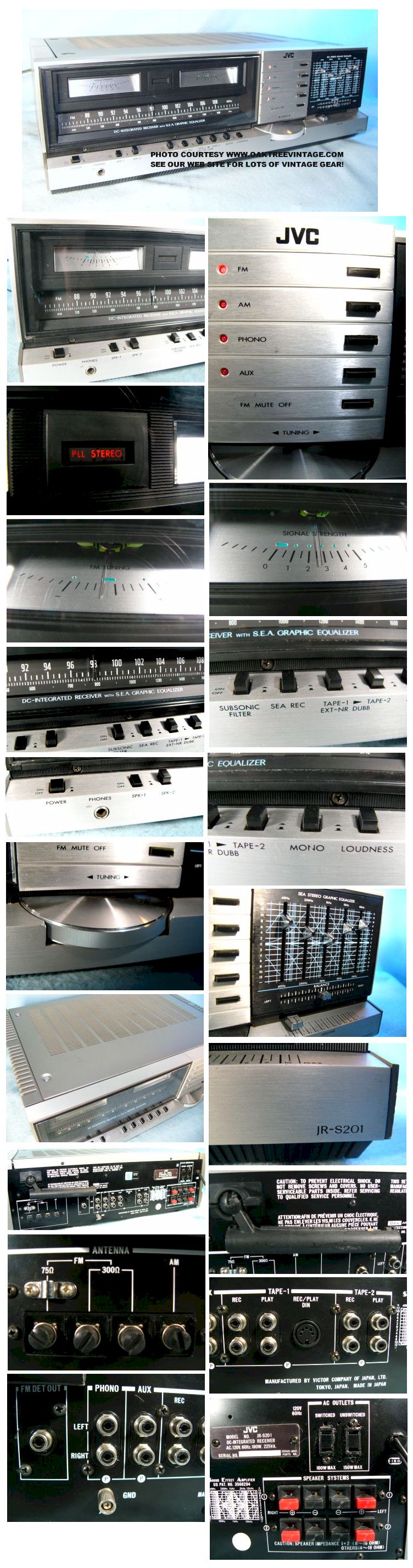

JVC_JR-S201_Stereo_Receiver_web.jpg (29953 bytes)       JVC_JR-S201_Stereo_Receiver_collage.jpg (413289 bytes)

(Click on above thumbnails to enlarge photos)

JVC JR-S201 JRS201 STEREO RECEIVER PARTS / SPARES

Parting out. All inputs function well. AM & FM tuners both fine. Both amps produced a strong 19.7 volts per channel @ 8 ohms for 48 watts and 16.5 volts @ 4 ohms for 68 watts per channel via Darlington STK-0040 power pack outputs with 1 kHz input. Unit in very good shape with only minor wear to some of the front panel silk screening. Parting out due to sticky loudness and speaker 2 buttonAppears someone spilled / splashed a soda on the front, thus requiring more effort than we wish to pursue. Also we have never had one of these for parts in 12 years, so it's all good.
Inquire for part you need.

Some parts may also fit the JR-S301, JR-S401 & 501, but we have no substitution info on that.

JVC JR-S201 JRS201 Parts / Spares for sale

Bonnet, Top sheet metal cover - Good, light finish wear (may fit other models in this series) - $35. Cases, covers and side plate / panels, etc. do not include mounting screws as those are sold separately)
Face panel (less knobs / buttons / dial window)
worn silk screening on Volume controls - $39.
Window / Display, Plexi Dial Window 3 5/8" x 10 7/8" - $25. SOLD OR MIA
Chassis Parts, Plastic Side panels - $25. ea.
decent condition with very light, normal wear.

Knob,
Tuning knob / 'Gyro' assembly - $40
Knob, Volume knob / cap - $18.
Caps, Push Switch caps - $12. ea
Caps, EQ / Equalizer caps, Silver - $15. ea.

Potentiometer / control, Volume Linear Control / Pot - $35.
Potentiometer / control, Balance Linear Control / Pot - $35.
Potentiometer / control, EQ Linear Pots - $25. ea.

Switches, Push Switch bank (FM / AM / PHONO / AUX / FM MUTE) - $55. for all on circuit board
Switches, Push Switches (Speaker 1 or 2, Subsonic Filter, Tape 1, Tape 2, MONO, Loudness) - $20. ea.
Switches, Push Switches (SEA REC) - $30.
Switch, Power Switch - $25.00 SOLD

Meters, VU "Signal Strength" or "FM Tuning" meters - $30. ea.


JVC JR-S201 JRS201 Parts / Spares for sale
Transformer, Power supply Transformer (E03077-27 / FH5-302))- $45.
Capacitors, Power supply filter Caps ( 50V / 6800uf ) - $20. ea.
Amplifier, Power amplifier outputs (
Darlington STK-0040 power pack)- $22.50 ea Pack

Relay, type MS4U / 24 VDC - $30.

Circuit Boards, Tuning circuit board TFM-914GUA w/ tuning capacitor and IC chips; HA1137W, HA1197, HA1156W - $45.

Plastic Tuning string wheel - $25.


JVC JR-S201 JRS201 Parts / Spares for sale
Jacks, Any single rear panel Input / Output component (speaker output strips, RCA panels, etc.) - $25. ea
Jacks, Headphone jack - $25.
Jacks, Speaker output clips - $25. each strip of 4
Antenna, AM antenna - $30. SOLD
Antenna, AM Antenna bracket - SOLD
Feet - $20 for set of 4 or $12. ea.

Most other parts $20-$45.ea

Call or email for part availability.

 JRS201



(Click on above thumbnails to enlarge photos)

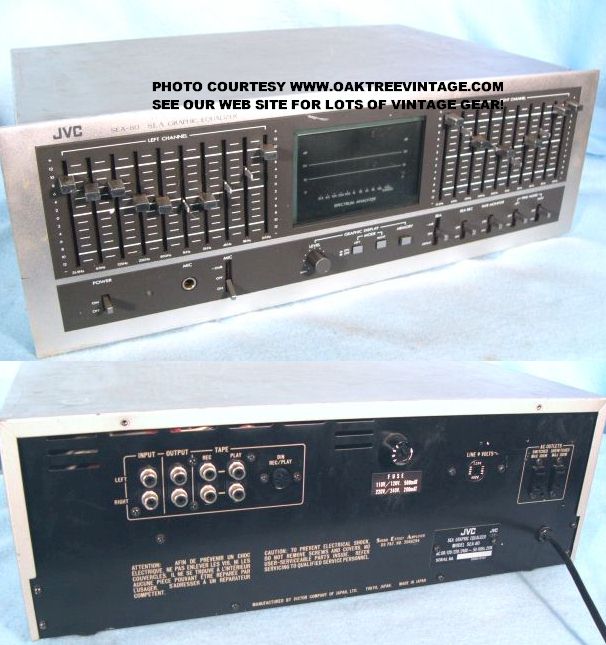

JVC SEA-80 SEA80 EQ PARTS / SPARES

- PARTING OUT -
EQ does function fine, and display lights, but does not display signal.


Panel, Face Panel - $45. finish scuff in charcoal color above left corner of display and small 6mm surface 'cut' on left edge.

Display, Fluorescent, Spectrum Analyzer Display 'itron' CP1005 / MGB / ELU 0001-001, 10+1 bar graph display bands - $35. (Cond. ???)

Knobs / Buttons / Caps, Display level control knob - $20.

Knobs / Buttons / Caps, Silver Fader caps- $12.50 ea.
(only 4 left in stock)

Knobs / Buttons / Caps, Toggle Switch caps- $12.50 ea.

 JVC SEA-80 SEA80 PARTS / SPARES


Transformer, Power supply transformer #E03042-26C - $55.

Selector, Voltage Selector - $35.

Potentiometer / Control, Linear fader / frequency pots ALPS #QVT602W-815 / 2X100k Ohms
(dimensions; overall body length = 88mm, body width = 7mm, throw = 60mm from stem center to center, stem / lever length = 20mm and and is parallel for 1st 10mm then tapers from 5mm-3mm at terminus) - $20. ea. less cap

Potentiometer / Control, Display level control #QVG442B / 50k Ohms
(less knob) - $25.

Switches, Bank of 3 push switches
(Mode Left / Right and Memory) - $35 ea. set of three

Switches, Any flip / toggle switch except 'Power'
(MIC, SEA, SEA REC, Tape Monitor, Pink Noise) - $20 ea
Switches, 'Power' Toggle Switch
- $20 ea

 JVC SEA-80 SEA80 PARTS / SPARES


Circuit Board / PCB
, Switch PCB TXX-190-2 w/ chip TA7317P
(less switches, pots, relay) - $65.

Circuit Board / PCB
, Filter & Rectifier PCB TXX-189-2 w/ ic chips JRC 4558D / 9486, 4558DD / 9264 & Toshiba TC4016BP - $65.

Circuit Board / PCB
, Control Pulse / Memory / X-Driver / Y-Driver PCB TXX-189-1 / C, w/ ic chips JRC 4558D / 9486, 4558D / 9572, 4558D / 9610, 4558DD / 9264 & Toshiba TC4016BP & TC4017BP - $65.

Circuit Board / PCB
, 'D.C. Power Supply PCB TPS-222C w/ transistor / voltage regulators; B507V, D313V
(less fuses) - $65.

Circuit Board / PCB, 'Resonate Circuit Board' PCB TXX-191-A - $45. ea.

 JVC SEA-80 SEA80 PARTS / SPARES

Circuit Board / PCB, 'Linear fader circuit Board' PCB TXX-191-2 (less linear fader pots which are available individually and separately) - $45. ea.

Circuit Board / PCB, Switch PCB TXX-190-A1 w/ chip JRC 9572 / 4558D (less switches, jack) - $45.

Circuit Board / PCB
, 'Graphic Display Control PCB TXX-190-3
(less switches, pot) - $45.

Circuit Board / PCB
, 'Graphic Display Control PCB TPS-224B
(less AC jacks & 'Voltage Selector) - $45.


Relay, ESK 2D12-212 / 14Y8 - $25.

 JVC SEA-80 SEA80 PARTS / SPARES

Fuse Holder,
(Fuse cap insert sold separately) - $20.

Fuse Cap,
(Fuse holder sold separately) - $25.

Jacks, RCA I/O section w/ DIN jack on pcb TXX-189-3 - $45.

Jacks, AC convenience jacks - $20. ea

Jacks, Microphone input jack - $25.

Panel, Rear sheet metal panel
(less components) - $25.

Feet, Feet set -  $20 for set of 4

Email for other parts you need

                                     - Revised 10/6/11





(Click on above thumbnails to enlarge photos)
JVC
4VR-5404
4-CHANNEL STEREO RECEIVER
NEEDS WORK

for sale

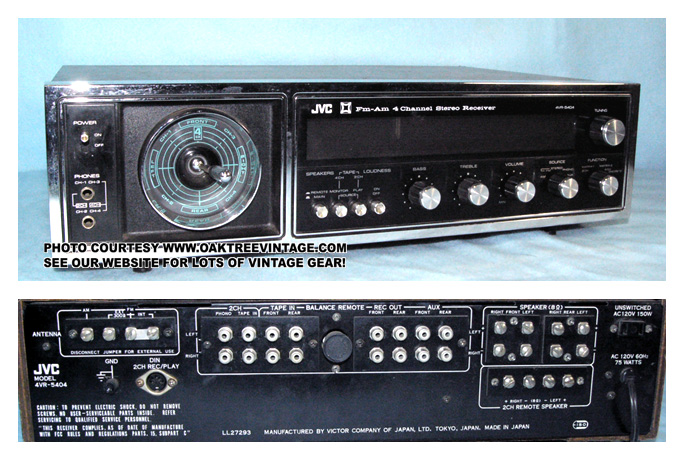

JVC 4VR-5404, 4-channel, Quadraphonic, Stereo receiver for sale for repair / restoration. Outputs are "square waving" and will likely need driver work or replacement.
As-Is complete
$40.
SOLD MOVIE PROP?




(Click on above thumbnails to enlarge photos)
JVC
4VR-5414
4-CHANNEL STEREO RECEIVER
NEEDS WORK

for sale

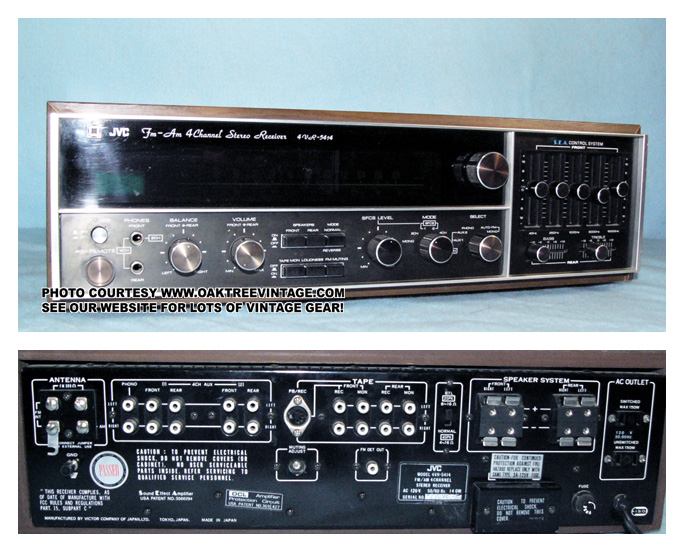

JVC 4VR-5414, 4-channel, Quadraphonic, Stereo receiver for sale for repair / restoration. Output shuts down at about 5 volts output so will likely need replacement.
As-Is complete
$40.
SOLD MOVIE PROP?





Unless specifically noted, we do not typically sell 'component level' parts such as resistors, diodes, transistors, semiconductors, ic's / integrated circuit chips, ceramic capacitors, led's, bulbs, lamps, belts, etc. We do commonly sell circuit boards / cards which will likely come with those parts attached.
