MOST OF THE PARTS LISTED BELOW ARE FROM SALVAGE UNITS.

AMPLIFIERS / RECEIVERS / TUNERS







(Click on above thumbnails to enlarge photos)
NEW / ADDITIONAL PARTS UNIT JUST IN!

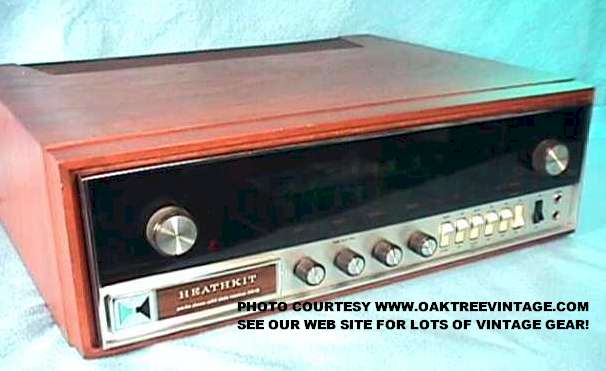

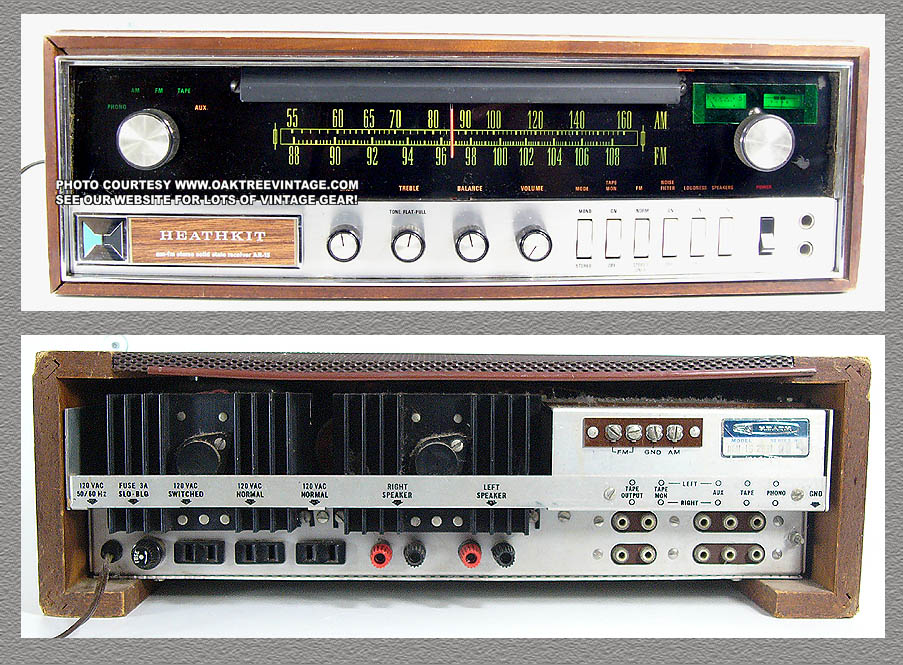

HEATHKIT AR-15 AR15 / ARW-15
HEATHKIT STEREO RECEIVER PARTS / SPARES
Some parts may also fit AR-13A / AR13A, AR-15, AR-1500 / AR1500

 FOR SALE
We have two Heathkit AR-15's in stock now for parts / spares.
One u
nit powers up, but unfortunately has low output on left side.
The 'just arrived' unit works and sounds great. Was parted out due to a broken dial glass.
(While we do not sell "component" level parts, we may list transistors / diodes as additional id information / cross-reference. The transistors / diodes and most other "component level" parts are sold on and with the circuit boards they are attached to)
- PARTING OUT -
Bonnet / Case, Walnut Wood veneer covered case / cover / Cabinet - Rough ie; scratches, dings, veneer chips, cig burns. Would be a 'better than nothing' cabinet.
(Cases, covers and side plate / panels, etc. do not include mounting screws as those are sold separately) - $55.

Panel / Vent, Screen / mesh rear bonnet panel (great condition) - $25.

Face panel Face Plate
w/ drop down door that covers 'Phase, Squelch, and Stereo Threshold' w/ wood grained 'Heathkit' logo and additional verbiage. Smoked "secondary" dial glass clean and free of major scuffs / scratches. Only real issues to speak of are scratches around one of the headphone jacks from someone trying to find the hole with the headphone plug in the dark, some light, horizontal scuffing between the rocker switches, and some light 'bubble corrosion' to the chrome perimeter. - $55.

Panel / Reflector, White dial window light reflector w/ dial lamp sockets
(less light bulbs / lamps and meter lamp sockets) - $25.

Lens, Green Function / Lens disc w/ bushing & set screw - $25.

HEATHKIT AR-15 / AR15 / ARW15 RECEIVER PARTS / SPARES

Knobs / Caps / Buttons, Large round 'Selector' knob w/ set screw - $30. SOLD

Knobs / Caps / Buttons, Large round 'Tuning' knob w/ set screw (will work as a 'Function' knob, but no 'pointer / index') - $30.

Knobs / Caps / Buttons, Medium round knobs Volume, Bass, Treble, Balance w/ set screw - $20. each

Knobs / Caps / Buttons, Small round knobs Phase, Squelch, Stereo Threshold - $20. each

Switches, White rocker switches (for 'Mode' (
Mono / Stereo), 'Tape Monitor', 'FM / Norm / Stereo Only', 'Noise Filter', 'Speakers' On/Off - $25. each

Switch, 'Power' Black rocker power switch - $25.

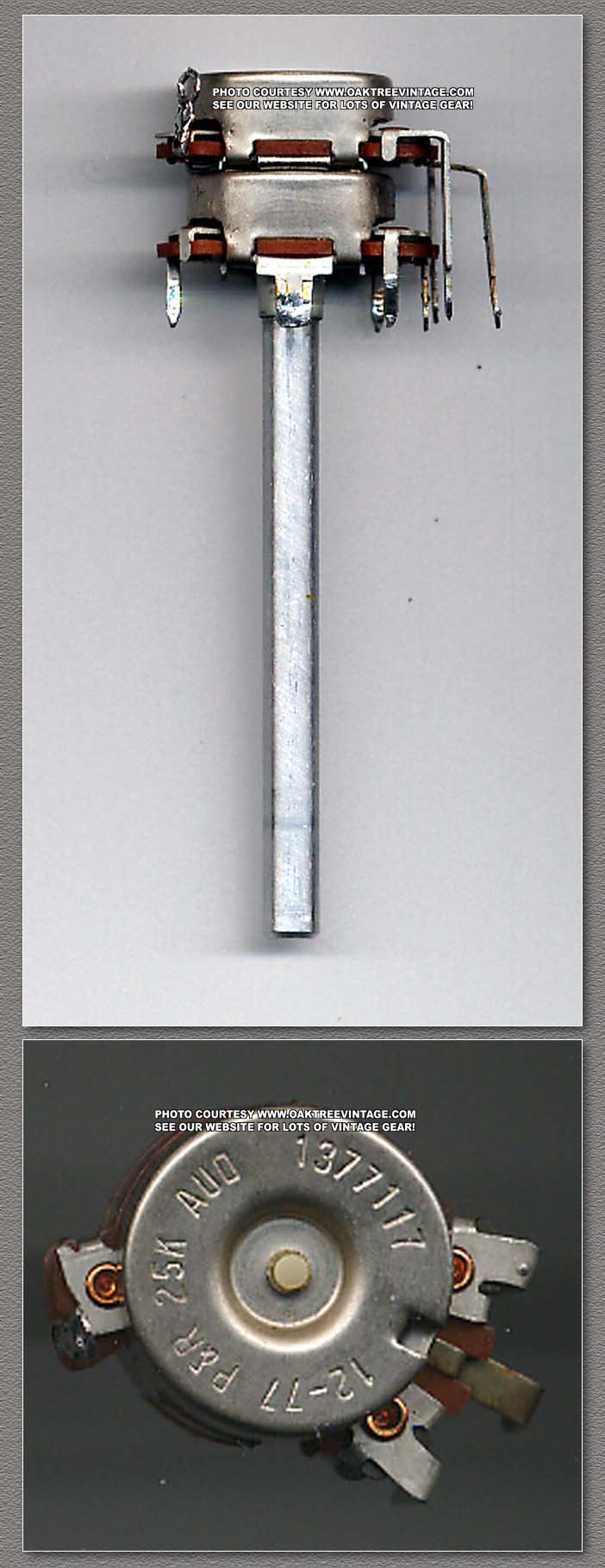

Potentiometers / Controls, #12-77 'Volume' stacked 25k Audio Taper 1376819, - $35.

Potentiometers / Controls, 'Balance' stacked 25k 12-78 1376819 - $35. SOLD

Potentiometers / Controls, 'Bass' 12-79 stacked 50k Linear 1376825 - $35.

Potentiometers / Controls, 'Treble' 12-79 19-107 stacked 50k Linear Taper w/ Push-Pull switch 304-6745 - $35.


~ 2.75" / 70mm shafts  Heathkit_AR-15_Volume_control-Pot_12-77

Potentiometers / Controls,
Squelch / Stereo Threshold pots w/ ~ 2.75" / 70mm shafts shafts - $30. ea.

Potentiometers / Controls, Phase pot W/ switch w/ ~ 2.75" / 70mm shafts shafts - $35. ea.

Potentiometers / Controls, #10-212 Mini Pots w/ ~ 1.75" / 45mm shafts shafts 100k Linear Taper - $20. ea.


HEATHKIT AR-15 / AR15 / ARW15 RECEIVER PARTS / SPARES


Meters, Tuning meters - $20. ea.

Meters, Signal Strength meters - $20. ea.

Dial Pointer, Black metal, w/ red plastic insert - $20.

String / Tuning Wheel, Tuning string wheel - $25.

Flywheel, Tuning flywheel on bracket - $30.

Transformer, Power transformer #54-181 / 549-6820 - $65.

Capacitors, Filter Caps (blue 'Mallory' capacitors 70mm tall x 43mm wide) - $25. ea

Capacitors, Filter Caps 4000mF / 4000
μF / 50vdc  (Silver 'Syncro' capacitors 80mm tall x 45mm wide) - $25. ea

Capacitors, Filter Caps 8000mF / 8000
μF / 90vdc  (Silver 'Syncro' capacitors 85mm tall x 75mm wide) - $35. ea
SOLD


Transistor, RCA 417-215 Silicone or 2N3055, NPN 100V 15A 115W TO-3) - (quantity available varies)  $15.


Transistor, Output Transistors RCA 417-139 Silicone or 40411 Germanium NPN 90V 30A 150W TO-3 - (quantity available varies) $20. ea

Transistor, Output TransistorsRCA 417-135 Silicone or 2N3859A NPN 30V 100mA TO-98 (quantity available varies) (100MHz) - $20. ea

Heat Sink (w/ diodes) - $35. ea

Heat Sink (without diodes) - $20. ea


Chokes / Coils, #45-59 iron core chokes - $18. ea.

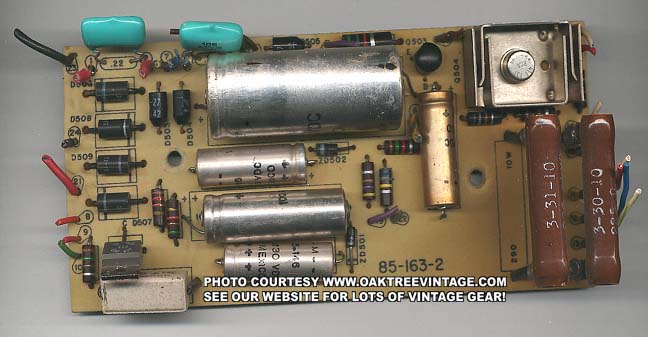

heathkit_ar-15_85-163-2_power-supply_circuit_board


Circuit Board, Power Supply Circuit board 85-163-2 w/ transistors 417-116, RCA 417-137, bridge rectifier diodes, RCA voltage regulator etc. and balance of components - $45.



heathkit_ar-15_85-164-3_driver_circuit_board

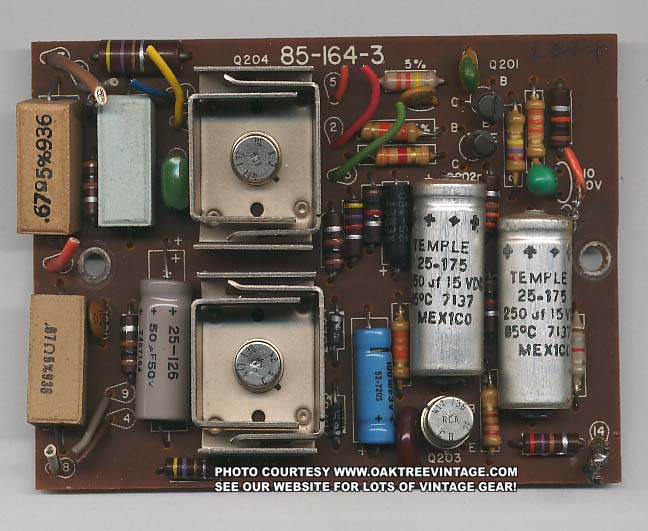

Circuit Board, Driver Circuit board 85-164-1 or 3 w/ transistors 417-118, RCA 417-137, RCA 417-138, RCA 40408, and balance of components - $45. SOLD OUT



heathkit_ar-15_85-165-2_circuit_board

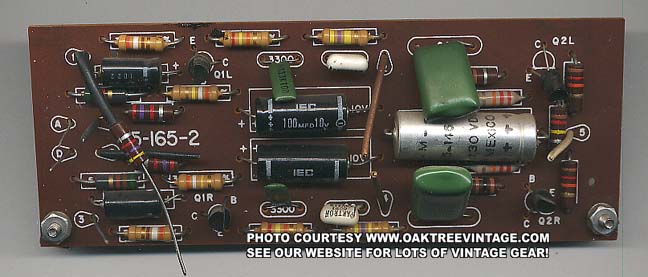

Circuit Board, 85-165-2, with transistors such as output transistors 2SC634A, 2N3859A - $45.








(click on above thumbnail to enlarge photo)

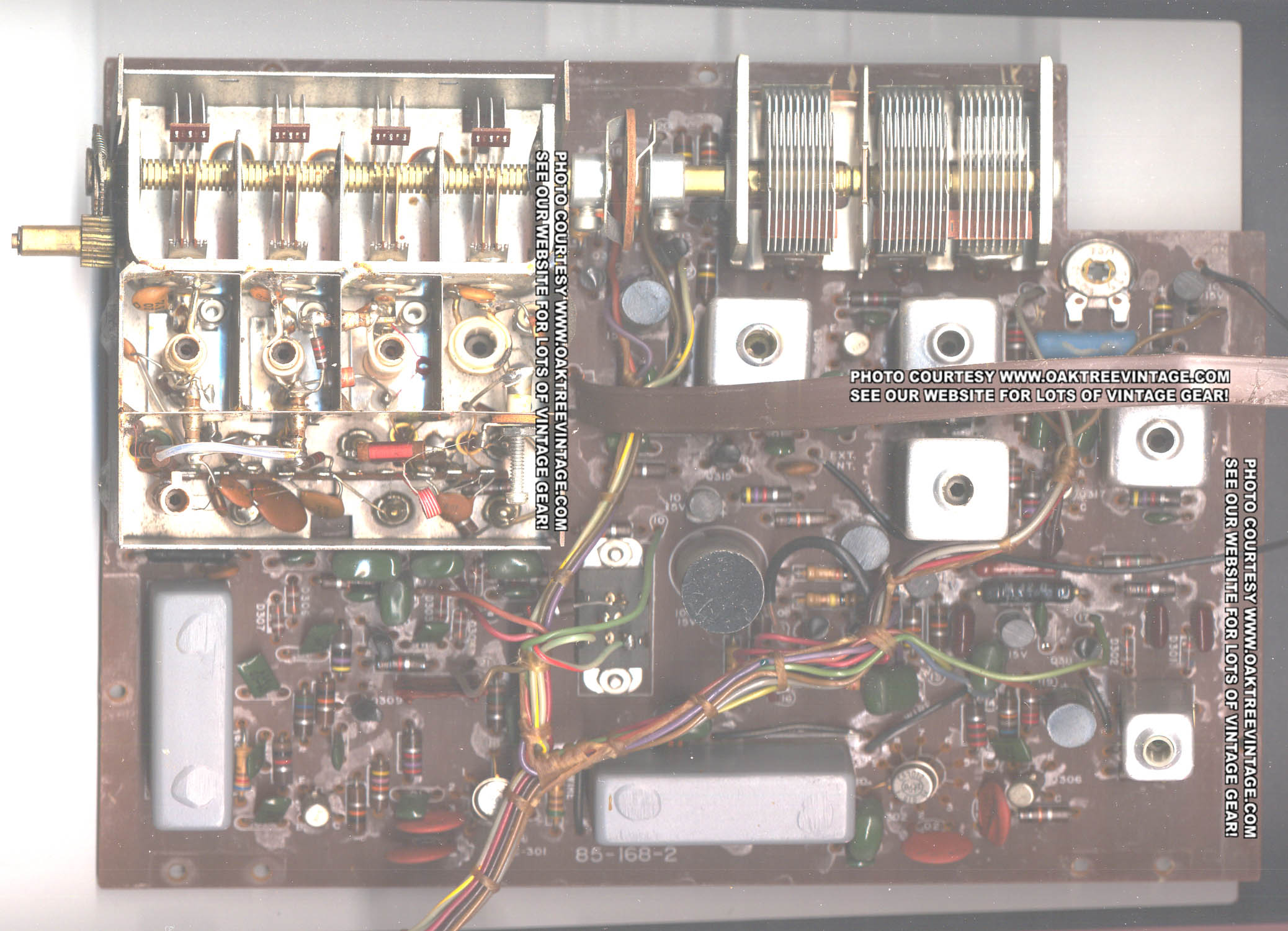

Circuit Board, 'Tuning' Circuit board 85-168-2 w/ AM & FM Tuning Capacitors and w/ transistors RCA 417-83, 417-133, CA3012, 417-201, transformers, coils / chokes and balance of components - $75.








(click on above thumbnail to enlarge photo)

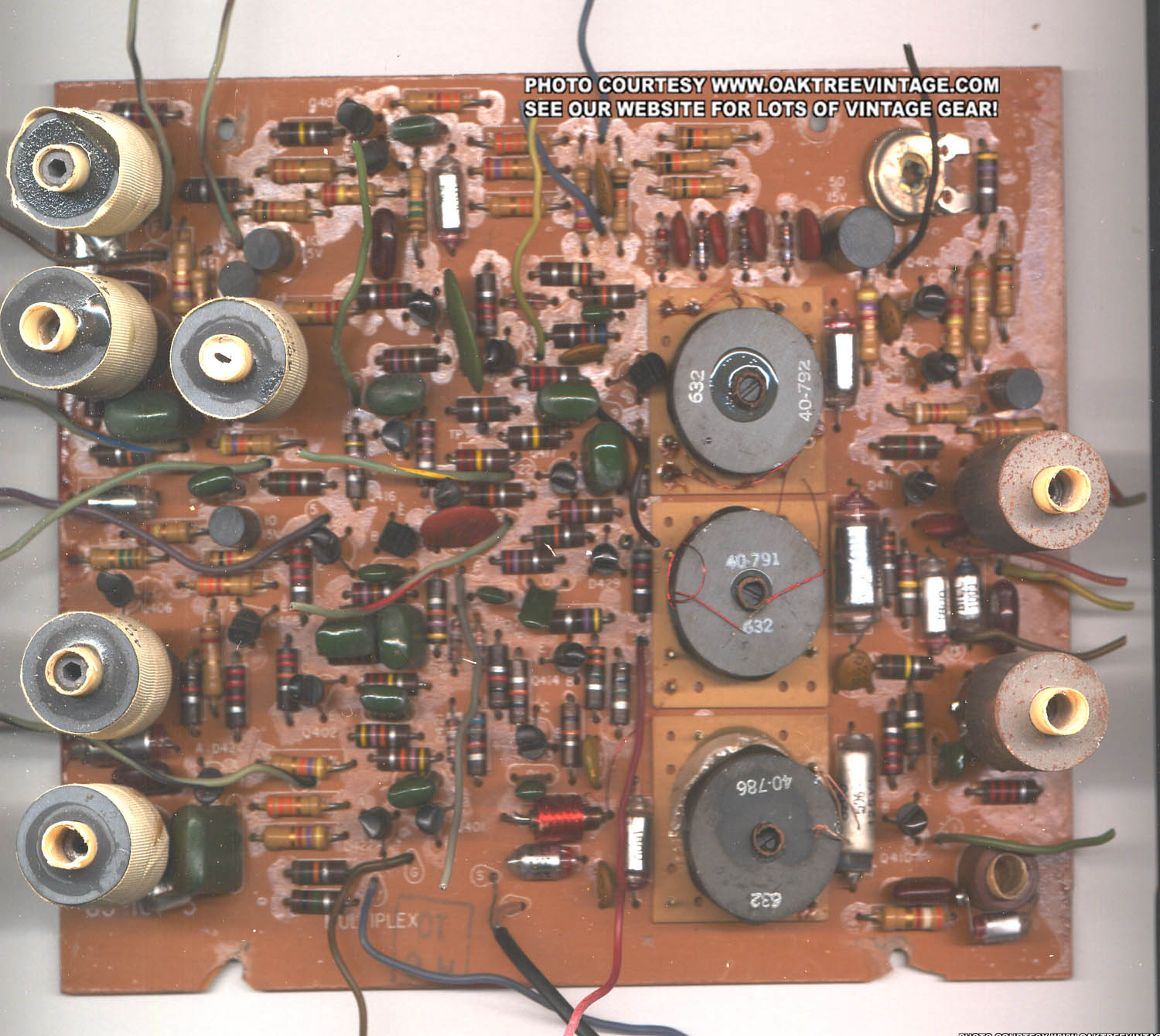

Circuit Board, 'Multiplex' Circuit board 85-167-3 w/ transistors 1N4951, 2N3393, 417-94, 417-118, 417-201, transformers, coils / chokes and balance of components (two coils; 40-171 & 40-786 have come 'un-soldered' and will need to be re-attached) - $55.








heathkit_ar-15_85-166-3_control_circuit_board

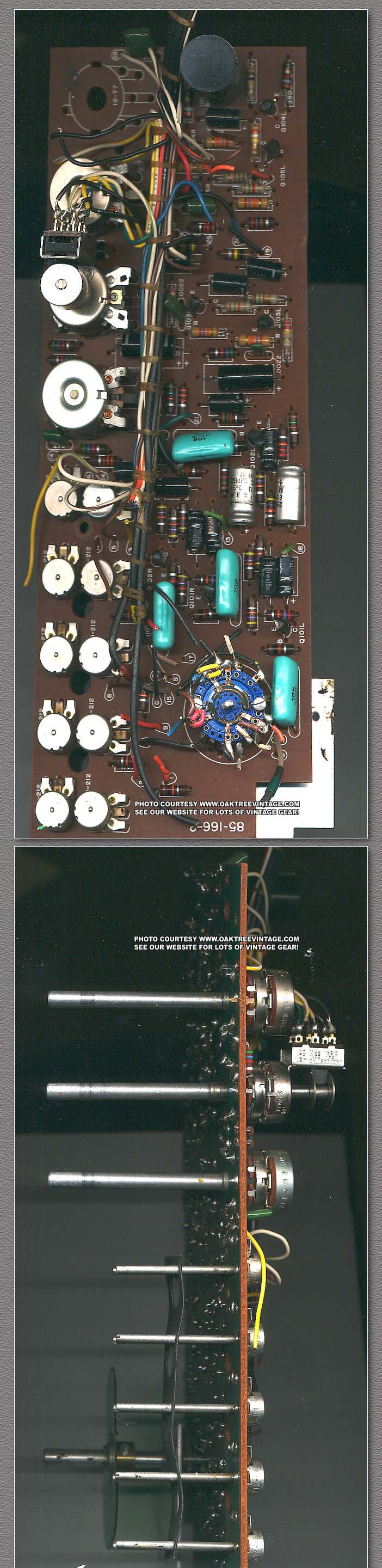

Circuit board, Pre-amp / Tone Control circuit board 85-166-2, WITH FUNCTION SELECTOR SWITCH & with transistors such Motorola HEP715 / 036, 2N3393, 2SC634A, 417-118, 417-201, and balance of electronic / semiconductor components such as resistors and capacitors
(less pots and switches that are available separately) - $65.

HEATHKIT AR-15 / AR15 / ARW15 RECEIVER PARTS / SPARES

Connectors, Antenna screw terminal strip (attached to aluminum bracket w/ 'Heathkit' badge intact - $30.

Jacks / Connectors, RCA Input jack strips for 'Tape Output', Tape Mon', 'AUX', 'TAPE', 'PHONO' - $30. ea strip L or R

Jacks, Headphone jacks - $25. ea.

Jacks, Speaker output Banana / binding posts - $18. ea.

Jacks / Connectors / Socket, AC convenience outlets - $15. ea.

Fuse, Fuse Cap - $30.

Fuse, Fuse holder (cap sold separately) - $25.


Antenna, AM 'Stick / Ferrite' antenna on aluminum bracket - $30.

Panel, Bottom panel / plate, round hole, perforated metal, 16.25" x 11 7/8" - $30.


Call or Email for "SHOWN and NOT marked 'SOLD' " part you need.

                                                                               - Revised 9/19/13






PHOTO OF UNIT COMING

(Click on above thumbnails to enlarge photos)
HEATHKIT
AJ-30 TUBE TUNER PARTS

 FOR SALE
This one was gutted for a Movie Prop. We only have some internal parts for it left
- PARTING OUT -
Tuning Circuit Boards:
FM Circuit board - 85-19 $25.
FM Circuit board - 85-18 $25.
AM Circuit board - 85-17 - $35.
Power supply Filter Caps - $30 pair.
AM ferrite stick antenna - $30.

That is ALL WE HAVE FOR THIS UNIT!


-
- - -

Unless specifically noted, we do not typically sell 'component level' parts such as resistors, diodes, transistors, semiconductors, ic's / integrated circuit chips, ceramic capacitors, led's, bulbs, lamps, belts, etc. We do commonly sell circuit boards / cards which will likely come with those parts attached.



*
When we say "some parts "MAY" also fit", that does NOT mean ALL the parts listed 'WILL' fit, and unless we show specific info that a particular part DOES 'cross-pollinate', do not infer that it does or will fit. Only careful research and comparisons, on YOUR part with service manuals, service bulletins, other comparable units, etc., MAY indicate a POSSIBLE substitution. If your situation is 'critical', do not base your decision on information found on this or any other page of this web site and do your own research.
