AKAI STEREO PARTS / SPARES - USED

Akai Stereo / Audio Parts & spares for reference and occasionally for sale. Akai GX and X series Reel to Reel Tape Deck parts, X-1800-SD, GX-220D / GX220D, GX-280D SS 280DSS X-150D, Akai 8-Track CR-80DSS parts, cassette deck parts for models F51 GXC-735D.




































20% off sale
on salvage audio & keyboard parts.
 See sales banners on parts pages for details



MORE GEAR BEING ADDED AS IT BECOMES AVAILABLE
KEEP CHECKING!!!

>>> IF YOU DON'T SEE YOURS
WE DON'T HAVE IT YET <<<


*Note about parts / spares sales

* Our "parts units", parts / spares and related reference information are primarily archived for the purpose of restoration / repair of "Oak Tree Vintage" units first. Only if we do not have a "viable" unit in yet, either already in process or in line to be processed, that may potentially need parts from a "parts unit", will we release available parts for sale (even though they may appear as available for sale to the public). As many of you know, the restoration of a unit can be a long, time consuming process. We may "lock up" parts that we may potentially need in the restoration of a unit (and not necessarily get it marked 'Hold' or 'Sold' on the site right away). Parts are priced according to the "potential value" of the unit they can be applicable to (meaning the amount WE would be willing to pay for the part if that was all that was standing between us having a "shelved unit" or a valuable / sellable unit), time to extract, their rarity & their condition to name a few criteria and likely will be completely unrelated to the original cost / price of a part when it was currently available from the manufacturer.

Parts Photos; We get a number of requests for 'photos' of a specific part. Unfortunately, in most cases that is not practical as the amount of time involved in posting that exceeds the value of the 'unique' part. We will sometimes post photos of less 'unique' parts, if there is a greater chance of them being available in multiple quantities, or on a more 'repeat' basis.

Shipping: Shipping on most 'small' parts if typically via Postal first class or Postal Priority for both domestic (USA) and international orders. Larger parts such as transformers and drivers (speakers) are typically via FedEx gnd.
Some parts sales such as those for empty 'speaker cabinets', empty 'component cabinets / covers / bonnets' and 'speaker grills' are 'doomed' from the start. Due to their size and required packing supplies, the cost of 'packing for safe transit' and shipping are typically nearly equal to and sometimes greater than the cost of the part.  Think about it. An empty speaker cabinet or stereo receiver case is essentially the same size as a complete one. Yes the weight will be less, but most of items that size are calculated on 'dimensional weight', not actual weight. Secondly empty component cabinets have to be packed to disallow breakage, typically requiring nearly as much packing materials as an entire unit. Speaker grills have to be 'sandwiched' between foam sheets in large, custom ordered boxes (all relatively expensive).  It is what it is....

A non-response to an email request for a part (we may appear to have), likely means that we are still determining which parts we are going to need for the restoration or repair of one of our units. Again, the parts are first for the restoration of our units and secondarily for the public market. Since we list the parts available for ourselves, it is not much effort to modify the menu's for web publication, which in turn makes the reference information and occasionally the part available to the public. Frankly, publishing them to the web, in many instances, makes it easier for us to determine if we have the part for our needs as well. The alternative to all of the above would be to not offer them at all to the public, however most parts are available to the public for sale.
BOTTOM LINE IS; IF YOU DON'T SEE IT AVAILABLE FOR SALE, WE DON'T HAVE IT!
 Thank you for your understanding.


MOST OF THE PARTS LISTED BELOW ARE FROM SALVAGE UNITS.




HERE   ARE   SOME   ADDITIONAL   RESOURCES   FOR   REPAIR   /   RESTORATION

______________________________________________________________________________________









LINKS TO OUR 'HI-FI' DEPARTMENTS

Amps and
Pre-Amps

Receivers

Cassette
Decks

Tuners

Turntables

8-Track Decks

CD Players

Reel-Reel
Decks

EQs and Signal
Processors

Speakers

Betamax and
VHS VCRs

Turntable Cartridges

Tube Audio

Ne'cessories

Speaker Parts

Record Players

Vintage Radios

Vintage
Walkmans

Headphones

Stereo Parts

THIS IS NOT THE SAME PAGE YOU JUST VIEWED. KEEP SCROLLING DOWN.










For Replacement Akai Speaker Plugs / adaptors
Click here....







(Click on above thumbnails to enlarge photos)
AKAI
CASSETTE DECK
PARTS

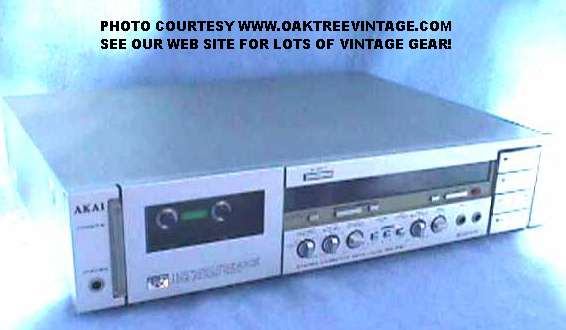

GX-F51

Would make a great deck and is loaded with features, however there is some distortion when recording with Dolby B or C. We discovered this after completely going through the deck cleaning and adjusting all and replacing or reconditioning all rubber. Plays great and records fine with no noise reduction. Problem only manifests itself when recording with Dolby B or C. Looks great!
Selling as-is
$55.
SOLD




(Click on above thumbnails to enlarge photos)

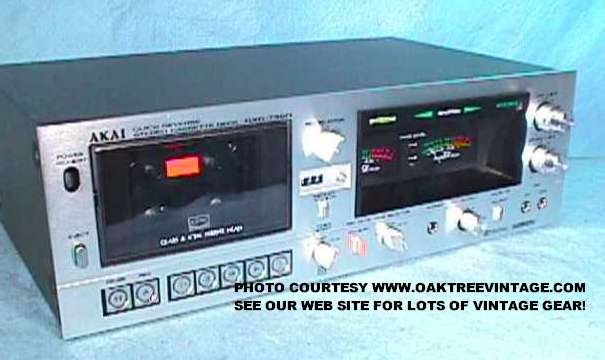

AKAI
CASSETTE DECK
PARTS
GXC-735D

- PARTING OUT -
Looks great. Parting out.

Face Panel (Perfect) - $40.
Single "Paddle" Knobs w/ set screw - $20 each
Output knob - $15.
Line / Mic Knobs - $25 each concentric pair.
Switch caps - $8 each
Tape Well window / Door - $25.
VU level meters - $25 ea or $40 pair.  SOLD?
Head / Head-Stack / Headstack assembly - $40. SOLD?
Transport (less motor and heads) - SOLD
Transport controls - SOLD
Main motor - SOLD
Any single circuit board
(less pots, switches, large transformers, outputs) - $25
Most other parts $15-$25.each





-

REEL TO REEL TAPE DECKS RECORDERS PARTS AND PARTS UNITS



CLICK HERE FOR
AKAI / ROBERTS REEL TO REEL TAPE DECK
CAPSTAN BUSHING / SPEED CHANGE SLEEVE





NEW LISTING
(Click on above thumbnails to enlarge photos)

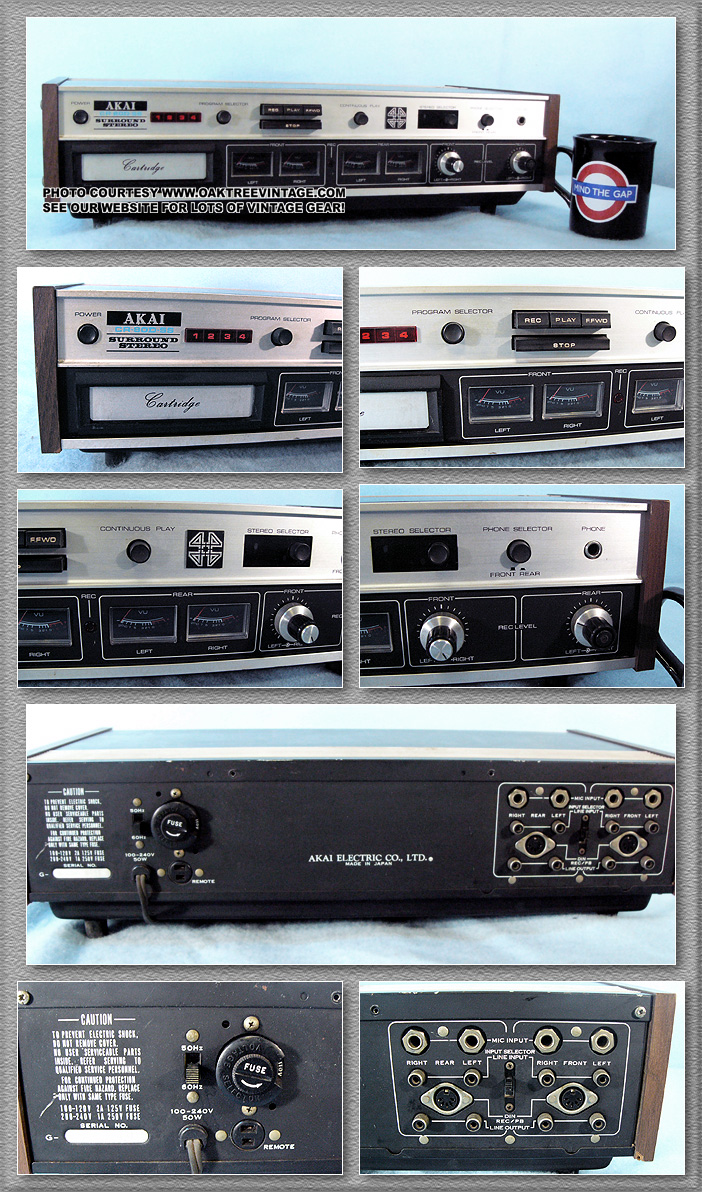

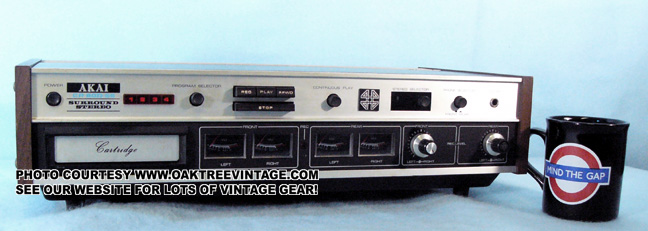

AKAI 8-Track Tape Recorder / Deck CR-80D-SS CR80DSS PARTS / SPARES
The Akai CR-80DSS was one of the most "serious" 8-tracks ever built. The motor is the same size used in most of their Reel to Reel decks. The entire deck weighs more than many receivers. This was working, however has static sound coming from the left side of the head. We gutted it and sold most of the unit as a movie prop. The rest of the internals are listed below:

Heads, Play / Record
Head / Head-Stack / Headstack  - $55. Decent shape

Heads, Erase
Head / Head-Stack / Headstack  - $35. Decent shape

Transformer, Main Power Transformer EFT-2 'ORION' 7209 - $45.

Knobs / Buttons / Caps, Record Level 'Bright' for knob
(this is only the 'spun' aluminum, silver trim cap that glues onto the top front of the Record Level Knobs) - $20.

Switches, Micro Switches D0782 - $18. ea.

Switches, Switch, mounted on circuit board ED-B506 - $35. ea.

Switches, Record Switches, mounted on circuit board 5ED / TP-S30 / ED-B / 503 - $35. ea.

Relay, OMRON 'Type MY4' -0-US-AD3 - $25.

Relay, TECK-19 1500
Ω - $25. ea.

Solenoid, OKI RG-Type / FI-AA0204C / 47
Ω - $35. Complete

Solenoid, KGS I N 840N / 8
Ω - $25. Coil Only

Fuse, Fuse Cap - $20

Fuse, Voltage selector plug (less fuse cap) - $25.

Fuse, Voltage selector jack (less fuse cap or selector plug) - $25.

Most of rest of unit has been sold.

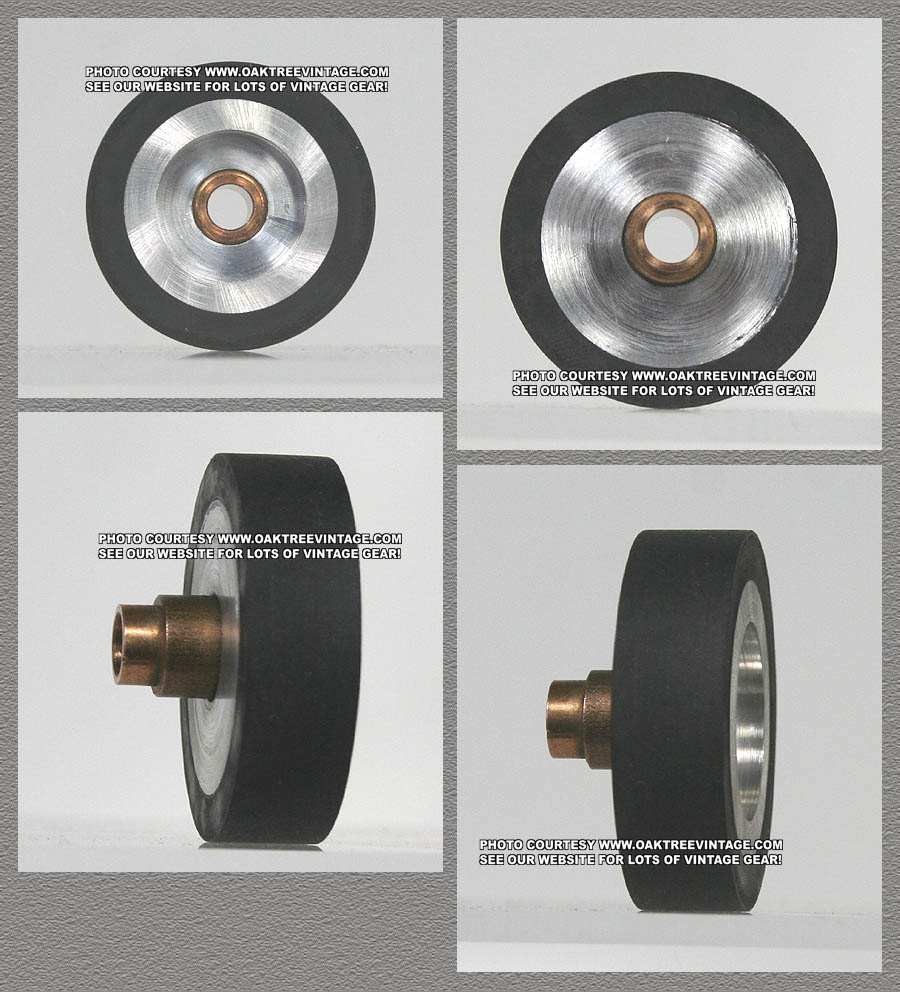

FYI; Akai GX-210D Pinch Roller measures 38mm diameter x 10.8mm thickness (none available)



(Click on above thumbnails to enlarge photos)

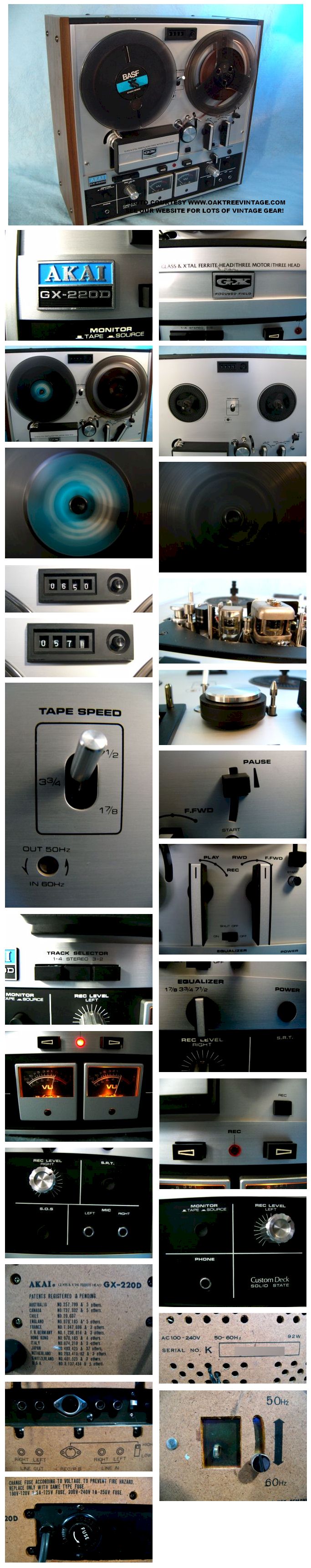

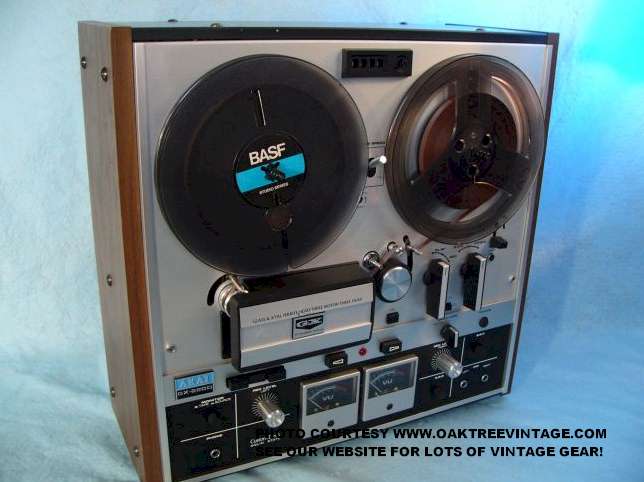

AKAI GX-220D GX220D Reel-Reel Tape Deck Parts / Spares

FOR SALE
Face Panel, Main Face Plate (upper 3/4 in brushed aluminum) VERY CLEAN - $50.
Face Panel, Lower Face Plate (Lower 1/4 in black anodized aluminum)  (good) - $40.
Motor,  3 speed Capstan / Main Motor - $65 SOLD
Motor, L / R fast-wind motors (TYPE 24XO-MR) - $ 65. ea.
(1 remaining in stock)
Transformer, Power Transformer - -MST-1-7108- - $55.

Solenoid, Auto-reverse solenoid (RGA10143 DC-48V) - $35.
SOLD
Capstan / Flywheel - $35.
Brake bands - $20. ea.

Fuse Cap, insert cap - $35. SOLD
Meters w/ covers - $35. ea

AKAI GX-220D Parts / Spares

Spindles / Hubs / Reel Tables, Hub spindles (Reel Base with spindle tips) - $65 ea. (1 left in stock and it's the one that is NOT tapped for the counter belt pully)

Pinch Roller, Rubber Pinch roller (good used, less screw and hubcap) - $35.
SOLD



Cover, Pinch Roller cover w/ screw (pinch roller sold separately) - $15.
SOLD

Capacitors,  (3.0F / 1.0F - 260 WV.AC, 2.0F / 1.0F - 260 WV.AC) - $18. ea
Relays - (OMRON  MY2 - -0-118-AD6- -24V, MY4 - -0-US-AD8 -20V) - $35. ea
Potentiometer, Right or Left Volume / Tone pots - $30. ea
Potentiometer, Right or Left Input Record Level pots - $30. ea

AKAI GX-220D Parts / Spares

Tape counter - $25
Knob, Transport knobs - $35. ea
Knob, Record Level knobs - $20. ea
Knob, Equalizer knob - $15.
Knob, Tape speed knob - $12.
Head Cover Top Plate / Panel - $25.
SOLD

Heads ,
Head / Head-Stack / Headstack - $65 for all on the mounting plate. SOLD

Circuit boards. Included boards are as follows:
MS-5022
- SOLD
MS-5023
MS-5025
MS-5027
MS-5030
MS-5055

- $45. ea (less pots, switches, large transformers, outputs)


AKAI GX-220D Parts / Spares


Switch, Power Push switches - $35. w/ black cap
Switch, SOS, SRT & MONITOR Push switches - $25.
w/ black caps
Switch, Track Select Push switches - $35. for bank of 3 w/ black caps
Switch
, Record
Push switches - $35. for bank of 2 w/ black caps

Switch, Rotary "Equalizer" switch - $30. w/ attached circuit board

Switches, Internal Micro switches - $20 ea.
Back panel / cover - $35
Tires, Internal Idler / Drive wheel / tires - $25 ea.

Selector, Transport Selector assembly w/ wafer switch (less pot metal cams / dogs) - $35.
Jacks, Input / Output Panels / sections - $30 ea.
DIN plugs / jacks, Internal DIN plugs - $15. ea.
Jacks, Headphone jack - $20

Cam, Play / Record Cam (disintegration free) (Also fits 1722W, 1722-II, X-150D, X-220D, X-1800SD an possibly others) (Also fits 1722W, 1722-II, X-150D, X-220D, X-1800SD an possibly others) - $45. ea.
SOLD

Cam, Fast Wind / Fast Forward / Rewind Cam (disintegration free) (Also fits 1722W, 1722-II, X-150D, X-220D, X-1800SD an possibly others) - $45. ea. SOLD




AKAI GX-220D Parts / Spares

Feet, Service Bumpers / Bottom Feet - $18 ea.
Springs, Any Single Spring (valued at time to extract.) Usually $20-$35 ea.

Selector-Voltage, Multi-voltage selector / fuse holder (insert cap sold separately) - $45.
Fuse Cap / Insert, Fuse Cap (see also
 CR-80DSS, GX-220D, X-1800D) - $25. SOLD
Chassis, Main Chassis Parts Generally not available
Other parts not listed quoted individually based mostly on part value and  time required to extract. Phone or email for  availability.






(Click on above thumbnails to enlarge photos)
AKAI X-150D Parts / Spares
AKAI X-150D REEL TO REEL PARTS / SPARES



Bonnet / Cover / Case, Wood Case / Cover - $45. SOLD

Face / Panel / Plate / Front Cover, Main Face Plate CLEAN - $65.
Panel / Cover, Back panel / covers - $15. ea.

Meters, VU / Level Meters - $25. ea.

Reel Base / Spindles, Hub spindles (Reel Base with spindle and assembly) - $45 ea.

Pinch / Pressure Roller, Rubber Pinch roller (good used, less screw and hubcap) - $35.

Cover, Pinch Roller cover w/ screw $15.

AKAI X-150D Parts / Spares

Potentiometer / Control, Mic / Line Pots - $25 ea.
Potentiometer / Control, Input Pots - $25.

Switches / Selectors, Power Switch - $30.
Switches / Selectors, Equalization Selector - $35.
Switches / Selectors, Slide switches $20 ea.
Switches / Selectors, "Cross Field" track / head selector knob - $30.
Switches / Selectors, Micro switches - $15-$25 ea.

Selector, Transport Selector assembly w/ wafer switch (less pot metal cams / dogs) - $35.

Knobs / Caps / Buttons, Mic / Line knobs (concentric / ganged) - $30 ea ganged pr.

Panel / Cover / Plate, Head Cover Plate / Panel - $25.

Heads,
Head / Head-Stack / Headstack (perfect) - $35. ea or $65 for all on the mounting plate.

AKAI X-150D Parts / Spares

Circuit Boards, Internal circuit boards - $40. ea (less pots, switches, large transformers, outputs)

Solenoid, Any internal Solenoid - $30. ea.


Motor, Capstan / Main Motor Part #HC-24D- $55. SOLD


Capacitor, Start / Run Capacitor 2.0uf / 0.8uf / 300WV Good cond. - $35.

Counter, Tape Counter - $25. SOLD

Transformer, Power Transformer #CDT-2- $45.

AKAI X-150D Parts / Spares

Cam Dogs, Play / Record transport Cam (disintegration free) (Also fits 1722W, 1722-II, X-150D, X-220D, X-1800SD an possibly others) - $45. ea.
SOLD

Cam Dogs, Fast Wind / Fast Forward / Rewind Cam (disintegration free) (Also fits 1722W, 1722-II, X-150D, X-220D, X-1800SD an possibly others) - $45. ea. SOLD



Tension Arms, Tape Tension Arm Assemblies - $25. ea
Brakes, Tape Tension brakes - $25. ea.

Wheels / Tires / Pulleys, Internal Idler / Drive wheel / tires - $25 ea.

AKAI X-150D Parts / Spares

Fuse, Multi-voltage selector / fuse holder (with insert cap) - $45.
Fuse, Multi-voltage selector / fuse holder (insert cap only) - $35.

Jacks, Input / Output Panels / sections - $20.
Jacks, Mic Jacks - $20 ea.
Jacks, Headphone jack - $20.


Springs, Any Single Spring (valued at time to extract.) Usually $20-$35 ea.

AKAI / X-150D - Rubber Reel Stoppers (see other sections of this page)

Main Chassis Parts Generally not available

Other parts not listed quoted individually based mostly on part value and  time required to extract. Phone or email for  availability.







(Click on above thumbnails to enlarge photos)

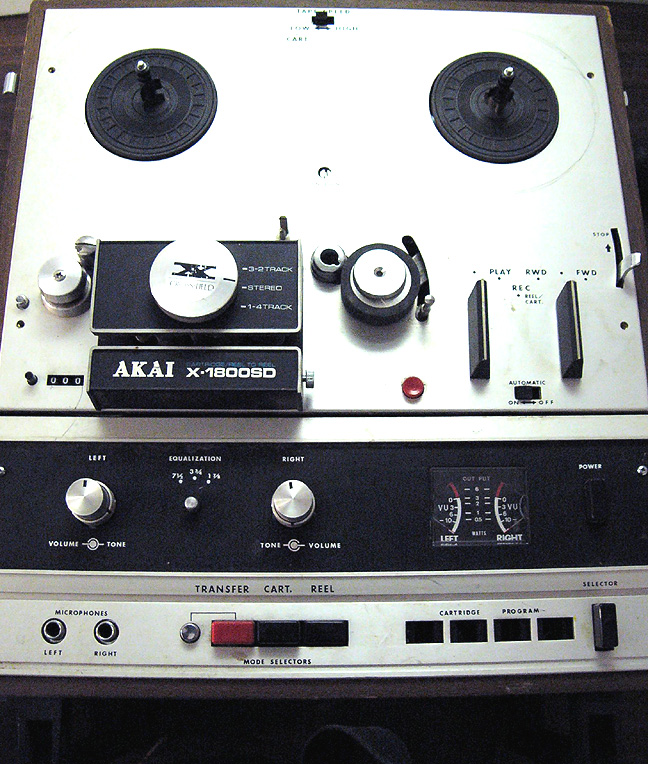

AKAI
X-1800SD X-1800 SD
Reel-Reel Deck
PARTS

Panel, Main Face Plate Lots of wear (circular striations around hubs) - $40. as-is

Panel, Lower Face Plate
(
good) - $65.

Motor, Capstan / Main Motor Part #IC-16Y- $65.

Capacitor, Start / Run Capacitor 2.0uf / 1.0uf / 250WV Good cond. - $35.


Meters, Record Level Meters - $35. pr.

Reel Tables / Spindles, Hub spindles (Reel Base with 'locking' spindle tips) - $65 ea.

Counter, Tape counter $25.


Switches / Selectors, Slide switches $20 ea.

Knobs / Caps / Buttons, "Cross Field" track / head selector knob - $30.

Assembly, 8-track assembly w/ heads, solenoid, but less 'relay' - $45 ea.

Relay, Omron Type MY4 / 0-US-AD3-DC 6V - $25.

Heads, Record, Playback & Erase
Heads / Head-Stack / Headstack  - $65 for all on the mounting plate.
Panel / Cover Head Cover Top Plate / Panel - $25.
Panel / Cover, Head Cover Bottom Plate / Panel - $25.

Transformer, Power Transformer - $55.


Circuit Boards, Internal circuit boards (many boards include the C458 transistors on them)
(less pots, switches, large transformers, outputs) Z
RC-553, Function Selector board w/ switches - $65.
RC-589,
- $45.
RC-550, - $45.
RC-554, - $45.

Transistors, Output transistors, Hitachi C1060 all 4 on Circuit board RC-590 - $35.

Potentiometer / Control,
Right or Left Volume / Tone / Input pots -
$30. ea  SOLD OUT


Switches / Selectors, Equalization Selector - $35.

Switch / Selector, Power Switch - $30.
Switch / Selector, Push switches $30 ea.
Switch, 8-Track Program Selector Switch - $30.
SOLD
Switch / Selector, Micro switches - $20 ea.


Switch / Selector, Transport Selector assembly w/ wafer switch - (less pot metal transport cams / dogs) - $35.

Cam, Play / Record transport Cam (disintegration free) (Also fits 1722W, 1722-II, X-150D, X-220D, X-1800SD an possibly others) - $45. ea. SOLD

Cam, Fast Wind / Fast Forward / Rewind Cam (disintegration free) (Also fits 1722W, 1722-II, X-150D, X-220D, X-1800SD an possibly others) - $45. ea.
SOLD





Tires / wheels, Internal Idler / Drive wheel / tires - $25 ea.

Roller, Rubber Pinch roller (good used, less screw and hubcap) - $35. SOLD


Roller,
Pinch Roller cover w/ screw $15. ea.

Stoppers / Reel Retainers, Rubber Reel Stoppers (see other sections of this page)

Selector,
Multi-voltage selector / fuse holder (with insert cap) - $45.
Selector, Multi-voltage selector / fuse holder (insert cap only) - $35.


 Speakers, SK2187E, 8 Ohm, 1.5W - $20. - ea.

Panel, Back panel / cover - $35.

Panels, Speakers covers / flaps - $12. - ea.

Jacks, Input / Output Panels / sections - $30. ea.

Jacks, Headphone jack - $20
.

Springs, Any Single Spring (valued at time to extract.) Usually $20-$35 ea.

Feet, Service Bumpers / Bottom Feet - $18. ea.

- Main Chassis Parts Generally not available
Other parts not listed quoted individually based mostly on part value and  time required to extract. Phone or email for  availability.






(Click on above thumbnails to enlarge photos)
AKAI
GX-280DSS
Reel-Reel Deck

for sale
Parting out. Blows main power supply fuse.
SOLD ENTIRE DECK





- -




______________________________________________________________________________________










Below are internal reference shots only. We do not have any parts, service, nor advice relating to any of the below machines. These photos are ONLY for your reference.
Please do not contact us for parts or service advice for any of the units shown in the below photos.










(Click on above thumbnails to enlarge photos)

Akai GX-365D





Unless specifically noted, we do not typically sell 'component level' parts such as resistors, diodes, transistors, semiconductors, ic's / integrated circuit chips, ceramic capacitors, led's, bulbs, lamps, belts, etc. We do commonly sell circuit boards / cards which will likely come with those parts attached.


BELOW FOR PHOTO ARCHIVING ONLY. UNIT STATUS UNKNOWN AT THIS TIME



*
When we say "some parts MAY also fit", that does NOT mean ALL the parts listed 'WILL' fit, and unless we show specific info that a particular part DOES 'cross-pollinate', do not infer that it does or will fit. Only careful research and comparisons, on YOUR part with service manuals MAY indicate a POSSIBLE substitution. If your situation is 'critical', do not base your decision on information found on this or any other page of this web site and do your own research.




AKAI GX-210D


AKAI X-355D


AKAI GX-370D






LINKS TO OUR 'HI-FI' DEPARTMENTS

Amps and
Pre-Amps

Receivers

Cassette
Decks

Tuners

Turntables

8-Track Decks

CD Players

Reel-Reel
Decks

EQs and Signal
Processors

Speakers

Betamax and
VHS VCRs

Turntable Cartridges

Tube Audio

Ne'cessories

Speaker Parts

Record Players

Vintage Radios

Vintage
Walkmans

Headphones

Stereo Parts


Wondering where the "tone" you remember went?....

Vintage  Stereo Equipment receivers speakers Classic Silver Audio Collection and jerry



.... Surround yourself with Silver and find it again!


CONTACT INFO BELOW

$20. MINIMUM ORDER





    Before calling, PLEASE read the text in orange below.
No Really...Stop, Alto, Halt, etc.
 BEFORE
CALLING

(800) 806-4231 EXT #1
OR EMAILING
parts@oaktreevintage.com

~9:30 AM- ~7:30 PM most days COLORADO / ROCKY MOUNTAIN TIME ZONE

We DO NOT have your part unless the following conditions are met:

A) You HAVE SERCHED our page(s) and HAVE FOUND the part you are looking for SPECIFICALLY listed on one of our pages or you have solid information that it's a 'bona fide' substitution for your part (unless noted already, we won't have any further info along those lines)
AND
B) The part that you have found is NOT marked as SOLD or SOLD OUT.


If you do not see it listed after thoroughly searching the pertinent page
(likely the page you landed on originally),
we do not have it,
nor do we know when
it might come in,
nor do we maintain "waiting lists" for parts,
nor do we know who
might have it.

Sorry, but phone and email traffic for parts
we don't have listed or for parts that are already marked "SOLD" has become too consuming of time resources.


 We try to keep these pages 99+% updated.
If you don't see the part you are looking for, simply check the web page periodically as we never know what will show up each day. Thanks!!!!!


ALSO: When e-mailing be sure to include a relevant subject, ie: Brand / Model number / reason for inquiry in the 'SUBJECT LINE'.
SUBJECT
lines left empty, or with 'single word' text like;
"Hello", "Hi", "parts", "stereo", "inquiry", "question", "selling" or similar or similar 'un-qualified' terms will automatically be deleted by Anti-Virus / Spam settings or receive 'Low Priority'.
(Subject lines left empty show up as "No Subject" and are deleted automatically by our anti-spam settings"


 SPEAKER PARTS   |   STEREO / HI-FI ELECTRONIC PARTS   |  KEYBOARD PARTS

___________________________________________

Haven't received a response to your email? See FAQ'S

MAILING:
OAK TREE ENTERPRISES
PO. BOX 6182
COLORADO SPRINGS, CO 80934
U.S.A
.

Before ordering by postal mail, please phone or email us about the item and the details of sending your funds. Thank-you.


 SPEAKER PARTS   |   STEREO / HI-FI ELECTRONIC PARTS   |   SELLING-TRADING-CONSIGNING   |  KEYBOARD PARTS   I   FAQ'S
  CONDITION RATINGS   |   ORDERING / POLICIES    |    WARRANTIES / RETURNS   |   SHIPPING
 RESTORATION PROCEDURES   |   REPAIRS  | CONTACT PARTS


30% restock fee / service charge applies to all 'parts' returns for refund.
Some parts are not returnable.

See our "
Warranties / Returns" page via the link below for more details.


POLICIES, SPECIFICATIONS, AVAILABILITY, INFORMATION AND PRICING SUBJECT TO CHANGE  AT ANYTIME  AND WITHOUT PRIOR NOTICE
and changes may not be posted to web immediately
. Information such as Parts Substitution possibilities, "Circa" dates, original values, etc. are to the best of our knowledge. If you are critically concerned, you should do independent
research on your own prior to ordering or utilizing this information in any way. Manufacturers also are known to change part numbers, specs, circuit designs, specs etc within the same model.


Copyright 1997-2014 Oak Tree Enterprises, LLC

COPYRIGHT INFORMATION




Please be patient while page loads . . .






LINKS        TO        SOME        OF        OUR        OTHER        STEREO        PARTS        LINKS

______________________________________________________________________________________
