YAMAHA AMPLIFIER PARTS / SPARES
|
|
.JPG)
.JPG)
|
NEW ADDITION
1/6/14
(Click on above thumbnails to enlarge photos)

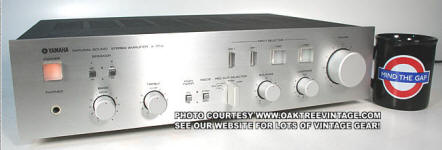

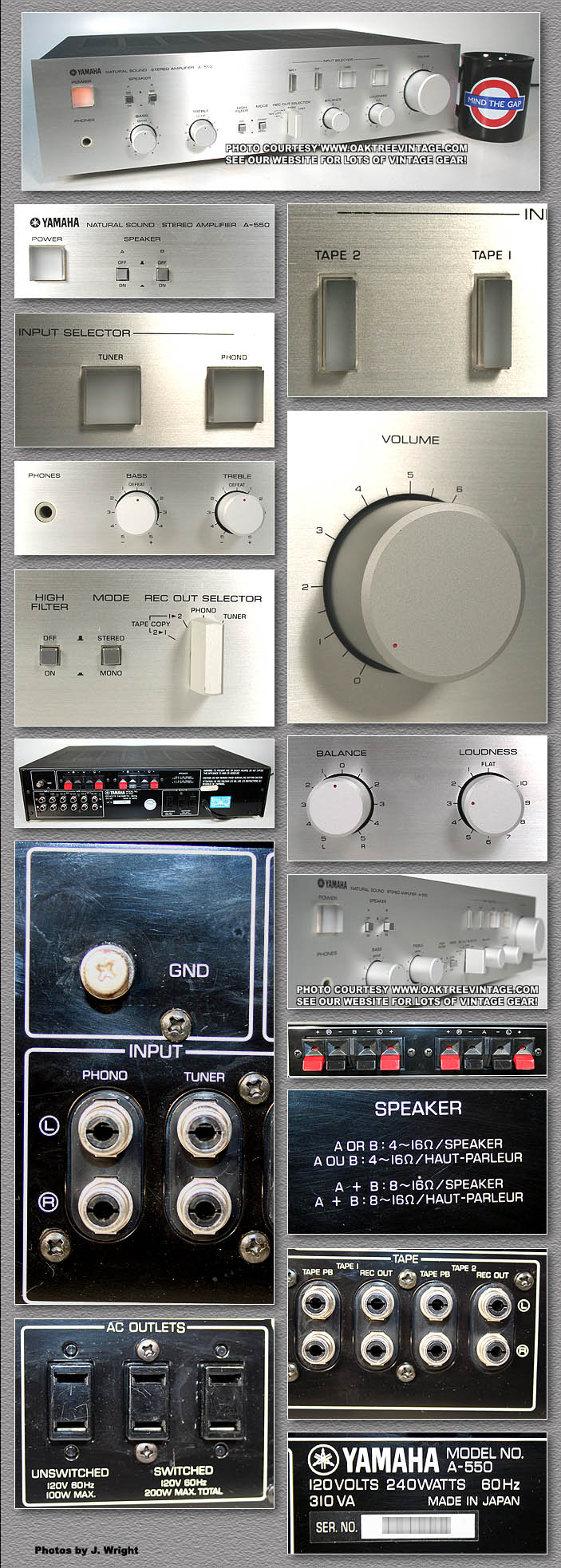

YAMAHA A-550 / A550 STEREO AMPLIFIER PARTS / SPARES
for sale
#...9380
-
PARTING OUT -
Unit was parted out due to bad section in 'Right Driver Board'.
Bonnet / Case / Cover / Cabinet,
Sheet metal case / cover - SOLD
Panel, Front / Face panel, aluminum, good condition
(illuminated selector caps sold separately) - $45.
Knobs / Caps / Buttons / Covers
‘Volume’ knob - $30.
Knobs / Caps / Buttons / Covers, ‘Balance’, ‘Treble’, ‘Bass’ knob- $20. ea.

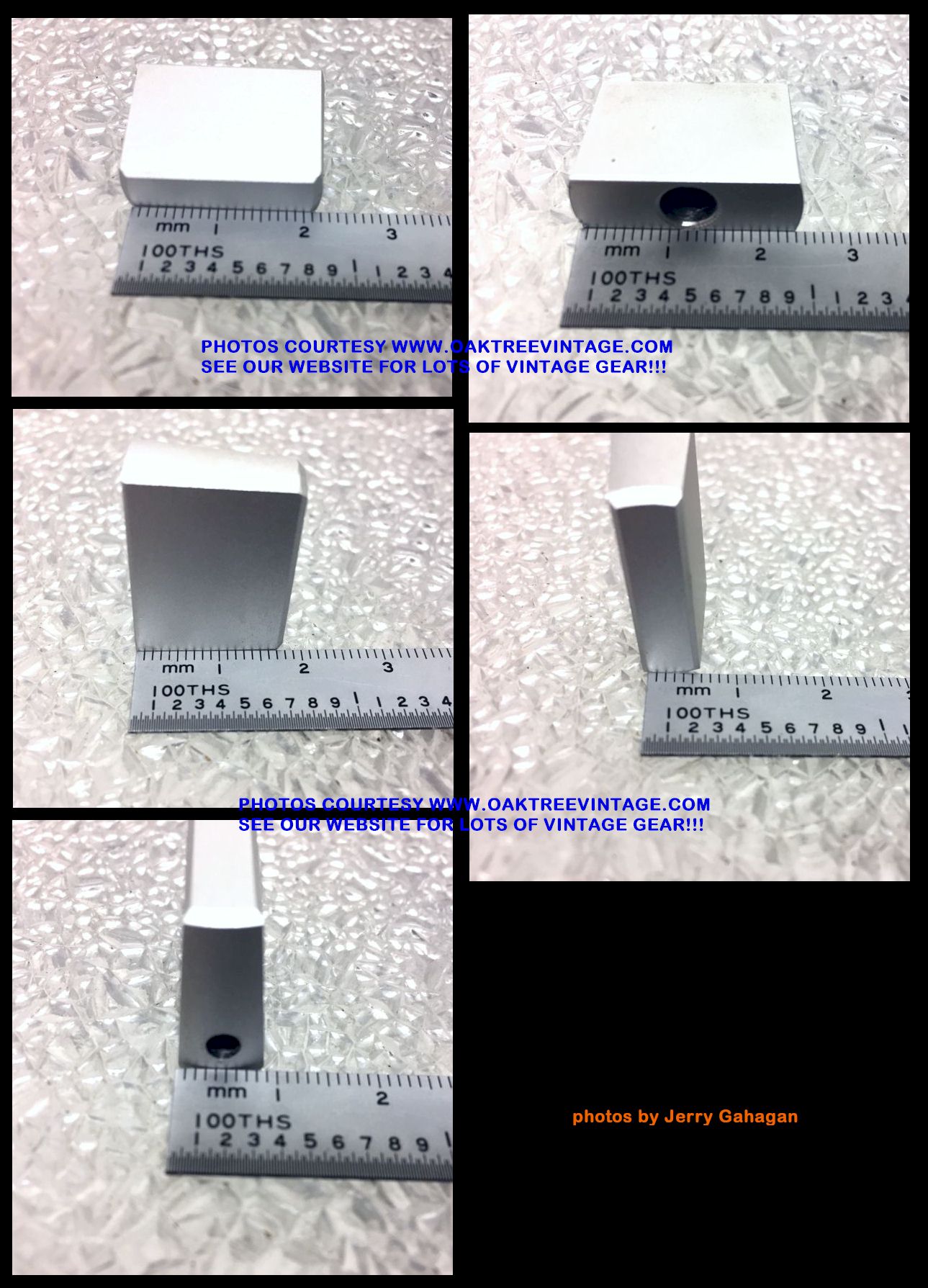

Knobs / Caps / Buttons / Covers, ‘Record Out Selector’ ‘paddle’ knob
(see also; Yamaha A-550, A-560, R-500, R-700, R-900, R-1000 and
likely many others) - $30. ea.
SOLD

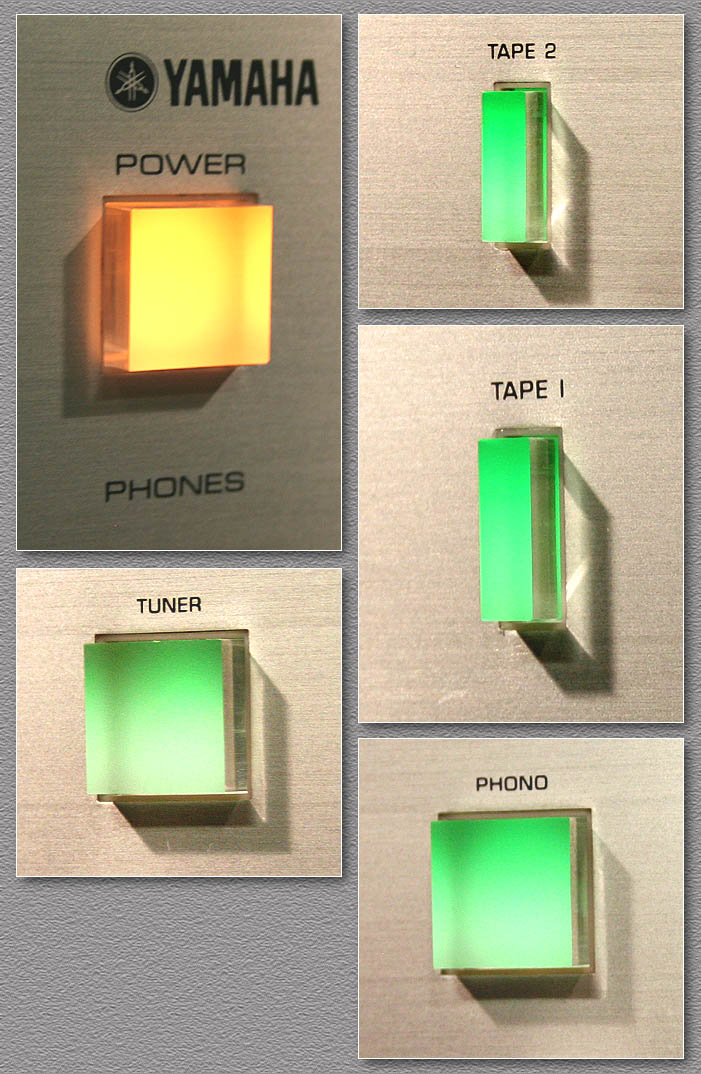

Knobs / Caps / Buttons / Covers, Illuminated Push Switch /
Selector Caps for ‘Power’,
‘Tuner’, Phono’, ‘Tape 1’, ‘Tape 2’ - $25. ea.
(existing lamps / bulbs included, but working condition not indicated nor
guaranteed)
Knobs / Caps / Buttons / Covers, Push Switch / Selector Caps for ‘Speaker A or B’, ‘High
Filter’, or ‘Mode’ - $15. ea.
YAMAHA A-550 /
A550 STEREO AMPLIFIER PARTS / SPARES
Potentiometer / Control,
‘Volume’ control pot 10A-200k Ohms x2 on
circuit board LC70460-2 - $35.
Potentiometer
/ Control,
‘Balance’ pot M 200k Ohms - $25.
Potentiometer / Control,
‘Bass’ pot M30k Ohms
B
-
$25.
Potentiometer / Control,
‘Treble’ pot M30k Ohms G - $25.
Potentiometer / Control,
’Variable Loudness’ pot M100k Ohms B - $25.
Switch / Selector,
‘Speaker A’, ‘Speaker B’ Push Switch / Selector - $25.
ea.
Switch / Selector,
‘Extensions’ plastic, for input Switch / Selector - $20. ea.
Switch / Selector, ‘Power’ push Switch / Selector, ALPS SDGIP N 645 with clamping capacitor - $35.
Switch / Selector, ‘Hi’-Filter’, ‘Mode’ push Switch /
Selector - $20. ea.
Switch / Selector, ’Tape
1-2’, ‘Tuner’, ‘Phono’ Push Switch / Selector
- $45. all 4 with bracket.
Switch / Selector,
‘Record Out Selector’ Switch / Selector -
SOLD
YAMAHA A-550 /
A550 STEREO AMPLIFIER PARTS / SPARES
Transformer, Power supply Transformer LBEI-85 GA6304 -
(US 120 volt version)
- $55.
Capacitors, Power supply filter caps, Elna
6800mF / 50 Volts - $20. ea.
Relay,
DEC Type MS4U 12 vdc - $30.
SOLD
Bridge Rectifier,
M4C31 7122 - $25.
Transistors, ‘Output’ transistors /
Power amp transistors; TO-220 NEC 2SD587A, NEC2SB617,
SK Replacements SK3934, SK3933
(circuit board, heat sink sold separately)-
$20. ea.
Circuit Board, ‘Main’ / ‘Power Supply’ /
‘Tone control’, Circuit Board, Yamaha LC70460-1 with transistors;
2SA798, 2SA999, 2SA1798, 2SB560, Hitachi
2SB690, 2SC1213 (changed to NTE289), Mitsubishi 2SC1384, 2SC2240,
2SC2291, 2SC2320, 2SD726, ECG 2S383,
ECG 2S290A, IC horizontal ‘in line package; M5214L,
capacitors RGC5 0.47k, Hitachi voltage regulator 2SD726 and
balance of resistors, capacitors and diodes
(less tone pots,
filter capacitors, bridge rectifier, relay, push Switch / Selector
& output transistors)
- $65.
Circuit Board, ‘Selector / I/O’ circuit board Yamaha
LC70190-1, with transistors; 2SA999, 2SC2320, main
fuse holder clips, with balance of resistors and capacitors
(less fuses, push Switch / Selector, I/O Jacks / Terminals /
Connectors)
- $45.
Circuit Board,
‘Input indicator’ circuit board Yamaha LC70190-2 - $20.
Heat Sink,
Power amp heat sink
(less transistors)
- $35.
YAMAHA A-550 /
A550 STEREO AMPLIFIER PARTS / SPARES
Jacks / Terminals / Connectors,
Headphone Jack on Yamaha circuit board LC70460- 4 - $20.
Jacks / Terminals /
Connectors,
RCA Input/Output, Phono, Tuner, Tape 1, Tape 2 in pairs of ‘two’ - $25. each
pair of ‘two’ / 4 RCA Jacks / Terminals / Connectors.
Jacks / Terminals /
Connectors, ‘Speaker’ connectors / terminals, 2 banks A or B -
$30. per bank
Jacks / Terminals /
Connectors,
‘Triple’ ‘Convenience’ AC outlet / sockets - $30.
Foot / Feet,
foot set
for all 4 -
SOLD
Panel,
Rear sheet metal panel (less any input / output Jacks / Terminals /
Connectors / components) - $25.
Call or Email for
"SHOWN and NOT marked 'SOLD'
" part you need.
Location: Brown Advance cab, Drawer 2, Position right
/ 3
- Revised
3/15/23
|
(Click on above thumbnails to enlarge photos)
YAMAHA CA-2010 / CA2010 INTEGRATED AMP AMPLIFIER PARTS / SPARES
YAMAHA CA-2010 / CA2010 PARTS / SPARES
for sale
SOME
MAY FIT YAMAHA CA-1010 / CA-810 / CA-610
Circa 1977-79
- PARTING OUT -
The flagship Yamaha Integrated amp from this time period. Unfortunately this one
likely has output problems as the output relay cycles every 2-3 seconds in
and out of protect mode. Looks good overall including face, knobs and
case.
Many of the parts such as Switch / Selector, pots, controls and knobs
MAY*
also fit
the CA-1010 / CA-810 / CA-610 models.
- PARTING OUT -
Bonnet, Wood case cover (including silver metal vent) - $75
SOLD (Cases, covers and side plate / panels, etc. do not include
mounting screws as those are sold separately)
Panel, Face plate - $95.
SOLD very clean. No gouges, or dings.
Knobs / Caps / Buttons / Covers,
Large volume round knob
#BA069250 - $45.
SOLD
Knobs / Caps / Buttons / Covers,
Balance Ring
#BA069120 - $30.
Knobs / Caps / Buttons / Covers,
Round tone / Bass /
Treble knobs #BA068810 - $35. ea.
SOLD OUT
Knobs / Caps /
Buttons / Covers,
Rectangular 'Paddle'
Knobs #BA440620 - $40.
ea.
(2 remaining)
Knobs / Caps / Buttons / Covers,
Toggle Switch / Selector caps
#CB067580 - $30.
ea. SOLD OUT
YAMAHA CA-2010
/ CA2010 PARTS / SPARES
Potentiometer / Control,
Volume / Balance control
#HY00550 - $75. SOLD
Potentiometer / Control,
Treble Control
ALPS 72B / 300k Ω
Ohms x 2
#HY000570 - $65.
Potentiometer / Control,
Bass
Control ALPS 71B / 7.89k Ω
Ohms x 2 & 59.2k
Ω
Ohms x 2
#HY000560 - $65.
Switch / Selector, Power Switch
/ Selector #KA200390 - $45.
- SOLD
Switch / Selector, Record Out Selector Switch / Selector #KA500780 - $55.00
Switch /
Selector, Input Selector Switch / Selector #KA500770 - $55.00
SOLD
Switch / Selector, Mode 'Stereo /Mono' Selector Switch / Selector
#KA500870 - $45.00
SOLD
Switch / Selector, Speaker Selector Switch / Selector #KA500880 -
$45.00
SOLD
Switch / Selector, Phono Cartridge Selector Switch / Selector
#KA500790 - $45.00
Switch / Selector,
Switch /
Selector, 'Operation' #KA200570 with #LC66393-3 Circuit board
populated with transistor; Hitachi 2SA673 and balance of capacitors and
resistors. Toggle Switch / Selector - $45.00
Switch / Selector, 'Subsonic' or 'High Filter' #KA200540
Toggle Switch / Selector - $35.00
Switch / Selector, 'Audio Muting' #KA200570 Toggle Switch / Selector - $35.00
Switch / Selector, 'Tone Control' / 'Tone Defeat'
Toggle Switch / Selector #KA200550 - $45.00. ea.
Switch / Selector, 'Phono Selector', 'Record Out Selector',
'Input Selector', Switch / Selector front shafts / bushings (not including actual wafer
Switch / Selector
or extension rods) - $35.00. ea. or $65. for set of 3 on mounting plate.
Shafts / Extension Rods, 'Phono Selector', 'Record Out Selector',
'Input Selector', Switch / Selector "SHAFTS" / "Extension Rods" (not including actual wafer
Switch / Selector
or 'Joints) #BA069090 - $35.00. ea.
Universal / U-Joints, 'Phono Selector', 'Record Out Selector',
'Input Selector', Switch / Selector "Swivel / Universal / U-Joints" (not including actual wafer
Switch / Selector
or 'Shafts') #CB077940 - $30.00. ea.
Meters, Power VU meters
#JI000440- $45. ea.
SOLD
YAMAHA CA-2010 / CA2010 PARTS / SPARES
Transformer, Power supply Transformer
GA-6092 North American Version - $125. SOLD
Relay, 10A / 250VAC / AP5421 / HL2-P-DC12V - $35.
2 available
Relay, Fujitsu RL-6442-HI32 12VDC
(on LC67004 Circuit board)- $25.
SOLD
Semiconductor, Bridge Rectifier NTE5342 (not original to amp) - $20.
Transistors, Single output original / OEM
Transistors
(Sanken 2SA745B & 2SC1403B) Tested OK units
- $25. ea.
Heat Sinks, Black less original / OEM Transistors
#BA067970 - $45. ea.
Capacitors, Power supply filter
capacitors Nippon Chemi-Con 71V / 22,000μF
/ uf- $35.
ea.
OR
$60. for both on power supply circuit board LC-66474 (less relay and bridge
rectifier) (Circuit board does have a cracked corner, but is still usable)
YAMAHA CA-2010
/ CA2010 PARTS / SPARES
A Note about the circuit boards from this series of Yamaha's:
The 'Soldering pads / Landing pads' are prone to
'peeling' up / becoming dislodged / stuck from the circuit board, so
some 'work-around' techniques will be necessary when putting entire
boards back into service such as using 'solder' to anchor components
then use 'jumpers' to bridge from traces to some component legs. The
issue is not a 'deal breaker', but does seem prevalent about 10% of the
time.
Circuit Boards,
Yamaha LC67004 Selector / RCA I/O / Phono
Pre-Amp circuit board
populated
w/ Yamaha IG-00135 chips, in-line / IC Chips; Y-K100 and transistors;
Hitachi 2SA673, 2SA872, Mitsubishi 2SA777, 2SC1509,
2SC1775,
and
balance of resistors, capacitors and diodes (less Switch / Selector, I/O
Jacks / Terminals / Connectors, & Relay which are all sold separately) - $65.
SOLD
Circuit Boards,
Yamaha LC66393 Tone Control circuit board
populated w/ transistors; Hitachi 2SA673, 2SA872, 2SC1775,
2SK68A,
and
balance of resistors, capacitors and diodes (less Switches / Selectors
and potentiometers which are all sold separately) - $65.
Circuit Boards,
Protection Board LC66386 w/ 2SB566A / B566A & 2SD 476A / D476A (less relay) - $65.
SOLD
Circuit Boards,
Output driver board
(NA06843 / LC66893) - $65
SOLD
Circuit Boards,
Meter drive board - $55.
SOLD
Circuit Boards,
Output Driver board - $85.
SOLD
(one left???
or MIA???)
YAMAHA CA-2010
/ CA2010 PARTS / SPARES
Jacks / Terminals / Connectors, RCA Input
Jacks / Terminals / Connectors (Phono-1 / Phono-2, Tuner /
AUX, Tape-1 / Tape-2, Monitor Jacks / Terminals / Connectors) - $35. ea. group of 4
Jacks / Terminals / Connectors, Pre Out / Main In
Jacks / Terminals / Connectors w/ 'Coupler' and
'Mode' Switch / Selector on circuit board LC66882 - $65.
SOLD
Jacks / Terminals / Connectors / Terminals /
Connectors, Speaker Output Banks #LA001842 - $35. ea.
SOLD OUT
Jacks / Terminals / Connectors, Headphone Jack #LB300480 - $30.
Jacks / Terminals / Connectors, AC convenience outlets - $25. ea.
Jacks / Terminals / Connectors, Turntable Ground Post - $20. SOLD
Bottom Plate - $35. SOLD
Feet (set)
#CB077950 - $35.
SOLD
Call or Email for
"SHOWN and NOT marked 'SOLD'
" part you need.
Location: PB,
West / South West Side, 4th 'Almond' cab from left, 2nd drawer.
- Revised 10/20/20
|
YAMAHA STEREO RECEIVER PARTS /
SPARES
|
|
.JPG)
.JPG)
|
(Click on above thumbnails to enlarge photos)
YAMAHA CR-240 / CR240 STEREO RECEIVER PARTS / SPARES
YAMAHA CR-240 / CR240 PARTS / SPARES
for sale
- PARTING OUT -
Unit works, but unfortunately has left outputs going out so we
are parting it out.
Many of the parts such as Switch / Selector, pots, controls and knobs
MAY*
also fit
other CR-x40 models.
- PARTING OUT -
Wood grain case (ding in left upper corner, see photos) - $25.
SOLD
(Cases, covers and side plate / panels, etc. do not include
mounting screws as those are sold separately)
Aluminum Face panel (excellent condition)
- $45.
Large tuning round knob - $30.
Volume knob - $30.
Other round knobs - $22. each
Paddle knobs - $30. ea.
Power Switch /
Selector Cap - $18.
Power supply Transformer GA6314 - $45.
Power supply / Driver circuit board
(less outputs, pots, Switch / Selector and Jacks / Terminals / Connectors) - $45
Power amplifier utilizing IG 03000 power packs (complete, with one
side working) - $35.
SOLD
Any single circuit board
(less pots, Switch / Selector, large transformers,
outputs) - $40.
Tuning Capacitor (less plastic string wheel) - $35.
Plastic tuning capacitor string wheel - $25.
Any pot,
Switch / Selector, input / output single panel section - $30.
Bottom Plate w/ feet - $25.
Jacks / Terminals /
Connectors,
Any rear panel single component - $25. ea.
Jacks / Terminals /
Connectors,
Speaker output clip sections A or B- $25. ea.
Relay - SOLD
Call or Email for
"SHOWN and NOT marked 'SOLD'
" part you need.
Location: PB,
West / South West Side, 1st / Tan cab from left, 3rd drawer, right side.
- Revised
11/13/18
|
(Click on above thumbnails to enlarge photos)
YAMAHA CR-620 / CR620 STEREO RECEIVER PARTS /
SPARES
YAMAHA CR-620 / CR620 PARTS / SPARES
for sale
some parts
MAY*
fit the
CR-420, CR-820, CR-1020, CR-2020 & CR-2020 as well, but you should
investigate PRIOR to contacting us.
- PARTING OUT -
Bonnet, case
/ cabinet / cover
/ bonnet
- $45.
SOLD (Cases, covers and
side plate / panels, etc. do not include mounting screws as those are sold
separately)
Face panel with glass (less knobs / buttons) - $55.
Dial Pointer, Lamp / Bulb may need to be
replaced #NB078380 - $25.
Indicator Lamps,
LED's for
'Power' and 'FM Stereo' indicator
- $30. for complete on circuit board
YAMAHA
CR-620 / CR620 PARTS / SPARES
Knobs / Caps / Buttons / Covers, Power button / cap
#CB079340
(See also; CR-620, CR-820)
- $25. ea.
Knobs / Caps / Buttons / Covers, Tuning knob
#BA069850
(See
also; CR-620, CR-820) - $30.
Knobs / Caps / Buttons / Covers, Balance
Ring
#BA069870
(See
also; CR-620, CR-820) - $20.
Knobs / Caps / Buttons / Covers, Volume knob
#BA069860
(See also; CR-620, CR-820)
- $30. SOLD
Knobs / Caps / Buttons / Covers, Tone / Bass / Treble,
Loudness #BA064460 (See
also; CA-1000, CR-620)
- $25. ea. (1
remaining in stock)
Knobs / Caps / Buttons /
Covers,
Selector 'Paddles'
#BA067790
- (See also; CA-610,
CR-620, CR-820) $30.
ea.
Knobs / Caps / Buttons / Covers,
Small Square 'Push' Switch / Selector caps for
Hi / Low Filter, Stereo / Mono Mode, FM
Muting, Tuner AM / FM band #CB079240
- $18. ea.
YAMAHA
CR-620 / CR620 PARTS / SPARES
Potentiometer / Control,
Loudness
control pot dual 20k Ohms - $25.
ea.
Potentiometer / Control,
Tone
/ Bass / Treble control pots
dual 50k Ohms - $25. ea.
Potentiometer / Control,
Volume /
Balance pot
$40. -
SOLD
Switch /
Selector,
Power Switch / Selector ALPS
TV-5
- $35.
Switch / Selector, Hi / Low Filter, Stereo / Mono Mode,
FM Muting, Tuner AM / FM band selector Switch / Selector
-
$25. ea.
Switch
/ Selector, Speaker Switch / Selector -
SOLD
Switch / Selector,
Rotary 'Record Out Selector' or 'Input Selector' Switch / Selector
- $35. ea.
Switch /
Selector, Rotary 'Record Out
Selector' or 'Input Selector' front panel
mechanism
- NYLON 'STOPS' ARE BOTH CRACKED!
Meters, VU meters
'Signal Q' #Ji000660 or 'FM Tuning'
#Ji000660
(See also; CR-620, CR-820)
- $35. pair
Flywheel, Dial Shaft / Flywheel / Tuning
control assembly #NB078150
- $35.
String wheel, Plastic String / Cord pulley
for tuning capacitor #CB079260
(See also; CR-620,
CR-820, CR-1020, CR-2020) - $25.
Transformer, Power supply Transformer
GA-6T05 (US 120 volt version) - $55.
Capacitors, Power supply filter Caps
- SOLD
Output Chips, Power amplifier
outputs -
SOLD??
Circuit Board, Main Tuner circuit board
LC-67331-1 w/ tuning capacitor w/ IC
Chips NEC UPC577H, Sanyo A3350, (less Switch / Selector,
string wheel, antenna binding posts and RCA Jacks / Terminals /
Connectors)
- $45.
SOLD
YAMAHA
CR-620 / CR620 PARTS / SPARES
U-Joint / Linkage, 'U-Joint' component for
plastic coupling #CB077940 of shaft to Switch / Selector for Rotary 'Record Out
Selector' or 'Input Selector' Switch / Selector (See also;
CA-1010, CR-620, CR-820, CR-1020, CR-2020)
- $20. each end or $35. for each complete joint
Jacks / Terminals / Connectors,
Headphone Jacks / Terminals / Connectors #LB300520 - $25.
ea.
Jacks / Terminals / Connectors,
RCA
Input / Output Jacks / Terminals / Connectors - $25.
/ bank of four
Jacks / Terminals / Connectors,
Speaker clips
#LA001940
- $25. ea.bank
Jacks / Terminals
/ Connectors,
AC convenience outlets
#LB200710
- $20. ea. bank
Jacks / Terminals / Connectors,
AM / FM Antenna Binding posts - $25.
complete bank
Antenna, AM 'Stick'
antenna #GE000100 w/
Bracket #AA076970 - $35. SOLD
Panel, Bottom panel
- SOLD
Feet Set -
$20. / pair. (4 avail)
Call or Email for
"SHOWN and NOT marked 'SOLD'
" part you need.
Location: PB, South, 3rd cab / pink, 3rd
drawer, Right-half -
Revised
3/15/2021
|
SORRY, NO PHOTO
(Click on above thumbnails to enlarge photos)
YAMAHA CR-840 / CR840 STEREO RECEIVER
PARTS / SPARES
YAMAHA CR-840 / CR840 PARTS / SPARES
for sale
PARTS IN
ORANGE
ARE NOT AVAILABLE AT THIS TIME
Some parts
MAY*
also fit other Yamaha CR-X40
models, such as the CR-640, CR-840, CR-1040, CR-2040 & CR-3040
as well, but you should investigate PRIOR to contacting us.
Bonnet,
Wood case cover
bonnet. Decent
condition with normal wear
- $85.
(Cases, covers and side plate / panels, etc.
do not include mounting screws as those are sold separately)
Panel, Face panel with glass.
Good condition, with only minor wear. Includes acrylic / aluminum dial
scale which is perfect. (less knobs / buttons) - $85.
YAMAHA CR-840 / CR840 PARTS / SPARES
Knobs / Caps / Buttons / Covers, Tuning knob w/ set
screw - $35.
Knobs / Caps / Buttons / Covers, Round
Bass, Treble,
Presence, Tone / Balance / Loudness knobs
- $25. ea.
Knobs / Caps /
Buttons / Covers, Volume knob.
- $30.
Knobs / Caps / Buttons / Covers, Speakers / Mode / Rec Out Selector / Input
Selector Rectangular 'Paddle' knob 'Matte finish' - $30.
ea. SOLD OUT
Knobs / Caps / Buttons / Covers,
'Power' push Switch / Selector cap - $25.
Knobs / Caps / Buttons / Covers,
'Low Filter', 'Hi
Filter', IF Mode, FM Muting, OTS, Tuner AM/FM, FM Muting 'Push' Switch / Selector caps - $12.50 ea.
YAMAHA CR-840 / CR840 PARTS / SPARES
Switch /
Selector,
'Power' Push Switch / Selector. Alps TV-5
type
w/ clamping capacitor SDV2P - $35. ea.
Switch / Selector, 'Speaker Selector' Rotary
Switch / Selector
ALPS KA50142
- $45. ea.
Switch / Selector, Push
Switch / Selector for 'Mode', 'Adaptor', 'IF Mode',
'FM Muting', 'AM / FM' - $65. for bank of 5
SOLD
Switch / Selector, Push Switch / Selector for 'Low
/ High Filters' SMK - $35. sold as a bank of 2
together
Switch / Selector, 'RECORD OUT' or 'INPUT SELECTOR' Rotary
Switch / Selector
ALPS KA500039
- $45. ea.
U-Joint / Linkage, 'U-Joint' component for
plastic coupling of shaft to Switch / Selector for Rotary 'Record Out
Selector' or 'Input Selector' Switch / Selector
- $20. each end or $35. for each complete joint
YAMAHA CR-840 / CR840 PARTS / SPARES
Potentiometer / Control pot,
Volume Pot Alps 914N
2x 50kΩ
On circuit board LC69700-5 -
$45.
Potentiometer / Controls, 'Balance' pot
193M, 'center detent' (dual) 2X 20K - $35. ea.
Potentiometer / Controls, Bass pot K81M (dual)
2X 20K -$35. ea.
Potentiometer / Controls, 'Presence' or
'Treble' pot 193M (dual) 2X 20K - $35. ea.
Potentiometer / Controls, Loudness Pot ALPS #192T dual 20k pot -
$35.
YAMAHA CR-840 /
CR840 PARTS / SPARES
Meters, ''Signal Quality' / 'FM Tuning' VU Meters-
$35.
ea.
Flywheel, Dial Shaft / Flywheel / Tuning control assembly
(knob sold separately) - $35.
Pulley / String-wheel, plastic string wheel for tuning capacitor -
$30.
Pointer, Lighted Dial Pointer (will likely need new lamp / bulb) -
$20.
Linkage, Dial pointer lamp lead linkage - $20.
Relays, DEC Relay Type MS4U 12VDC -
$30.
SOLD
YAMAHA CR-840 /
CR840 PARTS / SPARES
Circuit Boards, 'Tone Control / Pre-Amp / Power Supply
/ Protector / Main' Circuit board w/ LC-69670-1. w/ original / OEM
Transistors; 2SA1015, 2SC1815, 2SD438, 2SD734,
SS-5 / SS-5R Rectifier Diodes
(less pots & Switch / Selector,
Jacks / Terminals / Connectors, string wheel)
- $65.
Circuit Boards, 'LED' 'Power indicator' LED on Circuit
board - $20.
Circuit Boards, 'LED'
'FM status indicator' 6x LEDS on Circuit board - $25.
Circuit Boards,
Tuning Circuit board
696700-1
/
'AM', 'FM', 'EQ AMP', 'TONE
AMP',
w/ tuning capacitor. Also includes IC Chips; JRC 8423, NEC
UPC577H, Sanyo LA1240, Yamaha IG-02920, A3350 'FM
Stereo Decoder' IC, Voltage Regulator 2SD669 and original / OEM
Transistors; 2SA1015, 2SC1815, 2SC2240, 2SC461, 2SC535,
2SC2500
(does not include Phono RCA input Jacks /
Terminals / Connectors, pots,
controls or Switch / Selector. They are available separately) - $85.
Transformer, Power supply Transformer
GA-6246
- $75.
Capacitors,
Power supply filter Caps
55V / 12,000 uf - $30
ea. 1 remaining in stock
YAMAHA CR-840 / CR840 PARTS / SPARES
Jacks / Terminals / Connectors, RCA
Input / Output Jacks / Terminals / Connectors (banks of 4) for 'Tape 1', 'Tape 2' & 'Dolby FM
adapt' ' Phono / AUX'- $35. each bank
of 4
Jacks / Terminals /
Connectors, Speaker Outputs - $35. each bank
A or B
Jacks / Terminals / Connectors, Headphone Jacks / Terminals /
Connectors
- $25.
ea.
Jacks / Terminals / Connectors,
Antenna Input Jacks / Terminals / Connectors / board LC69700-2 - $30.
Jacks / Terminals / Connectors, AC Convenience
Outlets
set of 3 (minor chips) - $30. all
YAMAHA CR-840 /
CR840 PARTS / SPARES
Panel, Rear panel, less all components. Sheet metal only - $30.
Call or Email for
"SHOWN and NOT marked 'SOLD'
" part you need.
Location: PB,
West / South West Side, 4th 'Almond' cab from left, 2nd drawer.
- Revised
11/13/18
|
.JPG)
.JPG)
|
SORRY, NO PHOTO
(Click on above thumbnails to enlarge photos)
YAMAHA CR-1040 / CR1040 STEREO
RECEIVER PARTS / SPARES
for sale
Some parts
MAY*
also fit other Yamaha CR-X40
models, such as the CR-640, CR-840, CR-1040, CR-2040 & CR-3040
Knobs / Caps / Buttons / Covers, Speakers / Mode / Rec Out Selector / Input
Selector Rectangular 'Paddle' knob 'Matte finish' - $30.
ea. SOLD OUT
YAMAHA CR-1040
/ CR1040
PARTS / SPARES
Switch / Selector, 'Power' Push
Switch / Selector. Alps TV-5
type
w/ clamping capacitor SDV2P - $35. ea.
SOLD
Switch / Selector, 'Speaker Selector' Rotary Switch / Selector
ALPS KA50142
- $45. ea.
Switch / Selector,
6-Pin, 'Latching', Push
Switch / Selector for 'Mode', 'IF Mode',
'FM Muting', 'AM / FM' ("SW101-1, 2, 3, or 5" in service manual. see
also Yamaha CR-1040 & CR-2040 and possibly others) - $25. ea.
Switch / Selector, 12-Pin, Latching, Push
Switch / Selector for 'Adaptor' ("SW101-4" in service manual. see
also Yamaha CR-1040 & CR-2040 and possibly others) - $35.
Switch / Selector, Push Switch / Selector for 'Mode', 'Meters', 'Low
/ Mid-High / High Filters', 'Audio Muting' - $55. SOLD sold as a bank of 5
together
Switch / Selector, 'RECORD OUT' / 'INPUT SELECTOR' Rotary
Switch / Selector
ALPS KA500039
- $45. ea.
U-Joint / Linkage, 'U-Joint' component for
plastic coupling of shaft to Switch / Selector for Rotary 'Record Out
Selector' or 'Input Selector' Switch / Selector
- $20. each end or $35 for each complete joint
YAMAHA CR-1040
/ CR1040
PARTS / SPARES
Potentiometer / Controls, Bass pot 792M -
$35. ea.
Potentiometer / Controls, 'Presence' or
'Treble' pot 891M - $35. ea.
Potentiometer / Controls, 'Balance' pot
793M - $35. ea
Potentiometer / Controls, Volume Pot ALPS (#994B) dual 50k
pot on Circuit board LC69660-3 (see also CR-1040 & CR-2040)
- $35. SOLD
Potentiometer / Controls, Loudness Pot ALPS #893T dual 50k
pot - $35.
Flywheel, Dial Shaft / Flywheel / Tuning
control assembly (knob sold separately) - $35.
Pulley / String-wheel, plastic string wheel for tuning capacitor - $30.
Relays, DEC Relay Type MS4U 12VDC - $30.
Transformer, Power Transformer;
GA624200 / US / Canada models.
GA075040 General? Models
GA624500 N. European Models
GA624300 Australian / UK models
We don't have any of the above 'Power
Transformers' available as the version we had has already been SOLD. The
information is simply for 'Reference'.
YAMAHA CR-1040
/ CR1040
PARTS / SPARES
Circuit Boards, 'Tone Control / Pre-Amp / Tuner / Main' Circuit board
w/ LC-69660-1. LC69631-6 Circuit boards attached and tuning
capacitor attached. Contains IC chips: SANYO LA1240, Yamaha IG-02920 (Contains Phono Pre-Amp / cartridge, tuner, tone control, equalizer
sections) (less pots &
Switch / Selector, Jacks / Terminals / Connectors, string wheel)
- $65.
Circuit Boards, 'Power Supply' / 'Power Amplifier / Driver Boards' Circuit board
LC69631-1 mounted on heat sinks w/ power pack Yamaha IG-02960 &
'Pre-Driver' chip Yamaha IG-02930
(less pots & Switch / Selector, Jacks /
Terminals / Connectors, relay and
large filter capacitors) -
Original 'Sanyo' OEM units. NOT Chinese 'knock-offs' / counter-fits -
$85.
ea.
(if you do not need the heat sink, it can be omitted
& removed to reduce
packing / shipping costs) SOLD
10/28/21
Capacitors,
Power supply filter Caps
63V / 15,000 uf - $30
ea.
Jacks / Terminals / Connectors, RCA
Input / Output Jacks / Terminals / Connectors (banks of 4) for 'Tape 1', 'Tape 2' & 'Dolby FM
adapt' ' Phono / AUX'- $35. each bank
of 4
Jacks / Terminals / Connectors, Speaker Outputs - $35. each bank
A or B
Jacks / Terminals / Connectors, Headphone Jacks /
Terminals / Connectors - $25.
ea.
Jacks / Terminals / Connectors,
Antenna Input Jacks / Terminals / Connectors / board LC69660-2 - $30.
Jacks / Terminals / Connectors, AC Convenience
Outlets
set of 3 - $30. all
Panel, Rear panel, less all components. Sheet metal only - $40.
Call or Email for
"SHOWN and NOT marked 'SOLD'
" part you need.
Location: PB,
South, left 'corner' cab, gray, mid drawer.
- Revised
3/18/19
|
(Click on above thumbnails to enlarge photos)
YAMAHA CR-2020 / CR2020 STEREO
RECEIVER PARTS / SPARES
Parted out due to to many 'cosmetic issues'
(ragged case, broken and difficult to obtain and replace selector
switch)
for sale
Some parts
MAY*
also fit other Yamaha CR-X20
models, such as the CR-420, CR-620, CR-820, CR-1020, CR-2020 & CR-3020 as well, but you should
investigate PRIOR to contacting us.
Bonnet,
Wood case cover
bonnet. Good
structural
condition, corners and edges decently sharp, but scuffs on top from a
piece of gear sitting on it likely w/ no feet installed. When that is
done, the bottom plate screws of the unit will leave marks in the
veneer. - $55. due to scuffs on
top.
SOLD (Cases, covers and side plate / panels, etc.
do not include mounting screws as those are sold separately)
Panel, Face panel with glass.
Good condition, with only minor wear. Glass perfect. (less knobs / buttons) - $85.
YAMAHA CR-2020
/ CR2020 PARTS / SPARES
Most of the knobs / caps
/ buttons appear to be interchangeable between the Yamaha
CR-1020, CR-2020 & CR-2030.
Knobs / Caps / Buttons / Covers, Tuning knob
(32mm overall height x 'wide'
dimension; 16mm at bottom 1/3 and 37.5mm at top 2/3. Shaft hole is
6mm ID) ('machined / brushed' finish, NOT 'matte' finish)
#BA06968
(See also CR-1020 & CR-2020) - $55.
Knobs / Caps / Buttons / Covers, Round
Bass, Treble,
Presence, Tone / Balance / Loudness knobs
(18.6mm in diameter, NOT the 20.4mm
version)
#BA06445
(See also CR-820, CR-1020, CR-2020
& CR-3020) - $45. ea.
3 remaining in stock?
Knobs
/ Caps / Buttons / Covers, Volume knob.
(32.6mm diameter x 16.5mm height.
Shaft hole is 6mm ID) ('machined / brushed' finish with small, red
dot, NOT 'matte' finish)
#BA06969
(See also CR-1020 & CR-2020) - $55.
Knobs / Caps / Buttons / Covers, Balance 'Ring' knob.
(41.6mm diameter. Shaft hole is 7.7mm ID)
('machined / brushed' finish, NOT 'matte' finish)
#BA06970
(See also CR-1020 & CR-2020)
- $35.
Knobs / Caps / Buttons / Covers, Speakers / Mode / Rec Out Selector / Input
Selector Rectangular 'Paddle' knob.
('wide' dimension; 26.7mm at bottom and 25mm at top. 'Thin'
dimension; 10mm at bottom and 6.15mm at top)
('machined / brushed' finish, NOT 'matte' finish) #BA06970
(See also CR-1020, CR-2020 &
CR-3020 {NOT CR-820}) - $35.
ea.
Knobs / Caps / Buttons / Covers, Phono cartridge capacitance selector knob - $35.
Knobs / Caps / Buttons / Covers,
'Power' /
'Low Filter' / 'Hi
Filter'
Toggle Switch / Selector caps / 'Flippers'
#CB07978
(See also CR-1020 &
CR-2020) - $30. ea.
SOLD OUT
Knobs / Caps / Buttons / Covers,
'Turnover Frequency'
/ Dolby FM / FM Blend / FM Muting / OTS / Tuner / Audio Muting 'Push' Switch / Selector caps - $20. ea.
YAMAHA CR-2020
/ CR2020 PARTS / SPARES
Switch / Selector, 'Speaker' Selector Switch / Selector
- $45. ea.
Switch /
Selector, 'Power' toggle Switch / Selector. Alps TV-5
type
w/ clamping capacitors - $45. ea. SOLD
Switch / Selector, 'Hi / Low Filter' Toggle
Switch / Selector - $30. ea.
Switch / Selector, 'Phono
cartridge capacitance' rotary Switch / Selector - $35. ea.
Switch / Selector, 'TREBLE TURNOVER' / 'TONE CONTROL
DEFEAT' / 'BASS TURNOVER' 'PUSH' Switch / Selector
(see also CBS 18-pin Switch / Selector)
- $65. for all three on circuit board LC67151-4
Switch / Selector, 'FM Muting ON' / FM Muting Level' /
'Dolby FM adaptor' / 'OTS' / 'TUNER' / 'FM Blend' 'PUSH' Switch /
Selector
(see also CBS 12-pin Switch / Selector)
- $25. ea.
Switch
/ Selector, 'AUDIO Muting' on circuit board
LC67151-3 (see also CBS 12-pin Switch / Selector)
- $25. ea.
Switch / Selector, 'METER SELECTOR' on circuit
board LC67183-2 - $25.
Switch / Selector, 'RECORD OUT' / 'INPUT SELECTOR' /
'MODE' Rotary Switch / Selector
- $45. ea.
U-Joint / Linkage, 'U-Joint' component for
plastic coupling of shaft to Switch / Selector for Rotary 'Record Out
Selector' or 'Input Selector' Switch / Selector
- $20. each end or $35 for each complete joint
YAMAHA CR-2020
/ CR2020 PARTS / SPARES
Potentiometer / Control pot,
Volume / Balance Pot Alps 5-Gang unit.
2x 4.7Ω
& 2x 50kΩ
On circuit board LC-67151-2 / NA06896-2 - / actual
potentiometer number; #HS42017
$65. SOLD
Potentiometer / Controls, Bass / Presence / Treble (tone)
dual 50k pots - $35. ea.
Potentiometer / Controls, 'Loudness' dual 10k
pot -
$35.
YAMAHA CR-2020
/ CR2020 PARTS / SPARES
Meters, 'SP OUT' (power) / 'Signal Q' / 'FM Tuning' VU Meter
trio
- $65.
LED'S, AM/FM red LED indicators - $25 pair on circuit board LC-67212-2
Flywheel, Dial Shaft / Flywheel / Tuning
control assembly (knob sold separately) - $35.
SOLD
String-wheel, plastic string wheel for tuning capacitor - $30.
Pointer, Lighted Dial Pointer (will likely need new lamp / bulb) #CB06895
- $20.
SOLD
Linkage, Dial pointer lamp lead linkage - $20.
Relays, Relay Type HC2-P-DC12V - $35.
YAMAHA CR-2020
/ CR2020 PARTS / SPARES
Circuit Boards, 'Tone Control / Pre-Amp / Amplifier' Circuit board
w/ LC-67171-1, 2 & 3 Circuit boards attached
(less pots & Switch / Selector) - $65.
Circuit Boards, 'Power Amplifier / Driver Boards' Circuit board,
NA06884 / YE-23V???) mounted on heat sinks w/ output original / OEM Transistors (Toshiba 2SD424 & 2SB554)
and transistors; 2SA561, 2SA814, Hitachi 2SA844, 2SA872, 2SC1624,
2SC1628, 2SC734, 2SC1918, and balance of resistors, diodes, capacitors,
coils etc. - $85. ea. side
SOLD OUT
Circuit Boards,
LC-67191
'Power Supply' Circuit board (less dual, large filter capacitors) - $65.
SOLD
Circuit Boards, 'Protection' Circuit board
LC-67183-1 (relay sold separately) - $65.
SOLD
Circuit Boards,
Tuning Circuit board /
'Head Amp / Phono-Preamp
w/ tuning capacitor. Also includes IC Chips; Sanyo A3350 'FM
Stereo Decoder' IC (does not include Phono RCA input Jacks /
Terminals / Connectors or
cartridge capacitance selector Switch / Selector. They are available separately)
- $85.
SOLD
Transformer, Power supply Transformer
GA-6108
Secondary's produce; Blue-Blue 16.92VAC, Red-Red 85VAC & Red-Black
42VAC - $95.
Capacitors,
Power supply filter Caps
70V / 18,000 uf - $40.
ea.
YAMAHA CR-2020
/ CR2020 PARTS / SPARES
Jacks / Terminals /
Connectors, RCA
Input / Output Jacks / Terminals / Connectors (banks of 4) for 'Tape 1', 'Tape 2' & 'Dolby FM
adapt' - $35. each bank
of 4
Jacks / Terminals / Connectors, RCA
Input / Output Jacks / Terminals / Connectors (banks of 4) for AUX
- $35. bank of 2
Jacks / Terminals / Connectors, RCA Input
Jacks / Terminals / Connectors Phono 1 & Phono 2
- $35. bank of 4 -
SOLD
Jacks /
Terminals / Connectors, 'Pre-Out' / Main-In' RCA Input / Output
Jacks / Terminals / Connectors w/ coupler Switch / Selector - $35.
Jacks /
Terminals / Connectors, Speaker Outputs - $35. each bank
A/B/C
Jacks /
Terminals / Connectors, Headphone Jacks / Terminals / Connectors - $25.
ea.
Jacks / Terminals /
Connectors,
Antenna Input Jacks / Terminals / Connectors / board - $30.
Jacks / Terminals / Connectors, AC Convenience
Outlets
- $20. ea.
YAMAHA CR-2020
/ CR2020 PARTS / SPARES
Antenna, AM antenna
#GE00010 (See
also CR-620, CR-820, CR-1020, CR-2020 & CR-3020)
-
SOLD
Antenna, AM antenna
Swivel / Hinge Bracket - $20.
(Antenna sold separately)
Panel, Rear panel, less all components. Sheet metal only - $40.
Any rear panel Input / Output component
not
already listed - $30. ea
Feet,
Foot (leg / pad) 31mm x 14mm + felt ring. #CB07949 (see also
CR-620, CR-820, CR-1020 & CR-2020
- $15.50
ea. Five left in stock
Call or Email for
"SHOWN and NOT marked 'SOLD'
" part you need.
Location: PB,
West / South West Side, 1st / Tan cab from left, Top drawer. -
Revised
3/18/19
|
NEW LISTING 1/21/15
(Click on above thumbnails to enlarge photos)
YAMAHA M-80 / M80
STEREO POWER AMPLIFIER PARTS / SPARES
-
PARTING OUT -
Parted out due to to
broken
plastic 'structural' parts behind face-plate, broken speaker connectors,
and left channel was clipping on the 'tops' pre-maturely.
Bonnet / Case / Cover / Cabinet, Black sheet metal
(slight scratches on side)
(less bonnet attachment screws)-
$65.
SOLD
Panel,
Front / Face panel, anodized black aluminum, good condition w/ Plexiglass /
Lexan ‘Display’ window. Very minor ‘tics’ along edges
(controls, buttons, sold separately)
- $85. SOLD
Panel
/ Display,
‘Power / output level’ meters / bezel / circuit board. Integrated LED left,
range, right range display on circuit board Yamaha #LC7592-1 / GCMK-77X with
board mounted transistors: 2SA1015, 2SC1815, 2SK68A,
horizontal package Mitsubishi M5218L, 1B4B41 (rectifier), TA7318P, and IC
chips; TA6712AP and balance of capacitors, resistors.
(less
latching ‘Peak Hold’ Switch / Selector, latching ‘Range’ Switch / Selector & ‘Load’
Switch / Selector)
-
$85. SOLD W/ Switch / Selector
Panel,
‘Front / side’ black plastic face end cap / panel, left side, (right side
sold) - $25. SOLD
Knobs / Caps / Buttons / Covers,
‘Speaker’ A / B / C, black plastic buttons
(less
Switch / Selector sold
separately)
$20. ea.
Knobs / Caps /
Buttons / Covers, ‘Power’,’ Class A’ button / caps
(less
Switch / Selector sold separately)
- $30. ea.
Knobs / Caps / Buttons / Covers,
‘Peak Hold’, ‘Range’, ’Load’
(less
Switch / Selector sold separately) -
$20.
ea.
Knobs / Caps / Buttons / Covers,
‘Volume’ knobs, black plastic
(less
Switch / Selector sold separately)
- $25. ea.
YAMAHA M-80
/ M80 STEREO POWER AMPLIFIER PARTS / SPARES
Potentiometer / Control,
‘Volume’ control pots, left and right, ALPS 512F / 20KA
(less
circuit board)
- $35. ea. SOLD
OUT
Speaker
Switch / Selector / Control,
‘Speaker’, A / B / C, 3 (three) locking push Switch / Selector on circuit board
LC7590-4
(less
buttons /caps )-
$45. ea.
Switch / Selector, ‘Power’ push Switch / Selector, ALPS SDZIP / 125V / 15 amps with clamping capacitor
(less button /
cap) - $40.
SOLD
Switch / Selector, ‘Auto Class A’, ‘latching push
Switch / Selector on
circuit board #LC7590-5
(less button / cap)
- $20.
SOLD
Switch / Selector, ’Voltage Selector’ - $35.
YAMAHA M-80 / M80 STEREO POWER AMPLIFIER PARTS / SPARES
Transformer, Power supply Transformer GA6786 / 2 /JK03D / SMD (wire
colors; Orange/Yellow/Gray/Purple-Brown/White-Red/Red/Orange/Black/Orange) -
(“World” voltage version)
- $55.
Transformer,
Power supply Transformer GA6787 / 2 /JK13C / SMD (wire colors;
Red/Blue/White-White/Brown-Blue/Yellow/Blue Yellow)-
(“World” voltage version)
- $55.
Capacitors,
‘Power supply filter caps’, audio grade Nichicon, 45Volts / 47000uf - $35.
ea.
Capacitors,
‘Electrolytic capacitors’, Nichicon 100V / 1000uf
(less
circuit board)
-
$25. ea.
Relay,
Matsushita JC2aD-DC24V / AR39109 / 7A250VAC / 50128L- $35.
Relay,
DEC type MS4U, 24VDC / 451 - $30. ea.
Bridge Rectifiers,
D5FB20 / 46 (2) with heat sink
(less
circuit board sold separately) - $25. ea.
Bridge Rectifiers,
T4D4B414k2 (2)
(less
circuit board sold separately) - $20. ea.
Transistors,
‘Output’ transistors / Power amp transistors (Original
OEM / Japanese transistors. NOT Chinese!); - $25.
ea.
SanKen 2SA1169
SanKen 2SA1216
SanKen 2SC2773
SanKen 2SC2922
ALL OUTPUTS TESTED FINE 1/25/2021
Transistors,
transistors; Mitsubishi 2SC1953 - $15. ea.
YAMAHA M-80 / M80 STEREO POWER AMPLIFIER PARTS / SPARES
Circuit board,
‘Output’ circuit board Yamaha #LC7588-3 / GCMK-77X with transistors: 2SA1145,
2SA1306B, 2SC2705, 2SC3298B, Noble 0.1 Ohm resistors
and balance of board mounted resistors, capacitors
(output transistors, heat sink sold separately)
- $45. ea.
SOLD OUT
Circuit board, ‘Output’ circuit board Yamaha #LC7588-4 / GCMK-77X
with transistors: 2SA1145, 2SA1306B, 2SC2705, 2SC3298B,
Noble 0.1 Ohm resistors and balance of board mounted resistors, capacitors
(output transistors, heat sink sold separately)
- $45. ea.
SOLD
Circuit Board, ‘Main Amp’ circuit board, Yamaha #LC7590 with
Mitsubishi 2SA1127, 2SA970, Mitsubishi 2SC2634, 2SC240,
2SA1015, 2SA1352, 2SB560. 2SC3416, 5 Watt / 0.22
Ohm J Micron 51, 5 Watt / 390 Ohm J Micron, and balance of board mounted
resistors, capacitors and diodes
(less,
LARGE
100V / 1000mF capacitors, relay, heat sink and output transistors)
-$65.
SOLD
(some corrosion and 'conductive epoxy' and 'fuzzy
legged resistors' near the bases of the large electrolytic caps)
Circuit Board,
‘Power Supply’, Yamaha #LC7588 / NA08459 with balance of board mounted
capacitors, resistors, bridging rectifier diodes
(less
power supply ‘filter’ capacitors, Full-Wave bridging rectifiers sold
separately)
-
$45.
SOLD
Circuit Board,
Display with ‘Power’, ‘Protection’, ’Auto A’, Yamaha #LC7590-5 LED and
transistor: Mitsubishi 2SC2634 - $35.
Circuit Board,
‘Speaker’ / ‘Relay’ circuit board # LC7590-2, (with board mounted
capacitors, chokes, resistors
(less
relays) -
$35.
SOLD
Circuit Board,
‘Speaker’ circuit board Yamaha #LC7590-3
(less
speaker connectors / terminals)
- $25.
SOLD
Circuit Board,
‘Protection / fuse’ circuit board Yamaha # LC7588-2(less
fuses)
- $20.
Heat
Sink,
Power amp aluminum ‘heat sink’
(less
transistors, circuit board)
- $45. ea.
Fasteners / Bolts, Heat Sink mounting bolts - $8. ea.
YAMAHA M-80 / M80 STEREO POWER AMPLIFIER PARTS / SPARES
Jacks / Terminals /
Connectors,
RCA ‘Input’, on circuit board #LC7590-7 single pair 24k Gold plated - $25.
SOLD
Jacks / Terminals /
Connectors, Speaker Binding post knobs / caps (red or Black
threaded plastic caps for speaker wire) - $18. ea.
Jacks / Terminals /
Connectors, ‘Speaker’ connectors / terminals / posts
(Red
/ Black caps sold separately)
– SOLD
Jacks / Terminals /
Connectors,
‘Convenience’ AC outlet / socket - $20.
Foot / Feet,
set of
4 for $40. or $20. ea. w/ screw
Panel,
‘Rear’ sheet metal panel. black
(less input / output Jacks / Terminals
/ Connectors / connectors,
voltage selector sold separately)
- $25.
Panel, ‘Bottom’ black sheet metal, some corrosion / discoloration - $20.
Call or Email for
"SHOWN and NOT marked 'SOLD'
" part you need.
Location: PB,
South, 2nd cab from left, Pink, 4th drawer.
- Revised
11/6/2023
|
|
.JPG)
.JPG)
|
NEW ADDITION
10/1/13
(Click on above thumbnails to enlarge photos)
YAMAHA R-3 / R3 STEREO RECEIVER PARTS / SPARES
for sale
Some parts
MAY*
also fit other Yamaha "R"
models, such as the Yamaha R-3, R-5, R-7, R-9 as well, but you should
investigate PRIOR to contacting us.
for sale
- PARTING OUT -
Bonnet / Case / Cover / Cabinet, Black sheet metal case / cover -
SOLD
Panel, Front Face Plate / panel, Black aluminum w/ silk
screening,
minor edge
scratches - $35.
Knobs / Caps / Buttons / Covers, ‘Volume’ knob -
SOLD
Knobs /
Caps / Buttons / Covers,
‘Speaker’, ‘Treble’, ‘Bass’ knobs – ALL SOLD
Knobs /
Caps / Buttons / Covers.
‘Balance’ knob #abc-123 - SOLD
Knobs /
Caps / Buttons / Covers,
‘Tape monitor’, ‘Bass Extension’, ‘Speaker’ buttons / caps - $12.
Potentiometer / Control, ‘Volume’ control pot 513P 100KAX2 - $35. ea.
Potentiometer / Control, ‘Bass’, Treble, Balance’, ‘Loudness’ pots on
panel - $35. all 4
witch /
Selector, ‘Speaker
Selector’ Switch / Selector on circuit board #LC7688-4 - $30. pair
Switch /
Selector,
‘Tape Monitor’ or ‘Bass Extension’ Switch / Selector - $20. ea.
Switch /
Selector,
‘Power’ Switch / Selector SDL 1P 4A/32A 250V, on circuit board LC7688-8 with clamping
capacitor & fuse holder
- $30.
Switch /
Selector,
‘Input Selector’ Switch / Selector
ALPS KA 50208
514H - $25.
SOLD
YAMAHA R-3 /
YAMAHA R3 STEREO RECEIVER PARTS / SPARES
Transformer, Power supply Transformer #GA6880 TKP0228-169
- $45.
Capacitors, Power supply filter caps
–
SOLD
Transistors,
Output / power amp transistors (replacements?) SK 2SA1102 and / or SK
2SC2577 - $15. ea.
Heat Sink, Power amp heat sink
(less transistors) - $25.
Circuit Board,
Main “Everything” Circuit Board #LC7688-1 including Tuning section
PA00081 /
5C11251A, & Transistors; 11549F, 6034XF, 8560 E-4K, 2SA970,
2SC2240, 2SC2250, 4034XF, 2SD438, K246 Y 50, IC
Chips; Sanyo LA1235 5C5, LA1245 5C2, 5B3 LA3400, LC7030 680 4L2,
LM7000 4L5, JRC 4017, & Resistors; 0.22 Ohms etc., Bridge
Rectifier T3D5.C and balance of resistors, capacitors, diodes etc.
(relay, Switch / Selector, potentiometers, Connectors sold separately) -
$55.
Circuit Board, Switch / Selector Circuit Board #LC7688-3, integrated contact
buttons for radio presets 1-8, Memory, FM-AM, Tuning mode, Tuning - $35.
Circuit Board,
Display / Readout Circuit Board #LC7688-2, w/ Digital LED display 512D,
Green and Red LEDS, IC’s / Chips;
BA618 412
788, & Sanyo LB1274 and balance of components - $35.
Relay, Matsushita Relay JR2AD-DC24V / AJR39016 2A 125V AC, 30V DC -
$30.
YAMAHA R-3 /
YAMAHA R3 STEREO RECEIVER PARTS / SPARES
Jacks / Terminals / Connectors / Connectors, Convenience outlets, As pair - $20.
Jack, Headphone Jack - $20.
Jack /
Connector / Terminals,
RCA Input / Output connectors / Jacks / Terminals / Connectors, ‘Input’, ‘Tape’, ‘Antenna’,
‘’Ground’, ‘Speakers’, all as one entire panel - $45.
Panel,
Rear sheet metal panel
(less any
input / output Jacks / Terminals / Connectors / components)
- $25.
Panel / Plate,
Bottom plate sheet metal - $20. SOLD
AC cord,
- $20. SOLD
Feet,
- $20. set ALL SOLD
Call or Email for "SHOWN and NOT marked 'SOLD'
" part you need.
Location: PB,
West / South West Side, 3rd 'Almond' cab from left, top drawer, right
side.
- Revised
11/13/18
|
NEW
LISTING
11/10/13
(Click on above
thumbnails to enlarge photos)
YAMAHA
R-500 / R500 STEREO RECEIVER PARTS / SPARES
for sale
Some parts
MAY*
also fit other Yamaha "R"
models, such as the Yamaha R-500, R-700, R-900, R-1000 as well, but you should
investigate PRIOR to contacting us.
-
PARTING OUT -
Bonnet / Case / Cover / Cabinet, Wood, vinyl wood grain, fair
condition - $35.
SOLD
Panel, Front / Face panel / aluminum w/ dial lens /
glass / window, good condition
(less tuning scale, glass tuning cover, LED signal quality meter, LED
station lock indicator) -
$35.
Panel,
‘Tuning scale’ plastic, (with glass tuning cover, LED signal quality meter,
LED station lock
indicator) - $35.
Panel,
‘Wheel assembly’ tuning indicator support bracket #320000CB601910 - $25.
Meter, ‘Signal Quality Meter’ LED - $30.
Pointer / indicator,
Tuning ‘Dial Pointer’ #320000AA606610- $25.
Knob / Flywheel,
Tuning’ flywheel #320000NB098040- $25.
Knobs / Caps / Buttons / Covers,
‘Tuning’ knob silver #320000BA080160 – $30.
Knobs / Caps / Buttons /
Covers;
‘Volume‘, ‘Balance’, ‘Bass’, ‘Treble’, ‘Loudness’ knobs silver
#320000BA080140
(see also Yamaha R-500, R-700)
– $25. ea.
Knobs / Caps / Buttons / Covers,
‘Speakers’, Mode’. ‘Tuner’, ‘FM-AM / FM Muting’ caps – $20. ea.
Knobs / Caps / Buttons /
Covers,
‘Power’ Switch / Selector cap - $30.
Knobs / Caps / Buttons /
Covers.
‘Record Out’, ‘Input Selector’ 'paddle'
knobs, silver #320000BA079460
(see also; Yamaha A-550, A-560, R-500, R-700, R-900, R-1000 and likely
many others)
- $30. ea.
SOLD
Yamaha R-500 / R500 STEREO RECEIVER PARTS / SPARES
Potentiometer / Control,
‘Volume’ control pot
#420000Fi171470
/ 100KAX102(less
circuit board) - $35.
Potentiometer / Control,
‘Balance’ control pot
#420000HS310890
/ 250K M-N
(less circuit board) - $30.
Potentiometer / Control, ‘Bass’ control pot #420000HS311180 /
S-30KX2
(less circuit board) - $30.
SOLD
Potentiometer / Control,
‘Treble’ control pot #420000HS311340 / 20KWX2
(less circuit board)
- $30.SOLD
Potentiometer / Control,
“Loudness’ control pot #420000Fi174100 / 150KBX2
(less circuit board)- $30.
Switch / Selector,
‘REC OUT’ rotary Switch / Selector #42000KA501620 / ALPS KA50152 45 K
(less circuit board)
- $30.
Switch / Selector,
‘INPUT’ rotary Switch / Selector #420000KA151610 / ALPS KA50161 044 K
(less
circuit board)
- $30.
Switch / Selector,
‘Speaker’ push Switch / Selector #420000iF000040
(less circuit board)
- $30.
Switch / Selector,
‘Stereo / Mono’ push Switch / Selector #420000UW837100
(less circuit board)
- $25.
Switch / Selector,
‘Tuner’, ‘FM Muting / S. Lock’ push Switch / Selector #420000Fi174100
(less circuit board)
- $25.
Switch / Selector,
‘Power’ push Switch / Selector with clamping capacitor Alps TV-5 SDVIP
(less button / cap)
–
$30.
Capacitor,
‘Tuning capacitor’, 5-gang 420000PA000580 / PA00588044
(less string tuning wheel)
- $45.
Yamaha R-500 / R500 STEREO RECEIVER PARTS / SPARES
Circuit Board,
‘Main’ circuit board #NA075950 w/ transistors; 2SA999, 2SC2240,
2SC2320, Matsushita JC2aD-D24V and balance of resistors, capacitors
and diodes,
(less stereo power transistor 2STK2040, bridge rectifier T4D4B41012,
IC45600, capacitors, heat sink, control pots,
Switch / Selector, headphone jack
sold separately)
- $65.
Circuit Board,
‘Tuning’ circuit board, with transistors; 2SA999, 2SC2320,
Hitachi IC K3LA1240 Hitachi K4LA3380, Yamaha IG-03210, horizontal package IC
M5214L, BA6104, and balance of resistors, diodes and capacitors
(less control pots,
Switch / Selector, tuning capacitor, Jacks / Terminals / Connectors, plugs and terminals) - $55.
Transformer,
Power supply Transformer GA6405
- $45.
Capacitors, ‘Power supply filter caps’ Elna 8200μF 50 Volts - $25.
Transistors,
‘Output’ transistor; 2STK2040
(less heat
sink)
- $30.
Original 'Sanyo' OEM units. NOT Chinese 'knock-offs' / counter-fits
Heat Sink,
Power amp heat sink #BA080260 (less
transistors) - $25.
String Wheel,
Plastic String Tuning Wheel- $20.
Yamaha R-500 / R500 STEREO RECEIVER PARTS / SPARES
Jacks / Terminals /
Connectors,
‘Stereophones’ / headphone jack, ¼ inch
(less
circuit board)-
$25.
Jacks / Terminals /
Connectors, RCA Input / Output
connectors / Jacks / Terminals / Connectors ‘Phono’, ‘Aux’, ‘Tape 1’, ‘Tape 2’, in pairs - $30. each
pair.
Jacks / Terminals /
Connectors,
Speaker connectors / terminals, 1 bank of 2 pairs, on phenolic resin / fiber
board - $35. complete bank.
Jacks / Terminals /
Connectors, ‘Antenna’
Connectors / post / terminals includes 75 ohm input on fiber board as
set of 5 - $25.
Jacks / Terminals /
Connectors,
‘AC Convenience outlet / Socket’- $18.
Antenna,
AM ‘Stick’ / bar / rod antenna – SOLD
Antenna, AM ‘Stick’ swivel / mounting bracket - $20.
Panel,
Rear sheet metal panel (less
any input / output Jacks / Terminals / Connectors / components)
- $25.
Panel,
Bottom sheet metal - $20.
Foot / Feet, -
set of 4 - $20.
Call or Email for
"SHOWN and NOT marked 'SOLD'
" part you need.
- Location: PB, SE corner,
Upper Tan cab, Lower-Drawer -
Revised 9/24/19
|
NEW LISTING 2/13/18
NEW
LISTING
11/10/13
(Click on above
thumbnails to enlarge photos)
YAMAHA R-700 / R700 STEREO RECEIVER PARTS / SPARES
for sale
Some parts
MAY*
also fit other Yamaha "R"
models, such as the Yamaha R-500, R-700, R-900, R-1000 as well, but you should
investigate PRIOR to contacting us.
-
PARTING OUT -
Bonnet / Case / Cover / Cabinet, Wood, vinyl wood grain,
Great
condition, with bolts / fasteners / recessed, brown,
plastic grommets / washers - $55.
SOLD
Panel, Front / Face panel / aluminum w/ dial lens /
glass / window, w/ all 'push buttons' still attached.
good condition -
$55.
Panel,
Plastic bezel, w/ 'Green' lens for digital readout -
$25.
Meter / Display, 'RX MODE',
'FM STEREO', 'STATION LOCK', ‘Signal Quality Meter’ LED
LS-011, on circuit board - $30.
Knobs / Caps / Buttons / Covers;
‘Volume‘ knob, silver,
#320000BA080780 aka #320000BA080360
(see also Yamaha R-700, R-900) – $35.
Knobs / Caps / Buttons /
Covers;
‘Balance’, ‘Bass’, ‘Treble’, ‘Loudness’ knobs silver
#320000BA080140 (see also Yamaha R-500, R-700) – $25. ea.
Knobs / Caps / Buttons / Covers.
‘Record Out’, ‘Input Selector’ 'paddle'
knobs, silver #320000BA079460
(see also; Yamaha A-550, A-560, R-500, R-700, R-900, R-1000 and likely
many others) - $30. ea.
YAMAHA R-700 / R700 STEREO RECEIVER PARTS / SPARES
Potentiometer / Control,
‘Volume’ control pot,
60k Ohms,
on small circuit
board GCMK-77X - $35.
Potentiometer / Control,
‘Balance’ control pot,
10K
- $30.
Potentiometer / Control, ‘Bass’ control pot 20KX2 - $30.
Potentiometer / Control,
‘Treble’ control pot
- $30.
Potentiometer / Control,
‘Spatial Expander’ control pot
10k - $30.
Potentiometer / Control,
“Loudness’ control pot 20K
X2 - $30.
Switch / Selector,
‘REC OUT’ rotary Switch / Selector,
32-pins
- $40.
Switch / Selector,
‘INPUT’ rotary Switch / Selector, 32-pins
- $40.
Switch / Selector,
‘Speaker’ push Switches / Selectors
- $35.
pair
Switch / Selector,
‘High Filter’ push Switch / Selector
w/ nylon push rod - $25.
Switch / Selector,
‘Stereo / Mono’ push Switch / Selector, with nylon
extension rod - $25.
Switch / Selector,
‘Tuner’, ‘FM Muting’ push Switch / Selector, with nylon
extension rod - $25.
Switch / Selector,
‘Power’ push Switch / Selector with clamping / surge /
'in-rush' capacitor Noble
'Snap-switch' TV-5
(less button / cap)
–
$30.
YAMAHA R-700 / R700 STEREO RECEIVER PARTS / SPARES
Circuit Board,
‘Main’ circuit board #LC72140-1 / NAO763
w/ power supply section, power amp section, and 'pre-amp'
section, w/ transistors; 2SA999, 2SC2240,
2SC945,
2SC2320,
SK 2SC1983,
2SD613, Transformer 28P002 / GA6435, Matsushita JC2aD-D24V,
RB40 Bridge Rectifier,
(less stereo power transistor
STK1050-II,
IG 04540,
Filter capacitors, heat sink, control pots,
Relay, Switch / Selector, headphone jack
sold separately),
but with
balance of resistors, capacitors,
chokes
and diodes.
- $65.
Circuit Board,
‘Tuning’ circuit board LC7290-1 with
Tuning capacitor (digital version) PA00055 / 8139 transistors; 2SA999, 2SC2240,
2SC2320, IC Chips;
Yamaha IG-03210, Toshiba TC4069UBP,
JRC 4558DY, Sanyo LA3380
(Original
OEM units. NOT Chinese 'knock-offs' / counter-fits) horizontal package IC
M5214L, and balance of resistors, diodes and capacitors
(less control pots,
Switch / Selector, tuning capacitor, RCA Jacks / Terminals / Connectors, plugs and
Antenna posts / terminals)
- $65.
Circuit Board,
Tuner Function / Switch circuit board, LC72190-4 with 10x 'membrane /
touch' switches, LED's and diodes. - $45.
Circuit Board,
Station / tuner readout circuit board, LC72190-3 with fluorescent display
tube with IC Chips; Sanyo LC7207 and LC7258 w/ transistors; 2SC2320,
and balance of capacitors, diodes, transistors, and pc mounted 'trim' pots - $55.
Transformer,
Power supply Transformer
GA6424
- $45.
Capacitors, ‘Power supply filter caps’
10,000μF 56 Volts - $25.
Relay, Matsushita
JC2AD-24VDC / AR34229 / 7A / 250VAC / 30VDC / 1/10HP 125VAC / 250VAC - $35.
Original OEM units. NOT Chinese 'knock-offs' / counter-fits
Transistors,
‘Output’ Power Packs; STK1050-II
(less heat
sink)
- $35. ea. Original
'Sanyo' OEM units. NOT Chinese 'knock-offs' / counter-fits. Will be
re-tested prior to shipping.
Semiconductors,
Yamaha Voltage Amplifier IC packs / Chips IG 04540 / Darlington (not generic)
STK3056 packs - $55.
1 only left
Original OEM units. NOT Chinese 'knock-offs' / counter-fits
Heat Sink,
Power amp heat sink
(less
transistors) - $35.
YAMAHA R-700 / R700 STEREO RECEIVER PARTS / SPARES
Jacks / Terminals /
Connectors,
‘Stereophones’ / headphone jack, ¼ inch
(less
circuit board)-
$25.
Jacks / Terminals /
Connectors,
RCA Input / Output connectors / Jacks / Terminals / Connectors ‘Aux’, ‘Tape
1’ - $30. for the bank of 6x RCA jacks
Jacks / Terminals /
Connectors,
RCA Input / Output connectors / Jacks / Terminals / Connectors
‘Tape 2’ - $30. for the
bank of 4x RCA jacks
Jacks / Terminals /
Connectors,
RCA Input / Output connectors / Jacks / Terminals / Connectors
‘Phono’ - $35.
for the bank of 2x RCA jacks
Jacks / Terminals /
Connectors,
Speaker connectors / terminals, bank of 2 pairs, on phenolic resin / fiber
board - $35. complete bank / unit.
Jacks / Terminals /
Connectors, ‘Antenna’
Connectors / post / terminals includes 75 ohm input on fiber board as
set of 5 - $25.
Jacks / Terminals /
Connectors,
‘AC Convenience outlet / Socket’- $25. bank of 3
YAMAHA R-700 / R700 STEREO RECEIVER PARTS / SPARES
Antenna,
AM 'Loop' Antenna –
SOLD
Antenna, AM ‘Stick’ swivel / mounting bracket - $20.
Cord / Lead,
AC cord / cable / Mains Lead w/ grommet - $20.
Panel,
Rear sheet metal panel (less
any input / output Jacks / Terminals / Connectors / components)
- $25.
Panel,
Bottom sheet metal - $20.
SOLD
Foot / Feet, -
set of 4 - $20.
Call or Email for
"SHOWN and NOT marked 'SOLD'
" part you need.
Location: PB, South, Center Island, 2nd from left
cab / tan, 5th drawer, right half -
Revised
11/6/2023
|
.JPG)
.JPG)
|
YAMAHA
R-1000 R1000
STEREO RECEIVER
FM MEMORY REPLACEMENT BATTERY
for sale
If, like most Yamaha R-1000's, your stereo
receiver is having tuner problems, you likely need to change the old
battery. Besides visible leakage, battery issues will cause erratic tuning,
memory drops, signal drop outs, difficulty in finding stations or settling
on a station. These batteries originally had a useful life of approximately
7 years These units were originally marketed in 1981-83 making them over 40
years old! On the off chance your battery still has any residual charge left
in it, it is definitely "running on vapors" and will soon fail completely It
likely is already leaky, which will cause further damage to the internal
circuit boards. We have these batteries custom made for the operation of Yamaha R-1000
Stereo Receiver FM tuner circuit.
NEW
$34.99 ea.
Requires soldered in installation by a qualified
technician ONLY!
WARNING:
Electronic equipment carries dangerous and potentially lethal electrical
currents. You should never open any electronic unit without proper
knowledge of electronics and the hazards of electricity!
Any repair / restoration should be undertaken
ONLY by a QUALIFIED
ELECTRONICS TECHNICIAN!
The above
photo essay is only to illustrate the difficulty of the task, and
not in any way meant to be "do it
yourself" instructions!!!!!!
|
(Click on above thumbnails to enlarge photos)
YAMAHA R-1000 / R1000 STEREO
RECEIVER PARTS / SPARES
for sale
Some parts
MAY*
also fit other Yamaha "R"
models, such as the Yamaha R-500, R-700, R-900, R-1000 as well, but you should
investigate PRIOR to contacting us.
- PARTING OUT -
Unit works,
but the tuner sound will periodically disappear for
about a second every half hour to hour.
Power amp and power supply both strong.
YAMAHA R-1000 STEREO RECEIVER PARTS / SPARES
Bonnet / Cover / Case, Vinyl wrap, wood grain case,
clean - $55.
SOLD
(Cases, covers and side plate / panels, etc. do not include
mounting screws as those are sold separately)
Panel, Face panel with dial window less
most push
buttons (excellent condition)- $65.
Knobs / Caps / Buttons / Covers, Large Volume round knob - $35.
Knobs / Caps / Buttons / Covers, Other round knobs
(Bass, Presence, Treble, Spatial,
Balance Loudness) - $25. each
Knobs / Caps / Buttons / Covers, Paddle knobs - $30. ea.
Knobs / Caps / Buttons / Covers, Switch /
Selector caps - $12. each
Display, LED signal strength display assembly - $40.
YAMAHA R-1000 STEREO RECEIVER PARTS / SPARES
Potentiometers / controls,
Volume Pot - $45. ea.
Potentiometers / controls, Presence Pot
- $35. ea.
Potentiometers / controls, Balance Pot
- $35. ea.
Potentiometers / controls, Loudness Pots
- $35. ea.
Potentiometers / controls, Bass or Treble / Tone Pots 102N / 20k
X2
- $35. ea. 1
remaining
Potentiometers / controls,
Volume Pot, ALPS on LC72320-5 circuit board - $35. SOLD
Switch / Selector,
Any "remote" cabled Switch / Selector linkage assembly (ie: Rec Out, Phono cartridge
selector, or speaker Switch / Selector linkage) (not including the actual PC mounted
Switch / Selector - $35. ea.
Switch / Selector,
Any remotely cabled / controlled, PC mounted Switch / Selector (less cable / control
assemblies) - $35. ea.
Switch / Selector,
Momentary push Switch / Selector - $18 ea.
Relay, JC2AD / 24 Volt DC Surge / speaker / output protection Relay - $25. ea.
Transformer, Power supply Transformer (GA6460 100M008) - $65.
Capacitors, Power supply filter capacitors 80v / 12000 uF- $35.
ea.
SOLD OUT
Capacitors,
Power supply Electrolytic capacitors 50v / 6800 uF
- Radial Lead - $15.
ea.
YAMAHA R-1000 STEREO RECEIVER PARTS / SPARES
Semiconductors, Yamaha "X-Processor"
IC packs
/ Chips IG 04890 / STK-7100 power packs - $35.
SOLD
Original 'Sanyo' OEM units. NOT Chinese 'knock-offs' / counter-fits
Semiconductors,
Yamaha Voltage Amplifier IC packs / Chips IG
04870 / Darlington (not generic) STK3106 power packs - $55.
1 only left
Original 'Sanyo' OEM units. NOT Chinese 'knock-offs' / counter-fits
Circuit Board,
Power amplifier / amplifiers with Sanken 2SA-1169 AND 2SC-2773 power IC packs
/ chips and NA0758 driver boards - $45 each side complete.
Original 'Sanyo' OEM units. NOT Chinese 'knock-offs' / counter-fits
Circuit Board, Any single circuit board
(less pots, Switch / Selector, large transformers,
filter caps, outputs) - $40.
ea
Circuit Board, Power supply circuit board LC72360 with RB60
Bridge rectifiers (less electrolytic / filter caps) - $45.
Circuit Board,
Circuit board NA07668 (less power packs, relay, Jacks / Terminals /
Connectors, pots and Switch / Selector.
???
Circuit Board,
Tuner Circuit board LC-72240 with Yamaha IG-03210 IC (less Jacks / Terminals
/ Connectors, Switch / Selector &
pots) - $65.
Circuit Board,
Input selector Circuit board LC72290-2 with all Switch / Selector and LED's attached
- $55.
Circuit Board,
Station / tuner readout circuit board, LC72320-1 with fluorescent display
tube and LC7207 IC chip (no battery included) - $55.
SOLD
YAMAHA R-1000 STEREO RECEIVER PARTS / SPARES
Jacks / Terminals / Connectors,
Speaker output connectors / Jacks / Terminals / Connectors - $45 entire bank.
SOLD OUT of entire assemblies
or
'Single Rotating Speaker Connectors' avail in pairs. One Black and One
Gray - $20. per pair.
Jacks / Terminals / Connectors,
Headphone jack / Jacks / Terminals / Connectors on circuit board LC72320-6 - $35. complete.
Jacks / Terminals / Connectors,
Any rear panel single component (ie, RCA banks, Antenna
Jacks / Terminals / Connectors, etc, but not including speaker jack / output bank) - $25. ea.
AM Antenna mounting clip - $20.
Panel,
Rear panel less all components - $35
Panel,
Bottom Plate w/ feet - $25. SOLD
Call or Email for
"SHOWN and NOT marked 'SOLD'
" part you need.
Location: PB, South Wall,
Left / East End, Pink Cab, Top drawer
- Revised
11/6/2023
|
(Click on above thumbnails to enlarge photos)
YAMAHA R-1000 / R1000 STEREO
RECEIVER PARTS / SPARES
for sale
Some parts
MAY*
also fit other Yamaha "R"
models, such as the Yamaha R-500, R-700, R-900, R-1000 as well, but you should
investigate PRIOR to contacting us.
- PARTING OUT -
Unit worked great,
but
in cleaning some of the push / rotating Selector with "TechSpray" brand, "Contact
Cleaner, Third Generation", the internals of the Switch / Selector melted / froze
up. Could have fixed with our other parts unit, but too many other 'fires'
around here to tend to. Power amp and power
supply both strong.
YAMAHA R-1000 STEREO RECEIVER PARTS / SPARES
Bonnet / Cover / Case, Vinyl wrap, wood grain case,
clean - $55.
SOLD
(Cases, covers and side plate / panels, etc. do not include
mounting screws as those are sold separately)
Panel, Face panel with dial window less
most push
buttons (excellent condition)- $65.
Knobs / Caps / Buttons / Covers, Large Volume round knob - $35.
Knobs / Caps / Buttons / Covers, Other round knobs
(Bass, Presence, Treble, Spatial,
Balance Loudness) - $25. each
Knobs / Caps / Buttons / Covers, Paddle knobs - $30. ea.
Knobs / Caps / Buttons / Covers, Switch /
Selector caps - $12. each
Display, LED signal strength display assembly - $40.
Transformer, Power supply Transformer (GA6460 100M008) - $65.
YAMAHA R-1000 STEREO RECEIVER PARTS / SPARES
Potentiometers / controls,
Volume Pot - $45. ea.
Potentiometers / controls, Presence Pot
- $35. ea.
Potentiometers / controls, Balance Pot
- $35. ea.
Potentiometers / controls, Loudness Pots
- $35. ea.
Potentiometers / controls, Bass or Treble / Tone Pots
102N / 20k X2
- $35. ea.
SOLD
Potentiometers / controls,
Volume Pot, ALPS on LC72320-5 circuit board - $35. SOLD
Switch / Selector,
Any "remote" cabled Switch / Selector linkage assembly (ie: Rec Out, Phono cartridge
selector, or speaker Switch / Selector linkage) (not including the actual PC mounted
Switch / Selector - $35. ea.
Switch / Selector,
Any remotely cabled / controlled, PC mounted Switch / Selector (less cable / control
assemblies) - $35. ea.
Switch / Selector,
Momentary push Switch / Selector - $18 ea.
Relay, JC2AD / 24 Volt DC Surge / speaker / output protection Relay - $25 ea.
Capacitors, Power supply filter capacitors 80v / 12000 uF- $35
ea.
SOLD OUT
Capacitors,
Power supply Electrolytic capacitors 50v / 6800 uF
- Radial Lead - $15
ea.
YAMAHA R-1000 STEREO RECEIVER PARTS / SPARES
Semiconductors, Yamaha "X-Processor"
IC packs
/ Chips IG 04890 / STK-7100 power packs - $35.
SOLD
Original 'Sanyo' OEM units. NOT Chinese 'knock-offs' / counter-fits
Semiconductors,
Yamaha Voltage Amplifier IC packs / Chips IG
04870 / STK-3106 power packs - $35.
SOLD
Original 'Sanyo' OEM units. NOT Chinese 'knock-offs' / counter-fits
Circuit Board,
Power amplifier / amplifiers with Sanken 2SA-1169 AND 2SC-2773 power IC packs
/ chips and NA0758 driver boards - $45. each side complete.
Original 'Sanyo' OEM units. NOT Chinese 'knock-offs' / counter-fits
Circuit Board, Any single circuit board
(less pots, Switch / Selector, large transformers,
filter caps, outputs) - $40.
ea.
Circuit Board, Power supply circuit board LC72360 with RB60
Bridge rectifiers (less electrolytic / filter caps) - $45.
Circuit Board,
Circuit board NA07668 (less power packs, relay, Jacks / Terminals /
Connectors, pots and Switch / Selector.
???
Circuit Board,
Tuner Circuit board LC-72240 with Yamaha IG-03210 IC (less Jacks / Terminals
/ Connectors, Switch / Selector &
pots) - $65.
Circuit Board,
Input selector Circuit board LC72290-2 with all Switch / Selector and LED's attached
- $55.
Circuit Board,
Station / tuner readout circuit board, LC72320-1 with fluorescent display
tube and LC7207 IC chip (no battery included) - $55. SOLD
YAMAHA R-1000 STEREO RECEIVER PARTS / SPARES
Jacks / Terminals / Connectors,
Speaker output connectors / Jacks / Terminals / Connectors - $45. entire bank.
SOLD OUT of entire assemblies
or
'Single Rotating Speaker Connectors' avail in pairs. One Black and One
Gray - $20. per pair.
Jacks / Terminals / Connectors,
Headphone jack / Jacks / Terminals / Connectors on circuit board LC72320-6 - $35 complete.
Jacks / Terminals / Connectors,
Any rear panel single component (ie, RCA banks, Antenna
Jacks / Terminals / Connectors, etc, but not including speaker jack / output bank) - $25. ea.
AM Antenna mounting clip - $20.
Panel,
Rear panel less all components - $35.
Panel,
Bottom Plate w/ feet - $25. SOLD
Call or Email for
"SHOWN and NOT marked 'SOLD'
" part you need.
- Revised
11/6/2023
|
(Click on above thumbnails to enlarge photos)
YAMAHA
CD-X2
CD PLAYER
for sale
Great looking, Lights up and loads a CD but won't play. We don't have a
schematic or the time to repair. Selling
AS-IS.
SOLD
|
(Click on above thumbnails to enlarge photos)
YAMAHA RX-V690 / RXV690 SURROUND
SOUND / HOME THEATER STEREO RECEIVER PARTS / SPARES
for sale
Some parts
MAY*
also fit other Yamaha 'RX-V'
series, but we have no definitive info on which models so do your research.
Panel,
Face panel w/
display window. Decent cond with light, 1" scratch near bottom edge, between
'Speaker selector' and 'Tone Bypass' (less knobs / buttons) - $55.
YAMAHA RX-V690 / RXV690 STEREO RECEIVER PARTS / SPARES
Knobs / Caps / Buttons / Covers, Round
Bass, Treble, Tone,
Balance knobs - $25.
ea.
Knobs / Caps /
Buttons / Covers, Volume knob.
- SOLD with below listed
volume potentiometer on circuit board.
Knobs / Caps / Buttons / Covers,
'Speakers', 'Tone
Bypass',
caps - $12.50 ea
Switch /
Selector, 'Speaker Selector'
'push' Switch / Selector
- $25. bank of 2
Switch / Selector, 'TONE-BYPASS' 'Latched
Push' Switch / Selector
SW301
- $25.
Potentiometer / Control pot,
Motorized Volume Pot
w/ LED, #?13M-100KAX5L25 Alps
On circuit board
XQ251-2 /CMKM-P3X w/ IC chips LC7535 and DIP's C4570HA
WITH Volume knob included
-
$55.
SOLD
Potentiometer / Controls, 'Balance' pot
VR303 / 622M, 'center detent' 100K - $25.
Potentiometer / Controls, Bass pot VR301 / 632M 20K - $25.
ea.
Potentiometer / Controls, 'Treble' pot VR302
/ 613M 25K - $25. ea.
YAMAHA RX-V690 / RXV690 STEREO RECEIVER PARTS / SPARES
Relays, OMRON Relay Type G5P-1 /
12VDC / 5A/250VAC/30VDC,
2826W4 (schematic part number RY503) - $35.
Relays, DEC Relay Type DH2TU /
24VDC / 3A / 120VAC
(schematic part number RY501) - $35.
YAMAHA RX-V690 / RXV690 STEREO RECEIVER PARTS / SPARES
Circuit Board, 'Tone Control' Circuit board
On circuit board
XQ251-5 /CMKM-P3X w/ IC chips / DIP's C4570HA (less controls, pots, Switch / Selector)
-
$35.
Circuit Board, Main Front Panel circuit board
XQ252
/CMKM-P3X / VS941w/ IC chips / DIP's C4570HA (with 'tact' / momentary push Switch / Selector,
fluorescent display and LSIC XQ329BO / 6433723DO6F ) (plastic button over
lay / front panel sold separately)
-
$65.
Circuit Board, Main 'Audio / DSP' circuit board
XQ251 /
CMKM-P3X / VS94180 w/ IC, and LSIC chips / DIP's; BU2090, C4570HA,
LC78213,
Toshiba TC51832ASPL-10, TC9273N-004, and Yamaha YSS223-K and voltage
regulator AN78N05 (RCA I/O Jacks / Terminals / Connectors sold separately)
-
$65.
Circuit Board, 'Power Amplifier / Driver' circuit board
XQ049-4 /
CMKM-P3X / VS710
original / OEM Transistors A1708, 2SC2240, 2SD1915, bridge rectifier D3SBA20,
Elna capacitors 35V /
3300uf
/ & 2200uf, 0.1 Ohm resistors, and more
(Output original / OEM Transistors sold separately)
-
$65.
Circuit Board, 'Headphone / Speaker Selector' Circuit board
XQ049-3 /CMKM-P3X (headphone jack and speaker selector Switch / Selector sold
separately)
-
$25.
Circuit Board,
Tuning Circuit board
XN593 / VR34
/
'AM / FM'.
Includes antenna Jacks / Terminals / Connectors / ports. IC Chips; LA3401, LA1266, LM7000M,
original / OEM Transistors 2SC1815, 2SC535 - $45.
Circuit Board, 'Primary power supply' Circuit board
XQ049-1 /CMKM-P3X w/ dual emitter resistors S1NB bridge rectifier
original / OEM Transistors 3330, 2SA893, 2SA970, 2SA1358, 2SC1890, 2SC2229,
2SC3421, 2SD1915, Bridge rectifier D5SB, and more
(filter capacitors sold separately)
-
$65.
Circuit Board, 'Relay' Circuit board
XQ049-2 /CMKM-P3X w/
original / OEM Transistors 2SA1015, 2SC2240, 2SD400, and more
(DEC relay sold separately)
-
$35.
YAMAHA RX-V690 / RXV690 STEREO RECEIVER PARTS / SPARES
Transformer / Circuit Boards, 'secondary power supply' Circuit board
/ transformer XC083 / TKP0198-31
(schematic part number T501)
On circuit board
XQ049-6 /CMKM-P3X w/ S1NB bridge rectifier
(AC
Convenience Jacks / Terminals / Connectors and Relay sold separately)
-
$45.
SOLD 6/22/2020
Transformer, Power supply Transformer
XQ253 / TKP0279-58 / A-1K / BB98009KC w/ fuse-circuit
board (circuit board will need to be removed for shipment)
- $75.
Capacitors, Power supply filter Caps
63V / 10,000uf (ELNA 'For Audio' Audio Grade
capacitors) - $30
ea.
Transistors / Outputs, SK 2SA1726, 2SC4512, SK
2SC4495, (likely non-original) - $15. ea.
Transistors / Outputs, SK
2SC3856, SK 2SA1492, 2SA1695, 2SC3856, 2SC4468
(likely non-original) - $18. ea.
YAMAHA RX-V690 / RXV690 STEREO RECEIVER PARTS / SPARES
Jacks / Terminals / Connectors,
Front mounted 'Video / AUX', RCA / 'S-Video'
Input / Output Jacks / Terminals / Connectors (banks of 3)on circuit board XQ251-4 w/ plastic
bezel - $35.
Jacks / Terminals / Connectors,
'Video', Yellow RCA / 'S-Video'
Input / Output Jacks / Terminals / Connectors (bank of 9)on circuit board XQ251-3
- $45.
Jacks / Terminals / Connectors, RCA
Input / Output Jacks / Terminals / Connectors (banks of 4) for 'Phono', 'CD', 'Tape 1', 'LD/TV',
'VCR-1', VCR-1' - $25. each bank
of 4
Jacks / Terminals /
Connectors, Main Speaker Outputs (binding posts) - $45.
both A & B banks together
Jacks / Terminals /
Connectors, Headphone Jack - $25.
ea.
Jacks / Terminals / Connectors, AC Convenience
Outlets
set of 2 - $20.
Panel, Rear panel, less all components. Sheet metal only - $30.
Panel, Feet / Foot set / pods (with screws) - $18. ea. or - $30.
set of 4
Power cord / cable / mains lead, Original AC cord (plugs into circuit
board) - $20.
Call or Email for
"SHOWN and NOT marked 'SOLD'
" part you need.
Location:
PB, SW group, 2nd cab from center, Black, top drawer, right half. -
Revised 3/18/19
|
|
|
NEW LISTING 1/21/15
YAMAHA K-30 / K30 DUAL / DOUBLE CASSETTE TAPE DECK / RECORDER PARTS / SPARES
Deck was parted out due to numerous issues
Panel,
‘Front / Face panel’, Sheet metal –SOLD
Panel,
‘Bay door’, Plastic ‘Deck A’ - $25.
Panel,
‘Bay door’, Plastic, ‘Deck B’ – SOLD
Tape
counter - SOLD
Knobs / Caps / Buttons / Covers, ‘Power’ cap - SOLD
Knobs / Caps / Buttons / Covers, ‘DOLBY’, ‘Record’ level caps - $20.
ea.
Knobs / Caps / Buttons / Covers, ‘Forward’, ‘Reverse’, ‘Play’ / ‘Stop’,
‘Record’, ‘Mute’, ‘Search’ caps - SOLD
Switch / Selector,
‘Power’ push Switch / Selector - SOLD
Switch / Selector,
‘Dolby’ control Switch / Selector (less
cap)
- $25.
Switch / Selector,
‘Power’ Switch / Selector SOLD
Switch / Selector,
‘Deck selector’ - SOLD
Potentiometer / Control,
‘Record level’, Right / Left - $30. ea.
YAMAHA K-30 / K30
CASSETTE TAPE DECK PARTS /
SPARES
Circuit Board, ‘Main’ Circuit Board #NA09033, Includes
transistors; 2SA934, 2SA970, 2SA1310, 2SC1312,
2SC2060, 2SC3312, Mitsubishi 2SD1302, Horizontal
package Mitsubishi AN6551, BA6229, LA3161, LCBU4001B,
LC7800, LM64020, Mitsubishi AN90B20, TEA0665,
with the balance of resistors, capacitors and mounted potentiometers, (less
DOLBY and Recording level pots)
- $60.
Circuit Board, ‘Switch / Selector’ PCB / ‘Display’ XA746-2, includes 16
Green and Red LED’s, ‘momentary’ push Switch / Selector, transistors; Horizontal
package LC BA6124- $40.
Circuit Board, ‘Power’ XA856-NA090, with voltage regulators; Mitsubishi 2SD1273
, 2SAN791, fuse holders (2), and balance of resistors and
capacitors,
(less power supply) -
$40.
Power supply, XA775 TKP0205-A42 - $40.
Heads, - SOLD
Transport - SOLD
Transformer, Power transformer SOLD
Jacks / Terminals /
Connectors, RCA ‘Line in / Line out’ connectors / Jacks /
Terminals / Connectors
(separate from PCB)
- $ 25.
Jacks / Terminals /
Connectors, ‘Microphone’ ¼ inch jack -
SOLD
Jacks / Terminals /
Connectors, ‘Headphones’ ¼ inch jack -
SOLD
Panel, ‘Rear / sides / bottom’ with feet, sheet metal,
sold as unit - $SOLD
Panel, ‘Rear’, sheet metal.
(less
connectors, outlets)
- $20.
Call or Email for
"SHOWN and NOT marked 'SOLD'
" part you need.
Location: Brown Advance cab, Drawer 3, Position left
1 -
Revised 3/18/19
|
|
|
Unless specifically noted, we do not typically sell 'component level' parts
such as resistors, diodes, Transistors, semiconductors, ic's / integrated
circuit chips, ceramic capacitors, led's, bulbs, lamps, belts, etc. We do
commonly sell circuit boards / cards which will likely come with those parts
attached.
|
MAY*
*When we say "some parts "MAY" also
fit", that does NOT mean ALL the parts listed 'WILL' fit, and unless we show
specific info that a particular part DOES 'cross-pollinate', do not infer
that it does or will fit. Only careful research and comparisons, on YOUR
part with service
manuals, service bulletins, other comparable units, etc., MAY indicate a POSSIBLE substitution. If your situation is
'critical', do not base your decision on information found on this or any
other page of this web site and do your own research.
|
.JPG)
.JPG)
