(Click on above thumbnails to enlarge photos)
TEAC
X-7R / X7 / X7R
Reel-Reel Deck
PARTS /
SPARES
for sale
Some parts
MAY*
also fit;
TEAC 22-2, 22-4, 30-4, 32-2B, 388, 3030, 40-4, Early Model 44, TEAC A-1230,
A-1250, A-1400, A-2100, A-2300, A-2300S, A-2300SR, A-2300SX, A-2340,
A-2340SX, A-2420, A-2500, A-2520, A-3300, A-3300S, A-3300SX, A-3340,
A-3340S, A-3440, A-4300, A-4300SX, A-6100, A-6100MK2, A-6300, A-6300MK2,
TEAC X-10, X-10M, X-10MK2, X-10R, X-10RMK2, X-1000, X-1000M, X-1000R, X-20R,
X-2000, X-2000M, X-2000R, X-3, X-7R, X-7RMK2 & X-700R)

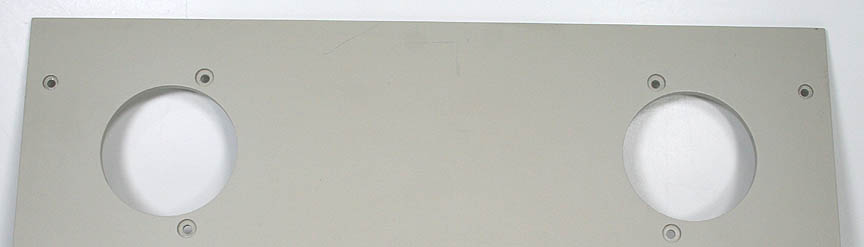

Panel
/ Front Cover,
Main

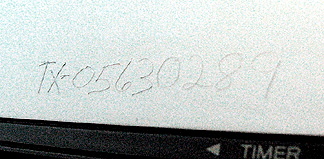

Face Plate – Has ID number, lightly etched above tape counter, but otherwise clean
- $75.

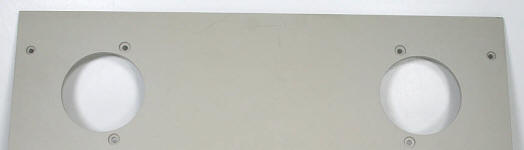

Panel
/ Front Cover,
Main
Face Plate – Has light scuffs / striations near top, center, but otherwise clean
- $75.
Teac X-7 & X-7mkII Mark II
PARTS / SPARES
Knobs / Caps /
Buttons / Covers, Power switch
cap #5534702000 - $20.
ea.
2 in stock
Knobs
/ Caps / Buttons / Covers,
Mic / Line / Output
knobs (concentric / ganged) - $35 ea. ganged pair
Knobs
/ Caps / Buttons / Covers, Auto
Reverse knob - $25 ea.
Knobs
/ Caps / Buttons / Covers, Pitch Control or Auto-Reverse Selector Knob - $20.
ea.
Knobs
/ Caps / Buttons / Covers, Speed Rec.
Mode, Bias, EQ or Monitor rectangular cap - $15.
ea.
8-10 in stock, some with extensions
Potentiometers, Mic
(10k x 2) / Line
Pots (10k x 2) / controls - $30.
ea.
4 in stock
Potentiometers,
Output
Pots / controls (100k x 2) - $30.
ea.
2 in stock
Potentiometers,
Pitch Control pot on pcb-101 / 51679380
- $30. ea.
2 in stock
Switches / Selectors, Power
Push switch #5134036000 - $30.
ea.
2
in stock
Switches / Selectors,
Speed
Push switch on pc board - $30.
ea.
2
in stock
Switches / Selectors,
Push switches
(Rec. Mode or 'Monitor) $30.
ea.
2 in stock
Switches / Selectors,
Push switches
(Bias, EQ) $30.
ea.
4 in stock
Switches / Selectors,
Auto Reverse Selector switch
on pcb-128 / 5169280
- $30. ea.
2 in stock
Switches / Selectors,
Timer switches on pcb-103 / 51679260 - $35.
pair on pcb board
Switches / Selectors,
Transport
Selector / Escutcheon assembly w/
buttons & switchs
(Rew, Rev, Stop, Forward, FF, Pause, Rec Mute & Record switch assembly)
(see also X-7R, X-10, X-10R and possibly others)
- $65.
2 in stock
Reel Table, Hub spindles
#5504744000 (Reel Table
Base
assembly with spindle tips)
(Reel Table assembly with spindle tips)
(117mm in diameter / ~28mm center to center on the screw / bolt holes)
(See Also; Teac
X-7, X-7R, X-700 / X-700R, X-10R,
X-1000 also fit the Teac X-2000. They are the same part both for
fit and cosmetics) May also fit other models.
-
$125. ea.
Teac X-7 & X-7mkII Mark II
PARTS / SPARES
Roller, Teac Rubber Pinch roller / pinch wheel /
tire #553469100 (good used, less screw and hubcap)
(Our records show this Teac rubber pinch roller also fits; TEAC 22-2, 22-4,
30-4, 32-2B, 388, 3030, 40-4, Early Model 44, TEAC A-1230, A-1250, A-1400,
A-2100, A-2300, A-2300S, A-2300SR, A-2300SX, A-2340, A-2340SX, A-2420,
A-2500, A-2520, A-3300, A-3300S, A-3300SX, A-3340, A-3340S, A-3440, A-4300,
A-4300SX, A-6100, A-6100MK2, A-6300, A-6300MK2, TEAC X-10, X-10M, X-10MK2,
X-10R, X-10RMK2, X-1000, X-1000M, X-1000R, X-20R, X-2000, X-2000M, X-2000R,
X-3, X-7R, X-7RMK2 & X-700R)
- $65.
ea.
3-4 in stock. Cleaned and reconditioned prior to
shipment.
Cover,
Teac
Rubber Pinch Roller
Cover / 'hub cap'
w/ screw
#5545014000
(should fit
many of the same decks shown above in the 'Pinch Roller' fit list) -
$25. ea.
2 in stock

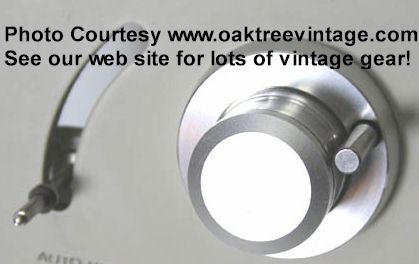

Rollers, 'LARGE' Left Tape Tension
Arm Roller assembly 'A' / 'Auto Reverse' detecting roller
w/ conductive spring #5504740002 (idler wheels / Rollers)
(see also X-7R & X-10R and possibly others)
(rollers are different than
X-1000. Caps are the same) - $45. w/ good spring.
SOLD $30.
w/ 'mangled' conductive spring remaining in stock.

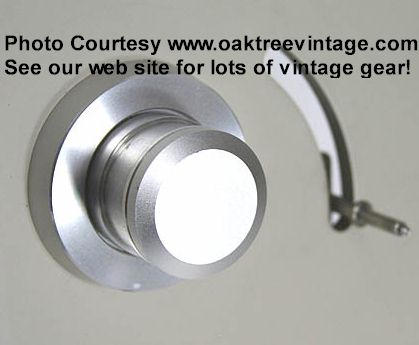

Rollers,
'LARGE'
Right Tape Tension
Arm Roller
assembly 'B' roller #5504743002 (idler wheels / Rollers)
(see also X-7R & X-10R and possibly others)
(rollers are different than
X-1000. Caps are the same)
- $45.
ea.
Caps / Covers, Tape Tension
Arm Roller Cap / Hub Cap
#5545037000 (See also X-7, X-7R, X-700, X-700R,
X-1000, X-1000R) - $35. ea.
Cap ONLY
2 in stock
Arms, Tape Tension
Arm assemblies 'Left / Supply side'
-
the parts
'BEHIND' the face plate
(less idler wheels,
rollers and caps) - $35. ea.
Arms, Tape Tension
Arm assemblies 'Right / Take-Up side'
-
the parts
'BEHIND' the face plate
(less idler wheels,
rollers and caps) - $35. ea.
Rollers, Tension Roller / axle / bushing / bearing;
#5504718100 & including
'Cap'; (#5800349000)
(version; 'apron' is
separate from axle and bearing is affixed to apron on this style)
(also fits X-7, X-7R, X-10R, X-20R)
- $75. ea. SOLD OUT
We DO NOT currently have any of the style of
bearing assembly where the 'apron' and 'bearing' are separate.
However, we have installed the
'X-10R' style (Tape Tension
Arm idler wheels / Rollers / bearings / axle; #5504718100
&
cap;
#5545009000)
on an 'X-700R' / 'X-1000R' w/
no issues.
Cap / Cover, Tension Roller CAP / hub cap #5545009000
CAP ONLY (also fits X-7, X-7R, X-10R,
X-20R, 32-2B and maybe others) - $35. ea.
SORRY, NOW SOLD OUT
Teac X-7 & X-7mkII Mark II
PARTS / SPARES
Counter, Tape Counter
#5504724000 - $35.
2 in stock
Panel / Front Cover / Bezel, Plastic Head bezel / head base plate
#5532061000 (fits X-7R, X-10R and likely others) - $25.
2 in stock
Panel, Head Housing /
Cover
Plate / Panel #5800285200 -
$45.
(minor finish wear above the 'C' in 'TEAC')
Meters, Analog VU level meters
#5296001500
(see also X-7R & X-10R and possibly others)
- $45.
ea.
4 in stock
HEADS
Play
Head
/ Head-Stack / Headstack
#53783007
- $65. 2
remaining in stock
or
Play
Head
/ Head-Stack / Headstack
#55692031
- $65. 1
remaining in stock
Record
Head
/ Head-Stack / Headstack
#53783006 (record head fits X-7R & X-1000R and
possibly others) - $65.
2
remaining in stock
or
Record
Head
/ Head-Stack / Headstack
#55692020 (record head fits X-7R & X-1000R and
possibly others) - $65.
2
remaining in stock
Erase
Head / Head-Stack / Headstack
#53783008 (Erase
head fits X-7R & X-1000R and possibly others) -
$65.
1
remaining in stock
or
Erase
Head / Head-Stack / Headstack
#55692090 (Erase
head fits X-7R & X-1000R and possibly others) -
$65.
2
remaining in stock
Teac X-7 & X-7mkII Mark II
PARTS / SPARES
Circuit
Board, Control Circuit PCB-116 #5200004803,
Not including Relays
(w/ chips; Hitachi HD7402P, HD7400P, Mitsubishi AN6251, JRC 2901N,
Transistors; C1061, 2SD313,
2SB507, JRC 78MO5, and bridge rectifier M4C51 / 7117
and all other 'component level' parts)
- $65.
2 in stock
Transistors / Voltage Regulators;
2SD313,
2SB507
& 78M05 (keeping for ourselves as they're too cheap to bother with
selling - Location; general semiconductor drawers)
Circuit Board, Record / Play Circuit PCB-109 with
linear 'Record' switches and micro pot. Also with chips; Hitachi HA11122W
and all other 'component level' parts
(less
'external control' pots,
'push' switches, oscillation
unit & jacks) - $65.
2 in stock
Circuit Board,
‘Speed / Pitch Control / Capstan Servo PCB’
Circuit #51678860
w/ M8416 / LN2903N or LN2903P chip, Transistors; 2SA1015,
2SC162, D880 regulator and balance of capacitors, diodes,
resistors, and pc mounted trim pots
(see also maybe TEAC 40-4 {when equipped with optional speed / pitch
control kit} TEAC X-7, X-7R, X-700, X-700R, X-1000, X-1000R,
X-2000R, Tascam 32-2B, as well
as Pioneer RT-901 / RT-909 and likely many other TEAC / Tascams)
- $65. SOLD
Circuit Board, Misc
Internal circuit boards - $45.
ea.(unless individually priced elsewhere in this menu
(less pots, switches, large transformers, outputs)
OSC UNIT 100KHZ 50400900
- $45.
2 in stock
Motor, Capstan /
Main DC Motor TEAC EM1446 / 7105018000 / 5018003
(see also
TEAC / Tascam 3440, & Most TEAC X SERIES, X-10R, X-20R, X-700, X-7R, X-7MKII, X-1000R,
X-2000R) (we have information that the Teac EM1446 / 'X-series' motor is the
same as a Pioneer RT-909, but may need it's polarity reversed when
connected. Just FYI.)
- $249.
SOLD OUT
Pulley, Drive Pulley / Main Capstan Belt Drive Pulley (aluminum w/
two set screws) (20.70mm at surface 'crown', 25.6mm
height, 4mm center hole)
(may also
fit TEAC / Tascam 3440,
& Most TEAC X SERIES, X-10R, X-20R, X-700, X-7R, X-7MKII,
X-1000R, X-2000R) - $30.
SOLD
Motor,
Hub / reel
/ Fast
Wind Fast Forward / Rewind motor motors right Part
#
EM1448
(Will
also fit X-7, X-7R, X-700R, Teac-X-1000
and possibly others) - $95. ea.
4 in stock
Transformer,
Power Transformer
#51522250
(NORTH AMERICAN VOLTAGE ONLY 120V/60HZ) (see also X-7R & X-10R and possibly others) - $95.
Transformer,
Power Transformer
"World Power" / Multi-voltage
w/ Voltage Selector
#51522260
(see also X-7R & X-10R and possibly others)
- $95.
Relays, OMRON G2U1-113P / C9409 - $30. ea.
4 in stock
Teac X-7 & X-7mkII Mark II
PARTS / SPARES
Solenoid,
Any internal
Solenoid
#51630450 / RL-1660 /
#51630440 / RL-1661 / #51630410
/ RL-1657
/ #51630430 / RL-1659
- $35. ea.
Brakes,
Hub Tension
brakes / brake bands - $30.
ea.
4 in stock
Capstan
Flywheel - $35. ea. 4 in stock
Jacks, RCA Input / Output Panel / section - $25.
2 in stock
Jacks,
Multi-pin Input / Output Panel / section
on PCB-109 - $35.
2 in stock
Jacks, Microphone jacks - $20.
ea.4 in stock
Jacks, Headphone jacks - $20.
ea.2 in stock
Panel, Rear metal panel - $25.
2 in stock
Feet,
Feet / Skids #5533190000
(see also X-7R & X-10R and possibly others)
- $35.
ea.
2 in stock
Springs, Any Single
Internal Spring - $20. ea.
Call or Email for
"SHOWN and NOT marked 'SOLD'
" part you need.
Location: PB, SW group,
5th cab
from center, Black, 3rd & 4th drawers. -
Revised
9/24/19
