| MOST
OF THE PARTS LISTED BELOW ARE FROM SALVAGE UNITS. |
*Note
about parts / spares sales
* Our "parts units", parts / spares
and related reference information are primarily archived for the purpose of
restoration / repair of "Oak Tree Vintage" units first. Only if we do not have a
"viable" unit in yet, either already in process or in line to be processed, that
may potentially need parts from a "parts unit", will we release available parts
for sale (even though they may appear as available for sale to the public). As
many of you know, the restoration of a unit can be a long, time consuming
process. We may "lock up" parts that we may potentially need in the restoration
of a unit (and not necessarily get it marked 'Hold' or 'Sold' on the site
right away). Parts are priced according to the "potential value" of the unit
they can be applicable to (meaning the amount WE would be willing to pay for
the part if that was all that was standing between us having a "shelved unit" or
a valuable / sellable unit), time to extract, their rarity & their condition
to name a few criteria and likely will be completely unrelated to the original
cost / price of a part when it was currently available from the manufacturer.
Parts Photos; We get a number of requests for 'photos' of a
specific part. Unfortunately, in most cases that is not practical as the amount
of time involved in posting that exceeds the value of the 'unique' part. We will
sometimes post photos of less 'unique' parts, if there is a greater chance of
them being available in multiple quantities, or on a more 'repeat' basis.
Parts, general condition / circuit board condition; Most of
our parts are from 'salvage / donor' units. While we don't sell parts that
are 'known' to be bad, occasionally parts will need further adjustment,
cleaning, 'tweaking', or in the case of circuit boards, may need old,
conductive glue / epoxy further cleaned, and some 'common' parts /
components such as, aging / leaky capacitors, parts whose values have
drifted, and some epoxy transistors may need to be replaced due to 'green / black / furry' legs, or because those

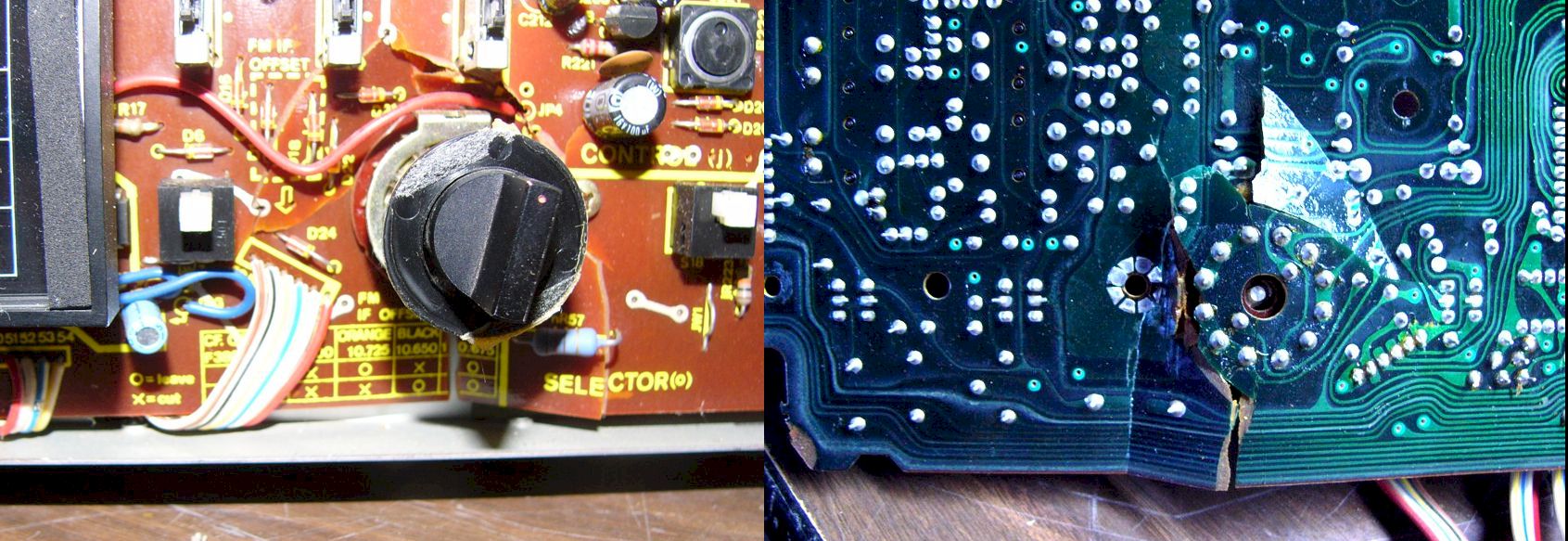

parts were marked as 'sold separately'. Some circuit boards may have 'tired'
"landing / solder pads", or severed traces, or cold / bad solder
joints which may require solder re-flow or 'jumpers'. Unless noted, circuit
boards will be 'crack / split / break' free.
Parts pricing; Most of our parts price / value will be based
on a few things. Firstly, we are in the restoration / refurb business, so we
consider what we would be willing to pay for the part if we needed it (which
again, is what the parts are listed for in the first place, "our units").
Secondly, the rarity / value of the unit the part(s) fit. The 'Tuning Knob'
for a receiver that has a final value of $350 will likely be much less than
the "Tuning Knob" for a unit with a final value of $1500 or more (a set of
tires for a typical sedan will be $400 to $600. A set for a Lamborghini can
be $16,000). Thirdly, the 'rarity' of the part. Forth, the 'condition' of
the part. Fifth, the difficulty to extract the part, or success rate for
extracting certain parts. Sixth; frankly it's a LOT of work and time to part
out a unit. Most take 1 to 3 days of shop time to process. Not only the
disassembly, but the 4-15 hours of pre-testing / servicing and just as time
consuming can be the amount of time it takes to do all of the research we do
and the info we list on many parts for cross-referrencing to other units
that my use the same parts by scouring service manuals. On many circuit
boards we will list every 'semi-conductor' which is also very time
consuming. Lastly, every call or email for a part can require 20 minutes to
sometimes over an hour of 'phone support', often (about 70% of the time)
with me convincing the potential purchaser that they don't need the part I
have to solve their problem.
Sorry to sound like a "whiner" about selling
parts, but "time is money".
Shipping: Shipping on most 'small' parts if typically via Postal
first class or Postal Priority for both domestic (USA) and international orders.
Larger parts such as transformers and drivers (speakers) are typically via FedEx
gnd.
Some parts sales such as those for empty 'speaker cabinets', empty 'component
cabinets / covers / bonnets' and 'speaker grills' and most are 'doomed'
from the start. Due to their size and required packing supplies, the cost of
'packing for safe transit' and shipping are commonly 'disproportionate' to their
cost, typically nearly equal to and
sometimes greater than the cost of the part. Think about it. An empty
speaker cabinet or stereo receiver case is essentially the same size as a
complete one. Yes the weight will be less, but most of items that size are
calculated on 'dimensional weight', not actual weight so are commonly just as
expensive as shipping a 'complete unit'. Secondly empty component
cabinets have to be packed to disallow breakage, typically requiring nearly as
much packing materials as an entire unit. Speaker grills have to be 'sandwiched'
between foam sheets in large, custom ordered boxes (all relatively expensive).
It is what it is....
A non-response to an email of phone call /
voice message request for a part that we don't show on one or our
pages, or is already marked "SOLD" will be typical. We simply don't have the
time / man-power resources to respond to every query we get for items we
don't show as avail. Most folks get that. Having said that, I / we may
respond if we have information on a substitution or other useful information
relating to it.
A non-response to an email of phone call /
voice message request for a part (we may appear to
have, but typically 'highlighted in
Orange or Yellow'), likely means that we are still determining which parts we are going to
need for the restoration or repair of one of our units. Again, the parts
are first for the restoration of our units and secondarily for the public
market. Since we list the parts available for ourselves, it is not much effort
to modify the menu's for web publication, which in turn makes the reference
information and occasionally the part available to the public. Frankly,
publishing them to the web, in many instances, makes it easier for us to
determine if we have the part for our needs as well. The alternative to all of
the above would be to not offer them at all to the public, however most parts
are available to the public for sale. Also, parts requests can
occasionally take time for us to respond to. While we may have a part
listed, and we like to keep the website 100% accurate, occasionally a part
will be 'used by us' or 'previously sold' and we by oversight, and we did
not get the web listing marked "SOLD", or the part gets 'mis-placed'
or 'lost' (laid down somewhere in the warehouse(s) and then it get's lost
track of (that happens to our coffee cups all the time, then we find it
months later with 'a good batch of 'penicillin' growing in it), so we like
to 'lay eyes on it' prior to responding. Sometimes we just can't figure out
which cabinet or drawer parts were assigned to (and we're working on a
system for that one).
Some folks email / call and want us to respond either way / whether we
have the part or not. Again, we simply do not have the time resources to do
that. Our time must be utilized on the requests we can fulfill.
Sorry for all the excuses, but that's how the 'system'
(or lack thereof) works.
And, if
you don't see it, we likely don't have it.
Thank you for your understanding.
$20.
MINIMUM ORDER
|
| --
HERE ARE SOME ADDITIONAL RESOURCES FOR REPAIR /
RESTORATION
__________________________________________________________________________________________________________
|
|
|
|
|
SANSUI INTEGRATED AMPLIFIERS PARTS / SPARES
|
NEW LISTING
7/25/07
(Click on above thumbnails to enlarge photos)

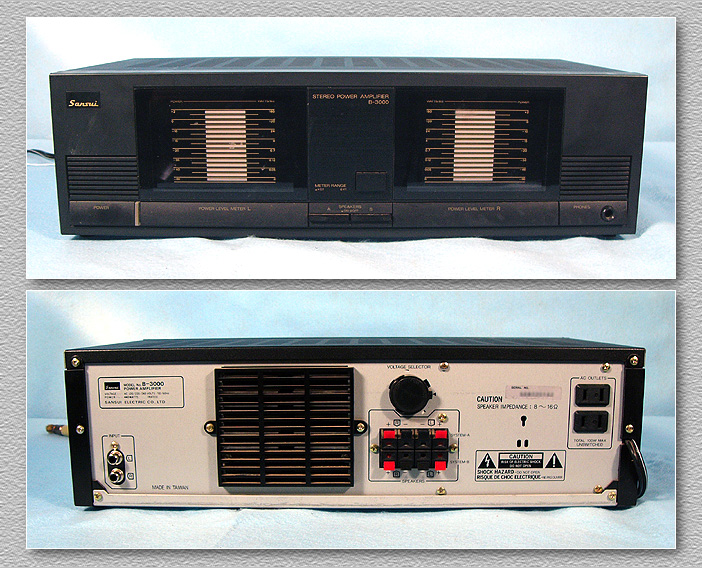

SANSUI
B-3000 B3000
STEREO
POWER AMPLIFIER
"WORLD AC POWER" ™
SOLD 11/5/08
for sale
amplifier looks great, but unfortunately it has a channel out.
One side of the amplifier produces
39.5 Volts per channel @ 8 Ohms for
195 wpc
and 24 Volts per channel @ 4 Ohms for
144 Watts per channel via
discrete, epoxy outputs.
True
"WORLD
AC POWER"™
as it will work on both 50 or 60 Hz AC and voltages from 110-240
Volts
AC
.
The amplifier is fan
cooled. There are no visibly
burned components.
We simply don't have the resources currently to spend
on restoring it. Again, it would likely be a good candidate for
restoration! Restore it or use it as a great single channel power
amplifier for a center channel speaker in a home theater system, or a sub woofer or for a practice PA
amplifier. Measures 17" wide x
9" deep x 5" high
and weighs 25 lbs unpacked.
Sansui B-3000
As-Is
SOLD 11/5/08
|
-
|
-
|
SANSUI RECEIVER PARTS / SPARES
|
NEW LISTING 3/4/2020
(Click on above thumbnails to enlarge photos)

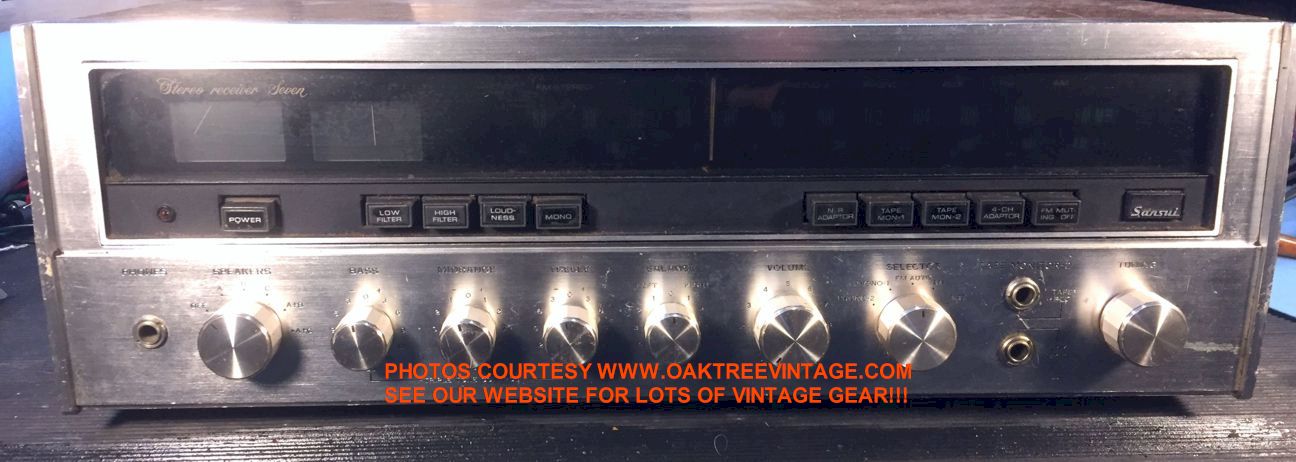

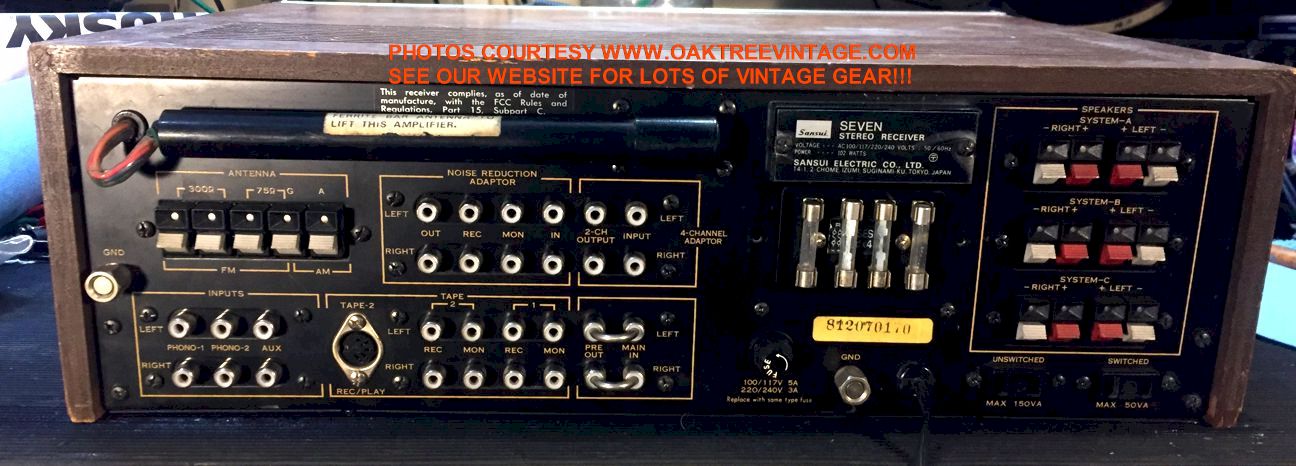

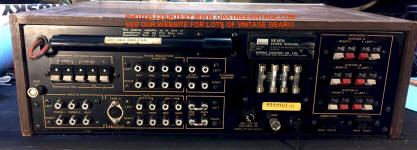

SANSUI
SEVEN / 7 STEREO RECEIVER
PARTS / SPARES
Some parts MAY also fit the Sansui SIX / 6, and Eight
/ 8 Receivers.
Unit was parted out due to excessive
current draw. At 35VAC on VariAC, unit draws 1 Amp. Didn't investigate
further.
-
PARTING OUT -

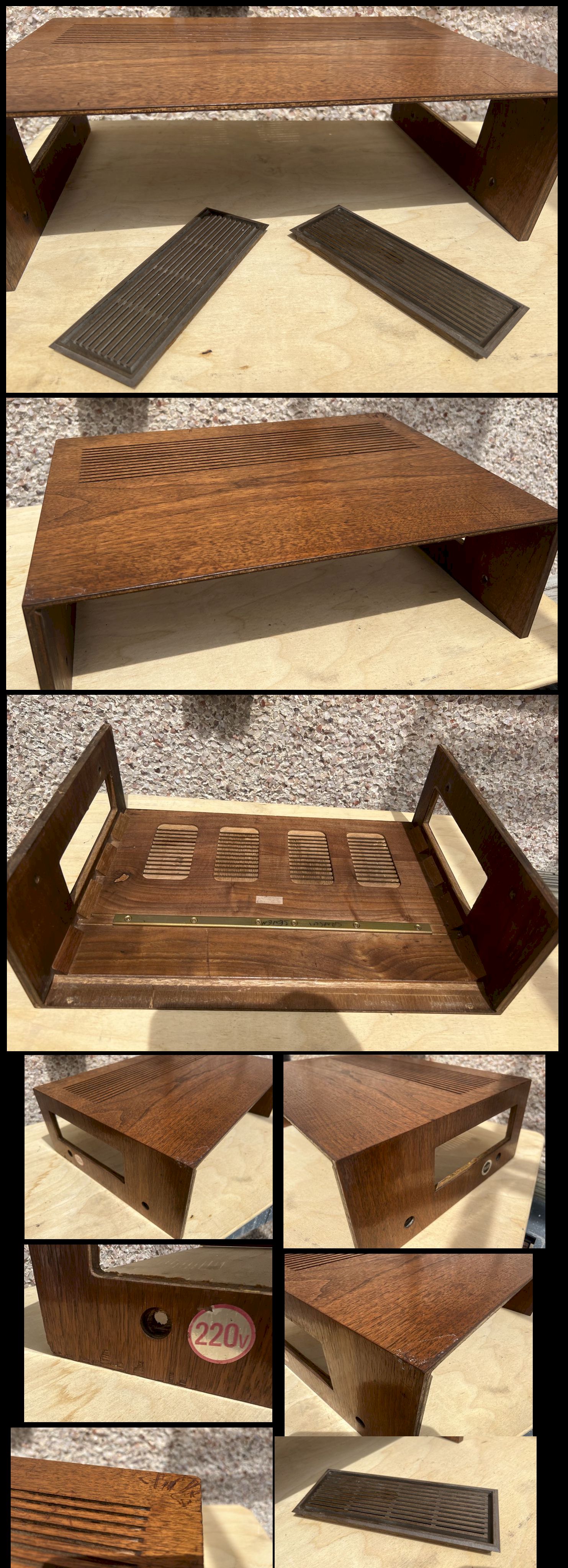

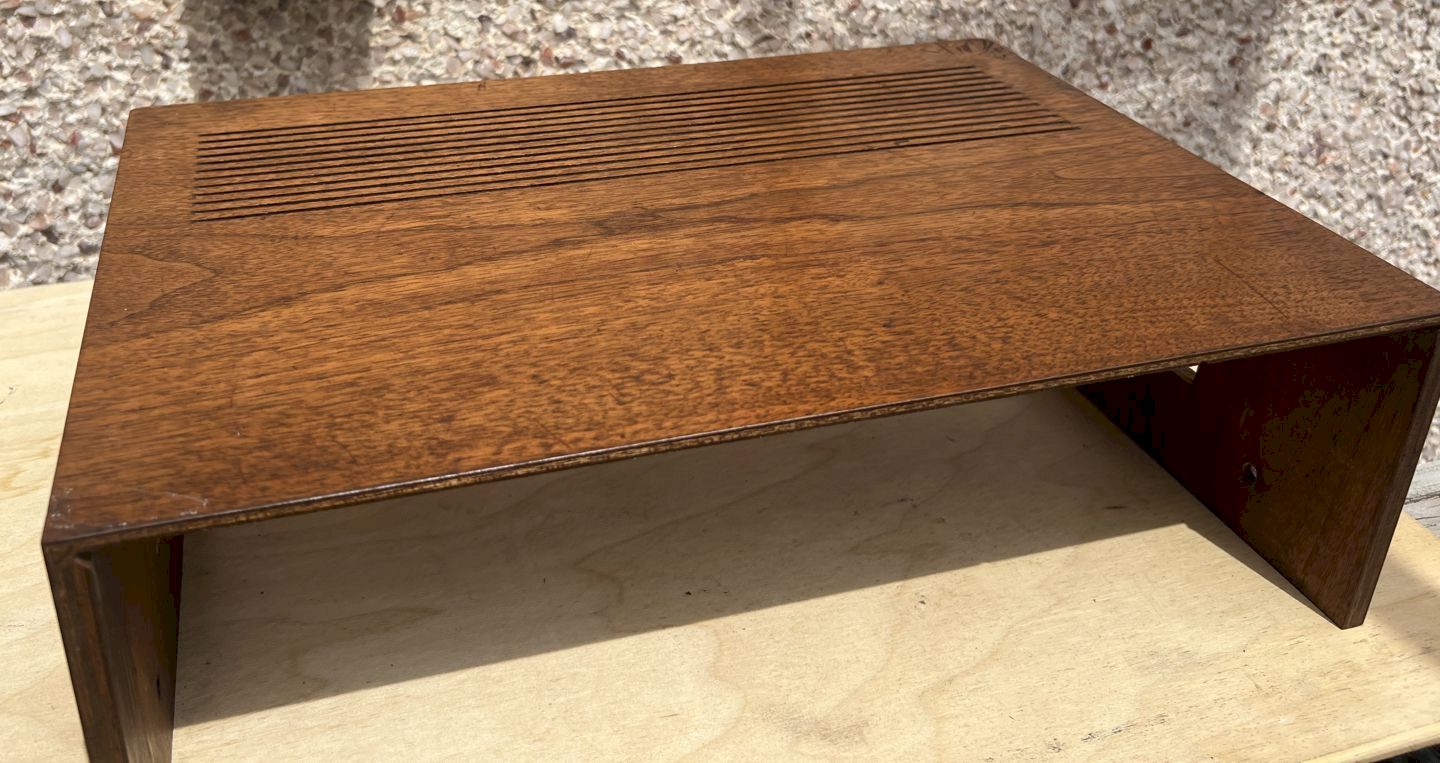

Bonnet / Case / Cover / Cabinet, Walnut
veneer. Good 'structural' condition, but a few
battle scars / chips. (inside dimensions; 16 5/8" wide x 5.25" tall (at
front edge) x 11 15/16" deep. Bolt hole centers are 7 1/8" apart. With
plastic, louvered vents. - $55.
(just FYI, 'pack / ship'
on items such as large panels, Speaker Grills, Empty speaker / component
cabinets, etc. will likely be 'expensive', relative to the
cost of the part, due to the amount of packing it takes for safe
delivery, and depending on location shipped to.)
Panel, Front / Face panel / aluminum, fair
to decent condition,
Striations / scuffing
mostly on ends and top surface. Both upper
corner dinged. Nicks / tics on end 'edges'. (see photos above).
Includes two, beveled screws / bolts for the top mounting.
(dial glass / window and bezel
sold separately)
- $55.
Panel, ‘Tuning scale cover’,
Black plastic w/ smoked
glass / plexi dial window and holes for switches & window surround &
plastic scale w/ station enumeration silk-screen
(see photos above)
- $45.
SOLD
Meter,
‘Tuning Signal Strength’ Meter #4300310
(see; Sansui Seven & Sansui Eight)
- $45.
Meter,
‘Tuning 'Center’ Meter #4300340
(see; Sansui Seven & Sansui Eight) - $45.
Pointer / indicator,
Tuning ‘Dial Pointer’ - $30.
SOLD
/ MIA
Knob / Flywheel,
‘Tuning’ knob
(see; Sansui Six, Seven & Sansui Eight)
- $35. ea.
Knobs / Caps / Buttons / Covers / Covers, Input ‘Selector’ knob
w/ 2-set / grub screws
(see; Sansui Six, Seven & Sansui Eight)
– $35.
SOLD
Knobs / Caps / Buttons / Covers / Covers, ‘Speakers’
Selector / Volume knob
(see; Sansui Six, Seven & Sansui Eight)
- $35. ea.
2 AVAILABLE
Knobs / Caps / Buttons /
Covers /
Covers.
‘Balance knob’, ‘Bass’ knob, ‘Treble’ / Tone knob
(see; Sansui Six, Seven & Sansui Eight)
– $30. ea.
Knobs / Caps / Buttons / Covers / Covers, ‘Power’ button / cap
(see; Sansui Six, Seven & Sansui Eight)
- $25.
Knobs / Caps / Buttons / Covers / Covers, ‘Low
Filter’ button / cap
(see; Sansui Six, Seven & Sansui Eight)
- $25.
Knobs / Caps / Buttons / Covers / Covers, ‘High
Filter’ button / cap(see; Sansui Six, Seven & Sansui Eight)
- $25.
Knobs / Caps / Buttons / Covers / Covers, ‘Loudness’ button / cap
(see; Sansui Six, Seven & Sansui Eight)
- $25.
Knobs / Caps / Buttons / Covers / Covers, ‘Mono’ button / cap(see; Sansui Six, Seven & Sansui Eight)
- $25.
Knobs / Caps / Buttons / Covers / Covers, ‘N.R.
Adaptor’ button / cap
(see; Sansui Six, Seven & Sansui Eight)
- $25.
Knobs / Caps / Buttons / Covers / Covers, ‘Tape
Mon-1’ button / cap
(see; Sansui Six, Seven & Sansui Eight)
- $25.
Knobs / Caps / Buttons / Covers / Covers, ‘Tape
Mon-2’ button / cap
(see; Sansui Six, Seven & Sansui Eight)
- $25.
Knobs / Caps / Buttons / Covers / Covers, ‘4-Chan
Adaptor’ button / cap
(see; Sansui Six, Seven & Sansui Eight)
- $25.
Knobs / Caps / Buttons / Covers / Covers, ‘FM
Muting Off’ button / cap
(see; Sansui Six, Seven & Sansui Eight)
- $25.
String Wheel, Plastic String Tuning Wheel- $35.
Fly Wheel
assembly, Tuning Flywheel assembly (less
knob which is sold separately) - $45.
Panel,
‘Illuminator box’ w/ ‘fuse lamp’ sockets (included
lamps / bulbs may or may not work) - $35.
SANSUI
SEVEN / 7 STEREO RECEIVER PARTS / SPARES
Potentiometer / Control,
‘Volume’ control pot, ALPS 250K BX2 / #1010820
(see; Sansui 7, Six / 6, Sansui QRX-4500 & QRX-6500, but will NOT fit the Sansui Eight)
-
$45.
SOLD 3/31/2025
Potentiometer / Control,
‘Balance’ control pot, ALPS 250K M / #1010830
(see; Sansui 7, Six / 6, Sansui QRX-4500 & QRX-6500, but will NOT fit the Sansui Eight) - $45.
Switches / Selectors,
‘Treble’, 'Midrange' or ‘ Bass’, control
switches (NOT pots.
They utilize multiple 'fixed value' resistors on a wafer switch) #1102210
(see; Sansui Seven & Sansui Eight)
- $45. ea.
Choke / Transformer, Adjustable Tone Transformer L701
& L702 #4010090 - $40. ea.
Switches / Selectors,
Rotary / Wafer ‘Input Selector’ switch, #1104320
(will NOT fit the Sansui Six or Eight)
- $40.
Switches / Selectors,
Rotary / Wafer ‘Speaker’ switch ALPS #1102410
(see; Sansui
Six / 6, Seven / 7 and likely others, but
will NOT fit the Sansui Six or Eight) - $40.
Switches / Selectors,
Push Switches; ‘Low Filter’, ‘Hi Filter’,
'Loudness', and 'Mono' switches ,
#1130600 all mounted on
circuit board
F-1438 / #2591180
(buttons / caps sold separately) (will NOT fit the
Sansui Eight)
- $55.
Switches / Selectors,
Push Switches; ‘N.R.
Adaptor’,
‘Tape Monitor’ Switches 1 & 2,
'4-Channel Adaptor', and 'FM Muting' switches
,
#1130610
& #1110210 all mounted on circuit board F-1437 / #2591170
(buttons / caps sold separately) (will NOT fit the
Sansui Eight)
- $65.
Switches / Selectors,
‘Power’ push switch #1130350, AC125VA w/ clamping capacitor
(button
/ cap sold separately)
(see; Sansui 7, Six / 6, Sansui QRX-4500 & QRX-6500, but will NOT fit the Sansui Eight) - $45.
SANSUI
SEVEN / 7 STEREO RECEIVER PARTS / SPARES
Circuit Board,
‘MPX Unit’ circuit board, board #F-1387-2
/ F-1387-B / 7540670 with transistors; 2SA678,
2SC634A, Matsushita
2SC711, 2SC871, Sansui 4240660
MPX coil assembly,
and balance of capacitors, diodes, adjustable transformers, pc mounted
trim pots / adjustors. - $65.
Circuit Board,
‘FM IF Unit’ circuit board, board #F-1450
/ 7520540 with transistors; Matsushita
2SC829, In-Line package; Toshiba
TA7061AP, and balance of capacitors, diodes, adjustable transformers, pc
mounted trim pots / adjustors.
(see; Sansui Six & Sansui Seven)
- $55.
Circuit Board,
‘AM IF Unit’ circuit board, board #F-1417
with transistors; 2SC4030, and balance
of capacitors, diodes, adjustable transformers, pc mounted trim pots /
adjustors. - $45.
Capacitor,
‘Tuning’ capacitor on circuit board marked #7510600 /
PA4313 with steel shielding / housing in place - $45.
Circuit Board,
‘Tone / Control Unit,’ circuit board #F-1436 /
7560560 with transistors;
NEC 2SA640, with
balance of capacitors & resistors
(not sure if it fits the Sansui "Six" as that unit specifies a
"#F-1436A")
-
$55.
Circuit Board,
‘Equalizer’ unit circuit board #F-1435 / 7550410 with transistors; 2SC1222
&
NEC 2SA640,
and balance of capacitors, and resistors
(see; Sansui Six & Sansui Seven)
-
$45.
SOLD 6/21/2022
Circuit Board,
‘Driver Unit’ circuit board #F-1439
/ 7570660, with transistors: Hitachi 2SC984,
NEC 2SA640, Sony 2SA706, Sony 2SC1124
, 2SC983 and balance of
capacitors, diodes, resistors
& PC mounted trim pots
(see; Sansui Six & Sansui Seven) - $45.
ea.
SOLD 1/18/2022
Circuit Board,
‘Power Board Unit’ / (power supply) circuit board #F-1441
/ #7500670, with
transistors / regulators; Sanyo 2SD330E, Sanyo 2SB514,
3W / 390 Ohm resistors, and balance
of mounted capacitors, diodes and resistors
(see; Sansui Six & Sansui Seven) - $55.
Circuit Board,
‘Protector Circuit Board Unit’ #F-1440
/ #759810, with
transistors; 2SC634A,
and balance
of mounted capacitors, Chokes / coils, diodes and resistors
(not including relay which is sold separately
(see; Sansui Six & Sansui Seven) - $35.
SOLD 12-4-2023
Relay,
Omron relay type MY 4 - $35.
Connectors, PCB, Edge-Card connectors.
#2420040 Blue
Plastic. 2-Bolt. 14 pin
(see; Sansui Seven / 7, Eight / 8, QRX-4500,
QRX-6500, QRX-7500 and likely others)
- $30. ea.
Connectors, PCB, Edge-Card connectors.
#2420030 Blue
Plastic. 2-Bolt. 10 pin
(see; Sansui Seven / 7, Eight / 8, QRX-4500,
QRX-6500, QRX-7500 and likely others)
- $30. ea.
SANSUI
SEVEN / 7 STEREO RECEIVER PARTS / SPARES
Transformer, ‘Power supply’
transformer #4001120 (alternative to #4001121. Unsure
of substitution info) – adjustable 120v-240v power option.
Includes #2410080 'Voltage Selector' still connected (Selector plug sold
separately) - $85.
Plug, ‘Voltage Selector’
Plug #2410090 (fits MANY
Sansui units) - $25.
Cover, Voltage selector switch cover -
$20.
Capacitors, ‘Power supply filter cap’
Nichicon
4700MFD 50 Volts
with clamps (will check for ESR and Leakage) - $25.
ea.
Transistors,
‘Output’ transistors; Toshiba
2SA663, 2SC793 TO-3, Metal cased output
transistors
(see; Sansui Six / 6, Seven / 7 and likely others)- $25. ea.
SOLD
Heat Sink,
Power amp heat sink
(less output transistors)
- $25. ea.
Rectifier, Bridge Rectifier. IOR 5B2 / 2D -
$20.
Jacks / Connectors
/ Terminals,
‘Stereophones’ / Headphone jack, ¼ inch #2430070
(see; Sansui Seven & Sansui Eight) - $35.
Jacks / Connectors
/ Terminals,
RCA Input / Output connectors / jacks 'Noise
Reduction Adaptor' & ‘4-Channel Adaptor’
bank (interchangeable with below)
(will NOT fit the Sansui Eight) - $55.
Jacks / Connectors
/ Terminals,
RCA Input / Output connectors / jacks ‘Tape-2’,
‘Tape-1’, ‘Pre-Out
/ Main-In’ bank
(interchangeable with above)
(will NOT fit the Sansui Eight)
- $55.
Jacks / Connectors
/ Terminals,
RCA Input / Output connectors / jacks ‘Phono’, ‘AUX-1’
(Phono-1 with capacitors)
(will NOT fit the Sansui Eight)
- $45.
Jacks / Connectors
/ Terminals,
1/4" / Phono type Input / Output connectors / jacks ‘Tape-2’
(on front panel) #2430060
(see; Sansui Seven & Sansui Eight)
- $25.
ea.
Jacks / Connectors / Terminals,
‘Speaker’ Connectors / 'Push' terminals
(grey & red buttons). 3 complete banks of 2 pairs
Measures 72mm wide x 25mm at plate for an opening 53mm x 21mm.
(will for sure fit the Sansui Seven / 7, Eight / 8 and QRX-6500, but
likely many others from this year / series)
- $35. ea.
bank
Jacks / Connectors / Terminals,
‘Antenna’ Connectors / 'Push' terminals
(grey buttons) as set of 5.
(see; Sansui Seven & Sansui Eight)
- $30.
Jacks / Connectors / Terminals,
AC Convenience outlet / Socket, ‘AC Convenience’ sockets
#2450040
(see; Sansui Seven, QRX-4500 & QRX-6500 & Sansui Eight for at least one of the part
numbers "2450040") - $20. ea.
Jacks / Connectors / Terminals,
AC / Main power input Jack / Socket. - $30.
SHOP USE
Jacks / Connectors
/ Terminals,
‘DIN’ socket with resistors #2430040
(see; Sansui 7, Sansui QRX-4500 & QRX-6500, but will NOT fit the Sansui Eight)
- $25.
SANSUI
SEVEN / 7 STEREO RECEIVER
PARTS / SPARES
Antenna, AM ‘Stick’ / bar /
rod antenna, # 4200540 with extension / sliding mounting bracket.
(similar to Sansui QRX-6500, but one wire is different. Dimensions /
mounting bracket are the same. Bar diameter 16.5mm & 7.5" long. Slide
mount is 28.3mm wide x 10mm thick and ~75mm in depth)
(will NOT fit the Sansui Eight) - $45.
Antenna
Socket, AM antenna
plastic slide sleeve with 4-bolts
- $25.
Fuse, Main AC / Power Fuse ‘Holder’
#2300020 (cap sold separately)
(see; Sansui Six / 6, Seven / 7 and likely others)
- $25.
Fuse,
Main
AC / Power Fuse ‘Cap’
(holder sold separately)
(will NOT fit the Sansui Eight 'Mains' fuse, but is interchangeable
with the Sansui Eight 'Speaker Protection' fuse holder)
- $30.
Fuse / Holder / Clips,
'Speaker / Output' fuse holder bank
(no fuses included) - $30.
Panel,
Rear sheet metal panel
(less any input / output
jacks / components)
- $35.
Panel,
Bottom sheet metal -
- $35.
(just FYI, 'pack / ship' on items such as large panels, Speaker
Grills, Empty speaker / component cabinets, etc. will likely be
'expensive', relative to the
cost of the part, due to the amount of packing it takes for safe
delivery, and depending on location shipped to.)
Foot / Feet / Skid,
Brown, plastic, 'full width', 3-bolt, Skid
(see; Sansui Seven & Sansui Eight)
- $35. 1 Remaining in stock
Call or Email for
"SHOWN and NOT marked 'SOLD'
" part you need.
Location: PB, Southern Island, North Shore,
East end, 1st cab (black), 3rd drawer
-
revised
3/31/2025 (Above
text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
(Click on above thumbnails to enlarge photos)
SANSUI 331, SANSUI STEREO
RECEIVER PARTS / SPARES
-
PARTING OUT -
Unit was parted out due to FM tuner issues. Only received
‘white noise’ (no stations and sounded like ‘FM Muting’ was ‘off’ all the
time. Repairable, but we didn't invest the resources).
Amplifier section sounds great!
Bonnet / Case / Cover / Cabinet, Wood veneer, few scratches. - $SOLD
(just FYI, 'pack / ship' on items such as large panels, Speaker
Grills, Empty speaker / component cabinets, etc. will likely be
'expensive', relative to the
cost of the part, due to the amount of packing it takes for safe
delivery, and depending on location shipped to.)
Panel, Front Face plate / panel, Aluminum, very clean
-
$45.
Panel,
Plastic ‘Radio “back screen” w/ ‘Stereo’ LED indicator - $25.
Panel,
Glass, FM-AM tuning display, - $25.
Lamp Holder,
Display / Dial Lamps (fuse lamp / bulb sockets) - $20. ea.
Meter, ‘Tuning Signal Strength’ Meter, - $25.
Pointer,
Dial / Tuning Needle / pointer, - $15.
Knobs / Caps / Buttons /
Covers /
Covers,
‘Power / Speakers’, ‘Volume’ & / or ‘Selector’ knob -
ALL SOLD
Knobs / Caps / Buttons /
Covers /
Covers,
‘Balance’, ‘Treble’, ‘Bass’ knob – ALL SOLD
Knobs / Caps / Buttons /
Covers /
Covers.
Balance knob- SOLD
Knobs / Caps / Buttons /
Covers /
Covers,
‘Tape monitor’, ‘Loudness’, ‘Mono’ buttons / caps
(black, rectangular, plastic)
- $18. ea.
Potentiometer , ‘Volume control’ pot ALPS 250K BX2 #1011020 -
$35.
Potentiometer / Control, ‘Bass’, ‘Treble’, 10k AX2 #101540
Pots, - $30. ea.
Potentiometer / Control,
‘Balance’, 100k M ,100K N #1015130 Pot - $30.
Switches / Selectors,
‘Power/Speaker’, Combination Selector/Switch, Noble U9SF TV 3, with Clamping
capacitor- $35.
Switches / Selectors,
‘Loudness’, ‘Mono’ or ‘Tape Monitor’ push Switches - $25. ea
Switches / Selectors,
‘Phono’, ‘FM Auto’, ‘AM’, ‘AUX’, 94V-1 wafer switch - $45.
SANSUI 331, SANSUI STEREO
RECEIVER PARTS / SPARES
Transformer,
‘Power supply’ Transformer 40022329 (North American version) - $45.
Capacitors, ‘Power supply filter’ cap, Nichicon 2200uf, 60719.
- $30.
Transistors, ‘Output / power amp
transistor’ STK 014, - $35.
Heat Sink, ‘Power amp’ heat sink (less transistor) - $25.
Capacitors,
‘Power supply’ filter caps, CEO4W, 35v 2200uf, - $35. ea.
Circuit Board,
Tuning / Phono Pre-amp / patch bay Circuit Board F-2535-1, including Tuning
Capacitor, AM stick antenna
& Transistors; 2SC738, 2SC930, 2SC1047, 2SC1313,
2SC1675, IC Chips; NEC PC554C, PC 555H, Sansui 4240710
and balance of resistors, capacitors, diodes etc. (Switches,
potentiometers, Connectors and string wheel sold separately) - $55.
Circuit Board, ‘Amplification’ / ‘Power Supply’ / ‘Tone
Control’ Circuit Board F-2531-1, with Transistors; 2S1313, 2S1364, &
Sanyo 2SD330 Voltage Regulator and balance of resistors, capacitors and
diodes (Output power pack, Switches, potentiometers & jacks sold
separately) - $45.
Heat Sink,
‘Power Amp Heat Sink’, - $30.
Flywheel, Tuning Flywheel - $30.
SANSUI 331, SANSUI STEREO
RECEIVER PARTS / SPARES
Jacks
/ Connectors / Terminals,
AC ‘Convenience outlets’, - $25. pr.
Jacks /
Connectors / Terminals,
‘Speaker’, ‘Antenna’, or ‘Ground’ terminals / posts / connectors
(same as on many
Sansui, Marantz units,
many speakers and others) - $15.
ea.
Jacks
/ Connectors / Terminals, Headphone Jack - $20.
Jack / Connector / Terminals,
RCA Input / Output connectors / jacks, ‘Phono, Aux, Record, Play’, all as
one entire panel - $45.
Panel, Input / Output jack bezel (black plastic) - $20.
Panel, ‘Rear fiberboard
panel’, silkscreen connector display, - $25.
Bottom Panel,
Sheet metal, - $25. SOLD
(just FYI, 'pack / ship' on items such as large panels, Speaker
Grills, Empty speaker / component cabinets, etc. will likely be
'expensive', relative to the
cost of the part, due to the amount of packing it takes for safe
delivery, and depending on location shipped to.)
Call or Email for
"SHOWN and NOT marked 'SOLD'
" part you need.
Location:
PB, SW group, 3rd cab from center, Black, 4th drawer, left side.
revised
11/6/2023 (Above
text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
SANSUI 350A /
350-A STEREO RECEIVER PARTS / SPARES
-
PARTING OUT -
Some parts
MAY be interchangeable with the Sansui
1000X &
QR-1500? receiver.
You will need to consult service manuals / part number for both to make that
determination. We have no definitive info on subs.
Bonnet / Case / Cover
/ Cabinet, Wood, vinyl wood grain, good condition - $SOLD
(just FYI, 'pack / ship' on items such as large panels, Speaker
Grills, Empty speaker / component cabinets, etc. will likely be
'expensive', relative to the
cost of the part, due to the amount of packing it takes for safe
delivery, and depending on location shipped to.)
Panel, Front / Face panel / aluminum w/ dial lens /
glass / window, fair condition w/ minor edge scuffs and typical scuffing
around the headphone jack port
(less
plastic tuning cover)
- $35.
Panel, Tuning scale ‘cover’, plastic - $25.
Panel,
‘Tuning scale’ plastic,
(less
tuning signal strength meter)
- $30.
Panel, Dial lamp housing
(less ‘fuse’ lamp clips / holders)
- $25.
Clips / holders, Dial ‘Fuse’ bulb / lamp clips / holders - $18. ea.
Meter,
‘Tuning Signal Strength’ Meter- $25.
Pointer / indicator,
Tuning ‘Dial Pointer’ - $25.
Knob
/ Flywheel,
Tuning’ flywheel - $25.
Knobs / Caps / Buttons / Covers / Covers,
‘Tuning’ knob (black) – $25.
Knobs / Caps / Buttons / Covers / Covers.
‘Volume‘, ‘Balance’, ‘Bass’, ‘Treble’, ‘Selector`’ knobs – $25. ea.
SOLD OUT
Knobs
/ Caps / Toggle Bats,
‘Tape monitor’, ‘Speakers’, ’Loudness’. ‘Muting’,
‘MPX Noise Canceler’ (SIC) toggle switch
'bats' / caps – $20. ea. (only
1
remaining in stock)
Knobs / Caps / Buttons / Covers / Covers,
‘Power’ switch cap, black plastic -
SOLD
SANSUI 350A / 350-A
STEREO RECEIVER PARTS / SPARES
Potentiometer / Control,
Noble ‘Volume’ control pot - $35.
Potentiometer / Control,
Noble ‘Balance’ control pot
(less circuit board)
- $30. ea. SOLD
Potentiometer / Control, Noble ‘Treble’, ‘Bass’ control pots
(less circuit board)
- $30. ea.
Switches / Selectors,
Rotary / Wafer ‘Selector’ switch with circuit board #F1249, transistor
Mitsubishi 2SC871 and extension shaft, and balance of resistors and
capacitors / components - $45.
Switches / Selectors,
‘Speaker’ switch -
SOLD
Switches / Selectors,
Toggle Switches, ‘Mode’ switch, ‘Tape Monitor’ switch, ‘MPX Noise Canceller (SIC) switch, ’Loudness’ switch - $25. ea.
Switches / Selectors,
‘Power’ push switch with clamping capacitor Alps UEH12
#1130160
(less
button / cap)
–
$30. SOLD
Switches / Selectors,
‘FM attenuator’ switch - $20.
Switches / Selectors,
‘Power / Voltage adjustment’ switch, external, adjustable 120v-240v power
option (with plugs / jumpers) - $35.
Capacitor, Alps 5-gang ‘Tuning capacitor’, #F1290 / FL12U13
(less string tuning wheel)
-
$45.
SANSUI 350A / 350-A
STEREO RECEIVER PARTS / SPARES
Circuit Board,
‘FM Amplifier’ circuit board #F-1239-1 w/ transistors; Mitsubishi 2SC711,
2SC733, 2SC735 and balance of resistors, capacitors and diodes
- $65.
Circuit Board,
‘Tone Amplifier’ circuit board. #F-1248, with transistors: Hitachi 2SC458,
and balance of capacitors, resistors
(less
bass, treble, volume and balance control pots)
- $45.
Circuit Board,
‘Power Supply’ circuit board, #F1324-1 with transistor; Hitachi 2SC1061,
10 DC ‘half-wave’ rectifier diode, ZB1 Diode, and balance of capacitors and
resistors - $45.
Circuit Board,
‘Tuning’ circuit board, #1247-1 with transistors; Mitsubishi 2SC710,
Mitsubishi 2SC711 Mitsubishi 2SC829, and balance of
resistors, diodes and capacitors - $45.
Circuit Board,
‘Output’ circuit board # F-1250 with transistors; Hitachi 2SC458, NEC 2SC815,
Sanyo 2SCA532E, Sanyo 2SC875E, and balance of resistors, diodes
and capacitors
(less
heat sink, output transistors)
-
$45.
Transformer,
Power supply Transformer 400-5407, externally adjustable 120v-240v power
option
(adjusting switch sold separately) -
$55.
Capacitors, ‘Power supply filter cap’ Elna 2200μF 80
Volts w/
mounting clamp - $25.
Transistors,
OEM ‘Output’ transistors; Hitachi 2SC1030 TO-3 Metal cased output
transistors,
(less
heat
sink)
- $25. ea. (2 remaining in stock from
this unit)
Heat
Sink,
Power amp heat sink
(less
transistors)
- $25. ea.
String Wheel,
Plastic String Tuning Wheel - $20.
SANSUI 350A / 350-A
STEREO RECEIVER PARTS / SPARES
Jacks /
Connectors / Terminals,
‘Stereophones’ / Headphone jack, ¼ inch - $25.
Jacks
/ Connectors / Terminals, RCA Input /
Output connectors / jacks ‘Phono’, ‘AUX’, ‘Record’,’ Monitor’ one bank of 4
pairs - $30.
Jacks
/ Connectors / Terminals, Speaker connectors / terminals, 2
complete banks of 2 pairs on phenolic resin / fiber board - $35. ea. bank
Jacks
/ Connectors / Terminals, ‘Antenna’ Connectors / post / terminals
on fiber board as set of 5 - $25.
Jacks
/ Connectors / Terminals, ‘AC Convenience
outlet / Socket’ - $18.
Jacks /
Connectors / Terminals,
‘DIN’ connector / socket - $20.
SANSUI 350A / 350-A
STEREO RECEIVER PARTS / SPARES
Antenna,
AM ‘Stick’ / bar / rod antenna W/ swivel / mounting bracket - $35.
Fuse,
‘Holder’ (cap
sold separately) - $25.
Fuse,
‘Cap’ (holder sold separately)
- $30.
Panel,
Rear sheet metal panel (some surface corrosion)
(less any input / output jacks /
components) - $25.
Panel,
Bottom sheet metal - $20.
(just FYI, 'pack / ship' on items such as large panels, Speaker
Grills, Empty speaker / component cabinets, etc. will likely be
'expensive', relative to the
cost of the part, due to the amount of packing it takes for safe
delivery, and depending on location shipped to.)
Foot / Feet, -
set of 4 - SOLD
Call or Email for
"SHOWN and NOT marked 'SOLD'
" part you need.
Location: PB, SW group, 4th cab from
center, Black, 4th drawer. - revised
3/22/2023 (Above
text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
|
(Click on above thumbnails to enlarge photos)
SANSUI 441 STEREO RECEIVER PARTS / SPARES
Some parts
MAY*
also fit Sansui models 331, 441, 551, 661,
771 & 881
Parting out.
Wood grain vinyl covered Case - Excellent (may
fit other models in this series) - SOLD
(Cases,
covers and side plate / panels, etc. do not include mounting screws as
those are sold separately when available)
(just FYI, 'pack / ship'
on items such as large panels, Speaker Grills, Empty speaker / component
cabinets, etc. will likely be 'expensive', relative to the
cost of the part, due to the amount of packing it takes for safe
delivery, and depending on location shipped to.)
Some parts may also fit Sansui models 331, 441, 551,
661, 771 & 881
Face panel with glass (less knobs / buttons)
Normal minor wear - $40.
Knobs, Caps, Buttons,
Tuning knob
- $25.
Knobs, Caps, Buttons,
Large round knobs - $20 ea.
Knobs, Caps, Buttons,
Tone knobs - $20.
ea.
Knobs, Caps, Buttons, Power Push Switch cap -
$12. ea. -
SOLD
Meters,
VU / Tuning meter -
$25. SOLD
Power supply Transformer (4002100) - $45.
SOLD / MIA? (not in drawer with other parts)
Power supply filter Caps (2200uf / 50 Volts - $15 ea.
Power amplifier outputs STK 016 -
$35.
ea side. SOLD
SANSUI 441 STEREO RECEIVER PARTS / SPARES
Any single circuit board (less pots,
Switches, large transformers, outputs)
- $ PRICE VARIES
Tuning capacitor & Tuning circuit board
including Tuning
Capacitor,
Sansui 4240710
and balance of transistors, resistors, capacitors, diodes etc. (Switches,
potentiometers, Connectors and string wheel sold separately) - $55.
Power / Speaker selector switch - $35.
Any control pot (volume
250k x2, Bass / Tone / Treble, Balance
)
- $35. ea.
SOLD
Ganged controls - Additional $15. ea.
Push Switches (Loudness, Tape Monitor, Mode) - $25. ea.
Input Selector Rotary Switch - $45.
SANSUI 441 STEREO RECEIVER PARTS / SPARES
Rear panel (less Antenna, AM antenna)
- $45 complete (while parts last)
- Fuse insert cap - SOLD
Voltage selector assembly - $30.
Bottom sheet metal panel -
SOLD
(just FYI, 'pack / ship' on items such as large panels, Speaker
Grills, Empty speaker / component cabinets, etc. will likely be
'expensive', relative to the
cost of the part, due to the amount of packing it takes for safe
delivery, and depending on location shipped to.)
Any single rear panel Input / Output component not
already listed separately (terminals, AC
outlets, RCA
panels, etc.) - $25. ea.
Jacks / Connectors / Terminals,
‘Speaker’ connectors / terminals, complete banks of 2 pairs
#2210200 (Fits Sansui 441 & 551
however, will not fit Sansui 221, 331, 661, 771, or
881) - $30. ea.
bank
Antenna, AM antenna - $25.
Most other parts $20-$45. ea.
Feet set of 4 - $25. or $12.
ea.
Call or Email for
"SHOWN and NOT marked 'SOLD'
" part you need.
Location: PB, East wall,
Tan, 'thin drawer' cab,
4th Drawer -
Revised
9/24/19 (Above
text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
NEW LISTING
11/10/13
(Click on above thumbnails to enlarge photos)
SANSUI 771 STEREO RECEIVER
PARTS / SPARES
-
PARTING OUT -
Bonnet / Case / Cover / Cabinet, vinyl wood grain, good
condition - SOLD
(just FYI, 'pack / ship'
on items such as large panels, Speaker Grills, Empty speaker / component
cabinets, etc. will likely be 'expensive', relative to the
cost of the part, due to the amount of packing it takes for safe
delivery, and depending on location shipped to.)
Panel, Front / Face panel / aluminum
#24 / #5308950, fair condition,
scuffing, lower-right corner ding (see photos above),
minor scuffing
(mostly to the ‘non-visible’ bottom edge) (dial glass / window and bezel
sold separately)
- $45.
Panel, ‘Front Dial Glass "smoked plate" window’
#29 / #5047700,
(less face panel
/ bezel)
- $35.
Panel, ‘Front Dial Glass FRAME / BEZEL
for "smoked plate" dial glass window’ #30 /
#5308190, Decent condition, bit of 'aluminum
smudging' on sides. Includes 5 zinc screws / bolts
(less face panel
/ Smoked, Plate, glass dial window)
- $35.
Panel, ‘Tuning scale cover’,
plastic
(see photos above)
(less face panel)
- $35.
Panel,
‘Tuning Scale’, function display, smoked plate #5047700 -
SOLD
Meter,
‘Tuning Signal Strength’ Meter #4300610- $35.
Pointer / indicator,
Tuning ‘Dial Pointer’ #5416361- $30.
Knob / Flywheel,
‘Tuning’ knob #7036380 - $30. ea.
2 In stock
Knobs / Caps / Buttons / Covers / Covers, ‘Volume’ knob #5317820 - $30.
ea. 2 In stock
Knobs / Caps / Buttons / Covers / Covers, Input ‘Selector’ knob #5317730 – $30.
Knobs / Caps / Buttons / Covers / Covers, ‘Speakers’
Selector knob #5317720 - $30. ea.
Knobs / Caps / Buttons /
Covers /
Covers.
‘Balance knob’, ‘Bass’ knob, ‘Treble’ knob, #5317740 – $30. ea.
Knobs / Caps / Buttons / Covers / Covers, ‘Power’ button / cap w/ spring - $25.
Knobs / Caps / Buttons /
Covers /
Covers,
#5326410
(see also Sansui 661 & 771.
Will NOT fit the 331, 441, or 881)
‘Audio muting’, ‘Filters high / low’, ‘Loudness’, ‘Mono’, ‘FM Muting’,
‘Tape monitor’ cap / button #5317740 – $20. ea.
String Wheel, Plastic String Tuning Wheel- $25.
Panel,
‘Illuminator box’ #5066211 / F-1470 w/ ‘fuse lamp’ sockets (lamps not
included) - $25.
SANSUI
771 STEREO RECEIVER PARTS / SPARES
Potentiometer / Control,
‘Volume’ control pot, ALPS 250K BX2 / #1010920
(see also Sansui 661 & 771)
- $40.
SOLD
Potentiometer / Control,
‘Balance’ control pot, ALPS 250K M / #1010940 - $40.
Potentiometer / Control,
‘Treble’, ‘ Bass’, control pots ALPS 100K BX2 / #1010930 - $35. ea.
Switches / Selectors,
Rotary / Wafer ‘Input Selector’ switch, ALPS #110240 - $40.
Switches / Selectors,
Rotary / Wafer ‘Speaker’ switch ALPS #1102400 - $35.
Switches / Selectors,
Push Switches, ‘Audio Muting’, ‘Low Filter’, ‘Hi Filter’ switch,
#1130790- $25. ea.
Switches / Selectors,
Push Switches, ’Loudness’, ‘Mono’, ‘Tape Monitor’ Switches 1 - 2, ‘FM
Muting’ switch, #1130770 - $25. ea.
Switches / Selectors,
‘Power’ push switch #1130350, AC125VA w/ clamping capacitor
(button sold separately) - $25.
SOLD
Switches / Selectors,
‘Antenna attenuator’ switch - $20.
Switches / Selectors.
‘Voltage adjustment’ switch w/ plug / jumper (plastic cover sold
separately) - $35.
Cover, Voltage selector switch cover -
$20.
Switches / Selectors.
‘FM De-emphasis’ switch - $25.
SANSUI
771 STEREO RECEIVER PARTS / SPARES
Circuit Board,
‘Tuning’ circuit board, board #F-1479-2 with transistors; 930D, 2SA562,
2SC711, 2SC738, Mitsubishi 2SC1047, 2SC1362,
2SC1364, 2SC403C, NEC 2SC555A, IC Hitachi HA11203M,
KOR BL-12 0910210, Sansui 4240703,
(tuning capacitor sold separately)
- $65.
Circuit Board,
‘Filter Unit’ circuit board #F-1505, with mounted resistors and
capacitors (less
push
Switches)
- $35.
Capacitor,
‘Tuning’ capacitor #1220130 - $30.
Circuit Board,
‘Mic / Tone / Control Unit,’ circuit board #F-1504-1 with transistors;
K34 / 25C, 2SC1222. with mounted capacitors, resistors
(Tone pots, push Switches, mic jack sold separately) -
$45.
Circuit Board,
‘Equalizer’ unit circuit board #F1503 with transistors; 2SC1222 -
$35.
Circuit Board,
‘Driver Unit’ circuit board #F-1499, with transistors: Hitachi 2SC281,
2SA726, Sony 2SA706, Sony 2SC1124 and balance of
capacitors, resistors - $65.
Circuit Board,
‘Power Board Unit’ / (power supply) circuit board #F-1500, with
transistors; 2SC1364, Sanyo 2SD330E, Sanyo 2SC875E,
Rectifier diodes; IR 10DC / IR-4B, 3W / 0.33 Ohm resistors, and balance
of mounted capacitors and resistors
(less power supply filter cap, relay, output
transistors, heat sink sold separately) - $65.
Relay,
Omron relay type MY 2 / 24VDC - $35.
SANSUI 771 STEREO RECEIVER
PARTS / SPARES
Transformer, ‘Power supply’
transformer #4001390– adjustable 120v-240v power option - $85.
Capacitors, ‘Power supply filter cap’ #E0549103 Elna
1000μF 50 Volts - $25.
Capacitors, ‘Power
supply filter cap’ Elna 4700uF 50 Volts - $20. ea.
Transistors,
‘Output’ transistors; SanKen 2SC1402 TO-3, Metal cased output
transistors - $25. ea.
Heat Sink,
Power amp heat sink
(less output transistors)
- $25. ea.
Jacks / Connectors
/ Terminals,
‘Stereophones’ / Headphone jack, ¼ inch - $25.
Jacks / Connectors / Terminals,
‘Microphone’ / Mic jack, ¼ inch - $25.
Jacks / Connectors
/ Terminals,
RCA Input / Output connectors / jacks ‘Phono’, ‘AUX’ 1-2,
‘Tape’1-2, ‘4channel adaptor’, one bank with capacitors - $45.
Jacks / Connectors / Terminals,
‘Speaker’ connectors / terminals, 3 complete banks of 2 pairs
#2290100 (Fits Sansui
Sansui
661, 771, & 881, however, will not fit Sansui 221,
331, 441, or 551) - $35. ea.
bank
Jacks / Connectors / Terminals,
‘Antenna’ Connectors / post / terminals on fiber board as set of
3, includes attached resistors- $25.
Jacks / Connectors / Terminals,
AC Convenience outlet / Socket, ‘AC Convenience’ sockets - $18. ea.
Jacks / Connectors
/ Terminals,
‘DIN’ socket with resistors - $25.
SANSUI 771 STEREO RECEIVER
PARTS / SPARES
Antenna, AM ‘Stick’ / bar /
rod antenna, # 4200610 with extension / sliding mounting bracket - $35.
Fuse, Main AC / Power Fuse ‘Holder’
(cap sold separately) - $25.
Fuse,
Main
AC / Power Fuse ‘Cap’
(holder sold separately)
- $30.
Panel,
Rear sheet metal panel
(less any input / output
jacks / components)
- $25.
Panel,
Bottom sheet metal - SOLD
(just FYI, 'pack / ship' on items such as large panels, Speaker
Grills, Empty speaker / component cabinets, etc. will likely be
'expensive', relative to the
cost of the part, due to the amount of packing it takes for safe
delivery, and depending on location shipped to.)
Foot / Feet,
set of 4 -
SOLD
Call or Email for
"SHOWN and NOT marked 'SOLD'
" part you need.
Location: Brown Advance cab, Drawer 1, Position right
1 & 2 -
revised
3/18/19 (Above
text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
|
|
(Click on above thumbnails to enlarge photos)
SANSUI 2000 STEREO RECEIVER PARTS / SPARES
ENTIRE UNIT CURRENTLY
MIA. SORRY. NONE OF THE BELOW PARTS AVAIL FROM THE UNIT AT THIS TIME
for sale
Parting out due to problems with right side outputs. Wood case in
NEW condition. Very good shape with only minor wear to some of the front
panel silk screening. Parting out.
Inquire for part you
need.
Many of the parts
MAY*
also fit the 1000, 3000, 4000 & 5000 models
such as Switches, pots, controls and knobs.
Wood Case - Excellent (may fit other models in this series) - $SOLD
(Cases,
covers and side plate / panels, etc. do not include mounting screws as
those are sold separately when available)
(just FYI, 'pack / ship'
on items such as large panels, Speaker Grills, Empty speaker / component
cabinets, etc. will likely be 'expensive', relative to the
cost of the part, due to the amount of packing it takes for safe
delivery, and depending on location shipped to.)
SANSUI 2000 RECEIVER PARTS / SPARES
Face panel with glass (less knobs / buttons)
worn silk screening on Selector and Volume controls - $39.
Knobs / Caps / Buttons / Covers / Covers,
Tuning knob
Black - $25. SOLD
Knobs / Caps / Buttons / Covers / Covers,
Tuning knob
Silver - $25.
Knobs / Caps / Buttons / Covers / Covers, Large round knobs - $20 ea.
Knobs / Caps / Buttons / Covers / Covers, Tone knobs (concentric sets)
(Antenna, AM
see also 2000X, 4000X &
5000X) - $20. ea.
ENTIRE UNIT CURRENTLY
MIA. SORRY.
NONE OF THE
PARTS AVAIL FROM THE UNIT AT THIS TIME
Knobs / Caps /
Buttons / Covers / Covers,
Push Switch caps -
$12. ea.
VU / Tuning meter - $25.
Power supply Transformer (400-5285) - $45.
Power supply filter Caps - $15 ea.
Power amplifier outputs (Toshiba 2SC493, one side remaining) - $35.
ea. side.
SANSUI 2000 RECEIVER PARTS / SPARES
- Tuning capacitor - $35
Any control pot - $25. ea.
Ganged controls - Additional $15. ea.
Volume Control -
SOLD
Switches / Selectors,
Any switch - $25. ea.
Circuit Board,
‘Driver Unit’ circuit board #F-1180
/ 2570221,
with transistors: NEC 2SA606, NEC 2SA659,
Matsushita
2SC871, NEC
2SC959, 2SC984, Sony 2SC1124,
and balance of
capacitors, diodes, resistors
& PC mounted trim pots
(see; Sansui 2000A, QRX-4500 & QRX-6500) - $75.
ea.
SANSUI 2000 RECEIVER PARTS / SPARES
ENTIRE UNIT CURRENTLY
MIA. SORRY.
NONE OF THE
PARTS AVAIL FROM THE UNIT AT THIS TIME
Rear panel - $65 complete (while parts last)
Cap, Fuse insert cap
for AC Mains Power or Speaker Output -
'Threaded' version. 8.9mm diameter by 7mm thread length threaded
section. Black bake-lite is tapered from 16mm to 11.65mm and is 'spring
loaded' (fits most Sansui "X000" series
receivers ie; 2000, 2000A, 4000, 5000, 5000A & 5000X that are
'threaded'. NOT the 'Bayonet' style). $25. ea.
small and limited quantity available
Voltage selector assembly - $30.
Bottom sheet metal panel - $20.
(just FYI, 'pack / ship' on items such as large panels, Speaker
Grills, Empty speaker / component cabinets, etc. will likely be
'expensive', relative to the
cost of the part, due to the amount of packing it takes for safe
delivery, and depending on location shipped to.)
Feet set of 4 - $25. or $12.
ea.
Jacks
/ Connectors / Terminals,
Any single rear panel Input / Output component (speaker output strips, RCA
panels, etc.) - $25. ea.
Antenna, AM antenna - $25.
Call or Email for
"SHOWN and NOT marked 'SOLD'
" part you need.
revised
3/18/19 (Above
text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
(Click on above thumbnails to enlarge photos)
SANSUI
MODEL 3300
QUAD STEREO
RECEIVER PARTS
for sale
Parting out due to problems with left
side outputs. Wood case in decent shape. Missing a couple of knobs. Call
or Email for part you need
SOLD
|
|
|
(Click on above thumbnails to enlarge
photos)
SANSUI 4000 STEREO RECEIVER PARTS /
SPARES
for sale.
Parting out.
Inquire for part you
need. Some parts MAY* fit other Sansui
receivers such as the Sansui 2000A, 2000X, 4000, 5000, 5000A, 5000X models.
SANSUI 4000 RECEIVER PARTS / SPARES
Case / Bonnet / Cover,
Wood Case - Fair condition, with a few 'battle scars' edge dings, scuffs -
$40.
SOLD
(Cases, covers and side plate / panels, etc. do not include mounting screws
as those are sold separately
(just FYI, 'pack / ship' on items such as large panels, Speaker
Grills, Empty speaker / component cabinets, etc. will likely be
'expensive', relative to the
cost of the part, due to the amount of packing it takes for safe
delivery, and depending on location shipped to.)
Panel / Face / Front, Face panel with glass. Decent, with minor
‘gouge’ on right side trim. Not too distracting. (less knobs / buttons) -
$65. ea.
Knobs /
Caps / Buttons / Covers / Covers, Tuning knob
(see also 2000A, 2000X, 4000, 5000A, 5000X)
- $40. SOLD
Knobs / Caps / Buttons
/ Covers
/ Covers, Volume / Input Selector / Speaker knobs
(see also 2000A, 2000X, 4000, 5000A, 5000X) - $30 ea.
SOLD
Knobs / Caps / Buttons / Covers / Covers,
Tone / Bass, Treble, Mic / Microphone / Balance knobs Concentric / split
set (front / back)
(see also 2000X, 3000A, 4000, 5000A, 5000X) - $30. ea concentric
/ split set SOLD
Knobs / Caps /
Buttons / Covers / Covers, Black, Plastic, Push Switch caps (black)
(See
also most of the Sansui models from this line / era, but not interchangeable with the "Sansui
5000") - $25. ea.
(Whoa, Why so many $$$$ for just a "stupid, little plastic button"? The
elevated price is due to the difficulty to remove 'intact' as Sansui epoxied
these on to the switch shafts and low success rate in removal from HIGH
likely-hood of injury (to us) or breakage of nylon switch shaft or cap)
Knobs, Caps, Buttons, Power Push Switch cap w/ spring
(see also Sansui 4000, 5000 and 5000A)- $25.
SOLD
Meters, Center Tune meter #090012
(see also Sansui 4000, 5000 and 5000A) - $30.
Meters, Signal Strength meter #090019 - $30.
Pointer / Indicator, Dial Tuning pointer / indicator / needle (light
bulb in 'unknown' condition) - $35. ea.
Tuning Flywheel Assembly, Tuning flywheel / bushing assembly
- $35. ea.
SOLD
SANSUI 4000 RECEIVER PARTS / SPARES
Potentiometers / Controls, Volume Control pot, Alps, stacked 250Kx2,
center tapped on top of vol #101020
(see also Sansui 2000A,
4000, 5000, & 5000A) - $45.
SOLD
Potentiometers / Controls, Bass / Treble pots. Concentric, Alps,
stacked 250K x2 #102004
(see also Sansui 2000A,
4000)
- $45. ea.
Potentiometers / Controls, Balance Level pot – Alps, stacked 2x 250K
#101040
(see also Sansui 2000A,
4000, 5000, & 5000A)
- $45. ea.
SOLD
Potentiometers / Controls, Muting control pot, (located on rear
panel) - $25.
Potentiometers / Controls, Level Adjust control pot, 2x50k
Ohms
(located on rear panel)
(see also Sansui 4000, 5000 and 5000A)
- $30.
Switches / selectors, Tape Monitor, Hi Filter, Lo Filter W/ BLACK CAP
-– INCLUDED WITH F-1052 - CIRCUIT BOARD LISTED BELOW
Switches / selectors, 6-Pin. Latched, Push
Switches for Muting
Switch, FM Stereo, Reverse, Mono, Loudness Switch – INCLUDED WITH F-1155 -
CIRCUIT BOARD LISTED BELOW
Switches / selectors, Power Switch (rectangle body)
(see also Sansui 4000, 5000 and 5000A) - $35. ea.
Switches / selectors, Rotary Input / Function Selector Switch w/ rod
and sheet metal chassis section - $55.
Switches / selectors, Rotary Speaker Selector Switch - $45. ea.
Switches / selectors, Slide Speaker Dist / Local switch
(see also Sansui 4000, 5000 and 5000A) - $25. ea.
SANSUI 4000 RECEIVER PARTS / SPARES
Transformer, Power supply
Transformer (4005339) “World Power” version 100V-240V - $60.
Capacitors, Power supply filter Caps ( 80V / 2200uf )
(see also Sansui 4000, 5000, 5000A & 5000X) - $25. ea.
Capacitors, Power supply filter Caps (50V / 1000uf )
(see also Sansui 4000, 5000, 5000A & 5000X) - $25. ea.
Capacitor,
FM Front End / FM Tuning Capacitor #71036 (zinc string wheel sold
separately) - $50. ea. SOLD
Capacitor,
AM Front End / AM 3-Gang Tuning Capacitor #120002 (zinc string wheel
sold separately) -$35. ea.
Wheel / Pulley, Nylon String wheel / Pulley,
FM 'Wide, with grooves / ridges and 2 springs' - $25. ea.
Wheel / Pulley, Nylon String wheel / Pulley,
AM 'Narrow, un-grooved, w/ no springs' - $25. ea.
Circuit Board,
F-1038 IF AM Tuner Circuit Board, w/ Transistors; Hitachi 2SC460, and
w/ adjustable transformers, and balance of board mounted capacitors, diodes
and resistors and variable resistors. - $45.
Circuit Board,
F-1149 Tone Control Circuit Board, w/ transistors Mitsubishi 2SC871,
balance of board mounted capacitors, and resistors
(does not include the 4 Potentiometers). - $45.
Circuit Board,
F-1150 Driver Amp Block Circuit Board, w/ transistors; Toshiba 2SA485,
2SA537A, Hitachi 2SC708, and balance of board mounted
capacitors, diodes and resistors and variable resistors. - $65. ea.
SOLD
Circuit Board, F-1150 Driver Amp Block Circuit Board, w/
transistors; Toshiba 2SA485, 2SA537A, Hitachi 2SC708,
and balance of board mounted capacitors, diodes and resistors and variable
resistors. (please note: This particular board is missing 2 of 3 transistors
2SC708 and heat sinks for board locations TR805 and TR807.
-
$25. as-is
SOLD
Circuit Board, F-1055 Tape Monitor Circuit Board SW, includes
both Switches and black plastic caps. -
$45.
Circuit Board,
F-1169 Equalizer Amp Circuit Board with a balance of board mounted
transistors Mitsubishi 2SC871 and balance of board mounted
capacitors, adjustable transistor and resistors - $65. ea.
Circuit Board,
F-1176 Protector Block with NEC F6, Hitachi
2SC458 and balance of board mounted variable resistors, capacitors, diodes
and resistors, however, we pulled
transistor 2SC627 for shop use - $30.
As-Is
Circuit Board,
F-1178 Accessory Circuit Board, includes latched ‘push’ Switches with their
black plastic caps and balance of board mounted capacitors, and resistors -
$65.
Circuit Board,
F-1185 Multiplex / MPX Circuit Board, w/ Transistors; Mitsubishi 2SC564,
536E, and w/ adjustable Transformers; Sansui, and balance of
board mounted adjustable transformers, variable resistors, capacitors,
chokes, diodes and resistors. - $45.
SOLD
Circuit Board,
F-1186 High Low Filter Circuit Board, includes both filter Switches and
black plastic caps.
Balance of board
mounted capacitors - $45.
Circuit Board,
F-1187 Ripple Filter Block Circuit Board, Transistors; NEC 2SD205, 2SC971
and balance of board mounted capacitors, diodes and resistors - $35.
Circuit Board,
F-1214 FM IF Block Circuit Board, w/ IC’s; PA7703-260-7028, Transistors; 2SC380,
Mitsubishi 2SA564, 2SC828, variable resistors and balance of
board mounted adjustable transformers (All
10.7 Mhz,
423548, 423548, 423549,
423518,
&
423529),
capacitors, chokes, diodes and
resistors. - $45.
SOLD
Circuit Board,
F-1220
w/Transistors;
Hitachi 2SC460, and w/ adjustable transformers, and balance of board
mounted variable resistors, capacitors, diodes and resistors
(see also Sansui 2000A & 4000)- $35.
Transistors,
Power Amplifier Output
transistors; Can be 2SC1116, 2SD213, or can be sub’d with NTE284 or ECG162
(what we currently have are ‘old’ replacements by ‘Sylvania / ECG’ part
number ECG162 - $25. ea. tested good w/ NO leakage
Heat Sinks- Smaller,
small power amp heat-sinks (transistors sold separately)
(see also Sansui 4000, 5000A and 5000X) - $25. ea.
Heat Sinks- Larger, large power amp heat-sinks (transistors sold
separately)
(see also Sansui 4000, 5000A and 5000X)
- $25. ea.
SANSUI 4000 RECEIVER PARTS / SPARES
Connectors,
Multi-pin 14 pin circuit board, edge connector - $25. ea
Connectors,
Multi-pin 14 pin circuit board, edge connector - $25.
ea.
Jacks /
Connectors / Terminals,
DIN Tape Recorder RCA Input / Output jack
(see also Sansui 4000, 5000 and 5000A) - $30.
Jacks /
Connectors / Terminals, Phono 1, Phono 2, Tape Monitor and AUX RCA Input jacks - $35. ea. set of
10 jacks on bakelite panel / plate - $45. ea.
Jacks
/ Connectors / Terminals,
Speaker connectors / jacks / clips, sold in set / strip of four connectors
(all black and red in color) (see also Sansui 4000, 5000 5000A, & 5000X
(4000 and 5000X are black and red). Others are all black))
- $35. ea.
Jacks
/ Connectors / Terminals,
Headphone Jack (decorative nut sold separately) - $25. ea.
Jacks
/ Connectors / Terminals,
AC power convenience outlets / connectors - $20. ea.
Panel / Plate, Rear panel - $35. sheet metal only.
(a name is engraved into the back panel)
Fuse Holder, Main AC Power Fuse insert holders (caps sold separately)
- $20. ea.
Cap, Fuse insert cap for AC Mains
Power or Speaker Output - 'Threaded'
version. 8.9mm diameter by 7mm thread length threaded section. Black
bake-lite is tapered from 16mm to 11.65mm and is 'spring loaded'
(fits most Sansui "X000" series receivers ie;
2000, 2000A, 4000, 5000, 5000A & 5000X that are 'threaded'. NOT the
'Bayonet' style). $25. ea.
small and limited quantity available
Fuse Holder, Speaker Fuse insert holders (caps sold separately) -
$20. ea.
Jacks
/ Connectors / Terminals, Antenna connector plate - $25. ea.
Antenna, AM antenna Ferrite stick
(15 Centimeters in Length) (mounting bracket sold separately) -
$30. ea.
Antenna, AM antenna Bracket only (antenna stick sold separately) -
$30. ea.
Plate, Aluminum, silk-screened Sansui name plate from heat sinks with
Speaker output listing. (with screws) Straight and only minor scuffs /
scratches - $25.
Voltage selector assembly w/ jumper plugs (2) -
$55.
Bottom sheet metal panel - $20. SOLD
(just FYI, 'pack / ship' on items such as large panels, Speaker
Grills, Empty speaker / component cabinets, etc. will likely be
'expensive', relative to the
cost of the part, due to the amount of packing it takes for safe
delivery, and depending on location shipped to.)
Feet set of 4 - $25. or $12. ea. SOLD
Call or Email for "SHOWN and NOT marked 'SOLD'
" part you need.
Location: PB, South, Center Island, 2nd from left
cab (tan), 3rd drawer -
Revised 7/7/2022 (Above
text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
(Click on above thumbnails to enlarge
photos)
SANSUI 5000 STEREO RECEIVER PARTS /
SPARES
for sale.
Parting out.
Inquire for part you
need. Some parts MAY* fit other Sansui
receivers such as the Sansui 2000A, 2000X, 4000, 5000, 5000A, 5000X models.
SANSUI 5000 RECEIVER PARTS / SPARES
Case / Bonnet / Cover,
Wood Case - Fair condition, with a few 'battle scars' edge dings, scuffs -
$40. SOLD
(Cases, covers and side plate / panels, etc. do not include mounting screws
as those are sold separately)
(just FYI, 'pack / ship'
on items such as large panels, Speaker Grills, Empty speaker / component
cabinets, etc. will likely be 'expensive', relative to the
cost of the part, due to the amount of packing it takes for safe
delivery, and depending on location shipped to.)
Case / Bonnet / Cover,
Black Metal Case
/ Cover - Decent condition, with a few 'battle scars' edge dings, scuffs
- $40.
SOLD
(Cases, covers and side plate / panels, etc. do not include mounting
screws as those are sold separately)
(just FYI, 'pack / ship'
on items such as large panels, Speaker Grills, Empty speaker / component
cabinets, etc. will likely be 'expensive', relative to the
cost of the part, due to the amount of packing it takes for safe
delivery, and depending on location shipped to.)
Panel / Face / Front, Face panel with glass. Wear to silk screening
around ‘input selector’ switch. (less knobs / buttons)
- $55. ea.
Knobs / Caps / Buttons / Covers / Covers, Tuning knob
- $45. SOLD
Knobs / Caps /
Buttons / Covers / Covers, Volume / Balance /
Input Selector / Speaker knobs
(see also 2000A, 2000X, 4000, 5000A, 5000X) - $30 ea.
SOLD
Knobs / Caps / Buttons / Covers / Covers,
Tone / Bass, Treble, knobs Concentric / split
set (front / back)
(see also 2000X, 3000A, 4000, 5000A, 5000X) - $30. ea
concentric / split set SOLD
Knobs / Caps / Buttons / Covers / Covers, Black, Plastic, Push Switch caps (black) (not
interchangeable with the "Sansui 4000, 5000A"
or "5000X") - $25. ea.
(Whoa, Why so many $$$$ for just a "stupid, little plastic button"? The
elevated price is due to the difficulty to remove 'intact' as Sansui epoxied
these on to the switch shafts and low success rate in removal from HIGH
likely-hood of injury (to us) or breakage of nylon switch shaft or cap)
Knobs, Caps, Buttons, Power Push Switch cap w/ spring
(see also Sansui
4000, 5000 and 5000A)
- $25.
Meters, Center Tune / Tuning meter #090012
(see also Sansui
4000, 5000 and 5000A)
- $35.
Meters, Signal Strength meter
#090011
(see also Sansui 5000 and 5000A)
- $35.
Pointer / Indicator, Dial Tuning pointer / indicator / needle (light
bulb in 'unknown' condition).
(It appears that the "dial pointer" is
interchangeable between the Sansui "5000", "5000A" and "5000X", but we
haven't tried to interchange them, nor found definitive information on
that so do your own 'homework')
- $35. ea. SOLD
Tuning Flywheel Assembly, Tuning flywheel / bushing assembly
- $35. ea.
SANSUI 5000 RECEIVER PARTS / SPARES
Potentiometers / Controls, Volume
Control pot, Alps Stacked 250K #101020
(see also Sansui 2000A,
4000, 5000, & 5000A)
- $55. ea. SOLD
Potentiometers / Controls, Bass / Treble Control pots, Alps
#102004 Concentric / Stacked 100K
(see also Sansui 5000 and 5000A)
- $45. ea.
Potentiometers / Controls, Balance
Control pot #101021 Alps Stacked 2x 250K,
Center Tapped on top
(see also Sansui 5000 and 5000A)
- $45. ea.
SOLD
Potentiometers / Controls, MPX Separation control pot, 5k
Ohms
(located on rear panel)
(see also Sansui 5000 and 5000A)
- $20.
ea.
Potentiometers / Controls, Level Adjust control pot, 2x50k
Ohms
(located on rear panel)
(see also Sansui
4000, 5000 and 5000A)
- $30. ea.
Switches / selectors, Tape Monitor, Hi Filter, Lo Filter W/ BLACK CAP
#113007
(see also Sansui 5000 and 5000A)
– INCLUDED WITH F-1052 - CIRCUIT
BOARD LISTED BELOW
Switches / selectors, 6-Pin. Latched, Push Switches for Muting
Switch, FM Stereo, Reverse, Mono, Loudness Switch
(see also Sansui 5000 and 5000A)
– INCLUDED WITH F-1056 - CIRCUIT
BOARD LISTED BELOW
Switches / selectors,
Power Switch #113009 (round switch body, not
rectangular version)
(see also Sansui
4000, 5000 and 5000A)
- $45. ea.
SOLD
Switches / selectors, Rotary Input / Function Selector Switch #110504
(see also Sansui 5000 and 5000A)
- $45.
Switches / selectors, Rotary Input Selector linkage / rod
(see also Sansui 5000 and 5000A)
- $25. ea.
Switches / selectors, Rotary Speaker Selector Switch #110208
(see also Sansui 5000 and 5000A)
- $45. ea.
Switches / selectors, Slide Speaker ‘Damping’ Switch or Dist / Local
switch
(see also Sansui
4000, 5000 and 5000A)
- $25. ea.
SANSUI 5000 RECEIVER PARTS / SPARES
Transformer, Power supply
Transformer (4005292C) - $60. ea.
Capacitors, Power supply filter Caps ( 80V / 2200uf )
(see also Sansui 5000,
5000A &
5000X)
- $25. ea.
Capacitors, Power supply filter Caps (50V / 1000uf )
(see also Sansui 5000,
5000A &
5000X)
- $25. ea.
Capacitors,
Power supply filter Caps (35V / 1000uf ) - $25. ea.
Capacitor,
FM Front End / FM Tuning Capacitor Alps #F-1011 (zinc string wheel sold
separately) - $50. ea.
SOLD
10/19/2022
Capacitor,
AM Front End / AM 3-Gang Tuning Capacitor (zinc string wheel sold
separately) -$35. ea. SOLD
Wheel / Pulley, Zinc String wheel / Pulley
(see also Sansui 5000 and 5000A)
- $20. ea.
SOLD
Circuit Board,
F-1005 FM IF Circuit Board, w/ IC’s; PA7703-260-6935, Transistors; 2SC380,
Mitsubishi 2SC828, variable resistors and balance of board mounted
adjustable transformers, capacitors, chokes, diodes and resistors.
(see also Sansui 5000 and 5000A)
- $45.
SOLD
Circuit Board, F-1006-A FM MPX Circuit Board, w/ Transistors; 2SC373,
2SC536, Mitsubishi 2SC564A, Matsushita 2SC656and w/
adjustable Transformers; Sansui, 424021-213N, 424022-213N, 424025-213N,
424038-212N, and balance of board mounted capacitors, diodes and resistors
and variable resistors
(see also Sansui 5000 and 5000A)
- $45. SOLD
Circuit Board,
F-1029 Tone Control Circuit Board, w/ transistors Mitsubishi 2SC871
and 536E transistors and 693F transistors; balance of board mounted
capacitors, and resistors
(does not include the 4 Potentiometers).
- $45.
Circuit Board,
F-1036 Equalizer Amp Circuit Board with a balance of board mounted
transistors 2SC281 and 2SC650and balance of board mounted
capacitors, resistors
(see also Sansui 5000 and 5000A)
- $65. ea.
Circuit Board, F-1038 IF AM Tuner Circuit Board, w/ Transistors;
Hitachi 2SC460, and w/ adjustable transformers, and balance of board
mounted capacitors, diodes and resistors and variable resistors. - $45.
SOLD
Circuit Board,
F-1040 Driver Amp Circuit Board, w/ transistors; Hitachi 2SC458, Sony
2SC756, Toshiba 2SA485,
variable resistor / trim pot and
balance of board mounted capacitors, diodes &
resistors.
(see also Sansui 5000 and 5000A)
- $85. ea.
SOLD OUT
Circuit Board,
F-1041 Protector Circuit Board, w/ transistors; Hitachi 2SC458,
Mitsubishi 2SF521, variable resistor and balance of board mounted
capacitors, diodes and resistors.
(see also Sansui 5000 and 5000A)
- $35.
Circuit Board,
F-1042 Diode Stack Circuit Board, w/ 8 diodes.
(see also Sansui 5000 and 5000A) - $25.
Circuit Board,
F-1051 High Low Filter Circuit Board, includes both filter Switches and
black plastic caps.
Balance of board
mounted capacitors
(see also Sansui 5000 and 5000A)
- $45.
SOLD
Circuit Board,
F-1052 Tape Monitor Circuit Board SW, includes both Switches and black
plastic caps.
(see also Sansui 5000 and 5000A) - $45.
Circuit Board,
F-1056 Accessory Circuit Board, includes latched ‘push’ Switches with their
black plastic caps and balance of board mounted capacitors, and resistors
(see also Sansui 5000 and 5000A)
- $65.
Circuit Board,
F-1120 / F-1098 Muting Circuit Board, w/ Transistors; Hitachi 2SC458,
Mitsubishi 2SC828, Photo-Cell module MPL-101I, variable resistor and
balance of board mounted capacitors and resistors.
(see also Sansui 5000 and 5000A)
- $45.
SOLD
Circuit Board,
F-1137A Ripple Filter Circuit Board, Transistors; NEC 2SD205, Stanley
ZHR212 and balance of board mounted capacitors, diodes and resistors
(see also Sansui 5000 and 5000A)
- $35.
Transistors, Power Amplifier Output Transistors Toshiba 2SD118, TO-3,
Metal Cased output transistors
(see also Sansui 5000 and 5000A)
- $35. ea. tested good w/ NO
leakage SOLD OUT
Heat Sinks, (transistors sold separately) - $30. ea.
SANSUI 5000 RECEIVER PARTS / SPARES
Jacks
/ Connectors / Terminals,
Tape Monitor RCA Input / Output jacks
(see also Sansui 5000 and 5000A) -
FULL set of 8 jacks on bakelite panel / plate $45.
Jacks /
Connectors / Terminals,
DIN Tape Monitor RCA Input / Output jack
(see also Sansui
4000, 5000 and 5000A)
- $30.
Jacks /
Connectors / Terminals, Phono 1, Phono
2 and AUX RCA Input jacks, set of 6 jacks on bakelite panel / plate
(see also Sansui 5000 and 5000A)
- FULL set of 6 jacks on bakelite panel / plate $45.
Jacks
/ Connectors / Terminals,
Speaker connectors / jacks / clips, sold in set / strip of four connectors
(all black in color) (see also Sansui 5000 and 5000A)
- $35.
Jacks / Terminals
/ Connectors,
Headphone Jack (decorative nut sold separately) - $25. ea.
SOLD
Jacks
/ Connectors / Terminals,
Tape-2 Jack, front mounted (decorative nut sold separately) - $25.
ea.
Jacks
/ Connectors / Terminals, Decorative Nut / Fastener for
Mic, Tape or Headphone jacks
- $20. ea. (when
available)
Jacks
/ Connectors / Terminals,
AC power convenience outlets / connectors - $20. ea.
Jacks /
Connectors / Terminals,
Phono GND / Ground post / terminal / screw / bolt
(see also Sansui
5000, 5000A, 5000X
and possibly others)
- $20.
Panel / Plate, Rear panel - $35. sheet metal only.
All parts / components removed -$25. ea.
Fuse Holder, Main AC Power Fuse insert holders (caps sold separately)
(see also Sansui 4000, 5000, 5000A and 5000X)
- $25. ea.
Cap, Fuse insert cap for AC Mains Power
or Speaker Output - 'Threaded' version. 8.9mm
diameter by 7mm thread length threaded section. Black bake-lite is
tapered from 16mm to 11.65mm and is 'spring loaded'
(fits most Sansui "X000" series receivers ie; 2000,
2000A, 4000, 5000, 5000A & 5000X that are 'threaded'. NOT the 'Bayonet'
style). $30. ea.
small and limited quantity available
(location; misc Sansui
cabinet)
Caps, Speaker Fuse
insert caps (bayonet) - $30. ea.
SOLD / MIA?
Fuse Holder, Speaker Fuse insert holders (caps sold separately)
(see also Sansui 5000 and 5000A)
-
$20. ea.
Jacks /
Connectors / Terminals, Antenna connector plate - $25. ea.
SANSUI 5000 RECEIVER PARTS / SPARES
Antenna, AM antenna Ferrite stick (mounting bracket sold separately)
(see also Sansui 5000 and 5000A)
- $30. ea.
Antenna, AM antenna Bracket only (antenna stick sold separately)
(see also Sansui 5000 and 5000A)
- $30. ea.
Plate, Aluminum, silk-screened Sansui name plate from heat sinks with
Speaker output listing (with screws). Straight and only minor scuffs /
scratches - $25.
Voltage selector assembly w/ jumper plug
(see also Sansui 5000 and 5000A
and may also fit Stax DA-80M Mono-block amplifier)
- $35.
Bottom sheet metal panel - $20.
SOLD
(just FYI, 'pack / ship' on items such as large panels, Speaker
Grills, Empty speaker / component cabinets, etc. will likely be
'expensive', relative to the
cost of the part, due to the amount of packing it takes for safe
delivery, and depending on location shipped to.)
Feet set of 4 - $25. or $12. ea.
SOLD
Call or Email for "SHOWN and NOT marked 'SOLD'
" part you need.
Location: PB, South, Center Island, 1st /
left-most
cab / gray, 4th drawer -
Revised
1/4/2023 (Above
text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
(Click on above thumbnails to enlarge
photos)
SANSUI 5000A STEREO RECEIVER PARTS /
SPARES
for sale.
Parting out. Unit in very good shape
with only minor wear to some of the front panel silk screening. Parting
out.
Inquire for part
you need. Some parts MAY* fit other
Sansui receivers such as the Sansui 2000A, 2000X, 4000, 5000A, 5000X
models.
SANSUI 5000A RECEIVER PARTS / SPARES
Case / Bonnet / Cover,
Wood Case - Fair condition, with a few 'battle scars' edge dings, scuffs
- $40.
SOLD
(Cases, covers and side plate / panels, etc. do not include mounting
screws as those are sold separately)
(just FYI, 'pack / ship'
on items such as large panels, Speaker Grills, Empty speaker / component
cabinets, etc. will likely be 'expensive', relative to the
cost of the part, due to the amount of packing it takes for safe
delivery, and depending on location shipped to.)
Case / Bonnet / Cover,
Black Metal Case
/ Cover - Decent condition, with a few 'battle scars' edge dings, scuffs
- $40.
(Cases, covers and side plate / panels, etc. do not include mounting
screws as those are sold separately)
(just FYI, 'pack / ship'
on items such as large panels, Speaker Grills, Empty speaker / component
cabinets, etc. will likely be 'expensive', relative to the
cost of the part, due to the amount of packing it takes for safe
delivery, and depending on location shipped to.)
Panel / Face / Front, Face panel with glass. Dial glass
clean. Metal panel is VERY clean, with no wear to silk screened
lettering. Has ID number engraved on top, horizontal
edge (not visible from front, only when looking down from above) (less knobs / buttons) Good condition - $65.
ea.
Panel / Face / Front, Face panel with glass. Dial glass has minor
scuff. Metal panel is VERY clean, with no wear to silk screened
lettering. (less knobs / buttons) Good condition - $65.
ea.
Knobs / Caps / Buttons / Covers / Covers, Tuning knob
(for
'Split/ Splined shaft'. NOT 5000X)
- $45.
1
JUST IN
Knobs / Caps / Buttons / Covers / Covers, Volume /
Balance / Input Selector / Speaker knobs
(see also 2000A, 2000X, 4000, 5000A, 5000X) - $30 ea.
Knobs / Caps / Buttons / Covers / Covers,
Tone / Bass, Treble, knobs Concentric /
split set (front / back)
(see also 2000X, 3000A, 4000, 5000A, 5000X) -
$30. ea concentric / split set
Knobs / Caps / Buttons / Covers / Covers, Black, Plastic, Push Switch caps
(black)
(See
also most of the Sansui models from this line / era, but not interchangeable with the "Sansui
5000")
- $25. ea. (Whoa, Why so many $$$$ for just
a "stupid, little plastic button"? The elevated price is due to the
difficulty to remove 'intact' as Sansui epoxied these on to the switch
shafts and low success rate in removal from HIGH likely-hood of injury
(to us) or breakage of nylon switch shaft or cap)
Knobs, Caps, Buttons, Power Push Switch cap w/ spring
(see also Sansui 5000 and 5000A) - $30.
2
IN STOCK
Meters, Center Tune meter #090012
(see also Sansui 5000 and 5000A) - $35.
2
IN STOCK
Meters, Signal Strength meter #090011
(see also Sansui 5000 and 5000A) - $35.
2
IN STOCK
Pointer / Indicator, Dial Tuning pointer / indicator / needle
(light bulb in 'unknown' condition).
(It appears that the "dial pointer" is
interchangeable between the Sansui "5000", "5000A" and "5000X", but we
haven't tried to interchange them, nor found definitive information on
that so do your own 'homework') - $35. ea.
1
JUST IN
Tuning Flywheel Assembly, Tuning flywheel / bushing assembly
(not interchangeable with Sansui 5000X) - $35. ea.
3 IN STOCK
SANSUI 5000A RECEIVER PARTS / SPARES
Potentiometers / Controls, Volume
Control pot, Alps Stacked 250K #101020
(see also Sansui 2000A,
4000, 5000, & 5000A) - $55. ea.
SOLD 6/29/2022
Potentiometers / Controls, Bass / Treble Control pots, Alps
#102004 Concentric / Stacked 100K
(see also Sansui
4000, 5000, & 5000A) - $45. ea.
2
JUST IN
Potentiometers / Controls, Balance
Control pot #101021 Alps Stacked 2x 250K,
Center Tapped on top
(see also Sansui 5000 and 5000A) - $45. ea.
1
JUST IN
Potentiometers / Controls, MPX Separation control pot, 5k
Ohms
(located on rear panel)
(see also Sansui 5000 and 5000A) - $20. ea.
2 IN STOCK
Potentiometers / Controls, Level Adjust control pot, 2x50k
Ohms
(located on rear panel)
(see also Sansui 5000 and 5000A) - $30. ea.
2 IN STOCK
Switches / selectors, Tape Monitor, Hi Filter, Lo Filter W/ BLACK
CAP
(see also Sansui 5000 and 5000A) – INCLUDED WITH F-1052 - CIRCUIT BOARD LISTED BELOW
Switches / selectors, 6-Pin. Latched, Push Switches for Muting
Switch, FM Stereo, Reverse, Mono, Loudness Switch
(see also Sansui 5000 and 5000A) – INCLUDED WITH F-1056
- CIRCUIT BOARD LISTED BELOW
Switches / selectors,
Power Switch #113009 (round switch body, not
rectangular version)
(see also Sansui
4000, 5000 and 5000A) - $55. ea.
SOLD 1/2/23
Switches / selectors, Rotary Input
/ Source Selector Switch
#110504
(see also Sansui 5000 and 5000A) - $55.
2 IN STOCK
Switches / selectors, Rotary Input / Function Selector linkage / rod
(see also Sansui 5000 and 5000A) - $25.
ea.
2 IN STOCK
Switches / selectors, Rotary Speaker Selector Switch
#110208
(see also Sansui 5000 and 5000A) - $55. ea.
2 IN STOCK
Switches / selectors, Slide Speaker ‘Damping’ Switch or Dist /
Local switch
(see also Sansui
4000, 5000 and 5000A) - $25. ea.
2 IN STOCK
SANSUI 5000A RECEIVER PARTS / SPARES
Transformer, Power supply
Transformer (4000970) - $45. ea.
Transformer, Power supply
Transformer (400-5292C)
(multi-voltage version) - $45. ea.
2 IN STOCK
Capacitors, Power supply filter Caps ( 80V / 2200uf )
(see also Sansui
4000, 5000, 5000A
& 5000X) - $25. ea.
Capacitors, Power supply filter Caps (50V / 1000uf )
(see also Sansui
4000, 5000, 5000A
& 5000X) - $25. ea.
Capacitor,
FM Front End / FM Tuning Capacitor #F-1085A (zinc string wheel sold
separately) - $50. ea.
2
IN STOCK
Capacitor,
AM Front End / AM 3-Gang Tuning Capacitor (zinc string wheel sold
separately) -$35. ea.
2
IN STOCK
Circuit Board,
F-1005 FM IF Circuit Board, w/ IC’s; PA7703-260-6935, Transistors; 2SC380,
Mitsubishi 2SC828, variable resistors and balance of board
mounted adjustable transformers, capacitors, chokes, diodes and
resistors.
(see also Sansui 5000 and 5000A) - $45.
SOLD
Circuit Board, F-1006-A FM MPX Circuit Board, w/ Transistors; 2SC373,
2SC536, Mitsubishi 2SC564A, Matsushita 2SC656and w/
adjustable Transformers; Sansui, 424021-213N, 424022-213N, 424025-213N,
424038-212N, and balance of board mounted capacitors, diodes and
resistors and variable resistors
(see also Sansui 5000 and 5000A) - $45.
2
IN STOCK
Circuit Board,
F-1029 Tone Control Circuit Board, w/ transistors Mitsubishi 2SC871
and 536E transistors and 693G transistors; balance of board mounted
capacitors, and resistors (does not include the 4 Potentiometers).
(see also Sansui 5000 and 5000A) -
$45.
2
IN STOCK
Circuit Board,
F-1036 Equalizer Amp Circuit Board with a balance of board mounted
transistors 2SC281 and 2SC650and balance of board mounted
capacitors, resistors
(see also Sansui 5000 and 5000A) - $65. ea.
2 IN STOCK
Circuit Board, F-1038-5 IF AM Tuner Circuit Board, w/
Transistors; Hitachi 2SC460, and w/ adjustable transformers, and
balance of board mounted capacitors, diodes and resistors and variable
resistors. - $45. 2 IN STOCK
Circuit Board,
F-1040 Driver Amp Circuit Board, w/ transistors; Hitachi 2SC458,
Sony 2SC756, Toshiba 2SA485, variable resistor
/ trim pot and
balance of board mounted capacitors, diodes & resistors.
(see also Sansui 5000 and 5000A) - $65. ea.
SOLD OUT
Circuit Board,
F-6013 / TP-H43-T Driver Amp Circuit Board, w/ Transistors;
Sanken 2SA765, 2SC1445,
Fairchild 2SC627, Hitachi 2SC984,
2SC2240, and balance
of board mounted capacitors, diodes, resistors and variable resistors -
$85. ea.
2 JUST IN STOCK
Circuit Board,
F-1041 / F-1041A Protector Circuit Board, w/ transistors; Hitachi 2SC458,
Mitsubishi 2SF521, variable resistor and balance of board mounted
capacitors, diodes and resistors.
(see also Sansui 5000 and 5000A) - $35.
2 IN STOCK
Circuit Board,
F-1042 Diode Stack Circuit Board, w/ 8 diodes.
(see also Sansui 5000 and 5000A) - $25.
2 IN STOCK
Circuit Board,
F-1051 High Low Filter Circuit Board, includes both filter Switches and
black plastic caps.
Balance of board
mounted capacitors
(see also Sansui 5000 and 5000A) - $45.
2 IN STOCK
Circuit Board,
F-1052 Tape Monitor Circuit Board SW, includes both Switches and black
plastic caps.
- $45.
2 IN STOCK
Circuit Board,
F-1056 Accessory Circuit Board, includes latched ‘push’ Switches with
their black plastic caps and balance of board mounted capacitors, and
resistors
(see also Sansui 5000 and 5000A) - $65.
2 IN STOCK
Circuit Board,
F-1120 Muting Circuit Board, w/ Transistors; Hitachi 2SC458,
Mitsubishi 2SC828, PhotoCell module MPL-101I, variable resistor
and balance of board mounted capacitors and resistors.
(see also Sansui 5000 and 5000A) - $45.
2 IN STOCK
Circuit Board,
F-1137 Ripple Filter Circuit Board, w/ Transistors;
#TR001 / TEN 2SD167
or 2SD767,
(hard to read label),
#TR002 / NEC 2SD205, and balance of board mounted capacitors,
diodes and resistors
(see also Sansui 5000 and 5000A) - $35.
Circuit Board,
F-1137A Ripple Filter Circuit Board, w/ Transistors; Sanken 2SD223,
Matsushita 2SC696, and balance of board mounted capacitors,
diodes and resistors
(see also Sansui 5000 and 5000A) - $35.
2 IN STOCK
Transistors, Power Amplifier Output Transistors Toshiba 2SD118,
TO-3, Metal Cased output transistors
(see also Sansui 5000 and 5000A) - $35. ea. tested good w/ NO
leakage
2+ IN STOCK
Transistors, Power Amplifier Output Transistors Toshiba
2SC2607,
TO-3, Metal Cased output transistors - $35. ea. tested good w/ NO
leakage
2 IN STOCK
Heat Sinks- Smaller, (See also
4000,
5000A & 5000X) (transistors sold
separately) (there are two different output transistor heat sinks on the
each Sansui 5000A and 5000X) - $25. ea.
4+
IN STOCK
Heat Sinks- Larger, (See also
4000,
5000A & 5000X) (transistors sold
separately) (there are two different output transistor heat sinks on the
each Sansui 5000A and 5000X) - $25. ea.
2
IN STOCK
SANSUI 5000A RECEIVER PARTS / SPARES
Jacks
/ Connectors / Terminals,
Tape Monitor RCA Input / Output jacks
(see also Sansui 5000 and 5000A) -
FULL set of 8 jacks on bakelite panel / plate $45.
2 IN STOCK
Jacks /
Connectors / Terminals,
DIN Tape Monitor RCA Input / Output jacks
(see also Sansui
4000, 5000 and 5000A)
- $20.
2 IN STOCK
(1 chipped but functional)
Jacks /
Connectors / Terminals,
Tape Head, Phono
2 and AUX RCA Input jacks, set of 6 jacks on bakelite panel / plate
(see also Sansui 5000 and 5000A)
- FULL set of 6 jacks on bakelite panel / plate $45.
2 IN STOCK
Jacks
/ Connectors / Terminals,
Speaker connectors / jacks / clips, sold in set / strip of four
connectors. Most have minor crack in plastic, but still functional (all
black in color)
(see also Sansui 5000 and 5000A) - $35.
A FEW IN STOCK
Jacks
/ Connectors / Terminals,
Headphone Jack (decorative nut sold separately)
(see also Sansui 5000 and 5000A) - $25. ea.
2 IN STOCK
Jacks
/ Connectors / Terminals,
Tape-2 Jack, front mounted (decorative nut sold separately)
(see also Sansui 5000 and 5000A) -
$25. ea. 2+ IN STOCK
Jacks
/ Connectors / Terminals, Mic jack (decorative nut sold separately)
- $25. ea.
2 IN STOCK
Jacks
/ Connectors / Terminals, Decorative Nut / Fastener for
Mic, Tape or Headphone jacks
- $20. ea. (when
available)
Jacks
/ Connectors / Terminals,
AC power convenience outlets / connectors
(see also Sansui 5000 and 5000A) - $20. ea.
4 IN STOCK
Jacks /
Connectors / Terminals,
Phono GND / Ground post / terminal / screw / bolt
(see also Sansui
5000, 5000A, 5000X
and possibly others)
- $20.
2 IN STOCK
Panel / Plate, Rear panel - $35. sheet metal only. All parts /
components removed -$35. ea.
2 IN STOCK
Caps, Main AC Power Fuse insert cap (threaded)
(see also Sansui 4000, 5000, 5000A and 5000X)
- $30. ea.
2 IN STOCK
Fuse Holder, Main AC Power Fuse insert holders (caps sold
separately)
(see also Sansui 4000, 5000, 5000A and 5000X) - $25. ea.
2 IN STOCK
Cap,
Fuse insert cap for AC Mains Power or Speaker
Output - 'Threaded' version. 8.9mm diameter by
7mm thread length threaded section. Black bake-lite is tapered from 16mm
to 11.65mm and is 'spring loaded' (fits most
Sansui "X000" series receivers ie; 2000, 2000A, 4000, 5000, 5000A &
5000X that are 'threaded'. NOT the 'Bayonet' style). $30. ea.
small and limited quantity available
(location; misc Sansui
cabinet)
Caps, Speaker Fuse
insert caps (bayonet) - $30. ea.
SOLD / MIA?
Fuse Holder, Speaker Fuse insert holders (caps sold separately)
(see also Sansui 5000 and 5000A)
-
$20. ea.
Jacks / Terminals / Connectors, Antenna connector plate - $25. ea.
2 IN STOCK
SANSUI 5000A RECEIVER PARTS / SPARES
Antenna, AM antenna Ferrite stick (mounting bracket sold
separately)
(see also Sansui 5000 and 5000A) - $35. ea.
2
IN STOCK
Antenna, AM antenna Bracket only (antenna stick sold separately)
(see also Sansui 5000 and 5000A) - $35. ea.
2
IN STOCK
Plate, Aluminum, silk-screened Sansui name plate from heat sinks
with Speaker output listing (with screws). Straight and only minor
scuffs / scratches - $25.
2
IN STOCK
Voltage selector assembly w/ jumper plug
(see also Sansui 5000 and 5000A
and may also fit Stax DA-80M Mono-block amplifier) - $35. 1
Remaining in stock
Bottom sheet metal panel - $40.
(just FYI, 'pack / ship' on items such as large panels, Speaker
Grills, Empty speaker / component cabinets, etc. will likely be
'expensive', relative to the
cost of the part, due to the amount of packing it takes for safe
delivery, and depending on location shipped to.)
Feet set of 4 - $30. or $15. ea.
Call or Email for "SHOWN and NOT marked 'SOLD'
" part you need.
Location: PB, South, Center Island, Right /
Eastern
cab (beige), 4th drawer -
Revised
1/4/2023 (Above
text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
(Click on above thumbnails to enlarge photos)
SANSUI 5000X STEREO RECEIVER PARTS / SPARES
for sale.
Parting out. Unit in very good shape with only minor wear to some of the
front panel silk screening. Parting out.
Inquire for part
you need. Some
parts MAY* fit other Sansui receivers such as the Sansui 2000A, 2000X,
4000, 5000A, 5000X models.
SANSUI 5000X PARTS / SPARES
Case / Bonnet / Cover,
Wood Case - Fair condition, with a few 'battle scars' edge dings, scuffs
- $40. SOLD
(Cases, covers and side plate / panels, etc. do not include mounting
screws as those are sold separately)
(just FYI, 'pack / ship'
on items such as large panels, Speaker Grills, Empty speaker /
component cabinets, etc. will likely be 'expensive', relative to the
cost of the part, due to the amount of packing it takes for safe
delivery, and depending on location shipped to.)
Case / Bonnet / Cover,
Black Metal Case
/ Cover - Decent condition, with a few 'battle scars' edge dings, scuffs
- $40.
SOLD
(Cases, covers and side plate / panels, etc. do not include mounting
screws as those are sold separately)
(just FYI, 'pack / ship'
on items such as large panels, Speaker Grills, Empty speaker / component
cabinets, etc. will likely be 'expensive', relative to the
cost of the part, due to the amount of packing it takes for safe
delivery, and depending on location shipped to.)
Panel / Face / Front, Face panel with glass (less knobs /
buttons) Good condition - $65.
SOLD
1/4/2023
Knobs / Caps / Buttons / Covers / Covers,
Tuning knob
("D-Shaft") - $45.
SOLD
Knobs / Caps / Buttons / Covers / Covers, Volume / Input Selector / Speaker knob
knobs
(see also 2000A, 2000X, 4000, 5000A, 5000X)
- $30. SOLD OUT
Knobs / Caps / Buttons / Covers / Covers,
Tone / Bass, Treble, Mic / Microphone / Balance knobs Concentric /
split set (front / back) (see also
2000X, 3000A, 4000, 5000A, 5000X) - $30. ea concentric / split
set
Knobs / Caps / Buttons / Covers / Covers, Black, Plastic, Push Switch caps (black)
(See
also most of the Sansui models from this line / era, but not interchangeable with the "Sansui
5000") -
$25. ea. (Whoa, Why so many $$$$ for just a
"stupid, little plastic button"? The elevated price is due to the
difficulty to remove 'intact' as Sansui epoxied these on to the switch
shafts and low success rate in removal from HIGH likely-hood of
injury (to us) or breakage of nylon switch shaft or cap)
Knobs, Caps, Buttons, Power Push Switch cap - $20. ea. -
SOLD
Meters, Center Tune meter
#4300410 - $40.
Meters, Signal Strength meter
#4300400
- $40.
Pointer / Indicator, Dial Tuning pointer / indicator / needle
(light bulb in 'unknown' condition).
(It appears that the "dial pointer" is
interchangeable between the Sansui "5000", "5000A" and "5000X", but
we haven't tried to interchange them, nor found definitive
information on that so do your own 'homework')
- $35.
Tuning Flywheel Assembly, Tuning flywheel / bushing assembly
(not interchangeable with Sansui 5000A) - $35.
ea.
SANSUI 5000X PARTS / SPARES
Potentiometers / Controls, Volume Control pot, Alps Stacked 250K
#1010200
(see also Sansui
2000X & 5000X) - $55. ea. SOLD
Potentiometers / Controls, Tone / Bass / Treble Control pots,
Alps Stacked 100K #1020040
Bass / Treble Control pots.
(see also Sansui
2000X & 5000X)
- $35. ea.
Potentiometers / Controls, Balance / Mic Level pot – Alps Stacked
250K / 30K, Center Tapped on top #1010210 - $45. ea.
SOLD 6/20/2022
Potentiometers / Controls, MPX Separation control pot 2k
Ohms
(located on rear panel) - $20.
Potentiometers / Controls, Level Adjust control pot 2x50k
Ohms
(located on rear panel) - $30.
Switches / selectors, Tape Monitor, Hi Filter, Lo Filter W/ BLACK
CAP - $25. ea.
Switches / selectors, (S-1) Muting Switch, (S-2) FM Stereo, (S-6)
Reverse, (S-6) Mono, (S-7) Loudness Switch - $25. ea.
(black caps sold separately)
Switches / selectors, Power Switch (Rectangular switch body, not
round version) - $55.00 SOLD
Switches / selectors, Rotary Input
/ Function
Selector Switch - $45.
SOLD
Switches / selectors, Rotary Input Selector linkage / rod - $20.
Switches / selectors, Rotary Speaker Selector Switch - $45. ea.
SANSUI 5000X PARTS / SPARES
Transformer, Power supply
Transformer (4000970) - $45.
Capacitors, Power supply filter Caps ( 80V / 2200uf )
(see also Sansui 5000,
5000A
& 5000X)
- $25. ea.
Capacitors, Power supply filter Caps (50V / 1000uf )
(see also Sansui 5000,
5000A
& 5000X)
- $25. ea.
Capacitor,
FM Front End / FM Tuning Capacitor #7510351 w/ plastic string wheel -
$50. SOLD 1/11/2022
Capacitor,
AM Front End / AM 3-Gang Tuning Capacitor #1200020 -$35.
SOLD
Circuit Board, F-1006-2 FM MPX Circuit Board, w/
Transistors; 2SC373, 2SC536, 2SC971, and w/
adjustable Transformers; Sansui, 424021-213N, 424022-213N,
424025-213N, 424038-212N, and balance of board mounted capacitors,
diodes and resistors and variable resistors - $45. ea.
SOLD
Circuit Board, F-1038-5 IF AM Tuner Circuit Board, w/
Transistors; 2SC380, and w/ adjustable transformers; 421010021JS,
42203001DNT, 4230440212S, 423047021JS, 423048021JS, and balance of
board mounted capacitors, diodes and resistors and variable resistors -
$45. ea.
Circuit Board,
F-1056-5 Accessory Circuit Board, with light bar / holder (working
bulbs not included) and balance of board mounted capacitors, and
resistors
(Switches not included and sold separately)
- $35.
Circuit Board, F-1137A Ripple Filter Circuit Board, w/
Transistors; Sanken 2SD223, Matsushita 2SC696, and balance
of board mounted capacitors, diodes and resistors - $35. ea.
Circuit Board, F-1219 FM IF Tuner Circuit Board, Transistors;
Mitsubishi 2SC828, 2SC380, and IC’S: NEC C555A w/ adjustable
transformers; Sansui 423518-212C, 423529-212N, 423547-212C,
423548-212C, 423549-212C, and balance of board mounted capacitors,
diodes, resistors and variable resistors - $35. ea
Circuit Board, F-1350-3 Tone / Mic circuit
board w/Transistors; Mitsubishi 2SC871 with a
balance of board mounted capacitors, diodes and resistors - $45.
Potentiometers are not included.
SOLD
Circuit Board,
F-6013 Driver Amp Circuit Board, w/ Transistors;
2SA566, 2SC627, 2SC680, 2SC984, and balance
of board mounted capacitors, diodes, resistors and variable resistors -
$85. ea.
Circuit Board, F-6016 Filter Block Circuit Board Transistors;
Mitsubishi 2SC871 and balance of board mounted
variable resistor / trim pot and
balance of board mounted capacitors, diodes &
resistors
(less
Switches)
- $35. ea.
Transistors, Power Amplifier Output Transistors Toshiba 2SC1079
TO-3, Metal Cased output transistors - $35. ea. tested good w/ NO
leakage
Heat Sinks- Smaller, (See also 4000,
5000A & 5000X) (transistors sold
separately) (there are two different output transistor heat sinks on the
each Sansui 5000A and 5000X) - $25. ea.
Heat Sinks- Larger, (See also
4000, 5000A & 5000X) (transistors sold
separately) (there are two different output transistor heat sinks on the
each Sansui 5000A and 5000X) - $25. ea.
SANSUI 5000X PARTS / SPARES
Jacks
/ Connectors / Terminals,
Tape Monitor RCA Input / Output jacks - $35. set of 8 jacks on bakelite
panel / plate
Jacks /
Connectors / Terminals,
DIN Tape Monitor RCA Input / Output jacks - $25.
Jacks /
Connectors / Terminals, Phono 1, Phono 2 and AUX RCA Input jacks - $35. set of 6 jacks on
bakelite panel / plate
Jacks /
Connectors / Terminals,
Pre-Output / Main Input jack set (U-Jumpers sold separately) - $35.
Jacks /
Connectors / Terminals,
U-Jumpers / connectors for Pre-Out / Main-In - $35. pair
Jacks
/ Connectors / Terminals,
Speaker connectors / jacks / clips, sold in set / strip of four
connectors
(all black and red in color) (see also Sansui 4000, 5000 5000A, & 5000X
(4000 and 5000X are black and red). Others are all black)) - $35.
Jacks
/ Connectors / Terminals,
Headphone Jack (decorative nut sold separately) - $25.
Jacks
/ Connectors / Terminals,
Tape-2 Jack (decorative nut sold separately) - $25.
Jacks
/ Connectors / Terminals, Mic jack (decorative nut sold separately)
- $25.
Jacks
/ Connectors / Terminals, Decorative Nut / Fastener for
Mic, Tape or Headphone jacks
- $20. ea. (when
available)
Jacks
/ Connectors / Terminals,
AC power convenience outlets / connectors - $20. ea.
Jacks /
Connectors / Terminals,
Phono GND / Ground post / terminal / screw / bolt
(see also Sansui
5000, 5000A,
5000X and possibly others)
- $20.
SOLD
BOTH
Panel / Plate, Rear panel - $35. sheet metal only. All parts /
components removed
Caps, Main AC Power Fuse insert cap (threaded)
(see also Sansui 4000, 5000, 5000A and 5000X)- $25. ea.
SOLD OUT?
Fuse Holder, Main AC Power Fuse insert holders (caps sold
separately)
(see also Sansui 4000, 5000, 5000A and 5000X) - $25. ea.
Cap, Fuse insert cap for AC Mains
Power or Speaker Output - 'Threaded'
version. 8.9mm diameter by 7mm thread length threaded section. Black
bake-lite is tapered from 16mm to 11.65mm and is 'spring loaded'
(fits most Sansui "X000" series receivers ie;
2000, 2000A, 4000, 5000, 5000A & 5000X that are 'threaded'. NOT the
'Bayonet' style). $30. ea.
small and limited quantity available
(location; misc Sansui
cabinet)
Caps, Speaker Fuse insert caps (threaded)
(see also Sansui 4000, and 5000X)
- $30. ea.
SOLD OUT?
Fuse Holder, Speaker Fuse insert holders (caps sold separately)
(see also Sansui 4000, and 5000X)
-
$20. ea.
Jacks
/ Connectors / Terminals, Antenna connector plate - $25.
SANSUI 5000X PARTS / SPARES
Antenna, AM antenna Ferrite stick (mounting bracket sold
separately) - $30.
Antenna, AM antenna Bracket only (antenna stick sold separately)
- $30.
Plate, Aluminum, silk-screened Sansui name plate from heat sinks
with Speaker output listing (with screws). Straight and only minor
scuffs / scratches - $25.SOLD
Voltage selector assembly
(see also Sansui 5000 and 5000A
and may also fit Stax DA-80M Mono-block amplifier) - $30.
SOLD??
Bottom sheet metal panel - $20. SOLD
(just FYI, 'pack / ship' on items such as large panels, Speaker
Grills, Empty speaker / component cabinets, etc. will likely be
'expensive', relative to the
cost of the part, due to the amount of packing it takes for safe
delivery, and depending on location shipped to.)
Feet set of 4 - $25. or $12.
ea.
SOLD
Call or Email for "SHOWN and NOT marked 'SOLD'
" part you need.
Location: PB, South, Center Island, 2nd from right
cab (black), 2nd drawer -
Revised
1/4/2023
(Above
text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
|
(Click on above thumbnails to enlarge photos)
SANSUI 7070 RECEIVER PARTS / SPARES
STEREO RECEIVER PARTS / #1
- PARTING OUT -
Unit looks near NEW! Very clean.
Many of the parts such as
Switches, pots, controls and knobs
MAY*
also fit the Sansui
5050 / 6060 / 7070 / 8080
8080DB / 9090 9090 DB models.
- PARTING OUT -
Bonnet / Case, Wood grain vinyl wrap case / cover - $65. Good + cond.
SOLD
(Cases,
covers and side plate / panels, etc. do not include mounting screws as
those are sold separately when available)
(just FYI, 'pack / ship'
on items such as large panels, Speaker Grills, Empty speaker /
component cabinets, etc. will likely be 'expensive', relative to the
cost of the part, due to the amount of packing it takes for safe
delivery, and depending on location shipped to.)
Face panel / plate,
Face panel (with plexi-glass)- $85.
MIA? / SOLD?
SANSUI 7070 Receiver Part / Spares
Knobs / Buttons / Caps,
Large
'tuning' round knob (fits 6060, 7070, 8080 & 9090 models {5050 /
4040 unknown}) - $35. SOLD
Knobs / Buttons / Caps, 'Volume' round knob - $35.
SOLD
Knobs / Buttons / Caps, 'Balance' Ring -
$20.
SOLD
Knobs / Buttons / Caps, 'Round' 'Tone' (Bass, Midrange, Treble)
knob
or 'Tape Selector' knob - $25. ea.
Knobs / Buttons / Caps, 'Round'
'Speaker Selector' / 'Input-Function Selector'
knob - $30. ea.
Knobs / Buttons / Caps,
'Dolby Play Cal',
'Rec Level' &
'Mic Level' knobs -
$25 ea.
- SOLD OUT
Knobs / Caps / Buttons /
Covers /
Covers,
Round
'PUSH' button Switch caps
(Loudness, FM Muting, Mono, Tape Monitor, Audio
Monitor, High Filter, Low Filter, Meter Calibration) (see
also Sansui 990 / 990DB, 7070, 8080 / 8080DB, 9090 / 9090DB, QRX-6001,
QRX-7001, QRX-8001, QRX-9001 and possibly others) - $20. ea.
Knobs / Buttons / Caps, Power switch cap - $25.
SANSUI 7070 Receiver Part / Spares
Switches / Selectors,
Power Switch
ALPS SDG5P TV-5 (See also Marantz 1250
& Sansui 7070. less cap) (Square
shaft is 3.5mm on a side) - $35.
SOLD
Switches / Selectors, Loudness or Mode
Switches - $35. ea.
Switches / Selectors, Tape Play / Monitor / Selector - $45.
Switches / Selectors, Source / Input Selector Switch - $45.
SOLD
Switches / Selectors, Extension shaft for Tape Play - $25. ea.
Switches / Selectors, Speaker Selector- $45.
Switches / Selectors, Dolby, FM mute, MPX or Meter Select switch with chrome caps
- $35. ea.
SANSUI 7070 Receiver Part / Spares
Potentiometers / Controls,
Tone Pots
#1015180 - $40. ea.
Potentiometers / Controls,
Volume / Balance Control Pot
#1060320
(see Sansui 881, 7070, 8080 / 8080DB / Sansui 9090 / 9090DB)
- $55.
SOLD
Potentiometers / Controls,
Mic Level Pot Alps dual 20kΩ
w/ part #1090260 / 77S. (may be interchangeable with mic level pot on
8080) - $35.
Flywheel, Dial Shaft / Flywheel / Tuning
control assembly assembly w/ bushing and shaft (knob sold separately) - $55.
Pulley,
Tuning string wheel - $30.
Pointer, Dial Pointer 5416050 & 5416350 / w/ 6.3V / 75ma light bulb in 'unknown' condition
(see also 7070 & 8080)
-
SOLD
Meters,
Power meters - $55. pair on plate.
Meters,
Tuning Meters or Signal meter - $35. ea.
SANSUI 7070 Receiver Part / Spares
Transformer,
Power supply Transformer
(North American 120V / 60Hz version) - $85.
Circuit Board, Power supply protector circuit board - $65.
Capacitors, Power Supply Filter Caps 10,000 mF & 50
Volts - $30. ea.
SOLD
Amplifier Section, Power
amplifier (complete) - $95.
Or
Transistors,
Single Outputs
(Sanken 2SC1115 or 2SA746) - $25. ea.
Heat Sinks (less outputs) - $35.
SANSUI 7070 Receiver Part / Spares
Circuit Board, Any single circuit board unless singled out separately
(less pots, Switches, large transformers, Relays & outputs) Examples: F-2627, F-2620 'Equalizer & Mic Circuit
Board', F-2622 (Tone
Control Board), , F-2621, F-2623
- $45. ea.
Circuit Board, 'Equalizer & Mic Circuit
Board' F-2620 with transistors; 2SA726,
2SC1313, 2SC1634, Inline package; BA312, and balance of capacitors,
diodes and resistors. (less Switches) - $45.
Circuit Board,
F-2626 (w/ Sanyo D315
F and Sanyo D314E original / OEM Transistors) - $45.
Circuit Board, FM Muting Circuit board
F-2615 (see also
7070 & 8080) -
SOLD
Circuit Board, F-2625 Power Supply
Circuit board (less relay and large
filter caps) - $65.
SOLD 5/20
Circuit Board, F-2614 (tuning circuit board
with variable tuning capacitor, {but less string wheel}
and w/ chips Hitachi HA1137 FM IF amp + AFC chip, Hitachi HA1196 Stereo Decoder chip & Hitachi
HA1197 AM tuner chip, NEC UPC555H, and with transistors; 2SA562,
2SC711, 2SC1047, 2SC1674,
MPX coil assembly,
KOR BL-12 / 091030, and balance of capacitors, diodes, adjustable
transformers, pc mounted trim pots / adjustors) (see also Sansui 7070, QRX-9001)
-
$65. SOLD
Circuit Board, F-2624
As-found / Take-out condition. To perform
correctly, the board should be 're-capped' and have it's devices
tested and replaced where prudent.
(Driver Board
w/ NEC D381 & NEC B536) (May
also work on Sansui 9090 and European 990, 9090db, 8080db, 7070,
QRX-9001 and QRX-8001)
- $95.
SOLD
Relay - RABK-2B - $35.
SANSUI 7070 Receiver Part / Spares
Jacks
/ Connectors / Terminals,
Headphone Jack - $20.
Jacks /
Connectors / Terminals, Mic Jack - $20.
Jacks /
Connectors / Terminals, Rear input / speaker output jacks / AC outlet sections - $30. each.
Plate / Panel, Bottom Plate
(just FYI, 'pack / ship' will likely be as much or more than the
cost of the part, depending on location) - $25.
(just FYI, 'pack / ship' on items such as large panels, Speaker
Grills, Empty speaker / component cabinets, etc. will likely be
'expensive', relative to the
cost of the part, due to the amount of packing it takes for safe
delivery, and depending on location shipped to.)
Plate / Panel, Rear Panel (sheet metal only) - $40.
(just FYI, 'pack / ship' on items such as large panels, Speaker
Grills, Empty speaker / component cabinets, etc. will likely be
'expensive', relative to the
cost of the part, due to the amount of packing it takes for safe
delivery, and depending on location shipped to.)
SANSUI 7070 Receiver Part / Spares
Antenna, AM stick Antenna (less mounting
bracket / ball & socket
all sold separately) (Interchangeable
with the 7070, 8080 & 9090 9090DB) (not
interchangeable with the Sansui 5050 / 6060 'slide-in' style) -
$35.
SOLD
Antenna, AM antenna mounting
ball socket (Interchangeable with the 7070, 8080 & 9090 9090DB)
-
$25. per half
SOLD OUT
Antenna, AM antenna mounting bracket / ball (antenna stick and socket sold
separately) - $25.
SOLD
Feet - $25. set
SOLD
Fuse cap - $25.
Call or Email for
"SHOWN and NOT marked 'SOLD'
" part you need.
[Interesting note on a recent Sansui 7070 repair /
restoration we experienced. The symptoms were a loud, volume dependant
'pop' noise when most any switch was manipulated, especially the
'Loudness', the pots, made a 'swishing' sound when turned, and the tuner
was very intermittent (mostly not working). All other inputs seemed to
work. After a bit of investigation, we determined that it seemed to be
associated with the F-2625 circuit board. When we tapped on the board
with a dowel, the tuner would at times start to work. It was appearing
to be most near the Relay, and we have seen corroded relay contacts
cause similar symptoms. Luckily after about 15 minutes of this we
discovered it was one of the screws that secured the board to the
chassis, and was supposed to be soldered in place.
The solder joint had given way and the screw was slightly loose, causing
all the issues. Once tightened (and re-soldered of course), the problem
was solved. Just FYI.]
revised
8/24/2021 (Above
text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
(Click on above thumbnails to enlarge photos)
SANSUI 7070 RECEIVER PARTS / SPARES
#...1992 / #2
STEREO RECEIVER PARTS
- PARTING OUT -
Unit worked well, but had a bad tape monitor switch and
at the time we didn't have one and started pulling a few cosmetic parts,
then just chopped the entire unit.
Many of the parts such as
Switches, pots, controls and knobs
MAY*
also fit the Sansui
5050 / 6060 / 7070 / 8080
8080DB / 9090 9090 DB models.
- PARTING OUT -
Bonnet / Case, Wood grain vinyl wrap case / cover -
$65.
SOLD (Cases,
covers and side plate / panels, etc. do not include mounting screws as
those are sold separately when available)
(just FYI, 'pack / ship'
on items such as large panels, Speaker Grills, Empty speaker /
component cabinets, etc. will likely be 'expensive', relative to the
cost of the part, due to the amount of packing it takes for safe
delivery, and depending on location shipped to.)
Face panel / plate,
Face panel (with plexi-glass) Some scratches to
aluminum. about a 7 condition - $55.
As-Is
SANSUI 7070 Receiver Parts / Spares
Knobs / Buttons / Caps,
Large tuning round knob (fits 6060, 7070, 8080 & 9090 models {5050 /
4040 unknown}) - $40.
SOLD
Knobs / Buttons / Caps,
Volume round knob -
$40. SOLD
Knobs / Buttons / Caps, Balance Ring (7070, 8080, but not 9090 including DB
versions) - $35.
SOLD
Knobs / Buttons / Caps, Round knobs
Tone /
Treble, Bass & Balance control round knobs
21mm lower diameter x
20mm upper diameter x 18mm height (will also fit 6060,
7070, 8080 / 880 & 9090 / 990) - $35. ea.
SOLD OUT
Knobs / Buttons / Caps, Round knobs,
Speaker Selector / Input-Source selector.
26mm
diameter x 18mm height (will also fit 6060,
7070, 880 / 880DB / 8080 / 8080DB) - $35. ea.
Knobs / Buttons / Caps,
Mic Level knobs - $35. ea.
- SOLD OUT
Knobs / Caps / Buttons / Covers / Covers, Round
'PUSH' button Switch caps
(Loudness, FM Muting, Mono, Tape Monitor, Audio
Monitor, High Filter, Low Filter, Meter Calibration) (see
also Sansui 990 / 990DB, 7070, 8080 / 8080DB, 9090 / 9090DB, QRX-6001,
QRX-7001, QRX-8001, QRX-9001 and possibly others) - $20. ea.
Knobs / Buttons / Caps, Power switch cap - $25.
SANSUI 7070 Receiver Parts / Spares
Switches / Selectors,
Power Switch
ALPS SDG5P TV-5 (See also Marantz 1250 &
Sansui 7070. less cap) (Square shaft is 3.5mm on a side)
-
$35.
SOLD
Switches / Selectors, Loudness or Mode
Switches - $35. ea.
Switches / Selectors, Tape Play / Monitor / Selector - $45.
Switches / Selectors, Source / Input Selector Switch - $45.
Switches / Selectors, Extension shaft for Tape Play - $25. ea.
Switches / Selectors, Phono 1 / Phono 2 Selector- $35.
Switches / Selectors, Speaker Selector
- $45.
Switches / Selectors, Dolby, FM mute, MPX or Meter Select switch with chrome caps
- $35. ea.
SANSUI 7070 Receiver Parts / Spares
Potentiometers / Controls,
Tone Pots
Bass, Mid, Treble - $40. ea.
Potentiometers / Controls,
Volume / Balance Control Pot
#1060320
(see Sansui 881, 7070, 8080 / 8080DB / Sansui 9090 / 9090DB) - $55.
SOLD
Potentiometers / Controls,
Mic Level Pot Alps dual 20kΩ
w/ part #1090260 / 77S. (may be interchangeable with mic level pot on
8080) - $35.
Flywheel, Dial Shaft / Flywheel / Tuning
control assembly assembly w/ bushing and shaft (knob sold separately) - $55.
Pulley,
Tuning string wheel - $30.
Pointer, Dial Pointer 5416050 & 5416350 / w/ 6.3V / 75ma light bulb in 'unknown' condition
(see also 7070 & 8080)
- $25.
Meters,
Power meters - $55. pair on plate.
Meters,
Tuning Meters or Signal meter - $35. ea.
SANSUI 7070 Receiver Parts / Spares
Transformer,
Power supply Transformer
4002452 (North American 120V / 60Hz version)
- $85.
Capacitors, Power Supply Filter Caps 10,000 mF & 50
Volts - $30 ea.
Amplifier Section, Power
amplifier (complete) w/ heat sink - $95.
Or
Transistors, Single Outputs
(Sanken 2SC1115 or 2SA746) - $25. ea.
All work well.
Heat Sinks,
There's at
least two different versions of Sansui 7070 output heat sinks. 'See-Thru'
and 'Closed'. These are the
'Closed' version. original / OEM Transistors NOT visible - $35.
SANSUI 7070 Receiver Parts / Spares
Circuit Board,
Any single circuit board unless singled out separately
(less pots, Switches, large transformers, Relays & outputs) Examples: F-2627, F-2620 'Equalizer & Mic Circuit
Board', F-2622 (Tone
Control Board), , F-2621, F-2623
- $45. ea.
Circuit Board,
F-2626 (w/ Sanyo D315
F and D314E original / OEM Transistors) - $45.
Circuit Board, F-2625 Power Supply Circuit
board (less relay and large filter caps)
- $65.
Circuit Board,
F-2614 (tuning circuit board
with variable tuning capacitor, {but less string wheel}
and w/ chips Hitachi HA1137 FM IF amp + AFC chip, Hitachi HA1196 Stereo Decoder chip & Hitachi
HA1197 AM tuner chip, NEC UPC555H, and with transistors; 2SA562,
2SC711, 2SC1047, 2SC1674,
MPX coil assembly,
KOR BL-12 / 091030, and balance of capacitors, diodes, adjustable
transformers, pc mounted trim pots / adjustors) (see also Sansui 7070, QRX-9001)
- $65. SOLD
Circuit Board,
FM Muting Circuit board F-2615 with transistors; 2SA733,
2SC711, 2SC1636,
and balance of capacitors, diodes, adjustable transformers, pc
mounted trim pots / adjustors)
(see also
7070 & 8080)
- $45.
Circuit Board, F-2624.
As-found / Take-out condition. To perform correctly, the board
should be 're-capped' and have it's devices tested and replaced
where prudent. (Driver Board
w/ NEC D381 & NEC B536) (May
also work on Sansui 9090 and European 990, 9090db, 8080db, 7070,
QRX-9001 and QRX-8001)
-
$95.
SOLD
Relay - RABK-2B - $35.
SANSUI 7070 Receiver Part / Spares
Jacks
/ Connectors / Terminals,
Headphone Jack - $20.
Jacks
/ Connectors / Terminals,
Mic Jack - $20.
Jacks /
Connectors / Terminals, RCA 'Phono 1 / Phono 2 / AUX' patch panel / bank - $45.
complete section of RCA jacks
Jacks /
Connectors / Terminals, RCA 'Tape / Adaptor' patch panel / bank - $45.
complete section of RCA jacks
Jacks / Terminals / Connectors, Antenna binding posts - $25. complete section of connectors
Jacks / Terminals /
Connectors, AC Convenience outlets - $15. ea.
Plate / Panel, Bottom Plate - $25.
(just FYI, 'pack / ship' on items such as large panels, Speaker
Grills, Empty speaker / component cabinets, etc. will likely be
'expensive', relative to the
cost of the part, due to the amount of packing it takes for safe
delivery, and depending on location shipped to.)
Plate / Panel, Rear Panel (sheet metal only)
(just FYI, 'pack / ship' on items such as large panels, Speaker
Grills, Empty speaker / component cabinets, etc. will likely be
'expensive', relative to the
cost of the part, due to the amount of packing it takes for safe
delivery, and depending on location shipped to.) - $40.
SANSUI 7070 Receiver Parts / Spares
Antenna,
AM stick Antenna
4200760 (less mounting bracket / ball &
socket
all sold separately) (Interchangeable
with the 7070, 8080, 8080DB, 9090
& 9090DB) (not
interchangeable with the Sansui 5050 / 6060 'slide-in' style) - $35.
SOLD
Antenna, AM antenna mounting
ball socket (Interchangeable with the 7070, 8080 & 9090 9090DB)
- $25. per half
Antenna, AM antenna mounting bracket / ball (antenna stick and socket sold
separately) - $25.
Antenna, AM antenna 'Storage Clip' - $15.
Feet - $25. set
Call or Email for
"SHOWN and NOT marked 'SOLD'
" part you need.
Location: PB, South, left 'corner' cab, gray, lower drawer.
revised
5/16/2025 (Above
text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
(Click on above thumbnails to enlarge photos)
SANSUI 8080 / 880 RECEIVER PARTS / SPARES
8080 / 880
STEREO RECEIVER PARTS
- PARTING OUT -
Unit looks near NEW! Very clean.
Many of the parts such as
Switches, pots, controls and knobs
MAY*
also fit
the Sansui 5050 / 6060 / 7070 / 8080
8080DB / 9090 9090 DB models.
- PARTING OUT -
Bonnet / Case, Wood grain vinyl wrap case
/ cover #5726923 - $65.
SOLD
(Cases,
covers and side plate / panels, etc. do not include mounting screws as
those are sold separately when available)
(just FYI, 'pack / ship'
on items such as large panels, Speaker Grills, Empty speaker / component
cabinets, etc. will likely be 'expensive', relative to the
cost of the part, due to the amount of packing it takes for safe
delivery, and depending on location shipped to.)
Face panel / plate, (with plexi-glass)
#7007170 - $85.
SOLD
Bottom front wood strip for Sansui 8080 / 8080DB only
#5996102.
Vinyl wrapped. Some finish peeling typically. Will not fit 9090 series -
$20.
SOLD
(Cases,
covers and side plate / panels, etc. do not include mounting screws as
those are sold separately when available)
SANSUI 8080 / 880 Receiver Parts:
Knobs / Buttons / Caps,
Large tuning round knob #5318420 (fits 6060, 7070, 8080 & 9090 models {5050 /
4040 unknown}) - $40.
Knobs / Buttons / Caps,
Volume round knob #5318440 -
$40. SOLD
Knobs / Buttons / Caps, Balance Ring
#5318431 (7070, 8080, but not 9090 including DB
versions) - $35.
SOLD
Knobs / Buttons / Caps, Round knobs
Tone /
Treble, Bass control round knobs
#5318410
21mm lower diameter x
20mm upper diameter x 18mm height (will also fit 6060,
7070, 8080 / 880 & 9090 / 990) - $35. ea.
Knobs / Buttons / Caps, Round knobs,
Speaker Selector / Input-Source selector.
#5318380
26mm
diameter x 18mm height (will also fit 6060,
7070, 880 / 880DB / 8080 / 8080DB) - $35. ea.
Knobs / Buttons / Caps,
Dolby Play Cal, Rec Level & Mic Level knobs
#5318340 - $35. ea.
- SOLD OUT
Knobs / Caps / Buttons /
Covers /
Covers,
Round
'PUSH' button Switch caps
(Loudness, FM Muting, Mono, Tape Monitor, Audio
Monitor, High Filter, Low Filter, Meter Calibration) (see
also Sansui 990 / 990DB, 7070, 8080 / 8080DB, 9090 / 9090DB, QRX-6001,
QRX-7001, QRX-8001, QRX-9001 and possibly others) - $25. ea.
(Whoa, Why so many $$$$ for just
a "stupid, little plastic button"? The elevated price is due to the
difficulty to remove 'intact' as Sansui epoxied these on to the switch
shafts and low success rate in removal from HIGH likely-hood of injury
(to us) or breakage of nylon switch shaft or cap)
??
Knobs / Caps / Buttons / Covers / Covers, Toggle switch caps
#5326550 (Treble
Defeat / Bass Defeat) (see also
Sansui 990 / 990DB, 8080 / 8080DB, 9090 / 9090DB, QRX-8001, QRX-9001 and
possibly others) - $25. ea.
SANSUI 8080 / 880 Receiver Parts:
Switches / Selectors,
Power Switch
#1131190 - SOLD
Switches / Selectors, Speaker Selector
switch #1102650 (MAY also work on 9090 / 990 /
990db / 9090db. 2 wafers / 12 pins per wafer) - $55.
SOLD OUT
Switches / Selectors, Loudness or Mode
Switches #1171120 - $35. ea.
Switches / Selectors, Tape Play / Monitor
Switch - $55.
SOLD
Switches / Selectors, Source Selector Switch -
$65.
SOLD
Switches / Selectors,
Extension shafts for Tape Play
and Source Selector Switches - $25. ea.
Switches / Selectors,
Dolby, FM mute, MPX or Meter Select switch with chrome caps
-
SOLD or MIA
Switches / Selectors,
Audio Mute, Low Filer, and High Filter
switches with chrome caps
-
$35.
SANSUI 8080 / 880 Receiver Parts:
Potentiometers / Controls,
Bass Potentiometer / control
NOBLE
100K BX2 / #1010930.1
- $40. ea.
Potentiometers / Controls,
Midrange Potentiometer / control
NOBLE
100K BX2 / #1010930.1
- $40. ea.
Potentiometers / Controls,
Treble Potentiometer / control
NOBLE
100K BX2 / #1010930.1
- $40. ea.
Potentiometers / Controls, Volume / Balance Control
#1060320
(ALPS
'Stacked' 250K on board F-2693)
(see Sansui 881, 7070, 8080 / 8080DB / Sansui 9090 / 9090DB) - $75.
SOLD
Potentiometers /
Controls, Mic Level Pot
part
#1090260 / 77S. (is
NOT interchangeable with mic level pot on 7070 as that unit requires a dual
layer pot)- $35.
Flywheel, Dial Shaft / Flywheel / Tuning
Unit
control assembly w/ bushing and shaft
#7036451
(knob sold separately) - $55.
Pointer, Dial Pointer
5416050 & 5416350 / w/ 6.3V / 75ma light bulb in 'unknown' condition
(see also 7070 & 8080)
- $25.
Meter, 8080 Power VU meters
#4300920 (should also work in 9090 according
to the service manual with same part number for both) - $90. pair.
still mounted to metal mounting plate with circuit boards still
intact.
Meters, 'Signal' meter 4300740 & 'Tuning' meter
4300750 (see also Sansui 8080, 8080DB, 9090 & 9090DB)
- $55. pair
SANSUI 8080 / 880 Receiver Parts:
Transformer, Power supply Transformer
#4002350 - $85.
Capacitors, Power Supply Filter Caps,
Nichicon 6800 MFD / 63 WV, #0559515 Single Element, 80mm tall x 40mm diameter - $30 ea.
SOLD
Amplifier,
Power
amplifier (complete) - $95.
HOLD FOR SHOP USE AND RE-ASSES
Heat Sinks,
Rear (NOT interchangeable with the 9090 /
9090db) - $35.
1 IN STOCK
Circuit Board,
Any single circuit board
unless listed separately, (less pots,
Switches, large transformers,
outputs) - $65.
Circuit Board,
F-2436 (Driver Board #F-2436 -
SOLD
Circuit Board, F-2541 "Equalizer" circuit board
w/ BA312 In-line packages and
w/ balance of capacitors, resistors and
coils (less rotary switches which are sold separately)-
$45.
Circuit Board, F-2545 "Filter-Muting" circuit board
w/ balance of capacitors & resistors
(less switches which are sold separately) -
$45.
Circuit Board, F-2546
Power supply protector circuit board
w/ Sanyo D313E voltage regulator and (see also Sansui
8080 & 9090 non-'DB' version) - $65.
SOLD
Circuit Board, F-2548 Red / Green LED on
circuit board. If your Sansui Power indicator LED flashes, but flashes 'Red' doesn't go
'Green', or goes 'Green' and doesn't flash 'Red', and you've checked for proper
voltage, then you may need this. (see also Sansui 8080 / 9090 'non-DB') - $35.
Circuit Board, F-2549 FM Muting Circuit board
F-2549 AM / FM Tuner Circuit board
- SOLD
Circuit Board, F-2615 FM Muting Circuit board F-2615
(see also 7070 & 8080)
-
SOLD
Circuit Boards, F-2619 / F2619 Tuner Power supply / RF Circuit
board w/ transistors; Sanyo 2SD313, 2SC1211, 2SC1364, and
w/ balance of capacitors, resistors, pc mounted pots.
(See also Sansui 8080 and 9090)
- $35.
SOLD ???
Relay - RABK-4B - $35.
SOLD
SANSUI 8080 / 880 Receiver Parts:
Jacks / Terminals / Connectors, Pre-Out / Main-In / Adaptor jack set -
$30.
as a complete plate. -
SOLD
Jacks / Connectors /
Terminals, 2430200 Headphone Jack - $20.
Jacks / Connectors / Terminals, Mic Jack - $20.
Plate / Panel,
Bottom Plate
(See also, 8080 / 8080DB, 890 / 890DB, 9090 / 9090DB, 990 / 990DB)
(just FYI, 'pack / ship' will likely be as much or more than the cost
of the part, depending on location) -
$30.
SOLD
Antenna,
AM stick Antenna
4200760
(less mounting bracket / ball &
socket
all sold separately) (Interchangeable
with the 7070, 8080, 8080DB, 9090
& 9090DB) - $45.
SOLD
Antenna, AM antenna mounting
ball socket (Interchangeable with the 7070, 8080 & 9090 9090DB)
-
$25. per half
SOLD OUT
Antenna, AM antenna mounting bracket / ball (antenna stick and socket sold
separately) - $25.
Feet set of 4
(See also, 8080, 9090, G-871DB, G-8000, G-9000) 40mm lower diameter x
35mm upper diameter x 20mm height
- $45. for set or $18.
ea. SOLD OUT?
Fuse cap - $25.
Call or Email for
"SHOWN and NOT marked 'SOLD'
" part you need.
LOCATION: PB, S Wall, 6th Cab, Black, 3rd drawer. -
Revised
8/24/2021 (Above
text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
(Click on above thumbnails to enlarge photos)
SANSUI 9090 / 9090DB / 990 / 990DB RECEIVER PARTS / SPARES
- PARTING OUT -
Unit #1 works great, however the
tuner quit tuning and making any signal. All other inputs work great as
does Pre & Power amp. Unit good cosmetically. Face, case, rear panel and face
in great
condition. Knobs all
look new.
Unit #2 worked great producing 35
Volts @ 8 Ohms for and 31 Volts @ 4 Ohms
for Watts per channel. It's problem was that when you changed a source or
flipped a tape monitor switch it would "pop" violently through the outputs
and sometimes put the unit into it's "protect" mode.
Many of the parts such as controls, pots, Switches and knobs
MAY*
also fit
Sansui 5050 / 6060 / 7070 / 8080
8080DB / 9090 9090 DB models.
What are the differences between Sansui 9090 vs Sansui 9090DB.
Here are the
differences we are aware of:
- Sansui 9090DB has 2 / dual phono inputs
- Sansui 9090DB features 'built-in Dolby
- Sansui 9090DB has a 400Hz, Audio Sine Wave / Tone generator as a function
of the Dolby circuit
- 9090 has a 'loop' on the rear for external Dolby or 4-Channel Decoder /
adaptor
- 9090 has a more versatile 'Tape Monitor' section for routing / copying
(although there are 'work-arounds' if you have the 'db' version)
- 9090 'Tape Monitor' is controlled via a 'rotating / wafer' switch (yes,
one of the one's that are a 'service nightmare', just like the 'Function
Selector' on both versions, and the 'Dolby' selector on the DB version)
-
9090DB 'Tape Monitor' is controlled via 'Push' Switches
- 9090DB features 'dual / two' 'Pre-Amp' outs
(handy for feeding a
separate audio system or additional power amp)
- On the 'right end' of either units, some of the 'furniture' (Switches
/ controls) are 'moved around' and / or utilize different types of
Switches
(ie; toggles vs push button, rotating vs toggles, etc)
- PARTING OUT -
Bonnet,
Wood case cover
(good but wear on top from stacked gear) - $65.
SOLD
(Cases,
covers and side plate / panels, etc. do not include mounting screws as
those are sold separately when available)
(just FYI, 'pack / ship'
on items such as large panels, Speaker Grills, Empty speaker / component
cabinets, etc. will likely be 'expensive', relative to the
cost of the part, due to the amount of packing it takes for safe
delivery, and depending on location shipped to.)
Panel / Plate, Face panel
/ Face Plate / Front Plate with glass
(glass has cracks radiating from tuning shaft hole,
but 'holding together' and not too offensive) (less knobs / buttons / wood end caps.) -
$95. w/ Glass issue
Trim,
Bottom front wood strip for Sansui 9090 / 9090DB only.
Real wood veneer. Will not fit 8080 - $35. SOLD
(Cases,
covers and side plate / panels, etc. do not include mounting screws as
those are sold separately when available)
Panel, Top metal ventilation panel - $45.
Pointer / Indicator,
Dial Pointer assembly w/ original bulb (functionality of original light
bulb not implied or guaranteed) - $40.
SANSUI 9090 / 9090DB / 990 / 990DB RECEIVER PARTS / SPARES
Knobs / Caps / Buttons / Covers / Covers,
Tuning knob (will also fit 6060, 7070, 8080 / 880 & 9090 / 990)
- $40. 2 IN STOCK
Knobs / Caps / Buttons / Covers / Covers, Volume knob (will
also fit 6060, 7070, 8080 / 880 & 9090 / 990) - $40. 2 IN STOCK
Knobs / Caps / Buttons / Covers / Covers,
Balance Ring (only fits 9090 and NOT 7070 or 8080) -
$25.
1 IN STOCK
Knobs / Caps / Buttons / Covers / Covers, Dolby Play Cal, Rec Level & Mic Level knobs - $25. ea.
SOLD OUT
Knobs / Caps / Buttons / Covers / Covers,
Tone /
Treble, Bass & Balance control round knobs (will also fit 6060,
7070, 8080 / 880 & 9090 / 990) - $30. ea. 3-4 IN STOCK
Knobs / Caps / Buttons / Covers / Covers, Round
'PUSH' button Switch caps
(Loudness, FM Muting, Mono, Tape Monitor, Audio
Monitor, High Filter, Low Filter, Meter Calibration) (see
also Sansui 990 / 990DB, 7070, 8080 / 8080DB, 9090 / 9090DB, QRX-6001,
QRX-7001, QRX-8001, QRX-9001 and possibly others) - $25. ea.
8-10 remaining in stock (difficult to remove) (Whoa, Why so many $$$$ for just
a "stupid, little plastic button"? The elevated price is due to the
difficulty to remove 'intact' as Sansui epoxied these on to the switch
shafts and low success rate in removal from HIGH likely-hood of injury
(to us) or breakage of nylon switch shaft or cap)
Knobs / Caps / Buttons / Covers / Covers, Toggle switch caps (Treble
Defeat / Bass Defeat) (see also
Sansui 990 / 990DB, 8080 / 8080DB, 9090 / 9090DB, QRX-8001, QRX-9001 and
possibly others) - $25. ea. 2 IN STOCK
Knobs / Caps / Buttons / Covers / Covers, 'Dolby Selector' knob - $35.
ea.
1 IN STOCK
Knobs / Caps / Buttons / Covers / Covers, Power Switch cap (Rectangular shape, not round.
With 'Red' rectangle in center. Will also
fit the 7070, but not the 8080) - $30. ea. 1 remaining
Knobs / Caps / Buttons / Covers / Covers, Input Selector knob / Speaker
Selector
knob (990 / 9090 / 990DB / 9090DB ONLY) - $35. ea.
SOLD OUT
Shaft,
Input / Source
Selector extension shaft w/ gray nylon coupler
- $35.
2 IN STOCK
Potentiometer / control Pot, Volume / Balance Control
#1060320
(ALPS
'Stacked' 250K on board F-2693)
(see Sansui 881, 7070, 8080 / 8080DB / Sansui 9090 / 9090DB)
-
$95. SOLD
Potentiometer / control Pot, Tone pots
(Bass, Mid or Treble) Noble 1010931 1KBP 100x2 Ohms - $45.
ea.
Potentiometer / control Pot, Microphone Pot
1005290 - $35.
Potentiometer / control Pot, Play Calibration ALPS 500Kx2 Ohms - $35.
Potentiometer / control Pot, Record Level Calibration ALPS 500Kx4 Ohms
- $40.
Switches / Selectors,
1131190
Power Switch, with 'clamping / in-rush'
capacitor attached - $65.
SOLD? / MIA?
Switches / Selectors,
Speaker Selector Switch
(should also work on 8080 / 880 / 880db / 8080db.
4
wafers / 12 pins per wafer)
- $75.
SOLD? / MIA?
Switches / Selectors,
Source / Input
Selector Switch on circuit board F-2653 (DB version
ONLY
with 2 Phonos) with inline packages; BA312 and
balance of resistors and capacitors (The contacts will need to be cleaned prior to
installation. It is also recommended that you modify the board to do a 'dial
light bypass', so that the current of the dial lamps do not run thru this
switch. This modification allows the lamps to be on regardless of the source
selected) - $75.
SOLD
('as-is' / may work
without cleaning, but always plan on burnishing the contacts on these.)
Switches / Selectors,
Dolby Switch / Selector (mounted to it's circuit board
F-2655) with Dolby IC chips; NE545B7716,
Transistors; 2SC945,
and
w/ balance of capacitors, resistors, pc mounted pots. - $75.
SOLD
('as-is' / may work
without cleaning, but always plan on burnishing the contacts on these.)
Switches / Selectors,
Push-Switches, 6-Pin 'Low Filter', 'High Filter' and 'Audio Muting'
- $35.
ea.
Switches / Selectors,
1171220
Tone ' Treble De-Feat / Selector' toggle switch
- $35.
Switches / Selectors,
1171240
Tone ' Bass De-Feat / Selector' toggle switch
- $40.
Switches / Selectors,
Push-Switches, 6-Pin 'Loudness', or 'Stereo / Mono' - $35.
ea.
Switches / Selectors,
Push-Switches, 14-Pin 'Tape-2' - $40.
ea.
Switches / Selectors,
Push-Switches, 18-Pin 'Tape-1' - $40.
ea.
Switches / Selectors,
Push-Switches, 24-Pin 'Meter' - $45.
ea.
SANSUI 9090 / 9090DB / 990 / 990DB RECEIVER PARTS / SPARES
Meter,
VU Tuning meter -
$45. 1 just back in stock
Meter, VU Signal meter -
$45.
SOLD
Meter, 9090 Power VU meters
#4300920 (should also work in 8080) -
$90. pair. still mounted
to metal mounting plate with circuit boards still intact.
Meter, 9090DB Power VU meters #4301010
(should also work in 8080DB) - $90.
pair. still mounted
to metal mounting plate with circuit boards still intact.
Circuit Boards, F-2544 Tone control Circuit
board with transistors;
2SC1313, inline packages; BA312
and w/ balance of capacitors, resistors.
(less toggle Switches and pots which are sold
separately) - $45. 2 IN STOCK
Circuit Board, F-2545 (9090 NOT 9090DB) "Filter-Muting" circuit board
w/ balance of capacitors & resistors
(less switches which are sold separately) -
$45. SOLD OR MIA?
Circuit Boards,
F-2549 /
F2549 FM / AM Tuner
Circuit board w/ transistors; 2SA562,
2SA628,
2SC711,
2SC738,
2SC1312,
2SC1636, w/ IC Chips; Hitachi HA1197, HA1966, NEC UPC555H &
BL-12 inductor, adjustable ferrite transformers including 0910310, and all other component level parts
- $65.
SOLD 1/4/23
Circuit Boards, F-2617 / F2617 Microphone Pre-amp Circuit board
(less mic jack which is sold separately) w/ transistors; 2SC1313, inline
package; BA312 and
w/ balance of capacitors, resistors.
(less mic jack which is sold separately) - $35.
2 IN STOCK
Circuit Boards, F-2619 / F2619 Tuner Power supply / RF Circuit
board w/ transistors; Sanyo 2SD313, 2SC1211, 2SC1364, and
w/ balance of capacitors, resistors, pc mounted pots.
(See also Sansui 8080 and 9090)
- $45.
2 IN STOCK
Circuit Boards, F-2623 Switch Circuit board w/
balance of capacitors, resistors, pc mounted pots, connectors.
(less Switches which are all sold separately)
- $35.
2 IN STOCK
Circuit Boards, Output-Pre-Driver Board F-2624
As-found /
Take-out condition. To perform correctly, the board should be
're-capped' and have it's devices tested and replaced where prudent.
(May
also work on Sansui 9090 and European 990, 9090db, 8080db, 7070,
QRX-9001 and QRX-8001)
-
$95.
SOLD
Circuit Boards, F-2653
Selector Switch on circuit board (SEE LISTING FOR
'SELECTOR SWITCH' ABOVE
Circuit Boards, F-2654 Switch Circuit board
all 6 'Push Switches' intact and
balance of capacitors, resistors, pc mounted pots, connectors.
(less Switches which are all sold separately)
- $165.
1 REMAINING IN STOCK
Circuit Boards, F-2655 Dolby Selector /
Circuit board w/ transistors; 2SC945, IC's; DOLBY
NE545B and balance of resistors, capacitors, diodes, pc pots. -
(See listing above under "Dolby Switch / Selector")
Circuit Boards, Power Rectifier board Sansui
F-2656 (fits Sansui 'DB' versions ONLY ie; 890DB / 8080DB &
990DB / 9090DB) w/ Sanyo 2SC1024E, 2SC1509, 2SC1211, 2SA777
original / OEM Transistors, SS-5 & SS5R Rectifier modules / diodes, and balance of attached
components. - $75.
SOLD
6/1/20
Circuit Boards, F-2657 Relay Circuit board
(less relay, sold separately) with
transistors;
2SC711, 2SC945,
5W / 220Ohm resistors, w/ balance of capacitors, resistors, pc mounted pots,
connectors. (less RELAY which is sold separately)
- $35. 3 IN STOCK
Circuit Board, F-2695 Red / Green 'Protection' LED on
circuit board. If your Sansui 9090DB Power indicator LED flashes, but flashes
'Red' doesn't go 'Green', or goes 'Green' and doesn't flash 'Red', and
you've checked for proper voltage, then you may need this.
(See also Sansui 8080DB / 9090DB) -
$35.
SANSUI 9090 / 9090DB / 990 / 990DB RECEIVER PARTS / SPARES
Transformer, Power supply Transformer
Part # 4002530 / 7JBE11 (version that has the World Ac Power capability in
that it will work with any voltage and comes with voltage change selector
jack and plug) Works and looks great! - $145.
SOLD 7/27/20
Capacitors, Filter Caps Elna 80V 12,000mf - $30. ea. 4 IN STOCK
Transistors, Power amplifier outputs Toshiba 2SD424 or 2SB554 (call or email for complete
assemblies) - $30. ea. transistor
(follows our 20% posted discount for quantity also)
ONLY 3x
2SD424 (1x in
"transistor" drawer) and 3x 2SB554
REMAINING IN STOCK
Heat Sinks,
Rear (NOT interchangeable with the 8080 /
8080db) - $45.
SOLD
Relay, ( Omron Type M Y 3 - 02-AU-Y96 24 V DC
(see 8080DB and 9090DB) (located on
F-2657 circuit board) - $35.
SOLD
Light Housing, White function light housing - $45.
Wheel,
Tuning string drum wheel, black plastic w/
string lock screws - $35.
ea. 3 IN STOCK
Flywheel,
Dial Shaft / Flywheel / Tuning
control assembly w/ bushing and shaft (knob sold separately) - $35.
2 IN STOCK
Tuning capacitor Tuning Capacitor on
Sansui F-1519 circuit board w/ shielding - $45.
SOLD
OUT
SANSUI 9090 / 9090DB / 990 / 990DB RECEIVER PARTS / SPARES
Jacks / Connectors / Terminals, Any single rear panel RCA jack section component - $30. ea.
Jacks / Connectors / Terminals, Speaker output clips (sections for A, B or C speaker output jacks)
- $30. ea. section (Interchangeable with the
9090
& 9090DB) A FEW IN STOCK
Jacks
/ Connectors / Terminals, Headphone jacks - $25. ea. 4 IN STOCK
Jacks / Connectors / Terminals, Mic / Microphone jack - $25. ea. 2 IN STOCK
Jacks / Connectors / Terminals, AC convenience outlets - $25. ea. A FEW IN STOCK
Jumpers, Pre-Out / Main-In 'U' Shorting
Jumpers (See also, 8080, 9090, G-871DB, G-8000, G-9000,
9090
& 9090DB)- $20.
ea. SOLD OUT?
Antenna, Binding post
/ terminals section - $25.
2 IN STOCK
Antenna,
AM stick Antenna
4200760 (less mounting bracket / ball &
socket
all sold separately) (Interchangeable
with the 7070, 8080, 8080DB, 9090
& 9090DB) - $45.
(in 9090db
drawer) SOLD
Antenna,
AM antenna mounting ball socket
 (Interchangeable with the 7070, 8080 & 9090 9090DB)
-
$35. per half (1 (one) half
remaining in stock)
Antenna,
AM antenna mounting bracket / ball (antenna stick and socket sold
separately) - $35.
(in 9090db drawer)
Antenna,
AM 'stick' antenna
'retention' bracket / clip - $25.
(Interchangeable with the 9090
& 9090DB)
2 IN STOCK
Rear panel (sheet metal only, less components) - $45. 2 IN STOCK
Voltage Selector cover, Plastic cover
w/ silkscreened label - $25.
Voltage Selector, Jack,
(see also Sansui 5000 and 5000A
and may also fit Stax DA-80M Mono-block amplifier)
- $35.
Voltage Selector insert plug / pins,
- $35.
Fuse cap / insert
cap / fuse CAP ONLY - $30. 2 IN STOCK
OR
Fuse holder 'assembly'
WITH
fuse CAP insert - $35.
2 IN STOCK
Feet, set of 4
(See also, 8080, 9090, G-871DB, G-8000, G-9000)
40mm lower diameter x 35mm upper diameter x 20mm height
- $20.
ea. (3 remaining in stock currently)
Plate / Panel,
Bottom Plate
(See also, 8080 / 8080DB, 890 / 890DB, 9090 / 9090DB, 990 / 990DB)
(just FYI, 'pack / ship' will likely be as much or more than the cost
of the part, depending on location) -
$45. SOLD
(just FYI, 'pack / ship' on items such as large panels, Speaker
Grills, Empty speaker / component cabinets, etc. will likely be
'expensive', relative to the
cost of the part, due to the amount of packing it takes for safe
delivery, and depending on location shipped to.)
Original AC cord and grommet - SOLD
Call or Email for
"SHOWN and NOT marked 'SOLD'
" part you need.
9090DB LOCATION: PB, South, left 'corner' cab, gray, lowest drawer. -
Revised 1/4/2023
9090 (NON-DB) LOCATION: PB, S Wall, 6th Cab, Black, 4th / bottom
drawer. - Revised 8/24/2021 (Above
text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
(Click on above thumbnails to enlarge photos)
SANSUI STEREO RECEIVER AC POWER CORD QR / QRX
REPLACEMENT AC POWER CORD / CABLE FOR
SANSUI EIGHT / 8, QR-4500, QR-6500, QRX-1500, QRX-3500, QRX-4500, QRX-5500,
QRX-6500, QRX-7500
for sale
Replacement AC power cord for Sansui Model 8 and QRX series Receivers and
some other vintage Sansui audio components / electronic units such as the Sansui
SD-5000 Reel to Reel.
GOOD-USED
$28.99
|
Domestic US Customers |
International Customers |
|
|
|
Limited availability.
IF YOU PREFER TO PLACE YOUR ORDER BY PHONE,
PLEASE CALL US AT:
(800) 806-4231
- Press Option '2' for 'SALES' to order -
~10:00 AM- ~5:30
PM most days COLORADO / ROCKY MOUNTAIN TIME ZONE
Orders for this product taken by Phone vs
via the "Buy Now" button will incur a $5.00 surcharge.
(Should fit Sansui
Eight / 8, QR-4500, QR-6500, QRX-1500, QRX-3500, QRX-4500, QRX-5500, QRX-6500,
QRX-7500
and any other "round" prong receptacle Sansui products from that
time period.)
|
|
HERE ARE SOME ADDITIONAL RESOURCES FOR REPAIR /
RESTORATION
__________________________________________________________________________________________________________
|
(Click on above thumbnails to enlarge photos)
SANSUI
RECEIVER
G-4500 G4500
FOR PARTS.
SOLD 2/26/14
SHIPPED TO ILLINOIS
Will make a very nice receiver from a performance standpoint. We are
offering it on the "Salvage-Units" page as the dial lamplifier circuit needs
repair. Probably a reasonable easy fix, but we don't have a service manual
or the resources to spend more time on it. It's in "as-found"
condition, but does have a very strong tuner on both Antenna, AM and FM bands. Also
has a "quick-off-the-line" pre-amplifier volume control with lots of
"punch" and headroom. Both amplifier sides produce 22 Volts per
channel @ 8 Ohms for 60 wpc and 18 Volts per channel @ 4 Ohms for 81 Watts
per channel. Overall will look and perform great! No missing parts or
knobs and case in very good condition. Again a good candidate for
restoration! 120VAC / 60Hz AC power Requirements.
Measures 17" wide x 14" deep x 6" high.
Sansui G-4500
As-Is
$99. Complete
SOLD 2/26/14
SHIPPED TO ILLINOIS
|
(Click on above thumbnails to enlarge photos)
SANSUI G-7700 G7700 STEREO RECEIVER PARTS /
SPARES
- PARTING OUT -
Many of the parts such as Switches, pots, controls and knobs
MAY*
also fit
the Sansui G-5700 / G-6700 / G-7700 / G-8700 / G-9700 models.
Unit sounded strong and great, but had an issue with the tuner readout being
locked on one frequency.
- PARTING OUT -
Panel,
Face panel (good, very minor scuffs on bottom edge and top edge)-
$75. SOLD
Case / Bonnet / Cover,
Vinyl, wood grained wrap. (Fits G-6700 and G-7700)
- SOLD / MIA
(just FYI, 'pack / ship' on items such as large panels, Speaker
Grills, Empty speaker / component cabinets, etc. will likely be
'expensive', relative to the
cost of the part, due to the amount of packing it takes for safe
delivery, and depending on location shipped to.)
Knobs / Caps / Buttons / Covers / Covers, Large tuning round knob -
$35. SOLD
Knobs / Caps / Buttons / Covers / Covers, Large volume round knob -
$35.
SOLD
Knobs / Caps / Buttons / Covers / Covers, Small round knobs - $25.
each SOLD OUT
Knobs / Caps / Buttons / Covers / Covers, Mic knob - $18. SOLD
Knobs / Caps / Buttons / Covers / Covers, Switch caps ~3mm x 5mm
- $20. each
SANSUI G-7700 / G7700
STEREO RECEIVER PARTS
Transformer, Power supply Transformer
( # 4003090 )-
$75.
SOLD
Capacitors,
Power supply filter caps - $25.
ea.
Circuit Boards, F-2890 Power supply protector circuit board
F-3060 - $65.
MIA? / SOLD?
Circuit Boards, F-2855 Tone Control circuit board
(less headphone jack, pots & switches) - $45.
(See also G-701, G-6000, G-7000,
G-7700)
Circuit Boards, Power Supply
/ Driver board F-2980 -
$45. SOLD
Circuit Boards, Speaker Selector /
Filter Circuit Board (erroneously listed in service manual for
G-6000 & G-7000 as a "Tape Monitor" cb)
F-2860 (see also Sansui G-701, G-6000, G-6700,
G-7000 & G-7700)
- SOLD
Circuit Boards, Power Indicator / Meter Circuit Board
F-3059
- SOLD
Circuit Boards, Tuning Circuit Board -
SOLD
Circuit Boards, FM Muting, Tape Monitor switching, Mode
switching Circuit Board F-2853, less switches (see also Sansui
G-701, G-6000, G-6700, G-7000 & G-7700)
- $65.
Circuit Boards, FM Muting
/ switch Circuit Board F-2854 not including push switches
(see also Sansui G-701, G-6000, G-5700, G-6700,
G-7000 & G-7700)
- $55.
Circuit Boards,
Mic amp / Dolby switch Circuit Board F-2857 not including pots, jack or
switches
(see also Sansui G-6000, G-6700, G-7000 & G-7700)
- $45.
Display / Readout screen, Tuning Digital Display -
SOLD
Pointer / Dial indicator / needle, Tuning Dial pointer -
SOLD
Circuit Boards, Green Protection LED on circuit board F-3067 -
SOLD
String wheel / Pulley, Tuning
string wheel / pulley (plastic) - $35.
SOLD
Circuit Boards,
Power amplifier (complete on circuit board F-3058, with
2x 2SA1106N 2x 2SC2581N & output original / OEM Transistors) -
$45 per side. SOLD OUT
SANSUI G-7700 / G7700
STEREO RECEIVER PARTS
Control Potentiometer, Balance Pot #1015341 on F-2878 circuit
board (will not work in G-8700 / 871) -
$30.
SOLD
Control Potentiometer, Bass or Treble potentiometer / control #1015360 / 2x 100k
(See also G-701, G-6000, G-7000, G-7700, G-8700, 8700DB) - $40. ea.
SOLD
Control Potentiometer, Volume #1011160 on F-2879 circuit board - $45.
SOLD
Switches / Selectors, Input / Function Selector switch (ALPS 1190710 / 912 K)
May work in 7700D, 8700, 8700DB, 871 and 871DB) - $65.
Switches / Selectors, Power Switch (partially broken shaft, switch still works)
- as-is $25.
SANSUI G-7700 / G7700
STEREO RECEIVER PARTS
Antenna, AM antenna (stick only, less bracket)
-
$20.
SOLD
Antenna, AM antenna
bracket - $30.
Jacks / Connectors / Terminals, Speaker output jack strips A or B -
$25. ea.
SOLD OUT
Jacks / Connectors / Terminals, Headphone Jack - $30.
SOLD OUT
Plate / Bottom Cover,
bottom sheet metal plate. (Fits G-6700 and G-7700)
(just FYI, 'pack / ship' on items such as large panels, Speaker
Grills, Empty speaker / component cabinets, etc. will likely be
'expensive', relative to the
cost of the part, due to the amount of packing it takes for safe
delivery, and depending on location shipped to.) -
SOLD / MIA
Feet set of 4 - $25. or
$12.
ea. SOLD OUT
Call or Email for
"SHOWN and NOT marked 'SOLD'
" part you need.
Location: PB,
West Side, 2nd set of cabs, 1st 'tan' cab, 2nd drawer.
-
revised
3/18/19 (Above
text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
(Click on above thumbnails to enlarge photos)
SANSUI G-8000
/ G8000 STEREO RECEIVER PARTS / SPARES
- PARTING OUT -
Huge early 80's receiver. Weighs about 60lbs and is almost 2 feet wide!
Power amplifier produces 40 Volts per channel or 200 Watts per channel at
8 Ohms.
Unfortunately this one has no radio output to the amplifier & selector
switch sheered.
Many of the parts such as Switches, pots, controls and knobs
MAY*
also fit
the Sansui G-801, 801DB, G-901, 901DB, G-9000, G-22000 & G-33000 models.
- PARTING OUT -
Sansui G-8000
/ G8000
PARTS / SPARES
Wood case cover (less plastic vent) - $155.
(Cases,
covers and side plate / panels, etc. do not include mounting screws as
those are sold separately when available)
Plastic top rear vent - $35.
SOLD
(just FYI, 'pack / ship' on items such as large panels, Speaker
Grills, Empty speaker / component cabinets, etc. will likely be
'expensive', relative to the
cost of the part, due to the amount of packing it takes for safe
delivery, and depending on location shipped to.)
Face panel
/ face plate / front cover Good
condition with a few tics / nics on the face, some striations on the
horizontal, top edge, and some scuffing on the bottom, horizontal
surface. Dial window has no issues. We would use on a unit with a
final grade of 8.0-8.5. - $165.
SOLD
SOLD
Knobs / Caps / Buttons / Covers / Covers, Large tuning round knob (scuffed) -
$35.
SOLD
Knobs
/ Caps / Buttons / Covers / Covers,
Large volume round knob (scuffed) -
SOLD
Knobs / Caps /
Buttons / Covers / Covers, Large knob back bezel / trim -
$35. ea.
SOLD / MIA?
Knobs / Caps / Buttons / Covers / Covers, Small round knobs (Bass, Mid, Treble, Selector, Tape monitor)
- $25. each SOLD
OUT
Knobs / Caps / Buttons / Covers / Covers, Balance knob
-
$25. each SOLD
Knobs, Mic knob - $25.
SOLD
Knobs / Caps / Buttons / Covers / Covers, Toggle Switch Caps - $30. each
(2 remaining in stock)
SOLD OUT / MIA?
Knobs / Caps / Buttons / Covers / Covers, 'Square' Push Switch Caps - $30. each
(4 remaining in stock)
Control Potentiometer, Volume pot -
$95.
SOLD
Control Potentiometer, Tone
pots Treble, Mid, Bass
(Part #1015200 / 100kΩBX2)
- $65.
ea..
SOLD
OUT
Control Potentiometer, Control
Pot Balance
#1015340 2x 250k
(also fits the G-8700 / G-871)
- $65.
SOLD
Sansui G-8000
/ G8000
PARTS / SPARES
Switches / Selectors,
Rotary
Tape Monitor - SOLD
Switches / Selectors,
Rotary
Selector -
$55.
- SOLD
Switches / Selectors,
Toggle (ex; Speaker A-B, Tone / Treble /
Mid / Bass 1015200 / 100kΩBX2)
- $45. ea. SOLD??
Switches / Selectors, Toggle 1171780, 8-Pin "Dolby FM"
(also fits the G-8000,
G-9000, G-22000 & G-33000)
- $45. ea.
SOLD
Switches / Selectors, Toggle 1171800, 14-Pin "Mode"
(also fits the G-8000,
G-9000, G-22000 & G-33000)
- $45. ea.
1 Remaining in stock
Switches / Selectors,
Power Toggle switch -
$45.
ea
SOLD??
Switches / Selectors,
Preamplifier / Power amplifier coupling circuit
F-2804 board w/ switch and RCA jacks -
$45.
ea
SOLD
Meters, 'Tuning' meter - $55. ea.
Meters, 'Signal Strength' meter - $55. ea.
Meters,
Power meters (power meters range from 0-300 Watts) - $65. ea.
SOLD
Flywheel, Dial Shaft / Flywheel / Tuning
control assembly w/ bushing and shaft (knob sold separately) - $65.
Pointer / Needle / Indicator, Dial pointer
#7116040 (also fits
the Sansui G-801, G-8000, 801DB, G-901, 901DB, G-9000,
{NOT the same part number for Sansui G-22000 & G-33000} models.)
- $40.
Transformer,
Power supply Transformer 4002750 8.7 - $250.
MIA / SOLD?
Transformer, Power supply Transformer
World / Multi Voltage / Current version
(with voltage selector jack assembly and fuse
holder, but less Multi-Voltage Selector plug, Sold Separately)
- $250.
SOLD
Switch,
Multi-Voltage
Power Selector Plug
 (fits Sansui 990DB, 7070, 8080,
8080DB,9090,9090DB, G-8000, G-9000. Also fits Harman Kardon / Rabco ST-7
/ ST-8 turntables and possibly others) - $35.
Capacitors, Power supply filter
caps, Elna 80V / 12,000 uf - $55. (for both sides)
Sansui G-8000
/ G8000
PARTS / SPARES
Power amplifier (complete while parts last) - $165.
Transistors, Single outputs (original
/ OEM Sanken
2SC1403B or 2SA745B ) - $25. ea.
but follows our
discount for quantity
Tuning Capacitor, Tuning Capacitor on circuit
board #F-2714 W/ sheet metal housing - $95.
Circuit Board, Power supply protector circuit board
F-2809 (This board is used in both the G-8000 & G-9000)-
$145.
MIA? OR SOLD?
Circuit Board, F-2795 Mic Amp Circuit Board
with transistors; 2SA872, 2SC1775 and balance of
capacitors, diodes, resistors as well connectors. (less
wafer / selector Switches,
and toggle switch which are all sold separately)
(see also Sansui G-801 G-8000, G-901 / G-9000) -
$65.
SOLD
Circuit Board, F-2806 Driver board, etc. (less pots,
Switches, large transformers,
outputs) SOLD
Circuit Board, Driver Connection circuit board
F-2814 (This board is used in both the G-8000 & G-9000)-
$35.
Sansui G-8000
/ G8000
PARTS / SPARES
Lamp Housing / light Diffusion, White,
metal housing, with light diffusion acrylic installed with black,
push pins. 14cm overall length (fits G-8000. May also fit
G-7000, G-9000, G-22000 and G-33000?) - $35. ea.
Rear Panel I/O's, Any Rear panel patch section, RCA's etc - $35. ea.
Jacks / Connectors / Terminals, Speaker terminals /
connectors / clip sections - $35. ea.
SOLD OUT
Plate / Panel, Bottom Plate
20 1/2" X 15 7/8" - $65.
(just FYI, 'pack / ship'
on items such as large panels, Speaker Grills, Empty speaker /
component cabinets, etc. will likely be 'expensive', relative to the
cost of the part, due to the amount of packing it takes for safe
delivery, and depending on location shipped to.)
Aluminum lower side trim (Fit G-8000 & G-9000)
-
$30 ea. SOLD
OUT
Service Bumpers, Rear plastic Bumpers
/ Back stand (Fit G-8000 not G-9000)
- $35. ea. SOLD
OUT
Heat sinks - $45. ea. side, (front and back together)
Feet set of 5
(See also, 8080, 9090, G-871DB, G-8000, G-9000)
- $55. for set $18.
ea. SOLD OUT?
Call or Email for
"SHOWN and NOT marked 'SOLD'
" part you need.
Location: PB, South, 5th
cab / gray, 3rd & 4th drawer -
revised
7/2/20 (Above
text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
|
|
(Click on above thumbnails to enlarge photos)
SANSUI
R-30
STEREO
RECEIVER PARTS
- PARTING OUT -
Power amplifier produces
20 Volts
on the left or 50 Watts per channel at
8 Ohms.
Unfortunately this one has a bit of DC surge when powered,
and a "cranky" noise on the right side up so we are
just going to go ahead and part it out..
Many of the parts such as
Switches, pots, controls and knobs
MAY*
also fit
the Sansui R-30, R-50 & R-70 models.
- PARTING OUT -
Metal top panel - $25.
(Cases,
covers and side plate / panels, etc. do not include mounting screws as
those are sold separately when available)
(just FYI, 'pack / ship'
on items such as large panels, Speaker Grills, Empty speaker / component
cabinets, etc. will likely be 'expensive', relative to the
cost of the part, due to the amount of packing it takes for safe
delivery, and depending on location shipped to.)
Side Panels - $20. ea.
(Cases,
covers and side plate / panels, etc. do not include mounting screws as
those are sold separately when available)
Face panel with dial window- $45.
Large tuning round knob - $30.
Other round knobs - $25. each
Switch caps - $18. each
Power supply Transformer - $45.
Power supply filters - $95. (for both sides)
Power supply protector circuit board - $45.
Power amplifier (complete) - $55.
Any single circuit board (less pots,
Switches, large transformers,
outputs) - $45.
Any pot, switch, input / output single panel section - $30.
Ganged controls - Additional $15. ea.
Bottom Plate - $20.
(just FYI, 'pack / ship' on items such as large panels, Speaker
Grills, Empty speaker / component cabinets, etc. will likely be
'expensive', relative to the
cost of the part, due to the amount of packing it takes for safe
delivery, and depending on location shipped to.)
Feet set of 4 - $25. or $12.
ea.
Call or Email for
"SHOWN and NOT marked 'SOLD'
" part you need.
revised
1/2/2023 (Above
text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
NEW LISTING 3/13/2020
(Click on above thumbnails to enlarge photos)
SANSUI
QRX-6500
/ QR-6500 STEREO RECEIVER
PARTS / SPARES
Some parts MAY also fit the Sansui SIX / 6, and Eight
/ 8 receivers as well as QR-4500, QRX-4500, QR-6500 & QRX-7500 and
possibly others).
-
PARTING OUT -
Bonnet / Case / Cover / Cabinet, Walnut
veneer. Good 'structural' condition, but a few
battle scars / chips. (inside dimensions; 20" wide x 6 1/8" tall (at
front edge) x 14.25" deep. Bolt hole centers are 8.25" apart. With
wood vents all intact with no breaks. - $95. SOLD
(just FYI, 'pack / ship'
on items such as large panels, Speaker Grills, Empty speaker / component
cabinets, etc. will likely be 'expensive', relative to the
cost of the part, due to the amount of packing it takes for safe
delivery, and depending on location shipped to.)
Panel, Front / Face panel / aluminum,
with Black plastic w/ smoked
glass / plexi dial window.
VERY CLEAN condition,
Really nothing derogatory to mention. No cracks,
dings, dents, scuffs, scratches, chips or anything.
(dial glass / window and bezel
sold separately)
- $95.
Panel, ‘Tuning scale’,
Black 'smoked' plastic
dial
/ scale with 'back-lit' 'Green' numerals / scale and 'Indicator' labels
- $35.
Meter,
‘Tuning Signal Strength’ Meter #4300610
(see; Sansui QRX-4500, QRX-6500& QRX-7500)
- $45.
Meter,
‘Tuning 'Center’ Meter #4300600
(see; Sansui QRX-6500 & QRX-7500)- $45.
Pointer / indicator,
Tuning ‘Dial Pointer’ - $30.
Knobs / Caps / Buttons / Covers / Covers,
‘Tuning’ knob w/ black, anodized apron. 21.6mm tall x
~25.4mm top diameter x 31.7mm bottom apron diameter
- $45. ea.
SOLD
Knobs / Caps / Buttons / Covers / Covers,
‘Volume’ knob. 19.5mm tall
x ~28.5mm diameter
- $35. ea.
Knobs / Caps / Buttons / Covers / Covers,
‘Tone’ knobs / concentric /
stacked pair. 14mm tall x ~19.5mm diameter for outer knob and 22.5mm
diameter x 5.5mm height (aluminum portion)
- $35. ea. concentric pair
Knobs / Caps / Buttons / Covers / Covers,
‘Synthesizer Decoder’ knob
apron. 20mm tall x 19.4mm top diameter with 10mm wide at 'flat' area x
24mm bottom apron diameter
- $40. ea.
Knobs / Caps / Buttons / Covers / Covers, ‘Speakers’
Selector
19.5mm tall x ~20mm diameter
- $35. ea.
1X REMAINING
Knobs / Caps / Buttons /
Covers /
Covers.
‘Balance knob / Fader’ caps
12.2mm tall x 12mm x 8.2mm
– $25. ea.
Knobs / Caps / Buttons / Covers / Covers, ‘Power’ button / cap
/
knob with black, plastic apron. 19.5mm tall x 11mm
top diameter with 20mm apron diameter with spring
- $35.
SOLD 2/1/2022 TO BRANDON
Knobs / Caps / Buttons / Covers / Covers,
‘Low Filter’, ‘Hi Filter’,
‘Loudness
Front / Rear’, ‘Tape Monitor’, and 'FM Muting' buttons / caps
(see; Sansui
QRX-4500 & QRX-6500, but NOT QRX-7500)
- $20.
ea.
String Wheel, Plastic String Tuning Wheel
for AM Variable capacitor - $35.
String Wheel, Plastic String Tuning Wheel
for FM Front-end Variable capacitor - $35.
Fly Wheel
assembly,
Tuning Flywheel assembly (less
knob which is sold separately)
(need photo)
-
$45.
Panel,
‘Dial Illuminator
/ Function / Input indicator
box’ w/ ‘fuse lamp’ sockets,
F-1374 (included
lamps / bulbs may or may not work) - $35.
SANSUI
QRX-6500 STEREO RECEIVER PARTS / SPARES
Potentiometer / Control,
‘Volume’ control pot, ALPS 250K Ohms BX4
/ #1060120
(see; Sansui QRX-4500 & QRX-6500)
-
$65.
SOLD
Potentiometer / Control,
‘Main Front / Rear Balance’ control pot, ALPS 250K M,
N / #1040110
- $75.
Potentiometer / Control,
‘Front or Rear Left-Right Balance’ control pot, ALPS 250K M,
N / #1040090
(see; Sansui
QRX-4500 & QRX-6500)
- $65. ea.
1 Remaining in stock
Potentiometer / Control,
‘Treble / Bass / Front /
Rear Tone control’, 100k Ohm x2, #1060040
- $55. ea.
Switches / Selectors,
‘Input Selector’ Rotary / 2-Wafer
/ 84-Terminal switch Noble / Teikoku Tsushin switch, #1170100
(will NOT fit the Sansui QRX-4500)
- $65.
Switches / Selectors,
‘Front Speaker’,
Rotary /
2-Wafer / 8-Terminal switch
Noble / Teikoku Tsushin #1102440
(see; Sansui QRX-4500 & QRX-6500)
- $45.
SOLD
Switches / Selectors,
‘Rear Speaker’,
Rotary /
1-Wafer / 12-Terminal switch
Noble / Teikoku Tsushin #1102470
- $45.
Switches / Selectors,
‘Synthesizer Decoder’,
Rotary / 5-Wafer /
60-Terminal (12 terminals per wafer) switch Noble / Teikoku
Tsushin #1105140
(see; Sansui QRX-4500 & QRX-6500)
- $65.
Switches / Selectors,
‘Mode’, Rotary /
5-Wafer / 60-Terminal (12
terminals per wafer) switch Noble / Teikoku Tsushin
#1110090 - $65.
Switches / Selectors,
Push Switches; ‘Low Filter’, ‘Hi Filter’,
'Loudness', and 'Mono' switches , #1130380
both mounted on
circuit board
F-1376
(buttons / caps sold separately) (see; Sansui QRX-4500
& QRX-6500)
- $40.
for each pair
Switches / Selectors,
Push Switches; ‘Loudness
Front / Rear’, ‘Tape Monitor’, and 'FM Muting'
switches,
#1130390
all mounted on circuit board F-1375-1
/ #7590820
(buttons / caps sold separately)
- $65.
Switches / Selectors,
‘Power’ push switch #1130350, AC125VA w/ clamping capacitor
(button
/ cap sold separately)
(see; Sansui 7, Sansui QRX-4500 & QRX-6500, but will NOT fit the Sansui Eight) - $45.
Switches / Selectors,
‘FM De-Emphasis Slide Switch' #1110040
(will NOT fit the Sansui QRX-4500)
- $25.
SANSUI
QRX-6500 STEREO RECEIVER PARTS / SPARES
Circuit Board,
‘FM MPX Unit’ circuit board, board #F-1322-1
2340300 with transistors; 2SA562,
2SA678, 2SC733,
Matsushita
2SC711, 2SC735, 2SC871, Sansui
MPX coils; 4240660 / 424048,
and balance of capacitors, diodes, adjustable transformers, pc mounted
trim pots / adjustors. - $55.
Circuit Board,
‘FM IF Block / Unit’ circuit board, board #F-1364-1
/ 2520261 with transistors;
2SC930D & 2SK24, IC package; Toshiba
TA7027M, and balance of capacitors, diodes, adjustable transformers, pc
mounted trim pots / adjustors.
(see; Sansui QRX-4500 & QRX-6500)
- $55.
Circuit Board,
‘AM Block’ circuit board, board #F-1038-5
with transistors; 2SC380, 2SC458,
Ceramic Filter and balance
of capacitors, diodes, adjustable transformers, pc mounted trim pots /
adjustors. - $45.
Capacitor,
‘FM Front-End / Tuning’ capacitor
on circuit board marked #7510420 /
72443 (PA4031) with steel shielding / housing in place - $45.
Capacitor,
‘AM Variable Tuning’ capacitor
marked #1200050 /
7293 (PA4031)
(see also Sansui Eight & QRX-6500 / QR-6500)
- $35.
Circuit Board,
‘Tone / Control Block Unit,’ circuit board #F-1370 /
7560630 / 2560420 with transistors;
Matsushita
2SC871, with
balance of capacitors &
resistors
-
$55. ea.
Circuit Board,
‘Equalizer Block / Unit’ circuit board #F-1267 / 7550480
/ 2550140 with transistors;
Matsushita 2SC1313,
and balance of capacitors, and resistors
(see; Sansui QRX-4500 & QRX-6500)
-
$45.
Circuit Board,
‘Driver Unit’ circuit board #F-1180
/ 2570221,
with transistors:
NEC
2SA606, NEC 2SA659,
Matsushita
2SC871,
NEC
2SC959,
2SC984, Sony 2SC1124,
and balance of
capacitors, diodes, resistors
& PC mounted trim pots
(see; Sansui 2000A, QRX-4500 & QRX-6500) - $75.
ea.
1X REMAINING IN STOCK
Circuit Board,
‘Variable / Vario Matrix
Block / Unit’ circuit board #F-2047
/ #7650110 / 2650090, with
transistors;
Matsushita
2SA726,
2SK34, and balance
of mounted capacitors, diodes and resistors
and trim pots w/ shielded unit containing unknown parts
(see; Sansui QRX-4500, QRX-7500 & QRX-6500) - $55.
Circuit Board,
‘Fixed Matrix Block /
Unit’ circuit board #F-2048
/ #7650120 / 2650100, with
transistors;
Matsushita
2SA726,
2SC871, and balance
of mounted capacitors, diodes and resistors
(see; Sansui QRX-4500, QRX-7500 & QRX-6500) - $55.
Circuit Board,
‘Power Supply Block /
Unit’ circuit board #F-1454 / #7500760 /
2500640, with
transistors; NEC 2SC959 & Matsushita
2SC1211, 5W /
180 Ohm resistors, and balance
of mounted capacitors, diodes and resistors
and trim pots
(see; Sansui QRX-4500 & QRX-6500) - $55.
Circuit Board,
‘Intermediate Power Supply
Block / Unit’ circuit board #F-6024
/ #7591440 / 2591410, with
balance
of mounted capacitors, fuses and resistors - $35.
Circuit Board,
‘Terminal / Contact / Connector’ circuit board #F-1382 - $25.
Connectors, PCB, Edge-Card connectors.
#2420020 Blue
Plastic. 2-Bolt. 18 pin
(see; Sansui Seven / 7, Eight / 8, QRX-4500,
QRX-6500, QRX-7500 and likely others)
- $30. ea.
Connectors, PCB, Edge-Card connectors.
#2420040 Blue
Plastic. 2-Bolt. 14 pin
(see; Sansui Seven / 7, Eight / 8, QRX-4500,
QRX-6500, QRX-7500 and likely others)
- $30. ea.
SOLD 1/18/2022
Connectors, PCB, Edge-Card connectors.
#2420030 Blue
Plastic. 2-Bolt. 10 pin
(see; Sansui Seven / 7, Eight / 8, QRX-4500,
QRX-6500, QRX-7500 and likely others)
- $30. ea.
SANSUI
QRX-6500 STEREO RECEIVER PARTS / SPARES
Transformer, ‘Power supply’
transformer #4000860 (alternative to #400960. (Voltage Selector
/ switch assembly sold
separately) - $125.
Plug, ‘Voltage Selector’
"MAIN" Plug #2410180 (fits MANY
Sansui units) - $25.
Plug, ‘Voltage Selector’
"SUB" Plug #2410190 (fits MANY
Sansui units) - $25.
Cover, Voltage selector switch cover - $30.
Capacitors, ‘Power supply filter cap’
Elna
4700MFD
80 Volts
with clamps (yes, they're 'used / old' caps, so will check for ESR and Leakage) - $25.
ea.
Capacitors, ‘Power supply filter cap’
Elna
4700MFD
50 Volts
with clamps (yes, they're 'used / old' caps, so will check for ESR and Leakage) - $25.
ea.
Transistors,
‘Output’ transistors; Toshiba 2SC793 TO-3, Metal cased output
transistors - $25. ea.
SOLD?
Heat Sink,
Power amp heat sink for up to 4X TO-3 transistors
with transistor sockets intact
(less output transistors)
- $45. ea.
Rectifier, Bridge Rectifiers. IOR 5B2 / 2J -
$20. ea.
Jacks / Connectors
/ Terminals,
‘Stereophones’ / Headphone jack, Front or Rear, ¼ inch
#2430060
(see;
Sansui QRX-4500 {for "Rear" ONLY) & QRX-6500) - $35.
ea.
Jacks / Connectors
/ Terminals,
RCA Input / Output connectors / jacks front
mounted, ‘Tape-2’,
1/4" / Phono jacks, #2430071
(see; Sansui QRX-4500 & QRX-6500)
- $25. ea.
Jacks / Connectors
/ Terminals,
RCA Input / Output connectors / jacks,
2-Channel; ‘Phono-1’,
'Phono-2', ‘AUX’,
'Tape-1' & 'Tape-2' bank. Plate = 100mm x 36mm. - $55.
ea. bank of 10 RCA jacks
Jacks / Connectors
/ Terminals,
RCA Input / Output connectors / jacks ‘Tape-1’
&
‘AUX’, Front or Rear bank.
Plate = 125mm x 36mm. - $55.
bank of 14 RCA jacks
Jacks / Connectors / Terminals,
‘Speaker’ Connectors / 'Push' terminals
(grey & red buttons). 3 complete banks of 2 pairs
Measures 72mm wide x 25mm at plate for an opening 53mm x 21mm.
(will
for sure fit the Sansui Seven / 7, Eight / 8 and QRX-6500, but likely
many others from this year / series)
- $35. ea.
bank
Jacks / Connectors / Terminals,
‘Antenna’ Connectors / 'Push' terminals
(grey buttons) as set of 5. Measures 84mm wide
x 25mm at plate for an opening 65.5mm x 21mm.
- $30.
Jacks / Connectors / Terminals,
AC Convenience outlet / Socket, ‘AC Convenience’ sockets
#2450040
(see; Sansui Seven, QRX-4500, QRX-6500, QRX-7500 & Sansui Eight for at least one of the part
numbers "2450040") - $20. ea.
Jacks / Connectors
/ Terminals,
‘DIN’ socket #2430040
(see; Sansui QRX-4500, QRX-6500 & QRX-7500, but will NOT fit the Sansui Eight)
- $25.
SANSUI
QRX-6500 STEREO RECEIVER
PARTS / SPARES
Antenna, AM ‘Stick’ / bar /
rod antenna, # 4200510 with extension / sliding mounting bracket
(similar to Sansui Seven / 7, but one wire is different.
Dimensions / mounting bracket are the same.
Dimensions / mounting bracket are the same. Bar diameter 16.5mm &
7.5" long. Slide mount is 28.3mm wide x 10mm thick and ~75mm in depth)
(will NOT fit the Sansui Eight)
- $45.
Antenna
Socket, AM antenna
plastic slide sleeve with 4-bolts
- $25.
Fuse, Main AC / Power Fuse ‘Holder’
#2300060
(see;
Sansui QRX-4500, QRX-6500 & QRX-7500)
(cap sold separately)
- $35.
Fuse,
Main
AC / Power Fuse ‘Cap’ for holder #2300060
(holder sold separately)
(see;
Sansui QRX-4500, QRX-6500 & QRX-7500)
- $40.
Fuse, 'Speaker Protection / Quick
Acting' Fuse ‘HOLDER’
#2300070
(see;
Sansui QRX-4500 & QRX-6500)
(cap sold separately)
- $25.
ea.
Fuse,
'Speaker Protection / Quick Acting'
‘CAP’
for holder #2300070
(holder sold separately)
(see;
Sansui QRX-4500 & QRX-6500)
- $35.
ea.
2X REMAINING
Panel,
Rear sheet metal panel
(less any input / output
jacks / components)
- $45.
Panel
/ Plate,
Bottom sheet metal
- $45.
(just FYI, 'pack / ship' on items such as large panels, Speaker
Grills, Empty speaker / component cabinets, etc. will likely be
'expensive', relative to the
cost of the part, due to the amount of packing it takes for safe
delivery, and depending on location shipped to.)
Foot / Feet,
This unit does not utilize separate feet, as they are built into the
wood case.
Call or Email for
"SHOWN and NOT marked 'SOLD'
" part you need.
Location: PB, Southern Island, North Shore,
East end, 2nd cab (OD Green), 2nd drawer
-
revised
8/28/2024 (Above
text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
NEW LISTING 2/4/18
(Click on above thumbnails to enlarge
photos)
SANSUI TR-707A / TR707A STEREO RECEIVER PARTS /
SPARES
1-2 in stock for parts / spares
- PARTING OUT -
Parted out due to 'output issues', and could not get
'Stereo' FM, but primarily due to it's utilization of 'oddly' shaped RCA I/O
jacks. They're 'conical' and hard to get most RCA cables to connect
reliably.
Bonnet / Case / Cover / Cabinet,
SOLD
(just FYI, 'pack / ship' on items such as large panels, Speaker
Grills, Empty speaker / component cabinets, etc. will likely be
'expensive', relative to the
cost of the part, due to the amount of packing it takes for safe
delivery, and depending on location shipped to.)
Face panel
with glass (less knobs / buttons) Nice condition.
Brushed aluminum.
- $55.
Dial Slide Rule panel,
Silk-Screened, Glass dial panel / Window - $35.
MIA / SOLD?
Pointer / indicator,
Tuning ‘Dial Pointer’ / indicator / needle - $25.
Meters,
D'Arsonval
/ Analog 'Signal Strength',
#41518 - $35.
Knobs / Caps /
Buttons / Covers / Covers, ‘Tuning’ knob - $30.
Knobs / Caps / Buttons / Covers / Covers, ‘Volume’ or
‘Balance’ knobs, aluminum
(pots sold separately)
- $25.
ea.
Knobs / Caps / Buttons / Covers / Covers, ‘Mode’, ‘Function’,
'Band' knobs, aluminum
(pots sold
separately
– $30. ea.
Knobs / Caps / Buttons / Covers / Covers,
‘Bass’
or ‘Treble’ knobs, 'stacked /
concentric pairs'. aluminum
(pots sold separately) – $25. ea.
'stacked pair'
SANSUI
TR-707-A / TR707A STEREO RECEIVER PARTS / SPARES
Potentiometer / Control,
‘Volume’ control pot, 'stacked' 250k / 250k
(knob
sold separately)
- $40.
Potentiometer / Control,
‘Balance’ control pot, #5227, stacked 125K
(x2) - $30.
Potentiometer / Control, ‘Treble’ control pot #5227,
'stacked' 100k / 100k
(knobs sold
separately)
- $35.
Potentiometer / Control, ‘Bass’ control pot #5227,
'stacked' 100k / 100k
(knobs sold
separately)
- $35.
Switches / Selectors,
'Mode' 'Wafer' Switch for 'Mono
/ Stereo' selection
(knob sold
separately)
- $35.
Switches / Selectors,
‘Band’ rotary / wafer switch
/ selector (knob sold separately)
- $35.
Switches / Selectors,
’Input / Function’, rotary wafer switch, ALPS
(knob sold
separately
- $45.
Switches / Selectors,
‘Power’ Switch. locking push switch with button -
$25.
Switches / Selectors,
rocker switch; 'Phones / Speakers', 'Low Filter', 'High
Filter', ‘Loudness’, ‘Tape Monitor’,
'Muting' ‘FM / AFC’,
- $20.
ea.
Switches /
Selectors,
‘Muting’, ‘Hi / Lo filter’, ‘Speaker / Phones’, rocker switches
- $20. ea.
Switch /
Selector,
‘Voltage’ selector, 100 / 117 / 200 / 240 Volt w/
selector plug / insert
(transformer
sold separately)
(see also Sansui 5000 and 5000A
and may also fit Stax DA-80M Mono-block amplifier)
-$40.
Switches / Selectors
‘Cartridge’
Noble slide switch from 'Mag' to 'XTAL' - $20.
Socket /
Holder / Clips, Dial Lamp / Bulb holder assembly - $20. ea.
Flywheel, Tuning flywheel assembly - $25.
Wheel, Tuning String wheel / pulley (metal) - $25. ea.
Variable Capacitor, AM Tuning capacitor
SANSUI TR-707A / TR707A STEREO RECEIVER PARTS / SPARES
Transformer,
Power supply Transformer 5227S (selectable Power
version) -
$65.
Transformer,
'Driver' Transformer 5227
68 -
$25. ea.
Choke /
Transformer,
'Filter' Choke 5227
67 -
$25. ea.
Capacitors,
‘Power supply filter cap’ Elna 2000μF / 60 wV
- $25.
Capacitors, ‘Power supply filter cap’ Elna 1000uF
/ 60 wV - $20.
Capacitors,
‘Power supply filter cap’ Elna 2000uF / 50 wV
- $20. ea.
Circuit Board,
#TRF-2A‘Tuner’ circuit board with transistors: Matsushita 2SA70, 2SA341,
Matsushita 0479 diodes, tuning / adjustable transformers; 10FD-1-A1 and
balance of PC / board tunable pots, resistors, diodes and capacitors - $35.
Circuit Board, #TRX-2A ‘Tuner Board’ circuit board with transistor:
Toshiba 2SA49, Toshiba 2SB54, Matsushita 0479 diodes, tuning /
adjustable transformers; MPT/6CT/673T, and MPT/6BT & MFC/6AT/672T and
balance of board mounted diodes, pc mounted pots / variable resistors,
capacitors, tunable pots - $35.
Circuit Board,
#TRAM-2A ‘Tuner Board’ circuit board with transistor: Matsushita 2SA101,
2SA102, and balance of board mounted diodes, resistors, capacitors,
tunable pots - $35.
Circuit Board,
#TRM-2A ‘Driver /
Amplifier’ circuit board with transistors; NEC 2SB220,
SONY 2SB381, balance of mounted
capacitors, diodes, and resistors - $65.
Circuit Board,
#TRS-3A Circuit board with transistors; Toshiba 2SC372
with balance of resistors, capacitors and diodes - $25.
Circuit Board,
#TRD-2 circuit board with transistors: Sony 2SC292
with heat-sinks, capacitors Elna 1000uF
/ 6 wV, Elna 600uf
/ 40 wV and balance of board mounted
capacitors, resistors - $45.
Circuit Board,
#TRP-2 Circuit board with transistor: SONY 2SB381 and balance of board
mounted resistors, capacitors - $35.
ea.
Transistors,
‘Output’ transistors; NEC 2SC245 , Metal cased output transistors
(less heat-sink)
– $25. ea. (will be re-tested prior to shipping)
Diodes, Temperature protection diodes Origin SE 1.5 - $25. ea.
Capacitors,
Elna 2000uf / 60wV / 70 sV
- $25.
Capacitors,
Elna 2000uf / 50wV / 60 sV
- $25.
Capacitors,
Elna 1000uf
/ 60wV / 70 sV - $25.
SANSUI 707-A
/ 707A STEREO RECEIVER PARTS / SPARES
Jack /
Connector,
‘Headphone jack, ¼ inch - $25.
Jack / Connector, RCA Input / Output connectors / jacks ‘Phono’,
‘AUX’ , ‘Tape’, ‘Tape Mon’, ’Mic’, ‘Rec’, one bank - $40.
Jack / Connector,
5-Pin DIN for ‘Tape’
I/O - $20.
Jack / Connector, ‘Center Channel out RCA jack. with screw
terminals for 8 – 32 Ohms together - $25.
Jack / Connector, AC Convenience outlet / Socket, ‘AC
Convenience’ sockets - $18. ea.
Jack / Connector,
FM / AM ‘antenna’ screw terminals, 2 pair on board - $25.
SANSUI 707-A
/ 707A STEREO RECEIVER PARTS / SPARES
Antenna,
AM ‘Stick’ / bar / rod antenna with articulating
arm
- $35.
Fuse, Fuse Holders / clips
w/ clear plastic covers
- $18.ea.
Fuse, Main AC / Power Fuse ‘Cap’ (holder sold separately)
- $30.
Panel, Rear sheet metal panel (less any input / output
jacks / components) - SOLD
Panel, Bottom sheet metal -
SOLD
Foot / Feet, set of 4 - $25.
Bottom panel w/o feet -
SOLD
(just FYI, 'pack / ship' on items such as large panels, Speaker
Grills, Empty speaker / component cabinets, etc. will likely be
'expensive', relative to the
cost of the part, due to the amount of packing it takes for safe
delivery, and depending on location shipped to.)
Call or Email for
"SHOWN and NOT marked 'SOLD' "
part
you need.
Location: PB, South, Inside Island, Right End, Top Drawer, Left side. -
revised
3/18/19
(Above
text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
(Click on above thumbnails to enlarge
photos)
SANSUI SE-8X EQ
'BLACK' GRAPHIC EQUALIZER PARTS / SPARES
- PARTING OUT -
Reason for parting out, was that the Fader LED'S
were not lighting on one or both sides.
Keep in mind the quantity
discounts discussed above:-)
Bonnet / Case / Cover / Cabinet,
Black metal
#07611000 - $55.
SOLD
(just FYI, 'pack / ship' on items such as large panels, Speaker
Grills, Empty speaker / component cabinets, etc. will likely be
'expensive', relative to the
cost of the part, due to the amount of packing it takes for safe
delivery, and depending on location shipped to.)
Front / Face Plate Black Sansui SE-8X,
Black anodized aluminum face panel #47303200. (Clean, decent condition
very little wear. Minor edge nicks / tics) - $65.
Display Window Spectrum Display window. Plastic lens in good
condition. No cracks or noticeable scuffs / scratches. Snap in with
plastic frame - $35.
Potentiometers / Controls,
- Linear pots / Faders / Slide Pots / controls - #
46708200 / 250k Ohms
- $25. ea.
(w/ LED and Black Cap)
(LED may need to be reversed once
installed to function as their leads are the same length)
Potentiometers / Controls, - 'Analyzer
Level' Pot / control - #46089800 / 250k Ohms
w/ circuit board F-3570
- $30.
SANSUI SE-8X EQ EQUALIZER PARTS
/ SPARES
Switches, "Tape Monitor" Switches, 3
on bar. Attenuator, Equalizer, Tape monitors switches (used but still
locking, currently) - $45. for all three still on 'bar'
Extension bars, Plastic, extension bars for "Tape Monitor"
Switches - $15. ea.
LED's, Linear fader LED's
- Sold with Linear Faders shown above
Black caps,
Spectrum Display level Cap / Knob #47680600
- $20.
Black caps, Linear Fader
Caps / "Slide Volume Knob" #47317600
- Sold with Linear Faders shown above
Black caps / buttons,
Push switch
Caps #07630900
- $15.50 ea.
Switch, Power Switch, ALPS
SDL1P, Push Switch w/ in-rush / clamping capacitor
#46360300 - $35.
SANSUI SE-8X EQ EQUALIZER PARTS
/ SPARES
Circuit board, 'Spectrum
Analizer' Sealed
display detached from Circuit boar - $45.
SOLD
Circuit board, 'Spectrum
Analizer CB' F-3567
with IC / Integrated circuit chips; JRC 4558D, 2901N x4, 2902N x2, OKI
MSM4017RS, Transistors 2SC1815 x10, 2SA1015 x2 & balance of
capacitors, diodes and resistors - $45.
Circuit board, 'Control / Fader CB' F-4370. Board only. Faders /
Linear pots sold separately - $45.
Circuit board, 'Ripple
Filter CB' F-4371 with capacitors, resistors and connectors
- $25.
Circuit board, 'Control / Switch / Power Supply' Main circuit board
F-3569 WITH 6x Push Switches ( Spectrum Left / Right, Peak Hold, EQ
Defeat, 'ON' and Recording,
with IC / Integrated circuit chips; JRC 4558D, Transistors; 2SA1015, 2SB527,
2SC1815, 2SD357, Bridge Rectifier RB-15, and balance of Capacitors,
Diodes, and resistors
(less RCA Jacks / Terminals /
Connectors, some swtiches switches) - $85.
with 6 push switches mentioned above.
Transformer, Power supply
Transformer C1410XX / B371 - $55.
SANSUI SE-8X EQ EQUALIZER PARTS
/ SPARES
Jacks
/ Terminals / Connectors, RCA jacks for 'Tape 2 Play / Rec'
- $35. section of 6
Jacks
/ Terminals / Connectors, RCA jacks for 'Output' and 'Tape 2 Play /
Rec' - $35. section of 6
Jacks
/ Terminals / Connectors, RCA jacks for 'Output'
- $35. section of 2
Jacks / Terminals / Connectors,
AC
convenience outlet jack #07189600 -
$20.
Panel, Sheet Metal Back Panel
(sheet metal only. all parts / cords removed)
- $35.
Foot / Feet / Cushion / Leg, #07662900 -
$35.
for set of 4 or $15.50 ea. SOLD 9/23/2024
Call or Email for
"SHOWN and NOT marked 'SOLD'
" part you need.
Location: PB, Southern Island, North Shore,
West end / last cab (black, Steelmaster 2600), 5th drawer
-
revised
9/23/2024 (Above
text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
|
|
NEW LISTING 1/2020
(Click on above thumbnails to enlarge photos)
SANSUI Z-9000 / Z9000 STEREO RECEIVER
/ COMPU-RECEIVER PARTS /
SPARES
- PARTING OUT -
Many of the parts such as Switches, pots, controls and knobs
MAY*
also fit
the Sansui Z-5000, Z-7000 / Z-7000X & Z-9000 / Z-9000X models.
Unit had physically broken 'Timer' section of the front circuit board.
That coupled with the fact that we hadn't had one of this series for
parts yet, made the decision to part it out for us.
- PARTING OUT -
Case / Bonnet / Cover,
Vinyl, wood grained wrap. -
SOLD
(just FYI, 'pack / ship' on items such as large panels, Speaker
Grills, Empty speaker / component cabinets, etc. will likely be
'expensive', relative to the
cost of the part, due to the amount of packing it takes for safe
delivery, and depending on location shipped to.)
Panel,
Front / Face panel (Decent with some minor
striations on top edge, bottom beveled edge, and smoked plexi window
should be buffed. At this point, includes all the 'spring loaded'
control buttons on left end for 'Volume', 'Function', 'Muting', 'Tape'
and 'Power / Standby' - $85.
Panel,
Left / Starboard, Front / Face 'End Cap /
Insert'. Plastic 'end cap'. Silver mat finish.
Decent and 'usable' condition. - $30.
Panel,
Right / Port, Front / Face 'End Cap / Insert'.
Plastic 'end cap'. Silver mat finish. Decent
and 'usable' condition. - $30. SOLD
Panel,
Display / readout panel (behind smoked window
on face plate). Has all the 'silk-screening' graphics - $45.
Knobs / Caps / Buttons / Covers / Covers,
EQ Slide knob / cap pt #07930100
(fits Sansui Z-7000 / Z-7000X & Z-9000 / Z-9000X)
- $25.
ea.
Knobs / Caps / Buttons / Covers / Covers,
Small round knobs 'Balance', 'Reverb Depth'
and 'Mic Level' pt #07964000
(fits Sansui Z-7000 / Z-7000X & Z-9000 / Z-9000X)
- $25.
each
Knobs / Caps / Buttons / Covers / Covers,
'Timer' knob pt #07964100 - $35.
Knobs / Caps / Buttons / Covers / Covers,
Push Switch caps, Square ends. Speakers A, B,
C, FM IF Band, Graphic Equalizer Defeat, High Filter, Subsonic Filter,
Tuning Mode, Cartridge, Reverb On/Off / Mode. pt #07977500
(fits Sansui z-5000, Z-7000 / Z-7000X & Z-9000
/ Z-9000X)
- $18. ea.
Control Potentiometer, Balance Pot & Mic
Mixing Pots as a pair.
-
$45. as a pair.
Control Potentiometer, Reverb Depth potentiometer / control #46362700
(6 legs) - $45.
Control Potentiometer, EQ Linear Fader / potentiometer / control #46360500
(JVR51 thru JVR57) 50k Ohms x2 - $35. ea.
Switches / Selectors,
'Timer' / Wafer switch - $35.
SANSUI Z-9000 / Z9000
STEREO RECEIVER PARTS / SPARES
Transformer, Power supply Transformer,
Stamped on transformer; R2030XX / 31-8 (part number from service manual;
#15008511? or 15013501?) (World Power Version 120V /
220V / 240V) -
$95.
Capacitors*,
Power supply filter caps.
Original, Nichicon Electrolytic Capacitor, #46223000 from service manual (10,000 MFD /
80V).
(Would also work in the Z-7000 as it
requires 'LESS' voltage @ 71V)
- $25.
ea.
*
So just be aware that these are decades old, Electrolytic Capacitors
and while they may be still functioning at some level, unless you really
want to keep the amp original, I would replace them. As 'newer'
capacitors are typically smaller (physically) for like values, you could
use these as 'housings' for the new transplants. A bit of an effort, but
common when restorations require 'period correct visuals'. Price is
essentially for the original capacitor clamps and 'outside housings'
(and the trouble to write all of the above)
Circuit Boards,
Power Amp / Power Supply (MAIN) Circuit board F-3804 pt#00750901.
Populated with 'Voltage Amplifier STK 3156 / STK3156 (aka Yamaha IG
04880) (NOT
CHINESE COPY!),
IC chips; TA7317P, TA3718P, and transistors; 115, 603, 78N15, 2SA939,
2SA968B, 2SA970, 2SA1207, 2SB528, 2SC2003,
2SC2320, 2SC2071, 2SC2344, 2SC2238B, 2SC2375,
2SC2909, 2SD358, and the balance of bridge rectifiers,
capacitors, diodes, emitter resistors, 0.33 Ohms, resistors, pc mounted
'Bias Current' & 'DC Offset' trim pots, connectors and Sansui
Transformer 2030RXX-B, and Hitachi L24 'Reed Relay'
(NOT CHINESE FAKE!).
(less Filter Caps, LARGER Omron Relays and speaker output connectors
which are all sold separately)
- $135.
Circuit Boards,
Tuner Circuit board F-3806. Populated with IC chips; Hitachi HA12412,
Sanyo LA1245, LA3390, TA7302P and transistors; 115, 603, 2SC1674,
2SK192A, 2SC2320, 2SD1147, V100, and the
balance of capacitors, diodes, resistors, tuning coils, transformers, pc
mounted / trim pots.
- $75.
Circuit Boards,
EQ Amp. Circuit board F-3807 (the one with the 'spring reverb' tank,
relays and I/O RCA jacks, none of which are included, but sold
separately). Populated with IC chips; JRC 2459, Mitsubishi M5220L, Sanyo
LC4066B, and transistors; 115, 603, 2SC2320, and the balance of
capacitors, diodes, resistors. (less Spring Reverb Tank, Relays and RCA
I/O jacks which are all sold separately)
- $75.
Circuit Boards,
Control & Selector Switch Circuit board F-3808 (Also has Volume / Peak
Power / Watt Meter readout Fluorescent tube section pt #46254100
{fits
Sansui Z-7000 / Z-7000X & Z-9000 / Z-9000X}).
Populated with IC chips; A103J / A104J, BA6125, JRC 2053, Hitachi
HA12010, Mitsubishi M5220L, M51133P, and transistors; 2SA999, 2SC2320,and
the balance of capacitors, diodes, LED's, Lamps, resistors, & 'locking
push' switches. NOTE: while removing the control potentiometers, we
discovered an area of the board about the size of a 'quarter' with
numerous cracks. Could be repaired utilizing jumpers / 'point-to-point'
soldering. (less EQ Linear Faders / pots, 'Balance' Pot, 'Mic
Mixing' Pot or 'Reverb Depth' pot)
- $75. NOW $40. due to discovered cracks. Components
seem fine, and again, with some effort, repairs to traces could be
effected.
Circuit Boards, Tone
Control and Audio Indicator Circuit board F-3810 (Also has Tuner
Frequency / Quartz Clock readout Fluorescent tube section pt #46253900
{fits
Sansui Z-7000 / Z-7000X & Z-9000 / Z-9000X})
(board has serious, physical damage from the 'Timer' control being
pushed in forcefully. Board could be repaired with considerable work)
(does not include the 'Timer' control or the 7-Segment, LED 'Digit'
readout, but does include the tuner 'Fluorescent display tube').
Populated with IC chips; Mitsubishi M50601P, NEC UPA81C, B553AC, Toshiba
TC4001BP, and MB74LS247
and transistors; 2SA999, 2SC2320, 2SD1111, 2SK163,
L78N06 and the balance of capacitors, diodes, LED's, resistors, 'tactile
push' switches and connectors.
- $75.
LED Display, 7-Segment LED numeral display pt #46166200. 10-pins.
Plugs in.
(fits Sansui Z-7000 / Z-7000X & Z-9000 / Z-9000X)
- $35.
Circuit Boards,
'Volume Control' Circuit board F-3962. Populated with IC Chips; JRC
2058D / (2037) and transistors; #603 and the balance of capacitors, pin
connectors, diodes, resistors. (less RCA I/O jacks which are sold
separately)
- $55.
Transistors / Outputs, Output Transistors. Sanken 2SC2774 pt
#46440101 (NOT CHINESE KNOCK-OFFS!) - $25. ea.
Transistors / Outputs, Output Transistors. Sanken 2SA1170 pt
#46440001 (NOT CHINESE FAKES!) - $25. ea.
Heat Sink, Double aluminum heatsink w/ Freon tube (may fit
Sansui 8900Z & 9900Z. Dimensions and photo coming) - $65.
Relays, 221D024 Relay #11506200 (NOT CHINESE KNOCK-OFF!)- $25.
ea.
Relays, Omron Relay #G2Z-222P (NOT CHINESE COPY!) - $25. ea.
Relays, Omron Relay #G4W-1112P-US-TV8 / 15A / 24VDC / 250VAC (NOT
CHINESE FAKE!) - $25. ea.
Reverb Spring Tank, Reverb pickup / output assembly - $65.
SANSUI Z-9000 / Z9000
STEREO RECEIVER PARTS / SPARES
Antenna, AM antenna
(stick only, less bracket)
-
$20.
SOLD
Antenna, AM antenna
bracket - $30.
SOLD
Jacks / Connectors / Terminals, Speaker output jack strips A,
B or C, pt#22902400
(fits Sansui Z-7000 /
Z-7000X & Z-9000 / Z-9000X) - $45. ea.
group of 4 (2 groups remaining in stock)
Jacks / Connectors / Terminals,
Antenna Terminals / connectors assembly #46364500
(fits Sansui Z-7000 /
Z-7000X & Z-9000 / Z-9000X) - $30.
Jacks / Connectors / Terminals, Headphone Jack
on circuit board #3809. Pt #46289200
(fits Sansui Z-7000 /
Z-7000X & Z-9000 / Z-9000X) - $30.
Jacks / Connectors / Terminals,
Mic / Microphone Jack on circuit board #3809. Pt #46133900 (fits Sansui
Z-7000 / Z-7000X & Z-9000 / Z-9000X) - $30.
Jacks / Connectors / Terminals,
RCA input / output jacks molded in pairs, Tape-1, Tape-2, AUX, Phono
#46363800, set of 4 - $30. ea. set of 4
Jacks / Connectors / Terminals,
AC Convenience Outlets #46360200, set of 3
(fits Sansui Z-7000 /
Z-7000X & Z-9000 / Z-9000X) - $30.
Cord / Cable / Mains Lead, Original 'clipped' AC cord (no
grommet) - $20.
Plate / Bottom Cover,
rear sheet metal panel. (metal panel only. Components all sold
separately) - $45.
Plate / Bottom Cover,
bottom sheet metal plate.
(just FYI, 'pack / ship' on items such as large panels, Speaker
Grills, Empty speaker / component cabinets, etc. will likely be
'expensive', relative to the
cost of the part, due to the amount of packing it takes for safe
delivery, and depending on location shipped to.) -
SOLD
Feet set of 4 - $35. or
$15.
ea.
Call or Email for
"SHOWN and NOT marked 'SOLD'
" part you need.
Location: PB, South, 4th cab / black, 4th /
bottom
drawer -
Revised 4/9/2025 (Above
text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
SANSUI CASSETTE TAPE DECK PARTS / SPARES
|
|
|
-
|
NEW LISTING 1/7/14
(Click on above thumbnails to enlarge photos)
SANSUI SC-2000 CASSETTE DECK PARTS / SPARES
- PARTING OUT -
Just had transport disassembled to replace
refurb
and never progressed.
Great cosmetic shape and motor runs well! Some
parts
MAY*
also fit the Sansui SC-1000, 2000, 3000 and SC-5000 models.
SANSUI
SC-2000 / SC2000 CASETTE RECORDER PARTS / SPARES
Bonnet / Case / Cover / Cabinet. Wood veneer, good
condition - $SOLD
(just FYI, 'pack / ship' on items such as large panels, Speaker
Grills, Empty speaker / component cabinets, etc. will likely be
'expensive', relative to the
cost of the part, due to the amount of packing it takes for safe
delivery, and depending on location shipped to.)
Panel,
‘Front / Face panel’, aluminum, clean with black plastic transport surround,
(less
transport, meters,
meter bezel /
surround,
Switches,
pots and jacks sold separately), see also Sansui SC-2000 and SC-2002)
- $45.
Panel,
‘Bay door’, Cassette lid assembly – SOLD / MIA?
Panel, Surround / Bezel / Escutcheon, VU
‘meter surround’, plastic
(less meters, record and Dolby
lamps sold separately) - $25.
Counter, tape counter #5430080
(see also Sansui SC-2000 & SC-2002)
- $25.
SANSUI
SC-2000 / SC2000 CASETTE RECORDER PARTS / SPARES
Knobs / Caps / Buttons / Covers / Covers, ‘Power’ switch cap - $25.
Knobs / Caps / Buttons / Covers / Covers, ‘Mic / Line’. ‘Left / Right’ recording level, 2
piece knob - $30.
Knobs / Caps / Buttons / Covers / Covers, ‘DOLBY’, ‘Record’ level toggle
switch caps - $20.ea.
Knobs / Caps / Buttons / Covers / Covers, ‘Output’ knob - $25.
SANSUI
SC-2000 / SC2000 CASETTE RECORDER PARTS / SPARES
Meters, Analog ‘VU’ record level #4300930 -
$25. ea.
Switches / Selectors,
(see Circuit Board #G-1212 below)
Switches / Selectors,
(see Circuit Board #G-1212 below)
Switches / Selectors,
‘Power’ switch #1131200
(less cap
sold separately) - $30.
Potentiometer / Control,
‘Mic / Line’ / ‘Right / Left’, ‘stacked’ pot Alps 50kAX2, dual function -
$30.
Potentiometer
/ Control, ‘Output’ level ‘stacked’ pot Alps 10k AX2 - $30.
SANSUI
SC-2000 / SC2000 CASETTE RECORDER PARTS / SPARES
Circuit Board, ‘Main’ Circuit Board #G-1197 /
7990270 with transistors: Mitsubishi 2SC328, Mitsubishi, 2SC564,
Mitsubishi 2SC644, Mitsubishi 2SC828, Mitsubishi 2SC1327,
IC S7636 / Dolby chip NE545B, IC S7635 / NE5458, with the balance of
resistors, capacitors and pc mounted ‘micro’ potentiometers and
integrated Switches
(see also Sansui SC-2000 / SC-2002)-
$60.
Circuit Board, ‘Shut off’ circuit board, G-1198,
with transistors: Mitsubishi 2SA564, Mitsubishi 2SA699,
Mitsubishi 2SC828 and balance of resistors, capacitors - $35.
Circuit Board, ‘Switch’ Circuit Board #G-1212 /
#7690250 w/ ‘Tape Monitor’ and ‘Dolby’ toggle Switches
(see also Sansui SC-2000 & SC-2002 )-
$35.
Circuit Board, ‘Power’ Circuit Board G-1198, with
voltage regulators; Mitsubishi 2SD1226 , fuse holders (3), and
balance of resistors and capacitors -
$35.
Circuit Board, Display, ‘Dolby’ and ‘Record’ LED’s
/ indicators on circuit board #G-1211 with connecting wires and plug - $25.
Circuit Board, Display, ‘Transport illumination’,
on circuit board # G-1202, with lamps (operating condition not guaranteed)
and colored shade - $25.
SANSUI
SC-2000 / SC2000 CASETTE RECORDER PARTS / SPARES
Solenoid, ‘Plunger’ solenoid with ‘leaf
switch’ #4340150 - $25.
Transformer, Power transformer #4002370 /
PT244EX - $40.
Selector, Voltage Adjustment Selector / ‘Multi-voltage’ switch
#2410970 w/ plug - $35.
Motor, ‘Capstan’ motor, MHI-5R9CKH, 9VDC
#4320360 - $40.
Head / headstack, ‘Erase’ head #WY241Z - 6J10T /
#4526010
(less transport mechanism)
- $30.
Head / headstack, ‘Record / Playback’ head HN-424822 /
#1611822 / #4536010
(less transport mechanism
- $30.
Transport Mechanism with ‘Hub’ assembly with
‘cap’ #5370090, ‘p-type’ washer #5180380, ‘reel hub’ #7150070, ‘Control’
button assembly #7050080 with ‘Forward’, ‘Reverse’, ‘Play’ / ‘Stop’,
‘Record’, ‘Mute’, ‘Search’ levers, wheels, tires, springs, and caps
included, reed / leaf Switches,
(less record
/ playback and erase heads and pinch roller)
- $65.
Roller,
‘Pinch’ Roller
#7060160 in good shape on arm - $30.
SOLD
Jacks /
Connectors / Terminals, RCA ‘Line in / Rec out’ connectors
/ jacks with ‘DIN’ connector on molded plastic board w/ circuit board G-1213
attached - $35.
Jacks /
Connectors / Terminals, ‘Microphone’ ¼ inch jack #2430170 –
$20. ea.
Jacks /
Connectors / Terminals, ‘Headphones’ ¼ inch jack #2430190 -
$20.
Panel,
‘Rear’, sheet metal.
(less
connectors, outlets)
- $20.
Panel,
‘Bottom’ sheet metal - $20. SOLD
(just FYI, 'pack / ship' on items such as large panels, Speaker
Grills, Empty speaker / component cabinets, etc. will likely be
'expensive', relative to the
cost of the part, due to the amount of packing it takes for safe
delivery, and depending on location shipped to.)
Call or Email for
"SHOWN and NOT marked 'SOLD'
" part you need.
Location:
PB, SW group, 3rd cab from center, Black, 2nd drawer, right half. revised
8/15/2022 (Above
text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
-
|
|
|
|
Unless specifically noted, we do not typically sell 'component level' parts
such as resistors, diodes, Transistors, semiconductors, ic's / integrated
circuit chips, ceramic capacitors, led's, bulbs, lamps, belts, etc. We do
commonly sell circuit boards / cards which will likely come with those parts
attached.
|
MAY*
*When we say "some parts "MAY" also
fit", that does NOT mean ALL the parts listed 'WILL' fit, and unless we show
specific info that a particular part DOES 'cross-pollinate', do not infer
that it does or will fit. Only careful research and comparisons, on YOUR
part with service
manuals, service bulletins, other comparable units, etc., MAY indicate a POSSIBLE substitution. If your situation is
'critical', do not base your decision on information found on this or any
other page of this web site and do your own research.
|
