SANSUI SPEAKER PARTS / SPARES USED / VINTAGE.
REFERENCE / DATA BASE



Sansui replacement speaker parts / spares for Sansui speaker repair of Sansui models SP30, SP-30, 50, 70, SP300, 300, SP1000, SP-1000, SP-1500, SP-2000, SP2000, SP-2500, SP2500, SP-2700A, SP3000, 3000, SP-3500, SP3500, as well as Sansui SP-4000, SP4000, SP-4000A, SP4000A, SP 5500X, Sansui SP-7500X, SP-X8, SPX8, SP-X7000, X7700, SP-X8000, SPX8000. Replacement vintage Sansui speakers, drivers, woofers, Tweeters, mids, midranges, crossovers, cross over, cabinets & Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use). Sansui speakers / parts for Data Base info, specifications / specs, reference and occasional sale.














































*Note about parts / spares sales

* Our "parts units", parts / spares and related reference information are primarily archived for the purpose of restoration / repair of "Oak Tree Vintage" units first. Only if we do not have a "viable" unit in yet, either already in process or in line to be processed, that may potentially need parts from a "parts unit", will we release available parts for sale (even though they may appear as available for sale to the public). As many of you know, the restoration of a unit can be a long, time consuming process. We may "lock up" parts that we may potentially need in the restoration of a unit (and not necessarily get it marked 'Hold' or 'Sold' on the site right away). Parts are priced according to the "potential value" of the unit they can be applicable to (meaning the amount WE would be willing to pay for the part if that was all that was standing between us having a "shelved unit" or a valuable / sellable unit), time to extract, their rarity & their condition to name a few criteria and likely will be completely unrelated to the original cost / price of a part when it was currently available from the manufacturer.

Parts Photos; We get a number of requests for 'photos' of a specific part. Unfortunately, in most cases that is not practical as the amount of time involved in posting that exceeds the value of the 'unique' part. We will sometimes post photos of less 'unique' parts, if there is a greater chance of them being available in multiple quantities, or on a more 'repeat' basis.

Parts, general condition / circuit board condition; Most of our parts are from 'salvage / donor' units. While we don't sell parts that are 'known' to be bad, occasionally parts will need further adjustment, cleaning, 'tweaking', or in the case of circuit boards, may need old, conductive glue / epoxy further cleaned, and some 'common' parts / components such as, aging / leaky capacitors, parts whose values have drifted, and some epoxy transistors may need to be replaced due to 'green / black / furry' legs, or because those parts were marked as 'sold separately'. Some circuit boards may have 'tired' "landing / solder pads", or severed traces, or cold / bad solder joints which can require solder re-flow or 'jumpers'. Unless noted, circuit boards will be 'crack / split / break' free.

Parts pricing; Most of our parts price / value will be based on a few things. Firstly, we are in the restoration / refurb business, so we consider what we would be willing to pay for the part if we needed it (which again, is what the parts are listed for in the first place, "our units"). Secondly, the rarity / value of the unit the part(s) fit. The 'Tuning Knob' for a receiver that has a final value of $350 will likely be much less than the "Tuning Knob" for a unit with a final value of $1500 or more (a set of tires for a typical sedan will be $400 to $600. A set for a Lamborghini can be $16,000). Thirdly, the 'rarity' of the part. Forth, the 'condition' of the part. Fifth, the difficulty to extract the part, or success rate for extracting certain parts. Sixth; frankly it's a LOT of work and time to part out a unit. Most take 1 to 3 days of shop time to process. Not only the disassembly, but the 4-15 hours of pre-testing / servicing and just as time consuming can be the amount of time it takes to do all of the research we do and the info we list on many parts for cross-referrencing to other units that my use the same parts by scouring service manuals. On many circuit boards we will list every 'semi-conductor' which is also very time consuming. Lastly, every call or email for a part can require 20 minutes to sometimes over an hour of 'phone support', often (about 70% of the time) with me convincing the potential purchaser that they don't need the part I have to solve their problem.
Sorry to sound like a "whiner" about selling parts, but "time is money".

Shipping: Shipping on most 'small' parts if typically via Postal first class or Postal Priority for both domestic (USA) and international orders. Larger parts such as transformers and drivers (speakers) are typically via FedEx gnd.
Some parts sales such as those for empty 'speaker cabinets', empty 'component cabinets / covers / bonnets' and 'speaker grills' and most are 'doomed' from the start. Due to their size and required packing supplies, the cost of 'packing for safe transit' and shipping are commonly 'disproportionate' to their cost, typically nearly equal to and sometimes greater than the cost of the part.  Think about it. An empty speaker cabinet or stereo receiver case is essentially the same size as a complete one. Yes the weight will be less, but most of items that size are calculated on 'dimensional weight', not actual weight so are commonly just as expensive as shipping a 'complete unit'. Secondly empty component cabinets have to be packed to disallow breakage, typically requiring nearly as much packing materials as an entire unit. Speaker grills have to be 'sandwiched' between foam sheets in large, custom ordered boxes (all relatively expensive).  It is what it is....

A non-response to an email of phone call / voice message request for a part that we don't show on one or our pages, or is already marked "SOLD" will be typical. We simply don't have the time / man-power resources to respond to every query we get for items we don't show as avail. Most folks get that. Having said that, I / we may respond if we have information on a substitution or other useful information relating to it.

A non-response to an email of phone call / voice message request for a part (we may appear to have, but typically 'highlighted in Orange or Yellow'), likely means that we are still determining which parts we are going to need for the restoration or repair of one of our units. Again, the parts are first for the restoration of our units and secondarily for the public market. Since we list the parts available for ourselves, it is not much effort to modify the menu's for web publication, which in turn makes the reference information and occasionally the part available to the public. Frankly, publishing them to the web, in many instances, makes it easier for us to determine if we have the part for our needs as well. The alternative to all of the above would be to not offer them at all to the public, however most parts are available to the public for sale.  Also, parts requests can occasionally take time for us to respond to. While we may have a part listed, and we like to keep the website 100% accurate, occasionally a part will be 'used by us' or 'previously sold' and we by oversight, and we did not get the web listing marked "SOLD", or the part gets  'mis-placed' or 'lost' (laid down somewhere in the warehouse(s) and then it get's lost track of (that happens to our coffee cups all the time, then we find it months later with 'a good batch of 'penicillin' growing in it), so we like to 'lay eyes on it' prior to responding. Sometimes we just can't figure out which cabinet or drawer parts were assigned to (and we're working on a system for that one).

Some folks email / call and want us to respond either way / whether we have the part or not. Again, we simply do not have the time resources to do that. Our time must be utilized on the requests we can fulfill.
Sorry for all the excuses, but that's how the 'system' (or lack thereof) works.
And, if you don't see it, we likely don't have it.
 Thank you for your understanding.

$20. MINIMUM ORDER



20% off sale on salvage speaker parts.


See sales banners on parts pages for details



Most of these components are "take-outs" from working speaker cabinets and unless otherwise noted are in perfect shape!
   Where necessary foam surrounds have been replaced and / or speaker has been professionally and correctly re-coned!





If you're looking on this page for 'Subwoofers' for the below listed models, or for most any 'vintage' speaker, those likely AREN'T SUBWOOFERS you need. They are most probably 'WOOFERS', and there is a difference.




Further rea.ding at this link:
WOOFERS - VS - SUBWOOFERS









Jerry of OakTreeVintage from high-atop 'Mt. Sansui'

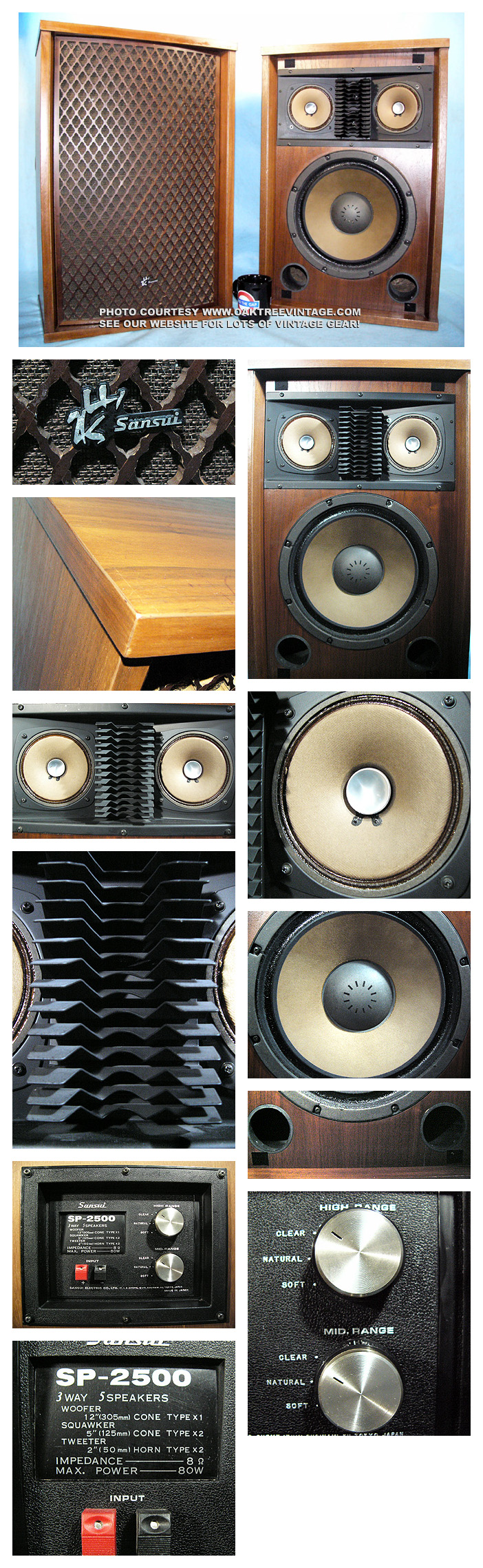

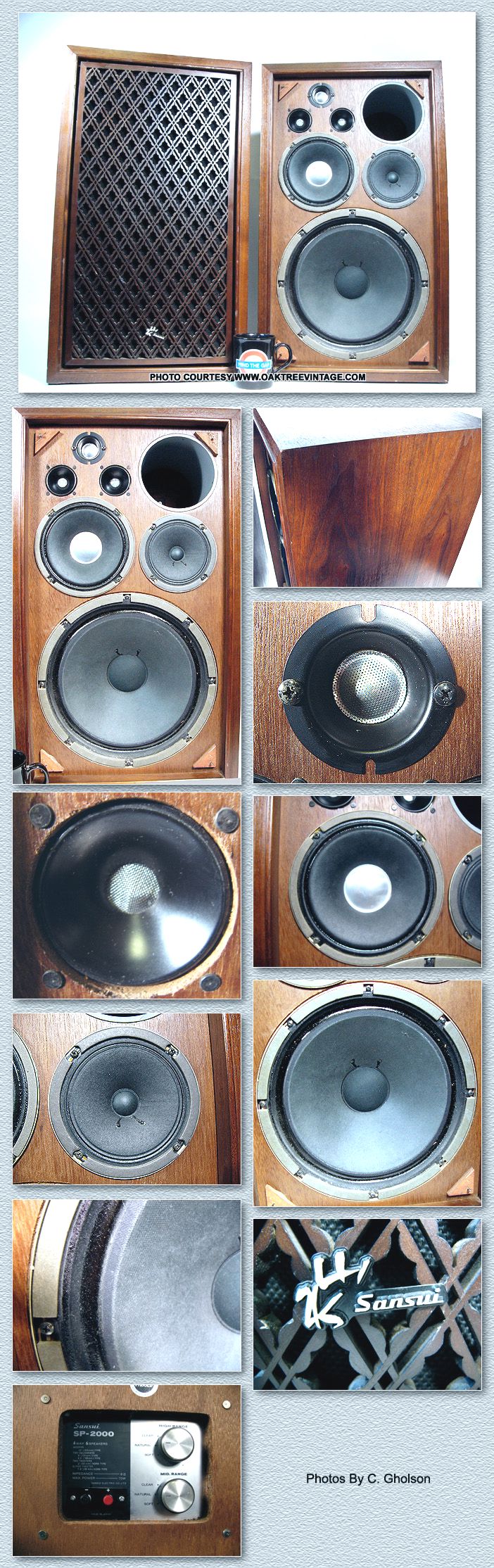

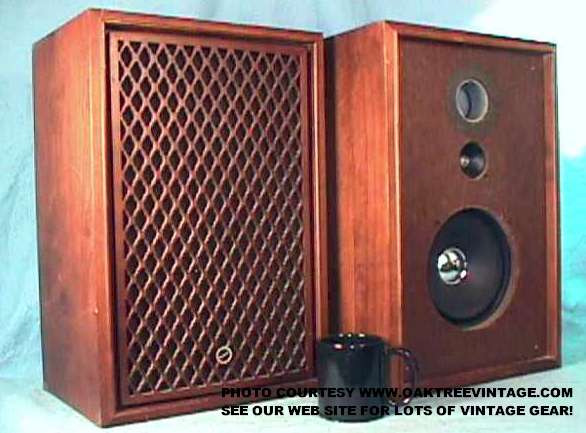

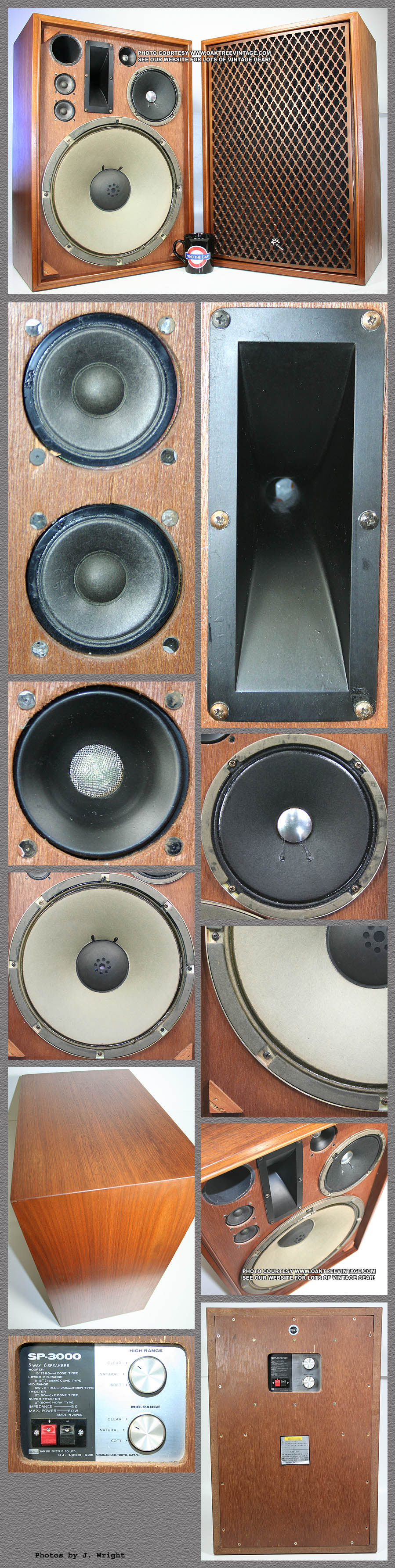

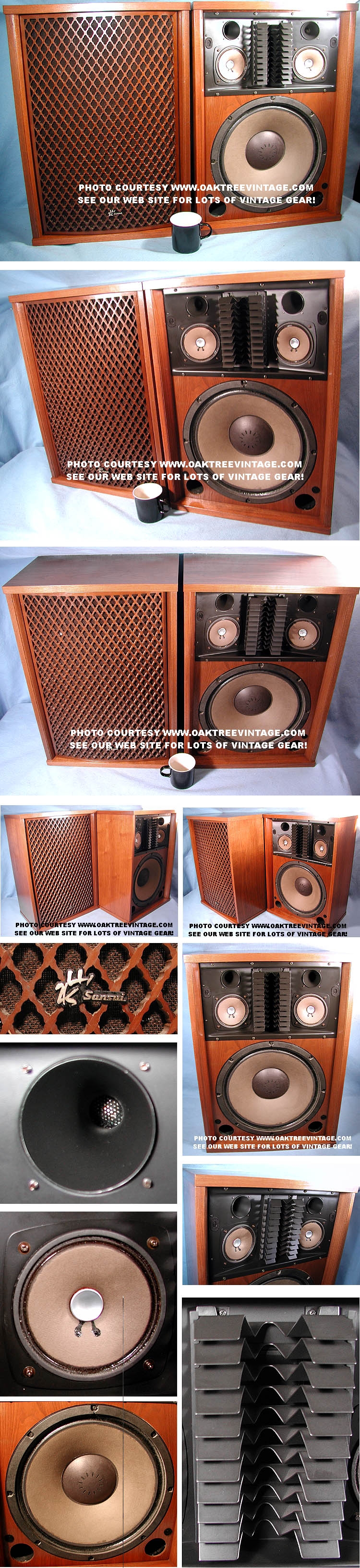

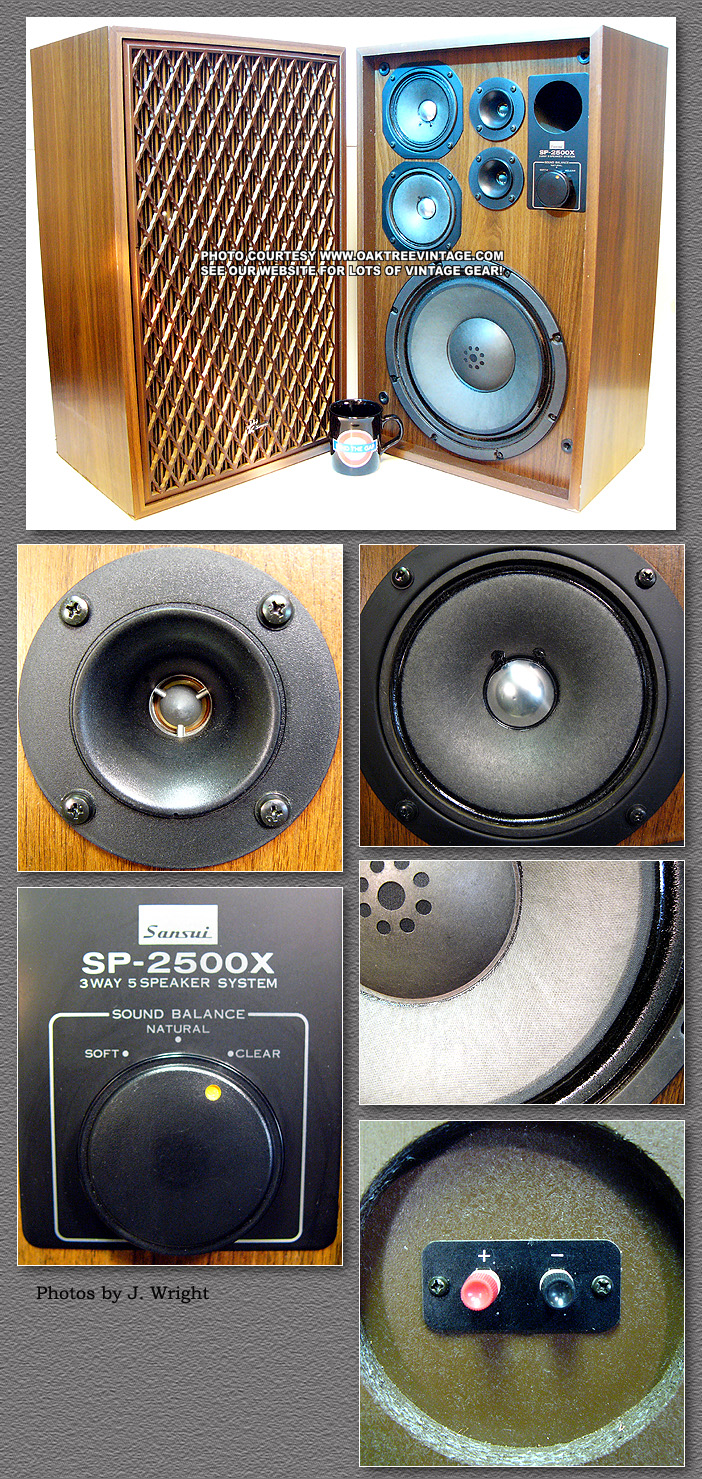

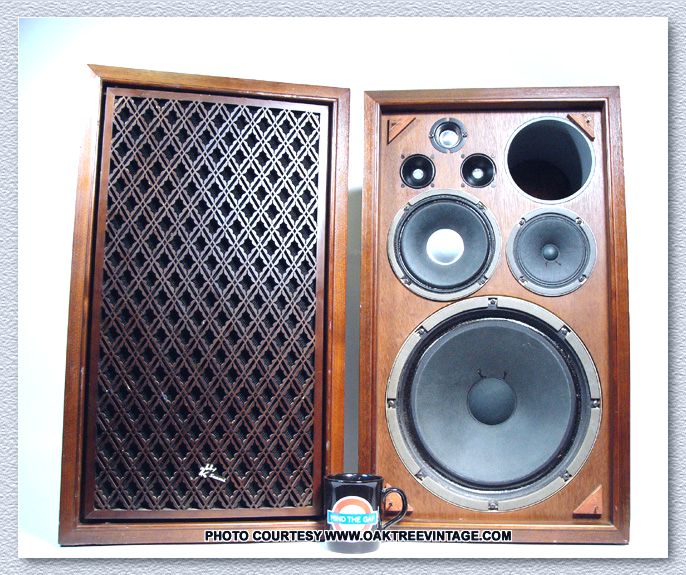

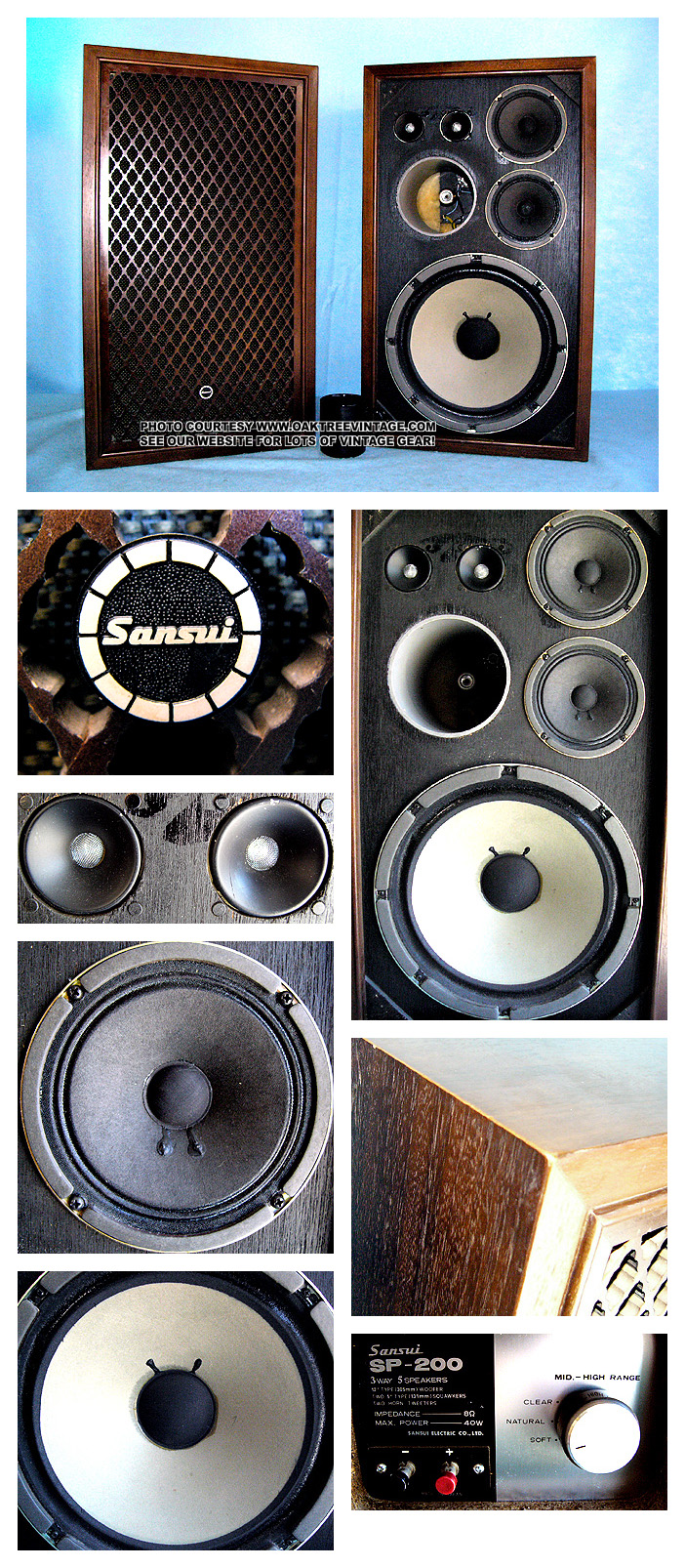

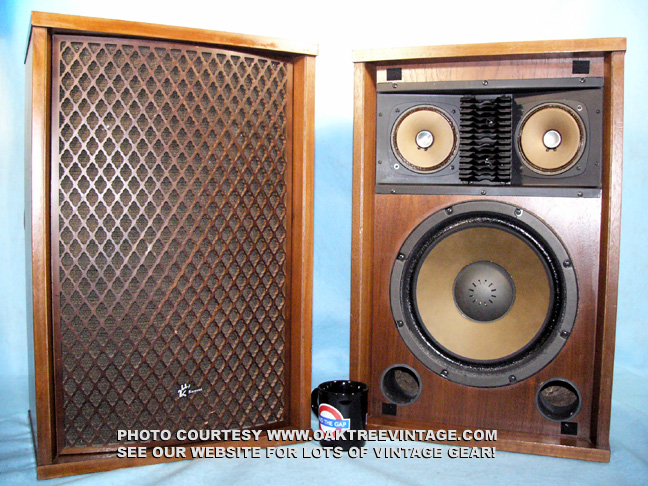

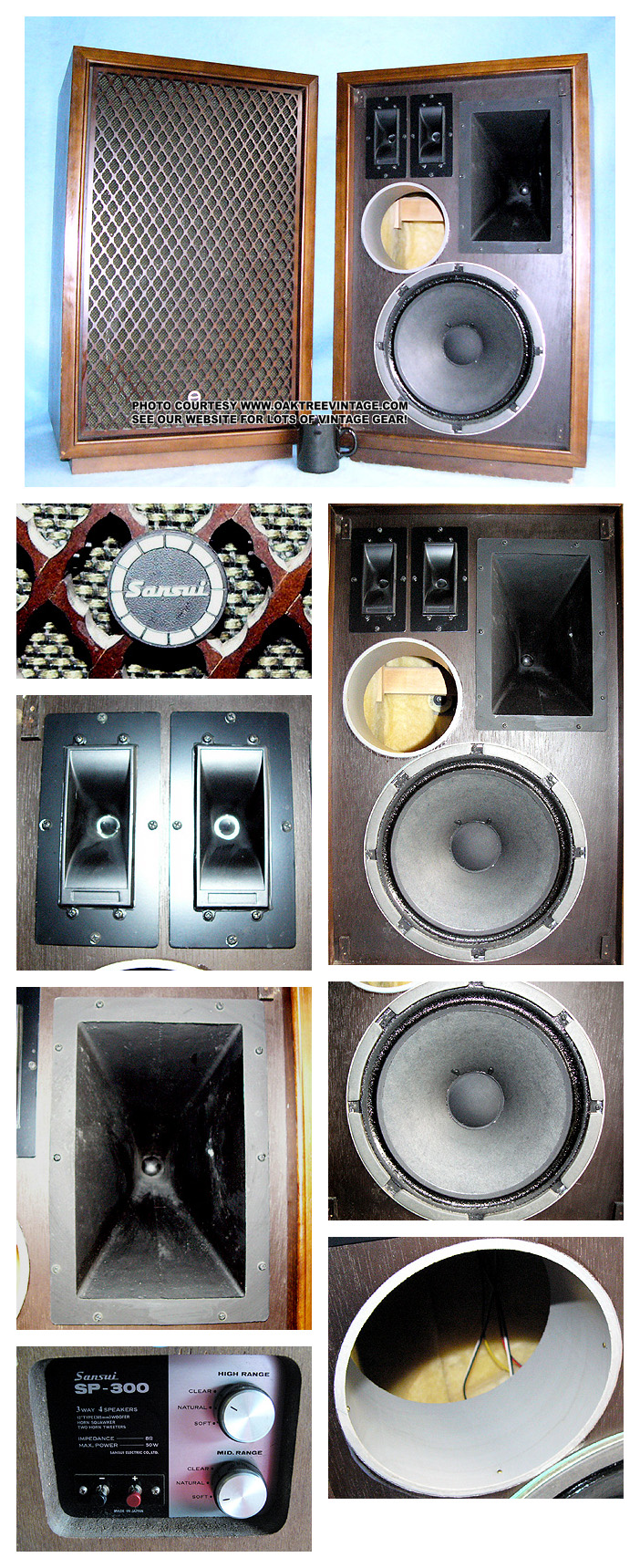

Sansui Lattice Grill Speaker models SP-200, SP-2000, SP-2500, SP-3500, SP-5500
 from Late 1960's thru 1970's




SANSUI AS-200 / AS200 speaker PARTS / SPARES

  BRAND
  OF
  speaker
MODEL
  OF
speaker
ITEM PART # SIZE Watts Ohms USED
  /
  NEW
QUANTITY
ON HAND
PRICE NOTES
Sansui AS-200 / AS200 Woofer
W-111 12" 10 Watts 7-9Ohms U -
SOLD.

Reference information
 only.
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
 Sansui AS-200 / AS200  Midranges / Mids / Swuawker S-114 - 20 Watts 8 Ohms U -
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
 Sansui AS-200 / AS200  Tweeters T-114
W/ AlNiCo Magnet
- 2 Watts 8 Ohms U -
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
 Sansui AS-200 / AS200 Crossover
- 2-Way
 with dual 8watt / 8 ohm L-Pads / attenuators
- 8 U -
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-

SANSUI PM-C70 / PMC70 speaker PARTS / SPARES

  BRAND
  OF
  speaker
MODEL
  OF
speaker
ITEM PART # SIZE Watts Ohms USED
  /
  NEW
QUANTITY
ON HAND
PRICE NOTES
Sansui PM-C70 / PMC70  Super Tweeters T-213 - - - U -
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-

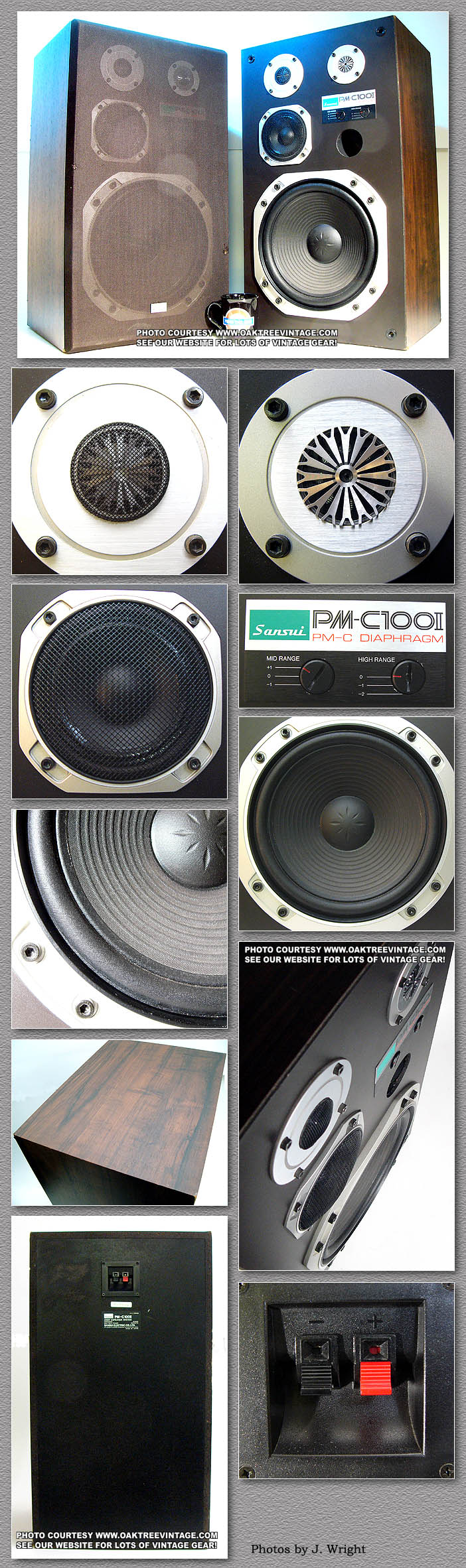

SANSUI PM-C100-II / PMC100II speaker PARTS / SPARES


  BRAND
  OF
  speaker
MODEL
  OF
speaker
ITEM PART # SIZE Watts Ohms USED
  /
  NEW
QUANTITY
ON HAND
PRICE NOTES


Sansui
PM-C100-II / PMC100II Woofer
W-230 / W-230B
Cast Frame
823TNB
12" / 305mm 'PM-C' ( Poly coated, Ribbed, paper pulp Low Frequency Driver (woofer) w/ trea.ted cloth surround - - U -
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-


Sansui
PM-C100-II / PMC100II Midranges / Mids S-169 4.5" / 120mm Poly-Cone Midrange w/ trea.ted cloth surround - - U -
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-


Sansui
PM-C100-II / PMC100II  Tweeters T-192 30mm "Planar-Honeycomb' Diaphragm Tweeter 20 Watts - U -
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-


Sansui
PM-C100-II / PMC100II  Planar Super Tweeters T-193 25mm "Planar-Ribbon-Direct' Super Tweeter - - U -
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-

SANSUI PM-C200-II / PMC200II speaker PARTS / SPARES

  BRAND
  OF
  speaker
MODEL
  OF
speaker
ITEM PART # SIZE Watts Ohms USED
  /
  NEW
QUANTITY
ON HAND
PRICE NOTES
Sansui PM-C200 / PMC200 Woofers
W-248
Cast Frame
823TNB
15"  'PM-C' ( Polycarbonate, Ribbed, Low Frequency Driver (woofer) w/ trea.ted cloth surround - - U -
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-





SANSUI LM-330 LM330 PARTS
/ SPARES


  BRAND
  OF
  speaker
MODEL
  OF
speaker
ITEM PART # SIZE Watts Ohms USED
  /
  NEW
QUANTITY
ON HAND
PRICE NOTES

Sansui

LM-330
LINEAR MOTION
Woofers
W-154 10"
Cast Frame w/ corrugated, coated cloth suspension
15 Watts 8 Ohms U -
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-


SANSUI LM-110 LM110 PARTS
/ SPARES


  BRAND
  OF
  speaker
MODEL
  OF
speaker
ITEM PART # SIZE Watts Ohms USED
  /
  NEW
QUANTITY
ON HAND
PRICE NOTES

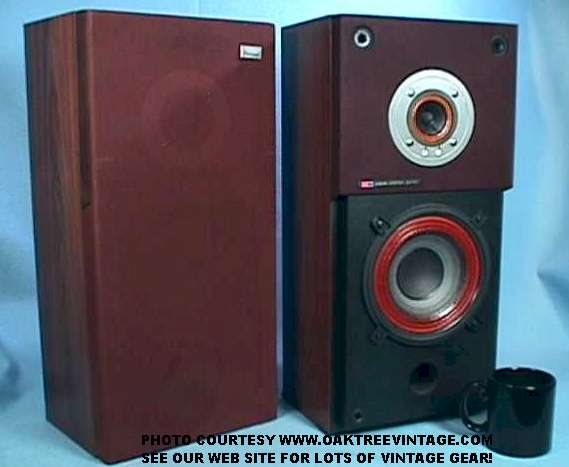

Sansui
LM-110
LINEAR  MOTION
Woofer
W-152 6.5" - 9 U -
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.

-

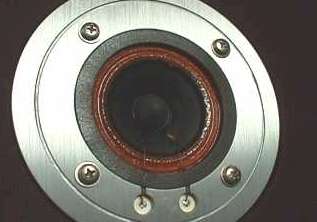

Sansui
LM-110
LINEAR  MOTION
 Tweeters T-134 2 9/16"
on 4.75" plate
20 Watts 5.5 Ohms U -
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.

-
   Sansui LM-110
LINEAR  MOTION
Crossover
N-152 2-Way - 8 U -
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.

-
   Sansui LM-110
LINEAR  MOTION
Cabinets

speaker
Vinyl
wood
grain
21" x 9.75" x 7.5" 2-way - U -
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
 *

 *
Here's the issue with 'empty speaker cabinet'  sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, as they essentially require the same amount of packing for safe transit. They are also the same physical size, empty or not, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

-
   Sansui LM-110
LINEAR  MOTION
Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use) Dark
Brown
Cloth
- - - U -
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
*

 *
Here's the issue with speaker grill sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, due to their large size, the 'custom' box and amount of 'expensive' foam board required for safe transit, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

-

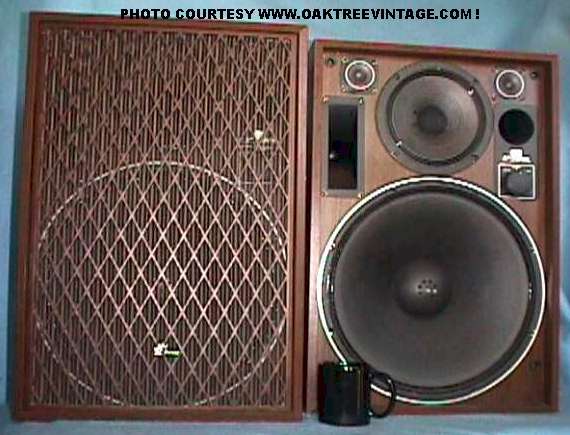

SANSUI SP-7500X SP7500X Speaker Parts / Spares

  BRAND
  OF
  speaker
MODEL
  OF
speaker
ITEM PART # SIZE Watts Ohms USED
  /
  NEW
QUANTITY
ON HAND
PRICE NOTES


Sansui

SP-7500X
SP7500X
Woofer W-146 / W146 16" 85 Watts 6 Ohms
DCR = 4.3 Ohms
U 0 SOLD.
$95. ea.
Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.


Good Cond. Dusty, but no tears, cracks, rips or surround separation.


Sansui

SP-7500X
SP7500X
Woofer W-146 / W146 16" 85 Watts 6 Ohms
DCR = 4.3 Ohms
U 1 $40. ea. Currently As-Is ------->
Function, but cone has perimeter  separation near surround. We may modify these with 'modern' foam surrounds, but price will increase if further work is done.



Sansui

SP-7500X SP7500X Midrange S-130 / S130 8" 65 Watts 8 Ohms U 4 $55. ea. Good Cond.


Sansui

SP-7500X
SP7500X

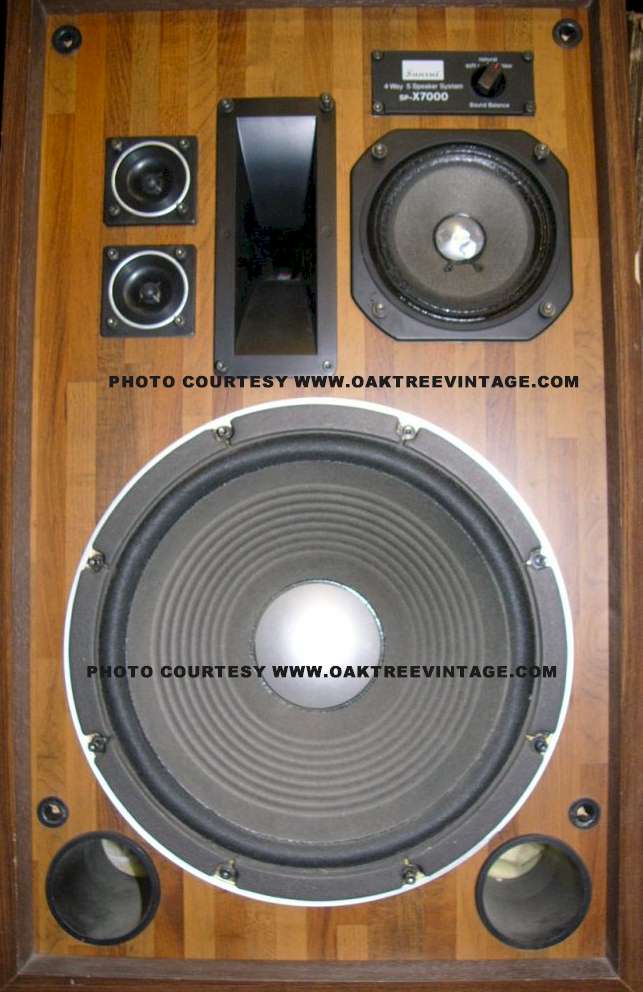

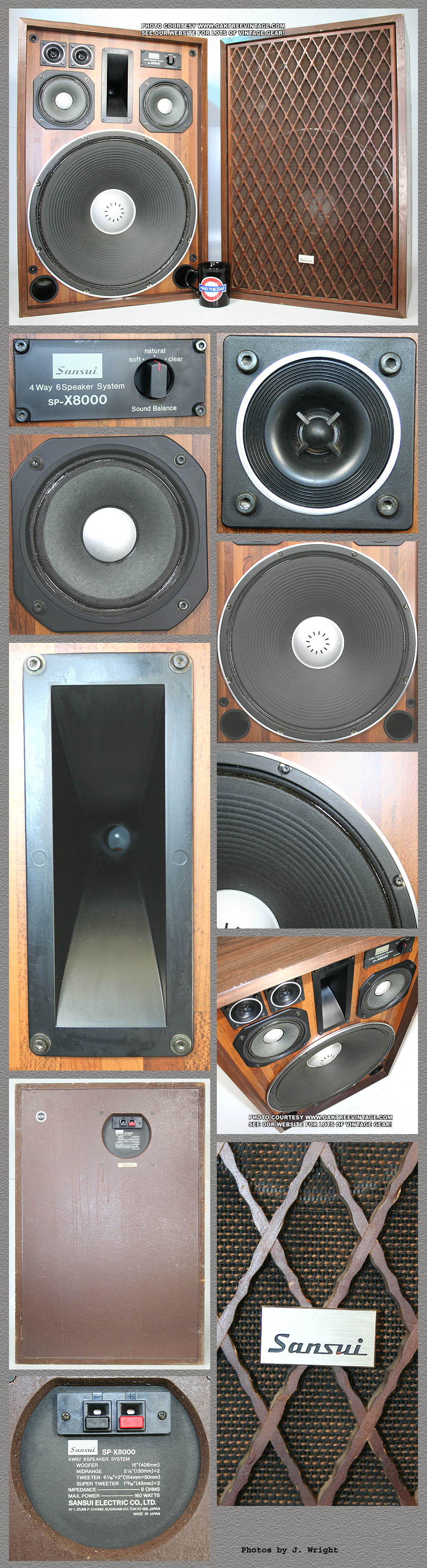

(see also SP-5500X, SP-7500X, SP-X7000, SP-X8000)
Horn Tweeter
T-135 / T135 6" x 2"
Freq Response;
 6kHz-10kHz
65 Watts 8 Ohms
DCR =
6.6Ω
U 0 SOLD.
Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.

$65. ea.
Good Cond. Black. Metal. AlNiCo magnet.


Sansui

SP-7500X
SP7500X

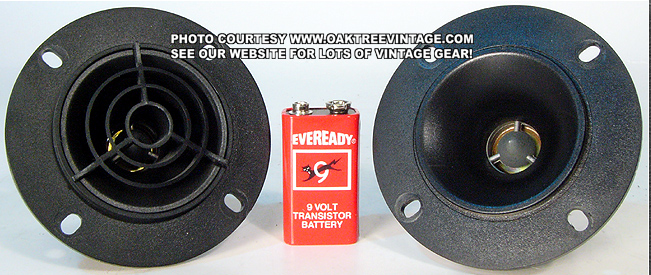

Tweeters T-136 / T136 2" 15 Watts 8 Ohms U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.

$35. ea.
Good Cond.


Sansui

SP-7500X
SP7500X
Tweeters T-136 / T136 2" 15 Watts 8 Ohms U 2 $30. ea.  Dented dust-caps (center dome). We will remove prior to shipping. Minor diaphragm repairs may be visible. Cosmetics only


Sansui

SP-7500X
SP7500X
Tweeters T-136 / T136
Cones stamped / embossed "C512A"
2" 15 Watts 8 Ohms U 1 $15. ea. Dust Cover dented (cosmetics only). Torn cone.
   Sansui SP-7500X
SP7500X
Crossover - 4-way 130 Watts - U 6 $55. ea.
Good Cond. Knobs sold separately.

   Sansui
SP-7500X
SP7500X
(see also SP-5500X, but lower attachment pin blocks will need to be moved down slightly to use 7500's on 5500's.)

Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use) Wood
Lattice
- - - U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.


 *
Here's the issue with speaker grill sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, due to their large size, the 'custom' box and amount of 'expensive' foam board required for safe transit, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

Good Cond.

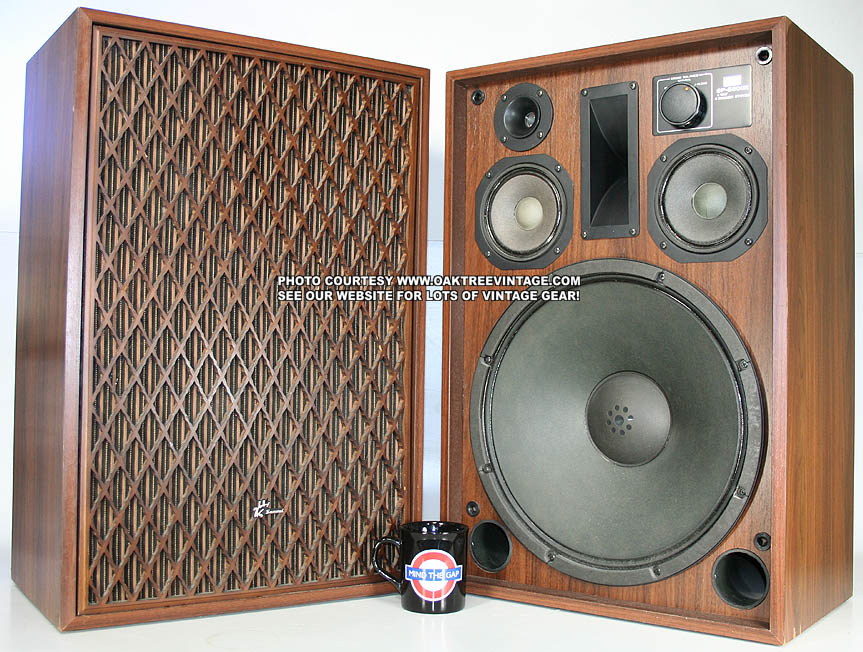

SANSUI SP-5500X SP5500X Speaker Parts / Spares



  BRAND
  OF
  speaker
MODEL
  OF
speaker
ITEM PART # SIZE Watts Ohms USED
  /
  NEW
QUANTITY
ON HAND
PRICE NOTES
   Sansui SP-5500X Woofers W-147 15" 50 Watts 5 Ohms U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Sansui SP-5500X Midranges S-133 5" 16 Watts 13 Ohms U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Sansui SP-5500X
(see also SP-5500X, SP-7500X, SP-X7000, SP-X8000)
Horn Tweeter
T-135 / T135 6" x 2"
Freq Response;
 6kHz-10kHz
65 Watts 8 Ohms
DCR =
6.6Ω
U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Sansui SP-5500X Radial
Horn
 Tweeter
T-137 2" 12 Watts 8 Ohms U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Sansui SP-5500X Crossover - - - - U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Sansui SP-5500X
(see also SP-7500X, but lower attachment pin blocks will need to be moved up slightly to use 5500x's on 7500x's.)

Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use) Wood
Lattice
24 3/4" x 16 3/16 - - U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
*

 *
Here's the issue with speaker grill sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, due to their large size, the 'custom' box and amount of 'expensive' foam board required for safe transit, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

-

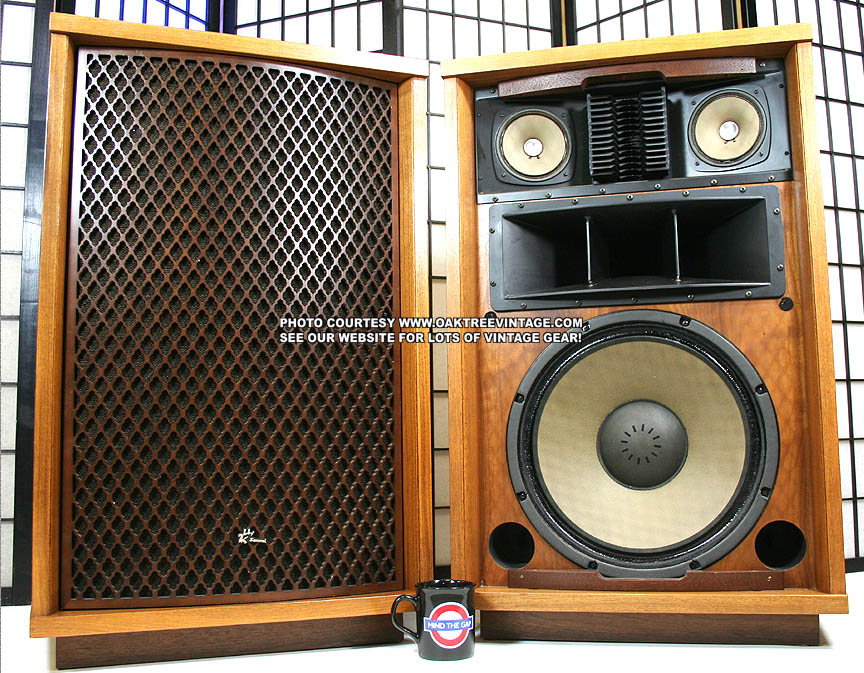

SANSUI SP-5500 SP5500 Speaker Parts / Spares



  BRAND
  OF
  speaker
MODEL
  OF
speaker
ITEM PART # SIZE Watts Ohms USED
  /
  NEW
QUANTITY
ON HAND
PRICE NOTES
   Sansui SP-5500 Woofers W-106 15" 40 Watts 7 Ohms
DCR= 5.4Ω
U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Sansui SP-5500 Midranges S-110 5" 10 Watts 19 Ohms
DCR= 15.4Ω
U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Sansui SP-5500 Rectangle
 Horn
 Mid
"Squawker"
S-107 15"x4.75" 10 Watts 8 Ohms
DCR= 6.3Ω
U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Sansui SP-5500 Radial
Horn
 Tweeter
T-105 2.25" 40 Watts 12 Ohms
DCR= 10.2Ω
U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Sansui SP-5500 Crossover 4-Way
70 Watts
- - 8 Ohms U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Sansui Sansui
SP-5500

Attenuator / L-pad KNOB
(See also, Sansui SP-200, SP-300, SP-1000, SP-1200, SP-1500, SP-1700, SP-2000, SP-2500, SP-2700, SP-3000, SP-3500, SP-5500 and likely others.)

Black w/ brushed 'brite' - - - U 2 $18. ea. Good cond.
   Sansui SP-5500 Cabinet Walnut
Veneer
33.5"h x
 21"w x
17"d
- - U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
*

 *
Here's the issue with 'empty speaker cabinet'  sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, as they essentially require the same amount of packing for safe transit. They are also the same physical size, empty or not, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

-
   Sansui SP-5500 Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use) Wood
Lattice
Curved  - - U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
*

 *
Here's the issue with speaker grill sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, due to their large size, the 'custom' box and amount of 'expensive' foam board required for safe transit, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

-


SANSUI SP-4000A / SP4000A
Speaker Parts / Spares


  BRAND
  OF
  speaker
MODEL
  OF
speaker
ITEM PART # SIZE Watts Ohms USED
  /
  NEW
QUANTITY
ON HAND
PRICE NOTES


Sansui

SANSUI
SP-4000A / SP4000A
speaker PARTS


Woofers W-155 12" 40 Watts 6.5 Ohms U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-


Sansui

SANSUI
SP-4000A / SP4000A
speaker PARTS


Woofers W-155 12" 40 Watts 6.5 Ohms U 1 $55. ea. Winkles / creases to dust cap. Cosmetics only. Works.
Good Cond and sound great.


Sansui

SANSUI
SP-4000A / SP4000A
speaker PARTS


Midranges
Squawker
S-136

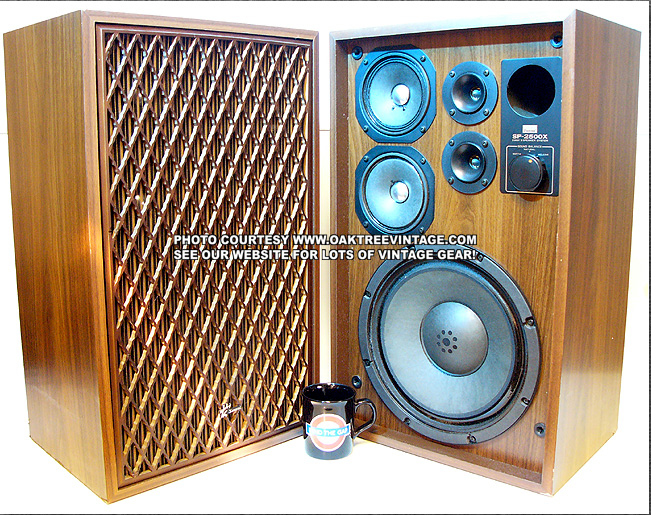

Also fits SP-2500X
5 1/8"
1k-10kHz Freq response
16 Watts 12 Ohms U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.

$40. ea.
(location; shelves)
Winkles / creases to dust cap. Cosmetics only. Works Good Cond. sounds great.


Sansui

SANSUI
SP-4000A / SP4000A / SP-2500X
speaker PARTS


Tweeters T-138

(Also fits SP-2500X / SP-4000A)

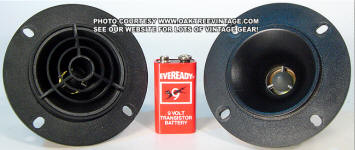

See Also Kenwood KL-777A T14-0024
-05 tweeter. Differences are wattage, impedance and  cosmetic in that the Kenwood has a concentric plastic Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use) added over the front and the Sansui T-138 does not.

2 1/8" 12 Watts 12 Ohms U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-


Sansui

SANSUI
SP-4000A / SP4000A
speaker PARTS


X-Over
 Crossover
SP-4000A 3-Way 100 Watts 8 Ohms U 2 $45. ea. Good Cond.
   Sansui SANSUI
SP-4000A / SP4000A
speaker PARTS


Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use)  Lattice / fretted 13.5" X 23.75" - - U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.


Good, slight scuffing
--


SANSUI SP-3700 / SP3700 Speaker Parts / Spares


  BRAND
  OF
  speaker
MODEL
  OF
speaker
ITEM PART # SIZE Watts Ohms USED
  /
  NEW
QUANTITY
ON HAND
PRICE NOTES
Sansui SANSUI
SP-3700 / SP3700

Woofers W-135 12" 60 Watts
5.5 Ohms
DCR= ~ 5.0
Ohms
U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.

Pulp cone, Cloth Surround, Cast alloy frame, Ceramic Magnet, non-vented dust cap.


Sansui
SANSUI
SP-3700 / SP3700

Top
 mount
Horn
 Tweeters

 S-122A (see also Sansui SP-2700, 2700A, 3700 & 3700A)

2" 30 Watts 14 Ohms
DCR= 13.2
Ohms
U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
Good Cond.

Sansui
SANSUI
SP-3700 / SP3700


X-Over
 Crossover
SP-3700 4-Way - - U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-


SANSUI SP-3700A / SP3700A Speaker Parts / Spares


  BRAND
  OF
  speaker
MODEL
  OF
speaker
ITEM PART # SIZE Watts Ohms USED
  /
  NEW
QUANTITY
ON HAND
PRICE
NOTES
Sansui SANSUI
SP-3700 / SP3700

Woofers W-139 12" 60 Watts
5.5 Ohms
DCR= ~ 5.0
Ohms
U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.

Pulp cone, Cloth Surround, Cast alloy frame, Ceramic Magnet, non-vented / Aluminum dust cap.


Sansui
SANSUI
SP-3700A / SP3700A

Horn
 Tweeter
s
S-129 - 60 Watts 8 Ohms
DCR= 9
Ohms
U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
Ceramic magnet.

Sansui
SANSUI
SP-3700A / SP3700A

Ambiance / 'Up-Firing' Horn
 Tweeter
s
S-122A - 60 Watts 14 Ohms
DCR= 9
Ohms
U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
Cast Aluminum horn, AlNiCo magnet.

Sansui
SANSUI
SP-3700A / SP3700A


X-Over
 Crossover
Sansui N-135 / AF435  /
SP-3700
4-Way - - U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
w/ 3 'wafer' attenuator switches.





SANSUI SP-3500 / SP3500 Speaker Parts / Spares




  BRAND
  OF
  speaker
MODEL
  OF
speaker
ITEM PART # SIZE Watts Ohms USED
  /
  NEW
QUANTITY
ON HAND
PRICE NOTES






Sansui
SANSUI
SP-3500 / SP3500

Woofers W-114 14" 40 Watts 5.5 Ohms
DCR = 5.0 Ohms
U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.

$95. ea.

Original surrounds were 're-glued' and then swept with an AF generator.
Pulp cone, Cloth Surround, Stamped frame, Ceramic Magnet, Vented, hardened pulp dust cap.







Sansui
SANSUI
SP-3500 / SP3500

Midranges
Squawker
(See also SP-1200, SP-1500, SP-1700, SP-3500)
S-104 4" 5 Watts 15 Ohms
DCR =
12.5 Ohms
U 3 $45. ea.

Good condition.
Pulp cone.
Coated pulp Surround. Stamped frame. AlNiCo Magnet, with integrated housing. Aluminum, dust cap.
Spade Lug / connectors.







Sansui
SANSUI
SP-3500 / SP3500

Horn
 Midrange
S-106 4.5" x 2"
x 7.5" deep
40 Watts 12 Ohms
DCR =
12 Ohms
U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.

$65. ea.

Good condition.
Cast metal horn. Vented, Ceramic Magnet.
Spade Lug / connectors.








Sansui
SANSUI
(see also SP-2500, SP-3500)

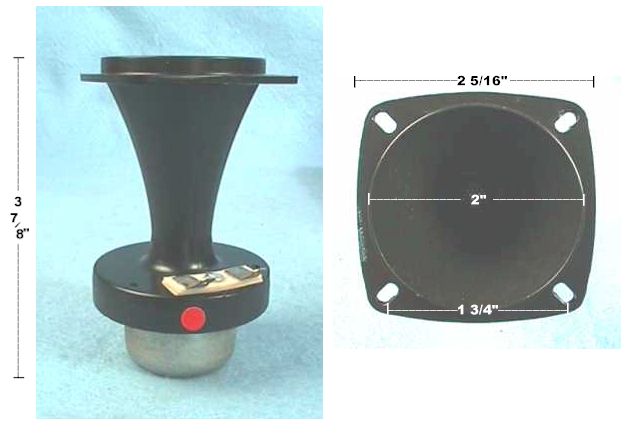

Tweeters T-104 2" 20 Watts 15 Ohms
DCR =
12.5 Ohms
U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
$45. ea.

Good condition.
Cast Metal, Radial horn. AlniCo Magnet.
Spade Lug / connectors.








Sansui
SANSUI
SP-3500 / SP3500

X-Over
 Crossover
SP-3500 4-Way 100 Watts 8 Ohms U 2 $65. ea.
Good Cond. Tested 1/16/2024 WORKS! Knobs sold separately.
   Sansui Sansui
SP-3500 / SP3500

Attenuator / L-pad KNOB
(See also, Sansui SP-200, SP-300, SP-1000, SP-1200, SP-1500, SP-1700, SP-2000, SP-2500, SP-2700, SP-3000, SP-3500, SP-5500 and likely others.)

Black w/ brushed 'brite' - - - U 6 $18. ea.
Good cond.
   Sansui SANSUI
SP-3500 / SP3500
Cabinets - - - - U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
*

 *
Here's the issue with 'empty speaker cabinet'  sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, as they essentially require the same amount of packing for safe transit. They are also the same physical size, empty or not, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

-
   Sansui SANSUI
SP-3500 / SP3500

Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use) Curved Lattice 15.25" X 23.5" - - U 0

SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
*


 *
Here's the issue with speaker grill sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, due to their large size, the 'custom' box and amount of 'expensive' foam board required for safe transit, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.


Wood Kumiko carved grills, w/ Sansui logo intact. Only very minor chips. No splits, separations, cracks, missing lattice or cloth pulling away. Overall, would complete a project to an 8.5+ rating.

--


SANSUI SP-3000 / SP3000 Speaker Parts / Spares




  BRAND
  OF
  speaker
MODEL
  OF
speaker
ITEM PART # SIZE Watts Ohms USED
  /
  NEW
QUANTITY
ON HAND
PRICE NOTES


   Sansui
Sansui SP-3000 / SP3000 Sansui SP-3000 / SP3000 Woofers W-3000 15" 40 Watts 5 Ohms
DCR = 4.5 Ohms
U 0

SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.

$95.
SOLD

Currently works fine, but should probably have surround replaced by foam (not because foam is necessarily better, but because on all of these we've seen, the top 'peak' of the surround crease is fairly 'worn' and will likely 'tear through' in the not too far off future).
Stamped Steel frame, Pulp Cone, Vented Dust cap, Accordion surround, Ceramic Magnet.



   Sansui
Sansui SP-3000 / SP3000 Sansui SP-3000 / SP3000 Woofers W-3000 15" / 380mm 40 Watts 5 Ohms
DCR = 4.5 Ohms
U 0 SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.

$45.

Has a buzz at most 'lower' frequencies. Fairly faint much of time, but doesn't pass our inspection. A new 'foam' surround might cure it.?. Also had a missing solder terminal, but has a braided wire extending from it to solder to.
Stamped Steel frame, Pulp Cone, Vented Dust cap, Accordion surround, Ceramic Magnet.




   Sansui

Sansui SP-3000 / SP3000 Sansui SP-3000 / SP3000 Midranges
Squawker
S-3000-1 6.5" / 165mm 20 Watts 8 Ohms
DCR = 6.7 Ohms
U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.

$45. ea.
SOLD
Work fine. Stamped Steel and 'Sealed / closed back' frame, Pulp Cone, Pulp surround, Ceramic Magnet.



   Sansui

Sansui SP-3000 / SP3000 Sansui SP-3000 / SP3000 Midranges
Squawker
S-3000-1 6.5" / 165mm 20 Watts 8 Ohms
DCR = 6.7 Ohms
U 1 $25. ea.

Work well, but has few small tears / holes that are repairable (couple in center of cone radius and one near edge. Also, has small dimple in silver dust cap. Issues reflected in the price. Stamped Steel and 'Sealed / closed back' frame, Pulp Cone, Pulp surround, Ceramic Magnet.

   Sansui Sansui SP-3000 / SP3000 Sansui SP-3000 / SP3000 Horn
 Midrange
S-3000-2 6.25" x 2" / 154mm x 50mm 10 Watts 8 Ohms
DCR = 6.9 Ohms
U 2 $55. ea.

Work great. 6x2 Horn midrange, AlNiCo magnet.

   Sansui Sansui SP-3000 / SP3000 Sansui SP-3000 / SP3000 Tweeters T-3000 2" / 50mm 15 Watts 8 Ohms
DCR = 6.1 Ohms
U 0

SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.

$45. ea.
SOLD


Good cond. Work fine. Stamped Steel frame, Pulp Cone, Pulp surround, Ceramic Magnet.

   Sansui Sansui SP-3000 / SP3000 Sansui SP-3000 / SP3000 Tweeters T-3000 2" / 50mm 15 Watts 8 Ohms
DCR = 6.1 Ohms
U 1 $30. ea.

Small hole at outer edge. Work fine. Stamped Steel frame, Pulp Cone, Pulp surround, Ceramic Magnet.

   Sansui Sansui SP-3000 / SP3000 Sansui SP-3000 / SP3000 Super
Tweeter
T-1200 2" / 50mm 10 Watts 8 Ohms
DCR = 6.2 Ohms
U 1 $45. ea.

Work great. 360 Radial Horn tweeter, AlNiCo magnet.

   Sansui
Attenuator / L-pad KNOB
(See also, Sansui SP-200, SP-300, SP-1000, SP-1200, SP-1500, SP-1700, SP-2000, SP-2500, SP-2700, SP-3000, SP-3500, SP-5500 and likely others.)

Black w/ brushed 'brite' - - - U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.

$18. ea.
Good cond.
   Sansui Sansui SP-3000 / SP3000 Sansui SP-3000 / SP3000 X-Over
 Crossover
902 5-Way Crossover / dividing network - 8 Ohms U 2 $55. ea.
Good cond. W/ Attenuators
   Sansui Sansui SP-3000 / SP3000 Attenuator knobs - - - - U 4 $18. ea.
Black w/ 'gold' bright intact
   Sansui Sansui SP-3000 / SP3000 Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use) Lattice - - - - 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.


 *
Here's the issue with speaker grill sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, due to their large size, the 'custom' box and amount of 'expensive' foam board required for safe transit, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

Wood frame and lattice grill good, but backing cloth has shrunk, thus is pulling away from top edge.
Lattice has a few 'minor' battle scars, but nothing serious, and is structurally sound.
--


SANSUI SP-2700A / SP2700A speaker parts Spares


  BRAND
  OF
  speaker
MODEL
  OF
speaker
ITEM
PART #
SIZE
Watts
Ohms
USED
  /
  NEW
QUANTITY
ON HAND
PRICE
NOTES
   Sansui
SP-2700A
Woofers
W-137 (DF-103)
12"
45 Watts
6 Ohms
U
1 remaining
$75. ea.

Good Cond.
4-Bolt, Cast Frame. Dark Tan, Pulp Cone. Coated cloth surround. Sealed, paper dustcap. (some versions; ie: W-132 may have 'silver' dust-cap.)

   Sansui
SP-2700A
Midrange
S-127
-
60 Watts
8 Ohms
U
0

SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
Good Cond.
4-Bolt. Tan, Pulp Cone. Coated cloth surround. Sealed, Silver Mylar dust-cap.
   Sansui
SP-2700A
Top mount / Ambiance
Horn Tweeters

 S-122A (see also Sansui SP-2700, 2700A, 3700 & 3700A)
-
30 Watts
14 Ohms
U
0

SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Sansui
SP-2700A
Super
Tweeter
T-128
-
20 Watts
14 Ohms
U
0

SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
Good Cond.
   Sansui
SP-2700A
X-over
 Crossover
N-133
 AF-433
-
-
-
U
2
$45. ea.
Good Cond.  Knobs sold separately.
   Sansui
Sansui
SP-2700A

Attenuator / L-pad KNOB
(See also, Sansui SP-200, SP-300, SP-1000, SP-1200, SP-1500, SP-1700, SP-2000, SP-2500, SP-2700, SP-3000, SP-3500, SP-5500 and likely others.)

Black w/ brushed 'brite'
-
-
-
U
2
$18. ea.
Good cond.

Sansui
SP-2700A
Attenuator Knobs
-
-
-
-
U
2
$18. ea.
Good Cond.
   Sansui
SP-2700A
Main
Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use)
Lattice
-
-
-
U
1

$85. ea.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.


 *
Here's the issue with speaker grill sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, due to their large size, the 'custom' box and amount of 'expensive' foam board required for safe transit, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.


Excellent condition. No splits, cracks, missing lattice, noticeable chips. Edges solid. Finish great. No 'cat pee'. Black grill cloth good. Sansui logo / badge intact.

   Sansui
SP-2700A
Top
Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use)
Lattice
-
-
-
U
2
$35. ea.
Good Cond.
--


SANSUI SP-2500 / SP2500 speaker parts Spares



  BRAND
  OF
  speaker
MODEL
  OF
speaker
ITEM PART # SIZE Watts Ohms USED
  /
  NEW
QUANTITY
ON HAND
PRICE NOTES






 Sansui

SP-2500 Woofers W-113 12" 25 6 U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-





 Sansui

SP-2500 Woofers W-113 12" 25 6 U
0

SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-





 Sansui

SP-2500 Mid-ranges /
 Squawker
s
S-115 5" 10 12 U
0

SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.

$35. ea.
Good Cond.
(The "S-115" was an alternative version (and the more common) we have seen in Sansui SP-2500 speakers. They are 15 Ohms versus the 12 Ohms of the S-115 version. 'Physical Fit / attributes' are the same)

OR






 Sansui

SP-2500 Mid-ranges /
 Squawker
s
S-105 5" 10 15 U
0

SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.

$35. ea.
Good Cond.
(The "S-105" was an alternative version we have seen in some Sansui SP-2500 speakers. They are 15 Ohms versus the 12 Ohms of the S-115 version. 'Physical Fit / attributes' are the same)






 Sansui

SP-2500 Mid-ranges
 Squawker
s
S-115 5" 10 12 U
4
$20. ea.
Work and sound fine, but wrinkled from likely being wet at some point in the past.
   Sansui

SP-2500
(see also SP-2500, SP-3500)
Tweeters T-104 2" 20 14 U 1 $45. ea.
ON HOLD FOR POSSIBLE SHOP USE.
Good Cond.






 Sansui

SP-2500 Crossover
/ Input panels
N-104 3-way 80 8 U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.


$45. ea., less knobs
Good Cond. Knobs sold separately.
   Sansui Sansui
SP-2500

Attenuator / L-pad KNOB
(See also, Sansui SP-200, SP-300, SP-1000, SP-1200, SP-1500, SP-1700, SP-2000, SP-2500, SP-2700, SP-3000, SP-3500, SP-5500 and likely others.)

Black w/ brushed 'brite' - - - U 2 $18. ea.
Good cond.
   Sansui SP-2500 Attenuator Knobs - - - - U
2
$18. ea.
Good Cond.
   Sansui SP-2500 Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use) Wood
Lattice
- - - U
0

Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.


Ok, with minor lattice chips
   Sansui SP-2500 Cabinets
- - - - U
0

SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.


 *
Here's the issue with 'empty speaker cabinet'  sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, as they essentially require the same amount of packing for safe transit. They are also the same physical size, empty or not, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

Clean. Very Good.






 Sansui

SP-2500 Tweeter
 Diffusion
 Lens
- - - - U 4 $29. ea.
Good Cond.


SANSUI SP-2500X / SP2500X speaker parts Spares



  BRAND
  OF
  speaker
MODEL
  OF
speaker
ITEM PART # SIZE Watts Ohms USED
  /
  NEW
QUANTITY
ON HAND
PRICE NOTES




 Sansui

SP-2500X Woofers W-155 12" / 305mm 40 6.5 U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-



Sansui
SP-2500X Mid-ranges /
 Squawker
s
S-136
Freq Resp:
1kHz-10kHz
5 1/8" / 130mm 16 12 U
0

SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-


 Sansui
SANSUI
SP-2500X / SP-4000A / SP4000A /
speaker PARTS


Tweeters T-138

(Also fits SP-2500X / SP-4000A)





See Also Kenwood KL-777A T14-0024
-05 tweeter. Differences are wattage, impedance and  cosmetic in that the Kenwood has a concentric plastic Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use) added over the front and the Sansui T-138 does not.

2 1/8" 12 Watts 12 Ohms U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-



Sansui
SP-2500X Crossover
/ Input panels
- 3-way 100 8 U
0

SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-

Sansui
SP-2500X Attenuator Knobs - - - - U
0

SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.

-

Sansui
SP-2500X Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use) Wood
Lattice
23.75" x 13.5" - - U
0

SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
*

 *
Here's the issue with speaker grill sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, due to their large size, the 'custom' box and amount of 'expensive' foam board required for safe transit, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

-

Sansui
SP-2500X Cabinets
- 25" tall x 15.25" wide x 11.25" deep - - U
0

SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.

*

 *
Here's the issue with 'empty speaker cabinet'  sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, as they essentially require the same amount of packing for safe transit. They are also the same physical size, empty or not, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

-
-

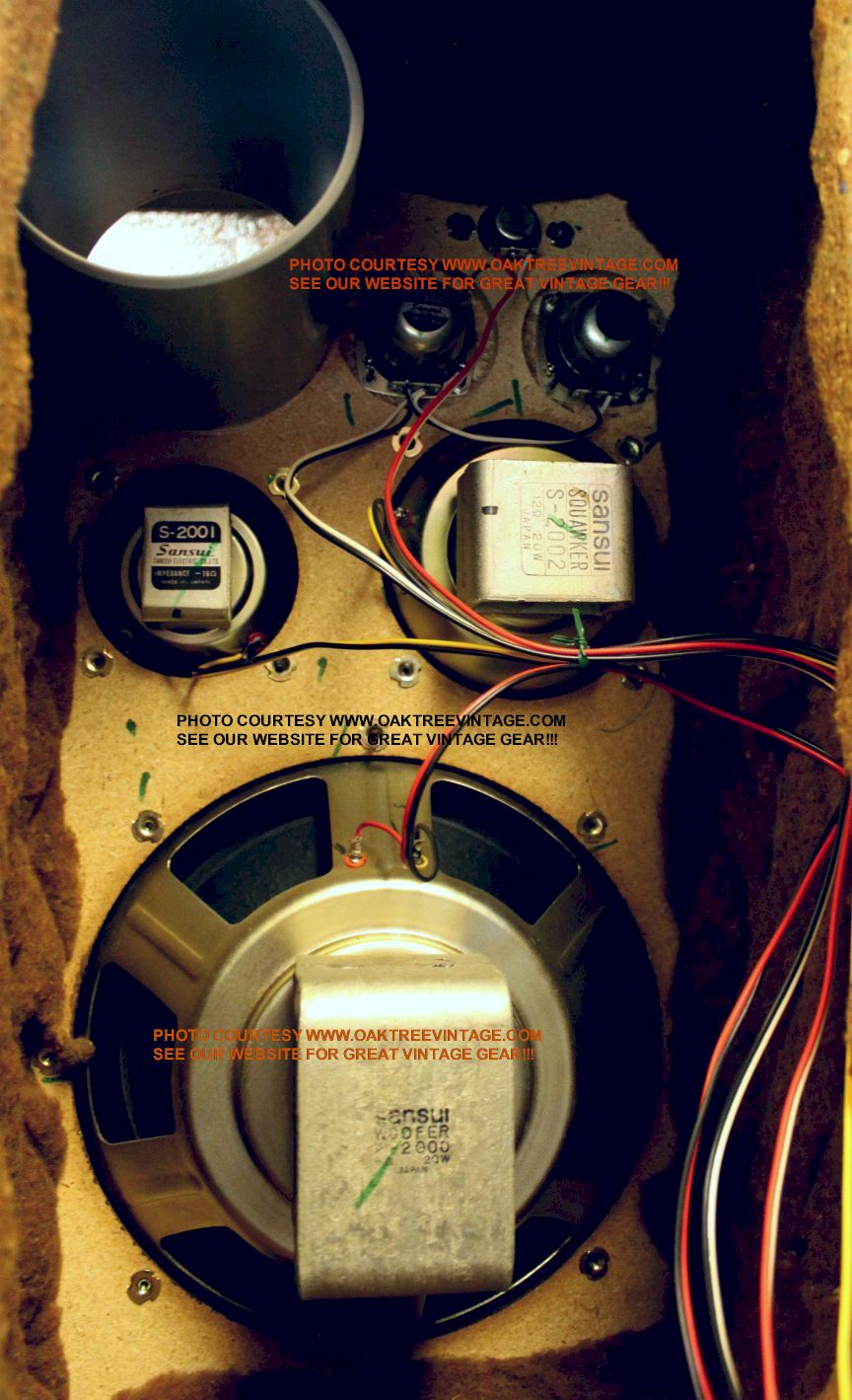

SANSUI SP-2000 / SP2000 speaker parts



  BRAND
  OF
  speaker
MODEL
  OF
speaker
ITEM PART # SIZE Watts Ohms USED
  /
  NEW
QUANTITY
ON HAND
PRICE NOTES

Sansui




Sansui SP-2000 / SP2000 AlNiCo
Magnet
Woofer
s
W-2000 12" 20 8 U 0


SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.

$75. ea.

Pulp cone, Stamped frame, coated cloth surround, AlNiCo magnet, vented / cloth dust cap.


Sansui




Sansui SP-2000 / SP2000 Mid-ranges /
 Squawker
s
S-2002
S-2000A
6.5" - 16 /
12
U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.

$49. ea.

Small dimples to dust cap, but works great.
Pulp cone, Stamped frame, coated pulp surround, AlNiCo magnet, silver Mylar dust cap.


Sansui




Sansui SP-2000 / SP2000 Mid-ranges /
 Squawker
s
S-2002
S-2000A
6.5" - 16 /
12
U 1 $39. ea.
Small repaired 0.25" tear in cone. Repaired wrinkles to dust cap. Still sounds fine.
Pulp cone, Stamped frame, coated pulp surround, AlNiCo magnet, silver Mylar dust cap.


Sansui




Sansui SP-2000 / SP2000 Mid-ranges /
 Squawker
s
S-2001 5" - 16 U 1 $39. ea. Good Cond.
Pulp cone, Stamped frame, coated pulp surround, AlNiCo magnet, hardened pulp dust cap.


Sansui




Sansui SP-2000 / SP2000 Radial
Horn
Tweeter
s
T-200 / T200
(See also Sansui SP-200 & SP-2000)
2" 20 Watts 16 U 1 or 2 in stock $45. ea. Radial horn, AlNiCo magnet

Sansui




Sansui SP-2000 / SP2000 Radial
Horn
Super
Tweeter
s
T-2000 1.5" 70 8 U 2 $39. ea. Radial horn, AlNiCo magnet

Sansui

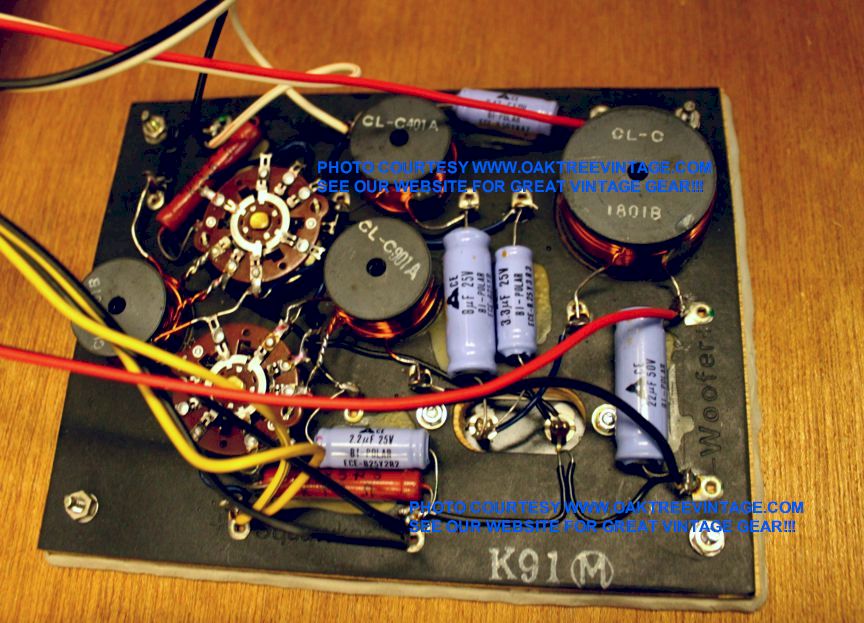

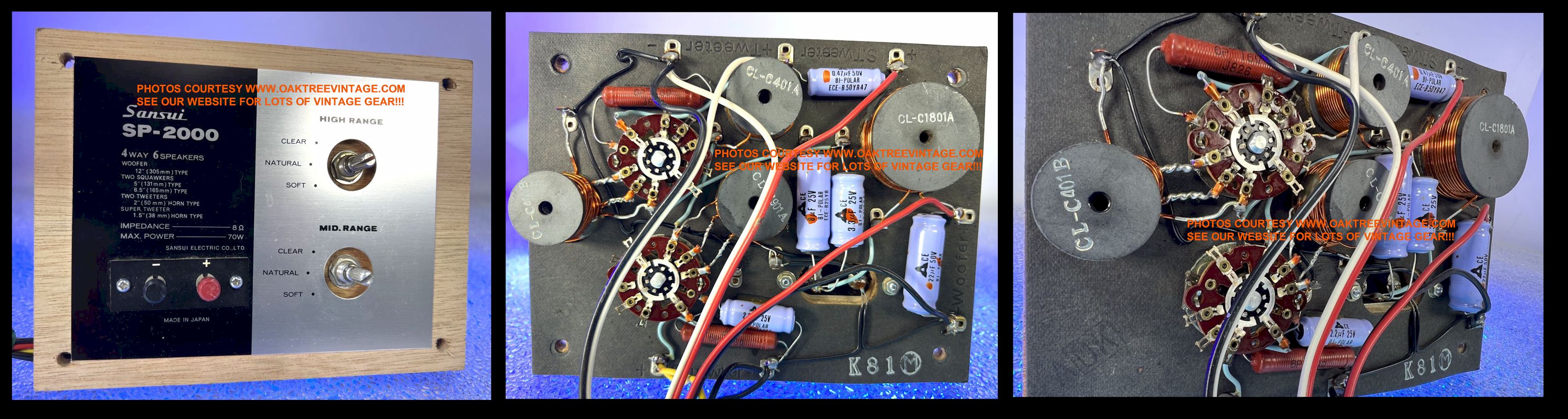

(above photo may differ slightly in appearance from one crossover to another of same model)


Sansui SP-2000 / SP2000 Crossover
Input
panel /
 L-pads
- 4-way 60 8 U 2
$45. ea.
Good Cond. with input posts. Knobs sold separately.
1-24 Burnished attenuator contacts / tracks. TESTED WORKING!
Note: Woofer positive has coil CL-C1801A in series. Woofer has 22uF / 50V cap across it as well, thus is NOT directly connected to the I/O posts.

Sansui





(above photo may differ slightly in appearance from one crossover to another of same model)


Sansui SP-2000 / SP2000 Crossover
Input
panel /
 L-pads
- 4-way 60 8 U 0 SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.

$35. ea.
Good.
Will
need
your
speaker
clip
posts.
 Knobs sold separately.
   Sansui Sansui SP-2000 / SP2000
Attenuator / L-pad KNOB
(See also, Sansui SP-200, SP-300, SP-1000, SP-1200, SP-1500, SP-1700, SP-2000, SP-2500, SP-2700, SP-3000, SP-3500, SP-5500 and likely others.)

Black w/ brushed 'brite' - - - U 6 $18. ea. Good cond.
   Sansui Sansui SP-2000 / SP2000 Cabinets
Walnut wood
veneer
- - - U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.


 *
Here's the issue with 'empty speaker cabinet'  sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, as they essentially require the same amount of packing for safe transit. They are also the same physical size, empty or not, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

Clean and decent
   Sansui Sansui SP-2000 / SP2000 Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use)
Wood
Lattice
- - - U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.


 *
Here's the issue with speaker grill sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, due to their large size, the 'custom' box and amount of 'expensive' foam board required for safe transit, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

Wood Kumiko carved grills. Will need lots of cleaning. Dirty / Dusty, cat pee, spider webs etc. No splits, chips, separations, cracks, missing lattice or cloth pulling away.
--


SANSUI SP-1700 / SP1700 speaker parts Spares


  BRAND
  OF
  speaker
MODEL
  OF
speaker
ITEM PART # SIZE Watts Ohms USED
  /
  NEW
QUANTITY
ON HAND
PRICE NOTES
   Sansui SANSUI
SP-1700 / SP1700
Woofers W-110 12" 35 8 Ohms U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Sansui SANSUI
SP-1700 / SP1700

Midranges
Squawker
(See also SP-1200, SP-1500, SP-1700, SP-3500)
S-104 4" 5 Watts 15 Ohms U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Sansui  SANSUI
SP-1700 / SP1700
Dome Tweeters T-103 2" 15 17 Ohms U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Sansui Sansui
SP-1700

Attenuator / L-pad KNOB
(See also, Sansui SP-200, SP-300, SP-1000, SP-1200, SP-1500, SP-1700, SP-2000, SP-2500, SP-2700, SP-3000, SP-3500, SP-5500 and likely others.)

Black w/ brushed 'brite' - - - U 2 $18. ea. Good cond.
   Sansui SANSUI
SP-1700 / SP1700
Crossover
Input
panel /
attenuators
- 3-way 70 8 U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-


SANSUI SP-1500 / SP1500 speaker parts Spares


  BRAND
  OF
  speaker
MODEL
  OF
speaker
ITEM PART # SIZE Watts Ohms USED
  /
  NEW
QUANTITY
ON HAND
PRICE NOTES
   Sansui SP-1500 Woofers W-1500 12" 20 6.4 U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.

Pulp Cone, non-vented dust cap, Stamped Steel frame (zinc color), Ceramic Magnet, Reverse Cloth Surround.

   Sansui SP-1500 Mid-ranges /
 Squawker
s
S-2002A 6.5" 20 12
DCR = 9.7 Ohms
U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
Integrated housing to seal unit. Pulp cone, paper surround.
   Sansui SP-1500 Mid-ranges /
 Squawker
s
S-2002B 5" 25 16
DCR = 14 Ohms
U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
Integrated housing to seal unit. Pulp cone, paper surround.
   Sansui SP-1500 Mid-ranges /
 Squawker
s
S-2002B 5" 25 16 U 1 $35. ea.
Good with cosmetic dimple in dust cap

   Sansui  SP-1500 Dome Tweeters T-2002 1" 20 16 U 4 $49. ea. Good Cond.
   Sansui SP-1500 Crossover
Input
panel /
 L-pads
311 3 / 4-way 60 8 U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
Good Cond.  Knobs sold separately.
   Sansui SP-1500 Attenuator / L-pad knob
(See also, Sansui SP-200, SP-300, SP-1000, SP-1200, SP-1500, SP-1700, SP-2000, SP-2500, SP-2700, SP-3000, SP-3500, SP-5500 and likely others.)
Black w/ brushed 'brite' - - - U 2 $18. ea. Good cond.
   Sansui SP-1500 Cabinets Walnut veneer - - - U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.


 *
Here's the issue with 'empty speaker cabinet'  sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, as they essentially require the same amount of packing for safe transit. They are also the same physical size, empty or not, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

Excellent with hardly any wear.
   Sansui SP-1500 Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use) Wood
Lattice
- - - U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
*

 *
Here's the issue with speaker grill sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, due to their large size, the 'custom' box and amount of 'expensive' foam board required for safe transit, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

-


SANSUI SP-1500X / SP1500X speaker parts / Spares


  BRAND
  OF
  speaker
MODEL
  OF
speaker
ITEM PART # SIZE Watts Ohms USED
  /
  NEW
QUANTITY
ON HAND
PRICE NOTES
   Sansui  SP-1500X Dome Tweeters T-144 - 7W

3khz-18-khz
8 U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-

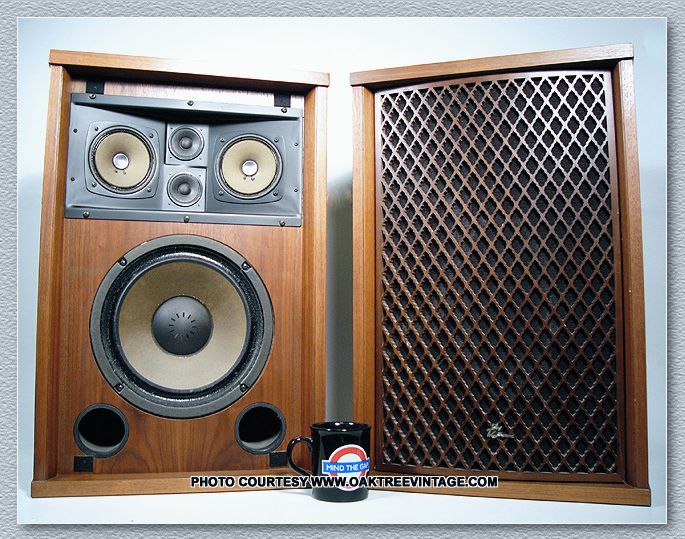

SANSUI SP-1200 / SP1200 speaker parts / Spares



  BRAND
  OF
  speaker
MODEL
  OF
speaker
ITEM PART # SIZE Watts Ohms USED
  /
  NEW
QUANTITY
ON HAND
PRICE NOTES
   Sansui Sansui
SP-1200 / SP1200
Woofers W-103 10' 20 Watts 7 Ohms U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Sansui Sansui
SP-1200

Attenuator / L-pad KNOB
(See also, Sansui SP-200, SP-300, SP-1000, SP-1200, SP-1500, SP-1700, SP-2000, SP-2500, SP-2700, SP-3000, SP-3500, SP-5500 and likely others.)

Black w/ brushed 'brite' - - - U 2 $18. ea. Good cond.
   Sansui Sansui
SP-1200 / SP1200
Midranges
Squawker
(See also SP-1200, SP-1500, SP-1700, SP-3500)
S-104 4" 5 Watts 15 Ohms
DCR=12.7 Ohms
U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-

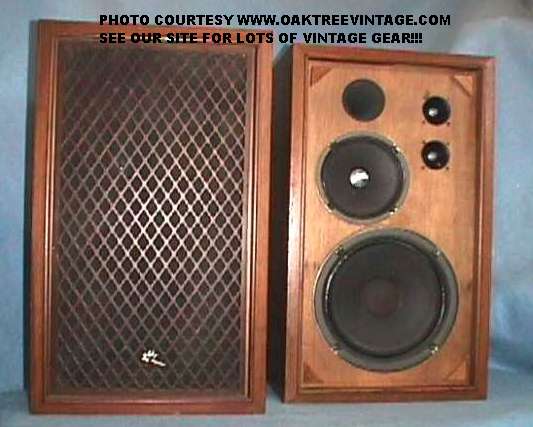

SANSUI SP-1000 SP1000 speaker parts / Spares


  BRAND
  OF
  speaker
MODEL
  OF
speaker
ITEM PART # SIZE Watts Ohms USED
  /
  NEW
QUANTITY
ON HAND
PRICE NOTES
   Sansui SP-1000 Woofers W-1000 10" 20 7 U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Sansui SP-1000 Woofers W-1000 10" 20 7 U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Sansui SP-1000 Mid-ranges S-1000
"Squawker"
Sealed
6.5" 25 7 U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Sansui SP-1000 Mid-ranges S-1000
"Squawker"
Sealed
6.5" 25 7 U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Sansui SP-1000 Tweeters T-1000
Sealed
2" Radial Horn 20 16 U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Sansui SP-1000 Crossover
111? 3-way 50 8 U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Sansui Sansui
SP-1000

Attenuator / L-pad KNOB
(See also, Sansui SP-200, SP-300, SP-1000, SP-1200, SP-1500, SP-1700, SP-2000, SP-2500, SP-2700, SP-3000, SP-3500, SP-5500 and likely others.)

Black w/ brushed 'brite' - - - U 2 $18. ea. Good cond.
   Sansui SP-1000 Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use) Wood
Lattice
- - - U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
*

 *
Here's the issue with speaker grill sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, due to their large size, the 'custom' box and amount of 'expensive' foam board required for safe transit, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

-
--


SANSUI SP-300 SP300 speaker parts Spares


  BRAND
  OF
  speaker
MODEL
  OF
speaker
ITEM PART # SIZE Watts Ohms USED
  /
  NEW
QUANTITY
ON HAND
PRICE NOTES


   Sansui
SP-300
SP300
Woofers W-300 / w300
AlNiCo Magnet
12" ~40 Watts 8 Ohms U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Sansui SP-300
SP300
Squawker / mid horn / midrange S-300
S300
AlNiCo Magnet
10 5/8" x 7 1/8" x 11 5/8" deep - 8 Ohms U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-


   Sansui
SP-300
SP300
Tweeters T-300
T300
AlNiCo Magnet
horn tweeter - 16 Ohms U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.

$55. ea.
Good Cond.
   Sansui SP-300
SP300
Crossover / Input panel w/ input terminals and level controls  crossovers cross-overs - 3-Way 50 Watts 8 Ohms U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.


$65. ea.

Good Cond.
   Sansui Sansui
SP-
300
SP300

Attenuator / L-pad KNOB
(See also, Sansui SP-200, SP-300, SP-1000, SP-1200, SP-1500, SP-1700, SP-2000, SP-2500, SP-2700, SP-3000, SP-3500, SP-5500 and likely others.)

Black w/ brushed 'brite' - - - U 2 $18. ea. Good cond.
   Sansui SP-300
SP300
Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use)
Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use)
Walnut
 lattice
- - - U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
*

 *
Here's the issue with speaker grill sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, due to their large size, the 'custom' box and amount of 'expensive' foam board required for safe transit, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

-


SANSUI SP-200 SP200 speaker parts Spares



  BRAND
  OF
  speaker
MODEL
  OF
speaker
ITEM PART # SIZE Watts Ohms USED
  /
  NEW
QUANTITY
ON HAND
PRICE NOTES


Sansui

Sansui
SP-
200
SP200
Woofers W-200 / w200
AlNiCo Magnet
12" 30-40- Watts 8 Ohms U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Sansui Sansui
SP-
200
SP200
Squawker / mid horn / midrange S-200
S200
5.25 Cone - 16 Ohms U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.

AlNiCo Magnet


   Sansui
Sansui
SP-
200
SP200
Tweeters T-200 / T200
(See also Sansui SP-200 & SP-2000)
2" Radial horn tweeter - 16 Ohms U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
Radial horn, AlNiCo magnet
   Sansui Sansui
SP-
200
SP200
Crossover / Input panel w/ input terminals and level controls  crossovers cross-overs - 3-Way 40 Watts 8 Ohms U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Sansui Sansui
SP-
200
SP200

Attenuator / L-pad KNOB
(See also, Sansui SP-200, SP-300, SP-1000, SP-1200, SP-1500, SP-1700, SP-2000, SP-2500, SP-2700, SP-3000, SP-3500, SP-5500 and likely others.)

Black w/ brushed 'brite' - - - U 2 $18. ea. Good cond.
   Sansui Sansui
SP-
200
SP200
Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use)
Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use)
Walnut
 lattice
- - - U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
*

 *
Here's the issue with speaker grill sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, due to their large size, the 'custom' box and amount of 'expensive' foam board required for safe transit, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

-


SANSUI SP-95 SP95 speaker parts Spares


  BRAND
  OF
  speaker
MODEL
  OF
speaker
ITEM PART # SIZE Watts Ohms USED
  /
  NEW
QUANTITY
ON HAND
PRICE NOTES
   Sansui Sansui
SP-95 SP95
Woofers - 10" - - U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Sansui Sansui
SP-95 SP95
Tweeters T-118 1 5/8" 15 Watts 4 Ohms U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Sansui Sansui
SP-95 SP95
Crossover / Input panel w/ input terminals and level control AT-102 - 2-Way 45 Watts 8 Ohms U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-

-

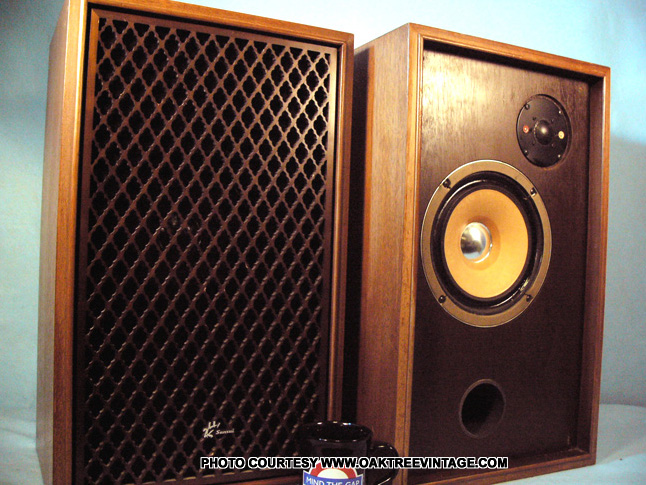

SANSUI SP-70 SP70 speaker parts Spares



  BRAND
  OF
  speaker
MODEL
  OF
speaker
ITEM PART # SIZE Watts Ohms USED
  /
  NEW
QUANTITY
ON HAND
PRICE NOTES
   Sansui SP-70 SP70 Woofers W-70 8" 15 Watts DCR 7.8 Ohms U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Sansui SP-70 SP70 Tweeters T-1001 1" Dome tweeter 40 Watts 8 Ohms U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Sansui SP-70 SP70 Crossover / Input panel w/ input terminals and level controls  crossovers cross-overs N-70 2-Way 30 Watts 8 Ohms U 1 left $35. ea. Good Cond. Does not include knob.
   Sansui SP-70 SP70 Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use) Walnut
 lattice
11.5" x 10.5" - - U 1 $45. ea.*

 *
Here's the issue with speaker grill sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, due to their large size, the 'custom' box and amount of 'expensive' foam board required for safe transit, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

Good Cond.





SANSUI SP-50 SP50 speaker parts Spares  Sansui_SP-50_SP50_Stereo_Speakers_web.jpg (37859 bytes)


  BRAND
  OF
  speaker
MODEL
  OF
speaker
ITEM PART # SIZE Watts Ohms USED
  /
  NEW
QUANTITY
ON HAND
PRICE NOTES
   Sansui SP-50 Woofers W-50 8" 8 Watts 8 Ohms U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.

-
   Sansui SP-50
(see Sansui SP-30 & SP-50)

Tweeters T-50N horn tweeter 10 Watts 8 Ohms U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.

$30. ea.

Good Cond.
   Sansui SP-50 Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use) Walnut
 lattice
10.75" x 17.75" - - U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
*

 *
Here's the issue with speaker grill sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, due to their large size, the 'custom' box and amount of 'expensive' foam board required for safe transit, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

-


SANSUI SP-35 SP35 speaker parts Spares


  BRAND
  OF
  speaker
MODEL
  OF
speaker
ITEM PART # SIZE Watts Ohms USED
  /
  NEW
QUANTITY
ON HAND
PRICE NOTES
   Sansui SP-35
SP35
Woofers W-117 8" w/ AlNiCo magnet 15 Watts 7.8 Ohms U 1 $40. ea. Good Cond.
   Sansui SP-35
SP35
Tweeters T-116 .75" Dome tweeter 20 Watts 8 Ohms U 2  ??? $30. ea.
SOLD OR MIA? IF WE LOCATE THEM, WE'LL UPDATE THE PAGE.
Good Cond.
   Sansui SP-35
SP35
Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use) Walnut
 lattice
17.75" x 10.75" - - U 1 $35. ea. Good Cond.
   Sansui SP-35
SP35
Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use) Walnut
 lattice
17.75" x 10.75" - - U 1 $30. ea. Good w/ only minor wear


SANSUI SP-30 SP30 speaker parts



  BRAND
  OF
  speaker
MODEL
  OF
speaker
ITEM PART # SIZE Watts Ohms USED
  /
  NEW
QUANTITY
ON HAND
PRICE NOTES

Sansui



SP-30 Woofers W-30 6.5" w/ AlNiCo magnet 30 Watts 8 Ohms U 1
$45. ea.

Good, working Cond. No rattles. Pulp cone, coated cloth, reverse roll surround. Stamped steel frame. AlNiCo magnet.
   Sansui SP-30
(see Sansui SP-30 & SP-50)

Tweeters T-50N horn tweeter - 8 Ohms U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.

Good Cond.






SANSUI SP-X9 SPX9 speaker parts Spares



  BRAND
  OF
  speaker
MODEL
  OF
speaker
ITEM PART # SIZE Watts Ohms USED
  /
  NEW
QUANTITY
ON HAND
PRICE NOTES


   Sansui

Sansui
SP-X9 / SPX9
Woofer
W-218 17"
Frequency Response 45Hz-1kHz
100 6 U 0 SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.


$40. ea. due to condition. However, shipping will be about as much as the cost of one driver to most states.


Fairly 'rough' condition each. Cone 'tearing' away at surround attachment in places around circumference. Dust Caps dented. On woofer has a 'nickel' sized hole near it's outer edge (that could be repaired, as the 'flap' is still intact). 'Functionally' they could be resurrected, but not without cosmetic evidence likely. They're almost too bad to list, but not bad enough not to list. If you are not concerned with cosmetics, and just need to get some correct woofers, that will function, then here you go. That's why they're 'cheap'.
Steel Frame. Ceramic Magnet.
Ribbed, Pulp cone.
Coated, accordion surround.
Vented Dust cap.


   Sansui Sansui
SP-X9 / SPX9
(see also SP-X8 & SP-X9 and maybe SP-X6 & SP-X7 )
Midranges
S-158 6"
Frequency Response 1Hz-4kHz
50 Watts 8 U SOLD 8/30/19
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.

$65. ea

Good condition with NO issues.
Steel Frame. Ceramic Magnet.
Ribbed, Pulp cone.
Coated, accordion surround.


   Sansui

Sansui
SP-X9 / SPX9
(see also SP-X8 & SP-X9)
Horn
 Tweeter
s (see also SP-X8, SP-X9, SP-X7700, SP-X7900, SP-X8700, SP-X9000, SP-X9700, SP-Z9 & SP-Z99)
T-149E
T-149B / T-149C / T-149D / T-149E

(may be black or silver)

7.25" x 3" 40 Watts 12 Ohms U 2 $69. ea.
Silver, Aluminum Horn.
AlNiCo magnet.
   Sansui Sansui
SP-X9 / SPX9
3x Super Tweeters T-167
(see also SP-X8, SP-X9, SP-X7700, SP-X7900, SP-X8700 & SP-X9700)
1.75" 3 Watts 8 Ohms U 6 $25. ea.
Dust cap dents (no negative affect on performance)
Steel Frame. Ceramic Magnet.
Ribbed, Pulp cone.
   Sansui Sansui
SP-X9 / SPX9
Super Tweeter 'Diffusion' lens / De-fraction louvers - - - - U 2 $30. ea.
Plastic Diffusion / de-fraction lens / louvers.
   Sansui Sansui
SP-X9 / SPX9
crossovers

cross overs
- - 300 Watts 8 U 2
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-


   Sansui
Sansui
SP-X9 / SPX9

(see also SP-X8 & SP-X9. Grills are interchangeable)
Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use) Lattice - - - U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
*

 *
Here's the issue with speaker grill sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, due to their large size, the 'custom' box and amount of 'expensive' foam board required for safe transit, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

-





SANSUI SP-X8 SPX8 speaker parts Spares

  BRAND
  OF
  speaker
MODEL
  OF
speaker
ITEM PART # SIZE Watts Ohms USED
  /
  NEW
QUANTITY
ON HAND
PRICE NOTES
   Sansui Sansui
SP-X8 / SPX8
Woofer
W-128 18" 100 6 U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.

$135.
Excellent
   Sansui Sansui
SP-X8 / SPX8
(see also SP-X8 & SP-X9 and maybe SP-X6 & SP-X7 )
Midranges
S-158 6"
Frequency Response 1Hz-4kHz
50 Watts 8 U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Sansui Sansui
SP-X8 / SPX8
(see also SP-X8 & SP-X9)
Horn
 Tweeter
s (see also SP-X8, SP-X9, SP-X7700, SP-X7900, SP-X8700, SP-X9000, SP-X9700, SP-Z9 & SP-Z99)
T-149B / T-149C / T-149D / T-149E

(may be black or silver)

7.25" x 3" 40 Watts 12 Ohms U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
--
   Sansui Sansui
SP-X8 / SPX8
Horn Tweeter Diffusion lens Silver
Color
7.25" x 3" - - U 2 $20. ea. Good Cond.
   Sansui Sansui
SP-X9 / SPX9
3x Super Tweeters T-167
(see also SP-X8, SP-X9, SP-X7700, SP-X7900, SP-X8700 & SP-X9700)
1.75" 3 Watts 8 Ohms U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Sansui Sansui
SP-X8 / SPX8
Crossover w/ L Pad -tweeter control / Sound Balance NA-213 4-Way - 8 U 1 $45. ea. Good Cond..
   Sansui Sansui
SP-X8 / SPX8
L Pad -tweeter control / Sound Balance AT-111 3-Position 40 Watts 15 Ohms U 1 $25. ea. Good Cond. w/ knob
   Sansui Sansui
SP-X8 / SPX8
crossovers

cross overs
NA-213 4-Way - 8 U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Sansui Sansui
SP-X8 / SPX8

(see also SP-X8 & SP-X9. Grills are interchangeable)
Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use) Lattice - - - U 1

SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.

$35.  ea.*

 *
Here's the issue with speaker grill sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, due to their large size, the 'custom' box and amount of 'expensive' foam board required for safe transit, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.


Logo intact. Some splintered lattices, but all mostly intact. Stain would help or recover with normal.
Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use) cloth.


SANSUI SP-X7 SPX7 speaker parts Spares



  BRAND
  OF
  speaker
MODEL
  OF
speaker
ITEM PART # SIZE Watts Ohms USED
  /
  NEW
QUANTITY
ON HAND
PRICE NOTES
   Sansui SP-X7 Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use) Lattice - - - U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

Good shape with only minor scuffs / wear.
-




SANSUI SP-X9700 SPX9700 speaker parts Spares


  BRAND
  OF
  speaker
MODEL
  OF
speaker
ITEM PART # SIZE Watts Ohms USED
  /
  NEW
QUANTITY
ON HAND
PRICE NOTES
   Sansui SP-X9700
SPX9700
Woofers W-195
(see also SP-X8700 & SP-X9700)
17" 70 Watts 6-8 Ohms U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.

-
   Sansui SP-X9700
SPX9700
Midranges S-149 7" 65 Watts  7 Ohms U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Sansui SP-X9700
SPX9700
Horn
 Tweeter
s (see also SP-X8, SP-X9, SP-X7700, SP-X7900, SP-X8700, SP-X9000, SP-X9700, SP-Z9 & SP-Z99)
T-149B / T-149C / T-149D / T-149E

(may be black or silver)

6 11/16" x 2 5/16" 40 Watts 12 Ohms U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Sansui SP-X9700
SPX9700
Horn's diffusion lens  - 7" x 2" - - U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Sansui SP-X9700
SPX9700
Super
Tweeter
  Tweeters
T-167
(see also SP-X8, SP-X9, SP-X7700, SP-X7900, SP-X8700 & SP-X9700)
1.75" 3 Watts 8 Ohms U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
Good Cond.
   Sansui SP-X9700
SPX9700
Crossovers 4-Way - 280 Watts - U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
--
   Sansui SP-X9700
SPX9700
Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use) Lattice
Wood
- - - U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
*

 *
Here's the issue with speaker grill sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, due to their large size, the 'custom' box and amount of 'expensive' foam board required for safe transit, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

-



SANSUI SP-X9000 / SPX9000 speaker parts Spares



  BRAND
  OF
  speaker
MODEL
  OF
speaker
ITEM PART # SIZE Watts Ohms USED
  /
  NEW
QUANTITY
ON HAND
PRICE NOTES
   Sansui        Sansui SP-X9000 / SPX9000 Woofers W-171 16" / 406mm 110 Watts 5 Ohms U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.


Cone; ribbed, pulp w/ vented dust cap in 'matte' silver and paper / accordion surround.
Frame; Stamped steel, zinc finish.
Motor; Ceramic magnet.


   Sansui Sansui SP-X9000 / SPX9000 Midranges S-139
Freq response; 1KHz to 4kHz
8" / 200mm 65 Watts  7 Ohms U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.

Cone; pulp w/ dust cap in 'matte' silver and paper / accordion surround.
Frame; Sealed, Stamped steel, zinc finish.
Motor; Ceramic magnet.

   Sansui Sansui SP-X9000 / SPX9000 Horn
 Tweeter
s
(see also SP-X8, SP-X9, SP-X7700, SP-X7900, SP-X8700, SP-X9000, SP-X9700, SP-Z9 & SP-Z99)

T-149
(Single horns, originally attached to a plastic, face plate w/ double sided tape.)
Freq response; 5Hz to 10kHz
6 .25" x ~4-4.5" 40 Watts 12 Ohms U 1 $69. ea.
Working, Good condition.
   Sansui Sansui SP-X9000 / SPX9000 Horn
 Tweeter
Mounting plate / panel.
(Panel only. Horns sold separately. No fasteners included.)

For T-149 horns 7 5/16" x 6 3/16" - - U 2 $39. ea.
Good condition. No cracks or splits. Screw holes / ears intact. Finish good. Silk-screening good.
   Sansui

Sansui SP-X9000 / SPX9000
(see also SP-X7000, SP-X8000 & SP-X9000)
Super  Tweeters
T-151 / T151 1.75"
Freq Response;
 10kHz-23kHz
20 Watts 12 Ohms
DCR = 9
.6Ω
U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
Good Cond.
   Sansui Sansui SP-X9000 / SPX9000 Super Tweeter trim ring / plate / panel.
(Trim ring only. tweeters sold separately. No fasteners included.)

For T-151 / T151 tweeters 4-Bolt - - U 2 $20. ea.
Good condition. No cracks or splits. Screw holes / ears intact. Finish good. Silver ring silk screening good.
   Sansui



Sansui SP-X9000 / SPX9000 Crossover / X-over
N-173 - 220 Watts 8 Ohms U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
Good Cond.



SANSUI SP-X8700 SPX8700 speaker parts Spares



  BRAND
  OF
  speaker
MODEL
  OF
speaker
ITEM PART # SIZE Watts Ohms USED
  /
  NEW
QUANTITY
ON HAND
PRICE NOTES


   Sansui
SP-X8700
SPX8700
Woofers W-195
(see also SP-X8700 & SP-X9700)
17"
~fo-1kHz
70 Watts 6.3 Ohms U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
Good Cond..
   Sansui SP-X8700
SPX8700
Midranges S-148 6.5"
1k-4kHz
50 Watts  8 Ohms U 0 SOLD? / MIA?

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.

$65. ea.
Good Cond.
   Sansui SP-X8700
SPX8700
Horn
 Tweeter
s (see also SP-X8, SP-X9, SP-X7700, SP-X7900, SP-X8700, SP-X9000, SP-X9700, SP-Z9 & SP-Z99)
T-149B / T-149C / T-149D / T-149E

(may be black or silver)

6 11/16" x 2 5/16" 40 Watts 12 Ohms U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Sansui SP-X8700
SPX8700
Horn's diffusion lens  - 7" x 2" - - U 1 $35. ea. Good Cond..


Sansui
SP-X8700
SPX8700
Super
Tweeter
s
T-167
(see also SP-X8, SP-X9, SP-X7700, SP-X7900, SP-X8700 & SP-X9700)
1 15/16" 3 Watts 8 Ohms U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
Sold in 'Three's' as they are too difficult to remove from mounting bezel.
   Sansui SP-X8700
SPX8700
Crossovers N-190 4-Way
x-over Frequencies:
 1k, 6k & 10kHz
220 Watts 8 Ohms U 1 $55. ea. Good Cond..


Sansui
SP-X8700
SPX8700
Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use) Lattice
Wood
- - - U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.


 *
Here's the issue with speaker grill sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, due to their large size, the 'custom' box and amount of 'expensive' foam board required for safe transit, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

Clean, no breaks.
Sansui SP-X8700
SPX8700
Cabinet / Box vinyl wood grain wrap - 27.25" x 18.5" x 10.75" - U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
*

 *
Here's the issue with 'empty speaker cabinet'  sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, as they essentially require the same amount of packing for safe transit. They are also the same physical size, empty or not, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

-
-





SANSUI SPX8000 / SP-X8000 speaker parts Spares


  BRAND
  OF
  speaker
MODEL
  OF
speaker
ITEM PART # SIZE Watts Ohms USED
  /
  NEW
QUANTITY
ON HAND
PRICE NOTES
   Sansui





SPX8000 / SP-X8000 Woofers
W-172 16"

Freq Response;
 20-1kHz
80 Watts 5.5 Ohms
DCR = 5.3
Ω
U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.

$95. ea.
Good cond.
   Sansui

SPX8000 / SP-X8000 Woofers
W-172 16"

Freq Response;
 20-1kHz
80 Watts 5.5 Ohms
DCR = 5.3
Ω
U 1 $65. ea. Dust imbedded in cone paper. Scratches on silver dust cap. Functionally fine.
   Sansui





SPX8000 / SP-X8000 Midranges
S-140 5.25"
Freq Response;
 2kHz-6kHz
28 Watts 13 Ohms
DCR = 11
Ω
U 1 $45. ea. Good cond.
   Sansui





SPX8000 / SP-X8000 Midranges
S-140 5.25"
Freq Response;
 2kHz-6kHz
28 Watts 13 Ohms
DCR = 11
Ω
U 2 $35. ea. Dented dust caps. (cosmetics only). Function fine.
   Sansui



SPX8000 / SP-X8000
(see also SP-5500X, SP-7500X, SP-X7000, SP-X8000)
Horn Tweeter
T-135 / T135 6" x 2"
Freq Response;
 6kHz-10kHz
65 Watts 8 Ohms
DCR =
6.6Ω
U 0 SOLD.
Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.

$65. ea.
Fine cond. Black finish.
   Sansui



SPX8000 / SP-X8000
(see also SP-X7000, SP-X8000 & SP-X9000)
Super  Tweeters
T-151 / T151 1.75"
Freq Response;
 10kHz-23kHz
20 Watts 12 Ohms
DCR = 9
.6Ω
U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
Good Cond.
   Sansui SPX8000 / SP-X8000 Crossover
7G04 / N174 4-Way
Turnover points
~ 1kHz
~6kHz
~10kHz

160 Watts 8 U 2 $75. ea. Good Cond.
 Includes
pad
control


   Sansui
SPX8000 / SP-X8000 Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use) Lattice 24.75" x 16" - - U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.


 *
Here's the issue with speaker grill sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, due to their large size, the 'custom' box and amount of 'expensive' foam board required for safe transit, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

Good Cond. All Locating attachment pins intact
--






SANSUI SP-X7900 SPX7900 speaker parts / Spares


  BRAND
  OF
  speaker
MODEL
  OF
speaker
ITEM PART # SIZE Watts Ohms USED
  /
  NEW
QUANTITY
ON HAND
PRICE NOTES
   Sansui Sansui SP-X7900
(See also SP-X7700, SP-X7900, SP-Z7-II as possible substitutions)
Woofers W-192B 15"
Freq.= 0-2kHz
80 Watts 6 Ohms
DCR = 4.8
U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Sansui Sansui SP-X7900 Midranges S-147C
(see also SP-X7700 & SP-X7900)
4.5"

Freq.=1.7-8kHz
40 Watts  6.7 Ohms
DCR = 5
U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Sansui Sansui SP-X7900 Horn
 Tweeter
s
(see also SP-X8, SP-X9, SP-X7700, SP-X7900, SP-X8700, SP-X9000, SP-X9700, SP-Z9 & SP-Z99)

T-149B / T-149C / T-149D / T-149E

(may be black or silver)
(see also SP-X8, SP-X9, SP-X7700, SP-X7900, SP-X8700, SP-X9000, SP-X9700, SP-Z9 & SP-Z99)


6 11/16" x 2 5/16" 40 Watts 12 Ohms
DCR =
10.6
U 1 $69. ea. MIA?  Silver in finish. 4-hole mounting flange. Fine / Good Cond.
   Sansui Sansui SP-X7900 Super
Tweeter
s
T-167
(see also SP-X8, SP-X9, SP-X7700, SP-X7900, SP-X8700 & SP-X9700)
2" 3 - 9 Watts 8 Ohms
DCR =
7.3
U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Sansui Sansui SP-X7900 Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use) Lattice
Wood
26 3/4" x 17 1/16 - - U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
*

 *
Here's the issue with speaker grill sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, due to their large size, the 'custom' box and amount of 'expensive' foam board required for safe transit, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

-


SANSUI SP-X7700 SPX7700 speaker parts Spares


  BRAND
  OF
  speaker
MODEL
  OF
speaker
ITEM PART # SIZE Watts Ohms USED
  /
  NEW
QUANTITY
ON HAND
PRICE NOTES
   Sansui SP-X7700
(See also SP-X7700, SP-X7900, SP-Z7-II as possible substitutions)
Woofers W-192 15"
Freq.= 0-2kHz
80 Watts 6 Ohms
DCR = 4.8
U 2 $115. ea.

Vented via rear located vents in cone.
Good Cond.

   Sansui SP-X7700
(See also SP-X7700, SP-X7900, SP-Z7-II as possible substitutions)
Woofers W-192 15"
Freq.= 0-2kHz
80 Watts 6 Ohms
DCR = 4.8
U 2 $65. ea.

Vented via rear located vents in cone. Functions / sounds fine, however have been
Cat urine / pee sprayed. Works fine, but don't purchase if you have cats, as they would continue to be a 'target'. Even though you can't smell it, a cat will be able to.

   Sansui SP-X7700 Midranges S-147
(see also SP-X7700 & SP-X7900)
4.5"

Freq.=1.7-8kHz
40 Watts  6.7 Ohms
DCR = 5
U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.

$55. ea.
 Fine / Good Cond.
   Sansui SP-X7700 Horn
 Tweeter
s ((see also SP-X8, SP-X9, SP-X7700, SP-X7900, SP-X8700, SP-X9000, SP-X9700, SP-Z9 & SP-Z99))
T-149B / T-149C / T-149D / T-149E

(may be black or silver)

6 11/16" x 2 5/16" 40 Watts 12 Ohms
DCR =
10.6
U 1 $69. ea.
 Silver in finish. Fine / Good Cond.
   Sansui SP-X7700 Super
Tweeter
s
T-167
(see also SP-X8, SP-X9, SP-X7700, SP-X7900, SP-X8700 & SP-X9700)

2" 3 Watts 8 Ohms
DCR =
7.0
U 4 $30. ea.
 Fine / Good Cond.
   Sansui SP-X7700 Crossovers N-189 / SP-X7700 4-Way - - U 2 $45. ea.
Good Cond.
   Sansui SP-X7700 Attenuators SP-X7700 - - - U 2 $25. ea.
Good Cond. W/ mounting plate and knob
   Sansui SP-X7700 'Sansui' Label / badge Lattice
Wood
24 3/4" x 16 3/16 - - U 2 $25. ea.
W/ locking washer
   Sansui SP-X7700 Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use) Lattice
Wood
24 3/4" x 16 3/16 - - U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
*

 *
Here's the issue with speaker grill sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, due to their large size, the 'custom' box and amount of 'expensive' foam board required for safe transit, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

-
--


SANSUI SP-X7000 SPX7000 speaker parts Spares


  BRAND
  OF
  speaker
MODEL
  OF
speaker
ITEM PART # SIZE Watts Ohms USED
  /
  NEW
QUANTITY
ON HAND
PRICE NOTES
   Sansui



SP-X7000
SPX7000
Woofers W-173 / W173 12" 45 Watts
fo-2kHz
6 Ohms U 0

SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
$95. ea.

Ribbed, Pulp cone. Cloth, roll surround. Silver painted, pulp dust-cap.
Stamped steel frame. Ceramic Magnet. Good Cond.


   Sansui



SP-X7000
SPX7000

(see also SP-X6000 & SP-X7000)
Midrange S-141 / S141 5" 40 Watts
1.5kHz-4kHz
8 Ohms U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.

Good Cond.
Ribbed, Pulp cone. Coated, cloth, 'accordion' surround. Silver, Mylar dust-cap.
Stamped steel frame. Ceramic Magnet.

   Sansui



SP-X7000
SPX7000
Midrange S-141 / S141 5" 40 Watts
1.5kHz-4kHz
8 Ohms U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.

$30. ea. 8/7/12

Cosmetic dents to aluminum dust cap. Driver Works and sounds great!
Ribbed, Pulp cone. Coated, cloth, 'accordion' surround. Silver, Mylar dust-cap.
Stamped steel frame. Ceramic Magnet.

   Sansui



SP-X7000
SPX7000

(see also SP-5500X, SP-7500X, SP-X7000, SP-X8000)
Horn Tweeter
T-135 / T135 6" x 2"
Freq Response;
 6kHz-10kHz
65 Watts 8 Ohms
DCR =
6.6Ω
U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
Cast Aluminum Horn w/ AlNiCo magnet.
   Sansui



SP-X7000
SPX7000
(see also SP-X7000, SP-X8000)
Super Tweeters T-151 / T151 .5" 20 Watts
10kHz-23kHz
12 Ohms
DCR=9.6 Ohms
U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Sansui



SP-X7000
SPX7000
Crossover - 4-way 130 Watts - U 2 $55. ea. Good Cond.
   Sansui



SP-X7000
SPX7000
Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use) Wood
Lattice
- - - U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.


 *
Here's the issue with speaker grill sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, due to their large size, the 'custom' box and amount of 'expensive' foam board required for safe transit, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

Good Cond.


SANSUI SP-X6700 SPX6700 speaker parts Spares

  BRAND
  OF
  speaker
MODEL
  OF
speaker
ITEM PART # SIZE Watts Ohms USED
  /
  NEW
QUANTITY
ON HAND
PRICE NOTES
   Sansui Sansui
SP-X6700 / SPX6700
Woofers W-191E 13"
40-2kHz
45 Watts 5 Ohms U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
--

SANSUI SP-X6000 SPX6000 speaker parts / Spares


  BRAND
  OF
  speaker
MODEL
  OF
speaker
ITEM PART # SIZE Watts Ohms USED
  /
  NEW
QUANTITY
ON HAND
PRICE NOTES
   Sansui



SP-X6000
SPX6000
Woofers W-174 / W174 10"
Freq range; to 2kHz
35 Watts 6 Ohms
DCR = 5 Ohms
U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
   Sansui



SP-X6000
SPX6000
(see also SP-X6000 & SP-X7000)
Midrange S-141 / S141 5 1/8" 40 Watts
1.5kHz-4kHz
8 Ohms U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
    Sansui

SP-X6000
SPX6000
(see also SP-5500X, SP-7500X, SP-X7000, SP-X8000)
Horn Tweeter
T-157 / T157 2 3/8"
Phenolic dome, 360 degree radial horn tweeter
35 Watts
5kHz-22kHz
8 Ohms
DCR= 7 Ohms
U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
      Sansui


SP-X6000
SPX6000
Crossover N176 3-way 100 Watts 8 Ohms U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
--
--

SANSUI SP-Z9 / SPZ9 OR SP-Z99 / SPZ99 speaker PARTS / SPARES (essentially same speaker, but for different markets)


  BRAND
  OF
  speaker
MODEL
  OF
speaker
ITEM PART # SIZE Watts Ohms USED
  /
  NEW
QUANTITY
ON HAND
PRICE NOTES





Sansui

Sansui SP-Z99 /
SPZ99

(see also Sansui SP-Z9, SP-Z99)
Woofers W-218B / W218B 16" ~250 Watts 8 Ohms
DCR = 5.6 Ohms
U 2 $105. ea.
Refinished in 'bright white'. EPCD (Exclusive Composition), White, Pulp cone. Stamped Steel frame. Ceramic magnet. Black and Blue, front rubber gasket / trim.



Sansui


Sansui SP-Z99 /
SPZ99

(see also Sansui SP-Z9, SP-Z99)
Midrange S-173 / S173 6.5" - 8 Ohms
DCR = 6.3 Ohms
U 1 ??? $55. ea.
Pulp cone. Coated, accordion paper surround. 'Matte' silver dust cap. Sealed, steel frame. Ceramic magnet



Sansui


Sansui SP-Z99 /
SPZ99

(see also Sansui SP-Z9, SP-Z99)
Horn Mid-Tweeter
(see also SP-X8, SP-X9, SP-X7700, SP-X7900, SP-X8700, SP-X9000, SP-X9700, SP-Z9, SP-Z9-II & SP-Z99)
T-149G / T149G Black

(may be black or silver)
7.25" X 3" Horn perimeter - 8 Ohms
DCR= 7.2 Ohms
U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
Aluminum horn. Ceramic, vented magnet. 6 (2 extra in the 'centers' of the 'long dimensions') mounting holes. No magnet covers on this version.



Sansui


Sansui SP-Z99 /
SPZ99

(see also Sansui SP-Z9, SP-Z99)


Horn Upper-Tweeter T-210 / T210 3 7/8" X 2 1/2" Horn perimeter - DCR= 11 Ohms U 2 $45. ea.
Aluminum horn. Ceramic, vented magnet. Louvers / diffusion lens sold separately.



Sansui


Sansui SP-Z99 /
SPZ99

(see also Sansui SP-Z9, SP-Z99)
Super Tweeter
T-211 / T211 .5" - N/A / PIEZO U 1 $35. ea.

ORIGINAL.
Piezo with Mylar 'chrome'. We recommend that the terminal / back plate attachment to the plastic housing be reinforced. The attachment points are fairly minimal, especially considering the stiff, oversized wire used to connect them. Additional glue, epoxy, liquid metal or similar should be added to the original edge glue for added security. Be very careful removing the super tweeter assembly, as the stiffness of the wires is enough to dislodge the terminal plates. We do sell replacement piezo elements for these, but it is a 're-engineering' feat to get them installed.




Sansui


Sansui SP-Z99 /
SPZ99

(see also Sansui SP-Z9, SP-Z99)
Super Tweeter
T-211 / T211 .5" - N/A / PIEZO U 1 $25. ea.

REPLACED ON ONE DRIVER.
Piezo with Mylar 'chrome'. We recommend that the terminal / back plate attachment to the plastic housing be reinforced. The attachment points are fairly minimal, especially considering the stiff, oversized wire used to connect them. Additional glue, epoxy, liquid metal or similar should be added to the original edge glue for added security. Be very careful removing the super tweeter assembly, as the stiffness of the wires is enough to dislodge the terminal plates. We do sell replacement piezo elements for these, but it is a 're-engineering' feat to get them installed.




Sansui


Sansui SP-Z99 /
SPZ99

(see also Sansui SP-Z9, SP-Z99)
Super Tweeter replacement piezo element for the T-211 / T211
T-211 / T211 'DIY' .5" - N/A / PIEZO U Usually in stock $20. for a 6 pack (4+2 spares)

Piezo element. This is DIY and will require some re-engineering to retro fit. We use a Dremal with a 'cut-off' wheel, 'gel' super glue & JB weld to re-attach. We recommend that the terminal / back plate attachment to the plastic housing be reinforced. The original attachment points are fairly minimal, especially considering the stiff, oversized wire used to connect them. Additional glue, epoxy, liquid metal or similar should be added to the original edge glue for added security. Be very careful removing the original super tweeter assembly, as the stiffness of the wires is enough to dislodge the terminal plates. If yours 'tears / rips out', then you can repair it with these piezo elements.






Sansui


Sansui SP-Z99 /
SPZ99

(see also Sansui SP-Z9, SP-Z99)
Louvers for horn tweeters
Upper silver, plastic - - U 1 remaining in stock now

Upper, Blue Rack
$30. ea.
Good cond.
Utilize double stick tape to attach. Pry off VERY carefully and slowly to remove.
--

SANSUI SP-Z7 / SP-Z7-II / SPZ7-II (MARK 2 / SERIES 2) speaker PARTS / SPARES


  BRAND
  OF
  speaker
MODEL
  OF
speaker
ITEM PART # SIZE Watts Ohms USED
  /
  NEW
QUANTITY
ON HAND
PRICE NOTES



Sansui

Sansui SP-Z7-II /
SPZ7-II (MARK 2 / SERIES 2)

(See also SP-X7700, SP-X7900, SP-Z7, SP-Z7-II as possible substitutions)
Woofers W-192E / W192E 15" Cabinet was rated 250 Watts 8 Ohms U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
EPCD (Exclusive Composition), White, Pulp cone. Stamped Steel frame. Ceramic magnet. Black and Blue, front rubber gasket / trim.

  BRAND
  OF
  speaker
MODEL
  OF
speaker
ITEM PART # SIZE Watts Ohms USED
  /
  NEW
QUANTITY
ON HAND
PRICE NOTES
---


Misc Sansui Driver Listings. speaker System model unknown

  BRAND
  OF
  speaker
MODEL
  OF
speaker
ITEM PART # SIZE Watts Ohms USED
  /
  NEW
QUANTITY
ON HAND
PRICE NOTES
SANSUI S-50 / S50 Woofer W-191C
Coated cloth suspension
12"
40-2kHz
45 Watts 5 Ohms U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
SANSUI ?? Cast Frame
Woofer
W-180 12"
40-1.5kHz
35 Watts 7.4 Ohms U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
SANSUI SPL-250 Cast Frame
Woofer
W-179 10"
40-1.5kHz
25 Watts 7 Ohms U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
SANSUI ?? Woofer W-146 15" 65 Watts 5 Ohms U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
SANSUI ?? tweeters T-139 / t139 3.75" outside across - 7.9 Ohms U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-
SANSUI   Cast Frame Tweeter. Similar to JBL LE-25 / LE25 tweeter T-153 / T153 10"
3.75" magnet.
Mounting plates ~ 5 5/8"  on a side.
1.5-50kHz ???
30 Watts 6 Ohms
DCR-5.2 Ohms
U 0
SOLD.

Reference information
 only. None currently for sale,
but more MAY occasionally show up. Check back periodically.
-

If you're looking for a great place for great place to purchase new foam surround kits, replacement surrounds, or to have your woofers, sub woofers / subs, re-foamed or re-coned, we recommend either 'Orange County speakers' or 'Parts Express'. They have QUALITY parts and do QUALITY work.



LINK       TO        OUR        OUR        OTHER        speaker        PARTS        DEPARTMENTS


__________________________________________________________________________________________________________













LINKS TO OUR 'HI-FI' DEPARTMENTS

Amps and
Pre-Amps

Receivers

Cassette
Decks

Tuners

Turntables

8-Track Decks

CD Players

Reel-Reel
Decks

EQs and Signal
Processors

Speakers

Betamax and
VHS VCRs

Turntable Cartridges

Tube Audio

Ne'cessories

Speaker Parts

Record Players

Vintage Radios

Vintage
Walkmans

Headphones

Stereo Parts


Wondering where the "tone" you remember went?....




.... Surround yourself with Silver and find it again!


CONTACT INFO BELOW

$20. MINIMUM ORDER





>>>(for 'PARTS'; <<<
as of NOW and for the foreseeable future,
due to staffing / time / resource limitations, we are shifting focus AWAY from MOST 'SALVAGE / USED / DONOR' parts requests at this time with
*only a few exceptions, and will not likely be responding to calls or emails for those type of parts.  We will still process orders for '**non-unique / SKU' parts / accessories that offer an 'on-line payment' option.)

*at our discretion, some requests may still get a response if time allows.
*"unique" would apply to most 'salvage' Hi-Fi / Stereo / Speaker, scooter, MI, Pro-audio parts.
Parts that we normally stock and have a "Buy It" option are not included in the above notice.


    Before calling, PLEASE read the text in below.
 BEFORE
CALLING

(800) 806-4231 EXT #1
~10:00 AM- ~5:30 PM most days COLORADO / ROCKY MOUNTAIN TIME ZONE


OR

BEFORE EMAILING

parts@oaktreevintage.com

>>>(for 'PARTS'; <<<
as of NOW and for the foreseeable future,
due to staffing / time / resource limitations, we are shifting focus AWAY from MOST 'SALVAGE / USED / DONOR' parts requests at this time with
*only a few exceptions, and will not likely be responding to calls or emails for those type of parts.  We will still process orders for '**non-unique / SKU' parts / accessories that offer an 'on-line payment' option.)

*at our discretion, some requests may still get a response if time allows.
*"unique" would apply to most 'salvage' Hi-Fi / Stereo / Speaker, scooter, MI, Pro-audio parts.
Parts that we normally stock and have a "Buy It" option are not included in the above notice.

We DO NOT have your part unless the following conditions are met:

A) You HAVE SEARCHED our page(s) and HAVE FOUND the part you are looking for SPECIFICALLY listed on one of our pages or you have solid information that it's a 'bona fide' substitution for your part (unless noted already, we won't have any further info along those lines)
AND
B) The part that you have found is NOT marked as SOLD or SOLD OUT.


If you do NOT see it listed after thoroughly searching the pertinent page
(likely the page you landed on originally),
we do not have it,
nor do we know when
it might come in,
nor do we maintain "waiting lists" for parts,
nor do we know who
might have it.

Sorry, but phone and email traffic for parts
we don't have listed or for parts that are already marked "SOLD" has become too consuming of time resources.


 We try to keep these pages 99+% updated.
If you don't see the part you are looking for, simply check the web page periodically as we never know what will show up each day. Thanks!!!!!


ALSO: When e-mailing be sure to include a relevant subject, ie: Brand / Model number / reason for inquiry in the 'SUBJECT LINE'.
SUBJECT
lines left empty, or with 'single word' text like;
"Hello", "Hi", "parts", "stereo", "inquiry", "question", "selling" or similar or similar 'un-qualified' terms may automatically be deleted by Anti-Virus / Spam settings or receive 'Low Priority'.
(Subject lines left empty show up as "No Subject" and are deleted automatically by our anti-spam settings".
We do not return calls / emails for requests for parts we don't show / or have available (we may choose contact with further, useful information).


 SPEAKER PARTS   |   STEREO / HI-FI ELECTRONIC PARTS   |  KEYBOARD PARTS

___________________________________________

Haven't received a response to your email? See FAQ'S

MAILING:
OAK TREE ENTERPRISES
PO. BOX 6182
COLORADO SPRINGS, CO 80934
U.S.A.


Before ordering by postal mail, please phone or email us about the item and the details of sending your funds. Thank-you.


 SPEAKER PARTS   |   STEREO / HI-FI ELECTRONIC PARTS   |   SELLING-TRADING-CONSIGNING   |  KEYBOARD PARTS   I   FAQ'S
  CONDITION RATINGS   |   ORDERING / POLICIES    |    WARRANTIES / RETURNS   |   SHIPPING
 RESTORATION PROCEDURES   |   REPAIRS  | CONTACT PARTS


As much of the price charged for parts is for the 'time to extract' from it's donor unit, unless we send the 'wrong part', parts are NOT returnable.
See our "
Warranties / Returns" page via the link below for more details.


POLICIES, SPECIFICATIONS, AVAILABILITY, INFORMATION AND PRICING SUBJECT TO CHANGE  AT ANYTIME  AND WITHOUT PRIOR NOTICE
and changes may not be posted to web immediately
. Information such as Parts Substitution possibilities, "Circa" dates, original values, etc. are to the best of our knowledge. If you are critically concerned, you should do independent
research on your own prior to ordering or utilizing this information in any way. Manufacturers also are known to change part numbers, specs, circuit designs, specs etc within the same model.


Copyright © 1997-2023 Oak Tree Enterprises, LLC

COPYRIGHT INFORMATION
