JBL SPEAKER PARTS / SPARES / COMPONENTS - USED / VINTAGE
REFERENCE / DATA BASE

*Note about parts / spares sales

* Our "parts units", parts / spares and related reference information are primarily archived for the purpose of restoration / repair of "Oak Tree Vintage" units first. Only if we do not have a "viable" unit in yet, either already in process or in line to be processed, that may potentially need parts from a "parts unit", will we release available parts for sale (even though they may appear as available for sale to the public). As many of you know, the restoration of a unit can be a long, time consuming process. We may "lock up" parts that we may potentially need in the restoration of a unit (and not necessarily get it marked 'Hold' or 'Sold' on the site right away). Parts are priced according to the "potential value" of the unit they can be applicable to (meaning the amount WE would be willing to pay for the part if that was all that was standing between us having a "shelved unit" or a valuable / sellable unit), time to extract, their rarity & their condition to name a few criteria and likely will be completely unrelated to the original cost / price of a part when it was currently available from the manufacturer.

Parts Photos; We get a number of requests for 'photos' of a specific part. Unfortunately, in most cases that is not practical as the amount of time involved in posting that exceeds the value of the 'unique' part. We will sometimes post photos of less 'unique' parts, if there is a greater chance of them being available in multiple quantities, or on a more 'repeat' basis.

Parts, general condition / circuit board condition; Most of our parts are from 'salvage / donor' units. While we don't sell parts that are 'known' to be bad, occasionally parts will need further adjustment, cleaning, 'tweaking', or in the case of circuit boards, may need old, conductive glue / epoxy further cleaned, and some 'common' parts / components such as, aging / leaky capacitors, parts whose values have drifted, and some epoxy transistors may need to be replaced due to 'green / black / furry' legs, or because those parts were marked as 'sold separately'. Some circuit boards may have 'tired' "landing / solder pads", or severed traces, or cold / bad solder joints which can require solder re-flow or 'jumpers'. Unless noted, circuit boards will be 'crack / split / break' free.

Parts pricing; Most of our parts price / value will be based on a few things. Firstly, we are in the restoration / refurb business, so we consider what we would be willing to pay for the part if we needed it (which again, is what the parts are listed for in the first place, "our units"). Secondly, the rarity / value of the unit the part(s) fit. The 'Tuning Knob' for a receiver that has a final value of $350 will likely be much less than the "Tuning Knob" for a unit with a final value of $1500 or more (a set of tires for a typical sedan will be $400 to $600. A set for a Lamborghini can be $16,000). Thirdly, the 'rarity' of the part. Forth, the 'condition' of the part. Fifth, the difficulty to extract the part, or success rate for extracting certain parts. Sixth; frankly it's a LOT of work and time to part out a unit. Most take 1 to 3 days of shop time to process. Not only the disassembly, but the 4-15 hours of pre-testing / servicing and just as time consuming can be the amount of time it takes to do all of the research we do and the info we list on many parts for cross-referrencing to other units that my use the same parts by scouring service manuals. On many circuit boards we will list every 'semi-conductor' which is also very time consuming. Lastly, every call or email for a part can require 20 minutes to sometimes over an hour of 'phone support', often (about 70% of the time) with me convincing the potential purchaser that they don't need the part I have to solve their problem.
Sorry to sound like a "whiner" about selling parts, but "time is money".

Shipping: Shipping on most 'small' parts if typically via Postal first class or Postal Priority for both domestic (USA) and international orders. Larger parts such as transformers and drivers (speakers) are typically via FedEx gnd.
Some parts sales such as those for empty 'speaker cabinets', empty 'component cabinets / covers / bonnets' and 'speaker grills' and most are 'doomed' from the start. Due to their size and required packing supplies, the cost of 'packing for safe transit' and shipping are commonly 'disproportionate' to their cost, typically nearly equal to and sometimes greater than the cost of the part.  Think about it. An empty speaker cabinet or stereo receiver case is essentially the same size as a complete one. Yes the weight will be less, but most of items that size are calculated on 'dimensional weight', not actual weight so are commonly just as expensive as shipping a 'complete unit'. Secondly empty component cabinets have to be packed to disallow breakage, typically requiring nearly as much packing materials as an entire unit. Speaker grills have to be 'sandwiched' between foam sheets in large, custom ordered boxes (all relatively expensive).  It is what it is....

A non-response to an email of phone call / voice message request for a part that we don't show on one or our pages, or is already marked "SOLD" will be typical. We simply don't have the time / man-power resources to respond to every query we get for items we don't show as avail. Most folks get that. Having said that, I / we may respond if we have information on a substitution or other useful information relating to it.

A non-response to an email of phone call / voice message request for a part (we may appear to have, but typically 'highlighted in Orange or Yellow'), likely means that we are still determining which parts we are going to need for the restoration or repair of one of our units. Again, the parts are first for the restoration of our units and secondarily for the public market. Since we list the parts available for ourselves, it is not much effort to modify the menu's for web publication, which in turn makes the reference information and occasionally the part available to the public. Frankly, publishing them to the web, in many instances, makes it easier for us to determine if we have the part for our needs as well. The alternative to all of the above would be to not offer them at all to the public, however most parts are available to the public for sale.  Also, parts requests can occasionally take time for us to respond to. While we may have a part listed, and we like to keep the website 100% accurate, occasionally a part will be 'used by us' or 'previously sold' and we by oversight, and we did not get the web listing marked "SOLD", or the part gets  'mis-placed' or 'lost' (laid down somewhere in the warehouse(s) and then it get's lost track of (that happens to our coffee cups all the time, then we find it months later with 'a good batch of 'penicillin' growing in it), so we like to 'lay eyes on it' prior to responding. Sometimes we just can't figure out which cabinet or drawer parts were assigned to (and we're working on a system for that one).

Some folks email / call and want us to respond either way / whether we have the part or not. Again, we simply do not have the time resources to do that. Our time must be utilized on the requests we can fulfill.
Sorry for all the excuses, but that's how the 'system' (or lack thereof) works.
And, if you don't see it, we likely don't have it.
 Thank you for your understanding.

$20. MINIMUM ORDER

20% off sale on salvage speaker parts.


See sales banners on parts pages for details

Most of these components are "take-outs" from working speaker cabinets and unless otherwise noted are in perfect shape!
   Where necessary foam surrounds have been replaced and / or speaker has been professionally and correctly re-coned!


JBL SPEAKER PARTS SPEAKERS FOR SALE
BRAND   OF   SPEAKER	MODEL   OF  SPEAKER	ITEM	PART #	SIZE	WATTS	Ohms	USED   /   NEW	QUANTITY ON HAND	PRICE	NOTES
JBL	2440?	Aluminum / Aluminium Diaphragms	DR162440	4" for a 2" throat	60 Watts	x Ohms	NOS	1-5?	-	New Old  Stock from a JBL dealer I worked at. These were left over from their 1970's / 1980's stock. Some have evidence of past dimples from being handled.
JBL 62 JBL62 SPEAKER Parts, woofers, tweeters, crossovers, spares The JBL 62 speaker was originally marketed in 1986 w/ an MSRP of $116. ea.
BRAND   OF   SPEAKER	MODEL   OF  SPEAKER	ITEM	PART #	SIZE	WATTS	Ohms	USED   /   NEW	QUANTITY ON HAND	PRICE	NOTES
JBL	JBL 62 / JBL62	Woofers	67261 / J71TNG	~7"	-	Rated 8 Ω, DCR=6.0 Ω	U	?	$45. ea. SOLD / MIA?	Dented Dust cap. Cosmetics only, works and sounds fine.

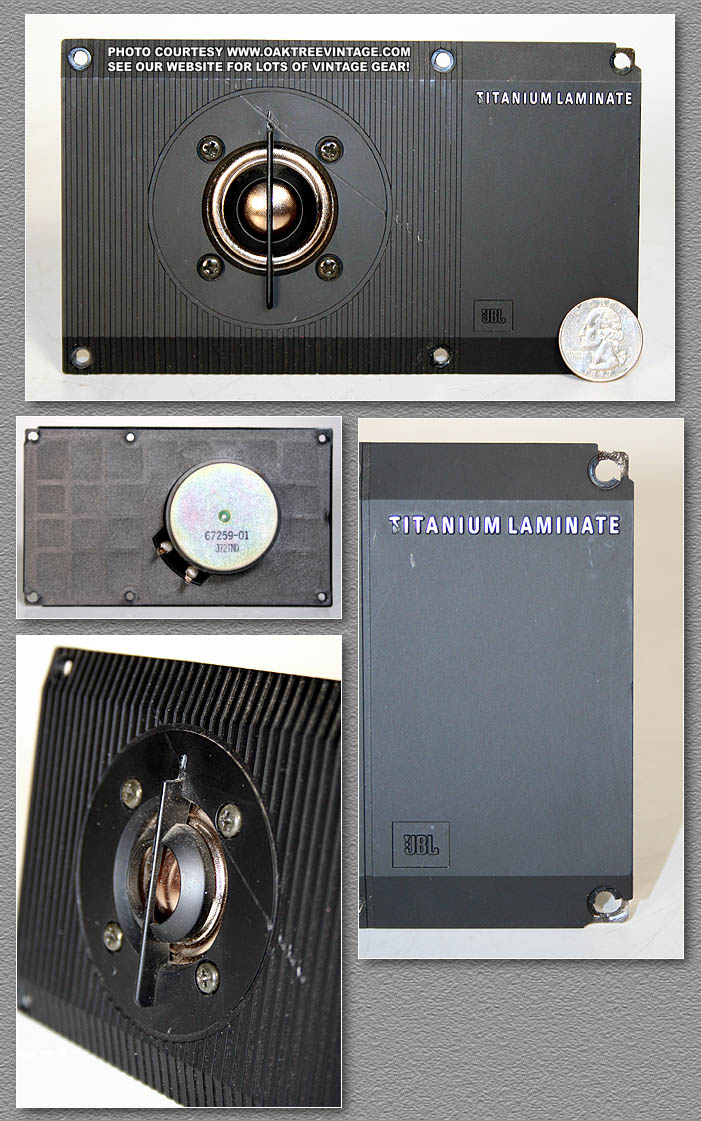

JBL	JBL 62 / JBL62	Tweeters	67259-01 / J72TNG	1"	-	Rated 8 Ω, DCR=6.5 Ω	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	Scratch across plastic mounting plate / face. Cosmetics only, works and sounds fine. Mounting holes chipped.
JBL	JBL 62 / JBL62	Crossovers	-	2-Way	-	Rated 8 Ω	U	?	$30. ea. SOLD / MIA?	Fine.
JBL	JBL 62 / JBL62	Cabinets	-	-	-	-	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically. *    *Here's the issue with 'empty speaker cabinet'  sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, as they essentially require the same amount of packing for safe transit. They are also the same physical size, empty or not, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.	Rough.
JBL	JBL 62 / JBL62	Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use)	-	-	-	-	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	Decent.

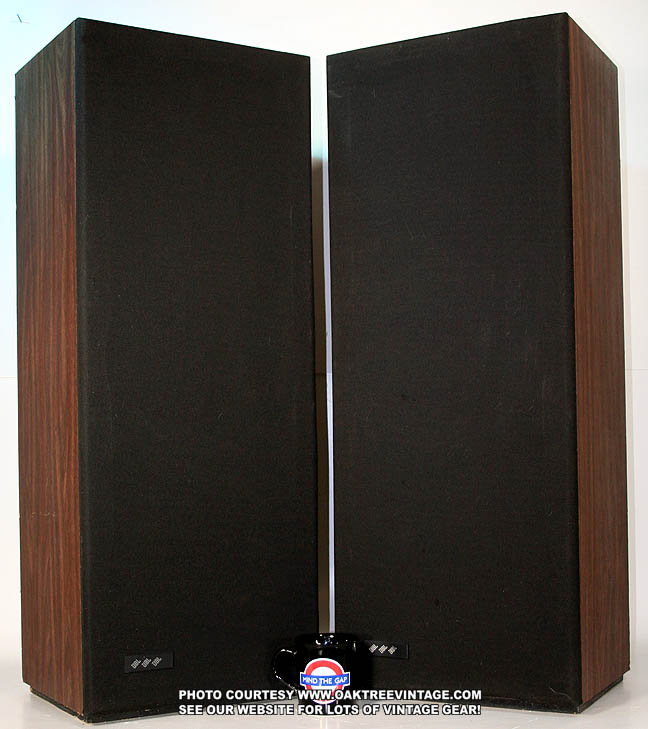

JBL 121VX Radiance Series; Speaker Parts / spares
BRAND   OF   SPEAKER	MODEL   OF  SPEAKER	ITEM	PART #	SIZE	WATTS	Ohms	USED   /   NEW	QUANTITY ON HAND	PRICE	NOTES
JBL	JBL 121VX Radiance Series	Woofers	310G / 0981	10" 3.5lbs	-	Rated 4-8 Ω, DCR=4.1 Ω	U	0	$25. ea. Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	Functioning VC. Cone and dust cap good. Will need new foam surrounds. Beauty rings will need to be re-glued onto front of driver once installed.
JBL	JBL 121VX Radiance Series	Passive Radiators	PR310	10" 1.25lbs	-	N/A	U	0	$25. ea. Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	Cone and dust cap good. Will need new foam surrounds. Beauty rings will need to be re-glued onto front of driver once installed.
JBL	JBL 121VX Radiance Series	Midranges / mids	305G / 1181	4" 1.5lbs	-	Rated 8 Ω, DCR= 3.8 Ω	U	0	$20. ea. Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	Functioning VC. Cone and dust cap good. Will need new foam surrounds. Beauty rings will need to be re-glued onto front of driver once installed.
JBL	JBL 121VX Radiance Series	Tweeters	303G-2 / 098	2.5" 0.5lbs	-	Rated 8 Ω, DCR= 4.1 Ω	U	0	$35. ea. Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	Fine. Beauty rings will need to be re-glued onto front of driver once installed.
JBL	JBL 121VX Radiance Series	Input panel / terminals	-	-	-	-	U	2	$35. ea.	Fine.
JBL	JBL 121VX Radiance Series	Cabinets	-	-	-	-	U	2	$65. ea. *    *Here's the issue with 'empty speaker cabinet'  sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, as they essentially require the same amount of packing for safe transit. They are also the same physical size, empty or not, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.	Fine.
JBL	JBL 121VX Radiance Series	Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use)	-	-	-	-	U	0	Reference info ONLY.  None currently for sale,  but more MAY occasionally show up. Check back periodically.	Fine.
BRAND   OF   SPEAKER	MODEL   OF  SPEAKER	ITEM	PART #	SIZE	WATTS	Ohms	USED   /   NEW	QUANTITY ON HAND	PRICE	NOTES

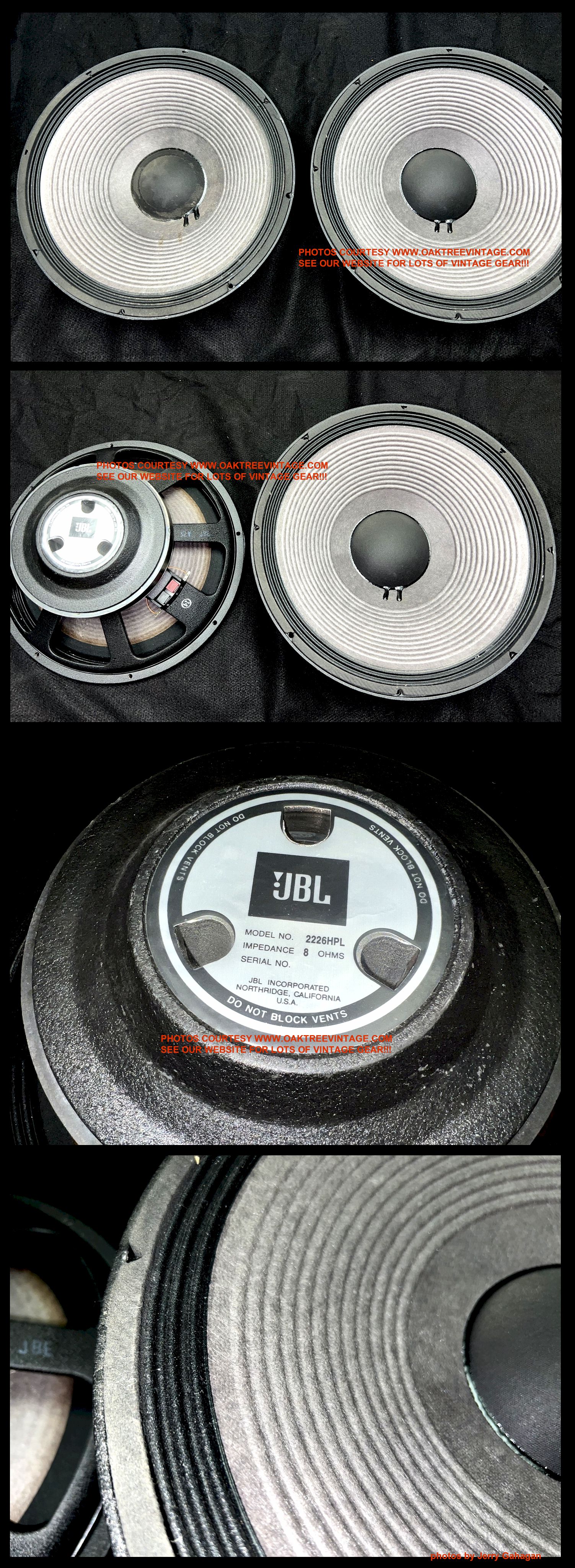

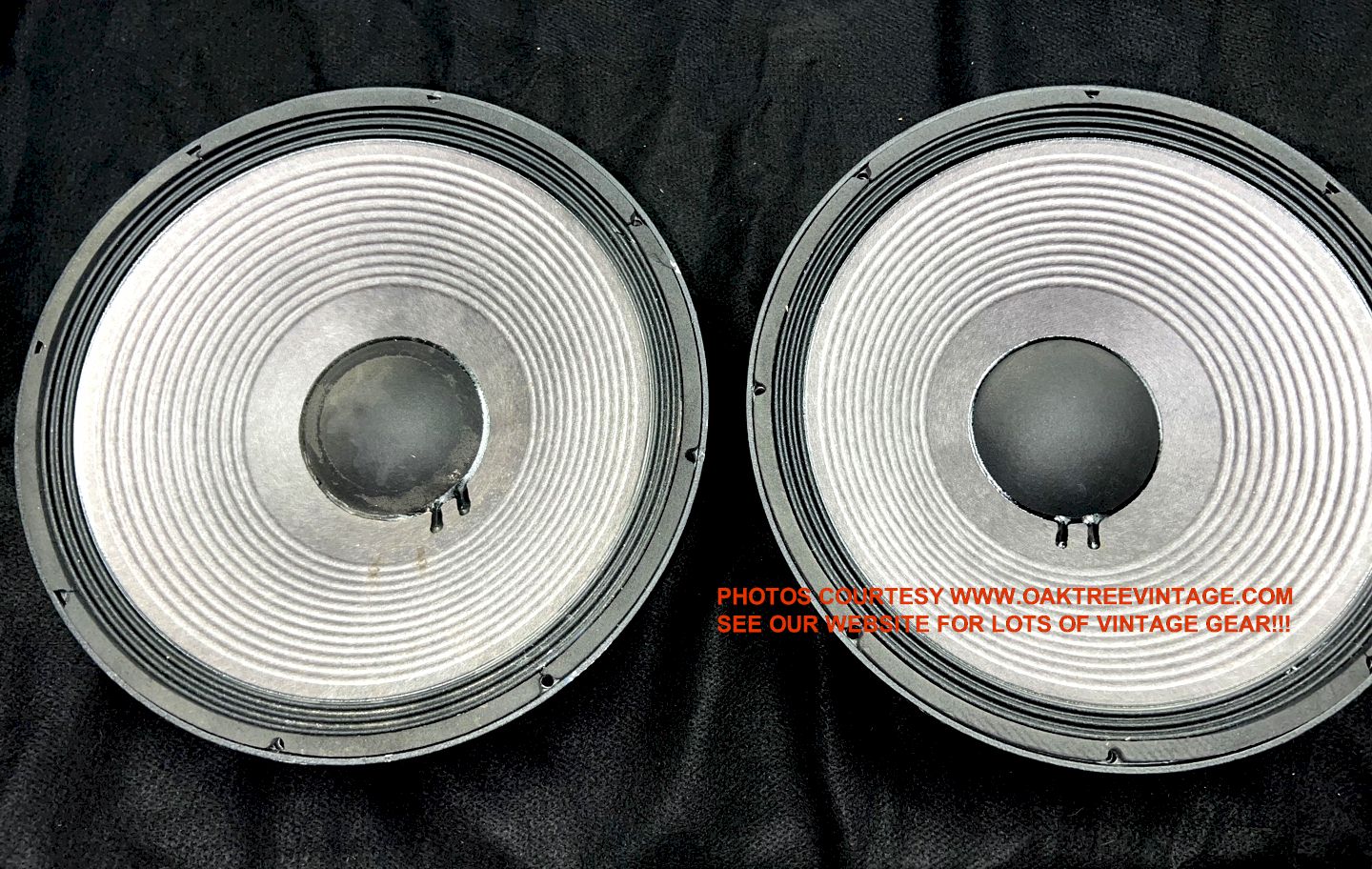

photos coming JBL	JBL 15" Drivers (woofers)	Woofer	2226HPL	15"	600 Watts	8	U	2	$350. pair	Cellulous cone, Coated / Accordion cloth surround, Cast alloy frame, Vented Magnet, Ceramic Magnet, 'push type connectors.

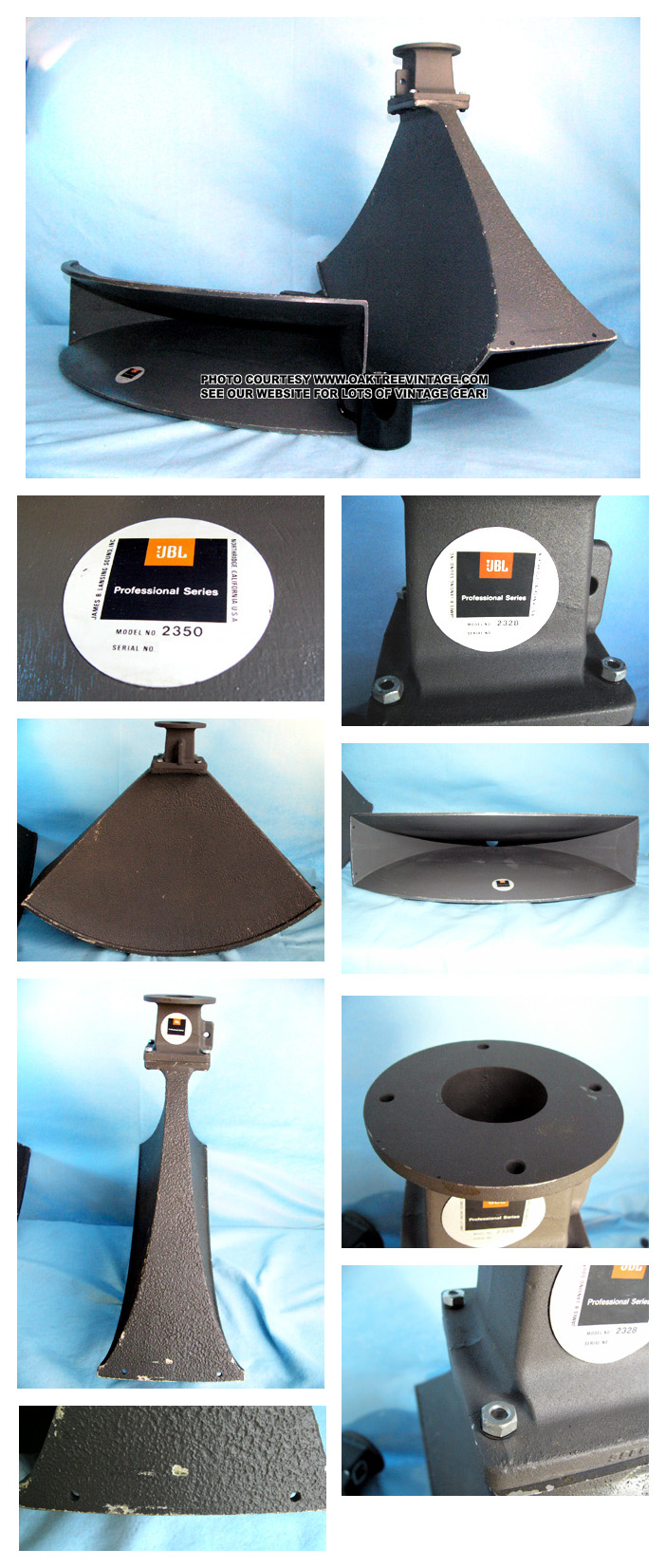

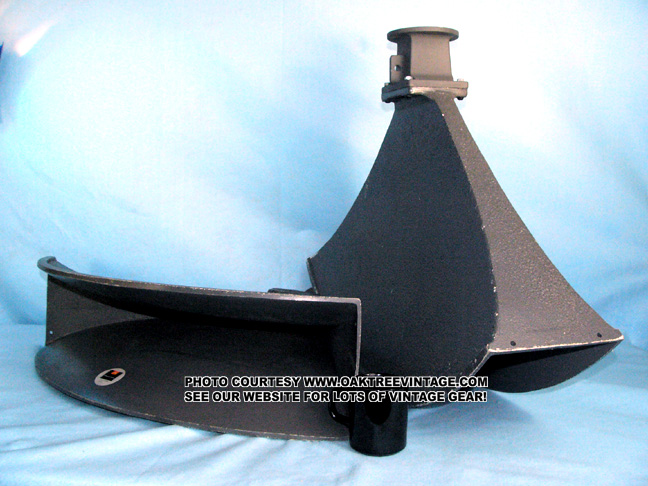

JBL	JBL 2350 Horns 2328 Throat Adaptor	Horns  with  Throat Adaptor	JBL  2350  Horn/ 2328  Adaptor	2" Throat w/4 3/4" mounting flange. Horn is 31 1/2" wide x 7 3/4" x  20" deep. Adaptor is 5" wide x 4 1/4" tall x 4" deep. Horn w/Throat adaptor 22 lbs	-	-	NOS	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	-

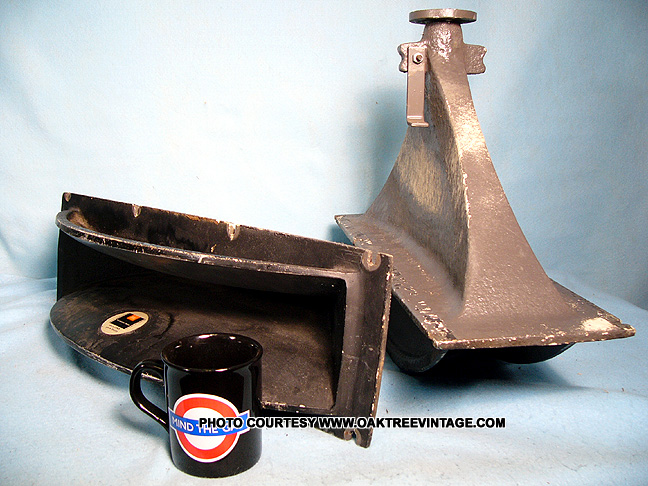

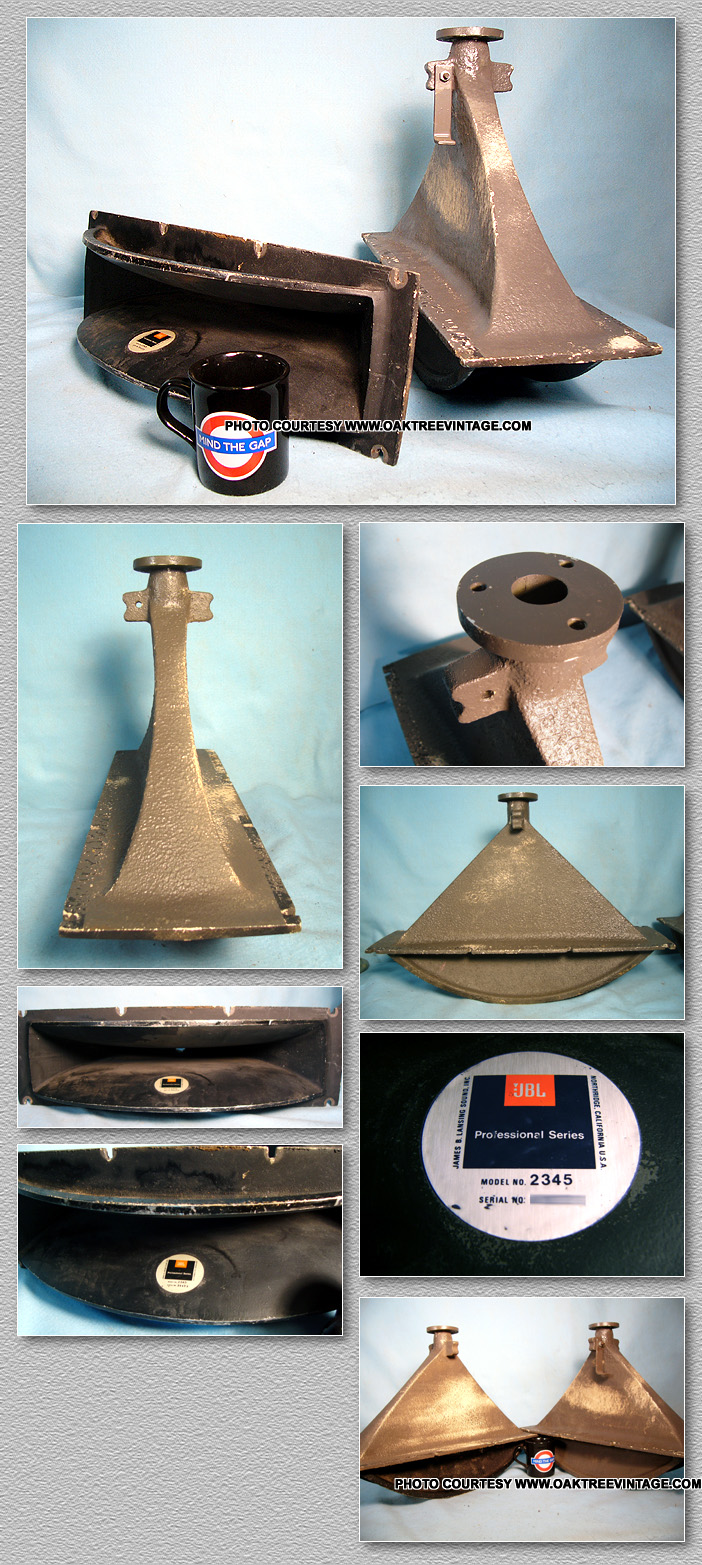

JBL	JBL 2345 horns	40 x 90 horn	JBL 2345 Horn horns	25mm / 1" Throat.  w/4 3/4" mounting flange. Horn is 22.5" wide x 6.75"  high x  15.5" deep. Horn weight 15 lbs	Designed for x-over freq of 800Hz. Sensitivity designed at 111dB	-	Pre-Owned	2	$360.00 Pair	Structurally sound, but have been refinished in flat black. All mounting holes perfectly intact. Click here for more info.

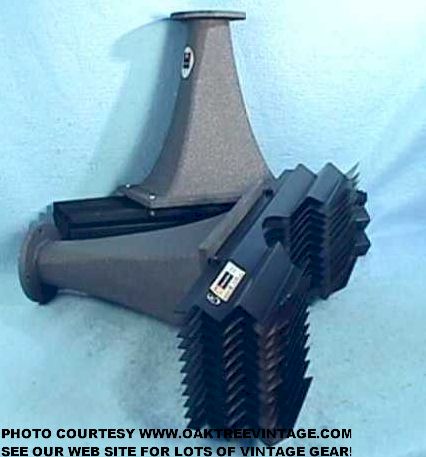

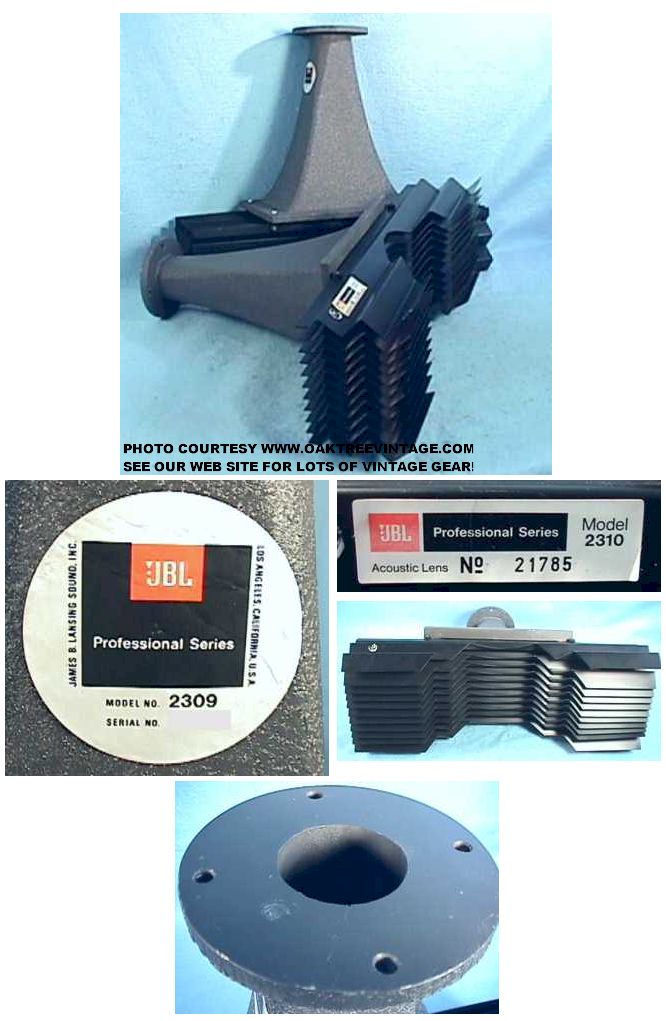

JBL	JBL 2309 Horns 2310 Diffusion lenses	Horns  with  diffusion  lenses	JBL  2309  Horn 2310  Diffusion Lens	2" Throat 6" x 8" opening Horn is 13" deep. Lens is 19 7/8" wide x 7" tall x 4 3/4" deep.  10 lbs.	-	-	NOS	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	-
BRAND   OF   SPEAKER	MODEL   OF  SPEAKER	ITEM	PART #	SIZE	WATTS	Ohms	USED   /   NEW	QUANTITY ON HAND	PRICE	NOTES

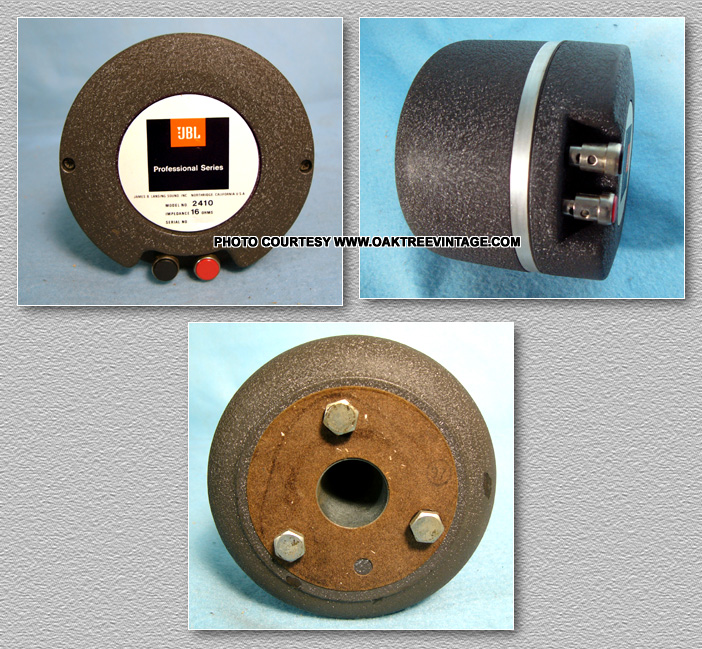

JBL	JBL 2410	1" / 3-bolt AlNiCo High compression driver	JBL 2410	1" Throat	4.5" diameter x 3.75" deep x 1" Bolt-on throat. Bolts on 2" centers.	16 Ohms	USED	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	-

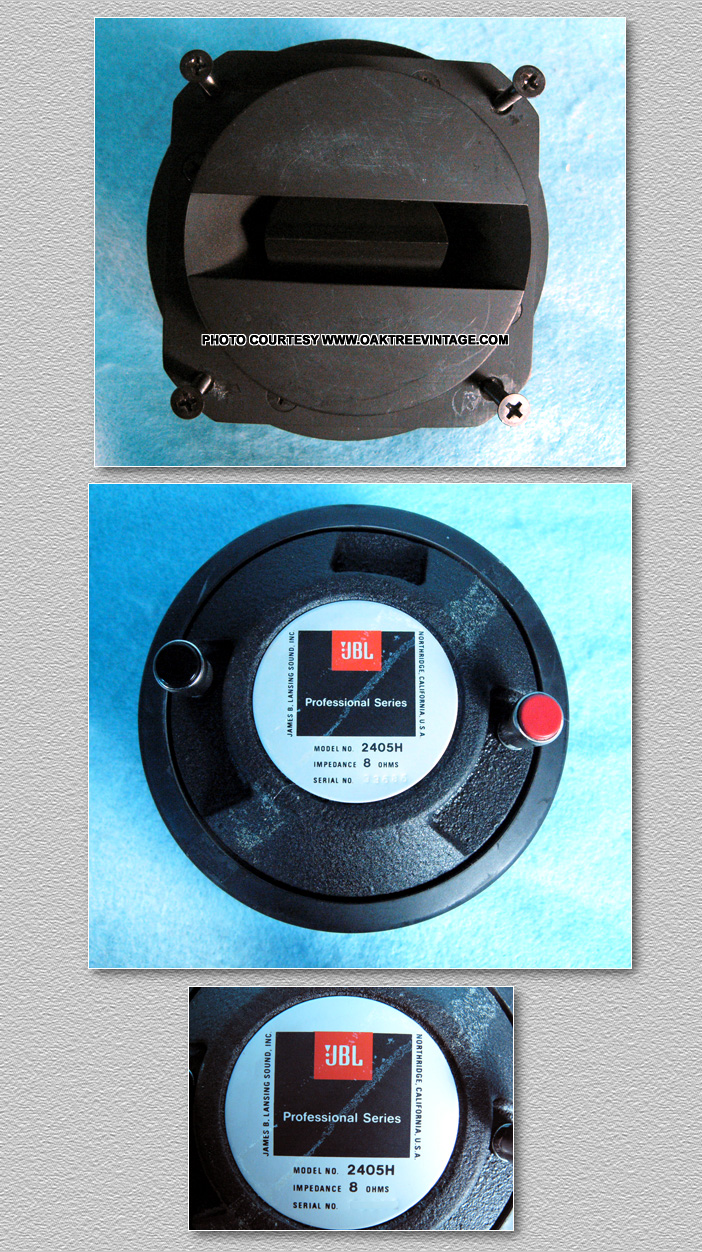

JBL	JBL 2405H / 2405	"Slot" Tweeter	JBL 2405H / 2405	44mm edge wound aluminum voice coil	140 x 40 degrees 40 watts 105db sens 6.5k - 21.5kHz	8 Ohms	USED	1	$149. Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	-
JBL 2500 SPEAKER PARTS / SPARES The JBL 2500 speaker was originally marketed in 1989 w/ an MSRP of $89. ea.
BRAND   OF   SPEAKER	MODEL   OF  SPEAKER	ITEM	PART #	SIZE	WATTS	Ohms	USED   /   NEW	QUANTITY ON HAND	PRICE	NOTES
JBL	JBL 2500	JBL 2500 Drivers Woofers speakers	Model 305G-3A-1 Part # 70012-01 Made in USA	5.25" / 12cm / 120mm	50-90 watts	8 Ohms	USED	3	$35. ea.	Good Cond.
JBL	JBL 2500, 2600, 2800, 3800 & 4800	JBL 2500 Tweeters Will also fit 2500, 2600, 2800, 3800 & 4800	JBL 70740 - Rev B 412TNV Will also fit 2500, 2600, 2800, 3800 & 4800	Titanium dome on mounting plate. 8 Ohms 3-23kHz	1.25"	8 Ohms	USED	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically. $35. ea.	Perfect working, cosmetic and structural cond. No breaks / cracks / chips to the flange / plate mounting holes. Plastic front trim intact and perfect. No dents to titanium diaphragm.
JBL	JBL 2500	JBL 2500 Cabinet w/  Crossover	Oak Grain  Vinyl	12 3/8" x 8" x 6.25"	2-Way Crossover, 8 Ohms 60-100 watts	8 Ohms	USED	3	$25. ea	Perfect cosmetic and working input / crossover
JBL	JBL 2500	JBL 2500 Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use)	Black Knit	11" x 6.5"	-	-	USED	4	$20. ea.	perfect w/ no tears, snags or frame breaks
JBL 2800 SPEAKER PARTS / SPARES The JBL 2800 speaker was originally marketed in 1989 w/ an MSRP of $169. ea.
BRAND   OF   SPEAKER	MODEL   OF  SPEAKER	ITEM	PART #	SIZE	WATTS	Ohms	USED   /   NEW	QUANTITY ON HAND	PRICE	NOTES
JBL	JBL 2800	JBL 2800 Drivers Woofers / speakers	Model 50BG Part # 70103 Made in USA	8" / 20.3 cm / 230mm	60-125 watts	8 Ω	USED	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	-
JBL	JBL 500, 2600, 2800, 3800 & 4800	JBL 2800 Tweeters Will also fit 2500, 2600, 2800, 3800 & 4800	JBL 70740 - Rev B 412TNV Will also fit 2500, 2600, 2800, 3800 & 4800	Titanium dome on mounting plate. 8 Ohms 3-23kHz	1.25"	8 Ω	USED	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	-.
JBL	JBL 2800	JBL 2800 Cabinet w/  Crossover	Oak Grain  Vinyl	22.5" x 11" x 10"	2-Way Crossover, 8 Ohms 60-125 watts	8 Ω	USED	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	-
JBL	JBL 2800	JBL 2800 Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use)	Black Knit	21.25" x 9.75"	-	-	USED	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	-
JBL CROSSOVER CROSSOVERS XOVER CROSS OVER OVERS
BRAND   OF   SPEAKER	MODEL   OF  SPEAKER	ITEM	PART #	SIZE	WATTS	Ohms	USED   /   NEW	QUANTITY ON HAND	PRICE	NOTES

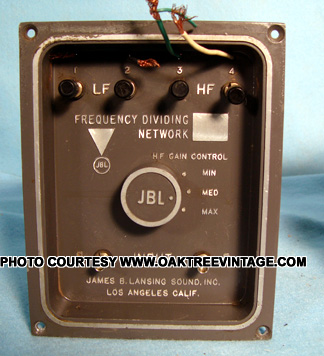

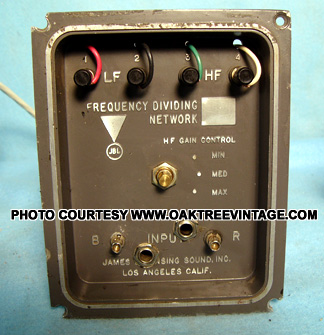

JBL	JBL 3110	Crossover	JBL 3110	2-way, 800 Hz	-	-	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	Perfect working order. All mounting holes perfect with no breaks. Original terminal push caps missing on inputs. Output caps all intact. Comes with about 4' of  original JBL "twisted pair" hook-up wire for drivers.
JBL	JBL 3110	Crossover	JBL 3110	2-way, 800 Hz	-	-	U	1	$129. ea	Perfect working order. 3 of the mounting holes have chips. Original terminal push caps missing on inputs. Unit has been modified with the addition of parallel, 1/4" phono input jacks. Output caps all intact. Attenuator knob missing. Comes with about 4' of  original JBL "twisted pair" hook-up wire for drivers.
-
BRAND   OF   SPEAKER	MODEL   OF  SPEAKER	ITEM	PART #	SIZE	WATTS	Ohms	USED   /   NEW	QUANTITY ON HAND	PRICE	NOTES

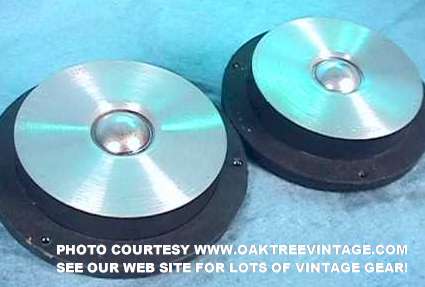

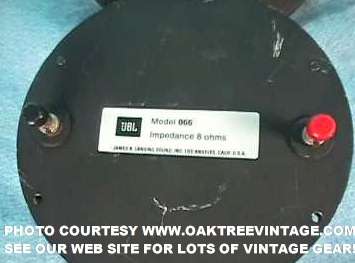

JBL	JBL 4313B (see also JBL L212, L166,  4313, 4313B)	JBL  066 Tweeters	JBL 066	1" Aluminum coated, Phenolic  dome. Aluminum VC. Huge motor structure	-	8 Ω	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	-
JBL 4301B SPEAKER PARTS / SPARES
BRAND   OF   SPEAKER	MODEL   OF  SPEAKER	ITEM	PART #	SIZE	WATTS	Ohms	USED   /   NEW	QUANTITY ON HAND	PRICE	NOTES
JBL	JBL 4301B	JBL 4301B Drivers Woofers / speakers	JBL 4301B 116H Woofer / Driver. Made in USA	8" / 200mm	-	8 Ω	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	Vented, Ceramic Magnet. Cast Frame w/ epoxied magnet. 2" copper VC. Ribbed, pulp cone. Inverted pulp dust cap. Foam Surround.
JBL	JBL 4301B	JBL 4301B Tweeters	JBL LE26 Tweeter / hi-frequency driver	1.25" / 36mm	-	DCR = 4.1Ω	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	5/8" copper VC.
JBL 4311 / 4312 SPEAKER PARTS / SPARES
The only difference between the JBL 4311 and the JBL 4312 models that we can deduce it that one is inverted when compared to a speakers typical orientation. The 4311 has the woofer located nearer the 'top' of the baffle board in the cabinet, with the controls on the lower edge. This was more conducive for some 'studio' situations, in that if they were mounted in a more 'near field' situation, then it located the 'top' end more at 'ear-level'. This design also made it easier to get to the controls when leaning over a mixing console.
BRAND   OF   SPEAKER	MODEL   OF  SPEAKER	ITEM	PART #	SIZE	WATTS	Ohms	USED   /   NEW	QUANTITY ON HAND	PRICE	NOTES
JBL	JBL 4311 / 4312 (see also 4311, 4312)	JBL 4311 / 4312 Drivers Woofers / speakers	JBL 2213 Woofer / Driver. Made in USA AlNiCo Magnet. Cast Frame. Corrugated, coated cloth suspension.	12" / 30cm	-	8 Ω	USED	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	-.
JBL	JBL 4311 / 4312 (see also; L65 Jubals, L100 Century, L166, 4310, 4311, 4312, 4313, L212, L250)	JBL 4311 / 4312 Midranges / Mids	JBL LE5-2 Made in USA  Cast Frame	5" Cast aluminum frame	-	8 Ohms DCR= ~5.4 Ohms	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	-
JBL	JBL 4311 / 4312 (Also fit L26, L28, L36,L88,L100 Century, JBL 4301, 4311, 4312, 4313 Tweeter)	JBL 4311 / 4312 Tweeters	JBL LE25	1.5"	-	8 Ohms	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	-
JBL 4311B SPEAKER PARTS / SPARES
The difference between the JBL 4311 and the JBL 4311B models that we can deduce, is that 'B' series products used 'Ceramic' magnets on their woofers and the 'non-B's' utilized woofers with AlNiCo magnets. The same also applies to the 4312 & 4312B.
BRAND   OF   SPEAKER	MODEL   OF  SPEAKER	ITEM	PART #	SIZE	WATTS	Ohms	USED   /   NEW	QUANTITY ON HAND	PRICE	NOTES
JBL	JBL 4311B	JBL 4311B Drivers Woofers / speakers	JBL 2213H Woofer / Driver. Made in USA Ceramic Magnet. Cast Frame. Corrugated, coated cloth suspension. 3", Edge-wound copper ribbon VC.	12" / 30cm	-	8 Ω DCR=6 Ohms	USED	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	-
JBL	JBL 4311B (see also; L65 Jubals, L100 Century, L166, 4310, 4311, 212, 250)	JBL  mid mids Midranges	JBL LE5-2 / LE5-10 Made in USA Cast Frame	5" Cast aluminum frame	-	8 Ohms DCR= ~5.4 Ohms	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	-
JBL	JBL 4311B (Also fit L26, L28, L36,L88,L100 Century, JBL 4301, 4311, 4312, 4313 Tweeter)	Tweeters	JBL LE25-2	1.5"	-	8 Ohms	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	-
JBL 4313 SPEAKER PARTS / SPARES
BRAND   OF   SPEAKER	MODEL   OF  SPEAKER	ITEM	PART #	SIZE	WATTS	Ohms	USED   /   NEW	QUANTITY ON HAND	PRICE	NOTES
JBL	JBL 4313	JBL 4313 Drivers Woofers / speakers	JBL LE111A Woofer / Driver. Made in USA AlNiCo Magnet. Cast Frame. Corrugated, coated cloth suspension.	10"	-	8 Ω	USED	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	-
JBL	JBL 4313	JBL 4313 Midranges / Mids	JBL LE5-9 Made in USA  Cast Frame	5" Cast aluminum frame	-	8 Ohms DCR= ~5.4 Ohms	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	-
JBL	JBL 4313B (see also JBL L212, L166,  4313, 4313B)	JBL  066 Tweeters	JBL 066	1" Aluminum coated, Phenolic  dome. Aluminum VC. Huge motor structure	-	8 Ω	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	-
JBL	JBL 4313	JBL 4313 Crossover	JBL 3113	3-Way x-over Frequencies @ 1kHz & 4kHz	40 Watts	8 Ohms	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	-
JBL 4313B SPEAKER PARTS / SPARES
BRAND   OF   SPEAKER	MODEL   OF  SPEAKER	ITEM	PART #	SIZE	WATTS	Ohms	USED   /   NEW	QUANTITY ON HAND	PRICE	NOTES
JBL	JBL 4313B	JBL 4313B Drivers Woofers / speakers	JBL LE10H Woofer / Driver. Made in USA Ceramic Magnet. Cast Frame. Corrugated, coated cloth suspension.	10"	-	8 Ω DCR=6 Ohms	USED	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	-
JBL	JBL 4313B	JBL 4313B Midranges / Mids	LE5-9 Made in USA  Cast Frame	5" Cast aluminum frame	-	8 Ohms DCR= ~5.4 Ohms	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	-
JBL	JBL 4313B (see also JBL L212, L166,  4313, 4313B)	JBL  066 Tweeters	JBL 066	1" Aluminum coated, Phenolic  dome. Aluminum VC. Huge motor structure	-	8 Ω	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	-
JBL	JBL 4313	JBL 4313 Crossover	3113B	3-Way x-over Frequencies @ 1kHz & 4kHz	40 Watts	8 Ohms	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	-
JBL 4612 'Cabaret Series' SPEAKER PARTS / SPARES
JBL	JBL 4612 (see also 4612, 4628 and possibly others)	JBL 4612 Drivers Mid-Bass Driver / speakers	JBL 2118J Mid-Bass / Driver. Made in USA	8" 2" Copper VC. 70-7kHz 97dB 1W/1m	200 W 'continuous'	16Ω DCR=~10 Ohms	USED	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	Ceramic Magnet. Cast Frame.
JBL	JBL 4612 (see also 4612, 4628B, 4698B, 4871, 4873 and possibly others)	JBL  2404H 'Baby Butt Cheeks' 'Bi-Radial' Tweeter	JBL  2404H	8" 2" Copper VC. 3k-21.5kHz (-10dB). 'Bi-Radial' Compression Tweeter Huge motor structure	40W 'continuous'	8Ω DCR=6.25 Ohms	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	-
----
JBL	D120F	Woofers	JBL D120F	12"	-	8 Ω	U	/	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	/

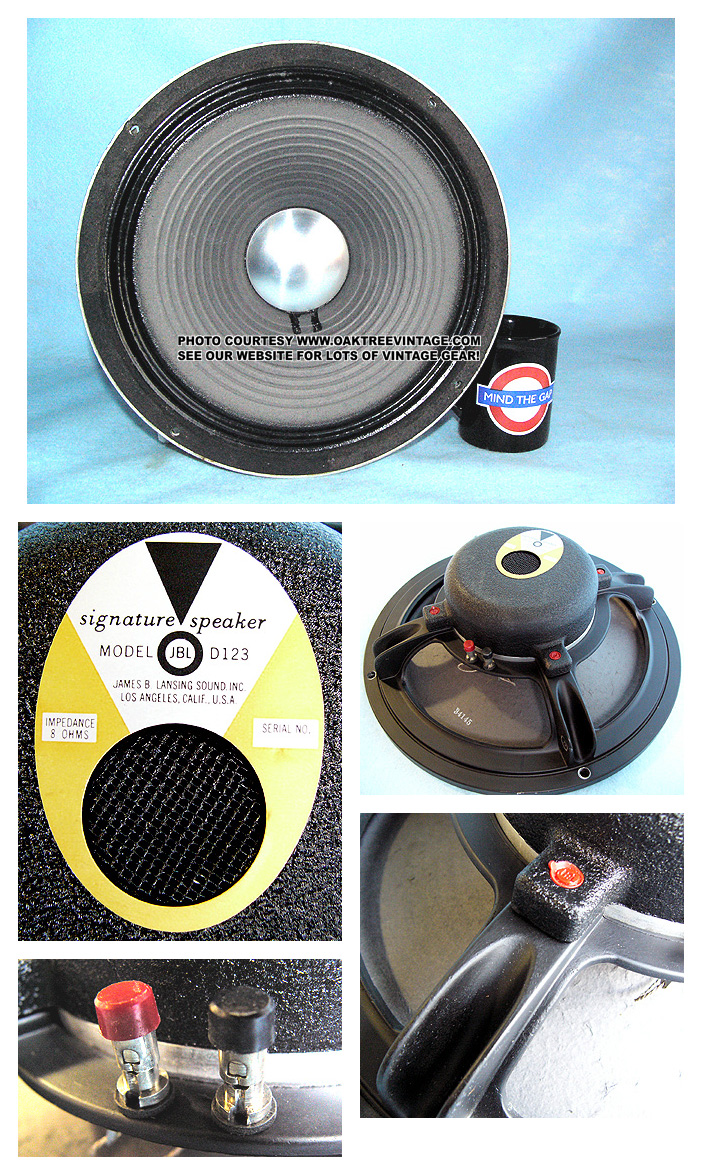

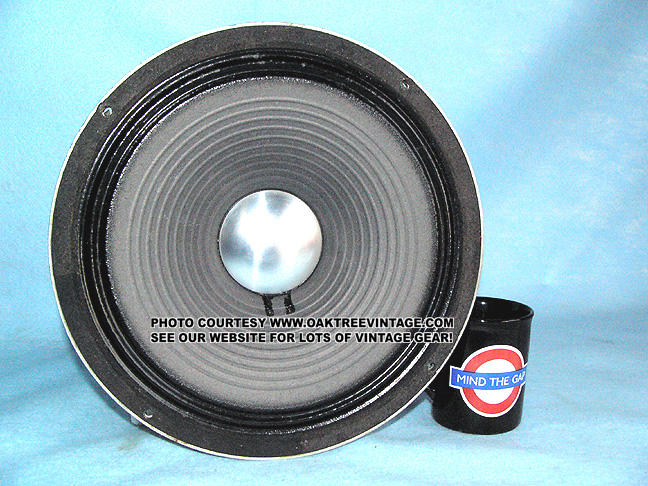

JBL	D123 D-123	Woofers	JBL D123 D-123 Cast aluminum frame. Specs: - Impedance: 8 Ω - AlNiCo V motor - VC diameter: 3" - Recommended Power: 20 watts - Enclosed Freq response: 30-15kHz - 35 cps free-air res	12" with an overall mounting depth of only 3 3/8"	-	8 Ω	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	-
JBL D123 D-123 (Above) Cast aluminum frame. Specs: - Impedance: 8 Ω - AlNiCo V motor - VC diameter: 3" - Recommended Power: 20 watts - Enclosed Freq response: 30-15kHz - Free-air res: 35 cps

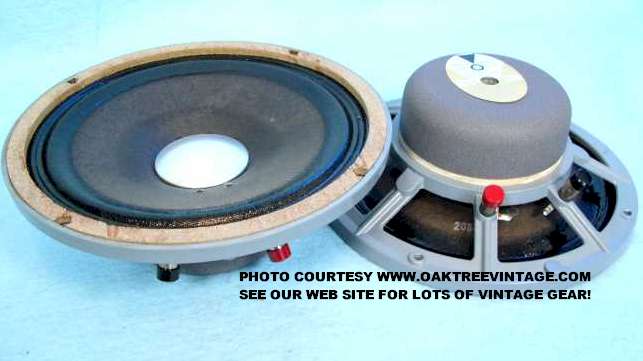

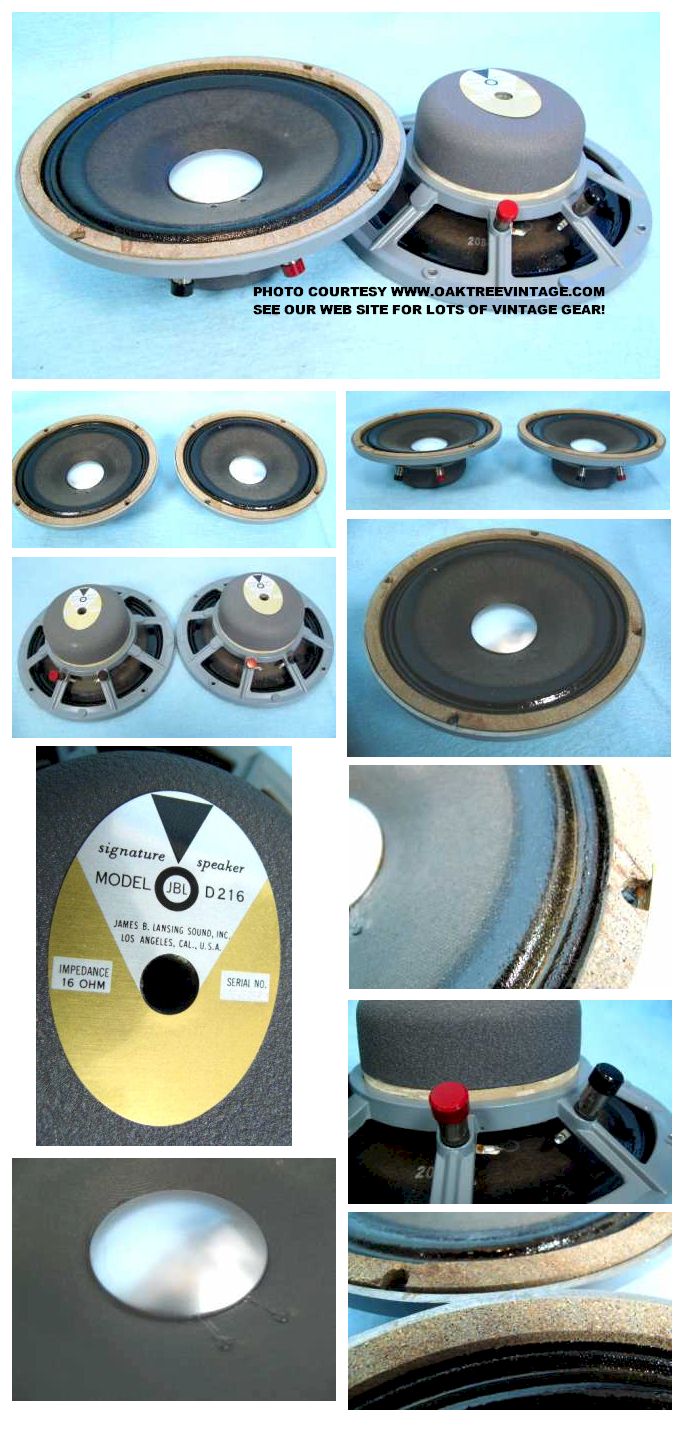

JBL	JBL  D216 D 216	Woofers / Speakers	Gray Cast Aluminum Frames D216 for sale	8"	-	16 Ohms	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	Likely same day serial numbers   #25858 &  25862. Perfect Original & Like NEW!
JBL HLS610 Speaker Parts / spares -
BRAND   OF   SPEAKER	MODEL   OF  SPEAKER	ITEM	PART #	SIZE	WATTS	Ohms	USED   /   NEW	QUANTITY ON HAND	PRICE	NOTES
JBL	JBL HLS610 speaker parts speakers	Woofers	R206GS / 332650-001 / 670-JBAB	~6"	-	8 Ohms DCR = 4.6 Ohms	U	1	$55.	Good Cond. Stamped frame, 'Poly' cone, Butyl Rubber Surround, Magnetically shielded.
JBL	JBL HLS610 speaker parts speakers	Tweeters	101829B	.5" Mylar	-	8 Ohms DCR = 5.7 Ohms	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically. $35.	Works. (tweeter rotates about 1/4 turn to lock / un-lock from CD horn / lens.)
JBL	JBL HLS610 speaker parts speakers	Crossover / Input panel / Jacks	-	-	2-way	-	U	1	$35.	Works.
JBL	JBL HLS610 speaker parts speakers	Cabinets	Black	-	2-way	-	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.    *Here's the issue with 'empty speaker cabinet'  sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, as they essentially require the same amount of packing for safe transit. They are also the same physical size, empty or not, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.	Good Cond. W/ Tweeter CD horn.
JBL	JBL HLS610 speaker parts speakers	Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use)	Black  Cloth	-	-	-	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	Perfect. No holes, tears, discolorations, snags to black, knit cloth. Plastic frame perfect, with ALL locating pins intact.
JBL J216  Speaker Parts / spares The JBL J216 speaker was originally marketed in 1986 w/ an MSRP of $100. ea. -
BRAND   OF   SPEAKER	MODEL   OF  SPEAKER	ITEM	PART #	SIZE	WATTS	Ohms	USED   /   NEW	QUANTITY ON HAND	PRICE	NOTES
JBL	J216 / J216A speaker parts speakers	Woofers	65436	6.5"	-	8 Ohms	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically. $45. ea.	Good Cond.

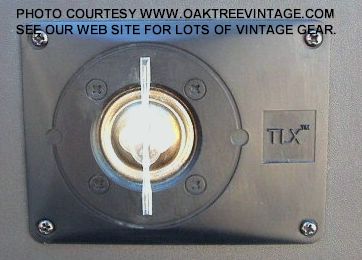

JBL	J216A speaker parts speakers	TLX Tweeters	65408	1.25" dome on a 4 3/8" x 3.25" plate	-	8 Ohms	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	Works, but missing plastic fin and has a minor "chip" missing from the dome. Does not seem to affect performance. & slight stress cracks around screw hole /  mounting ears
JBL	J216A speaker parts speakers	Crossover / Input panel / Jacks	-	-	2-way	-	U	1	$25.	Works.
JBL	J216A speaker parts speakers	Cabinets	Vinyl  wood  grain & Black	-	2-way	-	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.    *Here's the issue with 'empty speaker cabinet'  sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, as they essentially require the same amount of packing for safe transit. They are also the same physical size, empty or not, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.	Good Cond.
JBL	J216A speaker parts speakers	Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use)	Brown  Cloth	-	-	-	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	-
JBL J325 J-325  Speaker Parts / spares The JBL J325 speaker was originally marketed in 1983 w/ an MSRP of $250. ea.
BRAND   OF   SPEAKER	MODEL   OF  SPEAKER	ITEM	PART #	SIZE	WATTS	Ohms	USED   /   NEW	QUANTITY ON HAND	PRICE	NOTES
JBL	JBL J325 speaker parts speakers	Woofers	JBL 310G-2	10" Ribbed Paper Cone.	-	8 Ohms DCR =  5.2Ω	U	1	$25. As-Is W/ magnet, but not attached	Magnet removed due to magnet shift. Frame, Butyl rubber suspension, VC and cone all perfect.
JBL	JBL J325	Midranges / Mids	JBL 305G-2	4"	-	6 Ohms DCR = 4.4	U	1	$25. As-Is W/ magnet, but not attached	Magnet removed due to magnet shift. Frame, Butyl rubber suspension, VC and cone all perfect.
JBL	JBL J325	JBL J325 Tweeters	JBL J33TND	1.25" coated cloth dome	-	4 Ohms DCR = 3.2	U	1	$45. As-Is	Plastic mounting plate has 'chipped' screw ears. Tweeter works fine. Use 'as-is' or since tweeter does 'remove' from mounting plate, swap with your mounting plate.
JBL	JBL J325	Cabinets 26"H x 15.75"W x 8.5"D	Vinyl  wood  grain & Black	-	3-way	-	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.    *Here's the issue with 'empty speaker cabinet'  sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, as they essentially require the same amount of packing for safe transit. They are also the same physical size, empty or not, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.	Clean. Missing lower grill pins. Includes JBL crossover and input terminals.
JBL	JBL J325	Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use)	Black Cloth	-	-	-	U	0	Reference info ONLY.  None currently for sale,  but more MAY occasionally show up. Check back periodically.	Only a couple very tiny holes in cloth. Outside frame solid. W/ JBL logo.
JBL J350A J-350A  Speaker Parts / spares The JBL J350A speaker was originally marketed in 1986 w/ an MSRP of $350. ea.
BRAND   OF   SPEAKER	MODEL   OF  SPEAKER	ITEM	PART #	SIZE	WATTS	Ohms	USED   /   NEW	QUANTITY ON HAND	PRICE	NOTES
JBL	J350A speaker parts speakers	Woofers	65434 (some examples also show 310-G)	10"	-	8 Ohms DCR = 5.5 Ohms	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically. $65. ea.	Good cond. Ribbed, coated pulp cone. Coated, cloth surround. Woven dust cap. Stamped steel frame. Ceramic magnet.
JBL	J350A speaker parts speakers	PASSIVE RADIATOR	65433	10"	-	N/A	U	0	Reference info ONLY. None currently for sale, but more MAY occasionally show up. Check back periodically.	Good cond. Ribbed, coated pulp cone. Coated, cloth surround. Woven dust cap. Stamped steel frame.
JBL	J350A speaker parts speakers	Midranges / Mids	65437	5"	-	8 Ohms DCR = 5.8 Ohms	U	2	$45. ea.	Good cond. Ribbed, coated pulp cone. Coated, cloth surround. Woven dust cap. Stamped steel frame. Ceramic magnet.

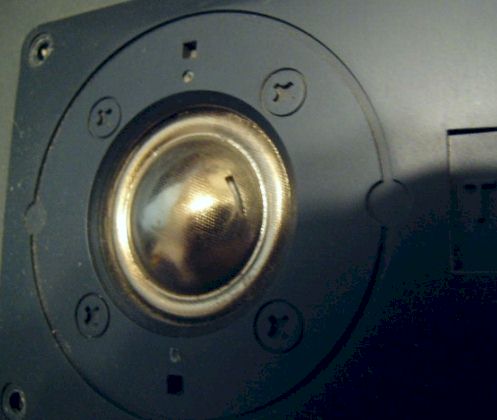

JBL	J350A speaker parts speakers	TLX Tweeters	65908	1.25" dome 10oz	-	8 Ohms DCR = 6.3 Ohms	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically. $55. ea.	Good cond. Titanium-finish, Silk soft dome w/ clear plastic lens intact. Ceramic magnet. Plastic mounting plate screw ears may be compromised due to age.
JBL	J350A speaker parts speakers	TLX Tweeters	65908	1.25" dome 10oz	-	8 Ohms DCR = 6.3 Ohms	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically. $35. ea.	Working, but half of clear plastic lens / guard missing / broken off. Mostly 'cosmetics'. Titanium-finish, Silk soft dome w/ diffusion lens. Ceramic magnet. Plastic mounting plate screw ears may be compromised due to age.
JBL	J350A speaker parts speakers	Cabinets	Vinyl  wood  grain & Black	-	3/4-way	-	U	0	Reference info ONLY. None currently for sale, but more MAY occasionally show up. Check back periodically.	Decent, w/ normal 'battle scars'.
JBL	J350A speaker parts speakers	Crossover / Dividing Network		-	3-Way	-	U	0	Reference info ONLY. None currently for sale, but more MAY occasionally show up. Check back periodically.	Working w/ input panel.
JBL	J350A speaker parts speakers	Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use)	Black Cloth	-	-	-	U	0	Reference info ONLY.  None currently for sale,  but more MAY occasionally show up. Check back periodically.	Frames solid. Cloth intact, but typical wear. (Pins sold separately)
JBL	J350A speaker parts speakers	Grill locating / attachment pins	-	-	-	-	U	VERY limited quantity left	$18. ea.	Grill locating / attachment pins
JBL L3 SPEAKER PARTS / SPARES The JBL L3 / 'L series' speaker was originally marketed in 1992 w/ an MSRP of $425. ea.
BRAND   OF   SPEAKER	MODEL   OF  SPEAKER	ITEM	PART #	SIZE	WATTS	Ohms	USED   /   NEW	QUANTITY ON HAND	PRICE	NOTES
JBL	JBL L3	Woofers	708G-1 / 25J-HSA	8"	-	8 Ohms	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	-
JBL	JBL L3 (see also JBL L3, L60T, L80T & L100T)	Tweeters	JBL 035TIA / 25F JBH	1" Titanium Dome	-	8 Ohms	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	-
JBL	JBL L3	Crossovers	-	2-way	-		U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	-
JBL	JBL L3	Grills / Front Screens / Covers	-	-	-		U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.*    *Here's the issue with speaker grill sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, due to their large size, the 'custom' box and amount of foam board required for safe transit, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.	-
JBL	JBL L3	Cabinets	Black Satin	2-way	-	-	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically. *    *Here's the issue with 'empty speaker cabinet'  sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, as they essentially require the same amount of packing for safe transit. They are also the same physical size, empty or not, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.	-
JBL L26 DECADE SPEAKER PARTS / SPARES The JBL L26A / L26 'Decade' speaker was originally marketed in 1973 w/ an MSRP of $129. ea., but went thru the early 80's at least with appropriate price increases thru the period.
BRAND   OF   SPEAKER	MODEL   OF  SPEAKER	ITEM	PART #	SIZE	WATTS	Ohms	USED   /   NEW	QUANTITY ON HAND	PRICE	NOTES
JBL	L26	Woofers	JBL 125A	10"	-	8 Ohms	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	Perfect with fresh new foam surround
JBL	L26 Decade Also fit L26, L28, L36,L88,L100 Century, JBL 4301, 4311 & 4312 Tweeter	Tweeters	JBL LE25-4	1.5"	-	8 Ohms	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	-
JBL	L26 Decade Also fit L26, L28, L36,L88,L100 Century, JBL 4301, 4311 & 4312 Tweeter	Tweeters	JBL LE25-4	1.5"	-	8 Ohms	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	Small creases in dust cap and cone, but works fine
JBL	L26 DECADE	Crossovers	-	2-way	-		U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	-
JBL	L26 DECADE	Cabinets	Medium  Oak  veneer	2-way	-	-	U	1	$75. *    *Here's the issue with 'empty speaker cabinet'  sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, as they essentially require the same amount of packing for safe transit. They are also the same physical size, empty or not, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.	Nice with only minor wear. No grills or pegs
JBL L40 SPEAKER PARTS / SPARES
BRAND   OF   SPEAKER	MODEL   OF  SPEAKER	ITEM	PART #	SIZE	WATTS	Ohms	USED   /   NEW	QUANTITY ON HAND	PRICE	NOTES
JBL	JBL L40 (See also JBL L36, L40, L50, and likely others)	Woofers	127A	10"	-	8 Ohms DCR 6.5 Ohms	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	Ribbed, Pulp cone and dust cap. Cast frame. Ceramic magnet.
JBL	JBL L40 (See also JBL L40, L110, L150, and likely others)	Tweeters	JBL 033	1"	-	8 Ohms? DCR ~4.4 - 4.5 Ohms	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	Silk, 'semi-hard' dome. Ceramic magnet
JBL L60T SPEAKER PARTS / SPARES The JBL L60T speaker was originally marketed in 1985 w/ an MSRP of $265. ea.
BRAND   OF   SPEAKER	MODEL   OF  SPEAKER	ITEM	PART #	SIZE	WATTS	Ohms	USED   /   NEW	QUANTITY ON HAND	PRICE	NOTES

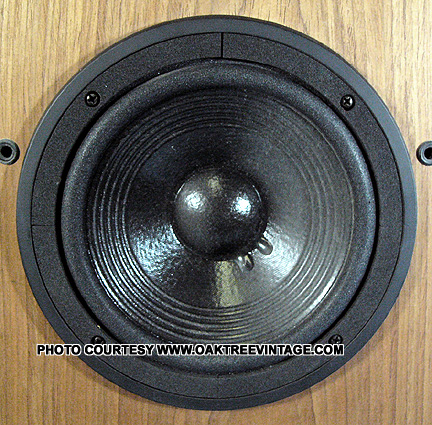

JBL	L60T	Woofers	116H-2	8"	-	8 Ohms	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	-

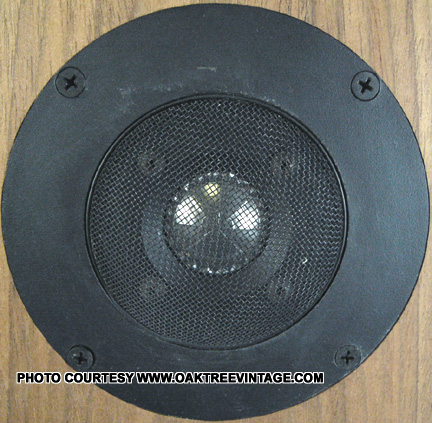

JBL	L60T (see also JBL L3, L60T, L80T & L100T)	Titanium Tweeters	JBL 035TI 035T1 035TIA	1"	-	8 Ohms	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	-
JBL	L60T	Crossovers	66415	2-way	-		U	1	$45.	Good Cond.  Comes with all leads attached.
JBL	L60T	Crossovers	66415	2-way	-		U	1	$20.	Works but split in two. Will need jumpers soldered to traces.
JBL	L60T	Cabinets	Light  Oak  veneer	2-way	-	-	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.    *Here's the issue with 'empty speaker cabinet'  sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, as they essentially require the same amount of packing for safe transit. They are also the same physical size, empty or not, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.	Nice with only minor finish flakes. No grills or pegs

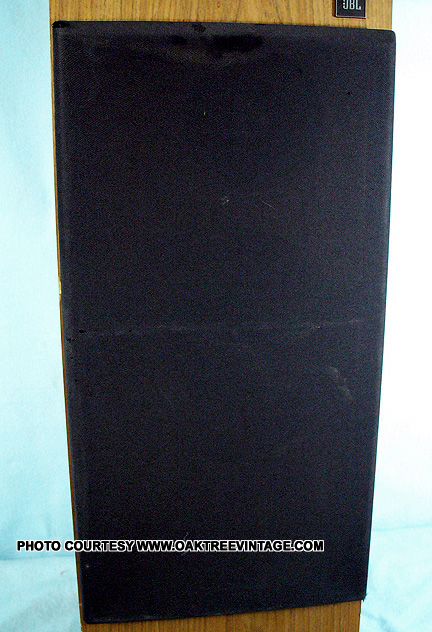

JBL	L60T	Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use)	Brown knit cloth	-	-	-	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.    *Here's the issue with speaker grill sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, due to their large size, the 'custom' box and amount of foam board required for safe transit, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.	Great
JBL L80T SPEAKER PARTS / SPARES
BRAND   OF   SPEAKER	MODEL   OF  SPEAKER	ITEM	PART #	SIZE	WATTS	Ohms	USED   /   NEW	QUANTITY ON HAND	PRICE	NOTES
JBL	JBL L80T	Woofers	71743 'Aquaplas' laminate	10"	-	8 Ohms DCR = 6.1	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	-
JBL	L80T (see also JBL L80T, L100T, & L120Ti, )	Midranges	104H-2 High Polymer Laminate	5"	-	8 Ohms DCR = 4.1	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	-
JBL	L80T (see also JBL 4406, 4408, 4312, L3, L20t, L40t, L40T3, L60t, L80t, L100t, 4411, 035Tia)	Titanium Tweeters	JBL 035TI 035T1 035TIA	1"	-	DCR = 3.5	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	-
JBL L100 / L88 4310 Control Monitors / Speaker Parts / spares
BRAND   OF   SPEAKER	MODEL   OF  SPEAKER	ITEM	PART #	SIZE	WATTS	Ohms	USED   /   NEW	QUANTITY ON HAND	PRICE	NOTES
JBL	L100 Century / L88 / 4310 Control Monitors	Woofers Cast aluminum frame. AlNiCo V magnets	JBL 123A-1 Cone damped with JBL's exclusive formulation, Lansaplas coating.	12" 3" edge wound copper ribbon voice coil.  6lb magnet assembly. Sensitivity; 91dB @ 1W / 1m. Overall weight 9.5lbs ea. & 12.25" overall dia. x 4" deep.	-	8 Ohms	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically. SOLD  (Cons.) M.R.	Good. Fully tested and work fine.
JBL	JBL L100 Century (see also; L65 Jubals, L100, L166, 4310, 4311, 212, 250)	JBL  mid mids Midranges	JBL LE-5-5	5" Cast aluminum frame	-	8 Ohms	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	-
JBL	JBL L100 Century (Also fit L26, L28, L36,L88,L100 Century, JBL 4301, 4311 & 4312 Tweeter)	Tweeters	JBL LE25-4	1.5"	-	8 Ohms	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	-
JBL	JBL L100 Century	Crossovers	-	3-way	-		U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	-
JBL	JBL L100 Century	Cabinets	Walnut	3-way	-	-	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically. *    *Here's the issue with 'empty speaker cabinet'  sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, as they essentially require the same amount of packing for safe transit. They are also the same physical size, empty or not, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.	Decent
JBL	JBL L100 Century	Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use)	Brown knit / Wood frame	-	-	-	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.*    *Here's the issue with speaker grill sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, due to their large size, the 'custom' box and amount of foam board required for safe transit, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.	-
JBL LANCER 66  Speaker Parts / spares
BRAND   OF   SPEAKER	MODEL   OF  SPEAKER	ITEM	PART #	SIZE	WATTS	Ohms	USED   /   NEW	QUANTITY ON HAND	PRICE	NOTES

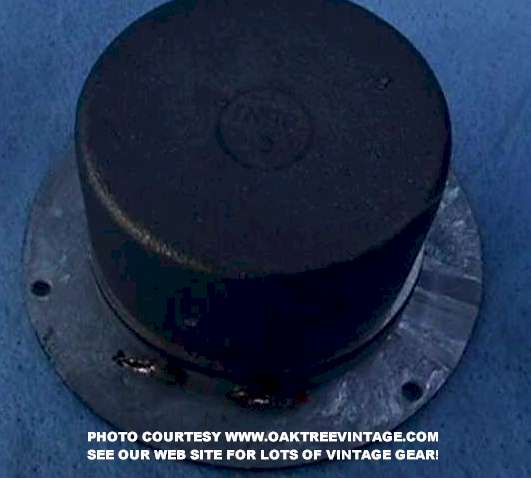

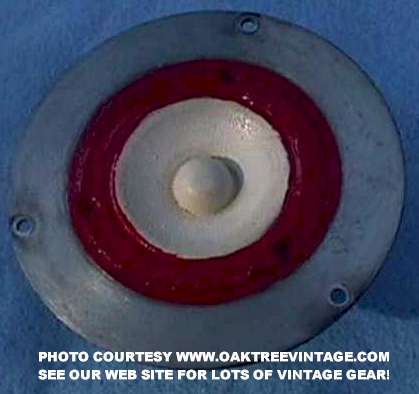

speaker parts   JBL	JBL  LANCER 66	JBL  Tweeters	JBL LE20A / LE20-1 (Also used in JBL Lancer 66, Lancer 77, Lancer 88, Lancer 99 and 4310 Studio Monitor and likely others)	2" cone tweeter.  AlNiCo V magnet	-	4 Ohms	U	1	$85. ea	Perfect
JBL	JBL  LANCER 66	JBL  Tweeters	JBL LE20A / LE20-1 (Also used in JBL Lancer 66, Lancer 77, Lancer 88, Lancer 99 and 4310 Studio Monitor and likely others)	2" cone tweeter.  AlNiCo V magnet	-	4 Ohms	U	1	$45. ea	Repaired 1/2" tear in cone

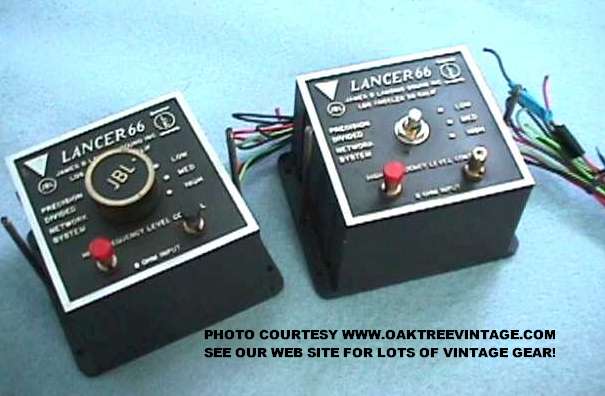

JBL	LANCER 66	Crossover	JBL Lancer 66	2-way	-		U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	Comes with all leads attached.  1 missing knob.  1 missing plastic button on speaker clip
JBL LANCER 77  Speaker Parts / spares
BRAND   OF   SPEAKER	MODEL   OF  SPEAKER	ITEM	PART #	SIZE	WATTS	Ohms	USED   /   NEW	QUANTITY ON HAND	PRICE	NOTES
JBL	JBL  LANCER 77	JBL  WOOFERS Cast Aluminum Frame.	JBL LE10A	10"  AlNiCo V magnet	-	8 Ohms DCR = 4.8 Ohms	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	Cast Frame. Lansaplas coated Pulp Cone w/ 3”, ‘Edge-wound’ copper ribbon Voice Coil, surrounded by a powerful 6.75 lb ‘AlNiCo V’ magnet. Vented VC. Typically, Inverted Dust Cap. Additional (and important) notes: JBL LANCER 77 (and others) LE10A woofers; While these had 'foam' surrounds, instead of deteriorating and 'falling apart' (like most foam surrounds), they typically 'hardened' to the point that they have no compliance (at least none that is practical). If you see a pair that still has their 'yellowed' color surrounds and someone is stating, "still have their original surrounds in fine shape", WRONG.  They will be hardened and won't let the woofer move through it's excursion. You aren't hearing the original woofers intended sound (not even remotely close) if the surround has not been replaced with compliant foam. PERIOD.
JBL	JBL  LANCER 77	JBL  PASSIVE RADIATORS	JBL PR10	10"	-	N/A	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	-
JBL	JBL  LANCER 77	JBL  Tweeters AlNiCo Magnet	JBL LE20A / LE20-1 (Also used in JBL Lancer 66, Lancer 77, Lancer 88, Lancer 99 and 4310 Studio Monitor and likely others)	2" AlNiCo V magnet	-	DCR = 4.8 Ohms	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	Pulp Cone. AlNiCo magnet.
JBL	LANCER 77	Crossover	JBL Lancer LX4-1 or LX4-2 (Also used in JBL Lancer 77, Lancer 99 and likely others)	2-way	-		U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	Comes with all leads attached.  1 missing knob.  1 missing plastic button on speaker clip
JBL LX44 Speaker Parts / spares
BRAND   OF   SPEAKER	MODEL   OF  SPEAKER	ITEM	PART #	SIZE	WATTS	Ohms	USED   /   NEW	QUANTITY ON HAND	PRICE	NOTES
JBL	JBL LX44 (SEE ALSO LX22, LX44, LX55, LX66)	JBL  WOOFER	JBL 40BG / 70460	8"  Ceramic magnet	-	8 Ohms DCR = 5.8 Ohms	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	Ribbed, Coated pulp cone. Rolled, Foam surround. Steel frame. Ceramic Magnet.
JBL	JBL LX44 (SEE ALSO LX44, LX55, LX66, LX500, LX600)	JBL  Midrange	JBL 405GN / 70575	5"	-	8 Ohms DCR = 4.4 Ohms	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	Coated pulp cone. accordion, cloth surround. Steel frame. Ceramic Magnet.
JBL	JBL LX44 (SEE ALSO LX22, LX44, LX55, LX66)	JBL  Titanium Tweeters	JBL 026TI	1"	-	DCR = 3.9 Ohms	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	Pure titanium dome tweeter. Ceramic magnet. Cast plastic frame / mounting plate.
JBL	JBL LX44	Crossover	JBL 70671	3-way	140	8 Ohms	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.
JBL P20 'Prose Series' Speaker Parts / spares The JBL P20 'Prose Series' speaker was originally marketed in 1992 w/ an MSRP of $135. ea.
BRAND   OF   SPEAKER	MODEL   OF  SPEAKER	ITEM	PART #	SIZE	WATTS	Ohms	USED   /   NEW	QUANTITY ON HAND	PRICE	NOTES
JBL	JBL  P20	JBL P20 Prose WOOFERS. Ribbed cone	JBL 206H; PN 72573	6.5"	-	6 Ohms DCR= 5.1 Ohms	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	-
JBL	JBL  P20	JBL P20 Prose Tweeters Titanium	TW025XE	~1" Titanium Dome. Outer diameter 3.75"	-	8 Ohms DCR= 7.7 Ohms	U	0	Reference information only. None currently for sale, but more MAY occasionally show up. Check back periodically.	-
-
BRAND   OF   SPEAKER	MODEL   OF  SPEAKER	ITEM	PART #	SIZE	WATTS	Ohms	USED   /   NEW	QUANTITY ON HAND	PRICE	NOTES
-	-	-	-	-	-	-	-	-	-	-
If you're looking for a great place for great place to purchase new foam surround kits, replacement surrounds, or to have your woofers, sub woofers / subs, re-foamed or re-coned, we recommend either 'Orange County Speakers' or 'Parts Express'. They have QUALITY parts and do QUALITY work.

CONTACT INFO BELOW

$20. MINIMUM ORDER





>>>(for 'PARTS'; <<<
as of NOW and for the foreseeable future,
due to staffing / time / resource limitations, we are shifting focus AWAY from MOST 'SALVAGE / USED / DONOR' parts requests at this time with *only a few exceptions, and will not likely be responding to calls or emails for those type of parts.  We will still process orders for '**non-unique / SKU' parts / accessories that offer an 'on-line payment' option.)
*at our discretion, some requests may still get a response if time allows.
*"unique" would apply to most 'salvage' Hi-Fi / Stereo / Speaker, scooter, MI, Pro-audio parts.
Parts that we normally stock and have a "Buy It" option are not included in the above notice.

    Before calling, PLEASE read the text in below.
 BEFORE CALLING
(800) 806-4231 EXT #1
~10:00 AM- ~5:30 PM most days COLORADO / ROCKY MOUNTAIN TIME ZONE

OR

BEFORE EMAILING
 parts@oaktreevintage.com
>>>(for 'PARTS'; <<<
as of NOW and for the foreseeable future,
due to staffing / time / resource limitations, we are shifting focus AWAY from MOST 'SALVAGE / USED / DONOR' parts requests at this time with *only a few exceptions, and will not likely be responding to calls or emails for those type of parts.  We will still process orders for '**non-unique / SKU' parts / accessories that offer an 'on-line payment' option.)
*at our discretion, some requests may still get a response if time allows.
*"unique" would apply to most 'salvage' Hi-Fi / Stereo / Speaker, scooter, MI, Pro-audio parts.
Parts that we normally stock and have a "Buy It" option are not included in the above notice.

We DO NOT have your part unless the following conditions are met:

A) You HAVE SEARCHED our page(s) and HAVE FOUND the part you are looking for SPECIFICALLY listed on one of our pages or you have solid information that it's a 'bona fide' substitution for your part (unless noted already, we won't have any further info along those lines)
AND
B) The part that you have found is NOT marked as SOLD or SOLD OUT.

If you do NOT see it listed after thoroughly searching the pertinent page (likely the page you landed on originally),
we do not have it,
nor do we know when it might come in,
nor do we maintain "waiting lists" for parts,
nor do we know who might have it.

Sorry, but phone and email traffic for parts we don't have listed or for parts that are already marked "SOLD" has become too consuming of time resources.

 We try to keep these pages 99+% updated.
If you don't see the part you are looking for, simply check the web page periodically as we never know what will show up each day. Thanks!!!!!

ALSO: When e-mailing be sure to include a relevant subject, ie: Brand / Model number / reason for inquiry in the 'SUBJECT LINE'.
SUBJECT lines left empty, or with 'single word' text like;
"Hello", "Hi", "parts", "stereo", "inquiry", "question", "selling" or similar or similar 'un-qualified' terms may automatically be deleted by Anti-Virus / Spam settings or receive 'Low Priority'.
(Subject lines left empty show up as "No Subject" and are deleted automatically by our anti-spam settings".
We do not return calls / emails for requests for parts we don't show / or have available (we may choose contact with further, useful information).

 SPEAKER PARTS   |   STEREO / HI-FI ELECTRONIC PARTS   |  KEYBOARD PARTS
___________________________________________

Haven't received a response to your email? See FAQ'S

MAILING:
OAK TREE ENTERPRISES
PO. BOX 6182
COLORADO SPRINGS, CO 80934
U.S.A.

Before ordering by postal mail, please phone or email us about the item and the details of sending your funds. Thank-you.

 SPEAKER PARTS   |   STEREO / HI-FI ELECTRONIC PARTS   |   SELLING-TRADING-CONSIGNING   |  KEYBOARD PARTS   I   FAQ'S
  CONDITION RATINGS   |   ORDERING / POLICIES    |    WARRANTIES / RETURNS   |   SHIPPING
 RESTORATION PROCEDURES   |   REPAIRS  | CONTACT PARTS


As much of the price charged for parts is for the 'time to extract' from it's donor unit, unless we send the 'wrong part', parts are NOT returnable.
See our "Warranties / Returns" page via the link below for more details.

POLICIES, SPECIFICATIONS, AVAILABILITY, INFORMATION AND PRICING SUBJECT TO CHANGE  AT ANYTIME  AND WITHOUT PRIOR NOTICE
and changes may not be posted to web immediately. Information such as Parts Substitution possibilities, "Circa" dates, original values, etc. are to the best of our knowledge. If you are critically concerned, you should do independent research on your own prior to ordering or utilizing this information in any way. Manufacturers also are known to change part numbers, specs, circuit designs, specs etc within the same model.


Copyright © 1997-2023 Oak Tree Enterprises, LLC

COPYRIGHT INFORMATION
