INFINITY SPEAKER PARTS / SPARES
- USED / VINTAGE.

REFERENCE / DATA BASE



Infinity Replacement Speakers drivers & Parts / Spares. Infinity 1500 / 2500, ES-83, KAPPA 6.1-II, 7.1-II, Infinity Qa, Quantum Jr., Infinity 'Reference Standard' RS1, RS1A, RS-1B, RS 2a, RS-IIB, RS-2.5, RS 4.5, RS-2000, RSb, IRS Beta, IRS Gamma & Delta, Reference Standard 1, SL-30, SL-40, SL-50, SM-82, SM-100, SM-102, SM-112, SM-120, SM-122, SM-152, Video-1 / Video One Center Channel woofers Polycell Tweeters, Infinity EMIM Ribbon midranges, crossover, cabinets, Grills / Front Screen / Cover. Infinity speakers / parts for Data Base info, specifications / specs, reference and occasional sale.
















































*Note about parts / spares sales

* Our "parts units", parts / spares and related reference information are primarily archived for the purpose of restoration / repair of "Oak Tree Vintage" units first. Only if we do not have a "viable" unit in yet, either already in process or in line to be processed, that may potentially need parts from a "parts unit", will we release available parts for sale (even though they may appear as available for sale to the public). As many of you know, the restoration of a unit can be a long, time consuming process. We may "lock up" parts that we may potentially need in the restoration of a unit (and not necessarily get it marked 'Hold' or 'Sold' on the site right away). Parts are priced according to the "potential value" of the unit they can be applicable to (meaning the amount WE would be willing to pay for the part if that was all that was standing between us having a "shelved unit" or a valuable / sellable unit), time to extract, their rarity & their condition to name a few criteria and likely will be completely unrelated to the original cost / price of a part when it was currently available from the manufacturer.

Parts Photos; We get a number of requests for 'photos' of a specific part. Unfortunately, in most cases that is not practical as the amount of time involved in posting that exceeds the value of the 'unique' part. We will sometimes post photos of less 'unique' parts, if there is a greater chance of them being available in multiple quantities, or on a more 'repeat' basis.

Parts, general condition / circuit board condition; Most of our parts are from 'salvage / donor' units. While we don't sell parts that are 'known' to be bad, occasionally parts will need further adjustment, cleaning, 'tweaking', or in the case of circuit boards, may need old, conductive glue / epoxy further cleaned, and some 'common' parts / components such as, aging / leaky capacitors, parts whose values have drifted, and some epoxy transistors may need to be replaced due to 'green / black / furry' legs, or because those parts were marked as 'sold separately'. Some circuit boards may have 'tired' "landing / solder pads", or severed traces, or cold / bad solder joints which can require solder re-flow or 'jumpers'. Unless noted, circuit boards will be 'crack / split / break' free.

Parts pricing; Most of our parts price / value will be based on a few things. Firstly, we are in the restoration / refurb business, so we consider what we would be willing to pay for the part if we needed it (which again, is what the parts are listed for in the first place, "our units"). Secondly, the rarity / value of the unit the part(s) fit. The 'Tuning Knob' for a receiver that has a final value of $350 will likely be much less than the "Tuning Knob" for a unit with a final value of $1500 or more (a set of tires for a typical sedan will be $400 to $600. A set for a Lamborghini can be $16,000). Thirdly, the 'rarity' of the part. Forth, the 'condition' of the part. Fifth, the difficulty to extract the part, or success rate for extracting certain parts. Sixth; frankly it's a LOT of work and time to part out a unit. Most take 1 to 3 days of shop time to process. Not only the disassembly, but the 4-15 hours of pre-testing / servicing and just as time consuming can be the amount of time it takes to do all of the research we do and the info we list on many parts for cross-referrencing to other units that my use the same parts by scouring service manuals. On many circuit boards we will list every 'semi-conductor' which is also very time consuming. Lastly, every call or email for a part can require 20 minutes to sometimes over an hour of 'phone support', often (about 70% of the time) with me convincing the potential purchaser that they don't need the part I have to solve their problem.
Sorry to sound like a "whiner" about selling parts, but "time is money".

Shipping: Shipping on most 'small' parts if typically via Postal first class or Postal Priority for both domestic (USA) and international orders. Larger parts such as transformers and drivers (speakers) are typically via FedEx gnd.
Some parts sales such as those for empty 'speaker cabinets', empty 'component cabinets / covers / bonnets' and 'speaker grills' and most are 'doomed' from the start. Due to their size and required packing supplies, the cost of 'packing for safe transit' and shipping are commonly 'disproportionate' to their cost, typically nearly equal to and sometimes greater than the cost of the part.  Think about it. An empty speaker cabinet or stereo receiver case is essentially the same size as a complete one. Yes the weight will be less, but most of items that size are calculated on 'dimensional weight', not actual weight so are commonly just as expensive as shipping a 'complete unit'. Secondly empty component cabinets have to be packed to disallow breakage, typically requiring nearly as much packing materials as an entire unit. Speaker grills have to be 'sandwiched' between foam sheets in large, custom ordered boxes (all relatively expensive).  It is what it is....

A non-response to an email of phone call / voice message request for a part that we don't show on one or our pages, or is already marked "SOLD" will be typical. We simply don't have the time / man-power resources to respond to every query we get for items we don't show as avail. Most folks get that. Having said that, I / we may respond if we have information on a substitution or other useful information relating to it.

A non-response to an email of phone call / voice message request for a part (we may appear to have, but typically 'highlighted in Orange or Yellow'), likely means that we are still determining which parts we are going to need for the restoration or repair of one of our units. Again, the parts are first for the restoration of our units and secondarily for the public market. Since we list the parts available for ourselves, it is not much effort to modify the menu's for web publication, which in turn makes the reference information and occasionally the part available to the public. Frankly, publishing them to the web, in many instances, makes it easier for us to determine if we have the part for our needs as well. The alternative to all of the above would be to not offer them at all to the public, however most parts are available to the public for sale.  Also, parts requests can occasionally take time for us to respond to. While we may have a part listed, and we like to keep the website 100% accurate, occasionally a part will be 'used by us' or 'previously sold' and we by oversight, and we did not get the web listing marked "SOLD", or the part gets  'mis-placed' or 'lost' (laid down somewhere in the warehouse(s) and then it get's lost track of (that happens to our coffee cups all the time, then we find it months later with 'a good batch of 'penicillin' growing in it), so we like to 'lay eyes on it' prior to responding. Sometimes we just can't figure out which cabinet or drawer parts were assigned to (and we're working on a system for that one).

Some folks email / call and want us to respond either way / whether we have the part or not. Again, we simply do not have the time resources to do that. Our time must be utilized on the requests we can fulfill.
Sorry for all the excuses, but that's how the 'system' (or lack thereof) works.
And, if you don't see it, we likely don't have it.
 Thank you for your understanding.

$20. MINIMUM ORDER



20% off sale on salvage speaker parts.


See sales banners on parts pages for details


Most of these components are "take-outs" from working speaker cabinets and unless otherwise noted are in perfect shape!
   Where necessary foam surrounds have been replaced and / or speaker has been professionally and correctly re-coned!












INFINITY 1500 / 2500 SPEAKER PARTS
/ SPARES

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES
- - - - - - - - - - -
   Infinity  1500 / 2500 Woofer /
  Woofers
490809 ?
511TNG / 711TNG  902-2666
8" 35 4 Ohms U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

Stamped steel frame, ceramic magnet, pulp cone, Butyl Rubber surround.
   Infinity  1500 / 2500 Tweeter /
  Tweeters
HR / 2018 / 902-0136 1"
soft dome
- 8-9 Ohms U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

-


INFINITY ES-83 SPEAKER PARTS
/ SPARES

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES
   Infinity  ES-83
ES83
Woofer
  Woofers
- 8" - - U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

-
   Infinity






ES-83
ES83
Midrange

mid-range

midranges

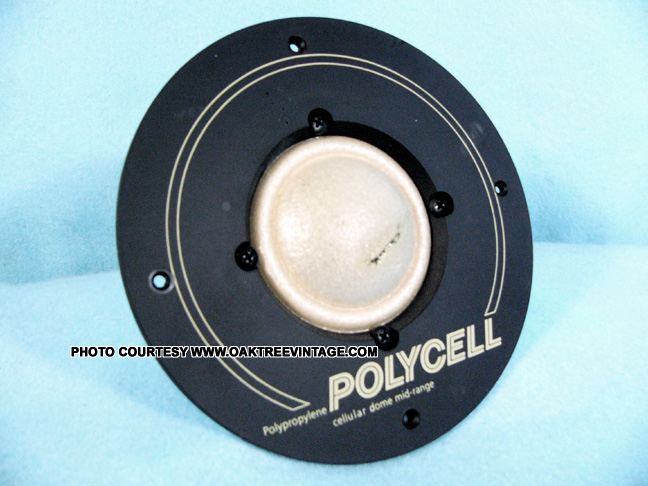

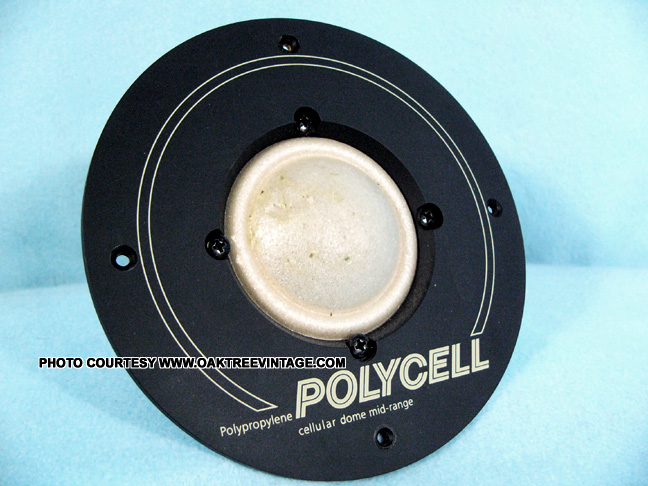

Polycell mid-range
902-2114 / 64979 / 751TND
2.5" - 4 Ohms U 2 $45. ea. Work, but torn poly dome. Repaired and will work and sound fine.
   Infinity



ES-83
ES83
Round
EMIT

Tweeter
  Tweeters
Polycell tweeter
902-5072 / 65715 / 152TND
1" on a 4.5" diameter Plate - 4 Ohms U 0

Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

$55. ea

Perfect
   Infinity  ES-83
ES83
Speaker
Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use)
BROWN W/
 GOLD
 INFINITY
 SYMBOL
32" X 18" - - U 0 Reference info ONLY.
 None currently for sale,
 but more MAY occasionally show up. Check back periodically.


Good with light normal wear. Gold Infinity logo intact.
 Infinity  ES-83
ES83
Crossover
  cross-over

crossovers
-  3-way - - U 2 $55. ea. Perfect
 Infinity  ES-83
ES83
Grill Clips - -  - - U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

-


INFINITY KAPPA 6.1 II SPEAKER PARTS / SPARES


  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES
   Infinity


KAPPA 6.1 II Midrange

mid-range

midranges
902-5793 / 442-TNH

(See also Infinity Kappa 6.1-II and Kappa 7.1-II)
4" - 4  Ohms
DCR = 3.5 Ohms
U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

Infinity Kappa 'PolyDome' midrange.
   Infinity

KAPPA 6.1 II Round
EMIT 'R-Foil'
Tweeter / Tweeters
Polycell tweeter
902-7206 / 311614 / K43TNM

(See also Infinity Kappa 6.1-II and Kappa 7.1-II)
1" - 4 Ohms
DCR = 3.4 Ohms
U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

Infinity 'Emit-R' foil tweeter. Ceramic Magnet.







INFINITY KAPPA 7.1 II SPEAKER PARTS / SPARES


  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES
   Infinity  KAPPA 7.1 II Woofer
  Woofers
902-5806 10" - 4  Ohms
DCR = 3.4 Ohms
U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

Poly-Carbonate cone
   Infinity


KAPPA 7.1 II Midrange

mid-range

midranges
902-5793 / 442-TNH
(See also Infinity Kappa 6.1-II and Kappa 7.1-II)
4" - 4  Ohms
DCR = 3.5 Ohms
U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

Infinity Kappa 'PolyDome' midrange
   Infinity

KAPPA 7.1 II Round
EMIT 'R-Foil'
Tweeter / Tweeters
Polycell tweeter
902-7206 / 311614 / K43TNM
(See also Infinity Kappa 6.1-II and Kappa 7.1-II)
1" - 4 Ohms
DCR = 3.4 Ohms
U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

Infinity 'Emit-R' foil tweeter. Infinity 'Emit-R' foil tweeter. Ceramic Magnet.

INFINITY Qa SPEAKER PARTS
/ SPARES

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES


Infinity Qa

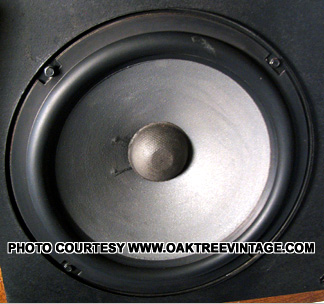

Infinity Qa Woofer
  Woofers
- 10" - - U 1 $65. ea. Butyl surround. Perfect and works.


Infinity Qa

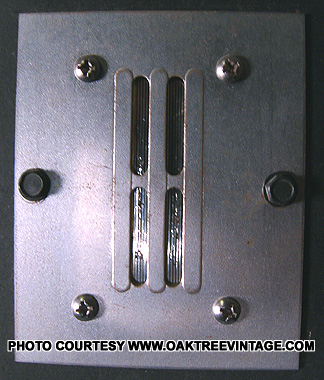

Infinity Qa Rectangle
EMIT
Tweeter
  Tweeters
490124 87mm tall x 70mm wide. Mounting screw holes 60mm center to center - 4 ohms U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

Perfect and works.


Infinity Qa
Infinity Qa Cabinets /
 Crossover cross-over
crossovers
- -  2-way - U 1 $40. ea. *

 *
Here's the issue with 'empty speaker cabinet'  sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, as they essentially require the same amount of packing for safe transit. They are also the same physical size, empty or not, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

Good shape. Does not include drivers, grill or stand. Those items of course sold separately.


Infinity Qa
Infinity Qa Speaker
Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use)
- Perimeter = 25" x 14 3/8"
Holes center to center:
22.5" x 12"
- - U 0 Reference info ONLY.
 None currently for sale,
 but more MAY occasionally show up. Check back periodically.


Good brown knit cloth covered. Some wear to knit, exposing the black frame on the corners.


Infinity Qa
Infinity Qa Speaker
Stands
- - - - U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

Perfect original bent metal stands that screw into the back of the speaker cabinets. W/ Screws.








INFINITY Quantum Jr. SPEAKER PARTS
/ SPARES

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES
   Infinity
speaker parts
Quantum Jr. Woofer
  Woofers
- 12" - - U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

-
   Infinity
speaker parts
Quantum Jr. Polycell
Midrange

mid-range
midranges
- 1.75" Poly / Cloth dome on a 5" x 5" plate - 8 U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

-
   Infinity  Quantum Jr. CHROME
Rectangle
EMIT
Tweeter
  Tweeters
- 3 5/16" X 2 3/4" - 4 U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

-
 Infinity  Quantum Jr. Cabinets /
 Crossover cross-over
crossovers
- -  3-way - U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
*

 *
Here's the issue with 'empty speaker cabinet'  sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, as they essentially require the same amount of packing for safe transit. They are also the same physical size, empty or not, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.


Walnut veneer.
 Decent with some scuffs and top dings that are not too distracting. A coat of Lemon oil would do wonders!

INFINITY REFERENCE STANDARD SPEAKER PARTS / SPARES


  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES





   Infinity

Infinity 'Reference Standard' RS1, RS1A, RS-1B, RS 2a, RS-IIB, RS-2.5, RS 4.5 IRS Beta, IRS Gamma & Delta,  Reference Standard 1  and likely other more serious models.
Midrange.

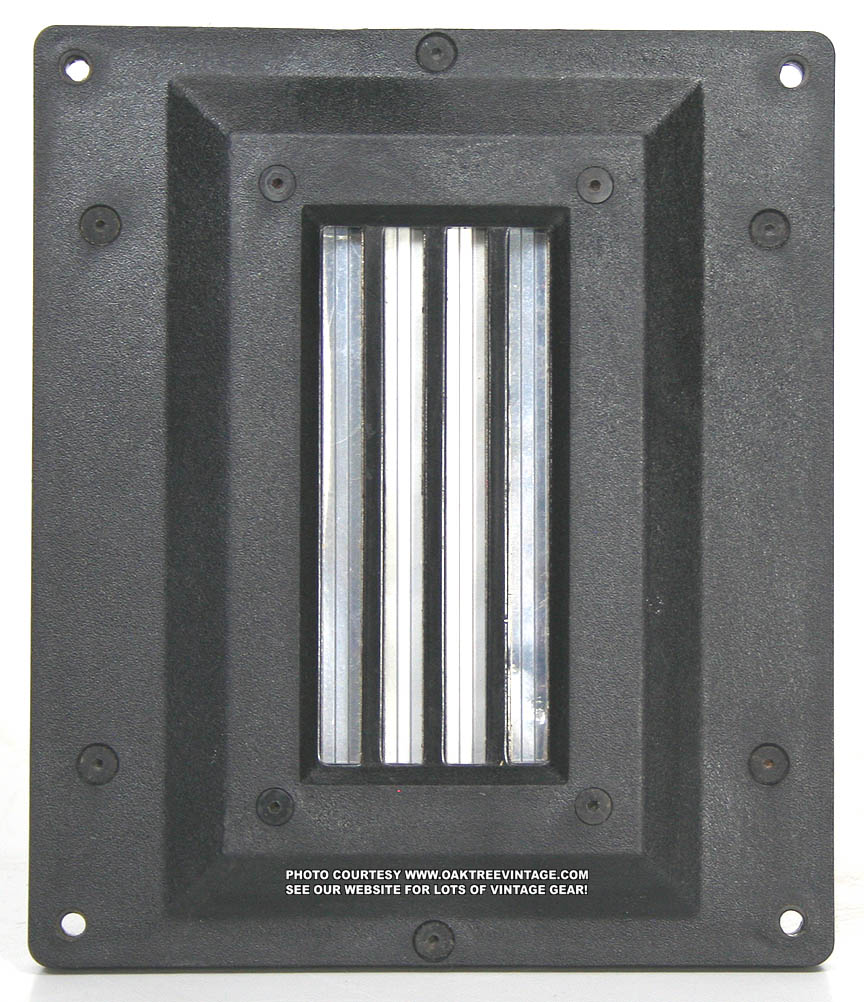

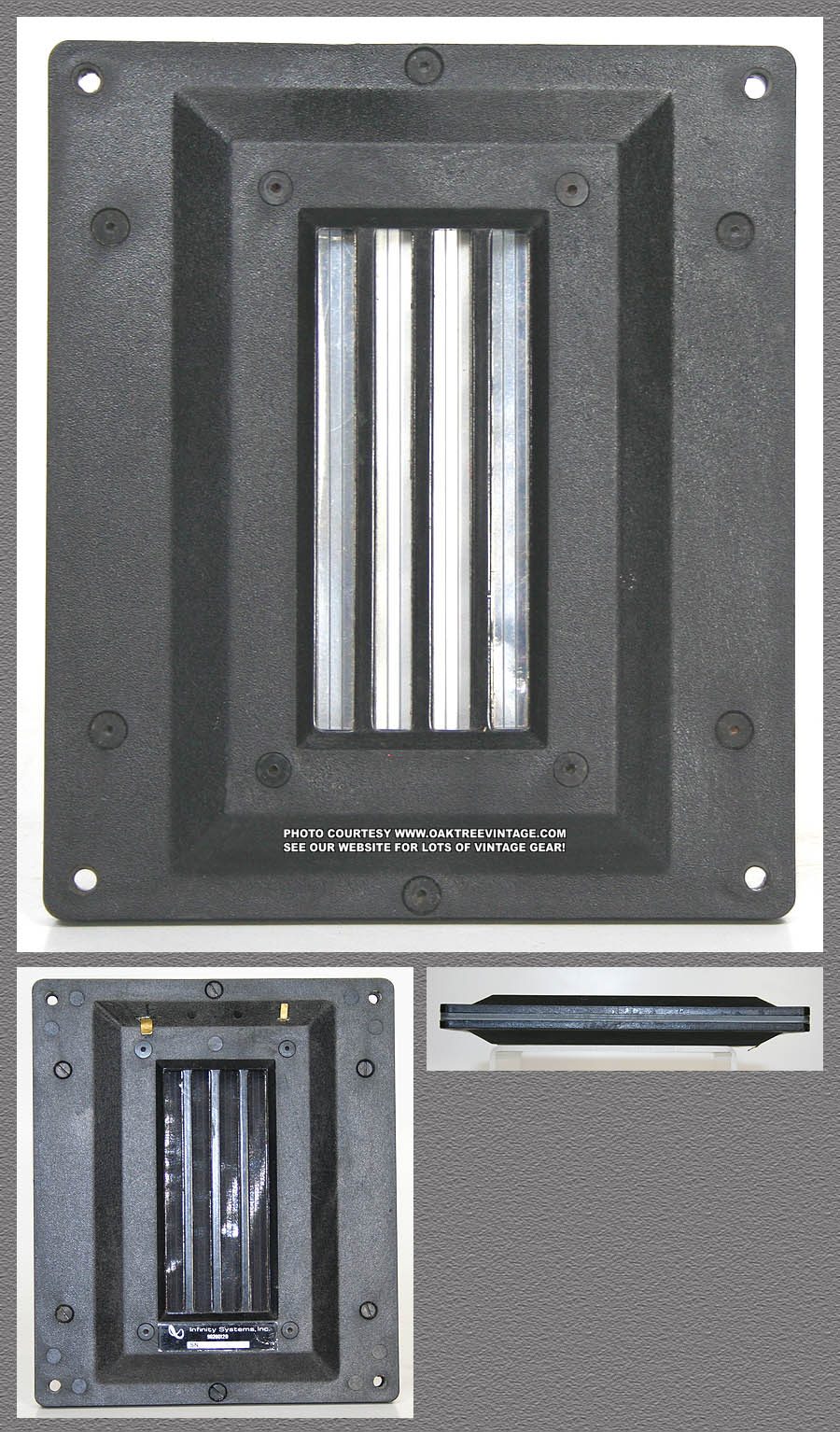

'Emit' / EMIM (Electro Magnetic Induction Midrange). Ribbon Midrange
This was the midrange version of the famous 'Emit'  style Infinity tweeter.

EMIM 9020012D
Ser # 001020
7" x 6" overall outside. Internal 'throat' 4" x 1.75". Mounting hole centers 6 3/8" x 5 3/8".
Ribbon / Emit midrange
- DCR = 3-4 Ω U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
$339. ea.
Slight crinkle to the membrane. Working & Good condition.

INFINITY RS-2000 SPEAKER PARTS / SPARES


  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES



Infinity

Infinity RS-2000 / RS2000 Woofer
  Woofers
902-2715 67007 671TND 6"
Poly woofer
- 4 Ohms
DCR = 2.9
Ω
U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

Fresh, new foam surrounds installed
   Infinity  Infinity RS-2000 / RS2000 Polycell Tweeter Tweeters  902-2624
67009 872TND
1"
'Poly Cell' foam / soft dome
- DCR = 5.4 Ω U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

Working & Good condition.
   Infinity  Infinity RS-2000 / RS2000 Crossover
  Cross over / Input Panel
- 2-Way - 8 Ohms U 1 $30. ea. Good
   Infinity  Infinity RS-2000 / RS2000 Speaker
Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use)
Black knit covered, Poly frame - - - U 0 Reference info ONLY.
 None currently for sale,
 but more MAY occasionally show up. Check back periodically.

Frame perfect w/ no breaks or repairs. All locating / attachment pins intact.
Clean, stain & snag free w/ 'Infinity' logo










INFINITY RSb SPEAKER PARTS
/ SPARES

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES
   Infinity  RSb Woofer
  Woofers
Grey Poly-
propylene
w/ Phase
plug style
dust cap

# 501TNB
10" - 8 Ohms U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

-
   Infinity  RSb Midrange

mid-range

midranges
Poly-
propylene /
 Butyl
rubber
 surround

# 601TNF
4.5" - 4 Ohms U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

-
   Infinity  RSb Round
EMIT

Tweeter
  Tweeters
EMIT
BLACK
# K91TNT
4.5" Plate diameter - 4 Ohms U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

-
   Infinity  RSb Speaker
Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use)
BROWN W/
 GOLD
 INFINITY
 SYMBOL
25" X 14" - - U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
*

 *
Here's the issue with speaker grill sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, due to their large size, the 'custom' box and amount of foam board required for safe transit, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.



Slight moisture line on lower 1/4. Not distracting and could be cleaned.
 Infinity  RSb Cabinets /
 Crossover
  cross-over

crossovers
Oak
veneer
25" x 14" x 10"  3-way - U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
*

 *
Here's the issue with 'empty speaker cabinet'  sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, as they essentially require the same amount of packing for safe transit. They are also the same physical size, empty or not, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.


Clean
 Infinity  RSb Cabinets /
 Crossover
  cross-over

crossovers
Oak
veneer
25" x 14" x 10"  3-way - U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

Thin veneer chip to lower front left edge. Not too distracting.
 Infinity  RSb Grill Clips - -  - - U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

-


INFINITY Studio Monitor SL40 SPEAKER PARTS
/ SPARES

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES

Infinity

SL40 PASSIVE RADIATOR - 8" N/A N/A U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

Polycarbonate cone w/ Butyl Rubber Surround


Infinity

SL40 Woofer /
  Woofers
(If you know, lets us know the part number) 6.5" ~125-150 Watts ~6Ω U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

Polycarbonate cone w/ Butyl Rubber Surround. Stamped steel frame. Ceramic Magnet. Poly dust cap. (glued on plastic 'beauty ring')

   Infinity  SL40 (see also Infinity SL30, SL40 & SL50) Tweeters  902-6357
75592
842TND
.75" - DCR = 3.5Ω U 2 $45. ea. Polycarbonate dome. Ferro-fluid filled / cooled voice coil. Synthetic mounting plate.
Working & Good condition. No cracks / chips to mounting flange / screw holes. 1 tweeter has a bit of a scuff on across the "SL" logo.
   Infinity  SL-40 Crossover
  Cross over / Input Panel
SL-40 P/N015-6358 2-Way - 6 Ohms U 2 $35. ea. 3.3kHz crossover freq.
Good

   Infinity  SL40 Speaker
Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use)
Black knit covered, Poly frame - - - U 0 CULLED
Frame perfect w/ no breaks or repairs. All locating / attachment pins intact.
Cat pee infused.


 Infinity  SL40 Cabinets / boxes / enclosures Oak grain, vinyl wrapped, particle board. 25" x 14" x 10"  3-way (2-Way w/ Passive Radiator) - U 0
CULLED

Clean


INFINITY Studio Monitor SM-82 SPEAKER PARTS
/ SPARES

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES



   Infinity

STUDIO MONITOR
SM-82
Woofer
  Woofers
SMB-1
71832 A2J-HSA
8"
Poly woofer w/ foam dust cap & 'Infinity' symbol
- DCR = 3.3 Ω U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
$35. ea. Working, but will need foam
Original foam surround is currently intact, but will need to be replaced (not by us, due to glued on plastic 'beauty ring')

   Infinity  STUDIO MONITOR
SM-82
(see also SM-82, SM-102, SM-120, SM-122, SM-152 and likely others)
Polycell Tweeters  902-4270
72151
772TNV / 413TND
1"
'Poly Cell' foam / soft dome
- DCR = 6.2 Ω U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

Working & Good condition.
   Infinity  STUDIO MONITOR
SM-82
Crossover
  Cross over / Input Panel
- 2-Way - 8 Ohms U 1 $35. ea. Good
   Infinity  STUDIO MONITOR
SM-82
Speaker
Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use)
Black knit covered, Poly frame - - - U 0 Reference info ONLY.
 None currently for sale,
 but more MAY occasionally show up. Check back periodically.

Frame perfect w/ no breaks or repairs. All locating / attachment pins intact.
Clean, stain & snag free w/ 'Infinity' logo










INFINITY Studio Monitor SM-100 SPEAKER PARTS / SPARES


  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES
   Infinity  STUDIO MONITOR
SM-100

(See also SM-100 & SM-120 and likely others)
Woofers 902-2673
66877
473 TM
10" - 8 Ohms
DCR = 3.1Ω
U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

-

Tech notes about 're-foaming' / replacing foam surrounds on the 'SM' / SM-100 series woofers. There is a plastic 'bezel' / 'beauty ring' that is glued around the mounting flange of the woofer. It must be pried off, hopefully without breaking it up too badly to gain access to the mounting screws. Good luck.


   Infinity  STUDIO MONITOR
SM-100

(See also SM-100 & SM-120 and likely others)
Polycell

Tweeters
902-2638
66851
472TND
1"
POLYCELL
soft dome
- 8 Ohms
DCR = 6.1Ω
U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

-
   Infinity
speaker parts
STUDIO MONITOR
SM-100
Attenuator
 control
 panels /

Crossover
  Cross over
SM-100 2-Way w/ 0.4 mH coil. - 8 Ohms U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

-

Tech note about removing Infinity attenuators / crossover from SM series speakers. The plate is held in with 6 Philips screws that are hidden behind the 'stick-on' aluminum label. The label will need to be pried off to allow access to the screws. The decorative plate will likely be badly bent or destroyed in the process.

   Infinity  STUDIO MONITOR
SM-100
Speaker
Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use)
Black - - - U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.
*

 *
Here's the issue with speaker grill sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, due to their large size, the 'custom' box and amount of foam board required for safe transit, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.



-

INFINITY SM-112 / SM112 Studio Monitor SPEAKER PARTS / SPARES


  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES
   Infinity  STUDIO MONITOR
SM-112

(See also Infinity SM-112, SM-122 & SM-152 and likely others)
Infinity SM-112
Midrange
902-4315
72152
143TF / 403TNC & others
4" - DCR= 3.9 Ohms U 1 $35.00 Small crease / dent in cone. Does not affect performance.
Enclosed back, Poly coated cone, polycell dust cap, Accordion cloth suspension. Glued on beauty ring.

INFINITY Studio Monitor SM-120 SPEAKER PARTS
/ SPARES

  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES
   Infinity  STUDIO MONITOR
SM-120
Woofer
  Woofers
902-2680
66888
773 TM
12" - 8 Ohms U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

Slight wrinkles.
Stamped Steel Frame.
Poly coated cone.
Foam roll suspension.
Ceramic magnet.
 Foam coated dust cap.

Tech notes about 're-foaming' / replacing foam surrounds on the 'SM' / SM-120 series woofers. There is a plastic 'bezel' / 'beauty ring' that is glued around the mounting flange of the woofer. It must be pried off, hopefully without breaking it up too badly to gain access to the mounting screws. Good luck.

   Infinity
speaker parts
STUDIO MONITOR
SM-120
 Woofers 902-2680
66888
773 TM
12" - 8 Ohms U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

Stamped Steel Frame.
Poly coated cone.
Foam roll suspension.
Ceramic magnet.
 Foam coated dust cap.
   Infinity  STUDIO MONITOR
SM-120
Polycell

Midrange / mids
902-2659 4.5" - 8 Ohms U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

Stamped Steel Frame, Sealed housing, Poly coated cone, coated cloth / accordion suspension, ceramic magnet, foam coated dust cap.
   Infinity  STUDIO MONITOR
SM-120
Polycell

Tweeters
902-2638
66851
772TND
1"
soft dome
- 8 Ohms U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

-
   Infinity
speaker parts
STUDIO MONITOR
SM-120
Attenuator
 control
 panels /

Crossover
  Cross over
SM-120 3-Way - 8 Ohms U 1 $65. ea. Perfect, but face plate will be crinkled from removal as they are glued in place
   Infinity  STUDIO MONITOR
SM-120
Speaker
Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use)
Black - - - U 0 Reference info ONLY.
 None currently for sale,
 but more MAY occasionally show up. Check back periodically.


Minor
wear,
but
 presentable








INFINITY Studio Monitor SM-122 SPEAKER PARTS / SPARES


  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES
   Infinity  STUDIO MONITOR
SM-1
22
Infinity SM-122
Woofer
061590 12" - DCR= 3.4 Ohms U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

Poly coated paper cone. Foam surround. Stamped zinc frame. Ceramic magnet.
   Infinity  STUDIO MONITOR
SM-1
22
(See also Infinity SM-112, SM-122 & SM-152 and likely others)
Infinity SM-122
Midrange
902-4315
72152
143TF
4" - DCR= 3.9 U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

-
   Infinity  STUDIO MONITOR
SM-1
22 (see also SM-82, SM-102, SM-120, SM-122, SM-152 and likely others)
Polycell Tweeters  902-4270
72151
772TNV / 413TND
1"
'Poly Cell' foam / soft dome
- DCR = 6.2 Ω U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

High output, 'Poly-Cell'

INFINITY Studio Monitor SM-152 SPEAKER PARTS / SPARES


  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES
   Infinity



STUDIO MONITOR
SM-1
52
Infinity SM-152
Woofer
902-4305

or
902-6707
15" 300 8 U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

Stamped steel frame, Poly-coated pulp cone, Foam coated dust cap w/ "Infinity" symbol. Ceramic magnet
   Infinity  STUDIO MONITOR
SM-1
52
(See also Infinity SM-112, SM-122 & SM-152 and likely others)
Infinity SM-152
Midrange
902-4315

or
902-6699
4.5" - 8 U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

Stamped steel frame, Poly-coated pulp cone, Ceramic magnet
   Infinity  STUDIO MONITOR
SM-1
52 (see also SM-82, SM-102, SM-120, SM-122, SM-152 and likely others)
Polycell Tweeters  902-4270

(BTW; replacement diaphragm is part #751-5099)
1"
'Poly Cell' foam / soft dome
- DCR = 6.8 Ω U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

High output, 'Poly-Cell'
   Infinity  STUDIO MONITOR
SM-1
52 (see also SM-82, SM-102, SM-120, SM-122, SM-152 and likely others)
Crossover w/ Attenuators A015-4222 3-Way - 8 Ω U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.


   Infinity  STUDIO MONITOR
SM-1
52
Speaker
Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use)

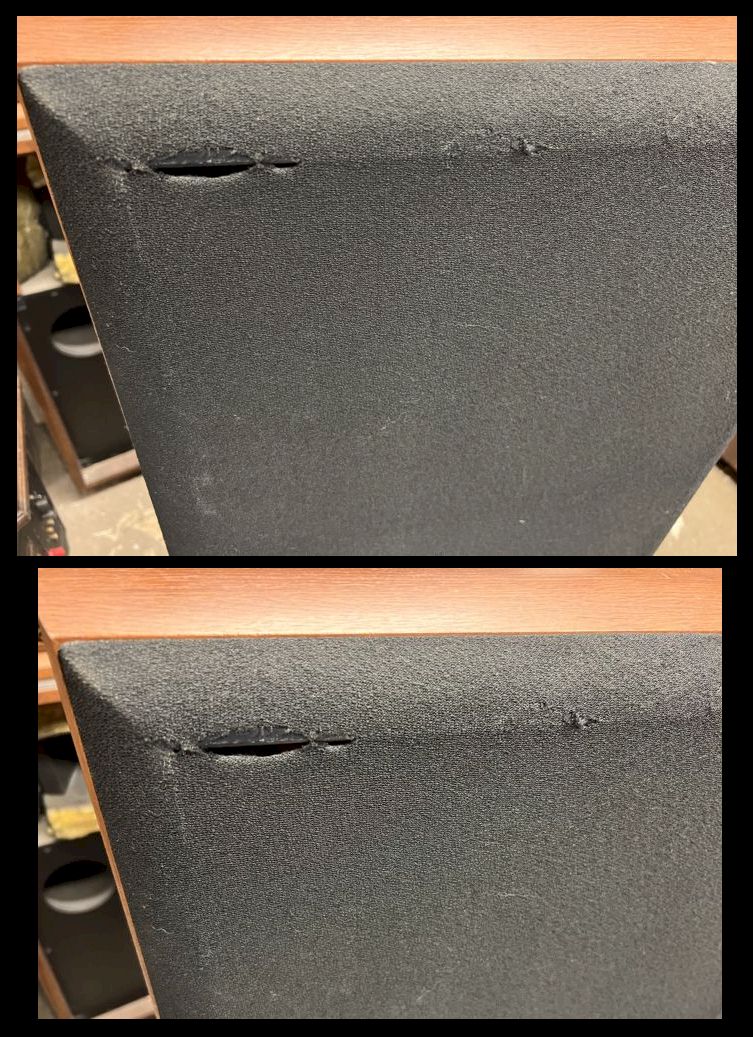

Black knit 34" X 16.75" - - U 0

Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.


 *
Here's the issue with speaker grill sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, due to their large size, the 'custom' box and amount of foam board required for safe transit, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.



Poly Frame with no breaks or repairs. All locate pins intact. Some holes to knit on upper half (no grill cannot be inverted).

 Infinity  STUDIO MONITOR
SM-1
52

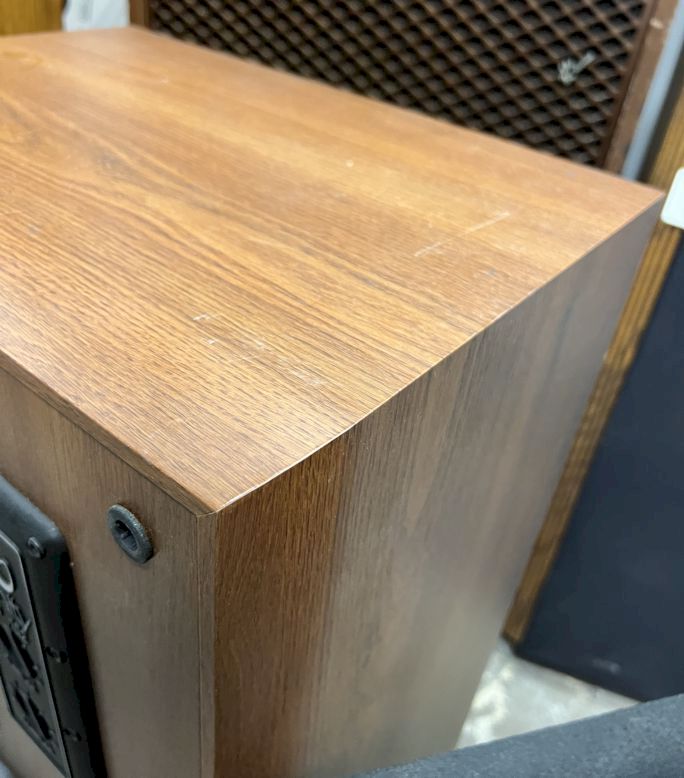

Cabinet Rosewood vinyl wood grain wrap 40" tall x 17.75" wide x 12.5" deep  3-way / 4-Driver - U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.


 *
Here's the issue with 'empty speaker cabinet'  sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, as they essentially require the same amount of packing for safe transit. They are also the same physical size, empty or not, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.


Clean. Nothing really to speak of as far as issues.



INFINITY VIDEO ONE (Center Channel) SPEAKER PARTS
/ SPARES

  BRAND
  OF

SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES



   Infinity

STUDIO MONITOR
VIDEO-1 / VIDEO ONE
CENTER CHANNEL SPEAKER
Woofer
  Woofers
307851-001 / 085A
Graphite
5.5" - - U 0

Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

$45. ea

Fresh, New foam surrounds installed.
   Infinity  STUDIO MONITOR
VIDEO-1 / VIDEO ONE
CENTER CHANNEL SPEAKER
Mylar Dome Tweeter  Tweeters  902-5226 / 76209 / 651TNV-2 .5"
soft dome
- - U 0
Reference info ONLY.
None currently for sale,
but more MAY occasionally show up. Check back periodically.

-
   Infinity
speaker parts
STUDIO MONITOR
VIDEO-1 / VIDEO ONE
CENTER CHANNEL SPEAKER
Cabinet / case w/ Input panel. - - - - U 1
$40. ea.
 *

 *
Here's the issue with 'empty speaker cabinet'  sales. They end up being a disproportionate amount of money, relative to their purchase price, for packing and shipping, as they essentially require the same amount of packing for safe transit. They are also the same physical size, empty or not, so it is not uncommon for their pack / ship cost to be equal to, if not more than the cost of the part. Just FYI.

Clean. Fine.



Infinity
STUDIO MONITOR
VIDEO-1 / VIDEO ONE
CENTER CHANNEL SPEAKER
Grill / Grates / Guard / Screen / Front Covers / Grates / Screens / Front Covers (or what ever term you want to use) Black - - - U 0 Reference info ONLY.
 None currently for sale,
 but more MAY occasionally show up. Check back periodically.
Clean. One of 6 pins missing. 'Infinity' logo intact. Knit clean and snag / tear free.
-

----
  BRAND
  OF
  SPEAKER
MODEL
  OF
SPEAKER
ITEM PART # SIZE WATTS OHMS USED
  /
  NEW
QUANTITY PRICE NOTES
- - - - - - - - - - -

If you're looking for a great place for great place to purchase new foam surround kits, replacement surrounds, or to have your woofers, sub woofers / subs, re-foamed or re-coned, we recommend either 'Orange County Speakers' or 'Parts Express'. They have QUALITY parts and do QUALITY work.











LINKS TO OUR 'HI-FI' DEPARTMENTS

Amps and
Pre-Amps

Receivers

Cassette
Decks

Tuners

Turntables

8-Track Decks

CD Players

Reel-Reel
Decks

EQs and Signal
Processors

Speakers

Betamax and
VHS VCRs

Turntable Cartridges

Tube Audio

Ne'cessories

Speaker Parts

Record Players

Vintage Radios

Vintage
Walkmans

Headphones

Stereo Parts


Wondering where the "tone" you remember went?....




.... Surround yourself with Silver and find it again!


CONTACT INFO BELOW

$20. MINIMUM ORDER





>>>(for 'PARTS'; <<<
as of NOW and for the foreseeable future,
due to staffing / time / resource limitations, we are shifting focus AWAY from MOST 'SALVAGE / USED / DONOR' parts requests at this time with
*only a few exceptions, and will not likely be responding to calls or emails for those type of parts.  We will still process orders for '**non-unique / SKU' parts / accessories that offer an 'on-line payment' option.)

*at our discretion, some requests may still get a response if time allows.
*"unique" would apply to most 'salvage' Hi-Fi / Stereo / Speaker, scooter, MI, Pro-audio parts.
Parts that we normally stock and have a "Buy It" option are not included in the above notice.


    Before calling, PLEASE read the text in below.
 BEFORE
CALLING

(800) 806-4231 EXT #1
~10:00 AM- ~5:30 PM most days COLORADO / ROCKY MOUNTAIN TIME ZONE


OR

BEFORE EMAILING

parts@oaktreevintage.com

>>>(for 'PARTS'; <<<
as of NOW and for the foreseeable future,
due to staffing / time / resource limitations, we are shifting focus AWAY from MOST 'SALVAGE / USED / DONOR' parts requests at this time with
*only a few exceptions, and will not likely be responding to calls or emails for those type of parts.  We will still process orders for '**non-unique / SKU' parts / accessories that offer an 'on-line payment' option.)

*at our discretion, some requests may still get a response if time allows.
*"unique" would apply to most 'salvage' Hi-Fi / Stereo / Speaker, scooter, MI, Pro-audio parts.
Parts that we normally stock and have a "Buy It" option are not included in the above notice.

We DO NOT have your part unless the following conditions are met:

A) You HAVE SEARCHED our page(s) and HAVE FOUND the part you are looking for SPECIFICALLY listed on one of our pages or you have solid information that it's a 'bona fide' substitution for your part (unless noted already, we won't have any further info along those lines)
AND
B) The part that you have found is NOT marked as SOLD or SOLD OUT.


If you do NOT see it listed after thoroughly searching the pertinent page
(likely the page you landed on originally),
we do not have it,
nor do we know when
it might come in,
nor do we maintain "waiting lists" for parts,
nor do we know who
might have it.

Sorry, but phone and email traffic for parts
we don't have listed or for parts that are already marked "SOLD" has become too consuming of time resources.


 We try to keep these pages 99+% updated.
If you don't see the part you are looking for, simply check the web page periodically as we never know what will show up each day. Thanks!!!!!


ALSO: When e-mailing be sure to include a relevant subject, ie: Brand / Model number / reason for inquiry in the 'SUBJECT LINE'.
SUBJECT
lines left empty, or with 'single word' text like;
"Hello", "Hi", "parts", "stereo", "inquiry", "question", "selling" or similar or similar 'un-qualified' terms may automatically be deleted by Anti-Virus / Spam settings or receive 'Low Priority'.
(Subject lines left empty show up as "No Subject" and are deleted automatically by our anti-spam settings".
We do not return calls / emails for requests for parts we don't show / or have available (we may choose contact with further, useful information).


 SPEAKER PARTS   |   STEREO / HI-FI ELECTRONIC PARTS   |  KEYBOARD PARTS

___________________________________________

Haven't received a response to your email? See FAQ'S

MAILING:
OAK TREE ENTERPRISES
PO. BOX 6182
COLORADO SPRINGS, CO 80934
U.S.A.


Before ordering by postal mail, please phone or email us about the item and the details of sending your funds. Thank-you.


 SPEAKER PARTS   |   STEREO / HI-FI ELECTRONIC PARTS   |   SELLING-TRADING-CONSIGNING   |  KEYBOARD PARTS   I   FAQ'S
  CONDITION RATINGS   |   ORDERING / POLICIES    |    WARRANTIES / RETURNS   |   SHIPPING
 RESTORATION PROCEDURES   |   REPAIRS  | CONTACT PARTS


As much of the price charged for parts is for the 'time to extract' from it's donor unit, unless we send the 'wrong part', parts are NOT returnable.
See our "
Warranties / Returns" page via the link below for more details.


POLICIES, SPECIFICATIONS, AVAILABILITY, INFORMATION AND PRICING SUBJECT TO CHANGE  AT ANYTIME  AND WITHOUT PRIOR NOTICE
and changes may not be posted to web immediately
. Information such as Parts Substitution possibilities, "Circa" dates, original values, etc. are to the best of our knowledge. If you are critically concerned, you should do independent
research on your own prior to ordering or utilizing this information in any way. Manufacturers also are known to change part numbers, specs, circuit designs, specs etc within the same model.


Copyright © 1997-2023 Oak Tree Enterprises, LLC

COPYRIGHT INFORMATION
