YAMAHA STEREO RECEIVERS
PHOTO GALLERY
- REFERENCE ARCHIVE / SOLD UNITS -



Yamaha Home Stereo Receivers, Vintage 1970's models such as the Yamaha stereo CC-70W, CR-240, 400, 420, CR-620, CR-640, CR-800, 820, 840, CR-1020, 2020, R-70, R-300, R-500, R-700, R-900, R-1000, RX-V850, RX-V1300 Yamaha receivers silver and black face with wood case.

Photo gallery of vintage Yamaha CR / R Series Home Stereo Receivers that  we have had in the past that have been sold. Keep checking as we always have more Yamaha Receivers coming. All photos and text, copyrighted and protected as stated at bottom of page. Click the link below for current inventory



























... OR, CLICK HERE TO SEE OUR RECEIVERS CURRENTLY FOR SALE!







NEW LISTING
(Click on above thumbnails to enlarge photos)

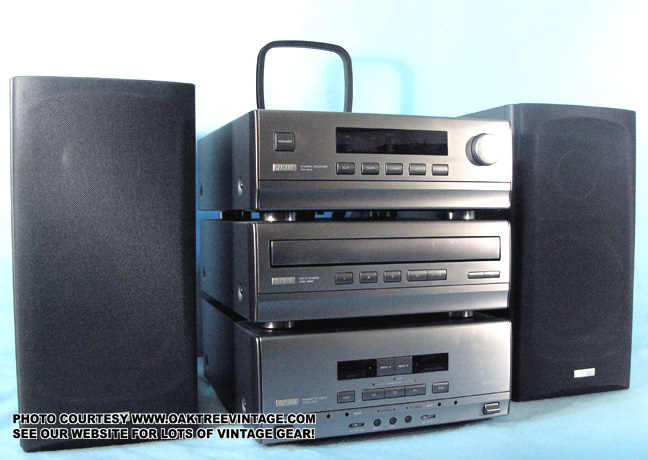

 YAMAHA

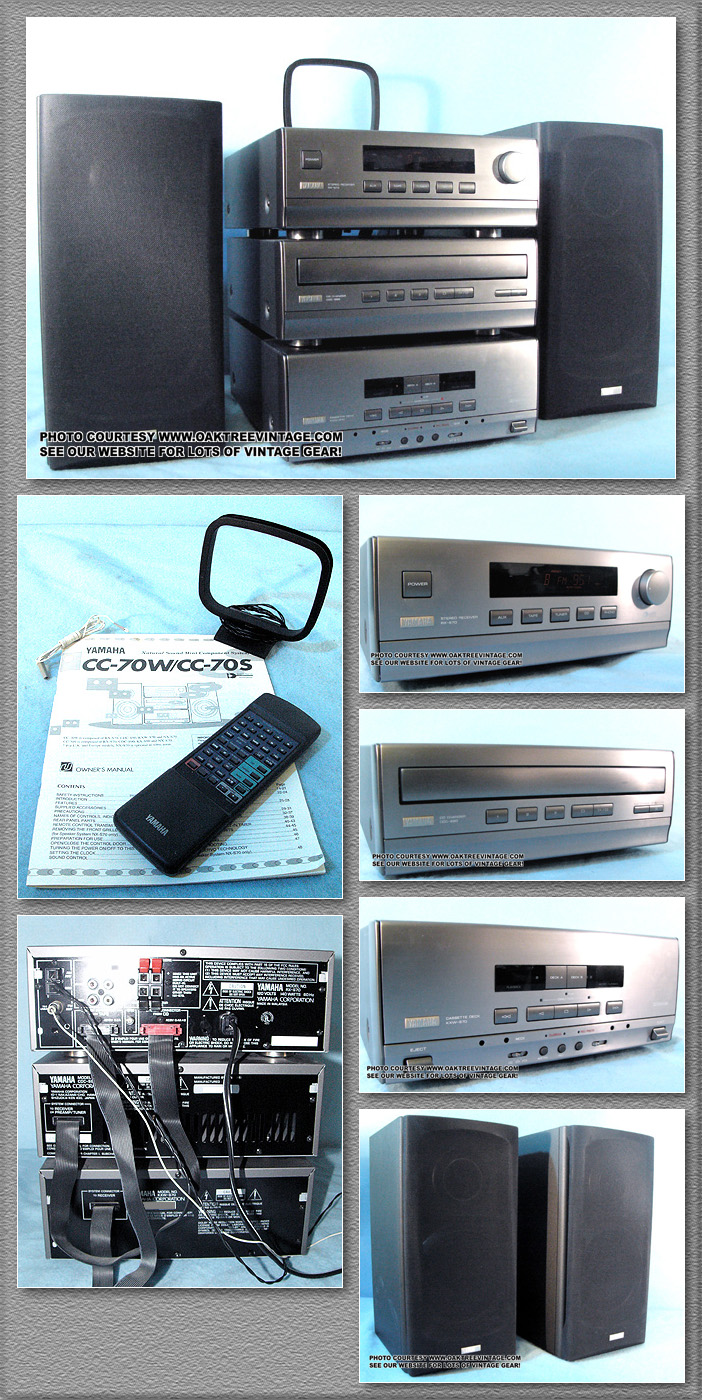

          CC-70W CC70W

"ALL-IN-ONE"

STEREO
SYSTEM

SOLD 5/2/06









Did you know?
It would be hard to name a category of 'musical instruments', 'audio equipment', 'motorized vehicles', or 'sporting equipment' that Yamaha does not have a 'hand in' with 'branded models'. Most folks do not realize this, but Yamaha is one of the oldest companies in existence, certainly when it comes to music gear and was actually established in 1887 and was incorporated on October 12, 1897! The company's origins as a musical instrument manufacturer is still reflected today in the group's logo—a trio of interlocking tuning forks. Yamaha has grown to become the world's largest manufacturer of musical instruments. I have worked for Yamaha dealers over the years, in both the 'consumer' level and 'pro-audio' / 'MI' level. Their gear was 'spec'd' more often in the military contracts we received, than any other brand. I knew when I sold a Yamaha unit, there was little chance of an 'issue after the sale'. Yamaha products are known as having about the best 'resale value' of any brand, regardless of the product class.






-
Yamaha_CR-240_Stereo_Receiver_web.JPG (57286 bytes)       Yamaha_CR-240_Stereo_Receiver_collage.JPG (196329 bytes)

VINTAGE YAMAHA STEREO RECEIVER

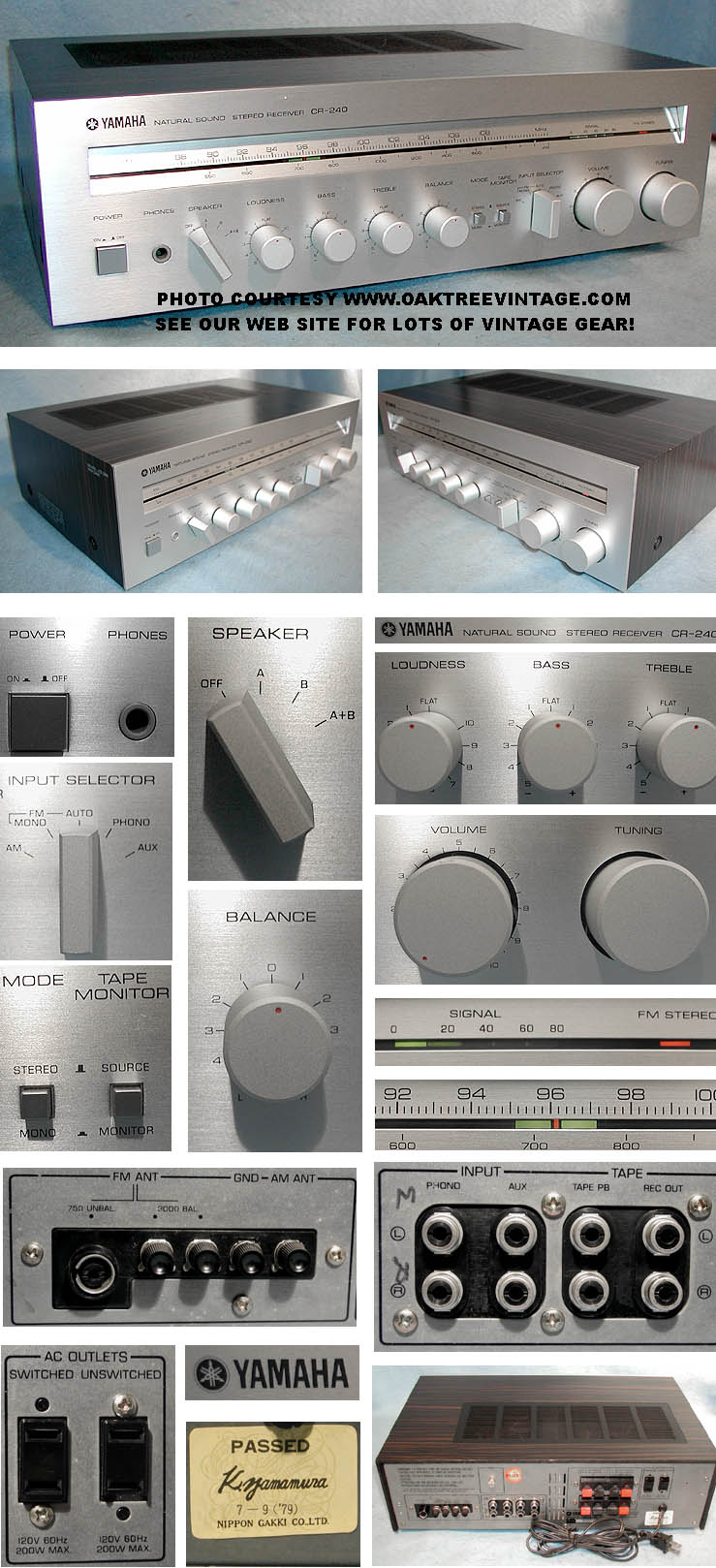

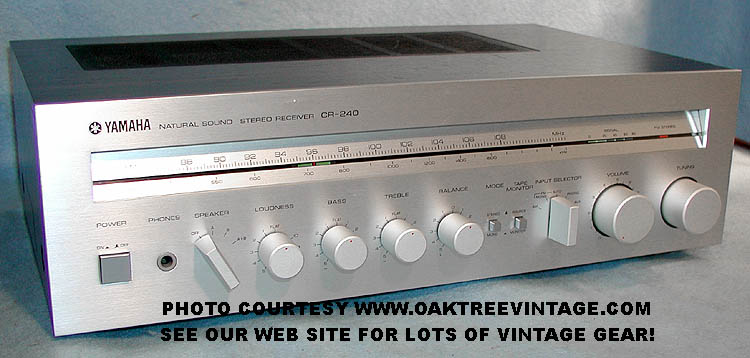

YAMAHA CR-240 / CR240 RECEIVER

SOLD 8/17/04

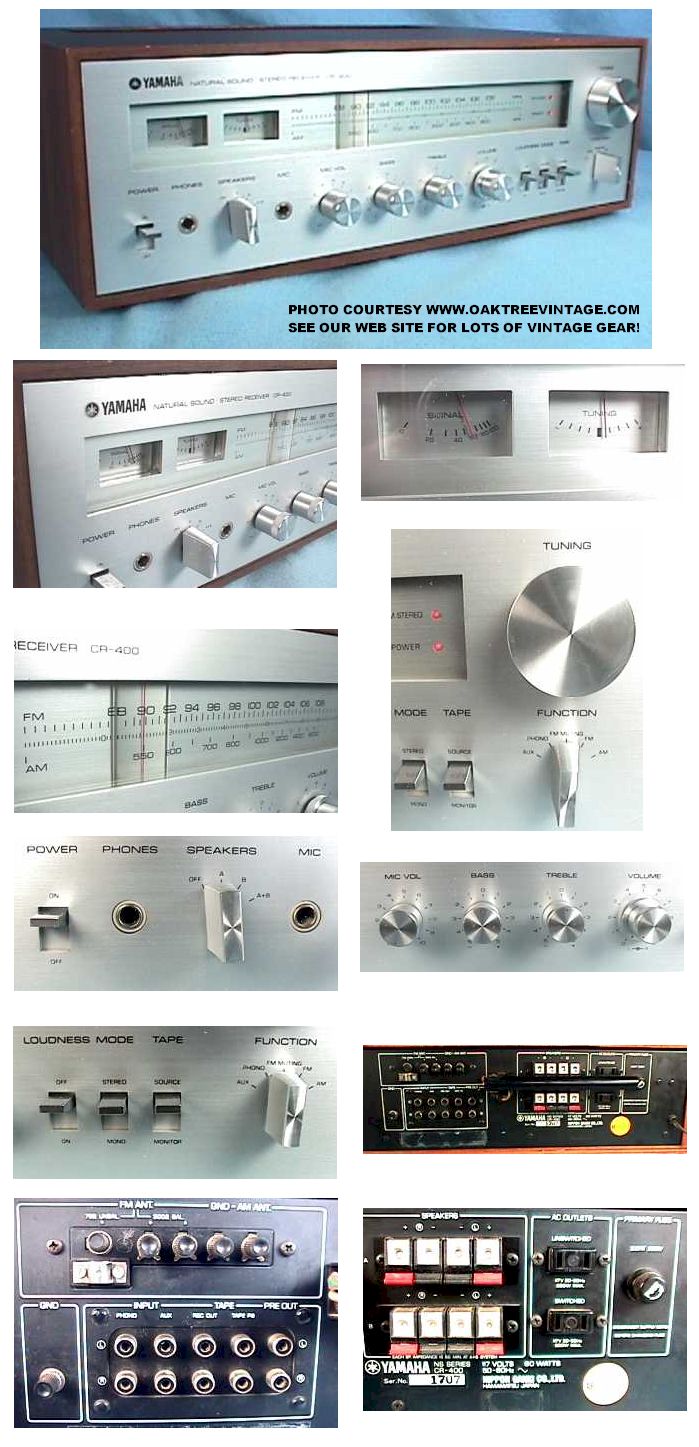

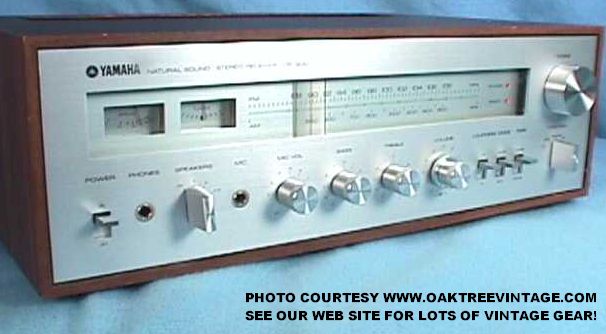

Yamaha_Natural_Sound_Stereo_Receiver_CR-400_web.jpg (36660 bytes)    Yamaha_Natural_Sound_Stereo_Receiver_CR-400_collage.jpg (172977 bytes)

VINTAGE YAMAHA STEREO RECEIVER
YAMAHA CR-400 / CR400 RECEIVER #1

SOLD

VINTAGE YAMAHA STEREO RECEIVER
YAMAHA CR-400 / CR400 RECEIVER #2

SOLD




NEW LISTING 6/15/09
 (Click on above thumbnails to enlarge photos)

VINTAGE YAMAHA STEREO RECEIVER

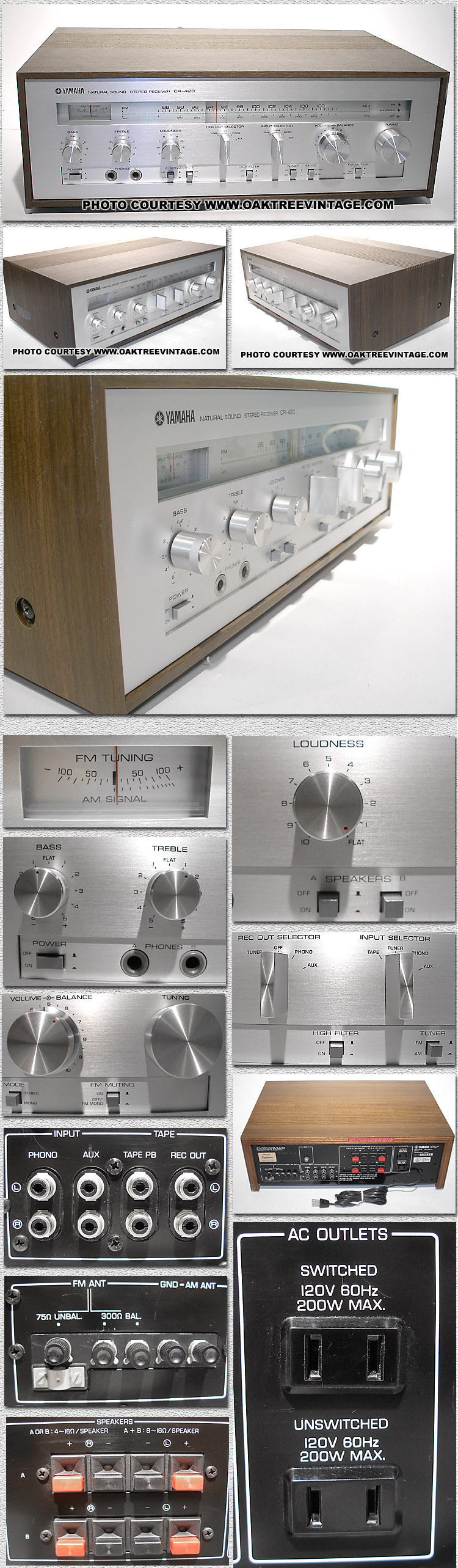

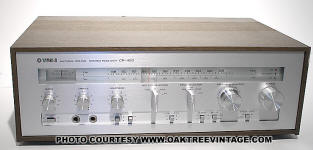

YAMAHA CR-420 / CR420 RECEIVER
#...0174
Circa 1977-79


(C)
C.B.S.

SOLD 6/24/09











NEW ADDITION

 (Click on above thumbnails to enlarge photos)

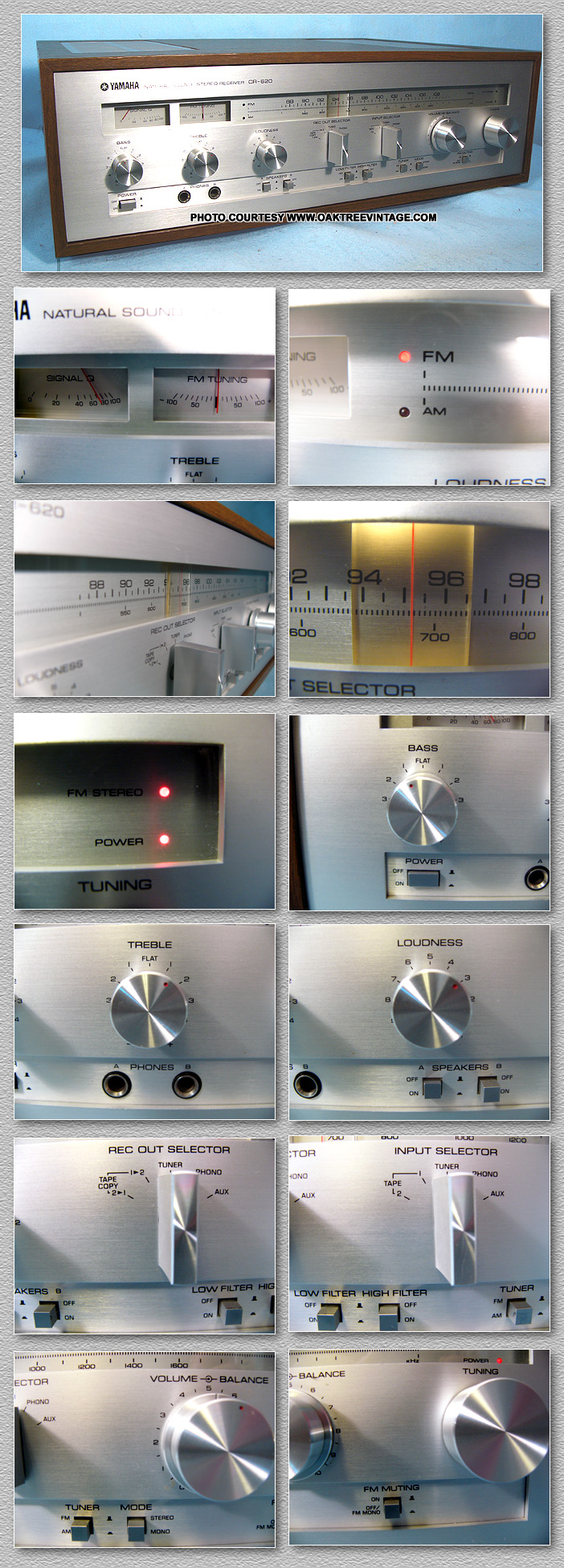

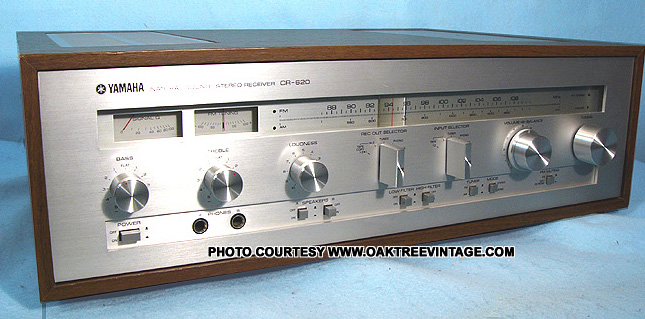

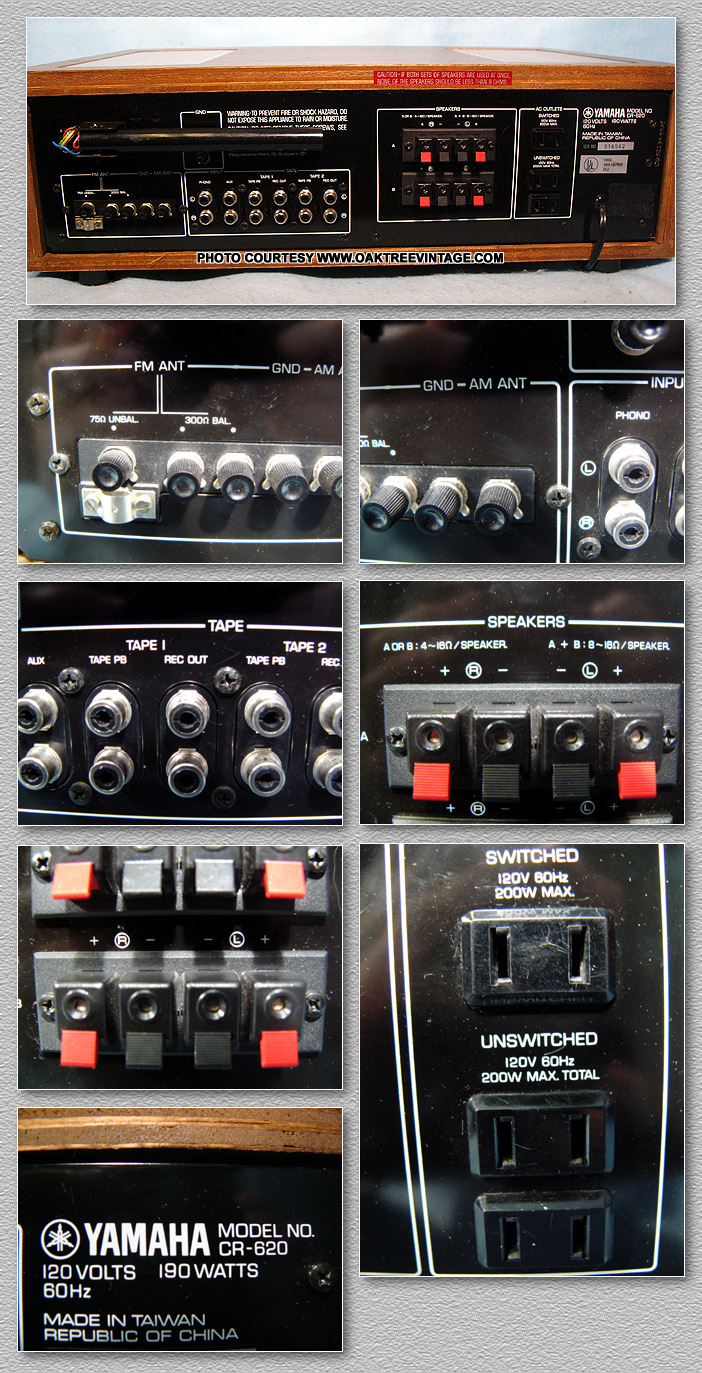

VINTAGE YAMAHA STEREO RECEIVER
YAMAHA CR-620 / CR620 RECEIVER

SOLD 5/30/07

         NEW ADDITION 6/4/08
  (Click on above thumbnails to enlarge photos)
VINTAGE YAMAHA STEREO RECEIVER
YAMAHA CR-620 / CR620 RECEIVER

  Circa 1977-79

SOLD 8/25/08










NEW LISTING 3/23/09
 (Click on above thumbnails to enlarge photos)

VINTAGE YAMAHA STEREO RECEIVER
YAMAHA CR-620 / CR620 RECEIVER

 #...7571
Circa 1977-79


(C)
C.B.S.

SOLD 4/16/09

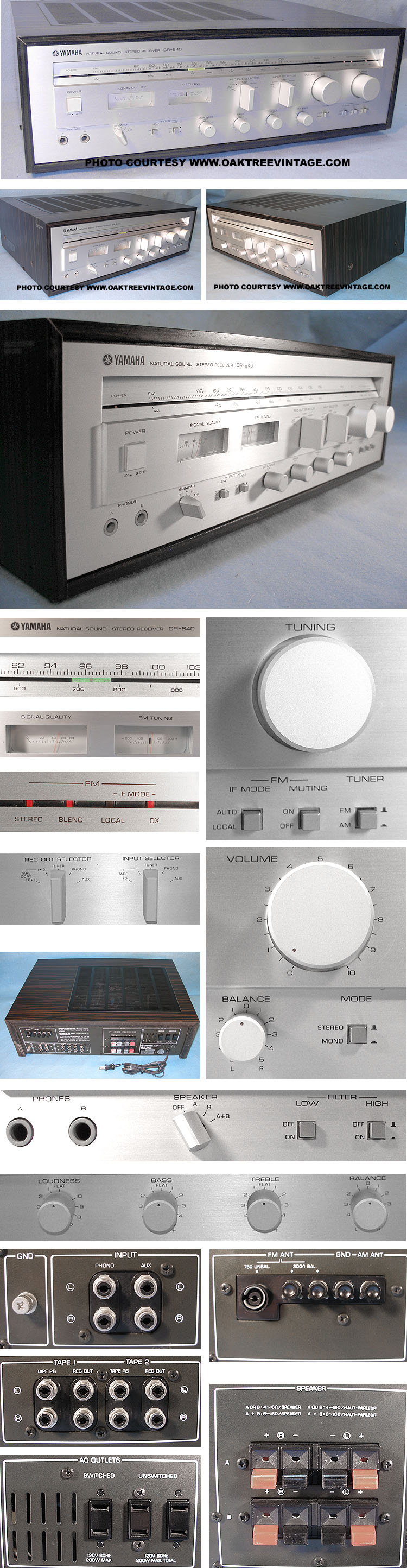

VINTAGE YAMAHA STEREO RECEIVER

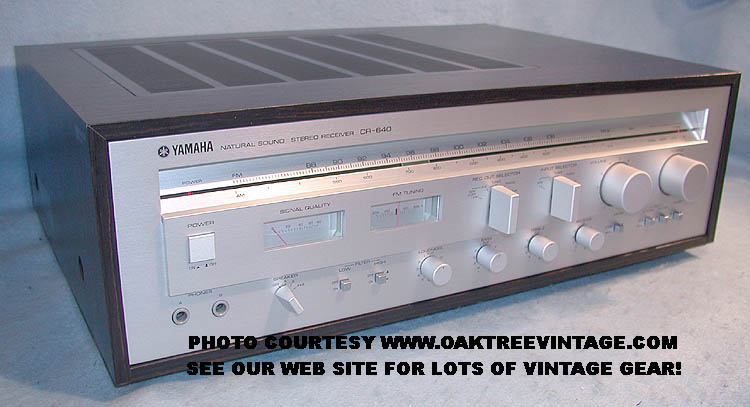

YAMAHA CR-640 / CR640 RECEIVER

SOLD 1/25/05






(Click on above thumbnails to enlarge photos)
VINTAGE YAMAHA STEREO RECEIVER
YAMAHA CR-640 / CR640 RECEIVER
SOLD 11/29/06







NEW LISTING 7/28/12
  (Click on above thumbnails to enlarge photos)

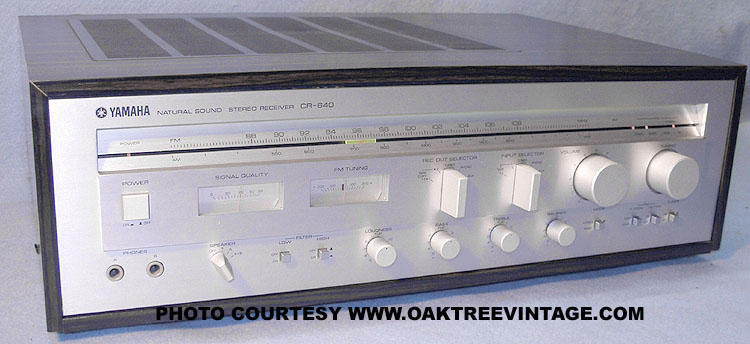

CLASSIC YAMAHA STEREO RECEIVER

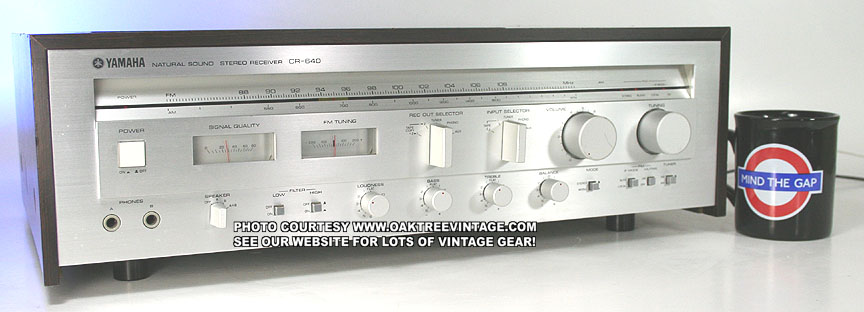

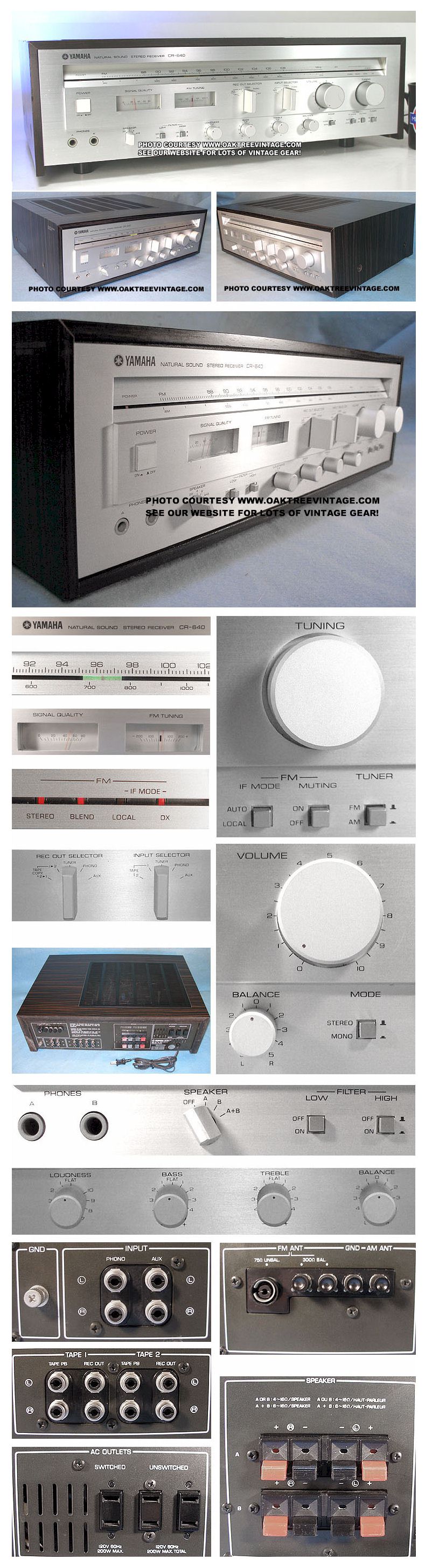

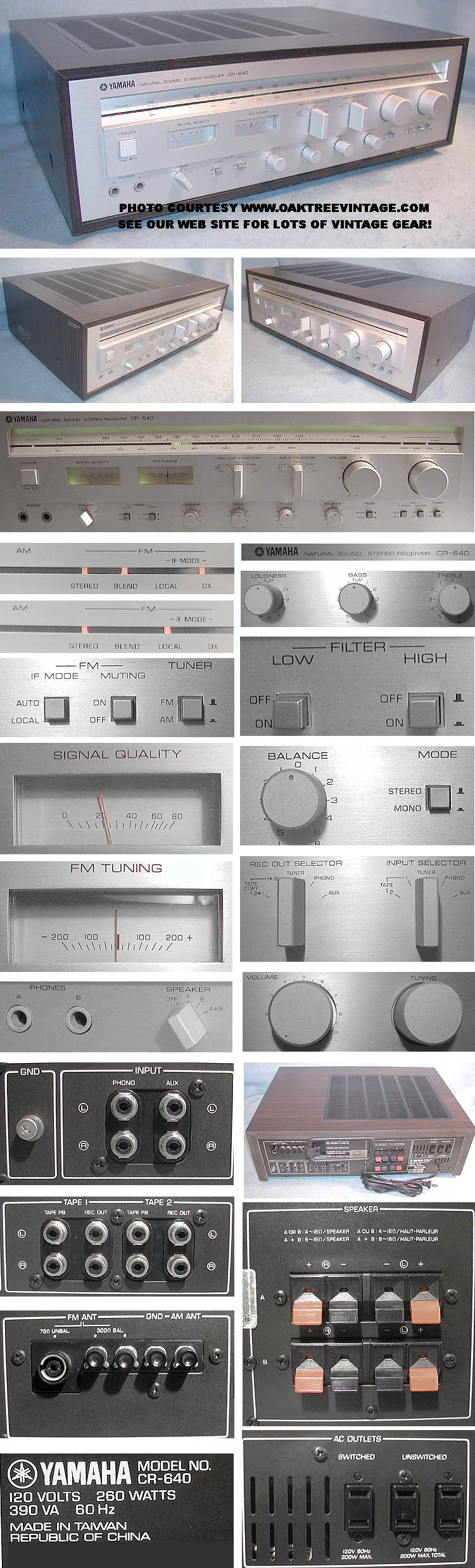

YAMAHA CR-640 / CR640
CIRCA 1979-80
M.I.J.

SOLD 8/6/12
SHIPPED TO TEXAS

We have
completely gone through this unit cleaning everything including all switches, controls and contacts. The technician also aligned the tuner front-end for optimum performance as older tuner components have drifted over the years. Re-tensioned internal fuse holder clips. Re-tensioned tuner string to relieve flywheel binding and re-centered pointer to correct dial position. VERY GOOD TUNER! Generally AM reception in a stereo receiver is treated as an 'after thought', but the AM reception on this one, #...6588, is WAY above average. VERY GOOD TUNER! FM reception as well great and IMPECCABLY CLEAN!!! We replaced ALL dial, meter and the dial pointer lamps with new units for trouble-free service. All inputs tested and both sides produce clean and even sine waves into 'brick-wall' 8 & 4 ohm loads!


On our test bench, the internal amplifiers of this receiver #...6588 produced 20 volts per channel @ 8 ohms with 1Khz input for 50 watts and 17 volts per channel @ 4 ohms with 1Khz input for 72 watts via dual, Yamaha branded power packs, IG-20980 supplied by Yamaha IG 02950 voltage amplfiers.
 AC Idle current at .4A, DC offset output <+/-1mvDC either channel. Floor noise at 00.2mVAC either channel.

   ____________________________

SOLD 8/6/12

SHIPPED TO TEXAS

(Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)



NEW ADDITION 6/1/06


(Click on above thumbnails to enlarge photos)

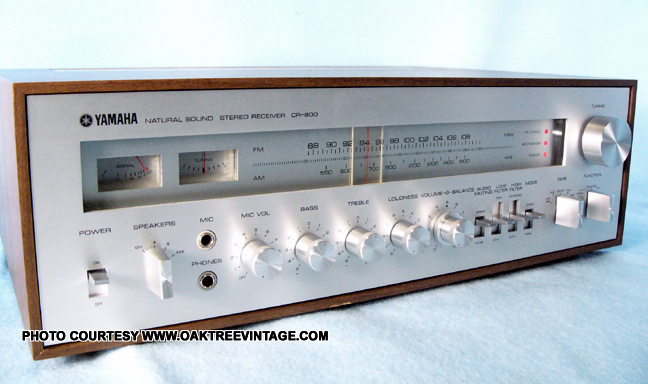

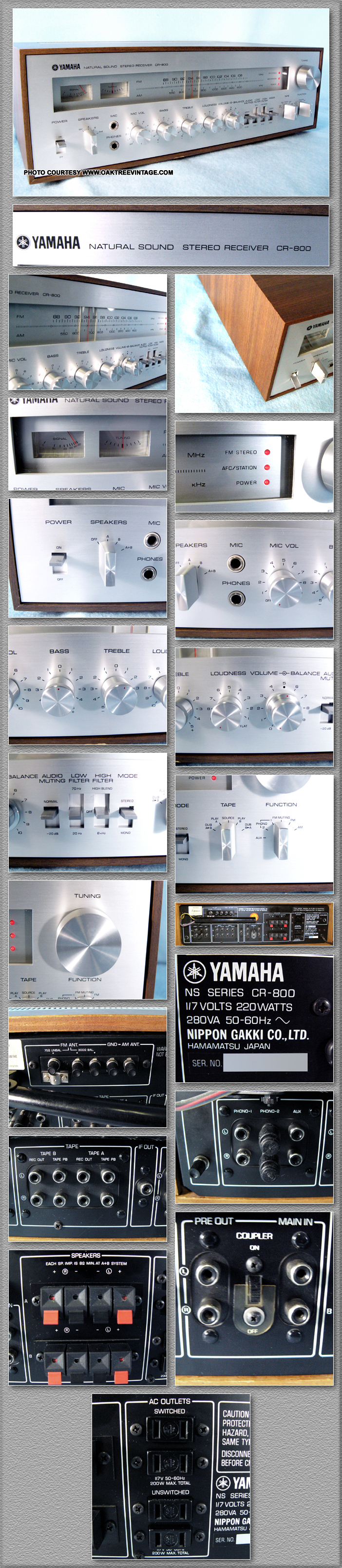

VINTAGE YAMAHA STEREO RECEIVER
YAMAHA CR-800 CR800
 STEREO RECEIVER

SOLD 6/3/06





NEW ADDITION
7/9/07
 (Click on above thumbnails to enlarge photos)
VINTAGE YAMAHA STEREO RECEIVER
YAMAHA CR-800 CR800
 STEREO RECEIVER

SOLD 7/26/07








NEW ADDITION 12/14/10

 (Click on above thumbnails to enlarge photos)
VINTAGE STEREO RECEIVER
    YAMAHA CR-800

#...2868
circa 1974-'76

  MIJ!

SOLD 12/20/10






        NEW ADDITION 1
0/12/11
  (Click on above thumbnails to enlarge photos)

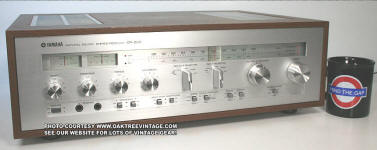

VINTAGE STEREO RECEIVER

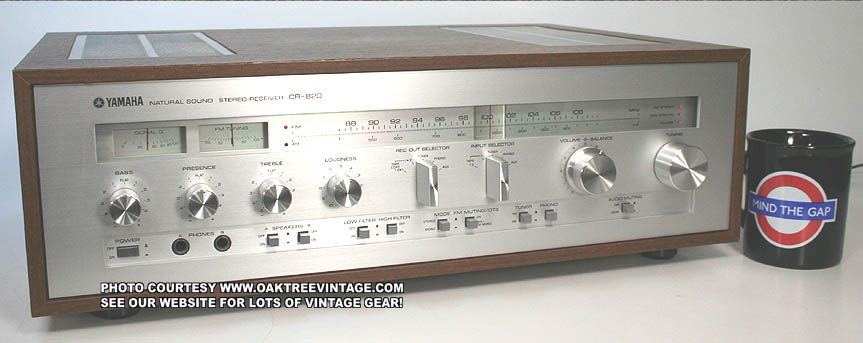

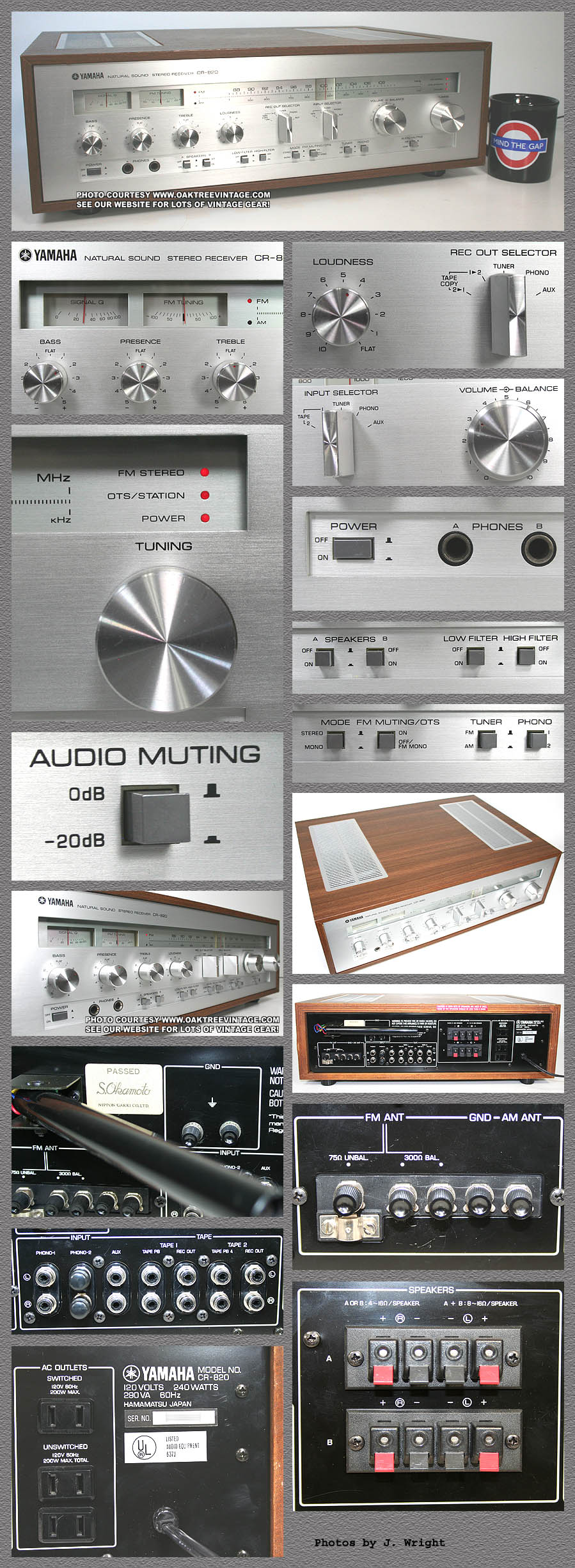

YAMAHA CR-820
cr820
STEREO RECEIVER
#...4096
 circa 1977-'79
   MIJ!

SOLD 1/20/12









             NEW ADDITION 5/11/12

  (Click on above thumbnails to enlarge photos)
VINTAGE STEREO RECEIVER
YAMAHA
      CR-820
cr820
STEREO RECEIVER
#...6787
 circa 1977-'79
   MIJ!
SOLD 7/31/12
SHIPPED TO NEW YORK

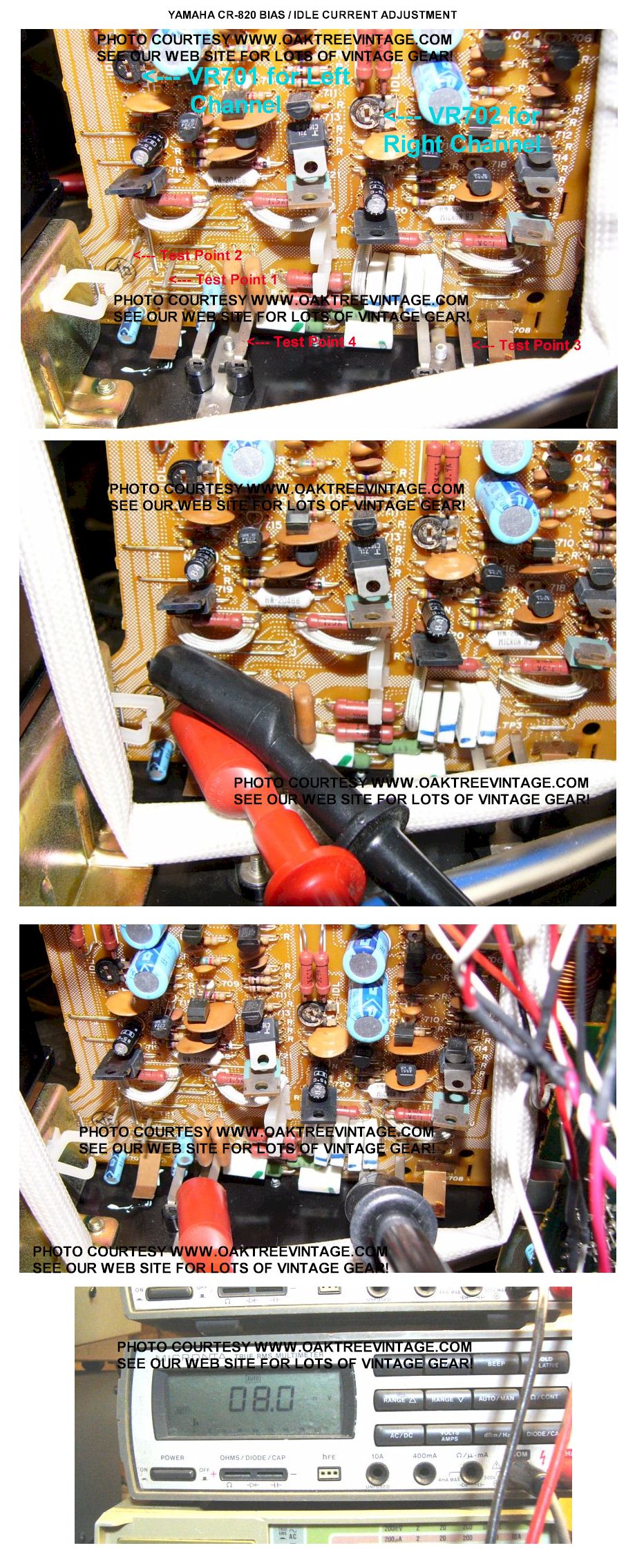

We have completely gone through this unit cleaning everything including all switches, controls and contacts. We also aligned the tuner front-end for optimum performance as older tuner components have drifted over the years. All output transistors removed, independently tested on our Huntron Tracker semiconductor analyzer and reinstalled with fresh heat sink compound. Output transistor bias adjusted to correct 08.0mv. Re-tensioned internal fuse holder clips. Re-tensioned tuner string to relieve flywheel binding and re-centered pointer to correct dial position. Balance of tuner string inspected and weak section replaced.
We replaced ALL meter lamps and the dial pointer lamps with new units for trouble-free service. All inputs tested and both sides produce clean and even sine waves into 'brick-wall' 8 & 4 ohm loads! Total restoration time investment ~14 hours.


On our test bench, the internal amplifiers of this Yamaha CR-820 receiver #...6787 produced 24.3 volts per channel @ 8 ohms with 1Khz input for 73 watts and 20.4 volts per channel @ 4 ohms with 1Khz input for 104 watts via discrete, TO3, metal cased output devices (2x Toshiba 2SB557 & 2SD427 output transistors).
 AC Idle current at .25A, DC offset output <17mVDC either channel. Floor noise at 00.3mVAC either channel.

   ____________________________

SOLD 7/31/12
SHIPPED TO NEW YORK

(Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)








VINTAGE YAMAHA STEREO RECEIVER

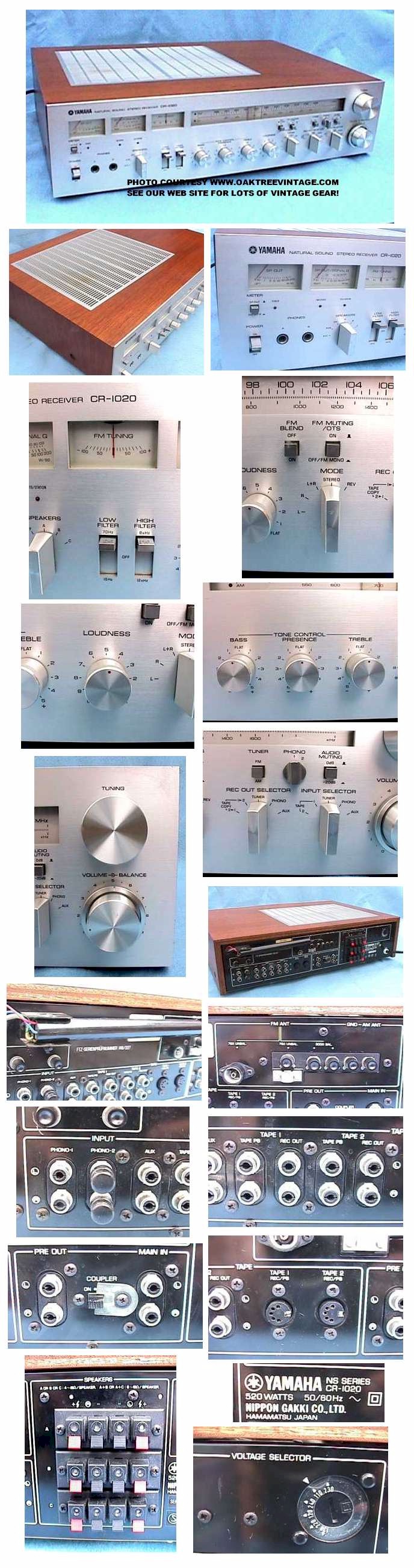

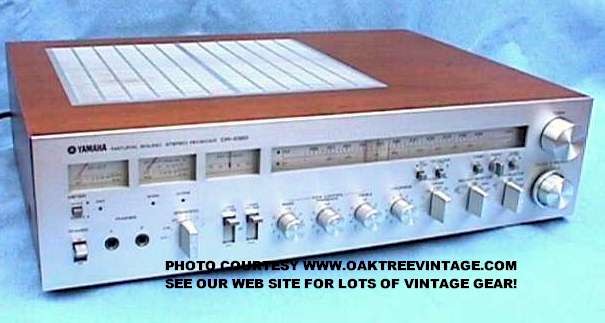

YAMAHA CR-1020 CR1020 RECEIVER

SOLD

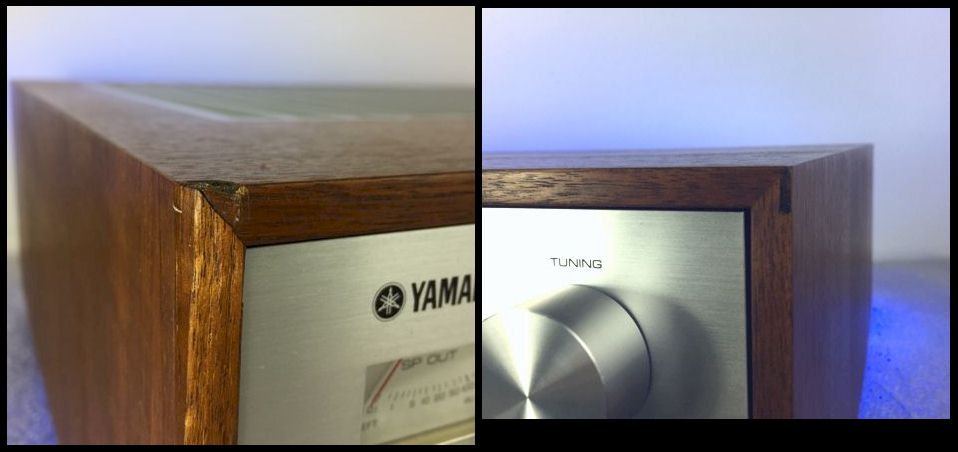

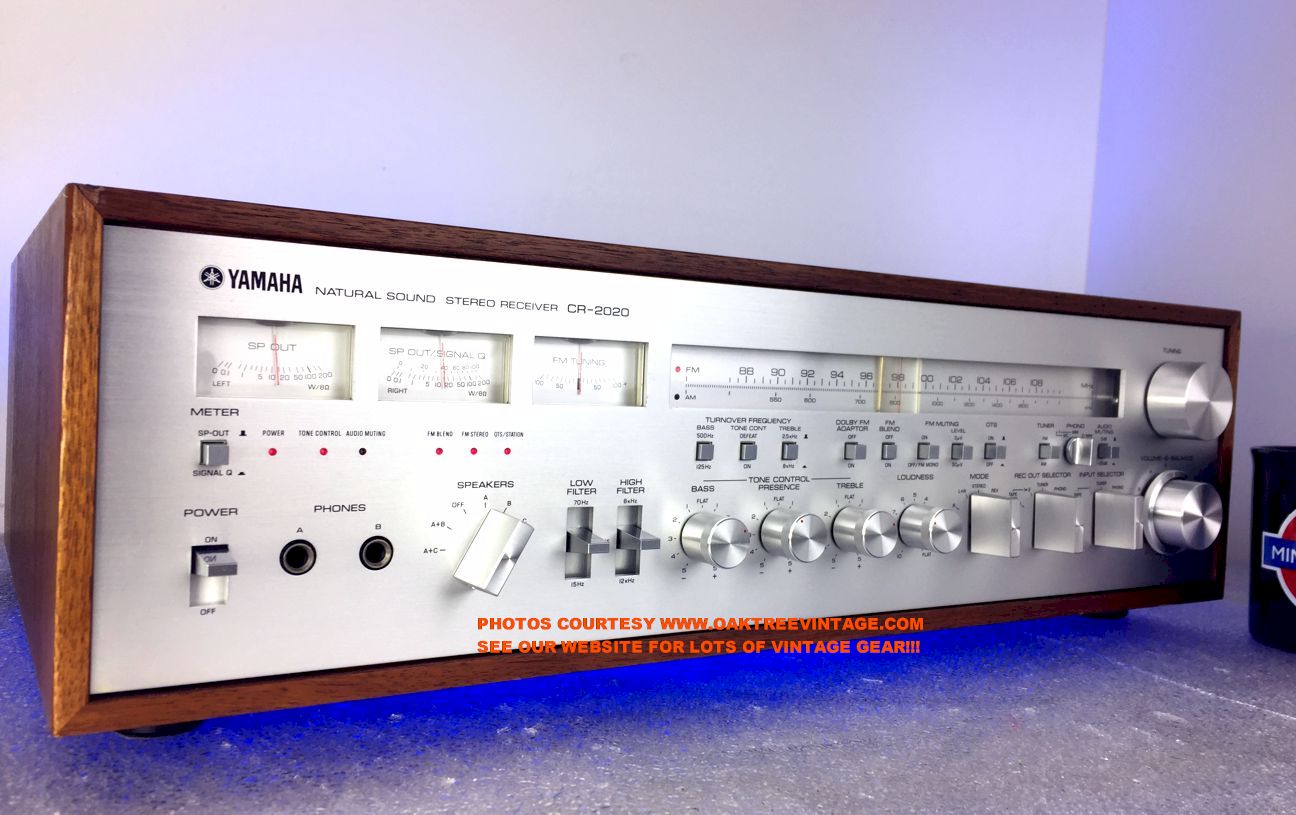

VINTAGE YAMAHA STEREO RECEIVER

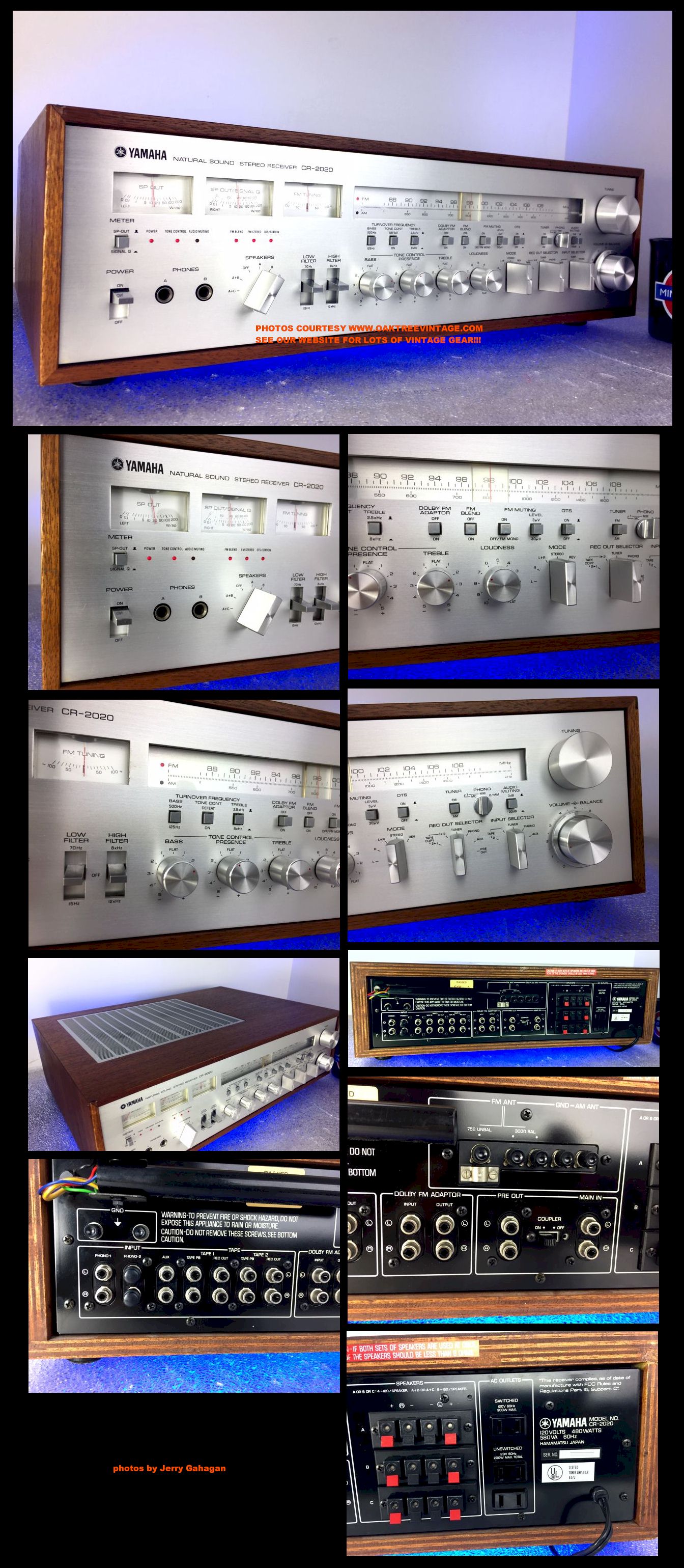

YAMAHA CR-2020 / CR2020 RECEIVER

SOLD
-




           NEW ADDITION 8/15/09
(Click on above thumbnails to enlarge photos)

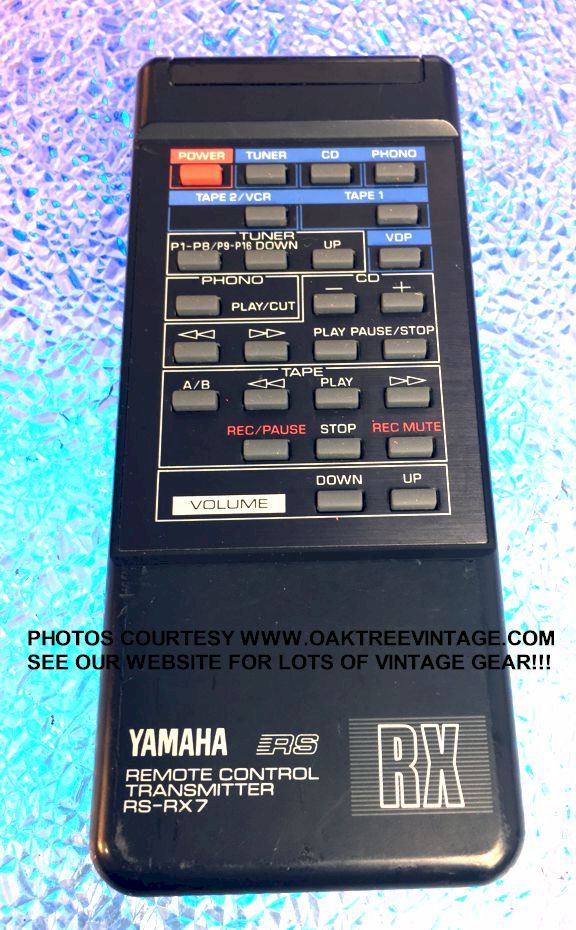

YAMAHA
  STEREO RECEIVER

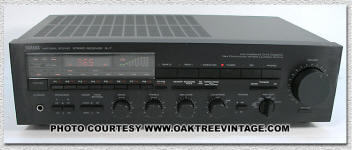

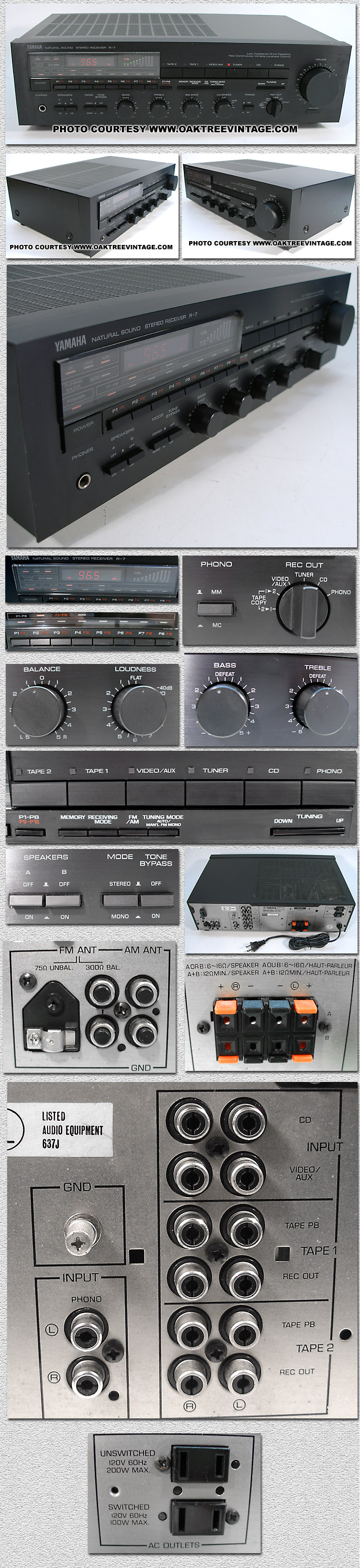

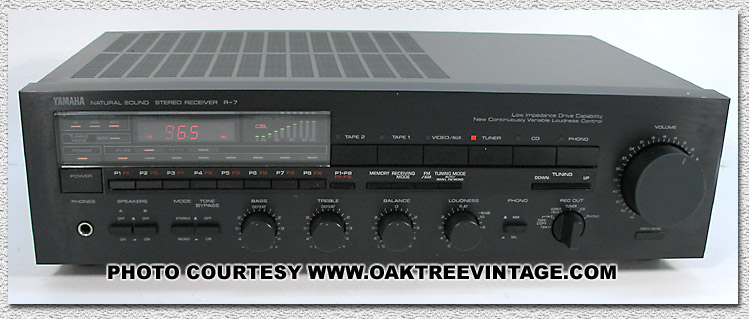

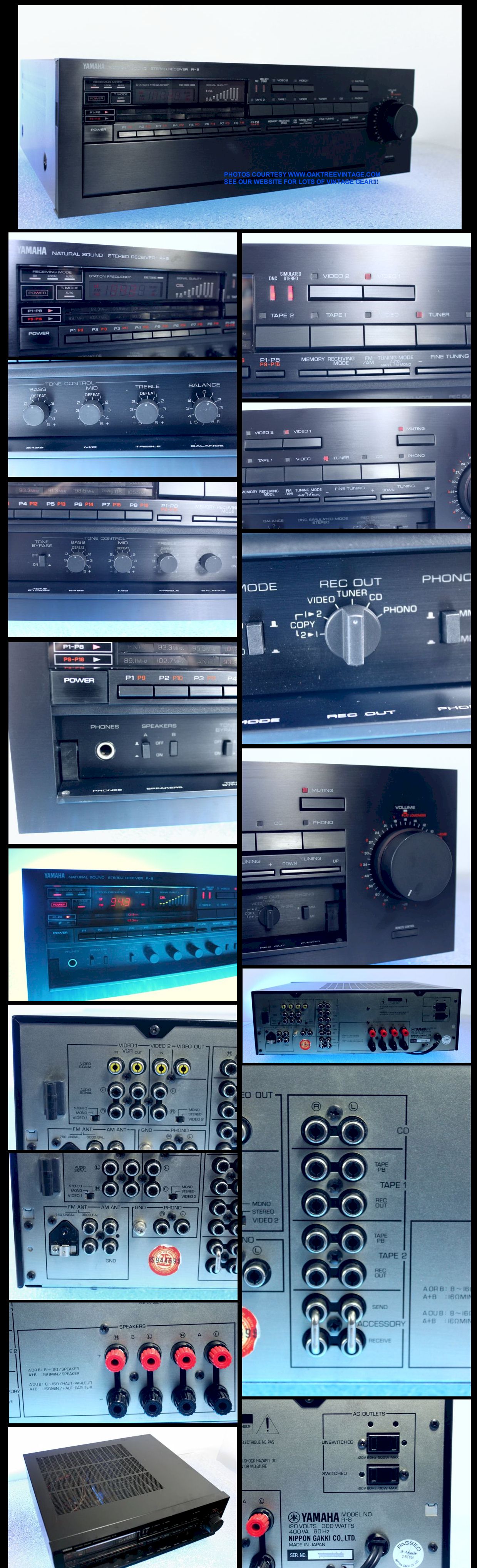

   R-7 R7
DIGITAL TUNING
#...1414
M.I.J.
 Circa
1986
(C)

C.B.S.

SOLD 2/1/10

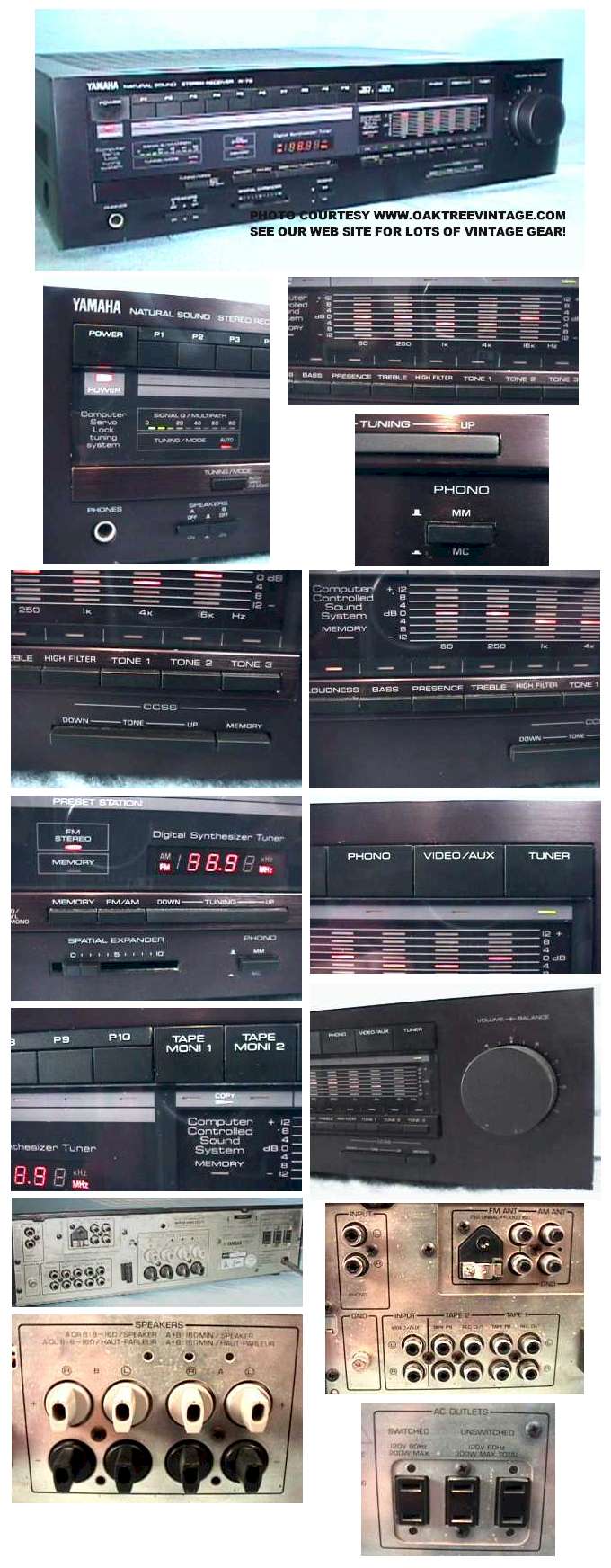

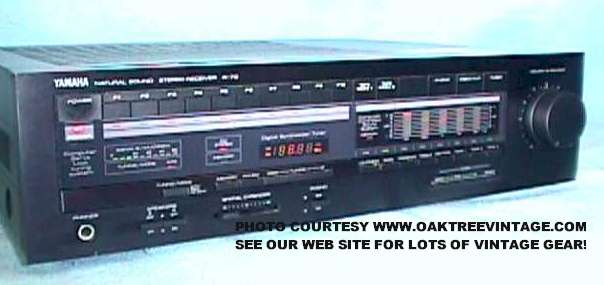

PRE-OWNED YAMAHA R-70
STEREO RECEIVER

SOLD

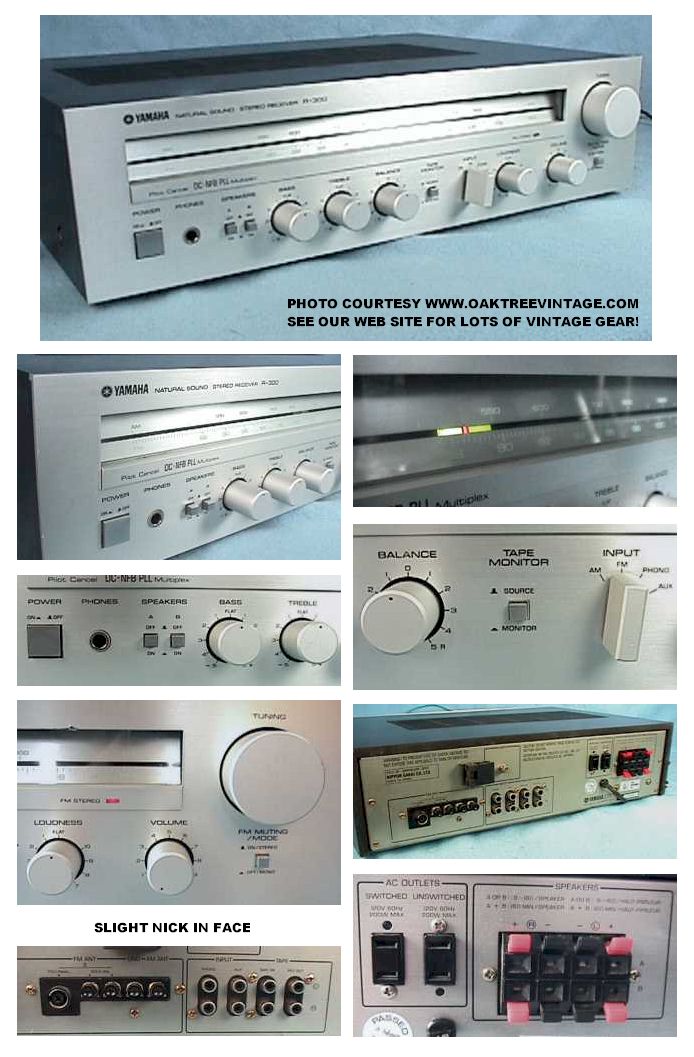

VINTAGE YAMAHA STEREO RECEIVER

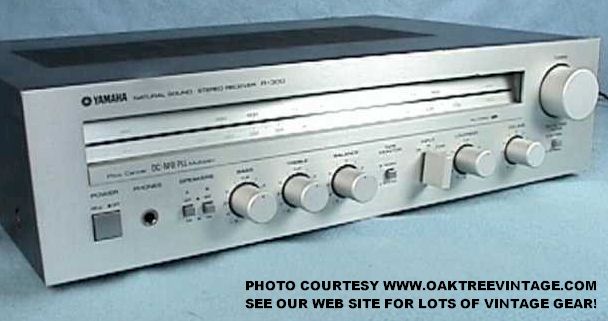

R-300 / R300
RECEIVER

Circa 1981-83
SOLD


VINTAGE YAMAHA STEREO RECEIVER
YAMAHA R-500 / R500
RECEIVER

SOLD 8/16/04

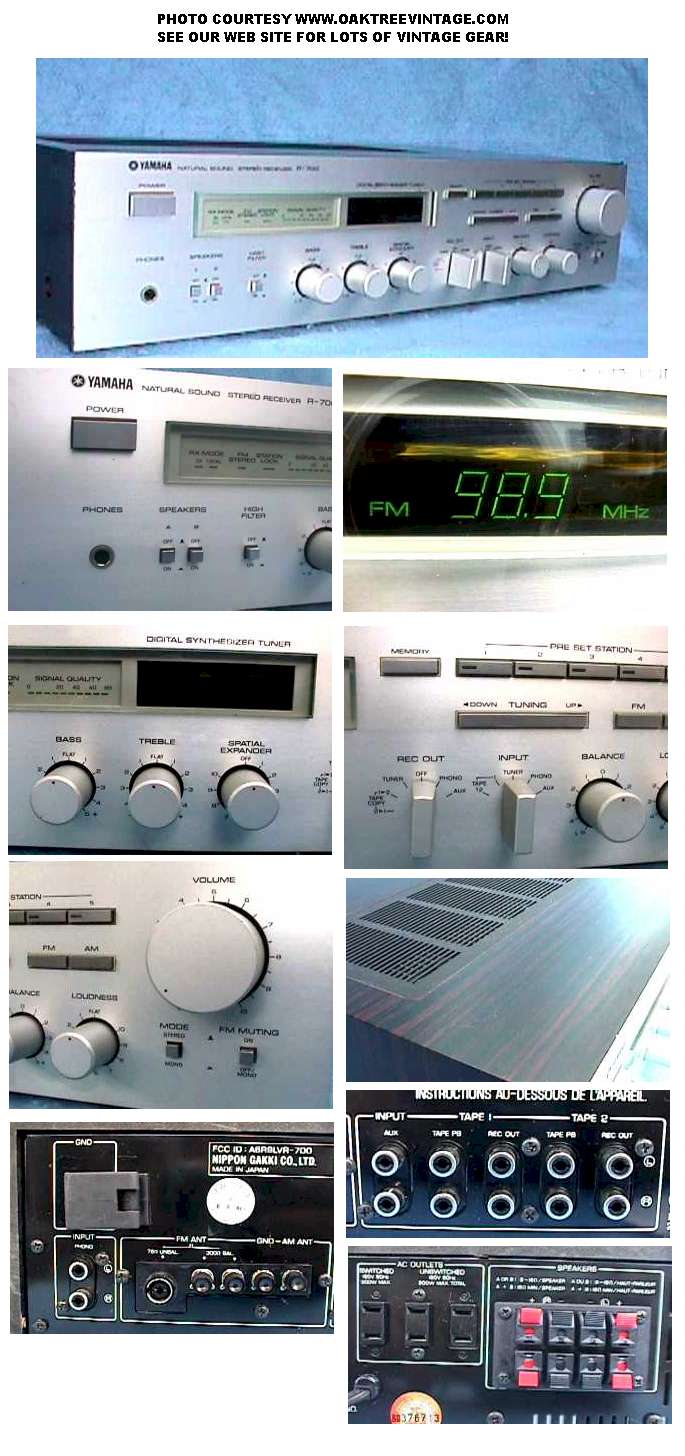

VINTAGE YAMAHA STEREO RECEIVER
YAMAHA R-700 / R700
RECEIVER

Circa '81-'83

SOLD

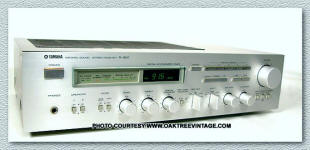

VINTAGE YAMAHA STEREO RECEIVER
YAMAHA R-900
RECEIVER
SOLD 1/13/05




         NEW ADDITION 6/4/08
  (Click on above thumbnails to enlarge photos)

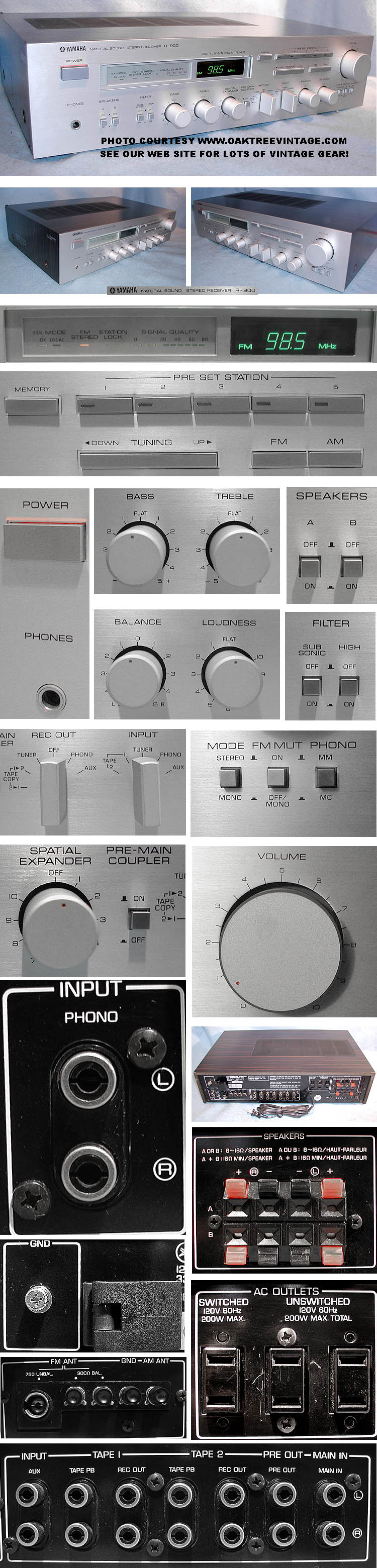

VINTAGE YAMAHA STEREO RECEIVER

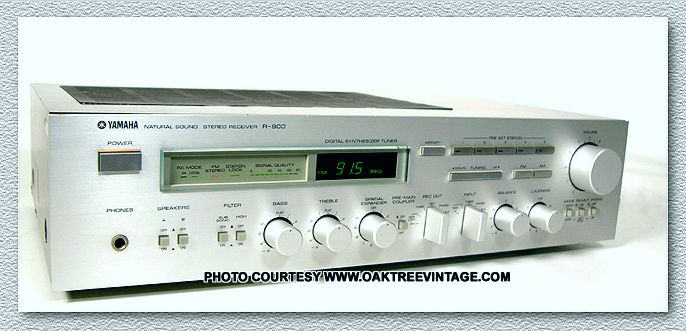

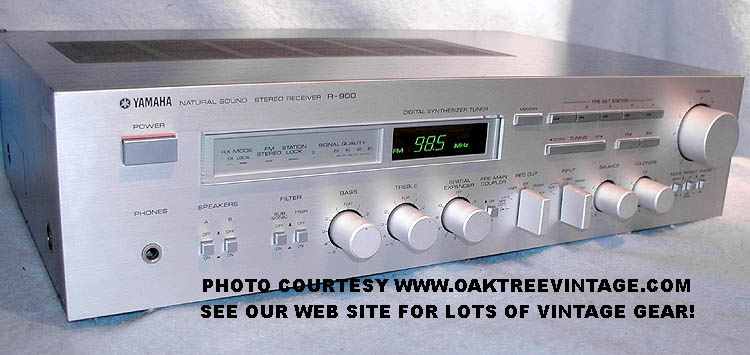

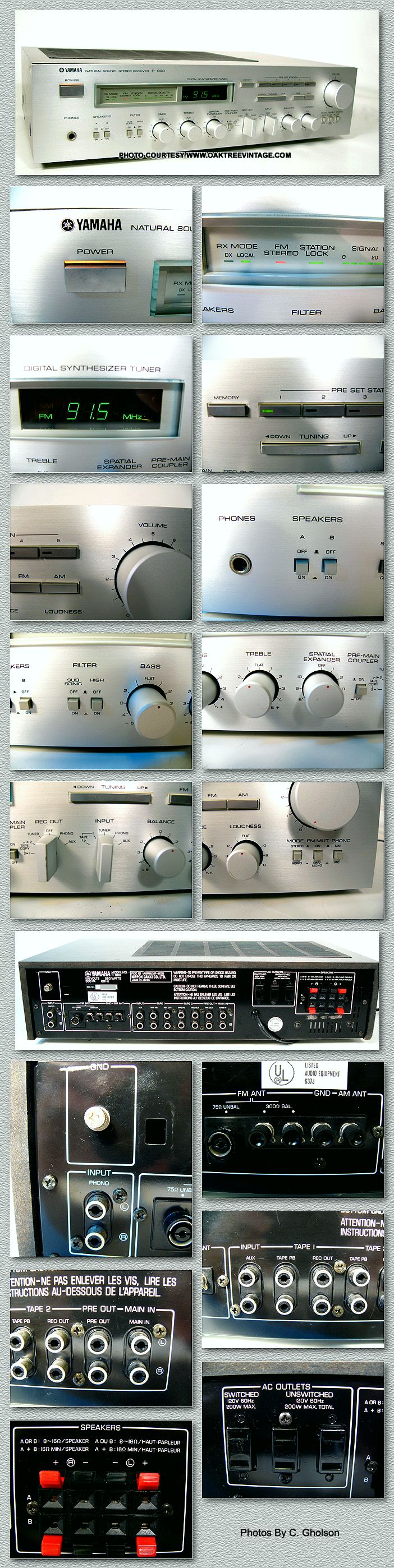

YAMAHA R-900 / R900 STEREO RECEIVER
Circa '81-'83

SOLD 1/18/09









VINTAGE YAMAHA STEREO RECEIVER
YAMAHA R-1000
RECEIVER

SOLD 8/6/05

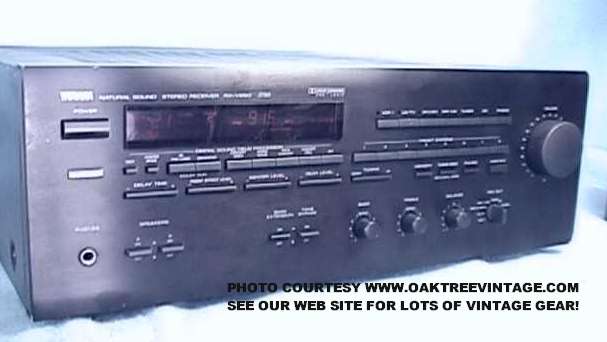

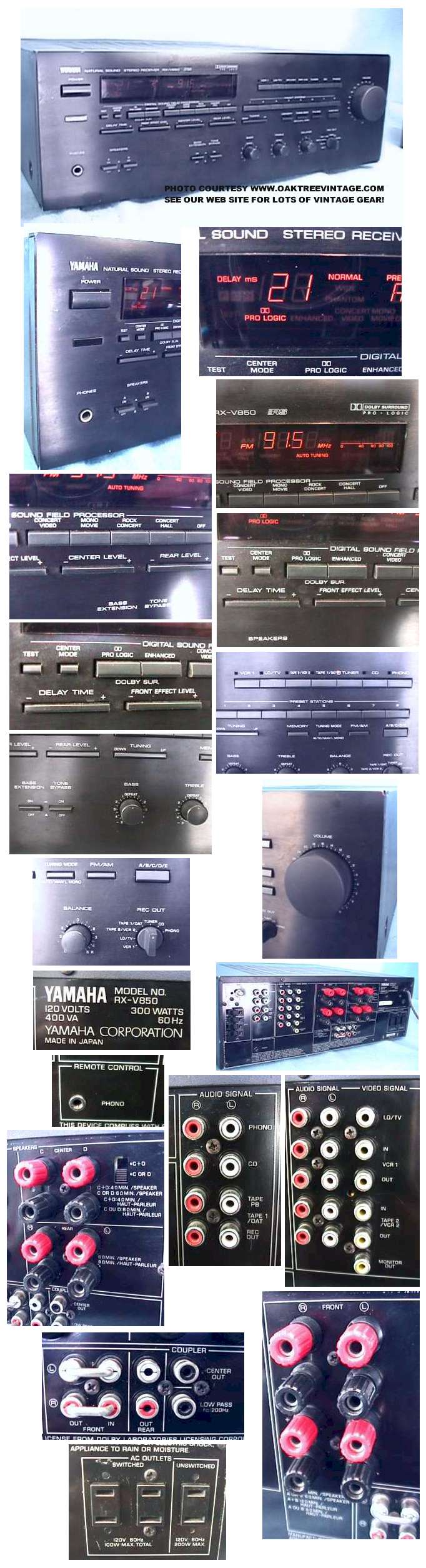

YAMAHA
            RX-V850
RXV850
STEREO RECEIVER
SOLD



         NEW LISTING 6/18/08
(Click on above thumbnails to enlarge photos)
YAMAHA

AUDIO / VIDEO

STEREO RECEIVER

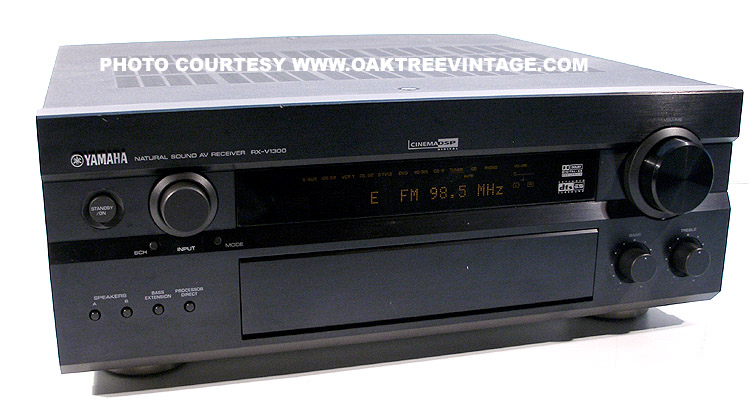

RX-V1300 RXV1300
6.1 CHANNEL AUDIO / VIDEO
STEREO
RECEIVER
Circa 2002
(C)

C.B.S.

SOLD 8/22/08



- - -

CLICK HERE TO SEE OUR RECEIVERS CURRENTLY FOR SALE!

                                                                                                                         ----       revised 9/23/10




LINKS TO OUR 'HI-FI' DEPARTMENTS

Amps and
Pre-Amps

Receivers

Cassette
Decks

Tuners

Turntables

8-Track Decks

CD Players

Reel-Reel
Decks

EQs and Signal
Processors

Speakers

Betamax and
VHS VCRs

Turntable Cartridges

Tube Audio

Ne'cessories

Speaker Parts

Record Players

Vintage Radios

Vintage
Walkmans

Headphones

Stereo Parts


Wondering where the "tone" you remember went?....

Vintage  Stereo Equipment receivers speakers Classic Silver Audio Collection and jerry



.... Surround yourself with Silver and find it again!



The units on the above page are for photo reference only and are no longer available for sale. To search 'For Sale' units, click on the links in the upper, left corner of page.
