VINTAGE SANSUI STEREO RECEIVER 221
SOLD
|
|
|

VINTAGE SANSUI STEREO RECEIVER 331 #1
STEREO RECEIVER
Circa 1977-79
SOLD 10/16/05
|

VINTAGE SANSUI STEREO RECEIVER 331 #2
STEREO RECEIVER
Circa 1977-79
SOLD 10/27/05 |

VINTAGE SANSUI STEREO
RECEIVER 331 #3
STEREO RECEIVER
Circa 1977-79
SOLD 7/29/05 |

VINTAGE SANSUI
STEREO RECEIVER 331 #4
STEREO RECEIVER
Circa 1977-79
SOLD |

(Click on above
thumbnails to enlarge photos)
NEW LISTING
10/4/07
warranty
VINTAGE SANSUI STEREO
RECEIVER 331 #6
STEREO RECEIVER
Circa 1977-79
331 #...5301
SOLD 10/22/07
(C)
C.B.S.
|

(Click on above
thumbnails to enlarge photos)
VINTAGE
SANSUI STEREO RECEIVER 331 #5
STEREO RECEIVER
Circa 1977-79
SOLD 9/1/06 |

NEW LISTING
6/23/08
(Click on above
thumbnails to enlarge photos)
warranty
CLASSIC SANSUI
STEREO RECEIVER SANSUI 350A RECEIVER #...0707 Circa '73-75 "WORLD
AC POWER"
™
MIJ
SOLD 8/24/08
|


NEW LISTING
7/28/128
(Click on above thumbnails to enlarge photos)
warranty
CLASSIC SANSUI STEREO RECEIVER SANSUI 350A RECEIVER #2 #...0707 Circa '73-75 "WORLD
AC POWER" ™ MIJ
SOLD 2/27/13 SHIPPED TO MARYLAND
Our
technician has completely gone through
and 'Certified'
this unit.
Everything was cleaned inside and out
including cleaning inside and out including all contacts, switches and
controls. Speaker switch replaced with another, original
Sansui 350A speaker switch. We also aligned the tuner
front-end for optimum AM & FM performance as older internal tuner components
have always drifted on vintage gear over the years.
All meter and dial lamps replaced for
trouble-free service.
Amplifier section had output bias and DC offset adjusted to spec
levels.
All inputs tested and both side produces clean and
even sine waves into static 8 & 4 ohm loads! No power supply hum of any
kind. It's dead silent! All functions test fine. Following
restoration procedures, the unit was run continuously at medium volume, as
all our amplifier / receivers are, into a load with "Loudness" on and both
Tone Controls at 10 for 48 hours
and into a 4 Ohm Load!
On our test bench, both this unit's amplifiers produced peak power of
XX volts per channel @ 8 ohms for
XX watts and XX volts @
4 ohms for XX
watts per channel via discrete, TO-3, metal cased outputs with 1 kHz input.
(4x Hitachi 2SC1030). AC
Idle current at .1A, DC offset output <4mvDC
either channel. Floor noise at 2.5mVAC either
channel. ____________________________ This Sansui 350A stereo receiver
would be ....
.....
Sansui 350A Features include:
.......
HEY, WHY ALL THE 'X'd' OUT /
OMITTED SPECS AND TEXT?
Original Sansui
350A Specifications:
POWER / PRE AMP SPECIFICATIONS:
Music Power: XX Cont rated RMS Power:XX watts @ 8 Ohms,
20-20k & <XX THD
THD: <XX% @ full rated power IMD: <XX% @ full rated power Power Bandwidth (IHF):
XXkHz Damping factor:
XX @ 8Ω & full bandwidth Hum and Noise:
XXdB on Phono w/ 2.5mV input and
XXdB w/ 5.0mV
input Input Sensitivity AUX / Tape:
XXmV @ 100kΩ| Bass Control: ±XXdB @
X0hz Treble Control: ±XXdB @
X0khz High Filter: -XXdB @
X0kHz Low Filter: -XXdB @
X0Hz "Loudness" Contour: +XdB @
Xhz & +XdB @
XXkHz (volume control
@ -30dB)
HEY, WHY ALL THE 'X'd' OUT /
OMITTED SPECS AND TEXT?
TUNER SPECS FOR FM: Tuning Range:
88-108mHz Capture Ratio: 1XXdB S/N: >
XXdb Stereo Selectivity: >4XXdB
Image Frequency Rejection: >XX dB at 98 MHz IF
Rejection: > XXdB at 98 MHz Spurious Response Rejection: >XXdB
THD 65dBf @ 1kHz, Mono: <XX%
Stereo Separation Ratio: >XXdB @ 50Hz to 10kHz TUNER SPECS FOR AM: Tuning Range: 535-1605kHz
IF (Image Frequency) Rejection: >XXdB @ 1kHz
Selectivity: >XXdB @ 1kHz Useable Sensitivity (External Antenna / Bar Antenna):
XμV/m /
250 μV/m PHONO SECTION SPECS: Freq Response:
XXkHz Channel Separation: >
XXdB Input Sensitivity:
XXmV @ 50kΩ Max input:
~2XXmV @ 50kΩ
HEY, WHY ALL THE 'X'd' OUT /
OMITTED SPECS AND TEXT?
Again, as stated before, we have completely gone through this Sansui
350A, stereo receiver, cleaning and testing all and it gets our full 'Certification'.
Brushed aluminum face and knobs in like NEW condition. Unit looks and
sounds great. Wood grained, vinyl case in great condition. Includes an
'e' copy pdf download of the original Sansui 350A brochure. .....Comes
with our standard 90 day limited warranty. CLASSIC SANSUI 350A RECEIVER
SOLD 2/27/13 SHIPPED TO MARYLAND
(Above text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
|

(Click on above
thumbnails to enlarge photos)
VINTAGE SANSUI STEREO RECEIVER

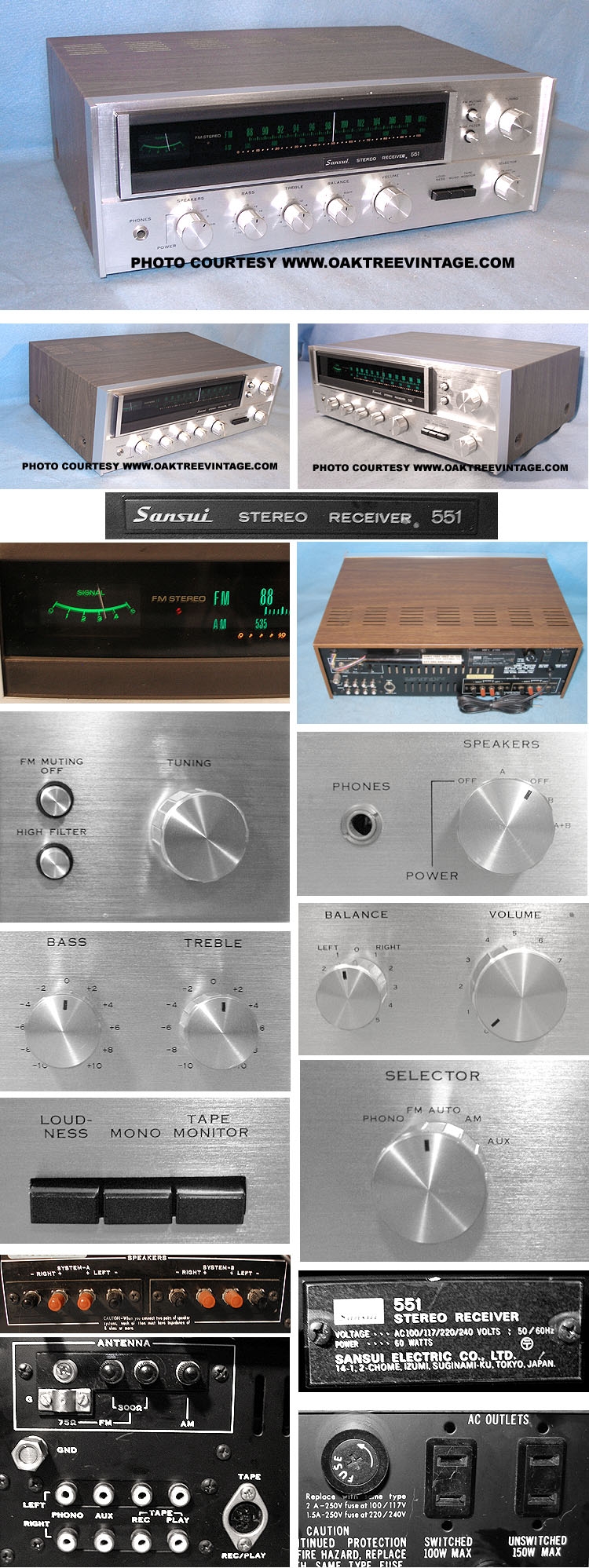

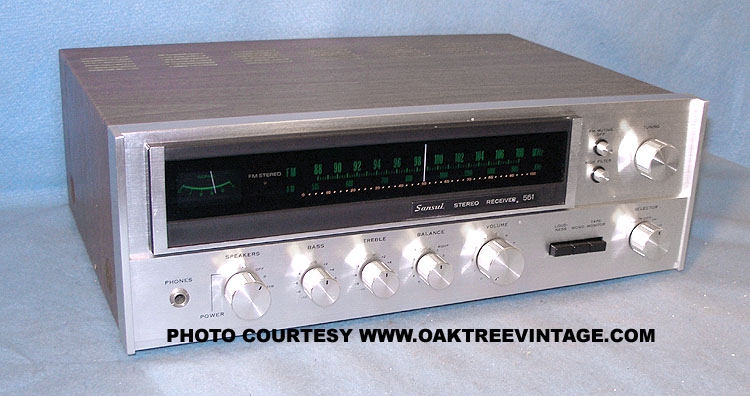

SANSUI MODEL 551 RECEIVER
SOLD 11/9/06 |
|
|

NEW LISTING 12/5/09
(Click on above
thumbnails to enlarge photos) warranty
VINTAGE
SANSUI STEREO RECEIVER SANSUI MODEL 661 RECEIVER #...1889
Circa 1974-76 "WORLD
AC POWER"
™
MIJ (C) C.B.S.
SOLD 2/5/10
|

NEW LISTING 3/22/17
(Click on above thumbnails to enlarge photos)
warranty

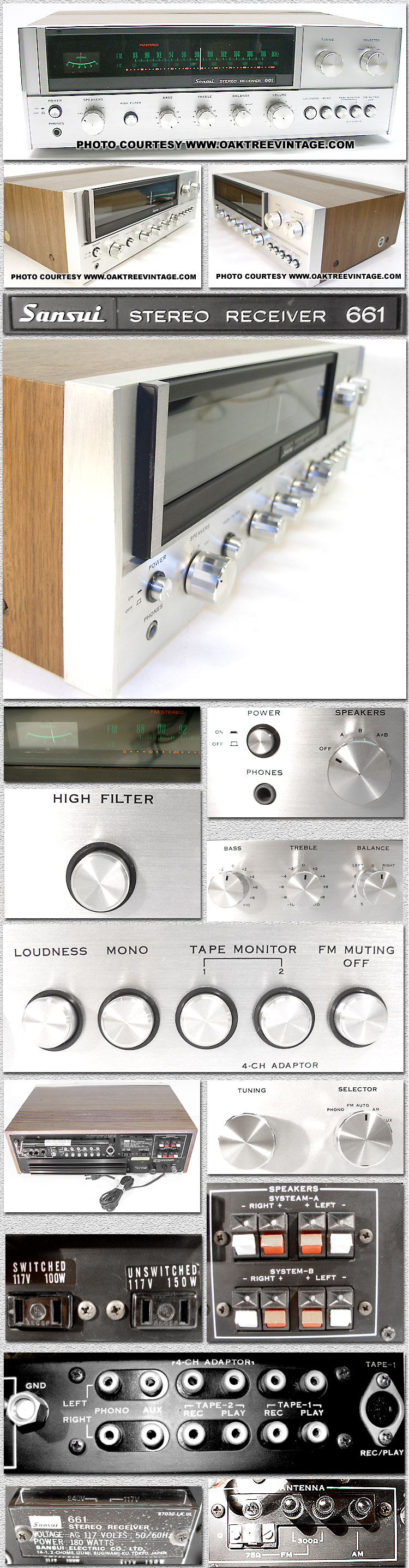

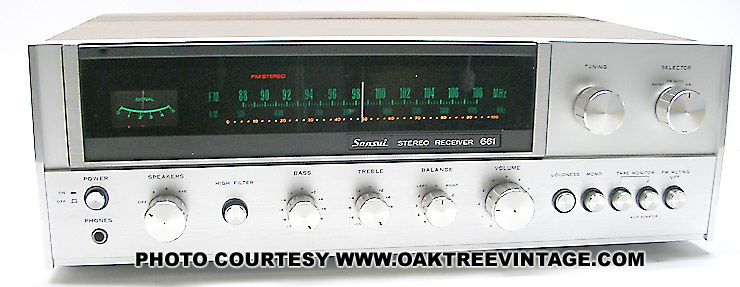

RESTORED / REFURBISHED / FULLY SERVICED VINTAGE
SANSUI STEREO RECEIVER SANSUI 661
#...0083
Circa 1974-76 "WORLD
AC POWER"
™
MIJ
SOLD 3/23/17 SHIPPING TO MONTANA
ü
Our technician has completely gone through
and 'Certified' this unit.
ü
Everything was cleaned inside and out including all contacts, switches
and controls.
ü

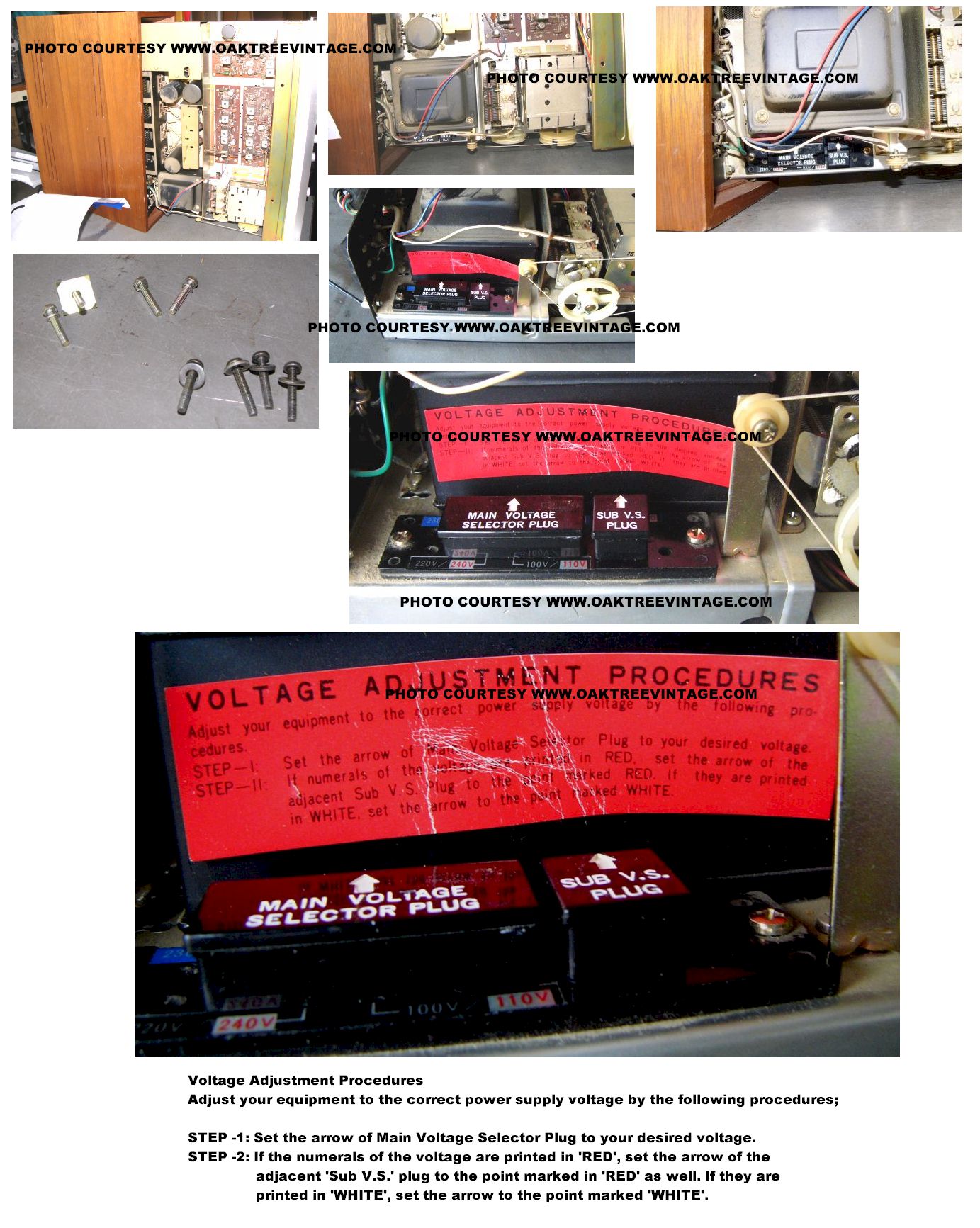

AC voltage
selector corrected and correct NEW 'mains' fuse installed
ü
Skewed control shafts straightened
ü
All question-able and common 'stress point' solder joints re-flowed
ü
Bias current adjusted to correct level
ü
DC offset adjusted to a low level ‘0’ mVDC (±10) on
either channel
ü
Headphone floor noise tested and found to be very quiet, to MAX volume
ü
We also aligned the tuner for optimum AM & FM performance as older
internal tuner components have always drifted on vintage gear over the
years.
VERY GOOD TUNER!
AM reception
WAY
above average, FM reception incredible, PUNCHY, with GREAT SEPARATION
and
IMPECCABLY CLEAN!!!
ü
All meter, dial, and FM stereo indicator and FM function lamps replaced
for trouble-free service
ü
Entire unit cleaned / detailed cosmetically inside and out.
ü
All inputs tested and both sides produce clean and even sine waves into
static 8 & 4 ohm loads! No power supply hum of any kind. It's dead
silent! All functions test fine.
ü
Following restoration procedures, the unit was run continuously at
medium volume, as all our amplifiers / receivers are, into a 4 Ohm load with
"Loudness" on and both Tone Controls at 10 for 48 hours
and into a 4 Ohm Load!
ü
We also aligned the tuner for optimum performance on both AM and FM. All
functions tested for perfect operation. All inputs tested and both sides
produce clean and even sine waves! No power supply hum of any kind. It's
dead silent! Tone controls are super quality, Alps brand, "full-size",
de-tented potentiometers. All functions tested for perfect operation.
You will not be disappointed. Total restoration time investment ~7
hours.
ü
Following the above tech work, on our test bench, this
unit's amplifiers produced
17.5 Volts @ 8
Ω
per channel for 38 Watts / channel and 14.5 Volts @ 4
Ω
per channel for 52 Watts / channel via discrete, metal cased, TO-3 style
output devices at 1kHz. (4x Sankyo 2SC1111). AC idle current draw measured at 0.2A.
DC offset adjusted to 0 mVDC ±10.
Bias current adjusted to 19mA. Floor Noise Level tested at 2.5mVAC / -58dBm.
Again, as stated before, we have completely gone through this unit
cleaning and testing all. Driver boards serviced and tuner aligned....
Includes an 'e' copy, pdf download of the
Sansui 661 brochure if purchaser desires. Comes with
original box and packing. Measures 17.5" wide x 12" deep x 5.25"
high and weighs 22 lbs unpacked. Includes our standard 90 day limited
warranty! SANSUI 661 Cond.
8.5++
SOLD 3/23/17 SHIPPING TO MONTANA (C) R.R.
(Above
text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
|

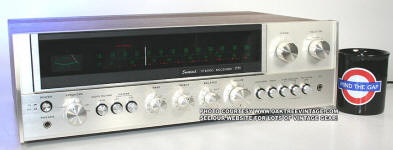

VINTAGE SANSUI STEREO RECEIVER SANSUI MODEL 771 RECEIVER
SOLD
|

NEW ADDITION
4/12/12
(Click on above
thumbnails to enlarge photos)
warranty

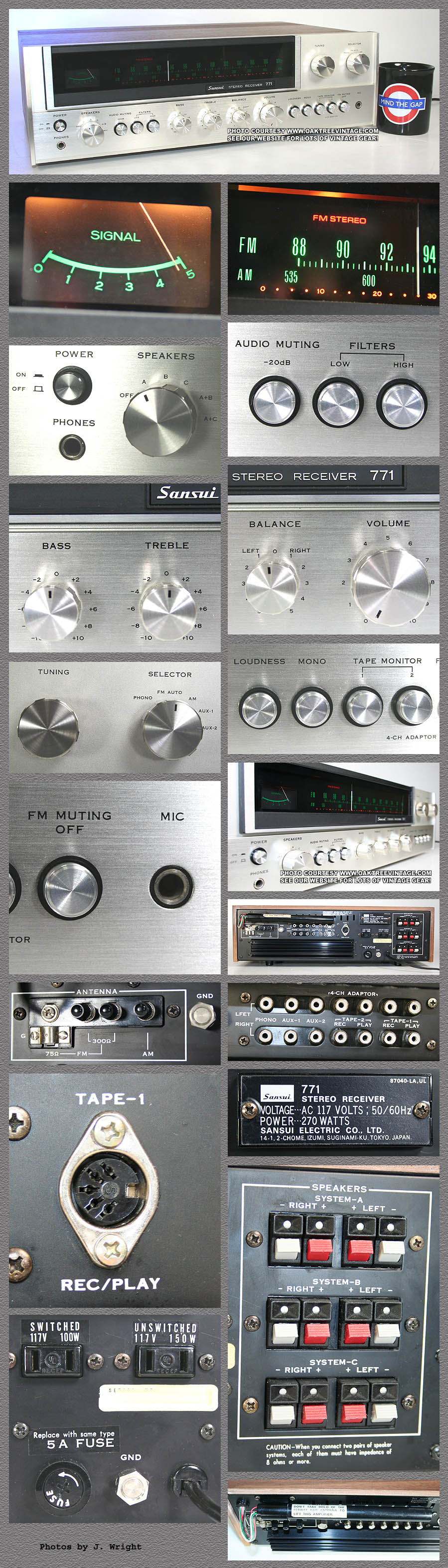

CLASSIC
SANSUI 2-CHANNEL STEREO RECEIVER SANSUI MODEL 771 RECEIVER #2 #...0923
Circa 1974-76 "WORLD
AC POWER" ™ MIJ
SOLD 7/23/12 SHIPPED TO OHIO
(Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
|

(Click on above
thumbnails to enlarge photos)
warranty

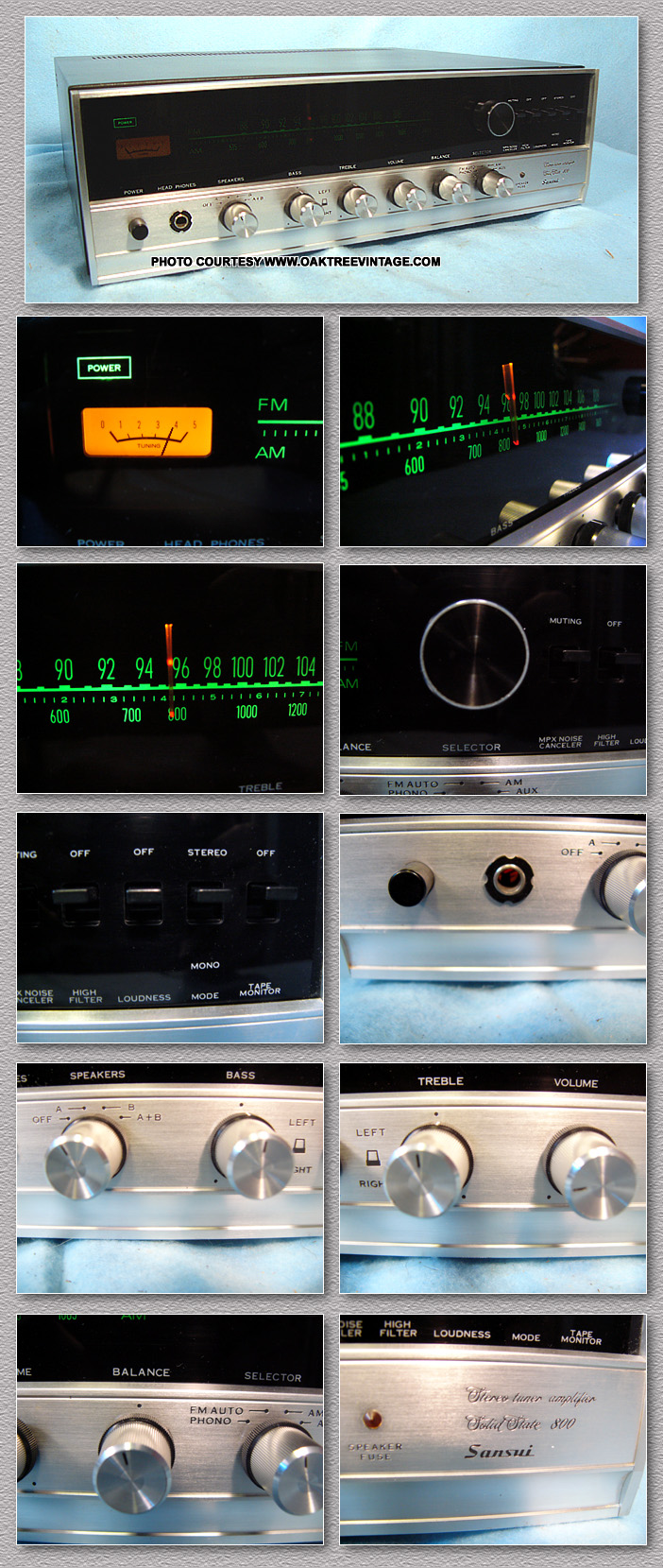

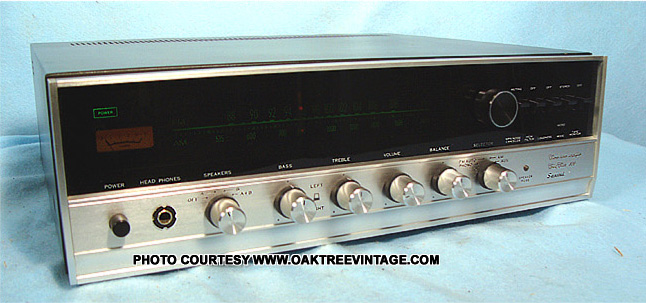

VINTAGE SANSUI STEREO RECEIVER

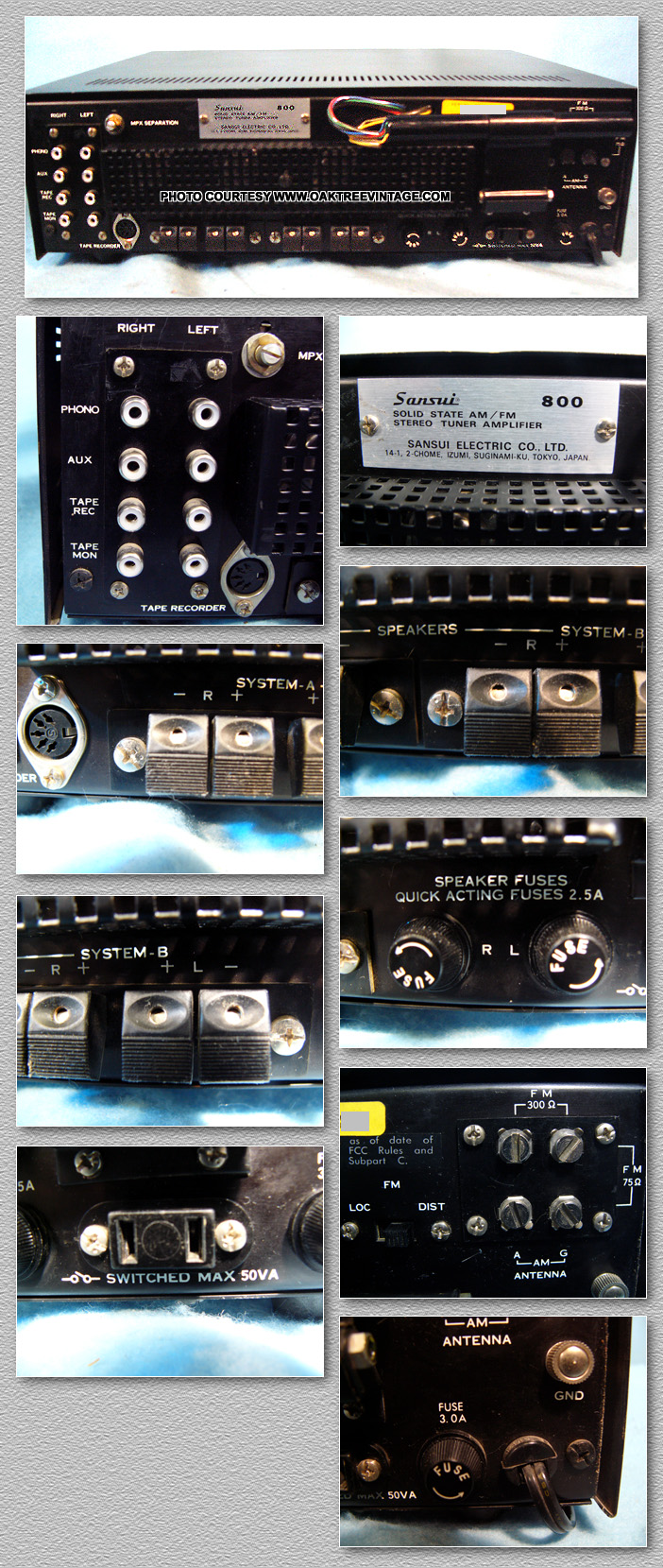

SANSUI MODEL 800 RECEIVER
#...0801
FM STEREO RECEIVER
SOLD 12/18/07
|
|

NEW LISTING
4/22/08
(Click on above
thumbnails to enlarge photos)
warranty

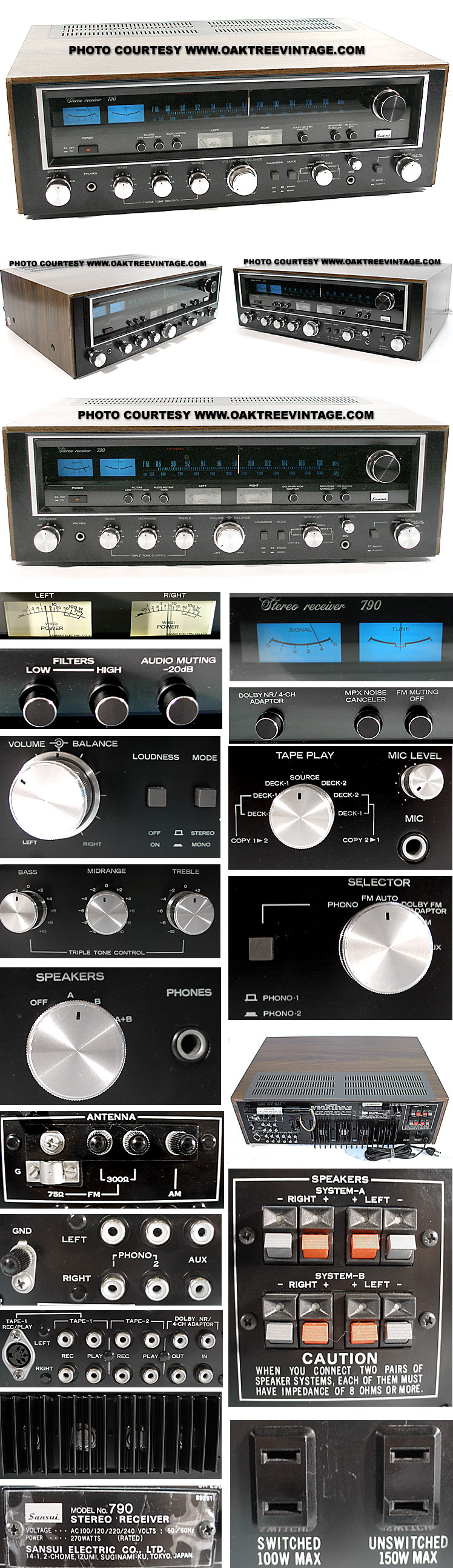

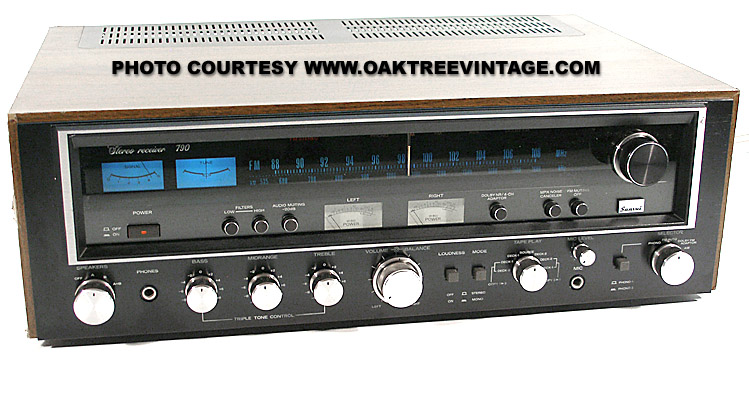

VINTAGE SANSUI STEREO RECEIVER

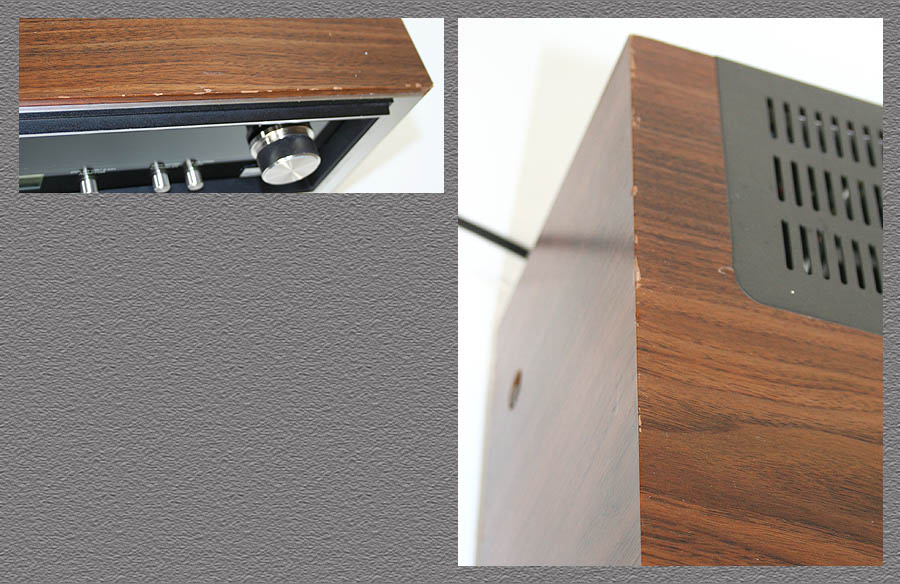

SANSUI 790 / 7070
CIRCA 1977-79
MILITARY VERSION OF A 7070DB
SOLD 6/12/08 |
|
|
|
|

NEW
LISTING
5/18/12
(Click on above thumbnails to enlarge photos)
warranty
VINTAGE-CLASSIC

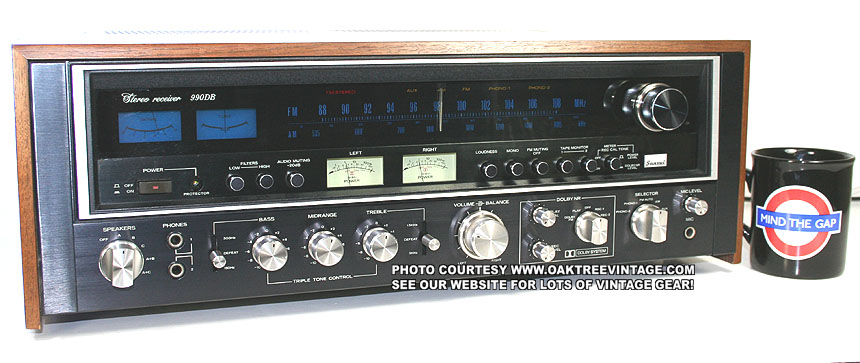

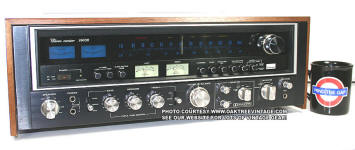

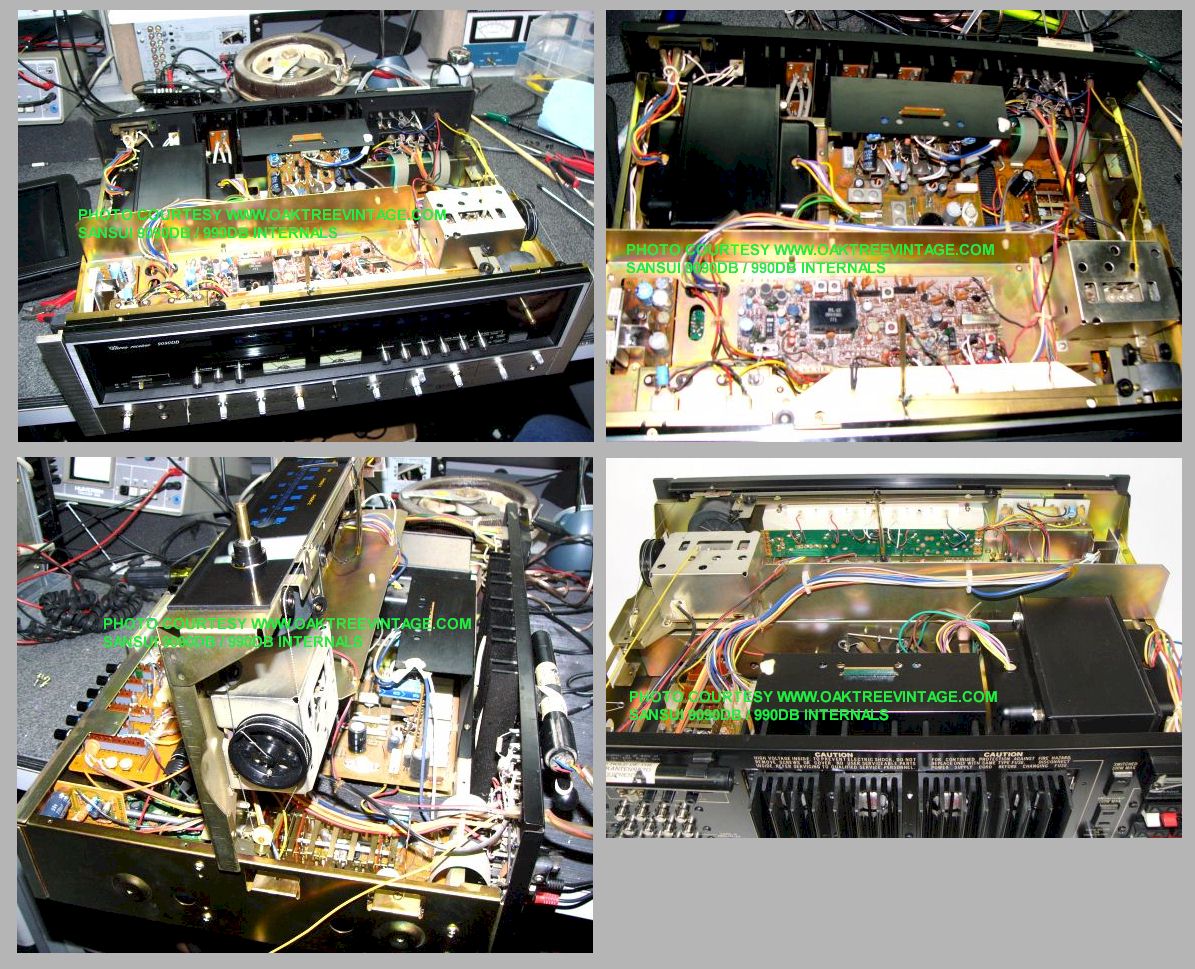

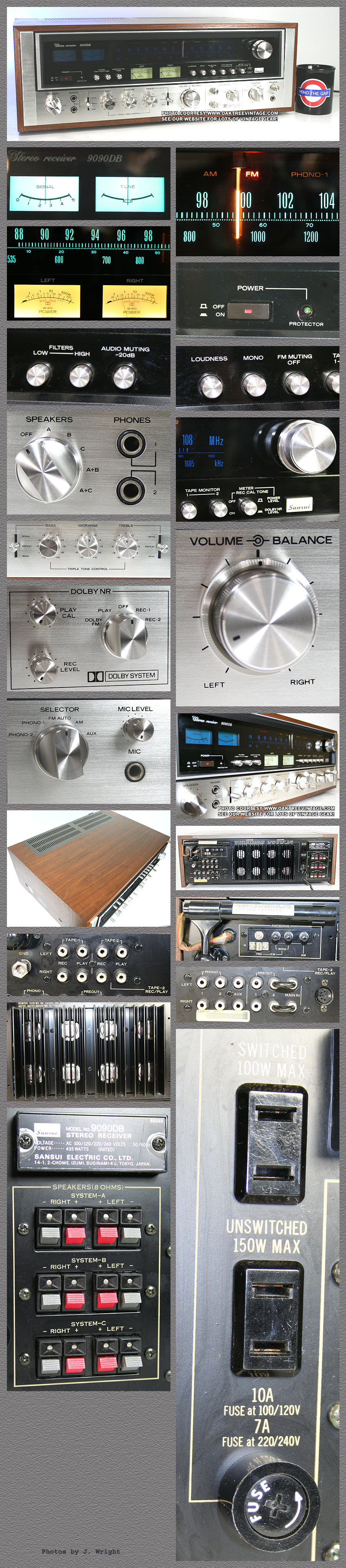

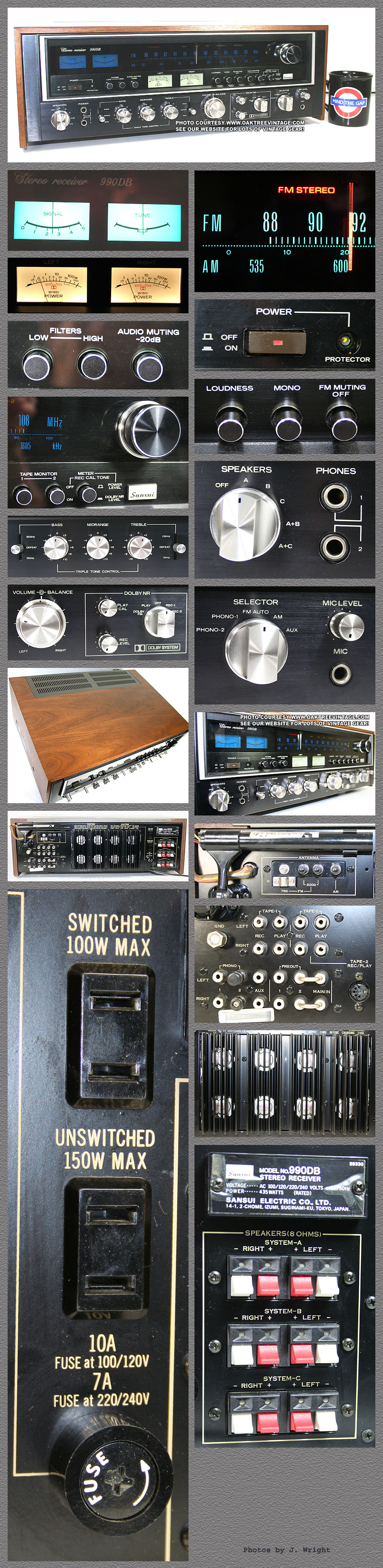

SANSUI STEREO RECEIVER SANSUI 990DB RECEIVER EURO / MILITARY 'BLACK-FACE' VERSION OF THE SANSUI 9090DB RECEIVER #...0061 CIRCA 1977-79
"WORLD
AC POWER"™
MIJ
SOLD 7/19/12 Our technician has
completely gone through this unit cleaning
everything including all switches (actually accessed
(requires 'splitting' the unit horizontally)
and fully
flooded), controls and contacts for quiet, positive operation.
Extra

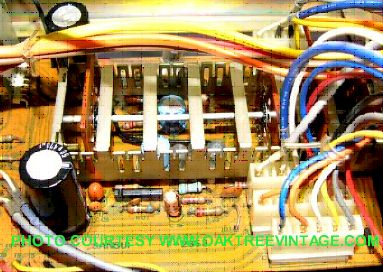

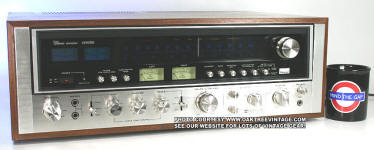

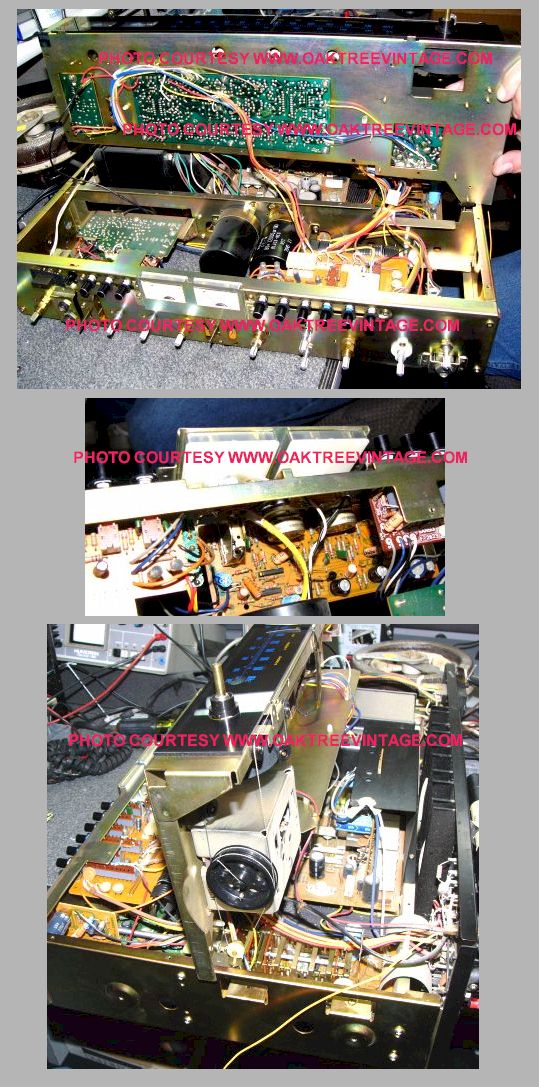

attention is ALWAYS necessary on Sansui 990 / 9090 units to the 'Input
Selector'
and 'Dolby' switches, and they were completely disassembled, thoroughly
cleaned, burnished, had contacts 're-sprung' and tested (only about half

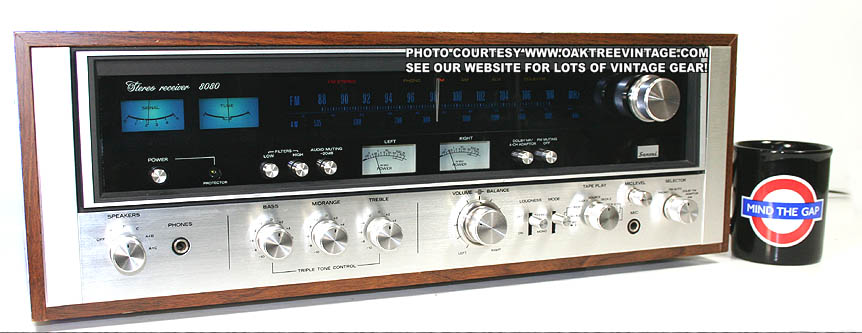

the 990's, 8080's and 9090's have input selector switches that will
respond to cleaning only). On this
unit, he actually bypassed the wafer portion that routes the dial light
current, and direct wired the lights to be lit constantly
(the
issue with the dial lights on Sansui 880 / 8080-DB / 990 / 9090-DB
series receivers is that the contacts were, by design, too anemic to
handle the 1 Amp+ current they require). He also re-flowed
all dial lamp solder joints, especially at the 'extremes' of the board.
Now dial lamps light solidly and inputs sonically intact.
DC measurements taken
'post-preamp', 'post driver board' and 'post power amp'. Questionable
driver board replaced with another original, inspected component by
component & contacts burnished. Once reseated, DC measurements re-taken.
Once driver board was replaced, then the tech moved to address the
output transistors. Substitute 'generic' outputs and bad original
outputs removed and we 'hand picked' from our extensive collection of
original Sansui 9090 output transistors, and closely matched 'quads' of outputs to re-install. Fresh heat sink
compound used of course.
Green
'LED' Power indicator's 'current limiting' circuit components replaced
as necessary.
The 'typically broken',
Sansui 9090 AM antenna socket replaced
.
We
also aligned the tuner front-end for optimum AM & FM performance as
older internal tuner components have always drifted on vintage gear over
the years. All dial, all meter (including the very difficult to
replace power meter lamps
),
all function indicator and stereo indicator lamps replaced with new
units for years of trouble-free service. Also we 'painstakingly'
replaced the 'dial pointer' lamp. The dial string was cleaned and
re-tensioned. Once unit's electronics were addressed, the unit was
cosmetically detailed inside and out, including rubbing the Real Walnut
Wood veneer case with a fresh coat of lemon oil. All original, extruded
face, and milled aluminum knobs in great shape after detailing. Internal
and external dial screen and window in perfect shape. All inputs tested,
including both phonos, and both amplifiers produces clean and even sine
waves into static 8 & 4 ohm loads! No power supply hum of any kind. It's
dead silent! All functions test fine. The real Walnut wood veneer in
good condition with only very minor wear. Following restoration
procedures, the unit was operated continuously at medium volume, as all
our amplifier / receivers are, into a load with ""Loudness"" on and both
Tone Controls at 10 for 72 hours. On
our test bench, this particular Sansui 990DB, #...0061, amplifiers each
produced XX volts per channel for 1XXwatts per channel @ 8 Ω via
discrete output & XXvolts per channel for
XXwatts per channel @ 4 Ω
via discrete, Metal cased, original TO-3 outputs (Toshiba 4x 2SB554 &
4x 2SD424 output transistors). (AC draw at idle 350mA tested,
DC offset adjusted to <4mV each side. Floor noise measured at L=00.1mVAC and R=00.1mVAC)
HEY, WHY ALL THE 'X'd' OUT /
OMITTED SPECS AND TEXT?
great tuners, and amp's that you can "darn near weld
with". The tuner quality on both AM & FM is
exceptional due to aspects such as a fully shielded tuning capacitor
.
SANSUI 990DB STEREO RECEIVER
(C) B.G.
SOLD 7/19/12
(Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|

NEW
LISTING 1/15/15
warranty
VINTAGE-CLASSIC
SANSUI STEREO RECEIVER SANSUI 990DB RECEIVER EURO / MILITARY 'BLACK-FACE' VERSION OF THE SANSUI 9090DB RECEIVER #...0061 CIRCA 1977-79
"WORLD
AC POWER"™
MIJ SOLD 4/7/15 SHIPPED TO TEXAS
Our
technician has completely gone through
and 'Certified'
this unit, cleaning
everything including all switches (actually accessed
(requires 'splitting' the unit horizontally)
and fully
flooded), controls and contacts for quiet, positive operation.
Extra
attention is ALWAYS necessary on Sansui 990 / 9090 units to the 'Input
Selector'
and 'Dolby' switches, and they were completely disassembled, thoroughly
cleaned, burnished, had contacts 're-sprung' and tested (only about half
the 990's, 8080's and 9090's have input selector switches that will
respond to cleaning only). On this
unit, he actually bypassed the wafer portion that routes the dial light
current, and direct wired the lights to be lit constantly
(the
issue with the dial lights on Sansui 880 / 8080-DB / 990 / 9090-DB
series receivers is that the contacts were, by design, too anemic to
handle the 1 Amp+ current they require). He also re-flowed
all dial lamp solder joints, especially at the 'extremes' of the board.
Now dial lamps light solidly and inputs sonically intact.
DC measurements taken
'post-preamp', 'post driver board' and 'post power amp'. Questionable
driver board replaced with another original, inspected component by
component & contacts burnished. Once reseated, DC measurements re-taken.
Once driver board was replaced, then the tech moved to address the
output transistors. Substitute 'generic' outputs and bad original
outputs removed and we 'hand picked' from our extensive collection of
original Sansui 9090 output transistors, and closely matched 'quads' of outputs to re-install. Fresh heat sink
compound used of course.
Green
'LED' Power indicator's 'current limiting' circuit components replaced
as necessary.
The 'typically broken',
Sansui 9090 AM antenna socket replaced
.
We
also aligned the tuner front-end for optimum AM & FM performance as
older internal tuner components have always drifted on vintage gear over
the years. All dial, all meter (including the very difficult to
replace power meter lamps
),
all function indicator and stereo indicator lamps replaced with new
units for years of trouble-free service. Also we 'painstakingly'
replaced the 'dial pointer' lamp. The dial string was cleaned and
re-tensioned. Once unit's electronics were addressed, the unit was
cosmetically detailed inside and out, including rubbing the Real Walnut
Wood veneer case with a fresh coat of lemon oil. All original, extruded
face, and milled aluminum knobs in great shape after detailing. Internal
and external dial screen and window in perfect shape. All inputs tested,
including both phonos, and both amplifiers produces clean and even sine
waves into static 8 & 4 ohm loads! No power supply hum of any kind. It's
dead silent! All functions test fine. The real Walnut wood veneer in
good condition with only very minor wear. Following restoration
procedures, the unit was operated continuously at medium volume, as all
our amplifier / receivers are, into a load with ""Loudness"" on and both
Tone Controls at 10 for 72 hours. On
our test bench, this particular Sansui 990DB, #...0061, amplifiers each
produced 35 volts per channel for 153 watts per channel @ 8 Ω via
discrete output & 31 volts per channel for 242 watts per channel @ 4 Ω
via discrete, Metal cased, original TO-3 outputs (Toshiba 4x 2SB554 &
4x 2SD424 output transistors). (AC draw at idle 350mA tested,
DC offset adjusted to <4mV each side. Floor noise measured at L=00.1mVAC and R=00.1mVAC) ___________________________ Here's the
first Sansui 990DB we've ever had! (yes, we had this
one a couple years ago, and the current owner is 'moving up' to HUGE
separates, and yes we've had a few 9090DB's, but no 'Military
Market' 990DB's) These are known for great tuners, and amp's that you
can "darn near weld with". The tuner quality on both AM & FM is

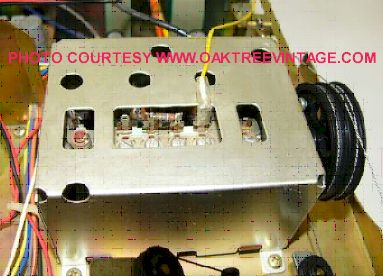

exceptional due to aspects such as a fully shielded tuning capacitor
.
The amps are incredibly warm sounding with
HUGE punch and headroom.
Very "Musical" sounding with real output transistors and huge
power supplies. A testament to the...
HEY, WHY ALL THE 'X'd' OUT /
OMITTED SPECS AND TEXT?
J.W. (C) SOLD 4/7/15 SHIPPED TO TEXAS
(Above text, including 'Features' and 'Specs' listing
property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|

VINTAGE SANSUI
AM/FM STEREO RECEIVER

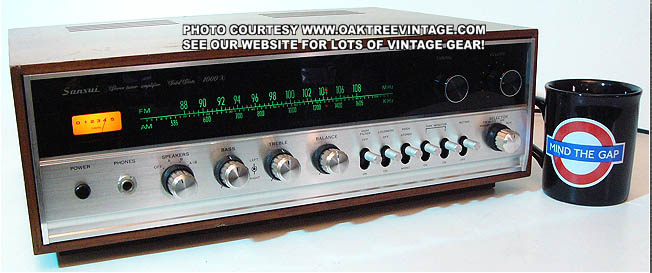

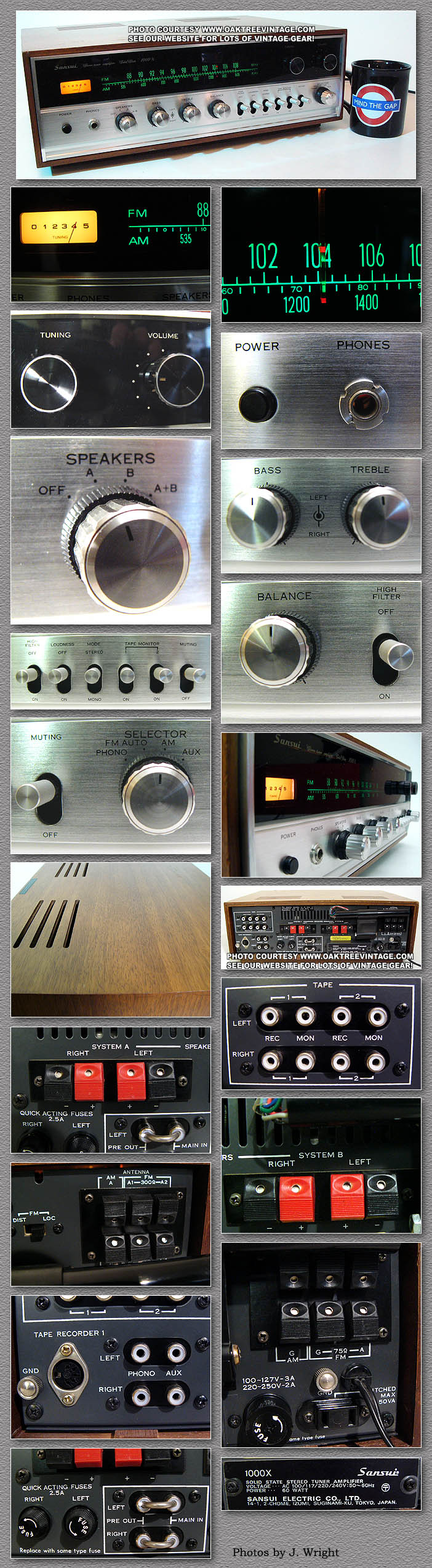

SANSUI 1000X
2-CHANNEL STEREO RECEIVER
SOLD
|

NEW ADDITION
2/10/10
(Click on above
thumbnails to enlarge photos)
warranty
VINTAGE SANSUI AM/FM STEREO RECEIVER
SANSUI 1000X RECEIVER #2
#...0907
Circa '73-76
"WORLD
AC POWER"
™
MIJ
SOLD 7/25/10 |
|

NEW LISTING 2/22/06
(Click on above
thumbnails to enlarge photos)
warranty

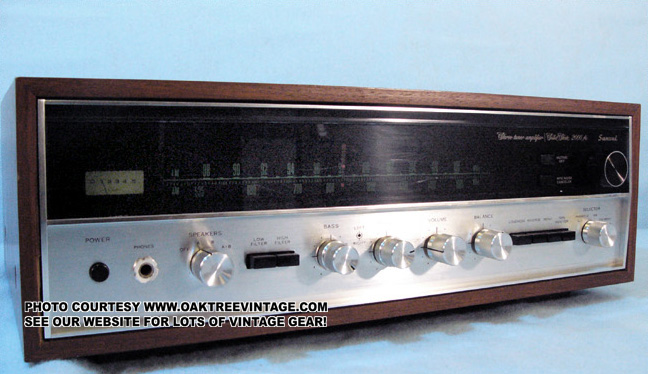

VINTAGE

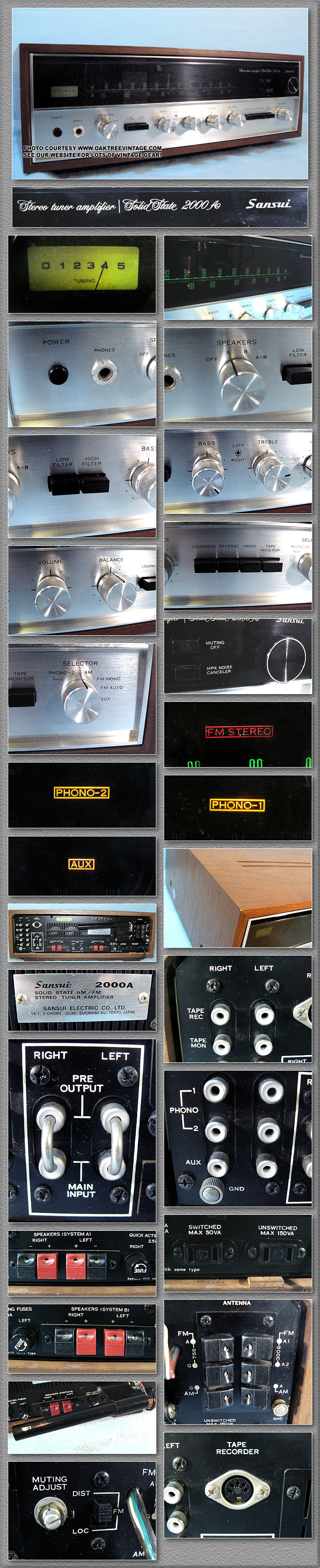

SANSUI AM/FM STEREO RECEIVER
2-CHANNEL STEREO RECEIVER
MODEL SANSUI
2000A
SOLD 3/09/06
|
|
|


NEW LISTING
5/4/07
(Click on above
thumbnails to enlarge photos)
warranty
VINTAGE
SANSUI AM/FM STEREO RECEIVER 2-CHANNEL STEREO RECEIVER MODEL SANSUI 2000X
SOLD 5/4/07
|


NEW ADDITION
4/19/12
(Click on
above thumbnails to enlarge photos)
warranty
VINTAGE STEREO RECEIVER
SANSUI 2000X RECEIVER #2 #...1843 Circa '73-76 "WORLD
AC POWER"
™ MIJ
SOLD 5/8/12
|



NEW
ADDITION 12/7/12
(Click on
above thumbnails to enlarge photos)
warranty

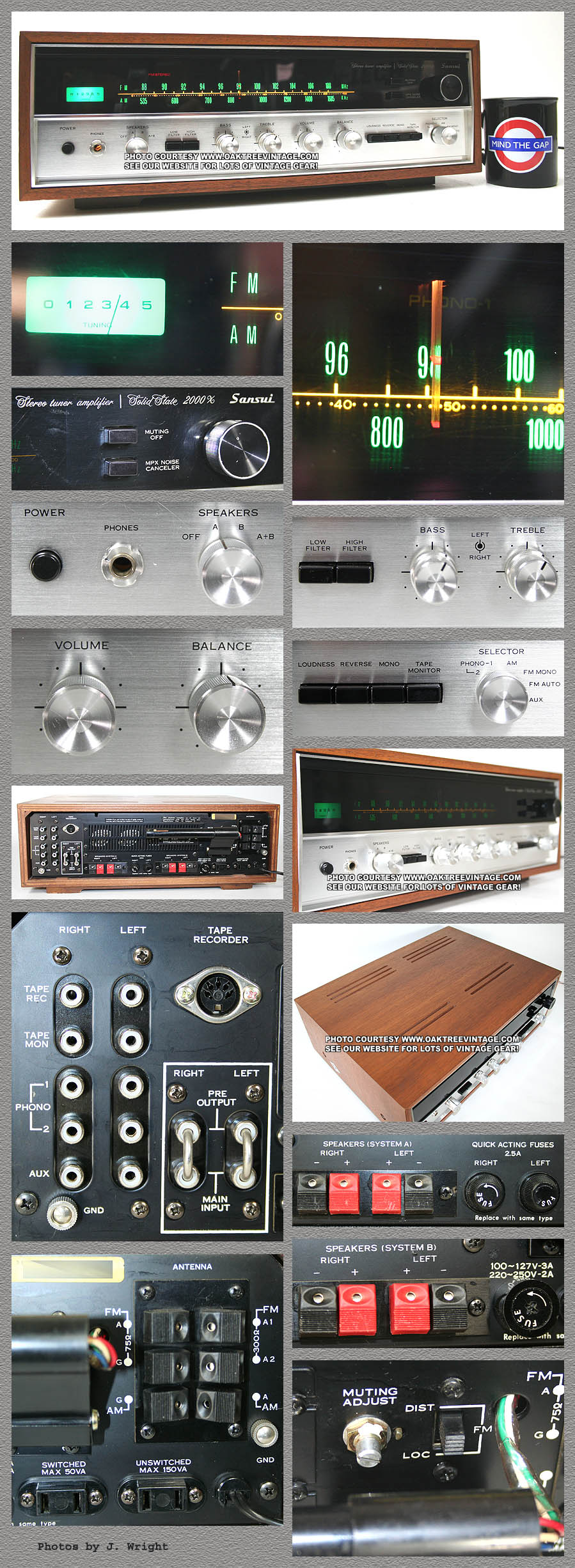

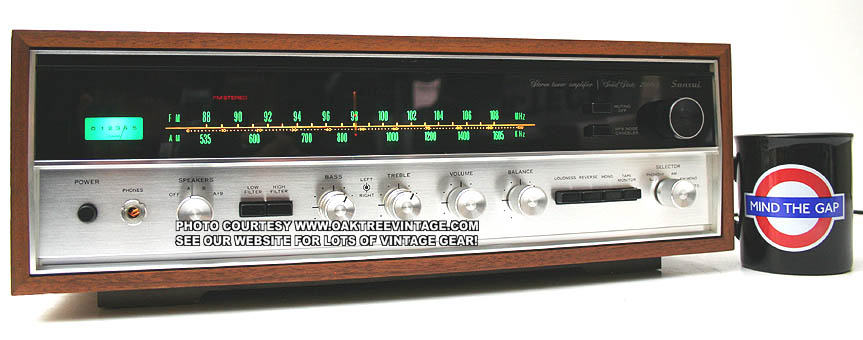

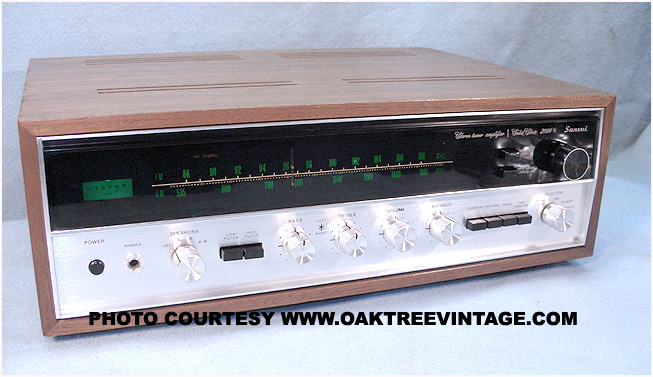

VINTAGE STEREO RECEIVER

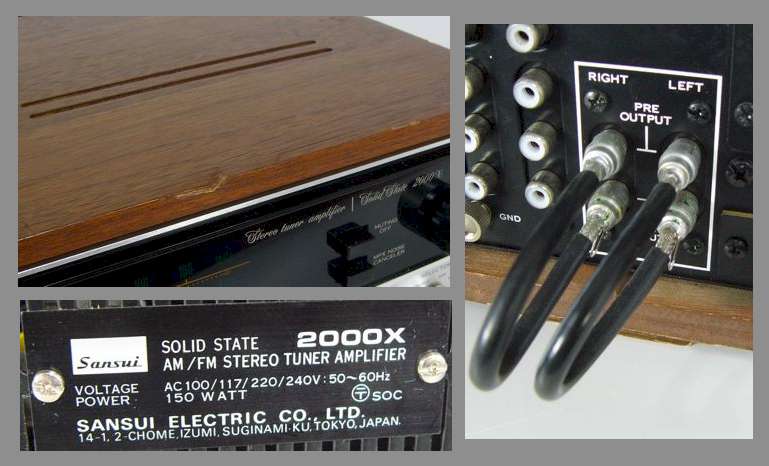

SANSUI 2000X RECEIVER #3 #...1261 Circa '73-76 "WORLD AC POWER"
™ MIJ
SOLD 1/14/13 SHIPPING TO NORTH CAROLINA Our
technician has completely gone through
and 'Certified' this unit. Everything was
cleaned inside and out including all contacts, switches, controls and
I/O jacks. Control Pot shafts re-sprung. Internal and external fuses
checked and replaced where necessary.
We also aligned the tuner for optimum AM & FM performance as older
internal tuner components have always drifted on vintage gear over the
years. All meter, dial, and FM stereo lamps replaced for trouble-free
service (very difficult to do on this series of receiver). All 4 power
transistors removed and fresh heat-sink compound applied. Tuner string
re-tensioned and flywheel string 'grip' improved.
Amplifier section had output bias and DC offset adjusted to spec
levels.
Entire unit cleaned / detailed cosmetically inside and out, including a
fresh coat of lemon oil rubbed into the Real Walnut wood veneer cabinet,
while chassis was removed. All inputs tested and both side produces
clean and even sine waves into static 8 & 4 ohm loads! No power supply
hum of any kind. It's dead silent! All functions test fine. Following
restoration procedures, the unit was run continuously at medium volume,
as all our amplifier / receivers are, into a load with "Loudness" on
and both Tone Controls at 10 for 48 hours
and into a 4 Ohm Load!
While this unit was originally rated at
XX wpc,
on our test bench, both this unit's amplifiers, #...1843 produced peak
power of XX volts per channel @ 8 ohms for
XX watts and XX
volts @ 4 ohms for XX
watts per channel via discrete, TO-3, metal cased outputs with 1 kHz
input. (4x Sanken 2SC1111,
HEY, WHY ALL THE 'X'd' OUT /
OMITTED SPECS AND TEXT?
(same as Toshiba 2SC793)).
DC offset adjusted to and measured at 2.6mVDC L&R. Idle current draw
within spec. Floor noise measured at 6mVAC w/ AUX shunted. ____________________________

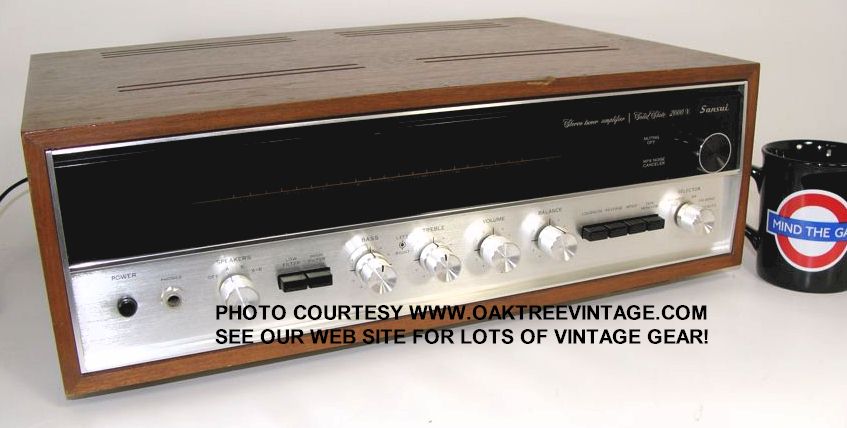

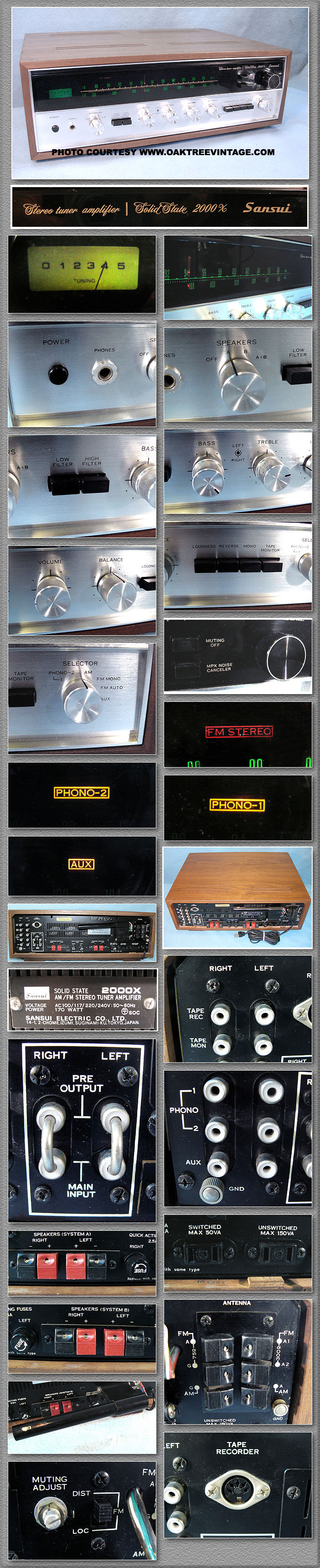

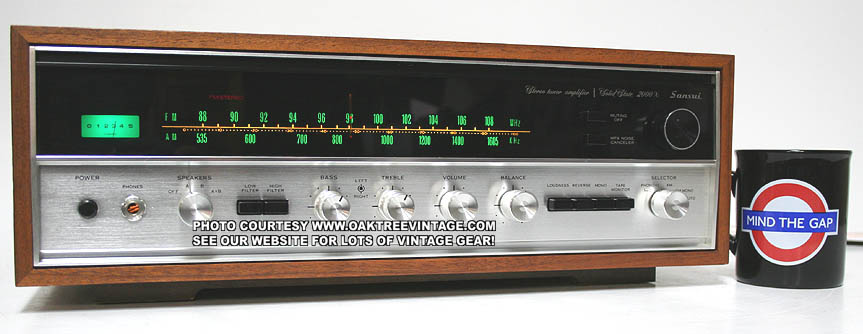

This is from

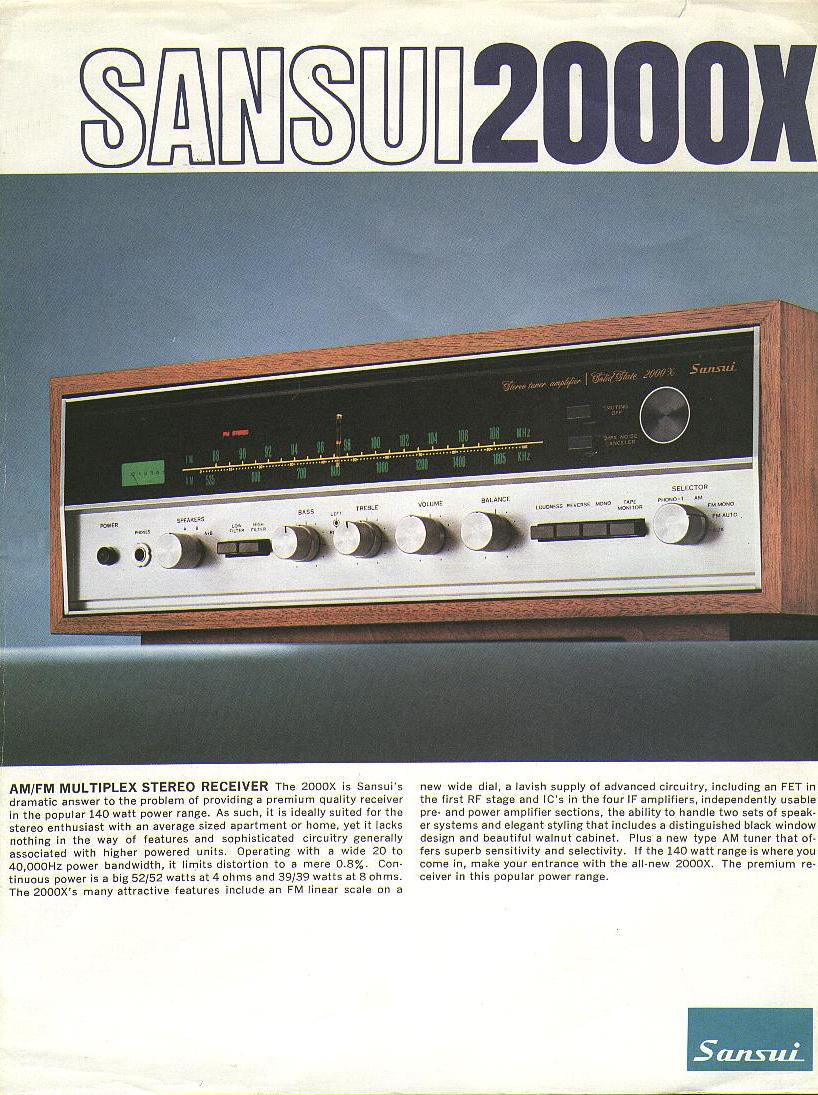

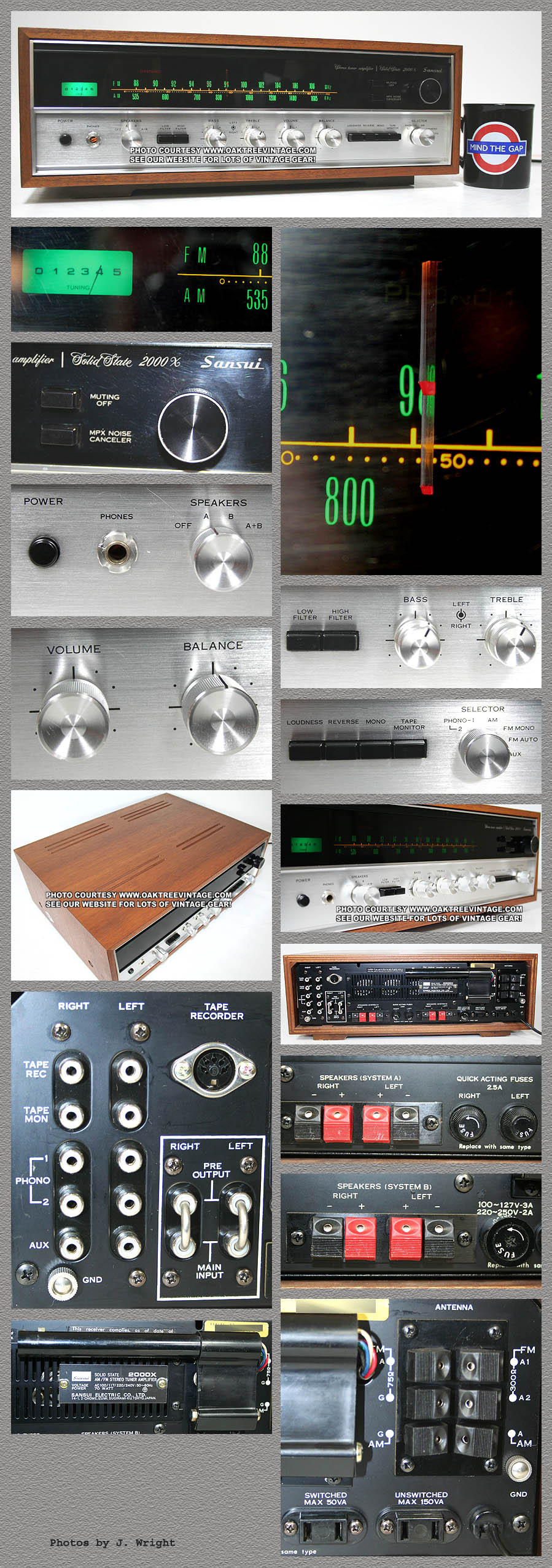

what many consider to be one of Sansui's best eras. The Sansui 2000X
stereo receiver. The "X" suffix designates upgraded f-6013 driver boards
that are sought after by owners of "non-X" units as an aftermarket
upgrade. We have had a few 'X000' series Sansui units and they are among
some of the best sounding, 'vintage', 'main stream' amplifiers we have
heard. Lot's of headroom and punch! Similar in sound to many of the NAD
amplifiers / receivers we sold back in the 80's. This one also is
installed in the optional, REAL walnut wood veneer case.

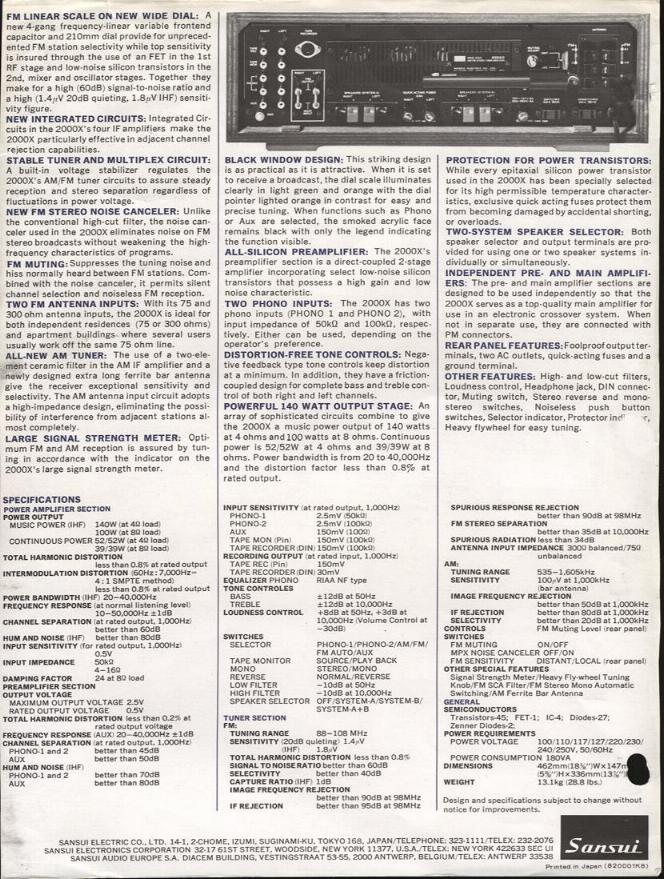

Sansui 2000X Features include:
.......
HEY, WHY ALL THE 'X'd' OUT /
OMITTED SPECS AND TEXT?
Original Sansui
2000X Specifications:
POWER / PRE AMP SPECIFICATIONS:
Music Power: XX Cont rated RMS Power:XX watts @ 8 Ohms,
20-20k & <XX THD
THD: <XX% @ full rated power IMD: <XX% @ full rated power Power Bandwidth (IHF):
XXkHz Damping factor:
XX @ 8Ω & full bandwidth Hum and Noise:
XXdB on Phono w/ 2.5mV input and
XXdB w/ 5.0mV
input Input Sensitivity AUX / Tape:
XXmV @ 100kΩ| Bass Control: ±XXdB @
X0hz Treble Control: ±XXdB @
X0khz High Filter: -XXdB @
X0kHz Low Filter: -XXdB @
X0Hz "Loudness" Contour: +XdB @
Xhz & +XdB @
XXkHz (volume control
@ -30dB)
HEY, WHY ALL THE 'X'd' OUT /
OMITTED SPECS AND TEXT?
TUNER SPECS FOR FM: Tuning Range:
88-108mHz Capture Ratio: 1XXdB S/N: >
XXdb Stereo Selectivity: >4XXdB
Image Frequency Rejection: >XX dB at 98 MHz IF
Rejection: > XXdB at 98 MHz Spurious Response Rejection: >XXdB
THD 65dBf @ 1kHz, Mono: <XX%
Stereo Separation Ratio: >XXdB @ 50Hz to 10kHz TUNER SPECS FOR AM: Tuning Range: 535-1605kHz
IF (Image Frequency) Rejection: >XXdB @ 1kHz
Selectivity: >XXdB @ 1kHz Useable Sensitivity (External Antenna / Bar Antenna):
XμV/m /
250 μV/m PHONO SECTION SPECS: Freq Response:
XXkHz Channel Separation: >
XXdB Input Sensitivity:
XXmV @ 50kΩ Max input:
~2XXmV @ 50kΩ
HEY, WHY ALL THE 'X'd' OUT /
OMITTED SPECS AND TEXT?
Again, we have completely gone through this unit. This is the first
Sansui 2000X we have refurbished in a few years. Brushed aluminum face
and knobs in like NEW condition. Unit looks and sounds great!
Originally 'Optional', but now included, Real
Walnut wood, veneer case in beautiful condition as well.....Comes with our standard 90 day
limited
warranty. SANSUI 2000X STEREO RECEIVER Cond. 8.5+
SOLD 1/14/13 SHIPPED TO NORTH CAROLINA
(Above text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)

SANSUI 2000X VOLTAGE CHANGE
PHOTOS
|



NEW ADDITION
5/10/13
(Click on above thumbnails to enlarge photos)
warranty
VINTAGE STEREO RECEIVER SANSUI 2000X STEREO RECEIVER #...1204 Circa '73-76
"WORLD AC POWER" ™ MIJ
SOLD 7/10/13 SHIPPED TO TEXAS
ü
Our technician has completely gone through and
'Certified' this unit.
ü
Everything was cleaned inside and out including all contacts, switches,
controls and I/O jacks.
ü
Control Pot shafts re-sprung.
ü
Internal and external fuses checked and replaced where necessary.
ü
Repaired power supply and power supply board
ü
Replaced ‘leaky’ transistors on driver board
(which
by the way, once biased, brought the idle temperature of the heat-sink down
from ~220 degrees to ~72°)
ü
All 4 power transistors removed and tested for leakage, the re-installed
with fresh heat-sink compound applied.
ü
Repaired AM circuit board
ü
Re-flowed multiple solder joints
ü
We also aligned the tuner for optimum AM & FM performance as older internal
tuner components have always drifted on vintage gear over the years.
ü
All meter, dial, and FM stereo lamps replaced for trouble-free service (very
difficult to do on this series of receiver).
ü
Tuner string re-tensioned for improved flywheel 'grip'
ü
Amplifier section had
output bias and DC offset adjusted to spec levels
ü
Entire unit cleaned / detailed cosmetically inside and out, including a
fresh coat of lemon oil rubbed into the Real Walnut wood veneer cabinet,
while chassis was removed.
ü
All inputs tested and both side produces clean and even sine waves into
static 8 & 4 ohm loads! No power supply hum of any kind. It's dead silent!
All functions test fine.
ü
Following restoration procedures, the unit was run continuously at medium
volume, as all our amplifier / receivers are, into a load with "Loudness" on
and both Tone Controls at 10 for 48 hours and into a 4 Ohm Load! You will
not be disappointed. Total restoration / ‘tech time’ investment ~14 hours.
While this unit was originally rated at 55 wpc, on our test bench,
both this unit's amplifiers, #...1204 produced
peak power of 17 volts per channel @ 8 ohms for 36 watts and 14.5
volts @ 4 ohms for 52 watts per channel via
discrete, TO-3, metal cased outputs with 1 kHz input. (4x
Toshiba
2SC793,
(same as Sanken 2SC1111)). Idle current draw within spec. Floor noise
measured at 2mV AC w/
AUX shunted). ____________________________
This is from what many consider to...
HEY, WHY ALL THE 'X'd' OUT /
OMITTED SPECS AND TEXT?
SOLD 7/10/13 SHIPPED TO TEXAS
(Above text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
|
|


VINTAGE SANSUI STEREO RECEIVER

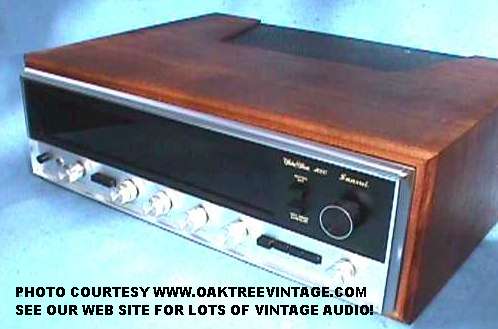

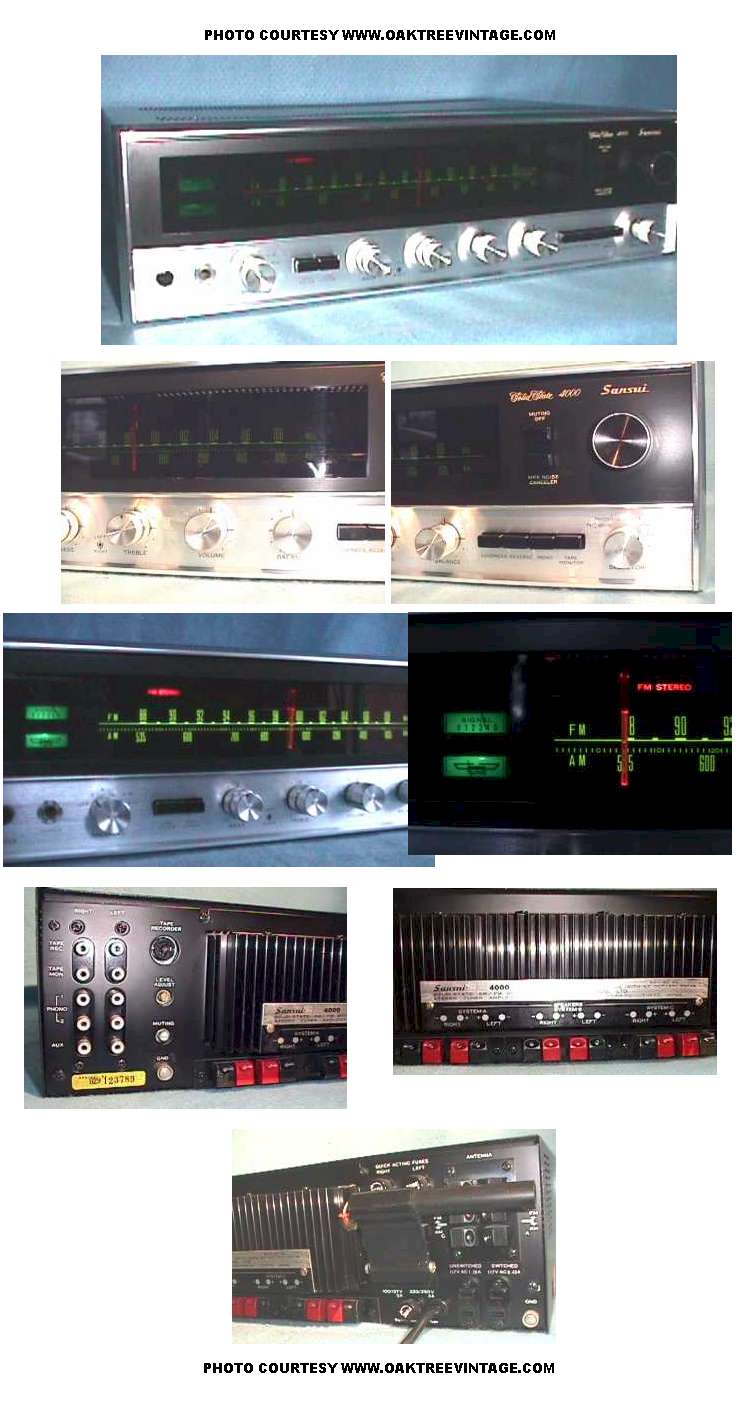

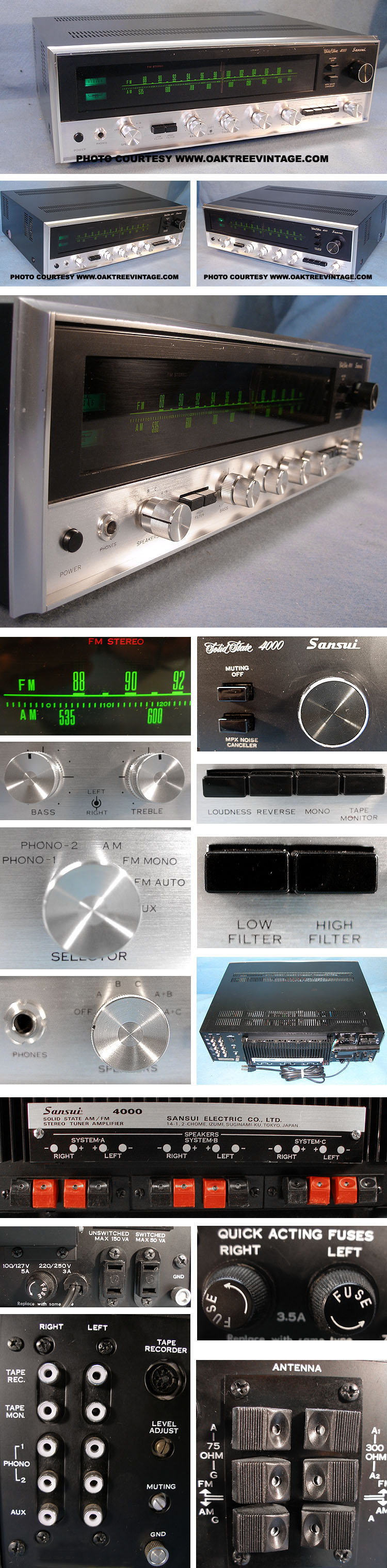

SANSUI MODEL 4000 RECEIVER
Circa 1971-73
SOLD
|

NEW LISTING
(Click on above
thumbnails to enlarge photos)
warranty
VINTAGE SANSUI
STEREO RECEIVER
SANSUI MODEL 4000 RECEIVER #2
"WORLD
AC POWER"
™
SOLD 10/4/07
|


NEW LISTING
7/4/08
(Click on above
thumbnails to enlarge photos)
warranty
VINTAGE SANSUI
STEREO RECEIVER
SANSUI MODEL 4000 RECEIVER #3
"WORLD AC POWER"
™
Circa
1971-73
MIJ
SOLD 7/7/08
|


NEW
LISTING 1/29/06
(Click on above
thumbnails to enlarge photos)
warranty

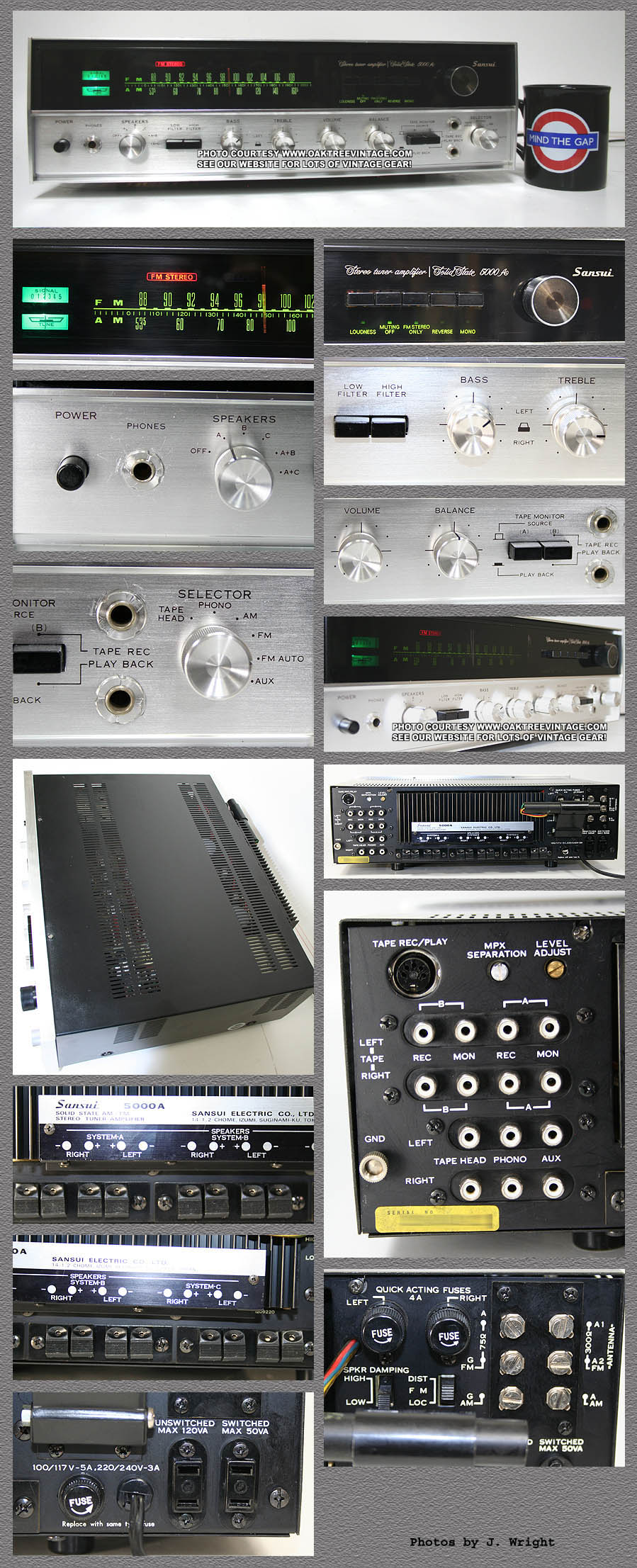

VINTAGE SANSUI 5000A STEREO RECEIVER SOLD 3/6/06
|

NEW
LISTING
10/13/12
(Click on above
thumbnails to enlarge photos)
warranty

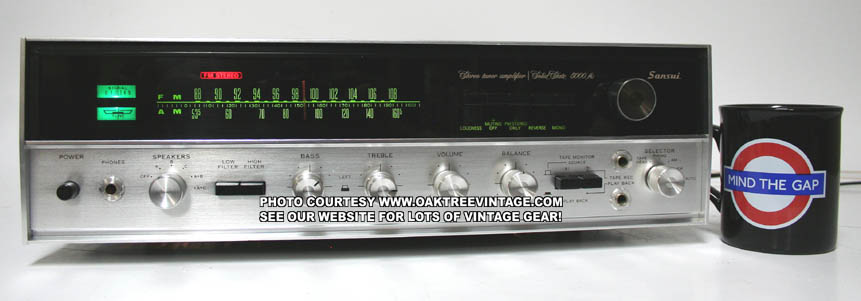

VINTAGE STEREO
RECEIVER SANSUI 5000A #...0112 Circa
~1970- ~'72 MIJ
SOLD 2/23/13 SHIPPED TO GEORGIA
Our
technician has completely gone through
and 'Certified'
this unit. Everything was cleaned
inside and out including all contacts, switches and controls. We also
aligned the tuner for optimum AM & FM performance as older internal
tuner components have always drifted on vintage gear over the years. All
meter, dial, function indicator and FM stereo
indicator lamps replaced for trouble-free service (very
difficult to do on this series of receiver and
there's a total of 12). All 4 power transistors removed
and tested for leakage. DC
offset and bias current adjusted to correct levels. Entire unit
cleaned / detailed cosmetically inside and out. All inputs tested and
both side produces clean and even sine waves into static 8 & 4 ohm
loads! No power supply hum of any kind. It's dead silent! All functions
test fine. Following restoration procedures, the unit was run continuously at medium volume, as all our amplifier / receivers are,
into a load with "Loudness" on and both Tone Controls at 10 for 48
hours
and into a 4 Ohm Load!
While this unit was originally rated at 55 wpc, on our test
bench, both this unit's amplifiers, #...0112 produced peak power of
~XX
volts per channel @ 8 ohms for XX watts and
XX volts @ 4 ohms for
XX
watts per channel via discrete, TO-3, metal cased outputs with 1 kHz
input. (2x Toshiba 2SC1079 & 2x 2SD118).
Idle current measured at 260mA. Bias current & DC offset / output
adjusted to levels within spec. Floor noise measured at
<4mVAC. ____________________________
Sansui 5000A Features include:....
HEY, WHY ALL THE 'X'd' OUT /
OMITTED SPECS AND TEXT?
Sansui 5000A Original Specifications:
POWER / PRE AMP SPECIFICATIONS:
Music Power: XX Cont rated RMS Power:XX watts @ 8 Ohms,
20-20k & <XX THD
THD: <XX% @ full rated power IMD: <XX% @ full rated power Power Bandwidth (IHF):
XXkHz Damping factor:
XX @ 8Ω & full bandwidth Hum and Noise:
XXdB on Phono w/ 2.5mV input and
XXdB w/ 5.0mV
input Input Sensitivity AUX / Tape:
XXmV @ 100kΩ| Bass Control: ±XXdB @
X0hz Treble Control: ±XXdB @
X0khz High Filter: -XXdB @
X0kHz Low Filter: -XXdB @
X0Hz "Loudness" Contour: +XdB @
Xhz & +XdB @
XXkHz (volume control
@ -30dB)
HEY, WHY ALL THE 'X'd' OUT /
OMITTED SPECS AND TEXT?
TUNER SPECS FOR FM: Tuning Range:
88-108mHz Capture Ratio: 1XXdB S/N: >
XXdb Stereo Selectivity: >4XXdB
Image Frequency Rejection: >XX dB at 98 MHz IF
Rejection: > XXdB at 98 MHz Spurious Response Rejection: >XXdB
THD 65dBf @ 1kHz, Mono: <XX%
Stereo Separation Ratio: >XXdB @ 50Hz to 10kHz TUNER SPECS FOR AM: Tuning Range: 535-1605kHz
IF (Image Frequency) Rejection: >XXdB @ 1kHz
Selectivity: >XXdB @ 1kHz Useable Sensitivity (External Antenna / Bar Antenna):
XμV/m /
250 μV/m PHONO SECTION SPECS: Freq Response:
XXkHz Channel Separation: >
XXdB Input Sensitivity:
XXmV @ 50kΩ Max input:
~2XXmV @ 50kΩ
HEY, WHY ALL THE 'X'd' OUT /
OMITTED SPECS AND TEXT?
Again, as
stated before, we have completely gone through this Sansui 5000A, Stereo Receiver cleaning and
testing all and it gets our full
'Certification'
.....
Includes a pdf 'e'
download copy of
a '5000A-Series' owners manual. Comes with our standard
90 day limited warranty. SANSUI 5000A STEREO RECEIVER Cond. 8.5
SOLD 2/23/13
SHIPPED
TO GEORGIA
(Above text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|


NEW
LISTING 12/18/13
(Click on above
thumbnails to enlarge photos)
warranty
VINTAGE SANSUI
5000A STEREO
RECEIVER #...1292 Circa
~1970- ~'72 MIJ (C) R.R. SOLD 2/3/14 SHIPPED TO CALIFORNIA
(Above text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
|

NEW LISTING 4/19/13
(Click on above thumbnails to enlarge photos)
warranty

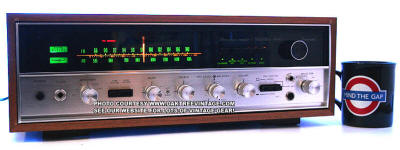

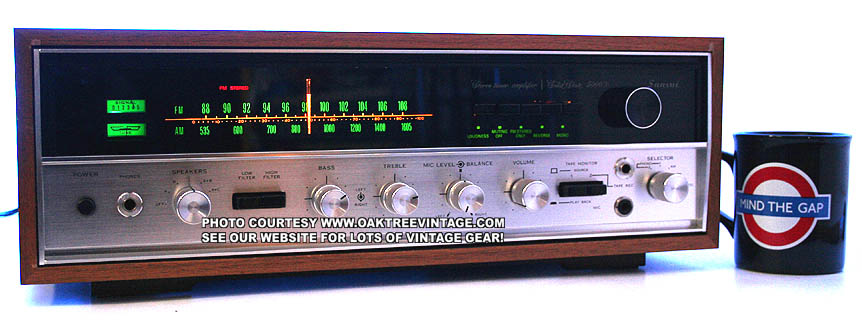

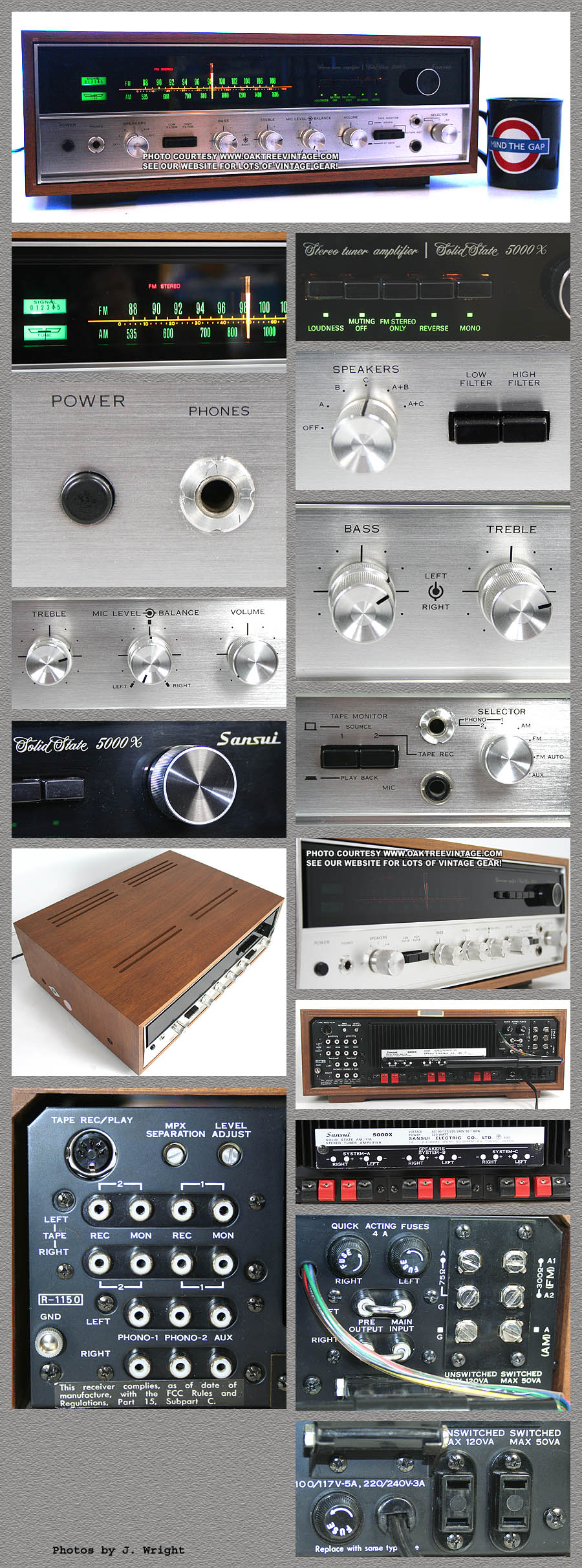

VINTAGE SANSUI STEREO RECEIVER SANSUI 5000X IN WOOD
CABINET
#...3882
CIRCA 1973-76
MIJ
SOLD 4/23/13 SHIPPED TO INDIANA
ü
Our technician has completely gone through
and 'Certified' this unit.
ü
Everything was cleaned inside and out including all contacts, switches
and controls.
ü
We also
aligned the tuner for optimum AM & FM performance as older internal
tuner components have always drifted on vintage gear over the years.
VERY GOOD TUNER!
AM reception WAY above average, FM reception incredible, PUNCHY and
IMPECCABLY CLEAN!!!
due
to the triple FET FM front end and the quality of the restoration.
ü
All
meter, dial, function indicator and FM stereo indicator lamps replaced
for trouble-free service (very difficult to do on this series of
receiver and there's a total of 12).
ü
All 4
power transistors removed, tested for leakage and reinstalled with fresh
heat-sink compound.
ü
DC offset
checked
(although as it’s a ‘cap couple’ amp, there better not be any DC) and bias current adjusted to correct levels.
ü
Two stuck
dual section controls were replaced and shafts lubed.
ü
Damaged
illuminated dial indicator was replaced.
ü
Entire
unit cleaned / detailed cosmetically inside and out. Only cosmetic
issues with this unit are some scuffing of the wood cabinet and very
minor wear on the face.
ü
All
inputs tested and both sides produce clean and even sine waves into
static 8 & 4 ohm loads! No power supply hum of any kind. It's dead
silent! All functions test fine.
ü
Following
restoration procedures, the unit was run continuously at medium volume,
as all our amplifiers / receivers are, into a load with "Loudness" on
and both Tone Controls at 10 for 48 hours
and into a 4 Ohm Load!
On our test bench, each internal amplifier of this
particular unit, #...3882, produced peak power of XX
volts @ 8Ω per channel for XX watts / channel
and XX volts @ 4Ω per channel for
XX
watts / channel via Discrete output devices at 1khz. (4X Toshiba metal
case TO-3 2SC1079). AC Idle current at .220A, & floor noise <1.4
mVAC.
____________________________ This is from what many consider to be one of Sansui's best eras. The
Sansui 5000X stereo receiver. The "X" suffix designates upgraded f-6013
driver boards that are sought after by owners of "non-X" units as an
aftermarket upgrade. We have had quite a few
'X000' series Sansui units and they are among some of the best sounding,
'vintage', 'main stream' amplifiers we have heard. Lot's of headroom
and punch! Similar in sound to many of the NAD amplifiers / receivers we
sold back in the 80's. This one also is installed in the optional, REAL
walnut wood veneer case.
Sansui 5000X Features include:
.......
HEY, WHY ALL THE 'X'd' OUT /
OMITTED SPECS AND TEXT?
Original Sansui 5000X Specifications:
POWER / PRE AMP SPECIFICATIONS:
Music Power: XX Cont rated RMS Power:XX watts @ 8 Ohms,
20-20k & <XX THD
THD: <XX% @ full rated power IMD: <XX% @ full rated power Power Bandwidth (IHF):
XXkHz Damping factor:
XX @ 8Ω & full bandwidth Hum and Noise:
XXdB on Phono w/ 2.5mV input and
XXdB w/ 5.0mV
input Input Sensitivity AUX / Tape:
XXmV @ 100kΩ| Bass Control: ±XXdB @
X0hz Treble Control: ±XXdB @
X0khz High Filter: -XXdB @
X0kHz Low Filter: -XXdB @
X0Hz "Loudness" Contour: +XdB @
Xhz & +XdB @
XXkHz (volume control
@ -30dB)
HEY, WHY ALL THE 'X'd' OUT /
OMITTED SPECS AND TEXT?
TUNER SPECS FOR FM: Tuning Range:
88-108mHz Capture Ratio: 1XXdB S/N: >
XXdb Stereo Selectivity: >4XXdB
Image Frequency Rejection: >XX dB at 98 MHz IF
Rejection: > XXdB at 98 MHz Spurious Response Rejection: >XXdB
THD 65dBf @ 1kHz, Mono: <XX%
Stereo Separation Ratio: >XXdB @ 50Hz to 10kHz TUNER SPECS FOR AM: Tuning Range: 535-1605kHz
IF (Image Frequency) Rejection: >XXdB @ 1kHz
Selectivity: >XXdB @ 1kHz Useable Sensitivity (External Antenna / Bar Antenna):
XμV/m /
250 μV/m PHONO SECTION SPECS: Freq Response:
XXkHz Channel Separation: >
XXdB Input Sensitivity:
XXmV @ 50kΩ Max input:
~2XXmV @ 50kΩ
HEY, WHY ALL THE 'X'd' OUT /
OMITTED SPECS AND TEXT?
Again, as
stated before, we have completely gone through this Sansui 5000X, Stereo
Receiver cleaning and testing all and it gets our full
'Certification'. This is probably the 'cleanest'
Sansui Receiver in the optional wood case from this era we've ever had.
This Sansui 5000X is also in the originally optional Walnut Wood
Veneer Case that is in great condition and really sets its look. Very
‘Handsome’ unit. Receiver looks, performs and sounds great! Includes a pdf
'e' download of a Sansui '5000-Series' owners manual.......
HEY, WHY ALL THE 'X'd' OUT /
OMITTED SPECS AND TEXT?
Comes with our standard 90 day
limited
warranty. SANSUI 5000X STEREO RECEIVER W/ WOOD CABINET
Cond.
8.5+++
SOLD 4/23/13 SHIPPED TO INDIANA
(C) M.R.
(Above text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|


NEW LISTING
7/4/08
(Click on above
thumbnails to enlarge photos)
warranty
VINTAGE SANSUI STEREO RECEIVER SANSUI 5000X RECEIVER #...2180 Circa '73-76 "WORLD
AC POWER"
™
MIJ
SOLD 9/25/08
|
NEW ADDITION
12/14/10
(Click
on above thumbnails to enlarge photos)
warranty VINTAGE AM/FM STEREO RECEIVER

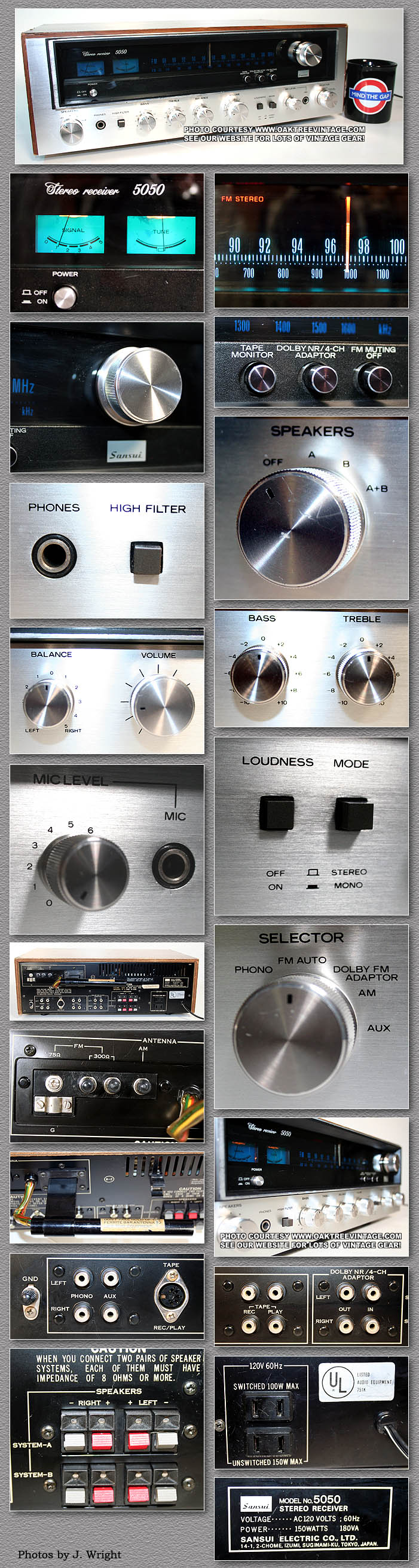

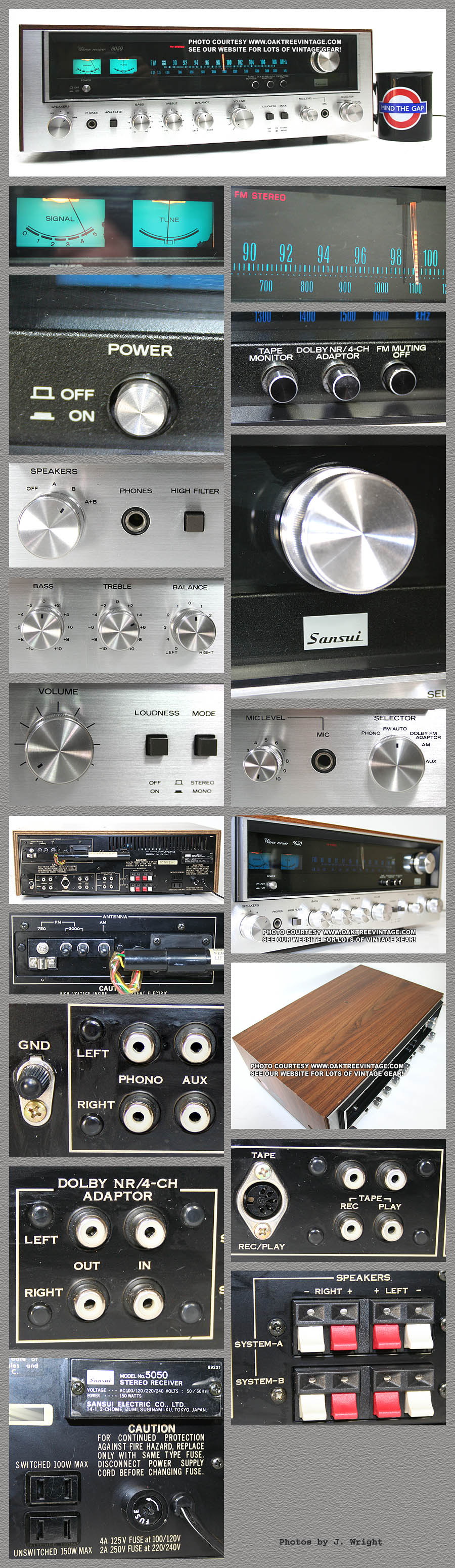

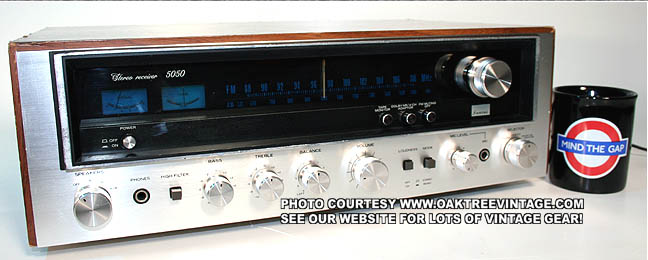

SANSUI 5050 STEREO RECEIVER #...5051 circa 1977-79 MIJ
SOLD 2/7/11
|

NEW LISTING
12/11/12
(Click on above thumbnails to enlarge photos)
warranty
VINTAGE AM/FM STEREO RECEIVER
SANSUI 5050 STEREO RECEIVER #2 #...4562
circa 1977-79 MIJ
SOLD
12/23/12 SHIPPING TO TEXAS
Our
technician has completely gone through
and 'Certified'
this unit.
Everything was cleaned inside and out
including all
switches, controls, contacts
and the tuning capacitor. We also
aligned the tuner front-end for optimum AM & FM performance as older
internal tuner components have always drifted on vintage gear over the
years. All dial, meter, function
indicator and stereo indicator lamps replaced with new units
for trouble-free service.
Amplifier section had output bias and DC offset adjusted to spec
levels.
All inputs tested, including phono. Both
amplifiers produce clean and even sine waves into static 8 & 4 ohm
loads! No power supply hum of any kind. It's dead silent!

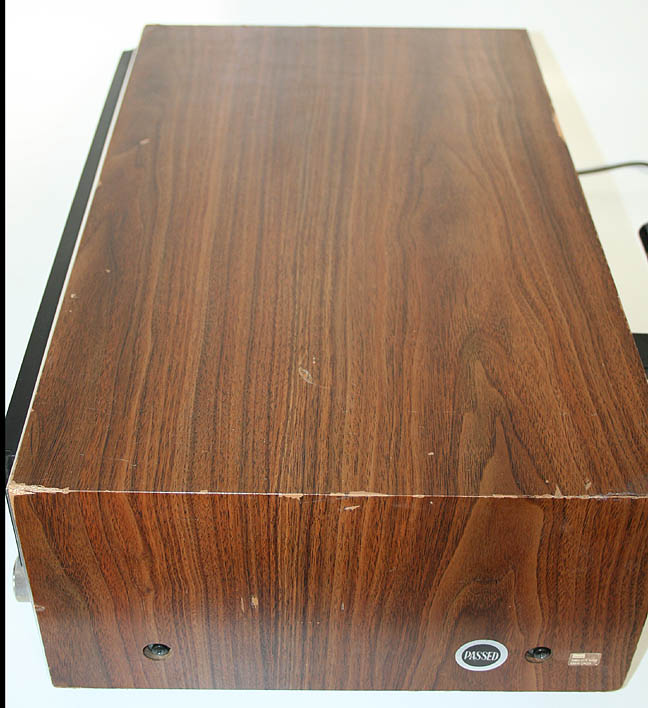

The Walnut wood grain, vinyl wrapped cabinet has numerous, battle scars,
but is structurally fine. Following restoration procedures, the unit was
operated continuously at medium volume, as all our amplifier / receivers
are, into a load with ""Loudness"" on and both Tone Controls at 10 for
72 hours.
On our test bench, both amplifiers each produced peak
power of XXX5 Volts per channel for a VERY
STRONG AND PUNCHY sounding XX watts per channel at 8 ohms &
XXVolts per channel for
XX watts per
channel at 4 ohms via discrete, TO-66 metal cased outputs. (2x 2SC1445 &
2x 2SA765) AC Idle current at .2A, floor noise <2mvAC. ____________________________
This is only the
Third Sansui 5050 we have had in 15
years. These are known for great tuners, and very warm sounding amps,
with lots of punch and headroom. Very "Musical" sounding with
real output transistors and well designed power supplies. Sansui 5050
Features include:
HEY, WHY ALL THE 'X'd' OUT /
OMITTED SPECS AND TEXT?
SANSUI 5050 STEREO RECEIVER SPECIFICATIONS:
HEY, WHY ALL THE 'X'd' OUT /
OMITTED SPECS AND TEXT?
Again,
as stated before, we have completely gone through this Sansui 5050, stereo receiver, cleaning and
testing all and it gets our full
'Certification'.
Only cosmetic issue worth mentioning is a small
cigarette burn in the middle of the top bonnet and a small, 'black' area
inside one of the meter backgrounds. Overall
looks, works and sounds great! This thing is incredible when lit
up at night or in a dark room!! Measures 18.25" wide x 6.5" tall x 13"
deep and weighs 24 lbs unpacked. Includes our standard 90 day limited
warranty. SANSUI 5050 STEREO RECEIVER
Cond. 8.5
SOLD
12/23/12 SHIPPING TO TEXAS
(C) R.R.
|

NEW LISTING
12/28/15
(Click on above thumbnails to enlarge photos)
warranty
VINTAGE SANSUI STEREO RECEIVER SANSUI 5050 RECEIVER #...1831
circa
1977-79 MIJ
SOLD 1/11/16 SHIPPING TO WISCONSIN
Our technician has completely gone through
and 'Certified' this unit. Everything was cleaned inside and
out including all switches, controls, contacts and the tuning capacitor.
We also aligned the tuner front-end for optimum AM & FM performance as
older internal tuner components have always drifted on vintage gear over
the years. All dial, meter, function indicator and stereo indicator
lamps replaced with new units for trouble-free service. Amplifier
section had output bias and DC offset adjusted to spec levels. All
inputs tested, including phono. Both amplifiers produce clean and even
sine waves into static 8 & 4 ohm loads! No power supply hum of any kind.
It's dead silent! The Walnut wood grain, vinyl wrapped cabinet has
numerous, battle scars, but is structurally fine. Following restoration
procedures, the unit was operated continuously at medium volume, as all
our amplifier / receivers are, into a load with ""Loudness"" on and both
Tone Controls at 10 for 72 hours.
On our test bench, both amplifiers
on this unit,
#...1831, each produced peak power of 17.75
Volts per channel for a VERY STRONG AND PUNCHY sounding 39 watts per
channel at 8 ohms & 15 Volts per channel for 56 watts per channel at 4
ohms via discrete, TO-66 metal cased outputs. (2x 2SC1445 & 2x 2SA765) AC Idle current at .25A, floor noise <0.1mvAC
L&R. ____________________________ This is only the forth Sansui 5050 we have had in 18 years. These are
known for great tuners, and very warm sounding amps, with lots of
punch and headroom. Very "Musical" sounding with real output
transistors and well designed power supplies. .... Again, as stated before, we have completely gone through this Sansui
5050, stereo receiver, cleaning and testing all and it gets our full
'Certification'.
This is a great receiver to.....Measures 18.25" wide x 6.5" tall x 13" deep and weighs
24 lbs unpacked. Includes our standard 90 day limited warranty. SANSUI 5050 STEREO RECEIVER Cond. 8.5
(C)
R.R.
SOLD 1/11/16 SHIPPING TO WISCONSIN
(Above text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|


NEW
LISTING 1/29/06
(Click on above
thumbnails to enlarge photos)
warranty

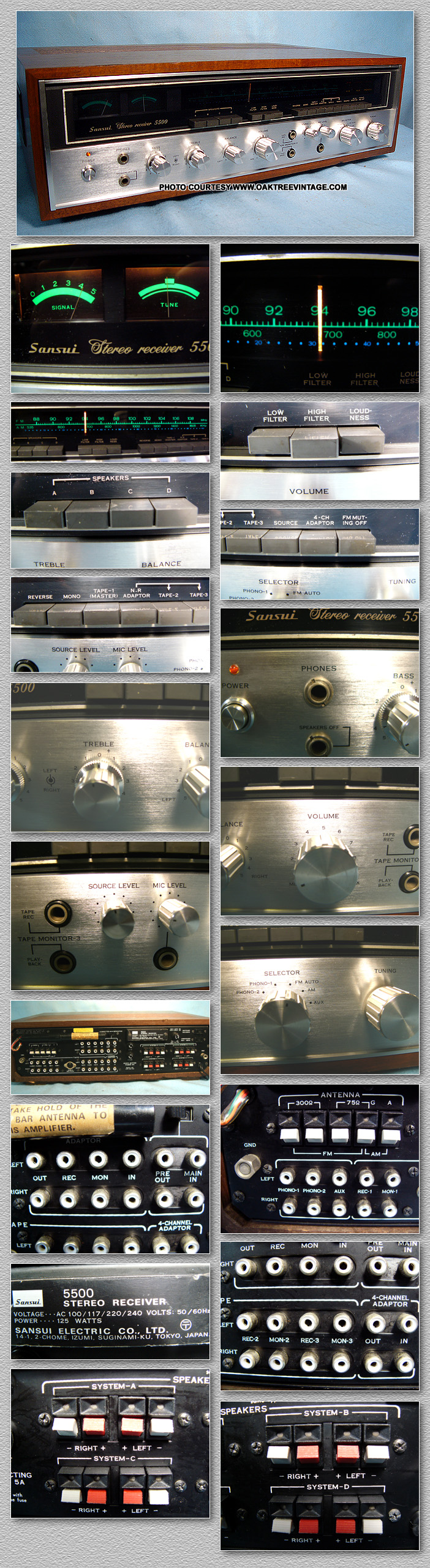

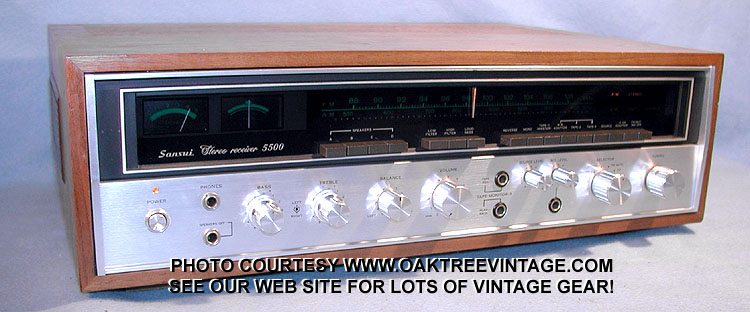

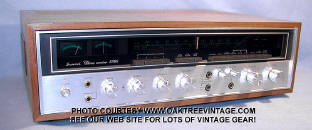

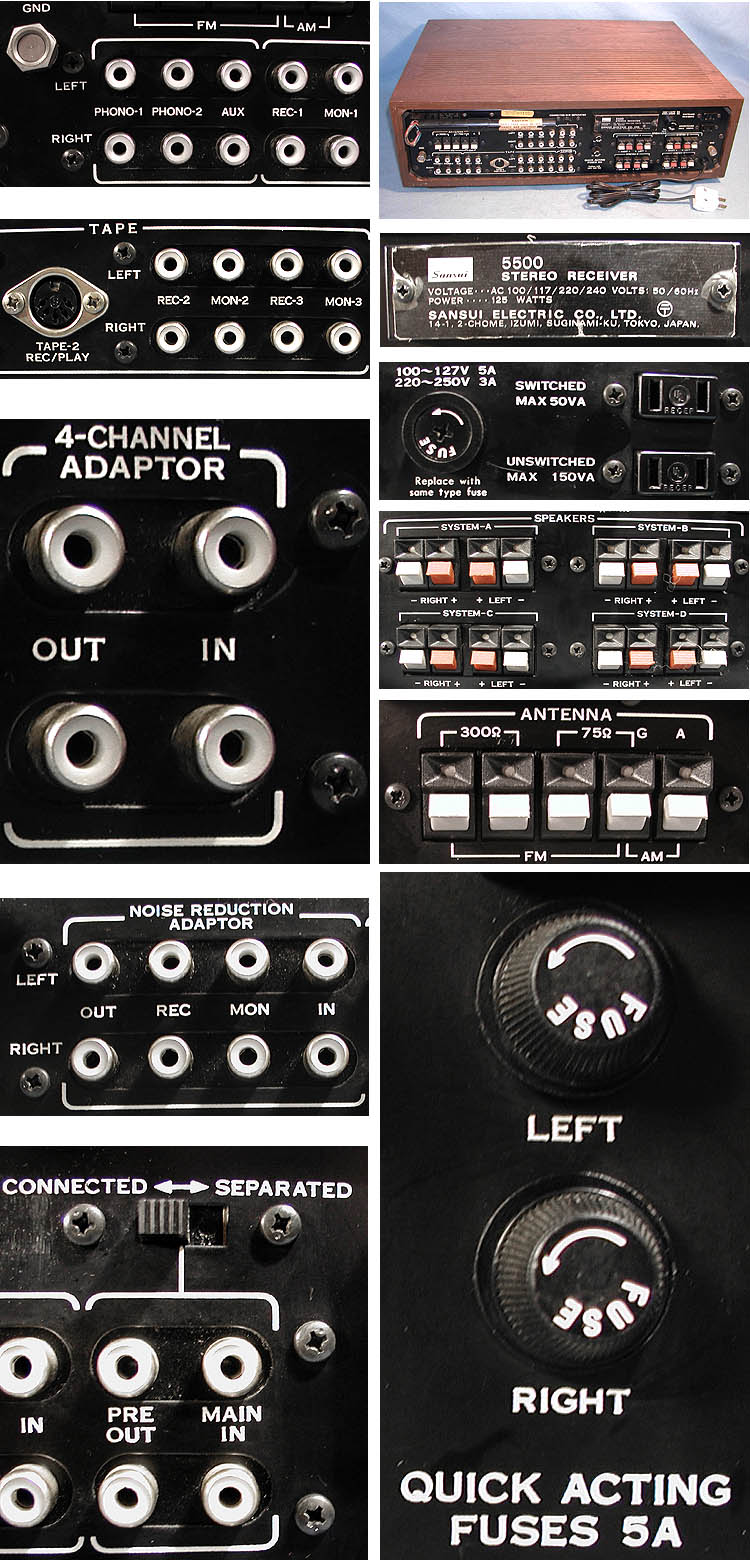

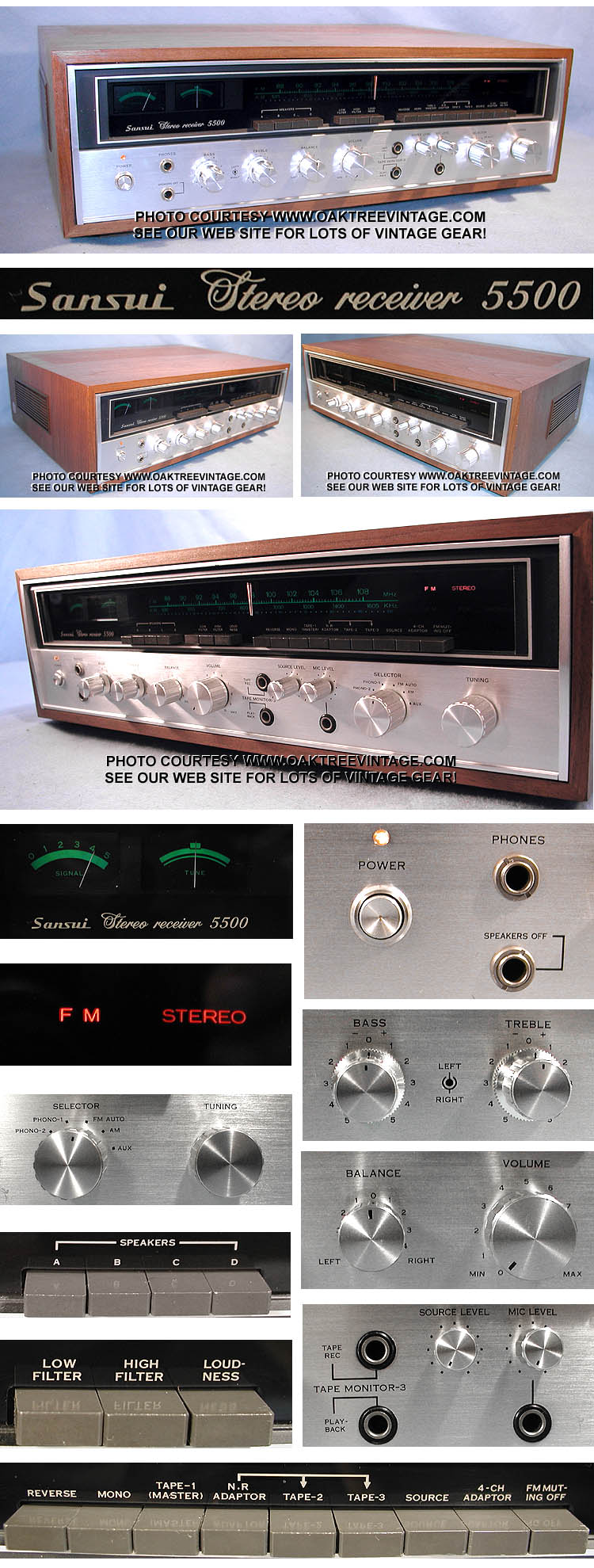

VINTAGE SANSUI 5500
STEREO RECEIVER
SOLD 4/7/06
|


NEW LISTING 3/19/07
(Click on above
thumbnails to enlarge photos)
warranty

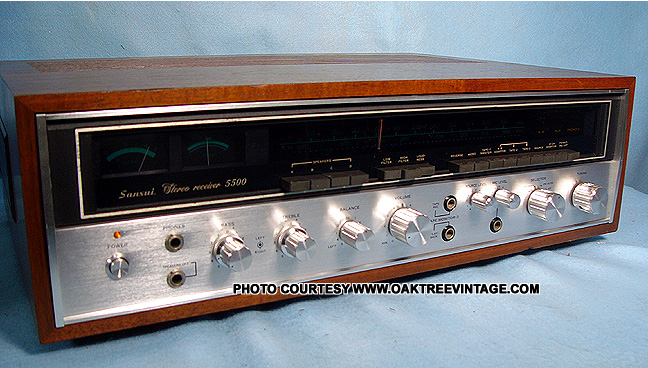

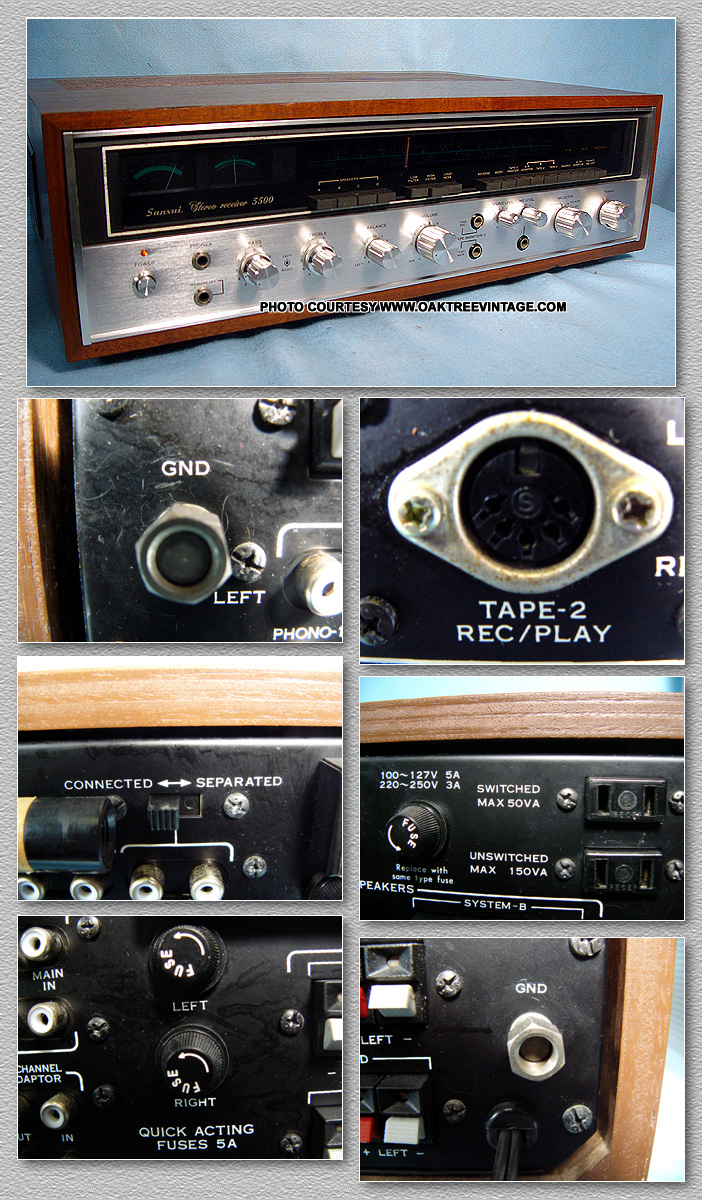

VINTAGE SANSUI 5500
STEREO RECEIVER
SOLD 4/9/07
|
|
|
|
|

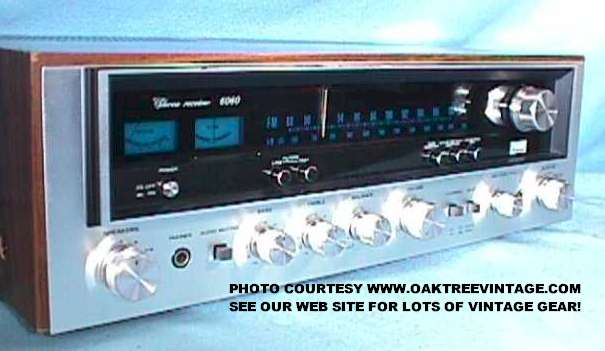

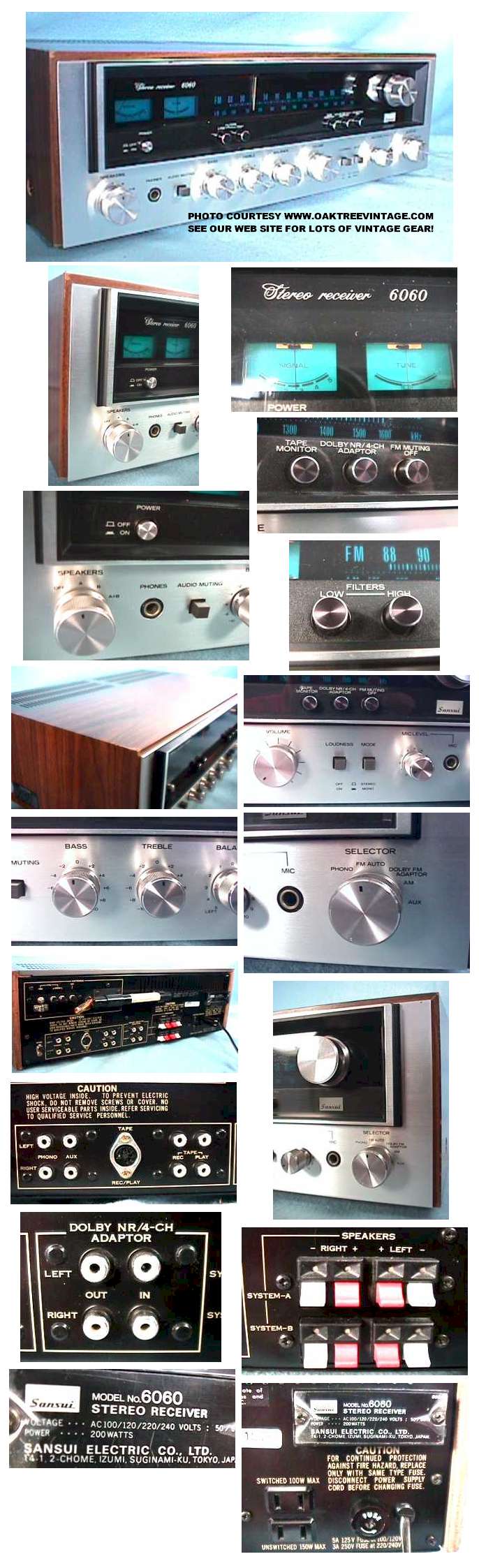

SANSUI 6060 STEREO RECEIVER
SOLD |
|
|

VINTAGE SANSUI
STEREO RECEIVER
SANSUI 7070 RECEIVER
SOLD
|

NEW LISTING 3/19/07
(Click on above
thumbnails to enlarge photos)
warranty
VINTAGE SANSUI STEREO RECEIVER
SANSUI 7070 RECEIVER #2
SOLD 4/9/07
|


NEW LISTING
8/5/11
(Click on above
thumbnails to enlarge photos)
warranty
VINTAGE SANSUI STEREO RECEIVER
SANSUI 7070 RECEIVER #3
#...2807
CIRCA 1977-79
"WORLD AC POWER" ™
MIJ
SOLD 10/24/11
|


NEW ADDITION 12/28/15 (Click
on above thumbnails to enlarge photos)
warranty

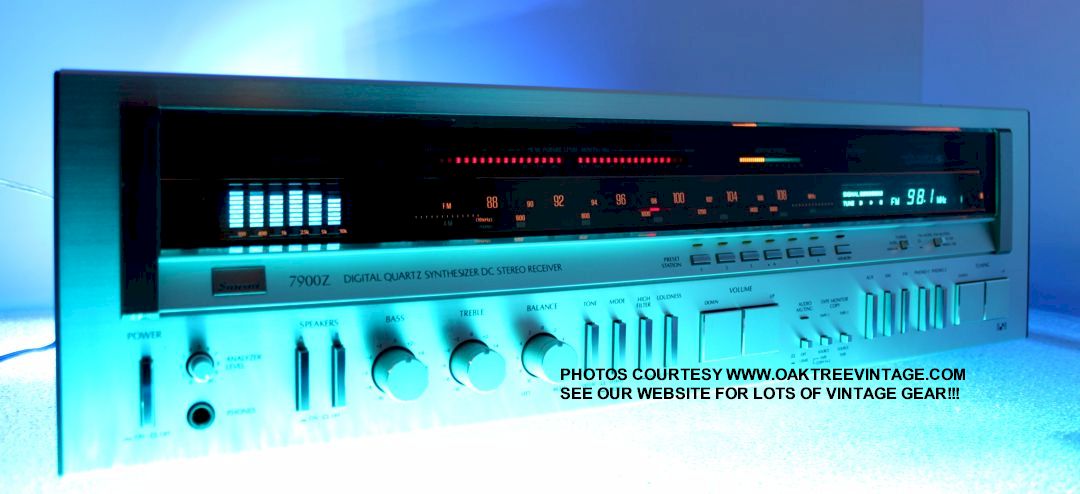

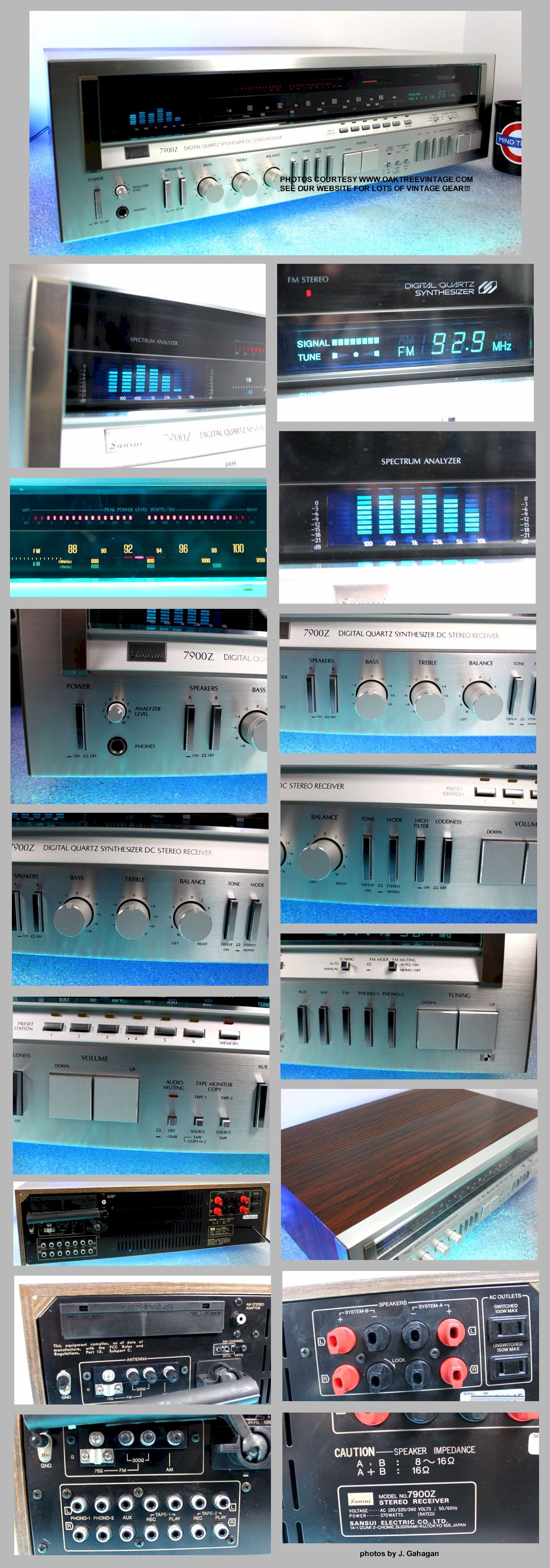

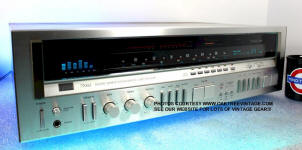

VINTAGE SANSUI STEREO RECEIVER SANSUI 7900Z RECEIVER #...0045 CIRCA 1981-82 MIJ
“WORLD
AC POWER"
Includes our standard 90 day limited warranty!
SANSUI 7900Z STEREO RECEIVER Condition 8.5
++
SOLD 7/26/16 SHIPPING TO CALIFORNIA
(C) R.R.
(Above text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
|
|

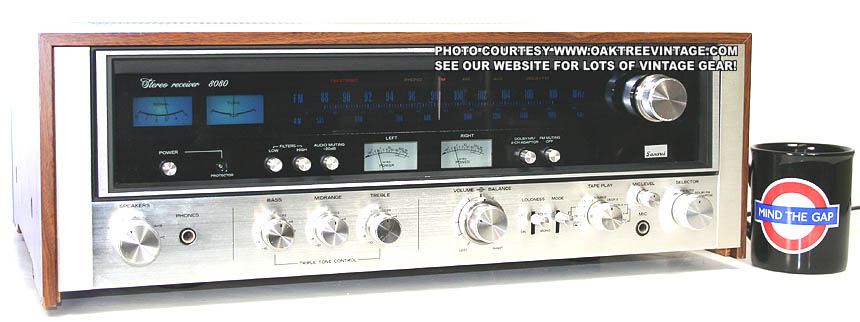

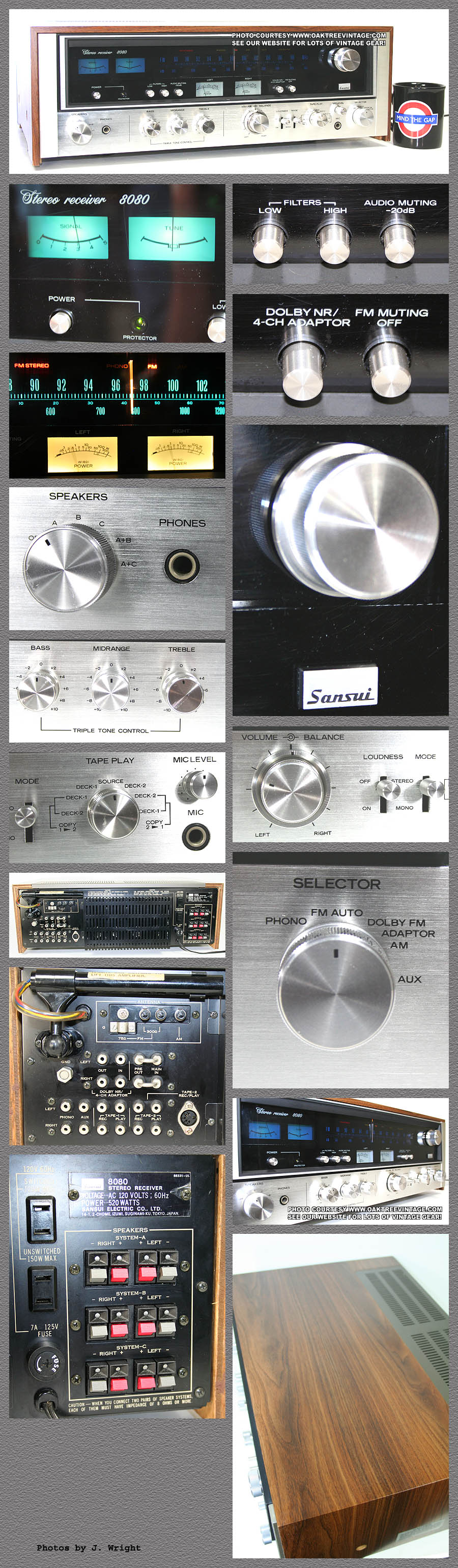

VINTAGE SANSUI STEREO RECEIVER SANSUI 8080 RECEIVER Circa '77-'79
SOLD
|

NEW
LISTING 7/13/12
(Click on above thumbnails to enlarge photos)
warranty

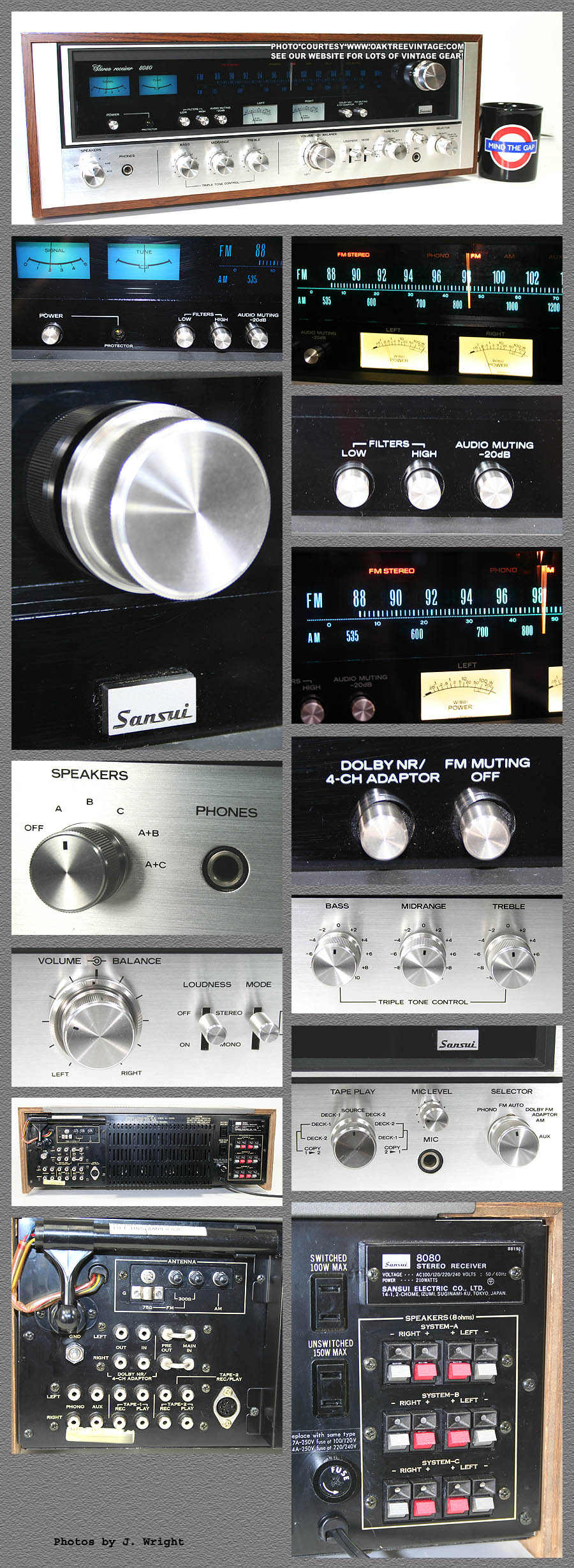

VINTAGE SANSUI STEREO RECEIVER SANSUI 8080 RECEIVER #...0786 CIRCA 1977-79
"WORLD
AC POWER"™
MIJ
SOLD 7/31/12 SHIPPED TO ARKANSAS
for
sale Our technician has
completely gone through this unit cleaning
everything including all switches (actually accessed (requires
'splitting' the unit horizontally) and fully flooded), controls and
contacts for quiet, positive operation.
Extra attention is ALWAYS

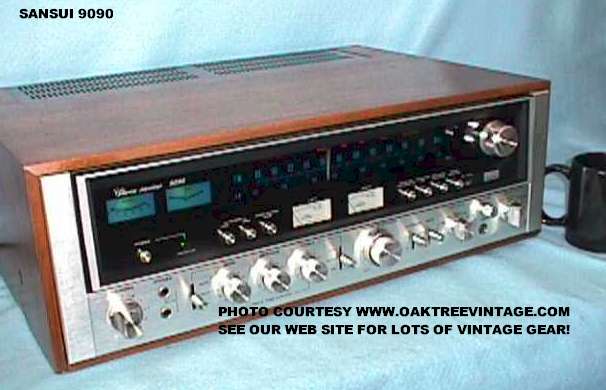

necessary on Sansui 8080 / 9090 units to the 'Input Selector'
and 'Dolby / Tape-Monitor' switches, and they were
completely disassembled, thoroughly cleaned, burnished, had contacts
're-sprung' and tested (only about half the 990's, 8080's and 9090's have
input selector switches that will respond to cleaning only). On this
unit, he actually bypassed the wafer portion that routes the dial light
current, and direct wired the lights to be lit constantly
(the
issue with the dial lights on Sansui 880 / 8080-DB / 990 / 9090-DB series
receivers is that the contacts were, by design, too anemic to handle the 1
Amp+ current they require). He also re-flowed all dial lamp solder
joints, especially at the 'extremes' of the board. Now dial lamps light
solidly and inputs sonically intact.
DC measurements taken
'post-preamp', 'post driver board' and 'post power amp'. 'Sansui
2624-Driver-Board 'removed, inspected / tested component by component &
contacts burnished. Once reseated, DC measurements re-taken. Once driver
board was tested, then the tech moved to address the output transistors.
All output transistors removed and individually tested.
Fresh
heat sink compound used of course. Green 'LED' Power
indicator's 'current limiting' circuit components replaced as necessary.
We also aligned the tuner front-end
for optimum AM & FM performance as older internal tuner components have
always drifted on vintage gear over the years. All dial, all meter (including the very difficult to replace power meter lamps
),
all function indicator and stereo indicator lamps replaced with new
units for trouble-free service. Dial light solder
contacts re-flowed. Also we 'painstakingly' replaced the 'dial pointer' lamp.
The dial string was cleaned and re-tensioned. Once unit's electronics
were addressed, the unit was cosmetically detailed inside and out. All original, extruded face, and milled aluminum knobs in
great shape after detailing. Internal and external dial screen and
window in perfect shape. We removed the dial window
and re-finished the black mask behind it. All inputs tested,
including phono input, and
both amplifiers produces clean and even sine waves into static 8 & 4 ohm
loads! No power supply hum of any kind. It's dead silent! All functions
test fine. The Walnut wood grain, vinyl wrapped in good condition with
minor wear. Following restoration procedures, the unit was operated
continuously at medium volume, as all our amplifier / receivers are,
into a load with ""Loudness"" on and both Tone Controls at 10 for 72
hours. On
our test bench, this particular Sansui 8080,
#...0786, amplifiers each produced
27.8 volts
per channel for 96 watts per channel @ 8 Ω via discrete output &
24
volts per channel for 144 watts per channel @ 4 Ω via discrete, Metal
cased, original TO-3 outputs (Sanken 4x 2SC1116 output
transistors). (AC draw at idle 245mA tested,
DC offset adjusted to <3mV each side.)
The tuner quality on both AM & FM is exceptional due
to aspects such as a fully shielded tuning capacitor
.
The 'typically
broken' Sansui 8080 AM antenna socket
still intact and 'un-broken'.
SANSUI 8080 STEREO RECEIVER Cond. 8.5++
SOLD 7/31/12 SHIPPED TO ARKANSAS
(Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|


NEW
LISTING
7/13/12
(Click on above thumbnails to enlarge photos)
warranty
VINTAGE SANSUI STEREO RECEIVER SANSUI 8080 RECEIVER #...1680 CIRCA 1977-79
MIJ
SOLD 1/7/13
SHIPPED
TO MICHIGAN
Our
technician has completely gone through
and 'Certified'
this unit.
Everything was cleaned inside and out including all switches (actually accessed (requires 'splitting'
the unit horizontally) and fully flooded), controls and contacts for quiet,
positive operation.
Extra attention is ALWAYS necessary on Sansui 8080 / 9090 units
to the 'Input Selector'
and
'Dolby / Tape-Monitor' switches, and they were completely disassembled,
thoroughly cleaned, burnished, had contacts 're-sprung' and tested (only
about half the 990's, 8080's and 9090's have input selector switches that
will respond to cleaning only). On this unit, he actually bypassed the wafer
portion that routes the dial light current, and direct wired the lights to
be lit constantly
(the
issue with the dial lights on Sansui 880 / 8080-DB / 990 / 9090-DB series
receivers is that the contacts were, by design, too anemic to handle the 1
Amp+ current they require). He also re-flowed all dial lamp
solder joints, especially at the 'extremes' of the board. Now dial lamps
light solidly and inputs sonically intact.
DC measurements taken
'post-preamp', 'post driver board' and 'post power amp'. 'Sansui
2624-Driver-Board 'removed, inspected / tested component by component &
contacts burnished. Once reseated, DC measurements re-taken. Once driver
board was tested, then the tech moved to address the output transistors.
All output transistors removed and individually tested.
Fresh heat sink compound used of course. Green
'LED' Power indicator's 'current limiting' circuit components replaced as
necessary.
We also aligned the tuner front-end for optimum AM & FM
performance as older internal tuner components have always drifted on
vintage gear over the years.
VERY GOOD TUNER! Generally AM reception in a stereo receiver is treated
as an 'after thought', but the AM reception on this 8080,
#...1680 is WAY above average.
VERY GOOD TUNER!
FM reception as well great and IMPECCABLY CLEAN!!!
All dial, all meter
(including the very difficult to replace power meter lamps
),
all function indicator and stereo indicator lamps replaced with new units
for trouble-free service. Dial light solder contacts
re-flowed. Also we 'painstakingly' replaced the 'dial pointer' lamp.
The dial string was cleaned and re-tensioned. Once unit's electronics were
addressed, the unit was cosmetically detailed inside and out.
The extruded aluminum
face great shape after detailing.
The knobs are intact,
but do have numerous 'flea bits' and minor scuffs on them. Internal
and external dial screen and window in perfect shape. We
removed the dial window and re-finished the black mask behind it. The lower
wood strip that would normally be on the bottom of the face plate is
missing. All inputs tested, including phono input,
and both amplifiers produces clean and even sine waves into static 8 & 4 ohm
loads! No power supply hum of any kind. It's dead silent! All functions test
fine. The Walnut wood grain, vinyl wrapped in good condition with minor
wear. Following restoration procedures, the unit was operated continuously
at medium volume, as all our amplifier / receivers are, into a load with
"Loudness" on and both Tone Controls at 10 for 72 hours
and into a 4 Ohm Load!
On
our test bench, this particular Sansui 8080, #...1680,
amplifiers each produced
XX.X volts per channel for XX
watts per channel @ 8 Ω via discrete output &
XX
volts per channel for XX watts per channel @
4 Ω via discrete, Metal cased, original TO-3 outputs (Sanken
4x 2SC1116 output transistors). (AC draw at idle
280mA tested, DC offset adjusted to <0.5mV each side.) ___________________________ Here's the
second Sansui
8080 we've had, that's made it all the way through
our restoration with no 'terminal' issues, since 2003!
These receivers are known for ....
The
tuner quality on both AM & FM is exceptional due to ...or
. The amps are....
Sansui 8080 Features include:
.......
HEY, WHY ALL THE 'X'd' OUT /
OMITTED SPECS AND TEXT?
Original Sansui
8080 Specifications:
POWER / PRE AMP SPECIFICATIONS:
Music Power: XX Cont rated RMS Power:XX watts @ 8 Ohms,
20-20k & <XX THD
THD: <XX% @ full rated power IMD: <XX% @ full rated power Power Bandwidth (IHF):
XXkHz Damping factor:
XX @ 8Ω & full bandwidth Hum and Noise:
XXdB on Phono w/ 2.5mV input and
XXdB w/ 5.0mV
input Input Sensitivity AUX / Tape:
XXmV @ 100kΩ| Bass Control: ±XXdB @
X0hz Treble Control: ±XXdB @
X0khz High Filter: -XXdB @
X0kHz Low Filter: -XXdB @
X0Hz "Loudness" Contour: +XdB @
Xhz & +XdB @
XXkHz (volume control
@ -30dB)
HEY, WHY ALL THE 'X'd' OUT /
OMITTED SPECS AND TEXT?
TUNER SPECS FOR FM: Tuning Range:
88-108mHz Capture Ratio: 1XXdB S/N: >
XXdb Stereo Selectivity: >4XXdB
Image Frequency Rejection: >XX dB at 98 MHz IF
Rejection: > XXdB at 98 MHz Spurious Response Rejection: >XXdB
THD 65dBf @ 1kHz, Mono: <XX%
Stereo Separation Ratio: >XXdB @ 50Hz to 10kHz TUNER SPECS FOR AM: Tuning Range: 535-1605kHz
IF (Image Frequency) Rejection: >XXdB @ 1kHz
Selectivity: >XXdB @ 1kHz Useable Sensitivity (External Antenna / Bar Antenna):
XμV/m /
250 μV/m PHONO SECTION SPECS: Freq Response:
XXkHz Channel Separation: >
XXdB Input Sensitivity:
XXmV @ 50kΩ Max input:
~2XXmV @ 50kΩ
HEY, WHY ALL THE 'X'd' OUT /
OMITTED SPECS AND TEXT?
Again, as
stated before, we have completely gone through this Sansui 5000X, Stereo
Receiver cleaning and testing all and it gets our full
'Certification'. This is probably the 'cleanest'
Sansui Receiver in the optional wood case from this era we've ever had.
This Sansui 5000X is also in the originally optional Walnut Wood
Veneer Case that is in great condition and really sets its look. Very
‘Handsome’ unit. Receiver looks, performs and sounds great! Includes a pdf
'e' download of a Sansui '5000-Series' owners manual.......
HEY, WHY ALL THE 'X'd' OUT /
OMITTED SPECS AND TEXT?
This
Sansui 8080 classic stereo receiver is great
looking and fabulous sounding! Again, we have done EXTENSIVE refurbishment /
restoration work (~16+ hours) on this unit to
insure it's performance, and it gets our full
'Certification'.
With the exception of a few very
minor 'tic' marks on knobs, the face plate &
window are in great cosmetic condition
(see photos
above). The 'typically broken' Sansui 8080 AM
antenna socket
still intact an... Includes an 'e-copy' of the
download pdf Sansui 9090 owners
manual
(will be applicable to the 8080) & Service manual.....
Includes our standard 90 day limited warranty. SANSUI 8080 STEREO RECEIVER Cond. 8.5
(C)
M.R. SOLD 1/7/13
SHIPPED
TO MICHIGAN
(Above text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
VINTAGE SANSUI STEREO
RECEIVER
SANSUI 9090DB RECEIVER
#1
Circa '77-'79
SOLD
|

VINTAGE SANSUI STEREO RECEIVER
SANSUI 9090DB RECEIVER
#2
SOLD
|
|

VINTAGE SANSUI STEREO RECEIVER
SANSUI 9090DB RECEIVER (#2)
WITH DOLBY DECODING
SOLD
|
VINTAGE SANSUI STEREO RECEIVER
SANSUI 9090DB RECEIVER (#3)
WITH DOLBY DECODING
SOLD
|
VINTAGE SANSUI STEREO RECEIVER
SANSUI 9090DB RECEIVER
#4
WITH DOLBY DECODING
SOLD
|

NEW
LISTING 5/18/12
(Click on above thumbnails to enlarge photos)
warranty
VINTAGE SANSUI STEREO RECEIVER SANSUI 9090DB RECEIVER #...0129 CIRCA 1977-79
"WORLD
AC POWER"™
MIJ
SOLD
6/4/12 SHIPPED TO NORTH DAKOTA
Our technician has
completely gone through this unit cleaning
everything including all switches (actually accessed (requires
'splitting' the unit horizontally) and fully flooded), controls and
contacts for quiet, positive operation.
Extra attention is ALWAYS
necessary on Sansui 8080 / 9090 units to the 'Input Selector'
and 'Dolby' switches, and they were completely
disassembled, thoroughly cleaned, burnished, had contacts 're-sprung'
and tested (only about half the 990's, 8080's and 9090's have input
selector switches that will respond to cleaning only). DC measurements taken
'post-preamp', 'post driver board' and 'post power amp'. 'Sansui
2624-Driver-Board 'removed, inspected / tested component by component &
contacts burnished. Once reseated, DC measurements re-taken. Once driver
board was tested, then the tech moved to address the output transistors.
Substitute 'generic' outputs and bad original outputs removed and we
'hand picked' from our extensive collection of original Sansui 9090
output transistors, and matched 'quads' of outputs to re-install. Fresh
heat sink compound used of course. Green 'LED' Power
indicator's 'current limiting' circuit components replaced as necessary.
We also aligned the tuner front-end
for optimum AM & FM performance as older internal tuner components have
always drifted on vintage gear over the years. All dial, all meter (including the very difficult to replace power meter lamps
),
all function indicator and stereo indicator lamps replaced with new
units for years of trouble-free service ('Stereo' indicator replaced
with an LED). Also we 'painstakingly' replaced the 'dial pointer' lamp.
The dial string was cleaned and re-tensioned. Once unit's electronics
were addressed, the unit was cosmetically detailed inside and out,
including rubbing the Real Walnut Wood veneer case with a fresh coat of
lemon oil. All original, extruded face, and milled aluminum knobs in
great shape after detailing. Internal and external dial screen and
window in perfect shape. All inputs tested, including both phonos, and
both amplifiers produces clean and even sine waves into static 8 & 4 ohm
loads! No power supply hum of any kind. It's dead silent! All functions
test fine.
The real Walnut wood veneer in good condition with only very minor wear.
Following restoration procedures, the unit was operated
continuously at medium volume, as all our amplifier / receivers are,
into a load with ""Loudness"" on and both Tone Controls at 10 for 72
hours. On
our test bench, this particular Sansui 9090DB,
#...0129, amplifiers each produced 35 volts
per channel for 153 watts per channel @ 8 Ω via discrete output & 31
volts per channel for 242 watts per channel @ 4 Ω via discrete, Metal
cased, original TO-3 outputs (Toshiba 4x 2SB554 & 4x 2SD424 output
transistors). (AC draw at idle 420mA tested,
DC offset adjusted to <2mV each side.) ___________________________ Here's the first Sansui 9090DB we've had, that's made it all the way
through our restoration with no 'terminal' issues, since 2004! These
receivers are known for great AM/FM tuners, and amplifiers that you can
"darn near weld with".
The tuner quality on both AM & FM is exceptional due
to aspects such as a fully shielded tuning capacitor
. The amps are incredibly warm sounding with HUGE
punch and headroom.
Very "Musical" sounding with real output transistors and huge power
supplies. A testament to the strength of the power supply is that the
results we achieved on the test bench. Most receivers will have from
20-40% more power at 4 Ohms than they do at 8 Ohms. This is primarily
due to power supply limitations. However, the Sansui 9090 at 4 Ohms is
almost double what the receiver's amplifiers are are rated at for 8
Ohms!!! The difference in tone of an 8080 or 9090, with a 'clean bill of
health', and most other receivers is astronomical. It's a difference that must be experienced to be
appreciated.
Again, we done EXTENSIVE
refurbishment / restoration work (~18 hours)
on this unit to insure it's performance. With
the exception of a few very minor 'tic' marks on the front panel, the
face plate, window and knobs
are in great cosmetic condition (see photos above). The 'typically
broken' Sansui 9090 AM antenna socket
still intact and 'un-broken'.
SOLD
6/4/12 SHIPPED TO NORTH DAKOTA
(Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
|
|

HUGE POWER OUTPUT!
NEW ADDITION
8/15/09
(Click on above
thumbnails to enlarge photos)
warranty
SANSUI STEREO
RECEIVER
G871DB SANSUI
G-871DB 8700DB
WITH DOLBY DECODING
#...0053
CIRCA 1980
"WORLD AC POWER"
™
MIJ
SOLD 8/18/09
|
|
|

NEW LISTING
(Click on
above thumbnails to enlarge photos)
warranty
VINTAGE SANSUI STEREO RECEIVER
SANSUI G-3000 / G3000 RECEIVER
SOLD 8/31/06
|
|
|
VINTAGE SANSUI STEREO RECEIVER
SANSUI G-4500 / G4500 RECEIVER
SOLD |

SANSUI G-4700 STEREO RECEIVER
Circa '80-'82
SOLD
|
|

VINTAGE SANSUI STEREO RECEIVER
SANSUI G-5700 / G5700 RECEIVER
SOLD
|

NEW ADDITION
2/11/10
(Click on above
thumbnails to enlarge photos)
warranty
VINTAGE SANSUI STEREO RECEIVER
SANSUI G-5700 / G5700 RECEIVER
"Pure DC Power"
STEREO RECEIVER
#...0107
CIRCA 1980-82
"WORLD
AC POWER"
™
MIJ
for sale
SOLD 3/4/10
|
|

NEW LISTING
5/10/6
(Click
on above thumbnails to enlarge photos)
warranty
VINTAGE-CLASSIC SANSUI STEREO RECEIVER SANSUI G-6000 STEREO RECEIVER
"DIRECT COUPLED" POWER AMPLIFIERS #...1806 CIRCA 1979
“WORLD
AC POWER" MIJ
Includes a pdf / 'e-copy' download of the Sansui G-6000
Brochure and Service manual (sorry, no owners / users
manual available at this time). Measures 20"
wide x 7.5" tall x 16.25"
deep and weighs and heavy 39 lbs unpacked.
Includes our standard 90 day limited warranty. SANSUI G-6000 STEREO RECEIVER Cond. 8.5+++
SOLD 5/11/16 SHIPPING TO NORTH CAROLINA
R.R. (C)
(Above text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|


NEW
LISTING 5/10/13 (Click
on above thumbnails to enlarge photos)
warranty
VINTAGE SANSUI STEREO RECEIVER THE CLASSIC SANSUI G-7700X BIG POWER AND SIZE!
Circa
1980-82 #...0827 "WORLD
AC POWER"
™
MIJ SOLD 5/17/13 SHIPPED TO SOUTH DAKOTA
ü
Our technician has completely gone through
and 'Certified' this unit.
ü
Everything was cleaned inside and out including all contacts, switches
and controls.
ü
Skewed control shafts straightened
ü
Electrolytic power supply filter capacitors tested for leakage
ü
All
8 power transistors removed, tested for
leakage
ü
All transistors re-installed with fresh heat-sink compound (usually good
for 20-30 years)
ü
Intermittent ground painstakingly located and corrected
ü
Numerous component connections re-flowed
ü
Bias current adjusted to correct levels.
ü
DC offset adjusted to correct levels.
ü
We also aligned the tuner for optimum AM & FM performance as older
internal tuner components have always drifted on vintage gear over the
years.
VERY GOOD TUNER!
AM reception WAY above average, FM reception incredible, PUNCHY and
IMPECCABLY CLEAN!!!
due
to the super quality FM front end and the
quality of the restoration.
ü
All dial indicator lamps replaced for trouble-free service (dial / meter
lamps ‘blue tinted’ to original color)
ü
Entire unit cleaned / detailed cosmetically inside and out.
ü
All inputs tested and both sides produce clean and even sine waves into
static 8 & 4 ohm loads! No power supply hum of any kind. It's dead
silent! All functions test fine.
ü
Following restoration procedures, the unit was run continuously at
medium volume, as all our amplifiers / receivers are, into a load with
"Loudness" on and both Tone Controls at 10 for 48 hours
and into a 4 Ohm Load!
You will
not be disappointed. Total restoration time investment ~10
hours.
On our test bench, the internal amplifiers of this
receiver #...0827 produced XX volts per
channel @ 8 ohms with 1Khz input for XX watts
and XX volts per channel @ 4 ohms with 1Khz
input for XX watts via discrete outputs.
(2x 2SA1106 & 2x 2SC2581). AC Idle current at 500mA, Bias adjusted and DC offset output adjusted
to <2 mvDC either channel. Floor noise @ <0.2mVAC either channel. ____________________________
This is one of the
dozen or so, largest 'receivers'
we have had. At 4 ohms, a single channel was able to produce
.... These are great receivers and this one has
been 'certified'
following the refurb by Oak Tree Vintage and is in great
condition!!! Sansui G-7700 Stereo Receiver
Features: ..... ... 50 or 60 Hz AC and voltages from
110-240 volts AC
Original
Sansui G-7700 Specifications:
"The G-7700 has a continuous power output of
XXX watts per channel min @ 8 ohms from 20
hertz to 20,000 hertz with no more than XXX%
THD (measured utilizing AUX input)"
POWER / PRE AMP SPECIFICATIONS:
THD: XX% @
XXX wpc @ 8
Ohms Freq Response of power amp section: @ full rated power 20-20kHz Potential frequency response of power amp section @ 1w:
7 Hz to 90KHz, + 0
dB,- 1 dB IMD utilizing AUX:
XX% @
XXwpc Hum / Noise Ratio:
XXdB
Slew Rate: X0
@ 8Ω full bandwidth (One of the main reasons this
thing is so punchy) Damping factor: X0 @ 8Ω full bandwidth
(One of the other main reasons this thing is so punchy)
Tone Control ranges: Bass:
+/-XXdB @ X0Hz
Treble:
+/-XdB @ XkHz
Hi Filter:
-
HEY, WHY ALL THE 'X'd' OUT /
OMITTED SPECS AND TEXT?
Loudness Contour w/ vol
@-30dB: X
Pre-Amp Input Sensitivity at all
inputs except phono & mic:
XXmV Microphone Input Impedance:
Xk Ohms Microphone Input Sensitivity:
XmV Input Freq Response (except Phono & Mic):
XX0kHz Tape Output Impedance:
XXk Ohms Tape Output:
XmV Pre-Amp S/N @ 'Tape' & 'AUX':
XXdB
Channel Separation Phono / All Other:
XdB
TUNER SPECS FOR FM:
Tuning Range: 88-108MHz Freq Response:
30-15kHz per FCC Regulations S/N: >
XXdB Mono @ 65dBf S/N: >
XXdB Stereo @ 65dBf Useable Mono RF Sensitivity dBf / μV:
XdBf
/ 1XμV Useable Stereo RF Sensitivity in dBf / μV:
XdBf Capture Ratio:
X0dB Signal for 50dB quieting, Mono dBf / μV: XdBf
Signal for 50dB quieting, Stereo dBf / μV:
XdBf De-Emphasis: selectable 25 or 75 μ-sec THD w/ 100% modulation @ 1kHz, Mono: XX% THD w/ 100% modulation @ 1kHz, Stereo: X%
IF Response Ratio: XXdB Spurious
Response Ratio / Rejection:
XXdB
IF Response Ratio:
XXdB FM Alternate Channel Selectivity: XXdB Stereo Separation:
XkHz
TUNER SPECS FOR AM:
Tuning Range:
530-1600kHz
RF Sensitivity: 300uV/meter or 15uV @ binding posts Alternate Channel Selectivity:
33dB Distortion @ 30% modulation & 80dB/m:
<0.5% Signal to Noise Ratio:
46dB
PHONO SECTION SPECS: Freq Response:
20-20kHz
(way better than either of it's little brothers, the G-5700 or G-6700) S/N:
XV input
Input Sensitivity:
XkΩ Overload limit:
XkHz
Again, we have completely gone through
this Sansui G-7700 Stereo Receiver, as stated above
and 'certified'
it's ready to go! This is an...
Wood grain, vinyl wrapped case in great shape
as well with only normal, minor cosmetic wear.
Entire unit looks NEW! After restoration, receiver performs and sounds
great!
HEY, WHY ALL THE 'X'd' OUT /
OMITTED SPECS AND TEXT?
Cosmetically,
this unit is in
very good condition. Brushed aluminum face and knobs all original and in great condition.
Unit looks great and sounds....Includes our standard 90 day limited warranty!
SANSUI G-7700 STEREO RECEIVER Cond.
8.5
(C) M.R. SOLD 5/17/13 SHIPPED TO SOUTH DAKOTA
(Above text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
|

VINTAGE SANSUI STEREO RECEIVER
SANSUI G-8000 / G8000 RECEIVER
SOLD
|

VINTAGE SANSUI STEREO
RECEIVER
SANSUI G-8000 / G8000 RECEIVER
#2
SOLD
|


HUGE POWER OUTPUT!
NEW ADDITION
12/15/09
(Click on above
thumbnails to enlarge photos)
warranty
VINTAGE SANSUI STEREO RECEIVER
SANSUI G-8000 / G8000 RECEIVER
#...0313
CIRCA 1979
"WORLD
AC POWER"
™
MIJ
SOLD 12/21/09
|

VINTAGE SANSUI STEREO RECEIVER
SANSUI G-8700 / G8700 RECEIVER
SOLD
|
|

VINTAGE SANSUI STEREO RECEIVER
SANSUI G-8700DB / G8700DB RECEIVER
WITH DOLBY DECODING
SOLD
|

NEW
LISTING 12/8/15
warranty
VINTAGE-CLASSIC
SANSUI STEREO RECEIVER SANSUI G-9000 STEREO RECEIVER (North American G-901) CIRCA 1979
“WORLD
AC POWER" MIJ
SOLD 12/29/15 SHIPPING TO MAINE
Our
technician has completely gone through
and 'Certified'
this unit, cleaning
everything including all switches, controls and contacts for quiet, positive operation.
Extra
attention is ALWAYS necessary on Sansui units to the 'Input
Selector'
and 'Tape Monitor' switches, and they were thoroughly
cleaned and tested (one great thing about the "G" series, over it's
predecessor series, the 990/9090 and 8080, is that the input selector
contacts are not also conducting the 'dial lamps', so a common
intermittent dial lamp issue with those units is averted on the G-9000). He also re-flowed
all dial lamp solder joints, especially at the 'extremes' of the board.
ALL NEW dial lamps light solidly and inputs sonically intact.
DC measurements
taken 'post-preamp', 'post driver board' and 'post power amp'.
Bias current set to spec.
Green
'LED' Power indicator's 'current limiting' circuit components tested.
We
also aligned the tuner dial indicator and tuner
front-end for optimum AM & FM performance as
older internal tuner components have always drifted on vintage gear over
the years. All dial, all meter (including the very difficult to
replace power meter lamps),
all function indicator and stereo indicator lamps replaced with new
units for years of trouble-free service. Mechanical volume preset disassembled, cleaned and re-lubed.
Once
the unit's electronics were addressed,
it was
cosmetically detailed inside and out. All original, extruded
face, and milled aluminum knobs in great shape after detailing. Internal
and external dial screen and window in perfect shape. All inputs tested,
including both phonos, and both amplifiers produce clean and even sine
waves into static 8 & 4 ohm loads! No power supply hum of any kind. It's
dead silent! All functions test fine.
Only cosmetic issues are minor, ie; a small tic in
the upper, left corner of the face plate, and some minor scuffs on the
sides (see above photos).
The real Walnut wood veneer in
good condition with only very minor wear. Following restoration
procedures, the unit was operated continuously at medium volume, as all
our amplifier / receivers are, into a load with ""Loudness"" on and both
Tone Controls at 10 for 72 hours.
On
our test bench, this particular Sansui G-9000, #...0492, amplifiers each
produced 38 volts per channel for 180 watts per channel @ 8 Ω via
discrete output & 35 volts per channel for
306 watts per channel @ 4 Ω
via discrete, Metal cased, original TO-3 outputs. (AC draw at idle
623mA tested, DC offset adjusted to
0mV each side. Floor noise measured at L=00.0mVAC and R=00.0mVAC) ___________________________ Here's the first Sansui G-9000 we've ever had! We've had a couple of
'8000's', but never a "9000". What a beautiful piece. I happen to think
this series was the most impressive looking receivers ever built by any
manufacturer. The controls have the ...
HEY, WHY ALL THE 'X'd' OUT /
OMITTED SPECS AND TEXT?
The front end is the same as the massive and famous
....
Sansui G-9000 Features include:
...
HEY, WHY ALL THE 'X'd' OUT /
OMITTED SPECS AND TEXT?
Sansui
G-9000 Original Specs: "The
G-9000 has a continuous power output of 1...
POWER / PRE AMP SPECIFICATIONS: THD;
0.xx% @ full rated power Potential Freq Response of Pre-amp section;
measured @ 1w; xxHz +0.2dB / -1.5dB ±
Potential Freq Response of power amp section; Potential frequency response of power amp section
xxHz & @ 1w; +0dB
/ -3.0dB ± IMD utilizing AUX; 0xxx% @ full rated power / 20-20kHz
HEY, WHY ALL THE 'X'd' OUT /
OMITTED SPECS AND TEXT?
Slew Rate; xx V / μ-sec Damping factor;
xxx @ 8Ω & full bandwidth Hum and Noise;
xxdB @ AUX / Tape Input Sensitivity AUX / Tape;
xxxx0mV @ 47kΩ Tape 1/2 Output level, via RCA;
xx0mV Tape 2 Output level, via DIN I/O;
xxmV PreOutput level;
xxV Stereo / Channel Separation @ 1kHz; xxdB
Bass Control; xxB @
xxhz Bass Turnover;
xx0hz
or xxhz Mid Control; ±xxdB @
xxkhz Treble Control; ±xxdB @
xx0khz Treble Turnover;
xxkhz orxxkhz
HEY, WHY ALL THE 'X'd' OUT /
OMITTED SPECS AND TEXT?
Low Filter; -xxdB @
xxHz @ xxdB Oct
High Filter; xxdB @
xxkHz @ xxdB Oct
"Loudness" Contour; +xxdB @
xxhz, +xxdB @
xxkhz (w/ volume set at
-30dB)
SANSUI G-9000 TUNER SPECS FOR FM
(most tuner specs are improved over it's smaller sibling, the Sansui
G-8000); Tuning Range;
xxmHz Freq Response;
xx-15kHz S/N @ 65dBf; >
xxdb Stereo S/N @ 65dBf; >
xxdb Mono Useable Mono Sensitivity;
xxdBf
(xxV) Useable Stereo Sensitivity; xxdBf
Capture Ratio; xxdB Image Response Ratio;
xx0dB Spurious Noise Ratio;
xxdB IF Response Ratio;
xxdB Signal for 50dB quieting, Mono; 1xx5dBf
Signal for 50dB quieting, Stereo; xx0dBf
THD 65dBf @ 1kHz, Mono; 0.0xx%
THD 65dBf @ 1kHz, Stereo; 0.xx%
Stereo Separation @ 100Hz; xxdB
Stereo Separation @ 1kHz; xxdB
Stereo Separation @ 10kHz; xxdB
FM Alternate Channel Selectivity; xxdB
@ xx0 Hz
HEY, WHY ALL THE 'X'd' OUT /
OMITTED SPECS AND TEXT?
TUNER SPECS FOR AM; Tuning Range; 5xxkHz S/N; >
xxdb Useable Sensitivity;
xxV / m with ferrite stick antenna or
xxB / m with external antenna Selectivity;
xxdB Distortion: 0.xx%
PHONO SECTION SPECS; Freq Response; xxkHz S/N;
xxdB, ref w/
xxmV input
THD; 0.0xx% @
xx mV @ 1kHz
Stereo / Channel Separation @ 1kHz; xxdB Input Sensitivity;
xxmV @ 47kΩ Overload limit;
xx mV @ 1kHz
Again, as stated before, we have completely gone through this unit
cleaning, refurbishing and testing all. This is an incredible sounding
receiver in all aspects. Due to it's huge power output (again, we
were able to get a 'shade' over
xx
watts per channel, into a 4 Ohm
load), even at very low volumes it sound's like a "Class-A"
amplifier. The controls are very ...
HEY, WHY ALL THE 'X'd' OUT /
OMITTED SPECS AND TEXT?
Again, only cosmetic issues are
minor, ie; a small tic in the upper, left corner of the face plate, and
some minor scuffs on the sides (see above photos). Beautiful
aluminum face, with it's beveled dial glass and all original, milled
knobs in fabulous shape. Wood grain, vinyl wrapped case in fine shape as
well. Unit looks great and sounds HUGE! ...
HEY, WHY ALL THE 'X'd' OUT /
OMITTED SPECS AND TEXT?
Includes a pdf / 'e-copy' download of the Sansui G-9000
Service manual. Measures 22.2" wide x 8" tall x 19.5" deep and weighs
and heavy 60 lbs unpacked. Includes our standard 90 day limited
warranty. SANSUI G-9000 / G-901 STEREO RECEIVER Cond. 8.5+
SOLD 12/29/15 SHIPPING TO MAINE
M.R. (C)
(Above text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
|
|



VINTAGE SANSUI AM-FM STEREO RECEIVER "Quad" 4-channel MODEL QR-4500 QR4500
'OLD-SCHOOL SURROUND SOUND' STEREO RECEIVER
SOLD 11/24/04
|

VINTAGE SANSUI AM-FM STEREO RECEIVER "Quad" 4-channel MODEL QRX-8001 'OLD-SCHOOL SURROUND SOUND' STEREO RECEIVER
SOLD
|
-
|

VINTAGE SANSUI STEREO RECEIVER
SANSUI R-30 / R30 RECEIVER
SOLD
|

NEW ADDITION
9/29/09
(Click on above
thumbnails to enlarge photos)
warranty
VINTAGE SANSUI STEREO RECEIVER
SANSUI R-50 / R50
RECEIVER
#...1565
MIJ
"WORLD
AC POWER"
™
SOLD 10/1/09 |
|

(Click on above
thumbnails to enlarge photos)
warranty
VINTAGE SANSUI STEREO RECEIVER
SANSUI Z-7000 Z7000
SOLD 11/12/07
(C)
C.B.S.
|

(Click on above
thumbnails to enlarge photos)
VINTAGE SANSUI
STEREO RECEIVER
SANSUI Z-9000 Z9000
SOLD |
|
- |
- |
- |
CLICK HERE
TO SEE OUR RECEIVERS CURRENTLY FOR SALE!
|
---- revised 5/10/19
|
