MARANTZ STEREO RECEIVERS PHOTO GALLERY
- REFERENCE PHOTOS / ARCHIVE SOLD UNITS -




Archive / Photo Gallery of Vintage Marantz Home Stereo Receivers that we have had in the past. Vintage 1970's models of Marantz silver / blue face receivers such as the 2215, 2220, 2230, 2240, 2250, 2275, 2325, 2330BD, 2500. Keep checking this page and our 'current receivers' page as we commonly have more Marantz Receivers coming. All photos and text, copyrighted and protected as stated at bottom of page. Click the link below for current inventory.
















































... OR, CLICK HERE TO SEE OUR RECEIVERS CURRENTLY FOR SALE!





NEW LISTING 10/10/12
(Click on above thumbnails to enlarge photos)

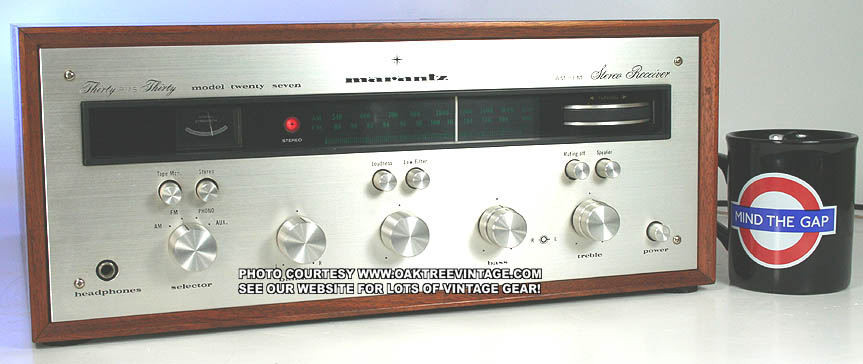

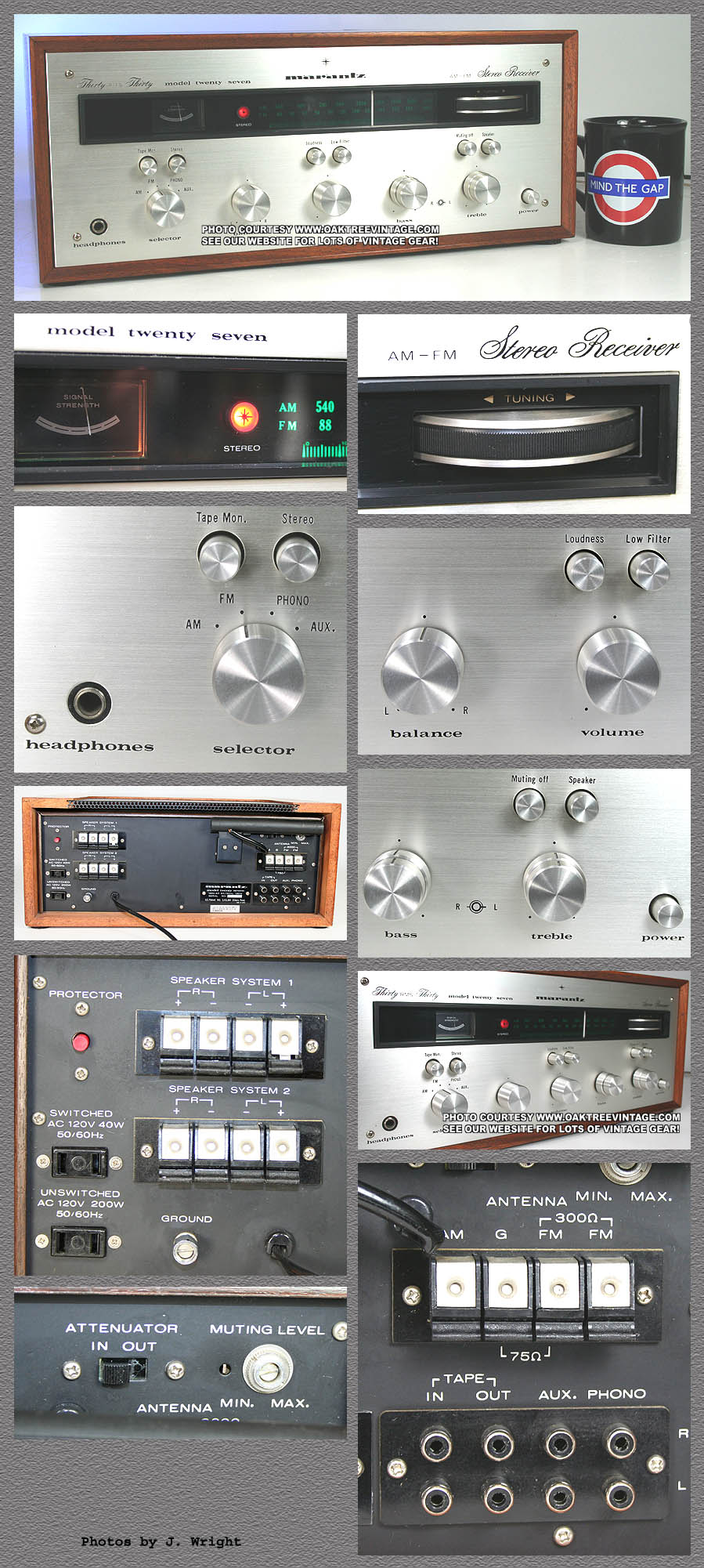

VINTAGE MARANTZ STEREO RECEIVER
MARANTZ TWENTY SEVEN / MARANTZ 27
 #...4476
 Circa 1970-73
 MIJ

for sale
SOLD 11/5/12
SHIPPED TO SOUTH DAKOTA

Our technician has completely gone through and 'Certified' this unit. Everything was cleaned inside and out including all contacts, switches, controls and I/O jacks. All internal fuses checked for correct values and replaced where necessary. He replaced the questionable power switch. All dial & meter lamps were replaced, as well as the 'stereo' indicator with new bulbs, for trouble-free service. We also aligned the tuner for optimum performance on both AM and FM including realigning the 'local osc'. AM reception on this Marantz 'Twenty Seven', #...4476 is above average. VERY GOOD TUNER! FM reception as well great and IMPECCABLY CLEAN!!! Dial pointer track was cleaned of old lube and re-lubed w/ silicone grease. Output bias adjusted correctly for clean output. DC offset adjusted to less than 2mV / Ch. All functions tested for perfect operation. Power supply adjusted to correct voltage. All inputs tested and both sides produce clean and even sine waves! Tone control shafts have a bit of 'play' in the bushings, but simply from 30+ years of age (short of replacing them, they are what they are, and still function fine electronically). Following restoration procedures, the unit was run at medium volume, as all our amplifier / receivers are, into a load with "Loudness" on and both Tone Controls at 10 for 72 hours. All functions test perfectly.
Following electronic refurb, entire unit was cosmetically detailed inside and out. Only 'cosmetic' issue is light 'splotching' on the wood case, but nothing too distracting (see photos above). Total restoration time investment ~7 hours.


 On our test bench, this unit of this Marantz Twenty Seven / 27 receiver #...4476,  amplifiers produced 16.4 volts @ 8 Ω per channel for 33 Watts / channel and 12.8 volts @ 4 Ω per channel for 41 Watts / channel via discrete, TO-3 style, Original Motorola metal cased output devices at 1khz. (2x 2SJ2008 & 2X 2SJ2009)
AC current at idle measured at 100mA. DC offset adjusted to produce <2mV. Bias set correctly for clean sine waves and correct draw.


Early and 'Elegant' Marantz stereo receiver from the early 1970's.
'Build Quality' features:

- 'Point to Point' wiring on control pots, selectors and I/O jacks
- Shielded Phono Section
- ALPS brand control pots
- Super heavy duty pwr tranny
- 7-Gang tuning capacitor
- 'TO-3 Output transistors


  Features include:



- Marantz exclusive "Gyro-Touch" weighted flywheel analog 'Slide Rule' tuning
- A or A+B speaker selector
- Separate 'LEFT AND RIGHT' Bass, and Treble controls
- Built-in 'Low' Filter to eliminate excess rumble from sources such as turntables
- FM muting, separate from FM stereo selector with 'rear located' level / 'Squelch' adjustment
- Stereo / Mono mode selector for Pre-Amp section or FM tuner (depending on function selected)
- "Loudness" function to boost Bass and Treble in relationship to Mid frequencies at lower volume levels for a much fuller sound
- Phono / turntable  input
- Aux input (may also be used for Video / CD / DVD /DAT / VCR / MP3 / iPod® / iPhone® / iTouch® / iGadget / MP3 / XM® / SIRUS®  etc.)
- Real 'Tape Monitor Loop' (Tape Monitors can be used with Video / CD / DVD / VCR / DAT / MP3 / iPod® / iPhone® / iTouch® / iGadget / MP3 / XM® / SIRUS® CDR (CD recorders as well as for inserting signal processors, such as EQ's, Reverbs, Spatial Enhancers / Dynamic Processors, Noise Reduction units, Special Effects units, Time Delays, etc)
- Analog VU''Signal Strength' Tuning meter
- 7-Gang tuning capacitor
- Built-In AM 'Stick' antenna
- FM 'Muting Level' control on rear panel
- Antenna attenuator on rear panel
- 1/4" Stereo Headphone Jack
- Externally located 'mains' protection breaker
- Dual AC convenience outlets on rear panel with 1 switched and 1 un-switched for a total capacity of 240 watts of accessories


 Marantz Twenty Seven / 27 Stereo Receiver Original Specifications:

   "The Marantz 27 has a continuous power output of 30 watts per channel min. @ 8 or 4 ohms from 20 hertz to 20,000 hertz with no more than 0.3% THD (measured utilizing AUX input)"
IHF (Institute of High-Fidelity) / Comparable 'Music' power = 45 watts @ 8 Ohms


 POWER / PRE AMP SPECIFICATIONS:

Rated RMS Power / Channel; 30 WPC @ 8 Ohms
IHF Power / Channel; 45 WPC @ 8 Ohms
THD:
<0.3% @ 8Ω @ Max rated power
Rated Freq Response; 20Hz-20,000Hz
 Power Bandwidth; 10Hz-30,000Hz
IMD utilizing AUX;
0.3% @
High Level Input Sensitivity / Impedance; 150mV / 47k Ohms
Tape Output Level / Impedance; 1V / 7k Ohms @ 1Khz
Treble
Control; +/- 12dB @ 10khz
Bass Control; +/- 12dB @ 100hz
Low Filter; 6dB / Oct @ 100hz

 TUNER SPECS FOR FM:
 Freq Response:
30-15kHz

Useable IHF Mono RF Sensitivity: >2.8 μV
Quieting Slope: 52dB & 5μV, 58dB & 10μV, 65dB & 50μV
 Capture Ratio: 3dB (INCREDIBLE!)
Alternate Channel Selectivity; 40dB
 THD w/ 100% modulation @ 400Hz, Mono / Stereo:  0.3% / 0.5%
 Stereo Separation @ 1kHz: 34dB
Spurious Rejection: >80dB
67kHz Suppresion: >60dB

 TUNER SPECS FOR AM:

Useable AM Sensitivity: 11μV

PHONO SECTION SPECS:
Input Sensitivity:
2mV @ 47kΩ



 Again, as stated before, we have completely gone through this Marantz Twenty Seven / 27, Stereo Receiver cleaning and testing all and it gets our full 'Certification'. With the exception of the above mentioned, 'splotching' to a section of the wood case (see photos above) the unit is near perfect cosmetically. The brushed aluminum face and all original, milled knobs in great shape. After restoration, receiver looks, performs and sounds great! This unit features Marantz's 'Variable Overlap Drive' technology, to virtually eliminate crossover distortion. In addition, this circuit compensates for internal component 'aging' insuring 'like new' performance for many years to come. According to an original Marantz Twenty Seven Brochure states;
"The Model 27 delivers 60 Watts RMS. Most receiver manufacturers measure power by such ratings as 'Music Power' or 'Peak Power'. Marantz measures power by the only reliable method - RMS power. Marantz 60 watts sounds more powerful than 180 Watts music power, because Marantz power is delivered throughout the entire audio spectrum, from 20Hz-20kHz (both channels driven), at or below the rated distortion. Marantz guarantees that you receive 60 Watts RMS."  This is a VERY 'Musical' sounding tuner/pre/power-amp. Very 'full, warm and phat'. Great 'low-end' depth at any volume. Tone controls have a lot of influence. Overall a pleasing unit to listen to in all aspects. Measures 15" wide x 16.5" deep x 7" high and weighs 35 lbs unpacked. Includes our standard 90 day limited warranty!
MARANTZ Twenty Seven / 27 STEREO RECEIVER
  Cond. 8
.5
(C) R.R.
SOLD 11/5/12

SHIPPED TO SOUTH DAKOTA


(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)

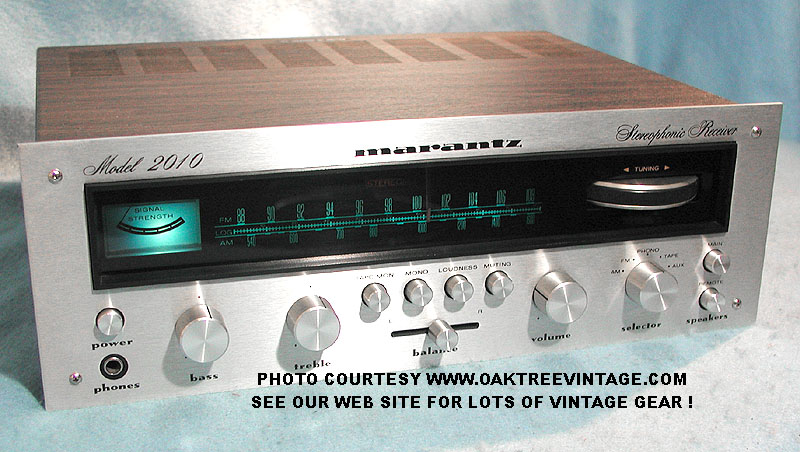

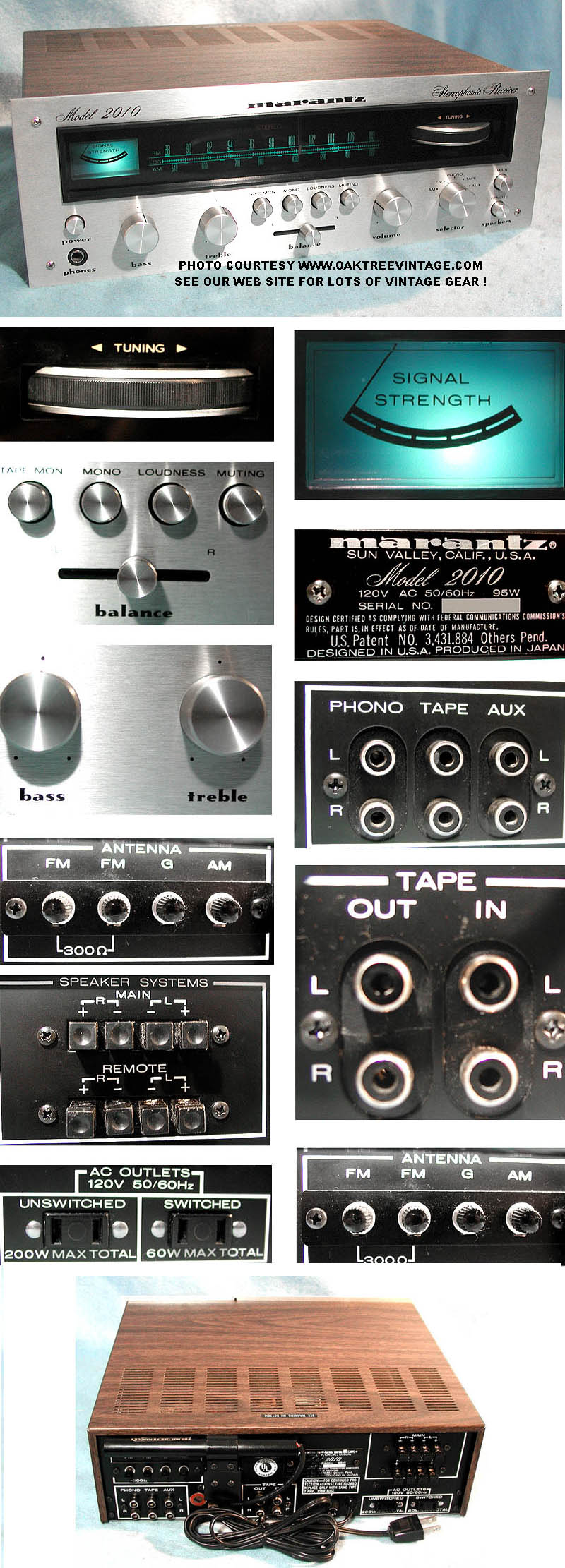

MARANTZ
2010
STEREO RECEIVER

SOLD












NEW LISTING 4/1/08
 (Click on above thumbnails to enlarge photos)

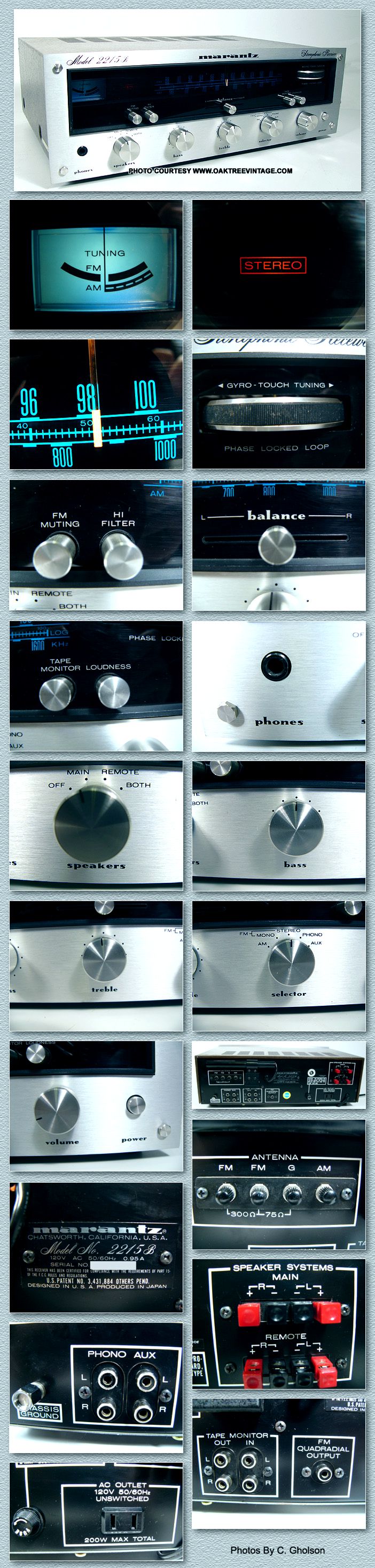

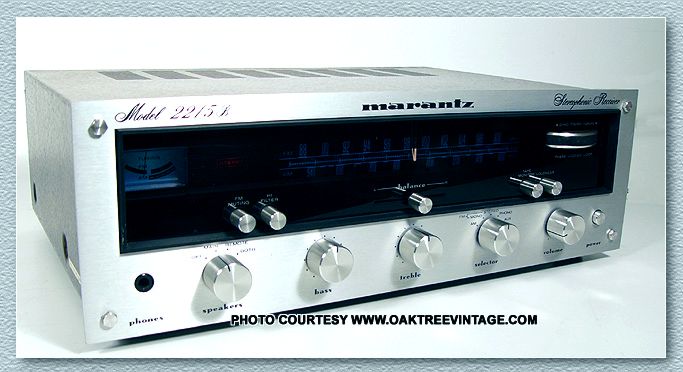

MARANTZ
2215B

STEREO RECEIVER
CIRCA 1973-77
SOLD 4/01/08





- -

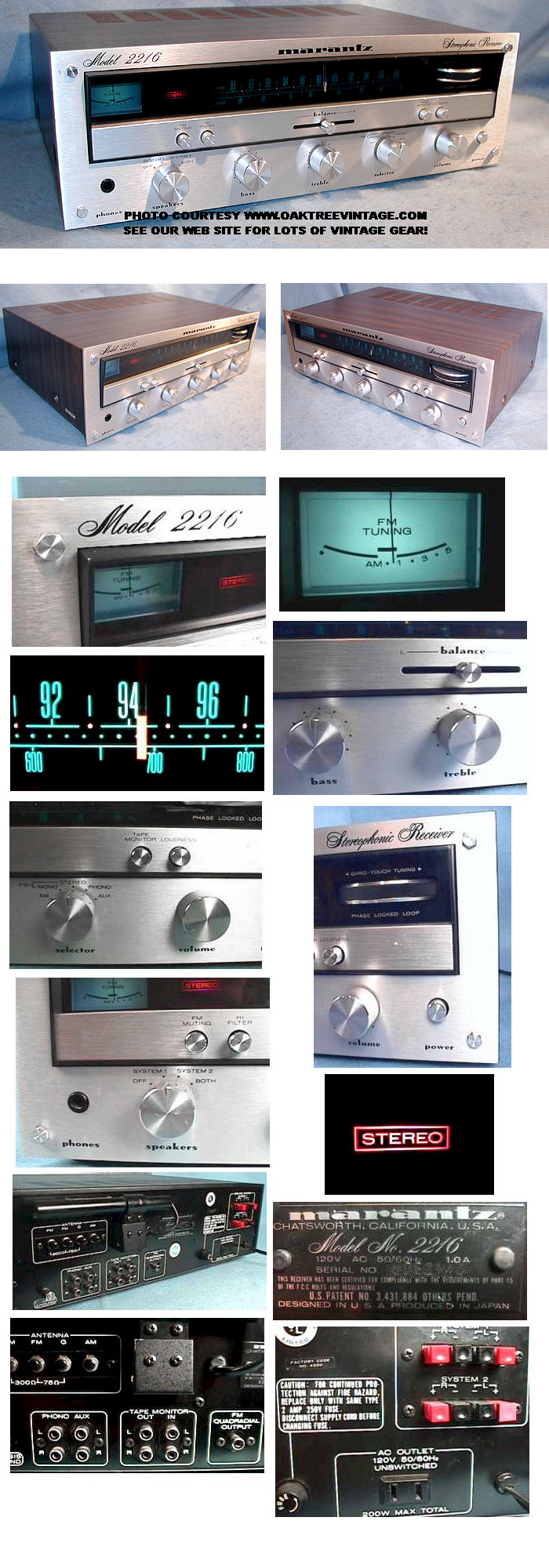

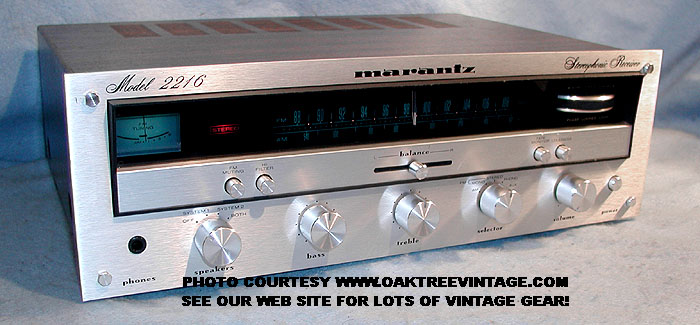

MARANTZ
2216
#
1
STEREO RECEIVER

SOLD 2/17/05








MARANTZ
2216
#2
STEREO RECEIVER

SOLD

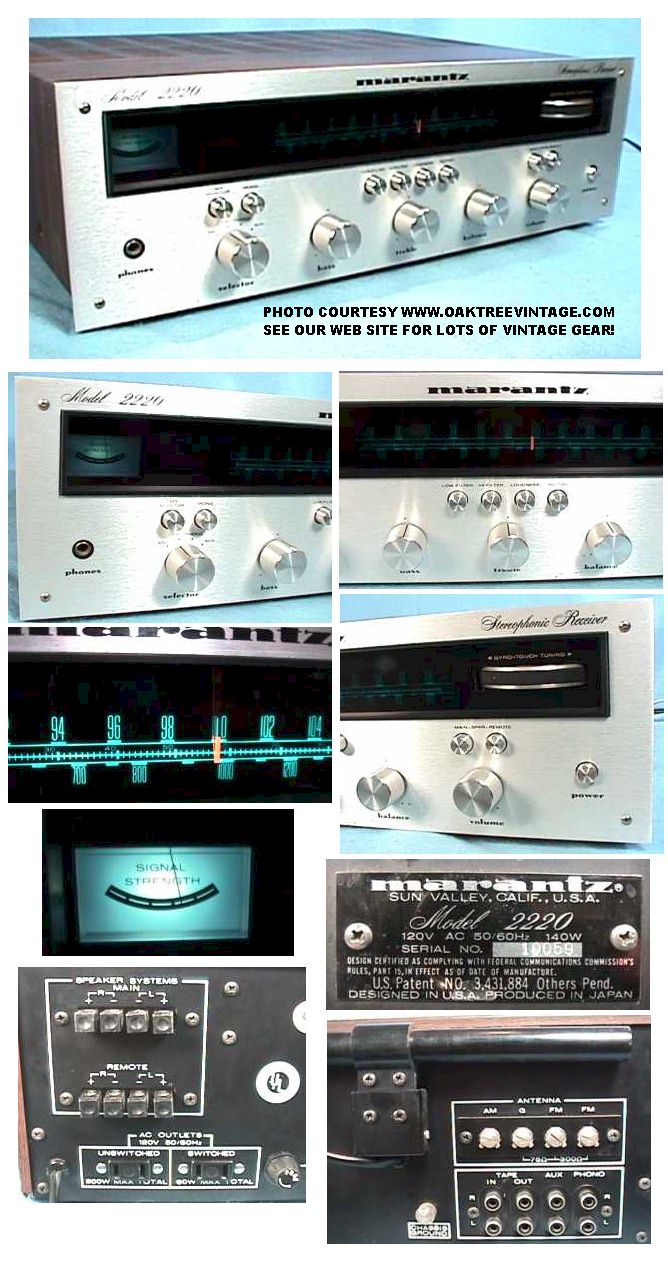

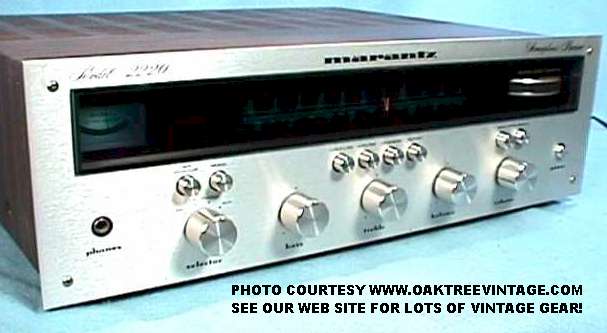

MARANTZ
2220
RECEIVER
Circa 1973-74

SOLD








NEW ADDITION 10/12/11
  (Click on above thumbnails to enlarge photos)

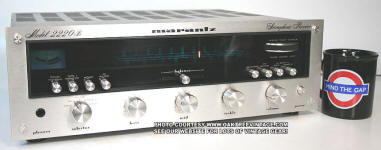

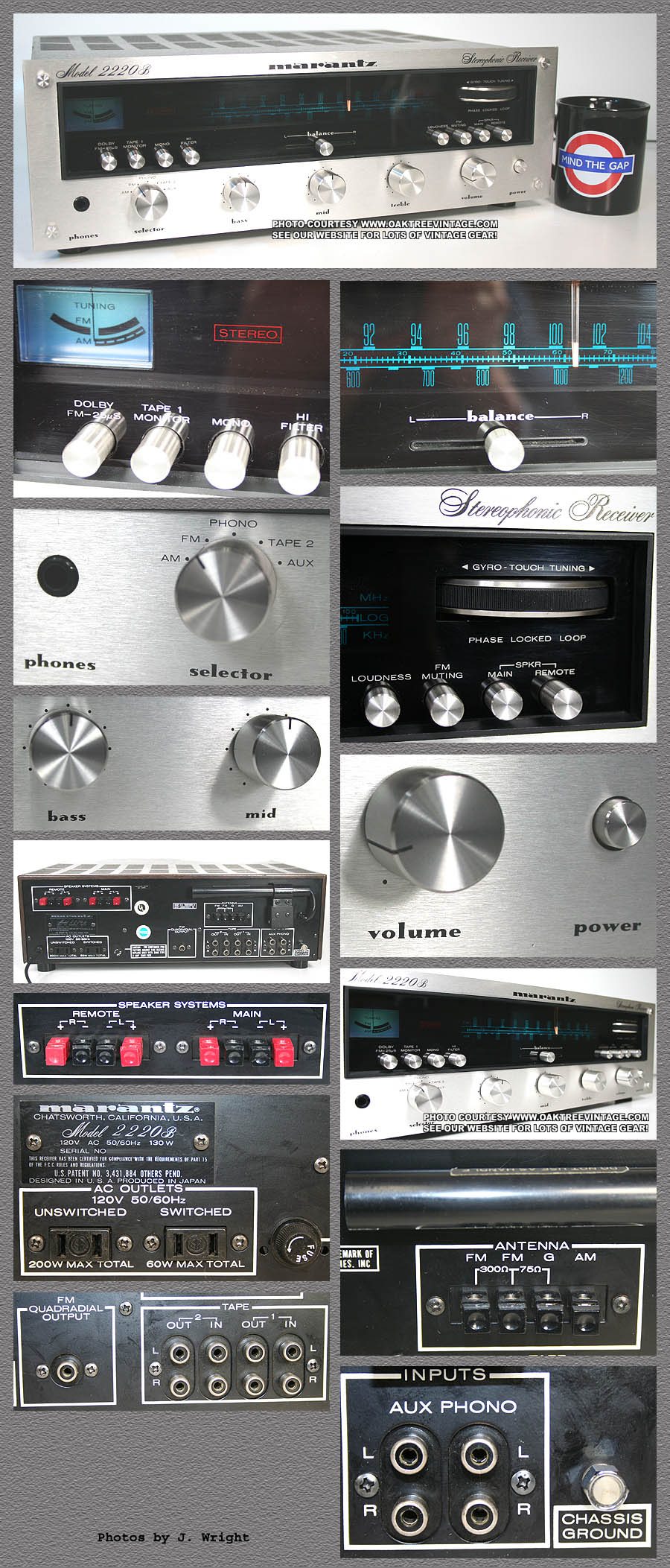

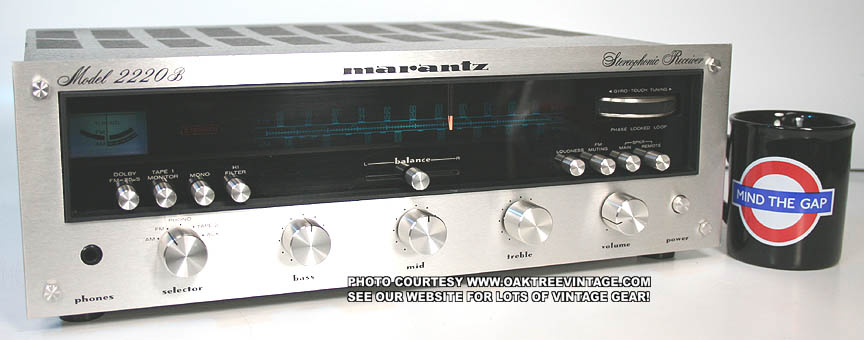

VINTAGE STEREO RECEIVER
MARANTZ

MODEL 2220B

STEREO RECEIVER
#...0883
Circa 1974-77

(actual internally dated 1976)

Classic 'Blue Face'

MIJ
SOLD 10/27/11





MARANTZ
MODEL 2230
#1

SOLD






(Click on above thumbnails to enlarge photos)

MARANTZ
2230
#
2
SOLD 12/18/05

STEREO RECEIVER
Circa '71-'73










         NEW LISTING 8/14/12
(Click on above thumbnails to enlarge photos)
VINTAGE MARANTZ STEREO RECEIVER
MARANTZ 2230
 #...3615
 Circa 1972- maybe 74
 Classic 'Blue Face'
 MIJ

for sale
SOLD 12/6/12
SHIPPED TO OHIO
Our technician has completely gone through and 'Certified' this unit. Everything was cleaned inside and out including all contacts, switches, controls and I/O jacks. All internal fuses checked for correct values and replaced where necessary. He replaced the power switch. He also 're-tensioned' the original dial cord. All indicator lamps checked, and most replaced proactively and all dial & meter lamps were replaced, as well as the lamps in the 'dial pointer' with new bulbs, for trouble-free service. A total of ten (10) lamps replaced. We also aligned the tuner for optimum performance on both AM and FM. Dial pointer track was cleaned of old lube and re-lubed w/ silicone grease. Output bias adjusted correctly for clean output. All functions tested for perfect operation. Power supply adjusted to correct voltage. Output transistors removed and fresh heat sink compound applied. All inputs tested and both sides produce clean and even sine waves! Tone controls are super quality, Alps brand, "full-size", de-tented potentiometers. Following restoration procedures, the unit was run at medium volume, as all our amplifier / receivers are, into a load with "Loudness" on and both Tone Controls at 10 for 72 hours. All functions test perfectly.
Following electronic refurb, entire unit was cosmetically detailed inside and out. Only 'cosmetic' issue is the lower, right corner of the face plate is 'tweaked' slightly, but nothing too distracting. Total restoration time investment ~7+ hours.


 On our test bench, this unit of this Marantz 2230 receiver #...3615,  amplifiers produced 18.16 volts @ 8 Ω per channel for 41
Watts / channel and 12.11 volts @ 4 Ω per channel for 36 Watts / channel via discrete, TO-3 style, Original Marantz metal cased output devices at 1khz. (4x 2SC897)
 AC current at idle measured at 0.225A.


One of the most famous of the Classic 'Blue Face' Marantz's, the 2230 stereo receiver. Elegant looking Face is milled from a solid plank of Aluminum with matching milled aluminum controls. This unit looks great!
  Features include:



 - Marantz exclusive "Gyro-Touch" weighted flywheel analog 'Slide Rule' tuning w/ ''PLL' (Phase Locked Loop) circuitry
  - A-B, A+B or Off speaker selector
  - Separate 'LEFT AND RIGHT' Bass, Mid and Treble utilizing high quality, De-Tented, 'Alps' brand pots
- 'Pre-Out' / 'Main-In' loop
 - Built-in Hi filter for reducing 19kHz pilot tone and 38kHz Harmonic in FM broadcasts & Tape hiss.
  - Built-in 'Low' Filter to eliminate excess rumble from sources such as turntables
  - FM muting, separate from FM stereo selector
 - Stereo / Mono mode selector for Pre-Amp section or FM tuner (depending on function selected)
 - "Loudness" function to boost Bass and Treble in relationship to Mid frequencies at lower volume levels for a much fuller sound
 - Phono / turntable  input
 - Aux input (may also be used for Video / CD / DVD /DAT / VCR / MP3 / iPod® / iPhone® / iTouch® / iGadget / MP3 / XM® / SIRUS®  etc.)
  - Real 'Tape Monitor Loop' and second 'Tape Input'
  (Tape Monitors can be used with Video / CD / DVD / VCR / DAT / MP3 / iPod® / iPhone® / iTouch® / iGadget / MP3 / XM® / SIRUS® CDR (CD recorders as well as for inserting signal processors, such as EQ's, Reverbs, Spatial Enhancers / Dynamic Processors, Noise Reduction units, Special Effects units, Time Delays, etc)
- 'Tape Dubbing' via front panel jacks
 - Analog VU''Signal Strength' Tuning meter
- Fully shielded tuning capacitor
 - Built-In AM 'Stick' antenna
- FM 'Muting Level' control on rear panel
- Antenna attenuator on rear panel
 - 'Quadradial' RCA tuner output for scope
- 1/4" Stereo Headphone Jack
 - Externally located protection line fuse and additional internal protection fuse bank

- Separated L & R output heat sink sections featuring large, vertically finned heat sinks

 - Dual AC convenience outlets on rear panel with 1 switched and 1 un-switched for a total capacity of 260 watts of accessories


 Marantz 2230 Stereo Receiver Original Specs:

   "The Marantz 2230 has a continuous power output of 30 watts per channel min. @ 8 or 4 ohms from 20 hertz to 20,000 hertz with no more than 0.5% THD (measured utilizing AUX input)"
Comparable 'Music' power = 90 watts @ 8 Ohms


 POWER / PRE AMP SPECIFICATIONS:
 THD:
<0.5% @ 8Ω @ Max rated power
 Dynamic Range;
96dB
 Power Bandwidth; 15Hz-50,000Hz
  IMD utilizing AUX;
0.5% @
 Damping factor: >45 @ 8Ω full bandwidth
(FYI; twice the damping factor of it's 'little brother' the 2220)
 Input Sensitivity: 180mV for output of 30 watts @ 8 Ohms
Input Impedance: 100k Ohms
 Channel Separation: >35dB @ 8Ω full bandwidth
(5 dB better than the 2220)

 TUNER SPECS FOR FM:
 Freq Response:
50-15kHz

 Useable Mono RF Sensitivity: 2.3 μV
 Capture Ratio: 1.8dB (about twice as good as the 2220)
 FM Selectivity; 60dB
 Signal for 50dB quieting, Stereo:
55dB & 5μV
 THD w/ 100% modulation @ 400Hz, Mono / Stereo:  0.3% / 0.4%
 Stereo Sub-Carrier Rejection (38kHz): 60dB
 Stereo Separation @ 1kHz: 40dB

 PHONO SECTION SPECS:
 Input Sensitivity:
1.8 mV @ 47kΩ



 Again, as stated before, we have completely gone through this Marantz 2230, Stereo Receiver cleaning and testing all and it gets our full 'Certification'. With the exception of the above mentioned, slight 'tweak' in the lower, right corner of the front plate (see photos above), the brushed aluminum face and all original, milled knobs in great shape. After restoration, receiver looks, performs and sounds great! This is a VERY 'Musical' sounding tuner/pre/power-amp. Very 'full, warm and phat'. Great 'low-end' depth at any volume. Tone controls have a lot of influence. Overall a pleasing unit to listen to in all aspects. Measures 17.5" wide x 14" deep x 5.5" high and weighs 27 lbs unpacked. Includes our standard 90 day limited warranty!
MARANTZ 2230 STEREO RECEIVER
  Cond. 8 (due to minor face 'ding')

SOLD 12/6/12
SHIPPED TO OHIO

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)

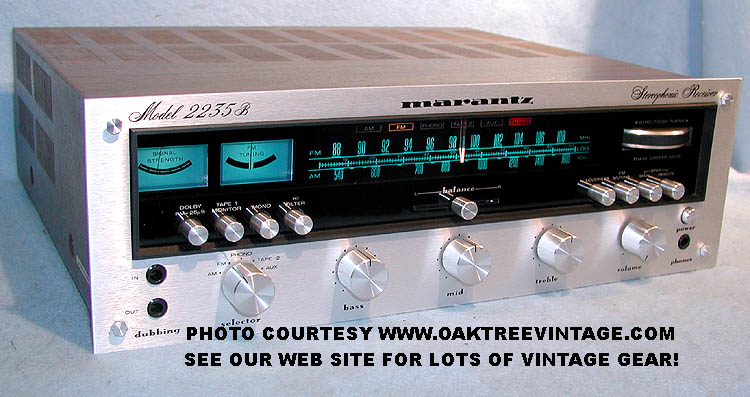

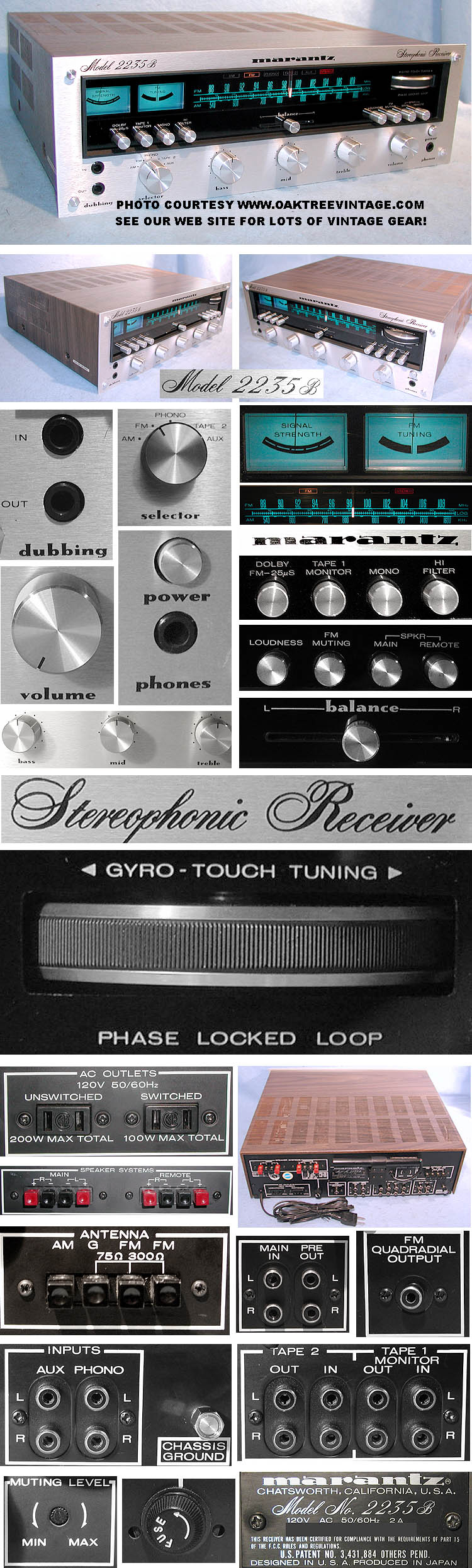

MARANTZ
2235B
STEREO RECEIVER
SOLD 09/21/04





MARANTZ
2238
STEREO RECEIVER
Circa 1973-74

SOLD



 NEW LISTING 12/5/09
(Click on above thumbnails to enlarge photos)

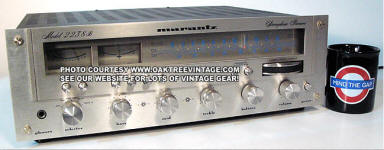

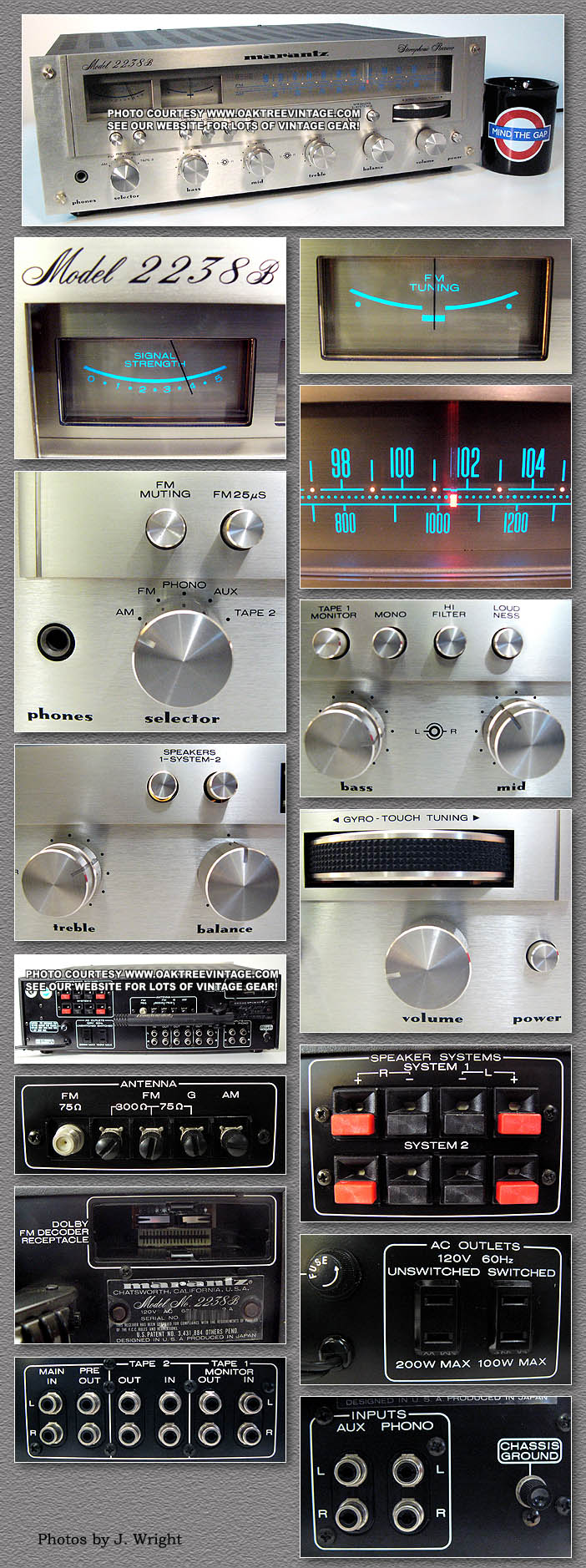

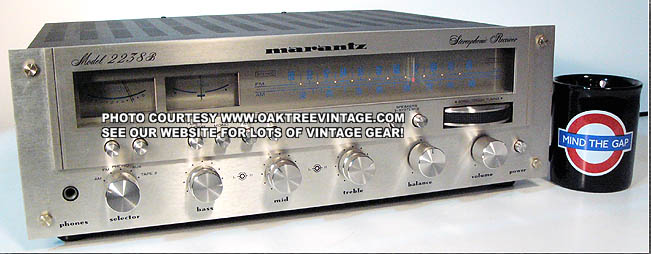

MARANTZ
STEREO RECEIVER
        MODEL 2238B
2238
#...0680

Circa 1977-79
MIJ

SOLD 12/21/09

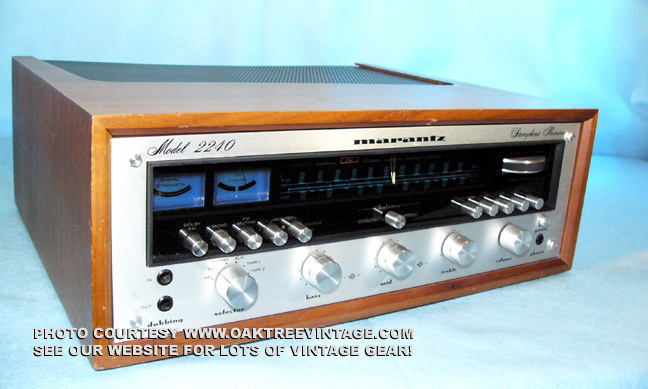

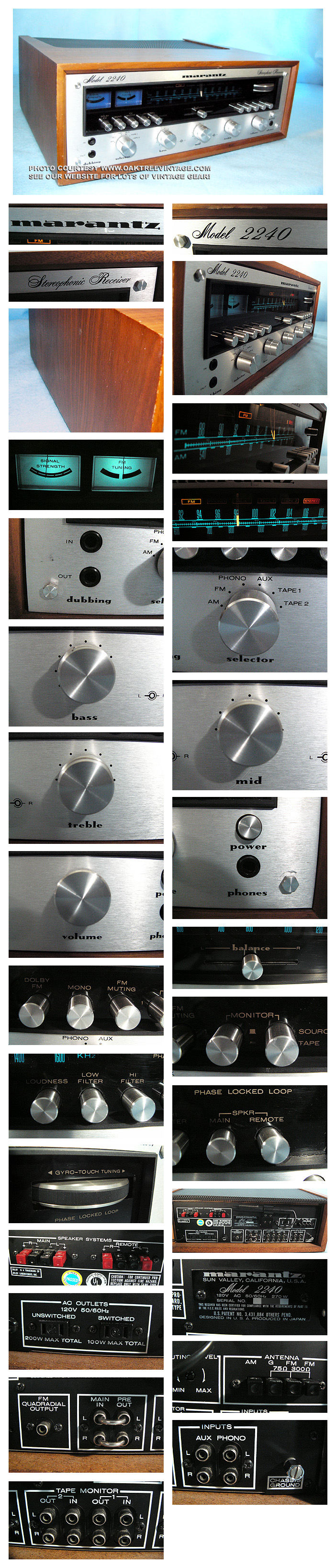

MARANTZ
2240
RECEIVER

SOLD

MARANTZ
2240

SOLD







MARANTZ
2240

SOLD 8/24/05

STEREO RECEIVER
Circa '71-'73












NEW LISTING 9/4/07
 (Click on above thumbnails to enlarge photos)

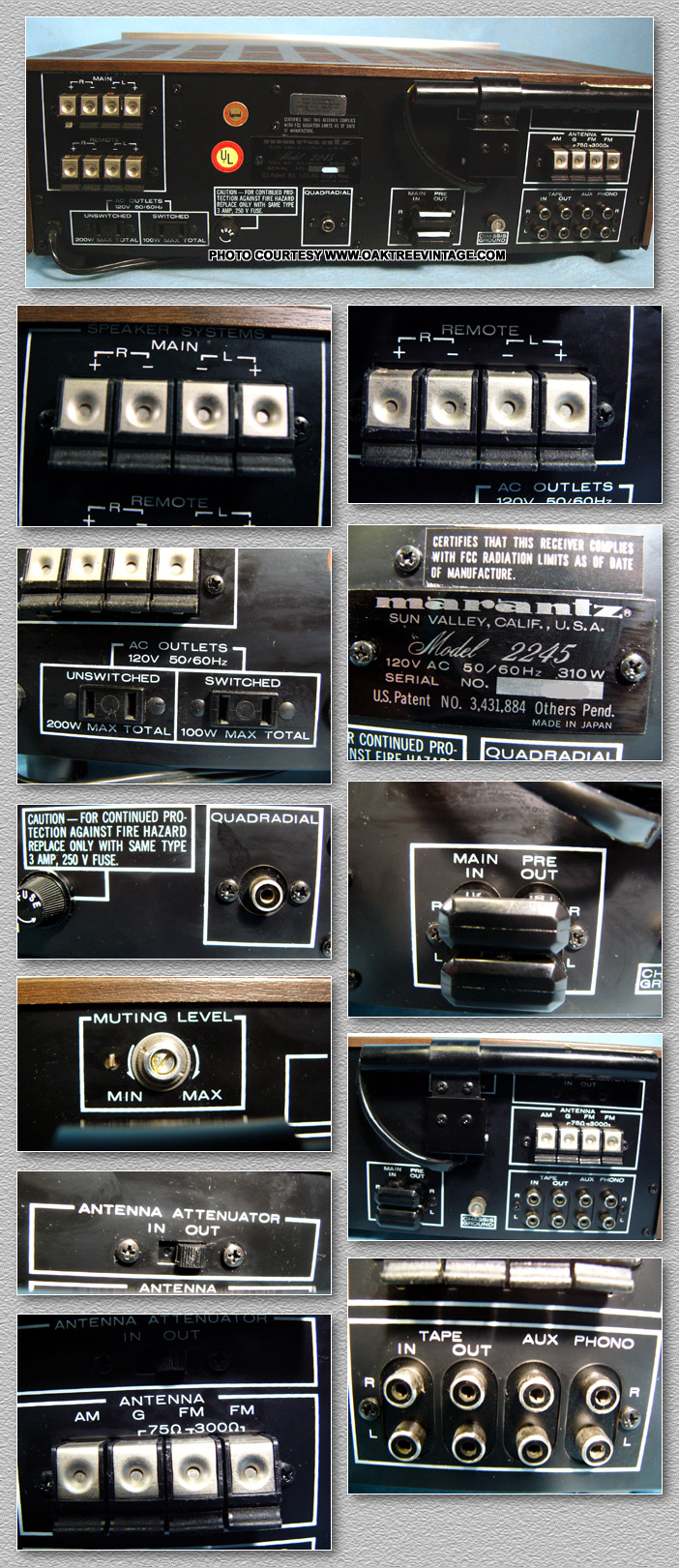

MARANTZ
2245
 STEREO RECEIVER
SOLD 9/14/07










NEW LISTING
8/14/12
(Click on above thumbnails to enlarge photos)

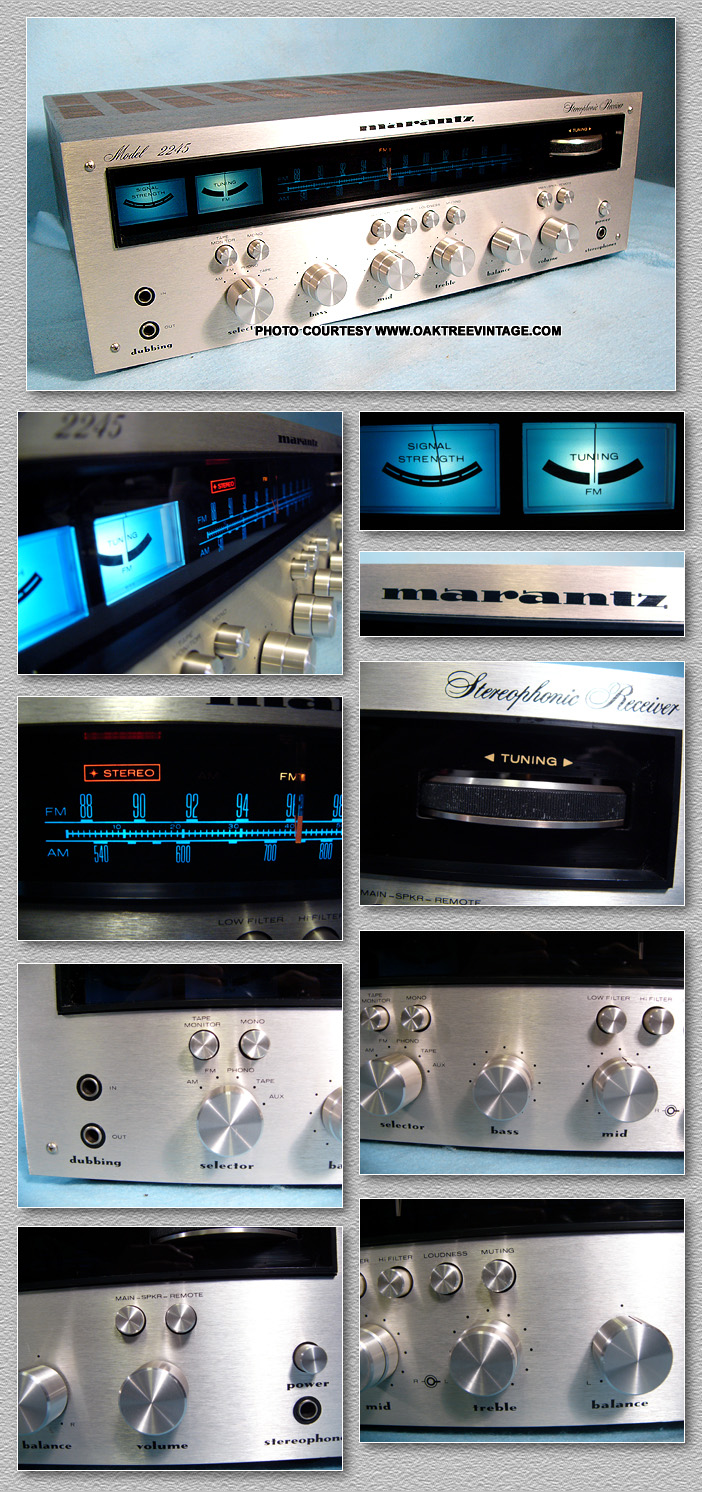

VINTAGE MARANTZ STEREO RECEIVER

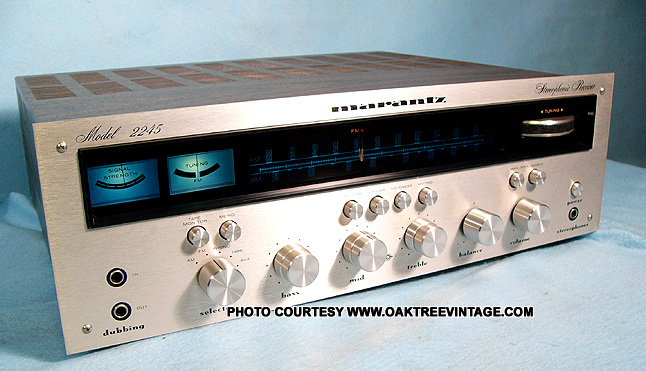

MARANTZ 2245

 #...6570
 Circa 1974-77
 Classic 'Blue Face'
 MIJ
SOLD 9/19/12
SHIPPED TO CALIFORNIA

Our technician has completely gone through and 'Certified' this unit. Everything was cleaned inside and out including all contacts, switches (requires extensive removal of front chassis assembly and circuit boards), controls and I/O jacks. All internal fuses checked for correct values. He disassembled and 're-built' the power switch (as the original is better than the substitutions available). He also replaced the original, and frayed tuner dial string with new, and proper dial cord (never an easy operation). All indicator lamps checked, and most replaced proactively and all 8 dial & meter lamps were replaced, as well as the lamps in the 'dial pointer' with new bulbs, for trouble-free service. We also aligned the VERY sophisticated tuner for optimum performance on both AM and FM. Dial pointer track was cleaned of old lube and re-lubed w/ silicone grease. We also replaced a 'questionable' 'Speaker A' output clip with original. Output bias adjusted correctly for clean output as well as the DC offset to a low level. He also upgraded a fairly 'questionable' AC power cord with a heavy, 3-Prong, grounded one. All functions tested for perfect operation. Power supply adjusted to correct voltage. Output transistors removed and fresh heat sink compound applied. All inputs tested and both sides produce clean and even sine waves! Tone controls are super quality, Alps brand, "full-size", de-tented potentiometers. As the original face plate on this unit had a few minor scuffs, we replaced it with a clean, original Marantz 2245 faceplate from a 'donor' unit we had.
Following restoration procedures, the unit was run at medium volume, as all our amplifier / receivers are, into a load with "Loudness" on and both Tone Controls at 10 for 72 hours.
Following electronic refurb, entire unit was cosmetically detailed inside and out. All functions test perfectly. Total restoration time investment ~10+ hours.


 On our test bench, this unit of this receiver #...6570,  amplifiers produced 21.5 volts @ 8 Ω per channel for 57 watts / channel and 19 volts @ 4 Ω per channel for 90 SOLID
watts / channel via discrete, TO-3 style, Original metal cased output devices at 1khz. (2x TI SJ2513 & 2x TI SJ2513)
 AC current at idle measured at 0.28A.


 Classic 'Blue Face' Marantz, 2245 stereo receiver. Elegant looking Face is milled from a solid plank of Aluminum with matching milled aluminum controls. This unit looks great!
  Features include:



 - Marantz exclusive "Gyro-Touch" weighted flywheel analog 'Slide Rule' tuning w/ ''PLL' (Phase Locked Loop) circuitry
  - A-B, A+B or Off speaker selector
  - Separate 'LEFT AND RIGHT' Bass, Mid and Treble utilizing high quality 'Alps' brand pots
- 'Pre-Out' / 'Main-In' loop
 - Built-in Hi filter for reducing 19kHz pilot tone and 38kHz Harmonic in FM broadcasts & Tape hiss.
  - Built-in 'Low' Filter to eliminate excess rumble from sources such as turntables
  - FM muting, separate from FM stereo selector
 - Stereo / Mono mode selector for Pre-Amp section or FM tuner (depending on function selected)
 - "Loudness" function to boost Bass and Treble in relationship to Mid frequencies at lower volume levels for a much fuller sound
 - Phono / turntable  input
 - Aux input (may also be used for Video / CD / DVD /DAT / VCR / MP3 / iPod® / iPhone® / iTouch® / iGadget / MP3 / XM® / SIRUS®  etc.)
  - Real 'Tape Monitor Loop' and second 'Tape Input'
  (Tape Monitors can be used with Video / CD / DVD / VCR / DAT / MP3 / iPod® / iPhone® / iTouch® / iGadget / MP3 / XM® / SIRUS® CDR (CD recorders as well as for inserting signal processors, such as EQ's, Reverbs, Spatial Enhancers / Dynamic Processors, Noise Reduction units, Special Effects units, Time Delays, etc)
 - Analog VU 'Tuning' & 'Signal Strength' meter
- Fully shielded tuning capacitor
 - Built-In AM 'Stick' antenna
- Antenna attenuator
 - 'Quadradial' RCA tuner output for scope
- 1/4" Stereo Headphone Jack
 - Externally located protection line fuse and additional internal protection fuse bank
-
Separated L & R output heat sink sections featuring large, vertically finned heat sinks
 - Dual AC convenience outlets on rear panel with 1 switched and 1 un-switched for a total capacity of 300 watts of accessories


 Marantz 2245 Stereo Receiver Original Specs:

   "The Marantz 2245 has a continuous power output of 45 watts per channel min. @ 8 or 4 ohms from 20 hertz to 20,000 hertz with no more than 0.5% THD (measured utilizing AUX input)"
Comparable 'Music' power = 135 watts

 POWER / PRE AMP SPECIFICATIONS:
 THD:
<
0.3% @ 8Ω @ full rated power
 Freq Response of power amp section;
 @ full rated power 20-20kHz
 Dynamic Range;
96dB
 Power Bandwidth; 7Hz-70,000Hz
  IMD utilizing AUX;
0.3% @
 Damping factor: >45 @ 8Ω full bandwidth (FYI; twice the damping factor of it's 'little brother' the 2220)
 Input Sensitivity: 180mV for output of 40 watts @ 8 Ohms
Input Impedance: 100k Ohms
 Channel Separation: >35dB @ 8Ω full bandwidth
(5 dB better than the 2220)

 TUNER SPECS FOR FM:
 Freq Response:
50-15kHz

 Useable Mono RF Sensitivity: 2.3 μV
 Capture Ratio: 1.8dB (about twice as good as the 2220)
 Signal for 50dB quieting, Stereo:
55.0μV
 THD w/ 100% modulation @ 400Hz, Mono:  0.2%
 Stereo Sub-Carrier Rejection: 60dB
 Stereo Separation @ 1kHz: 40dB

 PHONO SECTION SPECS:
 Input Sensitivity:
1.8 mV @ 47kΩ



 Again, as stated before, we have completely gone through this Marantz 2245, Stereo Receiver cleaning and testing all and it gets our full 'Certification'. Brushed aluminum face and all original, milled knobs in fabulous shape. After restoration, receiver looks, performs and sounds great! This is a VERY 'Musical' sounding tuner/pre/power-amp. Very 'full, warm and phat'. Great 'low-end' depth at any volume. Tone controls have a lot of influence. Overall a pleasing unit to listen to in all aspects. Measures 17.5" wide x 14" deep x 5.5" high and weighs 35 lbs unpacked. Includes our standard 90 day limited warranty!

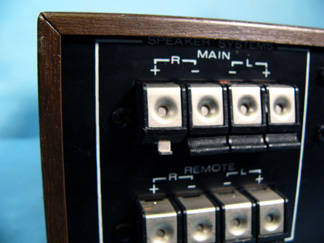

MARANTZ 2245 STEREO RECEIVER
  Cond. 8.5
SOLD 9/19/12
SHIPPED TO CALIFORNIA


(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)

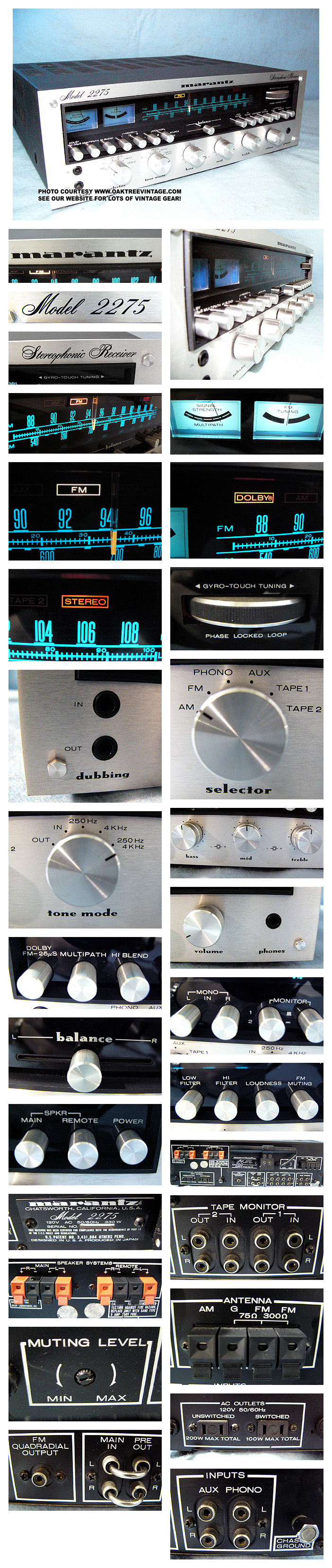

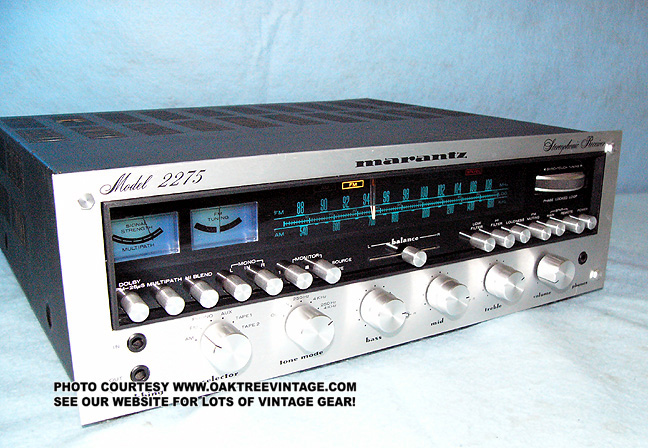

MARANTZ
2275
SOLD 7/27/05
STEREO RECEIVER
Circa '74-'76










NEW LISTING 6/15/09

(Click on above thumbnails to enlarge photos)

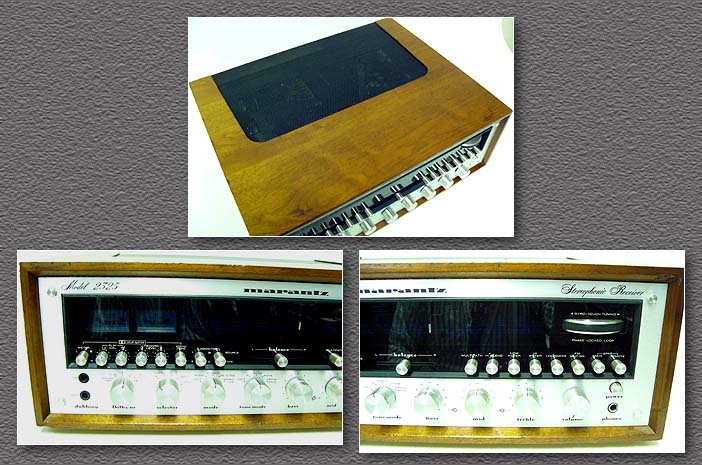

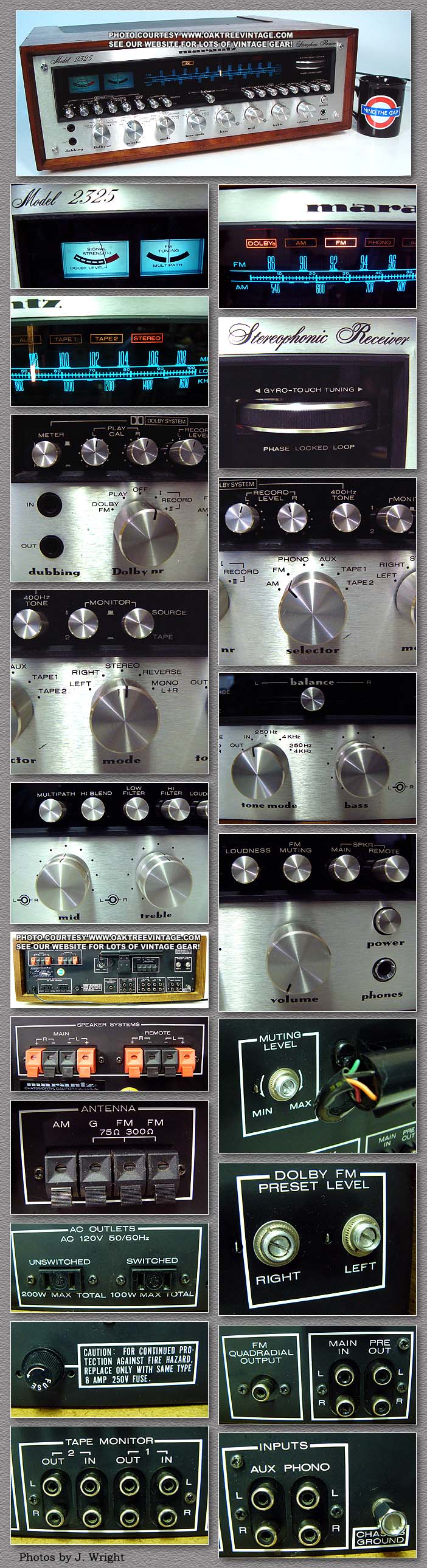

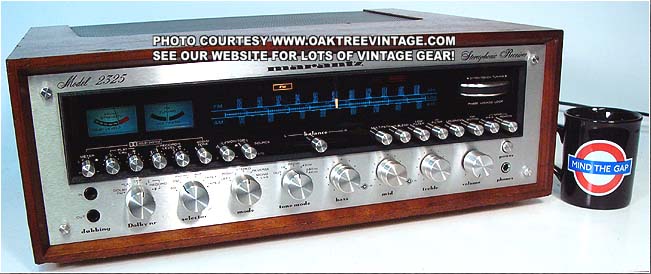

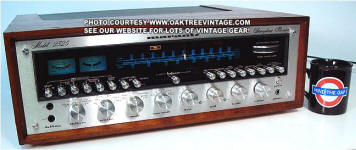

 MARANTZ
 STEREO RECEIVER
 2325 "Dolby"
#...0053

 Circa
1974
SOLD 6/20/09

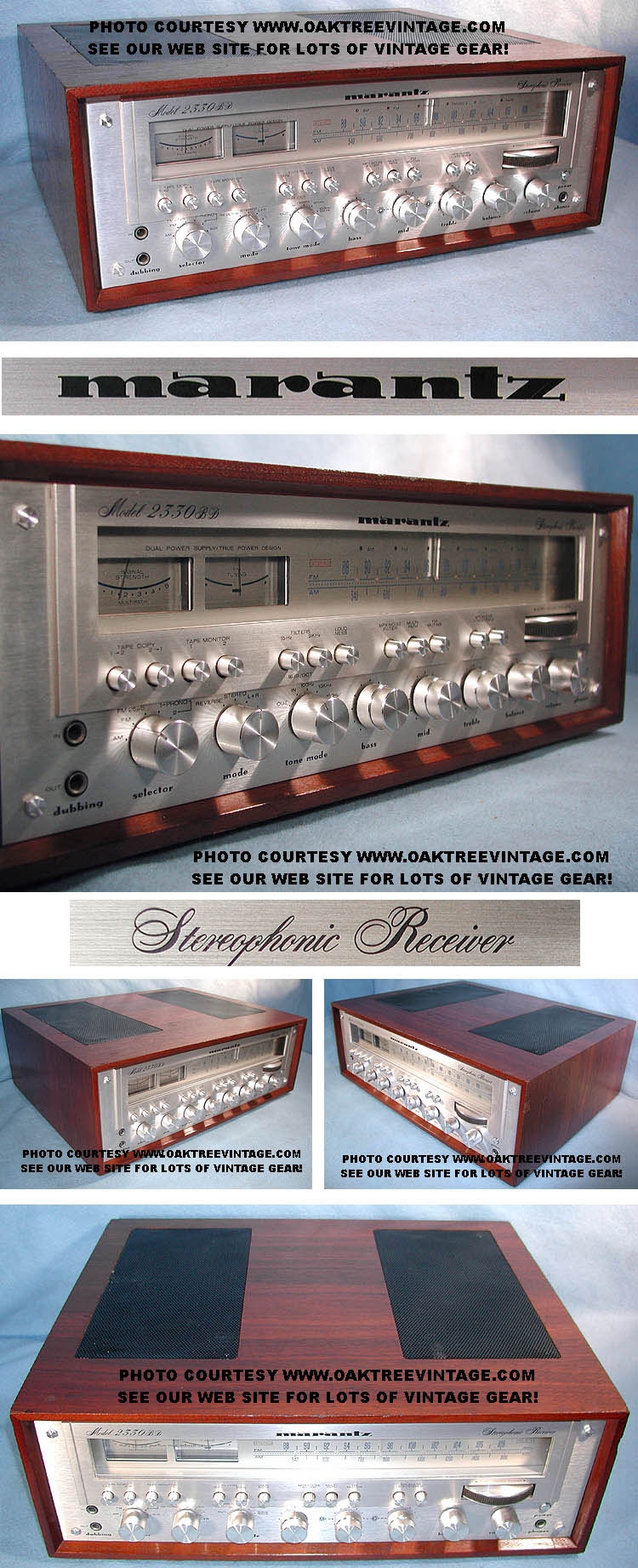

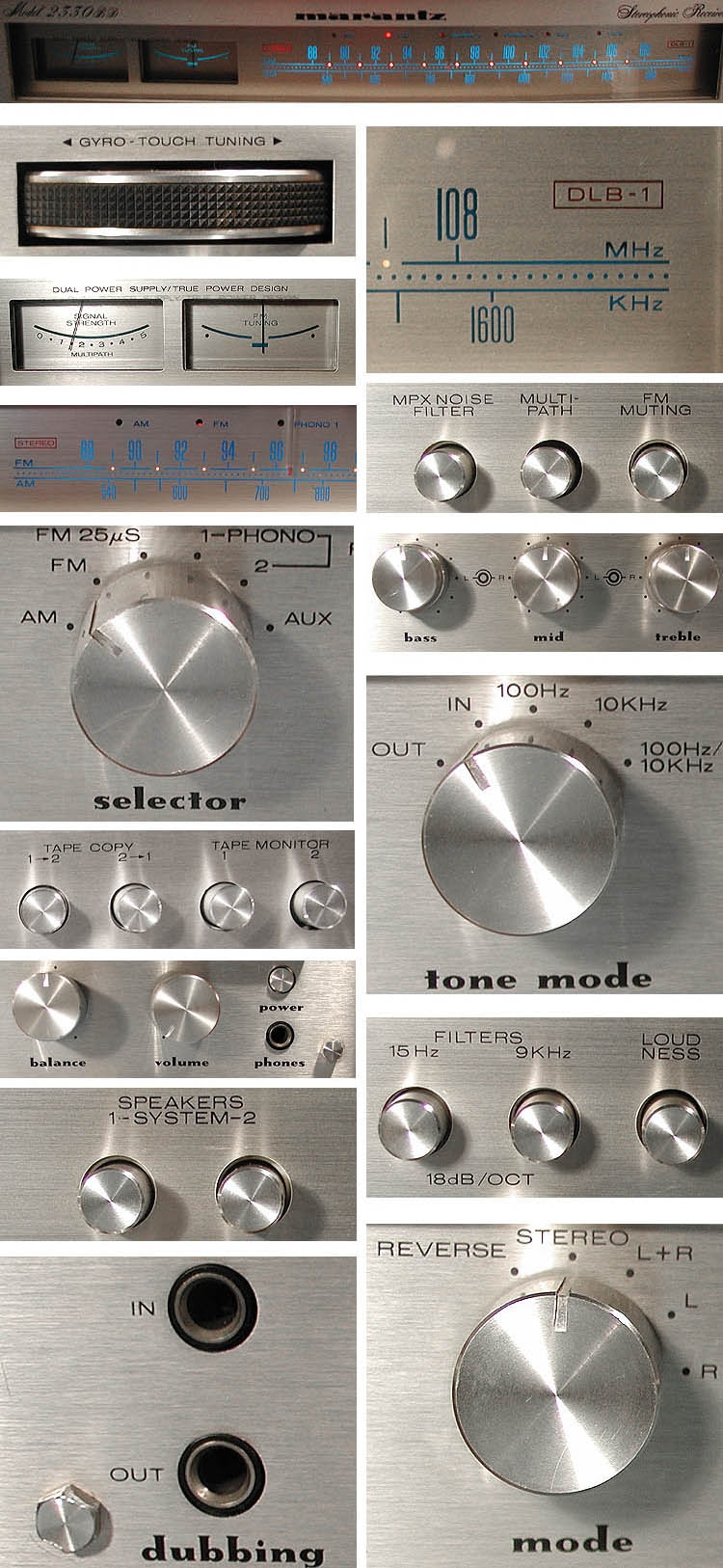

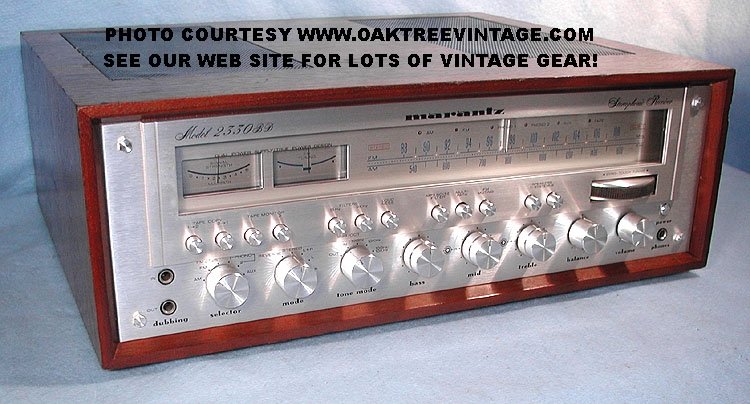

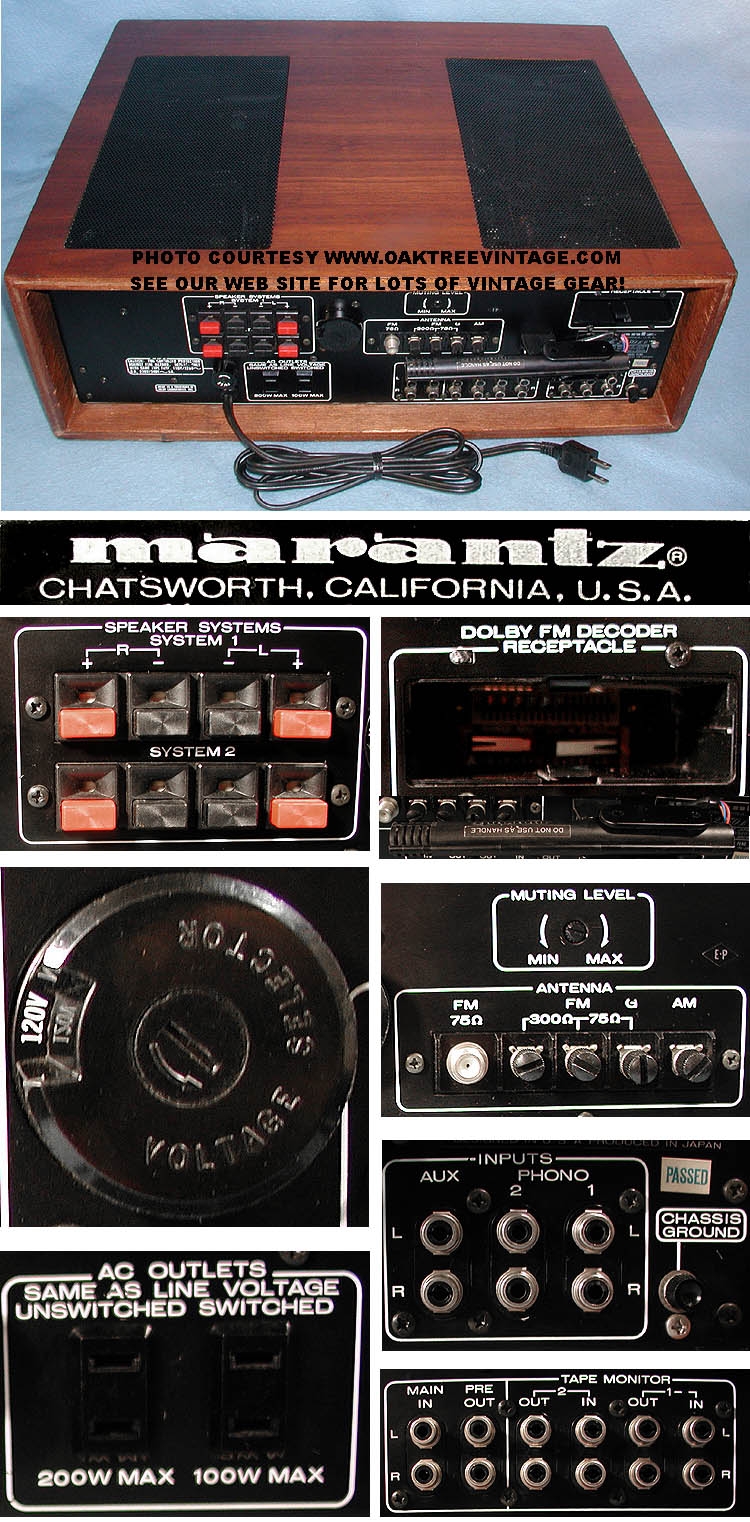

MARANTZ
2330BD

SOLD 8/10/05

STEREO RECEIVER
 "WORLD AC POWER"
Circa '71-'73







NEW LISTING 6/13/07
 (Click on above thumbnails to enlarge photos)
MARANTZ
     2500
 2600
STEREO RECEIVER

SOLD 5/6/08

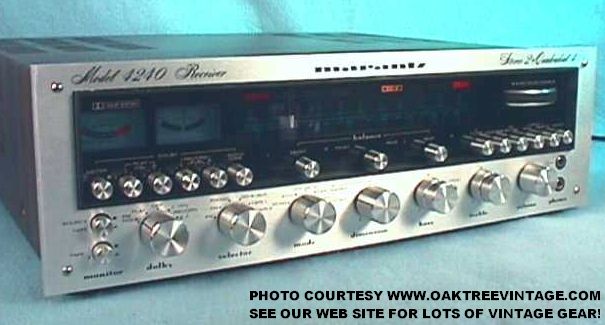

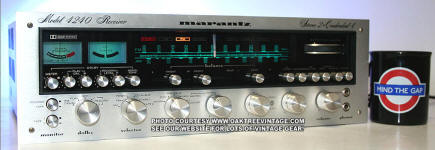

Marantz_Blue-face_4240_Stereo_Receiver_Quad_web.jpg (39556 bytes)   Marantz_Blue-face_4240_Stereo_Receiver_Quad_collage.jpg (335010 bytes)
MARANTZ
MODEL 4240
"Blue-Face"
Quadraphonic
Stereo 2 + Quadradial 4
STEREO RECEIVER

SOLD









NEW LISTING 10/10/12
(Click on above thumbnails to enlarge photos)

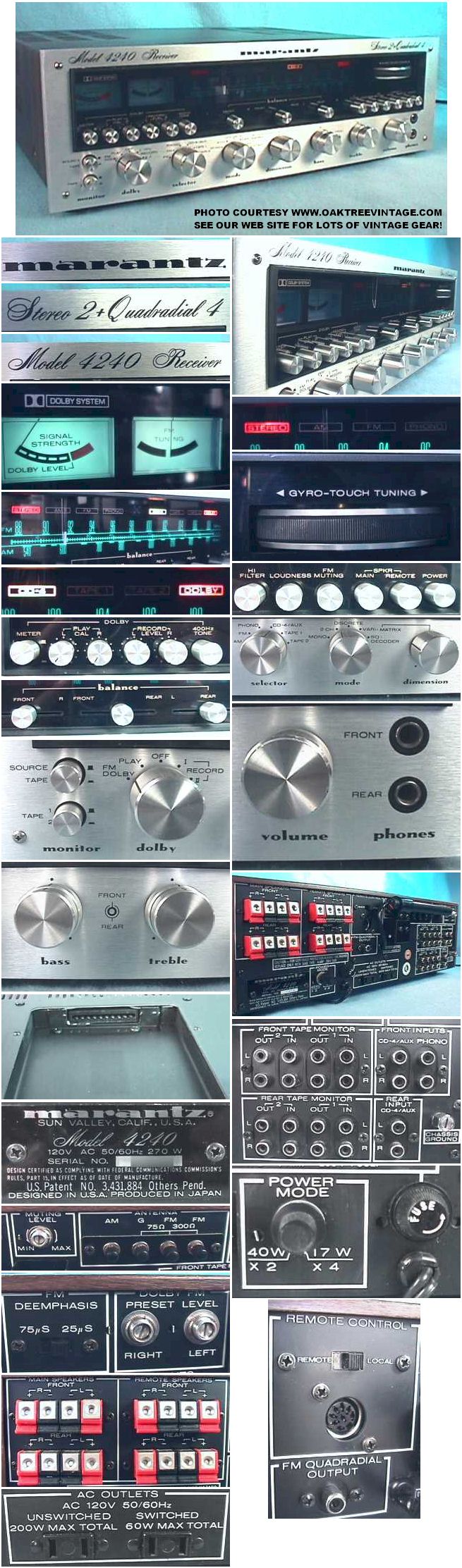

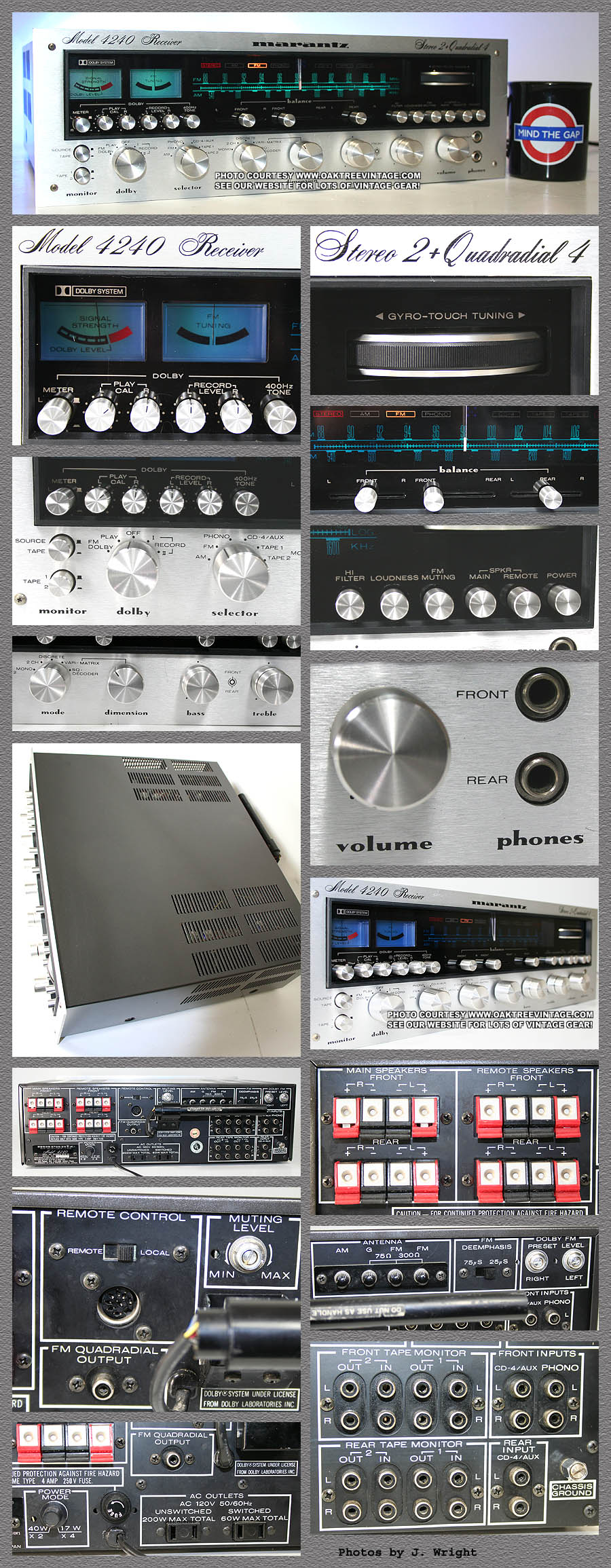

VINTAGE MARANTZ QUADRAPHONIC / STEREO RECEIVER

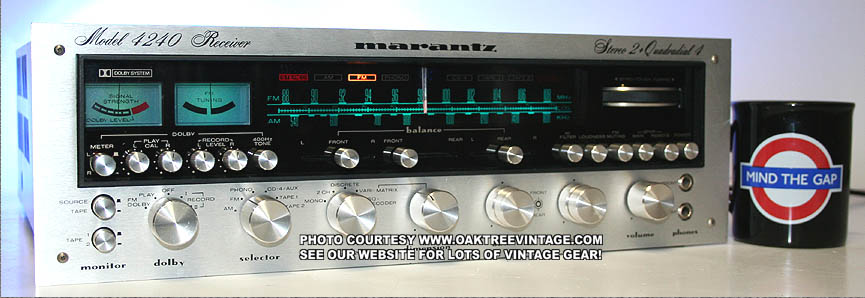

MARANTZ
4240
 #...0302
 Circa 1974-76
 Classic 'Blue Face'
 MIJ
SOLD 10/22/12
SHIPPED TO PENNSYLVANIA

Our technician has completely gone through and 'Certified' this unit. Everything was cleaned inside and out including all contacts, switches (requires extensive removal of front chassis assembly and circuit boards), controls and I/O jacks. All internal fuses checked for correct values. He disassembled and 're-built' the power switch (as the original is better than the substitutions available) and corrected some previous erroneous wiring. He also replaced the original, and frayed tuner dial string with new, and proper dial cord (never an easy operation). Found another previous, 'non-factory' mod to the 2 / 4 channel power amp selector and restored to original 'schematic design'. All indicator lamps and all 8 dial & meter lamps were replaced, as well as the lamps in the 'dial pointer' with new bulbs, for trouble-free service. We also aligned the VERY sophisticated tuner for optimum performance on both AM and FM. Generally AM reception in a stereo receiver is treated as an 'after thought', but the AM reception on this Marantz 4240, #...0302 is WAY above average (frankly it's amazing). VERY GOOD TUNER! FM reception as well great and IMPECCABLY CLEAN!!! Dial pointer track was cleaned of old lube and re-lubed w/ silicone grease. We also replaced a 'questionable' 'Speaker A' output clip with original. Wave form issues with driver boards / outputs corrected. Output bias adjusted correctly for clean output as well as the DC offset to a low level. All functions tested for perfect operation. Power supply adjusted to correct voltage. Output transistors removed and fresh heat sink compound applied. All inputs tested and both sides produce clean and even sine waves! Tone controls are super quality, Alps brand, "full-size", de-tented potentiometers. As the original wood grain metal case had some issues, we had it chemically stripped by a furniture refinisher and a coat of 'pro' quality primer laid down, followed by a couple of coats of black 'hammer-tone' finish. Looks nice.
Following restoration procedures, the unit was run at medium volume, as all our amplifier / receivers are, into a load with "Loudness" on and both Tone Controls at 10 for 72 hours.
Following electronic refurb, entire unit was cosmetically detailed inside and out. All functions test perfectly. Total restoration time investment ~20+ hours.


 On our test bench, the amplifiers of this Marantz 4240 receiver #...0302, in '2-Channel' mode, produced 26 volts @ 8 Ω per channel for 87 watts / channel. In '4-Channel' / Quadraphonic mode each channel produced 15 volts @ 8 Ω for 32 x 4 watts and 13 volts @ 4 Ω for 42 x 4 watts
via discrete, TO-66 style, original metal cased output devices at 1khz. (8x 2SD315E)
 AC current at idle measured at 0.3A.
DC offset adjusted to produce <0.2mV out of any of the 4 channels. Bias set correctly for clean sine waves and correct draw.

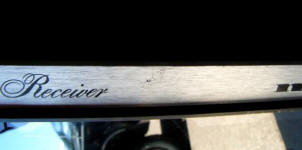

Classic 'Blue Face' Marantz, 4240 Four-Channel-Quad / stereo receiver. Elegant looking Face is milled from a solid plank of Aluminum with matching milled aluminum controls. This unit looks great!
  Features include:



- Quadraphonic or Stereo Capable
- Built-In Dolby NR (not used on FM anymore, but still useful on tape, esp Reel to Reel)
- 3-Mode Quadraphonic capable, 'Discrete', 'Matrix', or 'SQ' ('SQ' with optional SQA-2 decoder module, not included)

- Marantz exclusive "Gyro-Touch" weighted flywheel analog 'Slide Rule' tuning w/ ''PLL' (Phase Locked Loop) circuitry
- A-B, A+B or Off speaker selector
- Separate 'Front and Rear' Bass, and Treble controls
- Balance for L&R, Front and Rear
- Dolby controls for 'Play Calibration', 'Record Calibration' and also has a built in 400Hz tone generator

- Built-in Hi filter for reducing 19kHz pilot tone and 38kHz Harmonic in FM broadcasts & Tape hiss.
- FM muting, separate from FM stereo selector with rear located, adjustable level
- Stereo / Mono / 'Quad' mode selector for entire Pre-Amp section separate from 'FM Mode' selector
- "Loudness" function to boost Bass and Treble in relationship to Mid frequencies at lower volume levels for a much fuller sound
- Phono / turntable  input
- Aux input (may also be used for Video / CD / DVD /DAT / VCR / MP3 / iPod® / iPhone® / iTouch® / iGadget / MP3 / XM® / SIRUS®  etc.)
- Real 'Tape Monitor Loop' and second 'Tape Input'
(Tape Monitors can be used with Video / CD / DVD / VCR / DAT / MP3 / iPod® / iPhone® / iTouch® / iGadget / MP3 / XM® / SIRUS® CDR (CD recorders as well as for inserting signal processors, such as EQ's, Reverbs, Spatial Enhancers / Dynamic Processors, Noise Reduction units, Special Effects units, Time Delays, etc)
- Analog VU 'Tuning' & 'Signal Strength' meters
- Fully shielded tuning capacitor
- Built-In AM 'Stick' antenna
- 'Quadradial' RCA tuner output (was never really utilized)
- Dual 1/4" Quad / Stereo Headphone Jacks
- Dual position FM De-emphasis selectable for 25 or 75 msec
- Externally located AC Mains protection fuse

- Separated L & R output heat sink sections featuring large, vertically finned heat sinks

- Dual AC convenience outlets on rear panel with 1 switched and 1 un-switched for a total capacity of 260 watts of accessories


 Marantz 4240 Stereo Receiver Original Specs:

   "The Marantz 4240 has a continuous power output of 40 watts per channel min. @ 8 & 17 wpc x 4 or 4 ohms from 20 hertz to 20,000 hertz with no more than 0.5% THD (measured utilizing AUX input)"


 POWER / PRE AMP SPECIFICATIONS:
 THD:
<0.3% @ 8Ω @ full rated power
 Freq Response of power amp section; @ full rated power 20-20kHz

IMD utilizing AUX;
<0.5% @ / nom 0.3%
 Damping factor:
20 @ 20Hz in 2 channel mode and 40 in 4 channel mode
Input Sensitivity: 150mV

TUNER SPECS FOR FM:
FM Tuning Range:
88-108MHz
Freq Response:
30-15kHz

Useable Mono RF Sensitivity: 2.2μV & 30dB & 50μV @ 70dB
Capture Ratio: 1.5dB (Very Good!)
IHF Selectivity: 60dB
THD w/ 100% modulation @ 400Hz, Mono:  0.2%
Stereo Sub-Carrier Rejection: <60dB
Stereo Separation @ 1kHz: 40dB (30dB @ 15kHz)

TUNER SPECS FOR AM:
AM Tuning Range:
540-1605kHz

Useable Mono RF Sensitivity: 20μV or less
Image Rejection Ratio at 1400kHz: >60dB
Selectivity: 30dB @ 1kHz

PHONO SECTION SPECS:
Freq Response: 30-15kHz +/-1dB
Input Sensitivity:
2.2mV @ 47kΩ



Again, as stated before, we have completely gone through this Marantz 4240, Stereo Receiver cleaning and testing all and it gets our full 'Certification' with 20+ hours of tech time. Brushed aluminum face and all original, milled knobs in fabulous shape. After restoration, receiver looks, performs and sounds great! This is a VERY 'Musical' sounding tuner/pre/power-amp. Very 'full, warm and phat'. Great 'low-end' depth at any volume. Tone controls have a lot of influence. Overall a pleasing unit to listen to in all aspects. Comes with a pdf 'e' copy of the Marantz 4240 owners / users / operation manual. Measures 17.5" wide x 14" deep x 5.5" high and weighs 35 lbs unpacked. Includes our standard 90 day limited warranty!
MARANTZ 4240 QUAD / STEREO RECEIVER
  Cond. 8.5+

SOLD 10/31/12
SHIPPED TO PENNSYLVANIA


(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)








NEW LISTING
10/10/12
(Click on above thumbnails to enlarge photos)

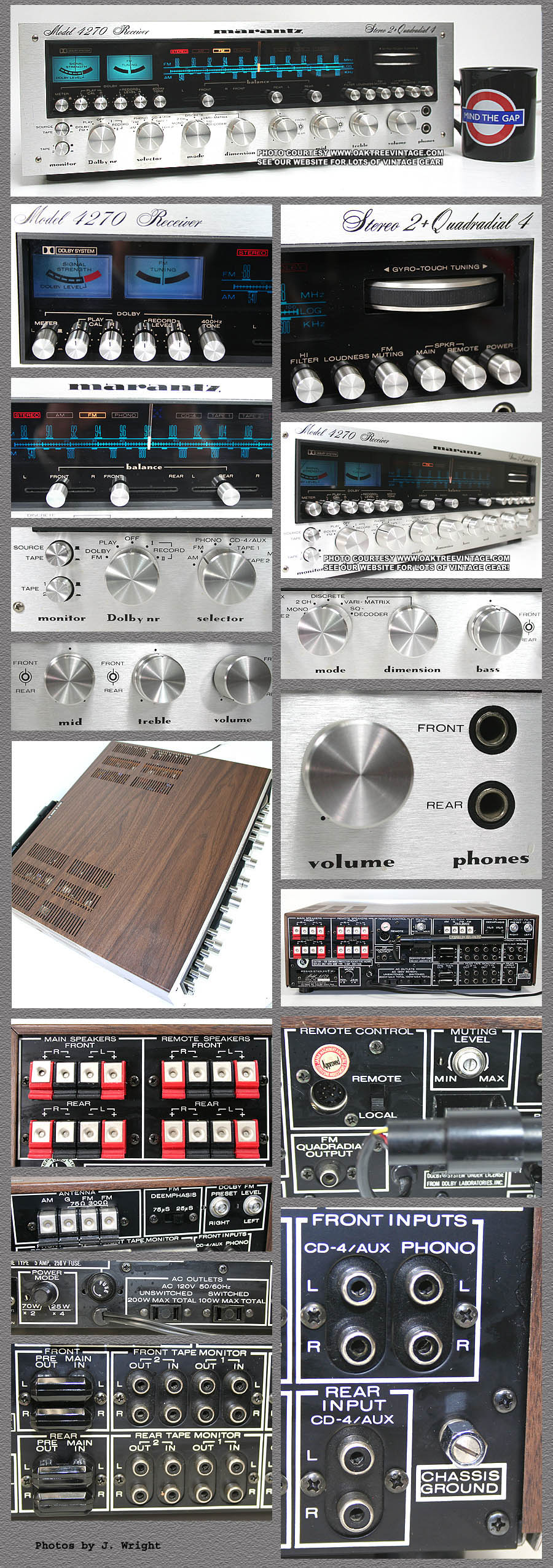

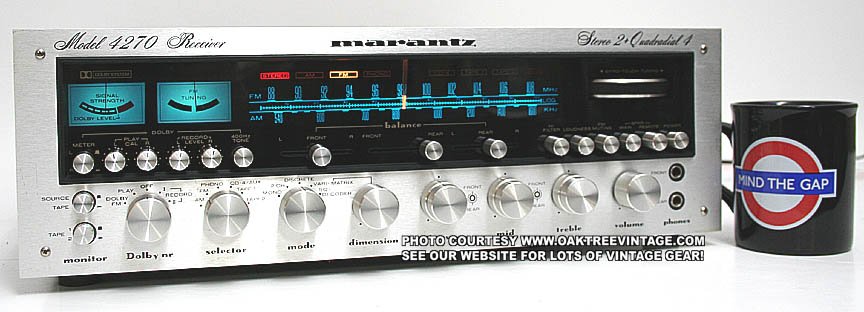

VINTAGE MARANTZ QUADRAPHONIC / STEREO RECEIVER
MARANTZ
4270
 #...0202
 Circa 1973-78
 Classic 'Blue Face'
 MIJ

SOLD 10/22/12

Our technician has completely gone through and 'Certified' this unit. Everything was cleaned inside and out including all contacts, switches (requires extensive removal of front chassis assembly and circuit boards), controls and I/O jacks. All internal fuses checked for correct values. All indicator lamps and all 8 dial & meter lamps were replaced, as well as the lamps in the 'dial pointer' with new bulbs, for trouble-free service. We also aligned the VERY sophisticated tuner for optimum performance on both AM and FM. Generally AM reception in a stereo receiver is treated as an 'after thought', but the AM reception on this Marantz 4270, #...0202 is WAY above average (frankly it's amazing). VERY GOOD TUNER! FM reception as well great and IMPECCABLY CLEAN!!! Dial pointer track was cleaned of old lube and re-lubed w/ silicone grease. Output bias adjusted correctly for clean output as well as the DC offset to a low level. All functions tested for perfect operation. Power supply adjusted to correct voltage. Output transistors removed and fresh heat sink compound applied. All inputs tested and both sides produce clean and even sine waves! Tone controls are super quality, Alps brand, "full-size", de-tented potentiometers. Looks nice.
Following restoration procedures, the unit was run at medium volume, as all our amplifier / receivers are, into a load with "Loudness" on and both Tone Controls at 10 for 72 hours.
Following electronic refurb, entire unit was cosmetically detailed inside and out. All functions test perfectly.


On our test bench, the amplifiers of this Marantz 4270 receiver #...0202, in '2-Channel' mode, produced 27.3 volts @ 8 Ω per channel for 93 watts / channel. In '4-Channel' / Quadraphonic mode each channel produced 17.3 volts @ 8 Ω for 37 x 4 watts and 14.7 volts @ 4 Ω for 54 x 4 watts via discrete, TO-3 style, original metal cased output devices at 1khz. (8x Hitachi 2SC897)
 AC current at idle measured at 0.375A. DC offset adjusted to produce <6.0mV out of any of the 4 channels. Bias set correctly for clean sine waves and correct draw.


Classic and 'Blue Face' Marantz, 4270 'BIG', Four-Channel-Quad / stereo receiver. Elegant looking Face is milled from a solid plank of Aluminum with matching milled aluminum controls. This unit looks great!
  Features include:



- Quadraphonic or Stereo Capable
- Built-In Dolby NR (not used on FM anymore, but still useful on tape, esp Reel to Reel)
- 3-Mode Quadraphonic capable, 'Discrete', 'Vari-Matrix', or 'SQ Decoder' ('SQ' with optional SQA-2 decoder module, not included)

- Marantz exclusive "Gyro-Touch" weighted flywheel analog 'Slide Rule' tuning
- A-B, A+B or Off speaker selector
- Separate 'Front & Rear' Bass, Mid and Treble controls

- Balance for L&R, Front and Rear
- Dolby controls for 'Play Calibration', 'Record Calibration' and also has a built in 400Hz tone generator

- Built-in Hi filter for reducing 19kHz pilot tone and 38kHz Harmonic in FM broadcasts & Tape hiss.
- FM muting, separate from FM stereo selector with rear located, adjustable level
- Stereo / Mono / 'Quad' mode selector for entire Pre-Amp section separate from 'FM Mode' selector
- "Loudness" function to boost Bass and Treble in relationship to Mid frequencies at lower volume levels for a much fuller sound
- Phono / turntable  input
- Aux input (may also be used for Video / CD / DVD /DAT / VCR / MP3 / iPod® / iPhone® / iTouch® / iGadget / MP3 / XM® / SIRUS®  etc.)
- Dual and ''Real' 'Tape Monitors
(Tape Monitors can be used with Video / CD / DVD / VCR / DAT / MP3 / iPod® / iPhone® / iTouch® / iGadget / MP3 / XM® / SIRUS® CDR (CD recorders as well as for inserting signal processors, such as EQ's, Reverbs, Spatial Enhancers / Dynamic Processors, Noise Reduction units, Special Effects units, Time Delays, etc)
- Analog VU 'Tuning' & 'Signal Strength' meters
- Built-In AM 'Stick' antenna
- 'Quadradial' RCA tuner output (was never really utilized)
- Pre-Amp Out / Main-Amp In for both Front and Rear

- Dual 1/4" Quad / Stereo Headphone Jacks
- Dual position FM De-emphasis selectable for 25 or 75 msec
- Externally located AC Mains protection fuse

- Separated L & R output heat sink sections featuring large, vertically finned heat sinks

- Dual AC convenience outlets on rear panel with 1 switched and 1 un-switched for a total capacity of 300 watts of accessories


 Marantz 4270 Stereo Receiver Original Specs:

   "The Marantz 4270 has a continuous power output of 70 watts per channel min. @ 8 x 2 or 25 wpc x 4 @ 8 Ohms from 20 hertz to 20,000 hertz with no more than 0.5% THD (measured utilizing AUX input)"


 POWER / PRE AMP SPECIFICATIONS:
 THD:
<0.3% @ 8Ω @ full rated power
Damping Factor: >45 @ 8 Ohms
 Freq Response of power amp section; @ full rated power 20-20kHz
 Freq Response Bandwidth; @ full rated power 8Hz-60kHz

Input Sensitivity: 150mV @ 100k Ohms

TUNER SPECS FOR FM:
FM Tuning Range:
88-108MHz
Freq Response:
30-15kHz

Useable Mono RF Sensitivity: 2.3μV
Capture Ratio: 1.6dB (Very Good!)
IHF Adjacent Channel Selectivity (wide or narrow): 60dB
THD w/ 100% modulation @ 400Hz, Mono / Stereo:  0.2% / 0.3%
S/N, Mono & Stereo: 70dB on either!
Stereo Sub-Carrier Rejection: <60dB
Stereo Separation @ 1kHz: 40dB
Quieting: 70dB @ 50μV
Image Rejection Ratio @ 106MHz: 70dB
Quadradial Output (400Hz / 75kHz dev.)300mV

TUNER SPECS FOR AM:
AM Tuning Range:
540-1605kHz

Useable Mono RF Sensitivity: 30μV (10μV better than the 4240)
Image Rejection Ratio at 1400kHz: >70dB (10dB better than the 4240)
Selectivity: 26dB @ 1kHz
THD: 1%
S/N
, Mono: 45dB

PHONO SECTION SPECS:
Input Sensitivity:
2.2mV @ 47kΩ



Again, as stated before, we have completely gone through this Marantz 4270, Stereo Receiver cleaning and testing all and it gets our full 'Certification'. Brushed aluminum face and all original, milled knobs in fabulous shape. After restoration, receiver looks, performs and sounds great! This is a VERY 'Musical' sounding tuner/pre/power-amp. Very 'full, warm and phat'. Great 'low-end' depth at any volume. Tone controls have a lot of influence. Overall a pleasing unit to listen to in all aspects. Comes with a pdf 'e' copy of the Marantz 4270 owners / users / operation manual. Measures 17.25" wide x 15.5" deep x 6" high and weighs 36 lbs unpacked. Includes our standard 90 day limited warranty!
MARANTZ 4270 QUAD / STEREO RECEIVER
Cond. 8.5+

SOLD 10/22/12


(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)

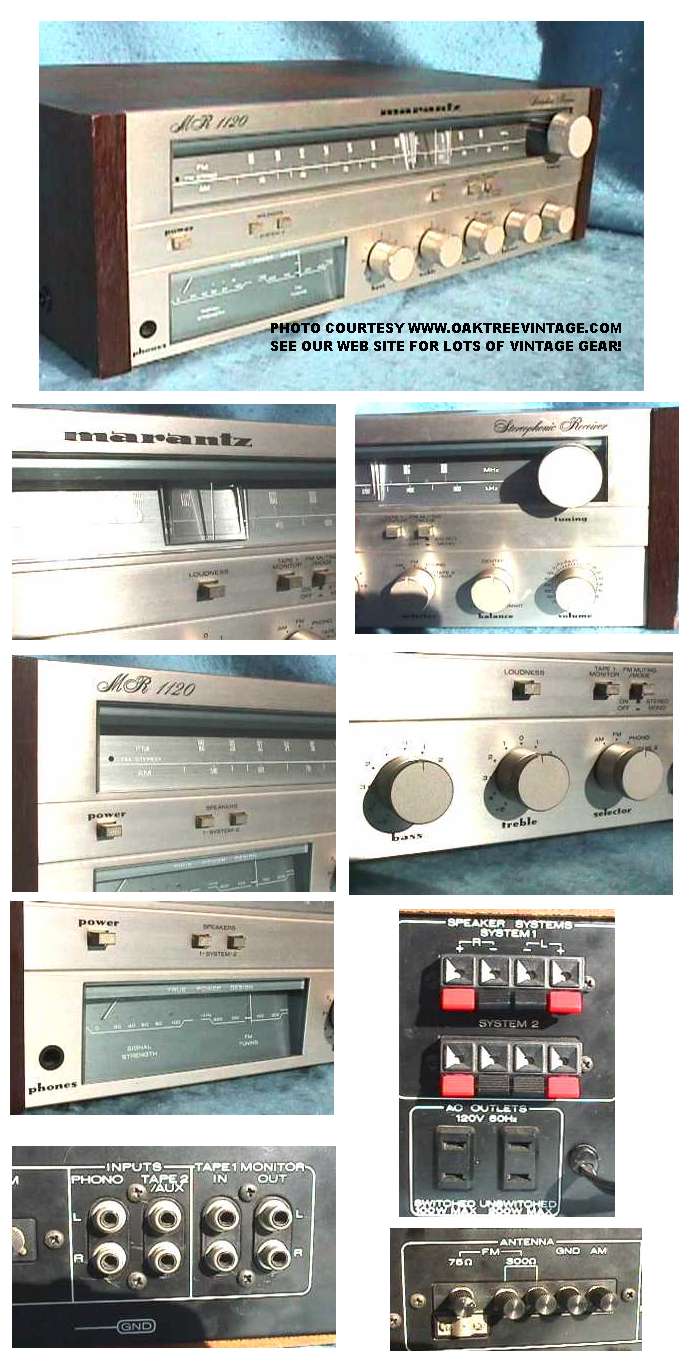

MARANTZ
MR-1120
RECEIVER
Circa '82-'84
SOLD



- -

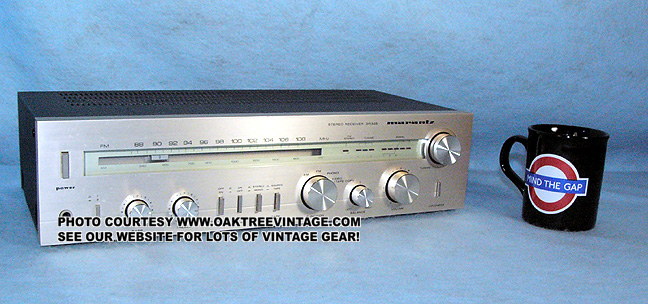

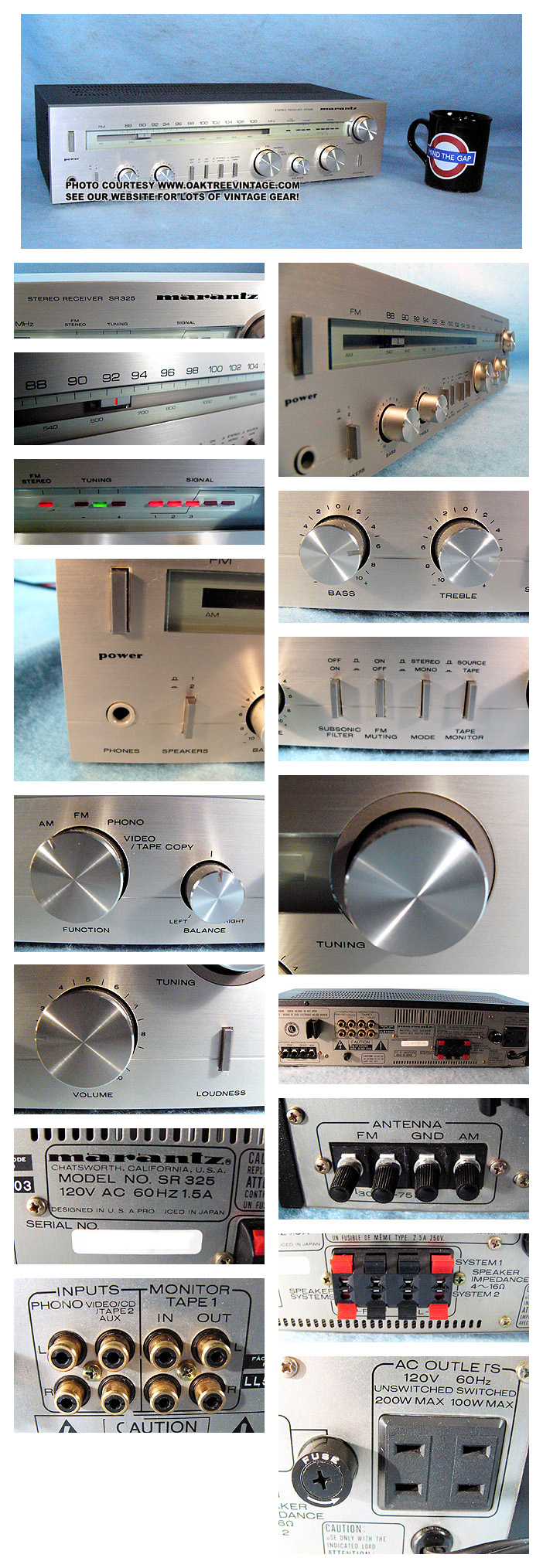

MARANTZ
          SR-325
SR325
SOLD 7/18/05
STEREO RECEIVER
Circa 1984-85





MARANTZ
SR-340
SOLD
-

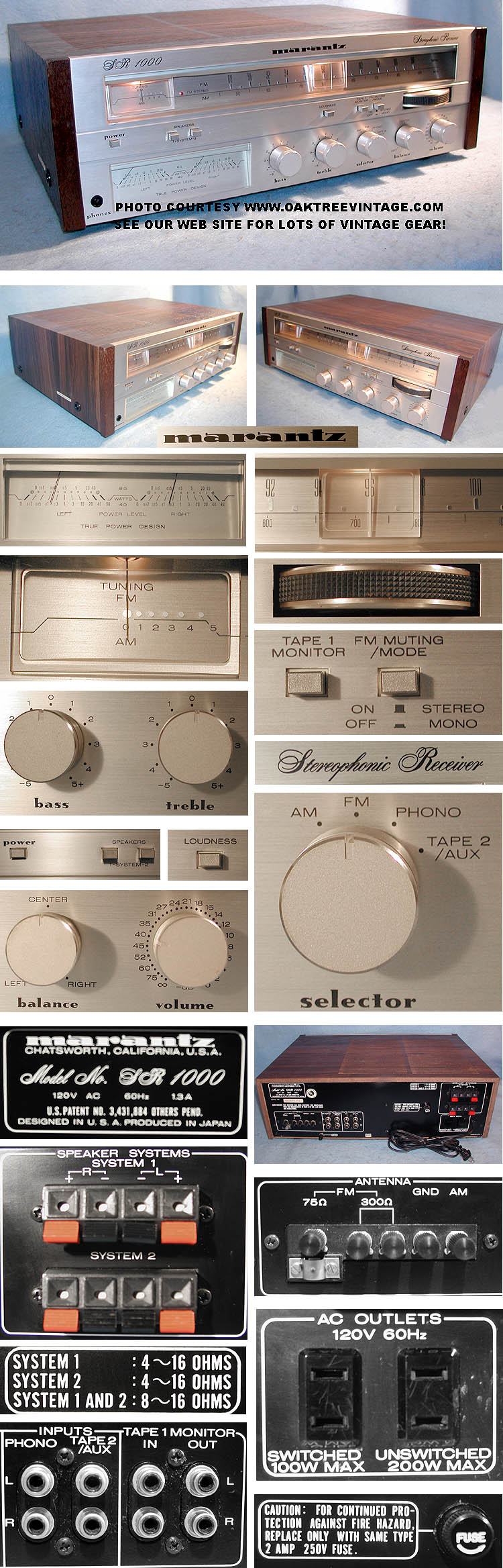

MARANTZ

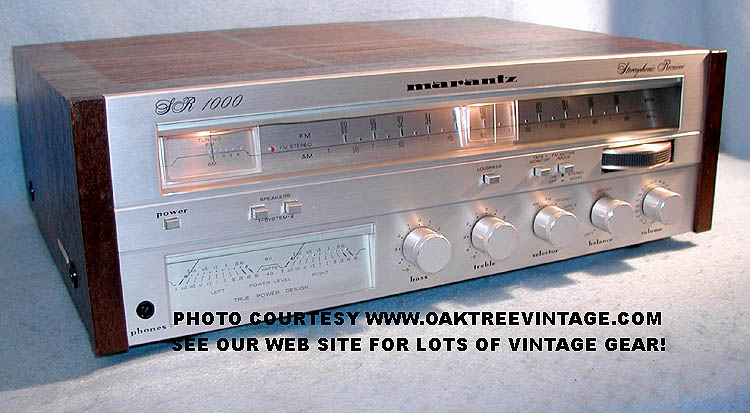

SR-1000
RECEIVER

SOLD 12/14/04



MARANTZ
SR-2000
SOLD

-

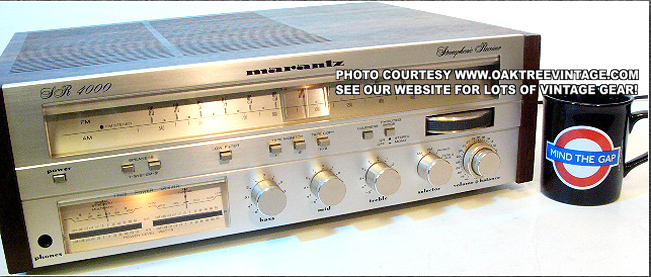

MARANTZ
SR-4000
#1
SOLD

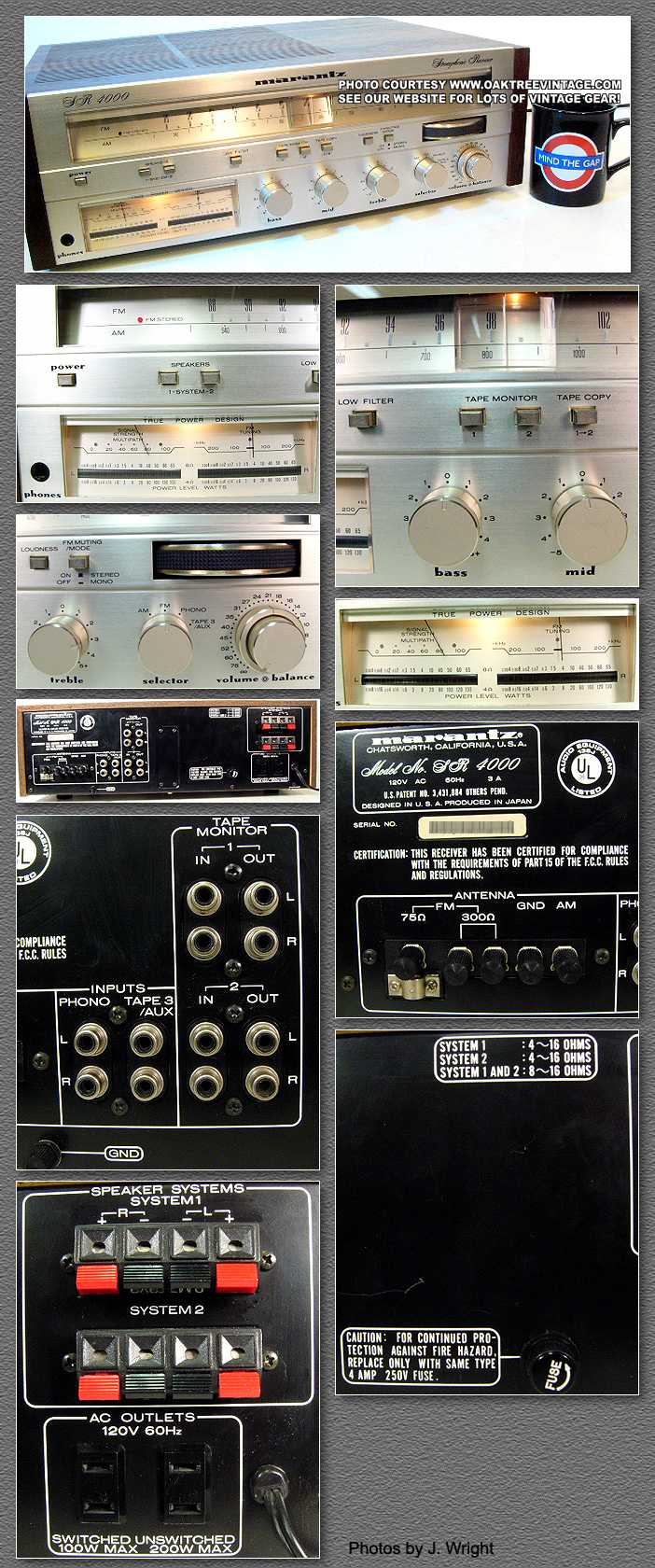

vintage MARANTZ receivers
RECEIVER
SR-4000
#2
Circa '79-84

SOLD







NEW LISTING 11/26/08
(Click on above thumbnails to enlarge photos)

VINTAGE
MARANTZ
STEREO RECEIVER

         SR-4000
SR4000
#...
0740
 Circa 1979-8
1
MIJ

SOLD 12/19/08

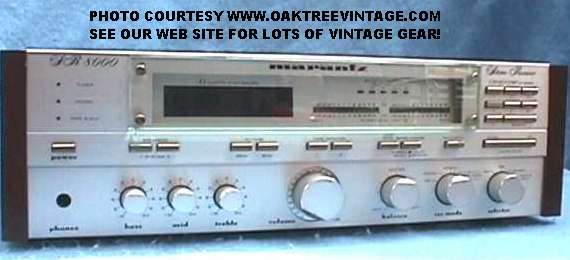

- - Marantz_SR-8000Silver_web.jpg (22891 bytes)
MARANTZ
SR-8000
SOLD



- - -

CLICK HERE TO SEE OUR RECEIVERS CURRENTLY FOR SALE!

                                                                                                                         ----       revised 9/23/10




LINKS TO OUR 'HI-FI' DEPARTMENTS

Amps and
Pre-Amps

Receivers

Cassette
Decks

Tuners

Turntables

8-Track Decks

CD Players

Reel-Reel
Decks

EQs and Signal
Processors

Speakers

Betamax and
VHS VCRs

Turntable Cartridges

Tube Audio

Ne'cessories

Speaker Parts

Record Players

Vintage Radios

Vintage
Walkmans

Headphones

Stereo Parts


Wondering where the "tone" you remember went?....

Vintage  Stereo Equipment receivers speakers Classic Silver Audio Collection and jerry



.... Surround yourself with Silver and find it again!



The units on the above page are for photo reference only and are no longer available for sale. To search 'For Sale' units, click on the links in the upper, left corner of page.

   *HOME PAGE*   |   FAQ'S   |   RESTORATION PROCEDURES    |  REPAIR RESOURCES  |  LINKS


POLICIES, SPECIFICATIONS, AVAILABILITY, INFORMATION
AND PRICING SUBJECT TO CHANGE  AT ANYTIME  AND
WITHOUT PRIOR
NOTICE
and changes may not be posted to web immediately
.


Copyright © 1997-2014 Oak Tree Enterprises, LLC

COPYRIGHT INFORMATION




Please be patient while page loads . . .
