JVC STEREO RECEIVERS
PHOTO GALLERY
- REFERENCE ARCHIVE / SOLD UNITS -




Photo gallery of vintage / Used JVC / Nivico Stereo Receivers that we have had in the past that have been sold. Keep checking as more JVC / Nivico Receivers will be added periodically. JVC Nivico Stereo Receivers, Vintage 1970's models such as the JVC 4VR-5406 / 4VR5406, JR-S11 JRS11, JR-S200 MKII, JR-S201, JRS201, S301, S501, Nivico 5003, R-S33 RS33, RX-318BK, VR-5521 VR5521 FS-6000 FS6000 JVC / Nivico receivers recievers silver face with wood case.All photos and text, copyrighted and protected as stated at bottom of page. Click the link below for current inventory.































... OR, CLICK HERE TO SEE OUR RECEIVERS CURRENTLY FOR SALE!





      NEW LISTING 4/22/08
(Click on above thumbnails to enlarge photos)

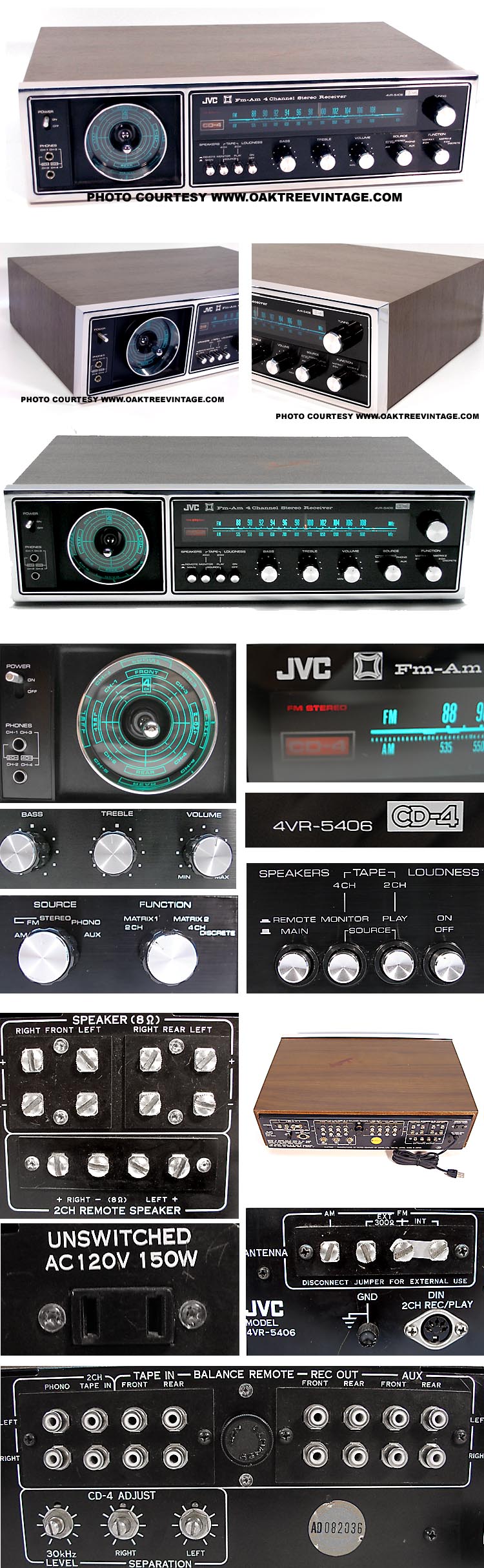

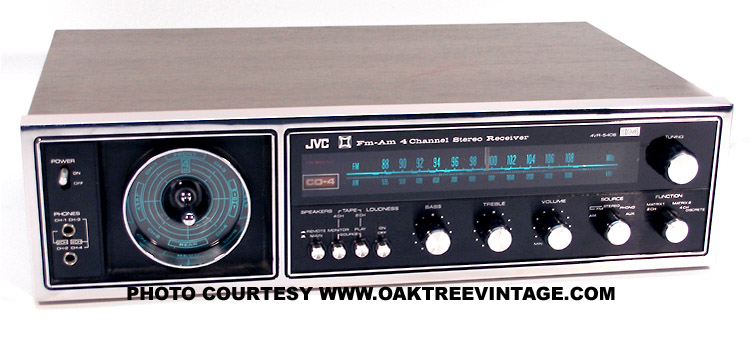

 JVC
STEREO RECEIVER

4VR-5406 / 4VR5406
# ...7293
QUADRAPHONIC

  STEREO RECEIVER

SOLD 6/13/08

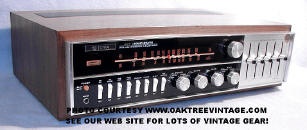

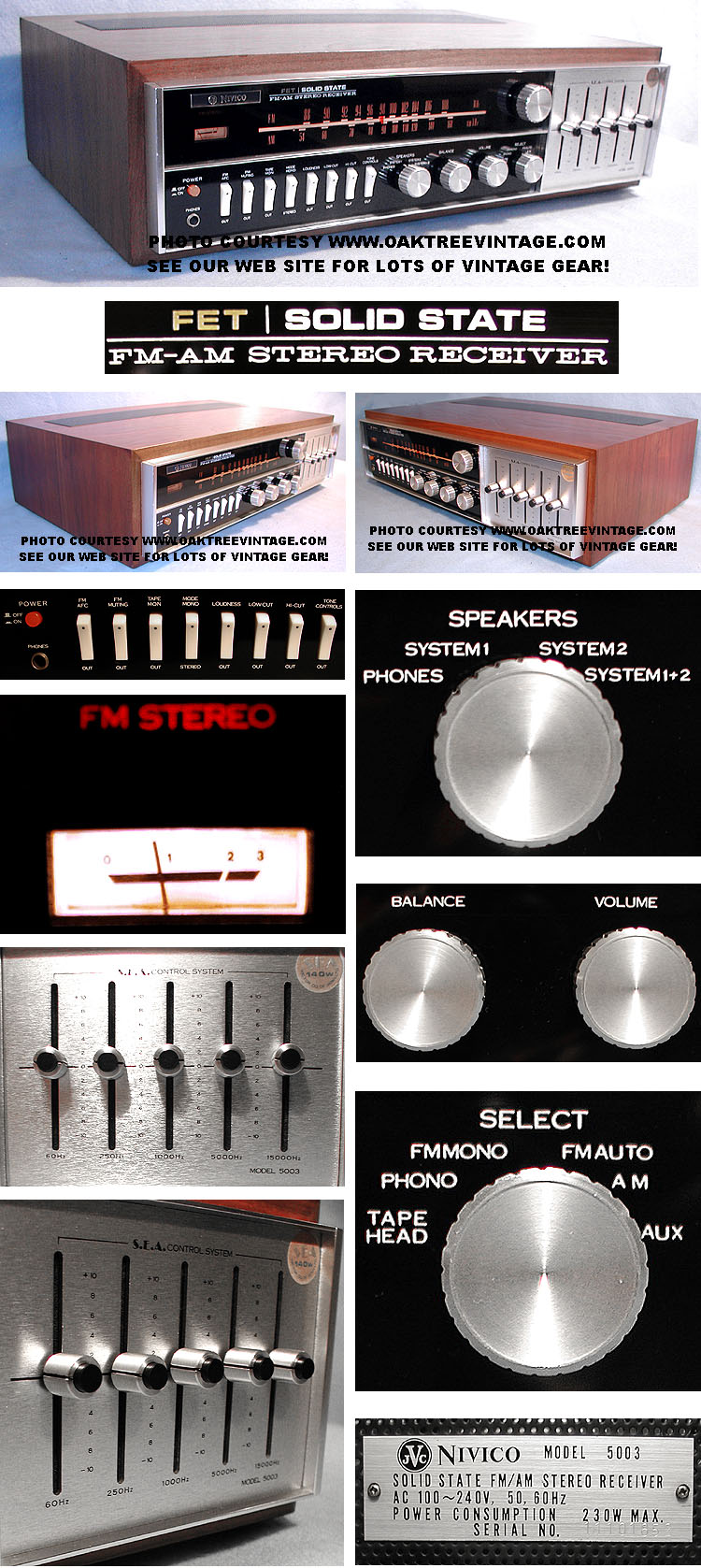

JVC / NIVICO
5003
SOLD 4/20/05
STEREO RECEIVER
CIRCA 1968-72





 NEW LISTING 3/19/07
 (Click on above thumbnails to enlarge photos)

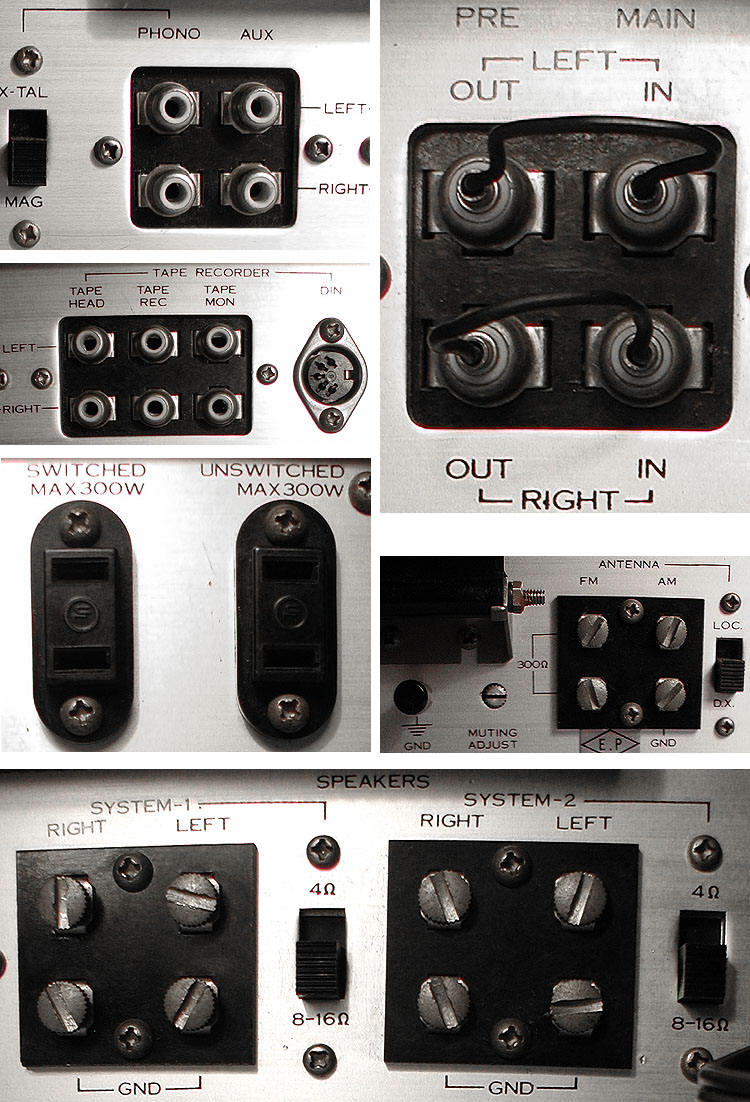

 JVC / NIVICO
 5003
 STEREO RECEIVER

SOLD 4/13/07

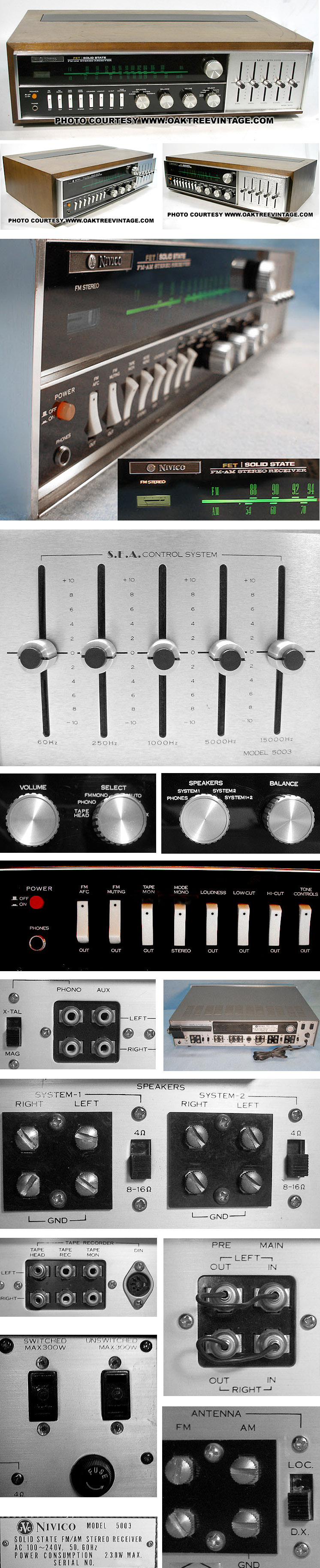

             NEW LISTING 2/10/09
(Click on above thumbnails to enlarge photos)

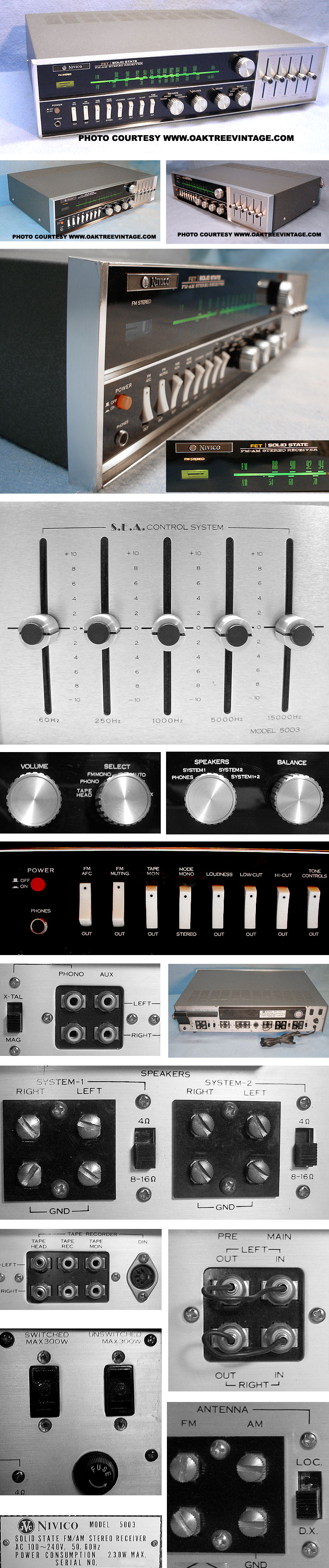

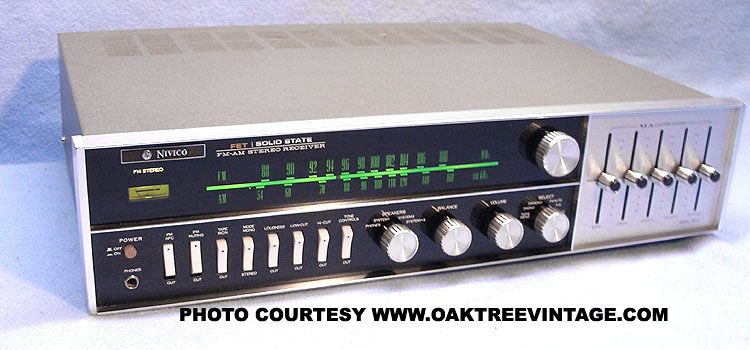

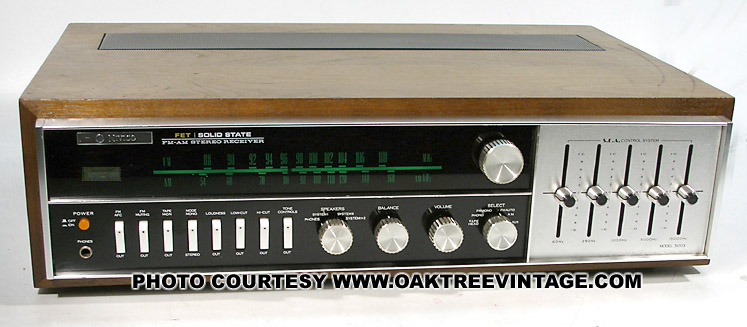

VINTAGE
JVC / NIVICO
 STEREO RECEIVER

M
ODEL 5003
"Green Lights" Version
#...4072
M.I.J.
 Circa
1968-72


(C)
  C.B.S.

SOLD 8/11/09







(Click on above thumbnails to enlarge photos)
             NEW LISTING 10/4/07



JVC
R-S33 RS33
  STEREO RECEIVER
SOLD 3/14/08



JVC
FS-6000 FS6000
AM/FM CD / AUX
EXECUTIVE BOOKSHELF AUDIO SYSTEM
SOLD






(above photos of previous MK-II unit. 200 looks identical)


(Click on above thumbnails to enlarge photos)

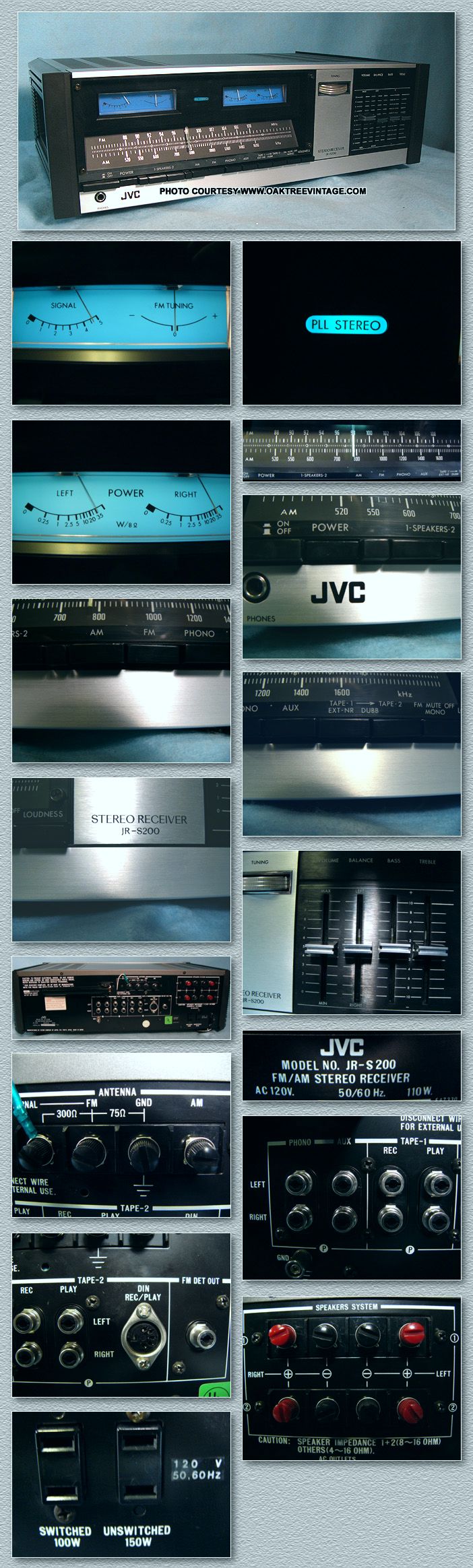

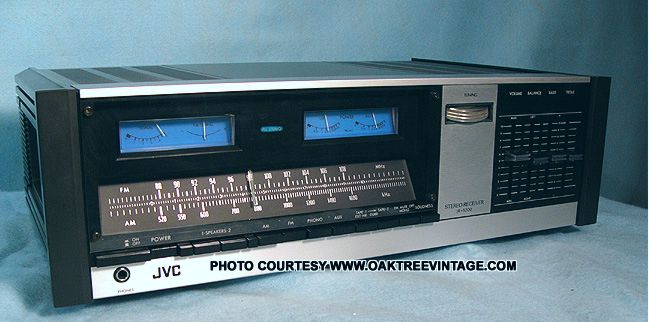

             NEW LISTING 10/4/07



JVC
STEREO RECEIVER

 JR-S200 JRS200

SOLD 5/15/08

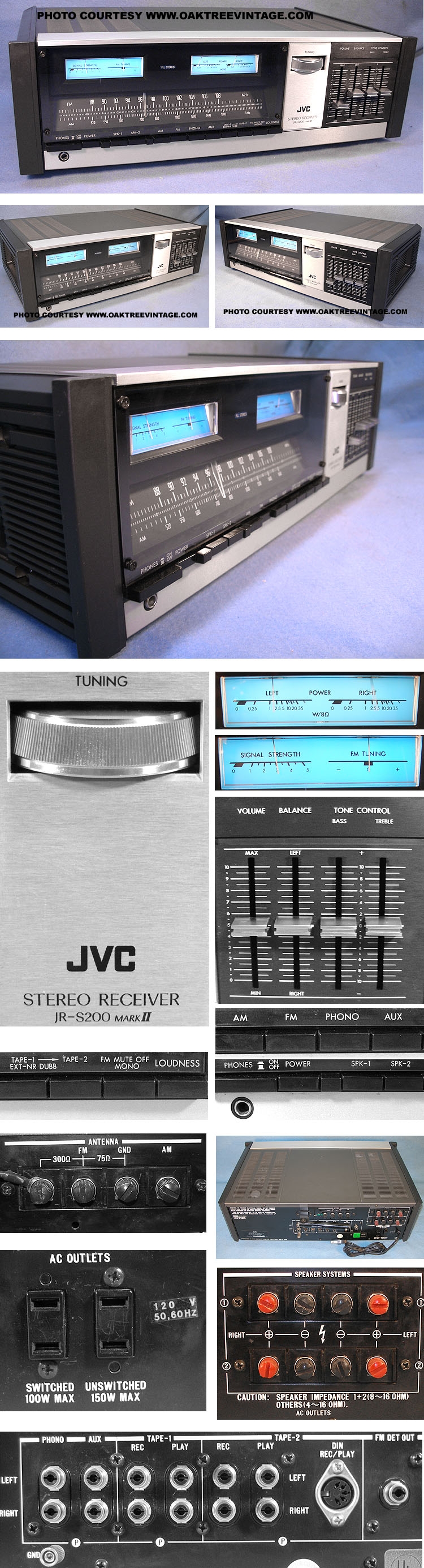

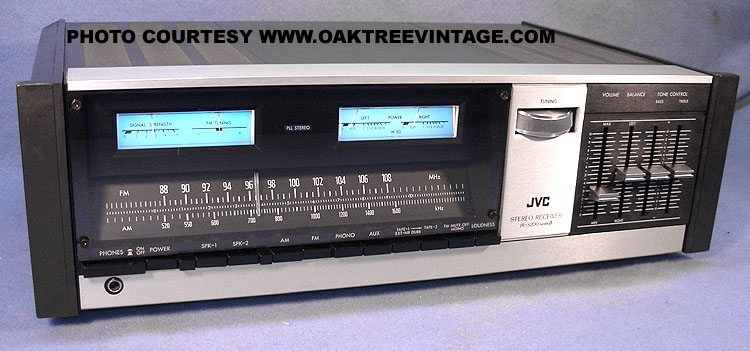

NEW ADDITION 11/21/06
JVC
JR-S200 MKII

STEREO RECEIVER

SOLD 12/2/06




         NEW ADDITION 6/6/08
  (Click on above thumbnails to enlarge photos)

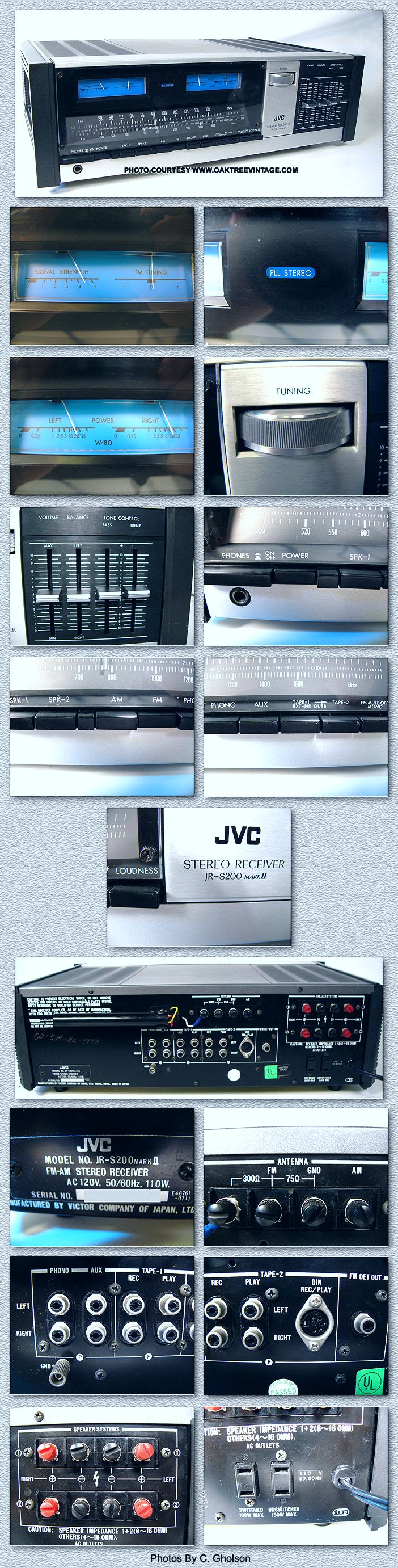

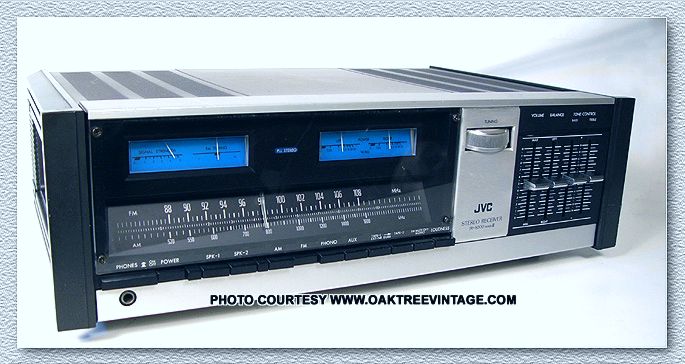

VINTAGE STEREO RECEIVER JVC JR-S200 Mark II
 JRS200 m
K II MKII

 Circa 1976-80
MIJ

SOLD 5/24/10





JVC
JR-S201
STEREO RECEIVER
Circa 1978-82

SOLD

(Click on above thumbnails to enlarge photos)

JVC
            JR-S201

SOLD 10/17/06







JVC
 JR-S201

STEREO
RECEIVER

SOLD 2/23/07






 (Click on above thumbnails to enlarge photos)

JVC
            JR-S20
JRS201
#...4331 / 2
STEREO
RECEIVER

SOLD 2/23/07

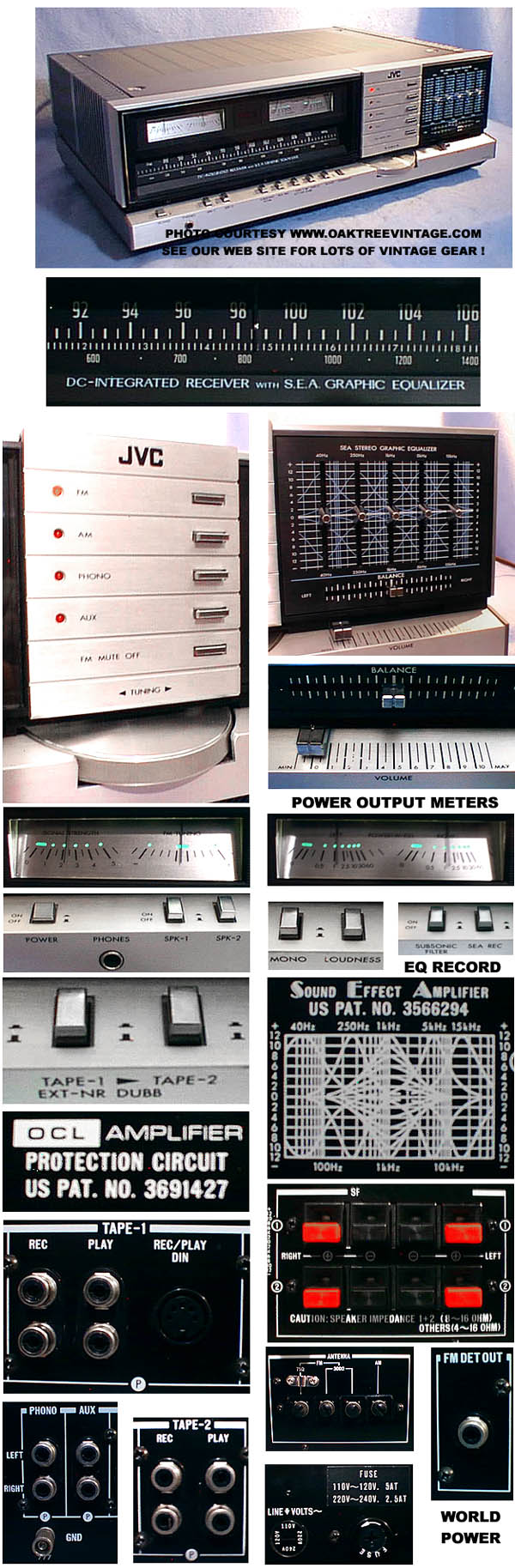

JVC
JR-S301
STEREO RECEIVER

SOLD




NEW LISTING 9/11/08
 (Click on above thumbnails to enlarge photos)

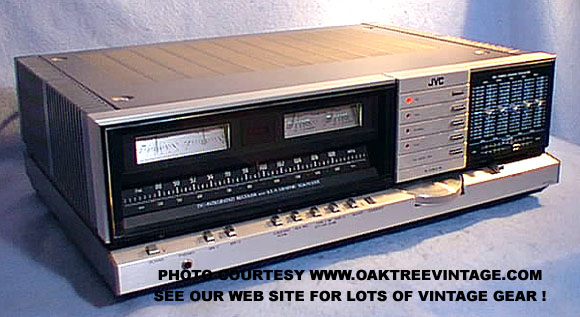

VINTAGE
JVC
 STEREO RECEIVER

             JR-S301
JRS301


#...2251

SOLD 1/30/09










NEW LISTING 12/11/12
  (Click on above thumbnails to enlarge photos)

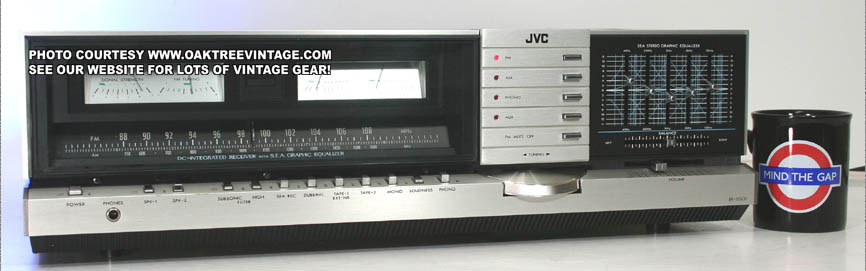

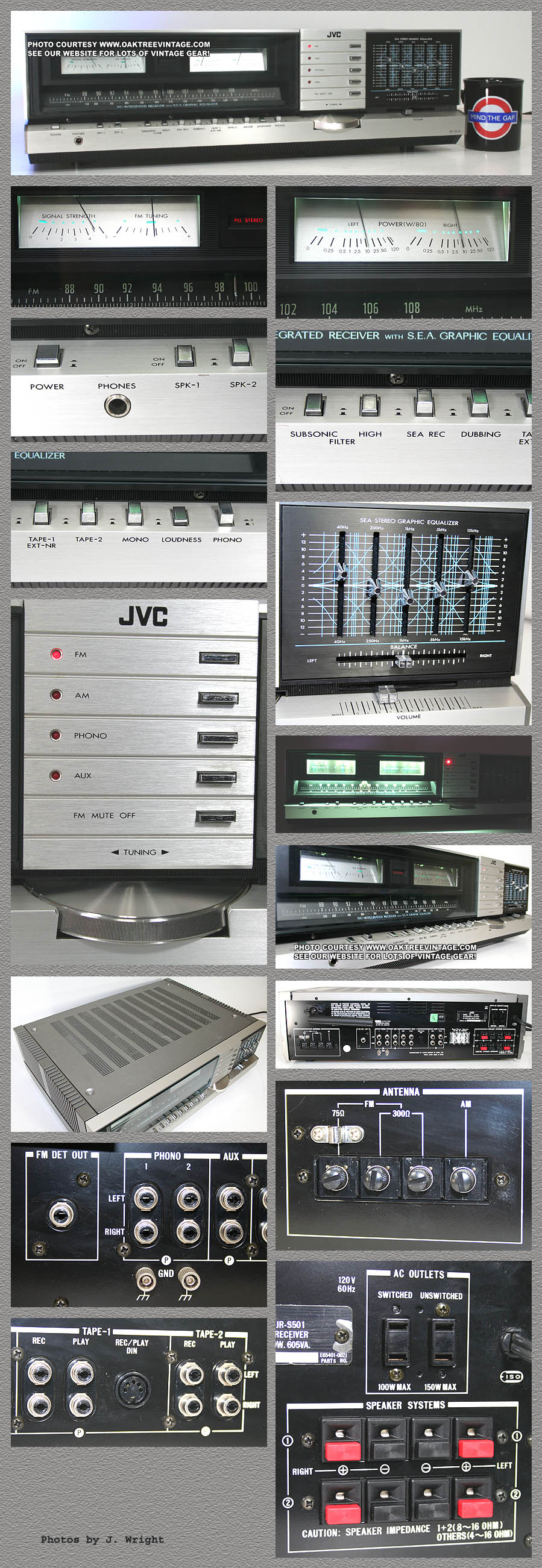

VINTAGE JVC STEREO RECEIVER
JVC JR-S501  JRS501
225 WATT, 'DIRECT COUPLED' MONSTER
WITH 5-BAND GRAPHIC EQ

 #...4695

 Circa 1978-82
MIJ

 for sale
SOLD 12/17/12
SHIPPED TO MARYLAND

Our technician has completely gone through and 'Certified' this unit. Everything was cleaned inside and out including all switches, controls and contacts. Extensive cleaning of unit internally. Amplifier section had output bias and DC offset adjusted to spec levels. All dial, meter and indicator  lamps were replaced. We also aligned the tuner front-end on both AM & FM bands for optimum performance as older tuner components will have 'drifted' over the years. VERY GOOD TUNER! AM reception WAY above average, FM reception incredible, PUNCHY and IMPECCABLY CLEAN!!! Only cosmetic issues with this unit are scuffing on the right side / end of the unit and some scratches on the top bonnet and top edge of the face (only seen when looking 'down' on it from above). Following above procedures, all functions tested for perfect operation and unit was cosmetically detailed inside and out. All inputs tested and both sides produce clean and even sine waves into static 8 & 4 ohm loads! No power supply hum of any kind. It's dead silent!  All functions tested for perfect operation. Following restoration procedures, the unit was run continuously at medium volume, as all our amplifier / receivers are, into a load with "Loudness" on and both Tone Controls at 10 for 48 hours.

 On our test bench, each internal amplifier of this particular unit, #...4695, produced peak power of 34 volts @ 8Ω per channel for 144 watts / channel and 30 volts @ 4Ω per channel for 225 watts / channel via Discrete output devices at 1khz. (2X 2SD738 & 2X 2SB702). AC Idle current at .125A, & floor noise <0.4 mVAC and DC offset adjusted to a SUPER LOW <1.4mV L&R.
 ____________________________


This series of receivers from JVC were always very impressive looking units and the JR-S501 is no exception. They definitely didn't "copy" anyone else in the industry for their design. The JVC JR-S501 is a 'Direct Coupled' amplifier, thus doesn't use 'coupling caps' on it's outputs. This means a number of HIGH QUALITY sonic benefits; reduces ALL types of distortion (without more neg feedback loop circuitry), wider bandwidth (0-100kHz), improves transient response (makes for much more 'solid' hitting and 'tighter' notes in music program) and eliminated 'colorization' (smearing) in your music.
From an original JR-S501 Brochure,
"DC Integrated Stereo Receiver The top-of-the-line JR-S501 includes massive and super-clean DC power amplification, advanced phono equalizer and tuner circuitry, S.E.A. Graphic Equalizer, clean "knob-less" looks. FM tuner offers first-rate sensitivity and selectivity from its low-noise FET fronted, phase-linear ceramic filter IF and PLL multiplex demodulator with built-in pilot signal canceller. Nothing gives you more high fidelity expertise."

JVC JR-S501 Features include:

- "Gyro" style, Weighted flywheel analog tuning
- A, B, A+B or OFF speaker positions
- JVC's patented 5-band "S.E.A." Graphic EQ for tone control, utilizing high quality, de-tented linear pots. (Centers at 40Hz, 250Hz, 1kHz, 5kHz & 15kHz)
- S.E.A. REC for Recording EQ tone curve into recordings

 - Phono / Turntable input
- Dual tape monitors with dubbing 1 to 2
 (Tape Monitors can be used with Video / CD / DVD / VCR / DAT / iPod / MP3 / XM / SIRUS CDR (CD recorders as well as for inserting signal processors, such as EQ's, Reverbs, Spatial Enhancers / Dynamic Processors, Noise Reduction units, Special Effects units, Time Delays, etc)
- Tape monitor A also doubles as an NR unit input and features a DIN I/O in addition to the RCA I/O's
 - Aux (CD / DVD /DAT / VCR / iPod / MP3 / XM / SIRUS etc.) input
 - "Loudness" function to boost Bass and Treble in relationship to Mid frequencies at lower volume levels for a much fuller sound.
- Hi filter for reducing tape hiss / electronic hiss & noise and record static
- Built-in Subsonic Filter to eliminate excess rumble from sources such as turntables
- Dual Tuning VU meters for signal strength and tuning
- Dual Power VU meters for
monitoring amplifier power level
- FM Muting separate from Stereo / Mono switch
- Stereo / Mono selector separate from FM Muting Switch
- Front mounted 1/4" stereo headphone jack
- FM Detector output on rear panel
- Dual AC convenience outlets (1 switched @ 100 watts / 1 un-switched @ 150 watts capacity)


Original Kenwood Super Eleven Specs:

  POWER / PRE AMP SPECIFICATIONS:

Power output: 85wpc min RMS @ 8 Ohms & no more than 0.03% THD @ 20-20kHz
90
wpc min RMS @ 8 Ohms & no more than 0.03% THD @ 1kHz
110
wpc min RMS @ 4 Ohms & no more than 0.03% THD @ 1kHz
THD;
<0.008% @ 'half-power' / 1kHz & <0.03% @ full rated power
IHF IMD; 0.01% @ full rated power & 8 Ohms
Freq Response of power amp section;
  DC-100,000kHz
Damping factor; 70 @ 8Ω / 1kHz
Signal / Noise;  95dB @ AUX / Tape
w/ 200mV input
Input Sensitivity AUX / Tape; 210mV @ 50kΩ
Graphic EQ Controls 12dB
Low Filter; 18Hz & 6dB / Oct
Loudness Control; +10dB @ 100Hz (-30dB VOL)
Output levels / impedance; Tape RCA 210mV / 300 Ohms
DIN 30mV / 80kOhms

TUNER SPECS FOR FM;
Tuning Range;
87.4- 109.7MHz
Freq Response; 20-15kHz
S/N @ 65dBf; >78db Mono or 73dB Stereo
Capture Ratio @ 65dBf; 1.0 dB
THD Mono @ 1kHz; 0.08%
THD Stereo @ 1kHz; 0.1%
50dB Quieting Sensitivity;
14.8 dBf / 3.0μV Mono
37.2 dBf / 39.7
μV Mono
FM Alternate Channel Selectivity; 80dB @ 400Hz
AM Suppression; 65dB

TUNER SPECS FOR AM;
Tuning Range; AM Band ~516 kHz- ~1709 kHz
S/N;
>55db
Useable Sensitivity (IHF External / Bar Antenna); 30μV / 290 μV/m
Selectivity; 50dB @ 10kHz

  PHONO SECTION SPECS;
  Freq Response;
20Hz-20kHz w/ RIAA deviation; 0.3dB
  S/N; >75dB
   Input Sensitivity; 2.5mV @ 47
  Overload limit; 200mV @ 1k w/ 0.03% THD


Again, we have done the previously stated refurbishment / restoration work (~8+ hours) on this unit to insure it's performance, and it gets our full 'Certification'. All functions tested
for perfect operation. Other than the previously mentioned scuffing / wear, this unit is in great cosmetic condition! Looks and sounds great! Really COOL looking when lit up at night or in a darkened room with green back lights! While we don't have a copy of the specific users manual for the JVC JR-S501, we will include an 'e' copy, pdf of it's little brother, the JVC JR-S401 receiver owners manual. Measures 22.25" wide x 6.5" tall x 17" deep and weighs an impressive 35 lbs unpacked. Includes our standard 90 day limited warranty.
Cond. 8.5
JVC JR-S501 STEREO RECEIVER

SOLD 12/17/12

SHIPPED TO MARYLAND


(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)







JVC
R-S11
SOLD

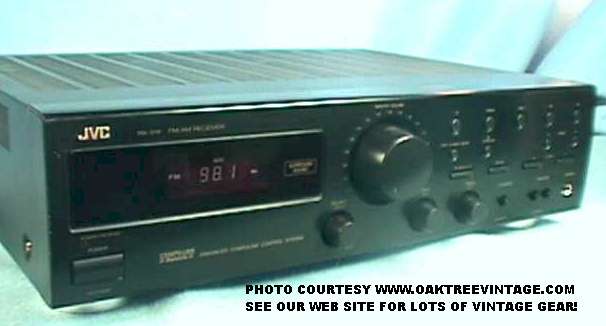

JVC
RX-318
SOLD

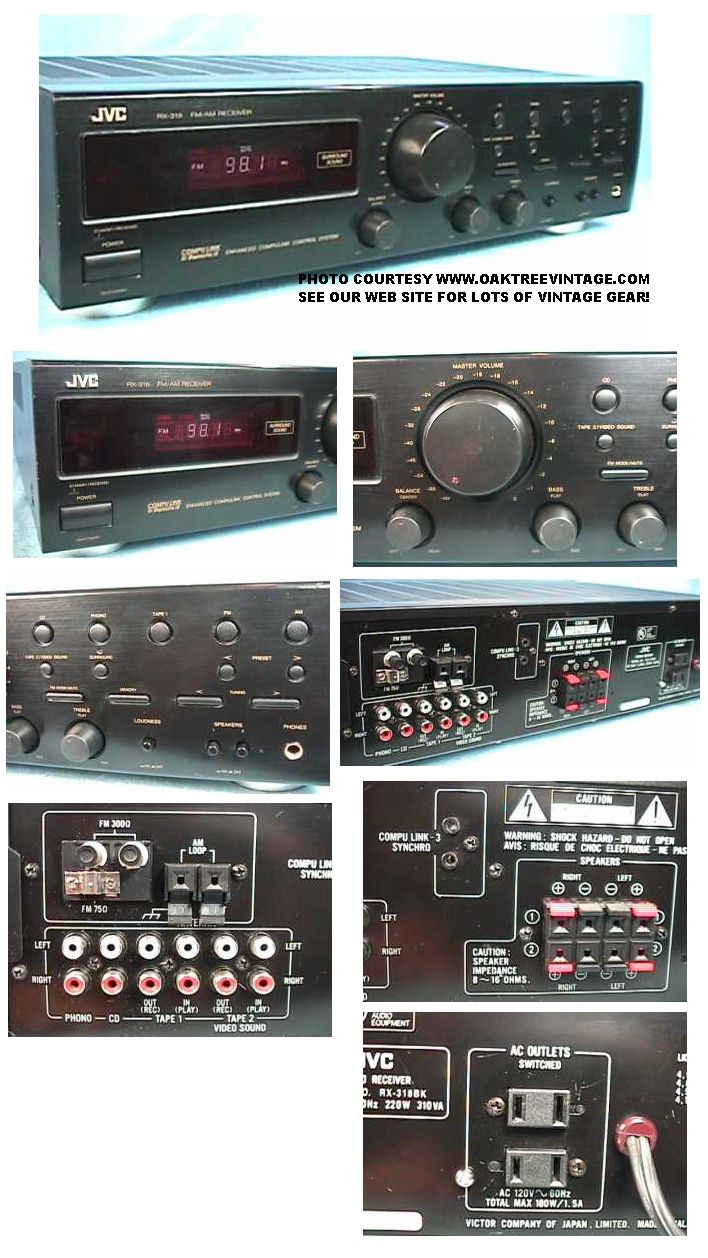

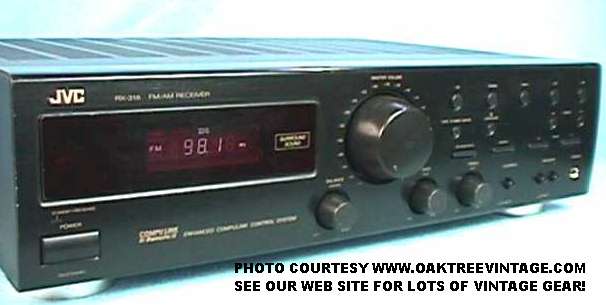

JVC
RX-318BK
AV RECEIVER
Circa late 1990's
SOLD









(Click on above thumbnails to enlarge photos)

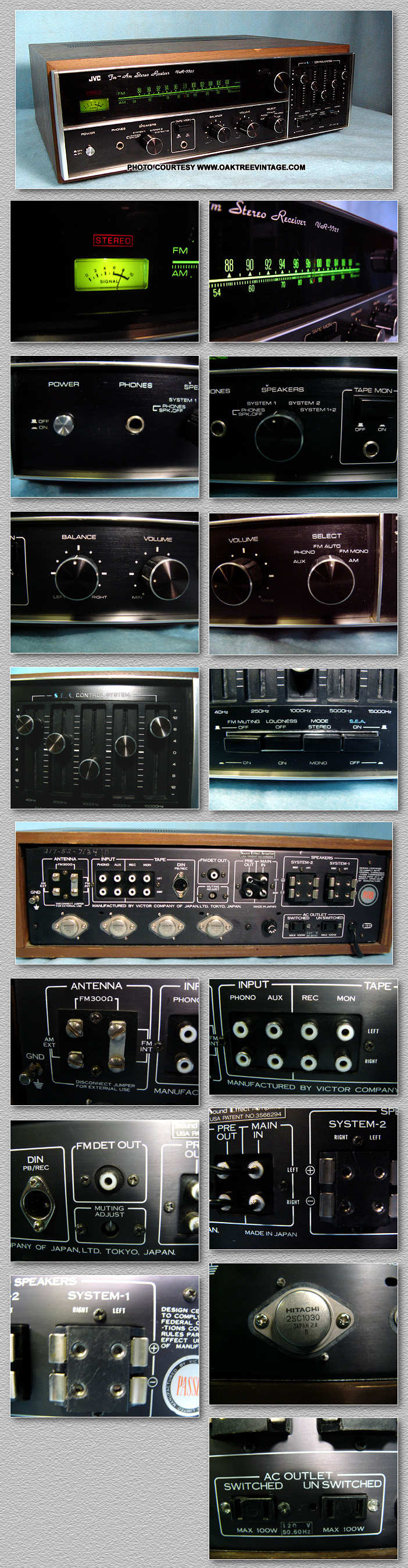

NEW LISTING 10/4/07

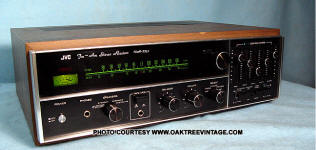

 JVC
VR-5521 VR5521
# ...0054

  STEREO RECEIVER

SOLD 11/8/07




- - -

CLICK HERE TO SEE OUR RECEIVERS CURRENTLY FOR SALE!
