PIONEER SX-780 / SX780 PARTS / SPARES &
PIONEER SX-790 / SX790 STEREO RECEIVER
PARTS / SPARES



Pioneer SX-780 / SX780 Stereo Receiver salvage replacement parts spares for sale. Pioneer SX-780 / SX780 & SX-790 / SX790 knobs, pots, switches, relays, meters, capacitors, circuit boards, transformer, outputs, and most other parts for sale.




20% off sale
on salvage audio & keyboard parts.
 See sales banners on parts pages for details



*Note about parts / spares sales

* Our "parts units", parts / spares and related reference information are primarily archived for the purpose of restoration / repair of "Oak Tree Vintage" units first. Only if we do not have a "viable" unit in yet, either already in process or in line to be processed, that may potentially need parts from a "parts unit", will we release available parts for sale (even though they may appear as available for sale to the public). As many of you know, the restoration of a unit can be a long, time consuming process. We may "lock up" parts that we may potentially need in the restoration of a unit (and not necessarily get it marked 'Hold' or 'Sold' on the site right away). Parts are priced according to the "potential value" of the unit they can be applicable to (meaning the amount WE would be willing to pay for the part if that was all that was standing between us having a "shelved unit" or a valuable / sellable unit), time to extract, their rarity & their condition to name a few criteria and likely will be completely unrelated to the original cost / price of a part when it was currently available from the manufacturer.

Parts Photos; We get a number of requests for 'photos' of a specific part. Unfortunately, in most cases that is not practical as the amount of time involved in posting that exceeds the value of the 'unique' part. We will sometimes post photos of less 'unique' parts, if there is a greater chance of them being available in multiple quantities, or on a more 'repeat' basis.

Parts, general condition / circuit board condition; Most of our parts are from 'salvage / donor' units. While we don't sell parts that are 'known' to be bad, occasionally parts will need further adjustment, cleaning, 'tweaking', or in the case of circuit boards, may need old, conductive glue / epoxy further cleaned, and some 'common' parts / components such as, aging / leaky capacitors, parts whose values have drifted, and some epoxy transistors may need to be replaced due to 'green / black / furry' legs, or because those parts were marked as 'sold separately'. Some circuit boards may have 'tired' "landing / solder pads", or severed traces, or cold / bad solder joints which can require solder re-flow or 'jumpers'. Unless noted, circuit boards will be 'crack / split / break' free.

Parts pricing; Most of our parts price / value will be based on a few things. Firstly, we are in the restoration / refurb business, so we consider what we would be willing to pay for the part if we needed it (which again, is what the parts are listed for in the first place, "our units"). Secondly, the rarity / value of the unit the part(s) fit. The 'Tuning Knob' for a receiver that has a final value of $350 will likely be much less than the "Tuning Knob" for a unit with a final value of $1500 or more (a set of tires for a typical sedan will be $400 to $600. A set for a Lamborghini can be $16,000). Thirdly, the 'rarity' of the part. Forth, the 'condition' of the part. Fifth, the difficulty to extract the part, or success rate for extracting certain parts. Sixth; frankly it's a LOT of work and time to part out a unit. Most take 1 to 3 days of shop time to process. Not only the disassembly, but the 4-15 hours of pre-testing / servicing and just as time consuming can be the amount of time it takes to do all of the research we do and the info we list on many parts for cross-referrencing to other units that my use the same parts by scouring service manuals. On many circuit boards we will list every 'semi-conductor' which is also very time consuming. Lastly, every call or email for a part can require 20 minutes to sometimes over an hour of 'phone support', often (about 70% of the time) with me convincing the potential purchaser that they don't need the part I have to solve their problem.
Sorry to sound like a "whiner" about selling parts, but "time is money".

Shipping: Shipping on most 'small' parts if typically via Postal first class or Postal Priority for both domestic (USA) and international orders. Larger parts such as transformers and drivers (speakers) are typically via FedEx gnd.
Some parts sales such as those for empty 'speaker cabinets', empty 'component cabinets / covers / bonnets' and 'speaker grills' and most are 'doomed' from the start. Due to their size and required packing supplies, the cost of 'packing for safe transit' and shipping are commonly 'disproportionate' to their cost, typically nearly equal to and sometimes greater than the cost of the part.  Think about it. An empty speaker cabinet or stereo receiver case is essentially the same size as a complete one. Yes the weight will be less, but most of items that size are calculated on 'dimensional weight', not actual weight so are commonly just as expensive as shipping a 'complete unit'. Secondly empty component cabinets have to be packed to disallow breakage, typically requiring nearly as much packing materials as an entire unit. Speaker grills have to be 'sandwiched' between foam sheets in large, custom ordered boxes (all relatively expensive).  It is what it is....

A non-response to an email of phone call / voice message request for a part that we don't show on one or our pages, or is already marked "SOLD" will be typical. We simply don't have the time / man-power resources to respond to every query we get for items we don't show as avail. Most folks get that. Having said that, I / we may respond if we have information on a substitution or other useful information relating to it.

A non-response to an email of phone call / voice message request for a part (we may appear to have, but typically 'highlighted in Orange or Yellow'), likely means that we are still determining which parts we are going to need for the restoration or repair of one of our units. Again, the parts are first for the restoration of our units and secondarily for the public market. Since we list the parts available for ourselves, it is not much effort to modify the menu's for web publication, which in turn makes the reference information and occasionally the part available to the public. Frankly, publishing them to the web, in many instances, makes it easier for us to determine if we have the part for our needs as well. The alternative to all of the above would be to not offer them at all to the public, however most parts are available to the public for sale.  Also, parts requests can occasionally take time for us to respond to. While we may have a part listed, and we like to keep the website 100% accurate, occasionally a part will be 'used by us' or 'previously sold' and we by oversight, and we did not get the web listing marked "SOLD", or the part gets  'mis-placed' or 'lost' (laid down somewhere in the warehouse(s) and then it get's lost track of (that happens to our coffee cups all the time, then we find it months later with 'a good batch of 'penicillin' growing in it), so we like to 'lay eyes on it' prior to responding. Sometimes we just can't figure out which cabinet or drawer parts were assigned to (and we're working on a system for that one).

Some folks email / call and want us to respond either way / whether we have the part or not. Again, we simply do not have the time resources to do that. Our time must be utilized on the requests we can fulfill.
Sorry for all the excuses, but that's how the 'system' (or lack thereof) works.
And, if you don't see it, we likely don't have it.
 Thank you for your understanding.

$20. MINIMUM ORDER


HOME / STUDIO / HI-FI SPEAKER PARTS
CLICK HERE!



MOST OF THE PARTS LISTED BELOW ARE FROM SALVAGE UNITS.





    -






(Click on above thumbnails to enlarge photos)
PIONEER SX-780 / SX780 or European / Asian / Military version SX-790 / SX790
STEREO RECEIVER PARTS (we have at least 2 units for parts / spares)

SOME PARTS MAY BE
INTERCHANGEABLE WITH OTHER PIONEER X80 SERIES SUCH AS;
(SX-480, 580, 680, 780, 880, 980, 1080, or SX-1280, SX-1980)
All circuit boards populated with ORIGINAL JAPANESE parts / components, NOT Chinese!!!

- PARTING OUT -

(Some parts from this receiver may be interchangeable with Toshiba model receivers such as Toshiba SA-320, SA-420, SA-735, SA-750 and possibly others. I say this, only based on VERY similar cosmetic similarities between some Pioneer & Toshiba Receivers and their parts. You'll need to do our own research. If anyone has any definitive information on any particular Pioneer to Toshiba substitutions, feel free to inform us.)

All units powered up, but either would not click the relay due to bad or weak output, or would click, but had weak output or bad drivers or a combination of those issues. Inquire for part you need.


Bonnet / Wooden Cover Assembly,
AAM-072 Wood grained, vinyl wrapped case cover bonnet / cabinet  (see also SX-780 SX-790, SX-880, SX-890) clean with only normal, minor scuffs, crisp corners and edges and structurally solid. - $65. SOLD OUT

Bolts / Screws / Fasteners, Bonnet / Cover bolts, ABA-209 - None currently for sale

'Finger nail' sized Veneer chips on L & R, lower front edges, otherwise decent looking, crisp corners and edges and structurally solid.
- $45. SOLD OUT

(Cases, covers and side plate / panels, etc. do not include mounting screws as those are sold separately)

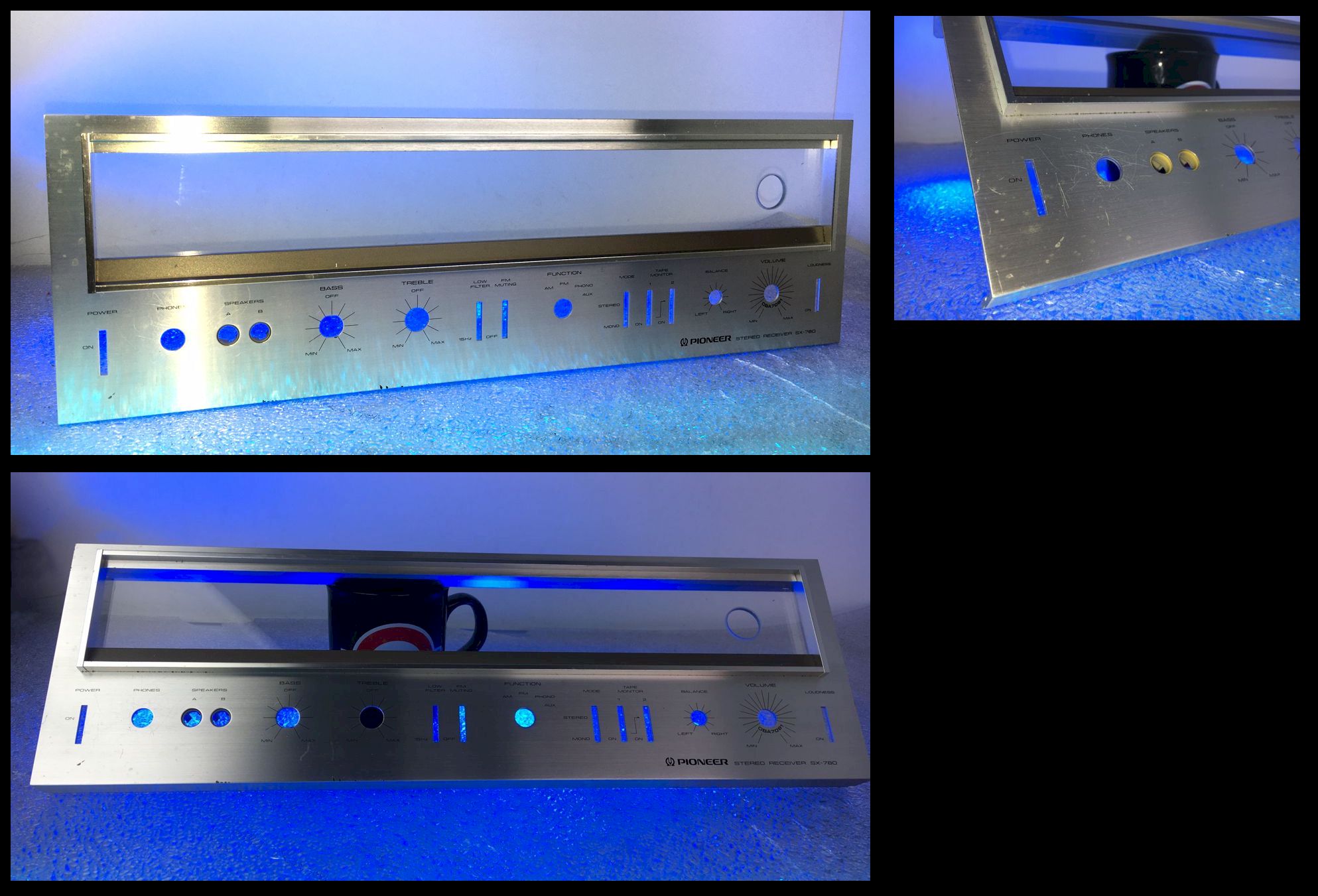

Face panel,
ANB-601 Pioneer SX-780 Face plate with dial glass (less knobs / buttons) decently 'fair'. Minor striations and tics. Glass good. Cond about "7.5" - $45.


Knobs / Caps / Buttons / Covers
, AAA-050
Tuning knob
(see also SX-580, SX-780, SX-880, SX-890) - $453 Remaining in stock

Knobs / Caps / Buttons / Covers, Tone knobs AAB-175
(Bass, Treble, Function, Turn-over, are interchangeable from all the X80 series. Also works as volume on SX-580 & SX-680) - $40. ea. SOLD OUT
(Knobs may fit other Pioneer units such as SX-480, 580, 680, 880, 980, 1080, or SX-1280)

Knobs / Caps / Buttons / Covers, Volume knob AAB-185
(Volume knob interchangeable with SX-780 / SX-790, SX-880 / SX-890) - $45. ea. 1 Remaining in stock

Knobs / Caps / Buttons / Covers, Function knob AAD-110
(see also SX-450, SX-550, SX-780 / SX-790, SX-880 / SX-890) - $35. ea.

 Knobs / Caps / Buttons / Covers, AAB-176 Small round 'Balance' knob - $35. ea.

Knobs / Caps / Buttons / Covers, AAD-154 Round button 'Push' Switch caps - $25. ea.

Knobs / Caps / Buttons / Covers, Toggle switch caps
AAD-138
SPLIT / 'TUNING FORK' STYLE!!! Loud, Mute, Filter, Tape Monitor, and most others except 'Power' (see also SX-780/ SX-790, SX-820, SX-880 / SX-890, SX-980, SX-1080, SX-1280, SX-1980, SX-3700, SX-3800, SX-3900) SPLIT / 'TUNING FORK' STYLE!!! - $30. ea. SOLD OUT

Knobs / Caps / Buttons / Covers, Power switch Toggle cap 'TAPERED SHAFT' STYLE!!!
AAD-139 (see also SX-780 / 790, SX-880 / 890, 980 / 990, 1080, SX-1280, SX-3900, SX-3900) - $30. SOLD OUT FROM THIS UNIT, (check SX-3900)

Potentiometer / Control
, Bass
Tone control pot ACV-193 (may sub ACV-194) (see also SX-650, SX-780 / 790) - $45. ea.

Potentiometer / Control, Treble Tone control pot ACV-160 ACV-194 (may sub ACV-194) (see also SX-650, SX-780 / 790) - $45. ea.

Potentiometer / Control, Volume Control pot ACV-161 (see also SX-450, SX-550, SX-680, SX-780 / 790, SX-880 / SX-890) $45. ea.

Potentiometer / Control, Balance control pot ACT-019 (see also SX-580, SX-680, SX-780, SX-790, SX-880, SX-890) - $45. ea.

Switch / Selector
, Power toggle switch ALPS ASK-507 (see also SX-780 / 790, SX-3800, SX-3900, 880/890)- $45.

Switch / Selector, De-Emphasis switch ALPS ASH-016
(see also F-28, SX-780 / 790)- $35.

Switch / Selector, Muting / Tone / Mode / Loud switch ALPS AS
K-144 (see also SX-780 / SX-790, SX-880 / SX-890, SX-980 / SX-990, SX-1080, SX-1280, SX-1980) - $35.

Switch / Selector, Function / Duplicate switch ALPS AS
K-145 (see also SX-780 / SX-790, SX-880 / SX-890, SX-1080, SX-1280, SX-1980) - $35.

Switch / Selector, Function switch ALPS ASE-107-A / ASE-108-A
(see also SX-780 / SX-790, SX-880 / SX-890, SX-1080, SX-1280, SX-1980) - $40. SOLD OUT

Meter, AAW-093 Tuning Meter
(see also SX-780 / SX-790) - $35. ea.

Meter, AAW-092 Power Meters
(see also SX-780 / SX-790)- $45. pair

PIONEER SX-780 / SX780 or European / Asian / Military version SX-790 / SX790 PARTS / SPARES

Wheel, AXA-113 Tuning Drum / Plastic string wheel for tuning capacitor - $25.

Flywheel, Tuning Shaft Assembly / Flywheel AXA-211
(see also SX-780 / 790, SX-880 / SX-890) - $55. (maybe one left)

Pointer, Dial 'Pointer' / station indicator AAF-074
(see also SX-780 / 790, SX-880 / SX-890) - $35.

Dial Lamp Sockets (we do not sell the lamps) - $20. ea. (Lamp sockets will fit other Pioneer units such as SX-480, SX-580, SX-680, SX-880, SX-980, SX-1080, or SX-1280)

PIONEER SX-780 / SX780 or European / Asian / Military version SX-790 / SX790 PARTS / SPARES

Transformer, Power supply Transformer  (BANDO BE91h-0001 / Pioneer #ATT-512)- $75. SOLD

Capacitors, Power supply filter Caps ACH-082 (Nippon 50V / 8000 u f uf mf. (Each measures 30mm in diameter x 62mm in height) (see also SX-680, 780 / 790, SA-6800 & SA-7800) - $25. ea.

Output Power Pack, Power amplifier chips  (Darlington / STK 0050 / STK0050 / STK-0050). Originals NOT Chinese FAKE chips - $65. ea.
SOLD OUT

Relay, Type MS4U 48VDC / FRL-264, (Pioneer # ASR-020 (see also SX-880, SX-890) [same as #ASR-032 see also SX-780, SX-790, SX-1050] ) - $35.

Circuit Board, Main circuit board (ANP-784 / GWK-118) FETs; 2SK34 (X4) and transistors / regulators; 2SA850, 2SA904, 2SA912, 2SA979, NEC 2SB536, 2SC945, 2SC1384, 2SC1775, 2SC1885, 2SC2291, 2SD325R, 2SD613 or Mitsubishi 2SD712, Inline packages; Hitachi HA1457 & TA7136P1 (or M5213L) & Pioneer PA3004 protection / relay IC (original Japanese, NOT Chinese) and balance of capacitors, coils, diodes, rectifier diodes, resistors, trim pots
(less control pots, switches, Relays, outputs) - $85.

Circuit Board, Tuning Circuit Board (
#AWE-099 / ANP-786 w/ PA1001A & PA3001A & HA1197 (AM Chip) chips and tuning capacitor,
(plastic string wheel not included)) - $45 SOLD OUT


Jacks / Terminals / Connectors, Headphone Jack AKN-009 (see also SX-450, SX-550, SX-680, SX-750 / 780 / 790, SX-880 / 890) - $25.

Jacks / Terminals / Connectors, Any rear panel Input / Output component ( RCA patch I/O's, AC outlets, Antenna terminals) - $35. ea.

Jacks / Terminals / Connectors, Speaker Output Jacks / terminals / bank AKE-026 (see also SA-6500 & II, SA-6700, SA-6800, SA-7500 II, SX-780 / 790) - $35. ea. bank

Antenna, AM antenna ATB-505 (see also SX-580, SX-680, SX-780/890, SX-880/890, SX-980, SX-1080 & 1280 series receivers, but not SX-1980) (less socket) - $35.

Antenna, AM antenna mounting socket
AXB-012 (see also SX-680, SX-780, SX-880 /
SX-890, SX-980, SX-1080, SX-1280, SX-1980, TX-6700, TX-6800, TX-7800, TX-9000) - $35.

Antenna, AM antenna mounting LINKAGE from socket to antenna
(see also SX-680, SX-780, SX-880 / 890, SX-980, SX-1080, SX-1280, SX-1980, TX-6700, TX-6800, TX-7800, TX-9000) - $35.


Bottom Plate / Cover / Panel, Bottom Plate / panel - None currently for sale

Bolts / Screws / Fasteners, Bottom Plate / Cover bolts, ABA-209 - None currently for sale

Feet Set
ANR-022  (see also SX-680, 780 / 790, SX-880/SX-890) (specify screw-in or snap-in) - $40. set of four (Care must be used when removing or reinstalling the "snap-in" version of the feet as the tabs break off very easily. Advisable to warm them in hot water or the sun prior to installing)


Call or Email for "SHOWN and NOT marked 'SOLD' " part you need.

- Location: PB, West, 2nd set cabs. Dark Grn / most 'left' cab, top drawer. - Revised 3/18/19
